Table of Contents
Slide-in RangeWarranty ................................................. 2
Product Record ............................................................... 2
iMPORTANT SAFETY iNSTRUCTiONS ......................... 3-5
Protection Agreements ................................................... 6
Range Features ............................................................... 7
Setting Surface Controls ............................................ 8-10
Selecting Surface Cooking Cookware ........................... 10
Before Setting the Oven Controls ................................. 11
Arranging Ovan Racks ................................................... 11
Air Circulation in the Oven ............................................ 11
Control Pad Functions ................................................... 12
Setting Oven Controls .............................................. 13-18
Adjusting the Oven Temperature ................................... 18
Self Cleaning ............................................................. 19-20
General Care & Cleaning .......................................... 2%25
Before you call .......................................................... 26-27
Sears Service ................................................................. 28
Kenmore Warranty
When installed, operated and maintained according to all instructions supplied with the product, ifthis appliance fails due to a
defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
This warranty applies for only 90 days from the date of purchase ifthis appliance isever used for other than private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions
supplied with the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc.,Toronto, Ontario, Canada M5B 2B8
Product Record
in this space below, record the date of purchase, model and serial number of your
product. You will find the model and serial number printed on the serial plate.
Model No. 790.
Serial No.
Date of purchase
Save these instructions and your sales receipt for future reference.
Please carefully read and save these instructions
This Use & Care Manual contains general operating instructions for your appliance
and feature information for several models. Your product may not have all the
described features. The graphics shown are representative.The graphics on your
appliance may not look exactly like those shown. Common sense and caution must
be practiced when installing, operating and maintaining any appliance.
Serial Plate Location
You will find the model and serial
number printed on the serial plate.
The serial plate is located as shown
below.
Remember to record the serial
number for future reference.
Serial
Location
Printed in United States 2

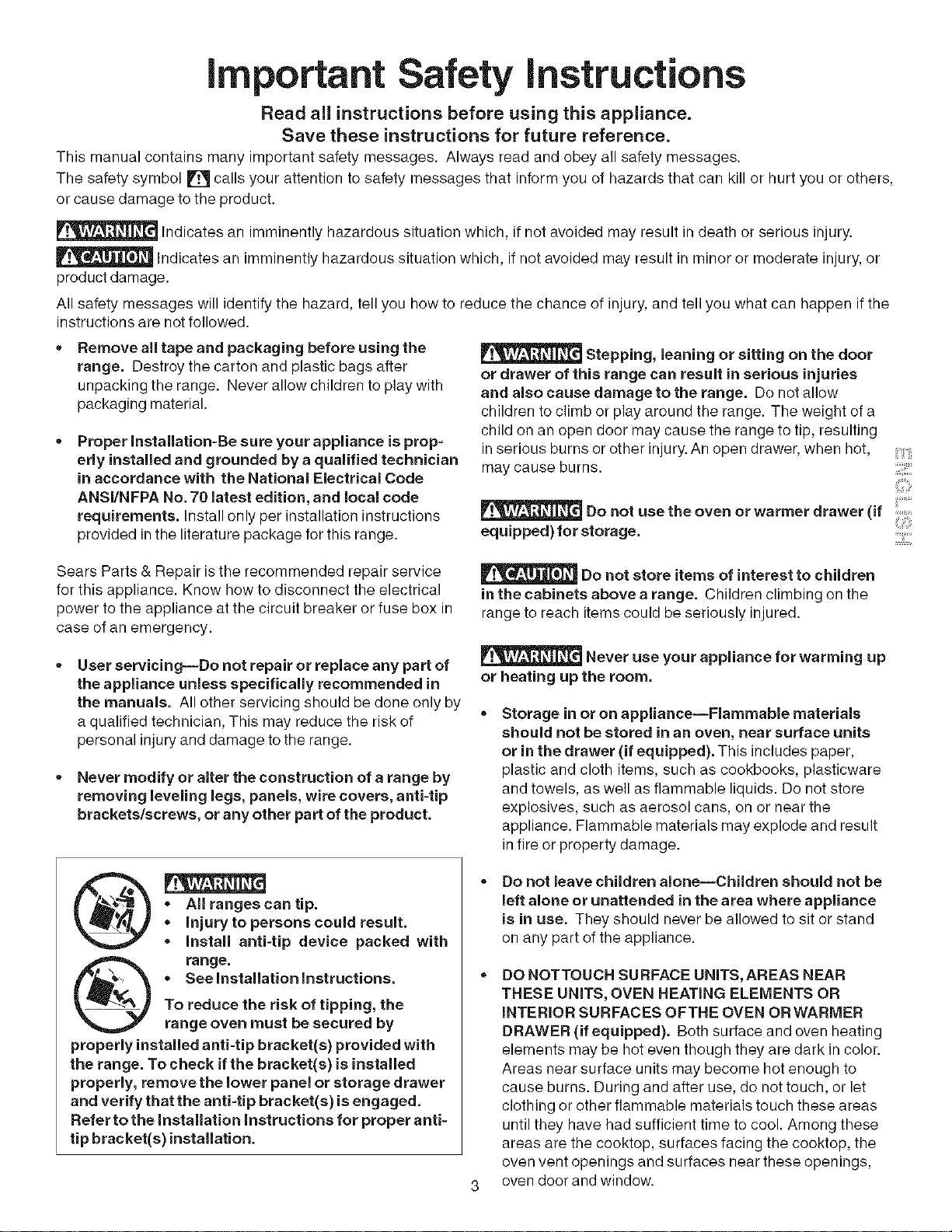

important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains many important safety messages. Always read and obey all safety messages.
The safety symbol _ calls your attention to safety messages that inform you of hazards that can kill or hurt you or others,
or cause damage to the product.
Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided may result in minor or moderate injury, or
product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
Proper Installation-Be sure your appliance is prop-
erly installed and grounded by a qualified technician
in accordance with the National Electrical Code
ANBI/NFPA No. 70 latest edition, and local code
requirements. Install only per installationinstructions
provided in the literature package for this range.
Stepping, leaning or sitting on the door
or drawer of this range can result in serious injuries
and also cause damage to the range. Do not allow
children to climb or play around the range. The weight of a
child on an open door may cause the range to tip, resulting
in serious burns or other injury. An open drawer, when hot,
may cause burns.
Do not use the oven or warmer drawer (if
equipped) for storage. ::::::::::
Sears Parts & Repair is the recommended repair service
for this appliance. Know how to disconnect the electrical
power to the appliance at the circuit breaker or fuse box in
case of an emergency.
User servicing--Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only by
a qualified technician, This may reduce the risk of
personal injury and damage to the range.
Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
Do not store items of interest to children
in the cabinets above a range. Children climbing on the
range to reach items could be seriously injured.
Never use your appliance for warming up
or heating up the room.
Storage in or on applianceiFlammable materials
should not be stored in an oven, near surface units
or in the drawer (if equipped). This includes paper,
plastic and cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the
appliance. Flammable materials may explode and result
in fire or property damage.
* All ranges can tip.
* Injury to persons could result.
* Install anti-tip device packed with
range.
* Seelnstallationlnstructions.
To reduce the risk of tipping, the
range oven must be secured by
properly installed anti-tip bracket(s) provided with
the range. To check ifthe bracket(s) is installed
properly, remove the lower panel or storage drawer
and verify that the anti-tip bracket(s) is engaged.
Refer to the installation instructions for proper anti-
tip bracket(s) installation.
Do not leave children alone--Children should not be
left alone or unattended in the area where appliance
is in use. They should never be allowed to sit or stand
on any part of the appliance.
DO NOTTOUCH SURFACE UNITS, AREAS NEAR
THESE UNITS, OVEN HEATING ELEMENTS OR
INTERIOR SURFACES OFTHE OVEN OR WARMER
DRAWER (if equipped). Both surface and oven heating
elements may be hot even though they are dark in color.
Areas near surface units may become hot enough to
cause burns. During and after use, do not touch, or let
clothing or other flammable materials touch these areas
until they have had sufficient time to cool. Among these
areas are the cooktop, surfaces facing the cooktop, the
oven vent openings and surfaces near these openings,
oven door and window.

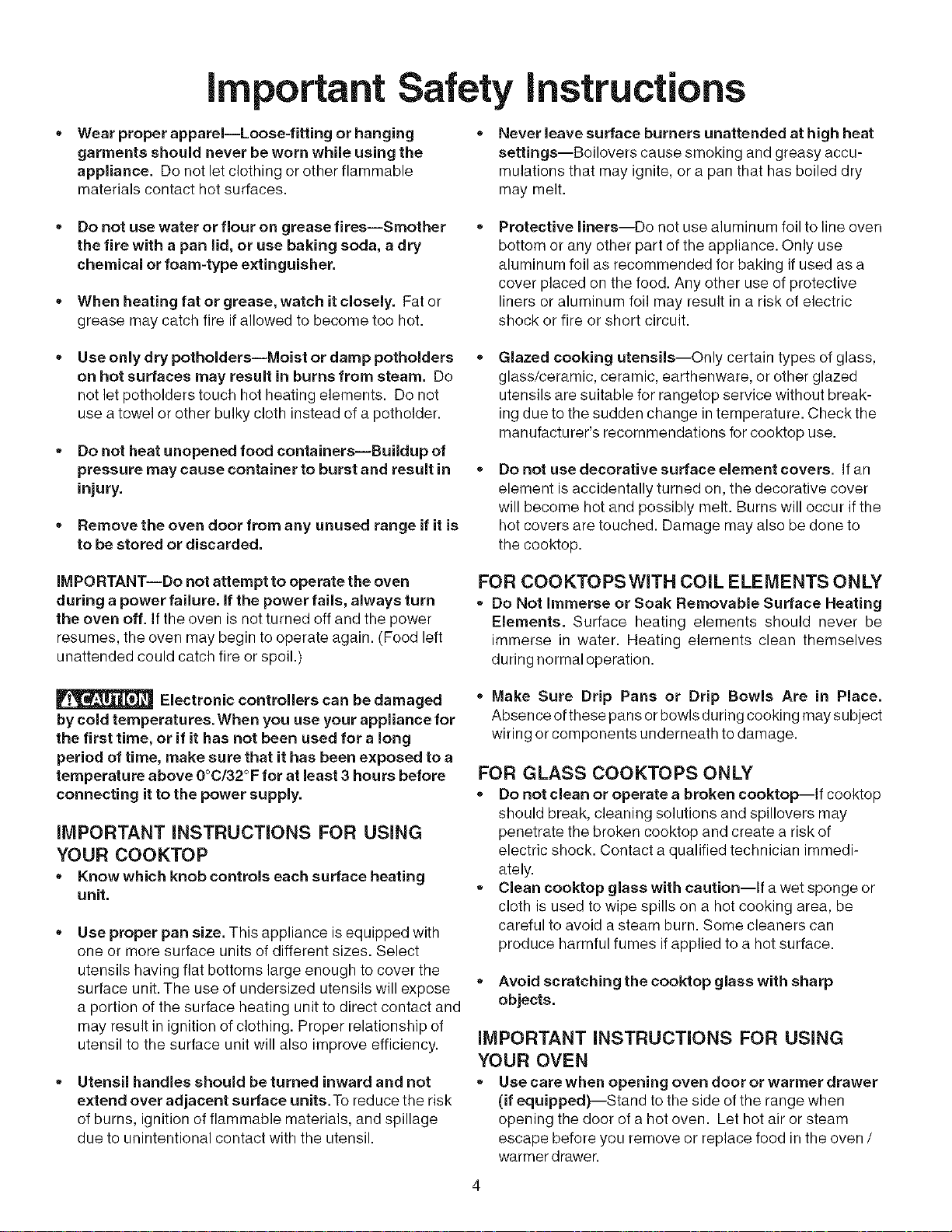

important Safety instructions
Wear proper apparel--Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
Never leave surface burners unattended at high heat
settings--Believers cause smoking and greasy accu-
mulations that may ignite, or a pan that has boiled dry
may melt.
Do not use water or flour on grease firesiSmother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
Protective liners--Do not use aluminum foil to line oven
bottom or any other part of the appliance. Only use
aluminum foil as recommended for baking if used as a
cover placed on the food. Any other use of protective
liners or aluminum foil may result in a risk of electric
shock or fire or short circuit.
Use only dry potholders--Moist or damp potholders
on hot surfaces may result in burns from steam. Do
not let potholders touch hot heating elements. Do not
use a towel or other bulky cloth instead of a potholder.
, Do not heat unopened food containers--Buildup of
pressure may cause container to burst and result in
injury.
, Remove the oven door from any unused range if it is
to be stored or discarded.
IMPORTANT--Do not attempt to operate the oven
during a power failure, ifthe power fails, always turn
the oven off. If the oven is not turned off and the power
resumes, the oven may begin to operate again. (Food left
unattended could catch fire or spoil.)
Electronic controllers can be damaged
by cold temperatures. When you use your appliance for
the first time, or if it has not been used for a long
period of time, make sure that it has been exposed to a
temperature above 0°C/32°F for at least 3 hours before
connecting it to the power supply.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
, Know which knob controls each surface heating
unit.
Use proper pan size. This appliance is equipped with
one or more surface units of different sizes. Select
utensils having flat bottoms large enough to cover the
surface unit. The use of undersized utensils will expose
a portion of the surface heating unit to direct contact and
may result in ignition of clothing. Proper relationship of
utensil to the surface unit will also improve efficiency.
Utensil handles should be turned inward and not
extend over adjacent surface units. To reduce the risk
of burns, ignition of flammable materials, and spillage
due to unintentional contact with the utensil.
Glazed cooking utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for rangetop service without break-
ing due to the sudden change in temperature. Check the
manufacturer's recommendations for cooktop use.
Do not use decorative surface element covers, if an
element is accidentally turned on, the decorative cover
will become hot and possibly melt. Burns will occur if the
hot covers are touched. Damage may also be done to
the cooktop.
FOR COOKTOPSWITH COIL ELEMENTS ONLY
Do Not immerse or Soak Removable Surface Heating
Elements. Surface heating elements should never be
immerse in water. Heating elements clean themselves
during normal operation.
Make Sure Drip Pans or Drip Bowls Are in Place.
Absen ce ofthese pans or bowls during cooking may subject
wiring or components underneath to damage.
FOR GLASS COOKTOPS ONLY
Do not clean or operate a broken cooktop--lf cooktop
should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of
electric shock. Contact a qualified technician immedi-
ately.
Clean cooktop glass with caution--If a wet sponge or
cloth is used to wipe spills on a hot cooking area, be
careful to avoid a steam burn. Some cleaners can
produce harmful fumes if applied to a hot surface.
Avoid scratching the cooktop glass with sharp
objects.
iMPORTANT iNSTRUCTiONS FOR USING
YOUR OVEN
® Use care when opening oven door or warmer drawer
(if equipped)--Stand to the side of the range when
opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven /
warmer drawer.
4

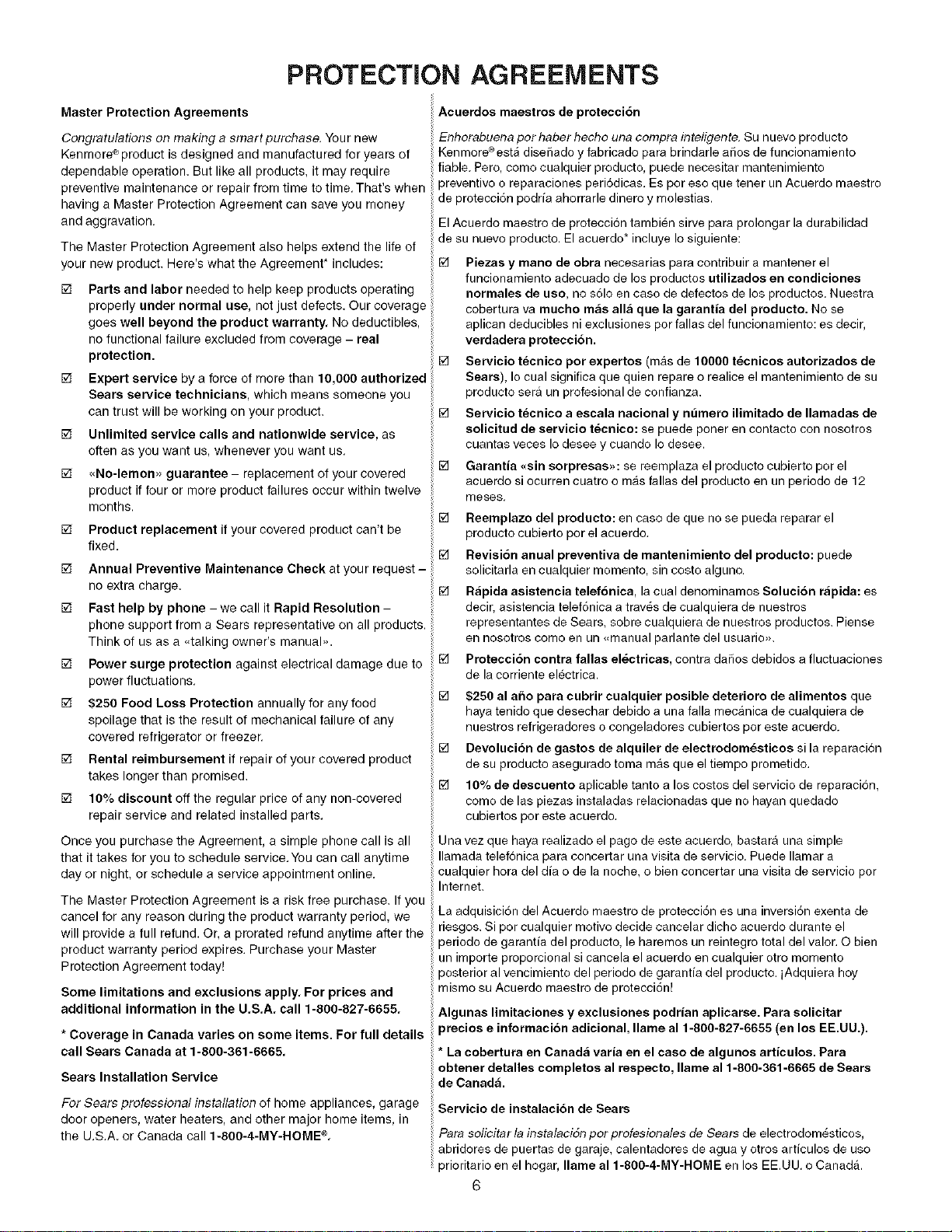

PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Yournew
Kenmora®product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time,That's when
having a Master Protection Agreement can save you money
and aggravation,
The Master Protection Agreement also helps extend the life of
your new product. Here's what the Agreement* includes:
Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductibles,
no functional failure excluded from coverage - real
protection.
Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you
can trust will be working on your product.
Unlimited service calls and nationwide service, as
often as you want us, whenever you want us,
,,No-lemom, guarantee - replacement of your covered
product if four or more product failures occur within twelve
months,
Product replacement if your covered product can't be
fixed.
Annual Preventive Maintenance Check at your request -
no extra charge.
Fast help by phone - we call it Rapid Resolution -
phone support from a Sears representative on all products,
Think of us as a ,,talking owner's manual,,.
Power surge protection against electrical damage due to
power fluctuations,
$250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer,
Rental reimbursement if repair of your covered product
takes longer than promised.
10% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is all
that it takes for you to schedule service. Youcan call anytime
day or night, or schedule a service appointment online,
The Master Protection Agreement is a risk free purchase. If you
cancel for any reason during the product warranty period, we
will provide a full refund. Or, a prorated refund anytime after the
product warranty period expires. Purchase your Master
Protection Agreement todayE
Some limitations and exclusions apply. For prices and
additional information in the U,S,A, call 1-600-627-6655,
* Coverage in Canada varies on some items. For full details
call Sears Canada at 1-600-361-6665,
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in
the U.S,A. or Canada call 1-800-4-MY-HOME ®,
Acuerdos maestros de protecci6n
Enhorabuena per haber hecho una compra inteligente. Su nuevo producto
Kenmore ®est_ disehado y fabricado para brindarle ahos de funcionamiento
liable. Pero, come cualquier producto, puede necesitar mantenimiento
preventive o reparaciones peri6dicas, Es per eso que tener un Acuerdo maestro
de protecci6n podria ahorrarle dinero y molestias,
El Acuerdo maestro de protecci6n tambi_n sirve para prolongar la durabilidad
de su nuevo producto, El acuerdo* incluye Io siguiente:
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
Piezas y mane de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en condiciones
normales de use, no s61o en case de defectos de los productos. Nuestra
cobertura va mucho mas alia que la garantia del producto. No se
aplican deducibles ni exclusiones per fallas del funcionamiento: es decir,
verdadera protecci6n.
Servicio tecnico per expertos (mas de 10000 t_cnicos autorizados de
Sears), Io cual significa que quien repare o realice el mantenimiento de su
producto sera un profesional de confianza.
Servicio tecnico a escala nacional y nt_mero ilimitado de Ilamadas de
solicitud de servicio tecnico: se puede poner en oontaoto con nosotros
cuantas veces Io desee y cuando Io desee.
Garantia _,sin sorpresas,,: se reemplaza el producto cubierto per el
acuerdo si ocurren cuatro o mas fallas del producto en un periodo de 12
meses.
Reemplazo del producto: en case de que no se pueda reparar el
producto cubierto per el acuerdo,
Revisi6n anual preventiva de mantenimiento del producto: puede
solicitarla en cualquier memento, sin costo alguno,
Rapida asistencia telef6nica, la cual denominamos Soluci6n rapida: es
decir, asistencia telef6nica a trav_s de cualquiera de nuestros
representantes de Sears, sobre cualquiera de nuestros productos. Piense
en nosotros come en un ,,manual parlante del usuario>_.
Protecci6n contra fallas el_ctricas, contra dMios debidos a fluctuaciones
de la cerriente electrica,
$250 al aho para cubrir cualquier posible deterioro de alimentos que
haya tenido que desechar debido a una falla mecanica de cualquiera de
nuestros refrigeradores o congeladores cubiertos per este acuerdo.
Devoluci6n de gastos de alquiler de electrodom_sticos si la reparaci6n
de su producto asegurado toma masque el tiempo prometido,
10% de descuento aplicable tanto a los costos del servicio de reparaci6n,
come de las piezas instaladas relacionadas que no hayan quedado
cubiertos per este acuerdo.
Una vez que haya realizado el page de este acuerdo, bastara una simple
Ilamada telef6nica para concertar una visita de servicio, Puede Ilamar a
cualquier hera del dia o de la noche, o bien concertar una visita de servicio per
Internet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n exenta de
riesgos. Si per cualquier motive decide cancelar dicho acuerdo durante el
periodo de garantia del producto, le haremos un reintegro total del valor, O bien
un importe proporcional si cancela el acuerdo en cualquier otro memento
posterior al vencimiento del periodo de garantia del producto, iAdquiera hey
mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1-800-827-6655 (en los EE.UU.).
* La cobertura en Canada varia en el case de algunos articulos. Para
obtener detalles completes al respecto, Ilame al 1-800-361-6665 de Sears
de Canada.
Servicio de instalaci6n de Sears
Parasolicitar la instalaci6n per profesionales de Sears de electrodom6sticos,
abridores de puertas de garaje, calentadores de aguay otros articulos de use
prioritario en el hogar, Ilame al 1-800-4-MY-HOME en los EE.UU. oCanad&
6

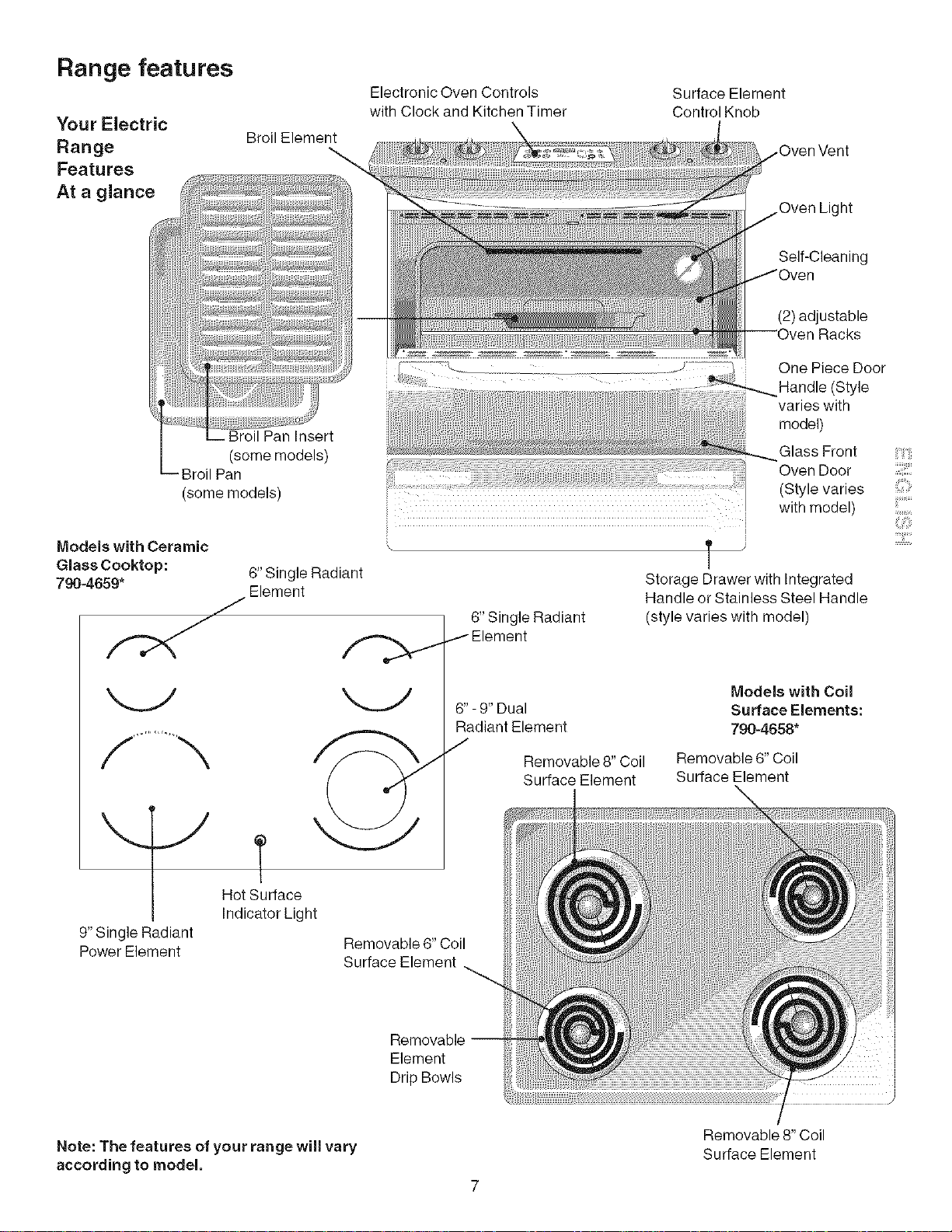

Range features
Your Electric
Range BroilElement
Features _"
At a glance
Electronic Oven Controls
with Clock and Kitchen Timer
Surface Element
Control Knob
Light
Self-Cleaning
(2) adjustable
Broil Pan Insert
(some models)
Broil Pan
(some models)
One Piece Door
Handle (Style
varies with
model)
Glass Front
Oven Door
(Style varies
with model)
Models with Ceramic
Glass Cooktop: 6" Single Radiant
790-4659" Element
./"
9"Single Radiant
Power Element
T
Hot Surface
Indicator Light
Removable 6"Coil
Surface Element
6"Single Radiant
6"-9" Dual
Radiant Element
Removable 8" Coil
Surface Element
Storage Drawer with Integrated
Handle or Stainless Steel Handle
(style varies with model)
Models with Coil
Surface Elements:
790-4658*
Removable 6"Coil
Surface Element
¸?¸¸¸¸¸i¸¸¸¸
Removable
Element
Drip Bowls
i
Removable 8" Coil
Surface Element
Note: The features of your range wiil vary
according to model.
7

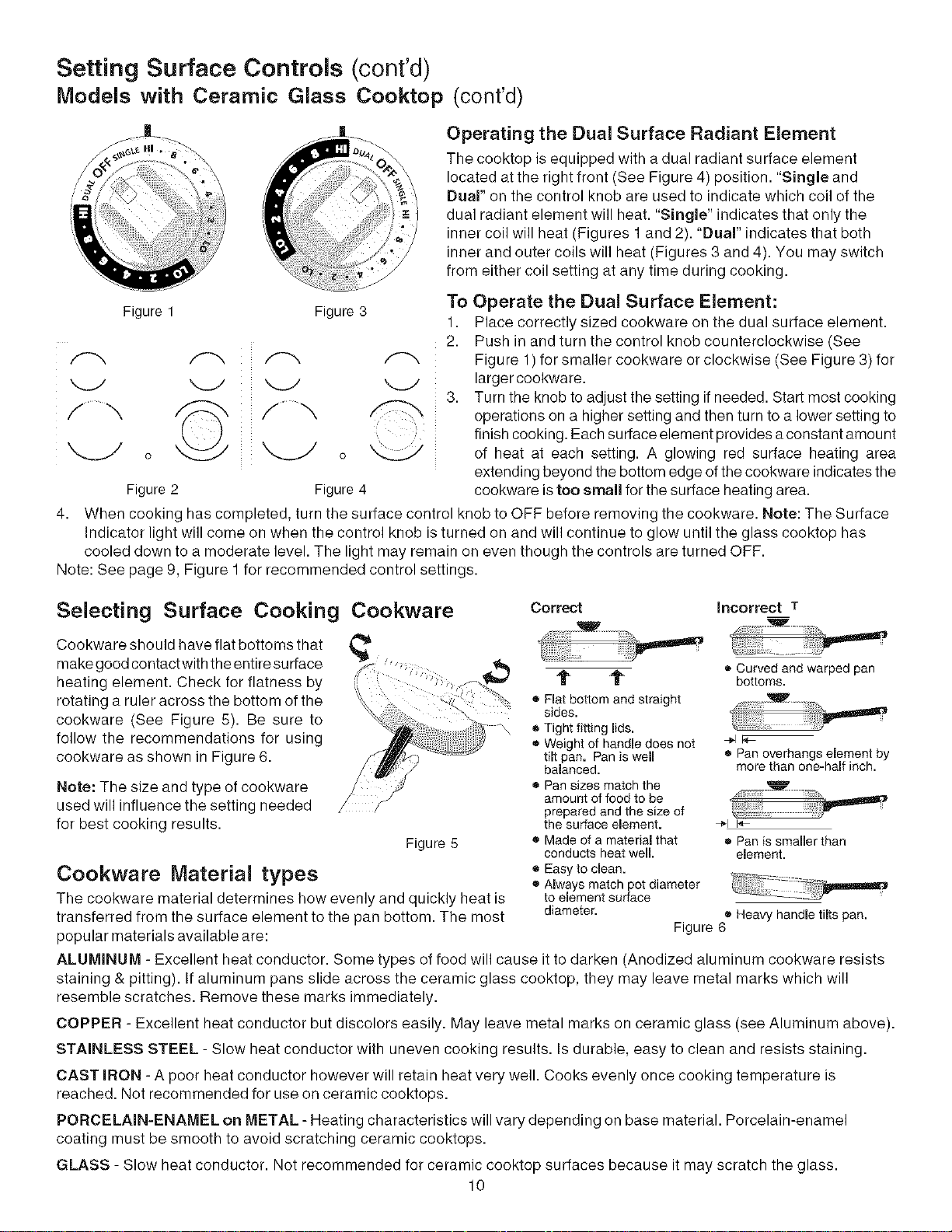

Setting Surface Controls (cont'd)
Models with Ceramic Glass Cooktop (cont'd)
Operating the Dual Surface Radiant Element
The cooktop is equipped with a dual radiant surface element
located at the right front (See Figure 4) position. "Single and
Duar' on the control knob are used to indicate which coil of the
dual radiant element will heat. "Single" indicates that only the
inner coil will heat (Figures 1 and 2). "Duar' indicates that both
inner and outer coils will heat (Figures 3 and 4). You may switch
from either coil setting at any time during cooking.
Figure 1 Figure 3
3.
, i X
i i
Figure 2 Figure 4
To Operate the Dual Surface Element:
1. Place correctly sized cookware on the dual surface element.
2. Push in and turn the control knob counterclockwise (See
Figure 1)for smaller cookware or clockwise (See Figure 3) for
larger cookware.
Turn the knob to adjust the setting if needed. Start most cooking
operations on a higher setting and then turn to a lower setting to
finish cooking. Each surface element provides a constant amount
of heat at each setting. A glowing red surface heating area
extending beyond the bottom edge of the cookware indicates the
cookware istoo small for the surface heating area.
4. When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The Surface
Indicator light will come on when the control knob is turned on and will continue to glow until the glass cooktop has
cooled down to a moderate level. The light may remain on even though the controls are turned OFF.
Note: See page 9, Figure 1 for recommended control settings.
Selecting Surface Cooking Cookware
Cookware should have flat bottoms that
make good contact with the entire surface
heating element. Check for flatness by
rotating a ruler across the bottom of the
cookware (See Figure 5). Be sure to
follow the recommendations for using
cookware as shown in Figure 6.
Note: The size and type of cookware
used will influence the setting needed
for best cooking results.
Figure 5
Cookware Material types
The cookware material determines how evenly and quickly heat is
transferred from the surface element to the pan bottom. The most
popular materials available are:
Correct
1" t"
• Fiat bottom and straight
sides.
• Tight fitting lids.
® Weight of handle does not
tilt pan, Pan is well
balanced.
• Pan sizes match the
amount of food to be
prepared and the size of
the surface element,
e Made of a material that
conducts heat well.
• Easy to clean.
® Always match pot diameter
to emement surface
diameter.
JncoFFect T
m
_i_!!ii!ili_!¸¸¸W _iiiim_
®Curvedandwarpedpan
bottoms.
• Panoverhangselementby
morethanone-halfinch.
÷i I_
• Panissmallerthan
element.
• Heavy handle tilts pan.
Figure 6
ALUMINUM - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists
staining & pitting). If aluminum pans slide across the ceramic glass cooktop, they may leave metal marks which will
resemble scratches. Remove these marks immediately.
COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.
CAST IRON - A poor heat conductor however will retain heat very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL - Heating characteristics will vary depending on base material. Porcelain-enamel
coating must be smooth to avoid scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.
10

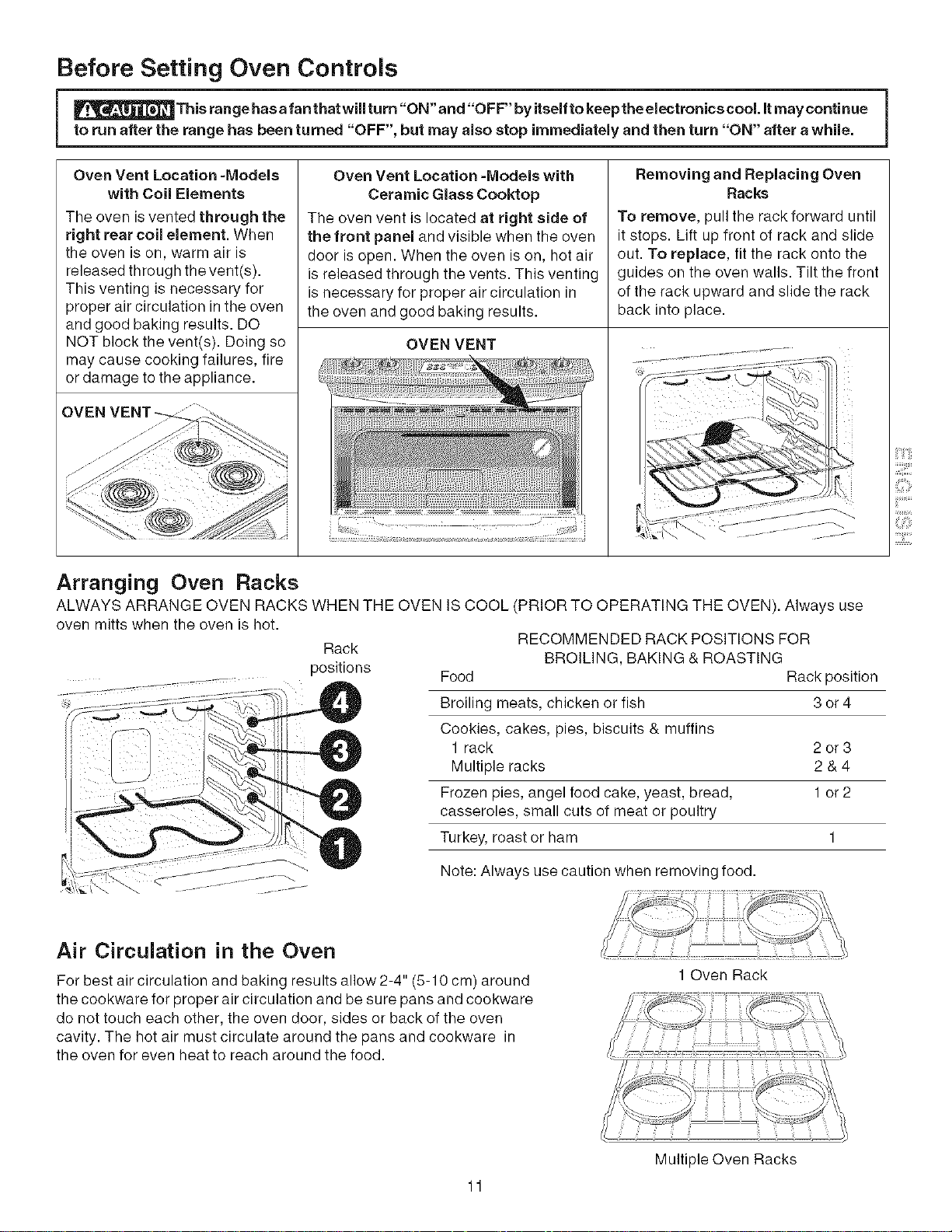

Before Setting Oven Controls
_Thisrangehasafanthat_iiiturn``_N_and``_FF_byitseift_keeptheeiectr_nicsc_Litmayc_ntinue 1
to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while,
Oven Vent Location -Models
with Coil Elements
The oven is vented through the
right rear coil element. When
the oven is on, warm air is
released through the vent(s).
This venting is necessary for
proper air circulation in the oven
and good baking results. DO
NOT block the vent(s). Doing so
may cause cooking failures, fire
or damage to the appliance.
Oven Vent Location =Models with
Ceramic Glass Cooktop
The oven vent is located at right side of
the front panel and visible when the oven
door is open. When the oven is on, hot air
is released through the vents. This venting
is necessary for proper air circulation in
the oven and good baking results.
OVEN VENT
Removing and Replacing Oven
Racks
To remove, pull the rack forward until
it stops. Lift up front of rack and slide
out. To replace, fit the rack onto the
guides on the oven walls. Tilt the front
of the rack upward and slide the rack
back into place.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when the oven is hot.
RECOMMENDED RACK POSITIONS FOR
Rack
BROILING, BAKING & ROASTING
positions Food Rack position
@
Broiling meats, chicken or fish 3 or 4
Cookies, cakes, pies, biscuits & muffins
1 rack 2 or 3
Multiple racks 2 & 4
Frozen pies, angel food cake, yeast, bread, 1 or 2
casseroles, small cuts of meat or poultry
Turkey, roast or ham 1
Note: Always use caution when removing food.
Air Circulation in the Oven
For best air circulation and baking results allow 2-4" (5-10 cm) around
the cookware for proper air circulation and be sure pans and cookware
do not touch each other, the oven door, sides or back of the oven
cavity. The hot air must circulate around the pans and cookware in
the oven for even heat to reach around the food.
11
1 Oven Rack
Multiple Oven Racks

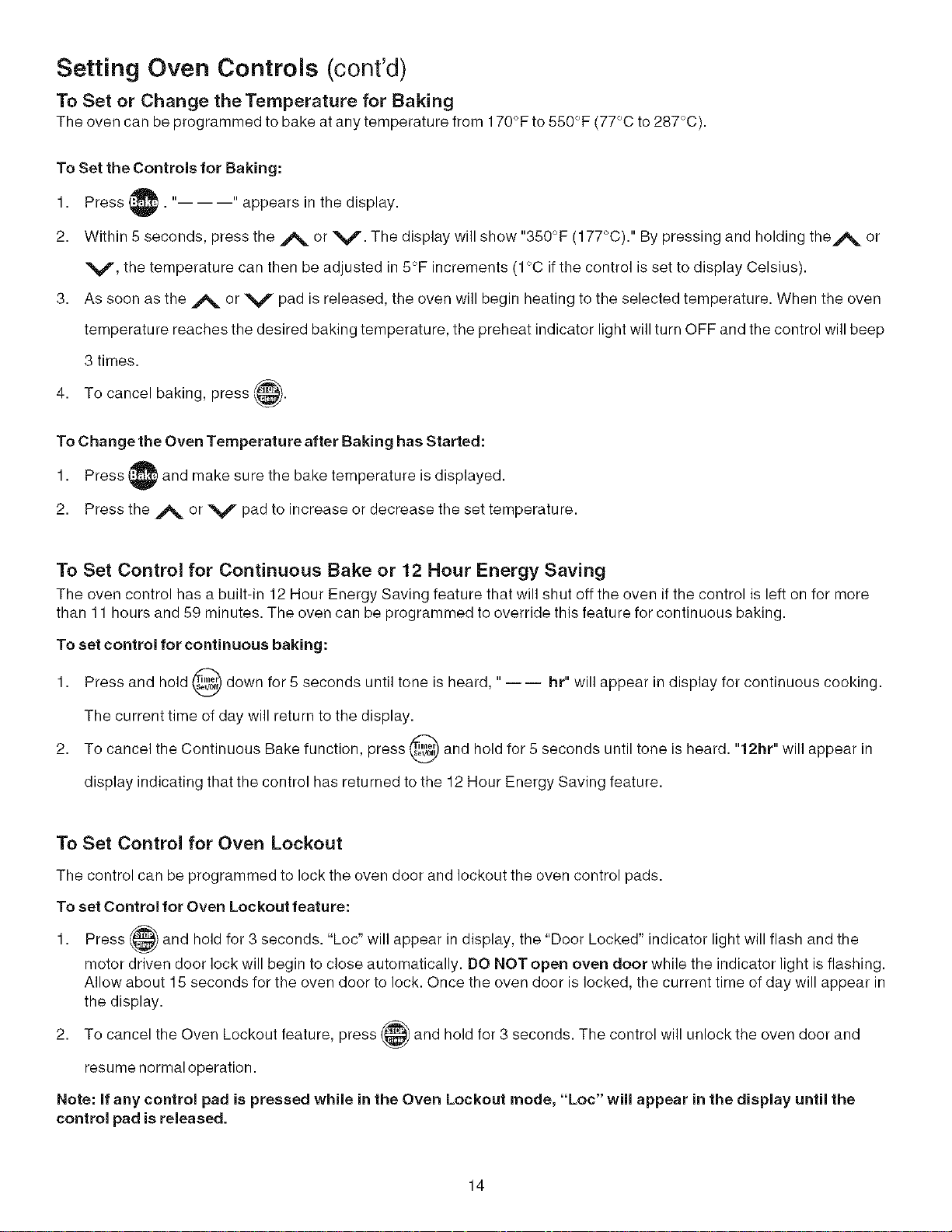

Setting Oven Controls (cont'd)
To Set or Change theTemperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C).
To Set the Controls for Baking:
1. Press I " appears in the display.
2. Within 5 seconds, press the A or V. The display will show "350°F (177°C). '' By pressing and holding theA or
V, the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
3. As soon as the A or V pad is released, the oven will begin heating to the selected temperature. When the oven
temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control will beep
3 times.
4. To cancel baking, press _.
To Change the Oven Temperature after Baking has Started:
1. Press ,and make sure the bake temperature is displayed.
2. Press the A or V pad to increase or decrease the set temperature.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more
than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.
To set control for continuous baking:
1. Press and hold _ down for 5 seconds until tone is heard, "---- hr" will appear in display for continuous
cooking.
The current time of day will return to the display.
2. To cancel the Continuous Bake function, press _ and hold for 5 seconds until tone is heard. "12hr" will appear in
display indicating that the control has returned to the 12 Hour Energy Saving feature.
To Set Control for Oven Lockout
The control can be programmed to lock the oven door and lockout the oven control pads.
To set Control for Oven Lockout feature:
1. Press _.t_ and hold for 3 seconds. "Loc" will appear in display, the "Door Locked" indicator light will flash and the
motor driven door lock will begin to close automatically. DO NOT open oven door while the indicator light is flashing.
Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will appear in
the display.
2. To cancel the Oven Lockout feature, press _ and hold for 3 seconds. The control will unlock the oven door and
resume normal operation.
Note: if any control pad is pressed while in the Oven Lockout mode, "Loc" will appear in the display until the
control pad is released.
14
Setting Oven Controls (cont'd)

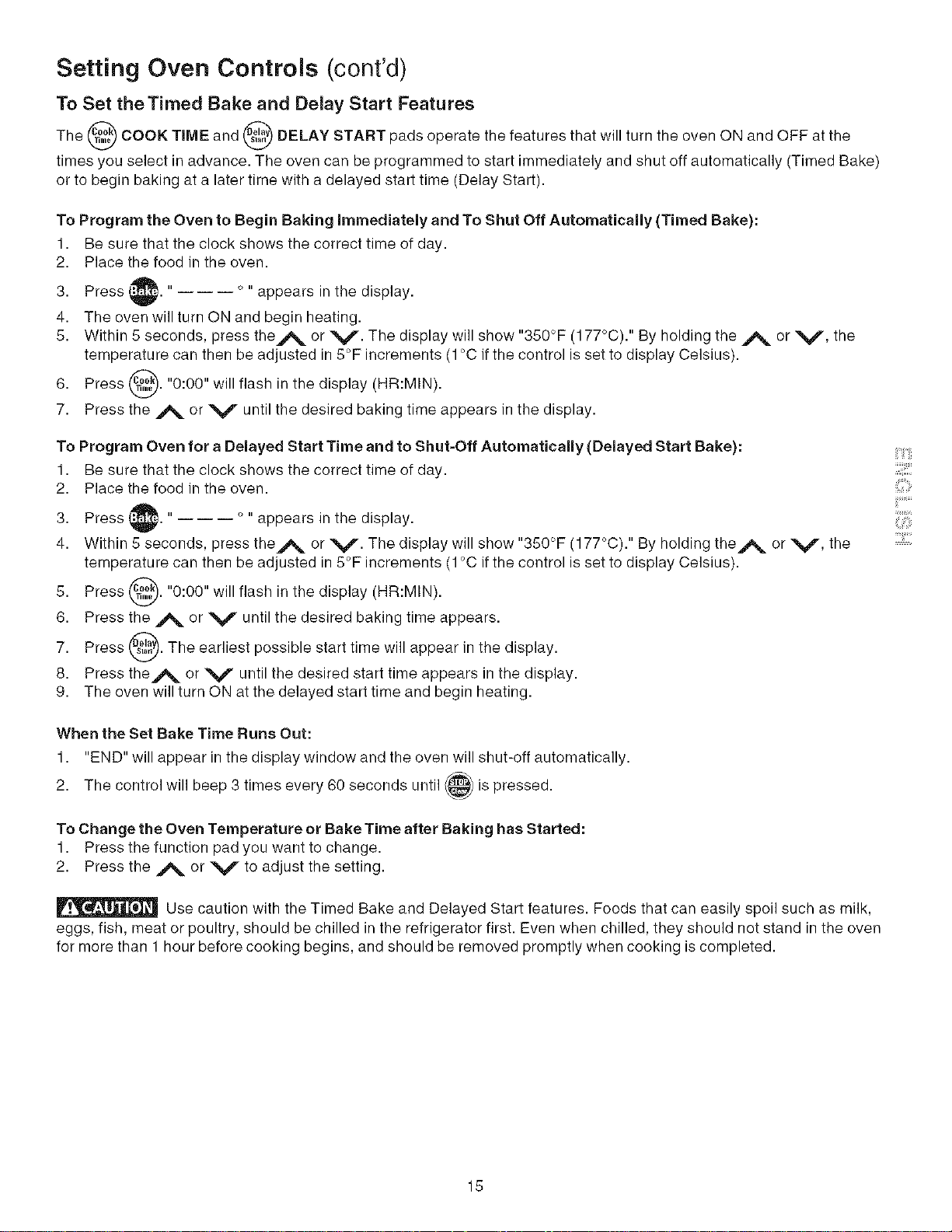

To Set theTimed Sake and Delay Start Features
The _ COOK TllVlE and _._ DELAY START pads operate the features that will turn the oven ON and OFF at the
times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake)
or to begin baking at a later time with a delayed start time (Delay Start).
To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Pressl 1" .... appears in the display.
4. The oven will turn ON and begin heating.
5. Within 5 seconds, press the_ or V. The display will show "350°F (177°C). '' By holding the ,_ or V, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
6. Press _,_. "0:00" will flash in the
display (HR:MIN).
7. Press the A or V until the desired baking time appears in the display.
To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Start Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press 4 t" '.... appears in the display.
4. Within 5 seconds, press their, or V. The display will show "350°F (177°C). '' By holding the_ or V, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
5. Press _,_. "0:00" will flash in the
display (HR:MIN).
6. Press the _ or V until the desired baking time appears.
7. Press _. The earliest possible start time will appear in the
display.
8. Press their, or V until the desired start time appears in the display.
9. The oven will turn ON at the delayed start time and begin heating.
When the Set Bake Time Runs Out:
1. "END" will appear in the display window and the oven will shut-off automatically.
2. The control will beep 3 times every 60 seconds until _ is
pressed.
To Change the Oven Temperature or Bake Time after Baking has Started:
1. Press the function pad you want to change.
2. Press the j_ or V to adjust the setting.
Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven
for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
¸?¸¸¸¸¸i¸¸¸¸
15
Setting Oven Controls (cont'd)

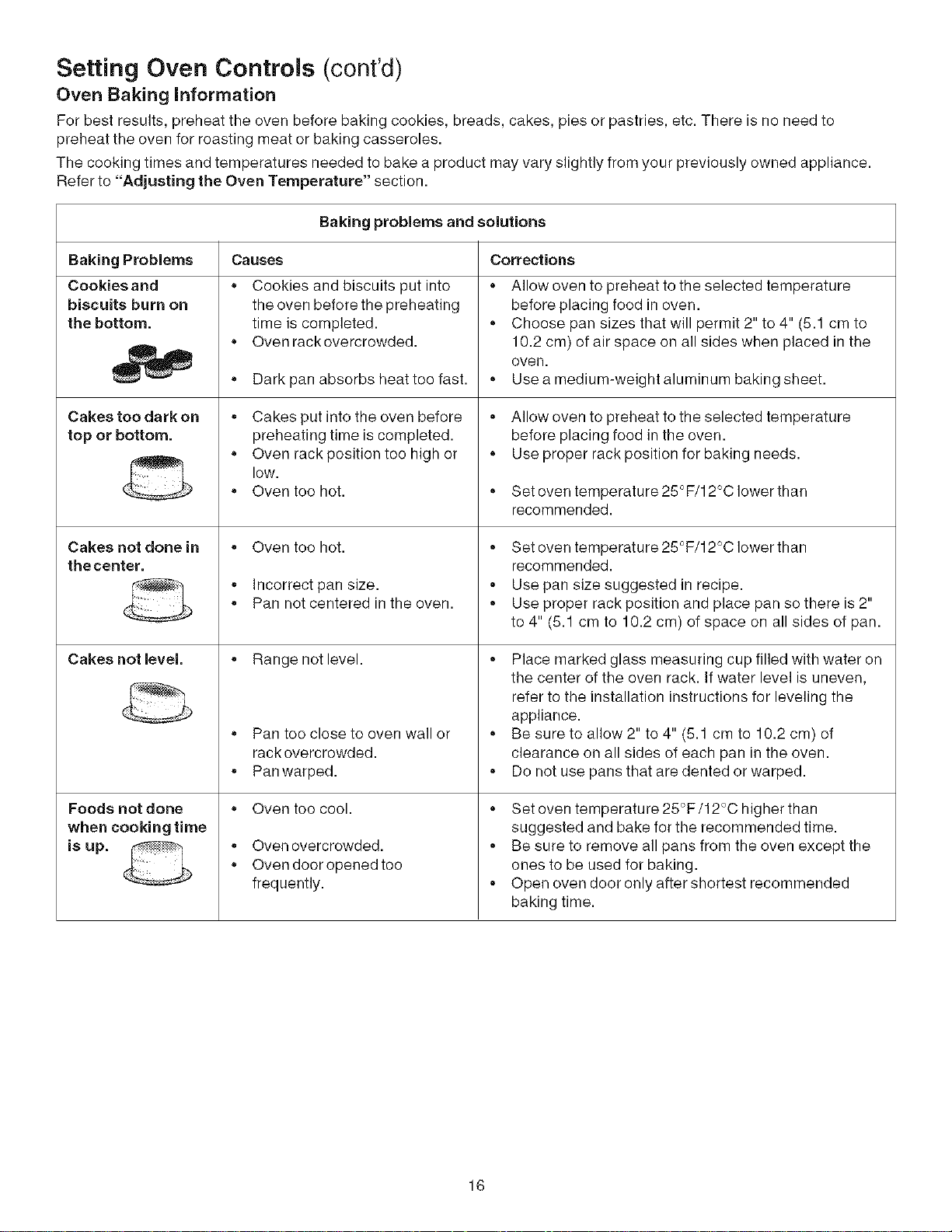

Oven Baking information
For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Refer to "Adjusting the Oven Temperature" section.
Baking problems and solutions
Causes Corrections
Cookies and biscuits put into • Allow oven to preheat to the selected temperature
the oven before the preheating before placing food in oven.
time is completed. • Choose pan sizes that will permit 2" to 4" (5.1 cm to
Oven rack overcrowded. 10.2 cm) of air space on all sides when placed in the
OVER.
Dark pan absorbs heat too fast. Use a medium-weight aluminum baking sheet.
Baking Problems
Cookies and
biscuits burn on
the bottom,
Cakes too dark on •
top or bottom.
Cakes not done in •
thecenter,
Cakes not level.
Foods not done
when cooking time
is up, •
Cakes put into the oven before
preheating time is completed.
Oven rack position too high or
lew.
Oven too hot.
Oven too hot.
Incorrect pan size.
Pan not centered in the oven.
Range not level.
Pan too close to oven wall or
rack overcrowded.
Pan warped.
Oven too cool.
Oven overcrowded.
Oven door opened too
frequently.
o
o
o
o
Allow oven to preheat to the selected temperature
before placing food in the oven.
Use proper rack position for baking needs.
Set oven temperature 25 °F/12°C lower than
recommended.
• Set oven temperature 25°F/12°C lower than
recommended.
• Use pan size suggested in recipe.
• Use proper rack position and place pan so there is 2"
to 4" (5.1 cm to 10.2 cm) of space on all sides o1pan.
o
o
o
o
o
Place marked glass measuring cup filled with water on
the center of the oven rack. If water level is uneven,
refer to the installation instructions for leveling the
appliance.
Be sure to allow 2" to 4" (5.1 cm to 10.2 cm) o1
clearance on all sides o1each pan in the oven.
Do not use pans that are dented or warped.
Set oven temperatu re 25°F/12°C higher than
suggested and bake for the recommended time.
Be sure to remove all pans from the oven except the
ones to be used for baking.
Open oven door only after shortest recommended
baking time.
16

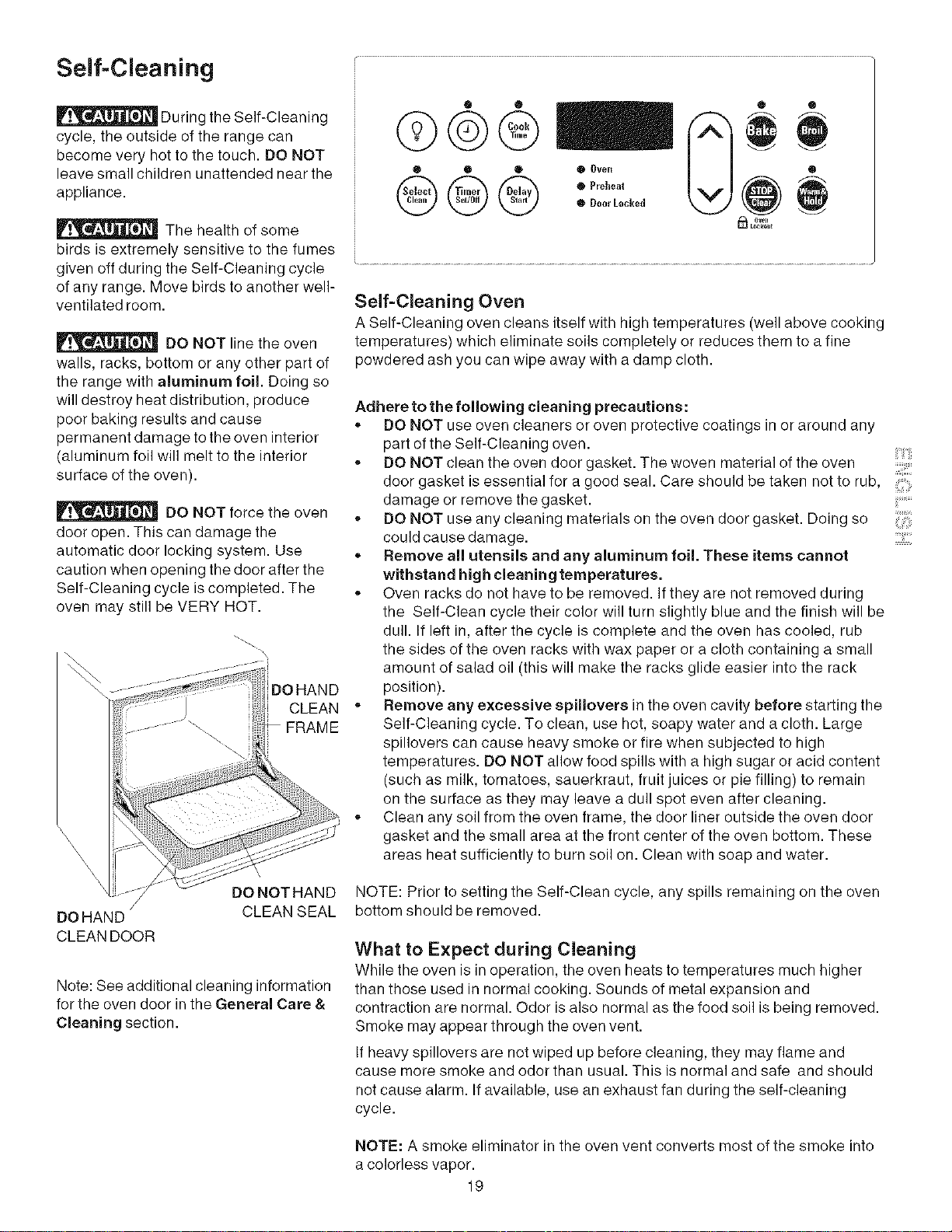

Self-Cleaning
During the Self-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
The health of some
birds is extremely sensitive to the fumes
given off during the Self-Cleaning cycle
of any range. Move birds to another well-
ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part of
the range with aluminum foil. Doing so
will destroy heat distribution, produce
poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.
DO HAN D
CLEAN
FRAM E
/
/
DO HAND
CLEAN DOOR
DO NOT HAND
CLEAN SEAL
Note: See additional cleaning information
for the oven door in the General Care &
Cleaning section.
"
• • 0 • OveE= _0
@@@ @
_ Leeke_t
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
• DO NOT use oven cleaners or oven protective coatings in or around any
part of the Self-Cleaning oven.
• DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket. ..........
,, DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage. ::::::::::;
• Remove all utensils and any aluminum foil. These items cannot
withstand high cleaning temperatures.
• Oven racks do not have to be removed. If they are not removed during
the Self-Clean cycle their color will turn slightly blue and the finish will be
due If left in, after the cycle is complete and the oven has cooled, rub
the sides of the oven racks with wax paper or a cloth containing a small
amount of salad oil (this will make the racks glide easier into the rack
position).
• Remove any excessive spillovers in the oven cavity before starting the
Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain
on the surface as they may leave a dull spot even after cleaning.
• Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed.
What to Expect during Cleaning
While the oven is in operation, the oven heats to temperatures much higher
than those used in normal cooking. Sounds of metal expansion and
contraction are normal. Odor is also normal as the food soil is being removed.
Smoke may appear through the oven vent.
If heavy spillovers are not wiped up before cleaning, they may flame and
cause more smoke and odor than usual. This is normal and safe and should
not cause alarm. If available, use an exhaust fan during the self-cleaning
cycle.
NOTE: A smoke eliminator in the oven vent converts most of the smoke into
a colorless vapor.
19

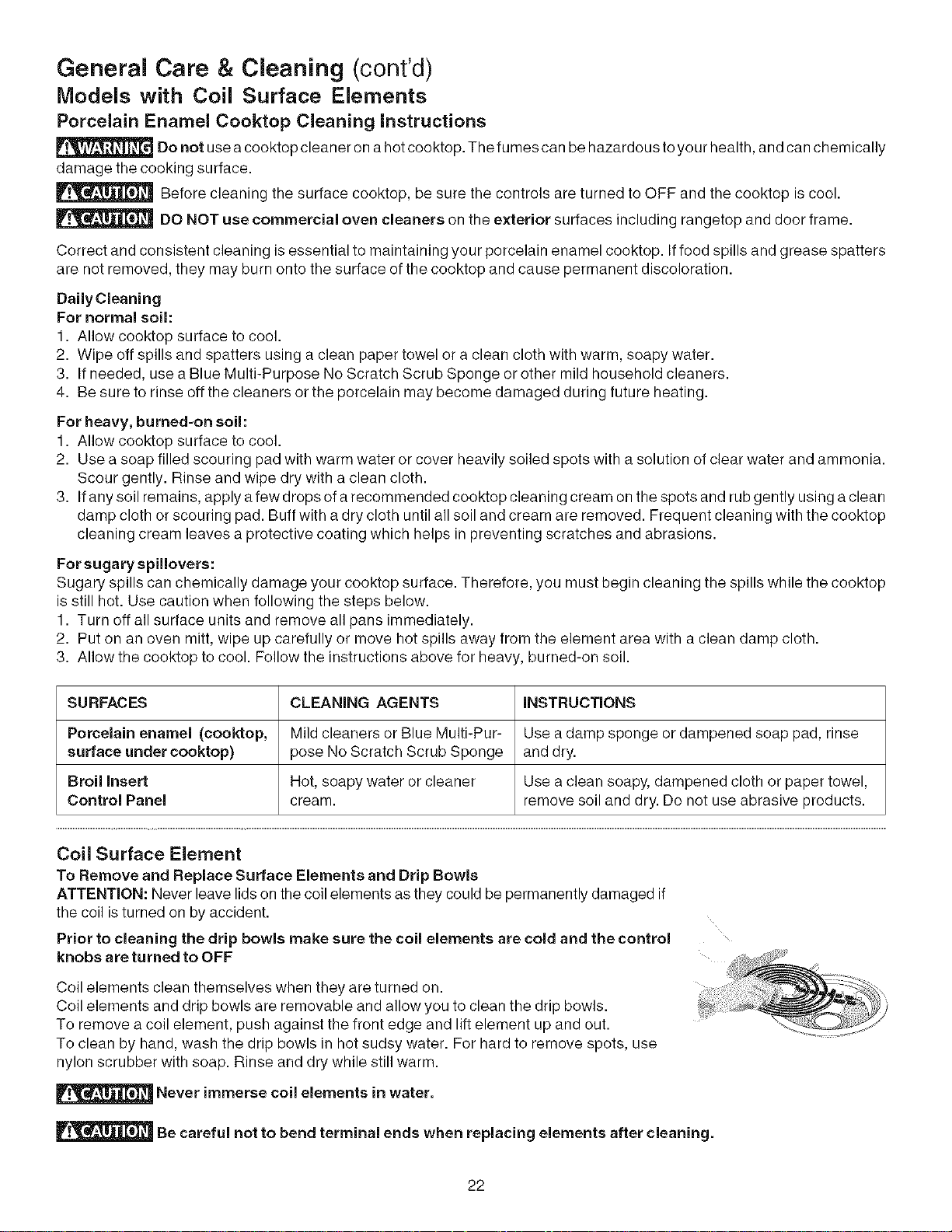

General Care & Cleaning (cont'd)
Models with Coil Surface Elements
Porcelain Enamel Cooktop Cleaning instructions
Do not use a cooktop cleaner on ahot cooktop. The fumes can be hazardous to your health, and can chemically
damage the cooking surface.
Before cleaning the surface cooktop, be sure the controls are turned to OFF and the cooktop is cool.
DO NOT use commercial oven cleaners on the exterior surfaces including rangetop and door frame.
Correct and consistent cleaning is essential to maintaining your porcelain enamel cooktop. If food spills and grease spatters
are not removed, they may burn onto the surface of the cooktop and cause permanent discoloration.
Daily Cleaning
For normal soil:
1. Allow cooktop surface to cool.
2. Wipe off spills and spatters using a clean paper towel or a clean cloth with warm, soapy water.
3. If needed, use a Blue Multi-Purpose No Scratch Scrub Sponge or other mild household cleaners.
4. Be sure to rinse off the cleaners or the porcelain may become damaged during future heating.
For heavy, burned-on soil:
1. Allow cooktop surface to cool.
2. Use a soap filled scouring pad with warm water or cover heavily soiled spots with a solution of clear water and ammonia.
Scour gently. Rinse and wipe dry with a clean cloth.
3. _fany s_i_remains_ app_ya few dr_ps _f a rec_mmended c__kt_p c_eaning cream _n the sp_ts and rub gent_y using a c_ean
damp cloth or scouring pad. Buff with a dry cloth until all soil and cream are removed. Frequent cleaning with the cooktop
cleaning cream leaves a protective coating which helps in preventing scratches and abrasions.
For sugary spillovers:
Sugary spills can chemically damage your cooktop surface. Therefore, you must begin cleaning the spills while the cooktop
is still hot. Use caution when following the steps below.
1. Turn off all surface units and remove all pans immediately.
2. Put on an oven mitt, wipe up carefully or move hot spills away from the element area with a clean damp cloth.
3. Allow the cooktop to cool. Follow the instructions above for heavy, burned-on soil.
SURFACES CLEANING AGENTS iNSTRUCTIONS
Porcelain enamel (cooktop, Mild cleaners or Blue Multi-Pur- Use a damp sponge or dampened soap pad, rinse
surface under cooktop) pose No Scratch Scrub Sponge and dry.
Broil Insert Hot, soapy water or cleaner Use a clean soapy, dampened cloth or paper towel,
Control Panel cream, remove soil and dry. Do not use abrasive products.
Coil Surface Element
To Remove and Replace Surface Elements and Drip Bowls
ATTENTION: Never leave lids on the coil elements as they could be permanently damaged if
the coil is turned on by accident.
Prior to cleaning the drip bowls make sure the coil elements are cold and the control
knobs are turned to OFF
Coil elements clean themselves when they are turned on.
Coil elements and drip bowls are removable and allow you to clean the drip bowls.
To remove a coil element, push against the front edge and lift element up and out.
To clean by hand, wash the drip bowls in hot sudsy water. For hard to remove spots, use
nylon scrubber with soap. Rinse and dry while still warm.
Never immerse coil elements in water.
Be careful not to bend terminal ends when replacing elements after cleaning.
22

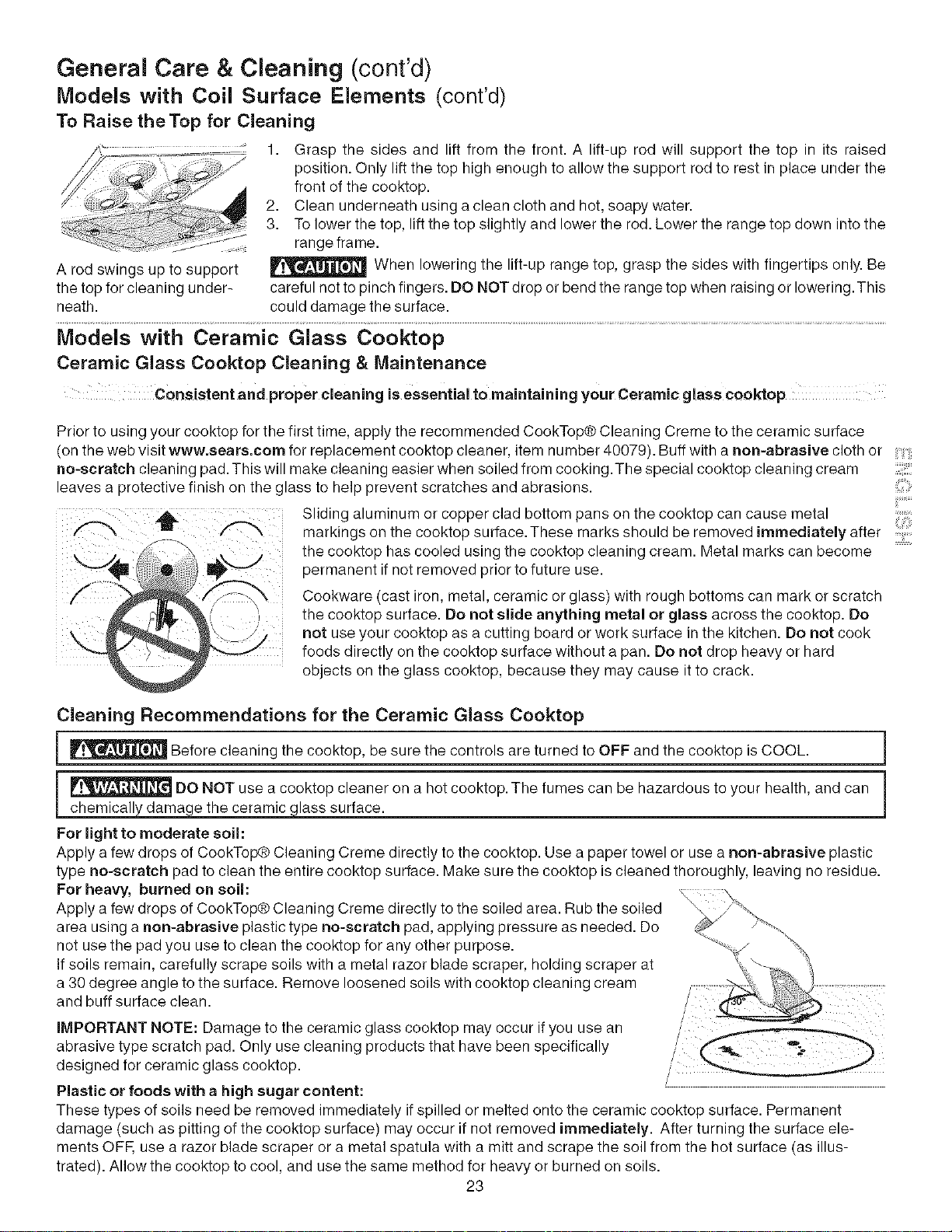

General Care & Cleaning (cont'd)
Models with Coil Surface Elements (cont'd)
To Raise theTop for Cleaning
1. Grasp the sides and lift from the front. A lift-up rod will support the top in its raised
position. Only lift the top high enough to allow the support rod to rest in place under the
front of the cooktop.
2. Clean underneath using a clean cloth and hot, soapy water.
3. To lower the top, lift the top slightly and lower the rod. Lower the range top down into the
_.. range frame.
A rod swings up to support _ When lowering the lift-up range top, grasp the sides with fingertips only. Be
the top for cleaning under- careful not to pinch fingers. DO NOT drop or bend the range top when raising or lowering. This
neath, could damage the surface.
Models with Ceramic Glass Cooktop
Ceramic Glass Cooktop Cleaning & Maintenance
Consistent and proper cleaning is essential to maintaining your Ceramic glass cooktop
Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or
no-scratch cleaning pad. This will make cleaning easier when soiled from cooking.The special cooktop cleaning cream
leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can cause metal
t _ "narKings on the cooktop surface. These marks should be removed immediately after
me COOKIOphas cooled using the cooktop cleaning cream. Metal marks can become
eermanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch
rne COOKrOpsurface. Do not slide anything metal or glass across the cooktop. Do
\ not use your cooktop as a cutting board or work surface in the kitchen. Do not cook
"-- foods direct y on the cooktop surface without a pan. Do not drop heavy or hard
objects on the glass cooktop, because they may cause it to crack.
Cleaning Recommendations for the Ceramic Glass Cooktop
Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chemicall dama e the ceramic lass surface.
For light to moderate soil:
Apply a few drops of CookTop@ Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic
type no-scratch pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled
area using a non-abrasive plastic type no-scratch pad, applying pressure as needed. Do
not use the pad you use to clean the cooktop for any other purpose.
If soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at
a 30 degree angle to the surface. Remove loosened soils with cooktop cleaning cream
and buff surface clean.
iMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you use an
abrasive type scratch pad. Only use cleaning products that have been specifically
designed for ceramic glass cooktop.
/
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent
damage (such as pitting of the cooktop surface) may occur ifnot removed immediately. After turning the surface ele-
ments OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illus-
trated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.
23

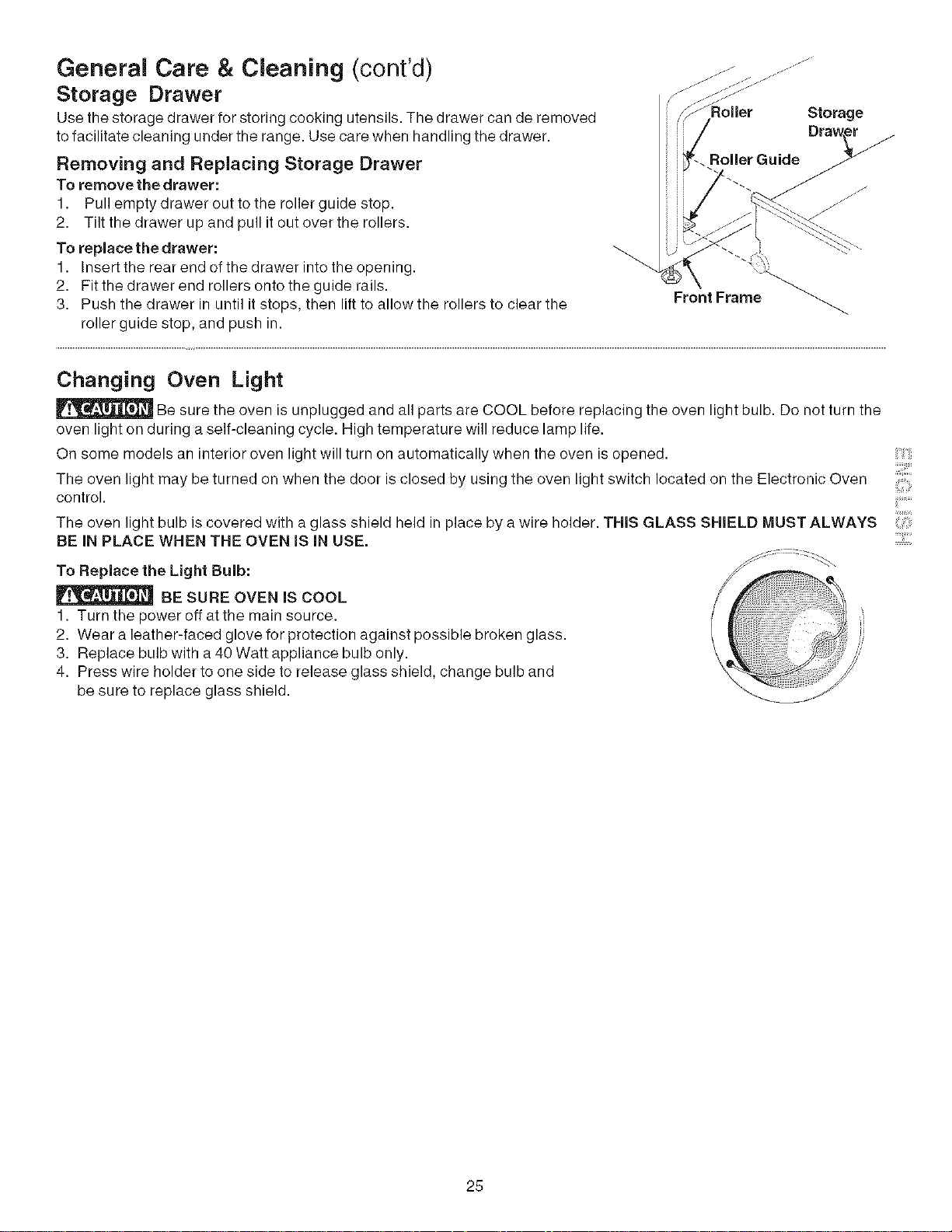

General Care & Cleaning (cont'd)
Storage Drawer
Use the storage drawer for storing cooking utensils. The drawer can de removed
to facilitate cleaning under the range. Use care when handling the drawer.
Removing and Replacing Storage Drawer
To remove the drawer:
1. Pull empty drawer out to the roller guide stop.
2. Tilt the drawer up and pull it out over the rollers.
To replace the drawer:
1. Insert the rear end of the drawer into the opening.
2. Fit the drawer end rollers onto the guide rails.
3. Push the drawer in until it stops, then lift to allow the rollers to clear the
roller guide stop, and push in.
Storage
Front Frame'_
Changing Oven Light
Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the
oven light on during a self-cleaning cycle. High temperature will reduce lamp life.
On some models an interior oven light will turn on automatically when the oven is opened.
The oven light may be turned on when the door is closed by using the oven light switch located on the Electronic Oven
control. ..........
The oven light bulb is covered with a glass shield held in place by a wire holder. THIS GLASS SHIELD MUST ALWAYS {S
BE IN PLACE WHEN THE OVEN IS IN USE.
To Replace the Light Bulb:
BE SURE OVEN iS COOL
1. Turn the power off at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
3. Replace bulb with a 40 Watt appliance bulb only.
4. Press wire holder to one side to release glass shield, change bulb and
be sure to replace glass shield.
25
Your Home
For expert troubleshooting and home solutions advice:
manage home
www.managemyhome.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night(U.S.A, and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n Au Canada pour service en fran£ais:
a domicilio, y para ordenar piezas: 1-800-LE-FOYER Mo
1-888-SU-HOGAR ® (1-800-533-6937)
(1-888-784-6427) Se_l_ www.sears.ca
TM SM
® Registered Trademark / Trademark / Service Mark of Sears Brands, LLC
SM
® Marca Registrada / TM Marca de F&brica / Marca de Servicio de Sears Brands, LLC
MD
MC Marque de commerce / Marque d6pos6e de Sears Brands, LLC © Sears Brands, LLC
