Operator's Manual
nEXTEC
12.0-Volt LITHIUM-ION MULTI-SAW
Model No. 320. 10004
©
Powered by an
ENERGYSTAR®
qualified battery
chargerfor a
Ilmll:i_'dk'11V!l,'tlbetter environment
_, CAUTION! Read, understand and
follow all Safety Rules and Operating
Instructions in this Manual before
using this product.
Charge battery before use.
0( us
• Warranty
• Safety
• Assembly
• Description
• Operation
• Maintenance
Sears Brands Management Corporation
www.craftsman.com
bL'_:]_ _o__o_

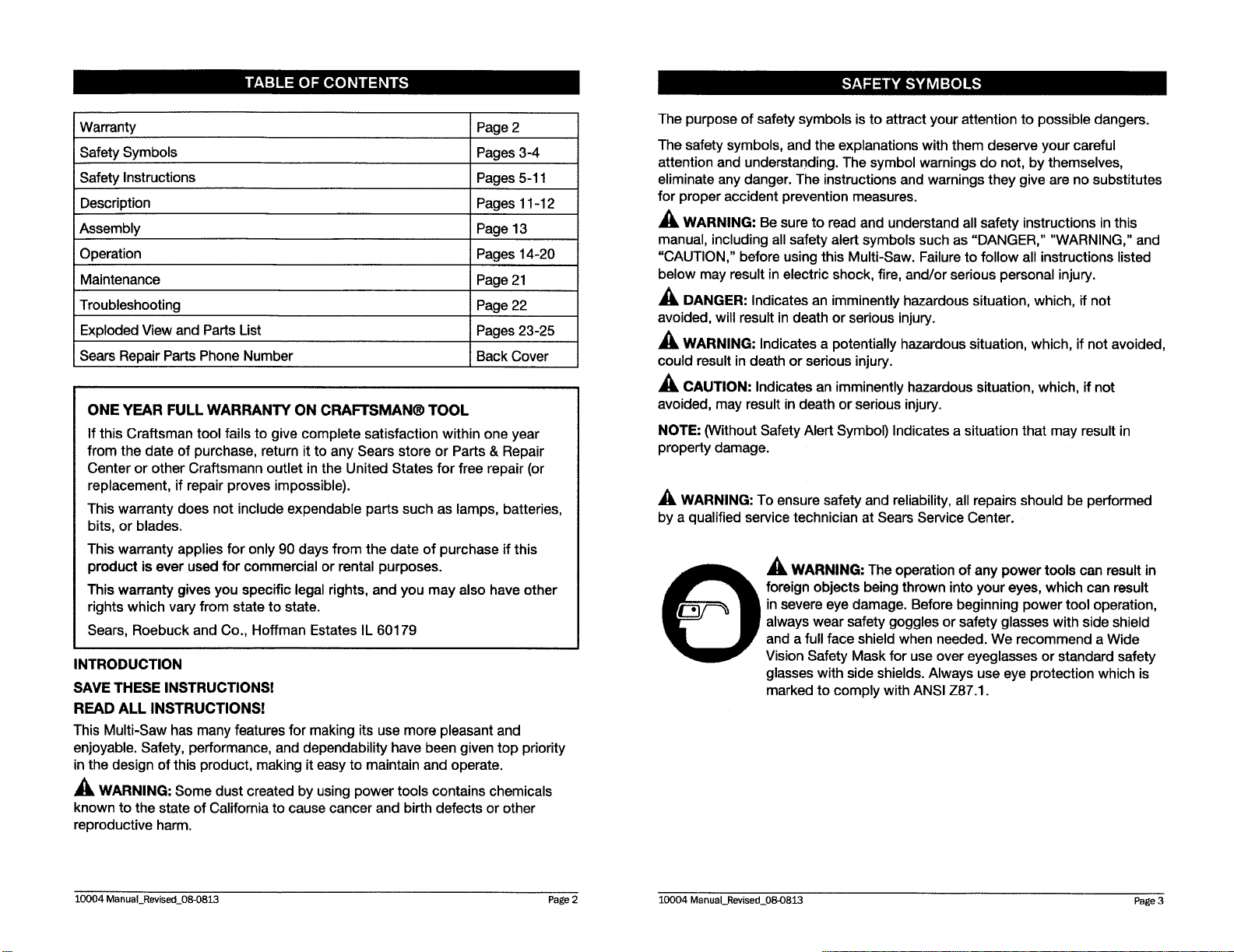

Warranty Page 2
Safety Symbols Pages 3-4
Safety Instructions Pages 5-11
Description Pages 11-12
Assembly Page 13

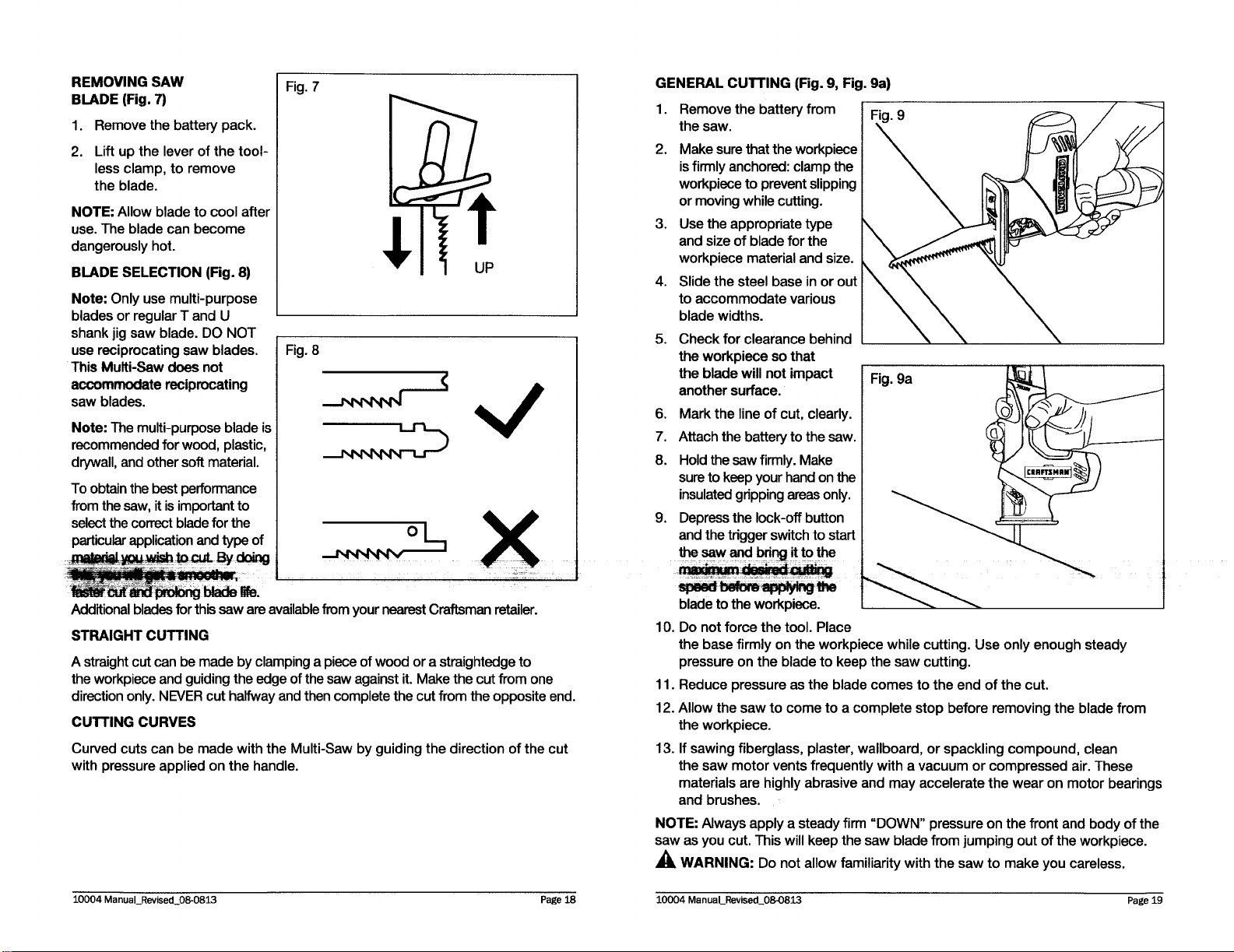

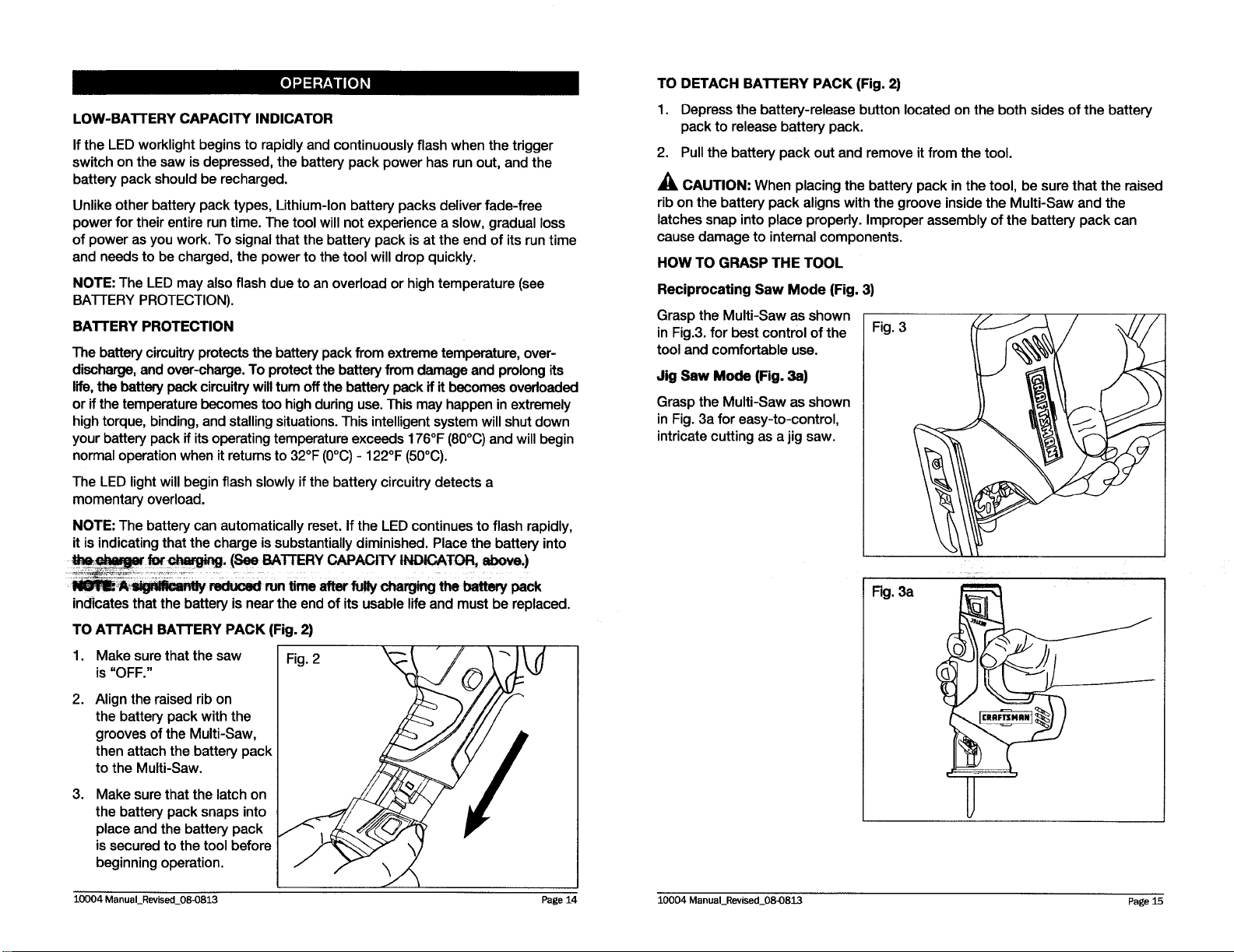

Operation Pages 14-20

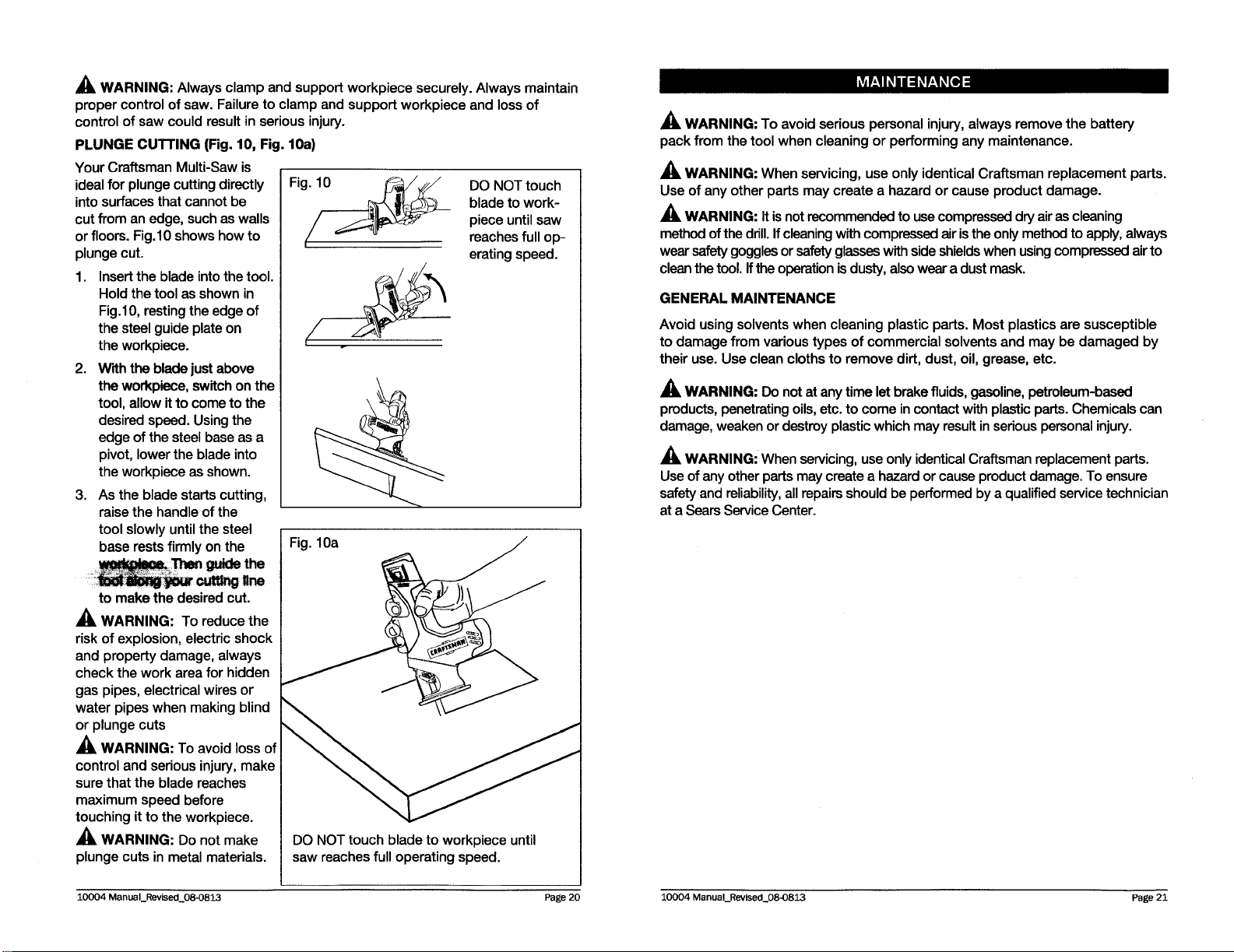

Maintenance Page 21
Troubleshooting Page 22

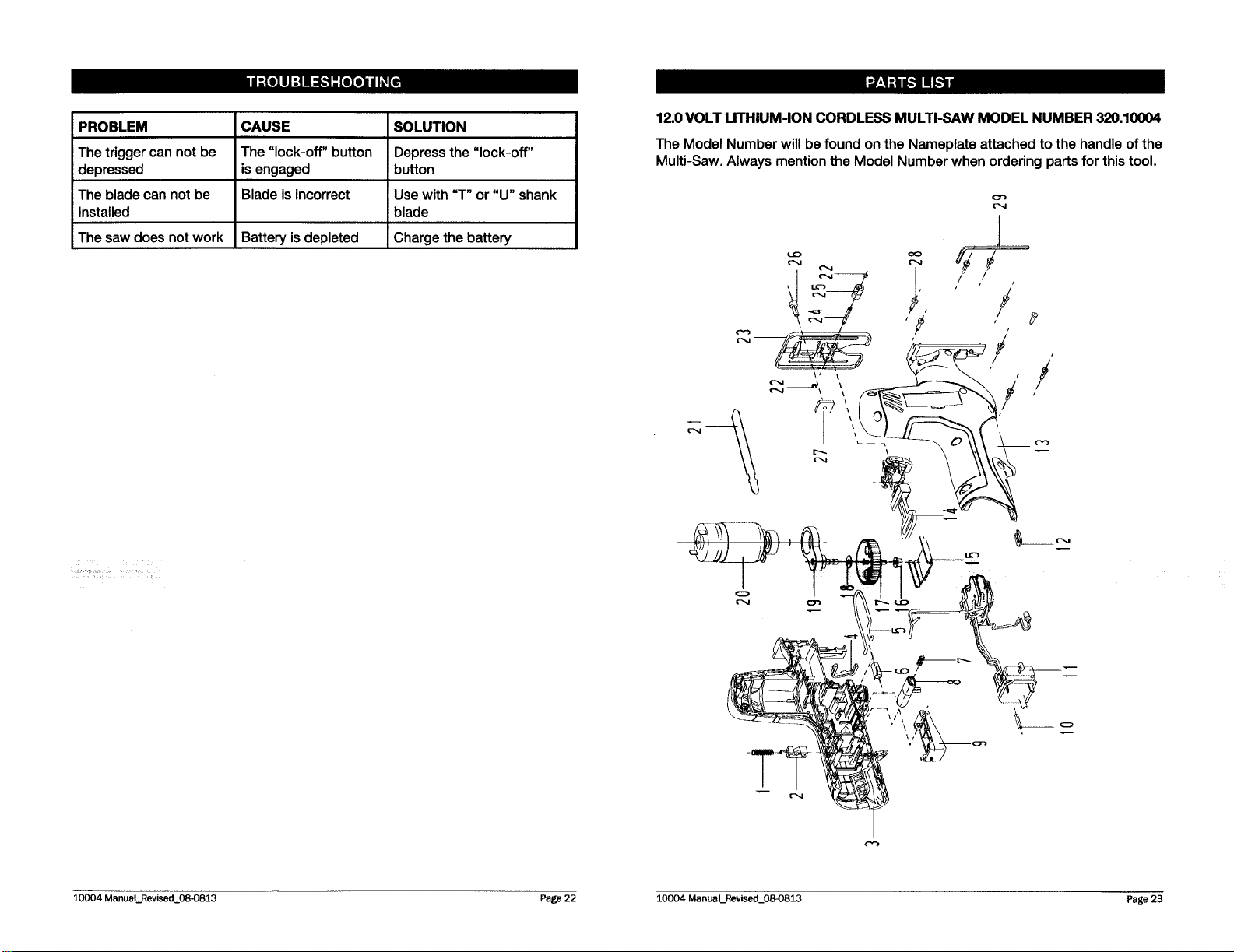

Exploded View and Parts List Pages 23-25
Sears Repair Parts Phone Number Back Cover
ONE YEAR FULL WARRANTY ON CRAFTSMAN® TOOL
If this Craftsman tool fails to give complete satisfaction within one year
from the date of purchase, return it to any Sears store or Parts & Repair
Center or other Craftsmann outlet in the United States for free repair (or
replacement, if repair proves impossible).
This warranty does not include expendable parts such as lamps, batteries,
bits, or blades.
This warranty applies for only 90 days from the date of purchase if this
product is ever used for commercial or rental purposes.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates IL 60179
INTRODUCTION
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
This Multi-Saw has many features for making its use more pleasant and
enjoyable. Safety, performance, and dependability have been given top priority
in the design of this product, making it easy to maintain and operate.
_, WARNING: Some dust created by using power tools contains chemicals
known to the state of California to cause cancer and birth defects or other
reproductive harm.
The purpose of safety symbols is to attract your attention to possible dangers.
The safety symbols, and the explanations with them deserve your careful
attention and understanding. The symbol warnings do not, by themselves,
eliminate any danger. The instructions and warnings they give are no substitutes
for proper accident prevention measures.
,_ WARNING: Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols such as "DANGER," "WARNING," and
"CAUTION," before using this Multi-Saw. Failure to follow all instructions listed
below may result in electric shock, fire, and/or serious personal injury.
_lk DANGER: Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
_, CAUTION: Indicates an imminently hazardous situation, which, if not
avoided, may result in death or serious injury.
NOTE: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
,_ WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at Sears Service Center.
O
_b, WARNING: The operation of any power tools can result in
foreign objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shield
and a full face shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.
10004 Manual_Revised_08-0813 Page 2 10004 Manual Revised_08-0813 Page 3

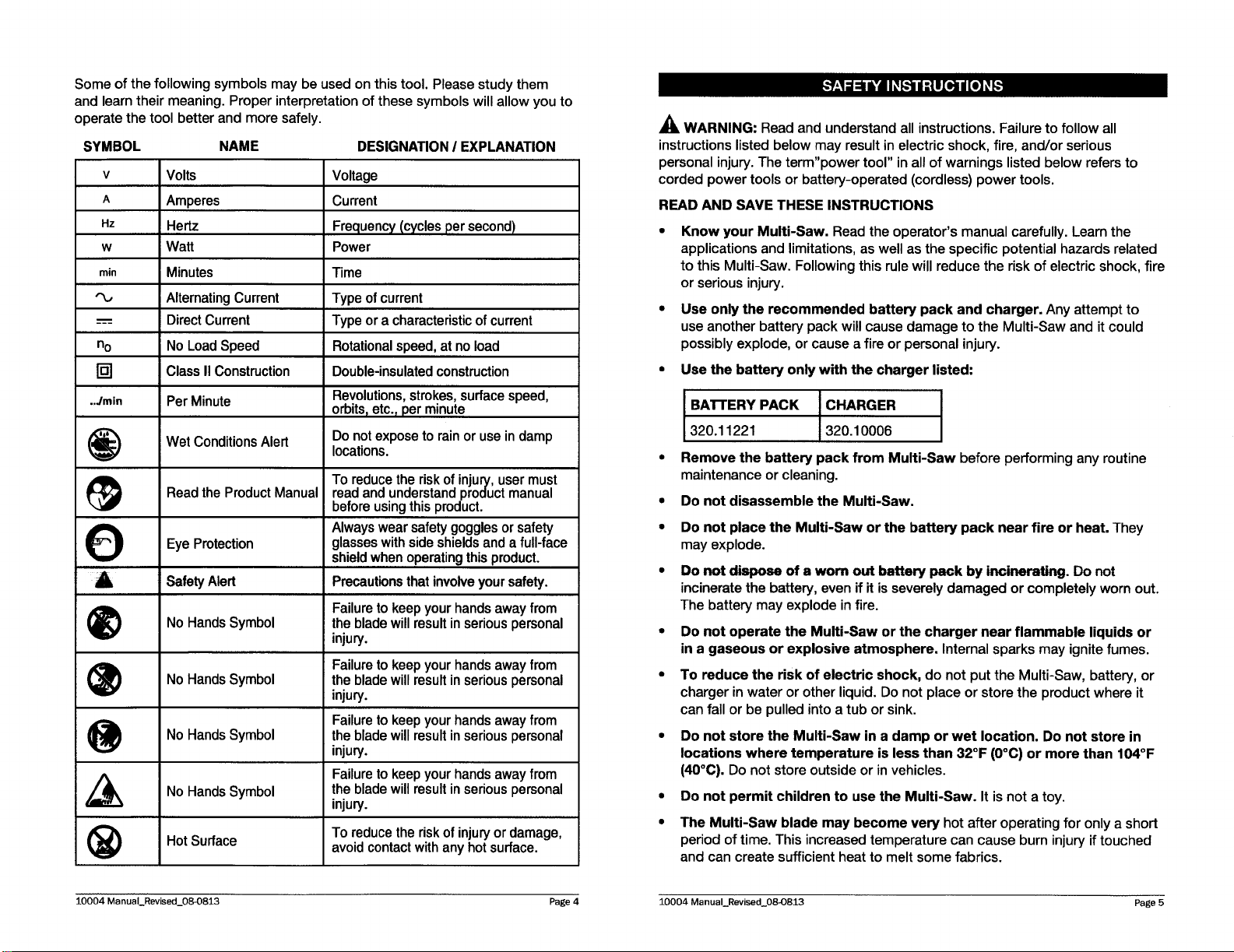

Some of the following symbols may be used on this tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and more safely.
[."7'..__1:l i'd li_[,._Jlil_tllO]ld[O_]_,.'.)
SYMBOL NAME DESIGNATION / EXPLANATION
v
A
Hz
W
min
,%,
no
[]
..Jmin
0
Volts
Amperes
Hertz
Watt
Minutes
Alternating Current
Direct Current
No Load Speed
Class IIConstruction
Per Minute
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristicof current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed,
orbitst etc._ per minute
Do not expose to rain or use in damp
locations.
Wet Conditions Alert
To reduce the risk of injury, user must
Read the Product Manual read and understand product manual
before using this product.
Always wear safety goggles or safety
Eye Protection glasses with side shields and a full-face
shield when operating this product.
A Safety Alert Precautionsthat involveyour safety.
(_ Failure to keep your hands away from
No Hands Symbol the blade will result in serious personal
injury.
Failure to keep your hands away from
No Hands Symbol the blade will result in serious personal
injury.
_) Failure to keep your hands away from
No Hands Symbol the blade will result in serious personal
injury.
Failure to keep your hands away from
No Hands Symbol the blade will result in serious personal
injury.
(_) To reduce the risk of injuryor damage,Hot Surface avoid contact with any hot surface.
10004 Manual Revised_08-0813 Page 4
WARNING: Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire, and/or serious
personal injury. The term"power tool" in all of warnings listed below refers to
corded power tools or battery-operated (cordless) power tools.
READ AND SAVE THESE INSTRUCTIONS
Know your Multi-Saw. Read the operator's manual carefully. Learn the
applications and limitations, as well as the specific potential hazards related
to this Multi-Saw. Following this rule will reduce the risk of electric shock, fire
or serious injury.
Use only the recommended battery pack and charger. Any attempt to
use another battery pack will cause damage to the Multi-Saw and it could
possibly explode, or cause a fire or personal injury.
Use the battery only with the charger listed:
BA'n'ERY PACK CHARGER
320.11221 320.10006
Remove the battery pack from Multi-Saw before performing anyroutine
maintenanceor cleaning.
Do not disassemble the Multi-Saw.
Do not place the Multi-Saw or the battery pack near fire or heat. They
may explode.
Do not dispose of a wom out battery pack by incinerating. Do not
incinerate the battery, even if it is severely damaged or completely worn out.
The battery may explode in fire.
Do not operate the Multi-Saw or the charger near flammable liquids or
in a gaseous or explosive atmosphere. Internal sparks may ignite fumes.
To reduce the risk of electric shock,do not put the Multi-Saw, battery, or
chargerinwateror otherliquid.Do notplace or storethe productwhereit
canfall or bepulledintoa tubor sink.
Do not store the Multi-Saw in a damp or wet location. Do not store in
locations where temperature is less than 32°F (0°C) or more than 104°F
(40°C). Do not store outside or in vehicles.
Do not permit children to use the Multi-Saw. It is not a toy.
The Multi-Saw blade may become very hot after operating for only a short
period of time. This increased temperature can cause burn injury if touched
and can create sufficient heat to melt some fabrics.
10004 Manual Revised 08-0813 Page 5

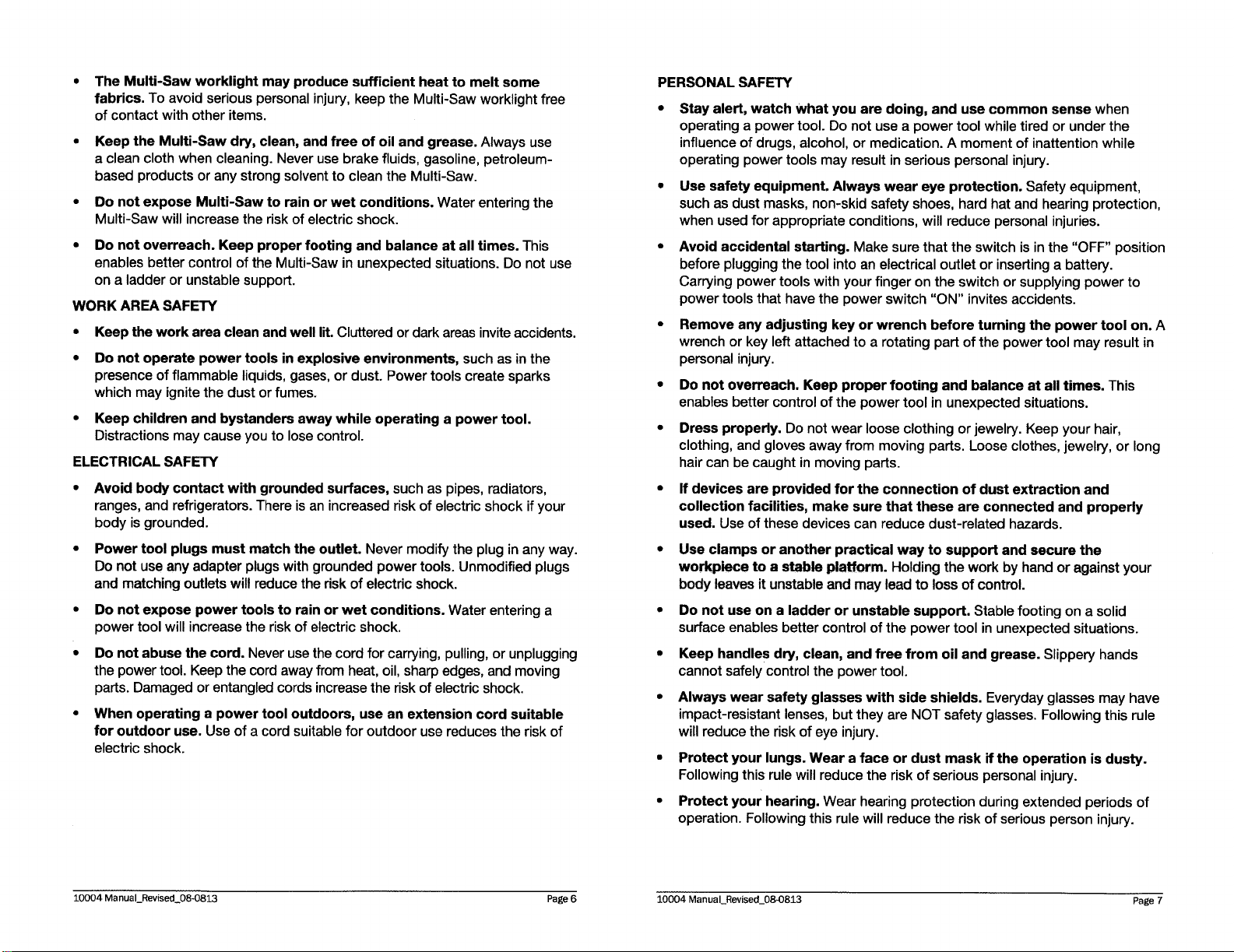

• The Multi-Saw worklight may produce sufficient heat to melt some
fabrics. To avoid serious personal injury, keep the Multi-Saw worklight free
of contact with other items.
Keep the Multi-Saw dry, clean, and free of oil and grease. Always use
a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-
based products or any strong solvent to clean the Multi-Saw.
Do not expose Multi-Saw to rain or wet conditions. Water entering the
Multi-Saw will increase the risk of electric shock.
• Do not overreach. Keep proper footing and balance at all times. This
enables better control of the Multi-Saw in unexpected situations. Do not use
on a ladder or unstable support.
WORK AREA SAFETY
Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive environments, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
Distractions may cause you to lose control.
ELECTRICAL SAFETY
Avoid body contact with grounded surfaces, such as pipes, radiators,
ranges, and refrigerators. There isan increased risk of electric shock ifyour
body isgrounded.
Power tool plugs must matchthe outlet. Nevermodify the pluginanyway.
Donot useanyadapterplugswithgroundedpowertools.Unmodifiedplugs
and matchingoutletswillreducethedskof electricshock.
Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging
the power tool. Keep the cord away from heat, oil, sharp edges, and moving
parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
PERSONALSAFETY
Stay alert, watch what you are doing, and use common sense when
operating a power tool. Do not use a power tool while tired or under the
influence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
Use safety equipment. Always wear eye protection. Safety equipment,
such as dust masks, non-skid safety shoes, hard hat and hearing protection,
when used for appropriate conditions, will reduce personal injuries.
Avoid accidental starting. Make sure that the switch is in the "OFF" position
before plugging the tool into an electrical outlet or inserting a battery.
Carrying power tools with your finger on the switch or supplying power to
power tools that have the power switch "ON" invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A
wrench or key left attached to a rotating part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and
collection facilities, make sure that these are connected and properly
used. Use of these devices can reduce dust-related hazards.
Use clamps or another practical way to support and secure the
workpiece to a stable platform. Holding the work by hand or against your
body leaves it unstable and may lead to loss of control.
Do not use on a ladder or unstable support. Stable footing on a solid
surface enables better control of the power tool in unexpected situations.
Keep handles dry, clean, and free from oil and grease. Slippery hands
cannot safely control the power tool.
Always wear safety glasses with side shields. Everyday glasses may have
impact-resistant lenses, but they are NOT safety glasses. Following this rule
will reduce the risk of eye injury.
• Protect your lungs. Wear a face or dust mask if the operation is dusty.
Following this rule will reduce the risk of serious personal injury.
• Protect your hearing. Wear hearing protection during extended periods of
operation. Following this rule will reduce the risk of serious person injury.
10004 Manual_Revised 08-0813 Page 6 10004 Manual_Revised_08-0813 Page 7

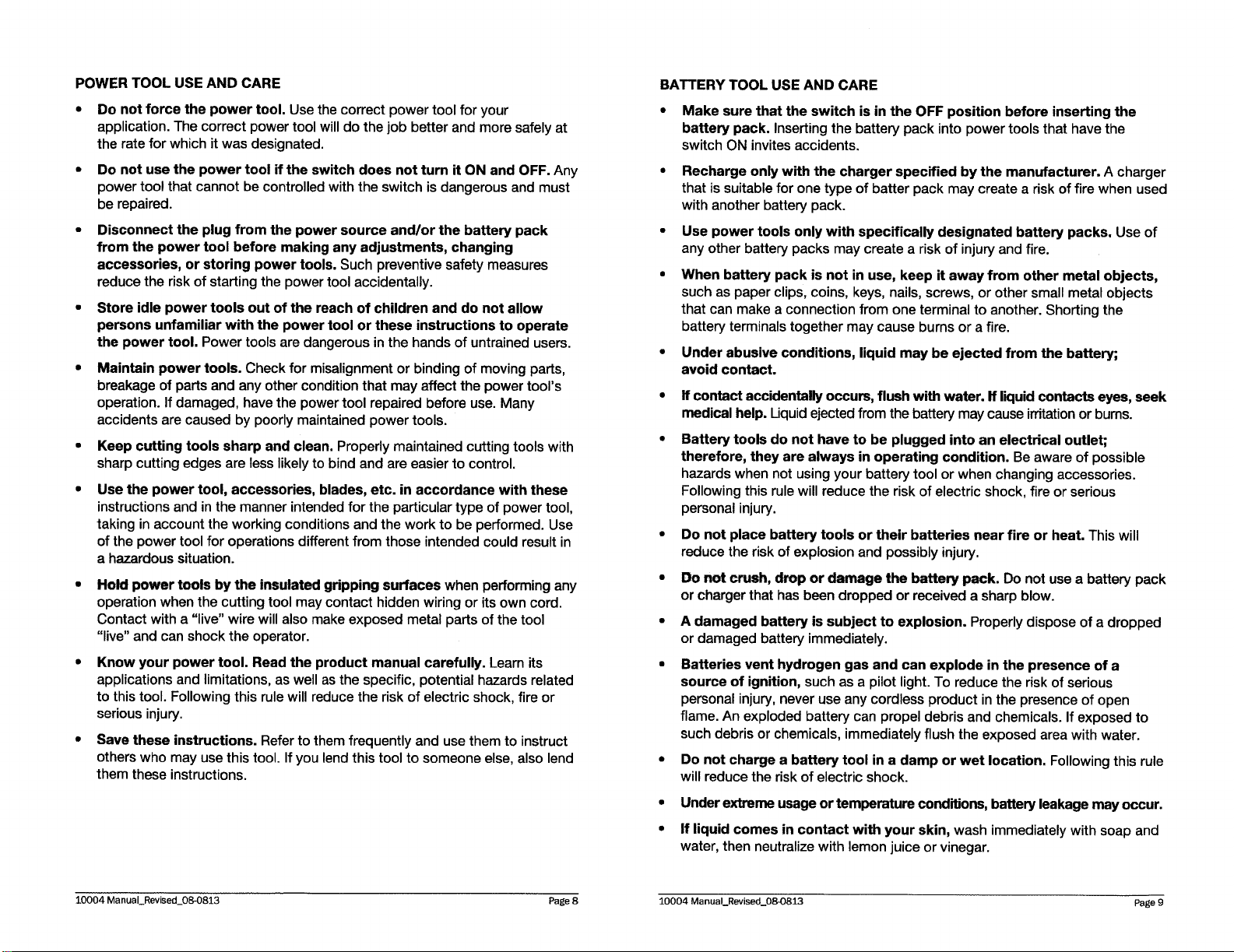

POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and more safely at
the rate for which it was designated.
Do not use the power tool if the switch does not turn it ON and OFF. Any
power tool that cannot be controlled with the switch isdangerous and must
be repaired.
Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool's
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properlymaintainedcuttingtoolswith
sharpcuttingedgesare tesslikelytobindand areeasiertocontrol.
Use the power tool, accessories, blades, etc. in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking in account the working conditions and the work to be performed. Use
of the power tool for operations different from those intended could result in
a hazardous situation.
Hold power tools by the insulated gripping surfaces when performing any
operation when the cutting tool may contact hidden wiring or itsown cord.
Contact with a "live" wire will also make exposed metal parts of the tool
"live" and can shock the operator.
Know your power tool. Read the product manual carefully. Learn its
applications and limitations, as well as the specific, potential hazards related
to this tool. Following this rule will reduce the risk of electric shock, fire or
serious injury.
Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. Ifyou lend this tool to someone else, also lend
them these instructions.
BATTERY TOOL USE AND CARE
• Make sure that the switch is in the OFF position before inserting the
battery pack. Inserting the battery pack into power tools that have the
switch ON invites accidents.
Recharge only with the charger specified by the manufacturer. A charger
that issuitable for one type of batter pack may create a risk of fire when used
with another battery pack.
Use power tools only with specifically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects,
such as paper clips, coins, keys, nails, screws, or other small metal objects
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery;
avoid contact.
If contact accidentally occurs, flush with water. If liquid contacts eyes, seek
medical help. Liquid ejected from the battery may cause irritation or burns.
Battery tools do not have to be plugged into an electrical outlet;
therefore, they are always in operating condition. Be aware of possible
hazards when not using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock, fire or serious
personal injury.
Do not place battery tools or their batteries near fire or heat. This will
reduce the risk of explosion and possibly injury.
Do not crush, drop or damage the battery pack. Do notusea battery pack
orchargerthat hasbeen dropped or received a sharpblow.
A damaged battery is subject to explosion. Properly dispose of a dropped
or damaged battery immediately.
Batteries vent hydrogen gas and can explode in the presence of a
source of ignition, such as a pilot light. To reduce the risk of serious
personal injury, never use any cordless product in the presence of open
flame. An exploded battery can propel debris and chemicals. If exposed to
such debris or chemicals, immediately flush the exposed area with water.
Do not charge a battery tool in a damp or wet location. Following this rule
will reduce the risk of electric shock.
• Under extreme usage or temperature conditions, battery leakage may occur.
• If liquid comes in contact with your skin, wash immediately with soap and
water, then neutralize with lemon juice or vinegar.
10004 Manual_Revised._08-0813 Page 8 10004 ManuaLRevised_08-0813 Page 9

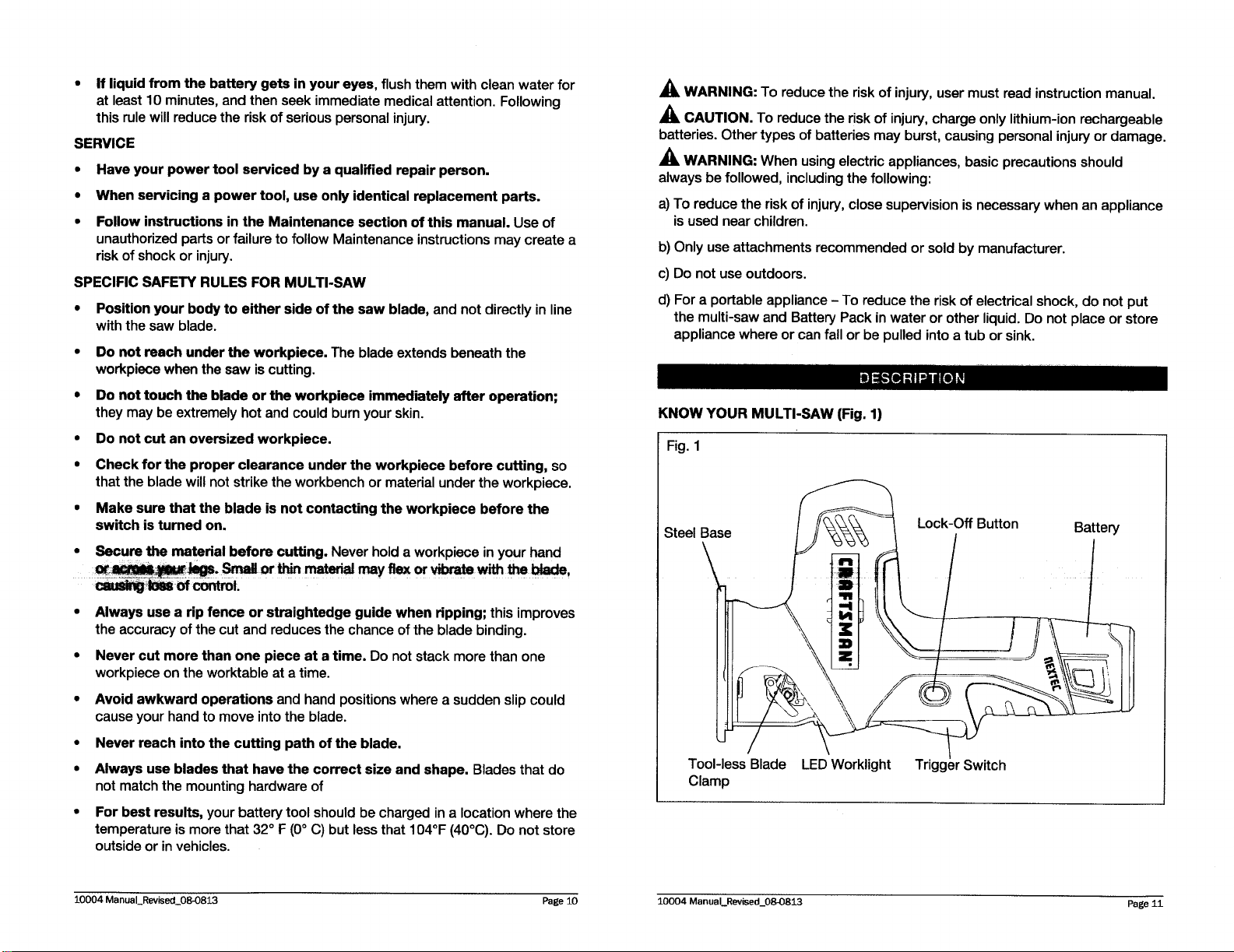

• If liquid from the battery gets in your eyes, flush them with clean water for
at least 10 minutes, and then seek immediate medical attention. Following
this rule will reduce the risk of serious personal injury.
SERVICE
• Have your power tool serviced by a qualified repair person.
• When servicing a power tool, use only identical replacement parts.
• Follow instructions in the Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance instructions may create a
risk of shock or injury.
SPECIFIC SAFETY RULES FOR MULTI-SAW
• Position your body to either side of the saw blade, and not directly in line
with the saw blade.
• Do not reach under the workpiece. The blade extends beneath the
workpiece when the saw is cutting.
• Do not touch the blade or the workpiece immediately after operation;
they may be extremely hot and could burn your skin.
• Do not cut an oversized workpiece.
• Check for the proper clearance under the workpiece before cutting, so
that the blade will not strike the workbench or material under the workpiece.
• Make sure that the blade is not contacting the workpiece before the
switch is turned on,
• Secure the martial before cutting. Never hold a workpiece in your hand
. or maysexor
• Always use a rip fence or straightedge guide when ripping; this improves
the accuracy of the cut and reduces the chance of the blade binding.
• Never cut more than one piece at a time. Do not stack more than one
workpiece on the worktable at a time.
• Avoid awkward operations and hand positions where a sudden slip could
cause your hand to move into the blade.
• Never reach into the cutting path of the blade.
• Always use blades that have the correct size and shape. Blades that do
not match the mounting hardware of
• For best results, your battery tool should be charged in a location where the
temperature is more that 32° F (0° C) but less that 104°F (40°C). Do not store
outside or in vehicles.
a WARNING: To reduce the risk of injury, user must read instruction manual.
a CAUTION. To reduce the risk of injury, charge only lithium-ion rechargeable
batteries. Other types of batteries may burst, causing personal injury or damage.
a WARNING: When using electric appliances, basic precautions should
always be followed, including the following:
a) To reduce the risk of injury, close supervision is necessary when an appliance
is used near children.
b) Only use attachments recommended or sold by manufacturer.
c) Do not use outdoors.
d) For a portable appliance - To reduce the risk of electrical shock, do not put
the multi-saw and Battery Pack in water or other liquid. Do not place or store
appliance where or can fall or be pulled into a tub or sink.
KNOW YOUR MULTI-SAW (Fig. 1)
Fig. 1
Steel Base
Lock-Off Button
Battery
Tool-less Blade LED Worklight Trigger Switch
Clamp
10004 Manual_Revised 08-0813 Page 10 10004 Manual_Revised_08-0813 Page 11
PRODUCT SPECIFICATIONS
Motor Voltage 12V DC
No load speed 2000SPM
Length of stroke 16mm
Blade type !T and U shank
Saw weight (without battery) 1.llbs
Battery type Lithium-ion
Battery Voltage 12V DC
Charging Adaptor Output 12.5 V
Optimum charging temperature 32°F (0° C) -104°F (40°C)
_i, WARNING: The safe use of this product requires an understanding of
the information included on the tool and in this operator's manual, as well
as knowledge of the project you are attempting. Before using this product,
familiarize yourself with all operating features and safety rules
TOOL-LESS BLADE CLAMP
The blade clamp design does not require the use of a tool (such as a blade
wrench) when installing or removing the blade.
LOCK-OFF BUTTON
The lock-off button reduces the possibility of accidental starting. The lock-off
button is located on the handle above the trigger switch. It must be depressed in
The LED worklight, located above the tool-less blade clamp, illuminates when the
trigger switch is depressed. This feature provides extra light for increased visibility.
a WARNING: If any part is broken or missing, DO NOT attempt to plug in
the power cord or operate the saw until the broken or missing part is replaced.
Failure to do so could result in possible serious injury.
a WARNING: Do not attempt to modify this saw or create accessories not
recommended for use with thissaw. Any such alteration or modification ismisuse
and could result in a hazardous condition leading to possible serious injury.
_, WARNING: To prevent accidental starting that could cause serious personal
injury, always disconnect the tool from the power source when assembling parts.
UNPACKING
This product has been shipped completely assembled.
• Carefully remove the tool and any accessories from the box. Make sure that
all items listed in the packing list are included.
• Inspect the tool carefully to make sure that no breakage or damage occurred
during shipping.
• Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
• If any parts are damaged or missing, please refer to the numbers listed on
the back page of operator's manual.
PACKING LIST
Multi-Saw,2pc Multi-purposeblades, 1pcon-boardhexkey, Operator'sManual.
10004 Manual_Revised_08-0813 Page 12 10004 Manual Revised_08-0813 Page 13
[o)_j_[o)_
LOW-BATTERY CAPACITY INDICATOR
If the LED worklight begins to rapidly and continuously flash when the trigger
switch on the saw is depressed, the battery pack power has run out, and the
battery pack should be recharged.
Unlike other battery pack types, Lithium-Ion battery packs deliver fade-free
power for their entire run time. The tool will not experience a slow, gradual loss
of power as you work. To signal that the battery pack isat the end of its run time
and needs to be charged, the power to the tool will drop quickly.
NOTE: The LED may also flash due to an overload or high temperature (see
BAI-rERY PROTECTION).
BATTERY PROTECTION
The battery circuitry protects the battery pack from extreme temperature, over-
discharge, and over-charge. To protect the battery from damage and prolong its
life, the battery pack circuitry willturn off the battery pack if it becomes overloaded
or ifthe temperature becomes too high during use. This may happen in extremely
high torque, binding, and stalling situations. This intelligent system will shut down
your battery pack if itsoperating temperature exceeds 176°F (800(3)and will begin
normal operation when it returns to 32°F (0°C) - 122°F (50°C).
The LED light will begin flash slowly ifthe battery circuitry detects a
momentary overload.
NOTE: The battery can automatically reset. If the LED continues to flash rapidly,
it is indicating that the charge is substantially diminished. Place the battery into
n__ _ runtime_ fuNycharg_ thebatterypack
indicates that the battery is near the end of its usable life and must be replaced.
TO ATTACH BATTERY PACK (Fig. 2)
Make sure that the latch on
the battery pack snaps into
place and the battery pack
is secured to the tool before
beginning operation.
1. Makesurethatthesaw • _ "
is "OFF."
2. Align theraised rib on
the batterypackwiththe
groovesofthe Multi-Saw,
thenattachthebatterypack
to theMulti-Saw.
3.
10004 Manual_Revised_08-0813 Page 14
TO DETACH BATTERY PACK (Fig. 2)
1. Depress the battery-release button located on the both sides of the battery
pack to release battery pack.
2. Pullthe battery pack out and remove it from the tool.
_, CAUTION: When placing the battery pack in the tool, be sure that the raised
rib on the battery pack aligns with the groove inside the Multi-Saw and the
latches snap into place properly. Improper assembly of the battery pack can
cause damage to internal components.
HOW TO GRASP THE TOOL
Reciprocating Saw Mode (Fig. 3)
Grasp the Multi-Saw as shown
in Fig.3. for best control of the
tool and comfortable use.
Jig Saw Mode (Fig. 3a)
Grasp the Multi-Saw as shown
in Fig. 3a for easy-to-control,
intricate cutting as a jig saw.
Fig. 3
10004 Ma nual_Revised._08-0813
Page 15
TRIGGER SWITCH (Fig. 4)
To turn the saw ON, depress
the lock-off button and then
depress the trigger switch.
To turn it OFF, release the
trigger switch and the lock-off
button will automatically locked.
NOTE: The lock-off button can
be activated when the trigger
isreleased.
,_ WARNING: Battery
tools are always in operating
condition. Therefore, the trigger
switch should always be locked
when not in use or when
carrying the tool at your side.
ELECTRIC BRAKE
To stopthe Multi-Saw,release
thetriggerswitchand allow the
toolto cometoa completestop.
The electdcbrakequicklystops
thesaw blade.Thisfeature
engagesautomaticallywhen
youreleasethetriggerswitch.
Fig. 4
_/_' Trigger
\ Lock-O.
'L__ :.:,' Button
t J
above the tool-less blade clamp, provides additional lighting on the surface of
the workpiece for operation in lower-light areas. The LED work will come on
when the trigger switch is depressed. The LED worklight will turn off when the
trigger switch is released.
INSTALLING SAW
BLADE (Fig. 6, Fig. 6a)
1. Remove the battery pack.
2. Turn the tool upside down,
and insert the blade into the
slot of the tool-less blade
clamp until it locks into
place. The blade must rest
in the groove of the guide
roller as indicated in Fig. 8.
To Slide Steel Base In or Out:
(See Fig.6b)
The steel base slides in or out to
accommodate various
blade widths.
1. Remove the battery.
2. Loosen the Hexagon
Socket Screw
3. Pull the steel base to
desired position (the base
moves a maximum of 1/4
inch forward or backward).
4. Tighten the Hexagon
Socket Screw.
er
Fig. 6a _/
__ide Roller
F000 /--7
Hexagon socket screw / \ /]
10004 ManuaLRevised_08-0813 Page 16 10004 Manual Revised_08-0813 Page 17
REMOVING SAW
BLADE (Fig. 7)
1. Remove the battery pack.
2. Lift up the lever of the tool-
less clamp, to remove
the blade.
NOTE: Allow blade to cool after
use. The blade can become
dangerously hot.
BLADE SELECTION (Fig. 8)
Note: Only use multi-purpose
blades or regular T and U
shank jig saw blade. DO NOT
use reciprocating saw blades.
This Multi-Saw does not
accommodate reciprocating
saw blades.
Note: Themulti-purposeblade is
recommendedforwood,plastic,
drywall,andothersoftmaterial.
To obtain the best performance
from the saw, it isimportantto
select the correct blade for the
particularapplicationand type of
Fig. 7
Fig. 8
o, x
AdditionalbladesforthissawareavailablefromyournearestCraftsmanretailer.
STRAIGHT CUTTING
A straight cut can be made by clamping a piece of wood or a straightedge to
the workpiece and guiding the edge of the saw against it. Make the cut from one
direction only. NEVER cut halfway and then complete the cut from the opposite end.
CUTTING CURVES
Curved cuts can be made with the Multi-Saw by guiding the direction of the cut
with pressure applied on the handle.
GENERAL CUTTING (Fig. 9, Fig. 9a)
1. Remove the battery from
the saw.
2. Make sure that the workpiece
isfirmly anchored: clamp the
workpiece to prevent slipping
or movingwhile cutting.
3. Use the appropriate type
and size of blade for the
workpiece material and size.
4. Slide the steel base in or out
to accommodate various
blade widths.
5. Check forclearance behind
theworkpiecesothat
the bladewillnot impact
anothersurface.
6. Mark the line of cut, clearly.
7. Attach the battery to the saw.
8. Hold the saw firmly. Make
sure to keep your hand on the
insulated gripping areas only.
9. Depress the lock-off button
and the trigger switch to start
Fig. 9a
_ saw _ bdng it to the
_ before_e_e
blade to the workpiece.
10. Do not force the tool. Place
the base firmly on the workpiece while cutting. Use only enough steady
pressure on the blade to keep the saw cutting.
11. Reduce pressure as the blade comes to the end of the cut.
12. Allow the saw to come to a complete stop before removing the blade from
the workpiece.
13. If sawing fiberglass, plaster, wallboard, or spackling compound, clean
the saw motor vents frequently with a vacuum or compressed air. These
materials are highly abrasive and may accelerate the wear on motor bearings
and brushes.
NOTE: Always apply a steady firm "DOWN" pressure on the front and body of the
saw as you cut. This will keep the saw blade from jumping out of the workpiece.
_b, WARNING: Do not allow familiarity with the saw to make you careless.
10004 Manual_Revised_08-0813 Page 18 10004 Manual_Revised_08-08!3 Page 19
,_ WARNING: Always clamp and support workpiece securely. Always maintain
proper control of saw. Failure to clamp and support workpiece and loss of
control of saw could result in serious injury.
PLUNGE cu'n'ING (Fig. 10, Fig. 10a)
Your Craftsman Muiti-Saw is
ideal for plunge cutting directly
into surfaces that cannot be
cut from an edge, such as walls
or floors. Fig.10 shows how to
plunge cut.
1. Insert the blade into the tool.
Hold the tool as shown in
Fig.10, resting the edge of
the steel guide plate on
the workpiece.
2. With the blade just above
the workpiece, switch on the
tool, allow itto come to the
desired speed. Using the
edge of the steel base as a
pivot, lower the blade into
the workpiece as shown.
3. As the blade starts cutting,
raise the handle of the
tool slowly until the steel
base rests firmly on the
to makethedesiredcut.
_, WARNING: To reduce the
risk of explosion, electric shock
and property damage, always
check the work area for hidden
gas pipes, electrical wires or
water pipes when making blind
or plunge cuts
_1_ WARNING: To avoid loss of
control and serious injury, make
sure that the blade reaches
maximum speed before
touching it to the workpiece.
_IL WARNING: Do not make
plunge cuts in metal materials.
DO NOTtouch
blade to work-
piece until saw
reachesfullop-
eratingspeed.
Fig.10a
DO NOT touch blade to workpiece until
saw reaches full operating speed.
_IL WARNING: To avoid serious personal injury, always remove the battery
pack from the tool when cleaning or performing any maintenance.
_, WARNING" When servicing, use only identical Craftsman replacement parts.
Use of any other parts may create a hazard or cause product damage.
_, WARNING" Itis not recommended to usecompressed dry airas cleaning
method ofthe drill. Ifcleaningwith compressed airisthe only method to apply, always
wear safetygoggles or safety glasses with side shieldswhen usingcompressed air to
cleanthe tool. Ifthe operation isdusty, alsowear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible
to damage from various types of commercial solvents and may be damaged by
their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
A WARNING: Do not at any time let brake fluids, gasoline, petroleum-based
products, penetrating oils, etc. to come in contact with plastic parts. Chemicals can
damage, weaken or destroy plasticwhich may result inserious personal injury.
_, WARNING: When servicing,use only identicalCraftsman replacement parts.
Use of any other parts may create a hazard or cause product damage. To ensure
safety and reliability,allrepairs should be performed by a qualified servicetechnician
at a Sears Service Center.
10004 Manual_Revised 08-08/3 Page 20 10004 Manual_Revised_08-08!3 Page 21
/d-"{ol!J_].l_']_'[oIoJmllI_[e_
PROBLEM CAUSE SOLUTION
The trigger can not be The "lock-off" button Depress the "lock-off"
depressed isengaged button
The blade can not be Blade is incorrect Use with "T" or "U" shank
installed blade
The saw does not work Battery is depleted Charge the battery
12.0 VOLT LITHIUM-ION CORDLESS MULTI-SAW MODEL NUMBER 320.10004
The Model Number will be found on the Nameplate attached to the handle of the
Multi-Saw. Always mention the Model Number when ordering parts for this tool.
o
10004 Manual_Revised._08-0813 Page 22 10004 Manual_Revised__08-0813 Page 23
12.0 VOLT LITHIUM-ION CORDLESS Multi-Saw MODEL NUMBER 320.10004
The Model Number will be found on the Nameplate attached to the handle of the
Multi-Saw. Always mention the Model Number when ordering parts for this tool.
1 3660075000
2 3124158000
3 320689000
4 3124160000
5 3650099000
6 3123507000
7 3660030000
8 3124161000
9 3124159000
10 5670039000
11 4890479000
12 3704254000
13 3320690000
14...... 2822511oo0
" _ i li i _ ii i
Spring
Sliding Block
Left Housing
Clamp
Wire Guard
Transparent Cap
Spring
Switch Button
Switch Trigger
Pin
PCB Assembly
Handle Hoop
Right Housing
Quick Clamp Assy
16 3520038000 Crank Roller
17 2822529000 Gear Set
18 3700159000 Gasket
19 2822530000 Bearing Support Set
20 2822531000 Motor & Gear Set
21 3810049000 Jigsaw Blade
22 5660137000 E Ring
23 3704258000 Base Plate
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
i
1
1
1
1
1
1
2
1
24 5670221000 Guiding Roller Pin 1
25 3551171000 Guiding Roller 1
26 5620011000 Hexagon Socket Screw 1
27 3700164000 Square Nut 1
28 5610012000 Tapping Screw 9
29 5680019000 Hexagon Wrench 1
10004 Manual_Revised_08-0813 Page 24 10004 Manual_Revised_O_813 Page 25

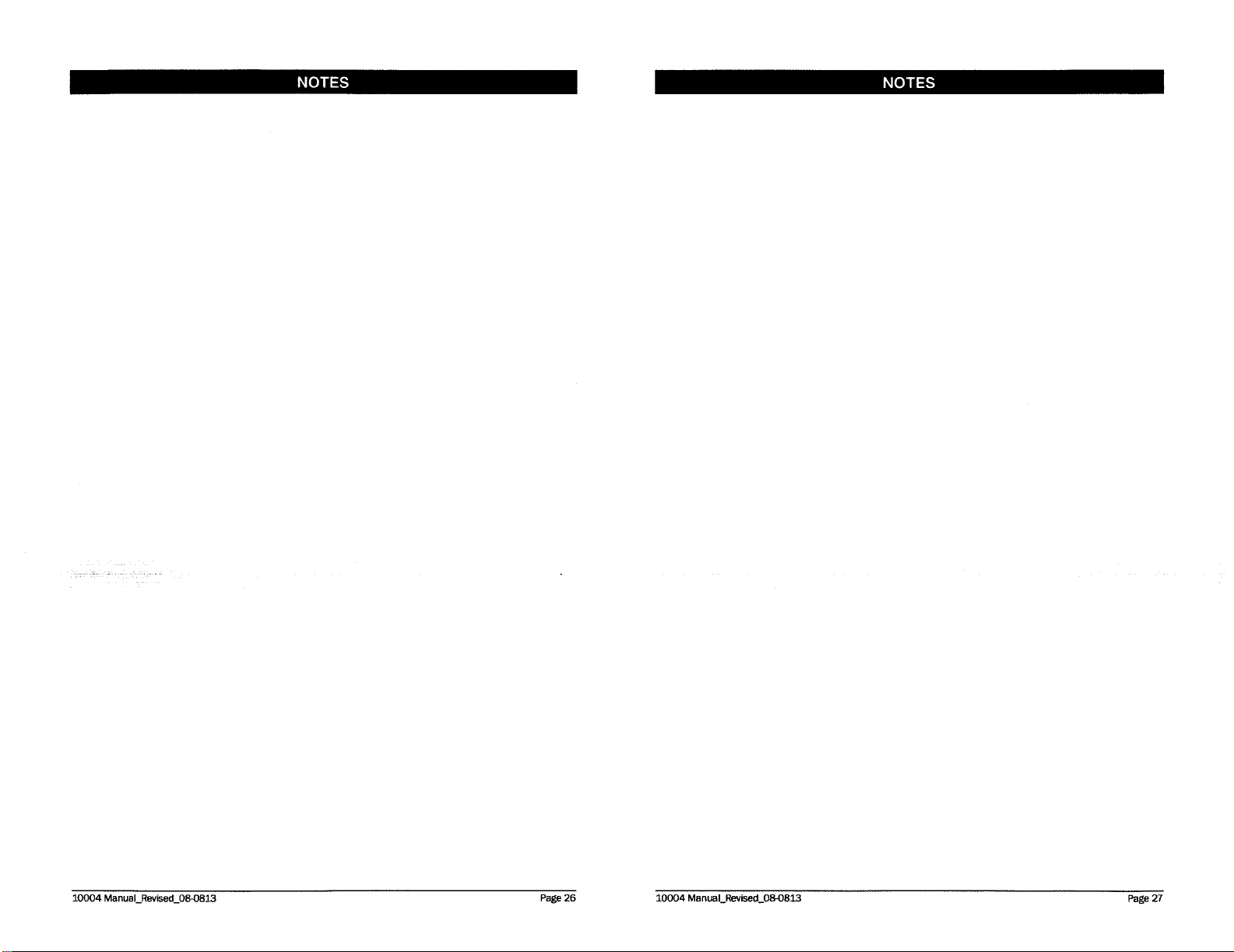

10004 Manual_Revised_08-08!3 Page 26 10004 ManuaLRevised_08-0813 Page 27
Your Home
For expert troubleshooting and home Solutions advice:
manage hi e
www.managemyhome.c_
I I!l!l
For repair - in your home - of all maj_ brand appliances,
lawn and garden equipment, or heating _d cooling systems,
no matter who made it, no matt_ Who sold it !
For the replacement parts, accessories and
owner's manuals that you need tO_0-it-yourself.
For Sears professional installation of h0me appliances
and items like garage door openers a_d water heaters.
i
1-800-4-MY-HOME ® ca, an_e, day or night
(1-800-469-4663) (U.S.Ai _d Canada)
www.sears.com wwW_rs.ca
iii
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the Io_tion of the nearest
Sears Parts & Repair Servl_ Center
1-800-488-1222 (U.S.A.) 1 (Canada)
www.sears.com
!i iiqPii
To purchase a protection agreement on a _ct serviced by Sears:
1-800-827-6655 (u.s_,.)
Para pedirservicio de reparaciOn
a domicilio, y paraordenarpiezas:
1-888-SU-HOGAR®
(1-888-784-6427)
1-80_1-6665 (Canada)
Au C_ pour service en franc.,ais:
I_LE-FOYER Mc
(1.a00-533-6937)
www.sears.ca
Sears
© SearsBrands,LLC
TM SM
® Registered Trademark / Trademark / Service Mark o_!_ Brands, LLC
® Marca Registrada / TM Mama de Fabrica / SMMarca de S_de Sears Brands, LLC
MC MD
Marque de commerce / Marque ddpos6e de Sears Bra_, LLC
