Lexmark T650, T652, T654
User's Guide
Important: For information about T656 products, go to
http://
md.lexmark.com/md/?
func=publications&folder=v12721881&file=v12721881_en.pdf
.
September 2017 www.lexmark.com
Machine type(s):
4062, 4551, 4552, 4553
Model(s):
01A, 21A, 23A, 41A, 43A, n01, gn1, n03, n02, xn2, gn2, dn1, d03, gd1, dn2, gd2, xd2, mn1, gm1, md1
Contents
Safety information........................................................................................ 8
Learning about the printer......................................................................... 10
Finding information about the printer...........................................................................................................10

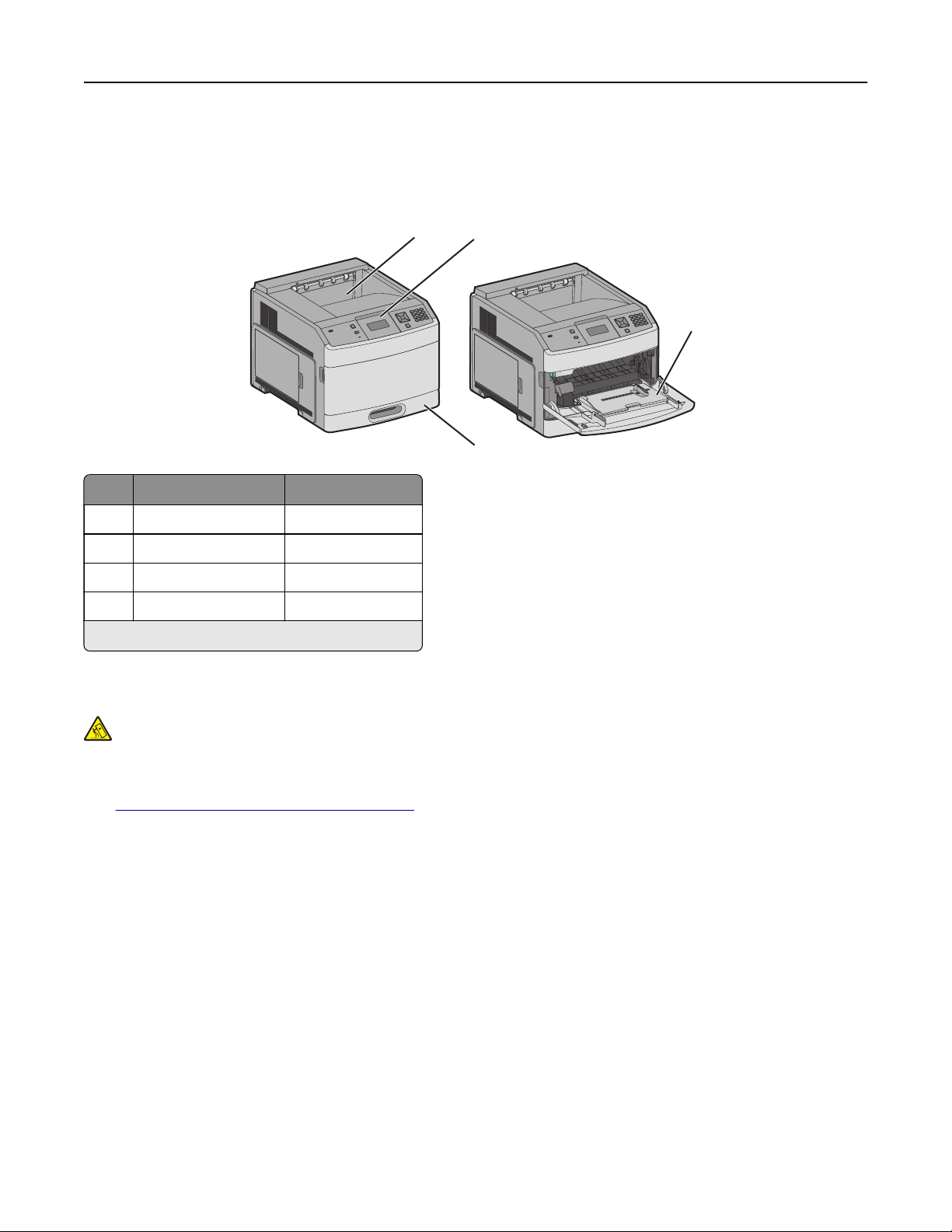

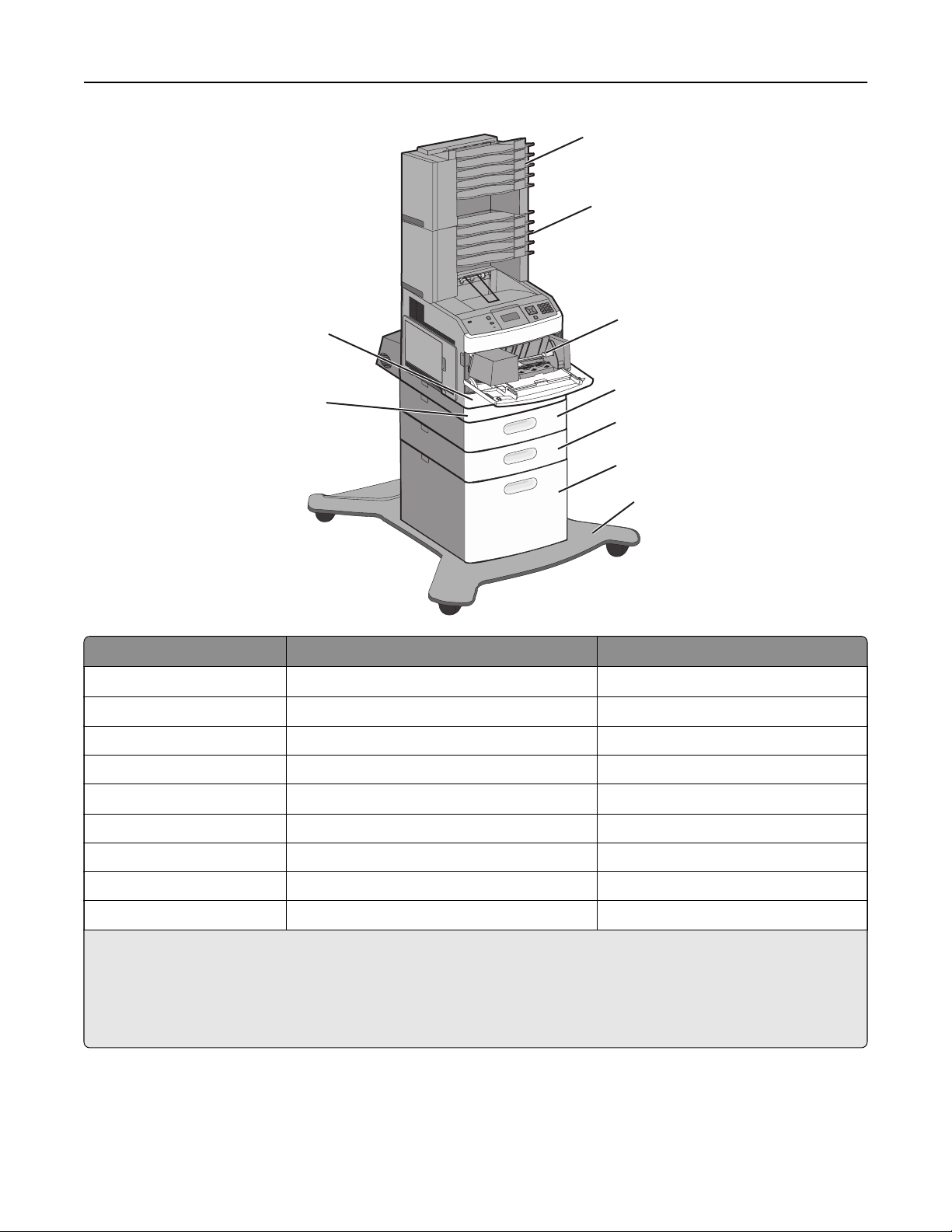

Printer configurations......................................................................................................................................... 11

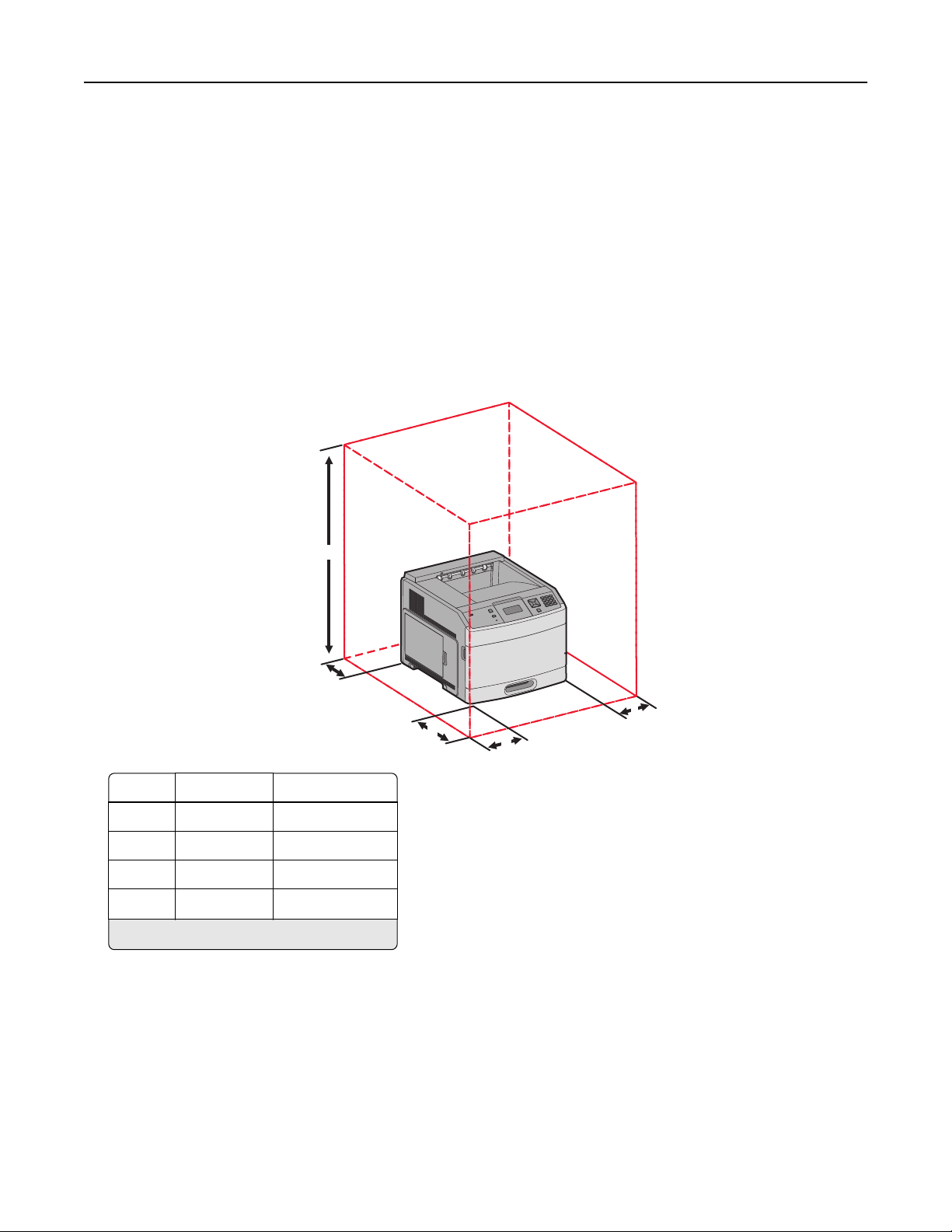

Selecting a location for the printer................................................................................................................ 13
Understanding the printer control panel......................................................................................................14
Additional printer setup............................................................................. 16
Installing internal options................................................................................................................................. 16
Available internal options........................................................................................................................................... 16

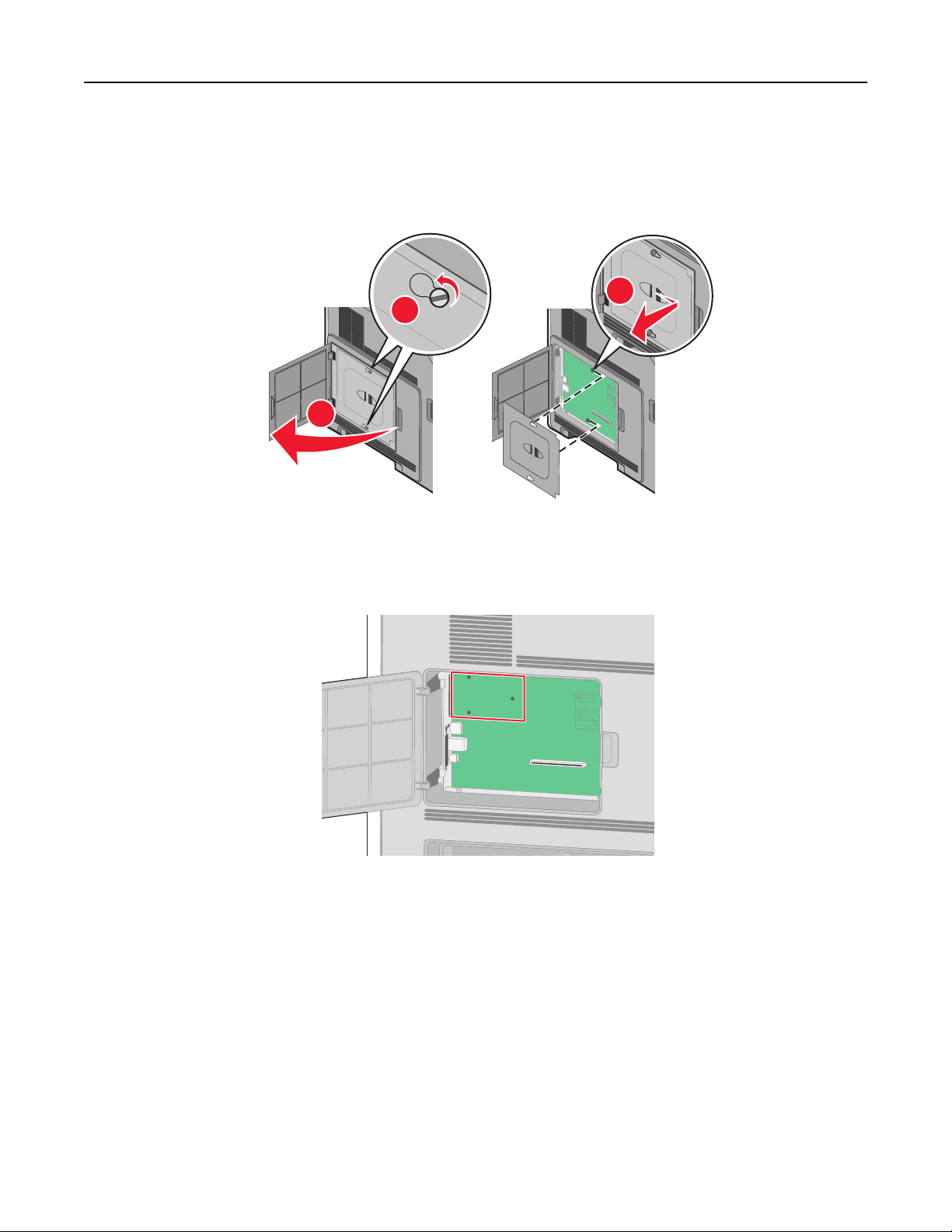

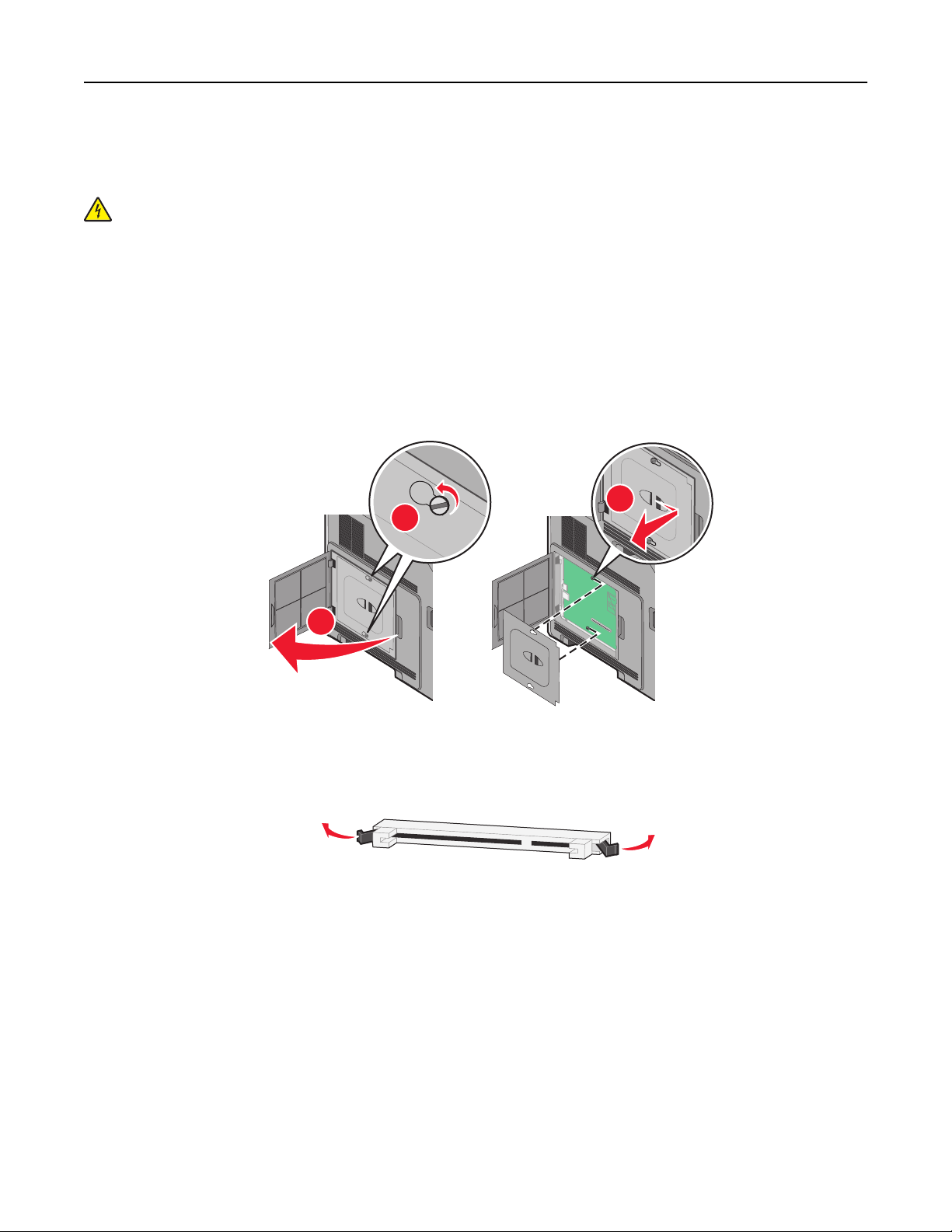

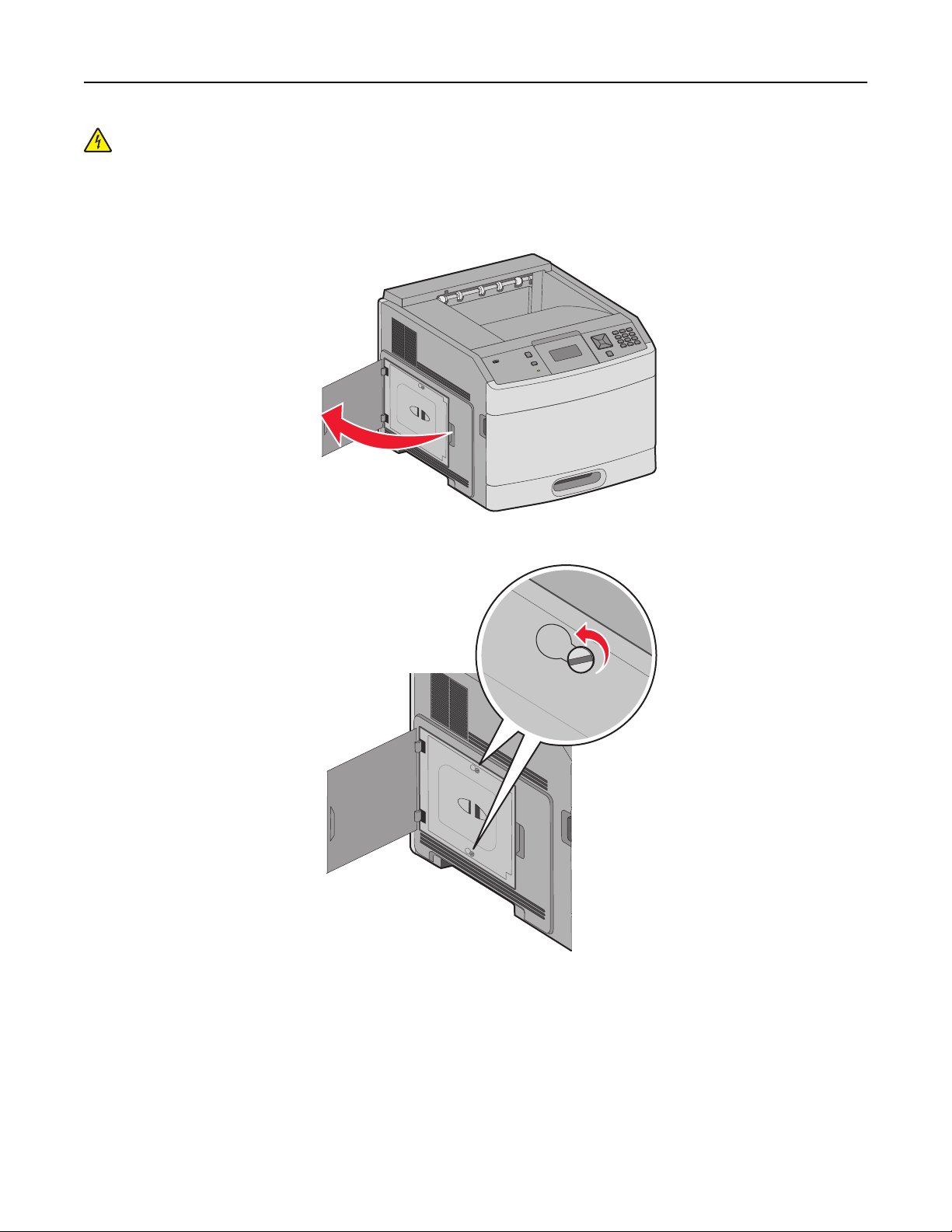

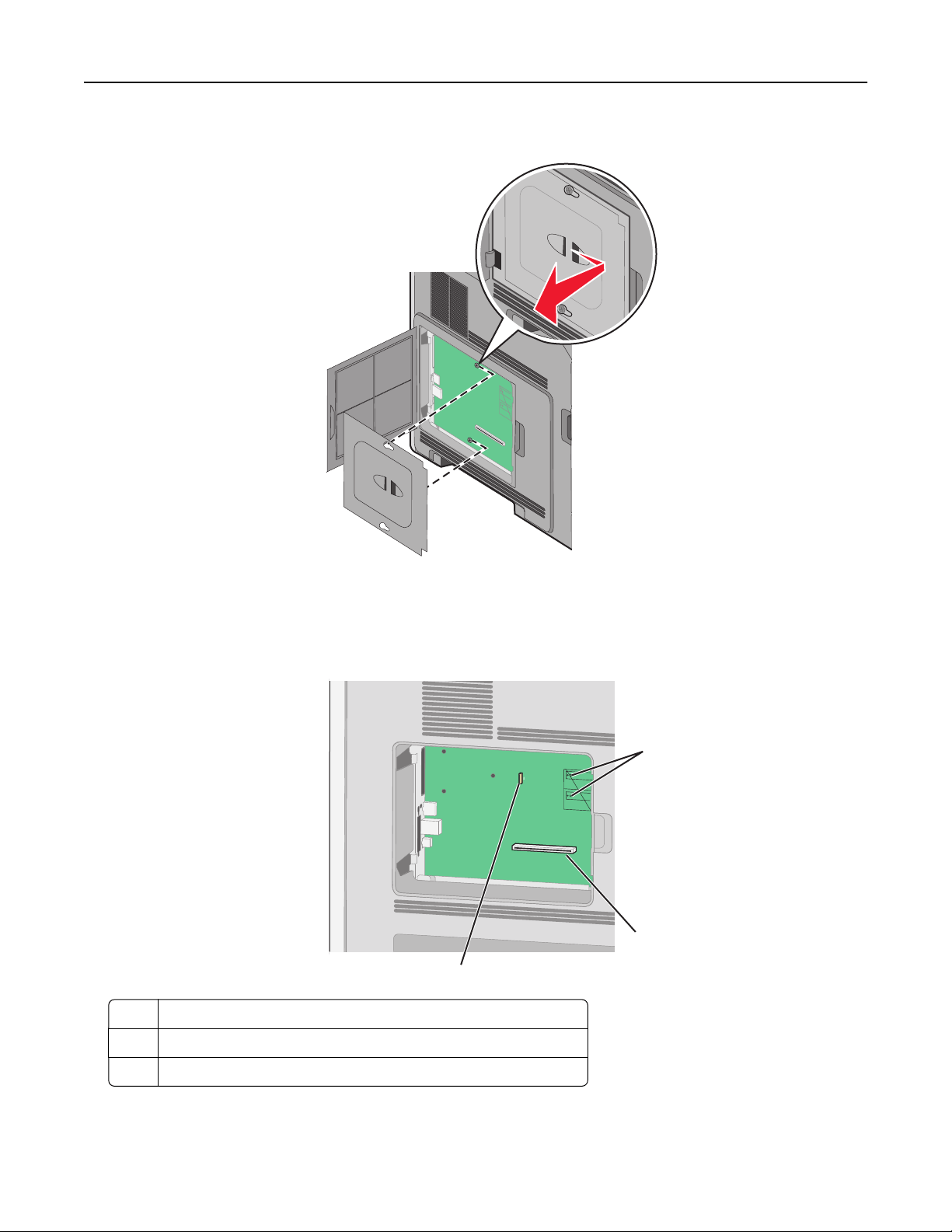

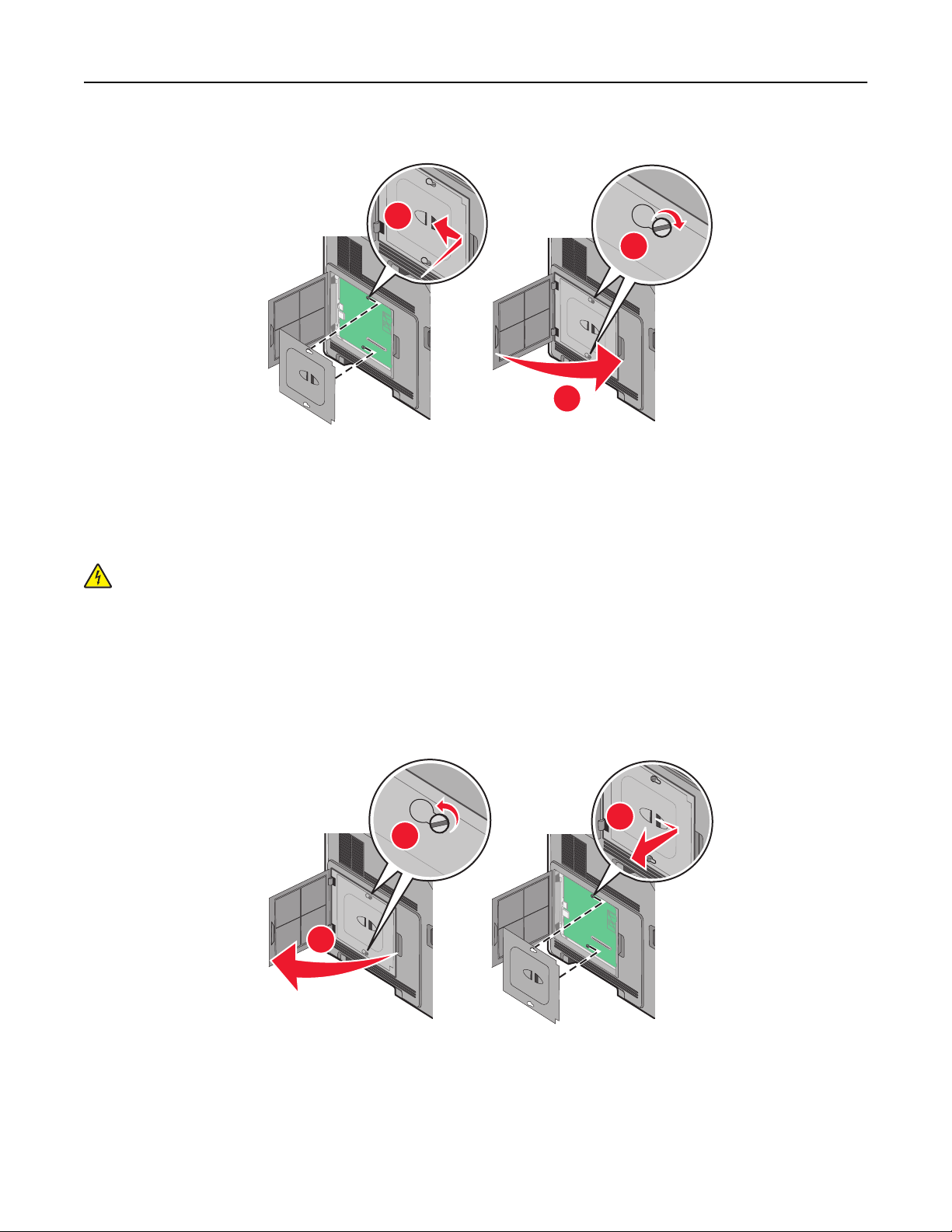

Accessing the system board to install internal options...................................................................................... 16

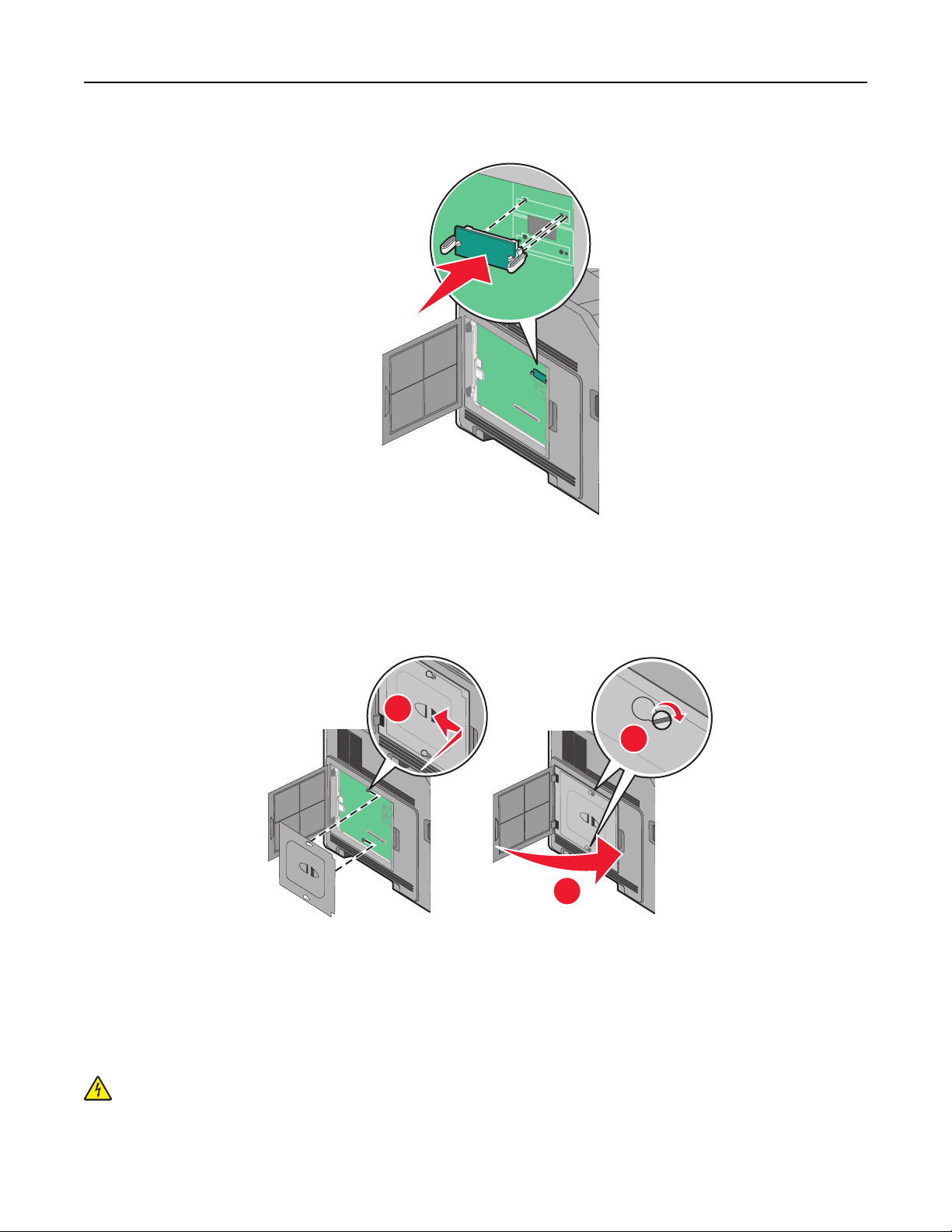

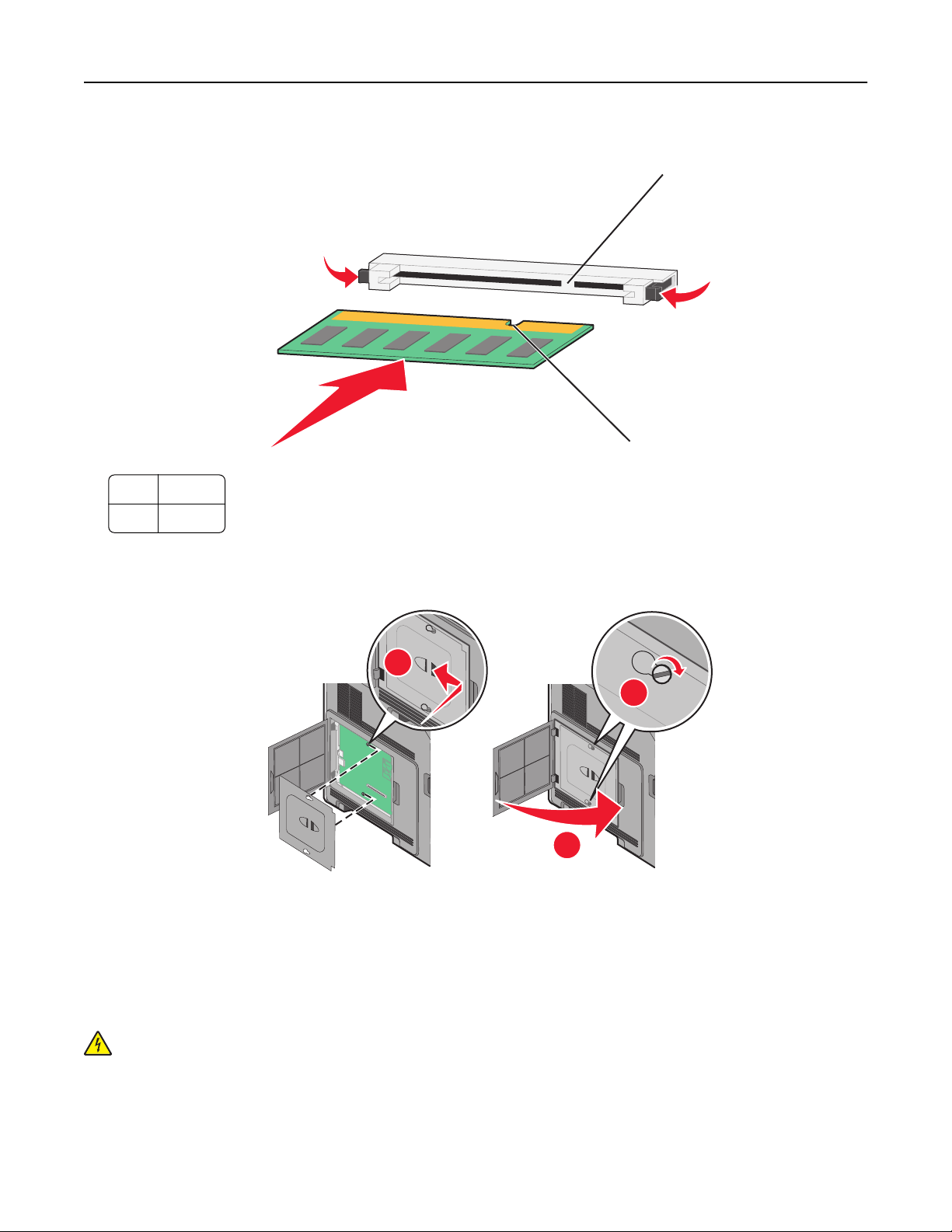

Installing a memory card ............................................................................................................................................ 19
Installing a flash memory or firmware card...........................................................................................................20

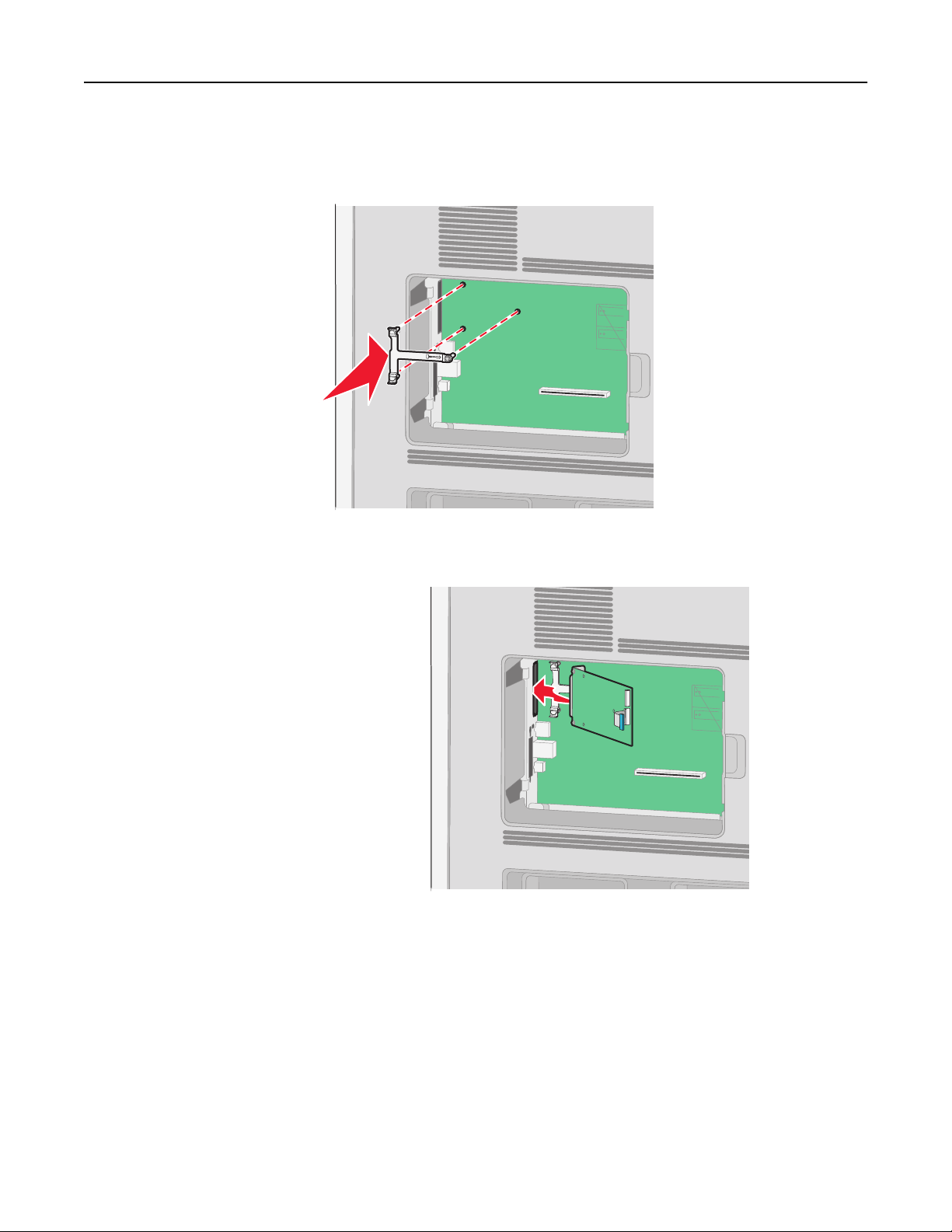

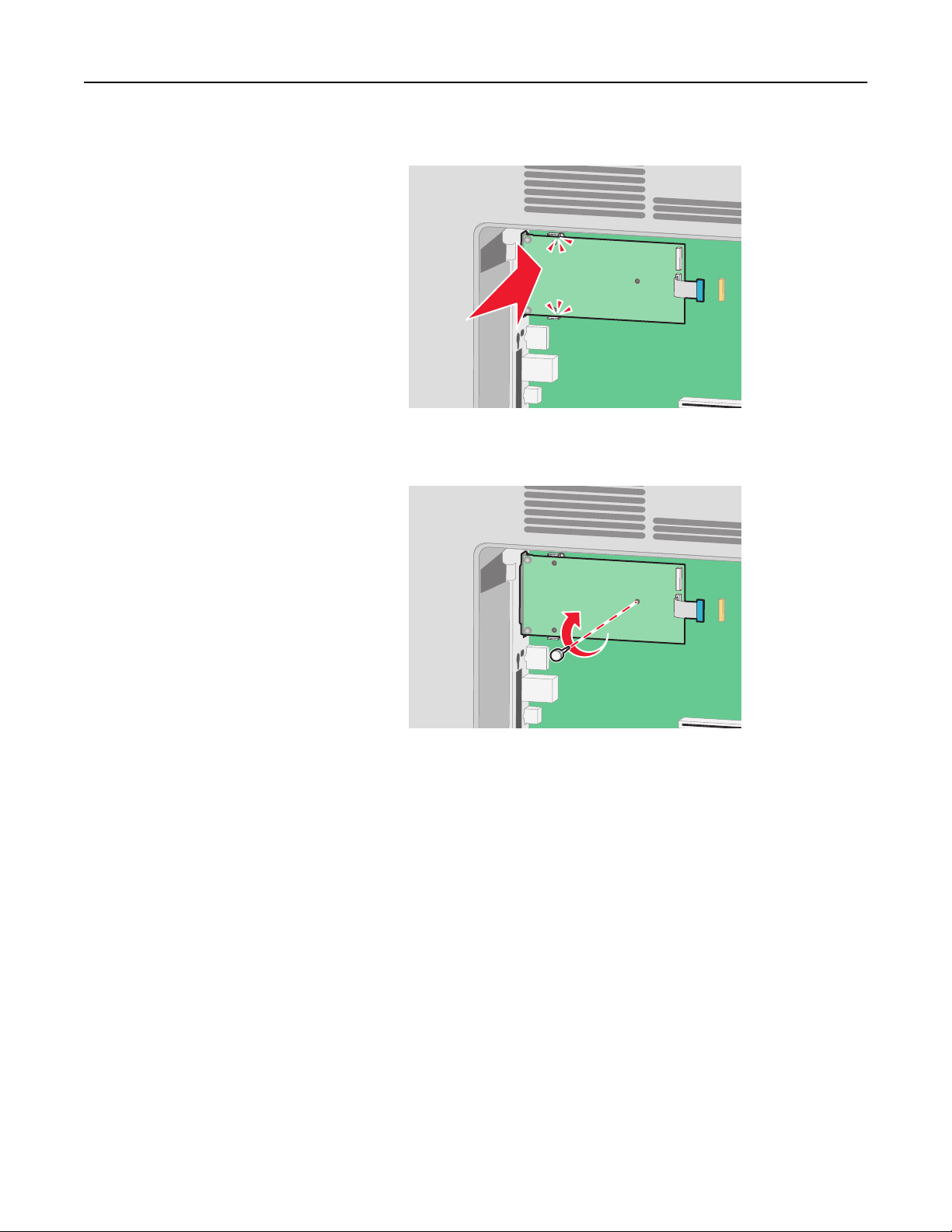

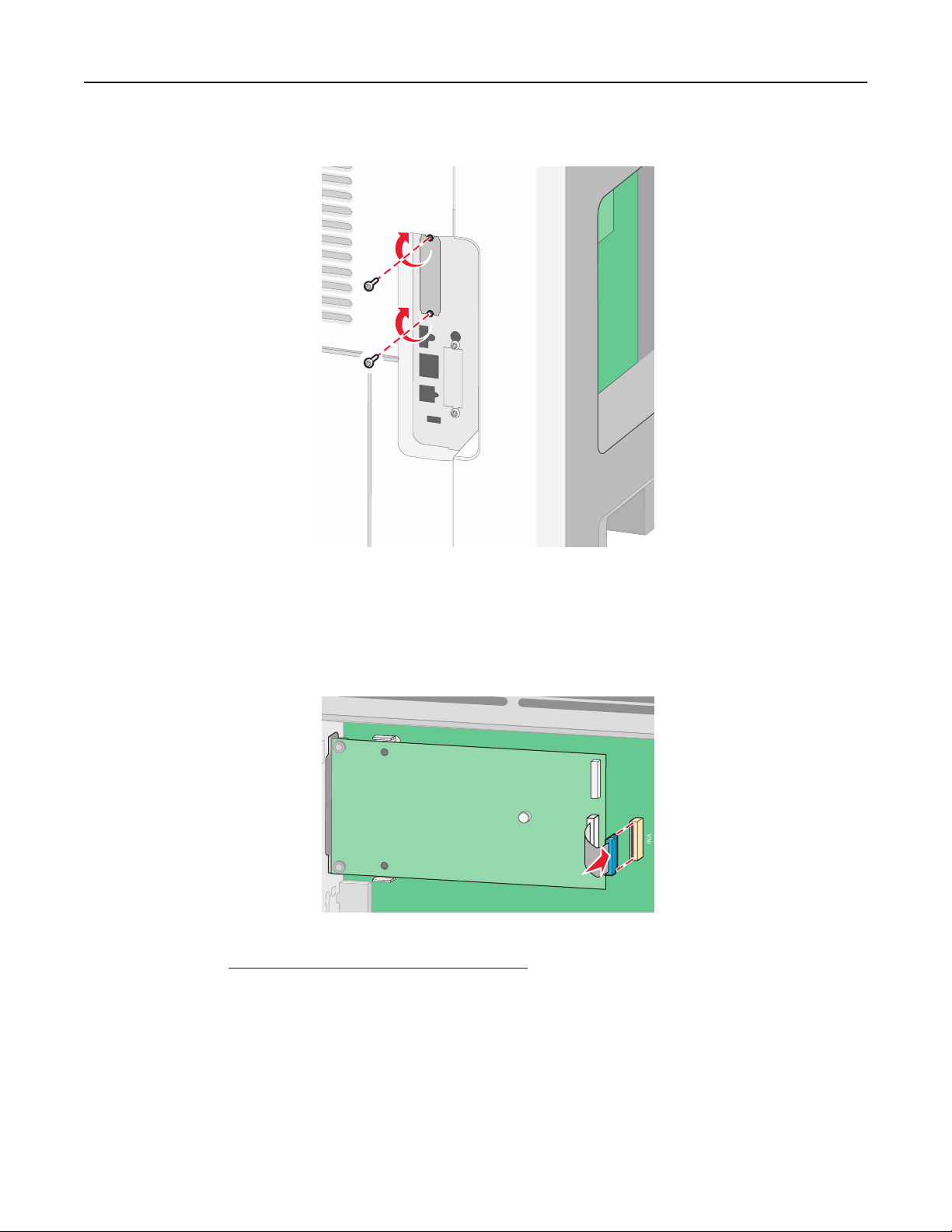

Installing an Internal Solutions Port ........................................................................................................................22

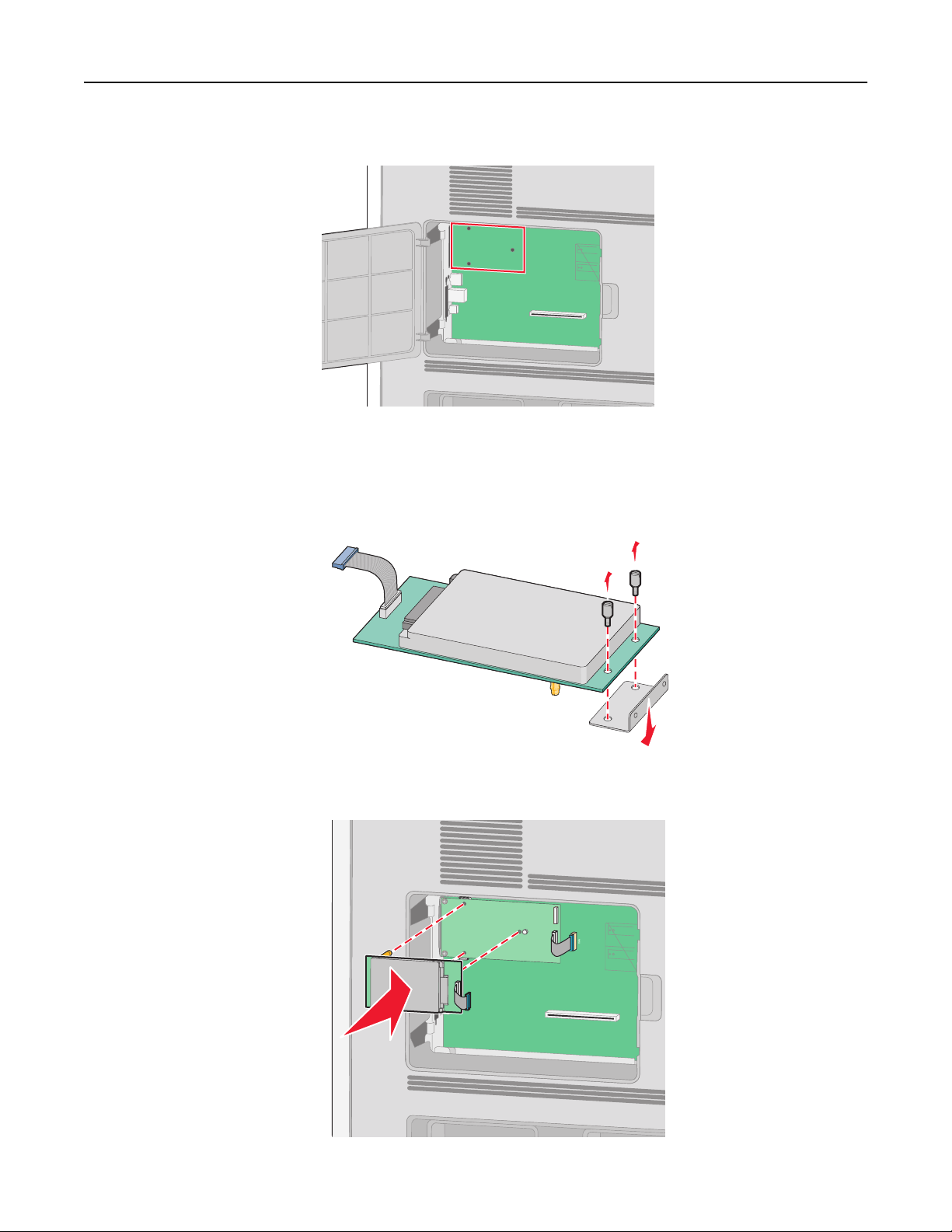

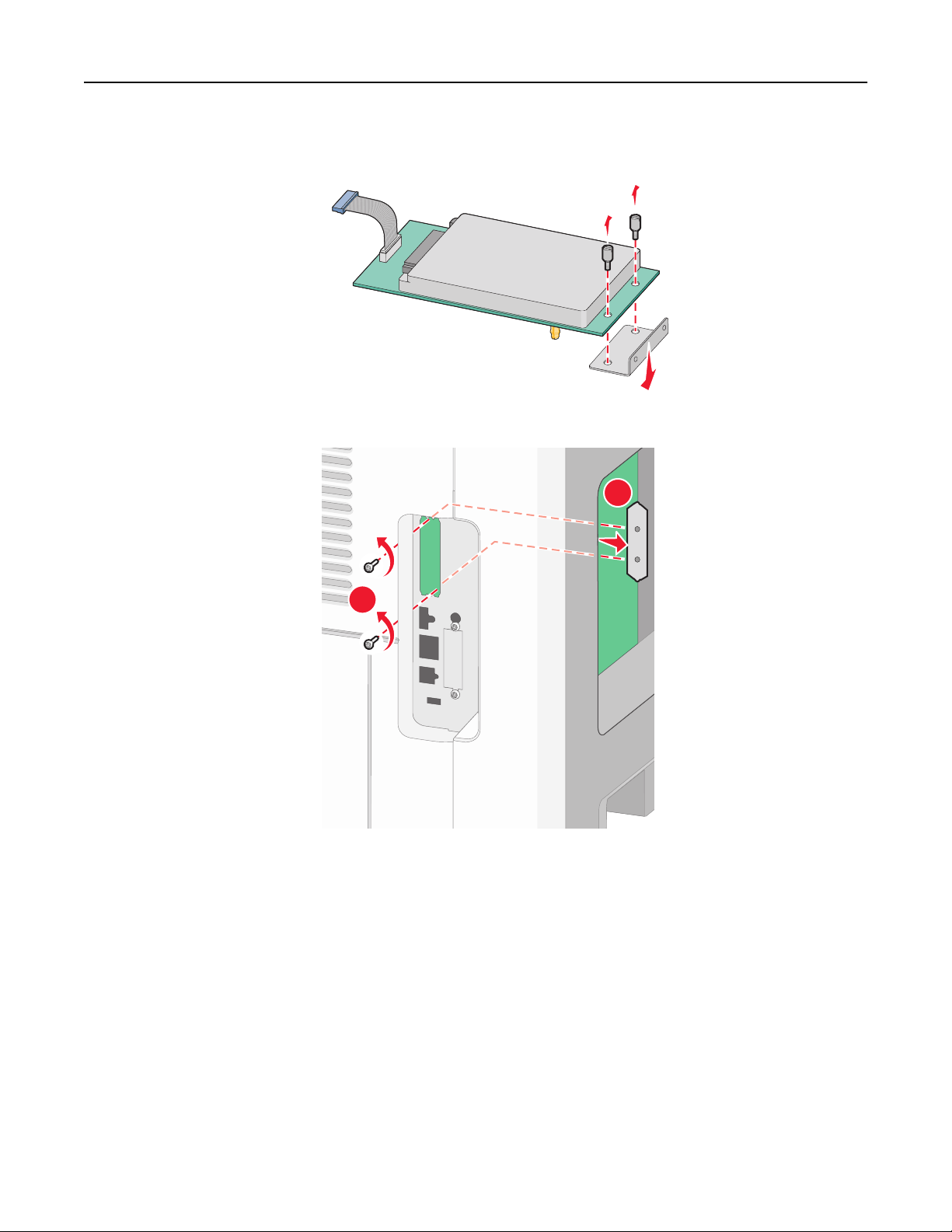

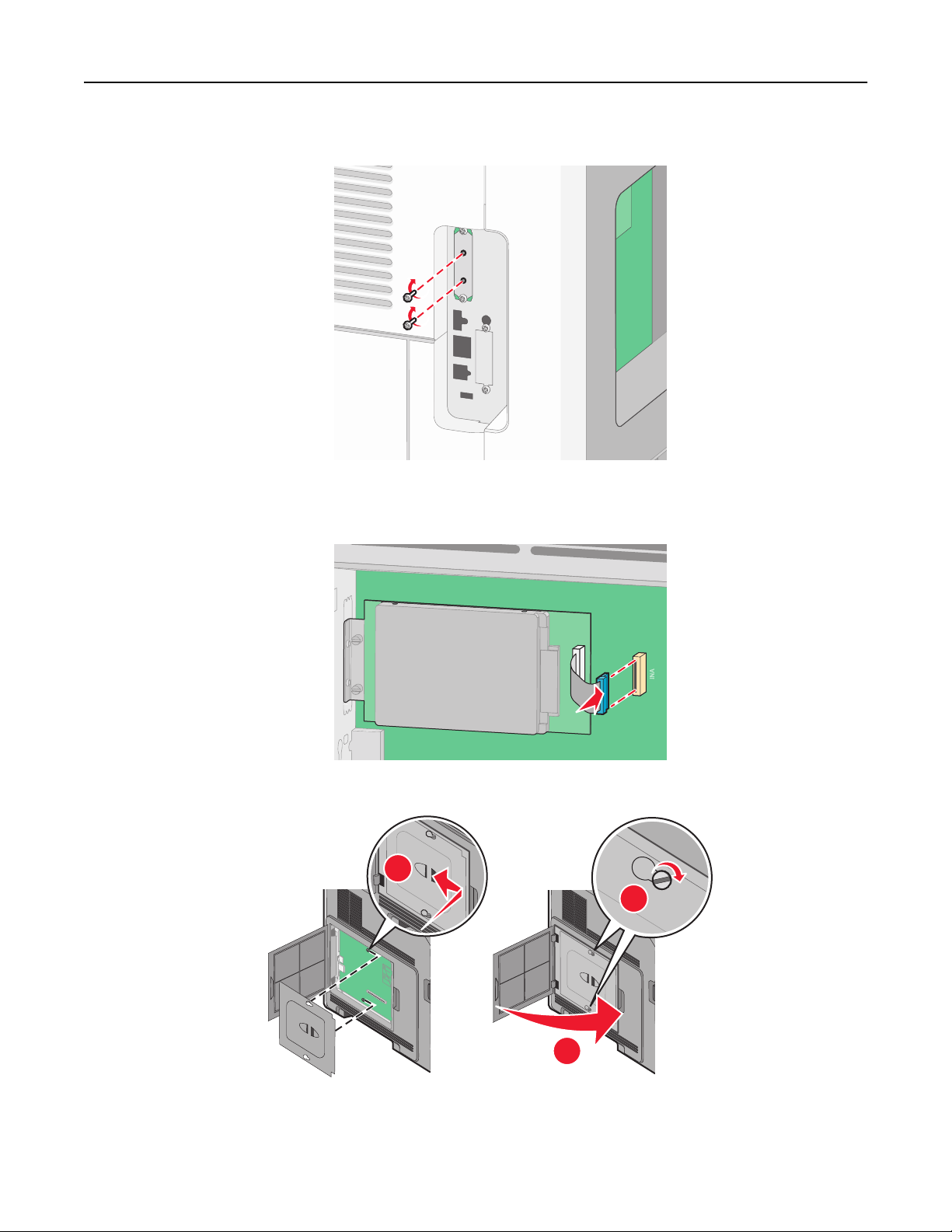

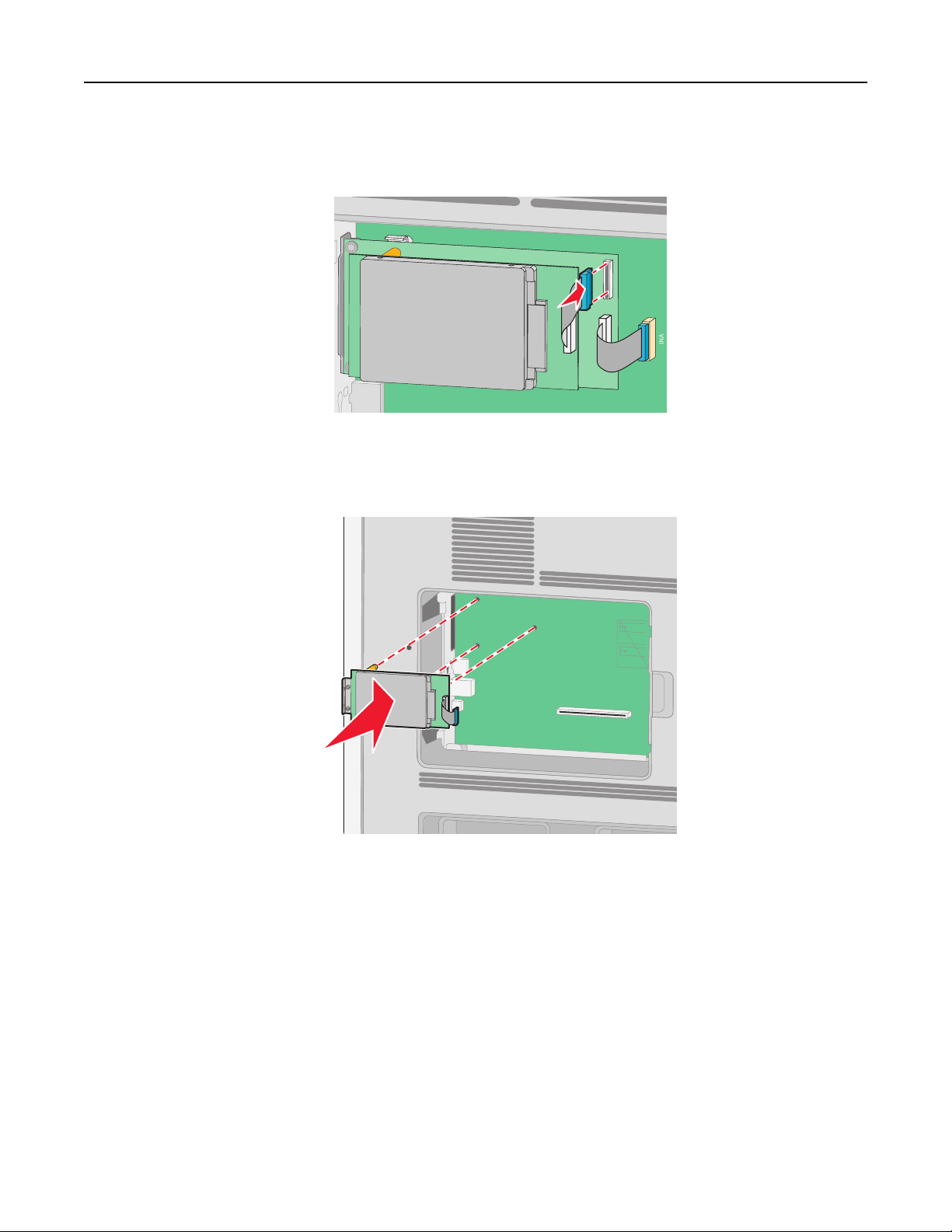

Installing a printer hard disk ..................................................................................................................................... 29
Installing hardware options.............................................................................................................................33
Order of installation .................................................................................................................................................... 33

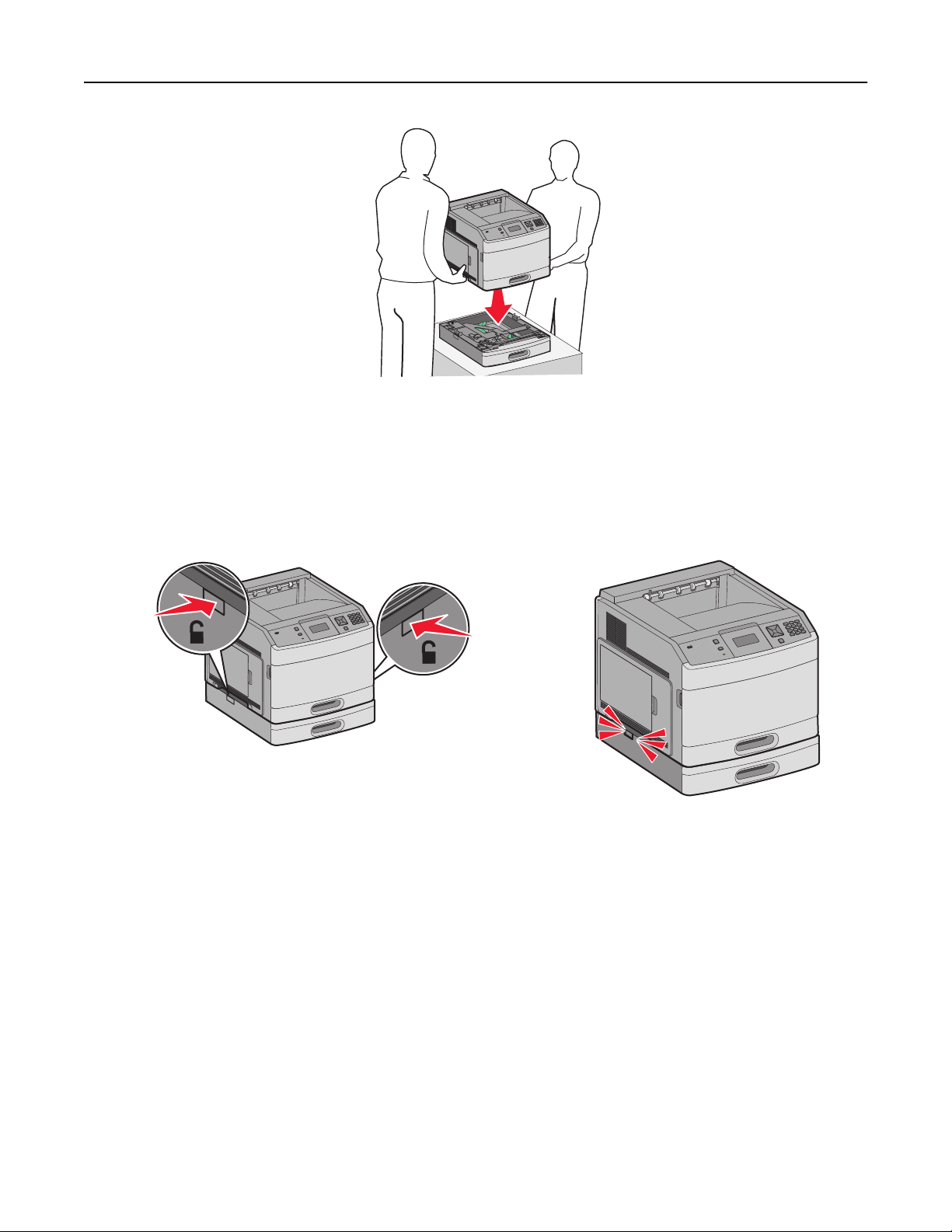

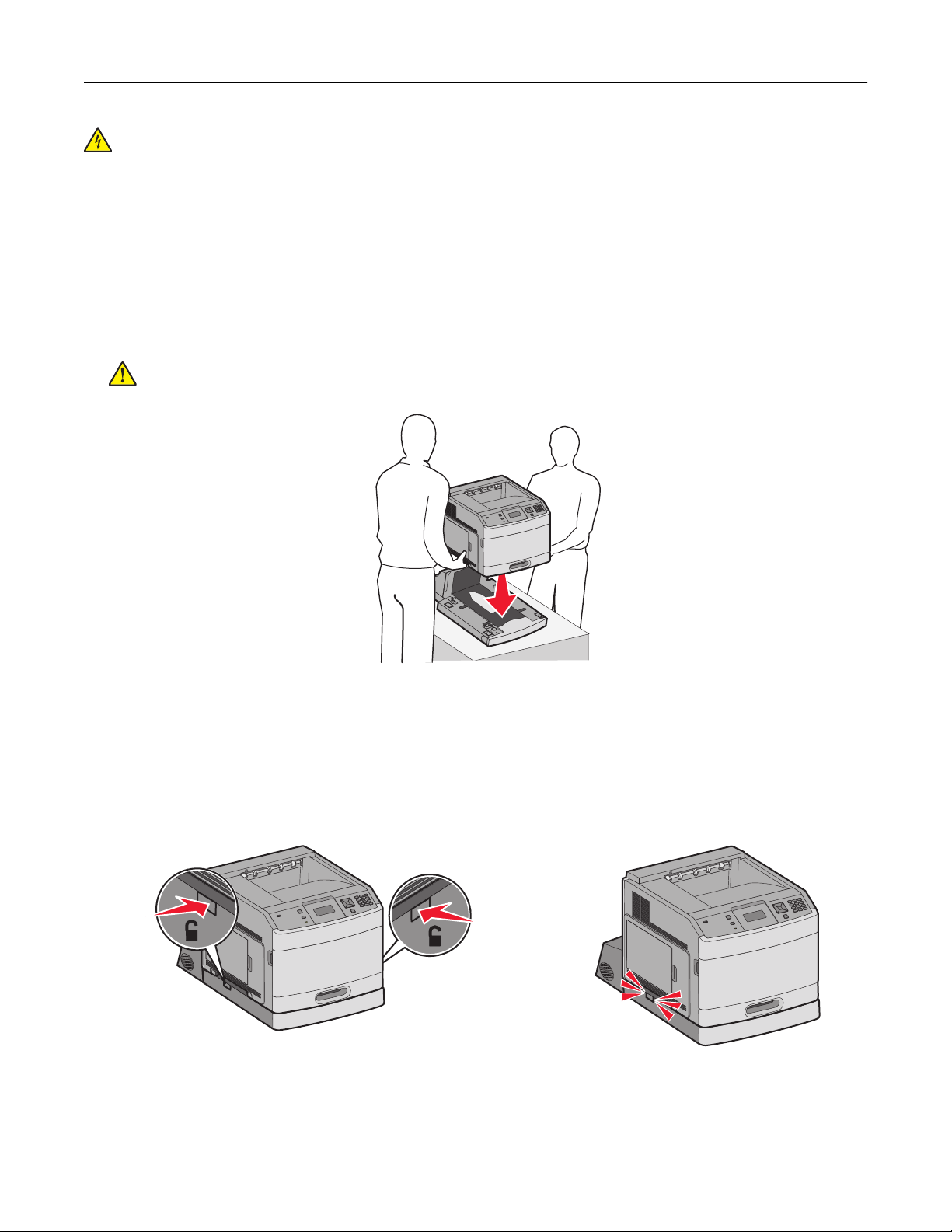

Installing paper drawers ............................................................................................................................................ 33
Installing an optional duplex unit (T650 only)...................................................................................................... 34

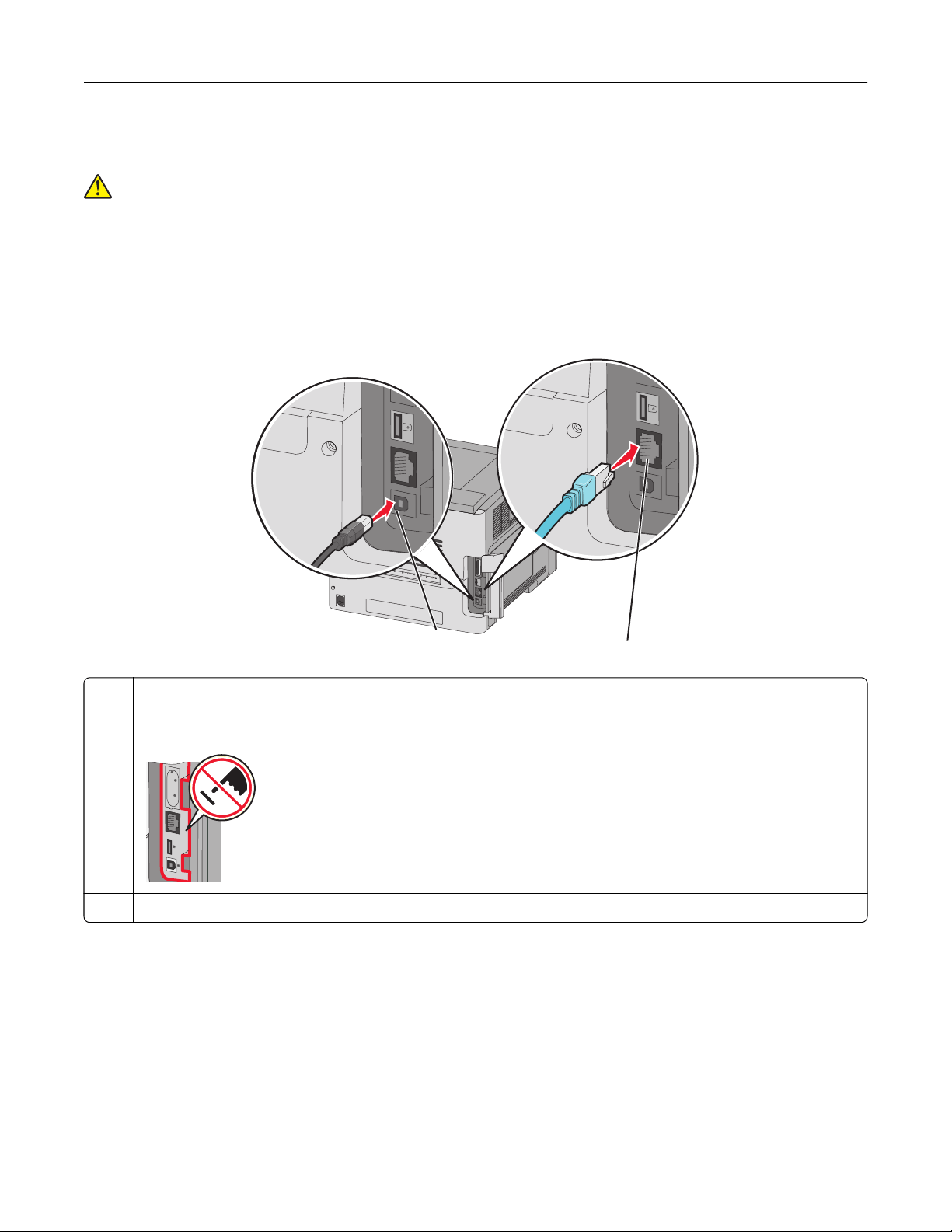

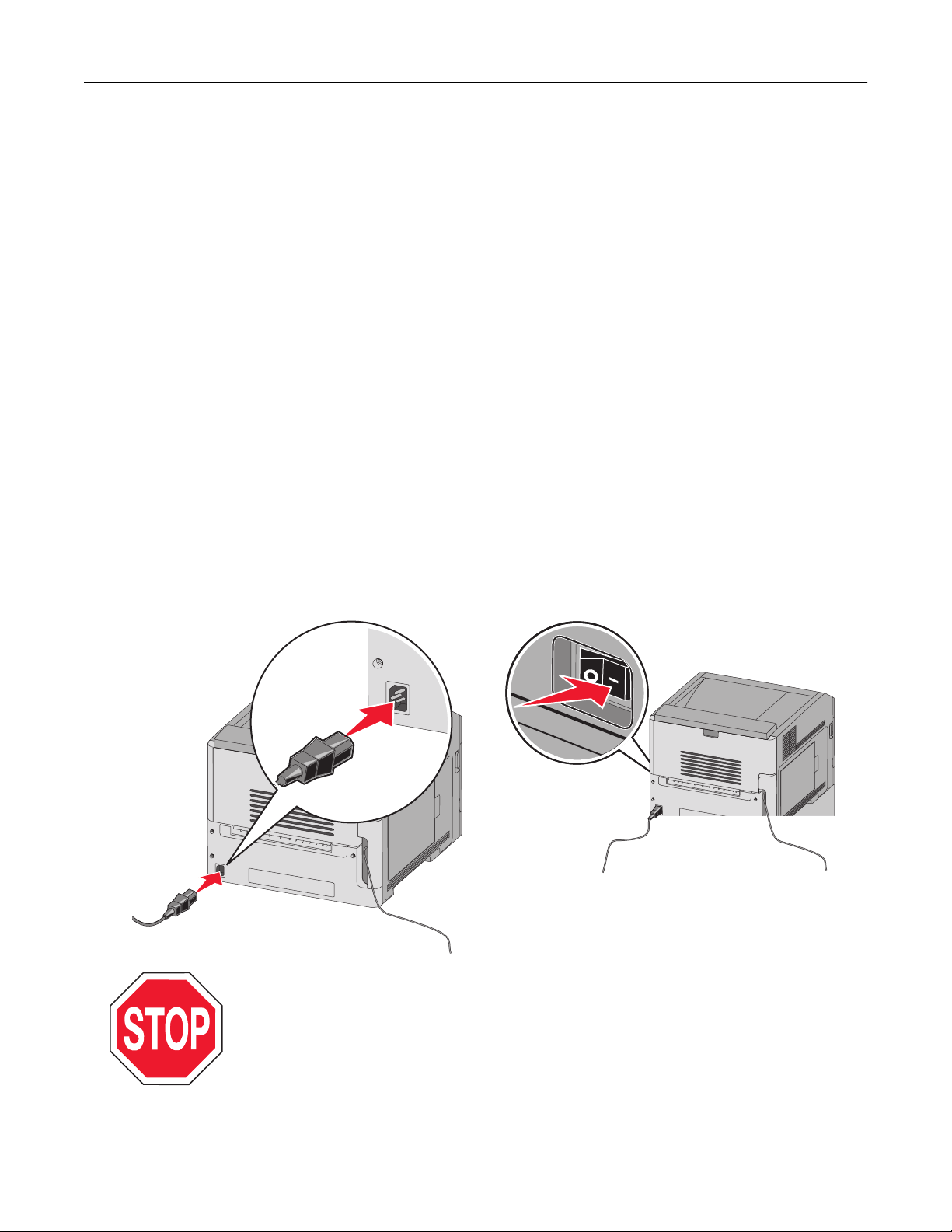

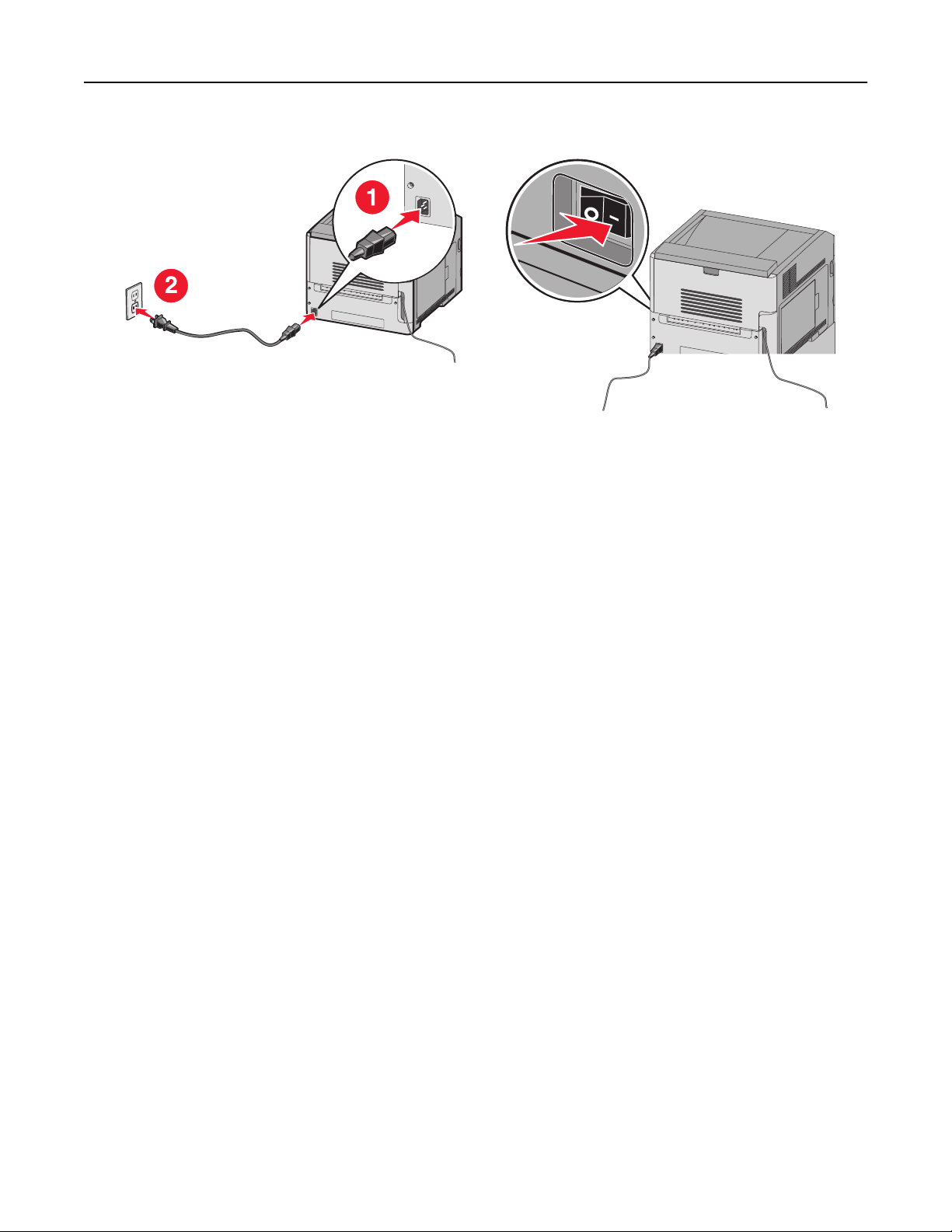

Attaching cables................................................................................................................................................ 36
Verifying printer setup......................................................................................................................................37
Printing a menu settings page..................................................................................................................................37
Printing a network setup page..................................................................................................................................37
Setting up the printer software......................................................................................................................38

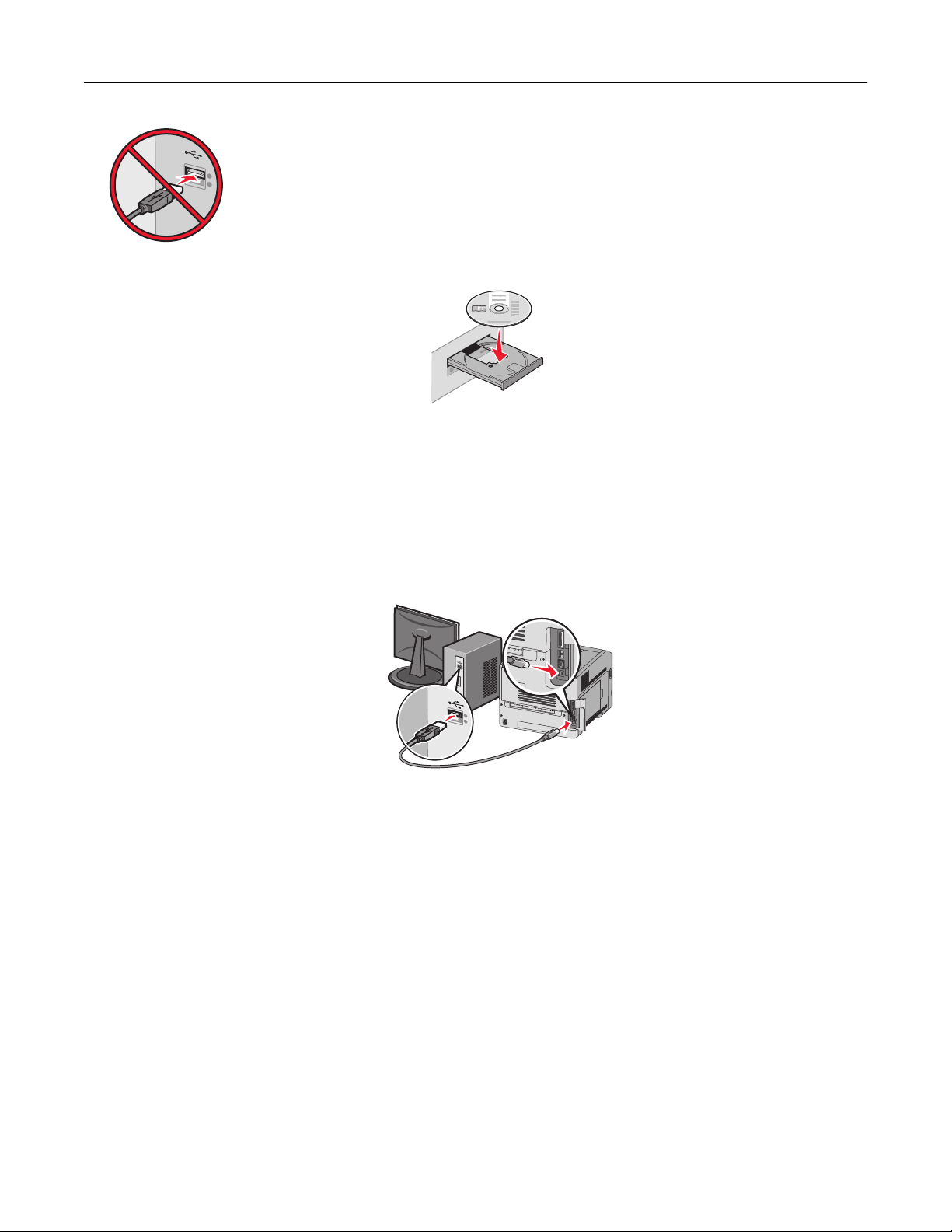

Installing printer software.......................................................................................................................................... 38
Updating available options in the printer driver.................................................................................................. 38
Setting up wireless printing............................................................................................................................ 39
Information you will need to set up the printer on a wireless network......................................................... 39
Installing the printer on a wireless network (Windows)..................................................................................... 40
Installing the printer on a wireless network (Macintosh).................................................................................... 41
Installing the printer on a wired network.....................................................................................................44
Changing port settings after installing a new network Internal Solutions Port.................................47
Setting up serial printing................................................................................................................................. 49
Loading paper and specialty media..........................................................51
Setting the Paper Size and Paper Type........................................................................................................51
Configuring Universal paper settings........................................................................................................... 51
Contents 2

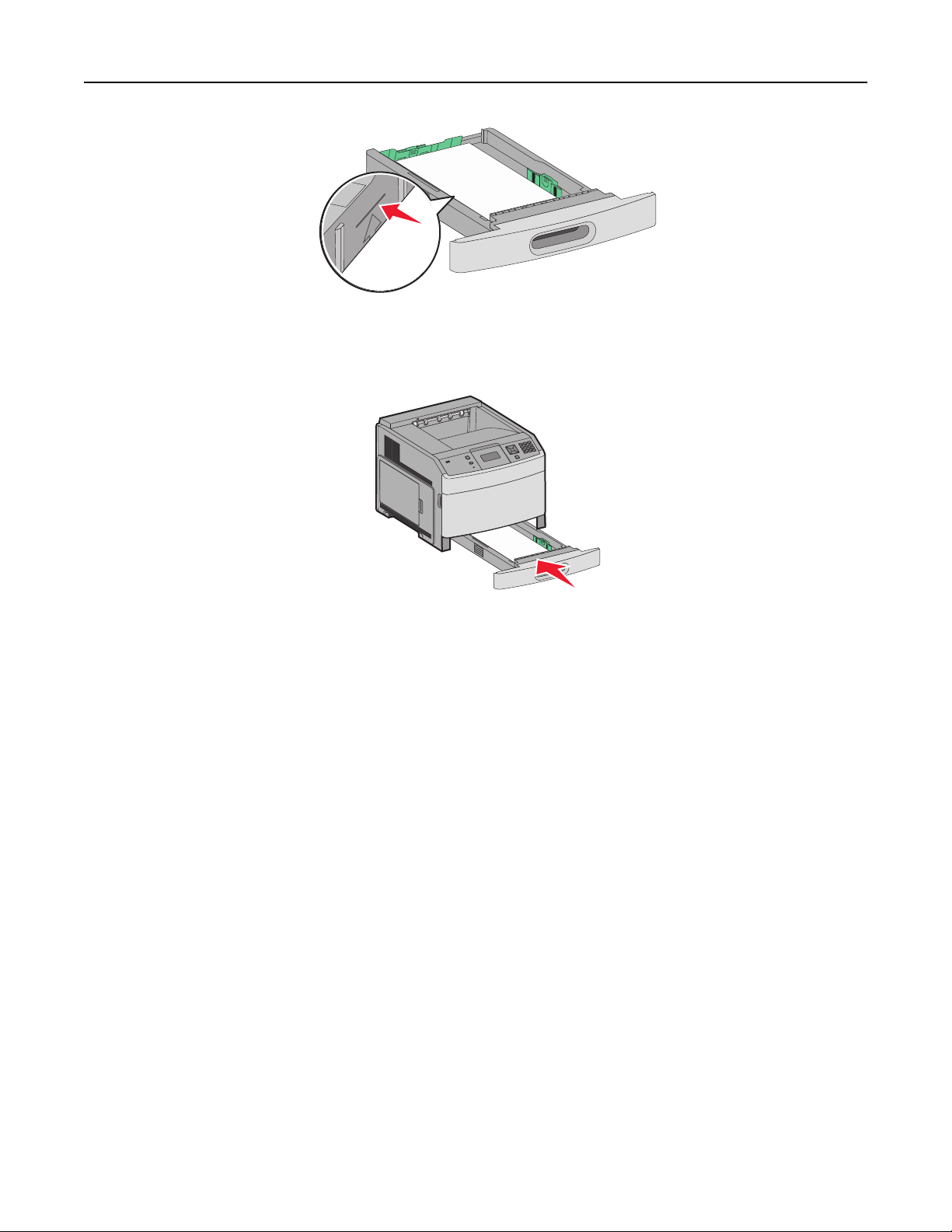

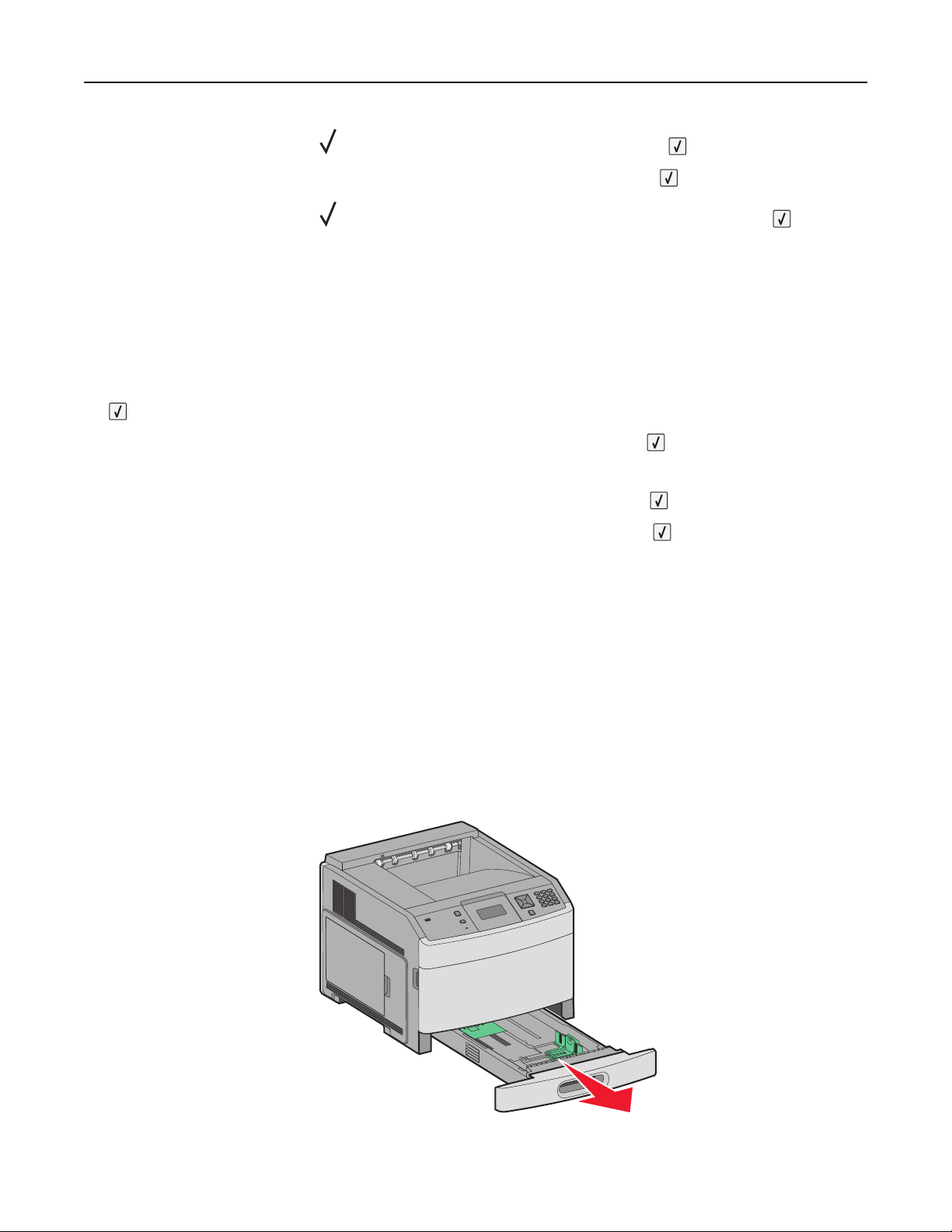

Loading the standard or optional 250‑sheet or 550‑sheet tray...........................................................52

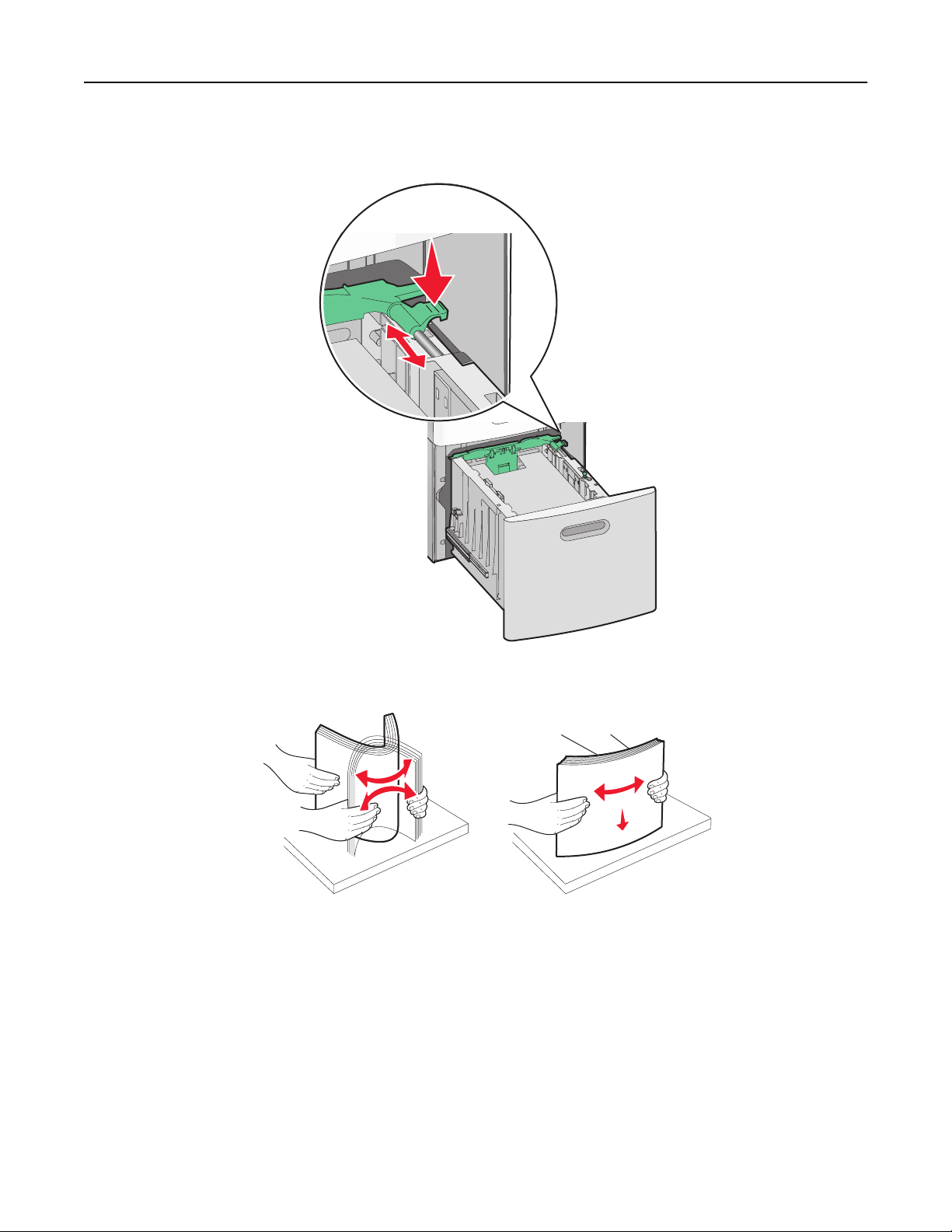

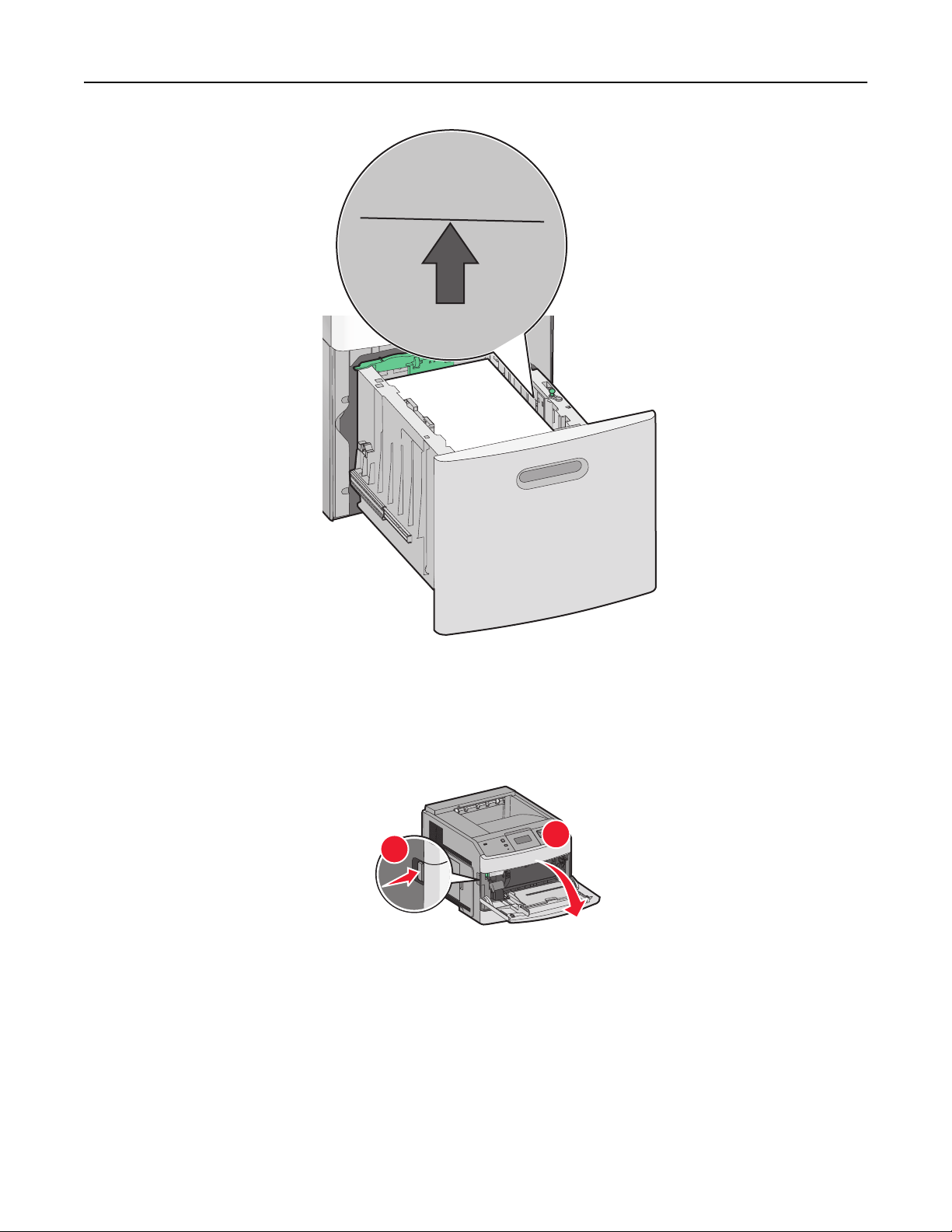

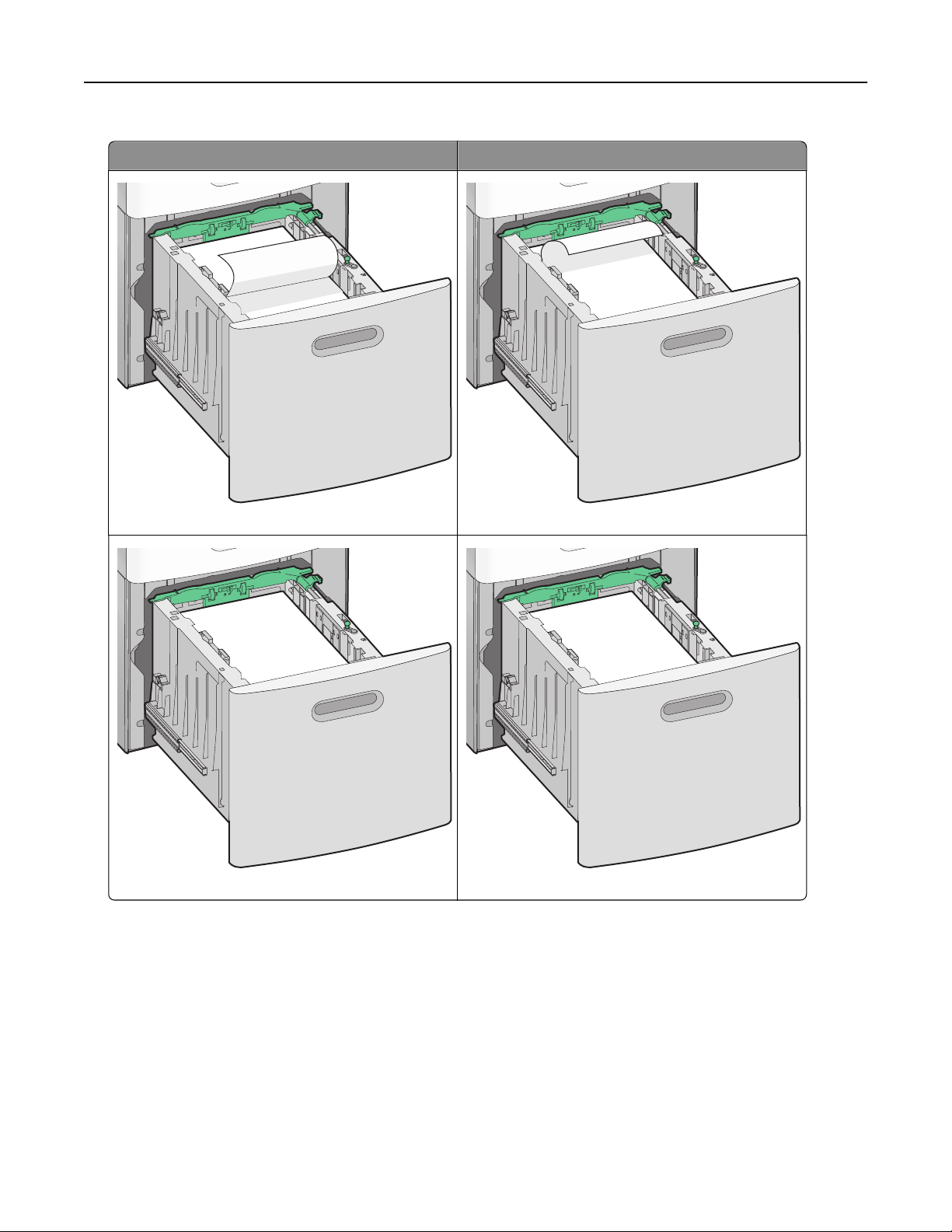

Loading the 2000‑sheet tray......................................................................................................................... 56

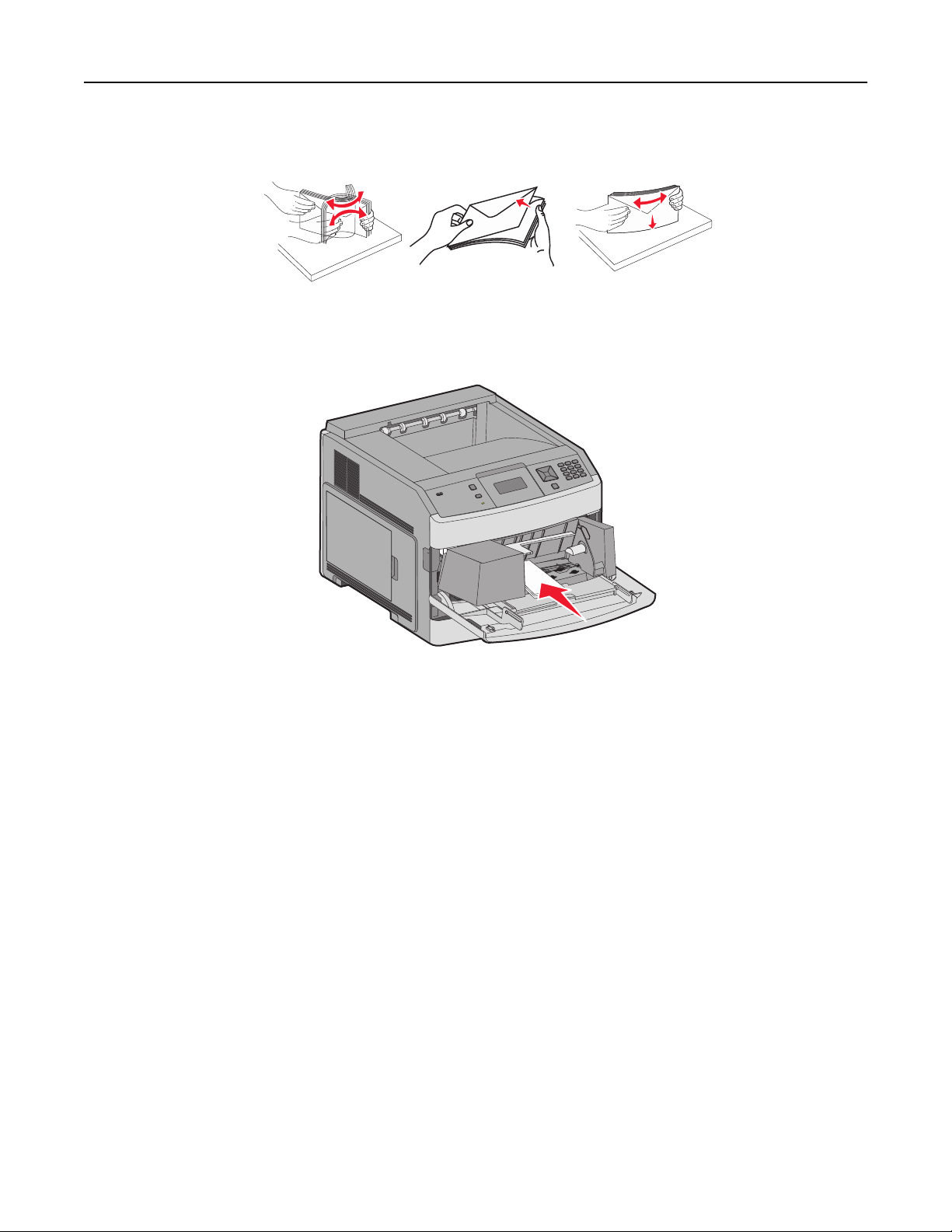

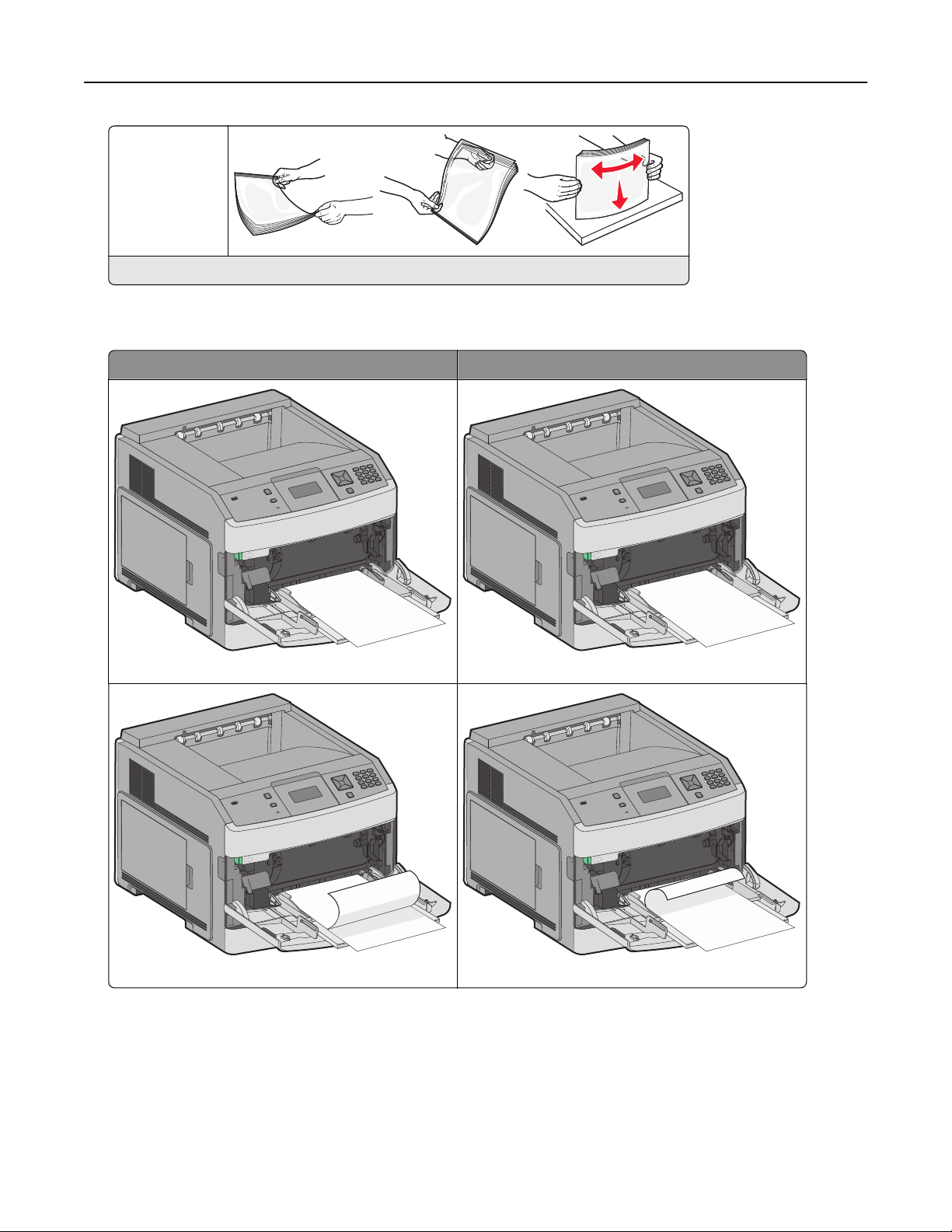

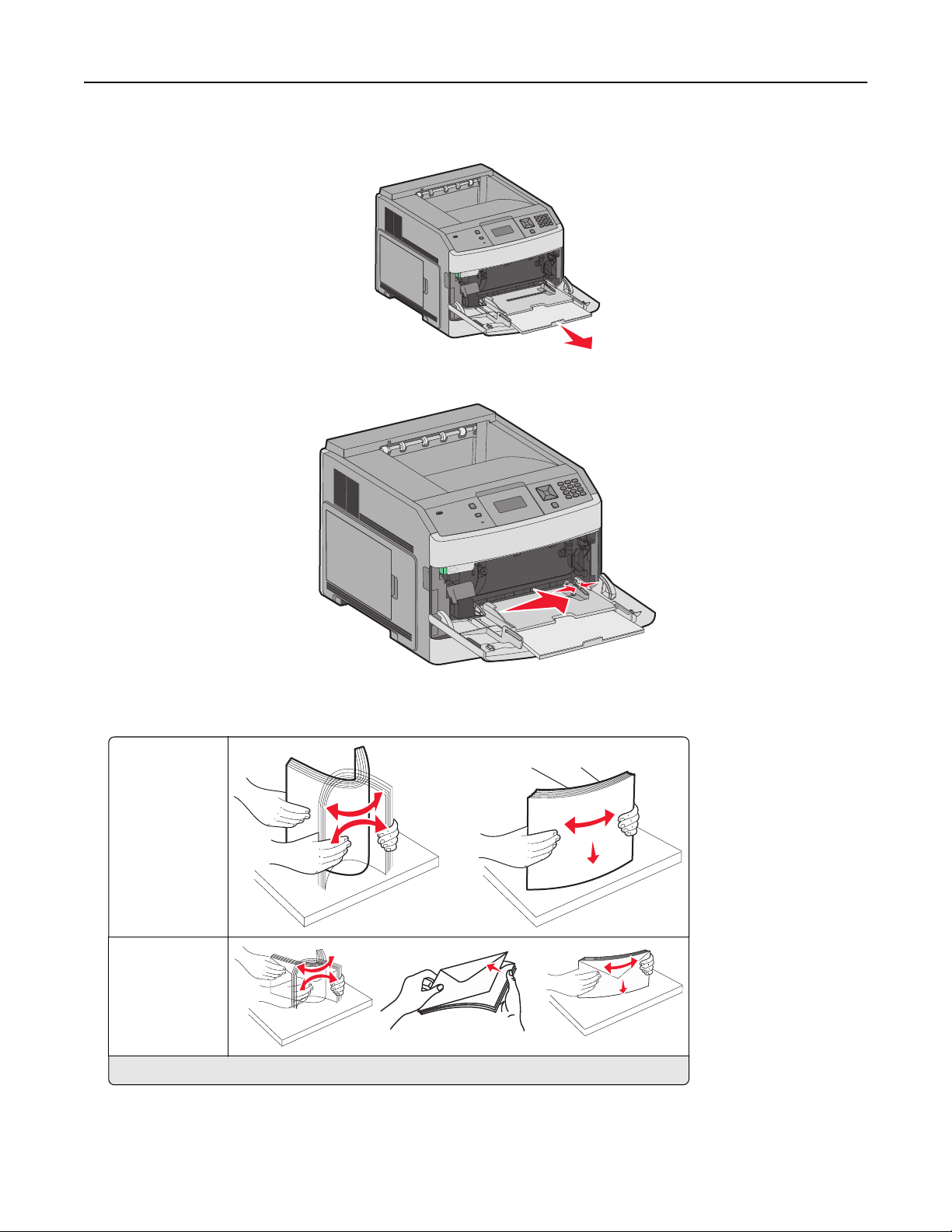

Loading the multipurpose feeder................................................................................................................. 59

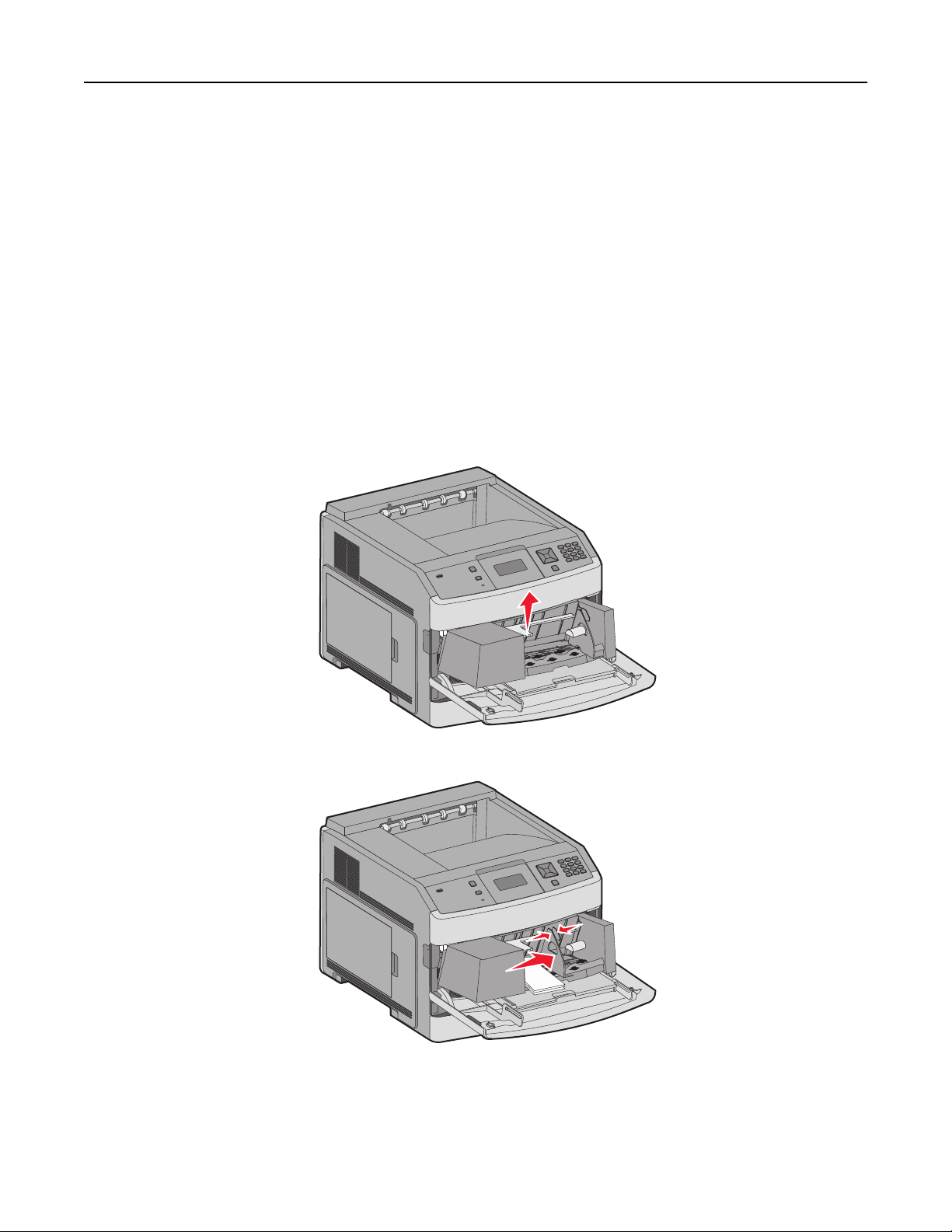

Loading the envelope feeder........................................................................................................................ 62
Linking and unlinking trays.............................................................................................................................63
Linking trays.................................................................................................................................................................. 63
Unlinking trays.............................................................................................................................................................. 64
Linking exit bins........................................................................................................................................................... 64
Changing a Custom Type <x> name ...................................................................................................................... 64
Paper and specialty media guidelines.....................................................66
Paper guidelines................................................................................................................................................66
Paper characteristics ..................................................................................................................................................66
Unacceptable paper................................................................................................................................................... 67
Selecting paper............................................................................................................................................................ 67
Selecting preprinted forms and letterhead .......................................................................................................... 67
Using recycled paper ................................................................................................................................................. 68
Storing paper................................................................................................................................................................ 69
Supported paper sizes, types, and weights...............................................................................................69
Paper sizes supported by the printer..................................................................................................................... 69
Paper types and weights supported by the printer..............................................................................................71
Paper types and weights supported by the output bins................................................................................... 72
Printing.........................................................................................................73
Printing a document..........................................................................................................................................73
Printing on specialty media.............................................................................................................................73
Tips on using letterhead.............................................................................................................................................73
Tips on using transparencies ....................................................................................................................................74
Tips on using envelopes ............................................................................................................................................74
Tips on using labels.................................................................................................................................................... 75
Tips on using card stock............................................................................................................................................ 75
Printing confidential and other held jobs....................................................................................................76
Holding jobs in the printer ........................................................................................................................................ 76
Printing confidential and other held jobs.............................................................................................................. 76

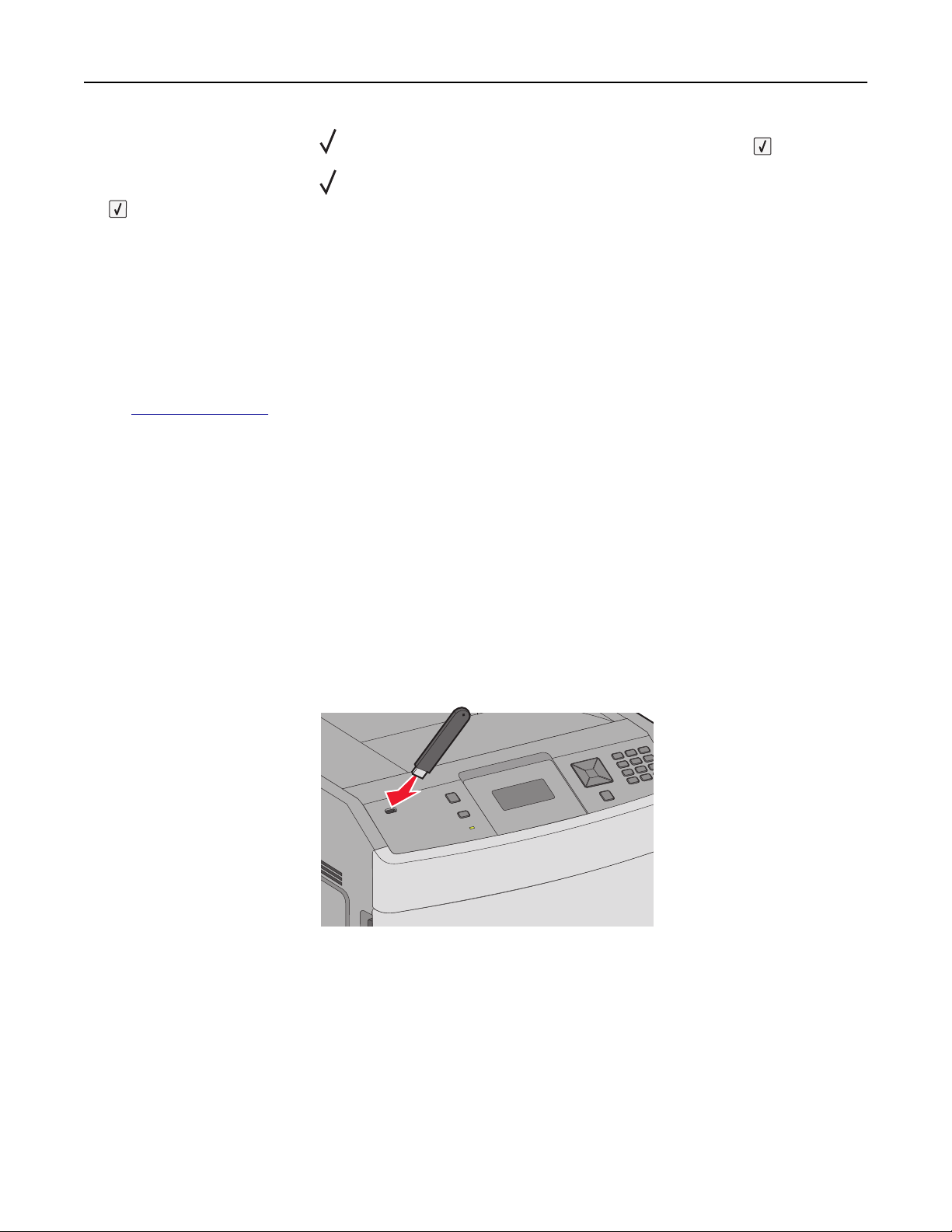

Printing from a flash drive................................................................................................................................78
Printing information pages..............................................................................................................................79
Printing a font sample list.......................................................................................................................................... 79
Printing a directory list ............................................................................................................................................... 79
Printing the print quality test pages........................................................................................................................ 79
Canceling a print job........................................................................................................................................ 80
Canceling a print job from the printer control panel..........................................................................................80
Canceling a print job from the computer ..............................................................................................................80
Contents 3
Clearing jams.............................................................................................. 82
Avoiding jams.....................................................................................................................................................82
Understanding jam numbers and locations............................................................................................... 83
200 and 201 paper jams..................................................................................................................................83
202 and 203 paper jams.................................................................................................................................84
230 paper jam....................................................................................................................................................85

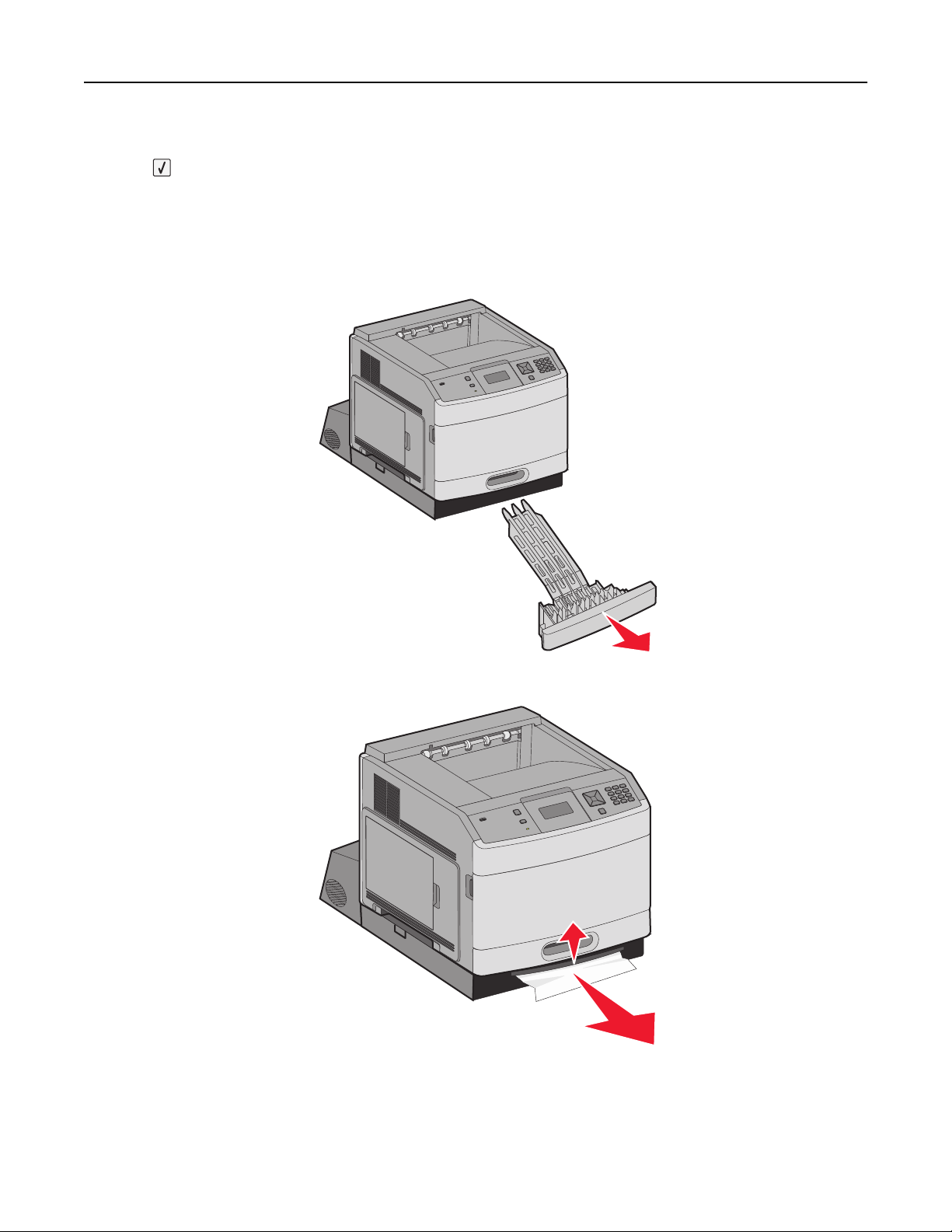

231–239 paper jams (optional external duplex unit)................................................................................87
241–245 paper jams.........................................................................................................................................89
250 paper jam....................................................................................................................................................89
260 paper jam....................................................................................................................................................90
271–279 paper jams.......................................................................................................................................... 91
280 paper jams...................................................................................................................................................91
281 paper jam.....................................................................................................................................................92
282 paper jam....................................................................................................................................................92

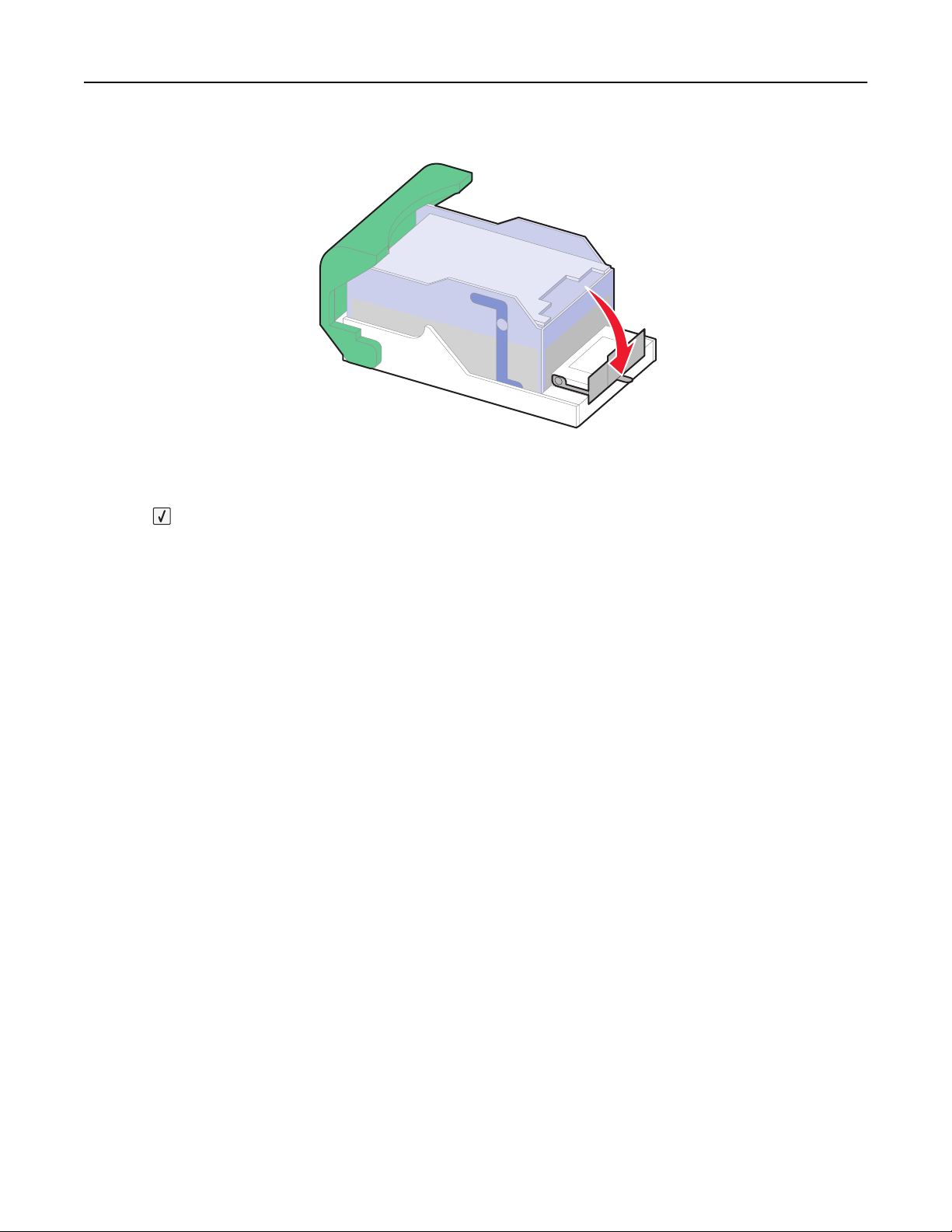

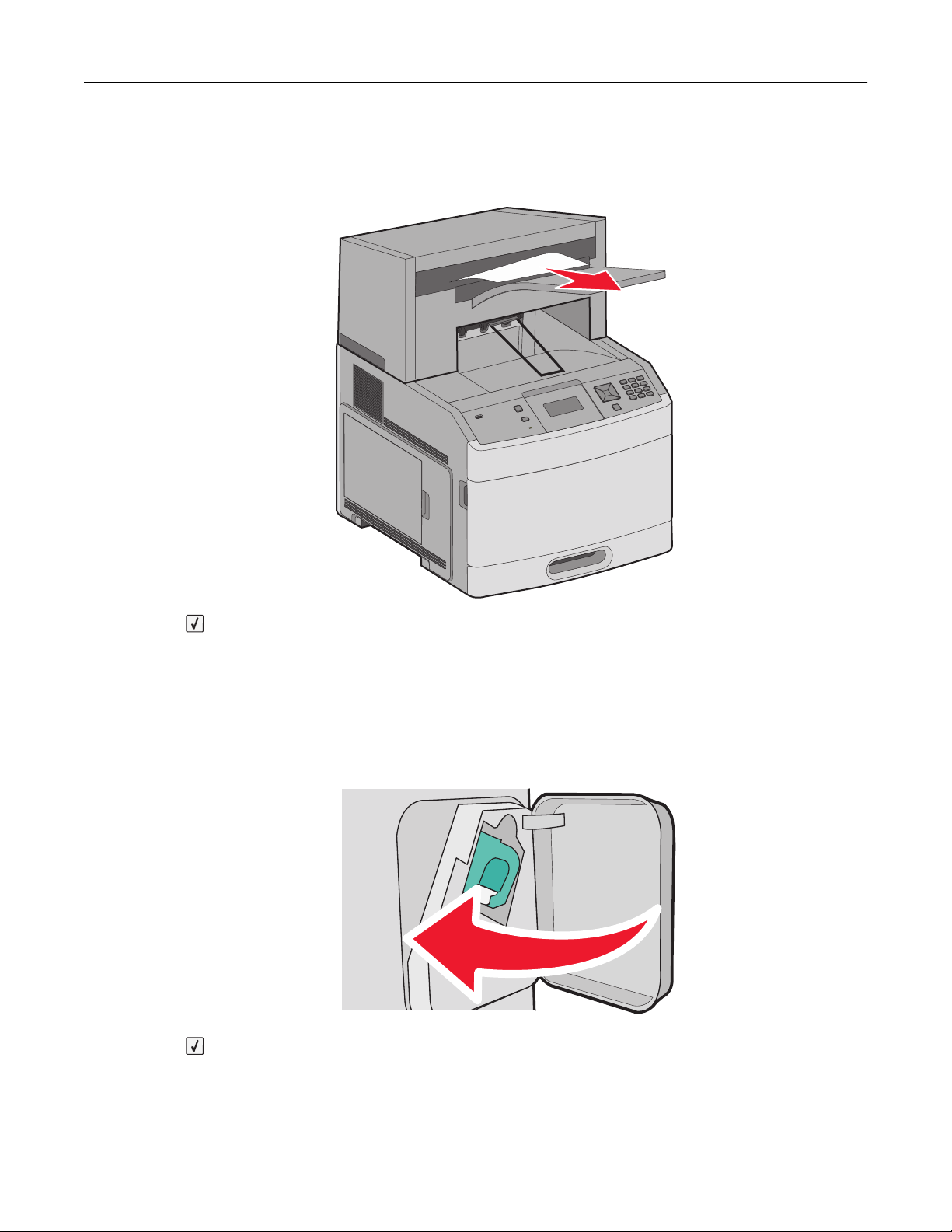

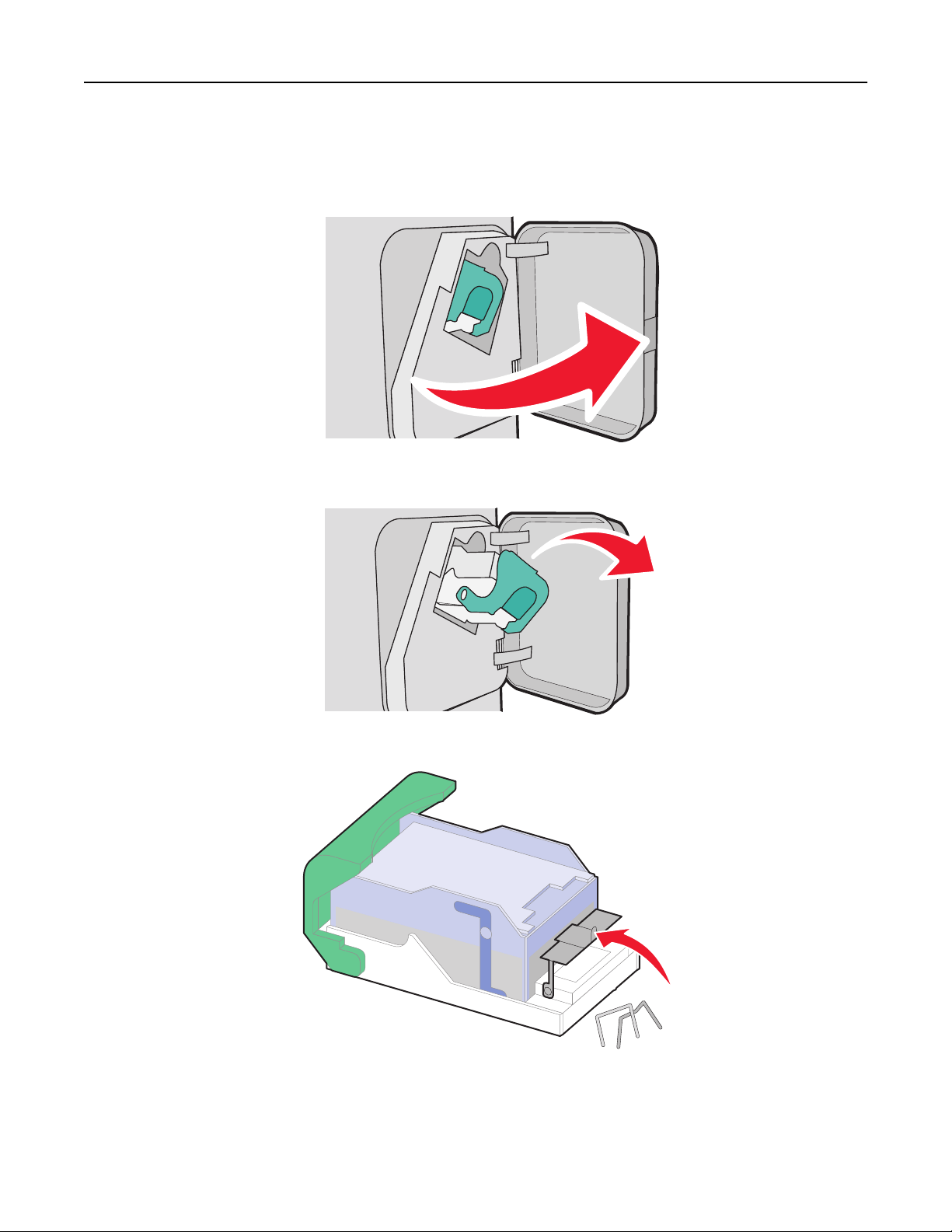

283 staple jam....................................................................................................................................................93
Understanding printer menus...................................................................95
Menus list............................................................................................................................................................ 95
Paper menu.........................................................................................................................................................96
Default Source menu..................................................................................................................................................96
Paper Size/Type menu............................................................................................................................................... 96
Configure MP menu....................................................................................................................................................99
Envelope Enhance .................................................................................................................................................... 100
Substitute Size menu................................................................................................................................................ 100
Paper Texture menu.................................................................................................................................................. 100
Paper Weight menu ...................................................................................................................................................102
Paper Loading menu .................................................................................................................................................104
Custom Types menu..................................................................................................................................................106
Universal Setup menu...............................................................................................................................................106
Bin Setup menu ..........................................................................................................................................................107
Reports menu....................................................................................................................................................108
Network/Ports menu.......................................................................................................................................109
Active NIC menu.........................................................................................................................................................109
Standard Network or Network <x> menus...........................................................................................................109
Network Reports menu...............................................................................................................................................111
Network Card menu ....................................................................................................................................................111
TCP/IP menu .................................................................................................................................................................112
IPv6 menu......................................................................................................................................................................113
Wireless menu..............................................................................................................................................................113
Contents 4
AppleTalk menu ...........................................................................................................................................................114
NetWare menu .............................................................................................................................................................114
LexLink menu ...............................................................................................................................................................115
Standard USB menu ...................................................................................................................................................116
Parallel <x> menu ........................................................................................................................................................117
Serial <x> menu............................................................................................................................................................119
SMTP Setup menu .....................................................................................................................................................122
Security menu...................................................................................................................................................124
Miscellaneous menu..................................................................................................................................................124
Confidential Print menu ............................................................................................................................................125
Disk Wiping menu ......................................................................................................................................................125
Security Audit Log menu..........................................................................................................................................127
Set Date/Time menu..................................................................................................................................................127
Settings menu...................................................................................................................................................128
General Settings menu .............................................................................................................................................128
Setup menu..................................................................................................................................................................132
Finishing menu............................................................................................................................................................134
Quality menu ...............................................................................................................................................................136
Utilities menu............................................................................................................................................................... 137
XPS menu.....................................................................................................................................................................138
PDF menu.....................................................................................................................................................................139
PostScript menu..........................................................................................................................................................139
PCL Emul menu...........................................................................................................................................................139
HTML menu..................................................................................................................................................................142
Image menu.................................................................................................................................................................143
Flash Drive menu........................................................................................................................................................144
Help menu......................................................................................................................................................... 145
Understanding printer messages........................................................... 147
List of status and error messages................................................................................................................147
Maintaining the printer............................................................................ 169
Cleaning the exterior of the printer.............................................................................................................169
Storing supplies................................................................................................................................................169
Conserving supplies....................................................................................................................................... 169
Checking the status of supplies...................................................................................................................170
Checking the status of supplies from the printer control panel.....................................................................170
Checking the status of supplies from a network computer ............................................................................170
Ordering supplies............................................................................................................................................ 170
Ordering print cartridges..........................................................................................................................................170
Ordering a maintenance kit.....................................................................................................................................172
Ordering charge rolls ................................................................................................................................................172
Contents 5
Ordering a fuser..........................................................................................................................................................172
Ordering a fuser wiper..............................................................................................................................................172
Ordering pick rollers.................................................................................................................................................. 173
Ordering staple cartridges....................................................................................................................................... 173
Ordering a transfer roller..........................................................................................................................................173
Recycling Lexmark products......................................................................................................................... 173
Moving the printer............................................................................................................................................173
Before moving the printer........................................................................................................................................173
Moving the printer to another location.................................................................................................................174
Shipping the printer...................................................................................................................................................174
Administrative support.............................................................................175
Finding advanced networking and administrator information............................................................. 175
Using the Embedded Web Server...............................................................................................................175
Checking the device status...........................................................................................................................175
Setting up e‑mail alerts...................................................................................................................................175
Viewing reports................................................................................................................................................ 176
Adjusting Power Saver................................................................................................................................... 176
Restoring the factory default settings.........................................................................................................177
Troubleshooting........................................................................................ 178
Solving basic problems.................................................................................................................................. 178
Solving basic printer problems...............................................................................................................................178
Printer control panel display is blank or displays only diamonds..................................................................178
Embedded Web Server does not open................................................................................................................178
Solving printing problems..............................................................................................................................179
Multiple‑language PDFs do not print ....................................................................................................................179
Error message about reading USB drive appears.............................................................................................179
Jobs do not print.........................................................................................................................................................179
Confidential and other held jobs do not print.....................................................................................................180
Job takes longer than expected to print..............................................................................................................180
Job prints from the wrong tray or on the wrong paper.....................................................................................181
Incorrect characters print ..........................................................................................................................................181
Tray linking does not work........................................................................................................................................181
Large jobs do not collate...........................................................................................................................................181
Unexpected page breaks occur.............................................................................................................................182
Solving option problems................................................................................................................................182
Option does not operate correctly or quits after it is installed.......................................................................182
Paper trays ...................................................................................................................................................................183
2000‑sheet tray..........................................................................................................................................................183
Envelope feeder .........................................................................................................................................................184
Duplex unit ...................................................................................................................................................................184
Contents 6
5‑bin mailbox ...............................................................................................................................................................184
Output options ............................................................................................................................................................184
Memory card................................................................................................................................................................185
Flash memory card.....................................................................................................................................................185
Hard disk with adapter..............................................................................................................................................185
Internal Solutions Port...............................................................................................................................................185
Solving paper feed problems....................................................................................................................... 185
Paper frequently jams ...............................................................................................................................................185
Paper jam message remains after jam is cleared..............................................................................................186
Page that jammed does not reprint after you clear the jam ...........................................................................186
Solving print quality problems......................................................................................................................186
Isolating print quality problems ..............................................................................................................................186
Blank pages .................................................................................................................................................................187
Clipped images...........................................................................................................................................................187
Ghost images...............................................................................................................................................................187
Gray background........................................................................................................................................................188
Incorrect margins........................................................................................................................................................188
Paper curl......................................................................................................................................................................189
Print irregularities .......................................................................................................................................................189
Print is too dark...........................................................................................................................................................190
Print is too light ............................................................................................................................................................191
Repeating defects ......................................................................................................................................................192
Skewed print................................................................................................................................................................192
Solid black or white streaks.....................................................................................................................................193
Solid color pages........................................................................................................................................................193
Streaked horizontal lines..........................................................................................................................................194
Streaked vertical lines...............................................................................................................................................194
Toner fog or background shading appears on the page.................................................................................195
Toner rubs o ..............................................................................................................................................................195
Toner specks................................................................................................................................................................196
Transparency print quality is poor..........................................................................................................................196
Contacting Customer Support......................................................................................................................197
Notices........................................................................................................198
Product information.........................................................................................................................................198
Edition notice.................................................................................................................................................... 198
Power consumption....................................................................................................................................... 203
Index........................................................................................................... 214
Contents 7
Safety information
Connect the power cord to an electrical outlet that is near the product and easily accessible.
Do not place or use this product near water or wet locations.
CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or
performance of procedures other than those
specified
herein may result in hazardous radiation
exposure.
This product uses a printing process that heats the print media, and the heat may cause the media to release
emissions. You must understand the section in your operating instructions that discusses the guidelines for
selecting print media to avoid the possibility of harmful emissions.
Use care when you replace a lithium battery.
CAUTION—POTENTIAL INJURY: There is a danger of explosion if a lithium battery is incorrectly
replaced. Replace it only with the same or an equivalent type of lithium battery. Do not recharge,
disassemble, or incinerate a lithium battery. Discard used batteries according to the manufacturer's
instructions and local regulations.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or
more trained personnel to move it safely.
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal
injury or printer damage:
• Turn the printer
o
using the power switch, and then unplug the power cord from the wall outlet.
• Disconnect all cords and cables from the printer before moving it.
• Lift the printer o the optional drawer, and set it aside instead of trying to lift the drawer and printer at the
same time.
Note: Use the handholds located on both sides of the printer to lift it
o
the optional drawer.
Use only the power cord provided with this product or the manufacturer's authorized replacement.
Use only the telecommunications (RJ‑11) cord provided with this product or a 26 AWG or larger replacement
when connecting this product to the public switched telephone network.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer
o,
and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone
system connections) are properly installed in their marked plug-in ports.
This product is designed, tested, and approved to meet strict global safety standards with the use of
specific
manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer
is not responsible for the use of other replacement parts.
Safety information 8
CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power
cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects
such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect
the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet
before inspecting it.
Refer service or repairs, other than those described in the user documentation, to a professional service person.
CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the
printer, unplug the power cord from the wall outlet and disconnect all cables from the printer before
proceeding.
CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this
product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone,
during a lightning storm.
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability.
You must use either a printer stand or printer base if you are using a high-capacity input tray, a duplex
unit and an input option, or more than one input option. If you purchased a multifunction printer (MFP)
that scans, copies, and faxes, you may need additional furniture. For more information, see
www.lexmark.com/multifunctionprinters.
SAVE THESE INSTRUCTIONS.
Safety information 9
Learning about the printer
Finding information about the printer
Description Where to find
The Setup information gives you instructions for setting
up the printer. Follow the set of instructions for local,
network, or wireless, depending on what you need.
You can find the Setup information on the side of the printer
box or on the Lexmark Web site at
www.lexmark.com.
Description Where to find
The Help gives you instructions for using the
software.
While in any Lexmark software program, click Help, Tips > Help, or
Help > Help Topics.
Description Where to find (North America) Where to find (rest of world)
Telephone support Call us at
• US: 1‑800‑332‑4120
Monday–Friday (8:00 AM–11:00 PM
ET)
Saturday (Noon–6:00 PM ET)
• Canada: 1‑800‑539‑6275
Monday–Friday (8:00 AM–11:00 PM
ET)
Saturday (Noon–6:00 PM ET)
• Mexico: 001‑888‑377‑0063
Monday–Friday (8:00 AM–8:00 PM
ET)
Note: Telephone numbers and support
times may change without notice. For
the most recent telephone numbers
available, see the printed warranty
statement that came with your printer.
Telephone numbers and support hours
vary by country or region.
Visit our Web site at
www.lexmark.com.
Select a country or region, and then
select the Customer Support link.
Note: For additional information about
contacting Lexmark, see the printed
warranty that came with your printer.
E-mail support For e-mail support, visit our Web site:
www.lexmark.com.
1 Click SUPPORT.
2 Click Techni cal Supp ort.
3 Select your printer type.
4 Select your printer model.
5 From the Support Tools section,
click e-Mail Support.
6 Complete the form, and then click
Submit Request.
E‑mail support varies by country or
region, and may not be available in some
instances.
Visit our Web site at
www.lexmark.com.
Select a country or region, and then
select the Customer Support link.
Note: For additional information about
contacting Lexmark, see the printed
warranty that came with your printer.
Learning about the printer 10
Printer configurations
Basic model
1
2
3
4
Feature
Paper Capacity
*
1 Standard exit bin 350 or 550 sheets
2 Printer control panel Not applicable
3 Multipurpose feeder 100 sheets
4 Standard tray (Tray 1) 250 or 550 sheets
*
Based on 75 g/m
2
(20 lb.) paper.
Fully configured model
CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability.
You must use either a printer stand or printer base if you are using a high-capacity input tray, a duplex
unit and an input option, or more than one input option. If you purchased a multifunction printer (MFP)
that scans, copies, and faxes, you may need additional furniture. For more information, see
www.lexmark.com/multifunctionprinters.
Learning about the printer 11
1
2
3
4
5
6
7
9
8
Feature/Option
Paper Capacity
1
1
5‑bin mailbox
2
500 sheets
2 5‑bin mailbox 500 sheets
3 Envelope feeder 85 envelopes
4 Standard tray (Tray 1) 250 or 550 sheets
5
Duplex unit
3
Not applicable
6 Optional tray (Tray 2) 250 or 550 sheets
7 Optional tray (Tray 3) 250 or 550 sheets
8 Optional 2000‑sheet tray (Tray 4) 2000 sheets
9 Caster base Not applicable
1
Based on 75 g/m
2
(20 lb.) paper.
2
The printer supports up to three output expander units, two 5-bin mailboxes, one high capacity output expander
(not depicted), or one stapler unit (not depicted).
3
An optional duplex unit is available for basic models with a 250‑sheet standard tray. Models with a 550‑sheet
standard tray may have an internal duplex unit.
Learning about the printer 12
Selecting a location for the printer
When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to
install any options, leave enough room for them also. It is important to:
• Make sure
airflow
in the room meets the latest revision of the ASHRAE 62 standard.
• Provide a
flat,
sturdy, and stable surface.
• Keep the printer:
– Away from the direct airflow of air conditioners, heaters, or ventilators
– Free from direct sunlight, humidity extremes, or temperature fluctuations
– Clean, dry, and free of dust
• Allow the following recommended amount of space around the printer for proper ventilation:
5
1
2
3
4
1 Right Side 31 cm (12 in.)
2 Left Side 31 cm (12 in.)
3 Front 51 cm (20 in.)
4 Rear 31 cm (12 in.)
5
To p
1
137 cm (54 in.)
1
Allows for addition of all output options.
Learning about the printer 13

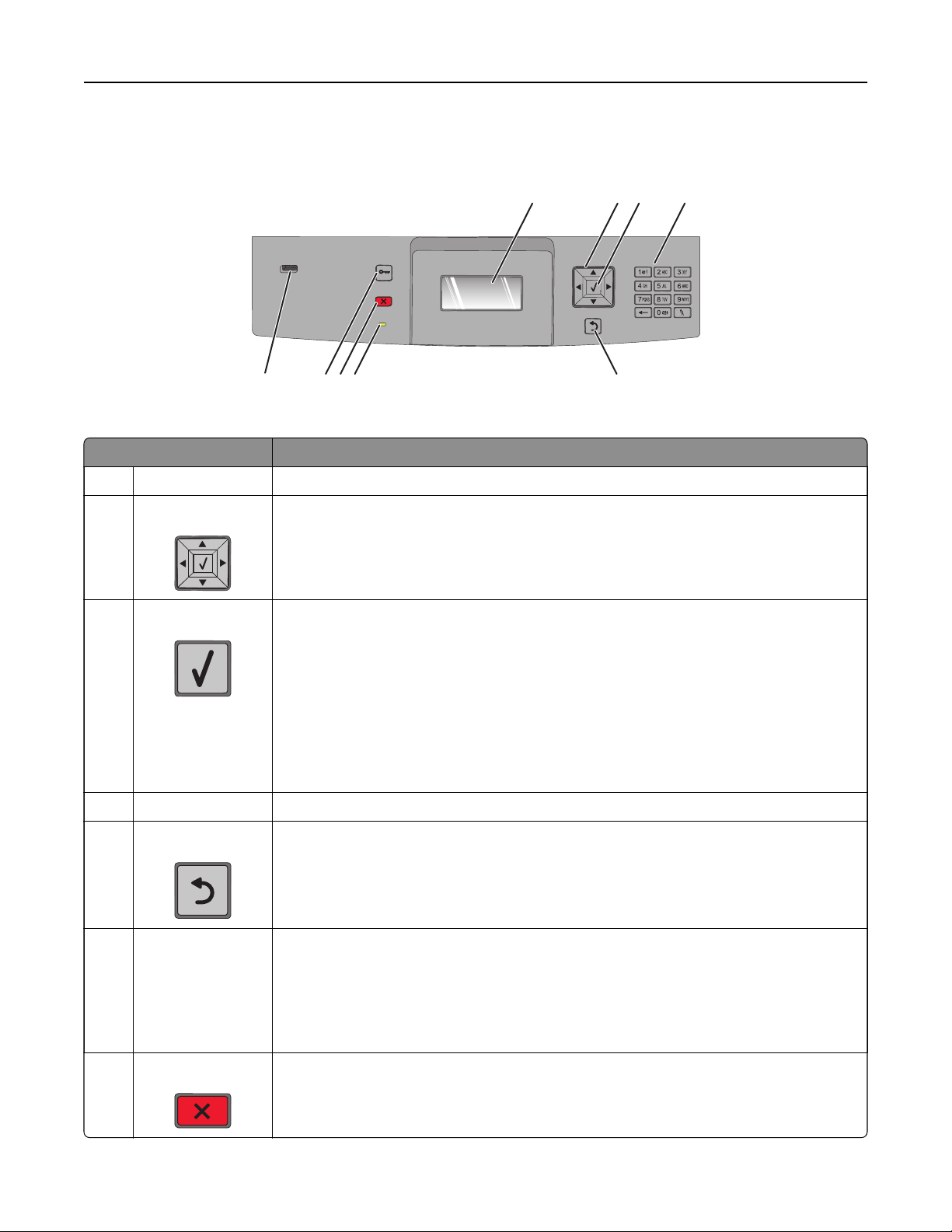

Understanding the printer control panel
123
4
56
7
89
Item Description
1 Display Shows messages and pictures that communicate the status of the printer
2 Navigation buttons
Press the up or down arrow buttons to scroll through menus or menu items, or to
increase or decrease a value when entering numbers.
Press the left or right arrow buttons to scroll through menu settings (also called values
or options), or to scroll through text that rolls to another screen.
3 Select
• Opens a menu item and displays the available values or settings. The current setting
is indicated by an asterisk (*).
• Saves a displayed menu item as the new user default setting.
Notes:
• When a new setting is saved as the user default setting, it remains in eect until a
new setting is saved or until factory defaults are restored.
• Settings chosen from a software program can also change or override the user
default settings selected from the printer control panel.
4 Keypad Enter numbers or symbols on the display.
5 Back Returns the display to the previous screen
6 Indicator light Indicates the printer status:
•
O
—The power is
o.
• Blinking green—The printer is warming up, processing data, or printing.
• Solid green—The printer is on, but idle.
• Solid red—Operator intervention is needed.
7 Stop
Stops all printer activity
A list of options is oered once Stopped appears on the display.
Learning about the printer 14
Item Description
8 Menu
Opens the menu index
Note: The menus are available only when the printer is in the Ready state.
9 USB port Insert a flash drive into the front of the printer to print saved files.
Note: Only the front USB port supports
flash
drives.
Learning about the printer 15
Additional printer setup
Installing internal options
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer o, and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
Available internal options
• Memory cards
– Printer memory
– Flash memory
– Fonts
• Firmware cards
– Bar Code and Forms
– IPDS and SCS/TNe
– PrintCryption
TM
• Printer hard disk
• Lexmark
TM
Internal Solutions Ports (ISP)
– RS‑232‑C Serial ISP
– Parallel 1284‑B ISP
– MarkNet
TM
N8150 802.11 b/g/n Wireless ISP
– MarkNet N8130 10/100 Fiber ISP
– MarkNet N8120 10/100/1000 Ethernet ISP
All of these options may not be available. For more information, contact the place where you purchased the
printer.
Accessing the system board to install internal options
Note: This task requires a flathead screwdriver.
Additional printer setup 16
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer o, and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
1 Open the system board door.
2 Loosen the screw on the system board cover.
Additional printer setup 17
3 Remove the system board cover.
4 Use the illustration below to locate the appropriate connector.
Warning—Potential Damage: System board electronic components are easily damaged by static
electricity. Touch something metal on the printer before touching any system board electronic
components or connectors.
1
2
3
1 Firmware and flash memory card connectors
2 Memory card connector
3 Lexmark Internal Solutions Port or printer hard disk connector
Additional printer setup 18
Installing a memory card
Note: This task requires a
flathead
screwdriver.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer
o,
and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or
connectors.
An optional memory card can be purchased separately and attached to the system board. To install the memory
card:
1 Access the system board.
1
2
3
2 Unpack the memory card.
Note: Avoid touching the connection points along the edge of the card.
3 Open the memory card connector latches.
Additional printer setup 19
4 Align the notches on the memory card with the ridges on the connector.
2
1
1 Notches
2 Ridges
5 Push the memory card straight into the connector until it snaps into place.
6 Replace the system board cover and close the system board door.
1
2
3
Installing a flash memory or firmware card
Note: This task requires a
flathead
screwdriver.
The system board has two connections for an optional
flash
memory or
firmware
card. Only one of each may
be installed, but the connectors are interchangeable.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer o, and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
Additional printer setup 20
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or
connectors.
1 Access the system board.
1
2
3

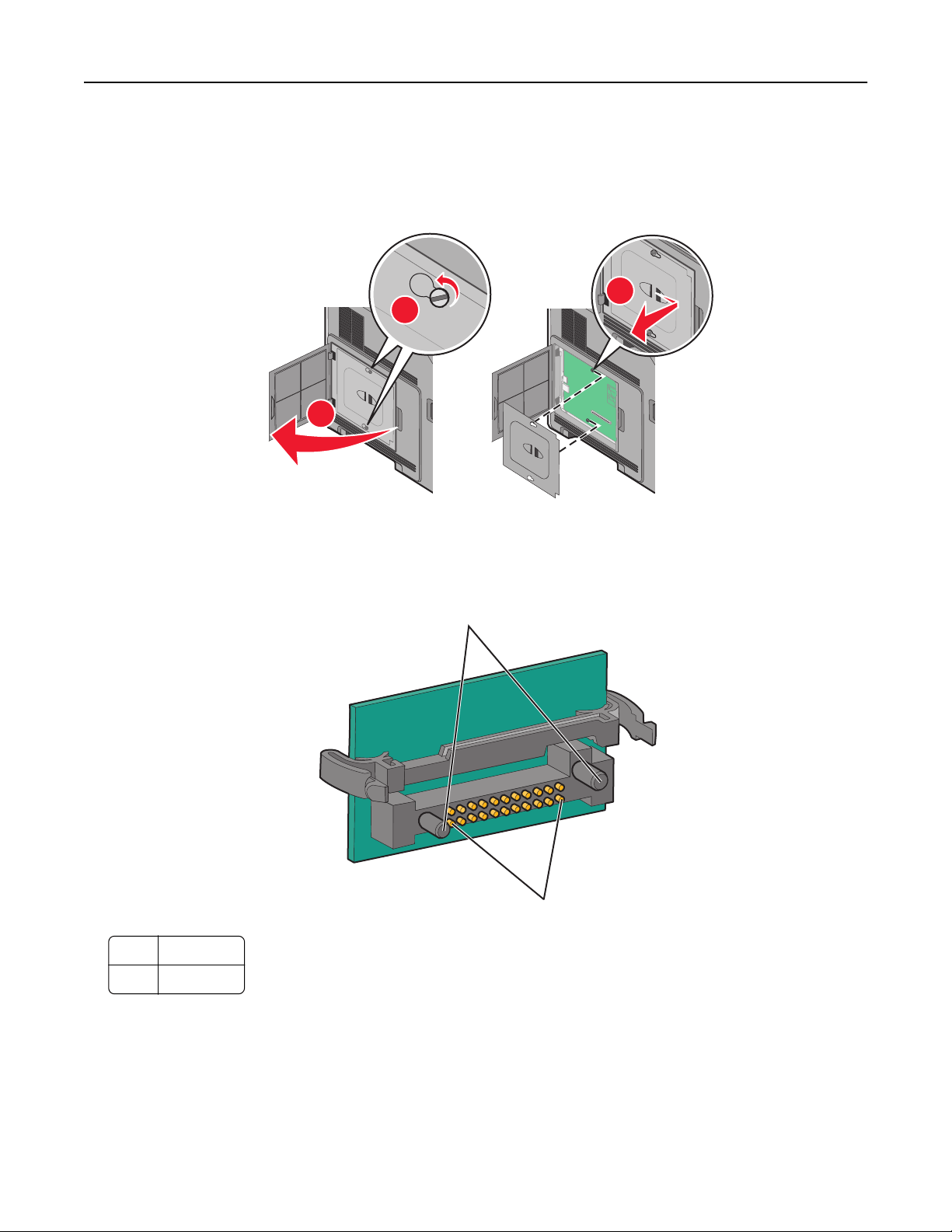

2 Unpack the card.
Note: Avoid touching any electrical components on the card.
3 Holding the card by its sides, align the plastic pins on the card with the holes on the system board.
1
2
1 Plastic pins
2 Metal pins
Additional printer setup 21
4 Push the card firmly into place.
Notes:
• The entire length of the connector on the card must touch and be flush against the system board.
• Be careful not to damage the connectors.
5 Replace the system board cover and close the system board door.
1
2
3
Installing an Internal Solutions Port
The system board supports one optional Lexmark Internal Solutions Port (ISP). Install an ISP for additional
connectivity options.
Note: This task requires a
flathead
screwdriver.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer
o,
and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
Additional printer setup 22
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or
connectors.
1 Access the system board.
1
2
3
2 Unpack the ISP and plastic tee.
Note: Avoid touching the components on the card.
3 Locate the appropriate connector on the system board.
Note: If an optional printer hard disk is currently installed, then the printer hard disk must
first
be
removed. To remove the hard disk:
Additional printer setup 23
a Unplug the printer hard disk interface cable from the system board, leaving the cable attached to the
printer hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage
the latch before pulling the cable out.
b Remove the screws holding the printer hard disk in place.
c Remove the printer hard disk by pulling it upward to unseat the standos.
Additional printer setup 24
d Remove the thumbscrews that attach the printer hard disk mounting bracket to the printer hard disk,
and then remove the bracket. Set the printer hard disk aside.
4 Remove the metal cover from the ISP opening.
1
2
Additional printer setup 25
5 Align the posts of the plastic tee to the holes in the system board, and then press downward until the tee
snaps into place. Be sure each post of the tee has latched completely, and that the tee is seated firmly onto
the system board.
6 Install the ISP onto the plastic tee. Angle the ISP over the plastic tee, and then approach the plastic tee so
that any overhanging connectors will pass through the ISP opening in the system board cage.
Additional printer setup 26
7 Lower the ISP toward the plastic tee until the ISP is seated between the guides of the plastic tee.
8 Insert the long thumbscrew and turn it clockwise enough to hold the ISP in place, but do not tighten the
thumbscrew at this time.
Additional printer setup 27
9 Attach the two provided screws to secure the ISP mounting bracket to the system board cage.
10 Tighten the long thumbscrew.
Note: Do not overtighten the thumbscrew.
11 Insert the plug of the ISP interface cable into the receptacle of the system board.
Note: The plugs and receptacles are color coded.
12 If a printer hard disk was previously installed, then attach the printer hard disk to the ISP. For more
information, see
“Installing a printer hard disk” on page 29.
Additional printer setup 28
13 Replace the system board cover and close the system board door.
1
2
3
Installing a printer hard disk
The optional printer hard disk can be installed with or without a Lexmark Internal Solutions Port (ISP).
Note: This task requires a flathead screwdriver.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer o, and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or
connectors.
1 Access the system board.
1
2
3
2 Unpack the printer hard disk.
Note: Avoid touching the components on the card.
Additional printer setup 29
3 Locate the appropriate connector on the system board.
Note: If an optional ISP is currently installed, then the printer hard disk must be installed onto the ISP.
To install a printer hard disk onto the ISP:
a Using a
flathead
screwdriver to loosen the screws, remove the thumbscrews that attach the printer hard
disk mounting bracket to the printer hard disk, and then remove the bracket.
b Align the
standos
of the printer hard disk with the holes in the ISP, and then press downward on the
printer hard disk until the standos have seated into place.
Additional printer setup 30
c Insert the plug of the printer hard disk interface cable into the receptacle of the ISP.
Note: The plugs and receptacles are color coded.
To install a printer hard disk directly onto the system board:
a Align the standos of the printer hard disk with the holes in the system board, and then press downward
on the printer hard disk until the standos have seated into place.
Additional printer setup 31
b Attach the two provided screws to secure the printer hard disk mounting bracket.
c Insert the plug of the printer hard disk interface cable into the receptacle of the system board.
Note: The plugs and receptacles are color coded.
4 Replace the system board cover and close the system board door.
1
2
3
Additional printer setup 32
Installing hardware options
Order of installation
CAUTION—TIPPING HAZARD: Floor-mounted
configurations
require additional furniture for stability.
You must use either a printer stand or printer base if you are using a high-capacity input tray, a duplex
unit and an input option, or more than one input option. If you purchased a multifunction printer (MFP)
that scans, copies, and faxes, you may need additional furniture. For more information, see
www.lexmark.com/multifunctionprinters.
Install the printer and any options you have purchased in the following order:
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer o, and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
• Printer stand or caster base
• 2,000‑sheet dual trays and high capacity feeder
• Standard or optional 500‑sheet trays
• Duplex unit
• Printer
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or
more trained personnel to move it safely.
For more information on installing a printer stand, caster base, or 2,000‑sheet tray, see the setup documentation
that came with the option.
Installing paper drawers
The printer supports up to four optional drawers. A drawer consists of a tray and a support unit. All drawers are
installed the same way.
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer
o,
and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
1 Unpack the drawer, and then remove any packing material.
2 Place the drawer in the location chosen for the printer.
Note: If you have multiple options to install, then see the section about the recommended order of
installation. The 2000‑sheet drawer must be the bottom drawer.
3 Align the printer with the drawer, and then lower the printer into place.
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or
more trained personnel to move it safely.
Additional printer setup 33
Removing an optional drawer
Warning—Potential Damage: Lifting the printer from a drawer without pushing in the safety latches could
damage the latches.
To remove an optional drawer, push in the safety latches on both sides of the drawer until they click and stay
recessed, and then lift the printer.
Installing an optional duplex unit (T650 only)
The optional duplex unit for the T650 model attaches under the printer, below the standard tray and above any
optional drawers.
Notes:
• T652dn and T654dn models have an internal duplex unit installed in the printer.
• T652n and T654n models do not support an optional duplex unit.
Additional printer setup 34
CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer o, and unplug the power
cord from the wall outlet before continuing. If you have any other devices attached to the printer, then
turn them o as well, and unplug any cables going into the printer.
1 Unpack the duplex unit, and then remove any packing material.
2 Place the duplex unit in the location chosen for the printer.
Note: If you have multiple options to install, then see the section about the recommended order of
installation.
3 Align the printer with the duplex unit, and then lower the printer into place.
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or
more trained personnel to move it safely.
Removing an optional duplex unit
Warning—Potential Damage: Lifting the printer from the duplex unit without pushing in the safety latches
could damage the latches.
To remove the duplex unit, push in the safety latches on both sides of the duplex unit until they click and stay
recessed, and then lift the printer.
Additional printer setup 35
Attaching cables
CAUTION—POTENTIAL INJURY: Do not use the fax feature during a lightning storm. Do not set up this
product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone,
during a lightning storm.
Connect the printer to the computer using a USB cable or Ethernet cable.
Be sure to match the following:
• The USB symbol on the cable with the USB symbol on the printer
• The appropriate Ethernet cable to the Ethernet port
1
2
1 USB port
Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area
shown while actively printing. A loss of data or a malfunction can occur.
2 Ethernet port
Additional printer setup 36
Verifying printer setup
Once all hardware and software options are installed and the printer is turned on, verify that the printer is set
up correctly by printing the following:
• Menu settings page—Use this page to verify that all printer options are installed correctly. A list of installed
options appears toward the bottom of the page. If an option you installed is not listed, then it is not installed
correctly. Remove the option and install it again.
• Network setup page—If your printer is a network model and is attached to a network, print a network setup
page to verify the network connection. This page also provides important information that aids network
printing configuration.
Printing a menu settings page
Print a menu settings page to review the current menu settings and to verify printer options are installed
correctly.
Note: If you have not made any menu item settings changes yet, then the menu settings page lists all the
factory default settings. Once you select and save other settings from the menus, they replace the factory
default settings as user default settings. A user default setting remains in eect until you access the menu
again, choose another value, and save it. To restore the factory default settings, see
“Restoring the factory
default settings” on page 177.
1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Reports appears, and then press .
4 Press the arrow buttons until Menu Settings Page appears, and then press .
Printing a network setup page
If the printer is attached to a network, then print a network setup page to verify the network connection. This
page also provides important information that aids network printing configuration.
1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Reports appears, and then press .
4 Press the arrow buttons until Network Setup Page appears, and then press .
Note: If an optional internal print server is installed, Print Network <x> Setup Page appears.
5 Check the
first
section on the network setup page, and
confirm
that Status is “Connected.”
If Status is “Not Connected,” the LAN drop may not be active, or the network cable may be malfunctioning.
Consult a system support person for a solution, and then print another network setup page.
Additional printer setup 37
Setting up the printer software
Installing printer software
A printer driver is software that lets the computer communicate with the printer. The printer software is typically
installed during the initial printer setup. If you need to install the software after setup, follow these instructions:
For Windows users
1
Close all open software programs.
2 Insert the Software and Documentation CD.
3 From the main installation dialog, click Install.
4 Follow the instructions on the screen.
For Macintosh users
1
Close all open software applications.
2 Insert the Software and Documentation CD.
3 From the Finder desktop, double-click the printer CD icon that automatically appears.
4 Double-click the Install icon.
5 Follow the instructions on the screen.
Using the World Wide Web
1
Go to the Lexmark Web site at www.lexmark.com.
2 From the Drivers & Downloads menu, click Driver Finder.
3 Select your printer, and then select your operating system.
4 Download the driver and install the printer software.
Updating available options in the printer driver
Once the printer software and any options are installed, it may be necessary to manually add the options in the
printer driver to make them available for print jobs.
For Windows users
1 Click , or click Start and then click Run.
2 In the Start Search or Run box, type control printers.
3 Press Enter, or click OK.
The printer folder opens.
4 Select the printer.
5 Right‑click the printer, and then select Properties.
6 Click the Install Options tab.
Additional printer setup 38
7 Under Available Options, add any installed hardware options.
8 Click Apply.
For Macintosh users
In Mac OS X version 10.5 or later
1 From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Select the printer, and then click Options & Supplies.
4 Click Driver, and then add any installed hardware options.
5 Click OK.
In Mac OS X version 10.4 and earlier
1 From the Finder desktop, choose Go > Applications.
2 Double‑click Utilities, and then double‑click Print Center or Printer Setup Utility.
3 Select the printer, and then from the Printers menu, choose Show Info.
4 From the pop‑up menu, choose Installable Options.
5 Add any installed hardware options, and then click Apply Changes.
Setting up wireless printing
Information you will need to set up the printer on a wireless network
Note: Do not connect the installation or network cables until prompted to do so by the setup software.
• SSID—The SSID is also referred to as the network name.
• Wireless Mode (or Network Mode)—The mode will be either infrastructure or ad hoc.
• Channel (for ad hoc networks)—The channel defaults to auto for infrastructure networks.
Some ad hoc networks will also require the auto setting. Check with your system support person if you are
not sure which channel to select.
• Security Method—There are three basic options for Security Method:
– WEP key
If your network uses more than one WEP key, enter up to four in the provided spaces. Select the key
currently in use on the network by selecting the Default WEP Transmit Key.
or
– WPA or WPA2 passphrase
WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must
be set for the same type on the router and on the printer, or the printer will not be able to communicate
on the network.
Additional printer setup 39
– No security
If your wireless network does not use any type of security, then you will not have any security information.
Note: Using an unsecured wireless network is not recommended.
If you are installing the printer on an 802.1X network using the Advanced method, then you may need the
following:
• Authentication type
• Inner authentication type
• 802.1X username and password
• Certificates
Note: For more information on
configuring
802.1X security, see the Networking Guide on the Software and
Documentation CD.
Installing the printer on a wireless network (Windows)
Before you install the printer on a wireless network, make sure that:
• An optional wireless card is installed in your printer.
• Your wireless network is set up and working properly.
• The computer you are using is connected to the same wireless network where you want to set up the printer.
1 Connect the power cable, and then turn the printer on.
Make sure the printer and computer are fully on and ready.
Additional printer setup 40
Do not connect the USB cable until instructed to do so on the screen
2 Insert the Software and Documentation CD.
3 Click Install.
4 Click Agree.
5 Click Suggested.
6 Click Wireless Network Attach.
7 Connect the cables in the following order:
a Temporarily connect a USB cable between the computer on the wireless network and the printer.
Note: After the printer is configured, the software will instruct you to disconnect the temporary USB
cable so you can print wirelessly.
b If your printer has faxing capabilities, then connect the telephone cable.
8 Follow the on‑screen instructions to complete the software installation.
9 To allow other computers on the wireless network to use the wireless printer, follow steps 2 through 6 and
step 8 for each computer.
Installing the printer on a wireless network (Macintosh)
Prepare to
configure
the printer
1
Locate the printer MAC address on the sheet that shipped with the printer. Write the last six digits of the
MAC address in the space provided below:
MAC address: ___ ___ ___ ___ ___ ___
2 Connect the power cable to the printer and then to a properly grounded electrical outlet, and then turn the
power on.
Additional printer setup 41
Enter the printer information
1
Access the AirPort options.
In Mac OS X version 10.5 or later
a From the Apple menu, choose System Preferences.
b Click Network.
c Click AirPort.
In Mac OS X version 10.4 and earlier
a From the Finder desktop, choose Go > Applications.
b From the Applications folder, double‑click Internet Connect.
c From the toolbar, click AirPort.
2 From the Network popup menu, select print server xxxxxx, where the x’s are the last six digits of the MAC
address located on the MAC address sheet.
3 Open the Safari browser.
4 From the Bookmarks drop-down menu, select Show.
5 Under Collections, select Bonjour or Rendezvous, and then double‑click the printer name.
Note: The application is referred to as Rendezvous in Mac OS X version 10.3, but is now called Bonjour
by Apple Computer.
6 From the main page of the Embedded Web Server, navigate to the page where the wireless settings
information is stored.
Configure
the printer for wireless access
1
Type the name of your network (SSID) in the appropriate
field.
2 Select Infrastructure as your Network Mode if you are using a wireless router.
3 Select the type of security you use to protect your wireless network.
4 Enter the security information necessary for the printer to join your wireless network.
5 Click Submit.
Additional printer setup 42
6 Open the AirPort application on your computer:
In Mac OS X version 10.5 or later
a From the Apple menu, choose System Preferences.
b Click Network.
c Click AirPort.
In Mac OS X version 10.4 and earlier
a From the Finder desktop, choose Go > Applications.
b From the Applications folder, double‑click Internet Connect.
c From the toolbar, click AirPort.
7 From the Network popup menu, select your wireless network.
Configure your computer to use the printer wirelessly
To print to a network printer, each Macintosh user must install a custom PostScript Printer Description (PPD)
file
and create a printer in the Print Center or Printer Setup Utility.
1 Install a PPD file on the computer:
a Insert the Software and Documentation CD in the CD or DVD drive.
b Double-click the installer package for the printer.
c From the Welcome screen, click Continue.
d Click Continue again after viewing the Readme file.
e Click Continue after viewing the license agreement, and then click Agree to accept the terms of the
agreement.
f Select a Destination, and then click Continue.
g From the Easy Install screen, click Install.
h Type the user password, and then click OK.
All necessary software is installed on the computer.
i Click Close when installation is complete.
2 Add the printer:
a For IP printing:
In Mac OS X version 10.5 or later
1 From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Click +.
4 Select the printer from the list.
5 Click Add.
In Mac OS X version 10.4 and earlier
1 From the Finder desktop, choose Go > Applications.
2 Double‑click the Utilities folder.
3 Locate and double‑click Printer Setup Utility or Print Center.
4 From the Printer List, choose Add.
Additional printer setup 43
5 Select the printer from the list.
6 Click Add.
b For AppleTalk printing:
In Mac OS X version 10.5
1 From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Click +.
4 Click AppleTalk.
5 Select the printer from the list.
6 Click Add.
In Mac OS X version 10.4 and earlier
1 From the Finder desktop, choose Go > Applications.
2 Double‑click the Utilities folder.
3 Locate and double‑click Print Center or Printer Setup Utility.
4 From the Printer List, choose Add.
5 Choose the Default Browser tab.
6 Click More Printers.
7 From the first pop‑up menu, choose AppleTalk.
8 From the second pop‑up menu, select Local AppleTalk zone.
9 Select the printer from the list.
10 Click Add.
Installing the printer on a wired network
Use the following instructions to install the printer on a wired network. These instructions apply to Ethernet
and fiber optic network connections.
Before you install the printer on a wired network, make sure that:
• You have completed the initial setup of the printer.
• The printer is connected to your network with the appropriate type of cable.
For Windows users
1 Insert the Software and Documentation CD.
Wait for the Welcome screen to appear.
If the CD does not launch after a minute, then do the following:
a Click , or click Start and then click Run.
b In the Start Search or Run box, type D:\setup.exe, where D is the letter of your CD or DVD drive.
2 Click Install Printer and Software.
3 Click Agree to agree to the License Agreement.
Additional printer setup 44
4 Select Suggested, and then click Next.
Note: To
configure
the printer using a static IP address, using IPv6, or to
configure
printers using
scripts, select Custom and follow the on‑screen instructions.
5 Select Wired Network Attach, and then click Next.
6 Select the printer manufacturer from the list.
7 Select the printer model from the list, and then click Next.
8 Select the printer from the list of printers discovered on the network, and then click Finish.
Note: If your configured printer does not appear in the list of discovered printers, click Add Port and
follow the on‑screen instructions.
9 Follow the on‑screen instructions to complete the installation.
For Macintosh users
1 Allow the network DHCP server to assign an IP address to the printer.
2 Print the network setup page from the printer. For information on printing a network setup page, see
“Printing a network setup page” on page 37.
3 Locate the printer IP address in the TCP/IP section of the network setup page. You will need the IP
address if you are configuring access for computers on a dierent subnet than the printer.
4 Install the drivers and add the printer.
a Install a PPD
file
on the computer:
1 Insert the Software and Documentation CD in the CD or DVD drive.
2 Double-click the installer package for the printer.
3 From the Welcome screen, click Continue.
4 Click Continue again after viewing the Readme file.
5 Click Continue after viewing the license agreement, and then click Agree to accept the terms
of the agreement.
6 Select a Destination, and then click Continue.
7 From the Easy Install screen, click Install.
8 Type the user password, and then click OK.
All the necessary software is installed on the computer.
9 Click Restart when installation is complete.
b Add the printer:
• For IP printing:
In Mac OS X version 10.5 or later
1
From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Click +.
4 Click IP.
5 Type in the IP address of your printer in the Address field.
6 Click Add.
Additional printer setup 45
In Mac OS X version 10.4 and earlier
1
From the Finder desktop, choose Go > Applications.
2 Double‑click Utilities.
3 Double‑click Printer Setup Utility or Print Center.
4 From the Printer List, click Add.
5 Click IP.
6 Type in the IP address of your printer in the Address field.
7 Click Add.
• For AppleTalk printing:
In Mac OS X version 10.5
1
From the Apple menu, choose System Preferences.
2 Click Print & Fax.
3 Click +.
4 Click AppleTalk.
5 Select the printer from the list.
6 Click Add.
In Mac OS X version 10.4 and earlier
1
From the Finder desktop, choose Go > Applications.
2 Double‑click Utilities.
3 Double‑click Print Center or Printer Setup Utility.
4 From the Printer List, click Add.
5 Choose the Default Browser tab.
6 Click More Printers.
7 From the first pop‑up menu, choose AppleTalk.
8 From the second pop‑up menu, select Local AppleTalk zone.
9 Select the printer from the list.
10 Click Add.
Note: If the printer doesn't show up in the list, you may need to add it using the IP address.
Contact your system support person for assistance.
Additional printer setup 46
Changing port settings after installing a new network
Internal Solutions Port
When a new network Lexmark Internal Solutions Port (ISP) is installed in the printer, the printer
configurations
on computers that access the printer must be updated because the printer will be assigned a new IP address.
All computers that access the printer must be updated with this new IP address in order to print to it over the
network.
Notes:
• If the printer has a static IP address that will stay the same, then you do not need to make any changes
to the computer
configurations.
• If the computers are
configured
to print to the printer by a network name that will stay the same, instead
of by IP address, then you do not need to make any changes to the computer configurations.
• If you are adding a wireless ISP to a printer previously configured for a wired connection, then make sure
the wired network is disconnected when you configure the printer to operate wirelessly. If the wired
connection remains connected, then the wireless configuration will complete, but the wireless ISP will
not be active. In the event that the printer was configured for a wireless ISP while still attached to a wired
connection, disconnect the wired connection, turn the printer o, and then turn the printer back on
again. This will enable the wireless ISP.
• Only one network connection at a time is active. If you want to switch the connection type between
wired and wireless, you must first turn the printer o, connect the cable (to switch to a wired connection)
or disconnect the cable (to switch to a wireless connection), and then turn the printer back on again.
For Windows users
1 Print a network setup page and make a note of the new IP address.
2 Click , or click Start and then click Run.
3 In the Start Search or Run box, type control printers.
4 Press Enter, or click OK.
The printer folder opens.
5 Locate the printer that has changed.
Note: If there is more than one copy of the printer, then update all of them with the new IP address.
6 Right‑click the printer.
7 Click Properties.
8 Click the Ports tab.
9 Locate the port in the list, and then select it.
10 Click Configure Port.
11 Type the new IP address in the “Printer Name or IP Address” field. You can find the new IP address on the
network setup page you printed in step 1.
12 Click OK, and then click Close.
Additional printer setup 47
For Macintosh users
1 Print a network setup page and make a note of the new IP address.
2 Locate the printer IP address in the TCP/IP section of the network setup page. You will need the IP address
if you are configuring access for computers on a dierent subnet than the printer.
3 Add the printer:
• For IP printing:
In Mac OS X version 10.5 or later
a
From the Apple menu, choose System Preferences.
b Click Print & Fax.
c Click +.
d Click IP.
e Type in the IP address of your printer in the Address field.
f Click Add.
In Mac OS X version 10.4 and earlier
a
From the Go menu, choose Applications.
b Double‑click Utilities.
c Double‑click Printer Setup Utility or Print Center.
d From the Printer List, click Add.
e Click IP.
f Type in the IP address of your printer in the Address field.
g Click Add.
• For AppleTalk printing:
In Mac OS X version 10.5
a
From the Apple menu, choose System Preferences.
b Click Print & Fax.
c Click +.
d Click AppleTalk.
e Select the printer from the list.
f Click Add.
In Mac OS X version 10.4 and earlier
a
From the Go menu, choose Applications.
b Double‑click Utilities.
c Double‑click Print Center or Printer Setup Utility.
d From the Printer List, click Add.
e Choose the Default Browser tab.
f Click More Printers.
g From the first pop‑up menu, choose AppleTalk.
h From the second pop‑up menu, select Local AppleTalk zone.
i Select the printer from the list.
j Click Add.
Additional printer setup 48
Setting up serial printing
In serial printing, data is transferred one bit at a time. Although serial printing is usually slower than parallel
printing, it is the preferred option when there is a great deal of distance between the printer and computer or
when an interface with a better transfer rate is not available.
After installing the serial port, you will need to configure the printer and the computer so they can communicate.
Make sure you have connected the serial cable to the serial port on your printer.
1 Set the parameters in the printer:
a From the printer control panel, navigate to the menu with port settings.
b Locate the submenu with serial port settings.
c Make any necessary changes to the serial settings.
d Save the new settings.
e Print a menu settings page.
2 Install the printer driver:
a Insert the Software and Documentation CD. It launches automatically.
If the CD does not launch automatically, then do the following:
1 Click , or click Start and then click Run.
2 In the Start Search or Run box, type D:\setup.exe, where D is the letter of your CD or DVD drive.
b Click Install Printer and Software.
c Click Agree to accept the Printer Software License Agreement.
d Click Custom.
e Make sure Select Components is selected, and then click Next.
f Make sure Local is selected, and then click Next.
g Select the manufacturer of the printer from the menu.
h Select the printer model from the menu, and then click Add Printer.
i Click the + beside the printer model under Select Components.
j Make sure the correct port is available under Select Components. This is the port where the serial cable
attaches to the computer. If the correct port is not available, select the port under the Select Port menu,
and then click Add Port.
k Make any
configuration
changes necessary in the Add a New Port window. Click Add Port to
finish
adding the port.
l Make sure the box next to the selected printer model is checked.
m Select any other optional software you want to install, and then click Next.
n Click Finish to complete the printer software installation.
3 Set the COM port parameters:
After the printer driver is installed, you must set the serial parameters in the communications (COM) port
assigned to the printer driver.
The serial parameters in the COM port must match the serial parameters you set in the printer.
a Open the Device Manager.
1 Click , or click Start and then click Run.
2 In the Start Search or Run box, type devmgmt.msc.
Additional printer setup 49
3 Press Enter, or click OK.
The Device Manager opens.
b Click + to expand the list of available ports.
c Select the communications port where you attached the serial cable to your computer (example: COM1).
d Click Properties.
e On the Port Settings tab, set the serial parameters to the same serial parameters in the printer.
Look for the printer settings under the serial heading on the Menu Settings page you printed earlier.
f Click OK, and then close all the windows.
g Print a test page to verify printer installation. When a test page prints successfully, printer setup is
complete.
Additional printer setup 50
Loading paper and specialty media
This section explains how to load the 250-, 550-, and 2000-sheet trays, and the multipurpose feeder. It also
includes information about paper orientation, setting the Paper Size and Paper Type, and linking and unlinking
trays.
Setting the Paper Size and Paper Type
The Paper Size setting is determined by the position of the paper guides in the tray for all trays except the
multipurpose feeder. The Paper Size setting for the multipurpose feeder must be set manually. The factory
default Paper Type setting is Plain Paper. The Paper Type setting must be set manually for all trays that do not
contain plain paper.
1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Paper Menu appears, and then press .
4 Press the arrow buttons until Paper Size/Type appears, and then press .
5 Press the arrow buttons until the correct tray appears, and then press .
6 Press the arrow buttons until appears next to the correct size, and then press .
7 Press the arrow buttons until the correct Paper Type setting appears, and then press .
Ready appears.
Configuring Universal paper settings
The Universal Paper Size is a user‑defined setting that lets you print on paper sizes that are not preset in the
printer menus. Set the Paper Size for the specified tray to Universal when the size you want is not available
from the Paper Size menu. Then, specify all of the following Universal size settings for your paper:
• Units of measure (millimeters or inches)
• Portrait Width
• Portrait Height
• Feed Direction
Note: The smallest supported Universal size is 70 x 127 mm (2.8 x 5 in.); the largest is 216 x 356 mm
(8.5 x 14 in.).
Specify a unit of measurement
1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Paper Menu appears, and then press .
Loading paper and specialty media 51
4 Press the arrow buttons until Universal Setup appears, and then press .
5 Press the arrow buttons until Units of Measure appears, and then press .
6 Press the arrow buttons until appears next to the correct unit of measure, and then press .
Submitting Selection appears, followed by the Universal Setup menu.
Specify the paper height and width
Defining a specific height and width measurement for the Universal paper size (in the portrait orientation) allows
the printer to support the size, including support for standard features such as duplex printing and printing
multiple pages on one sheet.
1 From the Universal Setup menu, press the arrow buttons until Portrait Width appears, and then press
.
2 Press the arrow buttons to change the paper width setting, and then press .
Submitting Selection appears, followed by the Universal Setup menu.
3 Press the arrow buttons until Portrait Height appears, and then press .
4 Press the arrow buttons to change the paper height setting, and then press .
Submitting Selection appears, followed by the Universal Setup menu.
Loading the standard or optional 250‑sheet or 550‑sheet
tray
Although the 250-sheet tray and the 550-sheet tray are
dierent
in appearance, they require the same process
for loading paper. Use these instructions to load paper in either tray:
1 Pull the tray out.
Note: Do not remove trays while a job prints or while Busy appears on the display. Doing so may cause a
jam.
Loading paper and specialty media 52

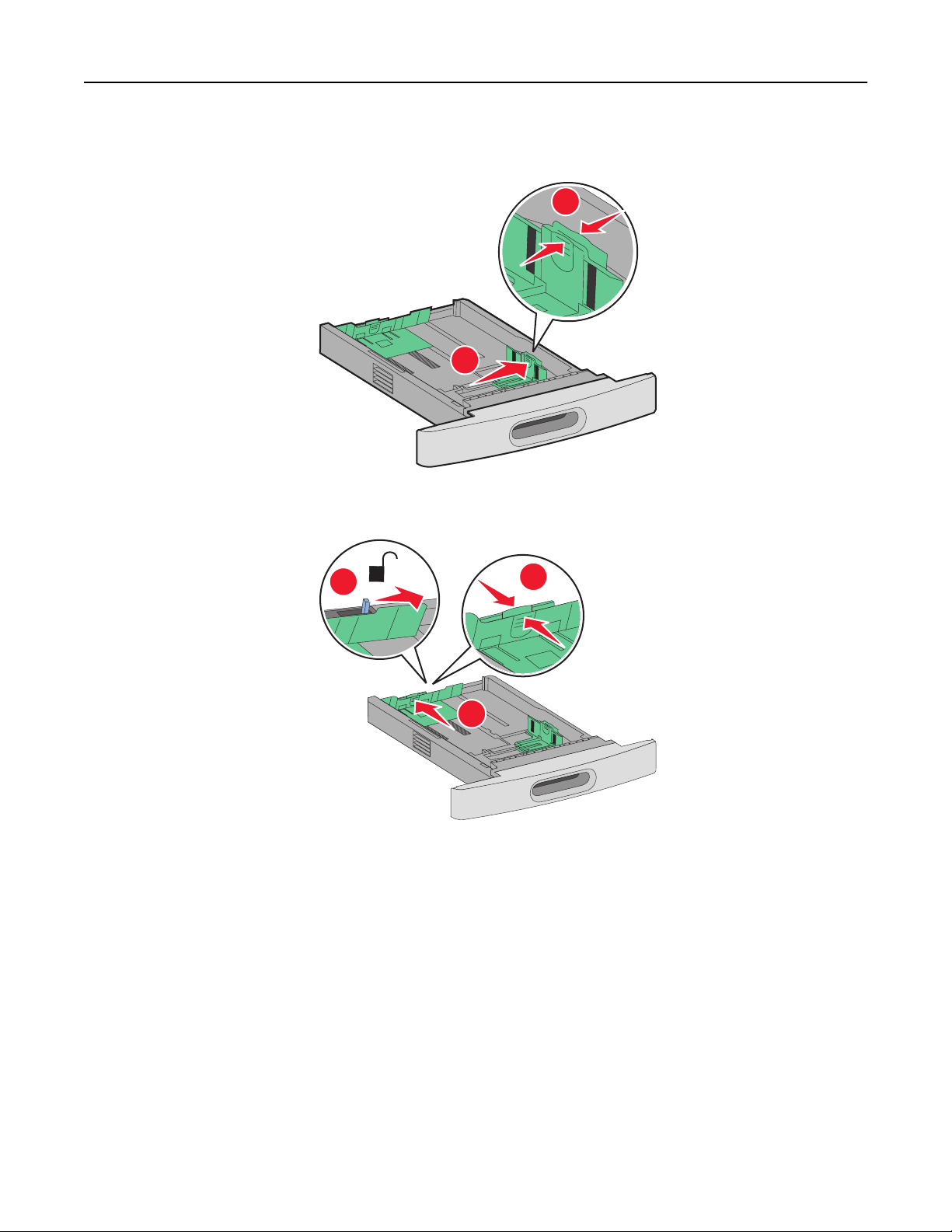

2 Squeeze the width guide tab inward as shown, and move the width guide to the correct position for the
paper size being loaded.
2
1
3 Unlock the length guide, squeeze the length guide tab inward as shown, and slide the guide to the correct
position for the paper size being loaded.
3
1
2
Notes:
• Use the size indicators on the bottom of the tray to help position the guides.
• For standard paper sizes, lock the length guide.
Loading paper and specialty media 53

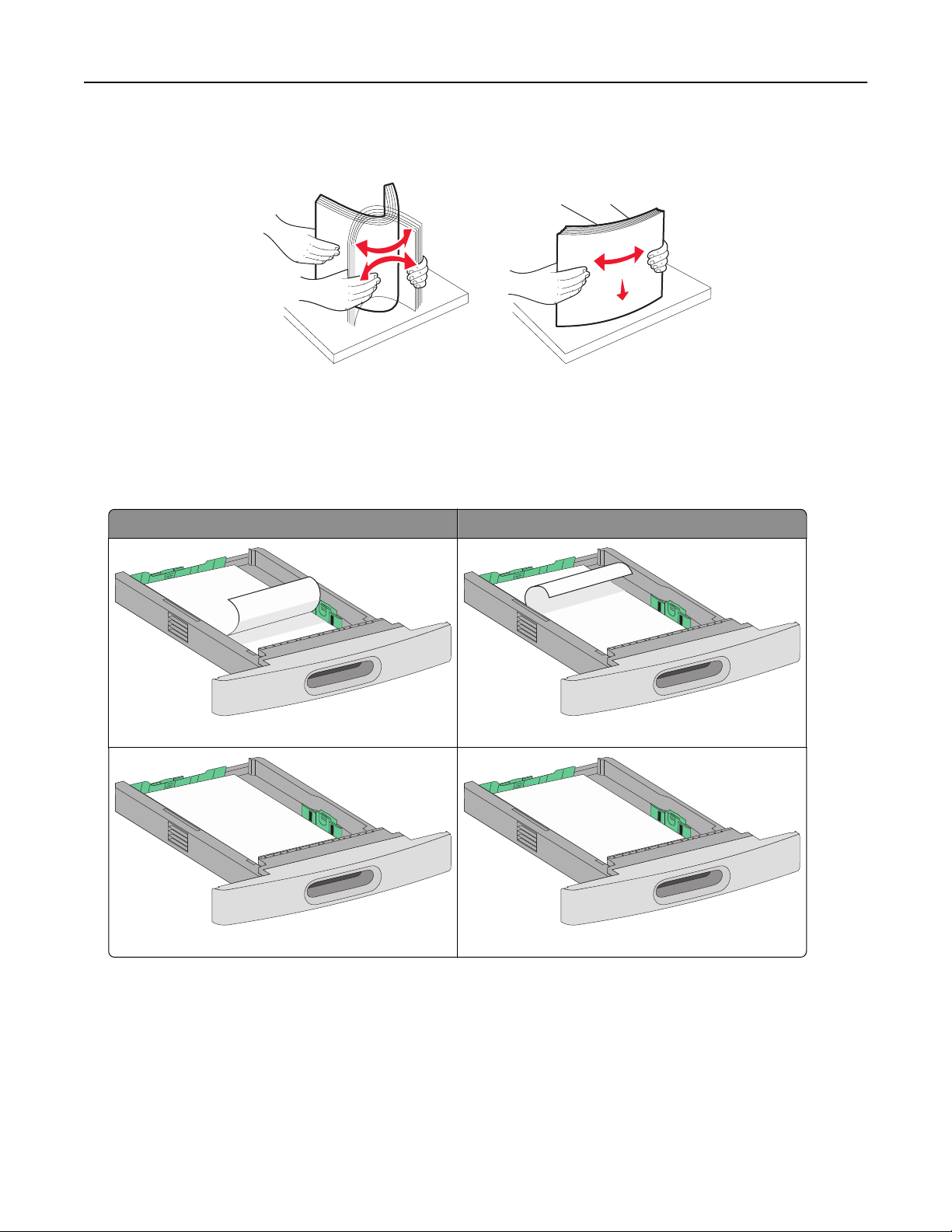

4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
5 Load the paper stack:
• Print side facedown for single‑sided printing
• Print side faceup for duplex printing
Note: Paper must be loaded
dierently
in the trays if an optional StapleSmart
TM
II Finisher is installed.
Without an optional StapleSmart II Finisher With an optional StapleSmart II Finisher
LETTERHEAD
Single‑sided printing
LETTERHEAD
Single‑sided printing
LETTERHEAD
Duplex (two‑sided) printing
LETTERHEAD
Duplex (two‑sided) printing
Note: Notice the maximum
fill
line on the side of the tray which indicates the maximum height for loading
paper. Do not overload the tray.
Loading paper and specialty media 54
6 If necessary, adjust the paper guides to lightly touch the sides of the stack, and lock the length guide for
the paper sizes indicated on the tray.
7 Insert the tray.
8 If a
dierent
type of paper was loaded than the type previously loaded in the tray, then change the Paper
Type setting for the tray from the printer control panel.
Loading paper and specialty media 55
Loading the 2000‑sheet tray
1 Pull the tray out.

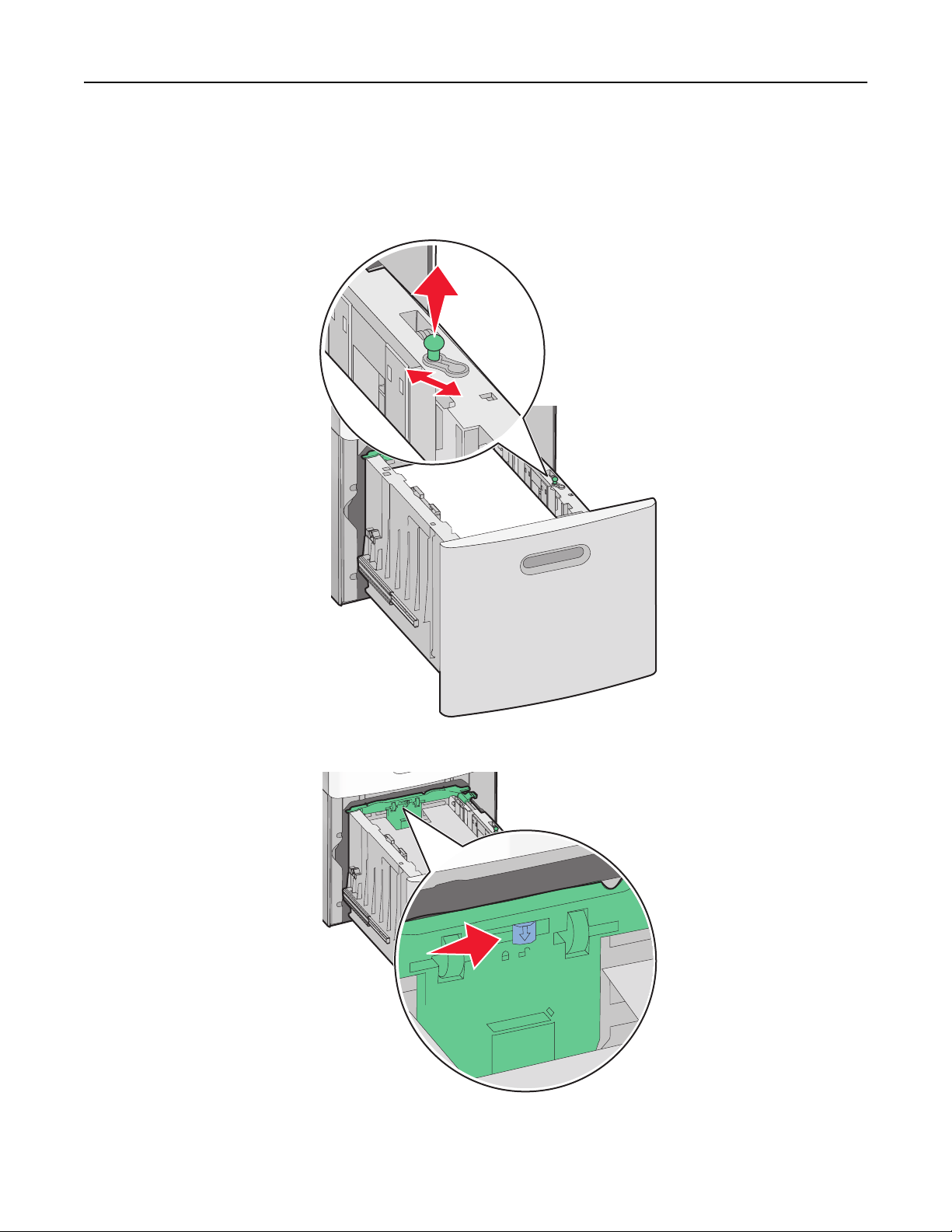

2 Pull up and slide the width guide to the correct position for the paper size being loaded.
3 Unlock the length guide.
Loading paper and specialty media 56
4 Push the length guide release latch to raise the length guide, slide the guide to the correct position for the
paper size being loaded, and then lock the guide.
5 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
6 Load the paper stack:
• Print side facedown for single‑sided printing
• Print side faceup for duplex printing
Note: Paper must be loaded
dierently
in the trays if an optional StapleSmart II Finisher is installed.
Loading paper and specialty media 57
Without an optional StapleSmart II Finisher With an optional StapleSmart II Finisher
LETTERHEAD
Single‑sided printing
LETTERHEAD
Single‑sided printing
LETTERHEAD
Duplex (two‑sided) printing
LETTERHEAD
Duplex (two‑sided) printing
Note: Notice the maximum
fill
line on the side of the tray which indicates the maximum height for loading
paper. Do not overload the tray.
Loading paper and specialty media 58
7 Insert the tray.
Loading the multipurpose feeder
1 Press the release latch, and then pull down the multipurpose feeder door.
1
2
Loading paper and specialty media 59
2 Pull out the extension until it is fully extended.
3 Squeeze and slide the width guide to the far right.
4 Flex the sheets of paper or specialty media back and forth to loosen them, and then fan them. Do not fold
or crease them. Straighten the edges on a level surface.
Paper
Envelopes
* Avoid touching the print side of transparencies. Be careful not to scratch them.
Loading paper and specialty media 60
Transparencies*
* Avoid touching the print side of transparencies. Be careful not to scratch them.
5 Load the paper or specialty media. Slide the stack gently into the multipurpose feeder until it comes to a
stop.
Without an optional StapleSmart II Finisher With an optional StapleSmart II Finisher
LETTERHEAD
Single‑sided printing
LETTERHEAD
Single‑sided printing
LETTERHEAD
Duplex (two‑sided) printing
LETTERHEAD
Duplex (two‑sided) printing
Notes:
• Do not exceed the maximum stack height by forcing paper under the stack height limiter.
• Do not load or close the printer while a job is printing.
• Load only one size and type of media at a time.
• Load envelopes with the flap side down and to the left as shown on the tray.
Loading paper and specialty media 61
Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings,
or self‑stick adhesives. These envelopes may severely damage the printer.
6 Adjust the width guide to lightly touch the edge of the paper stack. Make sure the paper fits loosely in the
multipurpose feeder, lies flat, and is not bent or wrinkled.
7 From the printer control panel, set the Paper Size and Paper Type.
Loading the envelope feeder
1 Adjust the envelope support for the length of envelope you are loading:
• Short envelopes—Fully close the envelope support.
• Medium‑length envelopes—Extend the envelope support to the middle position.
• Long envelopes—Fully open the envelope support.
2 Lift the envelope weight back toward the printer.
3 Slide the width guide to the right.
4 Prepare the envelopes for loading.
Loading paper and specialty media 62
Flex the envelopes back and forth to loosen them, and then fan them. Do not fold or crease the paper.
Straighten the edges on a level surface.
5 Load the stack of envelopes flap side down.
Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings,
or self‑stick adhesives. These envelopes may severely damage the printer.
Note: Do not exceed the maximum stack height by forcing paper under the stack height limiter.
6 Adjust the width guide to lightly touch the edge of the paper stack.
7 Lower the envelope weight to touch the paper stack.
8 From the printer control panel, set the Paper Size and Paper Type.
Linking and unlinking trays
Linking trays
Tray linking is useful for large print jobs or multiple copies. When one linked tray is empty, paper feeds from
the next linked tray. When the Paper Size and Paper Type settings are the same for any trays, the trays are
automatically linked.
The printer automatically senses the Paper Size setting according to the position of the paper guides in each
tray except the multipurpose feeder. The printer can sense A4, A5, JIS B5, Letter, Legal, Executive, and Universal
paper sizes. The multipurpose feeder and trays using other paper sizes can be linked manually using the Paper
Size menu available from the Paper Size/Type menu.
Note: To link the multipurpose feeder,
Configure
MP must be set to Cassette in the Paper menu in order for
MP Feeder Size to appear as a menu item.
Loading paper and specialty media 63
The Paper Type setting must be set for all trays from the Paper Type menu available from the Paper Size/Type
menu.
Unlinking trays
Unlinked trays have settings that are not the same as the settings of any other tray.
To unlink a tray, change the following tray settings so that they do not match the settings of any other tray:
• Paper Type (for example: Plain Paper, Letterhead, Custom Type <x>)
Paper Type names describe the paper characteristics. If the name that best describes your paper is used
by linked trays, assign a dierent Paper Type name to the tray, such as Custom Type <x>, or define your
own custom name.
• Paper Size (for example: letter, A4, statement)
Load a dierent paper size to change the Paper Size setting for a tray automatically. Paper Size settings for
the multipurpose feeder are not automatic; they must be set manually from the Paper Size menu.
Warning—Potential Damage: Do not assign a Paper Type name that does not accurately describe the type
of paper loaded in the tray. The temperature of the fuser varies according to the specified Paper Type. Paper
may not be properly processed if an inaccurate Paper Type is selected.
Linking exit bins
The standard exit bin holds up to 350 sheets or 550 sheets of 20 lb paper, depending on the printer model. If
you need additional output capacity, you can purchase other optional exit bins.
Note: Not all exit bins support every paper size and type.
Linking exit bins lets you create a single output source so the printer can automatically switch output to the
next available exit bin.
1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Paper Menu appears, and then press .
4 Press the arrow buttons until Bin Setup appears, and then press .
5 Press the arrow buttons until the correct tray appears, and then press .
6 Press the arrow buttons until Configure Bins appears, and then press .
7 Press the arrow buttons until Link appears, and then press .
Changing a Custom Type <x> name
You can use the Embedded Web Server or MarkVision
TM
to define a name other than Custom Type <x> for each
of the custom paper types that are loaded. When a Custom Type <x> name is changed, the menus display the
new name instead of Custom Type <x>.
Loading paper and specialty media 64
To change a Custom Type <x> name from the Embedded Web Server:
1 Type the printer IP address into the address field of your Web browser.
Note: If you do not know the IP address of the printer, then print a network setup page and locate the IP
address in the TCP/IP section.
2 Click Settings.
3 Under Default Settings, click Paper Menu.
4 Click Custom Names.
5 Type a name for the paper type in a Custom Name <x> box.
Note: This custom name will replace a custom type <x> name under the Custom Types and Paper
Size/Type menus.
6 Click Submit.
7 Click Custom Types.
Custom Types appears, followed by your custom name.
8 Select a Paper Type setting from the list next to your custom name.
9 Click Submit.
Loading paper and specialty media 65
Paper and specialty media guidelines
Paper guidelines
Paper characteristics
The following paper characteristics aect print quality and reliability. Consider these characteristics when
evaluating new paper stock.
Note: For detailed information on card stock and labels, see the Card Stock & Label Guide available on the
Lexmark Web site at
www.lexmark.com/publications.
Weight
The printer can automatically feed paper weights from 60–176 g/m
2
(16–47 lb bond) grain long. Paper lighter
than 60 g/m
2
(16 lb) might not be
sti
enough to feed properly, causing jams. For best performance, use
75 g/m
2
(20 lb bond) grain long paper. For paper smaller than 182 x 257 mm (7.2 x 10.1 in.), we recommend
90 g/m
2
(24 lb) or heavier paper.
Curl
Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can
occur after the paper passes through the printer, where it is exposed to high temperatures. Storing paper
unwrapped in hot, humid, cold, or dry conditions, even in the trays, can contribute to paper curling prior to
printing and can cause feeding problems.
Smoothness
Paper smoothness directly aects print quality. If paper is too rough, then toner cannot fuse to it properly. If
paper is too smooth, then it can cause paper feeding or print quality issues. Always use paper between 100
and 300 Sheeld points; smoothness between 150 and 250 Sheeld points produces the best print quality.
Moisture content
The amount of moisture in paper
aects
both print quality and the ability of the printer to feed the paper correctly.
Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes
that can degrade its performance.
Condition paper before printing by storing it in its original wrapper in the same environment as the printer for
24 to 48 hours before printing. Extend the time several days if the storage or transportation environment is very
dierent
from the printer environment. Thick paper may also require a longer conditioning period.
Grain direction
Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length
of the paper, or grain short, running the width of the paper.
For 60–176 g/m
2
(16–47 lb bond) paper, grain long paper is recommended. For paper heavier than 176 g/m
2
,
grain short is recommended.
Paper and specialty media guidelines 66
Fiber content
Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides
the paper with a high degree of stability resulting in fewer paper feeding problems and better print quality.
Paper containing fibers such as cotton can negatively aect paper handling.
For detailed information on paper with recycled fiber content, see
“Using recycled paper” on page 68.
Unacceptable paper
Test results indicate that the following paper types are at risk for use with laser printers:
• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers
• Preprinted papers with chemicals that may contaminate the paper
• Preprinted papers that can be aected by the temperature in the printer fuser
• Preprinted papers that require a registration (the precise location on the page) greater than ± 2.3 mm (±
0.9 in.), such as optical character recognition (OCR) forms. In some cases, registration can be adjusted with
a software application to successfully print on these forms.)
• Coated papers (erasable bond), synthetic papers, thermal papers
• Rough-edged, rough or heavily textured surface papers or curled papers
• Recycled papers that fail EN12281:2002 (European testing)
• Paper weighing less than 60 g/m
2
(16 lb)
• Multiple part forms or documents
For more information about Lexmark, visit
www.lexmark.com. General sustainability-related information can
be found at the Environmental Sustainability link.
Selecting paper
Using appropriate paper prevents jams and helps ensure trouble‑free printing.
To help avoid jams and poor print quality:
• Always use new, undamaged paper.
• Before loading paper, know the recommended print side of the paper. This information is usually indicated
on the paper package.
• Do not use paper that has been cut or trimmed by hand.
• Do not mix paper sizes, types, or weights in the same source; mixing results in jams.
• Do not use coated papers unless they are specifically designed for electrophotographic printing.
Selecting preprinted forms and letterhead
Use these guidelines when selecting preprinted forms and letterhead:
• Use grain long for 60–90 g/m
2
(16–24 lb) paper.
• Use only forms and letterhead printed using an oset lithographic or engraved printing process.
• Avoid papers with rough or heavily textured surfaces.
Paper and specialty media guidelines 67
Use papers printed with heat‑resistant inks designed for use in xerographic copiers. The ink must be able to
withstand temperatures up to 230°C (446°F) without melting or releasing hazardous emissions. Use inks that
are not aected by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements;
latex inks might not. When in doubt, contact the paper supplier.
Preprinted papers such as letterhead must be able to withstand temperatures up to 230°C (446°F) without
melting or releasing hazardous emissions.
Using recycled paper
As an environmentally conscientious company, Lexmark supports the use of recycled paper produced
specifically for use in laser (electro-photographic) printers.
While no blanket statement can be made that all recycled paper will feed well, Lexmark consistently tests papers
that represent recycled cut size copier papers available on the global market. This
scientific
testing is conducted
with rigor and discipline. Many factors are taken into consideration both separately and as a whole, including
the following:
• Amount of post-consumer waste (Lexmark tests up to 100% post-consumer waste content.)
• Temperature and humidity conditions (Testing chambers simulate climates from all over the world.)
• Moisture content (Business papers should have low moisture: 4–5%.)
• Bending resistance and proper stiness means optimum feeding through the printer.
• Thickness (impacts how much can be loaded into a tray)
• Surface roughness (measured in Sheeld units, impacts print clarity and how well toner fuses to the paper)
• Surface friction (determines how easily sheets can be separated)
• Grain and formation (impacts curling, which also influences the mechanics of how the paper behaves as it
moves through the printer)
• Brightness and texture (look and feel)
Recycled papers are better than ever; however, the amount of recycled content in a paper aects the degree
of control over foreign matter. And while recycled papers are one good path to printing in an environmentally
responsible manner, they are not perfect. The energy required to de-ink and deal with additives such as
colorants and “glue” often generates more carbon emissions than does normal paper production. However,
using recycled papers enables better resource management overall.
Lexmark concerns itself with the responsible use of paper in general based on life cycle assessments of its
products. To gain a better understanding of the impact of printers on the environment, the company
commissioned a number of life cycle assessments and found that paper was identified as the primary contributor
(up to 80%) of carbon emissions caused throughout the entire life of a device (from design to end-of-life). This
is due to the energy-intensive manufacturing processes required to make paper.
Thus, Lexmark seeks to educate customers and partners on minimizing the impact of paper. Using recycled
paper is one way. Eliminating excessive and unnecessary paper consumption is another. Lexmark is well-
equipped to help customers minimize printing and copying waste. In addition, the company encourages
purchasing paper from suppliers who demonstrate their commitment to sustainable forestry practices.
Lexmark does not endorse specific suppliers, although a converter’s product list for special applications is
maintained. However, the following paper choice guidelines will help alleviate the environmental impact of
printing:
1 Minimize paper consumption.
2 Be selective about the origin of wood fiber. Buy from suppliers who carry certifications such as the Forestry
Stewardship Council (FSC) or The Program for the Endorsement of Forest Certification (PEFC). These
Paper and specialty media guidelines 68
certifications guarantee that the paper manufacturer uses wood pulp from forestry operators that employ
environmentally and socially responsible forest management and restoration practices.
3 Choose the most appropriate paper for printing needs: normal 75 or 80 g/m
2
certified paper, lower weight
paper, or recycled paper.
Storing paper
Use these paper storage guidelines to help avoid jams and uneven print quality:
• For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40%. Most
label manufacturers recommend printing in a temperature range of 18 to 24°C (65 to 75°F) with relative
humidity between 40 and 60%.
• Store paper in cartons when possible, on a pallet or shelf, rather than on the floor.
• Store individual packages on a flat surface.
• Do not store anything on top of individual paper packages.
Supported paper sizes, types, and weights
The following tables provide information on standard and optional paper sources and the types of paper they
support.
Note: For an unlisted paper size, select the closest larger listed size.
For information on card stock and labels, see the Card Stock & Label Guide on the Lexmark Web site.
Paper sizes supported by the printer
Note: An optional 250‑sheet Universally Adjustable Tray is available for sizes smaller than A5, such as index
cards.
Paper size Dimensions 250‑ or
550‑sheet
trays (standard
or optional)
Optional
2000‑sheet
tray
Multipurpose
feeder
Duplex unit
A4 210 x 297 mm
(8.3 x 11.7 in.)
A5 148 x 210 mm
(5.8 x 8.3 in.)
X
A6
1,2
105 x 148 mm
(4.1 x 5.8 in.)
XX X
1
This size appears in the Paper Size menu only when Tray Size Sensing is turned o. For more information, contact
Customer Support.
2
Only the standard exit bin supports this size.
3
This size setting formats the page for 216 x 356 mm (8.5 x 14 in.) unless the size is specified by the software
application.
4
To support duplexing, the Universal width must be between 148 mm (5.8 in) and 216 mm (8.5 in); Universal length
must be between 182 mm (7.2 in) and 356 mm (14 in).
Paper and specialty media guidelines 69
Paper size Dimensions 250‑ or
550‑sheet
trays (standard
or optional)
Optional
2000‑sheet
tray
Multipurpose
feeder
Duplex unit
JIS B5 182 x 257 mm
(7.2 x 10.1 in.)
X
Letter 216 x 279 mm
(8.5 x 11 in.)
Legal 216 x 356 mm
(8.5 x 14 in.)
Executive 184 x 267 mm
(7.3 x 10.5 in.)
X
Oficio
1
216 x 340 mm
(8.5 x 13.4 in.)
X
Folio
1
216 x 330 mm
(8.5 x 13 in.)
X
Statement
1
140 x 216 mm
(5.5 x 8.5 in.)
X X
Universal
3,4
138 x 210 mm
(5.5 x 8.3 in.) up to
216 x 356 mm
(8.5 x 14 in.)
X X
70 x 127 mm
(2.8 x 5 in.) up to
216 x 356 mm
(8.5 x 14 in.)
XX
X
148 x 182 mm
(5.8 x 7.7 in.) up to
216 x 356 mm
(8.5 x 14 in.)
X
7 3/4 Envelope
(Monarch)
98 x 191 mm
(3.9 x 7.5 in.)
XX X
9 Envelope 98 x 225 mm
(3.9 x 8.9 in.)
XX
X
10 Envelope 105 x 241 mm
(4.1 x 9.5 in.)
XX
X
DL Envelope 110 x 220 mm
(4.3 x 8.7 in.)
XX
X
1
This size appears in the Paper Size menu only when Tray Size Sensing is turned o. For more information, contact
Customer Support.
2
Only the standard exit bin supports this size.
3
This size setting formats the page for 216 x 356 mm (8.5 x 14 in.) unless the size is
specified
by the software
application.
4
To support duplexing, the Universal width must be between 148 mm (5.8 in) and 216 mm (8.5 in); Universal length
must be between 182 mm (7.2 in) and 356 mm (14 in).
Paper and specialty media guidelines 70
Paper size Dimensions 250‑ or
550‑sheet
trays (standard
or optional)
Optional
2000‑sheet
tray
Multipurpose
feeder
Duplex unit
Other Envelope 98 x 162 mm
(3.9 x 6.4 in.) to
176 x 250 mm
(6.9 x 9.8 in.)
XX
X
1
This size appears in the Paper Size menu only when Tray Size Sensing is turned o. For more information, contact
Customer Support.
2
Only the standard exit bin supports this size.
3
This size setting formats the page for 216 x 356 mm (8.5 x 14 in.) unless the size is
specified
by the software
application.
4
To support duplexing, the Universal width must be between 148 mm (5.8 in) and 216 mm (8.5 in); Universal length
must be between 182 mm (7.2 in) and 356 mm (14 in).
Paper types and weights supported by the printer
The printer engine supports 60–176 g/m
²
(16–47 lb) paper weights. The duplex path supports 63–170 g/m
²
(17–
45 lb) paper weights.
Paper type 250‑ or 550‑sheet
trays (standard or
optional)
Optional
2000‑sheet tray
Multipurpose feeder Two‑sided printing
Paper
• Plain
• Bond
• Colored
• Custom
• Letterhead
• Light
• Heavy
• Preprinted
• Rough/Cotton
• Recycled
Card stock X
Envelopes X X X
Labels
1
• Paper
• Vinyl
X
2
1
To print labels, you need a special label fuser cleaner which is included with the special cartridge required for label
applications.
2
Specially designed labels, such as pharmacy labels, may be supported for two-sided printing.
Paper and specialty media guidelines 71
Paper type 250‑ or 550‑sheet
trays (standard or
optional)
Optional
2000‑sheet tray
Multipurpose feeder Two‑sided printing
Transparencies
X X
1
To print labels, you need a special label fuser cleaner which is included with the special cartridge required for label
applications.
2
Specially designed labels, such as pharmacy labels, may be supported for two-sided printing.
Paper types and weights supported by the output bins
Use this table to determine the possible output destinations of print jobs which use supported paper types and
weights. The paper capacity of each output bin is listed in parentheses. Paper capacity estimations are
calculated based on 75 g/m
2
(20 lb) paper.
The finisher supports 60–176 g/m
2
(16–47 lb) paper weights.
Paper type Standard exit bin
(350 or 550
sheets)
Optional hardware
Output Expander
(550 sheets) or High
Capacity Output
Stacker (1850 sheets)
5‑Bin Mailbox
(500 sheets)
1
StapleSmart II
Finisher
(500 sheets)
2
Paper
• Plain
• Bond
• Colored
• Custom
• Letterhead
• Light
• Heavy
• Preprinted
• Rough/Cotton
• Recycled
Card stock XX
Envelopes
XX
Labels
3
• Paper
• Vinyl
XX
Transparencies XX
1
Supports 60‑90 g/m
2
(16‑24 lb) paper weights.
2
Maximum of 50 sheets of 75 g/m
2
(20 lb) paper per stapled packet. Results may vary with heavier paper.
3
Printing labels requires a special label fuser cleaner which is included with the special cartridge required for label
applications.
Paper and specialty media guidelines 72
Printing
This chapter covers printing, printer reports, and job cancelation. Selection and handling of paper and specialty
media can
aect
how reliably documents print. For more information, see
“Avoiding jams” on page 82 and
“Storing paper” on page 69.
Printing a document
1 From the printer control panel Paper menu, set the Paper Type and Paper Size to match the loaded paper.
2 Send the print job:
For Windows users
a With a document open, click File > Print.
b Click Properties, Preferences, Options, or Setup, and then adjust the settings as needed.
Note: To print on a
specific
size or type of paper, adjust the paper size or type settings to match the
loaded paper, or select the appropriate tray or feeder.
c Click OK, and then click Print.
For Macintosh users
a Customize the settings as needed in the Page Setup dialog:
1 With a document open, choose File > Page Setup.
2 Choose a paper size or create a custom size to match the loaded paper.
3 Click OK.
b Customize the settings as needed in the Print dialog:
1 With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2 From the Print dialog and pop‑up menus, adjust the settings as needed.
Note: To print on a
specific
paper type, adjust the paper type setting to match the loaded paper,
or select the appropriate tray or feeder.
3 Click Print.
Printing on specialty media
Tips on using letterhead
• Use letterhead designed specifically for laser printers.
• Print samples on the letterhead being considered for use before buying large quantities.
• Before loading letterhead, fan the stack to prevent sheets from sticking together.
• Page orientation is important when printing on letterhead. For information on how to load letterhead, see:
– “Loading the standard or optional 250‑sheet or 550‑sheet tray” on page 52
– “Loading the 2000‑sheet tray” on page 56
Printing 73
– “Loading the multipurpose feeder” on page 59
Tips on using transparencies
Print samples on the transparencies being considered for use before buying large quantities.
When printing on transparencies:
• Feed transparencies from a 250‑sheet tray, a 550‑sheet tray, or the multipurpose feeder.
• Use transparencies designed specifically for laser printers. Check with the manufacturer or vendor to ensure
transparencies are able to withstand temperatures up to 230°C (446°F) without melting, discoloring,
osetting,
or releasing hazardous emissions.
• Use transparencies that are 138–146 g/m
2
(37–39 lb. bond) in weight.
• To prevent print quality problems, avoid getting fingerprints on the transparencies.
• Before loading transparencies, fan the stack to prevent sheets from sticking together.
• We recommend Lexmark part number 12A5010 for A4‑size transparencies and Lexmark part number
70X7240 for letter‑size transparencies.
Tips on using envelopes
Print samples on the envelopes being considered for use before buying large quantities.
When printing on envelopes:
• Feed envelopes from the multipurpose feeder or the optional envelope feeder.
• Set the Paper Type to Envelope, and select the envelope size.
• Use envelopes designed specifically for laser printers. Check with the manufacturer or vendor to ensure
the envelopes can withstand temperatures up to 230°C (446°F) without sealing, wrinkling, curling
excessively, or releasing hazardous emissions.
• For the best performance, use envelopes made from 90 g/m
2
(24 lb bond) paper. Use up to 105 g/m
2
(28 lb bond) weight for envelopes as long as the cotton content is 25% or less. All‑cotton envelopes must
not exceed 90 g/m
2
(24 lb bond) weight.
• Use only new envelopes.
• To optimize performance and minimize jams, do not use envelopes that:
– Have excessive curl or twist
– Are stuck together or damaged in any way
– Have windows, holes, perforations, cutouts, or embossing
– Have metal clasps, string ties, or folding bars
– Have an interlocking design
– Have postage stamps attached
– Have any exposed adhesive when the flap is in the sealed or closed position
– Have bent corners
– Have rough, cockle, or laid
finishes
• Adjust the width guide to fit the width of the envelopes.
Note: A combination of high humidity (over 60%) and the high printing temperature may wrinkle or seal
envelopes.
Printing 74
Tips on using labels
Print samples on the labels being considered for use before buying large quantities.
Notes:
• Paper, dual‑web paper, polyester, and vinyl labels are supported.
• When using the duplex unit, specially‑designed, integrated, and dual‑web paper labels are supported.
• Printing labels requires a special label fuser cleaner which is included with the special cartridge required
for label applications. For more information, see
“Ordering supplies” on page 170.
For detailed information on label printing, characteristics, and design, see the Card Stock & Label Guide
available on the Lexmark Web site at
www.lexmark.com/publications.
When printing on labels:
• Feed labels from a 250‑sheet tray, a 550‑sheet tray, or the multipurpose feeder.
• Use labels designed specifically for laser printers. Check with the manufacturer or vendor to verify that:
– The labels can withstand temperatures up to 230°C (446°F) without sealing, excessive curling, wrinkling,
or releasing hazardous emissions.
– Label adhesives, face sheet (printable stock), and topcoats can withstand up to 25 psi (172 kPa) pressure
without delaminating, oozing around the edges, or releasing hazardous fumes.
• Do not use labels with slick backing material.
• Use full label sheets. Partial sheets may cause labels to peel o during printing, resulting in a jam. Partial
sheets also contaminate the printer and the cartridge with adhesive, and could void the printer and cartridge
warranties.
• Do not use labels with exposed adhesive.
• Do not print within 1 mm (0.04 in.) of the edge of the label, of the perforations, or between die‑cuts of the
label.
• Be sure adhesive backing does not reach to the sheet edge. Zone coating of the adhesive at least 1 mm
(0.04 in.) away from edges is recommended. Adhesive material contaminates the printer and could void the
warranty.
• If zone coating of the adhesive is not possible, remove a 1.6‑mm (0.06‑in.) strip on the leading and driver
edge, and use a non‑oozing adhesive.
• Portrait orientation works best, especially when printing bar codes.
Tips on using card stock
Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content,
thickness, and texture, can significantly impact print quality. Print samples on the card stock being considered
for use before buying large quantities.
When printing on card stock:
• Feed card stock from a 250‑sheet tray, a 550‑sheet tray, or the multipurpose feeder.
• Make sure the Paper Type is Card Stock.
• Select the appropriate Paper Texture setting.
• Be aware that preprinting, perforation, and creasing may
significantly
aect
the print quality and cause jams
or other paper handling problems.
• Check with the manufacturer or vendor to ensure the card stock can withstand temperatures up to 230°C
(446°F) without releasing hazardous emissions.
Printing 75
• Do not use preprinted card stock manufactured with chemicals that may contaminate the printer. Preprinting
introduces semi‑liquid and volatile components into the printer.
• Use grain short card stock when possible.
Printing confidential and other held jobs
Holding jobs in the printer
When sending a job to the printer, you can specify that you want the printer to hold the job in memory until you
start the job from the printer control panel. All print jobs that can be initiated by the user at the printer are called
held jobs.
Note:
Confidential,
Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory
to process additional held jobs.
Job type Description
Confidential When you send a Confidential print job to the printer, you must create a PIN
from the computer. The PIN must be four digits using the numbers 0–9. The
job is held in printer memory until you enter the PIN from the printer control
panel and choose to print or delete the job.
Verify When you send a Verify print job, the printer prints one copy and holds the
remaining copies in printer memory. Verify lets you examine the first copy to
see if it is satisfactory before printing the remaining copies. Once all copies
are printed, the job is automatically deleted from printer memory.
Reserve When you send a Reserve print job, the printer does not print the job
immediately. It stores the job in memory so you can print the job later. The
job is held in memory until you delete it from the Held Jobs menu.
Repeat When you send a Repeat print job, the printer prints all requested copies of
the job and stores the job in memory so you can print additional copies later.
You can print additional copies as long as the job remains stored in memory.
Other types of held jobs include:
• Profiles from various sources including Lexmark Document Solutions Suite (LDSS)
• Forms from a kiosk
• Bookmarks
• Jobs not printed, which are called parked jobs
Printing
confidential
and other held jobs
Note:
Confidential
and Verify print jobs are automatically deleted from memory after they print. Repeat and
Reserve jobs continue to be held in the printer until you choose to delete them.
For Windows Users
1
With a document open, click File > Print.
2 Click Properties, Preferences, Options, or Setup.
Printing 76
3 Click Other Options, and then click Print and Hold.
4 Select your job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
job, also enter a four‑digit PIN.
5 Click OK or Print, and then go to the printer to release the job.
6 From the printer control panel, press the arrow buttons until Held jobs appears, and then press .
7 Press the arrow buttons until appears next to your user name, and then press .
8 Press the arrow buttons until appears next to the job type or job name, and then press .
If you selected a job name, proceed to
step 11 on page 77.
9 After selecting your job type, use the keypad to enter your PIN.
If you enter an invalid PIN, the Invalid PIN screen appears.
• To re‑enter the PIN, make sure Try again appears, and then press .
• To cancel the PIN, press the arrow buttons until Cancel appears, and then press .
10 Press the arrow buttons until appears next to the job you want to print, and then press .
11 Press the arrow buttons until appears next to the number of copies you want to print, and then press
.
Note: Use the keypad to enter a number if necessary.
For Macintosh users
1
With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2 From the print options or Copies & Pages pop‑up menu, choose Job Routing.
3 Select your job type
(Confidential,
Repeat, Reserve, or Verify), and then assign a user name. For a
confidential
job, also enter a four‑digit PIN.
4 Click OK or Print, and then go to the printer to release the job.
5 From the printer control panel, press the arrow buttons until Held jobs appears, and then press .
6 Press the arrow buttons until appears next to your user name, and then press .
7 Press the arrow buttons until appears next to the job type or job name, and then press .
If you selected a job name, proceed to step 10 on page 78.
8 After selecting your job type, use the keypad to enter your PIN.
If you enter an invalid PIN, the Invalid PIN screen appears.
• To re‑enter the PIN, make sure Try again appears, and then press .
• To cancel the PIN, press the arrow buttons until Cancel appears, and then press .
Printing 77
9 Press the arrow buttons until appears next to the job you want to print, and then press .
10 Press the arrow buttons until appears next to the number of copies you want to print, and then press
.
Note: Use the keypad to enter a number if necessary.
Printing from a flash drive
A USB port is located on the printer control panel. Insert a
flash
drive to print supported
file
types. Supported
file
types include: .pdf, .gif, .jpeg, .jpg, .bmp, .png,
.ti,
.tif, .pcx, .xps, and .dcx.
Many
flash
drives are tested and approved for use with the printer. For more information, visit the Lexmark Web
site at
www.lexmark.com.
Notes:
• High‑speed
flash
drives must support the full‑speed USB standard. Flash drives supporting only USB
low‑speed capabilities are not supported.
• Flash drives must support the FAT (File Allocation Tables) system. Flash drives formatted with NTFS (New
Technology File System) or any other file system are not supported.
• Before printing an encrypted .pdf file, enter the file password from the printer control panel.
• You cannot print files for which you do not have printing permissions.
To print from a flash drive:
1 Make sure the printer is on and Ready appears.
2 Insert a
flash
drive into the front USB port.
Notes:
• If you insert the flash drive when the printer requires attention, such as when a jam has occurred,
then the printer ignores it.
• If you insert the
flash
drive while the printer is printing other jobs, then Printer Busy appears.
After the other jobs are processed, you may need to view the held jobs list to print documents from
the
flash
drive.
Printing 78
3 Press the down arrow button until appears next to the document you want to print, and then press .
Note: Folders found on the flash drive appear as folders. File names are appended by the extension type
(for example, .jpg).
4 Press to print one copy, or enter the number of copies using the keypad, and then press to initiate
the print job.
Note: Do not remove the
flash
drive from the printer until the document has
finished
printing.
If you leave the flash drive in the printer after leaving the initial USB menu screen, you can still print .pdf
files from the flash drive as held jobs.
Printing information pages
Printing a font sample list
To print samples of the fonts currently available for your printer:
1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Reports appears, and then press .
4 Press the arrow buttons until Print Fonts appears, and then press .
5 Press the arrow buttons until appears next to PCL Fonts, PostScript Fonts, or PPDS Fonts, and
then press
.
Printing a directory list
A directory list shows the resources stored in flash memory or on the hard disk.
1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press .
3 Press the arrow buttons until Reports appears, and then press .
4 Press the arrow buttons until Print Directory appears, and then press .
Printing the print quality test pages
Print the print quality test pages to isolate print quality problems.
1 Turn the printer o.
2 Hold down and while turning the printer on.
3 Release the buttons when the clock appears, and wait for CONFIG MENU to appear.
Printing 79
4 Press the arrow buttons until Prt Quality Pgs appears, and then press .
The print quality test pages print.
5 Press the arrow buttons until Exit Config Menu appears, and then press .
Resetting the Printer appears briefly, followed by a clock, and then Ready appears.
Canceling a print job
Canceling a print job from the printer control panel
If the job is formatting or already printing, and Cancel a job appears on the first line of the display:
1 Press the arrow buttons until Cancel appears.
A list of jobs appears.
2 Press the arrow buttons until appears next to the job you want to cancel, and then press .
Note: Once a print job is sent, to easily cancel a job, press
. The Stopped screen appears. Press the
arrow buttons until
Cancel a job appears, and then press .
Canceling a print job from the computer
To cancel a print job, do one of the following:
For Windows users
1 Click , or click Start and then click Run.
2 In the Start Search or Run box, type control printers.
3 Press Enter, or click OK.
The printer folder opens.
4 Double‑click the printer icon.
5 Select the job to cancel.
6 From the keyboard, press Delete.
From the Windows taskbar:
When you send a job to print, a small printer icon appears in the right corner of the taskbar.
1 Double‑click the printer icon.
A list of print jobs appears in the printer window.
2 Select a job to cancel.
3 From the keyboard, press Delete.
Printing 80
For Macintosh users
In Mac OS X version 10.5 or later:
1 From the Apple menu, choose System Preferences.
2 Click Print & Fax, and then double‑click the printer icon.
3 From the printer window, select the job to cancel.
4 From the icon bar at the top of the window, click the Delete icon.
In Mac OS X version 10.4 and earlier:
1 From the Go menu, choose Applications.
2 Double‑click Utilities, and then double‑click Print Center or Printer Setup Utility.
3 Double‑click the printer icon.
4 From the printer window, select the job to cancel.
5 From the icon bar at the top of the window, click the Delete icon.
Printing 81
Clearing jams
Jam error messages appear on the control panel display and include the area of the printer where the jam
occurred. When there is more than one jam, the number of jammed pages is displayed.
Avoiding jams
The following hints can help you avoid jams.
Paper tray recommendations
• Make sure the paper lies flat in the tray.
• Do not remove trays while the printer is printing.
• Do not load trays, the multipurpose feeder, or the envelope feeder while the printer is printing. Load them
prior to printing, or wait for a prompt to load them.
• Do not load too much paper. Make sure the stack height does not exceed the indicated maximum height.
• Make sure the guides in the paper trays, multipurpose feeder, or envelope feeder are properly positioned
and are not pressing too tightly against the paper or envelopes.
• Push all trays in firmly after loading paper.
Paper recommendations
• Use only recommended paper or specialty media. For more information, see “Paper types and weights
supported by the printer” on page 71.
• Do not load wrinkled, creased, damp, bent, or curled paper.
• Flex, fan, and straighten paper before loading it.
• Do not use paper that has been cut or trimmed by hand.
• Do not mix paper sizes, weights, or types in the same stack.
• Make sure all sizes and types are set correctly in the printer control panel menus.
• Store paper per the manufacturer's recommendations.
Envelope recommendations
• To reduce wrinkling, use the Envelope Enhance menu in the Paper menu.
• Do not feed envelopes that:
– Have excessive curl or twist
– Have windows, holes, perforations, cutouts, or embossing
– Have metal clasps, string ties, or folding bars
– Have an interlocking design
– Have postage stamps attached
– Have any exposed adhesive when the flap is in the sealed or closed position
– Have bent corners
– Have rough, cockle, or laid finishes
– Are stuck together or damaged in any way
Clearing jams 82
Understanding jam numbers and locations
When a jam occurs, a message indicating the jam location appears on the display. Open doors and covers and
remove trays to access jam locations. To resolve any paper jam message, you must clear all jammed paper
from the paper path and then press
.
Jam numbers Area
200–203, 230 Printer
231–239 Optional external duplex unit
241–245 Paper trays
250 Multipurpose feeder
260 Envelope feeder
271–279 Optional output bins
280–282 StapleSmart II Finisher
283 Staple cartridge

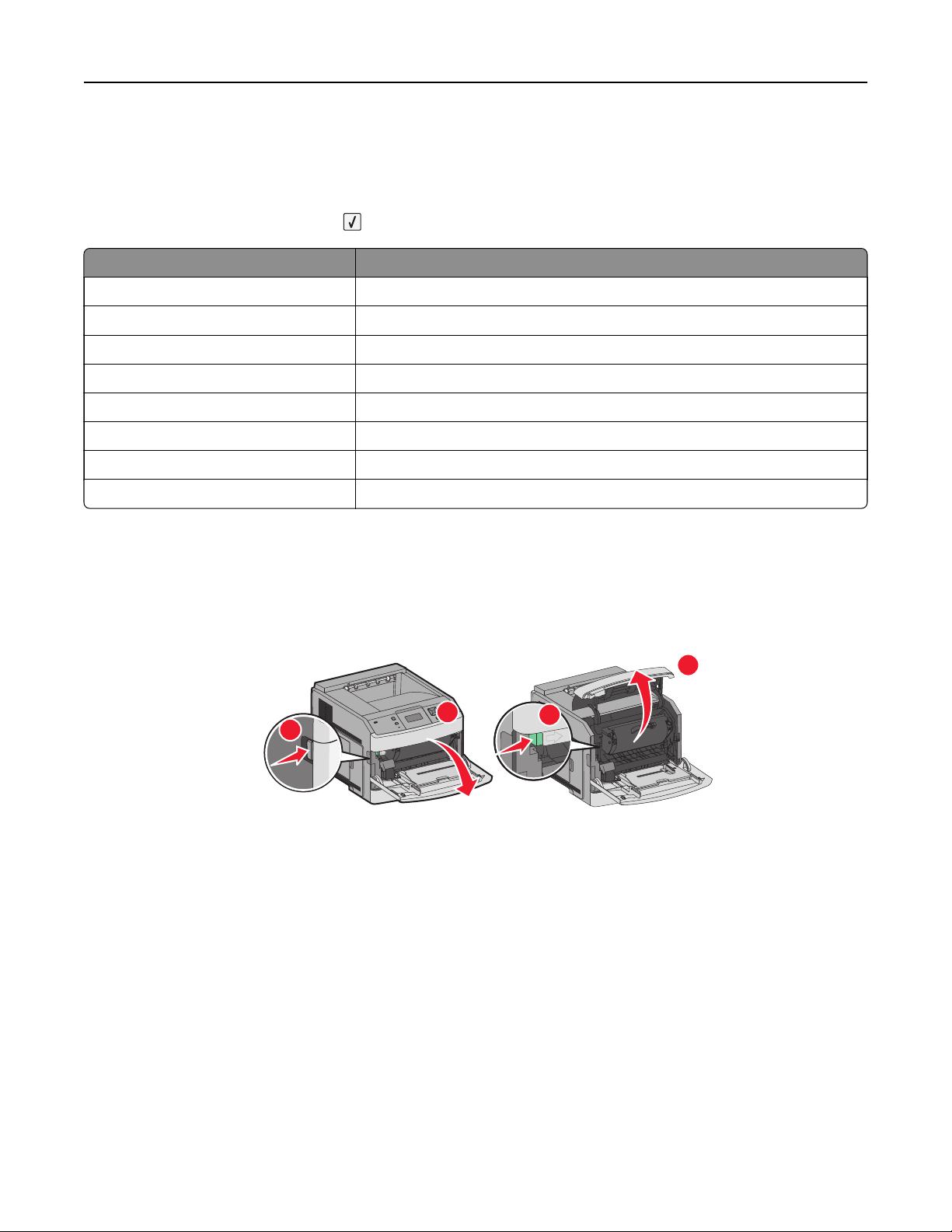

200 and 201 paper jams
1 Push the release latch, and then lower the multipurpose feeder door.
2 Push the release latch, and then open the front cover.
3
4
1
2

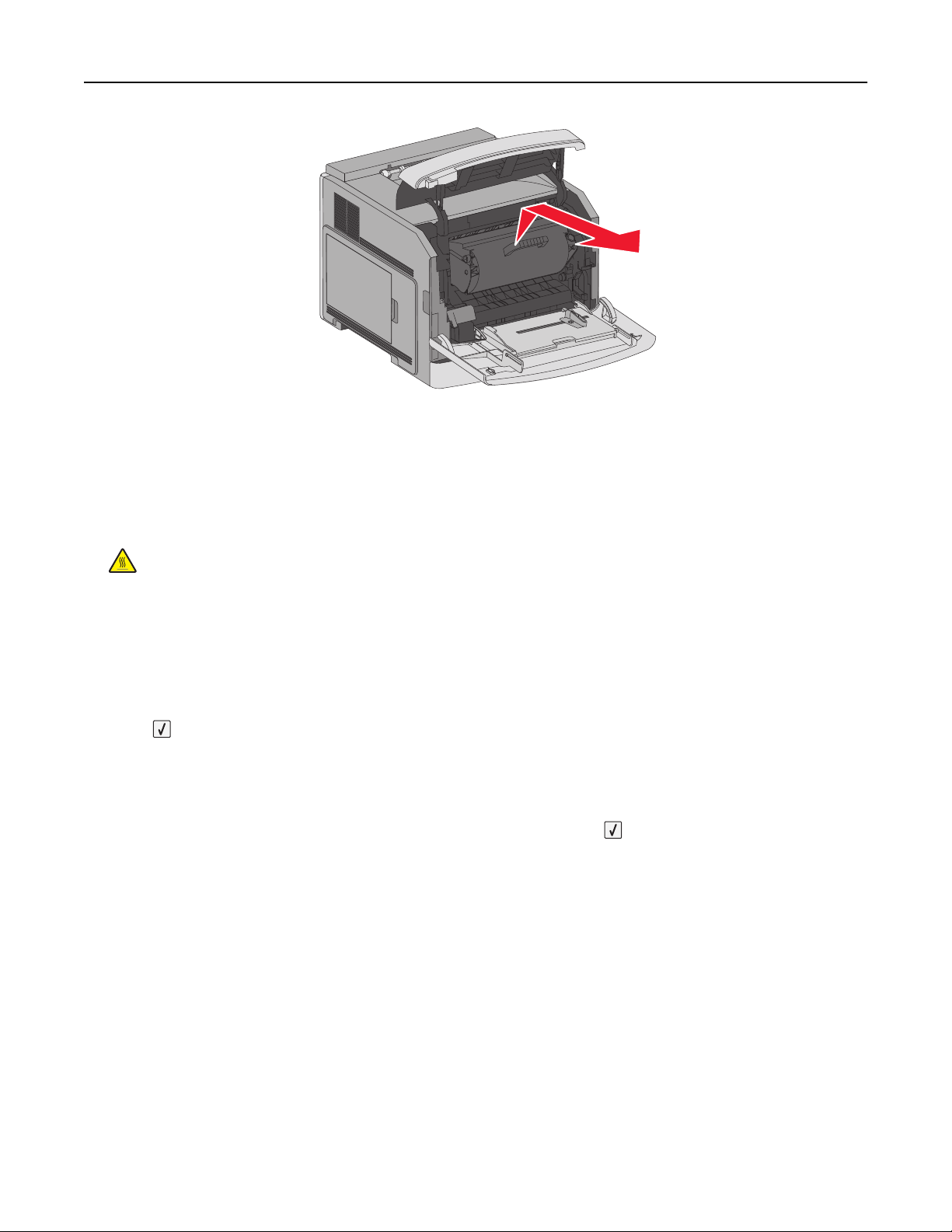

3 Lift and pull the print cartridge out of the printer.
Warning—Potential Damage: Do not touch the photoconductor drum on the underside of the cartridge.
Use the cartridge handle whenever you are holding the cartridge.
Clearing jams 83
4 Place the print cartridge aside on a
flat,
smooth surface.
Warning—Potential Damage: Do not leave the cartridge exposed to light for extended periods.
Warning—Potential Damage: The jammed paper may be covered with unfused toner which can stain
garments and skin.
5 Remove the jammed paper.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a
hot component, allow the surface to cool before touching.
Note: If the paper is not easy to remove, then open the rear door and remove the paper from there.
6 Align and reinstall the print cartridge.
7 Close the front cover.
8 Close the multipurpose feeder door.
9 Press .
202 and 203 paper jams
If the paper is exiting the printer, then pull the paper out, and then press .
Clearing jams 84
If the paper is not exiting the printer:

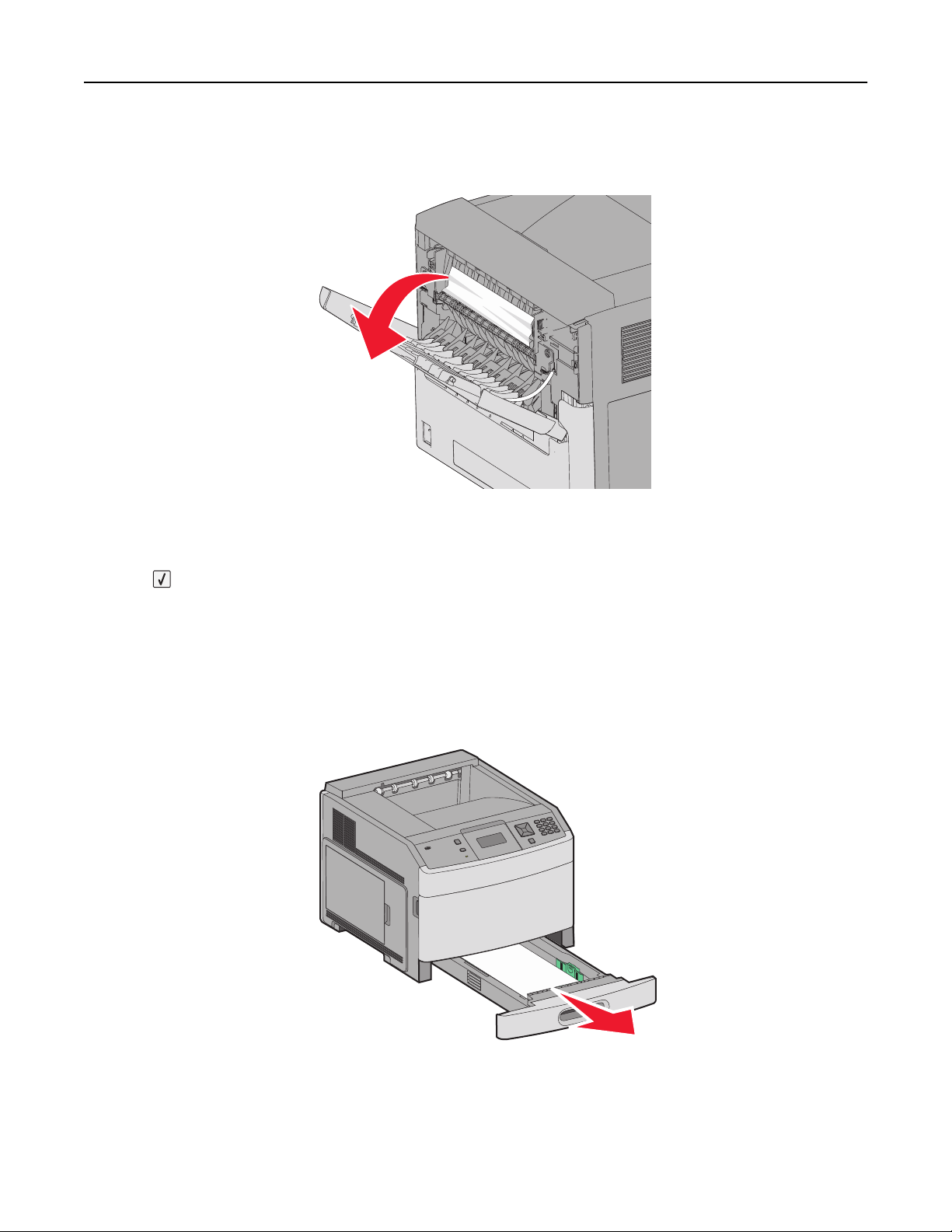

1 Pull down the top rear door.
2 Slowly remove the jammed paper to avoid tearing it.
3 Close the top rear door.
4 Press .
230 paper jam
Rear paper jams
1 Remove the standard tray from the printer.
Clearing jams 85

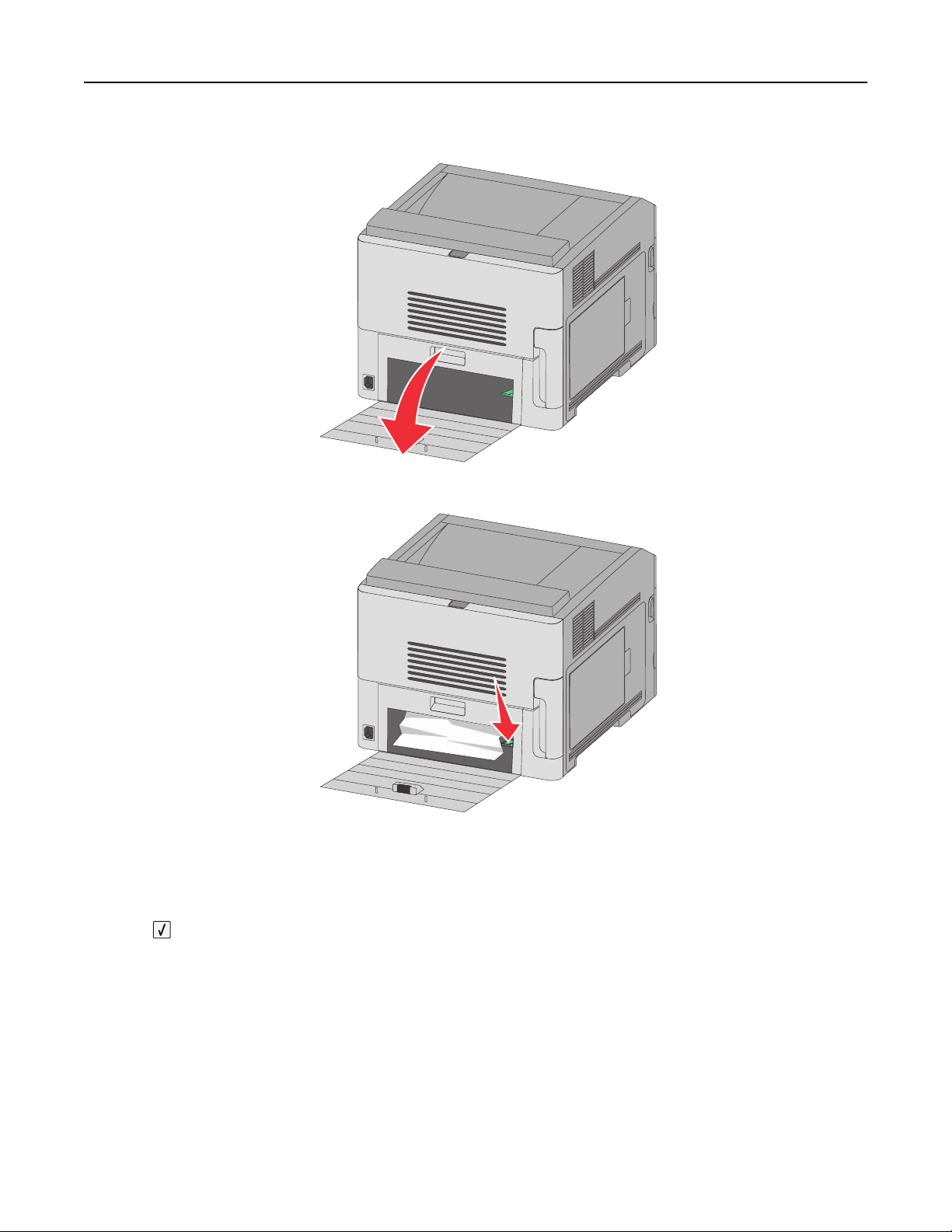

2 Pull down the bottom rear door.
3 Push the tab down.
4 Remove the jammed paper.
5 Close the bottom rear door.
6 Insert the standard tray.
7 Press .
Clearing jams 86

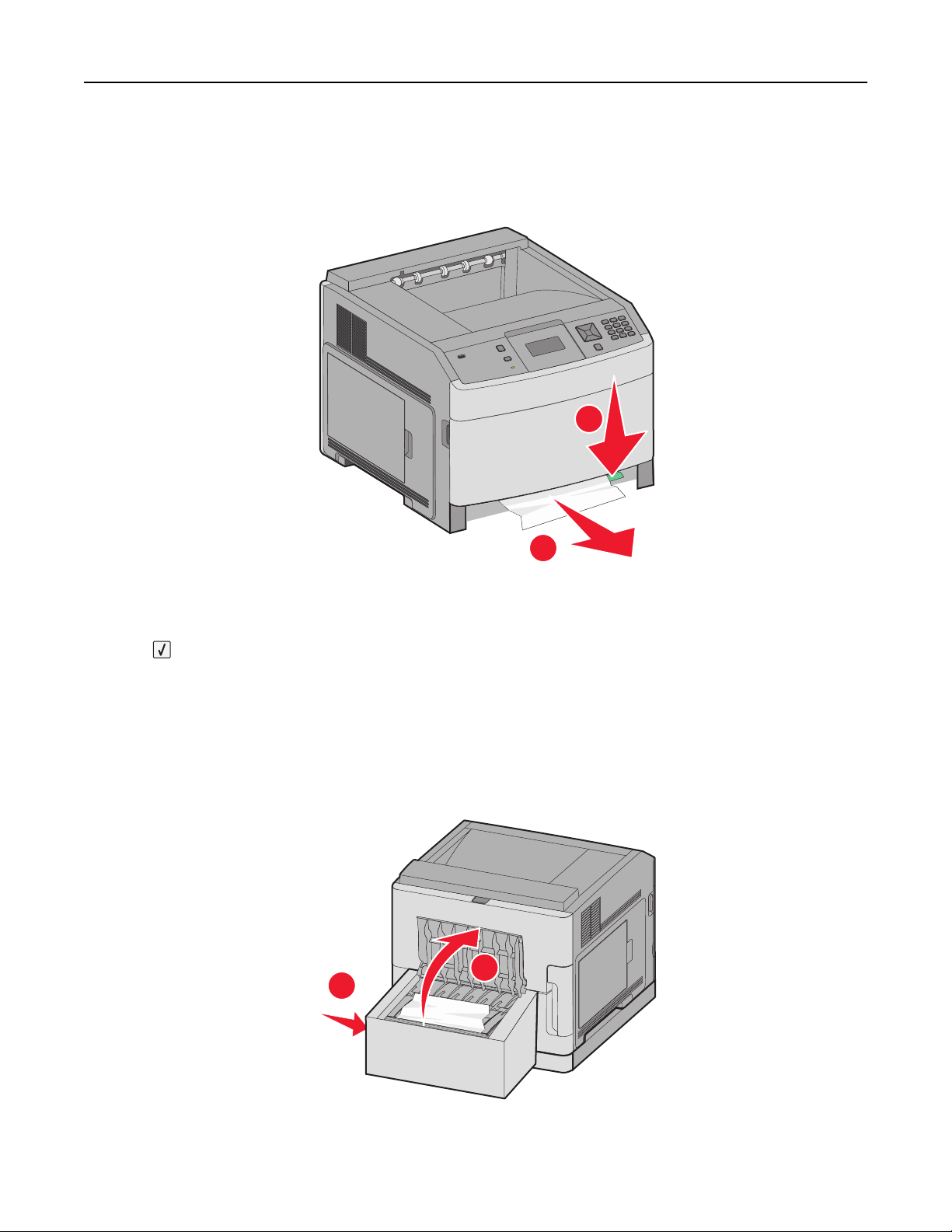

Front paper jams
1 Remove the standard tray from the printer.
2 Push the tab down.
1
2
3 Remove the jammed paper.
4 Insert the standard tray.
5 Press .
231–239 paper jams (optional external duplex unit)
Rear paper jams
1 Push in and hold the latch while pulling up the rear duplex door.
1
2
2 Remove the jammed paper.
Clearing jams 87
3 Close the rear duplex door.
4 Press .
Front paper jams
1 Remove the standard tray from the printer.
2 Remove the duplex jam access tray.
3 Raise the recessed duplex bar.
4 Remove the jammed paper.
5 Replace the duplex jam access tray.
Clearing jams 88
6 Insert the standard tray.
7 Press .
241–245 paper jams

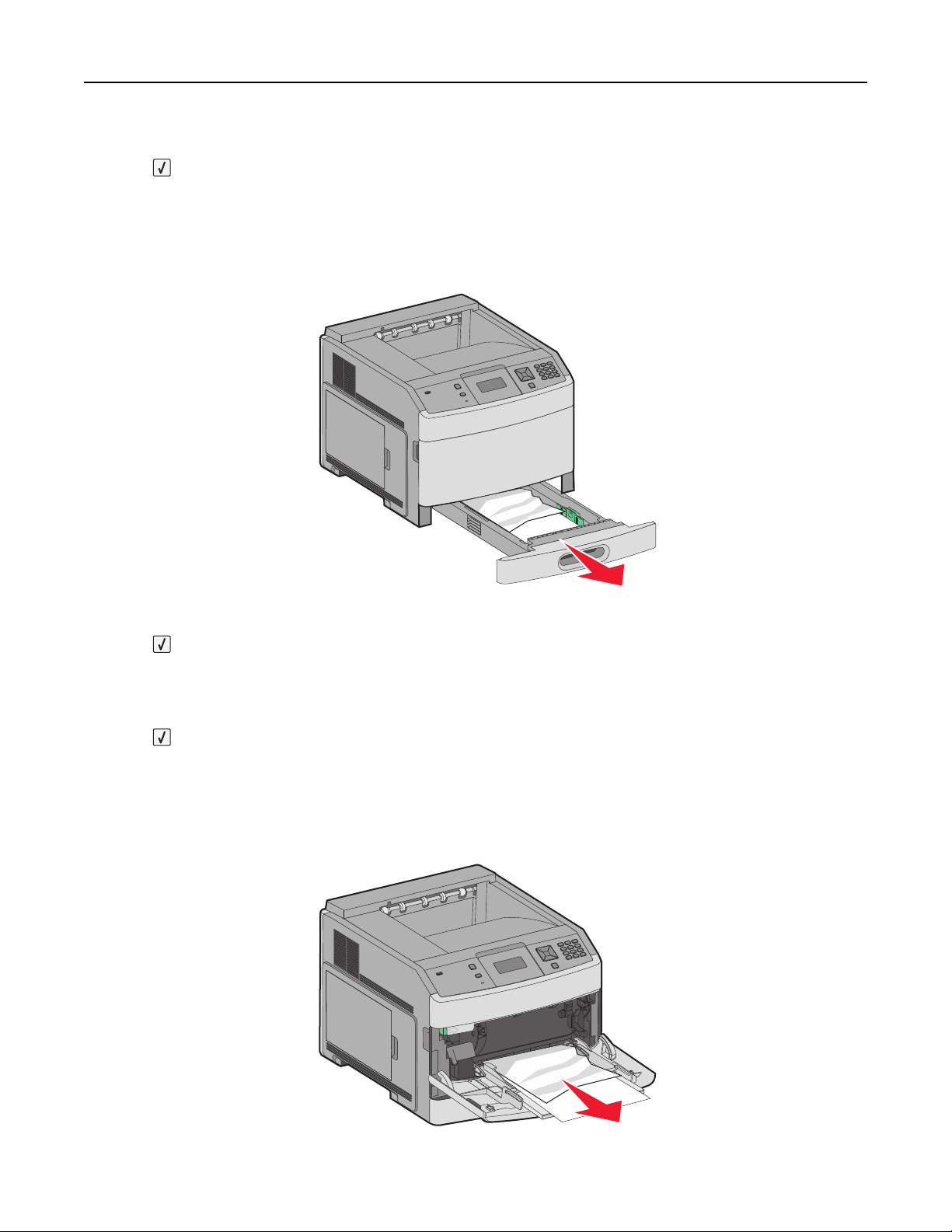

1 Pull out the tray indicated on the display.
2 Remove any jammed paper, and then insert the tray.
3 Press .
4 If the jam message persists for a 250‑sheet or 550‑sheet tray, then remove the tray from the printer.
5 Remove the jammed paper, and then insert the tray.
6 Press .
250 paper jam
1 Remove the paper from the multipurpose feeder.
Clearing jams 89
2 Flex the sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper.
Straighten the edges on a level surface.
3 Load the paper into the multipurpose feeder.
4 Slide the paper guide toward the inside of the tray until it lightly rests against the edge of the paper.
5 Press .
260 paper jam
The envelope feeder feeds envelopes from the bottom of the stack; the bottom envelope will be the one that
is jammed.

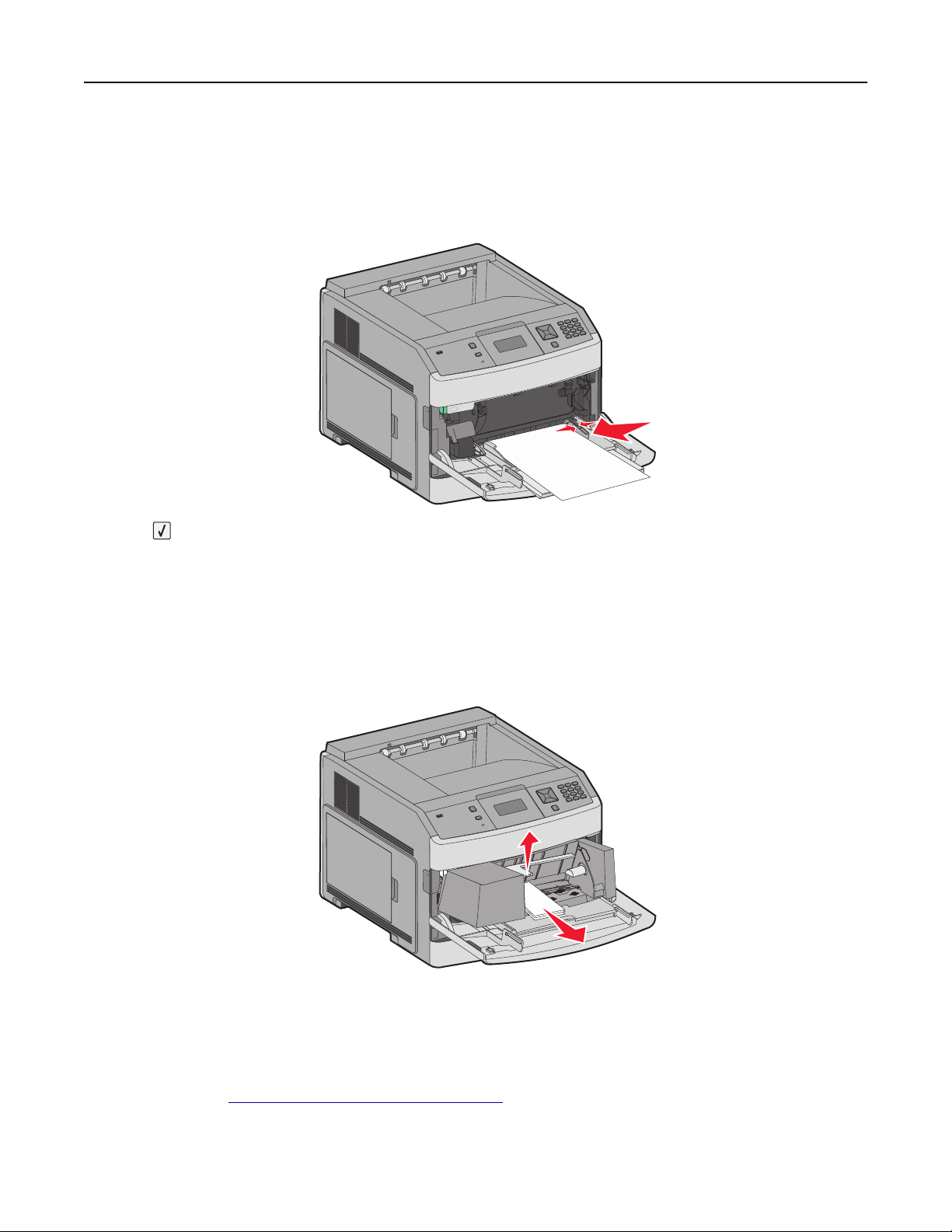

1 Lift the envelope weight, and then remove all the envelopes.
2 If the jammed envelope has entered the printer and cannot be pulled out, then lift the envelope feeder up
and then out of the printer, and then set it aside.
3 Remove the envelope from the printer.
Note: If you cannot remove the envelope, then the print cartridge will have to be removed. For more
information, see
“200 and 201 paper jams” on page 83.
4 Reinstall the envelope feeder. Make sure it snaps into place.
Clearing jams 90
5 Flex and stack the envelopes.
6 Load the envelopes in the envelope feeder.
7 Adjust the paper guide.
8 Lower the envelope weight.
9 Press .
271–279 paper jams

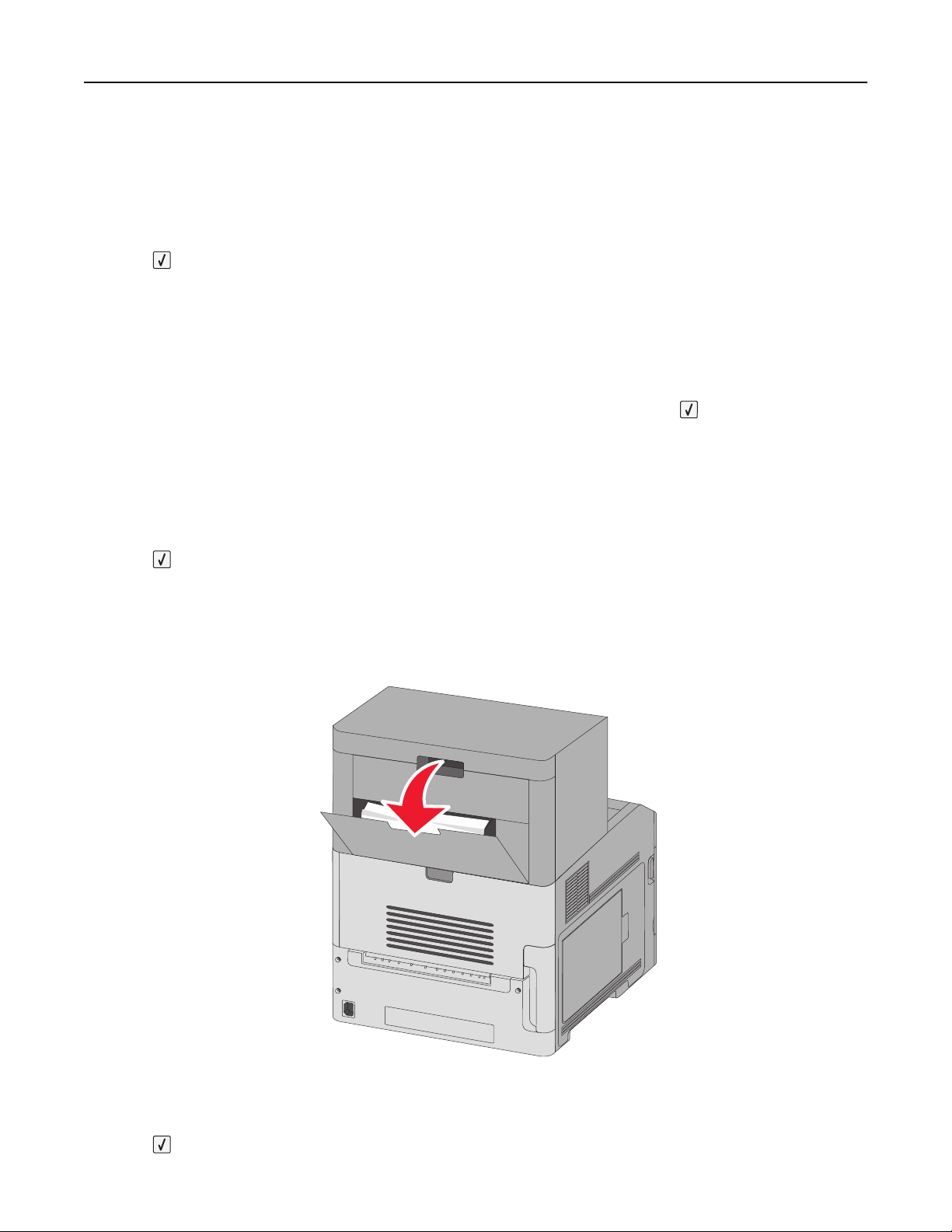

To clear a jam in the output expander, high‑capacity output stacker, the 5‑bin mailbox, or the StapleSmart II
Finisher:
1 If the paper is exiting into a bin, then pull the paper straight out, and then press .
If not, then continue with step 2.
2 Pull down the output bin door or doors.
3 Remove the jammed paper.
4 Close the output bin door or doors.
5 Press .
280 paper jams
1 Pull down the StapleSmart II Finisher door.
2 Remove the jammed paper.
3 Close the StapleSmart II Finisher door.
4 Press .
Clearing jams 91
281 paper jam
1 Clear the jam from the stapler output bin.
2 Press .
282 paper jam
To prevent paper jams, the stapler motor does not run when the stapler door is open.
1 Close the stapler door until it clicks into place.
2 Press .
Clearing jams 92
283 staple jam
1 Press the latch to open the stapler door.
2 Pull the latch of the staple cartridge holder down, and then pull the holder out of the printer.
3 Use the metal tab to lift the staple guard, and then remove any loose staples.
Clearing jams 93
4 Press down on the staple guard until it snaps into place.
5 Push the cartridge holder firmly back into the stapler unit until the cartridge holder clicks into place.
6 Close the stapler door.
7 Press .
Clearing jams 94
Understanding printer menus
Menus list
A number of menus are available to make it easy for you to change printer settings:
Paper Menu Reports Network/Ports
Default Source
Paper Size/Type
Configure MP
Envelope Enhance
Substitute Size
Paper Texture
Paper Weight
Paper Loading
Custom Types
Universal Setup
Bin Setup
Menu Settings Page
Device Statistics
Network Setup Page
1
Profiles List
NetWare Setup Page
Print Fonts
Print Directory
Asset Report
Active NIC
Standard Network
2
Standard USB
Parallel <x>
Serial <x>
SMTP Setup
1
Depending on the printer setup, this menu item appears as Network Setup Page or Network <x> Setup Page.
2
Depending on the printer setup, this menu item appears as Standard Network or Network <x>.
Security Settings Help
Miscellaneous Security Settings
Confidential Print
Disk Wiping
Security Audit Log
Set Date/Time
General Settings
Setup Menu
Finishing Menu
Quality Menu
Utilities Menu
XPS Menu
PDF Menu
PostScript Menu
PCL Emul Menu
HTML Menu
Image Menu
Flash Drive Menu
Print All
Print Quality
Printing Guide
Media Guide
Print Defects
Menu Map
Information Guide
Connection Guide
Moving Guide
Supplies Guide
Understanding printer menus 95
Paper menu
Default Source menu
Menu item Description
Default Source
Tray <x>
MP Feeder
Envelope Feeder
Manual Paper
Manual Env
Sets a default paper source for all print jobs
Notes:
• Tray 1 (standard tray) is the factory default setting.
• Only an installed paper source will appear as a menu setting.
• A paper source selected by a print job will override the Default
Source setting for the duration of the print job.
• If the same size and type of paper are in two trays and the Paper
Size and Paper Type settings match, then the trays are automatically
linked. When one tray is empty, the job prints using the linked tray.
• From the Paper menu, Configure MP must be set to Cassette in
order for MP Feeder to appear as a menu setting.
Paper Size/Type menu
Menu item Description
Tray <x> Size
A4
A5
A6
JIS B5
Letter
Legal
Executive
*
Oficio
*
Folio
Statement
*
Universal
Specifies the paper size loaded in each tray
Notes:
• A4 is the international factory default setting. Letter is the US
factory default setting.
• For trays with automatic size sensing, only the size detected by the
hardware appears.
• Use this menu item to configure automatic tray linking. If the same
size and type of paper are in two trays and the Paper Size and
Paper Type settings match, then the trays are automatically linked.
When one tray is empty, the job prints using the linked tray.
• Automatic size sensing is not supported for Oficio, Folio, or
Statement paper sizes.
• The 2000‑sheet tray supports A4, Letter, and Legal paper sizes.
*
Appears only if Tray Size Sensing is turned o. For more information, contact Customer Support.
Note: Only installed trays, drawers, and feeders are listed in this menu.
Understanding printer menus 96
Menu item Description
Tray <x> Type
Plain Paper
Card Stock
Transparency
Recycled
Labels
Vinyl Labels
Bond
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton Paper
Custom Type <x>
Specifies the type of paper loaded in each tray
Notes:
• Plain Paper is the factory default setting for Tray 1. Custom Type <x>
is the factory default setting for all other trays.
• If available, a user‑defined name will appear instead of Custom
Type <x>.
• Use this menu item to configure automatic tray linking. If the same
size and type of paper are in two trays and the Paper Size and
Paper Type settings match, then the trays are automatically linked.
When one tray is empty, the job prints using the linked tray.
MP Feeder Size
A4
A5
A6
JIS B5
Letter
Legal
Executive
Oficio
Folio
Statement
Universal
7 3/4 Envelope
9 Envelope
10 Envelope
DL Envelope
Other Envelope
Specifies the paper size loaded in the multipurpose feeder
Notes:
• From the Paper menu, Configure MP must be set to Cassette in
order for MP Feeder Size to appear as a menu item.
• A4 is the international factory default setting. Letter is the US
factory default setting.
• The multipurpose feeder does not automatically sense paper size.
The paper size value must be set.
*
Appears only if Tray Size Sensing is turned o. For more information, contact Customer Support.
Note: Only installed trays, drawers, and feeders are listed in this menu.
Understanding printer menus 97
Menu item Description
MP Feeder Type
Plain Paper
Card Stock
Transparency
Recycled
Labels
Vinyl Labels
Bond
Envelope
Rough Envelope
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton Paper
Custom Type <x>
Specifies the type of paper loaded in the multipurpose feeder
Notes:
• From the Paper menu, Configure MP must be set to Cassette in
order for MP Feeder Type to appear as a menu item.
• Plain Paper is the factory default setting.
Envelope Feeder Size
7 3/4 Envelope
9 Envelope
10 Envelope
DL Envelope
Other Envelope
Specifies the envelope size loaded in the envelope feeder
Note: DL Envelope is the international factory default setting.
10 Envelope is the US factory default setting.
Envelope Feeder Type
Envelope
Rough Envelope
Custom Type <x>
Specifies the type of envelope loaded in the envelope feeder
Notes:
• Envelope is the factory default setting.
• The Custom Type setting can be used to store up to six types of
envelopes.
Manual Paper Size
A4
A5
A6
JIS B5
Letter
Legal
Executive
Oficio
Folio
Statement
Universal
Specifies the size of the paper being manually loaded
Note: A4 is the international factory default setting. Letter is the US
factory default setting.
*
Appears only if Tray Size Sensing is turned o. For more information, contact Customer Support.
Note: Only installed trays, drawers, and feeders are listed in this menu.
Understanding printer menus 98
Menu item Description
Manual Paper Type
Plain Paper
Card Stock
Transparency
Recycled
Labels
Vinyl Labels
Bond
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton Paper
Custom Type <x>
Specifies the type of paper being manually loaded
Note: Plain Paper is the factory default setting.
Manual Envelope Size
7 3/4 Envelope
9 Envelope
10 Envelope
DL Envelope
Other Envelope
Specifies the size of the envelope being manually loaded
Note: DL Envelope is the international factory default setting.
10 Envelope is the US factory default setting.
Manual Envelope Type
Envelope
Rough Envelope
Custom Type <x>
Specifies the type of envelope being manually loaded
Note: Envelope is the factory default setting.
*
Appears only if Tray Size Sensing is turned o. For more information, contact Customer Support.
Note: Only installed trays, drawers, and feeders are listed in this menu.
Configure MP menu
Menu item Description
Configure MP
Cassette
Manual
First
Determines when the printer selects paper from the multipurpose feeder
Notes:
• Cassette is the factory default setting.
• The Cassette setting configures the multipurpose feeder as an
automatic paper source.
• When Manual is selected, the multipurpose feeder can be used only
for manual feed print jobs.
• If paper is loaded in the multipurpose feeder and First is selected,
then paper always feeds from the multipurpose feeder first.
Understanding printer menus 99
Envelope Enhance
The envelope conditioner significantly reduces the wrinkling of some envelopes.
Menu item Description
Envelope Enhance
O
1 (Least)
2
3
4
5
6 (Most)
Enables or disables the envelope conditioner
Notes:
• The factory default setting is 5.
• If noise reduction is more important than wrinkle reduction, then
decrease the setting.
Substitute Size menu
Menu item Description
Substitute Size
O
Statement/A5
Letter/A4
All Listed
Substitutes a specified paper size if the requested paper size is not
available
Notes:
• All Listed is the factory default setting. All available substitutions are
allowed.
• The O setting indicates no size substitutions are allowed.
• Setting a substitution lets the job print without a Change Paper
message appearing.
Paper Texture menu
Menu item Description
Plain Texture
Smooth
Normal
Rough
Specifies the relative texture of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Card Stock Texture
Smooth
Normal
Rough
Specifies the relative texture of the card stock loaded in a specific tray
Notes:
• Normal is the factory default setting.
• Settings appear only if card stock is supported.
Transparency Texture
Smooth
Normal
Rough
Specifies the relative texture of the transparencies loaded in a specific tray
Note: Normal is the factory default setting.
Understanding printer menus 100
Menu item Description
Recycled Texture
Smooth
Normal
Rough
Specifies the relative texture of the recycled paper loaded in a specific tray
Note: Normal is the factory default setting.
Labels Texture
Smooth
Normal
Rough
Specifies the relative texture of the labels loaded in a specific tray
Note: Normal is the factory default setting.
Vinyl Labels Texture
Smooth
Normal
Rough
Specifies the relative texture of the vinyl labels loaded in a specific tray
Note: Normal is the factory default setting.
Bond Texture
Smooth
Normal
Rough
Specifies the relative texture of the paper loaded in a specific tray
Note: Rough is the factory default setting.
Envelope Texture
Smooth
Normal
Rough
Specifies the relative texture of the envelopes loaded in a specific tray
Note: Normal is the factory default setting.
Rough Envelope Texture
Smooth
Normal
Rough
Specifies the relative texture of the rough envelopes loaded in a specific tray
Note: Rough is the factory default setting.
Letterhead Texture
Smooth
Normal
Rough
Specifies the relative texture of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Preprinted Texture
Smooth
Normal
Rough
Specifies the relative texture of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Colored Texture
Smooth
Normal
Rough
Specifies the relative texture of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Light Texture
Smooth
Normal
Rough
Specifies the relative texture of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Understanding printer menus 101
Menu item Description
Heavy Texture
Smooth
Normal
Rough
Specifies the relative texture of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Rough Texture
Smooth
Normal
Rough
Specifies the relative texture of the paper loaded in a specific tray
Note: Rough is the factory default setting.
Custom <x> Texture
Smooth
Normal
Rough
Specifies the relative texture of the custom paper loaded in a specific tray
Note: Normal is the factory default setting.
Paper Weight menu
Menu item Description
Plain Weight
Light
Normal
Heavy
Specifies the relative weight of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Card Stock Weight
Light
Normal
Heavy
Specifies the relative weight of the card stock loaded in a specific tray
Note: Normal is the factory default setting.
Transparency Weight
Light
Normal
Heavy
Specifies the relative weight of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Recycled Weight
Light
Normal
Heavy
Specifies the relative weight of the recycled paper loaded in a specific tray
Note: Normal is the factory default setting.
Labels Weight
Light
Normal
Heavy
Specifies the relative weight of the labels loaded in a specific tray
Note: Normal is the factory default setting.
Vinyl Labels Weight
Light
Normal
Heavy
Specifies the relative weight of the vinyl labels loaded in a specific tray
Note: Normal is the factory default setting.
Understanding printer menus 102
Menu item Description
Bond Weight
Light
Normal
Heavy
Specifies the relative weight of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Envelope Weight
Light
Normal
Heavy
Specifies the relative weight of the envelopes loaded in a specific tray
Note: Normal is the factory default setting.
Rough Envelope Weight
Light
Normal
Heavy
Specifies the relative weight of the rough envelopes loaded in a specific tray
Note: Normal is the factory default setting.
Letterhead Weight
Light
Normal
Heavy
Specifies the relative weight of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Preprinted Weight
Light
Normal
Heavy
Specifies the relative weight of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Colored Weight
Light
Normal
Heavy
Specifies the relative weight of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Light Weight
Light
Specifies the relative weight of the paper loaded in a specific tray
Heavy Weight
Heavy
Specifies the relative weight of the paper loaded in a specific tray
Rough Weight
Light
Normal
Heavy
Specifies the relative weight of the paper loaded in a specific tray
Note: Normal is the factory default setting.
Custom <x>
Light
Normal
Heavy
Specifies the relative weight of the custom paper type loaded in a specific tray
Notes:
• Normal is the factory default setting.
• Settings appear only if the custom type is supported.
Understanding printer menus 103
Paper Loading menu
Paper trays require paper to be loaded dierently for one‑sided or two‑sided (duplex) printing. However, if the
specified paper is loaded in the duplex orientation, the Duplex setting permits correct printing of both one‑sided
or two‑sided (duplex) print jobs without having to reload the paper. When one‑sided printing is selected from
Print Properties in Windows or the Print dialog in Macintosh, a blank page is inserted so that the one‑sided job
prints correctly.
Notes:
• Selecting a setting for one paper type will not aect other paper types.
• To set the printer default to duplex printing for all print jobs, use the Finishing menu.
• For information on paper loading orientation, see “Loading paper and specialty media” on page 51.
Menu item Description
Card Stock Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Card Stock is loaded in the two‑sided orientation in the paper
tray. When O is selected, Card Stock must be loaded in either
the one‑ or two‑sided orientation depending on the print job.
Note: O is the factory default setting.
Recycled Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Recycled paper is loaded in the two‑sided orientation in the
paper tray. When
O
is selected, Recycled paper must be loaded
in either the one‑ or two‑sided orientation depending on the print
job.
Note:
O
is the factory default setting.
Labels Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Labels are loaded in the two‑sided orientation in the paper tray.
When O is selected, Labels must be loaded in either the one‑
or two‑sided orientation depending on the print job.
Note: O is the factory default setting.
Vinyl Labels Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Vinyl Labels are loaded in the two‑sided orientation in the paper
tray. When
O
is selected, Vinyl Labels must be loaded in either
the one‑ or two‑sided orientation depending on the print job.
Note: O is the factory default setting.
Bond Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Bond paper is loaded in the two‑sided orientation in the paper
tray. When O is selected, Bond paper must be loaded in either
the one‑ or two‑sided orientation depending on the print job.
Note: O is the factory default setting.
Letterhead Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Letterhead paper is loaded in the two
‑sided orientation in the
paper tray. When
O
is selected, Letterhead paper must be
loaded in either the one‑ or two‑sided orientation depending on
the print job.
Note: O is the factory default setting.
Understanding printer menus 104
Menu item Description
Preprinted Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Preprinted paper is loaded in the two‑sided orientation in the
paper tray. When
O
is selected, Preprinted paper must be
loaded in either the one‑ or two‑sided orientation depending on
the print job.
Note: O is the factory default setting.
Colored Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Colored paper is loaded in the two‑sided orientation in the paper
tray. When
O
is selected, Colored paper must be loaded in
either the one‑ or two‑sided orientation depending on the print
job.
Note: O is the factory default setting.
Light Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Light paper is loaded in the two‑sided orientation in the paper
tray. When
O
is selected, Light paper must be loaded in either
the one‑ or two‑sided orientation depending on the print job.
Note: O is the factory default setting.
Heavy Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Heavy paper is loaded in the two‑sided orientation in the paper
tray. When O is selected, Heavy paper must be loaded in either
the one‑ or two‑sided orientation depending on the print job.
Note: O is the factory default setting.
Rough Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Rough paper is loaded in the two‑sided orientation in the paper
tray. When
O
is selected, Rough paper must be loaded in either
the one‑ or two‑sided orientation depending on the print job.
Note: O is the factory default setting.
Custom <x> Loading
Duplex
O
When Duplex is selected, one‑sided jobs can be printed when
Custom <x> paper is loaded in the two‑sided orientation in the
paper tray. When O is selected, Custom <x> paper must be
loaded in either the one‑ or two‑sided orientation depending on
the print job.
Notes:
• O is the factory default setting.
• Custom <x> Loading is available only if the custom type is
supported.
Understanding printer menus 105
Custom Types menu
Menu item Description
Custom Type <x>
Paper
Card Stock
Transparency
Labels
Vinyl Labels
Envelope
Associates a paper or specialty media type with a factory default Custom
Type <x> name or a user‑defined Custom Name created from the
Embedded Web Server or MarkVision Professional
Notes:
• Paper is the factory default setting.
• The custom media type must be supported by the selected tray or
multipurpose feeder in order to print from that source.
Recycled
Paper
Card Stock
Transparency
Labels
Vinyl Labels
Envelope
Specifies a paper type when the Recycled setting is selected in other
menus
Notes:
• Paper is the factory default setting.
• The custom media type must be supported by the selected tray or
multipurpose feeder in order to print from that source.
Universal Setup menu
These menu items are used to specify the height, width, and feed direction of the Universal Paper Size. The
Universal Paper Size is a user‑defined paper size setting. It is listed with the other paper size settings and
includes similar options, such as support for duplex printing and printing multiple pages on one sheet.
Menu item Description
Units of Measure
Inches
Millimeters
Identifies the units of measure
Notes:
• Inches is the US factory default setting.
• Millimeters is the international factory default setting.
Portrait Width
3–14 inches
76–360 mm
Sets the portrait width
Notes:
• If the width exceeds the maximum, the printer uses the
maximum width allowed.
• 8.5 inches is the US factory default setting. Inches can be
increased in 0.01‑inch increments.
• 216 mm is the international factory default setting. Millimeters
can be increased in 1‑mm increments.
Understanding printer menus 106
Menu item Description
Portrait Height
3–14 inches
76–360 mm
Sets the portrait height
Notes:
• If the height exceeds the maximum, the printer uses the
maximum height allowed.
• 14 inches is the US factory default setting. Inches can be
increased in 0.01‑inch increments.
• 356 mm is the international factory default setting. Millimeters
can be increased in 1‑mm increments.
Feed Direction
Short Edge
Long Edge
Specifies the feed direction if the paper can be loaded in either
direction
Notes:
• Short Edge is the factory default setting.
• Long Edge appears only if the longest edge is shorter than the
maximum width supported in the tray.
Bin Setup menu
Menu Item Description
Output Bin
Standard Bin
Bin <x>
Specifies the default output bin
Note: Standard Bin is the factory default setting.
Configure Bins
Mailbox
Link
Mail Overflow
Link Optional
Type Assignment
Specifies configuration options for output bins
Notes:
• Mailbox is the factory default setting.
• Bins assigned the same name are automatically
linked unless Link Optional is selected.
• The Mailbox setting treats each bin as a separate
mailbox.
• The Link setting links together all available output
bins.
• The Link Optional setting links together all
available output bins except the standard bin and
only appears when at least two optional bins are
installed.
• The Type Assignment setting assigns each paper
type to an output bin or linked bin set.
Overflow Bin
Standard Bin
Bin <x>
Specifies an alternate output bin when a designated bin
is full
Note: Standard Bin is the factory default setting.
Understanding printer menus 107
Menu Item Description
Assign Type/Bin
Plain Paper Bin
Card Stock Bin
Transparency Bin
Recycled Bin
Labels Bin
Vinyl Labels Bin
Bond Bin
Envelope Bin
Rough Envelope Bin
Letterhead Bin
Preprinted Bin
Colored Bin
Light Bin
Heavy Bin
Rough/Cotton Bin
Custom <x> Bin
Selects an output bin for each supported paper type
Available selections for each type are:
Disabled
Standard Bin
Bin <x>
Note: Standard Bin is the factory default setting.
Reports menu
Menu item Description
Menu Settings Page Prints a report containing information about paper loaded into trays,
installed memory, the total page count, alarms, timeouts, the printer control
panel language, the TCP/IP address, the status of supplies, the status of the
network connection, and other information
Device Statistics Prints a report containing printer statistics such as supply information and
details about printed pages
Network Setup Page Prints a report containing information about the network printer settings,
such as the TCP/IP address information
Note: This menu item appears only for network printers or printers
connected to print servers.
Network <x> Setup Page Prints a report containing information about the network printer settings,
such as the TCP/IP address information
Notes:
• This menu item is available when more than one network option is
installed.
• This menu item appears only for network printers or printers
connected to print servers.
Profiles List Prints a list of profiles stored in the printer
NetWare Setup Page Prints a report containing NetWare‑specific information about the network
settings
Note: This menu item appears only for printers with an internal print
server installed.
Understanding printer menus 108
Menu item Description
Print Fonts
PCL Fonts
PostScript Fonts
Prints a report in English of all the fonts available for the printer language
currently set in the printer
Note: A separate list is available for PCL and PostScript emulations. Each
emulator report contains print samples and information about the
language's available fonts.
Print Directory Prints a list of all the resources stored on an optional flash memory card or
printer hard disk
Notes:
• Job
Buer
Size must be set to 100%.
• The optional
flash
memory or printer hard disk must be installed
correctly and working properly.
Asset Report Prints a report containing asset information including the printer serial
number and model name. The report contains text and UPC barcodes that
can be scanned into an asset database.
Network/Ports menu
Active NIC menu
Menu item Description
Active NIC
Auto
<list of available network cards>
Notes:
• Auto is the factory default setting.
• This menu item appears only if an optional network card is installed.
Standard Network or Network <x> menus
Note: Only active ports appear in this menu; all inactive ports are omitted.
Menu item Description
PCL SmartSwitch
On
O
Sets the printer to automatically switch to PCL emulation when a print job
requires it, regardless of the default printer language
Notes:
• On is the factory default setting.
• When the
O
setting is used, the printer does not examine incoming
data.
• When the
O
setting is used, the printer uses PostScript emulation if PS
SmartSwitch is set to On. It uses the default printer language specified in
the Setup menu if PS SmartSwitch is set to O.
Understanding printer menus 109
Menu item Description
PS SmartSwitch
On
O
Sets the printer to automatically switch to PS emulation when a print job
requires it, regardless of the default printer language
Notes:
• On is the factory default setting.
• When the O setting is used, the printer does not examine incoming
data.
• When the O setting is used, the printer uses PCL emulation if PCL
SmartSwitch is set to On. It uses the default printer language specified in
the Setup menu if PCL SmartSwitch is set to O.
NPA Mode
O
Auto
Sets the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol
Notes:
• Auto is the factory default setting.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Network Buer
Auto
3K to <maximum size allowed>
Sets the size of the network input buer
Notes:
• Auto is the factory default setting.
• The value can be changed in 1‑K increments.
• The maximum size allowed depends on the amount of memory in the
printer, the size of the other link buers, and whether Resource Save is
set to On or O.
• To increase the maximum size range for the Network Buer, disable or
reduce the size of the parallel, serial, and USB buers.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Job Buering
O
On
Auto
Temporarily stores jobs on the printer hard disk before printing. This menu only
appears if a formatted disk is installed.
Notes:
•
O
is the factory default setting.
• The On value
buers
jobs on the printer hard disk. This menu selection
appears only when a formatted disk is installed and is not defective.
• The Auto setting
buers
print jobs only if the printer is busy processing
data from another input port.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Mac Binary PS
On
O
Auto
Sets the printer to process Macintosh binary PostScript print jobs
Notes:
• Auto is the factory default setting.
• The O setting filters print jobs using the standard protocol.
• The On setting processes raw binary PostScript print jobs.
Understanding printer menus 110
Menu item Description
Std Network Setup
Reports or Network Reports
Network Card
TCP/IP
IPv6
AppleTalk
NetWare
LexLink
Net <x> Setup
Reports or Network Reports
Network Card
TCP/IP
IPv6
Wireless
AppleTalk
NetWare
LexLink
For descriptions and settings of the network setup menus, see the following:
• “Network Reports menu” on page 111
• “Network Card menu” on page 111
• “TCP/IP menu” on page 112
• “IPv6 menu” on page 113
• “Wireless menu” on page 113
• “AppleTalk menu” on page 114
• “NetWare menu” on page 114
• “LexLink menu” on page 115
Note: The Wireless menu appears only when the printer is connected to a
wireless network.
Network Reports menu
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network <x> > Std Network Setup or Net <x> Setup > Reports or
Network Reports
Menu item Description
Print Setup Page
Print NetWare Setup
Page
Prints a report containing information about the current network setup
Notes:
• The Setup Page contains information about the network printer settings, such as
the TCP/IP address.
• The NetWare Setup Page menu item appears only on models that support NetWare
and shows information about NetWare settings.
Network Card menu
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network <x> > Std Network Setup or Net <x> Setup > Network Card
Menu item Description
View Card Status
Connected
Disconnected
Lets you view the connection status of the Network Card
View Card Speed Lets you view the speed of a currently active network card
Understanding printer menus 111
Menu item Description
Network Address
UAA
LAA
Lets you view the network addresses
Job Timeout
0‑225 seconds
Sets the amount of time in seconds that a network print job can take before
it is canceled
Notes:
• 90 seconds is the factory default setting.
• A setting value of 0 disables the timeout.
• If a value of 1–9 is selected, then the setting is saved as 10.
Banner Page
O
On
Allows the printer to print a banner page
Note:
O
is the factory default setting.
TCP/IP menu
Use the following menu items to view or set the TCP/IP information.
Note: This menu is available only for network models or printers attached to print servers.
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network <x> > Std Network Setup or Net <x> Setup > TCP/IP
Menu item Description
Activate
On
O
Activates TCP/IP
Note: On is the factory default setting.
View Hostname Lets you view the current TCP/IP hostname
Note: This can be changed only from the Embedded Web Server.
IP Address Lets you view or change the current TCP/IP Address
Note: Manually setting the IP address sets the Enable DHCP and Enable Auto
IP settings to
O.
It also sets Enable BOOTP and Enable RARP to
O
on
systems that support BOOTP and RARP.
Netmask Lets you view or change the current TCP/IP Netmask
Gateway Lets you view or change the current TCP/IP Gateway
Enable DHCP
On
O
Specifies the DHCP address and parameter assignment setting
Enable RARP
On
O
Specifies the RARP address assignment setting
Note: On is the factory default setting.
Understanding printer menus 112
Menu item Description
Enable BOOTP
On
O
Specifies the BOOTP address assignment setting
Note: On is the factory default setting.
AutoIP
Ye s
No
Specifies the Zero Configuration Networking setting
Note: Yes is the factory default setting.
Enable FTP/TFTP
Ye s
No
Enables the built-in FTP server, which allows you to send files to the printer using
the File Transfer Protocol.
Note: Yes is the factory default setting.
Enable HTTP Server
Ye s
No
Enables the built-in web server (Embedded Web Server). When enabled, the
printer can be monitored and managed remotely using a web browser.
Note: Yes is the factory default setting.
WINS Server Address Lets you view or change the current WINS Server Address
DNS Server Address Lets you view or change the current DNS Server Address
IPv6 menu
Use the following menu items to view or set the Internet Protocol version 6 (IPv6) information.
Note: This menu is available only for network models or printers attached to print servers.
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network <x> > Std Network Setup or Net <x> Setup > IPv6
Menu item Description
Enable IPv6
On
O
Enables IPv6 in the printer
Note: On is the factory default setting.
Auto Configuration
On
O
Specifies whether the network adapter accepts the automatic IPv6
address configuration entries provided by a router
Note: On is the factory default setting.
View Hostname
View Address
View Router Address
Lets you view the current setting
Note: These settings can be changed only from the Embedded
Web Server.
Enable DHCPv6
On
O
Enables DHCPv6 in the printer
Note: On is the factory default setting.
Wireless menu
Use the following menu items to view or configure the wireless internal print server settings.
Note: This menu is available only for models connected to a wireless network.
Understanding printer menus 113
This menu is available from the Network/Ports menu:
Network/Ports > Network <x> > Net <x> Setup > Wireless
Menu item Description
Network Mode
Infrastructure
Ad hoc
Specifies the network mode
Notes:
• Infrastructure mode lets the printer access a network using an
access point.
• Ad hoc is the factory default setting. Ad hoc mode configures
the printer for wireless networking directly between it and a
computer.
Compatibility
802.11n
802.11b/g
802.11b/g/n
Specifies the wireless standard for the wireless network
Choose Network
<list of available networks>
Lets you select an available network for the printer to use
View Signal Quality Lets you view the quality of the wireless connection
View Security Mode Lets you view the encryption method for the wireless connection.
“Disabled” indicates that the wireless network is not encrypted.
AppleTalk menu
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network <x> > Std Network Setup or Net <x> Setup > AppleTalk
Menu item Description
Activate
On
O
Activates AppleTalk support
Note: On is the factory default setting.
View Name Shows the assigned AppleTalk name
Note: The name can be changed only from the Embedded Web Server.
View Address Shows the assigned AppleTalk address
Note: The address can be changed only from the Embedded Web
Server.
Set Zone
<list of zones available on the
network>
Provides a list of AppleTalk zones available on the network
Note: The default setting is the default zone for the network. If no default
zone exists, the zone marked with an * is the default setting.
NetWare menu
This menu is available from the Network/Ports menu:
Understanding printer menus 114
Network/Ports > Standard Network or Network <x> > Std Network Setup or Net <x> Setup > NetWare
Menu item Description
Activate
Ye s
No
Activates NetWare support
Note: No is the factory default setting.
View Login Name Lets you view the assigned NetWare login name
Note: This can be changed only from the Embedded Web Server.
Print Mode Lets you view the assigned NetWare print mode
Note: This can be changed only from the Embedded Web Server.
Network Number Lets you view the assigned NetWare network number
Note: This can be changed only from the Embedded Web Server.
Select SAP Frames
Ethernet 802.2
Ethernet 802.3
Ethernet Type II
Ethernet SNAP
Enables the Ethernet frame type setting
Note: On is the factory default setting for all menu items.
Packet Burst
Ye s
No
Reduces network trac by allowing the transfer and acknowledgement of
multiple data packets to and from the NetWare server
Note: Yes is the factory default setting.
NSQ/GSQ Mode
Ye s
No
Specifies the NSQ/GSQ Mode setting
Note: Yes is the factory default setting.
LexLink menu
This menu is available from the Network/Ports menu:
Network/Ports > Standard Network or Network <x> > Std Network Setup or Net <x> Setup > LexLink menu
Menu item Description
Activate
On
O
Activates LexLink support
Note: O is the factory default setting.
View Nickname Lets you view the assigned LexLink nickname
Note: The LexLink nickname can be changed only from the Embedded
Web Server.
Understanding printer menus 115
Standard USB menu
Menu item Description
PCL SmartSwitch
On
O
Sets the printer to automatically switch to PCL emulation when a print job
received through a USB port requires it, regardless of the default printer
language
Notes:
• On is the factory default setting.
• When the O setting is used, the printer does not examine incoming data.
• When the
O
setting is used, the printer uses PostScript emulation if the
PS SmartSwitch setting is On. It uses the default printer language
specified in the Setup menu if the PS SmartSwitch setting is O.
PS SmartSwitch
On
O
Sets the printer to automatically switch to PS emulation when a print job
received through a USB port requires it, regardless of the default printer
language
Notes:
• On is the factory default setting.
• When the O setting is used, the printer does not examine incoming data.
• When the O setting is used, the printer uses PCL emulation if the PCL
SmartSwitch setting is On. It uses the default printer language specified in
the Setup menu if the PCL SmartSwitch setting is O.
NPA Mode
On
O
Auto
Sets the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol
Notes:
• Auto is the factory default setting.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
USB Buer
Disabled
Auto
3K to <maximum size allowed>
Sets the size of the USB input buer
Notes:
• Auto is the factory default setting.
• The Disabled setting turns o job buering. Any jobs already buered on
the disk are printed before normal processing is resumed.
• The USB buer size value can be changed in 1‑K increments.
• The maximum size allowed depends on the amount of memory in the
printer, the size of the other link buers, and whether the Resource Save
setting is On or O.
• To increase the maximum size range for the USB Buer, disable or
reduce the size of the parallel, serial, and network buers.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Understanding printer menus 116
Menu item Description
Job Buering
O
On
Auto
Temporarily stores jobs on the printer hard disk before printing
Notes:
• O is the factory default setting.
• The On setting buers jobs on the printer hard disk.
• The Auto setting buers print jobs only if the printer is busy processing
data from another input port.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Mac Binary PS
On
O
Auto
Sets the printer to process Macintosh binary PostScript print jobs
Notes:
• Auto is the factory default setting.
• The O setting filters print jobs using the standard protocol.
• The On setting processes raw binary PostScript print jobs.
USB With ENA
ENA Address
ENA Netmask
ENA Gateway
Sets the network address, netmask, or gateway information for an external print
server that is attached to the printer using a USB cable.
Note: This menu item is available only if the printer is attached to an external
print server through the USB port.
Parallel <x> menu
This menu appears only if an optional parallel card is installed.
Menu item Description
PCL SmartSwitch
On
O
Sets the printer to automatically switch to PCL emulation when a print job
received through a parallel port requires it, regardless of the default printer
language
Notes:
• On is the factory default setting.
• When the O setting is used, the printer does not examine incoming
data.
• When the O setting is used, the printer uses PostScript emulation if PS
SmartSwitch is set to On. It uses the default printer language specified in
the Setup menu if PS SmartSwitch is set to
O.
Understanding printer menus 117
Menu item Description
PS SmartSwitch
On
O
Sets the printer to automatically switch to PS emulation when a print job
received through a parallel port requires it, regardless of the default printer
language
Notes:
• On is the factory default setting.
• When the O setting is used, the printer does not examine incoming
data.
• When the O setting is used, the printer uses PCL emulation if PCL
SmartSwitch is set to On. It uses the default printer language specified in
the Setup menu if PCL SmartSwitch is set to O.
NPA Mode
On
O
Auto
Sets the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol
Notes:
• Auto is the factory default setting.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Parallel Buer
Disabled
Auto
3K to <max size allowed>
Sets the size of the parallel input buer
Notes:
• Auto is the factory default setting.
• The Disabled setting turns
o
job
buering.
Any jobs already
buered
on
the disk are printed before normal processing is resumed.
• The parallel buer size setting can be changed in 1K increments.
• The maximum size allowed depends on the amount of memory in the
printer, the size of the other link buers, and whether Resource Save is
set to On or
O.
• To increase the maximum size range for the Parallel Buer, disable or
reduce the size of the USB, serial, and network buers.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Job Buering
O
On
Auto
Temporarily stores jobs on the printer hard disk before printing
Notes:
• O is the factory default setting.
• The
O
setting does not
buer
print jobs to the printer hard disk.
• The On setting buers jobs on the printer hard disk.
• The Auto setting buers print jobs only if the printer is busy processing
data from another input port.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Understanding printer menus 118
Menu item Description
Advanced Status
On
O
Enables bidirectional communication through the parallel port
Notes:
• On is the factory default setting.
• The O setting disables parallel port negotiation.
Protocol
Standard
Fastbytes
Specifies the parallel port protocol
Notes:
• Fastbytes is the factory default setting. It provides compatibility with most
existing parallel ports and is the recommended setting.
• The Standard setting tries to resolve parallel port communication
problems.
Honor Init
On
O
Determines whether or not the printer honors printer hardware initialization
requests from the computer
Notes:
• O is the factory default setting.
• The computer requests initialization by activating the Init signal from the
parallel port. Many personal computers activate the Init signal each time
the computer is turned on.
Parallel Mode 2
On
O
Determines whether the parallel port data is sampled on the leading or trailing
edge of strobe
Notes:
• On is the factory default setting.
• This menu appears only if a standard or optional parallel port is available.
Mac Binary PS
On
O
Auto
Sets the printer to process Macintosh binary PostScript print jobs
Notes:
• Auto is the factory default setting.
• The O setting filters print jobs using the standard protocol.
• The On setting processes raw binary PostScript print jobs.
Parallel With ENA
ENA Address
ENA Netmask
ENA Gateway
Sets the network address, netmask, or gateway information for an external print
server that is attached to the printer using a parallel cable.
Note: This menu item is available only if the printer is attached to an external
print server through a parallel port.
Serial <x> menu
This menu appears only if an optional serial card is installed.
Understanding printer menus 119
Menu item Description
PCL SmartSwitch
On
O
Sets the printer to automatically switch to PCL emulation when a print job
received through a serial port requires it, regardless of the default printer
language
Notes:
• On is the factory default setting.
• When the O setting is used, the printer does not examine incoming
data.
• When the O setting is used, the printer uses PostScript emulation if PS
SmartSwitch is set to On. It uses the default printer language specified in
the Setup menu if PS SmartSwitch is set to O.
PS SmartSwitch
On
O
Sets the printer to automatically switch to PS emulation when a print job
received through a serial port requires it, regardless of the default printer
language
Notes:
• On is the factory default setting.
• When the O setting is used, the printer does not examine incoming
data.
• When the O setting is used, the printer uses PCL emulation if PCL
SmartSwitch is set to On. It uses the default printer language specified in
the Setup menu if PCL SmartSwitch is set to O.
NPA Mode
On
O
Auto
Sets the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol
Notes:
• Auto is the factory default setting.
• When the On setting is used, the printer performs NPA processing. If the
data is not in NPA format, it is rejected as bad data.
• When the
O
setting is used, the printer does not perform NPA
processing.
• When the Auto setting is used, the printer examines data, determines the
format, and then processes it appropriately.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Understanding printer menus 120
Menu item Description
Serial Buer
Disabled
Auto
3K to <maximum size allowed>
Sets the size of the serial input buer
Notes:
• Auto is the factory default setting.
• The Disabled setting turns o job buering. Any jobs already buered on
the disk are printed before normal processing is resumed.
• The serial buer size setting can be changed in 1‑K increments.
• The maximum size allowed depends on the amount of memory in the
printer, the size of the other link buers, and whether Resource Save is
set to On or O.
• To increase the maximum size range for the Serial Buer, disable or
reduce the size of the parallel, USB, and network buers.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Job Buering
O
On
Auto
Temporarily stores jobs on the printer hard disk before printing
Notes:
• O is the factory default setting.
• The O setting does not buer print jobs to the hard disk.
• The On setting buers jobs on the printer hard disk.
• The Auto setting
buers
print jobs only if the printer is busy processing
data from another input port.
• Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is updated.
Serial Protocol
DTR
DTR/DSR
XON/XOFF
XON/XOFF/DTR
XON/XOFF/DTRDSR
Selects the hardware and software handshaking settings for the serial port
Notes:
• DTR is the factory default setting.
• DTR/DSR is a hardware handshaking setting.
• XON/XOFF is a software handshaking setting.
• XON/XOFF/DTR and XON/XOFF/DTR/DSR are combined hardware and
software handshaking settings.
Robust XON
On
O
Determines whether or not the printer communicates availability to the
computer
Notes:
•
O
is the factory default setting.
• This menu item applies only to the serial port if Serial Protocol is set to
XON/XOFF.
Understanding printer menus 121
Menu item Description
Baud
1200
2400
4800
9600
19200
38400
57600
115200
138200
172800
230400
345600
Specifies the rate at which data can be received through the serial port
Notes:
• 9600 is the factory default setting.
• 138200, 172800, 230400, and 345600 baud rates are displayed only in
the Standard Serial menu. These settings do not appear in the Serial
Option or Serial Option 2 menus.
Data Bits
7
8
Specifies the number of data bits that are sent in each transmission frame
Note: 8 is the factory default setting.
Parity
Even
Odd
None
Ignore
Sets the parity for serial input and output data frames
Note: None is the factory default setting.
Honor DSR
On
O
Determines whether the printer uses the DSR Signal. DSR is a handshaking
signal used by most serial cables.
Notes:
•
O
is the factory default setting.
• The serial port uses DSR to distinguish data sent by the computer from
data created by electrical noise in the serial cable. The electrical noise
can cause stray characters to print. Select On to prevent stray characters
from printing.
• This menu item appears only if Serial RS‑232/RS‑422 is set to RS 232.
SMTP Setup menu
Use the following menu to configure the SMTP server.
Menu item Description
Primary SMTP Gateway
Primary SMTP Gateway Port
Secondary SMTP Gateway
Secondary SMTP Gateway Port
Specifies SMTP server port information
Note: 25 is the default SMTP gateway port. Range is 1‑65536.
Understanding printer menus 122
Menu item Description
SMTP Timeout
5–30
Specifies the amount of time in seconds before the server stops trying
to send the e‑mail
Note: 30 seconds is the factory default setting.
Reply Address Specifies a reply address of up to 128 characters in e-mail sent by the
printer
Use SSL
Disabled
Negotiate
Required
Sets the printer to use SSL for increased security when connecting
to the SMTP server
Notes:
• Disabled is the factory default setting for Use SSL.
• When the Negotiate setting is used, your SMTP server
determines if SSL will be used.
SMTP Server Authentication
No authentication required
Login/Plain
CRAM‑MD5
Digest‑MD5
NTLM
Kerberos 5
Specifies the type of user authentication required
Note: “No authentication required” is the factory default setting.
Device‑Initiated E‑mail
None
Use Device SMTP Credentials
Device Userid
Device Password
Kerberos 5 Realm
NTLM Domain
Specifies what credentials will be used when communicating to the
SMTP server. Some SMTP servers require credentials in order to send
e-mail.
Notes:
• None is the factory default setting for Device‑Initiated E‑mail.
• Device Userid and Device Password are used to log in to the
SMTP server when "Use Device SMTP Credentials" is selected.
Understanding printer menus 123
Security menu
Miscellaneous menu
Menu item Description
Panel Logins
Login failures
Failure time frame
Lockout time
Login timeout
Limits the number and time frames of failed login attempts from the printer
control panel before all users are locked out
Notes:
• “Login failures”
specifies
the number of failed login attempts before users
are locked out. Settings range from 1–50. 3 attempts is the factory default
setting.
• “Failure time frame”
specifies
the time frame during which failed login
attempts can be made before users are locked out. Settings range from
1–60 minutes. 5 minutes is the factory default setting.
• “Lockout time”
specifies
how long users are locked out after exceeding
the login failures limit. Settings range from 0–60 minutes. 5 minutes is
the factory default setting. 0 indicates the printer does not impose a
lockout time.
• “Login timeout” specifies how long the printer remains idle on the Home
screen before automatically logging the user o. Settings range from 1–
900 seconds. 300 seconds is the factory default setting.
Remote Logins
Login failures
Failure time frame
Lockout time
Login timeout
Limits the number and time frames of failed login attempts from a computer
before all remote users are locked out
Notes:
• “Login failures”
specifies
the number of failed login attempts before users
are locked out. Settings range from 1–50. 3 attempts is the factory default
setting.
• “Failure time frame” specifies the time frame during which failed login
attempts can be made before users are locked out. Settings range from
1–60 minutes. 5 minutes is the factory default setting.
• “Lockout time” specifies how long a user is locked out after exceeding
the login failures limit. Settings range from 0–60 minutes. 5 minutes is
the factory default setting. 0 indicates the printer does not impose a
lockout time.
• “Login timeout” specifies how long the remote interface remains idle
before automatically logging the user o. Settings range from 1–900
seconds. 300 seconds is the factory default setting.
Understanding printer menus 124
Confidential Print menu
Menu item Description
Max Invalid PIN
O
2–10
Limits the number of times an invalid PIN can be entered
Notes:
• O is the default setting.
• This menu item appears only if a printer hard disk is installed.
• Once a limit is reached, the jobs for that user name and that PIN are
deleted.
Job Expiration
O
1 hour
4 hours
24 hours
1 week
Limits the amount of time a confidential job stays in the printer before it is
deleted
Notes:
• O is the default setting.
• If the Job Expiration setting is changed while confidential jobs reside on
the printer RAM or printer hard disk, the expiration time for those print
jobs does not change to the new default value.
• If the printer is turned o, all confidential jobs held in printer RAM are
deleted.
Disk Wiping menu
Menu item Description
Automatic Wiping
O
On
Disk Wiping erases only print job data that is not currently in use by the file
system from the printer hard disk. All permanent data on the printer hard disk
is preserved, such as downloaded fonts, macros, and held jobs.
Automatic Wiping marks all disk space used by a previous job and does not
permit the file system to reuse this space until it has been sanitized.
Only Automatic Wiping enables users to activate disk wiping without having to
take the printer oine for an extended amount of time.
Notes:
• This menu item appears only if a formatted, non-defective printer hard
disk is installed.
• O is the default setting.
• Due to the large amount of resources required for Automatic Wiping,
activating this option may decrease printer performance, especially if the
printer requires hard disk space faster than it can be wiped and returned
to service.
Understanding printer menus 125
Menu item Description
Manual Wiping
Start now
Do not start now
Disk Wiping erases only print job data that is not currently in use by the file
system from the printer hard disk. All permanent data on the printer hard disk
is preserved, such as downloaded fonts, macros, and held jobs.
Manual Wiping overwrites all disk space that has been used to hold data from
a print job that has been processed (i.e. printed). This type of wipe does not
erase any information related to an unprocessed print job.
Notes:
• This menu item appears only if a formatted, non-defective printer hard
disk is installed.
• "Do not start now" is the default setting.
• If the Disk Wiping access control is activated, then a user must
successfully authenticate and have the required authorization in order to
initiate the disk wipe.
Automatic Method
Single pass
Multiple pass
Disk Wiping erases only print job data that is not currently in use by the file
system from the printer hard disk. All permanent data on the printer hard disk
is preserved, such as downloaded fonts, macros, and held jobs.
Notes:
• This menu item appears only if a formatted, non-defective printer hard
disk is installed.
• Single pass is the default setting.
• Highly confidential information should be wiped using the Multiple pass
method only.
Manual Method
Single pass
Multiple pass
Disk Wiping erases only print job data that is not currently in use by the file
system from the printer hard disk. All permanent data on the printer hard disk
is preserved, such as downloaded fonts, macros, and held jobs.
Both manual and scheduled wiping allow the
file
system to reuse marked disk
space without first having to wipe it.
Notes:
• This menu item appears only if a formatted, non-defective printer hard
disk is installed.
• Single pass is the default setting.
• Highly confidential information should be wiped using the Multiple Pass
method only.
Understanding printer menus 126
Menu item Description
Scheduled Method
Single pass
Multiple pass
Disk Wiping erases only print job data that is not currently in use by the file
system from the printer hard disk. All permanent data on the printer hard disk
is preserved, such as downloaded fonts, macros, and held jobs.
Both manual and scheduled wiping allow the
file
system to reuse marked disk
space without
first
having to wipe it.
Notes:
• This menu item appears only if a formatted, non-defective printer hard
disk is installed.
• Single pass is the default setting.
• Highly confidential information should be wiped using the Multiple Pass
method only.
• Scheduled wipes are initiated without displaying a user warning or
confirmation message.
Security Audit Log menu
Menu item Description
Export Log Enables an authorized user to export the security log
Notes:
• To export the log from the printer control panel, a flash drive must be
attached to the printer.
• From the Embedded Web Server, the log can be downloaded to a
computer.
Delete Log
Delete now
Do not delete
Specifies whether audit logs are deleted
Note: Delete Now is the factory default setting.
Configure Log
Enable Audit
Enable Remote Syslog
Remote Syslog Facility
Severity of events to log
Specifies whether and how the audit logs are created
Note: Factory default settings enable the security audit log.
Set Date/Time menu
Menu item Description
View Date/Time Lets you view the current date and time settings for the printer
Set Date/Time
<input date/time>
Note: Date/Time is set in YYYY-MM-DD HH:MM format.
Time Zone
<list of time zones>
Note: GMT is the factory default setting.
Understanding printer menus 127
Menu item Description
Observe DST
On
O
Note: On is the factory default setting and uses the applicable Daylight
Saving Time associated with the Time Zone setting.
Enable NTP
On
O
Enables Network Time Protocol, which synchronizes the clocks of devices on
a network
Note: On is the factory default setting.
Settings menu
General Settings menu
Menu item Description
Display Language
English
Francais
Deutsch
Italiano
Espanol
Dansk
Norsk
Nederlands
Svenska
Portuguese
Suomi
Russian
Polski
Magyar
Turkce
Cesky
Simplified Chinese
Traditional Chinese
Korean
Japanese
Sets the language of the text appearing on the display
Note: All languages may not be available for all printers.
Understanding printer menus 128
Menu item Description
Eco-Mode
O
Energy
Energy/Paper
Paper
Minimizes the use of energy, paper, or specialty media
Notes:
• O is the factory default setting. O resets the printer to
its factory default settings.
• The Energy setting minimizes the power used by the
printer. Performance may be aected but not print
quality.
• Paper minimizes the amount of paper and specialty
media needed for a print job. Performance may be
aected but not print quality.
• Energy/Paper minimizes the use of power and of paper
and specialty media.
Quiet Mode
O
On
Reduces the amount of noise produced by the printer
Notes:
• O is the factory default setting.
• On
configures
the printer to produce as little noise as
possible.
Run Initial setup
Ye s
No
Instructs the printer to run the setup wizard
Notes:
• Yes is the factory default setting.
• After completing the setup wizard by selecting Done at
the Country select screen, the default becomes No.
Paper Sizes
US
Metric
Notes:
• Initial setting is determined by your Country selection in
the initial setup wizard.
• Changing this setting also changes the Units of
Measurement setting in the Universal Setup menu and
the default for each input source in the Paper Size/Paper
Type menu.
Output Lighting
Normal/Standby Mode
• Bright
• Dim
• O
Power Saver
• Bright
• Dim
• O
Sets the amount of light from an optional output bin
Notes:
• In Normal/Standby Mode, the factory default is Bright.
• In Power Saver Mode, the factory default is Dim.
Understanding printer menus 129
Menu item Description
Alarms
Alarm Control
Cartridge Alarm
Staple Alarm
Sets an alarm to sound when the printer requires operator
intervention
Available selections for each alarm type are:
O
Single
Continuous
Notes:
• Single is the factory default setting for Alarm Control.
Single sounds three quick beeps.
• O is the factory default setting for Cartridge Alarm and
Staple Alarm. O means no alarm will sound.
• Continuous repeats three beeps every 10 seconds.
• Staple Alarm is available only when the finisher is
installed.
Timeouts
Job Hold Timeout
5–255 sec
Sets the amount of time the printer waits for user intervention
before it holds jobs that require unavailable resources and
continues to print other jobs in the print queue
Notes:
• 30 seconds is the factory default setting.
• This menu item only appears when a printer hard disk is
installed.
Timeouts
Power Saver
1–240 min
Sets the amount of time the printer waits after a job is printed
before it goes into a reduced power state
Notes:
• 30 minutes is the factory default setting.
• Lower settings conserve more energy, but may require
longer warm‑up times.
• Select the lowest setting if the printer shares an
electrical circuit with room lighting or you notice lights
flickering in the room.
• Select a high setting if the printer is in constant use.
Under most circumstances, this keeps the printer ready
to print with minimum warm‑up time.
Timeouts
Screen Timeout
15–300 sec
Sets the amount of time in seconds the printer waits before
returning the printer display to a Ready state
Note: 30 seconds is the factory default setting.
Understanding printer menus 130
Menu item Description
Timeouts
Print Timeout
Disabled
1–255 sec
Sets the amount of time in seconds the printer waits to receive
an end‑of‑job message before canceling the remainder of the
print job
Notes:
• 90 seconds is the factory default setting.
• When the timer expires, any partially printed page still in
the printer is printed, and then the printer checks to see
if any new print jobs are waiting.
• Print Timeout is available only when using PCL
emulation. This setting has no eect on PostScript
emulation print jobs.
Timeouts
Wait Timeout
Disabled
15–65535 sec
Sets the amount of time in seconds the printer waits for
additional data before canceling a print job
Notes:
• 40 seconds is the factory default setting.
• Wait Timeout is available only when the printer is using
PostScript emulation. This setting has no eect on PCL
or PPDS emulation print jobs.
Print Recovery
Auto Continue
Disabled
5–255 sec
Lets the printer automatically continue printing from certain
oine situations when not resolved within the specified time
period
Note: Disabled is the factory default setting.
Print Recovery
Jam Recovery
Auto
Specifies whether the printer reprints jammed pages
Notes:
• Auto is the factory default setting. The printer reprints
jammed pages unless the memory required to hold the
pages is needed for other printer tasks.
• On sets the printer to always reprint jammed pages.
• O sets the printer to never reprint jammed pages.
Print Recovery
Page Protect
O
On
Lets the printer successfully print a page that may not have
printed otherwise
Notes:
•
O
is the factory default setting.
O
prints a partial page
when there is not enough memory to print the whole
page.
• On sets the printer to process the whole page so that
the entire page prints.
Understanding printer menus 131
Menu item Description
Factory Defaults
Do Not Restore
Restore Now
Returns the printer settings to the factory default settings
Notes:
• Do Not Restore is the factory default setting. Do Not
Restore keeps the user‑defined settings.
• Restore Now returns all printer settings to the factory
default settings except Network/Ports menu settings. All
downloads stored in RAM are deleted. Downloads
stored in
flash
memory or on a printer hard disk are not
aected.
Custom Home Message
O
IP Address
Hostname
Contact Name
Location
Zero Configuration Name
Custom Text 1
Sets a pre‑configured or customized message to appear on
the display beside Ready
Notes:
• O is the factory default setting.
• IP address and Hostname are pre‑
configured
messages.
• Contact Name, Location, Zero Configuration Name, and
Custom Text 1 are messages that can be customized by
a system support person.
Setup menu
Menu item Description
Printer Language
PCL Emulation
PS Emulation
Sets the default printer language
Notes:
• PCL emulation uses a PCL interpreter for processing
print jobs. PostScript emulation uses a PS interpreter for
processing print jobs.
• PCL is the factory default printer language.
• Setting a printer language as the default does not
prevent a software program from sending print jobs that
use another printer language.
Job Waiting
On
O
Specifies that print jobs be removed from the print queue if
they require unavailable printer options or custom settings.
They are stored in a separate print queue, so other jobs print
normally. When the missing information and/or options are
obtained, the stored jobs print.
Notes:
• O is the factory default setting.
• This menu appears only if a non-Read Only printer hard
disk is installed. This requirement ensures that stored
jobs are not deleted if the printer loses power.
Understanding printer menus 132
Menu item Description
Print Area
Normal
Whole Page
Sets the logical and physical printable area
Notes:
• This menu does not appear if Edge to Edge is enabled in
the printer Setup menu.
• Normal is the factory default setting. When attempting to
print data in the non‑printable area defined by the
Normal setting, the printer clips the image at the
boundary.
• The Whole Page setting allows the image to be moved
into the non‑printable area defined by the Normal
setting, but the printer will clip the image at the Normal
setting boundary.
• The Whole Page setting only
aects
pages printed using
a PCL 5e interpreter. This setting has no eect on pages
printed using the PCL XL or PostScript interpreter.
Download Target
RAM
Flash
Disk
Sets the storage location for downloads
Notes:
• RAM is the factory default setting.
• Storing downloads in flash memory or on a printer hard
disk places them in permanent storage. Downloads
remain in flash memory or on the printer hard disk even
when the printer is turned o.
• Storing downloads in RAM is temporary.
• This menu appears only if a flash and/or disk option is
installed.
Job Accounting
On
O
Specifies whether the printer stores statistical information
about the most recent print jobs on the hard disk
Notes:
• O is the factory default setting. O means the printer
does not store job statistics.
• The statistics include a record of print errors, the print
time, the job size in bytes, the requested paper size and
type, the total number of printed pages, and the total
number of copies requested.
• Job Accounting is available only when a printer hard disk
is installed and working properly. It should not be
Read/Write or Write protected. Job Buer Size should
not be set to 100%.
• Changing this setting from the printer control panel and
then exiting the menus causes the printer to reset. The
menu selection is updated.
Understanding printer menus 133
Menu item Description
Resource Save
On
O
Specifies how the printer handles temporary downloads, such
as fonts and macros stored in RAM, when the printer receives
a job that requires more memory than is available
Notes:
• O is the factory default setting. O sets the printer to
retain the downloads only until memory is needed.
Downloads are deleted in order to process print jobs.
• The On setting retains the downloads during language
changes and printer resets. If the printer runs out of
memory, 38 Memory Full appears, and downloads
are not deleted.
Print All Order
Alphabetically
Newest First
Oldest First
Specifies the order in which held and confidential jobs are
printed when Print All is selected
Notes:
• Alphabetically is the factory default setting.
• Print jobs always appear in alphabetical order on the
printer control panel.
Finishing menu
Menu item Description
Sides (Duplex)
2 sided
1 sided
Specifies whether duplex (2‑sided) printing is set as the default for all print jobs
Notes:
• 1 sided is the factory default setting.
• To set 2‑sided printing from the software program: for Windows users,
click File > Print, and then click Properties, Preferences, Options, or
Setup; for Macintosh users, choose File > Print, and then adjust the
settings from the Print dialog and pop‑up menus.
Duplex Binding
Long Edge
Short Edge
Defines the way duplexed pages are bound and how the printing on the back
of the page is oriented in relation to the printing on the front of the page
Notes:
• Long Edge is the factory default setting.
• Long Edge specifies that binding be placed on the left edge of portrait
pages and the top edge of landscape pages.
• Short Edge specifies that binding be placed on the top edge of portrait
pages and the left edge of landscape pages.
Copies
1–999
Specifies a default number of copies for each print job
Note: 1 is the factory default setting.
Blank Pages
Do Not Print
Print
Specifies whether blank pages are inserted in a print job
Note: Do Not Print is the factory default setting.
Understanding printer menus 134
Menu item Description
Collate
O (1,1,1,2,2,2)
On (1,2,1,2,1,2)
Stacks the pages of a print job in sequence when printing multiple copies
Notes:
• O is the factory default setting. No pages will be collated.
• The On setting stacks the print job sequentially.
• Both settings print the entire job the number of times specified by the
Copies menu setting.
Separator Sheets
None
Between Copies
Between Jobs
Between Pages
Specifies whether blank separator sheets are inserted
Notes:
• None is the factory default setting.
• Between Copies inserts a blank sheet between each copy of a print job if
Collation is set to On. If Collation is set to
O,
a blank page is inserted
between each set of printed pages, such as after all page 1's and after all
page 2's.
• Between Jobs inserts a blank sheet between print jobs.
• Between Pages inserts a blank sheet between each page of the print job.
This setting is useful when printing transparencies or inserting blank
pages in a document for notes.
Separator Source
Tray <x>
Multi‑Purpose Feeder
Envelope Feeder
Specifies the paper source for separator sheets
Notes:
• Tray 1 (standard tray) is the factory default setting.
• From the Paper menu,
Configure
MP must be set to Cassette in order for
Multi‑Purpose Feeder to appear as a menu setting.
N‑up (pages‑side)
O
2‑Up
3‑Up
4‑Up
6‑Up
9‑Up
12‑Up
16‑Up
Specifies that multiple‑page images be printed on one side of a sheet of paper
Notes:
• O is the factory default setting.
• The number selected is the number of page images that will print per
side.
N‑up Ordering
Horizontal
Reverse Horizontal
Reverse Vertical
Vertical
Specifies the positioning of multiple‑page images when using N‑up
(pages‑sides)
Notes:
• Horizontal is the factory default setting.
• Positioning depends on the number of images and whether the images
are in portrait or landscape orientation.
Orientation
Auto
Landscape
Portrait
Specifies the orientation of a multiple‑page sheet
Note: Auto is the factory default setting. The printer chooses between
portrait and landscape.
Understanding printer menus 135
Menu item Description
N‑up Border
None
Solid
Prints a border around each page image when using N‑up (pages‑sides)
Note: None is the factory default setting.
Staple Job
O
On
Specifies whether print jobs are stapled
Notes:
• This menu item is available only when the StapleSmart Finisher is
installed.
• O is the factory default setting. Print jobs are not stapled.
• Envelopes are not stapled.
Oset Pages
O
Between Jobs
Between Copies
Stacks copies or print jobs into staggered sets in an output bin
Notes:
• This menu item appears only when the StapleSmart Finisher is installed.
• O is the factory default setting. No pages are oset during the print job.
• Between Jobs osets each print job.
• Between Copies
osets
each copy of a print job.
Quality menu
Menu item Description
Print Resolution
300 dpi
600 dpi
1200 dpi
1200 Image Q
2400 Image Q
Specifies the printed output resolution
Note: 600 dpi is the factory default setting. The printer driver default is 1200 IQ.
Pixel Boost
O
Fonts
Horizontally
Vertically
Both Directions
Enhances the printed quality of small fonts and graphics
Notes:
• O is the factory default setting.
• Fonts applies this setting only to text.
• Horizontally darkens horizontal lines of text and images.
• Vertically darkens vertical lines of text and images.
• Both Directions darkens horizontal and vertical lines on text and images.
Toner Darkness
1–10
Lightens or darkens the printed output
Notes:
• 8 is the factory default setting.
• Selecting a smaller number can help conserve toner.
Understanding printer menus 136
Menu item Description
Enhance Fine Lines
On
O
Enables a print mode preferable for files such as architectural drawings, maps,
electrical circuit diagrams, and flow charts
Notes:
• O is the factory default setting.
• To set Enhance Fine Lines using the Embedded Web Server, type the
network printer IP address in a browser window.
Gray Correction
Auto
O
Adjusts the gray value of printed output
Note: Auto is the factory default setting.
Brightness
‑6 to +6
Adjusts or darkens printed output and conserves toner
Notes:
• 0 is the factory default setting.
• A negative value will darken text, images, and graphics. A positive value will
lighten them and conserve toner.
Contrast
0–5
Adjusts the degree of dierence between levels of gray in printed output
Notes:
• 0 is the factory default setting.
• Higher settings show more dierence between levels of gray.
Utilities menu
Menu item Description
Remove Held Jobs
Confidential
Held
Not Restored
All
Removes confidential and held jobs from the printer hard disk
Notes:
• Selecting a setting aects only print jobs that are resident in the printer.
Bookmarks, jobs on
flash
drives, and other types of held jobs are not
aected.
• Selecting Not Restored removes all Print and Hold jobs that were not
restored from the disk.
Format Flash
Ye s
No
Formats the flash memory. Flash memory refers to the memory added by
installing a flash memory option card in the printer.
Warning—Potential Damage: Do not turn o the printer while the flash
memory is formatting.
Notes:
• A flash memory option card must be installed in the printer and operating
properly for this menu item to be available. The flash memory option card
must not be Read/Write or Write protected.
• Selecting Yes deletes all data stored in flash memory.
• No cancels the format request.
Understanding printer menus 137
Menu item Description
Delete Downloads on Disk
Delete Now
Do Not Delete
Removes downloads from the printer hard disk, including all held Jobs, buered
jobs, and parked jobs. Job accounting information is not aected.
Note: Delete Now is the default setting.
Job Acct Stat
Print
Clear
Prints a list of all stored job statistics or deletes the information from the printer
hard disk
Notes:
• A printer hard disk must be installed in the printer and operating properly
for this menu item to be available.
• Selecting Print prints a list of statistics.
• Clear deletes all job statistics stored on the printer hard disk.
• The Clear selection will not appear if Job Accounting is set to
MarkTrack
TM
using NPA.
Hex Trace
Activate
Assists in isolating the source of a print job problem
Notes:
• When Activate is selected, all data sent to the printer is printed in
hexadecimal and character representation and control codes are not
executed.
• To exit or deactivate Hex Trace, turn the printer o or reset the printer.
Coverage Estimator
O
On
Provides an estimate of the percentage coverage of black on a page. The
estimate is printed on a separate page at the end of each print job.
Note:
O
is the factory default setting.
LCD Contrast
1–10
Adjusts the contrast lighting of the display
Notes:
• 5 is the factory default setting.
• A higher setting makes the display appear lighter.
• A lower setting makes the display appear darker.
LCD Brightness
1–10
Adjusts the brightness of the backlight on the display
Notes:
• 5 is the factory default setting.
• A higher setting makes the display appear lighter.
• A lower setting makes the display appear darker.
XPS menu
Menu item Description
Print Error Pages
O
On
Prints a page containing information on errors, including XML markup
errors
Note: O is the factory default setting.
Understanding printer menus 138
PDF menu
Menu item Description
Scale to Fit
Ye s
No
Scales page content to fit the selected paper size
Note: No is the factory default setting.
Annotations
Do Not Print
Print
Prints annotations in a PDF
Note: Do Not Print is the factory default setting.
PostScript menu
Menu item Description
Print PS Error
On
O
Prints a page containing the PostScript error
Note: O is the factory default setting.
Font Priority
Resident
Flash/Disk
Establishes the font search order
Notes:
• Resident is the factory default setting.
• A formatted flash memory option card or printer hard disk must be
installed in the printer and operating properly for this menu item to
be available.
• The flash memory option or printer hard disk cannot be Read/Write,
Write, or password protected.
• Job Buer Size must not be set to 100%.
PCL Emul menu
Menu item Description
Font Source
Resident
Disk
Download
Flash
All
Specifies the set of fonts used by the Font Name menu item
Notes:
• Resident is the factory default setting. It shows the factory default set
of fonts downloaded into printer RAM.
• Flash and Disk settings appear only if applicable and show all fonts
resident in that option.
• Flash and Disk options must be properly formatted and cannot be
Read/Write, Write, or password protected.
• Download appears only if applicable and shows all the fonts
downloaded into printer RAM.
• All shows all fonts available to any option.
Understanding printer menus 139
Menu item Description
Font Name
<list of available fonts>
Identifies a specific font and the option where it is stored
Notes:
• Courier 10 is the factory default setting.
• The font source abbreviation is R for Resident, F for Flash, K for Disk,
and D for download.
Symbol Set
10U PC‑8
12U PC‑850
Specifies the symbol set for each font name
Notes:
• 10U PC‑8 is the US factory default setting.
• 12U PC‑850 is the international factory default setting.
• A symbol set is a set of alphabetic and numeric characters,
punctuation, and special symbols. Symbol sets support the dierent
languages or specific programs such as math symbols for scientific
text. Only the supported symbol sets are shown.
PCL Emulation Settings
Point Size
1.00–1008.00
Changes the point size for scalable typographic fonts
Notes:
• 12 is the factory default setting.
• Point Size refers to the height of the characters in the font. One point
equals approximately 1/72 of an inch.
• Point sizes can be increased or decreased in 0.25‑point increments.
PCL Emulation Settings
Pitch
0.08–100
Specifies the font pitch for scalable monospaced fonts
Notes:
• 10 is the factory default setting.
• Pitch refers to the number of
fixed
‑space characters per inch (cpi).
• Pitch can be increased or decreased in 0.01‑cpi increments.
• For nonscalable monospaced fonts, the pitch appears on the display
but cannot be changed.
PCL Emulation Settings
Orientation
Portrait
Landscape
Specifies the orientation of text and graphics on the page
Notes:
• Portrait is the factory default setting.
• Portrait prints text and graphics parallel to the short edge of the
page.
• Landscape prints text and graphics parallel to the long edge of the
page.
PCL Emulation Settings
Lines per Page
1–255
Specifies the number of lines that print on each page
Notes:
• 64 is the US factory default setting. 68 is the international default
setting.
• The printer sets the amount of space between each line based on
the Lines per Page, Paper Size, and Orientation settings. Select the
desired Paper Size and Orientation before setting Lines per Page.
Understanding printer menus 140
Menu item Description
PCL Emulation Settings
A4 Width
198 mm
203 mm
Sets the printer to print on A4‑size paper
Notes:
• 198 mm is the factory default setting.
• The 203‑mm setting sets the width of the page to allow the printing
of eighty 10‑pitch characters.
PCL Emulation Settings
Auto CR after LF
On
O
Specifies whether the printer automatically performs a carriage return after
a line feed control command
Note: O is the factory default setting.
PCL Emulation Settings
Auto LF after CR
On
O
Specifies whether the printer automatically performs a line feed after a
carriage return control command
Note:
O
is the factory default setting.
Tray Renumber
Assign MP Feeder
O
None
0–199
Assign Tray <x>
O
None
0–199
Assign Manual Paper
O
None
0–199
Assign Man Env
O
None
0–199
Configures the printer to work with printer software or programs that use
dierent source assignments for trays, drawers, and feeders
Notes:
• O is the factory default setting.
• None is not an available selection. It is only displayed when it is
selected by the PCL 5 interpreter.
• None ignores the Select Paper Feed command.
• 0–199 allows a custom setting to be assigned.
Tray Renumber
View Factory Def
MPF Default = 8
T1 Default = 1
T2 Default = 4
T3 Default = 5
T4 Default = 20
T5 Default = 21
Env Default = 6
MPaper Default = 2
MEnv Default = 3
Displays the factory default setting assigned to each tray, drawer, or feeder,
even if it has not been installed
Understanding printer menus 141
Menu item Description
Tray Renumber
Restore Defaults
Ye s
No
Returns all tray, drawer, and feeder assignments to the factory default
settings
HTML menu
Menu item Description
Font Name
Albertus MT
Antique Olive
Apple Chancery
Arial MT
Avant Garde
Bodoni
Bookman
Chicago
Clarendon
Cooper Black
Copperplate
Coronet
Courier
Eurostile
Garamond
Geneva
Gill Sans
Goudy
Helvetica
Hoefler Text
Intl CG Times
Intl Courier
Intl Univers
Joanna MT
Letter Gothic
Lubalin Gothic
Marigold
MonaLisa Recut
Monaco
New CenturySbk
New York
Optima
Oxford
Palatino
StempelGaramond
Tay
Times
TimesNewRoman
Univers
Zapf Chancery
Sets the default font for HTML documents
Notes:
• The Times font will be used in HTML documents that do not
specify a font.
• The following fonts appear only if the appropriate DBCS font
card is installed: HG-GothicB, MSung-Light, MD_DotumChe, and
MingMT-Light.
Menu item Description
Font Size
1–255 pt
Sets the default font size for HTML documents
Notes:
• 12 pt is the factory default setting.
• Font size can be increased in 1‑point increments.
Scale
1–400%
Scales the default font for HTML documents
Notes:
• 100% is the factory default setting.
• Scaling can be increased in 1% increments.
Understanding printer menus 142
Menu item Description
Orientation
Portrait
Landscape
Sets the page orientation for HTML documents
Note: Portrait is the factory default setting.
Margin Size
8–255 mm
Sets the page margin for HTML documents
Notes:
• 19 mm is the factory default setting.
• Margin size can be increased in 1‑mm increments.
Backgrounds
Do Not Print
Print
Specifies whether to print backgrounds on HTML documents
Note: Print is the factory default setting.
Image menu
Menu item Description
Auto Fit
On
O
Selects the optimal paper size, scaling, and orientation
Notes:
• On is the factory default setting.
• The On setting overrides scaling and orientation settings for some
images.
Invert
On
O
Inverts bi‑tonal monochrome images
Notes:
• O is the factory default setting.
• The font size can be increased in 1‑point increments.
• This setting does not apply to GIF or JPEG images.
Scaling
Anchor Top Left
Best Fit
Anchor Center
Fit Height/Width
Fit Height
Fit Width
Scales the image to fit the selected paper size
Notes:
• Best Fit is the factory default setting.
• When Auto Fit is set to On, Scaling is automatically set to Best Fit.
Orientation
Portrait
Landscape
Rev Portrait
Rev Landscape
Sets the image orientation
Note: Portrait is the factory default setting.
Understanding printer menus 143
Flash Drive menu
Menu item Description
Copies
1–999
Specifies a default number of copies for each print job
Note: 1 is the factory default setting.
Paper Source
Tray <x>
MP Feeder
Manual Paper
Manual Env
Sets a default paper source for all print jobs
Note: Tray 1 (standard tray) is the factory default setting.
Collate
O (1,1,1,2,2,2)
On (1,2,1,2,1,2)
Stacks the pages of a print job in sequence when printing multiple copies
Note: On is the factory default setting.
Sides (Duplex)
2 sided
1 sided
Controls whether the job prints on one side or both sides of the paper
Note: 1 sided is the factory default setting.
Staple
O
On
Specifies whether print jobs are stapled
Notes:
• This menu item is available only when the StapleSmart II Finisher is
installed.
• O is the factory default setting. Print jobs are not stapled.
Duplex Binding
Long Edge
Short Edge
Defines the way duplexed pages are bound and how the printing on the back
of the page is oriented in relation to the printing on the front of the page
Notes:
• Long Edge is the factory default setting.
• Long Edge specifies that binding be placed on the left edge of portrait
pages and the top edge of landscape pages.
• Short Edge
specifies
that binding be placed on the top edge of portrait
pages and the left edge of landscape pages.
Orientation
Auto
Long Edge
Short Edge
Specifies the orientation of a multiple‑page sheet
Notes:
• Auto is the factory default setting. The printer chooses between portrait
and landscape.
• Long Edge uses landscape.
• Short Edge uses portrait.
Understanding printer menus 144
Menu item Description
N‑up (pages‑side)
O
2‑Up
3‑Up
4‑Up
6‑Up
9‑Up
12‑Up
16‑Up
Specifies that multiple‑page images be printed on one side of a sheet of paper
Notes:
• O is the factory default setting.
• The number selected is the number of page images that will print per
side.
N‑up Border
None
Solid
Prints a border around each page image when using N‑up (pages‑side)
Note: None is the factory default setting.
N‑up Ordering
Horizontal
Reverse Horizontal
Reverse Vertical
Vertical
Specifies the positioning of multiple‑page images when using N‑up
(pages‑side)
Notes:
• Horizontal is the factory default setting.
• Positioning depends on the number of images and whether the images
are in portrait or landscape orientation.
Separator Sheets
None
Between Copies
Between Jobs
Between Pages
Specifies whether blank separator sheets are inserted
Notes:
• None is the factory default setting.
• Between Copies inserts a blank sheet between each copy of a print job if
Collation is set to On. If Collation is set to
O,
then a blank page is
inserted between each set of printed pages, such as after all page 1's and
after all page 2's.
• Between Jobs inserts a blank sheet between print jobs.
• Between Pages inserts a blank sheet between each page of the print job.
This setting is useful when printing transparencies or inserting blank
pages in a document for notes.
Separator Source
Tray <x>
Multi‑Purpose Feeder
Envelope Feeder
Specifies the paper source for separator sheets
Notes:
• Tray 1 (standard tray) is the factory default setting.
• From the Paper menu, Configure MP must be set to Cassette in order for
Multi‑Purpose Feeder to appear as a menu setting.
Blank Pages
Do Not Print
Print
Specifies whether blank pages are inserted in a print job
Note: Do Not Print is the factory default setting.
Help menu
The Help menu consists of a series of Help pages that are stored in the printer as PDFs. They contain information
about using the printer and performing printing tasks.
Understanding printer menus 145
English, French, German, and Spanish translations are stored in the printer. Other translations are available on
the Software and Documentation CD.
Menu item Description
Print All Prints all the guides
Print Quality Provides information about solving print quality issues
Printing Guide Provides information about loading paper and other speciality media
Media Guide Provides a list of the paper sizes supported in trays, drawers, and feeders
Print Defects Provides information about resolving print defects
Menu Map Provides a list of the printer control panel menus and settings
Information Guide Provides help in locating additional information
Connection Guide Provides information about connecting the printer locally (USB) or to a
network
Moving Guide Provides instructions for safely moving the printer
Supplies Guide Provides part numbers for ordering supplies
Understanding printer menus 146
Understanding printer messages
When Manual Feeder appears on the display, it refers to the multipurpose feeder.
List of status and error messages
Activating Menu Changes
Wait for the message to clear.
Busy
Wait for the message to clear.
Cancel not available
Wait for the message to clear.
Canceling
Wait for the message to clear.
Change <src> to <x>
<src> is a tray or feeder, and <x> is a paper type or size.
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press if the paper was changed.
• Press the arrow buttons until Use Current appears, and then press to print on the paper
currently in the printer.
• Cancel the current print job.
Check duplex connection
Try one or more of the following:
• Turn the printer o and then back on.
If the error occurs a second time:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove the duplex unit.
4 Reattach the duplex unit.
Understanding printer messages 147
5 Connect the power cord to a properly grounded outlet.
6 Restart the printer.
If the error occurs again:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove the duplex unit.
4 Contact Customer Support.
• Press to clear the message and print without using the duplex unit.
Check tray <x> connection
Try one or more of the following:
• Turn the printer o and then back on.
If the error occurs a second time:
1 Turn the printer
o.
2 Unplug the power cord from the wall outlet.
3 If an optional duplex unit is installed, then remove it.
4 Remove the indicated tray.
5 Reattach the tray.
6 Connect the power cord to a properly grounded outlet.
7 Restart the printer.
If the error occurs again:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove the tray.
4 Contact Customer Support.
• Press to clear the message and print without using the tray.
Clearing job accounting statistics
Wait for the message to clear.
Close door or insert cartridge
The cartridge is missing or not installed correctly. Insert the cartridge and close all doors and covers.
Close finisher side door
Close the finisher side door to clear the message.
Understanding printer messages 148
Defragmenting Flash DO NOT POWER OFF
Wait for the message to clear.
Warning—Potential Damage: Do not turn the printer
o
while this message appears on the display.
Deleting
Wait for the message to clear.
Deleting held jobs
Wait for the message to clear.
Deletion complete
Wait for the message to clear.
Deletion failed
Your attempt to delete a file failed.
1 Wait for the message to clear.
2 Try to delete the file again.
Disabling DLEs
Wait for the message to clear.
Disabling Menus
Wait for the message to clear.
Note: While the menus are disabled, printer settings cannot be changed from the printer control panel.
Disk Corrupted
The printer attempted to recover a disk, but was not able to do so. Reformat appears. Press to reformat
the disk.
Note: Reformatting the disk deletes all the files currently stored on the disk.
Disk recovery x/y XX% DO NOT POWER OFF
Wait for the message to clear.
Warning—Potential Damage: Do not power
o
while the printer is attempting to recover the printer
hard disk.
Understanding printer messages 149
Disk recovery takes place in several phases. The percentage completed during each phase appears on the
display.
Enabling Menus
Wait for the message to clear.
Encrypting disk x/y XX% DO NOT POWER OFF
Wait for the message to clear.
Warning—Potential Damage: Do not power o while the printer is encrypting the printer hard disk.
The percentage completed appears on the display.
Enter PIN
Enter the PIN you created in Print Properties when the confidential job was sent for printing.
Error reading USB drive
Remove the device and wait for the message to clear. The USB drive may be corrupted.
Flushing buer
Wait for the message to clear.
Formatting Disk x/y XX% DO NOT POWER OFF
Wait for the message to clear.
Warning—Potential Damage: Do not power o while the printer is formatting the printer hard disk.
The percentage completed appears on the display.
Formatting Flash DO NOT POWER OFF
Wait for the message to clear.
Warning—Potential Damage: Do not power
o
while the printer is formatting the
flash
memory.
Hex Trace Ready
The printer is in the Ready state, and Hex Trace is active. You can use Hex Trace to troubleshoot printer
problems.
Understanding printer messages 150
Insert staple cartridge
Try one or more of the following:
• Insert a staple cartridge to clear the message.
• Press to clear the message and print without using the staple feature.
Insert Tray <x>
Insert the specified tray into the printer.
Install bin <x>
Try one or more of the following:
• Install the specified bin:
1 Turn the printer
o.
2 Unplug the power cord from the wall outlet.
3 Install the specified bin.
4 Connect the power cord to a properly grounded outlet.
5 Restart the printer.
• Cancel the current job.
Install duplex
Try one or more of the following:
• Install the duplex unit:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Install the duplex unit.
4 Connect the power cord to a properly grounded outlet.
5 Restart the printer.
• Cancel the current job.
Install envelope feeder
Try one or more of the following:
• Install the envelope feeder:
1 Turn the printer
o.
2 Unplug the power cord from the wall outlet.
3 Install the envelope feeder.
4 Connect the power cord to a properly grounded outlet.
5 Restart the printer.
• Cancel the current job.
Understanding printer messages 151
Install Tray <x>
Try one or more of the following:
• Install the specified tray:
1 Turn the printer
o.
2 Unplug the power cord from the wall outlet.
3 Install the specified tray.
4 Connect the power cord to a properly grounded outlet.
5 Restart the printer.
• Cancel the current job.
Install MICR Cartridge
The printer does not have a MICR cartridge installed. Install a MICR cartridge to continue printing.
Invalid Engine Code
You need to download valid engine code for the printer.
For more information, visit the Lexmark Web site at
www.lexmark.com, or contact customer support.
Note: Engine code may be downloaded while this message appears on the display.
Invalid Network Code
You need to download valid network printing code for the internal print server. The internal print server is
a hardware option installed inside the printer.
Note: Network code may be downloaded while this message appears on the display.
Invalid PIN
Enter a valid PIN.
Load manual feeder with <x>
Try one or more of the following:
• Load the specified paper in the multipurpose feeder.
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue printing.
If the printer
finds
a tray that has the correct paper type and size, then it feeds from that tray. If the
printer cannot find a tray with the correct paper type and size, then it prints from the default source.
• Cancel the current job.
Understanding printer messages 152
Load <src> with <x>
<src> is a tray or feeder, and <x> is a paper type or size.
Try one or more of the following:
• Load the paper tray or other source with the correct paper type and size.
• Cancel the current job.
Load staples
Try one or more of the following:
• Replace the specified staple cartridge in the finisher.
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue printing.
• Cancel the print job.
Maintenance
Replace the maintenance items and, if necessary, reset the printer maintenance counter.
For information on purchasing supplies, see
“Ordering supplies” on page 170.
Menu access turned o by system administrator
The printer menus cannot be accessed because your system support person disabled the menus. Wait for
the message to clear.
Menus are Disabled
The printer menus are disabled. The printer settings cannot be changed from the printer control panel.
Contact your system support person for help.
Note: When menus are disabled, it is still possible to cancel a print job, print a confidential job, or print a
held job.
Must be in Ready state to enter menus
The printer menus cannot be accessed at this time because the printer control panel does not show the
Ready message. Wait for the printer to complete its activity. When Ready appears, press
.
Network/Network <x>/Network <x>, <y>
The printer is connected to the network, so the network interface is the active communication link.
• Network indicates that the printer is using the standard network port built into the printer system board.
• Network <x> indicates that an internal print server is installed inside the printer or that the printer is
connected to an external print server.
Understanding printer messages 153
• Network <x>, <y> indicates a network interface is the active communication link, where <x>, <y>
indicates the active interface is connected to the printer through channel y on PCI connector x. If x equals
0, then the standard network interface is active.
Note: The current interface displays on the menus settings page.
Wait for the message to clear.
No held jobs
Wait for the message to clear.
No jobs found
The PIN you entered is not associated with any confidential print job.
Try one or more of the following:
• Press the arrow buttons until Try again appears, and then press to enter another PIN.
• Press the arrow buttons until Cancel appears, and then press to exit.
No jobs to cancel
Wait for the message to clear.
Not Ready
The printer is not ready to receive or process data, or the printer ports are oine.
No recognized
file
types
Either there are no files saved on the flash drive, or the files saved are not supported. Convert files to any
of the following supported file types: .pdf, .gif, .jpeg, .jpg, .bmp, .png, .ti, .tif, .pcx, or .dcx.
Overflow bin full
Remove the stack of paper from the bin to clear the message.
Parallel/Parallel <x>
The printer is using a parallel cable connection. The parallel port is the active communication link.
[PJL RDYMSG]
This is the Printer Job Language (PJL) Ready message. It appears after the Ready or Power Saver message.
If the message string is too long, it is truncated.
Wait for the message to clear.
Understanding printer messages 154
Power Saver
The printer is saving power while it waits for the next print job. Send a job to print to take the printer out of
Power Saver mode.
Printer busy, Continue, Quit
Try one or more of the following:
• Press to read the information from the flash drive.
• Select Quit to cancel the information retrieval process.
Printing
Wait for the message to clear.
Printing from USB drive DO NOT REMOVE
Warning—Potential Damage: Do not turn the printer
o
or remove the
flash
drive while this message is
displayed.
Wait for the message to clear.
Programming disk DO NOT POWER OFF
Wait for the message to clear.
Warning—Potential Damage: Do not turn the printer power o while Programming disk appears on
the display.
Programming flash DO NOT POWER OFF
Wait for the message to clear.
Warning—Potential Damage: Do not turn the printer power
o
while Programming flash appears
on the display.
Reading USB drive DO NOT REMOVE
Wait for the message to clear.
Ready
The printer is ready to receive print jobs.
Reattach bin <x>
Try one or more of the following:
• Turn the printer o and then back on.
Understanding printer messages 155
If the error occurs a second time:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove the
specified
bin.
4 Reattach the bin.
5 Connect the power cord to a properly grounded outlet.
6 Restart the printer.
If the error occurs again:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove the specified bin.
4 Contact Customer Support.
• Press to clear the message and print without using the specified bin.
Reattach bin <x> – <y>
Try one or more of the following:
• Turn the printer o and then back on.
If the error occurs a second time:
1 Turn the printer
o.
2 Unplug the power cord from the wall outlet.
3 Remove the specified bins.
4 Reattach the bins.
5 Connect the power cord to a properly grounded outlet.
6 Restart the printer.
If the error occurs again:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove the specified bins.
4 Contact Customer Support.
• Press to clear the message and print without using the specified bins.
Reattach envelope feeder
Try one or more of the following:
• Turn the printer o and then back on.
If the error occurs a second time:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove the envelope feeder.
Understanding printer messages 156
4 Reattach the envelope feeder.
5 Connect the power cord to a properly grounded outlet.
6 Restart the printer.
If the error occurs again:
1 Turn the printer
o.
2 Unplug the power cord from the wall outlet.
3 Remove the envelope feeder.
4 Contact Customer Support.
• Press to clear the message and print without using the envelope feeder.
Remote Management Active DO NOT POWER OFF
The printer settings are being configured. Wait for the message to clear.
Warning—Potential Damage: Do not turn the printer power o while Remote Management Active
appears on the display.
Remove packaging material, check <x>
Remove any remaining packaging material from the specified location.
Remove paper from all bins
Remove the paper from all of the bins. The printer automatically senses paper removal and resumes printing.
If removing the paper does not clear the message, then touch Continue.
Remove paper from bin <x>
Remove the paper from the specified bin. The printer automatically senses paper removal and resumes
printing.
If removing the paper does not clear the message, then touch Continue.
Remove paper from standard output bin
Remove the stack of paper from the standard exit bin.
Remove paper from <linked bin set name>
Remove the paper from the specified bin. The printer automatically senses paper removal and resumes
printing.
If removing the paper does not clear the message, press
.
Understanding printer messages 157
Replace wiper
Try one or more of the following:
• Replace the fuser wiper.
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue printing.
Resetting active bin
Wait for the message to clear.
Resetting the printer
Wait for the message to clear.
Resetting without replacing may
aect
print quality.
You selected No from the “Verify PC unit replaced” screen. Wait for the message to clear.
Restoring Factory Defaults
Wait for the message to clear.
When factory default settings are restored:
• All downloaded resources in the printer memory are deleted. This includes fonts, macros, and symbol
sets.
• All settings return to the factory defaults except the Display Language setting in the Setup menu and
the custom settings in the Serial <x>, Network, Infrared, LocalTalk, and USB menus.
Restore Held Jobs?
Try one of the following:
• Press the arrow buttons until Continue appears, and then press to restore all held jobs stored
on the printer hard disk.
• Press the arrow buttons until Do not restore appears, and then press . No print jobs will be
restored.
Restoring Held Job(s) x/y
x represents the number of jobs being restored. y represents the total number of jobs to be restored.
Try one or more of the following:
• Wait for the message to clear.
• Press the arrow buttons until Quit restoring appears, and then press to delete unrestored
held jobs.
Understanding printer messages 158
Routine maintenance needed
The printer needs to have routine maintenance done. Order a maintenance kit, which contains all the items
necessary to replace the pick rollers, the charge roll, the transfer roller, and the fuser.
Securely clearing disk space
The printer hard disk wiping process needs to recover. The message clears when all blocks are cleared.
Serial <x>
The printer is using a serial cable connection. The serial port is the active communication link.
Some held jobs were lost
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue printing.
• Cancel the current print job.
Staples <x> empty or misfed
Load the specified staple cartridge into the finisher to clear the message and continue stapling.
Staples <x> low or missing
Load the specified staple cartridge in the finisher to clear the message.
Standard Bin Full
Remove the stack of paper from the standard exit bin to clear the message.
Submitting selection
Wait for the message to clear.
Too many failed panel logins
The printer is now in a lockout mode because:
• You attempted to log in too many times with an incorrect PIN
• You attempted to log in using an incorrect password number for access to a printer feature, setting, or menu
that you do not have access to.
Understanding printer messages 159
Note: There is a defined limit on the number of login attempts. Once the limit is reached, this message
appears and the printer enters a lockout mode. The message remains on the printer control panel, and any
further attempts to enter menus is denied until the defined time out expires. The time out duration is set by
your system support person.
Wait for the message to clear once the time out expires, and then:
• Enter the correct PIN to access any held jobs
• See your system support person if you need a password number to enter a
specific
printer feature,
setting, or menu that is blocked from your use without the number.
Toner low
Try one or more of the following:
• Replace the print cartridge.
• Press to clear the message and continue printing.
Tray <x> Empty
Load paper in the tray to clear the message.
Tray <x> Low
Load paper in the specified tray to clear the message.
Tray <x> Missing
Insert the specified tray into the printer.
Unsupported disk
An unsupported printer hard disk has been installed. Remove the unsupported device, and then install a
supported one.
Unsupported USB device, please remove
Remove the unrecognized USB device.
Unsupported USB hub, please remove
Remove the unrecognized USB hub.
USB/USB <x>
The printer is using a USB cable connection. The USB port is the active communication link.
Understanding printer messages 160
USB drive removed
Try one or more of the following:
• Wait for the message to clear.
• Insert the flash drive.
View supplies
This message shows the current level of supplies.
Waiting
The printer has received data to print, but is waiting for an End‑of‑Job command, a Form Feed command,
or additional data.
Try one or more of the following:
• Press to print the contents of the buer.
• Cancel the current print job.
30 Invalid
refill,
change cartridge
Remove the print cartridge, and then install a supported one.
31 Replace defective cartridge
Remove the defective print cartridge, and then install a new one.
32 Cartridge part number unsupported by device
Remove the print cartridge, and then install a supported one.
34 Short paper
Try one or more of the following:
• Load the appropriate paper in the tray.
• Press the arrow buttons until Continue appears, and then press to clear the message and print
the job using a dierent paper tray.
• Check tray length and width guides and make sure the paper is properly loaded in the tray.
• For Windows users, check the Print Properties settings to make sure the print job is requesting the
correct paper size and type.
For Macintosh users, check the Print dialog settings to make sure the print job is requesting the correct
paper size and type.
• Check that the paper size is correctly set. For example, if the MP Feeder Size is set to Universal, make
sure the paper is large enough for the data being printed.
• Cancel the current print job.
Understanding printer messages 161
35 Insucient memory to support Resource Save feature
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to disable Resource Save and
continue printing.
• To enable Resource Save after receiving this message, make sure the link buers are set to Auto, and
then exit the menus to activate the link buer changes. When Ready appears, enable Resource Save.
• Install additional memory.
37 Insucient memory for Flash Memory Defragment operation
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to stop the defragment process
and continue printing.
• Delete fonts, macros, and other data in printer memory.
• Install additional printer memory.
37
Insucient
memory to collate job
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to print the portion of the job
already stored and begin collating the rest of the print job.
• Cancel the current print job.
37 Insucient memory, some held jobs were deleted
The printer deleted some held jobs in order to process current jobs.
Press the arrow buttons until
Continue appears, and then press to clear the message.
37 Insucient memory, some Held Jobs will not be restored
The printer was unable to restore some or all of the confidential or held jobs on the printer hard disk.
Press the arrow buttons until
Continue appears, and then press to clear the message.
38 Memory full
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message.
• Cancel the current print job.
• Install additional printer memory.
Understanding printer messages 162
39 Complex page, some data may not have printed
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue printing.
• Cancel the current print job.
• Install additional printer memory.
42.xy Cartridge region mismatch
Install a print cartridge that matches the region number of the printer. x indicates the value of the printer
region. y indicates the value of the cartridge region. x and y can have the following values:
1US
2 Europe, the Middle East, and Africa
3Asia
4 Latin America
9Invalid region
50 PPDS font error
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue printing.
• The printer cannot find a requested font. From the PPDS menu, select Best Fit, and then select On.
The printer will find a similar font and reformat the aected text.
• Cancel the current print job.
51 Defective flash detected
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue printing.
• Cancel the current print job.
52 Not enough free space in
flash
memory for resources
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to stop the defragment
operation and continue printing.
Downloaded fonts and macros not previously stored in
flash
memory are deleted.
• Delete fonts, macros, and other data stored in
flash
memory.
Understanding printer messages 163
• Upgrade to a larger capacity flash memory card.
53 Unformatted flash detected
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to stop the defragment
operation and continue printing.
• Format the flash memory. If the error message remains, the flash memory may be defective and require
replacing.
54 Serial option <x> error
<x> is the number of the serial option.
Try one or more of the following:
• Check that the serial cable is connected correctly and is the proper one for the serial port.
• Check that the serial interface parameters (protocol, baud, parity, and data bits) are set correctly on the
printer and host computer.
• Press the arrow buttons until Continue appears, and then press to continue printing.
• Turn the printer o and then back on to reset the printer.
54 Network <x> software error
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to continue printing.
• Turn the printer
o
and then back on to reset the printer.
• Upgrade (flash) the network firmware in the printer or print server.
54 Standard network software error
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to continue printing.
• Turn the printer o and then back on to reset the printer.
• Upgrade (flash) the network firmware in the printer or print server.
55 Unsupported option in slot <x>
<x> is a slot on the printer system board.
Try one or more of the following:
1 Turn the printer power o.
2 Unplug the power cord from the wall outlet.
3 Remove the unsupported option card from the printer system board.
Understanding printer messages 164
4 Connect the power cord to a properly grounded outlet.
5 Turn the printer power back on.
56 Parallel port <x> disabled
<x> is the number of the parallel port.
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message.
The printer discards any data received through the parallel port.
• Make sure the Parallel Buer menu item is not set to Disabled.
56 Serial port <x> disabled
<x> is the number of the serial port.
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message.
The printer discards any data received through the serial port.
• Make sure the Serial Buer menu item is not set to Disabled.
56 Standard parallel port disabled
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message.
The printer discards any data received through the parallel port.
• Make sure the Parallel Buer menu item is not set to Disabled.
56 Standard USB port disabled
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message.
The printer discards any data received through the USB port.
• Make sure the USB Buer menu item is not set to Disabled.
57
Configuration
change, some held jobs were not restored
Since the time the jobs were stored on the printer hard disk something has changed in the printer to
invalidate the held jobs. Possible changes include:
• The printer firmware has been updated.
• Paper input, output, or duplex options needed for the print job were removed.
Understanding printer messages 165
• The print job was created using data from a device in the USB port and the device is no longer in the
port.
• The printer hard disk contains jobs that were stored while installed in a
dierent
printer model.
Press the arrow buttons until
Continue appears, and then press to clear the message.
58 Too many bins attached
1 Turn the printer power
o.
2 Unplug the power cord from the wall outlet.
3 Remove the additional bins.
4 Connect the power cord to a properly grounded outlet.
5 Turn the printer power back on.
58 Too many disks installed
1 Turn the printer
o.
2 Unplug the power cord from the wall outlet.
3 Remove the extra disks.
4 Connect the power cord to a properly grounded outlet.
5 Turn the printer back on.
58 Too many
flash
options installed
Too many optional flash memory cards or too many optional firmware cards are installed on the printer.
Try one or more of the following:
• Press to clear the message and continue printing.
• Remove extra flash options:
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove extra flash options.
4 Connect the power cord to a properly grounded outlet.
5 Turn the printer back on.
58 Too many trays attached
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Remove the additional trays.
Understanding printer messages 166
4 Connect the power cord to a properly grounded outlet.
5 Turn the printer back on.
59 Incompatible Duplex
Only options designed specifically for this printer are supported.
Try one or more of the following:
• Remove the duplex unit.
• Press to clear the message and continue printing without using the duplex unit.
59 Incompatible envelope feeder
Only options designed specifically for this printer are supported.
Try one or more of the following:
• Remove the envelope feeder.
• Press to clear the message and continue printing without using the envelope feeder.
59 Incompatible output bin <x>
Only options designed specifically for this printer are supported.
Try one or more of the following:
• Remove the specified output bin.
• Press to clear the message and continue printing without using the specified output bin.
59 Incompatible tray <x>
Only options designed specifically for this printer are supported.
Try one or more of the following:
• Remove the specified tray.
• Press to clear the message and continue printing without using the specified tray.
61 Remove defective hard disk
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue printing.
• Install a dierent printer hard disk before performing any operations that require a hard disk.
Understanding printer messages 167
62 Disk full
Try one or more of the following:
• Press the arrow buttons until Continue appears, and then press to clear the message and
continue processing.
• Delete fonts, macros, and other data stored on the printer hard disk.
• Install a larger printer hard disk.
80 Routine maintenance needed
The printer needs to have routine maintenance done. Order a maintenance kit, which contains all the items
necessary to replace the pick rollers, the charge roll, the transfer roller, and the fuser.
88 Cartridge low
The toner is low. Replace the print cartridge, and then press to clear the message and continue printing.
88.yy Cartridge nearly low
The toner is low. Replace the print cartridge, and then press to clear the message and continue printing.
88.yy Replace cartridge
The print cartridge is exhausted.
1 Replace the print cartridge.
2 Press to clear the message.
200–282 Paper jam
1 Clear the paper path.
2 After clearing the paper path, press to continue printing.
1565 Emulation error, load emulation option
The printer automatically clears the message in 30 seconds and then disables the download emulator on the
firmware card.
To fix this, download the correct download emulator version from the Lexmark Web site at
www.lexmark.com.
Understanding printer messages 168
Maintaining the printer
Periodically, certain tasks are required to maintain optimum print quality.
Cleaning the exterior of the printer
1 Make sure that the printer is turned o and unplugged from the wall outlet.
CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the
printer, unplug the power cord from the wall outlet and disconnect all cables to the printer before
proceeding.
2 Remove paper from the standard exit bin.
3 Dampen a clean, lint‑free cloth with water.
Warning—Potential Damage: Do not use household cleaners or detergents, as they may damage the
finish of the printer.
4 Wipe only the outside of the printer, making sure to include the standard exit bin.
Warning—Potential Damage: Using a damp cloth to clean the interior may cause damage to your printer.
5 Make sure the paper support and standard exit bin are dry before beginning a new print job.
Storing supplies
Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing
until you are ready to use them.
Do not expose supplies to:
• Direct sunlight
• Temperatures above 35°C (95°F)
• High humidity above 80%
• Salty air
• Corrosive gases
• Heavy dust
Conserving supplies
There are some settings you can change from the printer control panel that will help you conserve toner and
paper. For more information, see “Supplies menu,” “Quality menu,” and “Finishing menu.”
If you need to print several copies, you can conserve supplies by printing the
first
copy and checking it for
accuracy before printing the remaining copies.
Maintaining the printer 169
Checking the status of supplies
A message appears on the display when a replacement supply item is needed or when maintenance is required.
Checking the status of supplies from the printer control panel
1 Make sure the printer is on and Ready appears.
2 From the printer control panel, press the arrow buttons until Status/Supplies appears, and then
press
.
3 Press the arrow buttons until View supplies appears, and then press .
The status of each supply appears.
Checking the status of supplies from a network computer
Note: The computer must be connected to the same network as the printer.
1 Type the printer IP address into the address
field
of your Web browser.
Note: If you do not know the IP address of the printer, print a network setup page and locate the IP
address in the TCP/IP section.
2 Click Device Status. The Device Status page appears, displaying a summary of supply levels.
Ordering supplies
To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized
supplies dealers in your area. In other countries or regions, visit the Lexmark Web Site at
www.lexmark.com
or contact the place where you purchased the printer.
Note: All life estimates for printer supplies assume printing on letter‑ or A4‑size plain paper.
Ordering print cartridges
When 88 Cartridge low appears or when the print becomes faded:
1 Remove the print cartridge.
2 Firmly shake the cartridge side‑to‑side and front‑to‑back several times to redistribute toner.
3 Reinsert the cartridge and continue printing.
Maintaining the printer 170
Note: Repeat this procedure multiple times until the print remains faded, and then replace the cartridge.
Part name Lexmark Return Program Cartridge Regular cartridge
For the US and Canada
Print Cartridge T650A11A T650A21A
High Yield Print Cartridge T650H11A T650H21A
Extra High Yield Print Cartridge* T654X11A T654X21A
High Yield Print Cartridge for Label
Applications
T650H04A Not applicable
Extra High Yield Print Cartridge for
Label Applications*
T654X04A Not applicable
For Europe, the Middle East, and Africa
Print Cartridge T650A11E T650A21E
High Yield Print Cartridge T650H11E T650H21E
Extra High Yield Print Cartridge* T654X11E T654X21E
High Yield Print Cartridge for Label
Applications
T650H04E Not applicable
Extra High Yield Print Cartridge for
Label Applications*
T654X04E Not applicable
For the Asia Pacific Region
Print Cartridge T650A11P T650A21P
High Yield Print Cartridge T650H11P T650H21P
Extra High Yield Print Cartridge* T654X11P T654X21P
High Yield Print Cartridge for Label
Applications
T650H04P Not applicable
Extra High Yield Print Cartridge for
Label Applications*
T654X04P Not applicable
For Latin America
Print Cartridge T650A11L T650A21L
High Yield Print Cartridge T650H11L T650H21L
Extra High Yield Print Cartridge* T654X11L T654X21L
High Yield Print Cartridge for Label
Applications
T650H04L Not applicable
Extra High Yield Print Cartridge for
Label Applications*
T654X04L Not applicable
* Available for the T654 models.
Maintaining the printer 171
Ordering a maintenance kit
When 80 Routine maintenance needed appears, order a maintenance kit. The maintenance kit contains
all the items necessary to replace the pick rollers, the charge roll, the transfer roller, and the fuser.
Notes:
• Using certain types of paper may require more frequent replacement of the maintenance kit. The charge
roll, fuser, pick rollers, and transfer roller can also be individually ordered and replaced as necessary.
• To check the fuser type (T1 or T2) installed in the printer, remove the print cartridge to view the label on
the fuser.
Part name Part number
Maintenance kit 40X4723 (100 V T1 fuser)
40X4724 (110 V T1 fuser)
40X4765 (220 V T1 fuser)
40X4766 (100 V T2 fuser)
40X4767 (110 V T2 fuser)
40X4768 (220 V T2 fuser)
Ordering charge rolls
When toner fog or background shading appears on printed pages, order replacement charge rolls.
Part name Part number
Charge roll assembly 40X5852
Ordering a fuser
To check the fuser type (T1 or T2) installed in the printer, remove the print cartridge to view the label on the
fuser.
Part name Part number
T1 fuser 40X1870 (100 V)
40X4418 (110 V)
40X1871 (220 V)
T2 fuser 40X5853 (100 V)
40X5854 (110 V)
40X5855 (220 V)
Ordering a fuser wiper
When Replace wiper appears on the display, order a fuser wiper.
Part name Part number
Fuser wiper 40X4417
Maintaining the printer 172
Ordering pick rollers
When the paper fails to properly feed from the tray, order new pick rollers.
Part name Part number
Pick rollers 40X4308
Ordering staple cartridges
When Staples Low or Staples Empty appears, order the specified staple cartridge.
For more information, see the illustrations inside the stapler door.
Part name Part number
Staple Cartridges–3 pack 25A0013
Ordering a transfer roller
When toner smudges appear on the front or back of printed pages, order a replacement transfer roller.
Part name Part number
Transfer roll assembly 40X1886
Recycling Lexmark products
To return Lexmark products to Lexmark for recycling:
1 Visit our Web site at www.lexmark.com/recycle.
2 Find the product type you want to recycle, and then select your country from the list.
3 Follow the instructions on the computer screen.
Moving the printer
Before moving the printer
Remove all printer options before moving the printer.
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or
more trained personnel to move it safely.
Maintaining the printer 173
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal
injury or printer damage:
• Turn the printer o using the power switch, and then unplug the power cord from the wall outlet.
• Disconnect all cords and cables from the printer before moving it.
• Lift the printer o of the optional drawer and set it aside instead of trying to lift the drawer and printer at the
same time.
Note: Use the handholds located on both sides of the printer to lift it o the optional drawer.
Warning—Potential Damage: Damage to the printer caused by improper moving is not covered by the
printer warranty.
Moving the printer to another location
The printer and options can be safely moved to another location by following these precautions:
• Any cart used to move the printer must have a surface able to support the full footprint of the printer. Any
cart used to move the options must have a surface able to support the dimensions of the options.
• Keep the printer in an upright position.
• Avoid severe jarring movements.
Shipping the printer
When shipping the printer, use the original packaging or call the place of purchase for a relocation kit.
Maintaining the printer 174
Administrative support
Finding advanced networking and administrator
information
This chapter covers basic administrative support tasks. For more advanced system support tasks, see the
Networking Guide on the Software and Documentation CD and the Embedded Web Server Administrator's
Guide on the Lexmark Web site at
www.lexmark.com.
Using the Embedded Web Server
If the printer is installed on a network, the Embedded Web Server is available for a range of functions including:
• Viewing a virtual display of the printer control panel
• Checking the status of the printer supplies
• Configuring printer settings
• Configuring network settings
• Viewing reports
To access the Embedded Web Server, type the printer IP address into the address
field
of your Web browser.
Notes:
• If you do not know the IP address of the printer, then print a network setup page and locate the IP
address in the TCP/IP section.
• For more information, see the Networking Guide on the Software and Documentation CD and the
Embedded Web Server Administrator's Guide on the Lexmark Web site at
www.lexmark.com.
Checking the device status
Using the Embedded Web Server, you can view paper tray settings, the level of toner in the print cartridge, the
percentage of life remaining in the maintenance kit, and capacity measurements of certain printer parts. To
view the device status:
1 Type the printer IP address in the address field of your Web browser.
Note: If you do not know the IP address of the printer, then print a network setup page and locate the IP
address in the TCP/IP section.
2 Click Device Status.
Setting up e‑mail alerts
You can have the printer send you an e‑mail when the supplies are getting low or when the paper needs to be
changed, added, or unjammed.
Administrative support 175
To set up e‑mail alerts:
1 Type the printer IP address into the address field of your Web browser.
Note: If you do not know the IP address of the printer, then print a network setup page and locate the IP
address in the TCP/IP section.
2 Click Settings.
3 Under Other Settings, click E‑mail Alert Setup.
4 Select the items for notification, and type in the e‑mail addresses.
5 Click Submit.
Note: See your system support person to set up the e‑mail server.
Viewing reports
You can view some reports from the Embedded Web Server. These reports are useful for assessing the status
of the printer, the network, and supplies.
To view reports from a network printer:
1 Type the printer IP address into the address field of your Web browser.
Note: If you do not know the IP address of the printer, then print a network setup page and locate the IP
address in the TCP/IP section.
2 Click Reports, and then click the type of report you want to view.
Adjusting Power Saver
Available settings range from 1–240 minutes. The factory default is 30 minutes.
To increase or decrease the number of minutes before the printer enters Power Saver mode, do one of the
following:
Using the Embedded Web Server
1 Type the printer IP address into the address field of your Web browser.
Note: If you do not know the IP address of the printer, then print a network setup page and locate
the IP address in the TCP/IP section.
2 Click Settings, and then click General Settings.
3 Click Timeouts.
4 In the Power Saver box, increase or decrease the number of minutes you want the printer to wait before
it enters Power Saver mode.
5 Click Submit.
Using the printer control panel
1 Make sure the printer is on and Ready appears.
2 Press .
Administrative support 176
3 Press the arrow buttons until Settings appears, and then press .
4 Press the arrow buttons until General Settings appears, and then press .
5 Press the arrow buttons until Timeouts appears, and then press .
6 Press the arrow buttons until Power Saver appears, and then press .
7 Press the arrow buttons to increase or decrease the number of minutes before the printer enters Power
Saver mode, and then press
.
Restoring the factory default settings
If you want to retain a list of the current menu settings for reference, then print a menu settings page before
you restore the factory default settings. For more information, see
“Printing a menu settings page” on page
37.
Warning—Potential Damage: Restoring factory defaults returns most printer settings to the original factory
default setting. Exceptions include the display language, custom sizes and messages, and Network/Port
menu settings. All downloads stored in RAM are deleted. Downloads stored in flash memory or on a printer
hard disk are not aected.
1 From the printer control panel, press .
2 Press the arrow buttons until Settings appears, and then press .
3 Press the arrow buttons until General Settings appears, and then press .
4 Press the arrow buttons until Factory Defaults appears, and then press .
5 Press the arrow buttons until Restore Now appears, and then press .
Restoring Factory Defaults appears.
Administrative support 177
Troubleshooting
Solving basic problems
Solving basic printer problems
If there are basic printer problems, or the printer is unresponsive, make sure:
• The power cord is plugged into the printer and a properly grounded electrical outlet.
• The electrical outlet is not turned o by any switch or breaker.
• The printer is not plugged into any surge protectors, uninterrupted power supplies, or extension cords.
• Other electronic equipment plugged into the outlet is working.
• The printer is turned on. Check the printer power switch.
• The printer cable is securely attached to the printer and the host computer, print server, option, or other
network device.
• All options are properly installed.
• The printer driver settings are correct.
Once you have checked each of these possibilities, turn the printer
o,
wait for about 10 seconds, and then
turn the printer back on. This often fixes the problem.
Printer control panel display is blank or displays only diamonds
The printer self test failed. Turn the printer o, wait about 10 seconds, and then turn the printer back on.
If Performing Self Test and Ready do not appear, turn the printer o and contact Customer Support.
Embedded Web Server does not open
These are possible solutions. Try one or more of the following:
Check the network connections
Make sure the printer and computer are turned on and connected to the same network.
Check the network settings
Depending on the network settings, you may need to type https:// instead of http:// before the printer
IP address to access the Embedded Web Server. For more information, see your system administrator.
Troubleshooting 178
Solving printing problems
Multiple‑language PDFs do not print
The documents contain unavailable fonts.
1 Open the document you want to print in Adobe Acrobat.
2 Click the printer icon.
The Print dialog appears.
3 Select Print as image.
4 Click OK.
Error message about reading USB drive appears
Make sure the USB drive is supported. For information regarding tested and approved USB flash memory
devices, visit the Lexmark Web site at
www.lexmark.com.
Jobs do not print
These are possible solutions. Try one or more of the following:
Make sure the printer is ready to print
Make sure Ready or Power Saver appears on the display before sending a job to print.
Check to see if the standard exit bin is full
Remove the stack of paper from the standard exit bin.
Check to see if the paper tray is empty
Load paper in the tray.
Make sure the correct printer software is installed
• Verify that you are using the correct printer software.
• If you are using a USB port, make sure you are running a supported operating system and using
compatible printer software.
Make sure the internal print server is installed properly and working
• Make sure the internal print server is properly installed and that the printer is connected to the network.
• Print a network setup page and check that the status shows Connected. If the status is Not
Connected, check the network cables, and then try printing the network setup page again. Contact
your system support person to make sure the network is functioning correctly.
Copies of the printer software are also available on the Lexmark Web site at
www.lexmark.com.
Troubleshooting 179
Make sure you are using a recommended USB, serial, or Ethernet cable
For more information, visit the Lexmark Web site at www.lexmark.com.
Make sure printer cables are securely connected
Check the cable connections to the printer and print server to make sure they are secure.
For more information, see the setup documentation that came with the printer.
Confidential and other held jobs do not print
These are possible solutions. Try one or more of the following:
Partial job, no job, or blank pages print
The print job may contain a formatting error or invalid data.
• Delete the print job, and then print it again.
• For PDF documents, recreate the PDF and then print it again.
Make sure the printer has
sucient
memory
Free up additional printer memory by scrolling through the list of held jobs and deleting some of them.
Job takes longer than expected to print
These are possible solutions. Try one or more of the following:
Reduce the complexity of the print job
Eliminate the number and size of fonts, the number and complexity of images, and the number of pages in
the job.
Change the Page Protect setting to O
1 From the printer control panel, press .
2 Press the arrow buttons until Settings appears, and then press .
3 Press the arrow buttons until Setup Menu appears, and then press .
4 Press the arrow buttons until Print Recovery appears, and then press .
5 Press the arrow buttons until Page Protect appears, and then press .
6 Press the arrow buttons until Off appears, and then press .
Troubleshooting 180
Job prints from the wrong tray or on the wrong paper
Check the paper type setting
Make sure the paper type setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
• For Windows users, specify the type from Print Properties.
• For Macintosh users, specify the type from the Print dialog.
Incorrect characters print
Make sure the printer is not in Hex Trace mode
If Ready Hex appears on the display, then you must exit Hex Trace mode before you can print your job.
Turn the printer
o
and back on to exit Hex Trace mode.
Tray linking does not work
These are possible solutions. Try one or more of the following:
Load the same size and type of paper
• Load the same size and type of paper in each tray to be linked.
• Move the paper guides to the correct positions for the paper size loaded in each tray.
Use the same Paper Size and Paper Type settings
• Print a menu settings page and compare the settings for each tray.
• If necessary, adjust the settings from the Paper Size/Type menu.
Note: The multipurpose feeder does not automatically sense the paper size. You must set the size from
the Paper Size/Type menu.
Large jobs do not collate
These are possible solutions. Try one or more of the following:
Make sure Collate is set to On
From the Finishing menu or Print Properties, set Collate to On.
Note: Setting Collate to
O
in the software overrides the setting in the Finishing menu.
Reduce the complexity of the print job
Reduce the complexity of the print job by eliminating the number and size of fonts, the number and
complexity of images, and the number of pages in the job.
Troubleshooting 181
Make sure the printer has enough memory
Add printer memory or an optional hard disk.
Unexpected page breaks occur
Increase the Print Timeout value:
1 From the printer control panel, press .
2 Press the arrow buttons until Settings appears, and then press .
3 Press the arrow buttons until Setup Menu appears, and then press .
4 Press the arrow buttons until Timeouts appears, and then press .
5 Press the arrow buttons until Print Timeout appears, and then press .
6 Press the arrow buttons until the value you want appears, and then press .
Solving option problems
Settings chosen from the software program or application can change or override settings chosen from the
printer control panel. If an option is not functioning, then make sure it is selected in the software as well as the
printer control panel.
Option does not operate correctly or quits after it is installed
These are possible solutions. Try one or more of the following:
Reset the printer
Turn the printer o, wait about 10 seconds, and then turn the printer on.
Check to see if the option is connected to the printer
1 Turn the printer o.
2 Unplug the power cord from the wall outlet.
3 Check the connection between the option and the printer.
4 Connect the power cord to a properly grounded wall outlet.
Make sure the option is installed correctly
Print a menu settings page and check to see if the option is listed in the Installed Options list. If the option
is not listed, then reinstall it. For more information, see the hardware setup documentation that came with
the option.
Troubleshooting 182
Make sure the option is selected
From the computer you are printing from, select the option. For more information, see “Updating available
options in the printer driver” on page 38.
Paper trays
These are possible solutions. Try one or more of the following:
Make sure the paper is loaded correctly
1 Open the paper tray.
2 Check for paper jams or misfeeds.
3 Make sure paper guides are aligned against the edges of the paper.
4 Make sure the paper tray closes properly.
Reset the printer
Turn the printer o, wait about 10 seconds, and then turn the printer on.
Make sure the paper tray is installed correctly
If the paper tray is listed on the menu settings page, but paper jams when it enters or exits the tray, then it
may not be properly installed. Reinstall the paper tray. For more information, see the hardware setup
documentation that came with the paper tray, or see the latest comprehensive User's Guide available on
our Web site at
www.lexmark.com/publications.
Make sure the list of options in the printer driver is up to date
From the computer you are printing from, verify that the paper tray is among the options listed in the printer
driver. For more information, see
“Updating available options in the printer driver” on page 38.
2000‑sheet tray
These are possible solutions. Try one or more of the following:
The elevator tray is not working properly
• Make sure the printer is properly connected to the 2000‑sheet tray.
• Make sure the printer is turned on.
The paper feed rollers do not turn to advance paper
• Make sure the printer is properly connected to the 2000‑sheet tray.
• Make sure the printer is turned on.
Troubleshooting 183
Envelope feeder
These are possible solutions. Try one or more of the following:
Reset the printer
Turn the printer
o,
wait about 10 seconds, and then turn the printer on.
Make sure the envelopes are loaded correctly
1 Adjust the envelope support for the length of envelope you are using.
2 For more information, see “Loading the envelope feeder” on page 62.
Check the paper type and paper size settings
Make sure the paper type and paper size settings match the envelopes you are using:
1 From the printer control panel, check the settings for the envelope feeder from the Paper menu.
2 Before sending the job to print, specify the correct settings from the computer:
• For Windows users, specify the settings from Print Properties.
• For Macintosh users, specify the settings from the Print dialog.
Make sure the envelope feeder is installed correctly
If the envelope feeder is listed on the menu settings page, but an envelope jams when it enters or exits the
feeder, then it may not be properly installed. Reinstall the envelope feeder. For more information, see the
hardware setup documentation that came with the envelope feeder, or go to
www.lexmark.com/publications to view the envelope feeder instruction sheet.
Duplex unit
If the duplex unit is listed on the menu settings page, but paper jams when it enters or exits the duplex unit,
then it may not be properly installed. Reinstall the duplex unit. For more information, see the hardware setup
documentation that came with the duplex unit, or go to
www.lexmark.com/publications to view the duplex
unit instruction sheet.
5‑bin mailbox
If the 5‑bin mailbox is listed on the menu settings page, but paper jams when it exits the printer and enters
the mailbox, then it may not be properly installed. Reinstall the 5‑bin mailbox. For more information, see the
hardware setup documentation that came with the 5‑bin mailbox, or go to
www.lexmark.com/publications
to view the 5‑bin mailbox instruction sheet.
Output options
If the Output Expander, High Capacity Output Expander, or StapleSmart II Finisher is listed on the menu
settings page, but paper jams when it exits the printer or enters the output option, then it may not be properly
installed. Reinstall the option. For more information, see the hardware setup documentation that came with
the option, or go to
www.lexmark.com/publications to view the option instruction sheet.
Troubleshooting 184
Memory card
Make sure the memory card is securely connected to the printer system board.
Flash memory card
Make sure the flash memory card is securely connected to the printer system board.
Hard disk with adapter
Make sure the hard disk is securely connected to the printer system board.
Internal Solutions Port
If the Lexmark Internal Solutions Port (ISP) does not operate correctly, then these are possible solutions. Try
one or more of the following:
Check the ISP connections
• Make sure the ISP is securely attached to the printer system board.
• Make sure the cable is securely connected to the correct connector.
Check the cable
Make sure you are using the correct cable and that it is securely connected.
Make sure the network software is configured correctly
For information about installing software for network printing, see the Networking Guide on the Software
and Documentation CD
Solving paper feed problems
Paper frequently jams
These are possible solutions. Try one or more of the following:
Check the paper
Use recommended paper and specialty media. For more information, see the chapter about paper and
specialty media guidelines.
Make sure there is not too much paper in the paper tray
Make sure the stack of paper you load does not exceed the maximum stack height indicated in the tray or
on the multipurpose feeder.
Check the paper guides
Move the guides in the tray to the correct positions for the paper size loaded.
Troubleshooting 185
The paper may have absorbed moisture due to high humidity
• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.
Paper jam message remains after jam is cleared
The paper path is not clear. Clear jammed paper from the entire paper path, and then press .
Page that jammed does not reprint after you clear the jam
Jam Recovery is set to O. Set Jam Recovery to Auto or On:
1 Press .
2 Press the arrow buttons until Settings appears, and then press .
3 Press the arrow buttons until General Settings appears, and then press .
4 Press the arrow buttons until Print Recovery appears, and then press .
5 Press the arrow buttons until Jam Recovery appears, and then press .
6 Press the arrow buttons until On or Auto appears, and then press .
Solving print quality problems
Isolating print quality problems
To help isolate print quality problems, print the print quality test pages:
1 Turn the printer o.
2 From the printer control panel, press and hold and the right arrow button while turning the printer
on.
3 Release both buttons when Performing Self Test appears.
The printer performs its power‑on sequence, and then Config Menu appears.
4 Press the down arrow button until Prt Quality Pgs appears, and then press .
The pages are formatted, Printing Quality Test Pages appears, and then the pages print. The
message remains on the printer control panel display until all the pages print.
5 After the print quality test pages print, press the down arrow button until Exit Config Menu
appears, and then press
.
The information in the following topics may help you solve print quality problems. If these suggestions still
do not correct the problem, then call for service. You may have a printer part that requires adjustment or
replacement.
Troubleshooting 186
Blank pages
These are possible solutions. Try one or more of the following:
Packing material may be on the print cartridge
Remove the print cartridge and make sure the packing material is properly removed. Reinstall the print
cartridge.
The toner may be low
When 88 Cartridge low appears, order a new print cartridge.
If the problem continues, the printer may need to be serviced. For more information, contact Customer
Support.
Clipped images
These are possible solutions. Try one or more of the following:
Check the guides
Move the width and length guides in the tray to the correct positions for the paper size loaded.
Check the paper size setting
Make sure the paper size setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Size setting from the Paper menu.
2 Before sending the job to print, specify the correct size setting:
• For Windows users, specify the size from Print Properties.
• For Macintosh users, specify the size from the Page Setup dialog.
Ghost images
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
Troubleshooting 187
Check the paper type setting
Make sure the paper type setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
• For Windows users, specify the type from Print Properties.
• For Macintosh users, specify the type from the Print dialog.
Gray background
ABCDE
ABCDE
ABCDE
Check the Toner Darkness setting
Select a lighter Toner Darkness setting:
• From the printer control panel, change the setting from the Quality menu.
• For Windows users, change the setting from Print Properties.
• For Macintosh users, change the setting from the Print dialog.
Incorrect margins
ABCD
ABCD
ABCD
These are possible solutions. Try one or more of the following:
Check the paper guides
Move the guides in the tray to the correct positions for the paper size loaded.
Troubleshooting 188
Check the paper size setting
Make sure the paper size setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Size setting from the Paper menu.
2 Before sending the job to print, specify the correct size setting:
• For Windows users, specify the size from Print Properties.
• For Macintosh users, specify the size from the Page Setup dialog.
Paper curl
These are possible solutions. Try one or more of the following:
Check the paper type setting
Make sure the paper type setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
• For Windows users, specify the type from Print Properties.
• For Macintosh users, specify the type from the Print dialog.
The paper has absorbed moisture due to high humidity
• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.
Print irregularities
These are possible solutions. Try one or more of the following:
The paper may have absorbed moisture due to high humidity
• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.
Troubleshooting 189
Check the paper type setting
Make sure the paper type setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
• For Windows users, specify the type from Print Properties.
• For Macintosh users, specify the type from the Print dialog.
Check the paper
Avoid textured paper with rough finishes.
The toner may be low
When 88 Cartridge low appears or when the print becomes faded, replace the print cartridge.
The fuser may be worn or defective
Replace the fuser.
Print is too dark
These are possible solutions. Try one or more of the following:
Check the darkness, brightness, and contrast settings
The Toner Darkness setting is too dark, the Brightness setting is too dark, or the Contrast setting is too high.
• From the printer control panel, change these settings from the Quality menu.
• For Windows users, change these settings from Print Properties.
• For Macintosh users, change these settings from the Print dialog and pop‑up menus.
The paper has absorbed moisture due to high humidity
• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.
Check the paper
Avoid textured paper with rough finishes.
Troubleshooting 190
Check the paper type setting
Make sure the paper type setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
• For Windows users, specify the type from Print Properties.
• For Macintosh users, specify the type from the Print dialog.
The print cartridge may be defective
Replace the print cartridge.
Print is too light
These are possible solutions. Try one or more of the following:
Check the darkness, brightness, and contrast settings
The Toner Darkness setting is too light, the Brightness setting is too light, or the Contrast setting is too low.
• From the printer control panel, change these settings from the Quality menu.
• For Windows users, change these settings from Print Properties.
• For Macintosh users, change these settings from the Print dialog and pop‑up menus.
The paper has absorbed moisture due to high humidity
• Load paper from a fresh package.
• Store paper in its original wrapper until you use it.
Check the paper
Avoid textured paper with rough finishes.
Check the paper type setting
Make sure the paper type setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
• For Windows users, specify the type from Print Properties.
• For Macintosh users, specify the type from the Print dialog.
Troubleshooting 191
The toner is low
When 88 Cartridge Low appears, order a new print cartridge.
The print cartridge may be defective
Replace the print cartridge.
Repeating defects
Repeating marks occur evenly down the page
Replace the charge rolls if the defects occur every 28.3 mm (1.11 in.).
Replace the transfer roller if the defects occur every 51.7 mm (2.04 in.).
Replace the print cartridge if the defects occur every:
• 47.8 mm (1.88 in.)
• 96.8 mm (3.81 in.)
Replace the fuser if the defects occur every:
• 88.0 mm (3.46 in.)
• 95.2 mm (3.75 in.)
Skewed print
These are possible solutions. Try one or more of the following:
Check the paper guides
Move the guides in the tray to the correct positions for the paper size loaded.
Check the paper
Make sure you are using paper that meets the printer specifications.
Troubleshooting 192
Solid black or white streaks
These are possible solutions. Try one or more of the following:
Make sure the fill pattern is correct
If the fill pattern is incorrect, then choose a dierent fill pattern from your software program or application.
Check the paper type
• Try a dierent type of paper.
• Use only transparencies recommended by the printer manufacturer.
• Make sure the Paper Type and Paper Texture settings match the paper loaded in the tray or feeder.
Make sure the toner is distributed evenly in the print cartridge
Remove the print cartridge and shake it from side to side to redistribute the toner, and then reinstall it.
The print cartridge may be defective or low on toner
Replace the used print cartridge with a new one.
Solid color pages
These are possible solutions. Try one or more of the following:
Make sure the print cartridge is properly installed
Remove the print cartridge and shake it from side to side to redistribute the toner, and then reinstall it.
The print cartridge may be defective or low on toner
Replace the used print cartridge with a new one. If the problem continues, the printer may need to be
serviced. For more information, contact Customer Support.
Troubleshooting 193
Streaked horizontal lines
ABCDE
ABCDE
ABCDE
These are the possible solutions. Try one or more of the following:
The toner is smeared
Select another tray or feeder to feed the paper for the job:
• From the printer control panel, select the Default Source from the Paper Menu.
• For Windows users, select the paper source from Print Properties.
• For Macintosh users, select the paper source from the Print dialog and pop‑up menus.
The print cartridge may be defective
Replace the print cartridge.
The paper path may not be clear
Check the paper path around the print cartridge.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from
a hot component, allow the surface to cool before touching.
Clear any paper you see.
There is toner in the paper path
Contact Customer Support.
Streaked vertical lines
ABCDE
ABCDE
ABCDE
These are possible solutions. Try one or more of the following:
Troubleshooting 194
The toner is smeared
Select another tray or feeder to feed paper for the job:
• From the printer control panel, select the Default Source from the Paper Menu.
• For Windows users, select the paper source from Print Properties.
• For Macintosh users, select the paper source from the Print dialog and pop‑up menus.
The print cartridge is defective
Replace the print cartridge.
The paper path may not be clear
Check the paper path around the print cartridge.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from
a hot component, allow the surface to cool before touching.
Clear any paper you see.
There is toner in the paper path
Contact Customer Support.
Toner fog or background shading appears on the page
These are possible solutions. Try one or more of the following:
The print cartridge may be defective
Replace the print cartridge.
The charge rolls may be defective
Replace the charge rolls.
There is toner in the paper path
Clean any toner from the paper path. If the problem persists, then contact Customer Support.
Toner rubs o
These are possible solutions. Try one or more of the following:
Troubleshooting 195
Check the paper type setting
Make sure the paper type setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
• For Windows users, specify the type from Print Properties.
• For Macintosh users, specify the type from the Print dialog.
Check the Paper Texture setting
From the printer control panel Paper menu, make sure the Paper Texture setting matches the paper loaded
in the tray.
Toner specks
These are possible solutions. Try one or more of the following:
The print cartridge may be defective
Replace the print cartridge.
There is toner in the paper path
Clean any toner from the paper path. If the problem persists, then contact Customer Support.
Transparency print quality is poor
Try one or more of the following:
Check the transparencies
Use only transparencies recommended by the printer manufacturer.
Check the paper type setting
Make sure the paper type setting matches the paper loaded in the tray:
1 From the printer control panel, check the Paper Type setting from the Paper menu.
2 Before sending the job to print, specify the correct type setting:
• For Windows users, specify the type from Print Properties.
• For Macintosh users, specify the type from the Print dialog.
Troubleshooting 196
Contacting Customer Support
When you call Customer Support, describe the problem you are experiencing, the message on the display,
and the troubleshooting steps you have already taken to find a solution.
You need to know your printer model type and serial number. For more information, see the label on the
inside top front cover of the printer. The serial number is also listed on the menu settings page.
In the U.S. or Canada, call (1‑800‑539‑6275). For other countries/regions, visit the Lexmark Web site at
www.lexmark.com.
Troubleshooting 197
Notices
Product information
Product name:
Lexmark T650, T652, T654
Machine type:
4062, 4551, 4552, 4553
Model(s):
01A, 21A, 23A, 41A, 43A, n01, gn1, n03, n02, xn2, gn2, dn1, d03, gd1, dn2, gd2, xd2, mn1, gm1, md1
Edition notice
September 2017
The following paragraph does not apply to any country where such provisions are inconsistent with local
law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of
express or implied warranties in certain transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in later editions. Improvements or changes in the
products or the programs described may be made at any time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to
make these available in all countries in which it operates. Any reference to a product, program, or service is
not intended to state or imply that only that product, program, or service may be used. Any functionally
equivalent product, program, or service that does not infringe any existing intellectual property right may be
used instead. Evaluation and
verification
of operation in conjunction with other products, programs, or services,
except those expressly designated by the manufacturer, are the user’s responsibility.
For Lexmark technical support, visit
support.lexmark.com.
For information on supplies and downloads, visit
www.lexmark.com.
If you don't have access to the Internet, you can contact Lexmark by mail:
Lexmark International, Inc.
Bldg 004-2/CSC
740 New Circle Road NW
Lexington, KY 40550
USA
© 2009 Lexmark International, Inc.
All rights reserved.
Notices 198
UNITED STATES GOVERNMENT RIGHTS
This software and any accompanying documentation provided under this agreement are commercial computer
software and documentation developed exclusively at private expense.
Trademarks
Lexmark, Lexmark with diamond design, MarkNet, and MarkVision are trademarks of Lexmark International,
Inc., registered in the United States and/or other countries.
MarkTrack, PrintCryption, and StapleSmart are trademarks of Lexmark International, Inc.
PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s
designation of a set of printer commands (language) and functions included in its printer products. This printer
is intended to be compatible with the PCL language. This means the printer recognizes PCL commands used
in various application programs, and that the printer emulates the functions corresponding to the commands.
The following terms are trademarks or registered trademarks of these companies:
Albertus The Monotype Corporation plc
Antique Olive Monsieur Marcel OLIVE
Apple-Chancery Apple Computer, Inc.
Arial The Monotype Corporation plc
CG Times Based on Times New Roman under license from The Monotype Corporation plc, is a
product of Agfa Corporation
Chicago Apple Computer, Inc.
Clarendon Linotype-Hell AG and/or its subsidiaries
Eurostile Nebiolo
Geneva Apple Computer, Inc.
GillSans The Monotype Corporation plc
Helvetica Linotype-Hell AG and/or its subsidiaries
Hoefler Jonathan Hoefler Type Foundry
ITC Avant Garde Gothic International Typeface Corporation
ITC Bookman International Typeface Corporation
ITC Mona Lisa International Typeface Corporation
ITC Zapf Chancery International Typeface Corporation
Joanna The Monotype Corporation plc
Marigold Arthur Baker
Monaco Apple Computer, Inc.
New York Apple Computer, Inc.
Oxford Arthur Baker
Palatino Linotype-Hell AG and/or its subsidiaries
Notices 199
Stempel Garamond Linotype-Hell AG and/or its subsidiaries
Tay Agfa Corporation
Times New Roman The Monotype Corporation plc
Univers Linotype-Hell AG and/or its subsidiaries
All other trademarks are the property of their respective owners.
AirPrint and the AirPrint logo are trademarks of Apple, Inc.
Federal Communications Commission (FCC) compliance information
statement
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
The FCC Class B limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment
o
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult your point of purchase or service representative for additional suggestions.
The manufacturer is not responsible for radio or television interference caused by using other than
recommended cables or by unauthorized changes or
modifications
to this equipment. Unauthorized changes
or
modifications
could void the user's authority to operate this equipment.
Note: To assure compliance with FCC regulations on electromagnetic interference for a Class B computing
device, use a properly shielded and grounded cable such as Lexmark part number 1021231 for parallel attach
or 1021294 for USB attach. Use of a substitute cable not properly shielded and grounded may result in a
violation of FCC regulations.
Notices 200
Any questions regarding this compliance information statement should be directed to:
Director of Lexmark Technology & Services
Lexmark International, Inc.
740 West New Circle Road
Lexington, KY 40550
(859) 232–3000
Temperature information
Ambient temperature 15–32° C (60–90° F)
Shipping temperature ‑40–60° C (‑40–140° F)
Storage temperature 1–60° C (34–140° F)
Noise emission levels
The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO
9296.
Note: Some modes may not apply to your product.
1-meter average sound pressure, dBA
Printing 53 dBA for T650, 54 dBA for T652, 55
dBA for T654
Scanning N/A
Copying N/A
Ready 30 dBA
Values are subject to change. See www.lexmark.com for current values.
Waste from Electrical and Electronic Equipment (WEEE) directive
The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the
European Union. We encourage the recycling of our products. If you have further questions about recycling
options, visit the Lexmark Web site at
www.lexmark.com for your local sales oce phone number.
Notices 201
Static sensitivity notice
This symbol identifies static-sensitive parts. Do not touch in the areas near these symbols without first touching
the metal frame of the printer.
ENERGY STAR
Any Lexmark product bearing the ENERGY STAR emblem on the product or on a start-up screen is
certified
to
comply with Environmental Protection Agency (EPA) ENERGY STAR requirements as
configured
when shipped
by Lexmark.
Laser notice
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR Subchapter J for Class I (1)
laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC
60825-1.
Class I laser products are not considered to be hazardous. The printer contains internally a Class IIIb (3b) laser
that is nominally a 7 milliwatt gallium arsenide laser operating in the wavelength of 655-675 nanometers. The
laser system and printer are designed so there is never any human access to laser radiation above a Class I
level during normal operation, user maintenance, or prescribed service condition.
Laser advisory label
A laser notice label may be
axed
to this printer as shown:
Notices 202
DANGER - Invisible laser radiation when cartridges are removed and interlock defeated. Avoid exposure to laser beam.
PERIGO - Radiação a laser invisível será liberada se os cartuchos forem removidos e o lacre rompido. Evite a exposição aos feixes de laser.
Opasnost - Nevidljivo lasersko zračenje kada su kasete uklonjene i poništena sigurnosna veza. Izbjegavati izlaganje zracima.
NEBEZPEČÍ - Když jsou vyjmuty kazety a je odblokována pojistka, ze zařízení je vysíláno neviditelné laserové záření. Nevystavujte se působení laserového paprsku.
FARE - Usynlig laserstråling, når patroner ernes, og spærreanordningen er slået fra. Undgå at blive udsat for laserstrålen.
GEVAAR - Onzichtbare laserstraling wanneer cartridges worden verwijderd en een vergrendeling wordt genegeerd. Voorkom blootstelling aan de laser.
DANGER - Rayonnements laser invisibles lors du retrait des cartouches et du déverrouillage des loquets. Eviter toute exposition au rayon laser.
VAARA - Näkymätöntä lasersäteilyä on varottava, kun värikasetit on poistettu ja lukitus on auki. Vältä lasersäteelle altistumista.
GEFAHR - Unsichtbare Laserstrahlung beim Herausnehmen von Druckkassetten und oener Sicherheitssperre. Laserstrahl meiden.
ΚΙΝΔΥΝΟΣ - Έκλυση αόρατης ακτινοβολίας laser κατά την αφαίρεση των κασετών και την απασφάλιση της μανδάλωσης. Αποφεύγετε την έκθεση στην
ακτινοβολία laser.
VESZÉLY – Nem látható lézersugárzás fordulhat elő a patronok eltávolításakor és a zárószerkezet felbontásakor. Kerülje a lézersugárnak való kitettséget.
PERICOLO - Emissione di radiazioni laser invisibili durante la rimozione delle cartucce e del blocco. Evitare l´esposizione al raggio laser.
FARE – Usynlig laserstråling når kassettene tas ut og sperren er satt ut av spill. Unngå eksponering for laserstrålen.
NIEBEZPIECZEŃSTWO - niewidzialne promieniowanie laserowe podczas usuwania kaset i blokady. Należy unikać naświetlenia promieniem lasera.
ОПАСНО! Невидимое лазерное излучение при извлеченных картриджах и снятии блокировки. Избегайте воздействия лазерных лучей.
Pozor – Nebezpečenstvo neviditeľného laserového žiarenia pri odobratých kazetách a odblokovanej poistke. Nevystavujte sa lúčom.
PELIGRO: Se producen radiaciones láser invisibles al extraer los cartuchos con el interbloqueo desactivado. Evite la exposición al haz de láser.
FARA – Osynlig laserstrålning när patroner tas ur och spärrmekanismen är upphävd. Undvik exponering för laserstrålen.
危险 - 当移除碳粉盒及互锁失效时会产生看不见的激光辐射，请避免暴露在激光光束下。
危險 - 移除碳粉匣與安全連續開關失效時會產生看不見的雷射輻射。請避免曝露在雷射光束下。
危険 - カートリッジが取り外され、内部ロックが無効になると、見えないレーザー光が放射されます。 このレーザー光に当たらないようにしてください。
Power consumption
Product power consumption
The following table documents the power consumption characteristics of the product.
Note: Some modes may not apply to your product.
Mode Description Power consumption (Watts)
Printing The product is generating hard‑copy output from
electronic inputs.
T650: 640 W (simplex), 540 W (duplex); T652:
725 W (simplex), 565 W (duplex); T654: 740 W
(simplex), 575 W (duplex)
Copying The product is generating hard‑copy output from
hard‑copy original documents.
N/A
Scanning The product is scanning hard‑copy documents. N/A
Ready The product is waiting for a print job. T650: 80 W; T652: 85 W; T654: 85 W
Power Saver The product is in energy‑saving mode. T650: 12 W; T652: 13 W; T654: 14 W
O The product is plugged into a wall outlet, but the
power switch is turned o.
0 W
The power consumption levels listed in the previous table represent time-averaged measurements.
Instantaneous power draws may be substantially higher than the average.
Values are subject to change. See
www.lexmark.com for current values.
Notices 203
Power Saver
This product is designed with an energy-saving mode called Power Saver. The Power Saver Mode is equivalent
to the Sleep Mode. The Power Saver Mode saves energy by lowering power consumption during extended
periods of inactivity. The Power Saver Mode is automatically engaged after this product is not used for a
specified period of time, called the Power Saver Timeout.
Factory default Power Saver Timeout for this product (in minutes): 30 (T650n, T652, T654); 10 (T650dn/dtn)
By using the configuration menus, the Power Saver Timeout can be modified between 1 minute and 240
minutes. Setting the Power Saver Timeout to a low value reduces energy consumption, but may increase the
response time of the product. Setting the Power Saver Timeout to a high value maintains a fast response, but
uses more energy.
O mode
If this product has an o mode which still consumes a small amount of power, then to completely stop product
power consumption, disconnect the power supply cord from the wall outlet.
Total energy usage
It is sometimes helpful to calculate the total product energy usage. Since power consumption claims are
provided in power units of Watts, the power consumption should be multiplied by the time the product spends
in each mode in order to calculate energy usage. The total product energy usage is the sum of each mode's
energy usage.
Industry Canada compliance statement
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Standard ICES-003.
Avis de conformité aux normes de l’industrie du Canada
Cet appareil numérique de classe B est conforme aux exigences de la norme canadienne relative aux
équipements pouvant causer des interférences NMB-003.
European Community (EC) directives conformity
This product is in conformity with the protection requirements of EC Council directives 2004/108/EC and
2006/95/EC on the approximation and harmonization of the laws of the Member States relating to
electromagnetic compatibility and safety of electrical equipment designed for use within certain voltage limits.
A declaration of conformity with the requirements of the directives has been signed by the Director of
Manufacturing and Technical Support, Lexmark International, Inc., S.A., Boigny, France.
This product satisfies the Class B limits of EN 55022 and safety requirements of EN 60950.
Notices 204
Regulatory notices for wireless products
This section contains the following regulatory information pertaining to wireless products that contain
transmitters, for example, but not limited to, wireless network cards or proximity card readers.
Modular component notice
This product may contain the following modular component(s):
Lexmark Regulatory Type/Model LEX-M04-001; FCC ID: IYLLEXM04001; Industry Canada IC: 2376A-M04001
Exposure to radio frequency radiation
The radiated output power of this device is far below the radio frequency exposure limits of the FCC and other
regulatory agencies. A minimum separation of 20 cm (8 inches) must be maintained between the antenna and
any persons for this device to satisfy the RF exposure requirements of the FCC and other regulatory agencies.
Notice to users in Brazil
Este equipamento opera em carater secundario, isto e, nao tem direito a protecao contra interferencia
prejudicial, mesmo de estacoes do mesmo tipo, e nao pode causar interferencia a sistemas operando em
carater primario. (Res.ANATEL 282/2001).
Industry Canada (Canada)
This device complies with Industry Canada specification RSS-210. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
This device has been designed to operate only with the antenna provided. Use of any other antenna is strictly
prohibited per regulations of Industry Canada.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away
from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not
emit RF fields in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada's Web site www.hc-sc.gc.ca/rpb.
The term "IC:" before the certification/registration number only signifies that the Industry Canada technical
specifications were met.
Industry Canada (Canada)
Cet appareil est conforme à la norme RSS-210 d'Industry Canada. Son fonctionnement est soumis aux deux
conditions suivantes :
(1) cet appareil ne doit pas provoquer d'interférences et (2) il doit accepter toute interférence reçue, y compris
celles risquant d'altérer son fonctionnement.
Notices 205
Cet appareil a été conçu pour fonctionner uniquement avec l'antenne fournie. L'utilisation de toute autre
antenne est strictement interdite par la réglementation d'Industry Canada.
En application des réglementations d'Industry Canada, l'utilisation d'une antenne de gain supérieur est
strictement interdite.
Pour empêcher toute interférence radio au service faisant l'objet d'une licence, cet appareil doit être utilisé à
l'intérieur et loin des fenêtres afin de garantir une protection optimale.
Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence.
L'installateur de cet équipement radio doit veiller à ce que l'antenne soit implantée et dirigée de manière à
n'émettre aucun champ HF dépassant les limites fixées pour l'ensemble de la population par Santé Canada.
Reportez-vous au Code de sécurité 6 que vous pouvez consulter sur le site Web de Santé Canada www.hc-
sc.gc.ca/rpb.
Le terme « IC » précédant le numéro de d'accréditation/inscription signifie simplement que le produit est
conforme aux spécifications techniques d'Industry Canada.
Taiwan NCC RF notice statement
Notice to users in the European Union
Products bearing the CE mark are in conformity with the protection requirements of EC Council directives
2004/108/EC, 2006/95/EC, and 1999/5/EC on the approximation and harmonization of the laws of the Member
States relating to electromagnetic compatibility, safety of electrical equipment designed for use within certain
voltage limits and on radio equipment and telecommunications terminal equipment.
Compliance is indicated by the CE marking.
A declaration of conformity with the requirements of the directives is available from the Director of
Manufacturing and Technical Support, Lexmark International, S. A., Boigny, France. Refer to the table at the end
of the Notices section for further compliance information.
Products equipped with 2.4GHz Wireless LAN option are in conformity with the protection requirements of EC
Council directives 2004/108/EC, 2006/95/EC, and 1999/5/EC on the approximation and harmonization of the
laws of the Member States relating to electromagnetic compatibility, safety of electrical equipment designed
for use within certain voltage limits and on radio equipment and telecommunications terminal equipment.
Notices 206
Compliance is indicated by the CE marking.
Operation is allowed in all EU and EFTA countries, but is restricted to indoor use only.
A declaration of conformity with the requirements of the directives is available from the Director of
Manufacturing and Technical Support, Lexmark International, S. A., Boigny, France. Refer to the table at the end
of the Notices section for further compliance information.
Česky Společnost Lexmark International, Inc. tímto prohlašuje, že výrobek tento výrobek je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk Lexmark International, Inc. erklærer herved, at dette produkt overholder de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/EF.
Deutsch Hiermit erklärt Lexmark International, Inc., dass sich das Gerät dieses Gerät in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie
1999/5/EG
befindet.
Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Η LEXMARK INTERNATIONAL, INC. ΔΗΛΩΝΕΙ ΟΤΙ ΑΥΤΟ ΤΟ ΠΡΟΪΟΝ
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ
ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
English Hereby, Lexmark International, Inc., declares that this type of equipment is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español Por medio de la presente, Lexmark International, Inc. declara que este producto cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
Eesti Käesolevaga kinnitab Lexmark International, Inc., et seade see toode vastab direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele muudele asjakohastele sätetele.
Suomi Lexmark International, Inc. vakuuttaa täten, että tämä tuote on direktiivin 1999/5/EY oleellisten
vaatimusten ja muiden sitä koskevien direktiivin ehtojen mukainen.
Français Par la présente, Lexmark International, Inc. déclare que l'appareil ce produit est conforme aux
exigences fondamentales et autres dispositions pertinentes de la directive 1999/5/CE.
Magyar Alulírott, Lexmark International, Inc. nyilatkozom, hogy a termék megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska Hér með lýsir Lexmark International, Inc. yfir því að þessi vara er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Italiano Con la presente Lexmark International, Inc. dichiara che questo questo prodotto è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski Ar šo Lexmark International, Inc. deklarē, ka šis izstrādājums atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių Šiuo Lexmark International, Inc. deklaruoja, kad šis produktas atitinka esminius reikalavimus ir kitas
1999/5/EB direktyvos nuostatas.
Malti Bil-preżenti, Lexmark International, Inc., jiddikjara li dan il-prodott huwa konformi mal-ħtiġijiet
essenzjali u ma dispożizzjonijiet oħrajn relevanti li jinsabu fid-Direttiva 1999/5/KE.
Nederlands Hierbij verklaart Lexmark International, Inc. dat het toestel dit product in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Notices 207
Norsk Lexmark International, Inc. erklærer herved at dette produktet er i samsvar med de grunnleggende
krav og øvrige relevante krav i direktiv 1999/5/EF.
Polski Niniejszym Lexmark International, Inc. oświadcza, że niniejszy produkt jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português A Lexmark International Inc. declara que este este produto está conforme com os requisitos essenciais
e outras disposições da Diretiva 1999/5/CE.
Slovensky Lexmark International, Inc. týmto vyhlasuje, že tento produkt spĺňa základné požiadavky a všetky
príslušné ustanovenia smernice 1999/5/ES.
Slovensko Lexmark International, Inc. izjavlja, da je ta izdelek v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Svenska Härmed intygar Lexmark International, Inc. att denna produkt står i överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Statement of Limited Warranty
Lexmark T650, T652, T654
Lexmark International, Inc., Lexington, KY
This limited warranty applies to the United States and Canada. For customers outside the U.S., refer to the
country-specific warranty information that came with your product.
This limited warranty applies to this product only if it was originally purchased for your use, and not for resale,
from Lexmark or a Lexmark Remarketer, referred to in this statement as “Remarketer.”
Limited warranty
Lexmark warrants that this product:
—Is manufactured from new parts, or new and serviceable used parts, which perform like new parts
—Is, during normal use, free from defects in material and workmanship
If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for
repair or replacement (at Lexmark's option).
If this product is a feature or option, this statement applies only when that feature or option is used with the
product for which it was intended. To obtain warranty service, you may be required to present the feature or
option with the product.
If you transfer this product to another user, warranty service under the terms of this statement is available to
that user for the remainder of the warranty period. You should transfer proof of original purchase and this
statement to that user.
Limited warranty service
The warranty period starts on the date of original purchase as shown on the purchase receipt and ends 12
months later provided that the warranty period for any supplies and for any maintenance items included with
the printer shall end earlier if it, or its original contents, are substantially used up, depleted, or consumed.
To obtain warranty service you may be required to present proof of original purchase. You may be required to
deliver your product to the Remarketer or Lexmark, or ship it prepaid and suitably packaged to a Lexmark
Notices 208
designated location. You are responsible for loss of, or damage to, a product in transit to the Remarketer or the
Lexmark designated location.
When warranty service involves the exchange of a product or part, the item replaced becomes the property of
the Remarketer or Lexmark. The replacement may be a new or repaired item.
The replacement item assumes the remaining warranty period of the original product.
Replacement is not available to you if the product you present for exchange is defaced, altered, in need of a
repair not included in warranty service, damaged beyond repair, or if the product is not free of all legal
obligations, restrictions, liens, and encumbrances.
Before you present this product for warranty service, remove all print cartridges, programs, data, and removable
storage media (unless directed otherwise by Lexmark).
For further explanation of your warranty alternatives and the nearest Lexmark authorized servicer in your area
contact Lexmark on the World Wide Web at
www.lexmark.com/support.
Remote technical support is provided for this product throughout its warranty period. For products no longer
covered by a Lexmark warranty, technical support may not be available or only be available for a fee.
Extent of limited warranty
Lexmark does not warrant uninterrupted or error-free operation of any product or the durability or longevity of
prints produced by any product.
Warranty service does not include repair of failures caused by:
—Modification or unauthorized attachments
—Accidents, misuse, abuse or use inconsistent with Lexmark user’s guides, manuals, instructions or guidance
—Unsuitable physical or operating environment
—Maintenance by anyone other than Lexmark or a Lexmark authorized servicer
—Operation of a product beyond the limit of its duty cycle
—Use of printing media outside of Lexmark specifications
—Refurbishment, repair, refilling or remanufacture by a third party of products, supplies or parts
—Products, supplies, parts, materials (such as toners and inks), software, or interfaces not furnished by Lexmark
TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER LEXMARK NOR ITS THIRD PARTY SUPPLIERS
OR REMARKETERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS
OR IMPLIED, WITH RESPECT TO THIS PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND
SATISFACTORY QUALITY. ANY WARRANTIES THAT MAY NOT BE DISCLAIMED UNDER APPLICABLE LAW
ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES, EXPRESS OR IMPLIED, WILL
APPLY AFTER THIS PERIOD. ALL INFORMATION, SPECIFICATIONS, PRICES, AND SERVICES ARE SUBJECT
TO CHANGE AT ANY TIME WITHOUT NOTICE.
Limitation of liability
Your sole remedy under this limited warranty is set forth in this document. For any claim concerning performance
or nonperformance of Lexmark or a Remarketer for this product under this limited warranty, you may recover
actual damages up to the limit set forth in the following paragraph.
Notices 209
Lexmark's liability for actual damages from any cause whatsoever will be limited to the amount you paid for the
product that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or
damage to real property or tangible personal property for which Lexmark is legally liable. IN NO EVENT WILL
LEXMARK BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, INCIDENTAL DAMAGE, OR OTHER
ECONOMIC OR CONSEQUENTIAL DAMAGES. This is true even if you advise Lexmark or a Remarketer of the
possibility of such damages. Lexmark is not liable for any claim by you based on a third party claim.
This limitation of remedies also applies to claims against any Suppliers and Remarketers of Lexmark. Lexmark's
and its Suppliers' and Remarketers' limitations of remedies are not cumulative. Such Suppliers and Remarketers
are intended beneficiaries of this limitation.
Additional rights
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or
limitation of incidental or consequential damages, so the limitations or exclusions contained above may not
apply to you.
This limited warranty gives you specific legal rights. You may also have other rights that vary from state to state.
LEXMARK SOFTWARE LIMITED WARRANTY AND LICENSE AGREEMENT
PLEASE READ CAREFULLY BEFORE USING THIS PRODUCT: BY USING THIS PRODUCT, YOU AGREE TO BE
BOUND BY ALL THE TERMS AND CONDITIONS OF THIS SOFTWARE LIMITED WARRANTY AND LICENSE
AGREEMENT. IF YOU DO NOT AGREE WITH THE TERMS OF THIS SOFTWARE LIMITED WARRANTY AND
LICENSE AGREEMENT, PROMPTLY RETURN THE PRODUCT UNUSED AND REQUEST A REFUND OF THE
AMOUNT YOU PAID. IF YOU ARE INSTALLING THIS PRODUCT FOR USE BY OTHER PARTIES, YOU AGREE TO
INFORM THE USERS THAT USE OF THE PRODUCT INDICATES ACCEPTANCE OF THESE TERMS.
LEXMARK SOFTWARE LICENSE AGREEMENT
This License Agreement (“Software License Agreement”) is a legal agreement between you (either an individual
or a single entity) and Lexmark International, Inc. (“Lexmark”) that, to the extent your Lexmark product or
Software Program is not otherwise subject to a written software license agreement between you and Lexmark
or its suppliers, governs your use of any Software Program installed on or provided by Lexmark for use in
connection with your Lexmark product. The term “Software Program” includes machine-readable instructions,
audio/visual content (such as images and recordings), and associated media, printed materials and electronic
documentation, whether incorporated into, distributed with or for use with your Lexmark product.
1 STATEMENT OF SOFTWARE LIMITED WARRANTY. Lexmark warrants that the media (e.g., diskette or
compact disk) on which the Software Program (if any) is furnished is free from defects in materials and
workmanship under normal use during the warranty period. The warranty period is ninety (90) days and
commences on the date the Software Program is delivered to the original end-user. This limited warranty
applies only to Software Program media purchased new from Lexmark or an Authorized Lexmark Reseller
or Distributor. Lexmark will replace the Software Program should it be determined that the media does not
conform to this limited warranty.
2 DISCLAIMER AND LIMITATION OF WARRANTIES. EXCEPT AS PROVIDED IN THIS SOFTWARE LICENSE
AGREEMENT AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, LEXMARK AND ITS
SUPPLIERS PROVIDE THE SOFTWARE PROGRAM "AS IS" AND HEREBY DISCLAIM ALL OTHER
WARRANTIES AND CONDITIONS, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, TITLE,
NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND ABSENCE
OF VIRUSES, ALL WITH REGARD TO THE SOFTWARE PROGRAM. TO THE EXTENT LEXMARK CANNOT
BY LAW DISCLAIM ANY COMPONENT OF THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
Notices 210
FOR A PARTICULAR PURPOSE, LEXMARK LIMITS THE DURATION OF SUCH WARRANTIES TO THE 90-
DAY TERM OF THE EXPRESS SOFTWARE LIMITED WARRANTY.
This Agreement is to be read in conjunction with certain statutory provisions, as that may be in force from
time to time, that imply warranties or conditions or impose obligations on Lexmark that cannot be excluded
or modified. If any such provisions apply, then to the extent Lexmark is able, Lexmark hereby limits its liability
for breach of those provisions to one of the following: providing you a replacement copy of the Software
Program or reimbursement of the price paid for the Software Program.
The Software Program may include internet links to other software applications and/or internet web pages
hosted and operated by third parties
unaliated
with Lexmark. You acknowledge and agree that Lexmark
is not responsible in any way for the hosting, performance, operation, maintenance, or content of, such
software applications and/or internet web pages.
3 LIMITATION OF REMEDY. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ANY AND ALL
LIABILITY OF LEXMARK UNDER THIS SOFTWARE LICENSE AGREEMENT IS EXPRESSLY LIMITED TO THE
GREATER OF THE PRICE PAID FOR THE SOFTWARE PROGRAM AND FIVE U.S. DOLLARS (OR THE
EQUIVALENT IN LOCAL CURRENCY). YOUR SOLE REMEDY AGAINST LEXMARK IN ANY DISPUTE UNDER
THIS SOFTWARE LICENSE AGREEMENT SHALL BE TO SEEK TO RECOVER ONE OF THESE AMOUNTS,
UPON PAYMENT OF WHICH LEXMARK SHALL BE RELEASED AND DISCHARGED OF ALL FURTHER
OBLIGATIONS AND LIABILITY TO YOU.
IN NO EVENT WILL LEXMARK, ITS SUPPLIERS, SUBSIDIARIES, OR RESELLERS BE LIABLE FOR ANY
SPECIAL, INCIDENTAL, INDIRECT, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT NOT LIMITED TO LOST PROFITS OR REVENUES, LOST SAVINGS, INTERRUPTION OF USE OR ANY
LOSS OF, INACCURACY IN, OR DAMAGE TO, DATA OR RECORDS, FOR CLAIMS OF THIRD PARTIES, OR
DAMAGE TO REAL OR TANGIBLE PROPERTY, FOR LOSS OF PRIVACY ARISING OUT OR IN ANY WAY
RELATED TO THE USE OF OR INABILITY TO USE THE SOFTWARE PROGRAM, OR OTHERWISE IN
CONNECTION WITH ANY PROVISION OF THIS SOFTWARE LICENSE AGREEMENT), REGARDLESS OF THE
NATURE OF THE CLAIM, INCLUDING BUT NOT LIMITED TO BREACH OF WARRANTY OR CONTRACT, TORT
(INCLUDING NEGLIGENCE OR STRICT LIABILITY), AND EVEN IF LEXMARK, OR ITS SUPPLIERS, AFFILIATES,
OR REMARKETERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM
BY YOU BASED ON A THIRD-PARTY CLAIM, EXCEPT TO THE EXTENT THIS EXCLUSION OF DAMAGES IS
DETERMINED LEGALLY INVALID. THE FOREGOING LIMITATIONS APPLY EVEN IF THE ABOVE-STATED
REMEDIES FAIL OF THEIR ESSENTIAL PURPOSE.
4 U.S.A. STATE LAWS. This Software Limited Warranty gives you specific legal rights. You may also have other
rights that vary from state to state. Some states do not allow limitations on how long an implied warranty
lasts or the exclusion of limitation of incidental or consequential damages, so the above limitations may not
apply to you.
5 LICENSE GRANT. Lexmark grants you the following rights provided you comply with all terms and conditions
of this License Agreement:
a Use. You may Use one (1) copy of the Software Program. The term “Use” means storing, loading, installing,
executing, or displaying the Software Program. If Lexmark has licensed the Software Program to you for
concurrent use, you must limit the number of authorized users to the number specified in your agreement
with Lexmark. You may not separate the components of the Software Program for use on more than one
computer. You agree that you will not Use the Software Program, in whole or in part, in any manner that
has the
eect
of overriding, modifying, eliminating, obscuring, altering or de-emphasizing the visual
appearance of any trademark, trade name, trade dress or intellectual property notice that appears on
any computer display screens normally generated by, or as a result of, the Software Program.
b Copying. You may make one (1) copy of the Software Program solely for purposes of backup, archiving,
or installation, provided the copy contains all of the original Software Program’s proprietary notices. You
may not copy the Software Program to any public or distributed network.
Notices 211
c Reservation of Rights. The Software Program, including all fonts, is copyrighted and owned by Lexmark
International, Inc. and/or its suppliers. Lexmark reserves all rights not expressly granted to you in this
License Agreement.
d Freeware. Notwithstanding the terms and conditions of this License Agreement, all or any portion of the
Software Program that constitutes software provided under public license by third parties (“Freeware”)
is licensed to you subject to the terms and conditions of the software license agreement accompanying
such Freeware, whether in the form of a discrete agreement, shrink-wrap license, or electronic license
terms at the time of download. Use of the Freeware by you shall be governed entirely by the terms and
conditions of such license.
6 TRANSFER. You may transfer the Software Program to another end-user. Any transfer must include all
software components, media, printed materials, and this License Agreement and you may not retain copies
of the Software Program or components thereof. The transfer may not be an indirect transfer, such as a
consignment. Prior to the transfer, the end-user receiving the transferred Software Program must agree to
all these License Agreement terms. Upon transfer of the Software Program, your license is automatically
terminated. You may not rent, sublicense, or assign the Software Program except to the extent provided in
this License Agreement, and any attempt to do so shall be void.
7 UPGRADES. To Use a Software Program identified as an upgrade, you must first be licensed to the original
Software Program identified by Lexmark as eligible for the upgrade. After upgrading, you may no longer
use the original Software Program that formed the basis for your upgrade eligibility.
8 LIMITATION ON REVERSE ENGINEERING. You may not alter, decrypt, reverse engineer, reverse assemble,
reverse compile or otherwise translate the Software Program, except as and to the extent expressly
permitted to do so by applicable law for the purposes of inter-operability, error correction, and security
testing. If you have such statutory rights, you will notify Lexmark in writing of any intended reverse
engineering, reverse assembly, or reverse compilation. You may not decrypt the Software Program unless
necessary for the legitimate Use of the Software Program.
9 ADDITIONAL SOFTWARE. This License Agreement applies to updates or supplements to the original
Software Program provided by Lexmark unless Lexmark provides other terms along with the update or
supplement.
10 TERM. This License Agreement is eective unless terminated or rejected. You may reject or terminate this
license at any time by destroying all copies of the Software Program, together with all modifications,
documentation, and merged portions in any form, or as otherwise described herein. Lexmark may terminate
your license upon notice if you fail to comply with any of the terms of this License Agreement. Upon such
termination, you agree to destroy all copies of the Software Program together with all modifications,
documentation, and merged portions in any form.
11 TAXES. You agree that you are responsible for payment of any taxes including, without limitation, any goods
and services and personal property taxes, resulting from this Agreement or your Use of the Software
Program.
12 LIMITATION ON ACTIONS. No action, regardless of form, arising out of this Agreement may be brought by
either party more than two years after the cause of action has arisen, except as provided under applicable
law.
13 APPLICABLE LAW. This Agreement is governed by the laws of the Commonwealth of Kentucky, United
States of America. No choice of law rules in any jurisdiction shall apply. The UN Convention on Contracts
for the International Sale of Goods shall not apply.
14 UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The Software Program has been developed
entirely at private expense. Rights of the United States Government to use the Software Program is as set
forth in this Agreement and as restricted in DFARS 252.227-7014 and in similar FAR provisions (or any
equivalent agency regulation or contract clause).
15 CONSENT TO USE OF DATA. You agree that Lexmark, its aliates, and agents may collect and use
information you provide in relation to support services performed with respect to the Software Program and
Notices 212
requested by you. Lexmark agrees not to use this information in a form that personally identifies you except
to the extent necessary to provide such services.
16 EXPORT RESTRICTIONS. You may not (a) acquire, ship, transfer, or reexport, directly or indirectly, the
Software Program or any direct product therefrom, in violation of any applicable export laws or (b) permit
the Software Program to be used for any purpose prohibited by such export laws, including, without
limitation, nuclear, chemical, or biological weapons proliferation.
17 AGREEMENT TO CONTRACT ELECTRONICALLY. You and Lexmark agree to form this License Agreement
electronically. This means that when you click the “Agree” or “Yes” button on this page or use this product,
you acknowledge your agreement to these License Agreement terms and conditions and that you are doing
so with the intent to “sign” a contract with Lexmark.
18 CAPACITY AND AUTHORITY TO CONTRACT. You represent that you are of the legal age of majority in
the place you sign this License Agreement and, if applicable, you are duly authorized by your employer or
principal to enter into this contract.
19 ENTIRE AGREEMENT. This License Agreement (including any addendum or amendment to this License
Agreement that is included with the Software Program) is the entire agreement between you and Lexmark
relating to the Software Program. Except as otherwise provided for herein, these terms and conditions
supersede all prior or contemporaneous oral or written communications, proposals, and representations
with respect to the Software Program or any other subject matter covered by this License Agreement (except
to the extent such extraneous terms do not conflict with the terms of this License Agreement, any other
written agreement signed by you and Lexmark relating to your Use of the Software Program). To the extent
any Lexmark policies or programs for support services
conflict
with the terms of this License Agreement,
the terms of this License Agreement shall control.
ADOBE SYSTEMS INCORPORATED NOTICE
Contains Flash®, Flash® Lite™ and/or Reader® technology by Adobe Systems Incorporated
This Product contains Adobe® Flash® player software under license from Adobe Systems Incorporated,
Copyright © 1995-2007 Adobe Macromedia Software LLC. All rights reserved. Adobe, Reader and Flash are
trademarks of Adobe Systems Incorporated.
Notices 213
Index
Numerics
1565 Emulation error, load
emulation option 168
2000‑sheet tray
loading 56
200–282 Paper jam 168
250‑sheet tray (standard or
optional)
loading 52
281 paper jam 92
282 paper jam 92
30 Invalid refill, change
cartridge 161
31 Replace defective
cartridge 161
32 Cartridge part number
unsupported by device 161
34 Short paper 161
35
Insucient
memory to support
Resource Save feature 162
37 Insucient memory for Flash
Memory Defragment
operation 162
37 Insucient memory to collate
job 162
37
Insucient
memory, some
held jobs deleted 162
37 Insucient memory, some
held jobs will not be
restored 162
38 Memory full 162
39 Complex page, some data
may not have printed 163
42.xy Cartridge region
mismatch 163
50 PPDS font error 163
51 Defective
flash
detected 163
52 Not enough free space in
flash memory for resources 163
53 Unformatted flash
detected 164
54 Network <x> software
error 164
54 Serial option <x> error 164
54 Standard network software
error 164
55 Unsupported option in
slot 164
550‑sheet tray (standard or
optional)
loading 52
56 Parallel port <x> disabled 165
56 Serial port <x> disabled 165
56 Standard parallel port
disabled 165
56 Standard USB port
disabled 165
57 Configuration change, some
held jobs were not restored 165
58 Too many bins attached 166
58 Too many disks installed 166
58 Too many flash options
installed 166
58 Too many trays attached 166
59 Incompatible Duplex 167
59 Incompatible envelope
feeder 167
59 Incompatible output bin
<x> 167
59 Incompatible tray <x> 167
61 Remove defective hard
disk 167
62 Disk full 168
80 Routine maintenance
needed 168
88 Cartridge low 168
88.yy Cartridge nearly low 168
88.yy Replace cartridge 168
Symbols
[PJL RDYMSG] 154
A
Activating Menu Changes 147
Active NIC menu 109
AppleTalk menu 114
attaching cables 36
B
Bin Setup menu 107
Busy 147
C
cables
Ethernet 36
USB 36
calling Customer Support 197
Cancel not available 147
Canceling 147
canceling a job
from Macintosh 80
from the printer control
panel 80
from Windows 80
card stock
loading 59
tips on using 75
cartridges, print
ordering 170
Change <src> to <x> 147
charge rolls
ordering 172
Check duplex connection 147
Check tray <x> connection 148
checking an unresponsive
printer 178
checking device status
on Embedded Web Server 175
cleaning
exterior of the printer 169
Clearing job accounting
statistics 148
Close door or insert
cartridge 148
Close finisher side door 148
Confidential
print jobs 76
printing for Macintosh users 76
printing for Windows users 76
Confidential Print menu 125
configuration
information
wireless network 39
configurations
printer 11
Configure
MP menu 99
configuring
port settings 47
conserving supplies 169
contacting Customer
Support 197
control panel, printer 14
Custom Type <x>
changing name 64
Custom Types menu 106
Index 214
D
Default Source menu 96
Defragmenting Flash 149
Deleting 149
Deleting held jobs 149
Deletion complete 149
Deletion failed 149
directory list
printing 79
Disabling DLEs 149
Disabling Menus 149
Disk Corrupted 149
Disk recovery x/y XX% 149
Disk Wiping menu 125
display troubleshooting
display is blank 178
display shows only
diamonds 178
display, printer control panel 14
documents, printing
from Macintosh 73
from Windows 73
drawers, paper
installing 33
duplex unit
installing 34
E
Embedded Web Server 175
administrator settings 175
checking device status 175
does not open 178
networking settings 175
setting up e‑mail alerts 175
Embedded Web Server
Administrator's Guide 175
emission
notices 200, 201, 204, 205, 206
Enabling Menus 150
Encrypting disk x/y XX% 150
Enter PIN 150
Envelope Enhance 100
envelopes
loading 59, 62
tips on using 74
Error reading USB drive 150
Ethernet networking
Macintosh 44
Windows 44
Ethernet port 36
exit bins
linking 64
exterior of the printer
cleaning 169
e‑mail
notice of low supply level 175
notice of paper jam 175
notice of paper needed 175
notice that dierent paper is
needed 175
F
factory defaults, restoring 177
FCC notices 200, 205
fiber optic
network setup 44
finding information
customer support 10
publications 10
Finishing menu 134
firmware card
installing 20
flash drive 78
Flash Drive menu 144
flash
memory card
installing 20
troubleshooting 185
Flushing buer 150
font sample list
printing 79
Formatting Disk x/y XX% 150
Formatting Flash 150
fuser
ordering 172
fuser wiper
ordering 172
G
General Settings menu 128
guidelines
card stock 75
envelopes 74
labels 75
letterhead 73
transparencies 74
H
hard disk with adapter
troubleshooting 185
held jobs 76
printing for Macintosh users 76
printing for Windows users 76
Help menu 145
Hex Trace ready 150
HTML menu 142
I
Image menu 143
Insert staple cartridge 151
Insert Tray <x> 151
Install bin <x> 151
Install duplex 151
Install envelope feeder 151
Install MICR Cartridge 152
Install tray <x> 152
installation
wireless network 40, 41
installing
options in driver 38
printer software 38
installing options
order of installation 33
installing printer software
adding options 38
Internal Solutions Port
installing 22
troubleshooting 185
Internal Solutions Port, network
changing port settings 47
Invalid Engine Code 152
Invalid Network Code 152
Invalid PIN 152
IPv6 menu 113
J
jams
avoiding 82
locating jam areas 83
locations 83
numbers 83
jams, clearing
200 83
201 83
202 and 203 84
230 85
231–239 (optional duplex) 87
241–245 89
250 89
260 90
271–279 91
280 paper jams 91
283 staple jam 93
Index 215
stapler 93
L
labels
tips on using 75
letterhead
loading, 2000‑sheet tray 56
loading, multipurpose
feeder 59
loading, trays 52
tips on using 73
LexLink menu 115
linking
exit bins 64
linking trays 63
Load <src> with <x> 153
Load manual feeder with <x> 152
Load staples 153
loading
2000‑sheet tray 56
250‑sheet tray (standard or
optional) 52
550‑sheet tray (standard or
optional) 52
card stock 59
envelopes 59, 62
letterhead in 2000‑sheet
tray 56
letterhead in multipurpose
feeder 59
letterhead in trays 52
multipurpose feeder 59
transparencies 59
M
Macintosh
wireless network installation 41
maintenance kit
ordering 172
memory card
installing 19
troubleshooting 185
Menu access turned
o
by
system administrator 153
menu settings page
printing 37
menus
Active NIC 109
AppleTalk 114
Bin Setup 107
Confidential
Print 125
Configure MP 99
Custom Types 106
Default Source 96
diagram of 95
Disk Wiping 125
Envelope Enhance 100
Finishing 134
Flash Drive 144
General Settings 128
Help 145
HTML 142
Image 143
IPv6 113
LexLink 115
Miscellaneous 124
NetWare 114
Network <x> 109
Network Card 111
Network Reports 111
Paper Loading 104
Paper Size/Type 96
Paper Texture 100
Paper Weight 102
Parallel <x> menu 117
PCL Emul 139
PDF 139
PostScript 139
Quality 136
Reports 108
Security Audit Log 127
Serial <x> 119
Set Date/Time 127
Setup 132
SMTP Setup menu 122
Standard Network 109
Standard USB 116
Substitute Size 100
TCP/IP 112
Universal Setup 106
Utilities 137
Wireless 113
XPS 138
Menus are Disabled 153
Miscellaneous menu 124
moving the printer 173, 174
multipurpose feeder
loading 59
Must be in Ready state to enter
menus 153
N
NetWare menu 114
Network 153
Network <x> 153
Network <x> menu 109
Network <x>, <y> 153
Network Card menu 111
Network Reports menu 111
network setup page
printing 37
Networking Guide 175
No held jobs 154
No jobs found 154
No jobs to cancel 154
No recognized file types 154
noise emission levels 201
Not Ready 154
notices 199, 200, 201, 202, 203,
204, 205, 206
O
options
duplex unit 34
fax card 16
firmware card 20
firmware cards 16
flash
memory card 20
internal 16
Internal Solutions Port 22
memory card 19
memory cards 16
networking 16
paper drawers 33
ports 16
printer hard disk 29
ordering
charge rolls 172
fuser 172
fuser wiper 172
maintenance kit 172
pick rollers 173
print cartridges 170
staple cartridges 173
transfer roller 173
Overflow bin full 154
P
paper
characteristics 66
letterhead 67
preprinted forms 67
recycled 68
selecting 67
Index 216
selecting weight 102
setting size 51
setting type 51
storing 69
unacceptable 67
Universal Paper Size 106
Universal size setting 51
paper drawers
installing 33
paper feed troubleshooting
message remains after jam is
cleared 186
page that jammed does not
reprint 186
paper jams
avoiding 82
Paper Loading menu 104
Paper Size/Type menu 96
paper sizes
supported by the printer 69
Paper Texture menu 100
paper types
supported by output bins 72
Paper Weight menu 102
paper weights
supported by output bins 72
Parallel 154
Parallel <x> 154
Parallel <x> menu 117
PCL Emul menu 139
PDF menu 139
pick rollers
ordering 173
port settings
configuring 47
PostScript menu 139
Power Saver 155
adjusting 176
print cartridges
ordering 170
print job
canceling from Macintosh 80
canceling from the printer
control panel 80
canceling from Windows 80
print quality test pages
printing 79
print quality troubleshooting
blank pages 187
clipped images 187
ghost images 187
gray background 188
poor transparency quality 196
print irregularities 189
print is too dark 190
print is too light 191
print quality test pages 186
repeating defects 192
skewed print 192
solid black streaks 193
solid color pages 193
solid white streaks 193
streaked horizontal lines 194
streaked vertical lines 194
toner fog or background
shading 195
toner rubs o 195
toner specks 196
print troubleshooting
error reading USB drive 179
held jobs do not print 180
incorrect characters print 181
incorrect margins 188
job prints from wrong tray 181
job prints on wrong paper 181
job takes longer than
expected 180
jobs do not print 179
Large jobs do not collate 181
multiple‑language PDFs do not
print 179
paper curl 189
paper frequently jams 185
tray linking does not work 181
unexpected page breaks
occur 182
printer
configurations 11
minimum clearances 13
models 11
moving 173, 174
selecting a location 13
shipping 174
Printer busy, Continue, Quit 155
printer control panel 14
factory defaults, restoring 177
printer hard disk
installing 29
printer messages
1565 Emulation error, load
emulation option 168
200–282 Paper jam 168
281 paper jam 92
282 paper jam 92
30 Invalid refill, change
cartridge 161
31 Replace defective
cartridge 161
32 Cartridge part number
unsupported by device 161
34 Short paper 161
35 Insucient memory to
support Resource Save
feature 162
37 Insucient memory for Flash
Memory Defragment
operation 162
37 Insucient memory to
collate job 162
37 Insucient memory, some
held jobs deleted 162
37 Insucient memory, some
held jobs will not be
restored 162
38 Memory full 162
39 Complex page, some data
may not have printed 163
42.xy Cartridge region
mismatch 163
50 PPDS font error 163
51 Defective flash detected 163
52 Not enough free space in
flash memory for
resources 163
53 Unformatted flash
detected 164
54 Network <x> software
error 164
54 Serial option <x> error 164
54 Standard network software
error 164
55 Unsupported option in
slot 164
56 Parallel port <x>
disabled 165
56 Serial port <x> disabled 165
56 Standard parallel port
disabled 165
56 Standard USB port
disabled 165
57 Configuration change, some
held jobs were not
restored 165
58 Too many bins attached 166
58 Too many disks installed 166
Index 217
58 Too many flash options
installed 166
58 Too many trays attached 166
59 Incompatible Duplex 167
59 Incompatible envelope
feeder 167
59 Incompatible output bin
<x> 167
59 Incompatible tray <x> 167
61 Remove defective hard
disk 167
62 Disk full 168
80 Routine maintenance
needed 168
88 Cartridge low 168
88.yy Cartridge nearly low 168
88.yy Replace cartridge 168
[PJL RDYMSG] 154
Activating Menu Changes 147
Busy 147
Cancel not available 147
Canceling 147
Change <src> to <x> 147
Check duplex connection 147
Check tray <x> connection 148
Clearing job accounting
statistics 148
Close door or insert
cartridge 148
Close finisher side door 148
Defragmenting Flash 149
Deleting 149
Deleting held jobs 149
Deletion complete 149
Deletion failed 149
Disabling DLEs 149
Disabling Menus 149
Disk Corrupted 149
Disk recovery x/y XX% 149
Enabling Menus 150
Encrypting disk x/y XX% 150
Enter PIN 150
Error reading USB drive 150
Flushing buer 150
Formatting Disk x/y XX% 150
Formatting Flash 150
Hex Trace ready 150
Insert staple cartridge 151
Insert Tray <x> 151
Install bin <x> 151
Install duplex 151
Install envelope feeder 151
Install MICR Cartridge 152
Install tray <x> 152
Invalid Engine Code 152
Invalid Network Code 152
Invalid PIN 152
Load <src> with <x> 153
Load manual feeder with
<x> 152
Load staples 153
Maintenance 153
Menu access turned o by
system administrator 153
Menus are Disabled 153
Must be in Ready state to enter
menus 153
Network 153
Network <x> 153
Network <x>, <y> 153
No held jobs 154
No jobs found 154
No jobs to cancel 154
No recognized file types 154
Not Ready 154
Overflow bin full 154
Parallel 154
Parallel <x> 154
Power Saver 155
Printer busy, Continue, Quit 155
Printing 155
Printing from USB drive DO
NOT REMOVE 155
Programming disk 155
Programming flash 155
Reading USB drive 155
Ready 155
Reattach bin <x> 155
Reattach bin <x> – <y> 156
Reattach envelope feeder 156
Remote Management
Active 157
Remove packaging material,
check <x> 157
Remove paper from <linked bin
set name> 157
Remove paper from all bins 157
Remove paper from bin <x> 157
Remove paper from standard
output bin 157
Replace wiper 158
Resetting active bin 158
Resetting the printer 158
Resetting without replacing may
aect print quality. 158
Restore Held Jobs? 158
Restoring Factory Defaults 158
Restoring Held Jobs(s) x/y 158
Routine maintenance
needed 159
Securely clearing disk
space 159
Serial <x> 159
Some held jobs were lost 159
Standard Bin Full 159
Staples <x> empty or
misfed 159
Staples <x> low or missing 159
Submitting selection 159
Toner low 16 0
Too many failed panel
logins 159
Tray <x> Empty 160
Tray <x> Low 160
Tray <x> Missing 160
Unsupported disk 160
Unsupported USB device,
please remove 160
Unsupported USB hub, please
remove 160
USB drive removed 161
USB/USB <x> 160
View supplies 161
Waiting 161
printer options troubleshooting
2000‑sheet tray 183
5‑bin mailbox 184
duplex unit 184
envelope feeder 184
flash memory card 185
hard disk with adapter 185
high capacity output
expander 184
Internal Solutions Port 185
memory card 185
option not working 182
output expander 184
paper trays 183
StapleSmart finisher 184
printer problems, solving
basic 178
printer status
[PJL RDYMSG] 154
Hex Trace ready 150
not ready 154
Index 218
Printing 155
printing
directory list 79
font sample list 79
from flash drive 78
from Macintosh 73
from Windows 73
installing printer software 38
menu settings page 37
network setup page 37
print quality test pages 79
printing confidential and other
held jobs
for Macintosh users 76
for Windows users 76
Printing from USB drive DO NOT
REMOVE 155
Programming disk 155
Programming flash 155
Q
Quality menu 136
R
Reading USB drive 155
Ready 155
Reattach bin <x> 155
Reattach bin <x> – <y> 156
Reattach envelope feeder 156
recycled paper
using 68
recycling
Lexmark products 173
WEEE statement 201
Remote Management Active 157
Remove packaging material,
check <x> 157
Remove paper from <linked bin
set name> 157
Remove paper from all bins 157
Remove paper from bin <x> 157
Remove paper from standard
output bin 157
Repeat print jobs 76
printing for Macintosh users 76
printing for Windows users 76
Replace wiper 158
reports
viewing 176
Reports menu 108
Reserve print jobs 76
printing for Macintosh users 76
printing for Windows users 76
Resetting active bin 158
Resetting the printer 158
Resetting without replacing may
aect print quality. 158
Restore Held Jobs? 158
Restoring Factory Defaults 158
Restoring Held Jobs(s) x/y 158
Routine maintenance
needed 159
S
safety information 8, 9
Securely clearing disk space 159
Security Audit Log menu 127
Serial <x> 159
Serial <x> menu 119
serial port 49
serial printing
setting up 49
Set Date/Time menu 127
setting
paper size 51
paper type 51
TCP/IP address 112
Universal Paper Size 51
setting up
serial printing 49
setting up the printer
on a wired network
(Macintosh) 44
on a wired network
(Windows) 44
Setup menu 132
shipping the printer 174
SMTP Setup menu 122
Some held jobs were lost 159
Standard Bin Full 159
Standard Network menu 109
standard tray
loading 52
Standard USB menu 116
staple cartridges
ordering 173
Staples <x> empty or misfed 159
Staples <x> low or missing 159
status of supplies, checking 170
storing
paper 69
supplies 169
Submitting selection 159
Substitute Size menu 100
supplies
conserving 169
status of 170
storing 169
supplies, ordering
charge rolls 172
fuser 172
fuser wiper 172
maintenance kit 172
pick rollers 173
print cartridges 170
staple cartridges 173
transfer roller 173
system board
accessing 16
T
TCP/IP menu 112
Ton er l ow 1 60
Too many failed panel logins 159
transfer roller
ordering 173
transparencies
loading 59
tips on using 74
Tray <x> Empty 160
Tray <x> Low 160
Tray <x> Missing 160
tray linking 64
tray unlinking 64
trays
linking 63
unlinking 64
troubleshooting
checking an unresponsive
printer 178
contacting Customer
Support 197
