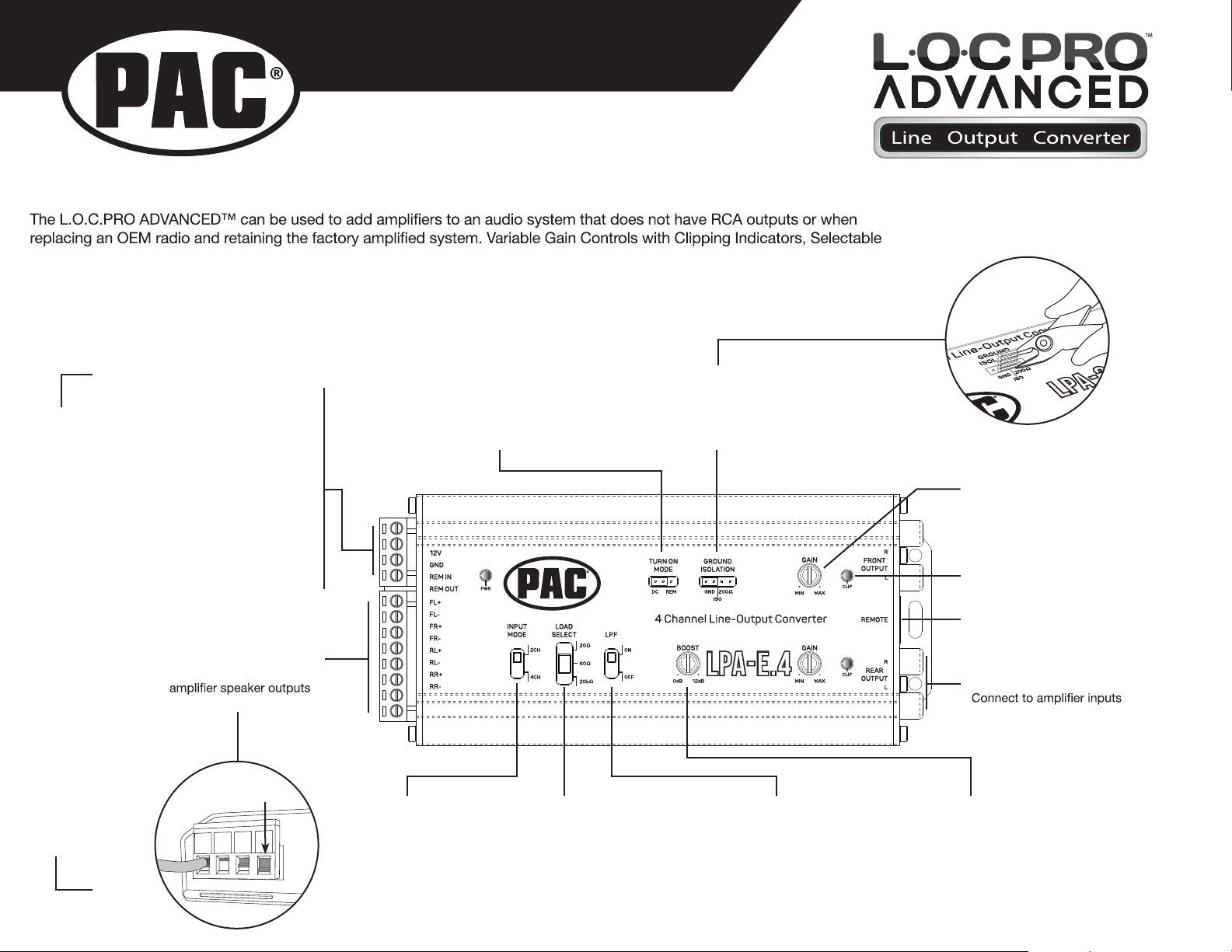

12V
Connect to a fused
+12V constant source
GND
Connect to a good
chassis ground
REM IN
Remote turn on input (+)
REM OUT
Remote turn on output (+)
The LPA will provide a
+12V Remote Output using
DC Signal Sense from the FR
and RR channel inputs
SPEAKER SIGNAL INPUTS
Connect to head unit or
Use FL and FR for 2CH mode
RCA SIGNAL OUTPUTS
GROUND ISOLATION
Selectable: GND / ISO / 200Ω
Default: ISO
If ground / engine noise is present,
the jumper can be repositioned
TURN ON MODE
Selectable: DC / REM
Default: DC
Select DC if using speaker inputs
for turn on, or REM if using REM IN
GAIN
Variable: -28dB -+ 1dB
Allows gain adjustment of
the output signal
LPF
Low Pass Filter
Allows 250Hz low pass
filter for Rear Channels
INPUT MODE
Selectable: 2CH / 4CH
Set to 2CH if only using FL
and FR inputs. Set to 4CH
if using all inputs
BOOST
Variable: 0dB — 12dB
When LPF is ON, provides
Bass Boost (45Hz) for
Rear Channels
CLIP
Indicates signal clipping when
gain is set to high
REMOTE
Remote Level Control Knob
(LPA-REM) for Rear Channels
LOAD SELECT
Selectable: 20Ω / 60Ω / 20KΩ
Default: 20KΩ
For factory audio systems
requiring a resistance load to
output audio, select 60Ω first,
then 20Ω. All others use 20kΩ
setting
LPA-E.4 | 4 Channel Line-Output Converter
Ground Isolation and Load Select features ensure a pure, noise-free signal for any type of audio system.
This Quick Start Guide will get you going, but if you need additional help or information, please visit our website or
contact Technical Support.
Features & Wiring Information
Quick Start Guide
X
FULLY OPEN TERMINALS
BEFORE INSERTING WIRE
JUMPERS CAN BE
TRIMMED FLUSH

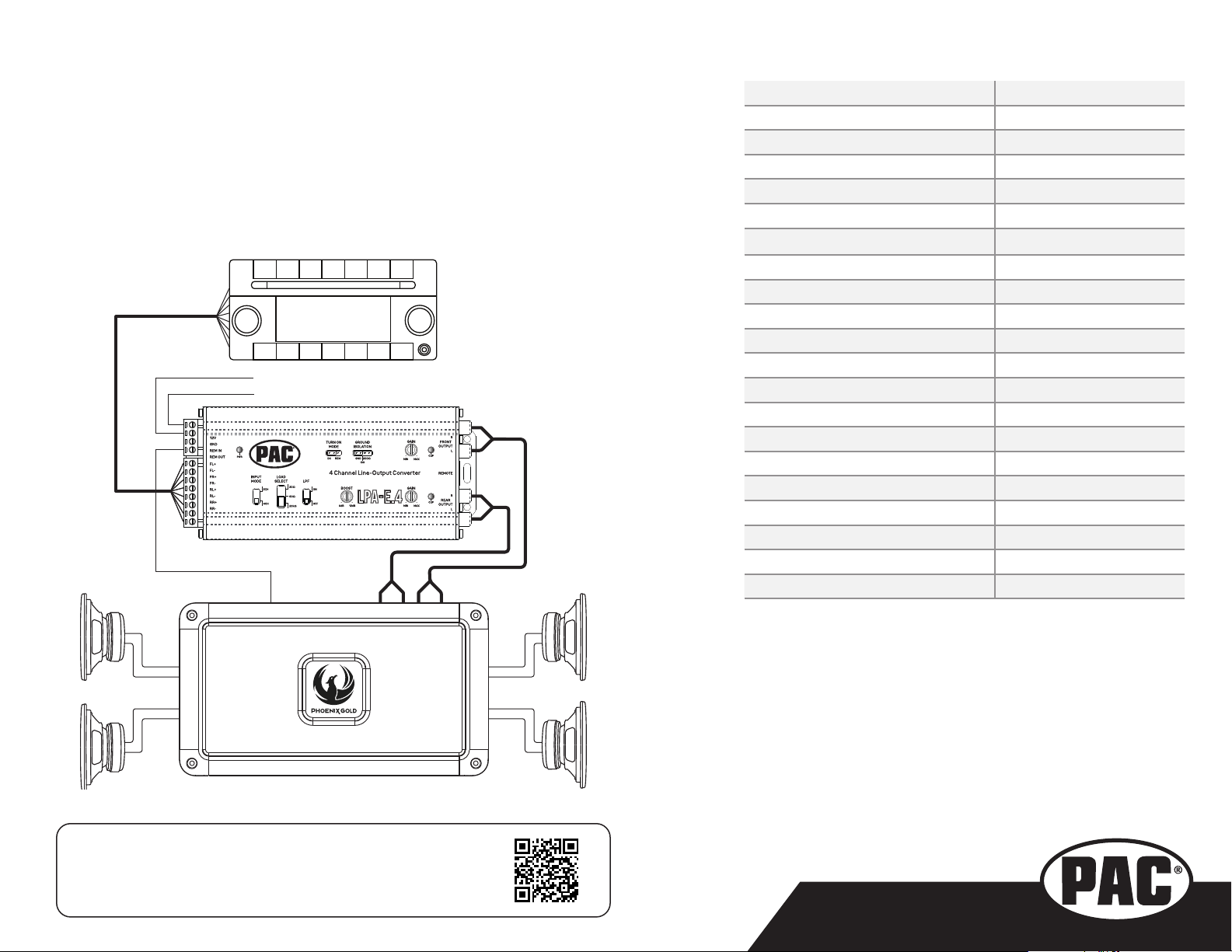

Speaker level input from a radio to RCA level output for an aftermarket amplier is the most com-
monly used conguration for the L.O.C.PRO ADVANCED. This will create RCA level outputs from a
radio that only has speaker level outputs.
In the example below, the 4 speaker outputs from the factory radio are disconnected from the
speakers and connected to the SPEAKER SIGNAL INPUTS of the LPA. The REM OUT is connected
to the ampliers turn-on. When the radio is turned on the LPA will automatically turn on the amplier.
The RCA SIGNAL OUTPUTS from the LPA are connected to the aftermarket ampliers inputs. The
speaker outputs from the aftermarket amplier are then connected to the speakers.
Model Number LPA-E.4
Channels
4 IN — 4 OUT
Operating Voltage
9V—16V
Max Input Level (20kHΩ Load Setting)
40V / 400W @ 4 ohms
Auto Turn On
DC Offset / Remote
Output Voltage MAX @ 13.8V
9.5V RMS
Turn On Trigger (DC-Offset)
3V—7V
Load Input Impedance
20Ω, 60Ω, 20KΩ
Output Impedance
<120Ω
Variable Gain Adjustment
-28dB—+1dB
Signal To Noise
>110dBA @ 6.4V Output
THD+N
< 0.01%
Input Sensitivity
0.5V—40V
Frequency Response
10Hz—20kHz
Current Draw (Max)
110mA
Low Pass Filter
<250Hz (Rear Channels)
Bass Boost
0dB to +12dB (Rear Channels)
Clip Indicator
YES
Remote Level Control
0dB—30dB
Chassis Type
Aluminum Extrusion
Terminal Gauge
18AWG / Quick Connect
OEM RADIO
CHASSIS GROUND (-)
12V CONSTANT POWER (+)
REMOTE AMP TURN-ON
