270 L
TM
Model No. 831.15907.0
Serial No.
Write the serial number in the
space above for reference.
t
Serial Number Decal
(under the seat)
• Assembly
• Operation
• Maintenance
• Part List and Drawing
Sears, Roebuck and Co.
Hoffman Estates, IL 60179
WEIGHT BENCH EXERCISER
User's Manual
TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 4
PART IDENTIFICATION CHART ............................................................... 5
ASSEMBLY ............................................................................... 6
ADJUSTMENT ............................................................................ 11
EXERCISE GUIDELINES ................................................................... 13

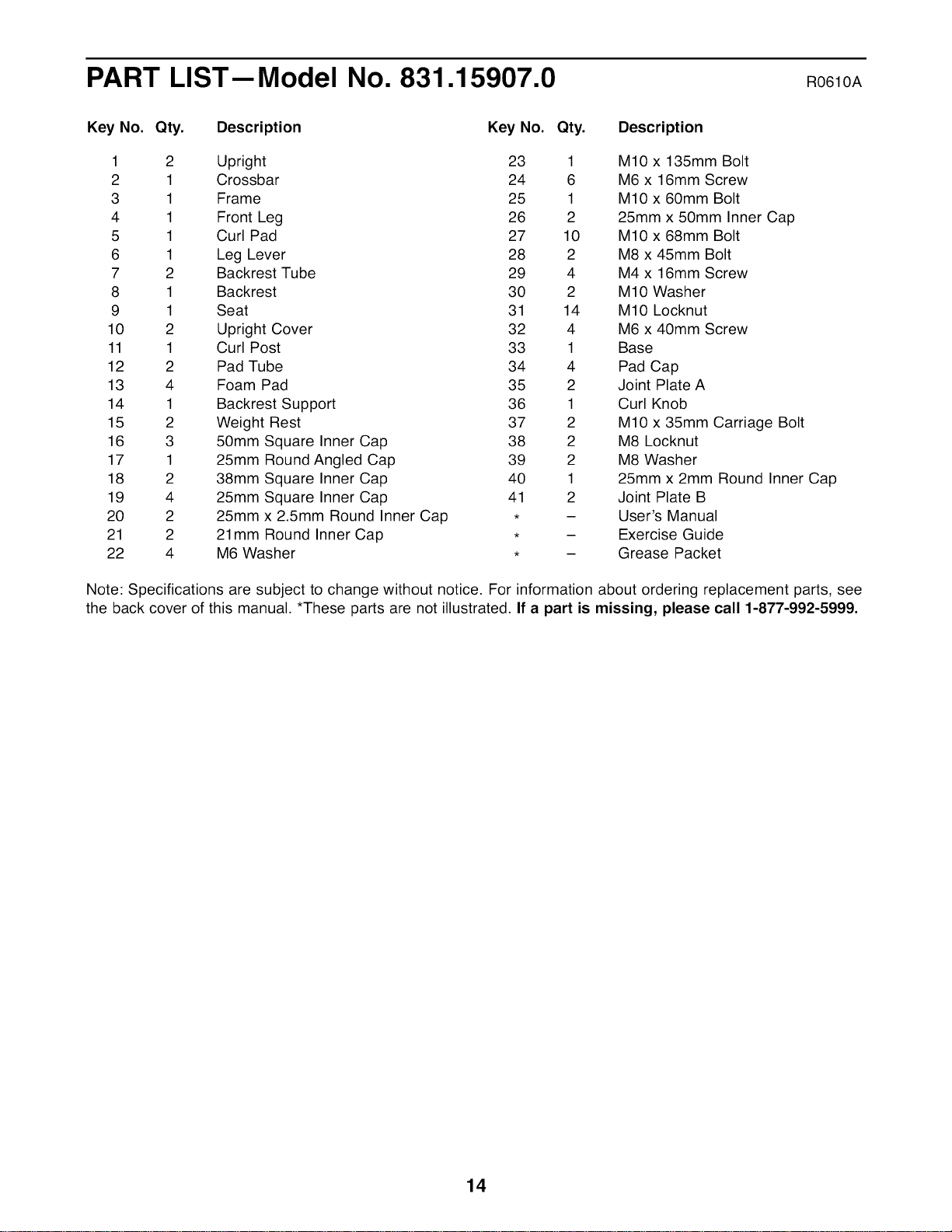

PART LIST ............................................................................... 14

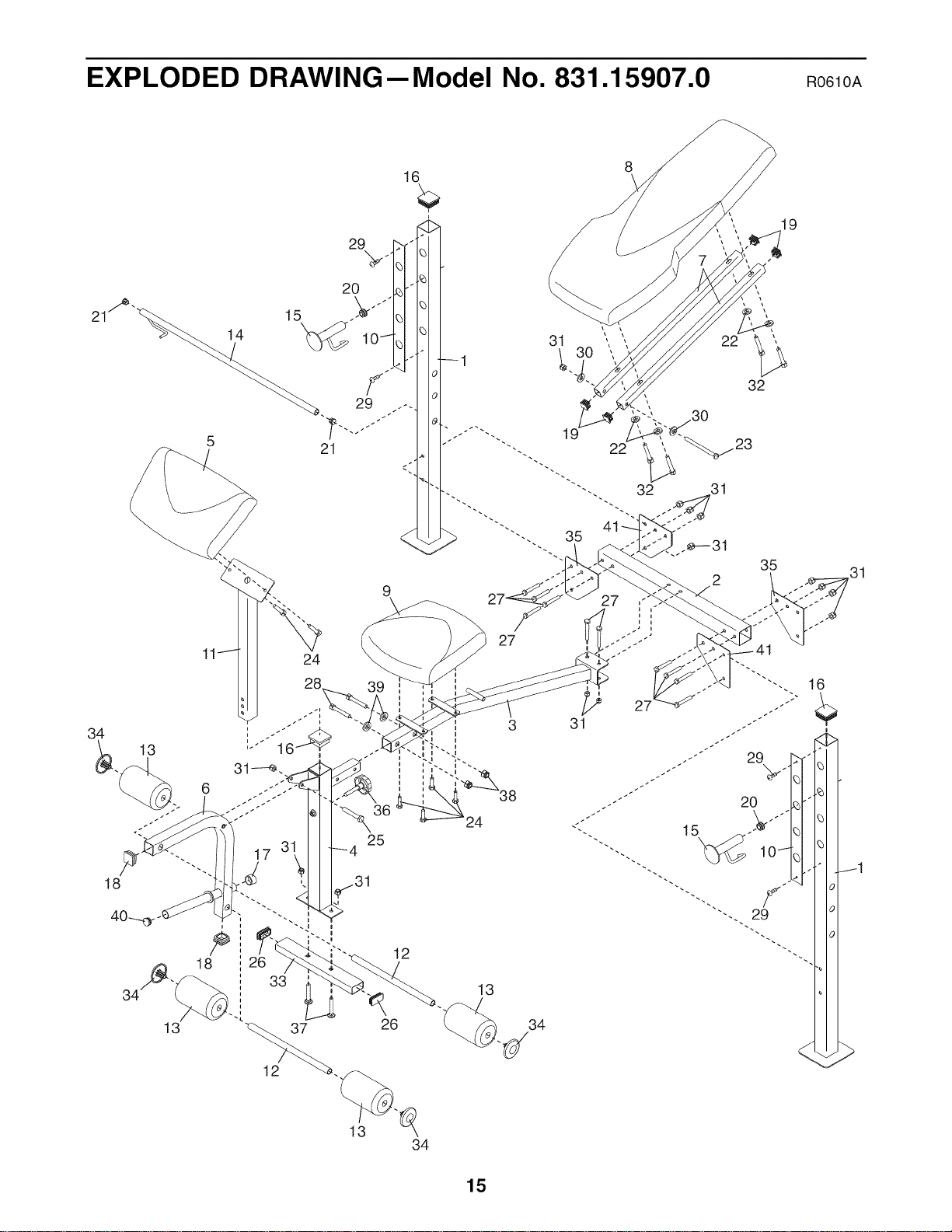

EXPLODED DRAWING ..................................................................... 15
ORDERING REPLACEMENT PARTS .................................................. Back Cover
90 DAY FULL WARRANTY .......................................................... Back Cover

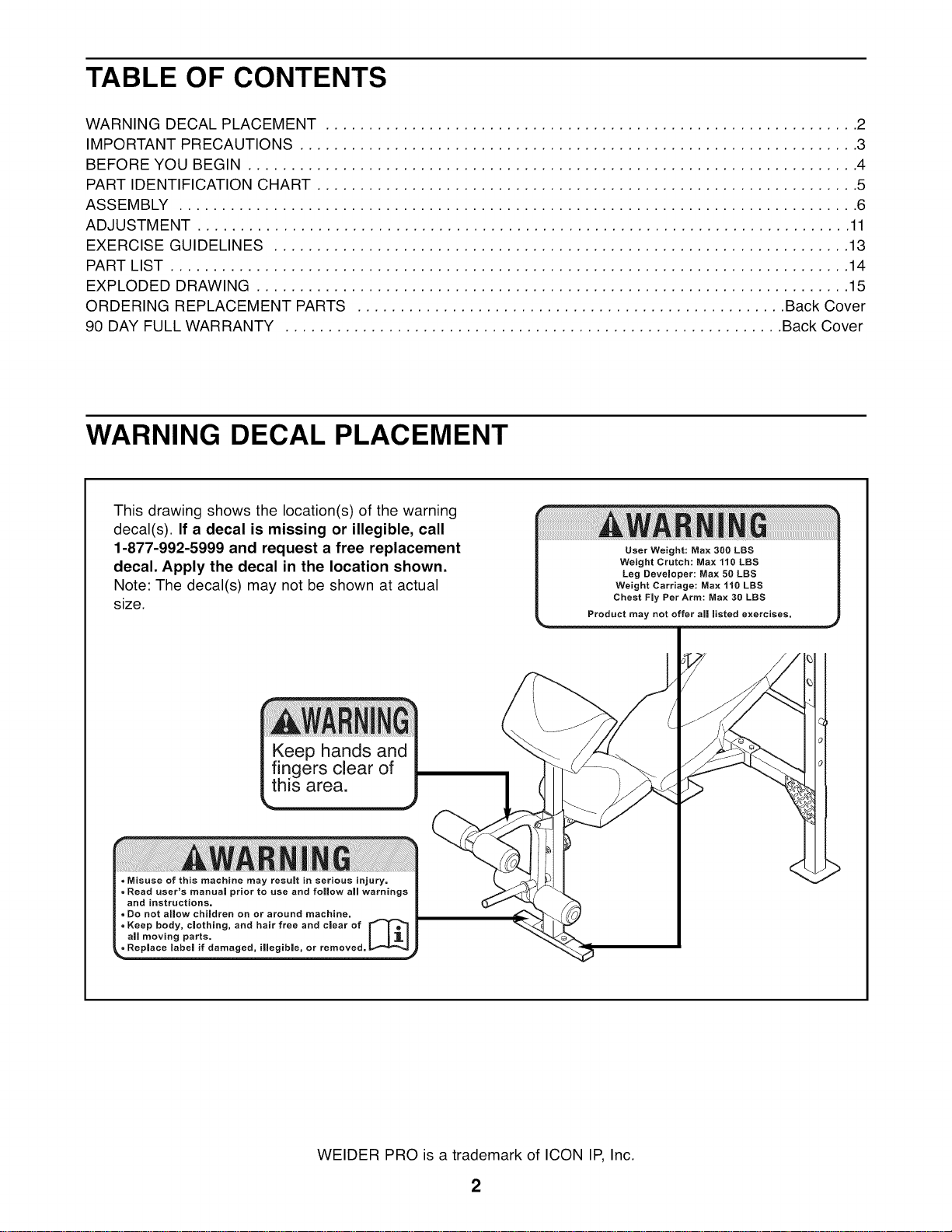

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, call
1-877-992-5999 and request a free replacement
decal. Apply the decal in the location shown.
Note: The decal(s) may not be shown at actual
size.
User Weight: Max 300 LBS
Weight Crutch: Max 110 LBS
Leg Developer: Max 50 LBS
Weight Carriage: Max 110 LBS
Chest Fly Per Arm: Max 30 LBS
Product may not offer all listed exercises.
• Misuse of this machine may result in serious injury.
• Read user's manual prior to use and follow all warnings |
and instructions. |
• Do not allow children on or around machine, |
• Keep body, clothing, and hair free and clear of _
aJl moving parts. _ I _- _ |
WELDER PRO is a trademark of ICON IP, Inc.
2

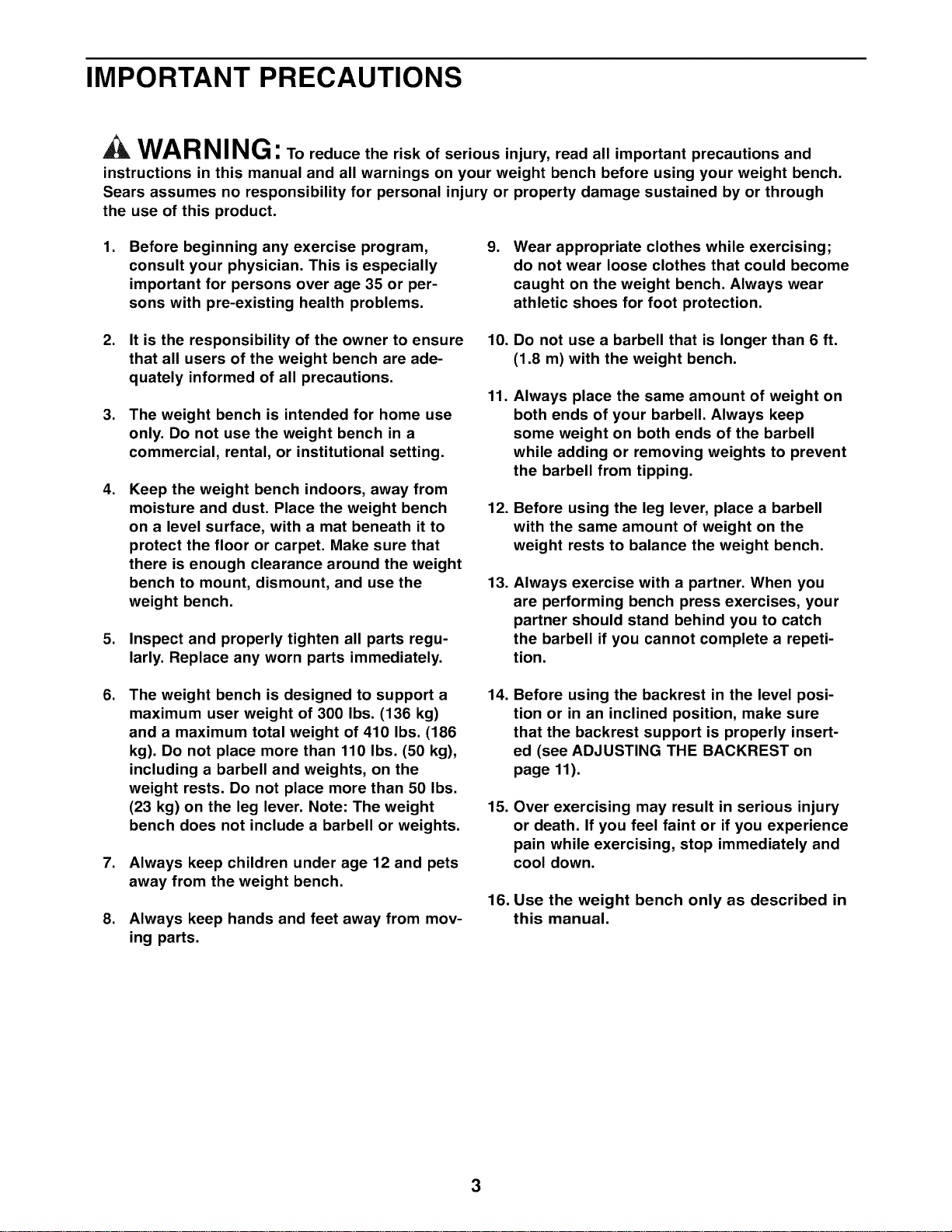

IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your weight bench before using your weight bench.
Sears assumes no responsibility for personal injury or property damage sustained by or through
the use of this product.
1. Before beginning any exercise program, 9.
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the weight bench. Always wear
athletic shoes for foot protection.
2. It is the responsibility of the owner to ensure 10.
that all users of the weight bench are ade-
quately informed of all precautions.
.
.
.
The weight bench is intended for home use
only. Do not use the weight bench in a
commercial, rental, or institutional setting.
11.
Keep the weight bench indoors, away from
moisture and dust. Place the weight bench 12.
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the weight
bench to mount, dismount, and use the 13.
weight bench.
Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
Do not use a barbell that is longer than 6 ft.
(1.8 m) with the weight bench.
Always place the same amount of weight on
both ends of your barbell. Always keep
some weight on both ends of the barbell
while adding or removing weights to prevent
the barbell from tipping.
Before using the leg lever, place a barbell
with the same amount of weight on the
weight rests to balance the weight bench.
Always exercise with a partner. When you
are performing bench press exercises, your
partner should stand behind you to catch
the barbell if you cannot complete a repeti-
tion.
.
.
.
The weight bench is designed to support a 14.
maximum user weight of 300 Ibs. (136 kg)
and a maximum total weight of 410 Ibs. (186
kg). Do not place more than 110 Ibs. (50 kg),
including a barbell and weights, on the
weight rests. Do not place more than 50 Ibs.
(23 kg) on the leg lever. Note: The weight 15.
bench does not include a barbell or weights.
Always keep children under age 12 and pets
away from the weight bench.
Always keep hands and feet away from mov-
ing parts.
16.
Before using the backrest in the level posi-
tion or in an inclined position, make sure
that the backrest support is properly insert-
ed (see ADJUSTING THE BACKREST on
page 11).
Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
Use the weight bench only as described in
this manual.
3
BEFORE YOU BEGIN
Thank you for selecting the new WELDER PRO TM
270 L weight bench. The 270 L weight bench offers a
selection of exercises designed to develop the major
muscle groups of the body. Whether your goal is to
tone your body, build dramatic muscle size and
strength, or improve your cardiovascular system, the
weight bench will help you to achieve the specific
results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, please see the back cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

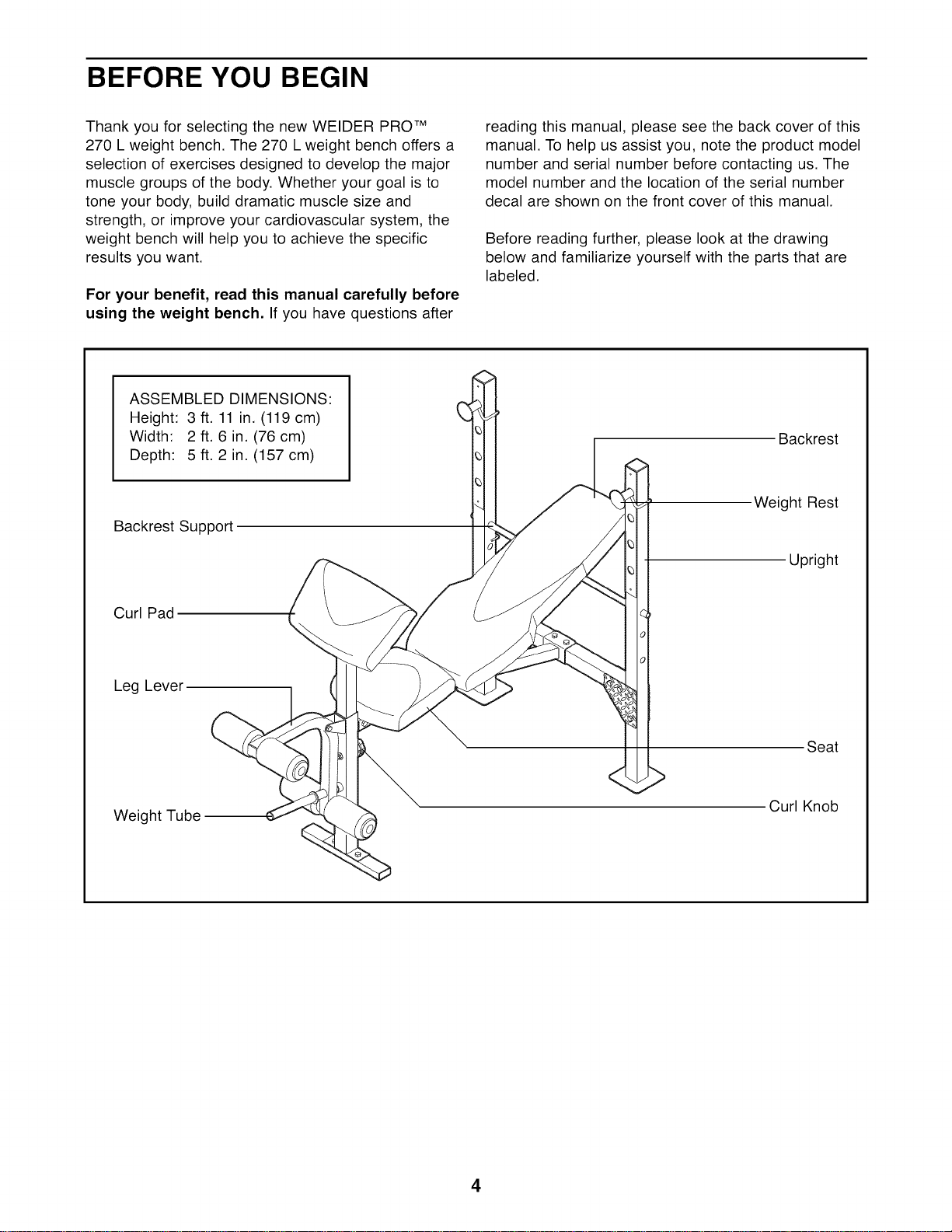

Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED DIMENSIONS:
Height: 3 ft. 11 in. (119 cm)
Width: 2 ft. 6 in. (76 cm)
Depth: 5 ft. 2 in. (157 cm)
Backrest Support
Curl Pad
Leg Lever
Backrest
Weight Rest
Upright
Seat
Weight Tube
Curl Knob
4
PART IDENTIFICATION CHART

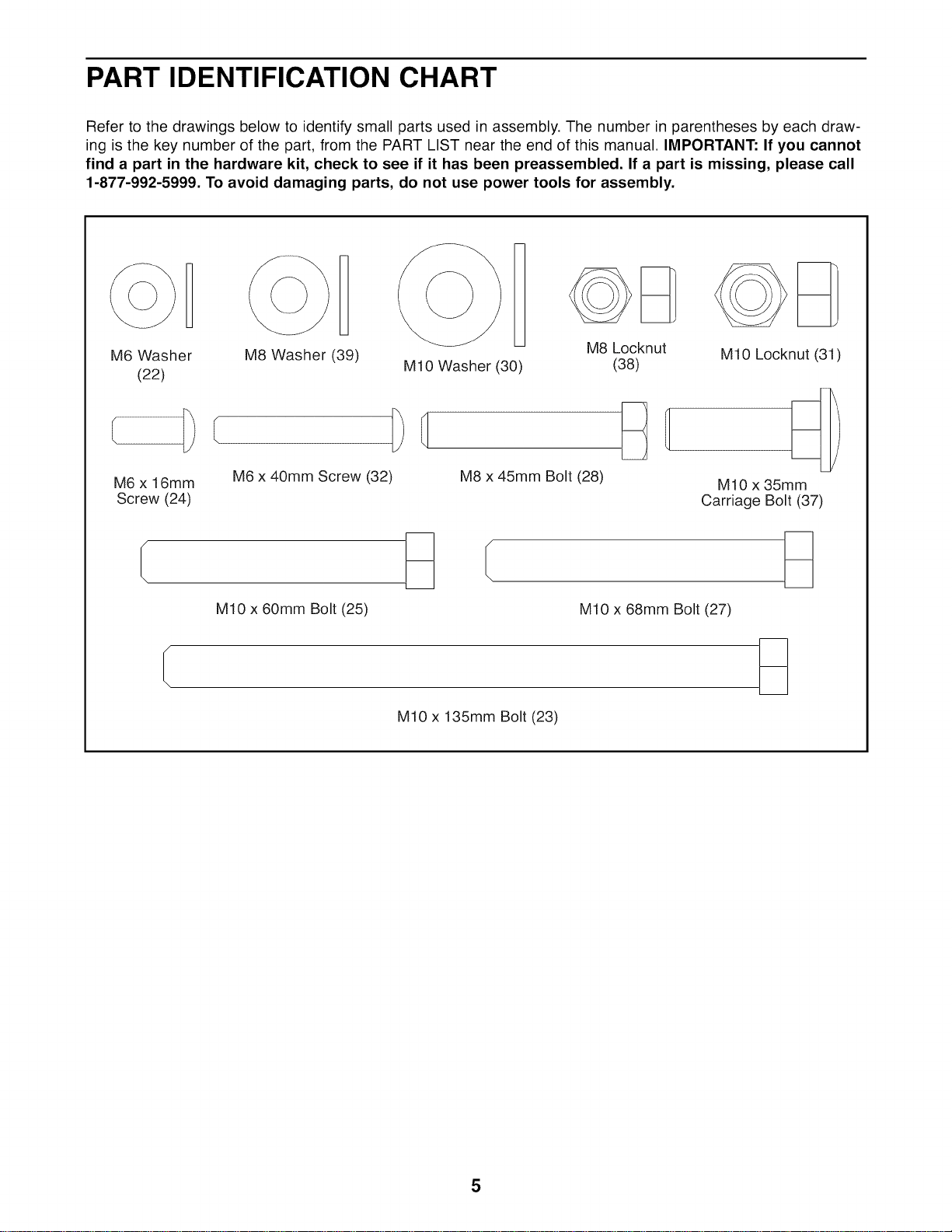

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. IMPORTANT" If you cannot
find a part in the hardware kit, check to see if it has been preassembled. If a part is missing, please call
1-877-992-5999. To avoid damaging parts, do not use power tools for assembly.
D
M6 Washer
(22)
M6 x 16mm
Screw (24)
M8 Washer (39)
M6 x 40mm Screw (32)
M10 Washer (30)
M8 Locknut
(38)
M8 x 45mm Bolt (28)
M10 Locknut (31)
MIO x 35mm
Carriage Bolt (37)
M10 x 60mm Bolt (25) M10 x 68mm Bolt (27)
M10 x 135mm Bolt (23)
5
ASSEMBLY
Assembly requires two persons.
Because of its size and weight, assemble the
weight bench in the location where it will be
used. Make sure that there is enough clear-
ance to walk around the weight bench as you
assemble it.
Place all parts in a cleared area and remove
the packing materials. Do not dispose of the
packing materials until you complete all
assembly steps.
To identify small parts, see page 5.
The following tools (not included) may be
required for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver (_:c======_
one Phillips screwdriver (]_L_====_
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
.

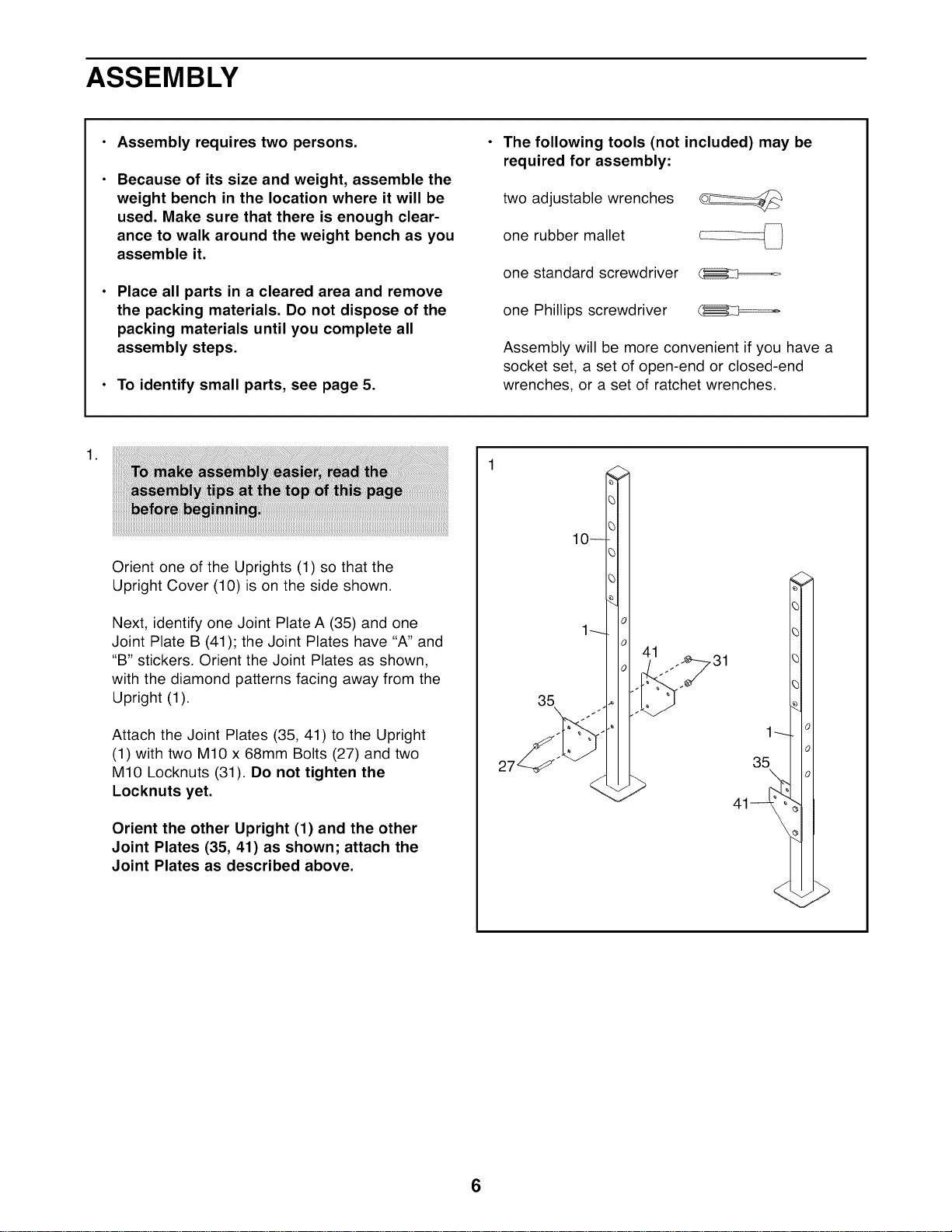

Orient one of the Uprights (1) so that the
Upright Cover (10) is on the side shown.
Next, identify one Joint Plate A (35) and one
Joint Plate B (41); the Joint Plates have "A" and
"B" stickers. Orient the Joint Plates as shown,
with the diamond patterns facing away from the
Upright (1).
Attach the Joint Plates (35, 41) to the Upright
(1) with two M10 x 68mm Bolts (27) and two
M10 Locknuts (31). Do not tighten the
Locknuts yet.
Orient the other Upright (1) and the other
Joint Plates (35, 41) as shown; attach the
Joint Plates as described above.
35
10--
1
35
6
2. 2

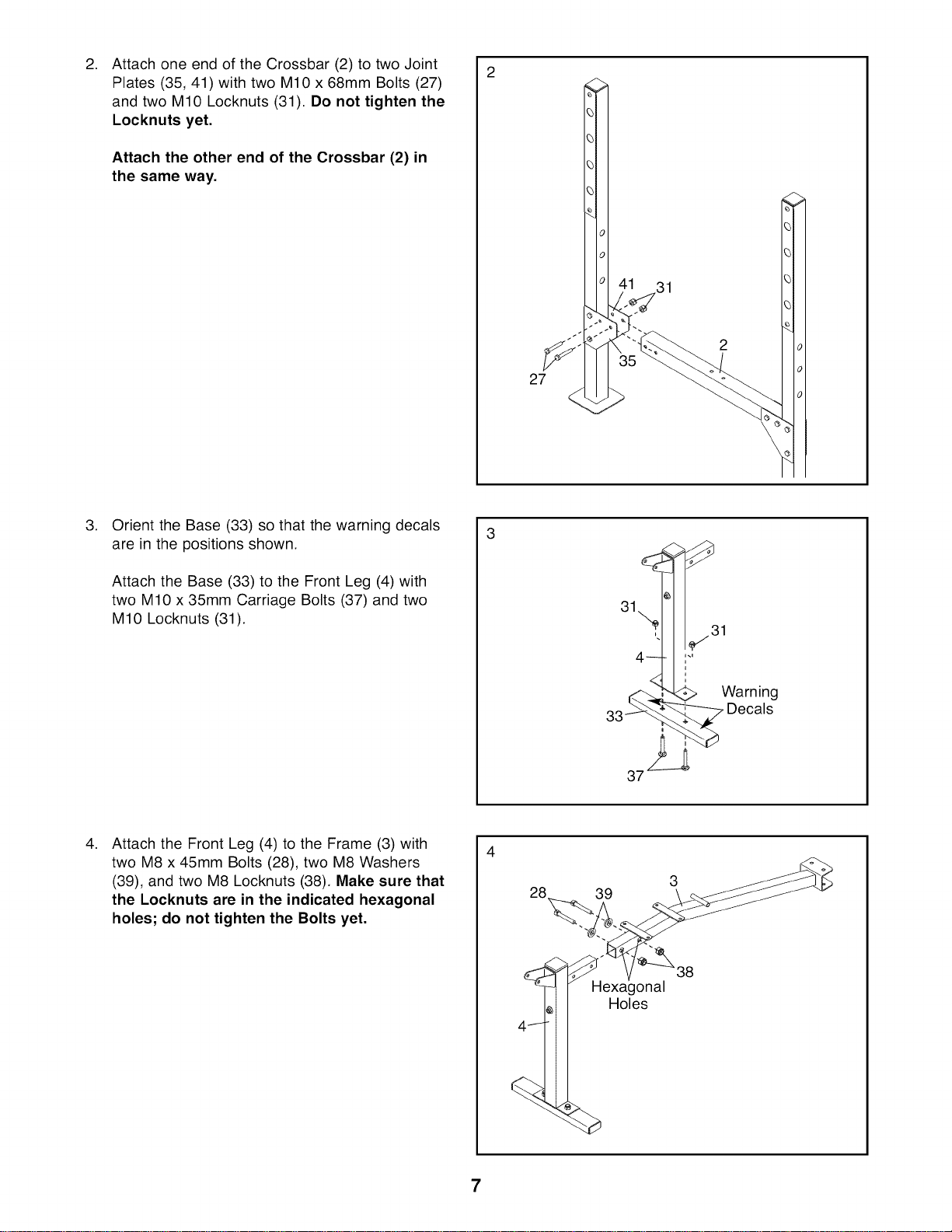

Attach one end of the Crossbar (2) to two Joint
Plates (35, 41) with two M10 x 68mm Bolts (27)
and two M10 Locknuts (31). Do not tighten the
Locknuts yet.
Attach the other end of the Crossbar (2) in
the same way.
27
2
0
0
o
.
Orient the Base (33) so that the warning decals
are in the positions shown.
Attach the Base (33) to the Front Leg (4) with
two M10 x 35mm Carriage Bolts (37) and two
M10 Locknuts (31).
4-
<
37
31
Warning
, Decals
.
Attach the Front Leg (4) to the Frame (3) with
two M8 x 45mm Bolts (28), two M8 Washers
(39), and two M8 Locknuts (38). Make sure that
the Locknuts are in the indicated hexagonal
holes; do not tighten the Bolts yet.
28_39
onal
Holes
7
5. 5

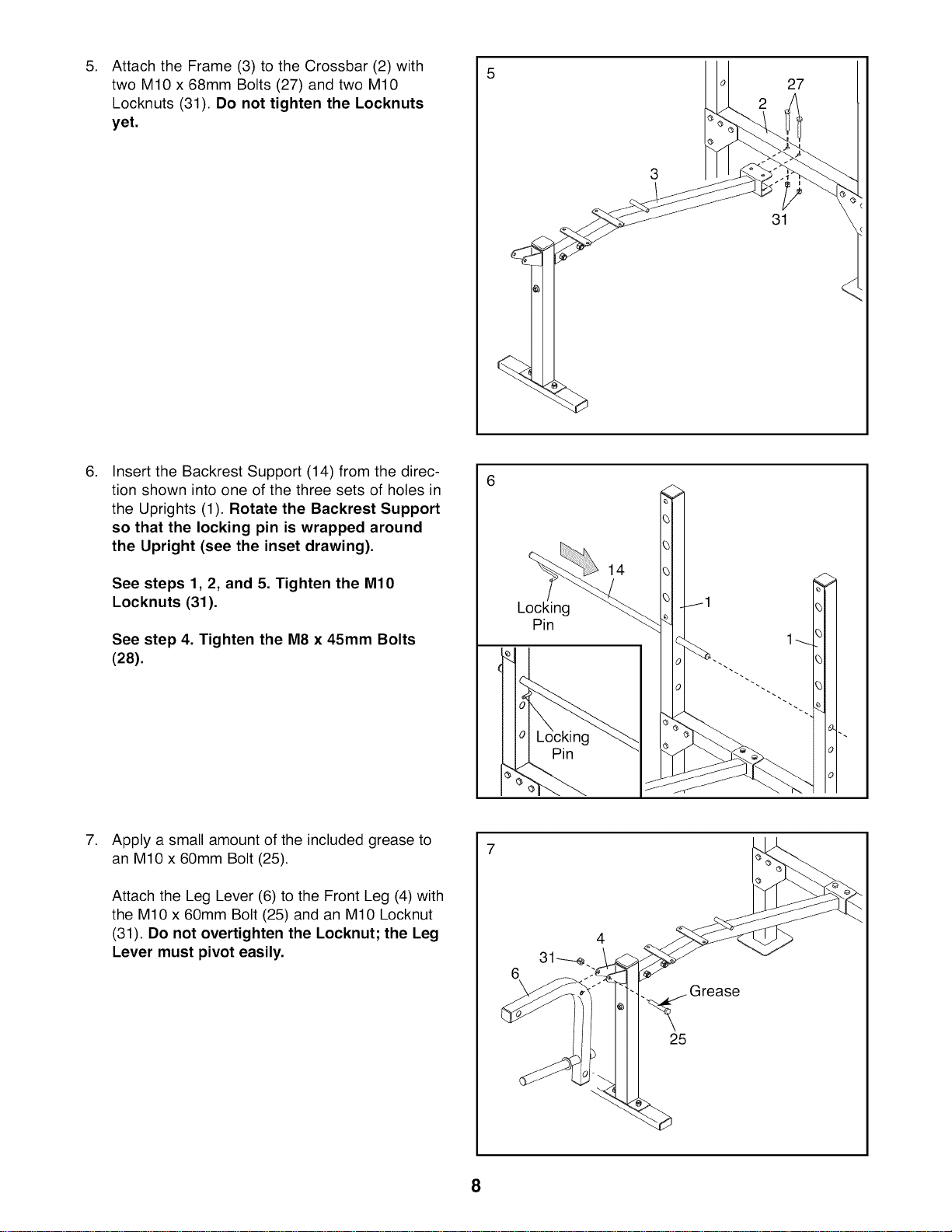

Attach the Frame (3) to the Crossbar (2) with
two M10 x 68mm Bolts (27) and two M10
Locknuts (31). Do not tighten the Locknuts
yet.
3
27
31
,
Insert the Backrest Support (14) from the direc-
tion shown into one of the three sets of holes in
the Uprights (1). Rotate the Backrest Support
so that the locking pin is wrapped around
the Upright (see the inset drawing).
See steps 1, 2, and 5. Tighten the M10
Locknuts (31).
See step 4. Tighten the M8 x 45mm Bolts
(28).
Locking
Pin
14
,
Apply a small amount of the included grease to
an M10 x 60mm Bolt (25).
Attach the Leg Lever (6) to the Front Leg (4) with
the M10 x 60mm Bolt (25) and an M10 Locknut
(31). Do not overtighten the Locknut; the Leg
Lever must pivot easily.
4
25
Grease
8
8. 8

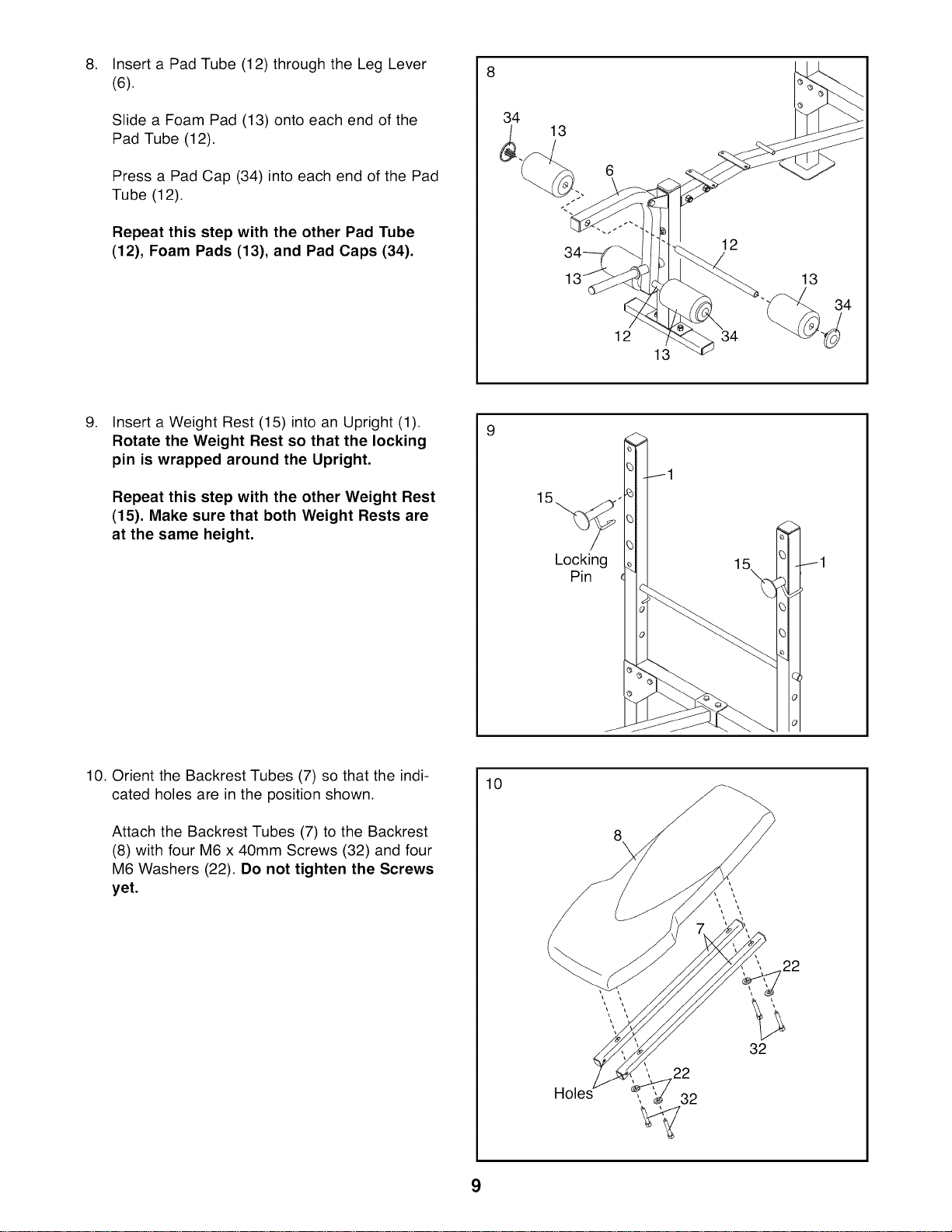

Insert a Pad Tube (12) through the Leg Lever
(6).
Slide a Foam Pad (13) onto each end of the
Pad Tube (12).
Press a Pad Cap (34) into each end of the Pad
Tube (12).
Repeat this step with the other Pad Tube
(12), Foam Pads (13), and Pad Caps (34).
34
6
12
13
12
34
13
.
Insert a Weight Rest (15) into an Upright (1).
Rotate the Weight Rest so that the locking
pin is wrapped around the Upright.
Repeat this step with the other Weight Rest
(15). Make sure that both Weight Rests are
at the same height.
15
Locking
Pin
15
10. Orient the Backrest Tubes (7) so that the indi-
cated holes are in the position shown.
Attach the Backrest Tubes (7) to the Backrest
(8) with four M6 x 40mm Screws (32) and four
M6 Washers (22). Do not tighten the Screws
yet.
10
\
\
22
32
9

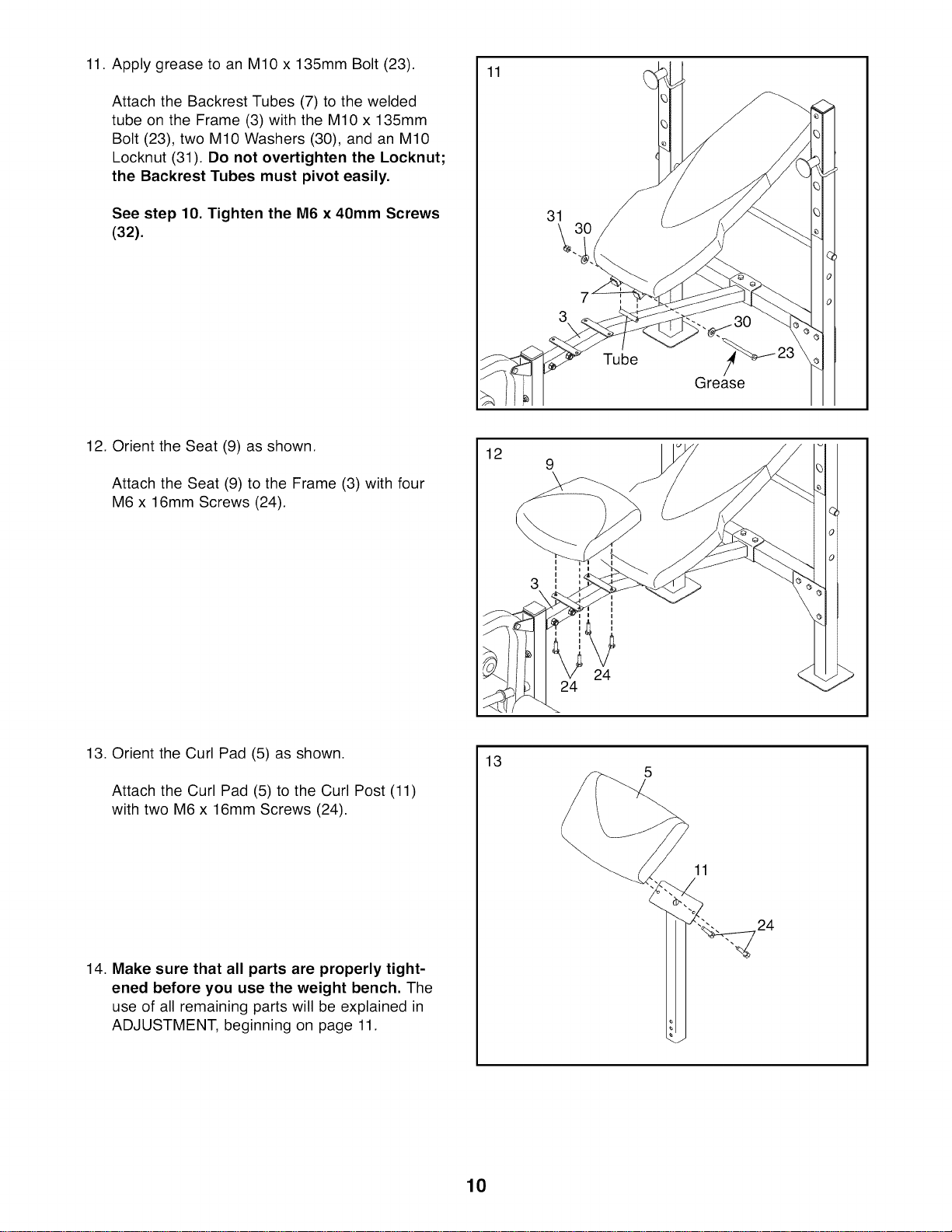

11. Apply grease to an M10 x 135mm Bolt (23).
Attach the Backrest Tubes (7) to the welded
tube on the Frame (3) with the M10 x 135mm
Bolt (23), two M10 Washers (30), and an M10
Locknut (31). Do not overtighten the Locknut;
the Backrest Tubes must pivot easily.
See step 10. Tighten the M6 x 40mm Screws
(32).
11
31
3
Tube
24
12. Orient the Seat (9) as shown.
Attach the Seat (9) to the Frame (3) with four
M6 x 16mm Screws (24).
12
9
\
3
13. Orient the Curl Pad (5) as shown.
Attach the Curl Pad (5) to the Curl Post (11)
with two M6 x 16mm Screws (24).
14. Make sure that all parts are properly tight-
ened before you use the weight bench. The
use of all remaining parts will be explained in
ADJUSTMENT, beginning on page 11.
13
5
11
24
10

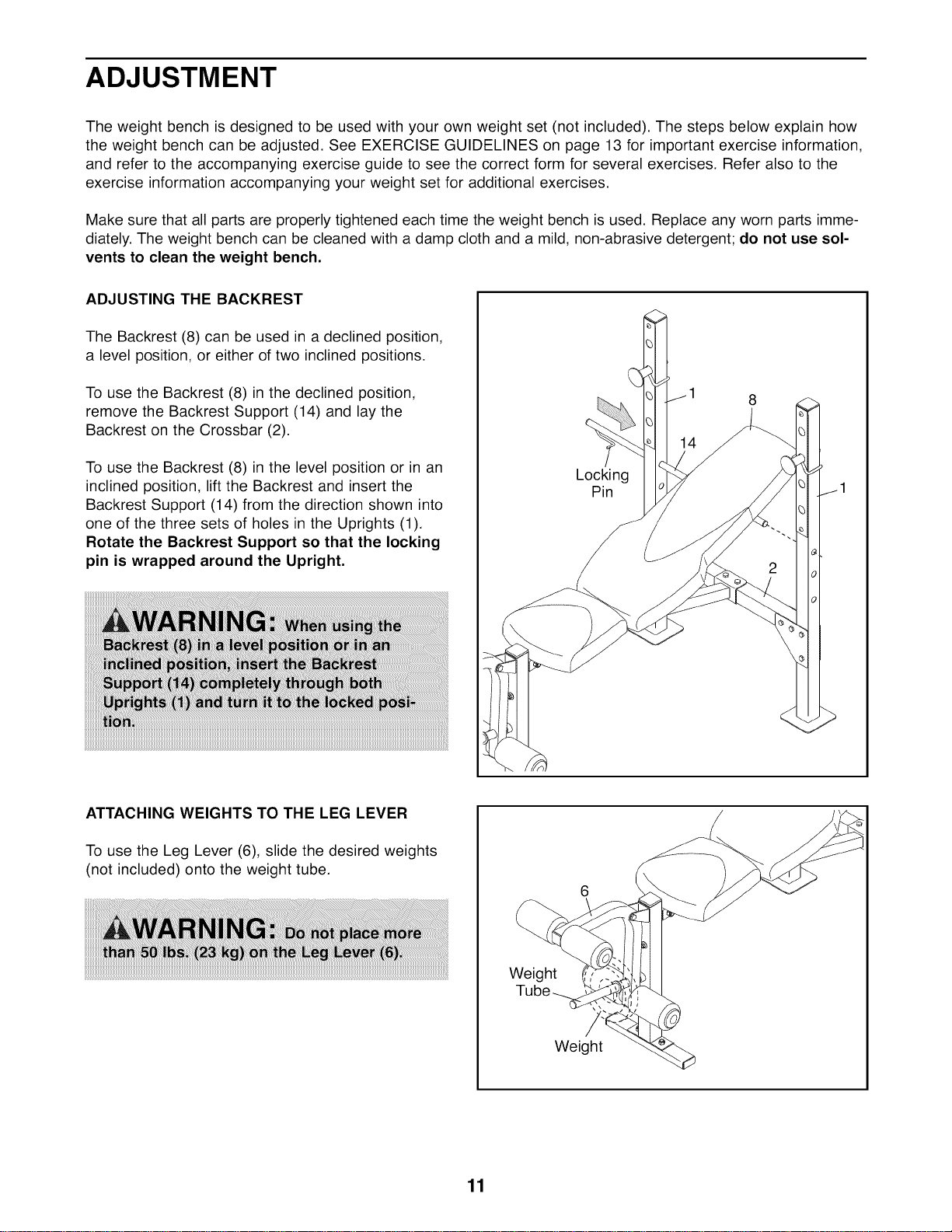

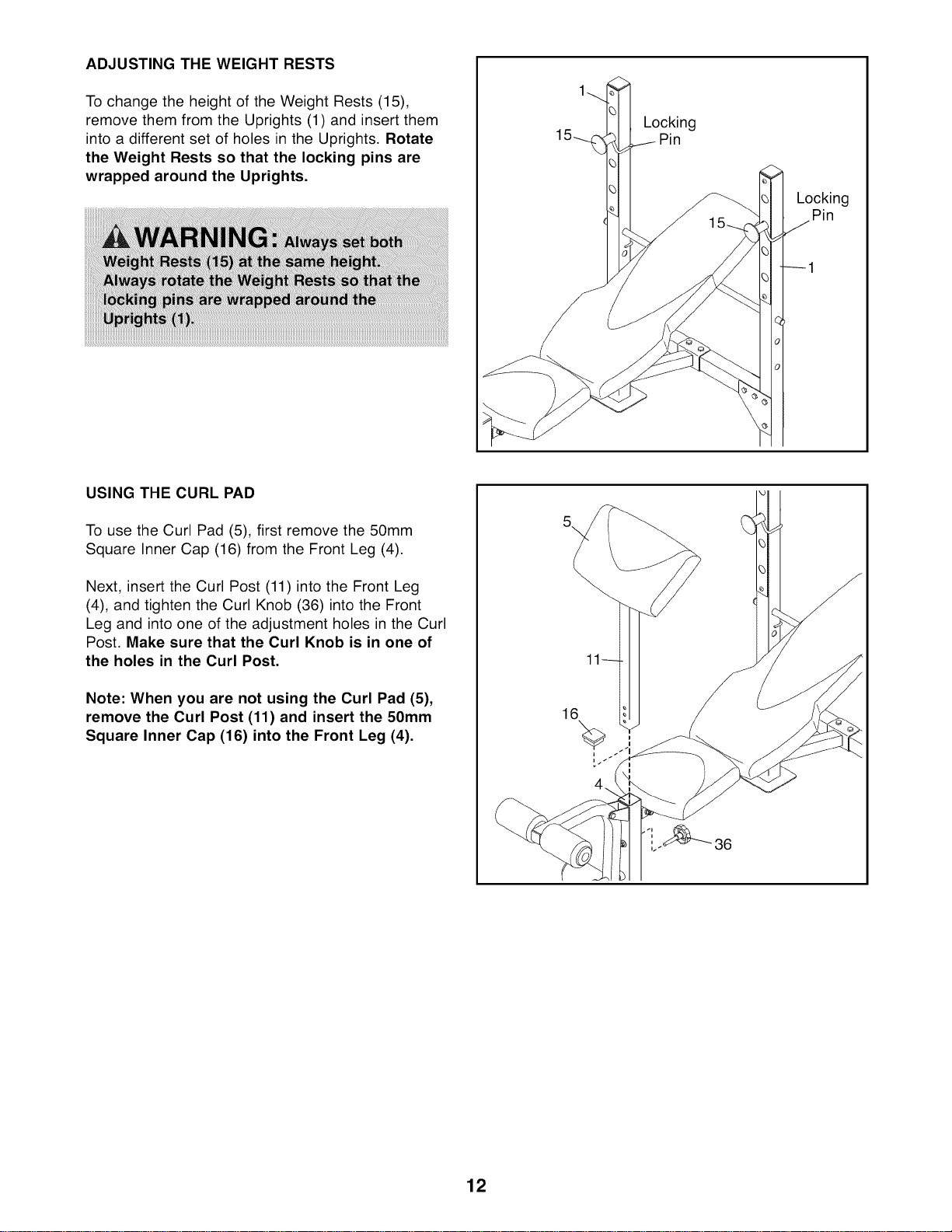

ADJUSTMENT
The weight bench is designed to be used with your own weight set (not included). The steps below explain how
the weight bench can be adjusted. See EXERCISE GUIDELINES on page 13 for important exercise information,
and refer to the accompanying exercise guide to see the correct form for several exercises. Refer also to the
exercise information accompanying your weight set for additional exercises.
Make sure that all parts are properly tightened each time the weight bench is used. Replace any worn parts imme-
diately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent; do not use sol-
vents to clean the weight bench.
ADJUSTING THE BACKREST
The Backrest (8) can be used in a declined position,
a level position, or either of two inclined positions.
To use the Backrest (8) in the declined position,
remove the Backrest Support (14) and lay the
Backrest on the Crossbar (2).
To use the Backrest (8) in the level position or in an
inclined position, lift the Backrest and insert the
Backrest Support (14) from the direction shown into
one of the three sets of holes in the Uprights (1).
Rotate the Backrest Support so that the locking
pin is wrapped around the Upright.
Locking
Pin
8
ATTACHING WEIGHTS TO THE LEG LEVER
To use the Leg Lever (6), slide the desired weights
(not included) onto the weight tube.
Weight
Tube
Weight
11
ADJUSTING THE WEIGHT RESTS
To change the height of the Weight Rests (15),
remove them from the Uprights (1) and insert them
into a different set of holes in the Uprights. Rotate
the Weight Rests so that the locking pins are
wrapped around the Uprights.
Locking
Pin
Locking
Pin
o
o
USING THE CURL PAD
To use the Curl Pad (5), first remove the 50mm
Square Inner Cap (16) from the Front Leg (4).
Next, insert the Curl Post (11) into the Front Leg
(4), and tighten the Curl Knob (36) into the Front
Leg and into one of the adjustment holes in the Curl
Post. Make sure that the Curl Knob is in one of
the holes in the Curl Post.
Note: When you are not using the Curl Pad (5),
remove the Curl Post (11) and insert the 50mm
Square Inner Cap (16) into the Front Leg (4).
5\
16
12

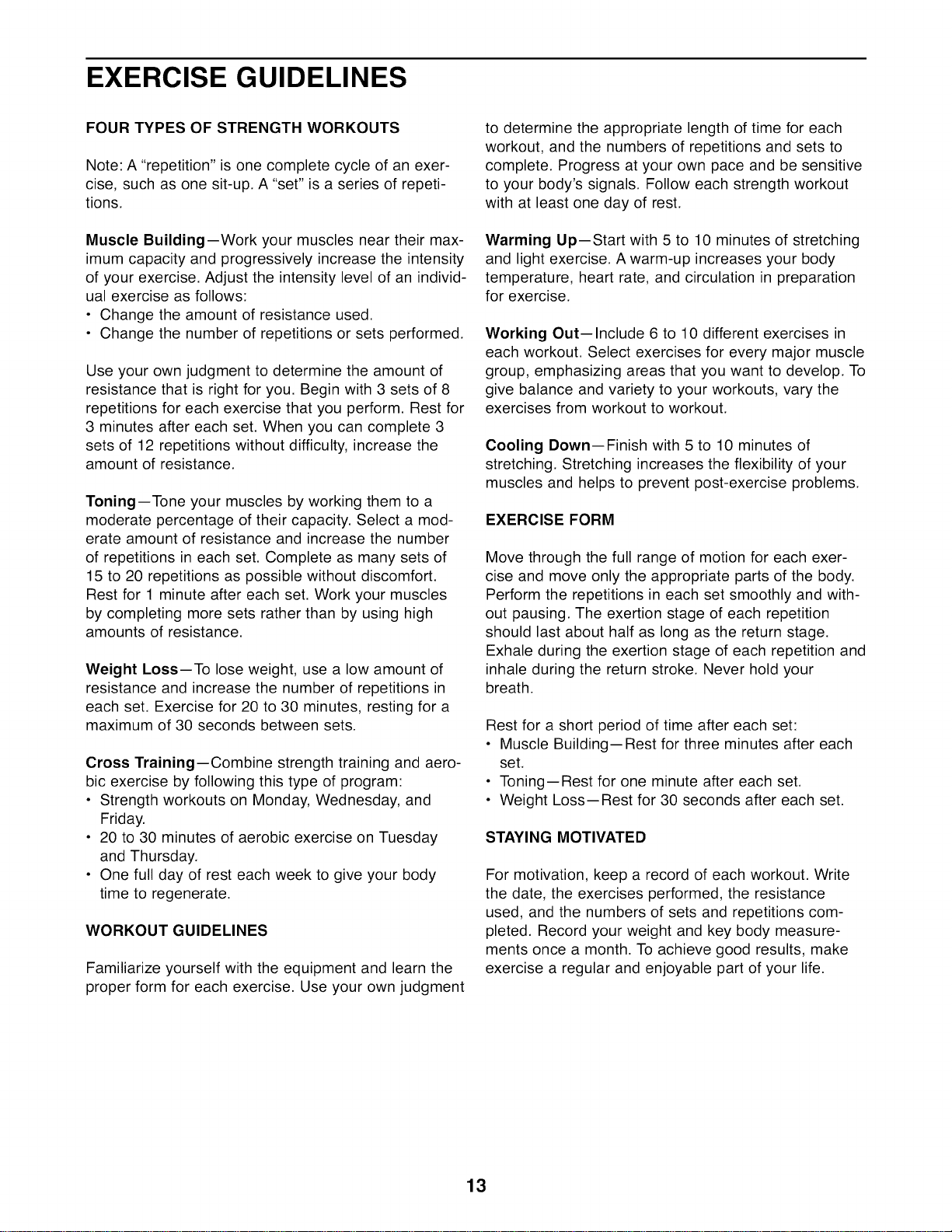

EXERCISE GUIDELINES
FOUR TYPES OF STRENGTH WORKOUTS
Note: A "repetition" is one complete cycle of an exer-
cise, such as one sit-up. A "set" is a series of repeti-
tions.
Muscle Building--Work your muscles near their max-
imum capacity and progressively increase the intensity
of your exercise. Adjust the intensity level of an individ-
ual exercise as follows:
• Change the amount of resistance used.
• Change the number of repetitions or sets performed.
Use your own judgment to determine the amount of
resistance that is right for you. Begin with 3 sets of 8
repetitions for each exercise that you perform. Rest for
3 minutes after each set. When you can complete 3
sets of 12 repetitions without difficulty, increase the
amount of resistance.
Toning--Tone your muscles by working them to a
moderate percentage of their capacity. Select a mod-
erate amount of resistance and increase the number
of repetitions in each set. Complete as many sets of
15 to 20 repetitions as possible without discomfort.
Rest for 1 minute after each set. Work your muscles
by completing more sets rather than by using high
amounts of resistance.
Weight Loss--To lose weight, use a low amount of
resistance and increase the number of repetitions in
each set. Exercise for 20 to 30 minutes, resting for a
maximum of 30 seconds between sets.
Cross Training--Combine strength training and aero-
bic exercise by following this type of program:
• Strength workouts on Monday, Wednesday, and
Friday.
• 20 to 30 minutes of aerobic exercise on Tuesday
and Thursday.
• One full day of rest each week to give your body
time to regenerate.
WORKOUT GUIDELINES
Familiarize yourself with the equipment and learn the
proper form for each exercise. Use your own judgment
to determine the appropriate length of time for each
workout, and the numbers of repetitions and sets to
complete. Progress at your own pace and be sensitive
to your body's signals. Follow each strength workout
with at least one day of rest.
Warming Up--Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Working Out--Include 6 to 10 different exercises in
each workout. Select exercises for every major muscle
group, emphasizing areas that you want to develop. To
give balance and variety to your workouts, vary the
exercises from workout to workout.
Cooling Down--Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FORM
Move through the full range of motion for each exer-
cise and move only the appropriate parts of the body.
Perform the repetitions in each set smoothly and with-
out pausing. The exertion stage of each repetition
should last about half as long as the return stage.
Exhale during the exertion stage of each repetition and
inhale during the return stroke. Never hold your
breath.
Rest for a short period of time after each set:
• Muscle Building--Rest for three minutes after each
set.
• Toning--Rest for one minute after each set.
• Weight Loss--Rest for 30 seconds after each set.
STAYING MOTIVATED
For motivation, keep a record of each workout. Write
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions com-
pleted. Record your weight and key body measure-
ments once a month. To achieve good results, make
exercise a regular and enjoyable part of your life.
13
PART LIST--Model No. 831.15907.0 R0610A
Key No. Qty. Description Key No. Qty. Description
1 2 Upright 23 1 M10 x 135mm Bolt
2 1 Crossbar 24 6 M6 x 16mm Screw
3 1 Frame 25 1 M10 x 60mm Bolt
4 1 Front Leg 26 2 25mm x 50mm Inner Cap
5 1 Curl Pad 27 10 M10 x 68mm Bolt
6 1 Leg Lever 28 2 M8 x 45mm Bolt
7 2 Backrest Tube 29 4 M4 x 16mm Screw
8 1 Backrest 30 2 M10 Washer
9 1 Seat 31 14 M10 Locknut
10 2 Upright Cover 32 4 M6 x 40mm Screw
11 1 Curl Post 33 1 Base
12 2 Pad Tube 34 4 Pad Cap
13 4 Foam Pad 35 2 Joint Plate A
14 1 Backrest Support 36 1 Curl Knob
15 2 Weight Rest 37 2 M10 x 35mm Carriage Bolt
16 3 50mm Square Inner Cap 38 2 M8 Locknut
17 1 25mm Round Angled Cap 39 2 M8 Washer
18 2 38mm Square Inner Cap 40 1 25mm x 2mm Round Inner Cap
19 4 25mm Square Inner Cap 41 2 Joint Plate B
20 2 25mm x 2.5mm Round Inner Cap , - User's Manual
21 2 21mm Round Inner Cap , - Exercise Guide
22 4 M6 Washer , - Grease Packet
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated. If a part is missing, please call 1-877-992-5999.
14
EXPLODED DRAWING--Model No. 831.15907.0 R0610A
29
34
13
18
24
28 39
12
13
26
16
8
24
35
31
27
13
<
31
13
34
15

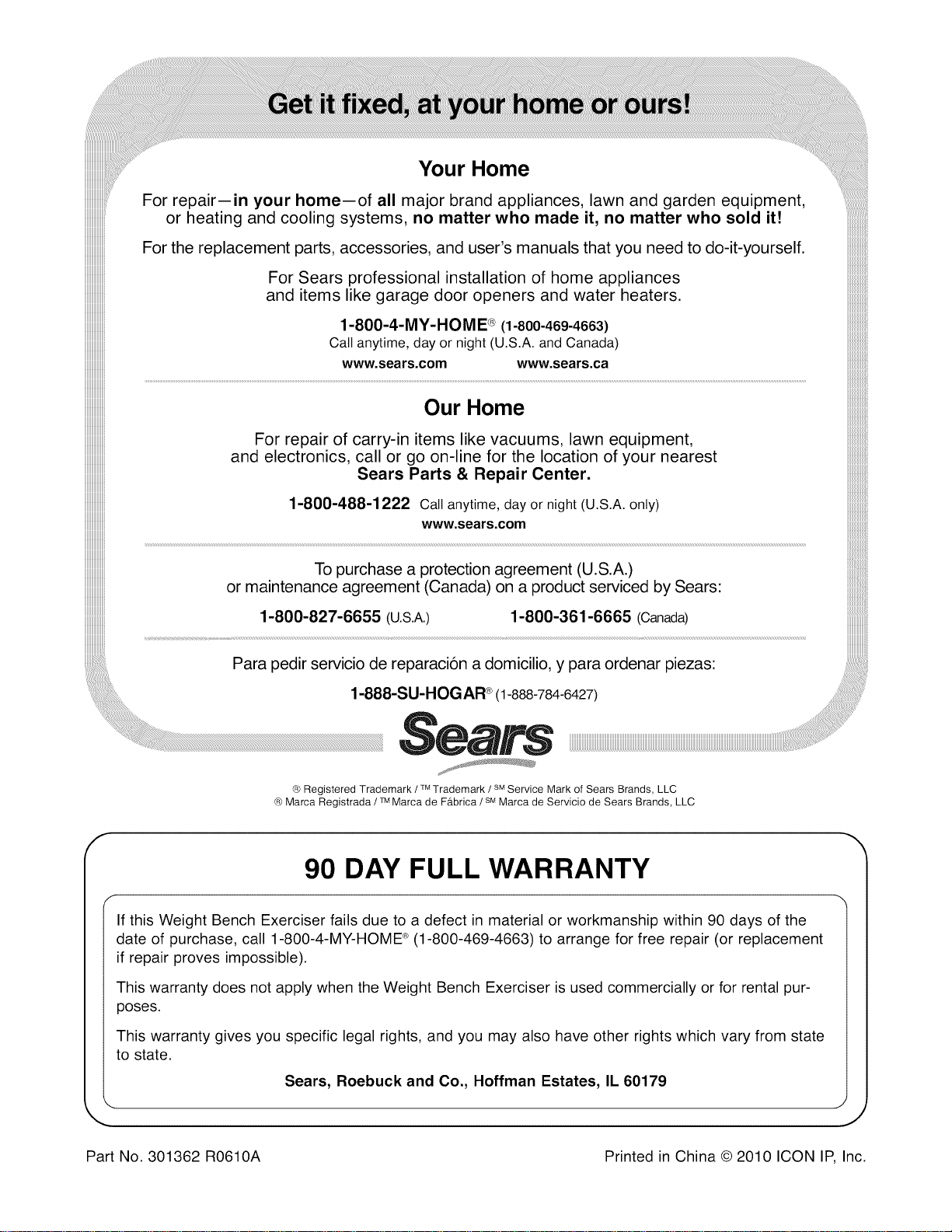

Your Home
For repair--in your home--of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold it!
For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222 Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
TM SM
® Registered Trademark / Trademark / Service Mark of Sears Brands, LLC
® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears Brands, LLC
f
90 DAY FULL WARRANTY
f
If this Weight Bench Exerciser fails due to a defect in material or workmanship within 90 days of the
date of purchase, call 1-800-4-MY-HOME ®(1-800-469-4663) to arrange for free repair (or replacement
if repair proves impossible).
This warranty does not apply when the Weight Bench Exerciser is used commercially or for rental pur-
poses.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
J
J
Part No. 301362 R0610A Printed in China © 2010 ICON IP, Inc.
