OWNER'S MANUAL
MODEL:
PD20H42STA
LAWN TRACTOR
A WARNING:
Read this Owner's Manual and follow all Warn-
ings and Safety Instructions. Failure to do so
can result in serious injm%
ALWAYS WEAR EYE PROTECTION DURING OPERATION
184617 Rev. 2 02.06.03 TR
Printed in U.S.A.
ml II IHIjjUmlL"

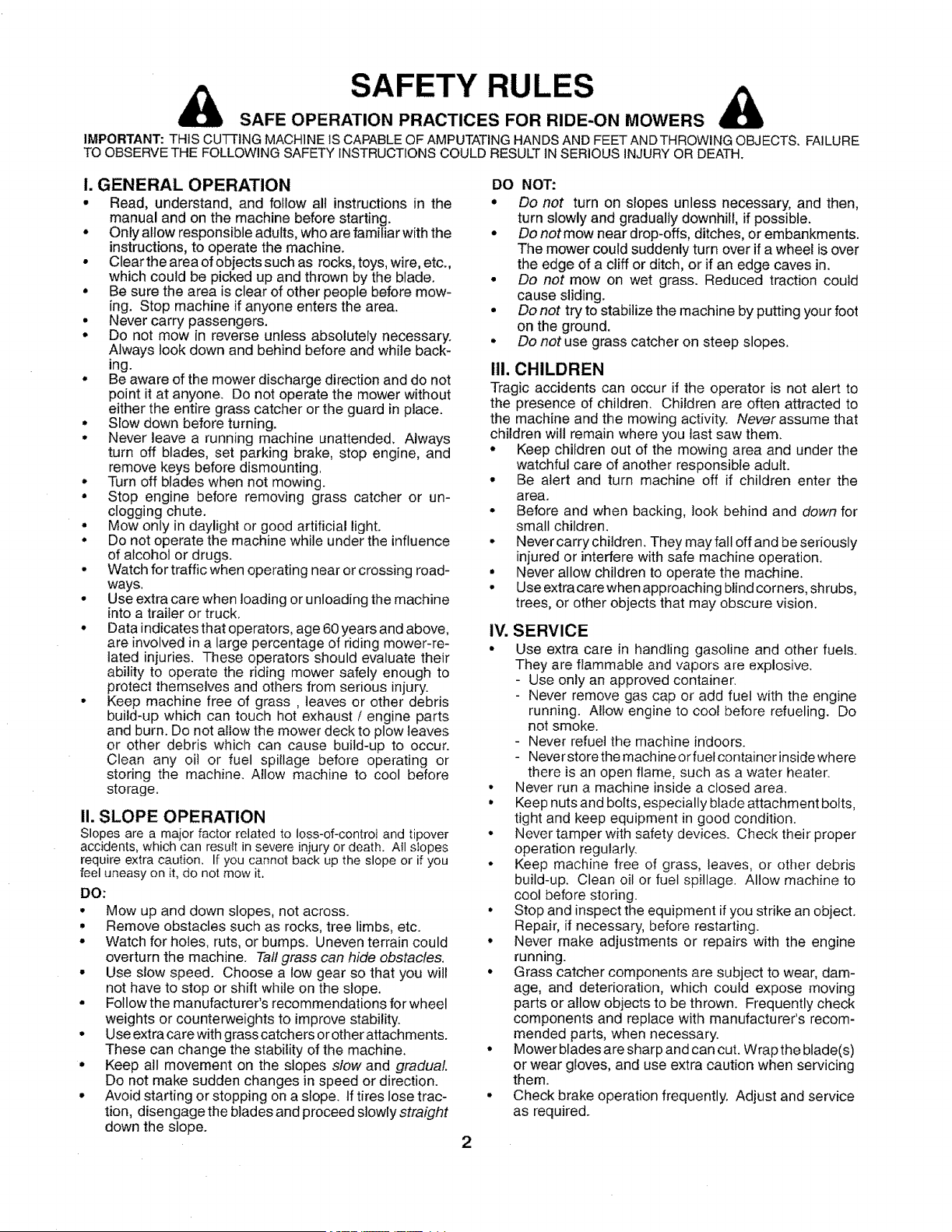

SAFETY RULES
SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS
IMPORTANT: THIS CU'I-FING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET ANDTHROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING SAFETY' INSTRUCTIONS COULD RESULT lN SERIOUS INJURY OR DEATH.
I. GENERAL OPERATION
• Read, understand, and follow all instructions in the
manual and on the machine before starting.
• Only allow responsible adults, who are familiar with the
instructions, to operate the machine.
• Clearthe area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blade.
• Be sure the area is clear of other people before mow-
ing. Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while back-
ing.
• Be aware of the mower discharge direction and do not
point it at anyone. Do not operate the mower without
either the entire grass catcher or the guard in place.
• Slow down before turning.
• Never leave a running machine unattended, Always
turn off blades, set parking brake, stop engine, and
remove keys before dismounting,
• Turn off blades when not mowing.
• Stop engine before removing grass catcher or un-
clogging chute.
• Mow only in daylight or good artificial light.
• Do not operate the machine while under the influence
of alcohol or drugs.
• Watch for traffic when operating near or crossing road-
ways.
• Use extra care when loading or unloading the machine
into a trailer or truck.
• Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mower-re-
lated injuries. These operators should evaluate their
ability to operate the riding mower safely enough to
protect themselves and others from serious injury.
• Keep machine free of grass, leaves or other debris
build-up which can touch hot exhaust / engine parts
and burn. Do not allow the mower deck to plow leaves
or other debris which can cause build-up to occur.
Clean any oil or fuel spillage before operating or
storing the machine. Allow machine to cool before
storage.
i1.SLOPE OPERATION
Slopes are a major factor related to loss-of-control and tipover
accidents, which can result in severe injury or death. AtI slopes
require extra caution. If you cannot back up the slope or if you
feel uneasy on it, do not mow it.
DO:
• Mow up and down slopes, not across.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Uneven terrain could
overturn the machine. Tall grass can hide obstacles.
° Use slow speed. Choose a low gear so that you will
not have to stop or shift while on the slope.
• Follow the manufacturer's recommendations for wheel
weights or counterweights to improve stability.
° Use extra care with grass catchers or other attachments.
These can change the stability of the machine.
° Keep all movement on the slopes slow and gradual
Do not make sudden changes in speed or direction.
• Avoid starting or stopping on a slope, tf tires lose trac-
tion, disengage the blades and proceed slowly straight
down the slope.
DO NOT:
• Do not turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.
• Do notmow near drop-offs, ditches, or embankments.
The mower could suddenly turn ever if a wheel is over
the edge of a cliff or ditch, or if an edge caves in.
• Do not mow on wet grass. Reduced traction could
cause sliding.
• Do not try to stabilize the machine by putting you rfoot
on the ground.
° Do not use grass catcher on steep slopes.
2
!11.CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume that
children will remain where you last saw them.
• Keep children out of the mowing area and under the
watchful care of another responsible adult.
• Be alert and turn machine off if children enter the
area.
• Before and when backing, look behind and down for
small children.
• Never carry children. They may fall off and be seriously
injured or interfere with safe machine operation.
• Never allow children to operate the machine.
° Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
IV. SERVICE
• Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
Use only an approved container.
Never remove gas cap or add fuel with the engine
running. Allow engine to coot before refueling. Do
not smoke.
Never refuel the machine indoors.
Never store the machine or fuel container inside where
there is an open flame, such as a water heater.
• Never run a machine inside a closed area.
° Keep nuts and bolts, especially blade attachment bolts,
tight and keep equipment in good condition.
° Never tamper with safety devices. Check their proper
operation regularly.
• Keep machine free of grass, leaves, or other debris
build-up. Clean oil or fuel spillage. Allow machine to
coot before storing.
° Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine
running.
° Grass catcher components are subject to wear, dam-
age, and deterioration, which could expose moving
parts or allow objects to be thrown. Frequently check
components and replace with manufacturer's recom-
mended parts, when necessary.
• Mower blades are sharp and can cut. Wrap the blade(s)
or wear gloves, and use extra caution when servicing
them.
° Check brake operation frequently. Adjust and service
as required.

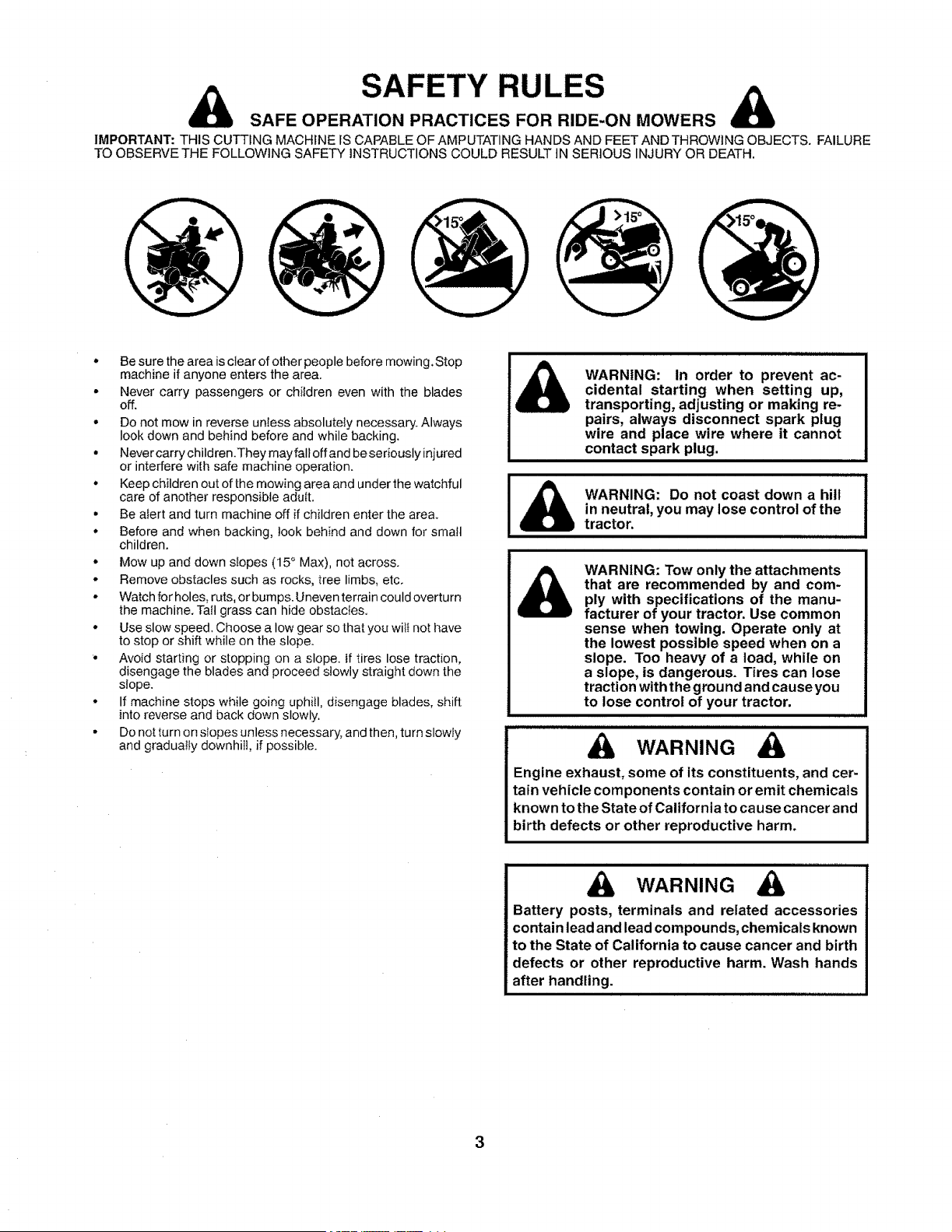

SAFETY RULES
A o A
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE
TO QBSERVE THE FOLLOWING SAFETY iNSTRUCTIONS COULD RESULT tN SERIOUS INJURY OR DEATH.
• Be sure the area is clear of other people before mowing. Stop
machine if anyone enters the area.
• Never carry passengers or chitdren even with the blades
off.
• Do not mow in reverse unless absolutely necessary. Always
look down and behind before and while backing.
• Never carry children.They may fall off and be seriously injured
or interfere with safe machine operation.
° Keep children out of the mowing area and under the watchful
care of another responsible adutt.
• Be alert and turn machine off if children enter the are&
° Before and when backing, look behind and down for small
children.
• Mow up and clown sIopes (15 ° Max), not across.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Uneven terrain could overturn
the machine. Tall grass can hide obstacles.
• Use slow speed. Choose a low gear so that you wilt not have
to stop or shift while on the slope.
• Avoid starting or stopping on a slope, if tires lose traction,
disengage the blades and proceed slowly straight down the
siope.
• If machine stops while going uphill, disengage blades, shift
into reverse and back down slowly.
• Do not turn on slopes unless necessary, and then, turn slowly
and gradua!_y downhill, if possible.
WARNING: In order to prevent ac-
cidental starting when setting up,
transporting, adjusting or making re-
pairs, always disconnect spark plug
wire and place wire where it cannot
contact spark plug.
WARNING: Do not coast down a hilt
in neutral, you may lose control ofthe
tractor.
WARNING: Tow only the attachments
that are recommended by and com-
ply with specifications of the manu-
facturer of your tractor. Use common
sense when towing. Operate only at
the lowest possible speed when on a
slope. Too heavy of a load, while on
a slope, is dangerous. Tires can lose
traction with the grou nd and cause you
to lose control of your tractor.
WARNING
Engine exhaust, some of its constituents, and cer-
tain vehicle components contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm.
WARNING
Battery posts, terminals and related accessories
contain lead and leadcompounds,chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.

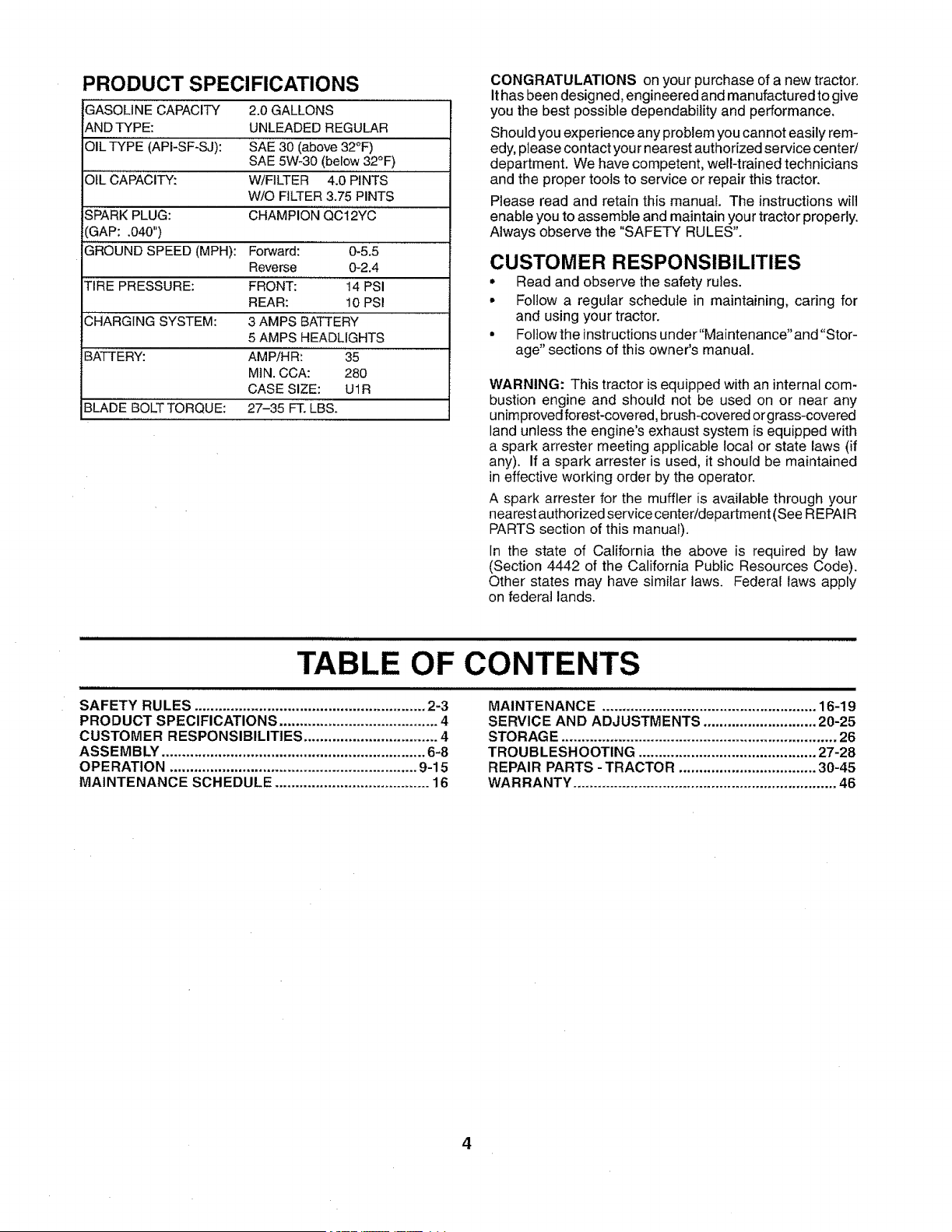

PRODUCT SPECIFICATIONS
GASOLINE CAPACITY 2.0 GALLONS
AND TYPE: UNLEADED REGULAR
OILTYPE (API-SF-SJ): SAE 30 (above 32°F)
SAE 5W-30 (below 32°F)
OIL CAPACITY: W/FILTER 4.0 PINTS
W/O FILTER 3.75 PINTS
SPARK PLUG: CHAMPION QCt2YC
IGAP: .040")
,,,,,
GROUND SPEED (MPH):
TIRE PRESSURE:
CHARGING SYSTEM:
BATTERY:
BLADE BOLT TORQUE:
Forward: 0-5.5
Reverse 0-2.4
FRONT: t4 PSi
REAR: 10 PSI
3 AMPS BATTERY
5 AMPS HEADLIGHTS
AMP/HR: 35
M]N. CCA: 280
CASE SIZE: U1R
27-35 FT.LBS.
CONGRATULATIONS on your purchase of a new tractor.
it has been designed, engineered and manufactured to give
you the best possible dependability and performance,
Should you experience any problem you cannot easily rem-
edy, please contact your nearest authorized service center/
department. We have competent, well-trained technicians
and the proper tools to service or repair this tractor.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your tractor properly.
Always observe the "SAFETY RULES".
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for
and using your tractor.
° Follow the instructions under"Maintenance" and "Stor-
age" sections of this owner's manual.
WARNING: This tractor is equipped with an internal com-
bustion engine and should not be used on or near any
unimproved forest-cove red, brush-cove red or grass-cove red
land unless the engine's exhaust system is equipped with
a spark arrester meeting applicable local or state laws (if
any). If a spark arrester is used, it should be maintained
in effective working order by the operator.
A spark arrester for the muffler is available through your
nearest authorized service center/department (See REPAIR
PARTS section of this manual).
In the state of Ca!ifornia the above is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar Jaws. Federal laws apply
on federal lands.
TABLE OF CONTENTS
SAFETY RULES ......................................................... 2-3
PRODUCT SPECIFICATIONS ....................................... 4
CUSTOMER RESPONSIBILITIES ................................. 4
ASSEMBLY ................................................................. 6-8
OPERATION ............................................................. 9-15
MAINTENANCE SCHEDULE ...................................... 16
MAINTENANCE ..................................................... 16-19
SERVICE AND ADJUSTMENTS ............................ 20-25
STORAGE .................................................................... 26
TROUBLESHOOTING ............................................ 27-28
REPAIR PARTS - TRACTOR .................................. 30-45
WAR RANTY ................................................................. 46
4
ill,llllln ii ilnll ilul nl

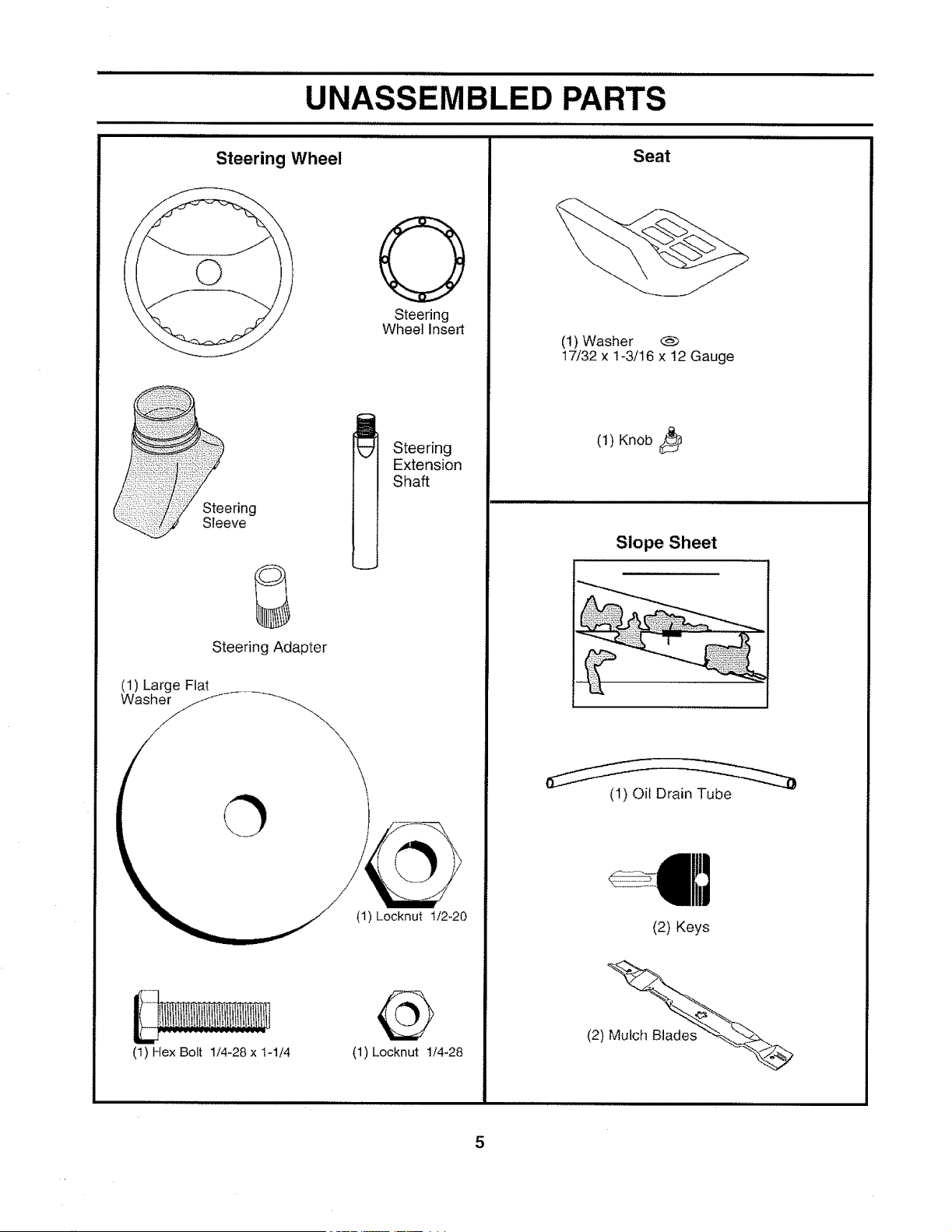

UNASSEMBLED PARTS
illlll iiinl ii ill
Steering Wheel
Steering
Sleeve
(1) Large Flat
Washe_._
Steering Adapter
O
(1) Hex Bolt 1/4-28 x I-1/4
,ill,, ullluiin iii i ,,,,i
ulHnlIIIIIIU ii i I
Seat
O
Steering
Wheel Insert
Steering
Extension
Shaft
(1) Locknut 1/2-20
{b
(1) Locknut 1/4-28
(1) Washer
17/32 x 1-3/16 x 12 Gauge
(1) Knob
Slope Sheet
(1) Oil Drain Tube
(2) Keys
ASSEMBLY
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.
To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use
the correct tools as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrenchset wilt make assembly easier, Standard
wrench sizes are listed,
Utility knife Pliers
(t) 3/4" wrenches Tire pressure gauge
(2) 7/16" wrenches Utility knife
When right or left hand is mentioned in this manual, it means
when you are in the operating position (seated behind the
steering wheel),
TO REMOVE TRACTOR FROM CAR-
TON
UNPACK CARTON
° Remove all accessible loose parts and parts cartons
from carton.
° Cut along dotted lines on all four panels of carton.
Remove end panels and lay side panels flat.
* Check for any additional loose parts or cartons and
remove,
BEFORE REMOVING TRACTOR FROM
SKID

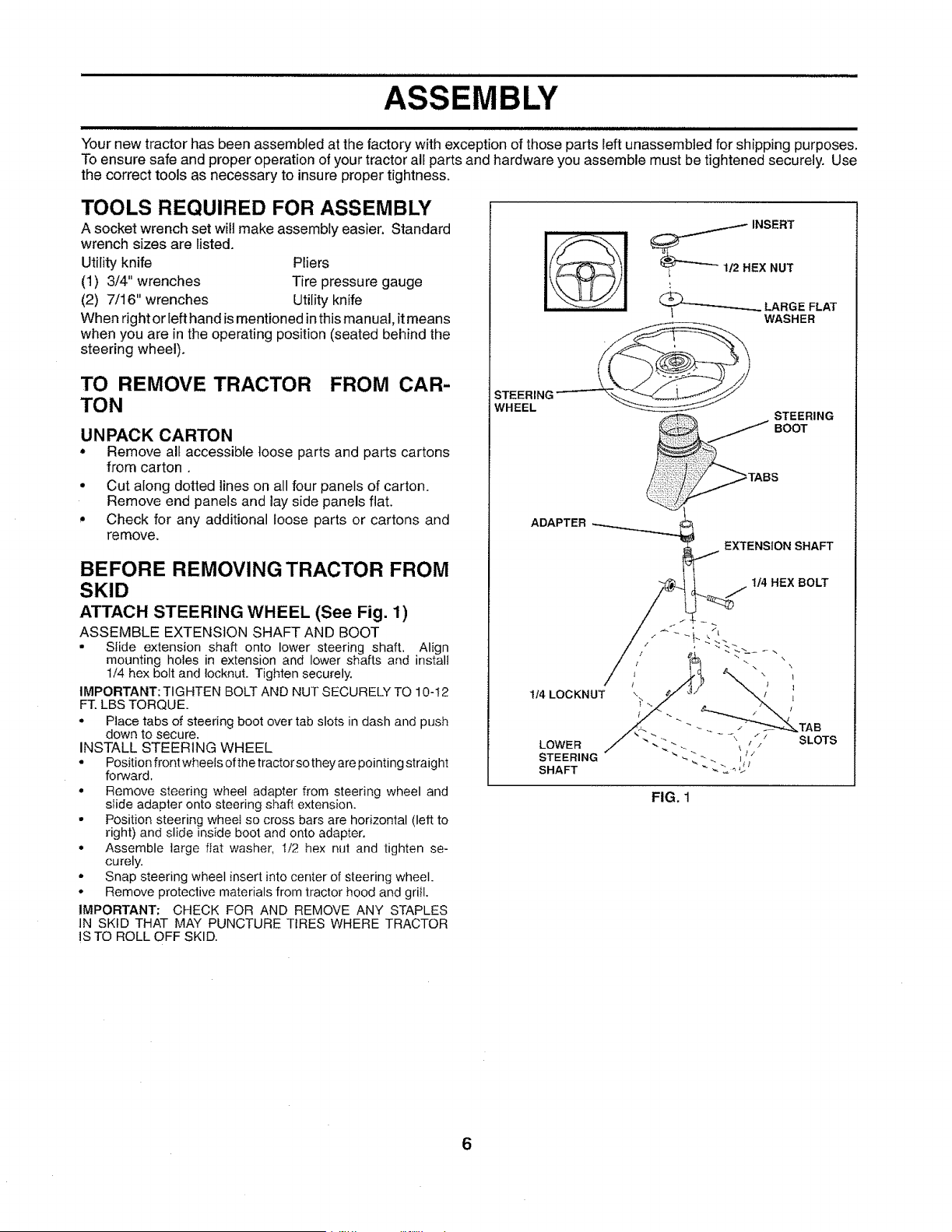

ATTACH STEERING WHEEL (See Fig. 1)
ASSEMBLE EXTENSION SHAFT AND BOOT
• Slide extension shaft onto lower steering shaft. Align
mounting holes in extension and lower shafts and instalt
1/4 hex bolt and tocknut. Tighten securely.
IMPORTANT: TIG HTEN BOLT AND NUT SECUR ELY TO 10- t2
FT. LBS TORQUE.
° Place tabs of steering boot over tab slots in dash and push
down to secure.
INSTALL STEERING WHEEL
• Position front wheels of the tractorso they are pointing straight
forward.
° Remove steering wheel adapter from steering wheel and
slide adapter onto steering shaft extension.
• Position steering wheel so cross bars are horizontal (left to
right) and slide inside boot and onto adapter.
° Assemble large flat washer, I/2 hex nut and tighten se-
curely.
° Snap steering wheel insert into center of steering wheel.
° Remove protective materials from tractor hood and grill.
IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES
IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR
IS TO ROLL OFF SKID.
STEERING
WHEEL
WASHER
STEERING
BOOT
ADAPTER
EXTENSION SHAFT
1_ HEX BOLT
FIG. 1
6
iwlll,ii iwlll i i i IIHI,IIIIII III I
ASSEMBLY
: i,iiiii wlllll iii i
HOW TO SET UP YOUR TRACTOR

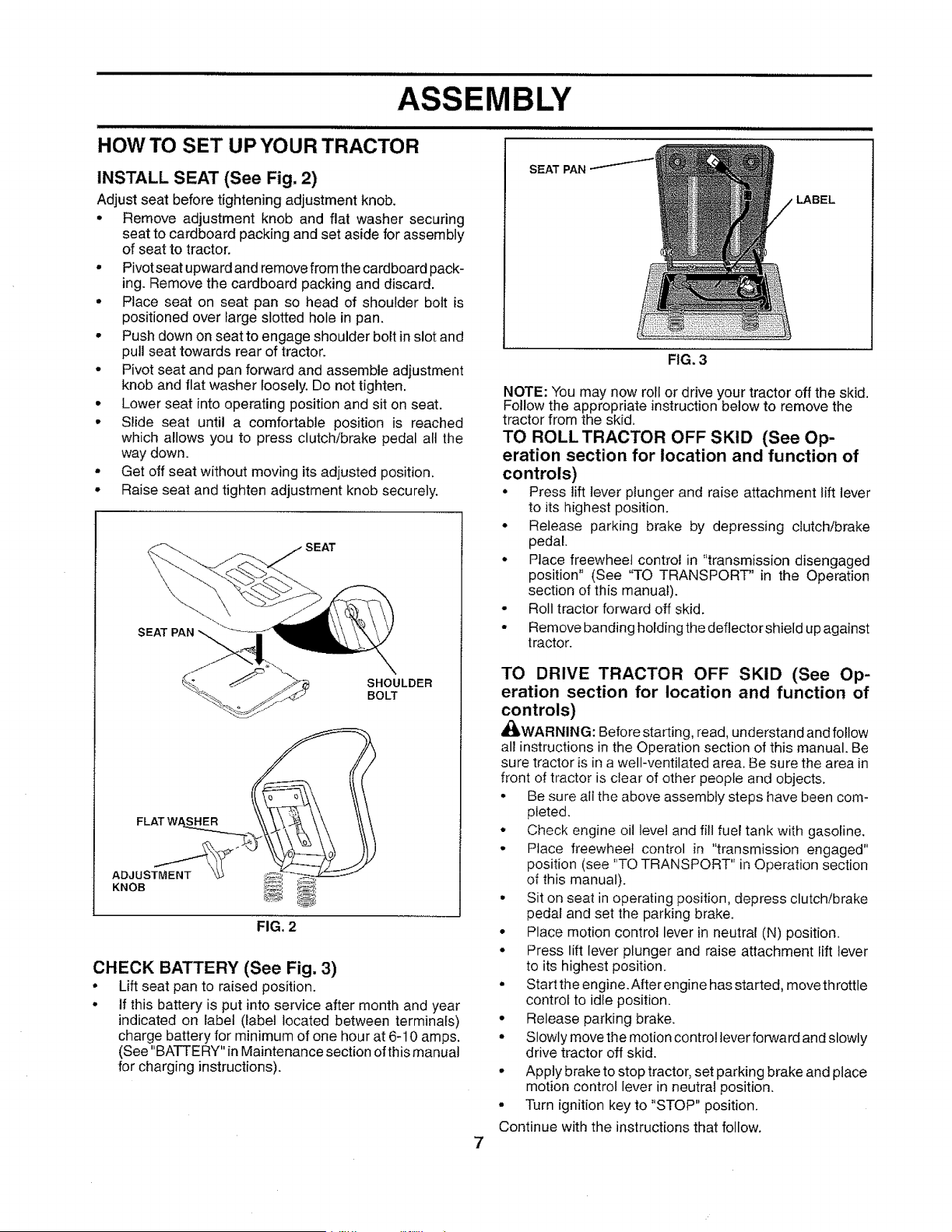

INSTALL SEAT (See Fig, 2)
Adjust seat before tightening adjustment knob.
• Remove adjustment knob and flat washer securing
seat to cardboard packing and set aside for assembly
of seat to tractor.
° Pivot seat upward and remove from the cardboard pack-
ing. Remove the cardboard packing and discard.
• Place seat on seat pan so head of shoulder bolt is
positioned over large slotted hole in pan.
• Push down on seat to engage shoulder bolt in slot and
pull seat towards rear of tractor.
• Pivot seat and pan forward and assemble adjustment
knob and flat washer loosely. Do not tighten.
• Lower seat into operating position and sit on seat.
• Slide seat until a comfortable position is reached
which allows you to press clutch/brake pedal all the
way down.
• Get off seat without moving its adjusted position.
• Raise seat and tighten adjustment knob securely.
SEAT
SHOULDER
BOLT
FLAT WASHER
ADJUSTMENT
KNOB
FIG. 2
CHECK BATTERY (See Fig. 3)
• Lift seat pan to raised position.
° If this battery is put into service after month and year
indicated on label (label located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" in Maintenance section of this manual
for charging instructions).
SEAT PAN "_
LABEL
7
FIG. 3
NOTE: You may now roll or drive your tractor off the skid.
Follow the appropriate instruction below to remove the
tractor from the skid.
TO ROLL TRACTOR OFF SKID (See Op-
eration section for location and function of
controls)
• Press lift lever ptunger and raise attachment lift lever
to its highest position.
• Release parking brake by depressing clutch/brake
pedal.
• Place freewheel control in "transmission disengaged
position" (See "TO TRANSPORT" in the Operation
section of this manual).
• Roll tractor forward off skid.
- Remove banding holding the deflector shield up against
tractor.
TO DRIVE TRACTOR OFF SKID (See Op-
eration section for location and function of
controls)
_WARNING: Before starting, read, understand and follow
all instructions in the Operation section of this manual. Be
sure tractor is in a well-ventilated area. Be sure the area in
front of tractor is clear of other people and objects.
• Be sure all the above assembly steps have been com-
pleted.
• Check engine oil level and fill fuel tank with gasoline.
• Place freewheel control in "transmission engaged"
position (see "TO TRANSPORT" in Operation section
of this manual).
• Sit on seat in operating position, depress clutch/brake
pedal and set the parking brake.
• Place motion control lever in neutral (N) position.
• Press lift lever plunger and raise attachment lift lever
to its highest position.
• Start the engine.After engine has started, move th rottle
control to idle position.
• Release parking brake.
• Slowly move the motion control lever forward and slowly
drive tractor off skid.
• Apply brake to stop tractor, set parking brake and place
motion control lever in neutral position.
• Turn ignition key to "STOP" position.
Continue with the instructions that follow.
,,,,,,IH,,,,,I,,,,,nnlII,II,In,I,IInn iiiii n ,i Ini iiiiil,n nu iii Ill nl n n l II n ii in ii I I i i i
ASSEMBLY

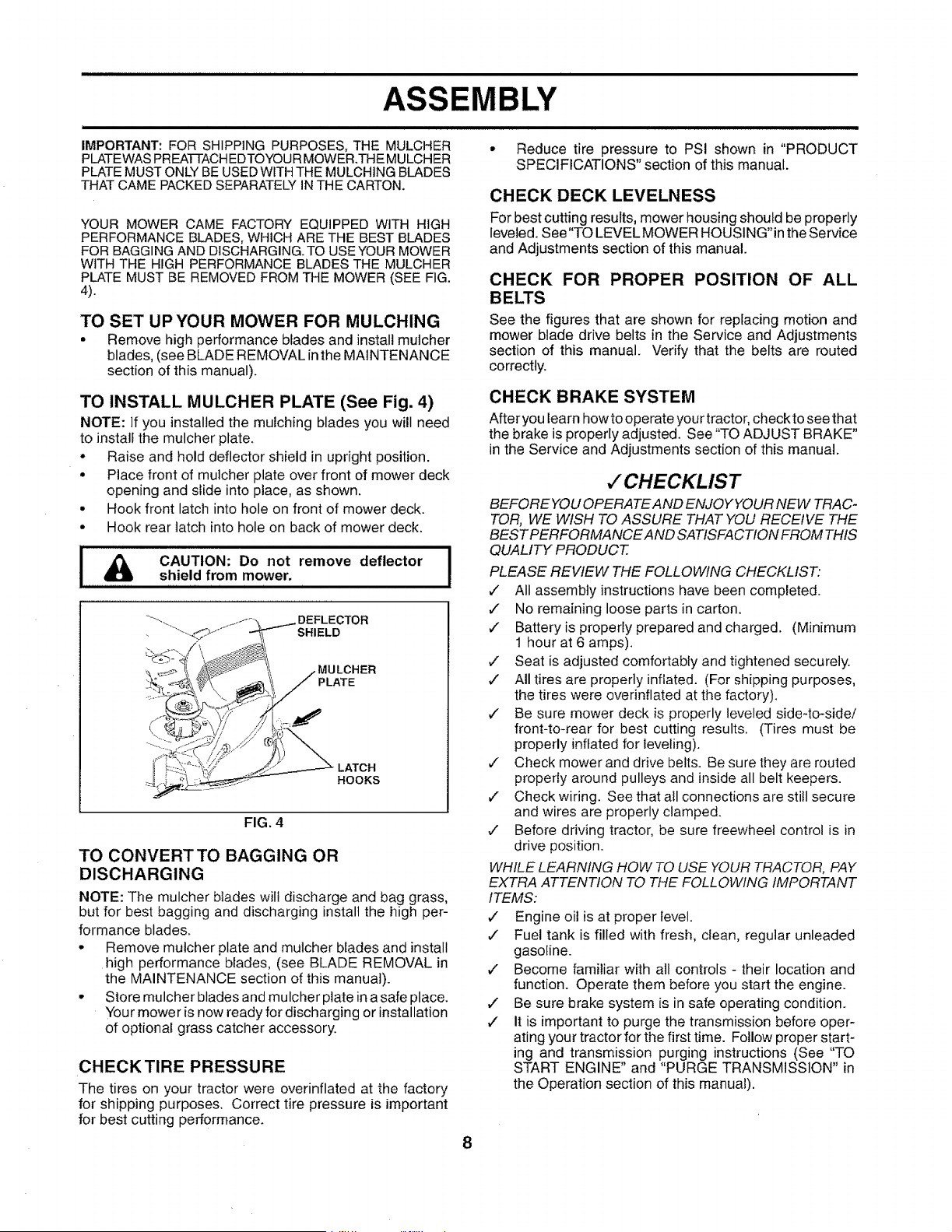

IMPORTANT: FOR SHIPPING PURPOSES, THE MULCHER
PLATEWAS PREATrACH EDTOYOU R MOWERTHE MULCHER
PLATE MUST ONLY BE USED WITH THE MULCHING BLADES
THAT CAME PACKED SEPARATELY IN THE CARTON,
YOUR MOWER CAME FACTORY EQUIPPED WITH HIGH
PERFORMANCE BLADES, WHICH ARE THE BEST BLADES
FOR BAGGING AND DISCHARGING. TO USE YOUR MOWER
WITH THE HIGH PERFORMANCE BLADES THE MULCHER
PLATE MUST BE REMOVED FROM THE MOWER (SEE FIG.
4).
TO SET UPYOUR MOWER FOR MULCHING
• Remove high performance blades and install mulcher
blades, (see BLADE REMOVAL inthe MAINTENANCE
section of this manual).
TO INSTALL MULCHER PLATE (See Fig. 4)
NOTE: If you installed the mulching blades you will need
to install the mulcher plate.
• Raise and hold deflector shield in upright position.
• Place front of mulcher plate over front of mower deck
opening and slide into place, as shown.
• Hook front latch into hole on front of mower deck.
o Hook rear latch into hole on back of mower deck.
!
CAUTION: Do not remove deflector I
shield from mower.
!
1111 =H i i = i =
SHIELD
PLATE
LATCH
HOOKS
FIG. 4
TO CONVERTTO BAGGING OR
DISCHARGING
NOTE: The mulcher blades wilt discharge and bag grass,
but for best bagging and discharging install the high per-
formance blades.
• Remove mutcher plate and mutcher blades and install
high performance blades, (see BLADE REMOVAL in
the MAINTENANCE section of this manuat).
• Store mulcher blades and mulcher plate ina safe place.
Your mower isnow ready for discharging or installation
of optional grass catcher accessory.
CHECKTIRE PRESSURE
The tires on your tractor were overinflated at the factory
for shipping purposes. Correct tire pressure is important
for best cutting performance.
° Reduce tire pressure to PSI shown in "PRODUCT
SPECIFICATIONS" section of this manual.
CHECK DECK LEVELNESS
For best cutting results, mower housing should beproperly
leveled. See"TO LEVEL MOWER HOUSING'in theService
and Adjustments section of this manual.
CHECK FOR PROPER POSITION OF ALL
BELTS
See the figures that are shown for replacing motion and
mower blade drive belts in the Service and Adjustments
section of this manual. Verify that the belts are routed
correctly.
CHECK BRAKE SYSTEM
Afteryou learn howto operate your tractor, checkto see that
the brake is properly adjusted. See "TO ADJUST BRAKE"
in the Service and Adjustments section of this manual.
BEFOREYOU OPERATE AND ENJOYYOUR NEW TRAC-
TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE
BEST PERFORMANCE AND SATISFACTION FROM THIS
QUALITY PRODUCT.
PLEASE REVIEW THE FOLLOWING CHECKLIST:
,/ All assembly instructions have been completed.
,/ No remaining loose parts in carton.
v" Battery is properly prepared and charged. (Minimum
1 hour at 6 amps).
,/ Seat is adjusted comfortably and tightened securely.
¢' All tires are properly inflated. (For shipping purposes,
the tires were overinflated at the factory).
,/ Be sure mower deck is properly leveled sideqo-side/
front-to-rear for best cutting results. (Tires must be
properly inflated for leveling).
J Check mower and drive belts. Be sure they are routed
properly around pulleys and inside all belt keepers.
v" Check wiring. See that all connections are still secure
and wires are properly clamped.
v" Before driving tractor, be sure freewheel control is in
drive position.
WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY
EXTRA ATTENTION TO THE FOLLOWING IMPORTANT
ITEMS:
v" Engine oil is at proper level.
¢" Fuel tank is filled with fresh, clean, regular unleaded
gasoline.
v" Become familiar with all controls - their location and
function. Operate them before you start the engine.
,,/ Be sure brake system is in safe operating condition.
¢" It is important to purge the transmission before oper-
ating your tractor for the first time. Follow proper start-
ing and transmission purging instructions (See "TO
START ENGINE" and "PURGE TRANSMISSION" in
the Operation section of this manual).
8
UUllUlUlIHUUUU,UUUUUUUlU,UUUlUl U UlUUUUUll Ull I I
OPERATION
u,,,,,u,u,uuuuuui uuuuu i ii ,,,,,,,,,,,,, ,,,

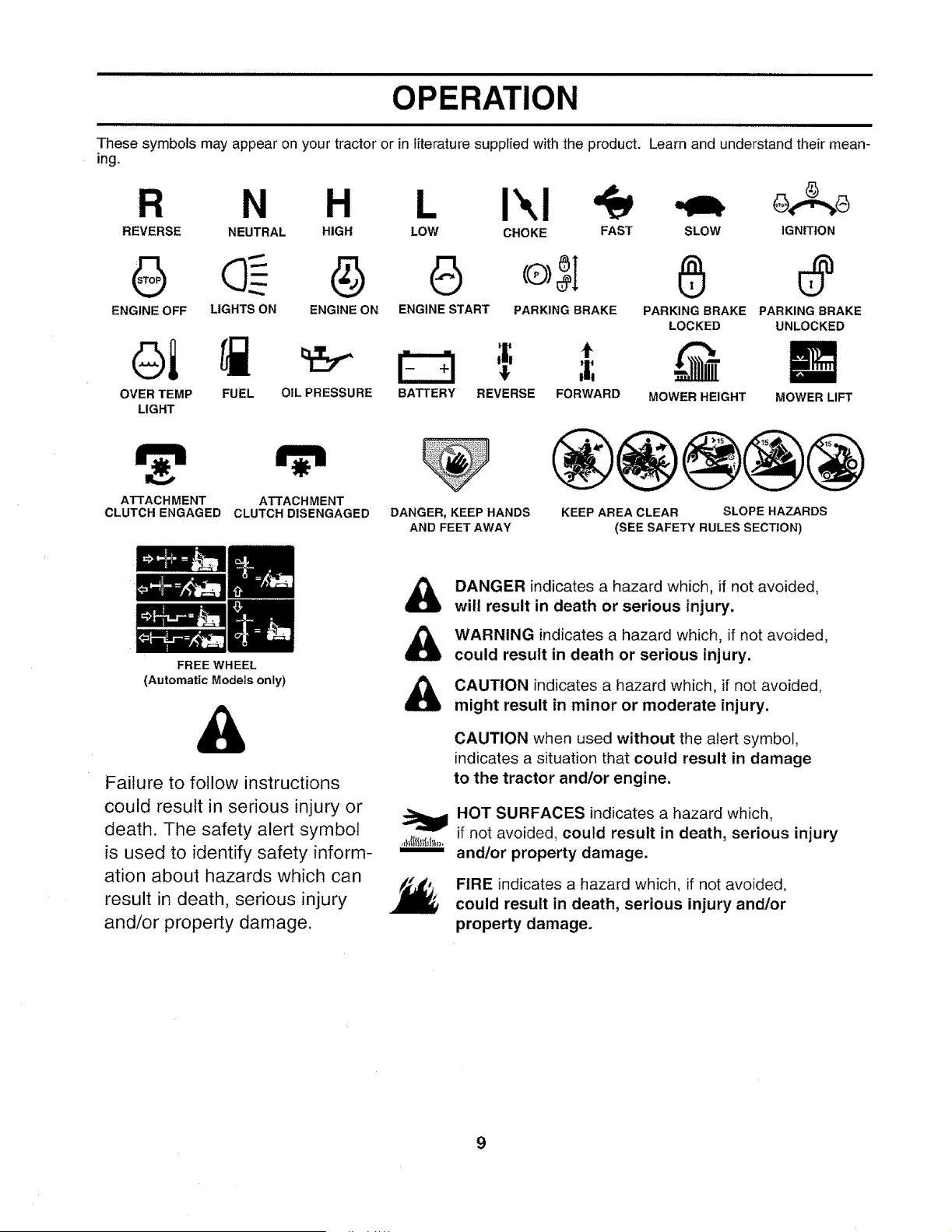

These symbols may appear on your tractor or in literaturesupplied with the product. Learn and understand their mean-
ing.
H L IXI
REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW
IGNITION
@ G_-----@ @ o;i
ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE
oi
OVER TEMP
LIGHT
FUEL OIL PRESSURE BATTERY REVERSE FORWARD
PARKING BRAKE PARKING BRAKE
LOCKED UNLOCKED
MOWER HEIGHT MOWER LIFT
ATTACHMENT
CLUTCH ENGAGED
ATTACHMENT
CLUTCH DISENGAGED
FREE WHEEL
(Automatic Modelsonly)
DANGER, KEEP HANDS
AND FEET AWAY
@@@@@
KEEP AREA CLEAR SLOPE HAZARDS
(SEE SAFETY RULES SECTION)
&
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, serious injury
and/or property damage.
&
&
&
DANGER indicates a hazard which, if not avoided,
wilt result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor and/or engine.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.
9
iiil,llliiiii iilllllllIll Ill I I
OPERATION
IILIIIIllLIIIIIIIIIIIIIIIIILIIJIIIllJ/IIJ,ll,,,I lUlI,I,IIIll I lll II II.,ll.,,lll

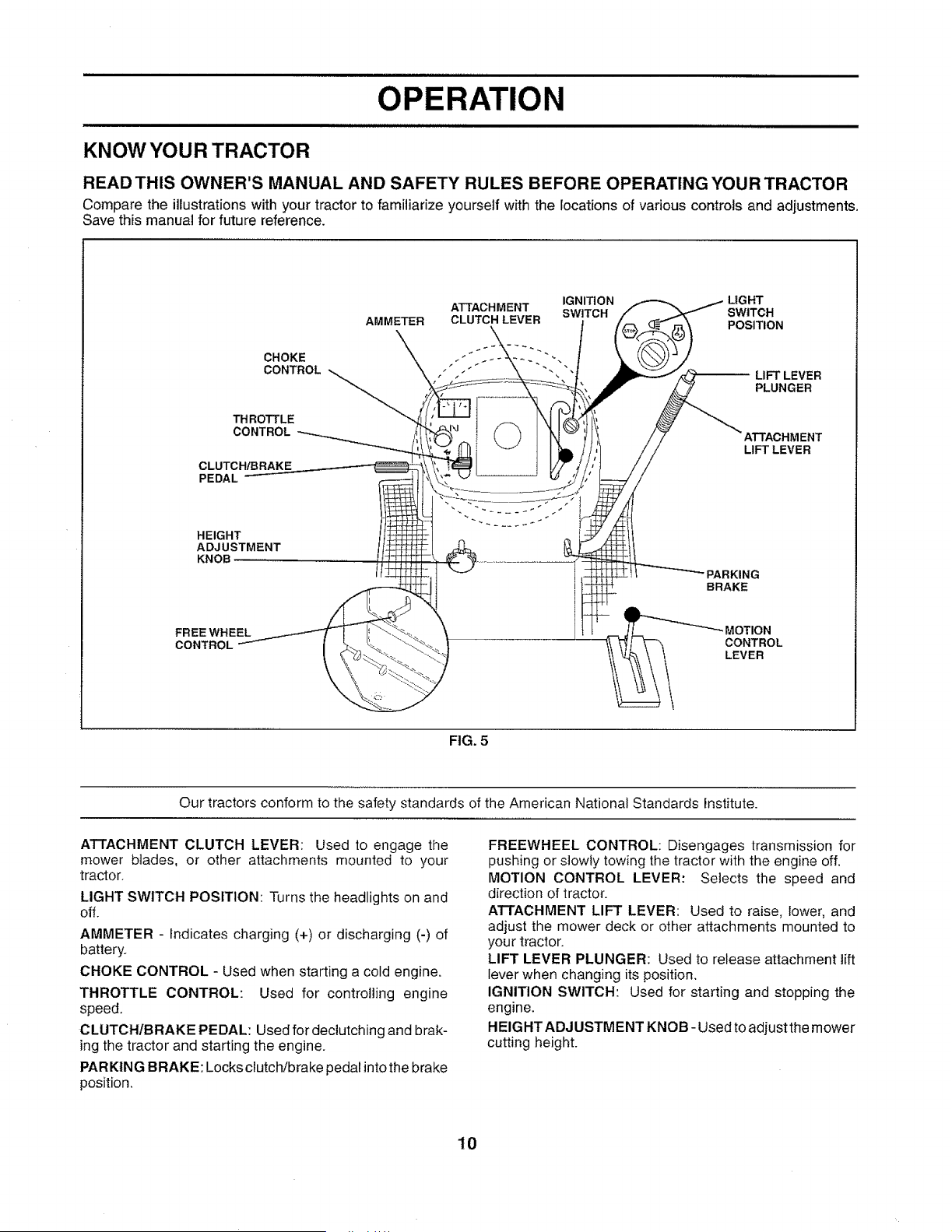

KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments.
Save this manual for future reference.
CHOKE
CONTROL
AMMETER
\
THROTTLE
CONTROL
CLUTCHtBRAKE
PEDAL
HEIGHT
ADJ USTMENT
KNOB
FREE WHEEL
CONTROL
ATTACHMENT IGNITION
SWITCH
CLUTCH LEVER
}2©
I
)
_ IGHT
SWITCH
POSITION
_ ATTACHMENT
LIFTLEVER
"PARKING
BRAKE
MOTION
CONTROL
LEVER
FIG. 5
Our tractors conform to the safety standards of the American National Standards Institute.
ATTACHMENT CLUTCH LEVER: Used to engage the
mower blades, or other attachments mounted to your
tractor.
LIGHT SWITCH POSITION: Turns the headlights on and
off.
AMMETER - Indicates charging (+) or discharging (-) of
battery.
CHOKE CONTROL - Used when starting a cold engine.
THROTTLE CONTROL: Used for controlling engine
speed.
CLUTCH/BRAKE PEDAL: Used for declutching and brak-
ing the tractor and starting the engine.
PAR KING BRAKE: Locks clutch/brake pedal into the brake
position.
FREEWHEEL CONTROL: Disengages transmission for
pushing or slowfy towing the tractor with the engine off.
MOTION CONTROL LEVER: Selects the speed and
direction of tractor.
ATTACHMENT LIFT LEVER: Used to raise, lower, and
adjust the mower deck or other attachments mounted to
your tractor.
LIFT LEVER PLUNGER: Used to release attachment lift
lever when changing its position.
IGNITION SWITCH: Used for starting and stopping the
engine.
HEIGHT ADJUSTMENT KNOB- Used to adjust the mower
cutting height.
10

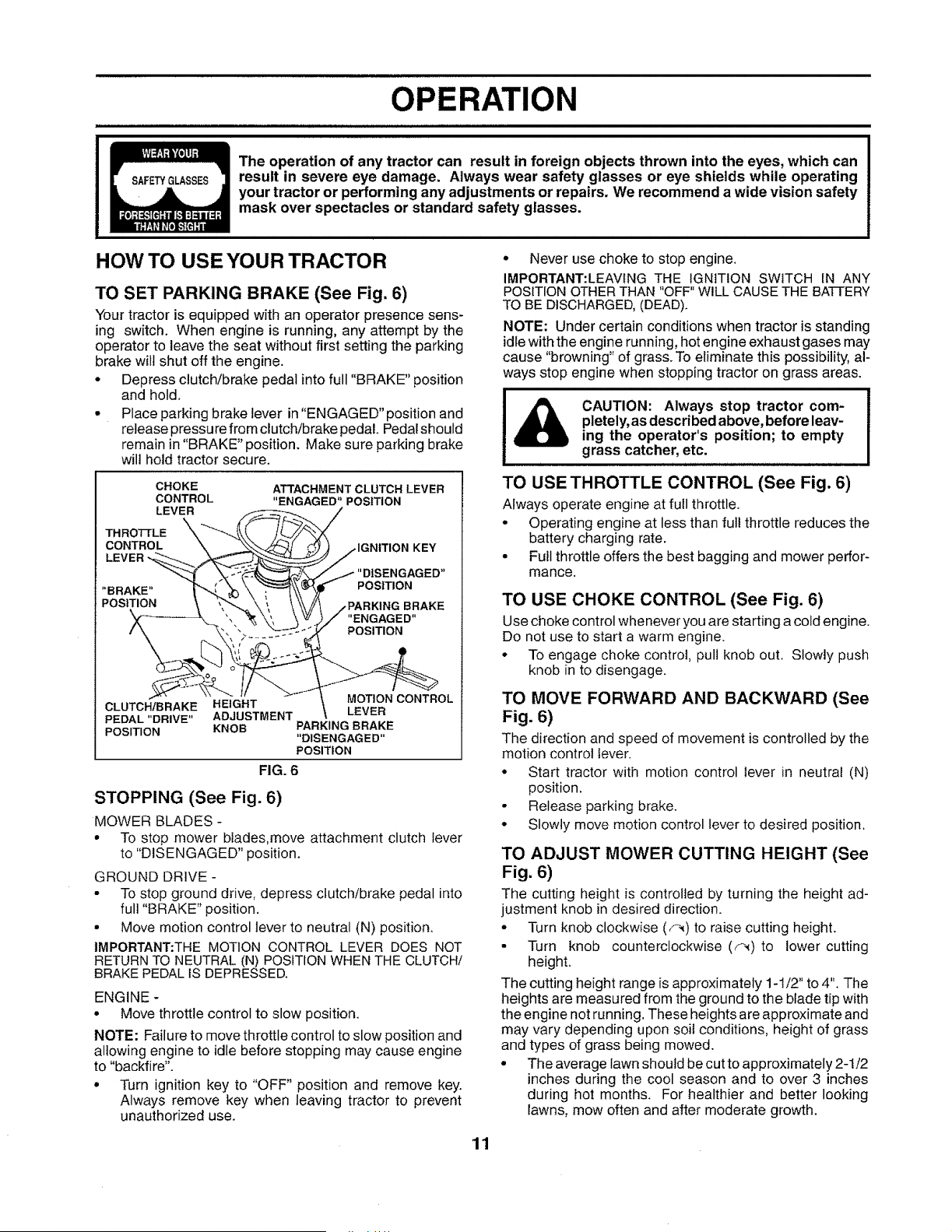

OPERATION
SAFETYGLASSES
The operation of any tractor can result in foreign objects thrown into the eyes, which can
result in severe eye damage. Always wear safety glasses or eye shields while operating
your tractor or performing any adjustments or repairs. We recommend a wide vision safety
mask over spectacles or standard safety glasses.
HOW TO USE YOUR TRACTOR
TO SET PARKING BRAKE (See Fig. 6)
Your tractor is equipped with an operator presence sens-
ing switch. When engine is running, any attempt by the
operator to leave the seat without first setting the parking
brake will shut off the engine.
° Depress clutch/brake pedal into full "BRAKE" position
and hold.
• Place parking brake lever in "ENGAG ED" position and
release pressure from clutch/brake pedal. Pedal should
remain in "BRAKE" position. Make sure parking brake
wilt hold tractor secure.
CHOKE
CONTROL
LEVER
THRO'N'LE X
CONTROL
LEVER
ATTACHMENT CLUTCH LEVER
"ENGAGED" POSITION
KEY
"BRAKE"
POSITION
POSITION
BRAKE
"ENGAGED"
POSITION
CLUTCH/BRAKE HEIGHT
PEDAL "DRIVE" ADJUSTMENT
POSITION KNOB
MOTION CONTROL
LEVER
PARKING BRAKE
"DISENGAGED"
POSITION
FIG. 6
STOPPING (See Fig. 6)
MOWER BLADES -
° TOstop mower blades,move attachment clutch lever
to "DISENGAGED" position.
GROUND DRIVE -
• To stop ground drive, depress clutch/brake pedal into
full "BRAKE" position.
° Move motion control lever to neutral (N) position.
IMPORTANT:THE MOTION CONTROL LEVER DOES NOT
RETURN TO NEUTRAL (N) POSITION WHEN THE CLUTCH/
BRAKE PEDAL IS DEPRESSED.
ENGINE -
° Move throttle control to slow position.
NOTE: Failure to move throttle control to slow position and
allowing engine to idle before stopping may cause engine
to "backfire".
° Turn ignition key to "OFF" position and remove key.
Always remove key when leaving tractor to prevent
unauthorized use.
° Never use choke to stop engine.
IMPORTANT:LEAVING THE IGNITION SWITCH IN ANY
POSITION OTHER THAN "OFF" WILL CAUSE THE BAI-IERY
TO BE DISCHARGED, (DEAD).
NOTE: Under certain conditions when tractor is standing
idle with the engine running, hot engine exhaust gases may
cause "browning" of grass. To eliminate this possibility, al-
ways stop engine when stopping tractor on grass areas.
CAUTION: Always stop tractor com-
pletely, as described above, before leav-
ing the operator's position; to empty
grass catcher, etc.
i i /i, i ill llllllll ill , / //
TO USE THROTTLE CONTROL (See Fig. 6)
Always operate engine at full throttle.
• Operating engine at less than full throttle reduces the
battery charging rate.
• Full throttle offers the best bagging and mower perfor-
mance.
TO USE CHOKE CONTROL (See Fig. 6)
Use choke control whenever you are starting acold engine.
Do not use to start a warm engine.
° To engage choke control, pull knob out. Slowly push
knob in to disengage.
TO MOVE FORWARD AND BACKWARD (See
Fig. 6)
The direction and speed of movement is controlled by the
motion control lever.
• Start tractor with motion control lever in neutral (N)
position.
• Release parking brake.
° Slowly move motion control lever to desired position.
TO ADJUST MOWER CUTTING HEIGHT (See
Fig. 6)
The cutting height is controlled by turning the height ad-
justment knob in desired direction.
• Turn knob clockwise (,__) to raise cutting height.
• Turn knob counterclockwise (_)to lower cutting
height.
The cutting height range is approximately 1-1/2" to 4". The
heights are measured from the ground to the blade tip with
the engine not running. These heights are approximate and
may vary depending upon soil conditions, height of grass
and types of grass being mowed.
° The average lawn should be cut to approximately 2-1/2
inches during the cool season and to over 3 inches
during hot months. For healthier and better looking
lawns, mow often and after moderate growth.
11
OPERATION
• For best cutting performance, grass over 6 inches
in height should be mowed twice. Make the first cut
relatively high; the second to desired height.

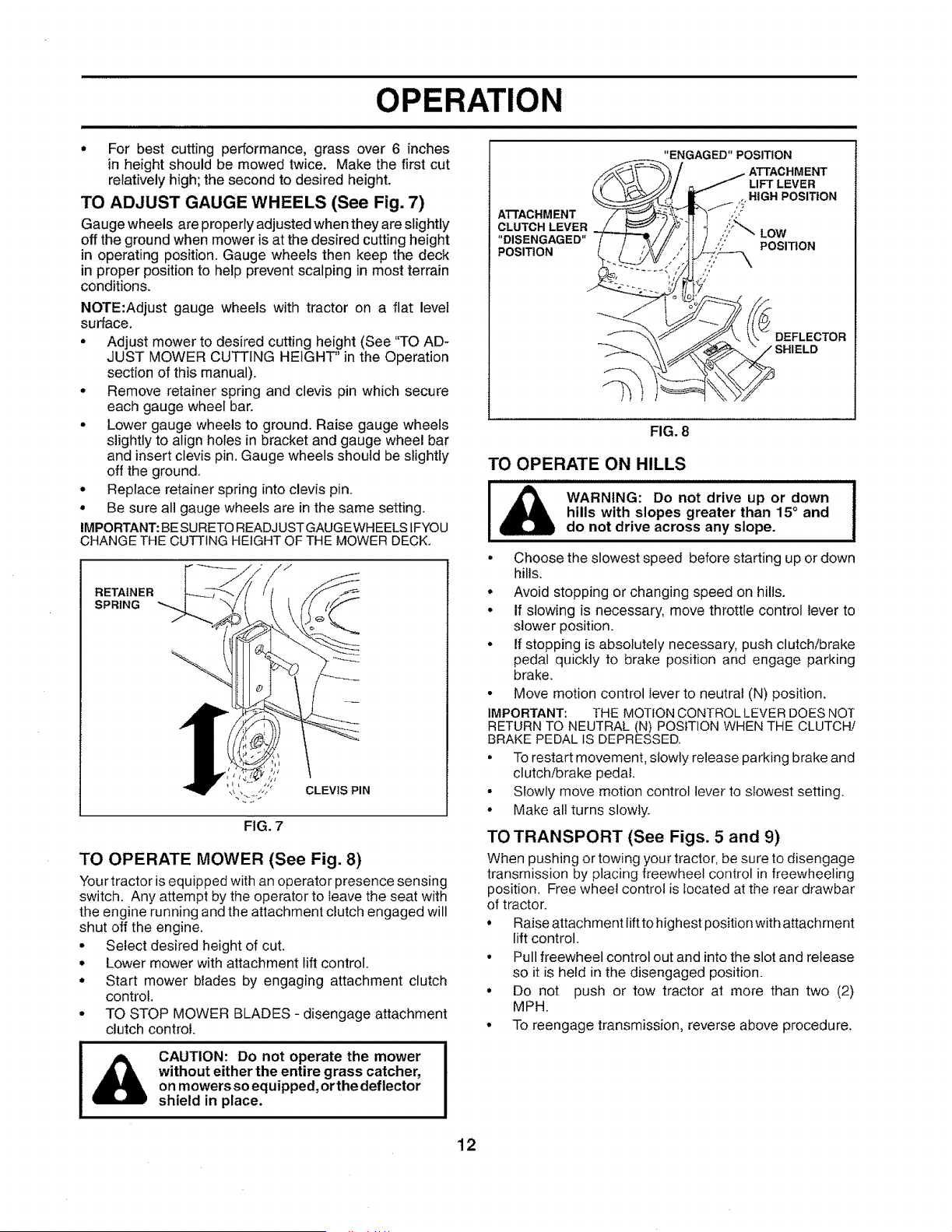

TO ADJUST GAUGE WHEELS (See Fig. 7)
Gauge wheels are properly adjusted when they are slightly
off the ground when mower is at the desired cutting height
in operating position. Gauge wheels then keep the deck
in proper position to help prevent scalping in most terrain
conditions.
NOTE:Adjust gauge wheels with tractor on a flat level
surface.
• Adjust mower to desired cutting height (See "TO AD-
JUST MOWER CUTTING HEIGHT" in the Operation
section of this manual).
• Remove retainer spring and clevis pin which secure
each gauge wheel bar.
° Lower gauge wheels to ground. Raise gauge wheels
slightly to align holes in bracket and gauge wheel bar
and insert clevis pin. Gauge wheels should be slightly
off the ground,
• Replace retainer spring into clevis pin.
° Be sure all gauge wheels are in the same setting.
IMPORTANT: BESURETQ READJUST GAUGEWHEELS tFYOU
CHANGE THE CUTTING HEIGHT OF THE MOWER DECK.
RETAINER _-_
SPRING
FIG. 7
TO OPERATE MOWER (See Fig. 8)
Your tractor is equipped with an operator presence sensing
switch. Any attempt by the operator to leave the seat with
the engine running and the attachment clutch engaged will
shut off the engine.
• Select desired height of cut.
• Lower mower with attachment lift control.
• Start mower blades by engaging attachment clutch
control.
• TO STOP MOWER BLADES - disengage attachment
clutch control.
CAUTION: Do not operate the mower
without either the entire grass catcher,
onmowerssoequipped,orthe deflector
shield in place.
"ENGAGED" POSITION
DEFLECTOR
s ,o o
FIG. 8
TO OPERATE ON HILLS
i
I_ WARNING: Do not drive up or down I
hills with slopes greater than 15 ° and
!
do not drive across any slope.
• Choose the slowest speed before starting up or down
hills.
• Avoid stopping or changing speed on hills.
• If slowing is necessary, move throttle control lever to
slower position.
• If stopping is absolutely necessary, push clutch/brake
pedal quickly to brake position and engage parking
brake.
• Move motion control lever to neutral (N) position.
IMPORTANT: THE MOTION CONTROL LEVER DOES NOT
RETURN TO NEUTRAL (N) POSITION WHEN THE CLUTCH/
BRAKE PEDAL IS DEPRESSED.
• To restart movement, slowly release parking brake and
clutch/brake pedal.
• Slowly move motion control lever 1oslowest setting.
• Make all turns slowly.
TO TRANSPORT (See Figs. 5 and 9)
When pushing or towing you rtractor, be su re to disengage
transmission by placing freewheel control in freewheeling
position. Free wheel control is located at the rear drawbar
of tractor.
• Raise attachment lift to highest position with attachment
lift control.
° Pull freewheel control out and into the slot and release
so it is held in the disengaged position.
• Do not push or tow tractor at more than two (2)
MPH.
• To reengage transmission, reverse above procedure.
12
OPERATION

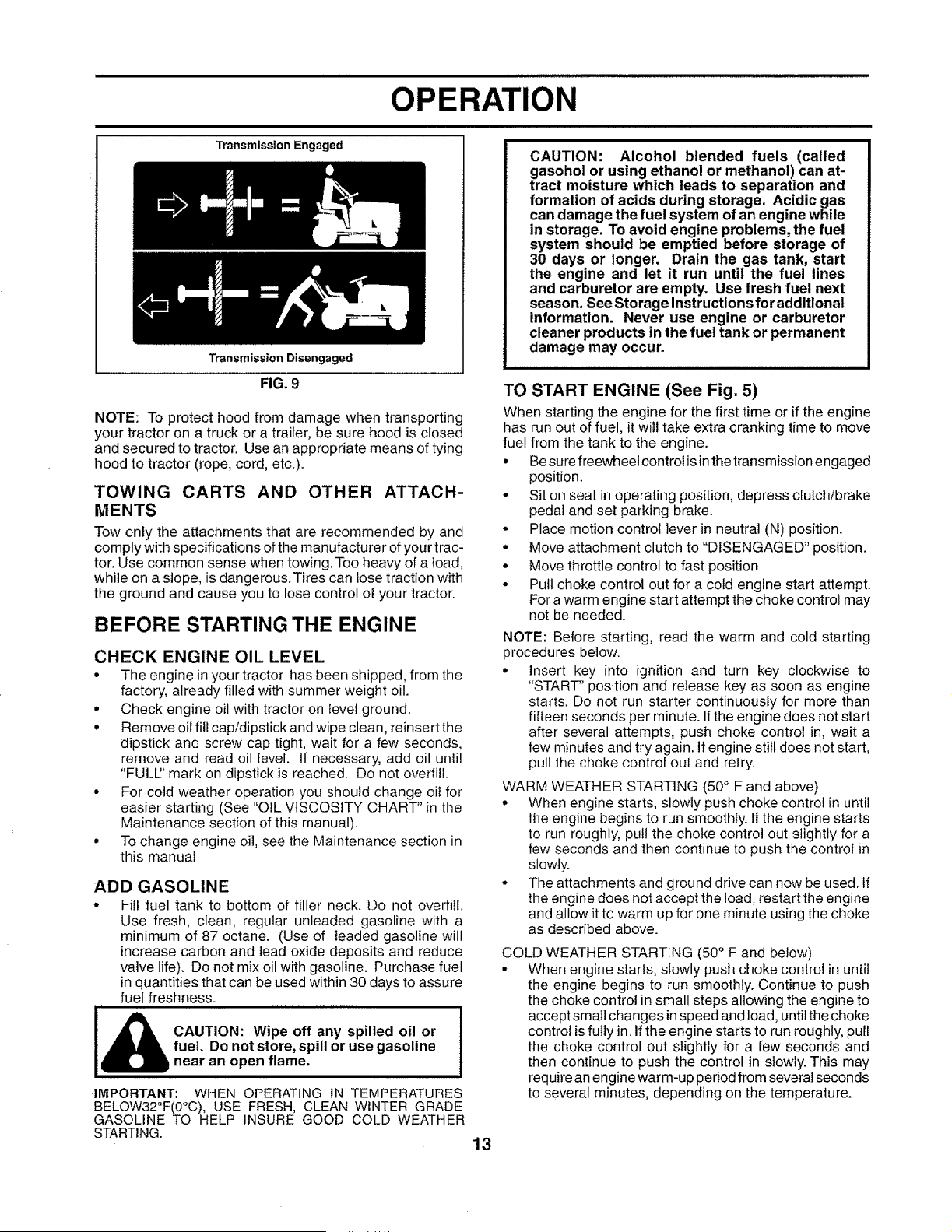

TransmissionEngaged
Transmission Disengaged
FIG, 9
NOTE: To protect hood from damage when transporting
your tractor on a truck or a trailer, be sure hood is closed
and secured to tractor. Use an appropriate means of tying
hood to tractor (rope, cord, etc.).
TOWING CARTS AND OTHER ATTACH-
MENTS
Tow only the attachments that are recommended by and
comply with specifications of the manufacture rof your trac-
tor. Use common sense when towing.Too heavy of a load,
while on a slope, is dangerous.Tires can lose traction with
the ground and cause you to lose control of your tractor.
BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL
• The engine in your tractor has been shipped, from the
factory, already filled with summer weight oil.
• Check engine oil with tractor on level ground.
• Remove oil fill cap/dipstick and wipe clean, reinsert the
dipstick and screw cap tight, wait for a few seconds,
remove and read oil level. If necessary, add oil until
'*FULL' mark on dipstick is reached. Do not overfill.
• For cold weather operation you should change oil for
easier starting (See **OILVISCOSITY CHART" in the
Maintenance section of this manual).
• To change engine oil, see the Maintenance section in
this manual.
ADD GASOLINE
• Fill fuel tank to bottom of filler neck. Do not overfill.
Use fresh, clean, regular unleaded gasoline with a
minimum of 87 octane. (Use of leaded gasoline will
increase carbon and lead oxide deposits and reduce
valve life). Do not mix oil with gasoline. Purchase fuel
in quantities that can be used within 30 days to assure
fuel freshness.
CAUTION: Wipe off any spilled oil or
fuel. Do not store,spill or use gasoline
near an open flame.
IMPORTANT: WHEN OPERATING IN TEMPERATURES
BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE
GASOLINE TO HELP INSURE GOOD COLD WEATHER
STARTING.
13
,,,,,,,,,,,,,,,,
CAUTION: Alcohol blended fuels (called
gasohol or using ethanol or methanol) can at-
tract moisture which leads to separation and
formation of acids during storage, Acidic gas
can damage the fuel system of an engine while
in storage. To avoid engine problems, the fuel
system should be emptied before storage of
30 days or longer. Drain the gas tank, start
the engine and let it run until the fuel lines
and carburetor are empty, Use fresh fuel next
season. See Storage Instructions for additional
information. Never use engine or carburetor
cleaner products in the fuel tank or permanent
damage may occur.
TO START ENGINE (See Fig. 5)
When starting the engine for the first time or if the engine
has run out of fuel, it wilt take extra cranking time to move
fuel from the tank to the engine.
• Be surefreewheel control is inthe transmission engaged
position.
• Sit on seat in operating position, depress clutch/brake
pedal and set parking brake.
° Place motion control lever in neutral (N) position.
• Move attachment clutch to "DISENGAGED" position.
• Move throttle control to fast position
o Pull choke control out for a cold engine start attempt.
For a warm engine start attempt the choke control may
not be needed.
NOTE: Before starting, read the warm and cold starting
procedures below.
• insert key into ignition and turn key clockwise to
"START" position and release key as soon as engine
starts. Do not run starter continuously for more than
fifteen seconds per minute. If the engine does not start
after several attempts, push choke control in, wait a
few minutes and try again. If engine still does not start,
pull the choke control out and retry.
WARM WEATHER STARTING (50° F and above)
• When engine starts, slowly push choke control in until
the engine begins to run smoothly. If the engine starts
to run roughly, pull the choke control out slightly for a
few seconds and then continue to push the control in
slowly.
• The attachments and ground drive can now be used. tf
the engine does not accept the load, restart the engine
and allow it to warm up for one minute using the choke
as described above.
COLD WEATHER STARTING (50° F and below)
• When engine starts, slowly push choke control in until
the engine begins to run smoothly. Continue to push
the choke control in small steps allowing the engine to
accept small changes in speed and toad, until the choke
control is fully in. If the engine starts to run roughly, pull
the choke control out slightly for a few seconds and
then continue to push the control in slowly. This may
require an engine warm-up period from several seconds
to several minutes, depending on the temperature.

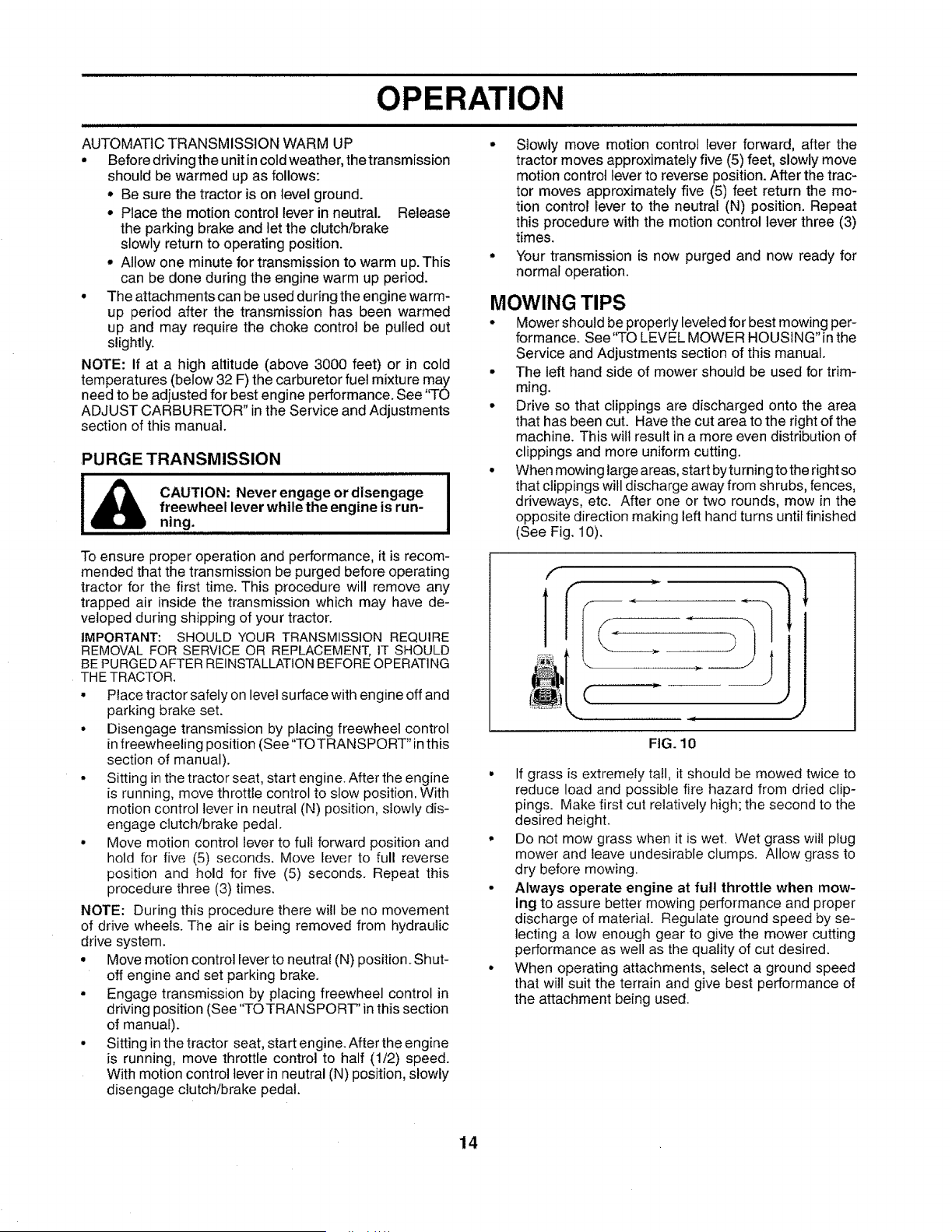

OPERATION
1111Jllu,_,ll,,,,H,,,Li
AUTOMATIC TRANSMISSION WARM UP •
° Before driving the unit in cold weather, thetransmission
should be warmed up as follows:
° Be sure the tractor is on level ground.
° Place the motion control lever in neutral. Release
the parking brake and let the clutch!brake
slowly return to operating position.
- Allow one minute for transmission to warm up.This °
can be done during the engine warm up period.
° The attachments can be used during the engine warm-
up period after the transmission has been warmed
up and may require the choke control be pulled out
slightly.
NOTE: if at a high altitude (above 3000 feet) or in cold
temperatures (below 32 F) the carburetor fuel mixture may
need to be adjusted for best engine performance. See 'q'O
ADJUST CARBURETOR" in the Service and Adjustments
section of this manual.
PURGE TRANSMISSION
!_ CAUTION: Never engage or disengage i
freewheel lever while the engine is run-
ning.
To ensure proper operation and performance, it is recom-
mended that the transmission be purged before operating
tractor for the first time. This procedure will remove any
trapped air inside the transmission which may have de-
veloped during shipping of your tractor.
IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE
REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD
BE PURGED AFTER REINSTALLATtON BEFORE OPERATING
THE TRACTOR.
• Place tractor safely on level surface with engine off and
parking brake set.
• Disengage transmission by placing freewheel control
in freewheeling position (See"TOTRANSPORT"in this
section of manual).
• Sitting in the tractor seat, start engine. After the engine
is running, move throttle control to stow position. With
motion control lever in neutral (N) position, slowly dis-
engage clutch/brake pedal.
° Move motion control lever to full forward position and
hold for five (5) seconds. Move lever to full reverse
position and hold for five (5) seconds. Repeat this
procedure three (3) times.
NOTE: During this procedure there will be no movement
of drive wheels. The air is being removed from hydraulic
drive system.
• Move motion control lever to neutral (N) position. Shut-
off engine and set parking brake.
• Engage transmission by placing freewheel control in
driving position (See "TO TRANSPORT" in this section
of manual).
• Sitting in the tractor seat, start engine. After the engine
is running, move throttle control to half (1/2) speed.
With motion control lever in neutral (N) position, slowly
disengage clutch/brake pedal.
Slowly move motion control lever forward, after the
tractor moves approximately five (5) feet, slowly move
motion control lever to reverse position. After the trac-
tor moves approximately five (5) feet return the mo-
tion control lever to the neutral (N) position. Repeat
this procedure with the motion control lever three (3)
times.
Your transmission is now purged and now ready for
normal operation.
MOWING TIPS
• Mower should be properly leveled for best mowing per-
formance. See'q'O LEVEL MOWER HOUSING" in the
Service and Adjustments section of this manual.
• The left hand side of mower should be used for trim-
ming.
° Drive so that clippings are discharged onto the area
that has been cut. Have the cut area to the right of the
machine. This wilt result in a more even distribution of
clippings and more uniform cutting.
° When mowing large areas, start by turning to the right so
that clippings will discharge away from shrubs, fences,
driveways, etc. After one or two rounds, mow in the
opposite direction making left hand turns until finished
(See Fig. 10).
f
ir
J
FIG. 10
• If grass is extremely tall, it should be mowed twice to
reduce load and possible fire hazard from dried clip-
pings. Make first cut relatively high; the second to the
desired height.
• Do not mow grass when it is wet. Wet grass will plug
mower and leave undesirable clumps. Allow grass to
dry before mowing.
• Always operate engine at full throttle when mow-
ing to assure better mowing performance and proper
discharge of material. Regulate ground speed by se-
lecting a tow enough gear to give the mower cutting
performance as well as the quality of cut desired.
• When operating attachments, select a ground speed
that will suit the terrain and give best performance of
the attachment being used.
14
OPERATION
i i ii m i,i,l_Lllll_,,,

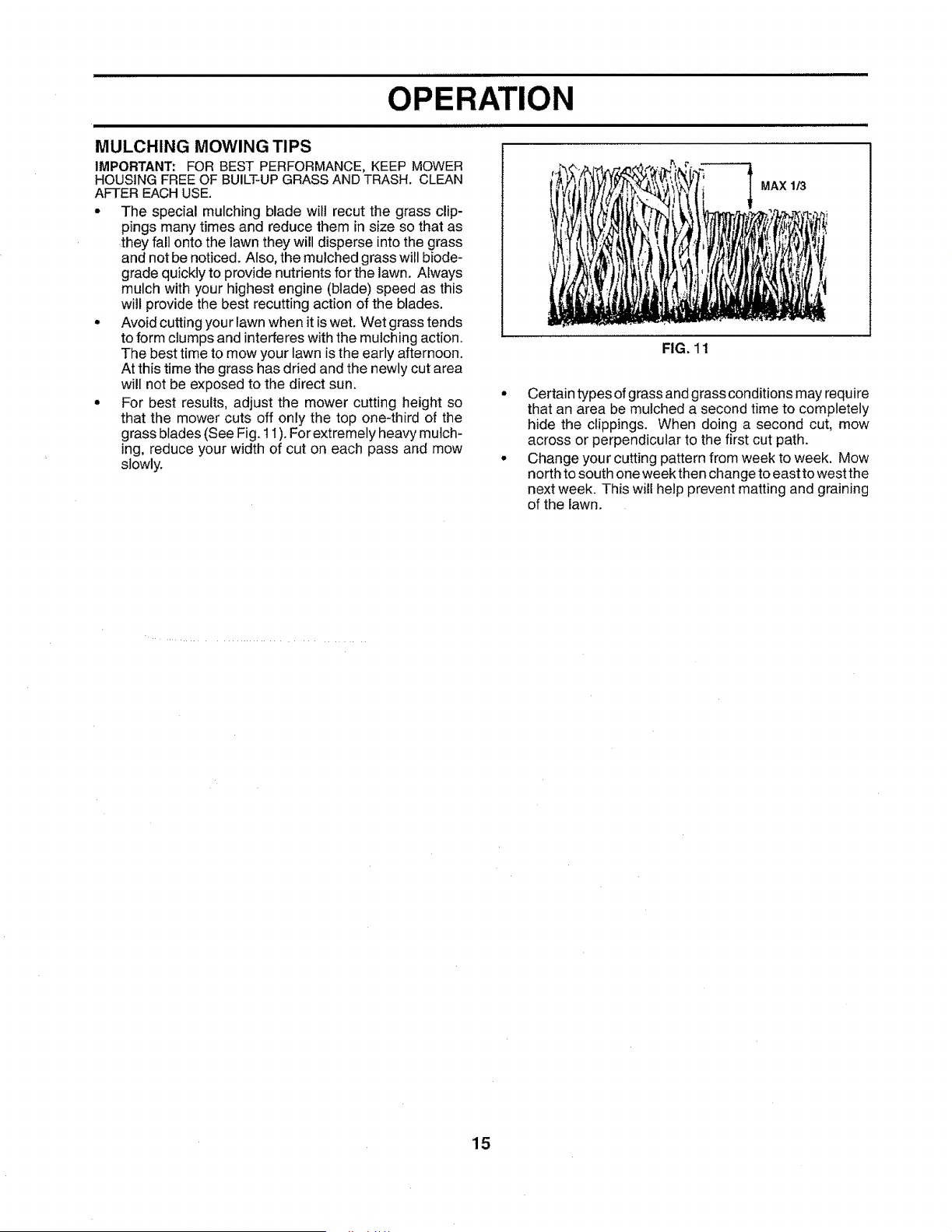

MULCHING MOWING TIPS
IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER
HOUSING FREE OF BUILT-UP GRASS AND TRASH. CLEAN
AFTER EACH USE.
• The special mulching blade wifl recut the grass clip-
pings many times and reduce them in size so that as
Ihey fall onto the lawn they will disperse into the grass
and not be noticed. Also, the mulched grass will biode-
grade quickly to provide nutrients for the lawn. Always
mulch with your highest engine (blade) speed as this
will provide the best recutting action of the blades.
• Avoid cutting your lawn when it is wet. Wet grass tends
to form clumps and interferes with the mulching action.
The best time to mow your lawn is the early afternoon.
At this time the grass has dried and the newly cut area
will not be exposed to the direct sun.
• For best results, adjust the mower cutting height so
that the mower cuts off only the top one-third of the
grass blades (See Fig. 11). For extremely heavy mulch-
ing, reduce your width of cut on each pass and mow
slowly.
MAXI_
FIG. 11
° Certain types of grass and grass conditions may require
that an area be mulched a second time to completely
hide the clippings. When doing a second cut, mow
across or perpendicular to the first cut path.
• Change your cutting pattern from week to week. Mow
north to south one week then change to east to west the
next week. This will help prevent matting and graining
of the lawn.
15
Check Tire Pressure If V'
Chec'k Operator Presence and ...........................
T Interlock Systems If
R Check for LooseFasieners .... If t_5 If
Sharpen/Replace Mower Blades
T Lubrication Chart If tf
0 Check Battery Level 1_4 ..........
a Clean Battery and Terminals if If
................................... = , ,
Check Transaxle Cooling if
Check V-Belts V
,,,,,,,,,,HH,H,, ,,,,,,,,,,,H ,,,,,,,,,, ,,,, , , ,,,, , ,,
Check Engine OiI Levet If If
Change Engine Oil (with oil fitter) V'_,2 If
E Change Engine Oil (without oil filter) V_.2 V* ,
N Clean Air Filter ................................................................V_2 C ..............
G Clean Air Screen V_2
Inspect Muffler/Spark Arrester V'
E Replace Oil Filter (if equipped) 1_.2
Clean Engine Cooling Fins I _ ! I I If 2
Replace Spark Plug If I_
Repiace Air FilterPaper Cartridge 1_2
Replace,,,F,ue!,,,Eilter
t - Change more often when operating under a heavy load or
in high ambient temperatures.
2 - Service more often when operating _n dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4 - Not required if equipped with maintenance-free battery.
5 - Tighten front axle pivot bolt to 35 ft.4bs, maximum.
Do not overtighten.

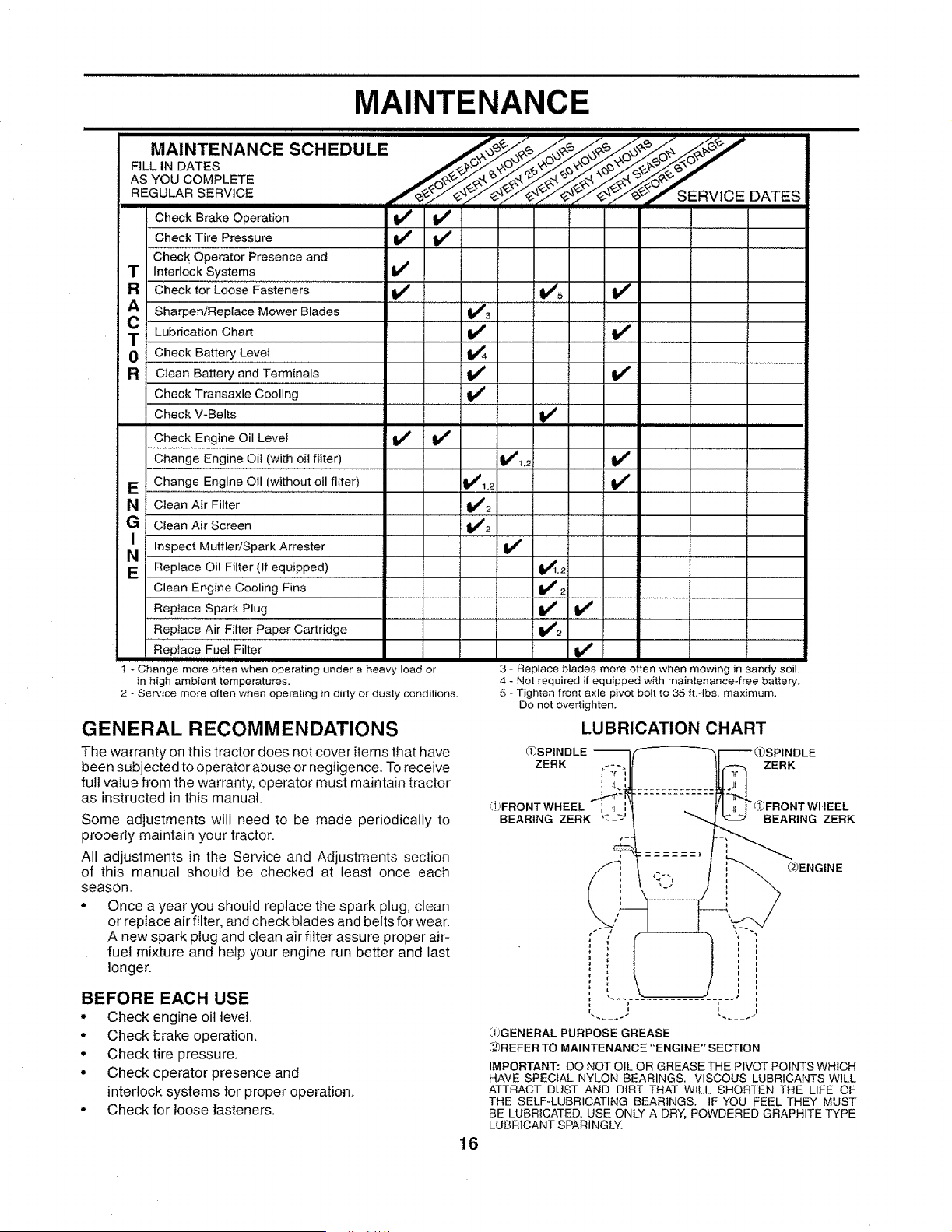

GENERAL RECOMMENDATIONS
LUBRICATION CHART
The warranty on this tractor does ROtcover items that have
been subjected to operator abuse or negligence. To receive
full value from the warranty, operator must maintain tractor
as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your tractor.
All adjustments in the Service and Adjustments section
of this manual should be checked at least once each
season.
• Once a year you should replace the spark plug, clean
or replace air filter, and check blades and belts for wear.
A new spark plug and clean air filter assure proper air-
fuel mixture and help your engine run better and last
longer.
BEFORE EACH USE
* Check engine oil level.
• Check brake operation.
• Check tire pressure.
• Check operator presence and
interlock systems for proper operation.
• Check for loose fasteners.
(T)SPINDLE i
ZERK ;"Jr ",
;PINDLE
ZERK
"(!)FRONT WHEEL
BEARING ZERK
@ENGINE
€
f
' I
t [ i
(])GENERAL PURPOSE GREASE
@REFER TO MAINTENANCE "ENGINE" SECTION
IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS WHICH
HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRICANTS WILL
ATTRACT DUST AND DIRT THAT WILL SHORTEN THE LIFE OF
THE SELF-LUBRICATING BEARINGS, tF YOU FEEL THEY MUST
BE LUBRICATED, USE ONLY A DRY, POWDERED GRAPHITE TYPE
LUBRICANT SPARI NGLY.
16
,I,UlIIIII,nnlHI,nlI,IIIIIIIIII,nlIIIInlIIIIIIIInlIIiiiiiiiii III iiiii in ii i II nnl i I i i I i n iii II IIII I I i i

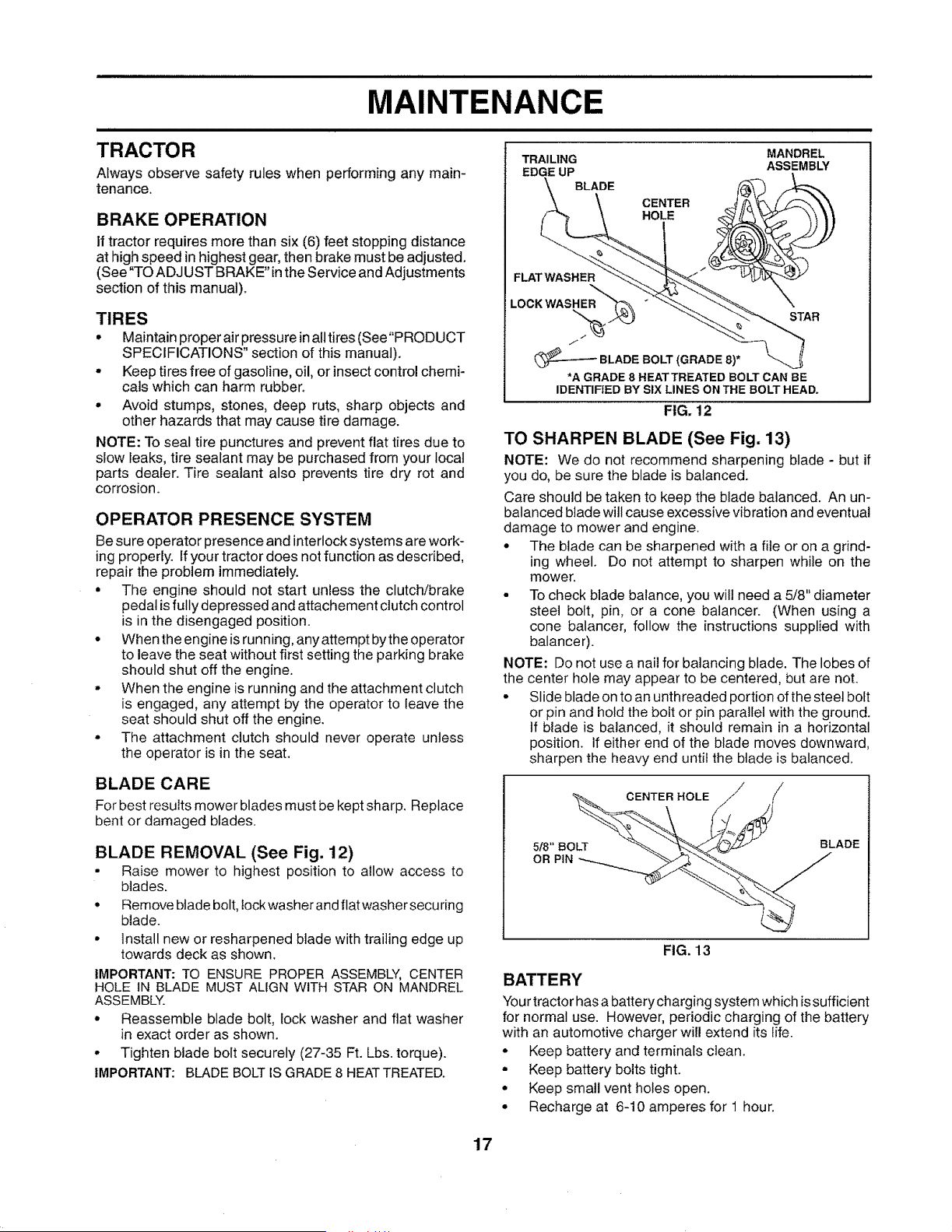

MAINTENANCE
TRACTOR
Always observe safety rules when performing any main-
tenance.
BRAKE OPERATION
If tractor requires more than six (6) feet stopping distance
at high speed in highest gear, then brake must be adjusted.
(See "TO ADJUST BRAKE" inthe Service and Adjustments
section of this manual).
TIRES
• Maintain proper air pressure inall tires (See"PRODUCT
SPECIFICATIONS" section of this manual).
- Keep tires free of gasoline, oil, or insect control chemi-
cals which can harm rubber_
° Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer. Tire sealant also prevents tire dry rot and
corrosion.
OPERATOR PRESENCE SYSTEM
Be su re operator presence and interlock systems are work-
ing properly. If your tractor does not function as described,
repair the problem immediately.
• The engine should not start unless the clutch/brake
pedal is fully depressed and attachement clutch control
is in the disengaged position.
° Whentheengineisrunning, anyattemptbytheoperator
to leave the seat without first setting the parking brake
should shut off the engine.
• When the engine is running and the attachment clutch
is engaged, any attempt by the operator to leave the
seat should shut off the engine.
° The attachment clutch should never operate unless
the operator is in the seat.
BLADE CARE
For best results mower blades must be kept sharp. Replace
bent or damaged blades.
BLADE REMOVAL (See Fig. 12)
• Raise mower to highest position to allow access to
blades.
° Remove btade bolt, tock washer andflat washer secu ring
blade.
° Install new or resharpened blade with trailing edge up
towards deck as shown,
IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER
HOLE tN BLADE MUST ALIGN WITH STAR ON MANDREL
ASSEMBLY.
° Reassemble blade bolt, lock washer and flat washer
in exact order as shown.
° Tighten blade bolt securely (27-35 Ft. Lbs. torque).
IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.
TRAILING
EDGE UP
BLADE
FLAT WASHER
LOCK WASHER
%
CENTER
HOLE
MANDREL
ASSEMBLY
STAR
(_--_ BLADE BOLT (GRADE 8)*
*A GRADE 8 HEATTREATED BOLT CAN BE
IDENTIFIED BY SIX LINES ON THE BOLT HEAD.
FIG. 12
TO SHARPEN BLADE (See Fig. 13)
NOTE: We do not recommend sharpening blade - but if
you do, be sure the blade is balanced.
Care should be taken to keep the blade balanced. An un-
balanced blade will cause excessive vibration and eventual
damage to mower and engine.
° The blade can be sharpened with a file or on a grind-
ing wheel. Do not attempt to sharpen while on the
mower.
• To check blade balance, you will need a 5/8" diameter
steel bolt, pin, or a cone balancer. (When using a
cone balancer, follow the instructions supplied with
balancer).
NOTE: Do not use a nail for balancing blade. The lobes of
the center hole may appear to be centered, but are not.
• Slide blade on to an unthreaded portion of the steel bolt
or pin and hold the bolt or pin parallel with the ground.
If blade is balanced, it should remain in a horizontal
position. If either end of the blade moves downward,
sharpen the heavy end until the blade is balanced.
CENTER HOLE
_8"BOLT BLADE
OR PiN
FIG. 13
BATTERY
Your tractor has a battery charging system which is sufficient
for normal use. However, periodic charging of the battery
with an automotive charger will extend its life.
° Keep battery and terminals clean.
° Keep battery bolts tight.
° Keep small vent holes open.
° Recharge at 6-10 amperes for 1 hour.
17

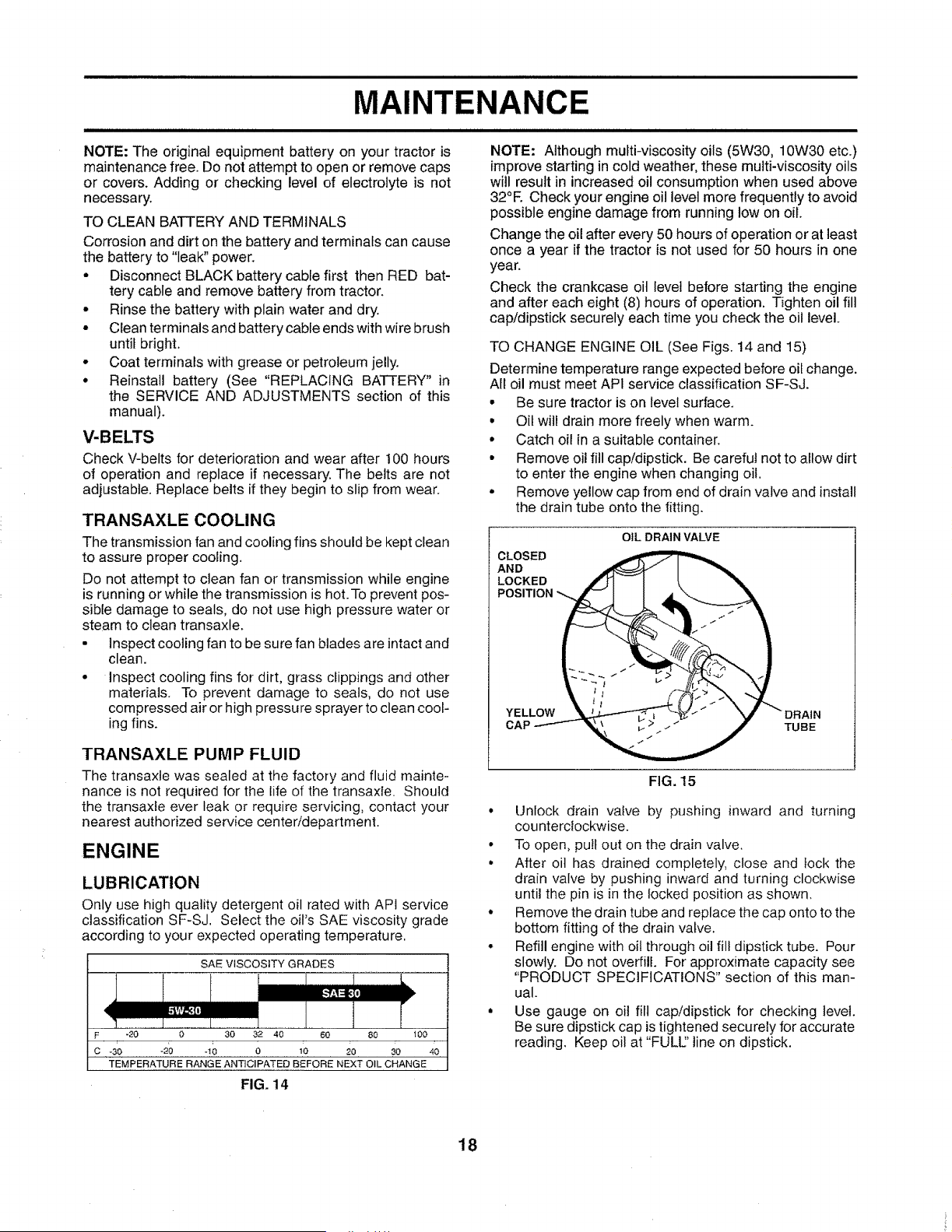

MAINTENANCE
NOTE: The original equipment battery on your tractor is
maintenance free. Do not attempt to open or remove caps
or covers. Adding or checking level of electrolyte is not
necessary.
TO CLEAN BATTERY AND TERMINALS
Corrosion and dirt on the battery and terminals can cause
the battery to "leak" power.
• Disconnect BLACK battery cable first then RED bat-
tery cable and remove battery from tractor.
• Rinse the battery with plain water and dry.
• Clean terminalsand battery cable ends with wire brush
until bright.
• Coat terminals with grease or petroleum jelly.
• Reinstall battery (See "REPLACING BATTERY" in
the SERVICE AND ADJUSTMENTS section of this
manual).
V-BELTS
Check V-belts for deterioration and wear after 100 hours
of operation and replace if necessary. The belts are not
adjustable. Replace belts if they begin to slip from wear.
TRANSAXLE COOLING
The transmission fan and cooling fins should be kept clean
to assure proper cooling.
Do not attempt to clean fan or transmission while engine
is running or while the transmission is hot.To prevent pos-
sible damage to seals, do not use high pressure water or
steam to clean transaxle.
• Inspect cooling fan to be sure fan blades are intact and
clean.
• Inspect cooling fins for dirt, grass clippings and other
materials. To prevent damage to seals, do not use
compressed air or high pressure sprayer to clean cool-
ing fins.
TRANSAXLE PUMP FLUID
The transaxle was sealed at the factory and fluid mainte-
nance is not required for the fife of the transaxle. Should
the transaxfe ever leak or require servicing, contact your
nearest authorized service center/department.
ENGINE
LUBRICATION
Only use high quality detergent oil rated with API service
classification SF-SJ. Select the oil's SAE viscosity grade
according to your expected operating temperature.
SAE VISCOSITY GRADES
[-.':}'.ai_
,I
F -_0 0 SO 32 40 eo 80 I00
c -30 -20 -_0 0 10 20 30 40
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)
improve starting in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
32°E Check your engine oil level more frequently to avoid
possible engine damage from running low on oil.
Change the oil after every 50 hours of operation or at least
once a year if the tractor is not used for 50 hours in one
year.
Check the crankcase oil levet before starting the engine
and after each eight (8) hours of operation. Tighten oil fill
cap/dipstick securely each time you check the oil level.
TO CHANGE ENGINE OIL (See Figs. 14 and 15)
Determine temperature range expected before oil change.
All oil must meet API service classification SF-SJ.
• Be sure tractor is on level surface.
• Oil will drain more freely when warm.
• Catch oil in a suitable container.
• Remove oil fill cap!dipstick. Be careful not to allow dirt
to enter the engine when changing oil.
° Remove yellow cap from end of drain valve and install
the drain tube onto the fitting.
OiL DRAIN VALVE
CLOSED _ ____
AND
LOCKED "_
POSITION t7 __ /
// _J7
YELLOW _ "-_'-° _ "DRAIN
CAP _ _,_ _> / _#, TUBE
FIG. 15
• Unlock drain valve by pushing inward and turning
counterclockwise.
• To open, putt out on the drain valve,
• After oil has drained completely, close and lock the
drain valve by pushing inward and turning clockwise
until the pin is in the locked position as shown,
° Remove the drain tube and replace the cap onto to the
bottom fitting of the drain valve.
° Refill engine with oil through oil fill dipstick tube, Pour
slowly. Do not overfill. For approximate capacity see
"PRODUCT SPECIFICATIONS" section of this man-
ual.
• Use gauge on oil fill cap/dipstick for checking level.
Be sure dipstick cap is tightened securely for accurate
reading, Keep oil at "FULL_' line on dipstick,
FIG. 14
18
i

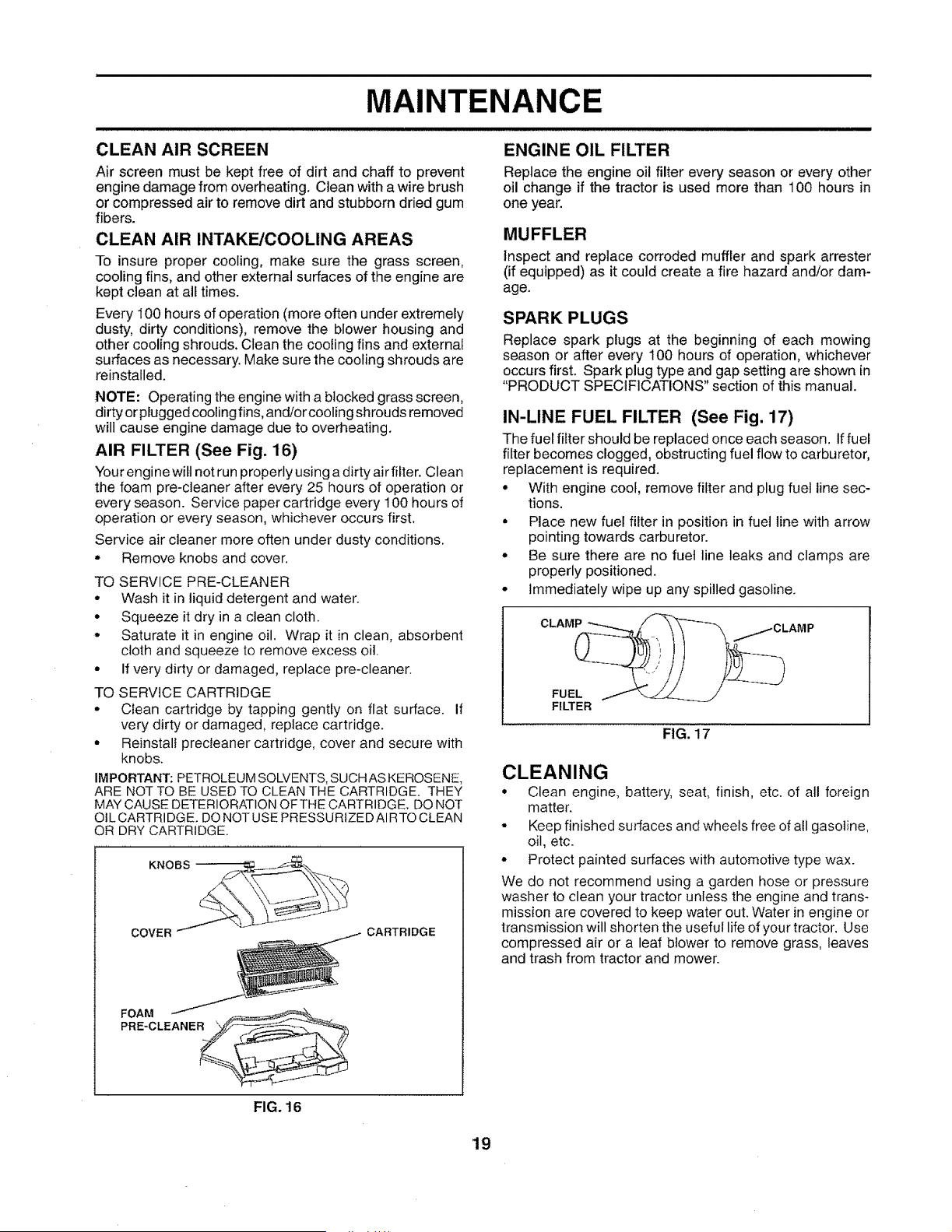

MAINTENANCE
CLEAN AIR SCREEN
Air screen must be kept free of dirt and chaff to prevent
engine damage from overheating. Clean with a wire brush
or compressed air to remove dirt and stubborn dried gum
fibers.
CLEAN AIR INTAKE/COOLING AREAS
To insure proper cooling, make sure the grass screen,
cooling fins, and other external surfaces of the engine are
kept clean at all times.
Every I00 hours of operation (more often under extremely
dusty, dirty conditions), remove the blower housing and
other cooling shrouds. Clean the cooling fins and external
surfaces as necessary. Make sure the cooling shrouds are
reinstalled.
NOTE: Operating the engine with a blocked grass screen,
dirtyor plugged cooling fins, and/or cooling shrouds removed
will cause engine damage due to overheating.
AIR FILTER (See Fig. 16)
Your engine will not run properly using a dirty air filter. Clean
the foam pre-cleaner after every 25 hours of operation or
every season. Service paper cartridge every 100 hours of
operation or every season, whichever occurs first,
Service air cleaner more often under dusty conditions.
• Remove knobs and cover.
TO SERVICE PRE-CLEANER
• Wash it in liquid detergent and water.
• Squeeze it dry in a clean cloth.
• Saturate it in engine oil. Wrap it in clean, absorbent
cloth and squeeze to remove excess oil.
° If very dirty or damaged, replace pre-cleaner.
TO SERVICE CARTRIDGE
• Clean cartridge by tapping gently on flat surface. If
very dirty or damaged, replace cartridge.
• Reinstall precteaner cartridge, cover and secure with
knobs.
IMPORTANT: PETROLEUM SOLVENTS, SUCHAS KEROSENE,
ARE NOT TO BE USED TO CLEAN THE CARTRIDGE. THEY
MAYCAUSE DETERIORATION OFTHE CARTRIDGE. DO NOT
OtL CARTRI DGE. DO NOT USEPRESSURIZED AIR TO CLEAN
OR DRY CARTRIDGE.
KNOBS
COVER CARTRIDGE
FIG. 16
ENGINE OIL FILTER
Replacethe engine oil filter every season or every other
oil change if the tractoris used more than 100 hours in
one year.
MUFFLER
Inspect and replace corroded muffler and spark arrester
(if equipped) as it could create a fire hazard and/or dam-
age.
SPARK PLUGS
Replace spark plugs at the beginning of each mowing
season or after every 100 hours of operation, whichever
occurs first. Spark plug type and gap setting are shown in
"PRODUCT SPECIFICATIONS" section of this manual.
IN-LINE FUEL FILTER (See Fig. 17)
The fuel filter should be replaced once each season. Iffuel
filter becomes clogged, obstructing fuel flow to carburetor,
replacement is required.
° With engine cool, remove filter and plug fuel line sec-
tions.
• Place new fuel filter in position in fuel line with arrow
pointing towards carburetor.
° Be sure there are no fuel line leaks and clamps are
properly positioned.
° Immediately wipe up any spilled gasoline.
FIG. 17
CLEANING
• Clean engine, battery, seat, finish, etc. of all foreign
matter.
• Keep finished surfaces and wheels free of all gasoline,
oil, etc.
° Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose or pressure
washer to clean your tractor unless the engine and trans-
mission are covered to keep water out. Water in engine or
transmission will shorten the useful life of your tractor. Use
compressed air or a leaf blower to remove grass, leaves
and trash from tractor and mower.
19
illlllll i i i i illllllllll, illllll i iilllllllllllllllllllllllllll,llllll

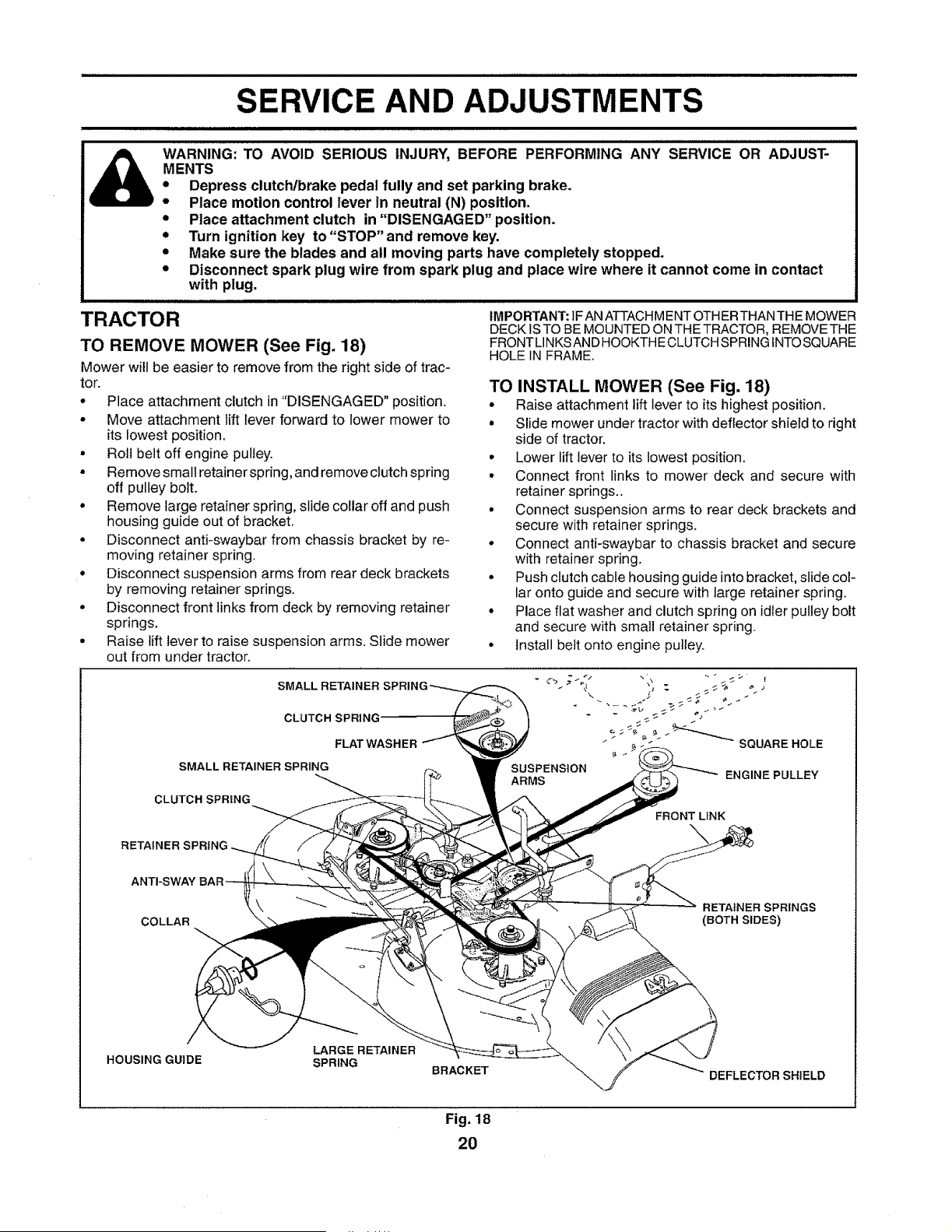

SERVICE AND ADJUSTMENTS
i ii ii ii iilllll ii i ii ii illllllll illllllllllll
WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST-
MENTS
" Depress clutch/brake pedal fully and set parking brake.
* Place motion control lever in neutral (N) position.
o Place attachment clutch in "DISENGAGED" position.
o Turn ignition key to"STOP" and remove key.
• Make sure the blades and all moving parts have completely stopped.
• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with plug.
TRACTOR IMPORTANT: 1FAN ATTACHMENT OTHER THANTHE MOWER
DECK ISTO BE MOUNTED ONTHE TRACTOR, REMOVETHE
TO REMOVE MOWER (See Fig, 18) FRONTLINKSANDHOOKTHECLUTCHSPRINGINTOSQUARE
HOLE IN FRAME.
Mower will be easier to remove from the right side of trac-
tor. TO INSTALL MOWER (See Fig. 18)
o Place attachment clutch in "DISENGAGED" position.
° Move attachment lift lever forward to lower mower to
its lowest position_
• Rot] belt off engine pulley.
° Remove small retainer spring, and remove clutch spring
off pulley bolt.
° Remove large retainer spring, slide collar off and push
housing guide out of bracket.
• Disconnect anti-swaybar from chassis bracket by re-
moving retainer spring,
° Disconnect suspension arms from rear deck brackets
by removing retainer springs.
° Disconnect front links from deck by removing retainer
springs.
• Raise lift lever to raise suspension arms. Slide mower
out from under tractor.
• Raise attachment lift lever to its highest position,
• Slide mower under tractor with deflector shield to right
side of tractor.
° Lower lift lever to its lowest position.
° Connect front links to mower deck and secure with
retainer springs..
• Connect suspension arms to rear deck brackets and
secure with retainer springs.
• Connect anti-swaybar to chassis bracket and secure
with retainer spring.
° Push clutch cable housing guide into bracket, slide col-
lar onto guide and secure with large retainer spring.
• Place flat washer and clutch spring on idler pulley bolt
and secure with small retainer spring.
• Install belt onto engine pulley.
SMALL RETAINER
CLUTCH SPRING
FLAT WASHER
SMALL RETAINER SPRING
CLUTCH SPRING
SUSPENSION
ARMS ENGINE PULLEY
FRONT LINK
RETAINER SPRING
COLLAR
RETAINER SPRINGS
(BOTH SIDES)
HOUSING GUIDE
LARGE RETAINER
SPRING
BRACKET
DEFLECTOR SHIELD
Fig. 18
20
i i ill hill in l i iillllll i i in in i ill I ill nIIHIIIll,U,H,,IH

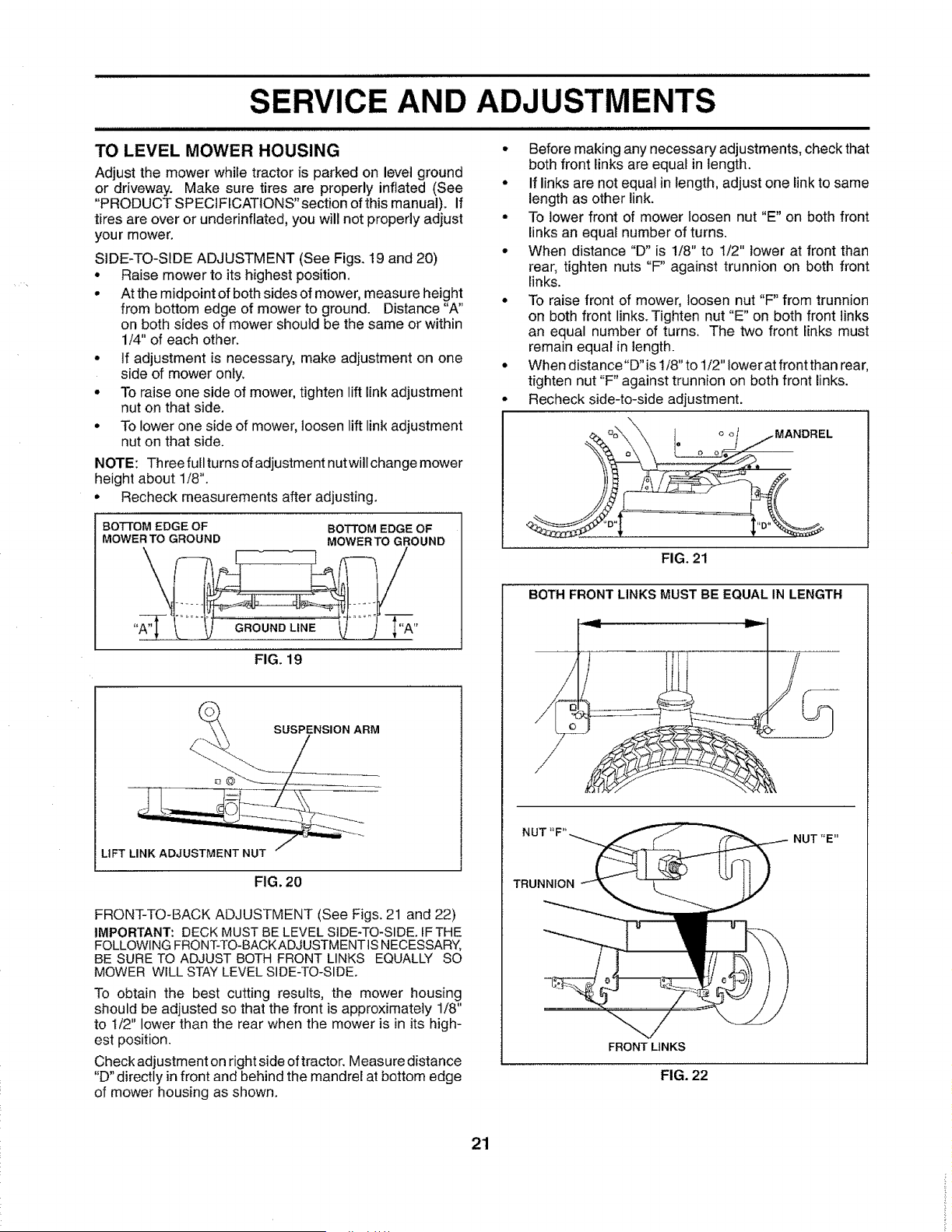

SERVICE AND ADJUSTMENTS
TO LEVEL MOWER HOUSING
Adjust the mower while tractor is parked on level ground
or driveway. Make sure tires are properly inflated (See
"PRODUCT SPECIFtCATIONS"section of this manual), if
tires are over or underinflated, you will not properly adjust
your mower.
SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)
° Raise mower to its highest position,
• At the midpoint of both sides of mower, measure height
from bottom edge of mower to ground. Distance "A"
on both sides of mower should be the same or within
1/4" of each other.
• If adjustment is necessary, make adjustment on one
side of mower only,
• To raise one side of mower, tighten lift link adjustment
nut on that side.
• To lower one side of mower, loosen lift link adjustment
nut on that side.
NOTE: Three full turns of adjustment nut will change mower
height about 1/8".
° Recheck measurements after adjusting.
BOTTOM EDGE OF
MOWER TO GROUND
BOTTOM EDGE OF
MOWERTO GROUND
_.._© .. ?ENSION ARM
Ll FT L_
FIG. 20
FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)
IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IFTHE
FOLLOWING FRONT-TO-BACKADJUSTMENTtS NECESSARY,
BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO
MOWER WILL STAY LEVEL SIDE-TO-SIDE.
To obtain the best cutting results, the mower housing
should be adjusted so that the front is approximately 1/8"
to I/2" lower than the rear when the mower is in its high-
est position.
Check adjustment on right side of tractor. Measure distance
"D" directly in front and behind the mandrel at bottom edge
of mower housing as shown.
• Before making any necessary adjustments, check that
both front links are equal in length.
• If links are not equal in length, adjust one link to same
length as other link.
° To lower front of mower loosen nut "E" on both front
links an equal number of turns.
• When distance "D" is 1/8" to 1/2" lower at front than
rear, tighten nuts "F" against trunnion on both front
links.
• To raise front of mower, loosen nut "F" from trunnion
on both front links. Tighten nut "E" on both front links
an equal number of turns. The two front links must
remain equal in length.
• Whendistance"D"isli8"toli2"loweratfrontthanrear,
tighten nut "F" against trunnion on both front links.
Recheck side-to-side adjustment.
FIG. 21
BOTH FRONT LINKS MUST BE EQUAL IN LENGTH
I
NUT "E"
TRUNNION
FRONTL1NKS
FIG. 22
21
i i i ilnnl iii lulll in l iii inllll nnlll,i

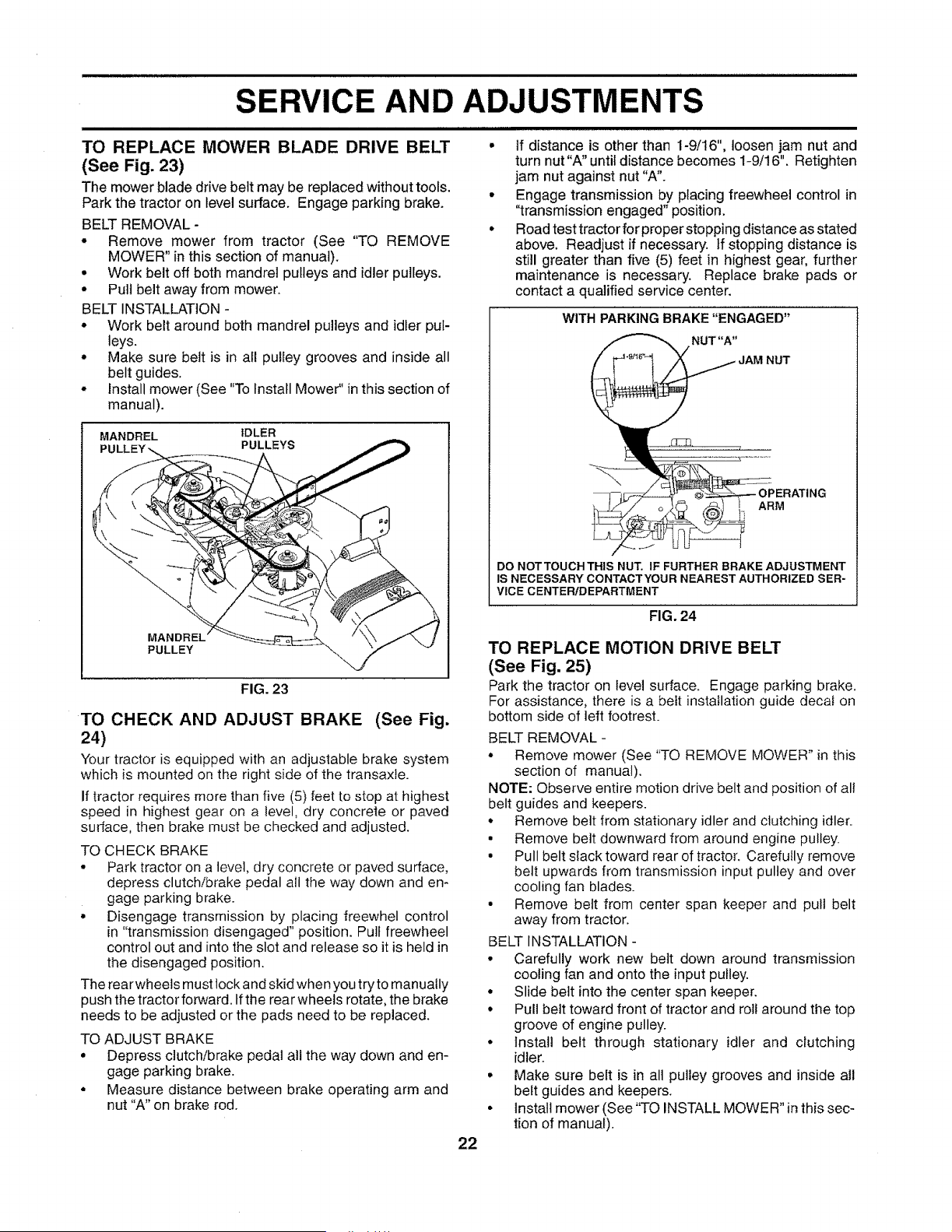

SERVICE AND ADJUSTMENTS
• If distance is other than 1-9/16", loosen jam nut and
turn nut "A" until distance becomes 1-9/! 6". Retighten
jam nut against nut 'W'.
° Engage transmission by placing freewheel control in
"transmission engaged" position.
° Road test tractor for proper stopping distance as stated
above, Readjust if necessary, tf stopping distance is
still greater than five (5) feet in highest gear, further
maintenance is necessary. Replace brake pads or
contact a qualified service center.
TO REPLACE MOWER BLADE DRIVE BELT
(See Fig. 23)
The mower blade drive belt may be replaced without tools.
Park the tractor on level surface. Engage parking brake.
BELT REMOVAL -
° Remove mower from tractor (See "TO REMOVE
MOWER" in this section of manual).
° Work belt off both mandrel pulleys and idler pulleys.
• Pull belt away from mower.
BELT INSTALLATION -
, Work belt around both mandrel pulleys and idler pul-
leys.
• Make sure belt is in all pulley grooves and inside all
belt guides.
° install mower (See "To Install Mower" in this section of
manual).
MANDREL IDLER
PULLEYS
MAND!
PULLEY
FIG. 23
TO CHECK AND ADJUST BRAKE (See Fig.
24)
Your tractor is equipped with an adjustable brake system
which is mounted on the right side of the transaxte.
If tractor requires more than five (5) feet to stop at highest
speed in highest gear on a level, dry concrete or paved
surface, then brake must be checked and adjusted.
TO CHECK BRAKE
• Park tractor on a level, dry concrete or paved surface,
depress clutch/brake pedal all the way down and en-
gage parking brake.
° Disengage transmission by placing freewhel control
in "transmission disengaged" position. Pull freewheel
control out and into the slot and release so it is held in
the disengaged position.
The rearwheels must lock and skid when you try to manually
push the tractor forward, tfthe rear wheels rotate, the brake
needs to be adjusted or the pads need to be replaced.
TO ADJUST BRAKE
• Depress clutch/brake pedal all the way down and en-
gage parking brake.
• Measure distance between brake operating arm and
nut "A" on brake rod.
WITH PARKING BRAKE "ENGAGED"
NUT "A"
JAM NUT
ARM
22
DO NOTTOUCHTHIS NUT. IF FURTHER BRAKE ADJUSTMENT
IS NECESSARY CONTACTYOUR NEAREST AUTHORIZED SER-
VICE CENTERIDEPARTMENT
FIG. 24
TO REPLACE MOTION DRIVE BELT
(See Fig. 25)
Park the tractor on level surface. Engage parking brake.
For assistance, there is a belt installation guide decal on
bottom side of left footrest.
BELT REMOVAL -
° Remove mower (See "TO REMOVE MOWER" in this
section of manual).
NOTE: Observe entire motion drive belt and position of all
belt guides and keepers.
° Remove belt from stationary idler and clutching idler.
• Remove belt downward from around engine pulley.
• Pull belt slack toward rear of tractor. Carefully remove
belt upwards from transmission input pulley and over
cooling fan blades.
• Remove belt from center span keeper and pull belt
away from tractor.
BELT INSTALLATION -
• Carefully work new belt down around transmission
cooling fan and onto the input pulley.
° Slide belt into the center span keeper.
• Pull belt toward front of tractor and roll around the top
groove of engine pulley.
• Install belt through stationary idler and clutching
idler.
• Make sure belt is in all pulley grooves and inside all
belt guides and keepers.
• Install mower (See "TO INSTALL MOWER" in this sec-
tion of manual).

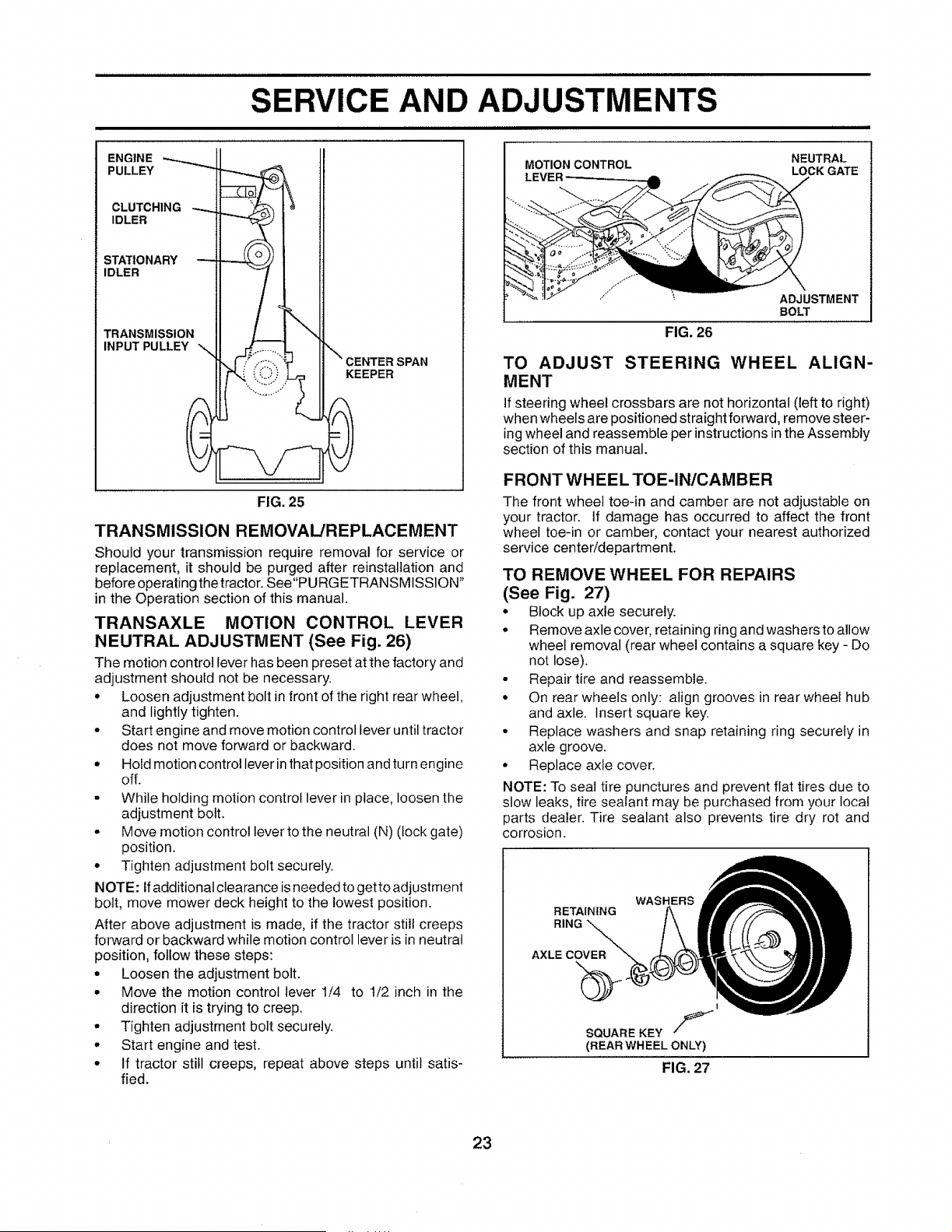

SERVICE AND ADJUSTMENTS
II
PULLEY
CLUTCHING _ _ ! _
TRANSMISSION II _ "
INPUT PULLEY "'_I _ ..........,.I-I "-,.
"N_,.( /"F.:_.._T_ -- CENTERSPAN
EEPER
FIG. 25
TRANSMISSION REMOVAL/REPLACEMENT
Should your transmission require removal for service or
replacement, it should be purged after reinstallation and
before operating thetractor. See"PURGETRANSMISS1ON"
in the Operation section of this manual.
TRANSAXLE MOTION CONTROL LEVER
NEUTRAL ADJUSTMENT (See Fig. 26)
The motion contro] lever has been preset at the factory and
adjustment should not be necessary.
• Loosen adjustment bolt in front of the right rear wheel,
and lightly tighten.
• Start engine and move motion control lever until tractor
does not move forward or backward.
• Hold motion control lever in that position and turn engine
off.
• While holding motion control lever in place, loosen the
adjustment bolt.
• Move motion control lever to the neutral (N) (lock gate)
position.
• Tighten adjustment bolt securely.
NOTE: Ifadditional clearance is needed to getto adjustment
bolt, move mower deck height to the lowest position.
After above adjustment is made, if the tractor still creeps
forward or backward while motion control lever is in neutral
position, follow these steps:
• Loosen the adjustment bolt.
• Move the motion control lever 1/4 to t/2 inch in the
direction it is trying to creep.
• Tighten adjustment bolt securely.
• Start engine and test.
• If tractor still creeps, repeat above steps until satis-
fied.
MOTION CONTROL NEUTRAL
LEVER LOCK GATE
FIG, 26
ADJUSTMENT
BOLT
TO ADJUST STEERING WHEEL ALIGN-
MENT
tf steering wheel crossbars are not horizontal (left to right)
when wheels are positioned straight forward, remove steer-
ing wheel and reassemble per instructions in the Assembly
section of this manual.
FRONT WHEEL TOE-IN/CAMBER
The front wheel toe-in and camber are not adjustable on
your tractor. If damage has occurred to affect the front
wheel toe-in or camber, contact your nearest authorized
service center/department.
TO REMOVE WHEEL FOR REPAIRS
(See Fig. 27)
• Block up axle securely.
• Remove axle cover, retaining ring and washers to allow
wheel removal (rear wheel contains a square key - Do
not lose).
• Repair tire and reassemble.
• Qn rear wheels only: align grooves in rear wheel hub
and axle. Insert square key.
• Replace washers and snap retaining ring securely in
axle groove.
- Replace axle cover.
NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer. Tire sealant also prevents tire dry rot and
corrosion.
WASHERS
RETAINING
RING
AXLE COVER
I
SQUAREKEY _
(REAR WHEEL ONLY)
FIG, 27
23

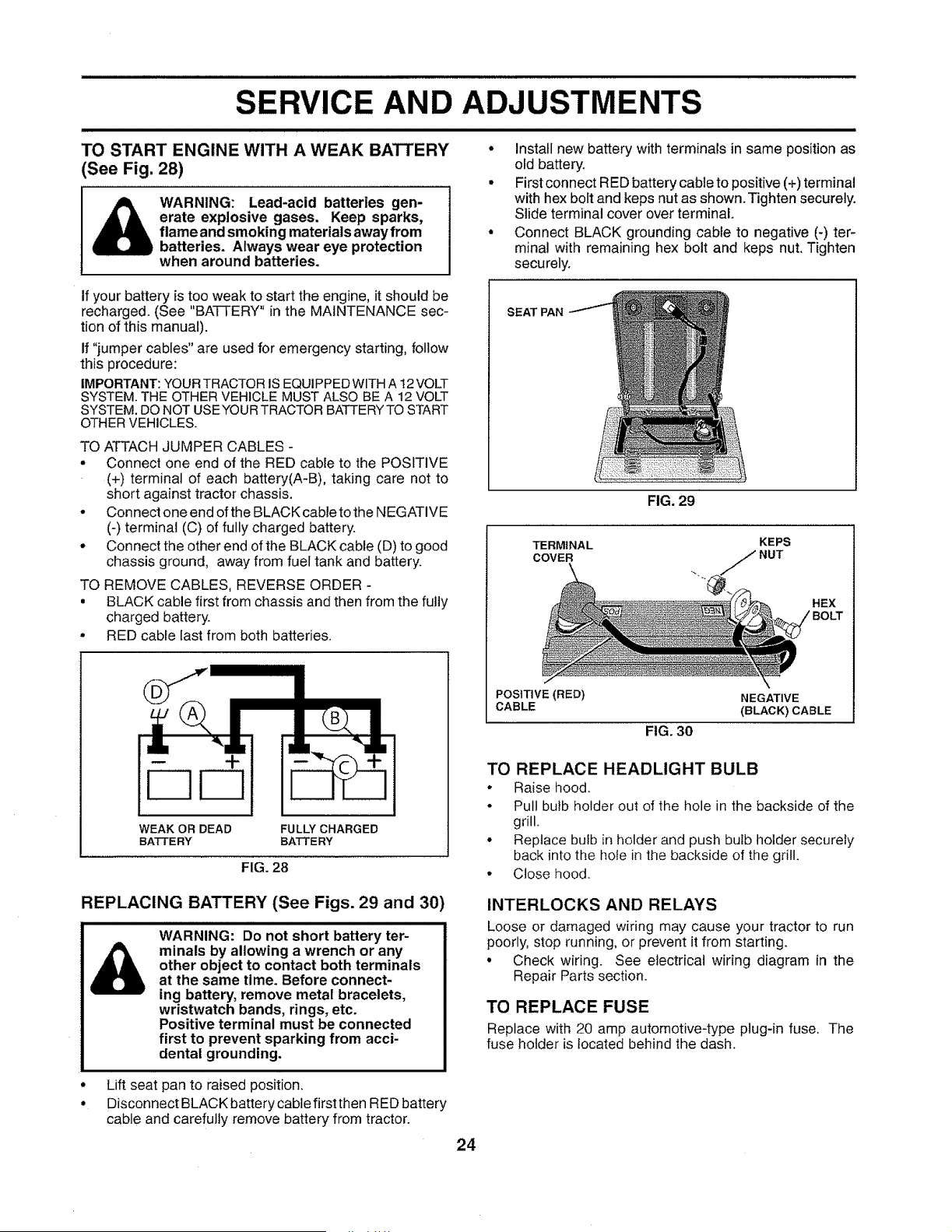

SERVICE AND ADJUSTMENTS
TO START ENGINE WITH A WEAK BATTERY
(See Fig, 28)
WARNING: Lead-acid batteries gen-
erate explosive gases. Keep sparks,
flame and smoking materials awayfrom
batteries. Always wear eye protection
when around batteries.
If your battery is too weak to start the engine, it should be
recharged. (See "BA-I-rERY" in the MAINTENANCE sec-
tion of this manual).
If "jumper cables" are used for emergency starting, follow
this procedure:
IMPORTANT: "fOUR TRACTOR IS EQUIPPED WITH A t2 VOLT
SYSTEM. THE OTHER VEHICLE MUST ALSO BE A t2 VOLT
SYSTEM. DQ ]',lOTUSE YOUR TRACTOR BATTERYTO START
OTHER VEHICLES.
TO ATTACH JUMPER CABLES -
• Connect one end of the RED cable to the POSITIVE
(+) terminal of each battery(A-B), taking care not to
short against tractor chassis.
- Connect one end of the BLACK cable tothe NEGATIVE
(-) terminal (C) of fully charged battery.
° Connect the other end of the BLACK cable (D) to good
chassis ground, away from fuel tank and battery.
TO REMOVE CABLES, REVERSE ORDER -
• BLACK cable first from chassis and then from the fully
charged battery.
• RED cable last from both batteries.
WEAK OR DEAD FULLY CHARGED
BATi-ERY BATTERY
FIG. 28
REPLACING BATTERY (See Figs. 29 and 30
&
WARNING: Do not short battery ter-
minals by allowing a wrench or any
other object to contact both terminals
at the same time. Before connect-
ing battery, remove metal bracelets,
wristwatch bands, rings, etc.
Positive terminal must be connected
first to prevent sparking from acci-
dental grounding.
Lift seat pan to raised position.
• Disconnect BLACK battery cable first then RED battery
cable and carefully remove battery from tractor.
• Install new battery with terminals in same position as
old battery.
° First connect RED battery cable to positive (+) terminal
with hex bolt and keps nut as shown.Tighten securely.
Slide terminal cover over terminal.
° Connect BLACK grounding cable to negative (-) ter-
minal with remaining hex bolt and keps nut. Tighten
securely.
SEAT PAN
FIG. 29
TERMINAL KEPS
COVER
HEX
POSITIVE (RED) NEGATIVE
CABLE (BLACK) CABLE
FIG. 30
TO REPLACE HEADLIGHT BULB
- Raise hood.
° Pull bulb holder out of the hole in the backside of the
grill.
• Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill.
• Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.
• Check wiring. See electrical wiring diagram in the
Repair Parts section.
TO REPLACE FUSE
Replace with 20 amp automotive-type plug-in fuse. The
fuse holder is located behind the dash.
24

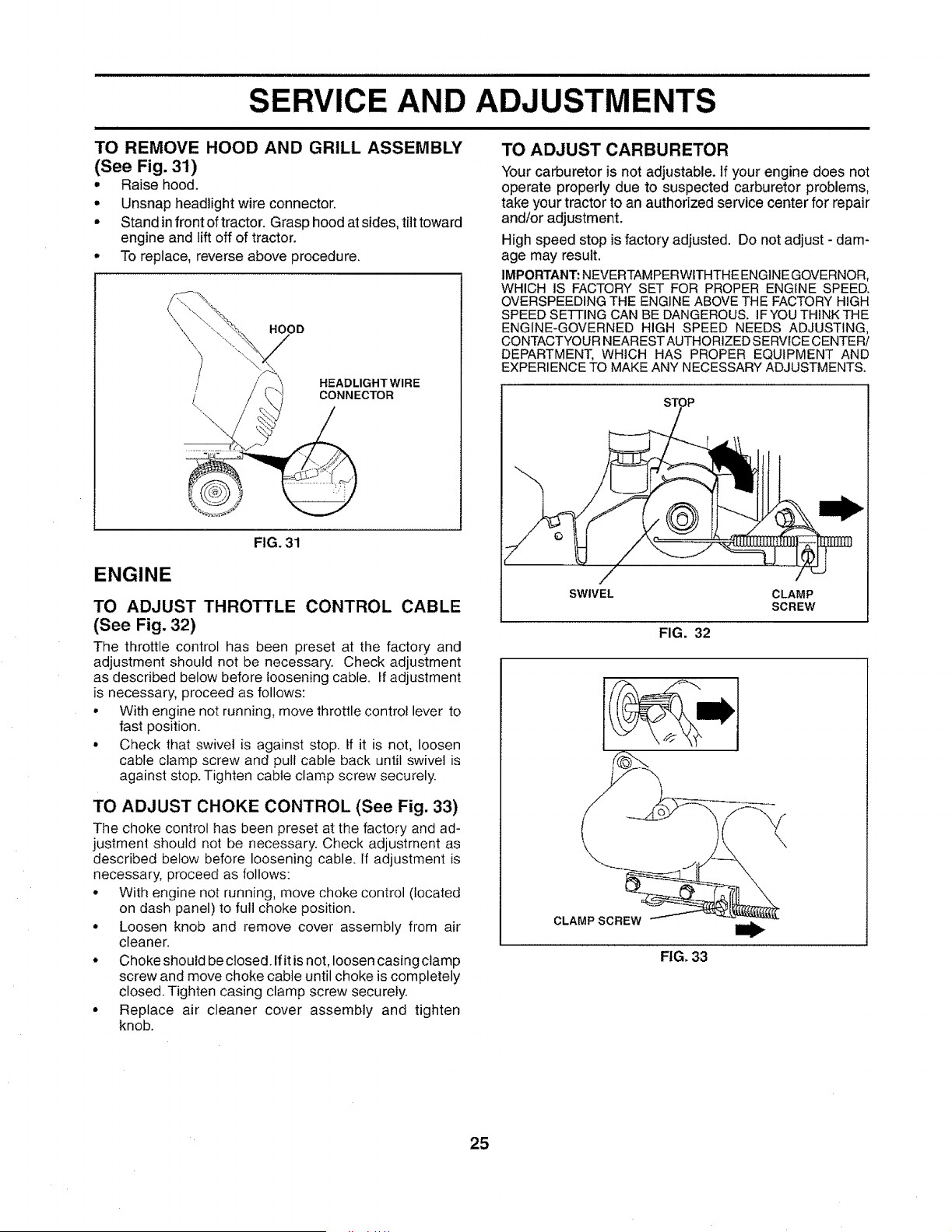

SERVICE AND ADJUSTMENTS
= i i
TO REMOVE HOOD AND GRILL ASSEMBLY TO ADJUST CARBURETOR
(See Fig. 31)
° Raise hood.
• Unsnap headlight wire connector.
• Stand in front of tractor. Grasp hood at sides, tilt toward
engine and lift off of tractor.
• To replace, reverse above procedure.
HOOD
/ HEADLIGHTWIRE
CONNECTOR
Your carburetor is not adjustable. If your engine does not
operate properly due to suspected carburetor problems,
take your tractor to an authorized service center for repair
and/or adjustment.
High speed stop is factory adjusted. Do not adjust - dam-
age may result.
IMPORTANT:NEVERTAMPERWITHTHE ENGINEGOVERNOR,
WHICH IS FACTORY SET FOR PROPER ENGINE SPEED.
OVERSPEEDING THE ENGINE ABOVE THE FACTORY HIGH
SPEED SE'FFING CAN BE DANGEROUS. IF YOUTHINK THE
ENGINE-GOVERNED HIGH SPEED NEEDS ADJUSTING,
CONTACT'YOUR NEAREST AUTHORIZED SERVICE CENTER!
DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND
EXPERIENCE TO MAKE ANY NECESSARY ADJUSTMENTS.
I
STOP
I
FIG. 31
TO ADJUST THROTTLE CONTROL CABLE
(See Fig. 32)
The throttle control has been preset at the factory and
adjustment should not be necessary. Check adjustment
as described below before loosening cable. If adjustment
is necessary, proceed as follows:
• With engine not running, move throttle control lever to
fast position.
° Check that swivel is against stop. If it is not, loosen
cable clamp screw and pull cable back until swivel is
against stop. Tighten cable clamp screw securely.
TO ADJUST CHOKE CONTROL (See Fig. 33)
The choke control has been preset at the factory and ad-
justment should not be necessary. Check adjustment as
described below before loosening cable. If adjustment is
necessary, proceed as follows:
° With engine not running, move choke control (located
on dash panel) to full choke position.
• Loosen knob and remove cover assembly from air
cleaner.
• Choke should be ctosed. Ifit is not, loosen casing ctamp
screw and move choke cable until choke is completely
closed. Tighten casing clamp screw securely.
• Replace air cleaner cover assembly and tighten
knob.
SWIVEL CLAMP
SCREW
CLAMP SCREW
FIG. 32
FIG, 33
25

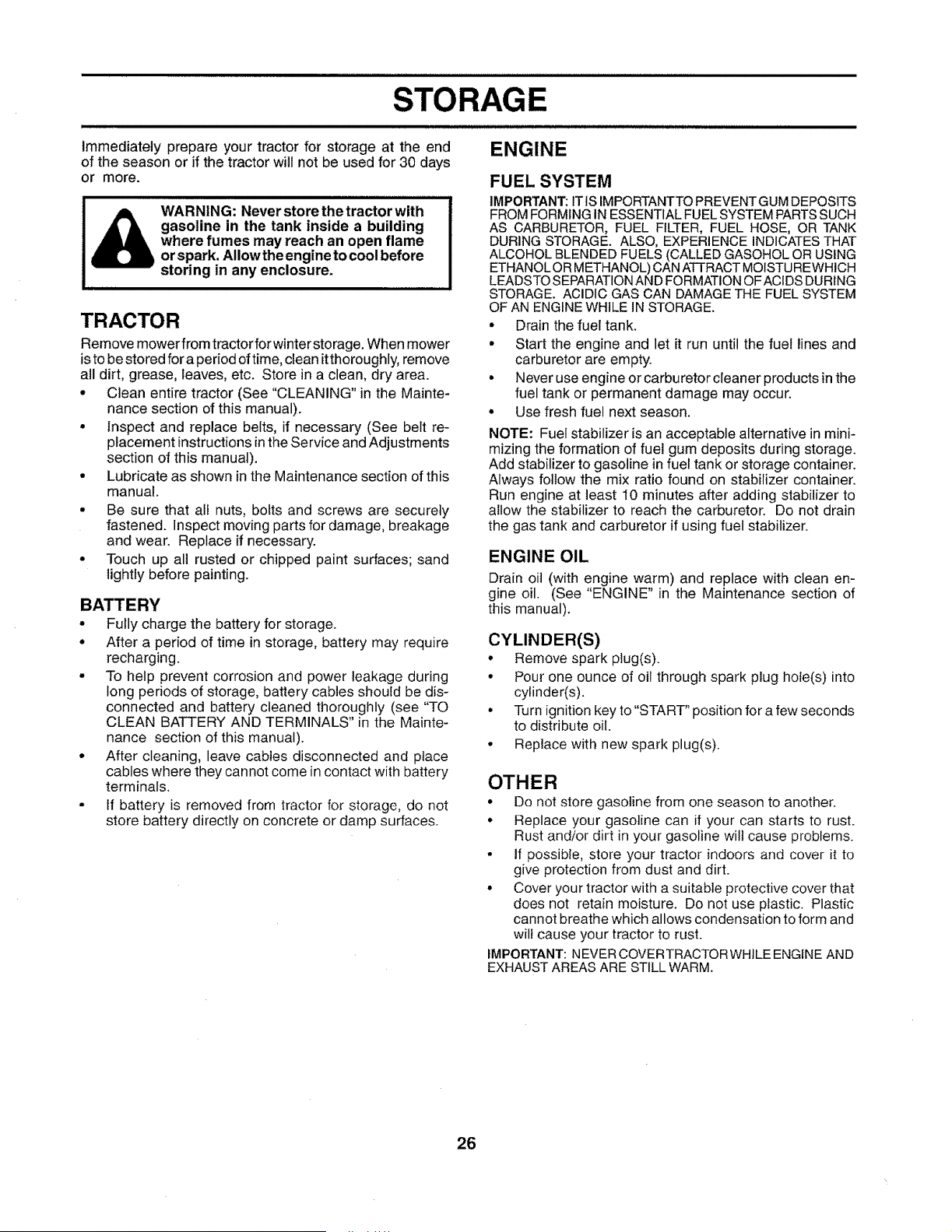

STORAGE
ENGINE
Immediately prepare your tractor for storage at the end
of the season or if the tractor will not be used for 30 days
or more.
&
iii iiii
WARNING: Never store thetractor with
gasoline in the tank inside a building
where fumes may reach an open flame
orspark. Allowtheengineto coolbefore
storing in any enclosure.
TRACTOR
Remove mower from tractor forwinter storage. When mower
is to be stored for a period of time, clean itthoroughly, remove
all dirt, grease, leaves, etc. Store in a clean, dry area.
• Clean entire tractor (See "CLEANING" in the Mainte-
nance section of this manual).
° Inspect and replace belts, if necessary (See belt re-
placement instructions in the Service and Adjustments
section of this manual).
° Lubricate as shown in the Maintenance section of this
manual.
• Be sure that all nuts, bolts and screws are securely
fastened. Inspect moving parts for damage, breakage
and wear. Replace if necessary.
• Touch up all rusted or chipped paint surfaces; sand
lightly before painting.
BATTERY
• Fully charge the battery for storage.
° After a period of time in storage, battery may require
recharging.
• To help prevent corrosion and power leakage during
long periods of storage, battery cables should be dis-
connected and battery cleaned thoroughly (see "TO
CLEAN BATTERY AND TERMINALS" in the Mainte-
nance section of this manual).
• After cleaning, leave cabtes disconnected and place
cables where they cannot come in contact with battery
terminals.
- tf battery is removed from tractor for storage, do not
store battery directly on concrete or damp surfaces.
FUEL SYSTEM
IMPORTANT: ITtS IMPORTANTTO PREVENTGUM DEPOSITS
FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTSSUCH
AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK
DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT
ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING
ETHANOL OR METHANOL) CAN ATTRACTMOISTU REWHICH
LEADSTO SEPARATIONAND FORMATION OF ACIDS DURING
STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM
OF AN ENGINE WHILE IN STORAGE.
• Drain the fuel tank.
• Start the engine and let it run until the fuel lines and
carburetor are empty.
• Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in mini-
mizing the formation of fuel gum deposits during storage.
Add stabilizer to gasoline in fuel tank or storage container.
Always follow the mix ratio found on stabilizer container.
Run engine at least I0 minutes after adding stabilizer to
allow the stabilizer to reach the carburetor. Do not drain
the gas tank and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oi] (with engine warm) and replace with clean en-
gine oil. (See "ENGINE" in the Maintenance section of
this manual).
CYLINDER(S)
• Remove spark piug(s).
• Pour one ounce of oil through spark plug hole(s) into
cylinder(s).
• Turn ignition key to "START" position for a few seconds
to distribute oil.
• Replace with new spark plug(s).
OTHER
° Do not store gasoline from one season to another.
* Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline wilt cause problems.
- If possible, store your tractor indoors and cover it to
give protection from dust and dirt.
• Cover your tractor with a suitable protective cover that
does not retain moisture. Do not use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your tractor to rust.
IMPORTANT: NEVER COVERTRACTOR WIll LEENGINE AND
EXHAUST AREAS ARE STILL WARM.
26

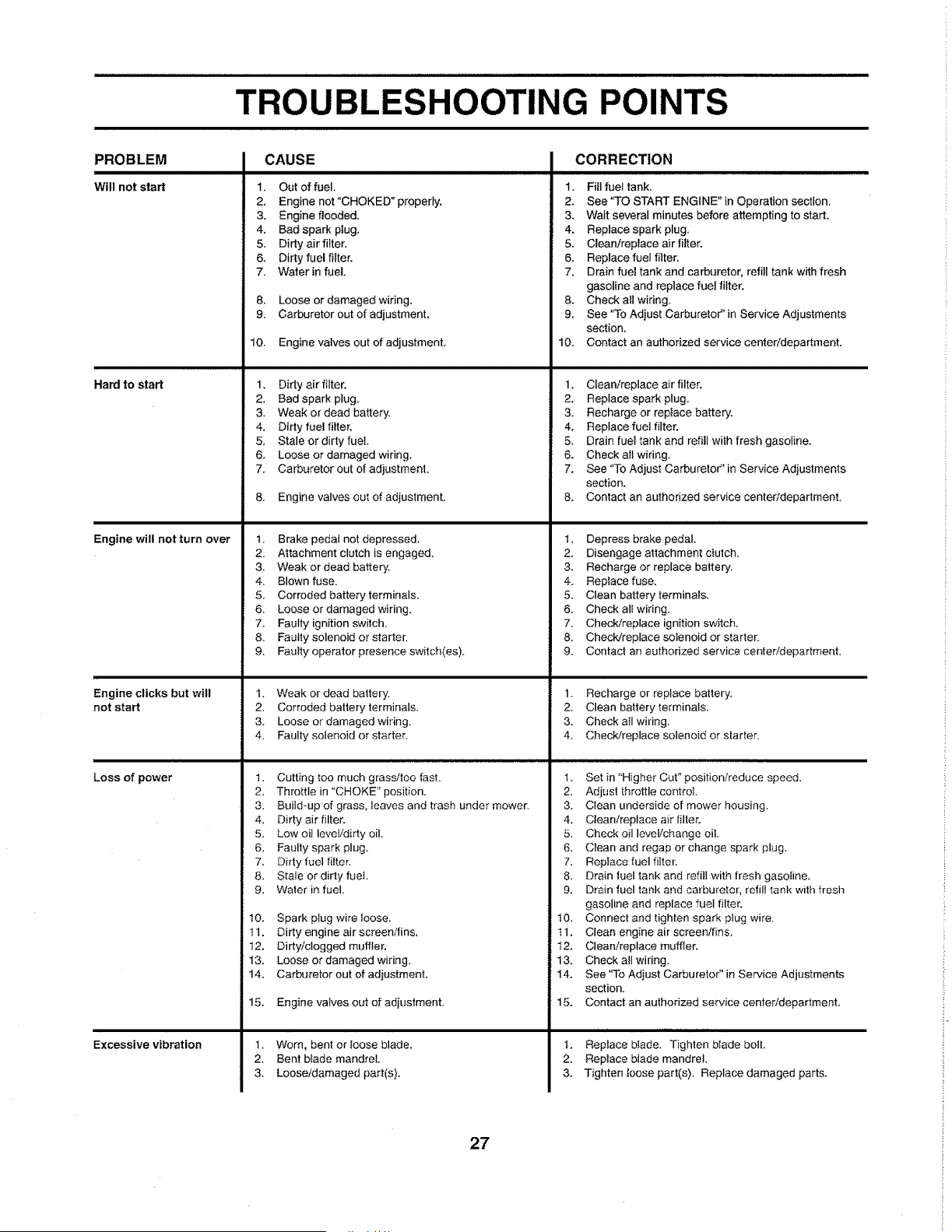

TROUBLESHOOTING POINTS
PROBLEM
Will notstart
Hard to start
Engine will not turn over
Engine clicks but will
not start
Loss of power
Excessive vibration
CAUSE
1. Out of fuel.
2. Engine not "CHOKED" properly.
3. Engine flooded.
4. Bad spark plug.
5. Dirty air filter.
6. Dirty fuel filter.
7. Wafer in fuel.
8. Loose or damaged wiring.
9. Carburetor out of adjustment.
10. Engine valves out of adjustment,
1. Dirty air filter.
2, Bad spark plug.
3. Weak or dead battery,
4, Dirty fuel filter.
5, Stale or dirty fuel.
6. Loose or damaged wiring.
7. Carburetor out of adjustment,
8. Engine valves out of adjustment.
t. Brake pedat not depressed,
2. Attachment clutch is engaged.
3. Weak or dead battery,
4, Blown fuse.
5, Corroded battery terminals.
6. Loose or damaged wiring.
7. Faulty ignition switch.
8. Faulty solenoid or starter.
9, Faulty operator presence switch(es).
1. Weak or dead battery.
2. Corroded battery terminal&
3. Loose or damaged wiring.
4. Faulty solenoid or starter.
1. Cutting too much grass/too fast.
2. Throttle in "CHOKE" position.
3. Buitd-up of grass, leaves and trash under mower.
CORRECTION
1. Fillfuel tank.
2. See "TO START ENGINE" in Operation section.
3. Wait several minutes before attempting to start.
4. Replace spark plug.
5. Clean/replace air fitter.
6. Replace fuel filter.
7. Drain fuel tank and carburetor, refill tank with fresh
gasoline and replace fuel tilter.
8. Check all wiring.
9. See "To Adjust Carburetor" in Service Adjustments
section.
10. Contact an authorized service center/department.
1. Clean/replace air filter.
2. Replace spark plug.
3. Recharge or replace battery.
4. Replace fue! filter.
5. Drain fuel tank and refill with fresh gasoline.
6. Check all wiring.
7. See "ToAdjust Carburetor' in Service Adjustments
section.
8. Contact an authorized service center/department.
ii
1, Depress brake pedal.
2. Disengage attachment cfutch.
3. Recharge or replace battery.
4. Repiace fuse.
5. Clean battery terminals.
6. Check nit wiring.
7. Check/replace ignition switch.
8. Check/replace solenoid or starter.
9, Contact an authorized service center/department.
1. Recharge or replace battery,
2. Clean battery terminals,
3. Check atlwiring,
4. Check/replace solenoid or starter.
l. Set in "Higher Cut" position/reduce speed.
2. Adjust throttle control.
3. Clean underside of mower housing,
4. Dirty air filter.
5. Low oit level/dirty oil.
6. Faulty spark plug.
7. Dirty fuel filter.
8. Stale or dirty fuel.
9. Water in fuel.
10. Spark plug wire loose.
11, Dirty engine air screen/fins.
12. Dirty/clogged muffler.
13. Loose or damaged wiring.
14. Carburetor out of adjustment.
15. Engine valves out of adjustment.
1. Worn, bent or loose blade.
2. Bent blade mandrel
3, Loose/damaged part(s).
4, Clean/replace air filter.
5. Check oil level/change oil,
6. Clean and regap or change spark plug.
7. Replace fuel fitter.
8. Drain luel tank and refill with fresh gasoline.
9. Drain fuel tank and carburetor, refill tank with fresh
gasoline and replace fuel filter,
I0. Connect and tighten spark ptug wire,
11, Clean engine air screen/fins,
I2. Clean/replace muffler.
13. Check all wiring.
14. See "To Adjust Carburetor" in Service Adjustments
section,
15. Contact an authorized service center/department,
i i illlllll ill i nl
t. Replace biade. Tighten bIade bolt.
2. Replace blade mandrel,
3. Tighten loose part(s). Replace damaged parts.
27

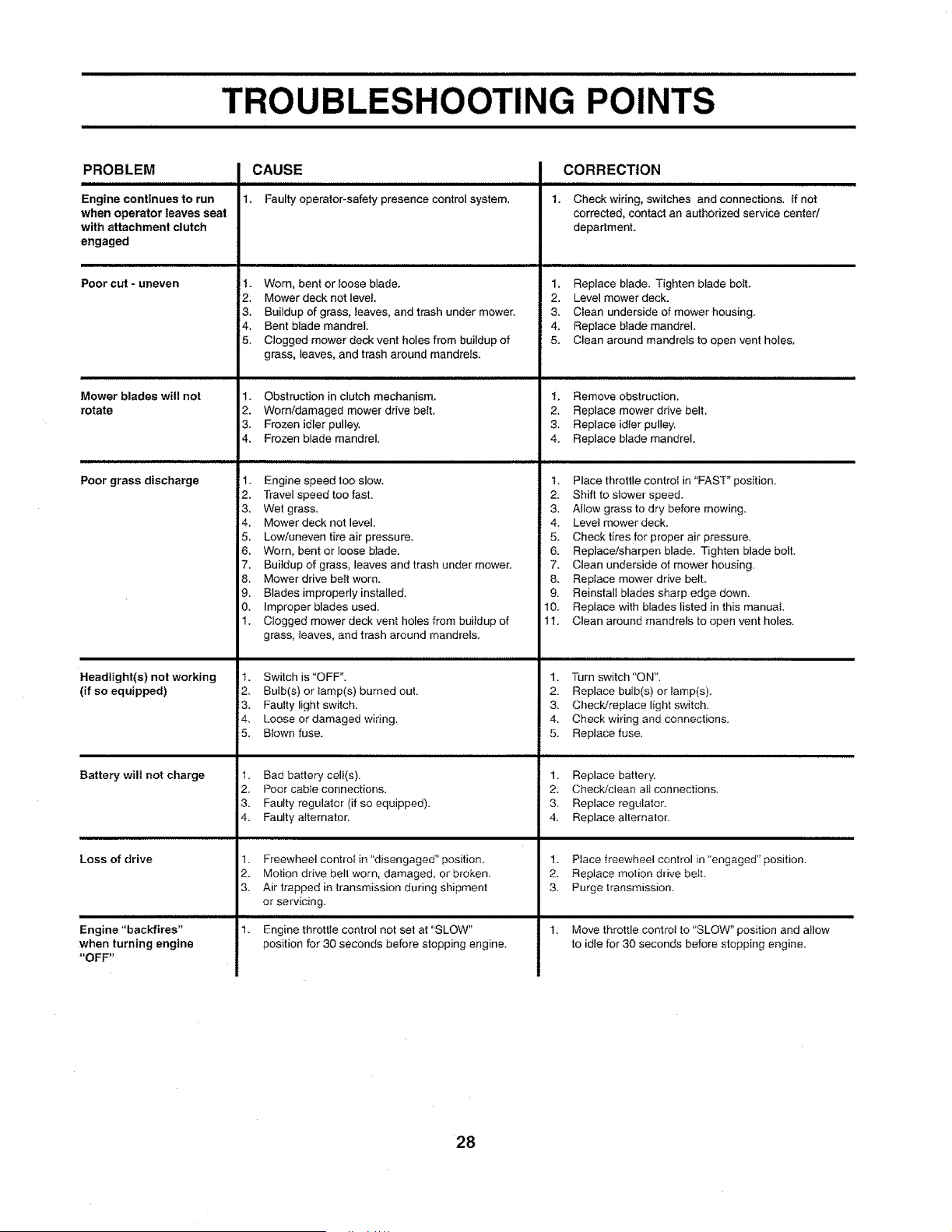

PROBLEM
Engine continues to run
when operator leaves seat
with attachment clutch
engaged
Poorcut-uneven
Mower blades will not
rotate
Poor grass discharge
Headlight(s) not working
(if so equipped)
CAUSE
1, Faultyoperator-safetypresencecontrolsystem.
Battery will not charge
Loss of drive
Engine "backfires"
when turning engine
"OFF"
I. Worn, bent or Ioose blade,
2. Mower deck not level,
3. Buildup of grass, leaves, and trash under mower.
4. Bent blade mandrel,
5. Clogged mower deck vent holes from buildup of
grass, leaves, and trash around mandra{s.
1. Obstruction in clutch mechanism.
2, Worn/damaged mower drive belt,
3. Frozen idler pulley.
4, Frozen blade mandrel.
1. Engine speed too slow.
2. Travel speed too fast.
3, Wet grass,
4, Mower deck not level,
5, Low/uneven tire air pressure.
6, Worn, bent or loose blade.
7, Buildup of grass, leaves and trash under mower.
8, Mower drive belt worn.
9, Blades improperlyinstalIed.
O. Improper blades used.
1. Clogged mower deck vent holes from buiIdup of
grass, leaves, and trash around mandrels.
1. Switch is "OFF".
2. Bulb(s) or tamp(s) burned out.
3. Faulty light switch.
4, Loose or damaged wiring,
5, B_own fuse.
Bad battery cell(s).
2, Poor cable connections.
3, Faulty regulator (if so equipped),
4. Faulty affernator.
1. Freewheel control in "disengaged" position.
2. Motion drive belt worn, damaged, or broken.
3. Air trapped in transmission during shipment
or servicing.
1.
Engine throttle control not set at "SLOW"
position for 30 seconds before stopping engine.
CORRECTION
1, Check wiring, switches and connections, tf not
corrected, contact an authorized service cented
department.
1. Replace blade. Tighten blade bolt.
2. Level mower deck.
3. CIean underside of mower housing.
4. Replace biade mandrel.
5. Clean around mandrels to open vent holes.
t. Remove obstruction.
2. Replace mower drive belt.
3, Replace idler pulley.
4. Replace blade mandrel.
!, Place throttle control in "FAST" position.
2. Shift to slower speed.
3. Allow grass to dry before mowing.
4. Level mower deck,
5. Check tires for proper air pressure.
6. Replace/sharpen blade. Tighten blade bolt,
7. Clean underside of mower housing.
8. Replace mower drive belt.
9. Reinstall blades sharp edge down.
10. Replace with blades listed in this manual
1!. Clean around mar_drels to open vent holes.
1. Turn switch "ON".
2. Replace bulb(s) or lamp(S)r
3. Check/replace light switch.
4. Check wiring and connections,
5. Replace fuse,
1. Replace battery.
2. Check/clean all connections.
3. Replace regulator.
4. Replace alternator.
1. Place freewheel control in "engaged" position.
2. Replace motion drive belt.
3. Purge transmission.
1. Move throttle control to "SLOW" position and allow
to idle for 30 seconds before stopping engine.
28

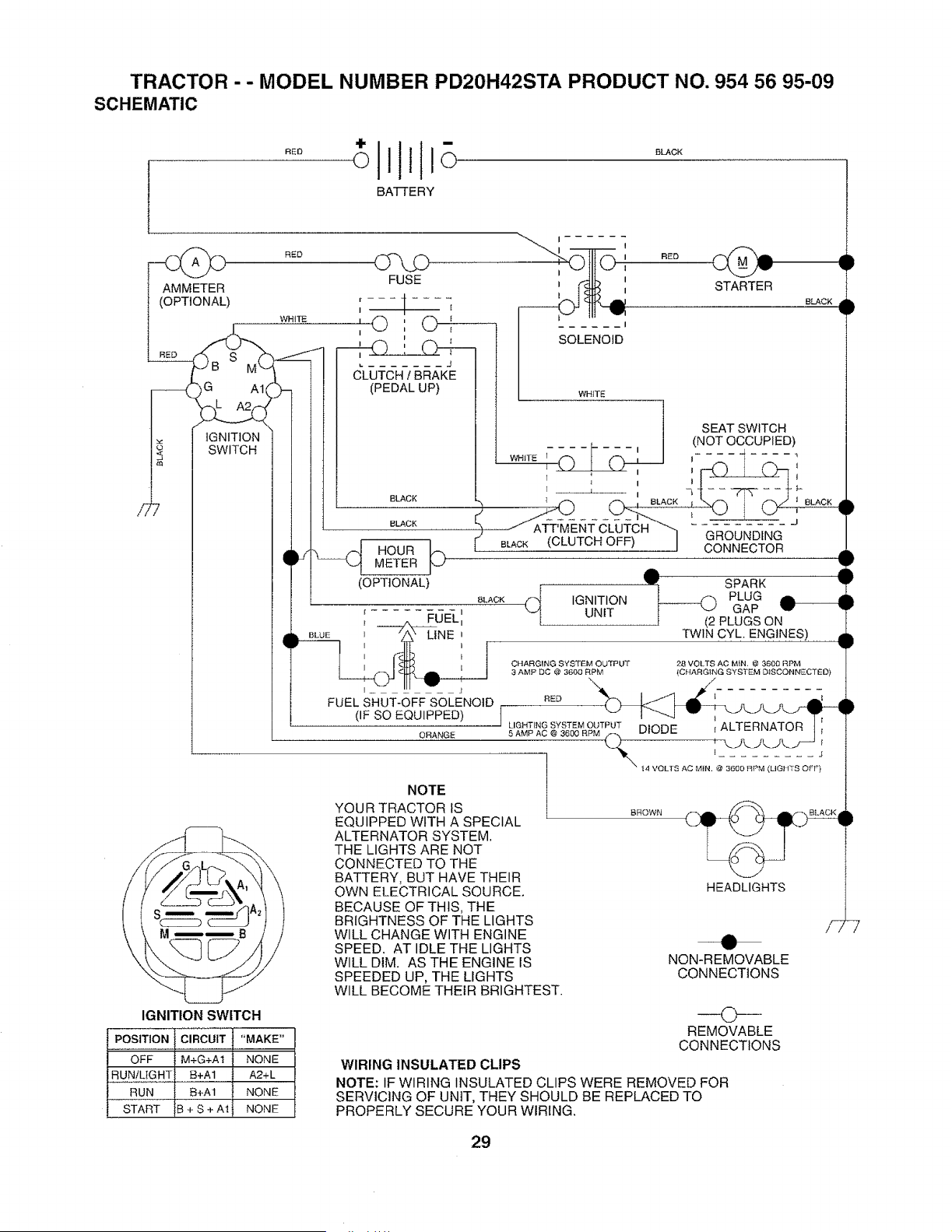

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
SCHEMATIC
BATTERY
AMMETER
(OPTIONAL)
FUSE
WH_T'B
_O ; OH,'_ -.....
l WHITE
STARTER
BLACK
IGNITION
SWITCH
IGNITION SWITCH
POSITION CIRCUIT "MAKE"
OFF M+G+A1 NONE
RUN/LIGHT B+A1 A2+L
RUN B+A1 NONE
START B + S + A1 NONE
J
C_LUTCH! BRAKE
(PEDAL UP)
BLACK
BLACK
HOURMETER t_
(OPTIONAL)
E_LACK
[ ........ I
t _FUELI
• BLUE I ----;iz_ LINE I
I f
dk
WF
_.l SEAT SWITCH
I (NOT OCCUPIED)
' '
{ i BLACK $
............ NTC
BLACK (CLUTCH OFF) j GROUNDING
CONNECTOR
F
h
SPARK r
IGNITION _ PLUG
GAP 0------- P
UNIT
(2 PLUGS ON
TWINCYL ENGINES) 1D
CHARGING SYSTEM OUTPUT 28 VOLTS AC MIN, @ 3600 RPM
3 AMP DC @ 3600 RPM (CHARGING SYSTEM DISCONNECTED)
i _ _ J /
FUEL SHUT-OFF SOLENOID _ RED
(!F S° EQU!PPED) _ L'GHT'NGSYSTEM_nr: :ALTERNATOR t[
14 VOLTS AC MIN, @ 3600 RRM (LIGHTS OFF}
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
BROWN
HEADLIGHTS
O
NON-REMOVABLE
CONNECTIONS
©
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
29

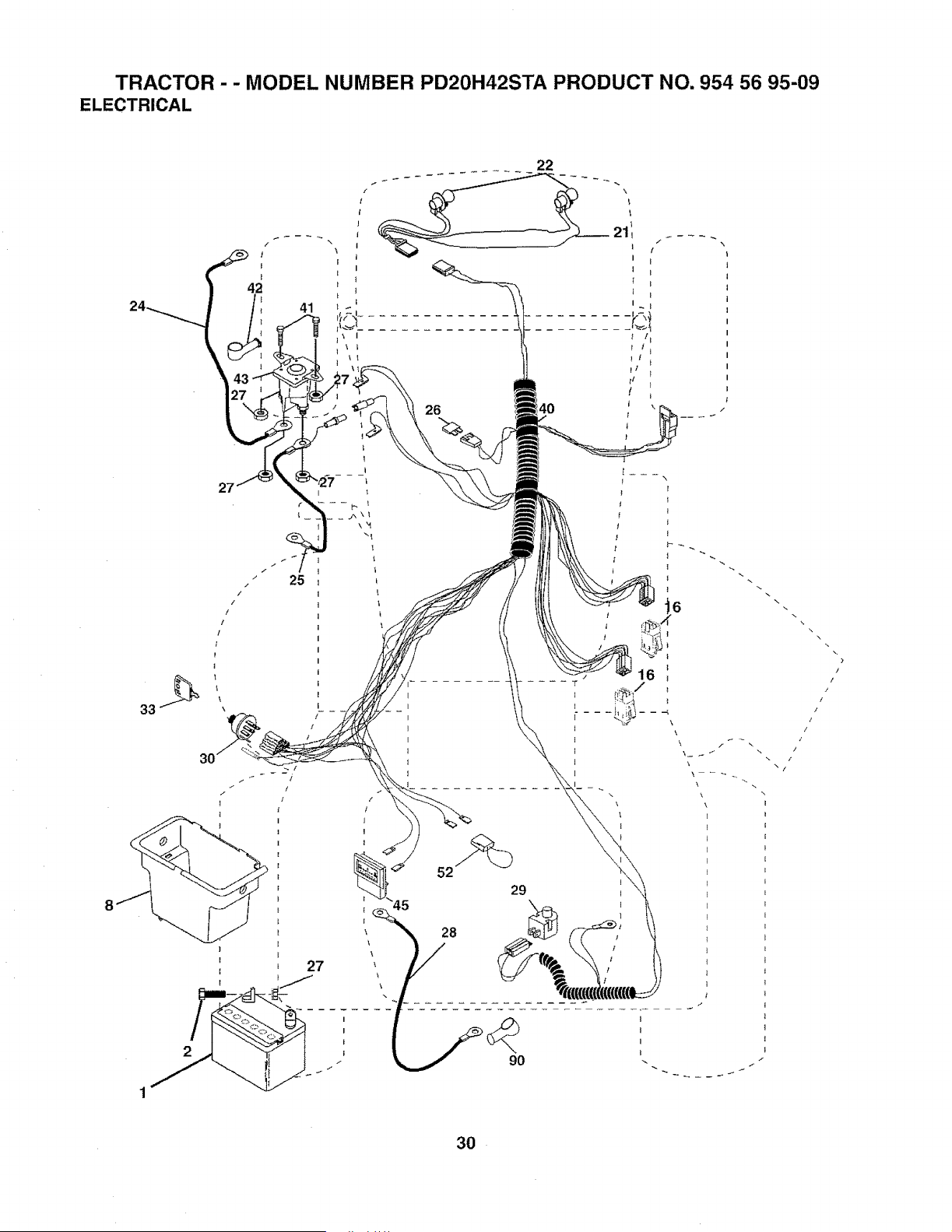

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
I
42
t
41
25
I
i i I
I
26 40
I-
I
I
I
I
I
1
1
1
I
29
\
\
\
\
\
\
30

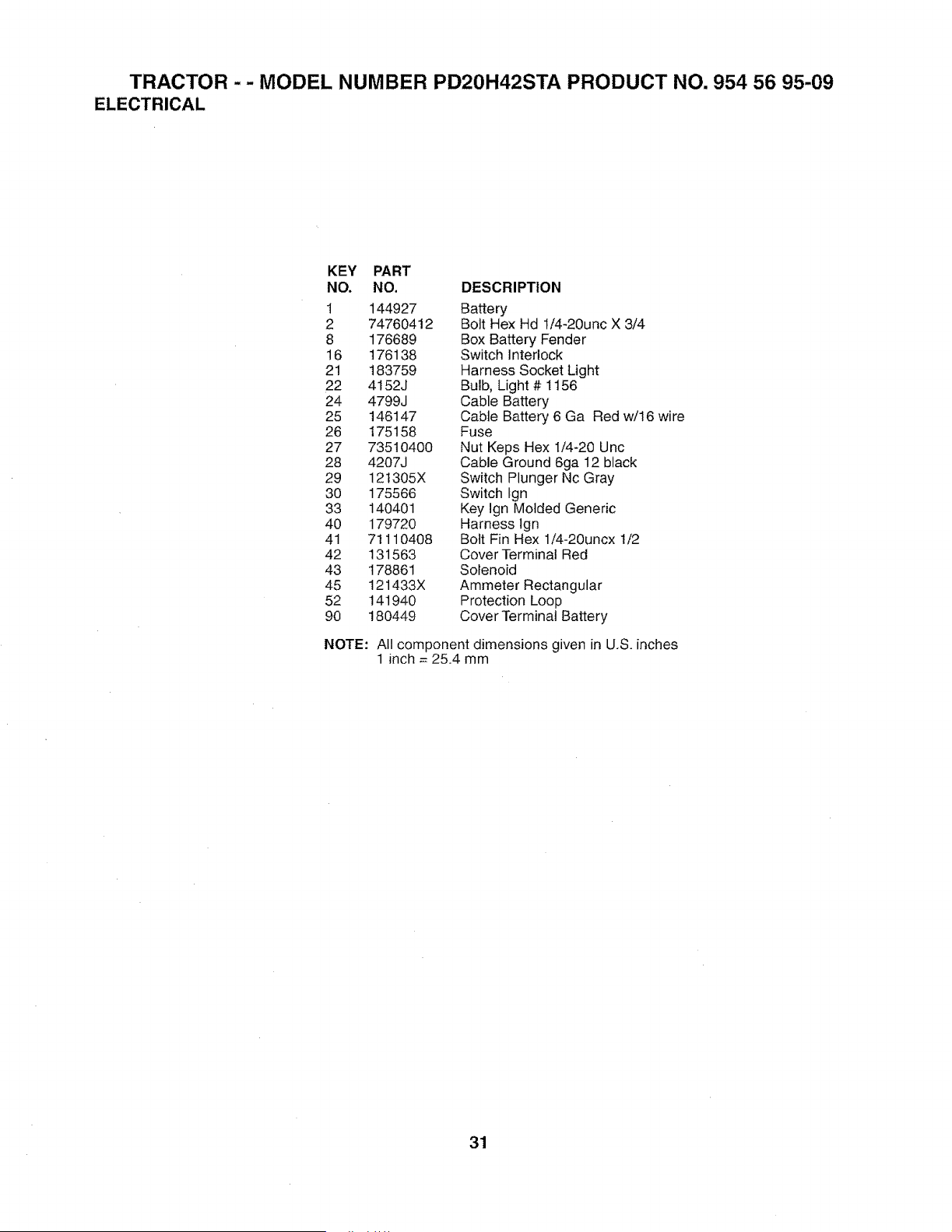

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
t 144927 Battery
2 74760412 Bolt Hex Hd t/4-20unc X 3/4
8 176689 Box Battery Fender
t 6 t76138 Switch interlock
21 t83759 Harness Socket Light
22 4152J Bulb, Light # 1156
24 4799J Cable Battery
25 146147 Cable Battery 6 Ga Red w/16 wire
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 Unc
28 4207J Cable Ground 6ga 12 black
29 12t305X Switch Plunger Nc Gray
30 175566 Switch ign
33 140401 Key Ign Molded Generic
40 179720 Harness lgn
41 71110408 Bolt Fin Hex 1i4-20uncx 1/2
42 131563 Cover Terminal Red
43 t78861 Solenoid
45 121433X Ammeter Rectangular
52 141940 Protection Loop
90 180449 Cover Terminal Battery
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31

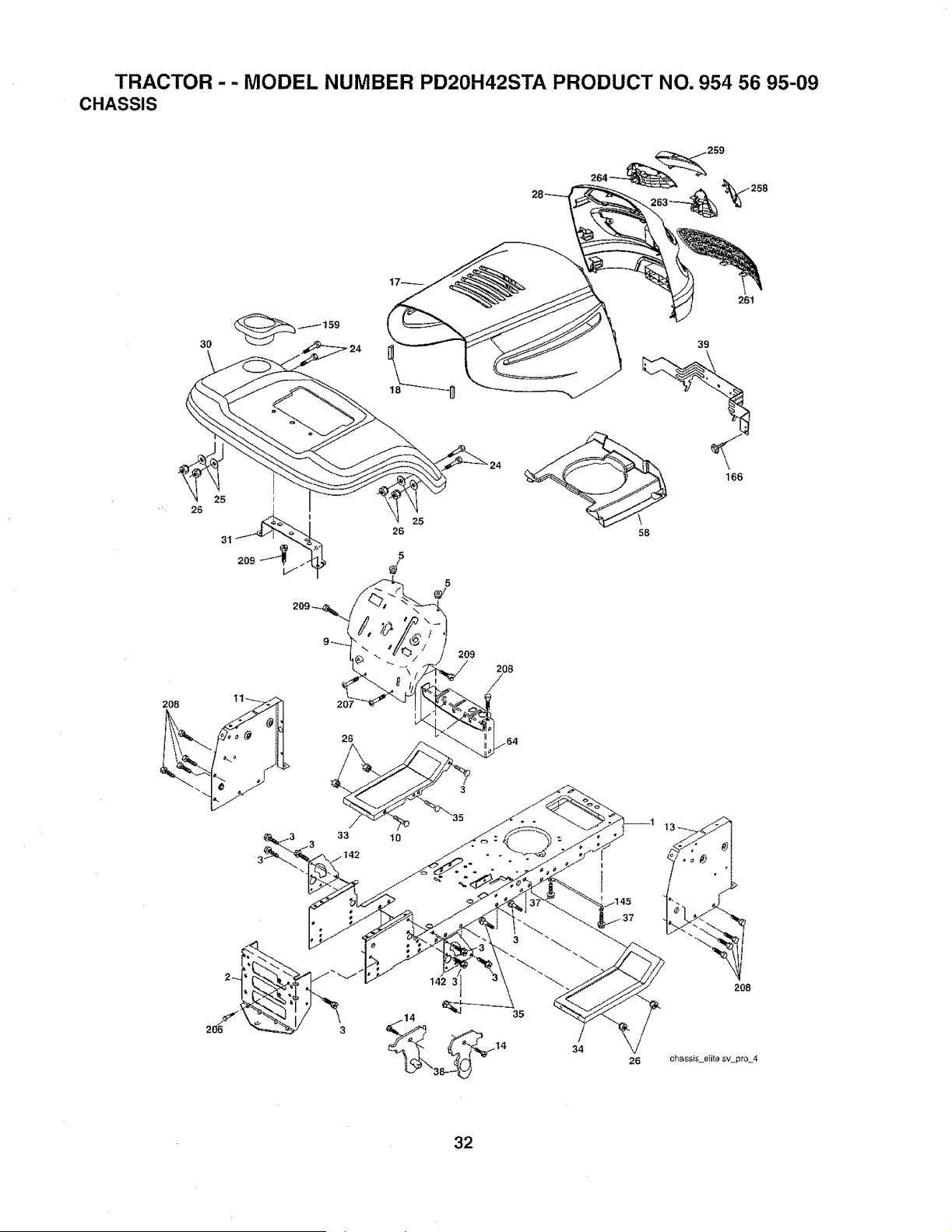

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
CHASSIS
258
261
3O
26
25
26
3t
25
5
39
166
58
207
26
33
t42
209
208
/
34
13
2O8
32

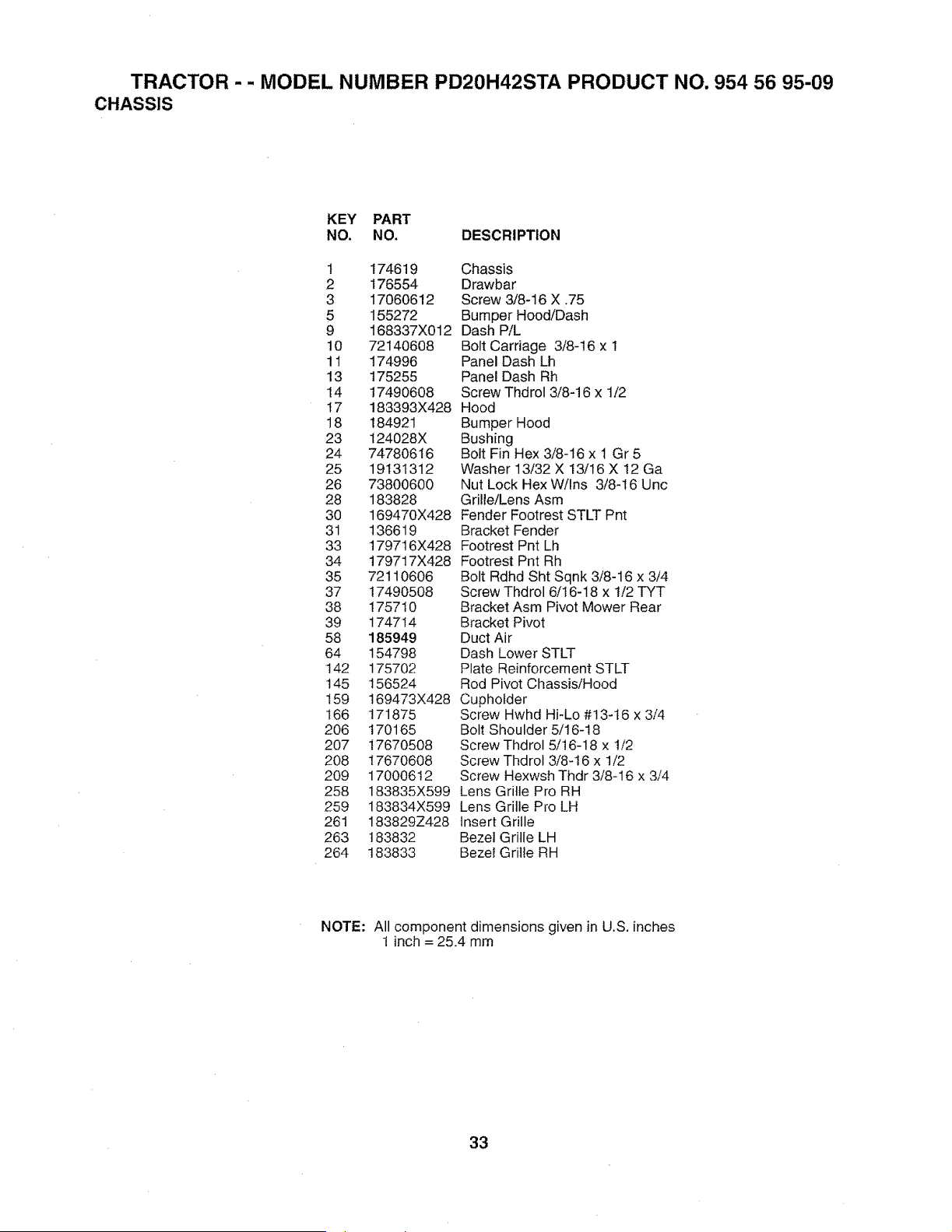

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
CHASSIS
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
3 17060612 Screw 3/8-16 X .75
5 155272 Bumper Hood/Dash
9 168337X012 Dash P/L
10 72140608 Bolt Carriage 3/8-16 x 1
11 174996 Panel Dash Lh
13 175255 Panel Dash Rh
14 17490608 Screw Thdrol 3/8-16 x t/2
t7 183393X428 Hood
18 184921 Bumper Hood
23 124028X Bushing
24 74780616 Bolt Fin Hex 3/8-t6 x 1 G r 5
25 19t3t312 Washer 13/32 X 13/I6 X 12 Ga
26 73800600 Nut Lock Hex W/Ins 3/8-t6 Unc
28 183828 Grille/Lens Asm
30 169470X428 Fender Footrest STLT Pnt
31 136619 Bracket Fender
33 t79716X428 Footrest Pnt Lh
34 179717X428 Footrest Pnt Rh
35 72110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 17490508 Screw Thdrol 6/16-18 x !/2 TYT
38 175710 Bracket Asm Pivot Mower Rear
39 174714 B_acket Pivot
58 185949 Duct Air
64 154798 Dash Lower STLT
142 175702 Plate Reinforcement STLT
145 156524 Rod Pivot Chassis/Hood
159 169473X428 Cuphofder
166 171875 Screw Hwhd HI-Lo #13-t6 x 3/4
206 170165 Bolt Shoulder 5/16-18
207 17670508 ScrewThdrol 5/16-18 x 1/2
208 17670608 Screw Thd rol 3/8-t 6 x 1/2
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
258 183835X599 Lens Grille Pro RH
259 183834X599 Lens Grille Pro LH
261 183829Z428 Insert Grille
263 t83832 Bezel Grille LH
264 t83833 Bezel Gritte RH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33

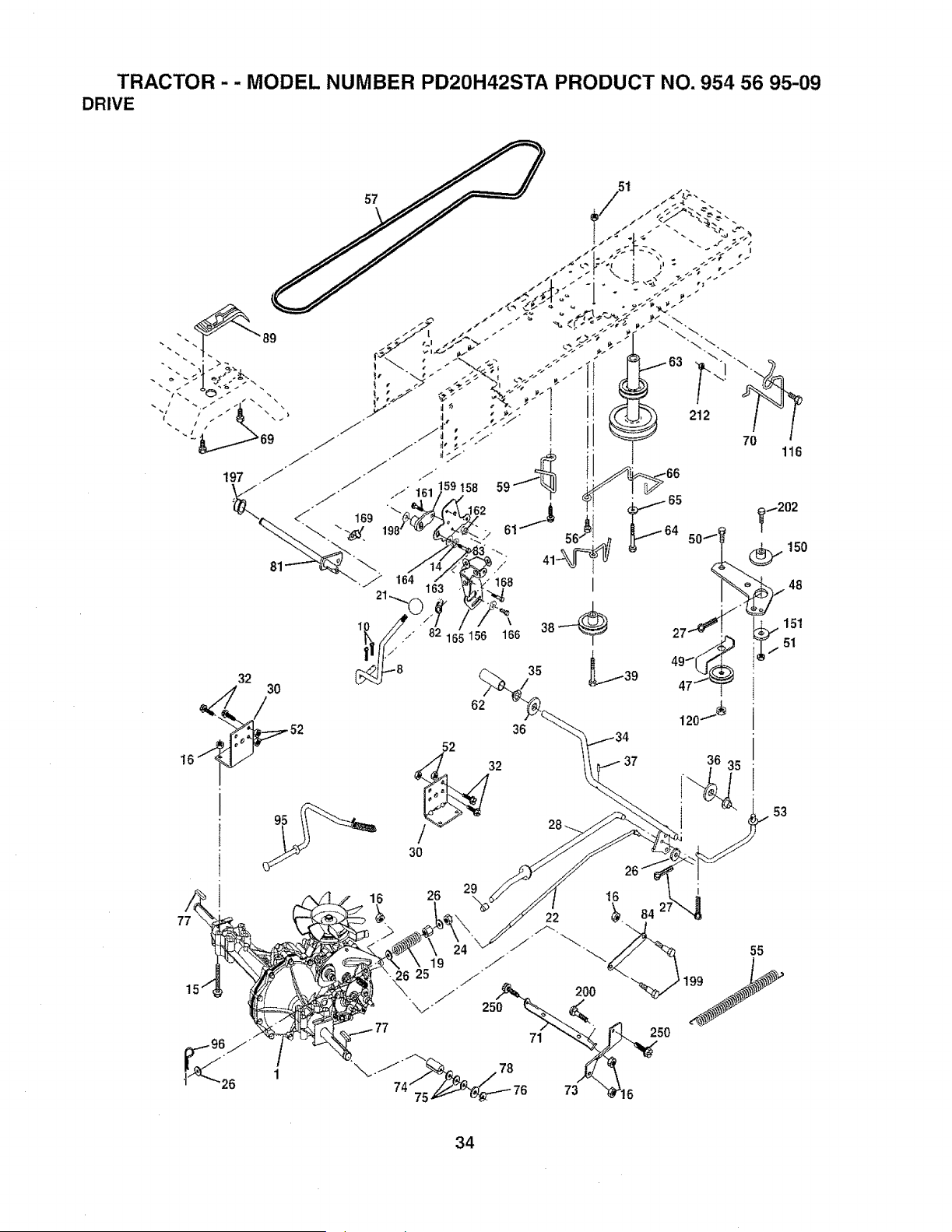

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
DRIVE
32
30
36 35
53
34

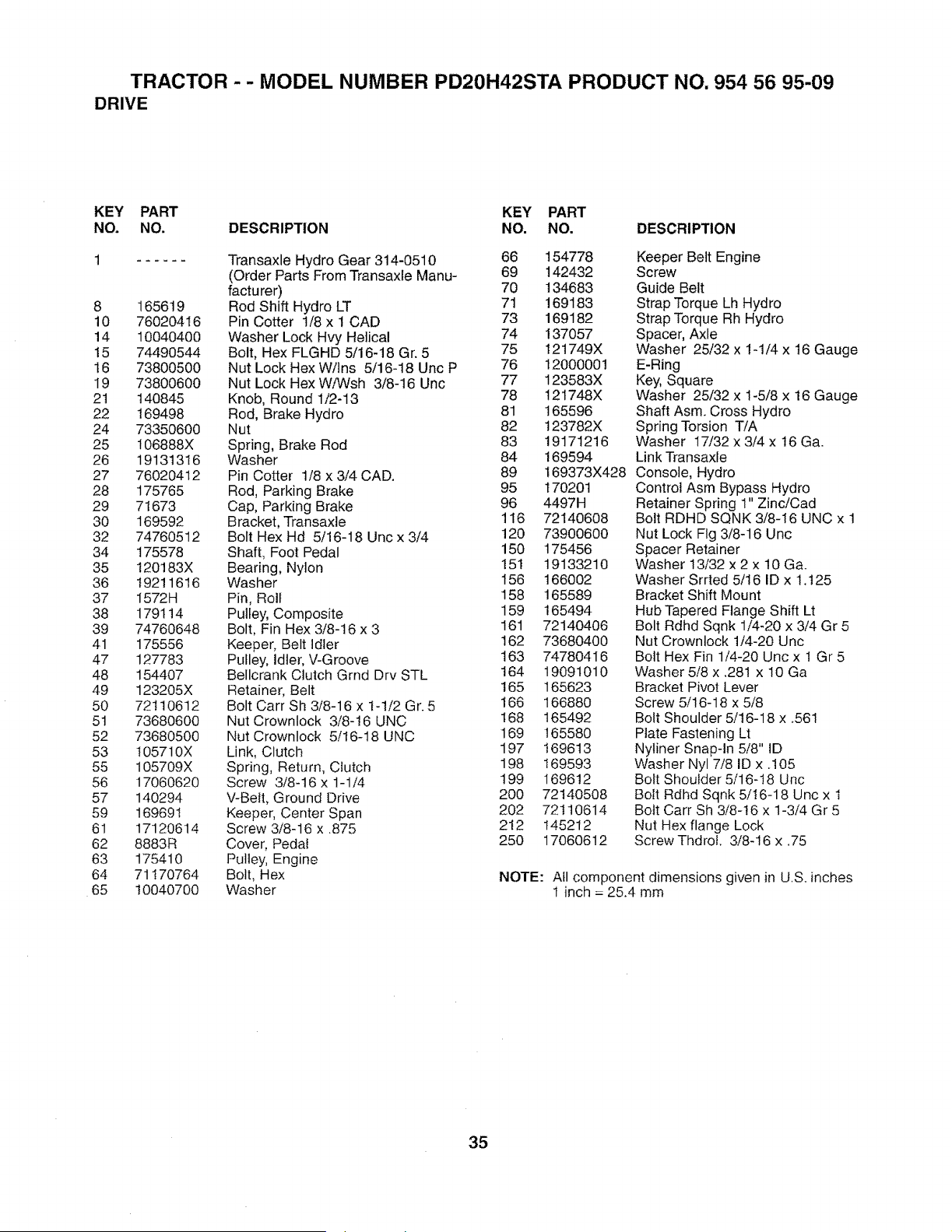

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
DRIVE
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
t Transaxle Hydro Gear 314-0510 66
(Order Parts From Transaxle Manu- 69
facturer) 70
8 165619 Rod Shift Hydro LT 71
10 76020416 Pin Cotter 1/8 x 1 CAD 73
14 10040400 Washer Lock Hvy Helical 74
15 74490544 Bolt, Hex FLGHD 5/16-18 Gr. 5 75
t6 73800500 Nut Lock Hex W/ins 5/16-18 Unc P 76
19 73800600 Nut Lock Hex WiWsh 3/8-16 Unc 77
21 140845 Knob, Round 1/2-13 78
22 169498 Rod, Brake Hydro 81
24 73350600 Nut 82
25 t06888X Spring, Brake Rod 83
26 1913t 3t 6 Washer 84
27 76020412 Pin Cotter 1/8 x 3/4 CAD. 89
28 175765 Rod, Parking Brake 95
29 7I 673 Cap, Parking Brake 96
30 169592 Bracket, Transaxle 116
32 74760512 Bolt Hex Hd 5/16-18 Unc x 3/4 120
34 175578 Shaft, Foot Pedal 150
35 t20t 83X Bearing, Nylon t 51
36 I9211616 Washer t56
37 I572H Pin, Roll 158
38 1791 t4 Pulley, Composite 159
39 74760648 Bolt, Fin Hex 3/8-16 x 3 161
41 175556 Keeper, Belt Idler 162
47 127783 Pulley, Idler, V-G roove 163
48 154407 Bellcrank Clutch Grad Dry STL 164
49 123205X Retainer, Belt 165
50 72110612 Bolt Carr Sh 3/8-16 x t-1/2 Gr. 5 166
51 73680600 Nut Crownlock 3/8-16 UNC 168
52 73680500 Nut Crownlock 5/I6-18 UNC 169
53 105710X Link, Clutch 197
55 105709X Spring, Return, Clutch 198
56 17060620 Screw 3/8-16 x 1-1/4 t99
57 140294 V-Belt, Ground Drive 200
59 169691 Keeper, Center Span 202
61 17120614 Screw 3/8-16 x .875 212
62 8883R Cover, Pedal 250
63 175410 Pulley, Engine
64 71170764 Bolt, Hex
65 t0040700 Washer
154778
142432
134683
169183
169182
137057
121749X
12000001
123583X
t2t748X
165596
123782X
19171216
169594
Keeper Belt Engine
Screw
Guide Belt
Strap Torque Lh Hydro
Strap Torque Rh Hydro
Spacer, Axle
Washer 25/32 x 1-1/4 x t6 Gauge
E-Ring
Key, Square
Washer 25/32 x 1-5/8 x 16 Gauge
Shaft Asm. Cross Hydro
Spring Torsion TiA
Washer 17/32 x 3/4 x 16 Ga.
Link Transaxle
169373X428 Console, Hydro
170201
4497H
72140608
73900600
175456
19133210
166002
165589
165494
72140406
73680400
74780416
19091010
165623
166880
165492
165580
169613
169593
169612
72140508
72110614
145212
17060612
Control Asm Bypass Hydro
Retainer Spring 1" Zinc/Cad
Bolt RDHD SQNK 3/8-I6 UNC x 1
Nut Lock Fig 3/8-16 Unc
Spacer Retainer
Washer 13/32 x 2 x t0 Ga.
Washer Srrted 5/t6 ID x 1.t25
Bracket Shift Mount
Hub Tapered Flange Shift Lt
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
Nut Crownlock 1/4-20 Unc
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
Washer 5/8 x .281 x 10 Ga
Bracket Pivot Lever
Screw 5/16-18 x 5/8
Bolt Shoulder 5/16-18 x .561
Plate Fastening Lt
Nytiner Snap-In 5/8" ID
Washer Nyl 7/8 ID x .105
Bolt Shoulder 5/16-18 Unc
Bolt Rdhd Sqnk 5/t6-18 Unc x 1
Bolt Carr Sh 3/8-16 x 1-3/4 Gr 5
Nut Hex flange Lock
Screw Thdro!. 3/8-16 x .75
NOTE: All component dimensions given in U.S. inches
t inch = 25.4 mm
35

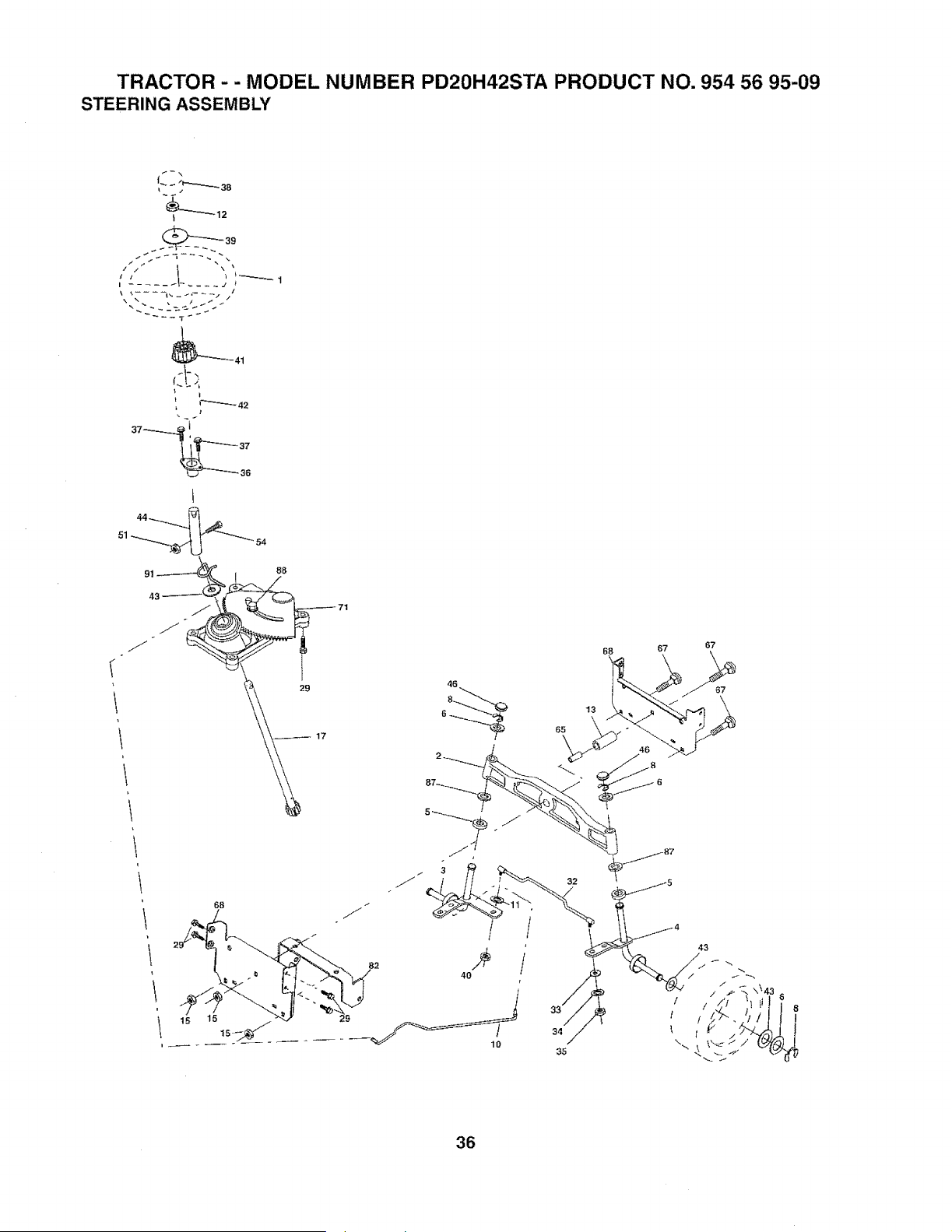

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
STEERING ASSEMBLY
_12
_41
<_I-:_
I
88
29
i
68
17
29
68 67 67
46
68_ 13
4O
i
/
10
36

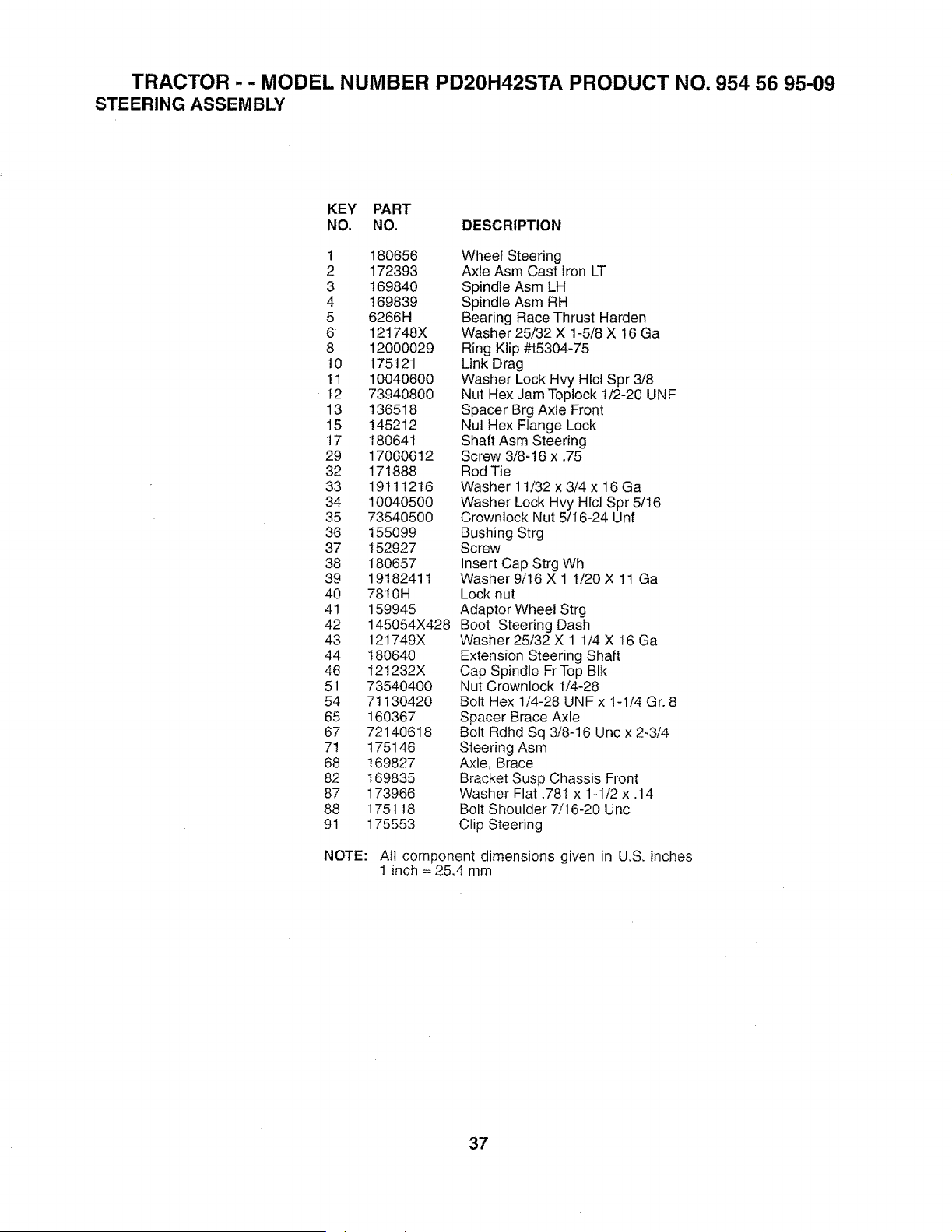

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 18O656
2 172393
3 169840
4 169839
5 6266H
6 t21748X
8 12000029
10 175121
11 10040600
12 73940800
13 136518
t5 145212
t7 180641
29 17060612
32 171888
33 19111216
34 10040500
35 73540500
36 155099
37 152927
38 180657
39 19182411
40 78t0H
41 159945
42 145054X428
43 121749X
44 180640
46 121232X
51 73540400
54 71130420
65 160367
67 72140618
7t 175146
68 169827
82 169835
87 173966
88 175118
91 175553
Wheel Steering
Axle Asm Cast Iron LT
Spindle Asm LH
Spindle Asm RH
Bearing Race Thrust Harden
Washer 25/32 X 1-5/8 X 16 Ga
Ring Klip #t5304-75
Link Drag
Washer Lock Hvy Hlct Spr 3/8
Nut Hex Jam Toplock 1/2-20 UNF
Spacer Brg Axle Front
Nut Hex Flange Lock
Shaft Asm Steering
Screw 3/8-16 x .75
Rod Tie
Washer 11/32 x 3/4 x 16 Ga
Washer Lock Hvy Hlcl Spr 5/16
Crownlock Nut 5/16-24 Unf
Bushing Strg
Screw
Insert Cap Strg Wh
Washer 9/t6 X 1 1/20 X 11 Ga
Lock nut
Adaptor Wheel Strg
Boot Steering Dash
Washer 25/32 X 1 1/4 X 16 Ga
Extension Steering Shaft
Cap Spindle FrTop BIk
Nut Crownlock 1/4-28
Bolt Hex 1/4-28 UNF x 1-1/4 Gr. 8
Spacer Brace Axle
Bolt Rdhd Sq 3/8-16 Unc x 2-3/4
Steering Asm
Axle, Brace
Bracket Susp Chassis Front
Washer Flat ,781 x 1-1/2 x .14
Bolt Shoulder 7/16-20 Unc
Clip Steering
NOTE: All component dimensions given in U,S, inches
1 inch = 25,4 mm
37

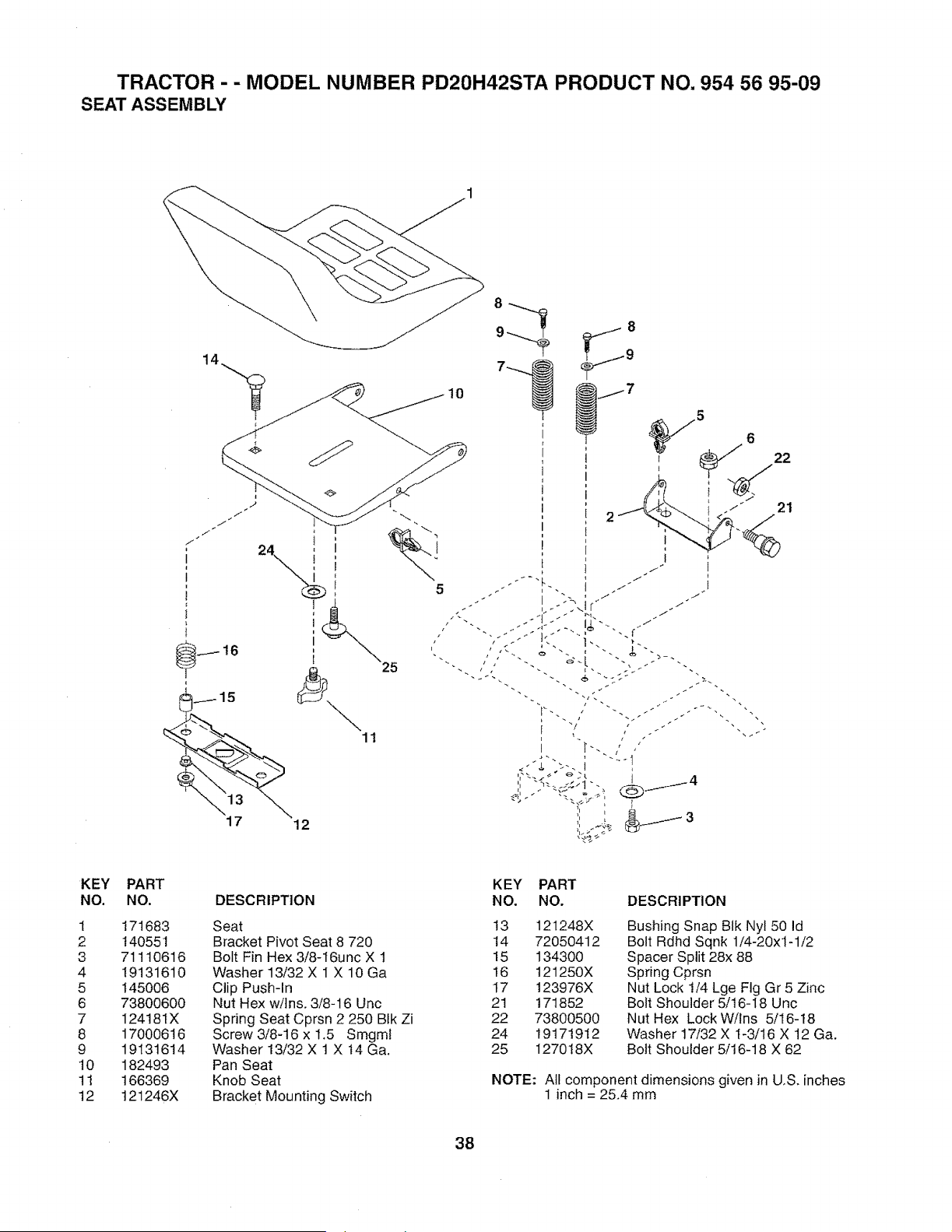

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
KEY
NO.
1
2
3
4
5
6
7
8
9
10
1t
12
PART
NO.
171683
140551
71110616
19131610
145006
73800600
124181X
17000616
19131614
182493
166369
t21246X
KEY PART
DESCRIPTION NO. NO. DESCRIPTION
Seat 13 121248X
Bracket Pivot Seat 8 720 14 72050412
Bolt Fin Hex 3/8-I6unc X t 15 134300
Washer 13/32 X 1 X 10 Ga 16 121250X
Clip Push-In 17 123976X
Nut Hex w/ins. 3/8-16 Uric 21 171852
Spring Seat Cprsn 2 250 Blk Zi 22 73800500
Screw 3/8-16 x 1.5 Smgmt 24 19171912
Washer 13/32 X 1 X 14 Ga. 25 1270t8X
Pan Seat
Knob Seat
Bracket Mounting Switch
Bushing Snap glk Nyl 50 Id
Bolt Rdhd Sqnk 1/4-20x1-1/2
Spacer Split 28x 88
Spring Cprsn
Nut Lock i/4 Lge Ftg Gr 5 Zinc
Bolt Shoulder 5/t6-I8 Unc
Nut Hex Lock W/Ins 5/I6-18
Washer 17/32 X I-3/16 X 12 Ga.
Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U,S. inches
1 inch = 25.4 mm
38

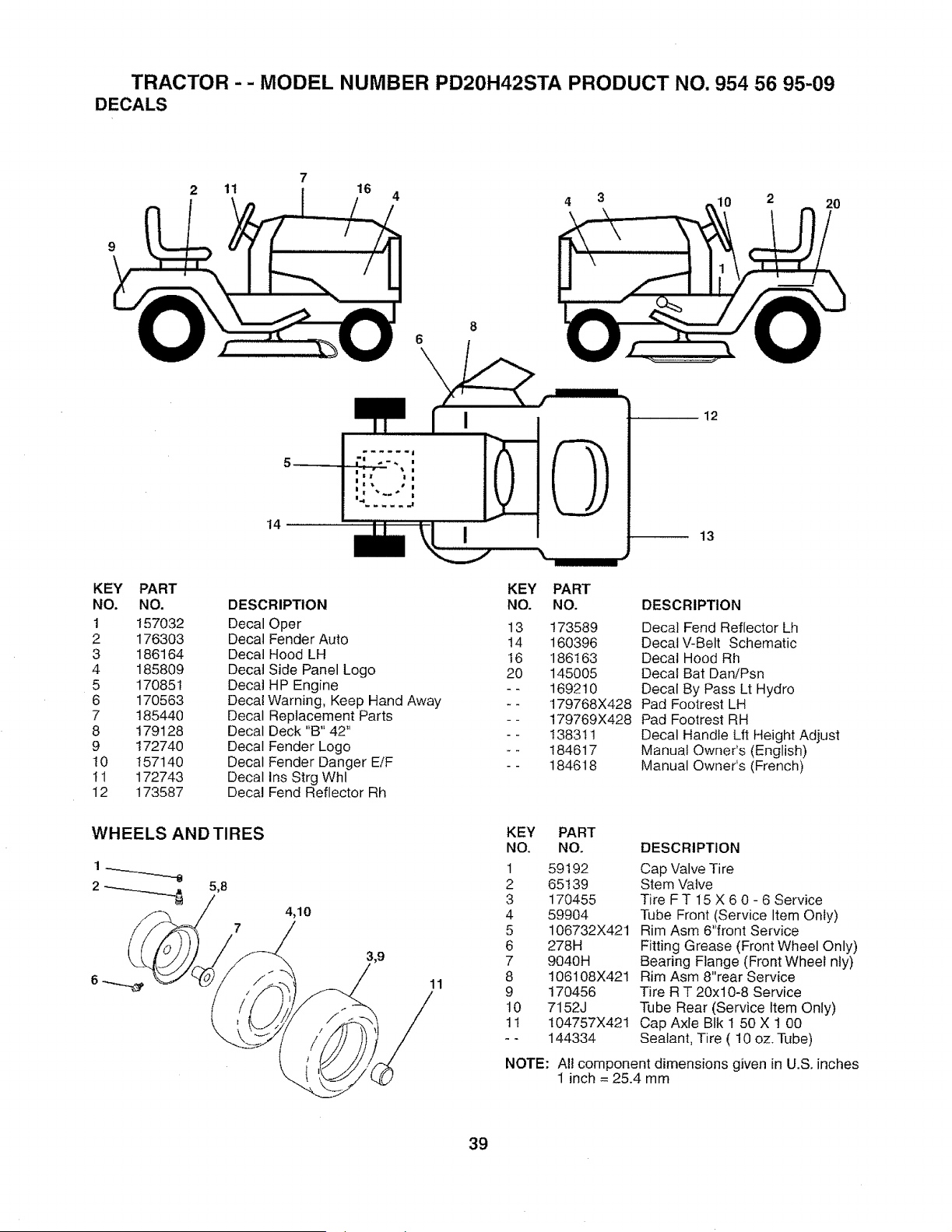

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
DECALS
11 16
4
4 3 10 2 20
9
\
8
6
12
14
13
KEY PART KEY PART
NO. NO, DESCRIPTION NO. NO.
1 I57032 Decal Oper 13 173589
2 176303 Decal Fender Auto 14 160396
3 186164 Decal Hood LH t6 186163
4 185809 Decal Side Panel Logo 20 145005
5 170851 Decal HP Engine - - 169210
6 170563 Decal Warning, Keep Hand Away - - 179768X428
7 185440 Decal Replacement Parts - - 179769X428
8 179128 Decal Deck "B" 42" - - 138311
9 172740 Decal Fender Logo - - 184617
t0 157140 Decal Fender Danger EiF - - 184618
11 172743 Decal Ins Strg Whl
12 173587 Decal Fend Reflector Rh
DESCRIPTION
Decal Fend Reflector Lh
Decal V-Belt Schematic
Decal Hood Rh
Decal Bat DaniPsn
Decal By Pass Lt Hydro
Pad Footrest LH
Pad Footrest RH
Decal Handle Lft Height Adjust
Manual OwneCs (English)
Manual Owner's (French)
WHEELS ANDTIRES
4,10
KEY PART
NO. NO, DESCRIPTION
1 59192
2 65139
3 170455
4 59904
5 106732X421
6 278H
7 9040H
8 106108X421
9 170456
t0 7152J
1t t04757X421
-- 144334
Cap Valve Tire
Stem Valve
Tire FT 15 X 6 0 - 6 Service
Tube Front (Service Item Only)
Rim Asm 6"front Service
Fitting Grease (Front Wheel Only)
Bearing Flange (Front Wheel nty)
Rim Asm 8"rear Service
Tire R T 20x10-8 Service
Tube Rear (Service Item Only)
Cap Axle BIk 1 50 X 1 00
Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39

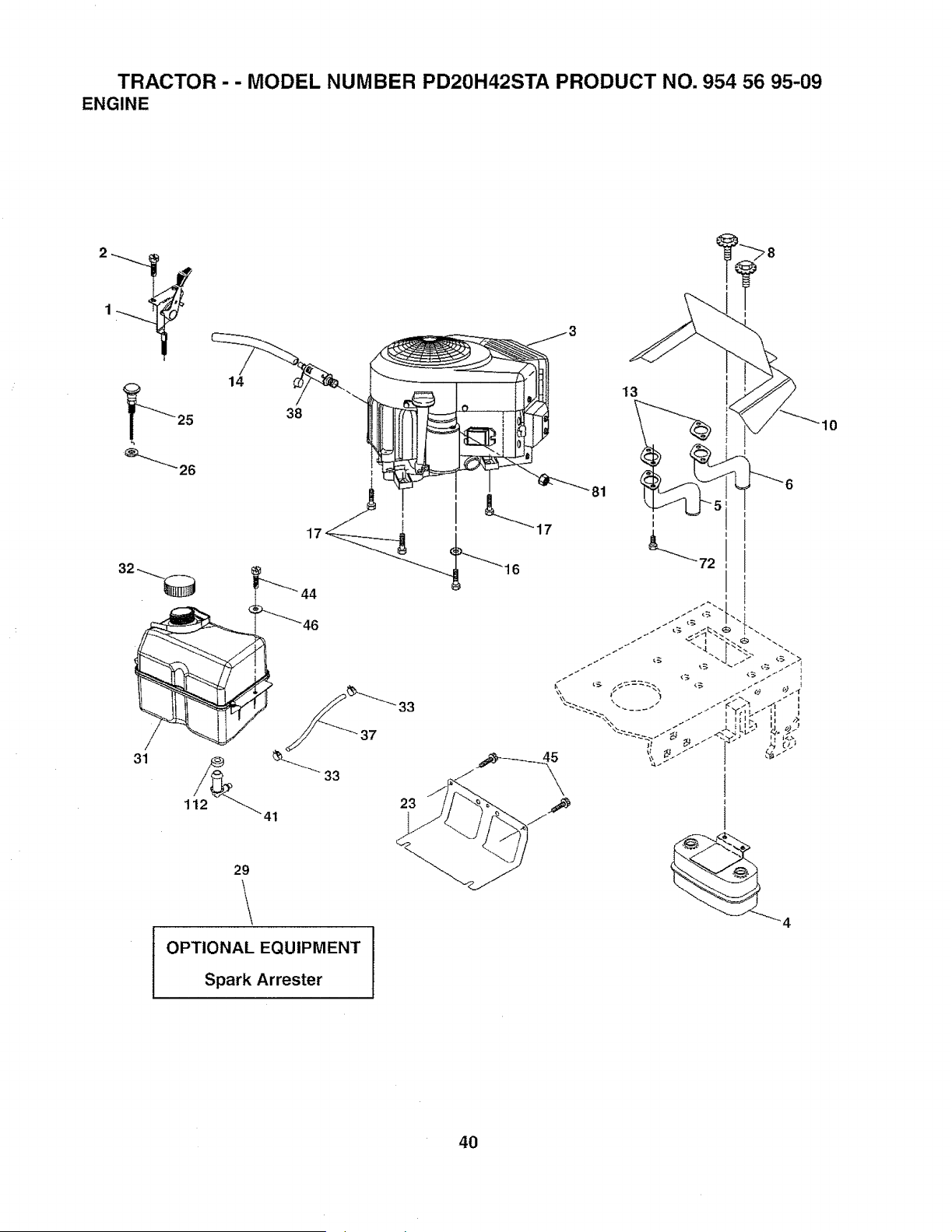

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
ENGINE
14
31
112
29
38
13
41
23
81
I
7
OPTIONAL EQUIPMENT
Spark Arrester
40

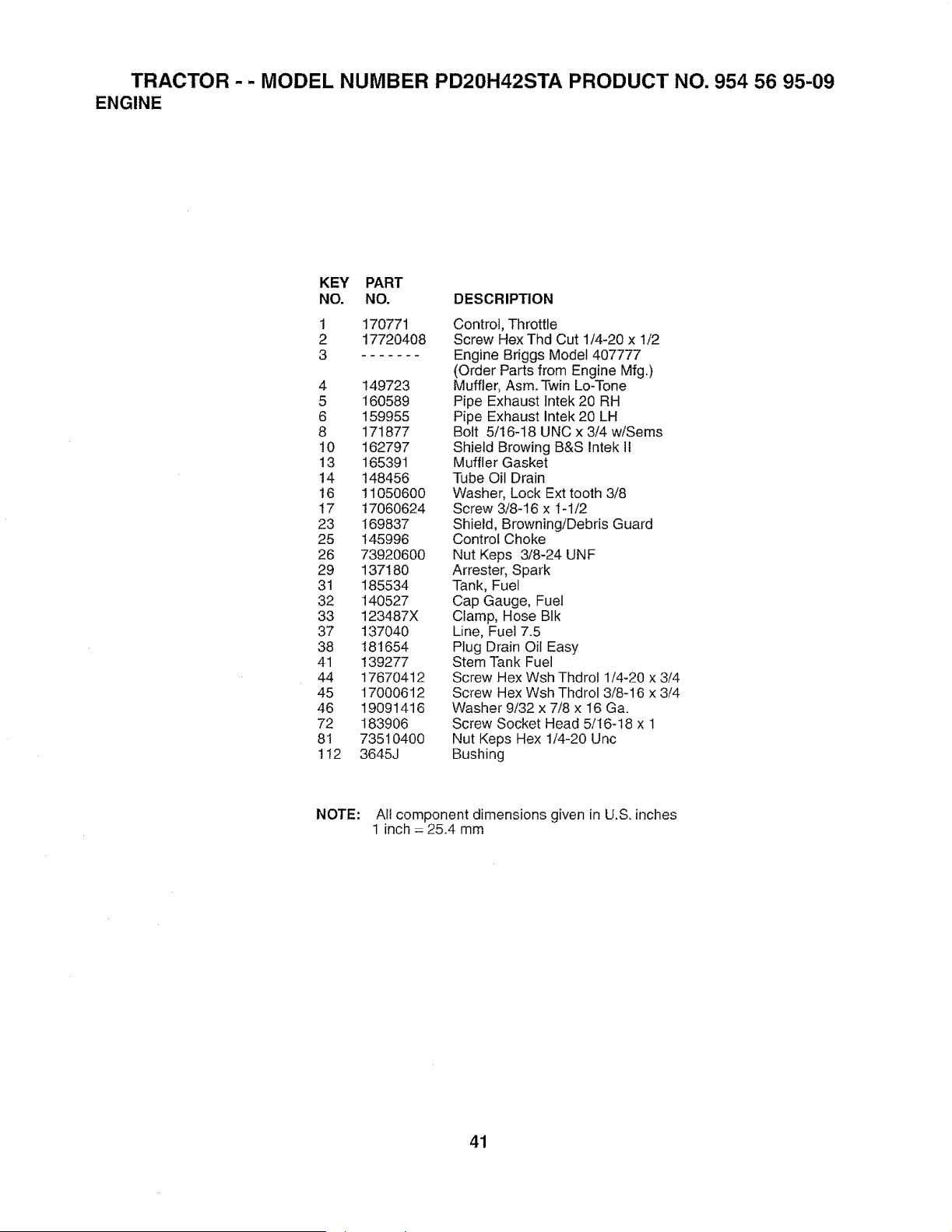

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 170771
2 17720408
3
4 149723
5 160589
6 159955
8 171877
t0 162797
13 165391
14 148456
16 11050600
t7 17060624
23 169837
25 145996
26 73920600
29 137180
31 185534
32 140527
33 123487X
37 137040
38 181654
41 139277
44 17670412
45 17000612
46 19091416
72 183906
8t 73510400
112 3645J
Control, Throttle
Screw Hex Thd Cut 1/4-20 x 1/2
Engine Briggs Model 407777
(Order Parts from Engine Mfg.)
Muffler, Asm. Twin Lo-Tone
Pipe Exhaust lntek 20 RH
Pipe Exhaust Intek 20 LH
Bolt 5/16-18 UNC x 3/4 w/Sems
Shield Browing B&S Intek II
Muffler Gasket
Tube Oil Drain
Washer, Lock Ext tooth 3/8
Screw 3/8-16 x 1-I/2
Shield, Browning/Debris Guard
Control Choke
Nut Keps 3/8-24 UNF
Attester, Spark
Tank, Fuel
Cap Gauge, Fuel
Clamp, Hose Blk
Line, Fuel 7.5
Plug Drain Oil Easy
Stem Tank Fuel
Screw Hex Wsh Thdrol 1/4-20 x 3/4
Screw Hex Wsh Thdrol 3/8-16 x 3/4
Washer 9/32 x 7/8 x 16 Ga.
Screw Socket Head 5/t648 x 1
Nut Keps Hex 1/4-20 Unc
Bushing
NOTE: All component dimensions given in U,S, inches
1 inch - 2&4 mm
41

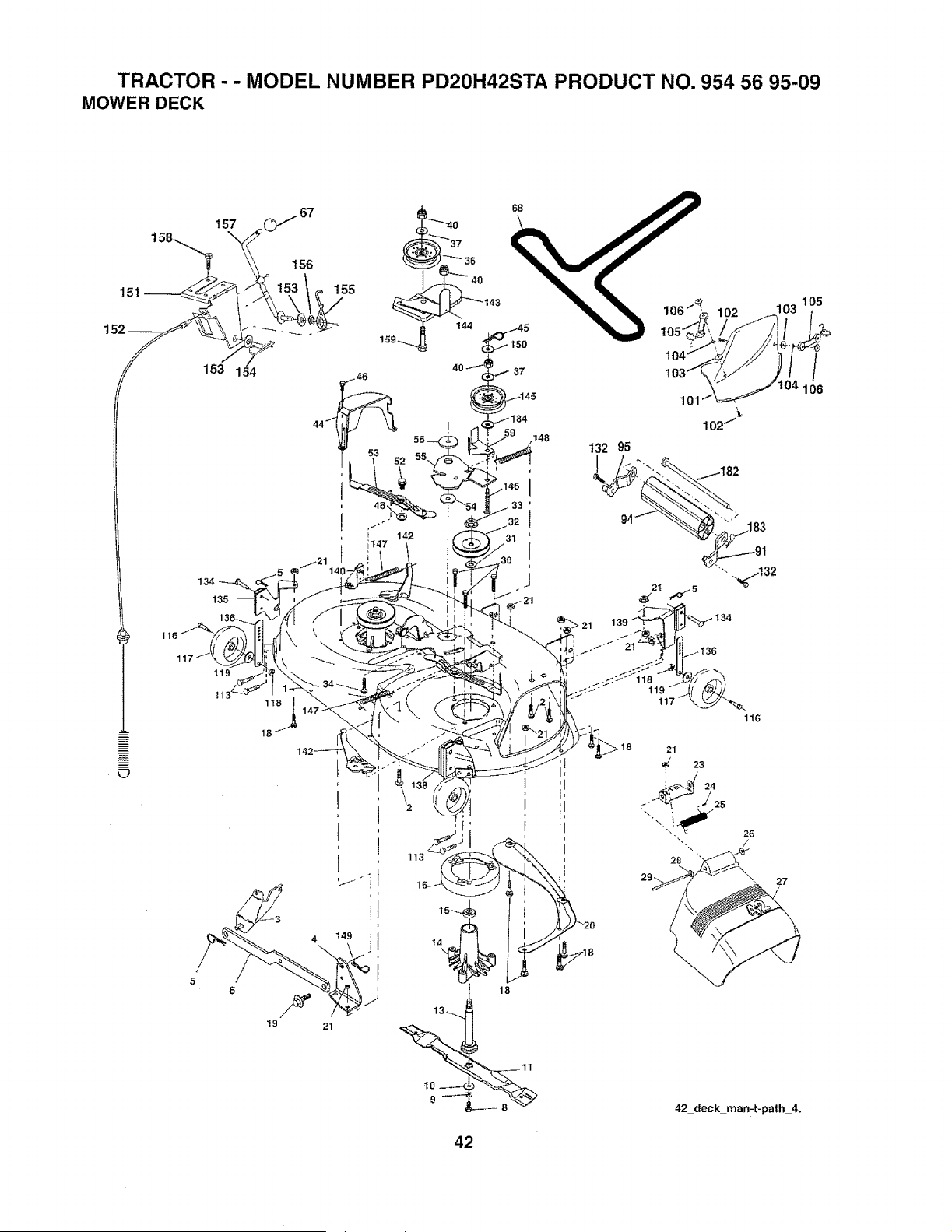

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
MOWER DECK
157
68
151
-___=
153 154
134
1t7 jl
119
5
6
156
155
53
33
118
1{
4 t4 J
19 21
42 deck man-t-path 4.
42

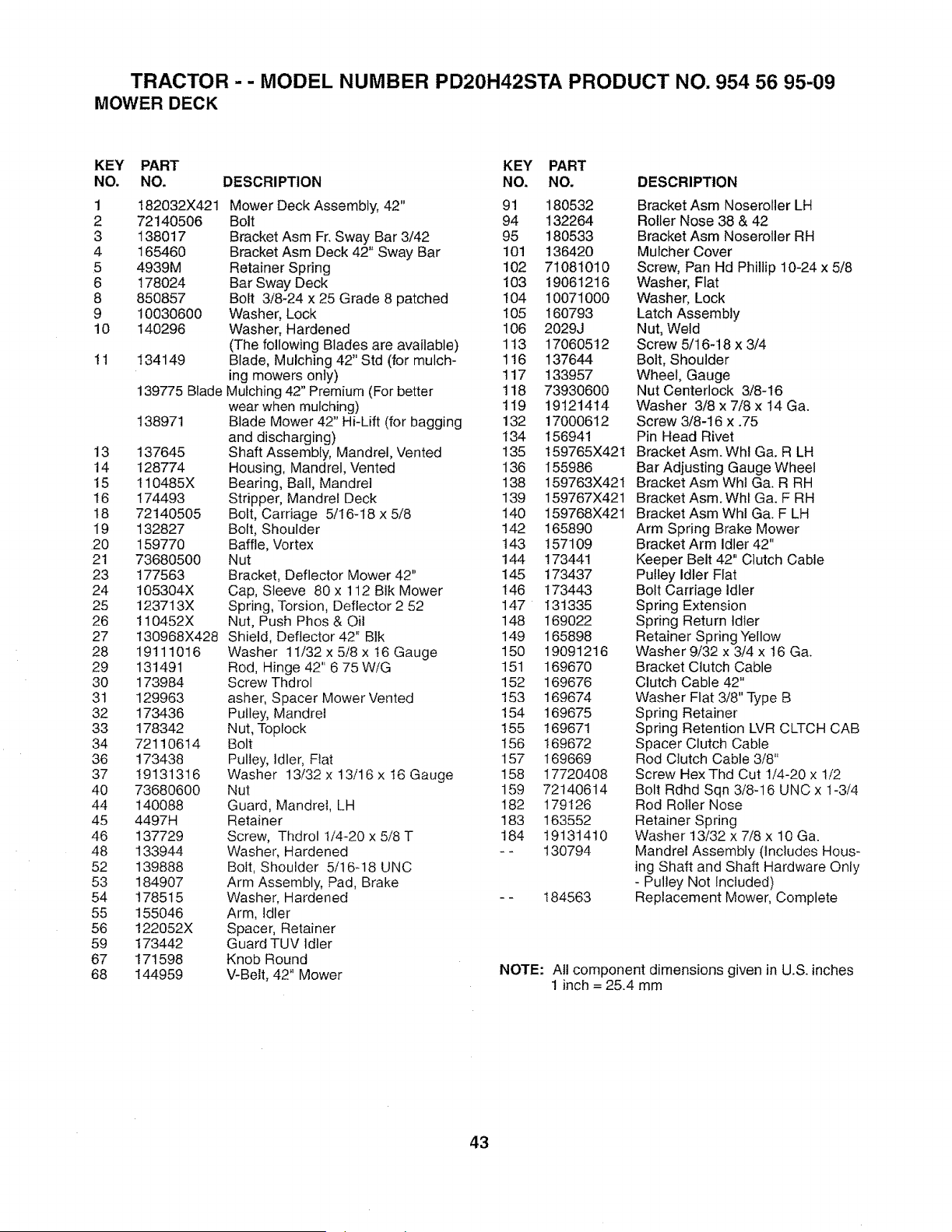

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
MOWER DECK
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 182032X421
2 72140506
3 138017
4 165460
5 4939M
6 178024
8 850857
9 10030600
10 140296
11 134149
Mower Deck Assembly, 42"
Bolt
Bracket Asm Fr. Sway Bar 3/42
Bracket Asm Deck 42" Sway Bar
Retainer Spring
Bar Sway Deck
Bolt 3/8-24 x 25 Grade 8 patched
Washer, Lock
Washer, Hardened
(The following Blades are available)
Blade, Mulching 42" Std (for mulch-
ing mowers only)
139775 Blade Mulching 42" Premium (For better
wear when mulching)
138971 Blade Mower 42" Hi-Lift (for bagging
and discharging)
13 137645 Shaft Assembly, Mandrel, Vented
14 128774 Housing, Mandrel, Vented
15 110485X Bearing, Ball, Mandre]
t6 I74493 Stripper, Mandrel Deck
18 72140505 Bolt, Carriage 5/16-t8 x 5/8
19 132827 Bolt, Shoulder
20 159770 Baffle, Vortex
21 73680500 Nut
23 177563 B racket, Deflector Mower 42"
24 105304X Cap, Sleeve 80 x 112 Btk Mower
25 123713X Spring, Torsion, Deflector 2 52
26 110452X Nut, Push Phos & Oil
27 130968X428 Shield, Deflector 42" Blk
28 19111016 Washer 11/32 x 5/8 x t6 Gauge
29 131491 Rod, Hinge 42" 6 75 WiG
30 173984 Screw Thdrol
31 129963 asher, Spacer Mower Vented
32 173436 Pulley, Mandrel
33 178342 Nut, Toplock
34 72110614 Bolt
36 173438 Pulley, Idler, Fiat
37 19131316 Washer 13/32x 13/16x 16 Gauge
40 73680600 Nut
44 140088 Guard, Mandrel, LH
45 4497H Retainer
46 137729 Screw, Thdrol 1/4-20 x 5/8 T
48 133944 Washer, Hardened
52 139888 Bolt, Shoulder 5/16q8 UNC
53 184907 Arm Assembly, Pad, Brake
54 178515 Washer, Hardened
55 155046 Arm, Idler
56 122052X Spacer, Retainer
59 173442 Guard TUV Idler
67 171598 Knob Round
68 I44959 V-Belt, 42" Mower
91 180532
94 132264
95 180533
101 136420
102 71081010
103 19061216
104 10071000
I05 160793
106 2029J
113 17060512
116 137644
117 133957
118 73930600
119 19121414
132 17000612
t34 156941
135 t59765X421
136 155986
138 159763X42I
139 159767X421
140 159768X421
t42 165890
143 157109
144 173441
145 173437
t46 173443
147 131335
148 169022
149 165898
150 19091216
151 169670
152 169676
153 169674
154 169675
!55 169671
156 169672
157 169669
158 17720408
159 72140614
182 179126
183 163552
t84 19131410
-- 130794
184563
Bracket Asm Noseroller LH
Roller Nose 38 & 42
Bracket Asm Noseroller RH
Mulcher Cover
Screw, Pan Hd Phillip 10-24 x 5/8
Washer, Flat
Washer, Lock
Latch Assembly
Nut, Weld
Screw 5/16-18 x 3/4
Bolt, Shoulder
Wheel, Gauge
Nut Centerlock 3/8-16
Washer 3/8 x 7/8 x I4 Ga.
Screw 3/8-16 x .75
Pin Head Rivet
Bracket Asm. Whl Ga. R LH
Bar Adjusting Gauge Wheel
Bracket Asm Wht Ga. R RH
Bracket Asm. Whl Ga. F RH
Bracket Asm Whl Ga. F LH
Arm Spring Brake Mower
Bracket Arm Idler 42"
Keeper Belt 42" Clutch Cable
Pulley Idler Flat
Bolt Carriage Idler
Spring Extension
Spring Return Idler
Retainer Spring Yellow
Washer 9/32 x 3/4 x t6 Ga.
Bracket Clutch Cable
Clutch Cable 42"
Washer Flat 3/8" Type B
Spring Retainer
Spring Retention LVR CLTCH CAB
Spacer Clutch Cable
Rod Clutch Cable 3/8"
Screw Hex Thd Cut 1/4-20 x 1/2
Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4
Rod Roller Nose
Retainer Spring
Washer 13/32 x 7/8 x 10 Ga.
Mandrel Assembly (Includes Hous-
ing Shaft and Shaft Hardware Only
- Pulley Not Included)
Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43

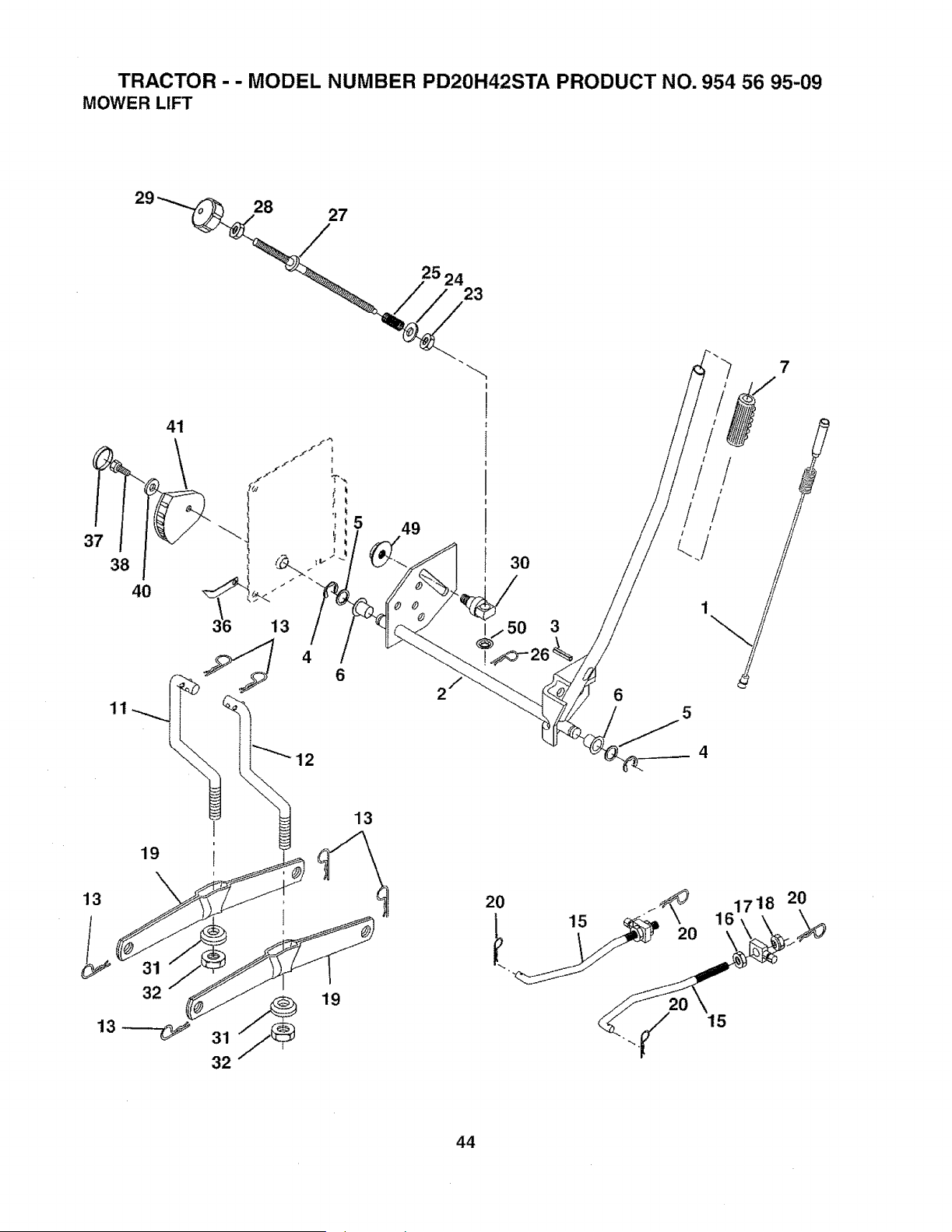

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
MOWER LIFT
7
37
38
40
11
41
13
49
30
6
1
12
19
13
32
32
13
19
20
15
20
161718
15
20
44

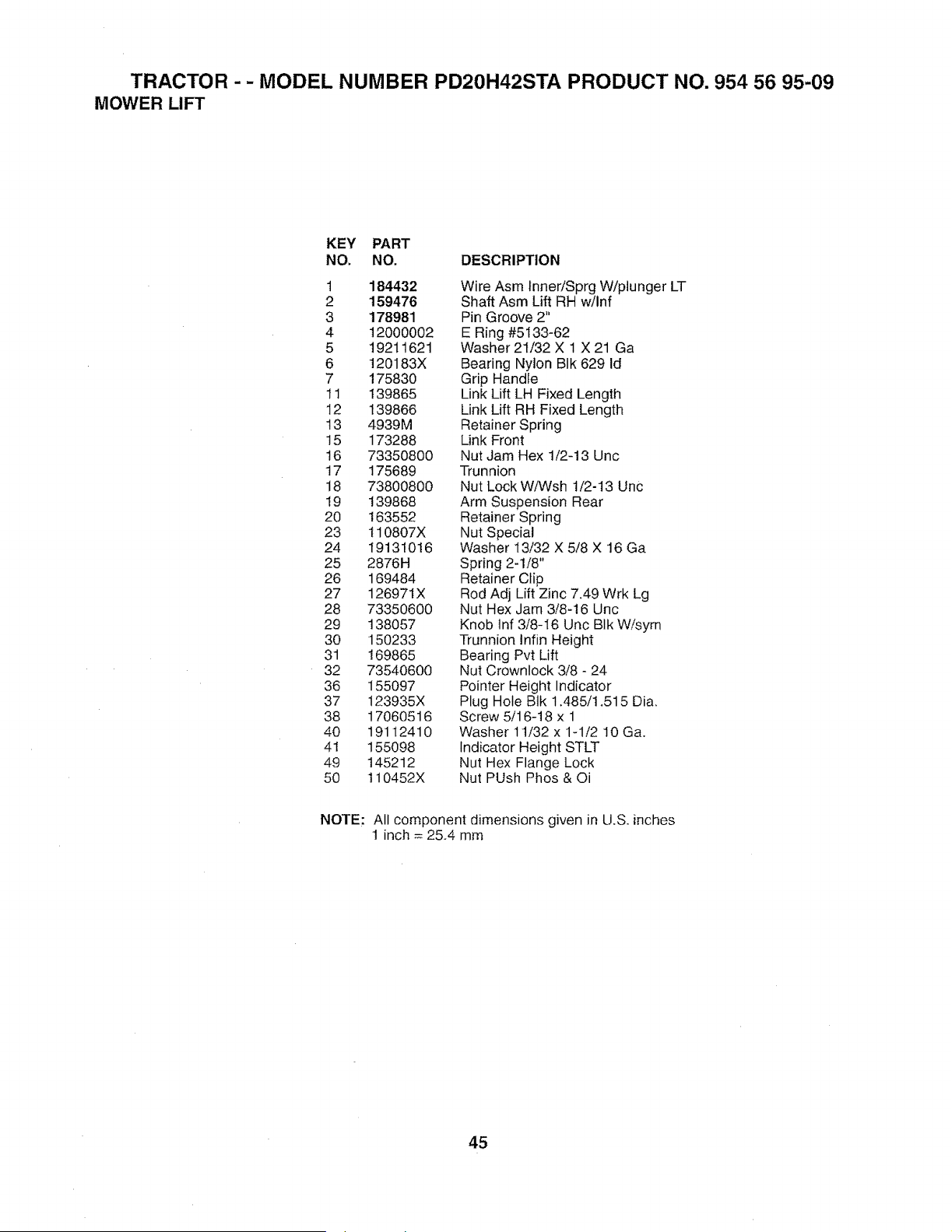

TRACTOR - - MODEL NUMBER PD20H42STA PRODUCT NO. 954 56 95-09
MOWER LIFT
KEY PART
NO_ NO. DESCRIPTION
t 184432
2 159476
3 178981
4 12000002
5 19211621
6 120183X
7 175830
11 139865
12 139866
13 4939M
15 173288
16 73350800
17 175689
18 73800800
19 139868
20 163552
23 t10807X
24 19131016
25 2876H
26 169484
27 126971X
28 73350600
29 138057
30 150233
31 169865
32 73540600
36 155097
37 123935X
38 17060516
40 19112410
4I 155098
49 145212
50 110452X
Wire Asm fnneriSprg W/plunger LT
Shaft Asm Lift RH wilnf
Pin Groove 2"
E Ring #5133-62
Washer 21/32 X 1 X 21 Ga
Bearing Nylon Blk 629 Id
Grip Handle
Link Lift LH Fixed Length
Link Lift RH Fixed Length
Retainer Spring
Link Front
Nut Jam Hex 1/2-13 Unc
Trunnion
Nut Lock WiWsh 1/2-13 Unc
Arm Suspension Rear
Retainer Spring
Nut Special
Washer t3/32 X 5/8 X 16 Ga
Spring 2-1/8"
Retainer Clip
Rod Adj Lift Zinc 7.49 Wrk Lg
Nut Hex Jam 3/8-16 Uric
Knob ]nf 3/8-16 Uric Blk Wisym
Trunnion Infin Height
Bearing Pvt Lift
Nut Crownlock 3/8 - 24
Pointer Height Indicator
Plug Hole Bik 1.485/1.515 Dia,
Screw 5/16-18 x 1
Washer 11/32 x 1-1/2 10 Ga.
Indicator Height STLT
Nut Hex Flange Lock
Nut PUsh Phos & ©i
NOTE: All component dimensions given in U.S. inches
t inch = 25.4 mm
45
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi-
als and 'workmanship.For a period of two (2) years from date of purchase bythe original consumer purchaser, we will repair or
replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, other than EHP manufactured transaxle/transmission components, battery (ex-
cept as noted below) or components parts thereof. Please refer to the applicable manufacturer's warranty on these items,
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the pur-
chaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser
unless such return isrequested by Etectrolux Home Products.
3. Battery Warranty: On products equipped with a Battery, we wiltreplace, without charge to you, any battery which we find
to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you !/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original
purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in accor-
dance with the instructions furnished. This Warranty does not apply to any product which has been subjected to alteration,
misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
Electrolux Home Products, Inc.
Outdoor Products Customer Service Dept.
250 Bobby Jones Expressway
Augusta, GA 30909 USA
tn Canada contact:
Electrolux Canada Corp.
7075 Ordan Drive
Mississauga, Ontario
L5T 1K6
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limi-
tations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which
vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975,
46

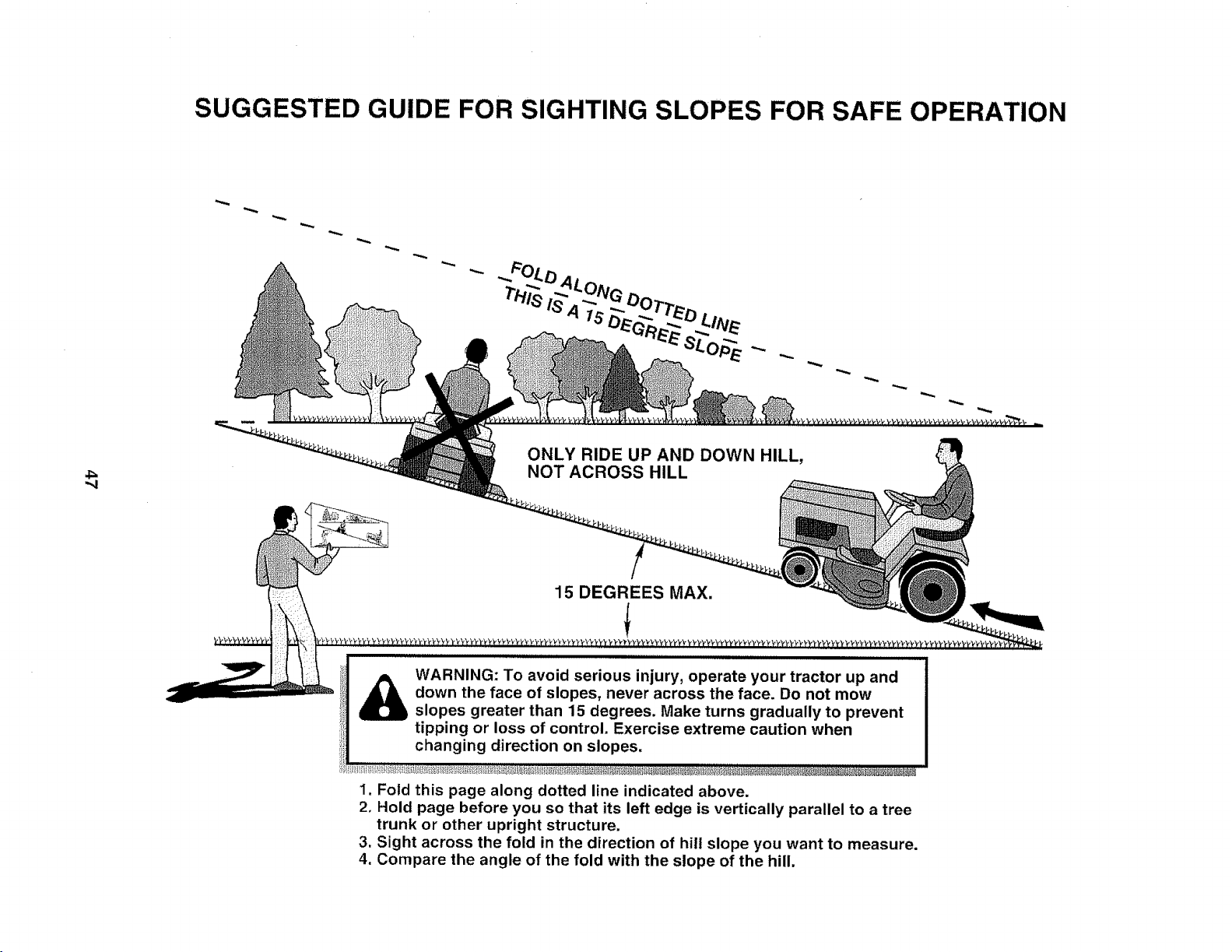

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION
_q
ONLY RIDE UP AND DOWN HILL,
NOT ACROSS HILL
15 DEGREES MAX.
_hb ARNING: To avoid serious injury, operate your tractor up and
down the face of slopes, never across the face. Do not mow
slopes greater than 15 degrees. Make turns gradually to prevent
tipping or loss of control. Exercise extreme caution when
changing direction on slopes,
I. Fold this page along dotted line indicated above.
2, Hold page before you so that its left edge is vertically parallel to a tree
trunk or other upright structure,
3. Sight across the fold in the direction of hilt slope you want to measure.
4, Compare the angle of the fold with the slope of the hill,
PARTS AND SERVICE
Your PO_4 PRO product has been expertly engineered and carefully manufactured to rigid quality
standards. As with all mechanical products, some adjustments or part replacement may be necessary
during the life of your unit.
FOR SERVICE OR REPLACEMENT PARTS:
1. Consult your dealer/place of purchase.
2. Consult the yellow pages of your phone directory for the name of the nearest service dealer (under
"saws" for Chain Saws or under "lawn mowers" for Trimmers, Brushcutters, and Blowers).
3. For replacement parts, have available the following information:
a. Model Number/Manufacturer's I.D. Number.
b. Description of part.
NOTE:
Electrolux Home Products provides parts and service through its authorized distributors
and dealers; therefore, all requests for parts and service should be directed to your local
dealer(s). The philosophy of Electrolux Home Products is to continually improve all of its
products. If the operating characteristics or the appearance of your product differs from
those described in this Manual, please contact your local local dealer for updated information
and assistance.
Illlll[llllllllllllllllllIlllllll
