Speaker connection harness for select 2007-2017 Ford
and Lincoln vehicles with factory amplied sound systems
Pacific Accessory Corporation
Page 1
Copyright © 2018. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
APH-FD01
Rev: V3
Date: 042518
0
Black/White
Black/Red
Black/White
Black/Red
Black
Black/Green
Black
Black/Green
Introduction and Features
The APH-FD01 simplies speaker wire connections when adding aftermarket ampliers. Aftermarket ampliers can be
easily added with no need to cut or modify a vehicle’s original wiring. 47Ω 5 Watt resistors have been added to the
amplier side of the harness with the Gray connector to retain the safety and warning chimes when they are played
through the factory door speakers.

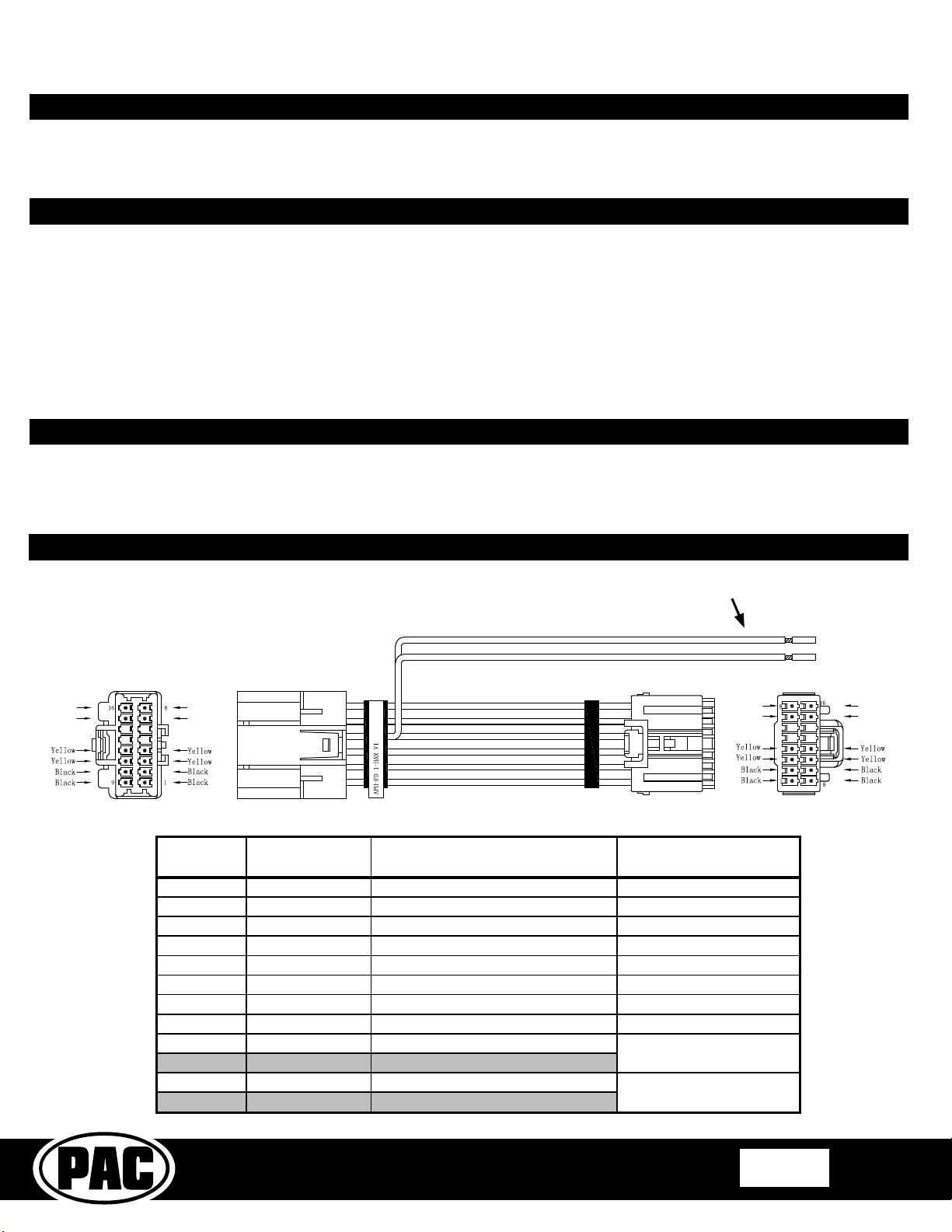

Wiring Overview
Harness 1 (Blue Connector):
Installation Notes
1. It is always best to use a tone generator (PAC Part# TL-PTG2) to verify that the tables in this manual, and the labels on the
wires, match the wiring in your specic vehicle.
2. Connection of the Gray 16-pin connector from the APH-FD01 to the factory amplier is only necessary if you wish for factory
warning chimes to be retained by the aftermarket amplier. When this harness is not connected to the factory amplier, or the
resistors are removed, the chimes will default to a smaller piezo speaker located in the upper dash and will no longer play
through the sound system.
3. If you are leaving any of the factory speakers connected to the factory amplier, simply connect the speaker wires (color for
color) between the male and female connectors. For example: If you want the rear speakers to be powered by the factory
amplier, simply connect the Green, Green / Black, Purple and Purple / Black wires from the male connector to the Green,
Green / Black, Purple and Purple / Black wires from the female connector. Be sure to remove the 47Ω 5W resistors when
connecting these wires together.
1 Black
Pass through
2 Black
Pass through
3 Yellow
Pass through
4 Yellow
Pass through
9 Black
Pass through
10 Black
Pass through
11 Yellow
Pass through
12 Yellow
Pass through
15 Black / Red Subwoofer Speaker 2 Positive
7 Black / Green Subwoofer Speaker 2 Negative
16 Black / White Subwoofer Speaker 1 Positive
8 Black Subwoofer Speaker 1 Negative
Subwoofer 1
Subwoofer 2
Wire Color Wire Description
Label
Pin Number
1. Locate the vehicle factory amplier and disconnect the Blue 16-pin and Gray 16-pin connectors.
2. Connect the APH-FD01 harness to the connectors that were disconnected in the previous step.
3. Connect the male connectors from the APH-FD01 to the amplier.
4. Connect the longer loose wires from the APH-FD01 to your aftermarket amplier or passive crossovers according to the
tables in this manual.
Installation Steps
Connect to aftermarket amplier
Speaker connection harness for select 2007-2017 Ford
and Lincoln vehicles with factory amplied sound systems
Pacific Accessory Corporation
Page 2
Copyright © 2018. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
APH-FD01
Rev: V3
Date: 042518

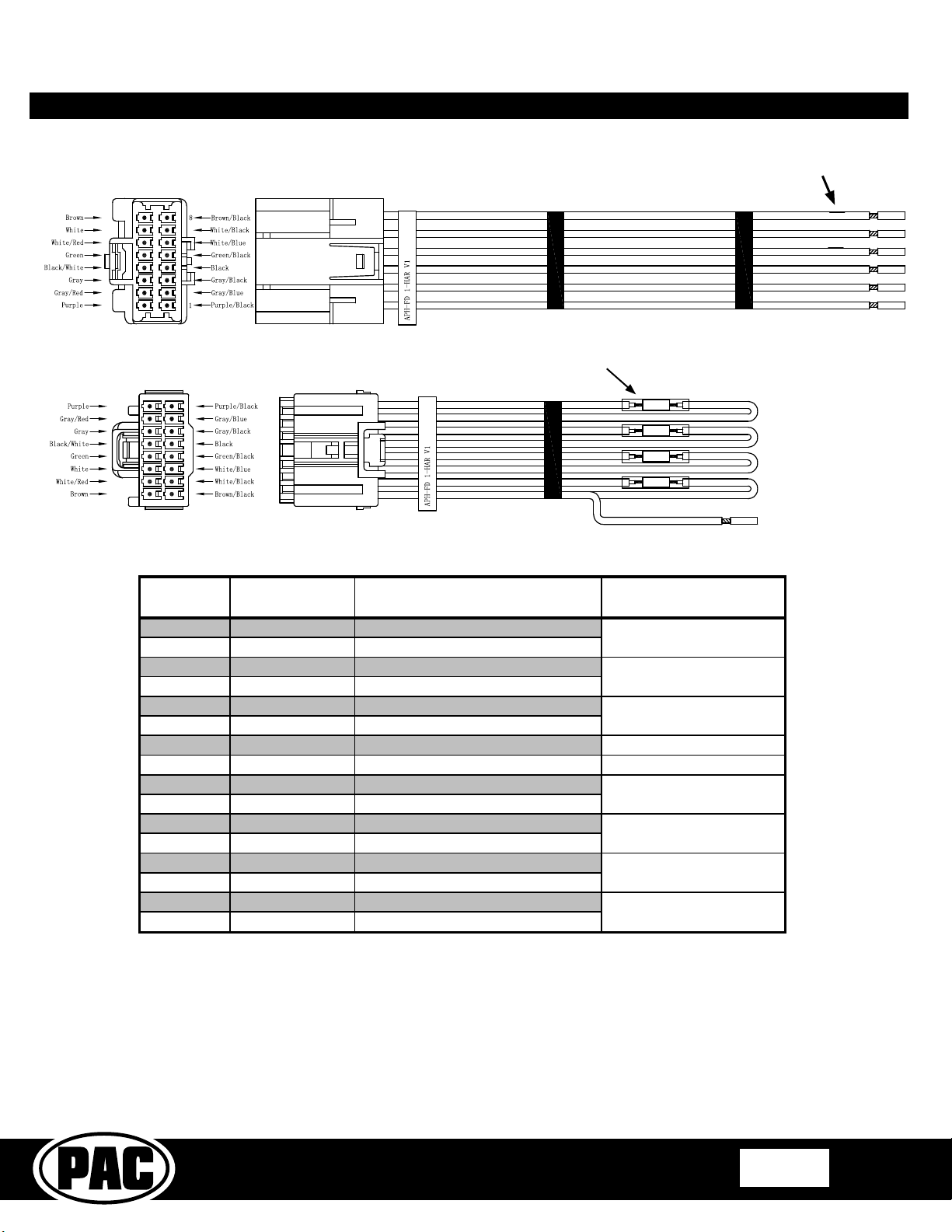

Wiring Overview (cont.)
1 Purple/Black RightRearSpeakerNegative(RR‐)
9 Purple RightRearSpeakerPositive(RR+)
2 Gray/Blue RightFrontTweeter‐
10 Gray/Red RightFrontTweeter+
3 Gray/Black RightFrontSpeakerNegative(RF‐)
11 Gray RightFrontSpeakerPositive(RF+)
4 Black ForFutureUse
12 Black/White ForFutureUse
5 Green/Black LeftRearSpeakerNegative(LR‐)
13 Green LeftRearSpeakerPositive(LR+)
6 White/Blue LeftFrontTweeter‐
14 White/Red LeftFrontTweeter+
7 White/Black LeftFrontSpeakerNegative(LF‐)
15 White LeftFrontPositive(LF+)
8 Brown/Black CenterChannel‐
16 Brown CenterChannel+
WireColor
LeftFrontMidrange
LeftFrontTweeter
LeftRearSpeaker
RightFrontMidrange
RightFrontTweeter
RightRearSpeaker
PinNumber WireDescription Label
CenterChannel
Harness 2 (Gray Connector):
0
0
47Ω 5 Watt resistors
(remove if retaining output from
original amplier)
Connect to aftermarket amplier
or passive crossover.
