PAC RP4-MZ11 Audio Mazda Radio Replacement Interface User Manual

RP4-MZ11

Radio Replacement & Steering Wheel Control Interface

for MazdaVehicles

Pacic Accessory Corporation

| Santa Ana, California 92705 | Ph. 866-931-8021 | [email protected]

www.pac-audio.com

Rev. 081612

Pacific Accessory Corporation

Page 1

Introduction & Features

Important Notes

The RP4-MZ11 interface allows the replacement of a factory radio in select Mazda vehicles with MS-CAN radios. Using

this interface will retain factory features such as steering wheel controls (SWC), programming of the clock on the OEM

LCD screen, vehicle information on the OEM LCD screen and the BOSE amplier when the original radio is removed. The

RP4-MZ11 also provides data bus driven outputs such as retained accessory power (RAP), vehicle speed sensor (VSS),

illumination, reverse trigger and parking brake.

1. The radio select rotary switch on the side of the interface must be adjusted to the proper radio setting before plugging the

interface into the vehicle (see below for setting chart).

2. If using this interface in a Mazda CX-5, all vehicle settings must be nalized before removing the factory radio.

3. When the interface is rst plugged into the vehicle the LED will ash indicating that it is initializing. Once initialization is complete

the LED will illuminate and should be on at all times when the interface is on.

4. The following vehicles will not provide a VSS signal as this information is not on the data bus: RX-8, 2007-2009 CX-9 w/non-nav

radio, Miata

5. The following vehicles will not provide a reverse output as this information is not on the data bus: RX8, 2007-2009 CX7, 2010

Mazda 5, Miata

6. The following vehicles will not provide a parking brake output as this information is not on the data bus: RX-8, Miata

7. The following vehicles have a speed based parking brake wire that will provide a negative trigger until the vehicle is going at

least 4 mph: 2007-2009 CX-9, 2007-2009 CX-7

8. The LED will also ash whenever a SWC button is pressed

9. The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming unless

you wish to re-assign the SWC functions to different buttons. The SWC can always be restored to default settings by pressing

and releasing the program button on the side of the interface once and waiting 7 seconds for the LED to ash 4 times.

10. The LED will ash whenever a SWC button is pressed.

Wiring Connection Chart

Red / White P.B. Output (-)

Purple / White VSS Output

Red Acc. Output (1 amp)

Green/ White 2nd SWC Input

(Connect to blue

wire in vehicle con-

nector in Mazda

CX-5, not used in

other applications)

Green Reverse Output (+)

Orange Illumination

Interface Connector

Yellow Battery +12v

Black Ground

Blue Antenna On Input

(connect to Green/

White wire in inter-

face connector in

the Mazda CX-5)

Orange/White Illumination

White Front L + input

White / Black Front L - input

Grey Front R + input

Grey / Black Front R - input

Green Rear L + input

Green / Black Rear L - input

Purple Rear R + input

Purple / Black Rear R - input

Vehicle Connector

SWC Connector

Blu/Yel Kenwwod, Newer

JVC, OEM or

Blaupunkt

3.5mm Jack Alpine, JVC,

Clarion, Pioneer,

Sony, Fusion, Valor,

Boyo, Dual, Visteon

or Advent

RP4-MZ11

Radio Replacement & Steering Wheel Control Interface

for Mazda Vehicles

Pacic Accessory Corporation

| Santa Ana, California 92705 | Ph. 866-931-8021 | [email protected]

www.pac-audio.com

Pacific Accessory Corporation

Rev. 081612

Page 2

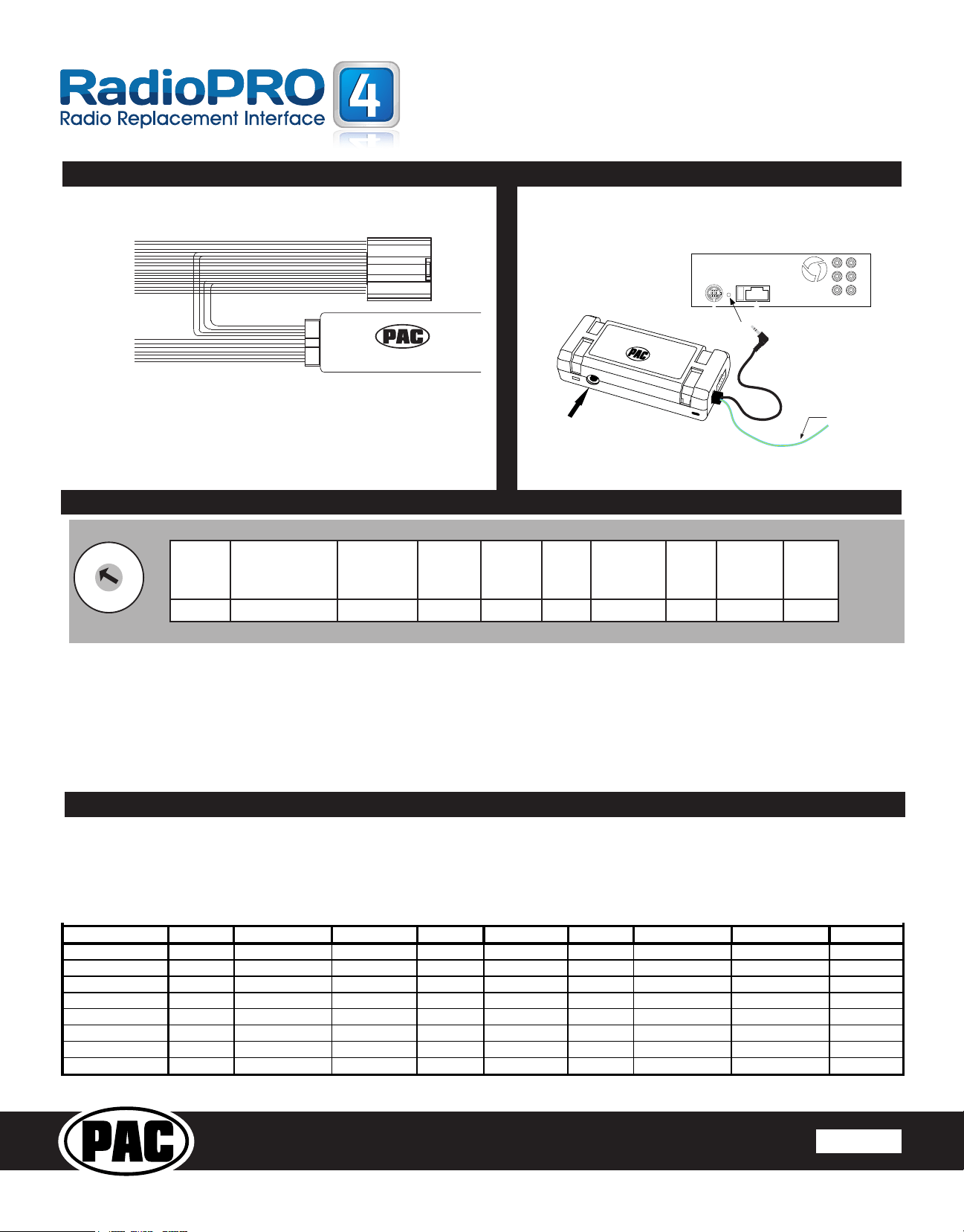

Installation Steps

1.The radio select rotary switch on the side of the interface must be adjusted to the proper radio

setting before plugging the interface into the vehicle.

2. Make all connections as described in the chart on page 1. 2013+ Mazda CX5 - Connect the blue wire in the 24 pin vehicle harness to the

green/white wire in the 16-pin RP harness. This is necessary for the Bluetooth SWC to function with the aftermarket radio. This vehicle must

also use the orange/white wire in the Interface Connector.

3. Connect the SWC wire according to the chart on page 1 (aftermarket radio MUST support a wired remote input).

4. If you wish to reassign the SWC buttons to different functions follow the programming instructions in the next section.

SET RADIO SELECT SWITCH

Alpine

Advent,

BOYO, Dual,

Visteon, Sony

Blaupunkt Clarion Fusion JVC Kenwood OEM Pioneer Valor

1 7 8 4 9 2 3 6 7 5

Illustration / Schematic

Pacific Accessory Corporation

Interface Connector

See above chart for

wire color descriptions.

Vehicle Connector

See above chart for

wire color description.

SWC Connection

See above chart for

different radio type

connections

Wiring SWC Connection

The interface comes pre-programmed for the functions listed in the chart below and does not require programming unless you

wish to re-assign the SWC functions to different buttons. The SWC can always be restored to default settings by pressing the

program button on the side of the interface once and waiting for the LED to ash four times.

Alpine JVC Kenwood Clarion

alo

OEM Sony/Pionee

Fusion Blaupunkt

olume + Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume +

olume - Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume -

Mode Source Source Source Source Source Source Source Source Source

Track + Track + Track + Track + Search + Track + Next Track + Track + Track +

Track - Track - Track - Track - Search - Track - Previous Track - Track - Track -

oice/Mute Mute Mute Mute Mute Mute Mute Mute Mute Mute

Answe

Receive Receive Answer Send Cursor + Answer Answer Audio Disc +

End End Selec

Pla

End OK Hang Up Phone Menu Powe

Mazda

Optional Steering Wheel Control Programming

Default SWC Button Assignments

RP4-MZ11

Radio Replacement & Steering Wheel Control Interface

for MazdaVehicles

Pacic Accessory Corporation

| Santa Ana, California 92705 | Ph. 866-931-8021 | [email protected]

www.pac-audio.com

Rev. 081612

Pacific Accessory Corporation

Page 2

Page 3

8/16/2012 - 2:53 PM swi-rc radio and button chart.xls

Radio Alpine JVC Kenwood Clarion Valor OEM

Advent, Boyo, Dual,

Visteon, Sony

Pioneer Blaupunkt Fusion

1 Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume +

2 Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume -

3 Mute Mute Mute Mute Mute Mute Mute Mute Mute Mute

4 Preset + Source Source Source Source Source Preset + Preset + Source Source

5 Preset - Track + Play Search + Track + Next Preset - Preset - Track + Track +

6 Source Track - Track + Search - Track - Previous Source Source Track - Track -

7 Track + Band/Disc + Track - Band Up Cursor Play/Ok Track + Track + Disc + Audio

8 Track - Preset/Disc - Disc/FM + Send/End Down Cursor Band Track - Track - Disc - Power

9 Power Select Disc/AM - Send Ok Up Cursor Band Band Ok

10 Enter/Play Attenuation Answer End Down Cursor Phone Menu

11 Band/Program Phone Receive BT Answer Answer Call

12 Receive Phone Reject BT Hangup End Call

13 End Voice Dial Voice Activation

14 Power

SET RADIO SELECT SWITCH

If you wish to re-assign the SWC functions, the interface must be programmed in the specic order shown in the chart below. If you

come across a function in the chart that your steering wheel does not have, or you do not want to program, press and release the

program button on the side of the interface to skip that function. The LED will ash off and on conrming that you have successfully

skipped that function and are ready to proceed to the next one.

Optional Programming Order

Alpine

Advent,

BOYO, Dual,

Visteon, Sony

Blaupunkt Clarion Fusion JVC Kenwood OEM Pioneer Valor

1 7 8 4 9 2 3 6 7 5

Optional Steering Wheel Control Programming (Cont)

RP4-MZ11

Radio Replacement & Steering Wheel Control Interface

for Mazda Vehicles

Pacic Accessory Corporation

| Santa Ana, California 92705 | Ph. 866-931-8021 | [email protected]

www.pac-audio.com

Pacific Accessory Corporation

Rev. 081612

Page 4

Testing & Verication

1. Turn the ignition on. The LED on the interface will turn on & the +12v accessory wire will turn on.

2. Turn on the radio & check balance & fade. Note: Premium Factory amplied Systems fader must be adjusted through the

RP interface. See vehicle Settings menu below.

3. Verify that the factory subwoofer (if present) is playing

4. Verify that all SWC are functioning properly. If not all SWC are functioning properly you need to re-calibrate the

SWC buttons because the analog SWC are falling outside of the pre-programmed values. Please see page 7 for

instructions on how to re-calibrate the SWC.

5. Turn off vehicle & remove key. RAP will be active & keep the radio on for 10 minutes or until the drivers door is opened.

6. The LED & radio will turn off when RAP turns off or the drivers door is opened.

Step B.

Press and

hold the

programming

button.

Step C.

Release the

programming

button.

LED will turn off.

SWC Connection

See above chart for

different radio type

connections

SWC Connection

See above chart for

different radio type

connections

SWC Connection

See above chart for

different radio type

connections

Step A.

Turn the vehicle ignition to

the ON position.

OFF

ACC

IGN

STRT

SWC Connection

See above chart for

different radio type

connections

Step E.

Release the button.

The LED will turn on

back on.

Step D.

Within 7 seconds,

press and release the

button that is to be

learned on the steering

wheel.

The LED will

turn off during

this process.

SWC Connection

See above chart for

different radio type

connections

VOL

Step F.

If you need to program more buttons,

repeat steps D & E for each additional

function on the steering wheel.

Program

remaining buttons

SWC Connection

See above chart for

different radio type

connections

Once programming is

completed, wait 7 seconds.

The LED will ash four

times indicating the end of

programming.

Step G.

After all buttons are

programmed

Optional Steering Wheel Control Programming (cont.)

RP4-MZ11

Radio Replacement & Steering Wheel Control Interface

for MazdaVehicles

Pacic Accessory Corporation

| Santa Ana, California 92705 | Ph. 866-931-8021 | [email protected]

www.pac-audio.com

Rev. 081612

Pacific Accessory Corporation

Page 4

Page 5

Accessing Vehicle Settings (vehicles equipped with OEM LCD)

To access the vehicle setting menu, press and hold the Mode button on the SWC until “Setup Menu” is displayed on the LCD

screen. Use the Arrow Down on the SWC to scroll through the options. Once the option you wish to select is displayed, press the

Mode button on the SWC to advance to the next step. Follow the instructions listed below under each option to make changes.

Change Text - Allows you to enter custom text for the LCD screen’s default display. Once this is selected, you can use the Volume

Up & Down buttons to select the character position and the Arrow Up & Down buttons to select the character. Once you have set

your custome text, do not press any buttons for 8 seconds and the programming function will time out and return to the default

display.

Set Clock - Allows you to set the clock on the LCD screen. Once this is selected you can use the Arrow Down button on the SWC

to choose a clock set mode. Please nd your vehicle in the chart below to determine which mode you will select. Once your mode

is displayed, press the Mode button on the SWC to select. Follow the instructions on the LCD screen or in the chart below to set

the clock.

PLEASE NOTE: Choosing the wrong clock set mode may cause erratic LCD screen behavior. If you choose the wrong

mode you will need to wait for the programming function to time out and start over. It may take up to one minute for the

programming function to time out in clock set mode.

Display Info - Allows you to change vehicle info display such as MPG, miles to empty, etc. Once this is selected, follow the

instructions on the LCD screen to change the vehicle info display. Once on the desired display, do not press any buttons for 8

seconds and the programming function will time out and return to the default display.

User Options - Allows you to turn off SWC text or reset options to default. SWC text shows you on the LCD screen which button

you are pressing on the SWC. Resetting options to default will set the custom text back to audio and if equipped, set the Bose amp

settings back to zero. Once this is selected you can use the Arrow Down & Up buttons on the SWC to scroll between SWC Text

or Reset. To select either of these press the Mode button. Follow the instructions on the LCD screen for each individual selection.

Amp Settings - Allows you to turn Center Point off/on (when available). Allows you to adjust Center Point gain, fader and amp

gain, This feature will only be seen in 2007+ CX-7 & CX-9.

Exit - Allows you to exit the menu and return to the default display

ClockSetMode Vehicle ClockSetInstructions

Mode1 2009+Mazda6

2010+CX‐7

2009+CX‐9

ChooseClockSetfromthemenuandfollowtheinstructionsonthe

LCDscreen.

Mode2 2007‐2009CX‐7

2004‐2009Mazda3

1.PressandholdtheModebuttonontheSWCtostart.

2.Usetheup&downarrowstoselectbetween12or24hour.

3.PresstheModebuttonagaintoadvancetohours.

4.Usetheuparrowtoselectthehour.

5.PresstheModebuttonagaintoadvancetominutes.

6.Usetheuparrowtoselecttheminute.

7.PresstheModebuttonagaintoexit.

1.PressandholdtheModebuttonontheSWCfor8secondstostart.

2.Thevehicleinfoscreenwhichswitchtothenextoption

3.AtthispointyoucanpresstheModebuttontoscrollthevehicle

infooptions(pressandholdmodetoresetoption)

4.UseVolumeUpontheSWCtoselectthehour.

5.UseArrowUpontheSWCtoselecttheminute.

7.Whenyouarefinisheddonotpressanybuttonsfor8secondsand

theprogrammingfunctionwilltimeoutandreturntothedefault

display.

2009+CX‐9

&Mazda6withMid‐Line

Radio

Rear Seat Entertainment (RSE); If equipped

The RP4-MZ11 will allow the DVD player and rear screen to function independantly fron the new radio. A/V will be passed

from the factory DVD player to the rear screen and audio can be heard through the headphones. A/V cannot be passed from the

factory DVD player to the aftermarket head unit.

RP4-MZ11

Radio Replacement & Steering Wheel Control Interface

for Mazda Vehicles

Pacic Accessory Corporation

| Santa Ana, California 92705 | Ph. 866-931-8021 | [email protected]

www.pac-audio.com

Pacific Accessory Corporation

Rev. 081612

Page 6

SWC Recalibration

SWC re-calibration is necessary when the SWC operation is erratic or non-existant. This process re-calibrates the SWC values

to the RP4 interface so it will know what they can be set to for button function assignment. The interface must be programmed

in the specic order shown in the chart below. If you come across a function in the chart that your steering wheel does not have

you MUST press and release the program button on the side of the interface to skip that function. The LED will ash off and on

conrming that you have successfully skipped that function and are ready to proceed to the next one.

The SWC and radio command assignments can always be restored to default values by entering re-calibration mode (Steps

A-C) and not pressing any buttons. After 7 seconds the re-calibration mode will time out and all default values will be restored.

After you have re-calibrated the SWC buttons, the default SWC button assignments will be the same as what is listed in the

chart on page 3. If you wish to re-assign button functions you must also go through the programming process on page 4.

Step B.

Press and

hold the

programming

button for 7

seconds

Step C.

Release the

programming

button.

LED will begin ashing

SWC Connection

See above chart for

different radio type

connections

SWC Connection

See above chart for

different radio type

connections

SWC Connection

See above chart for

different radio type

connections

Step A.

Turn the vehicle ignition to

the ON position.

OFF

ACC

IGN

STRT

SWC Connection

See above chart for

different radio type

connections

Step E.

Release the button.

The LED will turn on

back on.

Step D.

Within 7 seconds,

press and release the

button that is to be

learned on the steering

wheel.

The LED will

turn off during

this process.

SWC Connection

See above chart for

different radio type

connections

VOL

Step F.

If you need to program more buttons,

repeat steps D & E for each additional

function on the steering wheel.

Program

remaining buttons

SWC Connection

See above chart for

different radio type

connections

Once programming is

completed, wait 7 seconds.

The LED will ash four

times indicating the end of

programming.

Step G.

After all buttons are

programmed

ButtonProgrammingOrder

VolumeUp

VolumeDown

TrackUp

TrackDown

Mode

Mute

Voice

Phone Hang Up

Phone Answer

Product Updates (Firmware)

The RP4-MZ11 can be updated with new rmware as it becomes available using the PAC-UP interface updater (sold seperatly).

Please visit www.pac-audio.com/rmware for available updates.

PAC RP4-MZ11 Audio Mazda Radio Replacement Interface

Product's Documents

Manual

Specifications

PAC RP4-MZ11 Questions and Answers
