Free standing type
Jenis berdiri sendiri
站立式
AIR PURIFIER
OPERATION MANUAL
R
FP-F40E
FP-F40L
ENGLISHMALAYSIA
PEMBERSIH UDARA
BUKU PANDUAN OPERASI
空气净化器操作手册
中文
“Plasmacluster” and “Device of a cluster of grapes” are
trademarks of Sharp Corporation.
*The number in this technology mark indicates an
approximate number of ions supplied into air of 1 cm
3
,
which is measured around the center of a room with
the “high-density plasmacluster 7000” applicable oor
area (at 1.2 m height above the oor) at the medium
wind volume in air purifying mode, when an air purier
using the high-density plasmacluster ion evolving
device is placed close to a wall. This product is
equipped with a device corresponding to this capacity.
OM_FP-F40E_40L_EN_MA_CS.indb 1 4/21/2558 BE 3:12 PM

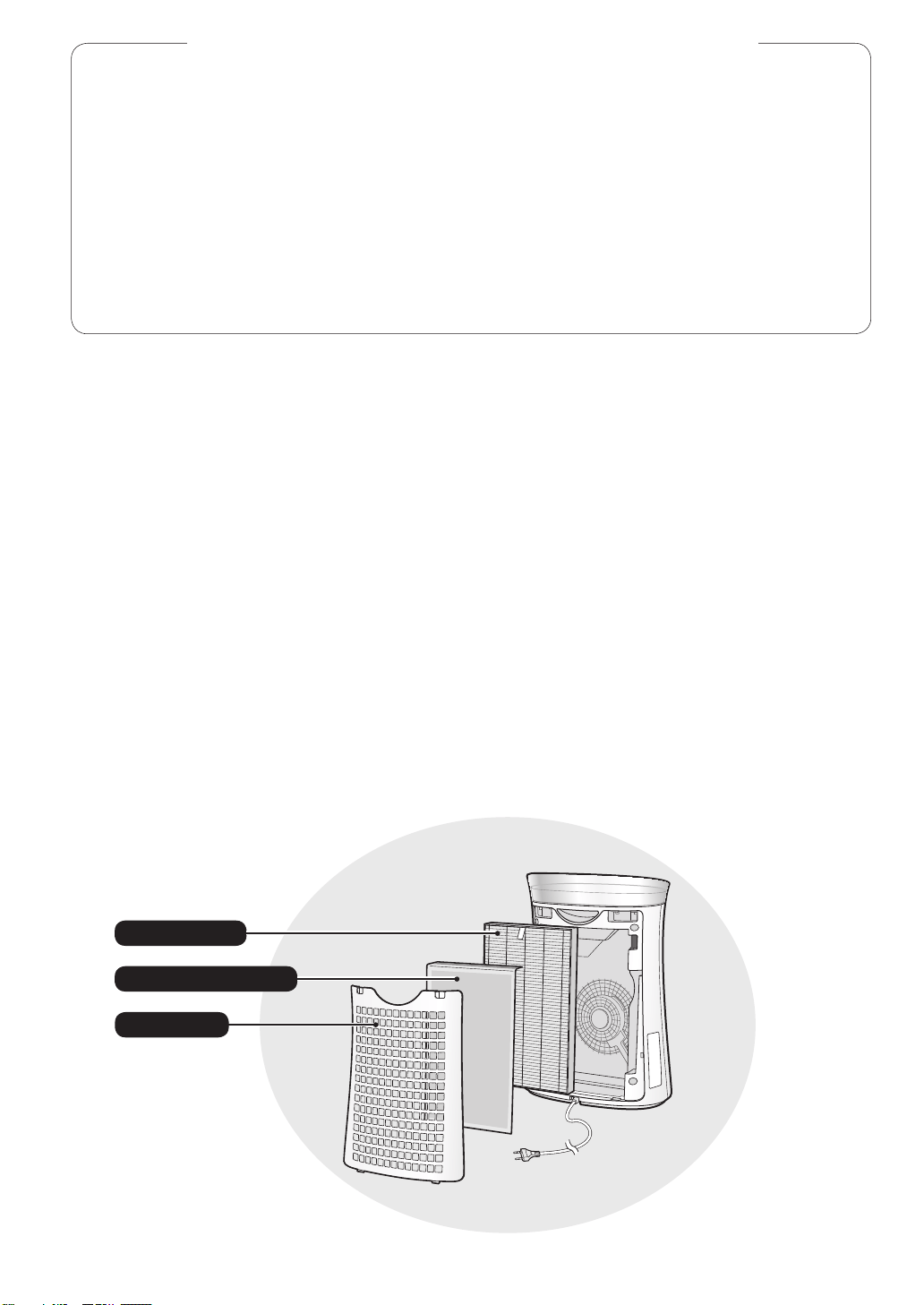

HEPA Filter
Deodorizing Filter
Pre-Filter
NOTE
The air purier draws in room air from the air intake, passes the air through a Pre-
Filter, a Deodorizing Filter and a HEPA Filter inside of the unit, then discharges the air
through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small
as 0.3 microns that pass through the lter and also helps absorb odours.
The Deodorizing Filter gradually absorbs odours as they pass through the lter.
Some odours absorbed by the lters may break down over time, resulting in additional
odour. Depending on the usage environment, especially when the product is used in
extreme environments (significantly more severe than normal household use), this
odour may become strong in a shorter period than expected. If the odour persists, the
lters should be replaced.
• The air purier is designed to remove air-suspended dust and odour, but not harmful gases (for
example, carbon monoxide contained in cigarette smoke). If the source of the odour still exists, the
air purier may not completely remove the odour.
Please read before operating your new Air Purier
OM_FP-F40E_40L_EN_MA_CS.indb 2 4/21/2558 BE 3:12 PM
ENGLISH
E-1
ENGLISH
Thank you for purchasing the SHARP
Air Purier. Please read this manual carefully.
Before using this product, be sure to read the
section: “Important Safety Instructions.”
After reading this manual, keep it in a
convenient location for future reference.
For your reference, we recommend to keep
this manual in the place where you can read
at any time.
IMPORTANT SAFETY INSTRUCTIONS
.....
E-2
PART NAMES
...............................................
E-4
FILTER INSTALLATION
.............................
E-5
OPERATION
.................................................
E-6
CARE AND MAINTENANCE
.....................
E-8
TROUBLESHOOTING
..............................
E-10
SPECIFICATIONS
......................................
E-11
CONTENTS
FEATURES
Unique Combination of Air Treatment
Technologies
Triple Filtration System + Plasmacluster
TRAPS DUST*
Pre-filter traps dust and other large
airborne particles.
DECREASES ODOURS
Deodorizing filter absorbs many common
household odours.
REDUCES POLLEN & MOLD*
HEPA filter traps 99.97% of particles as
small as 0.3 microns.
FRESHENS
Plasmacluster treats the air similar to the
way nature cleans the environment by
emitting a balance of positive and negative
ions.
*When air is drawn through the filter
system.
Sensor Technology continuously monitors
air quality, and automatically adjusting
operation based on detected air purity.
OM_FP-F40E_40L_EN_MA_CS.indb 1 4/21/2558 BE 3:12 PM
E-2
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed,
including the following:
WARNING
- To reduce the risk of electrical shock, re or injury to persons:
• Read all instructions before using the unit.
• Use only a 220-240 volt outlet.
• Do not use the unit if the power cord or plug is damaged or the connection to the
wall outlet is loosened.
• Periodically remove dust from the power plug.
• Do not insert ngers or foreign objects into the intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.
Electrical shock and/or re from short circuit may occur as a result.
• Be careful not to damage the power cord, it may cause electric shock, excess heat or
res.
• Do not remove the plug when your hands are wet.
• Do not use this unit near gas appliances or replaces.
• Remove the power plug from the wall outlet before cleaning the unit and when not
using the unit.
Electrical shock from bad insulation and/or re from short circuit may occur as a result.
• When cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electrical
shock and/or re from a short circuit may result.
• If the power cord is damaged, it must be replaced by the manufacturer, its service
agent, Sharp Approved Service Centre or similarly qualified person in order to
avoid a hazard.
• Do not operate when using aerosol insecticides or in rooms where there is oily residue,
incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity
conditions, such as a bathroom.
• Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.
• Only a Sharp Authorized Service Centre should service this air purifier. Contact the
nearest Service Centre for any problems, adjustments, or repairs.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
NOTE
- Radio or TV Interference
If this air purier should cause interference to radio or television reception, try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and radio/TV/wave-clock receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
OM_FP-F40E_40L_EN_MA_CS.indb 2 4/21/2558 BE 3:12 PM
ENGLISH
E-3
CAUTIONS CONCERNING OPERATION
• Do not block the intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters or where it may
come into contact with steam.
• Do not lay the unit down when using.
• Always hold the handle on the back of the unit when moving it.
• Do not use without the lters inside the unit.
• Do not wash and reuse the HEPA lter and the deodorizing lter.
Not only does it not improve lter performance, it may cause electric shock or malfunction.
INSTALLATION GUIDELINES
• When using the unit, place it away away from equipment utilizing electric waves
such as televisions or radios to avoid electrical interference.
• Avoid use in locations where furniture, fabrics or other items may come in contact
with and restrict the air intake and/or air outlet.
• Avoid use in locations where the unit is exposed to condensation or drastic
temperature changes. Appropriate conditions are when room temperature is
between 0 – 35 ºC.
• Place on a stable surface with sufcient air circulation.
When placing the unit on a heavily carpeted area, the unit may vibrate slightly.
• Avoid locations where grease or oily smoke is generated.
The unit surface may crack as a result.
• Place the unit about 30 cm(1 ft) away from the wall in order to ensure proper
airow.
The dust collecting performance will be the same even if using the unit 3cm away from
the wall, but place it as far as possible(30cm away recommended) because it may dirty
the wall or oor around.
FILTER GUIDELINES
• Follow the instructions in this manual for correct care and maintenance of the lter.
OM_FP-F40E_40L_EN_MA_CS.indb 3 4/21/2558 BE 3:12 PM
E-4

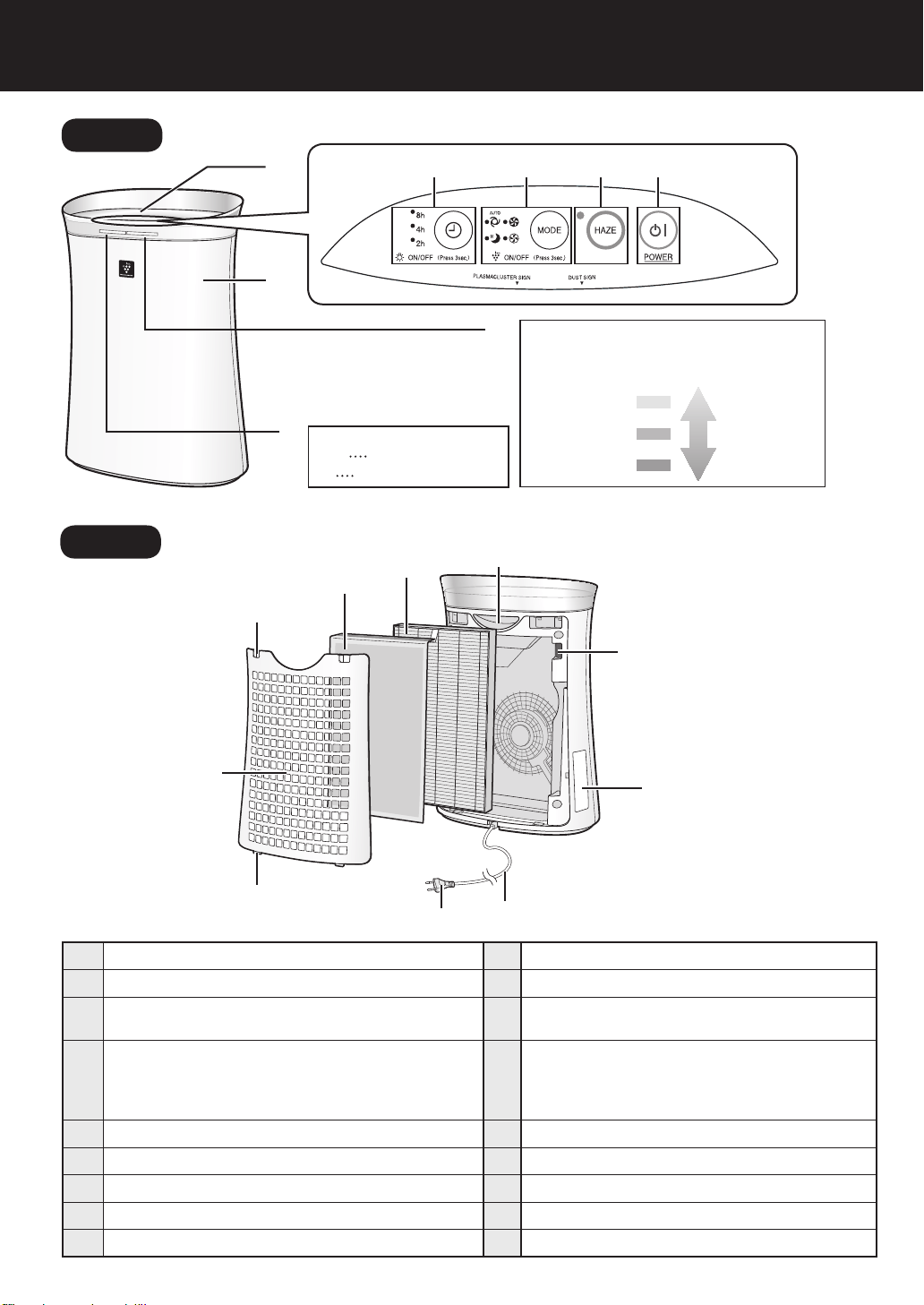

PART NAMES
18
17
2
1
1
Main Unit
10
Dust sensor / Dust Sensor Filter
2
Air Outlet
11
HEPA Filter
3
OFF TIMER Button /
LIGHT ON/OFF Button (Press 3 sec.)
12
Deodorizing Filter
4
MODE Button / MODE Indicator Light
(green)
Plasmacluster Ion ON/OFF Button
(Press 3 sec.)
13
Upper Tabs
5
HAZE Button / HAZE indicator Light (green)
14
Back Panel (Pre-Filter)
6
POWER ON/OFF Button
15
Bottom Tabs
7
DUST SIGN
16
Power Cord
8
PLASMACLUSTER SIGN
17
Plug (Shape of plug depends on country.)
9
Handle
18
Date Label
FRONT
BACK
16
13
14
PLASMACLUSTER SIGN
blue Plasmacluster ON
off Plasmacluster OFF
8
7
Clean
Impure
Red
Orange
Green
3 4 5 6
9
10
11
12
15
DUST SIGN
Indicates the air purity of the room
in 3 levels with color changes.
OM_FP-F40E_40L_EN_MA_CS.indb 4 4/21/2558 BE 3:12 PM
ENGLISH
E-5

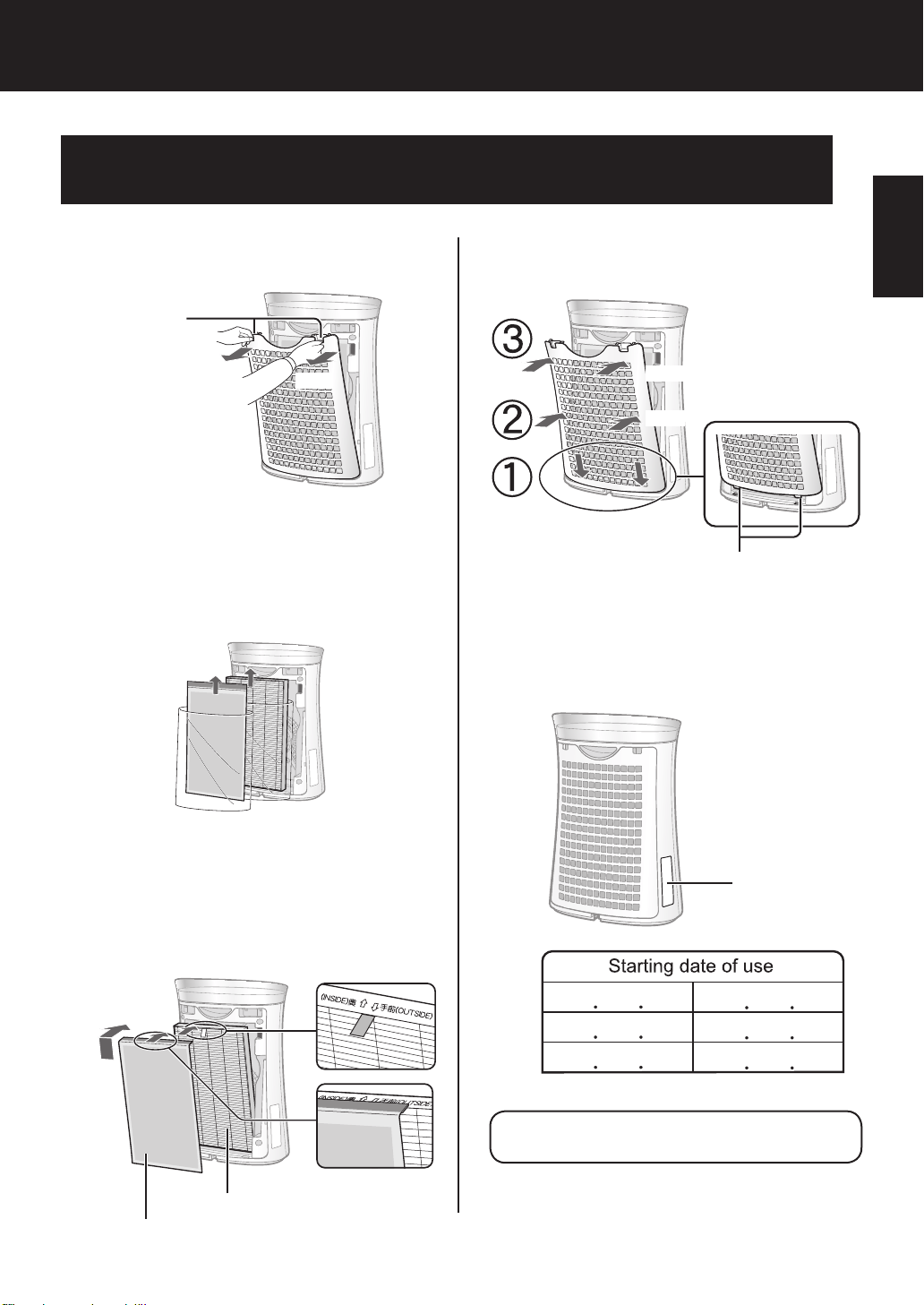

FILTER INSTALLATION
To maintain the quality of the lter, it is installed in the main unit and packed in plastic
bag. Be sure to remove the lter from the plastic bag before using the unit.
1
Remove the Back Panel.
2
Remove the plastic bag from
the Filter.
3
Place the Filter within the main
unit.
Do not install the lter backwards or the
unit will not operate properly.
Upper Tabs
• Do not operate the unit without the lter.
Date Label
Pull
Push
Push
Be sure to remove the power plug
from the wall outlet.
4
Replace the Back Panel to the
main unit.
5
Fill in the usage start date on the
Date Label.
Use the date as a guide for the filter re-
placement schedule.
Bottom Tabs
HEPA Filter
Deodorizing Filter
OM_FP-F40E_40L_EN_MA_CS.indb 5 4/21/2558 BE 3:12 PM
E-6

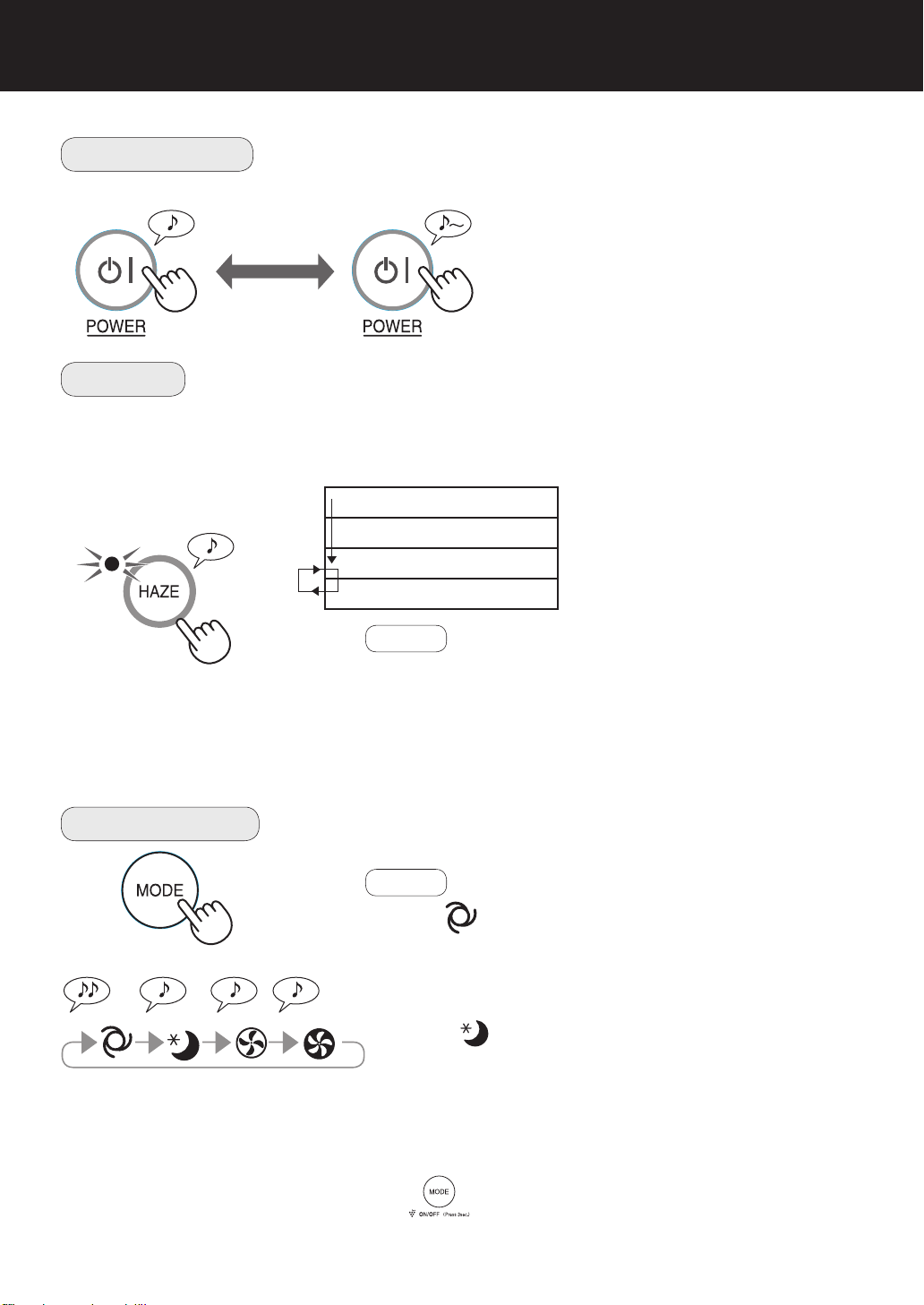

OPERATION
AUTO SLEEP MED MAX
The unit operates at HIGH fan speed for 60 minutes and then alternates between Low and High
level for 20 minutes each.
CLEAN AIR
START
• Select the desired fan speed.
• Unless the power cord has been unplugged,
the operation starts in the previous mode it
was operated in.
STOP
HAZE
START
10 minutes: Max High fan level
50 minutes: High fan level
20 minutes: Low fan level
20 minutes: High fan level
• If Plasmacluster Ion is OFF, Plasmacluster Ion will not be
released.
• It is possible to switch this mode to another while operating.
However, the HAZE mode will not function after switching
mode.
NOTE
FAN SPEED
SLEEP
• The unit will operate very quietly, and the fan speed
is automatically switched depending on the amount of
impurities in the air.
DUST/PLASMACLUSTER SIGN go off automatically.
Even though the indicator is off, Plasmacluster Ion is
dispersed into air unless Plasmacluster Ion is turned off
by
NOTE
AUTO
• The fan speed is automatically switched depending on the
amount of impurities in the air. The sensors detect impurities
for efcient air purcation.
OM_FP-F40E_40L_EN_MA_CS.indb 6 4/21/2558 BE 3:12 PM
ENGLISH
E-7
Light Control
Plasmacluster Ion ON/OFF
You can set the DUST/PLASMACLUSTER SIGN to OFF when their SIGN is bright.
ON
more than 3 sec.
OFF
• When the unit starts operation,
the DUST/PLASMACLUSTER
SIGN always lights.
• In SLEEP mode, Light Control
button doesn’t operate.
NOTE
When Plasmacluster Ion is ON, the PLASMACLUSTER SIGN will turn on. (blue)
(In operation)
ON OFF
ADJUSTMENT OF SENSOR DETECTION SENSITIVITY
Set to “Low” if the DUST SIGN is constantly red to reduce sensitivity, and set to “High” if the DUST
SIGN is constantly green to increase sensitivity.
OFF TIMER
Select the length of time you want, with the unit on. The unit automatically stops once the selected
time is reached.
CANCELLATION
• If the power OFF Button is not
pushed within 8 seconds of
adjusting sensor sensitivity, the
setting will be saved automatically.
• The sensor sensitivity setting
will be saved even if the unit is
unplugged.
NOTE
1
2
3
(with the unit OFF)
High
Standard
Low
more than 3 sec.
more than 3 sec. more than 3 sec.
more than 3 sec.
OM_FP-F40E_40L_EN_MA_CS.indb 7 4/21/2558 BE 3:12 PM
E-8
Gently remove dust from the back panel,
using a vacuum cleaner attachment or
similar tool.
BACK PANEL
(Pre-lter)
To maintain optimum performance of this air purier, please clean the unit including the lter
periodically.
Be sure to disconnect the power cord from the wall outlet before performing any maintenance.

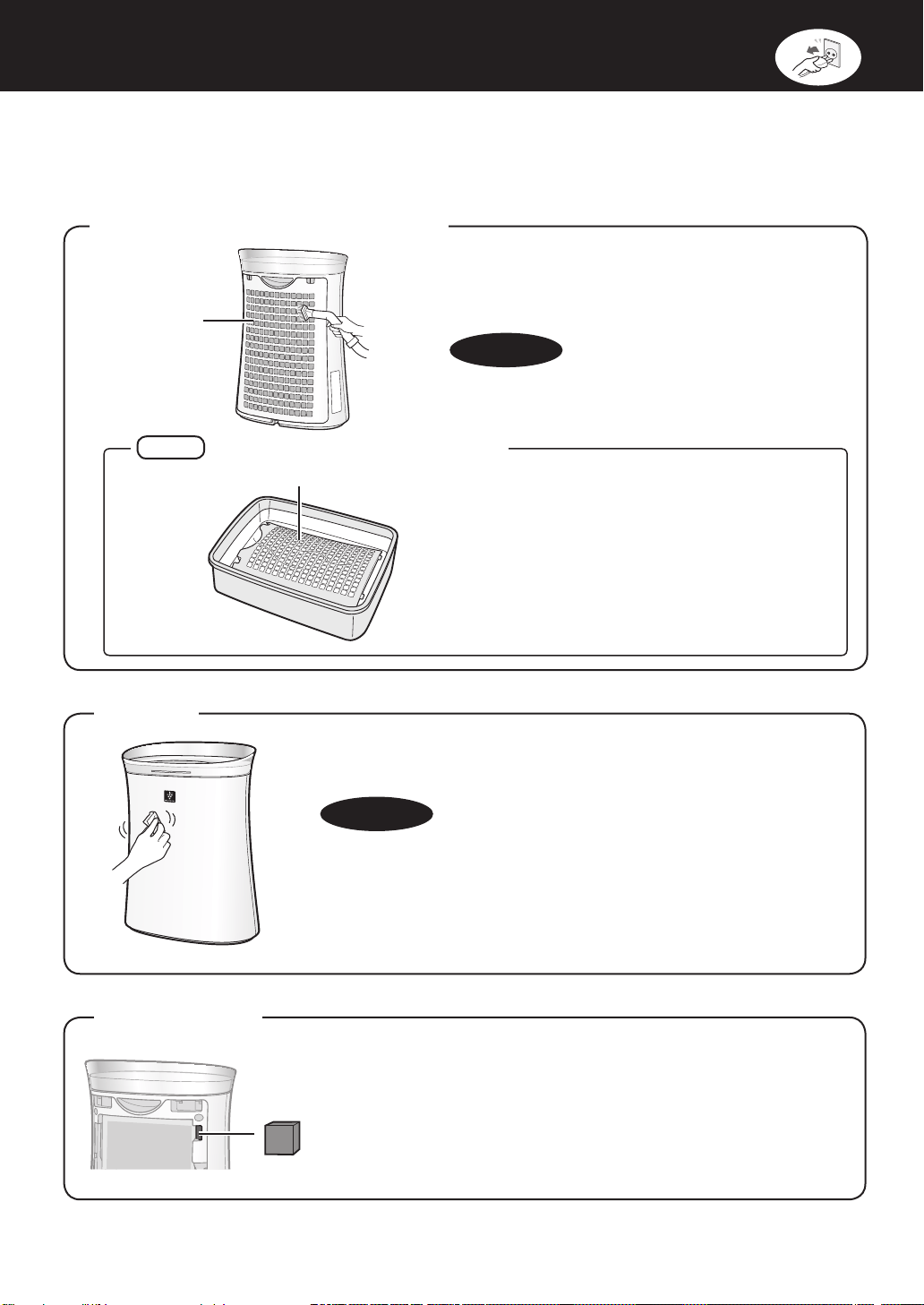

CARE AND MAINTENANCE
Back Panel
UNIT
CAUTION
NOTE How to clean hard to remove dirt
1. Add a small amount of kitchen detergent
to water and soak for about 10 minutes.
2. Rinse off the kitchen detergent with clean
water.
3. Completely dry the lter in a well-
ventilated area.
Wipe with a dry, soft cloth
For stubborn stains or dirt, use a soft cloth dampened with warm water.
•Do not use volatile uids
Benzine, paint thinner, polishing powder, etc. , may damage the surface.
•Do not use detergents
Detergent ingredients may damage the unit.
SENSOR
1. Remove the Back Panel.
2. Remove the Dust Sensor Filter.
3. If it is very dirty, wash it with water and dry it
thoroughly.
Dust sensor
lter
Back Panel
Do not apply excessive pressure, when
scrubbing the back panel.
CAUTION
OM_FP-F40E_40L_EN_MA_CS.indb 8 4/21/2558 BE 3:12 PM
ENGLISH
E-9

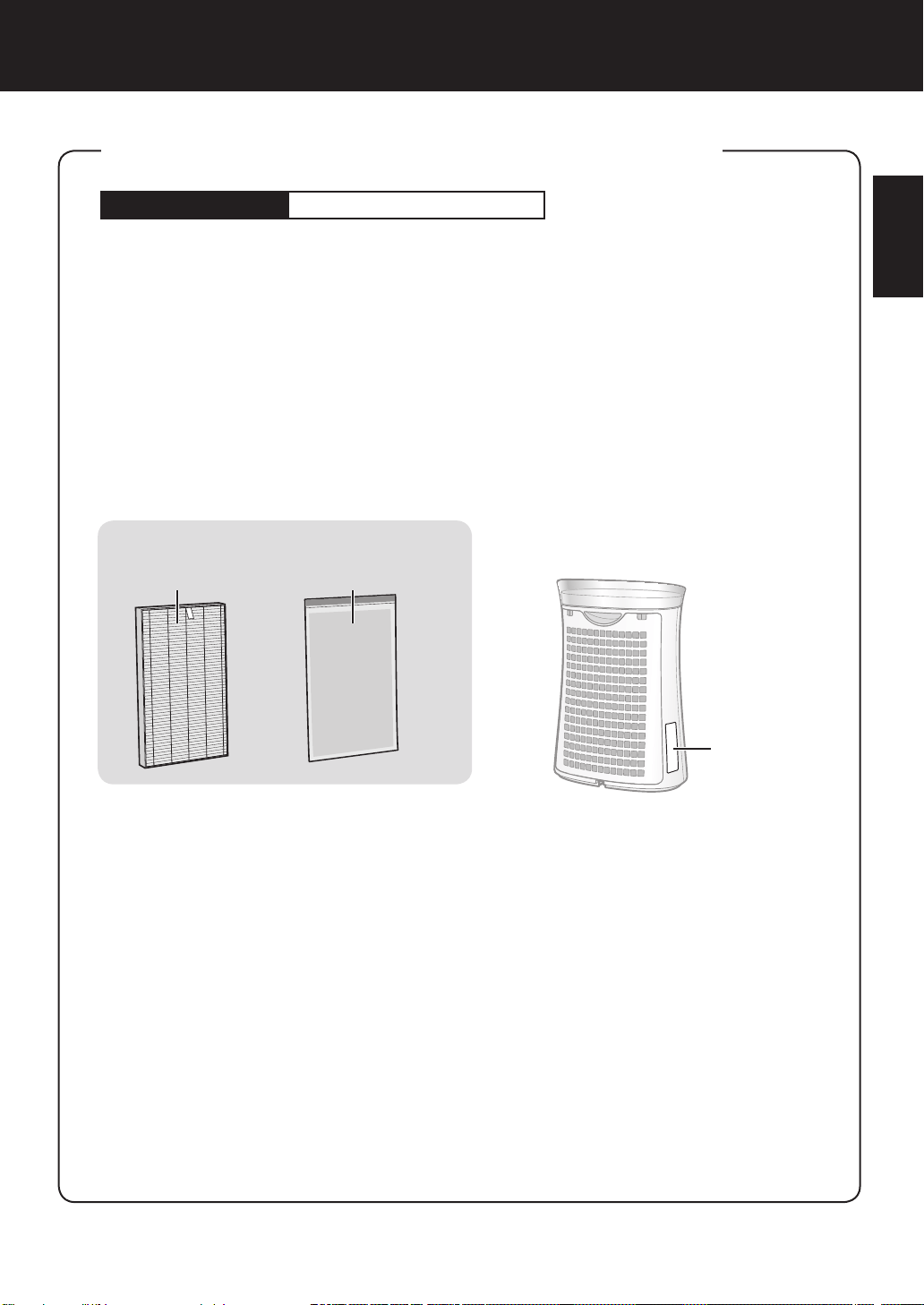

FILTER REPLACEMENT GUIDELINES
Do not wash and reuse the lter
The lter life and replacement period are based on the condition of smoking 5 cigarettes per
day and the dust collection power is reduced by half compared with that of new lter.
Filter life varies depending on the room environment, usage, and location of the unit.
We recommend to replace the lter more frequently if the product is used in a condition signif-
icantly severer than normal household use.
REPLACING THE FILTER
Replacement Filter
• Please consult your dealer for purchase of replacement lter.
• Use only lter designed for this product.
Disposal of Filter
Please dispose of the replaced lter according to the local disposal laws and regulations.
See page E-5 for directions on how to
install the lter when replacing.
Replacement timing
About 2 years after operating
Be sure to remove the power plug from the wall outlet.
Date Label
Model:FZ-F40SFE
• HEPA Filter : 1 unit • Deodorizing Filter : 1 unit
HEPA Filter materials :
•Filter : Polypropylene
•Frame : Polyester
Deodorizing Filter materials :
•Polypropylene, Polyester, Activated charcoal
OM_FP-F40E_40L_EN_MA_CS.indb 9 4/21/2558 BE 3:12 PM
E-10

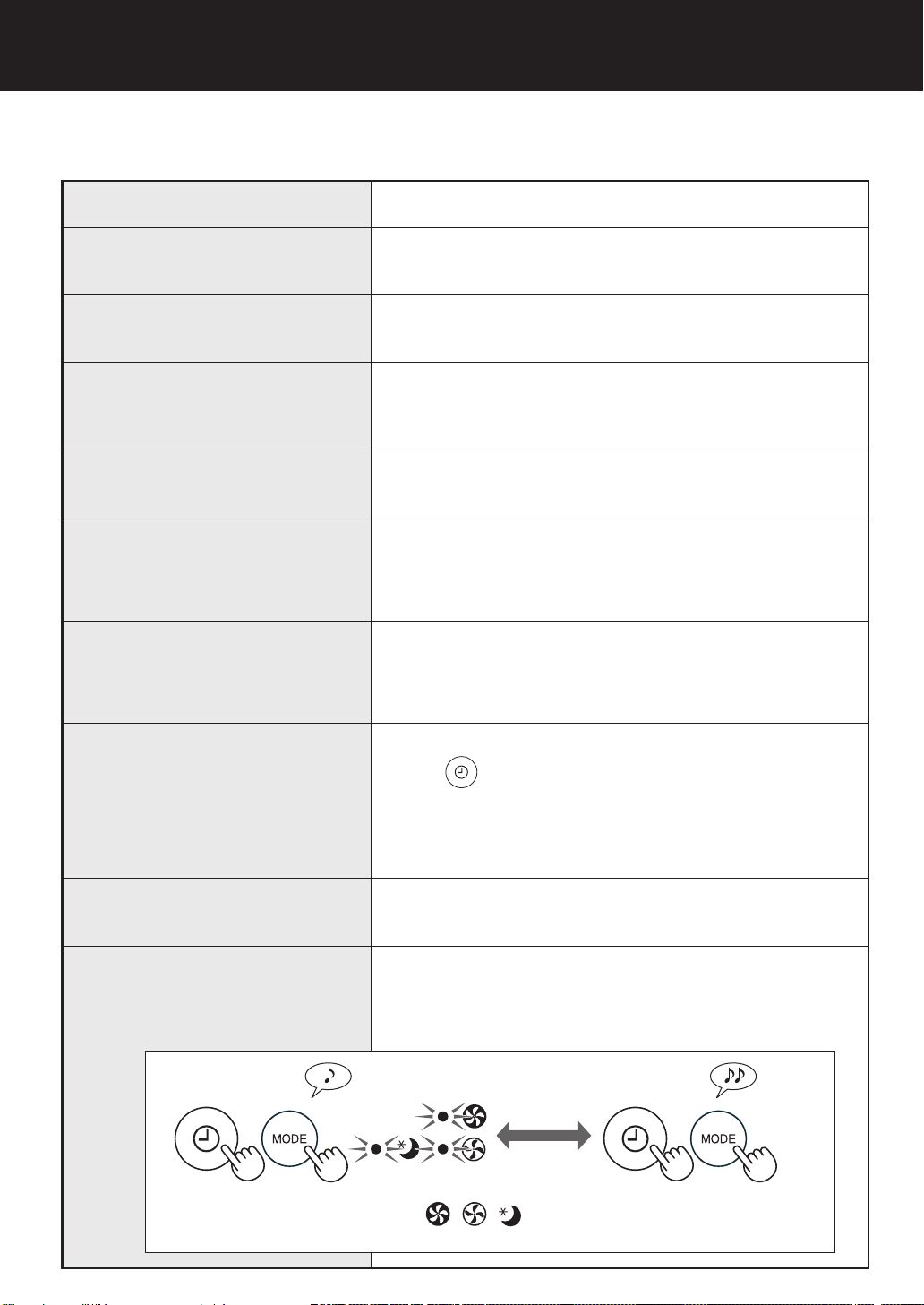

TROUBLESHOOTING
SYMPTOM REMEDY (not a malfunction)
Odours and smoke are not
removed.
• Replace the lters if they appear to be heavily soiled.
(Ref. E-9)
The DUST SIGN illuminates green
even when the air is impure.
• The air could be impure at the time the unit was plugged in.
Unplug the unit, wait one minute, and plug the unit in again.
The DUST SIGN illuminates
orange or red even when the air is
clean.
• Sensor operation is affected if the dust sensor openings are
dirty or clogged. Gently clean the dust sensor openings.
(Ref. E-8).
A clicking or ticking sound is heard
from the unit.
• Clicking or ticking sounds may be audible when the unit is
generating ions.
The discharged air has an odour.
• Check to see if the lters are heavily soiled.
• Clean or replace the lters.
• Plasmacluster Air Puriers emit small traces of ozone which
may produce an odour.
The unit does not operate properly
when cigarette smoke is in the air.
• Is the unit installed in a location that is difcult for the sensor to
detect cigarette smoke?
• Is the dust sensor opening blocked or clogged?
(In this case, clean the opening.) (Ref. E-8)
The
DUST SIGN
is turned off.
• Check to see if the Lights OFF Mode selected.
Press
for 3 seconds to light On.
(Ref. E-7)
•
Check to see if the SLEEP mode is selected.
The DUST/PLASMACLUSTER SIGN are turned off automatically
after the SLEEP mode is selected.
The DUST SIGN lights change
colour frequently.
• The DUST SIGN lights automatically change colours as
impurities are detected by the dust sensor.
AUTO RESTART
After a power failure, automatically
resume the operation when the
power recovers.
Auto Restart can be set.
• Even when the plug is unplugged or the breaker is thrown
during the operation, the operation resumes at the previous
operation mode and settings if the power recovers.
Before calling for service, please review the Troubleshooting chart below, since the problem may not
be a unit malfunction.
ON OFF
(with the unit OFF) (with the unit OFF)
If the , , lamp Lights up
for 10 seconds, the setting is completed.
(simultaneously for more than 3 sec.)
(simultaneously for more than 3 sec.)
OM_FP-F40E_40L_EN_MA_CS.indb 10 4/21/2558 BE 3:12 PM
ENGLISH
E-11
Power supply 220-240V 50-60Hz
Fan
Speed
Operation
Fan Speed Adjustment MAX MED SLEEP
*1
Rated Power 31W 12W 3.7~5.9W
Fan Speed 240m
3
/hour 150m
3
/hour 48~90m
3
/hour
Recommended Room Size ~30m
2
*2
High density Plasmacluster ion recommended room size
~23m
2
*3
Cord Length 2.0m
Dimensions 383mm(W)x209mm(D)x540mm(H)
Weight 4.7kg
*1 The fan speed is automatically switched depending on the amount of impurities in the air.
*2 Size of a room which is appropriate for operating the unit at maximum fan speed.
• It indicates the space where a certain amount of dust particles can be removed in 30 minutes
(JEM1467).
*3 Size of a room in which approximately 7000 ions can be measured per cubic centimeter in the
center of the room (at a height of approximately 1.2 meters from the oor) when the product is
placed next to a wall and run at the MED operation position.
Standby Power
In order to operate the electrical circuits while the power plug is inserted in the
wall outlet, this product consumes about 1.0W of standby power.
For energy saving, unplug the power cord when the unit is not in use.
SPECIFICATIONS
OM_FP-F40E_40L_EN_MA_CS.indb 11 4/21/2558 BE 3:12 PM
