en Installation and operating instructions
Tumble dryer
Your new tumble dryer
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
Contentsen Installation and operating instructions
8 Intended use 4
( Safety instructions 4
7 Environmental protection 13
5 Installation and connection 14
Œ Draining the condensation water 17
Y The main points in brief 19
* Getting to know your appliance 20
Z Laundry 23
/ Programmes and buttons 24
1 Operating the appliance 27
M Setting the signal and current 31
D Cleaning 32
3 Faults and what to do about them 35
J After-sales service 37
[ Consumption values 38
J Technical data 40
8 Intended use
Intended use
( Safety instructions
Safety instructions
Children/people/pets
: Warning
Risk of death!
: Warning
Risk of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of explosions/fire!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of poisoning/material damage!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
: Warning
Risk of burns!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
7 Environmental protection
Environmental protection
Packaging/old appliance
Energy-saving tips
Note:
5 Installation and connection
Installation and connection
Scope of delivery
Installing and connecting the dryer
: Warning
Risk of death!
: Warning
Children could lock themselves in the dryer, putting their lives at risk!
Caution!
Risk of injury
Caution!
Risk of material damage to the dryer or fabrics
Note:
Note:
Optional accessories
Transport and frost protection
1. Use the programme selector to select any programme.
2. Press the Start button.
3. Wait for 5 minutes.
Note:
4. Empty the condensate container again.
5. Switch off the dryer.
Caution!
Any residual water may leak out and cause material damage.
Œ Draining the condensation water

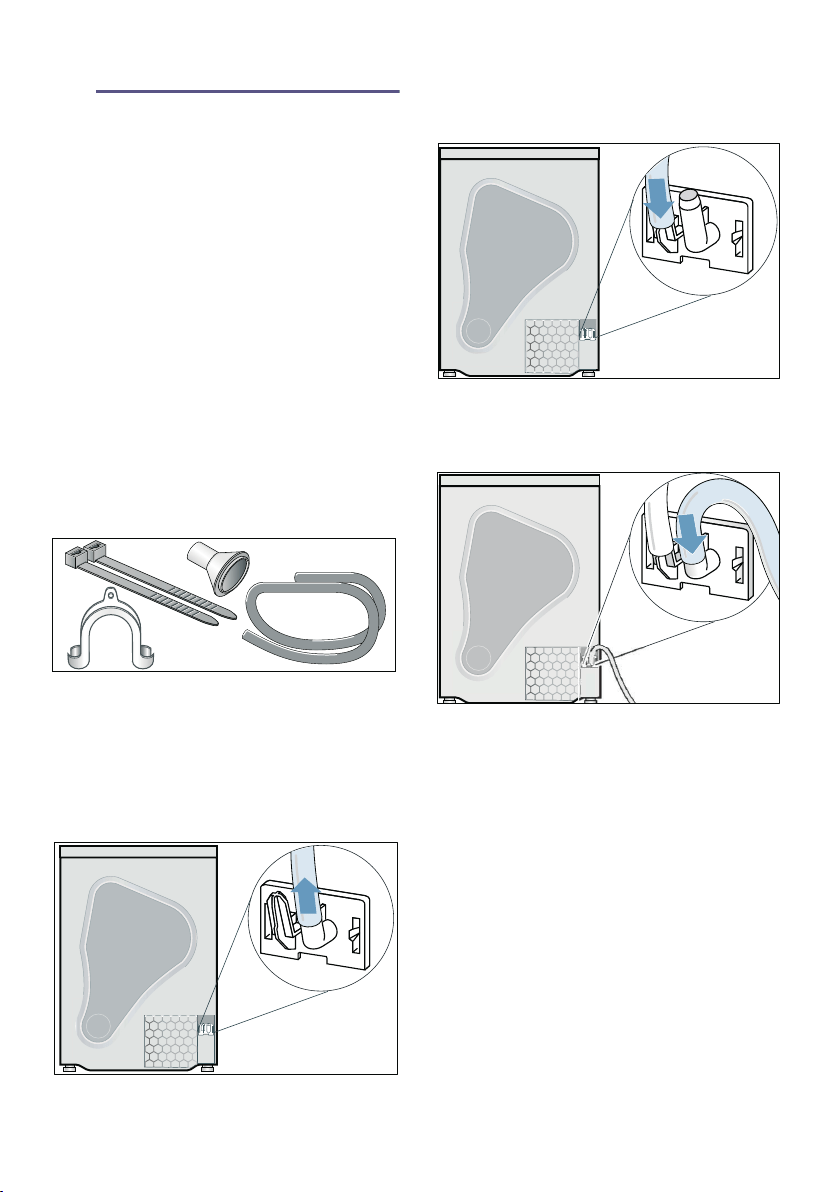

Draining the condensation water
1. Remove the accessories from the dryer drum.
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
3. Detach the condensation hose from the socket.
4. Place the condensation hose in the "parked" position.
5. Take the drain hose from the accessories and secure it to the free connecting piece.

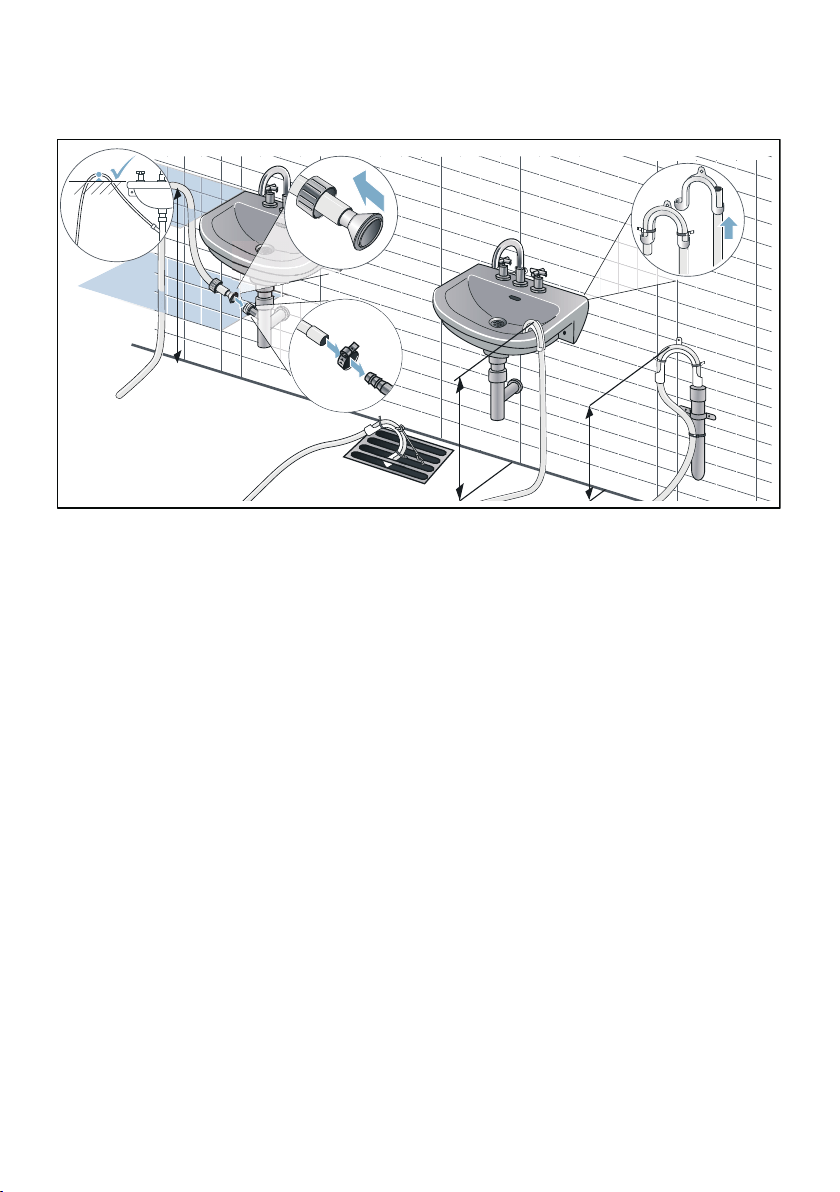

6. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
Caution!
Accumulated water can be drawn back into the dryer and may cause material damage.
Caution!
Material damage due to leaks or draining water.
Note:

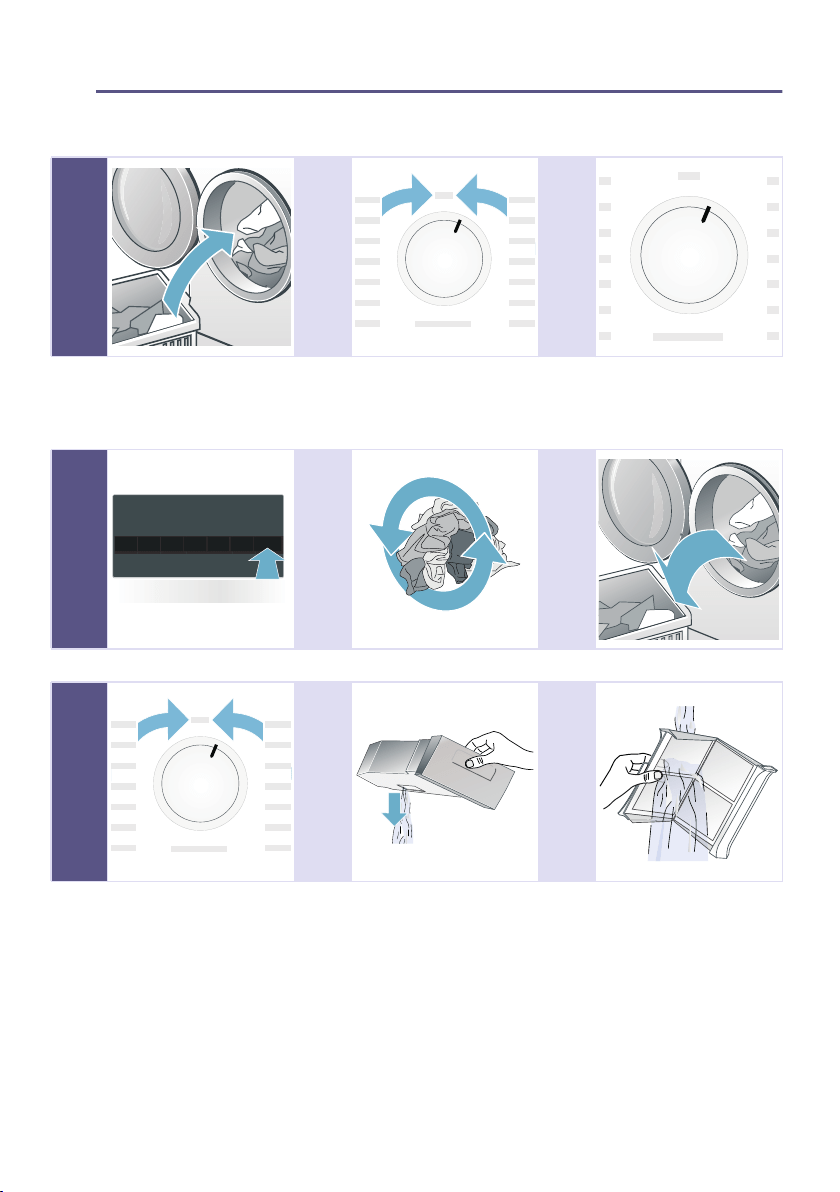

Y The main points in brief
The main points in brief
* Getting to know your appliance
Getting to know your appliance

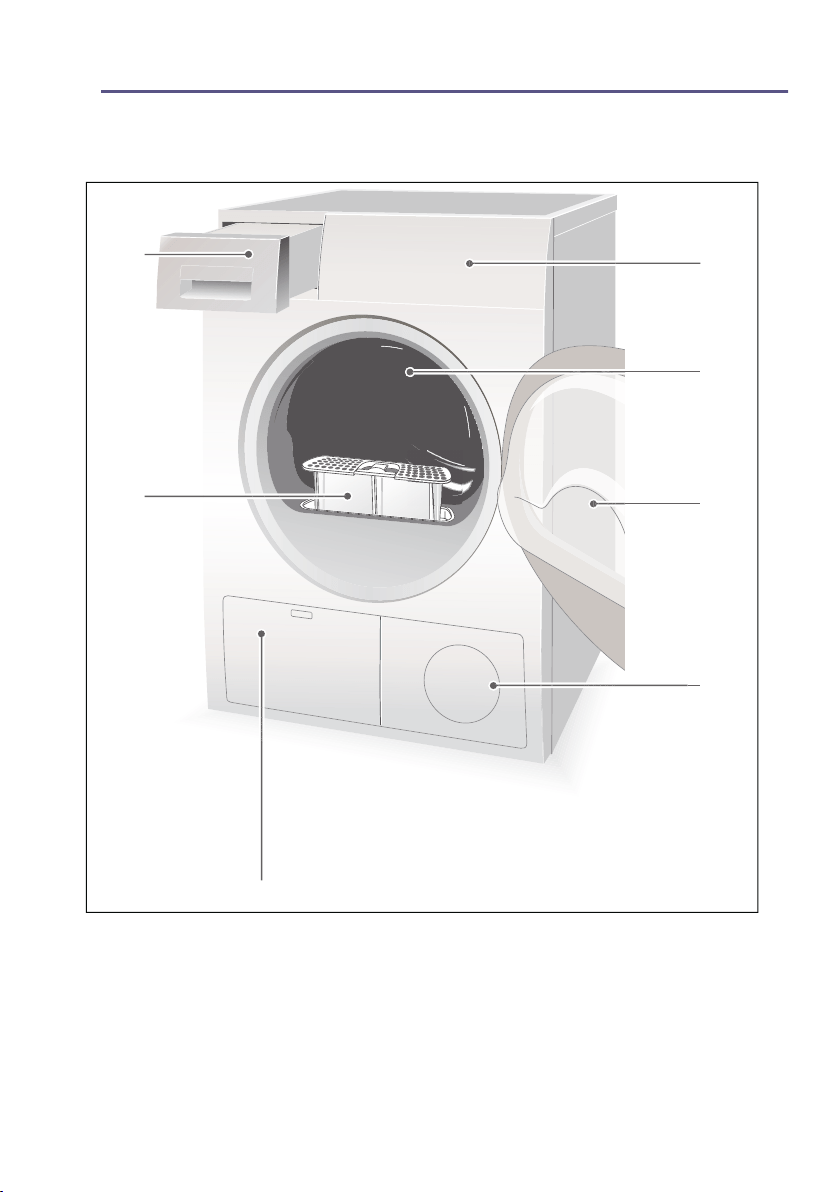

Dryer
Control panel
Display panel
Buttons in the display panel
Display panel
Z Laundry
Laundry
Preparing the laundry
: Warning
Risk of explosion/fire!
Caution!
The dryer drum and fabrics could be damaged.
Notes
Sorting washing according to:
Note:
Caution!
Possibility of material damage to the dryer or laundry.
Do not tumble-dry the following fabrics:
/ Programmes and buttons
Programmes and buttons
Programmes
Programme and fabrics
Maximum load and programme settings/info
Notes
Buttons
Buttons
Explanations and notes
Note:
Note:
1 Operating the appliance
Operating the appliance
Loading laundry and switching on the dryer
Note:
1. Place the laundry in the drum.
2. Turn the programme selector to any programme to switch the dryer on.
3. Close the dryer door.
Caution!
Possibility of material damage to the dryer or laundry.
Setting a programme
Note:
1. Select the required programme; detailed information on the programmes can be found from ~ Page 24 onwards.
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
Note:
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 24 onwards.
Starting the programme
Note:
Programme sequence
Note:
Changing the programme or adding laundry
1. To pause the programme, open the dryer door or press the Start button.
2. Add or remove laundry.
3. Select another programme or an additional function, if required.
4. Close the dryer door.
5. Press the Start button.
Note:
Cancelling the programme
Caution!
Risk of fire. Laundry may catch fire.
Programme end
Removing laundry and switching off the dryer
1. Remove the laundry.
2. Turn the programme selector to the "off" position.

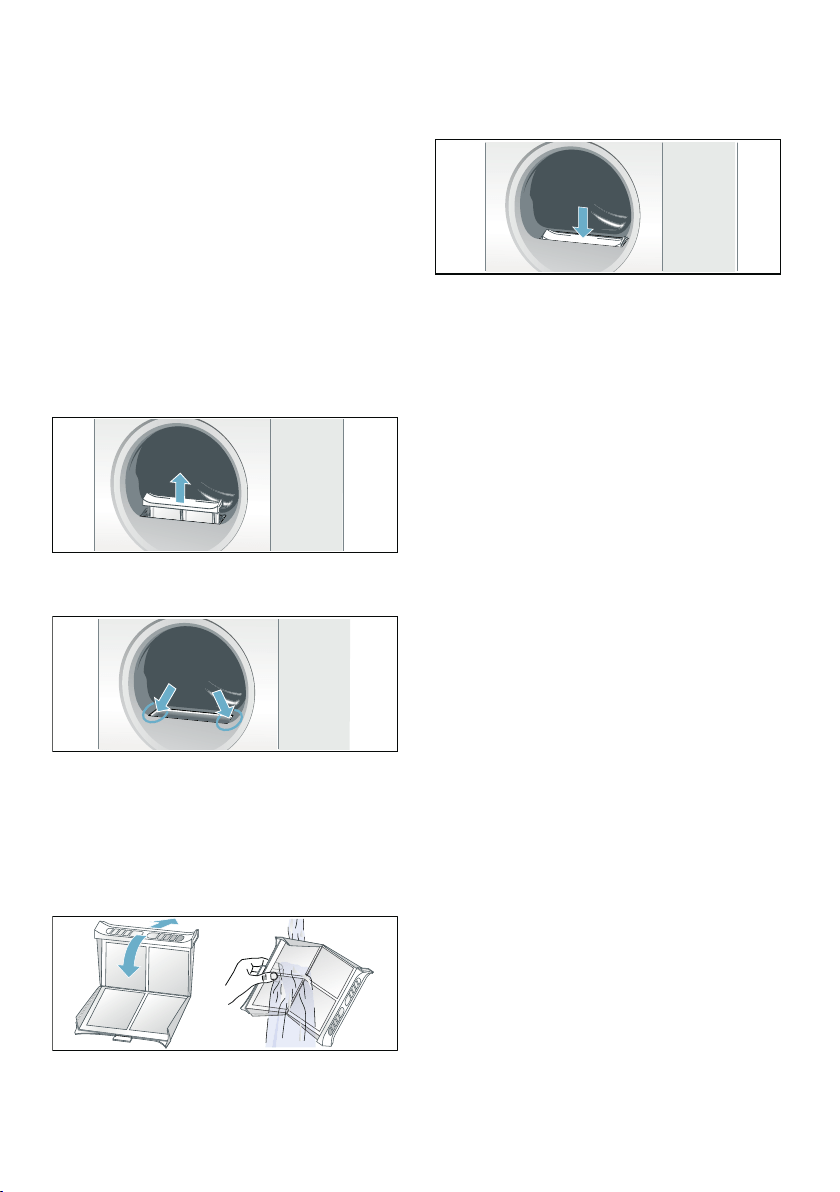

Clean the fluff filter
Note:
1. Open the dryer door and remove all fluff from the door.
2. Remove the fluff filter.
3. Remove the fluff from the recess in the fluff filter.
Note:
4. Open the fluff filter and remove all the fluff.
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
6. Dry the fluff filter, close it and reinsert the fluff filter.
Caution!
The dryer may be damaged.

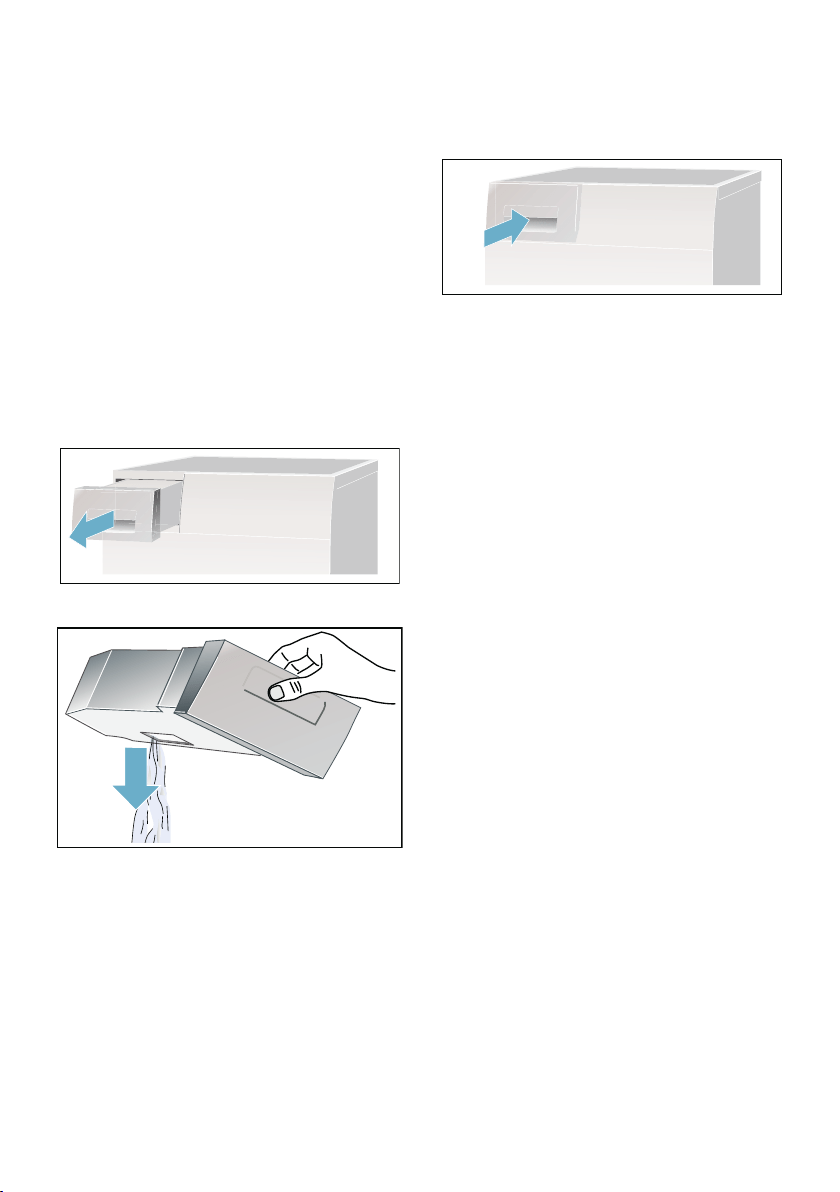

Emptying the condensate container
1. Pull out the condensate container horizontally.
2. Pour out the condensation water.
Caution!
Dirty condensation water may be harmful to your health and cause material damage.
3. Push in the condensate container until you feel it lock back into place in the dryer.
M Setting the signal and current
Setting the signal and current
Note:
Activating setting mode
1. Switch the dryer on.
2. Select the "Cottons" programme in position 1 and wait for five seconds.
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
2. The spin speed is shown on the display.
3. Press the "Ready in" time button or the drying time button to change the spin speed.
4. Turn the programme selector clockwise to position 3.

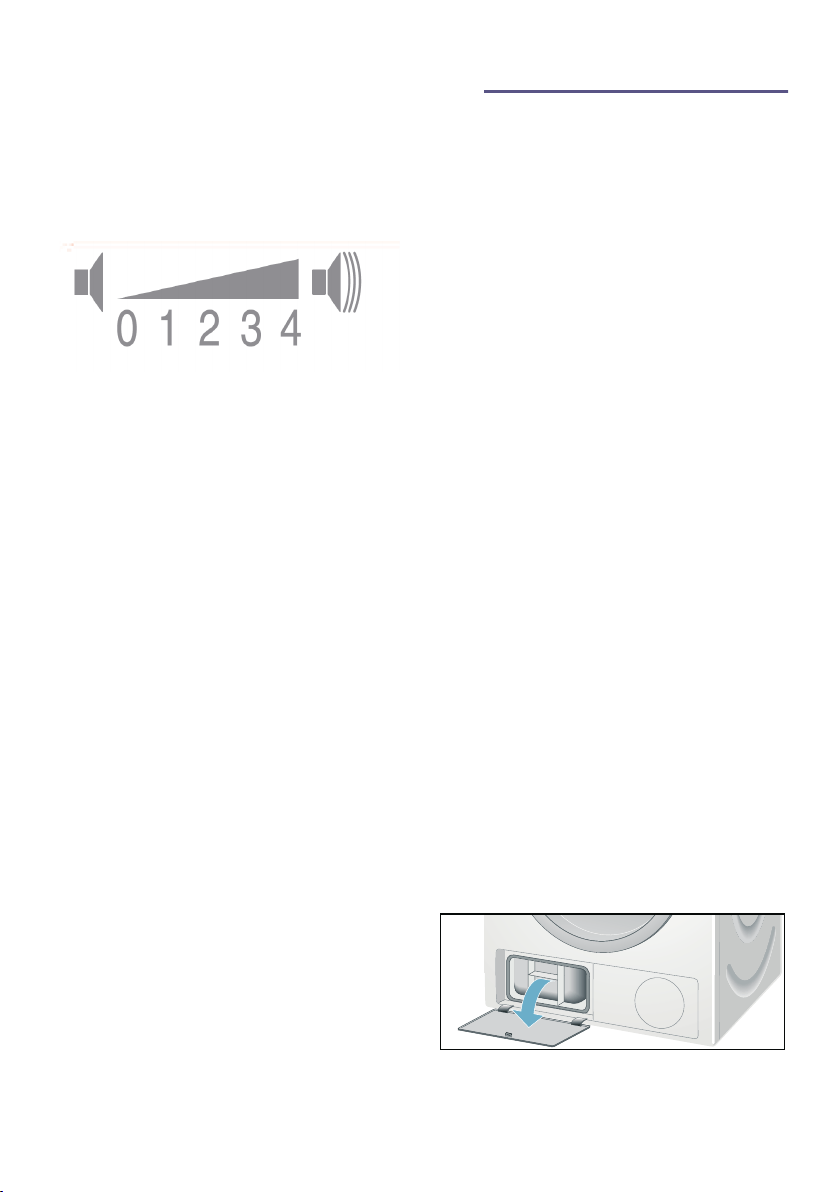

5. The volume for the audible signal at the end of the programme is shown on the display.
6. Press the "Ready in" time button or the drying time button to change the volume.
7. Turn the programme selector clockwise to position 4.
8. The volume for the audible button signal is shown on the display.
9. Press the "Ready in" time button or the drying time button to change the volume.
10. Turn the programme selector clockwise to position 5.
11. The current is shown on the display.
12. Press the "Ready in" time button or the drying time button to change the current.
D Cleaning
Cleaning
Cleaning the dryer and the control panel
: Warning
Risk of death!

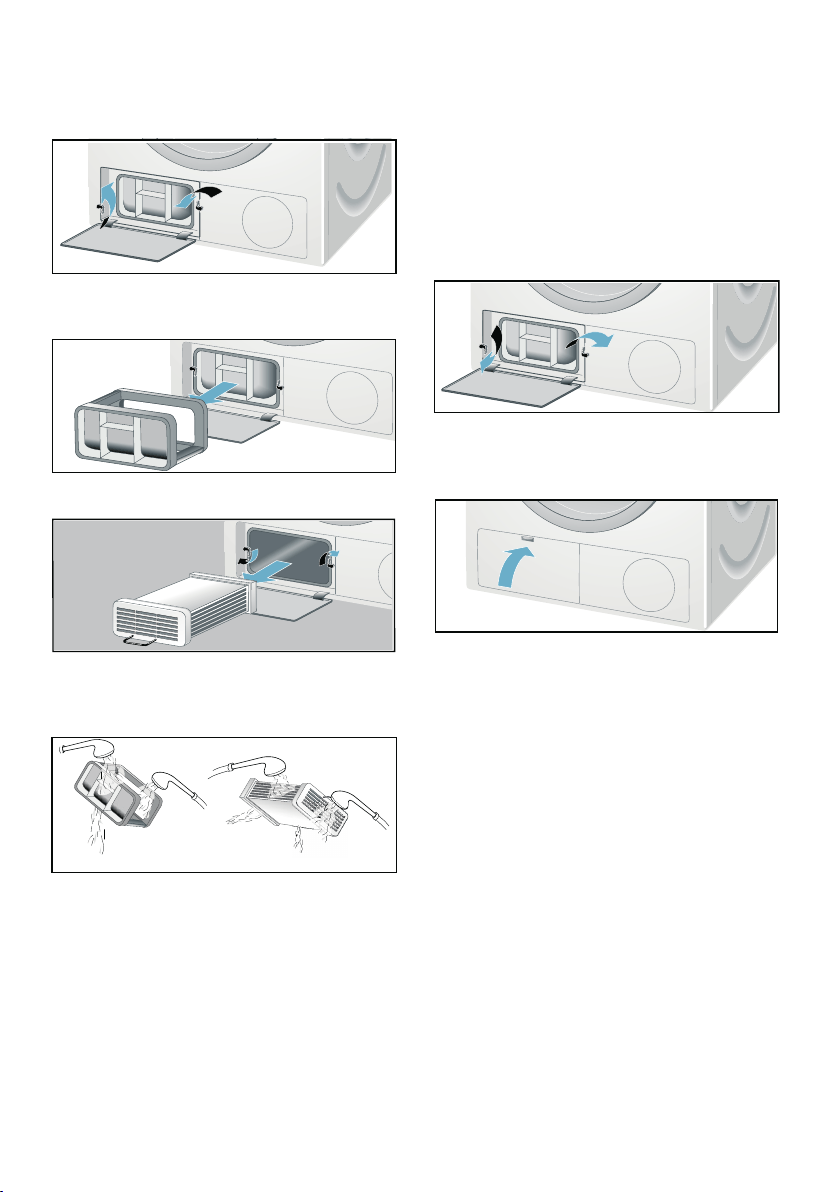

Cleaning the heat exchanger
Notes
1. Allow the dryer to cool down and place an absorbent cloth beneath the maintenance flap.
Note:
2. Open the maintenance flap fully.
3. Turn both locking levers towards each other.
4. Remove the top cap from the heat exchanger.
5. Remove the heat exchanger.
6. Flush water through the heat exchanger from all sides to completely remove all fluff.
Caution!
There is a risk of damage to the heat exchanger.
7. Remove all fluff from the seals on the dryer and on the heat exchanger.
8. Allow all the water to drip off.
9. First insert the heat exchanger, and then fit the heat exchanger's top cap in place.
10. Turn both locking levers back and close the maintenance flap until it locks into place.
11. Close the maintenance flap and press on it until you feel it click in place.
Cleaning the moisture sensor
Note:
Caution!
Moisture sensor may be damaged.
3 Faults and what to do about them
Faults and what to do about them
Faults
Cause/remedy
Note:
Note:
J After-sales service
After-sales service
[ Consumption values
Consumption values
Consumption values table
8 kg
4 kg
8 kg
4 kg
10/13 A
10/13 A
10/13 A
10/13 A
1400 rpm
136 min/ 115 min
85 min/ 65 min
4.52 kWh/ 4.41 kWh
2.54 kWh/ 2.49 kWh
1000 rpm
158 min/ 137 min
106 min/ 82 min
4.76 kWh/ 4.63 kWh
2.68 kWh/ 2.61 kWh
800 rpm
180 min/ 159 min
113 min/ 93 min
5.01 kWh/ 4.85 kWh
2.81 kWh/ 2.73 kWh
1400 rpm
113 min/ 86 min
64 min/ 48 min
3.41 kWh/ 3.39 kWh
1.94 kWh/ 1.91 kWh
1000 rpm
135 min/ 108 min
78 min/ 62 min
3.65 kWh/ 3.61 kWh
2.08 kWh/ 2.03 kWh
800 rpm
157 min/ 130 min
92 min/ 76 min
3.90 kWh/ 3.83 kWh
2.21 kWh/ 2.15 kWh
3.5 kg
3.5 kg
800 rpm
52 min/ 46 min
1.46 kWh/ 1.42 kWh
600 rpm
65 min/ 56 min
1.79 kWh/ 1.74 kWh
Most efficient programme for cotton fabrics
Standard programmes for cottons in accordance with current EU regulation 932/2012
Programme
8 kg/4 kg
13 A
13 A
4.63 kWh/2.61 kWh
137 min./82 min.
J Technical data
Technical data
*9001493778*
