Desktop Monitor
MultiSync E242N
User’s Manual
Please find your model name in the label on the rear side of the monitor.
MODEL: M245AZ
Index
Important Information ...................................................................................................................English-1
Registration Information ...............................................................................................................English-3
Recommended Use ......................................................................................................................English-4

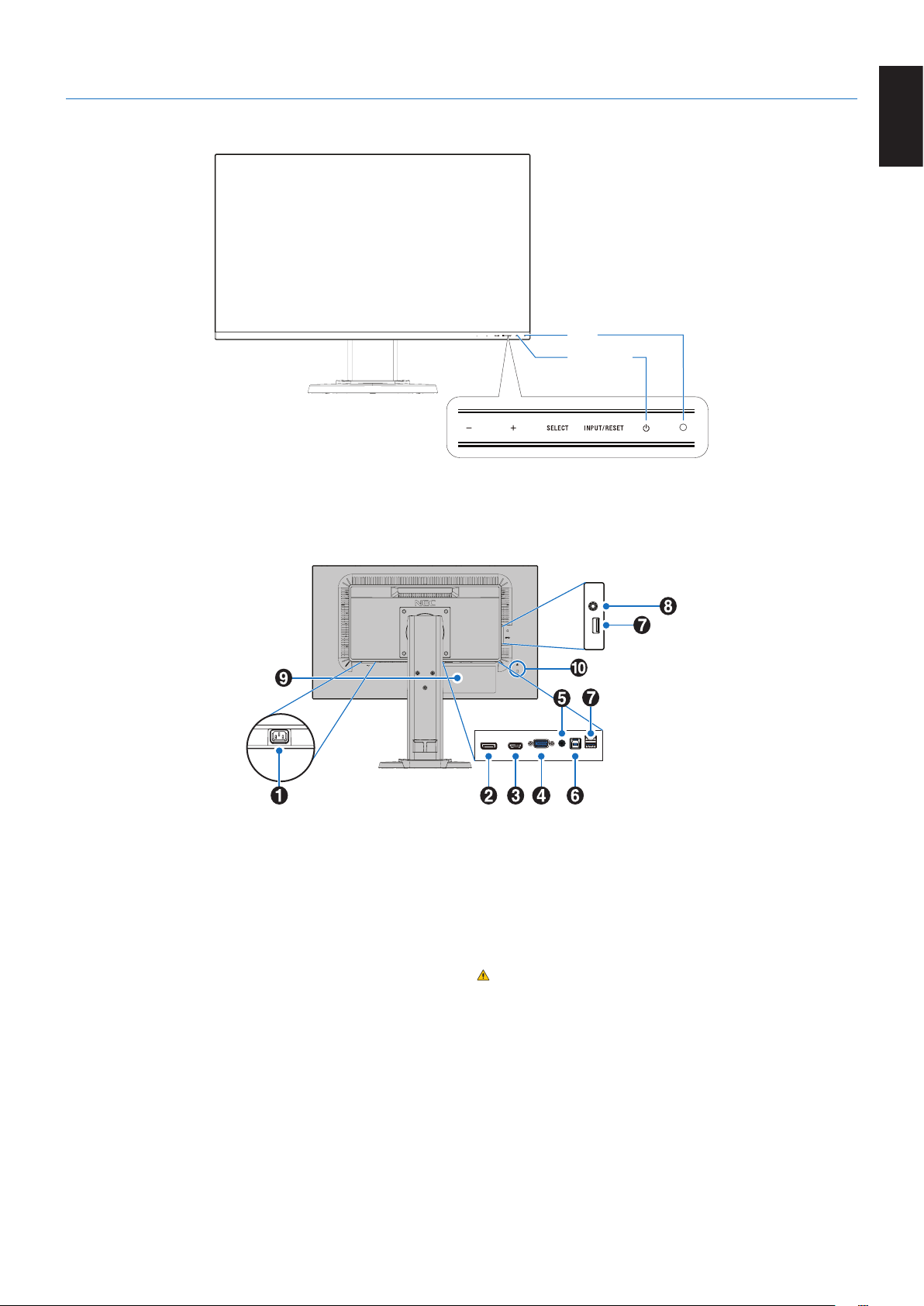

Parts Name and Functions ...........................................................................................................English-9
Quick Start ....................................................................................................................................English-10
Controls ........................................................................................................................................English-15
Specifications ...............................................................................................................................English-19
Features .......................................................................................................................................English-21
Troubleshooting ............................................................................................................................English-22
Manufacturer’s Recycling and Energy Information .......................................................................English-23
English-1
English
Important Information
WARNING: To prevent fire or shock hazards, do not expose this unit to rain or moisture.
Do not connect or disconnect this product during an electrical storm.
Also, do not use this unit’s polarized plug with an extension cord receptacle or other outlets unless the prongs can be fully
inserted.
Refrain from opening the cabinet as there are high voltage components inside. Refer servicing to qualified service personal.
CAUTION: To reduce the risk of electric shock, make sure the power cord is unplugged from the wall socket.
To fully disengage the power to the unit, please disconnect the power cord from the AC outlet.
Do not remove cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
Please use the power cord provided with this display in accordance with the power cord table. If a power cord is not supplied
with this equipment, please contact NEC. For all other cases, please use the power cord with the plug style that matches the
power socket where the monitor is located. The compatible power cord corresponds to the AC voltage of the power outlet and
has been approved by, and complies with, the safety standards in the country of purchase.
This equipment is designed to be used in the condition of the power cord connected to the earth. If the power cord is not
connected to the earth, it may cause electric shock. Please make sure the power cord is earthed properly.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is
dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included.
Therefore, it should be read carefully in order to avoid any problems.

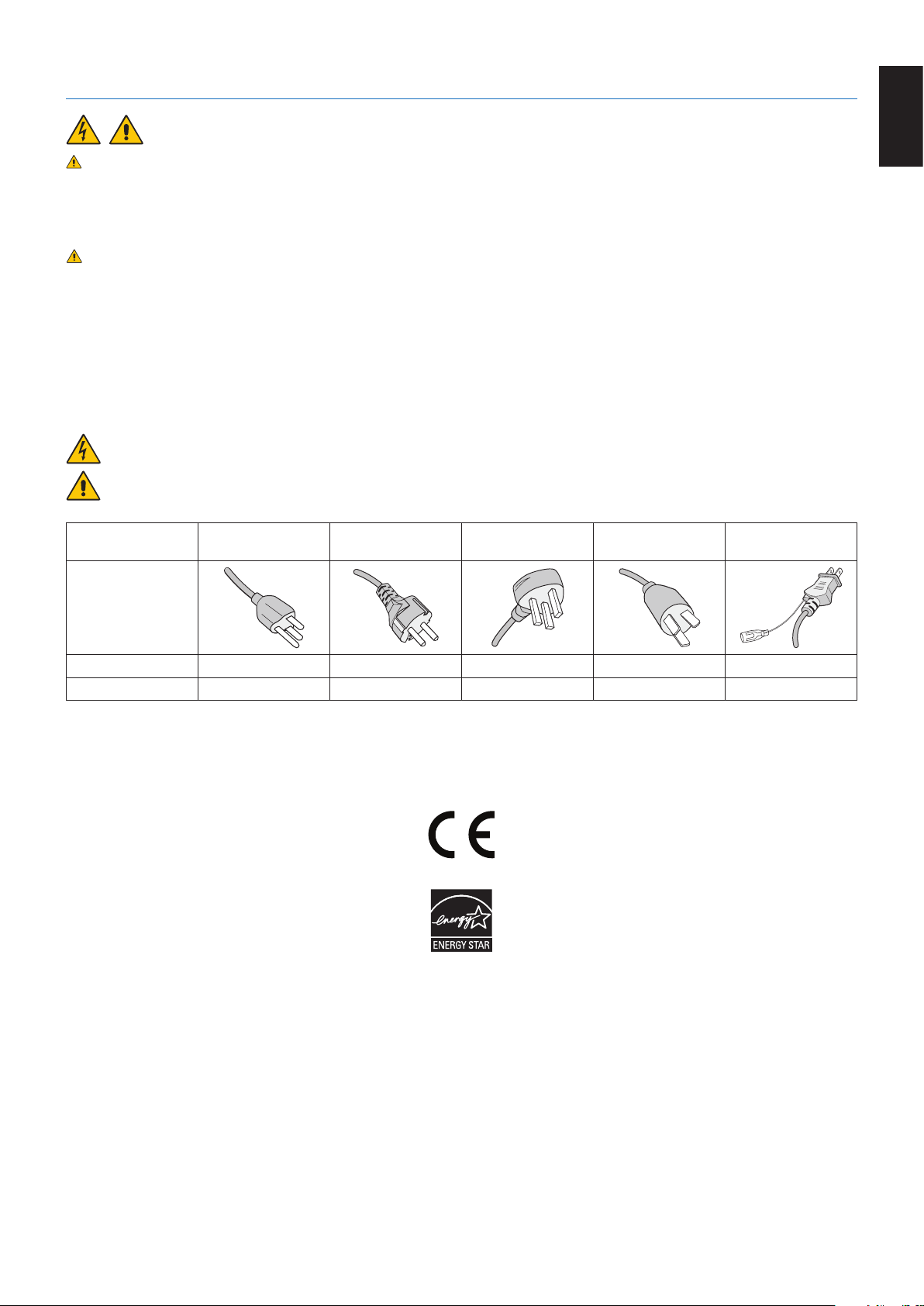

Plug Type North America
European
Continental
U.K. Chinese Japanese
Plug Shape
Region U.S.A./Canada EU U.K. China Japan
Voltage 120* 230 230 220 100
* When operating the MultiSync monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of
the AC power outlet being used.
NOTE: This product can only be serviced in the country where it was purchased.
• The intended primary use of this product is as an Information Technical Equipment in an office or domestic environment.
• The product is intended to be connected to a computer and is not intended for the display of television broadcast signals.
ENERGY STAR is a program run by the U. S. Environmental
Pro tecti on A gency (EPA) an d U. S. Department
of Energy (DOE) that promotes energy efficiency.
This product qualifies for ENERGY STAR in the “factory
default” settings and this is the setting in which power
savings will be achieved. Changing the factory default
picture settings or enabling other features will increase
power consumption that could exceed the limits necessary
to qualify for ENERGY STAR rating. For more information
on the ENERGY STAR program, refer to energystar.gov.
English-2
Copyright Information
Windows is a registered trademark of Microsoft Corporation.
NEC is a registered trademark of NEC Corporation.
DisplayPort and DisplayPort Compliance Logo are trademarks owned by Video Electronics Standards Association in the
United States and other countries.
MultiSync is a trademark or registered trademark of NEC Display Solutions, Ltd. in Japan and other countries.
ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy,
Norway, Spain, Sweden, U.K.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
HDCP (High-bandwidth Digital Content Protection): HDCP is a system for preventing illegal copying of video data
sent over a digital signal. If you are unable to view material via the digital signal input, this does not necessarily
mean the display is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with
HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).
All other brands and product names are trademarks or registered trademarks of their respective owners.
NOTE: (1) The contents of this user’s manual may not be reprinted in part or whole without permission.
(2) The contents of this user’s manual are subject to change without notice.
(3) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or
omissions, please contact us.
(4) The image shown in this user’s manual is indicative only. If there is inconsistency between the image and the actual product,
the actual product shall govern.
(5) Notwithstanding articles (3) and (4), NEC will not be responsible for any claims on loss of profit or other matters deemed to result
from using this device.
English-3
English
Registration Information
Cable Information
CAUTION: Use the provided specified cables with this monitor so as not to interfere with radio and television reception.
For mini D-Sub 15-pin, please use a shielded signal cable with ferrite core.
For HDMI, DisplayPort, USB and AUDIO, please use a shielded signal cable. Use of other cables and adapters
may cause interference with radio and television reception.
For detailed information, please visit our website: https://www.nec-display.com/global/about/worldwide.html
FCC Information
WARNING: The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT
those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government
regulation could void your right to operate this equipment.
1. The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet
the following condition.
Power supply cord
Plug shape
Non shield type, 3-conductor
U.S.A
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify
and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office,
Washington, D.C., 20402, Stock No. 004-000-00345-4.
SUPPLIER’S DECLARATION OF CONFORMITY
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
U.S. Responsible Party: NEC Display Solutions of America, Inc.
Address: 3250 Lacey Rd, Ste 500
Downers Grove, IL 60515
Tel. No.: (630) 467-3000
Type of Product: Display Monitor
Equipment Classification: Class B Peripheral
Model: MultiSync E242N (M245AZ)
To see a list of our TCO certified monitors and their TCO Certification (in English only), visit our website at
https://www.nec-display.com/global/about/legal_regulation/TCO_mn/index.html
CAUTION: Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240 V,
20 A (maximum).
English-4
Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE LCD COLOR MONITOR:
About the Symbols
To ensure safe and proper use of the product, this manual uses a number of symbols to prevent injury to you and others as well
as damage to property. The symbols and their meanings are described below. Be sure to understand them thoroughly before
reading this manual.
WARNING
Failing to heed this symbol and handling the product incorrectly could result in accidents leading to major
injury or death.
CAUTION
Failing to heed this symbol and handling the product incorrectly could result in personal injury or damage to
surrounding property.
Examples of symbols
Indicates a warning or caution.
This symbol indicates you should be careful of electric shocks.
Indicates a prohibited action.
This symbol indicates something that must be prohibited.
Indicates a mandatory action.
This symbol indicates that the power cord should be unplugged from the power outlet.
WARNING
UNPLUG THE
POWER CORD
Unplug the power cord if the monitor malfunctions.
Should the monitor emit smoke or strange odors or sounds, or if the monitor has been dropped or the
cabinet broken, turn off the monitor’s power, then unplug the power cord from the power outlet. Failure to do
so could not only lead to fire or electric shock, it could also result in vision impairment. Contact your dealer
for repairs.
Never try to repair the monitor on your own. Doing so is dangerous.
To prevent damage to the monitor caused by tipping over due to earthquakes or other shocks, make sure to
install the monitor in a stable location and take measures to prevent falling.
Immediately turn off the power and unplug your monitor from the wall outlet, then refer servicing to qualified
service personnel under the following conditions. If the monitor is used in this condition, the monitor may fall
or cause a fire or electric shock.
• If the monitor stand has cracked or peeled.
• If you notice any structural damage such as cracks or unnatural wobbling.
Do not open the monitor.
There are high voltage areas in the monitor. Opening or removing covers may expose you to dangerous
shock hazards or other risks. Refer all servicing to qualified service personnel.
Handle the power cord with care. Damaging the cord could lead to fire or electric shock.
• Do not place heavy objects on the cord.
• Do not place the cord under the monitor.
• Do not cover the cord with a rug, etc.
• Do not scratch or modify the cord.
• Do not bend, twist or pull the cord with excessive force.
• Do not apply heat to the cord.
Should the cord be damaged (exposed core wires, broken wires, etc.), ask your dealer to replace it.
English-5
English
WARNING
Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing
serious damage to the monitor.
Do not use the monitor if the monitor was dropped or the cabinet is damaged.
Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which
can be harmful or fatal, or may cause electric shock, fire or equipment failure.
Do not spill any liquids into the cabinet or use your monitor near water.
Immediately turn off the power and unplug your monitor from the wall outlet, then refer servicing to qualified
service personnel under the following condition. If the monitor is used in this condition, the monitor may fall
or cause an electric shock or start a fire:
• If liquid has spilled or objects have fallen into the monitor.
The power supply cord you use must have been approved by and comply with the safety standards of your
country. (e.g. Type H05VV-F 3G 0.75 mm
2
should be used in Europe).
In the UK use a BS-approved power cord with a molded plug having a black (5 A) fuse installed for use with
this monitor.
Do not disassemble the monitor.
Do not remove or open the monitor’s cabinet.
Do not modify the monitor. There are high voltage areas in the monitor. Modifying the monitor could lead to a
fire or electric shock.
Do not play with the plastic bag which covers the monitor. Do not use this bag for any other purpose.
To avoid the danger of suffocation, do not place this bag over your head, nose or mouth. Do not place this
bag over another person’s head, nose or mouth. Keep this bag away from children and babies.
CAUTION
Please install the monitor in accordance with the following information.
Improper installation of the monitor may result in damage to the monitor, an electric shock or fire.
Allow adequate ventilation around the monitor, so that heat can properly dissipate.
Do not cover the vent on the monitor.
Do not mount the product in any configuration or position not described in the user’s manual.
Do not place this monitor near a radiator, other heat sources, or in direct sunshine.
Do not install in areas where the monitor will be exposed to continual vibration.
Do not use the monitor in high temperature, humid, dusty, or oily areas.
Do not use the monitor outdoors.
English-6
CAUTION
Do not climb on the monitor or the table where the monitor is installed. Do not install the monitor on a
wheeled table if the wheels on the table have not been properly locked. The monitor may fall causing
damage to the monitor or personal injury.
Do not touch LCD panel surface while transporting, mounting and setting. Applying pressure on the LCD
panel can cause serious damage.
If the monitor or glass breaks, do not come into contact with the liquid crystal that is inside the screen. If the
liquid crystal comes into contact with your eyes or mouth, rinse thoroughly and immediately contact your
doctor for help.
Handling the power cord
• When connecting the power cord to the monitor’s AC IN terminal, make sure the connector is fully and
firmly inserted. Loose connection of the power cord could lead to fire or electric shock.
• Do not connect or disconnect the power cord with wet hands. Doing so could result in electric shock.
• When connecting or disconnecting the power cord, pull the power cord out by holding onto its plug. Do
not pull the power cord out by holding onto its cable. Pulling the power cord out of the wall by holding
onto the cable can damage the power cord, which could lead to fire or electric shock.
• When cleaning the monitor, for safety purposes unplug the power cord from the power outlet beforehand.
• Before moving the monitor, make sure the monitor power is off, then unplug the power cord from the
power outlet and check that all cables connecting the monitor to other devices are disconnected.
• When you are not planning to use the monitor for an extended period of time, always unplug the power
cord from the power outlet.
Handle with care when transporting.
• To safely transport and securely install the monitor, please use as many people as necessary to be able
to lift the monitor without causing personal injury or damage to the monitor.
To ensure the monitor’s reliability, please clean the ventilation holes at the rear side of the cabinet at least
once a year to remove dirt and dust.
Regularly dust off the power cord by using a soft dry cloth. Dust build-up on the power cord’s plugs and cable
could cause an electric shock and result in a fire.
Handle with care during installation and adjustment to prevent personal injury and damage to the monitor.
The monitor must be mounted to a flexible arm or stand that supports the weight of the monitor to prevent
damage and personal injury that could result from the monitor tipping over or falling.
• Please tighten all screws when installing the monitor to a flexible arm or stand. A loose screw may cause
the monitor to fall, causing damage to the monitor or personal injury.
Clean the monitor’s LCD screen surface with a lint-free, non-abrasive cloth.
Avoid using any cleaning solutions! DO NOT clean with benzene thinner, alkaline detergent, alcoholic system
detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Rubber or vinyl should not be in
contact with the cabinet for an extended period of time. These types of fluids and materials can cause the
paint to deteriorate, crack or peel.
Do not connect headphones to the monitor while you are wearing them. Depending on the volume level, it
may damage your ears and cause loss of hearing.
Do not bind the USB cable. It may trap heat and cause a fire.
English-7
English
Image Persistence
Image persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT
monitors, LCD monitors’ image persistence is not permanent, but a still image being displayed for a long period of time should
be avoided.
To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image
was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular
intervals whenever the screen is idle, or turn off the monitor when not in use.
English-8
Ergonomics
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN
REDUCE EYE, SHOULDER, AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
To realize the maximum ergonomics benefits, we recommend the following:
• For optimum performance of the monitor, allow 20 minutes for warming up. Avoid
reproduction of still patterns on the monitor for long periods of time to avoid image
persistence (after image effects).
• Adjust the monitor height so that the top of the screen is at or slightly below eye level.
Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm (15.75 inches) and no further away than
70 cm (27.56 inches) from your eyes. The optimal distance is 50 cm (19.69 inches).
• Rest your eyes periodically for 5 to 10 minutes for every 1 hour by focusing on an object
at least 20 feet away.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare
and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Adjust the monitor’s brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize
turning your head while you are typing.
• Blink often. Eye exercise helps to reduce eye strain. Please contact your ophthalmologist. Get regular eye checkups.
• To avoid eye fatigue, adjust the brightness to a moderate setting. Place a sheet of white paper next to the LCD screen for
luminance reference.
• Do not position the Contrast control to its maximum setting.
• Use the preset Size and Position controls with standard signals.
• Use the preset Color Setting.
• Use non-interlaced signals.
• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient
contrast.
• Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing reflections from the screen.
For more detailed information on setting up a healthy work environment, write to the American National Standard for Human
Factors Engineering of Computer Workstations - ANSI/HFES 100-2007 - The Human Factors Society, Inc. P.O. Box 1369,
Santa Monica, California 90406.
Cleaning the LCD Panel
• When the LCD is dusty, please gently wipe with a soft cloth.
• Please do not rub the LCD panel with hard or coarse material.
• Please do not apply pressure to the LCD surface.
• Please do not use OA cleaner as it will cause deterioration or discoloration on the LCD panel surface.
Cleaning the Cabinet
• Unplug the power supply.
• Gently wipe the cabinet with a soft cloth.
Dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.
English-9
English
Parts Name and Functions
Control Panel
LED
Power Key
Control Keys
Refer to the Controls section. See page 15.
A AC IN Connector
Connects with the supplied power cord.
B DisplayPort IN
DisplayPort signals input.
C HDMI IN
HDMI signals input.
D VGA IN (mini D-Sub 15-pin)
Analog RGB signals input.
E Audio IN
Audio signal input from external equipment such as a
computer or player.
F USB Upstream Port (Type-B)
Connects with external equipment such as a computer.
Please use this port to control the monitor from connected
external equipment.
G USB Downstream Port (Type-A)
Connects with USB devices.
Connects with external equipment such as a computer
compliant with USB.
H Headphone Jack
Connects with headphones.
CAUTION: Do not connect headphones to the monitor
while you are wearing them. Depending on
the volume level, it may damage your ears
and cause loss of hearing.
I Rating Label
J Security Slot
Security and theft protection lock slot compatible with
Kensington cables/equipment.
For products visit Kensington’s website.
Terminal Panel
English-10
Figure 1
Figure 2
Screw

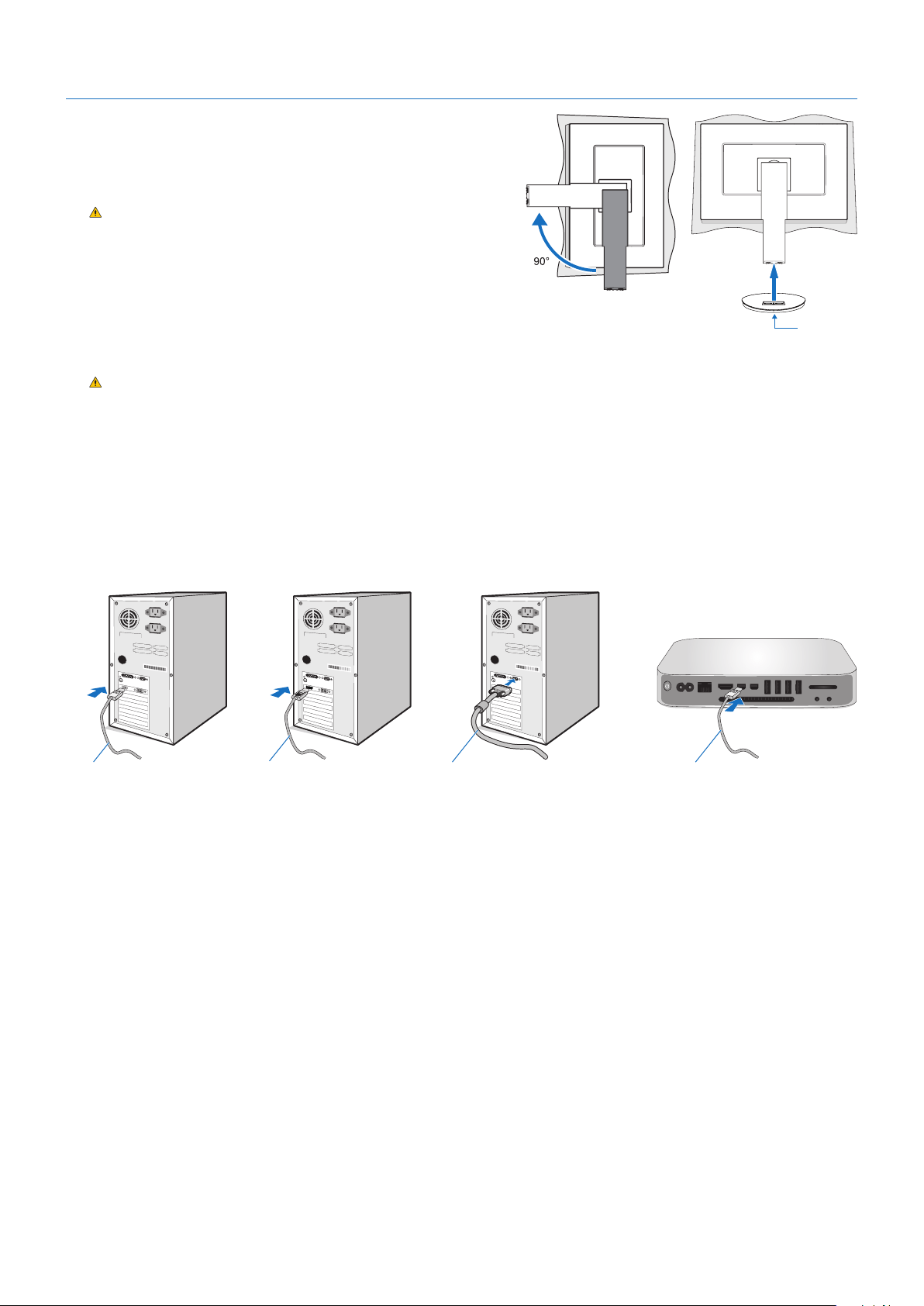

Quick Start
For box contents, please refer the printed contents sheet provided in the box.
To attach the base to the monitor stand:
1. Place monitor face down on a non-abrasive surface (Figure 1).
2. Please rotate the monitor stand 90 degrees as shown in Figure 1.
CAUTION: Handle with care when pulling the monitor stand.
It may pinch your fingers.
3. Attach the base to the monitor stand, then tighten the screw at the
base’s bottom (Figure 2).
NOTE: Reverse this procedure if you need to re-pack the monitor.
To connect the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 4) before installation.
CAUTION: Please tighten all screws.
NOTE: The accessories included will depend on the location where the LCD monitor was shipped.
1. Turn off the power for your computer.
2. For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.1).
For a PC with HDMI output: Connect the HDMI cable to the connector of the display card in your system (Figure A.2).
For a PC with Analog output: Connect a 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.3). Tighten all screws.
For a Mac or PC with Thunderbolt or Mini DisplayPort output: Connect a Mini DisplayPort to DisplayPort cable to the
video output connector on your system (Figure A.4).
Mini DisplayPort to DisplayPort cable
Figure A.1 Figure A.3Figure A.2
DisplayPort cable HDMI cable Mini D-Sub 15-pin signal cable
Figure A.4
NOTE: • When removing the DisplayPort cable, hold down the top button to release the lock.
• PleaseuseaHighSpeedHDMIcablewithHDMIlogo.
• PleaseuseaCertiedDisplayPortcable.
CAUTION: Use the provided specified cables with this monitor so as not to interfere with radio and television reception.
For mini D-Sub 15-pin, please use a shielded signal cable with ferrite core.
For HDMI, DisplayPort, USB and AUDIO, please use a shielded signal cable. Use of other cables and adapters
may cause interference with radio and television reception.
English-11
English

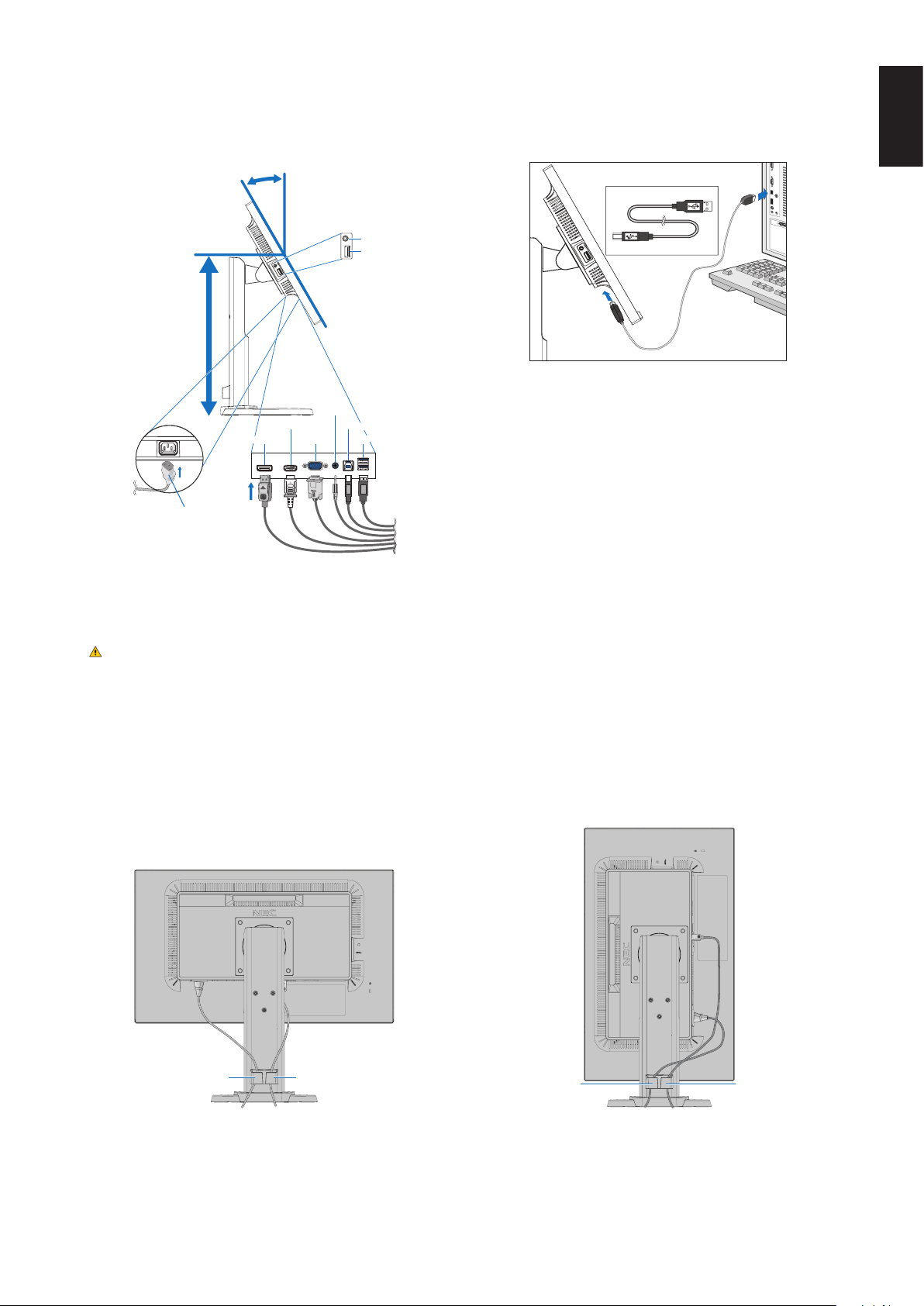

3. Place hands on each side of the monitor screen, tilt the screen to the maximum tilt angle, then lift the screen to the highest
position.
4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the Type-B connector
to the USB upstream port on the rear side of the monitor and the Type-A connector to the downstream port on the computer
(Figure C.1a). If using the cord from a USB device, plug it into the downstream port of the monitor.
Figure C.1a
Type-A
Type-B
Type-A
Type-B
Figure C.1
Power cord
Maximum Tilt
DisplayPort
HDMI
Highest Monitor
Stand Position
Audio IN
D-Sub USB Downstream (USB Type-A)
USB Upstream (USB Type-B)
USB Downstream (USB Type-A)
Headphone
NOTE: Incorrect cable connections may cause abnormal operation, damage display quality/components of the LCD panel
and/or shorten the module’s life.
CAUTION: Do not bind the USB cable. It may trap heat and start a fire.
NOTE: Do not use an attenuating (built-in resistor) audio cable. Using an audio cable with a built-in resistor will lower the
sound level.
NOTE: Adjustment of the volume control as well as the equalizer to settings other than the center position may increase
the ear-/headphones output voltage and therefore the sound pressure level.
5. Place the cables into the cable management system that is built into the monitor stand firmly and evenly (Figure C.2 and
Figure C.3).
6. Please check that you can still rotate, raise and lower the monitor screen after you have installed the cables.
Figure C.2 Figure C.3
Power Cord DisplayPort Cable
Power Cord DisplayPort Cable
7. Connect the power cord to the power outlet.
NOTE: Please refer to the Important Information section of this manual for proper selection of the AC power cord.
English-12

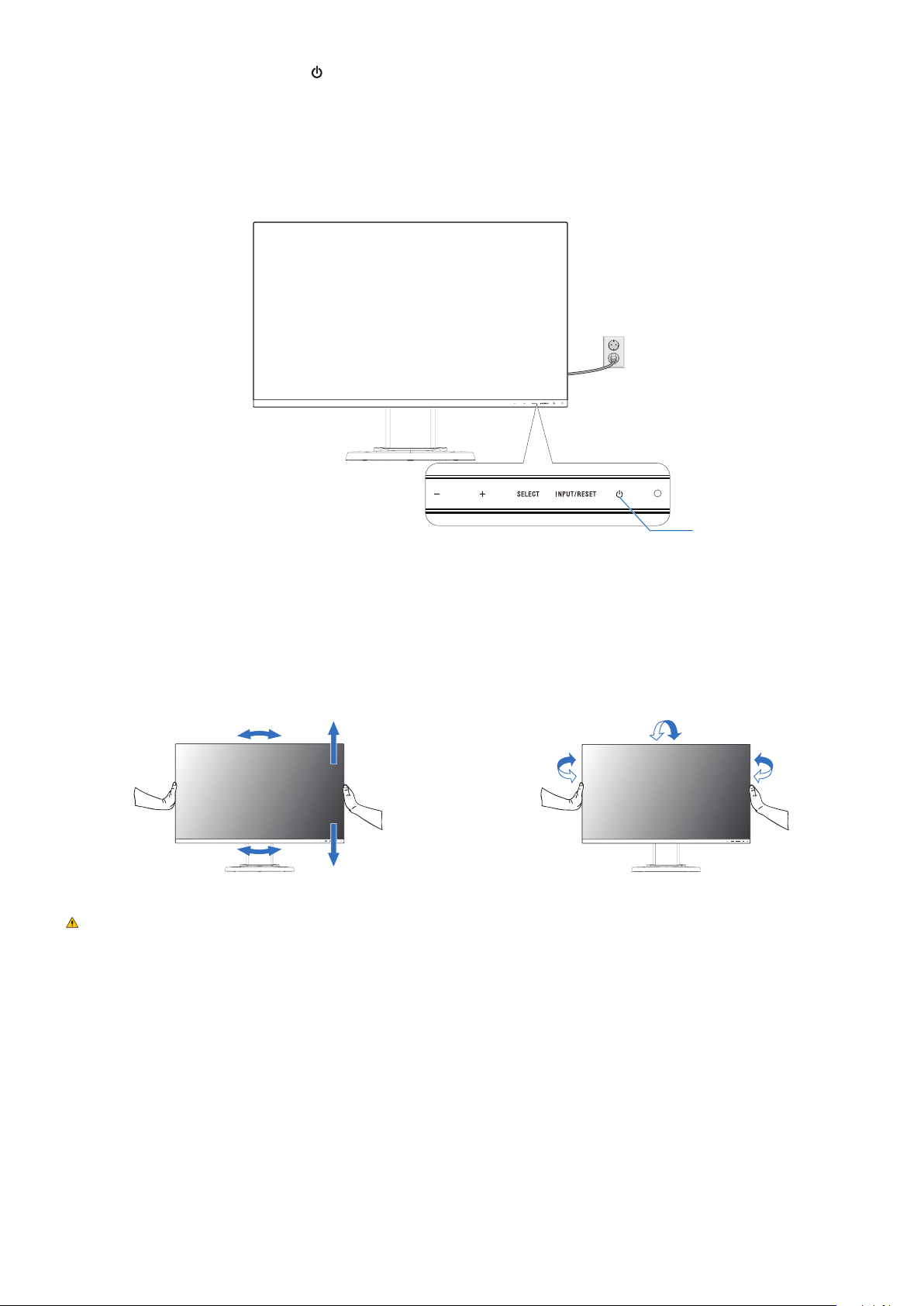

8. Turn on the monitor by touching the key and then the computer (Figure E.1).
9. When using analog (VGA) input, No Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial
setup. For further adjustments, use the following OSD controls:
• AUTO CONTRAST
• AUTO ADJUST
Refer to the Controls section of this User’s Manual for a full description of these OSD controls.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.
Figure E.1
Power Key
Adjustable monitor stand with pivot capability
Raise and Lower: Hold the monitor on each side and lift or lower to the desired height.
Tilt and Swivel: Hold the top and bottom sides of the monitor screen with your hands and adjust the tilt and swivel as desired.
Screen Rotation (Pivot): Hold each side of the monitor screen, lift to its maximum height and tilt to its maximum tilt angle, then
rotate the screen from landscape to portrait.
Tilt and SwivelRotation, Raise and Lower
CAUTION: Handle with care when adjusting the monitor screen. Do not apply pressure to the LCD when adjusting the
height and rotating the monitor screen.
Before rotating, disconnect the power cord and all cables from the display. The screen must be raised to the
highest level and adjusted to maximum tilt to avoid knocking the screen on the desk or pinching your fingers.
English-13
English
Flexible Arm Installation
This LCD monitor is designed for use with a flexible arm. Contact NEC for more information.
To prepare the monitor for alternate mounting purposes:
• Followtheinstructionsprovidedbythemanufacturerofthedisplaymount.
CAUTION: To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the
monitor. See page 19 for details. Remove the monitor stand before mounting.

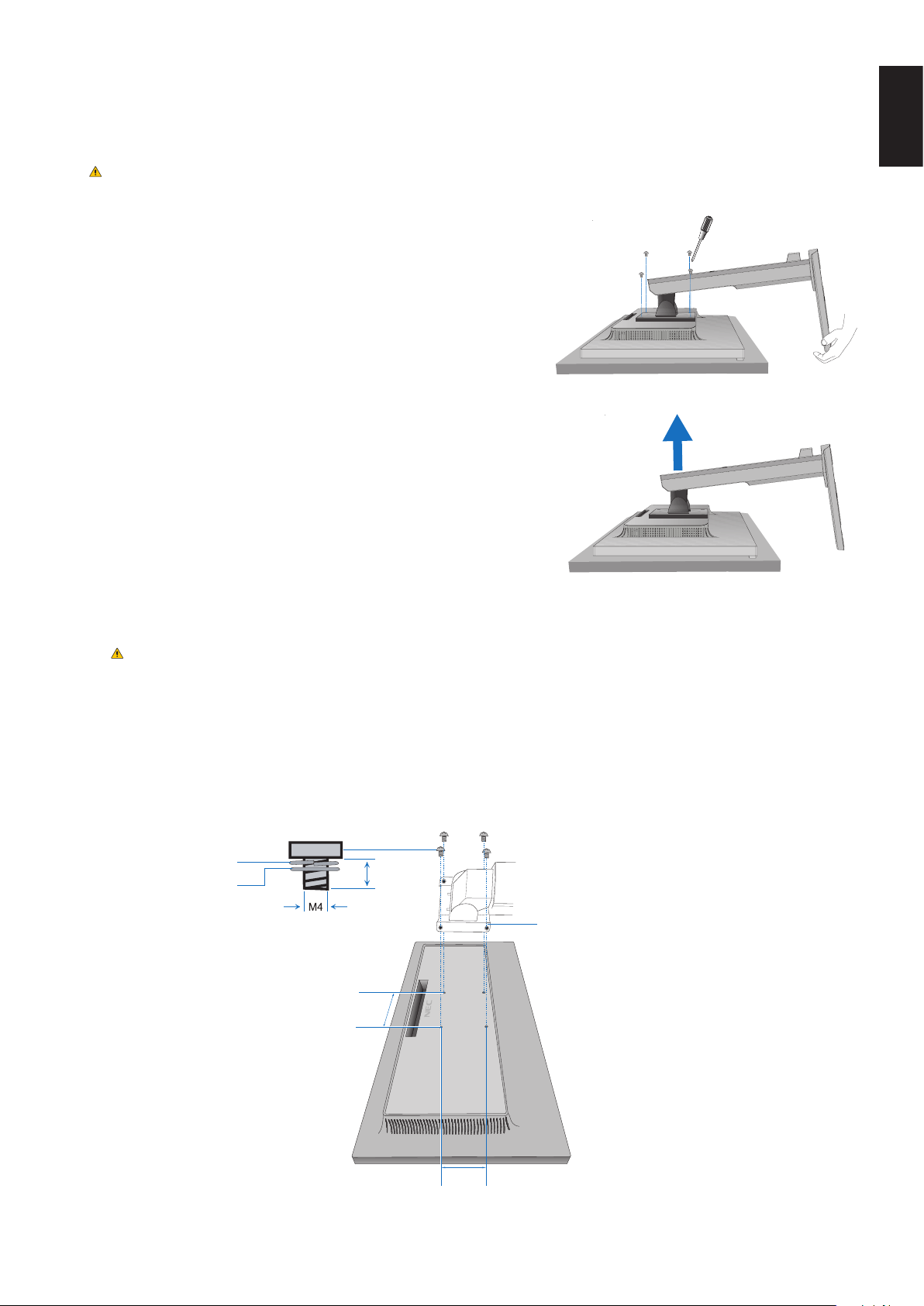

Remove the Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place your hands on each side of the monitor and lift up to the highest position.
3. Place the monitor face down on a non-abrasive surface (Figure S.1).
NOTE: Handle with care when the monitor is facing down.
4. Remove the 4 screws connecting the monitor stand to the monitor
(Figure S.1).
NOTE: Please securely hold the monitor stand while removing the screws
to prevent the monitor stand from falling.
5. Remove the monitor stand (Figure S.2).
NOTE: Use only VESA-compatible alternative mounting method.
Handle with care when removing the monitor stand.
6. The monitor is now ready for mounting in an alternate manner.
Mount Flexible Arm
This LCD monitor is designed for use with a flexible arm.
1. Follow the instructions on how to Remove the Monitor Stand for Mounting.
2. Using 4 screws that meet the specifications listed below, attach the arm to the monitor
(Figure F.1).
CAUTION:• Onlyusethescrews(4pcs)thatwereremovedfromthemonitorstandorthespeciedscrews
(Figure F.1) to avoid damage to the monitor or monitor stand.
• Tomeetthesafetyrequirements,themonitormustbemountedtoanarmwhichguarantiesthe
necessary stability under consideration for the weight of the monitor. The LCD monitor should only be
used with an approved arm (e.g. TUEV GS mark).
• Tightenallscrews(recommendedFastenForce:98-137N•cm).
A loose screw may cause the monitor to fall off the arm.
• Attachingtheexiblearmshouldbedonebytwoormorepeopleifthemonitorcannotbeplacedface
down on a flat surface for installation.
3. Connect the cables to the rear side of the monitor.
Figure F.1
100 mm
100 mm
Thickness of Bracket (Arm)
2.0~3.2 mm
12 mm
Spring washer
Flat washer
Figure S.1
Figure S.2
English-14

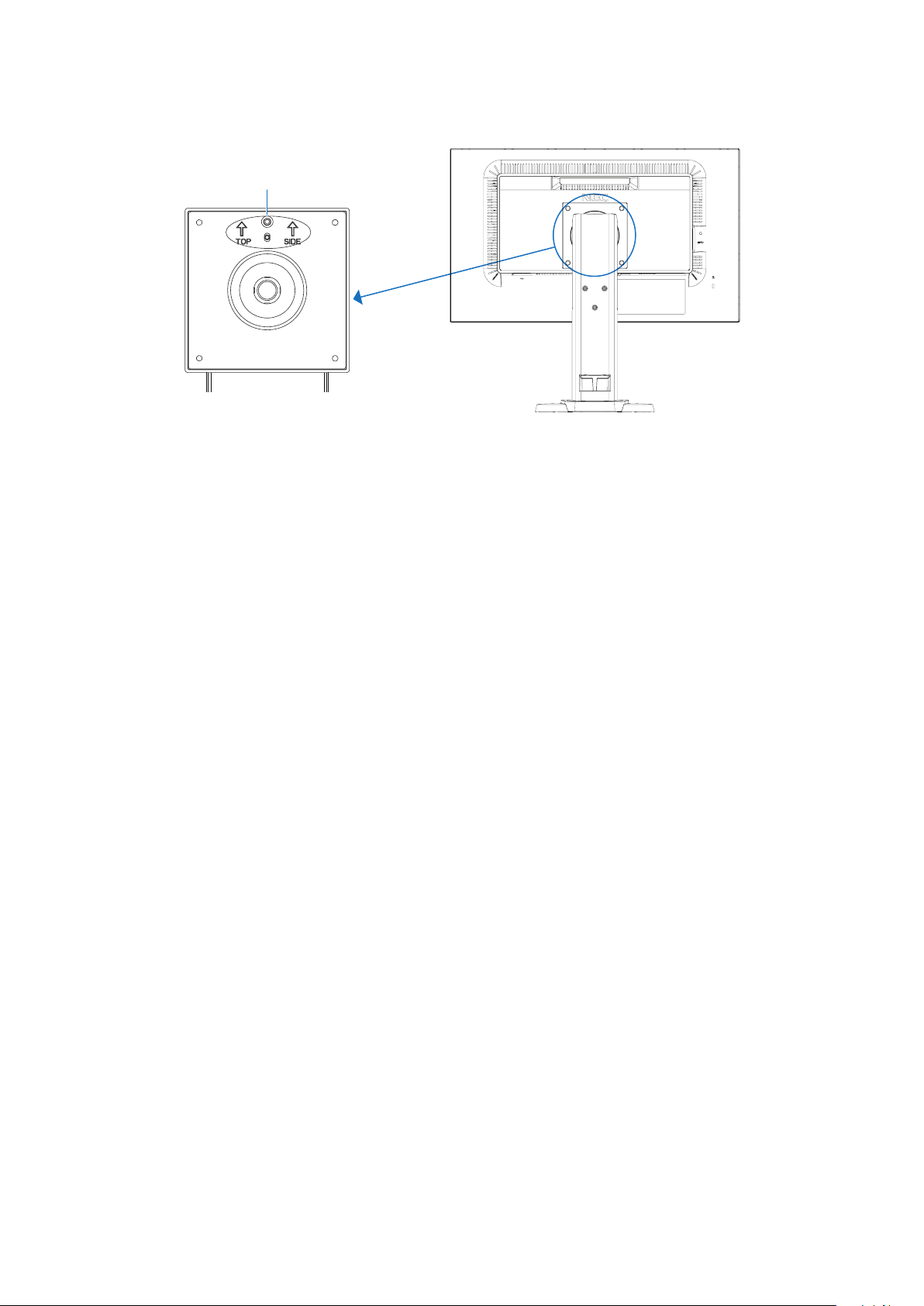

Re-attaching the original monitor stand
Reverse the process in the previous section to re-attach the monitor stand.
NOTE: Match “TOP SIDE” mark on the monitor stand to top side of the monitor when re-attaching the monitor stand.
“TOP SIDE” mark
Please match top side
of the monitor
English-15
English
Controls
OSD (On-Screen Display) Control Functions
1. Basic functions of the touch keys on the front of the monitor
OSD Menu
– +
SELECT INPUT/RESET
Not displaying on screen
Shortcut to
[BRIGHTNESS].
Shortcut to [VOLUME]. Displays OSD. Selects input signal.
Displaying on screen
Icon Select
Moves leftward. Moves rightward. Displays OSD menu and
selects function icon.
Displaying on screen
Function Adjustment
Adjusts down. Adjusts up. Adjusts the function of the
selected icon.
Resets the function.
NOTE: You can directly change to [LOW BLUE LIGHT MODE] by touching the SELECT key for 3 seconds or more.

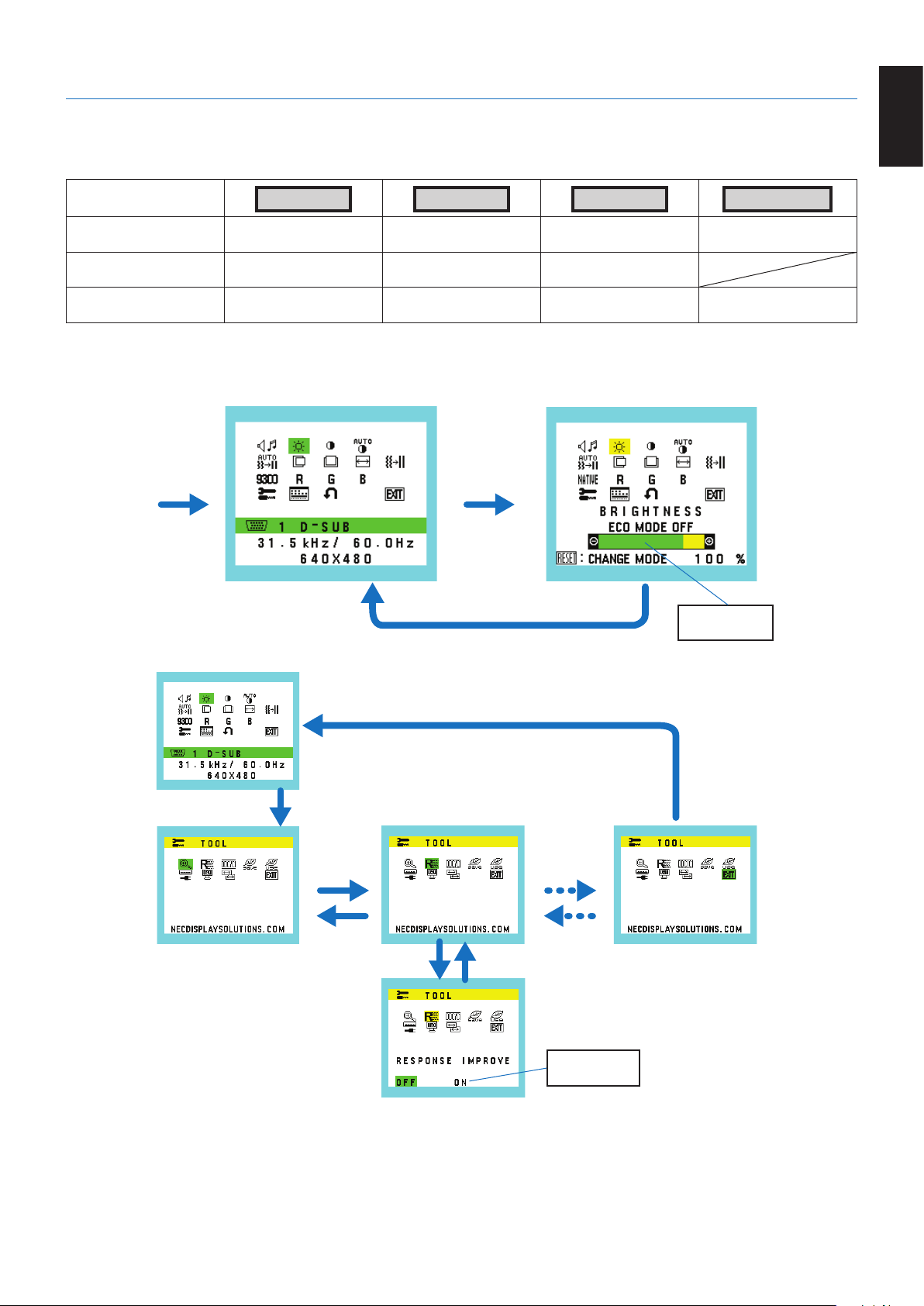

2. OSD structure
Main Menu (Icon Select)
Sub Menu (Icon Select)
Touch
SELECT
key
Touch
SELECT
key again
Touch – or +
key to select
an icon
Main Menu (Adjust)
Sub Menu (Adjust)
Touch SELECT key
Touch
SELECT key
Adjust by using
– or + key
Select by using
– or + key
Touch
– or + key
Example: [TOOL] sub menu
Touch SELECT key
Touch
SELECT key
English-16
VOLUME
Controls the volume of the speakers or headphones.
To mute the speaker output select Audio icon and touch INPUT/RESET key.
BRIGHTNESS
Adjusts the overall image and background screen brightness.
Touch INPUT/RESET key to enter [ECO MODE].
ECO MODE OFF: Sets brightness variable from 0% to 100%.
ECO MODE1: Sets brightness 70%.
ECO MODE2: Sets brightness 30%.
NOTE: When [DV MODE] is [ON], [ECO MODE] is set to [OFF] and cannot be changed.
CONTRAST
Adjusts the image brightness in relation to the background.
To enter the [DV MODE] setting, touch the INPUT/RESET key.
DV MODE: Setting that adjusts the brightness by detecting the screen’s black areas and optimizes it.
NOTE: [OFF] is used for TCO Certificate compliance.
AUTO CONTRAST (Analog input only)
Automatically adjusts the image displayed for non-standard video inputs.
AUTO ADJUST (Analog input only)
Automatically adjusts the image position, the [H.SIZE] and [FINE] settings.
LEFT/RIGHT (Analog input only)
Controls horizontal image position within the display area of the LCD.
DOWN/UP (Analog input only)
Controls vertical image position within the display area of the LCD.
H. SIZE (Analog input only)
Adjusts the horizontal size by increasing or decreasing the setting.
FINE (Analog input only)
Improves focus, clarity and image stability by increasing or decreasing this setting.
COLOR
Six color presets (9300 / 7500 / sRGB / USER / NATIVE / L/B) select the desired color setting.
NOTE: You can directly change to [L/B] (LOW BLUE LIGHT MODE) by touching the SELECT key for 3 seconds
or more.
For changing to other settings from [L/B] mode, touch the SELECT key to show OSD menu and enter
[COLOR].
When [L/B] is selected in [COLOR] control, [CONTRAST] and [DV MODE] are disabled.
RED
Increases or decreases [RED]. The change will appear on screen.
GREEN
Increases or decreases [GREEN]. The change will appear on screen.
BLUE
Increases or decreases [BLUE]. The change will appear on screen.
TOOL
Selecting [TOOL] allows you to get into the sub menu. See page 17.
OSD TOOL
Selecting [OSD TOOL] allows you to get into the sub menu. See page 18.
English-17
English
FACTORY PRESET
Selecting [FACTORY PRESET] allows you to reset all OSD control settings back to the factory settings except
[MUTE], [CARBON SAVINGS], [CARBON USAGE], and [SIGNAL INFORMATION]. Individual settings can be reset by
highlighting the control to be reset and touching the INPUT/RESET key.
EXIT
Selecting [EXIT] allows you to exit OSD menu/sub menu.
TOOL
EXPANSION
Selects the zoom mode.
This function works when the input signal timing is under native resolution.
FULL: The image is expanded to full screen, regardless of the resolution.
ASPECT: The image is expanded without changing the aspect ratio.
RESPONSE IMPROVE
Turns the [RESPONSE IMPROVE] function [ON] or [OFF].
This function may reduce blurring that occurs in some moving images.
DDC/CI
This function turns the [DDC/CI] function [ON] or [OFF].
USB POWER
Selects how power through the USB port is enabled in relation to the monitor’s power status.
AUTO: Power is supplied to the USB downstream port depending on the monitor’s power condition.
ON: Power is always supplied to the USB downstream port even when the monitor is in power save mode or
power OFF.
NOTE: Power consumption depends on the connected USB device even when a monitor’s power is off.
CARBON SAVINGS
Displays the estimated carbon saving information in kg.
The carbon footprint factor in the carbon saving calculation is based on the OECD data (2008 Edition).
The carbon saving information can be reset by touching the INPUT/RESET key.
CARBON USAGE
Displays the estimated carbon usages information in kg.
This is an arithmetic estimation, not actual measurement value.
The carbon footprint factor in the carbon usage calculation is based on the OECD data (2008 Edition).
The carbon usage information can be reset by touching the INPUT/RESET key.
MONITOR INFO
Indicates the model and serial numbers of your monitor.
SOUND INPUT (HDMI, DisplayPort inputs only)
Selects the sound input source.
INPUT RESOLUTION (Analog input only)
This function works when the user selects one of the special input signal timings below.
Select one of the following pair of resolutions as the input signal priority:
1280 x 768 or 1360 x 768 or 1366 x 768 (vertical resolution 768),
1600 x 900 or 1280 x 960 (horizontal frequency 60 kHz, vertical frequency 60 Hz),
1400 x 1050 or 1680 x 1050 (vertical resolution 1050).
English-18
OSD TOOL
LANGUAGE
Selects the language used by the OSD.
OSD TURN OFF
The OSD menu will stay on as long as it is in use. You can select how long the monitor waits after the last key touch to
shut off the OSD menu. The preset choices are 10-120 seconds by 5-second increments.
OSD LOCK OUT
This control completely locks out the access to all OSD control functions except for [VOLUME], [BRIGHTNESS] and
[CONTRAST].
To activate the [OSD LOCK OUT] function, enter the [OSD TOOL] sub menu, select [OSD LOCK OUT], touch and hold
the INPUT/RESET and + keys simultaneously until “OSD LOCKED OUT” indicator appears.
To deactivate, touch the SELECT key, then repeat the same steps until the OSD main menu displays on screen.
SIGNAL INFORMATION
If you select [ON], the monitor displays “VIDEO INPUT” after changing the input.
NOTE: The compliance marks that are shown when powering on the monitor the first time are not shown when
switching inputs.
The compliance marks are not shown again unless the AC power cord has been disconnected and
reconnected.
If you select [OFF], the monitor does not display “VIDEO INPUT” after changing the input.
NOTE: Setting [OFF] also prevents the compliance marks from being shown when powering on the monitor.
OSD Warning
OSD warning message close by touching the SELECT key.
NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a
change of input signal or video is inactive, the “NO SIGNAL” window will appear.
OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power
is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the “OUT OF RANGE”
message will appear.
English-19
English
Specifications
Monitor Specifications MultiSync E242N Monitor Notes
LCD Module Diagonal:
Viewable Image Size:
Native Resolution (Pixel Count):
60.47 cm/23.8 inches
60.47 cm/23.8 inches
1920 x 1080
Active matrix; thin film transistor (TFT) liquid crystal
display (LCD); 0.275 mm dot pitch; 250 cd/m
2
white
luminance; 1000:1 contrast ratio (typical), (5000:1
Contrast ratio, DV MODE ON).
Input Signal
DisplayPort: DisplayPort Connector: Digital RGB DisplayPort V1.1a (HDCP 1.3)
VGA: Mini D-Sub 15-pin: Analog RGB
Sync
0.7 Vp-p/75 ohm
Separate sync.TTL level Positive/Negative
HDMI: HDMI Connector: Digital YUV
Digital RGB
HDMI (HDCP 1.4)
Display Colors 16,777,216 Depends on display card used.
Synchronization Range Horizontal:
Vertical:
31.5 kHz to 83.0 kHz
56 Hz to 75 Hz
Automatically
Automatically
Response Time 6 ms (Gray to gray Typ.)
Viewing Angle Left/Right:
Up/Down:
±89° (CR > 10)
±89° (CR > 10)
Active Display Area Landscape: Horiz.:
Vert.:
Portrait: Horiz.:
Vert.:
527.04 mm/20.7 inches
296.46 mm/11.7 inches
296.46 mm/11.7 inches
527.04 mm/20.7 inches
USB Hub I/F:
Port:
Load Current:
SuperSpeed USB (USB 3.1 Gen 1)
Upstream 1
Downstream 3
5 V/0.9 A (Max.)
Upstream port applicable to USB monitor control.
AUDIO
AUDIO Input: STEREO Mini Jack:
DisplayPort Connector:
HDMI Connector:
Analog Audio
Digital Audio
Digital Audio
Stereo L/R 0.5 Vrms 20 Kohm
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
Headphone Output: STEREO Mini Jack: Headphone Impedance 32 Ohm
Speakers Practical Audio Output: 1.0 W + 1.0 W
Power Supply 100 - 240 V, 50/60 Hz
Current Rating 0.80 - 0.45 A
Dimensions Landscape:
Portrait:
538.6 mm (W) x 373.9 - 483.9 mm (H) x 213.9 mm (D)
21.2 inches (W) x 14.7 - 19.1 inches (H) x 8.4 inches (D)
319.4 mm (W) x 555.1 - 593.2 mm (H) x 213.9 mm (D)
12.6 inches (W) x 21.9 - 23.4 inches (H) x 8.4 inches (D)
Monitor Stand Height Adjustment:
Adjustable Range
Tilt / Pivot / Swivel:
110 mm/4.3 inches (Landscape orientation)
38.0 mm/1.5 inches (Portrait orientation)
Up 25° Down 5° / ± 90° / 90°
Weight 5.6 kg (12.3 lbs) (with monitor stand)/3.6 kg (7.9 lbs.) (without monitor stand)
Environmental Considerations
Operating Temperature:
Humidity:
Altitude:
Storage Temperature:
Humidity:
Altitude:
5°C to 35°C/41°F to 95°F
20% to 80%
0 to 6,562 Feet/0 to 2,000 m
-10°C to 60°C/14°F to 140°F
10% to 85%
0 to 40,000 Feet/0 to 12,192 m
NOTE: Technical specifications are subject to change without notice.
English-20
Major supported timings
Resolution
Vertical Frequency Scan Type Notes
H V
640 x 480 60/72/75 Hz P
720 x 400 70 Hz P
720 x 480 60 Hz P
720 x 576 50 Hz P
800 x 600 56/60/72/75 Hz P SVGA
1024 x 768 60/70/75 Hz P XGA
1280 x 720 50/60 Hz P HD 720
1280 x 960 60/75 Hz P Quad-VGA
1280 x 1024 60/75 Hz P SXGA
1440 x 900 60 Hz P WXGA+
1680 x 1050 60 Hz P WSXGA+
1920 x 1080 50 Hz P FHD
1920 x 1080 60 Hz P FHD Recommend
p: Progressive.
NOTE: When the selected monitor resolution is not a native panel resolution, the text contents appearance in the monitor
screen is expanded in a horizontal or vertical direction to show the non-native resolution to full screen. This expansion
is done by interpolated resolution technologies, which are normal and widely used in flat panel devices.
English-21
English
Features
3-side Narrow Bezel: Stylish appearance and less distance between adjacent screens in a multi-monitor setup.
SuperSpeed USB Hub: The USB hub adds flexibility to your computing by providing easy access to SuperSpeed USB data
transfer and charging via USB. For more details, please see page 19.
Various Signal Interfaces: This model has various interfaces. Fore more detail, please see page 11.
Fully Ergonomic Monitor Stand: Provides viewing flexibility with 110 mm height adjustment, -5 ~ 25-degree tilt, 45-degree
swivel to both right/left directions, with cable management and a small footprint. The ability to pivot to either side can minimize
width between adjacent bezels in multi-monitor installations. The bottom of the monitor cabinet can touch the monitor stand
base for lower positioning requirements.
ErgoDesign Features: Enhance human ergonomics to improve the working environment, protect the health of the user
and save money. The ergonomic features include a fully articulating monitor stand, OSD controls for quick and easy image
adjustment, and lower emissions.
VESA Plate for Thin Client Computer*: Provides the ability to mount a thin client computer on the monitor stand pole using the
included VESA plate.
VESA Standard Mounting Interface: Connects the monitor to any VESA standard third party mounting arm or bracket.
Color Control Systems: Adjusts the colors on the screen and allows customization of the color accuracy of the monitor to a
variety of standards.
OSD (On-Screen Display) Controls: Provides access for quick and easy adjustment to all elements of the screen image via
simple to use on-screen menus.
NaViSet Administrator 2 Software: Offers an expanded and intuitive graphical interface, allowing adjustments of the OSD
display settings from a network PC.
No Touch Auto Adjust (Analog input only): Automatically adjusts the monitor to optimal settings upon initial setup.
Plug and Play: The Microsoft
®
solution with the Windows
®
operating system facilitates setup and installation by allowing the
monitor to send its capabilities (such as screen size and resolutions supported) directly to the computer, automatically optimizing
display performance.
Intelligent Power Manager System: Provides innovative power-saving methods that allow the monitor to shift to a lower-
power mode when on but not it use, reducing emissions and lowering the cost of operating the monitor by reducing its power
consumption.
FullScan Capability: Allows use of the entire screen area in most resolutions, significantly expanding the image size.
Low Blue Light: Low Blue Light function substantially reduces blue light and helps to alleviate eye-strain (see page 16).
Flicker Free: Special backlight system reduces flicker for less eyestrain.
Environmental Impact: Annual typical maximum operating carbon footprint of this monitor (world-wide average) is
approximately 35.5 kg (calculated by: rated wattage x 8 hours per day x 5 days a week x 45 weeks per year x Power-to-Carbon
conversion factor - conversion factor is based on OECD publication of global CO2 emissions 2008 Edition).
This monitor has a manufacturing carbon footprint of approximately 59.8 kg.
Note: The manufacturing and operating carbon footprints are calculated by a unique algorithm developed exclusively by NEC
for its monitors and are accurate at the time of printing. NEC reserves the right to publish updated carbon footprint values.
* Depending on the country where the LCD monitor is shipped to, the VESA Plate is not included in the box contents.
English-22
Troubleshooting
No picture
• Makesurethesignalcableisfullyconnectedtoboththemonitorandthecomputer.
• Makesurethecomputer’sdisplaycardisfullyseatedinitsslot.
• DonotuseaDisplayPortconverteradapter.Thisdeviceisnotsupported.
• MakesureboththecomputerandmonitorpowerswitchesareintheONposition.
• MakesurethataMajorSupportedTimingshasbeenselectedforthedisplaycardinthesystembeingused.
(Please consult the manual for the system or display card for supported resolution and changing the settings.)
• Checkthemonitorandyourdisplaycardwithrespecttocompatibilityandrecommendedsettings.
• Checkthesignalcableconnectorforbentorpushed-inpins.
• Makesuretheconnecteddeviceoutputsasignaltothemonitor.
Power key does not respond
• Unplugthemonitor’spowercordfromtheACoutlettoresetthemonitor.
Image persistence
• Imagepersistenceiswhenaresidualor“ghost”imageofapreviousimageremainsvisibleonthescreen.UnlikeCRT
monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time
should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed.
For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off
for one hour to erase the image.
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular
intervals whenever the screen is idle or turning off the monitor when not in use.
Message “OUT OF RANGE” is displayed (screen is either blank or shows rough images only)
• OSDwarning“OUTOFRANGE”isdisplayedonaroughimage(pixelsaremissing):Eitherthesignalclockorresolutionis
too high. Change the settings to a supported mode.
• OSDwarning“OUTOFRANGE”isdisplayedonablankscreen:Thesignalfrequencyisoutofrange.Changethesettings
to a supported mode.
Image is unstable, unfocused or swimming is apparent
• Signalcableshouldbecompletelyattachedtothecomputer.
• Disconnect the DisplayPort cable and touch SELECT key, and then adjust the OSD value using the - or + key.
• UsetheOSDImageAdjustcontrolstofocusandadjustthedisplaybyincreasingordecreasingthe[FINE]adjustment.
When the display mode is changed, the OSD Image Adjust settings may need to be readjusted.
• Checkthemonitorandyourdisplaycardwithrespecttocompatibilityandrecommendedsignaltimings.
• Ifyourtextisgarbled,changethevideomodetonon-interlaceanduse60Hzrefreshrate.
Picture is not bright
• Makesure[ECOMODE]isturnedoff.
• Signal cable should be completely attached.
• LCD brightness degradation occurs due to long-term usage or extreme cold conditions.
• If the brightness fluctuates, make sure [DV MODE] is set to [OFF].
LED on monitor is not lit (no blue or amber color can be seen)
• PowerSwitchshouldbeintheONpositionandpowercordshouldbeconnected.
Display image is not sized properly
• UsetheOSDImageAdjustcontrolstoincreaseordecreasethe[H.SIZE]orselectthe[INPUTRESOLUTION].
• MakesurethataMajorSupportedTimingshasbeenselectedforthedisplaycardinthesystembeingused.
(Please consult the manual for the system or display card for supported resolution and changing the settings).
No Video
• Ifnovideoispresentonthescreen,turnthe key off and on again.
• Makesurethecomputerisnotinapower-savingmode(touchthekeyboardormouse).
• WhenusingDisplayPort,somedisplaycardsdonotoutputvideosignalunderlowresolutionmodeswhenthemonitoris
turned OFF/ON or disconnected/connected from the AC power cord.
No Sound
• Checktoseeifspeakercableisproperlyconnected.
• Checktoseeifmuteisactivated.
• Check the volume level in the OSD menu.
• IftheinputsignalisDisplayPortorHDMI,makesurethe[SOUNDINPUT]intheOSDmenuissetto[DP]or[HDMI].
Brightness variations over time
• Change[DVMODE]to[OFF]andthenadjustthe[BRIGHTNESS].
NOTE: When [DV MODE] is set to [ON], the monitor automatically adjusts the [BRIGHTNESS] based on the video signal.
English-23
English
Manufacturer’s Recycling and Energy Information
NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s
top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-
friendly products, and always strive to help define and comply with the latest independent standards from agencies such as
ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
Disposing of your old NEC product
The aim of recycling is to gain an environmental benefit by means of re-use, upgrading, reconditioning or reclamation of
material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely
disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures
and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.
All required information concerning the disposal of the product and country-specific information on recycling facilities can be
found on our following websites:
https://www.nec-display-solutions.com/greencompany/ (in Europe),
https://www.nec-display.com (in Japan) or
https://www.necdisplay.com (in USA).
Energy Saving
This monitor features an advanced energy saving capability. When a Display Power Management signal is sent to the monitor,
the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.
Mode Power consumption LED color
Maximum Operation 39 W Blue
Normal Operation 12 W Default setting Blue
Energy Saving Mode 0.30 W Amber
Off Mode 0.27 W Unlit
For additional information visit:
https://www.necdisplay.com/ (in USA)
https://www.nec-display-solutions.com/ (in Europe)
https://www.nec-display.com/global/index.html (Global)
For Energy Saving information:
For ErP requirement:
Setting: None.
Power consumption: 0.5 W or less.
Time for power management function: Approx. 1 min.
For ErP (Network standby) requirement:
Setting: None.
Power consumption: 0.5 W or less (with 1 port activating) / 3.0 W or less (with all ports activating).
Time for power management function: Approx. 1 min.
WEEE Mark (European Directive 2012/19/EU and amendments)
Disposing of your used product: In the European Union
EU-wide legislation as implemented in each Member State requires that used electrical and electronic products
carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors
and electrical accessories, such as signal cables or power cords. When you dispose of such products, please
follow the guidance of your local authority or ask the shop where you purchased the product, or if applicable,
follow applicable legislation or agreement you may have. The mark on electrical and electronic products may
only apply to the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority
and ask for the correct method of disposal.
