Thank you for choosing this product.
We are proud to offer the ideal product for
you and the best complete range of home
appliances for your daily routine.
Carefully read this manual for correct and
safe appliance use and for helpful tips on
efficient maintenance.
Only use the dish washer
after
carefully reading these instructions. We
recommend you always keep this manual
to hand and in good condition for any
future
owner.
Please check that the appliance is
delivered with this instruction manual, the
warranty certificate, the service centre
address and the energy efficiency label.
Each product is identified by
a unique 16
-
digit code, also called the “serial number”,
printed on the warranty
certificate or on
the serial plate found inside the door, on
the upper right hand side. This code is a
sort of product
-
specific ID card that you
will need to use to register the product or
if you need to contact the Technical
Assistance Centre.
Fig. A
1.
GENERAL SAFETY RULES
2.
WATER CONNECTION
3.
LOADING THE SALT
4.
ADJUSTING THE UPPER BASKET
(ONLY ON SOME MODELS)
5.
LOADING DISHES
6.
INFORMATION FOR TEST
LABORATORIES
7.
LOADING THE DETERGENT
8.
TYPES OF DETERGENT
9.
LOADING THE RINSE AID
10.
CLEANING THE FILTERS
11.
PRACTICAL HINTS
12.
CLEANING AND MAINTENANCE
13.
DESCRIPTION OF THE CONTROL
PANEL
14.
TECHNICAL DATA
15.
PROGRAMME SELECTION AND
SPECIAL FEATURES
16.
REMOTE CONTROL (Wi-Fi)
17.
PROGRAMME LEGEND
18.
WATER SOFTENER UNIT
19.
TROUBLESHOOTING AND WARRANTY
20.
ENVIRONMENTAL CONDITIONS
Contents
3
EN
1. GENERAL SAFETY
RULES
This appliances is intended to
be used in household and
similar applications such as:
− Staff kitchen areas in
shops, offices and other
working environments;
− Farm houses;
− By clients in hotels, motels
and other residential type
environments;
− Bed and breakfast type
environments.
A different use of this appliance
from household environment
or from typical housekeeping
functions, as commercial use by
expert or trained users, is excluded
even in the above applications. If
the appliance is used in a manner
inconsistent with this it may reduce
the life of the appliance and may
void the manufacturer’s warranty.
Any damage to the appliance or
other damage or loss arising
through use that is not consistent
with domestic or household use
(even if located in a domestic or
household environment) shall not
be accepted by the manufacturer to
the fullest extent permitted by law.
for EU market
The appliance can be used by
those aged 8 or over and by
those with limited physical,
sensorial or mental capacities,
without experience or knowledge
of the product, only if supervised
or provided with instruction as
to the operation of the appliance,
in a safe way with awareness
of the possible risks.
for Extra EU markets
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use of
the appliance by a person
responsible for their safety.
Children should be supervised
to ensure that they do not play
with the appliance.
Children of aged 3 and under
should be kept away unless
continuously supervised.
If the supply cord is damaged,
it must be replaced by a
Special cord or assembly
available from the manufactured
or its service agent.
Only use the hose-sets
supplied with the appliance for
the water supply connection
(do not reuse old hose-sets).
4
Water pressure must be
between 0.08 MPa and 1 MPa.
Make sure carpets or rugs do
not obstruct the base or any of
the ventilation openings.
After installation, the appliance
must be positioned so that the
plug is accessible.
Do not leave the door open in
a horizontal position, in order
to avoid potential dangers (e.g.
tripping).
For further information on the
product or to consult the technical
data sheet, please refer to the
manufacturer's website.
For the maximum number of
place settings, see the relevant
data plate attached to the product
.
The technical details (supply voltage
and power input) are indicated
on the product rating plate.
Make sure that the electrical
system is earthed and complies
with all applicable laws, and
that the socket is compatible
with the plug of the appliance.
The manufacturer declines all
responsibility for any damage
to people or property due to
non-earthing of the machine.
Ensure that the dishwasher
does not crush power cables.
In general it is not advisable to
use adaptors, multiple plugs
and/or extension cables.
Before cleaning or maintaining
the dishwasher, unplug the
appliance and turn off the
water supply.
Do not pull on the power cord
or appliance to unplug the
machine.
WARNING:
Water may reach very high
temperature
s during the
wash cycle.
WARNING:
The appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a circuit
that is regularly switched on
and off by a utility.
Electrical connections and
safety instructions
5
EN
Do not leave the appliance
exposed to the elements (rain,
sun, etc.).
Leaning or sitting on the open
door of the dishwasher could
cause it to tip over.
When moving, do not lift the
dishwasher by the door; during
the transport, never lean the
door on the trolley. We
recommend two people lift the
machine.
The dishwasher is designed for
normal kitchen utensils. Objects
that have been contamined by
petrol, paint, traces of steel or
iron, corrosive chemicals, acids
or alkalis must not be washed in
the dishwasher.
If there is a water softening
device installed in the home
there is no need to add salt to
the water softener fitted in the
dishwasher.
If the appliance breaks down or
stops working properly, switch it
off, turn off the water supply and
do not tamper with it. Repair work
should only be carried out by an
approved service agent and only
genuine spare parts should be
fitted. Any failure to follow the
above advice may have serious
consequences for the safety of
the appliance.
If you need to move the
machine after removing the
packaging, do not try to lift it by
the bottom of the door. Open
the door slightly and lift the
machine by holding it on the top.
By marking this product,
we confirm, under our own
responsibility, full compliance
of this product with all
relevant safety, health and
environmental requirements
under European legislation.
Remove all elements of the
packaging.
Do not install or use the
dishwasher if it is damaged.
WARNING:
Keep packaging materials
away from children.
Installation
WARNING:
Knives and other utensils
with sharp points must be
loaded in the basket with
their points down or placed
in a horizontal position.
6
Follow the instructions supplied
with the product.
In case of breakage, the hose
must be replaced with an
original spare part available
from the manufacturer or its
service center.

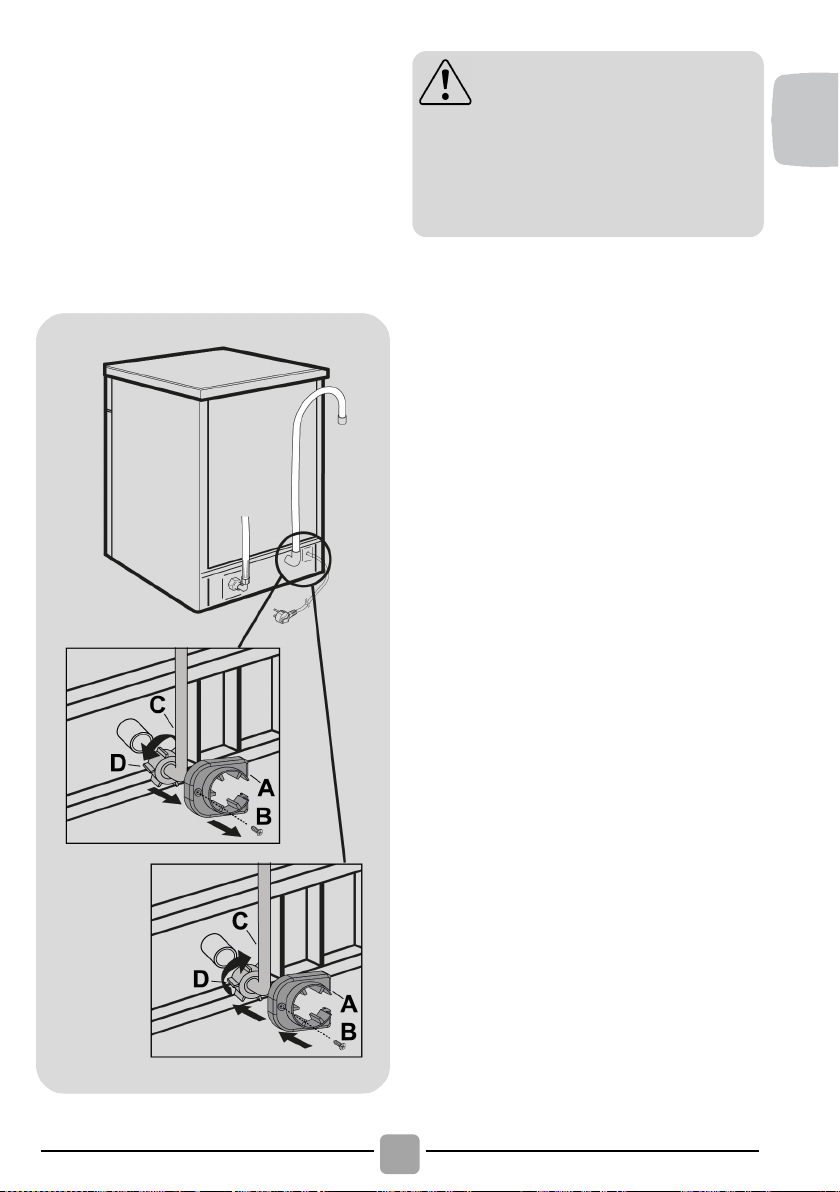

Remove the anti-removal
device (A) by unscrewing the
fixing screw (B).
Remove the inlet hose (C) by
unscrewing the ring nut (D).
Anti-removal device
(only on some models)
WARNING:
Use only the in
let hose
supplied with the appliance
for connection to the water
mains. Old inlet hoses must
not be reused.
Replacement of the inlet hose
WARNING:
Ensure tha
t the product,
before being switched on for
the first time, is installed in a
horizontal position by way of
the adjustable feet.
Check the horizontal position
using a spirit level
WARNING:
(only freestanding models)
If it is necessary to remove
the worktop to install the
dishwasher in a compartment
of a modular kitchen, please
contact our Authorized
Technical Assistance Centres.
WARNING:
(only built-
in and half
integrated models)
Do not connect the dishwasher
to the mains supply until the
front panel has been fully
installed. Otherwise, the risk
of an electrical hazard
may
persist.
WARNING:
(only built-in and semi-
integrated models)
Do not connect the dishwasher
to the mains supply unt
il all
installation operations have
been performed according
to the "TECHNICAL NOTES
FOR INSTALLATION" supplied
with the product.
7
EN
Connect the new inlet hose by
screwing the ring nut.
Fit the anti-removal device,
fixing it with the designated
screw.
WARNING:
Ensure that the ring nut has
been screwed in correctly
and that there are no
water
leakages.
8
2. WATER CONNECTION
The inlet and drain hoses can be directed
to left or right.
Water pressure must be between 0,08
MPa and 1 MPa.
The inlet hose must be connected to a tap
so that the water supply can be cut off
when the machine is not in use (fig.1).
The dishwasher is fitted with 3/4" threaded
connector (fig.2).
Connect inlet hose "A" to water tap
"B"
with a 3/4" attachment making sure that it
has been properly tightened.
If it is necessary, the inlet pipe can be
lengthened up to 2,5 m. The extension
pipe is available from the After Sales
Service Centre.
If the dishwasher is connected to new
pipes or to pipes which have not been
inuse for a long time run water through for
a few minutes before connecting the inlet
hose. In this way no deposits of san
d or
rust will clog up the water inflow filter.
The dishwasher can be connected to
either cold or hot water, as long as it
is no hotter than 60°C.
The appliance must be connected to
the water mains using new hose-
sets.
The old hose-
sets should not be
reused.
9
EN
SOM
E MODELS
may include one or more
of the following features:

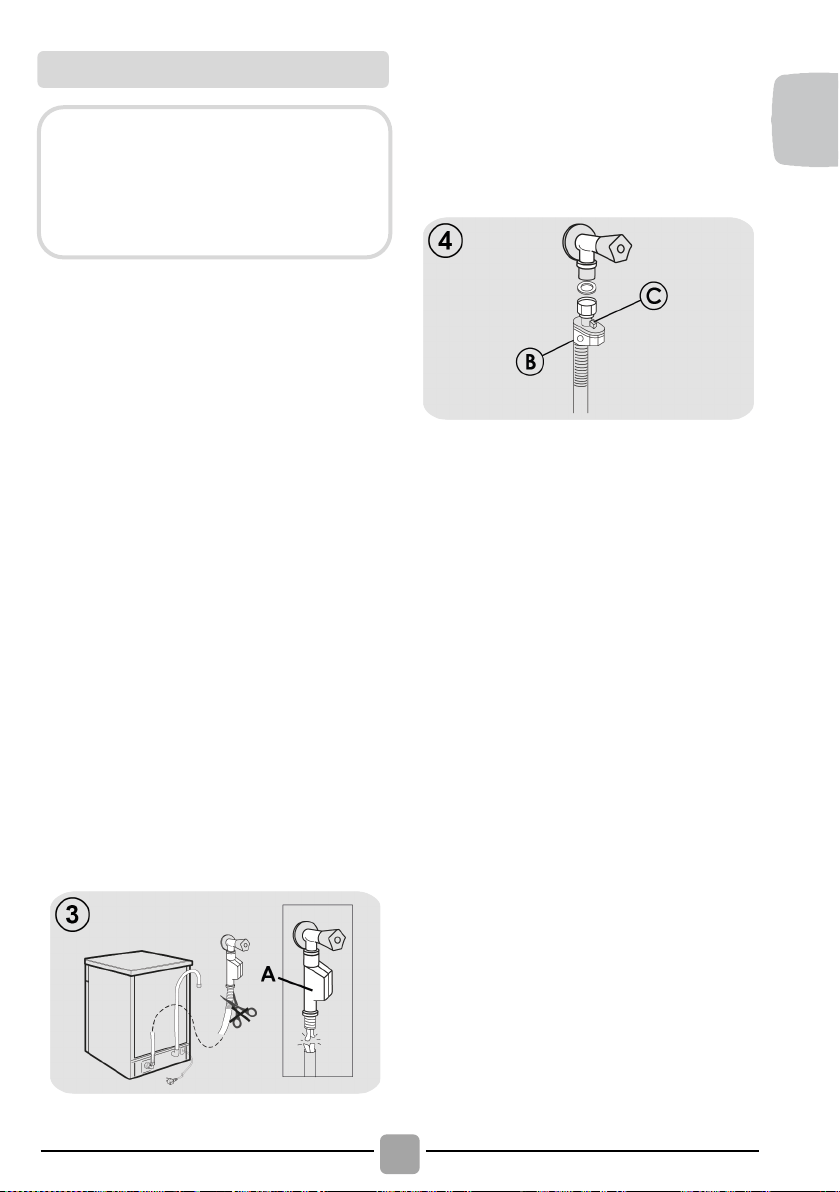

WATERBLOCK (fig.3)
The waterblock system has been designed
to
improve the safety of your appliance. The
system prevents flooding which might be
caused by a machine malfunction or as a
result of a fracture on the rubber pipes
and in particular on the water supply pipe.
How it works
A sump located on the base of the appliance
collects any possible water leakage and
operates a sensor which activates a valve
placed under the water tap and blocks any
water, even with the tap fully opened.
If
box "A"
containing the electrical parts is
damaged, remove the plug from the socket
immediately. To ensure perfect operation of
the safety system, the hose with box "A"
should be connected to the tap as shown in
the
figure
. The water supply hose should
not
be cut, as it contains live parts. If the
hose is not long enough for correct
connection, it must be replaced with a longer
one. The hose can be obtained from the
Technical Assistance Centre.
AQUASTOP (fig.4):
A device located on the supply tube
that
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
window "B"
and the tube must be
replaced. To unscrew the nut, press the
one-way lock device "C".
All the dishwashers are equipped with
an overflow safety device which, if
water exceeds normal levels due to
malfunctions, automatically blocks
water flow and/or drains excess
quantities.
Hydraulic safety devices
10
The outlet hose should disharge into a
standpipe, making sure that there are no
kinks (fig.5).
The standpipe must be at least 40 cm
above floor level and it must have an
internal diameter of at least 4 cm.
It is advisable to fit an anti-
odour air trap
(fig.5X)
. If necessary the outlet hose can
be extended up to 2,5 m, provided that it
is kept at a maximum height of 85 cm
above floor level. The extension pipe is
available from the After Sales Service
Centre.
The hose can be hooked over the side of
the sink, but it must not be immersed in
water, in order to prevent water from
being syphoned back to the machine
when this is in operation (fig.5Y).
When installing the appliance under a
worktop the hose pipe clam
p must be
attached to the wall in the highest
possible position under the worktop
(fig.5Z).
Check that there are no kinks in the inlet
and outlet hoses.
Connecting the outlet hose
11
EN

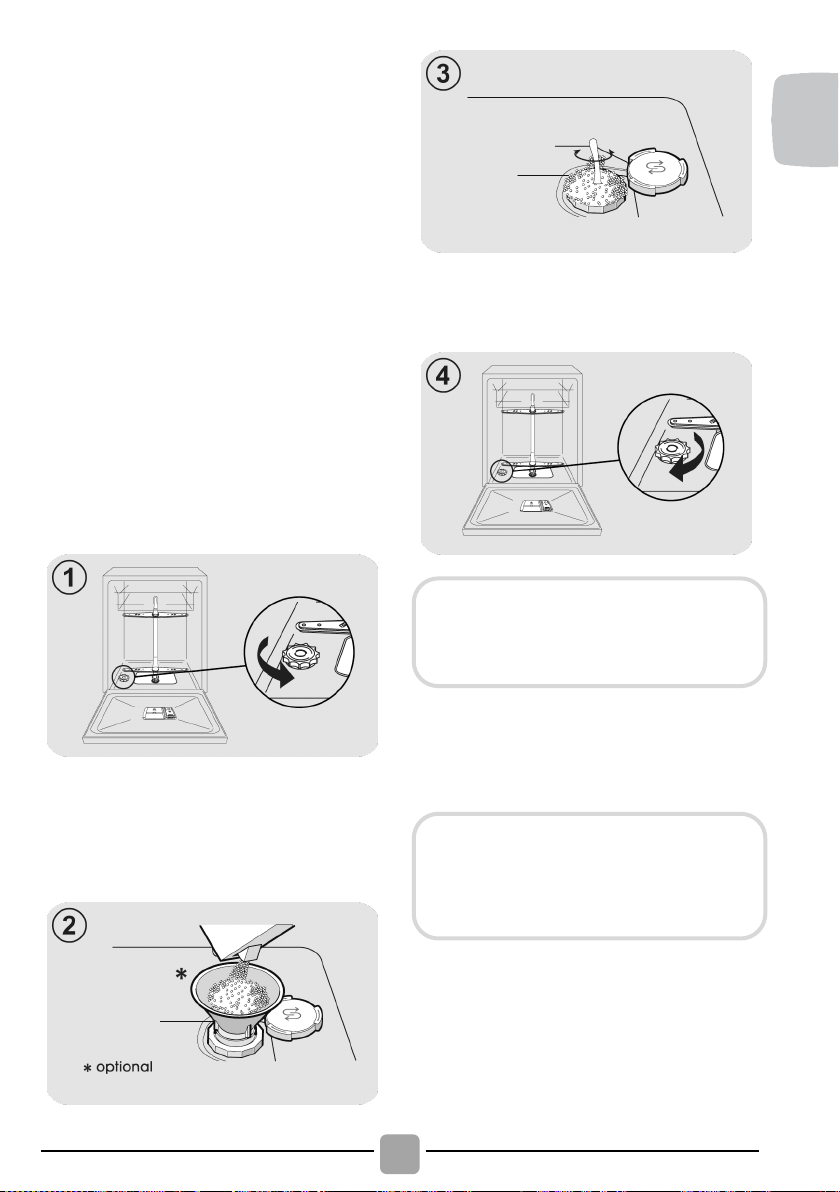

3. LOADING THE SALT
(Fig. A "1")
The appearance of white stains on dishes
is generally a warning sign that the salt
container needs filling.
On the bottom of the machine there is a
container for the salt for regenerating the
softener.
It is important to use only a salt that is
specifically designed for dishwasher.
Other types of salt contain small
quantities of insoluble particles which
over a long period of time may affect and
deteriorate the softener performance.
To add salt, unscrew the cap of the
container on the bottom and then refill the
container.
During this operation a little water will
overflow; but keep adding salt until the
container is full. When the container is
full, clean the thread of salt residue and
retighten the tap.
After loading the salt, it is recommended
running a complete washing cycle, or
COLD RINSE programme.
The salt dispenser has a capacity of
between 1 kg and, for efficient use of the
appliance, it should be refilled from time
to time .
(Only for first start up) When the
appliance is used for the first time,
after completely filling the
salt
container, it is necessary to add water
until the container overflows.
After loading the salt, YOU MUST run
a complete washing cycle, or the
PRE-
WASH/COLD RINSE/REFRESH
programme.
12
4. ADJUSTING THE UPPER
BASKET (ONLY ON SOME
MODELS)
Type "A":
1. Turn front blocks "A" outwards;
2. Remove the basket and remount it in
the upper position;
3. Replace blocks "A" in the original
position.
Following this operation, the movable
supports cannot be used in the upper
position.
Type "A"
Type "B":
(ONLY MODELS WITH EASY CLICK)
The upper basket is equipped with a height
adjustment system.
To lift it: lift the basket holding it by the
sides, as soon as it is in a raised position,
let it go without applying any pressure to the
levers.
To lower it: hold the basket by the sides,
press the two B levers on the sides of the
basket, and lower it.
WARNING:
Never raise or lower the basket by
working on one side only.
WARNING:
Always accompany the basket during
its descent into the stop position.
WARNING:
We recommend adjusting the basket
before loading the dishes.
During the first start-up, the upper
basket may be in the upper or lower
position. Place the basket in the upper
or lower position, as appropriate for
the requirements of the load,
following the instructions provided.
13
EN

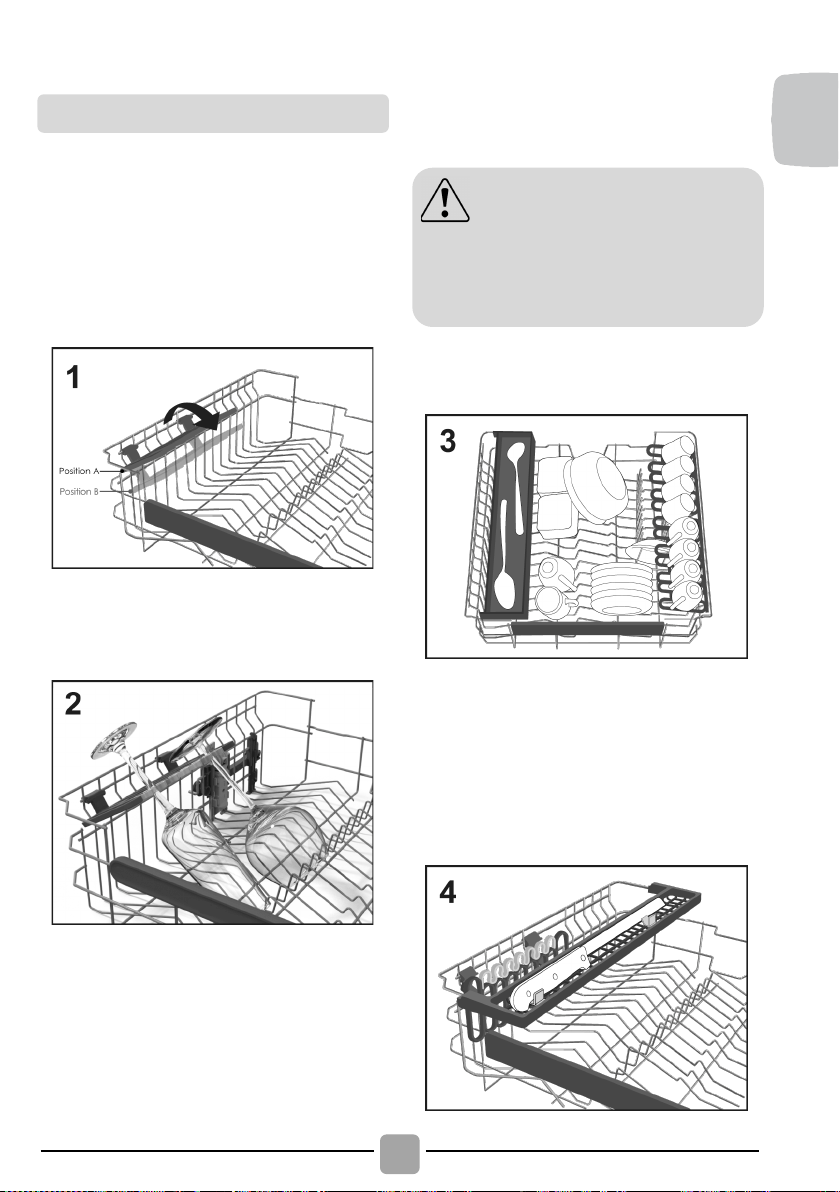

5. LOADING DISHES
Cup Holder
(only on some models)
The upper basket (fig.1) is equipped with
movable supports hooked to the side panel.
They can either be placed in the open
position (A) to place tea cups, coffee, long
knives and ladles or in the lowered position
(B) to have more space in the upper basket.
Goblet-shaped glasses can be hung on
the ends of the supports themselves.
(fig.2).
Using the upper basket
The upper basket has been designed to
offer maximum flexibility of use. It can be
loaded with dessert plates, cups and
glasses, which it is advisable to lock to
avoid to avoid them being overturned by
the jets.
Position the larger plates, slightly inclined
towards the front in order to facilitate the
easy insertion of the basket inside the
machine.
A standard daily load is represented in fig.3
"Maxi-Ladle"
(only on some models)
This accessory (fig.4), has been designed
to provide the optimal washing position for
all long kitchen objects or tools such as
bread knives, ladles, and forks
WARNING:
After loading the basket make sure
that the spray arm rotates freely
without hitting dishes or kitchen
utensils.
Using the upper basket
14
The lower basket houses pots, pans,
tureens, salad bowls, lids, serving plates,
dinner plates, and soup plates.
The cutlery should be placed with the
handle down, in the special plastic
container positioned in the lower basket
(fig.10-11) making sure that the cutlery
itself does not prevent the rotation of the
spray arm or the opening of the detergent
compartment.
Foldable racks
(only on some models)

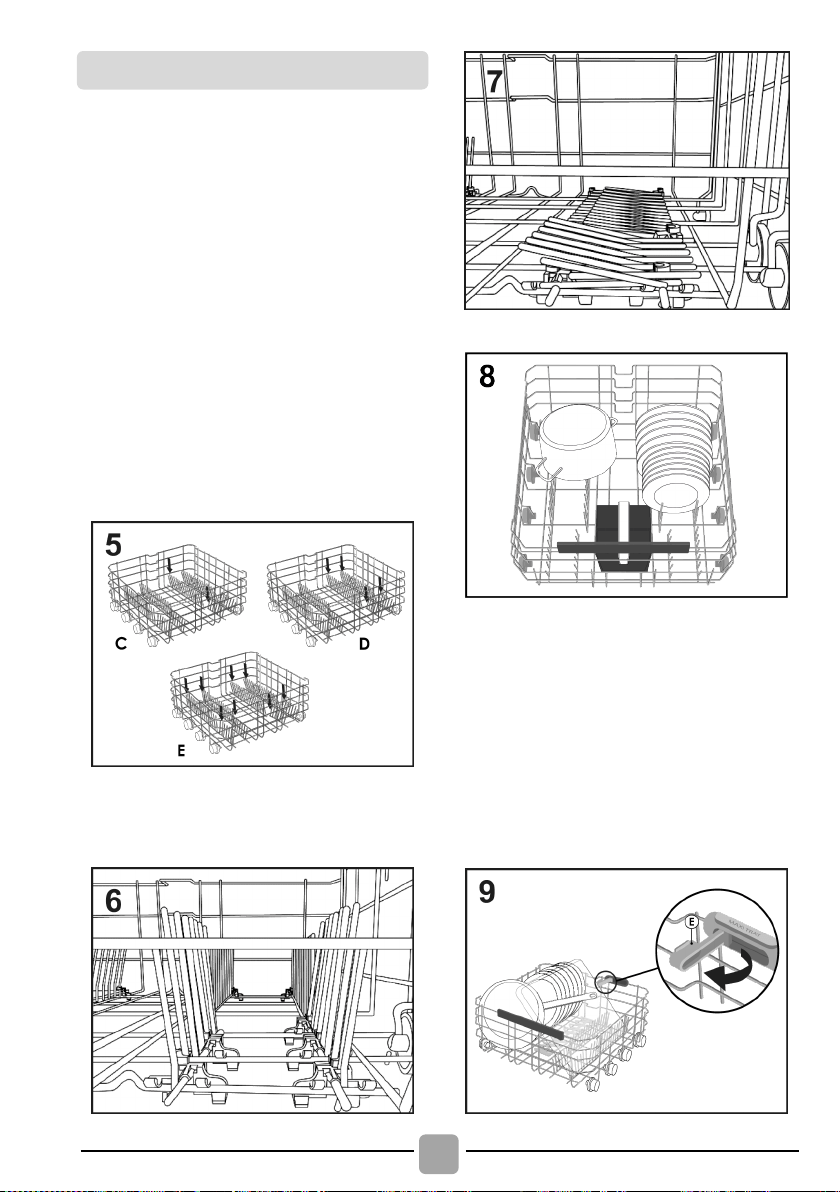

In the lower basket (fig.5), there may be
some adjustable combs (C-D-E depending
on the model) useful to guarantee
optimum stability for the dishes.
Non-standard size or shaped dishes or
plates can be raised/lowered (fig. 6 and fig.
7) to ensure maximum loading flexibility.
A standard daily load is represented in fig.9.
The rational and correct arrangement of the
dishes is an essential condition for a good
washing result.
Maxi Tray
(only on some models)
This accessory has been designed to
provide the optimal washing position for
oven trays and pans. Just extract the
supports (E) located on the lower basket
and place the kitchen accessories on them
(fig.9).
Using the lower basket
15
EN

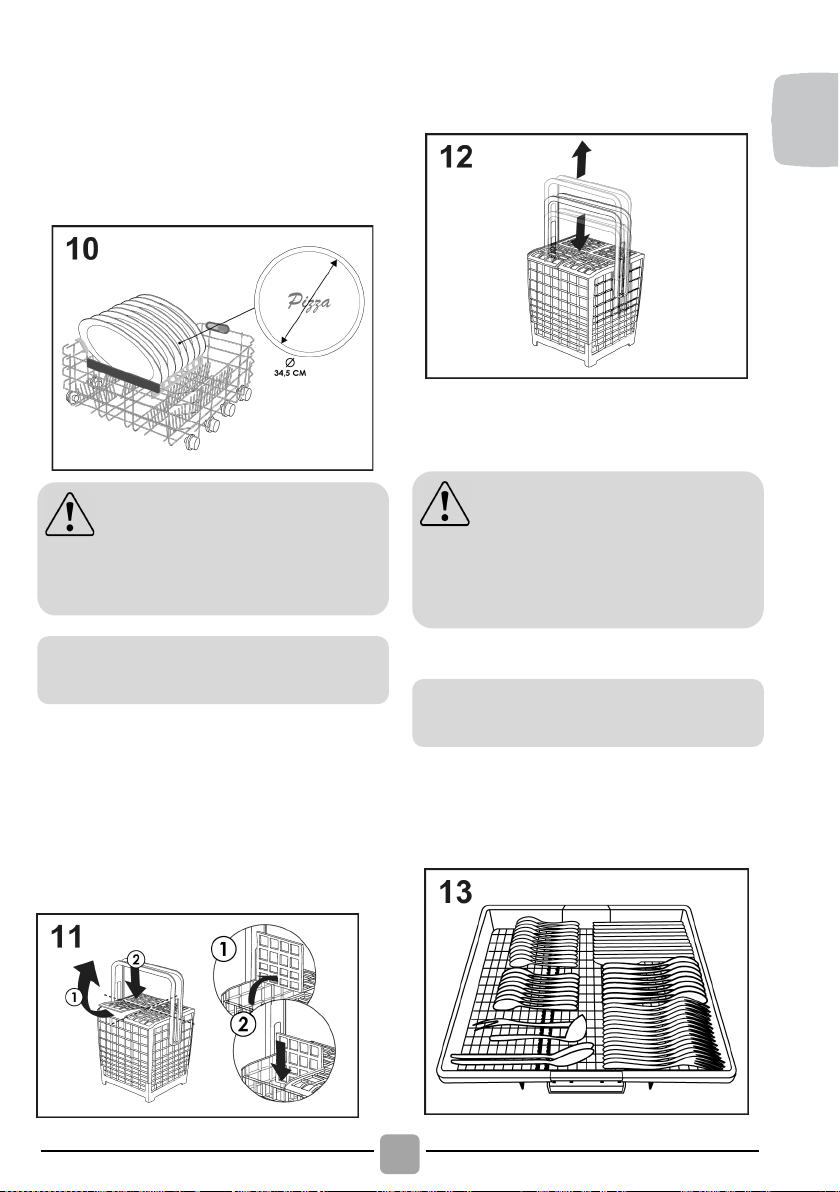

Maxi Plates
(only on some models)
The Maxi Plates system (fig.10) has been
designed to provide the optimal washing
position thanks to two special supports for
up to 8 8 larger-than-standard size plates,
up to a diameter of 34.5cm (for example
pizza dishes).
The cutlery basket is intended to contain
cutlery of all kinds, excluding those of such
length as to interfere with the upper
sprinkler. The cutlery must be placed in the
appropriate spaces of the upper grids to
allow for optimal water passage. It is
possible to remove the upper grids by lifting
them and sliding them inside their seat
(fig.11).
You can adjust the height of the cutlery
basket handle by pulling or pushing the
handle (fig.12).
An example of the positioning of the cutlery
rack is shown in figure 8.
Use the third basket to load the cutlery, as
shown in the image (fig.13).
Load knives with the sharp, cutting side
facing downwards.
Using the third basket
(only on some models)
WARNING:
Knives and other utensils with sharp
points must be loaded in the basket
with their points down or placed in a
horizontal position.
Cutlery basket
(only on some models)
WARNING:
After loading the basket make sure
that
the spray arm rotates freely without
hitting dishes or kitchen utensils.
16
If necessary, the side shelves of the third
basket can be slid or removed (fig.14-15) in
order to create additional space in the
upper basket for bulky items such as wine
crystals.
In some programmes (see table of
programmes), the third washing arm,
positioned at the bottom of the dishwasher
POWER WASH, will also be enabled.
This feature is ideal when cleaning heavily
soiled tableware or cookware, placing them
directly in the area of the basket above the
POWER WASH arm.
6. INFORMATION FOR
TEST LABORATORIES
Please ask information required for
comparison testing and measuring noise
levels, according to EN normative, to the
following address:
testinfo-dishwasher@candy.it
In the request, please specify model name
and number of the dishwasher (see rating
plate).
POWER WASH (only on some
models)
17
EN

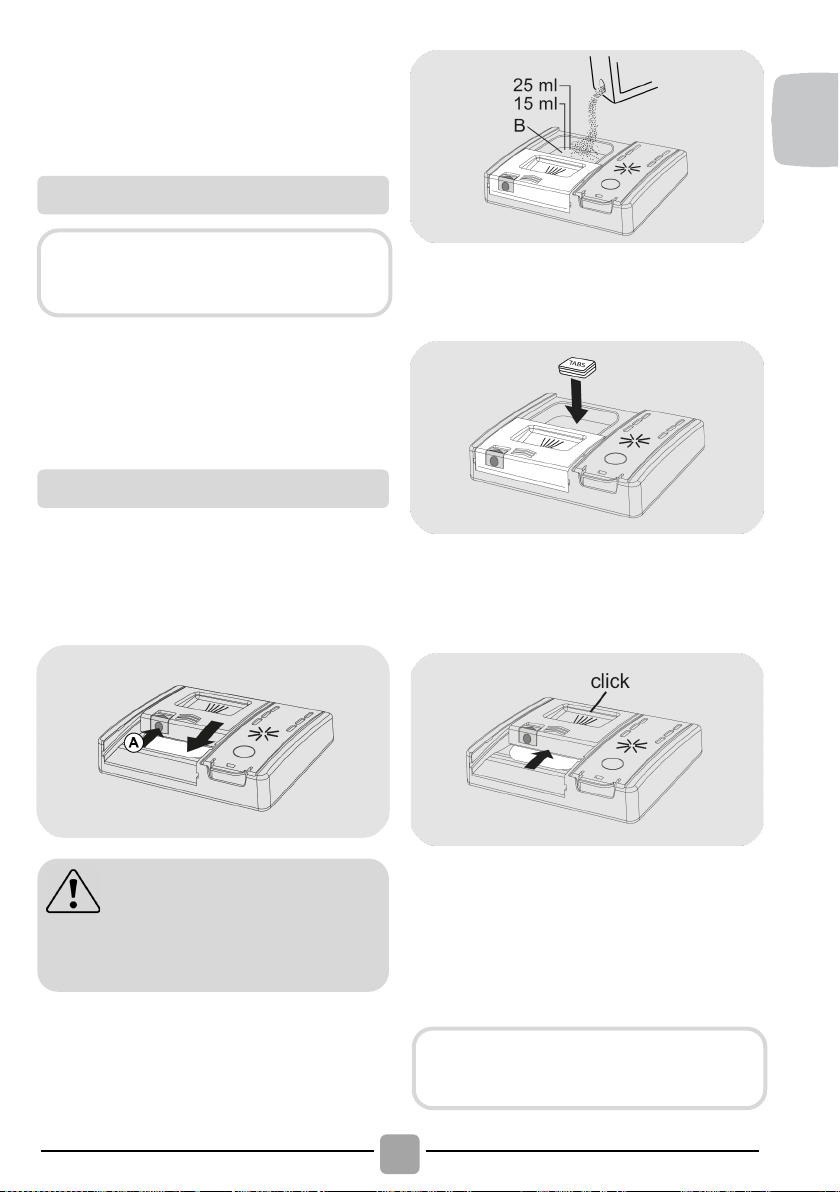

7. LOADING THE
DETERGENT
(Fig. A "2")
Unsuitable detergents (like those for
washing up by hand) do not contain the
proper ingredients for use in a dishwasher,
and stop the dishwasher from working
correctly.
The detergent container is inside the door
(fig. A "2"). If container door is closed, to
open it simply press the release button (A):
the door is always open at the end of any
wash programme ready for the next use.
The amount of detergent to be used varies
according to how dirty the dishes are and
on the type of dishes to be washed. We
advise using 20:30 g of detergent in the
wash section of detergent compartment (B).
If you are using tablets, one should suffice.
Insert the TABLETS, making sure that they
do not interfere with the opening system.
After pouring the detergent into the
container, close the door again, pushing in
the direction of the arrow until it clicks into
place.
Since not all detergents are the same the
instructions on the boxes of detergent can
vary. We should just like to remind users
that too little detergent does not clean the
dishes properly whilst too much detergent
will not produce better results and is also a
waste.
Do not use an excessive amount of
detergent and help limit damage to the
environment at the same time.
WARNING
When loading the lower basket, please
ensure that the plates or others do not
obstruct the detergent dispenser.
Filling the detergent container
It is essential to use a detergent that is
specifically designed for dishwashers
either in powder, liquid,gel or tablet form.
The detergent
18
In programmes that have a pre-wash cycle
that requires an additional dose of
detergent (see the washing programmes
chapter), the additional detergent must be
poured into the appropriate location (C).

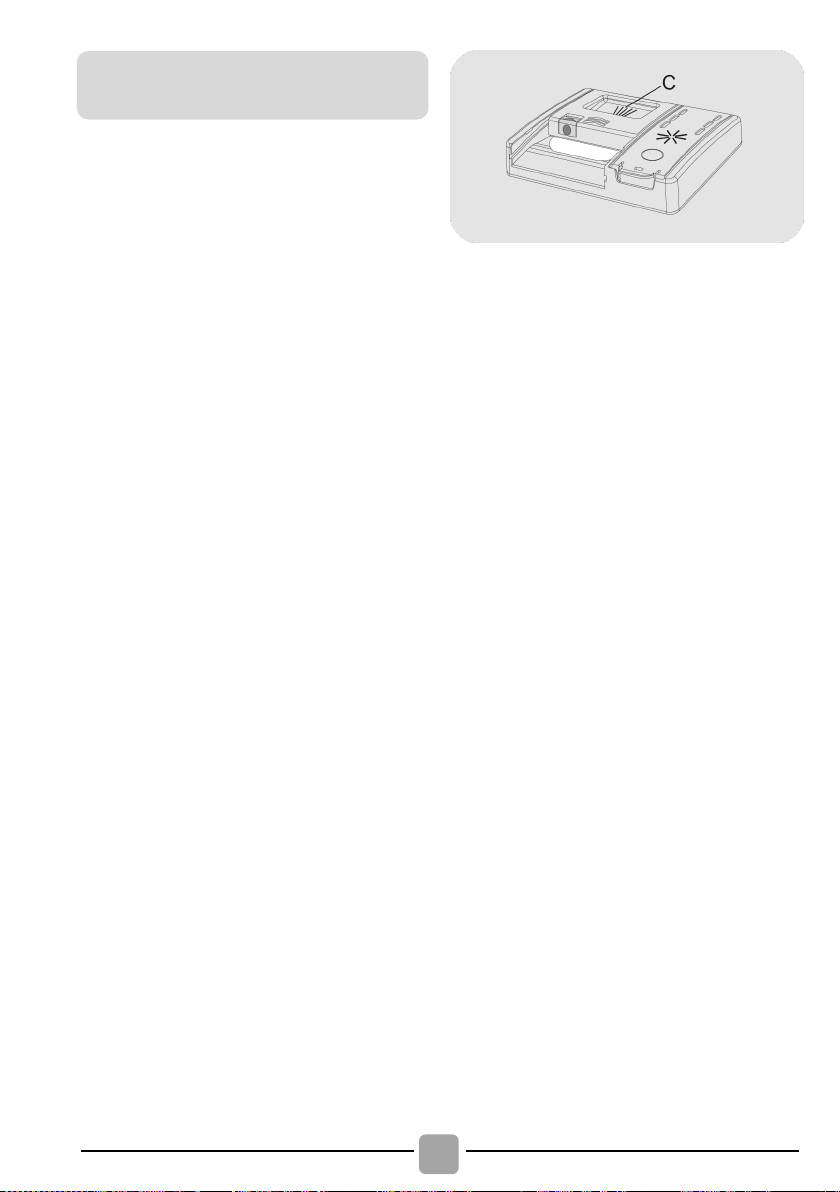

Loading pre-wash detergent in
programmes that require it
19
EN
8. TYPES OF DETERGENT
Detergent tablets of different manufacturers
dissolve at different speeds, for this reason,
during short programmes, some detergent
tablets may be not fully effective, because
they are not completely dissolved. If these
products are used, is recommended to
choose longer programmes to guarantee
the complete use of the detergent.
The concentrated detergents, with reduced
alkalinity and with natural enzymes, in
conjunction with 50°C wash programmes,
have a smaller impact on the environment
and they protect the dishes and the
dishwasher. The 50°C wash programmes
purposely exploit the dirt-dissolving
properties of the enzymes, allowing
therefore, with the use of the concentrated
detergents, to achieve the same results of
the 65°C programmes but at a lower
temperature.
The detergents that also contain the rinse
aid must be placed in the wash section of
the detergent container. The rinse aid
container must be empty (if it is not empty,
set the rinse aid regulator to lowest position
before using combined detergents).
If you are planning to use "TABLETS" (“3 in
1 “/ “4 in 1”/ “5 in 1”, etc.) combined
detergents i.e. those with built in salt and/or
rinse agent, we would advise the following:
read carefully and follow the manufacturer’s
instructions given on the packaging;
the effectiveness of detergents containing
the built in water softener/salt depends on
the hardness of your water supply. Check
that the hardness of your water supply is
within the effective range given on the
detergent packaging.
If when using this type of product, you
don't get satisfactory washing results,
please contact the detergent manufacturer.
In certain circumstances use of combined
detergents can cause:
limescale deposits on dishes or in the
dishwasher;
a reduction in washing and drying
performance.
Please note that using the "TABLETS"
combined detergents, the rinse aid and
salt indicator lights (only used on
selected models) are superfluous, so
you must ignore the lights.
If washing and/or drying problems occur,
we recommend you return to use traditional
separate products (salt, detergent and rinse
agent). This will ensure that the water
softener in the dishwasher operates
correctly.
In this case, we recommends that you:
refill both the salt and rinse aid container;
run one normal washing cycle without a
load.
Please note that on return to the use of
conventional salt, a number of cycles will be
required before the system becomes fully
efficient again.
Any problems which arise as a direct
result of the use of these products are not
covered by our warranty.
"TABLETS" combined detergents
Combined detergents
Concentrated detergents
To get satisfactory washing results,
the tablets MUST be placed in the
wash section of the detergent
container and NOT directly in the tub.
Detergent tablets
20
9. LOADING THE RINSE AID
(Fig. A "3")
Rinse aid, which is automatically released
during the last rinsing cycle, helps the
dishes to dry quickly and prevents spots
and stains forming.

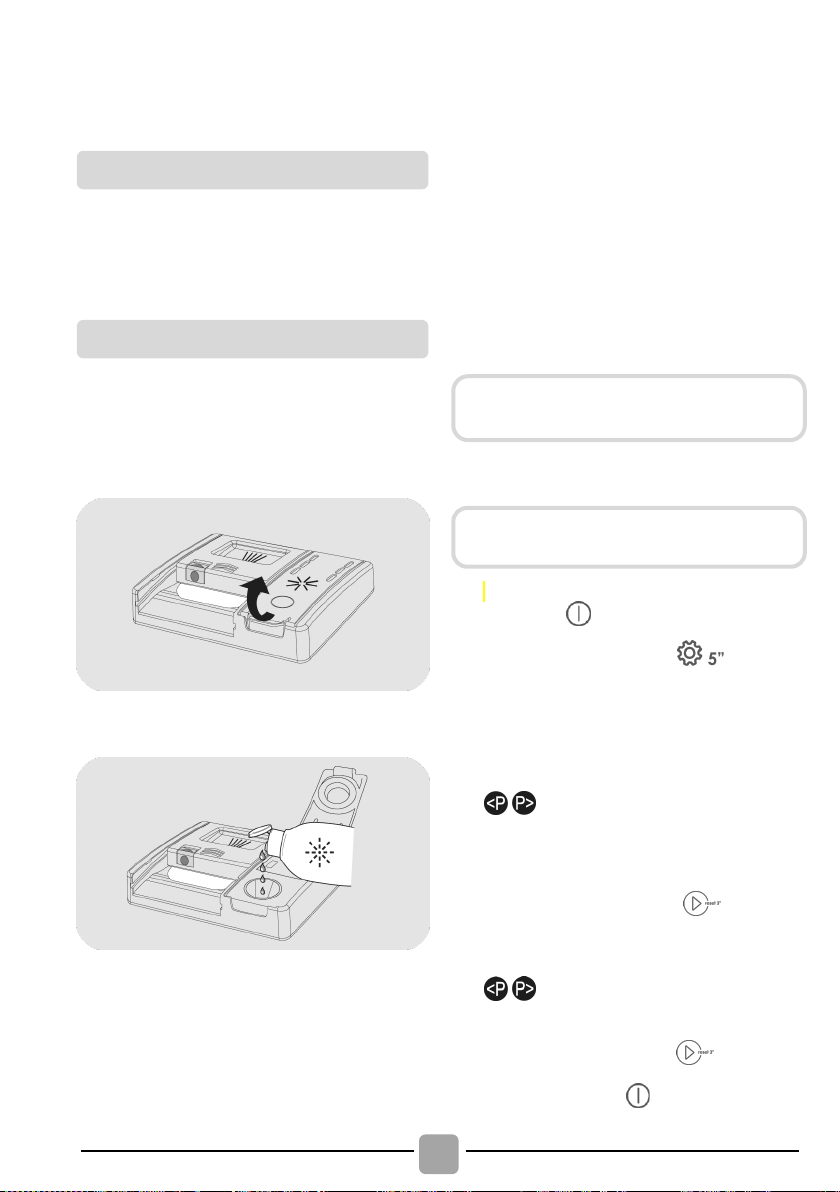

The rinse aid container is next to the
detergent container (fig.A "3").
To open, press the tab on the lid of the
rinse aid dispenser and lift it.
Add rinse aid up to the Max. indication.
If the rinse aid spills out, remove it from
the wash tank.
Spilled rinse aid can cause excessive
frothing during the wash cycle.
Close the lid of the rinse aid dispenser.
The lid clicks into the locking position.
Always use rinse additives that are suitable
for automatic dishwashers.
Models equipped with display or
rinse aid indicator (only on some
models)
When it becomes necessary to fill the rinse
aid container, the display will indicate the
lack of rinse aid (in models with display), or
the designated indicator light on the
dashboard will turn on.
Adjusting the amount of rinse aid
1. Switch the appliance on, press
ON/OFF"
button.
2. Hold the "SETTINGS (5Sec.)"
button, a short beep will sound.
3.The "SETTINGS" message appears on
the display.
4. Press the "PROGRAMME SELECTION"
buttons to navigate the
submenu.
5. Choose the "RINSE AID" option.
6. Press "START/RESET" to access
the regulation levels.
7.
Press "PROGRAMME SELECTION"
to choose the value (R1......R6).
With level R0, no rinse aid is dispensed.
8.Press "START/RESET" to confirm.
9. Press "ON/OFF" to confirm.
ALWAYS start the procedure with the
dishwasher turned off.
This has been factory-set to level 4, as
this satisfies the majority of users.
Filling the rinse aid container
Rinse aid
21
EN
The limestone content of the water
considerably affects the formation of
limescale and the drying performance.
It is therefore important to regulate the
quantity of rinse aid to achieve good
washing results.
If, after the wash, there are streaks on the
dishes, decrease the amount by one
position. If whitish spots occur, increase the
amount by one position.
Models not equipped with rinse
aid indicator (only on some
models):

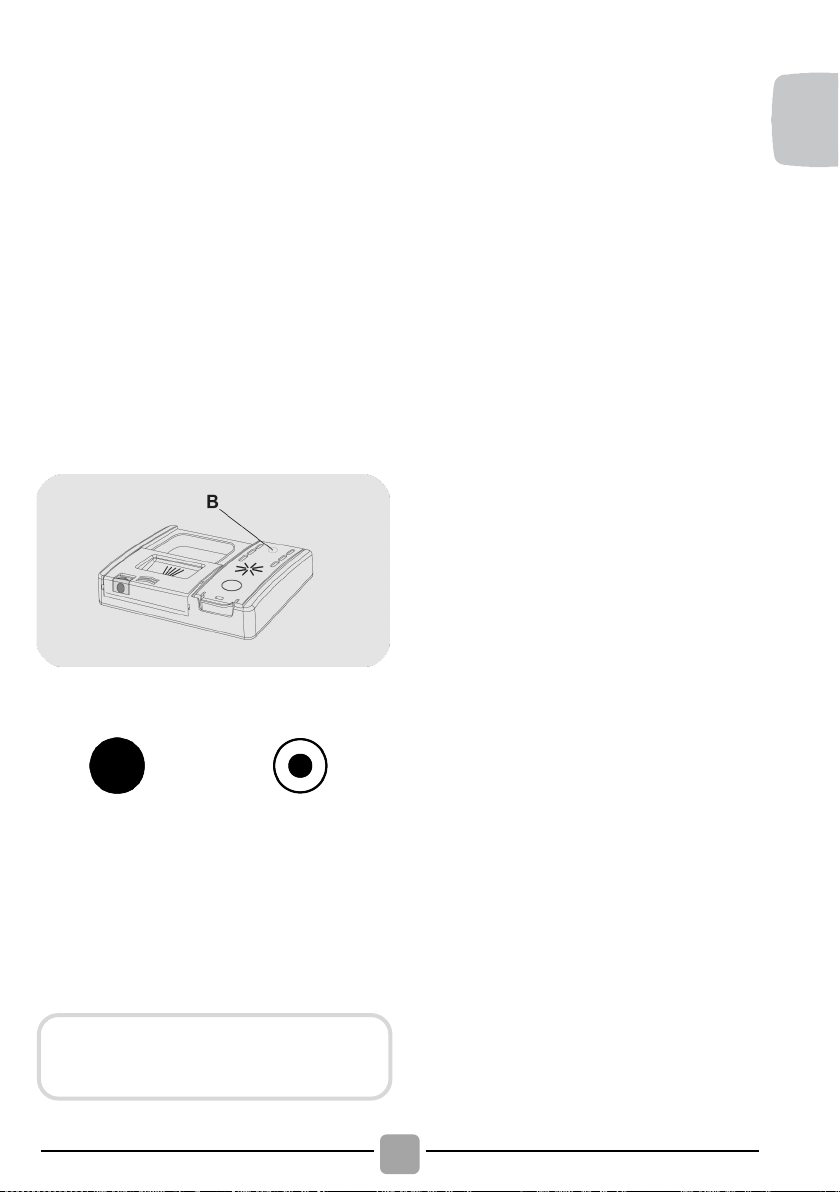

You can check the rinse aid level by means
of the optical display (B) on the dispensing
container.
FULL EMPTY
dark
light
Adjusting the amount of rinse aid.
It is only possible to adjust the amount
of rinse aid used by the dishwasher via a
special APP that can be downloaded
from the site with your smartphone.
The limestone content of the water
considerably affects the formation of
limescale and the drying performance.
It is therefore important to regulate the
quantity of rinse aid to achieve good
washing results.
If, after the wash, there are streaks on the
dishes, decrease the amount by one
position. If whitish spots occur, increase the
amount by one position.
The adjustment has been factory-set
at level 2 as this satisfies the majority
of users.
22
10. CLEANING THE FILTERS
(Fig. A "4")
The filter system consists of:
- A central container that traps the larger
particles;
- A micro filter, located beneath the
gauze, that traps the tiniest particles
ensuring a perfect rinse;
- A flat gauze that continuously filters the
wash water.
To achieve excellent results every time,
the filters should be checked and cleaned
after each wash.
To remove the filter unit, simply turn the
handle anti-clockwise
and extract it by
pulling it upwards (fig.1).
For ease of cleaning, the central
container is removable (fig.2) by pressing
the two buttons on the sides and pulling it
upwards.
Remove the gauze filter (fig.3) and wash
the whole unit under a jet of water (fig.4).
If necessary a small brush can be used.
Re-assemble the plate and filter unit by
following the previous operations in
reverse order, taking care to screw the
components back correctly, so as not to
jeopardise the operation of the
dishwasher.
With the Self-cleaning Micro filter,
maintenance is reduced and the filter unit
need only be checked every two weeks.
Nevertheless, after each wash it is
advisable to check that the central
container and the gauze filter are not
clogged.
23
EN
Never use the dishwasher without the
filters.
WARNING
After cleaning the filters, make
sure that
they are correctly reassembled and
that the gauze filter is properly
positioned at the bottom of the
dishwasher. Make sure that the filter
is screwed back, clockwise, into the
gauze, as poor seating of the filter unit
could have an adverse effec
t on the
efficiency of the appliance.
24
11. PRACTICAL HINTS
Before placing the dishes in the
dishwasher, remove any remaining food
(bones, shells, pieces of meat or
vegetables, coffee grounds, skin of fruit,
cigarette ash, thooth picks etc. to avoid
blocking the filters, water outlet and
washing arm nozzles.
Try not to rinse the dishes before loading
them into the dishwasher.
If saucepans and oven dishes are
encrusted with the remains of burnt or
roast food, it is advisable to leave them to
soak before washing.
Place the dishes face downwards.
Try to place the dishes in such a way that
they are not touching one another. If they
are loaded properly you will get better results.
After loading the dishes check that the
washing arms can rotate freely.
Pans and other dishes that have
particularly stubborn food particles or
remnants of burnt food should be left to
soak in water with dishwasher detergent.
To wash silver properly:
a) rinse the silver immediately after use,
especially if it has been used for
mayonnaise, eggs, fish etc.;
b) do not sprinkle detergent onto it;
c) keep it separate from other metals.
Tips on how to save money and not
damage the environment when using your
appliance.
Achieve the best use of energy, water,
detergent and time by using the
recommended maximum load size. Save
up to 50% energy by washing a full load
instead of 2 half loads.
If you want the dishwasher to give a
complete wash, place the dishes in the
dishwasher at the end of each meal and if
necessary turn on the COLD RINSE cycle
to soften the food remains and remove
bigger particles of food from the new load
of dishes. When the dishwasher is full
start the complete wash cycle programme.
If the dishes are not very dirty or if the
baskets are not very full select an
ECONOMY programme, following the
instructions in the program list.
The most efficient programmes in terms
of combined use of water and energy are
usually the longer-lasting ones with lower
temperature.
It should be remembered that not all
dishes are suitable for washing in a
dishwasher. We advise against using the
dishwasher to wash items in
thermoplastic, cutlery with wooden or
plastic handles, saucepans with wooden
handles, items in aluminum, crystal
leaded glass unless otherwise stated.
Certain decorations may fade. It is
therefore a good idea before loading the
whole batch to wash just one of the items
first so as to be sure that others like it will
not fade.
It is a good idea not to put silver cutlery
with non-stainless steel handles into the
dishwasher as there could be a chemical
reaction between them.
In order to avoid any dripping from the top
rack, remove the lower rack first.
If the dishes are to be left in the machine
for some time, leave the door ajar, to let
some air circulate and to improve the
drying performance.
Useful hints
When buying new crockery or cutlery
always make sure that they are
suitable for washing in a dishwasher.
What not to wash.
How to make savings.
How to get really good wash
results.
25
EN
12. CLEANING AND
MAINTENANCE
Looking after your appliance correctly can
extend its lifespan.
Disconnect the machine from the power
supply.
To clean the dishwasher outside, do not
use solvents (degreasing action) neither
abrasives, but only a cloth soaked with
water.
The dishwasher does not require special
maintenance, because the tank is self-
cleaning.
Regularly wipe the door gasket with a
damp cloth to remove any food remains
or rinse aid.
Dishwasher cleaning is recommended, in
order to remove limestone deposits or
dirt. We suggest you run a washing cycle
periodically with specialist dishwasher
cleaning products. For all cleaning
operations the dishwasher must be empty.
If, in spite of the routine cleaning of the
filters, you notice that the dishes or pans
are not properly washed or rinsed, check
that all the spray heads on the rotor arms
(fig. A "5") are clear.
If they are blocked, clean them in the
following way:

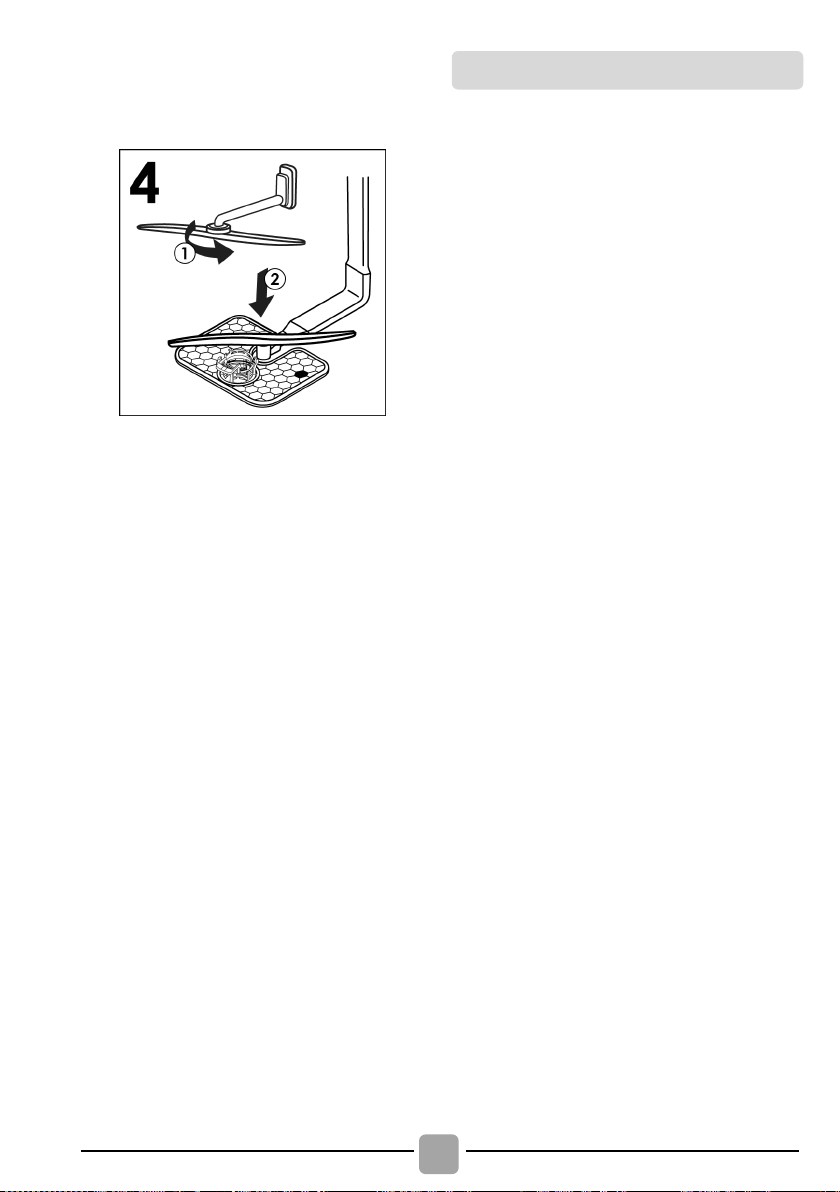

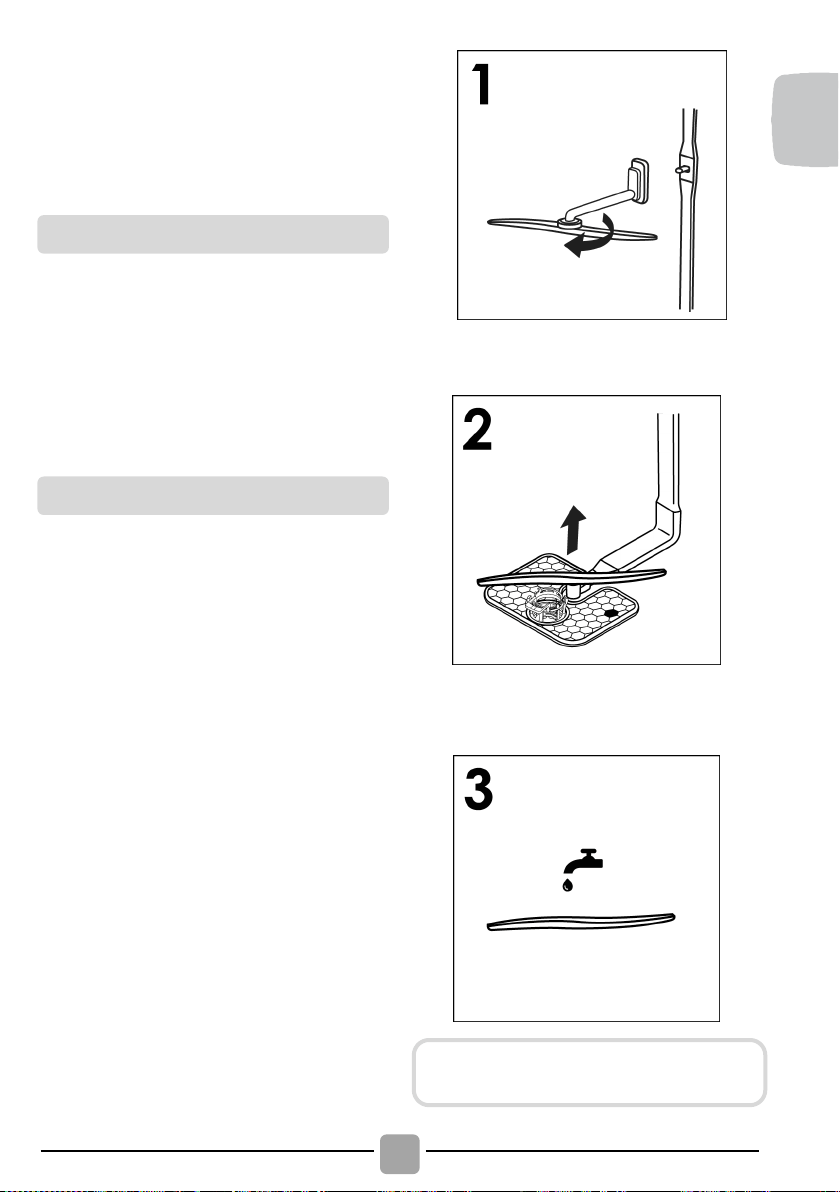

1) remove the upper rotor arm, turning the
ring nut from the right to the left (fig.1).
2) The lower rotor arm can be extracted by
simply pulling it upwards (fig.2).
3) wash the rotor arms under a jet of water
to clear any blockage in the spray
heads (fig.3).
Do not use tools that can deform the
spray heads.
Cleaning the appliance’s interior
Cleaning the appliance’s exterior
26
4) when you have finished, refit the rotor
arms in the same position,
remembering to re-align the arrow and
screw into position (fig.4).
5) Both the door lining and the tank lining
are in stainless steel; however, should
spots caused by oxidation occur, this is
probably due to a high level of iron salts
presents in the water.
6) The spots can be removed with a mild
abrasive agent; never use chlorine
based materials, steel wool, etc.
After every wash it is essential to turn off
water supply and to switch off the machine
by pressing the On/Off button to the off
position.
If the machine is not going to be used for
some time, it is advisable to follow these
rules:
1. do an empty wash with detergent in
order to clean the machine of any
deposits;
2. pull out the electric plug;
3. turn off the water tap;
4. fill the rinse aid container;
5. Ieave the door ajar;
6. keep the inside of the machine clean;
7. If the machine is left in places where the
temperature is below 0°C any water left
inside the pipes may freeze. Wait until
the temperature rises above zero and
then wait for about 24 hours before.
WHEN CYCLE IS FINISHED.
27
EN

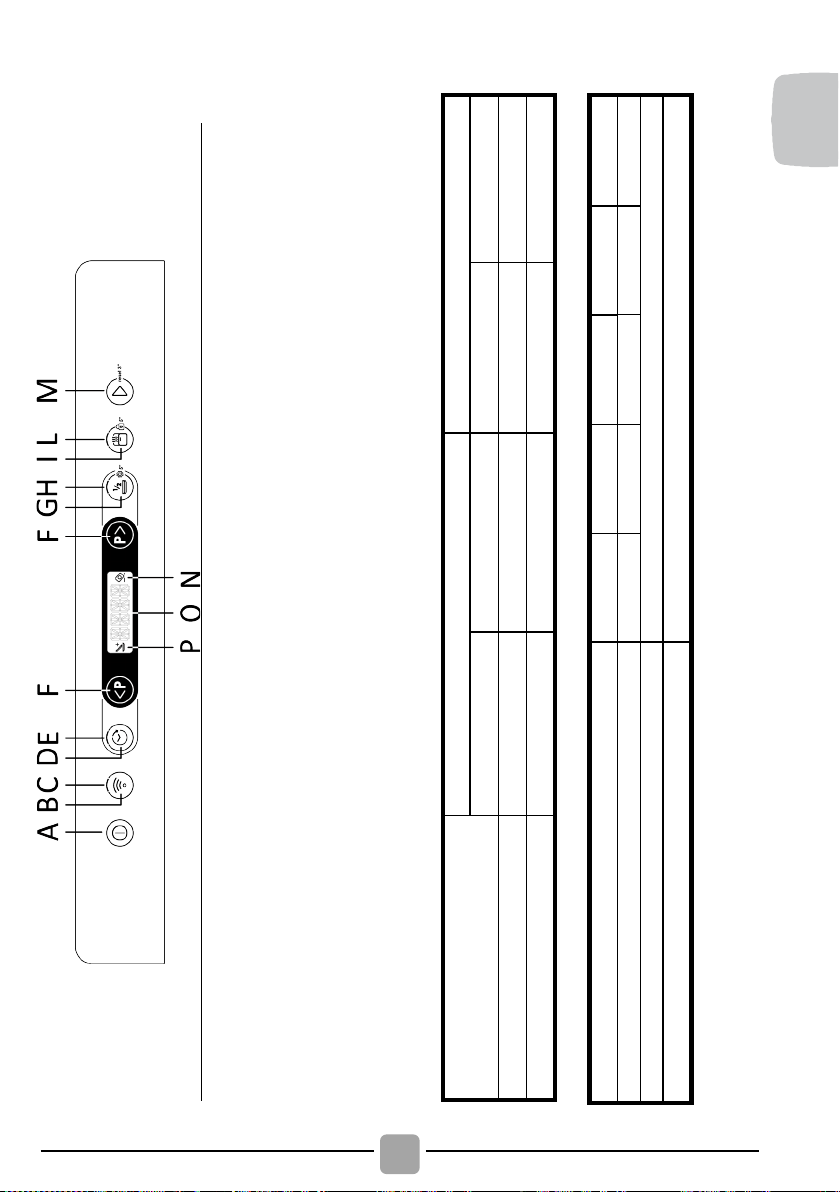

13. DESCRIPTION OF THE
CONTROL PANEL
H
HALF LOAD light
I
AUTO DOOR/CHILD LOCK button
L
SMART DOOR light
M
START/RESET button
N
TABLETS light
O
DISPLAY
P
ADDISH light
A
ON/OFF Button
B
ENROLMENT Wi
-Fi button
C
ENROLMENT Wi
-Fi light
D DELAY START button
E
DELAY START light
F
PROGRAMME SELECTION button
G
HALF LOAD/SETTING button
14. TECHNICAL DATA
TECHNICAL DATA (See rating plate)
16
9 people
Min. 0,08 – Max. 1
See rating plate
15
9 people
14
9 people
13
8 people
12
8 people
Place settings (EN 50242)
Capacity with pans and dishes
Water supply pressure (MPa)
Fuse / Power input / Supply voltage
SIZE
BUILT-IN
FULL
-
INTEGRATED
59,8x81,8 ÷ 89,8x55
117
HALF-
INTEGRATED
59,8x81,8 ÷ 89,8x57
117
FREE-STANDING
WITHOUT WORKTOP
59,8x82x58
117
WITH WORKTOP
60x85x60.9
120
DATA
Width x Height x Depth (cm)
Depth with door open (cm)
28
15.
PROGRAMME SELECTION
AND SPECIAL FEATURES
To turn the appliance on and off, press
the ON/OFF
button.
Connect the machine to the power
supply.
Press the "ON/OFF" button.
The "SET LANGUAGE" message will
appear on the display, followed by
"ENGLISH".
By pressing the "PROGRAM
SELECTION
"
button you can
select the preferred language.
To accept the choice of language, press
the "START/RESET"
button.
Immediately after, the "WELCOME"
message will appear on the display. just
once and the lights will all be off.
The pre-set "ECO" programme will
appear on the display.
To adapt the wash cycle to the type of
dirty dishes, choose the suitable programme
by selecting the two "PROGRAM
SELECTION
"
buttons.
Select the washing options if necessary.
Press the "START/RESET" button.
Hold down the ON/OFF button to turn the
machine on and the "ECO" programme, or
the programme you have decided to use,
will appear on the display, saving it when
the dishwasher is switched on. (To save the
programme, see the “SETTINGS menu” in
the specific paragraph "MEMO FUNCTION").
Models with Smart Loading Sensor
The
"AUTO WASH"
programme, automatically
sets the ideal temperature and washing
time, optimising water and electricity
consumption, thanks to an algorithm that
analyses the degree of dirtiness of the
dishes in real time.
Models with dirt sensor
(only on some models).
The dishwasher is equipped with a dirt
sensor, capable of analysing water
murkiness during all "AUTOMATIC"
programme phases (see programme
list). This device automatically adapts the
wash cycle parameters to the actual
quantity of dirt on the dishes, since water
murkiness is linked to the quantity of dirt on
the dishes. Thus, excellent washing results
are guaranteed while optimising water and
energy consumption.
Some programmes use an impulse or
intermittent washing system (depending on
the model) which reduces consumption,
noise and improves performance.
"IMPULSE"or "INTERMITTENCE"
programmes (only on some
models)
"AUTOMATIC" programmes
Next time you switch on the
appliance
WARNING:
In the event that the machine remains
switched on without selecting or
starting any programme, the
dishwasher
will switch off automatically after 5 minutes.
In this phase, only the "PROGRAMME
SELECTION" and "START/RESET"
buttons will remain active.
First time you switch on the
appliance
ON/OFF button
29
EN
When the programme starts, you should
only open the door and add more dishes
when the ADDISH indicator light is switched
on. The appliance will stop automatically
and the time remaining to the end of the
cycle will flash on the display. Close the
door, without pressing any buttons.
Opening the door when a programme is
running is not recommended especially
during the main wash and final hot rinse
phases. However, if the door is opened
while a programme is running (for example,
to add dishes) the machine stops automatically.
Close the door, without pressing any
buttons. The cycle will restart from where it
left off.
If you want to cancel and change a
programme that is already in progress,
proceed as follows:
1. Press and hold the "START/RESET"
button for at least 3 seconds.
2. The countdown appears on the display
"3 -2 -1" while the "RESET" button is
held down.
3. "RESET" will appear on the display and
beeps will sound.
4. The programme in progress will be
cancelled and the "ECO" programme,
or the programme you have decided to
use, appears on the display, memorising
it
when the dishwasher is switched on.
5. At this point you can set a new
programme using the "PROGRAMME
SELECTION
"
keys.
While the programme is running, the display
shows the time remaining until the end of
the cycle and the name of the programme
set can be displayed by pressing any key
except for "START/RESET"
.
Programme operations.
(only for free-standing models)
WARNING:
Before starting a new programme, you
should check that there is still
detergent in the dispenser. If
necessary, top up the detergent.
Changing a running programme
WARNING:
If you open the door during the drying
cycle, an intermittent audio signal
advises you that the drying cycle has
not yet finished.
Interrupting a programme
WARNING:
If you open the door during the drying
cycle, an intermittent audio signal
advises you that the drying cycle has
not yet finished.
Adding dishes after the ADDISH
indicator light has switched off is
strongly discouraged as this could
affect the wash performance.
Open the door slowly and carefully, to
avoid getting splashed by washing
water.
ADDISH
option to add
dishes after the programme has
started)
The "intermittent" working of the washing
pump is NOT to be considered a
malfunction; it is a characteristic of
impulse washing, and therefore
should be considered a normal feature
of the programme.
30
If there is any break in the power supply
while the dishwasher is operating, a
special memory stores the selected
programme and, when the power is
restored, it continues where it left off.
The end of the programme will be indicated
by 3 signals lasting 3 seconds interspersed
with a pause of 20 seconds. After one
minute, the dishwasher will switch off. At
the same time the "END" message will
appear on the display for one minute.
This button enables average energy and
time savings of 25% (according to the cycle
selected), reducing the wash-water
temperature and the drying time during the
final rinse. This option is recommended for
evening washing when perfectly dry dishes
are not needed immediately. For better
drying, leave the dishwasher door slightly
ajar to promote natural air circulation in the
dishwasher.
This key allows you to select two different
functions:
"HALF LOAD"
"HALF LOAD" button
(Only in models where present)
Specially developed for lightly soiled small
loads that fits approximately half the
of the dishwasher. Selecting this option can
save you time, energy and water.
After selecting the programme, press the
button and the indicator light will come on.
If this option is not compatible with the set
programme, a sound will be heard.
In models with the PRO version only, you
can also choose the washing basket.
Each time the half load button is pressed,
the wash basket will appear on the display.
Both baskets.
Lower basket.
Upper basket.
SETTINGS
The dishwasher comes with certain factory
settings. However, you can adapt the
various parameters to your washing needs
from the settings menu.
The following parameters can be adjusted
(LANGUAGE → TABS → SOFTENER →
RINSE AID → BUZZER → MEMO
FUNCTION → INTERIOR LIGHT
*).
*Only in models where present
LANGUAGE SETTING
1. Switch the dishwasher on with the
"ON/OFF"
button.
2. Keep the "OPTIONS" button
pressed for about 5 sec.
ALWAYS start the procedure with the
dishwasher turned off.
In models with a 3rd basket, it will
always be active.
HALF LOAD/SETTING button
"EXPRESS" button
(only on some models)
Only for models with the SMART DOOR"
option, the door will open automatically
during the drying phase
and you will
have to wait for the end-of-
cycle signal
before removing the dishes.
End of the programme
31
EN
3. The "SETTINGS" message appears on
the display.
4. By pressing the "PROGRAM
SELECTION"
key you can select
the successive parameters to be
adjusted.
5. Select the "LANGUAGE" setting that
appears on the display.
6. Press the "START/RESET"
button
to confirm the selected parameter.
7. "ENGLISH" appears on the display.
8. Press the "PROGRAM SELECTION"
buttons to choose the new
language.
9. Press the "START/RESET"
to
confirm the chosen language has been
set, "LANGUAGE" will be displayed
and a short sound will be heard.
10. To exit the menu, press the
"ON/OFF"
key.
"TABLETS"
"TABLETS" OPTION SETTING
(only in models where present)
This option enables optimal tablet usage ("3
in 1"/ "4 in 1"/ "5 in 1", etc.). By pressing this
button, the set washing programme is
changed, in order to obtain optimum
performance using tablets or combined
detergents; in addition, the salt and rinse
aid indicators are deactivated.
1. Switch on the dishwasher with the
"ON/OFF"
button.
2. Keep the "OPTIONS" button
pressed for about 5 sec.
3. The "SETTINGS" message appears on
the display.
4. By pressing the "PROGRAM
SELECTION"
key you can select
the successive parameters to be
adjusted.
5. Select the "TABLETS" setting.
6. Press the "START/RESET" button
to confirm the selected parameter.
7. Press the "PROGRAM SELECTION"
buttons to choose the two
settings:
- "YES"
- "NO"
8. Confirm your choice by pressing
"START/RESET"
.
- If the "YES" setting is confirmed,
"TABLETS" will appear on the display,
which will scroll continuously and the
"TABLETS" light will appear on the
display.
- If the "NO" setting is confirmed,
"TABLETS" will appear on the display
and the warning light will be off.
9. To exit the menu, press the "ON/OFF”
key.
This option is recommended when
using the RAPID programme, whose
duration will be extended to enable
improved performance from the
detergent tablets.
WARNING:
Once selected, this option also
remains active (light on) for
subsequent washing cycles and can
only be de-activated (light off)
by
deselecting the option.
32
SOFTENER
For SOFTENER settings, see the
appropriate chapter.
RINSE AID
For RINSE AID settings, see the
appropriate chapter.
BUZZER SELECTIONS AND SETTINGS
The buzzer signal that sounds upon
pressing the keys used for selecting and
setting washing functions and options can
be activated/deactivated as follows (it is
activated by default):
1. Switch on the dishwasher with the
"ON/OFF"
button.
2. Keep the "OPTIONS" button
pressed for about 5 sec.
3. The "SETTINGS" message appears on
the display.
4. By pressing the "PROGRAM
SELECTION"
key you can select
the successive parameters to be
adjusted.
5. Select the "BUZZER" setting.
6. Press the "START/RESET" button
to confirm the selected parameter.
7. Press the "PROGRAM SELECTION"
buttons to choose the two
settings:
- "YES"
- "NO"
8. Confirm your choice by pressing
"START/RESET"
.
- If the setting is confirmed, "BUZZER"
will appear on the display and will scroll
continuously.
9. To exit the menu, press the "ON/OFF"
key.
MEMO FUNCTION
To enable storage of the last programme
used, proceed as follows:
1. Switch on the dishwasher with the
"ON/OFF"
button.
2. Keep the "OPTIONS" button
pressed for about 5 sec.
3. The "SETTINGS" message appears on
the display.
4. By pressing the "PROGRAM
SELECTION"
key you can select
the successive parameters to be
adjusted.
5. Select the "LAST USED" setting.
6. Press the "PROGRAM SELECTION"
buttons to choose the two
settings:
- "YES"
- "NO"
7. Confirm your choice by pressing
"START/RESET"
.
- If the setting is confirmed, "LAST
USED" will appear on the display and
will scroll continuously.
8. To exit the menu, press the "ON/OFF”
key.
WARNING:
The buzzer signal will always remain
active when the machine is switched
on and off, at the start or end of a
washing cycle or in the event of a
problem or error with the machine.
33
EN
The innovative internal lighting system has
been designed according to high aesthetic
standards to make your dishwasher even
more functional. When you load or empty
the dishwasher, two powerful LED lights
illuminate the inside of the dishwasher.
The lights come on as soon as the machine
is turned on with the ON/OFF
button.
After a period of 5 min. the dishwasher
goes into stand-by by turning off the lights.
After the end of the cycle, to use the
internal lighting again, press the ON/OFF
button.
1. Switch on the dishwasher with the
"ON/OFF"
button.
2. Keep the "OPTIONS" button
pressed for about 5 sec.
3. The "SETTINGS" message appears on
the display.
4. By pressing the "PROGRAMME
SELECTION"
key you can select
the successive parameters to be
adjusted.
5. Select the "INTERIOR LIGHT" setting.
6. Press the "START/RESET" button
to confirm the selected parameter.
7. Press the "PROGRAMME SELECTION"
buttons to choose the two
settings:
- "YES"
- "NO"
8. Confirm your choice by pressing
"START/RESET"
.
- If the "YES" setting is confirmed,
"INTERIOR LIGHT" will appear on the
display, which will scroll continuously.
- If the "NO" setting is confirmed,
"INTERIOR LIGHT" will appear on the
display.
9. To exit the menu, press the "ON/OFF”
key.
While the washing program is running, a
floor light is projected onto the floor under
the dishwasher door. When the wash cycles
are started, the light stays on until the end
of the wash cycle. To indicate the end of the
wash cycle, the floor light is activated
intermittently for 10 sec.
This option allows you to increase the
temperature and modify some parameters
of the washing cycle so the interior of the
machine can be effectively sanitized.
HYGIENE + button
(only on some models)
The indication will not be visible if the
plinth panel is positioned forward or if
something is placed in front of the
information projector.
The light is not active when the
machine is in the delayed start or
pause condition.
FLOOR LIGHT
(only in models where present)
The light is not active when the
machine is in th
e delayed start or
pause condition.
INTERIOR LIGHT
(only on some models)
34
This option activates a special device that
opens the door a few centimetres during or
at the end of the drying cycle (depending on
the programmes), favouring a more natural
and efficient drying of the dishes. The
duration of the selected cycle will be
automatically modified, to allow the rinsing
temperatures to be optimised, providing a
significant reduction in energy consumption.
Opening the door in the last stage of drying
enables air to be recirculated, eliminating
the risk of unpleasant odours.
When the door opens, the "SMART DOOR"
message will appear on the display.
CHILD LOCK ACTIVATION
The dishwasher is equipped with an
electronic child lock. Child protection
disables commands, thereby preventing
unwanted or accidental changes from being
made.
Child protection can be activated or
deactivated as follows:
1. Turn on the dishwasher by pressing and
holding the "ON/OFF"
button.
2. Press the "CHILD LOCK" button
for about 5 seconds.
3.
"CHILD LOCK ON" will appear on the
display and a short beep will be heard.
4. Only the "ON/OFF"
button will
remain active.
5. Each time you press the disabled keys,
"LOCK" will appear on the display.
CHILD LOCK DEACTIVATION
1. Press the "CHILD LOCK"
button for about 5 seconds.
2.
"LOCK OFF" will appear on the display
and a short beep will be heard.
When the "SALT" message appears on the
display or, where present, the relative light
comes on
, fill the tank (see chapter on
"ADDING THE SALT").
When the "RINSE AID" message appears
on the display or, where present, the
relative light comes on
, fill the tank (see
chapter "FILLING RINSE AID").
If the RINSE AID level is set to 0, this
will never happen.
"NO RINSE AID" warning light
If the setting level of the softener is set
to 0, this will never happen (see
chapter on setting the softener).
"NO SALT" warning light
Turning off the machine with the "ON/
OFF"
button, the next time the
machine is switched on, the child
protection will be activated.
CHILD LOCK button
WARNING:
With this option selected, you must
not in any way prevent the doo
r from
opening or force it to close, so as not
to damage the mechanism. Leave the
space in front of the door free and
before closing it, wait for the opening
device to reactivate.
This option will automatically be active
in the "ECO" programme. There is
however the option to deactivate it.
SMART DOOR button
(only on some models)
35
EN
Delay start selection
This button allows you to programme the
start of the wash cycle, with a delay
between 0:30 and 24 hours.
To set the delayed start proceed as follows:
1. Switch on the dishwasher by holding
down the "ON/OFF"
button for about
3 sec.
2. Select the washing programme.
3. Press the "DELAY START"
button
("0:30" will appear on the display).
4. Press the button again to increase the
delay (each time it is pressed, the delay
is increased by 30 minutes, up to a
delay of 4 hours, after each time the
button is pressed it will increase by 1
hour up to a maximum of 24:00.
Pressing the button again after a delay
of 24:00 will return to 0:00 (delayed
start disabled).
5. The delayed start settings will remain
visible on the display for 5 seconds, or
until the ON/OFF - PROGRAM
SELECTION - START/RESET buttons
are pressed.
Countdown and Programme start with
DELAY START
When the delay is set on a programme:
after pressing "START/RESET"
.
The "DELAY START" light stays on until
the end of the time.
The delayed time countdown starts
showing on the display "START IN XX:
XX".
The time will be displayed with 30-minute
intervals over 24 hours and one-minute
intervals over the last 2 hours.
Pressing any button (except the "ON/
OFF, Wi-Fi Enrollment, START/RESET"
buttons for 3 seconds, the programme
name "P XX NAME" is displayed (P +
programme number + programme name)
for one single scroll and then the delay
time is displayed again.
If you want to cancel the delayed start
proceed as follows:
Press and hold the "START/RESET"
button for at least 3 seconds. The display
will show "RESET" and beeps will sound.
The delayed start and the selected
programme will be cancelled. Two
dashes will appear on the display.
At this point, if you want to start the
dishwasher, you will need to set the
desired programme again and select the
option buttons if necessary.
DEMO MODE ACTIVATION
ALWAYS start the procedure with the
dishwasher turned off.
Activation or exclusion of the DEMO
MODE program:
(demonstration program to be used
exclusively in points of sale)
In the event of a power failure or
shutdown, the dishwasher stores the
time remaining at the start, which will
be resumed at the poi
nt where it was
interrupted once the power supply is
restored or the machine is switched
on again.
When you press the DELAY START
button, the last setting made will be
displayed.
Changing the programme does not
change the delay time and the LED will
remain on.
DELAY START button
36
1. To start the DEMO MODE, press the
"ON/OFF"
and "HALF LOAD/
SETTINGS"
buttons simultaneously
for 10 seconds.
2. The "DEMO ON" message will scroll
twice on the display.
3.The machine is now ready for simulating
various programmes and options.
Interaction with DEMO MODE
In "DEMO MODE" the user can operate
dishwasher as in normal operating
conditions, but cannot start the
programme, only the Programmes,
Options and Delay Start are active.
You can also turn off the dishwasher.
If no button is pressed within 7 seconds,
the dishwasher returns to PASSIVE
DEMO MODE.
DEMO MODE DEACTIVATION
1. To deactivate the DEMO MODE, press
the "ON/OFF"
buttons and "HALF
LOAD/
SETTINGS"
buttons
at the
same time for 10 seconds.
2.The "DEMO OFF" message will scroll
twice on the display.
3. The dishwasher switches off.
4. The machine is now ready to turn on
and activate in normal mode.
ALWAYS start the procedure with the
dishwasher turned off.
When the dishwasher is turned on and
the DEMO MODE is still active, the
"DEMO ON" message scrolls twice on
the display to warn the user that the
machine is in this mode.
37
EN
16.
REMOTE CONTROL (WI-FI)
This appliance is equipped with Wi-Fi
technology that allows the machine to be
remote controlled via an app.
Download the hOn App on your device by
framing the following QR code:
or by the link:
go.haier-europe.com/download-app
Make sure the router is turned on and
your smartphone/tablet is connected to
your home Wi-Fi network.
Turn the BLUETOOTH on your
smartphone/tablet (if available).
Open the App, create the user profile (or
log-in if it is already created previously)
and pairing the appliance following the
instructions on the device display.
Successful pairing
If the pairing with the app is successful,
the "Wi-Fi" light will be on steady.
The display will show "CONNECTED",
followed by "REMOTE CONTROL ON".
You can now control the dishwasher from
the App.
Unsuccessful pairing
If pairing with the App fails (or 5 minutes
have passed):
• The "Wi-Fi" indicator will turn off.
"TRY AGAIN" will appear on the product
display.
The dishwasher will be not connected.
Repeat the pairing procedure from the
App.
In case of problems or change of the home
router settings (e.g.: change network
name/password, internet supplier, etc...)
you have to perform the pairing procedure
again, removing the product from the App,
or changing the Wi-Fi network credentials
from the appliance settings, within the App.
Whenever you want to use the dishwasher
remotely:
Make sure the router is turned on and
connected to the Internet.
Load the dishwasher, load the detergent,
close the door.
Switch on the dishwasher with the ON/
OFF
button.
Press the "Wi-Fi" button "REMOTE
CONTROL ON" appears on the display.
Close the door.
ENABLING REMOTE CONTROL
Reset WiFi
The frequency of the home Wi-Fi network
has to be set on the 2.4 GHz band. You
can not configure the machine if your
home network is set to the 5 GHz band.
To discover all the details of the Wi-Fi
features, explore the app menus in
DEMO mode.
The hOn App is available for devices
running both Android and iOS, both for
tablets and for smartphones.
APPLIANCE PAIRING (ON APP)
38
It is now possible to control the
dishwasher from the App.
To exit remote control, press the "Wi-Fi"
button on the appliance again.
The "Wi-Fi" indicator will blink very
slowly.
Without running cycle:
The message "REMOTE CONTROL
OFF" appears on the product display. It
will be possible to manually select a new
cycle.
With cycle in progress:
The message "REMOTE CONTROL
OFF" appears on the product display.
The display will then show the remaining
time. The cycle will be completed without
having control from the App.
Alternative way to exit remote control.
Press the "START/RESET" button
for 3 secs.
If there is a cycle under way, it will be
cancelled, and the machine will exit
REMOTE CONTROL mode.
The "Wi-Fi" indicator light will flash
slowly. It is now possible to set a new
wash cycle from the control panel.
Press the "ON/OFF" button for 3
secs (or power off).
If there is a cycle under way, it will be
paused and the machine will exit
REMOTE CONTROL mode.
On switching on again, the "Wi-Fi"
indicator light will flash slowly and any
cycle under way will continue from the
point of interruption.
Indicates the connection status of the
product to the home Wi-Fi network. It can
be:
- FIXED ON: remote control enabled.
-
VERY SLOW FLASHING: remote control
disabled.
- SLOW FLASHING: reset of the Wi-Fi
network (during pairing on the App).
- FAST FLASHING: appliance associated
with the app but no Wi-Fi connection.
Check the correct functioning of the router
or the changed home Wi-Fi credentials
(Network name and / or password). In this
case, update the settings within the app,
following the instructions on the
smartphone.
"Wi-Fi" indicator light
Opening the door, any REMOTE
CONTROL will be disabled. To resume
control from the App, close the door.
DISABLING REMOTE CONTROL
For built-in models, do this before
turning on the product.
39
EN
17. PROGRAMME LEGEND
Programme Description
P1
WASH&DRY 35’
This programme allows you to wash & dry a limited
load in only 35 minutes (freshly soiled)
P2
RAPID 59’
This is a full load programme designed to wash
and dry in less than an hour, maintaining high-
quality wash performance.
P3
ECO
Standard and most efficient programme in terms of
combined energy and water consumption for
normally soiled dishes.
EN60436-standardized programme.
P4
UNIVERSAL
Suitable for everyday light soiled dishes, your daily
reference programme.
P5
INTENSIVE
For heavily soiled pans and any other items that
require a strong and effective wash. Perfectly
designed for very dirty plates, pans, and pots.
P6
GLASS
A gentle cleaning cycle for your most precious,
delicate dishes and crystals. A dedicated
programme that protects the lifespan of your
glassware.
P7
AUTO WASH
A programme that automatically selects the most
efficient and effective cycle duration and
temperature according to the load and degree of
soiling*
*Only on some models
P8
PREWASH
Short, pre-wash for dishes used during the day,
when you want to wait until you have a full load.
Programmes with prewash
For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 6 g)
directly in the machine.
40
Functions and
Options
Programme
Detergent for soaking
(Prewash)
Washing temperature
(°C)
Average wash
duration
3
(min.)
"HALF LOAD"
1
button
"SMART DOOR"
1
button
"TABLETS"
2
button
P1
WASH&DRY 35’
-
60 35
YES* YES YES
P2
RAPID 59’
●
65 59
YES* YES YES
P3
ECO
-
45
235-
238
YES* YES YES
P4
UNIVERSAL
-
60
129-
131
YES* YES YES
P5
INTENSIVE
●
75
135-
146
YES* YES YES
P6
GLASS
-
45
94-
96
YES* YES YES
P7
AUTO WASH
-
55-
65
120-
144
YES* YES
YES
P8
PREWASH
-
-
10
YES* YES N/A
● = Add detergent for prewash
¹= only on some models
²= Only if function is activated via SETTINGS.
*"HALF LOAD/HALF LOAD PRO" option available according to the model
N/A= OPTION NOT AVAILABLE
³= With cold water (15°C) – Tollerance ±10%
With hot water the time remaining until the end of the programme is automatically displayed while
the programme is running.
*Values are measured in a laboratory according to European Standard EN60436 (consumption
may vary according to conditions of usage).
The actual duration of the wash cycle varies according to the model.
41
EN
18. WATER SOFTENER
UNIT
Depending on the source of the supply,
water contains varying amounts of
limestone and minerals which are deposited
on the dishes leaving whitish stains and
marks. The higher the level of these
minerals present in the water, the harder
the water is.
The dishwasher is fitted with a water
softener unit which, through the use of
special regenerating salt, supplies softened
water for washing the dishes. The degree of
hardness of your water can be obtained
from your water supply company.
The water softener can treat water with a
hardness level of up to 90 °fH (French grading)
or 50 °dH (German grading) through 8 settings.
The settings are listed in the table below,
with the relative mains water to be treated.
Level
Water hardness
Use of
Regenerating salt
Water softener
setting
°fH
(Franch)
°dH
(German)
0 0-5 0-3 NO S0
1 6-10 4-6
YES
S1
2 11-20 7-11 YES S2
3 21-30 12-16 YES S3
4* 31-40 17-22 YES S4
5 41-50 23-27 YES S5
6 51-60 28-33 YES S6
7 61-90 34-50 YES S7
* The softener unit is set in the factory at
level 4 (S4) as this satisfies the requirements
of the majority of users.
Regulate the setting of your water softener
unit according to the degree of hardness of
your water, as follows:
1. Switch on the dishwasher with the "ON/
OFF"
button.
2. Keep the "OPTIONS" button
pressed for about 5 sec.
3. The "SETTINGS" message appears on
the display.
4. By pressing the "PROGRAM
SELECTION"
key you can select
the successive parameters to be
adjusted.
5. Select the "SOFTENER" setting.
6. Press the "START/RESET" button
to confirm the selected parameter.
7. The set level appears on the display
(the factory-set level is "S4").
8. Press the "PROGRAM SELECTION"
buttons to choose different
settings levels.
9. Confirm your choice by pressing
"START/RESET"
.
10. "SOFTENER" will scroll on the
display.
11. To exit the menu, press the "ON/
OFF"
k
ey.
To change the water softener setting again,
follow the same procedure.
The dishwasher must ALWAYS be off
before start of this procedure.
Regulating the water softener
42
The regeneration phase is carried out at the
end of a washing cycle.
Approximately 3.5 litres of water are
consumed in the resin phase, with an
energy consumption of approximately 1Wh
and an increase in cycle time of
approximately 7 minutes.
For the Eco cycle, it is as shown in the
table.
Level DISPLAY Frequency
S0
DISPLAY S0 Never
S1
DISPLAY S1
1 every
9 cycles
S2
DISPLAY S2
1 every
7 cycles
S3
DISPLAY S3
1 every
5 cycles
S4
DISPLAY S4
1 every
4 cycles
S5
DISPLAY S5
1 every
3 cycles
S6
DISPLAY S6
1 every
2 cycles
S7
DISPLAY S7 Every cycle
Information on resin regeneration
with salt
WARNING!
If you cannot complete the
procedure,
turn the dishwasher
off by pressing
the
"ON/OFF" button and start the
procedure again from the beginning
(STEP 1).
43
EN
19. TROUBLESHOOTING AND WARRANTY
If you believe the dishwasher is not working correctly, consult the quick guide provided
below with some practical tips on how to fix the most common problems. If the
malfunction continues or recurs, contact the Technical Assistance Centre.
Error displayed Meaning and solutions
"NO WATER"
with a
short audio signal
(only
on some models).
ERROR E2 (with
display)
with a short
audio signal
The dishwasher does not fill with water
Make sure the water supply is open.
Make sure the water supply hose is not bent or crushed.
Make sure the drain pipe is at the proper height (see installation
section).
Close the water supply, unscrew the drain pipe from the back of the
dishwasher and check that the "sand" filter is not clogged.
ERROR E3 (with
display) with a short
audio signal
The dishwasher does not drain water
Make sure the drain pipe isn’t bent, trapped or blocked, and the filter
is not clogged.
Make sure the siphon is not clogged.
ERROR E4 (with
display) with a short
audio signal
Water leak
Make sure the drain pipe isn’t bent, trapped or blocked, and the filter
is not clogged.
Make sure the siphon is not clogged.
ERROR E8 (with
display)
with a short
audio signal
The water heating element is not working correctly or the filter
plate is clogged
Clean the filter plate.
ERROR E18 (with
display)
with a short
audio signal
Water level problems; check clogged filter plate.
Clean the filter plate.
Only models with a display
Models with a display: errors are reported by a number preceded by the letter "E"
(e.g. Error 2 = E2) and a short audio signal.
Models without a display: an error is shown by a sequence of flashes of every LED.
The error code is shown by the number of flashes followed by a pause of 5 seconds
(example: two flashes – pause 5 seconds – two flashes – repeating = Error 2).
BUG REPORTS
44
ERROR E21 (with
display)
with a short
audio signal
Uncontrolled water supply with open solenoid valve.
Close the water tap immediately and disconnect the appliance from
the power supply.
Any other code
(with display)
Turn off and unplug the dishwasher, wait a minute. Turn on the
machine and restart a program. If the error occurs again contact an
Authorised Customer Service Centre directly.
If malfunctions or faults occur when a programme is running, the indicator light that
corresponds to the selected cycle will blink rapidly, and an intermittent audio signal will
sound. In this case, turn the dishwasher off by pressing the "ON/OFF" button.
After checking to make sure the water supply is open, that the drain pipe is not bent
and that the siphon or filters are not clogged, set the selected program again.
If the fault persists, contact the Technical Assistance Centre.
FAULTS
CAUSE
SOLUTION
1. No programme
works
Plug not connected to wall socket
Connect electric plug
O/I button not pressed
Press button
Door is open
Close door
No electricity
Check
2. Dishwasher
does not fill
with water
See point 1
Check
The water tap is closed
Open the water tap
The water supply hose is bent
Eliminate the bends in the hose
The filter of the water supply
hose is clogged
Clean the filter at the end of the
hose
Other faults
WARNING
To ensure the correct operation of the overflow safety device, we
recommend not moving or tilting the dishwasher during operation.
Should it be necessary to tilt or move the dishwasher, please
ensure that the washing cycle is complete and that no water
remains inside the appliance.
This dishwasher is equipped with an overflow safety device that, in the event of a
problem, automatically discharges any excess water.
Only models without a display
45
EN
FAULTS
CAUSE
SOLUTION
3. Dishwasher
does not
discharge water
Filter is dirty
Clean filter
Drain pipe is bent
Eliminate the bends in the pipe
The drain pipe extension is not
correctly connected
Follow the instructions for connecting
the drain pipe carefully
The outlet connection on the
wall is pointing downwards not
upwards
Call a qualified technician
4. Dishwasher
discharges
water
continuously
Position of the drain pipe is too
low
Lift drain pipe to at least 40 cm
above floor level
5. Spray arms are
not heard to
rotate
Excessive amount of detergent
Reduce amount of detergent Use
suitable detergent
Item prevents arms from rotating
Check
Filtering plate and filter very dirty
Clean filtering plate and filter
6. On electronic
appliances
without a
display: one or
more indicator
lights flashing
quickly
Water supply tap turned off
Switch off the appliance. Turn on
the tap. Re-set the cycle.
7. Dishes only
partially washed
See point 5
Check
Bottom of saucepans have not
been washed well
Burnt on food remains must be
soaked before putting pans in
dishwasher
Edge of saucepans have not
been washed well
Reposition saucepans
Spray arms are partially blocked
Remove spray arms by unscrewing
ring nuts clockwise and wash under
running water
The dishes have not been
loaded properly
Do not place the dishes too close
together
The end of the drain pipe is
immersed in water
The end of the drain pipe must not
come into contact with the outflow
water
An incorrect amount of
detergent has been measured
out, or the detergent is old and
hard
Increase the measure according to
how dirty the dishes are, or change
detergent
The cap of the salt container is
not closed properly
Choose a more vigorous
programme
The wash programme is not
thorough enough
Tighten it properly
8. Detergent not
dispensed or
partially
dispensed
Cutlery, dishes, pans, etc., stop
the detergent dispenser from
opening
Position dishes so as not to
obstruct the dispenser
46
FAULTS
CAUSE
SOLUTION
9. Presence of
white spots on
dishes
Mains water is too hard
Check salt and rinse aid level and
regulate. Should the fault persist,
contact the Technical Assistance
Centre
10. Noise during
wash
The dishes knock against one
another
Re-check loading of dishes in the
basket
The revolving arms knock
against the dishes
Re-check loading of dishes in the
basket
11. The dishes
are not
completely dry
Inadequate air flow
Leave the dishwasher door ajar at
the end of the wash program to
allow the dishes to dry naturally
Rinse aid missing
Fill the rinse aid dispenser
N.B.: Should any of the above situations result in a bad wash performance or insufficient
rinsing, remove dirt deposits from the dishes by hand since the final drying cycle hardens
the dirt, making it difficult to remove with a subsequent wash.
If the malfunction continues, contact the Technical Assistance Centre, quoting the model of
the dishwasher. This is found on the plate on the upper section of the inside of the
dishwasher door, or on the warranty. This information will make it possible to take quicker,
more effective action.
Except for the list of spare parts available on our website, under no circumstances should
you repair or attempt to repair the appliance yourself or have the appliance repaired by
inexperienced and / or unqualified persons. Repairs carried out by inexperienced and / or
unqualified persons can cause injury or serious malfunction of the equipment and damage
to property. It is advisable to contact our Authorized Technical Assistance Centres.
We recommend that you always use original spare parts, which can be obtained from our
customer service for a period of at least 10 years from the moment the appliance is put
into circulation within the European Economic Area.
From 1 March 2021, energy and environmental information relating to the energy labelling
of household appliances and the specifications for their eco-design are visible in Europe in
the product database (EPREL) at the following link https://eprel.ec.europa.eu/ or through
the QR code located on the energy label.
WARNING
The manufacturer cannot be held responsible for any damage to
things and people and / or for safety issues re
sulting from repairs
not carried out by an Authorized Technical Assistance Centre or by
a service provider authorised by the manufacturer in accordance
with company guidelines relating to the repair and maintenance of
its products. Any damage caused to the
product by unauthorized
personnel during a repair attempt will not be covered by the
conventional warranty.
47
EN
The manufacturer declines all responsibility for any printing errors in this booklet.
Moreover, the manufacturer reserves the right to make any changes deemed useful to its
products without changing their essential characteristics.
Assistance and Warranty
The product is guaranteed under the law, and under the terms and conditions
stated on the warranty certificate included with the product. The certificate
should be stored and shown to an authorized Technical Assistance Centre in
cas
e of need, together with the proof of purchase. You can also check the
warranty conditions on our website.
For assistance, please fill in the online form or contact us at the number
indicated on the support page of our website.
48
20. ENVIRONMENTAL CONDITIONS
This appliance is marked a
cording to the European directive
2012/19/EUon Waste Electrical
and Electronic Equipment
(WEEE).
WEEE contains both polluting substances
(which can cause negative consequences
for the environment) and basic components
(which can
be re-used).
It is important to have WEEE subjected to
specific treatments, in order to remove
and dispose properly all pollutants,
and recover and recycle all materials.
Individuals can play an important role in
ensuring that WEEE does not become an
environmental issue; it is
WEEE should not be treated as
household waste;
WEEE should be handed over to the
relevant collection points managed by
the municipality or by re
gistered
companies. In many countries, for large
WEEE, home collection could be
present.
In many countries, when you buy a new
appliance, the old one may be returned to
the retailer who has to collect it free of
charge on a one
-to-
one basis, as long as
the equipment is of equivalent type and
has the same functions as the supplied
equipment.
23.05 - 70021716.C - IDM s.r.l.
