DELTA HEAT SIDE BURNER
USE & CARE MANUAL
MODEL: DHSB1D-C
DHSB2-C
1
IMPORTANT SAFETY INFORMATION
WARNING! Read this manual carefully and completely before using your grill to ensure proper operation,
proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury.
D A N G E R
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
D A N G E R
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Si l’odeur continue, évite l’appareil et appelle
tout de suite votre fournisseur de gaz ou les
pompiers.
W A R N I N G
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this or
any other appliance.
A V E R T I S S E M E N T
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas
raccordée en vue de son utilisation, ne doit
pas être entreposée dans le voisinage de cet
appareil ou de tout autre appareil.
THIS IS FOR OUTDOOR USE ONLY:
If stored indoors, detach and leave L.P. cylinder
outdoors.
C’EST POUR UTILISATION à L’ExTéRIEUR
SEULEMENT:
Si l’appareil est entreposé à l’interieur, enlever
les bouteilles et les laisser à l’extérieur.
B E F O R E L I G H T I N G
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 5 seconds,
turn the burner control(s) off, wait 5
minutes, and repeat the lighting
procedure.
A V A N T D ’ A L L U M E R
L ’ A P P A R E I L
1. Lisez les instructions avant d’allumer l’appareil.
2. Ouvrez le couvercle avant d’allumer l’appareil.
3. Si l’appareil ne s’allume pas en 5 secondes,
fermez le robinet du brûleur, attendez 5 minutes,
et procédez de nouveau à l’allumage.
2
GENERAL SAFETY REQUIREMENTS
1. The installation of this appliance must conform with local codes or, in the absence of local codes,
either the National Fuel Gas Code, ANZI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas
Installation Code or CAN/CGA-B149.2, Propane Installation Code.
2. This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles and
/or boats.
3. This outdoor cooking gas appliance is intended for use outdoors and shall not be used in a building,
garage or any other enclosed area.
4. Minimum clearance of 12 inches from the back and sides of the unit to adjacent combustible
construction must be maintained. This outdoor cooking gas appliance shall not be located
under overhead-unprotected combustible construction.
5. The utilization of an external electrical source requires that when installed, this outdoor cooking gas
appliance must be electrically grounded in accordance with the local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA
C22.1. Keep any electrical supply cord, or the rotisserie motor cord and the fuel supply hose away
from any heated surfaces.
6. Keep your side burner in an area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
7. DO NOT obstruct the flow of combustion and ventilation air to this appliance. Keep the ventilation
openings of the cylinder enclosure free and clear from debris.
8. Check all gas connections for leaks with soapy water solution and brush. Never use an open flame.
9. Check flexible hoses for cuts and wear that may affect the safety before each use.
10. Never use the side burner in a windy area.
11. The pressure regulator and hose assembly supplied with the Delta Heat Side Burner must be used.
Replacement pressure regulators and hose assemblies must be those specified by Delta Heat.
12. CALIFORNIA PROPOSITION 65-WARNING: The burning of gas cooking fuel generates some by-
products which are on the list of substances known by the State of California to cause cancer or
reproductive harm. California law requires businesses to warn customers of potential exposure to
such substances. To minimize exposure to these substances always operate this unit according to the
use and care manual, ensuring you provide good ventilation when cooking with gas.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or
gasfitter. A “T” handle type manual gas valve must be installed in the gas supply line to this appliance.
This applies to permanently installed natural gas and propane installations. This does not apply to
propane portable installations using a 20 pound tank.
To the Installer:
Please read these instructions completely before installation and give this manual to the owner.
To the Owner:
Keep this manual in a safe place for future reference.
3
FOR YOUR RECORDS
IMPORTANT: Retain original proof of purchase to establish warranty period.
Please record the following information and refer to this information when contacting the company or an
authorized service agent. This information is found on the rating/ data plate located on the inside side of
the unit.
Model #: __________________________________________
Serial #: __________________________________________
Date of Purchase: ___________________________________
Place of Purchase: __________________________________
Type of Gas: NG LP
OPERATING INSTRUCTIONS – SIDE BURNERS
1. Make sure all knobs are in the “OFF” position.
2. Turn “on” the gas at source. Caution: If you smell gas, shut off gas supply and call for service.
3. Before lighting, remove the side burner cover or any cooking utensils from the burner grate.
4. a.) For DHSB2-C, push-in, turn counterclockwise to “HI” (LARGE FLAME) position, and hold the
burner knob in. You should hear a continuous clicking sound and see sparks being provided to
the burner. (If clicking sound is weak, replace the 9V battery).
4. b.) For DHSB1D-C, push-in and turn the burner knob counterclockwise to a “HI” (LARGE FLAME)
position. Push and hold the ignition button. You should hear a continuous clicking sound and see
sparks being provided to the burner. (If clicking sound is weak, replace the AAA battery).
5. If the burner does not ignite within 5 seconds, turn the burner to “OFF” and wait for five minutes.
Repeat the above procedures or try the following manual lighting procedures
a. Hold a lit match next to the burner ports
b. Push and turn the burner knob counterclockwise to ignite the burner.
6. Adjust flame setting to “LOW” or “MEDIUM” or “HIGH”, if desired.
7. Caution: Do not leave the side burner unattended while cooking.
8. To shutdown the burner, push and turn the burner knob clockwise to “OFF”.
9. For complete shutdown, turn “off” the gas at source.

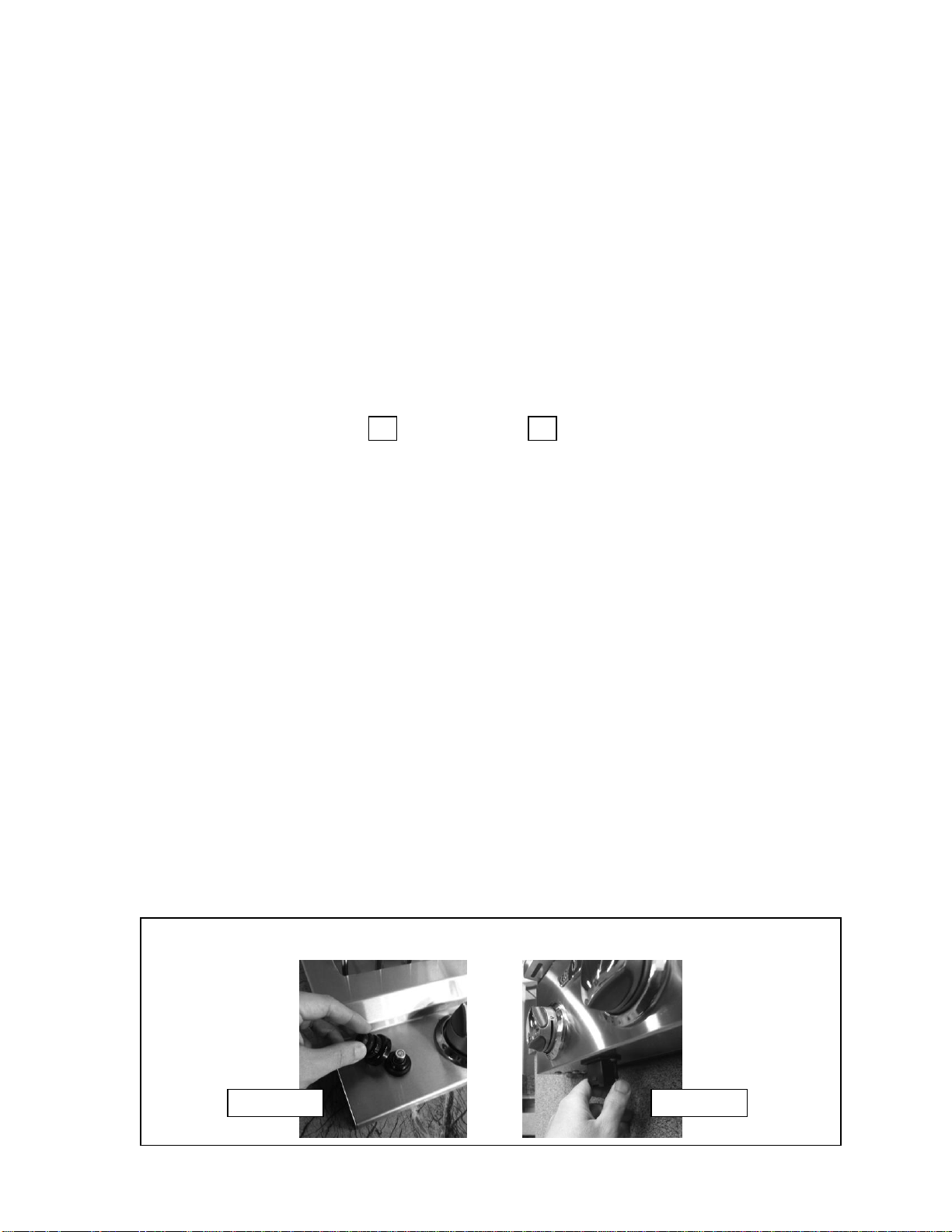

Battery Locations
DHSD1D-C
DHSB2-C
4
GAS SAFETY REQUIREMENTS
Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the
type of gas, either Natural Gas or LP gas and make sure that the marking on the data plate (rating plate)
matches the gas being supplied to the side burner. The data plate is located on the inside side of the unit.
All gas connections should be made by a qualified technician and in accordance with local codes
and ordinances. The installation must conform with local codes or, in the absence of local codes, with
either the national Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas Installation
Code or CAN/CGA-B149.2, Propane Installation Code.
WARNING:
CHECK TO ENSURE THAT THE GAS SUPPLY HOSE DOES NOT COME IN CONTACT WITH
ANY HOT SURFACE OF THE SIDE BURNER.
NEVER CONNECT THE SIDE BURNER TO AN UNREGULATED GAS SUPPLY.
L.P. GAS (LIQUIFIED PETROLEUM /PROPANE)
If your unit is factory built for L.P., the regulator supplied is set for 11” water column and is for use
with L.P. gas only. The factory-supplied regulator and hose must be used with a 20 lb. L.P. cylinder.
L.P. GAS SAFETY REQUIREMENT
The LP-gas supply cylinder must be constructed and marked in accordance with the
Specifications for LP-gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National
Standards of Canada CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of
Dangerous Goods, and Commission, as applicable; and
1. Provided with a listed overfilling prevention device.
2. Provided with a cylinder connection device compatible with the connection for outdoor cooking
appliances.
It must be provided with a shut-off valve terminating in gas tank valve outlet. It must include a collar to
protect the cylinder valve. The cylinder supply system must be arranged for vapor withdrawal.
Do not operate indoors or in any enclosed area. If the unit is not in use, the gas must be turned off at
the supply cylinder. If the unit is to be stored indoors, disconnect the gas supply cylinder and leave the
cylinder outdoors out of reach of children and must not be stored in a building, garage or any other
enclosed area.
! WARNING !
DO NOT STORE SPARE LP-GAS CYLINDER UNDER OR NEAR THIS APPLIANCE.
NEVER FILL THE CYLINDER BEYOND 80 PERCENT FULL.
FAILURE TO DO SO, A FIRE CAUSING DEATH OR SERIOUS INJURY MAY OCCUR.
5

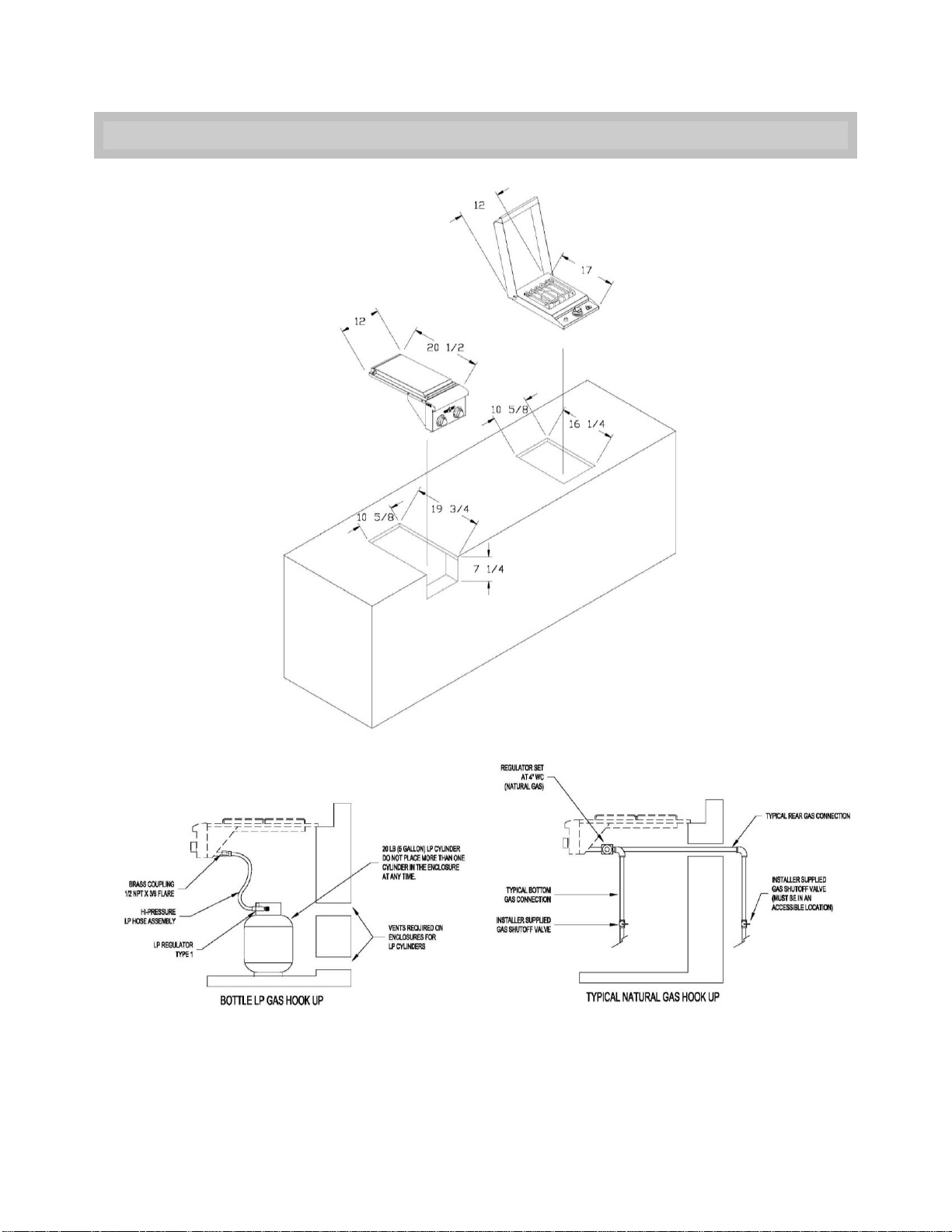

CABINET CUT-OUT DIMENSIONS FOR BUILT-IN APPLICATION
DHSB1D-C
DHSB2-C
6
LEAK TEST
CAUTION BEFORE TESTING
Finding and/or fixing a gas leak is NOT a “DO-IT-YOURSELF” procedure.
NEVER USE THE SIDE BURNER WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS.
WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME
COULD RESULT IN A FIRE, EXPLOSION AND BODILY HARM.
DO NOT SMOKE WHILE PERFORMING THE LEAK TEST!
To prevent fire or explosion hazard, DO NOT use or permit sources of ignition in the area while
performing a leak test. Perform leak test outdoors only.
Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before
each use. Only the factory supplied hose and regulator must be used. Use only replacement
regulator and hose assemblies specified by Delta Heat.
LEAK TEST
1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half
water.
2) Confirm that all control knobs are in the OFF position.
3) Turn the main gas valve supply ON.
4) Apply leak testing solution by spraying on the pipe joints, fittings, and hose.
5) A gas leak is detected if;
a) there is a faint gas smell and/or…
b) …growing bubbles appear on any of the connection points and/or hose, DO NOT attempt to ignite
the side burner and IMMEDIATELY turn off the gas supply valve.
6) When there is a gas leak, call a qualified service technician. DO NOT use the side burner until the
leak is corrected.
7

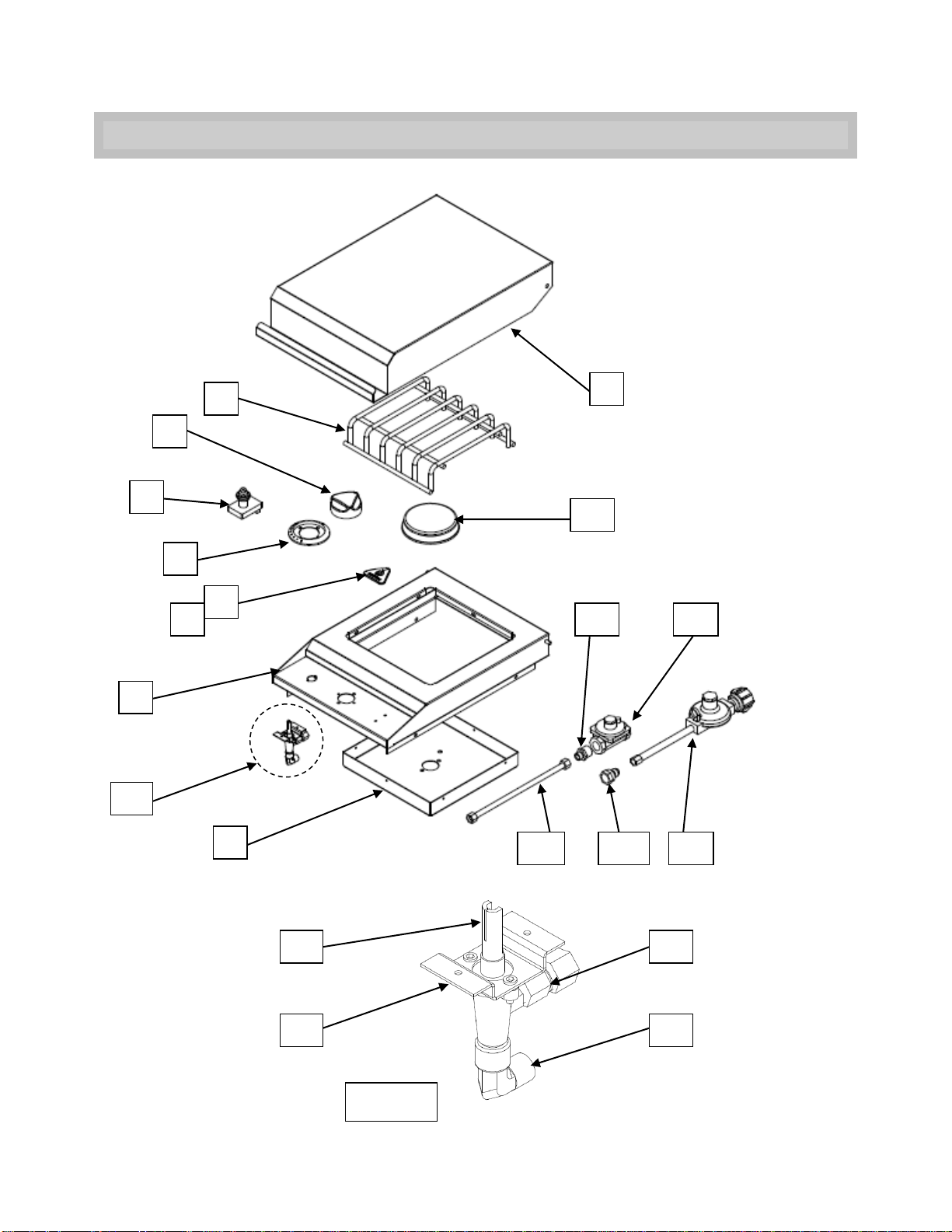

EXPLODED VIEW – SIDE BURNER DROP-IN (DHSB1D-C)
1
2
3
4
5
6
8
9
14
15
16
17
18
7
10
11
13
12
19
Detail A
A
8
SERVICE PARTS LIST – SIDE BURNER DROP-IN (DHSB1D-C)
Item
No.
Service Part
Number
Description
DHSB1D-CL
DHSB1D-CN
1
S21847
Side Burner Cover
1
1
2
S13843
Side Burner Grate
1
1
3
S13195
Delta Black Knob
1
1
4
S16157
2-Spark Ignition Module
1
1
5
S13199
Delta Knob Bezel
1
1
6
S13201
Delta Heat Logo
1
1
7
S14160
Tinnerman Barrel Clip
2
2
8
S21846
Cooktop Body
1
1
9
S21841-1
1-Burner Burner Holder
1
1
10
S15106
Straight Gas Valve
1
1
11
S21855
Valve Mount
1
1
12
S12601
Brass Elbow, 3/8 CC x 1/8 FIP
1
1
13
S12609
Brass Nut and Sleeve, 1/8 FIP x 5/16 CC
1
1
14
S12407
Stainless Steel Flex Tubing, 3/8 x 7.5”
1
1
15
S12602
Brass Coupling, 3/8 Flare x ½ FIP
1
16
S15344
LP Regulator
1
17
S15303
NG Regulator
1
18
S12641
Brass Coupling, 3/8 CC x ½ MPT
1
1
19
S13336
Burner Assembly
1
1
*
S13340
Orifice, NG
1
*
S13341
Orifice, LP
1
* Not Shown
9
EXPLODED VIEW – 2-BURNER SIDE BURNER, BUILT-IN (DHSB2-C)
1
3
2
4
5
6
8
7
9
17
20
21
22
12
13
14
15
19
16
10
18
11
10

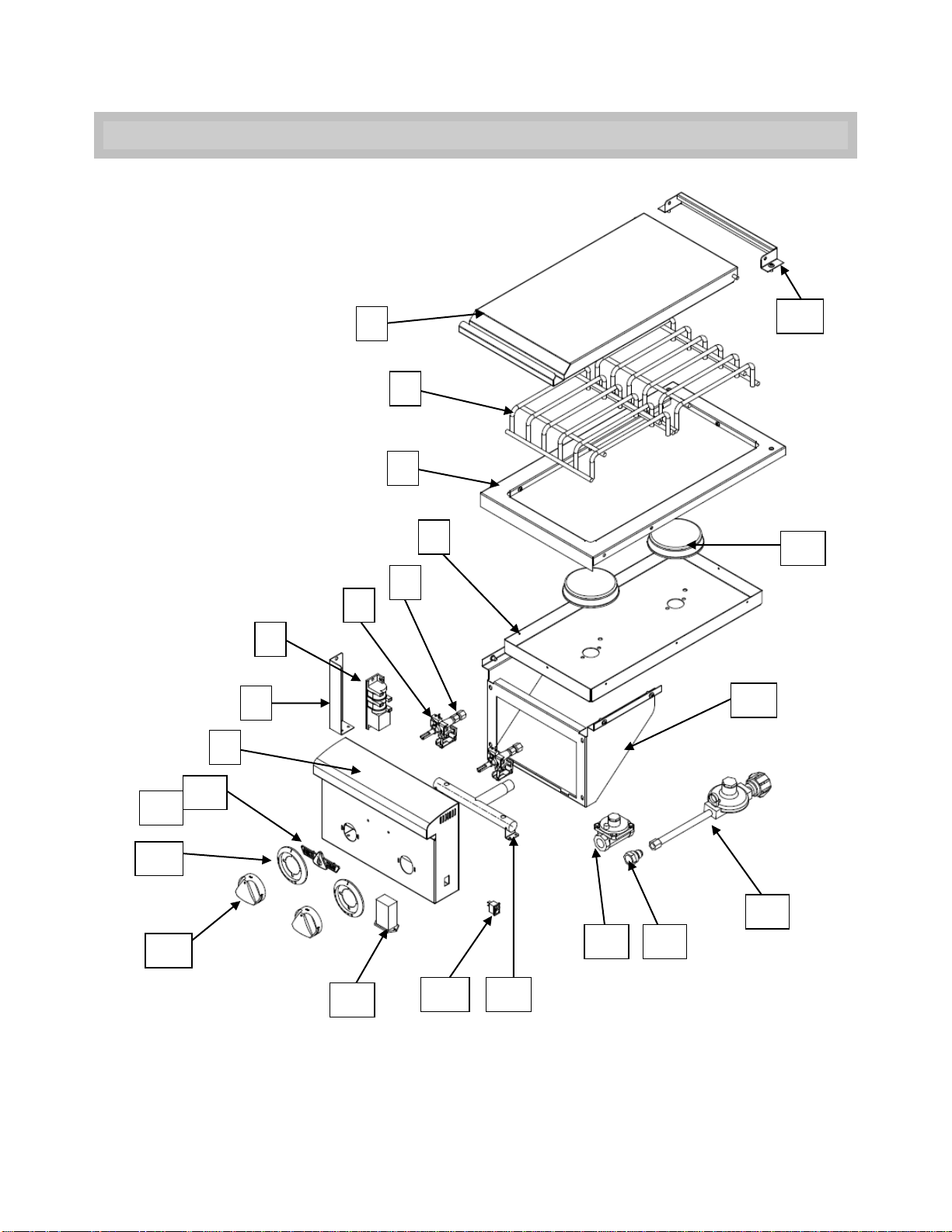

SERVICE PARTS LIST 2-BURNER SIDE BURNER, BUILT-IN (DHSB2-C)
Item
No.
Service Part
Number
Description
DHSB2-CL
DHSB2-CN
1
S21844
Side Burner Cover
1
1
2
S13843
Side Burner Grate
2
2
3
S21842-2
2-Burner Cooktop
1
1
4
S21841-2
2-Burner Burner Holder
1
1
5
S12609
Brass Nut and Sleeve, 1/8 FIP x 5/16 CC
2
2
6
S15106
Straight Gas Valve
2
2
7
S16323
2-Spark Ignition Module
1
1
8
S23216
Ignition Module Bracket
1
1
9
S23202-12WY
Front Panel, 2-Burner
1
1
10
S13201
Delta Heat Logo
1
1
11
S14160
Tinnerman Barrel Clip
2
2
12
S13199
Delta Knob Bezel
2
2
13
S13195
Delta Black Knob
2
2
14
S16272
Battery Pack
1
1
15
S13131
Rocker Switch
1
1
16
S12754
Manifold
1
1
17
S15303
NG Regulator
1
18
S12602
Brass Coupling, 3/8 Flare x ½ FIP
1
19
S15344
LP Regulator
1
20
S21845
Stiffener
1
1
21
S13336
Burner Assembly
2
2
22
S21849
Side Burner Cover Brace
1
1
*
S16355
Delta Blue LED
2
2
*
S16337Y
Wire Harness Assembly
1
1
*
S16260
72” extension, built-in
1
1
*
S13340
Orifice, NG
2
*
S13341
Orifice, LP
2
* Not Shown
11
DELTA HEAT WARRANTY
ONE-YEAR FULL WARRANTY: Delta Heat warrants the outdoor Side Burners and all of their component
parts, to be free from defects in materials and workmanship under normal residential use for a
period of one year from the original date of purchase. The actual part will be repaired or
replaced, free of charge, with the owner paying for all other costs including labor, installation,
shipping and handling charges.
NINETY (90) DAY RESIDENTIAL PLUS WARRANTY: This warranty applies to applications where use of the
product extends beyond normal residential use such as bed and breakfast inn, private clubs,
multi-dwelling condos and apartments. The actual part will be repaired or replaced, free of
charge, with the owner paying for all other costs including labor, installation, shipping and
handling charges. This warranty excludes all commercial locations such as restaurants and
food service locations.
WARRANTY LIMITATIONS & EXCLUSIONS
This warranty shall apply only to the products purchased and located in the continental United States and Canada.
The warranty coverage begins on the original date of purchase and proof of date of purchase is required. In order to
activate the warranty, we require that you send in the attached warranty registration card or register on-line at our
website, www.deltaheat.com. This warranty applies only to the original owner and may not be transferred.
This warranty does not apply to damages resulting from negligence, alteration, misuse, abuse, accident, natural
disaster, loss of electrical power to the product for any reason, improper installation or improper operation,
unauthorized adjustments or calibrations, dings, dents, scratches, or damages due to harsh cleaning chemicals. This
warranty does not apply to rust, corrosion, discoloration, surface scratches, weather and atmospheric related staining
and oxidation which are normal conditions and to be expected with any outdoor products unless the affected
component becomes inoperable. This warranty does not apply to commercial use, or to products with altered or
removed serial numbers. Delta Heat shall not be liable for incidental, consequential, special or contingent damages
resulting from its breach of this written warranty or any implied warranty.
WARRANTY SERVICE & REPLACEMENT PARTS: Call your authorized selling dealer or call Delta Heat
directly at 800-422-0091. Be prepared to furnish the following information: Purchaser’s name, model and serial
number of the appliance, date of purchase and the accurate description of the problem. Delta Heat will not pay for
service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing
normal care and maintenance, providing proof of purchase upon request and making the appliance accessible for
service. In the event of any warranty replacement, all removal, replacement, installation and shipping costs are the
responsibility of the grill owner.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusions of or limitations on
consequential damages. This warranty gives you specific legal rights and you may have other rights, which vary
from state to state.
12
Warranty Registration
Customer Name
Model #
Address
Serial #
City
Date Purchased
Zip
Dealer’s Name
Phone #
Dealer’s Address
e-mail:
This Warranty Registration card must be returned within thirty days of purchased to properly activate
your warranty. This information is for our internal use only.
Cut
Here
Or you may register online at http://www.deltaheat.com
HOW TO OBTAIN SERVICE
For service, please contact your DELTA HEAT dealer or call DELTA HEAT direct at (800)
422-0091 or fax (562) 802-3391
Mailing address:
DELTA HEAT, Inc.
13231 166
th
Street
Cerritos, CA 90703
Visit us at www.deltaheat.com
Please provide:
Model number
Serial Number
Date of installation
A description of the problem
13
Customer Service
ATTN: Warranty Department
13231 166
th
Street
Cerritos, CA 90703
Place
Postage
Here
Cut
Here
