Crosley CFD28WIQB0 28 cu.ft. Capacity Bottom Freezer User Manual

Use & Care Manual

Refrigerator

French Door Bottom Freezer

Table of Contents

Important Safety Instructions .......................... 2

Features at a Glance ....................................... 4

Installation .................................................... 5

Door Removal Instructions .............................. 9

Installing Door Handles ................................. 11

Connecting Water Supply .............................. 13

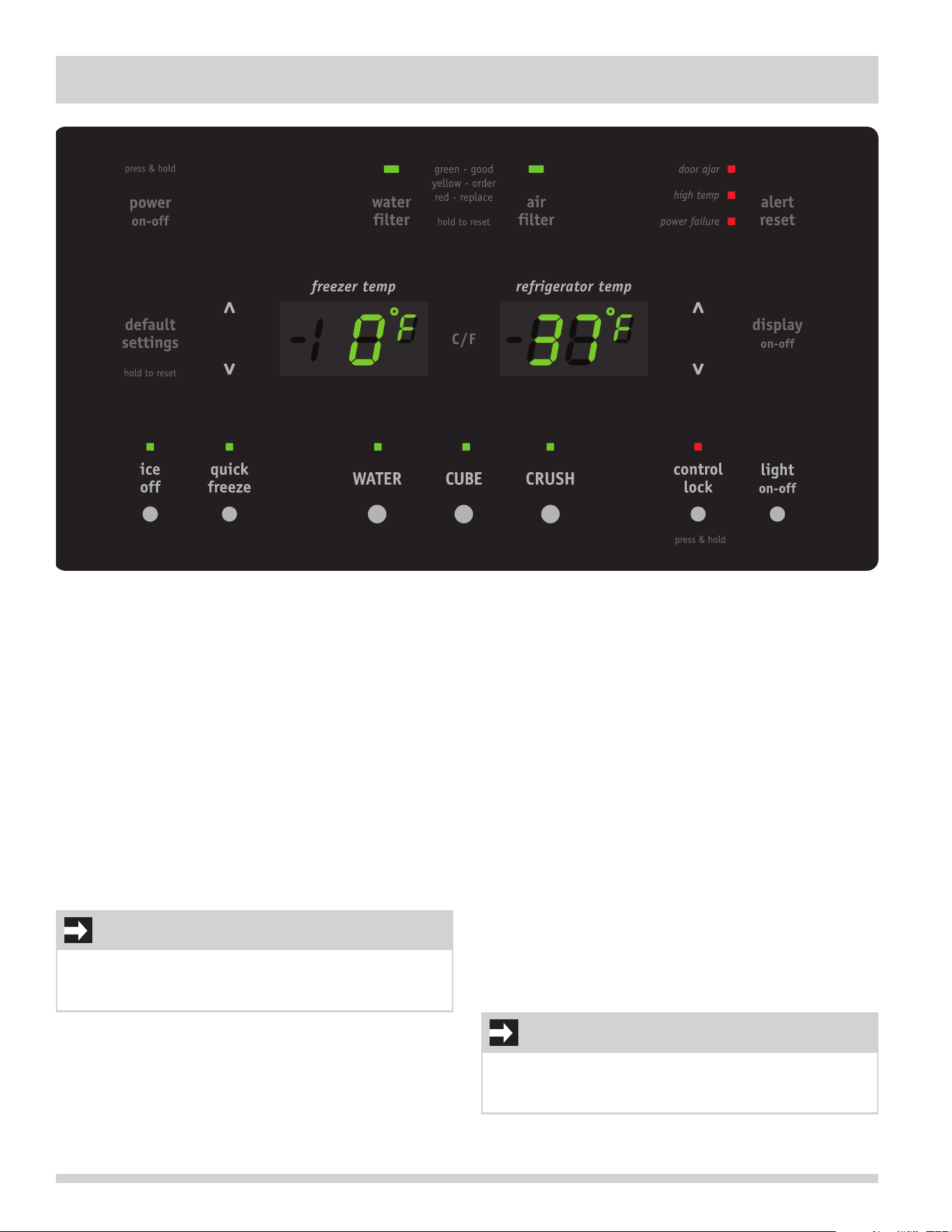

Controls ....................................................... 14

Automatic Ice & Water Dispenser .................. 16

Storage Features .......................................... 18

Storing Food and Saving Energy .................... 22

Normal Operating Sounds and Sights ............. 23

Changing the Filter ....................................... 24

Care and Cleaning ........................................ 26

Before you Call ............................................. 29

Major Appliance Warranty ............................. 31

242116403 (February 2011)

WARNING

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

injury.

IMPORTANT

IMPORTANT indicates installation, operation or

maintenance information which is important but not

hazard-related.

DANGER

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

injury.

Denitions

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible injury

or death.

Doors

 Handles are secure and tight

 Door seals completely to cabinet on all sides

 Freezer drawer is level across the top

Leveling

 Refrigerator is level, side-to-side and tilted ¼

inch (6 mm) front-to-back

 Toe grille is properly attached to refrigerator

 Cabinet is setting solid on all corners

Electrical Power

 House power turned on

 Refrigerator plugged in

Ice Maker

 House water supply connected to refrigerator

 No water leaks present at all connections -

recheck in 24 hours

 Ice maker is turned ON

 Ice & water dispenser operates correctly

Final Checks

 Shipping material removed

 Fresh food and freezer temperatures set

 Crisper humidity controls set

 Registration card sent in

Installation Checklist

CAUTION

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

injury.

IMPORTANT SAFETY INSTRUCTIONS

For your Safety

 • DONOTstoreorusegasoline,orotherammable

liquids in the vicinity of this or any other appliance.

Read product labels for warnings regarding

ammabilityandotherhazards.

 • DONOToperatetherefrigeratorinthepresenceof

explosive fumes.

 • Avoidcontactwithanymovingpartsofautomatic

ice maker.

 • Removeallstaplesfromthecarton.Staplescan

causeseverecuts,andalsodestroynishesifthey

come in contact with other appliances or furniture.

WARNING

Please read all instructions before using this

refrigerator.

IMPORTANT SAFETY INSTRUCTIONS

Electrical information

 • The refrigerator must be plugged into its

own dedicated 115 Volt, 60 Hz., 15 Amp, AC

only electrical outlet. The power cord of the

appliance is equipped with a three-prong grounding

plug for your protection against electrical shock

hazards. It must be plugged directly into a properly

grounded three prong receptacle. The receptacle

must be installed in accordance with local codes

andordinances.Consultaqualiedelectrician.

Avoid connecting refrigerator to a Ground

WARNING

These guidelines must be followed to ensure that

safety mechanisms in this refrigerator will operate

properly.

IMPORTANT

Pressing and holding the On/Off button for 3 seconds,

located on the left side of the temperature control

panel will disable your refrigerator’s cooling system, but

does not disconnect the power to the light bulb and

other electrical components. To turn off power to your

refrigerator you must unplug the power cord from the

electrical outlet.

CAUTION

To avoid personal injury or property damage, handle

tempered glass shelves carefully. Shelves may break

suddenly if nicked, scratched, or exposed to sudden

temperature change.

Child Safety

Destroy or recycle the carton, plastic bags, and any

exterior wrapping material immediately after the

refrigerator is unpacked. Children should NEVER

use these items to play. Cartons covered with rugs,

bedspreads, plastic sheets or stretch wrap may become

airtight chambers, and can quickly cause suffocation.

Proper Disposal of your Refrigerator or

Freezer

Risk of child entrapment

Child entrapment and suffocation are not problems of the

past. Junked or abandoned refrigerators or freezers are

still dangerous – even if they will sit for “just a few days”.

If you are getting rid of your old refrigerator or freezer,

please follow the instructions below to help prevent

accidents.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance recycling/

disposal methods. Check with your utility company or

visit www.energystar.gov/recycle for more information on

recycling your old refrigerator.

Before you throw away your old refrigerator/

freezer:

 • Removedoors.

 • Leaveshelvesinplace

so children may not

easily climb inside.

 • Haverefrigerant

removedbyaqualied

service technician.

Fault Interrupter (GFI) circuit. Do not use an

extension cord or adapter plug.

 • Ifthepowercordisdamaged,itshouldbereplaced

by an authorized service technician to prevent any

risk.

 • Neverunplugtherefrigeratorbypullingonthe

powercord.Alwaysgriptheplugrmly,and

pull straight out from the receptacle to prevent

damaging the power cord.

 • Unplugtherefrigeratorbeforecleaningandbefore

replacing a light bulb to avoid electrical shock.

 • Performancemaybeaffectedifthevoltagevaries

by 10% or more. Operating the refrigerator with

insufcientpowercandamagethecompressor.

Such damage is not covered under your warranty.

 • Donotplugtheunitintoanelectricaloutlet

controlled by a wall switch or pull cord to prevent

the refrigerator from being turned off accidentally.

FEATURES AT A GLANCE

Features may vary according to model

Toe

Grille

SpillSafe

Shelves

Dairy

Compartment

Ice

Bin

Ice

Maker

SpillSafe

Shelves

Freezer Baskets

Crisper

Drawer

Crisper

Drawer

Water

Filter

Adjustable

Hinges

Incandescent Light (select models)

LED Light (select models)

Door

Bin

Flipper Guide

Flipper

Mullion

Store-More

Drawer

Can

Rack

Air Filter

(select models)

IMPORTANT

Features not included with your refrigerator can be purchased at

www.frigidaire.com or by calling 1-800-944-9044.

(select models)



NOTE

If your refrigerator is placed with the door hinge side

against a wall, you may have to allow additional space

so the door can be opened wider.



NOTE

The refrigerator doors are designed to shut by

themselves within a 20 degree opening.

INSTALLATION

CAUTION

Do Not install the refrigerator where the temperature

will drop below 55°F (13°C) or rise above 110°F

(43°C). The compressor will not be able to maintain

proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front of your

refrigerator.Sufcientaircirculationisessentialforthe

proper operation of your refrigerator.

This Use & Care Guide provides general installation and

operating instructions for your model. We recommend

using a service or kitchen contracting professional to

install your refrigerator. Use the refrigerator only as

instructed in this Use & Care Guide. Before starting

the refrigerator, follow these important rst steps.

Location

 • Chooseaplacethatisnearagrounded,non-GFCI,

electrical outlet. Do Not use an extension cord or

an adapter plug.

 • Ifpossible,placetherefrigeratoroutofdirect

sunlight and away from the range, dishwasher, or

other heat sources.

 • Therefrigeratormustbeinstalledonaoorthatis

level and strong enough to support a fully loaded

refrigerator.

 • Considerwatersupplyavailabilityformodels

equipped with an automatic ice maker.

Installation

 • Allowthefollowingclearancesforeaseof

installation, proper air circulation, and plumbing

and electrical connections:

Sides & Top

inch (9.5 mm)

Back 1 inch (25.4 mm)

Door opening

Your refrigerator should be positioned to allow easy

access to a counter when removing food. For best use of

refrigerator drawers and freezer baskets, the refrigerator

should be in a position where both can be fully opened.

Required Tools

You will need the following tools:

INSTALLATION



NOTE

DO NOT remove center screw from freezer drawer.

This is a factory adjustment.

To level the cabinet using the front rollers (select

models):

1 Slightlyopenfreezerdrawer.Liftthetoegrilleand

gently pull forward (see illustration).

Leveling Freezer Drawer (if necessary) Level Refrigerator & Adjust Doors

(if necessary)

Guidelines for nal positioning of your refrigerator:

 • Allfourcornersofthecabinetmustrestrmlyon

theoor.

 • Thesidesshouldtilt

inch (6 mm) from front to

back (to ensure that doors close and seal properly).

 • Doorsshouldalignwitheachotherandbelevel.

Most of these conditions can be met by raising or

lowering the adjustable front rollers.

To level the cabinet using the front rollers:

1 You can raise or lower each door. use a 3/8 inch

socket wrench to turn the adjustment screws (1

per side).

To raise: turn adjustment screw clockwise.

To lower: turn adjustment screw counterclockwise.

2 Ensure both doors are bind-free with their seals

touching the cabinet on all four sides and that

cabinet is stable.

3 After unit is leveled, lower anti-tip leg until it

contactstheoor.

2 Check gasket seal around top, bottom, and sides of

freezer drawer.

3 If gasket is not sealed, open drawer and slightly

loosen four (4) drawer screws (two (2) on each

side) to allow drawer to rotate.

4 Close drawer and recheck the seal on the gasket

(A). Open the drawer grabbing by the sides in the

center (B). Be careful not to rotate the drawer.

5 Tighten four (4) drawer screws.

6 Recheck gasket seal.

7 Installthetoegrillebyttingintoplace.

Pull Drawer Out

From Both Sides

Grab Drawer

At Center

Then

Push Against

Freezer Drawer

A B

Raise

Lower

Anti-tip

Leg

Door

Remove Hex

Head Drawer

Screw

Remove Hex

Head Drawer

Screw

Do Not Remove

Other Screws

Remove Hex

Head Drawer

Screw

Remove Hex

Head Drawer

Screw

Do Not Remove

Other Screws

To adjust the door stop:

Door stop is adjustable between 85 to 145 degrees.

1 Open door to provide access to screw.

2 Loosenscrew.

3 Adjust door to desired location.

4 Rotate door stop until it makes contact with the

lower hinge.

5 Retighten screw.

Loosen or Remove

Screw

Open

Door

degrees

Bottom of Door

Loosen/Remove Screw (where applicable)

6 Ensure door stops in desired location before

resuming normal use.

To level the doors using the adjustable lower

hinge (select models):

1 Remove all food items from door bins on door

being adjusted.

2 Open doors to 90 degrees.

3 Loosenorremovescrew.

Adjusting Door

Retighten Screw

Adjustable Door Stop

INSTALLATION



NOTE

View shown is looking up at the bottom of the

refrigerator door.



NOTE

Adjustable hinge should only be used after doors have

been leveled with rollers.

Adjusting Flipper Mullion Screw

To adjust the ipper mullion:

1 Loosenthescrewlocatedontheippermullion

hinge.

2 Adjustippermullionheight.Forproper

connectionwiththeippermullionguide,there

should be a separation about the thickness of a

coin (0.060 inches, or 1.5 mm) between the guide

andippermullion.

3 Retighten screw.

4 Liftthedoorwhileadjustingthewasher.Toraise

the door, rotate washer clockwise (when viewed

from the bottom). To lower door, rotate washer

counterclockwise (when viewed from the bottom).

5 Retighten the screw, ensuring it is between the

spokes of the washer. Screw will not be tight, just

insertuntilitisushwiththehinge.

Adjusting Flipper Mullion Height

Raising/Lowering Door

Screw (where applicable)



NOTE

If after adjusting doors higher the door makes a

popping/clicking sound, remove screw and replace with

the longer one supplied in the handle package.

INSTALLATION

DOOR REMOVAL INSTRUCTIONS

To remove the refrigerator doors:

1 Trace lightly around the door’s top hinges with a

pencil. This makes reinstallation easier.

2 Disconnect the harness by grasping both sides of

theconnectorrmly,depressthelatch,andpull

apart. Remove the two (2) screws from the top

hinge.Liftthedooroffofthebottomhingeandset

it aside.

3 Detach the water tube from the connector

located behind the refrigerator and pull the tube

back out to the front of the unit. The connector

releases when you press inward on the outer

sleeve while pushing the tube toward the

connector then while continuing to hold in the

sleeve, pull the tube away.

Getting through narrow spaces

Ifyourrefrigeratorwillnottthroughanentrancearea,

youcanremovethedoors.Checkrstbymeasuringthe

entrance.

To prepare for removing the doors:

1 Make sure the electrical power cord is unplugged

from the wall outlet.

2 Open the freezer drawer and remove the toe grille

(see “Installation” section).

3 Remove any food from the door shelves and close

the doors.

To remove the top hinge covers:

1 Remove the two (2) screws from each cover over

the top door hinges.

2 Liftinsideedgeofhingecoverandtiltback.



NOTE

DO NOT remove the ground screw from hinge.

CAUTION

Be sure doors are set aside in a secure position where

they cannot fall and cause personal injury, or damage

to the doors or handles.

CAUTION

Drawer is heavy. Use caution when lifting.

DOOR REMOVAL INSTRUCTIONS

Once both doors are in place, ensure they are aligned

with each other and level (Please see the “Installation”

section for more details), and replace the top hinge cover.

Lower Hinge Removal

4 Unscrew the three (3) lower hinge screws and

hinge if necessary.

To reinstall the right door, reverse the above steps.

Removing Freezer Drawer

1 Open freezer drawer.

2 Remove drawer screws on right and left sides (two

(2) screws on each side).

3 Liftdrawerupandouttoremove.

Installing Freezer Drawer

1 With lower slides pulled out, hang drawer onto

slide brackets ensuring pins on each side are fully

inserted into slots on each side.

6 Tighten four (4) drawer screws.

7 Recheck gasket seal.

8 Installthetoegrillebyttingintoplace.

2 Reinstall four (4) drawer screws (two (2) per side),

tighten down, and close drawer (C).

Pull Drawer Out

From Both Sides

Grab Drawer

At Center

Then

Push Against

Freezer Drawer

A B

Fully Extend

Assembly

Drawer Slides

Slot

Cabinet

Drawer

Install Screws

(2) Each Side

3 Check gasket seal around top, bottom, and sides of

freezer drawer.

4 If gasket is not sealed, open drawer and slightly

loosen four (4) drawer screws (two (2) on each

side) to allow drawer to rotate.

5 Close drawer and recheck the seal on the gasket

(A). Open the drawer grabbing by the sides in the

center (B). Be careful not to rotate the drawer.



NOTE

You will be pulling approximately three (3) feet of

water tube from the back of the refrigerator.



NOTE

DO NOT remove center screw from freezer drawer.

This is a factory adjustment.

Remove Hex

Head Drawer

Screw

Remove Hex

Head Drawer

Screw

Do Not Remove

Other Screws

Remove Hex

Head Drawer

Screw

Remove Hex

Head Drawer

Screw

Do Not Remove

Other Screws

INSTALLING DOOR HANDLES



NOTE

All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn

tight to freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Allen screw

makes installation easier.

The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the

handles.

Door Handle Mounting Instructions for Frigidaire Gallery

1 Remove handles from carton and any other protective packaging.

2 Position fresh food handle end over upper and lower pre-installed shoulder bolts (A) that are fastened into door,

ensuring the holes for the set screws are facing towards the opposite door.

3 Whileholdinghandlermlyagainstdoor,fastenupperandlowerAllensetscrews(B)withsuppliedAllenwrench.

4 Repeatsteps2and3toinstalloppositehandle.Ensuretheholesforthesetscrewsarefacingtowardstherstdoor.

5 Position freezer handle end over left and right pre-installed handle mounts that are fastened to the door, ensuring

the holes for the set screws are facing down.

6 Whileholdinghandlermlyagainstdoor,looselytightenfarrightAllensetscrew(B)withsuppliedAllenwrenchuntilthereis

no gap between handle and door.

7 Stillholdingthehandlermlytothedoor,rmlytightenfarleftAllensetscrew(B)withsuppliedAllenwrench.

8 ReturntothefarrightAllensetscrew(B)andrmlytightenwithsuppliedAllenwrench.

Mounting Refrigerator Handles

Mounting Freezer Handle

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION

when installing these handles.

Door Handle Mounting Instructions for Frigidaire Professional

1 Remove handles from carton and any other protective packaging.

2 Position fresh food handle end over upper and lower pre-installed shoulder bolts (A) that are fastened into door,

ensuring the holes for the set screws are facing towards the opposite door.

3 Whileholdinghandlermlyagainstdoor,fastenupperandlowerAllensetscrews(B)withsuppliedAllenwrench.

4 Repeatsteps2and3toinstalloppositehandle.Ensuretheholesforthesetscrewsarefacingtowardstherstdoor.

5 Position freezer handle end over left and right pre-installed handle mounts that are fastened to the door, ensuring

the holes for the set screws are facing down.

6 Whileholdinghandlermlyagainstdoor,looselytightenfarrightAllensetscrew(B)withsuppliedAllenwrenchuntilthereis

no gap between handle and door.

7 Stillholdingthehandlermlytothedoor,rmlytightenfarleftAllensetscrew(B)withsuppliedAllenwrench.

8 ReturntothefarrightAllensetscrew(B)andrmlytightenwithsuppliedAllenwrench.

9 Firmly tighten the inside Allen set screws.

INSTALLING DOOR HANDLES



NOTE

All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn

tight to freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Allen screw

makes installation easier.

The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the

handles.

Mounting Refrigerator Handles

Mounting Freezer Handle

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION

when installing these handles.

WARNING

To avoid electric shock, which can cause death or

severe personal injury, disconnect the refrigerator

from electrical power before connecting a water

supply line to the refrigerator.



NOTE

Check with your local building authority for recommendations

on water lines and associated materials prior to installing

your new refrigerator. Depending on your local/state

building codes, Frigidaire recommends for homes with

existing valves its Smart Choice

water line kit 5305513409

(witha6ft.StainlessSteelWaterLine)andforhomes

without an existing valve, Frigidaire recommends its Smart

Choice water

line kit 5305510264 (with a 20 ft. Copper

WaterLinewithself-tappingsaddlevalve).Pleasereferto

www.crosley.com for more information.

CAUTION

To Avoid Property Damage:

• Copper or Stainless Steel braided tubing is

recommended for the water supply line. Water

supply tubing made of ¼ inch plastic is not

recommended to be used. Plastic tubing greatly

increases the potential for water leaks, and the

manufacturer will not be responsible for any

damage if plastic tubing is used for the supply line.

• DO NOT install water supply tubing in areas where

temperatures fall below freezing.

• Chemicals from a malfunctioning softener

can damage the ice maker. If the ice maker is

connected to soft water, ensure that the softener

is maintained and working properly.

IMPORTANT

Ensure that your water supply line connections comply with

all local plumbing codes.

IMPORTANT

After connecting the water supply, refer to “How to Prime

the Water Supply System” for important information about

priming an empty water supply system.

Your refrigerator’s water supply system includes several tubing

lines,awaterlter,awatervalve,andawatertank.Toensure

that your water dispenser works properly, this system must

becompletelylledwithwaterwhenyourrefrigeratorisrst

connected to the household water supply line.

CONNECTING THE WATER SUPPLY

Before Installing The Water Supply Line, You Will Need:

 • BasicTools:adjustablewrench,at-bladescrewdriver,

and Phillips

screwdriver

 • Accesstoahouseholdcoldwaterlinewithwater

pressure between 30 and 100 psi.

 • Awatersupplylinemadeof¼inch(6.4mm)OD,

copper or stainless steel tubing. To determine the length

of tubing needed, measure the distance from the ice

maker inlet valve at the back of the refrigerator to your

cold water pipe. Then add approximately 7 feet (2.1 m),

so the refrigerator can be moved out for cleaning (as

shown).

 • Ashutoffvalvetoconnectthewatersupplylinetoyour

household water system. DO NOT use a self-piercing

type shutoff valve.

 • Donotreuseacompressionttingorthreadsealtape.

 • Acompressionnutandferrule(sleeve)forconnectinga

copper water supply line to the ice maker inlet valve.

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn

ONwatersupplyandushsupplylineuntilwateris

clear. Turn OFF water supply at shutoff valve.

3. Remove plastic cap from water valve inlet and discard

cap.

4. If you use copper tubing - Slide brass compression

nut, then ferrule (sleeve) onto water supply line. Push

water supply line into water valve inlet as far as it will

go (¼ inch/6 mm). Slide ferrule (sleeve) into valve inlet

andngertightencompressionnutontovalve.Tighten

another half turn with a wrench; DO NOT overtighten.

See Figure 1.

If you use stainless steel tubing - The nut and

ferrule are already assembled on the tubing. Slide

compressionnutontovalveinletandngertighten

compression nut onto valve. Tighten another half turn

with a wrench; DO NOT overtighten. See Figure 2.

5. With steel clamp and screw, secure water supply line

(copper tubing only) to rear panel of refrigerator as

shown.

6. Coil excess water supply line (copper tubing only), about

2½ turns, behind refrigerator as shown and arrange

coils so they do not vibrate or wear against any other

surface.

7. Turn ON water supply at shutoff valve and tighten any

connections that leak.

8. Reconnect refrigerator to electrical power source.

Figure 2

Figure 1

Copper water line

from household water supply

(Includeenough tubing in loop to allow

moving refrigerator out for cleaning.)

Ferrule

(Sleeve)

Copper

water line

WaterValve

Valve Inlet

Water Valve

Bracket

Steel

Clamp

Plastic Water Tubing

to Ice Maker

Fill Tube

Brass

Compression

Nut

CONTROLS

ice off Press and hold for three (3) seconds to

turn the ice maker “ON” or “OFF”. The

icemakerisoffwhentheLEDabove

the “Ice Off” icon is illuminated. Turn-

ing the ice maker “OFF” disables the

ice dispensing feature. Neither “CUBE”

nor “CRUSH” will operate with the ice

maker “OFF”.

quick freeze Activates a faster rate for freezing

food.

light On / Off

control lock Press and hold for three (3) seconds to

activate and deactivate. This restricts

undesired changes to the refrigerator’s

settings and prevents use of the ice

and water dispenser.

water lter Touchtodisplaylterconditionstatus.

Press and hold for three (3) seconds to

resetafterlterchange.

air lter Touchtodisplaylterstatus.Press

and hold for three (3) seconds to reset

afterlterchange.

display on-off Toggles the temperature displays On

and Off.

C / F Touch to toggle display from Fahren-

heit to Celsius.

default settings Hold to Reset all refrigerator settings

such as temp, and temp display to

their factory default settings.

power Press and hold for three (3) seconds

to turn off the cooling system to clean

the refrigerator. It also turns off the

ice maker, all dispenser functions. The

temperature display will read OFF.

IMPORTANT

When the ice maker is turned off, the ice in the bucket

should be transferred to the freezer or discarded to

prevent it from melting.

IMPORTANT

Pressing the power on/off icon does not turn off

power to your refrigerator. You must unplug the power

cord from the wall outlet.

Your refrigerator is equipped with a touch control panel.

It is only necessary to gently touch the control panel.

There are three (3) dispenser modes:

1 Water

2 Ice Cubes

3 Crushed Ice

A green indicator light will be illuminated above the active

feature.

CONTROLS

Alarms

Door Ajar If the door has been left open for an

extended period of time, an alarm will

sound and the door ajar indicator will

illuminate on the display. Press the

alarm reset key to reset any system

alarms.

High Temp In the event of a high temperature

condition, the temperature display

will blink and display “HI”. After 20

minutes, the high temp alert will

be illuminated. Press alarm reset to

acknowledge the alarm, at which time

the highest temperature reached will

be displayed and the refrigerator will

resume normal operation. All other

modes are turned off until the alarm is

acknowledged.

Power Fail In the event of a power failure, the

power fail alert will be illuminated.

Press alarm reset to acknowledge the

alarm. Other modes may be turned off

until the alarm is acknowledged. When

the power fail alert is acknowledged,

the refrigerator will resume normal op-

eration. The high temp alarm may also

be illuminated until a safe operating

range temperature has been reached.

Setting cooling temperatures

1 Down "∨” and Up "∧” indicators are located beside

the displayed temperatures.

2 Press the "∨” or "∧” indicator to adjust the

temperature to the desired setting.

The temperature display will begin to blink with the

rsttouch.Afterve(5)secondsofinactivity,the

display will beep to accept the new temperature.

After 10 seconds, the display times out and returns

to the basic display.

The Sabbath Mode is a feature that disables portions

of the refrigerator and its controls in accordance with

observance of the weekly Sabbath and religious holidays

within the Orthodox Jewish community.

Sabbath Mode is turned ON and OFF by pressing

and holding both the freezer “∨” and refrigerator “∧”

indicatorsforve(5)seconds.Thedisplayshows“Sb”

while in Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for

health reasons. If a high temperature alarm

is activated during this time, for example

due to a door left ajar, the alarm will sound

intermittently for about 10 minutes. The

alarm will then silence on its own and a red

high temperature icon will display. The high temp icon

will continue to display, even if the door is closed, until

the Sabbath mode is exited and the icon reset. The

refrigerator will function normally once the door is closed,

without any violation of the Sabbath/Holidays.

For further assistance, guidelines for proper usage and a

complete list of models with the Sabbath feature, please

visit the web at http:\\www.star-k.org.

Sabbath Mode



NOTE

While in Sabbath Mode, neither the lights, dispenser,

nor the control panel will work until Sabbath Mode is

deactivated.

Refrigerator stays in Sabbath Mode after power failure

recovery. It must be deactivated with the buttons on

the control panel.



NOTE

Although you have entered the Sabbath Mode, the ice

maker will complete the cycle it had already initiated.

The ice cube compartment will remain cold and new ice

cubes can be made with standard trays.

IMPORTANT

Your ice maker is turned on at the factory so it can work

as soon as you install your refrigerator. If you cannot

connect a water supply, set the ice maker’s On/Off icon to

Off and turn off the water supply valve; otherwise, the ice

maker’sllvalvemaymakealoudchatteringnoisewhen

it attempts to operate without water.

IMPORTANT

On occasion, unusually small ice cubes may be noticed in

the bucket or in dispensed ice. This could occur in normal

operation of the ice maker. If you start seeing these more

frequently, it may be an indication of low water pressure

orthewaterlterneedstobereplaced.Asthewaterlter

nears the end of its useful life and becomes clogged with

particles, less water is delivered to the ice maker during

each cycle. Remember, if it’s been six (6) months or longer

sinceyoulastchangedyourwaterlter,replacethewater

lterwithanewone.Poorqualityhouseholdwatermay

requiretheltertobechangedmorefrequently.

IMPORTANT

Turning off the ice maker will result in existing ice melting

in the bin.

IMPORTANT

Turning off the ice maker will disable the ice dispenser.

You will still be able to dispense water.

AUTOMATIC ICE & WATER DISPENSER



NOTE

The water dispenser has a built-in device that shuts off the

waterowafterthree(3)minutesofcontinuoususe.Toreset

this shutoff device, simply release the dispenser paddle.



NOTE

The ice maker also has a built-in plastic signal arm that

automatically stops ice production when the ice bin is full. This

signal arm should not be used to manually stop the ice maker.

CAUTION

For proper dispenser operation, recommended water

supply pressure should fall between 30 psi and 100 psi.

Excessivepressuremaycausewaterltertomalfunction.

Priming the water supply system

1 Beginllingthetankbypressingandholdinga

drinking glass against the water dispenser paddle.

2 Keep the glass in this position until water comes out

of the dispenser. It

may take about 1½

minutes.

3 Continue dispensing

water for about four

(4)minutestoushthe

system and plumbing

connections of any

impurities (stopping

to empty the glass as

necessary).

Ice maker operation & care

After the refrigerator is installed properly and has cooled

for several hours, the ice maker can produce ice within 24

hours.Theicemakerwilllltheicebinfromtherear.You

must dispense some ice to force the ice forward in the bin.

Thiswillallowthebintollcompletely.

Turning the ice maker on and off

Ice production is controlled by the ice maker’s On/Off icon on

the control panel. Press and hold the “Ice Off” icon for three (3)

seconds to turn the ice maker “ON” or “OFF”. The ice maker is

offwhentheLEDabovethe“IceOff”iconisilluminated.

Using the ice maker after installation

Beforemakingiceforthersttime,besuretoprimethe

water supply system. Air in new plumbing lines can result

in two (2) or three (3) empty ice maker cycles. Furthermore,

ifthesystemisnotushed,thersticecubesmaybe

discoloredorhaveanoddavor.

CAUTION

If the water supply to your refrigerator is softened, be

sure the softener is properly maintained. Chemicals

from a water softener can damage the ice maker.

CAUTION

NEVER use an ice pick or similar sharp instrument to

break up the ice. This could damage the ice bin.

To loosen stuck ice, use warm water. Before replacing

the ice bin, make sure it is completely dry.

IMPORTANT

When removing or replacing the ice bin, DO NOT

rotate the auger in the ice bin. If the auger is

accidentally rotated, you must realign the auger by

turning it in 45 degree turns (see below) until the ice

bintsintoplacewiththedrivemechanism.If the

auger is not properly aligned when replacing the ice

bin, the refrigerator will not dispense ice. The fresh

food door also may not close properly causing warm air

to leak into the fresh food compartment.

AUTOMATIC ICE & WATER DISPENSER

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals,

especially prior to vacation or moving.

1 Turn off the ice maker.

2 Remove the ice bin by

pulling straight out.

3 Empty and carefully

clean the ice bin with

mild detergent. Do not

use harsh or abrasive

cleaners. Rinse with

clear water.

4 Allow the ice bin to

dry completely before

replacing in the freezer.

5 Replace the ice bin. Turn the ice maker on.

Adjusting Ice Bin Auger

Removing Ice Bin

Remove and empty the ice bin if:

 • Anextendedpowerfailure(onehourorlonger)

causes ice cubes in the ice bin to melt and freeze

together, jamming the dispenser mechanism.

 • Youdonotusetheicedispenserfrequently.Ice

cubes will freeze together in the bin, jamming the

dispenser mechanism.

Remove the ice bin and shake to loosen the cubes or

clean as explained above.

Ice maker/dispenser tips

 • Ifyourrefrigeratorisnotconnectedtoawater

supply or the water supply is turned off, turn off the

ice maker by holding the On/Off soft-touch icon for

three (3) seconds.

 • Thefollowingsoundsarenormalwhentheice

maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

 • Whendispensingice,youwillhearasnappingor

clicking sound when the ice chute opens and closes.

 • Ifyouneedalargequantityoficeatonetime,itis

best to get cubes directly from the ice bin.

 • Icecubesstoredtoolongmaydevelopanodd

avor.Emptytheicebinasexplainedbelow.

 • Whendispensingcubedice,itisnormaltohavea

small quantity of little pieces along with the whole

cubes.

CAUTION

To avoid injury from breakage, handle tempered glass

shelves carefully.

STORAGE FEATURES



NOTE

Features may vary according to model.

Your refrigerator includes SpillSafe

glass shelves that

are designed to catch and hold accidental spills.

You can easily adjust shelf positions in the fresh food

compartments to suit your needs. The shelves have

mounting brackets that attach to slotted supports at the

rear of each compartment.

To change the position of a shelf:

1 Remove all food from shelf.

2 Liftthefrontedgeupandpulltheshelfout.

3 Replace by inserting the mounting bracket hooks

into the desired support slots.

4 Lowertheshelfandlockintoposition.

Shelf features

Crispers

Crisper drawers are designed for storing fruits,

vegetables, and other fresh produce.

Full SpillSafe

Shelf

Half SpillSafe

Shelf

Opening Crisper Drawer

Adjusting Crisper Humidity

Drawers

Your refrigerator includes a variety of storage drawers.

Thesedrawersarelocatedinxedpositionsatthe

bottom of the fresh food compartment.

Crisper humidity control

Crisper drawers include a sliding control for adjusting the

humidityinsidethecrisper.Leafyvegetableskeepbest

when stored with the Humidity Control set on Higher

Humidity. Fresh fruits keep best when stored with the

HumidityControlsetonLowerHumidity.

Removing Crisper Drawer

To remove the Crisper Drawer for cleaning:

1 Pull the drawer out until it stops.

2 Liftthefrontslightlyandremovethedrawer.

STORAGE FEATURES

Store-More

Drawer

Ideal for storage of deli meats and cheese.

Doors

Storage bins

The doors to your fresh food compartment use a system

of modular storage bins. All of these bins are removable

foreasycleaning.Someofthemhavexedpositions,

while others can be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and

large drink containers. They also enable quick selection of

frequently used items.

To change the position of an adjustable door bin:

1 Remove all food from bin.

2 Gripthebinrmlywithbothhandsandliftit

upward.

3 Remove the bin.

4 Place the bin just above desired position.

5 Lowerthebinontosupportsuntillockedinplace.

Adjustable Door Bin

Accessories (varies by model)

Tall bottle retainer

The tall bottle retainer keeps tall containers in the

bin from falling forward when opening or closing the

refrigerator door. To install, insert the ends of the retainer

into the holes.

Dairy compartment

Use the dairy compartment, at the top of the fresh food

compartment door, for short-term storage of cheese,

spreads, or butter. The dairy compartment is designed

to be warmer than the open area and includes a lift-up

cover and a dairy divider (select models).

6 Place bin liner into bin.

Dairy Compartment

STORAGE FEATURES

Freezer Features (varies by model)

To Remove Upper Basket

1 Remove all items from basket.

2 Remove basket by pulling baskets out to their full

extension and lift out.

To reinstall upper basket, position basket onto the

retainer clips making sure the front of the basket rests in

the retainer clips on the stabilizer bar.

Removing Lower Basket

To Remove Lower Basket

1 Remove all items from basket.

2 Remove the basket by tilting it forward and lifting it

from the retainer clips.



NOTE

If basket is not resting on stabilizer bar retainer clips,

the drawer will not close properly.

To reinstall lower basket, insert basket into retainer clips.

Two Freezer Baskets

Removing Upper Basket

Removable Can Dispenser

The can dispenser holds six 12 ounce cans. Insert cans

into top of bin and dispense from the bottom.

Middle Basket Divider

Dividers Removal

Liftuponthefrontofthemiddledividerandpullout.

Can Dispenser

STORAGE FEATURES

Lower Basket Divider &

Spill Guard Tray

Liftupontherearofthelowerdividerandpullout.

To reposition the pivoting divider (some models), lift up

and slide to desired location. The pivoting divider is not

designed to be removed .

Lower Basket Pivoting Divider

(some models)

Spill Guard

Tray

Lower Basket

Pivoting Divider



NOTE

Spill Guard Tray should be hand washed in warm water.

STORING FOOD AND SAVING ENERGY

Ideas for storing foods

Fresh food storage

 • Keepthefreshfoodcompartmentbetween34°F

and 40° F with an optimum temperature of 37° F.

 • Avoidovercrowdingtherefrigeratorshelves,which

reduces air circulation and causes uneven cooling.

Fruits and vegetables

 • Storefruitsandvegetablesincrisperdrawers,

where trapped moisture helps preserve food quality

for longer time periods.

 • Washitemsandremoveexcesswater.

 • Wrapanyitemsthathavestrongodorsorhigh

moisture content.

Meat

 • Wraprawmeatandpoultryseparatelyandsecurely

to prevent leaks and contamination of other foods

or surfaces.

 • Usethedelidrawertostoremeat/poultryforshort-

term storage. Any meat to be kept longer than two

(2) days should be frozen.

Frozen food storage

 • Keepthefreezercompartmentat0°Forlower.

 • Afreezeroperatesmostefcientlywhenitisat

least

full.

Packaging foods for freezing

 • Tominimizefooddehydrationandquality

deterioration, use aluminum foil, freezer wrap,

freezer bags, or airtight containers. Force as much

air out of the packages as possible and seal them

tightly. Trapped air can cause food to dry out,

changecolor,anddevelopanoff-avor(freezer

burn).

 • Wrapfreshmeatsandpoultrywithsuitablefreezer

wrap prior to freezing.

 • Donotrefreezemeatthathascompletelythawed.

Loading the freezer

 • Priortogroceryshopping,activate“quickfreeze”

so that on your return you can ensure your newly

purchased food designated for the freezer will be

preserved as quickly as possible.

 • Activating“quickfreeze”alsowillhelpyourfreezer

moreefcientlymaintaintheselectedtemperature

after placing new purchases with pre-existing

frozen foods.

 • Avoidaddingtoomuchwarmfoodtothefreezerat

one time. This overloads the freezer, slows the rate

of freezing, and can raise the temperature of frozen

foods.

 • Leaveaspacebetweenpackages,socoldaircan

circulate freely, allowing food to freeze as quickly

as possible.

Ideas for saving energy

Installation

 • Locatetherefrigeratorinthecoolestpartofthe

room, out of direct sunlight, and away from heating

ducts or registers.

 • Donotplacetherefrigeratornexttoheat-

producing appliances such as a range, oven, or

dishwasher. If this is not possible, a section of

cabinetry or an added layer of insulation between

the two (2) appliances will help the refrigerator

operatemoreefciently.

 • Leveltherefrigeratorsothatthedoorsclose

tightly.

Temperature settings

 • Refertothe“Controls”sectionforprocedureson

temperature settings.

Food storage

 • Avoidovercrowdingtherefrigeratororblockingcold

air vents. Doing so causes the refrigerator to run

longer and use more energy.

 • Coverfoodsandwipecontainersdrybefore

placing them in the refrigerator. This cuts down on

moisture build-up inside the unit.

 • Organizetherefrigeratortoreducedooropenings.

Remove as many items as needed at one time and

close the door as soon as possible.

 • Donotplaceahotcontainerdirectlyonacold

shelf. Remember, such an extreme temperature

change may damage the glass.

Understanding the sounds you

may hear

Yournew,high-efciencyrefrigeratormayintroduce

unfamiliar sounds. These sounds normally indicate

your refrigerator is operating correctly. Some surfaces

onoors,walls,andkitchencabinetsmaymakethese

sounds more noticeable.

The following is a list of major components in your

refrigerator and the sounds they can cause:

A Evaporator Refrigerant through the evaporator

may create a boiling or gurgling sound.

B Evaporator fan You may hear air being forced

through the refrigerator by the evaporator fan.

C Defrost heater During defrost cycles, water

dripping onto the defrost heater may cause a

hissing or sizzling sound. After defrosting, a

popping sound may occur.

D Automatic ice maker When ice has been

produced, you will hear ice cubes falling into the

ice bin. Ice maker fan, water valve activation, and

refrigerantgasuidmaycreatesoundsfromits

operation.

E Electronic control & automatic defrost

control These parts can produce a snapping or

clicking sound when turning the cooling system on

and off.

F Condenser fan You may hear air being forced

through the condenser.

G CompressorModern,high-efciencycompressors

run much faster than older models. The

compressor may have a high-pitched hum or

pulsating sound.

H Water valve Makes a buzzing sound each time it

openstolltheicemaker.

I Drain pan (not removable) You may hear water

dripping into the drain pan during the defrost cycle.

J Condenser May create minimal sounds from

forced air.

L Ice dispensing paddle When dispensing ice, you

will hear a snapping, clicking, or popping sound

when the solenoid opens and closes the ice chute.

M Motorized damper May produce a light

humming during operation.

NORMAL OPERATING SOUNDS AND SIGHTS



NOTE

Energyefcientfoaminyourrefrigeratorisnotasound

insulator.



NOTE

During automatic defrost cycle, a red glow in the back

wall vents of your freezer compartment is normal.

CHANGING THE FILTER

Locating the Filters

Yourrefrigeratorisequippedwithwaterlteringsystem.

Thewaterltersystemltersalldispenseddrinking

water, as well as the water used to produce ice.

Water Filter

Thewaterlterislocatedatthetoprightsideofthe

fresh food compartment.

Ordering Replacement Filters

Toorderyourreplacementlters,pleasevisitouronline

store at www.frigidaire.com/store, by calling toll-free

at 877-808-4195, or by visiting the dealer where you

purchased your refrigerator. Frigidaire recommends

thatyouorderextralterswhenyourstinstallyour

refrigerator,andthatyoureplaceyourltersatleastonce

every six months.

Here is the product number to request when ordering:

PureSource Ultra

Water Filter

Part #ULTRAWF

Replacing the Water Filter

Ingeneral,youshouldchangethewaterltereverysix

months to ensure the highest possible water quality.

Water Filter Status on the user interface prompts you

toreplacethelterafterastandardamountofwater

(200 gallons/757 liters for PureSource Ultra

)

has

owedthroughthesystem.

If your refrigerator has not been used for a period of time

(duringmovingforexample),changethelterbefore

reinstalling the refrigerator.

Do not use with water that is microbiologically unsafe or

of unknown quality without adequate disinfection before

orafterthesystem.Systemscertiedforcystreduction

may be used on disinfected waters that may contain

lterablecysts.

Test & certication results:

 • RatedCapacity-200gallons/757litersfor

PureSource Ultra

iceandwaterlter

 • Ratedserviceow-.50gallonsperminute

 • OperatingTemp.:Min.33°F,Max.100°F

 • MaximumRatedPressure-100poundspersquare

inch

 • RecommendedMinimumOperatingPressure:30

pounds per square inch

To replace your PureSource Ultra

water

lter:

It is not necessary to turn the water supply off to change

thelter.Bereadytowipeupanysmallamountsofwater

releasedduringthelterreplacement.

1 Turn Off the ice maker power switch.

2 Removethelterbypushingontheend/faceofthe

lter.

3 Slidetheoldwaterltercartridgestraightoutofthe

housing and discard it.

4 Unpackagethenewltercartridge.Usingthe

alignmentguide,slideitgentlyintothelterhousing

until it stops against the snap-in connector at the

back of the housing.

5 Push rmly until the cartridge snaps into

place (you should hear a click as the cartridge

engages the snap-in connector).

6 Press a drinking glass against the water dispenser

whilecheckingforanyleaksatthelterhousing.

Any spurts and sputters that occur as the system

purges air out of the dispenser system are normal.

7 Afterllingoneglassofwater,continueushingthe

system for about four minutes.

8 Turn On the ice maker.

9 Press and hold the Water Filter button on the Ice

& Water Dispenser control panel for three seconds.

When the display changes from Red to Green, the

status has been reset.

The PureSource Ultra

iceandwaterlter

systemistestedandcertiedtoNSF/ANSI

Standards 42 and 53 for the reduction of claims

speciedontheperformancedatasheet.

More about your Advanced Water Filter

CHANGING THE FILTER

Ordering replacement lters

Ordernewltersbycalling877-808-4195,onlineatwww.

crosley.com, or through the dealer where you bought

your refrigerator. You may want to consider ordering

extralterswhenyourstinstallyourrefrigerator.

Air Filter Replacement cartridge, part #PAULTRA

Air lter

Theairlterislocatedundertheutilitybin.

Replacing your PureAdvantage

air lter

Toensureoptimallteringofrefrigeratorodors,you

shouldchangetheairltereverysix(6)months(the

lterstatuslightontheTouchPanelpromptsyouto

replacethelteraftersix(6)months).

1 Opentheairlterdoor.

2 Removetheoldlteranddiscardit.

3 Unpackthenewlterandslideitintothehousing.

4 Toclosetheairlterdoor,pushthetopandbottom

to lock the door closed.

5 Press and hold the Air Filter Reset button on

the control panel for three (3) seconds. When the

display changes from “Replace” to “Good,” the

status has been reset.

6 The Air Filter Reset will turn itself off after a few

seconds.

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply

system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service

representative to perform this operation.

CAUTION

• Pulltherefrigeratorstraightouttomoveit.Shiftingitfromsidetosidemaydamageooring.Becarefulnotto

move the refrigerator beyond the plumbing connections.

• Dampobjectssticktocoldmetalsurfaces.Donottouchrefrigeratedsurfaceswithwetordamphands.



NOTE

Donotuseabrasivecleanerssuchaswindowsprays,scouringcleansers,ammableuids,cleaningwaxes,

concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors,

gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.



NOTE

If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue

until you unplug the power cord from the wall outlet.

CARE & CLEANING

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately

and clean the freezer and fresh food compartments at least twice a year.

 • Removeadhesivelabelsbyhand.Donotuserazorbladesorothersharpinstrumentswhichcanscratchthe

appliance surface.

 • Donotremovetheserialplate.Removalofyourserialplatevoidsyourwarranty.

 • Beforemovingyourrefrigerator,raisetheanti-tipbracketssotherollerswillworkcorrectly.Thiswillpreventthe

oorfrombeingdamaged.

Refertotheguideonthenextpagefordetailsoncaringandcleaningspecicareasofyourrefrigerator.

 • Neverusemetallicscouringpads,brushes,abrasivecleaners,orstrongalkalinesolutionsonanysurface.

 • NeveruseCHLORIDEorcleanerswithbleachtocleanstainlesssteel.

 • Donotwashanyremovablepartsinadishwasher.

 • Alwaysunplugtheelectricalpowercordfromthewalloutletbeforecleaning.

Vacation and moving tips

Occasion Tips

Short Vacations • Leaverefrigeratoroperatingduringvacationsofthree(3)weeksorless.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bucket, even if you will only be gone a few days.

LongVacations • Remove all food and ice if you will be gone one (1) month or more.

• Turn the cooling system off (see “Controls” section for location of On/Off button) and disconnect power cord.

• Turn water supply valve to closed position.

• Clean interior thoroughly.

• Leavebothdoorsopentopreventodorsandmoldbuild-up.Blockdoorsopenifnecessary.

Moving • Remove all food and ice.

• If using a handcart, load from the side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

CARE & CLEANING

Care and cleaning tips

Part Cleaning Agents Tips and Precautions

Interior &

DoorLiners

• Soap and water

• Baking soda and

water

• Use two (2) tablespoons of baking soda in one (1) quart of warm water.

• Be sure to wring excess water out of sponge or cloth before cleaning around

controls, light bulb or any electrical part.

Door Gaskets • Soap and water •Wipe gaskets with a clean soft cloth.

Drawers &

Bins

• Soap and water • Use a soft cloth to clean drawer runners and tracks.

• Do not wash any removable items (bins, drawers, etc.) in dishwasher.

Glass Shelves • Soap and water

• Glass cleaner

• Mild liquid sprays

• Allow glass to warm to room temperature before immersing in warm water.

Toe Grille • Soap and water

• Mild liquid sprays

• Vacuum

• Remove toe grille (see Installation Instructions).

• Vacuum both sides and wipe with sudsy cloth or sponge. Rinse and dry.

Exterior &

Handles

• Soap and water

• Non abrasive glass

cleaner

• Do not use commercial household cleaners containing ammonia, bleach or alcohol

to clean handles.

• Use a soft cloth to clean smooth handles.

• Do not use a dry cloth to clean smooth doors.

Exterior &

Handles

(Stainless

Steel Models

Only)

• Soap and water

• Stainless steel

cleaners

• NeveruseCHLORIDEorcleanerswithbleachtocleanstainlesssteel.

• Clean stainless steel front and handles with non-abrasive soapy water and a

dishcloth. Rinse with clean water and a soft cloth.

• Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at

most home improvement or major department stores. Always follow manufacturer’s

instruction. Do not use household cleaners containing ammonia or bleach.

• NOTE: Always clean, wipe and dry with grain to prevent scratching.

• Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well

and wipe dry with a clean soft cloth.

Ice Chute Extension

The ice chute extension is

designed to better direct ice

owintocontainers.

Push Upward Until The

Extension Snaps In Place

Pull Down

Press Here

Firmly

Removing the Ice Chute Extension For

Cleaning

1 Turn the refrigerator

off using the button

on the control panel

(refer to Owner’s

Manual).

2 Pressinwardrmlyon

the front of the chute

and pull down.

3 Turn your refrigerator

back on.

Installing the Ice

Chute Extension

1 Turn the refrigerator off

using the button on the

control panel (refer to

Owner’s Manual).

2 Align the extension with

the ice chute so that the

snap clips are just inside

the front edge of the

chute.

3 Push upward until the extension snaps into place.

4 Turn your refrigerator back on.

CAUTION

Wear gloves when replacing incandescent light bulbs to

avoid getting cut.



NOTE

LEDlightsareinseriessoifoneisbadorunplugged,

several lights may not light up.

CARE & CLEANING

Replacing LED Lights (select models)

The fresh food compartments of your refrigerator

mayhaveLEDlights.AlwaysuseFrigidairepartsfor

replacement.

To replace LED Lights:

1 Unplug your refrigerator’s power cord.

2 Remove light cover by pushing up and out.

3 HoldtheLEDcoverwithonehandandpullthe

connector with the other hand while pressing the

connector latch.

4 ReplaceLEDlightandsnapinplaceassuringthe

light is facing in toward the unit (inside fresh food)

or facing outward on bottom of fresh food doors.

Ordering Replacement LED Lights

OrdernewLEDsbycalling877-808-4195,onlineatwww.

frigidaire.com/store, or through the dealer where you

bought the refrigerator. Here is the product number to

request when ordering:

LED Light, Part #241891102

Incandescent Lights (40-watt bulb), Part

#5305514148

LED Light Harness Removal

LED Light Removal

Replacing Light Bulbs (select models)

Both the freezer and fresh food compartments of your

refrigerator include incandescent light bulbs that will

need replacing from time-to-time. Some lights have

covers that need to be removed before replacing the

bulbs. Always use bulbs that are designed for appliance

lighting.

To replace light bulbs:

1 Unplug your refrigerator’s power cord.

2 Wear protective gloves.

3 Remove light cover, if necessary.

4 Unscrew and replace old bulb with an appliance

bulb of the same type and wattage (normally 40

watts).

5 Replace light cover, if necessary.

6 Plug in the refrigerator’s power cord.

Refrigerator Light

Freezer Light

BEFORE YOU CALL

1-800-944-9044 (United States)

1-800-265-8352 (Canada)

Visit our web site at

www.crosley.com

CONCERN POTENTIAL CAUSE COMMON SOLUTION

AUTOMATIC ICE MAKER

Ice maker is not mak-

ing any ice.

• Ice maker is turned off.

• Refrigerator is not connected to wa-

ter line or water valve is not open.

• The water supply line is kinked.

• Thewaterlterisnotseated

properly.

• Thewaterltermaybeclogged

with foreign material.

• Saddle valve on cold water pipe

is clogged or restricted by foreign

material.

• Turn on ice maker. For the fresh food ice maker, press and

hold the “Ice Off” button for 4 seconds until the indicator turns

off. For the freezer ice maker, lower the wire signal arm.

• Connect the unit to the household water supply and ensure

the supply valve is open.

• Ensure that the supply line does not kink when the refrigera-

tor is pushed into place against the wall.

• Removeandre-installthewaterlter.Besuretopushthe

lterrmlysothatyouhearitlocksolidlyintoposition.

• Ifwaterdispensesslowlyornotatall,orifthelterissix(6)

months old or older, it should be replaced.

• Turn off household water line valve. Remove valve. Ensure

that valve is not a self-piercing saddle valve. Clean valve.

Replace valve if necessary.

Ice maker is not mak-

ing enough ice.

• Ice maker is producing less ice

than you expect.

• Thewaterltermaybeclogged

with foreign material.

• The water supply line is kinked.

• Saddle valve on cold water pipe

is clogged or restricted by foreign

material.

• The fresh food and freezer ice makers will each produce

approximately 2.5 pounds of ice every 24 hours depending

on usage conditions.

• Ifwaterdispensesslowerthannormal,orifthelterissix

(6) months old or older, it should be replaced.

• Ensure that the supply line does not kink when the refrigera-

tor is pushed into place against the wall.

• Turn off household water line valve. Remove valve. Ensure

that valve is not a self-piercing saddle valve. Clean valve.

Replace valve if necessary.

Freezer ice maker will

not stop making ice.

• Ice maker wire signal arm is be-

ing held down by some package

in the freezer that has fallen

against the ice maker.

• Move the item and release wire signal arm. Remove any ice

cubes that may have frozen together over the wire signal

arm.

Ice cubes are freezing

together.

• Ice cubes are not being used

frequently enough.

• Ice cubes are hollow (shells of

ice with water inside). The hollow

cubes break open in the bin and

leak their water onto existing ice,

which causes it to freeze together.

• Remove ice container and discard ice. The ice maker will

produce fresh supply. Ice should be used at least twice

weekly to keep the cubes separated.

• This generally occurs when the ice maker does not get

enough water. This is usually the result of a clogged water

lter.Replacethewaterlter.

ICE DISPENSER

Dispenser will not dis-

pense ice.

• There is no ice in the bin to be

dispensed.

• The refrigerator doors are not com-

pletely closed.

• Dispenser paddle has been pressed

too long and the dispenser motor

has overheated.

• See the “Ice maker is not making any ice” section above.

• Be sure the refrigerator doors are completely closed.

• The motor overload protector will reset in about three (3)

minutes and then ice can be dispensed.

Ice dispenser is

jammed.

• Ice has melted and frozen around au-

ger due to infrequent use, temperature

uctuations,and/orpoweroutages.

• Ice cubes are jammed between ice

maker and back of ice container.

• Remove ice container, thaw, and empty the contents. Clean

container, wipe dry, and replace in proper position. When

new ice is made, dispenser should operate.

• Remove ice cubes that are jamming the dispenser.

OPENING/CLOSING OF DOORS/DRAWERS

Door(s) will not close. • Door was closed too hard, causing

other door to open slightly.

• Refrigerator is not level. It rocks

ontheoorwhenmovedslightly.

• Refrigerator is touching a wall or

cabinet.

• Close both doors gently.

• Ensureoorislevelandsolid,andcanadequatelysupportthere-

frigerator.Contactacarpentertocorrectasaggingorslopingoor.

• Ensureoorislevelandsolid,andcanadequatelysupportthere-

frigerator.Contactacarpentertocorrectasaggingorslopingoor.

Drawers are difcult to

move.

• Food is touching shelf on top of

drawer.

• Track that drawers slide on is dirty.

• Remove top layer of items in drawer.

• Ensure drawer is properly installed on track.

• Clean drawer, rollers, and track. See Care & Cleaning.

BEFORE YOU CALL

CONCERN POTENTIAL CAUSE COMMON SOLUTION

RUNNING OF REFRIGERATOR

Compressor does not

run.

• Freezer control is set to “OF”

or “0”.

• Refrigerator is in defrost cycle.

• Plug at electrical outlet is dis-

connected.

• House fuse blown or tripped

circuit breaker.

• Power outage.

• Set freezer control.

• This is normal for a fully automatic defrost refrigerator.

The defrost cycle occurs periodically, lasting about 30

minutes.

• Ensure plug is tightly pushed into outlet.

• Check/replace fuse with a 15 amp time-delay fuse. Reset

circuit breaker.

• Check house lights. Call local electric company.

Refrigerator runs too

much or too long.

• Room or outside weather is

hot.

• Doors are opened too frequent-

ly or too long.

• Fresh Food/freezer door may

be slightly open.

• Freezer control is set too cold.

• Fresh Food/freezer gasket is

dirty, worn, cracked, or poorly

tted.

• Condenser is dirty.

• It’s normal for the refrigerator to work longer under these

conditions.

• Warm air entering the refrigerator causes it to run more.

Open doors less often.

• Ensure refrigerator is level. Keep food and contains from

blockingdoor.SeeCONCERNcolumnOPENING/CLOSING

OF DOORS/DRAWERS.

• Set Fresh Food control to warmer setting until refrigerator

temperature is satisfactory. Allow 24 hours for tempera-

ture to stabilize.

• Cleanorchangegasket.Leaksindoorsealwillcause

refrigerator to run longer in order to maintain desired

temperatures.

• Clean condenser. See Care & Cleaning.

Compressor goes off

and on frequently.

• Thermostat keeps the refrigera-

tor at a constant temperature.

• This is normal. Refrigerator goes on and off to keep tem-

perature constant.

DIGITAL TEMPERATURE DISPLAY

Digital temperature

displays are ashing.

• Electronic control system has

detected a performance prob-

lem.

• Call your Frigidaire service representative, who can inter-

pretanymessagesornumbercodesashingonthedigital

displays.

WATER DISPENSER

Dispenser will not dis-

pense water.

• Household water line valve is

not open.

• Iceandwaterltercartridgeis

clogged.

• Filter not fully installed.

• Open household water line valve. See CONCERN column

AUTOMATIC ICE MAKER.

• Replaceltercartridge.

• Pushlterinuntilyouheara“click”.

Water has an odd taste

and/or odor.

• Water has been in the tank for

a period of time.

• Unit not properly connected to

cold water line.

• Draw and discard 10-12 glasses of water to freshen the

supply and completely rinse out the tank.

• Connect unit to cold water line that supplies water to the

kitchen faucet.

Water pressure is ex-

tremely low.

• Cut-off and cut-on pressures

are too low (well systems only).

• Reverse osmosis system is in

regenerative phase.

• Have someone turn up the cut-off and cut-on pressure on

the water pump system (well systems only).

• It is normal for a reverse osmosis system to be below 20

psi during the regenerative phase.

WATER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture collects on

inside of refrigerator

walls.

• Weather is hot and humid.

• Door is slightly open.

• The rate of frost buildup and internal sweating increases.

• See CONCERN column OPENING/CLOSING OF

DOORS/DRAWERS.

Water collects on bot-

tom side of drawer

cover.

• Vegetables contain and give off

moisture.

• It is not unusual to have moisture on the bottom side of

the cover.

• Move humidity control (some models) to lower setting.

Water collects in bot-

tom of drawer.

• Washed vegetables and fruit

drain while in the drawer.

• Dry items before putting them in the drawer. Water col-

lecting in bottom of drawer is normal.

WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Moisture collects on

outside of refrigerator

or between doors.

• Weather is humid.

• Door is slightly open, causing

cold air from inside refrigerator

to meet warm air from outside.

• This is normal in humid weather. When humidity is lower,

the moisture should disappear.

• See CONCERN column OPENING/CLOSING OF

DOORS/DRAWERS.

MAJOR APPLIANCE WARRANTY

REFRIGERATOR WARRANTY

Your refrigerator is protected by this warranty

In the U.S.A., your appliance is warranted by Crosley Corporation. We authorize no person to change or add to any of our obligations under

this warranty. Our obligations for service and parts under this warranty must be performed by an authorized Crosley Corporation servicer. In

Canada, your appliance is warranted by Crosley Canada Corp.

This warranty applies only to products in ordinary household use, and the consumer is responsible for the

items listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in

accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufﬁcient voltage, replacement of blown fuses, repair of loose

connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,

which are not a part of the appliance when it was shipped from the factory.

5. Damages to ﬁnish after installation.

6. Replacement of light bulbs and/or ﬂuorescent tubes (on models with these features).

This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL

EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.

NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this

limitation or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in

ordinary household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Crosley Corporation, Crosley Canada Corp. or

its authorized servicers; use of parts other than genuine Crosley Corporation parts; obtained from persons other

than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the

warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all

receipts. This written warranty gives you speciﬁc legal rights. You may also have other rights that vary from state to

state. Service under this warranty must be obtained by contacting Crosley Corporation or Crosley Canada Corp.

*NORMAL

RESPONSIBILITIES

OF THE CONSUMER

EXCLUSIONS

IF YOU NEED

SERVICE

FOR WARRANTY INFORMATION CONTACT:

USA 800-944-9044

Canada 800-668-4606

FOR PRODUCT INFORMATION CONTACT:

336-761-1212

Crosley Corporation

111 Cloverleaf Dr.

Suite 200

Winston-Salem, NC 27103

www.crosley.com

This warranty only applies in the 50 States of the U.S.A., in Puerto Rico, and in Canada. Product features or speciﬁcations as described or

illustrated are subject to change without notice. All warranties are made by Crosley Corporation. In Canada, your appliance is warranted by

Crosley Canada Corp.

Rev. 01/2006

WARRANTY PERIOD THROUGH OUR AUTHORIZED SERVICERS,

WE WILL:

THE CONSUMER WILL BE RE-

SPONSIBLE FOR:

FULL ONE-YEAR

WARRANTY

One year from original

purchase date

Pay all costs for repairing or replacing any parts of

this appliance which prove to be defective in materials

or workmanship. Excludes original and replacement

Ice & Water ﬁlter cartridges (if equipped). Original

and replacement cartridges are warranted for 30 days

(parts only).

Costs of service calls that are listed

under NORMAL RESPONSIBILI-

TIES OF THE CONSUMER.*

*In addition to warranty shown above, ask your dealer about Crosley Extended Limited Warranty that comes to you at no extra

charge for the 2nd through 10th years.

Crosley CFD28WIQB0 28 cu.ft. Capacity Bottom Freezer Refrigerator

Product's Documents

Use & Care Manual

Specifications

Crosley CFD28WIQB0 Questions and Answers
