PERATOR'S MANUAL
T ®
3/8 in. DRILL
VARIABLE SPEED/REVERSIBLE
DOUBLE iNSULATED
Model No.
315.101070
A
WARNING: To reduce the risk of injury,
the user must read and understand the
operator's manual before using this product.
Customer Help Line: 1-800-932-3188
Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-740
6-14-06 (REV:01)
Save this manual for future reference

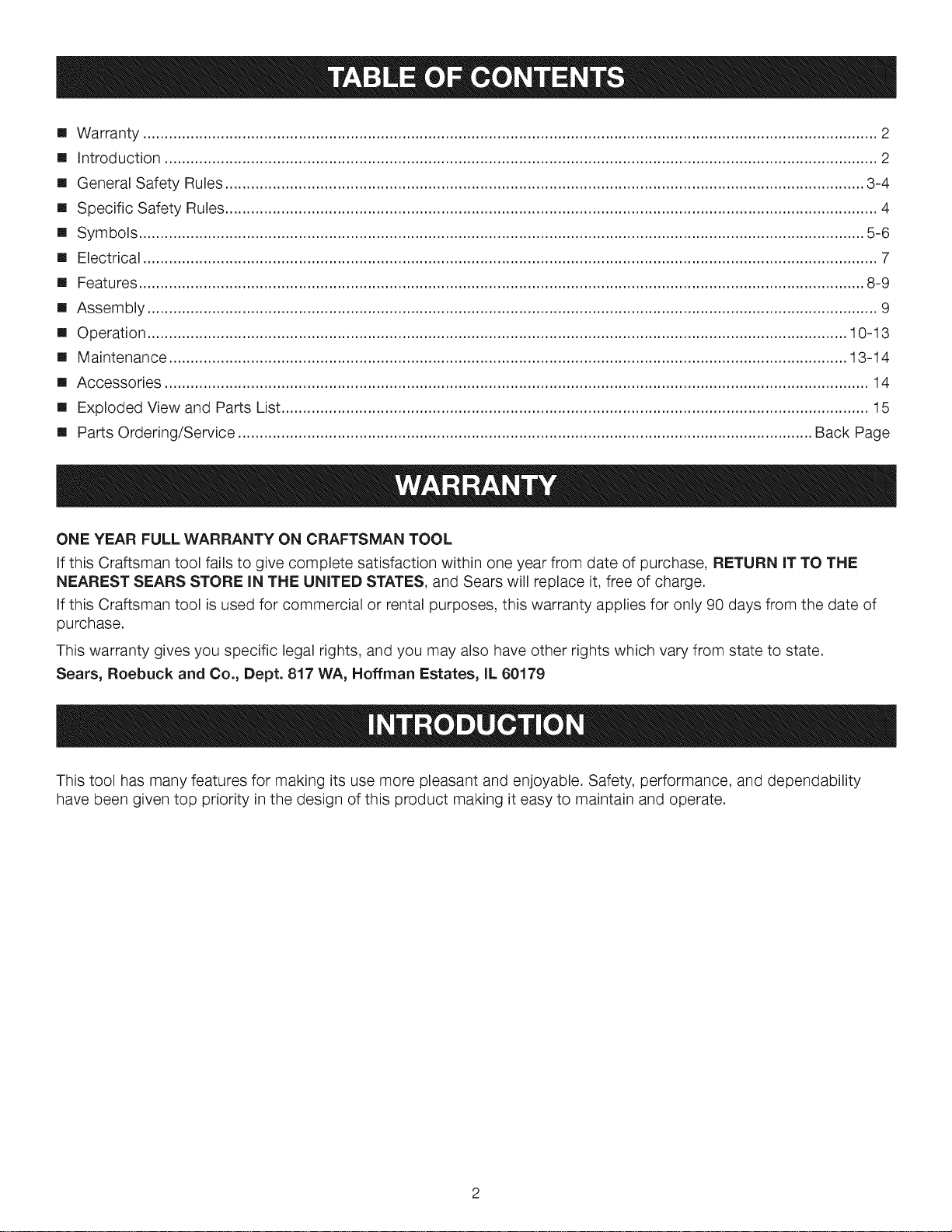

[] Warranty .......................................................................................................................................................................... 2
[] Introduction ..................................................................................................................................................................... 2
[] General Safety Rules .................................................................................................................................................... 3-4
[] Specific Safety Rules ....................................................................................................................................................... 4
[] Symbols ........................................................................................................................................................................ 5-6
[] Electrical .......................................................................................................................................................................... 7
[] Features ........................................................................................................................................................................ 8-9
[] Assembly ......................................................................................................................................................................... 9
[] Operation .................................................................................................................................................................. 10-13
[] Maintenance ............................................................................................................................................................. 13-14
[] Accessories ................................................................................................................................................................... 14
[] Exploded View and Parts List ........................................................................................................................................ 15
[] Parts Ordering/Service ..................................................................................................................................... Back Page
ONE YEAR FULL WARRANTY ON CRAFTSMAN TOOL
If this Craftsman tool fails to give complete satisfaction within one year from date of purchase, RETURN IT TO THE
NEAREST SEARS STORE IN THE UNITED STATES, and Sears will replace it, free of charge.
If this Craftsman tool is used for commercial or rental purposes, this warranty applies for only 90 days from the date of
purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.
A

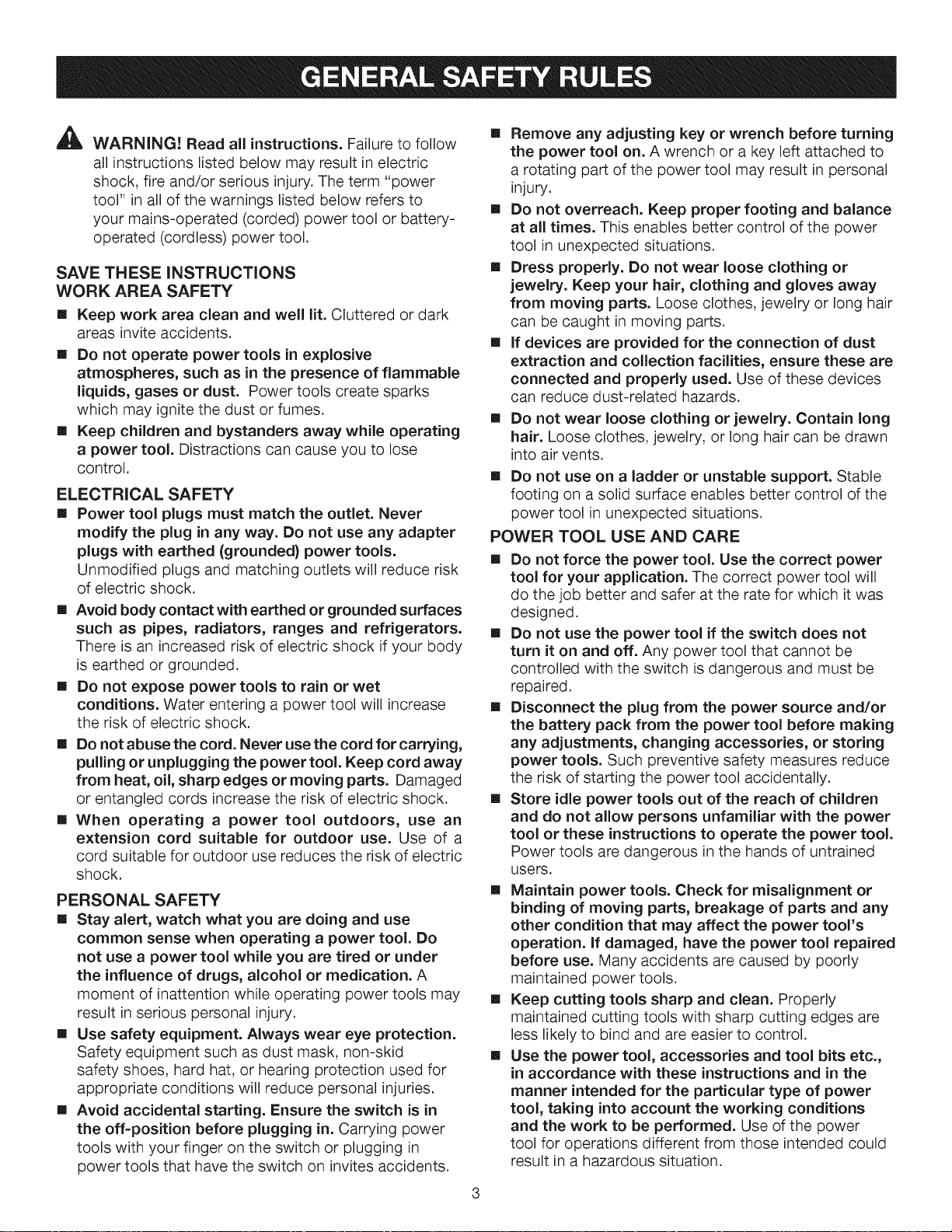

WARNING! Read all instructions. Failure to follow
all instructions listed below may result in electric
shock, fire and/or serious injury. The term "power
tool" in all of the warnings listed below refers to
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS

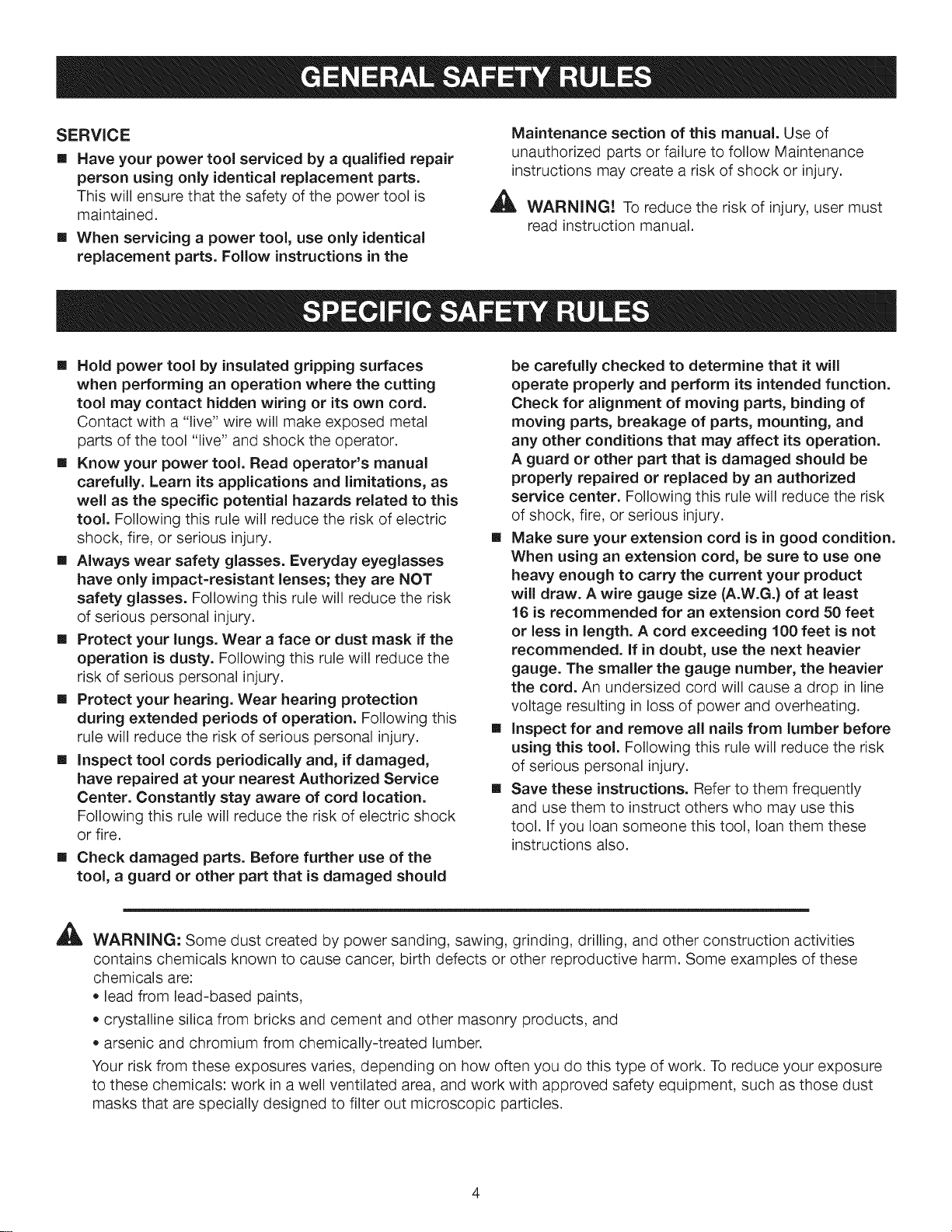

WORK AREA SAFETY
[] Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
[] Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
[] Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
[] Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
[] Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
[] Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
[] Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
[] When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
PERSONAL SAFETY
[] Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may
result in serious personal injury.
[] Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
[] Avoid accidental starting. Ensure the switch is in
the off-position before plugging in. Carrying power
tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
[] Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
[] Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
[] Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
[] If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices
can reduce dust-related hazards.
[] Do not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry, or long hair can be drawn
into air vents.
[] Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
power tool in unexpected situations.
POWER TOOL USE AND CARE
[] Do not force the power tool Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
[] Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
[] Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
[] Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
[] Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool's
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
[] Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
[] Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended could
result in a hazardous situation.
SERVICE
[] Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
[] When servicing a power tool, use only identical
replacement parts. Follow instructions in the
Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance
instructions may create a risk of shock or injury.
,_k WARNING! To reduce the risk of injury, user must
read instruction manual.
[] Hold power tool by insulated gripping surfaces
when performing an operation where the cutting
tool may contact hidden wiring or its own cord.
Contact with a "live" wire will make exposed metal
parts of the tool "live" and shock the operator.
[] Know your power tool. Read operator's manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this
tool. Following this rule will reduce the risk of electric
shock, fire, or serious injury.
[] Always wear safety glasses. Everyday eyeglasses
have only impact-resistant lenses; they are NOT
safety glasses. Following this rule will reduce the risk
of serious personal injury.
[] Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the
risk of serious personal injury.
[] Protect your hearing. Wear hearing protection
during extended periods of operation. Following this
rule will reduce the risk of serious personal injury.
[] Inspect tool cords periodically and, if damaged,
have repaired at your nearest Authorized Service
Center. Constantly stay aware of cord location.
Following this rule will reduce the risk of electric shock
or fire.
[] Check damaged parts. Before further use of the
tool, a guard or other part that is damaged should
be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation.
A guard or other part that is damaged should be
properly repaired or replaced by an authorized
service center. Following this rule will reduce the risk
of shock, fire, or serious injury.
[] Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one
heavy enough to carry the current your product
will draw. A wire gauge size (A.W.G.) of at least
16 is recommended for an extension cord 50 feet
or less in length. A cord exceeding 100 feet is not
recommended. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier
the cord. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
[] Inspect for and remove all nails from lumber before
using this tool. Following this rule will reduce the risk
of serious personal injury.
[] Save these instructions. Refer to them frequently
and use them to instruct others who may use this
tool. If you loan someone this tool, loan them these
instructions also.
A
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
• lead from lead-based paints,
crystalline silica from bricks and cement and other masonry products, and
arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic particles.

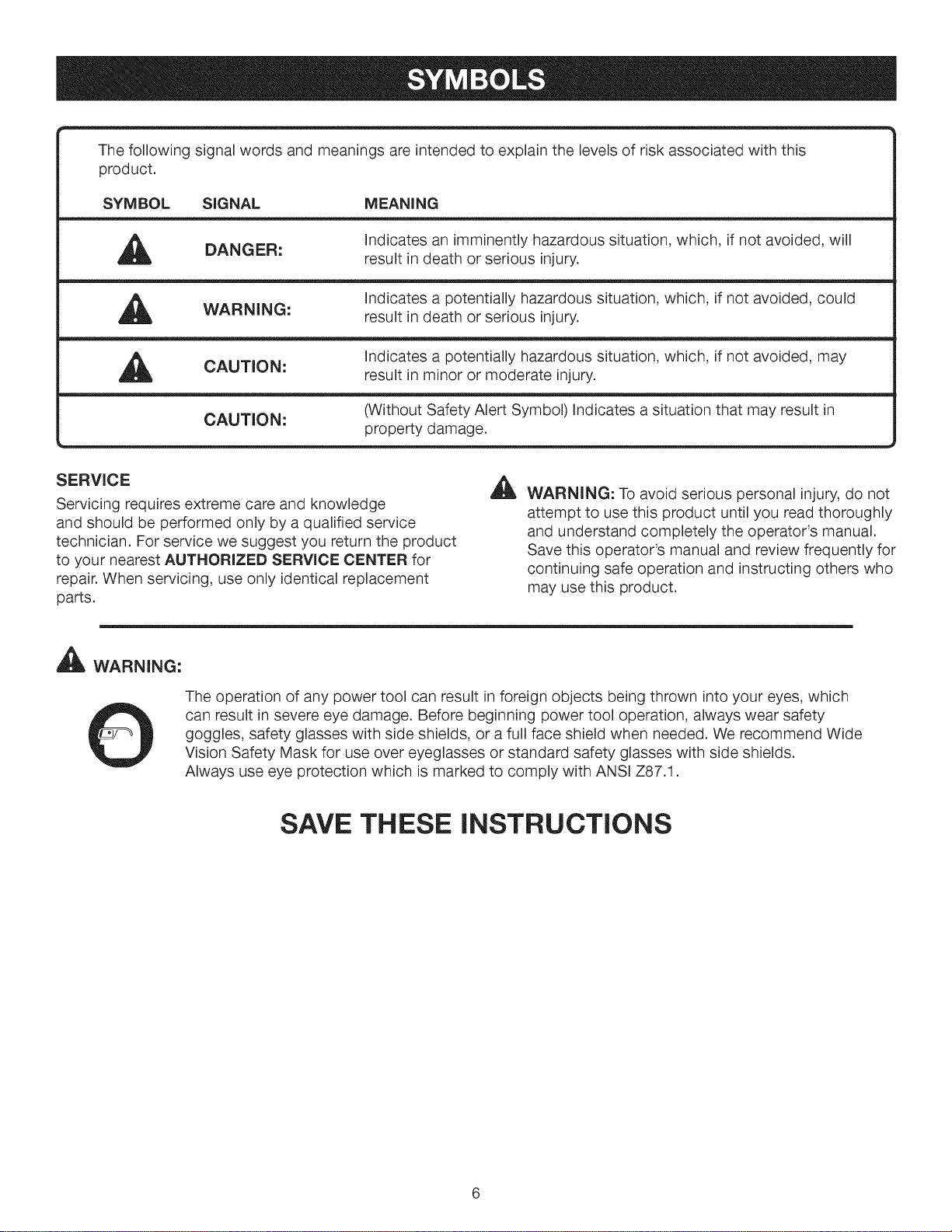

Someofthefollowingsymbolsmaybeusedonthistool.Pleasestudythemandlearntheirmeaning.Properinterpretation
ofthesesymbolswillallowyoutooperatethetoolbetterandsafer.

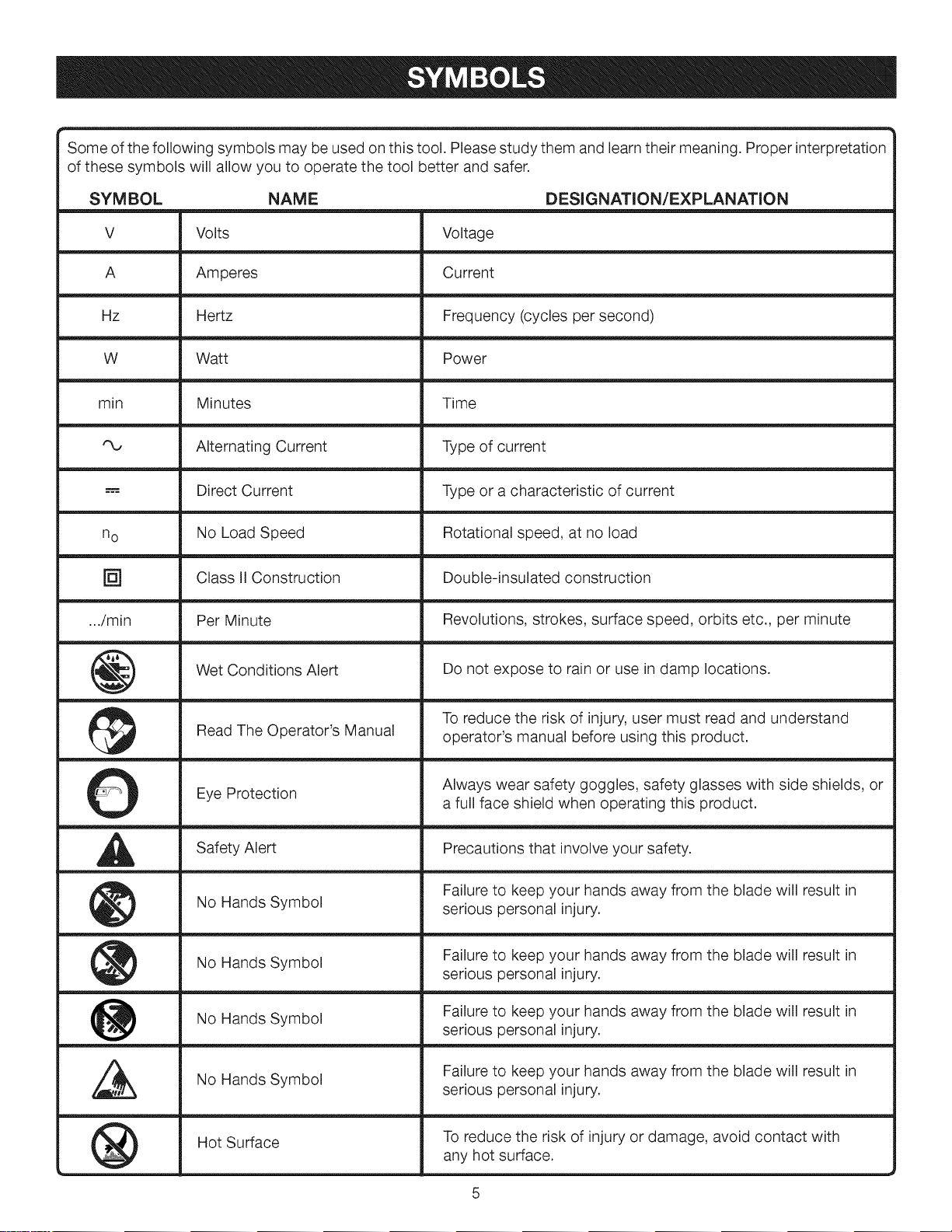

SYMBOL
V
A
Hz
W
min
n o
[]
.../min
@
0
,A
@
@
@
®
NAME
Volts
Ampe res
Hertz
Watt
Minutes
Alternating Current
Direct Current
No Load Speed
Class II Construction
Per Minute
Wet Conditions Alert
Read The Operator's Manual
Eye Protection
Safety Alert
No Hands Symbol
No Hands Symbol
No Hands Symbol
No Hands Symbol
Hot Surface
DESIGNATION/EXPLANATION
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits etc., per minute
Do not expose to rain or use in damp locations.
To reduce the risk of injury, user must read and understand
operator's manual before using this product.
Always wear safety goggles, safety glasses with side shields, or
a full face shield when operating this product.
Precautions that involve your safety.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
To reduce the risk of injury or damage, avoid contact with
any hot surface.
Thefollowingsignalwordsandmeaningsareintendedtoexplainthelevelsofriskassociatedwiththis
product.
SYMBOL SIGNAL MEANING
Indicates an imminently hazardous situation, which, if not avoided, will
DANGER:
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could
WARNING: result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may
CAUTION: result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SERVICE
Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. For service we suggest you return the product
to your nearest AUTHORIZED SERVICE CENTER for
repair. When servicing, use only identical replacement
parts.
A
WARNING: To avoid serious personal injury,do not
attempt to use this product until you read thoroughly
and understand completely the operator's manual.
Save this operator's manual and review frequently for
continuing safe operation and instructing others who
may use this product.
_ WARNING"
The operation of any power tool can result in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before beginning power tool operation, always wear safety
goggles, safety glasses with side shields, or a full face shield when needed. We recommend Wide
Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.
Always use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS

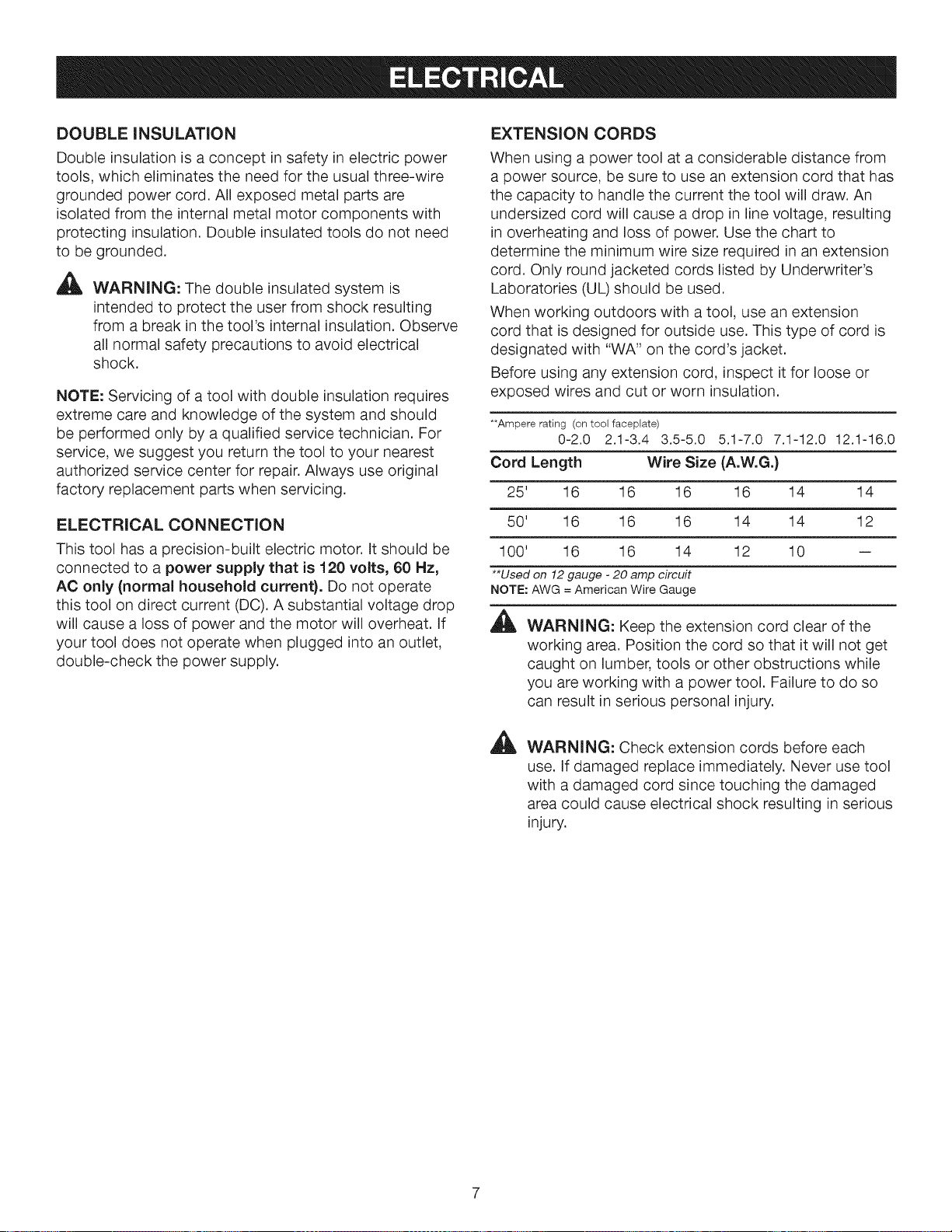

DOUBLE INSULATION
Double insulation is a concept in safety in electric power
tools, which eliminates the need for the usual three-wire
grounded power cord. All exposed metal parts are
isolated from the internal metal motor components with
protecting insulation. Double insulated tools do not need
to be grounded.
A
WARNING: The double insulated system is
intended to protect the user from shock resulting
from a break in the tool's internal insulation. Observe
all normal safety precautions to avoid electrical
shock.
NOTE: Servicing of a tool with double insulation requires
extreme care and knowledge of the system and should
be performed only by a qualified service technician. For
service, we suggest you return the tool to your nearest
authorized service center for repair. Always use original
factory replacement parts when servicing.
ELECTRICAL CONNECTION
This tool has a precision-built electric motor. It should be
connected to a power supply that is 120 volts, 60 Hz,
AC only (normal household current). Do not operate
this tool on direct current (DC). A substantial voltage drop
will cause a loss of power and the motor will overheat. If
your tool does not operate when plugged into an outlet,
double-check the power supply.
EXTENSION CORDS
When using a power tool at a considerable distance from
a power source, be sure to use an extension cord that has
the capacity to handle the current the tool will draw. An
undersized cord will cause a drop in line voltage, resulting
in overheating and loss of power. Use the chart to
determine the minimum wire size required in an extension
cord. Only round jacketed cords listed by Underwriter's
Laboratories (UL) should be used.
When working outdoors with a tool, use an extension
cord that is designed for outside use. This type of cord is
designated with "WA" on the cord's jacket.
Before using any extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
**Ampere rating (on tool faceplate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 --
**Used on 12 gauge - 20 amp circuit
NOTE: AWG = American Wire Gauge
A
WARNING: Keep the extension cord clear of the
working area. Position the cord so that it will not get
caught on lumber, tools or other obstructions while
you are working with a power tool. Failure to do so
can result in serious personal injury.
A
WARNING: Check extension cords before each
use. If damaged replace immediately. Never use tool
with a damaged cord since touching the damaged
area could cause electrical shock resulting in serious
injury.
PRODUCTSPECiFICATiONS
Chuck..........................................................3/8in. Keyless
Switch ......................................................... Variable Speed
No Load Speed .............................................. 0-1,500/min.
Input ...................................... V, 60 Hz, AC only, 5Amps
Torque .................................................... Maximum 76 in.lb.
Net Weight ............................................................... 3.5 Ibs.
LEVEL
LEVEL
TOPViEW
KEYLESSCHUCK
ENDVIEW
DiRECTiONOFROTATIONSELECTOR
(FORWARD/REVERSE)
LOCK-ON
BUTTON
/
VARIABLESPEED
SWITCH
LiVETOOL
INDICATOR

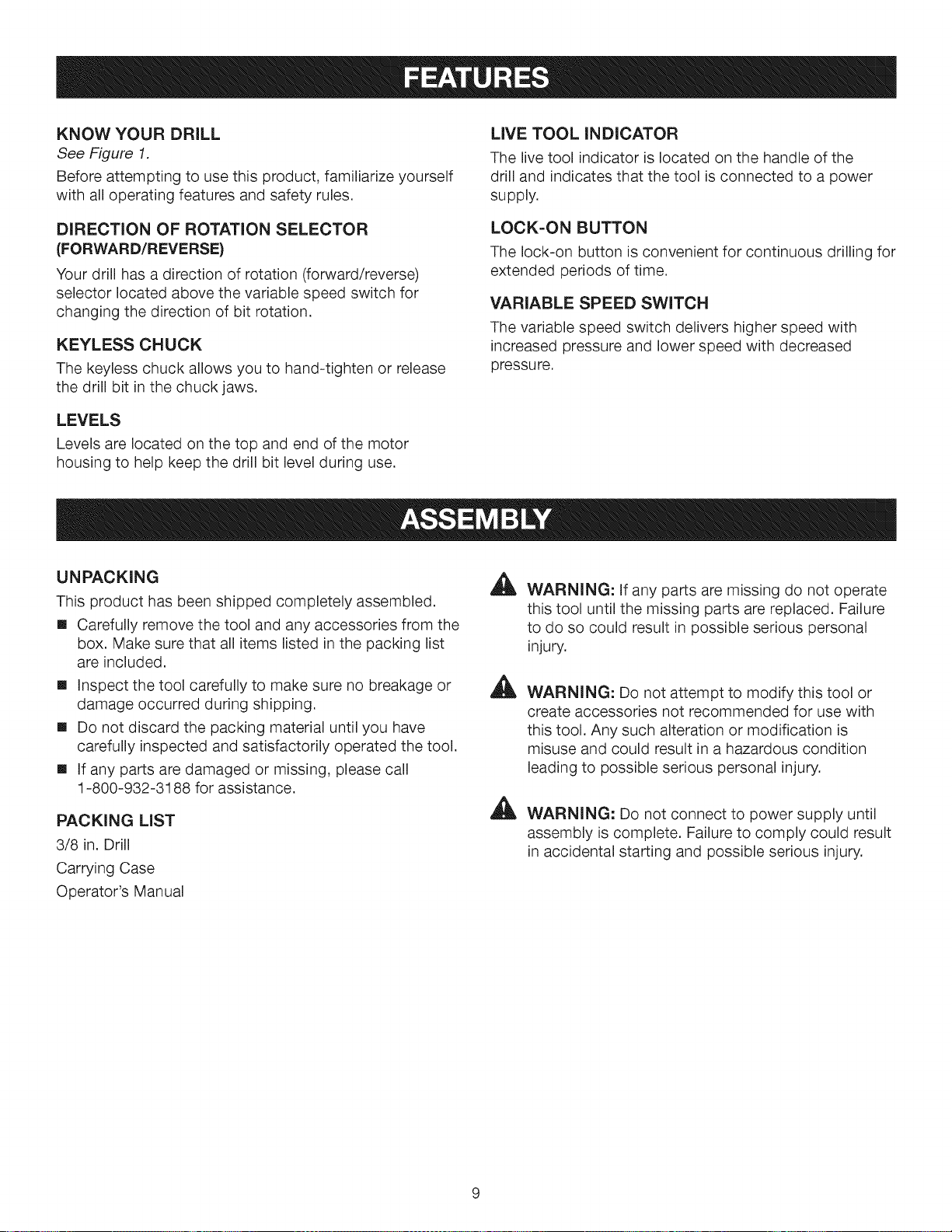

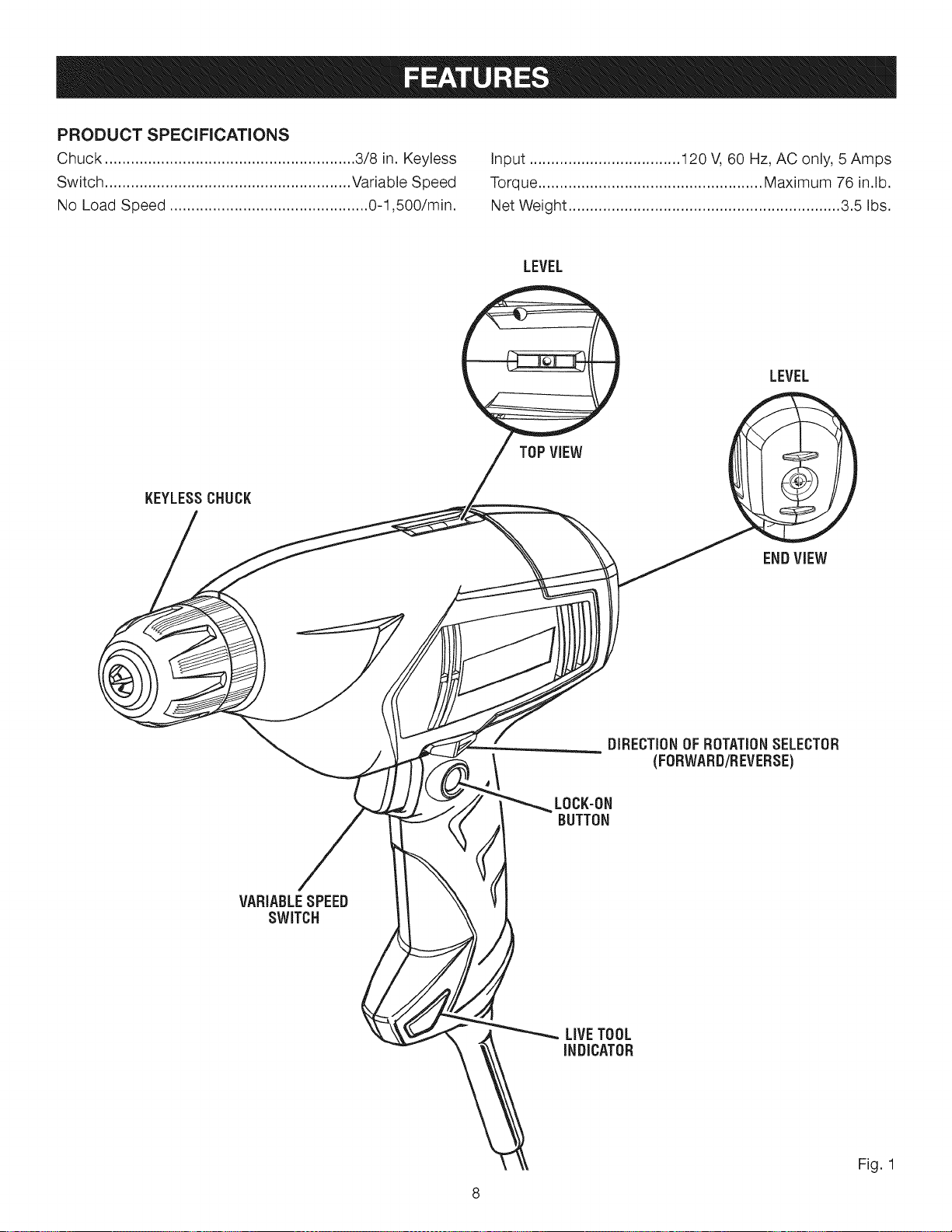

KNOW YOUR DRILL
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE)
Your drill has a direction of rotation (forward/reverse)
selector located above the variable speed switch for
changing the direction of bit rotation.
KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or release
the drill bit in the chuck jaws.
LEVELS
Levels are located on the top and end of the motor
housing to help keep the drill bit level during use.
LIVE TOOL INDICATOR
The live tool indicator is located on the handle of the
drill and indicates that the tool is connected to a power
supply.
LOCK=ON BUTTON
The lock-on button is convenient for continuous drilling for
extended periods of time.
VARIABLE SPEED SWITCH
The variable speed switch delivers higher speed with
increased pressure and lower speed with decreased
pressu re.
UNPACKING
This product has been shipped completely assembled.
[] Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list
are included.
[] Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
[] Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
[] If any parts are damaged or missing, please call
1-800-932-3188 for assistance.
PACKING LIST
3/8 in. Drill
Carrying Case
Operator's Manual
A
A
WARNING: If any parts are missing do not operate
this tool until the missing parts are replaced. Failure
to do so could result in possible serious personal
injury.
WARNING: Do not attempt to modify this tool or
create accessories not recommended for use with
this tool. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING: Do not connect to power supply until
assembly is complete. Failure to comply could result
in accidental starting and possible serious injury.
A
WARNING: Do not allow familiarity with tools
to make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious
injury.
,_ WARNING: Always wear safety goggles or safety
glasses with side shields when operating power
tools. Failure to do so could result in objects being
thrown into your eyes resulting in possible serious
injury.

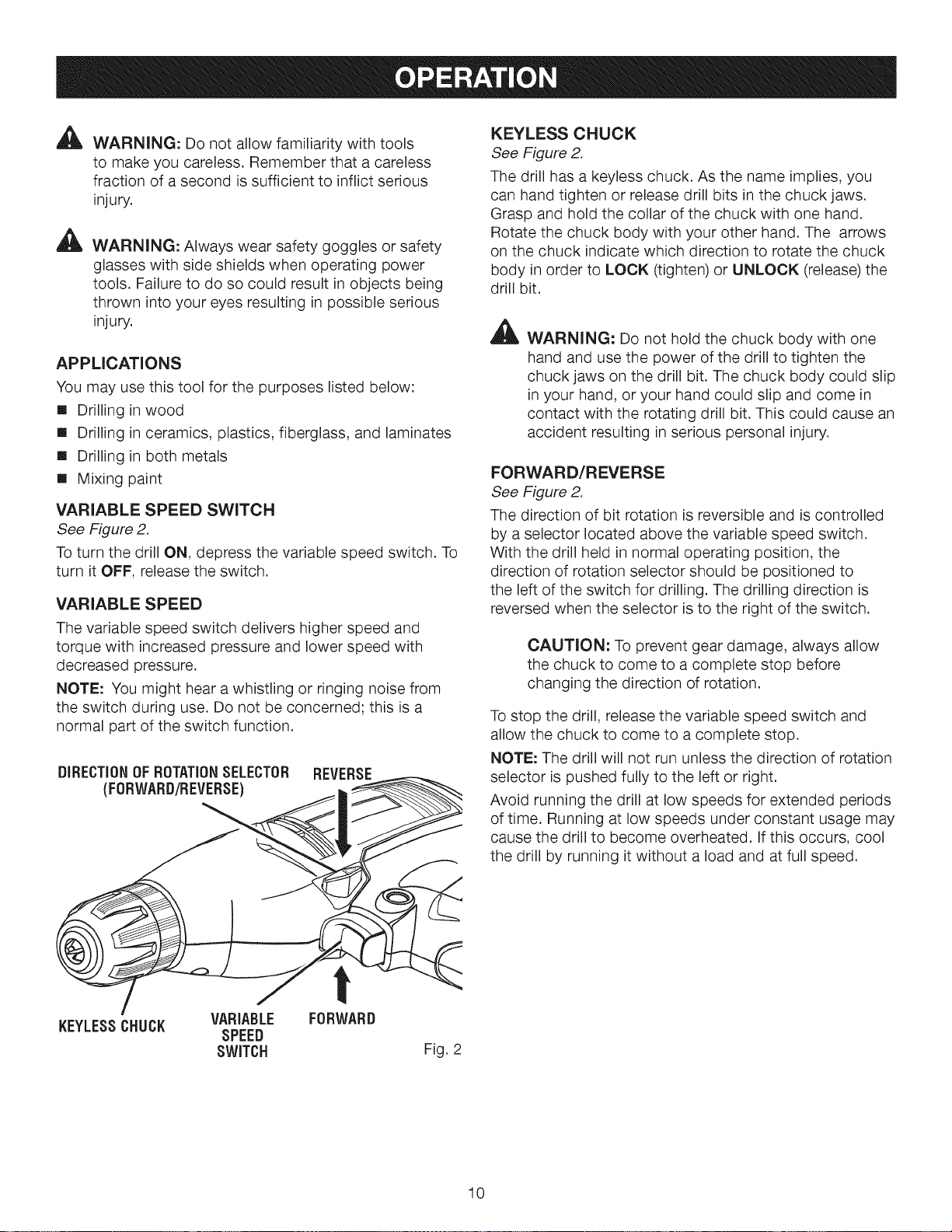

APPLiCATiONS
You may use this tool for the purposes listed below:
[] Drilling in wood
[] Drilling in ceramics, plastics, fiberglass, and laminates
[] Drilling in both metals
[] Mixing paint
VARIABLE SPEED SWITCH
See Figure 2.
To turn the drill ON, depress the variable speed switch. To
turn it OFF, release the switch.
VARIABLE SPEED
The variable speed switch delivers higher speed and
torque with increased pressure and lower speed with
decreased pressure.
NOTE: You might hear a whistling or ringing noise from
the switch during use. Do not be concerned; this is a
normal part of the switch function.
DIRECTIONOFROTATIONSELECTOR
(FORWARD/REVERSE)
REVERSE
KEYLESS CHUCK
See Figure 2.
The drill has a keyless chuck. As the name implies, you
can hand tighten or release drill bits in the chuck jaws.
Grasp and hold the collar of the chuck with one hand.
Rotate the chuck body with your other hand. The arrows
on the chuck indicate which direction to rotate the chuck
body in order to LOCK (tighten) or UNLOCK (release) the
drill bit.
_b, WARNING: Do not hold the chuck body with one
hand and use the power of the drill to tighten the
chuck jaws on the drill bit. The chuck body could slip
in your hand, or your hand could slip and come in
contact with the rotating drill bit. This could cause an
accident resulting in serious personal injury.
FORWARD/REVERSE
See Figure 2.
The direction of bit rotation is reversible and is controlled
by a selector located above the variable speed switch.
With the drill held in normal operating position, the
direction of rotation selector should be positioned to
the left of the switch for drilling. The drilling direction is
reversed when the selector is to the right of the switch.
CAUTION: To prevent gear damage, always allow
the chuck to come to a complete stop before
changing the direction of rotation.
To stop the drill, release the variable speed switch and
allow the chuck to come to a complete stop.
NOTE: The drill will not run unless the direction of rotation
selector is pushed fully to the left or right.
Avoid running the drill at low speeds for extended periods
of time. Running at low speeds under constant usage may
cause the drill to become overheated. If this occurs, cool
the drill by running it without a load and at full speed.
KEYLESSCHUCK
VARIABLE
SPEED
SWITCH
FORWARD
Fig. 2
10
A
WARNING: Always unplug the tool when installing
or removing bits, adjusting settings, or when the tool
is not in use. Failure to unplug the tool may result in
accidental starting and serious personal injury.

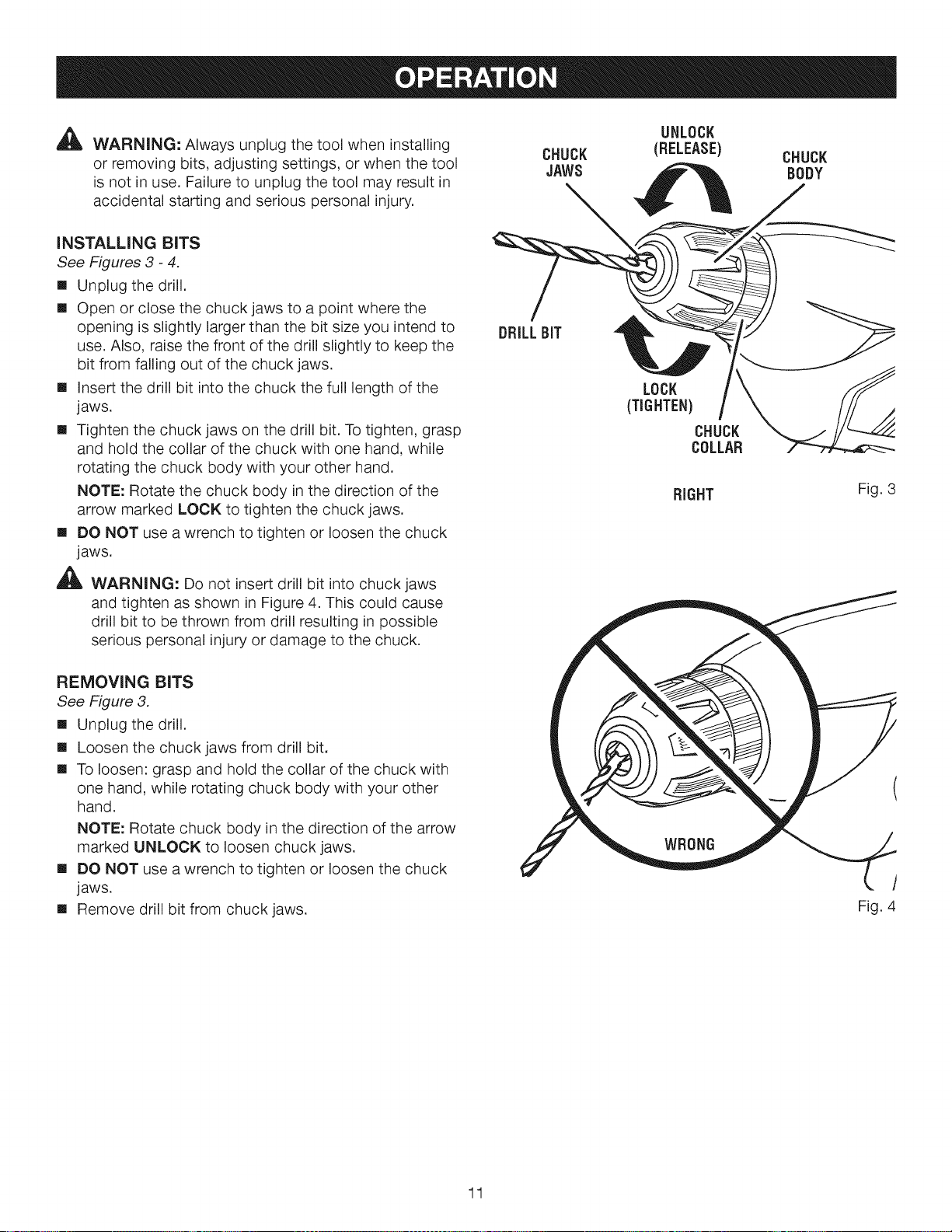

INSTALLING BITS
See Figures 3 - 4.
[] Unplug the drill.
[] Open or close the chuck jaws to a point where the
opening is slightly larger than the bit size you intend to
use. Also, raise the front of the drill slightly to keep the
bit from falling out of the chuck jaws.
[] Insert the drill bit into the chuck the full length of the
jaws.
[] Tighten the chuck jaws on the drill bit. To tighten, grasp
and hold the collar of the chuck with one hand, while
rotating the chuck body with your other hand.
NOTE: Rotate the chuck body in the direction of the
arrow marked LOCK to tighten the chuck jaws.
[] DO NOT use awrench to tighten or loosen the chuck
jaws.
_ WARNING: Do not insert drill bit into chuck jaws
and tighten as shown in Figure 4. This could cause
drill bit to be thrown from drill resulting in possible
serious personal injury or damage to the chuck.
REMOVING BITS
See Figure 3.
[] Unplug the drill.
[] Loosen the chuck jaws from drill bit.
[] To loosen: grasp and hold the collar of the chuck with
one hand, while rotating chuck body with your other
hand.
NOTE: Rotate chuck body in the direction of the arrow
marked UNLOCK to loosen chuck jaws.
[] DO NOT use a wrench to tighten or loosen the chuck
jaws.
[] Remove drill bit from chuck jaws.
UNLOCK
CHUCK (RELEASE) CHUCK
JAWS _ BODY
DRILLBIT
LOCK
(TIGHTEN)
CHUCK
COLLAR
RIGHT
Fig. 3
(
t
Fig. 4
11
LOCK-ONBUTTON

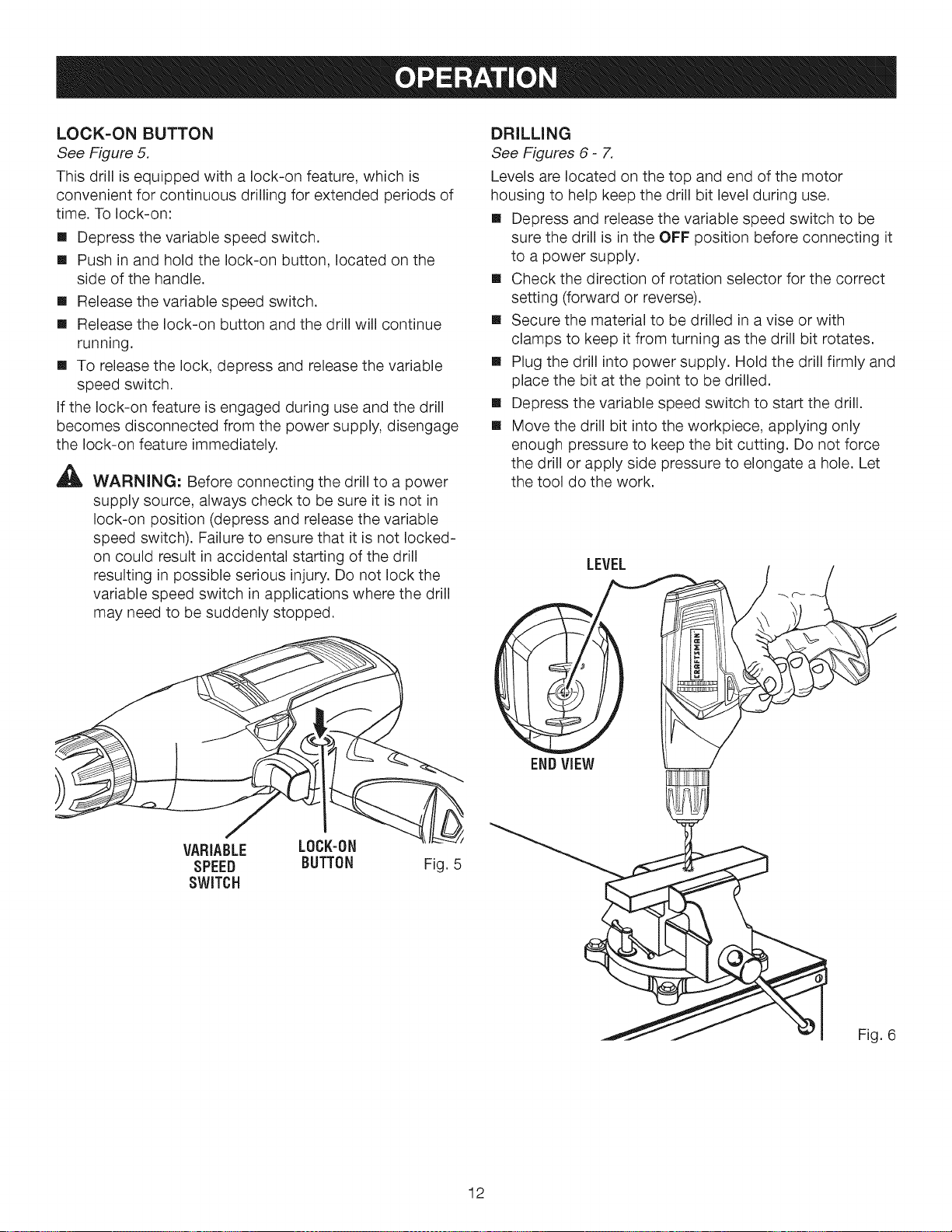

See Figure 5.
This drill is equipped with a lock-on feature, which is
convenient for continuous drilling for extended periods of
time. To lock-on:
[] Depress the variable speed switch.
[] Push in and hold the lock-on button, located on the
side of the handle.
[] Release the variable speed switch.
[] Release the lock-on button and the drill will continue
running.
[] To release the lock, depress and release the variable
speed switch.
If the lock-on feature is engaged during use and the drill
becomes disconnected from the power supply, disengage
the lock-on feature immediately.
_ WARNING: Before connecting the drill to a power
supply source, always check to be sure it is not in
lock-on position (depress and release the variable
speed switch). Failure to ensure that it is not locked-
on could result in accidental starting of the drill
resulting in possible serious injury. Do not lock the
variable speed switch in applications where the drill
may need to be suddenly stopped.

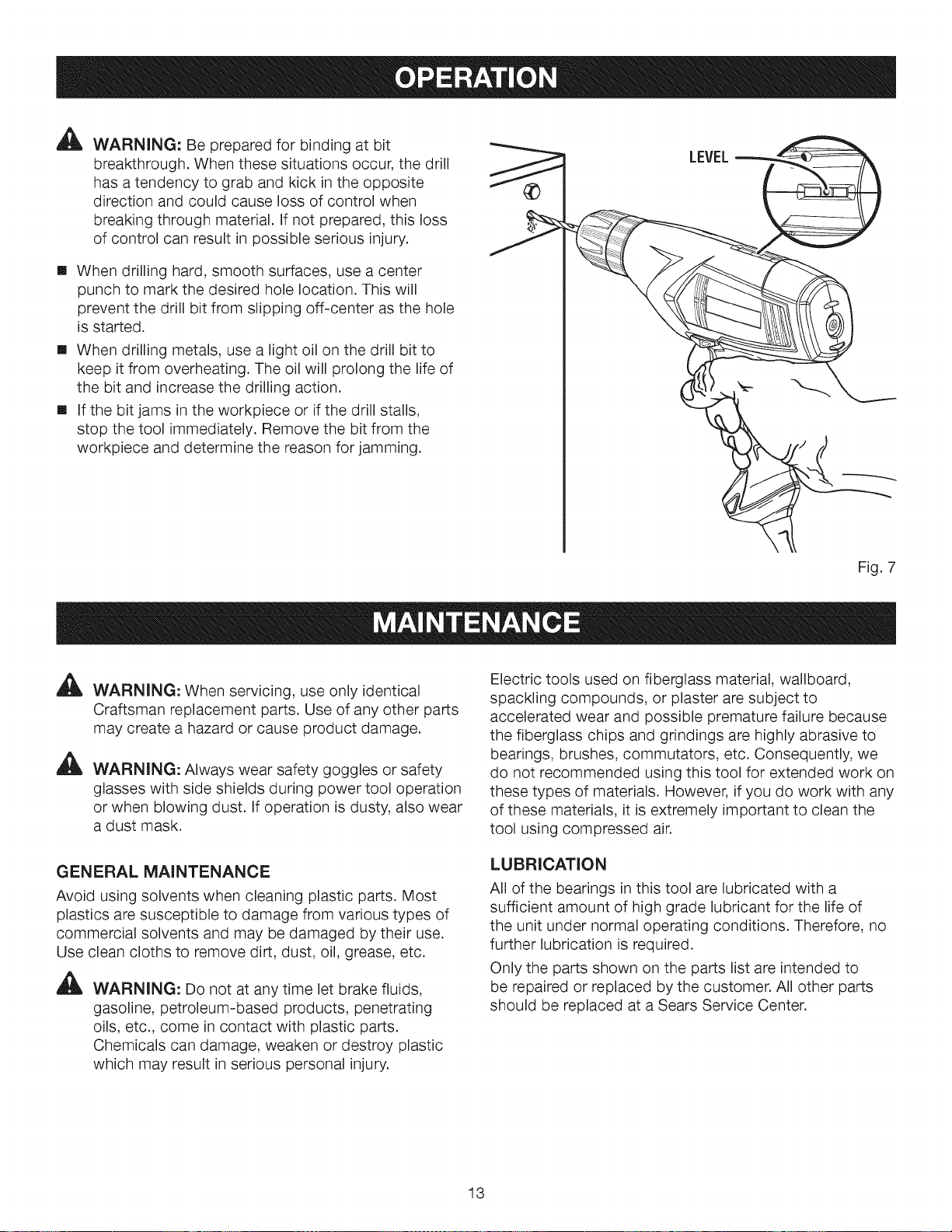

DRILLING
See Figures 6- 7,
Levels are located on the top and end of the motor
housing to help keep the drill bit level during use.
[] Depress and release the variable speed switch to be
sure the drill is in the OFF position before connecting it
to a power supply.
[] Check the direction of rotation selector for the correct
setting (forward or reverse).
[] Secure the material to be drilled in a vise or with
clamps to keep it from turning as the drill bit rotates.
[] Plug the drill into power supply. Hold the drill firmly and
place the bit at the point to be drilled.
[] Depress the variable speed switch to start the drill.
[] Move the drill bit into the workpiece, applying only
enough pressure to keep the bit cutting. Do not force
the drill or apply side pressure to elongate a hole. Let
the tool do the work.
LEVEL
VARIABLE LOCK-ON
SPEED BUTTON
SWITCH
Fig. 5
ENDViEW
Fig. 6
12
A
WARNING: Be prepared for binding at bit
breakthrough. When these situations occur, the drill
has a tendency to grab and kick in the opposite
direction and could cause loss of control when
breaking through material. If not prepared, this loss
of control can result in possible serious injury.
[] When drilling hard, smooth surfaces, use a center
punch to mark the desired hole location. This will
prevent the drill bit from slipping off-center as the hole
is started.
[] When drilling metals, use a light oil on the drill bit to
keep it from overheating. The oil will prolong the life of
the bit and increase the drilling action.
[] Ifthe bit jams in the workpiece or if the drill stalls,
stop the tool immediately. Remove the bit from the
workpiece and determine the reason for jamming.
LEVEL
Fig. 7
A
A
WARNING: When servicing, use only identical
Craftsman replacement parts. Use of any other parts
may create a hazard or cause product damage.
WARNING: Always wear safety goggles or safety
glasses with side shields during power tool operation
or when blowing dust. If operation is dusty, also wear
a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
AI_ WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc., come in contact with plastic parts.
Chemicals can damage, weaken or destroy plastic
which may result in serious personal injury.
Electric tools used on fiberglass material, wallboard,
spackling compounds, or plaster are subject to
accelerated wear and possible premature failure because
the fiberglass chips and grindings are highly abrasive to
bearings, brushes, commutators, etc. Consequently, we
do not recommended using this tool for extended work on
these types of materials. However, if you do work with any
of these materials, it is extremely important to clean the
tool using compressed air.
LUBRICATION
All of the bearings in this tool are lubricated with a
sufficient amount of high grade lubricant for the life of
the unit under normal operating conditions. Therefore, no
further lubrication is required.
Only the parts shown on the parts list are intended to
be repaired or replaced by the customer. All other parts
should be replaced at a Sears Service Center.
13

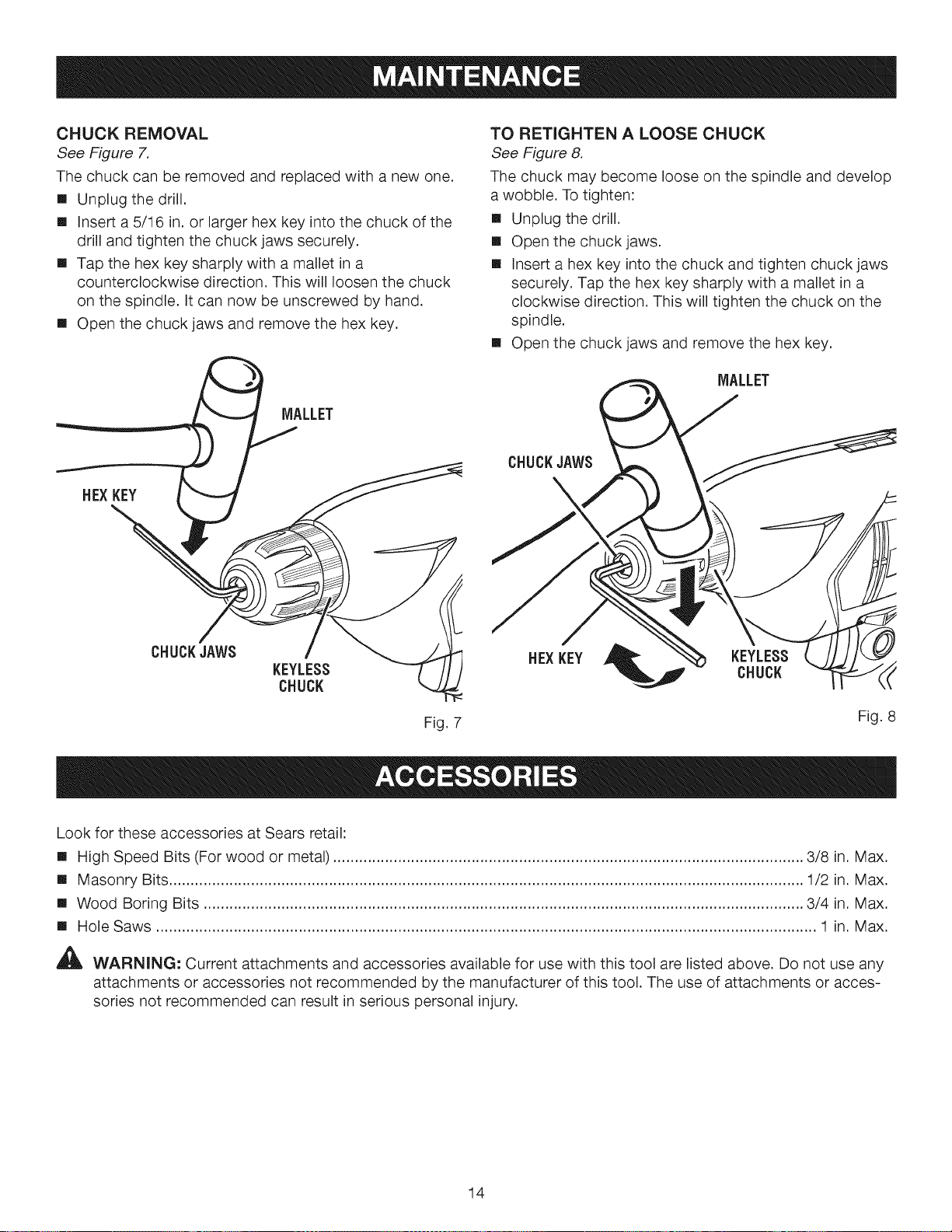

CHUCKREMOVAL
See Figure 7.
The chuck can be removed and replaced with a new one.
[] Unplug the drill.
[] Insert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
[] Tap the hex key sharply with a mallet in a
counterclockwise direction. This will loosen the chuck
on the spindle. It can now be unscrewed by hand.
[] Open the chuck jaws and remove the hex key.
TO RETIGHTEN A LOOSE CHUCK
See Figure 8.
The chuck may become loose on the spindle and develop
a wobble. To tighten:
[] Unplug the drill.
[] Open the chuck jaws.
[] Insert a hex key into the chuck and tighten chuck jaws
securely. Tap the hex key sharply with a mallet in a
clockwise direction. This will tighten the chuck on the
spindle.
[] Open the chuck jaws and remove the hex key.
MALLET
MALLET
HEXKEY
CHUCKJAWS
CHUCKJAWS
KEYLESS
CHUCK
Fig. 7
HEXKEY KEYLESS
CHUCK
Fig. 8
Look for these accessories at Sears retail:
[] High Speed Bits (For wood or metal) ............................................................................................................. 3/8 in. Max.
[] Masonry Bits ................................................................................................................................................... 1/2 in. Max.
[] Wood Boring Bits ........................................................................................................................................... 3/4 in. Max.
[] Hole Saws ......................................................................................................................................................... 1 in. Max.
_ WARNING: Current attachments and accessories available for use with this tool are listed above. Do not use any
attachments or accessories not recommended by the manufacturer of this tool. The use of attachments or acces-
sories not recommended can result in serious personal injury.
14

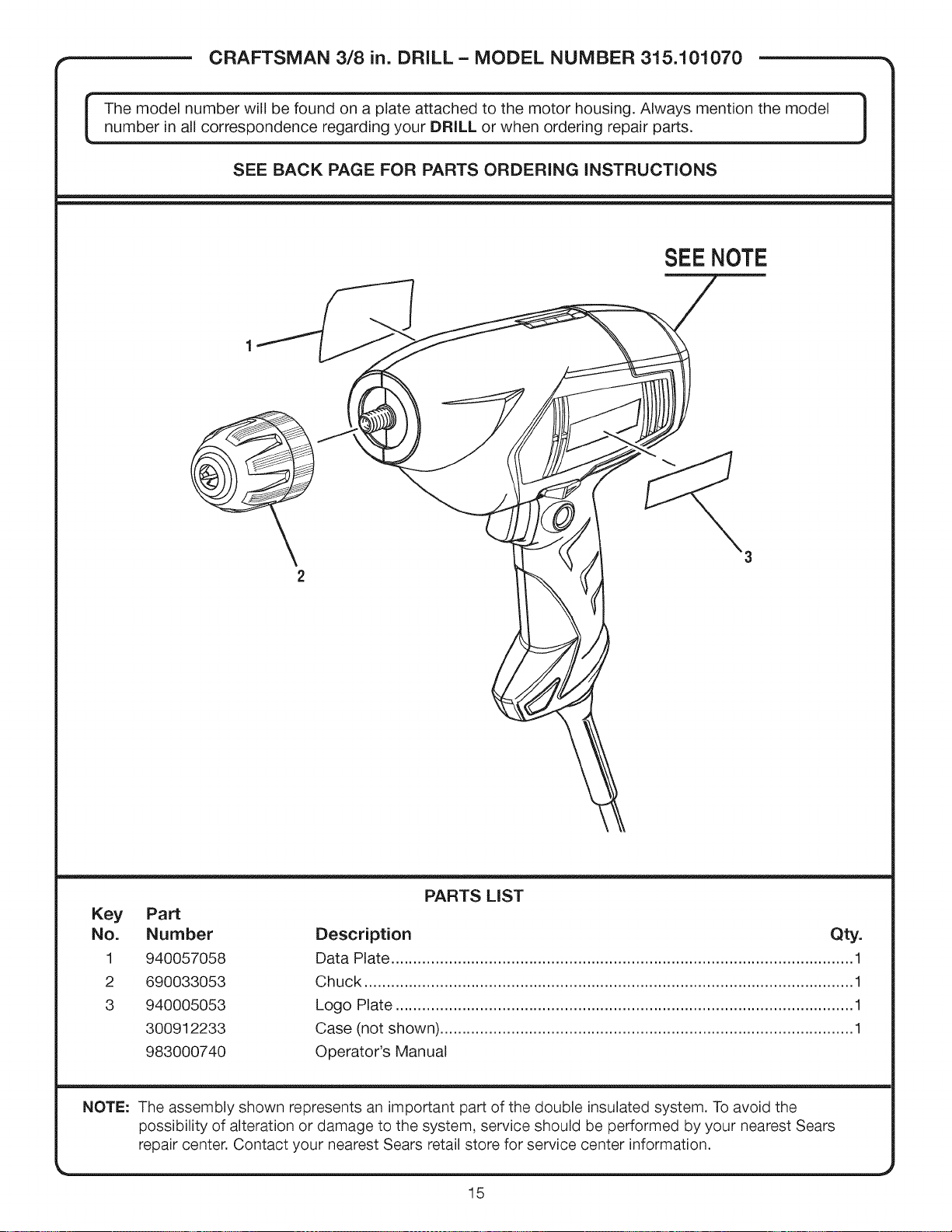

F CRAFTSMAN 3/8 in. DRILL - MODEL NUMBER 315.101070
I he model number will be found on a plate attached to the motor housing. Always mention the model
number in all correspondence regarding your DRILL or when ordering repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
SEENOTE
Key PaN
No. Number
1 940057058
2 690033053
3 940005053
300912233
983000740
PARTS LIST
Description Qty.
Data Plate ........................................................................................................ 1
Chuck .............................................................................................................. 1
Logo Plate ....................................................................................................... 1
Case (not shown) ............................................................................................. 1
Operator's Manual
NOTE: The assembly shown represents an important part of the double insulated system. To avoid the
possibility of alteration or damage to the system, service should be performed by your nearest Sears
repair center. Contact your nearest Sears retail store for service center information.
15

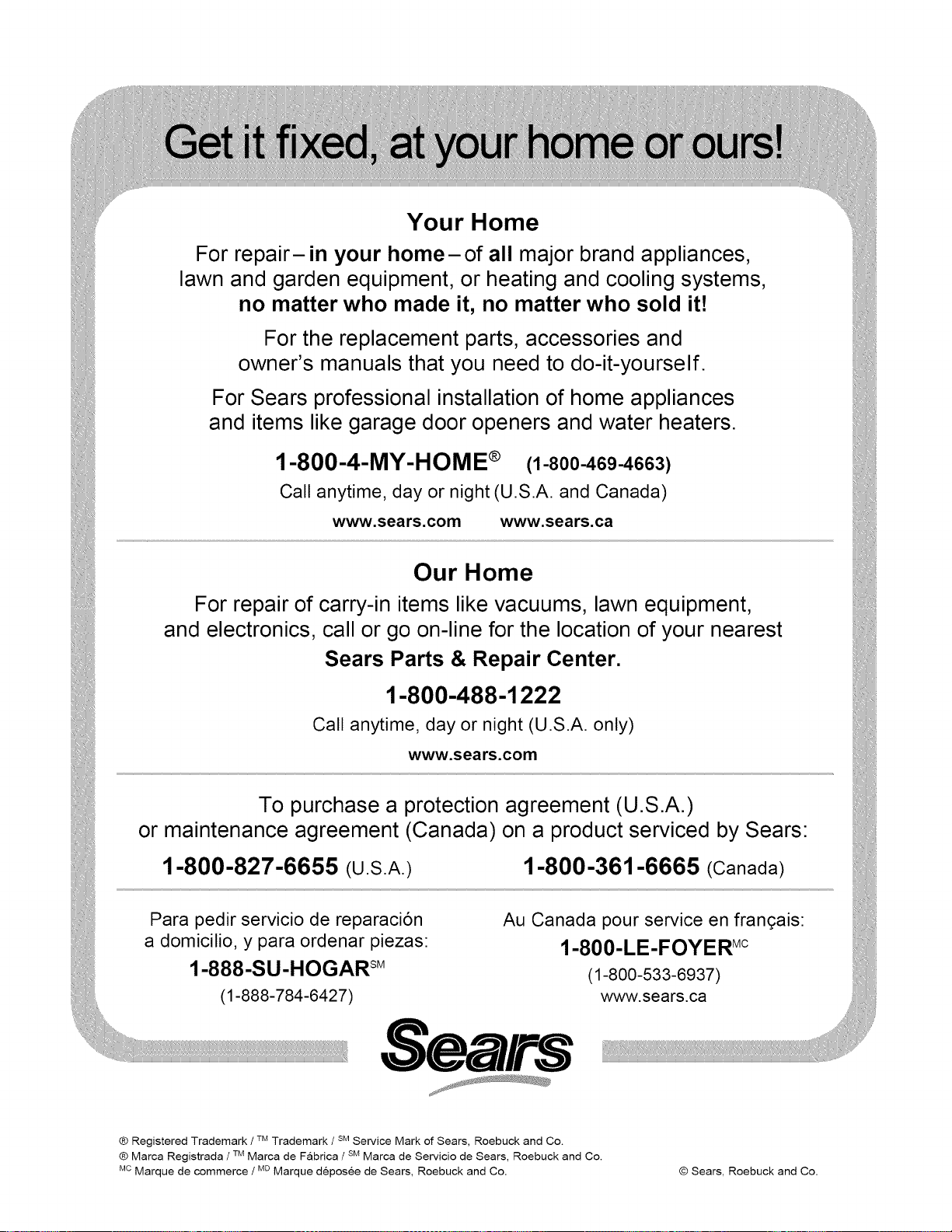

Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR SM
(1-888-784-6427)
Au Canada pour service en fran£ais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
® Registered Trademark / TMTrademark / su Service Mark of Sears, Roebuck and Co.
SM
® Marca Registrada / TMMarca de Fabrica / Marca de Servicio de Sears, Roebuck and Co.
MD
MCMarque de commerce / Marque depos6e de Sears, Roebuck and Co. ® Sears, Roebuck and Co.
