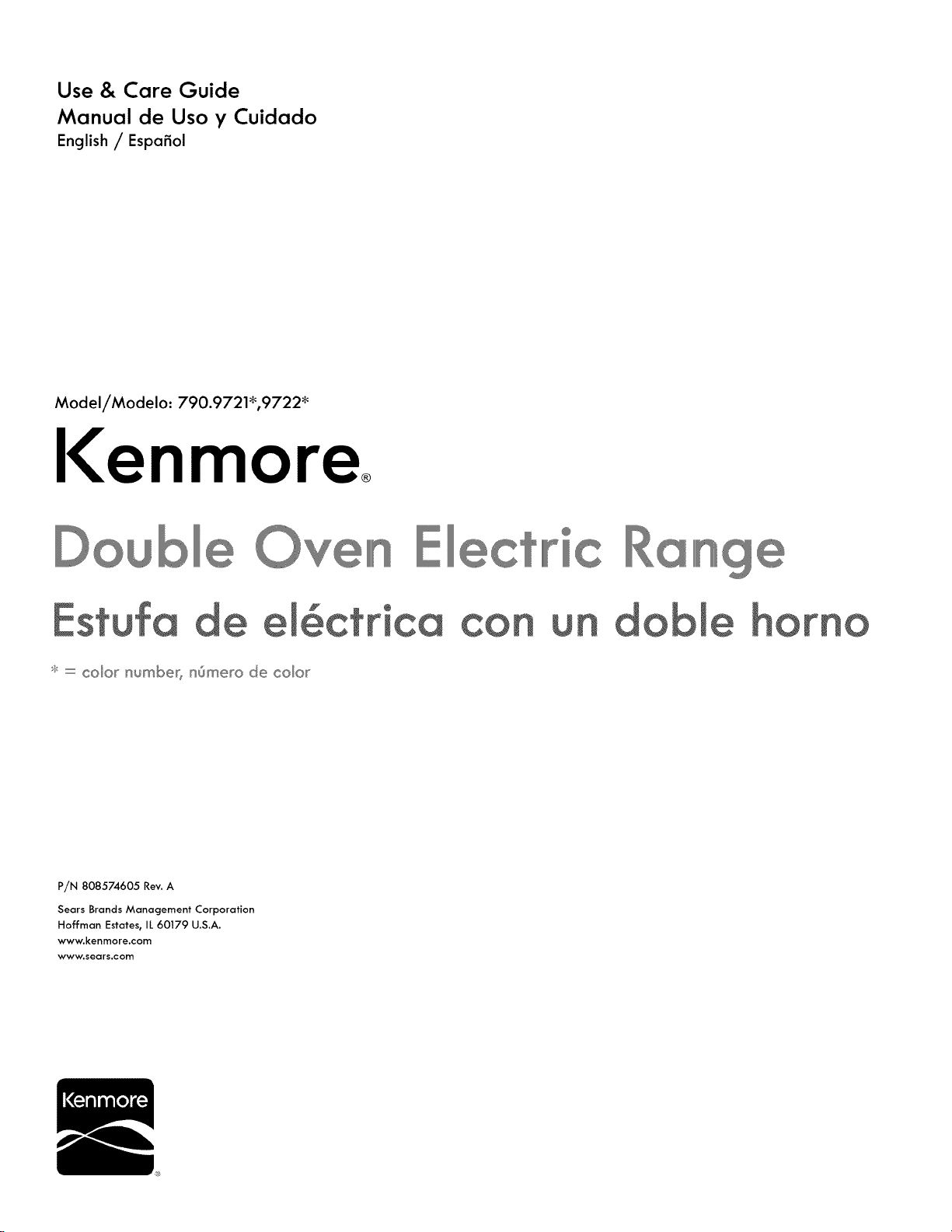

Use & Care Guide
Manual de Uso y Cuidado
English / Espa_ol
Model/Modelo: 790.9721%9722 _
I<enmoreo
El tr°
e el6ctrica con un
0
' = color numbe_, n#_,merode color
P/N 808574605 Rev. A
Sears Brands Management Corporation
Hoffman Estates_ IL 60179 U.S.A.
www.kenmore.com
www.sears.com

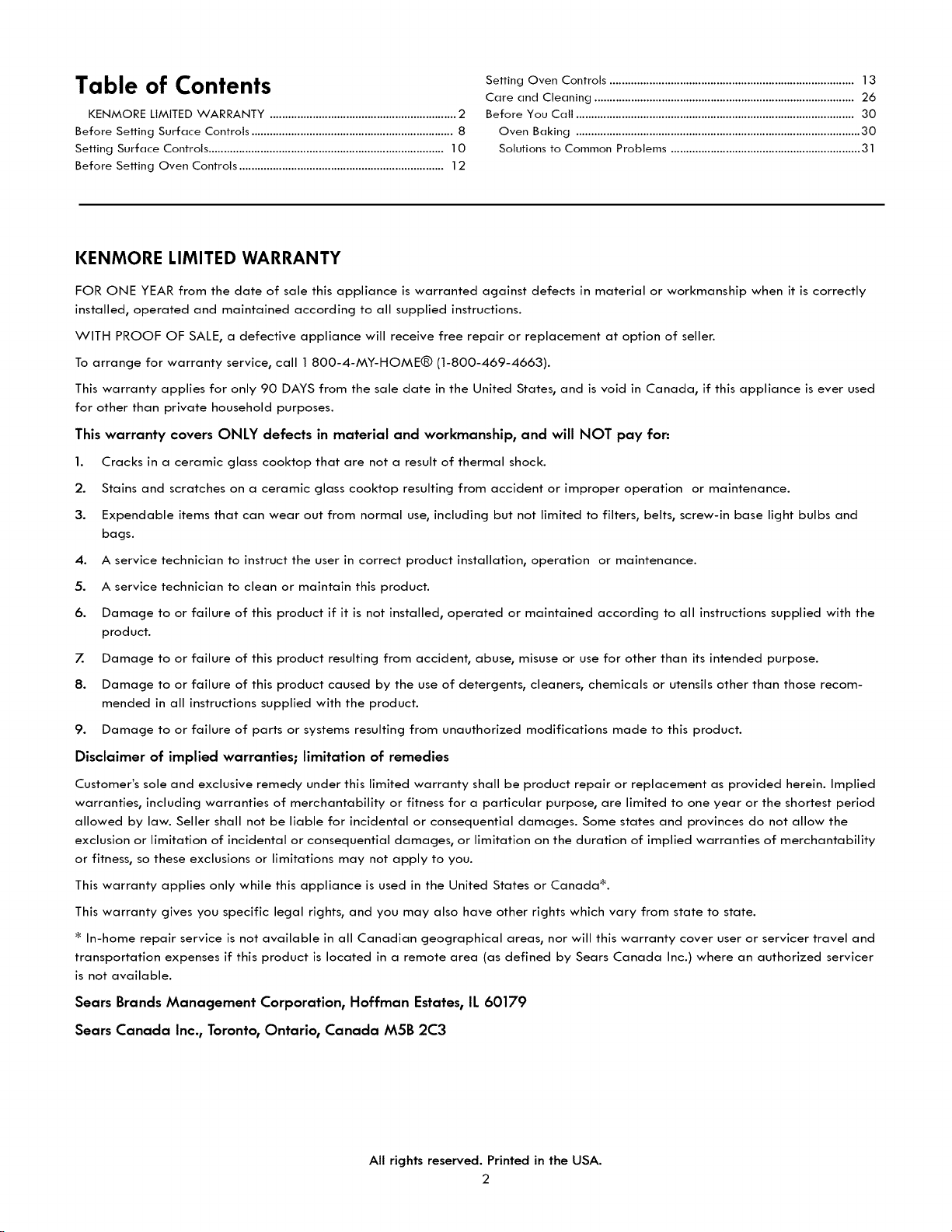

Table of Contents
KENMORE LIMITED WARRANTY ............................................................. 2
Before Setting Surface Controls .................................................................. 8
Setting Surface Controls ............................................................................. 10

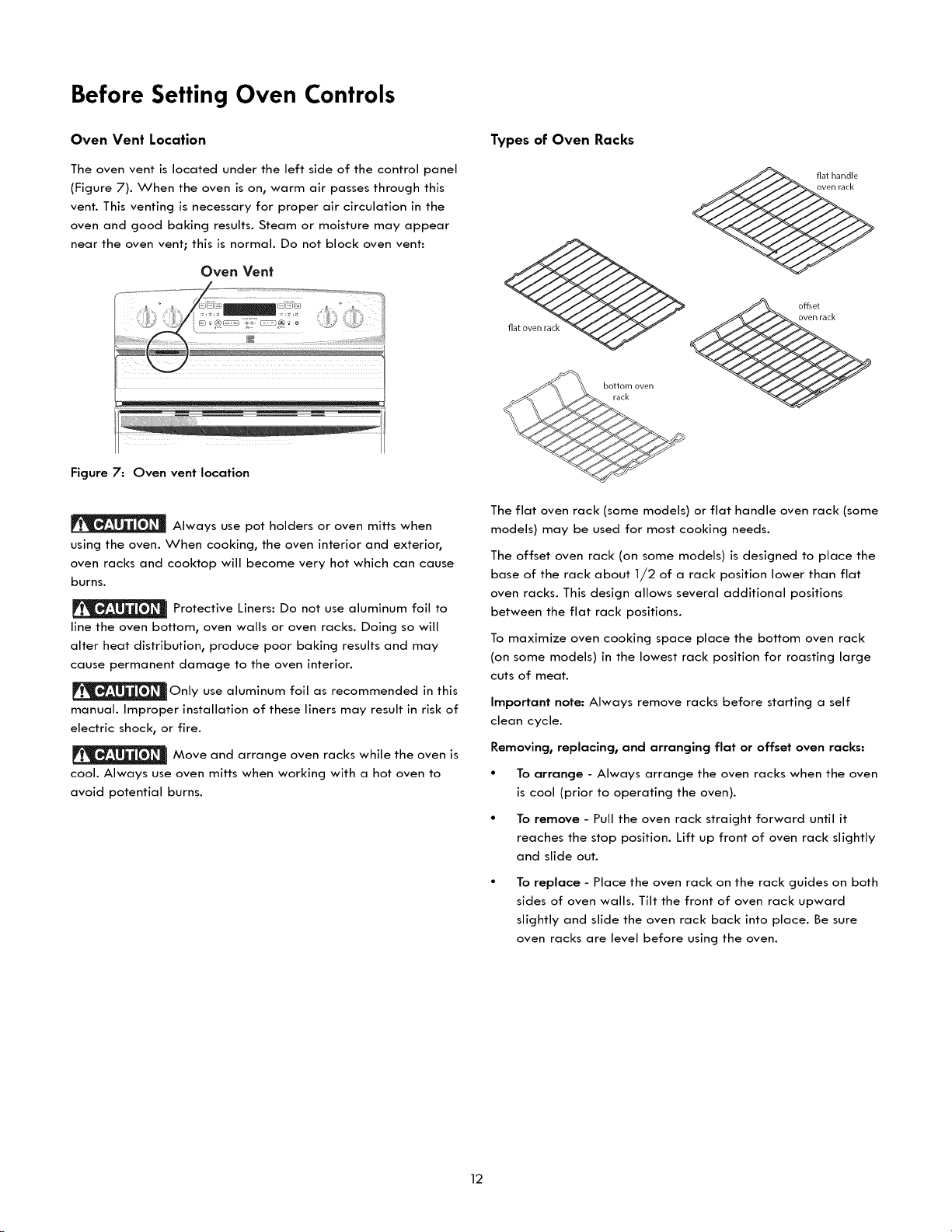

Before Setting Oven Controls ................................................................... 12

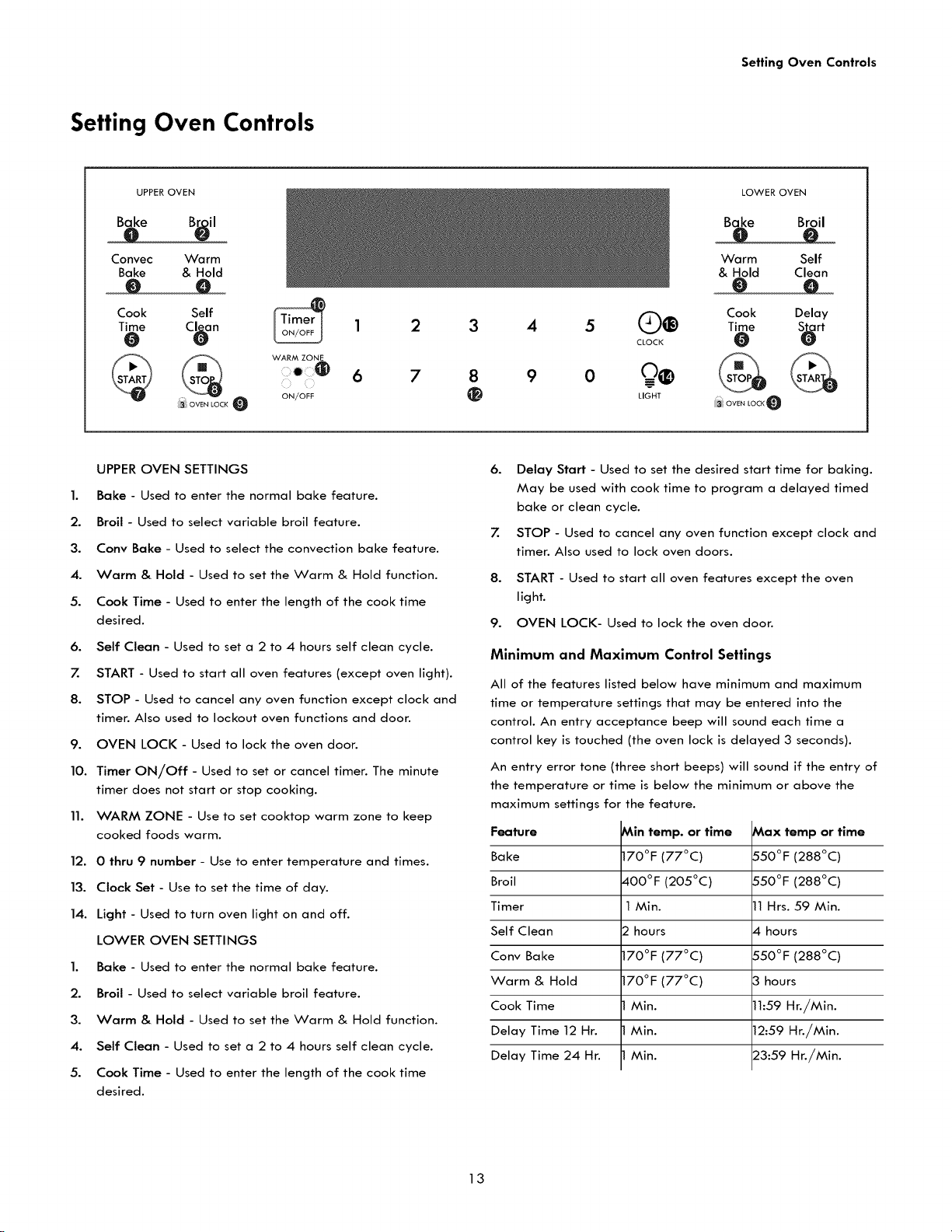

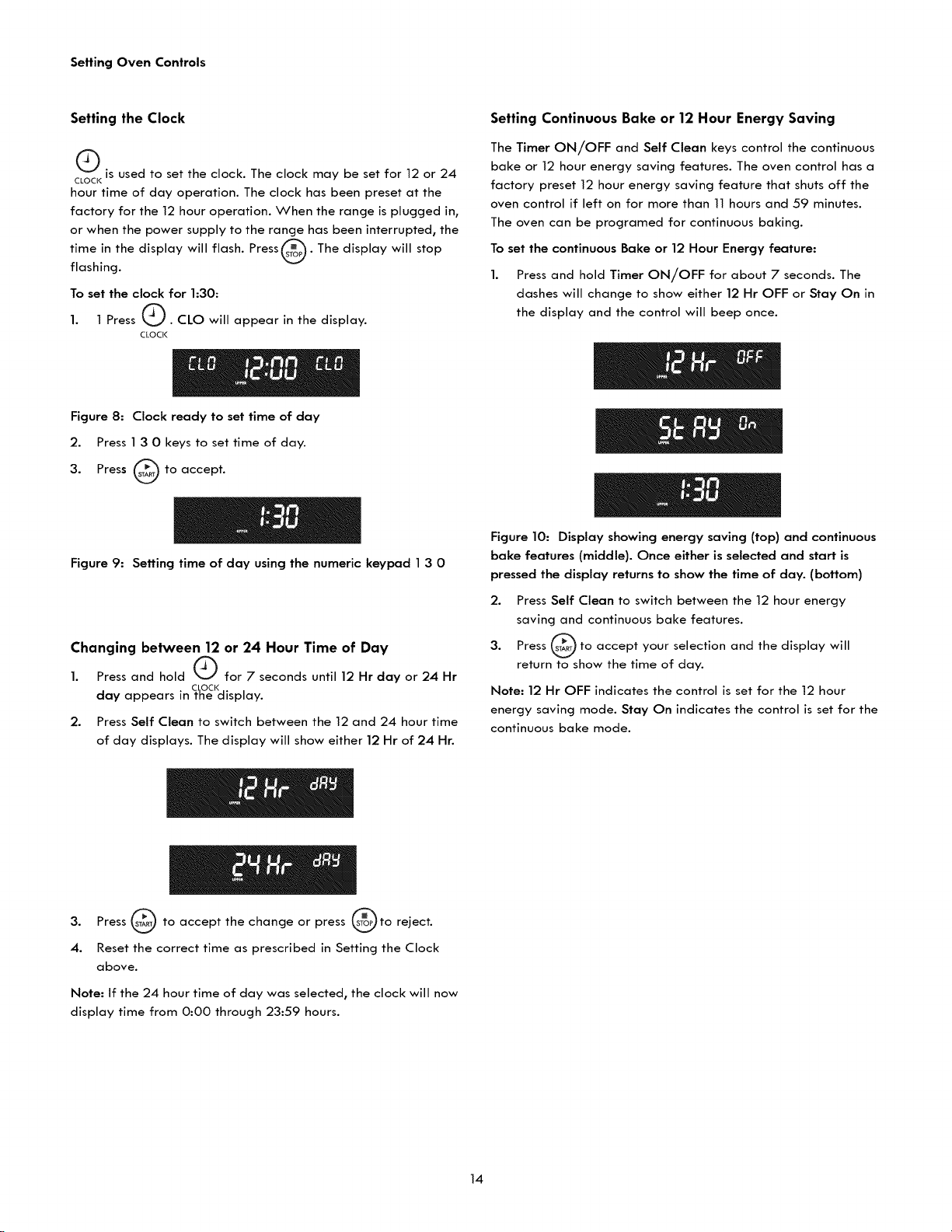

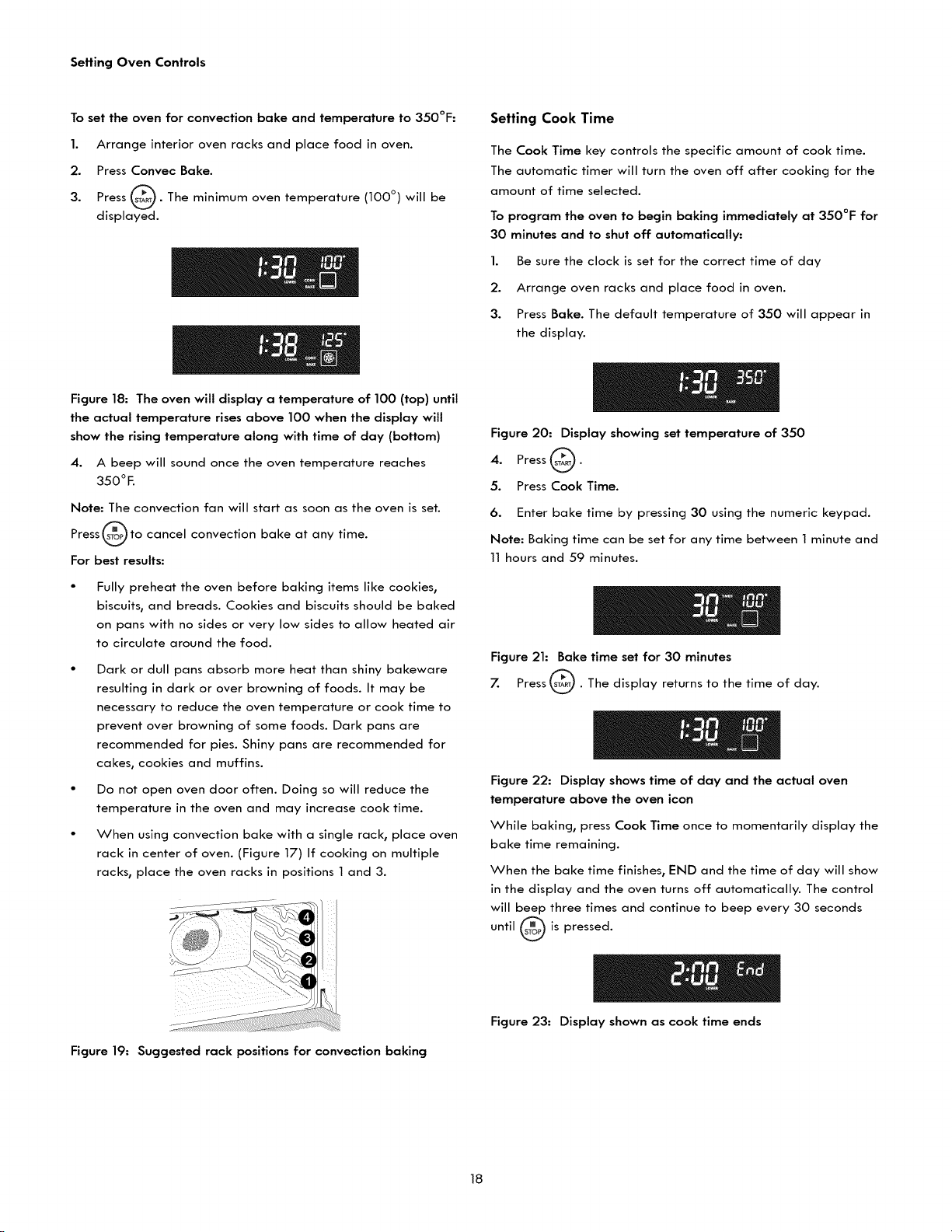

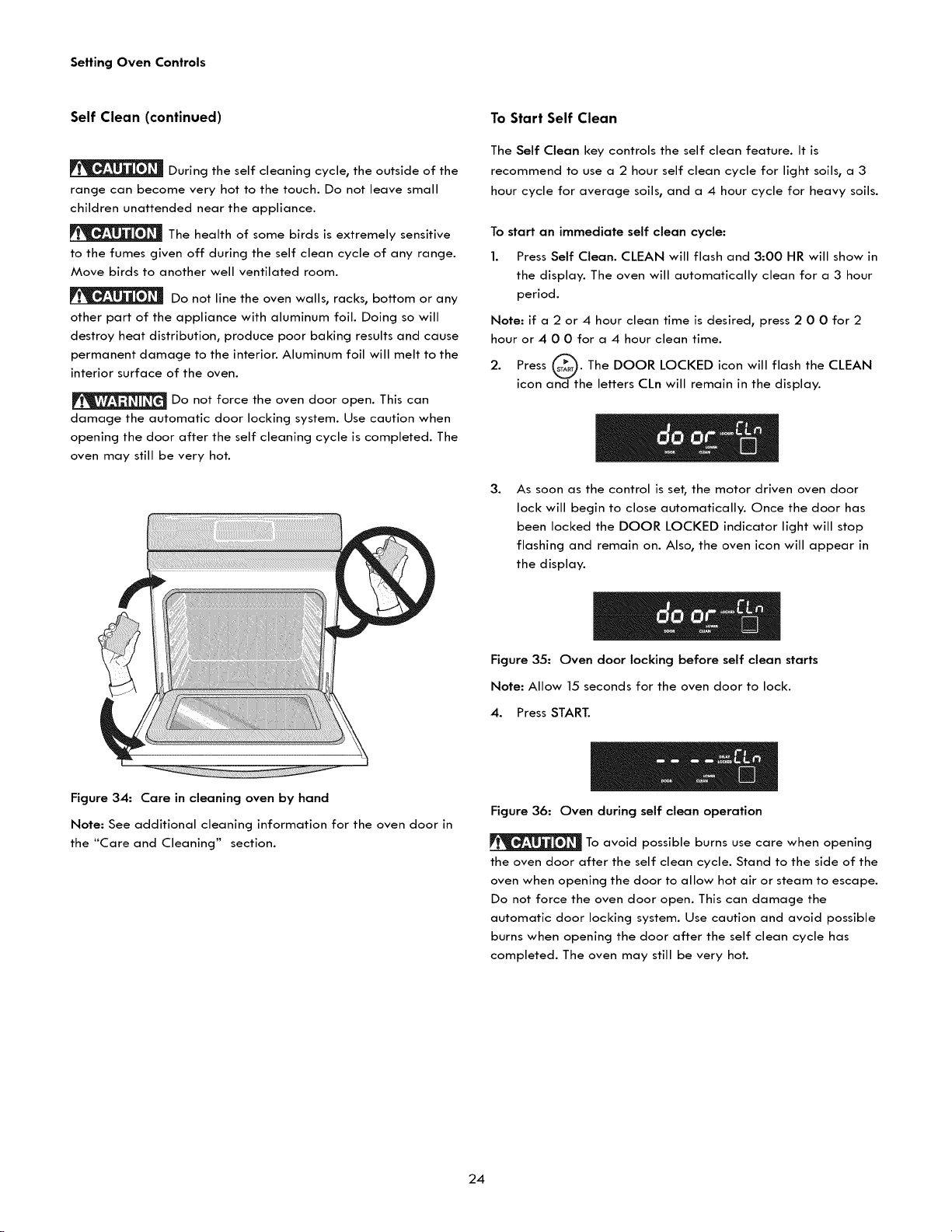

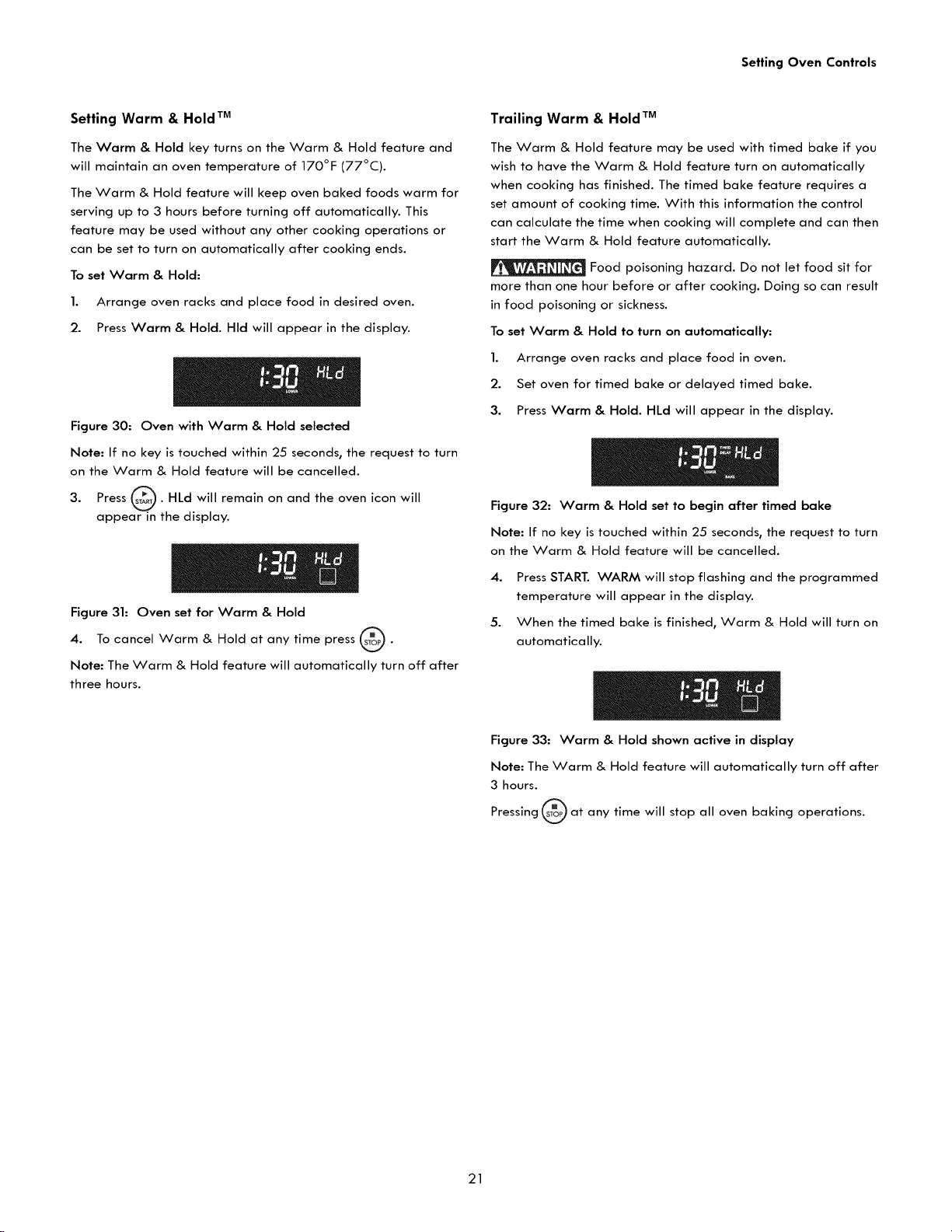

Setting Oven Controls ................................................................................ 13

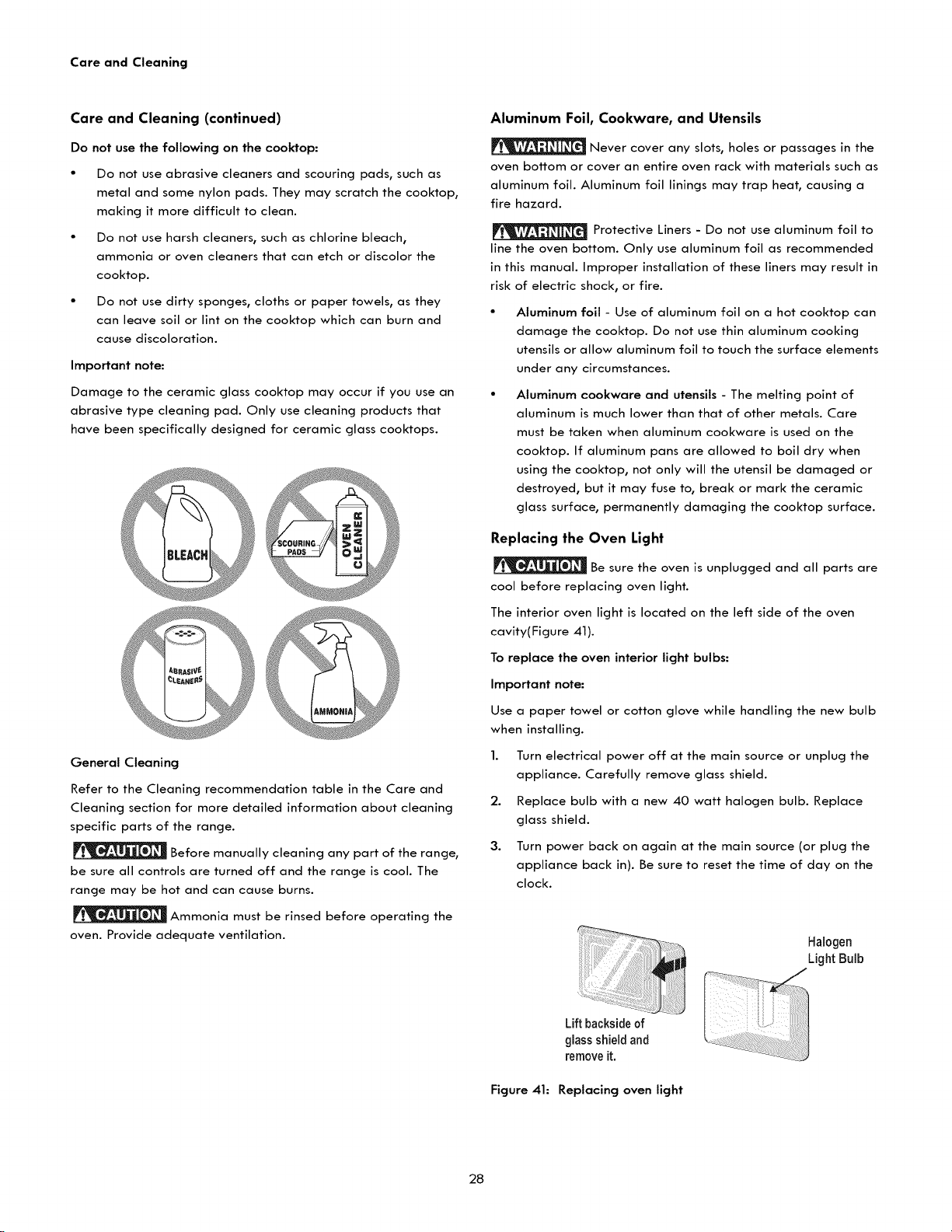

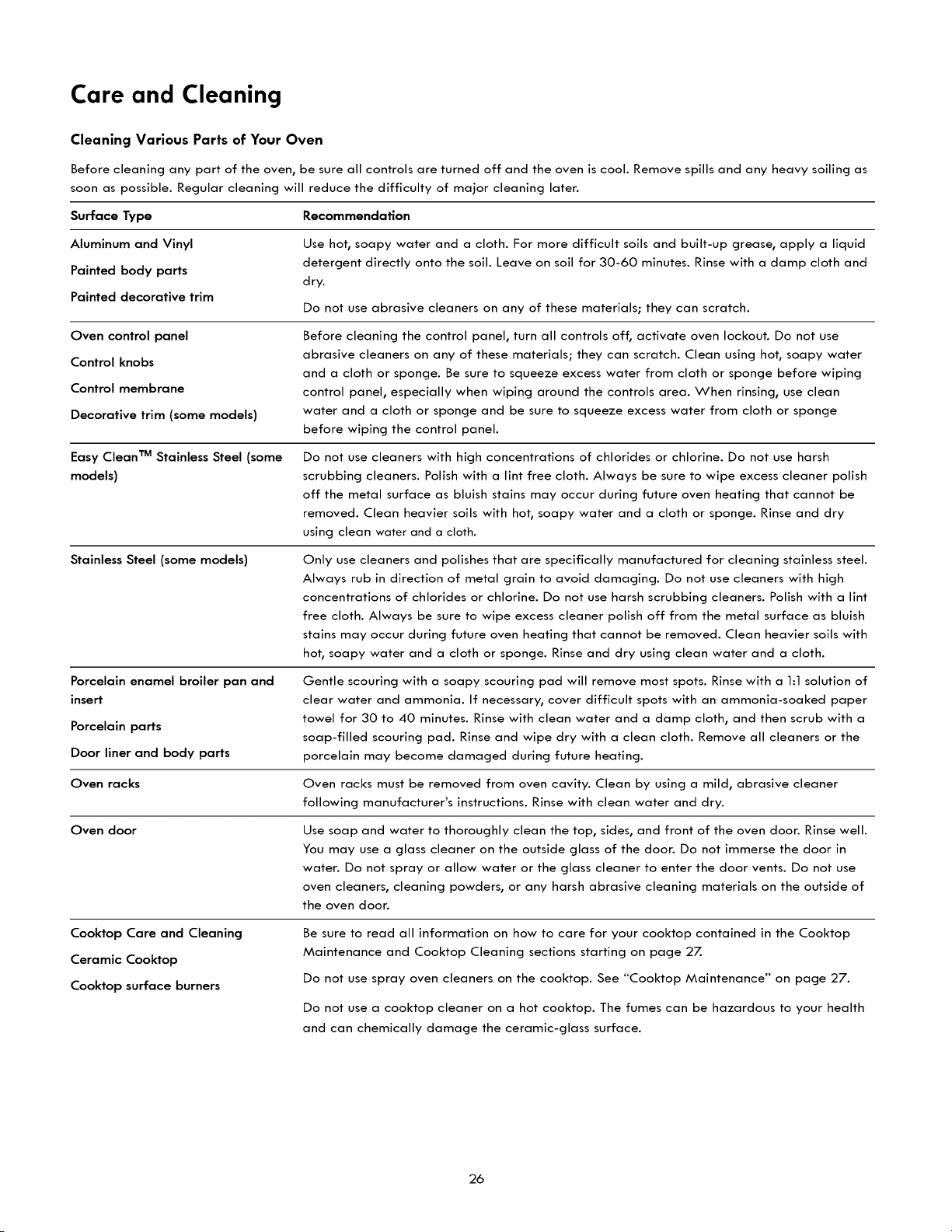

Care and Cleaning ..................................................................................... 26

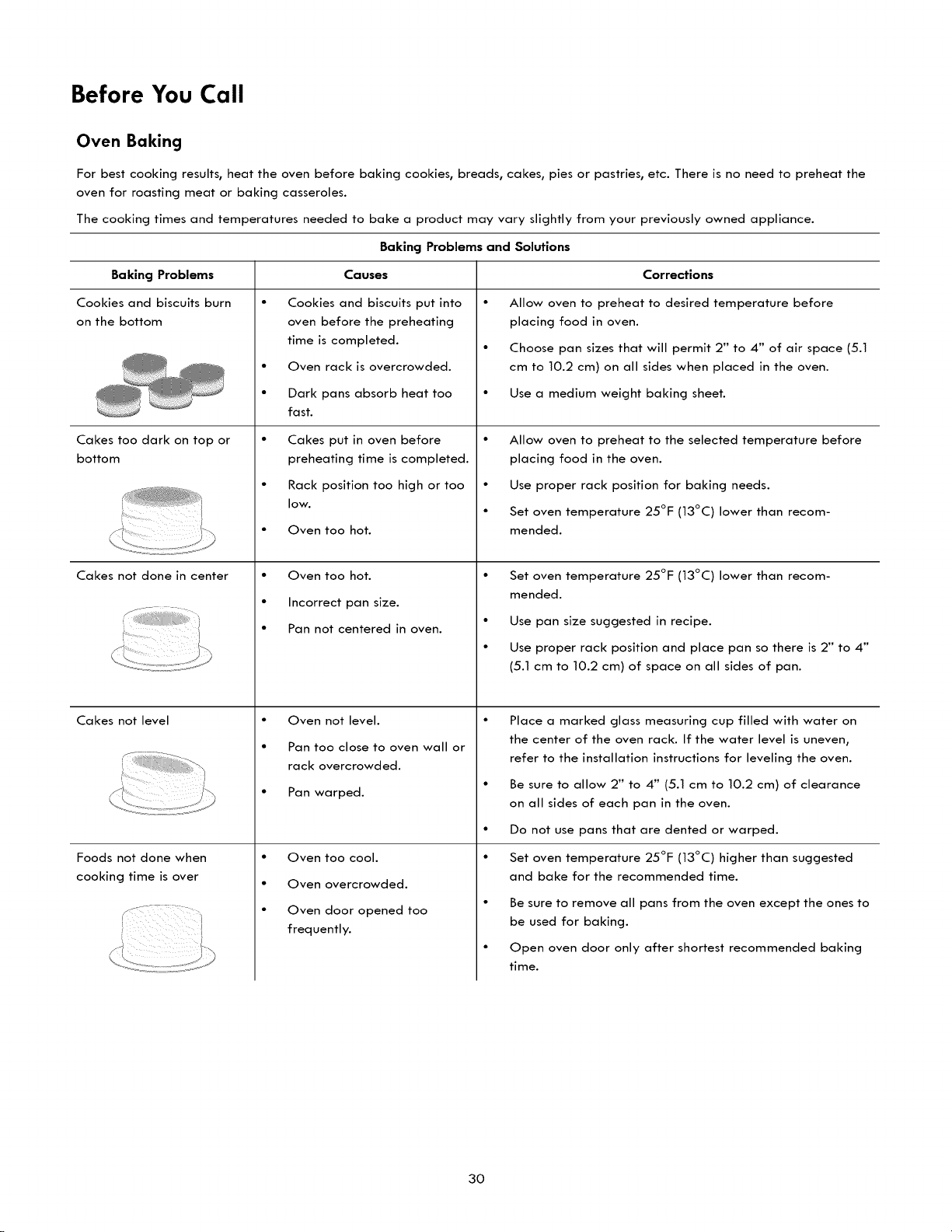

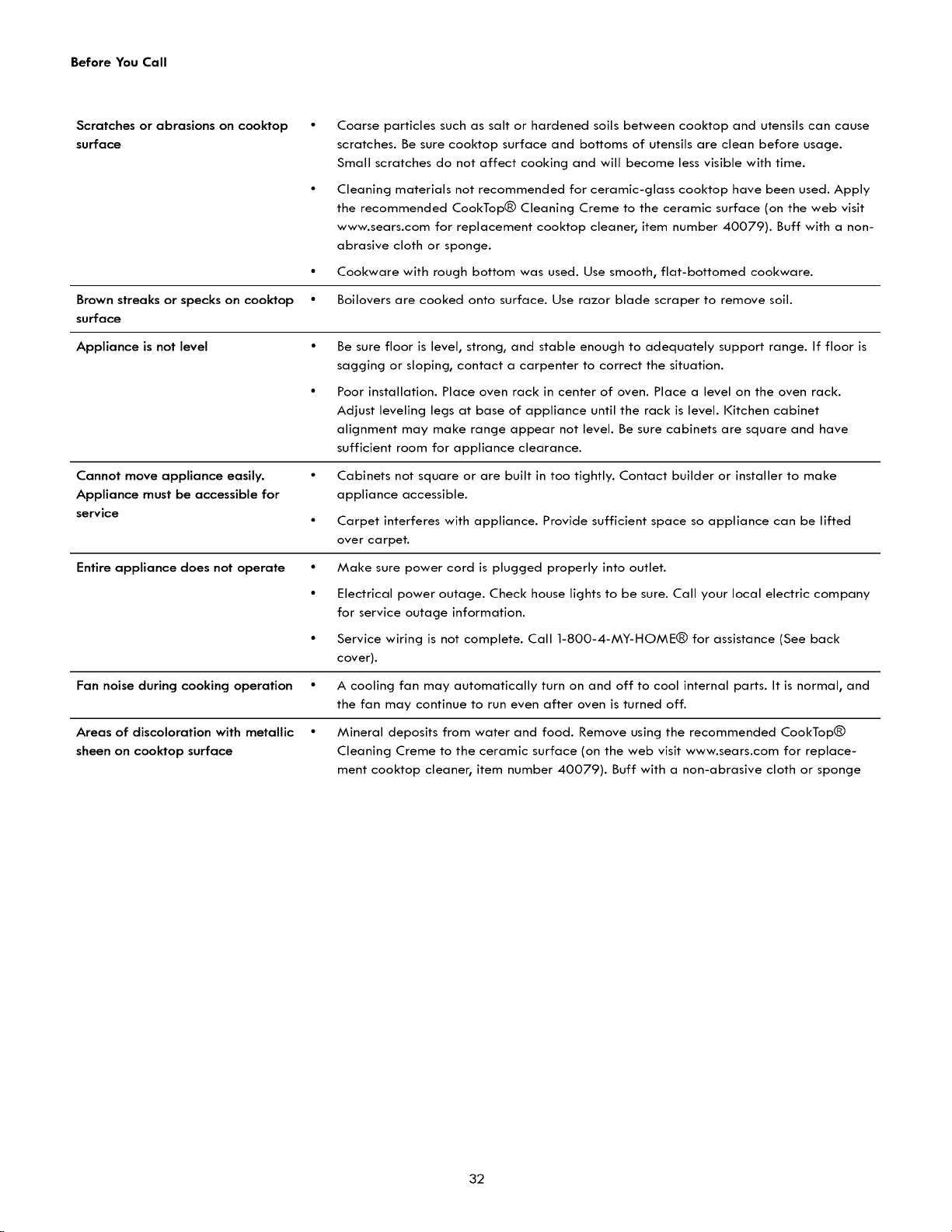

Before You Call ........................................................................................... 30
Oven Baking ............................................................................................. 30

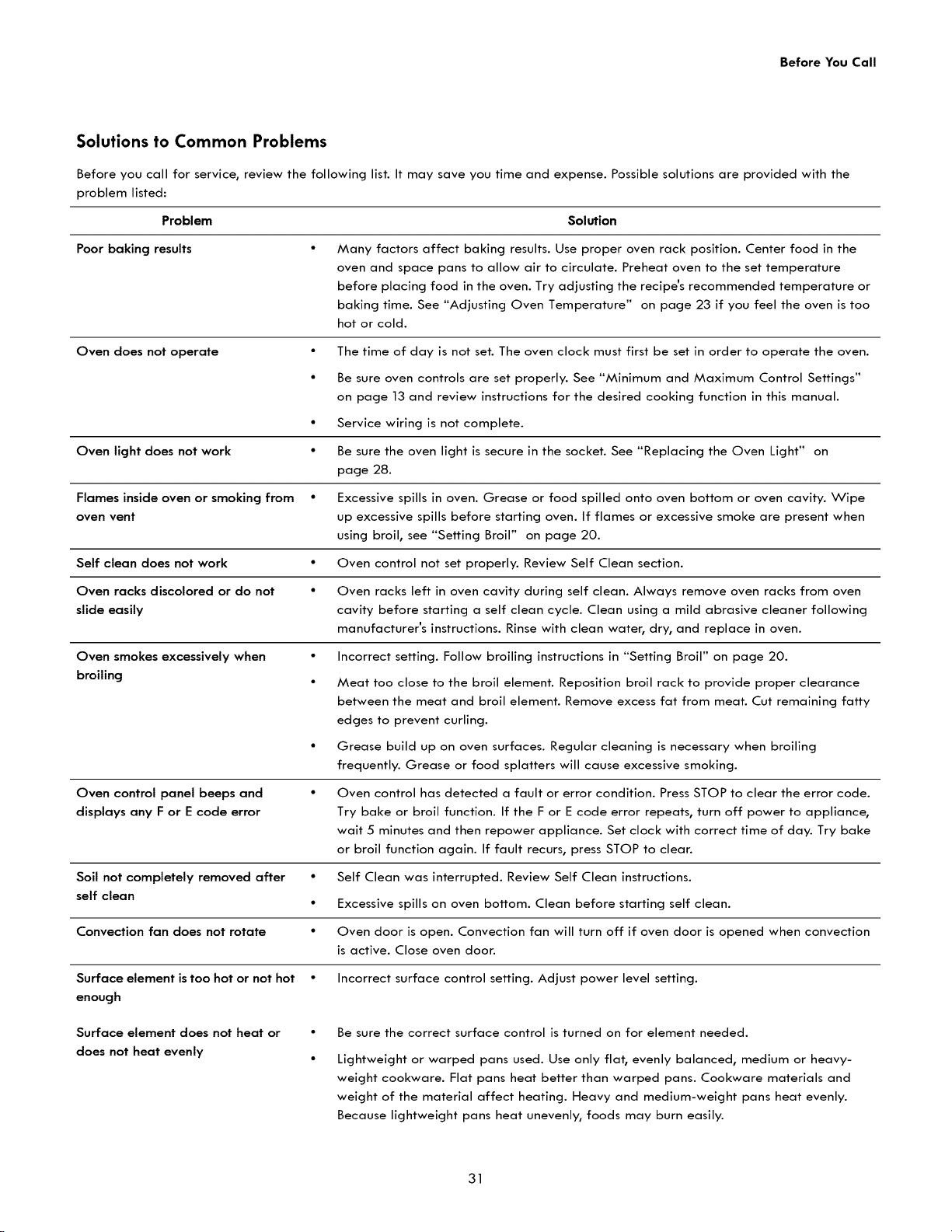

Solutions to Common Problems .............................................................. 31
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly
installed, operated and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option of seller.
To arrange for warranty service, call 1 800-4-MY-HOME® (1-800-469-4663).
This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if this appliance is ever used
for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
Cracks in a ceramic glass cooktop that are not a result of thermal shock.
1.
2.
3.
4.
5.
6.
Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
Expendable items that can wear out from normal use, including but not limited to filters, belts, screw-in base light bulbs and
bags.
A service technician to instruct the user in correct product installation, operation or maintenance.
A service technician to clean or maintain this product.
Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the
product.
Z Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recom-
mended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period
allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the
exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability
or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada _.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and
transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer
is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
All rights reserved. Printed in the USA.
2

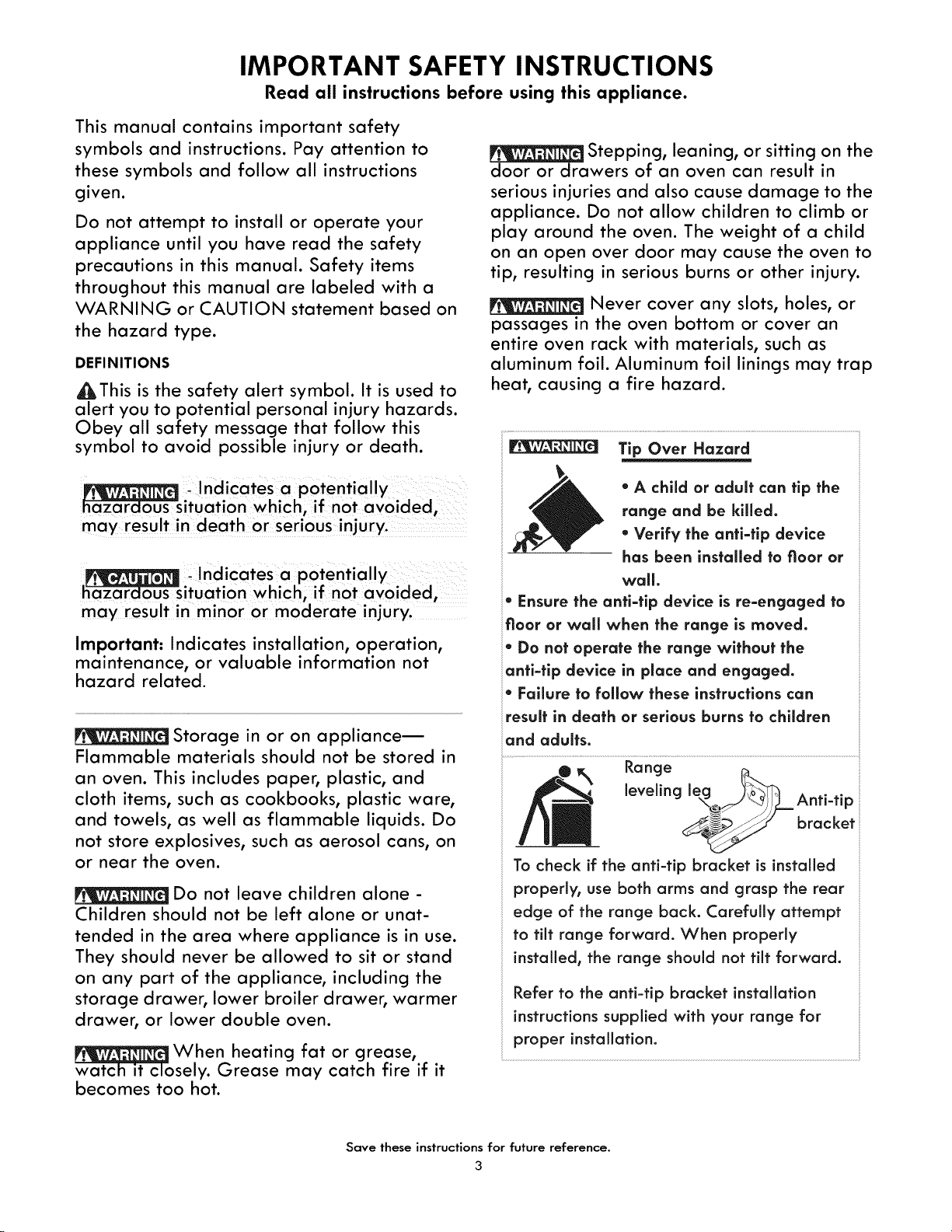

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
This manual contains important safety
symbols and instructions. Pay attention to
these symbols and follow all instructions
given.
Do not attempt to install or operate your
appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION statement based on
the hazard type.
DEFINITIONS
AThis is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety message that follow this
symbol to avoid possible injury or death.
_ Indicates a potentially
hazardous situation which, if not avoidedl
_Indicates a potentially
hazarclous situation which; if not avoided,
may result in minor or moderate injury.
Important: Indicates installation, operation,
maintenance, or valuable information not
hazard related.
Storage in or on appliance m
Flammable materials should not be stored in
an oven. This includes paper, plastic, and
cloth items, such as cookbooks, plastic ware,
and towels, as well as flammable liquids. Do
not store explosives, such as aerosol cans, on
or near the oven.
Do not leave children alone -
Children should not be left alone or unat-
tended in the area where appliance is in use.
They should never be allowed to sit or stand
on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer
drawer, or lower double oven.
When heating fat or grease,
watch it closely. Grease may catch fire if it
becomes too hot.
Stepping, leaning, or sitting on the
door or drawers of an oven can result in
serious injuries and also cause damage to the
appliance. Do not allow children to climb or
play around the oven. The weight of a child
on an open over door may cause the oven to
tip, resulting in serious burns or other injury.
Never cover any slots, holes, or
passages in the oven bottom or cover an
entire oven rack with materials, such as
aluminum foil. Aluminum foil linings may trap
heat, causing a fire hazard.
Tip Over Hazard
* A child or adult can tip the
range and be killed.
* Verify the anti-tip device
has been installed to floor or
wall.
" Ensurethe anti-tip device is re-engaged to
floor or wall when the range is moved.
" Do not operate the range without the
anti-tip device in place and engaged.
* Failure to follow these instructionscan
result in death or serious burns to children
and adults.
Range
leveling lexgg_Anti ti
- p
__ bracket
To check if the anti-tip bracket isinstalled
properly, use both arms and grasp the rear
edge of the range back. Carefully attempt
to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation
instructionssupplied with your range for
proper installation.
Save these instructions for future reference.
3

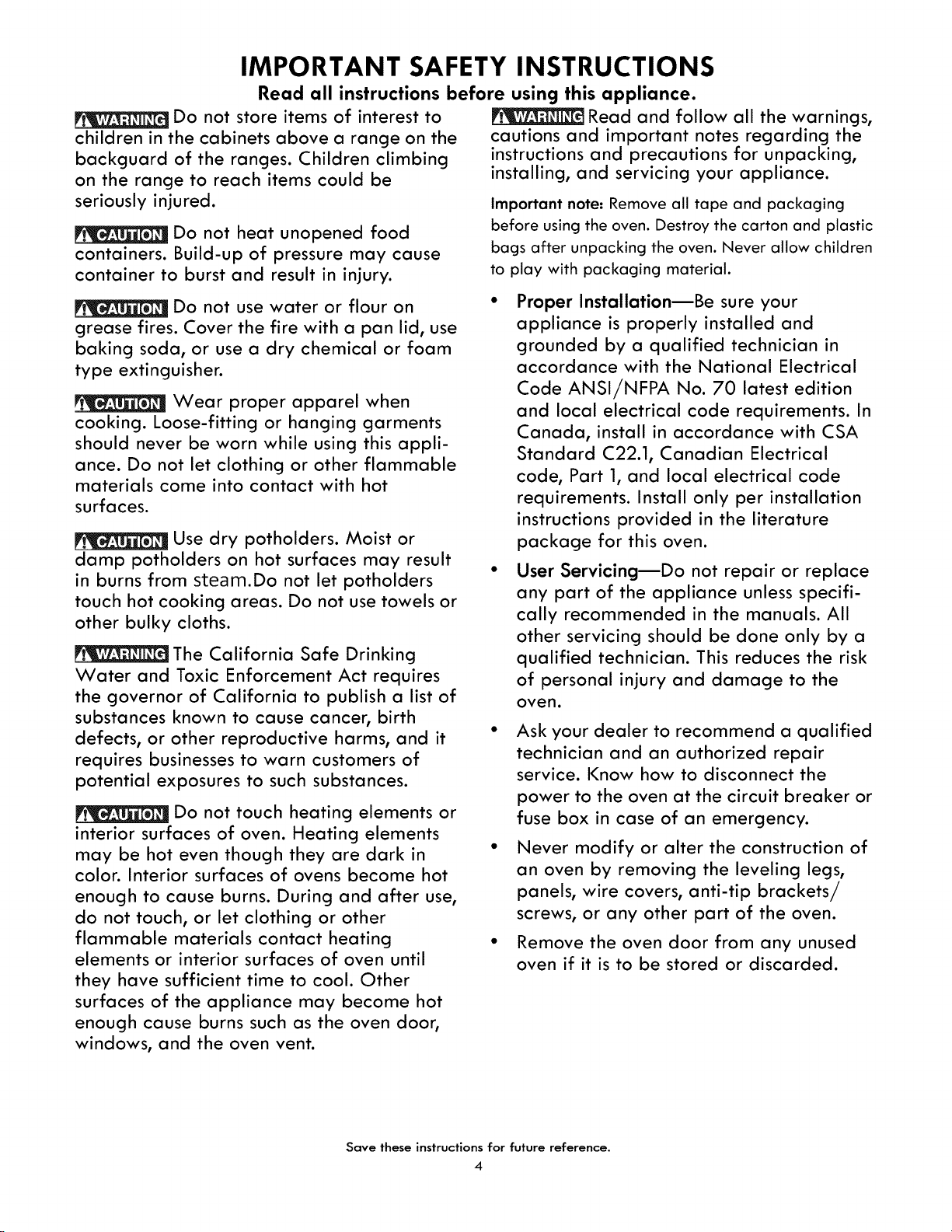

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Do not store items of interest to
children in the cabinets above a range on the
backguard of the ranges. Children climbing
on the range to reach items could be
seriously injured.
Do not heat unopened food
containers. Build-up of pressure may cause
container to burst and result in injury.
Read and follow all the warnings,
cautions and important notes regarding the
instructions and precautions for unpacking,
installing, and servicing your appliance.
Important note: Remove all tape and packaging
before using the oven. Destroy the carton and plastic
bags after unpacking the oven. Never allow children
to play with packaging material.
Do not use water or flour on
grease fires. Cover the fire with a pan lid, use
baking soda, or use a dry chemical or foam
type extinguisher.
Wear proper apparel when
cooking. Loose-fitting or hanging garments
should never be worn while using this appli-
ance. Do not let clothing or other flammable
materials come into contact with hot
surfaces.
Use dry potholders. Moist or
damp potholders on hot surfaces may result
in burns from steam.Do not let potholders
touch hot cooking areas. Do not use towels or
other bulky cloths.
The California Safe Drinking
Water and Toxic Enforcement Act requires
the governor of California to publish a list of
substances known to cause cancer, birth
defects, or other reproductive harms, and it
requires businesses to warn customers of
potential exposures to such substances.
Do not touch heating elements or
interior surfaces of oven. Heating elements
may be hot even though they are dark in
color. Interior surfaces of ovens become hot
enough to cause burns. During and after use,
do not touch, or let clothing or other
flammable materials contact heating
elements or interior surfaces of oven until
they have sufficient time to cool. Other
surfaces of the appliance may become hot
enough cause burns such as the oven door,
windows, and the oven vent.
° Proper InstallationmBe sure your
appliance is properly installed and
grounded by a qualified technician in
accordance with the National Electrical
Code ANSI/NFPA No. 70 latest edition
and local electrical code requirements. In
Canada, install in accordance with CSA
Standard C22.1, Canadian Electrical
code, Part 1, and local electrical code
requirements. Install only per installation
instructions provided in the literature
package for this oven.
° User ServicingmDo not repair or replace
any part of the appliance unless specifi-
cally recommended in the manuals. All
other servicing should be done only by a
qualified technician. This reduces the risk
of personal injury and damage to the
oven.
• Ask your dealer to recommend a qualified
technician and an authorized repair
service. Know how to disconnect the
power to the oven at the circuit breaker or
fuse box in case of an emergency.
• Never modify or alter the construction of
an oven by removing the leveling legs,
panels, wire covers, anti-tip brackets/
screws, or any other part of the oven.
• Remove the oven door from any unused
oven if it is to be stored or discarded.
Save these instructions for future reference.
4

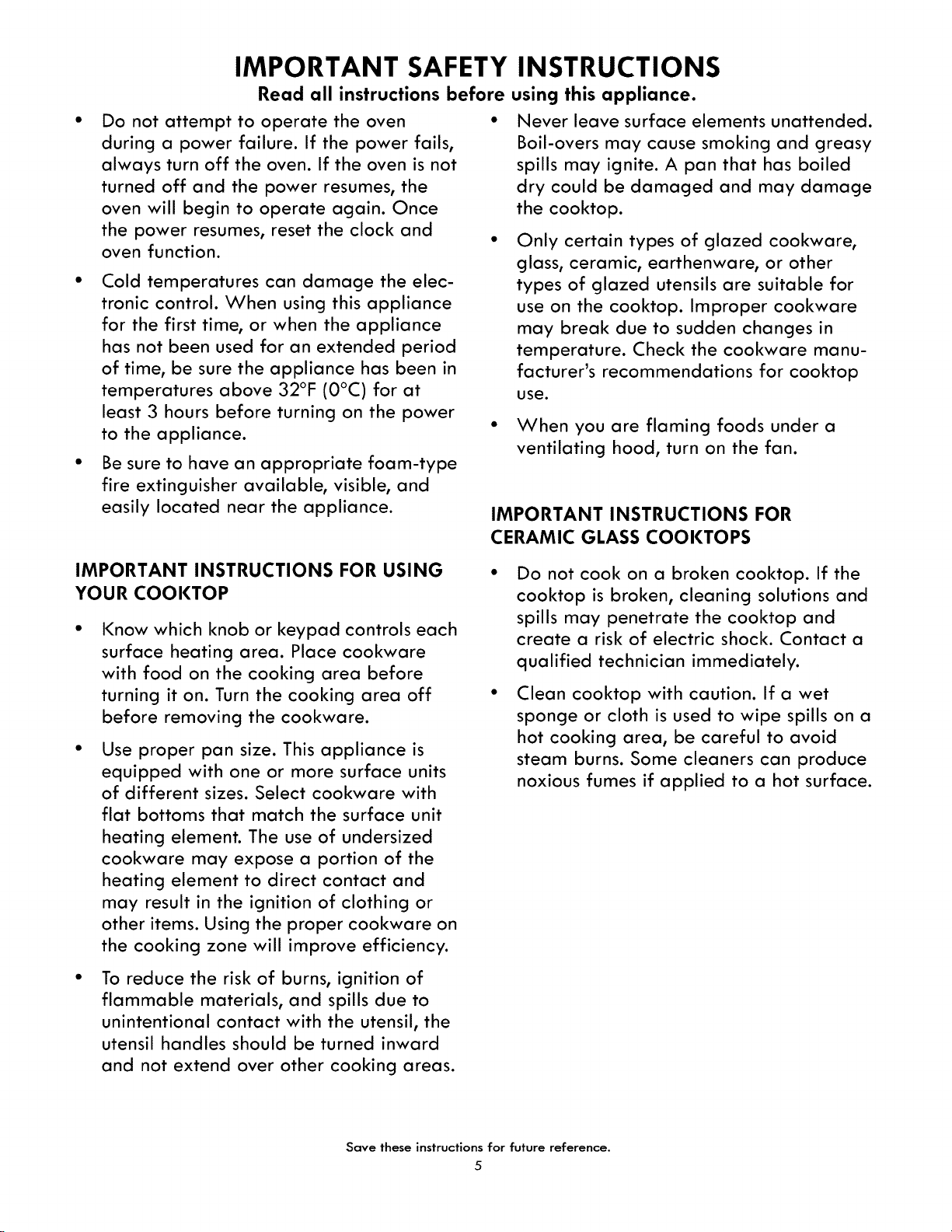

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Do not attempt to operate the oven •
during a power failure. If the power fails,
always turn off the oven. If the oven is not
turned off and the power resumes, the
oven will begin to operate again. Once
the power resumes, reset the clock and
oven function.
• Cold temperatures can damage the elec-
tronic control. When using this appliance
for the first time, or when the appliance
has not been used for an extended period
of time, be sure the appliance has been in
temperatures above 32°F (0°C) for at
least 3 hours before turning on the power
to the appliance.
• Be sure to have an appropriate foam-type
fire extinguisher available, visible, and
easily located near the appliance.
Never leave surface elements unattended.
Boil-overs may cause smoking and greasy
spills may ignite. A pan that has boiled
dry could be damaged and may damage
the cooktop.
Only certain types of glazed cookware,
glass, ceramic, earthenware, or other
types of glazed utensils are suitable for
use on the cooktop. Improper cookware
may break due to sudden changes in
temperature. Check the cookware manu-
facturer's recommendations for cooktop
use.
When you are flaming foods under a
ventilating hood, turn on the fan.
IMPORTANT INSTRUCTIONS FOR
CERAMIC GLASS COOl(TOPS
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOl(TOP
Know which knob or keypad controls each
surface heating area. Place cookware
with food on the cooking area before
turning it on. Turn the cooking area off
before removing the cookware.
Use proper pan size. This appliance is
equipped with one or more surface units
of different sizes. Select cookware with
flat bottoms that match the surface unit
heating element. The use of undersized
cookware may expose a portion of the
heating element to direct contact and
may result in the ignition of clothing or
other items. Using the proper cookware on
the cooking zone will improve efficiency.
Do not cook on a broken cooktop. If the
cooktop is broken, cleaning solutions and
spills may penetrate the cooktop and
create a risk of electric shock. Contact a
qualified technician immediately.
Clean cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a
hot cooking area, be careful to avoid
steam burns. Some cleaners can produce
noxious fumes if applied to a hot surface.
To reduce the risk of burns, ignition of
flammable materials, and spills due to
unintentional contact with the utensil, the
utensil handles should be turned inward
and not extend over other cooking areas.
Save these instructions for future reference.
5

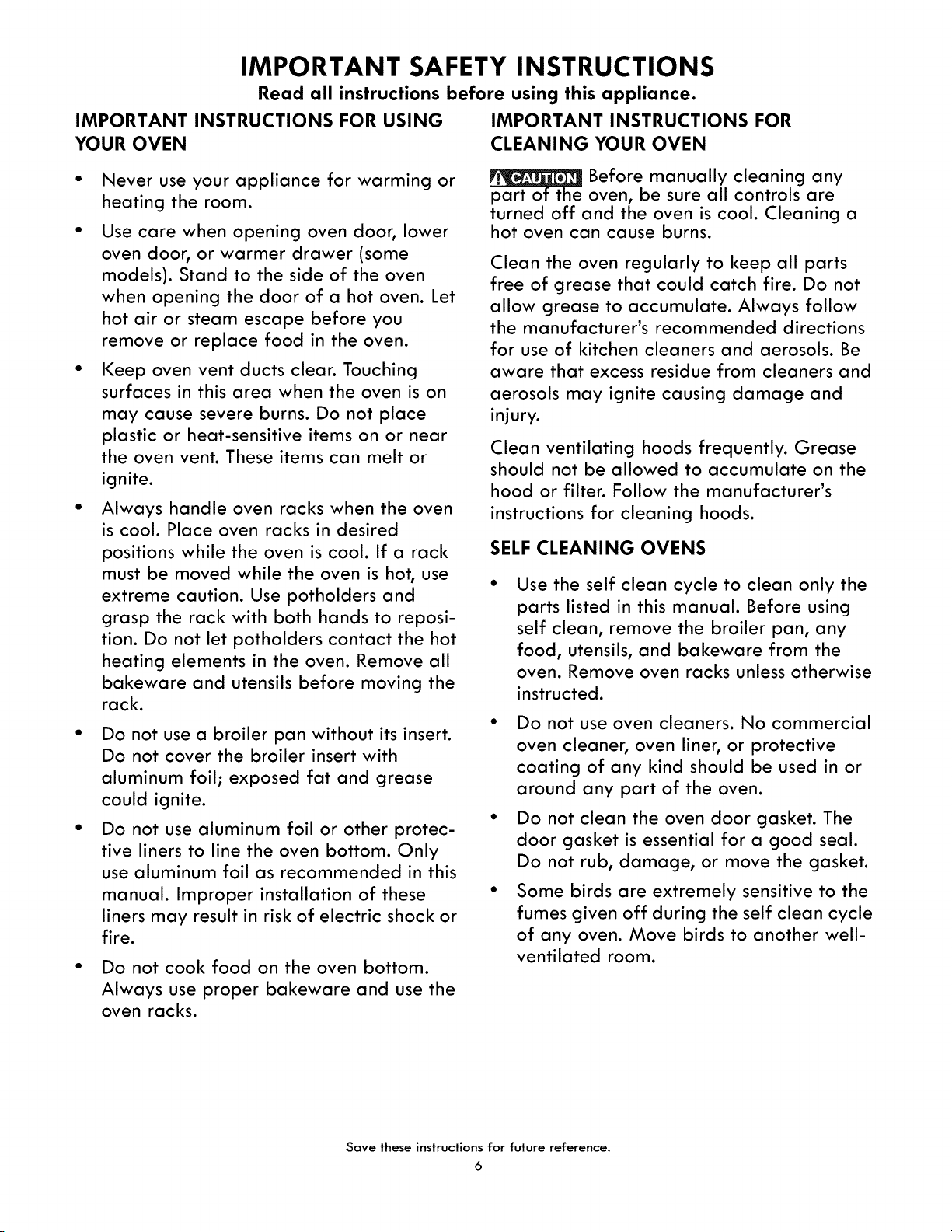

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
IMPORTANT INSTRUCTIONS FOR USING IMPORTANT INSTRUCTIONS FOR
YOUR OVEN CLEANING YOUR OVEN
Never use your appliance for warming or
heating the room.
Use care when opening oven door, lower
oven door, or warmer drawer (some
models). Stand to the side of the oven
when opening the door of a hot oven. Let
hot air or steam escape before you
remove or replace food in the oven.
Keep oven vent ducts clear. Touching
surfaces in this area when the oven is on
may cause severe burns. Do not place
plastic or heat-sensitive items on or near
the oven vent. These items can melt or
ignite.
Always handle oven racks when the oven
is cool. Place oven racks in desired
positions while the oven is cool. If a rack
must be moved while the oven is hot, use
extreme caution. Use potholders and
grasp the rack with both hands to reposi-
tion. Do not let potholders contact the hot
heating elements in the oven. Remove all
bakeware and utensils before moving the
rack.
Do not use a broiler pan without its insert.
Do not cover the broiler insert with
aluminum foil; exposed fat and grease
could ignite.
Do not use aluminum foil or other protec-
tive liners to line the oven bottom. Only
use aluminum foil as recommended in this
manual. Improper installation of these
liners may result in risk of electric shock or
fire.
Do not cook food on the oven bottom.
Always use proper bakeware and use the
oven racks.
Before manually cleaning any
part of the oven, be sure all controls are
turned off and the oven is cool. Cleaning a
hot oven can cause burns.
Clean the oven regularly to keep all parts
free of grease that could catch fire. Do not
allow grease to accumulate. Always follow
the manufacturer's recommended directions
for use of kitchen cleaners and aerosols. Be
aware that excess residue from cleaners and
aerosols may ignite causing damage and
injury.
Clean ventilating hoods frequently. Grease
should not be allowed to accumulate on the
hood or filter. Follow the manufacturer's
instructions for cleaning hoods.
SELF CLEANING OVENS
Use the self clean cycle to clean only the
parts listed in this manual. Before using
self clean, remove the broiler pan, any
food, utensils, and bakeware from the
oven. Remove oven racks unless otherwise
instructed.
Do not use oven cleaners. No commercial
oven cleaner, oven liner, or protective
coating of any kind should be used in or
around any part of the oven.
Do not clean the oven door gasket. The
door gasket is essential for a good seal.
Do not rub, damage, or move the gasket.
Some birds are extremely sensitive to the
fumes given off during the self clean cycle
of any oven. Move birds to another well-
ventilated room.
Save these instructions for future reference.
6
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.

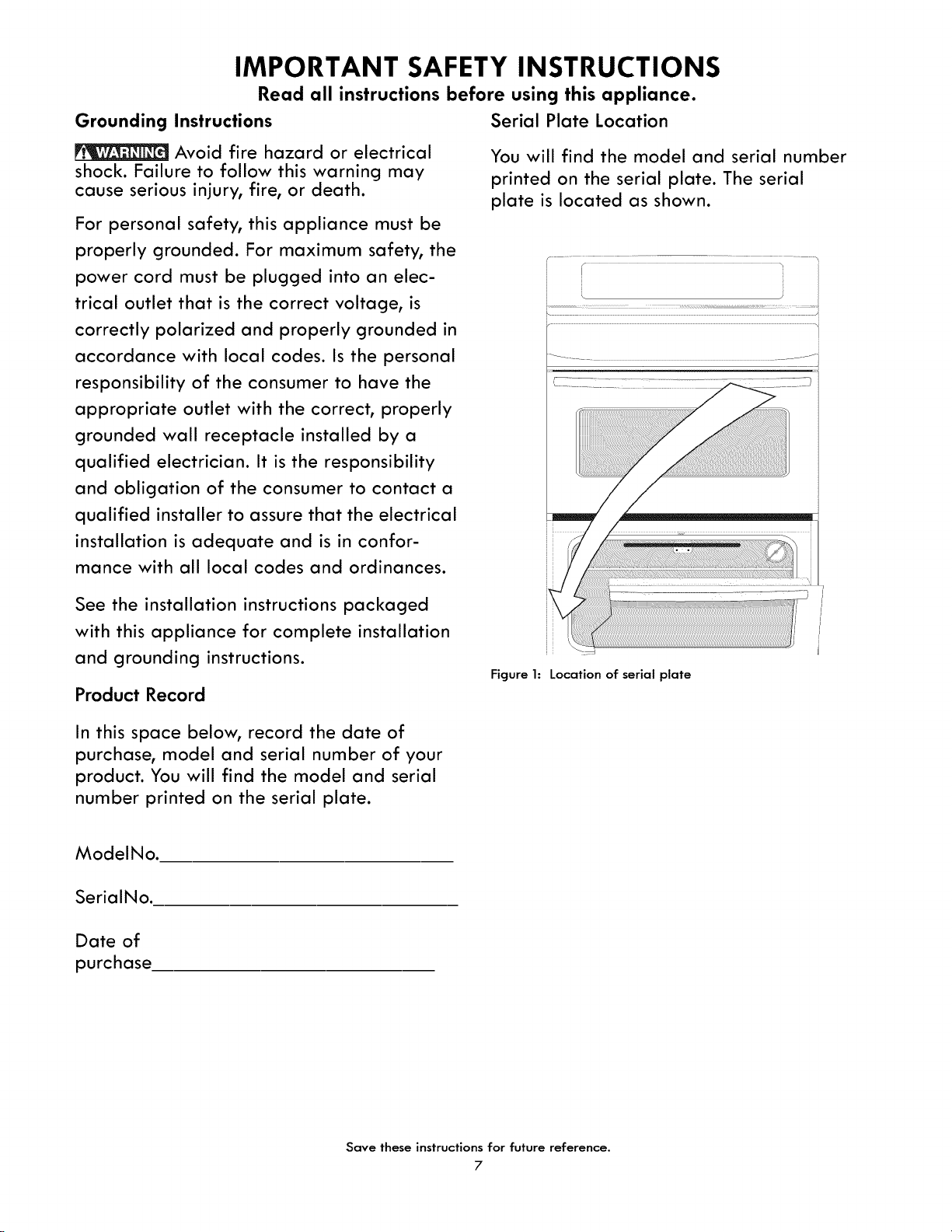

Grounding Instructions Serial Plate Location
Avoid fire hazard or electrical
shock. Failure to follow this warning may
cause serious injury, fire, or death.
For personal safety, this appliance must be
properly grounded. For maximum safety, the
power cord must be plugged into an elec-
trical outlet that is the correct voltage, is
correctly polarized and properly grounded in
accordance with local codes. Is the personal
responsibility of the consumer to have the
appropriate outlet with the correct, properly
grounded wall receptacle installed by a
qualified electrician. It is the responsibility
and obligation of the consumer to contact a
qualified installer to assure that the electrical
installation is adequate and is in confor-
mance with all local codes and ordinances.
See the installation instructions packaged
with this appliance for complete installation
and grounding instructions.
Product Record
You will find the model and serial number
printed on the serial plate. The serial
plate is located as shown.
r............................................................
u
Figure 1: Location of serial plate
In this space below, record the date of
purchase, model and serial number of your
product. You will find the model and serial
number printed on the serial plate.
ModelNo.
SerialNo.
Date of
purchase
Save these instructions for future reference.
7

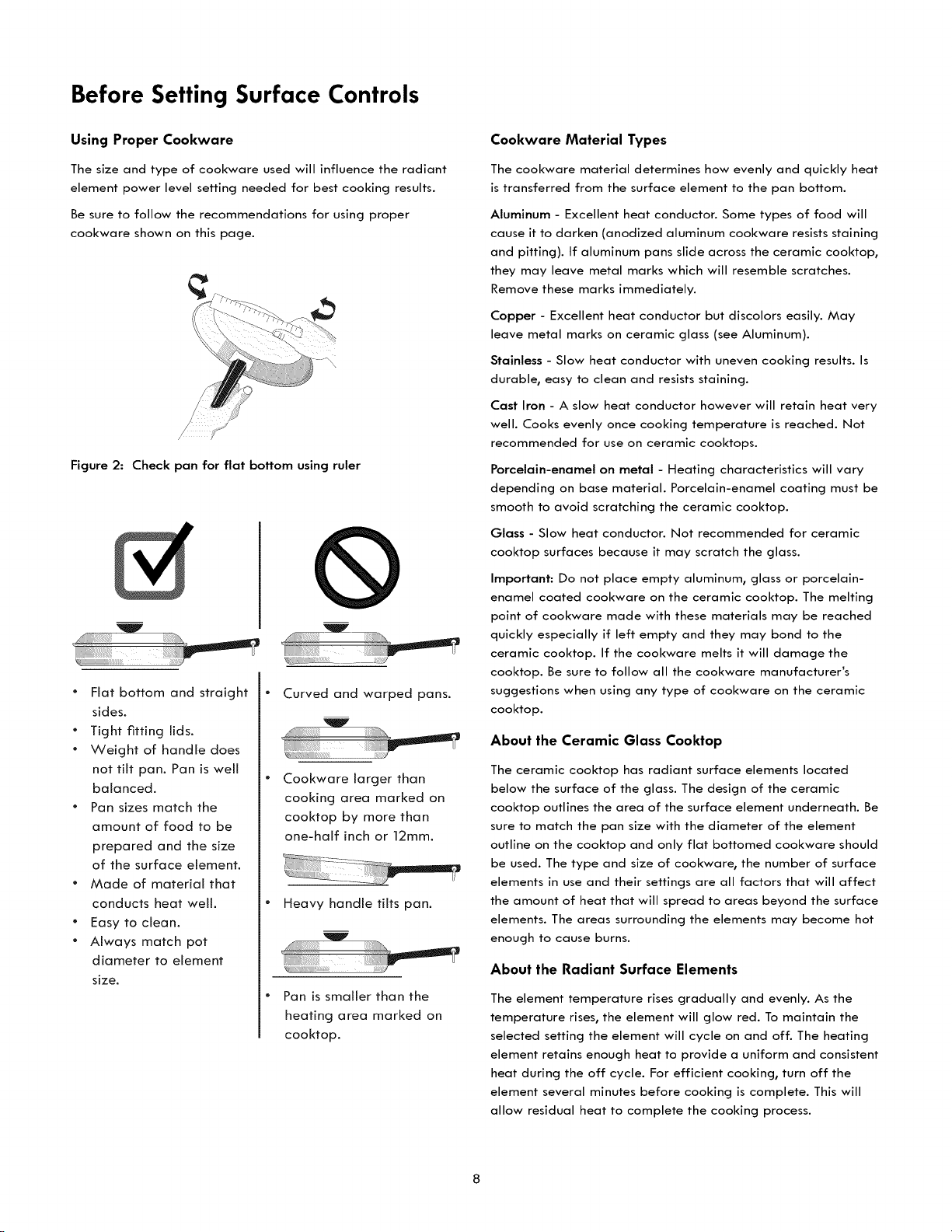

Before Setting Surface Controls
Using Proper Cookware
The size and type of cookware used will influence the radiant
element power level setting needed for best cooking results.
Be sure to follow the recommendations for using proper
cookware shown on this page.
Figure 2: Check pan for flat bottom using ruler
W
* Flat bottom and straight
sides.
" Tight fitting lids.
* Weight of handle does
not tih pan. Pan is weEI
balanced.
" Pan sizes match the
amount of food to be
prepared and the size
of the surface element.
" Made of material that
conducts heat weEI.
Easy to dean.
- Always match pot
diameter to eEement
size.
___>- ............... J
Curved and warped pans.
w
iiiiiiiiiiiiiiiiii!iiili iiiiiii!i
_J
Cookware larger than
cooking area marked on
cooktop by more than
one-half inch or 12mm.
Heavy handle tilts pan.
Pan is smaller than the
heating area marked on
cooktop.
Cookware Material Types
The cookware material determines how evenly and quickly heat
is transferred from the surface element to the pan bottom.
Aluminum - Excellent heat conductor. Some types of food will
cause it to darken (anodized aluminum cookware resists staining
and pitting). If aluminum pans slide across the ceramic cooktop,
they may leave metal marks which will resemble scratches.
Remove these marks immediately.
Copper - Excellent heat conductor but discolors easily. May
leave metal marks on ceramic glass (see Aluminum).
Stainless - Slow heat conductor with uneven cooking results. Is
durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat very
well. Cooks evenly once cooking temperature is reached. Not
recommended for use on ceramic cooktops.
Porcelain-enamel on metal - Heating characteristics will vary
depending on base material. Porcelain-enamel coating must be
smooth to avoid scratching the ceramic cooktop.
Glass - Slow heat conductor. Not recommended for ceramic
cooktop surfaces because it may scratch the glass.
Important: Do not place empty aluminum, glass or porcelain-
enamel coated cookware on the ceramic cooktop. The melting
point of cookware made with these materials may be reached
quickly especially if left empty and they may bond to the
ceramic cooktop. If the cookware melts it will damage the
cooktop. Be sure to follow all the cookware manufacturer's
suggestions when using any type of cookware on the ceramic
cooktop.
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located
below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element underneath. Be
sure to match the pan size with the diameter of the element
outline on the cooktop and only flat bottomed cookware should
be used. The type and size of cookware, the number of surface
elements in use and their settings are all factors that will affect
the amount of heat that will spread to areas beyond the surface
elements. The areas surrounding the elements may become hot
enough to cause burns.
About the Radiant Surface Elements
The element temperature rises gradually and evenly. As the
temperature rises, the element will glow red. To maintain the
selected setting the element will cycle on and off. The heating
element retains enough heat to provide a uniform and consistent
heat during the off cycle. For efficient cooking, turn off the
element several minutes before cooking is complete. This will
allow residual heat to complete the cooking process.

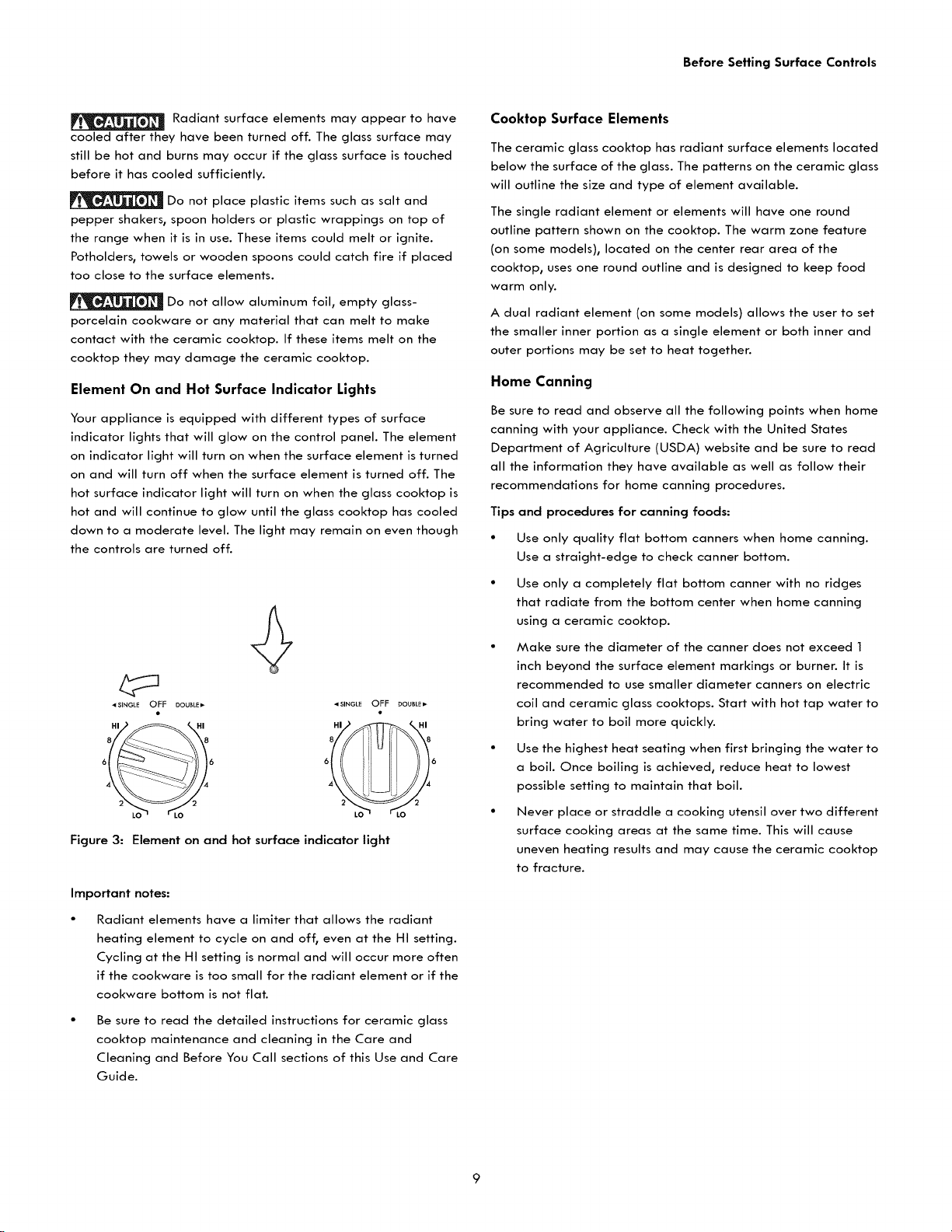

Before Setting Surface Controls
Radiant surface elements may appear to have
cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched
before it has cooled sufficiently.
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top of
the range when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the surface elements.
Do not allow aluminum foil, empty glass-
porcelain cookware or any material that can melt to make
contact with the ceramic cooktop. If these items melt on the
cooktop they may damage the ceramic cooktop.
Element On and Hot Surface Indicator Lights
Your appliance is equipped with different types of surface
indicator lights that will glow on the control panel. The element
on indicator light will turn on when the surface element is turned
on and will turn off when the surface element is turned off. The
hot surface indicator light will turn on when the glass cooktop is
hot and will continue to glow until the glass cooktop has cooled
down to a moderate level. The light may remain on even though
the controls are turned off.
_ISINGI._ OFF DOUBI.E_ 4SINGLE OFF DOUBL_-
6 i 6
6 6
4 4
Figure 3: Element on and hot surface indicator light
Important notes:
Radiant elements have a limiter that allows the radiant
heating element to cycle on and off, even at the HI setting.
Cycling at the HI setting is normal and will occur more often
if the cookware is too small for the radiant element or if the
cookware bottom is not flat.
Be sure to read the detailed instructions for ceramic glass
cooktop maintenance and cleaning in the Care and
Cleaning and Before You Call sections of this Use and Care
Guide.
Cooktop Surface Elements
The ceramic glass cooktop has radiant surface elements located
below the surface of the glass. The patterns on the ceramic glass
will outline the size and type of element available.
The single radiant element or elements will have one round
outline pattern shown on the cooktop. The warm zone feature
(on some models), located on the center rear area of the
cooktop, uses one round outline and is designed to keep food
warm only.
A dual radiant element (on some models) allows the user to set
the smaller inner portion as a single element or both inner and
outer portions may be set to heat together.
Home Canning
Be sure to read and observe all the following points when home
canning with your appliance. Check with the United States
Department of Agriculture (USDA) website and be sure to read
all the information they have available as well as follow their
recommendations for home canning procedures.
Tips and procedures for canning foods:
Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom.
Use only a completely flat bottom canner with no ridges
that radiate from the bottom center when home canning
using a ceramic cooktop.
Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner. It is
recommended to use smaller diameter canners on electric
coil and ceramic glass cooktops. Start with hot tap water to
bring water to boil more quickly.
• Use the highest heat seating when first bringing the water to
a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
• Never place or straddle a cooking utensil over two different
surface cooking areas at the same time. This will cause
uneven heating results and may cause the ceramic cooktop
to fracture.

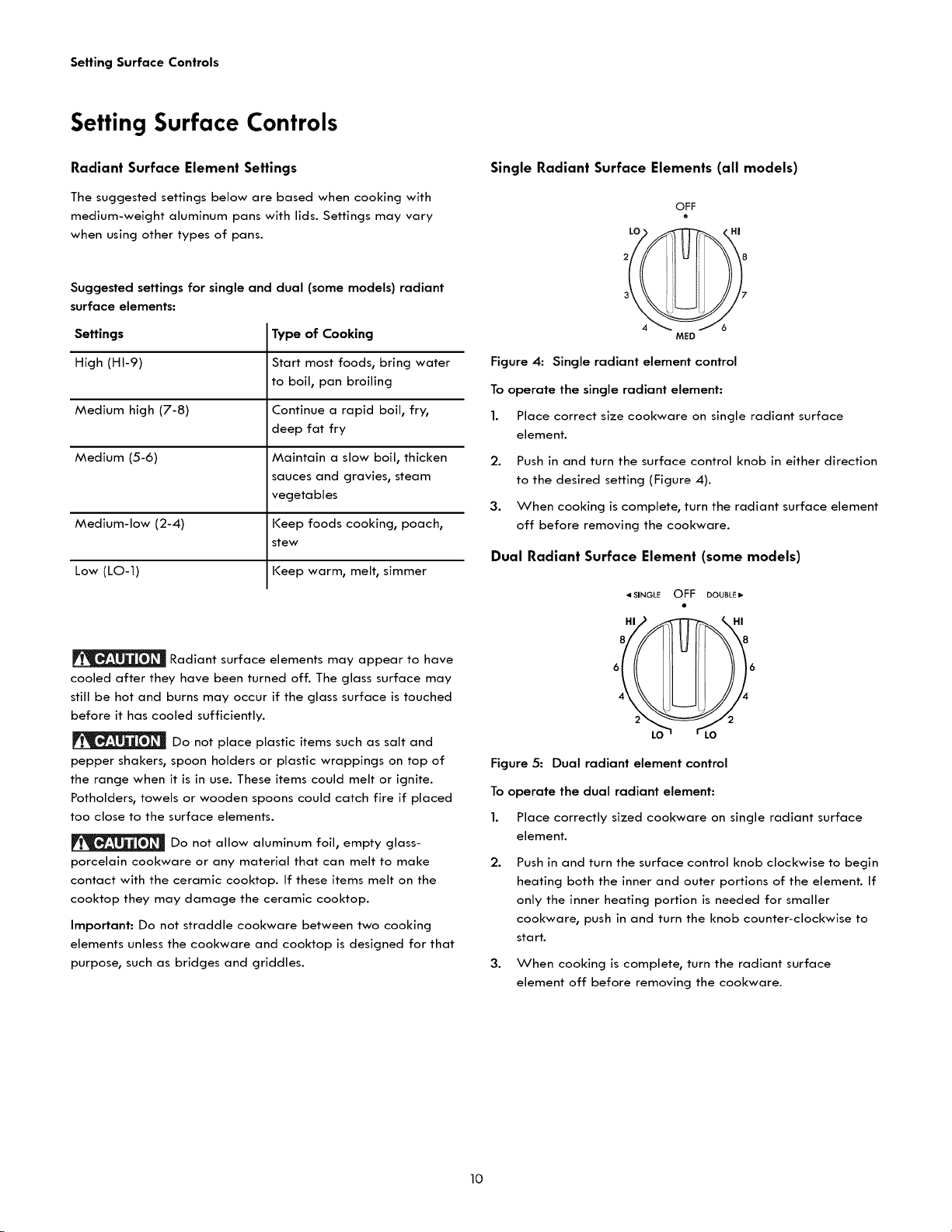

Setting Surface Controls
Setting Surface Controls
Radiant Surface Element Settings
The suggested settings below are based when cooking with
medium-weight aluminum pans with lids. Settings may vary
when using other types of pans.
Suggested settings for single and dual (some models) radiant
surface elements:
Settings Type of Cooking
High (HI-9) Start most foods, bring water
to boil, pan broiling
Medium high (7-8) Continue a rapid boil, fry,
deep fat fry
Medium (5-6) Maintain a slow boil, thicken
sauces and gravies, steam
vegetables
Medium-low (2-4) Keep foods cooking, poach,
stew
Low (LO-1) Keep warm, melt, simmer
Radiant surface elements may appear to have
cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched
before it has cooled sufficiently.
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top of
the range when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the surface elements.
Do not allow aluminum foil, empty glass-
porcelain cookware or any material that can melt to make
contact with the ceramic cooktop. If these items melt on the
cooktop they may damage the ceramic cooktop.
Important: Do not straddle cookware between two cooking
elements unless the cookware and cooktop is designed for that
purpose, such as bridges and griddles.
Single Radiant Surface Elements (all models)
OFF
o
3 7
MED
Figure 4: Single radiant element control
To operate the single radiant element:
1. Place correct size cookware on single radiant surface
element.
2. Push in and turn the surface control knob in either direction
to the desired setting (Figure 4).
3. When cooking is complete, turn the radiant surface element
off before removing the cookware.
Dual Radiant Surface Element (some models)
_I SINGLE 0 FF DOUBLE •
HI HI
6 6
LO LO
Figure 5: Dual radiant element control
To operate the dual radiant element:
1. Place correctly sized cookware on single radiant surface
element.
2.
3.
Push in and turn the surface control knob clockwise to begin
heating both the inner and outer portions of the element. If
only the inner heating portion is needed for smaller
cookware, push in and turn the knob counter-clockwise to
start.
When cooking is complete, turn the radiant surface
element off before removing the cookware.
10

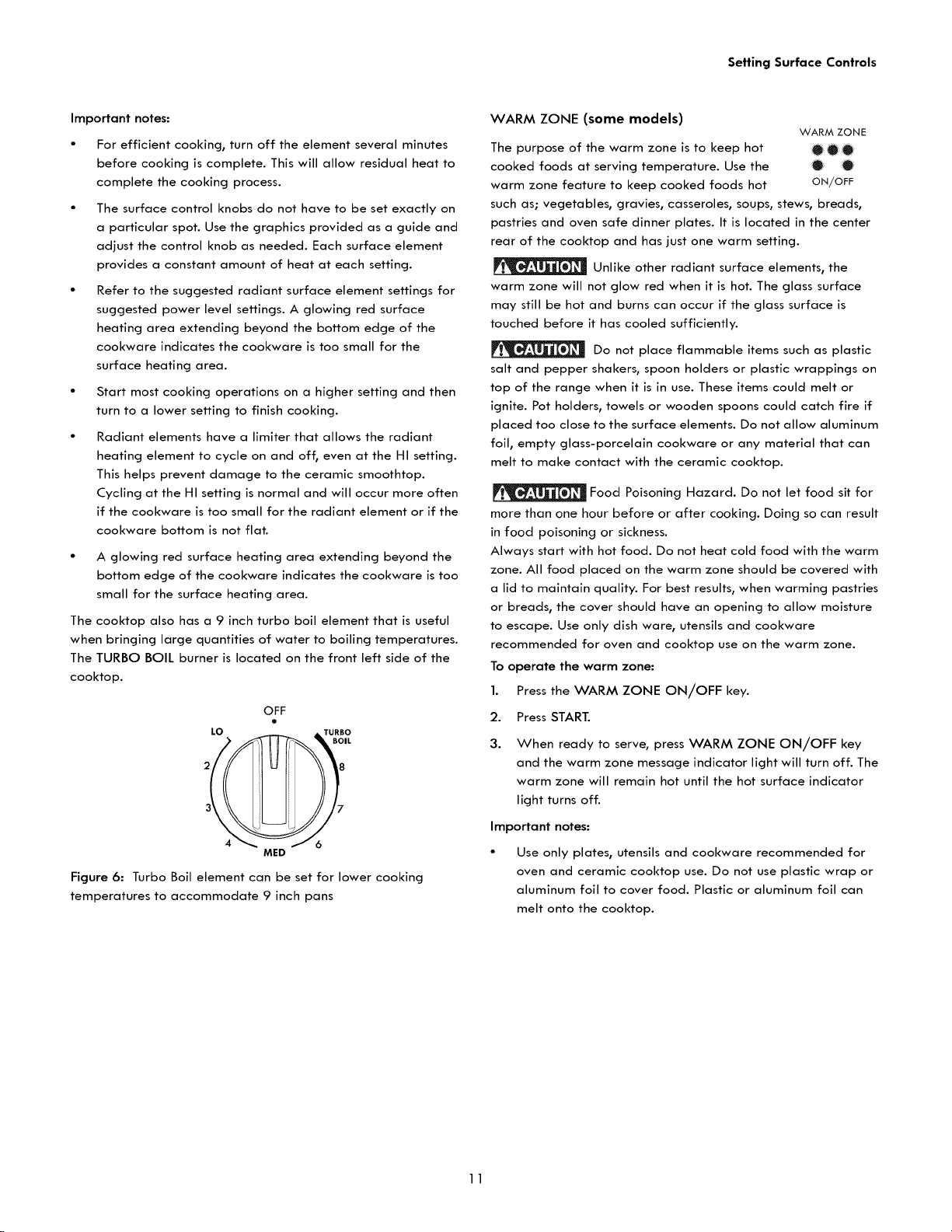

Setting Surface Controls
Important notes:
• For efficient cooking, turn off the element several minutes
before cooking is complete. This will allow residual heat to
complete the cooking process.
• The surface control knobs do not have to be set exactly on
a particular spot. Use the graphics provided as a guide and
adjust the control knob as needed. Each surface element
provides a constant amount of heat at each setting.
• Refer to the suggested radiant surface element settings for
suggested power level settings. A glowing red surface
heating area extending beyond the bottom edge of the
cookware indicates the cookware is too small for the
surface heating area.
Start most cooking operations on a higher setting and then
turn to a lower setting to finish cooking.
Radiant elements have a limiter that allows the radiant
heating element to cycle on and off, even at the HI setting.
This helps prevent damage to the ceramic smoothtop.
Cycling at the HI setting is normal and will occur more often
if the cookware is too small for the radiant element or if the
cookware bottom is not flat.
A glowing red surface heating area extending beyond the
bottom edge of the cookware indicates the cookware is too
small for the surface heating area.
The cooktop also has a 9 inch turbo boil element that is useful
when bringing large quantities of water to boiling temperatures.
The TURBO BOIL burner is located on the front left side of the
cooktop.
OFF
LO
2
MED
TURBO
Figure 6: Turbo Boil element can be set for lower cooking
temperatures to accommodate 9 inch pans
WARM ZONE (some models)
WARM ZONE
The purpose of the warm zone is to keep hot 000
cooked foods at serving temperature. Use the O
warm zone feature to keep cooked foods hot ON/OFF
such as; vegetables, gravies, casseroles, soups, stews, breads,
pastries and oven safe dinner plates. It is located in the center
rear of the cooktop and has just one warm setting.
Unlike other radiant surface elements, the
warm zone will not glow red when it is hot. The glass surface
may still be hot and burns can occur if the glass surface is
touched before it has cooled sufficiently.
Do not place flammable items such as plastic
salt and pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt or
ignite. Pot holders, towels or wooden spoons could catch fire if
placed too close to the surface elements. Do not allow aluminum
foil, empty glass-porcelain cookware or any material that can
melt to make contact with the ceramic cooktop.
Food Poisoning Hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
Always start with hot food. Do not heat cold food with the warm
zone. All food placed on the warm zone should be covered with
a lid to maintain quality. For best results, when warming pastries
or breads, the cover should have an opening to allow moisture
to escape. Use only dish ware, utensils and cookware
recommended for oven and cooktop use on the warm zone.
To operate the warm zone:
1. Press the WARM ZONE ON/OFF key.
2. Press START.
3.
When ready to serve, press WARM ZONE ON/OFF key
and the warm zone message indicator light will turn off. The
warm zone will remain hot until the hot surface indicator
light turns off.
Important notes:
• Use only plates, utensils and cookware recommended for
oven and ceramic cooktop use. Do not use plastic wrap or
aluminum foil to cover food. Plastic or aluminum foil can
melt onto the cooktop.
11
Before Setting Oven Controls
Oven Vent Location
The oven vent is located under the left side of the control panel
(Figure 7). When the oven is on, warm air passes through this
vent. This venting is necessary for proper air circulation in the
oven and good baking results. Steam or moisture may appear
near the oven vent; this is normal. Do not block oven vent:
Oven Vent
Figure 7: Oven vent location
_'__1 Always use pot holders or oven mitts when
using the oven. When cooking, the oven interior and exterior,
oven racks and cooktop will become very hot which can cause
burns.
__[I Protective Liners: Do aluminum foil
not use to
line the oven bottom, oven walls or oven racks. Doing so will
alter heat distribution, produce poor baking results and may
cause permanent damage to the oven interior.
_lOnly use aluminum foil as recommended in this
manual. Improper installation of these liners may result in risk of
electric shock, or fire.
_1 Move and arrange oven racks while the oven is
cool. Always use oven mitts when working with a hot oven to
avoid potential burns.
Types of Oven Racks
flat handle
_ bottom oven
The flat oven rack (some models) or flat handle oven rack (some
models) may be used for most cooking needs.
The offset oven rack (on some models) is designed to place the
base of the rack about 1/2 of a rack position lower than flat
oven racks. This design allows several additional positions
between the flat rack positions.
To maximize oven cooking space place the bottom oven rack
(on some models) in the lowest rack position for roasting large
cuts of meat.
Important note: Always remove racks before starting a self
clean cycle.
Removing, replacing, and arranging flat or offset oven racks:
• To arrange - Always arrange the oven racks when the oven
is cool (prior to operating the oven).
• To remove - Pull the oven rack straight forward until it
reaches the stop position. Lift up front of oven rack slightly
and slide out.
To replace - Place the oven rack on the rack guides on both
sides of oven walls. Tilt the front of oven rack upward
slightly and slide the oven rack back into place. Be sure
oven racks are level before using the oven.
12
Setting Oven Controls
Setting Oven Controls
UPPER OVEN
Convec Warm
Bake & Hold
Cook S_f n
Time
0
WARM ZONE
ON/oFF
:3o.... ocKO
2
6 7
4 s @e
CLOCK
8 9 0 0__®
LIGHT
LOWER OVEN
Bake Broil
Warm Self
& Hold Clean
Cook Delay
Time _rt
0
OvENLOCK_
UPPER OVEN SETTINGS
1. Bake - Used to enter the normal bake feature.
2. Broil - Used to select variable broil feature.
3. Conv Bake - Used to select the convection bake feature.
4. Warm & Hold - Used to set the Warm & Hold function.
5. Cook Time - Used to enter the length of the cook time
desired.
6. Self Clean - Used to set a 2 to 4 hours self clean cycle.
7. START - Used to start all oven features (except oven light).
8. STOP - Used to cancel any oven function except clock and
timer. Also used to lockout oven functions and door.
9. OVEN LOCK - Used to lock the oven door.
10. Timer ON/Off - Used to set or cancel timer. The minute
timer does not start or stop cooking.
11. WARM ZONE - Use to set cooktop warm zone to keep
cooked foods warm.
12. 0 thru 9 number - Use to enter temperature and times.
13. Clock Set - Use to set the time of day.
14. Light - Used to turn oven light on and off.
LOWER OVEN SETTINGS
1. Bake - Used to enter the normal bake feature.
2. Broil - Used to select variable broil feature.
3. Warm & Hold - Used to set the Warm & Hold function.
4. Self Clean - Used to set a 2 to 4 hours self clean cycle.
5. Cook Time - Used to enter the length of the cook time
desired.
6. Delay Start - Used to set the desired start time for baking.
May be used with cook time to program a delayed timed
bake or clean cycle.
7. STOP - Used to cancel any oven function except clock and
timer. Also used to lock oven doors.
8.
START - Used to start all oven features except the oven
light.
9. OVEN LOCK- Used to lock the oven door.
Minimum and Maximum Control Settings
All of the features listed below have minimum and maximum
time or temperature settings that may be entered into the
control. An entry acceptance beep will sound each time a
control key is touched (the oven lock is delayed 3 seconds).
An entry error tone (three short beeps) will sound if the entry of
the temperature or time is below the minimum or above the
maximum settings for the feature.
Feature
Bake
Broil
Timer
Self Clean
Conv Bake
Warm & Hold
Cook Time
Delay Time 12 Hr.
Delay Time 24 Hr.
Vdn temp. or time
70°F (77°C)
400°F (205°C)
1 Min.
2 hours
70°F (77°C)
70°F (77°C)
Min.
Min.
Min.
Max temp or time
550°F (288°C)
550°F (288°C)
11 Hrs. 59 Min.
4 hours
550°F (288°C)
3 hours
11:59 Hr./Min.
12:59 Hr./Min.
23:59 Hr./Min.
13
Setting Oven Controls
Setting the Clock
®
CLOCKis used to set the clock• The clock may be set for 12 or 24
hour time of day operation• The clock has been preset at the
factory for the 12 hour operation• When the range is plugged in,
or when the power supply to the range has been interrupted, the
time in the display will flash• Press_. The display will stop
flashing•
To set the clock for 1:30:
1. 1 Press Q. CLO will appear in the display.
CLOCK
Figure 8: Clock ready to set time of day
2. Press 1 3 0 keys to set time of day.
3. Press (_ to accept•
Figure 9: Setting time of day using the numeric keypad 1 3 0
Changing between 12 or 24 Hour Time of Day
1. Press and hold _) for 7 seconds until 12 Hr day or 24 Hr
• CLOCK
day appears in the display•
2. Press Self Clean to switch between the 12 and 24 hour time
of day displays. The display will show either 12 Hr of 24 Hr.
Setting Continuous Bake or 12 Hour Energy Saving
The Timer ON/OFF and Self Clean keys control the continuous
bake or 12 hour energy saving features• The oven control has a
factory preset 12 hour energy saving feature that shuts off the
oven control if left on for more than 11hours and 59 minutes•
The oven can be programed for continuous baking•
To set the continuous Bake or 12 Hour Energy feature:
1. Press and hold Timer ON/OFF for about 7 seconds. The
dashes will change to show either 12 Hr OFF or Stay On in
the display and the control will beep once.
Figure 10: Display showing energy saving (top) and continuous
bake features (middle). Once either is selected and start is
pressed the display returns to show the time of day. (bottom)
2. Press Self Clean to switch between the 12 hour energy
saving and continuous bake features.
3. Press _ to accept your selection and the display will
return to show the time of day.
Note: 12 Hr OFF indicates the control is set for the 12 hour
energy saving mode. Stay On indicates the control is set for the
continuous bake mode.
3.
4.
Press Q to accept the change or press Q to reject.
Reset the correct time as prescribed in Setting the Clock
above.
Note: If the 24 hour time of day was selected, the clock will now
display time from 0:00 through 23:59 hours.
14
Setting Oven Controls

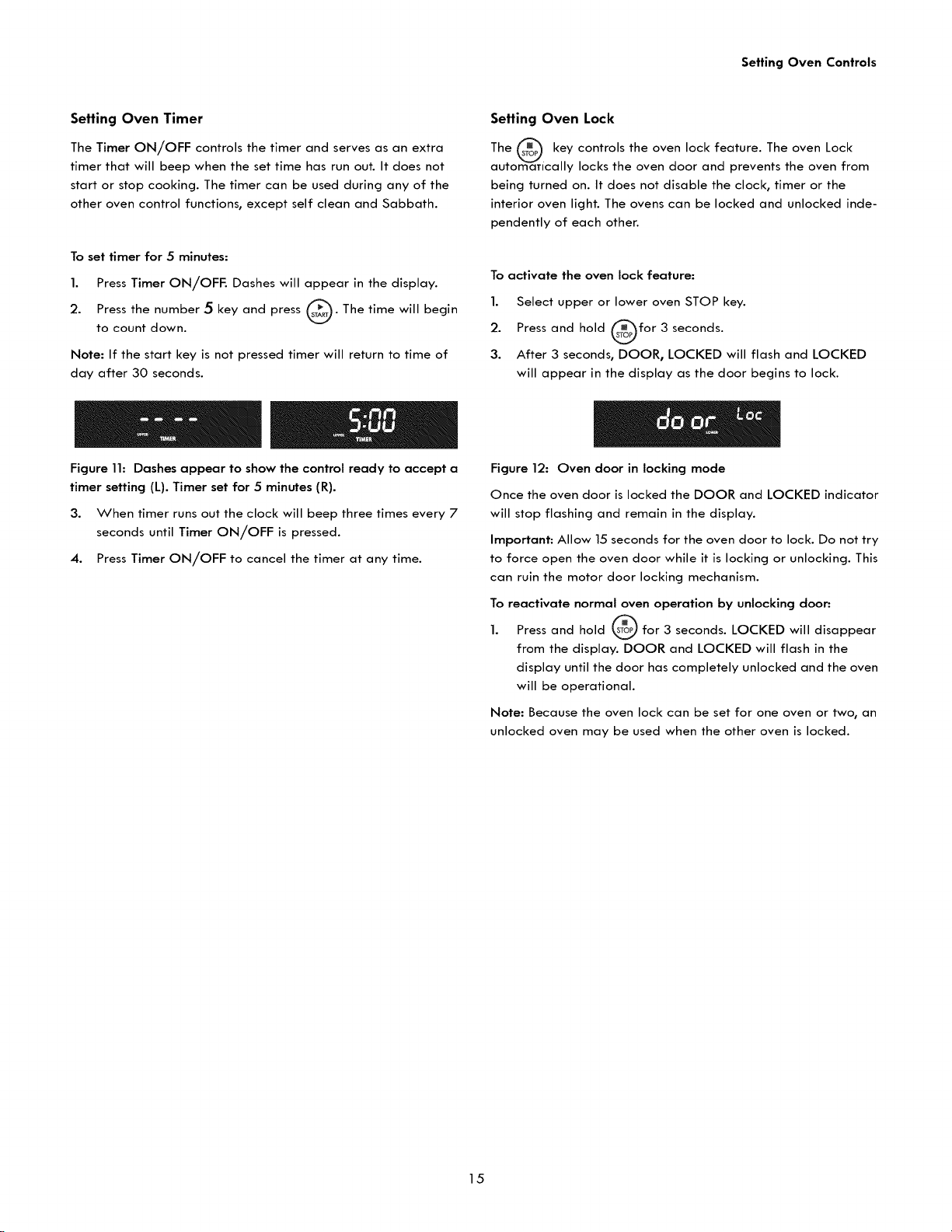

Setting Oven Timer
The Timer ON/OFF controls the timer and serves as an extra
timer that will beep when the set time has run out. It does not
start or stop cooking. The timer can be used during any of the
other oven control functions, except self clean and Sabbath.
To set timer for 5 minutes:
1. Press Timer ON/OFF. Dashes will appear in the display.
2. Press the number 5 key and press (_. The time will begin
V
to count down.
Note: If the start key is not pressed timer will return to time of
day after 30 seconds.
Figure 11: Dashes appear to show the control ready to accept a
timer setting (L). Timer set for 5 minutes (R).
3. When timer runs out the clock will beep three times every 7
seconds until Timer ON/OFF is pressed.
4. Press Timer ON/OFF to cancel the timer at any time.
Setting Oven Lock
The _ key controls the oven lock feature. The oven Lock
autom_Tically locks the oven door and prevents the oven from
being turned on. It does not disable the clock, timer or the
interior oven light. The ovens can be locked and unlocked inde-
pendently of each other.
To activate the oven lock feature:
1. Select upper or lower oven STOP key.
2. Press and hold _for 3 seconds.
3. After 3 seconds, DOOR, LOCKED will flash and LOCKED
will appear in the display as the door begins to lock.
Figure 12: Oven door in locking mode
Once the oven door is locked the DOOR and LOCKED indicator
will stop flashing and remain in the display.
Important: Allow 15 seconds for the oven door to lock. Do not try
to force open the oven door while it is locking or unlocking. This
can ruin the motor door locking mechanism.
To reactivate normal oven operation by unlocking door:
1. Press and hold sT_ for 3 seconds. LOCKED will disappear
from the display. DOOR and LOCKED will flash in the
display until the door has completely unlocked and the oven
will be operational.
Note: Because the oven lock can be set for one oven or two, an
unlocked oven may be used when the other oven is locked.
15
Setting Oven Controls

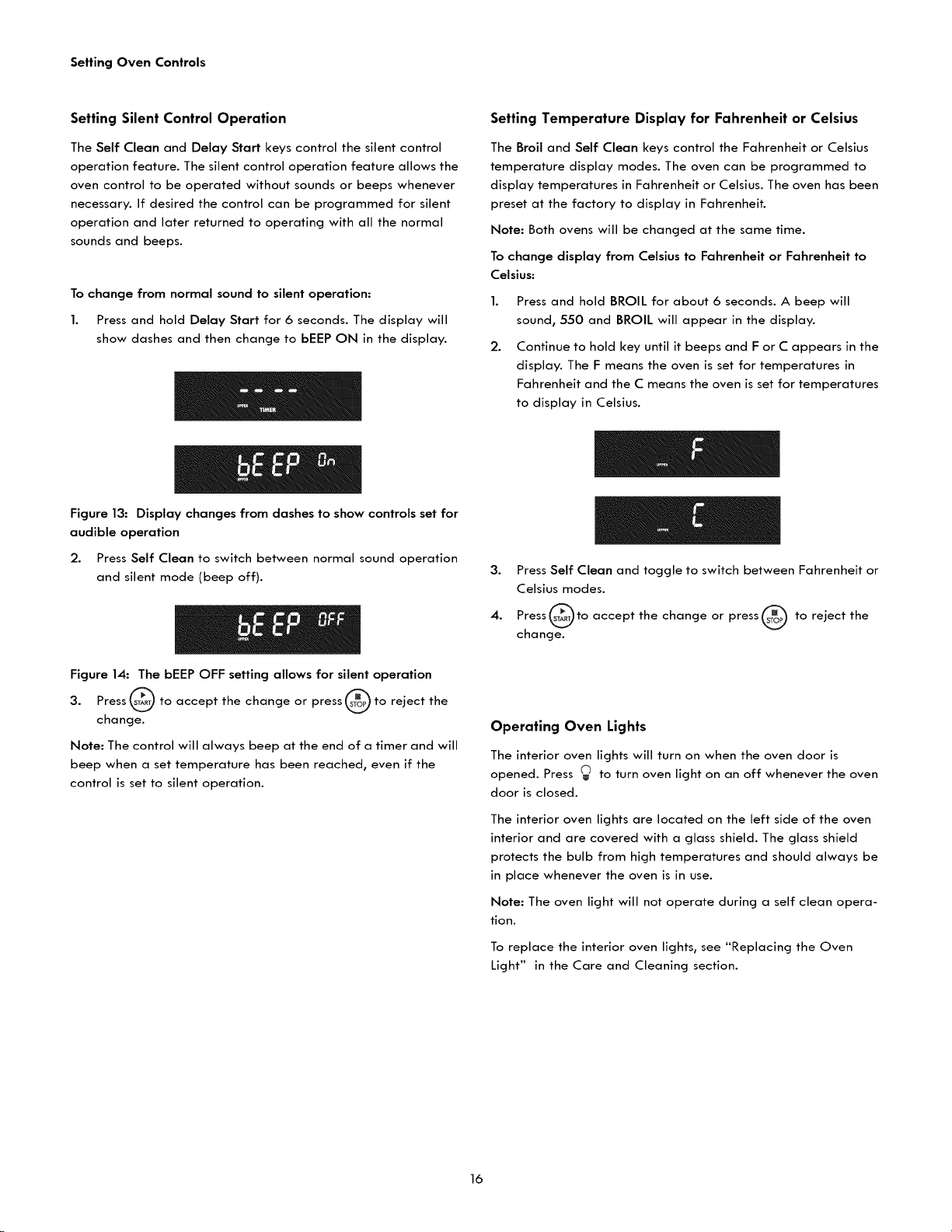

Setting Silent Control Operation
The Self Clean and Delay Start keys control the silent control
operation feature. The silent control operation feature allows the
oven control to be operated without sounds or beeps whenever
necessary. If desired the control can be programmed for silent
operation and later returned to operating with all the normal
sounds and beeps.
To change from normal sound to silent operation:
1. Press and hold Delay Start for 6 seconds. The display will
show dashes and then change to bEEP ON in the display.
Figure 13: Display changes from dashes to show controls set for
audible operation
2. Press Self Clean to switch between normal sound operation
and silent mode (beep off).
Figure 14: The bEEP OFF setting allows for silent operation
3. Press _ST_R_Tto accept the change or press _ to reject the
change.
Note: The control will always beep at the end of a timer and will
beep when a set temperature has been reached, even if the
control is set to silent operation.
Setting Temperature Display for Fahrenheit or Celsius
The Broil and Self Clean keys control the Fahrenheit or Celsius
temperature display modes. The oven can be programmed to
display temperatures in Fahrenheit or Celsius. The oven has been
preset at the factory to display in Fahrenheit.
Note: Both ovens will be changed at the same time.
To change display from Celsius to Fahrenheit or Fahrenheit to
Celsius:
1. Press and hold BROIL for about 6 seconds. A beep will
sound, 550 and BROIL will appear in the display.
2.
Continue to hold key until it beeps and F or C appears in the
display. The F means the oven is set for temperatures in
Fahrenheit and the C means the oven is set for temperatures
to display in Celsius.
3. Press Self Clean and toggle to switch between Fahrenheit or
Celsius modes.
4. Press_to accept the change or press (_) to reject the
change.
Operating Oven Lights
The interior oven lights will turn on when the oven door is
opened. Press _ to turn oven light on an off whenever the oven
door is closed.
The interior oven lights are located on the left side of the oven
interior and are covered with a glass shield. The glass shield
protects the bulb from high temperatures and should always be
in place whenever the oven is in use.
Note: The oven light will not operate during a self clean opera-
tion.
To replace the interior oven lights, see "Replacing the Oven
Light" in the Care and Cleaning section.
16
Setting Oven Controls

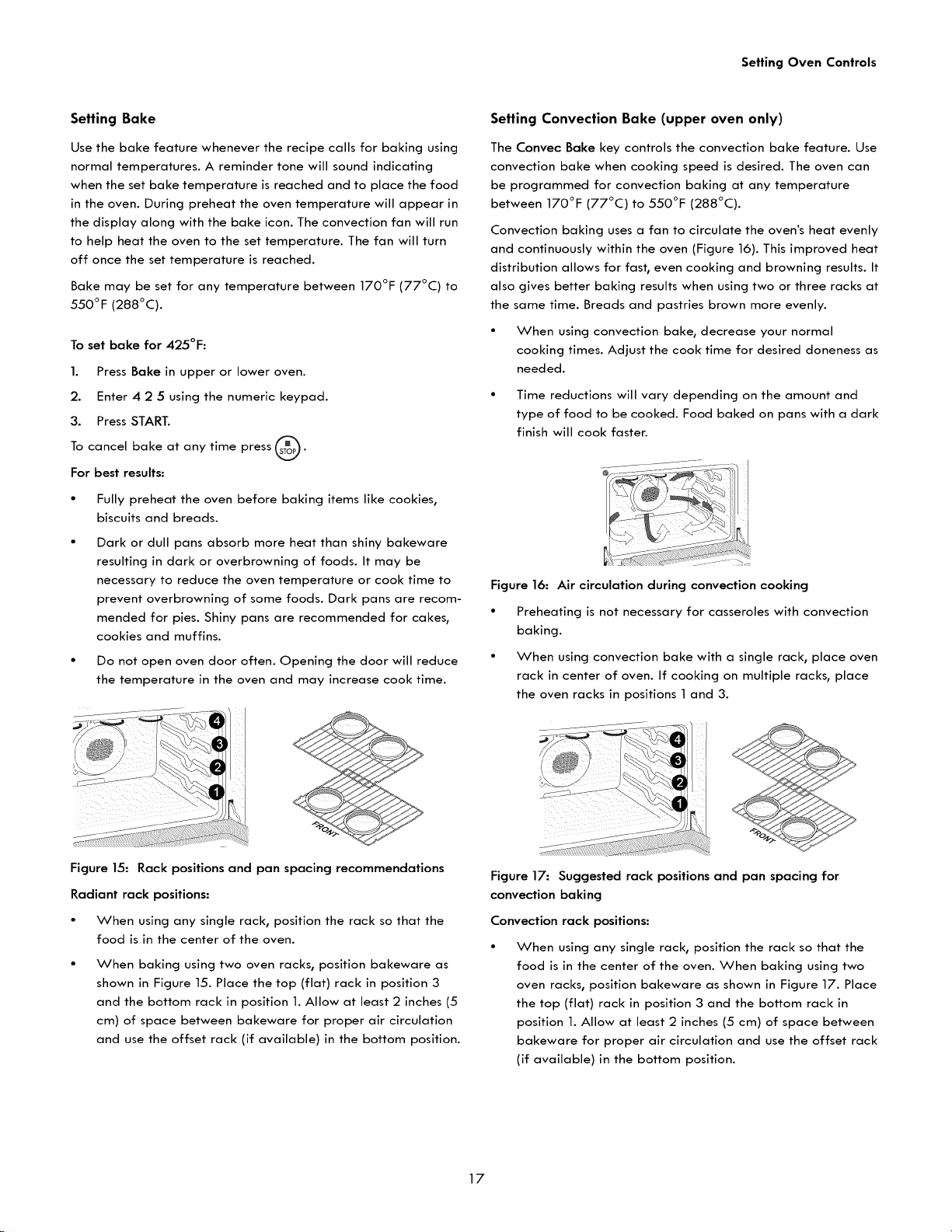

Setting Bake
Use the bake feature whenever the recipe calls for baking using
normal temperatures. A reminder tone will sound indicating
when the set bake temperature is reached and to place the food
in the oven. During preheat the oven temperature will appear in
the display along with the bake icon. The convection fan will run
to help heat the oven to the set temperature. The fan will turn
off once the set temperature is reached.
Bake may be set for any temperature between 170°F (77°C) to
550°F (288°C).
To set bake for 425°F:
1. Press Bake in upper or lower oven.
2. Enter 4 2 5 using the numeric keypad.
3. Press START.
To cancel bake at any time press _.
For best results:
• Fully preheat the oven before baking items like cookies,
biscuits and breads.
Dark or dull pans absorb more heat than shiny bakeware
resulting in dark or overbrowning of foods. It may be
necessary to reduce the oven temperature or cook time to
prevent overbrowning of some foods. Dark pans are recom-
mended for pies. Shiny pans are recommended for cokes,
cookies and muffins.
• Do not open oven door often. Opening the door will reduce
the temperature in the oven and may increase cook time.
Figure 15: Rack positions and pan spacing recommendations
Radiant rack positions:
• When using any single rack, position the rack so that the
food is in the center of the oven.
When baking using two oven racks, position bakeware as
shown in Figure 15. Place the top (flat) rack in position 3
and the bottom rack in position 1. Allow at least 2 inches (5
cm) of space between bakeware for proper air circulation
and use the offset rack (if available) in the bottom position.
Setting Convection Bake (upper oven only)
The Convec Bake key controls the convection bake feature. Use
convection bake when cooking speed is desired. The oven can
be programmed for convection baking at any temperature
between 170°F (77°C) to 550°F (288°C).
Convection baking uses a fan to circulate the oven's heat evenly
and continuously within the oven (Figure 16). This improved heat
distribution allows for fast, even cooking and browning results. It
also gives better baking results when using two or three racks at
the same time. Breads and pastries brown more evenly.
• When using convection bake, decrease your normal
cooking times. Adjust the cook time for desired doneness as
needed.
• Time reductions will vary depending on the amount and
type of food to be cooked. Food baked on pans with a dark
finish will cook faster.
Figure 16: Air circulation during convection cooking
• Preheating is not necessary for casseroles with convection
baking.
• When using convection bake with a single rack, place oven
rack in center of oven. If cooking on multiple racks, place
the oven racks in positions 1and 3.
Figure 17: Suggested rack positions and pan spacing for
convection baking
Convection rack positions:
When using any single rack, position the rack so that the
food is in the center of the oven. When baking using two
oven racks, position bakeware as shown in Figure 17. Place
the top (flat) rack in position 3 and the bottom rack in
position 1. Allow at least 2 inches (5 cm) of space between
bakeware for proper air circulation and use the offset rack
(if available) in the bottom position.
17
Setting Oven Controls
To set the oven for convection bake and temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press Convec Bake.
3. Press _. The minimum oven temperature (100 °) will be
displayed.
Figure 18: The oven will display a temperature of 100 (top) until
the actual temperature rises above 100 when the display will
show the rising temperature along with time of day (bottom)
4. A beep will sound once the oven temperature reaches
350°F.
Note: The convection fan will start as soon as the oven is set.
PressQto cancel convection bake at any time.
For best results:
Fully preheat the oven before baking items like cookies,
biscuits, and breads. Cookies and biscuits should be baked
on pans with no sides or very low sides to allow heated air
to circulate around the food.
Dark or dull pans absorb more heat than shiny bakeware
resulting in dark or over browning of foods. It may be
necessary to reduce the oven temperature or cook time to
prevent over browning of some foods. Dark pans are
recommended for pies. Shiny pans are recommended for
cakes, cookies and muffins.
• Do not open oven door often. Doing so will reduce the
temperature in the oven and may increase cook time.
• When using convection bake with a single rack, place oven
rack in center of oven. (Figure 17) If cooking on multiple
racks, place the oven racks in positions 1 and 3.
Figure 19: Suggested rack positions for convection baking
Setting Cook Time
The Cook Time key controls the specific amount of cook time.
The automatic timer will turn the oven off after cooking for the
amount of time selected.
To program the oven to begin baking immediately at 350°F for
30 minutes and to shut off automatically:
1. Be sure the clock is set for the correct time of day
2. Arrange oven racks and place food in oven.
3. Press Bake. The default temperature of 350 will appear in
the display.
Figure 20: Display showing set temperature of 350
4. Press (_
o
5. Press Cook Time.
6. Enter bake time by pressing 30 using the numeric keypad.
Note: Baking time can be set for any time between 1 minute and
11 hours and 59 minutes.
Figure 21: Bake time set for 30 minutes
7. Press _T_. The display returns to the time of day.
Figure 22: Display shows time of day and the actual oven
temperature above the oven icon
While baking, press Cook Time once to momentarily display the
bake time remaining.
When the bake time finishes, END and the time of day will show
in the display and the oven turns off automatically. The control
will beep three times and continue to beep every 30 seconds
until _ is pressed.
Figure 23: Display shown as cook time ends
18
Setting Oven Controls
Setting Delay Start
The delay start feature is available only in the lower oven. The
Delay Start key controls a delayed start. The automatic timer of
the feature will turn the oven on (and off if setting a cook time)
at the time you select in advance.
Note: If the clock is set for normal 12 hour display mode the
delayed time bake or delayed timed convection bake cycle can
not be set to start more than 12 hours in advance.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness. Foods that can easily spoil such as
milk, eggs, fish, meat or poultry, should be chilled in the refrig-
erator first. Even when chilled, they should not stand in the oven
for more than one hour before cooking begins, and should be
removed promptly when finished cooking.
To program the oven for a delay start bake time at 5:30 for 30
minutes at 350°F and to shut off automatically:
1. Be sure that the clock is set with the correct time of day.
2. Press Bake. The default temperature of 350 will appear in
the display.
Figure 24: Oven at default temperature
3. Press@.
4. Press Cook Time.
Figure 25: Dashes appear showing oven control ready for cook
time to be entered
5. Enter the baking time by entering 30 using the numeric
keypad.
Figure 26: Cook time entered
6. Press Q.
Z Press Delay Start. Dashes will appear in the display ....
8. Enter the start time (530) using the numeric keypad.
Figure 27: Oven set to start cooking at 5:30
9. Press _. The current time of day will appear in the
display.
10. When the delayed start time is reached, the oven turns on.
The oven icon will appear in the display and the oven will
start to bake at the previously selected temperature.
11. Press_sT_ when baking is finished or at any time to cancel
the delay start feature.
When the bake time runs out:
1. END will appear in the display and the oven will turn off
automatically.
2. The control will beep three times. The control will continue
to beep three times every 30 seconds until STOP is pressed.
19
Setting Oven Controls
Setting Broil
The Broil key controls the broil feature. When broiling, heat
radiates downward from the oven broiler for even coverage.
The broil temperature may be set between 400°F (205°C) and
550°F (288°C).
The broil pan and broil pan insert used together allow dripping
grease to drain and be kept away from the high heat of the
oven broiler (Figure 28). Do not use the broil pan without the
insert. Do not cover the broil pan insert with foil. The exposed
grease could catch fire.
The broil burner may appear to have cooled
after it has been turned off. The burners may still be hot and
burns may occur if these burners are touched before they have
cooled sufficiently. Always wear oven mitts when working with a
hot oven.
Should an oven fire occur, leave the oven door
closed and turn off the oven. If the fire continues, throw baking
soda on the fire or use a fire extinguisher. Do not put water or
flour on the fire. Flour may be explosive and water can cause a
grease fire to spread and cause personal injury.
Figure 28: Broil pan and insert (L) Broil Stop position (R)
To set the oven to broil at 550°F.
1. Place the broiler pan insert on the broiler pan. Then place
the food on the broiler pan insert. Arrange the interior oven
rack and place the broiler pan on the rack. Be sure to center
the broiler pan directly under the broiler element. Make sure
the oven door is in the broil stop position (Figure 28).
Preheat the oven for 2 minutes. When broiling in the top
position (4) use offset rack.
2. Press Broil.
3. If a lower broil temperature is desired (minimum broil
temperature setting is 400°F), press the desired tempera-
ture before continuing to step 5.
4. Press _. The oven will begin the broil function.
Figure 29: Broil set for maximum heat
5. Broil on one side until food is browned. Turn and cook on the
second side, season and serve.
Note: Always pull the rack out to the stop position before
turning or removing food.
6. To cancel broiling or if finished broiling press O.
Important note: If a broiler pan and insert are not supplied with
this appliance, they may be purchased from Sears. Order by
calling 1-800-4-MY-HOME (1-800-469-4663) and order broiler
pan kit 5304442087.
Food item Rack Position
Steak 1" thick 3rd or 4th _
3rd or 4th _
Pork Chops 3/4 "thick 3rd or 4th _
Chicken - Bone In 3rd
Chicken Boneless 3rd or 4th _
Fish 3rd
Shrimp 3rd
Hamburger 1" thick
Temperature
550°F (288°C)
550°F (288°C)
550°F (288°C)
450°F (232°C)
450°F (232°C)
500°F (260°C)
550°F (288°C)
3rd or 4th _ 550°F (288°C)
3rd or 4th _ 550°F (288°C)
_:When broiling in the top oven rack position use an offset oven rack.
1st side
6:00
7:00
8:00
20:00
8:00
Cook time
2nd side
4:00
5:00
6:00
10:00
6:00
As directed
As directed
9:00 7:00
10:00 8:00
Internal
Temperature
145°F (63°C) _
160°F (71°C)
170°F (77°C)
170°F (77°C)
170°F (77°C)
170°F (77°C)
170°F (77°C)
160°F (71°C)
170°F (77°C)
Doneness
Medium-Rare
Medium
Well
Well
Well
Well
Well
Medium
Well
_:_:The U.S. Department of Agriculture states, "Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poi-
soning organisms may survive." (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) The lowest temperature recommended by the USDA
is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77°C)
20
Setting Oven Controls
Setting Warm & Hold TM
The Warm & Hold key turns on the Warm & Hold feature and
will maintain an oven temperature of 170°F (77°C).
The Warm & Hold feature will keep oven baked foods warm for
serving up to 3 hours before turning off automatically. This
feature may be used without any other cooking operations or
can be set to turn on automatically after cooking ends.
To set Warm & Hold:
1. Arrange oven racks and place food in desired oven.
2. Press Warm & Hold. Hid will appear in the display.
Figure 30: Oven with Warm & Hold selected
Note: If no key is touched within 25 seconds, the request to turn
on the Warm & Hold feature will be cancelled.
3. Press _. HLd will remain on and the oven icon will
appear in the display.
Figure 31: Oven set for Warm & Hold
4. To cancel Warm & Hold at any time press
o
Note: The Warm & Hold feature will automatically turn off after
three hours.
Trailing Warm & Hold TM
The Warm & Hold feature may be used with timed bake if you
wish to have the Warm & Hold feature turn on automatically
when cooking has finished. The timed bake feature requires a
set amount of cooking time. With this information the control
can calculate the time when cooking will complete and can then
start the Warm & Hold feature automatically.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To set Warm & Hold to turn on automatically:
1. Arrange oven racks and place food in oven.
2. Set oven for timed bake or delayed timed bake.
3. Press Warm & Hold. HLd will appear in the display.
Figure 32: Warm & Hold set to begin after timed bake
Note: If no key is touched within 25 seconds, the request to turn
on the Warm & Hold feature will be cancelled.
4. Press START. WARM will stop flashing and the programmed
temperature will appear in the display.
5. When the timed bake is finished, Warm & Hold will turn on
automatically.
Figure 33: Warm & Hold shown active in display
Note: The Warm & Hold feature will automatically turn off after
3 hours.
Pressing _ at any time will stop all oven baking operations.
21
Setting Oven Controls
Setting the Sabbath Feature (for use on Jewish Sabbath
and Holidays)
The Cook Time and Delay Start keys are used
to set the Sabbath feature. For further assis-
tance, guidelines for proper usage, and a
complete list of models with the Sabbath
feature, please visit the web at www.star-k.org.
The Sabbath feature may only be used with the bake function.
Once the oven is properly set using bake with the Sabbath
feature active, the oven will remain on until cancelled. The
Sabbath feature overrides the factory preset 12 hour energy
saving feature.
Important: The bake function can be set for the upper or lower
oven or both before entering Sabbath. To enter the Sabbath
mode, only the Cook Time and Delay Start keys on the lower
oven only must be pressed at the same time. If the oven light is
needed during the Sabbath, press LIGHT before activating the
Sabbath feature. Once the oven light is turned on and the
Sabbath feature is active, the oven light will remain on until the
Sabbath feature is turned off. If the oven light needs to be off,
be sure to turn the oven light off before activating the Sabbath
feature.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To program the oven to begin baking immediately and to
activate the Sabbath feature (example: baking at 350°F):
1. Be sure that the clock is set to correct time of day and place
food in oven.
2. Press Bake.
3. Press START. The actual oven temperature will appear in the
display.
4.
If you desire to set the oven control for a cook time or delay
start, do so at this time. If not, skip to the next step. Refer to
the "Setting Cook Time" or "Setting Delay Start" sections
for complete instructions. Remember the oven will shut
down after using cook time and therefore may only be used
once during the Sabbath and Jewish Holidays. The
maximum delay start time is 11 hours and 59 minutes.
5.
6.
The oven will turn on and begin heating. If you need to set
both ovens for the Sabbath, both should be set at this time.
Press and hold both the Cook Time and Delay Start keys on
the lower oven for at least 3 seconds. SAb will appear in the
display. Once Sabbath mode is active, the oven control will
no longer beep or display any further changes. The oven is
properly set for the Sabbath feature.
Note: You may change the oven temperature once baking has
started. Press BAKE, enter the oven temperature change (170°F
to 550°F) and then press START twice (for Jewish Holidays only).
Remember that the oven control will no longer beep or display
any further changes once the oven is set for the Sabbath
feature.
The oven may be turned off at any time by first pressing STOP.
To turn off the Sabbath feature press and hold both the Cook
Time and Delay Start keys on the lower oven only for at least 3
seconds. This also turns off the oven. SAb will disappear from
the display.
Power failure while using Sabbath feature:
Should you experience a power failure or interruption, the oven
will shut off. When power is returned, SF (Sabbath Failure) will
be displayed and the oven will not turn back on automatically. If
your food was nearly fully cooked, you may allow the trapped
heat in the oven to finish the cooking process. Otherwise, you
should remove the food when the power failure occurs, because
you may only start the oven once during the Sabbath and Jewish
Holidays.
After the Sabbath observance turn off the Sabbath feature.
Press and hold both the Bake Time and Delay Start keys for at
least 3 seconds. SAb will disappear from the display and the
oven may be used with all normal functions.
For further assistance, guidelines for proper usage, and a
complete list of models with the Sabbath feature, please visit
www. star-k.org.
22
Setting Oven Controls
Adjusting Oven Temperature
The temperature in the oven is pre-set at the factory. Before
adjusting, be sure to follow recipe times and temperatures. Test
a recipe by using a temperature setting higher or lower than the
recommended temperature.
Important: Do not use thermometers such as those found in
grocery stores to check the temperature settings inside the oven.
These thermometers may display temperatures that vary greatly
from the actual temperature.
The baking results should help you to decide how much of an
adjustment is needed. If you think the oven is cooking too hot or
too cool for the temperature you select, you can adjust the
actual oven temperature to be 35°F (19°C) more or 35°F less
than the default setting of 0.
To adjust the oven temperature higher by 30°:
1. Press Broil for 6 seconds. UPO 0 will appear in the display.
2. Press 3 0 using the numeric keypad.
3. Press _ to accept the temperature change and the
v
display will return to the time of day. Press STOP to reject
the change if necessary.
To adjust the oven temperature lower by 30°:
1. Press Broil for 6 seconds. UPO 0 will appear in the display.
2. Press 3 0 using the numeric keypad.
3. Press Self Clean to change the 30 to - 30.
4. Press _ to accept the temperature change and the
display will return to the time of day.
5. Press STOP to reject the change if necessary.
Self Clean
A self cleaning oven cleans itself with high temperatures well
above normal cooking temperatures which eliminate soils
completely or reduces them to a fine powdered ash you can
wipe away with a damp cloth.
Adhere to the following cleaning precautions
• Allow the oven to cool before cleaning.
Before starting the self clean cycle, hand clean any soil
from the oven frame, the door liner outside the oven door
gasket, and the small area at the front center of the oven.
These surfaces are not in the self cleaning area. Clean with
soap and water. Burned-on residue can be cleaned off with
a stiff nylon brush and water or nylon scrubber.
• Wear rubber gloves when cleaning any exterior parts of the
oven manually. Do not use oven cleaners or oven protective
coatings in or around any part of the oven interior.
Do not clean the oven door gasket (See Figure 34 on
page 24). The woven material of the oven door gasket is
essential for a good seal. Care should be taken not to rub,
damage or remove the gasket. Do not use any cleaning
materials on the oven door gasket. Doing so could cause
damage.
• Remove all utensils and any aluminum foil. These items
cannot withstand high cleaning temperatures.
Porcelain coated racks: Some ovens come with lubricated
porcelain oven racks, which can remain in the oven during
the self clean cycle. Do not clean this vegetable oil lubrica-
tion off the racks. It is important that the sides of the oven
racks always have a light coating of vegetable oil. To
maintain optimal rack performance, re-apply a thin layer of
vegetable oil to the sides of the rack after every self clean
cycle or when the rack becomes difficult to slide.
Chrome oven racks: Some models come with chrome oven
racks, which have to be removed from the oven during the
self clean cycle or else their finish will turn dull and their
color slightly blue. If left in, after the cycle is complete and
the oven has cooled, rub the sides of the oven racks with
wax paper or a cloth containing a small amount of salad oil
to make the racks glide easier into the rack position. Clean
chrome oven racks by using a mild cleaner following manu-
facturer's instructions. Rinse with clean water and dry.
23
Setting Oven Controls
Self Clean (continued)
During the self cleaning cycle, the outside of the
range can become very hot to the touch. Do not leave small
children unattended near the appliance.
The health of some birds is extremely sensitive
to the fumes given off during the self clean cycle of any range.
Move birds to another well ventilated room.
Do not line the oven walls, racks, bottom or any
other part of the appliance with aluminum foil. Doing so will
destroy heat distribution, produce poor baking results and cause
permanent damage to the interior. Aluminum foil will melt to the
interior surface of the oven.
Do not force the oven door open. This can
damage the automatic door locking system. Use caution when
opening the door after the self cleaning cycle is completed. The
oven may still be very hot.
Figure 34: Care in cleaning oven by hand
Note: See additional cleaning information for the oven door in
the "Care and Cleaning" section.
To Start Self Clean
The Self Clean key controls the self clean feature. It is
recommend to use a 2 hour self clean cycle for light soils, a 3
hour cycle for average soils, and a 4 hour cycle for heavy soils.
To start an immediate self clean cycle:
1. Press Self Clean. CLEAN will flash and 3:00 HR will show in
the display. The oven will automatically clean for a 3 hour
period.
Note: if a 2 or 4 hour clean time is desired, press 2 0 0 for 2
hour or 4 0 0 for a 4 hour clean time.
Press . The DOOR LOCKED icon will flash the CLEAN
2. @
icon and the letters CLn will remain in the display.
3.
As soon as the control is set, the motor driven oven door
lock will begin to close automatically. Once the door has
been locked the DOOR LOCKED indicator light will stop
flashing and remain on. Also, the oven icon will appear in
the display.
Figure 35: Oven door locking before self clean starts
Note: Allow 15 seconds for the oven door to lock.
4. Press START.
Figure 36: Oven during self clean operation
To avoid possible burns use care when opening
the oven door after the self clean cycle. Stand to the side of the
oven when opening the door to allow hot air or steam to escape.
Do not force the oven door open. This can damage the
automatic door locking system. Use caution and avoid possible
burns when opening the door after the self clean cycle has
completed. The oven may still be very hot.
24
Setting Oven Controls
Setting Delayed Start Self Clean (Lower oven only)
Important: The Delay Start key only activates this feature in the
lower oven and will not delay a self clean in the upper oven.
To start self clean cycle with a delay start time of 4:30:
1. Press Self Clean. CLEAN will flash and 3:00 HR will show in
the display. The oven will automatically clean for a 3 hour
period.
Note: if a 2 or 4 hour clean time is desired, press 2 0 0 for 2
hour or 4 0 0 for a 4 hour clean time.
2. @
Press . The DOOR LOCKED icon will flash, the CLEAN
icon and the letters CLn will remain in the display.
3. Press Delay Start for the lower oven.
4. Enter the start time numbers 4 30.
5. Press STy. CLEAN, DELAY, LOCK, and DOOR will be
displayed.
Figure 37: Setting a delay self clean start time
6. The control will start the self cleaning at the set delay start
time.
Figure 38: Oven shown once delay start time is set
When the self clean cycle is completed:
1. HOT will appear in the display. The time of day, the DOOR
LOCKED and CLEAN icon will remain in the display.
2. Once the oven has cooled down for approximately one
hour, and the DOOR LOCKED icon is no longer displayed,
the oven door can then be opened.
If you are planning to use the oven directly after a self clean
cycle remember to allow time for the oven to cool down and the
oven door to unlock. This normally takes about one hour. So a 3
hour self clean cycle will usually take about 4 hours to
complete.
Stopping or Interrupting a Self Clean
If it becomes necessary to stop or interrupt a self cleaning cycle
due to excessive smoke or fire in the oven:
1. Press O "
2. The oven door can only be opened after the oven has
cooled down for approximately one hour and the DOOR
LOCKED icon is no longer displayed.
Note: If your clock is set for the normal 12 hour display mode
the delayed self clean cycle can never be set to start more than
12 hours in advance. To set for delayed self clean cycle 12 to 24
hours in advance the control must be set for the 24 hour time of
day display mode.
25
Care and Cleaning
Cleaning Various Parts of Your Oven
Before cleaning any part of the oven, be sure all controls are turned off and the oven iscool. Remove spills and any heavy soiling as
soon as possible. Regular cleaning will reduce the difficulty of major cleaning later.
Recommendation
Surface Type
Aluminum and Vinyl
Painted body parts
Painted decorative trim
Oven control panel
Control knobs
Control membrane
Decorative trim (some models)
Easy Clean TM Stainless Steel (some
models)
Stainless Steel (some models)
Porcelain enamel broiler pan and
insert
Porcelain parts
Door liner and body parts
Use hot, soapy water and a cloth. For more difficult soils and built-up grease, apply a liquid
detergent directly onto the soil. Leave on soil for 30-60 minutes. Rinse with a damp cloth and
dry.
Do not use abrasive cleaners on any of these materials; they can scratch.
Before cleaning the control panel, turn all controls off, activate oven lockout. Do not use
abrasive cleaners on any of these materials; they can scratch. Clean using hot, soapy water
and a cloth or sponge. Be sure to squeeze excess water from cloth or sponge before wiping
control panel, especially when wiping around the controls area. When rinsing, use clean
water and a cloth or sponge and be sure to squeeze excess water from cloth or sponge
before wiping the control panel.
Do not use cleaners with high concentrations of chlorides or chlorine. Do not use harsh
scrubbing cleaners. Polish with a lint free cloth. Always be sure to wipe excess cleaner polish
off the metal surface as bluish stains may occur during future oven heating that cannot be
removed. Clean heavier soils with hot, soapy water and a cloth or sponge. Rinse and dry
using clean water and a cloth.
Only use cleaners and polishes that are specifically manufactured for cleaning stainless steel.
Always rub in direction of metal grain to avoid damaging. Do not use cleaners with high
concentrations of chlorides or chlorine. Do not use harsh scrubbing cleaners. Polish with a lint
free cloth. Always be sure to wipe excess cleaner polish off from the metal surface as bluish
stains may occur during future oven heating that cannot be removed. Clean heavier soils with
hot, soapy water and a cloth or sponge. Rinse and dry using clean water and a cloth.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1solution of
clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper
towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a
soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the
porcelain may become damaged during future heating.
Oven racks Oven racks must be removed from oven cavity. Clean by using a mild, abrasive cleaner
following manufacturer's instructions. Rinse with clean water and dry.
Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well.
You may use a glass cleaner on the outside glass of the door. Do not immerse the door in
water. Do not spray or allow water or the glass cleaner to enter the door vents. Do not use
oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of
the oven door.
Cooktop Care and Cleaning
Ceramic Cooktop
Cooktop surface burners
Be sure to read all information on how to care for your cooktop contained in the Cooktop
Maintenance and Cooktop Cleaning sections starting on page 2Z
Do not use spray oven cleaners on the cooktop. See "Cooktop Maintenance" on page 27.
Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health
and can chemically damage the ceramic-glass surface.
26
Care and Cleaning
Cooktop Maintenance
Consistent and proper cleaning is essential to maintaining your
ceramic glass cooktop.
Prior to using your cooktop for the first time, apply the recom-
mended CookTopO Cleaning Creme to the ceramic surface (on
the web visit www.sears.com for replacement cooktop cleaner,
item number 40079). Buff with a non-abrasive cleaning pad.
This will make cleaning easier when soiled from cooking. The
special cooktop cleaning cream leaves a protective finish on the
glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop
can cause metal markings on the cooktop surface. These marks
should be removed immediately after the cooktop has cooled
using the cooktop cleaning cream. Metal marks can become
permanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough
bottoms can mark or scratch the cooktop surface.
Cooktop care precautions:
• Never slide anything metal or glass across the cooktop.
• Do not use cookware with dirt or dirt build up on bottom;
replace with clean cookware before using.
• Never use your cooktop as a cutting board or work surface
in the kitchen.
• Do not cook foods directly on the cooktop surface without a
pan.
• Be careful never to drop heavy or hard objects on the
ceramic glass cooktop, they may cause it to crack.
Cooktop Cleaning
Do not use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health, and can chemically
damage the ceramic-glass surface.
Before cleaning the cooktop, be sure the
controls are turned to off and the cooktop is cool. The glass
surface could be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the
cooktop. Use a paper towel or use a non-abrasive cleaning pad
to clean the entire cooktop surface. Make sure the cooktop is
cleaned thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the
soiled area. Rub the soiled area using a non-abrasive cleaning
pad, applying pressure as needed. Do not use the pad you use
to clean the cooktop for any other purpose.
If soils remain, carefully scrape soils with a metal razor blade
scraper, holding scraper at a 30 degree angle to the surface.
Remove loosened soils with cooktop cleaning cream and buff
surface clean.
Figure 39: Do not slide pans
Figure 40: Using razor blade to remove burned on matter
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or
melted onto the ceramic cooktop surface. Permanent damage
(such as pitting of the cooktop surface) may occur if not
removed immediately. After turning the surface elements off, use
a razor blade scraper or a metal spatula with a mitt and scrape
the soil from the hot surface (Figure 40). Allow the cooktop to
cool, and use the same method for heavy or burned on soils.
27
Care and Cleaning
Care and Cleaning (continued)
Do not use the following on the cooktop:
• Do not use abrasive cleaners and scouring pads, such as
metal and some nylon pads. They may scratch the cooktop,
making it more difficult to clean.
• Do not use harsh cleaners, such as chlorine bleach,
ammonia or oven cleaners that can etch or discolor the
cooktop.
• Do not use dirty sponges, cloths or paper towels, as they
can leave soil or lint on the cooktop which can burn and
cause discoloration.
Important note:
Damage to the ceramic glass cooktop may occur if you use an
abrasive type cleaning pad. Only use cleaning products that
have been specifically designed for ceramic glass cooktops.
General Cleaning
Refer to the Cleaning recommendation table in the Care and
Cleaning section for more detailed information about cleaning
specific parts of the range.
Before manually cleaning any part of the range,
be sure all controls are turned off and the range is cool. The
range may be hot and can cause burns.
Ammonia must be rinsed before operating the
oven. Provide adequate ventilation.
Aluminum Foil, Cookware, and Utensils
Never cover any slots, holes or passages in the
oven bottom or cover an entire oven rack with materials such as
aluminum foil. Aluminum foil linings may trap heat, causing a
fire hazard.
Protective Liners - Do not use aluminum foil to
line the oven bottom. Only use aluminum foil as recommended
in this manual. Improper installation of these liners may result in
risk of electric shock, or fire.
• Aluminum foil - Use of aluminum foil on a hot cooktop can
damage the cooktop. Do not use thin aluminum cooking
utensils or allow aluminum foil to touch the surface elements
under any circumstances.
Aluminum cookware and utensils - The melting point of
aluminum is much lower than that of other metals. Care
must be taken when aluminum cookware is used on the
cooktop. If aluminum pans are allowed to boil dry when
using the cooktop, not only will the utensil be damaged or
destroyed, but it may fuse to, break or mark the ceramic
glass surface, permanently damaging the cooktop surface.
Replacing the Oven Light
Be sure the oven is unplugged and all parts are
cool before replacing oven light.
The interior oven light is located on the left side of the oven
cavity(Figure 41).
To replace the oven interior light bulbs:
Important note:
Use a paper towel or cotton glove while handling the new bulb
when installing.
1. Turn electrical power off at the main source or unplug the
appliance. Carefully remove glass shield.
2.
3.
Replace bulb with a new 40 watt halogen bulb. Replace
glass shield.
Turn power back on again at the main source (or plug the
appliance back in). Be sure to reset the time of day on the
clock.
Figure 41:
Halogen
Light Bulb
Lift backsideof
glassshieldand
removeit.
Replacing oven light
28
Care and Cleaning
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage,
lay the door flat with the inside of the door facing down.
To remove the oven door:
1. Open oven door completely, horizontal with floor (See
Figure 42).
2. Pull the door hinge locks on both left and right door hinges
down from the oven frame completely toward the oven
door (See Figure 43). A tool such as a small flat-blade
screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 44).
4. Close the door to approximately 10 degrees from the oven
door frame.
5. Lift the oven door hinge arms over the roller pins located on
each side of the oven frame (See Figure 44).
To replace oven door.-
1. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 44).
2.
Holding the oven door at the same angle as the removal
position (See Figure 44), seat the hook of the hinge arm
over the roller pins located on each side of the oven door
frame (See Figure 45). The hook of the hinge arms must be
fully seated onto the roller pins.
3. Fully open the oven door, horizontal with floor (See
Figure 42).
4. Push the door hinge locks up toward and into the oven
frame on both left and right oven door hinges to the locked
position (Figure 43).
5. Close the oven door.
Special Door Care Instructions:
• Most oven doors contain glass that can break.
• Do not close the oven door until all the oven racks are fully
in place.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring, or stressing the glass may
weaken its structure causing an increased risk of breakage
at a later time.
Oven door
hinge
locations
Figure 42: Door hinge location
Figure 43: Door hinge locks
Figure 44:
oven
door -
B
hinge
fJ
Holding door for removal
roller
pin
hinge
arm
l/
Figure 45: Location of hinge arm and roller pin
29
Before You Call
Oven Baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the
oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Baking Problems and Solutions
Baking Problems
Cookies and biscuits burn
on the bottom
Cakes too dark on top or
bottom
Cakes not done in center
Cakes not level
Foods not done when
cooking time is over
Causes Corrections
Cookies and biscuits put into
oven before the preheating
time is completed.
Oven rack is overcrowded.
Dark pans absorb heat too
fast.
Cakes put in oven before
preheating time is completed.
Rack position too high or too
lOW.
Oven too hot.
• Oven too hot.
• Incorrect pan size.
• Pan not centered in oven.
• Oven not level.
• Pan too close to oven wall or
rack overcrowded.
• Pan warped.
• Oven too cool.
• Oven overcrowded.
• Oven door opened too
frequently.
Allow oven to preheat to desired temperature before
placing food in oven.
Choose pan sizes that will permit 2" to 4" of air space (5.1
cm to 10.2 cm) on all sides when placed in the oven.
Use a medium weight baking sheet.
Allow oven to preheat to the selected temperature before
placing food in the oven.
• Use proper rack position for baking needs.
• Set oven temperature 25°F (13°C) lower than recom-
mended.
• Set oven temperature 25°F (13°C) lower than recom-
mended.
• Use pan size suggested in recipe.
• Use proper rack position and place pan so there is 2" to 4"
(5.1 cm to 10.2 cm) of space on all sides of pan.
Place a marked glass measuring cup filled with water on
the center of the oven rack. If the water level is uneven,
refer to the installation instructions for leveling the oven.
Be sure to allow 2" to 4" (5.1 cm to 10.2 cm) of clearance
on all sides of each pan in the oven.
• Do not use pans that are dented or warped.
• Set oven temperature 25°F (13°C) higher than suggested
and bake for the recommended time.
• Be sure to remove all pans from the oven except the ones to
be used for baking.
• Open oven door only after shortest recommended baking
time.
3O
Before You Call
Solutions to Common Problems
Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the
problem listed:
Problem Solution
Poor baking results Many factors affect baking results. Use proper oven rack position. Center food in the
oven and space pans to allow air to circulate. Preheat oven to the set temperature
before placing food in the oven. Try adjusting the recipe's recommended temperature or
baking time. See "Adjusting Oven Temperature" on page 23 if you feel the oven is too
hot or cold.
Oven does not operate
Oven light does not work •
Flames inside oven or smoking from •
oven vent
Self clean does not work
Oven racks discolored or do not •
slide easily
Oven smokes excessively when
broiling
Oven control panel beeps and
displays any F or E code error
Soil not completely removed after •
self clean
Convection fan does not rotate *
• The time of day is not set. The oven clock must first be set in order to operate the oven.
• Be sure oven controls are set properly. See "Minimum and Maximum Control Settings"
on page 13 and review instructions for the desired cooking function in this manual.
Service wiring is not complete.
Be sure the oven light is secure in the socket. See "Replacing the Oven Light" on
page 28.
Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe
up excessive spills before starting oven. If flames or excessive smoke are present when
using broil, see "Setting Broil" on page 20.
Oven control not set properly. Review Self Clean section.
Oven racks left in oven cavity during self clean. Always remove oven racks from oven
cavity before starting a self clean cycle. Clean using a mild abrasive cleaner following
manufacturer's instructions. Rinse with clean water, dry, and replace in oven.
• Incorrect setting. Follow broiling instructions in "Setting Broil" on page 20.
• Meat too close to the broil element. Reposition broil rack to provide proper clearance
between the meat and broil element. Remove excess fat from meat. Cut remaining fatty
edges to prevent curling.
• Grease build up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Grease or food splatters will cause excessive smoking.
• Oven control has detected a fault or error condition. Press STOP to clear the error code.
Try bake or broil function. If the F or E code error repeats, turn off power to appliance,
wait 5 minutes and then repower appliance. Set clock with correct time of day. Try bake
or broil function again. If fault recurs, press STOP to clear.
Self Clean was interrupted. Review Self Clean instructions.
Excessive spills on oven bottom. Clean before starting self clean.
Oven door is open. Convection fan will turn off if oven door is opened when convection
is active. Close oven door.
Surface element is too hot or not hot • Incorrect surface control setting. Adjust power level setting.
enough
Surface element does not heat or
does not heat evenly
Be sure the correct surface control is turned on for element needed.
Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavy-
weight cookware. Flat pans heat better than warped pans. Cookware materials and
weight of the material affect heating. Heavy and medium-weight pans heat evenly.
Because lightweight pans heat unevenly, foods may burn easily.
31
Before You Call
Scratches or abrasions on cooktop
surface
• Coarse particles such as salt or hardened soils between cooktop and utensils can cause
scratches. Be sure cooktop surface and bottoms of utensils are clean before usage.
Small scratches do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. Apply
the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit
www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-
abrasive cloth or sponge.
• Cookware with rough bottom was used. Use smooth, flat-bottomed cookware.
Brown streaks or specks on cooktop * Boilovers are cooked onto surface. Use razor blade scraper to remove soil.
surface
Appliance is not level • Be sure floor is level, strong, and stable enough to adequately support range. If floor is
sagging or sloping, contact a carpenter to correct the situation.
Cannot move appliance easily.
Appliance must be accessible for
service
Entire appliance does not operate
Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Adjust leveling legs at base of appliance until the rack is level. Kitchen cabinet
alignment may make range appear not level. Be sure cabinets are square and have
sufficient room for appliance clearance.
Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.
Carpet interferes with appliance. Provide sufficient space so appliance can be lifted
over carpet.
• Make sure power cord is plugged properly into outlet.
• Electrical power outage. Check house lights to be sure. Call your local electric company
for service outage information.
• Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (See back
cover).
Fan noise during cooking operation • A cooling fan may automatically turn on and off to cool internal parts. It is normal, and
the fan may continue to run even after oven is turned off.
Areas of discoloration with metallic •
sheen on cooktop surface
Mineral deposits from water and food. Remove using the recommended CookTop®
Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replace-
ment cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or sponge
32
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore ®
product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional failure
excluded from coverage - real protection.
[] Expert service by a force of more than 10,0OOauthorized Scars
service technicians, which means someone you can trust will be
working on your product.
[] Unlimited service calls and nationwide service, as often as you
want us, whenever you want us.
[] "No=lemon" guarantee- replacement of your covered product if
four or more product failures occur within twelve months.
[] Product replacement if your covered product can't be fixed.
[] Annual Preventive Maintenance Check at your request - no extra
charge.
[] Fast help by phone- we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a "talking
owner's manual".
[] Power surge protection against electrical damage due to power
fluctuations.
[] $250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
[] Rental reimbursement if repair of your covered product takes
longer than promised.
[] 25% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase, if you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S,A. carl 1=800=827=6655,
* Coverage in Canada varies on some items, For full details call
Sears Canada at 1=800=361=6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1=800=4=MY=HOME®.
Acuerdos maestros de protecci6n
Enhorabuena por haber hecho una compra intetigente, Su nuevo
producto Kenmore ®est_ diseSado y fabdcado para brindade aSos de
funcionamiento fiable. Pero, como cualquier producto, puede necesitar
mantenimiento preventivo o reparaciones periSdicas. Es por eso que
tenet un Acuerdo maestro de protecciSn podria ahorrade dinero y
molestias.
El Acuerdo maestro de protecciSn tambien sirve para prolongar la
durabilidad de su nuevo producto. El acuerdo* incluye io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en
condiciones normales de uso, no sSio en caso de defectos de los
productos. Nuestra cobertura va mucho m&s alia que is garant_a
del producto. No se aplican deducibies ni exclusiones por failas del
funcionamiento: es decir, verdadera proteccibn.
[] Servicio t_cnico por expertos (mas de 10000 t_cnicos
autorizados de Sears), Io cuai significa que quien repare o reaiice
el mantenimiento de su producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y n_mero ilimitado de
llamadss de solicitud de servicio t_cnico: se puede porter en
contacto con nosotros cuantas veces Io desee y cuando Io desee.
[] Garantia "sin sorpresss": se reempmaza el producto cubierto por em
acuerdo si ocurren cuatro o m_,s fallas del producto en un periodo
de 12 moses.
[] Reemplazo del producto: en caso de que no se pueda reparar em
producto cubierto pot el acuerdo.
[] Revisibn anual preventivs de mantenimiento del producto:
puede solicitarla en cualquier momento, sin costo alguno.
[] R_pida asistencia telefbnica, la cual denominamos Solucibn
r_pida: es decir, asistencia telefSnica a traves de cualquiera de
nuestros representantes de Sears, sobre cualquiera de nuestros
productos. Piense en nosotros como en un "manual padante dem
usuario".
[] Protecci6n contra faflas el_ctricas, contra daSos debidos a
fluctuaciones de la corriente electrica.
[] $250 al a_o para cubrir cualquier posible deterioro de
alimentos que hays tenido que desechar debido a una falla
mecanica de cualquiera de nuestros refrigeradores o congeladores
cubiertos por este acuerdo.
[] Devolucibn de gastos de alquiler de electrodom_sticos si la
reparaciSn de su producto asegurado toma ma,s que el tiempo
prometido.
[] 25% de descuento aplicable tanto a los costos del servicio de
reparaciSn, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos por este acuerdo.
Una vez que hays realizado el pago de este acuerdo, bastara, una simple
Ilamada telefSnica para concertar una visita de servicio. Puede Ilamar a
cualquier hora del dis o de la noche, o bien concertar una visita de
servicio pot Internet.
La adquisiciSn del Acuerdo maestro de protecciSn es una inversiSn
exenta de riesgos. Si por cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garantia del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancels el acuerdo en
cualquier otto momento posterior al vencimiento del periodo de garantia
del producto, iAdquiera boy mismo su Acuerdo maestro de protecciSn!
AIgunas limitaciones y exclusiones podrian aplicarse. Pars solicitar
precios e informaci6n adicional, llame al 1=800=827=6655 (on los
EE.UU.).
* La cobertura en Canada varia en el caso de algunos articulos. Pars
obtener detafles completos sl respecto, flame al 1=800=361=6665 de
Sears de Canad&,
Servicio de instalaci6n de Sears
Pars solicitar ta instalaciSn por profesionales de Sears de
electrodomesticos, abridores de puertas de garaje, calentadores de agua
y otros articulos de uso prioritario en el hogar, flame al 1=800=4=MY=
HOME en los EE.UU. o Canad&.
®RegisteredTrademark/ TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TMMarca de Fabfica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises
MCMarque de commerce / MDMarque ddpos_e de Sears Brands, LLC
