OWNER’S GUIDE & SERVICE MANUAL
MARVEL UNDERCOUNTER REFRIGERATION
Model: MLCR215-SS01B

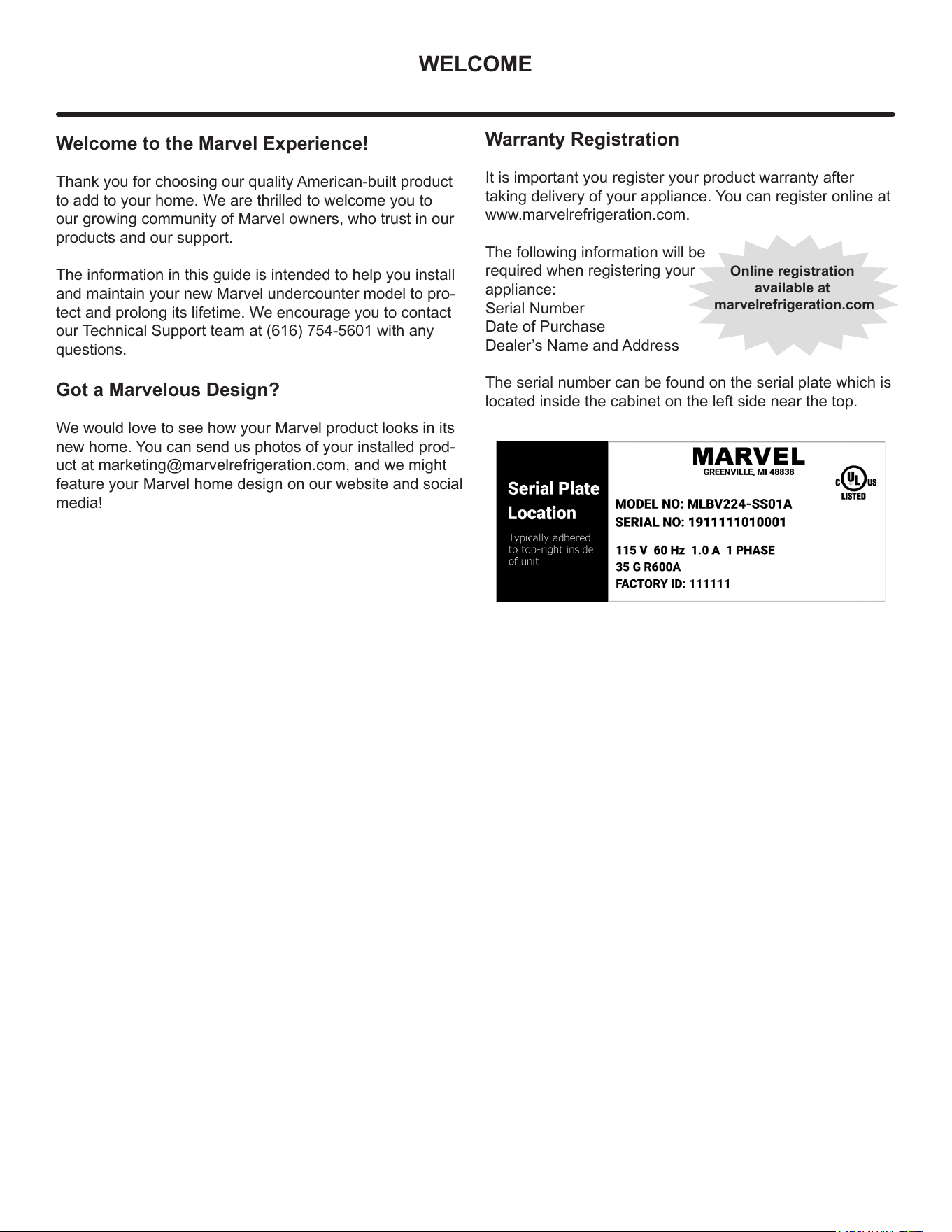

WELCOME
Welcome to the Marvel Experience!
Thank you for choosing our quality American-built product
to add to your home. We are thrilled to welcome you to
our growing community of Marvel owners, who trust in our
products and our support.
The information in this guide is intended to help you install
and maintain your new Marvel undercounter model to pro-
tect and prolong its lifetime. We encourage you to contact
our Technical Support team at (616) 754-5601 with any
questions.
Got a Marvelous Design?
We would love to see how your Marvel product looks in its
new home. You can send us photos of your installed prod-
uct at [email protected], and we might
feature your Marvel home design on our website and social
media!
Warranty Registration
It is important you register your product warranty after
taking delivery of your appliance. You can register online at
www.marvelrefrigeration.com.
The following information will be
required when registering your
appliance:
Serial Number
Date of Purchase
Dealer’s Name and Address
The serial number can be found on the serial plate which is
located inside the cabinet on the left side near the top.
Online registration
available at
marvelrefrigeration.com
TABLE OF CONTENTS
Tip: Click on any section below to jum
p directly there
Safety
Important Safety Instructions
Installation
Unpacking Your Appliance
Electrical
Cutout & Product Dimensions
Installing Your Appliance
Side-by-Side & Stacking Installations
Installing the anti-tip device

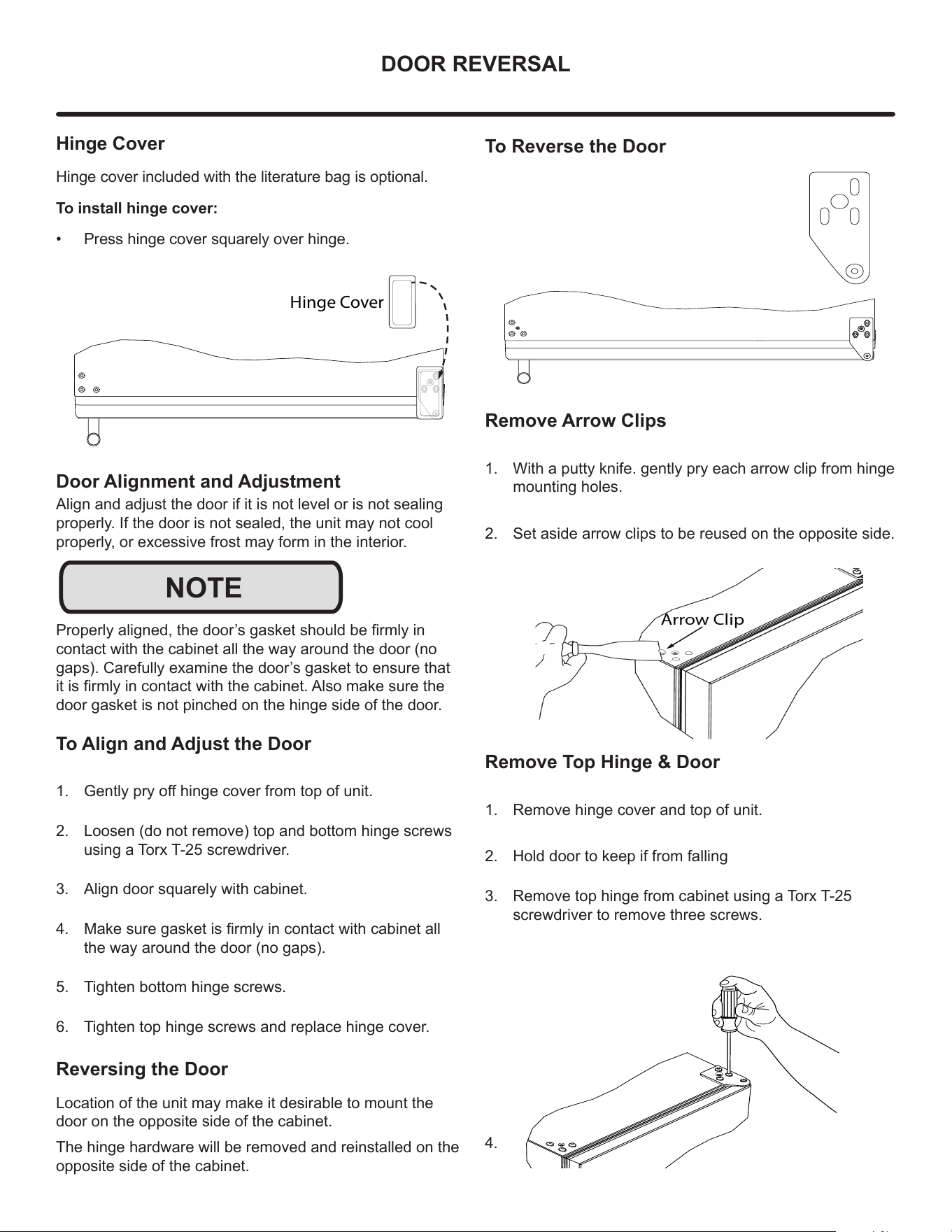

Door Reversal

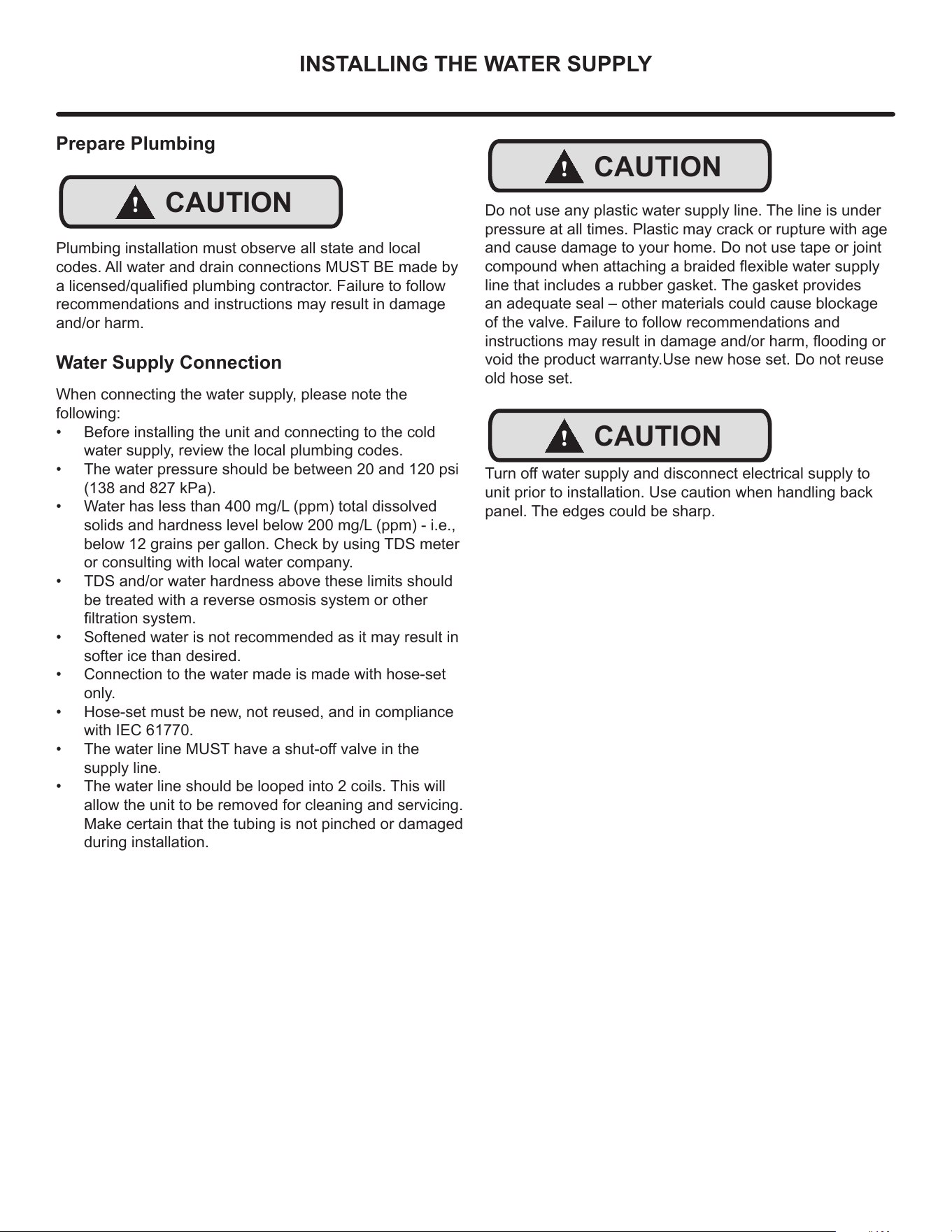

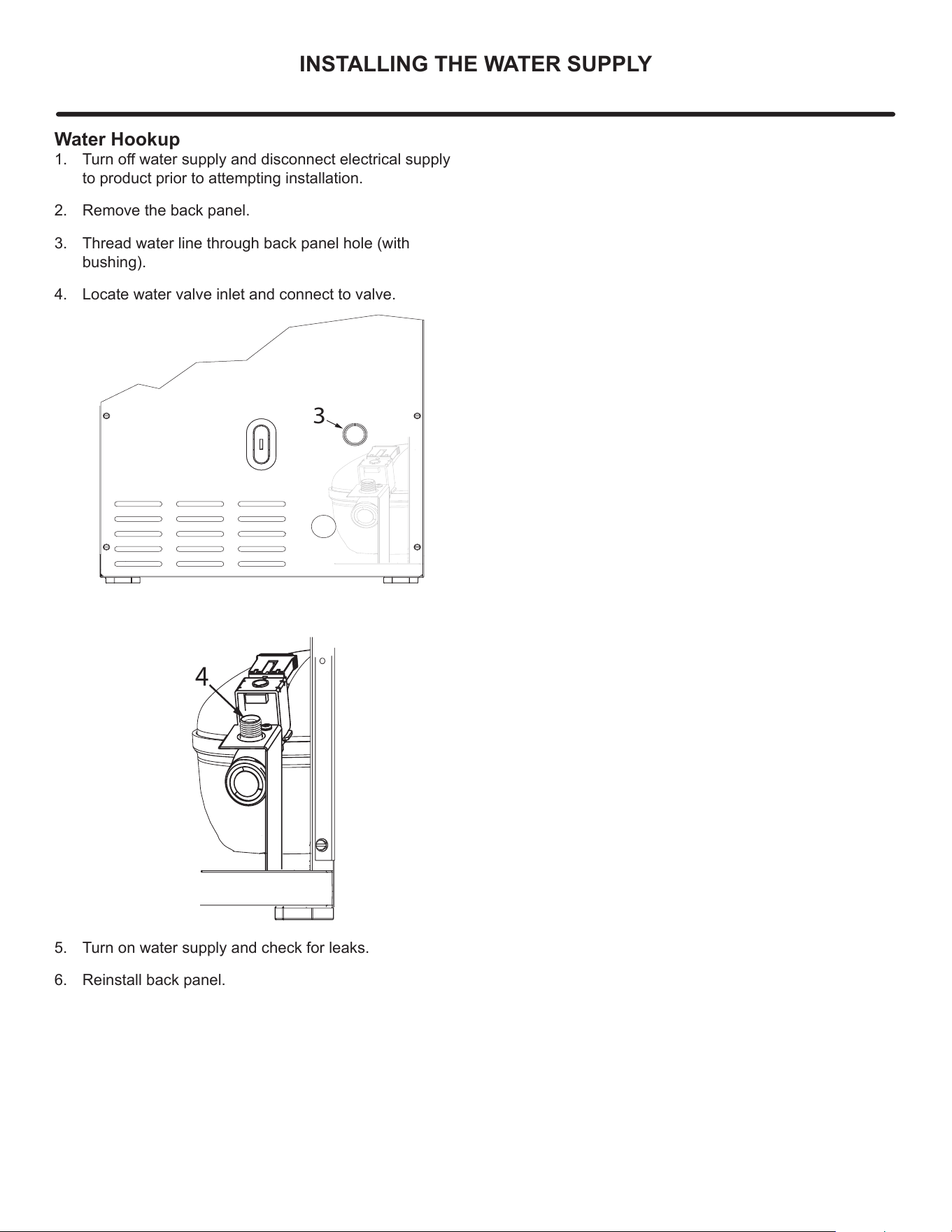

Installing The Water Supply
Maintenance

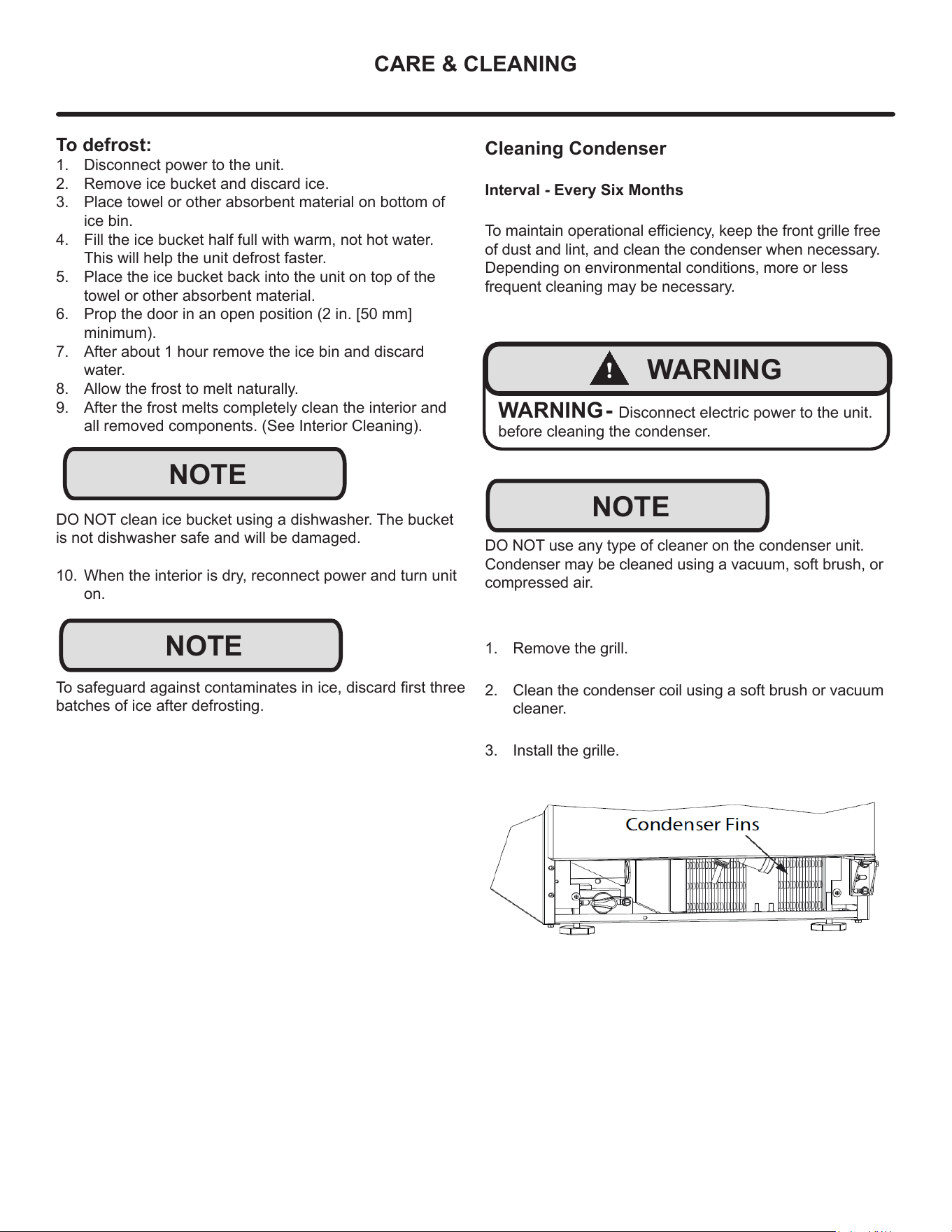

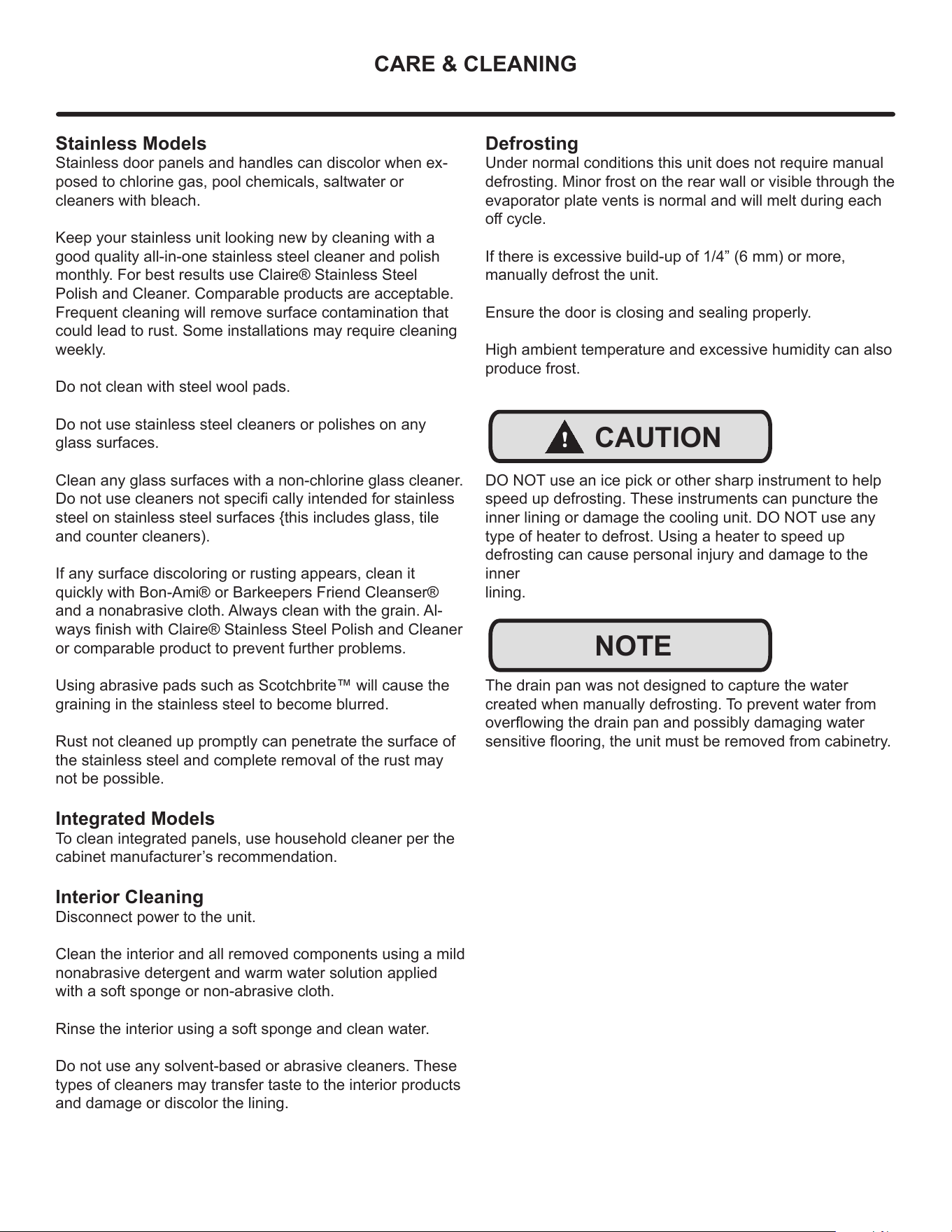

Care and Cleaning

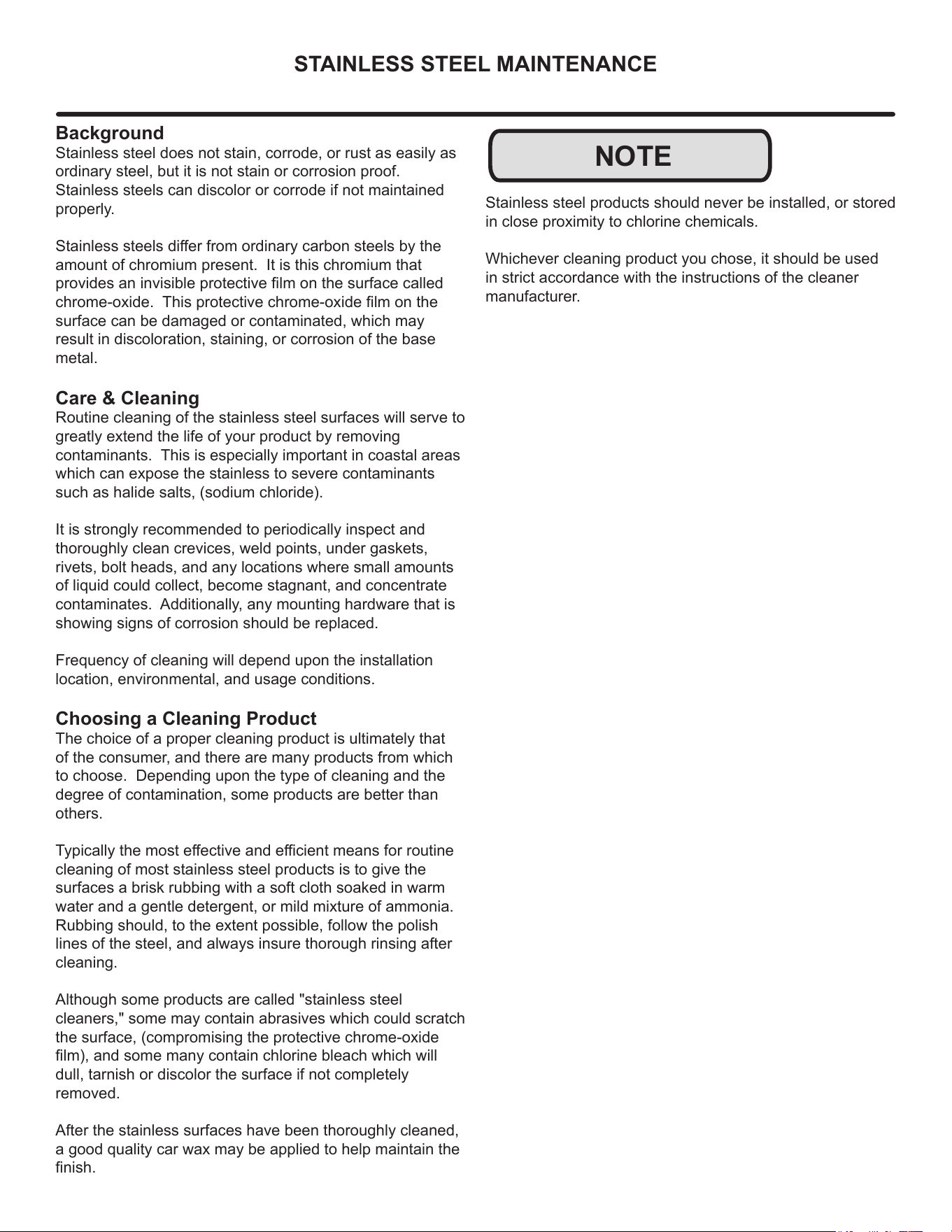

Stainless Steel Maintenance

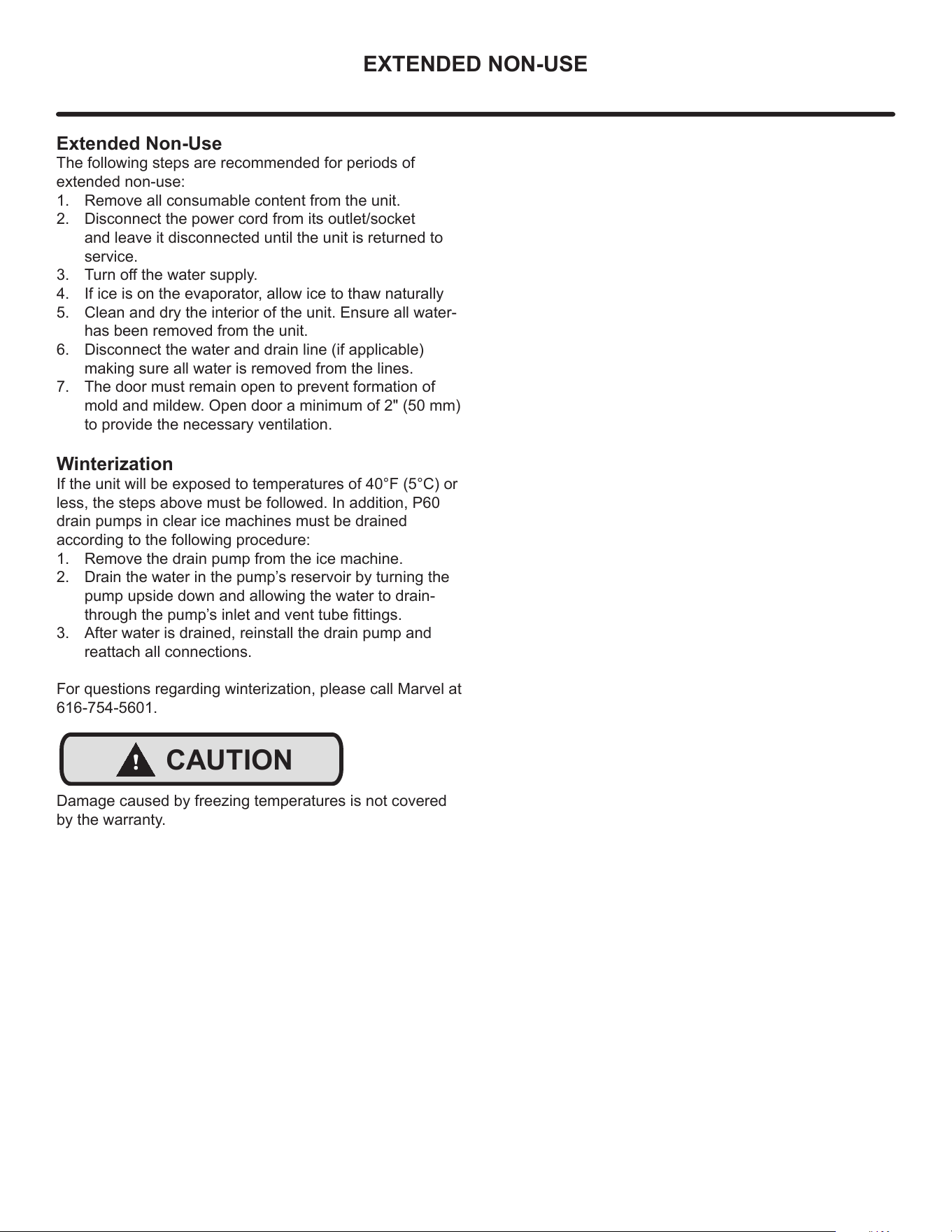

Extended Non-Use
Operating Instructions

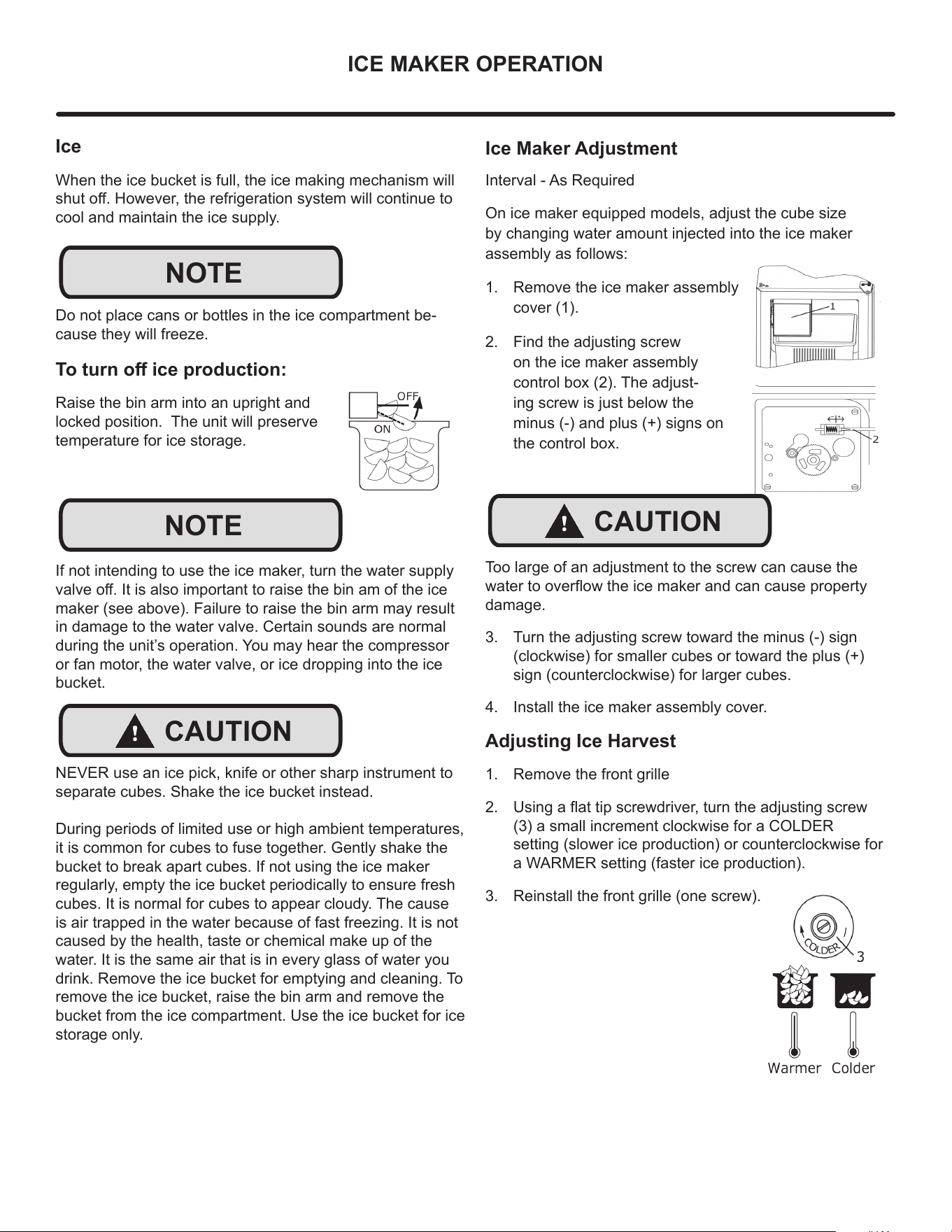

Ice Maker Operation
Service
Obtaining Service
Troubleshooting

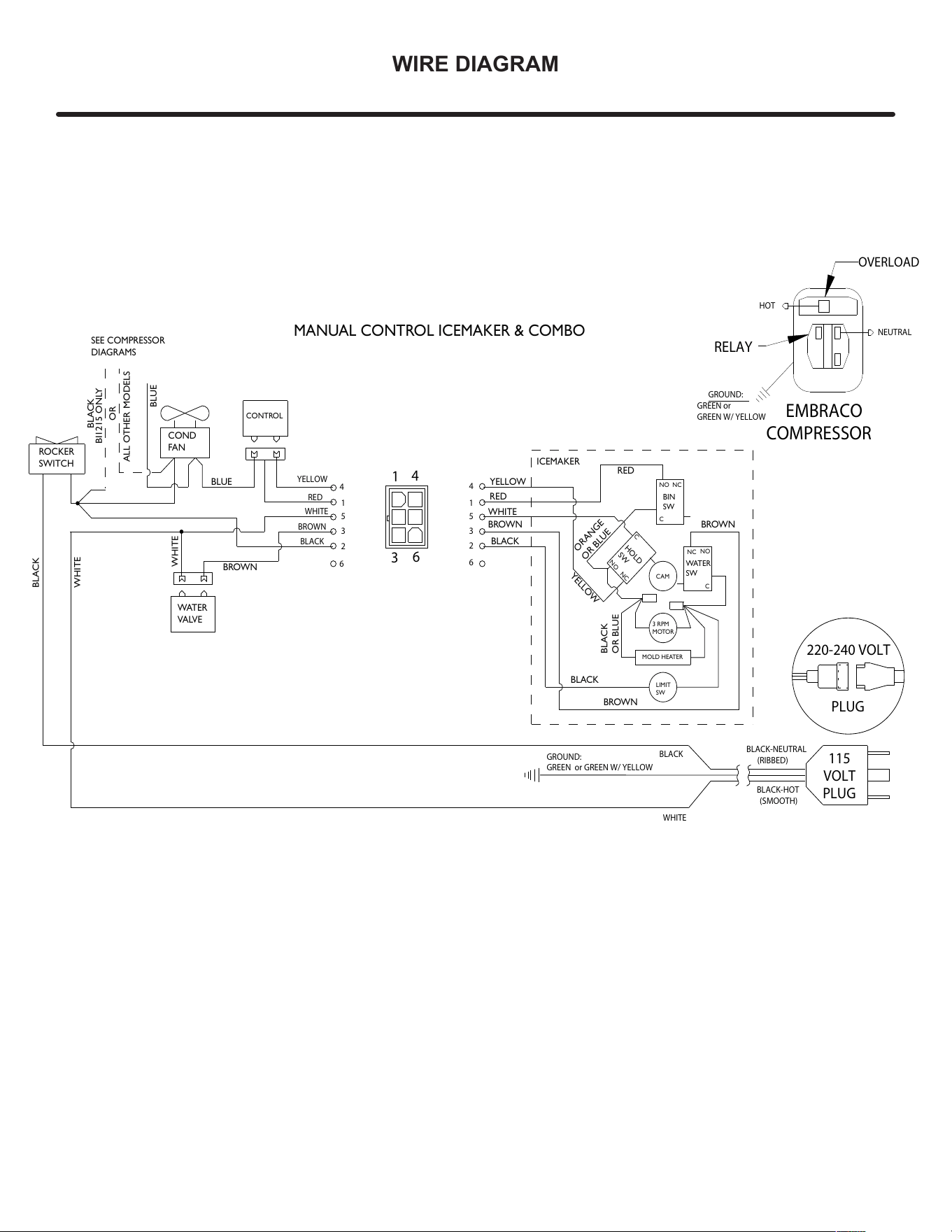

Wire Diagram

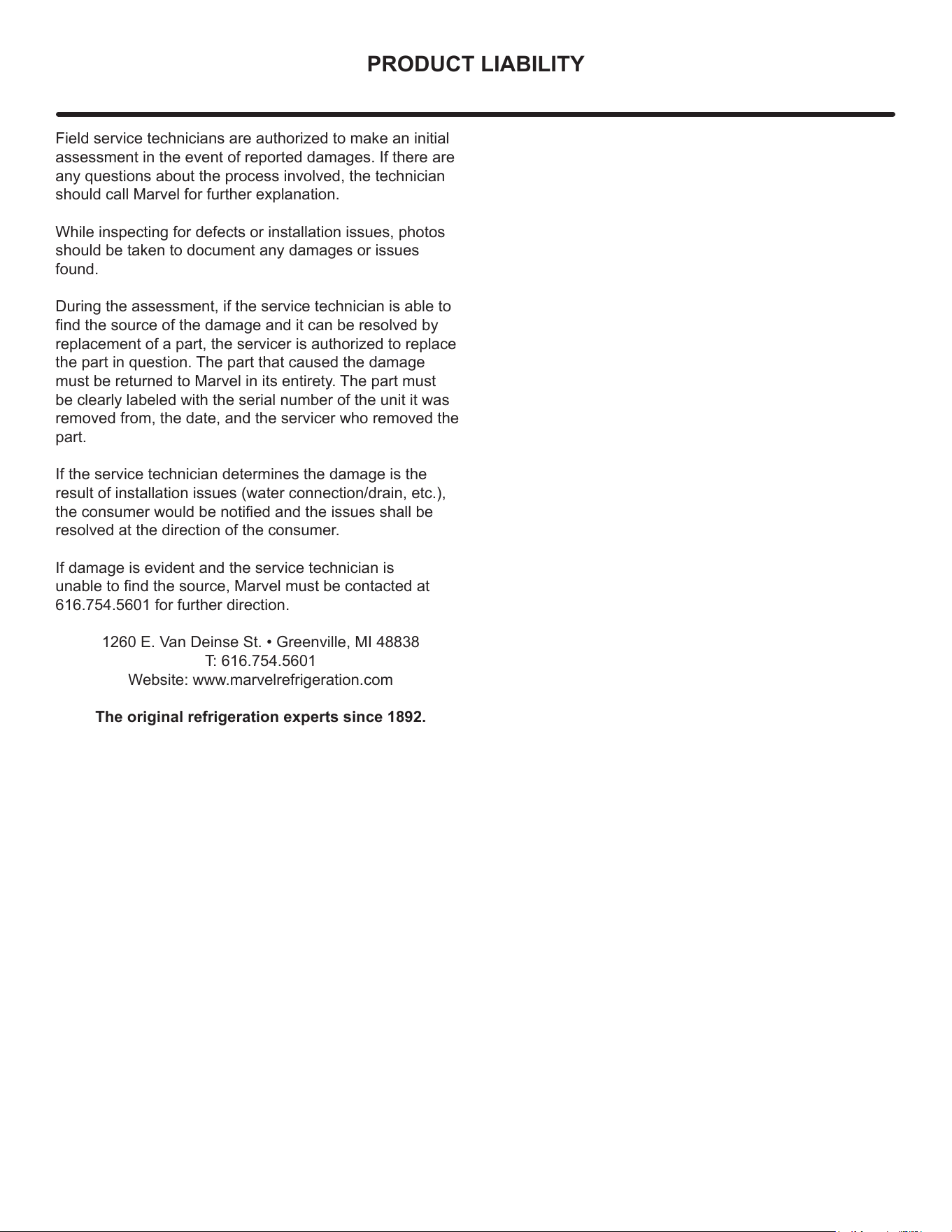

Product Liability
Ordering Replacement Parts

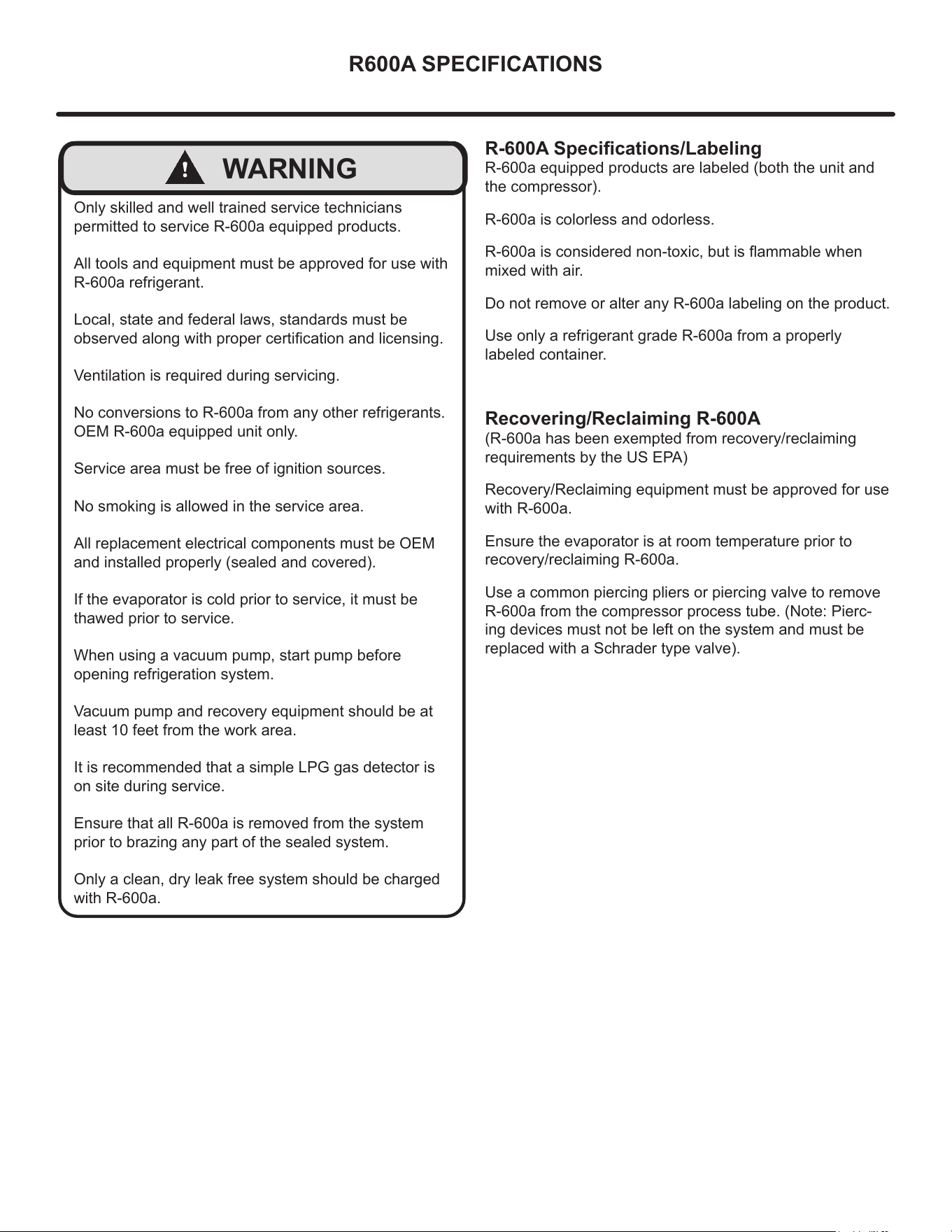

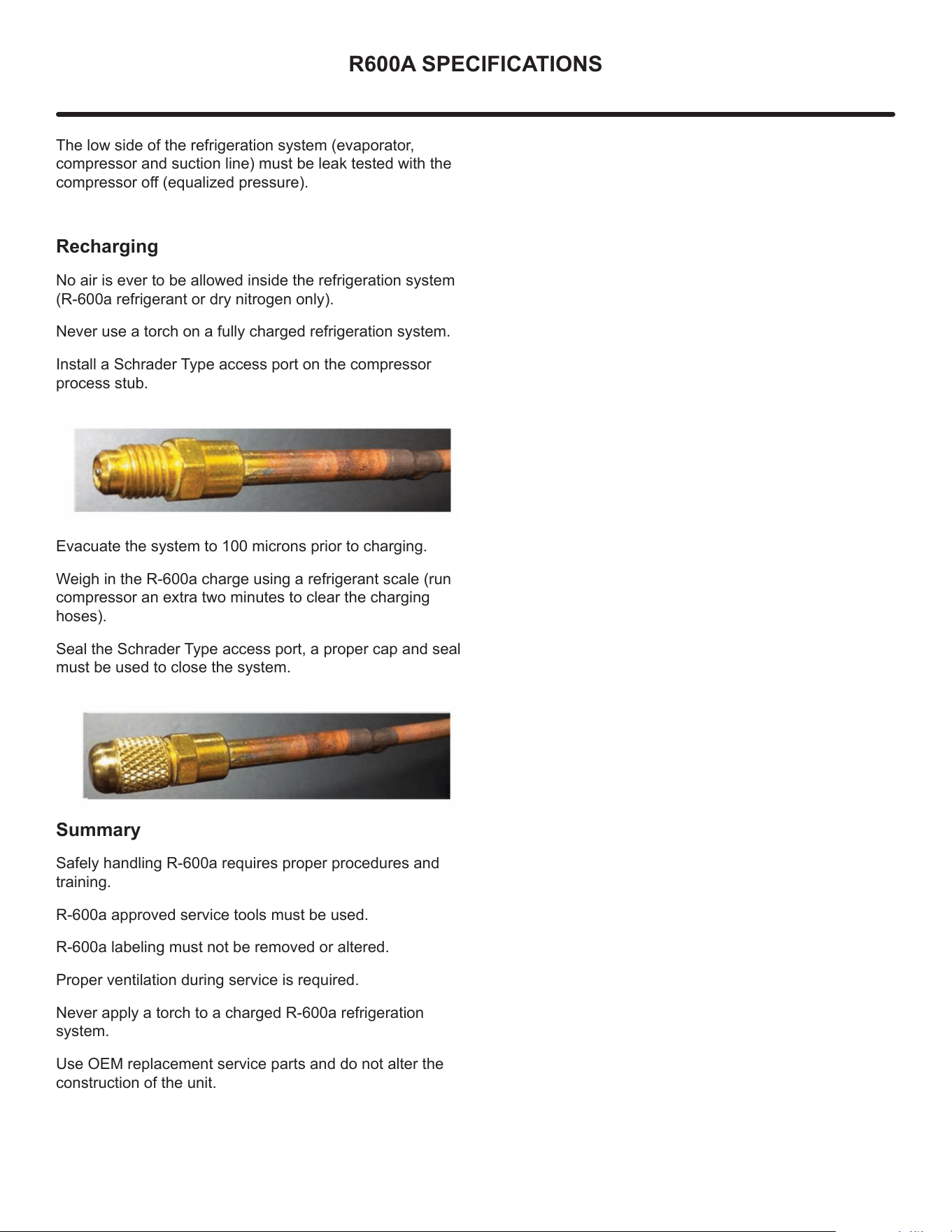

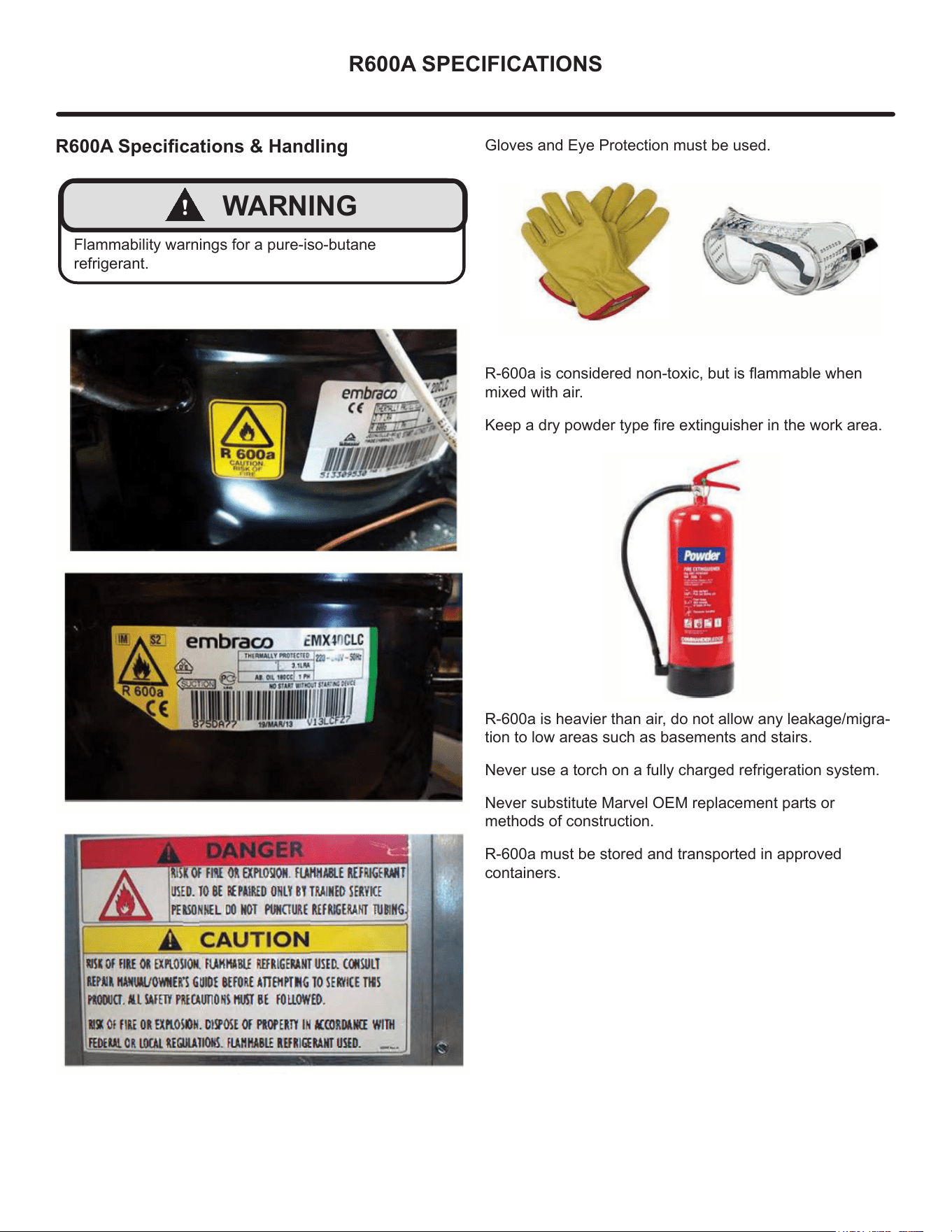

R600a Specifications
System Diagnosis Guide
Replace Ice Maker

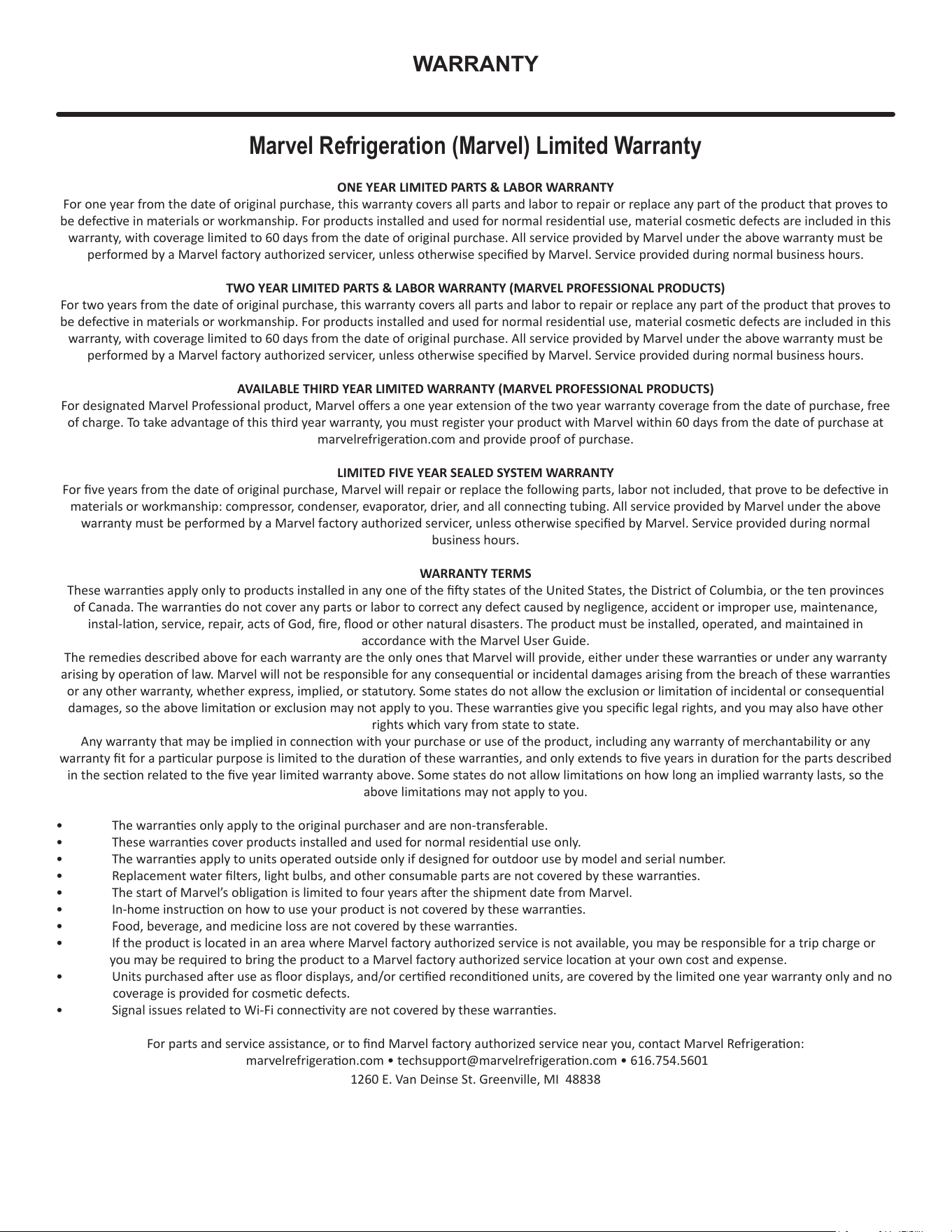

Warranty
3

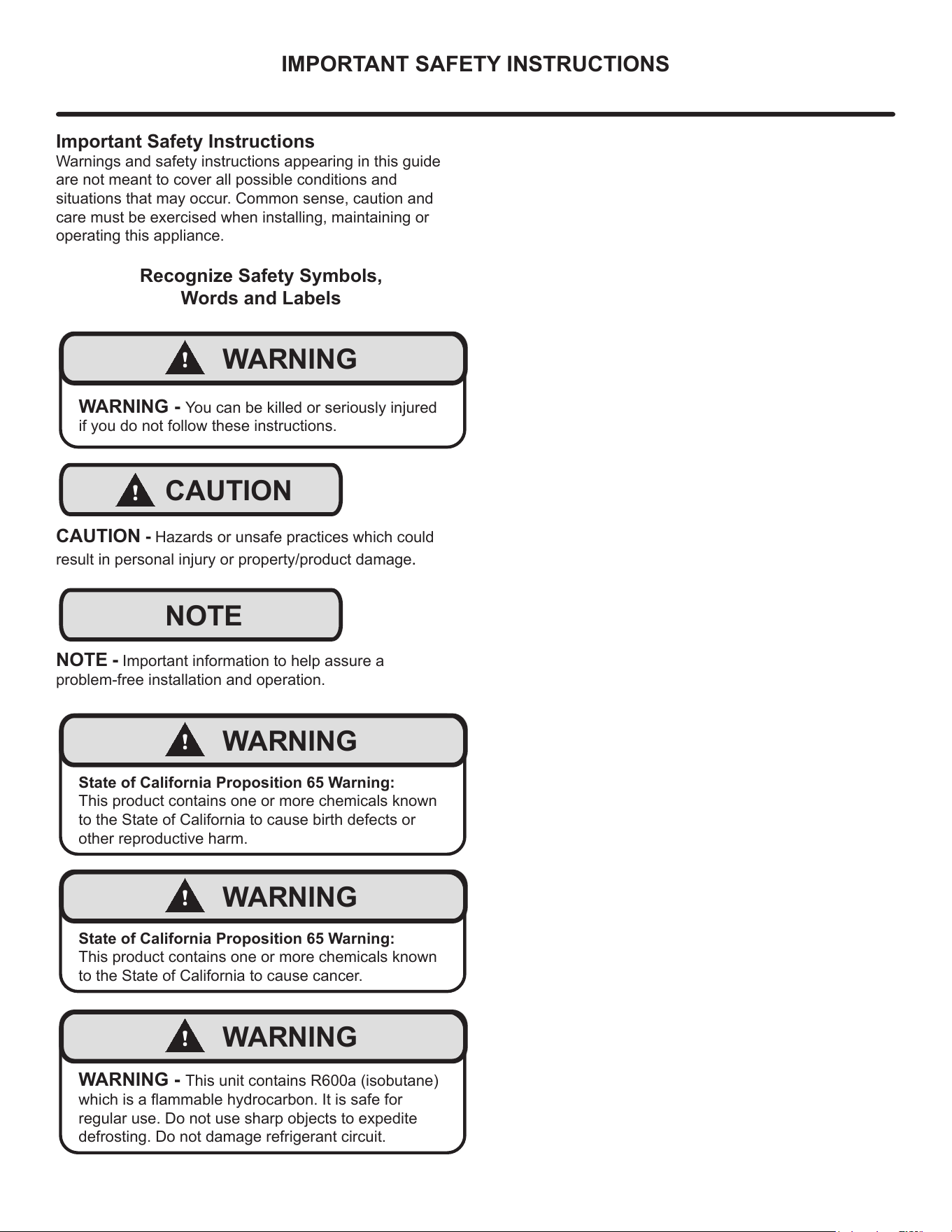

IMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and
situations that may occur. Common sense, caution and
care must be exercised when installing, maintaining or
operating this appliance.
Recognize Safety Symbols,
Words and Labels
!
WARNING
WARNING - You can be killed or seriously injured
if you do not follow these instructions.
!
CAUTION
CAUTION - Hazards or unsafe practices which could
result in personal injury or property/product damage.
NOTE
NOTE - Important information to help assure a
problem-free installation and operation.
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause birth defects or
other reproductive harm.
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause cancer.
!
WARNING
WARNING - This unit contains R600a (isobutane)
which is a ammable hydrocarbon. It is safe for
regular use. Do not use sharp objects to expedite
defrosting. Do not damage refrigerant circuit.
4

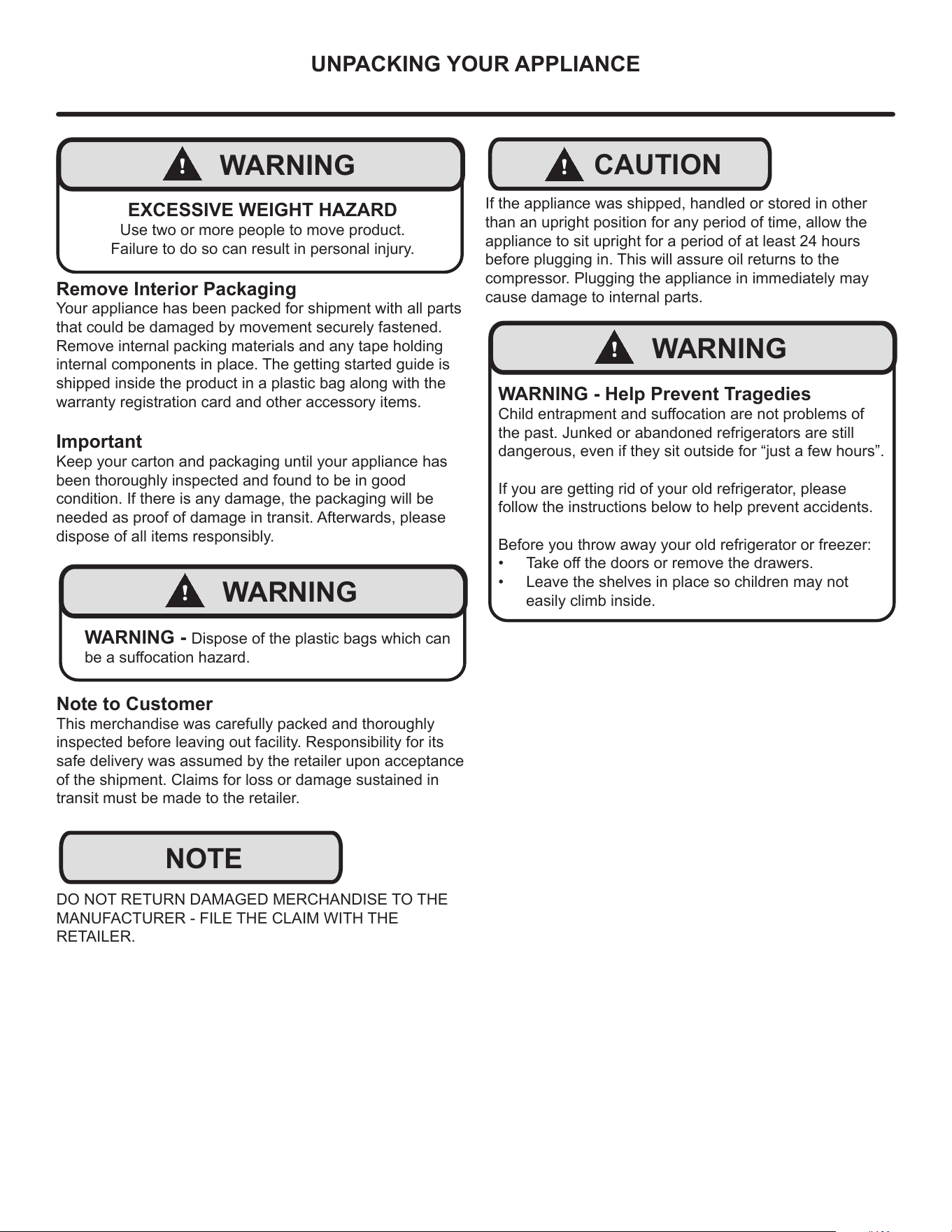

UNPACKING YOUR APPLIANCE
!
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding
internal components in place. The getting started guide is
shipped inside the product in a plastic bag along with the
warranty registration card and other accessory items.
Important
Keep your carton and packaging until your appliance has
been thoroughly inspected and found to be in good
condition. If there is any damage, the packaging will be
needed as proof of damage in transit. Afterwards, please
dispose of all items responsibly.
!
WARNING
WARNING - Dispose of the plastic bags which can
be a suocation hazard.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving out facility. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
NOTE
!
CAUTION
If the appliance was shipped, handled or stored in other
than an upright position for any period of time, allow the
appliance to sit upright for a period of at least 24 hours
before plugging in. This will assure oil returns to the
compressor. Plugging the appliance in immediately may
cause damage to internal parts.
!
WARNING
WARNING - Help Prevent Tragedies
Child entrapment and suocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous, even if they sit outside for “just a few hours”.
If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
• Take o the doors or remove the drawers.
• Leave the shelves in place so children may not
easily climb inside.
5

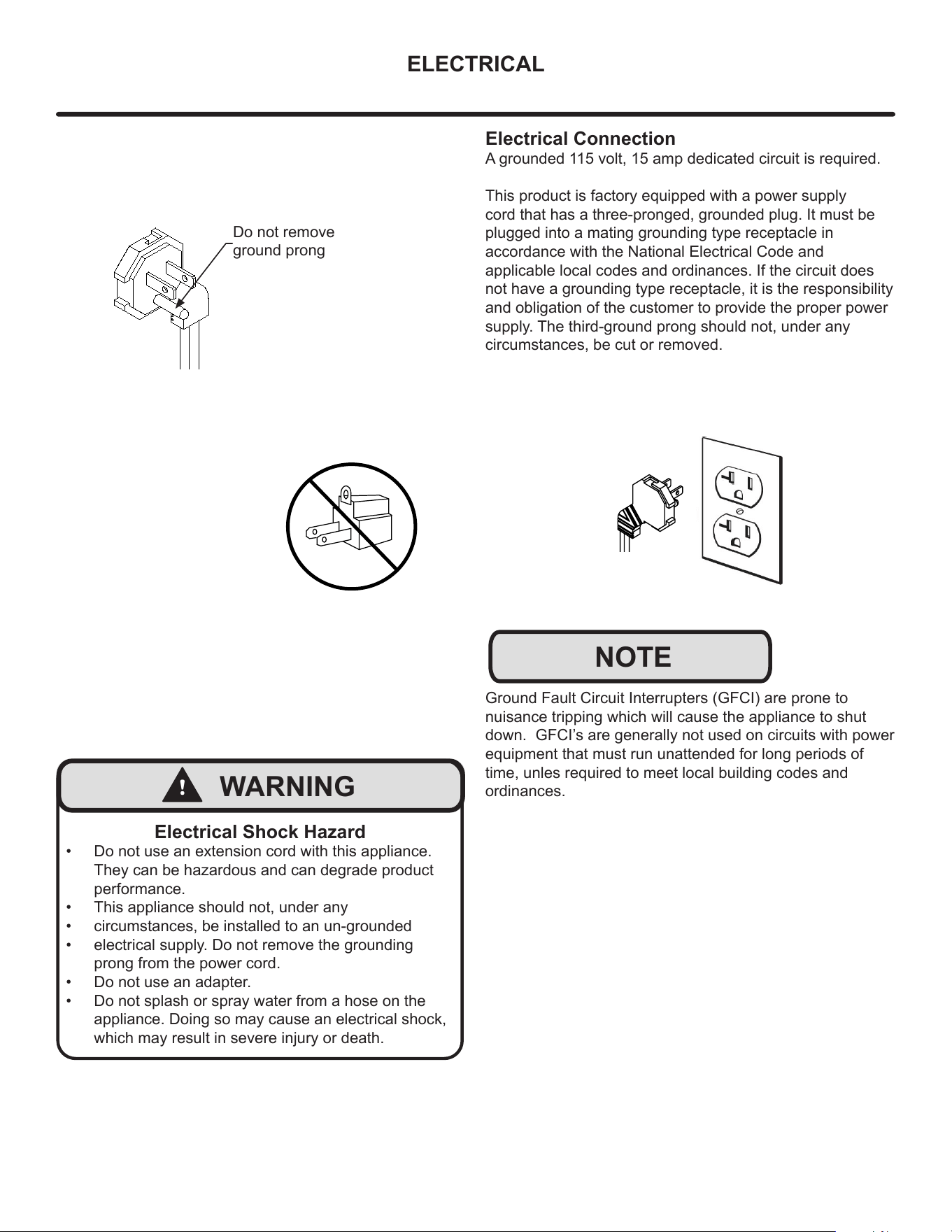

ELECTRICAL
Do not remove
ground prong
!
WARNING
Electrical Shock Hazard
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any
• circumstances, be installed to an un-grounded
• electrical supply. Do not remove the grounding
prong from the power cord.
• Do not use an adapter.
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in
accordance with the National Electrical Code and
applicable local codes and ordinances. If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to provide the proper power
supply. The third-ground prong should not, under any
circumstances, be cut or removed.
NOTE
Ground Fault Circuit Interrupters (GFCI) are prone to
nuisance tripping which will cause the appliance to shut
down. GFCI’s are generally not used on circuits with power
equipment that must run unattended for long periods of
time, unles required to meet local building codes and
ordinances.
6

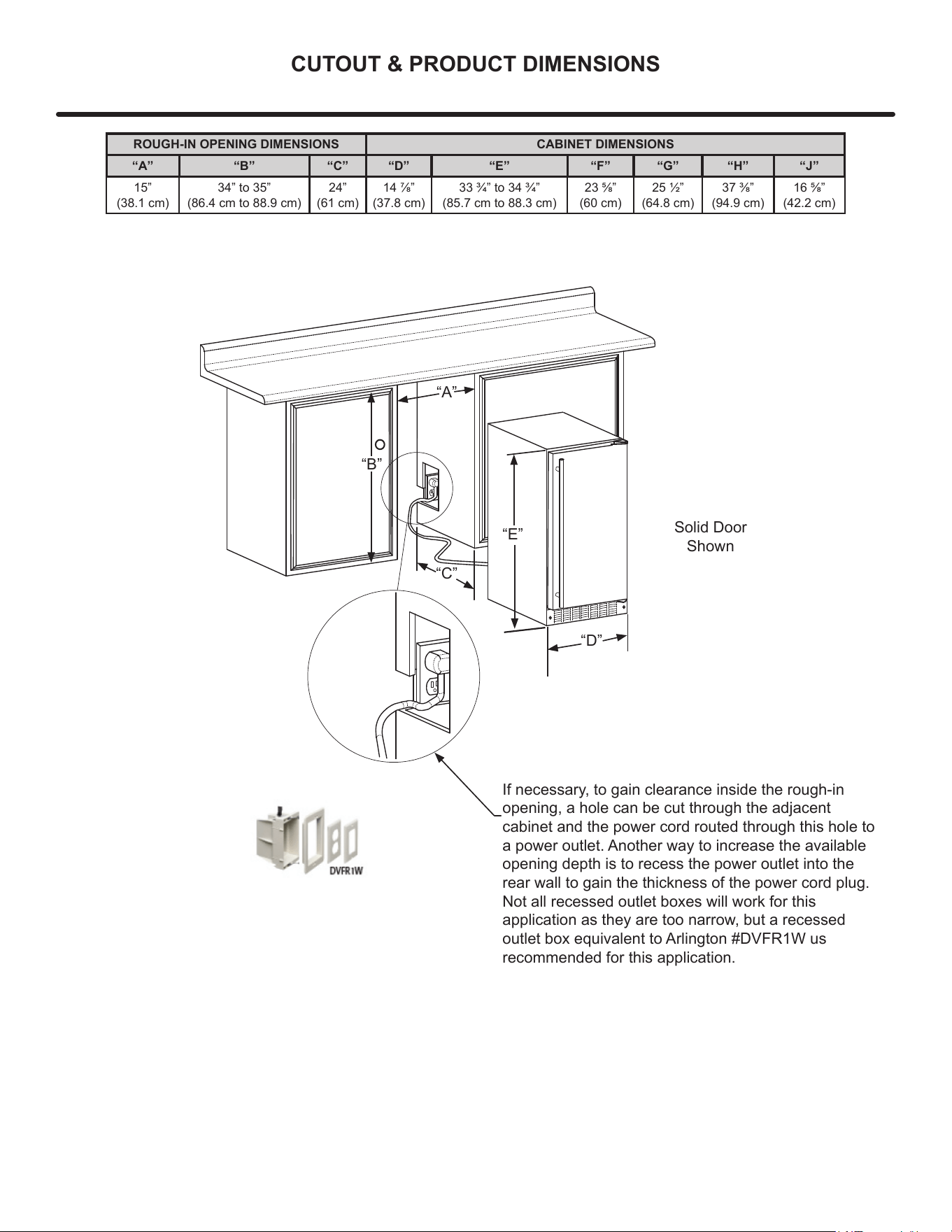

CUTOUT & PRODUCT DIMENSIONS
“A”
“B”
“D”
“E”
Solid Door
Shown
If necessary, to gain clearance inside the rough-in
opening, a hole can be cut through the adjacent
cabinet and the power cord routed through this hole to
a power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this
application as they are too narrow, but a recessed
outlet box equivalent to Arlington #DVFR1W us
recommended for this application.
“C”
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
“A” “B” “C” “D” “E” “F” “G” “H” “J”
15”
(38.1 cm)
34” to 35”
(86.4 cm to 88.9 cm)
24”
(61 cm)
14 7/8”
(37.8 cm)
33 3/4” to 34 3/4”
(85.7 cm to 88.3 cm)
23 5/8”
(60 cm)
25 1/2”
(64.8 cm)
37 3/8”
(94.9 cm)
16 5/8”
(42.2 cm)
7

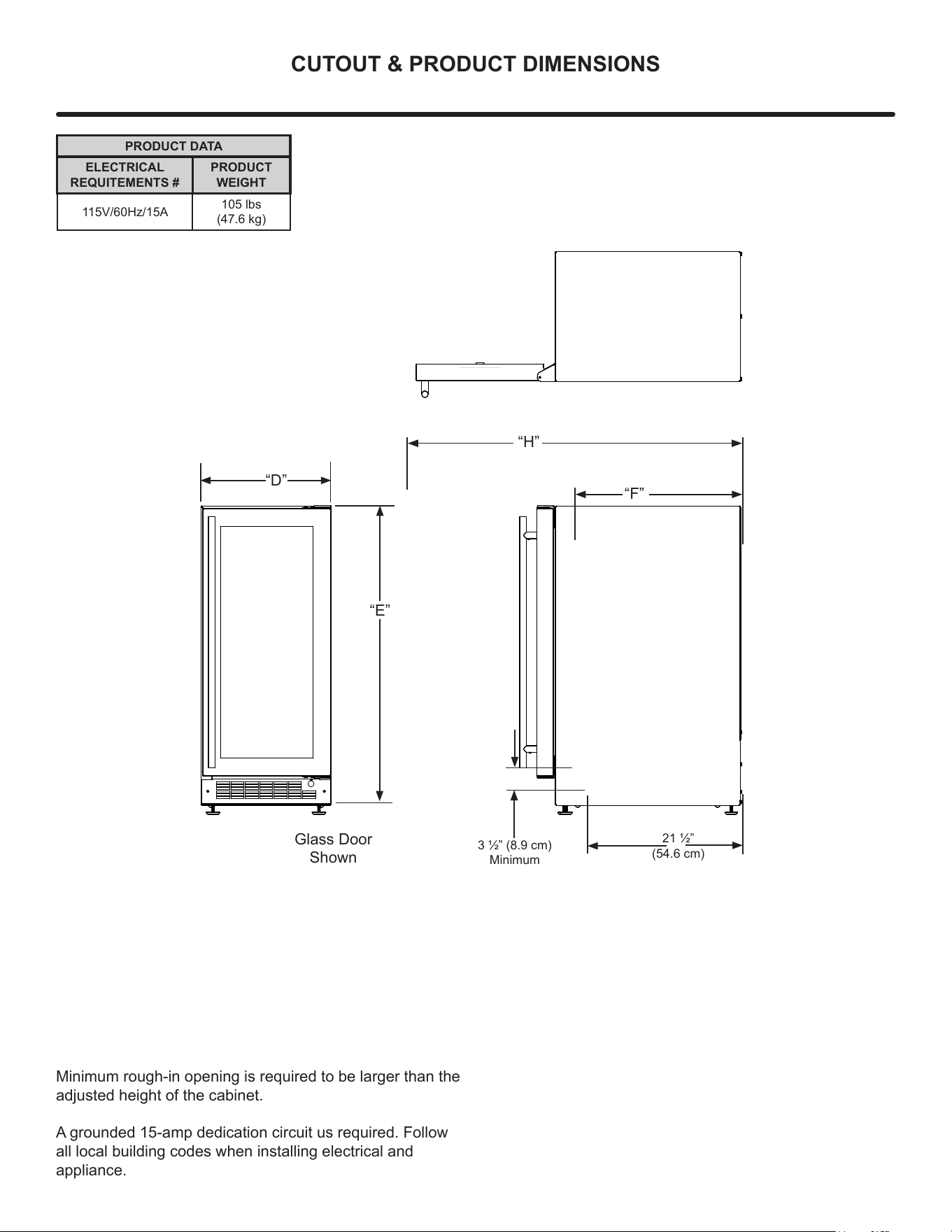

CUTOUT & PRODUCT DIMENSIONS
PRODUCT DATA
ELECTRICAL
REQUITEMENTS #
PRODUCT
WEIGHT
115V/60Hz/15A
105 lbs
(47.6 kg)
Minimum rough-in opening is required to be larger than the
adjusted height of the cabinet.
A grounded 15-amp dedication circuit us required. Follow
all local building codes when installing electrical and
appliance.
3 1/2” (8.9 cm)
Minimum
“D”
“E”
“F”
Glass Door
Shown
21 1/2”
(54.6 cm)
“H”
8

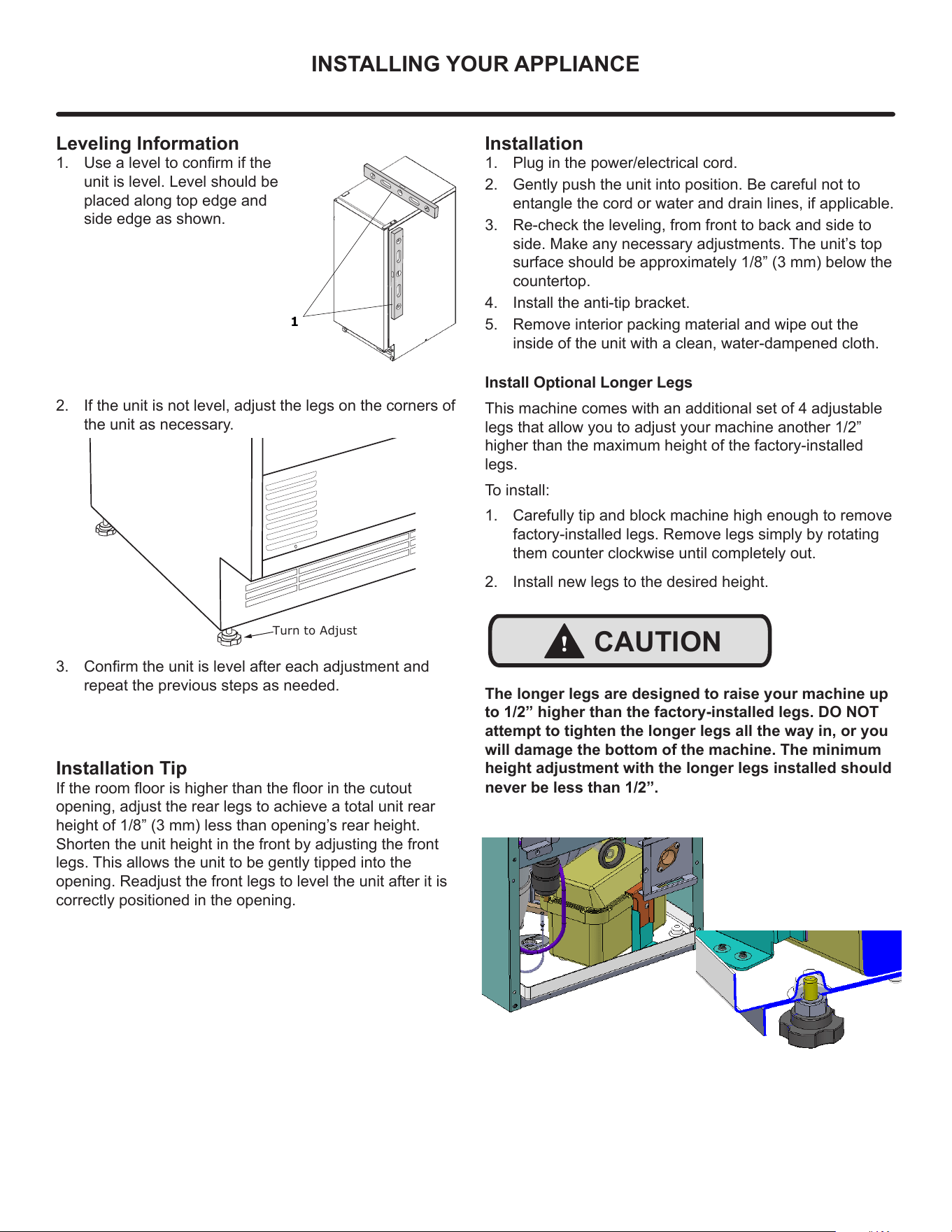

INSTALLING YOUR APPLIANCE
Leveling Information
1. Use a level to conrm if the
unit is level. Level should be
placed along top edge and
side edge as shown.
2. If the unit is not level, adjust the legs on the corners of
the unit as necessary.
3. Conrm the unit is level after each adjustment and
repeat the previous steps as needed.
1
Installation Tip
If the room oor is higher than the oor in the cutout
opening, adjust the rear legs to achieve a total unit rear
height of 1/8” (3 mm) less than opening’s rear height.
Shorten the unit height in the front by adjusting the front
legs. This allows the unit to be gently tipped into the
opening. Readjust the front legs to level the unit after it is
correctly positioned in the opening.
Installation
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not to
entangle the cord or water and drain lines, if applicable.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8” (3 mm) below the
countertop.
4. Install the anti-tip bracket.
5. Remove interior packing material and wipe out the
inside of the unit with a clean, water-dampened cloth.
Turn to Adjust
Install Optional Longer Legs
This machine comes with an additional set of 4 adjustable
legs that allow you to adjust your machine another 1/2”
higher than the maximum height of the factory-installed
legs.
To install:
1. Carefully tip and block machine high enough to remove
factory-installed legs. Remove legs simply by rotating
them counter clockwise until completely out.
2. Install new legs to the desired height.
The longer legs are designed to raise your machine up
to 1/2” higher than the factory-installed legs. DO NOT
attempt to tighten the longer legs all the way in, or you
will damage the bottom of the machine. The minimum
height adjustment with the longer legs installed should
!
CAUTION
never be less than 1/2”.
9

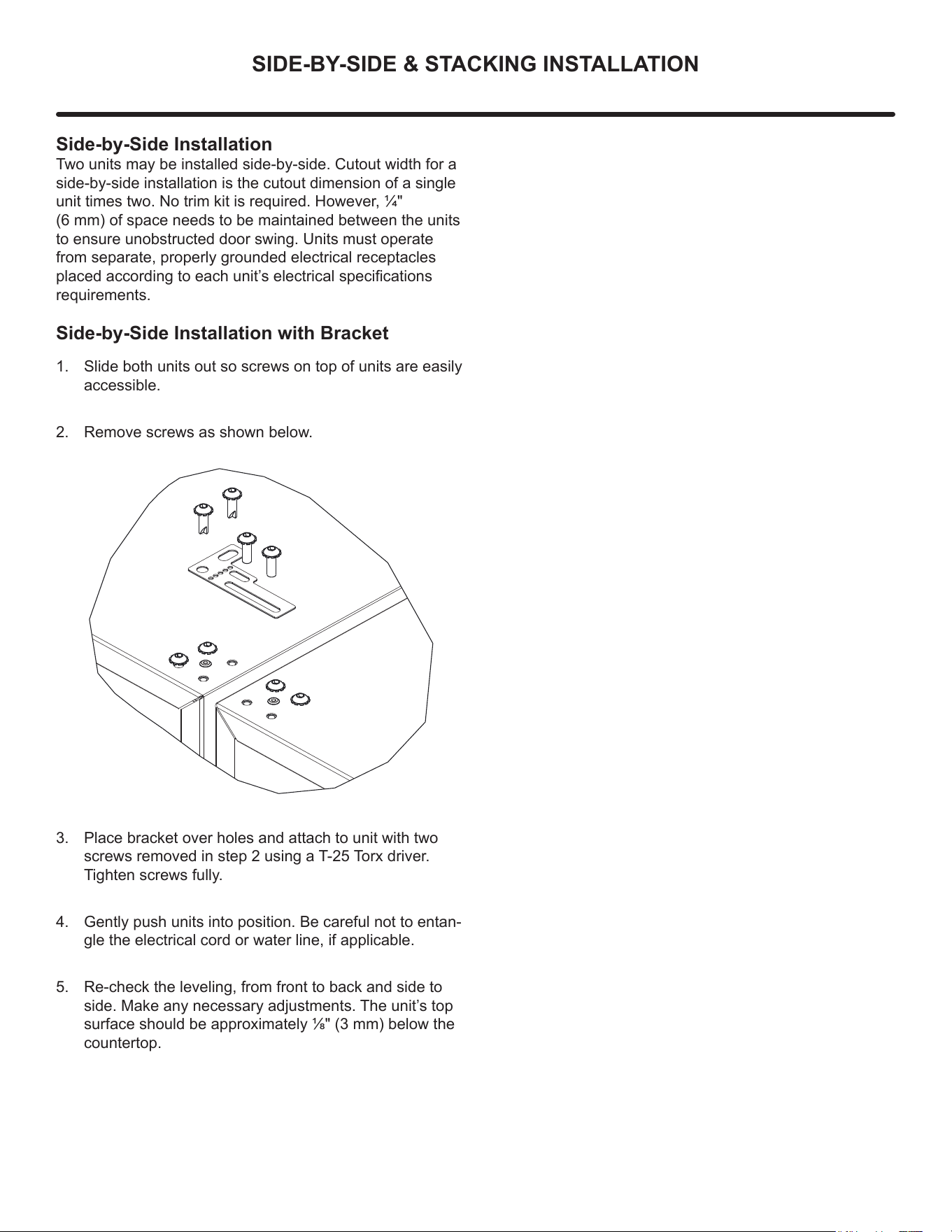

SIDE-BY-SIDE & STACKING INSTALLATION
Side-by-Side Installation
Two units may be installed side-by-side. Cutout width for a
side-by-side installation is the cutout dimension of a single
unit times two. No trim kit is required. However, 1/4"
(6 mm) of space needs to be maintained between the units
to ensure unobstructed door swing. Units must operate
from separate, properly grounded electrical receptacles
placed according to each unit’s electrical specications
requirements.
Side-by-Side Installation with Bracket
1. Slide both units out so screws on top of units are easily
accessible.
2. Remove screws as shown below.
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push units into position. Be careful not to entan-
gle the electrical cord or water line, if applicable.
5. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8" (3 mm) below the
countertop.
10

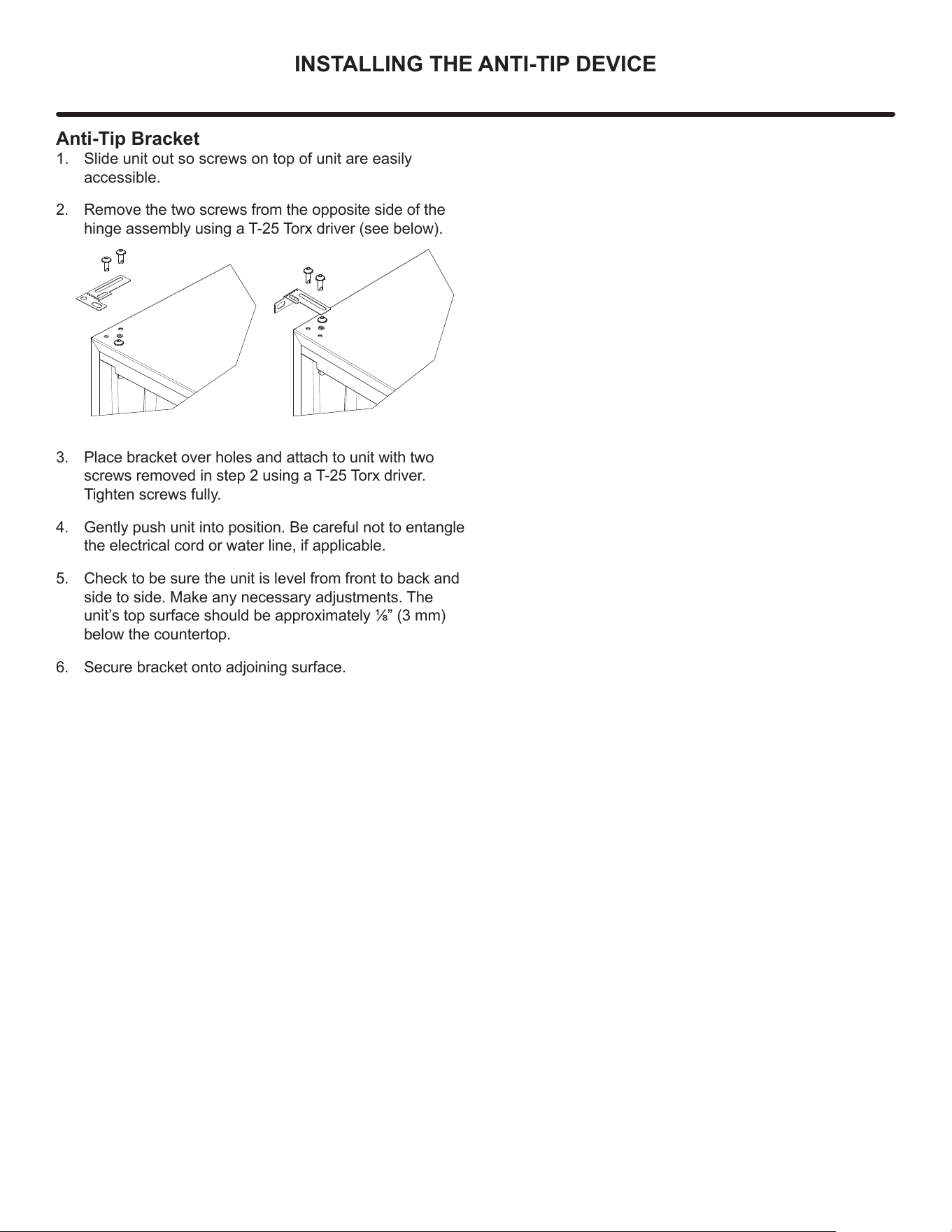

INSTALLING THE ANTI-TIP DEVICE
Anti-Tip Bracket
1. Slide unit out so screws on top of unit are easily
accessible.
2. Remove the two screws from the opposite side of the
hinge assembly using a T-25 Torx driver (see below).
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push unit into position. Be careful not to entangle
the electrical cord or water line, if applicable.
5. Check to be sure the unit is level from front to back and
side to side. Make any necessary adjustments. The
unit’s top surface should be approximately 1⁄8” (3 mm)
below the countertop.
6. Secure bracket onto adjoining surface.
11
DOOR REVERSAL
Hinge Cover
Hinge cover included with the literature bag is optional.
To install hinge cover:
• Press hinge cover squarely over hinge.
Door Alignment and Adjustment
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
Properly aligned, the door’s gasket should be rmly in
contact with the cabinet all the way around the door (no
gaps). Carefully examine the door’s gasket to ensure that
it is rmly in contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of the door.
To Align and Adjust the Door
1. Gently pry o hinge cover from top of unit.
2. Loosen (do not remove) top and bottom hinge screws
using a Torx T-25 screwdriver.
3. Align door squarely with cabinet.
4. Make sure gasket is rmly in contact with cabinet all
the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
Reversing the Door
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
Hinge Cover
NOTE
To Reverse the Door
Remove Arrow Clips
1. With a putty knife. gently pry each arrow clip from hinge
mounting holes.
2. Set aside arrow clips to be reused on the opposite side.
Remove Top Hinge & Door
1. Remove hinge cover and top of unit.
2. Hold door to keep if from falling
3. Remove top hinge from cabinet using a Torx T-25
screwdriver to remove three screws.
4.
12

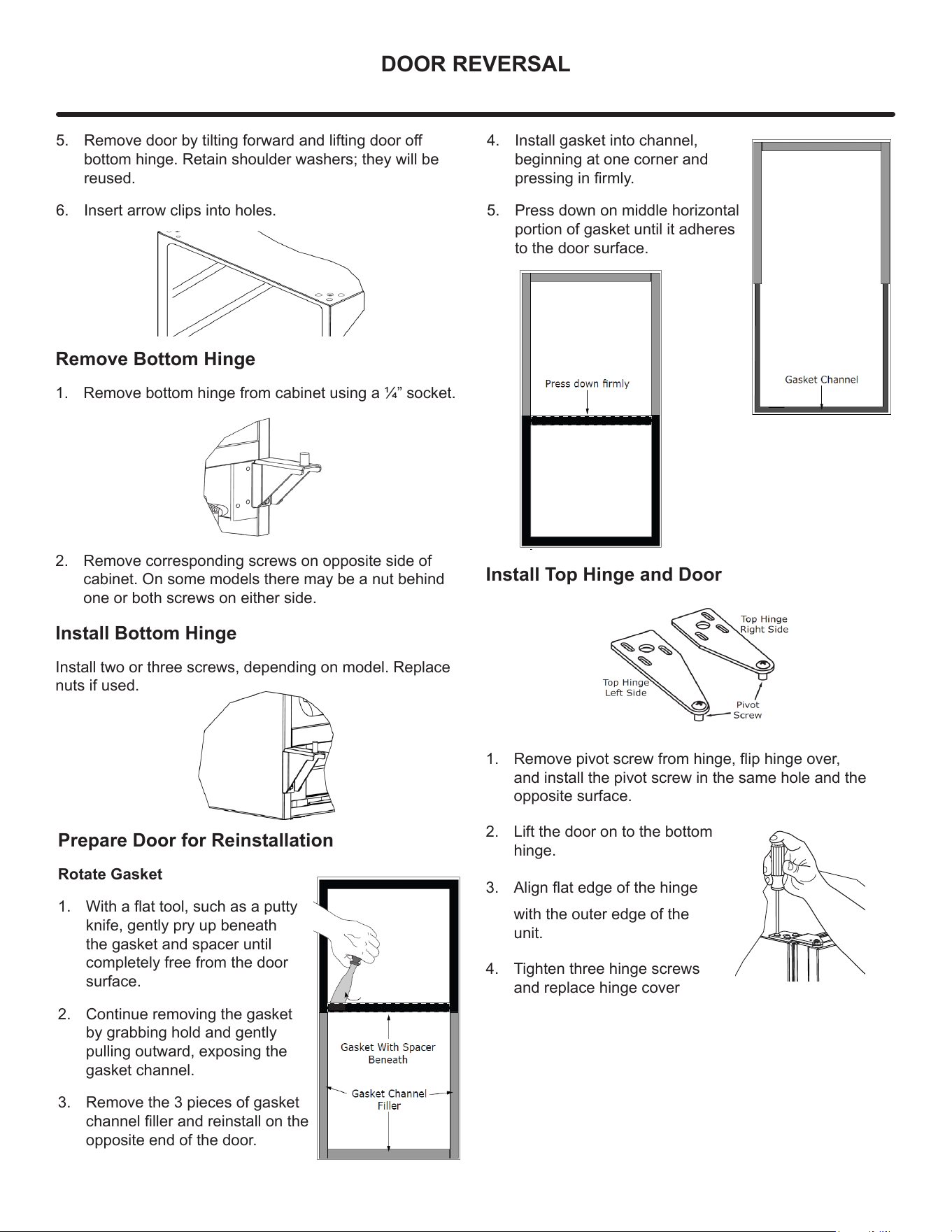

DOOR REVERSAL
Remove Bottom Hinge
1. Remove bottom hinge from cabinet using a 1/4” socket.
2. Remove corresponding screws on opposite side of
cabinet. On some models there may be a nut behind
one or both screws on either side.
Install Bottom Hinge
Install two or three screws, depending on model. Replace
nuts if used.
Install Top Hinge and Door
1. Remove pivot screw from hinge, ip hinge over,
and install the pivot screw in the same hole and the
opposite surface.
2. Lift the door on to the bottom
hinge.
3. Align at edge of the hinge
with the outer edge of the
unit.
4. Tighten three hinge screws
and replace hinge cover
5. Remove door by tilting forward and lifting door o
bottom hinge. Retain shoulder washers; they will be
reused.
6. Insert arrow clips into holes.
Prepare Door for Reinstallation
Rotate Gasket
1. With a at tool, such as a putty
knife, gently pry up beneath
the gasket and spacer until
completely free from the door
surface.
2. Continue removing the gasket
by grabbing hold and gently
pulling outward, exposing the
gasket channel.
3. Remove the 3 pieces of gasket
channel ller and reinstall on the
opposite end of the door.
4. Install gasket into channel,
beginning at one corner and
pressing in rmly.
5. Press down on middle horizontal
portion of gasket until it adheres
to the door surface.
13
INSTALLING THE WATER SUPPLY
Prepare Plumbing
Plumbing installation must observe all state and local
codes. All water and drain connections MUST BE made by
a licensed/qualied plumbing contractor. Failure to follow
recommendations and instructions may result in damage
and/or harm.
Water Supply Connection
When connecting the water supply, please note the
following:
• Before installing the unit and connecting to the cold
water supply, review the local plumbing codes.
• The water pressure should be between 20 and 120 psi
(138 and 827 kPa).
• Water has less than 400 mg/L (ppm) total dissolved
solids and hardness level below 200 mg/L (ppm) - i.e.,
below 12 grains per gallon. Check by using TDS meter
or consulting with local water company.
• TDS and/or water hardness above these limits should
be treated with a reverse osmosis system or other
ltration system.
• Softened water is not recommended as it may result in
softer ice than desired.
• Connection to the water made is made with hose-set
only.
• Hose-set must be new, not reused, and in compliance
with IEC 61770.
• The water line MUST have a shut-o valve in the
supply line.
• The water line should be looped into 2 coils. This will
allow the unit to be removed for cleaning and servicing.
Make certain that the tubing is not pinched or damaged
during installation.
!
CAUTION
!
CAUTION
Do not use any plastic water supply line. The line is under
pressure at all times. Plastic may crack or rupture with age
and cause damage to your home. Do not use tape or joint
compound when attaching a braided exible water supply
line that includes a rubber gasket. The gasket provides
an adequate seal – other materials could cause blockage
of the valve. Failure to follow recommendations and
instructions may result in damage and/or harm, ooding or
void the product warranty.Use new hose set. Do not reuse
old hose set.
!
CAUTION
Turn o water supply and disconnect electrical supply to
unit prior to installation. Use caution when handling back
panel. The edges could be sharp.
14
INSTALLING THE WATER SUPPLY
Water Hookup
1. Turn o water supply and disconnect electrical supply
to product prior to attempting installation.
2. Remove the back panel.
3. Thread water line through back panel hole (with
bushing).
4. Locate water valve inlet and connect to valve.
5. Turn on water supply and check for leaks.
6. Reinstall back panel.
3
4
15
ICE MAKER OPERATION
Ice
When the ice bucket is full, the ice making mechanism will
shut o. However, the refrigeration system will continue to
cool and maintain the ice supply.
Do not place cans or bottles in the ice compartment be-
cause they will freeze.
To turn o ice production:
Raise the bin arm into an upright and
locked position. The unit will preserve
temperature for ice storage.
If not intending to use the ice maker, turn the water supply
valve o. It is also important to raise the bin am of the ice
maker (see above). Failure to raise the bin arm may result
in damage to the water valve. Certain sounds are normal
during the unit’s operation. You may hear the compressor
or fan motor, the water valve, or ice dropping into the ice
bucket.
NOTE
NOTE
!
CAUTION
NEVER use an ice pick, knife or other sharp instrument to
separate cubes. Shake the ice bucket instead.
During periods of limited use or high ambient temperatures,
it is common for cubes to fuse together. Gently shake the
bucket to break apart cubes. If not using the ice maker
regularly, empty the ice bucket periodically to ensure fresh
cubes. It is normal for cubes to appear cloudy. The cause
is air trapped in the water because of fast freezing. It is not
caused by the health, taste or chemical make up of the
water. It is the same air that is in every glass of water you
drink. Remove the ice bucket for emptying and cleaning. To
remove the ice bucket, raise the bin arm and remove the
bucket from the ice compartment. Use the ice bucket for ice
storage only.
Ice Maker Adjustment
Interval - As Required
On ice maker equipped models, adjust the cube size
by changing water amount injected into the ice maker
assembly as follows:
1. Remove the ice maker assembly
cover (1).
2. Find the adjusting screw
on the ice maker assembly
control box (2). The adjust-
ing screw is just below the
minus (-) and plus (+) signs on
the control box.
Too large of an adjustment to the screw can cause the
water to overow the ice maker and can cause property
damage.
3. Turn the adjusting screw toward the minus (-) sign
(clockwise) for smaller cubes or toward the plus (+)
sign (counterclockwise) for larger cubes.
4. Install the ice maker assembly cover.
!
CAUTION
Adjusting Ice Harvest
1. Remove the front grille
2. Using a at tip screwdriver, turn the adjusting screw
(3) a small increment clockwise for a COLDER
setting (slower ice production) or counterclockwise for
a WARMER setting (faster ice production).
3. Reinstall the front grille (one screw).
16
CARE & CLEANING
Defrosting
Under normal conditions this unit does not require manual
defrosting. Minor frost on the rear wall or visible through the
evaporator plate vents is normal and will melt during each
o cycle.
If there is excessive build-up of 1/4” (6 mm) or more,
manually defrost the unit.
Ensure the door is closing and sealing properly.
High ambient temperature and excessive humidity can also
produce frost.
DO NOT use an ice pick or other sharp instrument to help
speed up defrosting. These instruments can puncture the
inner lining or damage the cooling unit. DO NOT use any
type of heater to defrost. Using a heater to speed up
defrosting can cause personal injury and damage to the
inner
lining.
The drain pan was not designed to capture the water
created when manually defrosting. To prevent water from
overowing the drain pan and possibly damaging water
sensitive ooring, the unit must be removed from cabinetry.
Stainless Models
Stainless door panels and handles can discolor when ex-
posed to chlorine gas, pool chemicals, saltwater or
cleaners with bleach.
Keep your stainless unit looking new by cleaning with a
good quality all-in-one stainless steel cleaner and polish
monthly. For best results use Claire® Stainless Steel
Polish and Cleaner. Comparable products are acceptable.
Frequent cleaning will remove surface contamination that
could lead to rust. Some installations may require cleaning
weekly.
Do not clean with steel wool pads.
Do not use stainless steel cleaners or polishes on any
glass surfaces.
Clean any glass surfaces with a non-chlorine glass cleaner.
Do not use cleaners not speci cally intended for stainless
steel on stainless steel surfaces {this includes glass, tile
and counter cleaners).
If any surface discoloring or rusting appears, clean it
quickly with Bon-Ami® or Barkeepers Friend Cleanser®
and a nonabrasive cloth. Always clean with the grain. Al-
ways nish with Claire® Stainless Steel Polish and Cleaner
or comparable product to prevent further problems.
Using abrasive pads such as Scotchbrite™ will cause the
graining in the stainless steel to become blurred.
Rust not cleaned up promptly can penetrate the surface of
the stainless steel and complete removal of the rust may
not be possible.
Integrated Models
To clean integrated panels, use household cleaner per the
cabinet manufacturer’s recommendation.
Interior Cleaning
Disconnect power to the unit.
Clean the interior and all removed components using a mild
nonabrasive detergent and warm water solution applied
with a soft sponge or non-abrasive cloth.
Rinse the interior using a soft sponge and clean water.
Do not use any solvent-based or abrasive cleaners. These
types of cleaners may transfer taste to the interior products
and damage or discolor the lining.
!
CAUTION
NOTE
17
CARE & CLEANING
To defrost:
1. Disconnect power to the unit.
2. Remove ice bucket and discard ice.
3. Place towel or other absorbent material on bottom of
ice bin.
4. Fill the ice bucket half full with warm, not hot water.
This will help the unit defrost faster.
5. Place the ice bucket back into the unit on top of the
towel or other absorbent material.
6. Prop the door in an open position (2 in. [50 mm]
minimum).
7. After about 1 hour remove the ice bin and discard
water.
8. Allow the frost to melt naturally.
9. After the frost melts completely clean the interior and
all removed components. (See Interior Cleaning).
DO NOT clean ice bucket using a dishwasher. The bucket
is not dishwasher safe and will be damaged.
10. When the interior is dry, reconnect power and turn unit
on.
To safeguard against contaminates in ice, discard rst three
batches of ice after defrosting.
NOTE
NOTE
Cleaning Condenser
Interval - Every Six Months
To maintain operational eciency, keep the front grille free
of dust and lint, and clean the condenser when necessary.
Depending on environmental conditions, more or less
frequent cleaning may be necessary.
DO NOT use any type of cleaner on the condenser unit.
Condenser may be cleaned using a vacuum, soft brush, or
compressed air.
1. Remove the grill.
2. Clean the condenser coil using a soft brush or vacuum
cleaner.
3. Install the grille.
!
WARNING
WARNING - Disconnect electric power to the unit.
before cleaning the condenser.
NOTE
18
STAINLESS STEEL MAINTENANCE
NOTE
Background
Stainless steel does not stain, corrode, or rust as easily as
ordinary steel, but it is not stain or corrosion proof.
Stainless steels can discolor or corrode if not maintained
properly.
Stainless steels dier from ordinary carbon steels by the
amount of chromium present. It is this chromium that
provides an invisible protective lm on the surface called
chrome-oxide. This protective chrome-oxide lm on the
surface can be damaged or contaminated, which may
result in discoloration, staining, or corrosion of the base
metal.
Care & Cleaning
Routine cleaning of the stainless steel surfaces will serve to
greatly extend the life of your product by removing
contaminants. This is especially important in coastal areas
which can expose the stainless to severe contaminants
such as halide salts, (sodium chloride).
It is strongly recommended to periodically inspect and
thoroughly clean crevices, weld points, under gaskets,
rivets, bolt heads, and any locations where small amounts
of liquid could collect, become stagnant, and concentrate
contaminates. Additionally, any mounting hardware that is
showing signs of corrosion should be replaced.
Frequency of cleaning will depend upon the installation
location, environmental, and usage conditions.
Choosing a Cleaning Product
The choice of a proper cleaning product is ultimately that
of the consumer, and there are many products from which
to choose. Depending upon the type of cleaning and the
degree of contamination, some products are better than
others.
Typically the most eective and ecient means for routine
cleaning of most stainless steel products is to give the
surfaces a brisk rubbing with a soft cloth soaked in warm
water and a gentle detergent, or mild mixture of ammonia.
Rubbing should, to the extent possible, follow the polish
lines of the steel, and always insure thorough rinsing after
cleaning.
Although some products are called "stainless steel
cleaners," some may contain abrasives which could scratch
the surface, (compromising the protective chrome-oxide
lm), and some many contain chlorine bleach which will
dull, tarnish or discolor the surface if not completely
removed.
After the stainless surfaces have been thoroughly cleaned,
a good quality car wax may be applied to help maintain the
nish.
Stainless steel products should never be installed, or stored
in close proximity to chlorine chemicals.
Whichever cleaning product you chose, it should be used
in strict accordance with the instructions of the cleaner
manufacturer.
19
EXTENDED NON-USE
Extended Non-Use
The following steps are recommended for periods of
extended non-use:
1. Remove all consumable content from the unit.
2. Disconnect the power cord from its outlet/socket
and leave it disconnected until the unit is returned to
service.
3. Turn o the water supply.
4. If ice is on the evaporator, allow ice to thaw naturally
5. Clean and dry the interior of the unit. Ensure all water-
has been removed from the unit.
6. Disconnect the water and drain line (if applicable)
making sure all water is removed from the lines.
7. The door must remain open to prevent formation of
mold and mildew. Open door a minimum of 2" (50 mm)
to provide the necessary ventilation.
Winterization
If the unit will be exposed to temperatures of 40°F (5°C) or
less, the steps above must be followed. In addition, P60
drain pumps in clear ice machines must be drained
according to the following procedure:
1. Remove the drain pump from the ice machine.
2. Drain the water in the pump’s reservoir by turning the
pump upside down and allowing the water to drain-
through the pump’s inlet and vent tube ttings.
3. After water is drained, reinstall the drain pump and
reattach all connections.
For questions regarding winterization, please call Marvel at
616-754-5601.
Damage caused by freezing temperatures is not covered
by the warranty.
!
CAUTION
20

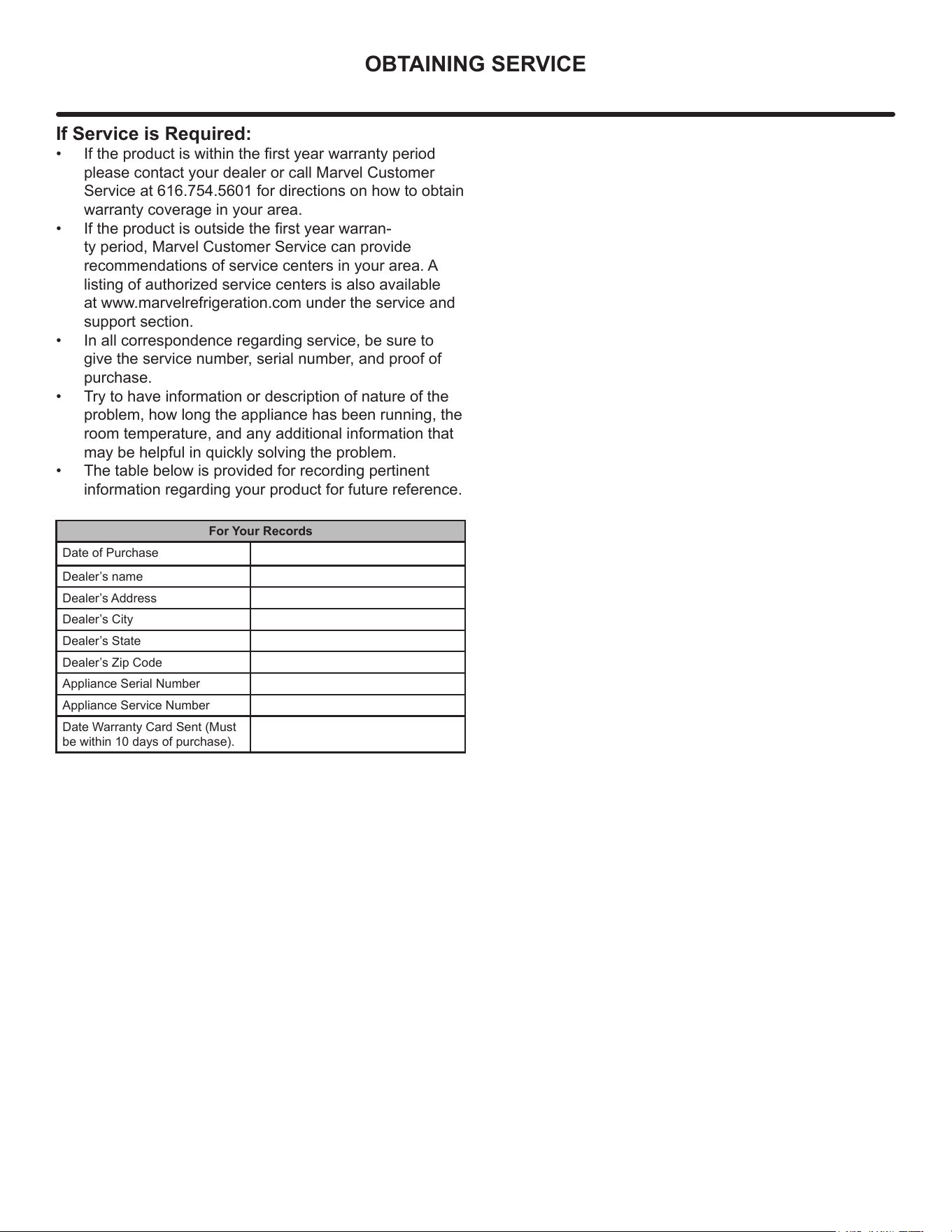

OBTAINING SERVICE
If Service is Required:
• If the product is within the rst year warranty period
please contact your dealer or call Marvel Customer
Service at 616.754.5601 for directions on how to obtain
warranty coverage in your area.
• If the product is outside the rst year warran-
ty period, Marvel Customer Service can provide
recommendations of service centers in your area. A
listing of authorized service centers is also available
at www.marvelrefrigeration.com under the service and
support section.
• In all correspondence regarding service, be sure to
give the service number, serial number, and proof of
purchase.
• Try to have information or description of nature of the
problem, how long the appliance has been running, the
room temperature, and any additional information that
may be helpful in quickly solving the problem.
• The table below is provided for recording pertinent
information regarding your product for future reference.
For Your Records
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must
be within 10 days of purchase).
21

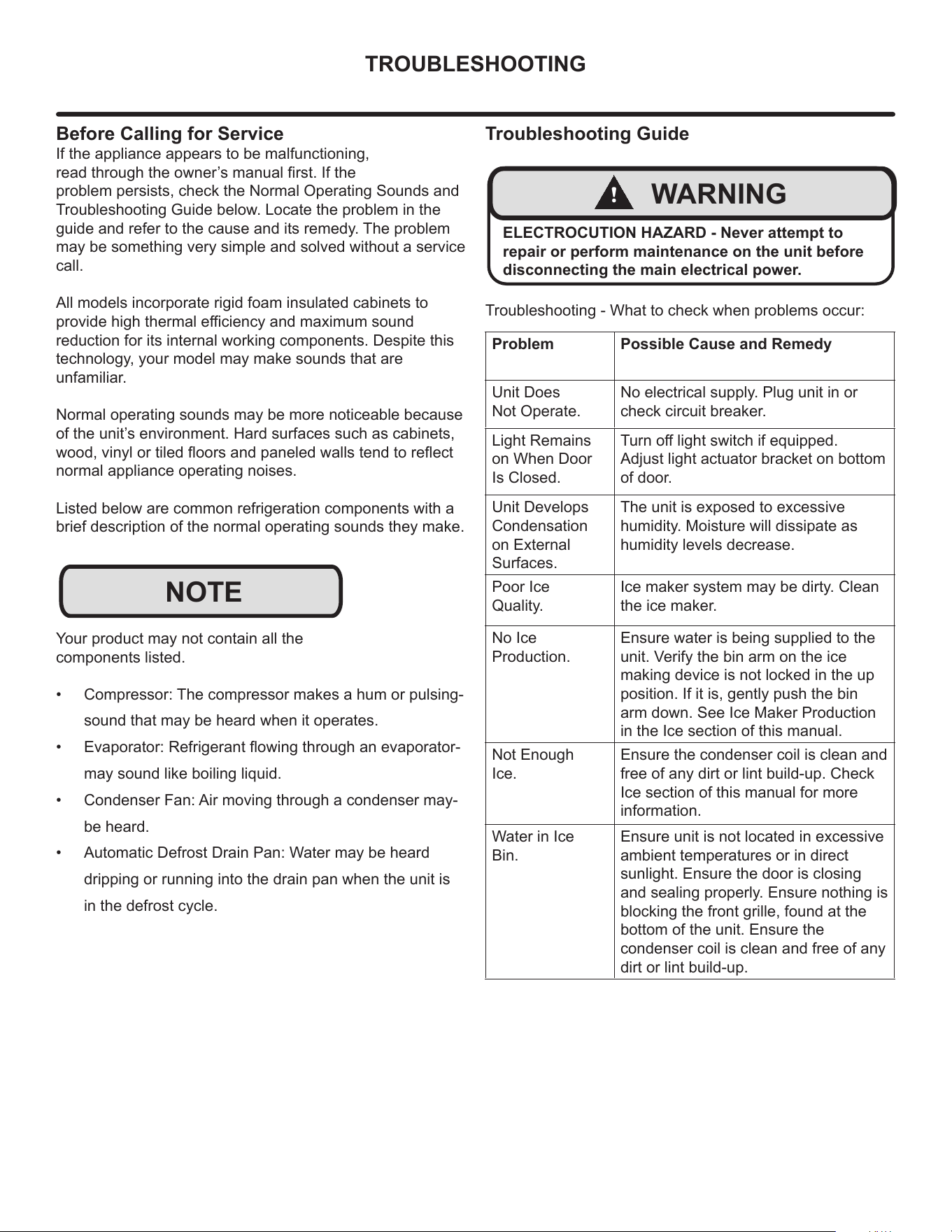

TROUBLESHOOTING
Before Calling for Service
If the appliance appears to be malfunctioning,
read through the owner’s manual rst. If the
problem persists, check the Normal Operating Sounds and
Troubleshooting Guide below. Locate the problem in the
guide and refer to the cause and its remedy. The problem
may be something very simple and solved without a service
call.
All models incorporate rigid foam insulated cabinets to
provide high thermal eciency and maximum sound
reduction for its internal working components. Despite this
technology, your model may make sounds that are
unfamiliar.
Normal operating sounds may be more noticeable because
of the unit’s environment. Hard surfaces such as cabinets,
wood, vinyl or tiled oors and paneled walls tend to reect
normal appliance operating noises.
Listed below are common refrigeration components with a
brief description of the normal operating sounds they make.
Your product may not contain all the
components listed.
NOTE
Troubleshooting Guide
Troubleshooting - What to check when problems occur:
!
WARNING
ELECTROCUTION HAZARD - Never attempt to
repair or perform maintenance on the unit before
disconnecting the main electrical power.
Problem Possible Cause and Remedy
Unit Does
Not Operate.
No electrical supply. Plug unit in or
check circuit breaker.
Light Remains
on When Door
Is Closed.
Turn o light switch if equipped.
Adjust light actuator bracket on bottom
of door.
Unit Develops
Condensation
on External
Surfaces.
The unit is exposed to excessive
humidity. Moisture will dissipate as
humidity levels decrease.
Poor Ice
Quality.
Ice maker system may be dirty. Clean
the ice maker.
No Ice
Production.
Ensure water is being supplied to the
unit. Verify the bin arm on the ice
making device is not locked in the up
position. If it is, gently push the bin
arm down. See Ice Maker Production
in the Ice section of this manual.
Not Enough
Ice.
Ensure the condenser coil is clean and
free of any dirt or lint build-up. Check
Ice section of this manual for more
information.
Water in Ice
Bin.
Ensure unit is not located in excessive
ambient temperatures or in direct
sunlight. Ensure the door is closing
and sealing properly. Ensure nothing is
blocking the front grille, found at the
bottom of the unit. Ensure the
condenser coil is clean and free of any
dirt or lint build-up.
• Compressor: The compressor makes a hum or pulsing-
sound that may be heard when it operates.
• Evaporator: Refrigerant owing through an evaporator-
may sound like boiling liquid.
• Condenser Fan: Air moving through a condenser may-
be heard.
• Automatic Defrost Drain Pan: Water may be heard
dripping or running into the drain pan when the unit is
in the defrost cycle.
22
WIRE DIAGRAM
MANUAL CONTROL ICEMAKER & COMBO
ROCKER
SWITCH
COND
FAN
WATER
VALVE
SEE COMPRESSOR
DIAGRAMS
BROWN
BLUE
BLUE
WHITE
BLACK
BLACK
WHITE
BIN
SW
NO
NC
C
WATER
SW
NC
NO
C
HOLD
SW
NO
NC
C
CAM
3 RPM
MOTOR
LIMIT
SW
MOLD HEATER
YELLOW
RED
WHITE
BROWN
BLACK
RED
YELLOW
BROWN
BLACK
BROWN
ORANGE
OR BLUE
BLACK
OR BLUE
OR
ALL OTHER MODELS
ICEMAKER
BI1215 ONLY
CONTROL
GROUND:
GREEN or GREEN W/ YELLOW
115
VOLT
PLUG
220-240 VOLT
PLUG
BLACK-HOT
(SMOOTH)
BLACK-NEUTRAL
(RIBBED)
BLACK
WHITE
RED
YELLOW
BROWN
WHITE
BLACK
1
3
6
4
4
1
5
3
2
6
4
1
5
3
2
6
NEUTRAL
HOT
RELAY
EMBRACO
COMPRESSOR
GREEN or
GREEN W/ YELLOW
GROUND:
OVERLOAD
23
PRODUCT LIABILITY
Field service technicians are authorized to make an initial
assessment in the event of reported damages. If there are
any questions about the process involved, the technician
should call Marvel for further explanation.
While inspecting for defects or installation issues, photos
should be taken to document any damages or issues
found.
During the assessment, if the service technician is able to
nd the source of the damage and it can be resolved by
replacement of a part, the servicer is authorized to replace
the part in question. The part that caused the damage
must be returned to Marvel in its entirety. The part must
be clearly labeled with the serial number of the unit it was
removed from, the date, and the servicer who removed the
part.
If the service technician determines the damage is the
result of installation issues (water connection/drain, etc.),
the consumer would be notied and the issues shall be
resolved at the direction of the consumer.
If damage is evident and the service technician is
unable to nd the source, Marvel must be contacted at
616.754.5601 for further direction.
1260 E. Van Deinse St. • Greenville, MI 48838
T: 616.754.5601
Website: www.marvelrefrigeration.com
The original refrigeration experts since 1892.
24

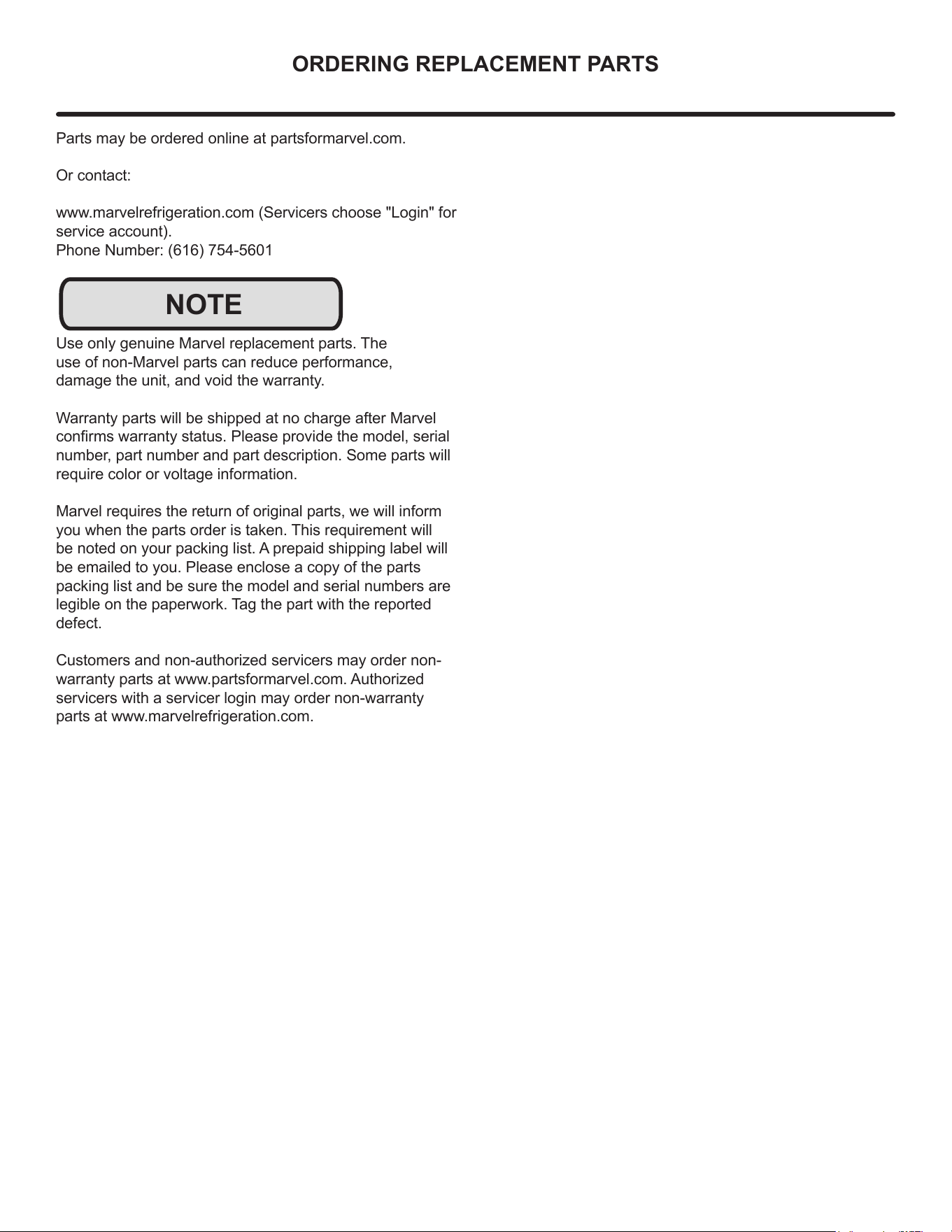

ORDERING REPLACEMENT PARTS
Parts may be ordered online at partsformarvel.com.
Or contact:
www.marvelrefrigeration.com (Servicers choose "Login" for
service account).
Phone Number: (616) 754-5601
NOTE
Use only genuine Marvel replacement parts. The
use of non-Marvel parts can reduce performance,
damage the unit, and void the warranty.
Warranty parts will be shipped at no charge after Marvel
conrms warranty status. Please provide the model, serial
number, part number and part description. Some parts will
require color or voltage information.
Marvel requires the return of original parts, we will inform
you when the parts order is taken. This requirement will
be noted on your packing list. A prepaid shipping label will
be emailed to you. Please enclose a copy of the parts
packing list and be sure the model and serial numbers are
legible on the paperwork. Tag the part with the reported
defect.
Customers and non-authorized servicers may order non-
warranty parts at www.partsformarvel.com. Authorized
servicers with a servicer login may order non-warranty
parts at www.marvelrefrigeration.com.
25
R600A SPECIFICATIONS
R600A Specications & Handling
!
WARNING
Flammability warnings for a pure-iso-butane
refrigerant.
Gloves and Eye Protection must be used.
R-600a is considered non-toxic, but is ammable when
mixed with air.
Keep a dry powder type re extinguisher in the work area.
R-600a is heavier than air, do not allow any leakage/migra-
tion to low areas such as basements and stairs.
Never use a torch on a fully charged refrigeration system.
Never substitute Marvel OEM replacement parts or
methods of construction.
R-600a must be stored and transported in approved
containers.
26
R600A SPECIFICATIONS
!
WARNING
Only skilled and well trained service technicians
permitted to service R-600a equipped products.
All tools and equipment must be approved for use with
R-600a refrigerant.
Local, state and federal laws, standards must be
observed along with proper certication and licensing.
Ventilation is required during servicing.
No conversions to R-600a from any other refrigerants.
OEM R-600a equipped unit only.
Service area must be free of ignition sources.
No smoking is allowed in the service area.
All replacement electrical components must be OEM
and installed properly (sealed and covered).
If the evaporator is cold prior to service, it must be
thawed prior to service.
When using a vacuum pump, start pump before
opening refrigeration system.
Vacuum pump and recovery equipment should be at
least 10 feet from the work area.
It is recommended that a simple LPG gas detector is
on site during service.
Ensure that all R-600a is removed from the system
prior to brazing any part of the sealed system.
Only a clean, dry leak free system should be charged
with R-600a.
R-600A Specications/Labeling
R-600a equipped products are labeled (both the unit and
the compressor).
R-600a is colorless and odorless.
R-600a is considered non-toxic, but is ammable when
mixed with air.
Do not remove or alter any R-600a labeling on the product.
Use only a refrigerant grade R-600a from a properly
labeled container.
Recovering/Reclaiming R-600A
(R-600a has been exempted from recovery/reclaiming
requirements by the US EPA)
Recovery/Reclaiming equipment must be approved for use
with R-600a.
Ensure the evaporator is at room temperature prior to
recovery/reclaiming R-600a.
Use a common piercing pliers or piercing valve to remove
R-600a from the compressor process tube. (Note: Pierc-
ing devices must not be left on the system and must be
replaced with a Schrader type valve).
27

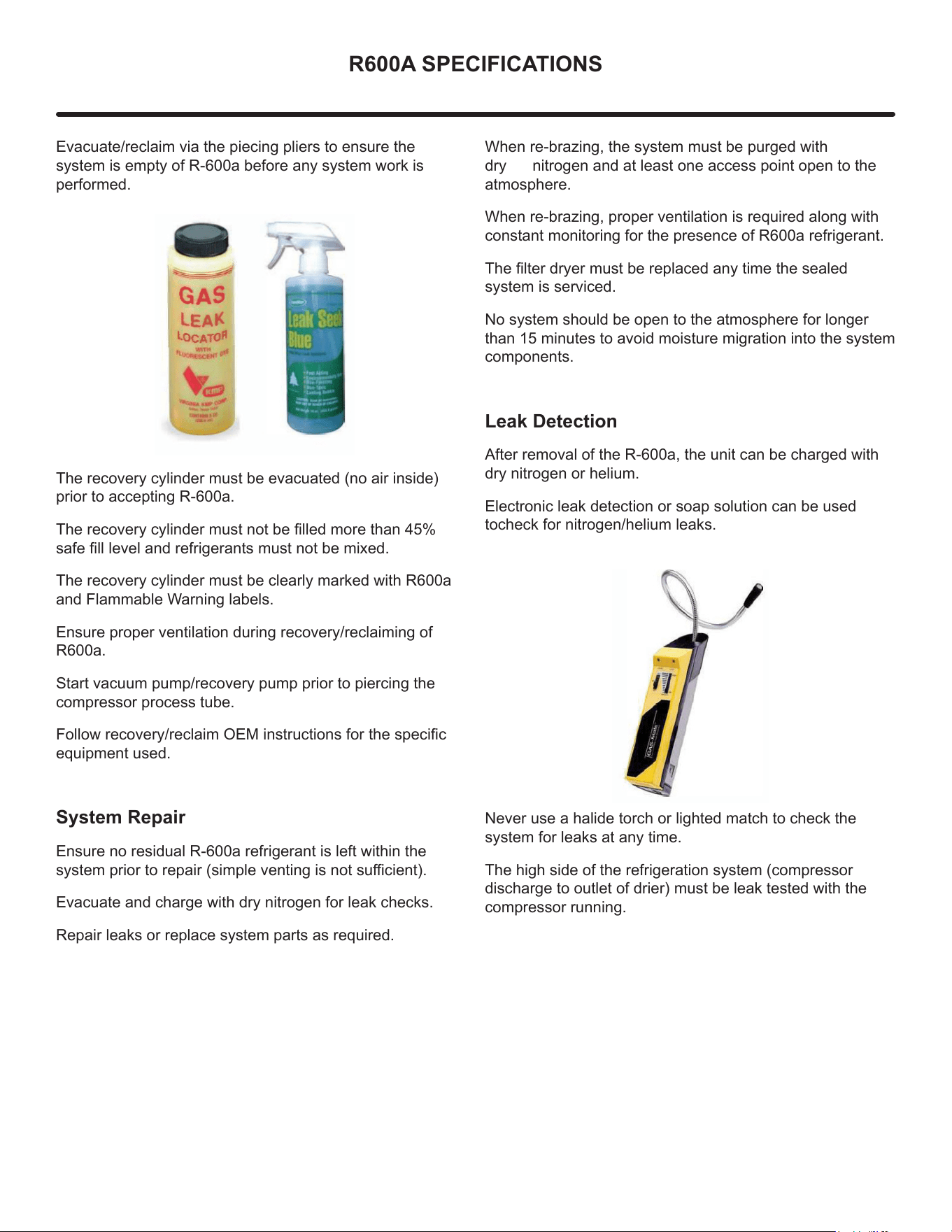

R600A SPECIFICATIONS
Evacuate/reclaim via the piecing pliers to ensure the
system is empty of R-600a before any system work is
performed.
The recovery cylinder must be evacuated (no air inside)
prior to accepting R-600a.
The recovery cylinder must not be lled more than 45%
safe ll level and refrigerants must not be mixed.
The recovery cylinder must be clearly marked with R600a
and Flammable Warning labels.
Ensure proper ventilation during recovery/reclaiming of
R600a.
Start vacuum pump/recovery pump prior to piercing the
compressor process tube.
Follow recovery/reclaim OEM instructions for the specic
equipment used.
System Repair
Ensure no residual R-600a refrigerant is left within the
system prior to repair (simple venting is not sucient).
Evacuate and charge with dry nitrogen for leak checks.
Repair leaks or replace system parts as required.
When re-brazing, the system must be purged with
dry nitrogen and at least one access point open to the
atmosphere.
When re-brazing, proper ventilation is required along with
constant monitoring for the presence of R600a refrigerant.
The lter dryer must be replaced any time the sealed
system is serviced.
No system should be open to the atmosphere for longer
than 15 minutes to avoid moisture migration into the system
components.
Leak Detection
After removal of the R-600a, the unit can be charged with
dry nitrogen or helium.
Electronic leak detection or soap solution can be used
tocheck for nitrogen/helium leaks.
Never use a halide torch or lighted match to check the
system for leaks at any time.
The high side of the refrigeration system (compressor
discharge to outlet of drier) must be leak tested with the
compressor running.
28
R600A SPECIFICATIONS
The low side of the refrigeration system (evaporator,
compressor and suction line) must be leak tested with the
compressor o (equalized pressure).
Recharging
No air is ever to be allowed inside the refrigeration system
(R-600a refrigerant or dry nitrogen only).
Never use a torch on a fully charged refrigeration system.
Install a Schrader Type access port on the compressor
process stub.
Evacuate the system to 100 microns prior to charging.
Weigh in the R-600a charge using a refrigerant scale (run
compressor an extra two minutes to clear the charging
hoses).
Seal the Schrader Type access port, a proper cap and seal
must be used to close the system.
S
ummary
Safely handling R-600a requires proper procedures and
training.
R-600a approved service tools must be used.
R-600a labeling must not be removed or altered.
Proper ventilation during service is required.
Never apply a torch to a charged R-600a refrigeration
system.
Use OEM replacement service parts and do not alter the
construction of the unit.
29

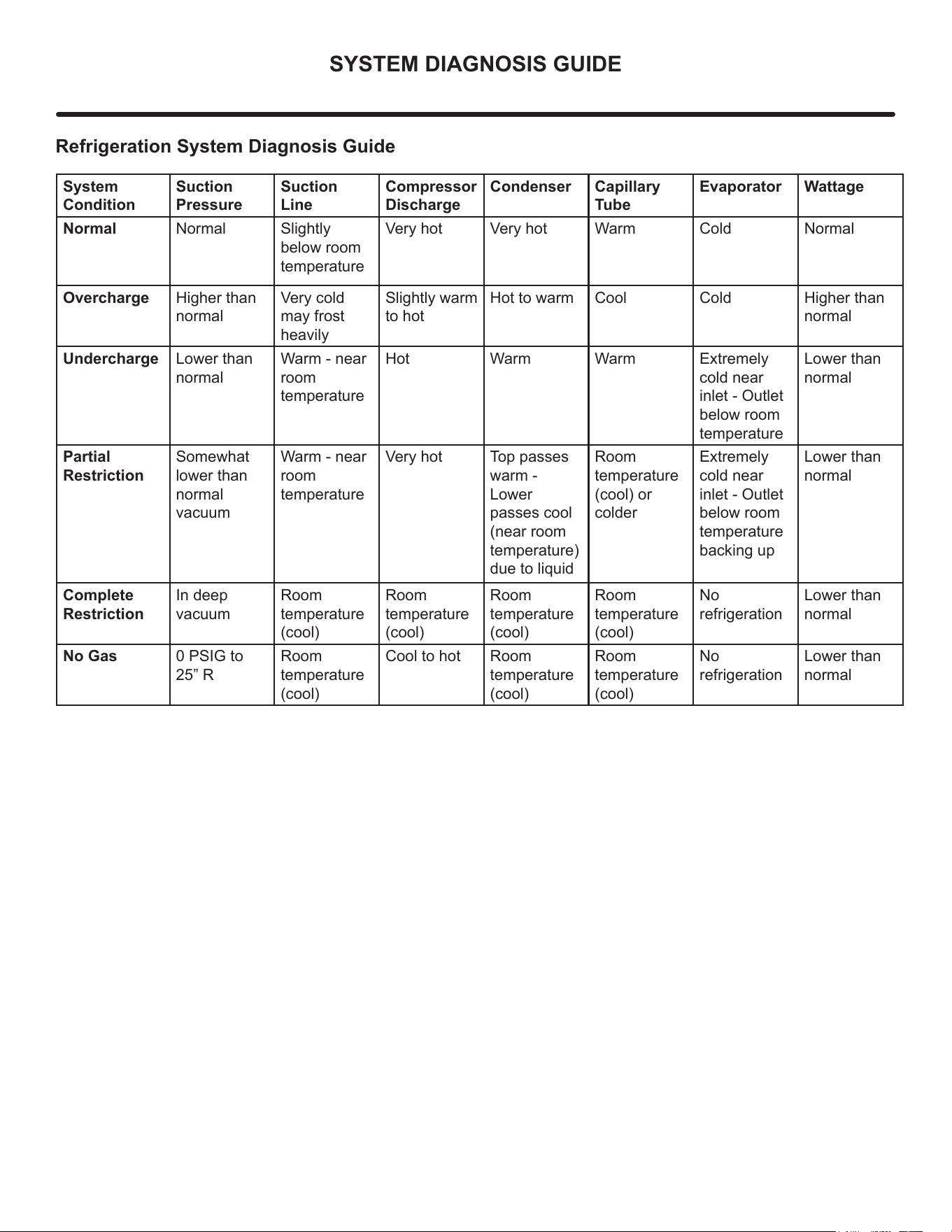

SYSTEM DIAGNOSIS GUIDE
Refrigeration System Diagnosis Guide
System
Condition
Suction
Pressure
Suction
Line
Compressor
Discharge
Condenser Capillary
Tube
Evaporator Wattage
Normal Normal Slightly
below room
temperature
Very hot Very hot Warm Cold Normal
Overcharge Higher than
normal
Very cold
may frost
heavily
Slightly warm
to hot
Hot to warm Cool Cold Higher than
normal
Undercharge Lower than
normal
Warm - near
room
temperature
Hot Warm Warm Extremely
cold near
inlet - Outlet
below room
temperature
Lower than
normal
Partial
Restriction
Somewhat
lower than
normal
vacuum
Warm - near
room
temperature
Very hot Top passes
warm -
Lower
passes cool
(near room
temperature)
due to liquid
Room
temperature
(cool) or
colder
Extremely
cold near
inlet - Outlet
below room
temperature
backing up
Lower than
normal
Complete
Restriction
In deep
vacuum
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
No
refrigeration
Lower than
normal
No Gas 0 PSIG to
25” R
Room
temperature
(cool)
Cool to hot Room
temperature
(cool)
Room
temperature
(cool)
No
refrigeration
Lower than
normal
30

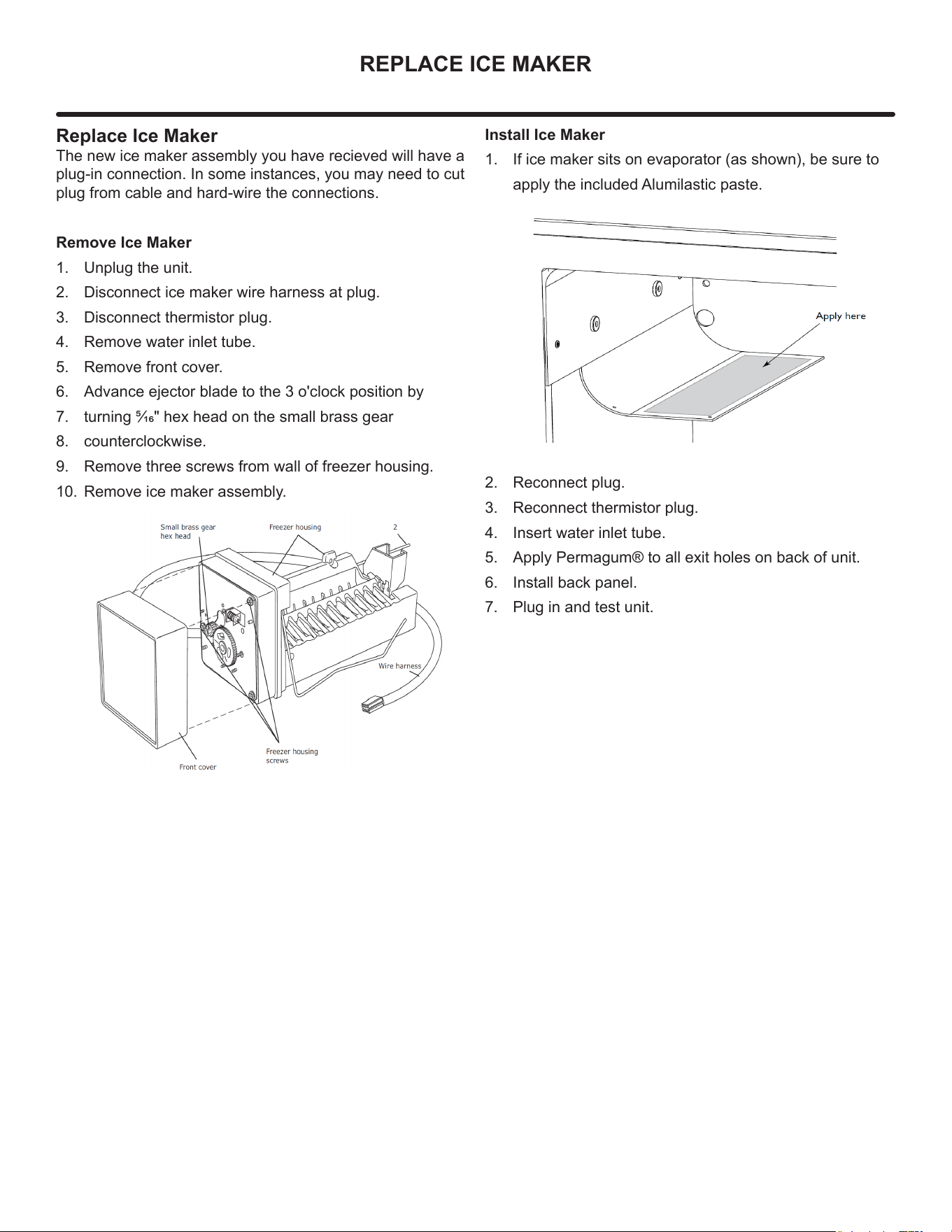

REPLACE ICE MAKER
Replace Ice Maker
The new ice maker assembly you have recieved will have a
plug-in connection. In some instances, you may need to cut
plug from cable and hard-wire the connections.
Remove Ice Maker
1. Unplug the unit.
2. Disconnect ice maker wire harness at plug.
3. Disconnect thermistor plug.
4. Remove water inlet tube.
5. Remove front cover.
6. Advance ejector blade to the 3 o'clock position by
7. turning 5/16" hex head on the small brass gear
8. counterclockwise.
9. Remove three screws from wall of freezer housing.
10. Remove ice maker assembly.
Install Ice Maker
1. If ice maker sits on evaporator (as shown), be sure to
apply the included Alumilastic paste.
2. Reconnect plug.
3. Reconnect thermistor plug.
4. Insert water inlet tube.
5. Apply Permagum® to all exit holes on back of unit.
6. Install back panel.
7. Plug in and test unit.
31
WARRANTY
ONE YEAR LIMITED PARTS & LABOR WARRANTY
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that proves to
be defecve in materials or workmanship. For products installed and used for normal residenal use, material cosmec defects are included in this
warranty, with coverage limited to 60 days from the date of original purchase. All service provided by Marvel under the above warranty must be
performed by a Marvel factory authorized servicer, unless otherwise specied by Marvel. Service provided during normal business hours.
TWO YEAR LIMITED PARTS & LABOR WARRANTY (MARVEL PROFESSIONAL PRODUCTS)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that proves to
be defecve in materials or workmanship. For products installed and used for normal residenal use, material cosmec defects are included in this
warranty, with coverage limited to 60 days from the date of original purchase. All service provided by Marvel under the above warranty must be
performed by a Marvel factory authorized servicer, unless otherwise specied by Marvel. Service provided during normal business hours.
AVAILABLE THIRD YEAR LIMITED WARRANTY (MARVEL PROFESSIONAL PRODUCTS)
For designated Marvel Professional product, Marvel oers a one year extension of the two year warranty coverage from the date of purchase, free
of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at
marvelrefrigeraon.com and provide proof of purchase.
LIMITED FIVE YEAR SEALED SYSTEM WARRANTY
For ve years from the date of original purchase, Marvel will repair or replace the following parts, labor not included, that prove to be defecve in
materials or workmanship: compressor, condenser, evaporator, drier, and all connecng tubing. All service provided by Marvel under the above
warranty must be performed by a Marvel factory authorized servicer, unless otherwise specied by Marvel. Service provided during normal
business hours.
WARRANTY TERMS
These warranes apply only to products installed in any one of the y states of the United States, the District of Columbia, or the ten provinces
of Canada. The warranes do not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance,
instal-laon, service, repair, acts of God, re, ood or other natural disasters. The product must be installed, operated, and maintained in
accordance with the Marvel User Guide.
The remedies described above for each warranty are the only ones that Marvel will provide, either under these warranes or under any warranty
arising by operaon of law. Marvel will not be responsible for any consequenal or incidental damages arising from the breach of these warranes
or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitaon of incidental or consequenal
damages, so the above limitaon or exclusion may not apply to you. These warranes give you specic legal rights, and you may also have other
rights which vary from state to state.
Any warranty that may be implied in connecon with your purchase or use of the product, including any warranty of merchantability or any
warranty t for a parcular purpose is limited to the duraon of these warranes, and only extends to ve years in duraon for the parts described
in the secon related to the ve year limited warranty above. Some states do not allow limitaons on how long an implied warranty lasts, so the
above limitaons may not apply to you.
• The warranes only apply to the original purchaser and are non-transferable.
• These warranes cover products installed and used for normal residenal use only.
• The warranes apply to units operated outside only if designed for outdoor use by model and serial number.
• Replacement water lters, light bulbs, and other consumable parts are not covered by these warranes.
• The start of Marvel’s obligaon is limited to four years aer the shipment date from Marvel.
• In-home instrucon on how to use your product is not covered by these warranes.
• Food, beverage, and medicine loss are not covered by these warranes.
• If the product is located in an area where Marvel factory authorized service is not available, you may be responsible for a trip charge or
you may be required to bring the product to a Marvel factory authorized service locaon at your own cost and expense.
• Units purchased aer use as oor displays, and/or cered recondioned units, are covered by the limited one year warranty only and no
coverage is provided for cosmec defects.
• Signal issues related to Wi-Fi connecvity are not covered by these warranes.
For parts and service assistance, or to nd Marvel factory authorized service near you, contact Marvel Refrigeraon:
marvelrefrigeraon.com • techsupport@marvelrefrigeraon.com • 616.754.5601
1260 E. Van Deinse St. Greenville, MI 48838
Marvel Refrigeration (Marvel) Limited Warranty
32
Marvel Refrigeration
All specications and product designs subject to change without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions, replacements or compensation for
previously purchased products.
www.marvelrefrigeration.com
1260 E. Van Deinse St.
Greenville MI 48838
616.754.5601
33
