Radiant Induction Cooktop
30” and 36”
User Manual
&
Installation Instructions

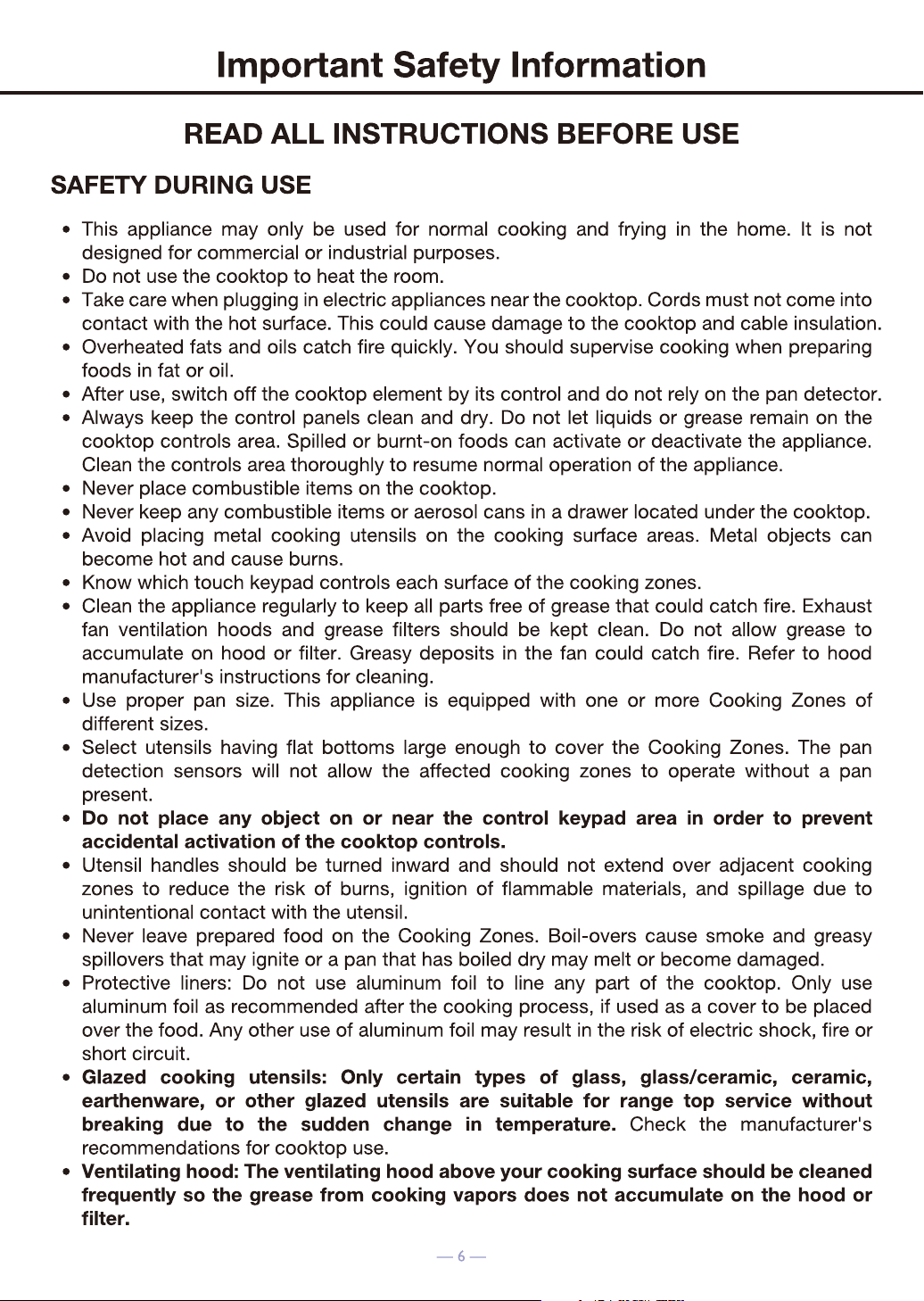

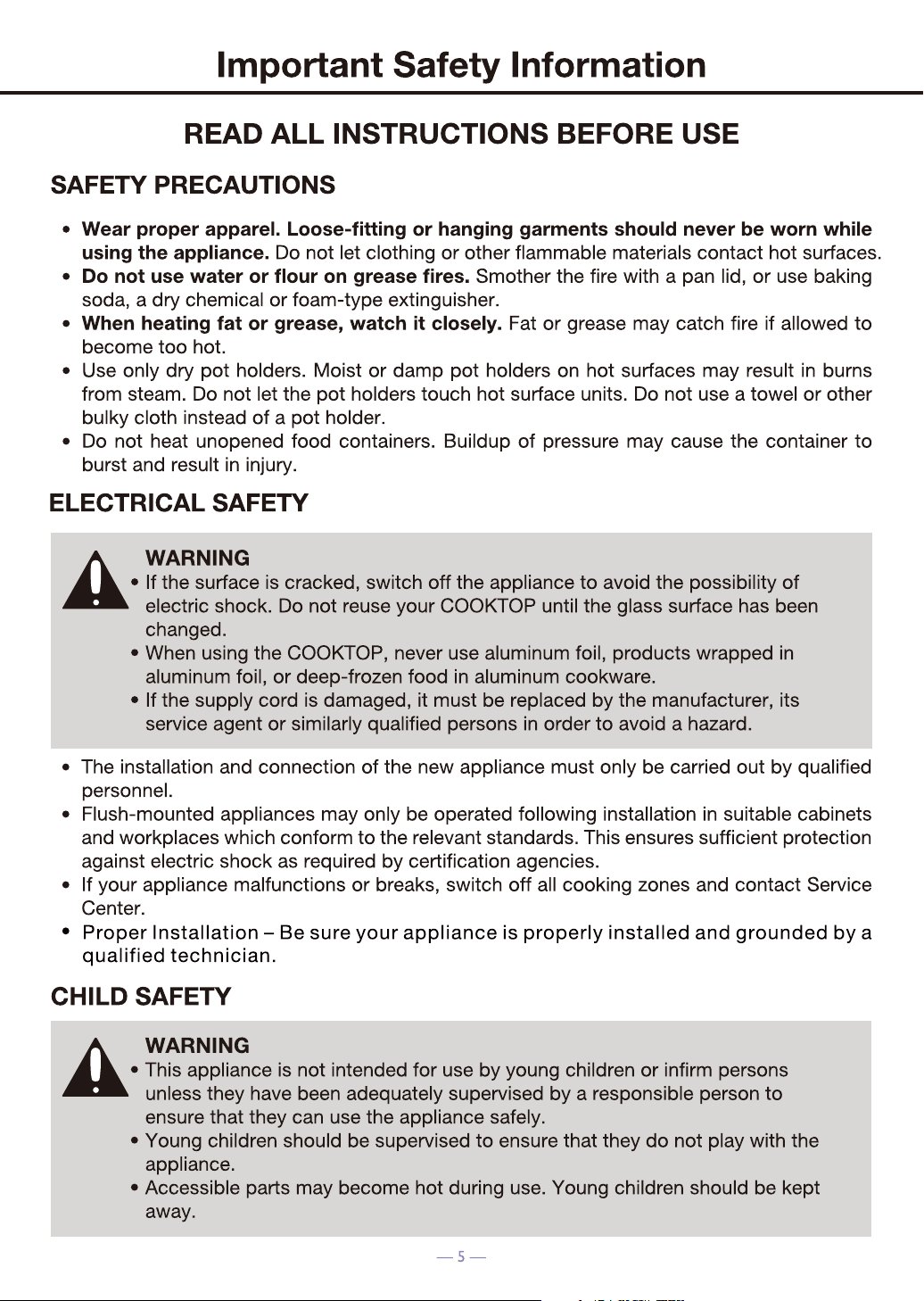

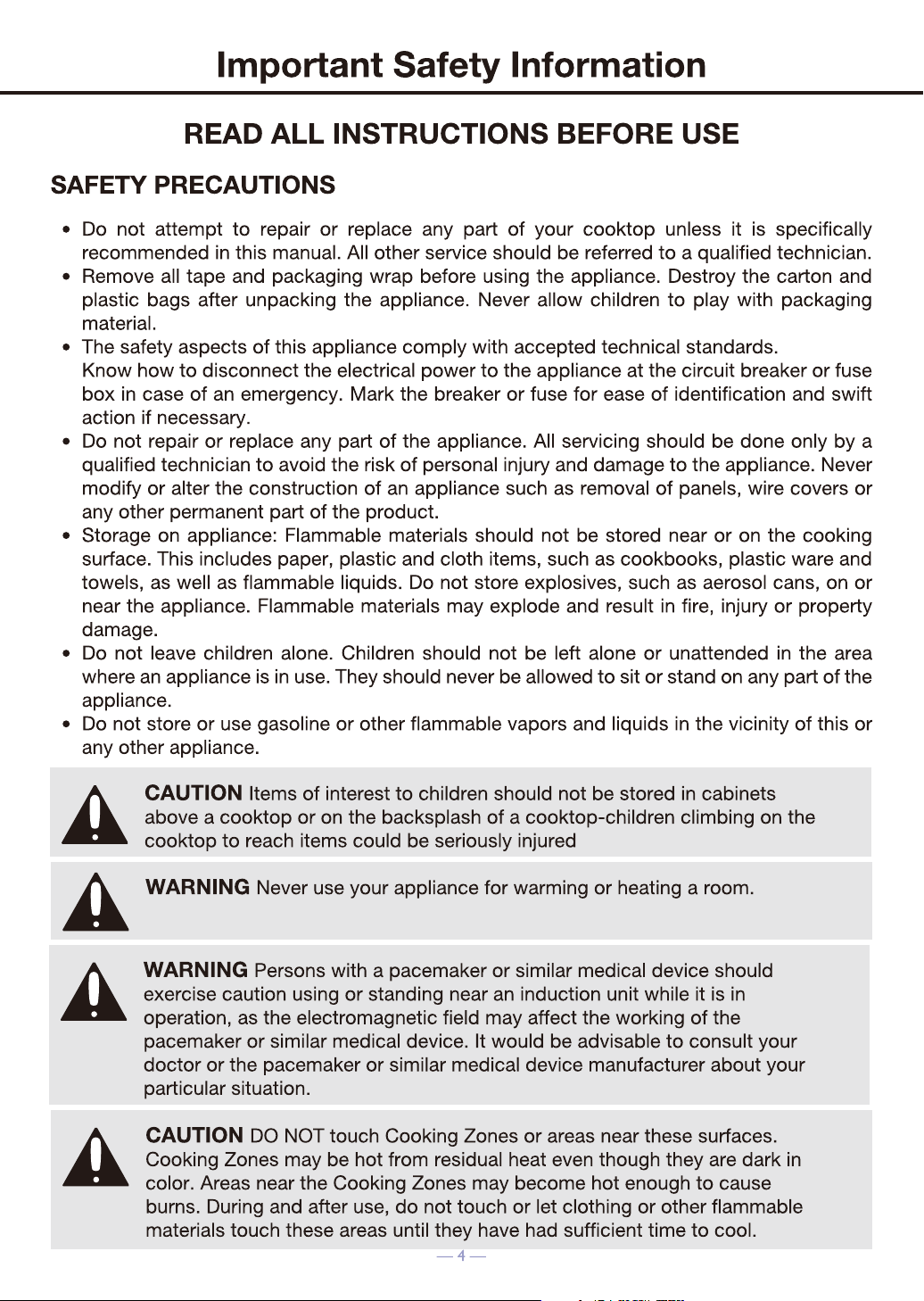

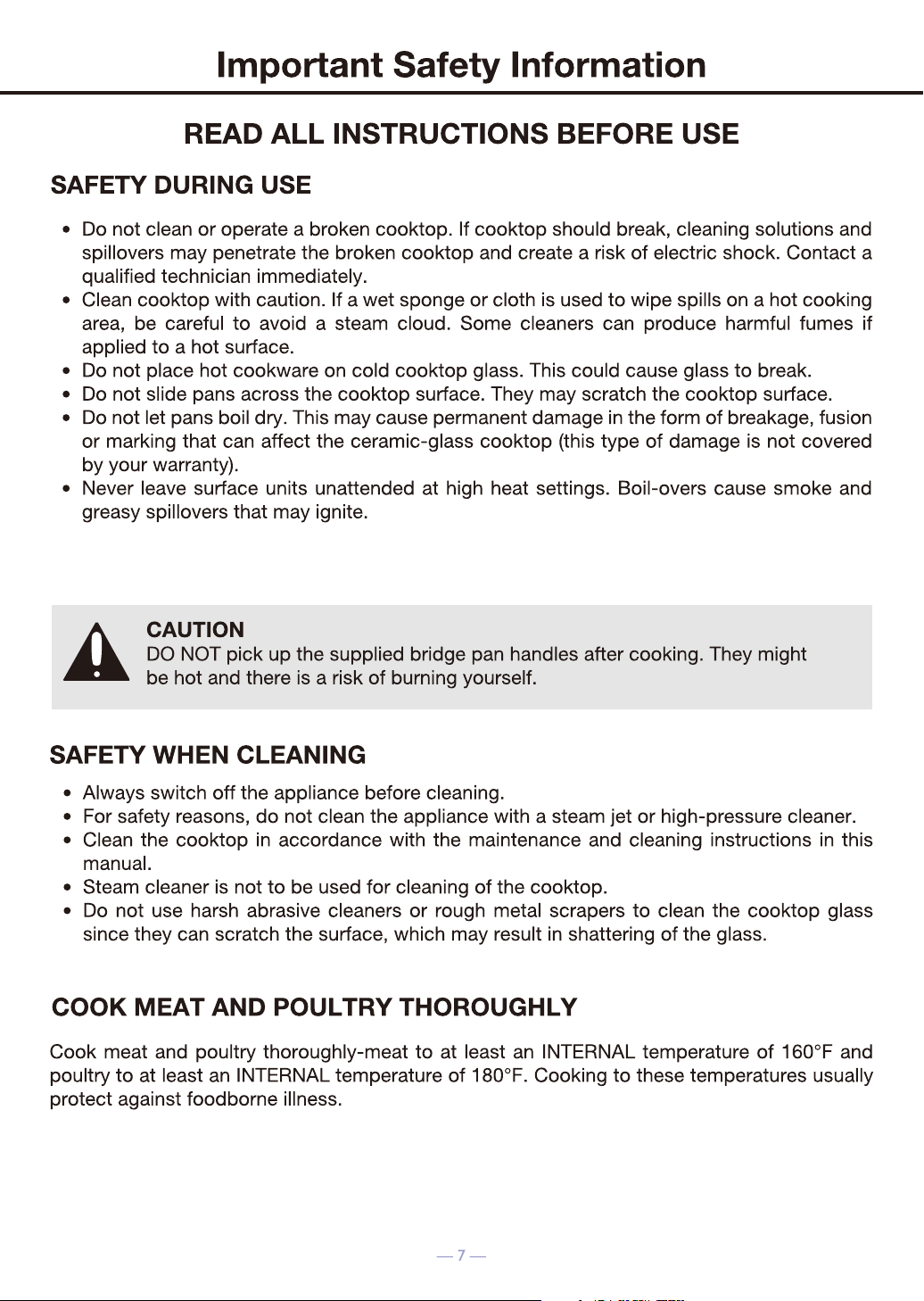

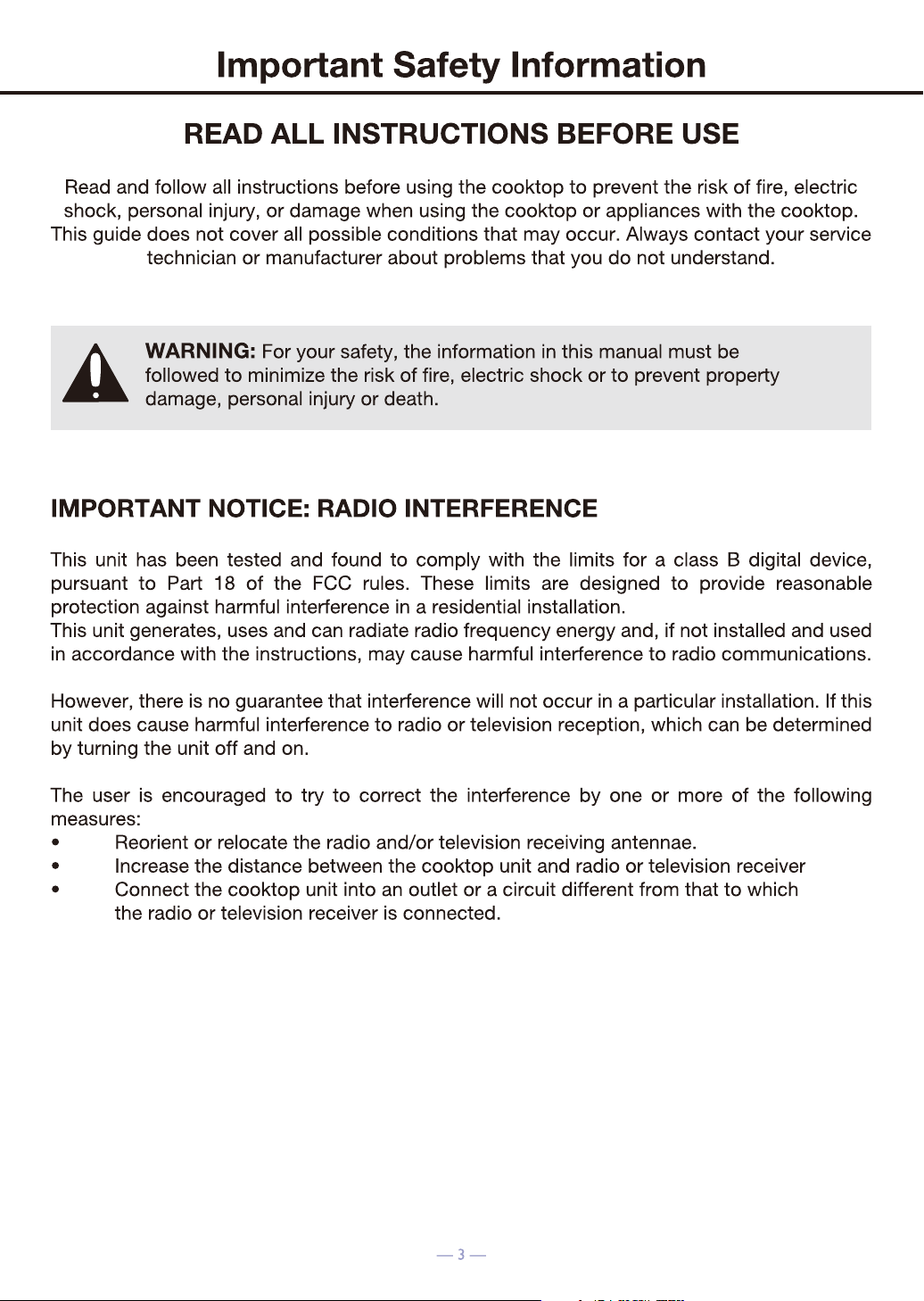

IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important information
regarding installation, safety and maintenance.
Keep these instructions for future reference.
MAAN2403-EN-2.1
2021-09-09
Table of Contents
IMPORTANT SAFETY INFORMATION ......................................................................... 3

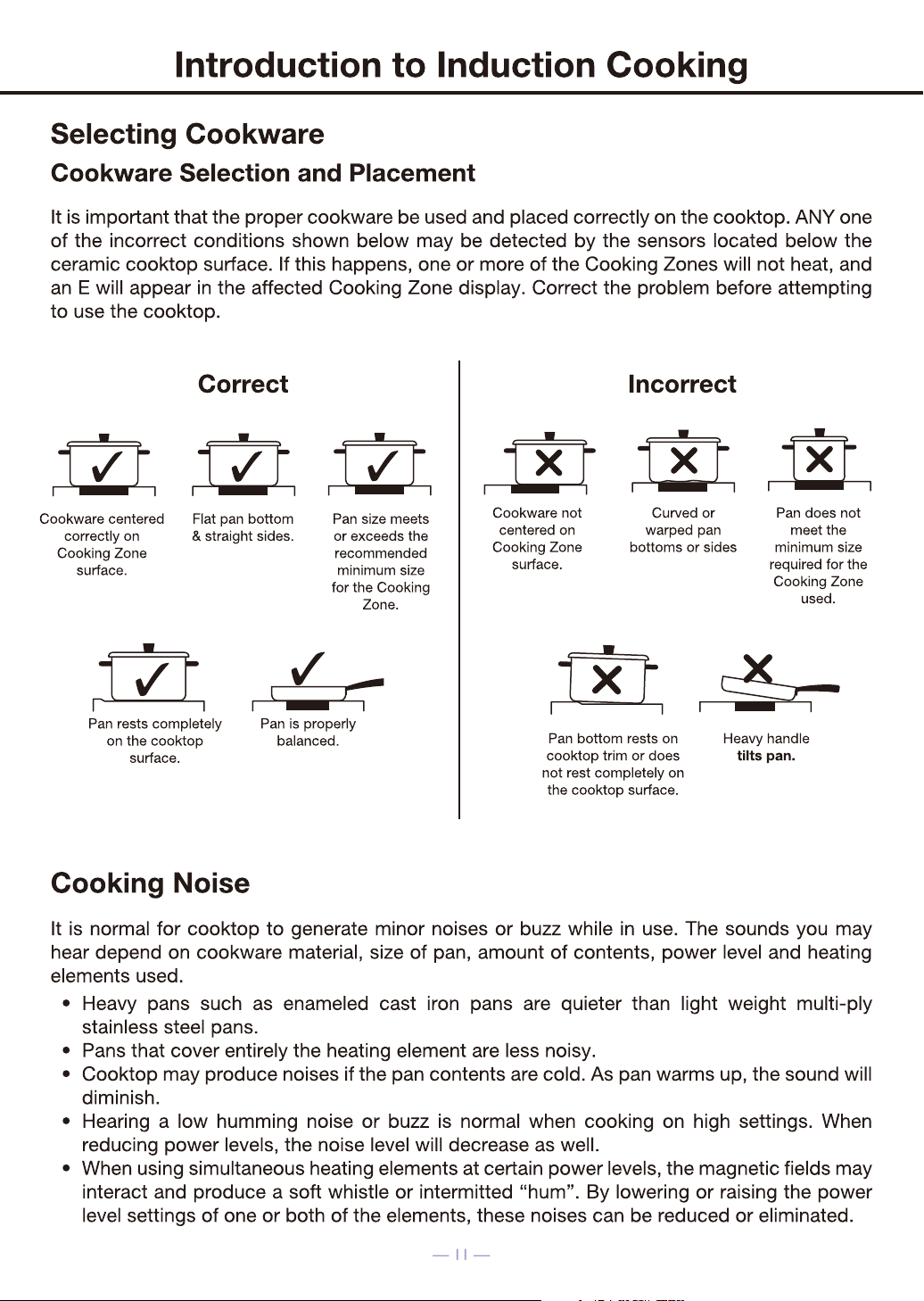

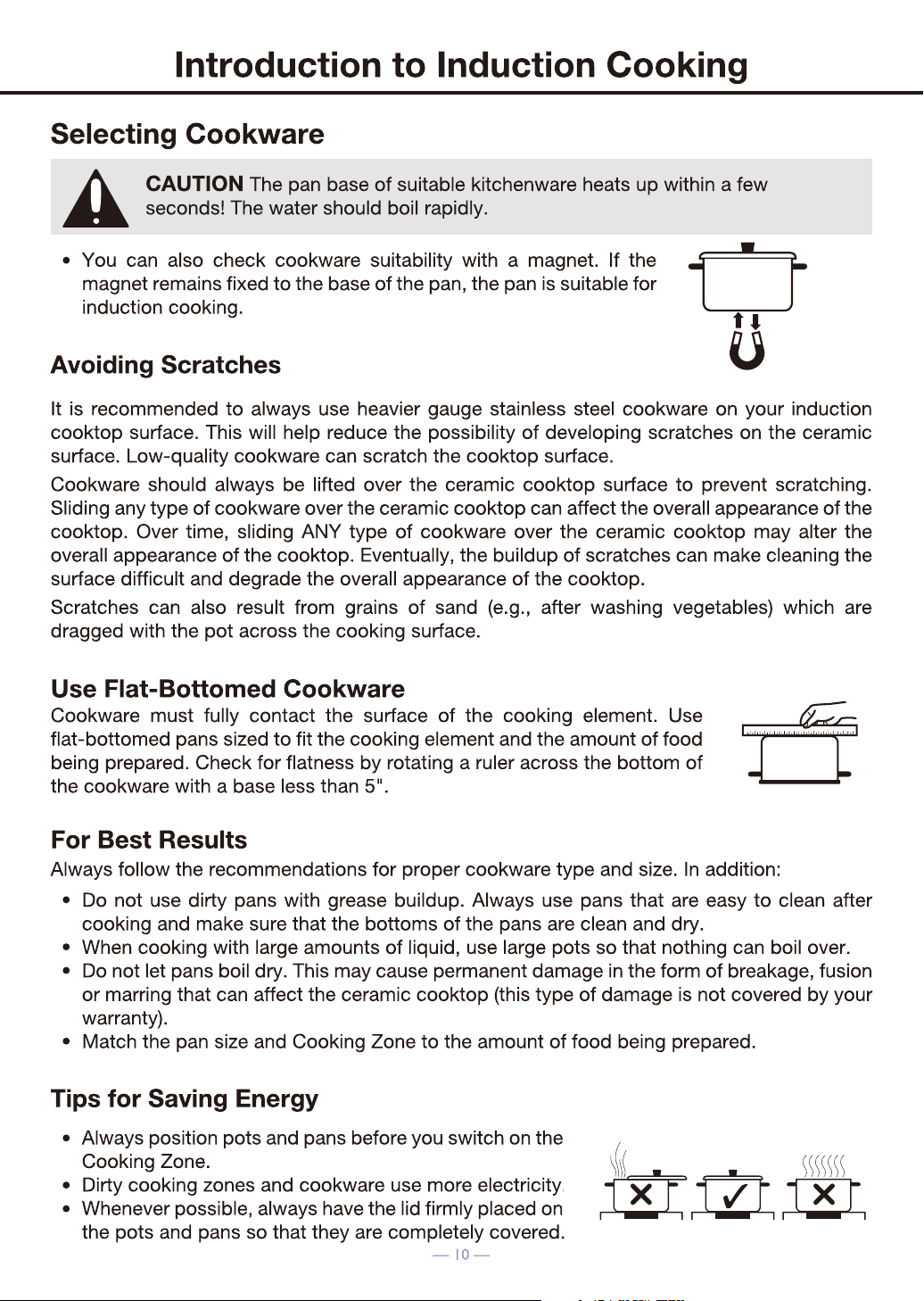

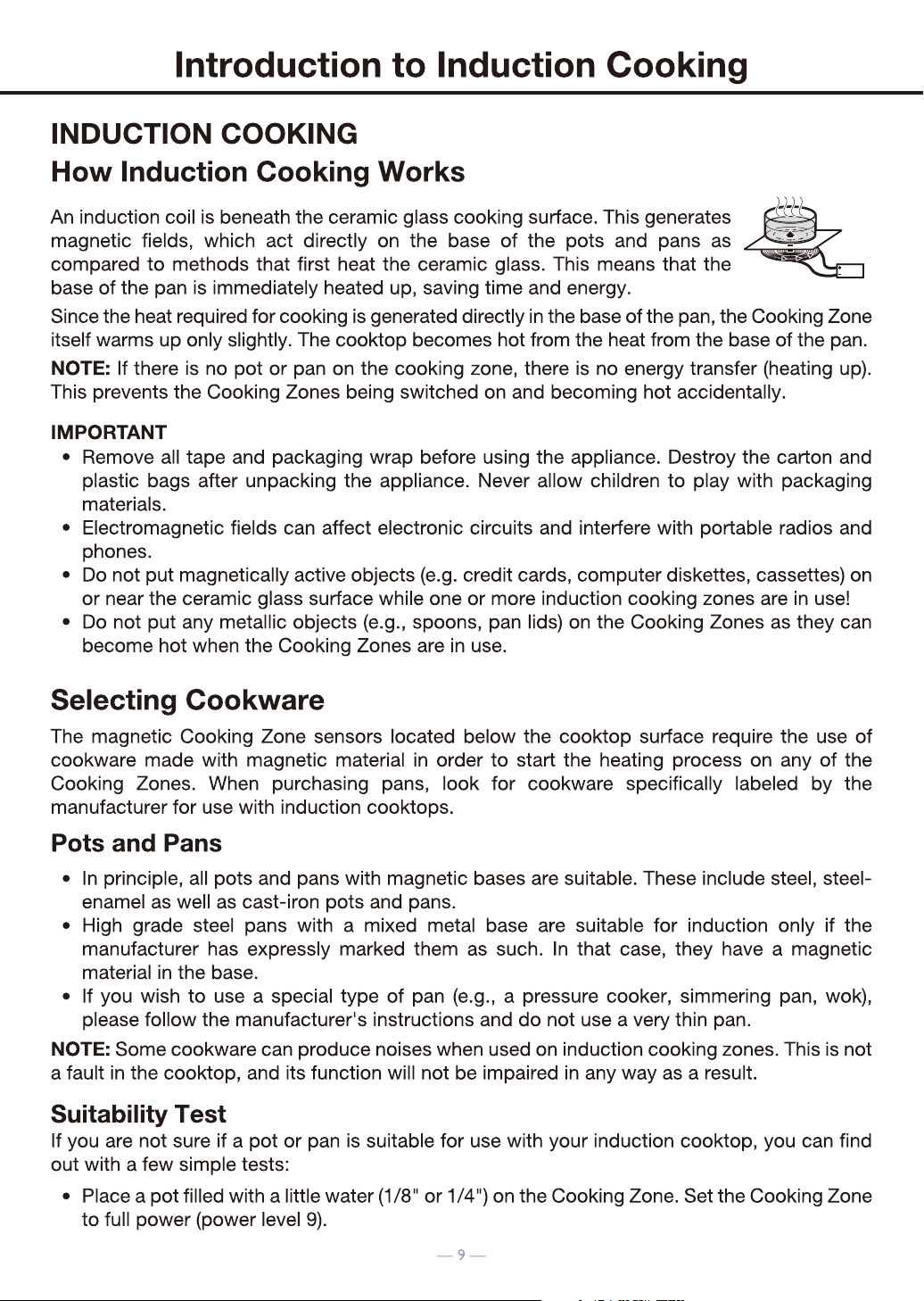

INTRODUCTION TO INDUCTION COOKING ............................................................. 9

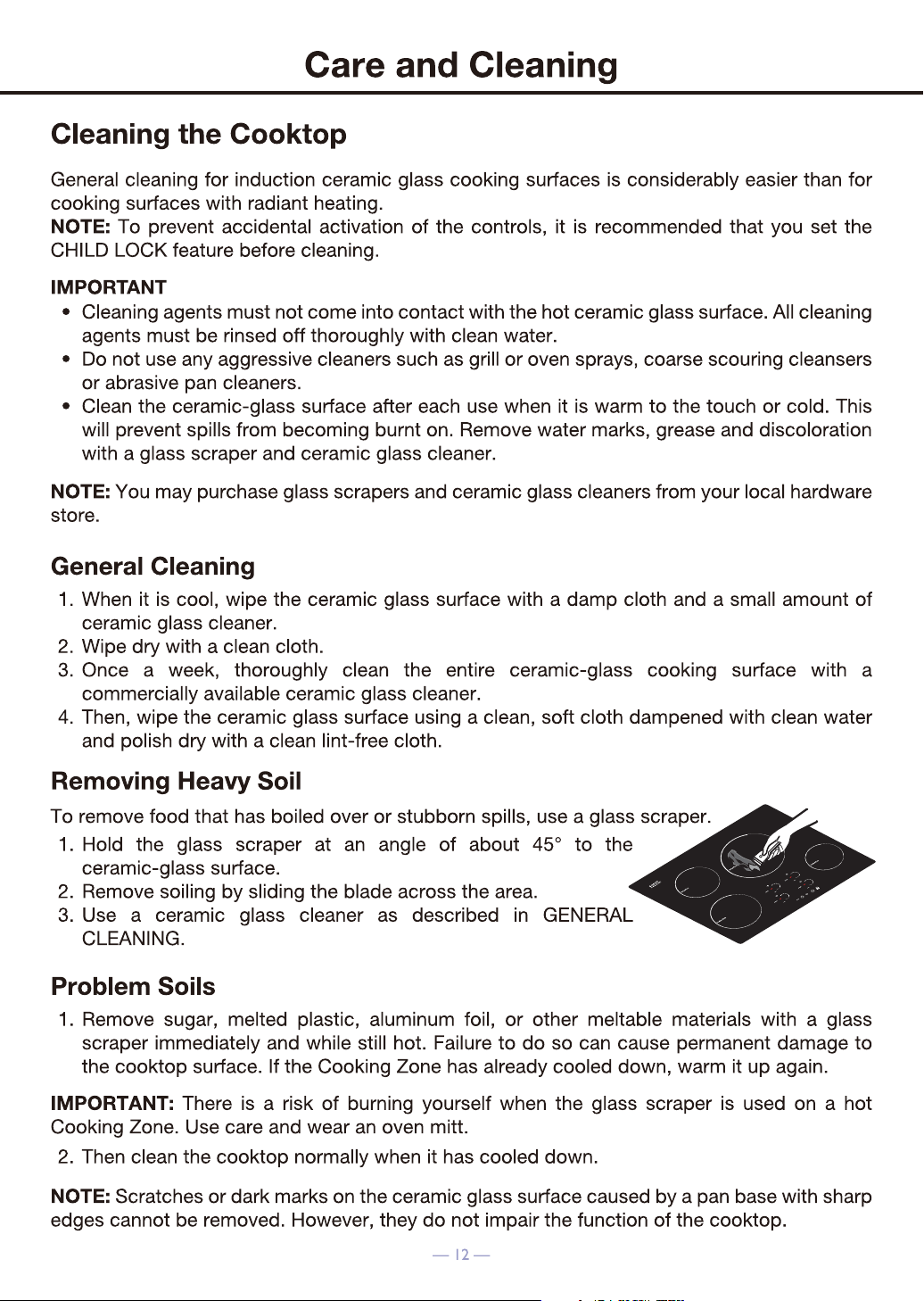

CARE AND CLEANING ............................................................................................... 12
IMPORTANT INSTALLATION INSTRUCTIONS .......................................................... 13
CONTROL PANEL OVERVIEW .....................................................................................16
18
HOW TO USE ..............................................................................................................19
OTHER FUNCTIONS ................................................................................................... 21
SPECIFICATIONS .......................................................................................................
COUNTER INSTALLATION INSTRUCTIONS
............................................................. 15

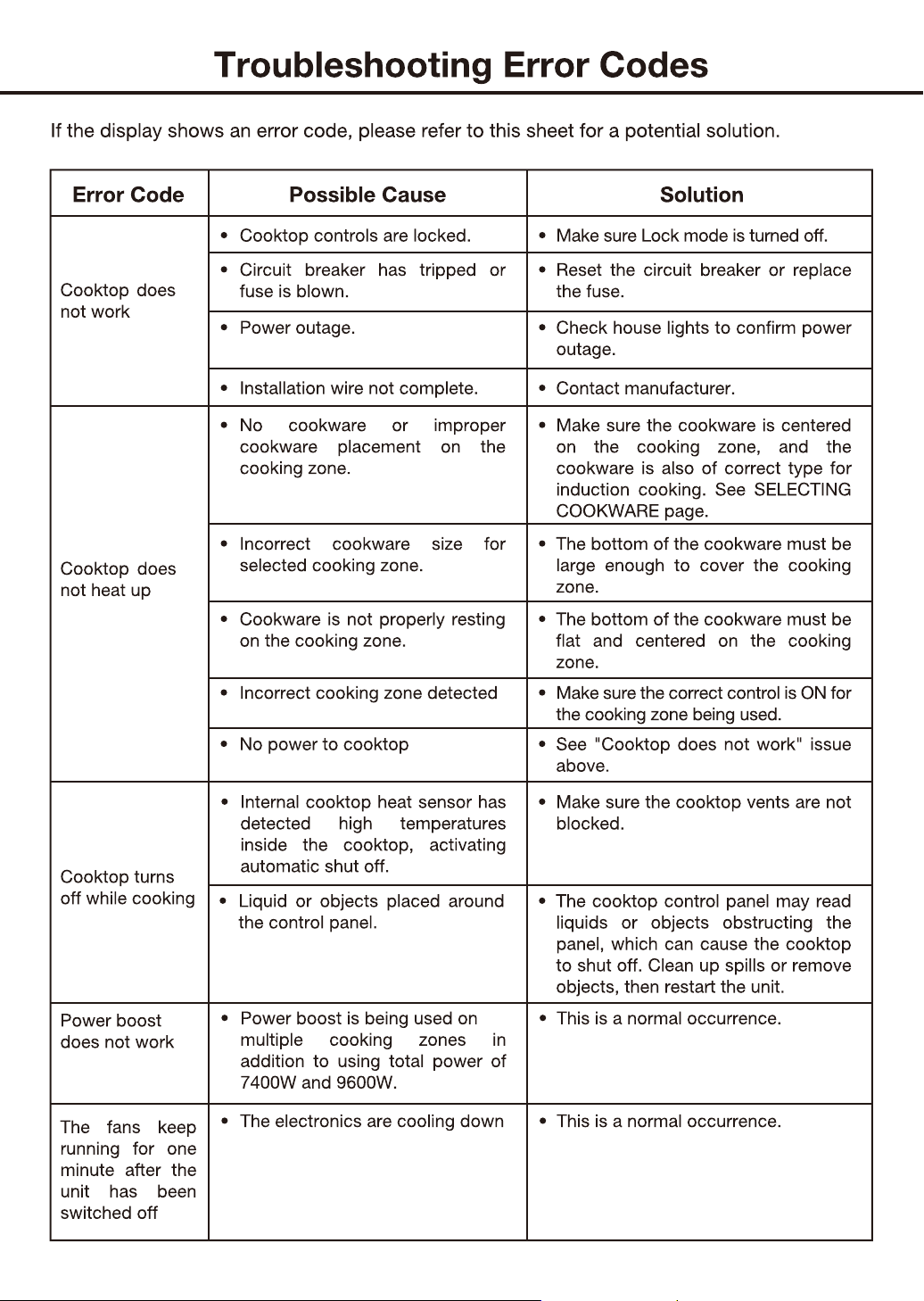

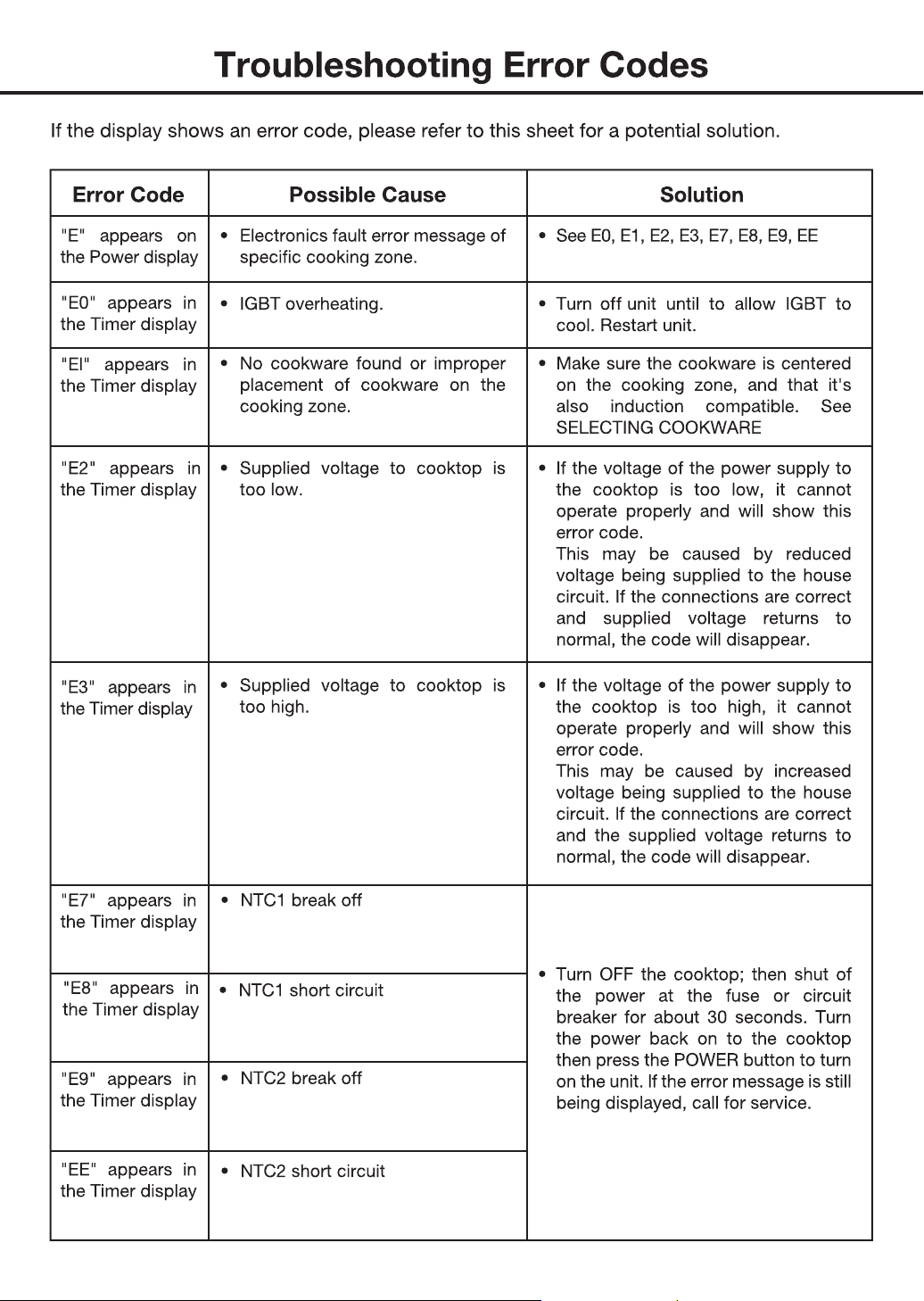

TROUBLESHOOTING ERROR CODES ...................................................................... 22
Please read the entire instruction manual prior to using your unit.
— 2 —
You can download an owner's & installation manual at www.anconahome.com

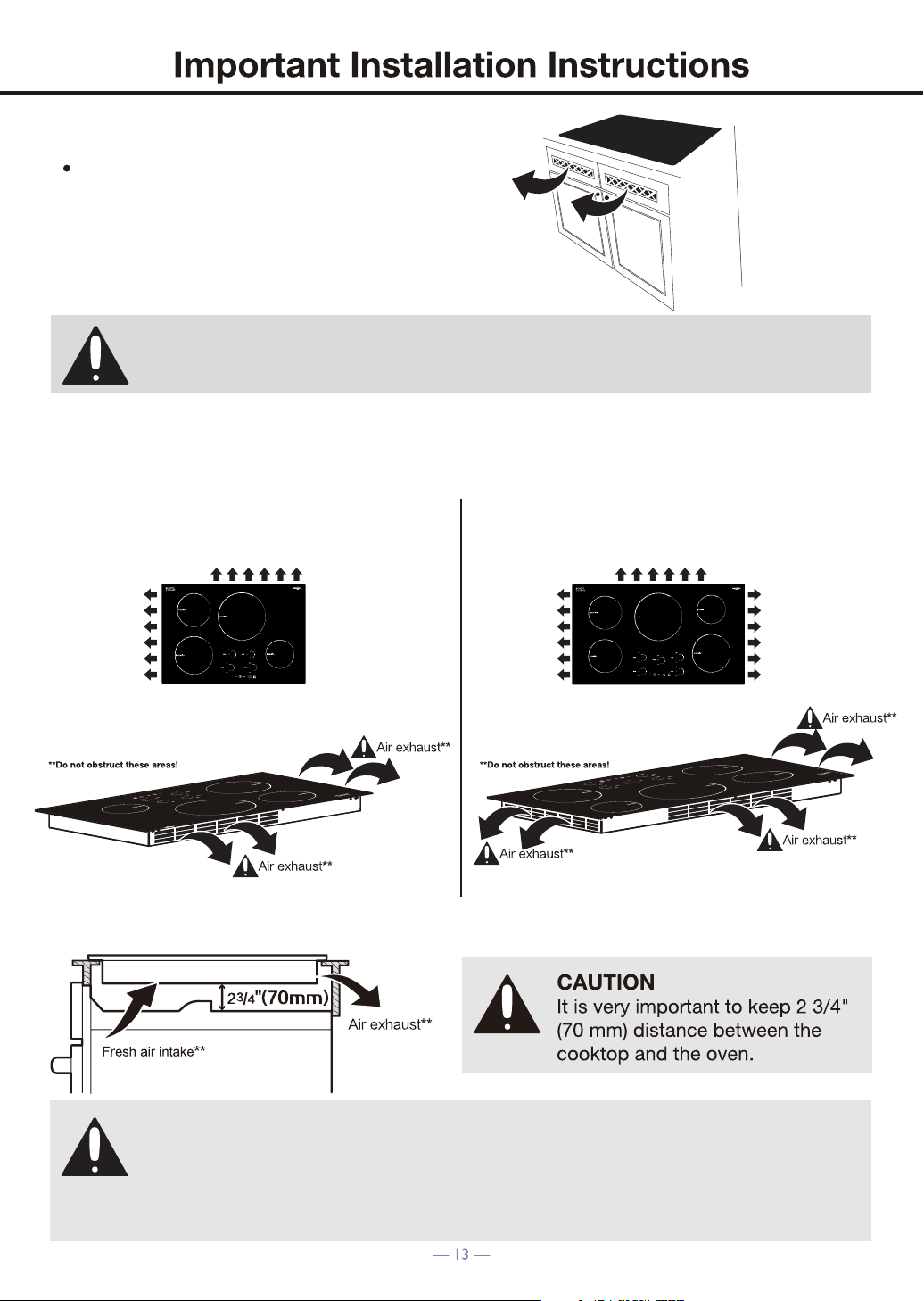

Cooktop ventilation
It is very important to provide
adequate ventilation for optimal
operation. Installing over vented
cabinets is highly recommended.
Recommended space between cooktop base if installing above oven
Cooktop ventilation areas - DO NOT OBSTRUCT!
36 inch
Model: AN-2413
30 inch
Model: AN-2403
Keep ventilation areas clear, to allow proper airflow.
Top view Top view
Rear view Rear view
CAUTION During cooking, built-in fan inside the cooktop will operate
constantly to keep the internal components cool. The air intake is on the bottom
of the cooktop box, and the warm air exhaust is located on the back and side of
rim, as shown on the schematic. If the air intake or the exhaust is obstructed,
the cooktop safeties will either diminish the power output or shut down the unit.
WARNING
Allow enough space between cooktop and cabinet for proper airflow.
If airflow is blocked, burners can overheat and stop working temporarily.
(Only 36 in.
model AN-2413)
WARNING DO NOT apply any sealant along the perimeter. The cooktop must
breath freely.
•
•
All electric cooktops run off a three phase, two live wire cable, 240 Volt, 60 Hertz, AC-only
electrical supply with ground.
Maximum distance between cooktop and overhead cabinetry is 30 inches (76.2 cm)
24” Min. (61 cm)
30” Max. (76.2 cm)
— 15 —

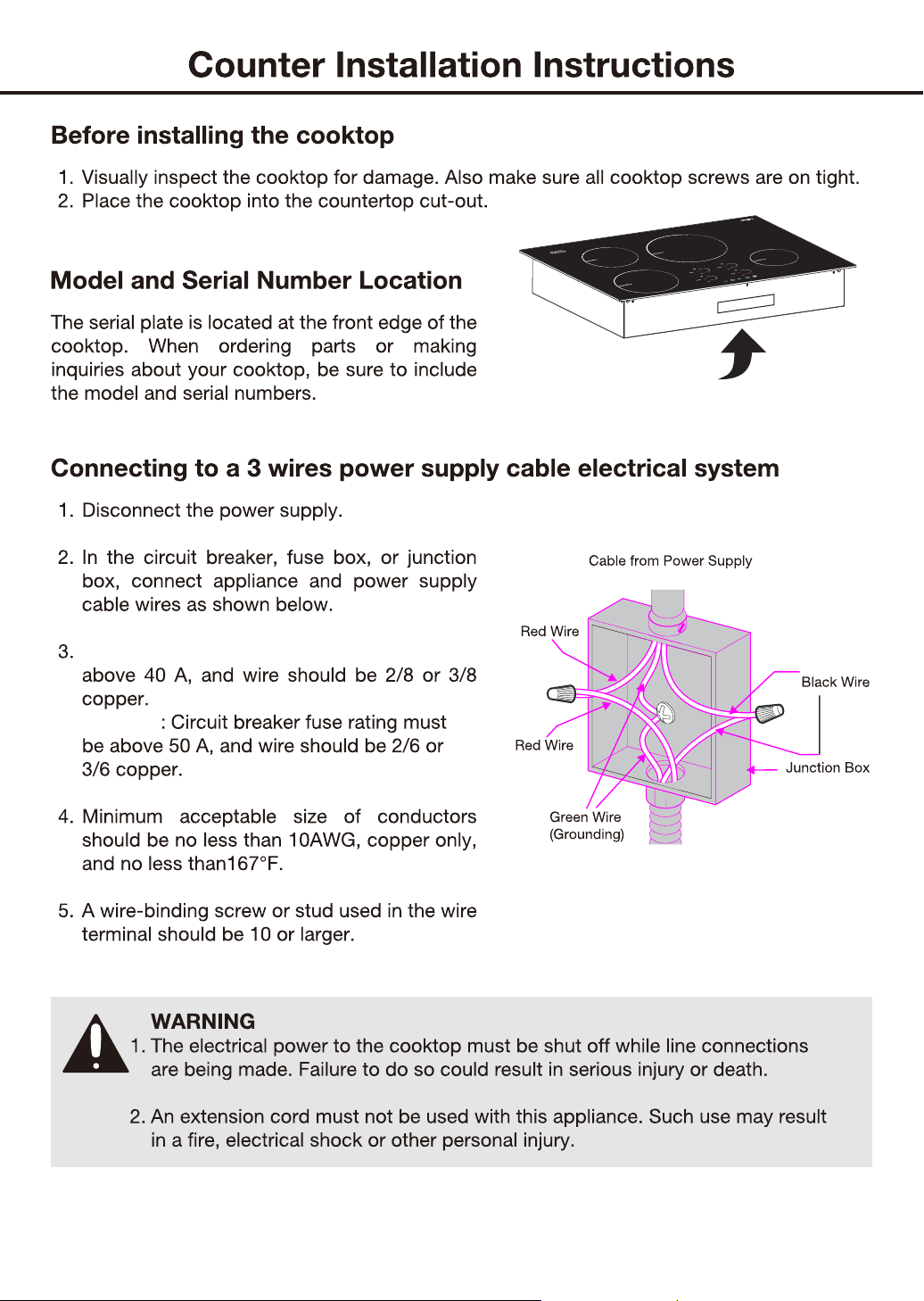

AN-2403: Circuit breaker fuse rating must be
AN-2413
Serial plate is located at the front edge
of the burner box of the cooktop.
Front left cooking zone
Back left cooking zone
Back right cooking zone
Front right cooking zone
Ceramic glass
Touch control panels

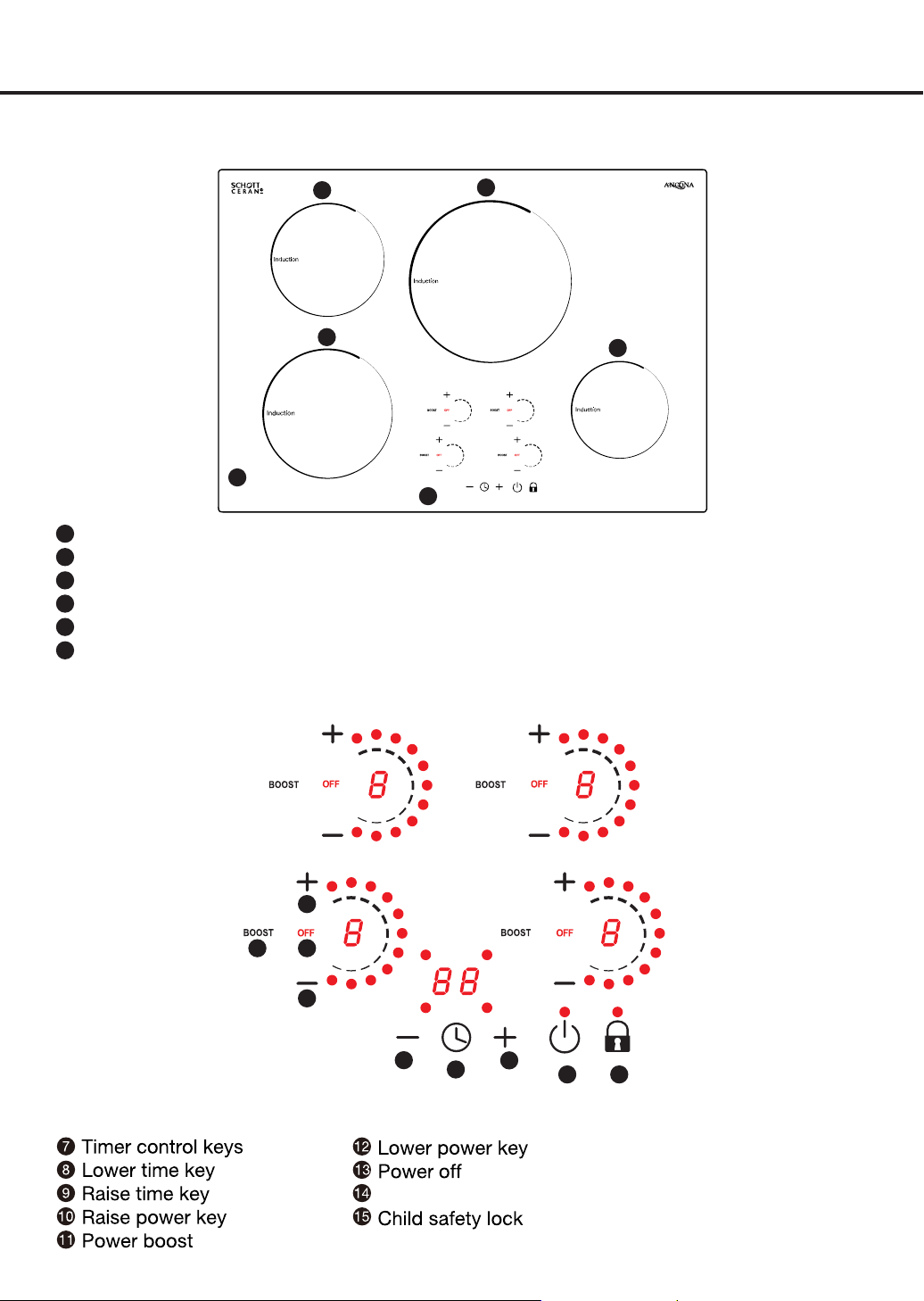

Control Panel Overview
Model: AN-2403
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
14 15
— 16 —
Master power button
13
Front left cooking zone
Back left cooking zone
Back right cooking zone
Front right cooking zone
Middle cooking zone
Ceramic glass
Touch control panels

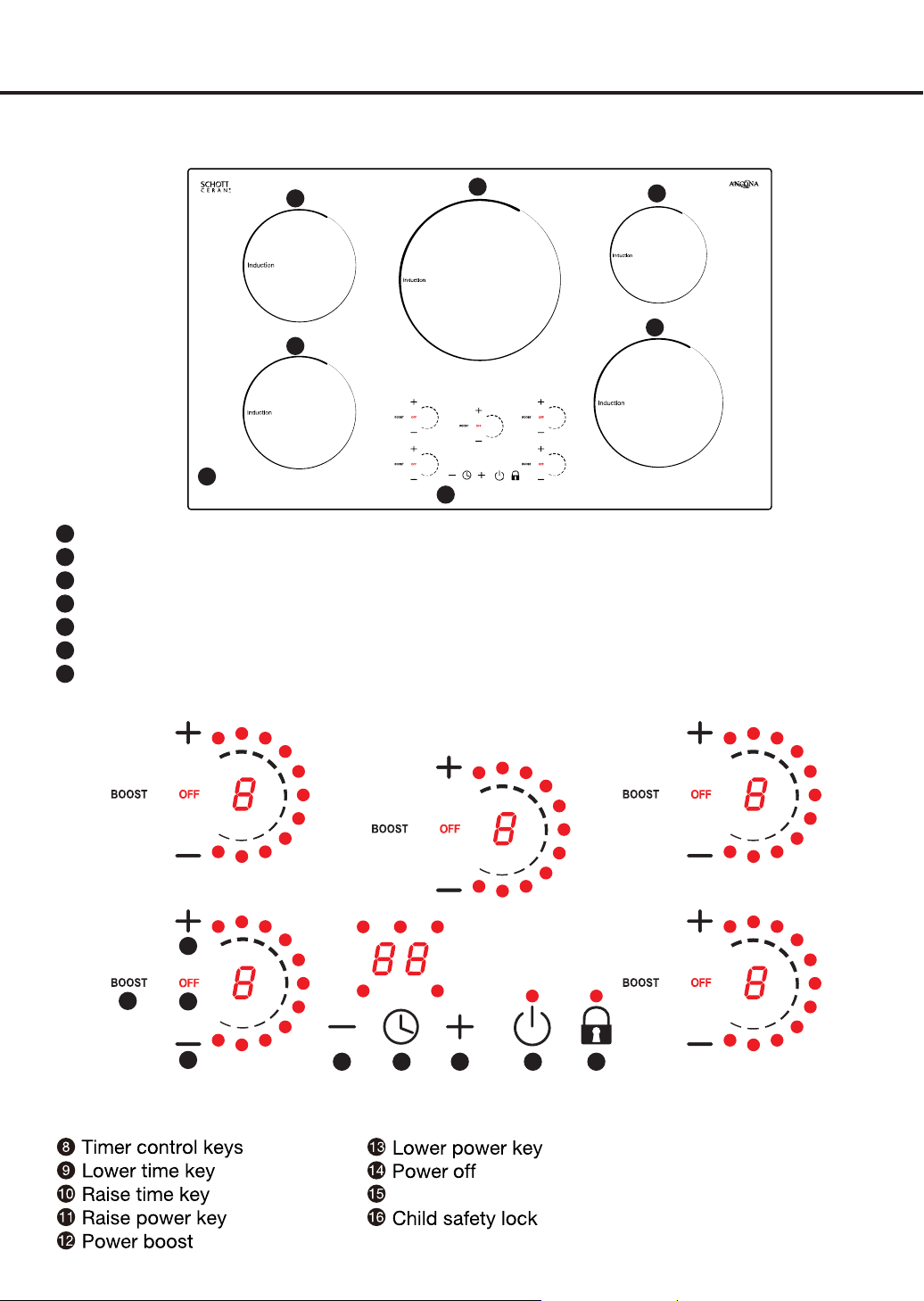

Control Panel Overview
Model: AN-2413
1
2
3
4
5
6
1
2
3
4
5
6
7
7
89 10
11
12
13
— 17 —
16
Master power button
14
15
— 18 —

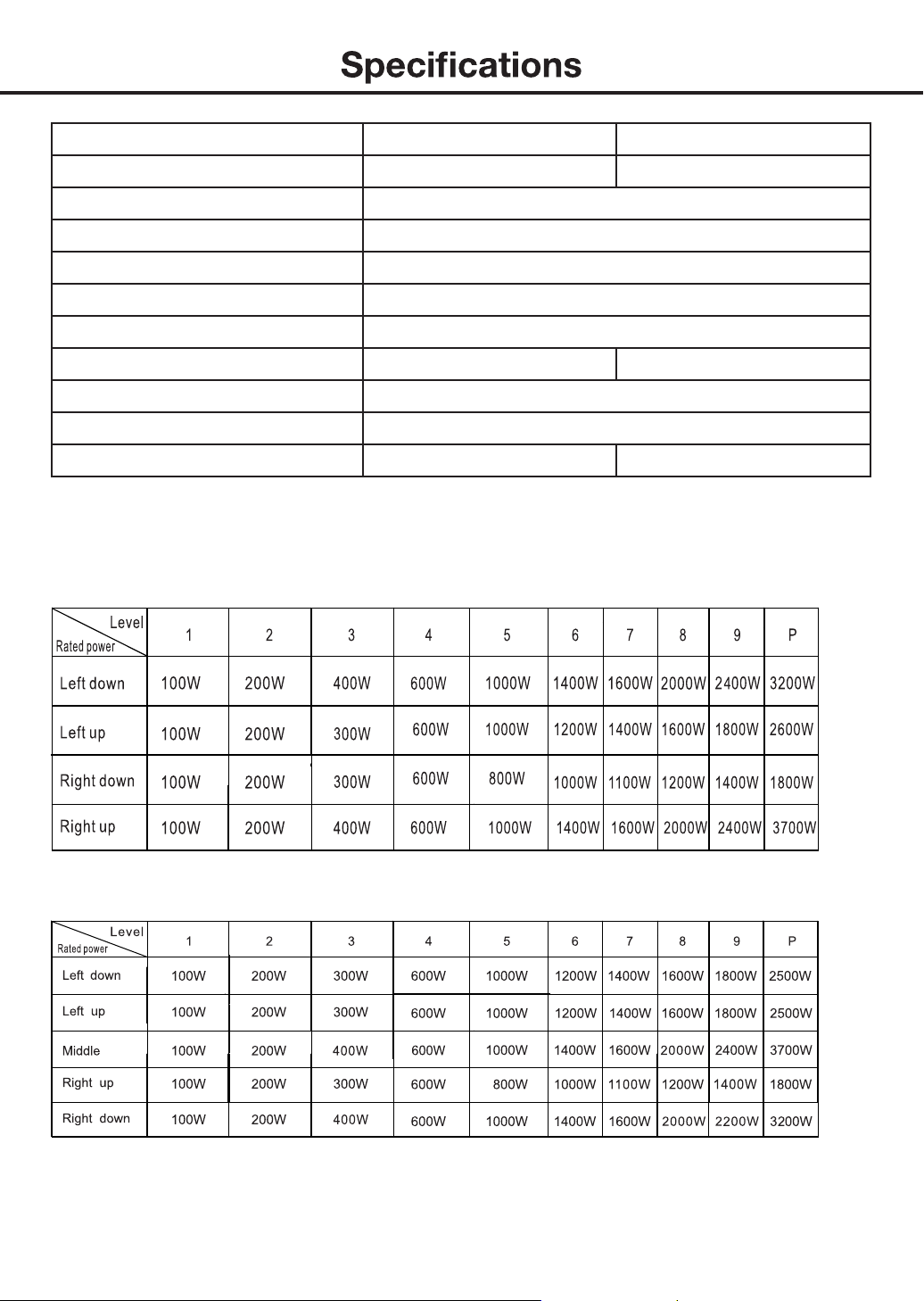

Model AN-2403
Power Rating 7400 Watts
Voltage 240V / 60Hz
Power Range 100W - 3700W
Level Selection Select settings 1 through 9
Max Time Set timer from 1 to 99 minutes
Material Glass Ceramic Top / Metal Body
Unit Measurements 30"W x 21"D x 2 5/32"H
Installation Type Drop-in
Installs Over Built-in Oven
Installation Dimensions (WxD) 28 3/4" x 19 11/16" Min
Yes
36"W x 21"D x 2 5/32"H
AN-2413
9600 Watts
Heating Power of Each Cooking Zone
Model: AN-2403
Model: AN-2413
34 7/16" X 19 11/16" Min
— 19 —

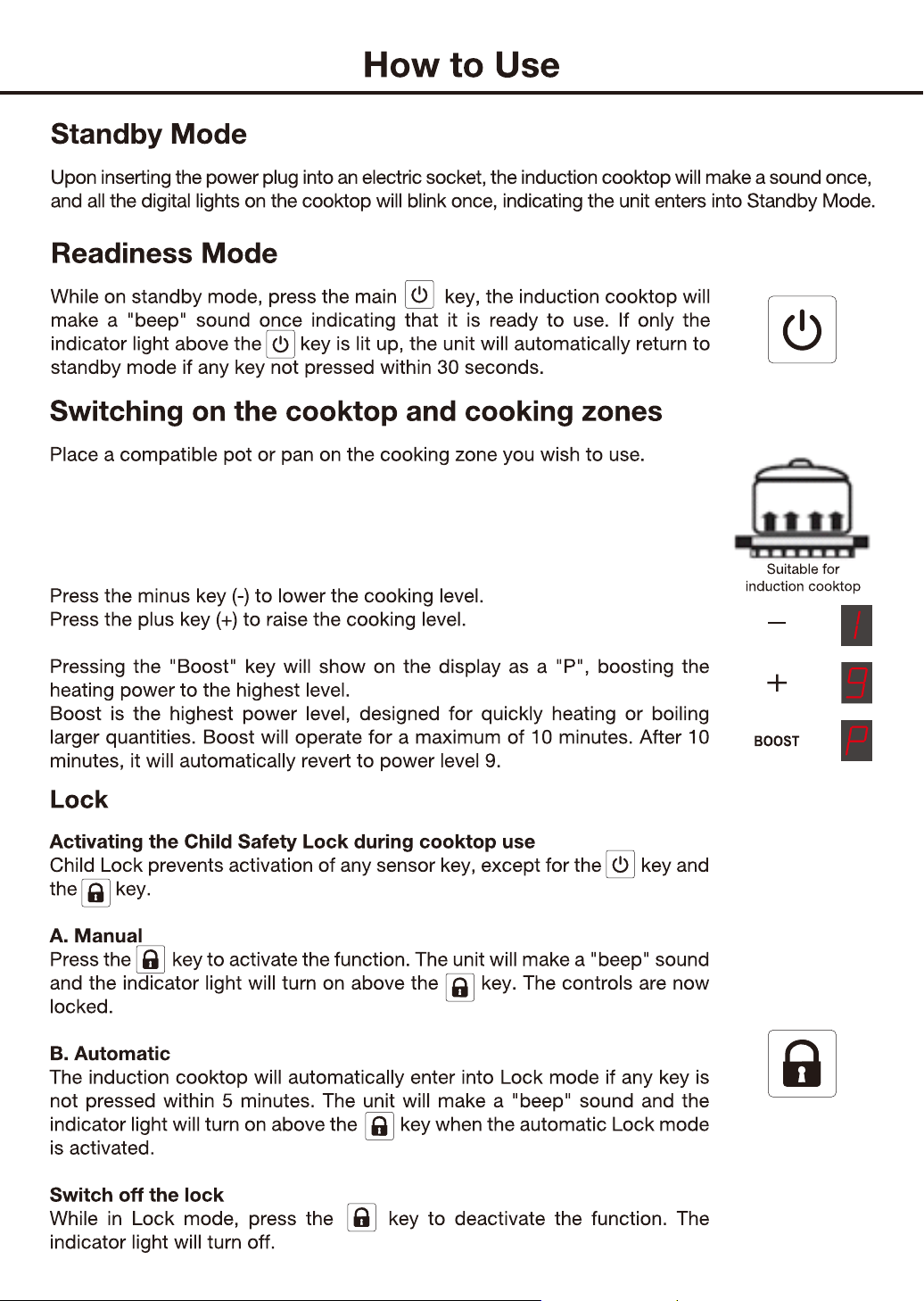

With the cooktop being ON as mentioned above, press the desired cooking
zone “+” key. The display will blink and show a “1”.
Then press either the “+” key, “-” key or “Boost” to select a cooking level.
The cooking zone will automatically turn on readiness mode if a key is not
pressed within 30 seconds.

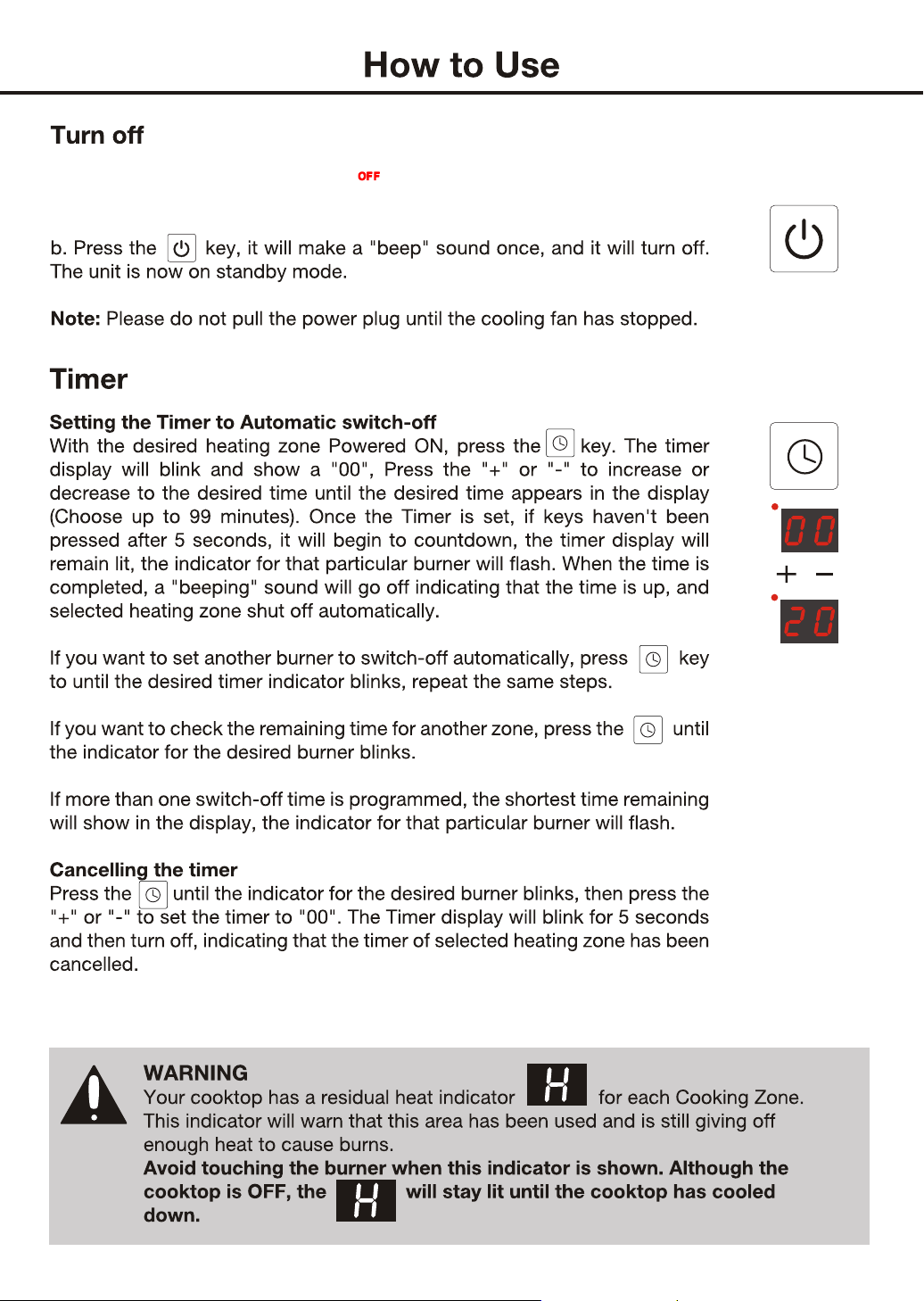

— 20 —
a. Press the desired cooking zone key, the corresponding display shuts
off. The unit is now in readiness mode.

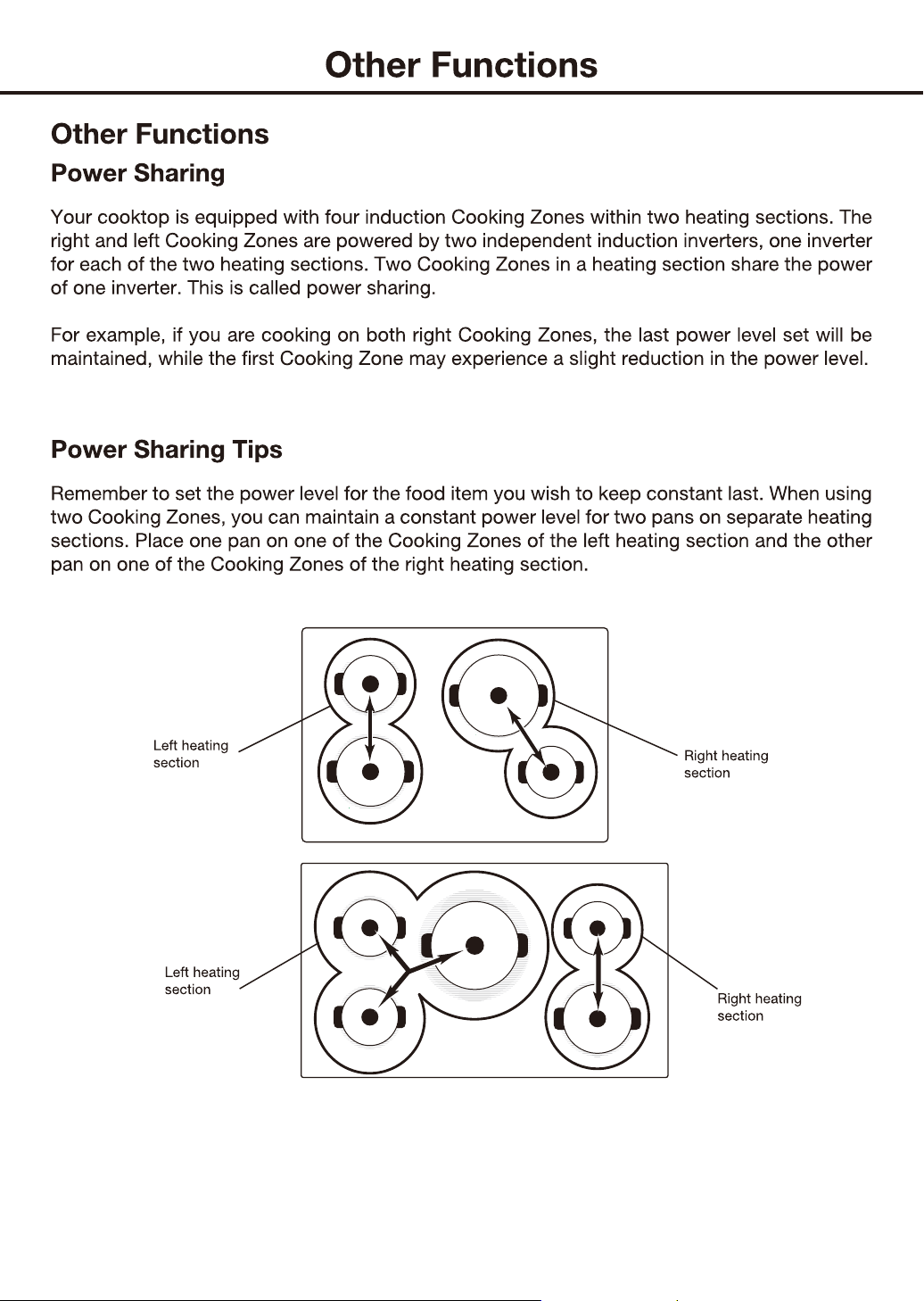

— 21 —
— 22 —
— 23 —
MAAN2403-EN-2.1
— 24 —
