ROKU, STREAMING STICK and the ROKU logo are the trademarks or registered
trademarks of Roku, Inc.
MODEL NO.: RPJ135
Standard HD Projector
Includes Roku
®
Streaming Stick
®
INSTRUCTION MANUAL
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
This product is manufactured and sold by Curtis International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks
or trademarks of RCA Trademark Management and are used under license by Curtis
International Ltd. Any other product, service, company, trade or product name and logo
referenced herein are neither endorsed nor sponsored by RCA Trademark Management or
its affiliates.
1
For Portable Projector
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifier) that product heat.
9. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
13. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
NOTE: Please see the Roku
®
Streaming Stick
®
Important Product Information
insert for streaming player safety precautions, legal notices, and other
important information.
2
For Portable Projector
1. Do not look directly into the projector light.
2. Don’t touch the projector lens
3. Mains adapter is used as disconnect device and it should remain readily operable
during intended use. In order to disconnect the apparatus from the mains completely,
the mains plug should be disconnected from the mains socket outlet completely.
4. CAUTION: Use of controls or adjustments or performance of procedures other than
those specified may result in hazardous radiation exposure.
5. WARNING: Changes or modified to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
6. WARNING: Use of this unit near fluorescent lighting may cause interference regarding
use of the remote. If the unit is displaying erratic behavior move away from any
fluorescent lighting, as it may be the cause.
7. WARNING: Shock hazard - Do Not Open.
8. Caution and marking information is located at the rear or bottom of the apparatus.
9. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to
rain, moisture, dripping, or splashing.
10. Objects filled with liquids, such as vases, shall not be placed on the apparatus.
NOTE: Please see the Roku
®
Streaming Stick
®
Important Product Information
insert for streaming player safety precautions, legal notices, and other
important information.
ROKU, STREAMING STICK and the ROKU logo are the trademarks or registered
trademarks of Roku, Inc.
MODEL NO.: RPJ135
Standard HD Projector
Includes Roku
®
Streaming Stick
®
INSTRUCTION MANUAL
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
This product is manufactured and sold by Curtis International Ltd.
RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered trademarks
or trademarks of RCA Trademark Management and are used under license by Curtis
International Ltd. Any other product, service, company, trade or product name and logo
referenced herein are neither endorsed nor sponsored by RCA Trademark Management or
its affiliates.
3
Remote
AC Power Adapter
User Manual
What’s Included
FCC Warning
Main Unit
Lens Cover
Two AAA
Batteries
Roku
®
Streaming Stick
®
USB Power Cable
Roku
®
Remote
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1)this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE:This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Please see the Important Product Information insert in the Roku
®
Streaming Stick
®
box
for streaming player safety precautions, legal notices, and other important information.
OK
ABC
/
DEF
GHI
JKL
MNO
PQRS
TUV WXYZ
FLI P
EXIT
FAV
RECA LL
SETUP
@
4
Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Table of Contents
P1
Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - - P2
FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ----- - - - - P3
What's Included - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3
Table of Contents -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P4
Remove & Close the Lens Cover - - - - - - - - - - - - - - - - - - - - - - - - - - P5
Placing Your Projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P5
To Reduce Image Distortion - - - - - - - - - - - - - - - - - - - - P6
Distance Between The Projector And Screen - - - - - - - - - - - - - - - - P6
Placing Your Projector on the Ceiling - - - - - - - - - - - - - - - - - - - - - P6
Adjust the Vertical Location - - - - - - - - - - - - - - - - - - - - - - - - - - - - P7
Adjust the Focus and Keystone --- - - - - - - - - - - - - - - - - - - - - - - P7
Projector Remote --- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P8
Install / Remove Battery of Remote --- - - - - - - - - - - - - - - - - - - - - -
Controls of Projector - - - - - - - - - - - - - - - - --- - - - --- - - - --- - - P9
Install Power Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P10
Main Operation --- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P10
Connect HDMI - -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - - - - - - - P12
Connect AV - -- -- -- -- -- -- -- -- -- -- -- -- -- -- - - - - - - - - - - - P12
Connect VGA - - -- - -- - -- - -- - -- - -- - -- - -- - -- - -- - - - - - - - - - P13
Connect Audio Output (Aux Out / Line Out) - - - - - - - - - - - - P14
- eciveD BSU llatsnI --------------------------------- 41P-
Using USB Playback (Media Player) - - - - - - - - - - - - - - - - - - - - - - - P15
Using Projector Menu 1.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P16
Using Projector Menu 2.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P17
Using Projector Menu 3.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P17
Using Projector Menu 4.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P18
Specifications - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - P19
P8
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P20
Set up/Install the Roku
®
Streaming Stick
®
------ - - - - - - - - - - - - P11
5
Remove & Close The Lens Cover
Placing Your Projector
Your projector can be installed in four different configurations (see picture below):
LENS COVER
REMOVE
CLOSE
LENS COVER
FRONT TABLE
REAR TABLE
FRONT CEILING
REAR CEILING
Remove the lens cover before using
Close the lens cover when unit not using
Front Table:
Select this location with the projector placed near
the floor in front of the screen. This is the most
common way to position the projector for quick
setup and portability.
Front Ceiling:
Select this location with the projector suspended
upside-down from the ceiling in front of the screen.
NOTE: A projector mount is required to install the
projector in a ceiling.
Rear Table:
Select this location with the projector placed near
the floor behind the screen.
NOTE: That a special rear projection screen is
required.
Rear Ceiling:
Select this location with the projector suspended
upside-down from the ceiling behind the screen.
NOTE: A projector mount is required to install the
projector in a ceiling. A special rear projection
screen is required.
6
Distance Between The Projector and Screen
Measure the distance between the projector and where you want to position the
screen. This is the projection distance.
Placing Your Projector on the Ceiling
When installing the projector in the ceiling, please purchase a projector mount
recommended by an installation professional and follow the instructions that come with
the mount.
Before installing the projector in the ceiling, please check to make sure the ceiling
structure can support the weight of the projector and the mount. If in doubt, please ask
the advice from an installation professorial.
NOTE: Projector mount and screw(s) not included
CEILING
HANGER
FIX HANGER HOLES
to
Square /Rectangle
It is recommended to move the projector as close to
center of screen.
SCREEN
120
100
THE CENTER OF LENS
72
"
60
"
50
"
45
"
37
"
"
"
1.36m
1.63m
1.7m
2m
2.42m
3.3m
3.9m
7
Adjust The Focus And Keystone
Follow below picture to adjust the focus and trapezoidal screen.
Adjust the focus by turning the lens while observing the image
pixels near the center of the screen. Optimal focus is obtained
when the pixels are clearly visible. Depending on the projected
screen size, the focus near the screen edges may be less sharp
than the screen center.
Keystone image is created when the projector lens is
projected from above or below the center of the screen.
Keystone correction restores the distorted image to a
rectangular or square shape.
SCREEN
VERTICAL
DIMENSION
PROJECTOR
VERTICAL
DIMENSION
PROJECTOR
SCREEN
VERTICAL
DIMENSION
PROJECTOR
SCREEN
Press the "PUSH" button (Button 3 page 9)
to extend the front leg and adjust the vertical
height of the projector.
FOCUS ADJ. KNOB
Follow below picture to adjust the vertical location.
HDMI 2
USB 2
Then sharpen the image
by rotating focus knob.
TRAPEZOIDAL ADJ. KNOB
OK
ABC
/
DEF
GHI
JKL
MNO
PQRS
TUV WXYZ
FLIP
EXIT
FAV
RECALL
SETUP
@
8

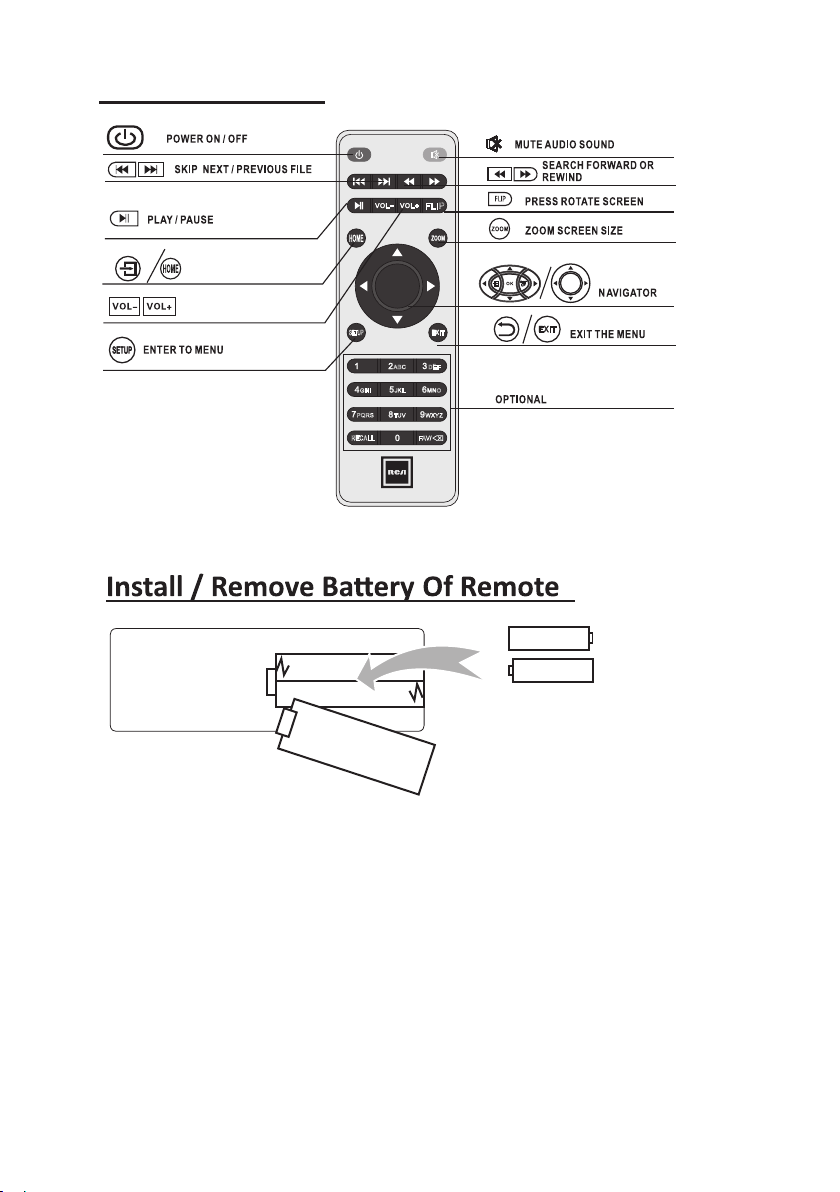

Projector Remote
Remove the battery compartment cover on the back of the remote by carefully sliding
to open. The battery cover can then be lifted away. Fit the correct batteries (not
included), referring to the polarity markings. Finally, replace the cover.
NOTES:
Batteries shall not be exposed to excessive heat such as placing under the sunlight
or near a fire.
Please make sure the batteries are installed with their correct polarities.
Do not mix old and new batteries.
Use only the same type of batteries.
Do not dispose of the batteries in fire, battery may explode or leak.
Do not recharge
a non-rechargeable battery.
BATTERY DOOR
AAA / UM4
AAA / UM4
+ -
- +
OK
EXIT
ADJUST VOLUME SOUND
HOME SELECTOR
Tip: The Roku
®
Streaming Stick
®
the streaming player.
uses a separate Roku remote, needed to control
HDMI 2
USB 2
9
1. IR Sensor (Front Side)
2. LENS
3. ANGEL ADJ. Button
4. FOCUS ADJ. Knob
5. NAVIGATOR Buttons
6. RETURN Button
7. POWER on Indicator
8. POWER Button
9. HOME Button
10. SETUP Button
11. KEYSTONE ADJ. Knob
12. VIDEO IN Jack
13. USB 1 Port ( Media Player)
14. USB 2 Port (For charging the Roku Stick)
15. HDMI 1 Port
16. HDMI port 2 (Roku
®
Streaming Stick
®
input)
17. DC IN Jack
18. AUDIO OUT R/L Jack
19. IR Sensor (Rear Side)
20. AUDIO IN R/L Jack
21. VGA IN Jack
Controls Of Projector
PUSH
32 1
4
5
7
6
8
9
5
10
1114
12
13
17
16
15
19
18 20 21
HDMI 2
USB 2
10
- Press the button to switch on the unit, press again to turn off.
/ HOME - Press this button to go back the home screen then
pressing the navigation key to select the input source.
- Press the buttons to navigate and select screen item of menu.
- Press the button to return to previous status or exit the menu.
- Press the buttons to fast search forward and rewind.
- Press the buttons to search next or previous file.
VOL+ / VOL - Press the buttons to adjust the sound level.
- Press the button to play/pause the playback.
-
- Press the button to projector SETUP menu
- Press the button to mute the audio. Press again to resume.
Install Power Adapter
Follow below picture to connect power adapter
Connect small end of adapter FIRST. Plug the adapter body to power outlet.
The Projector Home Screen is show on the screen like the figure.
Mains Socket
OK
EXIT
ZOOM - Press the button to select image scale.
Press the button to rotate / mirror projector screen
HDMI 2
USB 2
11
Supplied USB Cable
HDMI 2
USB 2
roku.com/lin k
STEP 4: Complete on-screen setup and
start streaming
Follow the on-screen instructions. To activate your
streaming player, you will need to use your computer
or smart phone to link to a Roku
®
account.
NOTE: Roku does not charge for activation support –
beware of scams.
STEP 3: Pair your Roku® remote
*ROKU Sck is cerfied
re-manufactured
On the back side of the remote, slide open the battery
cover. Insert included batteries placing the negative (-)
ends in first. Your remote should pair with your streaming
player automatically. For help pairing your remote, visit
go.roku.com/remotehelp
NOTE: To operate your Roku
®
Streaming Stick
®
, you must
use the included Roku remote.
STEP 1: Install the Roku®
Turn off the unit, plug your streaming player
into the HDMI ® 2 port on your projector.
NOTE: Be sure to always remove
any connected devices when
moving or transporting the projector.
STEP 2: Connect to power
For the best streaming experience,
use the included USB power cable
to connect to the USB port on your
projector.
Once connected, press the
button to turn on the unit.
The projector home screen will
appear. Use the arrow buttons to
select the HDMI
®
2 input."
Make your new Standard HD Projector smart! Stream almost anything across thousands
of free or paid streaming channels including hit movies, popular shows, live TV, news,
sports and more.
NOTE: The Roku
®
Streaming Stick
®
may be pre-installed in select models."
Roku
®
Streaming
Stick
®
Roku
®
Streaming Stick
®
Power and
status light
USB power
Reset
HDMI
®
connector
1. Turn off the unit before connect
HDMI cable.
2. After connecting, press the
button to turn on unit and power
indicator will light GREEN
3. The Projector Home Screen will
show. Use
4. Press the button twice to turn
off unit power.
12
HDMI 2
USB 2
1. Turn off the unit before connect AV cable.
Connect AV
Follow below picture to connect AV cable and device.
2. Use AV cable to connect follow below figure
3. After connect, press the button to turn on unit and power indicator will light
GREEN
4. The Projector Home Screen will show. Use
press OK button to enter. The video of AV device will show on projector screen.
5. Press the button twice to turn off unit power.
CABLE NOT INCLUDE
button to select AV icon and
VIDEO PLAYER
Important Note:
If there is no sound from the internal speakers when playing media contents from a set top
box, BD/DVD or streaming players connecting to the HDMI input, please check the set top
box or the player's digital audio settings and make sure it is set to "PCM Stereo" mode.
Refer to the following picture to connect a set top box, a BD/DVD player or a
streaming player to the HDMI input.
Connect HDMI
button to
HDMI 2
USB 2
CABLE NOT INCLUDE
HDMI CABLE
Video Player
select HDMI1 icon and press OK
butter to enter. The video from
the connected device will be
shown on projector screen.
HDMI 2
USB 2
13
2.
3.
Press the button twice to turn off power of your projector before connection.
After connect, press the button to turn on unit and power indicator will light GREEN.
The Projector Home Screen will show. Use
press OK button to enter. The video of VGA device will show on projector screen.
4.
5. Press the button twice to turn off unit power.
Please refer to the following table to adjust the output signal from computer
Type Resolution Frequency Field Frequency
PC
VGA 640x480
31.5 60
34.7 70
37.9 72
37.5 75
SVGA 800x600
31.4 50
35.1 56
37.9 60
46.6 70
48.1 72
46.9 75
XGA 1024x768
40.3 50
48.4 60
56.5 70
NOTE: In order to get the sound from the unit, please connect AV in cable when
you connect VGA input.
1. Turn off the unit before connect VGA cable.
Connect VGA
Follow below picture to connect VGA cable and device.
To VGA PORT
NOTE BOOK
DECK TOP
OR
COMPUTER CABLECOMPUTER CABLE
button to select VGA icon and
HDMI 2
USB 2
HDMI 2
USB 2
14
3. After connecting and turn on both units. Your projector sound from external device
now.
4. After using , turn off both unit
Important Note:
If there is no sound from the stereo audio output when playing media contents from a set
top box, BD/DVD or streaming players connecting to the HDMI input, please check the set
top box or the player's digital audio settings and make sure it is set to "PCM Stereo" mode.
Install USB Device
Follow below picture to install USB
Turn the unit off before install USB.
1. Press the button twice to turn off power of your projector before connection.
Connect Audio Output ( Aux Out / Line Out )
Follow below picture to connect audio cable and device.
2. Use audio cable to connect follow below figure.
AV CABLE
1. Turn off the unit before install USB.
2. Install the USB device into USB port.
3. After connecting, press the button to turn on unit and the power indicator light GREEN.
4. The Projector Home Screen will be showed. Use button to select MOVE /
MUSIC / PHOTO icon and press button to enter.
5. Use the button to select Removable dis... and press button to enter.
6. Use button to search the correct file and press the button to preview
playback file and press the button to return to previous or button of remote to
start playback.
7. Press button to fast search forward and rewind.
8 Press button to search next or previous file.
9. During playback, press the button to pause and press again to resume.
NOTE: Remove USB device, press the button to turn off power FIRST.
15
Sub-M
Install USB device: (it needs insert the USB to this unit before enter to video,
music and photo mode)
enu on Photo screen
Sub-Menu on Music screen
Sub-Menu on Movie screen
Figure 1.
Figure 2
Figure 3
Using USB Playback (Media Player)
OK
OK
OK
OK
OK
OK
OK
OK
OK
Pause
Prev.
Next
Stop
Repeat
Rotate
PList
Info
ZoomI Move SlideRotate ZoomO
Pause FB FF Prev. Next Stop Set A MUTE
PList Info GoTime
Pause FB FF Prev. Next Stop Repeat
Set A
AspectPList Info SlowF Step F GoTime Zoom I ZoomO
Move
1. When photo playback, press the
button and more function
screen show on lower (figure 1).
2. Use the button to select
icon and press the button to
play special function.
1. When music playback, press the
button and more function
screen show on lower (figure 2 ).
2. Use the button to select
icon and press the button to
play special function.
1. When movie playback, press the
button and more function
screen show on lower (figure 3).
2. Use the button to select
icon and press the button to
play special function.
EXIT
16
Picture Mode
Customer define Parameter
Contrast 0-100
Brightness 0-100
Color 0-100
Sharpness 0-100
Color temperature
Customer define Parameter
Red 0-100
Green 0-100
Blue 0-100
Aspect Ratio
4:3 The signal in a 4:3 aspect ratio projection image
16:9 The signal in a 16:9 aspect ratio projection image
In Projector Home Screen, use button to select SETUP icon and press button
to enter. Or press SETUP button to enter.
Using Projector Menu 1.0
This Picture menu showed on right upper of view screen.
USE
TO SELECT
USE
TO SELECT
USE
TO SELECT
USE
TO SELECT
USE
TO SELECT
USE
TO SELECT
PRESS OK
PRESS OK
PRESS OK
PRESS OK
PRESS OK
PRESS OK
Picture Mode Standard
Color Temper...
Aspect 16:9
MPEG Noise
Panel Flip Rotate 1
Noise Reduction
USE
TO SELECT
PRESS OK
Projector Zoom
Picture Mode Standard
Color Temper...
Aspect
Noise Reduction
MPEG_ Noise ... >
Panel Flip Rotate 1
Projector Zoom
Use to select different picture effect to Standard / Soft /
User / Vivid. Use or to select Contrast / Brightness /
Color / Sharpness digit If chose User item. Follow below figure.
Use to select different color temperature to Cool / Medium /
Warm / User. Use or to select Red / Green / Blue digit
If chose User item. Follow below figure.
Use buttons to select screen ratio AUTO / 4:3 / 16:9.
Follow below figure.
Use buttons to select Off / Low / Middle / High / Default.
Use buttons to select Off / Low / Middle / High / Default.
Use to select rotate 0 / rotate 1 / rotate 2 / rotate 3 to set
screen angle.
Use to select different zoom scale digit 70% -100%.
OK
17
Sound Mode - User Parameter
0elberT -100
0ssaB -100
Using Projector Menu 3
.0
T
Use button to select different language.
Follow below figure.
Use buttons to select Y or N.
If choose “Y” that your unit will go to factory default setting.
Press OK button to change AUTO/ 0~255 /16~235
his OPTION menu showed on right upper of viewing
OSD Language English
Restore Factory Default
Color Range AUTO
screen.
In Projector Home Screen, use button to select SETUP icon and press button
to enter. Or press SETUP button to enter. Press buttons to select Option menu.
Using Projector Menu 2.0
This
Use to select different sound effect Standard / Music /
Movie / Sports / User. Use or to select Treble
and Bass digit If chose User item. Follow below figure to set digit.
Use to select different sound effect to Off /
SRS TruSurrou… / Surround.
Use to select Balance level to -50 to +50.
sound menu showed on right upper of view screen.
Sound Mode Standard
Balance
USE
TO SELECT
USE
TO SELECT
PRESS OK
PRESS OK
USE
TO SELECT
PRESS OK
Balance 0
Surround Sound Off
Surround Sound
Sound Mode Standard
Restore Factory Default
USE
TO SELECT
USE
TO SELECT
PRESS OK
PRESS OK
Color Range AUTO
OSD Language English
USE
TO SELECT
PRESS OK
English
France
Dansk Hrvatski
Deutsch Italiano
Magyar
Polski
Nederl... Sloven...
Norsk
Srpski
Suomi
Slovakia
Svenska
Chinese
Romaneste
Portugues
P
ycc
OK
OK
In Projector Home Screen, use button to select SETUP icon and press button
to enter. Or press SETUP button to enter. Press buttons to select Sound menu.
OK
18
Using Projector Menu 4
.0
In Projector Home Screen, use button to select SETUP icon and press
button to enter. Or press SETUP button to enter. press buttons to select
System menu.
This System menu showed on right upper of view screen.
For service center use only.
Use the button to show below information and press
SETUP button to return.
▽
Native inf…
Model :RPJ135
RCA
SW Ver: 2.0
LOGO: RCA
TM058-ET058
IC:MINILVDS
MMM DD YYYY
HH:MM:SS
Software Update (...
USE
TO SELECT
PRESS OK
PRESS OK
USE
TO SELECT
Native information
Software Update (...
Native information
NOTE: MMM DD YYYY is representative date of software
HH:MM:SS is representative time of software
OK
19
White light output ANSI
White Brightness output ANSI
Color Light output ANSI
Display Native Resolution
HDMI Input Supported
Video Resolution.
Included Adapter
Display Color
Projection Size(Optimal)
Aspect Ratio
Input Ports
USB Port
Audio Power output
Power consumption
Net Weight
Product dimensions
Ideal for dark viewing environments for optimal performance.
PLEASE NOTE: PROJECTOR BRIGHTNESS IS MEASURED IN ANSI LUMENS. YOUR
VEWING ENVIRONMENT IS THE DECIDING FACTOR ON HOW MANY LUMENS YOUR
PROJECTOR NEEDS.
146 lm
84 lm
161.5 lm
1280 x 768
1080p, 1080i, 720p, 576i, 480p, and 480i
Input AC100-240V,50/60Hz
Output DC 36V, 2A
16.7M
60-160 inch
16:9 / 4:3
AV / VGA / HDMI
Support USB device up to 32GB
Support Picture format: JPG, BMP, PNG
Support Audio format: MP3, WMA
Support Video format: MPEG1, MPEG2,
MPEG4, RM, AVI
2W (RMS) x2
Standby: 3.2W, Operating: 72W
2.3 KG
12.5” x 10.8” x 4.6”
Specifications
20
TROUBLESHOOTING
Before resorting the maintenance service, please kindly check by yourself with the following chart.
1. Power light is on. If it is not on, check the projector is
plugged into the mains, that the socket is switched on, and
then press the power button on the projector.
2. Check the lens cover has been removed.
3. Check the cables are securely attached and installed as per
the User Manual.
4. The image source may not be set correctly. Press the HOME
button on the Control Panel or the Remote, to select the
correct setting.
5. Check in the Menu section under Video input signal to make
sure that has been set correctly.
This is called keystone and is due to the projection angle not
being perpendicular to the screen. To correct use the projectors
inbuilt keystone function to adjust the image.
Using a vacuum cleaner to clean the lens. If cleaning doesn’t
resolve things, please contact your support provider for further
assistance.
The Roku
®
Streaming Stick
®
needs to be properly connected to
power in order to function. For optimal performance, use the
included USB cable to connect to the USB 2 port on the projector.
First, make sure the projector is turned on and in ROKU mode
(HDMI 2), then press a button on the Roku remote control to
ensure that the Roku device is not in standby or screensaver
mode These are the most common reasons you may not see
video on your projector:
1. You have the wrong input (source) selected on your projector.
Look to see which input you have the Roku
®
Streaming Stick
®
connected to; look for a button on your projector remote
control that says HOME. Press this button, it may display a
menu with a choice of inputs, use the arrow buttons on this
remote to choose the right input and then press OK.
2. The Roku
®
Streaming Stick
®
is not connected properly.
Ensure it is firmly connected to the HDMI 2 connector on your
projector.
3. If all else fails, disconnect and reconnect all cables including
the power cable.
No Image is Projected
or a "No Signal"
message is displayed
The Image is wider at
the top/bottom of the
screen
Spots on the screen
Roku
®
Streaming Stick
®
will not power on
You cannot see the
video from your Roku
®
Streaming Stick
®
on
your projector
Please visit go.roku.com/rss for any questions about the Roku Streaming Stick .
For any other issues related to the projector function ,please contact Customer service: 1-800-968-9853.
Curtis International Ltd.
7045 BECKETT DRIVE, UNIT 15,
MISSISSAUGA, ON, L5S 2A3 www.curtisint.com
® ®
To make a warranty claim, do not return this product to the store. Please email
support@curtiscs.com or call 1-800-968-9853.
90 day Year Warranty
This product is warranted to be free from defects in material and workmanship for a
period of ninety (90) days from the date of original purchase. During this period, your
exclusive remedy is repair or replacement of this product or component found to be
defective, at our option; however, you are responsible for all costs associated with
returning the product to us. If the product or component is no longer available, we will
replace with a similar one of equal or greater value. Prior
to a replacement being sent,
the product must be rendered inoperable or returned to us.
This warranty does not cover glass, filters, wear from normal use, use not in conformity
with the printed directions., or damage to the product resulting from accident, alteration,
abuse, or misuse. This warranty extends only to the original consumer purchaser or gift
recipient. Keep the original sales receipt, as proof of purchase is required to make a
warranty claim. This warranty is void if the p
roduct is used for other than single-family
household use or subjected to any voltage and waveform other than as on the specified
rating on the label (e.g., 120V~60Hz).
We exclude all claims for special, incidental, and consequential damages caused by
breach of express or implied warranty. All liability is limited to the amount of the
purchase price. Every implied warranty, including any statutory warranty or
condition of merchantability or fitness for a particular purpose, is disclaimed
except
to the extent prohibited by law, in which case such warranty or condition is
limited to the duration of this written warranty. This warranty gives you specific legal
rights. You may have other legal rights that vary depending on where you live. Some
states or provinces do not allow limitations on implied warranties or special, incidental, or
consequential damages, so the foregoing limitations may not apply to you.
For faster service, locate the model, type, and serial numbers on your appliance.
