Operator's Manual
42-inch Two-stage Snow Thrower Attachment
For FA_ATTACH" Compatible Tractors
Model
0EM-190-823 /
190-823-101
NOTE: This snow thrower attachment will NOT fit on all 600-series lawn tractors and 800-series garden tractors.
It is designed for and will mount to and operate safely and properly on FastAttach TM compatible tractors ONLY. Check
TM
your tractor s right fender for the FastAttach label before attempting to mount this attachment.
MTD LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-9722
PRINTED IN U.S.A. FORM NO. 770-10279D
(9/2002)

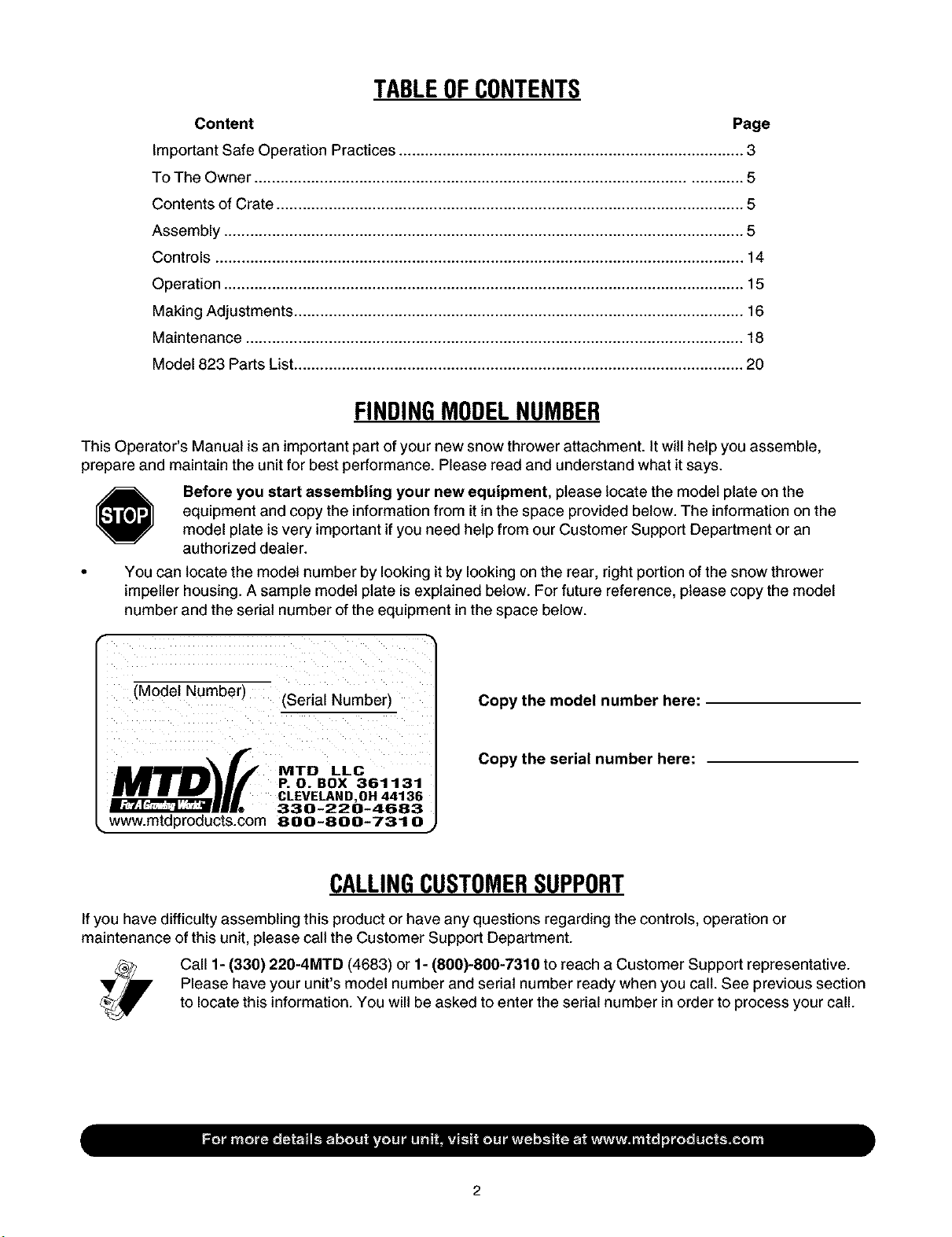

TABLEOFCONTENTS
Content Page
Important Safe Operation Practices ............................................................................... 3
To The Owner ............................................................................................................... 5
Contents of Crate ........................................................................................................... 5
Assembly ....................................................................................................................... 5
Controls ......................................................................................................................... 14
Operation ....................................................................................................................... 15
Making Adjustments ....................................................................................................... 16
Maintenance .................................................................................................................. 18
Model 823 Parts List ....................................................................................................... 20
FINDINGMODELNUMBER
This Operator's Manual is an important part of your new snow thrower attachment. Itwill help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the
equipment and copy the information from it in the space provided below. The information on the
model plate is very important if you need help from our Customer Support Department or an
authorized dealer.
You can locate the model number by looking it by looking on the rear, right portion of the snow thrower
impeller housing. A sample model plate is explained below. For future reference, please copy the model
number and the serial number of the equipment in the space below.
(Model Number) (Serial Number)
i BIR_I, _ MTD LLC
_l_ • _L_ |],_ P.O. BOX 361131
.... _" JH_H CLEVELAND,OH 44136
m,._F,,. , _ Ill® 330-220-4683
• www.mtdproducts.com 800-800-7310
Copy the model number here:
Copy the serial number here:
CALLINGCUSTOMERSUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support representative.
Please have your unit's model number and serial number ready when you call. See previous section
to locate this information. You will be asked to enter the serial number in order to process your call.

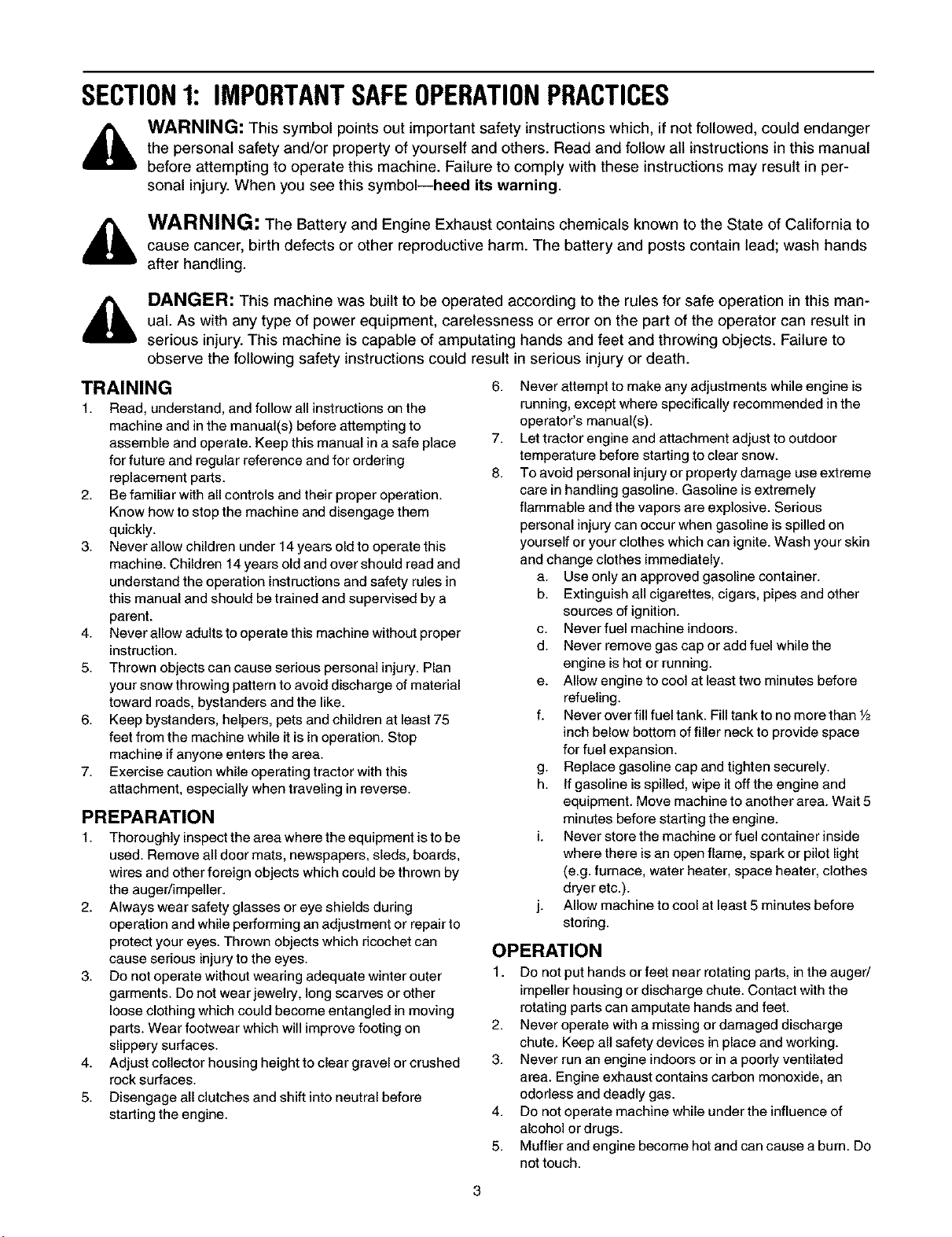

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES
WARNING: This symbol points out important safety instructions which, if not followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all instructions in this manual
before attempting to operate this machine. Failure to comply with these instructions may result in per-
sonal injury. When you see this symbol--heed its warning.
WARNING: The Battery and Engine Exhaust contains chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm. The battery and posts contain lead; wash hands
after handling.
DANGER: This machine was built to be operated according to the rules for safe operation in this man-
ual. As with any type of power equipment, carelessness or error on the part of the operator can result in
serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to
observe the following safety instructions could result in serious injury or death.
TRAINING
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place
for future and regular reference and for ordering
replacement parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructionsand safety rules in
this manual and should be trained and supervised by a
parent.
4. Never allow adults to operate this machine without proper
instruction.
5. Thrown objects can cause serious personal injury. Plan
your snow throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75
feet from the machine while it is in operation. Stop
machine if anyone enters the area.
7. Exercise caution while operating tractor with this
attachment, especially when traveling in reverse.
PREPARATION
1. Thoroughly inspect the area where the equipment is to be
used. Remove all door mats, newspapers, sleds, boards,
wires and other foreign objects which could be thrown by
the augedimpeller.
2. Always wear safety glasses or eye shields during
operation and while performing an adjustment or repair to
protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
3. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other
loose clothing which could become entangled in moving
parts. Wear footwear which will improve footing on
slippery surfaces.
4. Adjust collector housing height to clear gravel or crushed
rock surfaces.
5. Disengage all clutches and shift into neutral before
starting the engine.
6.
7.
8.
Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator's manual(s).
Let tractor engine and attachment adjust to outdoor
temperature before starting to clear snow.
To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes which can ignite. Wash your skin
and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the
engine is hot or running.
e. Allow engine to cool at least two minutes before
refueling.
f. Never over fill fuel tank. Fill tank to no more than Y2
inch below bottom of filler neck to provide space
for fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
i. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.).
j. Allow machine to cool at least 5 minutes before
storing.
OPERATION
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or discharge chute. Contact with the
rotating parts can amputate hands and feet.
2. Never operate with a missing or damaged discharge
chute. Keep all safety devices in place and working.
3. Never run an engine indoors or in a poorly ventilated
area. Engine exhaust contains carbon monoxide, an
odorless and deadly gas.
4. Do not operate machine while under the influence of
alcohol or drugs.
5. Muffler and engine become hot and can cause a burn. Do
not touch.

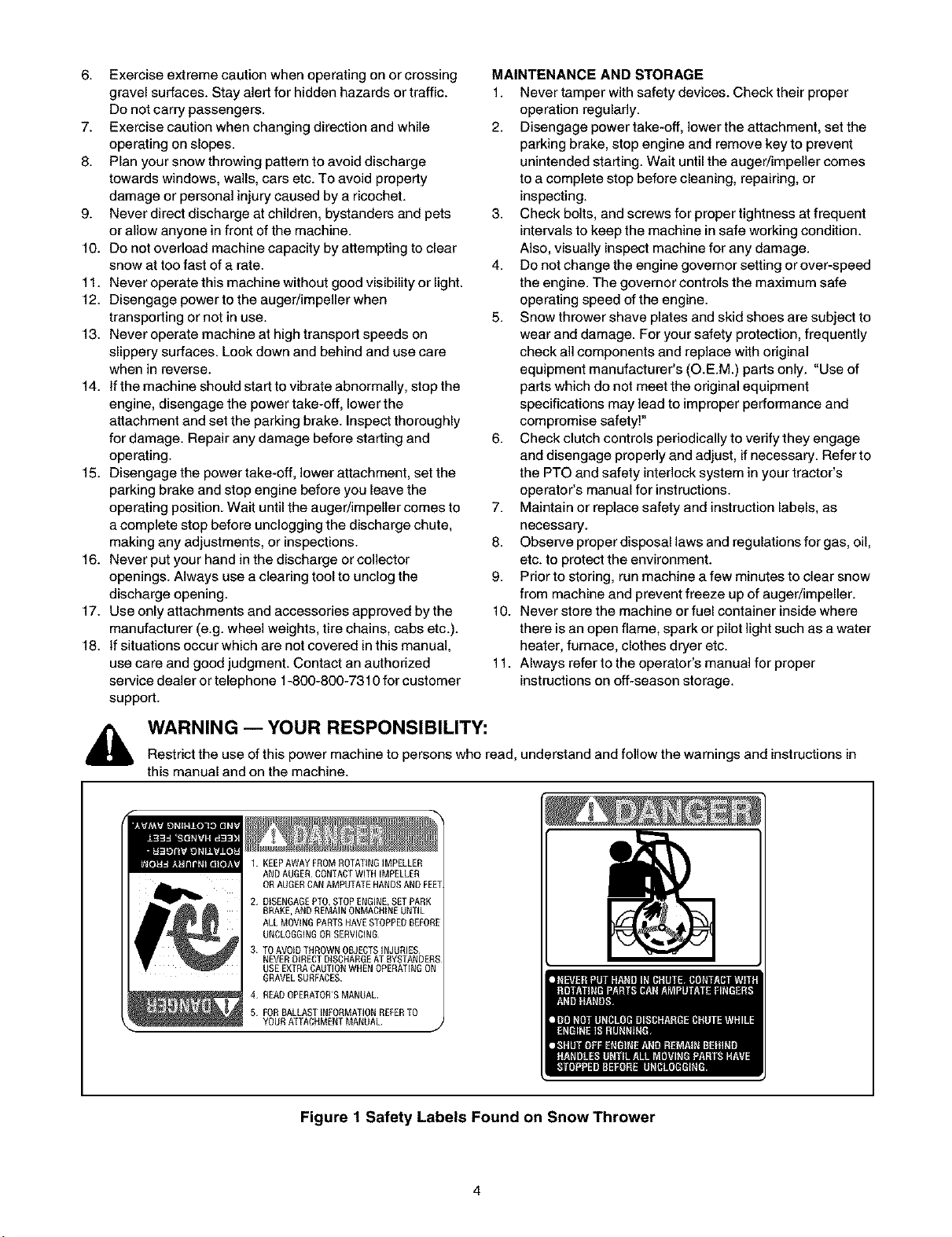

6. Exerciseextremecautionwhenoperatingonorcrossing
gravelsurfaces.Stayalertforhiddenhazardsortraffic.
Donotcarrypassengers.
7. Exercisecautionwhenchangingdirectionandwhile
operatingonslopes.
8. Planyoursnowthrowingpatterntoavoiddischarge
towardswindows,walls,carsetc.Toavoidproperty
damageorpersonalinjurycausedbyaricochet.
9. Neverdirectdischargeatchildren,bystandersandpets
orallowanyoneinfrontofthemachine.
10.Donotovedoadmachinecapecitybyattemptingtoclear
snowattoofastofarate.
11.Neveroperatethismachinewithoutgoodvisibilityorlight.
12.Disengagepowertotheauger/impellerwhen
transportingornotinuse.
13.Neveroperatemachineathightransportspeedson
slipperysurfaces.Lookdownandbehindandusecare
wheninreverse.
14.Ifthemachineshouldstarttovibrateabnormally,stopthe
engine,disengagethepowertake-off,lowerthe
attachmentandsettheparkingbrake.Inspectthoroughly
fordamage.Repairanydamagebeforestartingand
operating.
15.Disengagethepowertake-off,lowerattachment,setthe
parkingbrakeandstopenginebeforeyouleavethe
operatingposition.Waituntiltheauger/impenercomesto
acompletestopbeforeuncloggingthedischargechute,
makinganyadjustments,orinspections.
16.Neverputyourhandinthedischargeorcollector
openings.Alwaysuseaclearingtooltounclogthe
dischargeopening.
17.Useonlyattachmentsandaccessoriesapprovedbythe
manufacturer(e.g.wheelweights,tirechains,cabsetc.).
18.Ifsituationsoccurwhicharenotcoveredinthismanual
usecareandgoodjudgment.Contactanauthorized
servicedealerortelephone1-800-800-7310forcustomer
support.
MAINTENANCE AND STORAGE
1. Never tamper with safety devices. Check their proper
operation regularly.
2. Disengage power take-off, lower the attachment, set the
parking brake, stop engine and remove key to prevent
unintended starting. Wait until the augedimpeller comes
to a complete stop before cleaning, repairing, or
inspecting.
3. Check bolts, and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with odgina]
equipment manufacturer's (O.EM.) parts only. "Use of
parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!"
6. Check clutch controls periodically to verify they engage
and disengage properly and adjust, if necessary. Refer to
the PTO and safety interlock system in your tractor's
operator's manual for instructions.
7. Maintain or replace safety and instruction labels, as
necessary.
8. Observe proper disposal laws and regulations for gas, oil,
etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of augedimpeller.
10. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer etc.
11. Always refer to the operator's manual for proper
instructions on off-season storage.
_lb WARNING -- YOUR RESPONSIBILITY:
Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in
this manual and on the machine.
1 KEEPAWAYFROMROTAnNGiMPELLER
ANDAUGERCONTACTWiTHIMPELLER
ORAUGERCANAMPUTATEHANDSANDFEE1
2 DISENGAGEPTO,STOPENGINE,SFTPARR
BRAKE,ANDREMAINONMACRINEUNTIL
ALLMOVINGPARTSHAVESTOPPEDBEFORE
UNCLOGGINGORSERViCiNG¸
3 TOAVOIDTHROWNOBJECTSiNJURiES,
NEVERDIRECTD_SCRARG£ATBYSTANDERS
USEEXTRACAUTIONWRENOPERATINGON
GRAVELSURFACES¸
5
READ OPERATOR'S MANUAL
FOR BALLAST iNFORMATiON REFERTO
YOUR ATTACHMENT MANUAL¸
Figure 1 Safety Labels Found on Snow Thrower
SECTION2: TOTHEOWNER
Model 823 42-inch two-stage snow thrower is designed for use on FastAttach,. Compatible Lawn Tractors and
Garden Tractors ONLY. It will NOT fit nor operate properly or safely on ANY other tractor.

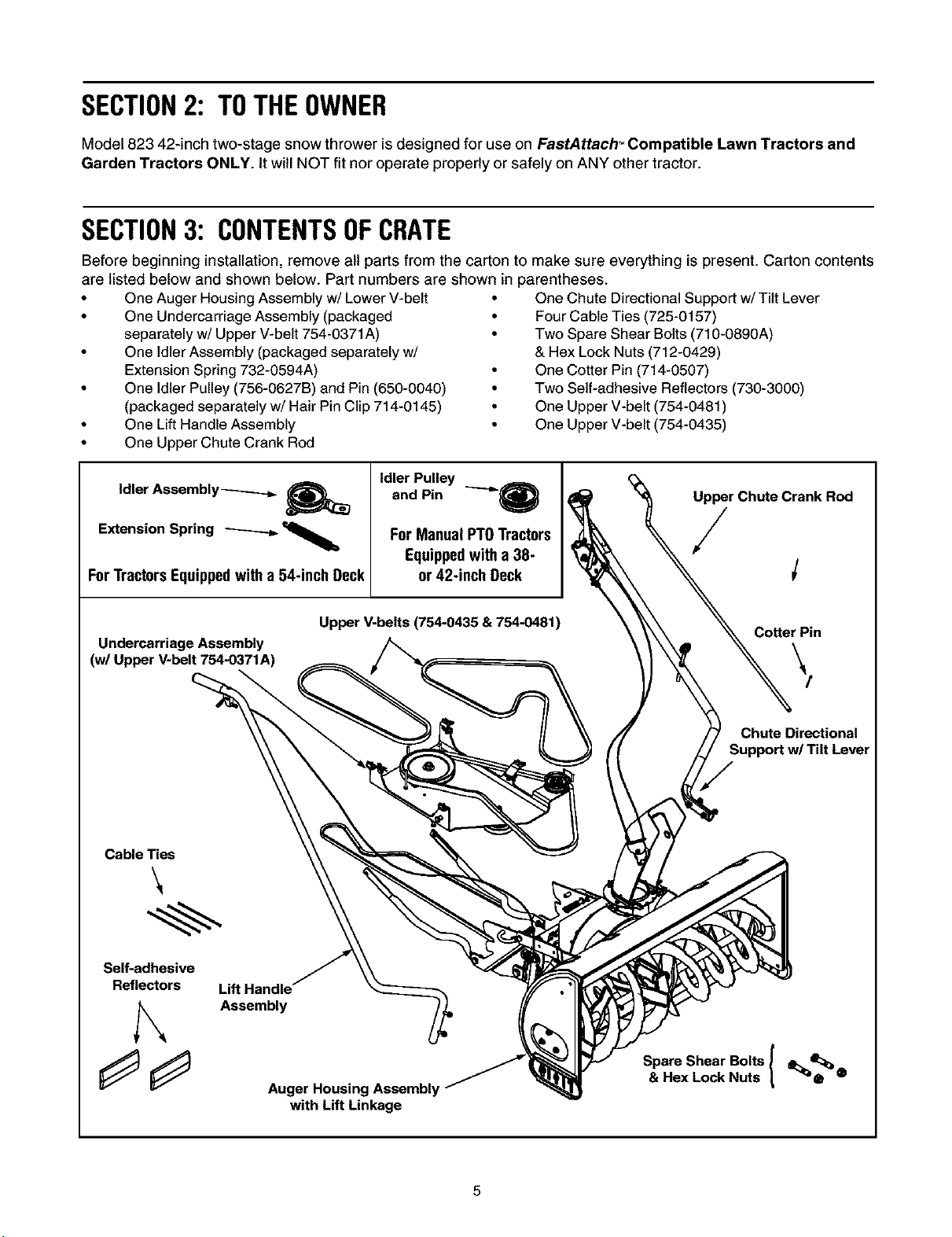

SECTION3: CONTENTSOFCRATE
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents
are listed below and shown below. Part numbers are shown in parentheses.
One Auger Housing Assembly w/Lower V-belt
One Undercarriage Assembly (packaged
separately w/Upper V-belt 754-0371A)
One Idler Assembly (packaged separately w/
Extension Spring 732-0594A)
One Idler Pulley (756-0627B) and Pin (650-0040)
(packaged separately w/Hair Pin Clip 714-0145)
One Lift Handle Assembly
One Upper Chute Crank Rod
One Chute Directional Support w/Tilt Lever
Four Cable Ties (725-0157)
Two Spare Shear Bolts (710-0890A)
& Hex Lock Nuts (712-0429)
One Cotter Pin (714-0507)
Two Self-adhesive Reflectors (730-3000)
One Upper V-belt (754-0481)
One Upper V-belt (754-0435)
ForTractorsEquippedwith a 54-inch Deck
Idler Pulley
and Pin "----'_O
ForManual PTOTractors
Equippedwith a 38-
or 42-inch Deck
Upper Chute Crank Rod
/
Undercarriage Assembly
(w/Upper V-belt 754-0371A)
Upper V-belts (754-0435 & 754-0481)
Cotter Pin
Chute Directional
Support w/Tilt Lever
Cable Ties
\
Self-adhesive
Reflectors Lift Handle"
Assembly
Auger Housing Assembly
with Lift Linkage
Spare Shear Bolts I
& Hex Lock Nuts L _:_O4_'®

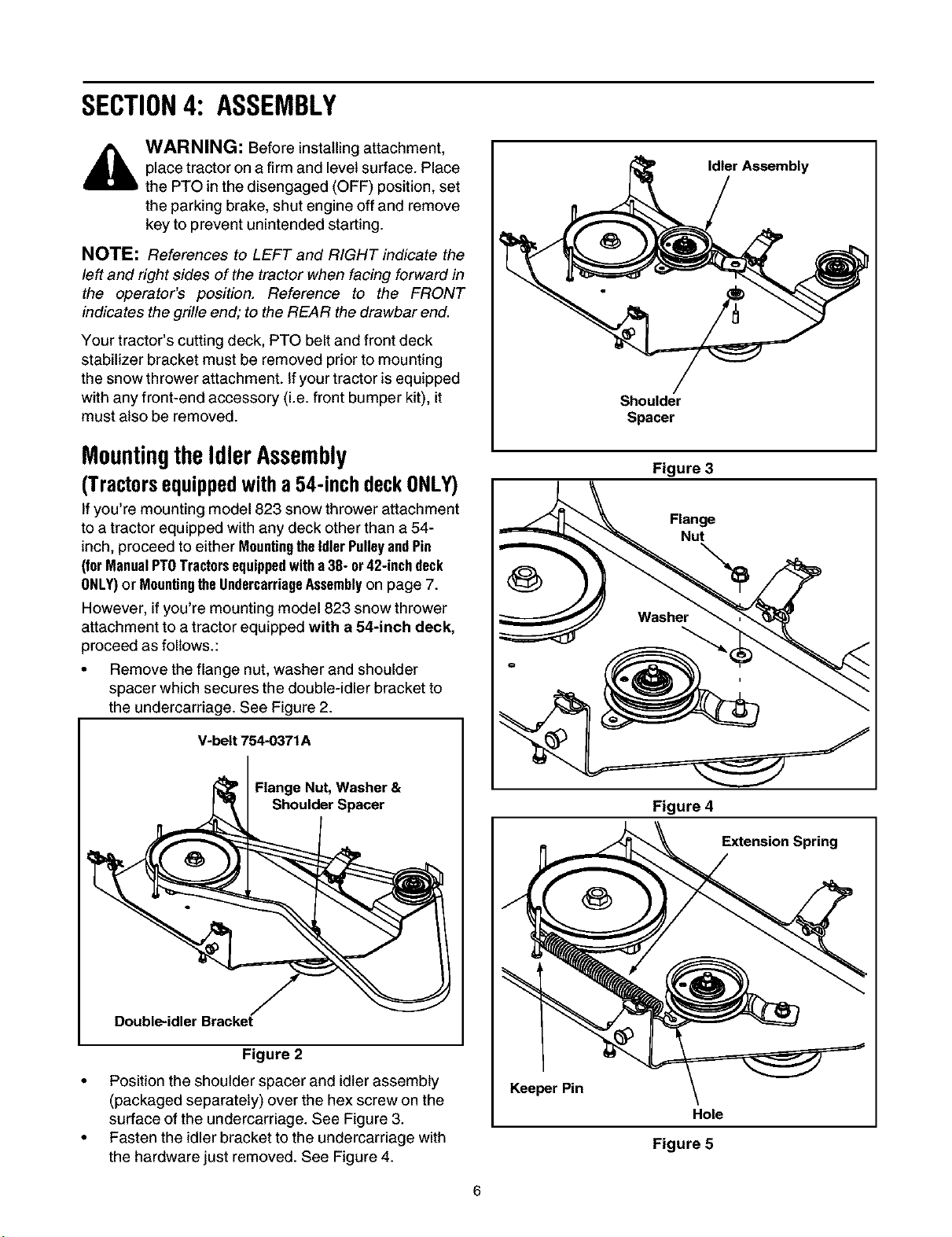

SECTION4: ASSEMBLY
WARNING: Before installingattachment,
place tractor on a firm and level surface. Place
the PTO in the disengaged (OFF) position, set
the parking brake, shut engine off and remove
key to prevent unintended starting.
NOTE: References to LEFT and RIGHT indicate the
left and right sides of the tractor when facing forward in
the operator's position. Reference to the FRONT
indicates the grille end; to the REAR the drawbar end.
Your tractor's cutting deck, PTO belt and front deck
stabilizer bracket must be removed prior to mounting
the snow thrower attachment. If your tractor is equipped
with any front-end accessory (i.e. front bumper kit), it
must also be removed.
MountingtheIdlerAssembly
(Tractorsequippedwitha54-inchdeckONLY)
If you're mounting model 823 snow thrower attachment
to a tractor equipped with any deck other than a 54-
inch, proceed to either MountingtheIdlerPulleyandPin
(forManualPTOTractorsequippedwitha 38- or42-inchdeck
ONLY)or MountingtheUndercarriageAssemblyon page 7.
However, ifyou're mounting model 823 snow thrower
attachment to a tractor equipped with a 54-inch deck,
proceed as follows.:
• Remove the flange nut, washer and shoulder
spacer which secures the double-idler bracket to
the undercarriage. See Figure 2.
V-belt 754-0371A
Flange Nut, Washer &
Shoulder Spacer
Double-idler Bracket
Figure 2
• Position the shoulder spacer and idler assembly
(packaged separately) over the hex screw on the
surface of the undercarriage. See Figure 3.
• Fasten the idler bracket to the undercarriage with
the hardware just removed. See Figure 4.
Idler Assembly
Shoulder
Spacer
Figure 3
Flange
Nut
Washer
Figure 4
Extension Spring
Keeper Pin
Hole
Figure 5
• Attach one end of the extension spring (732-
0594A) to the hole in the idler assembly just
mounted and the opposite end of the extension
spring to the keeper pin as illustrated in Figure 5.
• Position the upper v-belt as illustrated in Figure 6.
Figure 6

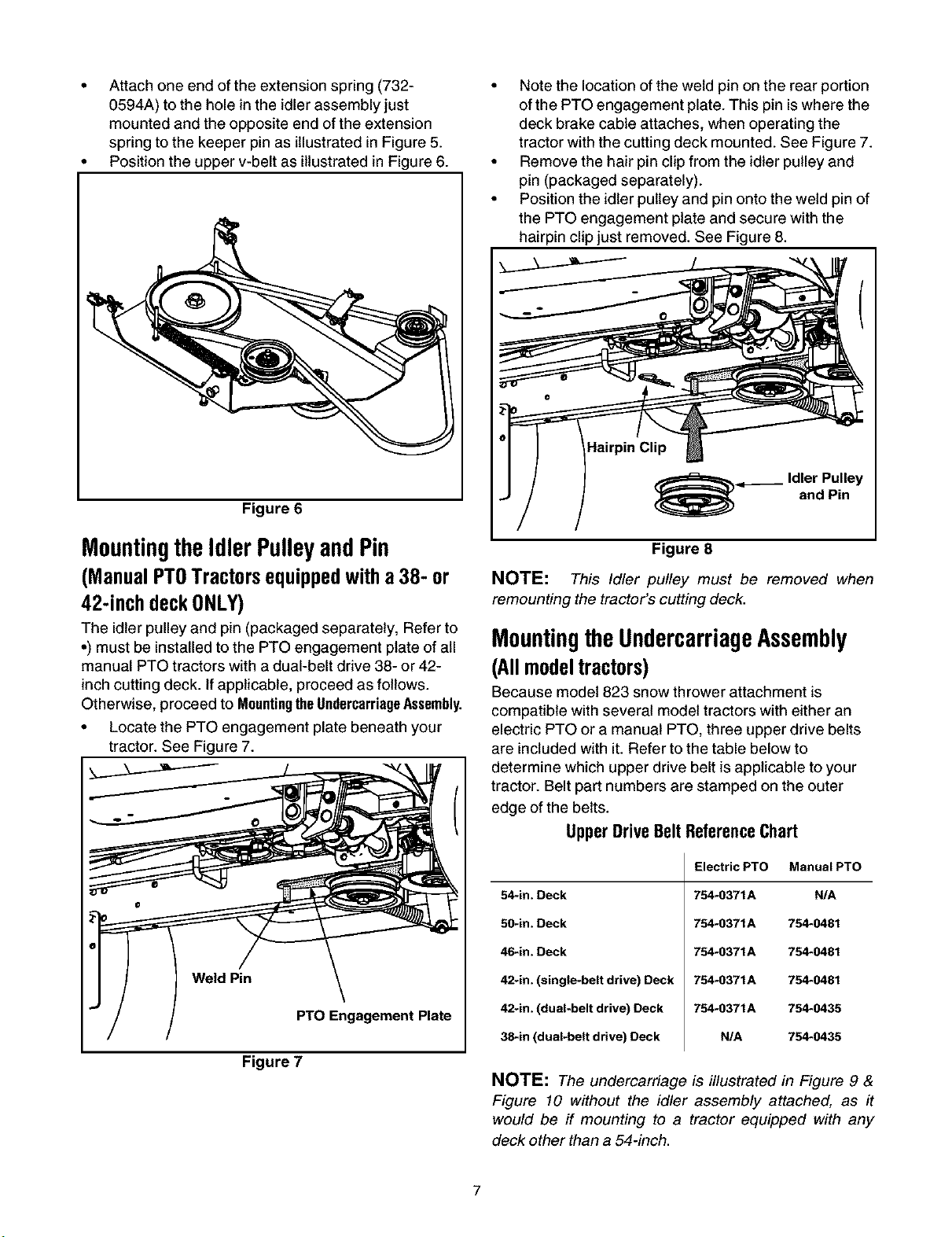

MountingtheIdler PulleyandPin
(ManualPTOTractorsequippedwitha 38- or
42-inch deckONLY)
The idler pulley and pin (packaged separately, Refer to
•) must be installed to the PTO engagement plate of all
manual PTO tractors with a dual-belt drive 38- or 42-
inch cutting deck. If applicable, proceed as follows.
Otherwise, proceed to MountingtheUndercarriageAssembly.
• Locate the PTO engagement plate beneath your
tractor. See Figure 7.
Weld Pin
PTO Engagement Plate
Figure 7
• Note the location of the weld pin on the rear portion
of the PTO engagement plate. This pin is where the
deck brake cable attaches, when operating the
tractor with the cutting deck mounted. See Figure 7.
• Remove the hair pin clip from the idler pulley and
pin (packaged separately).
• Position the idler pulley and pin onto the weld pin of
the PTO engagement plate and secure with the
hairpin clip just removed. See Figure 8.
Hairpin Clip
._...__ Idler Pulley
and Pin
Figure 8
NOTE: This /d/er pulley must be removed when
remounting the tractor's cutting deck.
MountingtheUndercarriageAssembly
(Allmodeltractors)
Because model 823 snow thrower attachment is
compatible with several model tractors with either an
electric PTO or a manual PTO, three upper drive belts
are included with it. Refer to the table below to
determine which upper drive belt is applicable to your
tractor. Belt part numbers are stamped on the outer
edge of the belts.
UpperDriveBeltReferenceChart
54-in. Deck
50-in. Deck
46-in. Deck
42-in. (single*belt drive) Deck
42-in. (dual-belt drive) Deck
38-in (dual-belt drive) Deck
Electric PTO Manual PTO
754-0371 A N/A
754-0371A 754-0481
754-037tA 754-0481
754-0371A 754-0481
754-0371A 754-0435
N/A 754-0435
NOTE: The undercarriage is illustrated in Figure 9 &
Figure 10 without the idler assembly attached, as it
would be if mounting to a tractor equipped with any
deck other than a 54-inch.

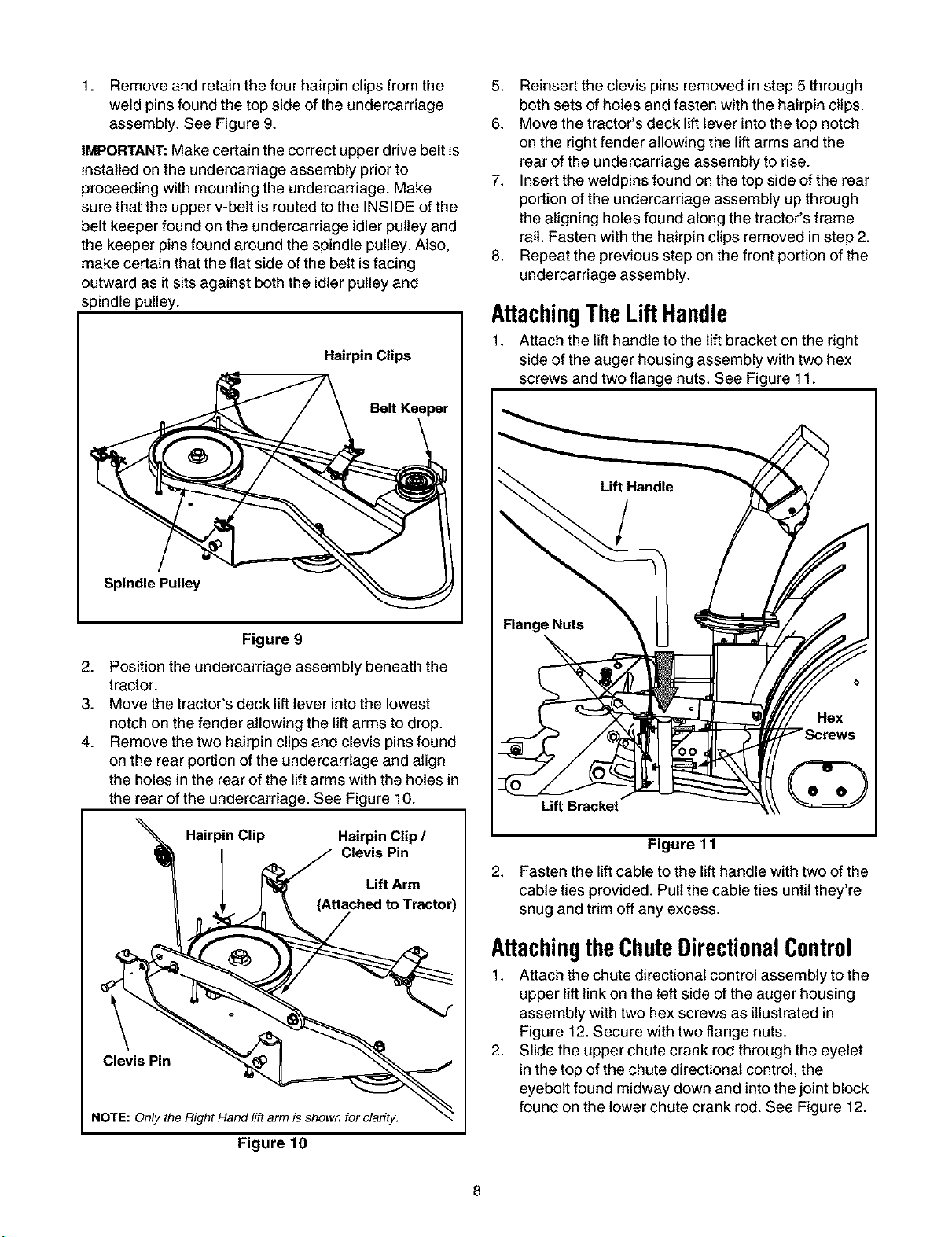

1. Remove and retain the four hairpin clips from the
weld pins found the top side of the undercarriage
assembly. See Figure 9.
IMPORTANT: Make certain the correct upper drive belt is
installed on the undercarriage assembly prior to
proceeding with mounting the undercarriage. Make
sure that the upper v-belt is routed to the INSIDE of the
belt keeper found on the undercarriage idler pulley and
the keeper pins found around the spindle pulley. Also,
make certain that the flat side of the belt is facing
outward as it sits against both the idler pulley and
spindle pulley.
Hairpin Clips
Belt Keeper
Spindle Pulley
5. Reinsert the clevis pins removed in step 5 through
both sets of holes and fasten with the hairpin clips.
6. Move the tractor's deck lift lever into the top notch
on the right fender allowing the lift arms and the
rear of the undercarriage assembly to rise.
7. Insert the weldpins found on the top side of the rear
portion of the undercarriage assembly up through
the aligning holes found along the tractor's frame
rail. Fasten with the hairpin clips removed instep 2.
8. Repeat the previous step on the front portion of the
undercarriage assembly.
AttachingTheLiftHandle
1. Attach the lift handle to the lift bracket on the right
side of the auger housing assembly with two hex
screws and two flange nuts. See Figure 11.
I
2.
3.
4.
Figure 9
Position the undercarriage assembly beneath the
tractor.
Move the tractor's deck lift lever intothe lowest
notch on the fender allowing the lift arms to drop.
Remove the two hairpin clips and clevis pins found
on the rear portion of the undercarriage and align
the holes in the rear of the lift arms with the holes in
the rear of the undercarriage. See Figure 10.
"_ Hairpin Clip Hairpin Clip /
I _J Clevis Pin
| _ _' Lift Arm
._ _ched toTr=actor)
Clevis Pin
NOTE_s shown for clarit_ "%
Figure 10
Hex
Lift Bracket
2.
Figure 11
Fasten the lift cable to the lift handle with two of the
cable ties provided. Pull the cable ties until they're
snug and trim off any excess.
AttachingtheChuteDirectionalControl
1. Attach the chute directional control assembly to the
upper lift link on the left side of the auger housing
assembly with two hex screws as illustrated in
Figure 12. Secure with two flange nuts.
2. Slide the upper chute crank rod through the eyelet
in the top of the chute directional control, the
eyebolt found midway down and into the joint block
found on the lower chute crank rod. See Figure 12.
Lower Chute Crank Rod
Upper Lift Link
Auger Housing
Support Bar
Cotter Pin
Joint Block
Upper Chute Crank Rod
Chute Directional Control
NOTE: The chute tilt cables are shown partitioned for clarity,
Do NOT cut the cables to mount the chute directional control
Eyelet
.
4.
Figure 12
Secure the upper chute crank rod to the joint block
on the lower chute crank rod with the cotter pin
provided. See Figure 12.
Fasten the chute tilt cables to the chute directional
control with two of the four cable ties provided. Pull
the cable ties until they're snug and trim off excess.

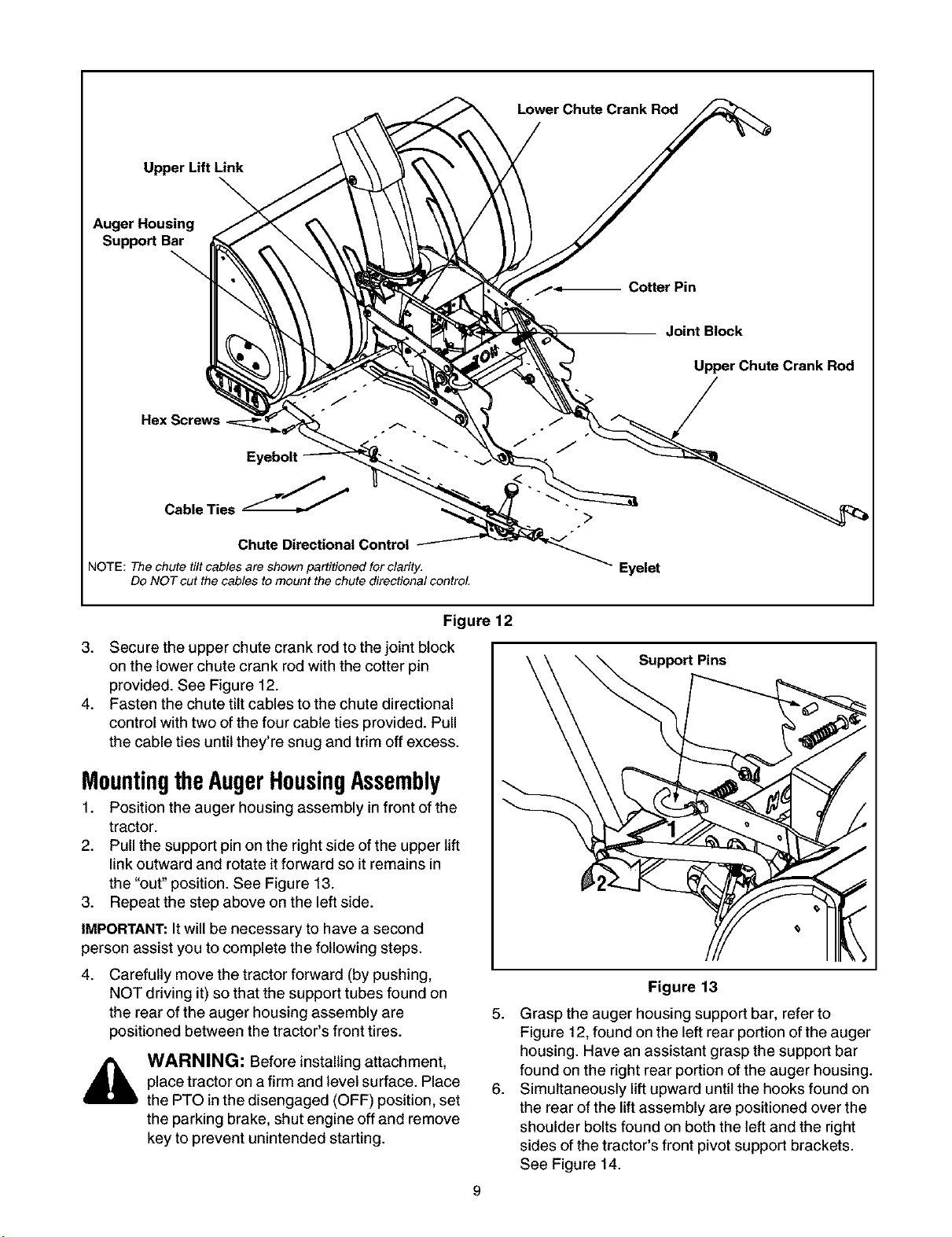

MountingtheAugerHousingAssembly
1. Position the auger housing assembly in front of the
tractor.
2. Pull the support pin on the right side of the upper lift
link outward and rotate it forward so it remains in
the "out" position. See Figure 13.
3. Repeat the step above on the left side.
IMPORTANT: It will be necessary to have a second
person assist you to complete the following steps.
4. Carefully move the tractor forward (by pushing,
NOT driving it) so that the support tubes found on
the rear of the auger housing assembly are
positioned between the tractor's front tires.
WARNING: Before installing attachment,
place tractor on a firm and level surface. Place
the PTO in the disengaged (OFF) position, set
the parking brake, shut engine off and remove
key to prevent unintended starting.
Support Pins
Figure 13
5. Grasp the auger housing support bar, refer to
Figure 12, found on the left rear portion of the auger
housing. Have an assistant grasp the support bar
found on the right rear portion of the auger housing.
6. Simultaneously lift upward until the hooks found on
the rear of the lift assembly are positioned over the
shoulder bolts found on both the left and the right
sides of the tractor's front pivot support brackets.
See Figure 14.
7.
Grasp the upper portion of the auger housing with
both hands (where the decorative label is found)
and pivot the assembly upward until the support pin
holes align with the holes in the tractor's front pivot
support bracket. Both of these holes are marked
with an 'A' in Figure 14.
Shoulder Bolt
Support Tubes
Figure 14
8. While holding the snow thrower attachment in this
"up" position, have an assistant pull the support pin
on the right side of the auger housing outward and
rotate it slightly until it aligns with the hole on the
side of the front pivot support bracket. The pin can
then be released to lock it in place.
9. Repeat the previous step on the left side.

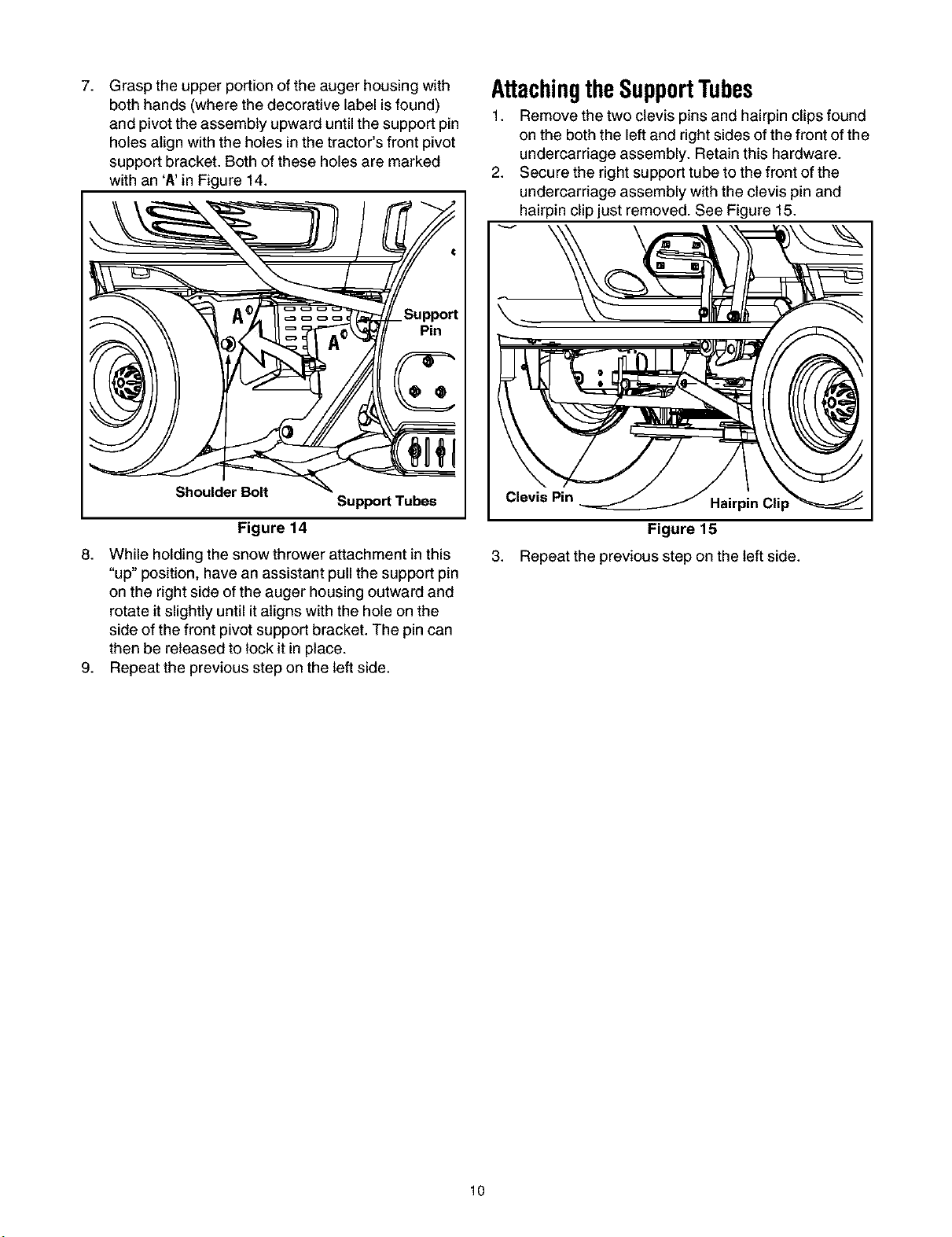

AttachingtheSupportTubes
1. Remove the two clevis pins and hairpin clips found
on the both the left and right sides of the front of the
undercarriage assembly. Retain this hardware.
2. Secure the right support tube to the front of the
undercarriage assembly with the clevis pin and
hairpin clip just removed. See Figure 15.
Clevis Pin
Hairpin Cli I
.
10
Figure 15
Repeat the previous step on the left side.

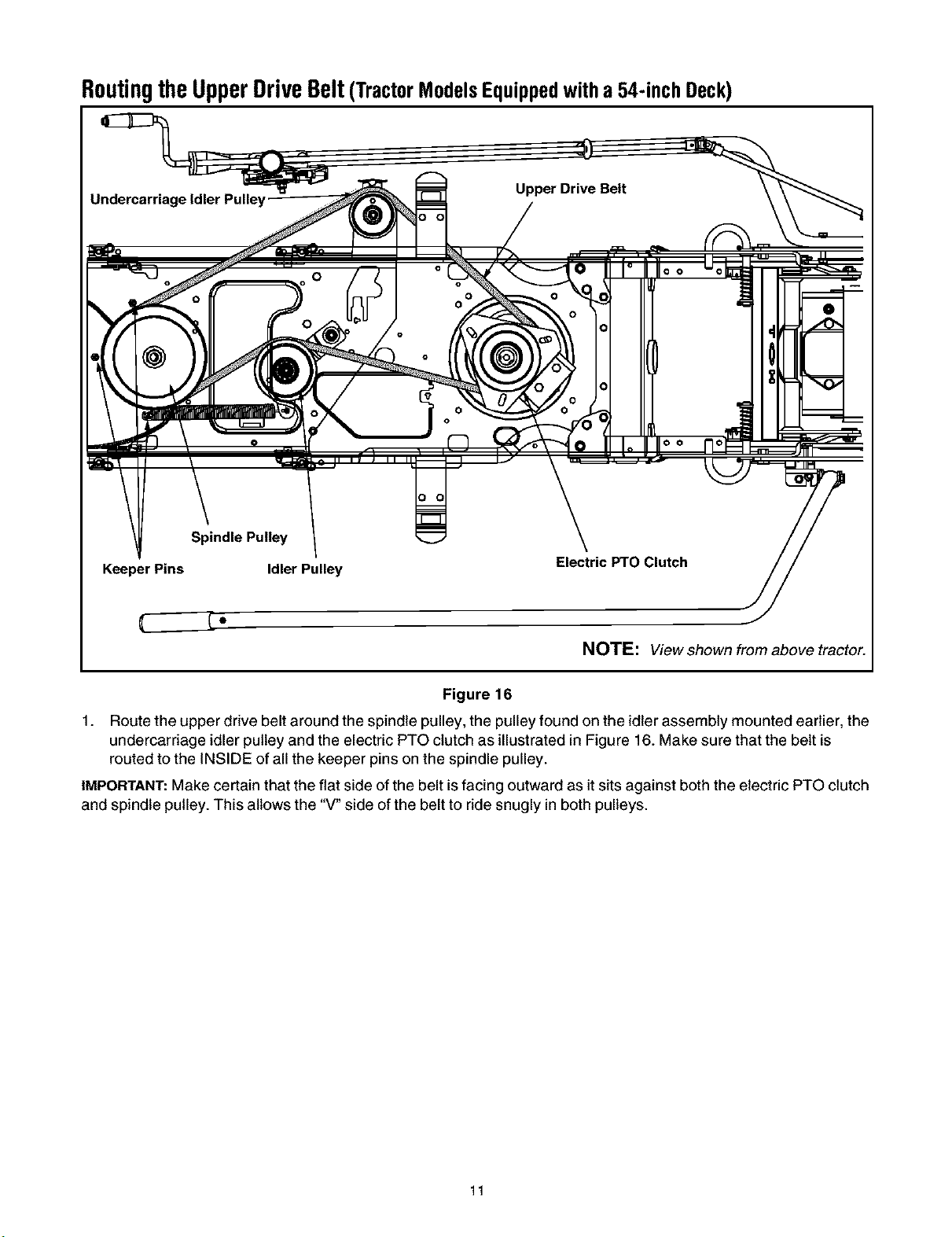

RoutingtheUpperDriveBelt(TractorModelsEquippedwitha54-inchDeck)
_.-_ j_ oO _ o_ _o
z_,-_ \ _.- :, .I J .... __'
Spindle Pulley
Keeper Pins Idler Pulley Electric PTO Clutch
U dec," ge e ey //_perDriveB_ __ (/__
C______-_"
NOTE: View shown from above tractor.
Figure 16
1. Route the upper drive belt around the spindle pulley, the pulley found on the idler assembly mounted earlier, the
undercarriage idler pulley and the electric PTO clutch as illustrated in Figure 16. Make sure that the belt is
routed to the INSIDE of all the keeper pins on the spindle pulley.
IMPORTANT: Make certain that the flat side of the belt is facing outward as it sits against both the electric PTO clutch
and spindle pulley. This allows the "V" side of the belt to ride snugly in both pulleys.
11

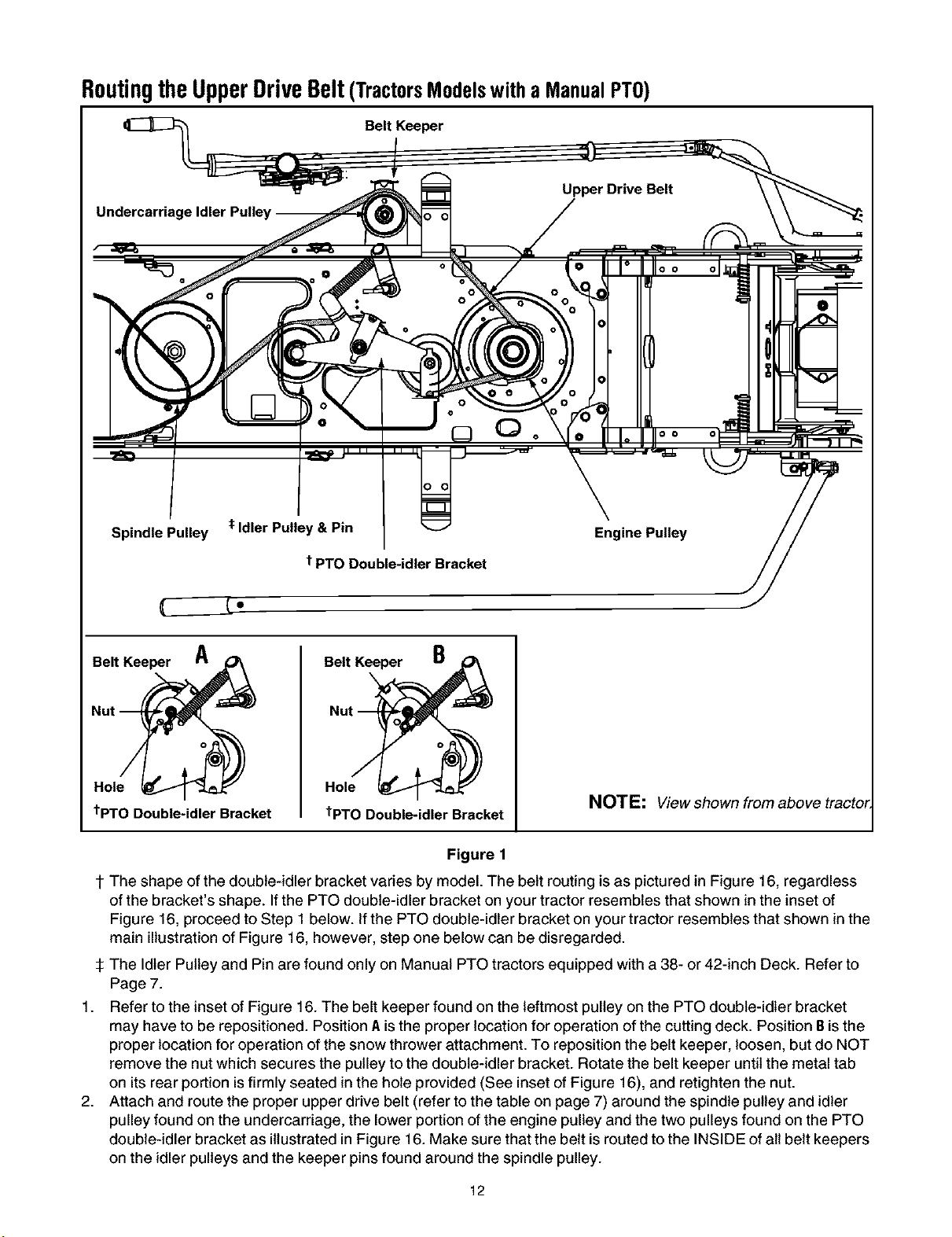

RoutingtheUpperDriveBelt(TractorsModelswitha ManualPTO)
Belt Keeper
Spindle Pulley $Idler Pulley & Pin
t PTO Double-idler Bracket
Engine Pulley
Belt Keeper A
tpTO Double-idler Bracket
Belt Keeper B
Hole
tpTO Double-idler Bracket
NOTE: View shown from above tractor
1.
2.
Figure 1
t The shape of the double-idler bracket varies by model. The belt routing is as pictured in Figure 16, regardless
of the bracket's shape. Ifthe PTO double-idler bracket on your tractor resembles that shown in the inset of
Figure 16, proceed to Step 1 below. If the PTO double-idler bracket on your tractor resembles that shown in the
main illustration of Figure 16, however, step one below can be disregarded.
:1:The Idler Pulley and Pin are found only on Manual PTO tractors equipped with a 38- or 42-inch Deck. Refer to
Page 7.
Refer to the inset of Figure 16. The belt keeper found on the leftmost pulley on the PTO double-idler bracket
may have to be repositioned. Position Ais the proper location for operation of the cutting deck. Position Bisthe
proper location for operation of the snow thrower attachment. To reposition the belt keeper, loosen, but do NOT
remove the nut which secures the pulley to the double-idler bracket. Rotate the belt keeper until the metal tab
on itsrear portion isfirmly seated in the hole provided (See inset of Figure 16), and retighten the nut.
Attach and route the proper upper drive belt (refer to the table on page 7) around the spindle pulley and idler
pulley found on the undercarriage, the lower portion of the engine pulley and the two pulleys found on the PTO
double-idler bracket as illustrated in Figure 16. Make sure that the belt is routed to the INSIDE of all belt keepers
on the idler pulleys and the keeper pins found around the spindle pulley.
12

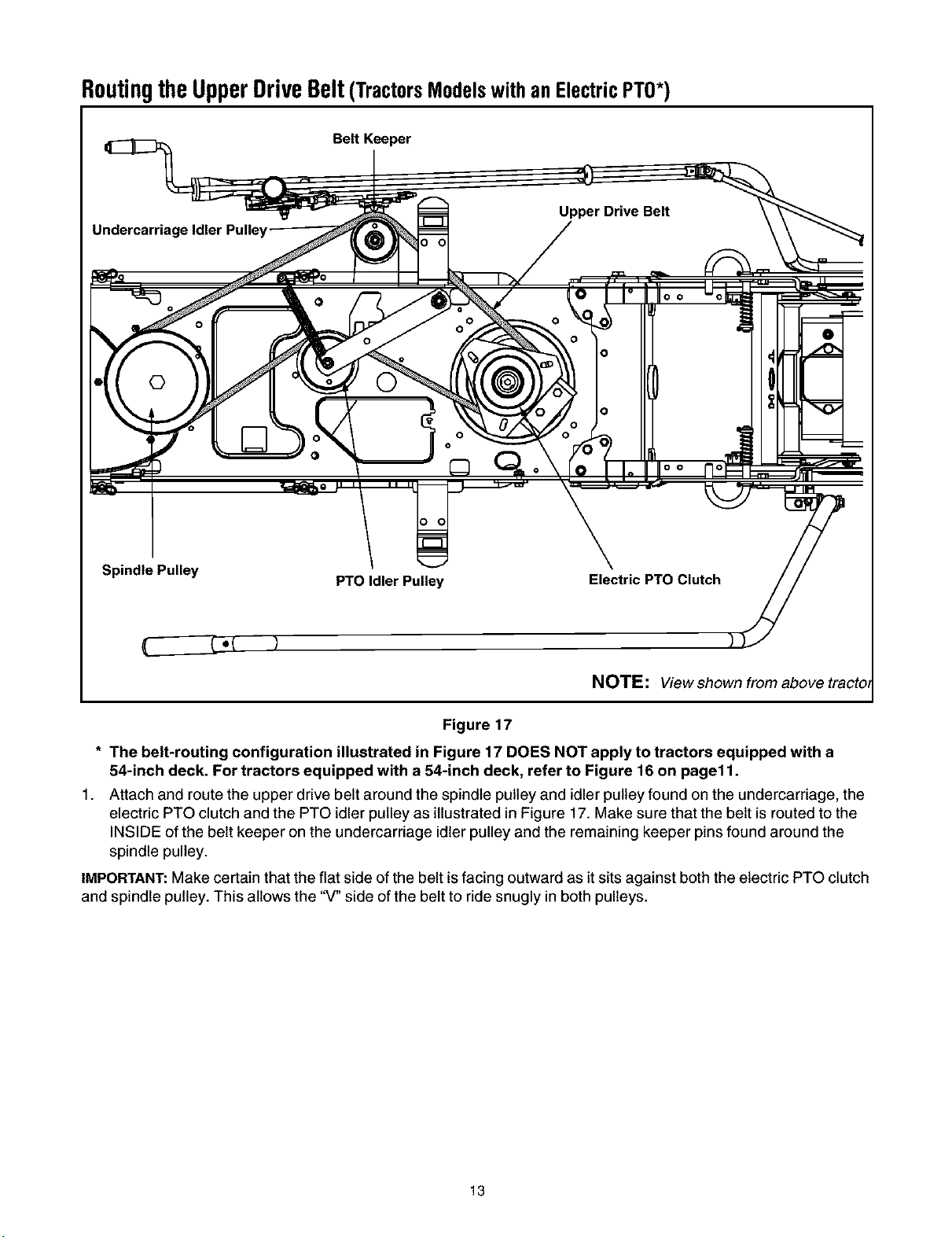

RoutingtheUpperDriveBelt(TractorsModelswithanElectricPTO*)
Belt Keeper
Spindle Pulley
PTO Idler Pulley
Electric PTO Clutch
(_ T*{ }
NOTE: View shown from above tractol
Figure 17
* The belt-routing configuration illustrated in Figure 17 DOES NOT apply to tractors equipped with a
54-inch deck. For tractors equipped with a 54-inch deck, refer to Figure 16 on page11.
1. Attach and route the upper drive belt around the spindle pulley and idler pulley found on the undercarriage, the
electric PTO clutch and the PTO idler pulley as illustrated in Figure 17. Make sure that the bett is routed to the
INSIDE of the bett keeper on the undercarriage idler pulley and the remaining keeper pins found around the
spindle pulley.
IMPORTANT: Make certain that the flat side of the belt isfacing outward as it sits against both the electric PTO clutch
and spindle pulley. This allows the "V" side of the belt to ride snugly in both pulleys.
13

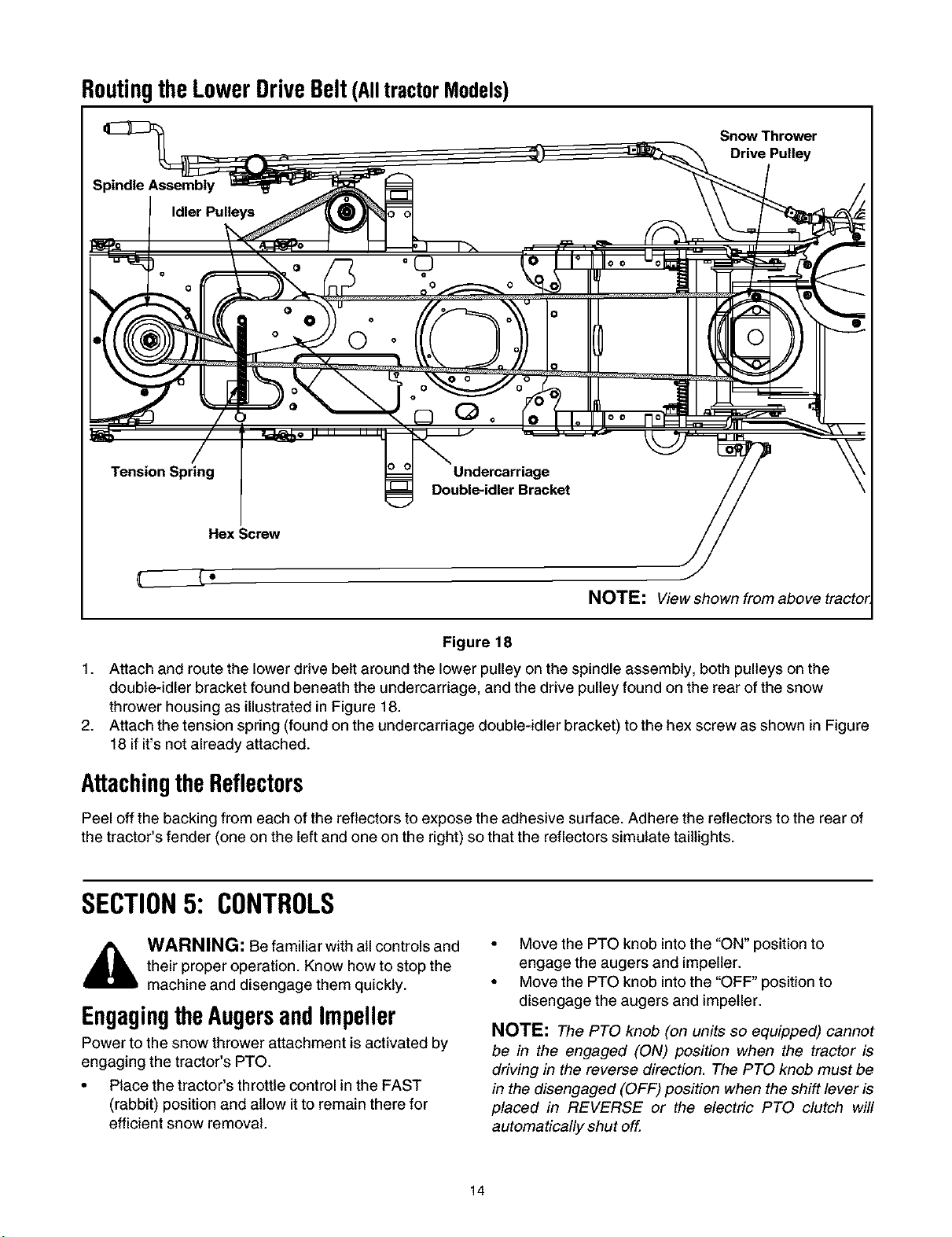

RoutingtheLowerDriveBelt(AlltractorModels)
Snow Thrower
Drive Pulley
Tension Spring
Hex Screw
NOTE: View shown from above tractor
Figure 18
1. Attach and route the lower drive belt around the lower pulley on the spindle assembly, both pulleys on the
double-idler bracket found beneath the undercarriage, and the drive pulley found on the rear of the snow
thrower housing as illustrated in Figure 18.
2. Attach the tension spring (found on the undercarriage double-idler bracket) to the hex screw as shown in Figure
18 if it's not already attached.
AttachingtheReflectors
Peel off the backing from each of the reflectors to expose the adhesive surface. Adhere the reflectors to the rear of
the tractor's fender (one on the left and one on the right) so that the reflectors simulate taillights.
SECTION5: CONTROLS
_ ARNING: Be familiar with all controls and
their proper operation. Know how to stop the
machine and disengage them quickly.
EngagingtheAugersandImpeller
Power to the snow thrower attachment is activated by
engaging the tractor's PTO.
• Place the tractor's throttle control in the FAST
(rabbit) position and allow it to remain there for
efficient snow removal.
• Move the PTO knob intothe "ON" position to
engage the augers and impeller.
• Move the PTO knob into the "OFF" position to
disengage the augers and impeller.
NOTE: The PTO knob (on units so equipped) cannot
be in the engaged (ON) position when the tractor is
driving in the reverse direction. The PTO knob must be
in the disengaged (OFF) position when the shift lever is
placed in REVERSE or the electric PTO clutch will
automatically shut off.
14

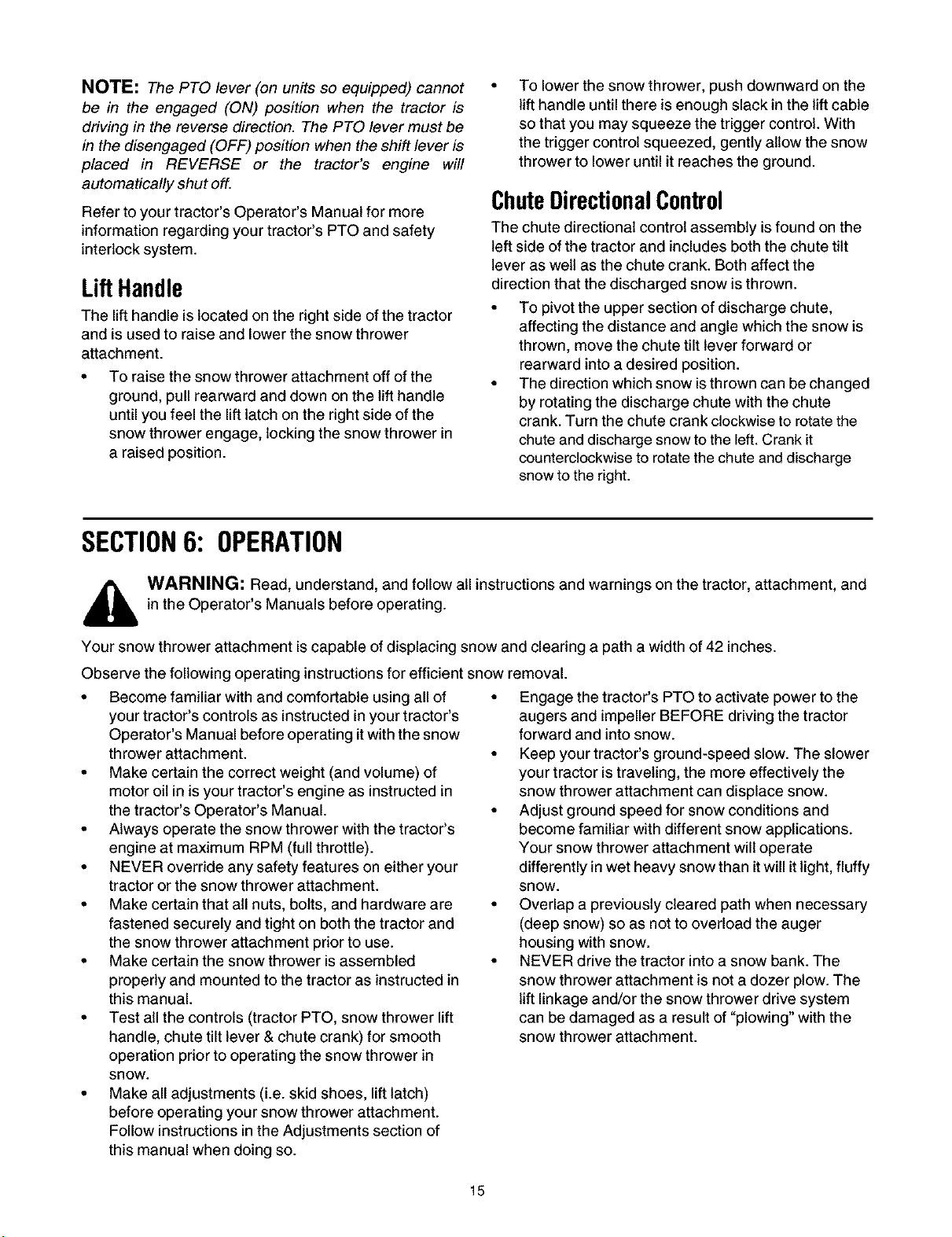

NOTE: The PTO lever (on units so equipped) cannot
be in the engaged (ON) position when the tractor is
driving in the reverse direction. The PTO lever must be
in the disengaged (OFF) position when the shift lever is
placed in REVERSE or the tractor's engine will
automatically shut off.
Refer to your tractor's Operator's Manual for more
information regarding your tractor's PTO and safety
interlock system.
Lift Handle
The lift handle is located on the right side of the tractor
and is used to raise and lower the snow thrower
attachment.
• To raise the snow thrower attachment off of the
ground, pull rearward and down on the lift handle
until you feel the lift latch on the right side of the
snow thrower engage, locking the snow thrower in
a raised position.
To lower the snow thrower, push downward on the
lift handle until there is enough slack in the lift cable
so that you may squeeze the trigger control. With
the trigger control squeezed, gently allow the snow
thrower to lower until it reaches the ground.
ChuteDirectionalControl
The chute directional control assembly is found on the
left side of the tractor and includes both the chute tilt
lever as well as the chute crank. Both affect the
direction that the discharged snow is thrown.
• To pivot the upper section of discharge chute,
affecting the distance and angle which the snow is
thrown, move the chute tilt lever forward or
rearward into a desired position.
• The direction which snow is thrown can be changed
by rotating the discharge chute with the chute
crank. Turn the chute crank clockwise to rotate the
chute and discharge snow to the left. Crank it
counterclockwise to rotate the chute and discharge
snow to the right.
SECTION6: OPERATION
,_ WARNING: Read, understand, and follow all instructions and warnings on the tractor, attachment, and
in the Operator's Manuals before operating.
Your snow thrower attachment is capable of displacing snow and clearing a path a width of 42 inches.
Observe the following operating instructions for efficient snow removal.
• Become familiar with and comfortable using all of
your tractor's controls as instructed in your tractor's
Operator's Manual before operating it with the snow
thrower attachment.
• Make certain the correct weight (and volume) of
motor oil in is your tractor's engine as instructed in
the tractor's Operator's Manual.
• Always operate the snow thrower with the tractor's
engine at maximum RPM (full throttle).
• NEVER override any safety features on either your
tractor or the snow thrower attachment.
• Make certain that all nuts, bolts, and hardware are
fastened securely and tight on both the tractor and
the snow thrower attachment prior to use.
• Make certain the snow thrower is assembled
properly and mounted to the tractor as instructed in
this manual.
• Test all the controls (tractor PTO, snow thrower lift
handle, chute tilt lever & chute crank) for smooth
operation prior to operating the snow thrower in
snow.
• Make all adjustments (i.e. skid shoes, lift latch)
before operating your snow thrower attachment.
Follow instructions in the Adjustments section of
this manual when doing so.
• Engage the tractor's PTO to activate power to the
augers and impeller BEFORE driving the tractor
forward and into snow.
• Keep your tractor's ground-speed slow. The slower
your tractor is traveling, the more effectively the
snow thrower attachment can displace snow.
• Adjust ground speed for snow conditions and
become familiar with different snow applications.
Your snow thrower attachment will operate
differently in wet heavy snow than it will it light, fluffy
snow.
• Overlap a previously cleared path when necessary
(deep snow) so as not to overload the auger
housing with snow.
• NEVER drive the tractor into a snow bank. The
snow thrower attachment is not a dozer plow. The
lift linkage and/or the snow thrower drive system
can be damaged as a result of "plowing" with the
snow thrower attachment.
15
• Iftheaugersbecomejammedwithachunkoficeor
aforeignobject,movethePTOintothedisengaged
(OFF)positionimmediatelyandturnoffthetractor's
engineandremovetheignitionkey.Examinethe
augerareathoroughlyfordamageanddoNOT
operatethesnowthrowerattachmentuntilany
damageisrepaired.
IMPORTANT:Theaugersaresecuredtothespiralshaft
withtwoshearboltsandhexlocknuts.Ifyouhitahard
foreignobjectoranicejam,thesnowthroweris
designedsothattheboltsmayshear.Tworeplacement
shearboltsandhexlocknutsareprovidedforyour
convenience.Storeinasafeplaceuntilneeded.
NEVERreplacetheaugershearboltswithstandard
hexbolts.Anydamagetotheaugergearboxorother
componentsasaresultofdoingsowillNOTbecovered
byyoursnowthrower'swarranty.
• Wheneverpossible,dischargesnowdownwind.
• DoNOTattempttoremoveiceorhard-packed
frozensnow.
• Whenthetractor(withthesnowthrower
attachmentmounted)isnotinuse,usetheliftlever
tolowertheaugerhousingassemblytotheground
torelievestrainonthetractor'sfrontendbetween
uses.
• Alwaysusetirechainsandrearwheelweightson
yourtractorwhereextratractionisneeded.Referto
thetabletotherighttodeterminewhichkitswiltfit
yourtractor(tiredimensionsarecanbefoundon
thesidewallsofyourtractor'stires).
• Usedriftcutterstoaidindisplacingsnowthrough
deep,driftedareas.
Garden Tractors
23" x 9.5" tires
22" x 7.5" tires
Lawn Tractors
20"x 10.0" tires
20" x 8.0" tires
18" x 9.5" tires
18" x 8.5" tires
18" x 6.5" tires
All Garden Tractors
All Lawn Tractors
All Tractors
Tire Chain Kit Number
OEM-190-964
OEM-190-974
OEM-190-916
OEM-190-658
OEM-190-657
OEM-190-754
OEM-190-664
Wheel Weight Kit Number
OEM-190-784
OEM-190-215
Drift Cutter Kit Number
OEM-390-679
NOTE: None of the kits in the table are included as
standard equipment with snow thrower attachment
0EM-190-823/190-823-101. Call our Customer
Support Department as instructed on page 2 of this
manual for availability and information regarding these
kits.
SECTION7: MAKINGADJUSTMENTS
_ ARNING: Never attempt to make any
adjustments while the engine is running,
except where specified in the Operator's
Manual. Place tractor on a firm and level
surface. Place the PTO in the disengaged
(OFF) position, set the parking brake, shut
engine off, and remove key to prevent
unintended starting.

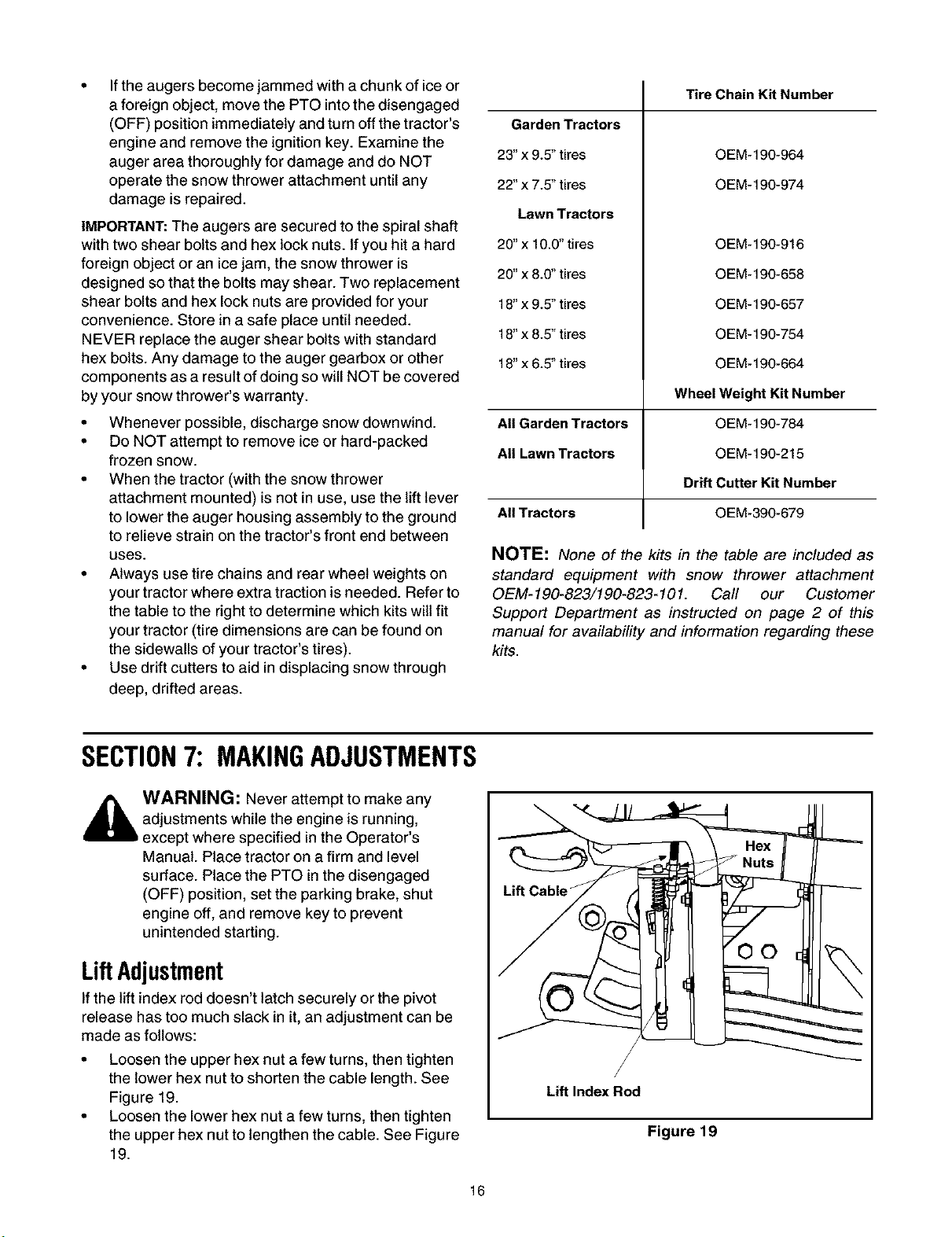

LiftAdjustment
If the lift index rod doesn't latch securely or the pivot
release has too much slack in it, an adjustment can be
made as follows:
• Loosen the upper hex nut a few turns, then tighten
the lower hex nut to shorten the cable length. See
Figure 19.
• Loosen the lower hex nut a few turns, then tighten
the upper hex nut to lengthen the cable. See Figure
19.
Lift Index Rod
Figure 19
16

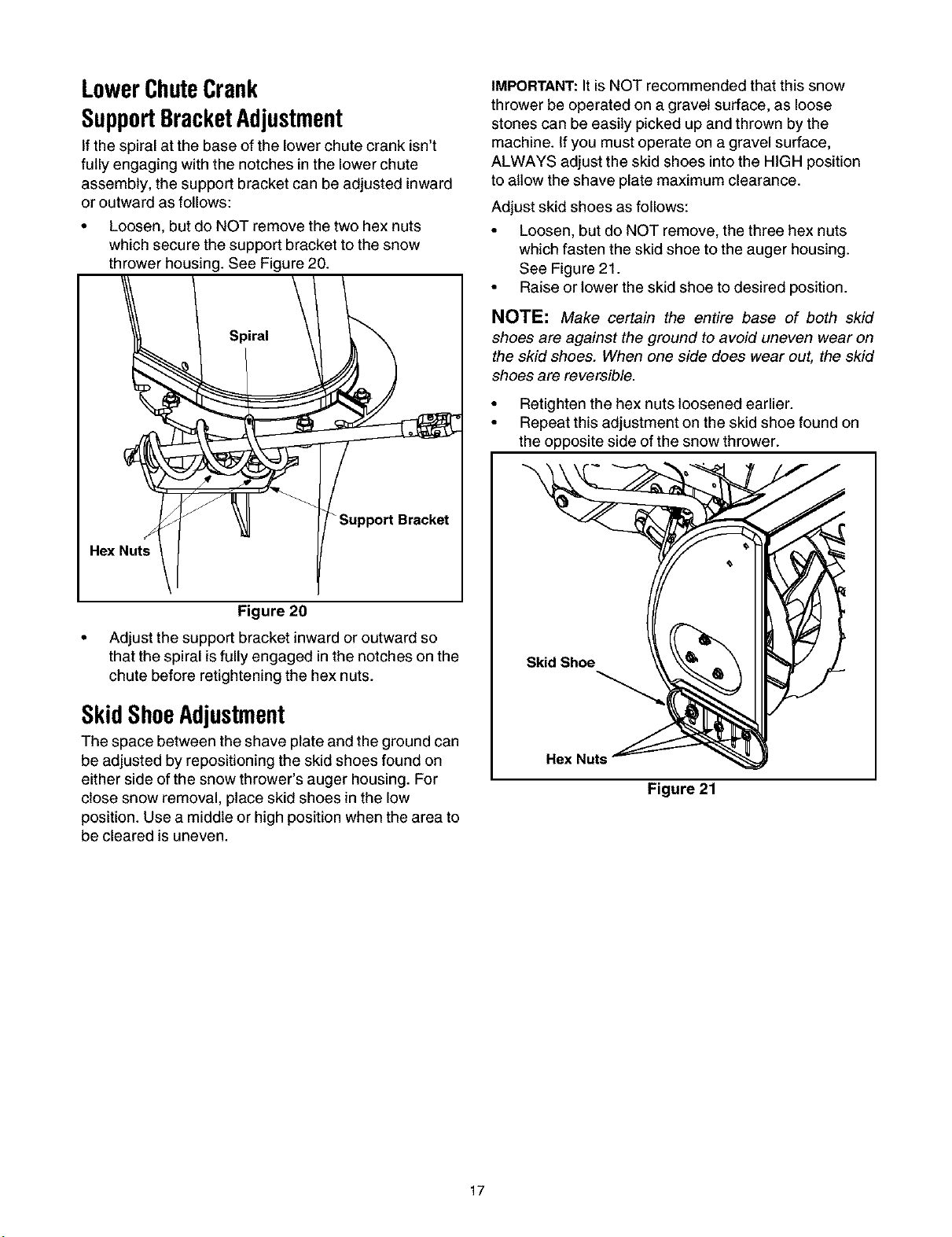

LowerChuteCrank
SupportBracketAdjustment
If the spiral at the base of the lower chute crank isn't
fully engaging with the notches in the lower chute
assembly, the support bracket can be adjusted inward
or outward as follows:
• LohoS "sebcUtr"e h eOT;;:2 eatc"ke ot ex uts
thrower houiing. See Figure 20. i_
iral
Rex Nut ,_ _r ,_ Supper[Bracket
Figure 20
• Adjust the support bracket inward or outward so
that the spiral is fully engaged in the notches on the
chute before retightening the hex nuts.
SkidShoeAdjustment
The space between the shave plate and the ground can
be adjusted by repositioning the skid shoes found on
either side of the snow thrower's auger housing. For
close snow removal, place skid shoes in the low
position. Use a middle or high position when the area to
be cleared is uneven.
IMPORTANT: It isNOT recommended that this snow
thrower be operated on a gravel surface, as loose
stones can be easily picked up and thrown by the
machine. If you must operate on a gravel surface,
ALWAYS adjust the skid shoes into the HIGH position
to allow the shave plate maximum clearance.
Adjust skid shoes as follows:
• Loosen, but do NOT remove, the three hex nuts
which fasten the skid shoe to the auger housing.
See Figure 21.
• Raise or lower the skid shoe to desired position.
NOTE: Make certain the entire base of both skid
shoes are against the ground to avoid uneven wear on
the skid shoes. When one side does wear out, the skid
shoes are reversible.
• Retighten the hex nuts loosened earlier.
• Repeat this adjustment on the skid shoe found on
the opposite side of the snow thrower.
Skid Shoe
Hex Nuts
Figure 21
17
SECTION8: MAINTENANCE
_b efore lubricating, repairing, or inspecting,
place tractor on a firm and level surface. Place
the PTO in the disengaged (OFF) position, set
the parking brake, shut engine off, and remove
key to prevent unintended starting.
Lubrication

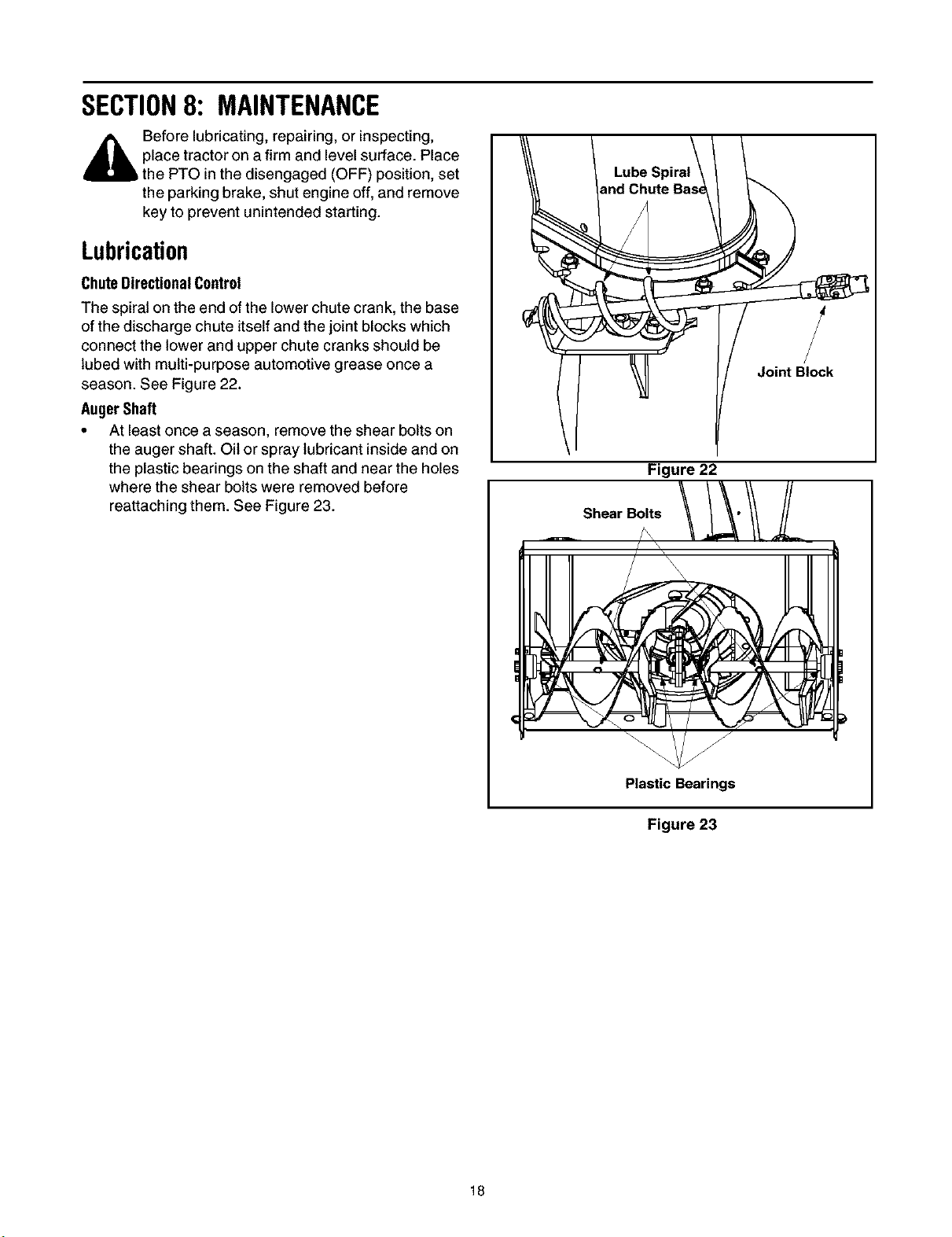

ChuteDirectionalControl
The spiral on the end of the lower chute crank, the base
of the discharge chute itself and the joint blocks which
connect the lower and upper chute cranks should be
lubed with multi-purpose automotive grease once a
season. See Figure 22,
AugerShaft
• At least once a season, remove the shear bolts on
the auger shaft. Oil or spray lubricant inside and on
the plastic bearings on the shaft and near the holes
where the shear bolts were removed before
reattaching them. See Figure 23.
Joint Block
Figure 22
Shear Bolts _°! _
Plastic Bearings
Figure 23
18
NOTES
19

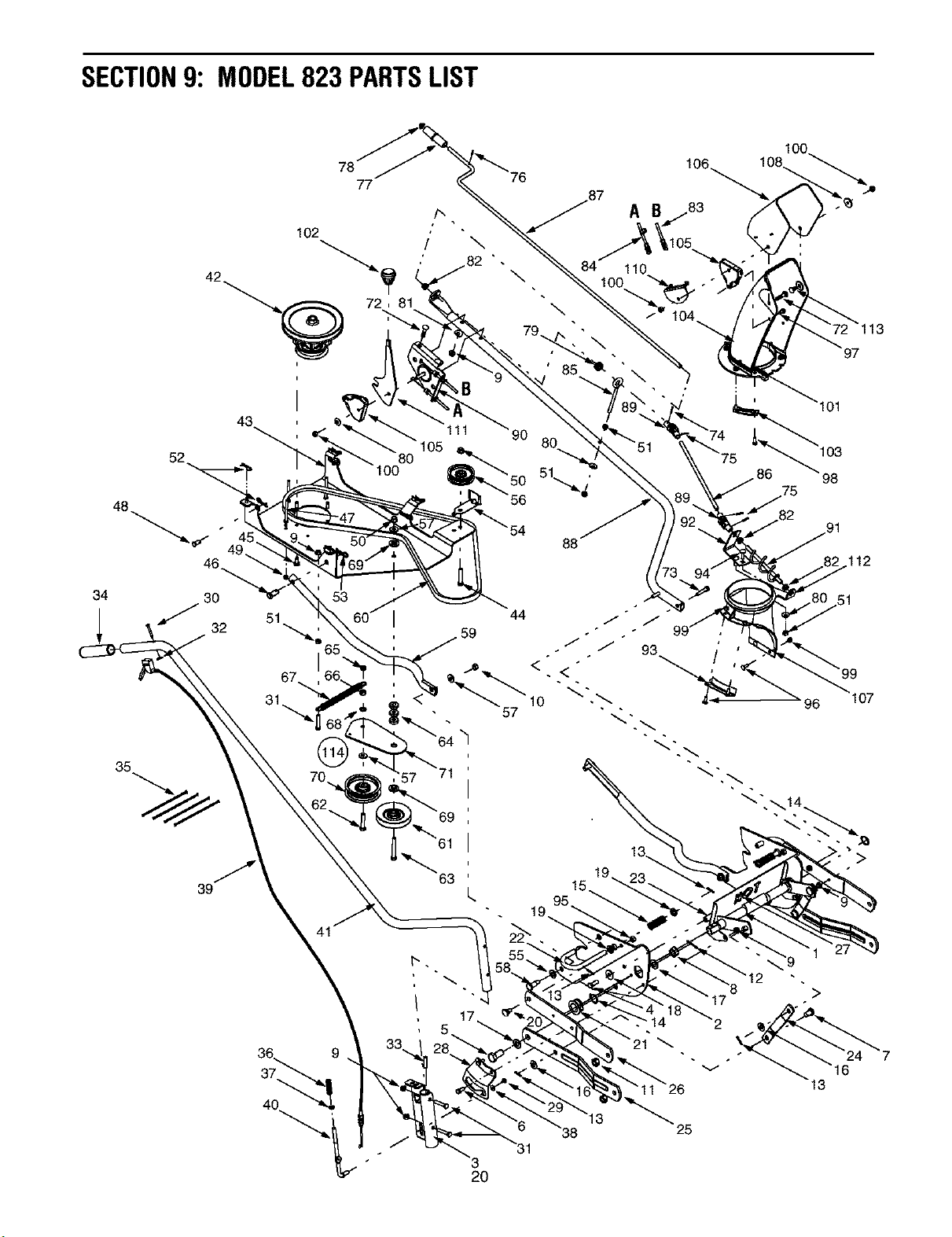

SECTION9: MODEL823 PARTSLIST
78
77
87
84
AB
52
34 30
32
35
39
43
31
53
41
6oJi
63
44
<_<
10
57
.112
>
v
25
20
Model823

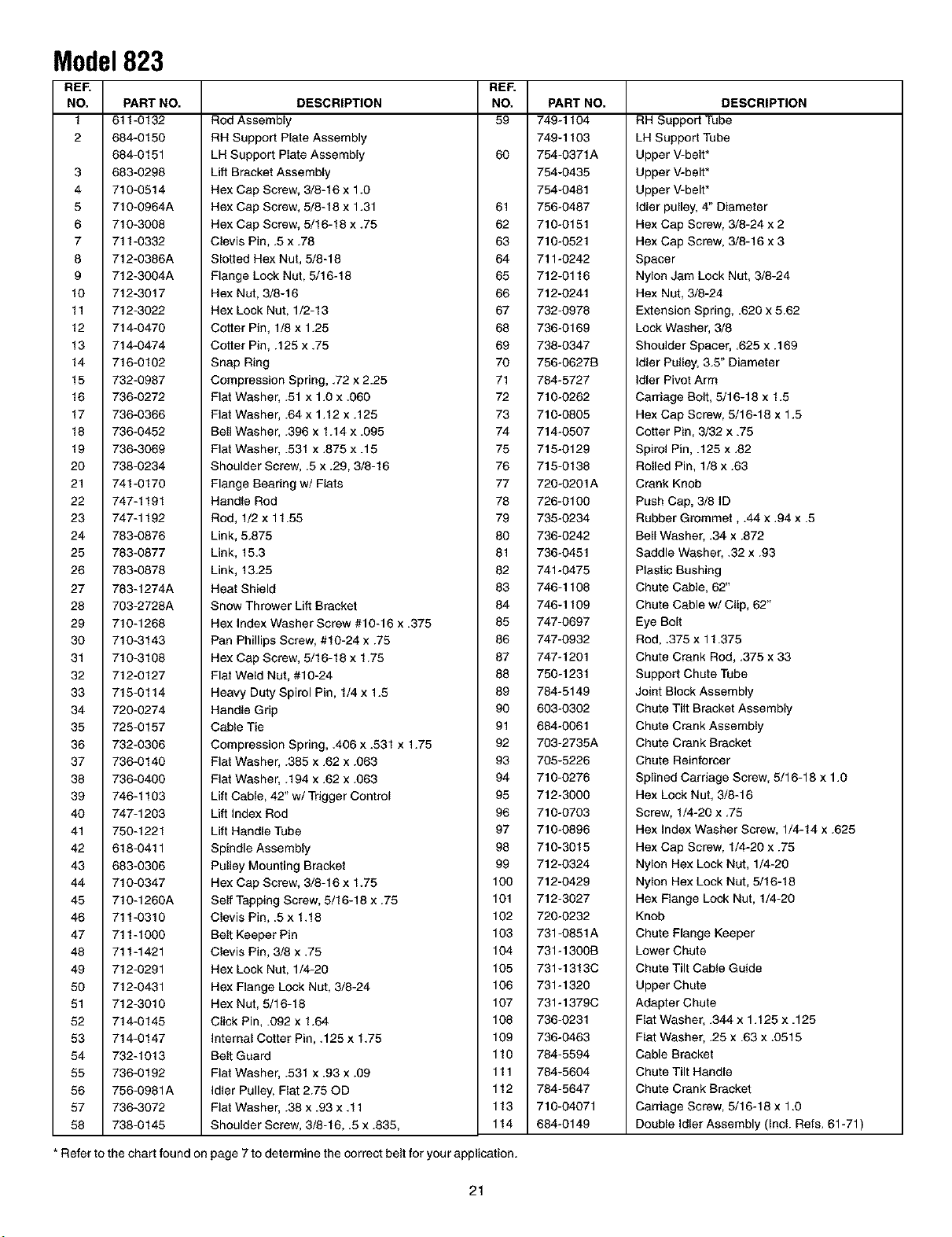

REF.
NO. PART NO.
1 611-0132
2 684-0150
684-0151
3 683-0298
4 710-9514
5 710-9964A
6 710-3008
7 711-9332
8 712-9385A
9 712-3004A
10 712-3017
11 712-3022
12 714-0479
13 714-9474
14 716-0102
15 732-0987
16 736-0272
17 736-0368
18 736-9452
19 736-3069
20 738-9234
21 741-9170
22 747-1191
23 747-1192
24 763-9878
25 763-9877
26 763-9878
27 783-1274A
28 763-2728A
29 719-1268
36 710-3143
31 710-3108
32 712-0127
33 715-9114
34 720-9274
35 725-0157
36 732-0306
37 736-0140
38 736-0409
39 746-1163
40 747-1203
41 750-1221
42 618-0411
43 683-0306
44 710-0347
45 710-1260A
46 711-0310
47 711-1000
48 711-1421
49 712-0291
50 712-0431
51 712-3010
52 714-0145
53 714-0147
54 732-1013
55 736-0192
56 756-0981 A
57 736-3072
58 738-0145
DESCRIPTION
Rod Assembly
RH Support Plate Assembly
LH Support Plate Assembly
Lift Bracket Assembly
Hex Cap Screw, 3/8-16 x 1.O
Hex Cap Screw, 5/8-18 x 1.31
Hex Cap Screw, 5/16-18 x .75
Clevis Pin, .5 x .78
Slotted Hex Nut, 5/8-18
Flange Lock Nut, 5/16-18
Hex Nut, 3/8-16
Hex Lock Nut, 1/2-13
Cotter Pin, 1/8 x 1.25
Cotter Pin, .125 x .75
Snap Ring
Compression Spring, .72 x 2.25
Flat Washer, .51 x 1.0 x .060
Flat Washer, .64 x 1.12 x .125
Bell Washer, .396 x 1.14 x .095
Flat Washer, .531 x .875 x .15
Shoulder Screw, .5 x .29, 3/8-16
Flange Bearing w/Flats
Handle Rod
Rod, 1/2 x 11.55
Link, 5.875
Link, 15.3
Link, 13.25
Heat Shield
Snow Thrower Lift Bracket
Hex index Washer Screw #10-16 x .375
Pan Phillips Screw, #10-24 x .75
Hex Cap Screw, 5/16-18 x 1.75
Flat Weld Nut, #10-24
Heavy Duty Spirol Pin, 1/4 x 1.5
Handle Grip
Cable Tie
Compression Spring, .406 x .531 x 1.75
Flat Washer, .385 x .62 x .063
Flat Washer, .194 x .62 x .063
Lift Cable, 42" w/Trigger Control
Lift Index Rod
Lift Handle Tube
Spindle Assembly
Pulley Mounting Bracket
Hex Cap Screw, 3/8-16 x 1.75
Self Tapping Screw, 5/16-18 x .75
REF.
NO.
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
PART NO.
749-1164
749-1103
754-0371A
754-0435
754-6481
756-6487
719-6151
719-0821
711-0242
712-0116
712-6241
732-0978
736-0189
738-0347
758-06278
764-5727
719-6262
719-0895
714-0807
715-6129
715-6138
729-0201A
726-6100
735-0234
736-0242
738-0451
741-6475
746-1168
746-1169
747-0697
747-0932
747-1261
759-1231
784-5149
603-0302
684-0061
703-2735A
765-5226
719-0276
712-3096
719-6703
719-0896
719-3915
712-0324
712-0429
712-3927
DESCRIPTION
RH Support Tube
LH Support Tube
Upper V-belt*
Upper V-belt*
Upper V-belt*
Idler pulley, 4" Diameter
Hex Cap Screw, 3/8-24 x 2
Hex Cap Screw, 3/8-16 x 3
Spacer
Nylon Jam Lock Nut, 3/8-24
Hex Nut, 3/8-24
Extension Spring, .620 x 5.62
Lock Washer, 3/8
Shoulder Spacer, .625 x .169
Idler Pulley, 3.5" Diameter
Idler Pivot Arm
Carriage Bolt, 5/16-18 x 1.5
Hex Cap Screw, 5/16-18 x 1.5
Cotter Pin, 3/32 x .75
Spirol Pin, .125 x .82
Rolled Pin, 1/8 x .63
Crank Knob
Push Cap, 3/8 ID
Rubber Grommet, .44 x .94 x .5
Bell Washer, .34 x .872
Saddle Washer, .32 x .93
Plastic Bushing
Chute Cable, 62"
Chute Cable w/Clip, 62"
Eye Bolt
Rod, .375 x 11.375
Chute Crank Rod, .375 x 33
Support Chute Tube
Joint Block Assembly
Chute Tilt Bracket Assembly
Chute Crank Assembly
Chute Crank Bracket
Chute Reinforcer
Splined Carriage Screw, 5/16-18 x 1.0
Hex Lock Nut, 3/8-16
Screw, 1/4-20 x .75
Hex Index Washer Screw, 1/4-14 x .625
Hex Cap Screw, 1/4-20 x .75
Nylon Hex Lock Nut, 1/4-20
Nylon Hex Lock Nut, 5/16-18
Hex Flange Lock Nut, 1/4-20
Clevis Pin, .5 x 1.18
Belt Keeper Pin
Clevis Pin, 3/8 x .75
Hex Lock Nut, 1/4-20
Hex Flange Lock Nut, 3/8-24
Hex Nut, 5/16-18
Click Pin, .092 x 1.64
Internal Cotter Pin, .125 x 1.75
Belt Guard
Flat Washer, .531 x .93 x .09
Idler Pulley, Flat 2.75 OD
Flat Washer, .38 x .93 x .11
Shoulder Screw, 3/8-16, .5 x .835,
102
103
104
105
106
107
108
109
110
111
112
113
114
720-0232
731-0851A
731-1300B
731-1313C
731-1320
731-1379C
736-0231
736-0463
784-5594
784-5604
784-5647
710-04071
684-0149
Knob
Chute Flange Keeper
Lower Chute
Chute Tilt Cable Guide
Upper Chute
Adapter Chute
Flat Washer, .344 x 1.125 x .125
Flat Washer, .25 x .63 x .0515
Cable Bracket
Chute Tilt Handle
Chute Crank Bracket
Carriage Screw, 5/16-18 x 1.O
Double Idler Assembly (Incl. Refs. 61-71)
* Refer to the chart found on page 7 to determine the correct belt for your application.
21
Model823
16
:_:::==,,_24
21
9
26
59
/
35
29
<
31
4
22
5 29
6
12
12
2
-. j
14
33
27
36
18 7
/
19
A
33
. /
19
42
30
37
22

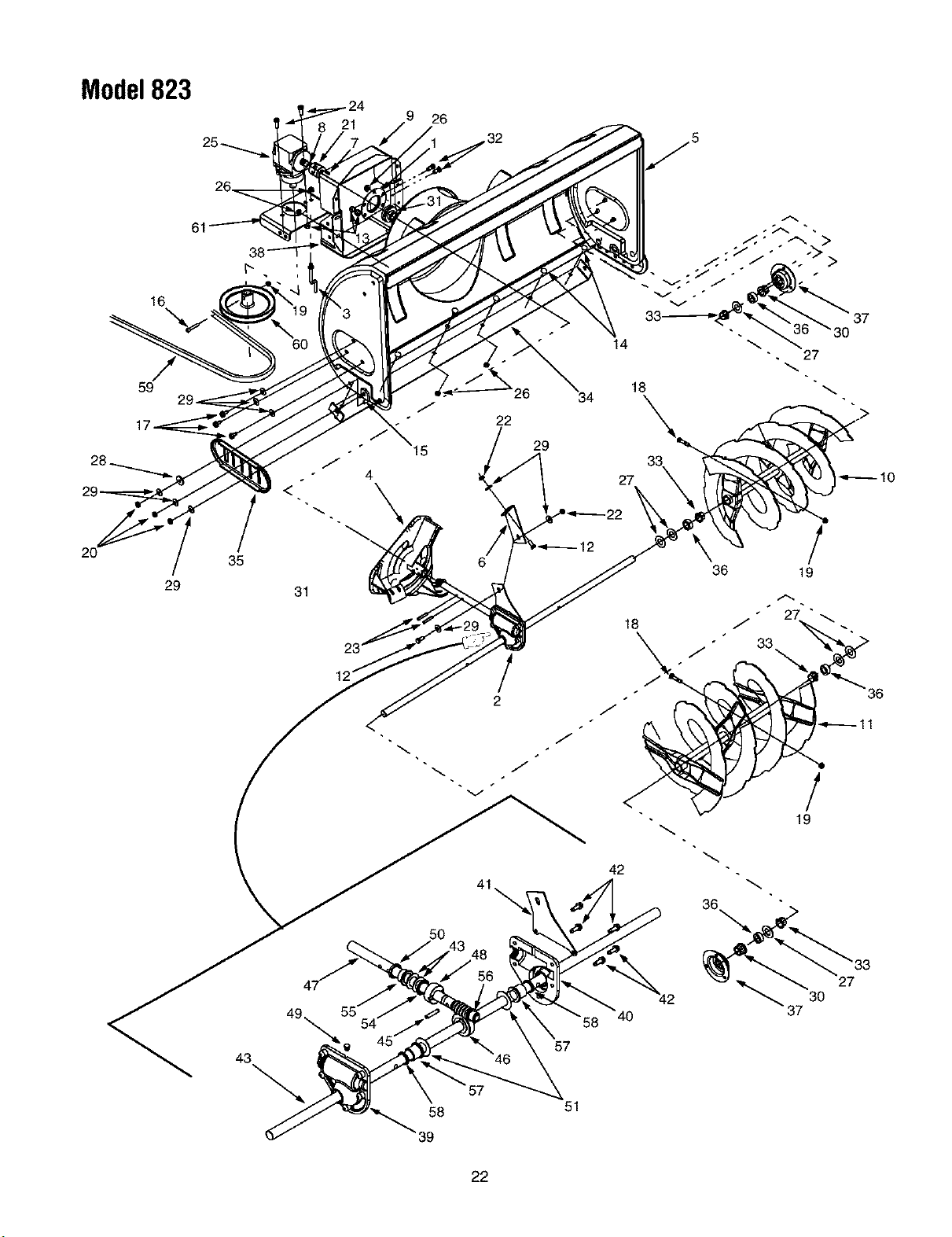

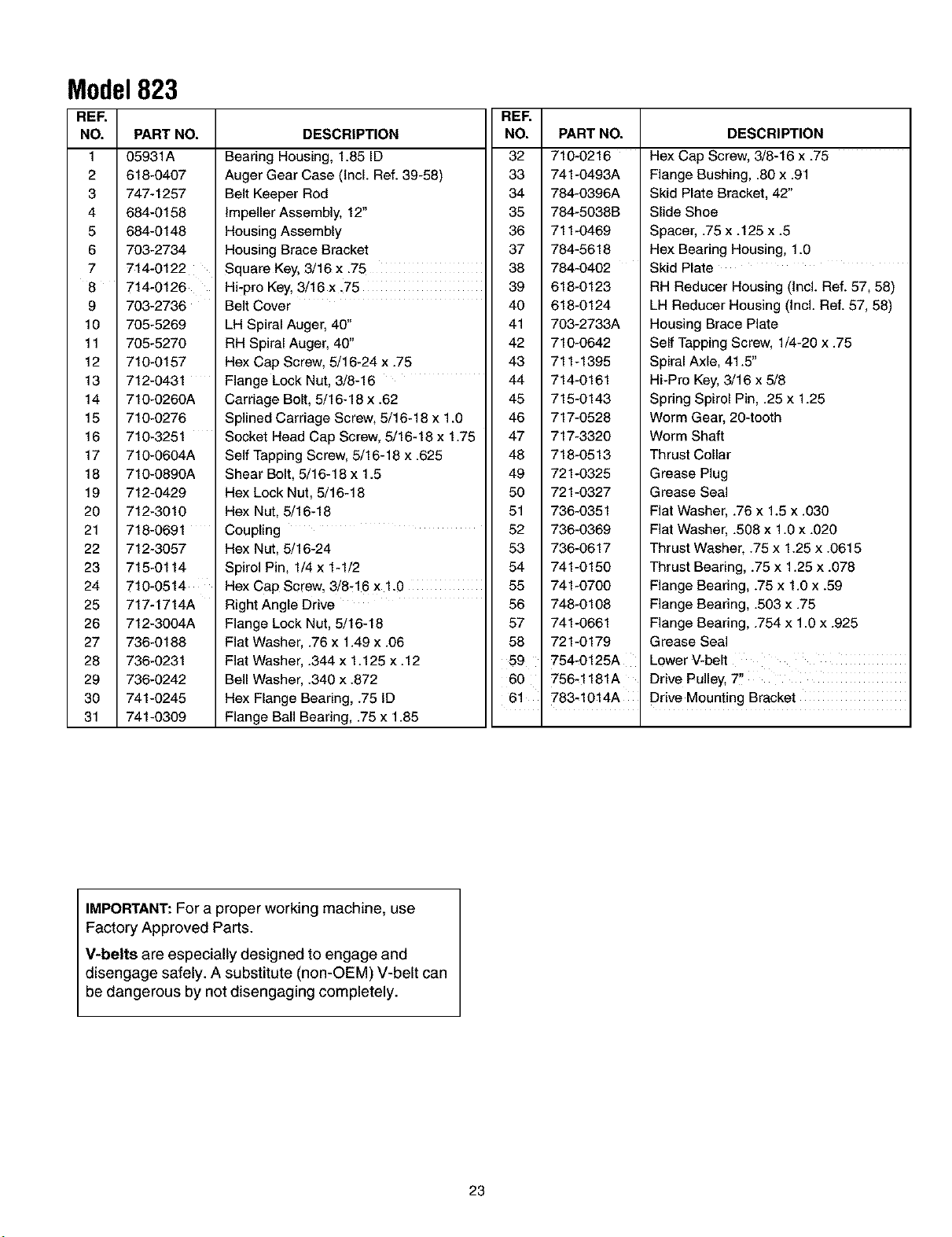

Model823
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
PART NO.
05931A
618-0407
747-1257
684-0158
684-0148
703-2734
714-0122
714-0126
703-2736
705-5269
705-5270
710-0157
712-0431
710-0260A
710-0276
710-3251
710-0604A
710-0890A
712-0429
712-3010
718-0691
712-3057
715-0114
710-0514
717-1714A
712-3004A
736-0188
736-0231
736-0242
741-0245
741-0309
REF.
DESCRIPTION NO.
Bearing Housing, 1.85 ID 32
Auger Gear Case (Incl. Ref. 39-58) 33
Belt Keeper Rod 34
Impeller Assembly, 12" 35
Housing Assembly 36
Housing Brace Bracket 37
Square Key, 3/16 x _75 38
Hi-pro Key, 3/16 x .75 39
Belt Cover 40
LH Spiral Auger, 40" 41
RH Spiral Auger, 40" 42
Hex Cap Screw, 5/16-24 x .75 43
Flange Lock Nut, 3/8-16 44
Carriage Bolt, 5/16-18 x .62 45
Splined Carriage Screw, 5/16-18 x 1.0 46
Socket Head Cap Screw, 5/16-18 x 1.75 47
Self Tapping Screw, 5/16-18 x .625 48
Shear Bolt, 5/16-18 x 1.5 49
Hex Lock Nut, 5/16-18 50
Hex Nut, 5/16-18 51
Coupling 52
Hex Nut, 5/16-24 53
Spirol Pin, 1/4 x 1-1/2 54
Hex Cap Screw, 3/8-16 x 1.0 55
Right Angle Drive 56
Flange Lock Nut, 5/16-18
Flat Washer, .76 x 1.49 x .06
Flat Washer, .344 x 1.125 x .12
Bell Washer, .340 x .872
Hex Flange Bearing, .75 ID
Flange Ball Bearing, .75 x 1.85
57
58
59
60
61
PART NO.
710-0216
741-0493A
784-0396A
784-5038B
711-0469
784-5618
784-0402
618-0123
618-0124
703-2733A
710-0642
711-1395
714-0161
715-0143
717-0528
717-3320
718-0513
721-0325
721-0327
736-0351
736-0369
736-0617
741-0150
741-0700
748-0108
741-0661
721-0179
754-0125A
756-1181A
783-1014A
DESCRIPTION
Hex Cap Screw, 3/8-16 x _75
Flange Bushing, .80 x .91
Skid Plate Bracket, 42"
Slide Shoe
Spacer, .75 x .125 x .5
Hex Bearing Housing, 1.0
Skid Plate
RH Reducer Housing (Incl. Ref. 57, 58)
LH Reducer Housing (Incl. Ref. 57, 58)
Housing Brace Plate
Self Tapping Screw, 1/4-20 x .75
Spiral Axle, 41.5"
Hi-Pro Key, 3/16 x 5/8
Spring Spirol Pin, .25 x 1.25
Worm Gear, 20-tooth
Worm Shaft
Thrust Collar
Grease Plug
Grease Seal
Fiat Washer, .76 x 1.5 x .030
Flat Washer, .508 x 1.0 x .020
Thrust Washer, .75 x 1.25 x .0615
Thrust Bearing, .75 x 1.25 x .078
Flange Bearing, .75 x 1.0 x .59
Flange Bearing, .503 x .75
Flange Bearing, .754 x 1.0 x .925
Grease Seal
Lower V-belt
Drive Pulley, 7!!
Drive Mounting Bracket
IMPORTANT:For a proper working machine, use
Factory Approved Parts.
V-belts are especially designed to engage and
disengage safely. A substitute (non-OEM) V-belt can
be dangerous by not disengaging completely.
23

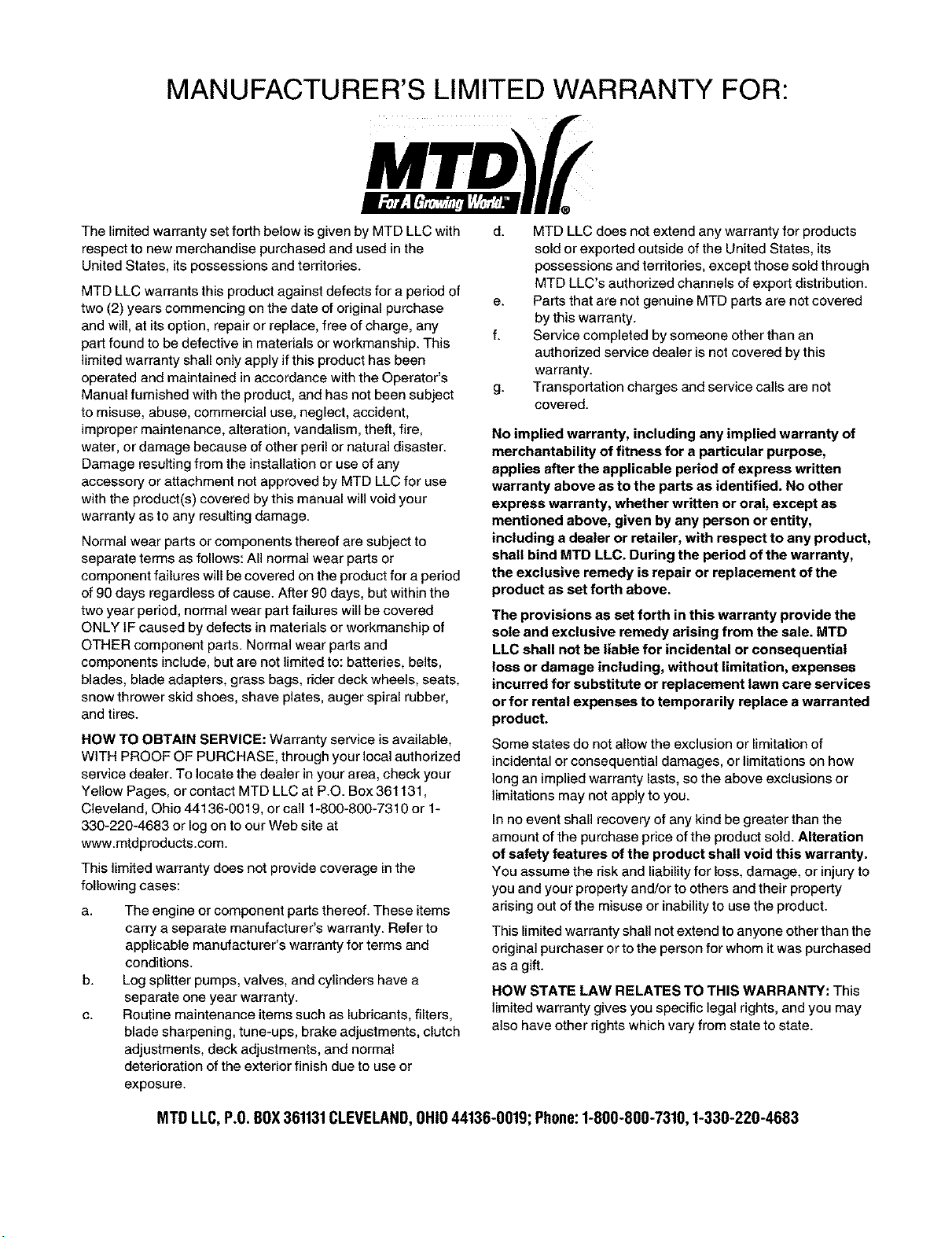

MANUFACTURER'S LIMITED WARRANTY FOR:
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the
United States, its possessions and territories.
MTD LLC warrants this product against defects for a period of
two (2) years commencing on the date of original purchase
and will, at its option, repair or replace, free of charge, any
part found to be defective in materials or workmanship. This
limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's
Manual furnished with the product, and has not been subject
to misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, fire,
water, or damage because of other peril or natural disaster.
Damage resulting from the installation or use of any
accessory or attachment not approved by MTD LLC for use
with the product(s) covered by this manual will void your
warranty as to any resulting damage.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear parts or
component failures will be covered on the product for a period
of 90 days regardless of cause. After 90 days, but within the
two year period, normal wear part failures will be covered
ONLY IF caused by defects in materials or workmanship of
OTHER component parts. Normal wear parts and
components include, but are not limited to: batteries, belts,
blades, blade adapters, grass bags, rider deck wheels, seats,
snow thrower skid shoes, shave plates, auger spiral rubber,
and tires.
ROW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE, through your local authorized
service dealer. To locate the dealer in your area, check your
Yellow Pages, or contact MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-
330-220-4683 or log on to our Web site at
www.mtdproducts.com.
This limited warranty does not provide coverage in the
following cases:
a. The engine or component parts thereof. These items
carry a separate manufacturer's warranty. Refer to
applicable manufacturer's warranty for terms and
conditions.
b. Log splitter pumps, valves, and cylinders have a
separate one year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch
adjustments, deck adjustments, and normal
deterioration of the exterior finish due to use or
d. MTD LLC does not extend any warranty for products
sold or exported outside of the United States, its
possessions and territories, except those sold through
MTD LLC's authorized channels of export distribution.
e. Parts that are not genuine MTD parts are not covered
by this warranty.
f. Service completed by someone other than an
authorized service dealer is not covered by this
warranty.
g. Transportation charges and service calls are not
covered.
NO implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty, whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind MTD LLC. During the period of the warranty,
the exclusive remedy is repair or replacement of the
product as set forth above.
The provisions as set forth in this warranty provide the
sole and exclusive remedy arising from the sale. MTD
LLC shall not be liable for incidental or consequential
loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services
or for rental expenses to temporarily replace a warranted
product.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for los& damage, or injury to
you and your property and/or to others and their property
arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the
odginal purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This
limited warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
exposure.
MTDLLC, P,O,BOX361131CLEVELAND,OHIO44136-0019; Phone:1-800-800-7310, 1-330-220-4683
