User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Appliance at a glance............................................ 3
1.1 Scope of delivery.......................................................... 3
1.2 Overview of the appliance and equipment.............. 3
1.3 SmartDevice.................................................................. 3
1.4 Appliance range of use............................................... 4
1.5 Conformity..................................................................... 4
1.6 SVHC substances according to REACH regulation. 4
2 General safety instructions.................................. 4
3 Putting into operation........................................... 6
3.1 Switching on appliance............................................... 6
3.2 Inserting the components.......................................... 6
4 Foods management............................................... 7
4.1 Storing food.................................................................. 7
4.2 Storage times............................................................... 7
5 Saving energy........................................................ 8
6 Controls................................................................. 8
6.1 Controls and displays.................................................. 8
6.1.1 Status display............................................................. 8
6.1.2 Navigation....................................................................9
6.1.3 Display symbols.......................................................... 9
6.2 Control concept............................................................ 9
6.2.1 Activating/deactivating the function..................... 9
6.2.2 Selecting function value............................................9
6.2.3 Activating/deactivating settings.............................9
6.2.4 Selecting the setting value..................................... 10
6.2.5 Go to the Customer menu....................................... 10
6.3 Functions....................................................................... 10
Turn off appliance.....................................................10
WiFi............................................................................ 10
Temperature............................................................... 11
BioFresh B-Value...................................................... 11
D-Value........................................................................11
SuperCool................................................................... 11
PartyMode...................................................................11
HolidayMode.............................................................. 12
SabbathMode............................................................12
EnergySaver...............................................................12
HydroBreeze...............................................................13
CleaningMode............................................................ 13
Display brightness.................................................... 13
Door alarm..................................................................13
Entry lock....................................................................13
Language....................................................................13
Info...............................................................................13
Reminder.....................................................................13
Reset........................................................................... 14
6.4 Fault messages............................................................ 14
6.4.1 Warnings.................................................................... 14
6.4.2 DemoMode................................................................. 14
7 Features................................................................. 14
7.1 Door rack....................................................................... 14
7.2 Shelves.......................................................................... 15
7.3 Dividing shelf................................................................ 15
7.4 VarioSafe....................................................................... 16
7.5 Space for baking tray.................................................. 16
7.6 Adjustable bottle shelf................................................ 17
7.7 Drawers.......................................................................... 17
7.8 Fruit & Vegetable safe cover...................................... 18
7.9 Adjusting the moisture levels.................................... 18
7.10 HydroBreeze.................................................................. 19
7.11 Accessories................................................................... 19
8 Maintenance.......................................................... 21
8.1 FreshAir carbon filter................................................... 21
8.2 Disassembling / assembling pull-out systems...... 21
8.3 Defrosting the appliance............................................ 21
8.4 Cleaning the appliance............................................... 21
9 Customer help....................................................... 22
9.1 Technical specifications............................................. 22
9.2 Operating noises.......................................................... 22
9.3 Technical fault.............................................................. 23
9.4 Customer Services....................................................... 24
9.5 Model plate................................................................... 24
10 Shutting down....................................................... 24
11 Disposal................................................................. 24
11.1 Preparing appliance for disposal.............................. 24
11.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 25
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Full instructions on the internet
You can find detailed instructions on the
internet using the QR code on the front
of these instruction or by entering the
service number at home.liebherr.com/fridge-
manuals.
The service number can be found on the serial
tag:
Fig. Example illustration
2 * Depending on model and options
Symbol Explanation
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
These operating instructions apply to:
IRBh
51...
1 Appliance at a glance
1.1 Scope of delivery
Check all parts for damage during transport. If you have
any complaints, please contact your retailer or Customer
Services (see 9.4 Customer Services) .
Your new appliance comes with the following parts:
-
Built-in appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
User Guide
-
Installation Guide
1.2 Overview of the appliance and
equipment
Fig. 1 Example illustration
Temperature range
(A)
Fridge compartment (B) BioFresh
(C) Coldest zone
Equipment
(1)
Controls (10) Lid for Fruit & Vegetable-
Safe
(2) Fan with FreshAir acti‐
vated charcoal filter
(11) Fruit & Vegetable-Safe
(3) Dry rear wall (12) Drain outlet
(4) Separable storage
shelf
(13) Fish & SeaFood-Safe
(5) Storage shelf (14) Serial tag
(6) VarioSafe (15) Door shelf
(7) Space for baking tray (16) Bottle holder
(8) Adjustable bottle shelf (17) VarioBoxes
(9) HydroBreeze
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.3 SmartDevice
SmartDevice is the networking solution for your refrigerator.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
Appliance at a glance
* Depending on model and options 3
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (see WiFi) .
Note
You cannot use the SmartDeviceBox in the following coun‐
tries: Belarus, Kazakhstan, Russia. The SmartDevice func‐
tion is not available.
1.4 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable for freezing
food;
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in outdoor areas with very high
humidity
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
SN-ST 10 °C to 38 °C
SN-T 10 °C to 43 °C
1.5 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable safety
regulations and with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
The BioFresh compartment meets the requirements of a
cold storage compartment as set out in DIN EN 62552:2020.
1.6 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
2 General safety instructions
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they
General safety instructions
4 * Depending on model and options
are supervised or have received instruction
in the safe use of this device, and about
the resulting hazards. Children must not
play with this appliance. Cleaning and user
maintenance work must not be carried out
by children without adult supervision. Chil‐
dren aged between 3 and 8 are allowed
to load and unload the appliance. Children
below the age of 3 must be kept away from
the appliance unless they are under contin‐
uous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer or its
service agent.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only install, connect and dispose of the
appliance according to the instructions.
-
Only use the appliance when is installed.
-
Special lights, such as LED lights on the
appliance, are used to illuminate the inte‐
rior of the appliance and are not suitable
for room lighting.
Fire hazard:
-
This appliance contains a refrigerant
which is environmentally friendly, but flam‐
mable. Leaking refrigerant may ignite. It
is hazardous for anyone other than an
Authorised Service Person to service this
appliance. In Queensland, the authorised
Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants,
to carry out Servicing or repairs where the
gas system is being opened or charged.
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
WARNING: Keep ventilation openings, in
the appliance enclosure or in the built-in
structure, clear of obstruction.
-
WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.
-
WARNING: Do not damage the refrigerant
circuit.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
-
Do not consume ice cream, water ice or
ice cubes immediately and do not consume
them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
General safety instructions
* Depending on model and options 5
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
3 Putting into operation
3.1 Switching on appliance
Ensure that the following conditions are met:
q
Appliance is installed and connected according to instal‐
lation instructions.
q
All adhesive strips, adhesive and protective films as well
as transport safety devices in and on the appliance are
removed.
q
All marketing leaflets are removed from the drawers.
Fig. 2
u
Switch on the appliance using the display.
Fig. 3
u
Select the language.
w
The status display appears.
The appliance starts in DemoMode:
If the appliance starts in DemoMode, you can deactivate
DemoMode within the next 5 minutes.
Fig. 4
u
Press DemoMode for 3 seconds.
w
DemoMode is deactivated.
Note
The manufacturer recommends:
u
Place the food inside: Wait for around 6 hours until the
set temperature is reached.
3.2 Inserting the components
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
u
Insert the supplied components to make the most of your
appliance.
Putting into operation
6 * Depending on model and options
4 Foods management
4.1 Storing food
WARNING
Risk of fire
u
Do not use any electrical appliances in the food area of
the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always keep air slots clear.
When storing food, always observe the following:
q
Air vents on the inside rear wall are unobstructed.
q
Air vents on the fan are unobstructed.
q
Food is in sealed packaging.
q
Foods that easily absorb or give off smell or taste are
stored in sealed containers or covered.
q
Raw meat and fish are in clean, sealed containers to
prevent them coming into contact with or dripping onto
other foods.
q
Liquids are in sealed containers.
q
Foods are not stored too closely together, as the air
needs to circulate.
Note
Failure to follow these guidelines can lead to food perishing.
4.1.1 Fridge section
The natural air circulation creates a range of temperatures.
Arrange your food as follows:
u
In the top section and in the door: butter and cheese,
preserves and tubes.
u
In the coldest zone Fig. 1 (C): easily perishable food such
as prepared meals.
4.1.2 BioFresh
BioFresh helps certain fresh foods stay fresh for longer
compared to conventional cooling methods.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
Note
If the temperatures drop below 0 °C foods may freeze to
each other.
u
Store cold-sensitive vegetables such as cucumbers,
aubergines, courgettes, and cold-sensitive tropical fruit,
in the fridge compartment.
Fruit & Vegetable-Safe
This provides a fresh storage climate with the lid closed. A
moist climate is suitable for storing loose foods with a high
moisture content (e.g. salad, vegetables, fruit).
The air moisture in the compartment depends on the mois‐
ture content of the items being stored and the number of
times the door is opened. You can adjust the air moisture.
Arrange your food as follows:
u
Store your loose fruit and vegetables.
u
Excessive air moisture: Regulate the air humidity
(see 7.9 Adjusting the moisture levels) .
Meat & Dairy-Safe
Here a relatively dry storage climate is set. A dry climate is
great for dry or packaged foods (e.g. dairy products, meat,
fish, sausages).
Arrange your food as follows:
u
Place the dry or packaged foods inside.
Fish & Seafood-Safe
A relatively dry storage climate is set here. This climate
is great for dry or packaged groceries (e.g. dairy products,
meat, fish, seafood, sausage).
A Fish & Seafood tray that can be moved or removed is
included in the compartment.
The temperature can be adjusted via the display in the
control panel. Dividing the compartment into different
temperature zones is only possible when the tray is
inserted. (see Temperature)
The following temperature combinations are possible:
Fig. 5
Arrange your food as follows:
Fig. 6
u
Position Fish & Seafood tray. The position shown gives
you an optimal cooling function (see Fig. 67) .
u
Zone -2 °C: Store fresh seafood or fish.
u
Zone 0 °C: Store dairy products or packaged meat.
Note
You can achieve the highest level of energy efficiency using
the temperature combination 0 °C / 0 °C.
Energy consumption is slightly higher using the temperature
combination -2 °C / 0 C° and -2 °C / -2 °C.
4.2 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
4.2.1 Fridge section
Always follow the best-before date stated on the packaging.
4.2.2 BioFresh
Recommended storage periods in the Meat & Dairy-Safe
Butter at 1 °C up to 90 days
Hard cheese at 1 °C up to 110 days
Milk at 1 °C up to 12 days
Sausage, cold meats at 1 °C up to 8 days
Poultry at 1 °C up to 6 days
Pork at 1 °C up to 6 days
Foods management
* Depending on model and options 7
Recommended storage periods in the Meat & Dairy-Safe
Beef at 1 °C up to 6 days
Game at 1 °C up to 6 days
Note
u
Remember that high-protein foods perish quicker; shell‐
fish and crustaceans do not last as long as fish, and fish
does not last as long as meat.
Recommended storage periods in the Fruit & Vegetable-
Safe
Vegetables, salads
Artichokes at 1 °C up to 14 days
Celery at 1 °C up to 28 days
Cauliflower at 1 °C up to 21 days
Broccoli at 1 °C up to 13 days
Chicory at 1 °C up to 27 days
Lettuce at 1 °C up to 19 days
Peas at 1 °C up to 14 days
Kale at 1 °C up to 14 days
Carrots at 1 °C up to 80 days
Garlic at 1 °C up to 160 days
Turnip at 1 °C up to 14 days
Lettuce at 1 °C up to 13 days
Herbs at 1 °C up to 13 days
Leeks at 1 °C up to 29 days
Mushrooms at 1 °C up to 7 days
Radishes at 1 °C up to 10 days
Brussels sprouts at 1 °C up to 20 days
Asparagus at 1 °C up to 18 days
Spinach at 1 °C up to 13 days
Savoy at 1 °C up to 20 days
Fruit
Apricots at 1 °C up to 13 days
Apples at 1 °C up to 80 days
Pears at 1 °C up to 55 days
Blackberries at 1 °C up to 3 days
Dates at 1 °C up to 180 days
Strawberries at 1 °C up to 7 days
Figs at 1 °C up to 7 days
Blueberries at 1 °C up to 9 days
Raspberries at 1 °C up to 3 days
Currants at 1 °C up to 7 days
Sweet cherries at 1 °C up to 14 days
Kiwis at 1 °C up to 80 days
Peaches at 1 °C up to 13 days
Plums at 1 °C up to 20 days
Cranberries at 1 °C up to 60 days
Recommended storage periods in the Fruit & Vegetable-
Safe
Rhubarb at 1 °C up to 13 days
Gooseberries at 1 °C up to 13 days
Grapes at 1 °C up to 29 days
Recommended storage periods in the Fish & Seafood-
Safe
Seafood
Crabs at -2 °C up to 4 days
Mussels at -2 °C up to 6 days
Sushi at -2 °C up to 4 days
Fish at -2 °C up to 4 days
5 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food: home.liebherr.com/food.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
For longer periods of absence, use HolidayMode
(see HolidayMode) .
6 Controls
6.1 Controls and displays
The display provides a quick overview of the temperature
setting and the status of functions and settings. You
can control the functions and settings either by deacti‐
vating/activating them or by selecting a value.
6.1.1 Status display
Fig. 7
(1)
Temperature display of
the fridge section
(2) Temperature display
BioFresh (Fish &
SeaFood-safe)
The Status display shows the set temperatures and is the
home display. From there, you can navigate to the options
and settings.
Saving energy
8 * Depending on model and options
6.1.2 Navigation
Navigate in the menu to access the individual functions.
An audible signal sounds after confirming a function or
setting. If no selection is made after 10 seconds the display
switches to the Status display.
The appliance is operated by swiping and confirming in the
display:
Fig. 8
Back:
-
Confirm your selection in the submenu. The display
returns to the menu.
-
. The display returns to the function/setting.
Back to Status display:
-
Close and open the door.
-
Wait 10 seconds. The display switches to the Status
display.
6.1.3 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set temperature is
reached.
Flashing symbol
Appliance is working. Setting is
made.
6.2 Control concept
6.2.1 Activating/deactivating the function
You can activate/deactivate the following functions:
Symbol
Function
SuperCool
x
PartyMode
x
Symbol Function
HolidayMode
EnergySaver
HydroBreeze
x
When function is on, the appliance works harder. This
means appliance noise when operating may be louder for
a short while, and more energy will be consumed.
u
Swipe left in the display until the function appears.
u
Confirm selected function with a short tap.
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Function is on/off.
6.2.2 Selecting function value
With the following functions you can set a value in the
submenu:
Symbol
Function
Setting the temperature
Switch the appliance on/off
u
Swipe left in the display until the function appears.
u
Confirm selected function with a short tap.
u
Select the setting value by swiping the display.
Setting the temperature
u
Confirm with a short tap.
w
You hear the confirmation tone.
w
The display changes to blue when it is activated.
w
Display switches back to the menu.
6.2.3 Activating/deactivating settings
You can activate/deactivate the following settings:
Symbol
Setting
WiFi
1
Entry lock
2
SabbathMode
2
Cleaning Mode
2
Reminders
1
Reset
2
Switch off
2
u
Swipe left in the display until Settings
appears.
u
Tap to confirm settings.
u
Swipe until you see the setting you want.
1
Activate setting (shortpress)
u
Tap briefly to confirm.
w
You hear the confirmation tone.
Controls
* Depending on model and options 9
w
Status appears in the menu.
w
Setting is on / off.
2
Activate setting (longpress)
u
Press the selection for 3 seconds to confirm.
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Display changes.
6.2.4 Selecting the setting value
With the following settings you can set a value in the
submenu:
Symbol Settings
Brightness
Door alarm
Language
u
Swipe left in the display until Settings appears.
u
Tap to confirm settings.
u
Swipe until you see the setting you want.
u
Tap briefly to confirm.
u
Select the desired setting value by swiping the display.
u
Tap briefly to confirm.
w
You hear the confirmation tone.
w
Status appears briefly in the submenu.
w
Display switches back to the menu.
6.2.5 Go to the Customer menu
You can see the following settings in the Customer menu:
Symbol
Function
BioFresh B-Value
1
D-Value
1
Software
u
Swipe left in the display until the settings
appear.
u
Tap settings.
w
The submenu appears.
u
Swipe left in the display until the appliance information
appears.
u
Press for 3 seconds.
w
The input menu for a numerical code appears.
u
Enter the numerical code 151.
w
The customer menu appears.
u
Swipe left in the display until the desired setting
appears.
1
Select the value
u
Confirm with a short tap.
w
You hear the confirmation tone.
w
Status appears briefly in the display.
w
Display switches back to the menu.
2
Activate the setting
u
To confirm, press the display for 3 seconds.
w
You hear the confirmation tone.
w
Status appears on the display.
w
The symbol flashes as long as the appliance is working.
6.3 Functions
Turn off appliance
This setting turns off the whole appliance.
Switching off the entire appliance
Fig. 9
u
Activating/deactivating (see 6.2 Control concept) .
w
Off: Display goes black.
WiFi
Use this function to connect your appliance to the WiFi. You
can then operate it via the SmartDevice app on a mobile
device. You can also use this function to disconnect or reset
the WiFi connection. To connect your appliance to the WiFi,
you need the SmartDeviceBox. For more information about
the SmartDeviceBox and how to use the SmartDevice app:
(see 1.3 SmartDevice)
Note
You cannot use the SmartDeviceBox in the following coun‐
tries: Belarus, Kazakhstan, Russia. The SmartDevice func‐
tion is not available.
Establishing a WiFi connection
Make sure that the following requirements are fulfilled:
q
You have purchased and inserted a SmartDeviceBox.
(see 1.3 SmartDevice)
q
You have installed the SmartDevice app (see
apps.home.liebherr.com).
Fig. 10
u
Activate the setting. (see 6.2 Control concept)
w
Connection is established: Connecting appears. The
symbol flashes.
w
Connection is established: WiFi appears, the display
turns blue.
w
Connection failed: WiFi Error appears.
Controls
10 * Depending on model and options
Disconnecting from the WiFi
u
Deactivate the setting. (see 6.2 Control concept)
Fig. 11
w
There is no connection: Symbol is permanently
visible.
Resetting the WiFi connection
u
Reset settings. (see 6.2 Control concept)
Fig. 12
w
The connection and other settings are reset to the
factory settings.
Temperature
The temperature depends on the following factors:
-
The amount of times the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of food
Temperature zone
Recommended setting
Fridge section
5 °C
BioFresh
(see BioFresh B-Value)
Setting the temperature
Fig. 13
u
Set the value. (see 6.2 Control concept) .
w
Set temperature is shown at the bottom right of the
display.
Setting the temperature in the BioFresh
You can set the temperature using the BioFresh B-Value in
the customer menu. (see BioFresh B-Value)
BioFresh B-Value
When delivered, the temperature in the BioFresh compart‐
ment is set to B5. The status indicator on the display shows
the appropriate target temperature in the BioFresh.
You can change this value slightly if a higher or lower
ambient temperature makes it necessary. When setting the
value, note:
Value
Description
B1 Lowest temperature
B1-B4 The temperature can drop to under 0 °C, so food
can freeze easily.
B5 Default temperature
B9 Highest temperature
BioFresh B-Value
Choose the setting
u
Set the size in the Customer menu (see 6.2 Control
concept) .
D-Value
The D-Value is preset for your appliance and may not be
changed.
SuperCool
This function selects the lowest cooling temperature. This
gives you colder storage temperatures.
This function is relevant to the fridge section Fig. 1 (A)
Use:
-
Cool large amounts of food quickly.
Activating/deactivating the function
u
Using the fridge section: activate the function when you
add the goods.
u
Activating/deactivating (see 6.2 Control concept) .
The function automatically turns off. The appliance goes
back to normal mode. The temperature adjusts itself to the
set level.
PartyMode
This option offers an assortment of special functions and
settings that are useful if you are having a party.
The following functions are on:
-
SuperCool
All the functions can be adjusted flexibly and separately.
Changes are discarded when the function turns off.
Activating/deactivating the function
u
Activating/deactivating (see 6.2 Control concept) .
w
On: All functions are activated at the same time.
w
Deactivated: Previously set temperatures are restored.
After 24 hours the function turns off automatically.
Controls
* Depending on model and options 11
HolidayMode
This function minimises the energy consumption during
an extended absence. The temperature of the refrigerator
compartment is set to 15 °C and this is displayed on the
status screen when the temperature has been reached.
Use:
-
Save energy if you plan to be away for a while.
-
Avoid coming home to bad smells and mould.
Activating/deactivating the function
u
Empty everything from the fridge section.
u
Activating/deactivating (see 6.2 Control concept) .
w
On: Fridge temperature is raised.
w
Off: the previously set temperature is restored.
SabbathMode
With this function you can activate or deactivate the
SabbathMode. If you activate this function, some electronic
functions will be switched off. This allows your appliance to
meet religious requirements on Jewish holidays such as the
Sabbath and comply with STAR-K Kosher certification.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivate
SabbathMode function are locked.
Active functions remain active.
The display stays lit when you close the door.
The interior lighting is off.
Reminders are disabled. The set time intervals are paused.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrost cycle only works for the specified time without
taking account of appliance use.
After a power failure, the appliance returns to
SabbathMode.
Appliance status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
u
Do not consume food that was frozen and has thawed
out.
u
Call up the settings menu. (see 6.2 Control concept)
u
Swipe left or right until corresponding function is
displayed.
Fig. 14
u
Complete the steps (see Fig. 75) .
w
SabbathMode is activated.
w
Status display continuously shows SabbathMode.
Deactivating SabbathMode
u
Call up the settings menu. (see 6.2 Control concept)
u
Swipe left or right until corresponding function is
displayed.
Fig. 15
u
Complete the steps (see Fig. 76) .
w
SabbathMode is deactivated.
EnergySaver
This function activates or deactivates the energy-saving
mode. When you activate this function, the energy
consumption decreases and the temperature increases by
2 °C in the appliance. The food remains fresh, but the shelf
life is shortened.
Temperature zone
Recom‐
mended
setting
Temperature when
EnergySaver acti‐
vated
Fridge
compartment
5 °C 7 °C
Temperatures
Activating EnergySaver
u
Swipe left or right until corresponding function is
displayed.
Fig. 16
u
Complete the steps (see Fig. 77) .
w
Energy-saving mode is activated.
Deactivating EnergySaver
u
Swipe left or right until corresponding function is
displayed.
Fig. 17
u
Complete the steps (see Fig. 78) .
w
Energy-saving mode is deactivated.
Controls
12 * Depending on model and options
HydroBreeze
HydroBreeze creates a fine mist in the drawer every 90
minutes for 4 seconds when the door is closed. This func‐
tion is also activated when you open the door. The function
is not activated when the appliance is delivered.
Use:
-
For storing loose salad, vegetables and fruit with a high
moisture content.
Choose from these options:
•
1: Duration of function while opening door 4 s
•
2: Duration of function while opening door 6 s
•
3: Duration of function while opening door 8 s
•
Off: HydroBreeze is off.
Activating/deactivating the function
u
Activating/deactivating (see 6.2 Control concept) .
CleaningMode
Use this setting to easily clean the appliance.
This setting refers to the fridge section Fig. 1 (A).
Use:
-
Clean the fridge section by hand.
What happens on the appliance when this setting is on:
-
The display permanently shows: CleaningMode.
-
The fridge section is switched off.
-
The internal light is on.
-
Reminders and warnings are not shown. There is no
acoustic signal.
Activating/deactivating settings
u
Activating/deactivating the setting (see 6.2 Control
concept) .
w
On: fridge section is off. Light stays on.
w
Off: preset temperature is restored.
After 60 min the setting turns off automatically. The appli‐
ance then continues running in normal mode.
Display brightness
Set the brightness level of the display.
You can set the following brightness levels:
-
40%
-
60%
-
80%
-
100%
Choose the setting
u
Set the level (see 6.2 Control concept) .
Door alarm
Set the time before the door alarm (see Close the door)
sounds.
The options are as follows:
-
1 min
-
2 min
-
3 min
-
Off
Choose the setting
u
Set the time (see 6.4 Fault messages) .
Entry lock
This setting prevents unintentional use of the appliance,
e.g. by children.
Use:
-
Avoid settings being changed unintentionally.
-
Avoid the appliance being switched off unintentionally.
-
Avoid the temperature being changed unintentionally.
Activating/deactivating settings
u
Activating/deactivating. (see 6.2 Control
concept)
Language
This setting lets you choose the language of the display.
Choose from the following languages:
-
German
-
English
-
French
-
Spanish
-
Italian
-
Dutch
-
Czech
-
Polish
-
Portuguese
-
Russian
-
Chinese
Activating/deactivating settings
u
Activating/deactivating (see 6.2 Control concept) .
Info
This setting allows the appliance information to be read out
as well as access to the customer menu.
It provides the following information:
-
Model name
-
Index
-
Serial number
-
Service number
Show appliance data
u
Swipe in the display until Settings
appears.
u
Confirm the display.
u
Swipe in the display until About appears.
u
Read the appliance info.
Reminder
Reminders are given out acoustically by a beep and visually
by a symbol in the display. The signal gets louder until the
alert stops.
Controls
* Depending on model and options 13
Replace FreshAir active carbon filter
This message appears when the air filter needs replacing.
u
Change the air filter every six months.
u
Confirm the message with OK.
w
The service interval resets.
w
The air filter guarantees the air quality in the fridge.
Activating the setting
u
Activating/deactivating (see 6.2 Control concept) .
Reset
This function resets all settings to the factory settings. All
settings that you have made thus far will be reset to their
original values.
Activating the setting
u
Activate (see 6.2 Control concept) .
6.4 Fault messages
Fault messages appear in the display. There are two catego‐
ries of fault message:
Category
Meaning
Message Reminder of general procedures. You can carry
out these procedures to eliminate the message.
Warning Appears when there are malfunctions. A signal
sounds in addition to the display. The signal
becomes louder until you acknowledge by
tapping the display. You can eliminate simple
defects yourself. For more serious defects, you
must contact customer service.
6.4.1 Warnings
Close the door
This message appears if the door is open for too long.
You can set how long it takes for this message to appear .
u
Stop alarm: Confirm the message.
-or-
u
Close the door.
Error
This message appears if there is a fault with the appliance.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
u
Confirm the message.
w
The signal tone stops.
w
The status display appears.
u
Close the door.
u
Contact customer service. (see 9.4 Customer Services)
6.4.2 DemoMode
If “D” appears on the display, demo mode is on. This option
is designed for retailers, as it turns off all the cooling func‐
tions.
Stopping DemoMode
If you see the following running in the display:
u
Confirm the display within the countdown.
w
DemoMode is off.
If the timer is not running:
u
Unplug the appliance.
u
Plug the appliance in again.
w
DemoMode is off.
7 Features
7.1 Door rack
7.1.1 Move/remove the door rack
Fig. 18
u
Slide the rack upwards.
u
Pull forwards.
u
Re-insert it in reverse order.

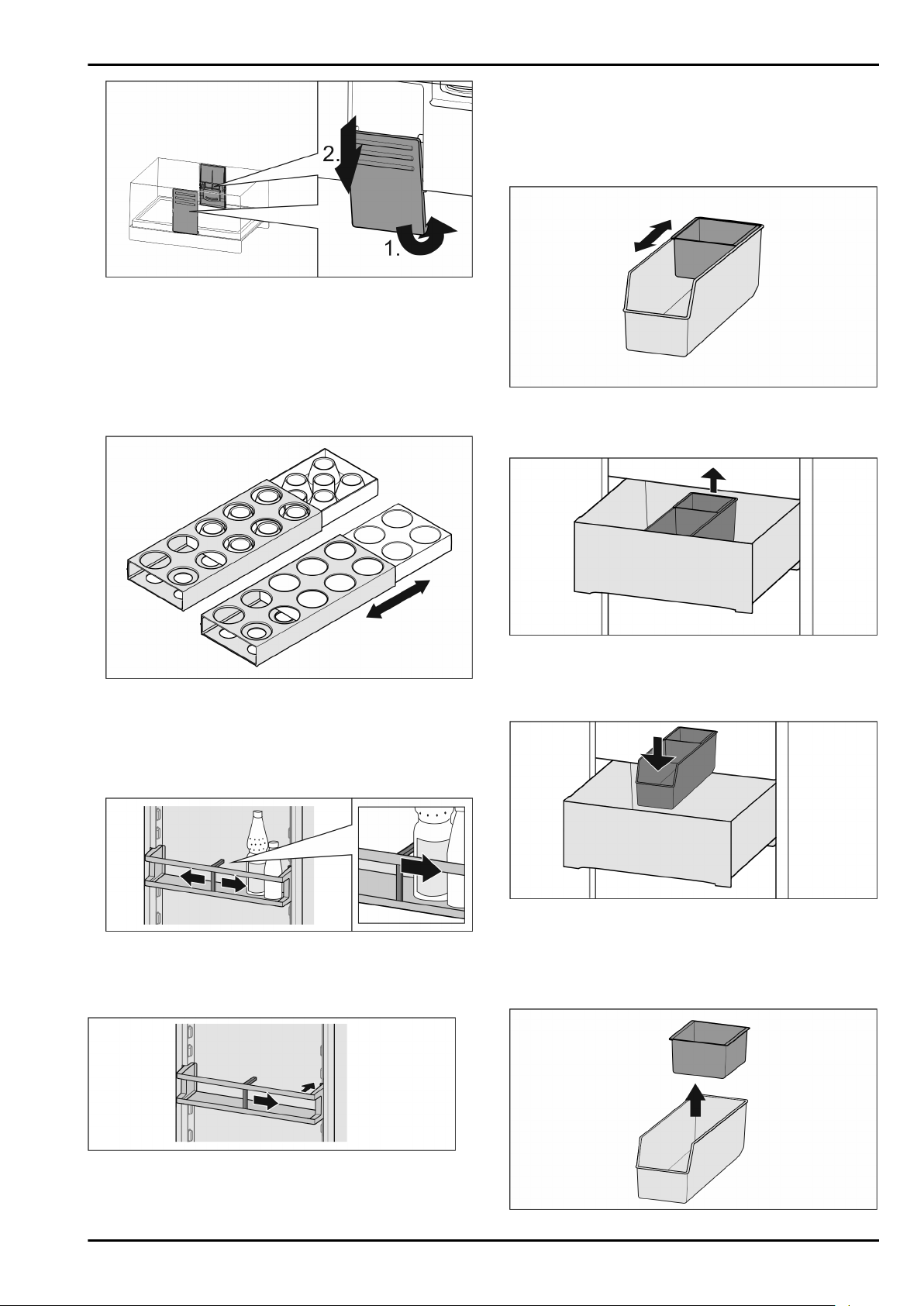

Fig. 19
You can use just one or both VarioBoxes. To store oversized
bottles, just suspend one box over the bottle rack.
Move the VarioBox shelf:
Fig. 20
u
Pull it up and out.
u
Put it back in at any position.
Moving the VarioBoxes:
Fig. 21
If the door rack is removed:
u
Remove containers.
Features
14 * Depending on model and options

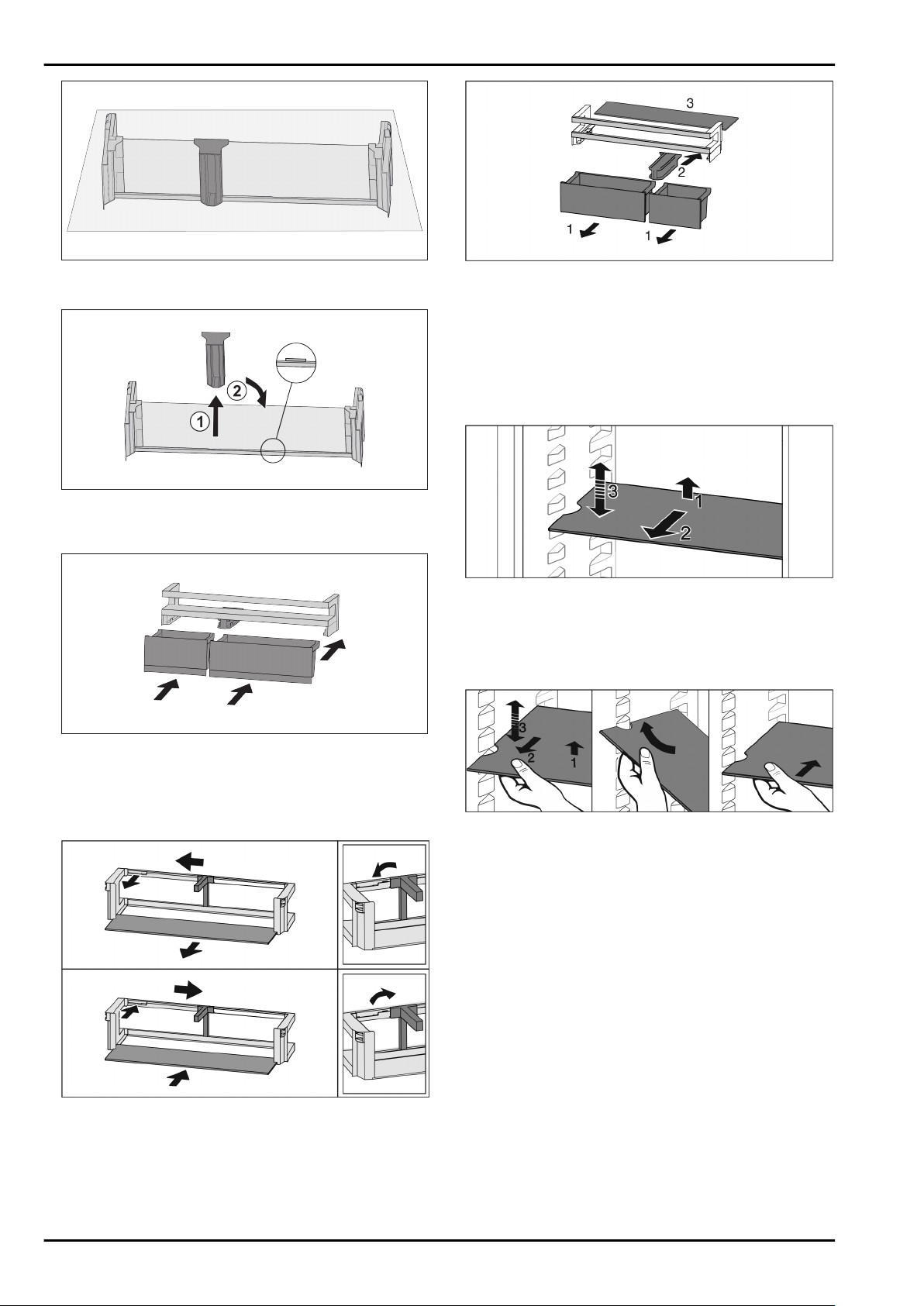

Fig. 22
u
Place the shelf on the table.
Fig. 23
u
Pull off the middle holder Fig. 23 (1).
u
Insert the middle holder in the second position Fig. 23 (2).
Fig. 24
u
Replace containers.
7.1.2 Disassembling the door rack
The door rack can be taken apart for cleaning.
Fig. 25
Fig. 26
u
Disassemble the door rack.
7.2 Shelves
7.2.1 Adjusting/removing the shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig. 27
u
Lift the shelf and pull forward.
w
Line up the side runner.
u
Adjust the height of the shelf: Lift or lower it to the
desired height and slide it in.
-or-
Fig. 28
u
Remove the shelf completely: Pull it out to the front.
u
Easier removal: Set the shelf at an angle.
u
Insert the shelf again: Slide it in all the way.
w
The pull-out stoppers point downwards.
w
The pull-out stoppers are behind the front support.
7.3 Dividing shelf
7.3.1 Using the dividing shelf
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Features
* Depending on model and options 15
Fig. 29
u
Push the dividing shelf underneath as shown.
Fig. 30
Adjusting the height:
u
Pull the glass panels out Fig. 30 (1) from the front, one at
a time.
u
Release the support rails and click in at the height you
want.
u
Slide in the glass panels one at a time.
w
Flat pull-out stoppers at the front, right behind the
support rails.
w
High pull-out stoppers at the back.
Using both shelves:
u
Hold the glass panel with one hand and pull it to the
front.
w
The glass panel Fig. 30 (1) and trim strip are at the front.
w
The stops Fig. 30 (3) point down.
7.4 VarioSafe
The VarioSafe provides space for compact foodstuffs and
packages, pots and glasses.
7.4.1 Using the VarioSafe
You can remove the drawer and slide it back in at 2 different
heights. This is handy for storing taller items in the drawer.
Fig. 31 *
u
Remove the drawer.
u
Slide back at the height you want Fig. 31 (1) or Fig. 31 (2).
7.4.2 Repositioning the VarioSafe
You can shift the height of the entire VarioSafe.
Fig. 32
u
Pull forwards.
w
Line up the side runner.
u
Lift or lower to the height you want.
u
Slide to the rear.
7.4.3 Removing the entire VarioSafe
You can remove VarioSafe as a whole unit.
u
Pull forwards.
w
Line up the side runner.
Fig. 33
u
Tip to the side and pull towards you.
7.4.4 Disassembling the VarioSafe
You can take the VarioSafe apart for cleaning.
Fig. 34
u
Disassembling the VarioSafe
7.5 Space for baking tray
There is space for a baking tray Fig. 1 (7) above the drawers.
Fig. 35
Ensure that the following conditions are met:
q
Max. baking tray dimensions are adhered to (see 9.1 Tech‐
nical specifications) .
q
Baking tray is cooled to room temperature.
q
The lowest door rack is set at least one position higher.
Features
16 * Depending on model and options
With the door open to 90°:
u
Slide the baking tray onto the lower side runners.
-or-
If baking tray is uneven:
u
Use the supplied support rails.
Fig. 36
u
Snap support rails into the lowest runners.
With the door open to 90°:
u
Slide the baking tray in on the support rails.
7.6 Adjustable bottle shelf
7.6.1 Using the bottle shelf
In the bottom of the fridge section you can either use the
variable bottle shelf or the glass panel.
Fig. 37
u
Remove the glass panel and store in a safe place.
u
Lay bottles with their base towards the rear wall.
Note
If the bottles are protruding over the front of the bottle
shelf:
u
Move the lower door rack up a place.
7.6.2 Removing the bottle shelf
You can remove the bottle shelf for cleaning.
u
Remove the glass panel above the bottle shelf.
Fig. 38
u
Lift the bottle shelf at the front and pull out.
Note
Liebherr recommends the following:
Do not place any goods on the drawer cover below.
7.6.3 Inserting the bottle shelf
Fig. 39
u
Slide in the bottle shelf until it engages and push down.
w
The lugs at the back of the bottle shelf are connected
automatically.
w
LED comes on.
7.7 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always leave the fan air vents clear on the back wall!
7.7.1 Drawer on telescopic rails
The drawer runs on extendible rails (telescopic rails). There
are fully extendible telescopic rails and telescopic rails with
partial pull-out. Drawers which are fully extendible can be
pulled out fully from the appliance. Drawers with partial
pull-out cannot be removed fully from the appliance. The
system in your appliance depends on the type of appliance.
Fully extendible*
If you have fully extendible rails, there is a clamp located at
the back on the left and right of the rail.
Removing drawer
Fig. 40
u
Pull out drawer as far as it will go.
u
Lift left clamp and simultaneously pull drawer forwards
on the left. Fig. 40 (1)
u
Lift right clamp and simultaneously pull drawer forwards
on the right. Fig. 40 (2)
u
Remove drawer to the front. Fig. 40 (3)
u
Slide rails in.
Inserting drawer
Features
* Depending on model and options 17
Fig. 41
u
Slide rails in.
u
Place drawer on rails.
u
Slide in drawer to the back.
w
Drawer latches in audibly at the back.
Partial pull-out fridge compartment*
Removing drawer
Fig. 42
u
Pull out drawer half-way. Fig. 42 (1)
u
Lift the drawer from the bottom. Fig. 42 (2)
u
Lift and hold the drawer and at the same time pull it
forwards.
u
Insert left rail. Fig. 42 (3)
u
Insert right rail. Fig. 42 (4)
u
Remove drawer to the front. Fig. 42 (5)
Fig. 43
If the rails are not yet fully inserted after removing the
drawer:
u
Push rails in completely.
Inserting drawer
Fig. 44
u
Slide rails in.
u
Place drawer on rails.
u
Slide in drawer to the back.
7.8 Fruit & Vegetable safe cover
You can remove the compartment cover for cleaning.
7.8.1 Removing the compartment cover
Ensure that the following conditions are met:
q
Bottle shelf is removed (see 7.6 Adjustable bottle shelf) .
Fig. 45
When the drawers are removed:
u
Pull the lid up at the front to the opening in the retaining
parts Fig. 45 (1).
u
Lift from the back and pull it up and out Fig. 45 (2).
7.8.2 Inserting the compartment cover
Fig. 46
If the text THIS SIDE UP points upwards:
u
Insert the lip of the cover over the opening of the rear
bracket Fig. 46 (1) and click into place Fig. 46 (2).
u
Position the cover where you want it (see 7.9 Adjusting
the moisture levels) .
7.9 Adjusting the moisture levels
You can adjust the moisture in the drawer yourself by
adjusting the compartment cover.
The compartment lid is attached to the drawer and can be
hidden by a shelf or additional drawers.
Fig. 47
Low air humidity
u
Open the drawer.
u
Slide the compartment cover forwards.
w
With the drawer closed: Gap between the cover and the
compartment.
u
Switch off HydroBreeze.
w
The air moisture in the Safe decreases.
High air moisture
u
Open the drawer.
u
Slide the cover back.
w
With the drawer closed: The cover seals the compart‐
ment.
Features
18 * Depending on model and options
u
Activate the HydroBreeze.
w
The air moisture in the Safe increases.
If there is too much moisture in the compartment:
u
Choose the setting “low air moisture”.
-or-
u
Remove any excess moisture with a cloth.
Note
You can apply the “low air moisture” setting to the Fruit &
Vegetable-Safe and the Meat & Dairy-Safe.
u
Set the “low air moisture” option.
7.10 HydroBreeze
HydroBreeze emits a mist over the refrigerated goods to
provide moisture every time the door is opened.
The HydroBreeze and its water tank are located in the
adjustable bottle shelf.
Ensure that the following conditions are met:
-
The water tank is clean (see 8.4.3 Clean the compo‐
nents) .
-
The water tank is properly engaged.
-
Moisture is set to “high moisture” (see 7.9 Adjusting the
moisture levels) .
-
HydroBreeze is on (see HydroBreeze) .
7.10.1 Fill the water tank
WARNING
Unclean water!
Contaminants.
u
Only fill with drinking water.
u
The HydroBreeze is off: empty water tank.
u
The HydroBreeze is no longer in use: empty water tank.
NOTICE
Sugar-content liquids!
Damage to HydroBreeze.
u
Only fill with drinking water.
Note
Only use filtered, decarbonised water for the best quality
drinking water and to make the HydroBreeze, work
smoothly.
This water quality can be achieved using a table water filter
of the kind available in trade retail outlets.
u
Only ever fill the water tank with filtered, decarbonised
drinking water.
The water tank is built into the adjustable bottle shelf
(see 1.2 Overview of the appliance and equipment) .
Fig. 48
u
Press on the back-left corner of the front glass plate.
w
The glass panel folds up at the front.
u
Lift the glass panel and fold towards the rear until it
clicks into place Fig. 48 (1).
w
Glass panel stands upright.
u
Slide the slider Fig. 48 (2) to the left.
w
The water tank jumps out of its recess.
u
Remove the water tank Fig. 48 (3).
u
Cleaning the water tank (see 8.4.3 Clean the compo‐
nents) .
Square opening:
u
Fill with drinking water up to the marker.
u
Insert the water tank into the recess, bottom first.
u
Slowly lower the front part and push the tank in.
w
The water tank is clicked into place.
7.10.2 Dismantling the water tank
You can take the water tank apart for cleaning.
Fig. 49
u
Dismantling the water tank.
7.11 Accessories
7.11.1 Butter dish
Opening/closing the butter dish
Fig. 50
Dismantling the butter dish
You can take the butter dish apart for cleaning.
Features
* Depending on model and options 19
Fig. 51
u
Disassembling the butter dish.
7.11.2 Egg rack
You can pull out and turn the egg rack. You can use both
sides of the egg rack so you can label specifics like the
purchase date.
Using the egg rack
Fig. 52
u
Top layer: for storing hen eggs.
u
Bottom layer: for storing quail eggs.
7.11.3 Bottle holder
Using the bottle holder
Fig. 53
u
Push the bottle holder onto the bottles.
w
The bottles are prevented from falling over.
Removing the bottle holder
Fig. 54
u
Move the bottle holder all the way to the right.
u
Push the bottle holder to the back to remove.
7.11.4 FlexSystem
Using the FlexSystem
The FlexSystem helps you store and organise your food in
a clear and flexible way. It lets you clearly divide your food
into fruit, vegetables or by use-by dates, for example.
Fig. 55
u
Move the inner shell.
Removing the FlexSystem
Fig. 56
u
Lift the FlexSystem from the back.
u
Pull up and out.
Inserting the FlexSystem
Fig. 57
u
Insert the FlexSystem front-first.
u
Lower the rear part.
Disassembling the FlexSystem
You can take the FlexSystem apart for cleaning.
Features
20 * Depending on model and options
Fig. 58
u
Disassembling the FlexSystem
8 Maintenance
8.1 FreshAir carbon filter
The FreshAir carbon filter is in the compartment above the
fan.
It guarantees the best air quality.
q
Replace the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
q
The carbon filter can be disposed of with the regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
8.1.1 Removing the FreshAir carbon filter
Fig. 59
u
Pull out the compartment Fig. 59 (1).
u
Remove the carbon filter Fig. 59 (2).
8.1.2 Inserting the FreshAir carbon filter
Fig. 60
u
Insert the carbon filter as shown in the diagram
Fig. 60 (1).
w
The carbon filter clicks into place.
If the carbon filter is pointing downwards:
u
Push the compartment in Fig. 60 (2).
w
The carbon filter is now ready for use.
8.2 Disassembling / assembling pull-
out systems
8.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system can be disassembled /
cannot be disassembled
Fully extendible* cannot be disassembled*
Partial pull-out fridge compart‐
ment*
cannot be disassembled*
8.3 Defrosting the appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
u
Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
u
Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
u
Do not use sharp objects to remove ice.
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
u
Clean the drain opening regularly (see 8.4 Cleaning the
appliance) .
8.4 Cleaning the appliance
8.4.1 Ready
WARNING
Danger of electric shock!
u
Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
u
Do not damage the refrigeration circuit.
u
Empty the appliance.
u
Remove mains connector.
-or-
u
Activate CleaningMode. (see CleaningMode)
8.4.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Maintenance
* Depending on model and options 21
u
Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Drain hole: remove deposits using a thin item (for
example a cotton bud).
8.4.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- VarioSafe
- Fruit & Vegetable safe cover
- Drawer
- Adjustable bottle shelf
- FlexSystem
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
Wash in the dishwasher up to 60 °C:
- Door rack
- VarioBox
- Bottle rack
- Shelf
- Dividing shelf
- Holder of the dividing shelf
- HydroBreeze water tank and water tank lid
- Egg rack
- Butter dish
u
To disassemble components: see the relevant section.
u
Clean the components.
8.4.4 Cleaning the HydroBreeze
Cleaning is required in the following cases:
q
Initial operation
q
HydroBreeze is off for more than 48 hours.
q
Refill the water tank.
Ensure that the following conditions are met:
q
HydroBreeze is off (see HydroBreeze) .
q
Water tank has been removed and cleaned in the dish‐
washer.
u
Wipe out the recess with a damp cloth.
u
Insert the water tank.
u
Activate the HydroBreeze.
8.4.5 After cleaning
u
Wipe the appliance and the components dry.
u
Connect and switch on the appliance.
The temperature is cold enough:
u
Place the food inside.
u
Repeat cleaning regularly.
9 Customer help
9.1 Technical specifications
Temperature range
Cooling 3 °C to 9 °C
BioFresh 0 °C to 3 °C
BioFresh Profes‐
sional
(Fish & SeaFood)
-2 °C to 0 °C
Possible settings: 0 °C | 0 °C, 0 °C |
-2 °C, -2 °C | -2 °C
Maximum size baking tray
Width 466 mm
Depth 386 mm
Height 50 mm
9.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 6.3 Functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
installation
Defective
noise
Check the
installation.
Level the
appliance.
Customer help
22 * Depending on model and options
Noise Possible
cause
Type of noise Lifting
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
9.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
9.3.1 Appliance function
Defect Cause Remedy
The appliance is
not working.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
u
Check the power plug.
→ There is something wrong with the
power outlet fuse.
u
Check the fuse.
→ Power cut
u
Keep the appliance closed.
u
Protecting food: Lay freezer packs on top of the food or
use another freezer if the power is off for a prolonged
period.
u
Do not re-freeze defrosted food,
→ The appliance plug does not fit the
appliance properly.
u
Check the appliance plug.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
u
Close the appliance door.
→ Not enough ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Solution: (see 1.4 Appliance range of use) .
→ The appliance was opened too
many times or for too long.
u
Wait to see if the required temperature corrects itself.
If not, contact Customer Service (see 9.4 Customer Serv‐
ices) .
→ The temperature is set incorrectly.
u
Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
u
Move the appliance or the heat source.
→ The appliance was not correctly
installed in the recess.
u
Check if the appliance was installed correctly and that
the door closes properly.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
u
Contact Customer Services (see 9.4 Customer Services) .
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
u
Check that the door seal is well fitted in the groove.
9.3.2 Features
Defect Cause Remedy
HydroBreeze is not
keeping refriger‐
ated goods moist.
→ The HydroBreeze is not on.
u
Activate the HydroBreeze.
→ There is not enough water in the
water tank.
u
Fill the water tank.
→ There is dirt in front of the concen‐
trator.
u
Clean the HydroBreeze.
Customer help
* Depending on model and options 23
Defect Cause Remedy
→ The water tank is not clicked into
place properly.
u
Click the water tank into place.
→ The cover of the Fruit & Vegetable-
Safe is in “low air moisture” mode.
u
Set the Fruit & Vegetable-Safe to the “high air moisture”
mode.
The internal light
does not come on.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The door was open for longer than
15 minutes.
u
Interior lighting turns off automatically after approx. 15
min. with the door open.
→ The LED interior light is faulty or
the lid is damaged.
u
Contact customer service (see 9.4 Customer Services) .
9.4 Customer Services
First check if you can fix the error yourself (see 9 Customer
help) . If you can't, contact Customer Services.
Please refer to the enclosed “Liebherr-Service” brochure for
the address.
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 8 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
9.4.1 Contact Customer Services
Make sure you have the following appliance data at the
ready:
q
Appliance name (model and index)
q
Service no. (Service)
q
Serial no. (S no.)
u
Look up the appliance information on the display
(see Info) .
-or-
u
Referring to appliance info on the nameplate
(see 9.5 Model plate) .
u
Note down the appliance information.
u
Notify Customer Services of the following: Give us the
appliance data.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow any further instructions given by Customer Serv‐
ices.
9.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 61
(1) Appliance description (3) Serial no.
(2) Service no.
u
Note the data on the model plate.
10 Shutting down
u
Empty the appliance.
u
Turn off the appliance .
u
Remove mains connector.
u
Remove appliance connector if required: Remove and
move from left to right at the same time.
u
Clean the appliance (see 8.4 Cleaning the appliance) .
u
Leave the door open to avoid bad smells building up.
11 Disposal
11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation.
u
Appliances with batteries: remove the batteries. For
description, see Maintenance chapter.
u
If possible: remove lamps without destroying them.
Shutting down
24 * Depending on model and options
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Disposal
* Depending on model and options 25
home.liebherr.com/fridge-manuals
integrated fridge with BioFresh
Issue date: 20230308
Part number index: 7088283-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland
