Installation Instructions for
EQUIPMENT STANDS
CHECK FOR CONCEALED DAMAGE
FILE CL
AIM WITH DELIVERING FREIGHT CARRIER
Equipment Stands manufactured by
A
A
D
D
V
V
A
A
N
N
C
C
E
E
T
T
A
A
B
B
C
C
O
O
are designed and constructed for
applications including Food Preparation, Cooking, Manufacturing, Material Handling, Laboratory
Service and the like.
A
A
D
D
V
V
A
A
N
N
C
C
E
E
T
T
A
A
B
B
C
C
O
O
does not recommend product use for activities
employing harsh and active chemicals. Consult factory regarding unusual applications.
Edgewood, New York 11717-8380
2-2007
equipment_stands.qxd 3/8/07 11:37 AM Page 1

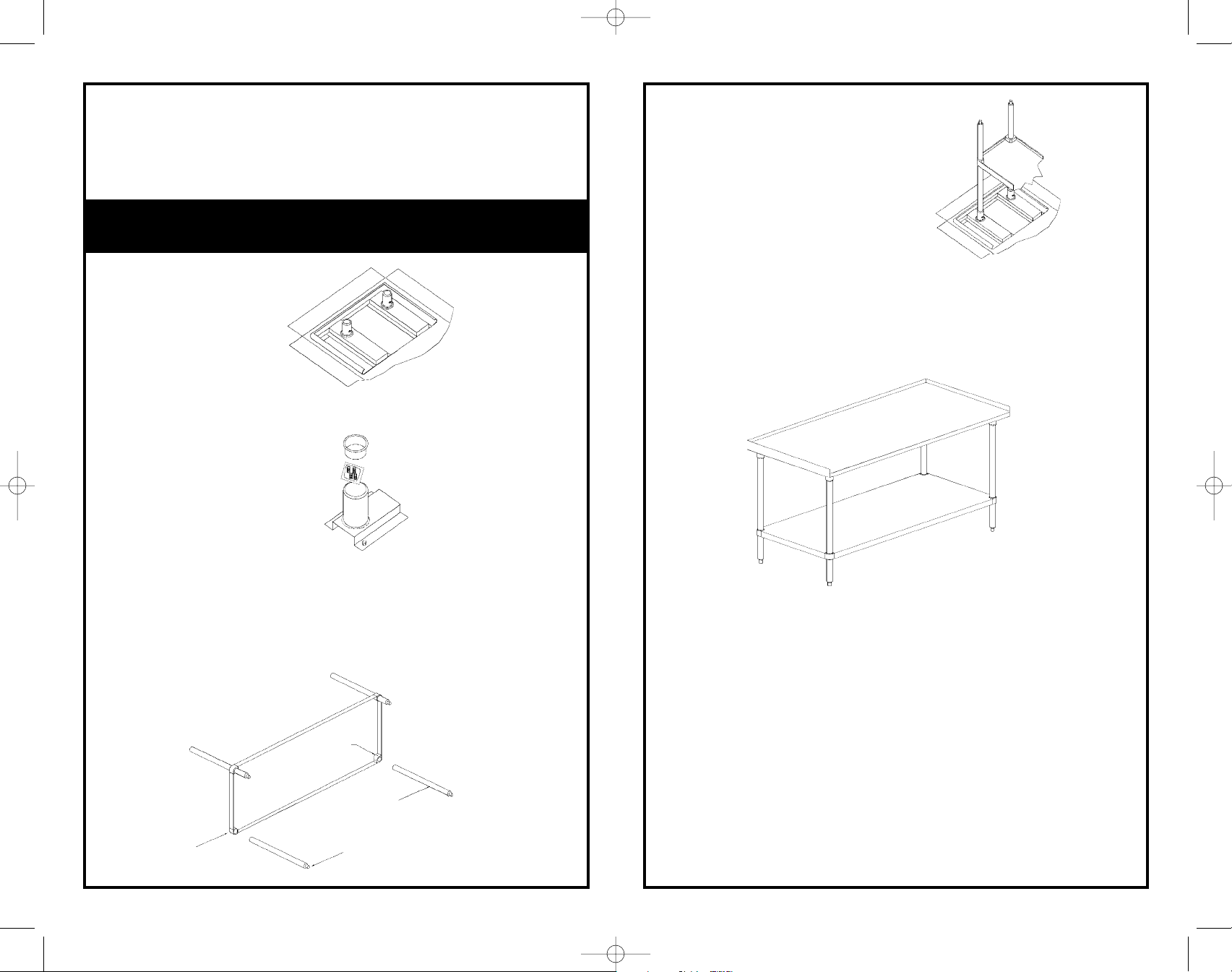

Step 1:
Lay the table top flat on
the box to protect the
finish during assembly.
(Figure 1)
Step 4:
Insert legs and undershelf assembly
into gussets as indicated in Figure 4.
Tighten set screws.
Step 5:
Turn table upright and level by adjusting bullet feet.
NSF Installations require all set screws filled
with an approved silicone sealer.
Figure 3
Figure 4
Shelf Cor
ner
Score
Marks
Adjustable Bullet F
eet
Set
Screws
Step 3:
Insert set screws into adjustable shelf corner - (2) each corner
(underneath shelf). Insert legs into adjustable shelf corner and set
desired height. Tighten set screws.
(Figure 3)
Figure 2
Contents:
Table Top
Undershelf
Legs
Set Screws
Tools Required:
5/32" Allen Wrench
Figure 1
Step 2:
Remove plastic cap from
gusset. (Figure 2) Set screws
are located inside gusset.
equipment_stands.qxd 3/8/07 11:37 AM Page 2
