GOLDFOIL JAZZ BASS®
(014-0711-XXX)

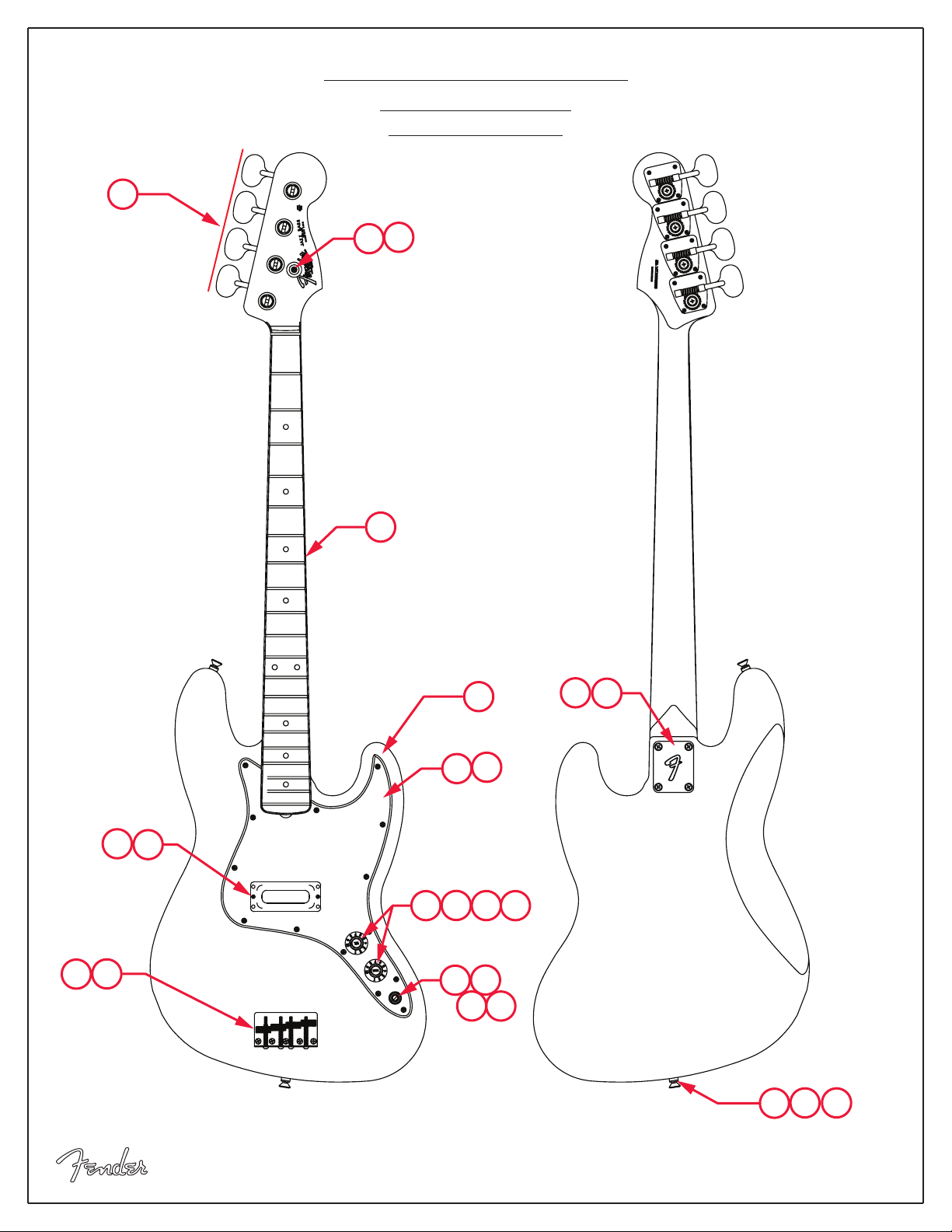

PARTS LAYOUT
COPYRIGHT - 2022 - FENDER MUSICAL INSTRUMENTS CORPORATION
Page 1 of 5
JUL 27, 2022 - Rev. A
14 12
7
2
11
1
6
7
8
5
13
9
3 4
12
10
19
16
17
20
15
16
17
18
PARTS LIST
COPYRIGHT - 2022- FENDER MUSICAL INSTRUMENTS CORPORATION
Page 2 of 5
JUL 27, 2022 - Rev. A
GOLDFOIL JAZZ BASS®
(014-0711-XXX)
REF # DESCRIPTION PART NUMBER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
BODY GOLD FOIL JAZZ BASS ALD 2TSB 7720064503
BODY GOLD FOIL JAZZ BASS ALD SONIC BLUE 7720064572
NECK GOLD FOIL JAZZ BASS EB SONIC BLUE 7720062000
NECK GOLD FOIL JAZZ BASS EB BLACK 7720063000
NECK PLATE - 'F', CHROME 0991448100
SCREW SM OV HD 8 X 1-3/4 0015636049
KEY BASS GOTOH FB30-LP L4 7720073000
ORIGINAL BASS STRING GUIDE 0994913000
SCREW SM OV HD 4 X 1/2 0015578049
PICKGUARD GOL
D FOIL JAZZ BASS P/B/P 7719991000
PICKGUARD GOLD FOIL JAZZ BASS TORT/W/B/W 7719992000
PICKUP GOLD FOIL JAZZ BASS 7719894000
SCREW WOOD RH 3 X 1 0016295049
VINT BASS BRIDGE, CHROME 0990804100
SCREW SM OV HD 5 X 1 0015610049
ORIGINAL STRAP BUTTONS 0994915000
WHITE FELT WASHERS 0994930000
CONTROL 500K A.TAPER S.SHAFT 0079409000
WASHER,INTLOCK 3/8 NI 0016436049
NUT HEX 3/8-32 X 3/32 NICKEL 0016352049
AM VINT 65 JAZZMASTE
R KNOB SET 0992086000
JACK, PHONE OPEN W/HDWR 0021956049
WSHR FLAT 3/8x.614 NI 0031153049
COPYRIGHT - 2022 - FENDER MUSICAL INSTRUMENTS CORPORATION
Page 3 of 5
JUL 27, 2022 - Rev. A
GOLDFOIL JAZZ BASS®
(014-0711-XXX)

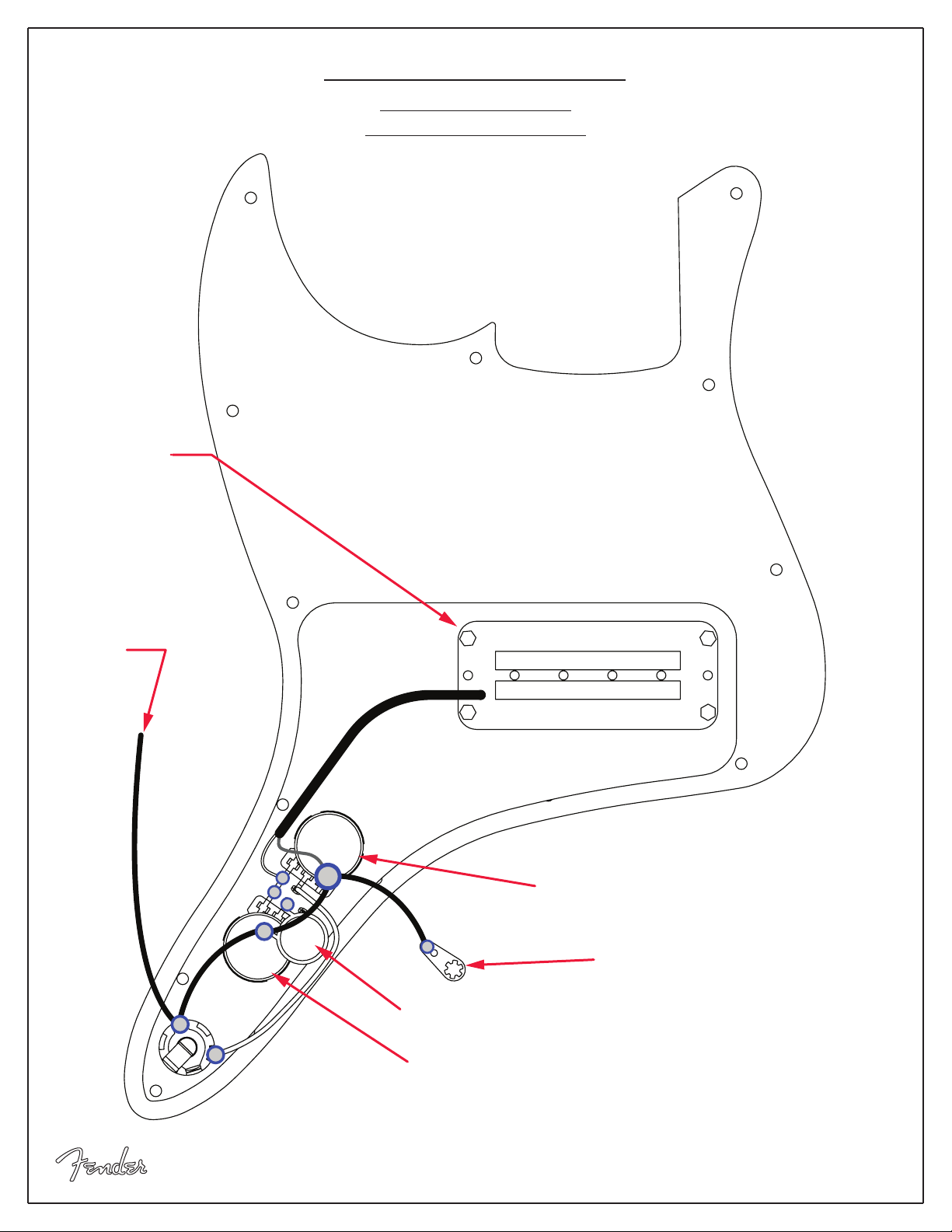

WIRING DIAGRAM
BODY
GROUND
TERMINAL
NECK
PICKUP
BRIDGE
GROUND
TONE
CONTROL
CAPACITOR .05µF
VOLUME
CONTROL
COPYRIGHT - 2022 - FENDER MUSICAL INSTRUMENTS CORPORATION
Page 4 of 5
JUL 27, 2022 - Rev. A
GOLDFOIL JAZZ BASS®
(014-0711-XXX)

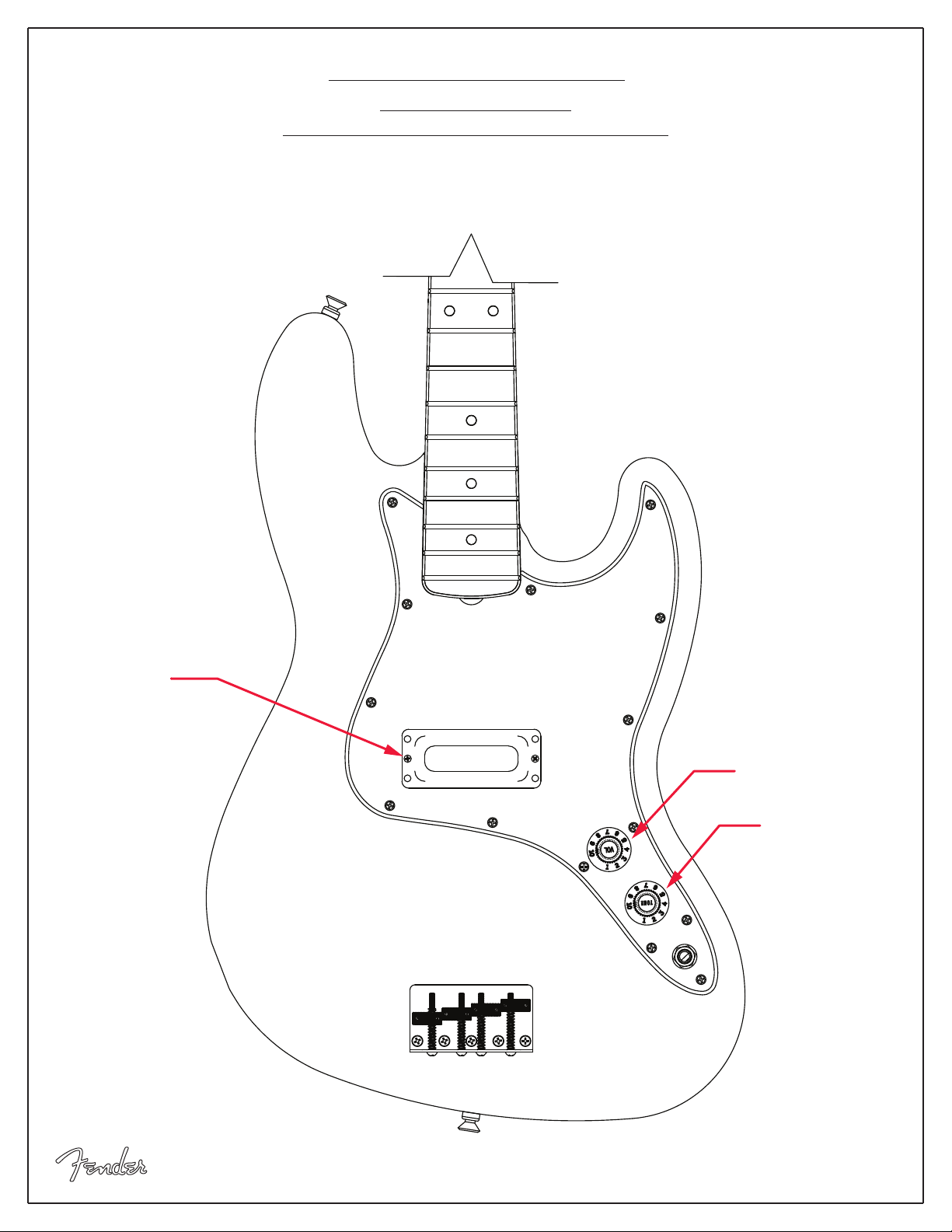

SWITCH AND CONTROL FUNCTION
MASTER TONE
NECK
PICKUP
MASTER VOLUME
COPYRIGHT - 2022 - FENDER MUSICAL INSTRUMENTS CORPORATION
Page 5 of 5
JUL 27, 202 - Rev. A
GOLDFOIL JAZZ BASS®
(014-0711-XXX)

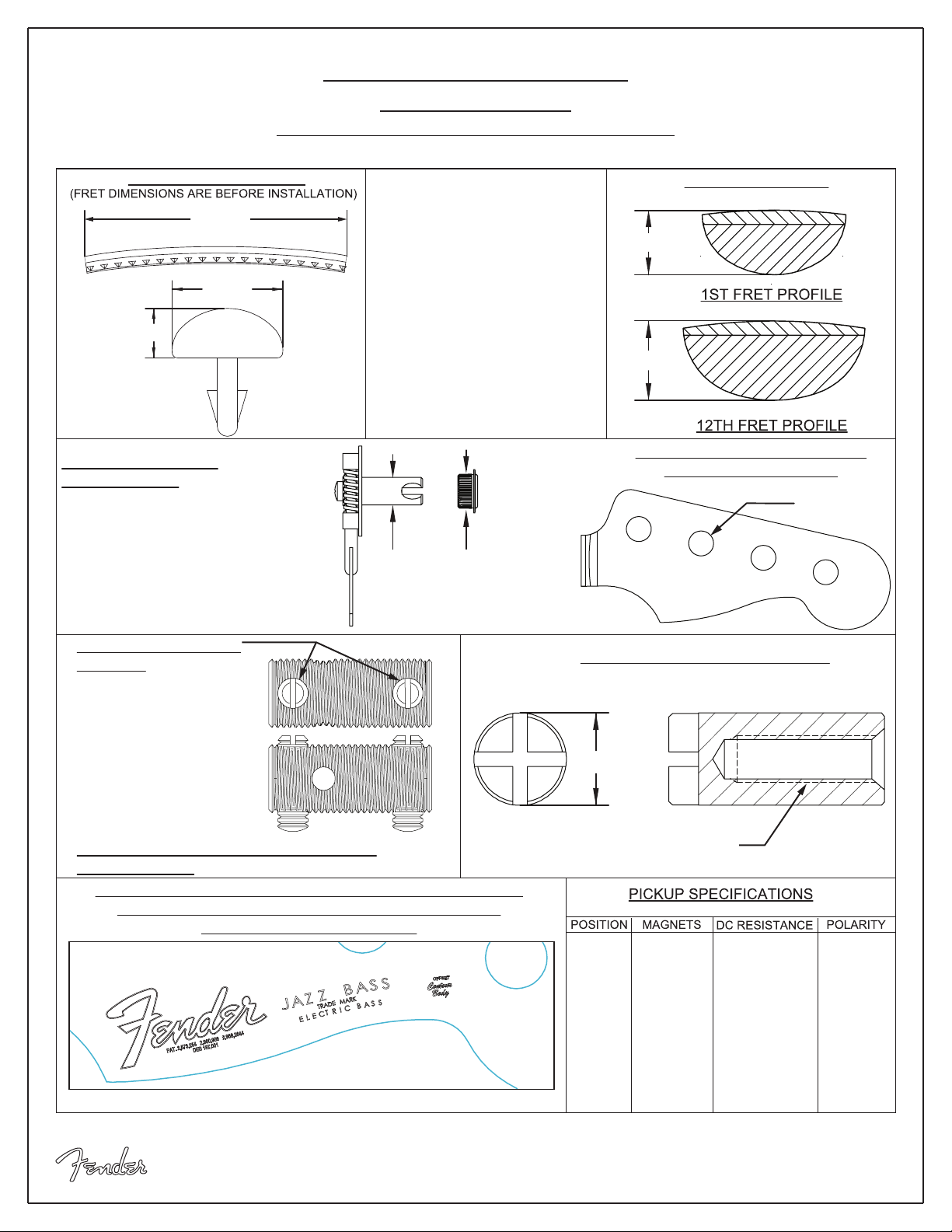

ADDITIONAL SPECIFICATION DETAIL
9.6 - 10.0KΩ
.103’’
2-13/16’’
.046’’
CERAMIC
NECK SOUTH
FRET SIZE: MED JUMBO
PLEASE NOTE: AS EACH NECK
IS SANDED & FINISHED BY
HAND, THICKNESS DIMENSIONS
MAY VARY SLIGHTLY FROM
THOSE SHOWN.
NECK PROFILE: “C”
.815”
1.000”
10-32 THREAD
Ø.375”
TRUSS ROD NUT P/N 0012252000
SADDLE HEIGHT ADJUSTMENT SCREW
P/N 0016105000
SLOTTED HEADLESS
SCREWS
LOGO: DECAL MEX 60 J BASS(SONIC BLUE HEADSTOCK)
DECAL MEX 60 J BASS GOLD (BLACK HEADSTOCK)
APPLIED UNDER THE FINISH
Ø .703”
TUNING MACHINE THRU-HOLE
INNER DIAMETER .703”
KEY BASS LOLLIPOP
P/N 7720073000
Ø.551 Ø.693
