Owners

Manual

FOR POTABLEWATER

HEATING ONLY

NOT SUITABLEFOR

SPACEHEATING

NOT FOR USE IN

MOBILE HOMES

Model No.

153.335816 40 Gal.

153.335845 40 Gal. High Altitude L.R

153.335862 40 Gal. L.R

153.335916 50 Gal.

153.335942 50 Gal. High Altitude L.R

153.335962 50 Gal. L.R

Caution:

Read and Follow

All Safety Rules and

Operating Instructions

Before First Use of

This Product.

Save this Manual for Future Reference.

POWER MISER TM 9

POWER VENT

GAS WATER HEATER

• Safety Instructions • Care and Maintenance

• Installation • Troubleshooting

• Operation • Parts List

For Your Safety

AN ODORANT IS ADDED TO THE GAS USED BY THIS

WATER HEATER

WARNING: If the information in these instructions are not fol- I

lowed exactly, a .fire or explosion may result, causing property I

damage, personal ,nlury or death. I

-Do not store or use gasoline or other flammable vapors and liq-

uids in the vicinity of this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your

building.

i mmecliately call your gas supplier from a neighbor's phone.

Follow the gas supplier'slnstructions.

If you can not reach your gas supplier, call the fire department.

-Installation and service must be performed by a qualified installer,

service agency or the gas supplier.

&WARNING

Improper installation, adjustment, alteration, service or maintenance

can cause DEATH, SERIOUS BODILY INJURY, OR PROPERTY DAN-

AGE. Refer to this manual for assistance or consult the local Sears

Service Center or gas utility for further information.

&WARNING

Flammable vapors may be drawn by air currents from other areas

of the structure to this appliance.

&WARNING

READ THE GENERAL SAFETY SECTION BEGINNING ON INSIDE

COVER AND THEN THIS ENTIRE MANUAL BEFORE INSTALLING

OR OPERATING THIS WATER HEATER.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Safety Precautions

•,WARNING I

Improper installation, adjustment, alteration, service or I

maintenance can cause death, serious bodily injury, or

property damage. Refer to this manual for assistanceor

consult your local Sears Service Center for further

information.

_.WARNING

WATER HEATERS EQUIPPED FOR ONE TYPE GAS

ONLY: This water heater is equipped for one type gas

only. Check the model rating plate near the gas control

valve for the correct gas. DO NOT USE THIS WATER

HEATER WITH ANY GAS OTHER THAN THE ONE

SHOWN ON THE MODEL RATING PLATE. Failure to

usethe correct gascancauseproblemswhichcan result in

DEATH, SERIOUS BODILY INJURY, OR PROPERTY

DAMAGE. If you have any questions or doubts consult

yourgassupplieror localutility.

•_ WARNING

INSTALLATIONS IN AREAS WHERE FLAMMABLE LIQ-

UIDS (VAPORS) ARE LIKELY TO BE PRESENT OR

STORED (GARAGES, STORAGE, AND UTILITY AREAS,

ETC): Flammable liquids (such as gasoline, solvents,

propane(LP) or butane, etc.), all of whichemit flammable

vapors, may be improperly stored or used in suchareas.

The gaswater heater pilot light or main burner canignite

such vapors. The resulting flashback and fire can cause

death or serious burns to anyone in the area, as well as

property damage.

If installation in such areas is your only option, then the

installation must be accomplishedin a way that the pilot

flame and main burner flame are elevated from the floor

at least 18 inches.While this may reduce the chancesof

flammable vaporsfrom a floor spill being ignited, gasoline

and other flammable substancesshouldnever be storedor

used in the same room or area containing a gaswater

heater or other openflame or spark producingappliance.

NOTE: Flammable vapors may be drawn by air currents

from other areasofthe structure to the appliance.

_WARNING

If this water heater will be used in beauty shops,barber

shops, cleaning establishments, or self-service laundries

with dry cleaning equipment, it is imperative that the

water heater or water heaters be installed sothat com-

bustion and ventilation air be taken from outside these

areas. Refer to the "Locating The New Water Heater"

section of this manual and also the latest edition of the

National Fuel Gas Code, ANSI Z223.1, also referred to as

NFPA 54for specificsprovidedconcerningair required.

_,WARNING

A fire can start if co_ials suchas clothing,

cleaningmaterials, or flammable liquidsare placedagainst

or nextto the water heater.

_WARNING

At the time of manufacture this water heater wasprovid-

ed with a combination temperature-pressures relief valve

certified by a nationally recognized testing laboratory

that maintains periodic inspectionof production of listed

equipment or materials, as meeting the requirements

for Relief Valves and Automatic Gas Shutoff Devicesfor

Hot Water Supply Systems, and the latest edition of

ANSI Z21.22 and the code requirements of ASME. If

replaced, the valve must meet the requirements of local

codes,but not lessthan a combination temperature and

pressure relief valve certified as meeting the require-

ments for Relief Valves and Automatic Gas Shutoff

Devicesfor Hot Water Supply Systems,ANSI Z21.22 by

l nationally recognized testing laboratory that maintains

_eriodic inspection of production of listed equipment or

materials.

The valvemust be marked with a maximum set pressure

not to exceed the marked hydrostaticworking pressure

of the water heater (150 Ibs./sq. in.) and a discharge

capacity not lessthan the water heater input rate as

shown on the model rating plate. (Electric heaters -

watts dividedby 1000x 3415 equal BTU/Hr, rate.)

Your local jurisdictional authority, while mandating the

use of a temperature-pressure relief valve complying

with ANSI Z21.22 and ASME, may require a valvemodel

different from the one furnishedwith the water heater.

Compliance with such local requirements must be satis-

fied by the installer or end user of the water heater with

a locally prescribed temperature-pressure relief valve

installedin the designatedopeningin the water heater in

place ofthe factory furnished valve.

For safe operation of the water heater, the relief valve

must not be removed from it's designated opening or

plugged.

The temperature-pressure relief valve must be installed

directly into the fitting of the water heater designated

for the relief valve. Positionthe valvedownward and pro-

vide tubing so that any dischargewill exit only within 6

inches above, or at any distance below the structural

floor. Be certain that no contact is made with any live

electrical part. The discharge opening must not be

blocked or reduced in size under any circumstances.

Excessivelength, over 30 feet, or use of more than four

elbows can cause restriction and reduce the discharge

capacity ofthe valve.

No valve or other obstruction is to be placed between

the relief valve and the tank. Do not connect tubing

directly to dischargedrain unlessa 6" air gap isprovided.

To prevent bodilyinjury, hazard to life,or property dam- I

age, the relief valve must be allowed to dischargewater

in quantities should circumstances demand. If the dis-

charge pipe is not connected to a drain or other suitable

means, the water flow may causeproperty damage.

The DischargePipe:

Must not be smaller in size than the outlet pipe sizeof

the valve, or have any reducing couplings or other

restrictions.

Must not be pluggedor blocked.

Must be of material listedfor hot water distribution.

Must be installed so as to allow complete drainage of

both the temperature-pressure relief valve, and the

dischargepipe.

Must terminate at an adequate drain.

Must not have any valve between the relief valve and

tank.

Safety Precautions

AWARNING

A gaswater heater cannot operate properly without the

correct amount of air for combustion. Do not install in a

confined area such a closet, unless you provide air as

shownin the "Locating The New Water Heater" section.

Never obstruct the flow of ventilation air. If you haveany

doubts or questionsat all, call your gas company.Failure

to providethe proper amount of combustionair canresult

in a fire or explosion and can cause DEATH, SERIOUS

BODILY INJURY,OR PROPERTY DAMAGE.

AWARNING

This water heater must not be installed directly on car-

peting. Carpeting must be protected by a metal or wood

panel beneath the appliance extending beyond the full

width and depth of the appliance by at least 3 inches

(76.2mm) in any direction, or if the appliance is installed

in an alcoveor closet,the entire floor must be coveredb

the panel. Failure to heed this warning may result in

fire hazard.

AWARNING

HOTTER WATER CAN SCALD: Water heaters are

intended to produce hot water. Water heated to a tem-

perature which will satisfyclotheswashing,dish washing,

and other sanitizing needs can scald and permanently

injure you upon contact. Some people are more likely to

be permanently injured by hot water than others. These

includethe elderly,children,the infirm, or physically/men-

tally handicapped.If anyoneusinghot water in your home

fits into one of these groupsor if there is a local code or

state lawrequiring a certain temperature water at the hot

water tap, then you must take specialprecautions.In addi-

tion to usingthe lowest possibletemperature setting that

satisfiesyour hot water needs, a means suchas a mixing

valve, shouldbe used at the hot water taps used bythese

people or at the water heater. Mixing valvesare available

at plumbing supply or hardware stores. Follow manufac-

turers instructions for installation of the valves. Before

changingthe factory setting on the thermostat, read the

"Temperature Regulation"sectionin this manual.

_WARNING

Soot build-up indicates a problem that requires correc-

tion before further use. Turn "off" gas to water heater

and leave"off" until repairs are made, becausefailure to

correct the cause of the sooting can result in a fire or

explosion causing DEATH, SERIOUS BODILY INJURY,

OR PROPERTY DAMAGE.

AWARNING

The power vent water heater requires its own (separate)

ventingsystem.It cannot beconnectedto anexistingvent

pipeor chimney.It must beterminated horizontallyto the

outdoors.Failureto properly installthe ventingsystemcan

result in asphyxiation, a fire or explosion and can cause

DEATH, SERIOUS BODILY INJURY,OR PROPERTYDAIv

AGE.

A, WARNING

No vent damper installationiscompatiblewith this power

vented water heater design.No vent damper,whether it is

operated thermally or otherwise isto be installedon this

powerventedwater heater.Alteration ofanypart ofthe fac-

tory-furnishedvent assemblycouldresult in improper oper-

ation due to restriction of flue gases,spillageof flue gases

and may causecarbon monoxidepoisoning.

AWARNING

• The appliance and itsindividualshutoffvalve mustbe dis-

connectedfrom the gassupplypipingsystem during any

pressure testing of the gas system at test pressuresin

excessof I/2 poundper squareinch(3.5kPa).

• The appliance must be isolated from the gassupplypip-

ing system by closingits individualmanual shutoffvalve

during any pressuretesting of the gassupplypipingsys-

tem at test pressuresequal or lessthan I/2 pound per

squareinch(3.5kPa).

_,WARNING

BEFORE LIGHTING [PROPANE (L.P.) GAS WATER

HEATERS]: Propane (L.R) gasis heavier than air. Should

there be a leak in the system,the gaswill settle near the

ground. Basements, crawl spaces, skirted areas under

mobile homes (even when ventilated), closets and areas

belowground levelwill serveas pocketsfor the accumula-

tion of this gas.Before attempting to light or relight the

water heater's pilot or turning on a nearby electrical light

switch, be absolutelysure there is no accumulated gasin

the area. Searchfor odor of gasby sniffingat ground level

in the vicinity of the appliance. If odor isdetected, follow

stepsindicated at "For Your Safety" on the cover page of

this manualthen leavethe premises.

AWARNING

Chemical vapor corrosion of the flue and vent system

may occur ifair for combustioncontainscertain chemical

vapors.Spray canpropellants, cleaningsolvents,refrigera-

tor and air conditioner refrigerants, swimming pool

chemicals, calcium and sodium chloride, waxes, bleach,

and processchemicals are typical compounds which are

potentially corrosive.

AWARNING a

Obstructed or deteriorated vent systems may present

serioushealth riskor asphyxiation.

Safety Precautions continued on page 4.

Safety Precautions

AWARNING ]

The water heater wi_talled must be prop- [

erly vented to a chimney which terminates outdoors.[

Never operate the water heater unlessit isvented to the [

outdoors and has adequate air supply to avoid risks of[

improper operation, explosionor asphyxiation. ]

_,WARNING

Minimum clearancesbetween the water heater and com-

bustibleconstructionare 0"at the sidesand rear, 5" at the

front, and 0" from the vent pipe. Clearance from the top

of the jacket is 14" on most models. Note that a lesser

dimension may be allowed on some models. Refer to the

labelon the water heater adjacentto the gascontrol valve

for all clearances.

_WARNING

Do not usethis applianceif any part of it hasbeen under

water. Immediately call a Sears Service Technician to

inspectthe appliance and to replace the gascontrolor any

part of the burner systemwh chhasbeen underwater.

_,WARNING [

Vent termination must not be within 4 feet of any items

such as gas meters, gas valves or other gas regulating

equipment.

_, CAUTION

WATER HEATERS EVENTUALLY LEAK: Installation of

the water heater must be accomplishedin sucha manner

that if the tank or any connectionsshouldleak, the flow of:

water will not cause damage to the structure. For this

reason, it isnot advisableto installthe water heater in an

attic or upper floor.When suchlocationscannotbe avoid-

ed, a suitable drain pan should be installed under the

water heater. Drain pansare available at your local Sears

store. Such a drain pan must be not greater than 1_/2

inchesdeep,havea minimum length and width of at least

2 inches greater than the water heater dimensions and

must be piped to an adequate drain. The pan must not

restrict combustion air flow. Under no circumstances is

the manufacturer or Searsto be held liable for any water

damage in connectionwith this water heater.

_,WARNING

HYDROGEN GAS:Hydrogen gascanbe producedina hot

water system that hasnot been used for a long period of

time (generally two weeks or more). Hydrogen gas is

extremely flammable and explosive.To prevent the possio

bility of injury under these conditions,we recommend the

hot water faucet be opened for several minutes at the

kitchen sink before any electrical appliances which are

connected to the hot water system are used (such as a

dishwasheror washing machine). If hydrogengas is pre-

sent,there will probablybe an unusualsoundsimilar to air

escaping through the pipe as the hot water faucet is

opened. There must be no smoking or open flame near

the faucet at the time it isopen.

AWARNING

INSULATING JACKETS: When installing an external

water heater insulationjacket on a gaswater heater:

DO NOT coverthe temperature-pressure relief valve.

DO NOT put insulationover any part of the top of the

gaswater heater.

DO NOT put insulationover the gascontrolvalve or gas

control valve/burner cover, or any access areas to the

burner.

DO NOT let insulationaround the gaswater heater to

get within 8 inches of the floor (air must get to the

burner).

DO NOT cover or remove operating instructions, and

safetyrelated warninglabelsand materials affixedto the

water heater.

:allure to heed this will result in the possibilityof a fire or

explosion.

Table of Contents

Safety Precautions ............................................................................................................................................2-4

Table of Contents ................................................................................................................................................5

Customer Responsibilities .......................................................................................................................6

Product Specifications ..................................................................................................................................6

Materials and Basic Tools Needed ...............................................................................................7

Materials Needed ...................................................................................................................................................................... 7

Basic Tools ................................................................................................................................................................................ 7

Installation Instructions ........................................................................................................................8-2o

Removing the Old Water Heater ............................................................................................................................................... 8

Locating the New Water Heater .......................................................................................................................................... 9-10

Combustion Air and Ventilation ............................................................................................................................................. 10

Venting Clearances ............................................................................................................................................................. 10

Combustion Air and Ventilation for Appliances in Unconfined Spaces ................................................................................... 11

Combustion Air and Ventilation for Appliances in Confined Spaces ....................................................................................... 11

Water Piping ........................................................................................................................................................................... l2

Temperature-Pressure Relief Valve........................................................................................................................................... 13

Filling the Water Heater .......................................................................................................................................................... 14

Wiring ............................................................................................................................................................................... 14-15

Venting .............................................................................................................................................................................. 15-18

Gas Piping .............................................................................................................................................................................. 19

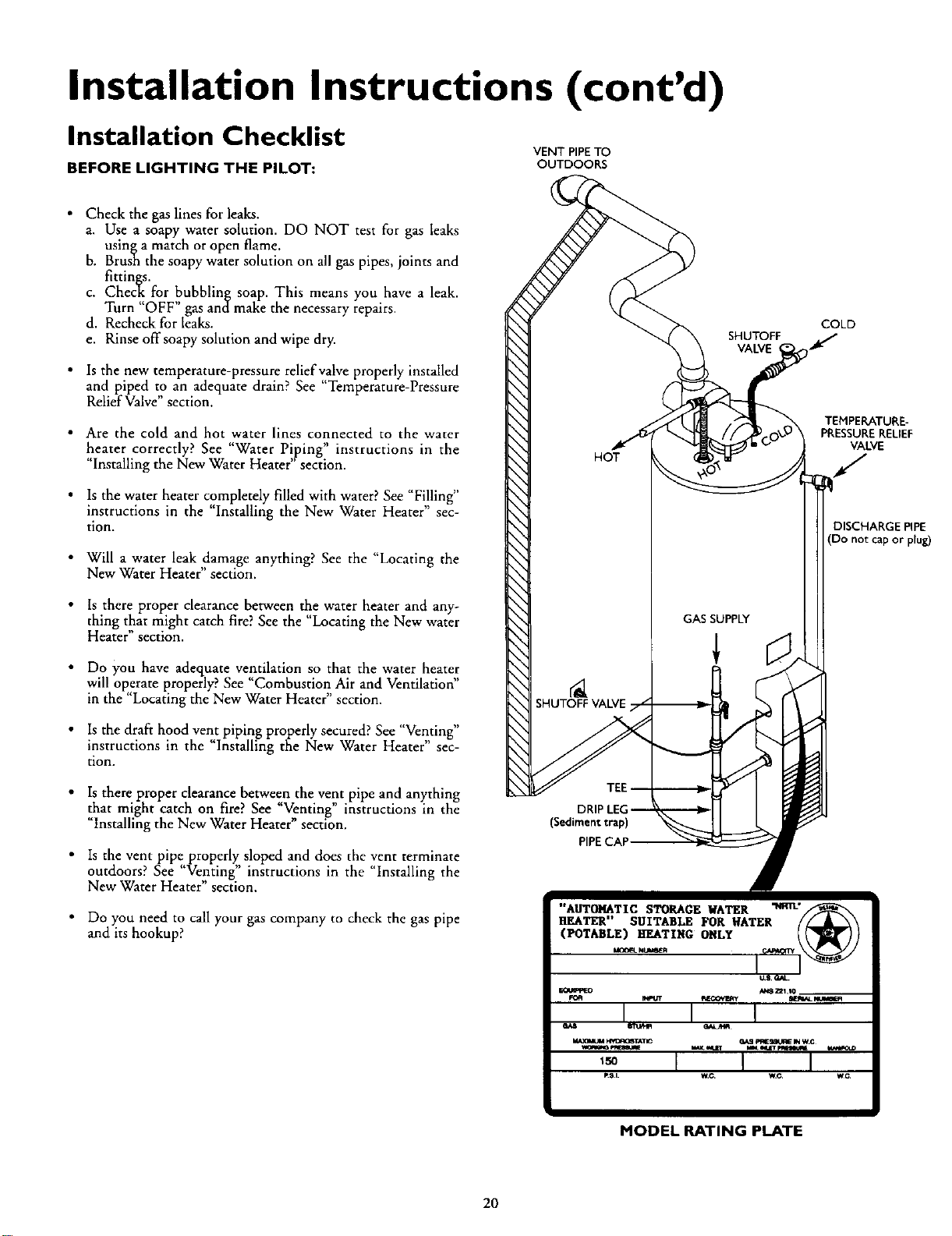

Installation Checklist .............................................................................................................................................................. 20

Operating Instructions ......................................................................................................................... 21-24

17ighting............................................................................................................................................................................. 22°23

Temperature Regulation .......................................................................................................................................................... 24

Service and Adjustment ......................................................................................................................25-27

Tank (Sediment) Cleaning ...................................................................................................................................................... 25

Venting System Inspection ...................................................................................................................................................... 25

Oiling Instructions .................................................................................................................................................................. 25

Burner Inspection ................................................................................................................................................................... 25

Burner Cleaning ..................................................................................................................................................................... 25

L.P. Gas Control Valve & Burner Assembly Replacement Information .................................................................................... 26

Draining ................................................................................................................................................................................. 26

Temperature-Pressure Relief ValveOperation .......................................................................................................................... 26

Drain ValveWasher Replacement ........................................................................................................................................... 27

Housekeeping ......................................................................................................................................................................... 27

Service .................................................................................................................................................................................... 27

Troubleshooting Guide ........................................................................................................................28-35

Start Up Conditions ..............-[ ................................................................................................................................................... 28

Thermal Expansion ................................................................................................................................................................. 28

Strange Sounds ....................................................................................................................................................................... 28

Condensation ......................................................................................................................................................................... 29

Smoke/Odor ........................................................................................................................................................................... 29

Operational Conditions ....................................................................................................................................................... 29-30

Smelly Water ............................................................................................................................................................... 29

"Air" in Hot Water Faucets ..................................................................................................................................................... 30

High Temperature Shut offSystem ......................................................................................................................................... 30

Not Enough or No Hot Water ................................................................................................................................................ 30

Water IsToo Hot .................................................................................................................................................................... 30

Leakage Checkpoints ................................................................................................................................................................ 31

Thermostat and Gas Supply Check ........................................................................................................................................... 32

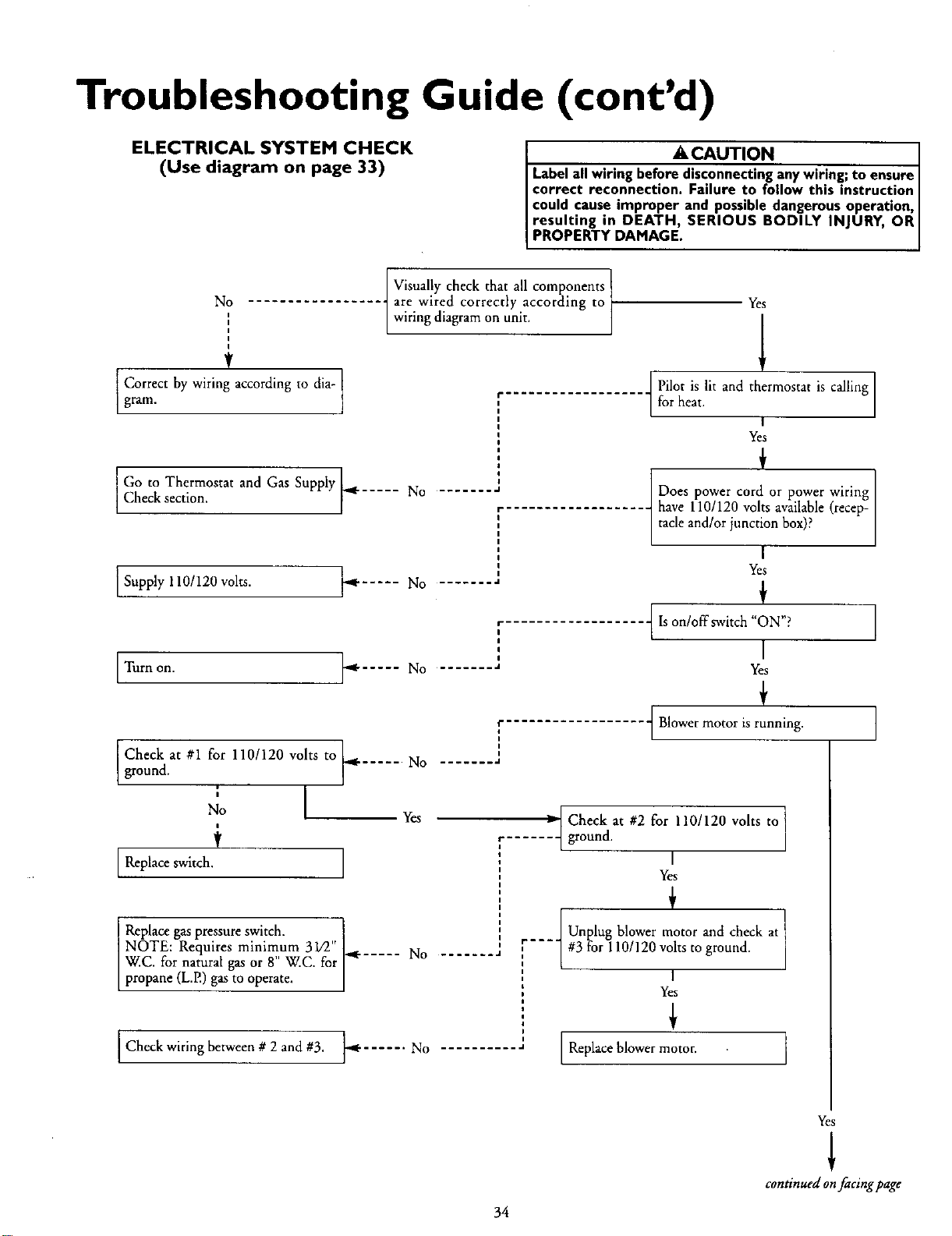

Electrical System Check ....................................................................................................................................................... 33-35

Parts Order List...............................................................................................................................................36-39

Customer Responsibilities

Thank You for purchasing a Sears water heater. Properly

installed and maintained, it should give you years of trouble free ser-

vice. If you should decide that you want the new water heater profes-

sionally installed by Sears call the local Sears Service Center or any

Sears store. They will arrange for prompt, quality installation by Sears

authorized contractors.

Abbreviations Found In This Instruction Manual

CSA - Canadian Standards Association

ANSI - American National Standards Institute

NFPA - National Fire Protection Association

A WARNING

This gas-fired water heater is design certified by CSA

INTERNATIONAL under American National

Standard/CSA Standard for Gas Water Heaters ANS

Z21.10.1 • CSA 4.1 (latest edition). The installationmust

conform with this manual, LocalCodesand with the latest

edition ofthe National FuelGasCode, ANSI Z223. I.

This publicationisavailablefrom your localgovernmentor

public library, gas company, or by writing NFPA,

Batterymarch Park, Quincy,MA 02269.

• Read the "Safety Precautions" section, pages 2 and 3 of this

manual first and then the entire manual carefully. If you don't

follow the safety rules, the water heater will not operate prop-

erly. It could cause DEATH, SERIOUS BODILY INJURY

AND/OR PROPERTY DAMAGE.

This manual contains instructions for the installation, opera-

tion, and maintenance of the gas-fired water heater. It also

contains warnings through out the manual that you must read

and be aware of. All warnings and all instructions are essential

to the proper operation of the water heater and your safety.

Since we cannot put everything on the first few pages, READ

THE ENTIRE MANUAL BEFORE ATTEMPTING TO

INSTALL OR OPERATE THE WATER HEATER.

The installation must conform with the instructions in this

manual; [_as company rules; and Local Codes, or in the

absence of Local Codes, with the latest edition of the National

Fuel Gas code, ANSI Z223.1, also referred to as NFPA 54.

This publication is available from your local government or

public library or gas company or by writing NFPA,

Batterymarch Park, Quincy, MA 02269.

If after reading this manual you have any questions or do not

understand any portion of the instructions, call the Sears

Service Center.

Carefully plan the place where you are going to put the water

heater. Correct combustion, vent action, and vent pipe instal-

lation are very important in preventing death from possible

carbon monoxide poisoning and fires.

Examine the location to ensure the water heater complies with

the "Locating the New Water Heater" section in this manual.

For California installation this water heater must be braced,

anchored, or strapped to avoid falling or moving during an

earthquake. See instructions for correct installation proce-

dures. Instructions may be obtained from your local dealer,

wholesaler, public utilities or California Office of the State

Architect, 400 P Street, Sacramento, CA 95814.

Complies with SCAQMD rule #1121 and districts having

equivalent NOx requirements.

Product Specifications

MODEL NUMBER

RECOVERY

TANK

CAPACITY

IN GALLONS

TYPE

GAS

NATURAL

PROPANE

NATURAL

PROPANE

B.ZU.

RATE

40,000

RATE GALS.

PER HOUR

@ 90°F RISE

40.9

MINIMUM

VENT

PIPE

DIAMETER

153.335816 18"

153.335845 18"

153.335862 18"

153.335916 20"

153.335942 20"

153.335962 20"

DIMENSIONS IN INCHES

HEIGHTTO

JACKET TOP

60"

59_"

59'/2"

59'A"

Materials and Basic Tools Needed

Materials Needed

To simplify the installation Sears has available the installation

parts shown below. You may or may not need all of these materi-

als, depending On your type of"installation.

Gas

Water Heater

Instaflation

Kit ;_

EXPANSION TANKS FOR

THERMAL EXPANSION

CONDITIONS AVAILABLE IN

2 GALLON AND 5 GALLON

CAPACITY THROUGH

LOCAL SEARS STORE OR

SERVICE CENTERS

½ _

WATER HEATER PVC VENT ELBOW

INSTALLATION KIT WITH

FLEXIBLE CONNECTORS

FOR 3/4" GALVANIZED OR

112"COPPER PLUMBING ( ()

PVC VENT EXTENSION

FLEXIBLE WATER HEATER

GAS CONNECTOR WITH

FITTINGS

WATER HEATER HEAT

TRAPS HELP REDUCE HEAT

LOSS DUE TO THERMAL

SYPHONING

/ \

WATER HEATER STAND 24"x24"x18"

FOR USE WITH WATER HEATERS

INSTALLED IN RESIDENTIAL

GARAGES HAVING A DIAMETER 24"

OR LESS AND A RATED CAPACITY 75

GALLONS OR LESS

DRAIN PANS

AVAILABLE IN 20" DIAMETER FOR

WATER HEATERS HAVING A DIAME-

TER 18" OR LESS, 24" DIAMETER FOR

WATER HEATERS HAVING A DIAME-

TER 22" OR LESS AND AVAILABLE IN

28" DIAMETER FOR WATER HEATERS

HAVING A DIAMETER 26" OR LESS

Basic Tools

You may or may not need all of these tools, depending on your

type of installation. These tools can be purchased at your local

Sears store.

• Pipe Wrenches (2) 14"

• Screwdriver

• Tin Snips

• 6 Foot Tape of Folding Rule

• Garden Hose

• Drill

• Pipe dope or Teflon Tape

GARDEN HOSE 6 FOOT TAPE

SLOT-HEAD SCREWDRIVER

PIPE

WRENCH

PHILLIPS SCREWDRIVER

ROLL OF TEFLON TAPE

(USE ONLY ON WATER

CONNECTIONS)

PIPE DOPE (SQUEEZE TUBE)

(USE FOR WATER AND

GAS CONNECTIONS)

TIN SNIPS

DRILL

ADDITIONAL TOOLS NEEDED

WHEN SWEAT SOLDERING

• Tubing Cutters or Hacksaw

• Propane Torch

• So_ Solder

• Solder Flux

• EmeryCIoth

• Wire Brushes

HACKSAW

314" WIRE BRUSH

1/2" WIRE BRUSH

ROLL OF LEAD FREE

SOFT SOLDER

ROLL OF EMERY

CLOTH

SOLDER FLUX

PROPANE

TORCH

TUBING

CUTTER

Installation Instructions

Removing the Old Water Heater

Turn "OFF" the gas supply to the water heater.

•,WARNING ]

If the main gas line shutoff serving all gas appliancesis/

used,also shut "off" the gas at each appliance. Leaveall|

gasappliances shut "off" until the water heater installation|

scompete.

QTurn water to water

"OFF" the the

heater. Some installations require that

the water be turned off to the entire

house.

QCheck again to make sure the gas supply

is "OFF" to the water heater. Then dis-

connect the gas supply connection from

the gas control valve.

Q Attach hose the heater drain

a to water

valve and put the other end in a floor

drain or outdoors. Open the water heater

drain valve. Open a nearby hot water

faucet which will relieve pressure in the

water heater and speed draining.

Disconnect the vent pipe from the draft hood where

they connect to the water heater. In most installations

the vent pipe can be lifted off after any screw or other

attached devices are removed. Dispose of the draft

hood. The new water heater has the draft hood which

must be used for proper operation.

Q a.

® ©

Qh.

If you have copper piping to the water

heater, the two copper water pipes can

be cut with a hacksaw approximately

four inches away from where they con-

nect to the water heater. This will avoid

cutting off the pipes too short.

Additional cuts can be made later if nec-

essary. Disconnect the temperature-pres-

sure relief valve drain line. When the

water heater is drained, disconnect the

hose from the drain valve. Close the

drain valve. The water heater is now

completely disconnected and ready to be

removed.

If you have galvanized pipe to the water

heater, loosen the two galvanized pipes

with a pipe wrench at the union in each

line. Also disconnect the piping remain-

ing to the water heater. These pieces

should be saved since they may be need-

ed when reconnecting the new water

heater. Disconnect the temperature-pres-

sure relief valve drain line. When the

water heater is drained, disconnect the

hose from the drain valve. Close the

drain valve. The water heater is now

completely disconnected and ready to be

removed.

_WARNING -_

The water passing out of the drain valve may be extremely I

hot. To avoid being scalded, make sure all connections are I

tight and that the water flow is directed away from any I

person. |

ACAUTION

Mineral buildup or sediment may have accumulated in the

old water beater. This causes the water heater to be much

heavier than normal and this residue, if spilled out, could

cause staining.

Installation Instructions

Locating the New Water

Heater

You should carefully choose an indoor location for the new water

heater, because the placement is a very important consideration

for the safety of the occupants in the building and for the most

economical use of the appliance. This water heater is not for

use in mobile homes or outdoor installation.

Whether replacing an old water heater or putting the water

heater in a new location, the following critical points must be

observed.

1. The location selected should be indoors as close as practical

to the vent termination point, and as centralized with the

water piping system as possible. The water heater, as all water

heaters, will eventually leak. Do not install without adequate

drainage provisions where water flow will cause damage.

2. The vent piing cannot exceed a total of 35 feet includin

vertical and _orizontal runs and have no more than 3 elbows g

It cannot slope downward and horizontal runs require ¼" per

foot rise. MI horizontal runs require adequate support at 3_

feet intervals.

3. The water heater requires its own (separate) venting system.

It cannot be connected to an existing ventpipe or chimney.

It must terminate horizontally to the outdoors. Whenever

possible terminate the vent on the leaward side of the build-

ing. NOTE: Condensation may be created, at times, as the

combustion gases exit the vent cap and discoloration of

surfaces in proximity to the vent cap may occur.

AWARNING

The power vent water heater requires its own (separate) venting

system.It cannot beconnected to an existingvent pipe or chim-

ne_ It must be terminated horizontallyto the outdoors.Failureto

properly installthe venting systemcanresultin asphyxiation,a fire

or explosion and can causeDEATH, SERIOUS BODILY INJUR_,

OR PROPERTY DAMAGE.

4. The water heater comes equipped with a 5 foot power cord

which can be used to connect to a 1101120 volt power

source if (1) local codes allow, and (2) there is a three prong

receptacle available.

AWARNING l

;Do not usean extension cord. If there isnot a suitable recepta- /

cle and/or local codes prohibit use of a power cord, field wiring/

must be provided. /

A CAUTION

WATER HEATERSEVENTUALLY LEAK:Installationof the

water heater must be accomplished insucha mannerthat if

the tank or any connectionsshouldleak, the flow of water

willnot causedamageto the structure.For this reason,it is

not advisableto installthe water heater in at attic or upper

floor. When suchlocations cannot be avoided, a suitable

drain pan shouldbe installedunder the water heater.Drain

pansare availableat yourlocalSearsstore.Sucha drain pan

must be not greater than I½inchesdeep,havea minimum

lengthand width of at least2 inchesgreater than the water

heater dimensionsand must bepiped to an adequatedrain.

The panmustnot restrict combustionair flow.Under no cir-

cumstancesisthe manufacturer or Searsto be held liable

for anywater damagein connectionwith thiswater heater.

5. The location selection must provide adequate clearances for

servicing and proper operation of the water beater.

AWARNING

INSTALLATIONSIN AREASWHERE FLAMMABLELIQUIDS

(VAPORS) ARE LIKELY TO BE PRESENT OR STORED

(GARAGES, STORAGE, AND UTILITY AREAS, ETC):

Flammableliquids(suchasgasoline,solvents,propane(LP) or

butane, etc.), all of whichemit flammable vapors, may be

improperlystoredor usedin suchareas.The gaswaterheater

piot ght or mainburnercan gnitesuchvapors.The resutng

Iflashbackandfirecancausedeathor seriousbumsto anyonein

ithe area,aswellaspropertydamage.

Ifinstallationin suchareasisyour onlyoption,thenthe installa-

tion mustbe accomplishedin a waythat the pilot flameand

mainburnerflameareelevatedfromthe floorat least18inches.

While thismayreducethe chancesof flammablevaporsfrom a

floorspillbeingignited,gasolineandotherflammablesubstances

shouldneverbe storedor usedin the sameroom or area con-

raininga gaswaterheateror otheropenflameor sparkproduc-

ingappliance.

NOTE: Flammablevaporsmaybe drawnbyair currentsfrom

otherareasofthestructuretothe appliance.

AWARNING

Propellants of aerosol spraysand volatile compounds, (clean-

ers, chlorine based chemicals, refrigerants, etc.) in addition to

being highly flammable in many cases,will also change to cor-

rosive hydrochloric acid when exposed to the combustion

products of the water heater. The results can be hazardous,

and also cause product failure.

AWARNING

This water heater must not be installed directly on carpeting.

Carpeting must be protected by a metal or wood panel

beneath the appliance extending beyond the full width and

depth of the appliance by at least 3 inches (76.2mm) in an)

direction, or if the appliance isinstalled in an alcove or closet

the entire floor must be covered by the panel. Failure to bee<

this warning may result in a fire hazard.

AWARNING

Minimum clearances between the water heater and com-

bustible construction are 0" at the sides and rear, 5" at the

front, and 0" from the vent pipe. Clearance from the top of the

jacket is 14"on most models. Note that a lesserdimension may

be allowed on some models. Refer to the label on the water

heater adjacent to the gascontrol valve for all clearances.

12'_x

VENTILATION

AIR

OPENINGS

Figure I ]

TOP VIEW -[}1 MIN

OF CLOSET

TOP VIEW

WITHOUt DOOR OF CLOSET

12" MAX. WITH DOOR

AIR DUCT

Installation Instructions (cont'd)

AWARNING

A gas water heater cannot operate properly without the cor-

rect amount of air for combustion. Do not install in a con-

fined area such a closet, unless you provide air as shown in

the "Locating The New Water Heater" section. Never

obstruct the flow of ventilation air. If you have any doubts or

questions at all, call your gas company. Failure to provide the

proper amount of combustion air can result in afire or explo-

sion and can cause DEATH, SERIOUS BODILY INJURY, OR

PROPERTY DAMAGE.

_,WARNING

If this water heater will be usedin beauty shops,barber shops,

cleaning establishments, or self-service laundries with dry

cleaningequipment, it is imperative that the water heater or

water heaters be installed so that combustion and ventilation

air be taken from outside these areas. Refer to the "Locating

The New Water Heater" section of this manual and also the

latest edition of the National Fuel Gas Cede, ANSI Z223.1, also

referred to as NFPA 54 for specifics provided concerning air

required.

Combustion Air and Ventilation

When determining the installation location for apower vent

water heater, snow accumulation and drifting shouldbe consid-

ered in areas where applicable.

VENTING CLEARANCES

• 0" clearance for 3" PVC, ABS or CPVC Schedule 40 vent piping

fromcombustible surfaces.

• 12" m'n'mum from the ground, 9" ceiling overhangs. Figure 2.

• The Power Vent outlet terminal shall terminate at least 36" above

any forced air inlet located within 10 feet. Figure 3a.

• The Power Vent outlet terminal shall terminate at least 9" below, 9"

horizontally from or 9" above any door, window or gravity air inlet

into the building. Figure 3a.

• 18" minimum in all directions from any obstruction that may

interfere. Figure 3b.

• 18" minimum from other gravity or natural appliance outlet vents

when directly above or 135° to either side of center line. Figure 3c.

• 36" minimum from any outlet vents when directly below or 45° to

either side of center line. Figure 3c.

• 36" minimum in all directions from any other forced air appliance

outlet vent. Figure 3c.

• The location selection must provide clearances for servicing and

proper operation of the water heater. Figure 4.

• Vent termination must not be within 4 feet of any items such as gas

meters, gas valves or other gas regulating equipment.

• The venting system must be installed in a manner which allows

inspection of the installation of the venting pipes and joints as well

as periodic inspection after installation as required by ANSI

Standards.

_,WARNING

Ventterminationmustnotbe within4 feetofanyitems suchas

gasmeters,gasvalvesor othergasregulating equipment.

_,WARNING ]

Failureto haverequiredclearancesbetweenwater heaterand

combustiblematerialwillresultina firehazard. J

Figure 2 ]

" rain from

!::?ng

• LESSTHAN

120"

TERMINAL 12" rain.

AIR

INLET

Figure 3a I

VENT TERMINAL

I_ 18" NIN.

IFigure3'i

18"TO WALL OR OTHER

OBSTRUCTIONS THAT

MAY INTERFERE WITH

VENTING•

s VENT TERMINAL

CORNER OF BUILDING

POWER VENT TERMINAL _ . _ -.. \ *THIS DIMENSION IS

iNCREASED TO 36" WHEN

...... _ _ THE VENT OUTLET IS FORA

Z_ ---- __ FORCED VENT APPLIANCE

:- _ _'_. _ _8"(:,':i=,:,o_.:,

'--_- - DIRECT VENT OR

_S _': _Z _( '3¥ GRAVITY VENTED

__ 36'; _ _ _APPLIANCE

_-ANY OTHER OUTLET VENT

Must maintain

adequate service

and maintenance _

accessibility.

• l' i

_L_._ Range of degrees

] available for vent

Figure 4 " " pipe installation.

Installation Instructions (cont'd)

Combustion Air and Ventilation

for Appliances Located in

Unconfined Spaces

Unconfined Space is a space whose volume is not less than 50 cubic

feet per 1,000 Btu per hour of the aggregate input rating of all appli-

ances installed in that space. Rooms communicating directly with the

space in which the appliances are installed, through openings not fur-

nished with doors, are considered a part of the unconfined space.

In unconfined spaces in buildings, infiltration may be adequate to

provide air for combustion, ventilation and dilution of flue gases.

However, in buildings of tight construction (for example, weather

stripping, heavily insulated, caulked, vapor barrier, etc.), additional air

may need to be provided using the methods described in Combustion

Air and Ventilation for Appliances Located in Confined Spaces.

Combustion Air and Ventilation

for Appliances Located in

Confined Spaces

Confined Space is a space whose volume is less than 50 cubic feet per

1,000 Btu pet hour of the aggregate input rating of all appliances

installed in that space.

a. ALL AIR FROM INSIDE BUILDINGS:

(See Page 9 Figure 1, and Figure 5 below)

The confined space shall be provided with two permanent open-

ings communicating directly with an additional room(s) of suffi-

cient volume so that the combined volume of all spaces meets the

criteria for an unconfined space. The total input of all gas utiliza-

tion equipment installed in the combined space shall be considered

in making this determination. Each opening shall have a minimum

free area of one square inch per 1,000 BTU per hour of the total

input rating of all gas utilization equipment in the confined space,

but not less than 100 square inches. One opening shall commence

within 12 inches of the top and one commencing within 12 inches

of the bottom of the enclosure.

b. ALL AIR FROM OUTDOORS: (see Figures 6-8)

The confined space shall be provided with two permanent open-

ings, one commencing within 12 inches of the top and one com-

mencing within 12 inches from the bottom of the enclosure.

The openings shall communicate directly, or by ducts, with the

outdoors or spaces (crawl or attic) that freely communicate with

the outdoors.

Figure 6 ]

1. When directly communicating with the outdoors, each opening

shall have a minimum free area of 1 square inch per 4,000 BTU

_er hour of total input rating of all equipment in the enclosure.

See Figure 6.)

2. When communicating with the outdoors through vertical ducts,

each opening shall have a minimum free area of 1 square inch

pet 4,000 BTU per hour of total input rating of all equipment in

the enclosure. (See Figure 7.)

Figure 7 ]

3. When communicating with the outdoors through horizontal

ducts, each openingshall have a minimum free area of 1 square

inch per 2,000 BTU per hour of total input rating of all equip-

ment in the enclosure. (See Figure8.)

_ENT TO

I Figure 8 ]

4. When ducts are used, they shall be of the same cross-sectional area

as the free area of the openings to which they connect. The mini-

mum short side dimension of rectangular air ducts shall not he

less than 3 inches. (See Figure 8.)

5. Louvers and Grilles: In calculating free area, consideration shall be

given to the blocking effect of louvers, grilles or screens protect-

ing openings. Screens used shall not be smaller than ¼ inch mesh.

If the free area through a design of louver or grille is known, it

should be used in calculating the size opening required to provide

the free area specified. If the design and free area is not known, it

may be assumed that wood louvers will be 20-25 percent free area

and metal louvers and grilles will have 60-75 percent free area.

Louvers and grilles shall be fixed in the open position or inter-

locked with the equipment so that they are opened automatically

during equipment operation.

6. Special Conditions Created by Mechanical Exhausting or

Fireplaces: Operation of exhaust fans, ventilation systems, clothes

dryers or fireplaces may create conditions requiring special atten-

tion to avoidunsatisfactory operation of installed gas utilization

equipment.

Installation Instructions (cont'd)

Water Piping

AWARNING

HO'I-I'ER WATER CAN SCALD: Water heaters are intended to

=reduce hot water. Water heated to a temperature which will

satisfyclothes washing, dish washing,and other sanitizingneeds

can scaldand permanently injure you upon contact. Some peo-

de are more likely to be permanently injured by hot water than

others.These includethe elderly,children,the infirm, or physical-

ly/mentally handicapped.If anyone using hot water in your home

fits into one of thesegroupsor if there isalocal codeor state law

requiring a certain temperature water at the hot water ta_ then

mu must take specialprecautions. In addition to usingthe lowest

_osslbletemperature setting that satisfiesyour hot water needs,

t means suchasa mixing valve, should be usedat the hot water

tapsused by these people or at the water heater. Mixing valves

are availableat plumbingsupplyor hardware stores. Follow man-

ufacturers instructions for installation of the valves. Before

changing the factory setting on the thermostat, read the

"Temperature Regulation" section in this manual.

This water heater shall not be connected to any heating systems

or component(s) used with a non-potable water heating appli-

ance.

If a water heater is installed in a closed water supply system;

such as one having a back-flow preventer, check valve, water

meter with a check valve, etc.., in the cold water supply; means

shall be provided to control thermal expansion. Contact the

local utility or local Sears Service Center on how to control this

situation.

NOTE: To protect against untimely corrosion of hot and

cold water fittings, it is strongly recommended that dielec-

tric unions or couplings be installed on this water heater

when connected to copper pipe.

The illustration shows the attachment of the water piping to the

water heater. The water heater is equipped with _/_ inch water

connections.

NOTE: If using copper tubing, solder tubing to an adapter

before attaching the adapter to the cold water inlet connec-

tion. Do not solder the cold water supply line directly to the

cold water inlet or it will harm the dip tube.

1. Look at the top covet of the water heater. The hot water outlet is

marked hot. Put two or three turns of teflon rape around the

threaded end of the threaded-to-sweat coupling and around both

ends of the ¼ threaded nipple. Using flexible connectors, con-

nect the hot water pipe to the hot water outlet on the water

heater.

2. Look at the top cover of the water heater. The cold water

inlet is marked cold. Put two or three turns of teflon tape

around the threaded end of the threaded-to-sweat coupling

and around both ends of the Y," threaded nipple. Usin_ flexi-

ble connectors, connect the cold water pipe to the coldwater

inlet of the water heater.

NOTE: This water heater is insulated to minimize heat

loss from the tank. Further reduction in heat loss can be

accomplished by insulating the hot water lines from the

water h_qgter.

INSTALLATION COMPLETED USING

SEARS INSTALLATION KIT

THREADED TO SHUTOFF

SWEAT COUPLING

THREADED TO

SWEAT COUPLING

HOT OUTLET

TO HOUSE

3/4"TF

NIPPLE

DISCHARGE PIPE

(Do not cap or plug)

PROVIDE A 6" AIR

GAP BETWEEN THE

END OF THE

DISCHARGE PiPE

AND DRAIN

COLD INLET

WATER LINE

3/4" THREADED

NIPPLE

TEMPERATURE-

PRESSLJRERELIEF

VALVE

Installation Instructions (cont'd)

Temperature-Pressure Relief Valve

_,WARNING

At the time of manufacture thiswater heater was provided

with acombinationtemperature-presseresrelief valvecertified

by a nationally recognized testinglaboratory that maintains

_eriodicinspectionofproductionof listedequipmentor mate-

rials, as meeting the requirements for Relief Valvesand

AutomaticGasShutoffDevicesfor MotWater SupplySystems,

and the latest editionofANSI Z21.22 andthe code require-

ments of ASME.If replaced, thevalvemustmeet the require-

ments oflocalcodes,but notlessthana combinationtempera-

tore and pressurerelief valvecertifiedasmeetingtherequire-

mentsfor ReliefValvesandAutomaticGasShutoffDevicesfor

Hot Water SupplySystems,ANSI Z21.22bya nationallyrecog-

nized testinglaboratorythat maintainsperiodicinspectionof

productionoflistedequipmentor materials.

The valvemustbe markedwith a maximumset pressurenot

to exceedthe marked hydrostaticworking pressureof the

waterheater (150Ibsdsq.in.)anda dischargecapacitynot less

thanthewaterheaterinputrate asshownonthe modelrating

plate.(Electricheaters- watts dividedby 1000x 3415 equal:

BTU/Hr.rate.)

Yourlocaljurisdictionalauthority,whilemandatingtheuseofa

temperature-pressurereliefvalvecomplyingwith ANSI Z21.22

and ASME,mayrequire a valvemodeldifferentfrom the one

furnishedwiththewaterheater.

Compliancewith suchlocalrequirements mustbe satisfiedby

the installeror enduserofthe waterheaterwith a locallypre-

scribedtemperature-pressurerelief valveinstalledin thedesig-

nated openingin the water heaterin placeofthe factoryfur-

nishedvalve.

Forsafeoperationofthewaterheater,therelief valvemustnot

be removedfromit'sdesignatedopeningor plugged.

The temperature-pressurereliefvalvemust beinstalleddirectly

intothefittingofthewaterheaterdesignatedforthereliefvalve.

Positionthe valvedownwardandprovidetubingsothat anydis-

chargewillexit onlywithin 6 inchesabove,or at anydistance

below thestructuralfloor.Be certainthat no contactismade

withanyliveelectricalpart.Thedischargeopeningmust notbe

Mockedor reducedin sizeunder anycircumstances.Excessive

length,over30 feet,or useofmorethan fourelbowscancause

restriction andreducethedischargecapacityofthe valve.

No valveor otherobstructionistobe placedbetweentherelief

valveandthe tank. Do not connecttubingdirectlyto discharge

drainunlessa6"air gapisprovided.Topreventbodilyiniury,haz-

ardto life,or propertydamage,the reliefvalvemustbeallowed

todischargewaterinquantitiesshouldcircumstancesdemand.If

the dischargepipeisnot connectedto a drainor othersuitable

means,thewaterflowmaycausepropertydamage.

The DischargePipe:

Mustnot be smallerin sizethan the outlet pipe sizeof the

valve,or haveanyreducingcouplingsor otherrestrictions.

Mustnot bepluggedor blocked.

Mustbe ofmateriallistedforhotwaterdistribution.

• Must beinstalledsoasto allowcompletedrainageof both

the temperature-pressurerelief valve, and the discharge

pipe.

• Mustterminateat anadequatedrain.

• Mustnothaveanyvalvebetweentherelief valveandtank.

AWARNING

The temperature-pressure relief valve must be manually

operated at leastonce a year.Caution shouldbe taken to

ensurethat (I) no one isin front of or aroundthe outlet of

the temperature-pressurerelief valvedischargeline,and(2)

the water manually dischargedwill not causeany bodily

injury or property damage because the water may be

extremelyhot.

If after manually operatingthe valve,it failsto completely

reset and continuesto releasewater, immediatelyclosethe

cold water inlet to the water heater, follow the draining

instructions,and replace the temperature-pressure relief

valvewith anew one.

HOT

TEMPERATURE-PRESSURE

RELIEEVALVE

DISCHARGE PIPE

(Do not cap or plug)

PROVIDE A 6" AIR

GAP BETWEEN THE

END OF THE

DISCHARGE PIPE

AND D_IN

RELIEFVALVEOPENING

A[ the time of manufacture, this water heater was provided with a combination tem-

perature-pressure rebel valvelisted as complying with the standard for relief valvesand

automatic gas shut-off devices for hot water supply systems, ANSI Z21.22. For safe

opera(ion of the water heater, the relief vatve must notbe removedfrom i_ 6es_natec_

point of installation or plugged.

Your local jurisdictional authority, while mandating the use of a temperature-pressure

relief valvecomplying with ANSI Z21.22 and ASME, may require a valve model different

from the one furnished with the water heater

Compliancewith such local requirements must be satisfied by the installer or end user

of the water heater with a locally prescribedtemperature-pressure relief valve installed

in the designated opening inthe water heater

See manual heading -"Temperature-Pressure Relief Valves"for inscagation and mainte-

nance of relief valve,discharge line,andother safetyprecautions.

Installation Instructions (cont'd)

Filling the Water Heater

A CAUTION J

Never use this water heater unless it iscompletely filed with

water. To prevent damage to the tank, the tank must be filled

with water. Water must flow from the hot water faucet

before turn ng ON' gasto the water heater.

You must provide all wiring of the proper size outside of the

water heater. You must obey local codes and electric company

requirements when you install this wiring.

If you are not familiar with electric codes and practices, or if you

have any doubt, even the slightest doubt, in your ability to con-

nect the wiring to this water heater, obtain the service of a com-

petent electrician or contact your local electric utility.

To flUthe water heater with water:

Close the water heater drain valve by turning the handle to

the right (clockwise), The drain valve is on the lower front of

the water heater.

Open the cold water supply valve to the water heater.

NOTE: The cold water supply valve must be left open

when the water heater is in use.

• To insure complete filling of the tank, allow air to exit by

opening the nearest hot water faucet. Allow water to run

until a constant flow is obtained. This will let air out of the

water heater and the piping.

• Check all new water piping for leaks.Repair as needed.

Wiring

USE WITH POWER CORD

AWARNING

WATER HEATERS EQUIPPED FOR ONE TYPE VOLTAGE

ONLY: This water heater isequippedfor 110/120voltsonly.DO

NOT USE THIS WATER HEATER WITH ANY VOLTAGE

OTHER THAN THE ONE SHOWN ABOVE. Failure to usethe

correct voltage cancauseproblems which can result in DEATH,

SERIOUS BODILY INJURY OR PROPERTY DAMAGE. If you

haveany questionsor doubts consultyour electric company.

ACAUTION

If wiring from the fuse box or circuit breaker box was alu-

minum for the old water heater, replace it with copper wire.

If you wish to reuse the existing aluminum wire, have the

connection at the water heater made by a competent elec-

trician. Contact a local electrical contractor and/or the local

electric utility.

The water heater comes equipped with a 5 foot power cord

which can he used to connect to a 110/120 volt power source if,

(1) local codes allow, and (2) there is a three prong receptacle

available.

5' MAXIMUM

CORD LENGTH

You must provide all wiring, (1) to a receptacle or, (2) between

the water heater and junction box when the power cord is not

used.

AWARNING [

Do not usean extensioncord.Ifthere isnot asuitablerecepta-J

cleand/orlocalcedespmhibituseofa powercord,fieldwiring

must be provded.

USE WITHOUT POWER CORD

If power cord cannot be used, then follow these wiring instruc-

tions.

1. Provide a way to easily shut off the electric power when work-

ing on the water heater. This could be with a circuit breaker

or fuse block in the entrance box or a separate disconnect

switch.

2. Install and connect a circuit directly from the main fuse or

circuit breaker box. This circuit must be the right size and

have its own fuse or circuit breaker.

GROUND SCREW

Installation Instructions (cont'd)

USE WITHOUT POWER CORD (cont'd)

3. A standard ½" conduit opening has been made in the water

beater junction box for the conduit connection.

4. Use wire nuts and connect the power supply wiring to the

wires inside the water heater's junction box.

5. The water heater must be electrically "grounded" by the

installer. A green ground screw has been provided on the

water heater's junction box. Connect ground wire to this

location. For complete grounding details and all allowable

exceptions, refer to local codes or in the absence of local

codes, with the latest edition of the National Electrical Code,

ANSI/NFPA 70.

6. Replace the wiring junction cover using the screw

provided.

WIRING DIAGRAM

o_o_

SWITCH

OAS

P_E_RE

SW_rCH

I_OVGAS

SOLEN_O HI_M T NO

REswlTCH

INOI_TOR UGHT I_OV

A_RP_ESSUnE

_WlrCH

HOT

_EUTR_ _JTE

...... 11 w.,,0.....

t20V _AS

SOLENOIO

ir oAs

P_ESSUnE

S_TCH

__ /

Venting

_,WARNING

Toinsureproperventingofthisgas.firedwater heater,the cor-

rect vent pipe diameter must be utilized. Any additionsof

other gasapplianceson vent with this water heater will

adverselyaffecttheoperationofthewaterheater,

The combustion andventilation air flow must not be obstructed.

_,WARNING 3" diametert

The vent pipefrom the water heater must be I/4 inchper/

PVC schedule40 pipeand must slopeupward

linearfoot.

All vent gases must be completely vented to the outdoors of the

structure (dwelling).

_,WARNING

The water heater with draft hoodinstalledmustbe properlyI

vented to a chimneywhichterminatesoutdoors.Never oper-

atethe water heaterunlessit isventedtothe outdoorsandhas

adequateairsupplyto avoidrisksofimproperoperation,explo-

sionor asphyxiation.

_,WARNING

Obstructedor deterioratedvent systemsmay presenta serious

healthrisk or asphyxation.

•,WARNING I

Failureto haverequired clearancesbetweenwater heaterand

combustiblematerialwillresult inafire hazard.

Installation Instructions (cont'd)

Venting (cont'd)

AWARNING J

Be sure vent pipe is properly connected to prevent escape of J

dangerousflue gaseswhich could causedeadly asphyxiation. J

AWARNING

Chemical vapor corrosion of the flue and vent system may

occur if air for combustion contains certain chemical vapors.

Spray can propellants, cleaning solvents, refrigerator and air

conditioner refrigerants, swimming pool chemicals, calcium

and sodium chloride, waxes, bleach, and processchemicalsare

typical compoundswhich are potentially corrosive.

VENTING SYSTEM EXAMPLE INSTALLATIONS

FOR ALL MODELS

The vent piping cannot under any circumstances be run down-

hill.

3" PVC SCHEDULE 40 VENT PIPING

Supplied in the carton with the water heater are:

1. A 3" ABS Schedule 40-45 ° vent cap with wire screen.

2. A 3" PVC Schedule 40-90 ° street ell; used to connect the

vent pipe to the water heater when the vent pipe is to be

turned horizontally directly off the blower.

3. A 5' section of 3" PVC Schedule 40 pipe (more may be

required and must be supplied locally).

3"PVCSCHEDULE40

90° ELBOW

S' SCHEDULE40 PVCPIPE

VENTCAP

WITH SCREEN

1 I

1. The water heater requires its own (separate) venting

system.

2. 3" PVC, ABS or CPVC Schedule 40 piping and fittings are

acceptable materials for the vent system on all 40 gallon

models and 50 gallon 40,000 BTU/HR models.

3. It cannot be connected to existing vent piping or

chimney.

4. It must terminate horizontally to the outdoors.

The vent piping can be installed as follows:

l. No more than 3 elbows can be used.

TOTAL VERTICAL AND

HORIZONTAL RUNS

CANNOT EXCEED 35'

MAX. 3

MIN. RISE I/4"

PER FOOT

MAX. 20'

L_ NIN. RISE I/4"

PER FOOT

TOTAL VERTICAL AND

HORIZONTAL RUNS

CANNOT EXCEED 35'

Installation Instructions (cont'd)

VENTING SYSTEM EXAMPLE INSTALLATIONS

FOR ALL MODELS (cont'd)

i - .

2. Horizontal runs require a minimum ¼ rise per foot.

13"HIN.

35' MAX.

3. A vertical run can be no more than 20'.

4. The total vertical and horizontal run cannot exceed 35'.

MIN. RISE¼"

PERFOOT

ONE ELBOW

MAX. 20'

TOTAL VERTICAL AND

HORIZONTAL RUNS

CANNOT EXCEED 35'

I 1

MAX. 20'

MIN. RISE ¼"

PER FOOT

MIN. RiSE ¼"

PER FOOT

TOTAL VERTICAL AND

HORIZONTAL RUNS

CANNOT EXCEED 35'

CEMENTING PVC,ABS OR CPVC PIPEAND FITTINGS

Read and observe all safety information printed on primer,

cleaner, and cement containers.

DANGER

Primer, cleaner, and cements are extremely flammable.

They are harmful or fatal if swallowed. The vapors are

harmful. They may irritate eyes and skin and can be

absorbed through the skin.

PRECAUTIONS

Always store primers, cleaner, and cements in cool, dry,

well ventilated places. Do not store them near heat,

sparks, or flames. Keep containers closed. Use them in

well ventilated areas. Wear impervious clothing while

handling. Do not smoke, eat, or drink while handling.

Wash thoroughly after handling and before eating. Wear

eye protection when handling. If swallowed, drink water,

do not induce vomiting, and call a physician or poison

control center immediately. If inhaled, get fresh air and

seek medical attention if ill feelings persist. In case of

eye and skin contact, immediately flush with plenty of

water for 15 minutes and seek medical attention if irri-

tation persists. KEEP OUT OR REACH OF CHILDREN.

All primers, cleaners, and cements must meet all local codes and

applicable standards of the American Society For Testing

Materials Standards.

Before using primers, cleaners, and cements, stir or shake, mak-

in sure contents are liquid. Do not use if found to be lumpy or

jelly-like.

1. Cut pipe ends squarely removing all burrs and dirt.

2. Dry fit pipe and fittings to be connected for proper fit.

3. Clean pipe and fitting with a primer/deaner.

4. Apply a thin coat of cement to fitting, avoiding puddling

inside.

5. Apply a liberal coat of cement to pipe leaving no voids.

6. QUICKLY assemble parts while cement is flui!! If you wait

too long, re-coat pipes.

7. Push pipe completely into socket of fitting, turning as it goes

until _tnottoms.

8. Hold pipe and fitting together for 30 seconds. Then carefully

clean off excess with a cloth. Allow connections a sufficient

time to cure before disturbing.

9. Remember that vent pipes must be adequately and securely

supported.

APPROXIMATE SETTING TIME FOR 2½" TO 4" PIPE

OINTS

90°F to 150°F

50°F to 90°F

O°F to 50°F

MOVEMENT

OF JOINT

hr.

1 hr.

IX hr.

COMPLETE

SET

8 hrs.

15 hrs.

18 hrs.

Installation Instructions (cont'd)

Venting (cont'd)

CUTTING OPENING THROUGH AN OUTSIDE

WALL AND COLLAR INSTALLATION

After reading the manual and you have determined the location

of the opening in the wall, (using the drawing below), cut a 3_"

hole through an exterior wall.

NOTE: When determining location of the opening in the

outside wall allow for the V_"rise per foot that has taken

place in the horizontal run.

CONNECTING PVC, ABS OR CPVC PIPE VENT TO

BLOWER

h • ,,

1. T e manufacturer has supplied a 3 PVC Schedule 40 street

elbow for connection to me water heater when turning imme-

diately horizontally off the blower. Place the dbow in the

required direction on the blower and using 3 sheet metal

screws, attach the elbow.

40 GAL.- 60"

50 GAL.- 59½"

The 3" PVC, ABS or CPVC Schedule 40 vent pipe can be run

from the water heater through the wall or from the wall to the

water heater, whichever is most convenient. The vent pipe must

extend a minimum of 1½" through the exterior wall. Extending

the vent cap as far as possible from the surface of the exterior

wall will help minimize discoloration of the wall in this area

which may be caused by the flue gases. Note that the inside col-

lar must be slipped over the vent piping before locating the pipe

through the wall. Before securing the inside and outside collars

to the wall, use a silicone sealer between pipe and opening to

insure a water and air tight seal.

l I

2. If there is to be a vertical run of vent from the blower, the 3"

PVC or ABS pipe must be attached to the blower using 3 sheet

metal screws. Additionally, you must sealall joints using a suit-

able silicone sealer such as GE RTV-103 or equivalent.

INSTALLATION SHOWING USE OF PVC, ABS OR

CPVC PIPE

SILICONE_

SEALER

SCREW /

sc_E_w

COLLA

SILICONE _

SEAI.ER

/EXTERIOR WALL

-- 1%# MIN.EXTENSION

THROUGH

EXTERIOR WALL

SCREW

VENT CAP MUST BE

POSITIONED

DOWNWARD

Installation Instructions (cont'd)

Gas Piping

&WARNING

Make sure the gas supplied is the same type listed on the

model rating plate. The inlet gas pressure must not exceed

10.5in. water column (2.6kPa) for natural gasor 13in. water

column (3.2kPa) for propane (LR) gas. The minimum inlet

gas pressure listed on the model rating plate is for the pur-

poseof input adjustment.

WA.N,NG ,1

If the gas control valve is subjected to pressures exceeding ½I

pound per square inch (3.5kPa), the damage to the gas con- I

trol valve could result in afire or explosion from leaking gas. ]

•,WARNING ]

If the main gas line shutoff serving all gas appliances is used, I

also tum "off" the gas at each appliance. Leave all gas appli. I

ances shut off until the water heater installation iscomplete. J

AWARNING I

Use pipejoint compound or teflon tape marked as being

resistant to theactionofpetroleum[Propane(L.R)] gases.

SEDIMENT TRAP

A sediment trap shall be installed as close to the inlet of the

water heater as practical at the time of water heater installation.

The sediment trap shall be either a tee fitting with a capped nip-

ple in the bottom outlet or other device recognized as an effec-

tive sediment trap. Ifa tee fitting is used, it shall be installed in

conformance with one of the methods of installation shown

below.

Connecting the gas piping to the gas control valve of the water

heater can he accomplished by either of the two methods shown.

GAS PIPING WITH

FLEXIBLE CONNECTOR

A gas line of sufficient size must be run to the water heater.

Consult the latest edition of National Fuel Gas Code ANSI

Z223.1, also referred to as NFPA 54 and the gas company con-

cerning pipe size.

There must be:

• A readily accessible manual shut off valve in the gas supply line

servingthe water heater, and

• A drip leg (sediment trap) ahead of the gas control valve to help

prevent dirt and foreign materials from entering the gas control

valve.

• A flexible gas connector or a ground joint union between the

shutoffvalve andcontrol valveto permit servicing of the unit.

Be sure to check all the gas piping for leaks before lighting the

water heater. Use a soapy water solution, not a match or open

flame. Rinse offsoapy solution and wipe dry.

Standard Models are for installation up to 3,300 feet above sea

level.

High Altitude Models are for installation from 3,300 to 5,500

feet above sea level.

lfa standard model is installed above 3,300 feet or a high altitude

model is installed above 5,500 feet, the input rating must be

reduced at the rate of 4 percent for each 1,000 feet above sea level.

Contact your local Sears Service Center or gas utility for further

information.

IT AWARNING I

he appliance and its gasconnection must be leak tested

foreplacingthe applianceinoperation.

_,WARNING

• The applianceanditsindividualshutoffvalvemustbediscon-

nectedfrom the gassupplypipingsystemduringanypressure

testingof the gassystemat test pressuresin excessof I/2

pound persquareinch(3.5kPa).

•The appliancemustbe isolatedfrom thegassupplypipingsys-

tem by closingitsindividualmanualshutoffvalveduring any

pressuretestingof the gassupplypipingsystemat test pres-

soresequalor lessthan I_ poundper squareinch(3.5kPa).

MANUAL SHUT OFF

VALVE

GROUND JOINT

UNION

AS SUPPLY PIPING

FLEXIBLE GAS CONNECTOR

LABELED AS COMPLYING

WITH ANSI STANDARDS

LOOP

(Sediment trap)

CAP

GAS

CONTROL

VALVE

GAS PIPING WITH ALL BLACK IRON

PIPE TO GAS CONTROL

MANUAL SHUT OFF [1_ CAS SUPPLY PIPING

VALVE

BLACK PIPE

GROUND

UNION

(Sedimen(

CAP

GAS

CONTROL

VALVE

_,WARNING

Contaminants in the gaslines may cause improper operation

of the gas control valve that may result in fire or explosion.

Before attaching the gasline be sure that all gaspipe isclean

on the inside. To trap any dirt or foreign material in the gas

supply line, a drip leg (sometimes called a sediment trap)

must be incorporated in the piping. The drip leg must be

readily accessible.Install in accordance with the "Gas Piping"

section. Refer to the latest edition of the National Fuel Gas

Code, ANSI Z223.1, also referred to as NFPA 54.

Installation Instructions (cont'd)

Installation Checklist

BEFORE LIGHTING THE PILOT:

VENT PIPETO

OUTDOORS

Check the gas lines for leaks.

a. Use a soapy water solution• DO NOT test for gas leaks

usinga match or open flame.

b. Brush the soapy water solution on all gas pipes, joints and

fittings.

c. Check for bubbling soap. This means you have a leak.

Turn "OFF" gas and make the necessary repairs.

d. Recheck for leaks.

e. Rinse off soapy solution and wipe dry.

• Is the new temperature-pressure relief valve properly installed

and piped to an adequate dram. See Temperature-Pressure

Relief Valve" section.

• Are the cold and hot water lines connected to the water

heater correctly? See "Water Piping" instructions in the

"Installing the New Water Heater" section•

• Is the water heater completely filled w'th water? See "Filling'

instructions in the "Installing the New Water Heater" sec-

tion.

• Will a water leak damage anything? See the "Locating the

New Water Heater" section.

• is there proper clearance between the water heater and any-

thing that might catch fire? See the "Locating the New water

Heater" section.

• Do you have adequate ventilation so that the water heater

will operate properly? See "Combustion Air and Ventilation"

in the "Locat'ng the New Water Heater' section•

• Is the draft hood vent piping properly secured? See "Venting"

"nstructions "n the "Installing the New Water Heater sec-

tion.

• Is there proper clearance between the vent pipe and anything

that might catch on fire? See "Venting" instructions in the

"Installing the New Water Heater" section.

• Is the vent pipe properly sloped and does the vent terminate

outdoors? See "Venting" instructions in the "Installing the

New Water Heater" section.

• Do you need to call your gas company to check the gas pipe

and its hookup?

HOT

SHUTOFF

VALVE

COLD

TEMPERATURE-

PRESSURERELIEF

VALVE

GASSUPPLY

SHUTOFFVALVE-

DISCHARGE PIPE

(Do not cap or plug)

(Sedimenttrap)

PIPECAI

_0 ANS _1.10 --

I I I

MA;_,I_4 _IllGSTATIC G_r_ p_ESBURE _ W.C

mm I;,xx.t_UT WN. O_T m

I_$_i_ W_C_ W_O_ W_C_

MODEL RATING PLATE

Operating Instructions

This water heater is equipped with an electrically operated vent-

ing system and a standing pilot. For the burner to come on, the

water heater thermostat must call for heat. Then the system will

begin sequencing, each section proving itself before gas is

allowed to flow to the burner.

BLOWER MOTOR

BEFORE THE WATER HEATER WILL OPERATE:

1. The control system must be connected to a 110/120 volt

power supply. The control system has an overall rating of 2

amps. The water heater must be securely and adequately

grounded in accordance with local codes and with the latest

edition of the National Electrical Code ANSI/NFPA 70.

2. The ON/OFF toggle switch, located on the control box

above the thermostat must be in the "ON" position for the

electrical control system to operate allowing the gas portion

to operate (ignite burner).

3. The pilot must be lit. See Lighting instructions on page 23

of this manual or located adjacent to the thermostat on the

water heater.

4. The gas control knob located on the thermostat must be

turned to the ON position for the gas to be able to flow.

5. The venting manual reset switch must be in the closed posi-

tion. See "Venting Manual Reset Switch" in the "For Your

Information Section".

6. There is a non-resettable hi-limit switch in the thermostat,

which must be good (closed) for the thermostat to be oper-

ated. See "High Temperature Shut Off System" in the "For

Your Information Section".

OPERATION

When the thermostat calls for heat, gas is allowed to flow to a

(Normally open) pressure switch closing it. An electrical circuit

is then made to the blower, turning it on. The indicator light

located on the control box will come on. When the blower has

achieved sufficient venting, the air pressure switch will close and

the indicator light will go off. A 120 volt circuit will be com-

pleted through the venting manual reset switch and on to the

120 volt gas valve located ust below the thermostat. The 120

volt gas valve will open allowing gas to flow to the burner. The

standing pilot will establish a main burner flame.

VENTING MANUAL

RESETSWITCH

DRAFT HOOD

ON/OFF SWITCH

LIGH% ,_

GAS CONTROL

KNOB *_

GAS THERMOSTAT

AIR PRESSURE

SWITCH

BURNER

120V GAS VALVE

Operating Instructions

Lighting

AWARNING

BEFORE LIGHTING [PROPANE (L,P.) GAS WATER

HEATERS]: Propane (LR) gasis heavier than air. Should there

be a leak in the system, the gas will settle near the ground.

Basements, crawl spaces, skirted areas under mobile homes

(evenwhen ventilated), closetsand areas belowground levelwiU

serve as pockets for the accumulation of this gas. Before

attempting to light or relight the water heater's pilot or turning

on a nearby electrical light switch,be absolutely sure there isno

accumulated gasin the area. Searchfor odor ofgasbysniffingat

ground level in the vicinity of the appliance. If odor isdetected,

follow stepsindicated at "For YourSafety" on the cover pageof

this manual then leavethe premises.

Lighting and operating instructions are located on front of the

water heater, above or to one side of the gas control valve.

AWARNING

AN ODORANT ISADDED TO THE GASUSED

BYTHIS WATER HEATER.

FORYOUR SAFETY

IF YOU SMELLGAS:

• Do not try to lightanyappliance.

• Do not touchanyelectricalswitch;do not useanyphonein

yourbuilding.

• Immediatelycallyour gassupplierfrom a neighbor'sphone.

Followthegassuppliersinstructions.

• If you cannotreach your gassupplier,call the fire depart-

ment.

AWARNING

DO NOT force the gascontrolknob.Use onlyyour handto

pushit downto lightthe pilot,or to turn it to "ON", "OFF"

or "PILOT". Never usea tool suchasa lever,wrenchor pli-

ers. Do not hit or damagethe knob. A damagedknob may

resultin an explosionand serious injury.If youhaveproblem

turning the knob, callthe gassupplierimmediately.

JFigure 9 1

IFigure 10]

Figure II]

INNER DOOR

OUTER DOOR

Figure l2 I

Operating Instructions (cont'd)

Lighting label on the water heater as it appears above the thermostat

I FOR YOUR SAFETY READ BEFORE LIGHTING I

WARNING

If you do not follow these instructions exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

A. Thisappliancehas a pilot whichmustbe lightedby

hand.Whenlightingthepilot,followtheseinstructions

exactly.

B. BEFORELIGHTINGsmellall aroundtheappliancearea

for gas. Be sure to smell nextto the floor because

somegasisheavierthanairandwillsettleonthefloor.

WHATTODOIF YOUSMELLGAS

• Donottrytolightanyappliance.

• Do not touch anyelectric switch; do not use any

phoneinyourbuilding.

• Immediatelycall yourgassupplierfroma neighbor's

phone.Followthegassupplier'sinstructions.

• if youcannotreachyourgas supplier,call the fire

department.

C. Useonlyyourhandtopushinor turnthegascontrol

knob.Never usetools.Ifthe knobwillnot pushinor

turnbyhand,don'ttryto repairit,calla qualifiedser-

vicetechnician.Forceor attemptedrepairmay result

ina fire orexplosion.

D. Do not usethisapplianceif anyparthas beenunder

water.Immediatelycalla qualifiedservicetechnician

toinspecttheapplianceandtoreplaceanypartofthe

controlsystemand anygascontrolwhichhasbeen

underwater.

LIGHTING INSTRUCTIONS

1. STOP!Readthesafetyinformationaboveonthislabel.

2. TurnON/OFFswitchoncontrolboxto "OFF".

3. Remove outer door covering gas thermostat and

burnerassembly.(Figure12,Page22)

4. Set the thermostat to lowest setting

by turning the watertemperaturedial

clockwise,(F_-_) to its lowesttempera-

ture setting (with arrow on dial) as

shown. DO NOT FORCE. (Figure 9,

Page22) clockwise_=

5. Turngascontrolknob to "OFF" posi-

tion. Knob cannotbe turned from "PILOT" to "OFF"

unlessknobisdepressedslightly.DONOT FORCE.

6. Wait five(5) minutesto clearoutany gas.If you then

smell gas,STOP!Follow"B" in thesafetyinformation

aboveon this label. If you don'tsmellgas, go to the

nextstep.

7, Remove(or open) inner door locatedbelowthe gas

controlunit.

8. Findpilot-followmetal " "_

tubefromgascontrol. THERMOCOUPLE_P,LOTBURNER

Thepilotislocatedin _,_i_-!_,_

frontoftheburner. -. _;

If you don't smell gas, turn knob on gas control

_,@ to"PILOT"position.(Figure9,

counter-clockwise

Page22)

10.Push in control knob all the way and hold down.

Immediatelylight the pilot with a match. Continue

to hold control knob in for about one (1) minute

after the pilot is lit. Release knoband it will pop

back up. Pilot should remain lit. If it goes out,

repeatsteps5 through10.

• If knob does not pop up when released, stop

and immediatelycall yourservicetechnicianor

gassupplier.

• If the pilot will not stay lit after several tries,

depre.qsAnd turn the gas control knob clock-

wise _P_ to "OFF" andcallyourservicetech-

nicianorgassupplier.(Figure9, Page22)

11.Replaceinnerdoor.(Figure12,Page22)

12.Atarmslengthaway,turngascontrolknobcounter-

clockwise(O to thefull "ON" position.WARNING

Do not use-gas control knob to regulate gas

flow. (Figure11,Page22)

13.At armslengthaway,set the thermostatto desired

setting.The mark(T) HOTindicativeof approximate

120°Fispreferredstartingpoint.Somelocallawsmay

require a lower starting point. If hotter water is

desired,seeinstructionmanualand"warning" below.

14.Replacetheouterdoor.(Figure12,Page22)

15. TurnON/OFFswitchoncontrolboxto"ON".

WARNING

Hotterwater increasesthe riskof scald injury. Beforechangingtemperature settingsee instructionmanual.

TO TURN OFF GAS TO APPLIANCE

1. TurnON/OFF switch on controlbox to "OFF".

2. Remove outer door covering gas thermostat and

burnerassembly.(Figure 12, Page22) !_._

3. Set the thermostat to lowest setting

by turning the water temperature I

dial clockwise (F_,) to its lowest

temperaturesetting(witharrowon dial)

asshown.DONOT FORCE, _ 1

4. Turngascontrolknobclockwise_',_""_o"OFF" posi-

tion. Knobcannotbeturnedfrom "PILOT"to "OFF"

unlessknobisdepressedslightly.DO NOT FORCE.

(Figure9, Page22)

5. Replaceouterdoor.(Figure12,Page22)

Operating Instructions (cont'd)

Temperature Regulation

Due to the nature of the typical gas water heater,the water tem-

perature in certain situations may vary up to 30°F higher or

lower at the point of use such as, bathtubs, showers, sink, etc.

Turn the water temperature dial clockwise (_-"',) to decrease

the temperature, or counterclockwise (_"-_) to increase the

temperature.

This means that when the temperature adjustment dial is set at

the mark approximating 120 ° F, the actual water temperature at

any hot water tap could be as high as 150°F or as low as 90°F.

Any water heater's intended purpose is to heat water. Hot water

is needed ior cleaning (bodies, dishes, clothing). Hot water will

present a scald hazard. Depending on the time element, and the

people involved (normaladults, children, toddlers, elderly,

infirm, etc.) scalding may occur at different temperatures.

U-

AWARNING

HOTTERWATERCAN SCALD:Water heatersareintendedto

producehot water.Water heatedto a temperaturewhichwill

satisfyclotheswashing,dishwashing,andother sanitizingneeds

canscaldand permanently injureyouupon contact.Somepeo-

plearemore likelyto bepermanentlyinjuredbyhotwaterthan

others.Theseincludethe elderly,children,the infirm,orphysical.

ly/mentallyhandicapped.Ifanyoneusinghotwaterinyourhome

fits intooneofthesegroupsor ifthereisa localcodeor statelaw

requiringa certaintemperaturewaterat thehotwatertap,then

youmusttakespecialprecautions.Inadditionto usingthe lowest

possibletemperature setting thatsatisfiesyour hotwaterneeds,

a meanssuchasa mixingvalve,shouldbe usedat the hotwater

tapsusedbythesepeopleor at the waterheater.Mixingvalves

areavailableat plumbingsupplyor hardwarestores.Followman-

ufacturersinstructionsfor installationof the valves.Before

changingthe factory setting on the thermostat, read the

'_emperature Regulation"sectioninthismanual

AWARNING

Never allowsmallchildrento usea hot water tap, or to draw

theirownbathwater, Never leavea childor handicappedper-

sonunattendedin a bathtubor shower.

The thermostat of this water heater has been factory set at its

lowest position, to reduce the risk of scald injury. It is adjustable

and must be reset to the desired temperature setting. The mark

(•) HOT indicative of approximately 1200F is the preferred

starting point. Some states have a requirement for a lower set-

ting. If you need hotter water, follow directions for temperature

adjustment, but beware of the warnings in this section.

• HOT- Is a thermostat setting of approximately 120°F,

which will supply hot water at the most economi-

cal temperatures. The temperature adjustment

knob can be turned lower than "HOT" if desired.

A- Is a thermostat setting of approximately 130°E

B- Is a thermostat setting of approximately 1400E

C- Is a thermostat setting of approximately 150°E

VERY HOT- Is a thermostat setting of 160°E It is recommend-

ed that the dial be set lower whenever possible.

NOTE: Water temperature range of 120°-140°F recom-

mended by most dishwasher manufacturers.

I AWARNING I

Shouldoverheatingoccur or the gassupplyfail to shutoff,

turn "OFF" the manualgascontrolvalveto the appliance. [

Service and Adjustment

Tank (Sediment) Cleaning

Sediment build-up on the tank bottom may create varying amounts of

noise, and if leiCtin the tank will cause premature tank failure. In some

water areas, you may not be able to drain all sediment deposits by

simply draining the tank. In these cases Mag Erad (part no. 23600)

can be used to help remove the sediment deposits. This may be

ordered from the Sears Service Center. For ordering, refer to the

"Repair Parts" section.

Burner Inspection

AWARNING [

Do not usethisapplianceifanypart ofit hasbeenunderwater.[

Immediately calla SearsService Technicianto inspectthe [

applianceand to replacethe gascontrolor anypart of the

burnersystemwhichhasbeenunderwater.

Venting System Inspection

At least once a year a visual inspection should be made of the

venting system. You should look for:

Obstructions which could cause improper venting. The com-

bustion and ventilation air flow must not be obstructed.

Damage or deterioration which could cause improper venting

or leaka[_eof combustion products.

Rusted i-lakesaround top of water heater.

AWARNING

Chemical vapor corrosionof the flue and vent systemmay

occurifair for combustioncontainscertainchemicalvapors.

Spraycanpropellants,cleaningsolvents,refrigeratorand air

conditionerrefrigerants, swimmingpool chemicals,calcium

andsodiumchloride,waxes,bleach,and processchemicalsare

typicalcompoundswhicharepotentially corrosive.

AWARNING

Obstructed or deterioratedventsystemsmaypresenta serious

healthrisk or asphyxiation.

AWARNING [

Be sure the vent piping is properly connected to prevent[

escapeof dangerousflue gasseswhich could causedeadly

asphyxat on.

AWARNING [

If after inspectionof the vent systemyou foundsootingor [

deterioration,somethingiswrong.Callthe localgasutilityto

correctthe problemand cleanor replacethe flueand venting

beforeresum ng operationofthe water heater.

Oiling Instructions

Oil motor every 12 months with 6 drops of SAE 20 motor oil

(Fasco motor only).

At least once a year a visual inspection should be made of the

main burner and pilot burner. The drawing is for your reference.

You should check for sooting which is not normal and will

impair proper combustion.

AWARNING [

Soot build-upindicatesa problem that requires correction[

beforefurther use.Turn "off" gasto water heaterand leave[

"off" until repairs are made, becausefailure to correctthe

causeofthe sootingcanresult in a Ere or explosioncausing[

death,seriousbodilyinjury,or propertydamage. [

Burner Cleaning

In the event your burner needs cleaning, use the following

instructions:

If inspection of the burner shows that cleaning is required, turn

the gas control knob clockwise (f"_) to the "OFF" position,

depressing slightly.

NOTE: The knob cannot be turned from "PILOT" to "OFF"

unless knob is depressed slightly. DO NOT FORCE.

Loose deposits on or around the burner can be removed by care-

fully using the hose of a vacuum cleaner inserted through the

access door of the water heater. If the burner needs to be removed

for additional cleaning, call the Sears Service Center to remove

and clean the burner and correct the problem that required the

burner to be cleaned.

Service and Adjustment (cont'd)

L.P.Gas Control Valve & Burner

Assembly Replacement

Information

Draining

The water heater should be drained if being shut down during

freezing temperatures. Also periodic draining and cleaning of

sediment from the tank may be necessary.

AWARNING

PROPANE (L.P.) GAS CONTROL VALVE AN BURNER

ASSEMBLY REPLACEMENT INFORMATION.

For Propane (L.P.) Gas Models Only."

Your water heater isequipped with a Propane (I-R) gas con-

trol valve and a main burner assembly with left hand threads

for the following fittings and their connections.

The connection between the manifold and the gas

control valve (A to B) are left hand threads.

The connection between the main burner orifice

and the manifold (C to D) are left hand threads.

For ordering these replacement parts, please refer to

the "Repair Parts" section of this manual.

Turn the Has control knob to the "OFF" position.

CLOSE me cold water inlet valve to the water heater.

• OPEN a nearby hot water faucet and leave open to allow for

draining.

• Connect a hose to the drain valve and terminate to an ade-

quate drain.

• OPEN the water heater drain valve to allow for tank draining.

NOTE: If the water heater is going to be shut down and

drained for an extended period, the drain valve should be

lefl open with hose connected allowing water to terminate

to an adequate drain.

• Close theorain valve.

Follow instructions in the "Filling The Water Heater" section.

Follow the lighting instructions in the "Lighting" section to

restart the water heater.

Temperature-Pressure Relief

Valve Operation

The temperature-pressure relief valve must be manually operated

at least once a year.

TEMPERATURE-PRESSURE

RELIEF VALVE

DISCHARGE PIPE

Failure to install and maintain a new properly listed tempera-

ture-pressure relief valve will release the manufacturer from any

claim which might result from excessive temperature or pressure.

AWARNING

If the temperature-pressure relief valve on the appliance

weepsor dischargesperiodically,thismay be dueto thermal

expansion. Your water heater may have a check valve

installed in the water line or a water meter with a check

valve.Consultthe SearsServiceCenter for further informa-

tion. Do not plugthe temperature-pressurerelief valve.

AWARNING

When checkingthe temperature-pressurerelief valveopera-

tion, make surethat (I) no one is in front of or aroundthe

outletofthe temperature-pressurerelief valvedischargeline,

and(2) that the water manuallydischargedwill not causeany

propertydamagebecausethewater maybe extremelyhot.

If after manually operatingthe valve, it failsto completely

reset and continuesto releasewater, immediatelyclosethe

cold water inlet to the water heater, follow the draining

instructions, and replace the temperature-pressure relief

valvewitha newone.

Service and Adjustment (cont'd)

Drain Valve Washer

Replacement

NOTE: For replacement, use a _z" x '_/_"x ¼" thick washer

available at your nearest hardware store. For ordering replace-

ment washers, refer to the "Repair Parts"section.

Turn "OFF" gas supply to water heater.

Follow "Draining" instructions.

Turning counter clockwise, remove the hex cap below the

screw handle.

Remove the washer and put the new one in place.

Screw the handle and cap assembly back into the drain valve

and retighten using a wrench. DO NOT OVER TIGHTEN.

Follow instructions in the "Filling The Water Heater"

section.

Check for leaks.

Follow the lighting instructions in the "Lighting" section to

restart the water heater.

WASHER

Housekeeping

Vacuum around base of water heater for dust, dirt, and lint on a

regular basis.

Combustible materials such as clothing, cleaning materials, or

flammable liquids, etc. must not be placed against or adjacent to

the water heater.

To insure sufficient ventilation and combustion air supply, prop-

er clearances from the water heater must be maintained at all

times.

Service

Before calling for repair service, read the Start Up Conditions

and Operational Conditions found in the Troubleshooting

Guide of this manual.

If a condition persists o'ryou are uncertain about the operation

of the water heater, let a qualified person check it out.

Contact SEARS Repair Services at 1-800-4-MY-HOME

(1-800-469-4663).

Troubleshooting Guide

Start Up Conditions

THERMAL EXPANSION

Water supply systems may, because of such events as high line

pressure, frequent cut-offs, the effects of water hammer among

others, have installed devices such as pressure reducing valves,

check valves, back flowpreventers, etc...to control these types of

problems. When these devices are not equipped with an internal

by-pass, and no other measures are taken, the devices cause the

water system to be closed. As water is heated, it expands (ther-

mal expansion) and closed systems do not allow for the expan-

sion of heated water.

The water within the water heater tank expands as it is heated and

increases the pressure of the water system. If the relieving point of

the water heater s temperature-pressure relief valve is reached, the

valve will relieve the excess pressure. The temperature-pressure

relief valve is not intended for the constant relief of thermal

expansion. This is an unacceptable condition and must be cor-

rected.

It is recommended that any devices installed which could create a

closed system have a by-pass and/or the system have an expan-

sion tank to relieve the pressure built by thermal expansion.

Thermal expansion tanks are available from Sears stores and

through the Sears Service Centers. Contact the local plumbing

inspector, water supplier and/or the Sears Service Center for

assistance in controlling these situations.

Thermal Expansion Tank Specifications

Model i Tank CaDac ty Dimension,s in Inches Pipe Fitting

[ Number _ In Gallons !Diameter" Length On Tank

1153.3310207 2 • 8inches 712_incbes _;'Male

1153.33 050i 5 iHiochesil<inches Ma,e

HOT COLD

i_,*ii=====,_1

WATER HEATER

COLD WATER

INLET FITTING

HOT

COLD

WATER HEATER (3)

• COLD WATER PRESSURE

INLET FITTING REDUCING

VALVE WITH

BY-PASS

(i)

EXPANSION

TANK

(z)

PRESSUREGAUGE

WATER

SHUTOFF

RECOMMENDED INSTALLATION

(VERTICAL MOUNTING)

FLOOR, CEILING

JOIST,ETC.

STRAPPING

(1)

EXPANSION

PRESSURE

REDUCING INLET COLD

VALVEWITH WATER

BY-PASS SHUTOFF

Expansion Tank Sizing Chart

iInlet*

Water

Expansion

Tank

Capacity

Needed

Water Heater Capacity (Gallons)

Pressure l 30 i 40 ' 50 66

40psi 2 i 2 2 5

0psi [ 2 iT 5 1

76ps_ _ 2 ! 2 5 5 / 5

80psi i 2 5 5 : 5 5

*Highest recorded inlet water pressure m a 24 hour period or

regulated water pressure.

NOTE: Expansion tanks are we-charged with a 40 psi air

charge. If the inlet water pressure is hi_her than 40 psi, the

expansion tank's air pressure must be adjusted to match that

pressure, but must not be higher than 80 psi.

PRESSUREGAUGE

ALTERNATE RECOMMENDED

INSTALLATION

(HORIZONTAL MOUNTING)

STRANGE SOUNDS

Possible noises due to expansion and contraction of some metal

parts during periods of heat-up and cool-down do not represent

harmful or dangerous conditions.

Condensation causes sizzling and popping with the burner area

during heating and cooling periods and should be considered

normah See "Condensation" section.

Troubleshooting Guide (cont'd)

CONDENSATION

Whenever the water heater is filled with cold water, a certain

amount of condensation will fornt while the burner is on. A

water heater may appear to he leakingwhen in fact the water is

condensation. This usually happens when:

• When a new water heater is filled with cold water for the

first time.

• When gas burns and water vapor isproduced in water

heaters, particularly high efficiency models where flue tem-

peratures are lower.

• When you use large amounts of hot water in a short time

and the refill water is very cold.

Moisture from the products of combustion condense on the

cooler tank surfaces and form drops of water which may fall

onto the burner or other hot surfaces to produce a "sizzling" or

"frying" noise.

Excessive condensation can cause pilot outage due to water run-

ning down the flue tube onto the main burner and putting out

the pilot.

Because of the suddenness and amount of water, condensation

water may be diagnosed as a "tank leak". After the water in the

tank warms up (about 1-2 hours), the condition should disap-

pear.

Do not assume the water heater is leaking until there has been

enough time for the water in the tank to warm up.

An undersized water heater will cause more condensation. The

water heater must be sized properly to meet the family's demands

for hot water including dishwashers, washing machines and

shower heads.

Excessive condensation may be noticed during the winter and

early spring months when incoming water temperatures are at

their lowest.

Good venting is essential for a gas fired water heater to operate

properly as well as to carry away products of combustion and

water vapor.

SMOKE/ODOR

It is not uncommon to experience a small amount of smoke and

odor during the initial start-up. This is due to burning off of oil

from metal parts, and will disappear ina short while.

Operational Conditions

SMELLY WATER

In each glasslined water heater there is installed at least one

anode rod (see parts section) for corrosion protection of the

tank. Certain water conditions will cause a reaction between this

rod and the water. The most common complaint associated with

the anode rod's one of a "rotten egg smell '. This odor is derived

from hydrogen sulfide gas dissolved in the water. The smell is

the result of four factors which must all be present for the odor

to develop:

a. a concentration of sulfate in the supply water.

b. little or no dissolved oxygen in the water.

c. a sulfate reducing bacteria within the water heater. (This

harmless bacteria is non-toxic to humans.)

d. an excess of active hydrogen in the tank. This is caused by

the corrosion protective action of the anode.

Smelly water may be eliminated or reduced in some water heater

models by replacing the anode(s) with one of less active material,

and then chlorinating the water heater tank and all hot water

lines. Contact Sears Service for further information concerning

an Anode Replacement Kit #9001453 and this Chlorination

Treatment.

If the smelly water persists after the anode replacement and chlo-

rination treatment, we can only suggest that continuous chlori-

nation and filtering conditioning equipment be considered to

eliminate the water problem.

Do not remove the anode leaving the tank unprotected. By

doing so, all warranty on the water heater tank is voided.

_,WARNING

HOTTERWATERCAN SCALD:Water heatersareintendedto

iroduce hot water.Water heatedto a temperaturewhichwill

satisfyclotheswashing,dishwashing,andothersanitizingneeds

canscaldandpermanentlyinjureyouuponcontact.Somepeo-

pleare more likelytobe permanentlyinjuredbyhotwaterthan

other*-Theseincludetheelderly,children,the infirm,or physical-

lyy/mentallyhandicapped.Ifanyoneusinghotwaterin your home

fitsintooneofthesegroupsorifthere isalocalcodeor statelaw

requiringa certaintemperaturewateratthe hotwatertap,then

mumusttakespecialprecautions.In additiontousingthe lowest

_ossibletemperaturesettingthat satisfiesyour hotwater needs,

a meanssuchasa mixingvalve,shouldbe usedat the hotwater

tapsusedbythesepeopleor at the water heater.Mixingvalves

areavailableat plumbingsupplyor hardwarestores.Followman-

ufacturersinstructionsfor installationof the valves.Before

changingthe factory setting on the thermostat, read the

'q'emporature Regulation"sectioninthis manual.

Troubleshooting Guide (cont'd)

Operational Conditions (cont'd)

"AIR" IN HOT WATER FAUCETS

WATER IS TOO HOT

AWARNING

HYDROGEN GAS: Hydrogen gas can be produced in a hot

water system that has not been usedfor a long period of time

(generally two weeks or more). Hydrogen gas is extremely

flammable and explosive. To prevent the possibility of injury

under these conditions, we recommend the hot water faucet

be opened for several minutes at the kitchen sink before any

electrical applianceswhich are connected to the hot water sys-

tem are used (such as a dishwasher or washing machine). If

hydrogen gas is present, there will probably be an unusual

soundsimilar to air escapingthrough the pipe as the hot water

faucet is opened. There must be no smoking or open flame

near the faucet at the time it isopen.

HIGH TEMPERATURE SHUT OFF SYSTEM

This water heater is equipped with an automatic gas shut off sys-

tem. The high temperature shut off is built into the gas control

valve. This system shuts off the gas supply to the water heater

burners when high water temperatures are present. It is non-

resettable. If the high temperature shut off activates, the gas con-

trol valve must be replaced. If this were to occur, turn "OFF" the

entire gas supply to the water heater. Contact the Sears Service

Center,

1. The temperature adjustment dial may be set too high. See the

"Temperature Adjustment" section.

NOTE: A period of time is necessary after an adjustment has

been made for the water temperature to reach the new tem-

perature setting.

2. If lower temperature settings will not lower the water tempera-

ture, call the SearsServiceCenter.

AWARNING

Due to the nature of the typical gas water heater, the

water temperature in certain situations may be hotter

than the thermostat setting.

Short, frequent draws of hot water - especiallywith very

coldincomingwater - canshockthe thermostat into brief

operation resulting in hotter and hotter layers of water

closerto the top ofthe tank.

Changesin hot water usagepatterns or raising the tem-

perature differential between the cut-on of the thermo-

stat and the coldwater temperature will usually eliminate

the problem.

A WARNING

Should overheating occur or the gas supply fail to shut off,

turn "OFF" the manual gas contro va ve to the app ance.

NOT ENOUGH OR NO HOT WATER

Check the manual gas shut offvalve to be sure it is open.

Check the pilot flame. It may have gone out. All models have

an opening behind the outer door for viewing the pilot.

• If the p'lot s not lit, follow the 'Lighting" instructions in this

manual or located above the gas control valve on the water

heater to relight the pilot. If the water was extremely hot and is

now cold, the high limit safety temperature shut off may have

put out the burner and pilot. If the high temperature shut off

activates, the gas controlvalve must be replaced. Contact the

Sears Service Center.

•. The gas control knob must be turned to the "ON" position.

• The temperature adjustment dial may be set too low. See the

"Temperature Regulation" section.

• The gas company can check the gas input to see if it is correct.

An underfired water heater will not heat water as quickly.

• Look for leaking or open hot water faucets. Make sure all are

closed.

• The cold water inlet temperature may be colder during the win-

ter months. It will take longer to heat the water and seem like

less hot water.

• If you cannot find what is wrong, call the Sears Service Center.

Troubleshooting Guide (cont'd)

Leakage Checkpoints

Use this guide to check a "Leaking" water heater. Many suspect-

ed "Leakers" are not leaking tanks. Often the source of the water

can be found and corrected.

If you are not thoroughly familiar with your local gas codes your

water heater, and safety practices, contact the S_ervice

Center-to check the water heater.

_CAUTION I

Read this manual first. Then before checking the water I

heater make sure the gas supply has been turned

"OFF", and never turn the gas "ON" before the tank is

completely full of water.

CAUTION

Never use this water heater unless it is completely filled

with water. To prevent damage to the tank, the tank

must be filled with water. Water must flow from the hot

water faucet before turning "ON" gas to the water

heater.

O Water the draft hood is which has

at water

vapor

con-

densed out of the combustion products. This is caused by a

problem in the vent. Contact the Sears Service Center.

*Condensation be seen on pipes in humid weather or

may

pipe connections may be leaking.

*The primary anode rod fitting may be leaking.

Q Small amounts of water from temperature-pressure relief

valve may be due to thermal expansion or high water pres-

sure in your area.

*The relief valve be leaking at

temperature-pressure may

the tank fitting.

Water from drain valve be due the valve opened

may

slightly.

*The drain valve may be leaking at the tank fitting.

Combustion products contain water vapor which can con-

dense on the cooler surfaces of the tank. Droplets form and

drip into the fire or run on the floor. This is common at

the time of startup after installation and when incoming

water is cold.

Water in the water heater bottom or on the floor may be

from condensation, loose connections, or the relief valve.

DO NOT replace the water heater until a full inspection

of all possible water sources is made and necessary correc-

tive steps taken. Leakage from other appliances, water

lines, or ground seepage should also be checked.

NOTE: To check where threaded portion enters tank,

insert cotton swab between jacket opening and fitting. If

cotton is wet, follow "Draining" instructions in the

"Periodic Maintenance" section and then remove fitting.

Put pipe dope or teflon tape on the threads and replace.

Then follow 'Filling the Water Heater "nstructons in the

"Installing the New Water Heater" section.

Troubleshooting Guide (cont'd)

_IWARNING I

This troubleshooting guide has been suppliedfor use by quail- I

tied service personnel who have a complete understanding of

beth e ectric ty and gas.

_ICAUTION I

Label all wiring before disconnecting any wiring; to ensure

correct reconnection. Failure to follow this instruction I

could cause improper and possible dangerous operation, I

resulting in DEATH, SERIOUS BODILY INJURY, OR

PROPERTY DAMAGE.

THERMOSTAT AND GAS SUPPLY CHECK

Turn "ON" gas supply•

Is gas being supplied to the.

thermostat?

Light Pilot. (See Lighting ]

Instructions in manual or attached -,<-

to water heater.

I Pilot won't light. I [Pilot lights.

]Checkthermocouple. I ]Turngascockknobto "ON".

Bad Good

Replace thermocouple.

' _ [ Replace thermostat.

l Replace thermostat.

Call gas company to increase gas _ ................

pressure.

I ls pilot lit?

No ............. "

Yes

> I Is gas cock knob turned "ON"?

, Yes

.....No.... l

Is thermostat calling for heat? Run

(hot) water from heater and turn

ad ustment knob higher. Check

using a manometer at thermostat

pressure tap.

No ............. a Yes

• • h .

ls there a minimum gas pressure 3½

W.C. for natural gas or 8" W.C. for

propane (LP.) gas?

' I

No ............. J

Yes

GO TO ELECTRICAL SYSTEM ! <

CHECK SECTION

Troubleshooting Guide (cont'd)

Diagram for Electrical System Check on pages 34 and 35.

120V

ONIOFF

SWITCH,

GAS

PRESSURE

SWITCH

120V GAS

SOLENOID HI-LIMIT N._

sw_c...,c

AIR PRESSURE

SWITCH

INDICATOR LIGHT 120V

AIR PRESSURE

SWITCH (_

GROUND iv R=ACK

]

[

®-..._

MANUAL HI-

LIMIT SWITCH

'! "-----®

WHITE

120V GAS

SOLENOID

12DV GAS VALVE

MANIFOLD

GAS PRESSURE

1','7--

I,,-O -

I,-- I --

1"-3-

I.-5-

_-.6-

T-7-

NATURAL GAS 3½'WC MtN.

PROPANE (LP) GAS 8" W C MIN

Troubleshooting Guide (cont'd)

ELECTRICAL SYSTEM CHECK

(Use diagram on page 33)

_,CAUTION I

Label all wiring before disconnecting an)"wiring; to ensure

correct reconnection. Failure to follow this instruction I

could cause improper and possible dangerous operation, I

I resulting in DEATH, SERIOUS BODILY INJURY, ORI

t PROPERTY DAMAGE. ]

Correct by wiring according to dia-

gram.

Go to Thermostat and Gas Supply L..L.....

Check section. V

Supply 110/120 volts.

I Turi1 oN.

Check at #1 for 1101120 volts to

ground.

• I

Replace switch.

Replace gas pressure switch.

NOTE: Requires minimum 31/2"

_C. for natural gas or 8" W.C. for

propane (L.E) gas to operate.

Check between # 2 and

wiring

#3.

Visually check that all components

are wired correctly according to

wiring diagram on unit.

NO ........ J

..... NO ........ .i

..... No ........ J

Yes

forPilotheat.is lit and thermostat is calling

Yes

Does power cord or power wiring

have 110/120 volts available (recep-

tacle and/or unct on box)?

Yes

t Is on/off switch "ON"?

Yes

I Bl°wer mOt°r is running" I

Yes I' I Check at #2 for 110/120 volts toi

,-...... -_ ground. i

] Yes

"-"" t Unplug blower motor and check at

#3 i7or110/120 volts to ground.

..... No ........ a i

' I

' Yes

, +

]_" ...... No .......... : ] Replace blower motor. ]

Yes

continued on facing page

Troubleshooting Guide (cont'd)

Check #5 to ground for 110/120 L.__

VO rs. I-

Yes

Check#9 for 110/120 volts. I

No Yes

Check venting manual reset switch.

continued from facing page

_o-t_hec_#_togrouod/r110,_20_o,ts.I-.-_ot Isindicator,_htoo?I

Yes

I Replace indicator light.

Secureair pressure line.

Replace air pressure switch.

Yes

t ls ¼" air pressure line secured to air

pressure switch with opposite end ]

- No --- secured to pressure tap on blower

housing? See 6 and 7.

Yes

t Is there venting restrictiOn Or lOw

- No -o voltage (ll0Vmin. req.)

Yes

IRem°verestricti°n°rc°rreCtlvoltage.

Replacethermostat.

]"_- No -'[ ls main burner on?

Yes

ALL SYSTEMS OPERATIONAL

Parts Order List

POWER MISER TM 9 POWER VENT

GAS WATER HEATERS

MODEL NUMBERS:

153.335816

153.335845

153.335862

153.335916

153.335942

153.335962

40 Gal.

40 Gal. High Altitude L.P.

40 Gal. L.E

5O Gal.

50 Gal. High Altitude LP.

50 Gal. L.P.

Parts Order List (cont'd)

POWER MISERTM 9 POWER VENT

GAS WATER HEATERS

MODEL NUMBERS:

153.335816 40 Gal.

153.335845 40 Gal. High Altitude L.E

153.335862 40 Gal. L.E

153.335916 50 Gal.

153.335942 50 Gal. High Altitude L.E

153.335962 50 Gal. L.E

KEY

NO. PART DESCRIPTION

1. Vent Cap w/Screen 9002120 9002120

2. Wall Collar 9001993 9001993

3. 5' PVC Schedule 40 Vent Pipe 9001958 9001958

4. 45 ° PVC Schedule 40 Elbow 9001959 9001959

5. Vent/Blower Adapter 9001960 9001960

6. Blower 9002672 9002672

7. Blower Gasket 9000736 9000736

8. Ventint_ Manual Reset Switch 9002678 9002678

9. Draft Hood Assembly 9001963 9001963

10. Dip Tube 9002444 9002444

11. Anode Rod 9000734 9000734

12. Temperature-Pressure Relief Valve 9000071 9000071

13. Drain Valve 9000254 9000254

14. Drain Valve Washer

(_2" x _Y_"x X" thick)** 9001584 9001584

15. Inner Door 9000281 9000281

16. Burner Assembly (Nat.) 9002411 --

16. Burner Assembly (L.E) -- 9000390

17. Burner Orifice 0230120 0230224

(Drill Size) #33 #51 (HA)

18. Manifold 9002674 9002675

19. Thermocouple* 9002321 9002321

20. Pilot Assembly w/Tubin_ & Fitting (Nat.) 9002294 --

20. Pilot Assembly w/Tubing & Fitting (L.P.) -- 9002295

2l. Bleed Pilot w/Tubing & Fitting 9002296 9002296

22. Manifold Cover 9001970 9001970

23. Control Cover 9002113 9002113

MODEL NUMBERS

153.335816 153.335845 153.335862 153.335916 153.335942 153.335962

PART NUMBERS

9002120 9002120

9001993 9001993

9001958 9001958

9001959 9001959

9001960 9001960

9002672 9002672

9000736 9000736

9002678 9002678

9001963 9001963

9002444 9002443

9000734 9000734

9000071 9000071

9000254 9000254

9001584 9001584

9000281 9000281

-- 9002411

9000390

0230225 0230120

#50 #33

9002675 9002676

9002321 9002321

-- 9002294

9002295

9002296 9002296

9001970 9001970

9002113 9002113

9002120

9001993

9001958

9001959

9001960

9002672

9000736

9002678

9001963

9002443

9000734

9000071

9000254

9001584

9000281

9000390

0230224

#51 (HA)

9002677

9002321

9002295

9002296

9001970

9002113

9002120

9001993

9001958

9001959

9001960

9002672

9000736

9002678

9001963

9002443

9000734

9000071

9000254

9001584

9000281

9000390

0230225

#50

9002677

9002321

9002295

9002296

9001970

9002113

*These parts are also available at most Sears retail stores.

1"Replaced only on return of damaged plate.

# Not Illustrated

Now that you have purchased your Gas Water Heater, should a need ever exist for repair parts or service, simply contact any SEARS Service

Center or call 1-800-4-MY-HOME (1-800-469-4663). Be sure to provide pertinent facts when you call or visit.

All parts listed may be ordered from any SEARS Service Center, most SEARS stores and by calling 1-800-366-PART (1-800-366-7247). If the

parts you need are not stocked locally, your order will be electronically transmitted to a SEARS Repair Parts Distribution Center for handling.

The model number of your Gas Water Heater will be found on the model rating plate located near the gas control valve.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

MODEL NUMBER PART DESCRIPTION

PART NUMBER NAME OF ITEM

THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.

Parts Order List

POWER MISERTM 9 POWER VENT

GAS WATER HEATERS

MODEL NUMBERS:

153.335816 40 Gal.

153.335845 40 Gal. High Altitude L.P.

153.335862 40 Gal. L.P.

153.335916 50 Gal.

153.335942 50 Gal. High Altitude L.P.

153.335962 50 Gal. L.P.

31€._

]

Parts Order List (cont'd)

POWER MISER TM 9 POWER VENT

GASWATER HEATERS

MODEL NUMBERS:

153.335816 40 Gal.

153.335845 40 Gal. High Altitude L.P.

153.335862 40 Gal. L.P.

153.335916 50 Gal.

153.335942 50 Gal. High Altitude L.R

153.335962 50 Gal. L.P.

KEY

NO. PART DESCRIPTION

24. Thermostat Adjustment Knob

25. Gas Thermostat (Nat.)

25. Gas Thermostat (LE) (See Note)

26. Power Cord

27. Liffht (120 V)

28. On/OffSwitch

29. Pressure Switch (Air)

30. Flue Baffle

31. Restrictor Ring

32. Model Ratinff Plaset

# Manual

# Mag-Erad

MODEL NUMBERS

153.335816 153.335845 153.335862 153.335916 153.335942 153.335962

IF145-0697

F145-1330

9001513

9002673

9001773

9001976

9001977

9000275

0270116

F145-0870

F145-1331

9001513

9002673

9001773

9001976

9001977

9000275

0270116

PART NUMBERS

F145-0870 F145-0697

-- F145-1330

F145-1331

9001513 9001513

9002673 9002673

9001773 9001773

9001976 9001976

9001977 9001978

9000275 9000275

0270116 0270116

0002916860

23600

F145-0870

F145-1331

9001513

9002673

9001773

9001976

9001978

9000275

0270116

F145-0870

F145-1331

9001513

9002673

9001773

9001976

9001978

9000275

0270116

Note: For Propane (L.P.) model(s) this part has left hand threads.

* These parts are also available at most Sears retail stores.

tReplaced only on return of damaged plate.

# Not Illustrated

Now that you have purchased your Gas Water Heater, should a need ever exist for repair parts or service, simply contact any SEARS Service

Center or call 1-800-4-MY-HOME (1-800-469-4663). Be sure to provide pertinent facts when you call or visit.

All parts listed may be ordered from any SEARS Service Center, most SEARS stores and by calling 1-800-366-PART (1-800-366-7247). If the

parts you need are not stocked locally, your order will be electronically transmitted to a SEARS Repair Parts Distribution Center for handling.

The model number of your Gas Water Heater will be found on the model rating plate located near the gas control valve.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

MODEL NUMBER PART DESCRIPTION

PART NUMBER NAME OF ITEM

THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.

Warranty

About Your Warranty

THE PRICE OF YOUR WATERHEATER DOES NOT INCLUDE

A FREECHECKUP SERVICE CALL.On Water Heater Installations

ArrangedBySears,Searswarrantsthe installation.

ON INSTALLATIONS NOT MADE BYSEARS AUTHORIZED

CONTRACTORS:

1.YourSearswarranty appliesto the productonly.

2. Searsdoesnot warrantthe installation.

3. A charge will be made on service callsdue to poor or incomplete

installation.Theseinclude:

a. Ad usting thermostat.

b. Lighting pi ot.

c. Leaks in pipes or fittings.

d. Improper venting

e. Condensation

This manual is in non-technical language. It may help you avoid the

cost of a needless service call. Many service calls really aren't needed.

Such aswhen:

1. The gas is turned "OFF".

2. The pilot is out.

3. A gas or water leak is due to loose pipe or connections.

FULL ONE YEARWARRANTY ON WATER HEATER

For one year from the date of purchase, when your SearsKenmore water heater is installed and operated in a single-family residence in

accordance with the instructions in this manual, Sears will:

1. Repair defects in material or workmanship in this water heater, free of charge.

2. Furnish and install a new current model water heater of equal capacity and quality, free of charge, ifa leak occurs in the tank.

LIMITED WARRANTY ON TANKS THAT LEAK

After one year and through 9 years from the date of purchase for water heaters used in a single-family residence, if a leak occurs in the

tank, Sears will furnish a new current model water heater of equal capacity and quality. You will be charged for any installation.

LIMITED WARRANTY ON PARTS

After one year and through 4 years from the date of purchase, when your Sears Kenmore water heater is used in a single-family residence

and is installed and operated in accordance with the information in this manual, if a part fails due to a materials or workmanship, Sears

will fitrnish a replacement free of charge. You will be charged for labor.

If the water heater is subjected to commercial, institutional, industrial or use in residences of two families or more, the above warranty

coverage for tanks that leak is effective for 2 years from the date of purchase and the above parts warranty is effective for 1 year from the

date of purchase.

To obtain warranty service, SIMPLY CALL 1-800-4MY-HOME (1-800-469-4663). "This warranty applies only while this product is in

use in the United States."

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., Dept. 817 WA, HOFFMAN ESTATES, IL 60179

Sears Installation Warranty

In addition to any warranty extended to you on the Sears merchandise

involved, which warranty becomes effective the date the merchandise is

installed should the workmanship of any Sears arranged installation

prove faulty within one year, Sears will, upon notice from you, cause

such faults to be corrected at no additional cost to you. If you want this

heater professionally installed by Sears contact your Sears Salesperson.

They will arrange for prompt, quality installation.

Sears Installation Policy

All installation labor arranged by Sears shall be performed in a neat,

workmanlike manner in accordance with generally accepted trade prac-

tices. Further, all installations shall comply with all local laws, codes

regulations and ordinances. The customer shall also be protected, dur-

ing installation, by insurance relating to property damage, Worker's

Compensation and Public Liability.

If you want this water heater professionally installed by Sears contact

your Salesperson. They will arrange for prompt, quality installation by

Sears authorized contractors.

Forin-homemajorbrandrepairservice

Call24hoursaday,7daysaweek

1-800-4-MY-HOME

(1-800-469-4663)

The model number of yourwater heater is foundon the modelrating plate on thefront ofthe water heater.

o6-oo Sears, Roebuck and Co., Hoffman Estates, Ik 60179 U.S.A. oooz9,686o-o

Kenmore 153335862 power miser 8 power vent gas water heater

Product's Documents

User Manual

Specifications

Kenmore 153335862 Questions and Answers
