*Product picture is for reference only.
Furrion Aurora™ TV Series
Instruction Manual
Model: FDUP43CBR / FDUP49CBR / FDUF55CBR / FDUP65CBR
FDUF43CBR / FDUF49CBR / FDUP55CBR / FDUF65CBR
2
Welcome
Thank you and congratulations for purchasing this Furrion Aurora™ TV. Before placing your new
appliance into operation, please read these operating instructions carefully. This instruction
manual contains important information for safe use, installation and maintenance of the
appliance.
The manufacturer does not accept responsibility for any damages that may arise due to
non-observation of these instructions.
If you have any further questions regarding our products, please contact us at
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier
Trade Name: Furrion
Model No.: FDUP43CBR, FDUP49CBR, FDUF55CBR, FDUP65CBR,
FDUF43CBR, FDUF49CBR, FDUP55CBR, FDUF65CBR
Responsible Party – U.S. Contact Information
Furrion Innovation Center & Institute of Technology
52567 Independence Ct., Elkhart, IN 46514, USA
Toll free:1-888-354-5792; Email: [email protected]
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
including interference that may cause undesired operation.
3
Contents
Welcome ................................................................................................. 2
Contents .................................................................................................3
Safety Warnings ....................................................................................4
Function Overview ................................................................................8
Control Panel .........................................................................................................................................8
Rear Panel ............................................................................................................................................... 9

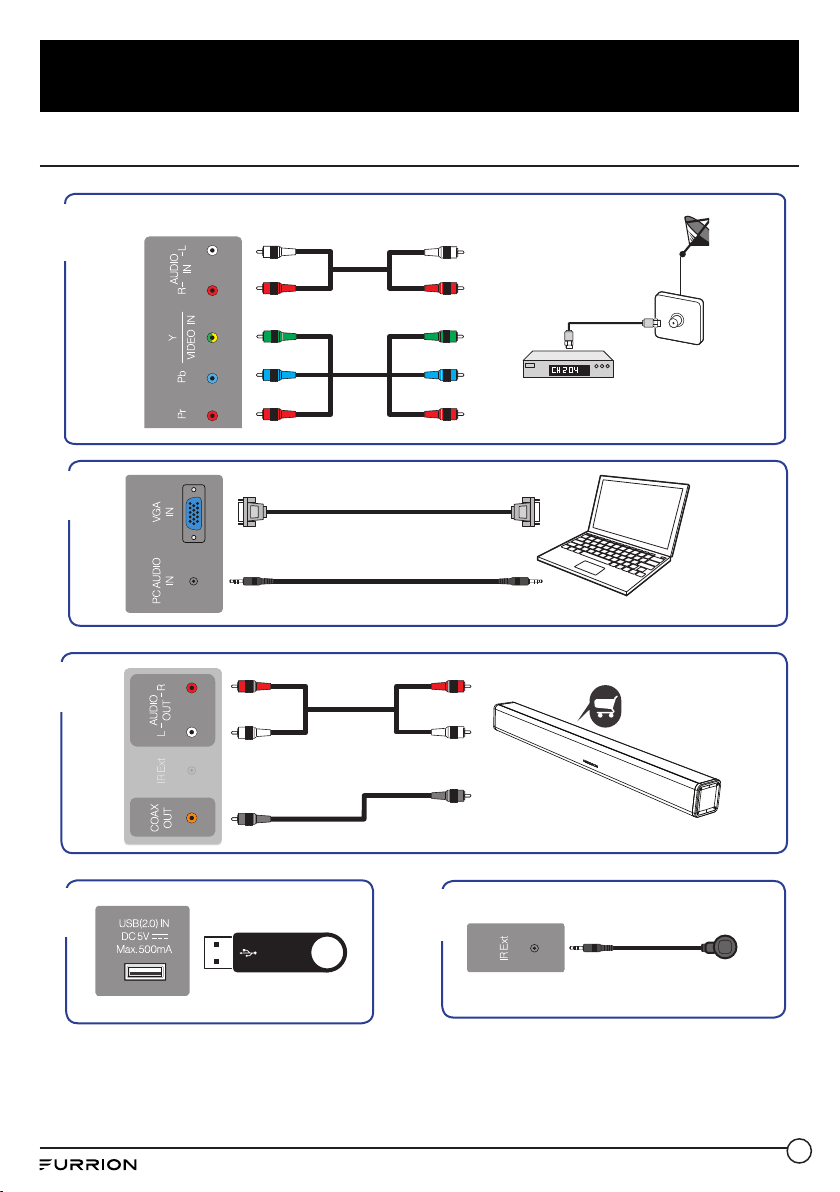

Connection ........................................................................................................................................... 10
Remote Control................................................................................................................................... 12
Before Operation................................................................................. 14
What’s in the Box ................................................................................................................................ 14
Prepare your Remote Control ...................................................................................................... 14
Choose a Proper Location for your TV .....................................................................................15
Cable Management ...........................................................................................................................15
Mount on Wall .......................................................................................................................................17
Getting Started .................................................................................... 18
TV Settings ........................................................................................... 19
Setup Settings ..................................................................................................................................... 19
Picture Settings ..................................................................................................................................22
Audio Settings .....................................................................................................................................23
Time Settings .......................................................................................................................................25
Lock Settings ...................................................................................................................................... 26
Channel Settings ............................................................................................................................... 29
PC Settings .......................................................................................................................................... 30
USB Operation ..................................................................................... 31
Troubleshooting ..................................................................................32
Specifications .................................................................................... 33
Care and Clean ................................................................................... 34
4
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING: TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
This ‘bolt of lightning’ indicates
uninsulated material within your
unit which may cause an electric
shock. For the safety of everyone in your
household, please do not remove product
covering.
The ‘exclamation mark’ calls
attention to features within the
enclosed literature to prevent
operating and maintenance problems.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
7. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
8. Do not mount this TV near a motor or
transformer where strong magnetism is
generated. Images on the television will
become distorted and the colour irregular.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
When the provided plug does not fit into your
outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on
or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Do not place the product on an unstable cart,
stand, tripod, table, or anywhere the unit is not
permanently installed. Placing the product on
an unstable place can cause the product to fall,
resulting in potential serious personal injuries,
as well as damage to the product.
13. Use only with a cart, stand, tripod, bracket or
table specified by the manufacturer
or sold with the apparatus. When a
cart is used, use caution when
moving the cart/apparatus to avoid
injury from tip-over.
14. Unplug this apparatus during lightning storms
or when unused for long periods of time.
15. Do not touch this apparatus or antenna during
a thunder or lightning storm.
16. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as if the power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, or when the apparatus has
been exposed to rain or moisture, does not
operate normally, or has been dropped.
17. Naked flame sources such as lit candles, should
not be placed on apparatus.
18. Do not overload wall outlets, extension cords,
or integral convenience receptacles as this can
result in a risk of fire or electric shock.
19. The power cord must be routed properly to
prevent people from stepping on it, or objects
from resting on it. Check the cords at the plugs
and product.
20. Never push objects of any kind into this product
through openings as they may touch short-out
parts or dangerous voltage points that could
result in a fire or electric shock.
21. If an outside antenna is connected to the
television equipment, be sure the antenna
system is grounded so as to provide some
5
Safety Warnings
protection against voltage surges and built
up static charges. Section 810 of the National
Electrical Code provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrodes.
22. An outside antenna system should not be
located in the vicinity of overhead power
lines or other electrical light or power circuits,
or where it can fall into such power lines or
circuits. When installing an outside antenna
system, extreme care should be taken to keep
from touching such power lines or circuits as
contact with them might be fatal.
NEC-NATIONAL
ELECTRICAL
CODE S2898A
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H))
GROUND CLAMPS
GROUND CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
EXAMPLE OF ANTENNA GROUNDING AS PER
THE NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN WIRE
GROUNDING
CONDUCTORS (NEC
SECTION 810-21)
ELECTRIC SERVICE
EQUIPMENT
23. NOTE TO CABLE/TV INSTALLER: This
reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall
be connected to the grounding system of the
building, as close to the point of the cable entry
as practical.
24. When replacement parts are required, be sure
the service technician uses replacement parts
specified by the manufacturer or those that
have the same characteristics as the original
part. Unauthorized substitutions may result in
fire, electric shock or other hazards.
25. Upon completion of any service or repairs to
this unit, ask the service technician to perform
safety checks to determine that the unit is in
proper operating condition.
26. When you connect the product to other
equipment, turn off the power and unplug from
the wall outlet. Failure to do so may cause an
electric shock and serious personal injury. Read
the owner’s manual of the other equipment
carefully and follow the instructions when
making any connections.
27. The socket-outlet must be installed near the
unit and easily accessible.
28. Where the mains plug is used as the disconnect
device, the disconnect device shall remain
readily operable.
29. Never remove the back cover of the TV as this
can expose you to very high voltages and other
hazards. If the TV does not operate properly,
unplug the TV and call your authorized
dealer or service center. Adjust only those
controls that are covered in the instructions,
as improper changes or modifications not
expressly approved by Furrion could void the
user’s warranty.
30. Do not submerge this TV in water or pressure
wash it. It is not designed to be submerged in
water, withstand pressure washers, high-
pressure water jets, or hurricane-type weather.
31. Cleaning : With your TV turned off, gently wipe
the surface of the display panel with a damp
(with water) microfiber, cotton or flannel cloth.
(Do not use tissues, rags, sponges or paper
towels because they may damage the screen
and leave lint pieces behind). Remove any dirt
and salt deposits from the unit, being careful to
rinse the cloth frequently to avoid scratching
the TV or screen surface. Avoid using harsh
chemicals, abrasives, or solvents when
cleaning any surface on the unit.
32. The operation temperature for the unit is
-20°C (-4°F) to +50°C (+122°F) . The storage
temperature is -33°C (-27.4°F) to +58°C
(+136.4°F). Protect the TV from damage by the
extreme temperature. This is not a commercial
TV.
33. Batteries (battery pack or batteries installed)
shall not be exposed to excessive heat such as
sunshine, fire or the like.
34. The apparatus should be connected to a
mains socket outlet with a protective earthing
connection.
35. To prevent injury, this apparatus must be
securely attached to the wall in accordance
with the installation instructions.
6
Safety Warnings
HOW TO HANDLE THE LED PANEL
● Do not press hard or jolt the LED panel. It may
cause the LED panel glass to break and injury
may occur.
● If the LED panel is broken, make absolutely sure
that you do not touch the liquid in the panel.
This may cause skin inflammation.
● If the liquid gets in your mouth, immediately
rinse and consult with your doctor. Also, if the
liquid gets in your eyes or touches your skin,
consult your doctor after rinsing for at least 15
minutes in clean water.
Possible Adverse Effects on LED Panel: If
a fixed image displays on the TV screen for a
long period of time, it may cause a permanent
disfigurement on the screen with image burn-in or
ghosting. This type of damage is NOT COVERED
BY THE WARRANTY.
● Avoid displaying a static picture or a picture
with static elements (black bars, black borders,
logos, etc.) on the TV screen for more than
two hours at a time. Make sure you change the
image on your screen periodically.
● If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on
the letterboxed area of the screen. Make sure
you change the size of the picture occasionally.
The following symptoms are not signs of
malfunction but technical limitation. Therefore
we disclaim any responsibility for these
symptoms.
● LED panels are manufactured using an
extremely high level of precision technology,
however sometimes parts of the screen may
be missing picture elements or have luminous
spots. This is not a sign of a malfunction.
● Do not install the LED panel near electronic
equipment that produces electromagnetic
waves. Some equipment placed too close to
LED may cause interference.
● Effect on infrared devices – There may be
interference while using infrared devices such
as infrared cordless headphones.
COMPLIANCE
FCC Statement
Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment
and receiver.
● Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV
technician for help.
WARNING: Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate this equipment under FCC Rules.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
POWER SOURCE
This TV is designed to operate on 100~240 volt
50/60 Hz, AC current. Connect the power cord
to a GFCI protected AC outlet with an “in-use”
waterproof cover.
Warning: TV and GFCI receptacle must be
installed away from any water source in a safety
distance. B e sure to check local electrical codes
and comply with their local standards.
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
7
Safety Warnings
CARE OF THE ENVIRONMENT
Disposal of your old product and battery
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
● Never dispose of your product with other
household waste. Please familiarize yourself
with the local rules on the separate collection of
electrical and electronic products and batteries.
● The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
● Your product contains batteries which cannot
be disposed of with normal household waste.
The battery must be recycled or disposed of
for information on battery recycling or disposal.
All registered and unregistered trademarks are
property of their respective owners.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
SAFETY PRECAUTIONS
WARNING: Never place a television set in an
unstable location. A television set may fall, causing
serious personal injury or death. Many injuries,
particularly to children, can be avoided by taking
simple precautions such as:
– Using cabinets or stands recommended by the
manufacturer of the television set.
– Only using furniture that can safely support the
television set.
– Ensuring the television set is not overhanging
the edge of the supporting furniture.
– Not placing the television set on tall furniture
(for example, cupboards or bookcases) without
anchoring both the furniture and the television
set to a suitable support.
– Not placing the television set on cloth or other
materials that may be located between the
television set and supporting furniture.
– Educating children about the dangers of
climbing on furniture to reach the television set
or its controls.
If your existing television set is being retained
and relocated, the same considerations as above
should be applied.
NOTES WHEN MOUNTING THE TV ON THE
WALL
IMPORTANT: The TV must be installed away from
any water source in a safe distance.
If the unit is to be mounted on the wall, contact the
retailer where you purchased the TV for advice,
and have the equipment professionally installed.
Incomplete or improper installation may cause
injury to you, and/or damage to the TV. Please refer
to the VESA mounting pattern to ensure the correct
VESA mounting is used for the TV.
VESA MOUNTING PATTERN
Model
Width
mm
Height
mm
Screw
Size
Quantity
FDUP43CBR
200
M6 * 15mm 4
FDUF43CBR
200
FDUP49CBR
200
FDUF49CBR
200
FDUP55CBR
400 400
FDUF55CBR
400
FDUP65CBR
400
FDUF65CBR
400
CAUTION: To prevent personal injury and/or
damage to the TV or personal property, use at least
two people to install or move the TV.
8
Function Overview
Control Panel
POWER
VOL- VOL+
CH- CH+ MENU SOURCE
1
4
2
5
3
6
7
* Please note that the button layout of the
controls may vary from model to model.
Item Button Function
1
SOURCE
Select the input source
2
MENU
Enter the main menu
3
CH+
Skip to the next channel
4
CH-
Skip to the previous
channel
5
VOL+
Increase volume
6
VOL-
Decrease volume
7
POWER
Switch the TV on/off
9
Function Overview
Rear Panel
HDMI 3
MHL/CEC
IN
RF IN
PC AUDIO
IN
HDMI 2
CEC
IN
HDMI 1
ARC/CEC
IN
VGA
IN
Pr
Pb
Y
VIDEO IN
AUDIO IN
L
R
R
L
COAX
OUT
IR
Ext
AUDIO OUT
USB(2.0) IN
DC 5V
Max. 500mA
1
2
3
7
6
8
11
10
9
12
4
5
No. I/O port Description
1
RF IN
Connect to the ANTENNA, CABLE or
CABLE BOX.
2
PC AUDIO
IN
Connect to the AUDIO OUT port of a PC.
3
VGA IN
Connect to the VGA OUT port of a PC to
use the TV as a monitor.
4
Y/Pb/Pr
Connect to the COMPONENT VIDEO
OUT ports of a DVD Player, Cable Box or
other compatible devices.
5
VIDEO IN
Connect to the COMPOSITE VIDEO/
AUDIO OUT ports of a DVD Player, Cable
Box or other compatible devices.
AUDIO IN
6
COAX OUT
Connect to the COAXIAL AUDIO IN port
of an audio device.
7
IR Ext
Connect with an IR extender.
Note: Please purchase an IR extender with
the spec as below:
3.5 mini plug/Tip-VCC 5V/Center-Data/
Lower-Ground; With 30ft range from
remote control to IR receiver; Operating
voltage 3.3~5v and supported by 38Khz
bandwidth.
8
AUDIO OUT
Connect to the AUDIO IN ports of an
audio device.
9
HDMI 3 IN
(MHL/CEC)
Connect to the HDMI OUT port of a DVD
Player, Games Console, Cable Box or
other HDMI device.
MHL (Mobile High-Definition Link)
You can connect an MHL-enabled device,
such as certain models of smart phones
& tablets, and view the device’s screen
on the TV. Connecting an MHL-enabled
device to the HDMI3 input requires a
special MHL cable (not included).
CEC (Consumer Electronics Control)
When connected to the CEC compatible
Furrion Entertainment Systems or other
CEC Compatible devices, the TV links
with the system to give extra functionality.
ARC (Audio Return Channel)
When connected with a HDMI 1.4 cable to
an ARC compatible audio system, the TV
links with the device to give extra audio
functionality.
10
HDMI 2 IN
(CEC)
11
HDMI 1 IN
(ARC/CEC)
12
USB IN
USB Port: view pictures/movies/text and
listen to MP3s via a compatible USB stick.
* The configuration of the connection
ports may vary from model to model.
10
Function Overview
Connection
Your Furrion Aurora™ TV offers multiple connection options. Please consult the manual of DVD
player, Games Console or other devices to ensure proper connection and use.
You can choose one or more of the connections below to operate.
Note: All external devices and cables shown in the diagram are for reference only and not
included in the package.
A
HDMI 1,
HDMI 2, or
HDMI 3
OR
B
L (White)
R (Red)
VIDEO (Yellow)
AUDIO
C
11
Function Overview
Connection
R (Red)
Y (Green)
Pb (Blue)
Pr (Red)
AUDIO
VIDEO
L (White)
D
R (Red)
L (White)
OR
Furrion model No.:
FSBNN3MR-BL/
FSBNN3MSR-BL
(sold separately)
IR extender
E
F
G
H
12
Function Overview
Remote Control
1
3
5
6
8
9
10
11
13
15
17 20
24
26
28
29
30
31
33
35
22
2
4
7
12
14
16
18 19
21
23
25
32
34
27
13
Function Overview
No. Button Function
21
ZOOM
Enlarge screen images
22
MTS
Select Stereo, Mono, or Second
Audio Programming
23
Skip to the beginning of the next
chapter/track/photo.
24
S.MODE
Select sound mode
25
Fast forward
26
P.MODE
Select picture mode
27
Toggle between the current and
previous channels
28
CH
/
Channel Up/Down
29
VOL +/-
Increase/Decrease the volume
30
EXIT
Exit the current menu
31
SOURCE
Select the input source
32
GUIDE
Open the current digital channel
information guide (antenna
only).
33
FAV
Add the channel to favorite list
34
CH.LIST
Display the channel list
35
Mute or unmute the audio
No. Button Function
1
Turn the TV on/off
2
SLEEP
Set time for the TV to turn off
3
INFO
Display information about the
current input source
4
FREEZE
Freeze current picture
5
MENU
Enter the main menu
6
/ / / Navigate in a menu
7
OK
Confirm the selection
8
RETURN
Return to the previous menu
9
NUMBER
BUTTONS
Enter numbers or select
channels
10
Insert the dash for selecting
digital channels directly (For
example, channel 28-2 would
be selected by the button
sequence 2 8 - 2.)
11
Fast backward
12
Start or pause the playback
13
Skip to the beginning of the
previous chapter/track/photo.
14
Stop playback
15
V-CHIP
Set up parental control
16
CC
Select Closed Caption: ON/
OFF/CC On Mute
17
USB
Switch the source to USB
18
TV
Switch the source to TV
19
HDMI
Switch the source to HDMI
20
VGA
Switch the source to VGA
Remote Control
14
Before Operation
What’s in the Box
Thanks for purchasing this Furrion Aurora™ TV. This manual will help you set up and begin using
your TV. First, check the contents of your box with the parts checklist below:
● TV
● Weather proof remote with button battery (x1) and tool to open battery cover (x1)
● Wall mount screws (x4)
● Screw adaptors (x4)
● RCA cable
● Printing materials
Now you can get started!
Prepare your Remote Control
BATTERY INSTALLATION
1. Open the battery cover with the tool supplied with the remote control.
2. Install the supplied button battery CR2025.
3. Close the
battery cover.
OP EN
CLO SE
OP EN
CLO SE
OP EN
CLO SE
BATTERY PRECAUTIONS
These precautions should be followed when using battery in this device:
● Use only the size and type of battery specified.
● Danger of explosion if batteries are incorrectly replaced.
● If the device is not to be used for a long period of time, remove the battery to prevent
damage or injury from possible battery leakage.
● The batteries should not be exposed to excessive heat due to sunlight, fire or other heat
sources.
WARNING: This product contains a button battery on the remote control.
15
Before Operation
● Do not ingest the battery contained within
the remote control supplied with the unit
as this battery represents a chemical burn
hazard.
● If the button battery is swallowed, it can
cause severe internal burns in just 2
hours and can lead to death. If you think
batteries might have been swallowed or
placed inside any part of the body, seek
immediate medical attention.
● Keep new and used batteries away from
children. If the battery compartment does
not close securely, stop using the product
and keep it away from children.
Choose a Proper Location
for your TV
Important: The TV must be installed away
from any water source in a safety distance.
For best viewing we recommend you install it
in a shaded environment.
● Avoid to install the TV where the screen is
facing direct sunlight. The ideal location
is in one place where the TV is shaded
by structures, or under a patio cover or
gazebo.
● If the sun shines directly on the screen
for long periods of time, dark areas may
appear on the screen. This is a normal
reaction for the LED panel, and will not
cause damage to the screen. Either turn
the screen away from the sun, or shade
the TV, and the dark areas will soon
disappear.
Note: DO NOT use the TV if ambient
air temperature exceeds the operating
temperature limits.
Cable Management
WARNING: Do not connect the power source
before making connections.
1. Open the cable access door in the rear
panel by loosing the thumb screws.
(Figure 1)
2. Connect the cables and lead all
connecting cables downwards through
the duct at the bottom of the cable access
door.
3. Leave a drip loop when cables enter the
compartment. This will prevent water
from dripping down the cord and possibly
entering the door area.
4. Close the door and tighten the thumb
screws for the best waterproof effect.
(Figure 2)
Figure 1
16
Before Operation
Cables
Drip Loop
Thumb Screws x 3
Cable Access Door
Figure 2
Tip: If a TV streaming stick is connected and stays inside the rear cable compartment, the RF/
Wifi signal will be reduced when passing through the closed cable door.
Connect the Power Cord
Connect the power cord to a GFCI protected AC outlet with an “in-use” waterproof cover.
Caution:
● Do not connect power cord during cable connecting and TV installation.
GFCI
PROTECTED
OUTLET
GFCI
PROTECTED
OUTLET
WARNING: TV and GFCI receptacle must be installed away from any water source in a safety
distance. Be sure to check local electrical codes and comply with their local standards.
17
Before Operation
POWER SOURCE
NOTE: Please make sure to insert the cord securely at both the TV and the wall outlet.
WARNING:
● DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. DOING
SO MAY CAUSE FIRE, ELECTRIC SHOCK, OR DAMAGE.
● DO NOT PLUG/UNPLUG THE POWER ADAPTER WHEN YOUR HANDS ARE WET. DOING
SO MAY CAUSE ELECTRIC SHOCK.
CAUTION:
●
Mount on Wall
You are recommended to install the TV in an area shaded by trees, landscape and/or
structures, or under a patio cover or gazebo.
FULL SHADE (Covered gazebos, patios, porches)
TV designed for fully shade outdoor spaces.
(Model: FDUF43CBR / FDUF49CBR / FDUF55CBR / FDUF65CBR)
PARTIAL SUN (Pergolas, partially covered decks)
TV designed for partial sun exposure and brighter outdoor spaces.
(Model: FDUP43CBR / FDUP49CBR / FDUP55CBR / FDUP65CBR)
18
Before Operation
IMPORTANT: Connect all cables to the rear panel prior to mounting TV on wall. The cable
access door in rear panel will be obstructed once the TV is mounted.
● Follow the installation guide supplied with the Wall-Mount Bracket (purchased separately)
when installing the TV.
● Choose an appropriate location and refer to VESA pattern for mounting.
● Recommend you to contact a professional for installation and use at least two people to
move or install the TV.
Wall
Adaptor
M6 Screws
19
Getting Started
The Setup Wizard window appears only the
first time you turn on the TV. It will assist you
to configure the TV and scan for available
channels.
IMPORTANT: Make sure the antenna or
cable connection is made.
1. Press POWER button on the TV control
panel or button on the remote control
to switch on the TV. The Setup Wizard
window appears on the screen.
NOTE: It may take a few seconds before
the Setup Wizard window appears on the
screen.
2. Use / / / to navigate and select
your desired settings.
Setup Wizard
Air/Cable Air
Cable System Auto
Auto Scan
Menu Language English
Move
Select
Exit
MENU
Setup Wizard
Menu
Language
Use
or to highlight Menu
Language, then press or to select
English, French or Spanish.
Air/Cable
Use
or to highlight Air/Cable,
then press or to select Air or
Cable.
Cable
System
Use
or to highlight Cable
System, then press or to select
Auto, STD, IRC or HRC.
NOTE: Only adjustable when “Air/
Cable” is set as “Cable” mode.
Auto Scan
Use
or to highlight Auto Scan,
then press OK or to start scanning all
the channels available in your area.
NOTE: You may press MENU at any time to
exit the menu.
20
TV Settings
Setup Settings
1. Press MENU button, the setup window will appear on the screen.
2. Use or to highlight Setup mode.
3. Use or to highlight the item you would like to reset, then press or to select the
settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Setup Menu
Menu
Language
Select the menu
language
Press
or to select English, Français, Español or Deutsch.
Transparency
Control the menu
transparency
Press
or to select Off /On.
Zoom Mode
Set the picture
proportion
Press
or to select Zoom, Normal, Cinema or Wide.
* The selection for Zoom Mode may vary from model to model.
Noise
Reduction
Reduce the
roughness of the
Press
or to select Off, Weak, Middle or Strong.
Advanced
Control the PC
settings.
*Only available after a PC connected.
Source Label
Allow labeling the
input source
TV
Press
or to select Custom, Default, Antenna,
Cable, Satellite, DTV, DVD, Blu-ray, HD-DVD, XBOX,
Wii, PS3, Game, Computer, VCR or DV
* The selection for Source Label may vary from model
to model.
AV
YPBPR
HDMI1
HDMI2
HDMI3
PC
USB
21
TV Settings
Setup Menu
Closed
Caption
Set the Closed
Caption features.
CC Mode
Press
or to select Off, On or CC On Mute.
Basic Selection
Press
or to select CC1, CC2, CC3, CC4, Text 1,
Text 2, Text 3 or Text 4 .
Advanced
Press
or to select Service1, Service 2, Service 3,
Service 4, Service 5 or Service 6.
Option
Press
or
to enter the
sub menu to
customize text
fonts, colors,
opacity.
Mode
Press
or to select Default or
Custom.
Font Style
Press
or to select Default, Font
0, Font 1, Font 2, Font 3, Font 4,
Font 5, Font 6 or Font 7.
Font Size
Press
or to select Default,
Normal, Large or Small.
Font Edge
Style
Press
or to select Default, None,
Raised, Depressed, Uniform, Left
Shadow or Right Shadow.
Font Edge
Color
Press
or to select Default,
Black, Red, Green, Blue, Yellow,
Magenta or Cyan.
FG Color
Press
or to select Default,
White, Red, Green, Blue, Yellow,
Magenta or Cyan.
BG Color
Press
or to select Default, Cyan,
Magenta, Yellow, Blue, Green, Red
or Black.
FG Opacity
Press
or to select Default,
Solid, Flashing, Translucent or
Transparency.
BG Opacity
Press
or to select Default,
Solid, Flashing, Translucent or
Transparency.
DLC
Adjust the picture
contrast.
Press
or to select Off or On.
Setup Wizard
Start the Setup
Wizard.
Press
or to enter setup wizard menu.
22
TV Settings
Setup Menu
HDMI CEC
Press
to enter
sub-menu, then
press
or to
select Off /On for
HDMI CEC.
When selecting On,
the sub-menu in the
right column will be
available to set up.
Auto Standby
Press
or to select Off /On.
In On mode, TV will shut down when there is no signal for
several minutes.
Auto TV on
Press
or to select Off /On.
In On mode, TV will automatically turn on when the
connected CEC device is turned on.
HDMI ARC
Press
or to select Off /On.
Set the HDMI ARC On if you want to enable the ARC
function with a connected 5.1/7.1 Home Theater System.
Device control
Press
or to select Off /On.
In On mode, it allows a connected CEC device to be
controlled by TV remote control.
Device list
Press
to display a list of HDMI CEC devices currently
connected to the TV.
EDID Switch
Select the EDID
version.
Press
or to select Auto, EDID 1.4 or EDID 2.0.
Restore
Default
Reset to factory
default settings.
Press
or to select Yes or No.
NOTE: HDMI CEC function is only available when connecting with a CEC device.
23
TV Settings
Picture Settings
1. Press MENU button, the setup window will appear on the screen.
2. Use or to highlight Picture mode.
3. Use or to highlight the item you would like to reset, then press or to select the
settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Picture Menu
Mode
Select the display mode
Press
or to select User/Standard/Dynamic/Mild.
Contrast
Control the contrast level of the picture
Press
or to increase or decrease contrast intensity.
* Only adjustable after set “Picture Mode” as “User” mode
Brightness
Control the brightness level of the
Press
or to increase or decrease the overall brightness.
* Only adjustable after set “Picture Mode” as “User” mode
Color
Control the color level of the picture
Press
or to increase or decrease the color intensity.
* Only adjustable after set “Picture Mode” as “User” mode
Tint
Control picture tint
Press
or to adjust colors toward green or reddish tint.
* Only adjustable under NTSC signal
Sharpness
Control the sharpness of the picture
Press
or to soften or enhance edges in the picture.
* Only adjustable after set “Picture Mode” as “User” mode
Color Temp
Select the color mode
Press
or to select Medium / Warm / Cool.
Blue Screen
If this is set as On,the screen changes
to blue when no signal input.
Press
or to set as On or Off.
Advanced
Setting
Press
to enter sub-menu to set the
features in right column.
Aspect Ratio
Press
or to select Wide /
Normal/Cinema/ Zoom.
Noise Reduction
Press
or to select Off /
.
Dynamic Contrast
Press
or to set as On or Off.
HDMI mode
Press
or to set as Video.
Auto Brightness
Press
or to set as On or Off.
24
TV Settings
Audio Settings
1. Press MENU button, the setup window will appear on the screen.
2. Use or to highlight Audio mode.
3. Use or to highlight the item you would like to reset, then press or to select the
settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the settings.
For DTV mode For ATV mode
25
TV Settings
Audio Menu
Sound Mode
Select the sound mode
Press
or to select Standard / Music / Movie / Sport / User
mode.
Standard: Optimizes a balanced sound in all environments.
Music: Preserves the original sound clear and dynamic like that on a
concert.
Movie: Enhances treble and bass for a rich surround sound
experience.
Sport: Reproduces a realistic sound like that in a stadium.
User: Customizes audio setting.
Bass
Control the bass level
Press
or to increase or decrease low frequency intensity.
Treble
Control the treble level
Press
or to increase or decrease high frequency intensity.
Balance
Control the balance level
Press
or to adjust the desired level between 0~100.
Surround
Control the surround effect
Press
or to set as On or Off.
AVC
(Auto Volume Control)
Control the maximum power
output
Press
or to set as On or Off.
SPDIF Type
Select the SPDIF sound mode
Press
or to select Off / RAW / PCM.
Audio
Languages
Select the menu language
Press
or to select English / French / Spanish.
* Only available on DTV channel
MTS
Select the sound mode
Press
or to select Stereo / SAP / Mono.
* Only available on ATV channel.
Accessibility
Control
the Voice
Guide
functions
Voice Guide
Voice Guide
Press
, or Enter to enter sub menu settings.
Then press or to set as On or Off. When the
Voice Guide is On, the OSD will read out via voice
once you operate the TV.
Volume
Press
or to select Weak / Middle / Strong to
change the volume.
* Only available after Voice Guide is set as On mode
Speed
Press
or to select Weak / Middle / Strong to
change the voice speed.
* Only available after Voice Guide is set as On mode
Pitch
Press
or to select Weak / Middle / Strong to
change the voice pitch.
* Only available after Voice Guide is set as On mode
Video
Description
Press
or to set as On or Off. When setting as On, the video
description function is enabled and the video commentary text will
appear.
26
TV Settings
Time Settings
1. Press MENU button, the setup window will
appear on the screen.
2. Use or to highlight Time mode.
3. Use or to highlight the item you
would like to reset, then press or to
select the settings.
4. Press MENU to return to the previous
menu or press EXIT at any time to exit the
setting.
Time Menu
Sleep Timer
Set the countdown time
before TV automatically
shutdown
Press
or to select Off, 5Min, 10Min, 15Min, 30Min, 45Min, 60Min,
90Min, 120Min, 180Min or 240Min.
Time Zone
Set the time zone
Press
or to select Pacific, Alaska, Hawaii, Atlantic, Eastern,
Central or Mountain
Daylight
Saving Time
Turn on/off daylight
saving time
Press
or to set as On or Off.
* Only adjustable on DTV channel
Time Format
Select the time display
format
Press
or to set as 12-hour or 24-hour.
* Only adjustable on DTV channel
Auto Clock
Set automatic time
Press
or to set as On or Off.
* Only adjustable on DTV channel
Clock
When Auto Clock is set as Off, you can set the time manually.
* Only adjustable on DTV channel
27
TV Setting
Lock Settings
1. Press MENU button, the setup window will appear on the screen.
2. Use
or to highlight Lock mode.
3. Use or to highlight “Enter Password” and input “0000” to enter the sub menu.
4. Use or to highlight the item you would like to reset, then press or to select the
settings.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
28
TV Setting
Lock Menu
Enter
Password
Input the password to access the Lock
menu.
Use the Number Buttons (0~9) to enter the password, the
Lock menu will appear.
* Default password is 0000.
* If you forgot the password, use 8888 to enter any locked
menu.
Set
Password
Change the user password.
Set Password
Use Number buttons (0-9) to enter a
new password.
Confirm
Password
Repeat the password to confirm.
System
Lock
Change the
Press
or to set as On or Off.
US
Set up parental locks based on US
rating system.
* Only available when System Lock is
set as On mode.
TV
Press
use / /
preference.(refer to the following tables of
Age and Genre)
MPAA
Press
buttons to select your movie rating
US Rating System.
Canada
Set up parental locks based on
Canadian rating system.
* Only available when System Lock is
set as On mode
Canada
English
Use
System (English).
Canada
French
Use
System(French).
RRT Setting
Not adjustable by user.
Reset RRT
Restore to default RRT settings.
Press OK or
to enter the sub menu, then press or to
select Yes or No .
Clear Lock
Restore to default V-chip settings and
clear the lock setting.
Press OK or
to enter the sub menu, then press or to
select Yes or No .
29
TV Settings
Age
T V-Y
All Children
T V-Y 7
Suitable for 7 years old or above
TV-G
General Audience
TV-PG
Parental Guidance
TV-14
Suitable for 14 years old or above
TV-MA
Suitable for 17 years old or above
US Rating System
N/A
All Ages
G
General Audience
PG
Parental Guidance
PG-13
Parental Guidance below 13 years
R
Parental Guidance below 17 years
NC-17
Suitable for 17 years old or above
X
Adults Only
Genre
ALL
All
FV
Fantasy Violence
V
Violence
S
Sex
L
Language
D
Dialogue
Canadian Rating System (English)
E
Exempt from the ratings (All ages)
C
Suitable for children age of 0–7 years
C8+
Suitable for children age over 8 years
G
General Audience
PG
Parental Guidance
14+
Suitable for viewers age over 14 years
18+
Suitable for adults over 18 years
Canadian Rating System (French)
E
Exempt from the ratings (All ages)
G
General Audience
Suitable for children ages over 8 years
Suitable for children ages over 13 years
Suitable for viewers ages over 16 years
Suitable for adults over 18 years
30
TV Settings
Channel Settings
1. Press MENU button, the setup window will appear on the screen.
2. Use or to highlight Channel mode.
3. Use or to highlight the item you would like to reset, then press or to select the
settings.
4. Press OK to confirm your selections or settings and enter the sub menus.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Note: For Cable or Satellite users with a set-top box, there is no need to run channel Auto Scan.
Connect your cable or satellite set top box to one of the available inputs on the TV for viewing.
Channel Menu
Air/Cable
Set the reception type.
Press
or to select Air or Cable.
● Select Air when TV is connected to an indoor / outdoor antenna.
● Select Cable if you subscribe to a pay television service WITHOUT a set top
box.
Auto Scan
Press
or OK to enter
sub menu.
Cable System
Press
or to select Auto, STD, IRC or HRC.
(Only available when you select Cable as the reception type.)
Start to Scan
Press
or OK to start scanning available channels..
Favorite
Add or delete a channel in
the favorite list.
Press
or to select a channel, then press or OK to add or delete the
channel in the favorite list.
Show/Hide
memory.
Press
or to select a channel, then press or OK to show or hide the
channel.
Channel No.
Select a channel number
to be labeled
Press
or to select a channel.
Channel Label
Allow custom labeling to
name or rename a channel
Press
or to select each letter, number or character. Press or to skip
(Maximum of 7 characters)
DTV Signal
Dynamically display the DTV signal status.
31
TV Settings
PC Settings
The PC menu is only accessible when a PC is connected to the TV via the VGA connection.
Press Source button to select VGA as the input source.
1. Press MENU button, the setup window will appear on the screen.
2. Use
or to highlight Setup mode.
3. Use or to highlight Advanced, then press OK or to enter the sub menu.
4. Use or to highlight the item you would like to reset, then press or to select the
settings.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Advanced Sub-Menu
H-Pos
Configure the horizontal position of the TV image
Press
or to move the screen horizontally.
V-Pos
Configure the vertical position of the TV image
Press
or to move the screen vertically.
Clock
Adjust the pixel Clock (vertical )for a clearer image
Press
or to adjust the pixel clock vertically.
Phase
Adjust the phase Clock (horizontal) for a clearer
Press
or to adjust the phase clock horizontally .
Auto
Automatically adjust the PC settings
Press OK or
to adjust all PC settings automatically.
PC MONITOR DISPLAY MODES
Mode Resolution Refresh Rate
VGA
640 x 480 60/75 Hz
VGA
720 x 400 70 Hz
VGA
1366 x 768 60Hz
SVGA
800 x 600 60/75 Hz
XGA
1024 x 768 60/70/75 Hz
WXGA
1280 x 720 60 Hz
PC MONITOR DISPLAY MODES
Mode Resolution Refresh Rate
WXGA
1360 x 768 60 Hz
SXGA
1280 x 1024 60 Hz
WXGA+
1440 x 900 60 Hz
WSXGA+
1680 x 1050 60 Hz
FHD
1920 x 1080 60 Hz
32
USB Operation
1. After connecting a flash drive, press SOURCE button and select MEDIA. Press OK or to
enter.
2. Use or to select Photo or Music. Press OK or to enter.
3. Use or to navigate the files or folders on the USB drive.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Playback of music is via this music player,
which gives playback controls and
information on the file.
The music player plays MP3 audio format
files.
When viewing photos, you can use this photo
viewer tool to control slide show, play music
and show file information.
The photo viewer displays .jpg photo format
files.
33
Troubleshooting
Problem Solution/Issue
TV does not
operate
● Make sure the power cord is plugged in.
● Try another AC outlet.
● Power is off, check fuse or circuit breaker.
● Unplug unit for an hour, then plug it back in.
Normal
picture, but
no sound
● Check the volume settings.
● Sound muted? Press MUTE button.
● Try another channel.
● Check audio cable connections.
The remote
control does
not work
● Make sure the remote control is in range with no obstructions.
● Check the batteries.
● Correct operating mode set: TV, VCR etc.
Poor sound or
no sound
● Station or Cable TV experiencing problems, tune to another station.
● Check sound adjustments (Volume or Mute).
● Check for sources of possible interference.
Poor picture
or no picture
● Station or Cable TV experiencing problems, tune to another station.
● Make sure channels are set into memory.
● Check antenna or Cable TV connections, adjust antenna.
● Check for sources of possible interference.
● Check picture control adjustments.
Poor TV
reception
● Ensure the antenna amplifier is turned on for Antenna TV.
● Adjust the antenna position to a stronger signal receiving angle.
● Check if the Antenna connection is tight to the TV.
● Check if there is power supplied to the Antenna distribution box.
● Check if your incoming cable is connected to the correct cable / antenna
wall connection inside the RV.
● Ensure the internal RV coax jump cable is connected to the correct port.
Poor Cable /
Satellite TV
Reception
● Ensure antenna amp is turned off for cable signal.
● Check if incoming cable is connected correctly to RV.
● Ensure cable splitter box has power.
● Check if the incoming cable is connected to the correct cable / Satellite
wall connection inside your RV.
● Ensure the internal RV coax jump cable is connected to the correct port.
● Ensure Dish has no obstruction.
TV shuts off
● Sleep Timer is set.
● Power interrupted.
Black and
white image
from the
connected AV
device
● Check video connections on both the TV and connected AV device.
Ensure the colors match between the connectors and sockets: green
(Y), blue (Pb/Cb) and red (Pr/Cr) for component connection, and yellow
(VIDEO) for composite connection.
● Ensure all video cables are connected firmly.
34
Specifications
MODEL, DIMENSION & RESOLUTION
TV Model
Dimension without Stand
(L x H x W)
Max Resolution
FDUP43CBR
///
(1010 x 605 x 96 mm)
3840 x 2160@ 60Hz UHD
FDUF43CBR
FDUP49CBR
///”
(1135 x 680 x 98 mm)
FDUF49CBR
FDUP55CBR
///”
(1274 x 756 x 105 mm)
FDUF55CBR
FDUP65CBR
///’’
(1499 x 885 x 97 mm)
FDUF65CBR
INPUT & OUTPUT CONNECTIONS
Model
L-AUDIO
OUT-R
IR
Ext
Coaxial
Out
L-AUDIO IN-R
Component
Video in
Component
YP
b
P
r
Video in
HDMI
in
VGA
(PC)
in
Audio
(PC)
in
RF
in
USB
FDUP43CBR
FDUP49CBR
FDUP55CBR
FDUP65CBR
FDUF43CBR
FDUF49CBR
FDUF55CBR
FDUF65CBR
1 1 1
1 x Left (White)
1 x Right (Red)
1 x Yellow/Green*
3 1 1 1 1
1 x Blue
1 x Red
W
H
L
35
Care and Clean
TV Cleaning
Remove any dirt and salt deposits from the unit, being careful to rinse the cloth frequently to
avoid scratching the TV or screen surface. Avoid using harsh chemicals, abrasives, or solvents
when cleaning any surface on the unit.
● If there is snow or ice on the TV surface, use a soft brush and towel to remove snow and
ice from the unit.
● Cleaning the LED panel: With your TV turned off, gently wipe the surface of the display
panel with a damp (with water) microfiber, cotton or flannel cloth. (Do not use tissues,
rags, sponges or paper towels because they may damage the screen and leave lint pieces
behind). If the LED panel is very dirty, you can mix equal parts of isopropyl alcohol and
distilled water in a clean spray bottle, spray the mixture onto the cloth (do not spray the
solution directly on the panel) and gently clean the panel.
● When the TV is not in use, keep it covered with the Furrion Weatherproof TV Cover.
The fitted cover is designed to protect the LED panel from the harmful UV rays from direct
sunlight, the ingress of water, and keeps wind-blown objects from scratching the surface of
the TV. To order a Furrion Weatherproof TV Cover, you can contact the authorized dealer
or buy from Furrion website.
IM-FAV00051 V1.0
Furrion Innovation Center & Institute of Technology
● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-888-354-5792
● Email: [email protected]
©2007-2019 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd.
and registered in the U.S. and other countries.
FURRION.COM
