Operating instructions
Heat pump tumble dryer
It is essential to read these operating instructions before installing
and using the appliance. This prevents both personal injury and
damage to the appliance.
en-AU, NZ M.-Nr. 12 127 240
Contents
2
Caring for the environment ............................................................................. 5
Warning and Safety instructions ..................................................................... 6
Operating the tumble dryer .............................................................................. 17
Control panel....................................................................................................... 17
How the control panel works .............................................................................. 18
Before using for the first time .......................................................................... 20
Downtime after installation.................................................................................. 20
Energy saving tips ............................................................................................. 21
1. Notes on correct laundry care ..................................................................... 22
Points to note regarding washed laundry............................................................ 22
Preparing the laundry before drying.................................................................... 22
Drying .................................................................................................................. 23
Care label symbols ......................................................................................... 23
Selecting the correct drying level................................................................... 23
2. Loading the tumble dryer ............................................................................. 24
Loading the laundry............................................................................................. 24
3. Selecting a programme and starting it........................................................ 25
Selecting a programme ....................................................................................... 25
Selecting a drying level with a drying programme ......................................... 25
Selecting timed drying programmes and other programmes ........................ 26
Selecting Gentletumble ...................................................................................... 26
Selecting Delay start ........................................................................................... 27
4. Removing the laundry at the end of the programme ................................. 29
End of programme/Anti-crease ........................................................................... 29
Removing the laundry ......................................................................................... 29
Programme chart .............................................................................................. 30
Changing the programme sequence............................................................... 33
Changing a programme after it has started ........................................................ 33
Adding or removing laundry ................................................................................ 33
Condensed water container ............................................................................. 34
Emptying the condensed water container .......................................................... 34
Fragrance flacon................................................................................................ 35
FragranceDos – 2 positions for inserting a fragrance flacon ............................... 35
Contents
3
Using a fragrance flacon ..................................................................................... 35
Removing the protective seal from the fragrance flacon................................ 35
Inserting the fragrance flacon......................................................................... 36
Opening the fragrance flacon.............................................................................. 37
Closing the fragrance flacon ............................................................................... 37
Removing/replacing the fragrance flacon ........................................................... 38
Cleaning and care ............................................................................................. 39
Fluff filters............................................................................................................ 39
Removing the fragrance flacon ...................................................................... 39
Removing visible fluff ..................................................................................... 39
Cleaning the fluff filters and air flow openings thoroughly ............................. 40
Cleaning the fluff filters with water ................................................................. 41
Cleaning the plinth filter....................................................................................... 42
Removing the plinth filter ............................................................................... 42
Cleaning the plinth filter.................................................................................. 43
Cleaning the plinth filter flap........................................................................... 44
Cleaning the dryer ............................................................................................... 44
Problem solving guide ...................................................................................... 45
Indicator lights or information in the time display ............................................... 45
Unsatisfactory drying results............................................................................... 48
The drying process takes a long time. ................................................................ 49
Other problems ................................................................................................... 50
Replacing the plinth filter..................................................................................... 51
Regenerating the plinth filter ............................................................................... 53
Checking the heat exchanger.............................................................................. 53
Service................................................................................................................ 54
Contact in case of fault ....................................................................................... 54
Optional accessories........................................................................................... 54
Warranty .............................................................................................................. 54
Installation.......................................................................................................... 55
Front view ............................................................................................................ 55
Rear view............................................................................................................. 56
Transporting the tumble dryer ............................................................................. 56
Transporting the tumble dryer to its installation site ...................................... 56
Installation ........................................................................................................... 57
Levelling the dryer .......................................................................................... 57
Downtime after installation............................................................................. 57
Ventilation....................................................................................................... 58
Before moving the tumble dryer again (e.g. when moving house)................. 58
Additional installation requirements .................................................................... 58
Contents
4
Externally draining condensed water .................................................................. 59
Installation conditions requiring a non-return valve ....................................... 59
Arranging the drain hose ................................................................................ 60
Examples........................................................................................................ 60
Changing the door hinging.................................................................................. 62

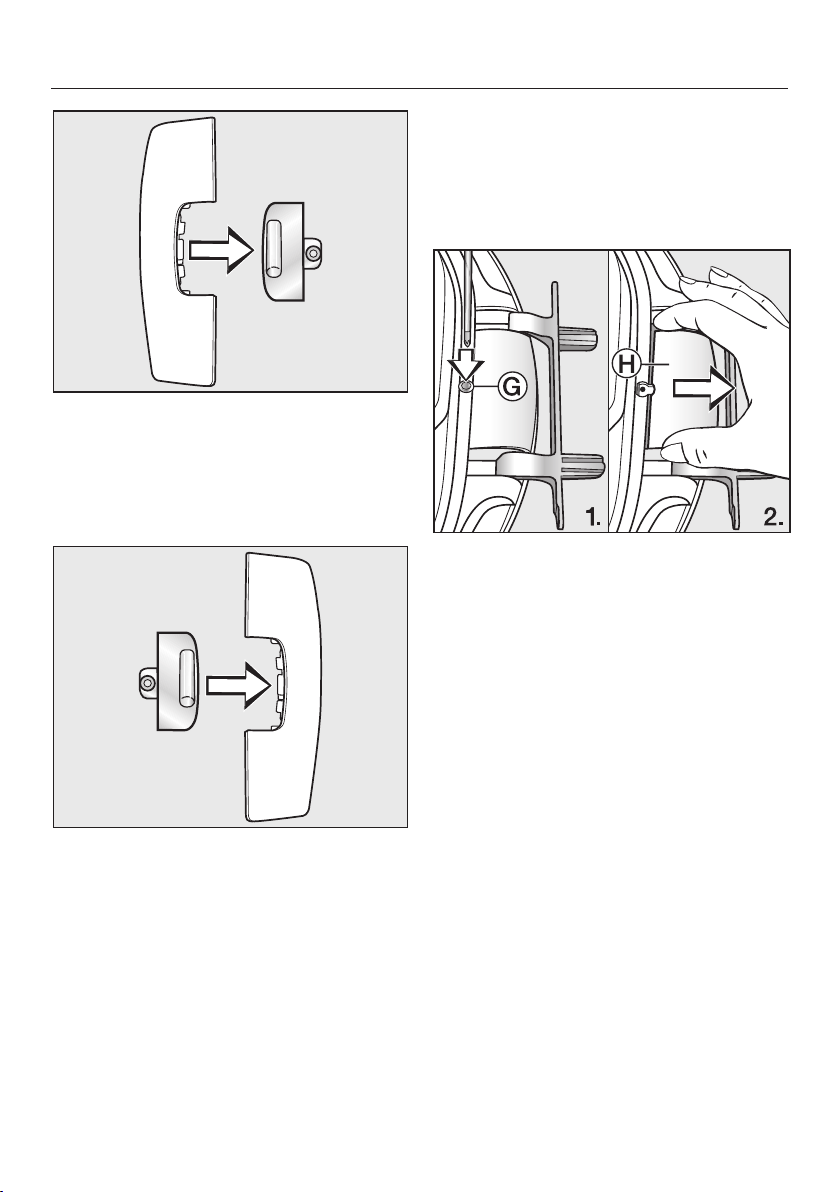

Changing the hinging over ............................................................................. 62
Refitting .......................................................................................................... 67
Electrical connection ........................................................................................... 68
Technical data.................................................................................................... 69
Consumption data............................................................................................. 70
Programmable functions .................................................................................. 71
Programming....................................................................................................... 71
Cottons drying levels.....................................................................................
73
Minimum iron drying levels...........................................................................
73
Cooling temperature ....................................................................................
73
Buzzer volume..............................................................................................
73
Keypad tone.................................................................................................
74
PIN Code ......................................................................................................
74
Conductivity .................................................................................................
74
Control panel standby status .........................................................................
75
Memory..........................................................................................................
75
Anti-crease ....................................................................................................
75
Buzzer is active .............................................................................................
76
Airways indicator..........................................................................................
76
Backlight brightness dimmed.......................................................................
76
Caring for the environment
5
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Warning and Safety instructions
6
It is essential to read these instructions.
This tumble dryer complies with current local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the tumble dryer,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, installation,
use and maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
This tumble dryer is designed for domestic use and for use in
similar environments by guests in hotel or motel rooms, bed &
breakfasts and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
This tumble dryer is not suitable for outdoor use.
It must only be used to dry items which have been washed in a
water solution and which are marked on the manufacturer's care
label as being suitable for tumble drying. If using dry cleaning kits,
do so at your own risk, and follow the instructions provided on the
packaging.
Any other applications may be dangerous. Miele cannot be held
liable for damage resulting from incorrect or improper use or
operation.
Warning and Safety instructions
7
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience or knowledge, unless they are supervised whilst
using it or have been shown how to use it by a person responsible
for their safety.
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Children must not be allowed to clean or maintain the tumble
dryer unsupervised.
Please supervise children in the vicinity of the tumble dryer and do
not let them play with it.
Warning and Safety instructions
8
Technical safety
Before setting up the tumble dryer, check it for any externally
visible damage.
Do not install or use a damaged tumble dryer.
Before connecting the tumble dryer, ensure that the connection
data on the data plate (fuse rating, voltage and frequency) matches
the mains electricity supply. If in any doubt, consult a qualified
electrician.
The electrical safety of this tumble dryer can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt, please have the household wiring
system tested by a qualified electrician. Miele cannot be held liable
for the consequences of an inadequate earthing system (e.g. electric
shock).
Reliable and safe operation of this tumble dryer can only be
assured if it has been connected to the mains electricity supply.
Do not connect the tumble dryer to the mains electricity supply by
an extension lead. Extension leads do not guarantee the required
safety of the appliance (e.g. danger of overheating).
If the connection cable is faulty, it must only be replaced by a
Miele authorised technician to protect the user from danger.
Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele authorised service technician, otherwise any
subsequent damage will not be covered by the warranty.
Faulty components must only be replaced by genuine Miele spare
parts. Miele can only guarantee the safety of the appliance when
Miele replacement parts are used.
Warning and Safety instructions
9
In the event of a fault or for cleaning purposes, the tumble dryer is
only completely isolated from the electricity supply when:
- it is switched off at the wall socket and the plug is withdrawn, or
- it is switched off at the mains circuit breaker.
This tumble dryer must not be installed and operated in mobile
installations (e.g. on a ship).
Do not make any alterations to the tumble dryer, unless authorised
to do so by Miele.
Heat pump technology and refrigerant:
The heat pump in this tumble dryer uses a gaseous refrigerant. The
refrigerant, which is brought to a higher temperature and liquefied by
condensing, is transferred in a closed circuit through the heat
exchanger unit where heat exchange takes place with the circulating
drying air.
Damage to the tumble dryer by switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer, wait for at least one hour before
switching it on.
- The humming noises caused by the heat pump during the drying
process are normal. They do not impair the efficient functioning of
the dryer.
- The refrigerant is not flammable or explosive.
Warning and Safety instructions
10
Please observe the instructions in “Installation” and “Technical
data”.
The plug and socket must be accessible at all times in order to be
able to disconnect the tumble dryer from the power supply.
Do not block the gap between the bottom of the tumble dryer and
the floor with plinth facings, deep pile carpet etc. This would hinder a
sufficient flow of air to the tumble dryer.
Make sure the dryer door can be opened without hindrance after
installation.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the warranty.
Warning and Safety instructions
11
Correct use
Warning: Risk of fire / Flammable materials.
To avoid the possible danger of fire, please read these warnings
carefully.
A clogged filter is a fire hazard!
The fluff filter must be cleaned after every programme.
The maximum load for this tumble dryer is 8.0 kg (dry weight). See
the “Programme chart” for the maximum recommended loads for
individual programmes.
To prevent the risk of fire, do not connect the tumble dryer via a
controllable socket (e.g. a timer or a peak-load switch-off device).
If the drying programme is interrupted before the end of the cooling
down phase, this could cause the laundry to self-ignite.
Warning and Safety instructions
12
To prevent the risk of fire, the following textiles must not be dried
in this tumble dryer:
- Items which have not been washed.
- Items which have been cleaned using chemicals (e.g. professional
dry-cleaning agents).
- Items, such as workwear, which have not been thoroughly
cleaned and which are still soiled with grease, oil or other
desposits (such as cosmetics, lotions etc). If items have not been
thoroughly cleaned, there is a danger that these might ignite when
heated, even after they have been removed from the dryer at the
end of the programme.
- Items that have been soiled with substances such as cooking oil,
acetone, petrol, kerosene, spot removers, turpentine, waxes, wax
removers and other chemicals (e.g. mops and floor cloths).
- Items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
- Fabrics which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex
foam rubber, shower caps, waterproof textiles, rubberised articles
and items of clothing and pillows with foam rubber filling.
- Damaged fabrics which contain padding or fillings (e.g. pillows,
jackets). When damaged, the filling can get out with the risk of it
igniting in the dryer.
When washing such heavily soiled items ensure that you use
sufficient detergent and select a high temperature. If in doubt,
wash the items several times.
Warning and Safety instructions
13
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat.
If the heat cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items can prevent
heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics contaminated with vegetable or
cooking oil, or hair care products, be placed in a tumble dryer, they
should first be washed in hot water with extra detergent - this will
reduce, but not eliminate, the hazard.
Remove all items from pockets (e.g. lighters, matches).
Warning: Ensure that you always wait until the end of the
programme before removing the laundry. If the drying programme is
stopped prematurely, remove the laundry immediately and hang it up
or spread it out to cool it down.
Fabric softener and similar products must be used according to
the instructions on the manufacturer's packaging.
In many programmes, the heating phase is followed by a cooling
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry self-
igniting). The programme is not finished until the cooling down phase
has been completed.
As soon as the programme has finished, remove all laundry from the
drum.
Do not let anyone sit or lean on the door, as this can cause the
tumble dryer to tip up.
Always close the door after use. This way you will avoid the
danger of:
- children climbing onto or into the dryer or hiding things in it.
- pets or other small animals climbing into it.
Warning and Safety instructions
14
The tumble dryer must not be used
- without the fluff filters in place or with damaged fluff filters.
- without the plinth filter in place or with a damaged plinth filter.
This would cause an excessive build-up of fluff which in turn would
cause a fault.
The fluff filters must be cleaned after every drying cycle.
Fluff must not be allowed to accumulate around the tumble dryer.
The fluff filters and the plinth filter must be thoroughly dried after
cleaning. Do not replace them if they are damp or wet. Damp or wet
filters could cause operational faults.
Do not install the tumble dryer in a room where there is a risk of
frost occurring. At temperatures around freezing point the tumble
dryer may not be able to operate properly. There is a risk of damage
if the condensed water is allowed to freeze in the pump and hoses.
If the water is drained externally through the drain hose instead of
being collected in the condensed water container, make sure the
drain hose is securely attached if you hang it in a laundry tub to
avoid the hose slipping and the water causing damage.
Condensed water is not drinking water.
It can cause health problems in both people and animals.
Always keep the area around the tumble dryer free of dust and
fluff.
Dust drawn into the tumble dryer can cause blockages in the heat
exchanger over time.
The tumble dryer must not be hosed down.
Warning and Safety instructions
15
Using a fragrance flacon (optional accessory)
Only use genuine Miele original fragrance flacons.
The fragrance flacon must be stored in its packaging so please
make sure you retain this.
Caution. The fragrance can run out of the flacon. Make sure that
you always keep the flacon, or the fluff filter with the flacon inserted
in it, upright when carrying and do not tip it or place it down on any
surface.
Use an absorbent cloth immediately to wipe up any fragrance
which has run out of the flacon onto the floor, the dryer or any dryer
components (e.g. the fluff filter).
If fragrance which has run out of a flacon should come in contact
with the skin - wash the skin thoroughly with soap and water; come
in contact with the eyes - rinse the eyes with clean water for at least
15minutes; be swallowed - rinse out the mouth thoroughly with
clean water. Seek medical advice in the case of contact with the
eyes or if fragrance has been swallowed.
If fragrance which has run out of a flacon comes in contact with
clothing, change the clothing immediately. Wash the clothing or any
cloths used for mopping up fragrance thoroughly with plenty of
water and detergent.
There is the risk of fire or damage to the tumble dryer if the
following instructions are not observed:
- Never refill a flacon with fragrance.
- Never use a faulty fragrance flacon.
Dispose of an empty fragrance flacon with the household waste
and never use it for any other purpose.
Please also observe the information supplied with the fragrance
flacon.
Warning and Safety instructions
16
Accessories
Only use genuine Miele spare parts and accessories with this
appliance. If spare parts or accessories from other manufacturers
are used, this will invalidate the warranty, and Miele cannot accept
liability.
A Miele tumble dryer can be stacked on top of a Miele washing
machine using the appropriate stacking kit (available as an optional
accessory). Please make sure you order the correct one for the Miele
washing machine and Miele tumble dryer.
Miele cannot be held liable for damage caused by non-
compliance with these Warning and Safety instructions.
Operating the tumble dryer
17
Control panel
a
Control panel
b
Sensors for the drying levels
c
Indicator lights
light up when necessary
d
Gentletumble sensor
for gentle drying
e
Time display
for the programme duration
f
Sensors
for time selection
g
Start/Add laundry sensor
for programme start and adding
laundry
h
Optical interface
for service technicians
i
Programme selector
for selecting programmes and for
switching off. The dryer is switched
on by selecting a programme, and
switched off by turning the
programme selector to the
position.
Operating the tumble dryer
18
How the control panel works
The , , , and sensors react to
fingertip contact. Selection is possible
as long as the respective sensor is
illuminated.
If a sensor is brightly lit, this means it is
currently selected.
If a sensor is dimly lit, this means it can
be selected.
Sensors for the drying levels
After selecting a drying programme with
the programme selector, the proposed
drying level lights up.
Drying levels that can be selected are
dimly lit.
Indicator lights
-
lights up when the condensed water
container needs to be emptied.
-
lights up when the plinth filter needs
to be cleaned.
- Perfect Dry
The Perfect Dry system measures the
residual moisture present in the
laundry in programmes with
selectable drying levels and provides
a more precise drying result.
The PerfectDry display
– will flash until the programme
duration has been determined, and
then go out.
– will light up again when the
selected drying level is reached
and remain on until the end of the
programme.
– does not light up at all with the
programmes Woollens handcare,
Warm air.
Gentletumble sensor
For drying temperature-sensitive textiles
with the symbol. When the sensor is
touched, Gentletumble lights up
brightly.
With some programmes, Gentletumble
is always active (lights up brightly) or
inactive (does not light up).
Operating the tumble dryer
19
Time display
The remaining programme duration will
be displayed in hours and minutes.
With most programmes, the duration
displayed may vary or “jump”. The
following factors, among others, affect
the programme duration displayed: the
quantity of the laundry, the type of
fabric and the residual moisture in the
laundry. The electronics will continually
assess the conditions and adjust the
programme duration with increasing
accuracy.
Sensor
-
After touching the sensor, a later
start time for the programme (Delay
start) can be selected. Once
selected, lights up brightly.
-
The or sensors are used for
selecting the duration of the Delay
start period or the duration of the
Warm air programme.
Start/Add laundry sensor
Touching the Start/Add laundrysensor
starts a programme. The current
programme can be interrupted to add
laundry. The programme can be started
when the sensor is flashing on and off.
The sensor lights up constantly once
the programme has started.
Drum lighting
The lighting helps to ensure that all
items are removed from the drum.
The drum lighting will go out
automatically to save energy.
Before using for the first time
20
Downtime after installation
Damage to the tumble dryer by
switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
switching it on.
Removing the protective foil
and advertising stickers
Remove:
- the protective foil from the door (if
present).
- any advertising stickers from the front
and the lid.
Please do not remove any labels
(e.g. the data plate) which are visible
when you open the door.
Follow the procedure for using
for the first time outlined in
these instructions
Refer to “1.Notes on correct laundry
care” and “2.Loading the tumble
dryer”.
You can then load the tumble dryer
and select a programme as described
in “3.Selecting a programme and
starting it”.
Energy saving tips
21
This dryer with heat-pump technology
is designed for energy-saving drying
cycles. You can save even more
energy with the following measures,
because the drying time is not
extended unnecessarily.
- Make sure your laundry is spun at the
maximum spin speed before drying.
The higher the spin speed, the
greater the savings that can be made
in energy and time during drying, e.g.
approx. 20% energy can be saved if
spinning laundry at 1600rpm instead
of 1000rpm.
- Use the maximum load quantity for
the drying programme being used.
This will mean that the energy
consumption for the amount of
laundry is the most economical.
- Make sure that the room temperature
is not too high. If there are other heat
producing appliances in the room in
which the dryer is located, make sure
the room is well ventilated and switch
the other appliances off, if possible.
- Clean the fluff filters in the door
opening after every drying cycle.
Please refer to “Cleaning and care” for
information on cleaning the fluff filters
and the plinth filter.
- If possible, make use of time-
variable, low-cost electricity tariffs.
Ask your energy supplier for
information. Your tumble dryer's
Delay start function will be useful as
you can select when during the next
24hours you want drying to start
automatically.
1. Notes on correct laundry care
22
Points to note regarding
washed laundry
- When washing very heavily soiled
items, ensure that you use sufficient
detergent and select a high
temperature. If in doubt, wash the
items several times.
- Do not put soaking wet items into the
tumble dryer. Make sure your laundry
is thoroughly spun before drying. The
higher the spin speed, the greater the
savings that can be made in energy
and time during drying.
- New dark coloured garments should
be washed and dried separately from
light coloured garments to avoid the
risk of colours running and
discolouring other garments or even
plastic components in the dryer. Dark
coloured fibres can also settle on
light coloured garments and vice
versa.
- Starched laundry can be dried in the
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
Preparing the laundry before
drying
Damage due to foreign objects
which were not removed from the
laundry.
Foreign objects can melt, burn, or
explode.
Ensure that any foreign objects, e.g.
detergent dispensing balls, lighters,
etc. have been removed from the
laundry.
Risk of fire due to incorrect use
and operation.
The laundry can burn and destroy
the dryer and the surroundings.
See “Warning and Safety
instructions” for further information.
- Sort the laundry according to the type
of fibre and weave, size, garment
care label symbol and the drying level
required.
- Check seams and stitching to ensure
that padding and linings are intact.
This way you will avoid the danger of
fillings coming out. These could catch
fire when being dried.
- Untangle the laundry.
- Tie together textile belts and apron
ties.
- Fasten duvet covers and pillow cases
to prevent small items from being
rolled up inside them.
- Fasten hooks and eyes.
- Leave jackets open and undo any
long zips so that textiles dry evenly.
- Sew in or remove loosened
underwiring from bras.
- Reduce the size of the load. Minimum
iron fabric tends to crease more the
larger the load. This is particularly the
case for garments made from very
fine weave fabric, such as shirts or
blouses.
1. Notes on correct laundry care
23
Drying
Useful tip: See the “Programme chart”.
It lists all programmes and their
maximum load.
- Always observe the maximum
recommended load for each
programme. This will mean that the
energy consumption for the amount
of laundry is the most economical.
- Down-filled garments have linings
which have a tendency to shrink,
depending on the quality of the item.
Only use the Pre-ironing programme
for these textiles.
- Pure linen should only be tumble
dried if it is specified as suitable on
the care label. The surface of the
fabric may otherwise become rough.
Only use the Pre-ironing programme
for these textiles.
- Woollens and wool blends are
susceptible to becoming matted or
shrinking. Only use the Woollens
handcare programme for these
textiles.
- Loopknit garments (e.g. T-Shirts,
underwear) have a tendency to shrink
after the first wash. Do not overdry
these fabrics to prevent further
shrinking. When buying loopknit
garments, it is advisable to take their
shrinkage potential into account.
- With fabrics that are particularly heat-
sensitive or susceptible to creasing,
reduce the drying load and select
Gentle tumble.
Care label symbols
Drying
Normal/higher temperature
Reduced temperature*
* Select Gentle tumble
Do not tumble dry
Ironing
Very hot
Warm
Hot
Do not iron
Selecting the correct drying level
- Extra dry for multi-layered and very
thick fabrics.
- Normal for textiles that can shrink or
for light cotton or jersey textiles.
- Hand iron or Machine iron if you want
to iron the laundry after drying.
Useful tip: You can alter the drying
levels (damper or drier) for the Cottons
and Minimum iron programmes. See
“Programmable functions”.
2. Loading the tumble dryer
24
Loading the laundry
Textiles may be damaged.
Before loading, read chapter “1.
Notes on correct laundry care” first.
Open the door.
Remove any items that have been left
inside the drum.
Unfold the laundry and load loosely
into the drum.
Do not overload the drum. Doing so
will cause unnecessary wear and tear
to the laundry and affect the drying
result. It is also likely to cause more
creasing.
Laundry items may be damaged if
they get trapped by the door.
Two positions for inserting a
fragrance flacon
See the section “Fragrance flacon” for
information on how to use fragrance
flacons.
If you are not using a fragrance flacon:
push the tab down completely (see
arrow) so that the socket is closed.
Otherwise, lint will accumulate here.
Closing the door
Shut the door with a gentle swing.
3. Selecting a programme and starting it
25
Selecting a programme
The dryer is switched on by selecting a
programme, and switched off by turning
the programme selector to the
position.
Turn the programme selector to a
programme.
A drying level may light up and
durations will appear in the time display.
Selecting a drying level with a drying
programme
Cottons, Minimum iron, Delicates,
Shirts, Express, Denim, Bed linen, Pre-
ironing
The preset drying level for the
programme can be changed if
required.
Touch the sensor for the drying level
you want. It then lights up brightly.
Any drying level can be selected for the
Cottons, Express, and Bed linen
programmes. A limited range is
available with the other programmes.
3. Selecting a programme and starting it
26
Selecting timed drying programmes
and other programmes
Warm air
You can set the duration in ten-minute
increments fromminutes
tohours.
Touch the or sensor repeatedly
until the required programme duration
appears in the time display.
Cottons , Woollens handcare,
Proofing
The drying level is preset by the dryer
and cannot be altered.
Selecting Gentletumble
Delicate fabrics (with the symbol on
the care label, e.g. acrylic garments)
are dried at a lower temperature. The
programme duration is longer.
Touch the Gentle tumble sensor. It
then lights up brightly.
- Gentle tumble can be selected with
the following programmes:
– Cottons
– Minimum iron
– Shirts
– Denim
– Warm air
- Gentle tumble is always activated/
cannot be deselected with Delicates,
Pre-ironing.
3. Selecting a programme and starting it
27
Selecting Delay start
With Delay start you can delay the
start of a programme from
minutes up to .
However: Delay start cannot be used
with the Warm air programme.
Touch the sensor.
The sensor lights up brightly.
Touch the or sensor repeatedly
until the required delayed start time
appears in the time display.
Useful tip: The time will count upwards
and downwards automatically if you
touch the or sensor continuously.
Altering Delay start
If you would like to alter the Delay start
function after starting a programme, the
function must be cancelled first.
Turn the programme selector to the
position.
The tumble dryer is switched off and
Delay start is cancelled.
Select a programme.
Select a Delay start time.
Delay start countdown
- Delay start times of more than will
count down in hours and then in
minutes until the start of the
programme.
- The drum will turn briefly every hour
until the start of the programme to
reduce laundry creasing (Anti-crease
function).
Adding laundry during the Delay start
period
Follow the instructions in the sections
“Changing the programme sequence”
and “Adding or removing laundry”.
3. Selecting a programme and starting it
28
Starting a programme
Touch the flashing Start/Add laundry
sensor.
The Start/Add laundry sensor lights up.
Programme sequence
- If Delay start has been selected, the
Delay start time will start to count
down first.
- The programme starts.
- The PerfectDry indicator will only
flash/light up with programmes with
selectable drying levels (see also
“Operating the tumble dryer”).
- The dryer measures the residual
moisture of the laundry and
calculates the required programme
duration.
If a small load or dry laundry is
placed in the dryer, it is dried/aired
for a preset duration. In this case the
PerfectDry indicator does not light up
at the end of the programme.
Laundry items and fabrics can wear
out unnecessarily.
Avoid over-drying laundry and
garments.
- Before the programme finishes, the
laundry is cooled.
Energy savings
After 10minutes, the indicators dim.
The Start/Add laundry sensor flashes
slowly.
Touch the Start/Add laundry sensor
to switch the indicators on again (this
does not have any effect on a running
programme).
Adding laundry
You can add laundry after the
programme has started.
Follow the instructions in the sections
“Changing the programme sequence”
and “Adding or removing laundry”.
4. Removing the laundry at the end of the programme
29
End of programme/Anti-crease
End of programme: lights up in the
time display and the Start/Add laundry
sensor goes out.
The end of the programme is followed
by the Anti-crease phase, which will run
for up to 2hours. The Woollens
handcare programme does not support
the Anti-crease function.
See "Programmable functions -
Anti-crease".
The tumble dryer switches off
automatically.
Removing the laundry
Only open the door when the drying
process has finished. Otherwise, the
laundry will not be properly dried and
cooled down.
Pull the door open at the side with
the orange marker.
Remove the laundry.
Always remove all items from the
drum.
Items left in the dryer could be
damaged by overdrying when the
dryer is used the next time.
Turn the programme selector to the
position.
Remove the fluff from the 2 fluff filters
in the door opening (see “Cleaning
and care - Fluff filters”).
Shut the door with a gentle swing.
Empty the condensed water
container.
Programme chart
30
All weights marked with * are based on the weight of dry laundry.
Cottons Max. load 8.0 kg*
Items Cotton items such as those described under Cottons Normal with
normal residual moisture.
Notes Items are dried to a Normal level only.
Cottons Max. load 8.0 kg*
Extra dry, Normal
Items Single and multi-layered cotton fabrics. For example: towelling,
jerseywear, T-shirts, underwear, baby clothes, workwear, covers,
aprons, jackets, bathrobes, and flannelette bed linen.
Notes - Select Extra dry for multi-layered and very thick fabrics.
- Do not use Extra dry for jersey fabrics (e.g. T-shirts, underwear,
baby clothes), as they have a tendency to shrink.
Select programme “Cottons Extra dry” for testing in accordance with AS/NZS
2442.1 & AS/NZS 2442.2
Hand iron, Machine iron
Items Cotton or linen fabric requiring further processing. For example: ta-
ble linen, bed linen, or starched laundry.
Notes Roll up laundry that you want to machine iron to prevent it from
drying out until you are ready for ironing.
Minimum iron Max. load 4 kg*
Normal, Hand iron
Items Minimum iron items made of cotton, synthetic, or mixed fibre. For
example: workwear, overalls, pullovers, dresses, trousers, table linen
and leggings.
Delicates Max. load 2.5 kg*
Normal, Hand iron
Items Delicate items with the symbol on the care label made of
synthetic fibre, mixed fibre, rayon, and easy care cotton. For
example: shirts, blouses, lingerie, and appliquéd garments.
Notes The load should be reduced further for a particularly crease-free
drying result.
Programme chart
31
Woollens handcare Max. load2.0kg*
Items Woollen garments and fabric containing wool blends, e.g. pullovers,
cardigans, stockings.
Notes - Wool and wool blend items are only fluffed up; they are not dried
completely.
- Remove garments as soon as the programme has finished.
Shirts Max. load 2 kg*
Normal, Hand iron
Items Shirts and blouses.
Express Max. load 4 kg*
Extra dry, Normal, Hand iron, Machine iron
Items Fabrics with the symbol that are suitable for the Cottons
programme.
Notes The programme duration is shorter.
Denim Max. load 3 kg*
Normal, Hand iron
Items Denim garments, e.g. jackets, jeans, shirts, and skirts.
Bed linen Max. load 4 kg*
Extra dry, Normal, Hand iron, Machine iron
Items Bed linen, pillow cases.
Proofing Max. load 2.5 kg*
Items Fabrics suitable for tumble drying, e.g. microfibre fabrics, skiwear,
outerwear, fine, close-weave cotton garments (poplin), and
tablecloths.
Notes - This programme only dries to the Normal level.
- This programme includes a proofing fixing phase.
- Only use proofing agents which are stated by the manufacturer as
being "suitable for use on membrane textiles". These agents
contain fluorochemical compounds.
- Do not dry items which have been treated with proofing agents
containing paraffin. Fire hazard!
Programme chart
32
Pre-ironing Max. load 1 kg*
Normal, Hand iron
Items - Cotton and linen fabrics.
- Minimum iron items made of cotton, synthetic or mixed fibre. For
example: cotton trousers, jackets, anoraks, and shirts.
Notes - This programme smoothes out creasing caused during the spin
cycle in the washing machine.
- This programme is also suitable for dry fabrics.
- Please remove the garments as soon as the programme has
finished.
Warm air Max. load 8.0 kg*
Items - Multi-layered fabrics whose layers have different drying
characteristics, e.g. jackets, pillows, sleeping bags and other
bulky items.
- For drying individual items, e.g. bath towels, bathing suits, tea
towels and small loads.
Tip Do not select the longest drying time to start with. Check the items
as you are drying them to find the optimal time.
Changing the programme sequence
33
Changing a programme after it
has started
It is no longer possible to change the
selected programme. This prevents the
appliance being operated
unintentionally, e.g. by children.
If you adjust the programme selector,
the symbol will light up in the time
display. The symbol goes out when
you select the original programme.
Cancelling the current programme
Turn the programme selector to the
position.
The programme is cancelled.
You can now select a new programme.
Adding or removing laundry
You have forgotten an item of laundry,
but the programme has already started.
Touch the Start/Add laundrysensor.
The wordAdd will appear in the time
display. The Start/Add laundry sensor
flashes slowly.
Risk of burning when touching
hot laundry in the drum.
You could burn yourself.
Open the door.
Add or remove laundry.
You can also change the programme
selection.
Close the door.
Touch the Start/Add laundrysensor.
The programme will continue.
Exceptions to adding laundry
In some cases, e.g. during the cooling
phase or in the Proofing programme,
you cannot add laundry.
In these cases, the wordAdd is not
displayed.
In exceptional cases, the door can be
opened while the programme is
running.
Condensed water container
34
Emptying the condensed water
container
The condensed water is collected in
the condensed water container.
Empty the condensed water
container after every drying
programme.
The indicator will light up when the
maximum level in the condensed water
container is reached.
To turn the indicator light off: Open
and close the door while the dryer is
switched on.
Damage to the door and the
fascia panel when removing the
condensed water container*.
The door and the fascia panel can
get damaged.
Always close the door completely.
*This does not apply to right-hand
hinged models.
Pull out the condensed water
container.
To prevent water running out, keep it
in a horizontal position when carrying
it. Hold the condensed water
container by the front panel and at
the back.
Empty the container.
Replace the container in the dryer.
Condensed water can cause health
problems in people and animals.
Do not drink condensed water.
Condensed water can be put to
household use (e.g. used in a steam
iron or humidifier). To ensure that any
residual particles of fluff in the
condensed water are removed before
use, pass it through a fine sieve or
paper filter first.
Fragrance flacon
35
FragranceDos – 2 positions for
inserting a fragrance flacon
Fragrance flacons (optional
accessories) can be used to give your
laundry a pleasant scent.
This dryer has 2 places for inserting
fragrance flacons. This gives you a
choice of how to use them.
- Use both positions if you wish to
change from one scent to another.
You can close the fragrance flacon
that you are not using.
- Both positions can be used for a
more intense scent of the same
fragrance.
- Use one socket only if you only want
to use the one fragrance.
Risk of fire and harm to health if
fragrance flacons are used
incorrectly.
Leaked fragrance can be harmful to
your health if it comes into contact
with your body. Leaked fragrance
can cause a fire.
Before using a fragrance flacon,
please read the section "Using a
fragrance flacon (optional
accessory)” in the Warning and
Safety instructions.
Using a fragrance flacon
Removing the protective seal from
the fragrance flacon
Only hold the fragrance flacon as
illustrated. Do not hold it at an angle
or tip it as the fragrance will leak out.
Take the fragrance flacon out of its
packaging.
Do not attempt to open the fragrance
flacon.
Hold the fragrance flacon securely so
that you do not open it by mistake.
Pull off the protective seal.
Fragrance flacon
36
Inserting the fragrance flacon
Open the door of the tumble dryer.
The fragrance flacon is inserted in the
upper fluff filter. It can be inserted on
the left or the right-hand side beside
the grip.
Open the cover using the tab until the
tab is right at the top as shown.
To prevent the accumulation of fluff,
the cover of the unused socket must
remain closed.
Push the tab of the cover to the
bottom (see dark arrow), until you
hear it click into position.
Insert the fragrance flacon in the
opening as far as it will go.
Markers and must line up with
each other.
Fragrance flacon
37
Turn the outer ring clockwise a
little.
The fragrance flacon can slip out.
Turn the outer ring so that markers
and line up.
Opening the fragrance flacon
Before drying, you can select the
intensity of the fragrance.
Turn the outer ring clockwise: the
further you open the fragrance flacon,
the more intense the fragrance.
The fragrance is only released into the
laundry effectively with damp laundry
and longer drying times with sufficient
heat transfer. The fragrance will also be
noticeable in the room air during the
drying process.
Closing the fragrance flacon
After drying, the fragrance flacon should
be closed to prevent the fragrance from
escaping needlessly.
Turn the outer ring anti-clockwise
until marker b is in position _.
If you wish to dry laundry without
adding fragrance: remove the
fragrance flacon and store it in its
original packaging.
When the intensity of the fragrance is
no longer sufficient, replace the
fragrance flacon with a new one.
Fragrance flacon
38
Removing/replacing the
fragrance flacon
Turn the outer ring anti-clockwise
until markers a and b line up.
Replace the fragrance flacon with a
new one.
When not in use, you can store the
fragrance flacon in its original
packaging.
Fragrance flacons are available to
order from Miele or online at
www.miele-shop.com.
Fragrance can leak.
Do not lay the fragrance flacon
down.
- If you are keeping the fragrance
flacon in its original packaging, do
not store the packaging upright on its
edge or upside down. Otherwise, the
fragrance will leak out.
- Always store in a cool, dry place
away from direct sunlight.
- When purchasing new fragrance
flacons, only remove the protective
seal just before use.
Cleaning and care
39
Fluff filters
This tumble dryer has 2 fluff filters in the
loading area of the door. Both fluff
filters trap fluff produced during the
drying process.
Clean the fluff filters after each drying
programme. This prevents an
extension of the programme duration.
Also clean the fluff filters when the
indicator light comes on.
To make the indicator light go out,
open and close the door while the
tumble dryer is switched on.
Removing the fragrance flacon
The intensity of the fragrance will be
diminished if the fluff filters and the
plinth filter are not cleaned.
Remove the fragrance flacon. See
“Fragrance flacon - Removing/
replacing the fragrance flacon”.
Removing visible fluff
Useful tip: You can use a vacuum
cleaner so that you can remove the fluff
without touching it.
Open the door.
Pull the upper fluff filter forwards to
remove it.
Remove the fluff (see arrows).
Cleaning and care
40
Remove the fluff from the filter
surface of all the fluff filters and the
perforated laundry deflector (see
arrows).
Push the upper fluff filter back until it
clicks into position.
Close the door.
Cleaning the fluff filters and air flow
openings thoroughly
If the drying duration has become
longer or the surface of the filters is
visibly compacted with fluff, you
should clean them thoroughly.
Remove the fragrance flacon. See
“Fragrance flacon-Removing/
replacing the fragrance flacon”.
Pull the upper fluff filter forwards to
remove it.
Turn the yellow dial on the lower fluff
filter in the direction of the arrow (until
you hear it click).
Hold the dial and pull the fluff filter
forwards to remove it.
Cleaning and care
41
Use a vacuum cleaner with a long
crevice nozzle attached to remove
any visible fluff from the upper air
flow openings.
Finally, clean the fluff filters with water.
Cleaning the fluff filters with water
Wipe the smooth plastic surfaces of
the fluff filters with a damp cloth to
clean them.
Rinse the filters with warm running
water.
Shake the fluff filters thoroughly and
then dry them carefully.
Ensure the filters are dry before
replacing them. Wet filters could
cause operational faults.
Push the lower fluff filter in
completely and lock it with the yellow
dial.
Push the upper fluff filter in
completely.
Close the door.
Cleaning and care
42
Cleaning the plinth filter
Clean the plinth filter whenever the
indicator light comes on or when the
programme duration is longer than
usual.
To make the indicator light go out,
open and close the door while the
tumble dryer is switched on.
Removing the plinth filter
Press the round, indented area on the
heat exchanger access panel to open
it.
The panel will spring open.
Pull the plinth filter out by the handle.
When the plinth filter is pulled out, the
right guide pin will slide out. The guide
pin prevents the flap from being closed
without the plinth filter in place.
Cleaning and care
43
Cleaning the plinth filter
Pull the handle out of the plinth filter.
Clean the filter thoroughly under
running water.
Squeeze the plinth filter very carefully
several times as you rinse it.
Rinse the plinth filter until all visible
residues have been removed.
Use a damp cloth to remove any fluff
from the handle.
Damage caused by a damaged
or worn filter.
If the plinth filter is not functioning
properly, the heat exchanger will be
obstructed. A fault may occur.
Check the plinth filter in accordance
with the descriptions in "Problem
solving guide - Replacing the plinth
filter". If necessary, replace the plinth
filter with a new one.
Fit the plinth filter back on the handle
the right way round.
Push the plinth filter in completely.
Insert the right guide pin at the same
time.
Cleaning and care
44
Cleaning the plinth filter flap
Use a damp cloth to remove any fluff.
Make sure that you do not damage
the rubber seal when doing this.
Close the heat exchanger access
panel.
Damage or ineffective drying
when drying without a plinth filter or
with the heat exchanger flap open.
An excessive accumulation of fluff
can damage the dryer in the long
term. If the system is not leak-proof,
this can lead to ineffective drying.
Only operate the dryer with the plinth
filter fitted correctly and the heat
exchanger access panel closed.
Cleaning the dryer
Disconnect the dryer from the
electricity supply.
Damage due to the use of
unsuitable care products.
Unsuitable care products could
damage plastic surfaces and other
parts.
Do not use solvents, abrasive
cleaners, glass cleaners or all-
purpose cleaners.
Clean the dryer and the seal on the
inside of the door only with a slightly
damp, soft cloth and mild detergent
or soapy water.
Dry all parts with a soft cloth.
Problem solving guide
45
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
Indicator lights or information in the time display
Problem Possible cause and remedy
The indicator light
lights up at the end of
the programme.
The tumble dryer is not working correctly or
economically. Possible causes could be clogging
caused by fluff or detergent residues.
To switch off the indicator light, open and close
the door (with the tumble dryer switched on).
Please see "Cleaning and care" for notes on
cleaning.
Clean the fluff filters.
Also check the plinth filter and clean it if
necessary.
You can influence when the indicator light comes
on.
Follow the instructions in "Programmable functions
- Airways indicator".
The indicator light
comes on. and
light up after a
programme has been
cancelled, a signal tone
sounds.
The system is clogged by fluff or detergent residues.
To deactivate the message, turn the programme
selector to the position.
Clean the fluff filters and the plinth filter.
Please see "Cleaning and care" for notes on
cleaning.
Check that the fluff filters and the plinth filter are
not damaged or worn.
If all fluff filters are damaged, deformed or cannot be
cleaned anymore, they must be replaced. For
information on when to replace a plinth filter that is
not functioning properly, refer to "Problem solving
guide - Replacing the plinth filter".
Problem solving guide
46
Problem Possible cause and remedy
The indicator light
comes on. and
continue to flash after a
programme has been
cancelled despite
thorough cleaning.
The plinth filter looks clean after thorough cleaning.
However, the programme is terminated again and the
error message appears again. There are probably still
deeper residues which could not be removed.
To deactivate the message, turn the programme
selector to the position.
Check all of the possible causes described below.
The heat exchanger is clogged.
Check the heat exchanger. Follow the instructions
in "Problem solving guide - Checking the heat
exchanger".
The plinth filter is clogged on a deeper level.
Check the plinth filter. Follow the instructions in
"Problem solving guide - Replacing the plinth
filter".
If the plinth filter is not deformed or defective, you
can regenerate it in the washing machine. Follow
the instructions in "Problem solving guide -
Regenerating the plinth filter".
The indicator light
comes on after a
programme has been
cancelled and a signal
sounds.
The condensed water container is full or there is a
kink in the drain hose.
To switch off the indicator light, open and close
the door (with the tumble dryer switched on).
Empty the condensed water container.
Check the drain hose.
See "Cleaning and care".
lights up. The programme selector has been moved.
Select the original programme. The time remaining
will appear in the display again.
Bars flash in the display
at the end of a
programme:
.........
The programme has finished but the laundry has not
yet cooled down.
Either remove the laundry and spread it out to cool
down or leave it in the tumble dryer to cool down
during the cooling phase.
Lines flash and light up
after switching on: .
Programme selection is
not possible.
Access via a code has been activated.
See “Programmable functions - PIN code”.
Problem solving guide
47
Problem Possible cause and remedy
and another number
combination flash after
a programme has been
cancelled, a signal
sounds.
There is no obvious cause.
Switch the dryer off and then on again.
Start a programme.
If the programme terminates again with the same
error message, then there is a fault. Contact Miele.
: lights up and the
programme has been
cancelled, a signal
sounds.
The laundry is unevenly distributed or has rolled up.
Untangle the laundry and remove a few items, if
necessary.
Switch the dryer off and then on again.
Start a programme.
Problem solving guide
48
Unsatisfactory drying results
Problem Possible cause and remedy
The laundry is not
sufficiently dry.
The load consisted of different types of fabric.
Finish drying using the Warm air programme.
Select a more suitable programme next time.
Useful tip: You can alter the drying levels for some
programmes. See “Programmable functions”,
sections “ Cottons drying levels”, “ Minimum
iron drying levels”.
Laundry or feather filled
pillows smell after
drying.
The laundry was washed with insufficient detergent.
Feathers are a natural product and this is quite
normal.
Laundry: use sufficient detergent next time.
Pillows: take out of the tumble dryer and aerate.
Use a fragrance flacon (available as an optional
accessory).
Items made of synthetic
fibres are charged with
static electricity after
drying.
Synthetic fibres tend to attract static charge.
Static charge can be reduced by adding a fabric
softener to the final rinse in the washing
programme.
There is a build-up of
fluff.
Fluff is principally the result of friction when garments
are being worn and to some extent when they are
being washed. Machine drying hardly causes any
fluff to form.
Fluff is collected by the fluff filters and the plinth filter
and can be removed easily.
See “Cleaning and care”.
Problem solving guide
49
The drying process takes a long time.
Problem Possible cause and remedy
The drying process
goes on for too long or
even switches off.*
The room in which the tumble dryer is located is too
warm.
Ventilate the room thoroughly.
Detergent residues, hair and fine fluff can clog the
filters.
Clean the fluff filters and the plinth filter.
Remove visible fluff from the heat exchanger.
The laundry is unevenly distributed or has rolled up.
The tumble dryer has been overloaded.
Untangle the laundry and remove a few items, if
necessary.
Start a programme.
The cool air intake (bottom right grille) is blocked.
Move any objects, such as a laundry basket, away
from the dryer.
The laundry is too damp.
Spin the laundry using a higher spin speed in the
washing machine.
Metallic components, e.g. zippers, have prevented
the dryer from registering the correct moisture level.
Open the zippers next time.
If the problem recurs, dry these items using the
Warm air timed drying programme.
* Switch the tumble dryer off and on again before starting a new programme.
Problem solving guide
50
Other problems
Problem Possible cause and remedy
There are humming
noises.
The compressor is operating.
These noises are quite normal and do not indicate a
fault.
A programme cannot be
started.
There is no obvious cause.
Connect the tumble dryer to the mains electricity
supply
Turn on the tumble dryer.
Close the door.
Check whether the mains fuse has tripped.
Has there been a power cut? When power is
restored, any previously running programme will
restart automatically.
Only the Start/Add
laundrysensor flashes
slowly when the
programme is running.
Once the programme has been running for
10minutes, the indicators go out. The Start/Add
laundry sensor flashes slowly. This is not a fault, but
a normal function to help save energy.
Touch a sensor to switch on the indicators.
See “Programmable functions”, section “ Control
panel standby status”.
The tumble dryer is
switched off.
The tumble dryer switches off automatically after
15minutes if no further selections are made. This is
not a fault, but a normal function.
Select a programme.
The interior drum
lighting does not come
on.
The drum lighting will switch off automatically ...
... when the door is closed.
... after a few minutes when the door is open (to
save energy).
If the dryer is switched on, the drum lighting will
come on when the door is opened.
Problem solving guide
51
Replacing the plinth filter
The heat exchanger can clog up.
Replace the plinth filter immediately
(replacement filters are available as
an optional accessory) if you see the
following signs of wear before or
after cleaning.
Poor fit
The edges of the plinth filter do not sit
properly and the filter is deformed. Fluff
will blow into the heat exchanger
unfiltered through edges that do not sit
properly. This will eventually cause
obstruction in the heat exchanger.
Deformations
Deformations indicate that the filter has
become worn.
Problem solving guide
52
Cracks, tears, indentations
Fluff will blow into the heat exchanger
unfiltered through cracks and tears and
will cause obstruction. This will
eventually cause obstruction in the heat
exchanger.
White residues or residues of other
colours
Residues arise from laundry fibres and
residual detergent components. They
can be found on the front and side
edges of the plinth filter. In extreme
cases, they can form stubborn crusts.
Residues are a sign that the filter no
longer has a snug fit at the sides, even
if it appears to be perfect.
Fluff is getting in unfiltered at the edges.
Regenerate the plinth filter (see
"Problem solving guide - Regenerating
the plinth filter"). If the plinth filter shows
these residues again soon, the plinth
filter must be replaced.
Problem solving guide
53
Regenerating the plinth filter
You can regenerate one or more dirty
plinth filters in the washing machine.
The plinth filter will be ready for use
again.
Before regenerating it, check whether
the plinth filter is still in good
condition. Check the plinth filter in
accordance with the descriptions in
"Problem solving guide - Replacing
the plinth filter". If the plinth filter is
worn, replace it.
Wash one or more plinth filters
separately without garments. Do not
add laundry detergent.
Select a short wash programme with
a maximum temperature of 40°C and
a maximum spin speed of 600 rpm.
After washing and spinning, you can
refit the plinth filter.
Checking the heat exchanger
Risk of injury from sharp cooling
fins.
You could cut yourself.
Do not touch the cooling fins.
Look to see if fluff has accumulated.
If fluff is present, it must be removed.
Damage due to incorrect
cleaning of the heat exchanger.
The tumble dryer will not dry if the
cooling fins are damaged or bent.
Clean using a vacuum cleaner with a
dusting brush attached. Only pass
the vacuum cleaner dusting brush
over the fins lightly, without applying
any pressure.
Carefully vacuum up any fluff and
residues.
Service
54
Contact in case of fault
In the event of any faults which you
cannot remedy yourself, please contact
Miele.
You can book a Miele customer
service call-out online at
www.miele.com.au/service or
www.miele.co.nz/service.
Contact information for Miele can be
found at the end of this booklet.
Please quote the model and serial
number of your appliance when
contacting Miele. This information can
be found on the data plate.
The data plate is visible when the door
is open.
Optional accessories
Optional accessories for this tumble
dryer are available from Miele (see
contact details at the back of these
instructions).
You also can order these and other
useful products from the Miele online
shop.
Drying basket
The drying basket is suspended in the
drum and does not rotate with the
drum. This enables items which must
not be subjected to mechanical action
to be dried or aired.
Fragrance flacon
Fragrance flacons can be used in your
tumble dryer to add a pleasant
fragrance to your laundry.
Warranty
The manufacturer's warranty for this
appliance is 2years.
For further information, please refer to
your warranty booklet.
Installation
*INSTALLATION*
55
Front view
a
Mains connection cable
b
Control panel
c
Condensed water container
– empty after every drying cycle
d
Door
– do not open during drying
e
Heat exchanger access panel
– do not open during drying
f
Four height adjustable screw feet
g
Cool air intake grille
– do not obstruct with a laundry
basket or other objects
h
Hose for external drainage of
condensed water
Installation
*INSTALLATION*
56
Rear view
a
Protruding lid for holding when
moving the tumble dryer (see
arrows)
b
Drain hose for condensed water
c
Hook for winding the mains cable
around during transport
d
Mains connection cable
Transporting the tumble dryer
Danger of injury to people and
damage to property caused by
moving the appliance incorrectly.
If the tumble dryer tips over, there is
a danger of injury to people and
damage to property.
Ensure that the tumble dryer is stable
during transportation.
If the tumble dryer is being
transported horizontally, it must only
be tipped onto its left or right side.
If the tumble dryer is being
transported upright and you are using
a handcart or trolley, you must only
transport it with its left or right side
resting on the handcart or trolley.
Transporting the tumble dryer to its
installation site
Make sure the fixings at the back
of the lid are secure.
Otherwise there is a danger of the lid
being pulled off when carrying the
appliance.
Before carrying the appliance, check
that the lid is secure where it
protrudes at the back of the
appliance.
Carry the tumble dryer by the front
feet and by the lid where it protrudes
at the back of the appliance.
Installation
*INSTALLATION*
57
Installation
Levelling the dryer
The appliance must not be
installed behind a lockable door, a
sliding door or a door with a hinge on
the opposite side to that of the
tumble dryer, in such a way that a full
opening of the tumble dryer door is
restricted.
Make sure the dryer door can be
opened without hindrance after
installation.
The appliance must stand perfectly
level to ensure safe and proper
operation.
The screw feet can be adjusted to
compensate for any unevenness in the
floor.
Downtime after installation
Damage to the tumble dryer by
switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
switching it on.
Installation
*INSTALLATION*
58
Ventilation
The cool air intake at the front of the
tumble dryer must not be blocked or
covered. This would hinder a
sufficient intake of cool air for the
heat exchanger.
Do not block the gap between the
bottom of the tumble dryer and the
floor with plinth facings, deep pile
carpet etc. This would hinder a
sufficient flow of air to the tumble
dryer.
Adequate ventilation has to be
provided to avoid the backflow of
gases into the room from appliances
burning other fuels, including open
fires.
Air which is taken in to cool the heat
exchanger is then blown back out of the
dryer and warms up the air in the room.
Ensure sufficient ventilation of the
room, e.g. by opening a window. The
drying time will otherwise take longer
(higher energy requirement).
Before moving the tumble dryer
again (e.g. when moving house)
After each use a small quantity of
condensed water will collect in the area
of the pump. This water can run out if
the tumble dryer is tipped up when it is
being moved. Recommendation: Run
the Warm air programme for
approximately 1minute without a load
before moving the tumble dryer. Any
remaining condensed water will then be
fed into the condensed water container,
which can then be emptied, or can
drain out through the drain hose.
Additional installation
requirements
Suitable for pushing under a worktop
This tumble dryer is suitable for pushing
under a worktop.
Appliance defect due to a build-up of
heat.
Make sure there is adequate room
for warm air from the dryer to be
directed away.
- The appliance lid cannot be removed.
- The electrical socket must be located
in an accessible position near the
appliance.
- Drying durations may increase
slightly.
Optional accessories
– Washer-dryer stack
The tumble dryer can also be combined
with a Miele washing machine in a
washer-dryer stack. The appropriate
Miele washer-dryer stacking kit is
required.
Installation
*INSTALLATION*
59
Externally draining condensed
water
Notes
When drying is in progress,
condensed water is pumped into the
condensed water container through
the drain hose which is located at the
back of the dryer.
The condensed water can also be
drained away via the drain hose. The
condensed water container will then not
need to be emptied.
Hose length: 1.49m
Maximum delivery head: 1.00m
Maximum drain hose length: 4.00m
Drainage accessories
- Supplied: adapter (b), hose clip (c),
hose holder (e);
- Available to purchase: “Non-return
valve” kit for connection to an
external water connection. Non-
return valve (d), hose extension (a)
and hose clips (c) are supplied with
the kit.
Installation conditions requiring a
non-return valve
Danger of condensed water
backflow.
Water could flow back into the
tumble dryer or be drawn into it.
Backflow water could damage the
tumble dryer and also the room in
which it is located.
The non-return valve should be used
if the end of the hose is immersed in
water, or if other water connections
are installed.
Maximum delivery head with non-return
valve fitted: 1.00m
Installation conditions requiring the
fitting of a non-return valve:
- Drainage into a laundry tub or floor
gully where the end of the hose is
immersed in water.
- Connection to a sink drain outlet.
- Connection to a drainage system
already in use by another appliance,
e.g. a dishwasher or washing
machine.
If the non-return valve is incorrectly
fitted the appliance will not drain.
The non-return valve has to be fitted
with the arrow on it pointing in the
direction of flow.
Installation
*INSTALLATION*
60
Arranging the drain hose
Damage to the drain hose
through incorrect handling.
The drain hose can suffer damage
and leak.
Do not pull on the drain hose and do
not stretch it or allow it to become
kinked.
There will be a small amount of residual
water left in the drain hose. Have a
container ready to collect this.
Pull the drain hose off its connection
(light arrow).
Pull the hose out of the holders (dark
arrows) and unwind it.
Allow any residual water to run into a
container.
Examples
Drainage into a laundry tub or floor gully
Use the hose holder to secure the drain
hose.
Risk of water damage.
Should the end of the hose come
loose, overflowing water can cause
damage.
Secure the drain hose carefully (e.g.,
by tying it) to make sure it cannot
slip.
The non-return valve can be fitted in the
end of the hose.
Installation
*INSTALLATION*
61
Direct connection to a sink drain outlet
Use the hose holder, the hose clips
and the non-return valve (available to
purchase).
1. Adapter
2. Nut
3. Hose clip
4. End of the hose (secured with the
hose holder)
5. Non-return valve
6. Tumble dryer drain hose
Fit the adapter 1 to the sink drain
outlet using the nut 2.
The nut is usually fitted with a washer
which must be removed.
Attach the end of the hose 4 to the
adapter 1.
Use the hose holder.
Use a screwdriver to tighten the hose
clip 3 up close to the nut.
Fit the non-return valve 5 to the
tumble dryer drain hose 6.
The non-return valve 5 has to be
fitted so that the arrow points in the
direction of flow (i.e. towards the
sink).
Secure the non-return valve using
hose clips.
Installation
*INSTALLATION*
62
Changing the door hinging
You can change the door hinging on
this tumble dryer yourself.
For safety reasons, the tumble dryer
must be disconnected from the
electricity supply before changing
the door hinging.
You will need:
- a T20 and T30 Torx screwdriver
- a flat head screwdriver or pointed
pliers
- the lock catch cover supplied
- the door hinge cover supplied
- a soft surface (e.g. a tablecloth)
Changing the hinging over
1. Remove the door from the dryer
Open the door.
Use a T30 Torx screwdriver to
unscrew the two screws on the base
plate of the door hinge .
The door cannot fall off as it is held in
place by two pins.
Hold the door securely and pull it
forwards: to remove the door you will
need to pull the base plate of the
hinge with its two pins out of the
dryer.
To avoid scratching the door, place it
outer side downwards on a soft
surface (e.g. a tablecloth).
2. Change over the door lock on the
dryer
Use a T30 Torx screwdriver to
unscrew the two screws on the door
lock .
Use the screwdriver to press the door
lock upwards.
The door lock will spring out of its
position and can then be removed.
Installation
*INSTALLATION*
63
Turn the door lock through 180°.
Press the door lock into the openings
on the opposite side of the door
opening.
Adjust the position of the door lock
so that the screw holes line up with
those in the front panel of the dryer
.
Secure the door lock with the two
Torx screws.
3. Remove the lock catch from the
door
First take the rubber seal off the door
and place this to one side.
Use a T20 Torx screwdriver to remove
the screw on the lock catch.
Pull off the lock catch together with
the lock catch cover .
Installation
*INSTALLATION*
64
Remove the lock catch from the
cover.
This lock catch cover is no longer
needed. However, please keep it in a
safe place.
Insert the lock catch into the new
cover supplied with the dryer.
Place this new cover to one side for
now.
4. Dismantle the door hinge from the
door
The door hinge cover must be
unclipped from position and then
removed.
Use a screwdriver to press down
gently on position on the door
hinge cover.
Using a little force, pull out the door
hinge cover .
This door hinge cover is no longer
needed. However, please keep it in a
safe place.
Installation
*INSTALLATION*
65
5. Change the door hinge on the door
The door hinge is secured to the door
with 2 angled rods. These rods need
to be removed with a screwdriver or
pointed pliers.
Insert the end of the screwdriver
blade under the rod and rotate it
so it is in an upright position. Do the
same to the other rod.
Use the screwdriver or pointed pliers
to guide first one then the other
rod to the middle until each can be
removed.
Useful tip: In some circumstances, the
rods can be difficult to dislodge.
Moving the screwdriver with a levering
action while pulling at the same time
may help to work the rods free.
Remove the door hinge and rotate it
180°.
Refit the door hinge on the opposite
side of the door.
Secure the door hinge with the two
rods .
Position the tip of the screwdriver
under the end of the rod and then
push it into its resting position.
Installation
*INSTALLATION*
66
You now need the new door hinge
cover supplied with the tumble dryer.
Fit the new door hinge cover and
clip it into position.
6. Change the lock catch on the door
You now need the new lock catch
cover supplied with the dryer which
you have already fitted with the lock
catch.
Push the lock catch cover with its
lock catch into position.
Tighten the screw with a T20 Torx
screwdriver.
Installation
*INSTALLATION*
67
Refitting
7. Refit the door
Press the rubber seal back into the
groove on the door.
Position the door in front of the dryer.
Fit the base of the door hinge with its
two pins into the openings on the
dryer.
The base of the door hinge must be
flush with the front panel of the dryer.
The door cannot fall off in this position.
Screw the door securely to the dryer
at the base of the door hinge with
a T30 Torx screwdriver.
Now that you have changed the
door hinging, the door will open from
the opposite side.
Push the orange marker round to the
other side so that you will see at
which side to pull the door open.
Note
Please keep the lock catch and
door hinge covers which were no
longer needed in a safe place. These
will be required if, for example, you
move house and need to change the
door hinging back to its original
position.
Installation
*INSTALLATION*
68
Electrical connection
The tumble dryer is supplied with a
mains cable with moulded plug ready
for connection to a socket.
The socket should be easily accessible
after the tumble dryer has been
installed. If the socket is not easily
accessible, ensure that a suitable
means of disconnection is provided on
the installation side for each pole.
Risk of fire from overheating.
Connecting the tumble dryer to a
multi-socket plug adapter or to an
extension lead can overload the
cable.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
All electrical work must be carried out
by a suitably qualified and competent
person in strict accordance with
national and local safety regulations.
For safety reasons, we recommend
using a suitable residual current device
(RCD) in the relevant electrical
installation for connecting the tumble
dryer.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of
the same type (available from Miele).
For safety reasons, such replacement
may only be carried out by a suitably
qualified and competent electrician or a
Miele authorised service technician, in
order to avoid a hazard.
The data plate indicates the nominal
power consumption and the connection
data. Compare this information with the
data of the on-site electrical
connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation with
a self-sufficient or non-mains
synchronous energy supply system
(e.g. isolated networks, back-up
systems) is possible. A requirement for
the operation is that the energy supply
system complies with all current local
and national requirements that apply to
stand-alone, solar and/or battery
systems.
The protective measures provided in
the domestic installation and in this
Miele product must also be assured in
their function and operation in isolated
operation or in non-mains synchronous
operation, or replaced with equivalent
measures in the installation.
Technical data
69
Height 850mm
Width 596mm
Depth 643mm
Depth with door open 1077mm
Suitable for pushing under a worktop Yes
Height for pushing under a worktop 850mm (+8/-2mm)
Width for pushing under a worktop 600 mm
Depth for pushing under a worktop 600 mm
Suitable for stacking Yes
Weight Approx. 62 kg
Drum volume 120l
Maximum capacity 8.0 kg (weight of dry laundry)
Capacity of condensed water container 4.8l
Drain hose length 1.49m
Maximum delivery head 1.00m
Maximum drain hose length 4.00m
Length of connection cable 2.00m
Voltage See data plate
Rated load See data plate
Fuse rating See data plate
Test certificates awarded See data plate
Energy consumption See “Consumption data”
LEDs Class 1
Consumption data
70
Load
1
Final spin speed of
the washing
machine
Residual
moisture
Energy Duration
kg rpm % kWh min.
Cottons 8.0
4.0
1000
1000
60
60
1.41
0.78
177
106
Cottons Normal 8.0
8.0
8.0
1200
1400
1600
53
50
44
1.25
1.20
1.05
160
152
136
Cottons Normal
incl. Gentle tumble
8.0 1000 60 1.47 188
Cottons Hand iron 8.0
8.0
8.0
8.0
1000
1200
1400
1600
60
53
50
44
1.20
1.05
1.00
0.85
154
135
126
107
Minimum iron Normal 4.0 1200 40 0.48 71
Minimum iron Normal
incl. Gentle tumble
4.0 1200 40 0.48 71
Proofing 2.5 800 50 0.82 117
Woollens handcare 2.0 1000 50 0.02 5
Express Normal 4.0 1000 60 0.82 114
Shirts Normal 2.0 600 60 0.45 71
Denim Normal 3.0 900 60 1.00 146
Outerwear Normal 2.5 800 50 0.55 82
1
Weight of dry laundry
All data was calculated using EN 61121 unless otherwise stated.
Consumption data can vary from the nominal values given above depending on the size of the
load, types of textiles, residual moisture levels after spinning and fluctuations in the electricity
supply.
Using the Cottons Normal programme is recommended for a mixed cotton load and is the programme
used in energy consumption tests to AS/NZS 2442 (Refer to www.energyrating.gov.au website for
consumption data).
Programmable functions
71
Programming
You can use the programmable
functions to alter the dryer's
electronics to suit your requirements.
Programming is carried out by following
these steps (, , ... ) using the
sensors.
Accessing the programming level
Before you begin, ensure the following:
- Make sure that the programme
selector is turned to any of the
programme settings.
- The door of the dryer is open.
Touch the Start/Add laundrysensor
and hold it down whilst carrying out
steps –.
Close the tumble dryer door.
Wait until the Start/Add
laundrysensor, which will now be
flashing quickly, lights up
constantly...
...then release the Start/Add
laundrysensor.
will light up in the time display.
Choosing and selecting
programmable functions
The number of the programmable
function will appear in the display as
and a number:
e.g. .
Touch the or sensor to scroll to
the next or previous programmable
function:
Programmable function
Cottons drying levels
Minimum iron drying levels
Cooling temperature
Buzzer volume
Keypad tone
PIN Code
Conductivity
Control panel standby status
Memory
Anti-crease
Buzzer is active
Airways indicator
Backlight brightness dimmed
Confirm the selected programmable
function by touching the Start/Add
laundry sensor.
Programmable functions
72
Editing and saving the programmable
function
You can either switch a programmable
function on or off or select different
options.
The programmable function option will
appear in the time display as and a
number:
e.g..
Touch the or sensor to switch
the programmable function on/off or
to select an option:
Programmable function
Available options
X
X X X X X
X X X X X X
X X X X to
X
X X
X
X
X
X
X X
X
X X X
X X X X X X
X = can be selected
= factory default setting
Confirm your selection with the Start/
Add laundrysensor.
The number of the programmable
function, e.g. will light up again.
Exiting the programming level
Turn the programme selector to the
position.
The settings have been changed. You
can alter the settings again at any time.
Programmable functions
73
Cottons drying levels
You can adjust the drying levels for the
Cottons programme to one of 7
different levels.
Options
= even damper
= damper
= a little damper
= factory setting
= a little drier
= drier
= even drier
Exception:
The Cottons programme will
remain unchanged.
Minimum iron drying levels
You can adjust the drying levels for the
Minimum iron programme to one of 7
different levels.
Options
= even damper
= damper
= a little damper
= factory setting
= a little drier
= drier
= even drier
Cooling temperature
The laundry will be cooled to 55°C
before the end of the programme. It
can be cooled to a lower temperature,
but this will prolong the cooling phase.
The level is set in increments of 1°C.
= factory setting 55°C
= 54°C
= 53°C
= 52°C
= 51°C
= 50°C
= 49°C
= 48°C
= 47°C
= 46°C
= 45°C
= 44°C
= 43°C
= 42°C
= 41°C
= 40°C
Buzzer volume
The buzzer volume can be changed.
= quieter
= factory setting
Programmable functions
74
Keypad tone
The tone that sounds when a sensor is
pressed can be changed or switched
off.
Options
= Off
= Factory default setting
= Louder
PIN Code
The code prevents your machine
being used without your knowledge.
When the code has been activated, you
have to enter the code after switching
the dryer on. Otherwise the dryer
cannot be operated.
Options
= Off (factory setting)
= On
If option has been selected, after
switching on you will have to enter the
code before you can operate the dryer.
Using the dryer when the code is
activated
After the dryer is switched on, will
flash in the time display.
The code is and cannot be altered.
Touch the sensor until a flashes
in the first position.
Confirm with the Start/Add laundry
sensor.
Enter the two other numbers in the
same way.
The dryer is ready for use after has
been entered and confirmed.
Conductivity
This programmable function should
only be altered if the water is so soft
that it is likely to cause the electronics
which sense residual moisture in the
laundry to give false readings.
Options
= Off (factory setting)
= low
Important
This programmable function should only
be set if the water used for washing the
laundry is extremely soft with a
conductivity reading (electrical
conductivity) of less than 150 μS/cm. To
find out the conductivity level of your
mains water, contact your local water
authority.
Make sure that you only activate
for the condition described above.
Otherwise, drying results can be
unsatisfactory.
Programmable functions
75
Control panel standby
status
To save energy, the time display and
the sensors will go out once the
programme has been running for
10minutes. In this case, the Start/Add
laundry sensor flashes slowly.
However, there is no switch-off in the
event of a fault.
Options
= Off
The time display and the
sensors do not go out.
= On (factory setting)
The time display and the
sensors will go out once the
programme has been running
for 10minutes.
“Switch on” display again
- Touch the Start/Add laundrysensor.
This will not affect a running
programme.
Memory
You can set the following: The
electronics will memorise the drying
level and any options selected for the
current drying programme. It will also
memorise the duration of the Warm
air/DryFresh programme. When the
programme is selected again, these
memorised settings will appear in the
display.
Options
= Off (factory setting)
= On
Exception:
The Cottons programme will
remain unchanged.
Anti-crease
After the programme has finished, the
drum will continue to rotate at intervals
for a max. of 2 hours. This helps
prevent creasing if the laundry is not
removed immediately after the end of
the programme. The duration can be
shortened.
Options
= no Anti-crease
= 1 hour
= 2 hours (factory setting)
Programmable functions
76
Buzzer is active
The buzzer sounds to let you know the
programme has finished.
Options
= Off (factory setting)
= On
Airways indicator
Fluff must be removed after every
drying programme. In addition, this
indicator will remind you to clean the
filters when a certain amount of fluff
has collected in them:
You can decide at what level of fluff
this reminder should be given.
You will have an idea of how often this
should be done after a few drying
programmes.
Options
= Off
does not light up. However,
if there is a very severe
blockage in the ducting, the
programme will be cancelled
and the error message
will appear in the display
regardless of this option.
= Heavy
lights up when there is a
heavy build-up of fluff.
= Normal (factory setting)
= Light
lights up when there is only
a small build-up of fluff.
Backlight brightness
dimmed
The brightness of the dimmed sensors
in the control panel can be set to one
of 7 different levels.
The brightness will change as soon as a
different setting is chosen.
Options
= darkest level
= factory setting
...
= brightest level
Miele Head Office Melbourne:
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd. Miele New Zealand Limited
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
Miele Experience Centre
and Head Office Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Wellington:
183 Featherston Street
Wellington 6011
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
205-207 Stirling Highway
Claremont, WA 6010
1300 464 353 (1300 4 MIELE)
www.miele.com.au
Miele Experience Centre Doncaster:
1136/7 Doncaster Shopping Centre
619 Doncaster Rd, Doncaster, VIC 3108
M.-Nr. 12 127 240 / 00en-AU, NZ
TWF 720 WP
