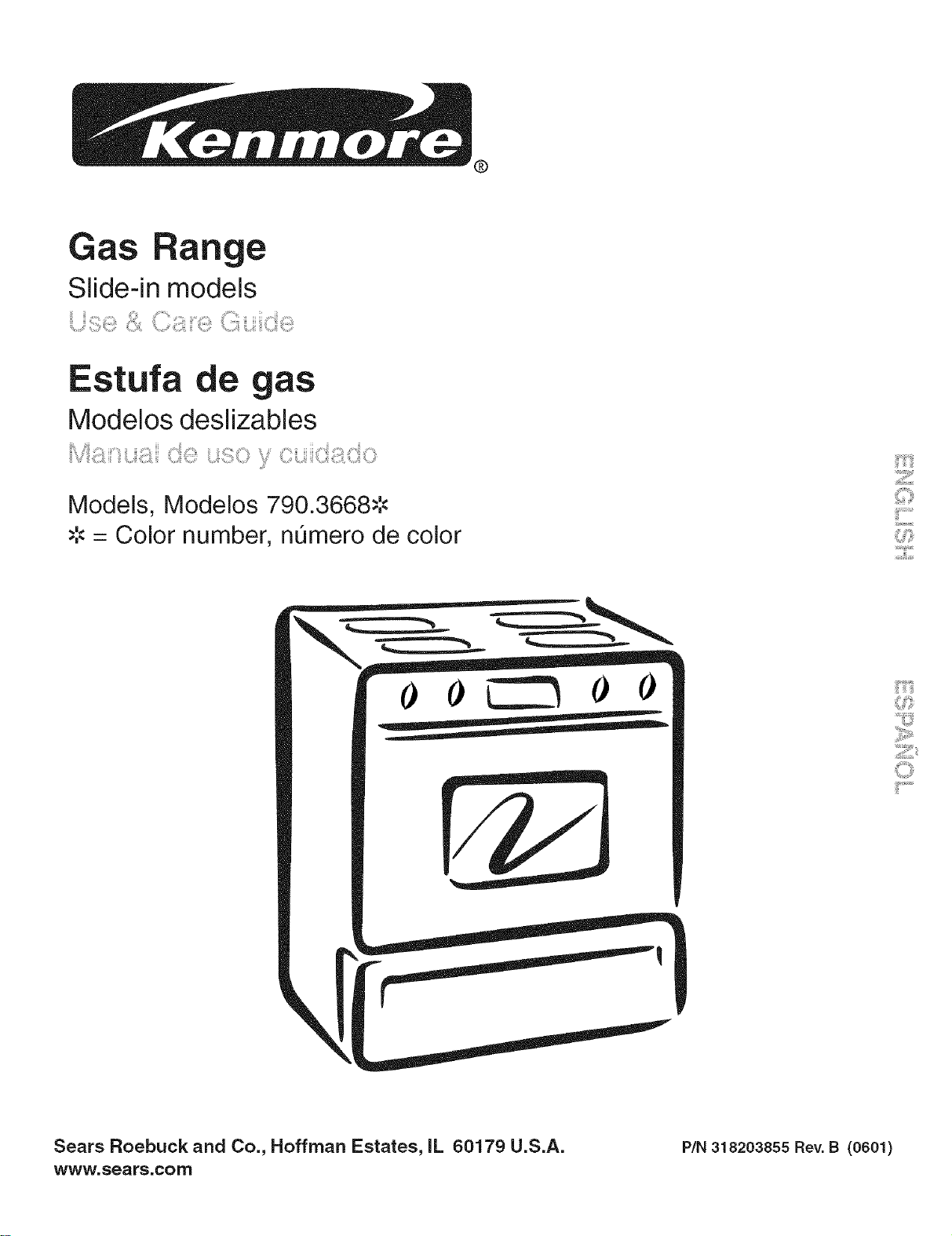

Gas Range
Slide-in models
iii , ,
Estufa de gas
Modelos deslizables
Models, Modelos 790.3668_':
.,. = Color number, nQmero de color
(:i>
_, _ __..
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www, sears,com
P/N 318203855 Rev. B (0601)

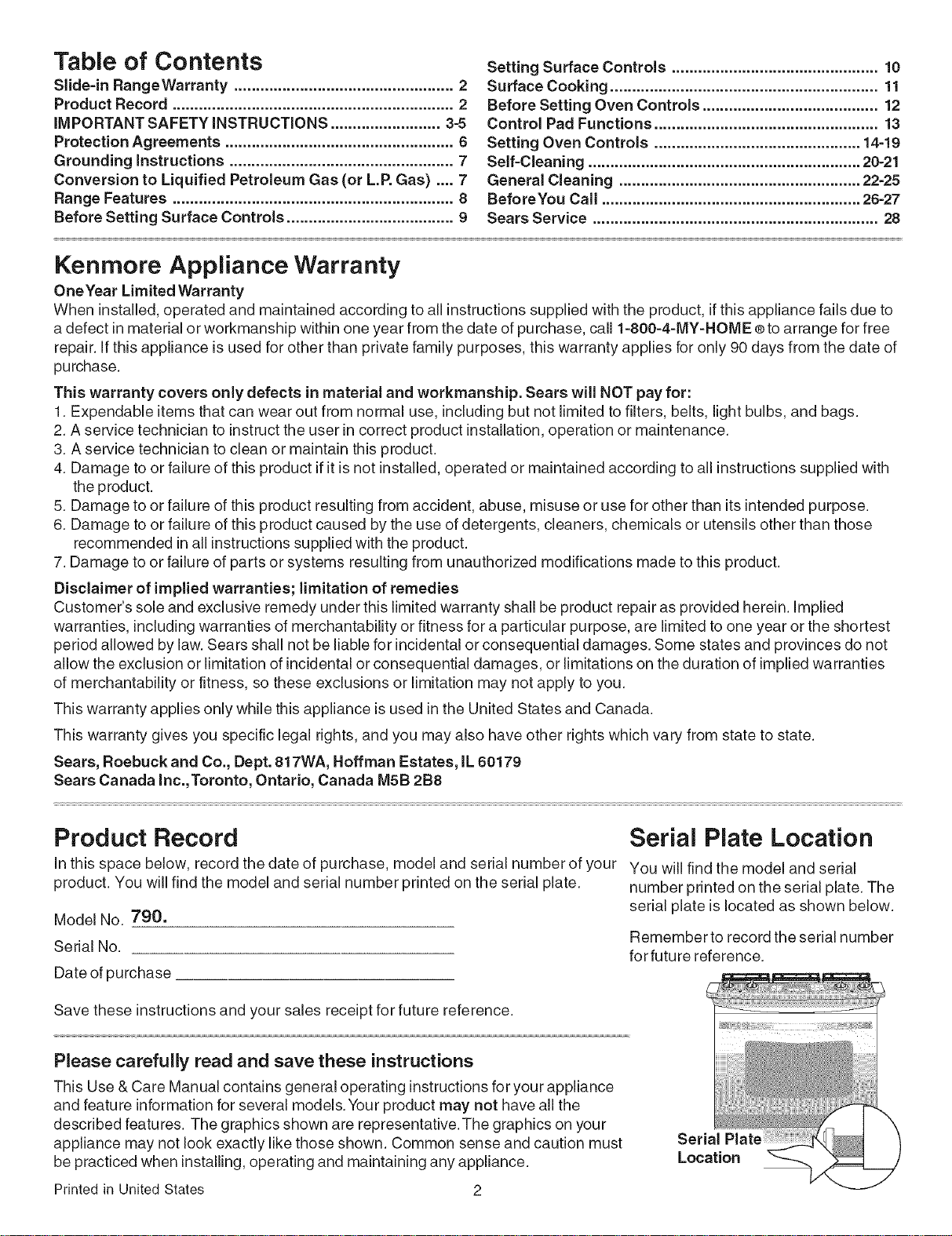

Table of Contents
Slide=in RangeWarranty .................................................. 2
Product Record ................................................................ 2
IMPORTANT SAFETY iNSTRUCTiONS ......................... 3-5

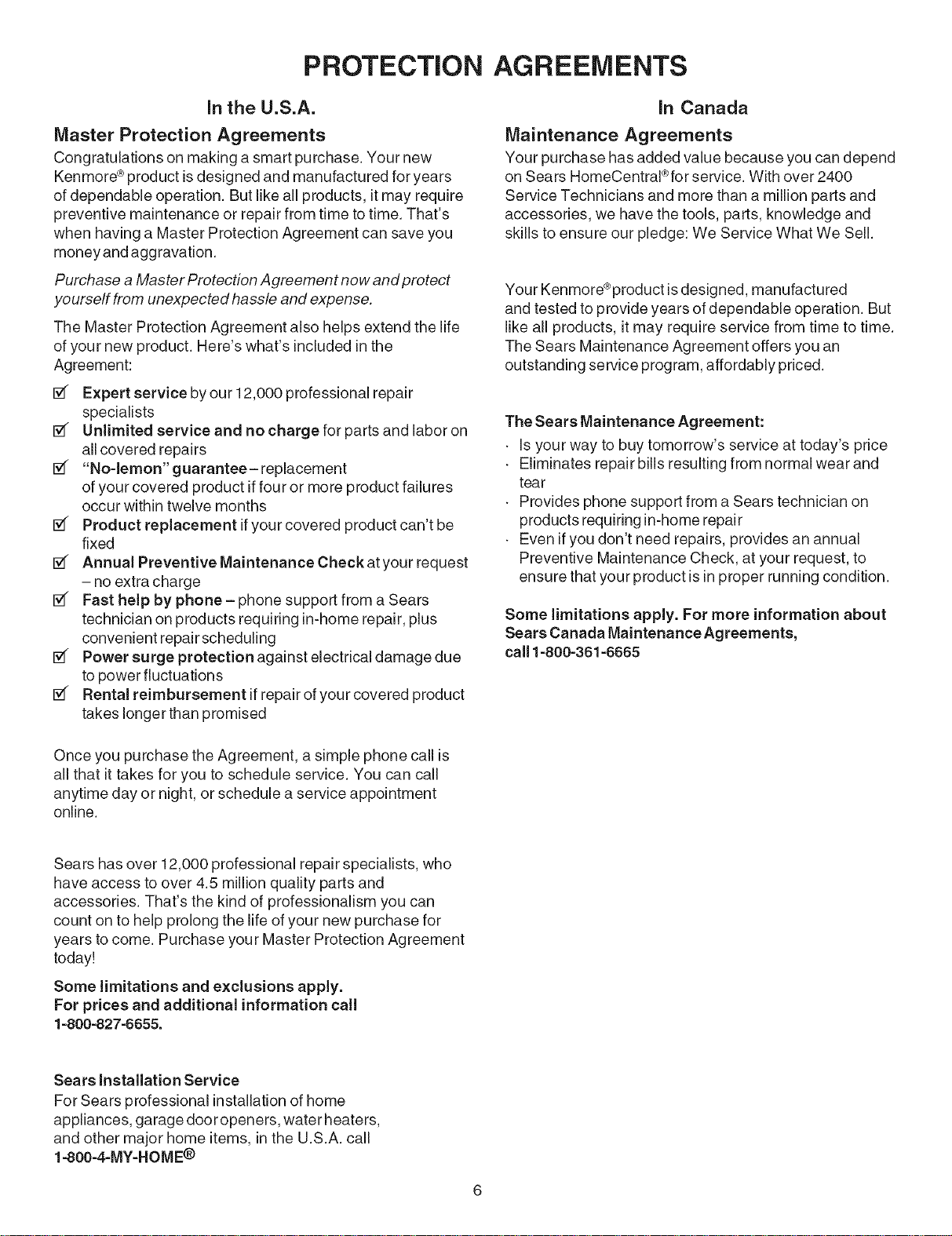

Protection Agreements .................................................... 6

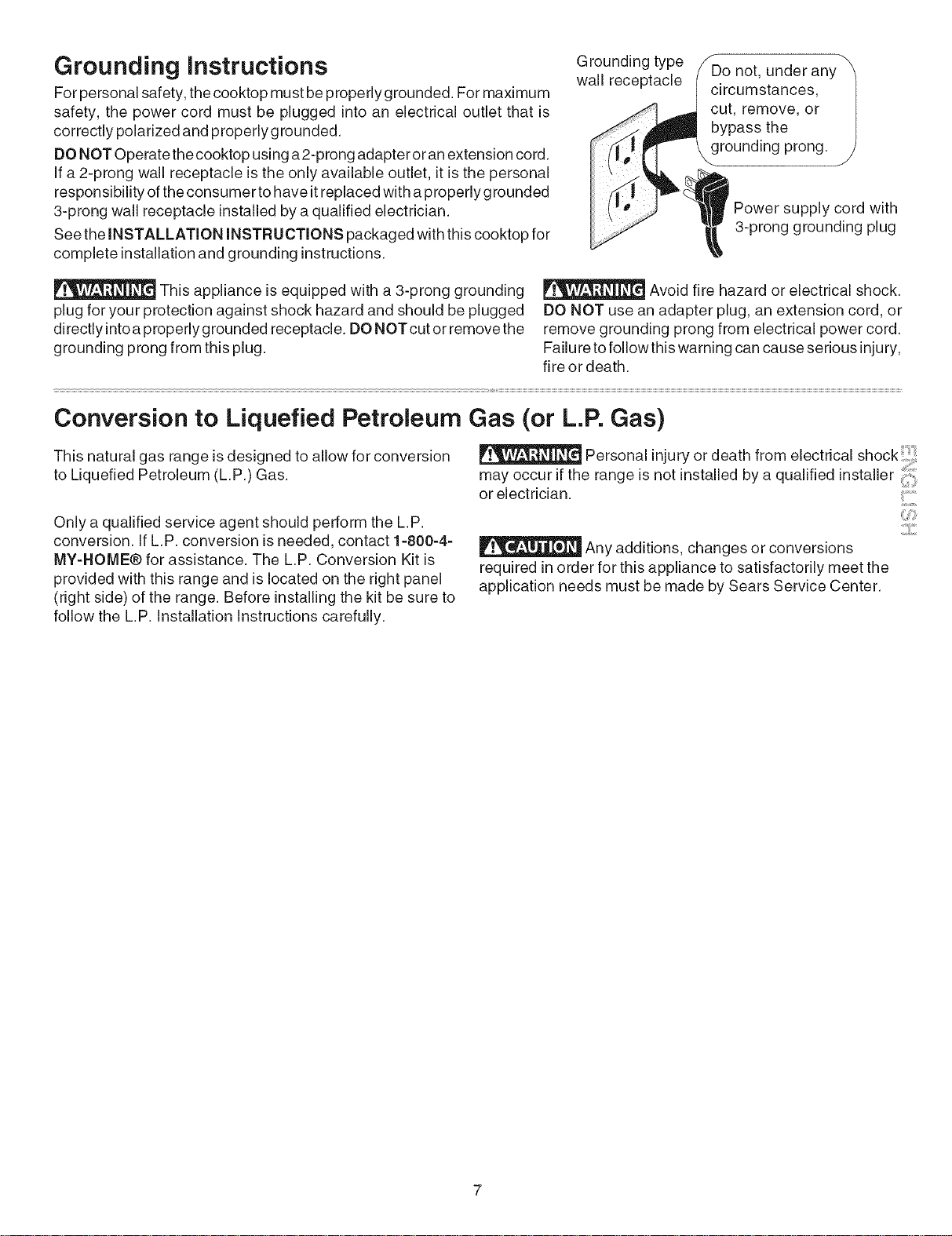

Grounding instructions ................................................... 7
Conversion to Liquified Petroleum Gas (or L.P. Gas) .... 7

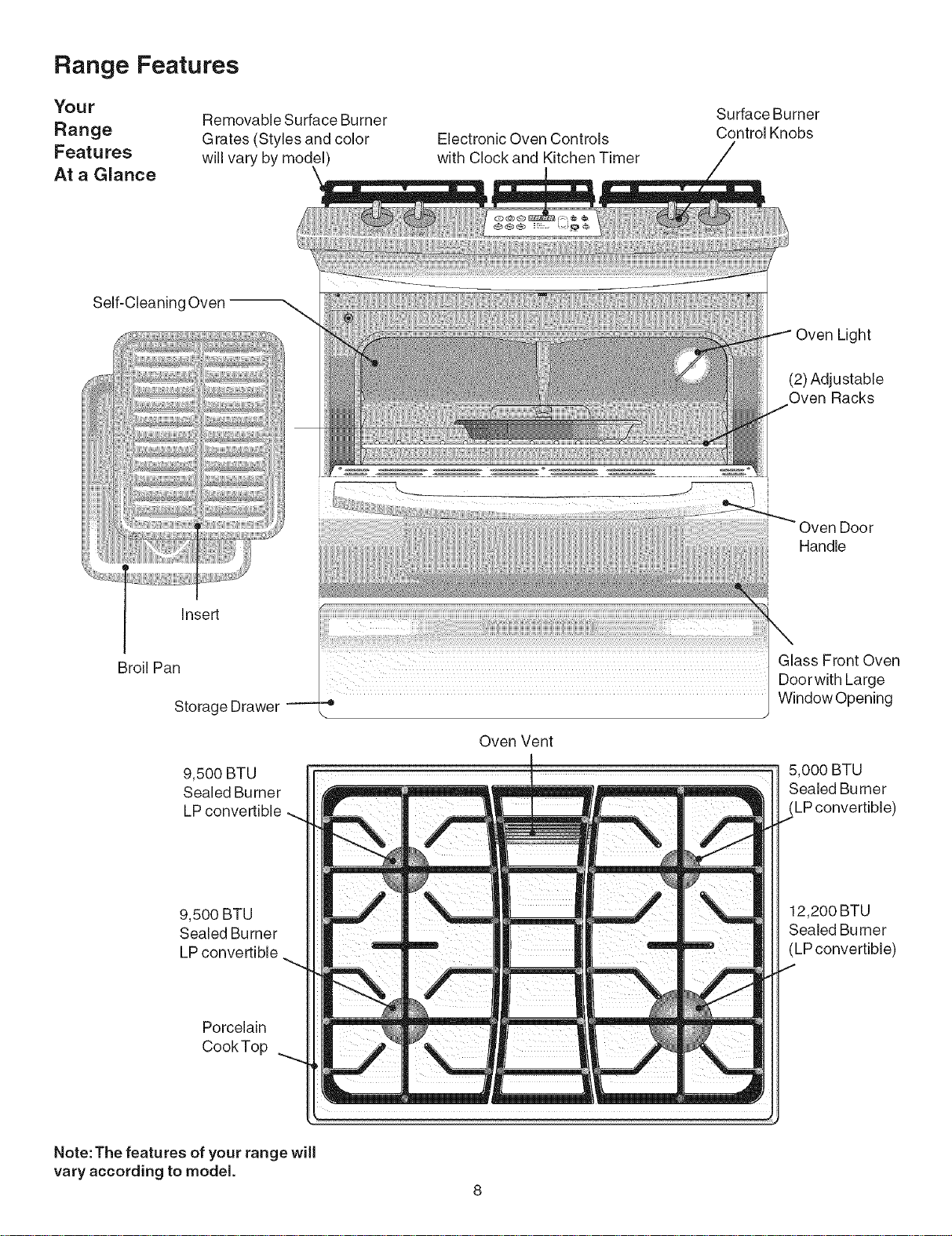

Range Features ................................................................ 8

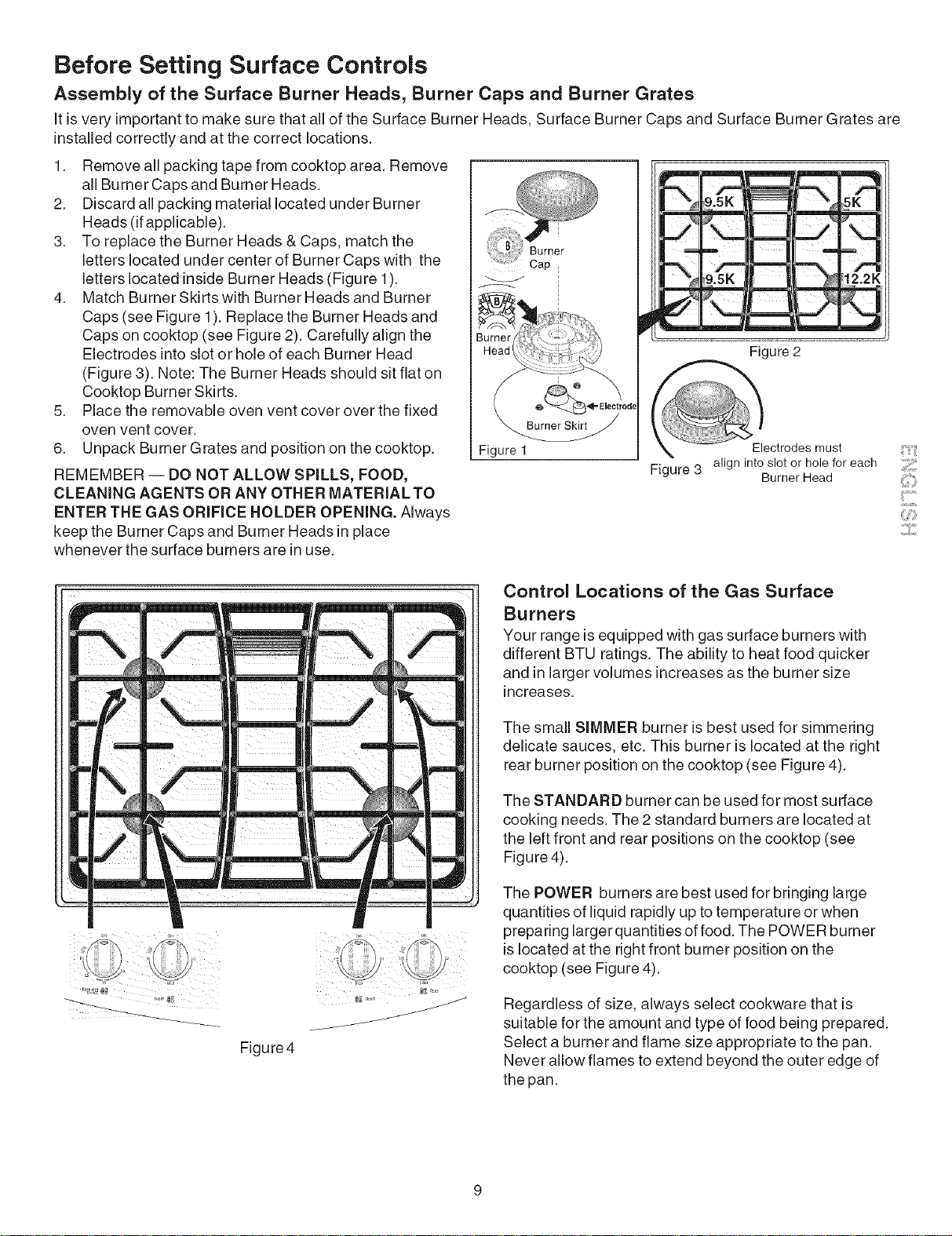

Before Setting Surface Controls ...................................... 9

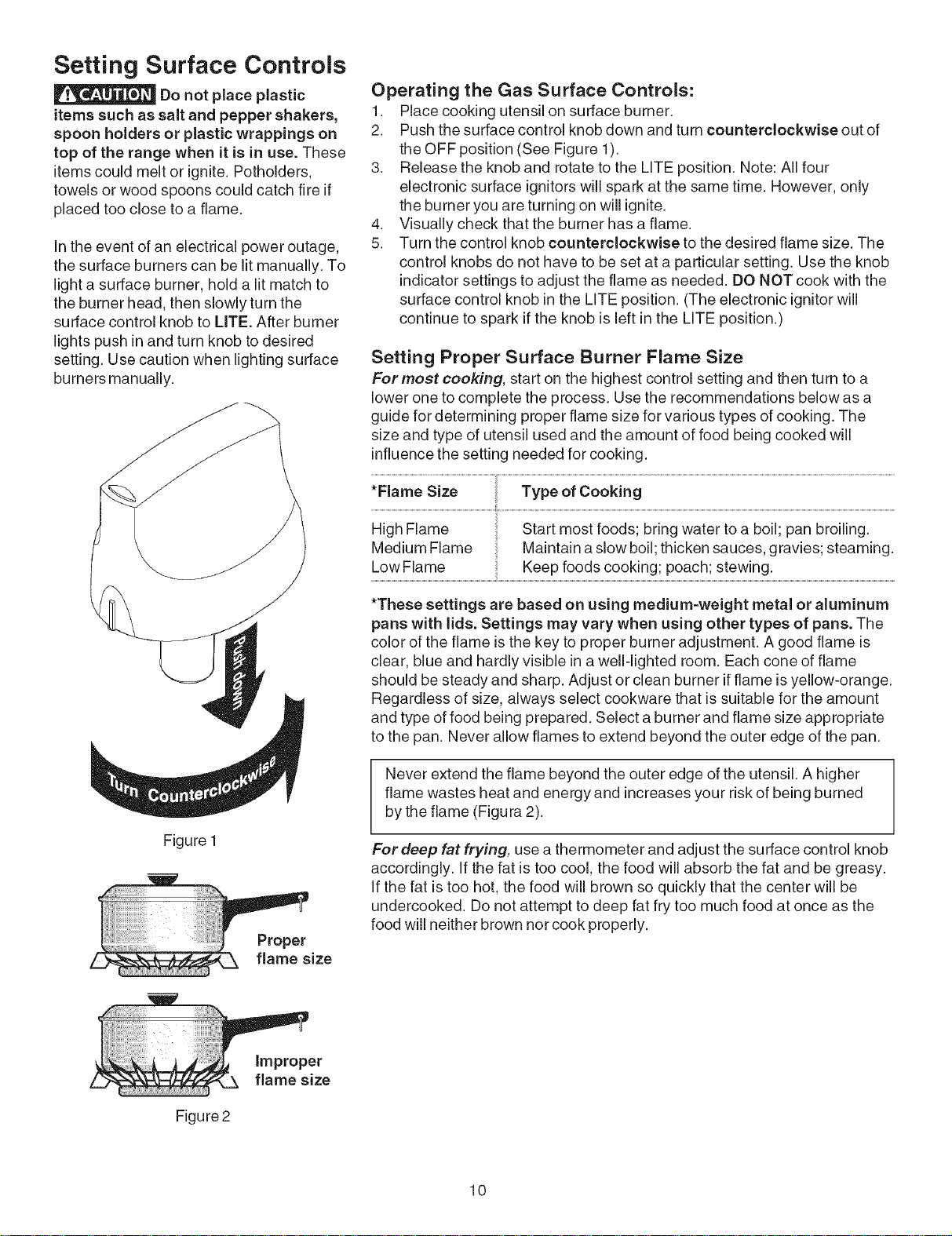

Setting Surface Controls ............................................... 10

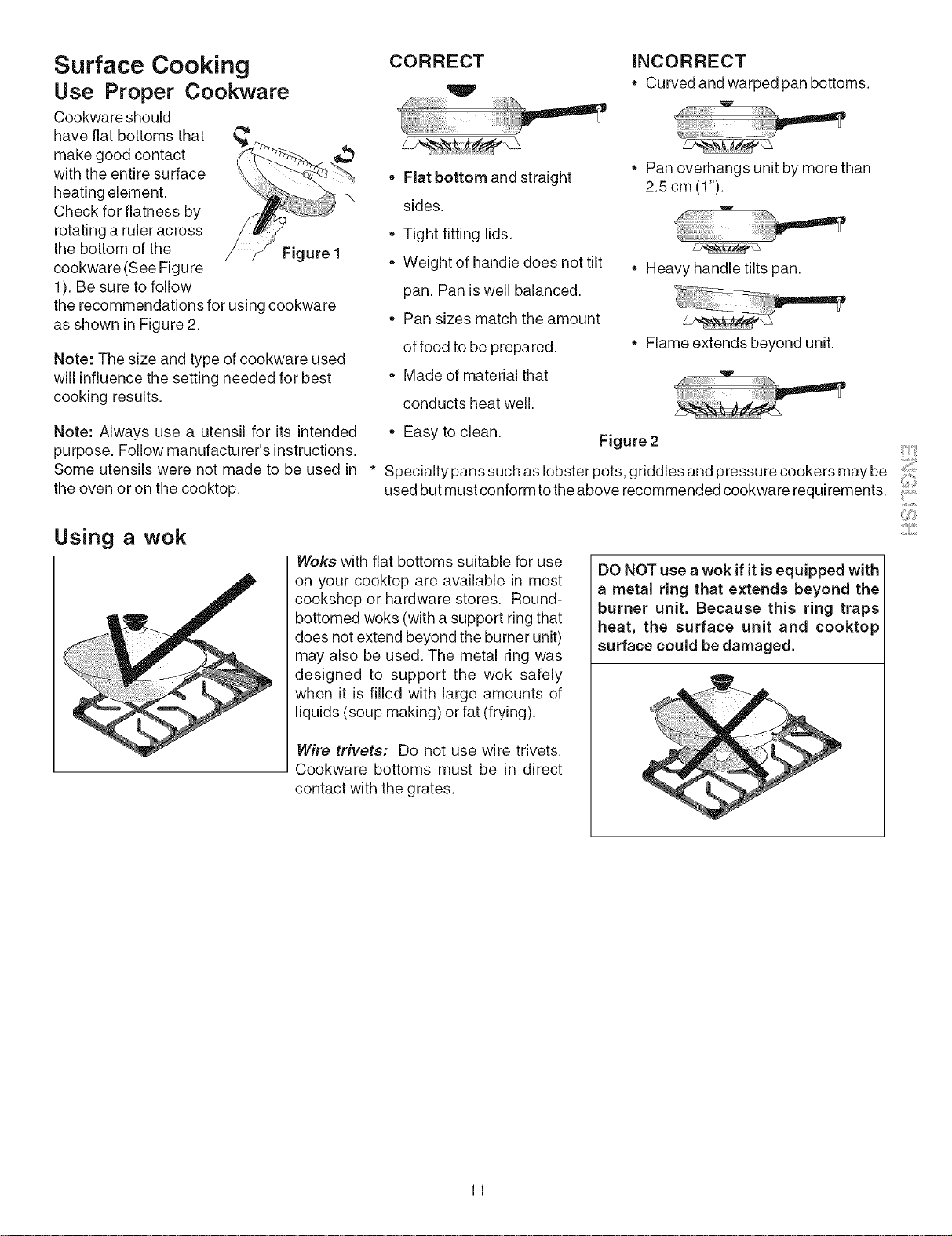

Surface Cooking ............................................................. 11

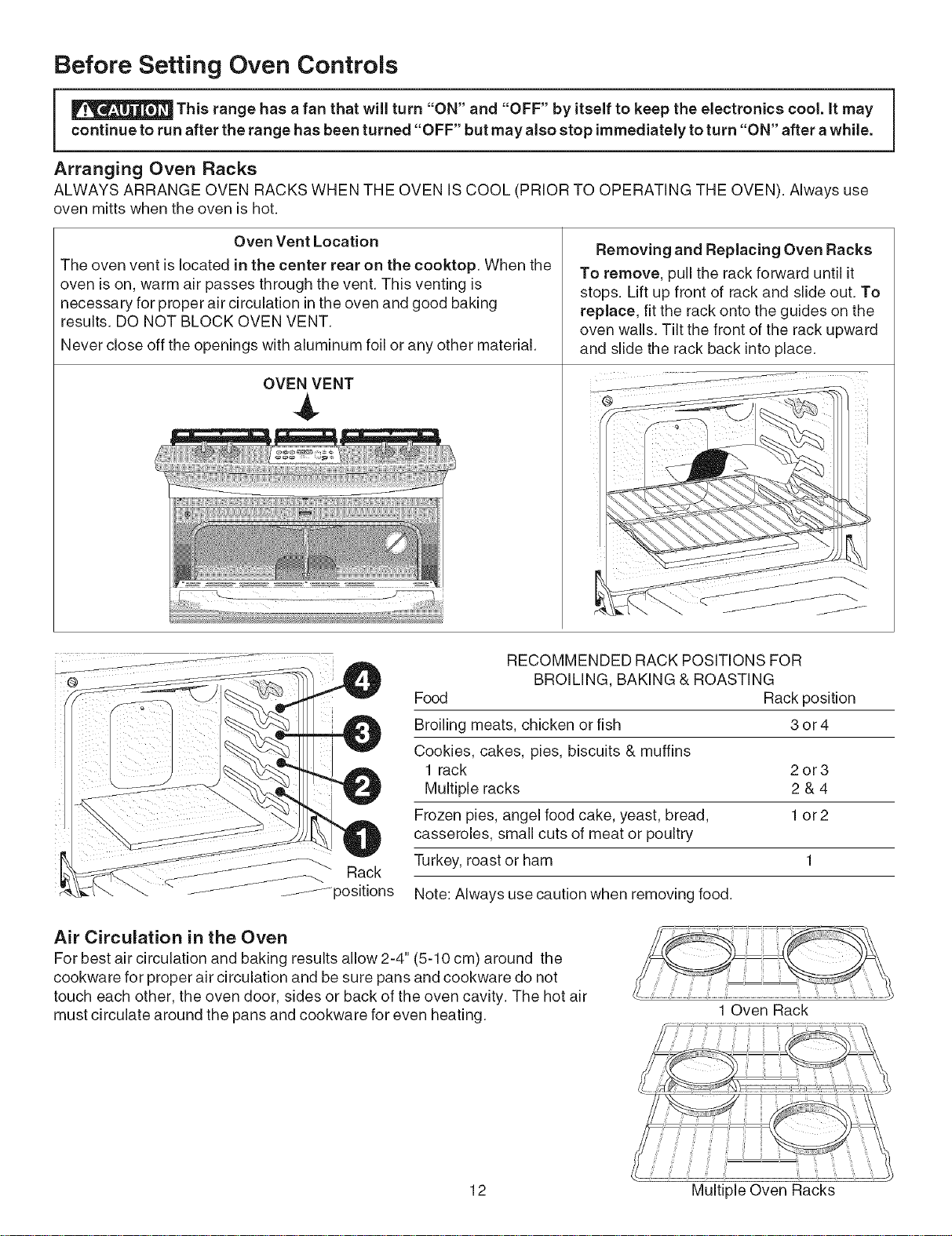

Before Setting Oven Controls ........................................ 12

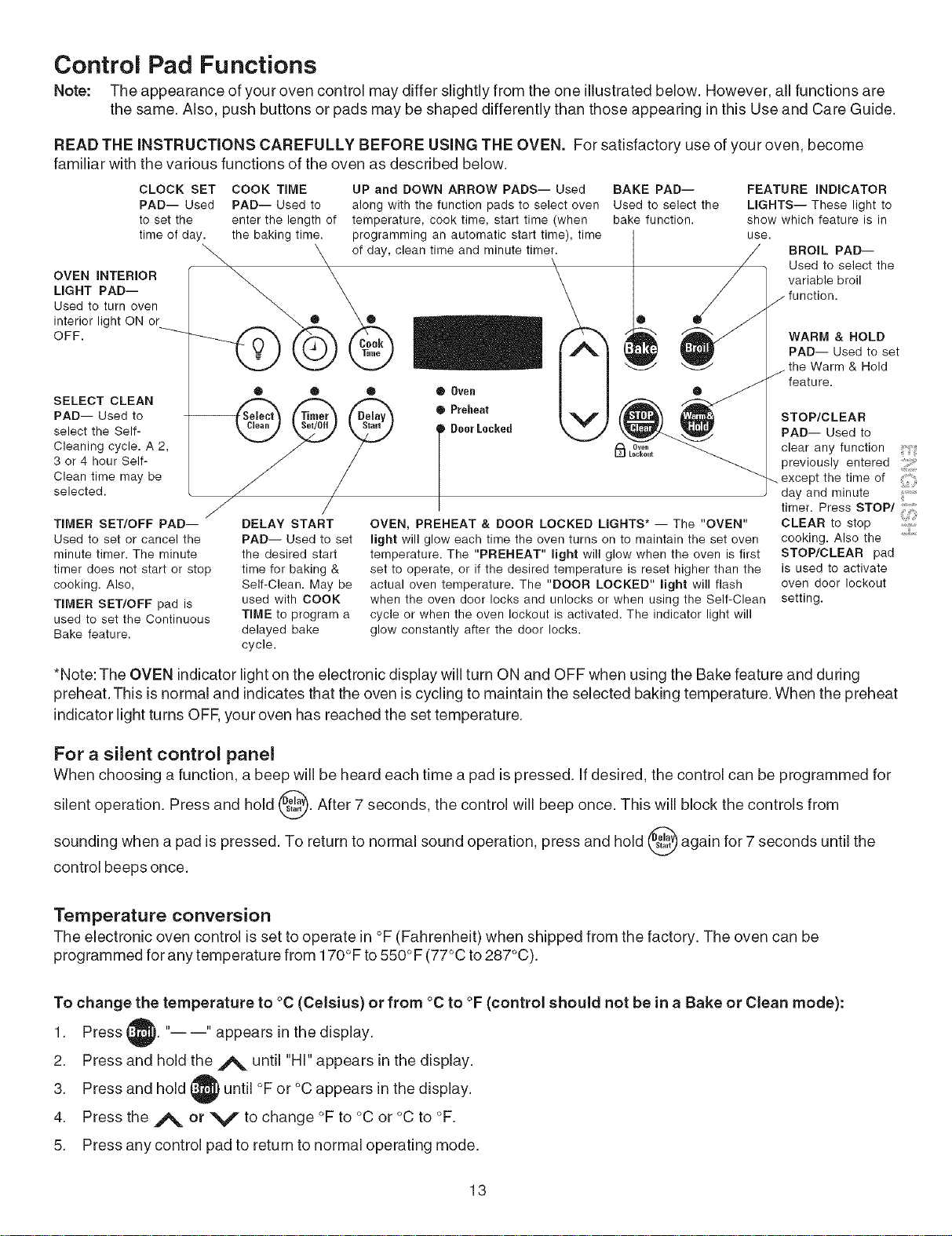

Control Pad Functions ................................................... 13

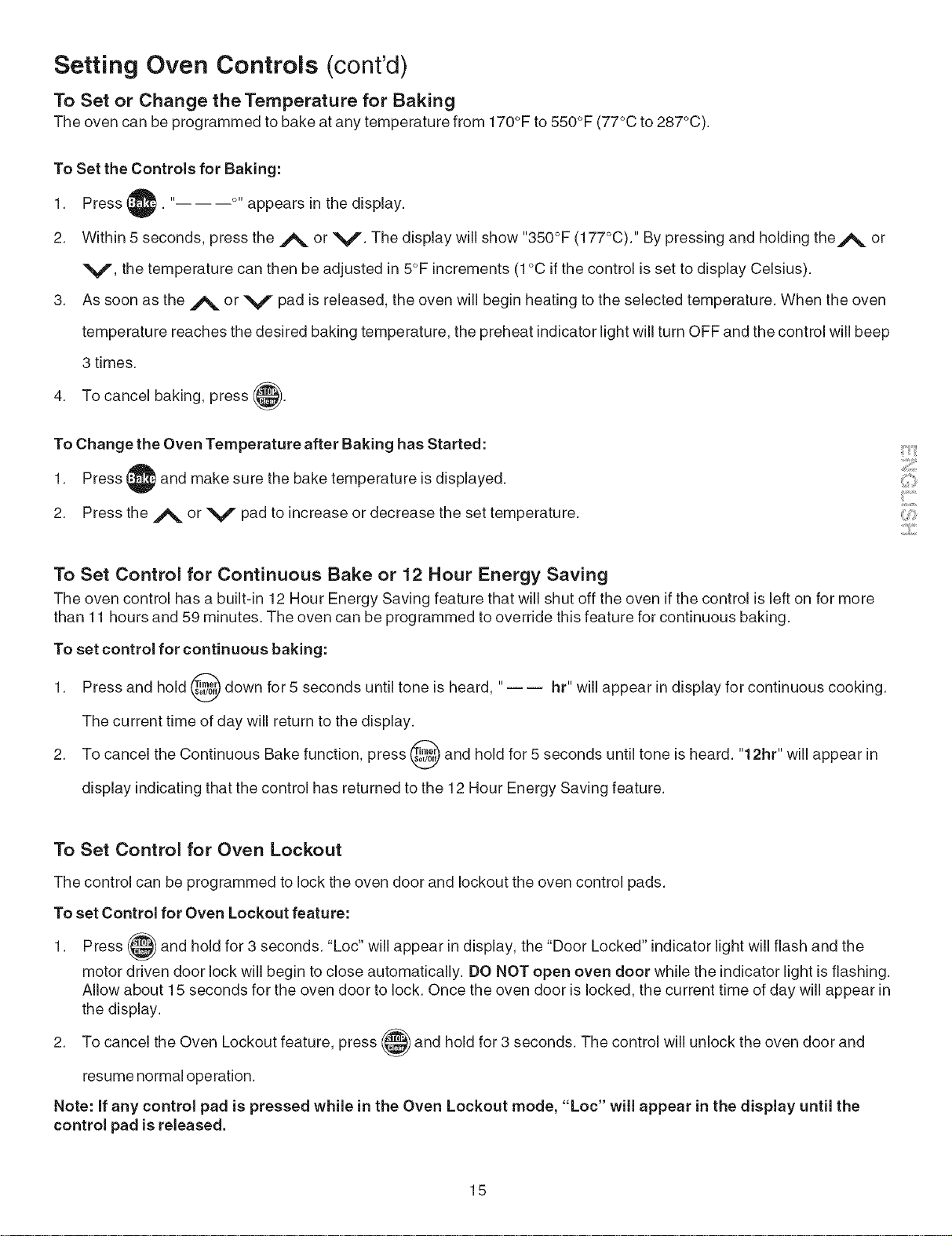

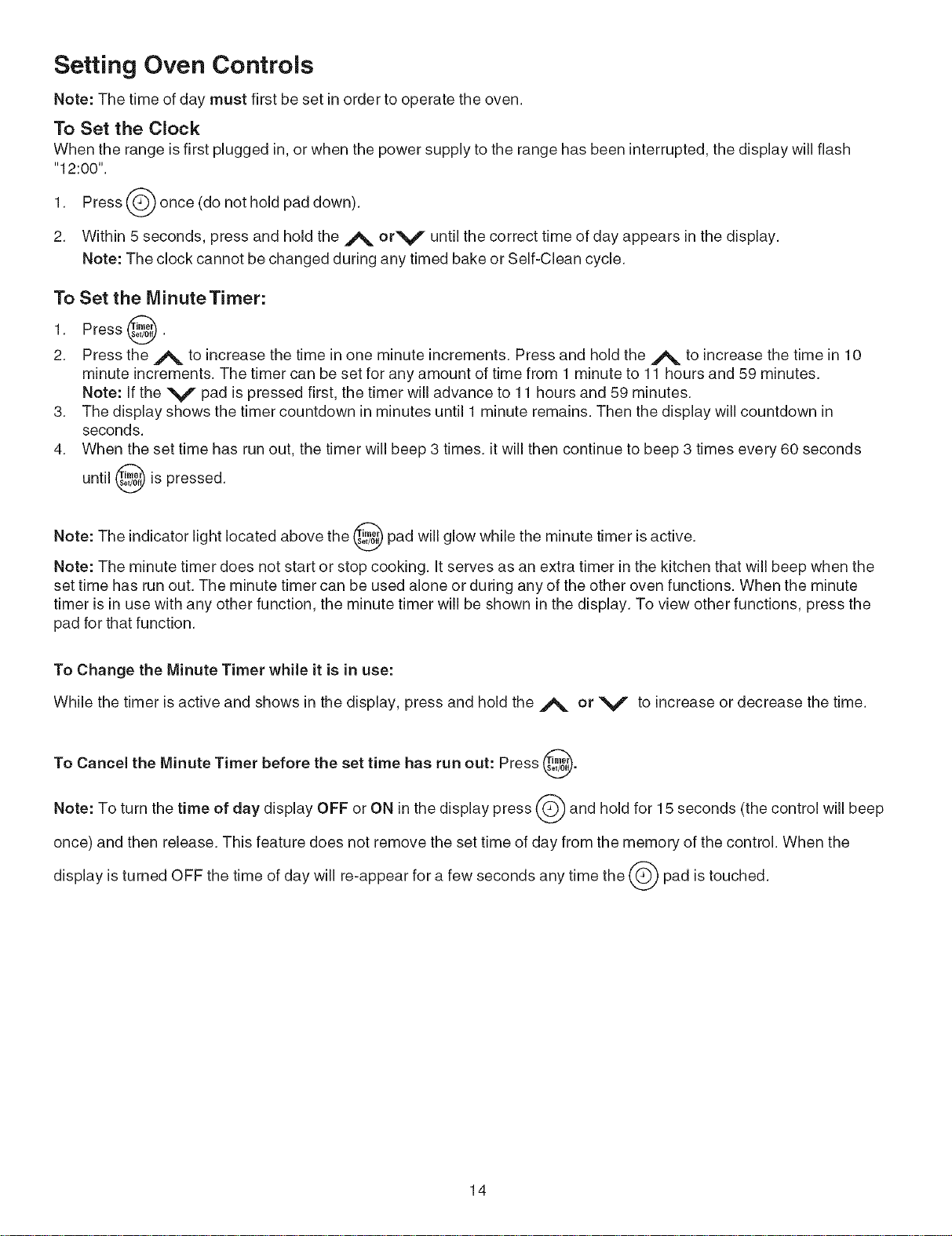

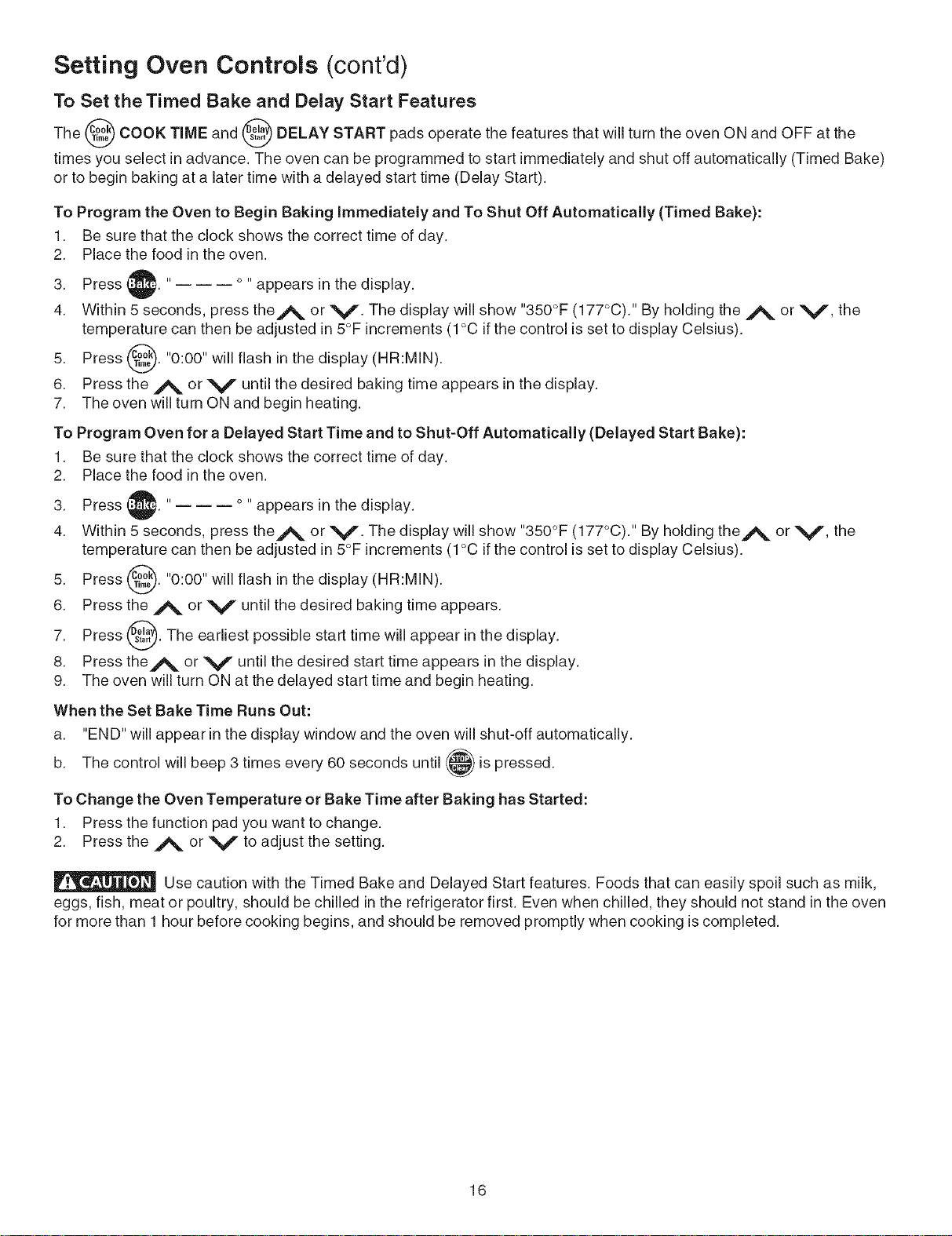

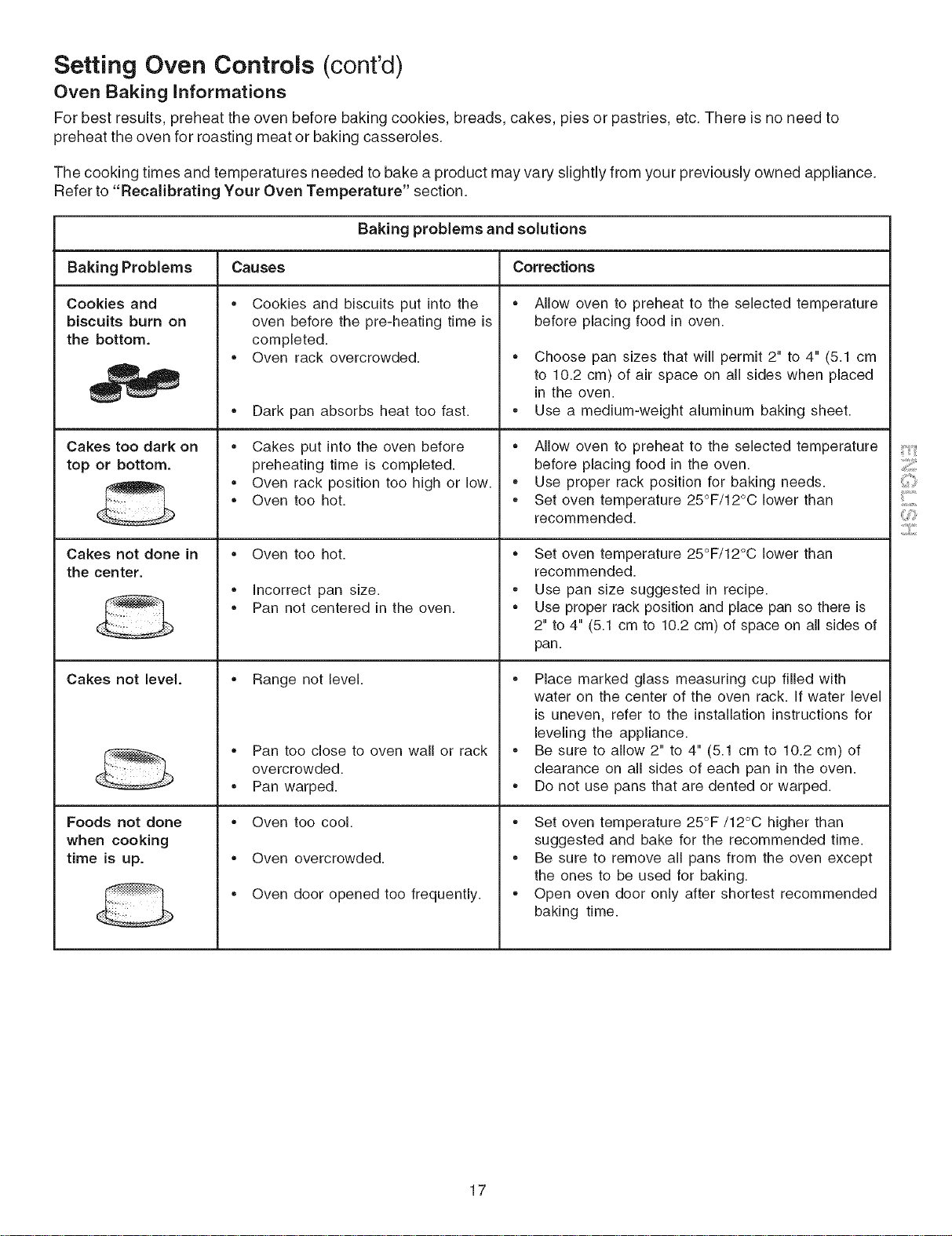

Setting Oven Controls ............................................... 14-19

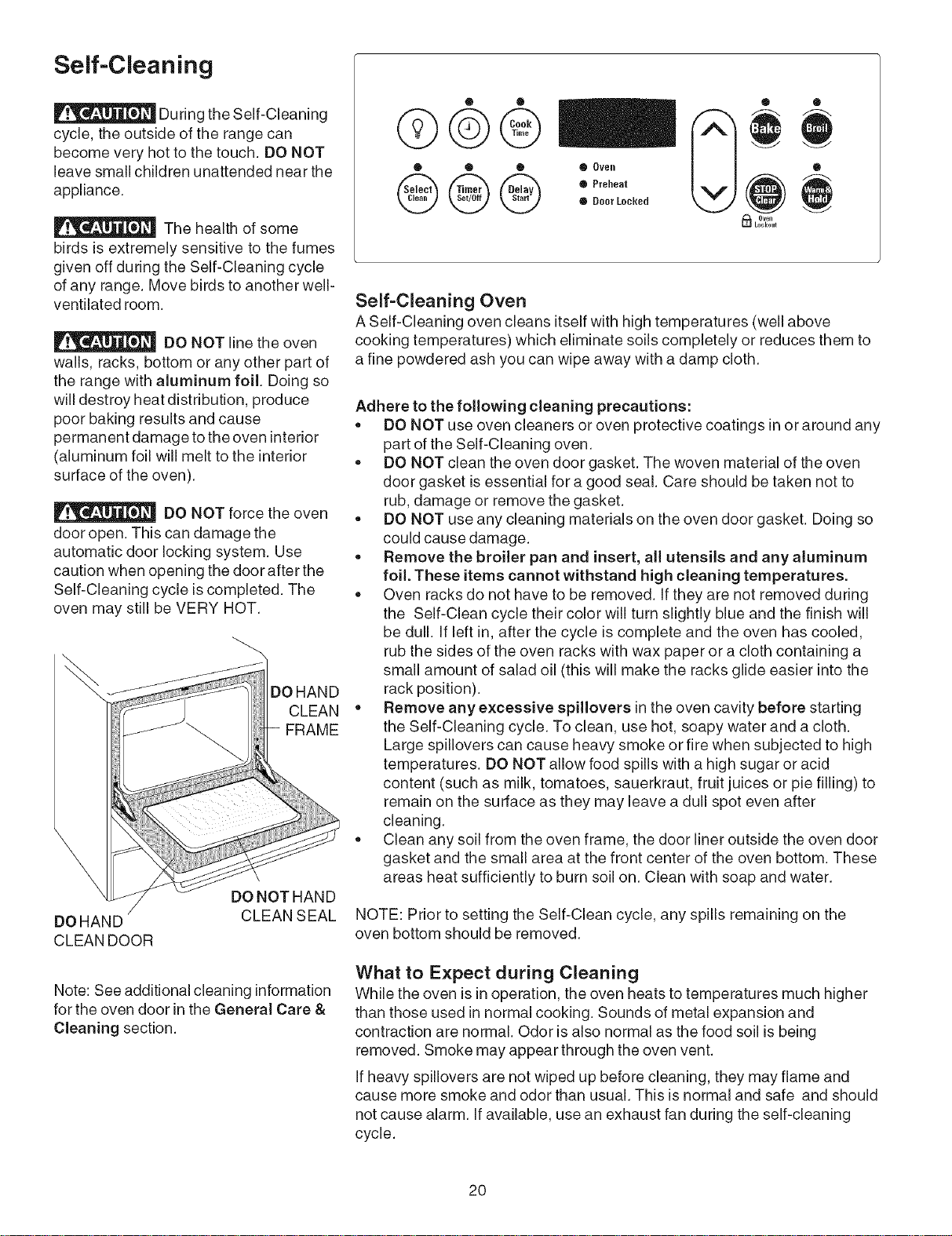

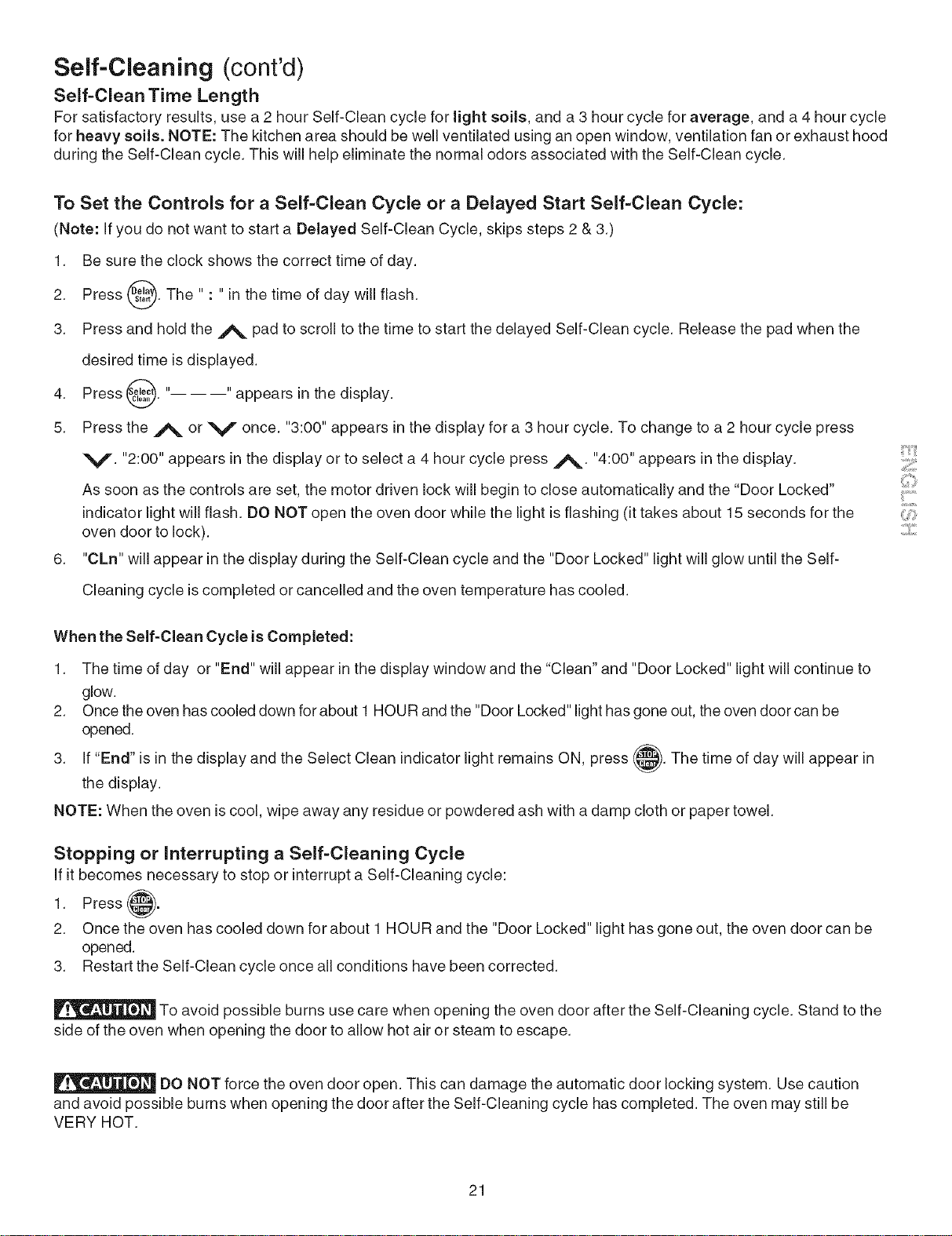

Self=Cleaning .............................................................. 20-21

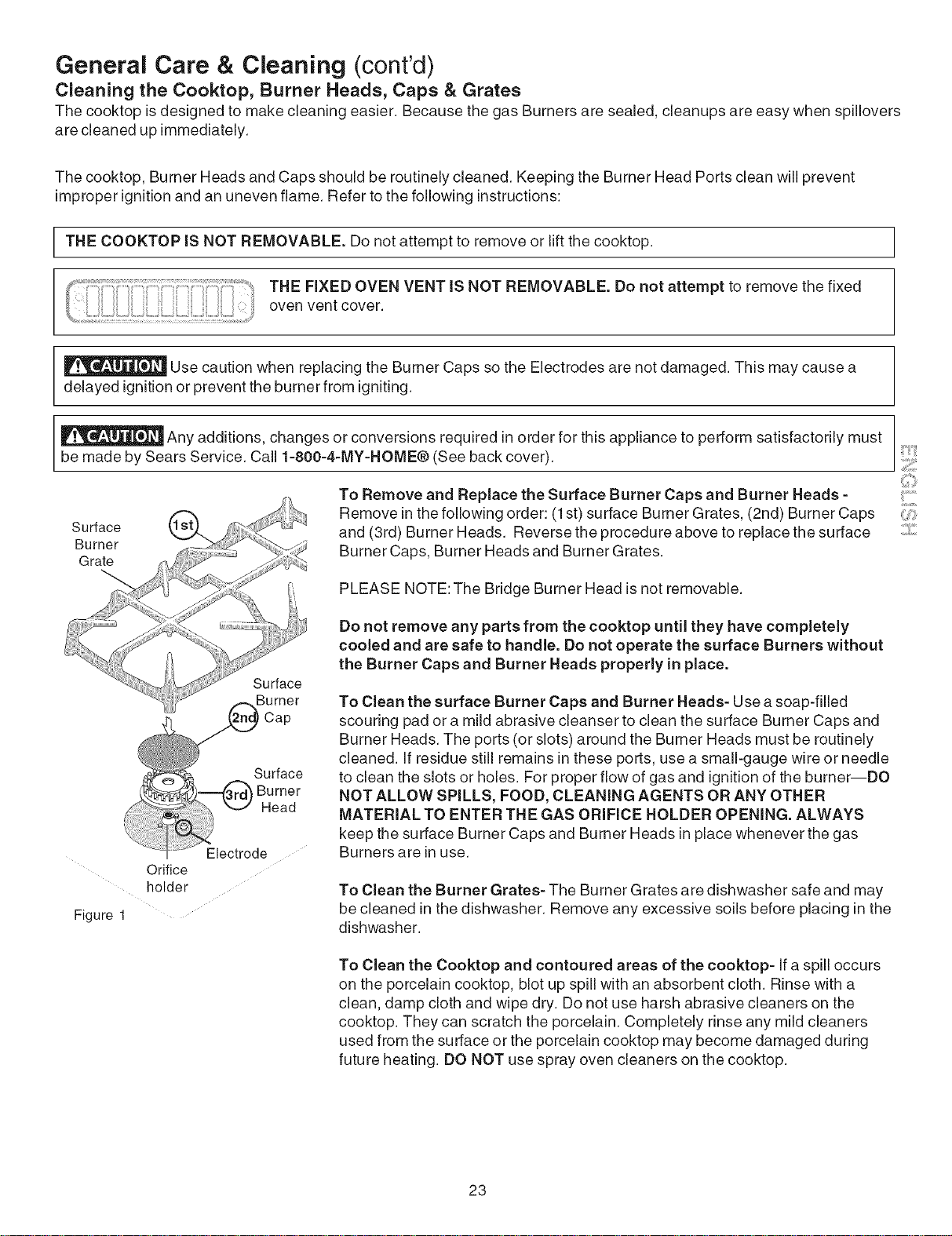

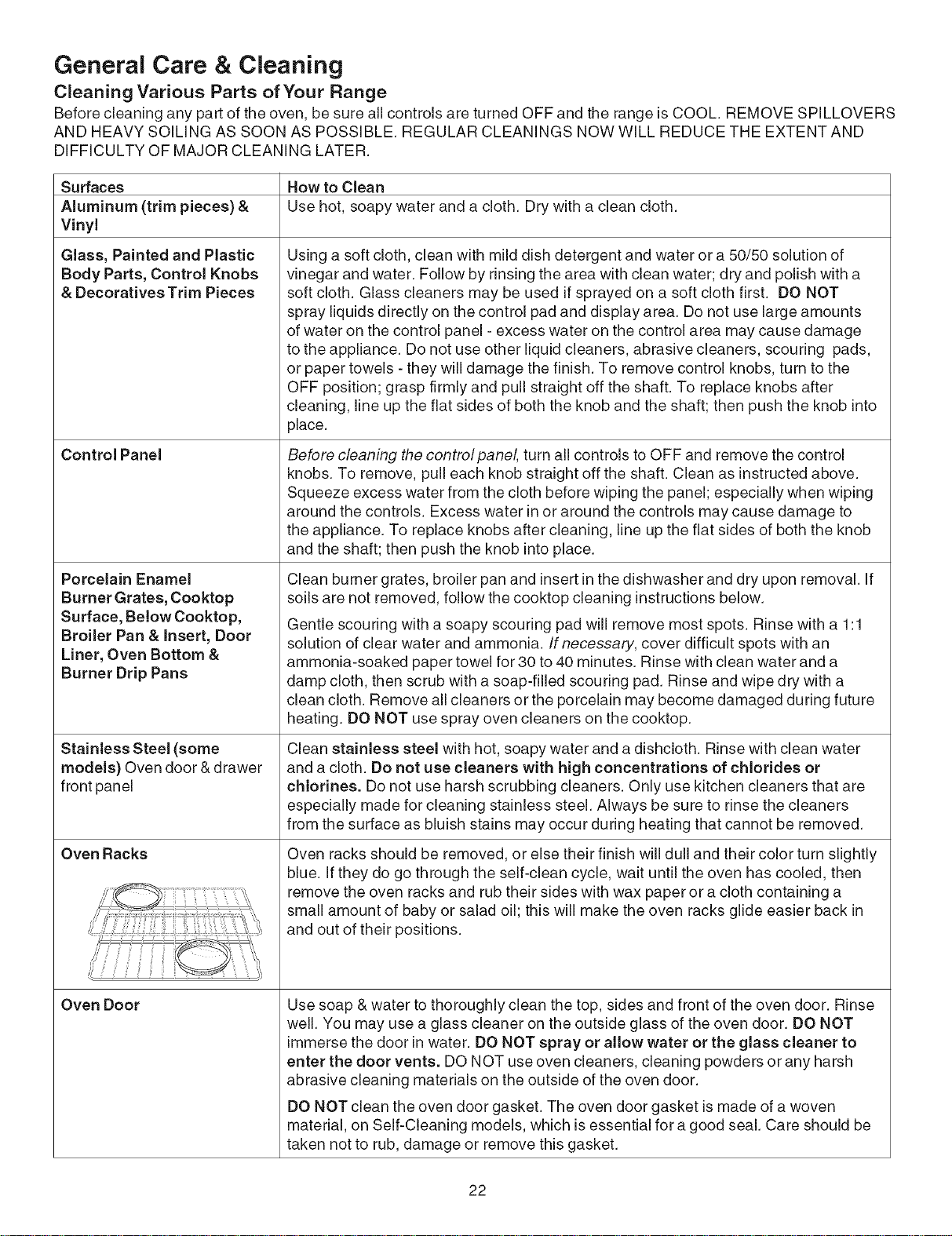

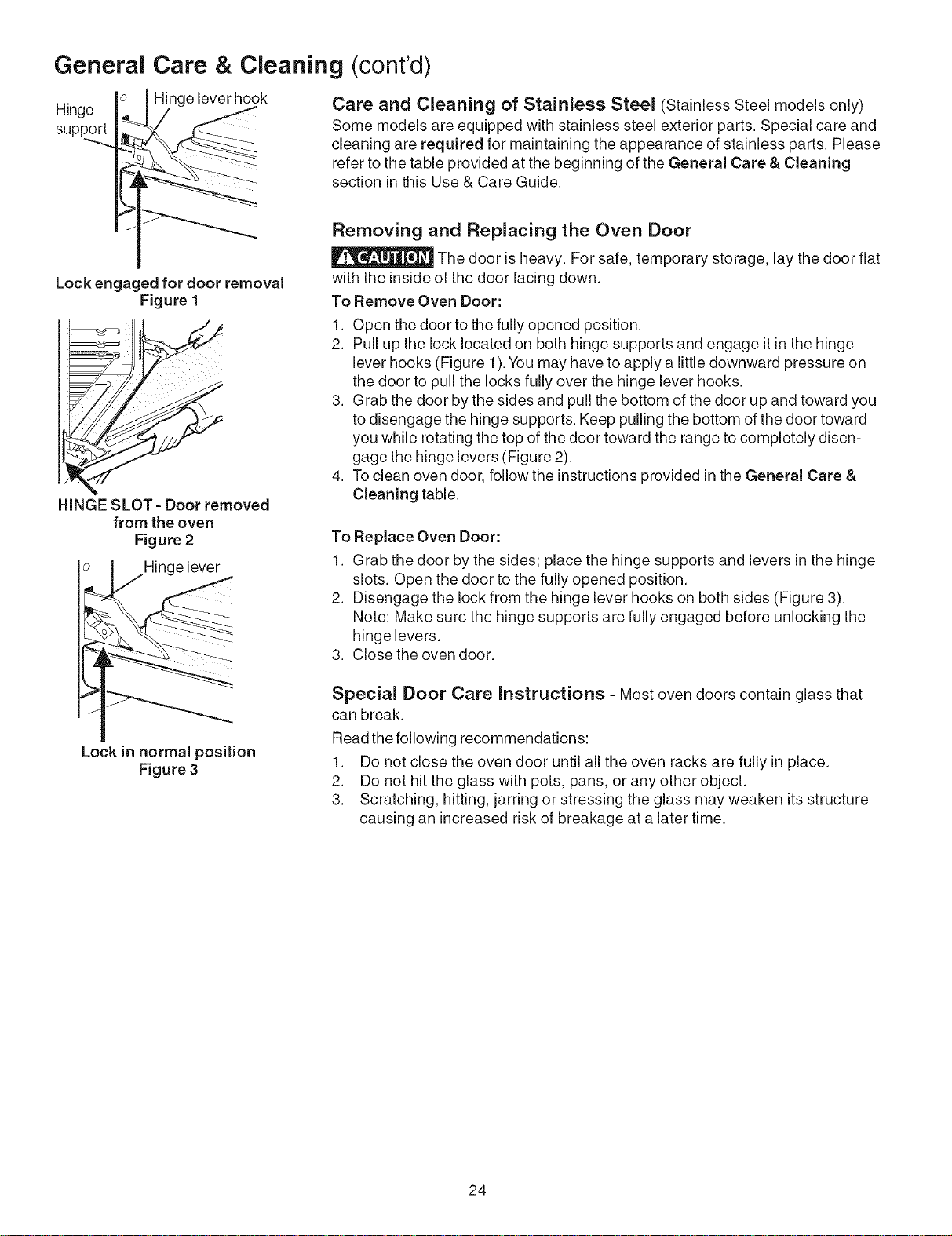

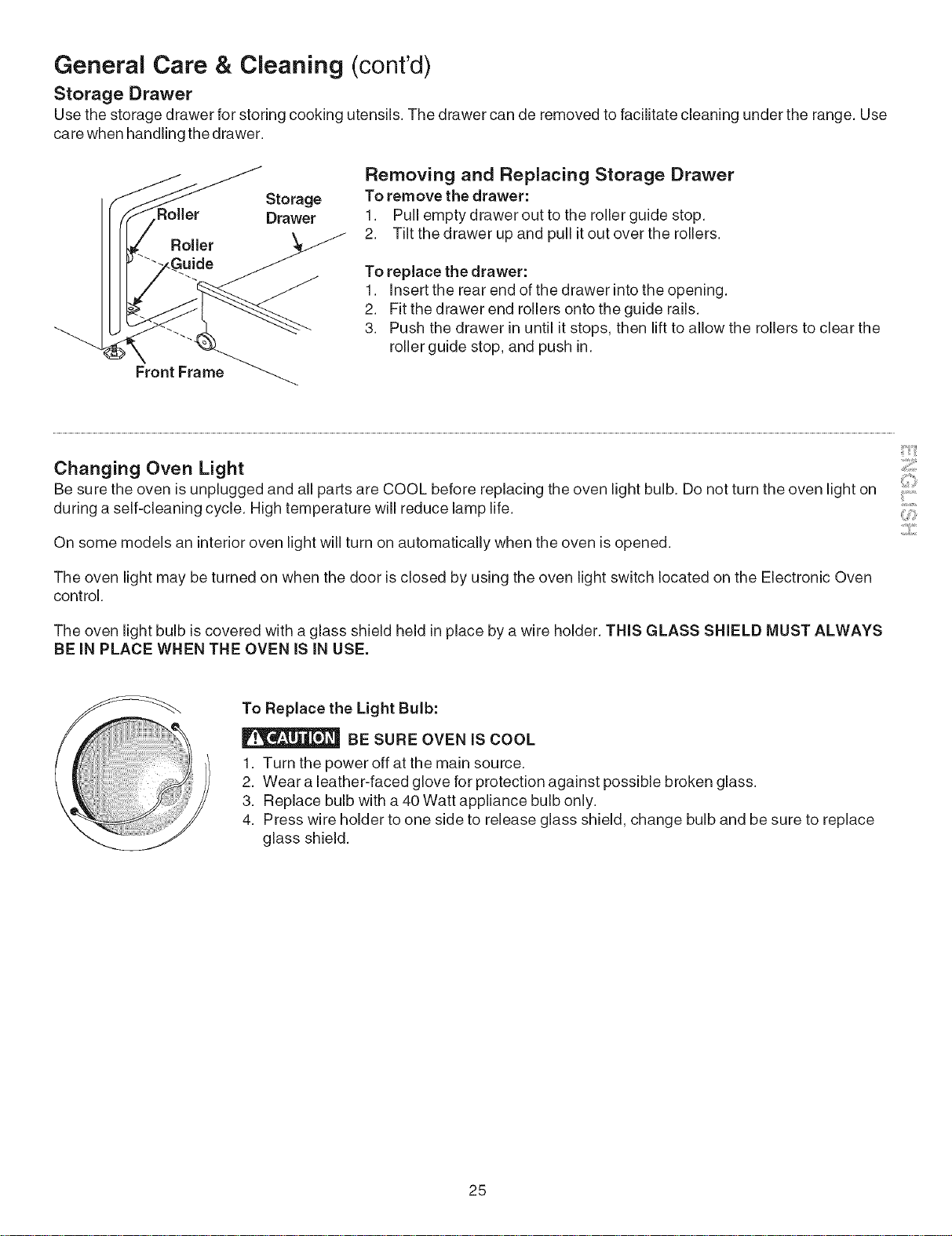

General Cleaning ....................................................... 22-25

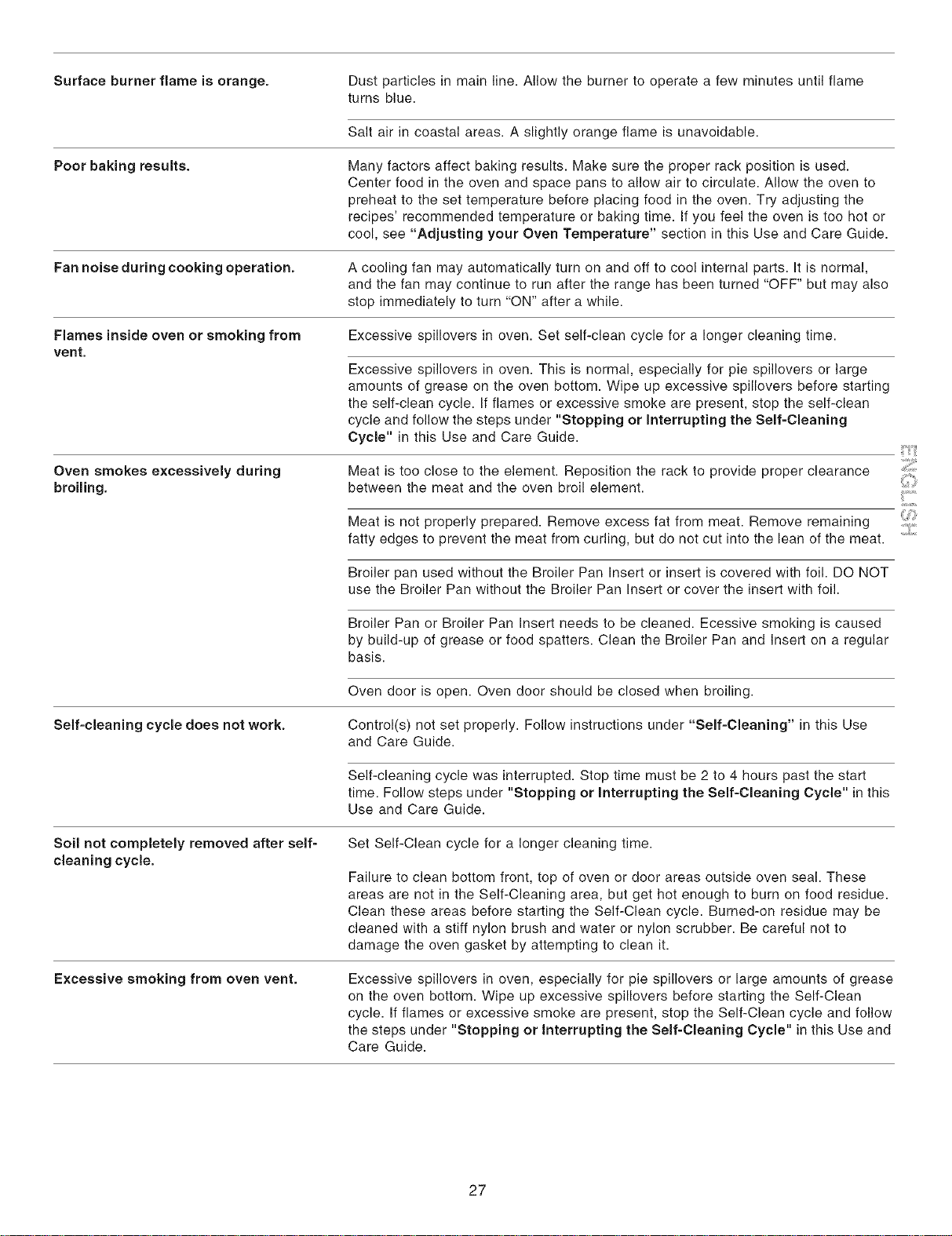

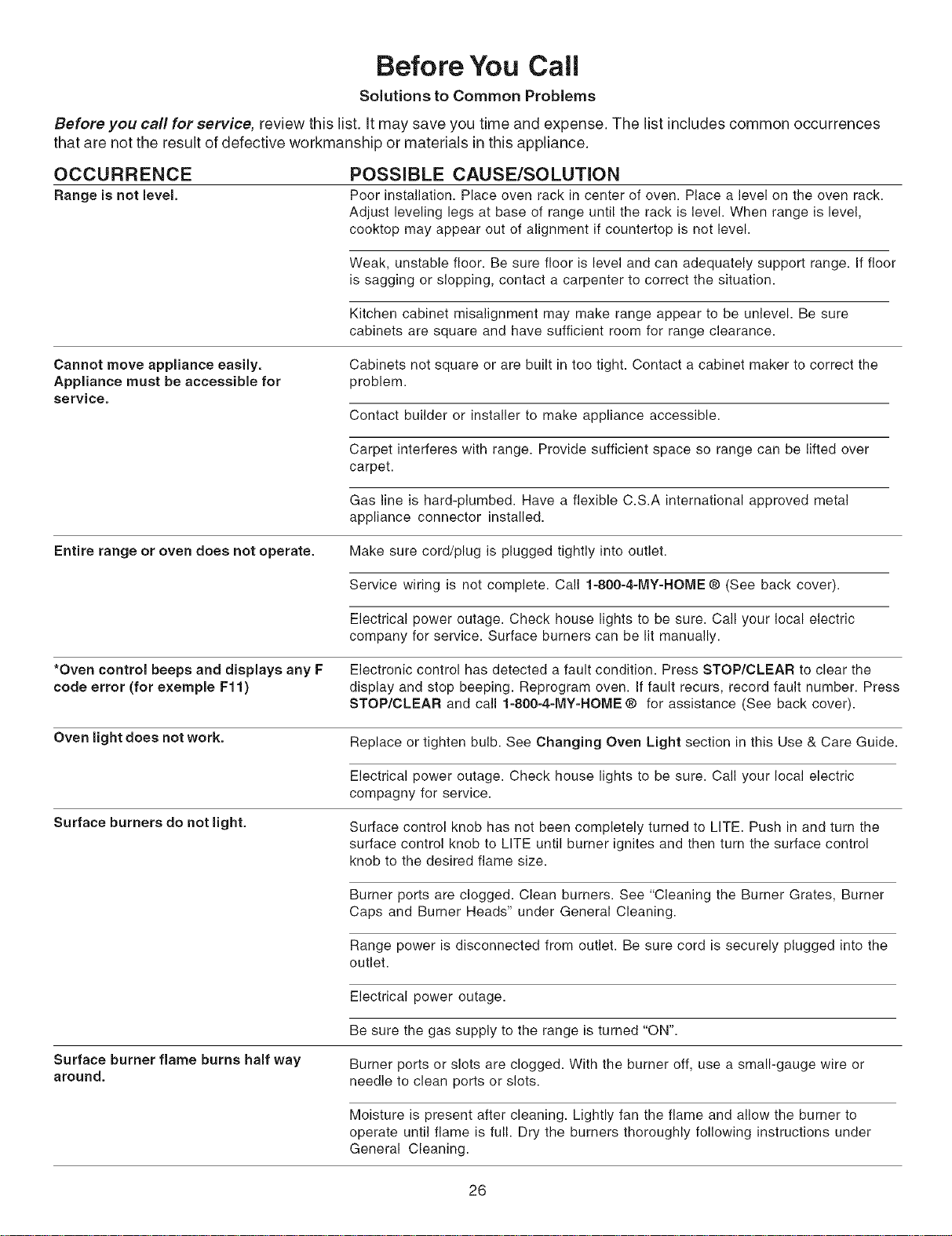

BeforeYou Call ........................................................... 26-27
Sears Service ................................................................. 28
Kenrnore Appliance Warranty
OneYear Limited Warranty
When installed, operated and maintained according to all instructionssupplied with the product, ifthis appliance fails due to
a defect in material or workmanship within one year from the date of purchase, call 1=800=4=MY=HOME®to arrange for free
repair, if this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instructthe user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product ifitis not installed, operated or maintained according to all instructionssupplied with
the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than itsintended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructionssupplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, includingwarranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitationof incidental or consequential damages, or limitations on the duration of impliedwarranties
of merchantability or fitness, so these exclusions or limitation may not apply to you.
This warranty applies only while this appliance is used inthe United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada Inc.,Toronto, Ontario, Canada M5B 2B8
Product Record Serial Plate Location
In this space below, record the date of purchase, model and serial number of your You will find the model and serial
product. You will find the model and serial number printed on the serial plate.
Model No. 790.
Serial No.
Date of purchase
number printed on the serial plate. The
serial plate is located as shown below.
Remember to record the serial number
for future reference.
Save these instructions and your sales receipt for future reference.
Please carefully read and save these instructions
This Use & Care Manual contains general operating instructions for your appliance
and feature information for several models. Your product may not have all the
described features. The graphics shown are representative.The graphics on your
appliance may not look exactly like those shown. Common sense and caution must
be practiced when installing,operating and maintaining any appliance.
Printed in United States 2
Serial Plate
Location

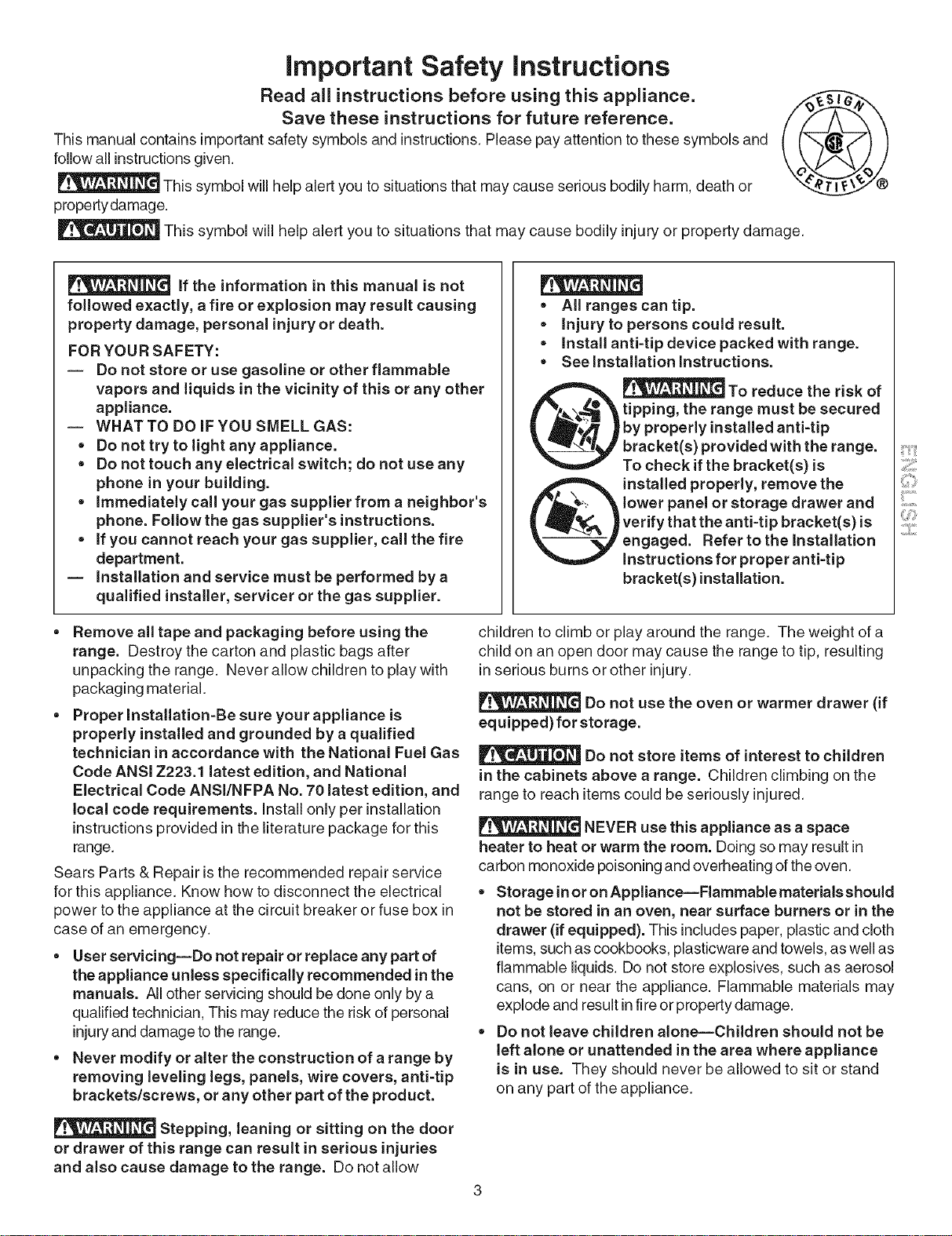

important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains importantsafety symbols and instructions.Please pay attention to these symbols and
follow all instructions given.
This symbol will help alert you to situations that may cause serious bodily harm, death or
propertydamage.
This symbol will help alert you to situations that may cause bodily injury or property damage.
if the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
-- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
= Do not touch any electrical switch; do not use any
phone in your building.
= immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• if you cannot reach your gas supplier, call the fire
department.
-- installation and service must be performed by a
qualified installer, servicer or the gas supplier.
• All ranges can tip.
• injury to persons could result.
• Install anti-tip device packed with range.
= Seelnstallationlnstructions.
To reduce the risk of
tipping, the range must be secured
!by properly installed anti-tip
bracket(s) provided with the range.
To check if the bracket(s) is
installed properly, remove the
lower panel or storage drawer and
Iverify that the anti-tip bracket(s) is
engaged. Refer to the Installation
instructions for proper anti-tip
bracket(s) installation.
• Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
• Proper Installation-Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Fuel Gas
Code ANSi Z223.1 latest edition, and National
Electrical Code ANSI/NFPA No. 70 latest edition, and
local code requirements, install only per installation
instructionsprovided in the literature package for this
range.
Sears Parts & Repair isthe recommended repair service
for this appliance. Know how to disconnect the electrical
power to the appliance at the circuit breaker or fuse box in
case of an emergency.
= User servicing--Do not repair or replace any part of
the appliance unless specifically recommended in the
manuals. Allother servicing should be done only by a
qualified technician, This may reduce the risk of personal
injuryand damage to the range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
Stepping, leaning or sitting on the door
or drawer of this range can result in serious injuries
and also cause damage to the range. Do not allow
children to climb or play around the range. The weight of a
child on an open door may cause the range to tip, resulting
in serious burns or other injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
Do not store items of interest to children
in the cabinets above a range. Children climbing on the
range to reach items could be seriously injured.
NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of the oven.
= Storage in or on Appliance--Flammable materialsshould
not be stored in an oven, near surface burners or in the
drawer (if equipped). This includespaper, plastic and cloth
items, such as cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as aerosol
cans, on or near the appliance. Flammable materials may
explode and result infire or property damage.
• Do not leave children alone--Children should not be
left alone or unattended in the area where appliance
is in use. They should never be allowed to sit or stand
on any part of the appliance.

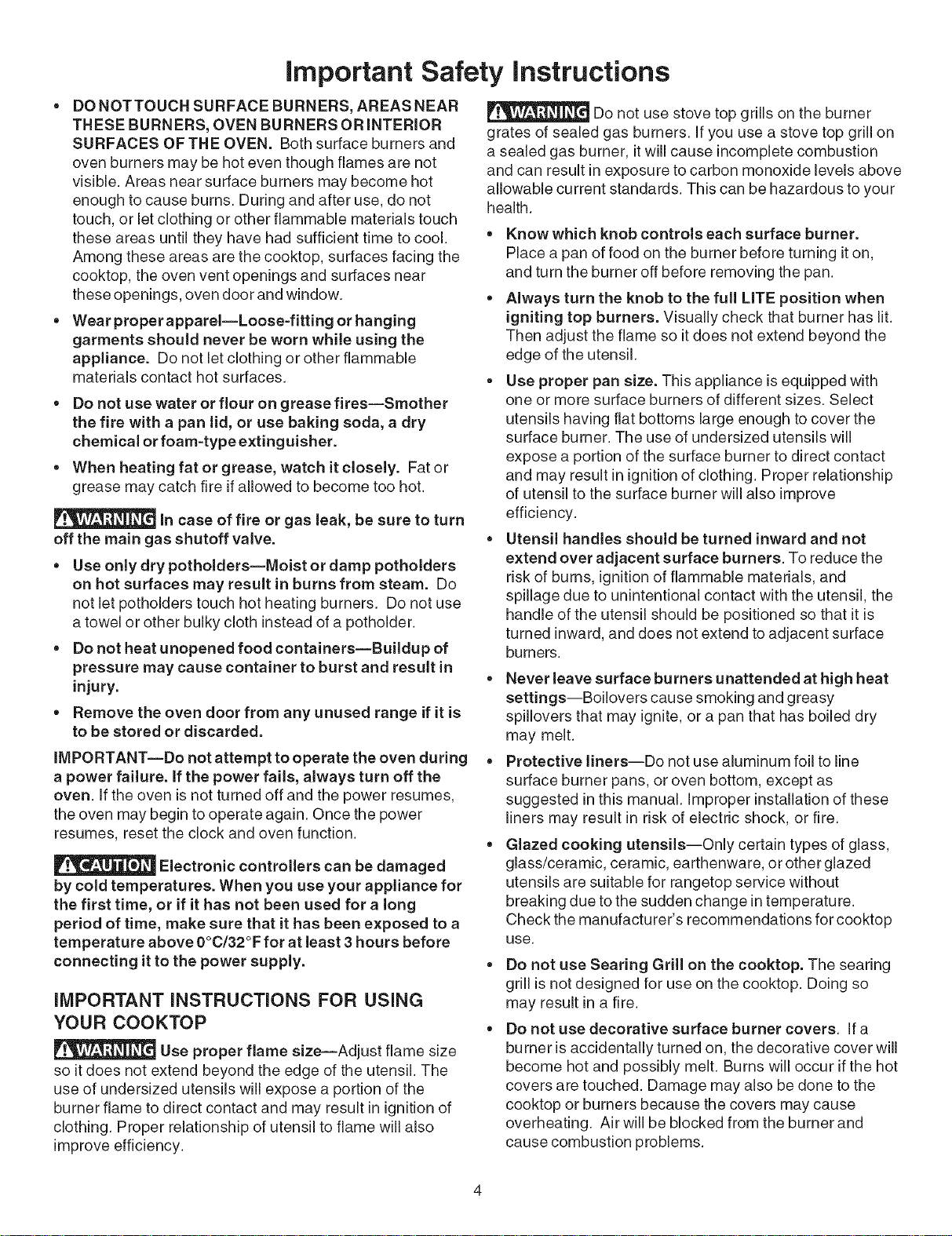

important Safety instructions
• DO NOTTOUCH SURFACE BURNERS, AREAS NEAR
THESE BURNERS, OVEN BURNERS OR iNTERiOR
SURFACES OF THE OVEN. Both surface burners and
oven burners may be hot even though flames are not
visible. Areas near surface burners may become hot
enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials touch
these areas until they have had sufficient time to cool.
Among these areas are the cooktop, surfaces facing the
cooktop, the oven vent openings and surfaces near
these openings, oven door and window.
• Wear properappareI--Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
• Do not use water or flour on grease fires--Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or
grease may catch fire ifallowed to become too hot.
In case of fire or gas leak, be sure to turn
off the main gas shutoff valve.
• Use only dry potholders--Moist or damp potholders
on hot surfaces may result in burns from steam. Do
not let potholders touch hot heating burners. Do not use
a towel or other bulky cloth instead of a potholder.
• Do not heat unopened food containers--Buildup of
pressure may cause container to burst and result in
injury.
• Remove the oven door from any unused range if it is
to be stored or discarded.
IMPORTANT--Do not attempt to operate the oven during
a power failure. If the power fails, always turn off the
oven. If the oven isnot turned off and the power resumes,
the oven may begin to operate again. Once the power
resumes, reset the clock and oven function.
Electronic controllers can be damaged
by cold temperatures. When you use your appliance for
the first time, or if it has not been used for a long
period of time, make sure that it has been exposed to a
temperature above 0°C/32°F for at least 3 hours before
connecting it to the power supply.
iMPORTANT iNSTRUCTiONS FOR USING
YOUR COOKTOP
Use proper flame size--Adjust flame size
so it does not extend beyond the edge of the utensil. The
use of undersized utensils will expose a portion of the
burner flame to direct contact and may result in ignitionof
clothing. Proper relationship of utensil to flame will also
improve efficiency.
Do not use stove top grills on the burner
grates of sealed gas burners. If you use a stove top grill on
a sealed gas burner, it will cause incomplete combustion
and can result in exposure to carbon monoxide levels above
allowable current standards. This can be hazardous to your
health.
• Know which knob controls each surface burner.
Place a pan of food on the burner before turning iton,
and turn the burner off before removing the pan.
• Always turn the knob to the full LITE position when
igniting top burners. Visually check that burner has lit.
Then adjust the flame so itdoes not extend beyond the
edge of the utensil.
• Use proper pan size. This appliance isequipped with
one or more surface burners of different sizes. Select
utensils having flat bottoms large enough to cover the
surface burner. The use of undersized utensils will
expose a portion of the surface burner to direct contact
and may result in ignitionof clothing. Proper relationship
of utensil to the surface burner will also improve
efficiency.
• Utensil handles should be turned inward and not
extend over adjacent surface burners. To reduce the
risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the
handle of the utensil should be positioned so that it is
turned inward, and does not extend to adjacent surface
burners.
• Never leave surface burners unattended at high heat
settings--Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry
may melt.
• Protective liners--Do not use aluminum foil to line
surface burner pans, or oven bottom, except as
suggested in this manual. Improper installation of these
liners may result in risk of electric shock, or fire.
• Glazed cooking utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for rangetop service without
breaking due to the sudden change intemperature.
Check the manufacturer's recommendations for cooktop
use.
Do not use Searing Grill on the cooktop. The searing
grill is not designed for use on the cooktop. Doing so
may result in a fire.
Do not use decorative surface burner covers, if a
burner is accidentally turned on, the decorative cover will
become hot and possibly melt. Burns will occur if the hot
covers are touched. Damage may also be done to the
cooktop or burners because the covers may cause
overheating. Air will be blocked from the burner and
cause combustion problems.

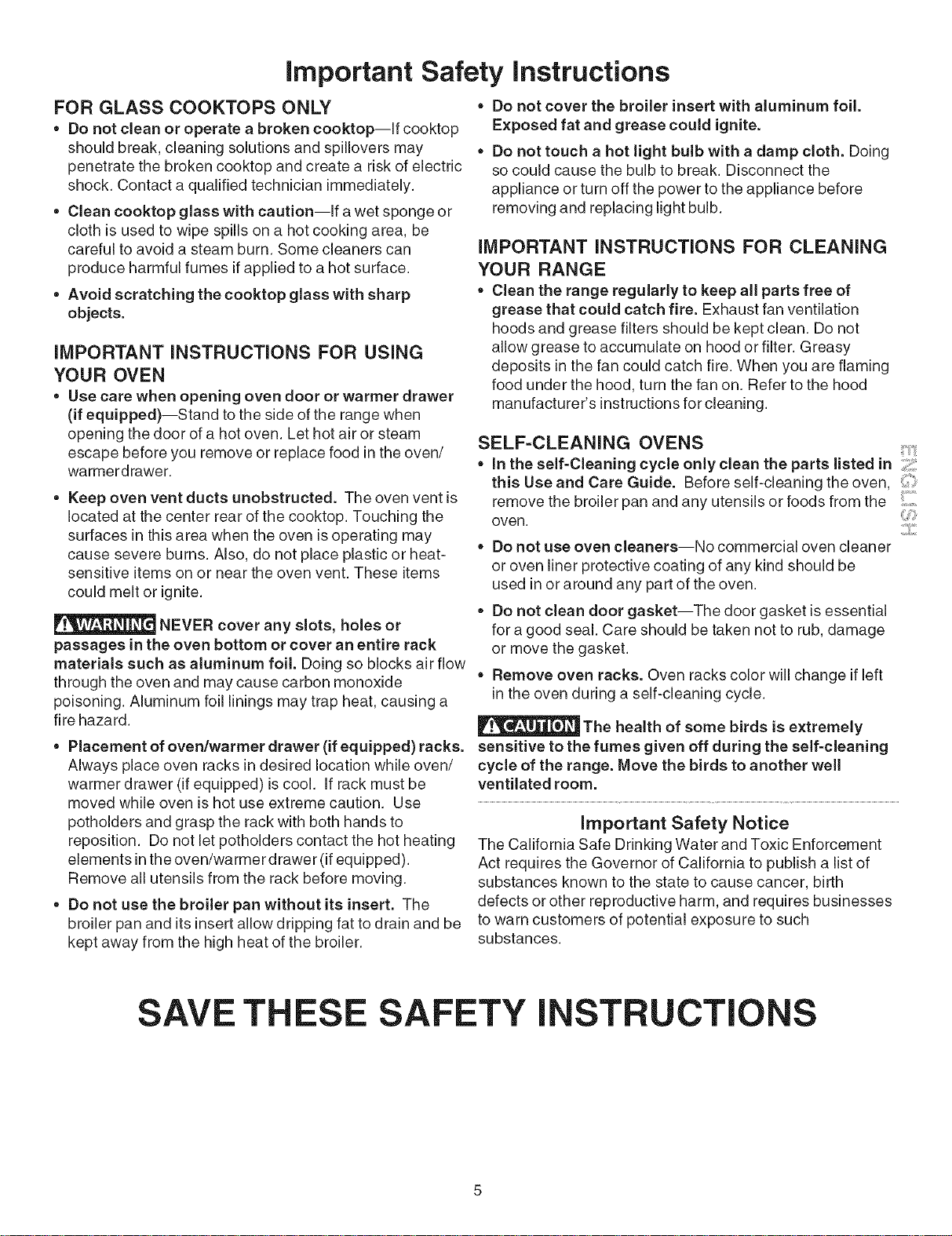

important Safety instructions
FOR GLASS COOKTOPS ONLY
• Do not clean or operate a broken cooktop--lf cooktop
should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of electric
shock. Contact a qualified technician immediately.
• Clean cooktop glass with caution--If a wet sponge or
cloth is used to wipe spills on a hot cooking area, be
careful to avoid a steam burn. Some cleaners can
produce harmful fumes ifapplied to a hot surface.
• Avoid scratching the cooktop glass with sharp
objects.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
= Use care when opening oven door or warmer drawer
(if equipped)--Stand to the side of the range when
opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven/
warmerdrawer.
• Keep oven vent ducts unobstructed. The oven vent is
located at the center rear of the cooktop. Touching the
surfaces in this area when the oven is operating may
cause severe burns. Also, do not place plastic or heat-
sensitive items on or near the oven vent. These items
could melt or ignite.
NEVER cover any slots, holes or
passages in the oven bottom or covet an entire rack
materials such as aluminum foil. Doing so blocks air flow
through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may trap heat, causing a
fire hazard.
• Placement of oven/warmer drawer (if equipped) racks.
Always place oven racks in desired location while oven/
warmer drawer (if equipped) is cool. if rack must be
moved while oven is hot use extreme caution. Use
potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements inthe oven/warmer drawer (if equipped).
Remove all utensils from the rack before moving.
• Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and be
kept away from the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
• Do not touch a hot light bulb with a damp cloth. Doing
so could cause the bulb to break. Disconnect the
appliance or turn off the power to the appliance before
removing and replacing light bulb.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of
grease that could catch fire. Exhaust fan ventilation
hoods and grease filters should be kept clean. Do not
allow grease to accumulate on hood or filter. Greasy
deposits in the fan could catch fire. When you are flaming
food under the hood, turn the fan on. Refer to the hood
manufacturer's instructionsfor cleaning.
SELF=CLEANING OVENS
• in the self=Cleaning cycle only clean the parts listed in
this Use and Care Guide. Before self-cleaning the oven,
remove the broiler pan and any utensils or foods from the :!
oven.
• Do not use oven cleaners--No commercial oven cleaner
or oven liner protective coating of any kind should be
used in or around any part of the oven.
• Do not clean door gasket--The door gasket isessential
for a good seal. Care should be taken not to rub, damage
or move the gasket.
• Remove oven racks. Oven racks color will change if left
in the oven during a self-cleaning cycle.
The health of some birds is extremely
sensitive to the fumes given off during the self=cleaning
cycle of the range. Move the birds to another well
ventilated room.
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires businesses
to warn customers of potential exposure to such
substances.
SAVETHESE SAFETY STR CTI
PROTECTION AGREEMENTS
in the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ®product is designed and manufactured for years
of dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's
when having a Master Protection Agreement can save you
moneyand aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life
of your new product. Here's what's included in the
Agreement:
I_" Expert service by our 12,000 professional repair
specialists
I_" Unlimited service and no charge for parts and labor on
all covered repairs
"No=lemon" guarantee- replacement
of your covered product if four or more product failures
occur within twelve months
Product replacement if your covered product can't be
fixed
I_" Annual Preventive Maintenance Checkatyour request
- no extra charge
Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling
lY_ Power surge protection against electrical damage due
to power fluctuations
lY_ Rental reimbursement if repair of your covered product
takes longer than promised
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
in Canada
Maintenance Agreements
Your purchase has added value because you can depend
on Sears HomeCentral®for service. With over 2400
Service Technicians and more than a million parts and
accessories, we have the tools, parts, knowledge and
skills to ensure our pledge: We Service What We Sell.
Your Kenmore®product isdesigned, manufactured
and tested to provide years of dependable operation. But
like all products, it may require service from time to time.
The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.
The Sears Maintenance Agreement:
Is your way to buy tomorrow's service at today's price
Eliminates repair bills resulting from normal wear and
tear
Provides phone support from a Sears technician on
products requiring in-home repair
Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running condition.
Some limitations apply. For more information about
Sears Canada Maintenance Agreements,
call 1=800=361=6665
Sears has over 12,000 professional repair specialists, who
have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection Agreement
today!
Some limitations and exclusions apply.
For prices and additional information call
1=800-827--6655.
Sears Installation Service
For Sears professional installationof home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call
1-800-4-MY-HOME®
Grounding instructions
For personal safety, the cooktop must be properly grounded. For maximum
safety, the power cord must be plugged into an electrical outlet that is
correctly polarized and properlygrounded.
DO NOT Operate the cooktop using a 2-prong adapter or an extension cord.
If a 2-prong wall receptacle is the only available outlet, it isthe personal
responsibility of the consumer to have it replaced with a properly g rounded
3-prong wall receptacle installed by a qualified electrician.
See the iNSTALLATiON INSTRUCTIONS packaged with this cooktop for
complete installationand grounding instructions.
Grounding type
wall receptacle
Power supply cord with
3-prong grounding plug
This appliance is equipped with a 3-prong grounding
plug for your protection against shock hazard and should be plugged
directlyintoa properlygrounded receptacle. DO NOTcut or removethe
grounding prong from this plug.
Avoid fire hazard or electrical shock.
DO NOT use an adapter plug, an extension cord, or
remove grounding prong from electrical power cord.
Failu reto follow this warning can cause serious injury,
fire or death.
Conversion to Liquefied Petroleum Gas (or L.P. Gas)
This natural gas range is designed to allow for conversion
to Liquefied Petroleum (L.P.) Gas.
Only a qualified service agent should perform the L.P.
conversion. If L.P. conversion is needed, contact 1=800=4-
MY=HOME@ for assistance. The L.P. Conversion Kit is
provided with this range and is located on the right panel
(right side) of the range. Before installingthe kit be sure to
follow the L.P. Installation Instructions carefully.
Personal injuryor death from electrical shock i :::
occur if the range is not installed by a qualified installer
may
or electrician. :_
Any additions, changes or conversions
required inorder for this appliance to satisfactorily meet the
application needs must be made by Sears Service Center.
Range Features
Your
Range
Features
At a Glance
Removable Surface Burner
Grates (Styles and color
will vary by _l)
Electronic Oven Controls
with Clock and Kitchen Timer
Surface Burner
Control Knobs
9,5OOBTU
Sealed Burner
LP convertible
Oven Vent
Oven Light
(2) Adjustable
Oven Racks
Oven Door
Handle
Glass Front Oven
Doorwith Large
Window Opening
5,OOOBTU
Sealed Burner
LP convertible)
9,5OOBTU
Sealed Burner
LP convertible
12,200BTU
Sealed Burner
(LP convertible)
Porcelain
Cook Top
Note: The features of your range will
vary according to model.
8
Before Setting Surface Controls
Assembly of the Surface Burner Heads, Burner Caps and Burner Grates
It is very important to make sure that all of the Surface Burner Heads, Surface Burner Caps and Surface Burner Grates are
installed correctly and at the correct locations.
1. Remove all packing tape from cooktop area. Remove
all Burner Caps and Burner Heads.
2. Discard all packing material located under Burner
Heads (if applicable).
3. To replace the Burner Heads & Caps, match the
letters located under center of Burner Caps with the
letters located inside Burner Heads (Figure 1).
4. Match BurnerSkirtswith Burner Heads and Burner
Caps (see Figure 1). Replace the Burner Heads and
Caps on cooktop (see Figure 2). Carefully align the
Electrodes into slot or hole of each Burner Head
(Figure 3). Note: The Burner Heads should sit flat on
Cooktop Burner Skirts.
5. Place the removable oven vent cover over the fixed
oven vent cover.
6. Unpack Burner Grates and position on the cooktop.
REMEMBER -- DO NOT ALLOW SPILLS, FOOD,
CLEANING AGENTS OR ANY OTHER MATERIAL TO
ENTER THE GAS ORiFiCE HOLDER OPENING. Always
keep the Burner Caps and Burner Heads in place
whenever the surface burners are in use.
A.SK
_9:5K
Figure 2
_Electrodes must
Figure 3 align into slot or hole for each
Burner Head
ill,i;
Figure4
Control Locations of the Gas Surface
Burners
Your range is equipped with gas surface burners with
different BTU ratings. The ability to heat food quicker
and in larger volumes increases as the burner size
increases.
The small SIMMER burner is best used for simmering
delicate sauces, etc. This burner is located at the right
rear burner position on the cooktop (see Figure 4).
The STANDARD burner can be used for most surface
cooking needs. The 2 standard burners are located at
the left front and rear positions on the cooktop (see
Figure 4).
The POWER burners are best used for bringing large
quantities of liquid rapidly up to temperature or when
preparing larger quantities of food. The POWER burner
is located at the right front burner position on the
cooktop (see Figure 4).
Regardless of size, always select cookware that is
suitable for the amount and type of food being prepared.
Select a burner and flame size appropriate to the pan.
Never allow flames to extend beyond the outer edge of
the pan.
Setting Surface Controls
Do not place plastic
items such as salt and pepper shakers,
spoon holders or plastic wrappings on
top of the range when it is in use. These
items could melt or ignite. Potholders,
towels or wood spoons could catch fire if
placed too close to a flame.
In the event of an electrical power outage,
the surface burners can be lit manually. To
light a surface burner, hold a lit match to
the burner head, then slowly turn the
surface control knob to LITE. After burner
lights push in and turn knob to desired
setting. Use caution when lighting surface
burners manually.
Operating the Gas Surface Controls:
t. Place cooking utensil on surface burner.
2. Push the surface control knob down and turn counterclockwise out of
the OFF position (See Figure t).
3. Release the knob and rotate to the LITE position. Note: All four
electronic surface ignitors will spark at the same time. However, only
the burner you are turning on will ignite.
4. Visually check that the burner has a flame.
5. Turn the control knob counterclockwise to the desired flame size. The
control knobs do not have to be set at a particular setting. Use the knob
indicator settings to adjust the flame as needed. DO NOT cook with the
surface control knob in the LITE position. (The electronic ignitor will
continue to spark if the knob is left in the LITE position.)
Setting Proper Surface Burner Flame Size
Formost cooking, start on the highest control setting and then turn to a
lower one to complete the process. Use the recommendations below as a
guide for determining proper flame size for various types of cooking. The
size and type of utensil used and the amount of food being cooked will
influence the setting needed for cooking.
Figure 1
Figure 2
Proper
flame size
High Flame Start most foods; bring water to a boil; pan broiling.
Medium Flame Maintain a slow boil; thicken sauces, gravies; steaming.
Low Flame Keep foods cooking; poach; stewing.
*These settings are based on using medium-weight metal or aluminum
pans with lids. Settings may vary when using other types of pans. The
color of the flame is the key to proper burner adjustment. A good flame is
clear, blue and hardly visible in a well-lighted room. Each cone of flame
should be steady and sharp. Adjust or clean burner ifflame isyellow-orange.
Regardless of size, always select cookware that is suitable for the amount
and type of food being prepared. Select a burner and flame size appropriate
to the pan. Never allow flames to extend beyond the outer edge of the pan.
Never extend the flame beyond the outer edge of the utensil. A higher
flame wastes heat and energy and increases your risk of being burned
by the flame (Figura 2).
For deep fat frying, use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy.
If the fat istoo hot, the food will brown so quickly that the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the
food will neither brown nor cook properly.
Improper
flame size
10
Surface Cooking
Use Proper Cookware
Cookware should
have flat bottoms that
make good contact
with the entire surface
heating element.
Check for flatness by
rotating a ruler across
the bottom of the Figure 1
cookware (See Figure
1). Be sure to follow
the recommendations for using cookware
as shown in Figure 2.
Note: The size and type of cookware used
will influence the setting needed for best
cooking results.
Note: Always use a utensil for its intended
purpose. Follow manufacturer's instructions.
Some utensils were not made to be used in
the oven or on the cooktop.
CORRECT
• Flat bottom and straight
sides.
• Tight fitting lids.
• Weight of handle does not tilt
pan. Pan is well balanced.
• Pan sizes match the amount
of food to be prepared.
• Made of material that
conducts heat well.
• Easy to clean.
iNCORRECT
• Curved and warped pan bottoms.
• Pan overhangs unit by more than
2.5 cm (1").
Heavy handle tilts pan.
• Flame extends beyond unit.
Figure 2
* Specialty pans such as lobster pots, griddles and pressure cookers may be
used but must conform to the above recommended cookware requirements.
Using a wok
Woks with flat bottoms suitable for use
on your cooktop are available in most
cookshop or hardware stores. Round-
bottomed woks (with a support ring that
does not extend beyond the burner unit)
may also be used. The metal ring was
designed to support the wok safely
when it is filled with large amounts of
liquids (soup making) or fat (frying).
Wire trivets: Do not use wire trivets.
Cookware bottoms must be in direct
contact with the grates.
DO NOT use a wok if it is equipped with
a metal ring that extends beyond the
burner unit. Because this ring traps
heat, the surface unit and cooktop
surface could be damaged.
2C
11
Before Setting Oven Controls
i _ This range has a fan that will turn "ON" and "OFF" by itself to keep the electronics cool. It maycontinue to run after the range has been turned "OFF" but may also stop immediately to turn "ON" after a while.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when the oven is hot.
Oven Vent Location
The oven vent is located in the center rear on the cooktop. When the
oven is on, warm air passes through the vent. This venting is
necessary for proper air circulation in the oven and good baking
results. DO NOT BLOCK OVEN VENT.
Never close off the openings with aluminum foil or any other material.
OVEN VENT
Removing and Replacing Oven Racks
To remove, pull the rack forward until it
stops. Lift up front of rack and slide out. To
replace, fit the rack onto the guides on the
oven walls. Tilt the front of the rack upward
and slide the rack back into place.
1
__ Rack
_positions
RECOMMENDED RACK POSITIONS FOR
BROILING, BAKING & ROASTING
Food Rack position
Broiling meats, chicken or fish 3 or 4
Cookies, cakes, pies, biscuits & muffins
1 rack 2or3
Multiple racks 2 & 4
Frozen pies, angel food cake, yeast, bread, 1 or2
casseroles, small cuts of meat or poultry
Turkey, roast or ham 1
Note: Always use caution when removing food.
Air Circulation in the Oven
For best air circulation and baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and cookware do not
touch each other, the oven door, sides or back of the oven cavity. The hot air
must circulate around the pans and cookware for even heating.
1 Oven Rack
12 Multiple Oven Racks
Control Pad Functions
Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are
the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide.
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various functions of the oven as described below.
CLOCK SET COOK TIME UP and DOWN ARROW PADS-- Used BAKE PAD-- FEATURE INDICATOR
PAD-- Used PAD-- Used to along with the function pads to select oven Used to select the LIGHTS-- These light to
to set the enter the length of temperature, cook time, start time (when bake function, show which feature is in
time of day. the baking time. programming an automatic start time), time use.
of day, clean time and minute timer. BROIL PAD--
Used to select the
variable broil
function.
OVEN INTERIOR
LIGHT PAD--
Used to turn oven
interior light ON or
OFF.
SELECT CLEAN
PAD-- Used to
select the Self-
Cleaning cycle. A 2,
3 or 4 hour Self-
Clean time may be
selected.
\
J
TIMER SET/OFF PAD--
Used to set or cancel the
minute timer. The minute
timer does not start or stop
cooking. Also,
TIMER SET/OFF pad is
used to set the Continuous
Bake feature.
m
• Oven
® Preheat
DoorLocked
\
0
Oven
_ L0ckout
/
DELAY START
PAD-- Used to set
the desired start
time for baking &
Self-Clean. May be
used with COOK
TIME to program a
delayed bake
cycle.
OVEN, PREHEAT & DOOR LOCKED LIGHTS* -- The "OVEN"
light will glow each time the oven turns on to maintain the set oven
temperature. The "PREHEAT" light will glow when the oven is first
set to operate, or if the desired temperature is reset higher than the
actual oven temperature. The "DOOR LOCKED" light will flash
when the oven door locks and unlocks or when using the Self-Clean
cycle or when the oven lockout is activated. The indicator light will
glow constantly after the door locks.
WARM & HOLD
PAD-- Used to set
the Warm & Hold
feature.
STOP/CLEAR
PAD-- Used to
clear any function
previously entered
except the time of
day and minute
timer. Press STOP/
CLEAR to stop
cooking. Also the
STOP/CLEAR pad
is used to activate
oven door lockout
setting.
*Note: The OVEN indicator light on the electronic display will turn ON and OFF when using the Bake feature and during
preheat. This is normal and indicates that the oven is cycling to maintain the selected baking temperature. When the preheat
indicator light turns OFF, your oven has reached the set temperature.
For a silent control panel
When choosing a function, a beep will be heard each time a pad ispressed. Ifdesired, the control can be programmed for
silent operation. Press and hold D_s%=_.After 7 seconds, the control will beep once. This will block the controls from
when a pad ispressed. To return to normal sound operation, press and hold _ again for 7 seconds until the
sounding
control beeps once.
Temperature conversion
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be
programmed for any temperature from 170°F to 550°F (77°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1.
2.
3.
4.
5.
Press "----" appears in the display.
Press and hold the ,_,_ until "Hr' appears in the display.
Press and hold until °F or °C appears in the display.
Press the ,j_ or V to change °F to °C or °C to °F.
Press any control pad to return to normal operating mode.
13
Setting Oven Controls
Note: The time of day must first be set in order to operate the oven.
To Set the Clock
When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash
"12:00".
(_ once (do not hold pad down).
1. Press
2. Within 5 seconds, press and hold the j_, or v until the correct time of day appears in the display.
Note: The clock cannot be changed during any timed bake or Self-Clean cycle.
To Set the MinuteTimer:
1. Press M
v
2. Press the j%. to increase the time in one minute increments. Press and hold the A to increase the time in 10
minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.
Note: if the V pad Jspressed first, the timer will advance to 11 hours and 59 minutes.
3. The display shows the timer countdown in minutes until 1 minute remains. Then the display will countdown in
seconds.
4. When the set time has run out, the timer will beep 3 times, itwill then continue to beep 3 times every 60 seconds
until _ is
pressed.
Note: The indicator light located above the _ pad will glow while the minute timer isactive.
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when the
set time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute
timer is in use with any other function, the minute timer will be shown in the display. To view other functions, press the
pad for that function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press and hold the A or V to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out: Press @.
Note: To turn the time of day display OFF or ON in the display press (_) and hold for 15 seconds (the control will beep
once) and then release. This feature does not remove the set time of day from the memory of the control. When the
display is turned OFF the time of day will re-appear for a few seconds any time the (_) pad istouched.
14
Setting Oven Controls (cont'd)
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C).
To Set the Controls for Baking:
1. Press _, .... appears in the display.
2. Within 5 seconds, press the A or V. The display will show "350°F (177°C)." By pressing and holding theA or
V, the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
3. As soon as the j_, or V pad is released, the oven will begin heating to the selected temperature. When the oven
temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control will beep
3 times.
4. To cancel baking, press _.
To Change the Oven Temperature after Baking has Started:
1. Press @ and make sure the bake temperature is
displayed.
2. Press the _ or V pad to increase or decrease the set temperature.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven ifthe control is left on for more
than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.
To set control for continuous baking:
1.
2.
Press and hold _ down for 5 seconds until tone is heard, "---- hr" will appear in display for continuous
cooking.
The current time of day will return to the display.
To cancel the Continuous Bake function, press @ and hold for 5 seconds until tone is heard. "12hr" will appear in
display indicating that the control has returned to the 12 Hour Energy Saving feature.
To Set Control for Oven Lockout
The control can be programmed to lock the oven door and lockout the oven control pads.
To set Control for Oven Lockout feature:
Press _) and hold for 3 seconds. "Loc" will appear in display, the "Door Locked" indicator light will flash and the
motor driven door lock will begin to close automatically. DO NOT open oven door while the indicator light is flashing.
Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will appear in
the display.
2. To cancel the Oven Lockout feature, press and hold for 3 seconds. The control will unlock the oven door and
resume normal operation.
Note: if any control pad is pressed while in the Oven Lockout mode, "Loc" will appear in the display until the
control pad is released.
15
Setting Oven Controls (cont'd)
To Set the Timed Bake and Delay Start Features
The _ COOK TiME and _ DELAY START pads operate the features that will turn the oven ON and OFF at the
v
times you select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake)
or to begin baking at a later time with a delayed start time (Delay Start).
To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):
t. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3,
4.
5,
6.
7.
Press t. '.... appears in the display.
Within 5 seconds, press theA or V. The display will show "350°F (177°C). '' By holding the A or V, the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
Press _. "0:00" will flash in the
display (HR:MIN).
Press the _ or V until the desired baking time appears in the display.
The oven will turn ON and begin heating.
To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Start Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3,
4.
5,
6.
7.
8.
9.
Press 1. '.... appears in the display.
Within 5 seconds, press the_ or V. The display will show "350°F (177°C). '' By holding the_ or V, the
temperature can then be adjusted in 5°F increments (1°C ifthe control is set to display Celsius).
Press _. "0:00" will flash in the display (HR:MIN).
Press the _ or V until the desired baking time appears.
Press _se_i_.The earliest possible start time will appear in the display.
Press theA or V until the desired start time appears in the display.
The oven will turn ON at the delayed start time and begin heating.
When the Set Bake Time Runs Out:
a. "END" will appear in the display window and the oven will shut-off automatically.
b. The control will beep 3 times every 60 seconds until _ is
pressed.
To Change the Oven Temperature or Bake Time after Baking has Started:
t. Press the function pad you want to change.
2. Press the _ or V to adjust the setting.
Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be chilled inthe refrigerator first. Even when chilled, they should not stand in the oven
for more than 1 hour before cooking begins, and should be removed promptly when cooking iscompleted.
16
Setting Oven Controls (cont'd)
Oven Baking Informations
For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Refer to "Recalibrating Your Oven Temperature" section.
Baking problems and solutions
Baking Problems Causes Corrections
e
Cookies and
biscuits burn on
the bottom.
Cakes too dark on
top or bottom.
Cakes not done in
the center.
Cakes not level.
Foods not done
when cooking
time is up.
Cookies and biscuits put into the
oven before the pre-heating time is
completed.
Oven rack overcrowded.
= Dark pan absorbs heat too fast.
= Cakes put into the oven before
preheating time is completed.
• Oven rack position too high or low.
= Oven too hot.
= Oven too hot.
• incorrect pan size.
= Pan not centered in the oven.
,, Range not level.
= Pan too close to oven wall or rack
overcrowded.
Pan warped.
= Oven too cool.
• Oven overcrowded.
= Oven door opened too frequently.
= Allow oven to preheat to the selected temperature
before placing food in oven.
Choose pan sizes that will permit 2" to 4" (5.1 cm
to 10.2 cm) of air space on all sides when placed
in the oven.
,, Use a medium-weight aluminum baking sheet.
Allow oven to preheat to the selected temperature
before placing food in the oven.
• Use proper rack position for baking needs.
,, Set oven temperature 25°F/12°C lower than
recommended.
,, Set oven temperature 25°F/12°C lower than
recommended.
• Use pan size suggested in recipe.
Use proper rack position and place pan so there is
2" to 4" (5.1 cm to 10.2 cm) of space on all sides of
pan.
,, Place marked glass measuring cup filled with
water on the center of the oven rack. if water level
is uneven, refer to the installation instructions for
leveling the appliance.
Be sure to allow 2" to 4" (5.1 cm to 10.2 cm) of
clearance on all sides of each pan in the oven.
,, Do not use pans that are dented or warped.
,, Set oven temperature 25°F/12°C higher than
suggested and bake for the recommended time.
Be sure to remove all pans from the oven except
the ones to be used for baking.
• Open oven door only after shortest recommended
baking time.
2
Z
17
Setting Oven Controls (cont'd)

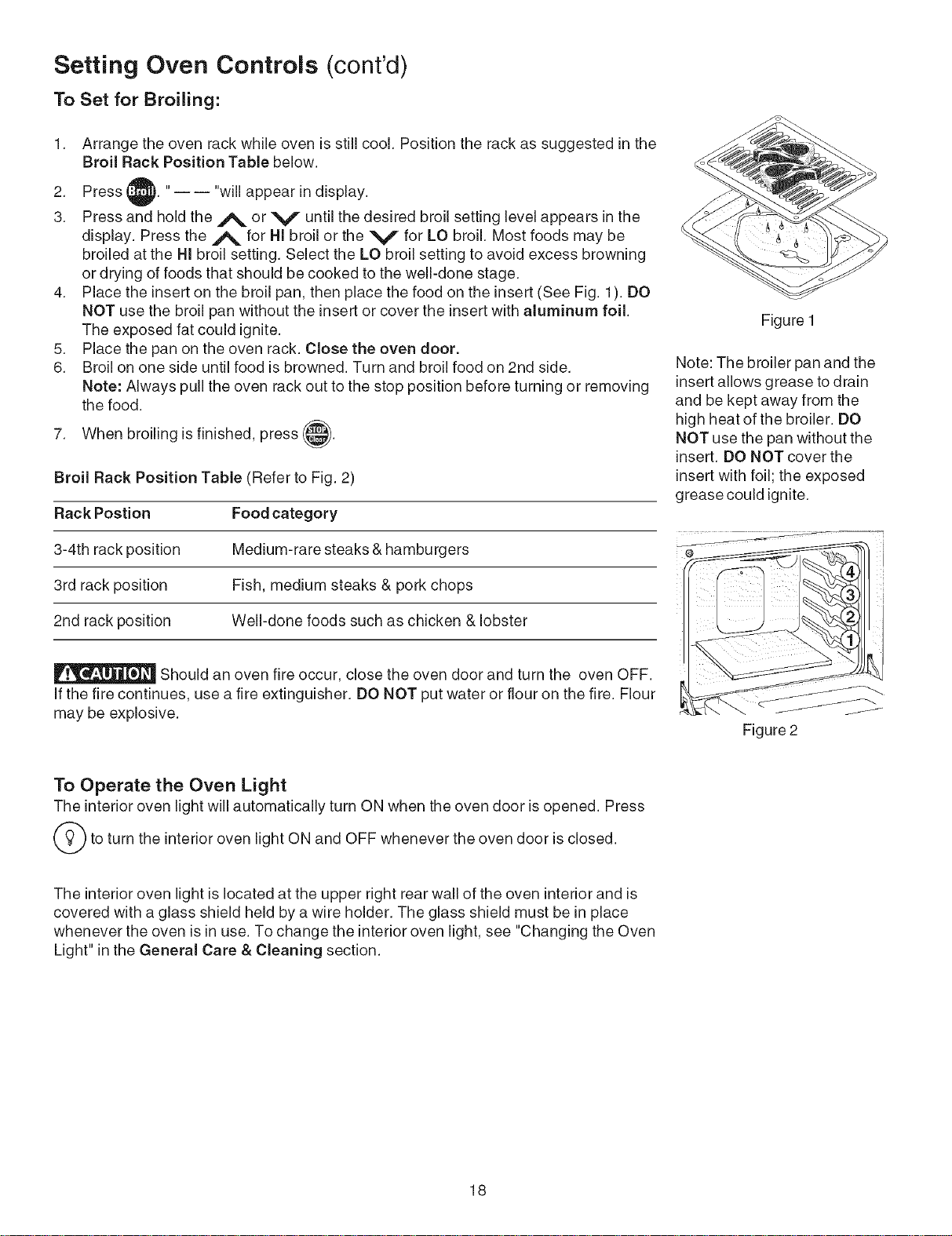

To Set for Broiling:
1.
2.
3.
Arrange the oven rack while oven is still cool. Position the rack as suggested in the
Broil Rack Position Table below.
Press "---- "will appear in display.
Press and hold the j_, or V until the desired broil setting level appears in the
display. Press the j_, for HI broil or the V for LO broil. Most foods may be
broiled at the HI broil setting. Select the LO broil setting to avoid excess browning
or drying of foods that should be cooked to the well-done stage.
4. Place the insert on the broil pan, then place the food on the insert (See Fig. 1). DO
NOT use the broil pan without the insert or cover the insert with aluminum foil.
The exposed fat could ignite.
5. Place the pan on the oven rack. Close the oven door.
6. Broil on one side until food is browned. Turn and broil food on 2nd side.
Note: Always pull the oven rack out to the stop position before turning or removing
the food.
broiling is finished, press (_.
7. When
Broil Rack Position Table (Refer to Fig. 2)
Rack Postion Food category
3-4th rack position Medium-rare steaks & hamburgers
3rd rack position Fish, medium steaks & pork chops
2nd rack position Well-done foods such as chicken & lobster
Figure 1
Note: The broiler pan and the
insert allows grease to drain
and be kept away from the
high heat of the broiler. DO
NOT use the pan without the
insert. DO NOT cover the
insert with foil; the exposed
grease could ignite.
=
Should an oven fire occur, close the oven door and turn the oven OFF.
If the fire continues, use a fire extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.
Figure 2
To Operate the Oven Light
The interior oven light will automatically turn ON when the oven door is opened. Press
(_to turn the interior oven light ON and OFF whenever the oven door isclosed.
The interior oven light is located at the upper right rear wall of the oven interior and is
covered with a glass shield held by a wire holder. The glass shield must be in place
whenever the oven is in use. To change the interior oven light, see "Changing the Oven
Light" in the General Care & Cleaning section.
18
Setting Oven Controls (cont'd)

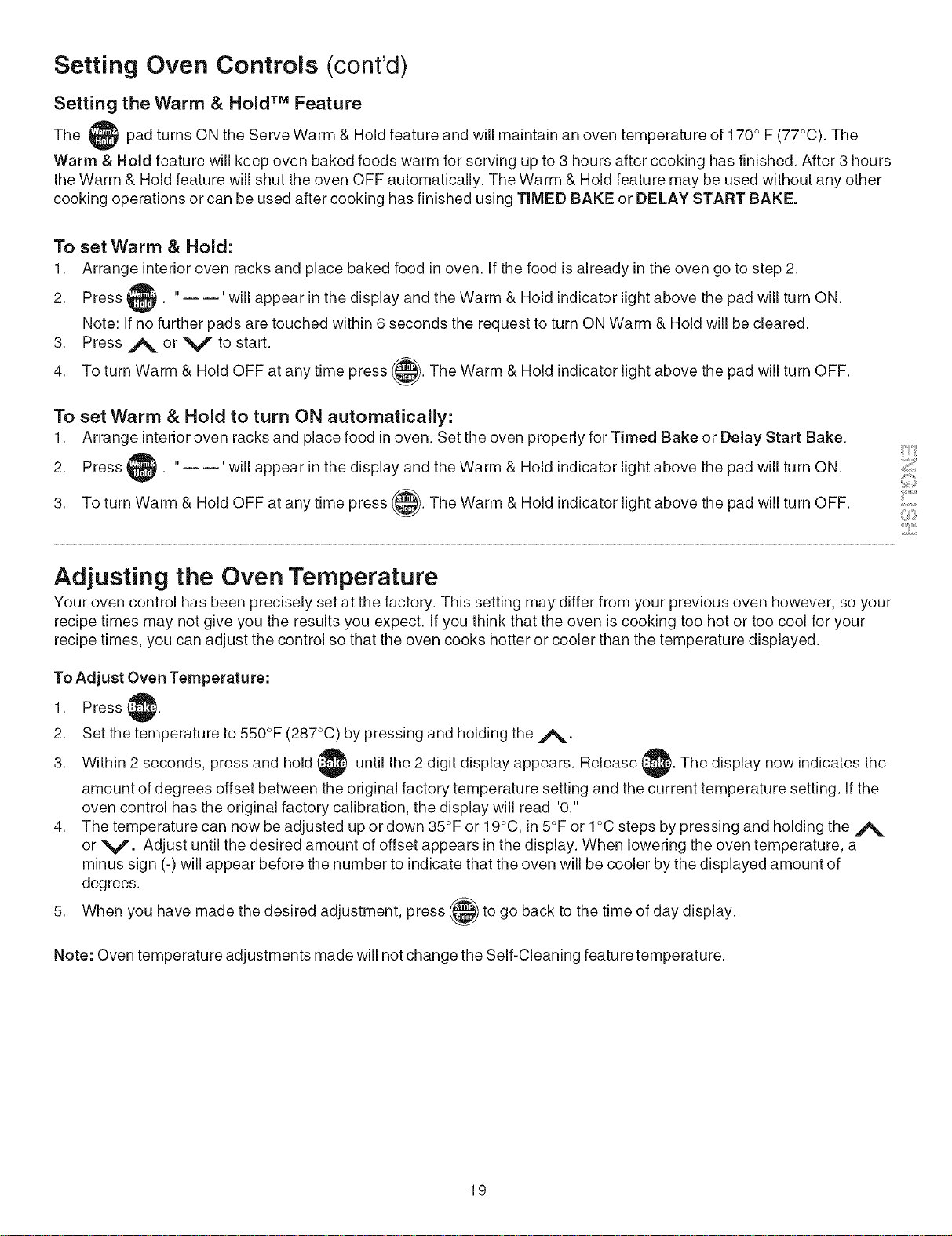

Setting the Warm & Hold TM Feature
The pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of t 70 ° F (77°C). The
Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours
the Warm & Hold feature will shut the oven OFF automatically. The Warm & Hold feature may be used without any other
cooking operations or can be used after cooking has finished using TIMED BAKE or DELAY START BAKE.
To set Warm & Hold:
1. Arrange interior oven racks and place baked food in oven. If the food is already in the oven go to step 2.
2. Press .... will appear in the display and the Warm & Hold indicator light above the pad will turn ON.
Note: If no further pads are touched within 6 seconds the request to turn ON Warm & Hold will be cleared.
3. Press A or V to start.
4. To turn Warm & Hold OFF at any time press _'_. The Warm & Hold indicator light above the pad will turn OFF.
_J
To set Warm & Hold to turn ON automatically:
1. Arrange interior oven racks and place food in oven. Set the oven properly for Timed Bake or Delay Start Bake.
2. Press .... will appear in the display and the Warm & Hold indicator light above the pad will turn ON.
3. To turn Warm & Hold OFF at any time press _. The Warm & Hold indicator light above the pad will turn OFF.
Adjusting the Oven Temperature
Your oven control has been precisely set at the factory. This setting may differ from your previous oven however, so your
recipe times may not give you the results you expect. Ifyou think that the oven iscooking too hot or too cool for your
recipe times, you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.
To Adjust Oven Temperature:
1. Press _.
2. Set the temperature to 550°F (287°C) by pressing and holding the j%.
3. Within 2 seconds, press and hold t until the 2 digit display appears. Release The display now indicates the
amount of degrees offset between the original factory temperature setting and the current temperature setting. If the
oven control has the original factory calibration, the display will read "0."
4. The temperature can now be adjusted up or down 35°F or t 9°C, in 5°F or 1°C steps by pressing and holding the j_,
or V. Adjust until the desired amount of offset appears in the display. When lowering the oven temperature, a
minus sign (-) will appear before the number to indicate that the oven will be cooler by the displayed amount of
degrees.
5. When you have made the desired adjustment, press _ to go back to the time of
day display.
Note: Oven temperature adjustments made will not change the Self-Cleaning feature temperature.
19
Self-Cleaning
During the Self-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
The health of some
birds is extremely sensitive to the fumes
given off during the Self-Cleaning cycle
of any range. Move birds to another well-
ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part of
the range with aluminum foil. Doing so
will destroy heat distribution, produce
poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.
/
DO HAND
CLEAN DOOR
CLEAN SEAL
Note: See additional cleaning information
for the oven door in the General Care &
Cleaning section.
® •
• Q o
@O@
m
00vee
Q Preheat
® Boor Looked
®
Oven
_ Lo6kout
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above
cooking temperatures) which eliminate soils completely or reduces them to
a fine powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
= DO NOT use oven cleaners or oven protective coatings in or around any
part of the Self-Cleaning oven.
• DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to
rub, damage or remove the gasket.
= DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
= Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
• Oven racks do not have to be removed. If they are not removed during
the Self-Clean cycle their color will turn slightly blue and the finish will
be dull. If left in, after the cycle is complete and the oven has cooled,
rub the sides of the oven racks with wax paper or a cloth containing a
small amount of salad oil (this will make the racks glide easier into the
rack position).
= Remove any excessive spillovers in the oven cavity before starting
the Self-Cleaning cycle. To clean, use hot, soapy water and a cloth.
Large spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid
content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may leave a dull spot even after
cleaning.
= Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the
oven bottom should be removed.
What to Expect during Cleaning
While the oven is in operation, the oven heats to temperatures much higher
than those used in normal cooking. Sounds of metal expansion and
contraction are normal. Odor is also normal as the food soil is being
removed. Smoke may appear through the oven vent.
If heavy spillovers are not wiped up before cleaning, they may flame and
cause more smoke and odor than usual. This is normal and safe and should
not cause alarm. Ifavailable, use an exhaust fan during the self-cleaning
cycle.
2O
Self=Cleaning (cont'd)
Self-Clean Time Length
For satisfactory results, use a 2 hour Self-Clean cycle for light soils, and a 3 hour cycle for average, and a 4 hour cycle
for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood
during the Self-Clean cycle. This will help eliminate the normal odors associated with the Self-Clean cycle.
To Set the Controls for a Self=Clean Cycle or a Delayed Start Self=Clean Cycle:
(Note: If you do not want to start a Delayed Self-Clean Cycle, skips steps 2 & 3.)
1. Be sure the clock shows the correct time of day.
2. Press @. The " : " in the time of day will flash.
3. Press and hold the A pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the
desired time is displayed.
4. Press 0' " "appears in the
display.
5. Press the j%. or V once. "3:00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle press
V. "2:00" appears in the display or to select a 4 hour cycle press j_. "4:00" appears in the display.
As soon as the controls are set, the motor driven lock will begin to close automatically and the "Door Locked"
indicator light will flash. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the
oven door to lock).
6. "CLn" will appear in the display during the Self-Clean cycle and the "Door Locked" light will glow until the Self-
Cleaning cycle is completed or cancelled and the oven temperature has cooled.
When the Self-Clean Cycle is Completed:
1. The time of day or "End" will appear in the display window and the "Clean" and "Door Locked" light will continue to
glow.
2. Once the oven has cooled down for about 1 HOU Rand the "Door Locked" light has gone out, the oven door can be
opened.
3. If "End" is in the display and the Select Clean indicator light remains ON, press _. The time of day will appear in
the display.
NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.
Stopping or Interrupting a Self-Cleaning Cycle
if it becomes necessary to stop or interrupt a Self-Cleaning cycle:
1. Press _.
2. Once the oven has cooled clown for about 1 HOUR and the "Door Locked" light has gone out, the oven door can be
opened.
3. Restart the Self-Clean cycle once all conditions have been corrected.
To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the
side of the oven when opening the door to allow hot air or steam to escape.
iii"_J'
DO NOT force the oven door open. This can damage the automatic door locking system. Use caution
and avoid possible burns when opening the door after the Self-Cleaning cycle has completed. The oven may still be
VERY HOT.
21
General Care & Cleaning
Cleaning Various Parts of Your Range
Before cleaning any part of the oven, be sure all controls are turned OFF and the range is COOL. REMOVE SPILLOVERS
AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS NOW WILL REDUCE THE EXTENT AND
DIFFICULTY OF MAJOR CLEANING LATER.
Surfaces How to Clean
Aluminum (trim pieces) & Use hot, soapy water and a cloth. Dry with a clean cloth.
Vinyl
Glass, Painted and Plastic
Body Parts, Control Knobs
& Decoratives Trim Pieces
Control Panel
Porcelain Enamel
Burner Grates, Cooktop
Surface, Below Cooktop,
Broiler Pan & Insert, Door
Liner, Oven Bottom &
Burner Drip Pans
Stainless Steel (some
models) Oven door & drawer
front panel
Oven Racks
Oven Door
Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of
vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. DO NOT
spray liquids directly on the control pad and display area. Do not use large amounts
of water on the control panel - excess water on the control area may cause damage
to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads,
or paper towels - they will damage the finish. To remove control knobs, turn to the
OFF position; grasp firmly and pull straight off the shaft. To replace knobs after
cleaning, line up the flat sides of both the knob and the shaft; then push the knob into
place.
Before cleaning the controlpanel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean as instructed above.
Squeeze excess water from the cloth before wiping the panel; especially when wiping
around the controls. Excess water in or around the controls may cause damage to
the appliance. To replace knobs after cleaning, line up the flat sides of both the knob
and the shaft; then push the knob into place.
Clean burner grates, broiler pan and insert in the dishwasher and dry upon removal. If
soils are not removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a
damp cloth, then scrub with a soap-filled scouring pad. Rinse and wipe dry with a
clean cloth. Remove all cleaners or the porcelain may become damaged during future
heating. DO NOT use spray oven cleaners on the cooktop.
Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water
and a cloth. Do not use cleaners with high concentrations of chlorides or
chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners that are
especially made for cleaning stainless steel. Always be sure to rinse the cleaners
from the surface as bluish stains may occur during heating that cannot be removed.
Oven racks should be removed, or else their finish will dull and their color turn slightly
blue. If they do go through the self-clean cycle, wait until the oven has cooled, then
remove the oven racks and rub their sides with wax paper or a cloth containing a
small amount of baby or salad oil; this will make the oven racks glide easier back in
and out of their positions.
Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse
well. You may use a glass cleaner on the outside glass of the oven door. DO NOT
immerse the door in water. DO NOT spray or allow water or the glass cleaner to
enter the door vents. DO NOT use oven cleaners, cleaning powders or any harsh
abrasive cleaning materials on the outside of the oven door.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential fora good seal. Care should be
taken not to rub, damage or remove this gasket.
22
General Care & Cleaning (cont'd)
Cleaning the Cooktop, Burner Heads, Caps & Grates
The cooktop isdesigned to make cleaning easier. Because the gas Burners are sealed, cleanups are easy when spillovers
are cleaned up immediately.
The cooktop, Burner Heads and Caps should be routinely cleaned. Keeping the Burner Head Ports clean will prevent
improper ignition and an uneven flame. Refer to the following instructions:
THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.
THE FIXED OVEN VENT IS NOT REMOVABLE. Do not attempt to remove the fixed
oven vent cover.
Use caution when replacing the Burner Caps so the Electrodes are not damaged. This may cause a
delayed ignition or prevent the burner from igniting.
Any additions, changes or conversions required in order for this appliance to perform satisfactorily must
be made by Sears Service. Call 1-800-4-MY-HOME® (See back cover).
Surface
Burner
Grate
Surface
Electrode
Orifice
holder
Figure 1
To Remove and Replace the Surface Burner Caps and Burner Heads - ::
Remove in the following order: (t st) surface Burner Grates, (2nd) Burner Caps
and (3rd) Burner Heads. Reverse the procedure above to replace the surface
Burner Caps, Burner Heads and Burner Grates.
PLEASE NOTE: The Bridge Burner Head is not removable.
Do not remove any parts from the cooktop until they have completely
cooled and are safe to handle. Do not operate the surface Burners without
the Burner Caps and Burner Heads properly in place.
To Clean the surface Burner Caps and Burner Heads- Use a soap-filled
scouring pad or a mild abrasive cleanser to clean the surface Burner Caps and
Burner Heads. The ports (or slots) around the Burner Heads must be routinely
cleaned, if residue still remains in these ports, use a small-gauge wire or needle
to clean the slots or holes. For proper flow of gas and ignitionof the burner--DO
NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY OTHER
MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING. ALWAYS
keep the surface Burner Caps and Burner Heads in place whenever the gas
Burners are in use.
To Clean the Burner Grates= The Burner Grates are dishwasher safe and may
be cleaned in the dishwasher. Remove any excessive soils before placing in the
dishwasher.
To Clean the Cooktop and contoured areas of the cooktop- Ifa spill occurs
on the porcelain cooktop, blot up spill with an absorbent cloth. Rinse with a
clean, damp cloth and wipe dry. Do not use harsh abrasive cleaners on the
cooktop. They can scratch the porcelain. Completely rinse any mild cleaners
used from the surface or the porcelain cooktop may become damaged during
future heating. DO NOT use spray oven cleaners on the cooktop.
23
General Care & Cleaning (cont'd)
Hinge
support
ngeleverhook
Care and Cleaning of Stainless Steel (Stainless Steel models only)
Some models are equipped with stainless steel exterior parts. Special care and
cleaning are required for maintaining the appearance of stainless parts. Please
refer to the table provided at the beginning of the General Care & Cleaning
section in this Use & Care Guide.
Lock engaged for door removal
Figure 1
HINGE SLOT =Door removed
from the oven
Figure 2
Hinge lever
Lock in normal position
Figure 3
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat
with the inside of the door facing down.
To Remove Oven Door:
1. Open the door to the fully opened position.
2. Pull up the lock located on both hinge supports and engage it in the hinge
lever hooks (Figure 1).You may have to apply a little downward pressure on
the door to pull the locks fully over the hinge lever hooks.
3. Grab the door by the sides and pull the bottom of the door up and toward you
to disengage the hinge supports. Keep pulling the bottom of the door toward
you while rotating the top of the door toward the range to completely disen-
gage the hinge levers (Figure 2).
4. To clean oven door, follow the instructions provided in the General Care &
Cleaning table.
To Replace Oven Door:
1. Grab the door by the sides; place the hinge supports and levers in the hinge
slots. Open the door to the fully opened position.
2. Disengage the lock from the hinge lever hooks on both sides (Figure 3).
Note: Make sure the hinge supports are fully engaged before unlocking the
hinge levers.
3. Close the oven door.
Special Door Care Instructions - Most oven doors contain glass that
can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
24
General Care & Cleaning (cont'd)
Storage Drawer
Use the storage drawer for storing cooking utensils. The drawer can de removed to facilitate cleaning under the range. Use
care when handling the drawer.
Storage
Roller Drawer
Front Frame
Removing and Replacing Storage Drawer
To remove the drawer:
1. Pull empty drawer out to the roller guide stop.
2. Tilt the drawer up and pull itout over the rollers.
To replace the drawer:
1. insert the rear end of the drawer into the opening.
2. Fit the drawer end rollers onto the guide rails.
3. Push the drawer in until it stops, then lift to allow the rollers to clear the
roller guide stop, and push in.
Changing Oven Light
Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on
during a self-cleaning cycle. High temperature will reduce lamp life.
On some models an interior oven light will turn on automatically when the oven isopened.
The oven light may be turned on when the door is closed by using the oven light switch located on the Electronic Oven
control.
The oven light bulb iscovered with a glass shield held in place by a wire holder. THiS GLASS SHIELD MUST ALWAYS
BE IN PLACE WHEN THE OVEN IS IN USE.
To Replace the Light Bulb:
BE SURE OVEN iS COOL
t. Turn the power off at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
3. Replace bulb with a 40 Watt appliance bulb only.
4. Press wire holder to one side to release glass shield, change bulb and be sure to replace
glass shield.
25
Before You Call
Solutions to Common Problems
Before you call for service, review this list. it may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE
Range is not level.
POSSIBLE CAUSE/SOLUTION
Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Adjust leveling legs at base of range until the rack is level. When range is level,
cooktop may appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor is level and can adequately support range. If floor
is sagging or slopping, contact a carpenter to correct the situation.
Kitchen cabinet misalignment may make range appear to be unlevel. Be sure
cabinets are square and have sufficient room for range clearance.
Cannot move appliance easily.
Appliance must be accessible for
service.
Cabinets not square or are built in too tight. Contact a cabinet maker to correct the
problem.
Contact builder or installer to make appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over
carpet.
Gas line is hard-plumbed. Have a flexible C.S.A international approved metal
appliance connector installed.
Entire range or oven does not operate. Make sure cord/plug is plugged tightly into outlet.
Service wiring is not complete. Call 1=800-4-MY-HOME ® (See back cover).
Electrical power outage. Check house lights to be sure. Call your local electric
company for service. Surface burners can be lit manually.
*Oven control beeps and displays any F Electronic control has detected a fault condition. Press STOP/CLEAR to clear the
code error (for exemple Fll) display and stop beeping. Reprogram oven. If fault recurs, record fault number. Press
STOP/CLEAR and call 1-800=4-MY=HOME ® for assistance (See back cover).
Oven light does not work.
Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide.
Electrical power outage. Check house lights to be sure. Call your local electric
compagny for service.
Surface burners do not light.
Surface control knob has not been completely turned to LITE. Push in and turn the
surface control knob to LITE until burner ignites and then turn the surface control
knob to the desired flame size.
Burner ports are clogged. Clean burners. See "Cleaning the Burner Grates, Burner
Caps and Burner Heads" under General Cleaning.
Range power is disconnected from outlet. Be sure cord is securely plugged into the
outlet.
Electrical power outage.
Surface burner flame burns half way
around.
Be sure the gas supply to the range is turned "ON".
Burner ports or slots are clogged. With the burner off, use a small-gauge wire or
needle to clean ports or slots.
Moisture is present after cleaning. Lightly fan the flame and allow the burner to
operate until flame is full. Dry the burners thoroughly following instructions under
General Cleaning.
26
Surface burner flame is orange. Dust particles in main line. Allow the burner to operate a few minutes until flame
turns blue.
Salt air in coastal areas. A slightly orange flame is unavoidable.
Poor baking results. Many factors affect baking results. Make sure the proper rack position is used.
Center food in the oven and space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the oven. Try adjusting the
recipes' recommended temperature or baking time. If you feel the oven is too hot or
cool, see "Adjusting your Oven Temperature" section in this Use and Care Guide.
Fan noise during cooking operation. A cooling fan may automatically turn on and off to cool internal parts. It is normal,
and the fan may continue to run after the range has been turned "OFF" but may also
stop immediately to turn "ON" after a while.
Flames inside oven or smoking from Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.
vent.
Excessive spillovers in oven. This is normal, especially for pie spillovers or large
amounts of grease on the oven bottom. Wipe up excessive spillovers before starting
the self-clean cycle, if flames or excessive smoke are present, stop the self-clean
cycle and follow the steps under "Stopping or interrupting the Self-Cleaning
Cycle" in this Use and Care Guide.
Oven smokes excessively during
broiling.
Meat is too close to the element. Reposition the rack to provide proper clearance
between the meat and the oven broil element.
Meat is not properly prepared. Remove excess fat from meat. Remove remaining
fatty edges to prevent the meat from curling, but do not cut into the lean of the meat.
Broiler pan used without the Broiler Pan insert or insert is covered with foil. DO NOT
use the Broiler Pan without the Broiler Pan Insert or cover the insert with foil.
Broiler Pan or Broiler Pan Insert needs to be cleaned. Ecessive smoking is caused
by build-up of grease or food spatters. Clean the Broiler Pan and Insert on a regular
basis.
Oven door is open. Oven door should be closed when broiling.
Self=cleaning cycle does not work. Control(s) not set properly. Follow instructions under "Self-Cleaning" in this Use
and Care Guide.
Self-cleaning cycle was interrupted. Stop time must be 2 to 4 hours past the start
time. Follow steps under "Stopping or interrupting the Self-Cleaning Cycle" in this
Use and Care Guide.
Soil not completely removed after self-
cleaning cycle.
Set Self-Clean cycle for a longer cleaning time.
Failure to clean bottom front, top of oven or door areas outside oven seal. These
areas are not in the Self-Cleaning area, but get hot enough to burn on food residue.
Clean these areas before starting the Self-Clean cycle. Burned-on residue may be
cleaned with a stiff nylon brush and water or nylon scrubber. Be careful not to
damage the oven gasket by attempting to clean it.
Excessive smoking from oven vent. Excessive spillovers in oven, especially for pie spillovers or large amounts of grease
on the oven bottom. Wipe up excessive spillovers before starting the Self-Clean
cycle. If flames or excessive smoke are present, stop the Self-Clean cycle and follow
the steps under "Stopping or interrupting the Self-Cleaning Cycle" in this Use and
Care Guide.
2
Z
27
iiiiiiiiiiiiiiiiiil YoorHome
For repair-inyour home-of allmajor brand appliances, :
lawn and garden equipment, orheatingand coolingsystems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sea,scorn wwwsea,
o.,Ho.1o
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-t 222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or 1maintenance800827 6655agreement(u.S.A.)(Canada)onaproduct1800 361serviced6665(Canada)bYSears:
Para pedir servicio de reparaci6n Au Canada pour service en frangais:
a domicilio, y para ordenar piezas: 1-800-LE-FOYER Mc
1-888-SU -HOGAR ® (1-800-533-6937) '"'"'"'"'"'"
iiiiiiiiiiiiiiiiii
(1-888-784-6427' www.sears.ca
,S@a/-rs
® Registered Trademark / TMTrademark / SMService Mark of Sears Brands, LLC
® Marca Registrada / TM Mama de F_brica / SMMarca de Servicio de Sears Brands, LLC
MCMarque de commerce / MDMarque d6pos6e de Sears Brands, LLC
® Sears Brands, LLC
