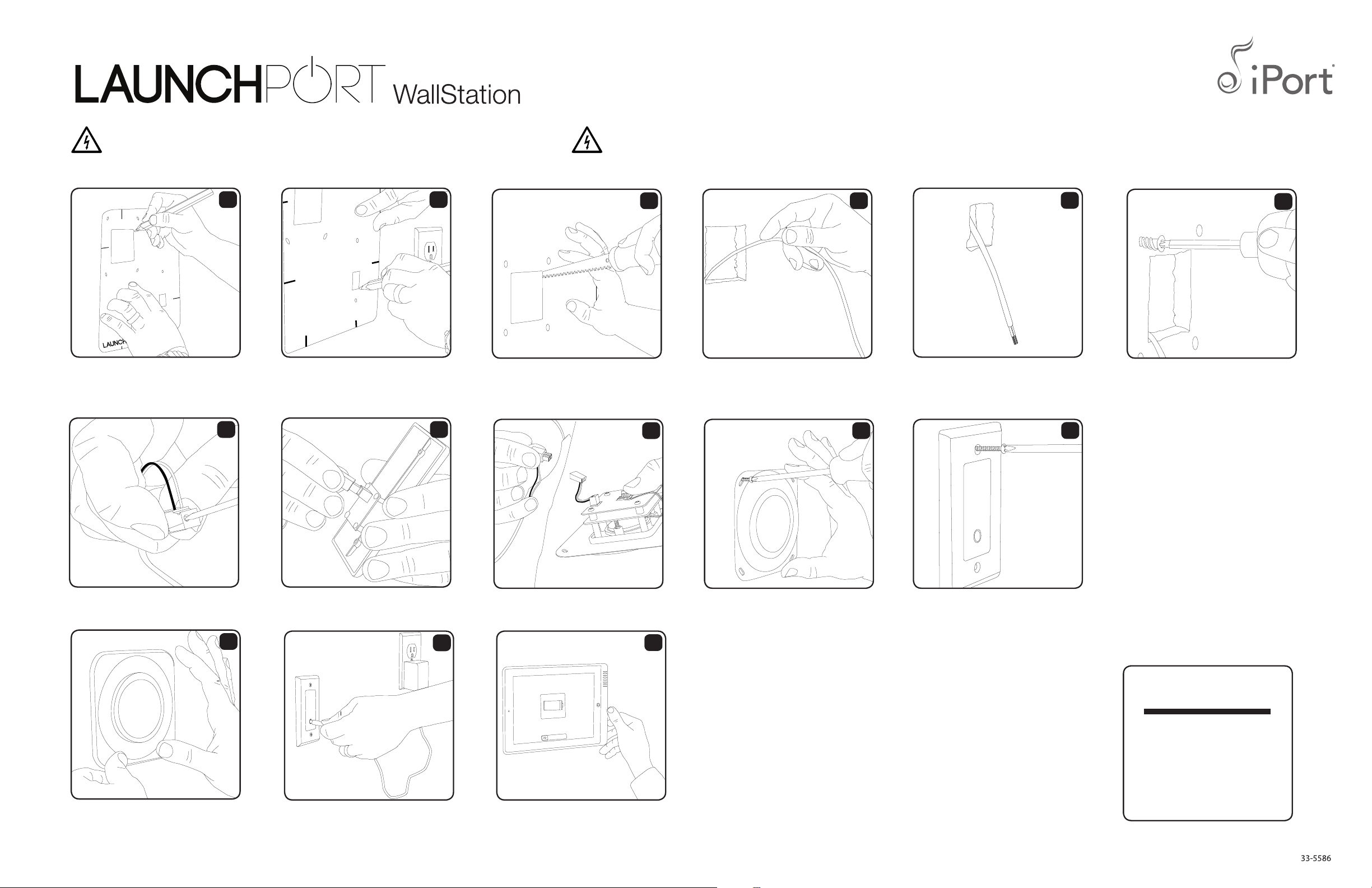

Watch the installation video at LaunchPort.com/support
Turn off power to eliminate risk of shock during installation
Locate desired area for WallStation and
trace cutout and screw locations. Use a
stud finder to locate studs. Use a level to
ensure a level trace.
Using a screwdriver, install the anchors
for the WallStation and wall plate.
*NOTE: For best results pre-drill holes.
Attach fascia to WallStation. Plug power adapter into electrical recepti-
cal and plug power adapter DC plug into
wall plate.
The WallStation is Ready to Use, Enjoy!
Mount wall plate on wall using supplied
screws.
WIRE SIZING CHART
MAX LENGTH GAUGE
25’ 24 AWG
40’ 22 AWG
60’ 20 AWG
100’ 18 AWG
150’ 16 AWG
Attach connectors to both ends of the
wire. The wires must be installed exactly
the same orientation on both connectors.
Plug connector into wall plate. Plug connector into WallStation. Attach WallStation to the wall using sup-
plied screws.
Locate desired area for wall plate and
trace cutout and screw locations.
*NOTE: wall plate must be within 2 feet of
a power outlet.
Cut opening for WallStation and wall plate
using a drywall saw.
Run supplied wire from Wall Station cut-
out to wall plate cutout.
*NOTE: if wiring over 6 feet of distance
refer to Wire Sizing Chart.
Receive wire through wall plate cutout.
1
7
12
13
14
8
9 10
11
2
3 4
5
6
