FULLY AUTOMATIC WASHING MACHINE
Operation Manual
It is most important that this instruction book should be retained with the
appliance for future reference. Should the appliance be sold or transferred
to another owner, or should you move house and leave the appliance, always
ensure the book is supplied with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read
them carefully before installing or using the appliance.
EP24660
1
2
4
5
6
8
9
10
11
12
13
14
15
16
Before using
Parts name............................
Cautions...............................
Installation and adjustment.....
How to use drainpipe..............

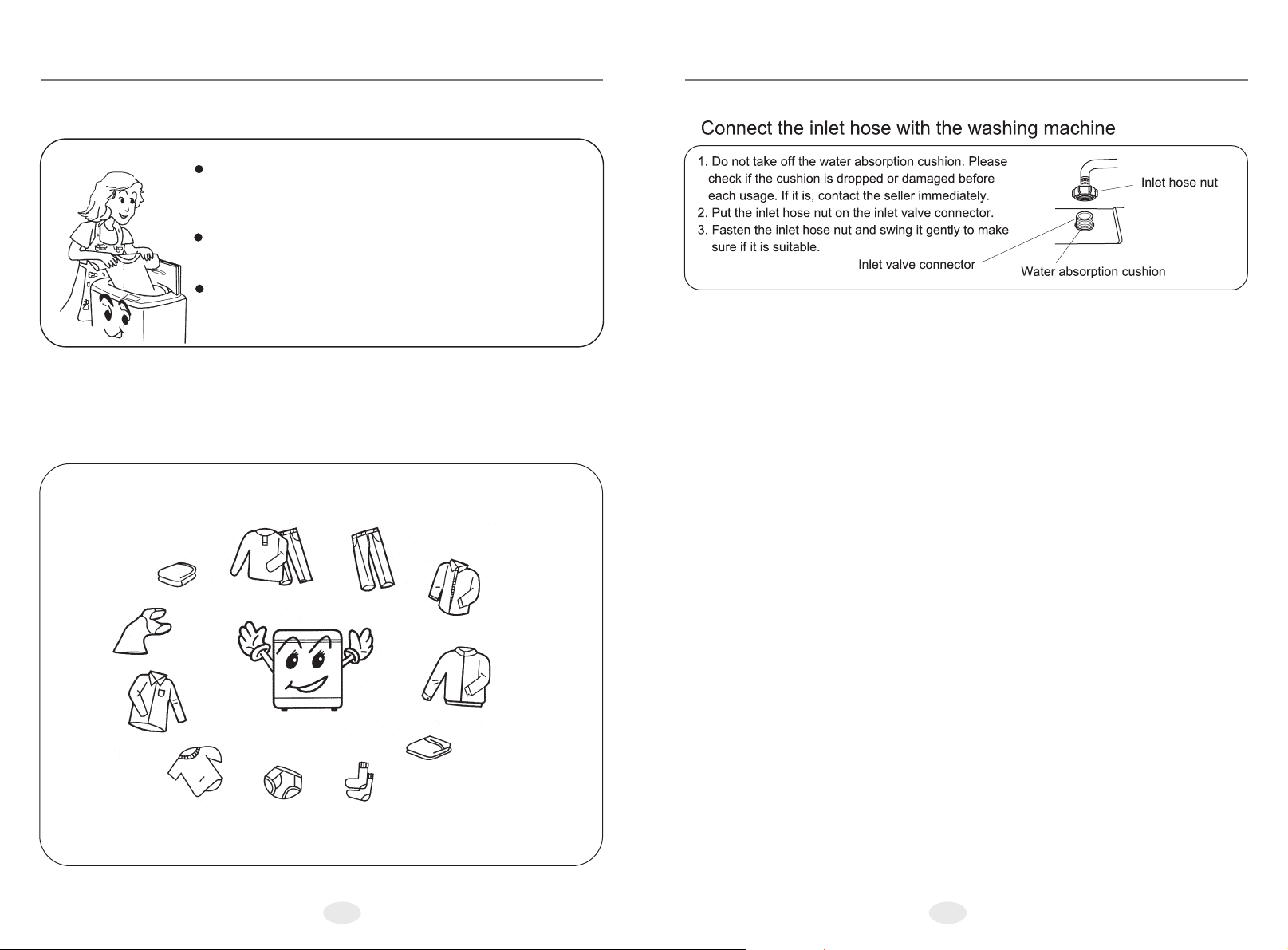

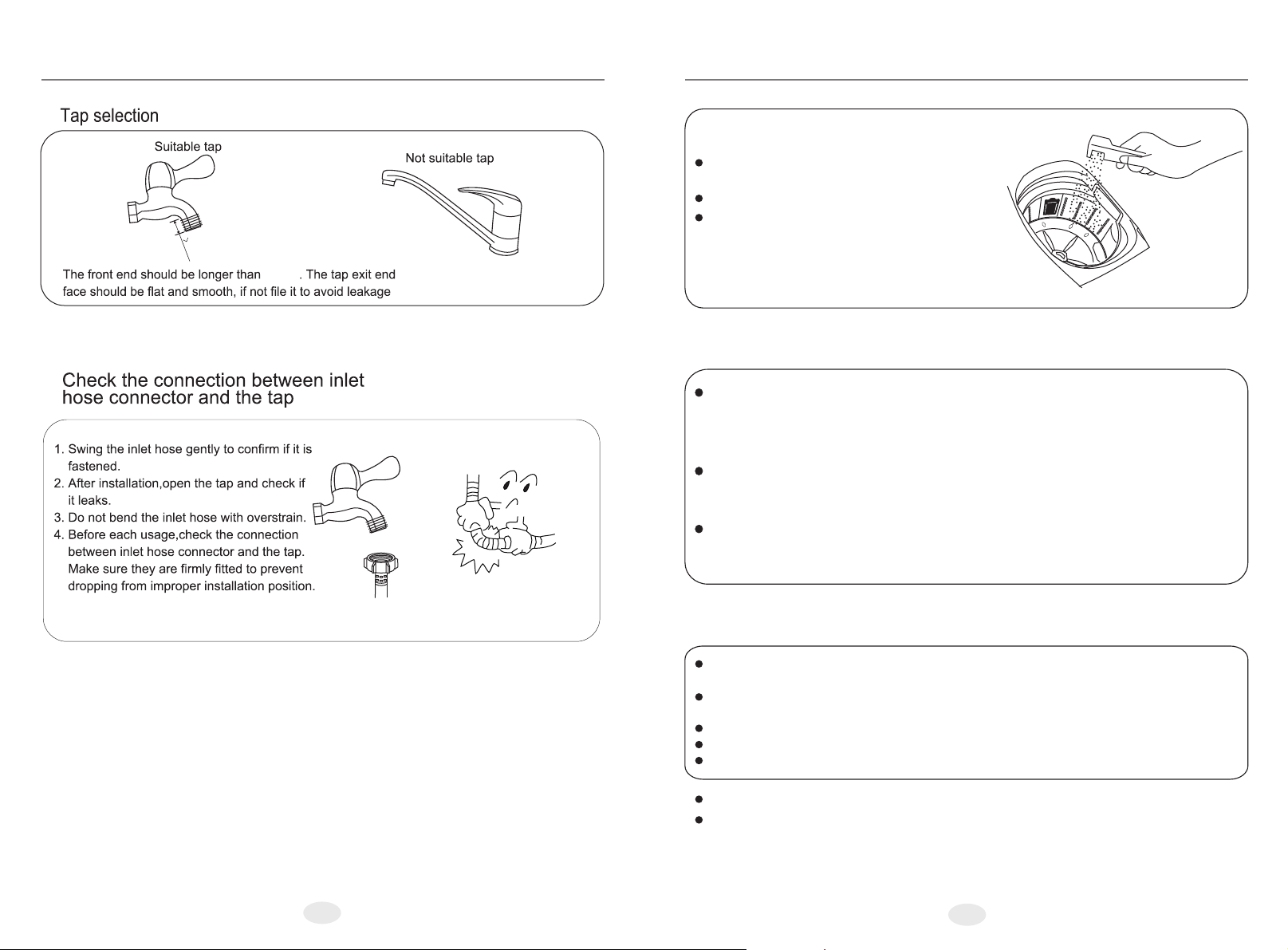

Water inlet installation............
Operation
Preparation before operation..
Control panel instruction.........
Load laundries......................
Use of detergent...................
Operation steps....................
Maintenance........................
Troubleshooting...................
Other functions.....................
Specifications......................
Contents
16
1
Parts name
Accessories
Symbol definition
Warning symbols
Pay special attention to the warning symbols. There may be
serous risks to personal body safety or damages to the washing
machine if not follow.
Please stop doing the contents with this symbol, otherwise
it will damage the appliance or injure your personal body.
Tapping screw
ST4X14(8pcs)
Bottom cover
(1pc)
Water inlet hose (1pc)
water inlet hose connector(1pc)
Forbidden symbols
Top lid
Top frame
Lint filter
Control panel
Inner tub
Pulsator
Body
Base
Feed valve
Power cord
Drainpipe
Fixing foot(3pcs)
Back cover
Adjustable foot
Handle
L/16L M/23L H/30L
Dimensions
W429mm D433mm H747mm
Rated voltage and frequency
Model
Water level/water
volume（about）
Inlet pressure
120V~ 60Hz
0.03MPa~0.85MPa
Specifications
Rated input power
Wash：240W spin：210W
7.7LBS (dry laundries weight)
Rated capacity of
wash and spin
EP24660
2
Cautions
Don t install the washing machine in bathroom or damp
places,. Do not wash the machine with water, do not put
wet clothes on the control panel film.
。
Do not use water hotter than 122 F .
If the machine is situated on a carpeted floor, please adjust
the feet in order to allow air to circulate freely.
Do not wash raincoat, bike cover, feather dress and such
waterproof laundries, which will make the washing machine
abnormal vibrations during spinning.
Do not share the same socket with other electric appliances.
Do not use the damaged plug or loose socket.
Please insert the plug into the power socket with rated voltage
110V A/C.
Always unplug the appliance and turn off the water when
the power is cut, moving or cleaning the washing machine,
or it is not in use. Do not insert or pull off the plug with wet hand.
Do not make the electric cable bended, stretched, twisted, strapped or changed,
pressed or nipped. If the electric cable or plug is damaged or the socket becomes
loose, they must be repaired or changed by our appointed repair stations or the
professionals of our post-sale service department to avoid danger. The pin of the
plug must remain clean. Please clean it carefully with dry cloth if it is dirty.
Ventilation holes
at the bottom
Soft item
Earth
wire
15
E1
E3
E2
F1
E4
E0
Display
Explanation
Settlement
The top lid is opened
when preset is started
Close the top lid and clear up the alarm
After draining 5 minutes,
it still does not reach to
water level
Open top lid, according to before
troubleshooting and settlement to
settle it ,then close the top lid and
clear up the alarm.
The top lid is open when
spinning
Spin does not balance
Open the top lid ,make the laundries
place equally, then close it and clear
up the alarm
After inlet 50 minutes still
not reach to setting water
level
Open top lid, according to before
troubleshooting and settlement to settle
it. Then close the tip lid and clear up the
alarm
Water level sensor is
wrong
Cut the power supply and call the
technicians
Close the top lid and clear up the alarm
Drain the water until the water level reach the
highest water level.
The water level is more than
overflowing water level.
E6
E7
The input and output of the
memory is abnormal.
Close the top lid and clear up the alarm
Other functions
1. Give an alarm
(1)If do not press START/PAUSE in 10 minutes after pressing POWER, power supply will cut
off automatically.
(2)Washing finished, power supply will cut off automatically .
vibration testing system will supervise the running. Once vibration is beyond certain
3. Power supply is cut off automatically
violent vibration. This machine has imbalance adjustment function, and the
During spinning, if the laundries are not placed equally in the tub, it would cause
2. Imbalance adjustment
level, the adjustment system will start automatically to adjust the imbalance.
14
3
Any objects such as coins, safety pins, nails,
screws, stones or any other hard, sharp material
can cause extensive damage and must not be
placed into to the machine.
Before washing, please ensure the tap is open
and the inlet hose is installed properly.
It is suggested to use low foam washing powder.
Do not put hands into the working machine.
It is dangerous even if the speed is very slow.
Take special care of the children, and forbid
them to climb on the washing machine.
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Do not overload the appliance or put any hot
goods(such as the kettle with hot water)on the
washing machine.
Garments which have been in contact with
volatile petroleum products should not be
machine washed.
Keep the appliance away from direct
sunlight and heat sources like the heater.
To prevent the lint from blocking cascade outlet
during washing, please keep the lint filter in good
condition, install it to proper position and clean it
in time.
Cautions
This appliance is not intended for use by persons(including children)
with reduced physical,sensory or mental capabilities,or lack of
experience and knowledge,unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
汽油
汽油
酒精
苯
Close
Open
Troubleshooting
13
4
Loosen
Fasten
Adjustable
nut
Adjustable
foot
High Low
Please install and adjust the machine according to the requirements of the manual.
Open the top lid of washing machine and take out all of the accessories.
You are advised to keep all the packaging for reuse in case the machine is to be
The distance between the washing machine and the wall should be more than 50mm, and the
.The slanting or rough ground may
cause operating stopped or unstable, please adjust it with the following methods:
1
It is very important to your safety and correct operation.
Unpacking
Unpack the carton and take out the bottom panel.
Remove all wrappers, including the polystyrene base.
transported again.
Installing the bottom cover
Positioning
。
maximum allowed angle of the shank base of the machine is 1
Make it horizontal
Use a tied thread with plumb to check
if it is horizontal.
Adjust the adjustable foot
1、Lift up the adjustable foot gently, loose the adjustable nut
and twist the adjustable foot.
2、Fasten the nut after adjustment.
Installation and
adjustment
As the right photo, put down the machine from side,
put down the machine on some soft thing, please let
the remarkable face outside, the arrow direction is
machine front side.
Align the screw hole between bottom and bottom
cover, use the appendix screw to fasten the bottom
cover.
Bottom panel
Soft item
Base
Side
Front
Back
Side
Press it and pull out the lint filter
The baffleplate
(the black rubber block)
Close
Open
Close
Open
Maintenance
1.Once you have using the machine, you are advised to turn off the water taps.(if necessary,
pull out the inlet hose)
2. Do not keep water in tub for a long time. When washing is finished , drain it right away.
3.Once you have finished using the machine, you are advised to unplug it.
4. Put the electric cable and the drain hose in order.
5. Wipe the water on the surface and in tub with soft cloth and keep the top lid opening for a
while. It helps to prevent mould and stagnant smells forming inside the appliance.
The machine stops automatically ,and music
buzzer will remind you to take out the laundries
or start again.
Once you have finished using the machine,
you are advised to unplug it and turn off the
water taps to avoid unexpected leak or fire.
After the end of the programme
Clean the exterior cabinet of the appliance with
soft cloth. Do not use cleanser, volatile chemical
materials to clean the machine, which will
damage plastic parts and the surface.
External cleaning
Clean inlet gate
It is possible that the inlet filter net can be blocked
by the dust, please clean it according to the follow
steps:
1. Close the tap and turn on the power switch.
2. Start the washing machine for 5 seconds(make
the water in the inlet hose flows to the tub),and
cut off the powersupply.
3. Pull off the inlet hose, remove and clean the
inlet valve and the inlet net, and install again.
Maintenance methods
If the water in the inner tub has possibility to freeze,please do like below:
1. In winter, if remaining water freeze can cause the washing machine trouble,
please take off the water inlet hose and drain out the water in the hose and inner tub.
2. If the water freeze, please don't operate the washing machine. Put 104 F hot water
in the tub, the hot water should submerge the pulsator, after a few minutes, rotate
the pulsator by hand gently, then you can operate the washing machine.
Illustration1 Illustration2
It is necessary to use lint filter during washing.
After washing, please clean the lint filter in time.
Clean the lint filter
Clean the lint filter according to the
following steps:
1. Pull out the lint filter.(see llustration 1)
2. Open the lint filter and wash it.(see
llustration 2)
3. Close the lint filter and install it to
proper position.
I
I
。
12
5
How to use drainpipe
1.the drainpipe must be hanged during use, the
height is not more than 4ft to avoid leakage or stop,
if drain a long time, the machine will stop running.
2. You can adjust the situation of the elbow bend
pipe to change the height of the drainpipe.
3. Do not extrude the drainpipe to ensue drain smoothly.
Less than 4ft
Drainpipe
Elbow
Operation steps
1. Press power switch, put through power, the machine is in state of beginning:
3. Select appropriate water level according to your laundries quantity.
4. Close the top lid, press Start/Pause, the washing machine is working.
5. When the washing is finished, buzzer alarm, power supply cut off automatically.
Times of pressing
the“process”button
Remarks: press Process button continually, the above mode will be
3. Press “process”button to begin process selection.
0
1
2
3
4
5
cycled in turn.
Selected procedure
program
Wash, rinse, spin
Soak, wash,
rinse ,spin
Wash, rinse
Wash
Rinse ,spin
Spin
No need to spin for
laundries creased easily
Wash by hand and
need to rinse and rinse
when use detergent
repeatedly
Standard program
For dirty laundries
Wash by hand and
only need to spin
Applicable
procedure
Contents(the lighted indicator
indicate the programs about
to run)
Wash light is on
Wash rinse and spin
lights are on
Soak, wash, rinse and
spin lights are on
Wash and rinse lights
are on
Rinse and spin lights
are on
Spin light is on
11
Water inlet installation
6
Use of detergent
For the quantity of the concentrated washing powder, please refer to its manual。
Remarks：avoid splashing of water and waste of washing powder, water level should not be too
high if laundries are too small.
How to use the washing powder
Dissolve in the machine directly
1. Low water level.
2. Add the washing powder, and run for 30 seconds to dissolve it completely.
3. Put laundries in, select suitable water level.
The instant dissolving of the washing powder
1. Prepare warm water of 86 in a container.
2. Pour the powder while stirring to fully dissolve it.
The washing powder is more prone to pollute the laundries than the detergent,
therefore, please use it with proper quantity.
F
How to use bleach
Fill water to the selected level, dilute the bleach in the container,
and pour it slowly into the washing tub.
Do not use bleach for colored or figured laundries as they are prone
to lose colors.
Do not put bleach to laundries directly.
Refer to the manual for the usage and quantity of the bleach.
Please dissolve powder bleach before use.
Put the detergent powder into the
tub as the right figure.
Then colose the wash lid.
We suggest use low sudsing
detergent powder
。
0.4in
0
.
4i
n
10 7
Water inlet installation
Load laundries
The capacity of washing and spinning of the machine refer
to the largest weight of the standard laundries under dry
condition .Washing quantity shall be lower than the rated
capacity.
Different thickness, size and type of the laundries will
influence the actual washing capacity. It is suitable that
the laundries can be turned round normally during washing.
Don't select high water level when laundries are less than
2.2LBS to avoid water splashing.
Blending coat
（about 1.76LBS）
Working suit(up,down)
(cotton, about 2.46LBS)
Blanket
（cotton ,about 1.98LBS）
Pajamas
（cotton,about
0.44LBS）
shirt
（cotton about
0.66LBS）
undershirt
（cotton about 0.4LBS）
underpants
（cotton about 0.15LBS）
socking
（blending,about 0.11LBS）
Single bed sheet
(cotton, about 1.32LBS）
Jacket
（cotton about
1.76LBS）
Jeans(about 1.76LBS)
Reference weight of the laundries
Preparation before
operation
Preparation before washing
1. Connect the inlet hose and open the tap.
2. This appliance must be earthed. Confirm
the socket is earthed reliably and insert the
power plug. The earth terminal should not
link to gas pipeline, tap pipeline etc.
3. Put up the drainpipe.
Before washing the laundries, please pay attention to the followings:
Make sure if there is
special requirements
for the laundries
Before washing, empty
all pockets of small
objects which may
have been left inside
(coins,keys,screws etc.)
As these could damage
the drain pump.
Knot the long band,
fasten the buttons
and close the zippers.
Do not overload the
machine. Load the
laundry loosely
alternating large
items with small ones.
Sort the laundry
according to the type
of fabric, color-fastness
and how dirty it is. Put
thin laundries, woolens
and such prone to wear
and tear laundries into
washing bag.
Warning: the temperature of the water should less than 122 ！ F
A. Make sure the laundries are washable.
B. It is essential to wash new colored items separately when washing for the first time. White items
should not be washed with colored items.
C. Please immerge the non-absorbable laundries by hand.
D. Some stains such as fruit, wine, grass, rust etc. are difficult to remove and should be treated
before washing with specific products, which can be found in most household shops. In some
cases it may help to soak the stain before washing with a special pre-soak product or biological
detergent.
E. Overturn the nap fabric and long floss laundries before putting them into the machine.
F. Do not put the laundries polluted by chemicals into the machine directly.
G. Very small item(handkerchiefs, ribbons, socks etc) should be washed in a washing bag or a pillow case.
Remain(min)
When washing, the digital timer
shows the rest time of washing,
unit is MINUTES.
When trouble encountered,
the digital time shows trouble
code.
After select process and
water level,press this button to start.
Press this button to pause during
working,press again will rework.
START
PAUSE
To control the washing machine is
in working state or waiting state.
POWER
。
