Masterforce 65320 3-in-1 Folding Roller Stand User Manual

3-in-1 Roller Stand

[IVl/;ISTERHJJll:Ek-

240-1664

OPERATOR'S MANUAL

IACAUTION: ITo Reduce The Risk Of Injury, User Must Read And

Understand Operator's Manual. Save These Instructions For Future Reference .

For questions/ comments, technical assistance or repair parts -

Please call toll free at: 1-800-255-7011 ( M-F 8am - 6pm CST)

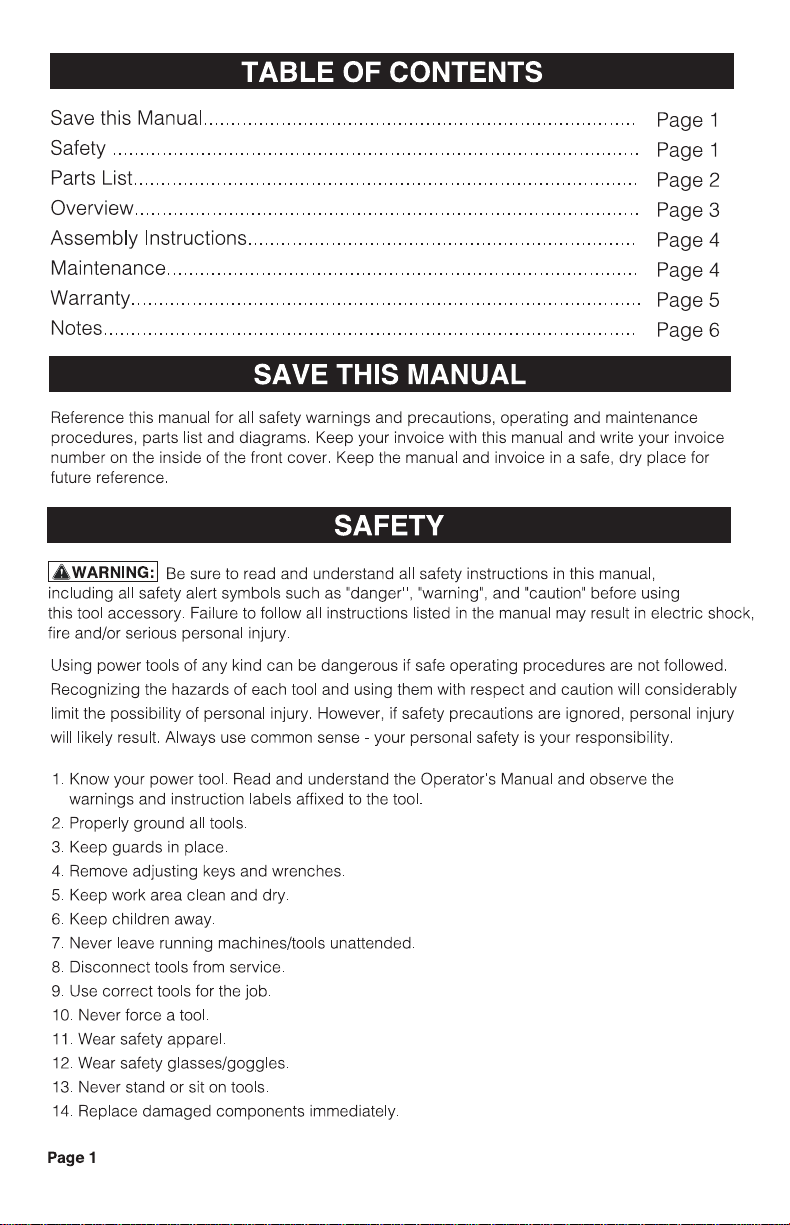

TABLE OF CONTENTS

Save this Manual..............................................................................

Safety .............................................................................................. .

Parts List...........................................................................................

Overview.......................................................................................... .

Assembly Instructions ......................................................................

Page 1

Page2

Page3

Page4

Maintenance..................................................................................... Page 4

Warranty............................................................................................ Page 5

Notes................................................................................................ Page 6

SAVE THIS MANUAL

Reference this manual for all safety warnings and precautions , operating and maintenance

procedures, parts list and diagrams . Keep your invoice with this manual and write your invoice

number on the inside of the front cover. Keep the manual and invoice in a safe, dry place for

future reference.

SAFETY

IAWARNING:I Be sure to read and understand all safety instructions in this manual,

including all safety alert symbols such as "danger", "warning", and "caution' before using

this tool accessory. Failure to follow all instructions listed in the manual may result in electric shock,

fire and/or serious personal injury.

Using power tools of any kind can be dangerous if safe operating procedures are not followed.

Recognizing the hazards of each tool and using them with respect and caution will considerably

limit the possibility of personal injury. However, if safety precautions are ignored, personal injury

will likely result. Always use common sense - your personal safety is your responsibility .

1. Know your power tool. Read and understand the Operator's Manual and observe the

warnings and instruction labels affixed to the tool.

2. Properly ground all tools.

3. Keep guards in place .

4. Remove adjusting keys and wrenches .

5. Keep work area clean and dry.

6. Keep children away.

7. Never leave running machines/tools unattended.

8. Disconnect tools from service.

9. Use correct tools for the job.

10. Never force a tool.

11. Wear safety apparel.

12. Wear safety glasses/goggles .

13. Never stand or sit on tools.

14. Replace damaged components immediately .

Page1

3-in-1 RollerStand

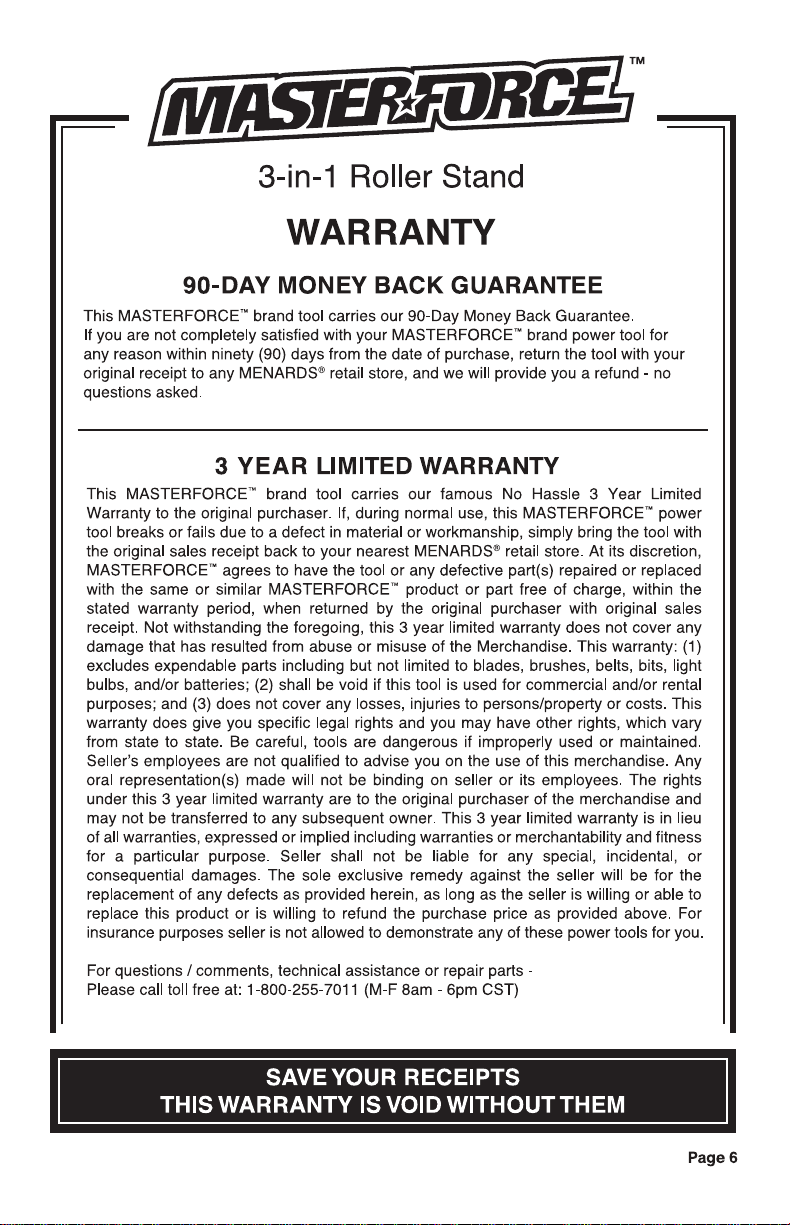

WARRANTY

90-DAY MONEY BACK GUARANTEE

This MASTERFORCE™brand tool carries our 90-Day Money Back Guarantee.

If you are not completely satisfied with your MASTERFORCE™brand power tool for

any reason within ninety (90) days from the date of purchase, return the tool with your

original receipt to any MENARDS®retail store, and we will provide you a refund - no

questions asked.

3 YEAR LIMITED WARRANTY

This MASTERFORCE'" brand tool carries our famous No Hassle 3 Year Limited

Warranty to the original purchaser. If, during normal use, this MASTERFORCE™power

tool breaks or fails due to a defect in material or workmanship, simply bring the tool with

the original sales receipt back to your nearest MENARDS®retail store. At its discretion,

MASTERFORCE™agrees to have the tool or any defective part(s) repaired or replaced

with the same or similar MASTERFORCE'" product or part free of charge, within the

stated warranty period, when returned by the original purchaser with original sales

receipt. Not withstanding the foregoing, this 3 year limited warranty does not cover any

damage that has resulted from abuse or misuse of the Merchandise. This warranty: (1)

excludes expendable parts including but not limited to blades, brushes, belts, bits, light

bulbs, and/or batteries; (2) shall be void if this tool is used for commercial and/or rental

purposes; and (3) does not cover any losses, injuries to persons/property or costs. This

warranty does give you specific legal rights and you may have other rights, which vary

from state to state. Be careful, tools are dangerous if improperly used or maintained.

Seller's employees are not qualified to advise you on the use of this merchandise. Any

oral representation(s) made will not be binding on seller or its employees. The rights

under this 3 year limited warranty are to the original purchaser of the merchandise and

may not be transferred to any subsequent owner. This 3 year limited warranty is in lieu

of all warranties, expressed or implied including warranties or merchantability and fitness

for a particular purpose. Seller shall not be liable for any special, incidental, or

consequential damages. The sole exclusive remedy against the seller will be for the

replacement of any defects as provided herein, as long as the seller is willing or able to

replace this product or is willing to refund the purchase price as provided above. For

insurance purposes seller is not allowed to demonstrate any of these power tools for you.

For questions

I comments, technical assistance or repair parts -

Please call toll free at: 1-800-255-7011 (M-F 8am - 6pm CST)

Page6

NOTES

Pages

SAFETY

15. Make sure your work platform is sufficiently sturdy to do the specific job at hand

16. Properly anchor blade for job being done.

17. Use correct blade for job being done.

18. Think Safety. Safety is a combination of operator awareness, common sense and

alertness at all times.

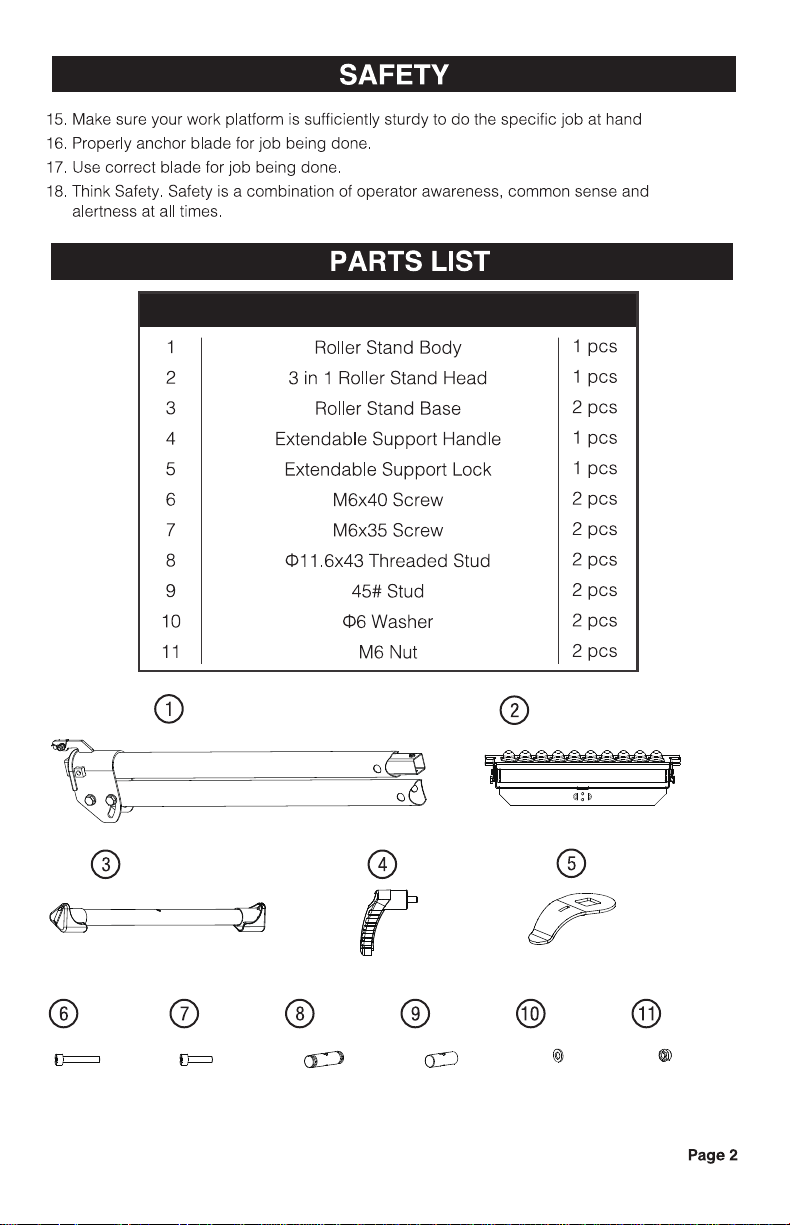

PARTS LIST

Roller Stand Body

1 pcs

3 in 1 Roller Stand Head

1 pcs

Roller Stand Base

2 pcs

Extendable Support Handle

1 pcs

Extendable Support Lock

1 pcs

6 M6x40 Screw

2 pcs

M6x35 Screw

2 pcs

8 CD11.6x43 Threaded Stud

2 pcs

45# Stud

2 pcs

CD6Washer

2 pcs

M6 Nut

2 pcs

1;-r

09t

1f6?6?6?~:~@f?@jr

® ®

CJ::::==

[l::::::J

a::::>

a:::J

Q1)

Page2

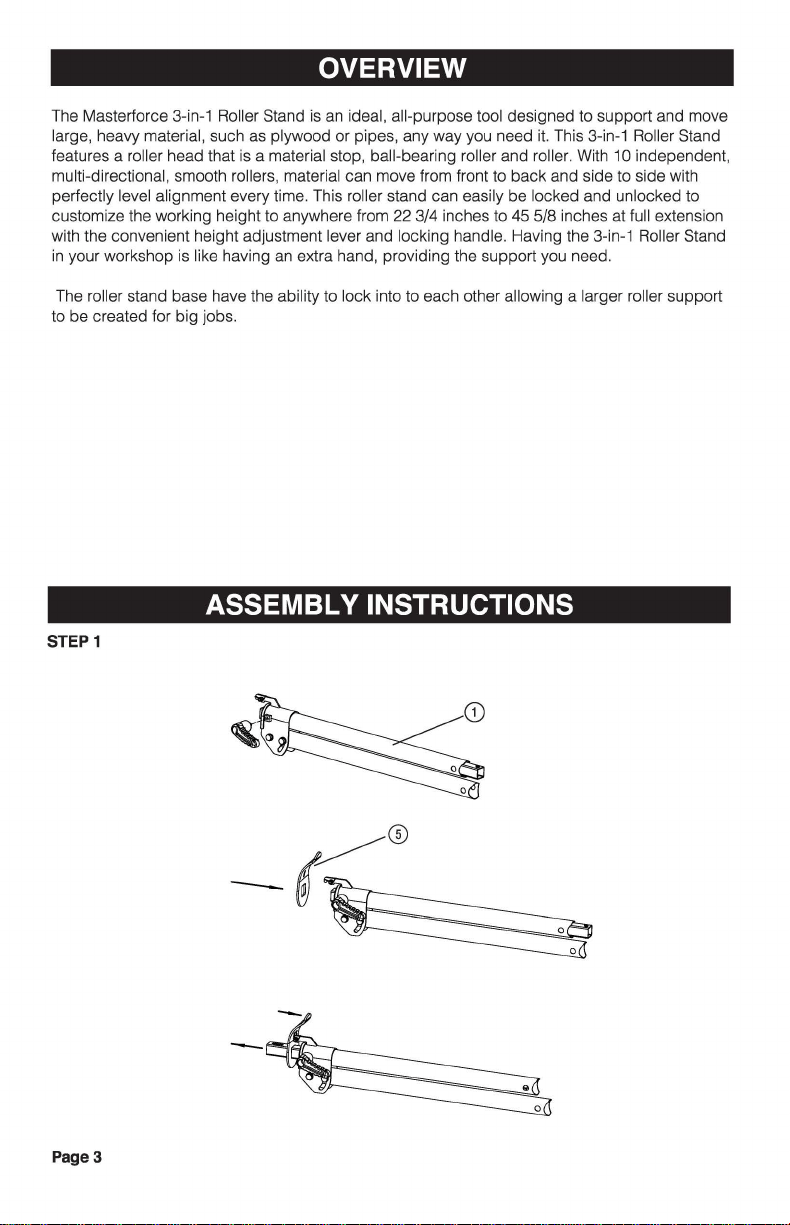

OVERVIEW

The Masterforce 3-in-1 Roller Stand is an ideal , all-purpose tool designed to support and move

large, heavy material, such as plywood or pipes, any way you need it. This 3-in-1 Roller Stand

features a roller head that is a material stop, ball-bearing roller and roller. With 10 independent ,

multi-directional , smooth rollers, material can move from front to back and side to side with

perfectly level alignment every time. This roller stand can easily be locked and unlocked to

customize the working height to anywhere from 22 3/4 inches to 45 5/8 inches at full extension

with the convenient height adjustment lever and locking handle . Having the 3-in-1 Roller Stand

in your workshop is like having an extra hand, providing the support you need .

The roller stand base have the ability to lock into to each other allowing a larger roller support

to be created for big jobs .

ASSEMBLY INSTRUCTIONS

STEP1

Page3

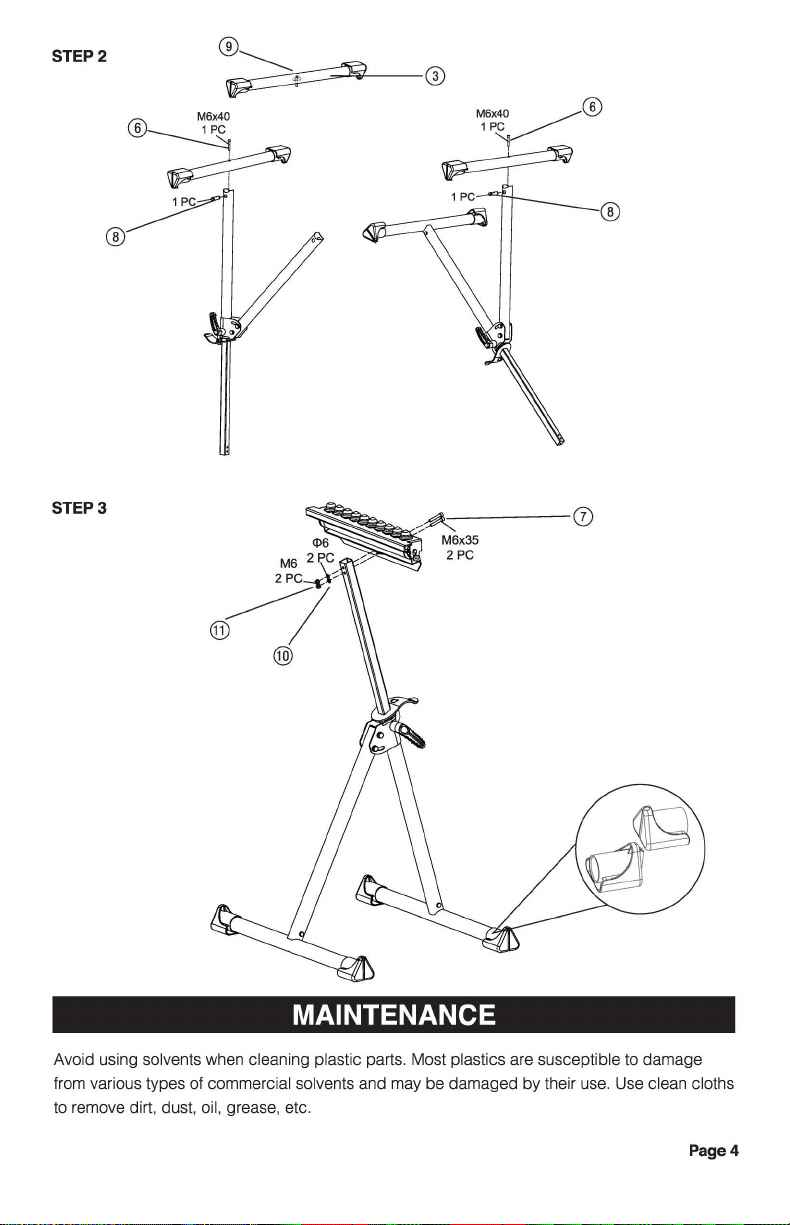

STEP2

le\ M6x40

M6x40

.......-------®

1 PC_........-----

\V~

STEP3

,:;.~----0

¢6 M6x35

MG 2PC ;;:/ 2PC

2PC~

MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage

from various types of commercial solvents and may be damaged by their use. Use clean cloths

to remove dirt, dust, oil, grease, etc.

Page4
