KitchenAid KSCS25MSMS00 Side-by-side Refrigerator User Manual

®itchen kid ®

USE AND CARE GUIDE

t_J_,__J_1__. £ {}e_ 1_ ,_de by _]e =__ _:_i_-__¸_¸_¸¸¸_¸_A_¸____=_ ___ ___

MANUAL DE USO Y CUIDADO

GUIDE D'UTILISATION ET D'ENTRETIEN

ASSISTANCE OR SERVICE ............................ 1

REFRIGERATOR SAFETY ............................... 2

REFRIGERATOR USE ..................................... 3

REFRIGERATOR CARE ................................... 5

TROUBLESHOOTING ...................................... 6

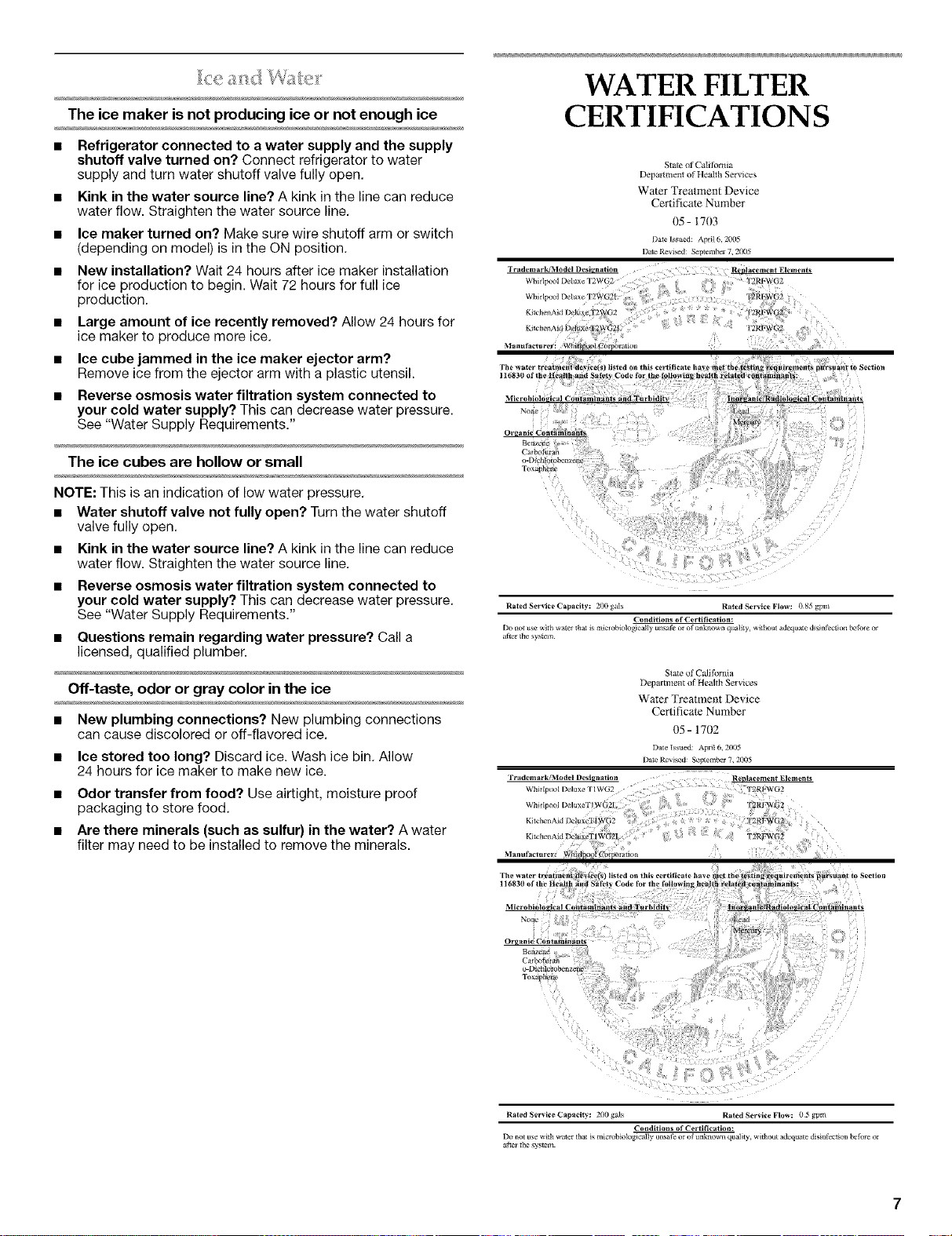

WATER FILTER CERTIFICATIONS ................ 7

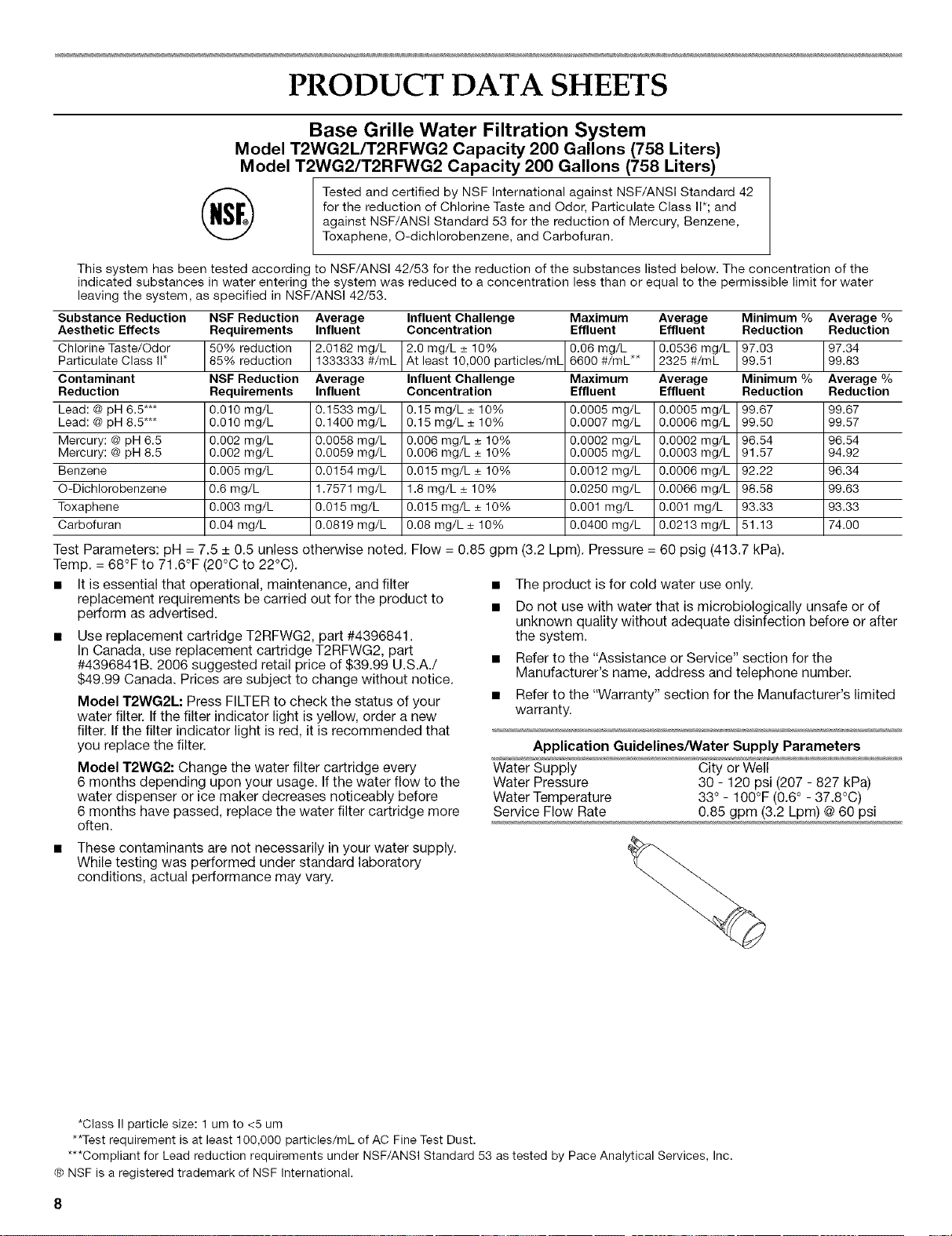

PRODUCT DATA SHEETS .............................. 8

WARRANTY .................................................... 10

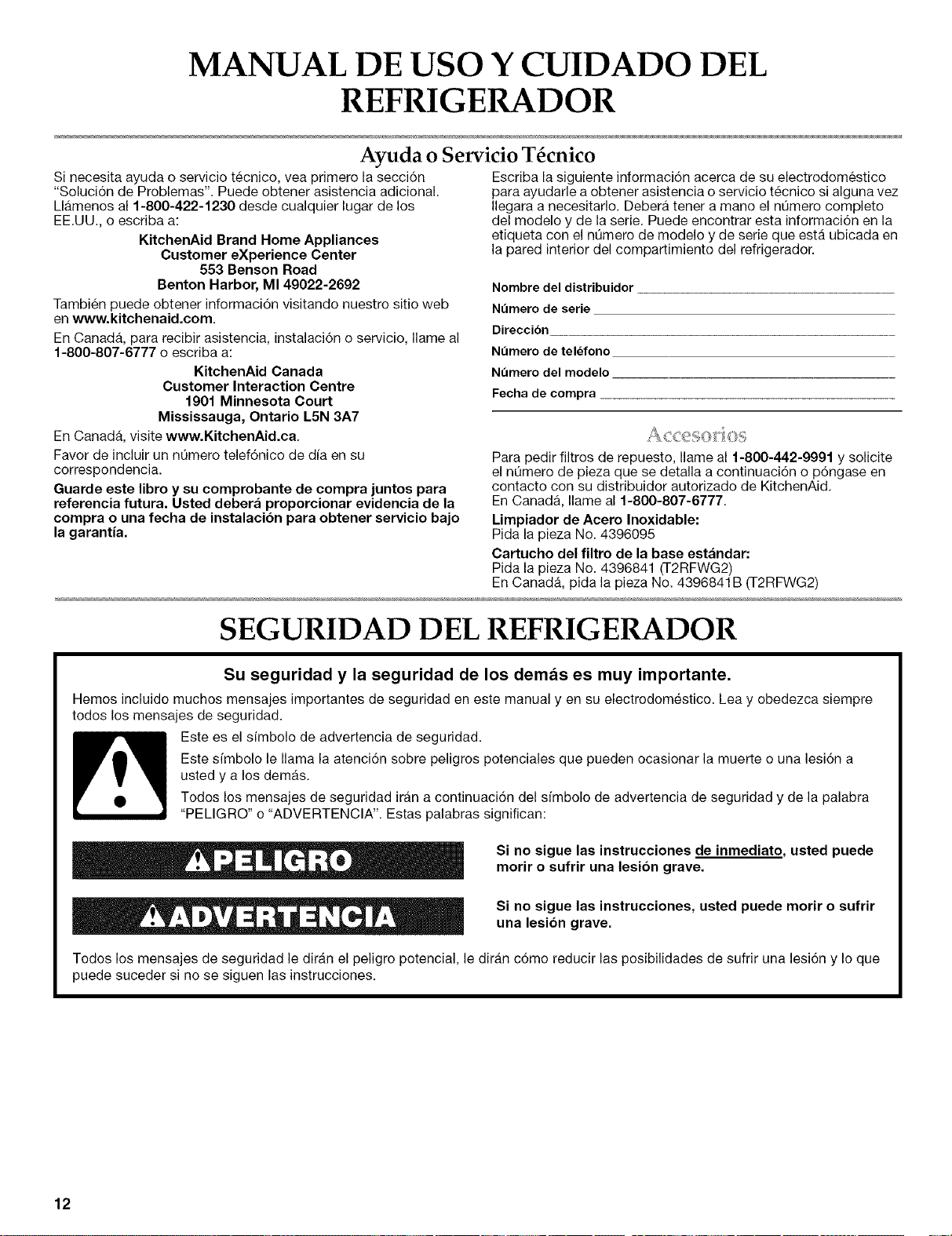

AYUDA O SERVICIO TleCNICO .................... 12

SEGURIDAD DEL REFRIGERADOR ............ 12

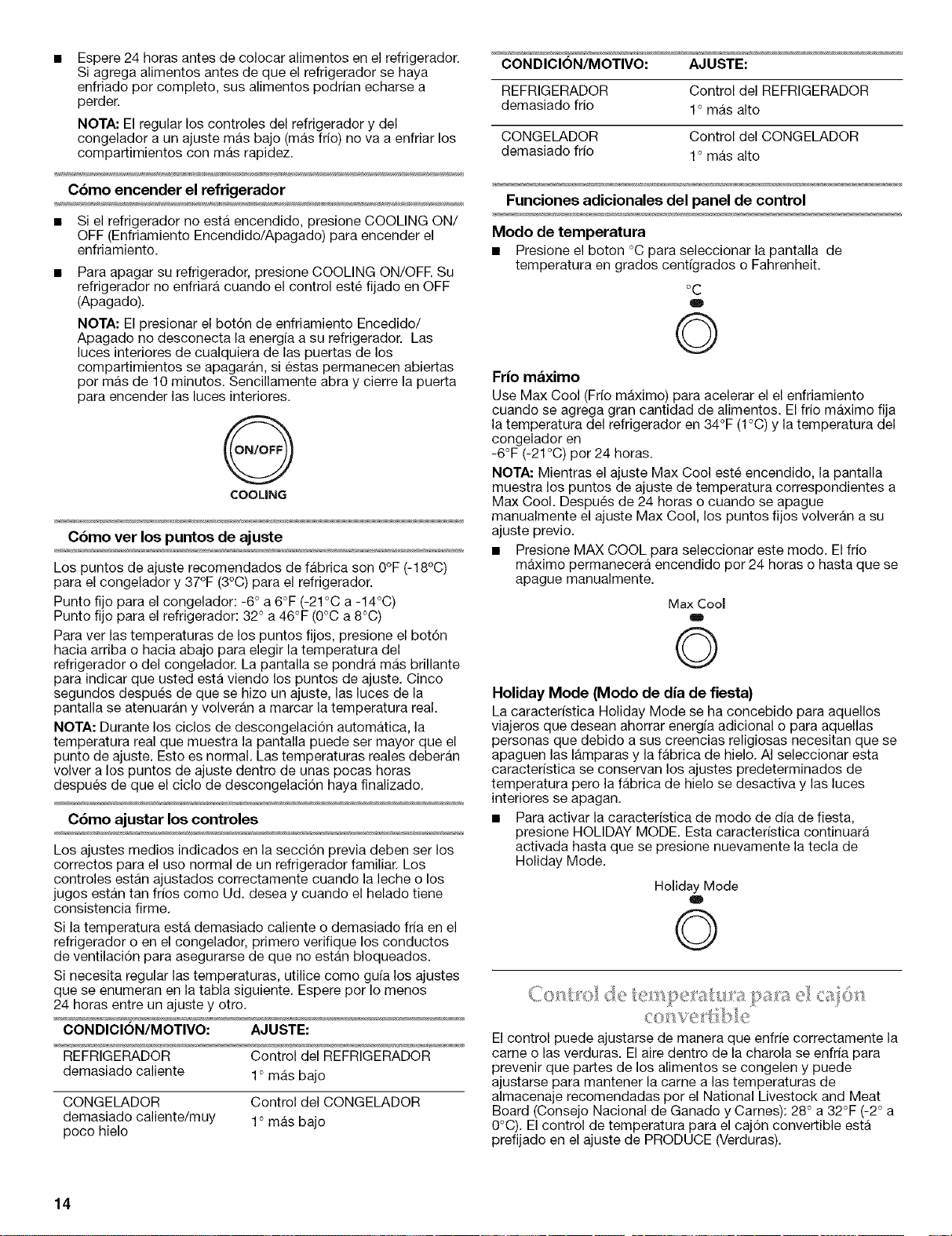

USO DE SU REFRIGERADOR ...................... 13

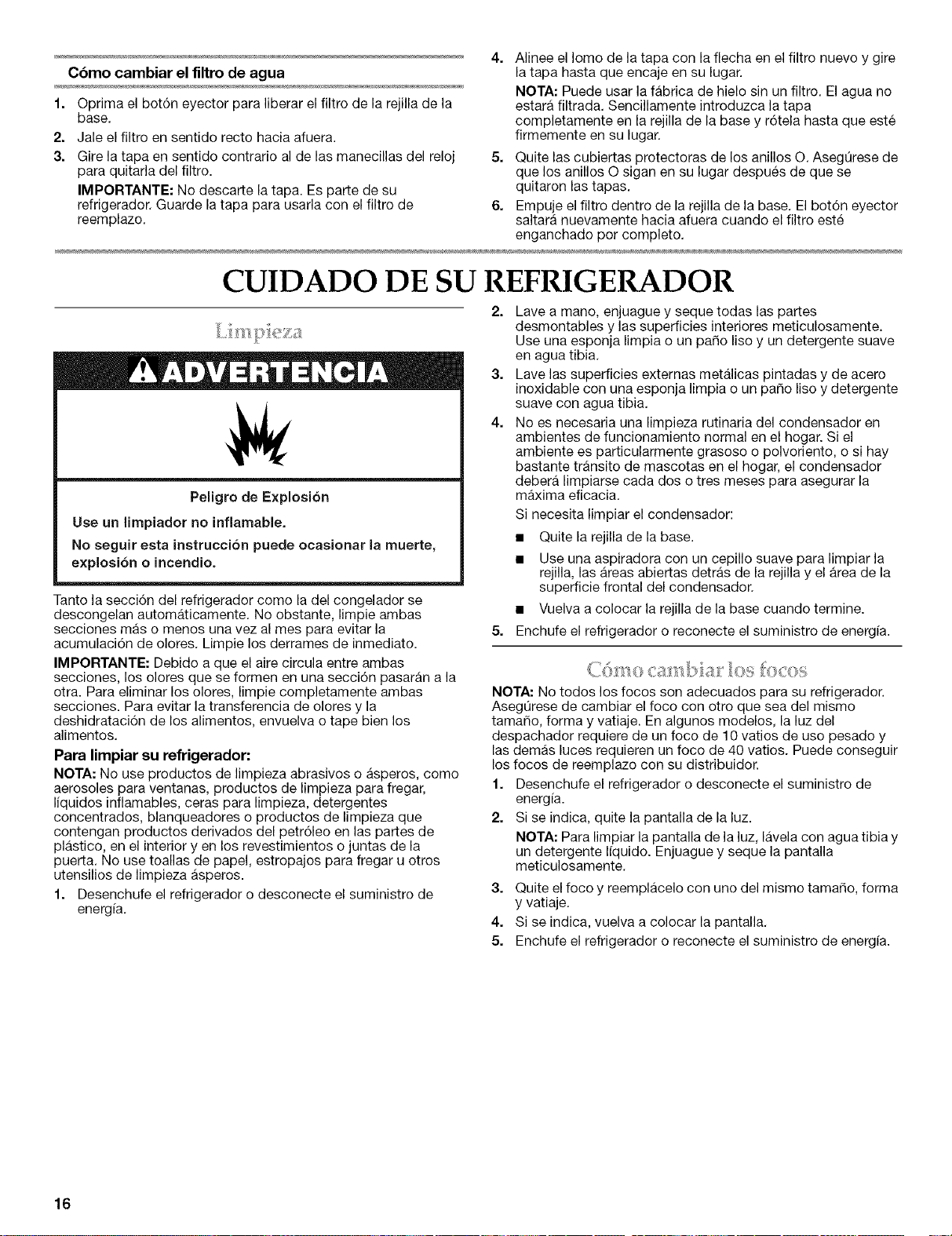

CUIDADO DE SU REFRIGERADOR ............. 16

SOLUCION DE PROBLEMAS ....................... 17

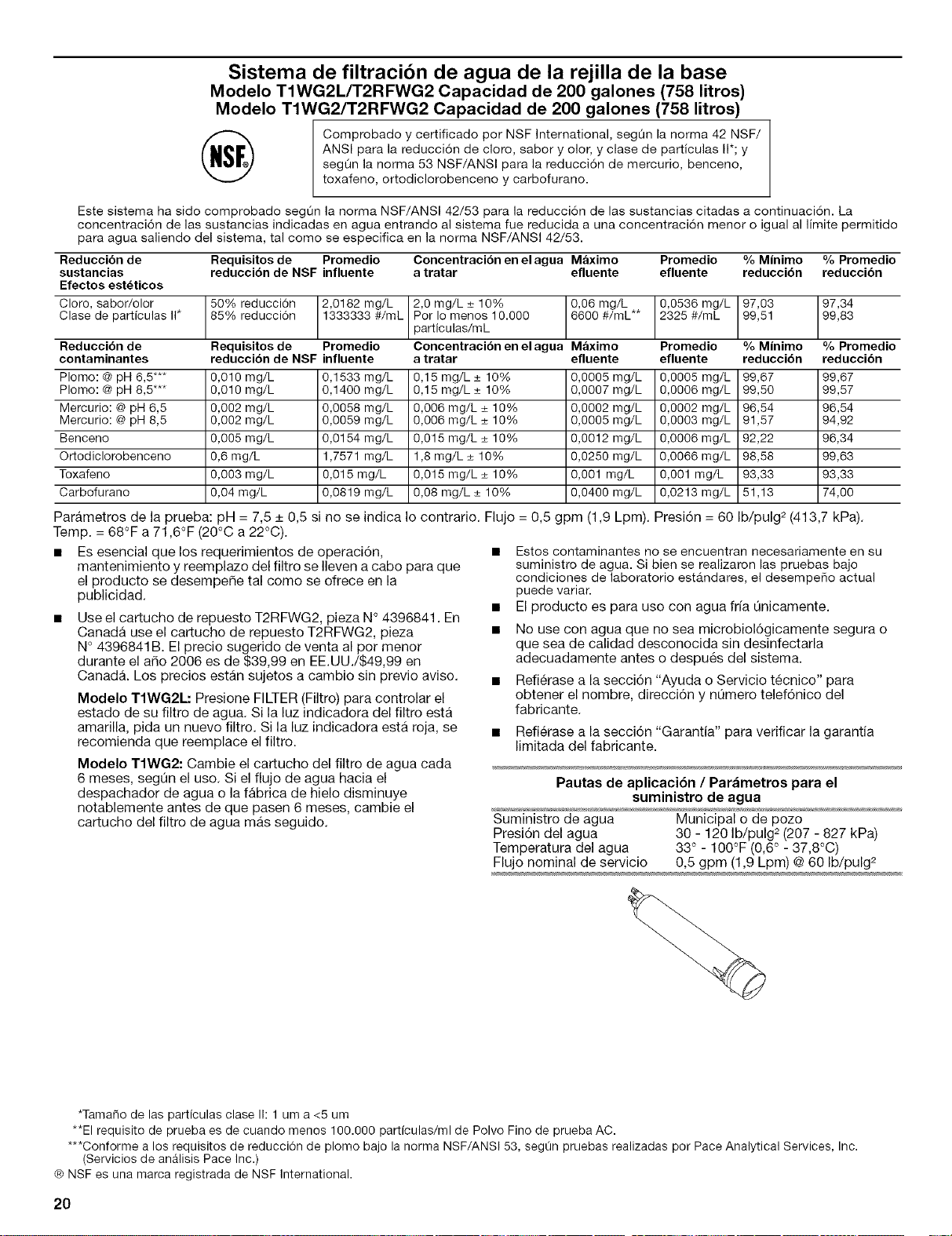

HOJA DE DATOS DEL PRODUCTO ............ 19

GARANTiA ...................................................... 21

ASSISTANCE OU SERVICE .......................... 22

SleCURITle DU RleFRIGleRATEUR ................ 22

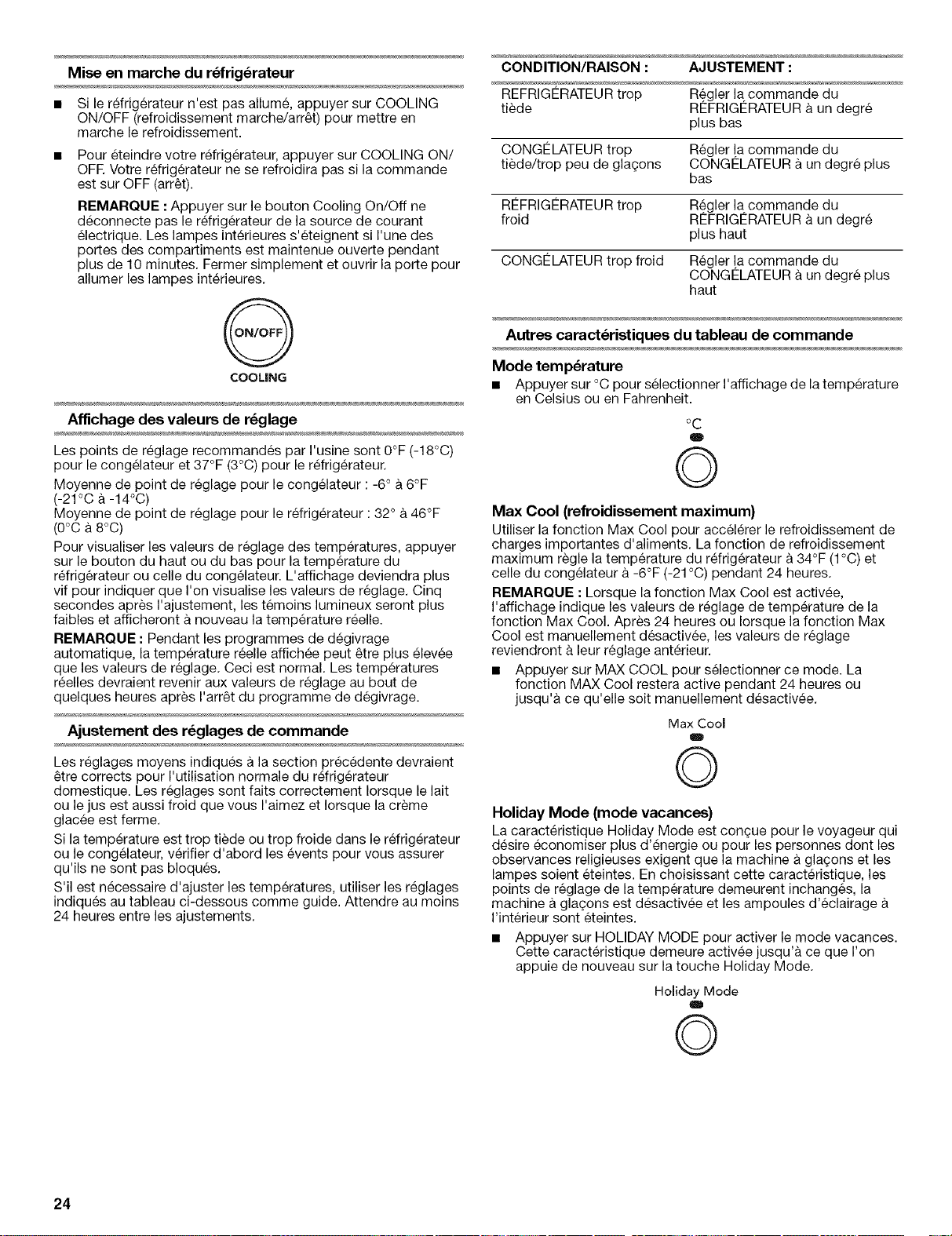

UTILISATION DU RleFRIGleRATEUR ........... 23

ENTRETIEN DU RleFRIGleRATEUR ............. 26

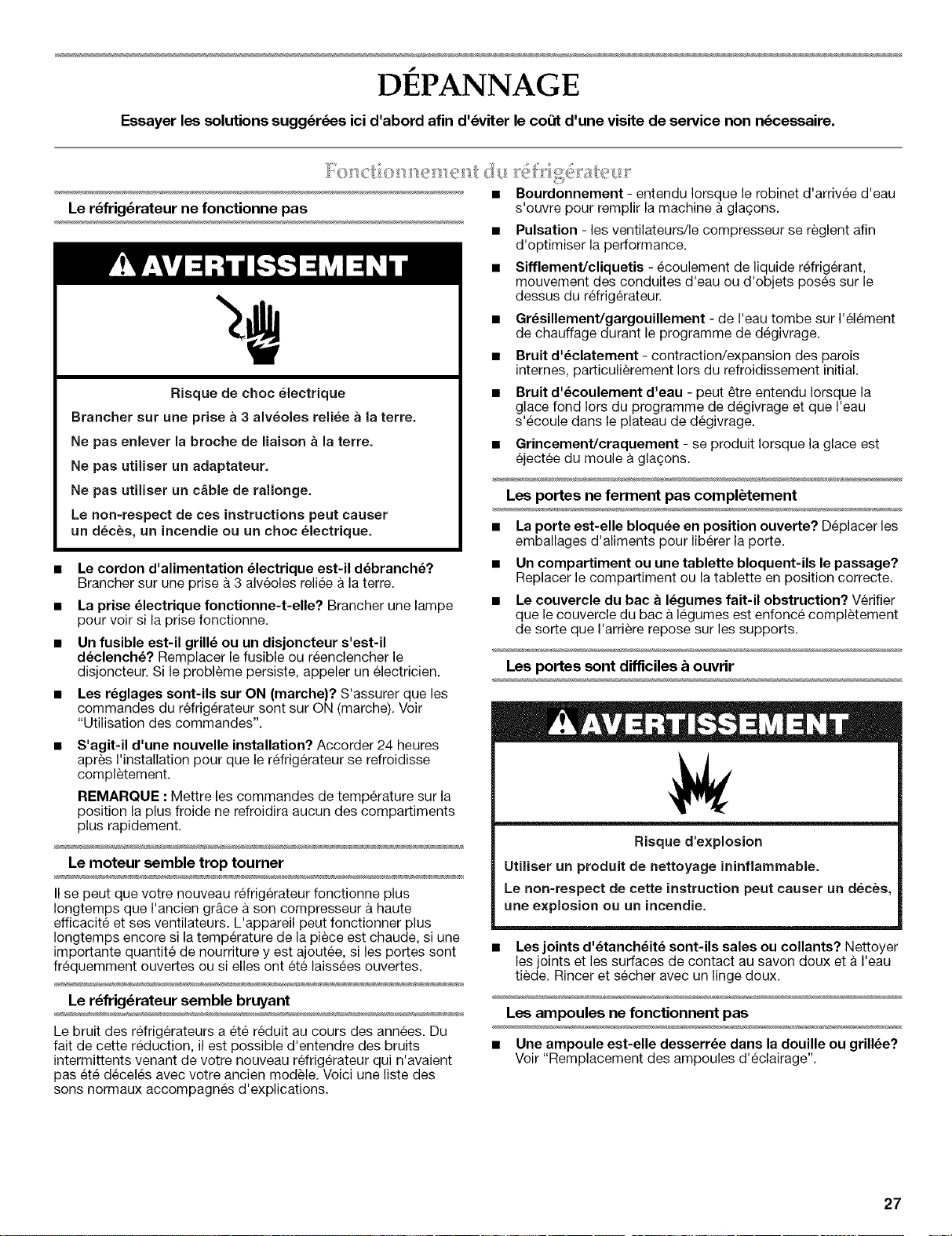

DlePANNAGE .................................................. 27

FEUILLES DE DONNleES SUR

LE PRODUlT ................................................... 29

GARANTIE ...................................................... 31

Assistance or Service

If you need assistance or service, first see the "Troubleshooting"

section. Additional help is available. Call us at 1-800-422-1230

from anywhere in the U.S.A., or write:

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Information may also be obtained by visiting our website at

www.kitchenaid.com.

In Canada, for assistance, installation or service, call:

1-800-807-6777, or write:

KitchenAid Canada

Customer Interaction Centre

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

In Canada, visit www.KitchenAid.ca.

Please include a daytime phone number in your correspondence.

Keep this book and your sales slip together for future

reference. You must provide proof of purchase or installation

date for in-warranty service.

Write down the following information about your appliance to help

you obtain assistance or service if you ever need it. You will need

to know your complete model number and serial number. You can

find this information on the model and serial number label, located

on the inside wall of the refrigerator compartment.

Dealer name

Serial number

Address

Phone number

Model number

Purchase date

Toorder replacement filters, call 1-800-442-9991 and ask for the

part number listed below or contact your authorized KitchenAid

dealer. In Canada, call 1-800-807-6777.

Stainless Steel Cleaner and Polish: Order Part #4396095

Standard Base Filter Cartridge:

Order Part #4396841 (T2RFWG2)

In Canada, Order Part #4396841B (T2RFWG2)

2318478

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

• Plug into a grounded 3 prong outlet.

• Do not remove ground prong.

• Do not use an adapter.

• Do not use an extension cord.

• Disconnect power before servicing.

• Replace all parts and panels before operating.

• Remove doors from your old refrigerator.

• Use nonflammable cleaner.

• Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

• Use two or more people to move and install refrigerator.

• Disconnect power before installing ice maker (on ice maker

kit ready models only).

• Use a sturdy glass when dispensing ice (on some models).

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems

of the past. Junked or abandoned refrigerators are still dangerous

- even if they will sit for "just a few days." Ifyou are getting rid of

your old refrigerator, please follow these instructions to help

prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

• Take off the doors.

• Leave the shelves in place so that children may not easily

climb inside.

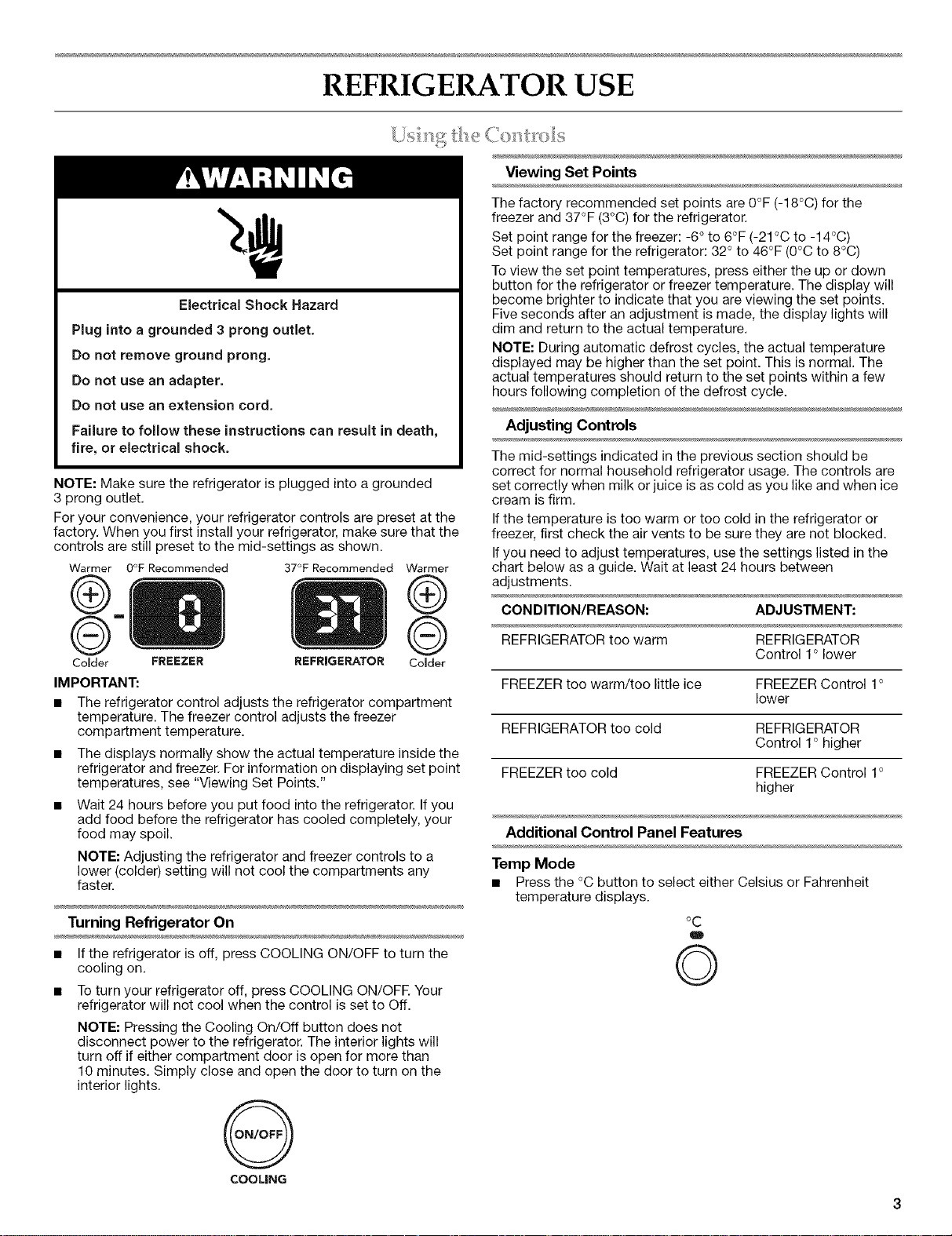

REFRIGERATOR USE

Electrical Shock Hazard

Plug into agrounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

NOTE: Make sure the refrigerator is plugged into a grounded

3 prong outlet.

For your convenience, your refrigerator controls are preset at the

factory. When you first install your refrigerator, make sure that the

controls are still preset to the mid-settings as shown•

Warmer O°F Recommended 37°F Recommended Warmer

FREEZER ColderColder

IMPORTANT:

REFRIGERATOR

Viewing Set Points

The factory recommended set points are 0°F (-18°C) for the

freezer and 37°F (3°C) for the refrigerator.

Set point range for the freezer: -6 ° to 6°F (-21°C to -14°C)

Set point range for the refrigerator: 32°to 46°F (0°C to 8°C)

Toview the set point temperatures, press either the up or down

button for the refrigerator or freezer temperature. The display will

become brighter to indicate that you are viewing the set points.

Five seconds after an adjustment is made, the display lights will

dim and return to the actual temperature,

NOTE: During automatic defrost cycles, the actual temperature

displayed may be higher than the set point. This is normal. The

actual temperatures should return to the set points within a few

hours following completion of the defrost cycle.

Adjusting Controls

The mid-settings indicated in the previous section should be

correct for normal household refrigerator usage, The controls are

set correctly when milk or juice is as cold as you like and when ice

cream is firm,

If the temperature is too warm or too cold in the refrigerator or

freezer, first check the air vents to be sure they are not blocked.

If you need to adjust temperatures, use the settings listed in the

chart below as a guide. Wait at least 24 hours between

adjustments.

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR too warm REFRIGERATOR

Control 1° lower

The refrigerator control adjusts the refrigerator compartment

temperature. The freezer control adjusts the freezer

compartment temperature.

The displays normally show the actual temperature inside the

refrigerator and freezer. For information on displaying set point

temperatures, see "Viewing Set Points."

Wait 24 hours before you put food into the refrigerator. If you

add food before the refrigerator has cooled completely, your

food may spoil.

NOTE: Adjusting the refrigerator and freezer controls to a

lower (colder) setting will not cool the compartments any

faster.

Turning Refrigerator On

• If the refrigerator is off, press COOLING ON/OFF to turn the

cooling on.

• Toturn your refrigerator off, press COOLING ON/OFF. Your

refrigerator will not cool when the control is set to Off.

NOTE: Pressing the Cooling On/Oft button does not

disconnect power to the refrigerator. The interior lights will

turn off if either compartment door is open for more than

10 minutes. Simply close and open the door to turn on the

interior lights. G

COOLING

FREEZER too warm/too little ice FREEZER Control 1°

lower

REFRIGERATOR too cold REFRIGERATOR

Control 1° higher

FREEZER too cold FREEZER Control 1°

higher

Additional Control Panel Features

Temp Mode

• Press the °C button to select either Celsius or Fahrenheit

temperature displays.

°C

Max Cool

Use Max Cool to speed cooling when large grocery loads are

added. Max Cool sets the refrigerator temperature to 34°F (1°C)

and the freezer temperature to -6°F (-21 °C) for 24 hours.

NOTE: While Max Cool is on, the display shows the Max Cool

temperature set points. After 24 hours or when Max Cool is

manually turned off, the set points will be returned to their

previous setting.

• Press MAX COOL to select this mode. Max Cool will stay on

for 24 hours or until it is manually turned off.

Max Cool

Holiday Mode

Holiday Mode is designed for the traveler who wishes to save

additional energy or for those whose religious observances

require turning off the lights and ice maker. In Holiday Mode, the

temperature set points remain unchanged, the ice maker and

dispenser levers are disabled, and the interior lights turn off.

• Press HOLIDAY MODE to turn on the Holiday Mode feature.

This feature will remain on until the Holiday Mode key is

pressed again.

Holiday Mode

The control can be adjusted to properly chill meats or vegetables.

The air inside the pan is cooled to prevent "spot" freezing and can

be set to keep meats at the National Livestock and Meat Board

recommended storage temperatures of 28°to 32°E (-2° to 0°(3).

The convertible drawer temperature control is preset to the

PRODUCE setting.

To Store Meat:

Set the control to one of the three MEAT settings to store meat at

its optimal storage temperature.

To Store Vegetables:

Set the control to PRODUCE to store vegetables at their optimal

storage temperatures.

NOTE: If food starts to freeze, move the control to the left (less

cold). Remember to wait 24 hours between adjustments.

You can control the amount of humidity in the moisture-sealed

crisper. Adjust the control to any setting between LOW and HIGH.

LOW (open) for best storage of fruits and vegetables with skins.

HIGH (closed) for best storage of fresh, leafy vegetables.

The door air control is located on the left-hand side of the

refrigerator compartment.

A...........

A. Door aircontrol

Slide the door air control to the left to reduce the flow of cold

air to the bin or can rack and make it less cold.

Slide the door air control to the right to increase the flow of

cold air to the bin or can rack and make it colder.

Turning the Ice Maker On/Off

The On/Off switch is located on the top right-hand side of the

freezer compartment.

Toturn on the ice maker, slide the control to the ON (left) position.

To manually turn off the ice maker, slide the control to the OFF

(right) position.

NOTE: Your ice maker has an automatic shutoff. The ice maker

sensors will automatically stop ice production, but the control will

remain in the ON (left) position.

REMEMBER:

• Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

• The quality of your ice will be only as good as the quality of the

water supplied to your ice maker. Avoid connecting the ice

maker to a softened water supply. Water softener chemicals

(such as salt) can damage parts of the ice maker and lead to

poor quality ice. If asoftened water supply cannot be avoided,

make sure the water softener is operating properly and is well

maintained.

• Do not use anything sharp to break up the ice in the storage

bin. This can cause damage to the ice container and the

dispenser mechanism.

• Do not store anything on top of or in the ice maker or storage

bin.

Removing and Replacing Ice Storage Bin

1. Hold the base of the storage bin with both hands and press

the release button to lift the storage bin up and out.

NOTE: It is not necessary to turn the ice maker control to the

OFF (right) position when removing the storage bin. The

sensor cover ("flipper door") on the left wall of the freezer

stops the ice maker from producing ice if the door is open or

the storage bin is removed.

2. Replacethestoragebinonthedoorandpushdowntomake

sureitissecurelyinplace.

NOTE: Do not use with water that is microbiologically unsafe

or of unknown quality without adequate disinfection before or

after the system.

Water Filter Status Display (on some models)

The filter status display will help you know when to change your

water filter. When the display reads 10%, order a new filter. It is

recommended that you replace the filter when the display reads

0% OR when water flow to your water dispenser or ice maker

decreases noticeably.

After changing the filter, reset the display by pressing the button.

The display will read 99% when the system is reset.

Non-indicator Water Filter (on some models)

If your refrigerator does not have the status light, you should

change the water filter every 6 months depending upon your

usage. If the water flow to the water dispenser or ice maker

decreases noticeably before 6 months have passed, replace the

water filter more often.

Changing the Water Filter

1. Press the eject button to release the filter from the base grille•

2. Pull the filter straight out.

3. Turn the cap counterclockwise to remove it from the filter.

IMPORTANT: Do not discard the cap. It is part of your

refrigerator. Keep the cap to use with the replacement filter.

4. Align the ridge on the cap with the arrow on the new filter and

turn the cap until it snaps into place.

NOTE: You can run the ice maker without a filter. Your water

will not be filtered. Simply insert the cap all of the way into the

base grille and rotate the cap until it is firmly in place.

5. Remove the protective covers from the O-rings. Be sure the

O-rings are still in place after the covers are removed.

6. Push the filter into the base grille. The eject button will pop

back out when the filter is fully engaged.

REFRIGERATOR CARE

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically.

However, clean both sections about once a month to prevent

odors from building up, Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any

odors formed in one section will transfer to the other• You must

thoroughly clean both sections to eliminate odors• To prevent

odor transfer and drying out of food, wrap or cover foods tightly.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window

sprays, scouring cleansers, flammable fluids, cleaning waxes,

concentrated detergents, bleaches or cleansers containing

petroleum products on plastic parts, interior and door liners or

gaskets. Do not use paper towels, scouring pads, or other harsh

cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a

mild detergent in warm water.

Wash stainless steel and painted metal exteriors with a clean

sponge or soft cloth and a mild detergent in warm water•

There is no need for routine condenser cleaning in normal

home operating environments• If the environment is

particularly greasy or dusty, or there is significant pet traffic in

the home, the condenser should be cleaned every 2 to

3 months to ensure maximum efficiency.

If you need to clean the condenser:

• Removethe base grille.

• Use a vacuum cleaner with a soft brush to clean the grille,

the open areas behind the grille and the front surface area

of the condenser•

• Replace the base grille when finished.

Plug in refrigerator or reconnect power•

NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the

bulb with one of the same size, shape and wattage. On some

models, the dispenser light requires a heavy duty 10-watt bulb. All

other lights require a 40-watt bulb. Replacement bulbs are

available from your dealer.

1. Unplug refrigerator or disconnect power.

2. Remove light shield when applicable.

NOTE: To clean the light shield, wash it with warm water and

liquid detergent. Rinse and dry the shield well.

3. Remove light bulb and replace with one of the same size,

shape and wattage.

4. Replace light shield when applicable.

5. Plug in refrigerator or reconnect power.

TROUBLESHOOTING

Trythe solutions suggested here first in order to avoid the cost of an unnecessary service call.

The refrigerator will not operate

Electrical Shock Hazard

Plug into agrounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

•Power cord unplugged? Plug into a grounded 3 prong outlet,

• Is outlet working? Plug in a lamp to see if the outlet is

working,

• Household fuse blown or circuit breaker tripped? Replace

the fuse or reset the circuit breaker. If the problem continues,

call an electrician,

Are controls on? Make sure the refrigerator controls are on.

See "Using the Controls."

New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

NOTE: Adjusting the temperature controls to coldest setting

will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its

high-efficiency compressor and fans. The unit may run even

longer if the room is warm, a large food load is added, doors are

opened often, or if the doors have been left open.

The refrigerator seems noisy

Refrigerator noise has been reduced over the years. Due to this

reduction, you may hear intermittent noises from your new

refrigerator that you did not notice from your old model. Below are

listed some normal sounds with explanations.

•Buzzing - heard when the water valve opens to fill the ice

maker.

•Pulsating - fans/compressor adjusting to optimize

performance.

• Hissing/Rattling - flow of refrigerant, movement of water

lines, or from items placed on top of the refrigerator.

• Sizzling/Gurgling - water dripping on the heater during

defrost cycle,

• Popping - contraction/expansion of inside walls, especially

during initial cool-down.

• Water running - may be heard when water melts during the

defrost cycle and runs into the drain pan.

• Creaking/Cracking - occurs as ice is being ejected from the

ice maker mold,

The doors will not close completely

• Door blocked open? Move food packages away from door.

• Bin or shelf in the way? Push bin or shelf back in the correct

position.

• Crisper cover in the way? Make sure the crisper cover is

pushed in fully, so that the back rests on the supports.

The doors are difficult to open

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

•Gaskets dirty or sticky? Clean gaskets and contact surfaces

with mild soap and warm water. Rinse and dry with soft cloth,

The lights do not work

• Is a light bulb loose in the socket or burned out? See

"Changing the Light Bulbs."

Temperature is too warm

•New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

• Door(s) opened often or left open? Allows warm air to enter

refrigerator, Minimize door openings and keep doors fully

closed.

• Large load of food added? Allow several hours for

refrigerator to return to normal temperature,

• Controls set correctly for the surrounding conditions?

Adjust the controls a setting colder. Check temperature in

24 hours. See "Using the Controls,"

There is interior moisture buildup

NOTE: Some moisture buildup is normal.

• Humid room? Contributes to moisture buildup,

• Door(s) opened often or left open? Allows humid air to enter

refrigerator, Minimize door openings and keep doors fully

closed.

The ice maker is not producing ice or not enough ice

•Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water

supply and turn water shutoff valve fully open,

•Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line,

• Ice maker turned on? Make sure wire shutoff arm or switch

(depending on model) is in the ON position,

• New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice

production.

• Large amount of ice recently removed? Allow 24 hours for

ice maker to produce more ice,

•Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

• Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See "Water Supply Requirements."

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure,

• Water shutoff valve not fully open? Turn the water shutoff

valve fully open,

• Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line,

• Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See "Water Supply Requirements."

•Questions remain regarding water pressure? Call a

licensed, qualified plumber.

Off-taste, odor or gray color in the ice

•New plumbing connections? New plumbing connections

can cause discolored or off-flavored ice.

• Ice stored too long? Discard ice. Wash ice bin, Allow

24 hours for ice maker to make new ice.

• Odor transfer from food? Use airtight, moisture proof

packaging to store food,

• Are there minerals (such as sulfur) in the water? A water

filter may need to be installed to remove the minerals.

WATER FILTER

CERTIFICATIONS

Trademark/Model Designation

Whirlpool D,,luxe T2WG2

wh,_l, ,_,1 Deluxe "l 7WG?I

State of Cahlbrma

Dcpartmcilt of Health Services

Water Treatment Device

Certificate Number

05- 1703

Date/s,taed: Apld 6, 2095

Dale Re_isexJ Septemt_r 7, 209b

Retflaeement Elenlent _

Mamdacturer: Whtfi_t+lCor_ rmm

Toxauhcnc

RatedSer*iceCapadty: 200gals Rat_dSer_feeFIow: 085gpm

Conditions of Certification:

D<)nol _ with wa_r that is microbthlogically unsafe or of imkno_ll quality, wit_ut ad_01ate disinfection b_fore ol ¸

after the system¸

State of California

Department of Health Services

WaterTreatmentDevice

CertificateNumber

05- 1702

Date Issued: April 6, 2005

[)ate RevKcxl: September 7. 2005

Whirlpool Delnxe'l')W_2Jk

KitcbenAid De

The water t*

116830 oft t to section

N<me _ ;

raid C6_ nl_

Ben_end

ca_bot_i'a_ ......

.... l

ToxapI_en_ }

Rated Service Capacity: 2(/(I gals Rated Service Flo_: 05 gpm

Conditions of Certification:

Do not use with water that is mlcrobthiogical)y unsa(e or of unknown quality, without adequate dlshlfectlon b_thl e or

after the system

PRODUCT DATA SHEETS

Base Grille Water Filtration System

Model T2WG2L/T2RFWG2 Capacity 200 Gallons (758 Liters)

Model T2WG2/T2RFWG2 Capacity 200 Gallons (758 Liters)

Tested and certified by NSF International against NSF/ANSI Standard 42

for the reduction of Chlorine Taste and Odor, Particulate Class II*; and

against NSF/ANSI Standard 53 for the reduction of Mercury, Benzene,

Toxaphene, O-dichlorobenzene, and Carbofuran.

This system has been tested according to NSF/ANSl 42/53 for the reduction of the substances listed below. The concentration of the

indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water

leaving the system, as specified in NSF/ANSl 42/53.

Substance Reduction NSF Reduction Average Influent Challenge Maximum Average Minimum %Average %

Aesthetic Effects Requirements Influent Concentration Effluent Effluent Reduction Reduction

Chlorine Taste/Odor 50% reduction 2.0182 mg/L 2.0 mg/L _+10% I 0.06 mg/L ** 0.0536 mg/L 97.03 97.34

Particulate Class II* 85% reduction 1333333 #/mL At east 10,000 part c es/mL 6600 #/mL 2325 #/mL 99.51 99.83

Contaminant NSF Reduction Average Influent Challenge Maximum Average Minimum %Average %

Reduction Requirements Influent Concentration Effluent Effluent Reduction Reduction

Lead: @ pH 6.5*** 0.010 mg/L 0.1533 mg/L 0.15 mg/L _+10% 0.0005 mg/L 0.0005 mg/L 99.67 99.67

Lead: @ pH 8.5*** 0.010 mg/L 0.1400 mg/L 0.15 mg/L _+10% 0.0007 mg/L 0.0006 mg/L 99.50 99.57

Mercury: @ pH 6.5 0.002 mg/L 0.0058 mg/L 0.006 mg/L _+10% 0.0002 mg/L 0.0002 mg/L 96.54 96.54

Mercury: @ pH 8.5 0.002 mg/L 0.0059 mg/L 0.006 mg/L _+10% 0.0005 mg/L 0.0003 mg/L 91.57 94.92

Benzene 0.005 mg/L 0.0154 mg/L 0.015 mg/L _+10% 0.0012 mg/L 0.0006 mg/L 92.22 96.34

O-Dichlorobenzene 0.6 mg/L 1.7571 mg/L 1.8 mg/L _+10% 0.0250 mg/L 0.0066 mg/L 98.58 99.63

Toxaphene 0.003 mg/L 0.015 mg/L 0.015 mg/L _+10% 0.001 mg/L 0.001 mg/L 93.33 93.33

Carbofuran 0.04 mg/L 0.0819 mg/L 0.08 mg/L _+10% 0.0400 mg/L 0.0213 mg/L 51.13 74.00

Test Parameters: pH = 7.5 _+0.5 unless otherwise noted. Flow = 0.85 gpm (3.2 Lpm). Pressure = 60 psig (413.7 kPa).

Temp. = 68°F to 71.6°F (20°C to 22°C).

• It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to

perform as advertised.

• Use replacement cartridge T2RFWG2, part #4396841.

In Canada, use replacement cartridge T2RFWG2, part

#4396841B. 2006 suggested retail price of $39.99 U.S.A./

$49.99 Canada. Prices are subject to change without notice.

Model T2WG2L: Press FILTER to check the status of your

water filter. Ifthe filter indicator light is yellow, order a new

filter. Ifthe filter indicator light is red, it is recommended that

you replace the filter.

Model T2WG2: Change the water filter cartridge every

6 months depending upon your usage. If the water flow to the

water dispenser or ice maker decreases noticeably before

6 months have passed, replace the water filter cartridge more

often.

• These contaminants are not necessarily in your water supply.

While testing was performed under standard laboratory

conditions, actual performance may vary.

• The product is for cold water use only.

• Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after

the system.

• Refer to the "Assistance or Service" section for the

Manufacturer's name, address and telephone number.

• Refer to the "Warranty" section for the Manufacturer's limited

warranty.

Application Guidelines/Water Supply Parameters

Water Supply City or Well

Water Pressure 30 - 120 psi (207 - 827 kPa)

Water Temperature 33 ° - 100°F (0.6 ° - 37.8°C)

Service Flow Rate 0.85 gpm (3.2 Lpm) @ 60 psi

*Class II particle size: 1 um to <5 um

**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

***Compliant for Lead reduction requirements under NSF/ANSl Standard 53 as tested by Pace Analytical Services, Inc.

(R_NSF is a registered trademark of NSF International.

Base Grille Water Filtration System

Model TIWG2L/T2RFWG2 Capacity 200 Gallons (758 Liters)

Model TlWG2/T2RFWG2 Capacity 200 Gallons (758 Liters)
