USER MANUAL
Wines Cellars
1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Index
Important instructions for safety and the environment
For your safety
Respect for the environment
Installation
Installation
Connection to the electrical mains
Before starting
Getting to know the appliance
Main features
Main components
Electronic Control
Main control panel
Turning the appliance on and off
Turning on and off
How to adjust the temperature to suit various needs
Information and malfunction signals on the display
Settings and Special Functions
Customization and Language Settings
Special functions activated through the Menu
Basic settings of the Menu
Internal Layout
Internal Layout (positioning, adjustment, removal)

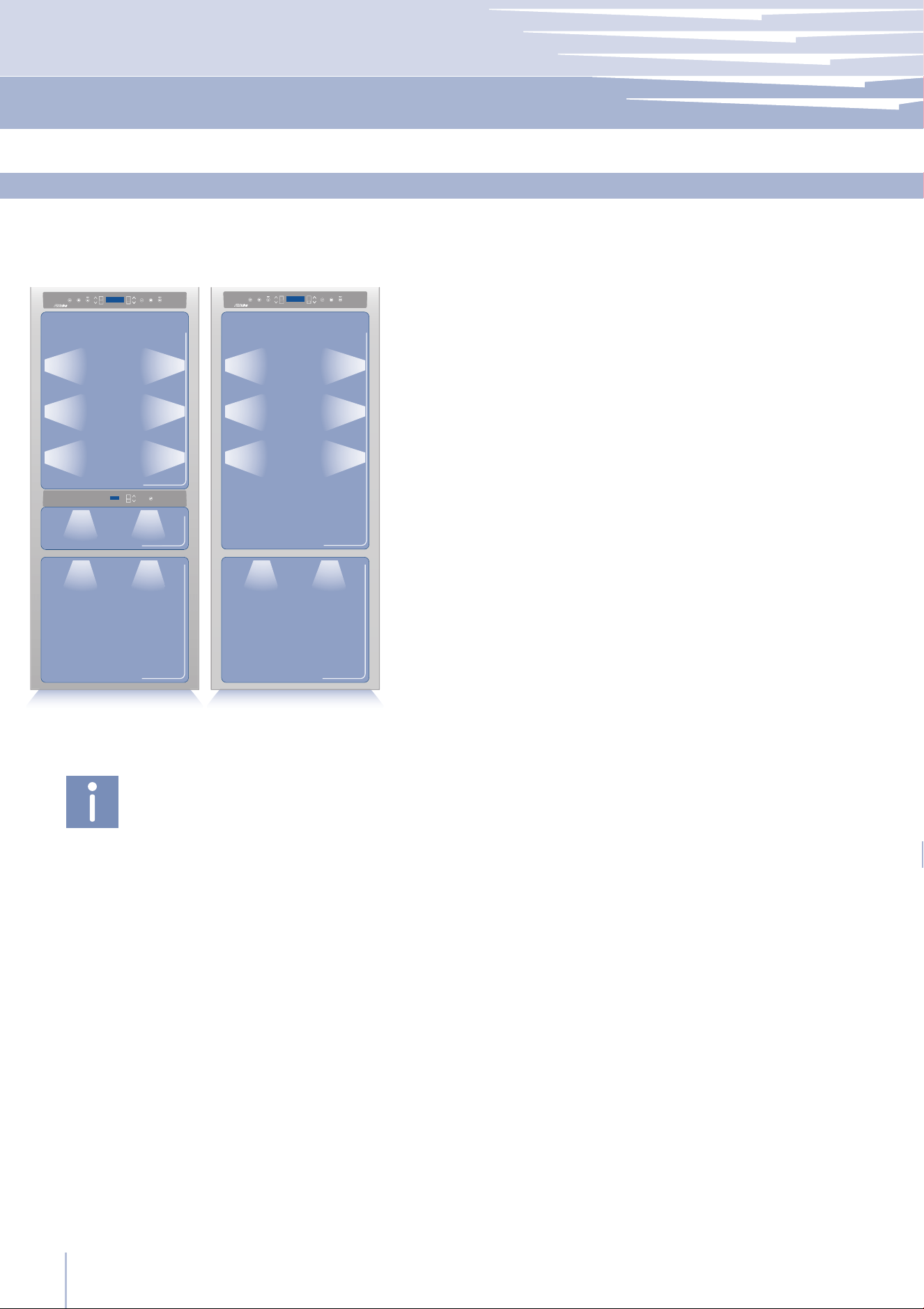

Lighting
Lighting
Use of the TriMode compartment
Use of the TriMode compartment
TriMode compartment
Conservation of wines
General directions
Wine conservation temperature
Time of conservation
Consumption temperature
Position of bottles
Food Conservation
Recommendations for conserving fresh food
Recommendations for conserving frozen food
Recommended times for food conservation
Care and Cleaning
Care and Cleaning
Condenser cleaning
Internal cleaning
Troubleshooting guide
Troubleshooting guide
Malfunction indications appearing on the display
Prior to calling Service
Prior to calling Service
Fhiaba Access Menu Map
Functions
Settings
1
1.1
1.2
2
2.1
2.2
3
3.1
3.2
3.3
3.4
3.5
4
4.1
4.2
4.3
5
5.1
5.2
5.3
6
6.1
7
7.1
8
8.1
8.2
9
9.1
9.2
9.3
9.4
9.5
10
10.1
10.2
11
12
12.1
12.2
12.3
13
13.1
13.2
14
14.1
15
15.1
15.2
Page 2
3
4
8
10
15
16
17
18
21
22
23
24
26
27
2
1
1.1
B0900130 1
Product tested in accordante with EN62471
Risk Group 2
PRUDENZA:
NON FISSARE LA LAMPADA IN FUNZIONE.
PUÒ ESSERE DANNOSO PER GLI OCCHI.
CAUTION:
DO NOT STARE AT OPERATING LAMP.
MAY BE HARMFUL T O THE EYES.
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Notes
Suggestions for proper use
of the appliance
For your safety
Important
Instruction to prevent damage
to the appliance
Warning
Instructions for preventing
personal injury
Important instructions for safety and the environment
If this appliance is replacing an existing appliance which must be
removed or disposed of, make sure that it does not become a dan-
gerous trap for children by cutting its power supply cable and ren-
dering it impossible to close the door. Use the same caution at the
end of the lifespan of the new appliance.
This appliance is designed to refrigerate beverages and foods and
is destined for domestic use.
The appliance must be installed by following the instructions in the
Installation Guide, particular care should be taken not to obstruct the
vent openings of the appliance and of the built-in units.
The appliance features a concentrated lighting system with LED
lamps. Do not stare into these lamps when they are on to avoid pos-
sible eyesight damage.
This warning is also contained on the label attached to the inside of
the refrigerator door.
When the freezer is functioning do not touch the inner surfaces in
stainless steel with wet or damp hands, since skin may stick to the
very cold surfaces.
Do not use any type of electrical equipment inside of the food
conservation compartments.
When positioning the shelves, do not place fingers in the shelf
slide guides.
Do not position containers of ammable liquids near the appliance.
Completely switch off the appliance and unplug the power supply
cable during cleaning operations. If the plug is not easily reached, it
is a good idea to disconnect the omnipolar switch that controls the
socket that the appliance is connected to.
The packaging parts can be dangerous for children: do not allow
children to play with the plastic bags, plastic lm or Styrofoam.
Any repairs must be performed by a qualified Fhiaba Service
technician.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
Do not damage the appliance refrigerant circuit pipes.
Do not store explosive substances such as aerosol cans with a am-
mable propellant in this appliance.
3
2
2.1
2.2
1.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161

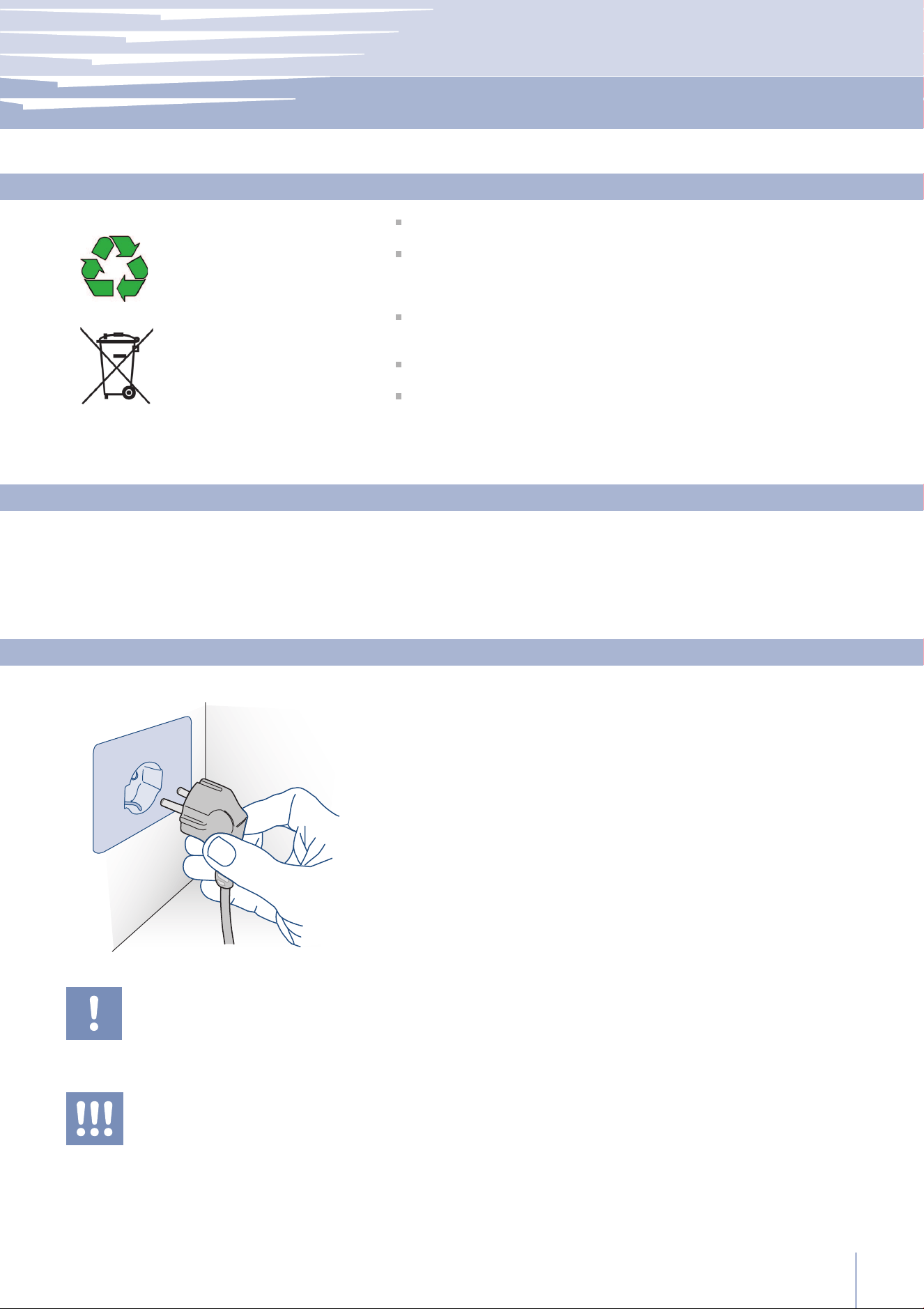

Make sure you dispose properly of all packing materials.
The appliance must not be disposed of with urban waste.
Contact local waste disposal authorities for information on the disposal
of recyclable waste.
For disposal, cut the power supply cord and make it impossible to
close the door.
During disposal, avoid damage to the refrigeration circuit.
Neither the refrigeration circuit nor the insulation contain substances
that are hazardous to the ozone layer
Respect for the environment
Make sure that installation is performed correctly, adhering to all of
the instructions in the specic installation guide provided with the
appliance.
Installation
Connection to the electrical mains
The appliance is equipped with a Schuko type 16A plug.
It must be connected to the electrical mains by means of a corre-
sponding Schuko socket.
Do not use extension cords and/or multiple adapters for connection.
Do not use extension cords and/or multiple
adapters for connection.
Installation
If energy is supplied through an alternative ener-
gy power source (solar, geothermal, etc..) or if
home automation systems are installed, it is ne-
cessary to install the Alternative Energy Kit to in-
tegrate the unit into the power grid.
4
3
3.1
3.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before starting
Getting to know the appliance
Exclusive design by Giugiaro
The Fhiaba triple refrigeration system and the separa-
tion of internal compartments ensure perfect conditions
for conservation of various types of wines
The electronic control guarantees constant temperature
and humidity levels set by the user
The double compressor allows separate management
of the set temperature and humidity for the Cantina, Wine
Cellar and TriMode compartments
The TriMode compartment may operate in three differ-
ent modes: as a freezer, as a refrigerator or as a cooler
compartment
Free-standing or built-in installation
Main features
An interactive menu (Menu) permits personalized man-
agement of appliance functions and the display of mes-
sages on operation
Optimization of consumption during vacation periods
Surfaces in stainless steel both inside and outside, with
ne aluminium trim
Patented hinge system that permits automatic door closing
TriMode drawers with Soft self-closing system
Localized lighting system with LEDS
Anti-tipping system with brackets for wall mounting.
Congratulations for having purchased your new Fhiaba:
from now on you can use our innovative conservation sys-
tem, which will allow you to keep all of your food in the
best way possible.
This manual will answer most of your questions about the
product’s features. Should you require further information,
please check our website
www.fhiaba.com
or write us an e-mail at

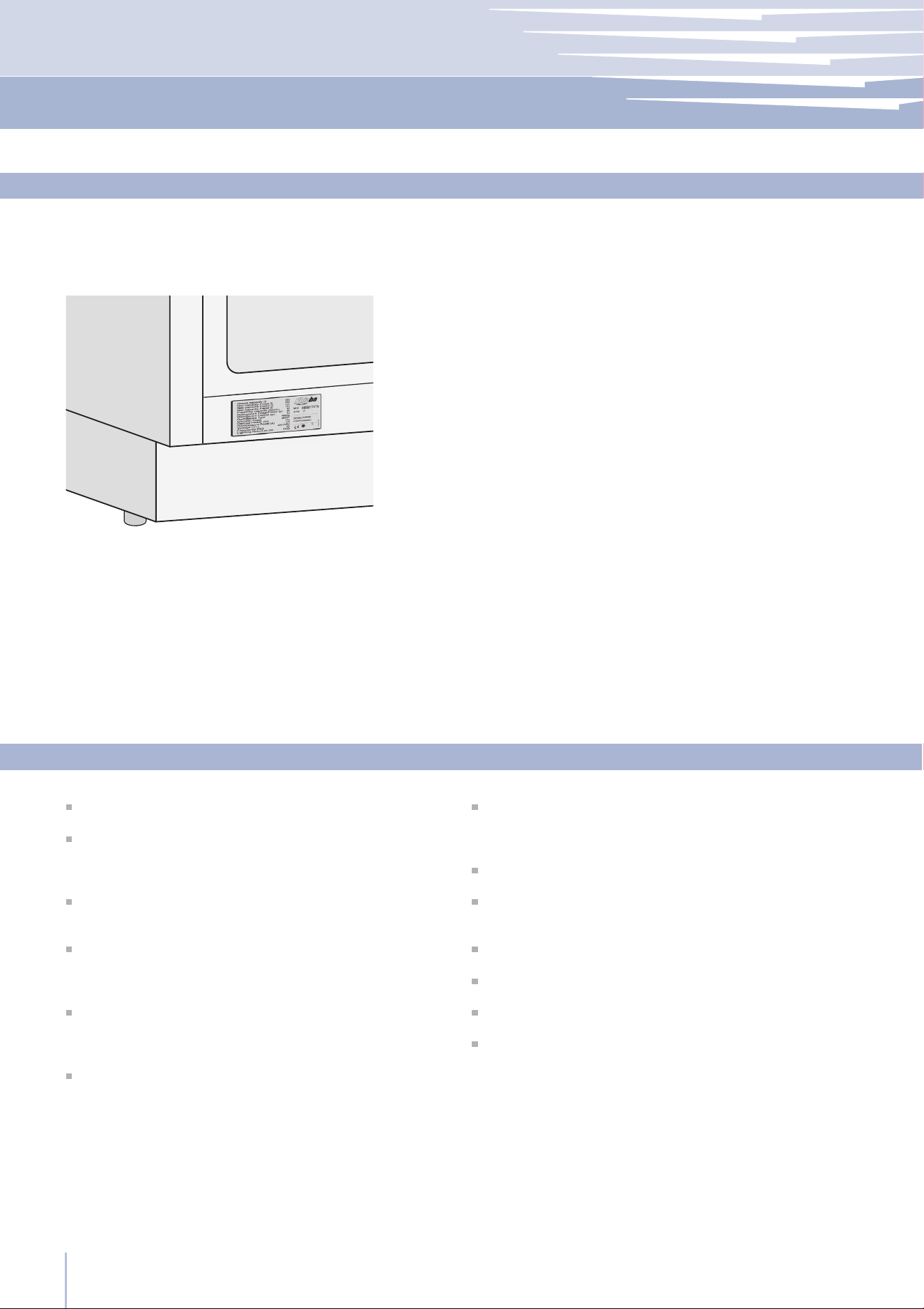

Before calling, write down the model type and serial number
which are available on the warranty certicate and on the
rating plate located on the bottom left-hand corner of the
appliance, behind the bottom drawer and any messages
which may have appeared on the display.
+39 0434 420 160
5
3
3.3
Cantina
TriMode
TriMode
1
1
7
8
8
9
9
10
10
11
11
12
12
2
2
3
3
5
4
5
6
6
7
Wine Cellar
Wine Cellar
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before starting

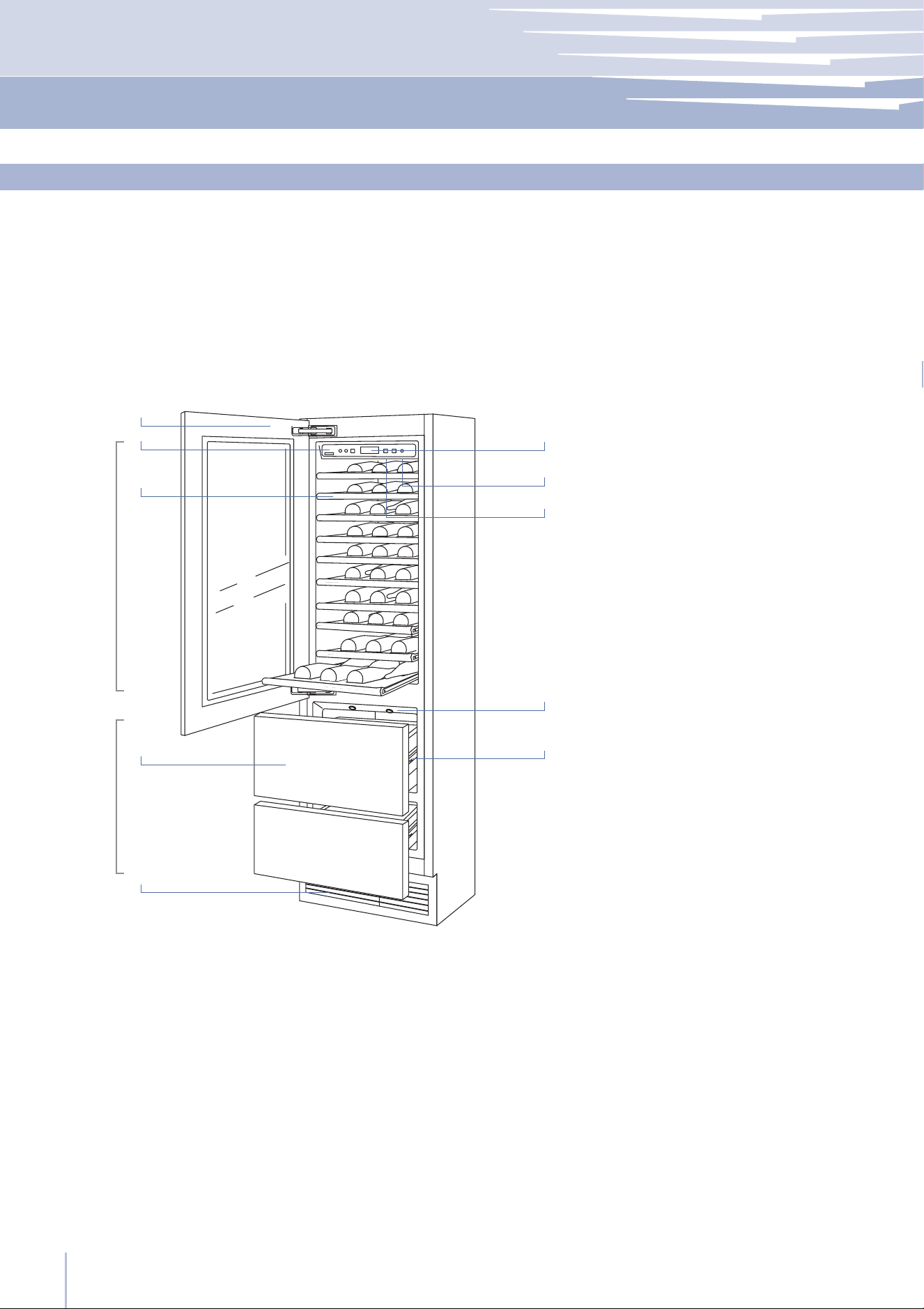

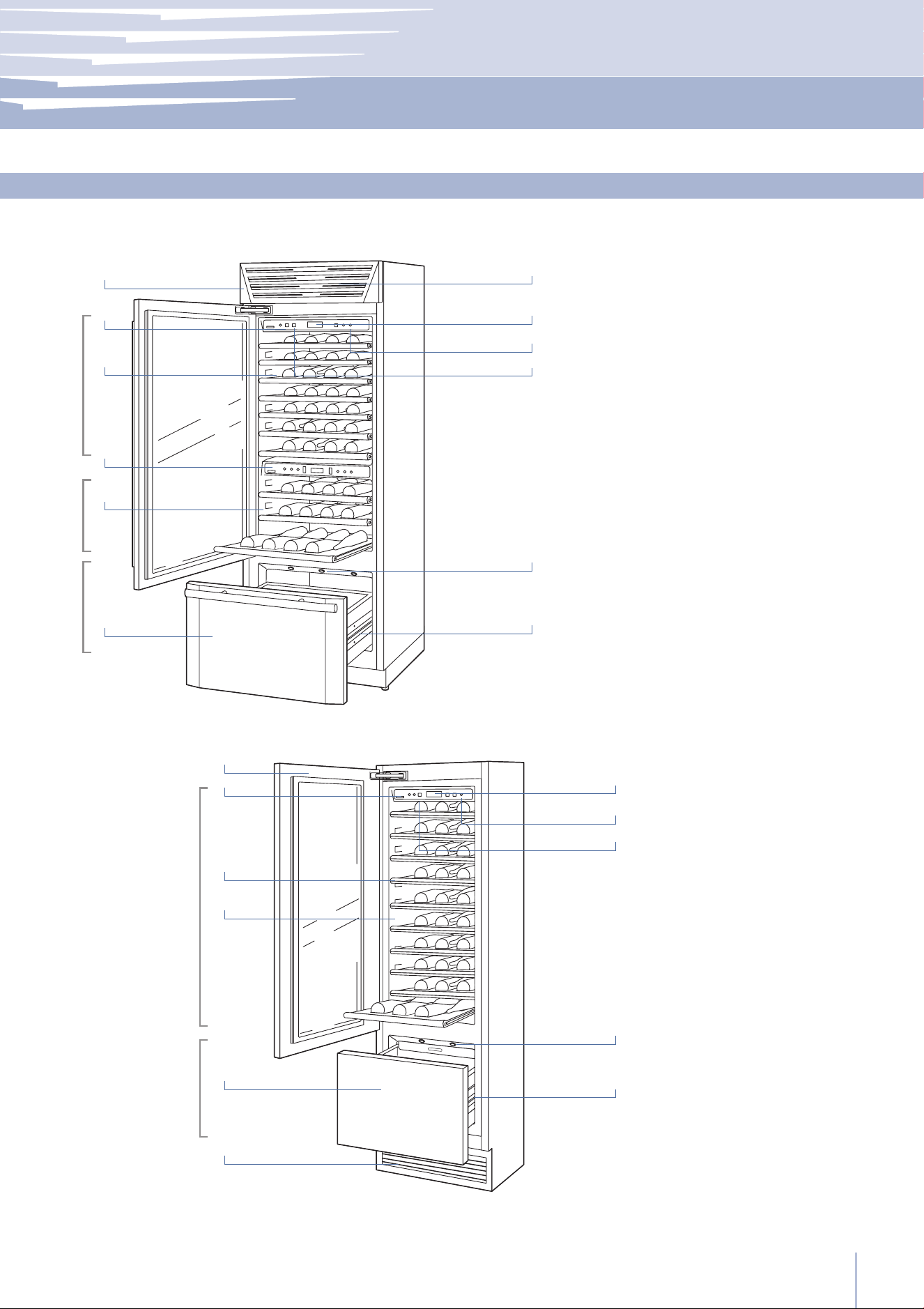

Main components
One drawer Wine Cellar
1 Structure in stainless steel
with aluminium trim
2 Wine Cellar and TriMode
control panels with Menu
3 Sliding bottle shelfs,
mounted on wheels for
easy extraction
4 Cantina area control panel
5 Wine Cellar
6 Frezer compartment that
can be transformed into a
refrigerator or Crisper-Fresco
compartment
(TriMode function)
7 Double refrigeration system
8 Temperature display
9 Acoustic signals
10 Vacation function
(in Menu)
11 Innovative lighting
12 Automatic door and
drawer closure
1T Models
0T Models
6
3
3.3
1
7
6
8
9
10
2
3
4
5
TriMode
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before starting
Main components
Two drawer Wine Cellar
1 Structure in stainless steel
with aluminium trim
2 Wine Cellar and TriMode
control panels with Menu
3 Sliding bottle shelfs,
mounted on wheels for
easy extraction
4 TriMode drawers, may be
used as freezer, refrigerator
or cooler
5 Double refrigeration system
6 Temperature display
7 Acoustic signals
8 Vacation function
(in Menu)
9 Innovative lighting
10 Automatic door and
drawer closure
0H Models
FridgeTriMode
7
3
3.3
3.3
Componenti principali
Componenti principali
3.5
3.4

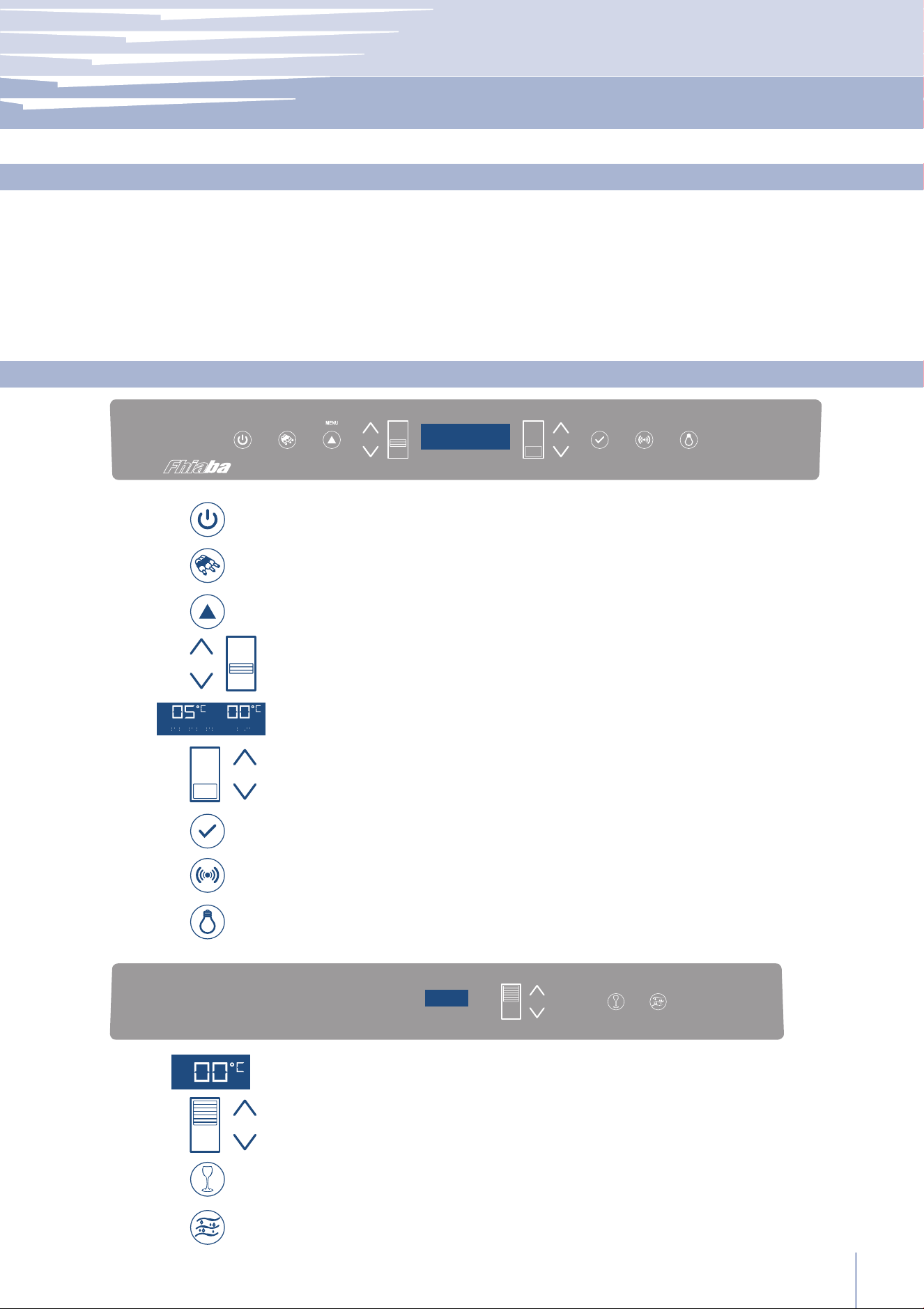

1234 56798
ALARM
ENTER
WINE CELLAR
UNIT
LIGHT
1
Unit
2
Wine cellar
3
Menu
4
Up/down
Wine Cellar
5
Display
6
Up/Down
(TriMode)
7
Enter
8
Alarm
9
Light
10 11 12 13
C A N TIN A
H U MID ITY
10
Display
12
13
Cantina
Humidity
11
Up/Down
Cantina
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Before starting
Main control panel
Electronic Control
Allows complete shutdown and start-up of the appliance
(press for three seconds).
Allows access to the appliance functions menu.
Displays the temperature of the Wine Cellar and TriMode compart-
ments, the date and time, Menu functions and visual messages.
Allows illumination of the Wine Cellar and Cantina compartments also
when the door is closed. Once activated, the light of the top compart-
ment will automatically shut off after 6 hours.
Shows the temperature of the Cantina compartment.
Allows switching on and off only the Cantina compartment on or off
(press for three seconds).
Allows adjustment of humidity in the Wine Cellar and Cantina com-
partments to three levels: High (HI), Medium (A) and Low (LO).
Using the Up and Down keys, it is possible to change the set tempera-
ture for the Cantina compartment.
The innovative electronic control system designed by Fhiaba maintains constant temperature on the three compart-
ments and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings
of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.
Allows switching on and off only the Wine Cellar compartment (press
for three seconds).
By selecting Up/Down the preset temperature can be changed ac-
cording to the selected function mode (freezer, refrigerator, Crisper-
Fresco).
Conrms activation or deactivation of the selections made in the
Menu.
Allows activating or deactivating the automatic ice production.
Using the Up and Down buttons, it is possible to change the set tem-
perature of the refrigerator and scroll through the interactive menu.
8
4
4.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Turning the appliance on and off
To prevent accidental modication of settings,
the keypad locks automatically after a certain
period of time and the display shows the mes-
sage “keypad locked”. To re-activate it, simul-
taneously press the keys Menu and Up/Down
(Down) for three seconds.
At the rst start-up, if the message Standby does
not appear, it means that the appliance has al-
ready started the cooling process. If this is the
case, deactivate any possible acoustic signals
by pressing the Alarm key
, close the door and
wait until the set temperature is reached.
During the rst start-up, you will not be able to use
the Menu to modify factory settings until the de-
fault temperature has been reached. It is howev-
er possible to set the time and date immediately;
these parameters are required to activate some
of the special functions.
If only the Cantina or Wine Cellar compartment
is turned off, the corresponding fan will continue
to run independently to prevent the formation of
unpleasant odours and mould.
First start-up
Once you have turned on all of the compartments of the appliance,
you can turn off only the wine cellar compartment by pressing the
relevant key for three seconds.
The TriMode compartment is always on and cannot be turned off
except by completely turning off the appliance.
To shut down the unit completely for cleaning or maintenance, press
the Unit key
for three seconds.
Also take the plug out of the socket and turn off the omnipolar switch
that powers it.
Turning off the Wine Cellar compartment
Turning the Wine Cellar compartment on
again
Complete shutdown
Lengthy shutdown periods
Turning on and off
Press again for three seconds the relevant key.
When the appliance is connected to the electrical power supply but
has not yet been turned on, the display shows the message
This is a safety message to warn that power is supplied to the appli-
ance, while all of the keys on the panel are off.
To switch on all the appliance compartments, press the Unit button
for three seconds.
After you have completely shut down the appliance and unplugged
it, empty it of all its contents, clean it and dry it. Leave the doors and
the drawers ajar to prevent the formation of unpleasant odours.
9
4
4.4
4.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
An integrated control system provides information through luminous
signals or text messages shown on the display.
The information signal is always displayed with a xed text message,
while a malfunction signal is shown with blinking text.
The acoustic signal that accompanies some malfunction signals can be
deactivated by pressing the Alarm key
on the main control panel.
The list of malfunction signals is located in the back of this manual.
Turning on the appliance
To adjust the temperature in the various compartments, use the up/
down key
for that compartment (see chapter 3.5).
If the “keypad locked” message appear, simultaneously press the keys
Menu and Up/Down (Down) for 3 seconds.
Wines compartment
TriMode compartment
Each model has been carefully tested before leaving the factory and
is adjusted so as to ensure high performance and low consumption.
The ideal temperature for wine conservation does however depend
on the types of wine you want to conserve, the method of conserva-
tion (Wine Cellar for conservation and consumption, or Cantina for the
conservation and aging of prized bottles).
It also varies according to personal taste.
Please refer to the guide on wine conservation included further ahead
in this manual.
As needed, you can reset the temperatures as follows:
Cantina Compartment:
from +4° C to +18° C (from 39.2° F to 64.4° F).
The default temperature is +12° C (53.6° F).
Wine Cellar compartment:
from +4° C to +18° C (from 39.2° F to 64.4° F).
The default temperature is +10° C (50° F).
The TriMode compartment is default set to freezer mode but it can also
be set to run as a refrigerator or cooler compartment.
Instructions for conversion are provided in the paragraph on special
functions and settings.
As needed, you can reset the temperatures as follows:
Freezer compartment: from -15° C to -22° C (from 5° F to -7.6° F).
The default temperature, which is recommended, is -18° (0° F)
Refrigerator compartment: from +2° C to +8° C (from 35.6° F to 46.4° F).
The default temperature, which is recommended, is +5° C (41° F).
Cooler compartment: from -2° C to +2° C (from 28.4° F to 35.6° F),
The default temperature, which is recommended, is 0° C (32° F).
The displayed temperature may vary slightly
with respect to the set temperature if the doors
are continuously opened or insertion of room
temperature food or large quantities of food.
It takes 6 to 12 hours to reach the selected tem-
perature.
Information and malfunction signals on the display
How to adjust the temperature for suit various needs
If the “keypad locked” message appear, simul-
taneously press the keys Menu
and Up/Down
(Down)
for 3 seconds.
10
5
5.1
5.2
FRIDGE
UNIT
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings and Special Functions
To prevent accidental modication of settings,
the keypad locks automatically after a certain
period of time and the display shows the mes-
sage “keypad locked”.
To re-activate it, simultaneously press the keys
Menu
and Up/Down (Down) for at least
three seconds.
Customization and Language Settings

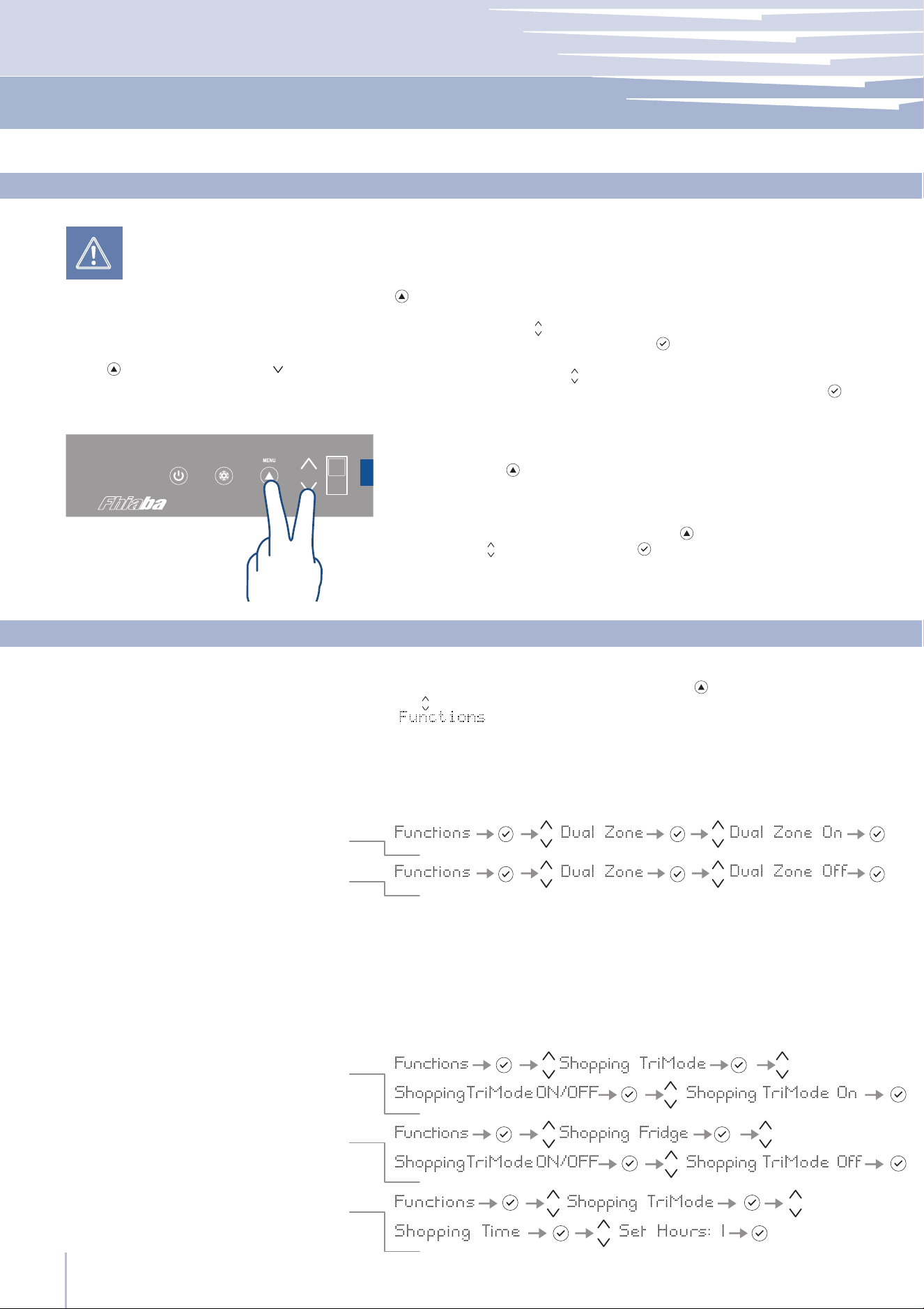

Special functions activated through the Menu
It is possible to customized the functions of your Fhiaba to adapt it to di-
verse usage needs, resetting the main parameters (Settings) or activating
special functions (Functions).
Functions are visualized on the main display by pressing the Menu button
.
The Up/Down buttons permit scrolling the available functions, which can
be selected by pressing the Enter button . The display visualizes the cur-
rent functioning status.
Using the Up/Down buttons
, it is also possible to scroll through the select-
ed function, activating or deactivating by pressing the Enter button .
Once the function is conrmed, the display will automatically visualize the
main menu to select other functions.
At any time it is possible to return to the previous selection through
the Menu button
.

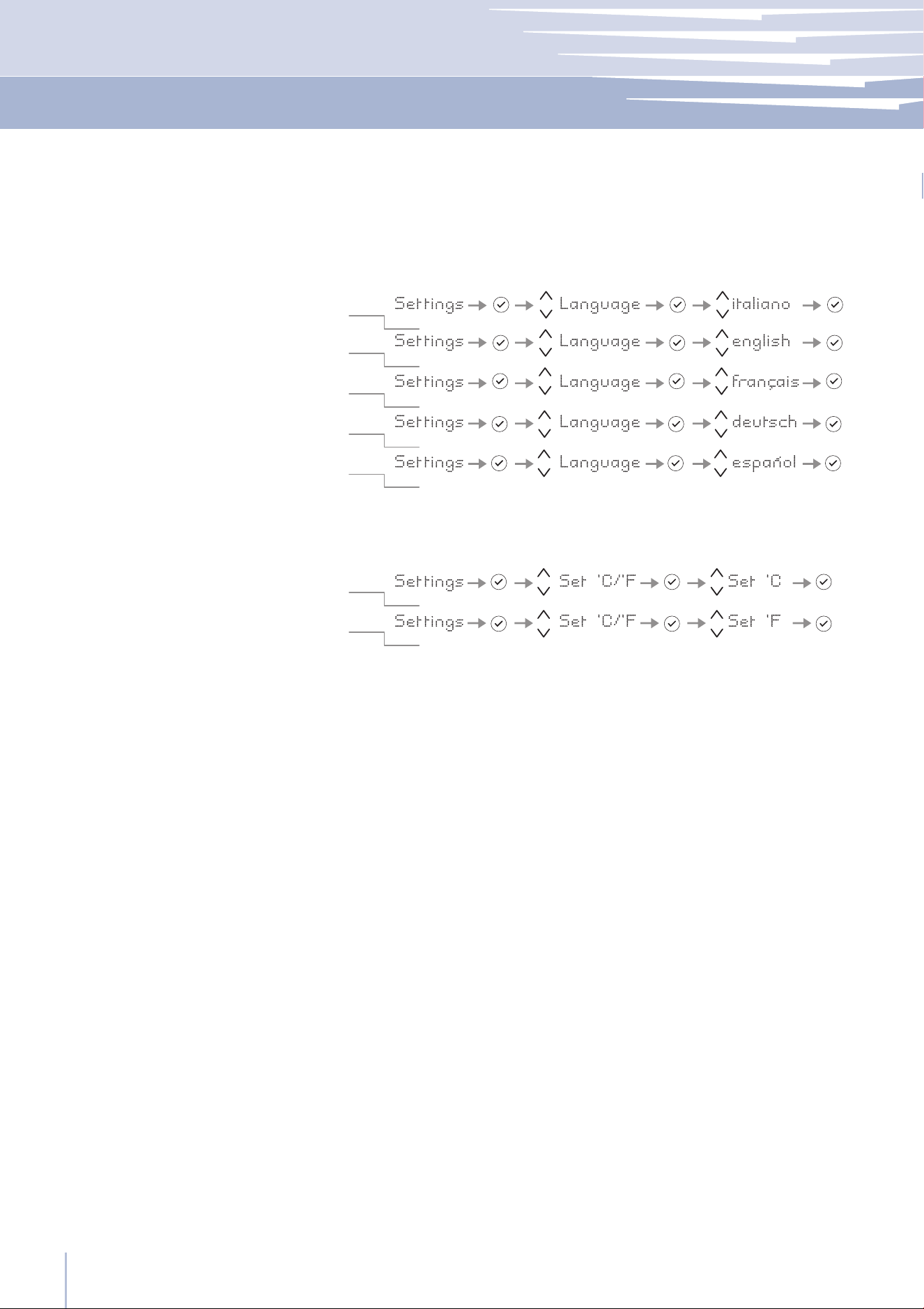

The language of the messages appearing on the display can be changed
by operating as follows:
Enter the Menu by pressing the Menu button
select Settings via the Up/
Down buttons and conrm via Enter .
Then select the Language function and the desired language.
This function can be activated only on models featuring a wine cellar
without internal separator. It allows to differentiate the temperature in
the upper part of the cellar (warmer and therefore better suited to keep
red wines) from the temperature in the lower part (colder and therefore
better suited to keep white wines).
This function must be activated at least 24 hours before inserting room
temperature items into the freezer, or several hours before placing into
the freezer previously frozen items which have been subject to a slight
temperature rise. This function is automatically deactivated when the
programmed time period expires.
It is possible o program timed activation of the function.
After a prolonged interruption of the electrical power, it is necessary to
reactivate the function.
To use special functions, select the Menu key
and use the Up/Down
key to access the menu, conrming the selection
.
How to activate
How to activate
How to deactivate
How to deactivate
How to program timed activation
Shopping TriMode
Dual Zone
11
5
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings and Special Functions

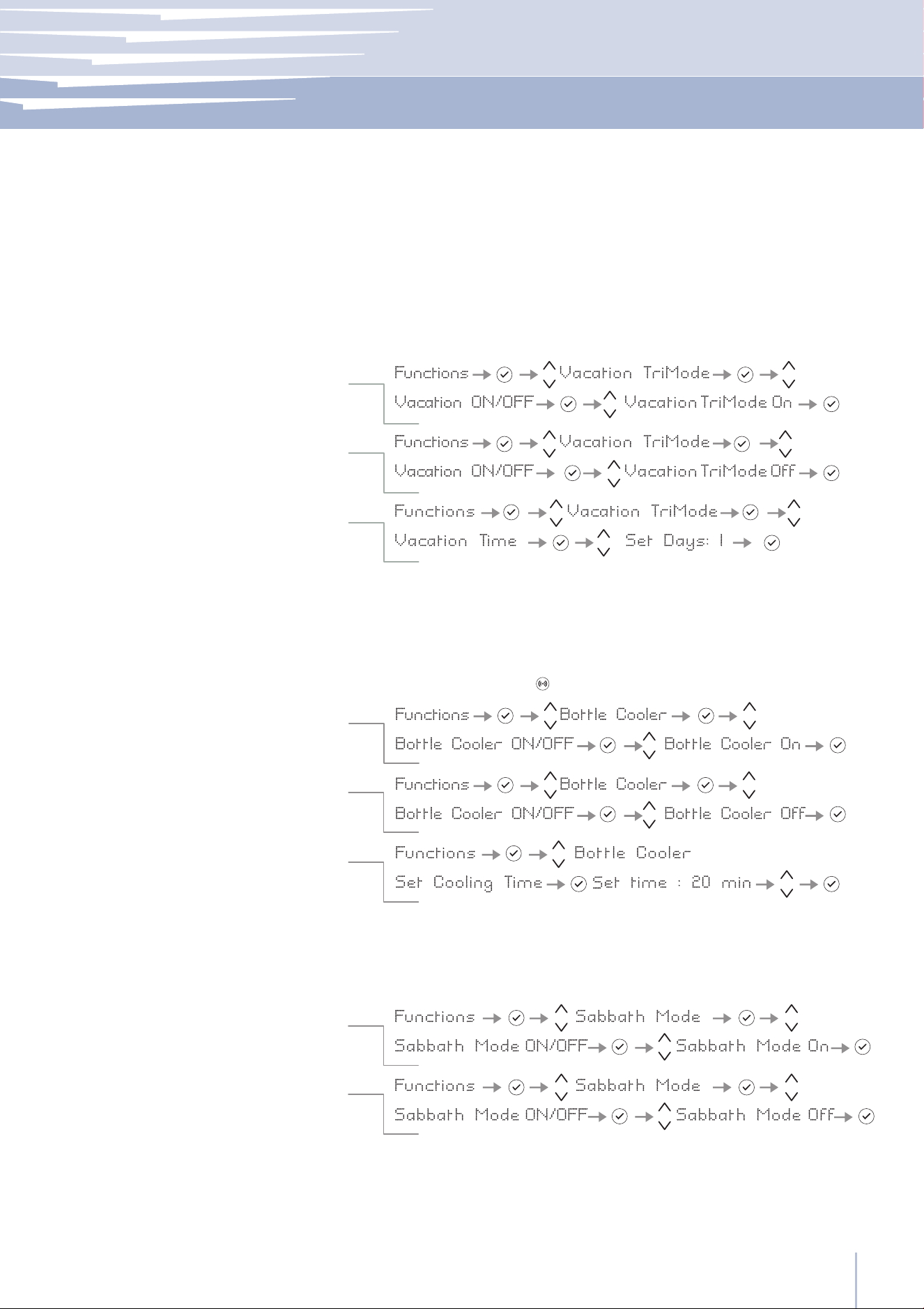

This function (recommended in case of prolonged absences since it
allows considerable energy savings) brings the Tri-Mode compartment
temperature to - 18°C (46.4°F).
It is possible to program the duration, or it can be manually deacti-
vated upon re-entry after a period of absence.
This function remains active even if during the period of absence there
is a prolonged interruption of electrical power.
It is possible to program a period from 1 to 90 days.
This function can be activated when it is necessary to cool off bever-
ages quickly, by placing them inside the freezer compartment.
It is possible to select a duration of 1 to 45 minutes. A sound signal will
indicated when the optimal temperature has been reached.
After removing the beverages, deactivate the sound signal by press-
ing the Alarm button
.
Bottle Cooler
How to activate
How to deactivate upon re-entry
How to program the duration
How to activate
How to deactivate
How to program the duration
Vacation TriMode
The function makes it possible to comply to certain religious observ-
ances requiring that the operation of the appliance is not affected by
the opening or closing of the doors (the thermostatic control, the inner
lighting and the ice maker are deactivated).
Sabbath Mode (Optional)
How to activate
How to deactivate
5.3
12
5
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings and Special Functions

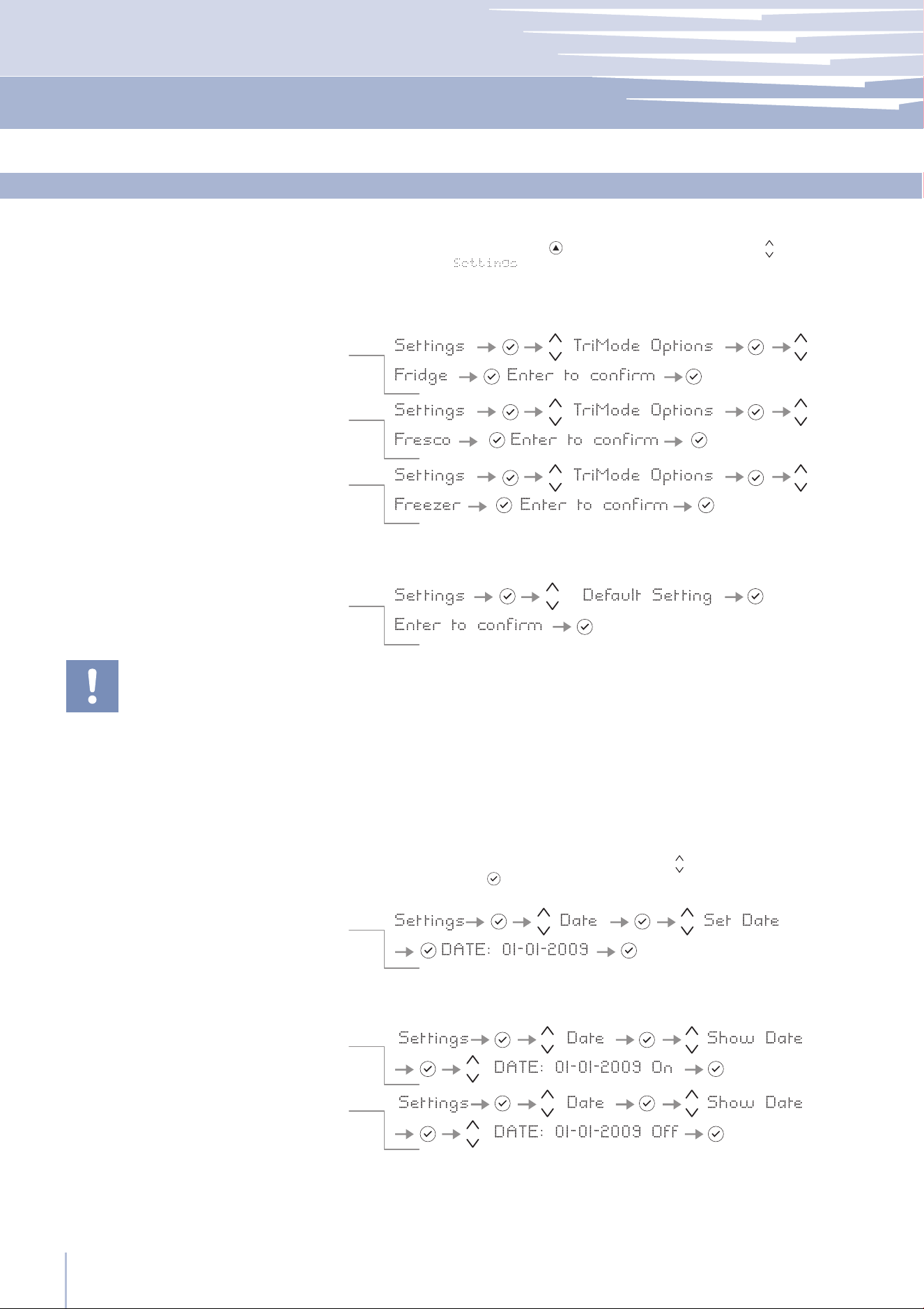

Basic settings of the Menu
This offers the possibility to reset default factory settings and cancels
any previous changes.
Default Setting
How to reset default settings
Using this function it is possible to deactivate/activate the date visuali-
zation on the display.
Show Date
How to activate the date
How to deactivate the date
The display will visualize the date in the format dd:mm:yy (day:month:year),
the day will blink. Use the Up/Down buttons
to modify the setting, con-
rm with Enter to go on to the next setting; once the year is conrmed
the date will be set.
Date
Set Date
How to set the date
Select the Menu button
and used the Up/Down button
to select .
The freezer compartment can, if required, be converted to the refrig-
eration o Crisper-Fresco operating mode.
TriMode Options
How to set the Fridge function
How to set the Crisper-Fresco function
How to revert to the Freezer function
ATTENTION: If the default settings are restored, it is
necessary to reactivate the choice of operation of
the TriMode compartment in case it was previously
set as Fridge or Fresco.
13
5
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings and Special Functions

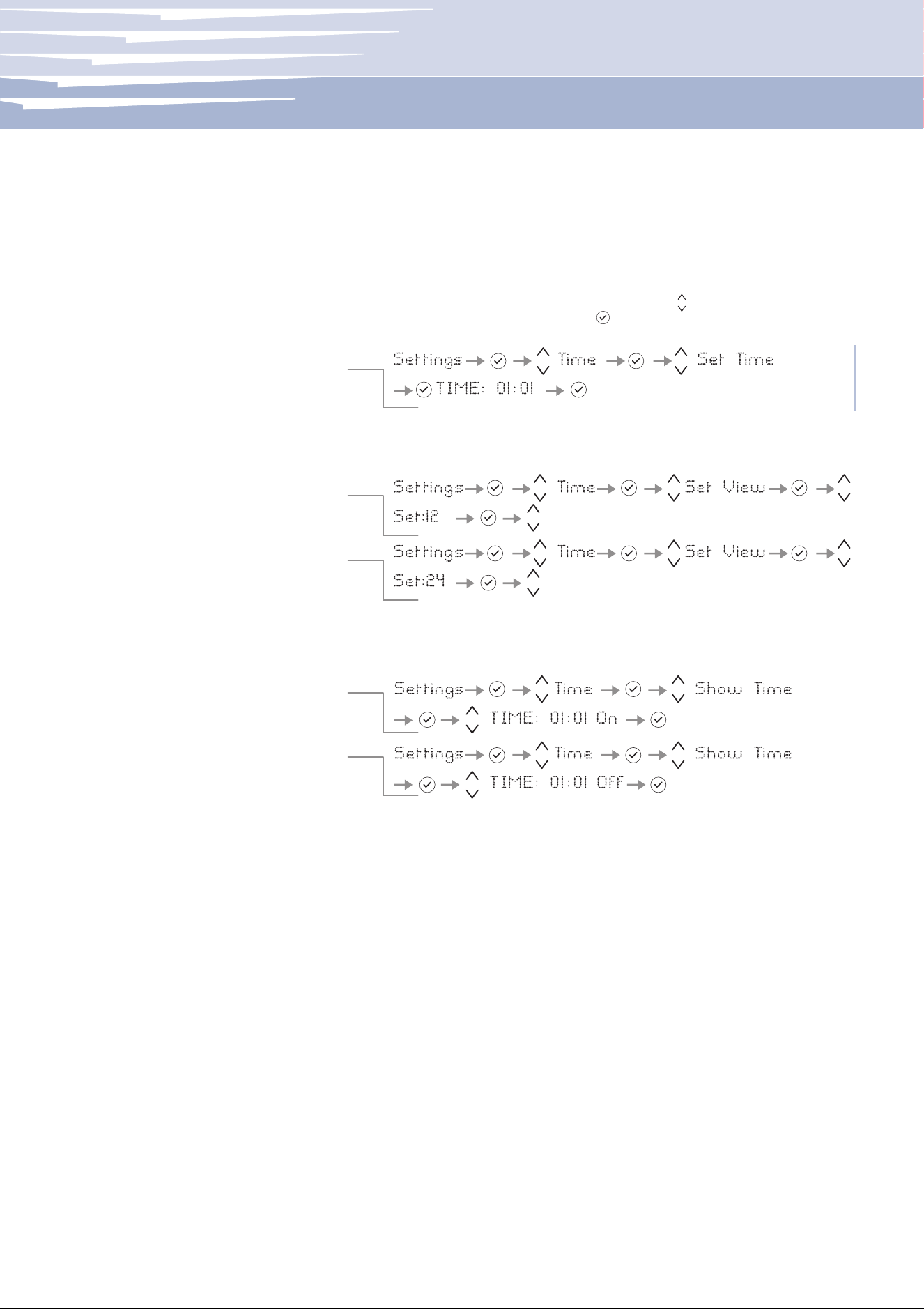

This function selects the display at 12 or 24 h.Set 12/24
How to set the display to 12 h
How to set the display to 24 h
Through this function it is possible to activate/deactivate the constant
visualization of the time.
Show Time
How to activate the permanent time
How to deactivate
The display visualizes the hours and minutes in the format hh:mm and
with hh: blinking. Use the Up/Down buttons to modify the setting and
then conrm by pressing Enter to go on to the next setting.
Once the minutes are conrmed, the time will be set.
Time
Set Time
How to set the time
14
5
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings and Special Functions
This function permits visualizing the temperature in Centigrade or Fahr-
enheit degrees. Normally, the appliance is set for visualization in cen-
tigrade degrees.
Set °C/°F
How to set the temperature in Centigrade
How to set the temperature in Fahrenheit
The function allows selection of the language for the display messages.Language
Italian
English
French
German
Spanish
15
6
6.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Internal Layout

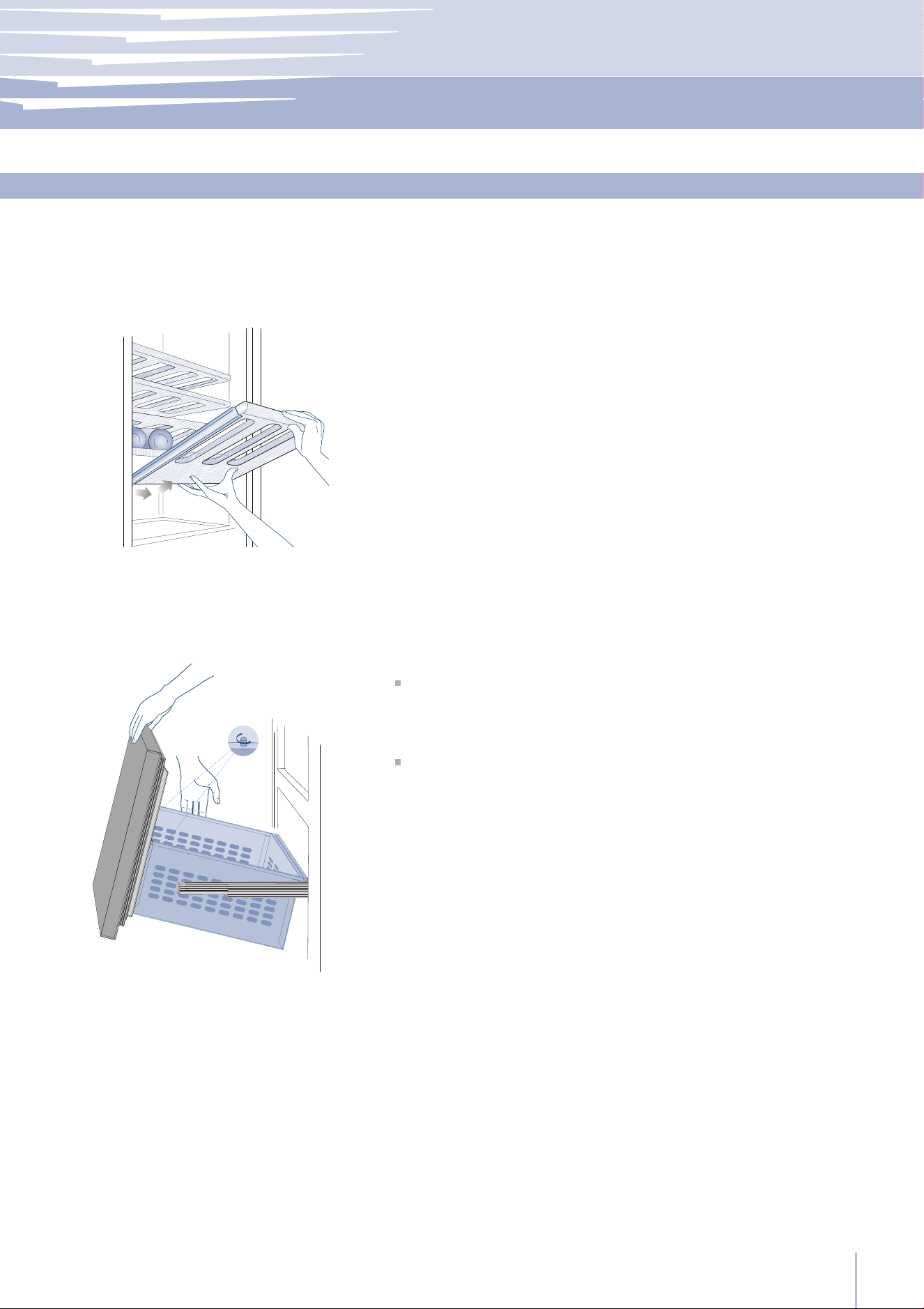

The shelves can be easily removed for cleaning.
Remove the bottles, completely extract the shelf, tilt it upward
until the wheels are free of their seat and extract it.
Wine shelf
TriMode drawer
Internal Layout (positioning, adjustment, removal)
Fixed to the slide guides with two locking nuts
to remove the drawer, unscrew the locking nuts and remove the
drawer.
to remove the inner TriMode drawer unscrew the locking nuts.
16
7
7.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Lighting
Lighting
To provide optimum interior lighting, LED strips illuminate the refrigera-
tor compartment from the top and sets of LED lights directly illuminate
different areas of the refrigerator compartment, of the Crisper-Fresco
drawers and the freezer drawer.
In case of malfunction and/or failure of the lighting system, you
should contact an authorized Fhiaba Service Agent.
Once activated, the light of the top compartment
will automatically shut off after 6 hours.
17
8
8.1
8.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Use of the TriMode compartment
Use of the TriMode compartment
The TriMode compartment, used in conjunction with the Wine Cellar
and Cantina compartment, allows great exibility in the use of the ap-
pliance.
Some possible uses:
Liquors, such as vodka, gin, tequila, schnapps, limoncello and the
glasses to serve them
Rapid cooling of beverages, by activating the bottle cooler function
Storage of large amounts of ice.
As expansion of the Wine Cellar or of the Cantina
For refrigeration of beer and soft drinks
For storage of cold dishes and snacks.
For conservation of ham, salmon
gourmet preparations.
It comes without saying that, the compartment can be used in a tra-
ditional manner. Suggestions and instructions are provided to offer
you best conservation of your food over time in complete safety.
Freezer mode
Refrigerator mode
Cooler mode
To fully use the capacity of the TriMode compartment:
remove the drawer
remove the top drawer
install the supports delivered with the units (on request)
TriMode compartment
18
9
9.1
9.2
Cantina
Wine Cellar
Wine Cellar
TriMode
TriMode
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
As is known, wine can be stored for long periods of time if this is done
under the following conditions:
Suitable temperature without appreciable variations over time
Controlled level of humidity
Protection from light
Absence of noise and vibrations
Absence of odours
Bottle kept horizontal.
All of these conditions are fully met in the Fhiaba Wine Cellar.
The space offered by the Wine Cellar and Cantina compartments,
which can be expanded as necessary by using the TriMode compart-
ment as a wine cellar, allows conservation of your best wines at three
different temperatures.
The three compartments are initially set to the following temperatures:
Cantina compartment
+12° C (53.6° F) - adjustable from +4° C to +18° C (from 39,2° F to 64,4° F)
Wine Cellar compartment
+10° C (50° F) - adjustable from +4° C to +18° C (from 39,2° F to 64,4° F)
TriMode drawer
-18° (0° F) - adjustable from -15° C to -22° C (from 5° F to -7.6° F)
(freezer mode)
To transform the TriMode compartment into a wine cellar space, you
must access the Menu, set it as a refrigerator compartment, and ad-
just it to a temperature between +4° C and +8° C (from 39.2° F to 46.4°
F).
All the temperatures can be modied according to the characteristics
of the wines and personal preferences. However, you should attempt
to keep the temperature as constant as possible over time.
Rapid and large-scale temperature variations can in fact cause dila-
tion of the liquid and early aging of the wine.
You should also avoid very low temperatures (below 4° C - 39.2° F )
which may lead to the formation of deposits and damage the aes-
thetic qualities of the wine.
All the compartments offer optimal conditions and take into account
all these needs. It should however be noted that the Cantina com-
partment, in particular, is thermostatically controlled in a very precise
manner and ensures the utmost care and attention over time of your
most prized bottles.
General directions
Conservation temperature
Conservation of wines
Models with Cantina and Wine Cellar
Models with Wine Cellar
19
9
9.3
9.4
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Time of conservation
Consumption temperature
Improvement of wine over time and its duration usually depends on
the character of the variety and its type.
The following chart shows the best period of conservation and ag-
ing for various types in ideal conservation conditions offered by your
appliance. However, you should always follow the instructions of the
winemaker, especially for ne wines.
TYPE OF WINE CONSERVATION TEMPERATURE TIME OF CONSERVATION
New wines (Vin Nouveau) from 12° to 14° C 6 months
Sweet sparkling wines from 8° to 10° C 1 year
Rosé from 10° to 14° C 1 year
Semi-sparkling wines from 10° to 12° C 1 - 2 years
Normal white wines from 10° to 14° C 1 - 2 years
Light red wines from 12° to 14° C 2 years
Dry sparkling wines from 8° to 10° C 2 years
Classic sparkling wines from 8° to 10° C 3 - 4 years
Barrique and Vigorous white wines from 8° to 12° C 3 - 5 years
Normal red wines from 14° to 16° C 3 - 5 years
Barrique and Vigorous red wines from 14° to 18° C 7 - 10 years
Straw wines or Liquorous wines from 16° to 18° C 10 - 15 years
As a general rule, white wines should be served at a temperature be-
tween 10 and 12° C (50 and 53,6°F) and red wines between 12 and 14°
C (53,6 and 57,2°F).
Some wines may however be best enjoyed at higher or lower tem-
peratures.
You should also keep in mind that, during the summer, wine is gener-
ally enjoyed at lower temperatures than during the winter.
You should also consider the following:
White wines are normally not served at high temperatures, since they are
generally more acidic that red wines and not very tannic. Therefore they
are more enjoyable at low temperatures.
It is preferable to serve these wines between 10° C and 14° C (50°F and
57,2°F). Young, fresh and aromatic wines can also be served at 10° C
(50°F), while less aromatic ones are served at 12° C (53,6°F).
Temperatures between 12° C and 14° C (53,6°F and 57,2°F) are for soft,
mature white wines that have been aged for some years in the bottle.
Higher temperatures would favour the exaltation of the sweet character
of the wine, at the expense of the acidity and avour, which are consid-
ered pleasant and desirable characteristics of this type of wine.
Rosé wine is served at the same temperature as white wines. It should
be noted that these wines may include a certain amount of tannin
and may therefore be preferable at higher temperatures. Therefore,
they are served between 10° C and 12° C (50°F and 53,6°F), if young
and fresh, and between 12° C and 14° C (53,6°F and 57,2°F) if robust
and mature.
White wines
Rosé
Conservation of wines
20
9
9.5
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Due to the special processing they undergo, new vintage wines con-
tain a low tannin content and are therefore more enjoyable if served
between 12° C and 14° C (53,6 and 57,2°F).
Since they contain more tannin and are less acidic, red wines are nor-
mally served at higher temperatures.
Younger wines with less tannin are normally served between 14° C and
16° C (57,2 and 60,8°F), while more full-bodied ones that are more tan-
nic may be served at up to 18° C (64,4°F). Some wines that have aged
for years in the bottle, still full-bodies and tannic, may be served at
18°C (64,4°F) or even 20° C (68°F).
Young red wines with little tannin and slightly structured may be en-
joyable at lower temperatures, between 12° C and 14° C (53,6 and
57,2°F).
It is difcult to provide instructions to cover the wide variety of sparkling
wines in available.
As a general rule, sweeter and more aromatic sparkling wines should
be served at lower temperatures, down to 8° C (46,4°F), whereas more
tannic sparkling wines may be served at higher temperatures, up to
14° C (57,2°F).
Dry sparkling wines are usually served between 8° C and 10° C (46,4
and 50°F).
“Classic” sparkling wines are normally served at these temperatures,
which may be as high as 12° C (53,6°F) for sparkling wines that have
been aged for some time.
It is however advisable, especially for ner wines, to follow the sugges-
tions and recommendations of the winemaker on the bottle.
These types of wines can be served at temperatures between 16° C
and 18° C (60,8 and 64,4°F), depending on personal tastes, to atten-
uate the sweet taste of straw wines, it can also be served at 10° C
(50°F).
New wines (Vin Nouveau)
Red wines
Sparkling wines
Liqueur and straw wines

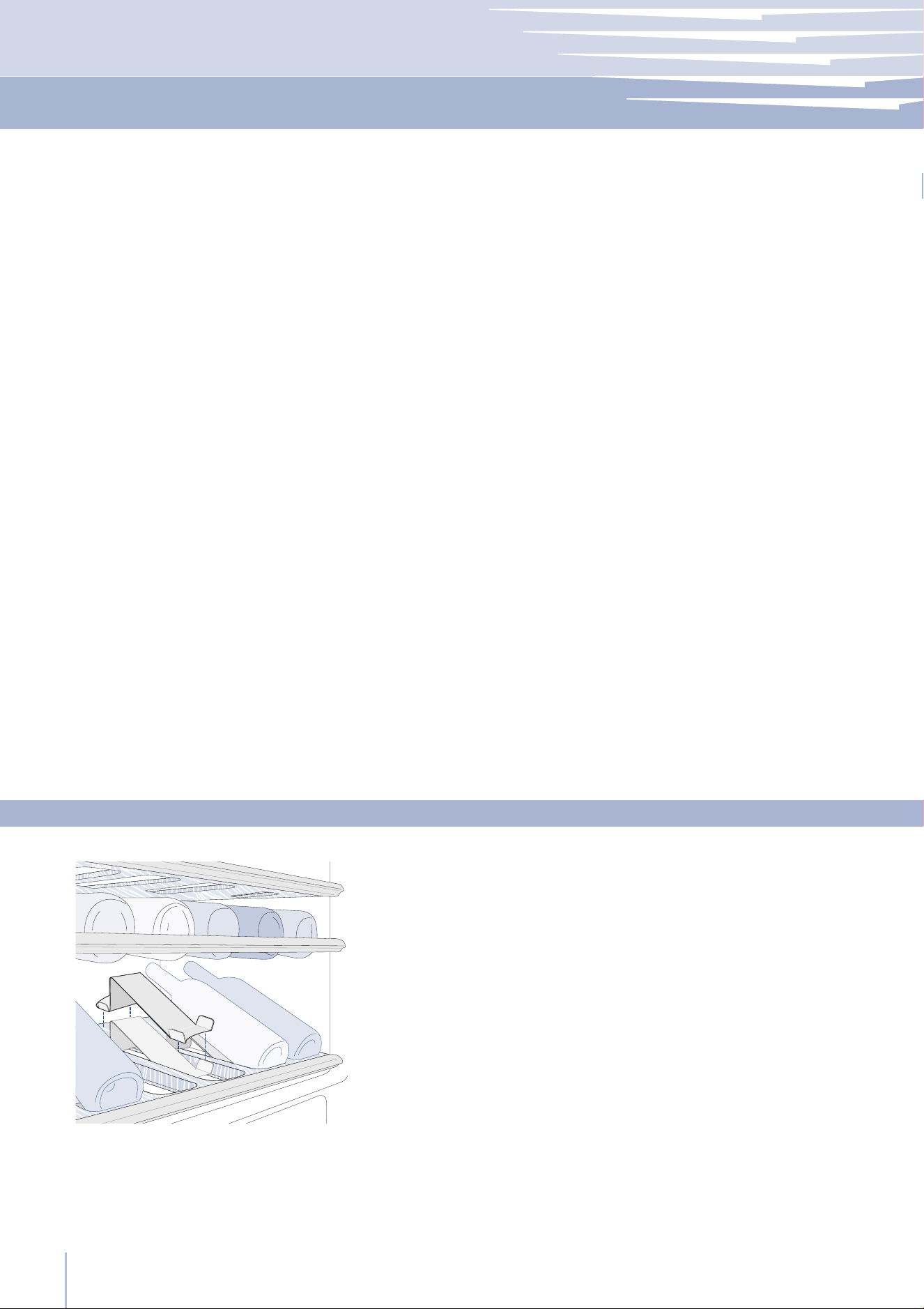

The sliding shelves are made of fine wood and contoured so as to
hold bottles of the most classical traditional shape or of the most
modern design.
Whether your collection holds fine bouteilles or petit bouteilles, they
will be right at home in the Fhiaba Wine Cellar. A special accessory,
available on request, will let you place them in an inclined position,
in order to display the labels of your most prized items.
Also Magnum bouteilles can be stored, provided you remove the
shelf just above the one that will hold them.
If the TriMode compartment is also used as a wine cellar, the bottles
may be kept in a horizontal position, as long as they do not move
or touch one another. A special accessory for this purpose may be
provided on request.
Position of bottles
Conservation of wines
21
10
10.1
10.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Recommendations for conserving fresh food
Recommendations for conserving frozen food
Vegetables
Fruit
Packaged meat
Fresh meat, sh and poultry
Eggs
Milk, cream and fresh cheeses
Cheeses
Leftovers
Wash vegetables in cold water and dry well. Place vegetables in vac-
uum packed containers, plastic containers or vegetable bags.
Wash and dry fresh fruit. Pack very aromatic fruit in plastic bags. Fruit
should be placed in the Cooler compartment on low humidity.
Place in the refrigerator in its original packaging.
After opening, wrap the remaining food in plastic bags or aluminium foil.
Remove the original packaging, then place in plastic bags or contain-
ers and immediately place back in the refrigerator.
Place the eggs in their package or container into the refrigerator with-
out washing them. Check the expiration date and use the eggs within
two weeks of purchasing.
These should be kept in their original closed packaging. Place these on
refrigerator shelves and consume them within ve days of purchase.
Place these in the refrigerator in their original packaging. Once
opened, close them hermetically in plastic bags or aluminium foil.
Let these cool off and cover hermetically with aluminium foil or place
in sealed containers to prevent drying and release of odours.
After a prolonged power outage,
when the power comes back on, a sound signal
will let you know that the temperature is above
what is best suited for conservation.
These temperatures are shown for one minute on
the display. This makes its possible for the user to
decide how best to use the conserved foods.
After one minute, the displays will start working
normally again, while the Alarm key
will con-
tinue to ash. Touch the Alarm key
to again
view the highest recorded temperatures.
Frozen foods Place foods in plastic bags for the freezer.
These bags must be hermetically sealed against air and humidity.
Do not refreeze defrosted meat.
Food Conservation
11
22
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Fresh foods Conservation area Time
Raw meats
Large cuts Cooler Compartment 4 days
Steaks, poultry and wild game Cooler Compartment 3 days
Ground meat Cooler Compartment 1-2 days
Carpaccio Cooler Compartment Immediately
Cooked meat
Boiled meat and roasted meat Refrigerator Compartment 2 days
Meat sauce Refrigerator Compartment 6 days
Raw and cooked sh Cooler Compartment 2 days
Soups and broths Refrigerator Compartment 2 days
Pasta Refrigerator Compartment 2 days
Opened cold cuts Refrigerator Compartment 3 days
Fresh cheeses Refrigerator Compartment 2-3 days
Well protected aged cheeses Refrigerator Compartment Several months
Eggs (fresh and unwashed) Refrigerator Compartment 15 days
Opened containers Refrigerator Compartment 2-3 days
Raw vegetables (in perforated bags) Refrigerator Compartment 3-6 days
Frozen foods Conservation area Time
Beef, veal, lamb and goat Freezer Compartment (steaks) 6-12 months
Beef, veal, lamb and goat Freezer Compartment (Meat with bone) 4-6 months
Ground beef Freezer Compartment 1-2 months
Pork Freezer Compartment (Without bone) 4-6 months
Pork Freezer Compartment (With bone) 2-3 months
Ground pork Freezer Compartment 1-2 months
Meat leftovers Freezer Compartment 2-3 months
Whole chicken and turkey Freezer Compartment 8-12 months
Goose, duck and pheasant Freezer Compartment 4-8 months
Fish Freezer Compartment 1-2 months
Crustaceans Freezer Compartment 2-3 months
Cooked foods Freezer Compartment 1-2 months
Vegetables Freezer Compartment 8-12 months
Fruit Freezer Compartment 6-12 months
Desserts and cakes Freezer Compartment 2-3 months
Recommended times for food conservation
23
12
12.1
12.3
11.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Care and Cleaning
Care and Cleaning
Internal cleaning
To clean the parts in steel use a microfiber cloth and the sponge pro-
vided in the kit with the appliance.
Always use the cloth and sponge in the direction of the steel’s satin nish.
Every now and then, to make to steel shiny, wipe with a slightly damp
microfiber cloth.
Do not use the sponge on aluminium parts, such as the handles and
the profiles of the glass shelves.
You should use special care to keep free of obstructions the ventila-
tion openings in the appliance or in the cabinet that houses it.
Scrupulously follow the detailed directions that
can be found in the provided kit and never
use abrasive or metallic products which could
scratch and damage the satin nishing on the
appliance permanently.
Before performing any sort of cleaning, discon-
nect the appliance from the electrical power
supply. Make sure you do not damage the re-
frigerant circuit in any way.
Do not bring cold glass parts into contact with
boiling water.
Do not wash any parts of the refrigerator in a
dishwashing machine since this could damage
or irreparably deform the parts.
Clean the internal and removable parts by washing them with a solu-
tion of lukewarm water, a small amount of dishwashing detergent.
Rinse and dry right away.
Do not use mechanical devices or other methods to speed up de-
frosting.
Do not use water on the electrical parts, lights
and control panel.

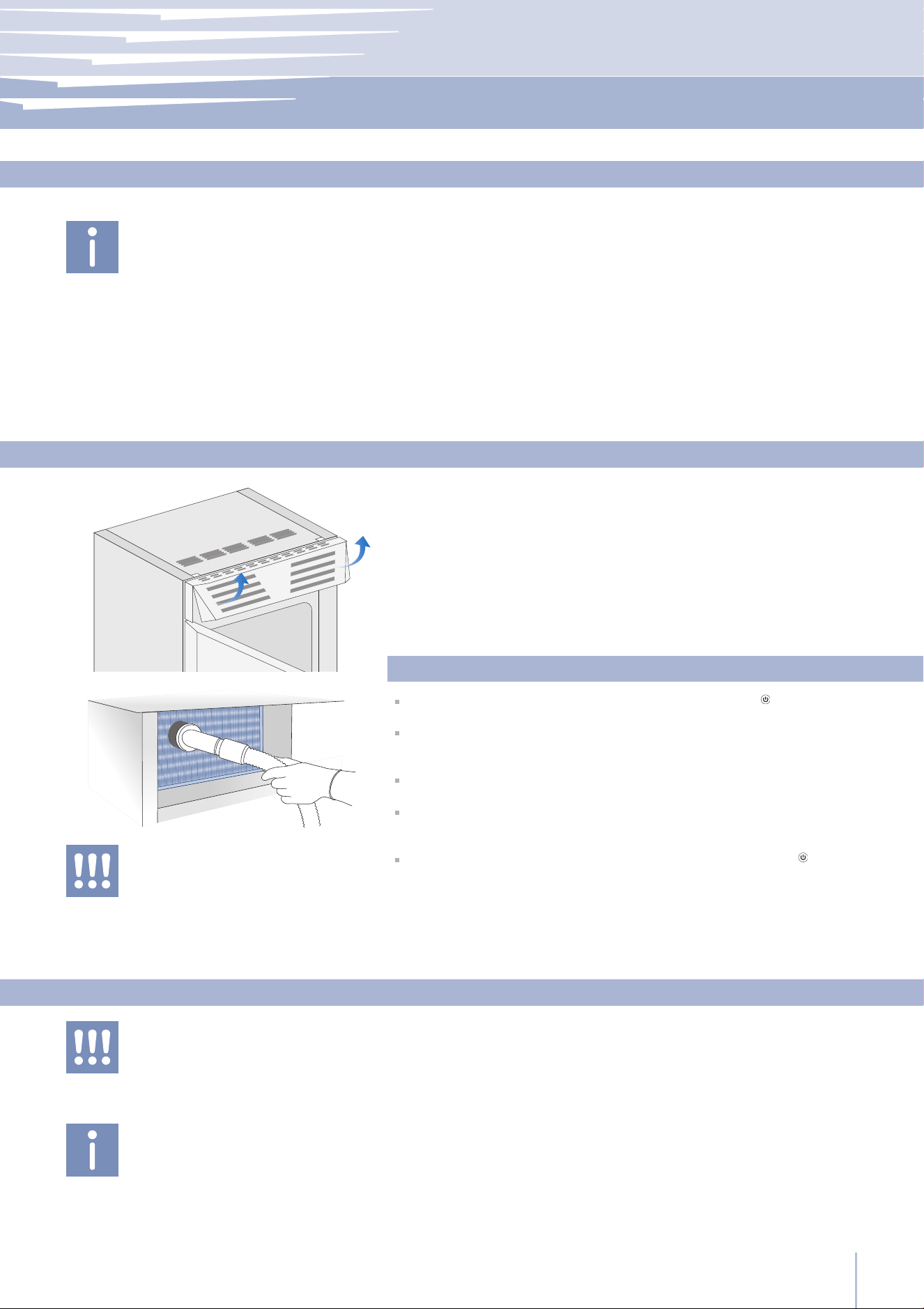

Condenser cleaning
The edges of the condenser are sharp, there-
fore use adequate protection for the hands and
arms when cleaning the condenser.
A ventilation grille is located either at the top of the appliance or at the
bottom according to the model type.
A foam lter is placed behind the grille to protect from dust the ventila-
tion system.
To clean it use a vacuum cleaner with a soft brush attachment at maxi-
mum power, sweeping it along the vent slits. In case of a signicant dust
build up, the ventilation grille can be removed to allow a more accu-
rate cleaning of the lter.
Take care also to check the condition of the nned condenser and
clean it from dust if needed.
Operate as follows:
Switch off the appliance by pressing the Unit button on the main
control panel for approx 3 seconds.
On models with ventilation at the base remove the grille at the bottom
and take it off. On models with ventilation at the top the grille (mag-
netically attached) lift as shown in the picture.
Thoroughly clean the grille and the foam lter, by means of a vacuum
cleaner and the soft brush attachment.
Wait approx 30 minutes, until the nned condenser cools down to
room temperature, then clean it thoroughly from any dust build up as
shown in the picture, taking care not to damage it.
Start up the appliance again, by pressing the Unit button on the
main control panel for approx 3 seconds.
1
Indicazioni generali ed avvertenze per
la sicurezza e per l’ambiente
13
24
13.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Did you leave the doors open for a long period of time?
Do the doors close perfectly?
If the doors do not close perfectly, contact your installer.
Clean the appliance completely as indicated in this manual.
Hermetically cover all the food. Do not conserve food for prolonged
periods of time.
The appliance was designed to permit hermetic closure.
When the door is closed, a vacuum situation can occur: in this case it
is necessary to wait a few seconds until the pressure balances before
opening the door.
The Refrigerator or Freezer has frost or ice
Unpleasant odours inside the refrigerator
The doors are difcult to open
If you notice malfunctions in your appliance, use this guide before calling
Service. This guide may help you resolve the problem yourself or could
provide important information to ensure rapid and effective service.
A malfunction is usually indicated on the display.
Problems that cannot be resolved by the user are signalled through a
malfunction code.
Is the appliance connected to the electrical power supply?
Does electrical power arrive at the electrical socket?
Is the Unit key
activated?
Is the condenser clean?
Does the display show a malfunction code?
Is the temperature adjusted correctly?
Is the condenser clean?
Were the doors or drawers open for a long period of time?
Were large quantities of food recently inserted?
Bear in mind that during a very hot weather and with very high tem-
peratures in the room it is normal that the compressor remains in op-
eration for prolonged periods of time.
Were the doors or drawers open for a long period of time?
Were large quantities of food recently inserted?
Is the condenser clean?
Check that the doors are closed and that the food or containers do
not obstruct the perfect closure of the door.
It is normal to hear noise from the fans or compressors during the
defrost phase.
Noise could be louder depending on the position of the appliance
and the surrounding environment.
If the climate is very humid, the formation of condensation is normal.
Opening the door or drawers for prolonged periods of time can con-
tribute to the formation of condensation.
In any case, make sure that the doors are always perfectly closed.
Malfunction message
The appliance does not work
The internal temperatures are
higher than normal
The appliance remains in function for a long
time period
If you hear strange noises
Condensation forms both inside and out
Troubleshooting guide
Troubleshooting guide
25
13
13.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Malfunction indications appearing on the display
Troubleshooting guide
Display message Malfunction description
Power Failure Prolonged interruption of electrical power
The appliance starts up again automatically and indicates the highest recorded temperatures
Door open Door open
this message appears few minutes from the door opening
Drawer open Drawer open
this message appears few minutes from the drawer opening
Cellar too warm Cellar (Wine Cellar) compartment too warm
See the troubleshooting guide
Cellar too cold Cellar (Wine Cellar) compartment too cold
Wait 12 hours. If the problem persists, contact Customer Care
Cantina too warm Cantina compartment too warm
See the troubleshooting guide
Cantina too cold Cantina compartment too warm
Wait 12 hours. If the problem persists, contact Customer Care
Fridge too warm TriMode compartment (refrigerator mode) too warm
See the troubleshooting guide
Fridge too cold TriMode compartment (refrigerator mode) too cold
Wait 12 hours. If the problem persists, contact Customer Care
Cooler too warm TriMode compartment (cooler mode) too warm
See the troubleshooting guide
Cooler too cold TriMode compartment (cooler mode) too cold
Wait 12 hours. If the problem persists, contact Customer Care
Freezer too warm TriMode compartment (freezer mode) too warm
See the troubleshooting guide
Freezer too cold TriMode compartment (freezer mode) too cold
Wait 12 hours. If the problem persists, contact Customer Care
Error Code... Functional problems
call Customer Care who may help you to salve the problem or put you in contact with the
nearest Service Agent
14
26
14.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Prior to calling Service
Prior to calling Service
If our recommendations were not sufcient to solve the problem, please
get in touch with our Customer Care Center for further support via our
website at
www.fhiaba.com
or by sending an email to
You can also contact us on the phone at
+39 0434 420 160
If necessary, we will place you in contact with the Fhiaba Service Cent-
er nearest to you.
Before calling, write down the model type and serial number and any
messages which may have appeared on the display.
This information is available on the warranty certicate and on the rat-
ing plate which is located on the cabinet’s frame, on the bottom left
side, behind the bottom drawer.
FUNCTIONS
27
15
15.1
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Menu Map
Functions
FUNCTIONS
Shopping TriMode
Shopping ON/OFF
Vacation ON/OFF
Shopping TriMode Off
Vacation TriMode Off
Bottle Cooler Off
Bottle Cooler On
Set Cooling Time
Sabbath Mode Off
Shopping TriMode On
Vacation TriMode On
Shopping Time
Vacation Time
Cooler ON/OFF
Sabbath Mode On
Set Hours: 1
Set Days: 1
Set Time: 20 min
Vacation TriMode
Bottle Cooler
Set Sabbath Mode
Dual Zone
Dual Zone Off
Dual Zone On
28
15
15.2
www.fhiaba.com ∙ [email protected] ∙ Info Line 800-344222 ∙ Tel +39 (0)434 420160 ∙ Fax +39 (0)434 420161
Settings
Menu Map
SETTINGS
TriMode Options
Default Setting
Freezer
Fresco
Enter to Conrm
DATE: 01-01-2009 On
TIME: 01:01 On
Set: 24
Set Date
Set Time
italiano
français
english
Set °C
DATE: 01-01-2009 Off
TIME: 01:01 Off
Set: 12
Fridge
Show Date
Set View
Show Time
deutsch
español
Set °F
DATE: 01-01-2009
TIME: 01:01
Date
Time
Language
Set °C/°F
11-11-2014
Fhiaba srl Via Fiumicino, 20 · 33082 · Azzano Decimo · PN · Italy · Tel +39 0434 420160 · Fax +39 0434 420161
E-mail: [email protected] · www.fhiaba.com · Info Line 800-Fhiaba (800-344222)
Fhiaba srl is constantly researching new way to improve the features and the design of their products, therefore models are often upgra-
ded and reviewed.
www.fhiaba.com
Info Line
800 - Fhiaba
.
(800-344222)
B09000207 EN
