r
I www.russellhobbs.com
23180
Register online for an EXTRA year guarantee
Visit uk.russellhobbs.com/product-registration You must register within 28 days of purchase
2
e
f
g
i
j
k
l
n
m
A
B
C
`
`
`
`
`
`
`
`
B
3
Read the instructions, keep them safe, pass them on if you pass the appliance on.
Remove all packaging before use.
IMPORTANT SAFEGUARDS
Follow basic safety precautions, including:
This appliance can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge
if they have been supervised/instructed and understand the
hazards involved.
Children must not use or play with the appliance. Keep the
appliance and cable out of reach of children.
Always disconnect the appliance from the mains supply socket if it
is left unattended and before assembling, disassembling or
cleaning.
Care must be taken when handling sharp cutting blades during
emptying and cleaning.
Misuse of the appliance may cause injury.
Never process hot or boiling liquids. Allow them to cool before
processing.
If the cable is damaged, it must be replaced by the manufacturer, its
service agent, or someone similarly qualied, to avoid hazard.
b Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• Don’t use the appliance for any purpose other than those described in these instructions.
• Don’t use accessories or attachments other than those we supply.
• Don’t operate the appliance if it’s damaged or malfunctions.
• Don’t run the motor continuously for more than 1 minute, it may overheat. After 1 minute
switch o and allow the appliance to rest for at least 1 minute.
HOUSEHOLD USE ONLY

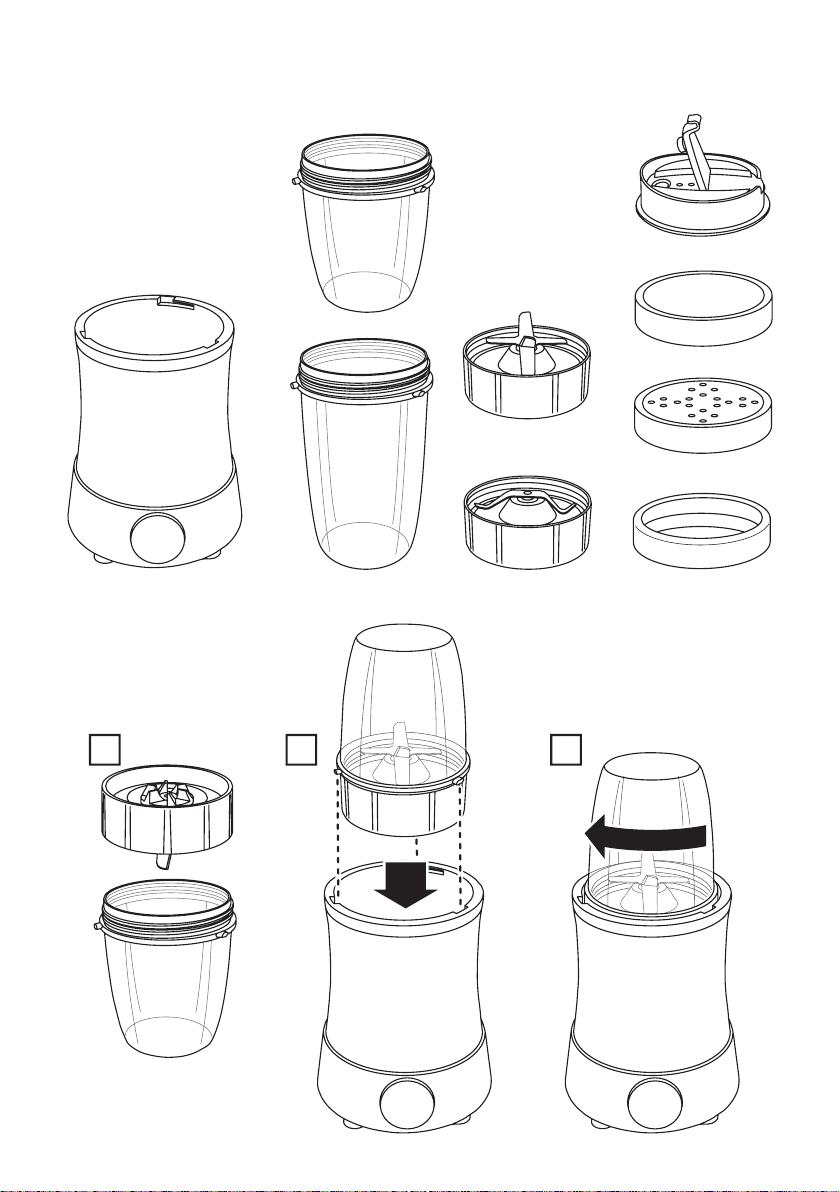

PARTS
1. Motor unit
2. Small cup (x2)
3. Large cup (x3)
4. 6-point blending blade
5. Serrated grinding blade
6. Travel lid with spout (x2)
7. Solid lid (x2)
8. Shaker lid
9. Lip ring (x2)
` Dishwasher safe
BEFORE USING FOR THE FIRST TIME
• Remove any packaging material and labels.
• Wash everything except the motor unit in warm, soapy water. Rinse and dry.
• Wipe the motor unit with a damp cloth.
• Place the appliance on a dry, rm, level surface, near a power socket.
4
BLADES
6-point blending blade - suitable for blending smoothies, soups, sauces, purées, etc.
Serrated grinding blade - suitable for grinding harder ingredients like coee beans, nuts,
chocolate, spices, etc.
LIDS
Travel lid with spout - screw-on lid with opening spout suitable for drinks on-the-go or storage.
Solid lid - screw-on lid suitable for storing processed ingredients.
Shaker lid - screw-on lid with holes suitable for serving grated cheese, chocolate, spices, etc.
Lip ring - push-on ring which can be tted to the large or small cups to cover the screw thread
for comfort.
USING
1. Add the ingredients to the small or large cup. Don’t exceed the max mark.
2. Screw the desired blade onto the cup and tighten rmly (FIG A).
3. Invert the cup and align the three tabs with the slots in the motor unit (FIG B). Lower the
cup assembly into the motor unit.
4. Turn the cup assembly clockwise to start the motor (FIG C).
5. Turn the cup assembly anti-clockwise to stop the motor.
TIPS
• The motor is powerful and operates quickly. Use short controlled bursts so that ingredients
aren’t over processed.
• Sometimes during processing, the ingredients clump together. If this happens, remove the
cup from the motor unit and shake it. Ret the cup to the motor unit and carry on
processing.
• Cut your ingredients into small pieces before processing.
• Chocolate, nuts, and cheese will chop/grind better if thoroughly chilled rst.
CLEANING
1. Unplug the appliance.
2. Dissasemble the appliance.
3. Wipe the outside of the motor unit with a clean damp cloth.
4. Wash the removable parts in warm soapy water, rinse well, drain, and air dry.
` You may wash these parts in a dishwasher.
If you use a dishwasher, the harsh environment inside the dishwasher will aect the surface
nishes. Damage should be cosmetic only, and should not aect the operation of the appliance.
5
A FEW RECIPES TO GET YOU STARTED
LEEK AND POTATO SOUP
• 75g leeks
• 75g potatoes
• 1 stock cube
• 400ml water
• salt and pepper
Process the leeks and potatoes for 2 seconds. Transfer to a large pan. Add the water and stock
cubes. Bring to the boil, stirring. Reduce the heat. Cover the pan. Simmer for 20 minutes.
Remove from the heat. Cool for 30 minutes. Process till smooth. Bring to serving temperature
(don’t let it boil). Adjust the seasoning. Serve with bread.
For Vichyssoise, add a couple of chives to the leeks and potatoes, add a knob of butter to the
pan before heating, cool the soup instead of re-heating it, and whisk in 75ml of cream before
serving it cold.
SPICY PUMPKIN SOUP
• 450g pumpkin
• 15ml vegetable oil
• 1 leek
• 1 garlic clove
• 450ml chicken/vegetable stock
• 2.5g ground ginger
• 15ml single cream/crème fraiche
• 2.5g ground coriander
• 1 bunch coriander leaves
• salt and pepper
Peel, deseed, and cut the pumpkin into chunks. Heat the oil in a pan. Add the leeks, garlic and
spices. Stir for 3 minutes. Add the stock and pumpkin. Bring to the boil, stirring. Reduce the heat.
Cover the pan. Simmer for 20-30 minutes. Remove from the heat. Stir in the coriander and cream.
Cool for 30 minutes. Process till smooth (if required, process in batches). Bring to serving
temperature (don’t let it boil). Adjust the seasoning. Serve with bread.
CORIANDER PESTO
• 2 handfuls coriander leaves
• 2 cloves garlic
• 60g pine nuts
• 125ml olive oil
• 60g Parmesan, grated
Process the coriander, garlic, pine nuts and half the oil till smooth. Transfer to a large bowl. Stir in
the Parmesan. Add oil to adjust the consistency: For a dip: thick. For a topping: medium. For
pasta sauce: thin.
6
FRUITY SMOOTHIES
Process everything till smooth.
• 60ml yogurt
• 200ml milk
• 30g oatmeal
• 1 banana
• 30ml honey
• 2 apples, cored
• 170g chocolate ice cream
• 300g orange juice
• 150g hazelnut yogurt
• 1 banana
• 200ml milk
• 300ml chocolate milk
• 2 pears, cored
• 400ml milk
• 1 banana
• 20ml honey
• 10ml vanilla extract
• 300ml orange juice
• 300ml cranberry juice
• 1 banana
• 200ml yogurt
• 1 mango, stone removed
• 200ml milk
• 5ml honey
• 300ml milk
• 1 banana
• 12 strawberries
• 360ml lemonade
• 125g vanilla ice cream
• 70g blueberries
• 4 halves of tinned apricot
• 80ml apricot juice (from tin)
• 2 peaches, stone removed
• 60ml yogurt
• 200ml milk
• 10ml honey
• 600ml apple juice
• 1 mango, stone removed
• 300ml apple juice
• 90g raspberries
• 12 strawberries
• 400ml apple juice
• 1 kiwi fruit, peeled
• 150g melon
• 350ml lemonade
• 125ml chocolate ice cream
• 100ml cherries, stones removed
ADULT ONLY SMOOTHIES (2 portions)
• 200ml ginger beer
• 150g melon
• 40ml rum
• 100ml cranberry juice
• 50ml vodka
• 50ml cointreau
• 100ml milk
• 40g vanilla ice cream
• 2.5g instant coee powder
• 40ml irish cream liqueur
• 100ml lemonade
• 60ml gin
• 5ml lemon juice
• 3 strawberries
• 300ml apple juice
• 90g raspberries
• 12 strawberries
7
T22-9000970
RECYCLING
W
To avoid environmental and health problems due to hazardous substances,
appliances and rechargeable and non-rechargeable batteries marked with
one of these symbols must not be disposed of with unsorted municipal
waste. Always dispose of electrical and electronic products and, where
applicable, rechargeable and non-rechargeable batteries, at an appropriate
ocial recycling/collection point.
SERVICE
If you ring Customer Service, please have the Model Number to hand, as we won’t be able to
help you without it. It’s on the rating plate (usually underneath the product).
The product isn’t user-serviceable. If it’s not working, read the instructions, check the plug fuse
and main fuse/circuit breaker. If it’s still not working, consult your retailer.
If that doesn’t solve the problem – ring Customer Service – they may be able to oer technical
advice.
If they advise you to return the product to us, pack it carefully, include a note with your name,
address, day phone number, and what’s wrong. If under guarantee, say where and when
purchased, and include proof of purchase (till receipt). Send it to:
Customer Service
Spectrum Brands (UK) Ltd
Fir Street, Failsworth, Manchester M35 0HS
email: support@russellhobbs.com
telephone: 0345 658 9700 (local rate number)
Please note: If you have purchased the product within the last 6 months, please contact the
retailer in the rst instance to deal with any matters relating to warranty.
GUARANTEE
Defects aecting product functionality appearing within the guarantee period will be corrected
by replacement or repair at our option provided the product is used and maintained in
accordance with the instructions. Your statutory rights are not aected.
This warranty shall not be valid where it is contrary to U.S. and other applicable laws, or where
the warranty would be prohibited under any economic sanctions, export control laws,
embargos, or other restrictive trade measures enforced by the United States or other applicable
jurisdictions. This includes, without limitation, any warranty claims implicating parties from, or
otherwise located in, Cuba, Iran, North Korea, Syria and the Crimea region.
Guarantee period = 2 years from rst retail purchase.
To claim an extra 1 year guarantee, register your product online within 28 days of purchase.
Register at: uk.russellhobbs.com/product-registration
Consumables are guaranteed only for their recommended lifecycle. Replacement/Spare parts*
are excluded and are only covered by a 1 year warranty.
* Examples include lters, removable grill plates, drip trays/crumb trays etc.
J ONLINE
www.russellhobbs.com for more products
