6 Gallon / 23 L
Model No. • Référence de modèle
VBVB611PF 1101
Operator’s Manual
Manuel d’utilisation
Wet/Dry Vacuum
Aspirateur Sec et Humide
FOR YOUR SAFETY
Read and understand this manual before use. Keep this manual for future reference.
POUR GARANTIR VOTRE SÉCURITÉ
Lisez et comprenez ce manuel avant toute utilisation de l’appareil. Conservez le présent manuel
D¿QGHSRXYRLUYRXV\UpIpUHUXOWpULHXUHPHQW
Replacement Filters &
Accessories available at:
Vacmaster.com
Filtres de rechange et
Accessoires disponibles à
l’adresse suivante:
Vacmaster.com
Distributed by / Distribue par:
Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou - China
2
TABLE OF CONTENTS
Warranty .......................................................................................................................................
Important Safety Instructions ........................................................................................................
Double Insulation Instructions ......................................................................................................
Extension Cords ...........................................................................................................................
Symbols ........................................................................................................................................
Unpacking & Checking Carton Contents ......................................................................................
General Assembly Instructions .....................................................................................................
Dry Vacuum Operation .................................................................................................................
Liquid Vacuum Operation .............................................................................................................
Blower Operation ..........................................................................................................................
Maintenance .................................................................................................................................
Installing & Cleaning Cartridge Filter ............................................................................................
Installing & Cleaning Foam Wet Filter ..........................................................................................
Troubleshooting ............................................................................................................................
Exploded View ..............................................................................................................................
Parts List.......................................................................................................................................
3
4
5
6
6
7
8
9
10
11
13
14
15
16
17
18
SECTION PAGE
Thank you for purchasing this Vacmaster
®
ZHWGU\YDFXXPFOHDQHU)HHOFRQ¿GHQWWKDWZLWK
Vacmaster
®
you are obtaining a high-quality product engineered for optimal performance.
This vacuum is capable of picking up liquids and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
IMPORTANT INFORMATION
GALLONS
7DQN6L]HUHIHUVWRWKHDFWXDOWDQNYROXPHDQGGRHVQRWUHÀHFWFDSDFLW\DYDLODEOHGXULQJ
operation.
PEAK HP
"PEAK HORSEPOWER" is a term used in the wet-dry vac industry for consumer comparison
purposes. It does not denote the operational horsepower output of a wet-dry vac, but rather the
horsepower output of a motor, including the motor’s inertial contribution, achieved in laboratory
testing. In actual use, motors do not operate at the peak horsepower shown.
3
WARRANTY
We take pride in producing a high quality, durable product. This Vacmaster
®
product carries a
limited two (2) year warranty against defects in workmanship and materials from date of purchase
under normal household use. If product is to be used for commercial, industrial, or rental use, a
90 day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty
JLYHV\RXVSHFL¿FOHJDOULJKWVDQG\RXPD\KDYHRWKHUULJKWVZKLFKPD\YDU\IURPVWDWHWRVWDWH
For product service call Customer Service at 1-866-384-8432.
Not Covered by Warranty:
• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents,
improper maintenance, repairs, or alterations;
&RQVXPDEOHVVXFKDV¿OWHUVDQGDFFHVVRULHV
• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;
1RUPDOGHWHULRUDWLRQRIWKHH[WHULRU¿QLVKGXHWRXVHRUH[SRVXUH
• Any product where serial number/data label is tampered with or removed;
• Any product purchased from an unauthorized retailer.
4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE.
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.
Read and understand this operator’s manual and all labels on the Wet/Dry Vacuum cleaner before
operating. Safety is a combination of common sense, staying alert and knowing how your vacuum
works. Use this Wet/Dry Vacuum only as described in this manual. To reduce the risk of personal
injury or damage to your Wet/Dry Vacuum, use only manufacturer recommended accessories.
When using a vacuum, basic precautions should always be followed including
the following. Failure to follow the warnings and instructions may result in
H[SORVLRQ¿UHDQGRUVHULRXVLQMXU\
• Do not run vacuum unattended.
'RQRWXVHWRSLFNXSÀDPPDEOHRUFRPEXVWLEOHOLTXLGVVXFKDVJDVROLQHRUXVHLQDUHDVZKHUH
they may be present.
'RQRWYDFXXPRUXVHWKLV:HW'U\9DFXXPQHDUÀDPPDEOHOLTXLGVJDVHVRUH[SORVLYHYDSRUV
OLNHJDVROLQHRURWKHUIXHOVOLJKWHUÀXLGVFOHDQHUVRLOEDVHGSDLQWVQDWXUDOJDVK\GURJHQRU
explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the
PRWRUFDQLJQLWHÀDPPDEOHYDSRUVRUGXVW
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
• Do not unplug by pulling on cord.To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
• Do not handle plug or vacuum with wet hands.
'RQRWXVHZLWKRXWGXVWEDJDQGRU¿OWHUVLQSODFH
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or
FOHDQLQJ¿OWHU
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,
KDLUDQGDQ\WKLQJWKDWPD\UHGXFHDLUÀRZ
.HHSKDLUORRVHFORWKLQJ¿QJHUVDQGDOOSDUWVRIERG\DZD\IURPRSHQLQJVDQGPRYLQJSDUWV
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• This vacuum is provided with double insulation. Use only identical replacement parts. See
DOUBLE INSULATION INSTRUCTIONS.
&$87,217RUHGXFHWKHULVNRILQMXU\IURPPRYLQJSDUWV8QSOXJEHIRUHVHUYLFLQJ
WARNING: To reduce the risk of electric shock - Unplug before cleaning or servicing.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
5
DOUBLE INSULATION INSTRUCTIONS
This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system.
Use only identical replacements parts. Read the instructions for Servicing Double-Insulated
Wet/Dry Vacuum before servicing. Use this Wet/Dry Vacuum as described in this manual.
Observe the following warnings that appear on the motor housing of your vacuum.
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
SAVE THESE INSTRUCTIONS
For Household Use Only
DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY
IDENTICAL REPLACEMENT PARTS.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO
RAIN. STORE INDOORS.
WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE OPERATOR’S
MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS,
TOXIC, FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND
EXPLOSIVE LIQUIDS OR VAPORS.
CAUTION: DO NOT VACUUM DRYWALL DUST OR FIREPLACE SOOT OR ASH WITH
STANDARD WET/DRY FILTER. THIS TYPE OF DUST IS VERY FINE WHICH MAY
NOT BE CAPTURED BY THE FILTER AND CAUSE DAMAGE TO MOTOR. WHEN
VACUUMING FINE DUST USE A FINE DUST FILTER (SOLD SEPARATELY).
WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM
WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION
ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED
ON A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING
BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES
EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE
ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A
DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS
THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VACUUM IS MARKED WITH
THE WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL (SQUARE WITHIN A
SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.
6
EXTENSION CORDS
SYMBOLS
When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine
the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension
cord are in good working condition. Make repairs or replacements before using the vacuum
cleaner. Only use extension cords that are rated for outdoor use.
Length of Extension Cord
120V 25ft (7.62m) 50ft (15.24m) 100ft (30.48m)
150ft
(45.72m)
Ampere rating
A.W.G. Wire Size
More than Not more than
0 6 18 16 16 14
6 1018161412
10 12 16 16 14 12
12 16 14 12 Not recommended
The following signal words and meanings are intended to explain the levels of risk
associated with this product.
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which,
if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which,
if not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which,
if not avoided, may result in minor or moderate injury.
NOTICE
(Without Safety Alert Symbol) Indicates a situation
that may result in property damage.
7

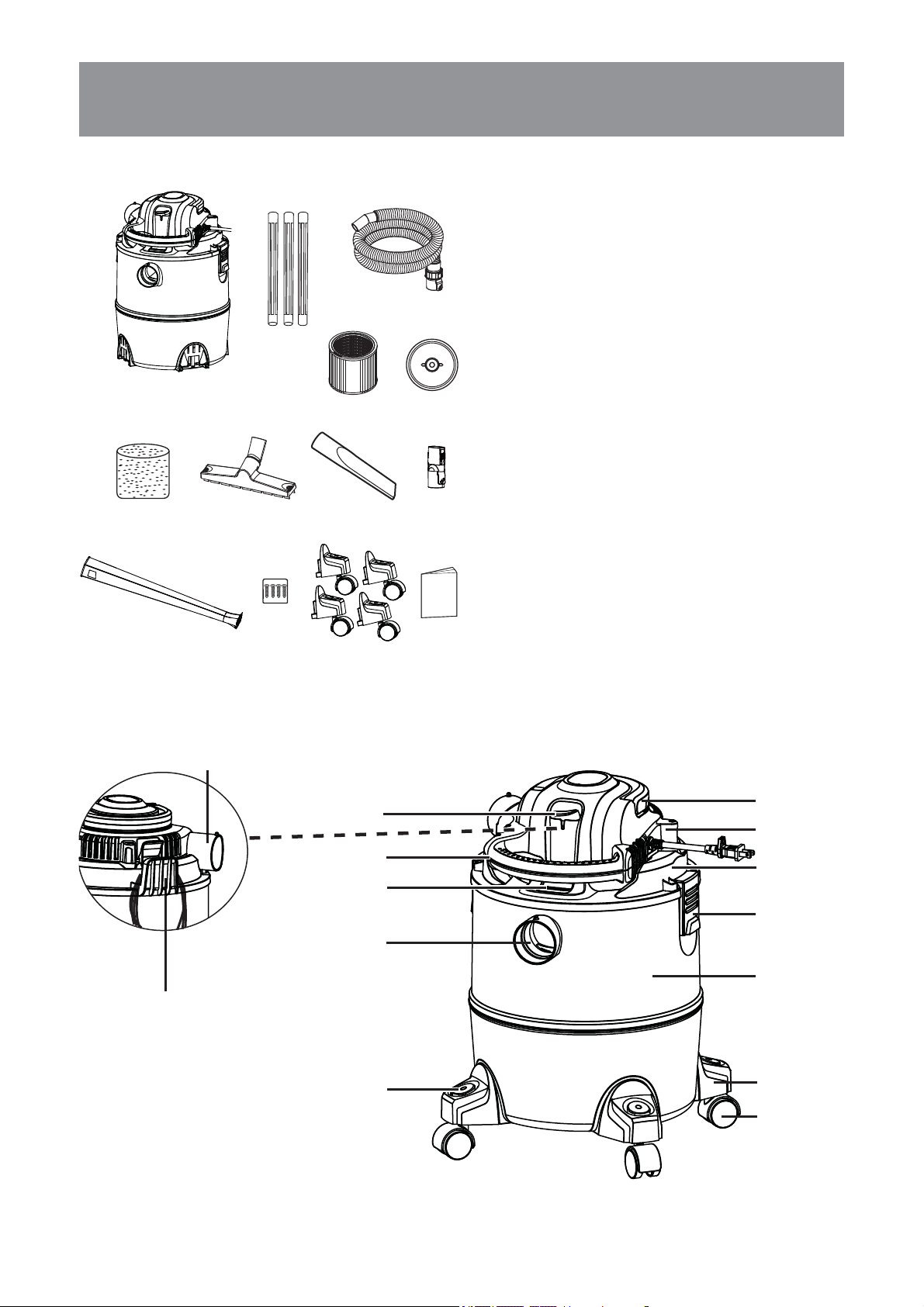

UNPACKING & CHECKING CARTON
CONTENTS
Remove all contents from the box.
Remove the power head and take out any
contents inside the collection tank.
Check each item against the carton
contents list.
A
B
C
K
M
F
H
D
E
G
J
I
L
Carton Contents List
Key Description....................Qty.
A Vacuum Assembly ...................1
B Extension Wands.......................3
C Hose ........................................1
D Cartridge Filter............................1
E Filter Retainer............................1
F Foam Wet Filter.........................1
G Floor Brush / Squeegee Nozzle..1
H Crevice Tool .............................1
I Blower Adapter..........................1
J Blower Tube...............................1
K 4 Screws (Bag)..........................1
L Caster Foot Assembly............4
M Operator’s Manual.....................1
Handle
Blower Port
Collection
Tank Lid
Accessory Storage
On/Off Switch
Caster Foot
Collection
Tank
Power Head
Caster
Vacuum Port
Blower Release
Button
Latch
Blower Handle
Hose Storage / Cord Storage
NOTE: The hose and accessories for this
vacuum are 1.25” (3.2 cm) diameter.
8

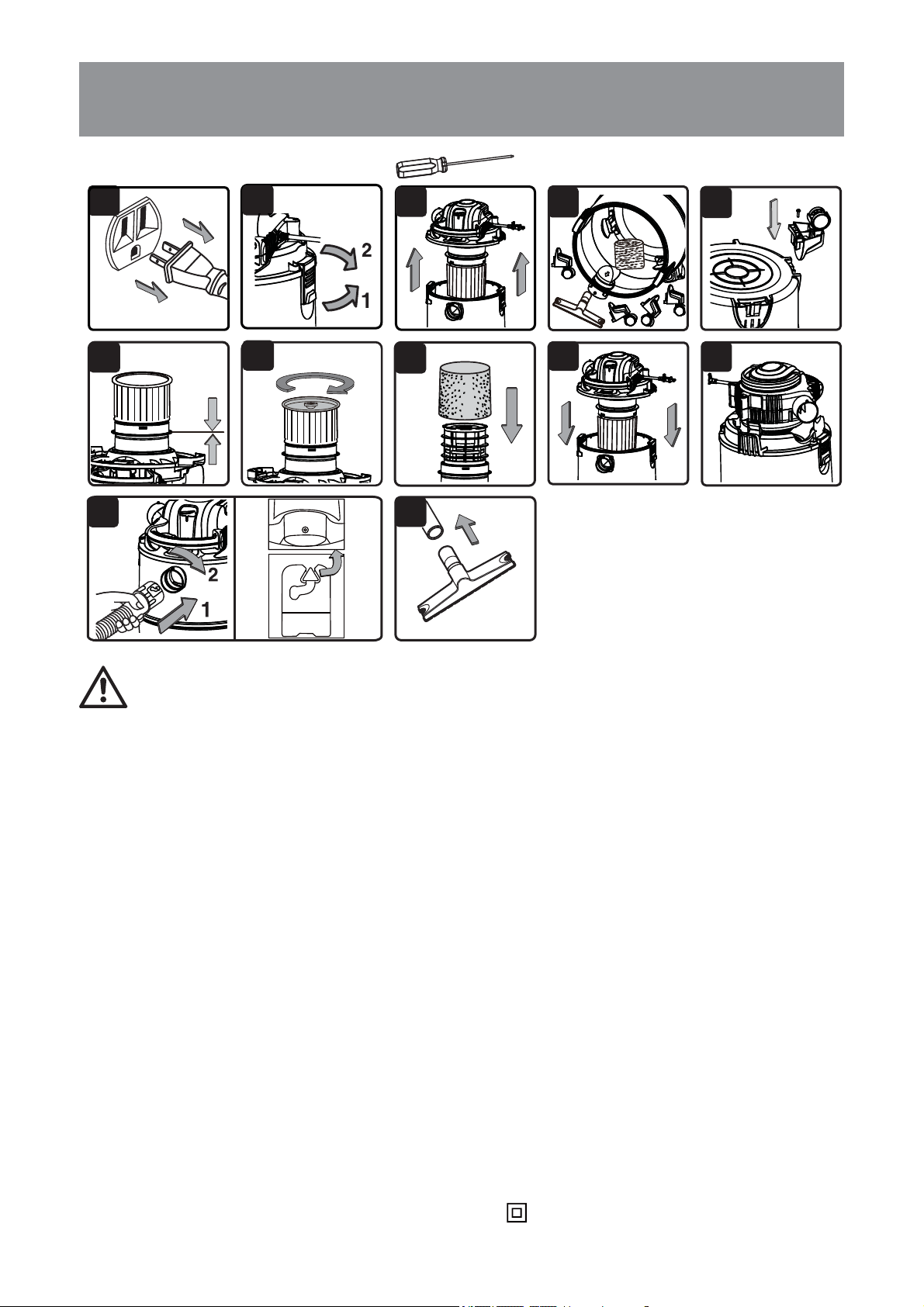

GENERAL ASSEMBLY INSTRUCTIONS
UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the latches (Fig. 2).
3. Lift the power head off the collection tank (Fig. 3).
4. Remove the contents from inside the collection tank; make sure you have all contents as listed
on carton content list on page 6 (Fig. 4).
5. Turn the collection tank upside down and insert the four caster feet into the slots on the
collection tank and tighten with supplied screws. Verify that the casters are mounted correctly.
Do not over-tighten screws (Fig. 5).
<RXUYDFXXPFRPHVUHDG\IRUGU\YDFXXPFOHDQLQJ,IWKHFDUWULGJH¿OWHULVQRWLQVWDOOHGUHIHUWR
page
13 for installation instructions (Fig. 6 & 7).
)RUZHWYDFXXPFOHDQLQJUHPRYHWKHFDUWULGJH¿OWHULQVWDOOWKHVXSSOLHGIRDPZHW¿OWHU)LJ
6HHSDJHIRUWKHIRDPZHW¿OWHULQVWDOODWLRQLQVWUXFWLRQV
8. Place the power head back on the collection tank and secure into place using the latches. Make
sure the power head is properly installed with the blower port positioned in the back of the unit
(Fig. 9 & 10).
9. Insert the locking end of the hose into the vacuum port of the collection tank and lock into place
(Fig. 11).
10. Choose the desired accessory and insert onto the end of the hose or extension wand (Fig. 12).
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the
RWKHU7KLVSOXJZLOO¿WLQDSRODUL]HGRXWOHWRQO\RQHZD\,IWKHSOXJGRHVQRW¿WIXOO\LQWKHRXWOHW
UHYHUVHWKHSOXJ,ILWVWLOOGRHVQRW¿WFRQWDFWDTXDOL¿HGHOHFWULFLDQWRLQVWDOOWKHSURSHURXWOHW
Do not change the plug in any way. Double insulation eliminates the need for the three wire
grounded power cord and grounded power supply system.
A Philips head screw driver is required.

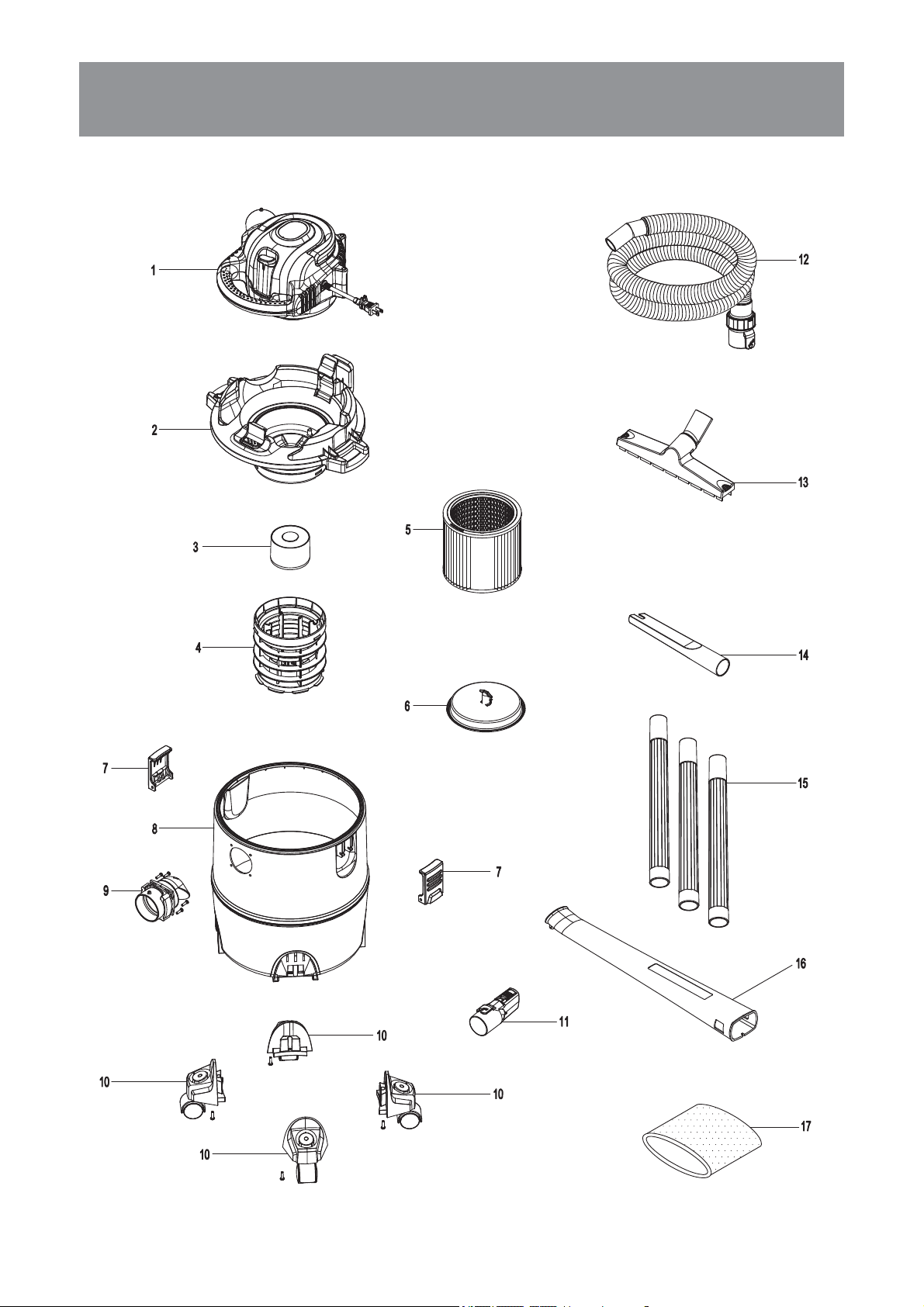

1
4
5
2
11
3
10
7
6
9
8
6
12
WARNING
: DO NOT PLUG POWER CORD INTO POWER OUTLET. MAKE SURE
THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.
9

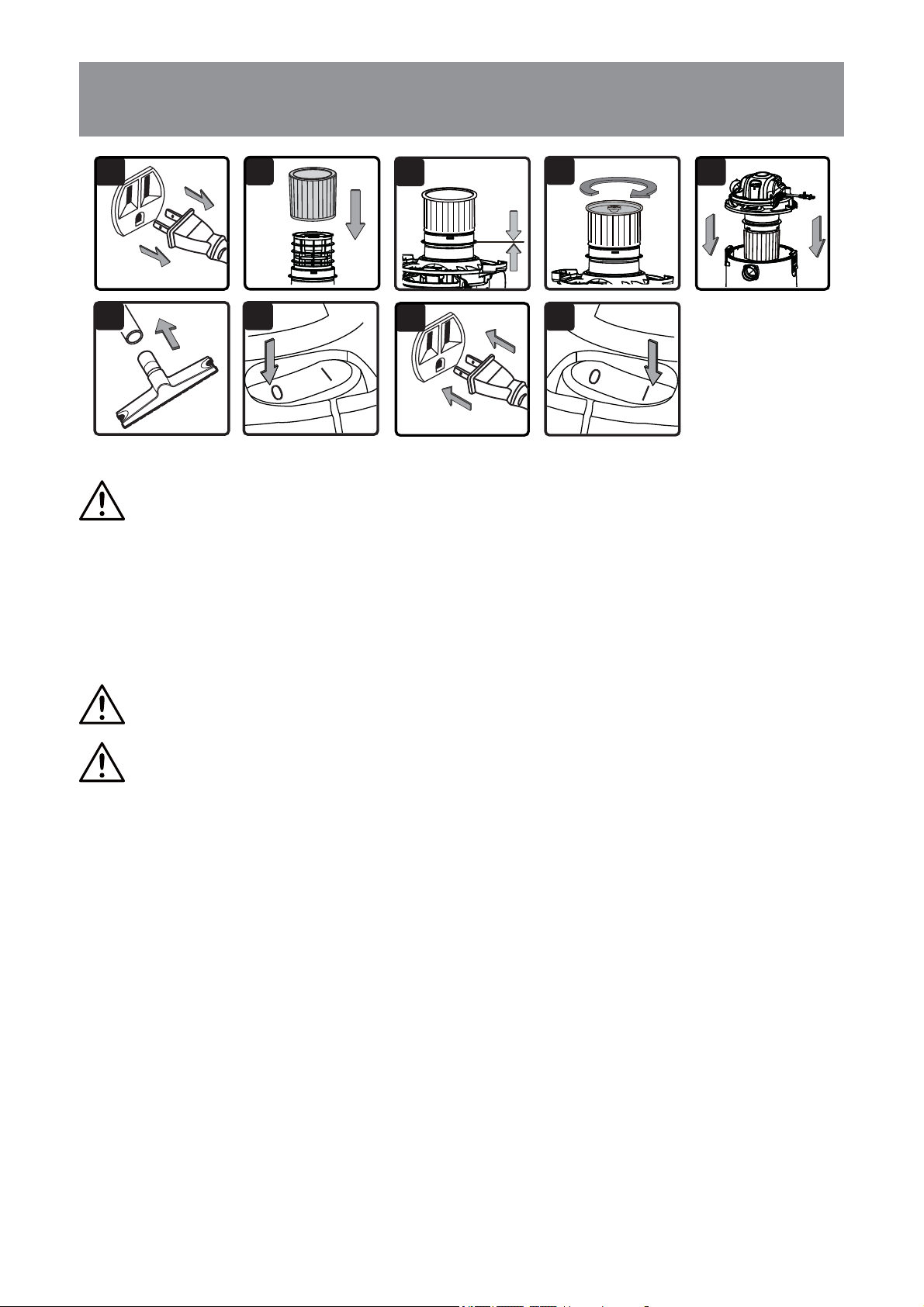

DRY VACUUM OPERATION
6
4
2
1
5
3
8
9
8
7
DRY VACUUMING
WARNING:
BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION
ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR
GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST,
DO NOT VACUUM TOXIC MATERIALS.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
,QRUGHUWRSUHSDUH\RXUYDFXXPIRUGU\YDFXXPLQJPDNHVXUHWKHFDUWULGJH¿OWHUFRPSOHWHO\
FRYHUVWKH¿OWHUFDJHDJDLQVWWKHSRZHUKHDG<RXUZHWGU\YDFXXPFRPHVZLWKWKHFDUWULGJH
¿OWHUSUHLQVWDOOHG)RULQVWDOODWLRQLQVWUXFWLRQVVHHSDJH)LJ
3ODFHWKH¿OWHUUHWDLQHURQWKHWRSRIWKHFDUWULGJH¿OWHUDQGWLJKWHQGRZQE\WXUQLQJWKHUHWDLQHU
handle clockwise (Fig. 4).
4. Place the power head back on the collection tank and secure it in place using the latches (Fig. 5).
OPERATING INSTRUCTIONS: DRY VACUUMING
5. Insert the locking end of the hose into the vacuum port on the collection tank and lock into place.
6. Push the required attachment onto the free end of the hose or extension wand (Fig. 6).
7. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power
outlet. Plug the power cord into the outlet (Fig. 7 & 8).
7XUQWKHPRWRURQE\ÀLSSLQJWKHVZLWFKWRWKHµ,¶21SRVLWLRQDQGEHJLQYDFXXPLQJ)LJ
2QFH\RXKDYHFRPSOHWHGYDFXXPLQJÀLSWKHVZLWFKWRWKH³2´2))SRVLWLRQDQGXQSOXJWKH
power cord from the outlet.
O = OFF I = ON
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
WARNING:
DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.
CAUTION:
DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH
WITH STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT BE
CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR. WHEN VACUUMING
FINE DUST USE A FINE DUST FILTER (SOLD SEPARATELY).
10

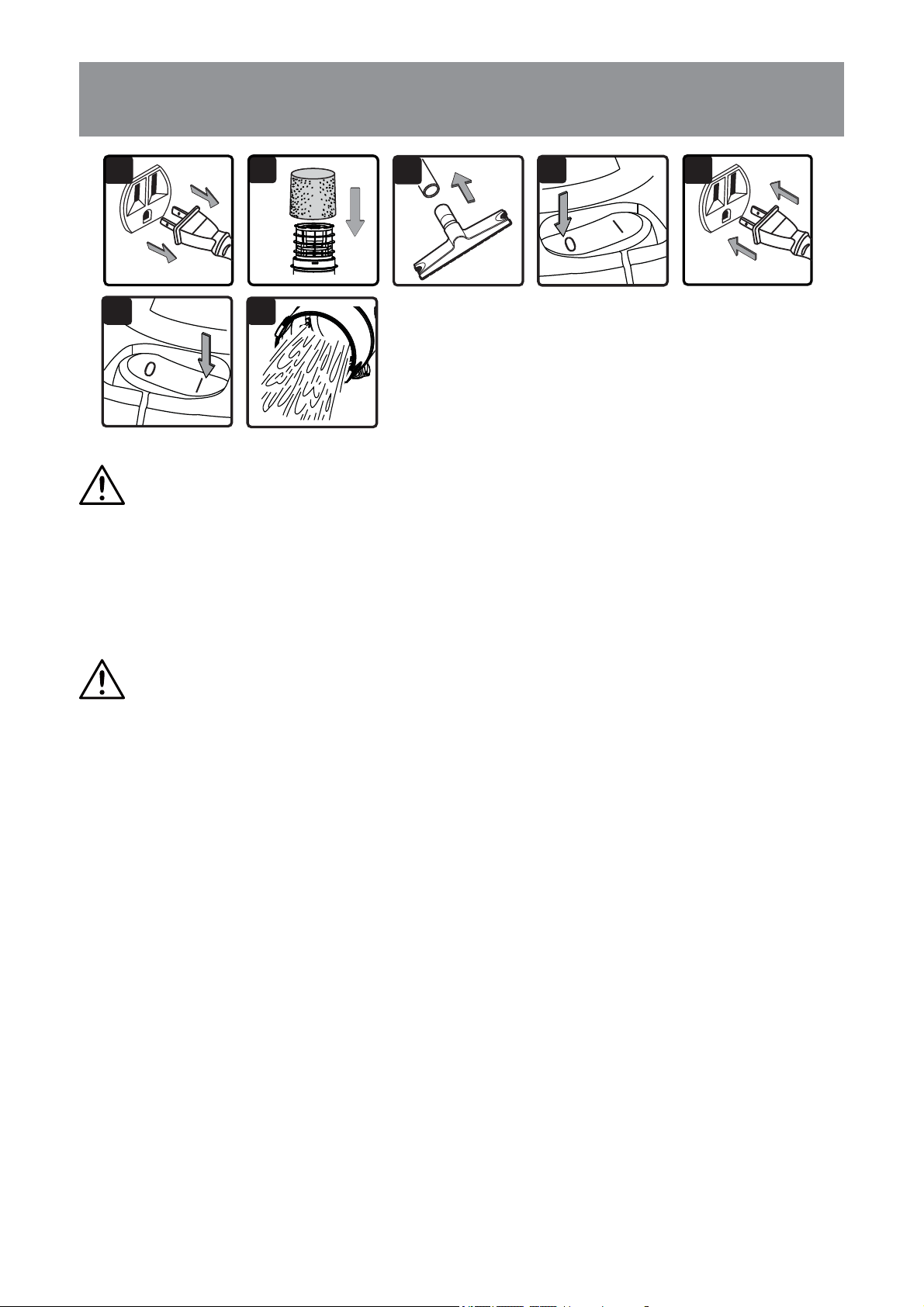

LIQUID VACUUM OPERATION
6
2
1
5
3
6
5
7
4
LIQUID VACUUMING
WARNING:
BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION
ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR
GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST,
DO NOT VACUUM TOXIC MATERIALS.
WARNING:
DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.
1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is
clean and free of dust and dirt (Fig. 1).
5HPRYHWKHFDUWULGJH¿OWHUWKHQFDUHIXOO\LQVWDOOWKHIRDPZHW¿OWHURYHUWKH¿OWHUFDJHDQG
SODFHWKHSRZHUKHDGEDFNRQWKHFROOHFWLRQWDQN)LJ)RUIRDPZHW¿OWHULQVWDOODWLRQ
instructions, see page 14.
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
OPERATING INSTRUCTIONS: WET VACUUMING
3. Push the required attachment onto the free end of the hose or extension wand (Fig. 3).
4. Verify that the on/off switch is in the ‘O’ OFF position before plugging the power cord into the
power outlet. Plug the power cord into the outlet (Fig. 4 & 5).
7XUQWKHPRWRURQE\ÀLSSLQJWKHVZLWFKWRWKHµ,¶21SRVLWLRQ)LJ
2QFH\RXKDYHFRPSOHWHGYDFXXPLQJÀLSWKHRQRIIVZLWFKWRWKHµ2¶2))SRVLWLRQDQGXQSOXJ
the power cord from the outlet.
7. After use, empty the collection tank, clean, and dry the inside and outside of the collection tank
(Fig. 7).
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely
LQWKHOLTXLGOHDYHDJDSDWWKHWLSRIWKHQR]]OHRSHQLQJWRDOORZDLULQÀRZ7KHPDFKLQHLV¿WWHG
ZLWKDÀRDWYDOYHWKDWVWRSVWKHVXFWLRQDFWLRQZKHQWKHFROOHFWLRQWDQNUHDFKHVLWVPD[LPXP
capacity. You will notice an increase in motor speed. When this happens, turn off the machine,
disconnect from power supply, and drain the liquid. After wet vacuuming, turn the machine off and
remove plug from power supply. Empty the collection tank, clean and dry the inside and outside
before storage.
REMEMBER!7KHIRDPZHW¿OWHUPXVWEHUHPRYHGDIWHUZHWYDFXXPLQJDQGWKHFDUWULGJH¿OWHU
must be installed before dry vacuuming again.
11

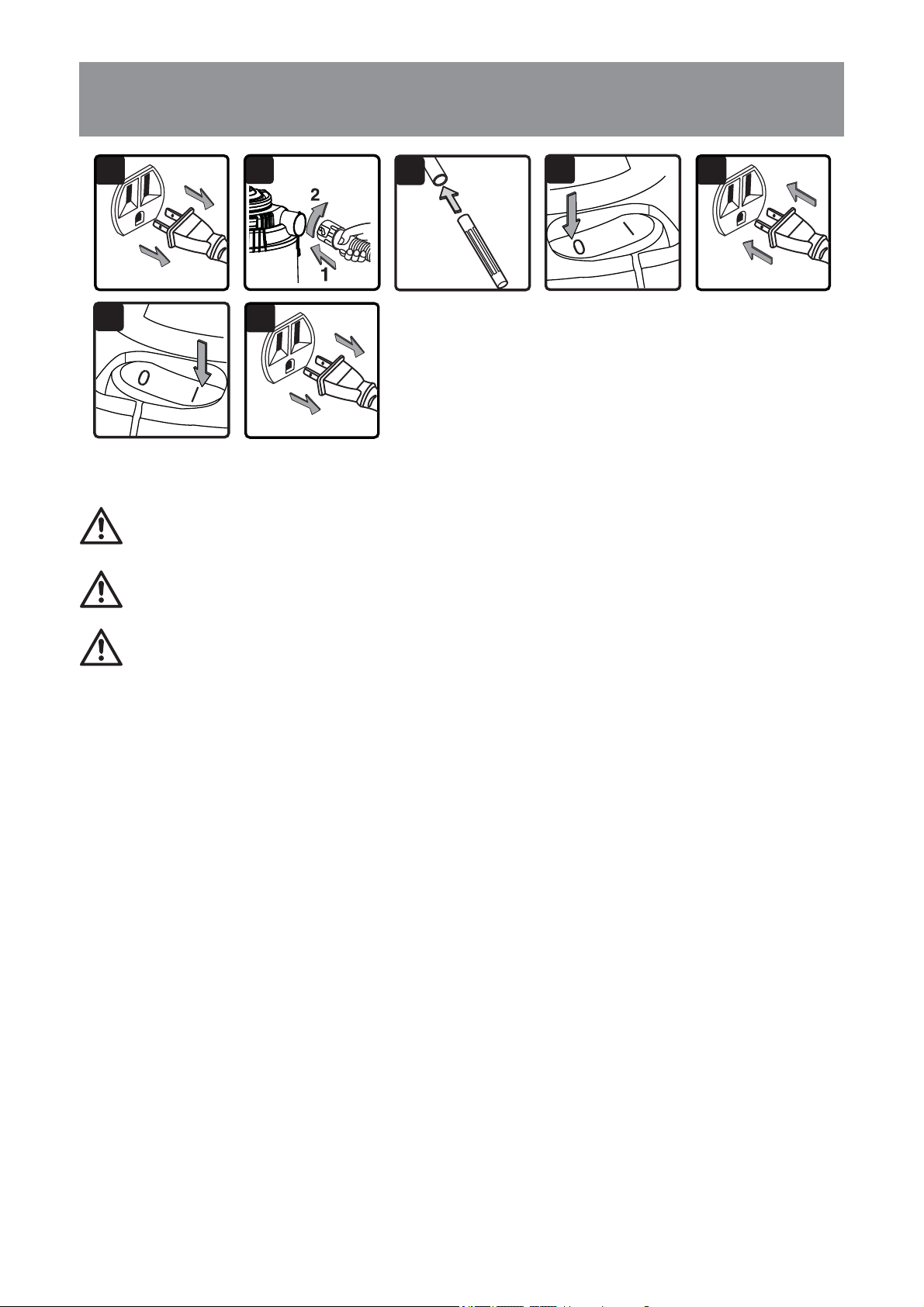

BLOWER OPERATION
This Wet/Dry Vacuum has blowing capabilities. To use the blower feature follow the instructions
listed.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Make sure the collection tank is empty before using as a blower. Clear all dirt and debris from
the hose and collection tank.
3. Remove hose from the vacuum port.
4. Secure the locking end of the hose onto the blower port on the back of the power head (Fig. 2).
5. Fit the desired attachment onto the hose or extension wand (Fig. 3).
6. Verify that the on/off switch is in the ‘O’ OFF position before plugging the power cord into the
outlet (Fig. 4 & 5).
%HIRUHWXUQLQJ21WKHYDFXXP¿UPO\KROGWKHORRVHHQGRIWKHKRVH7XUQWKHPRWRURQE\
ÀLSSLQJWKHVZLWFKWRWKHµ,¶21SRVLWLRQ)LJ
2QFH\RXKDYHFRPSOHWHGEORZLQJÀLSWKHRQRIIVZLWFKWRWKH22))SRVLWLRQDQGXQSOXJWKH
power cord from the outlet (Fig. 7).
WARNING:
ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1
(OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER.
WARNING:
WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT
BE INHALED.
CAUTION:
KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
6
4
2
1
7
5
3
12
BLOWER OPERATION
CAUTION:
TO REDUCE THE RISK OF HEARING DAMAGE, WEAR EAR
PROTECTION WHEN USING THE VAC/BLOWER FOR AN EXTENDED PERIOD OF TIME
OR WHEN USING IT IN NOISY AREAS.
3
7
6
5
4
2

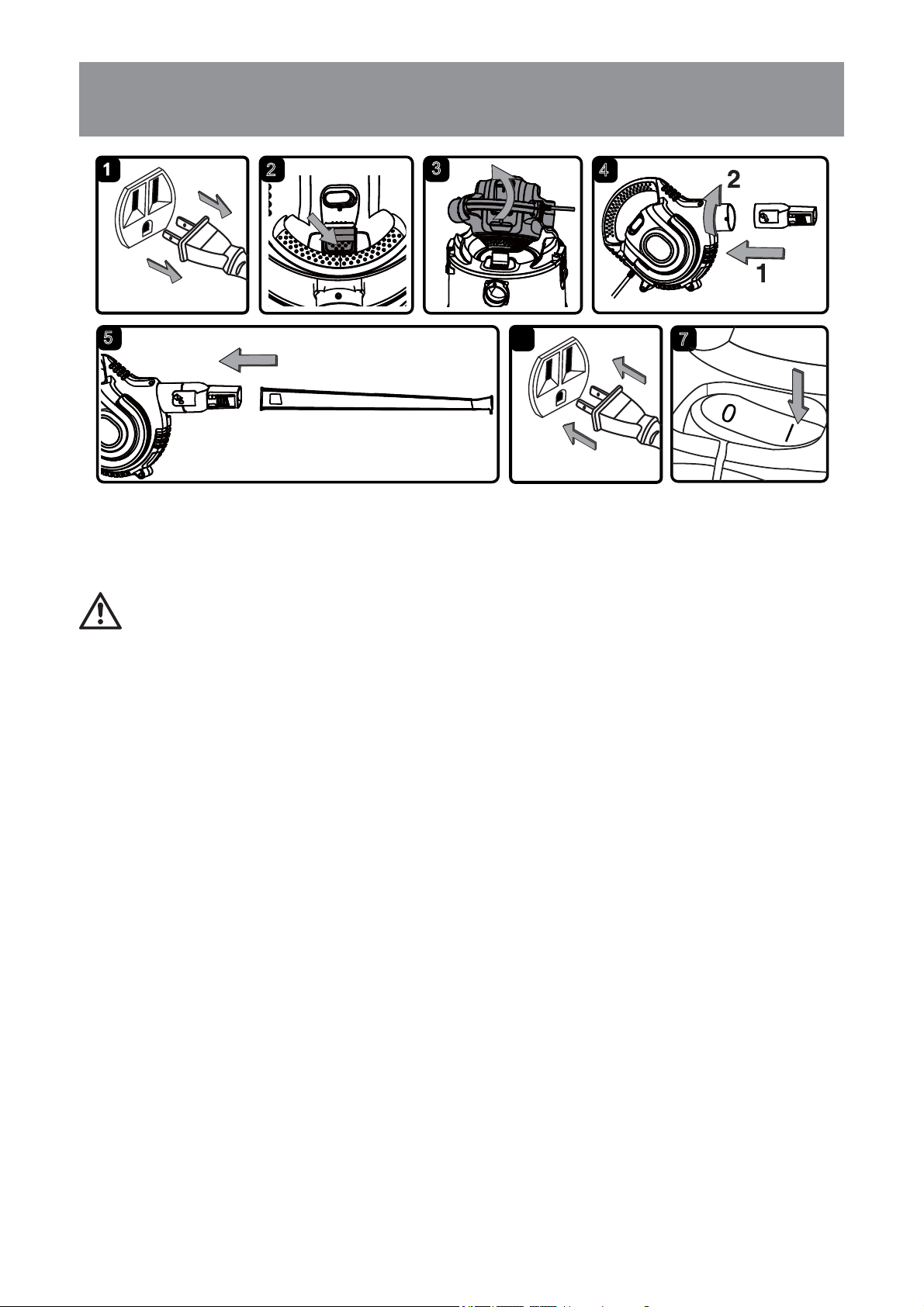

DETACHABLE BLOWING OPERATION
This Wet/Dry Vacuum converts to a detachable blower that can be used for leaf blowing in yards,
on decks, and patios. To use the detachable blower feature follow the instructions listed.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Hold the blower handle and press the blower release button to lift the detachable blower from
the collection tank lid (Fig. 2 & 3).
3. Secure the locking end of the blower adapter onto the blower port. Fit the blower tube onto the
adapter. Make sure the blower tube is locked into place. (Fig. 4 & 5).
4. Ensure the on/off switch is turned off and plug into the power supply (Fig. 6).
)LUPO\KROGWKHEORZHUEHIRUHWXUQLQJLWRQ7XUQWKHPRWRURQE\ÀLSSLQJWKHVZLWFKWRWKHµ,¶21
position (Fig. 7).
NOTE: Make sure that the detachable blower is replaced properly onto the collection tank lid when
¿QLVKHGEORZLQJ
13
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Disconnect the hose from the vacuum (Fig. 2).
3. Undo the latches and remove the power head from the collection tank (Fig. 3). Place power
head on a soft, clean surface upside down.
4. Clear all dirt or debris from the collection tank and hose into a proper waste container (Fig. 4).
&OHDQRUUHSODFHWKH¿OWHUV
6. Check the hose, attachments, and power cord to verify that they have not been damaged.
7. Place power head on collection tank and secure latches.
IMPORTANT! &OHDQRUFKDQJHWKH¿OWHUUHJXODUO\IRUEHVWSHUIRUPDQFH ALWAYS USE DUST
FILTER FOR DRY VACUUMING. ,IWKHPDFKLQHLVXVHGZLWKRXWWKHFDUWULGJH¿OWHUWKHPRWRUZLOO
EXUQRXWDQGWKHZDUUDQW\ZLOOEHYRLGHG$OZD\VNHHSVSDUHGXVW¿OWHUVRQKDQG
NOTICE!7KH¿OWHULQFOXGHGLVPDGHRIKLJKTXDOLW\PDWHULDOGHVLJQHGWRVWRSVPDOOGXVWSDUWLFOHV
7KH¿OWHUVKRXOGEHXVHGIRUGU\SLFNXSRQO\$GU\FDUWULGJH¿OWHULVQHFHVVDU\WRSLFNXSGXVW
,IWKHGXVW¿OWHULVZHWLWZLOOFORJTXLFNO\DQGEHYHU\GLI¿FXOWWRFOHDQ+DQGOHWKH¿OWHUFDUHIXOO\
ZKHQUHPRYLQJLWIRUFOHDQLQJDQGUHSODFLQJLW&KHFNWKH¿OWHUVIRUWHDUVRUVPDOOKROHVDVPDOO
KROHFDQOHWGXVWSDVVWKURXJKDQGRXWRIWKH¿OWHU'RQRWXVHD¿OWHUZLWKKROHVRUWHDUVUHSODFHLW
immediately.

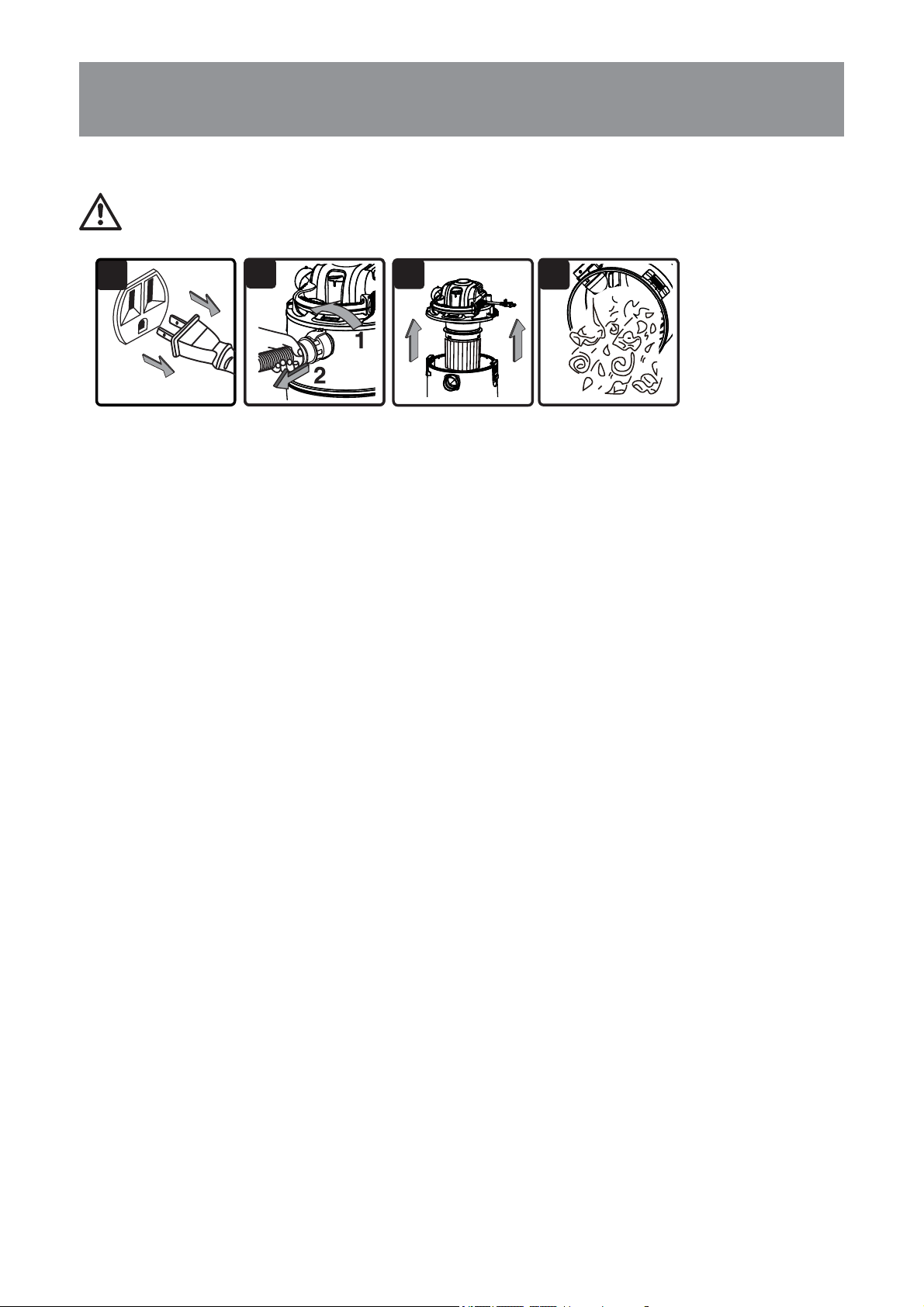

MAINTENANCE
WARNING:
ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET
BEFORE REMOVING THE POWER HEAD FROM COLLECTION TANK.
3
4
1
2
EMPTYING THE COLLECTION TANK
STORAGE
Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories
should be should be cleaned and stored so they can be readily available when needed. Store the
wet/dry vacuum indoors.
REPAIRS
5HSDLUVIRUWKLVZHWGU\YDFXXPVKRXOGEHSHUIRUPHGRQO\E\TXDOL¿HGVHUYLFHSHUVRQQHOXVLQJ
only identical replacement parts.
14

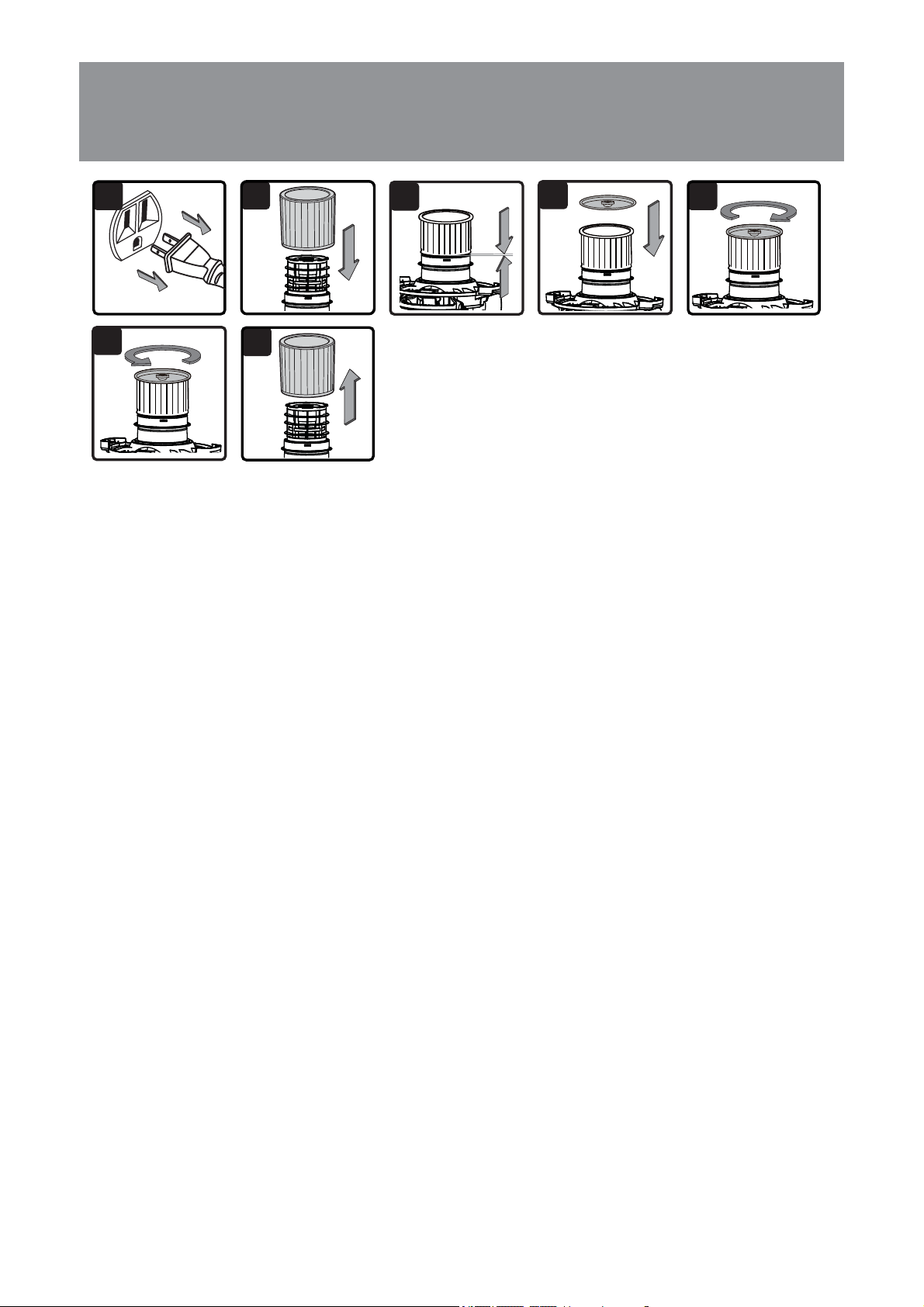

INSTALLING CARTRIDGE FILTER
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the power head and place in upside down position.
,QVWDOOWKHFDUWULGJH¿OWHURYHUWKH¿OWHUFDJHPDNLQJVXUHWKHFDJHLVFRPSOHWHO\FRYHUHG
(Fig. 2 & 3).
3ODFHWKH¿OWHUUHWDLQHURQWRSRIWKHFDUWULGJH¿OWHURYHUWKHUDLVHGOLSDQGWLJKWHQGRZQE\
turning the retainer clockwise; do not over-tighten (Fig. 4 & 5).
5. Place the power head back onto the collection tank.
REMOVING & CLEANING CARTRIDGE FILTER
8QORFNDQGUHPRYHWKH¿OWHUUHWDLQHUE\WXUQLQJWKHUHWDLQHUKDQGOHFRXQWHUFORFNZLVH)LJ
:LWKWKHUHPRYHGSRZHUKHDGLQDQXSVLGHGRZQSRVLWLRQFDUHIXOO\UHPRYHWKHFDUWULGJH¿OWHU
IURPWKH¿OWHUFDJH)LJ
&OHDQWKHFDUWULGJH¿OWHUE\JHQWO\WDSSLQJRUEUXVKLQJGLUWRII&OHDQLQJVKRXOGQRWEHGRQH
LQGRRUVLQOLYLQJDUHDV)RURSWLPDOSHUIRUPDQFHDQHZ¿OWHULVUHFRPPHQGHG
,QVWDOOFOHDQHGRUQHZ¿OWHUVDVDERYHLQVWHSVRI,QVWDOOLQJ&DUWULGJH)LOWHU
$OORZWKHZHW¿OWHUWRDLUGU\IRUKRXUVEHIRUHLQVWDOOLQJRQWRWKH¿OWHUFDJH
INSTALLING & CLEANING CARTRIDGE
FILTER
6
4
2
1
7
5
3
15

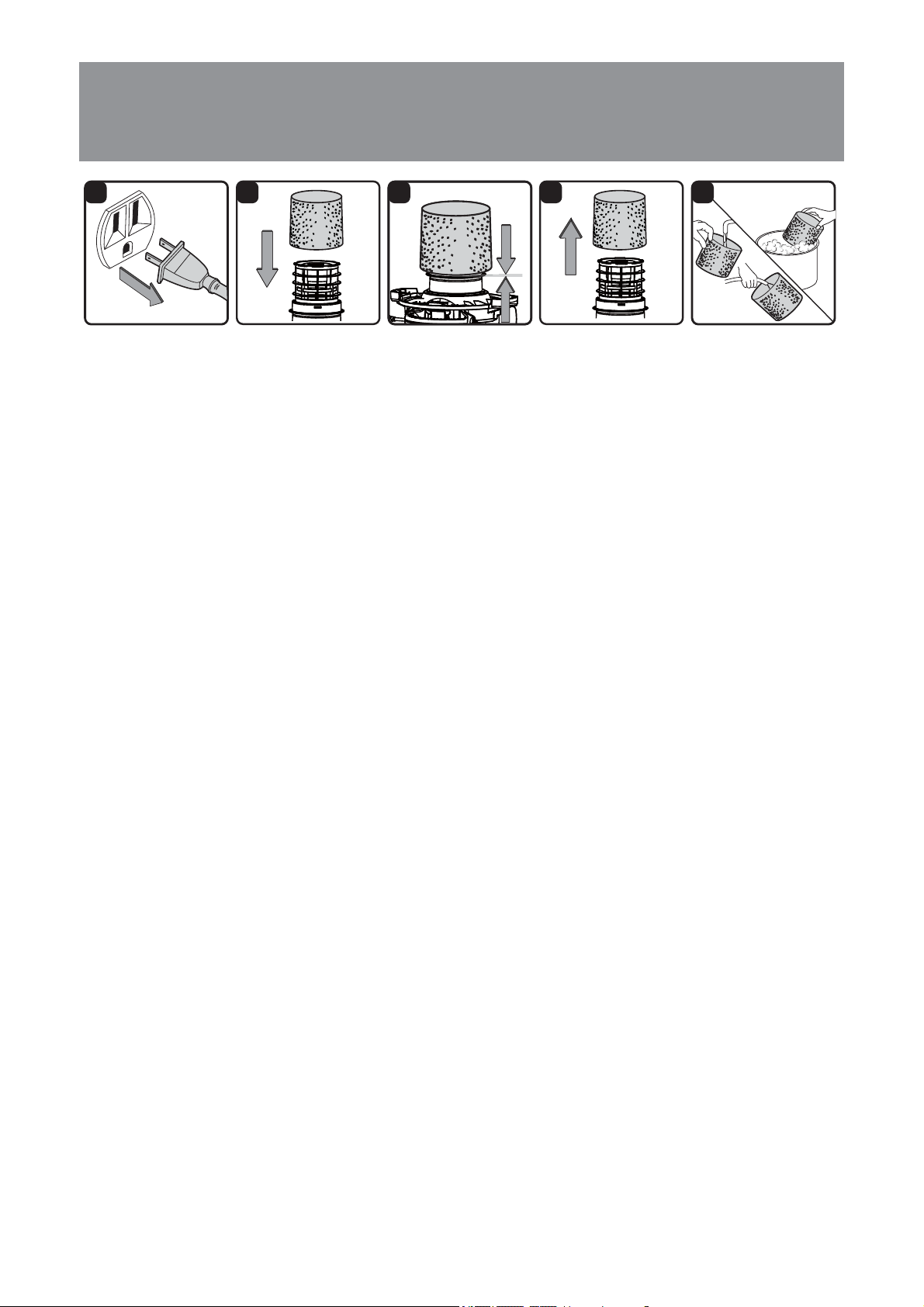

INSTALLING & CLEANING
FOAM WET FILTER
INSTALLING FOAM WET FILTER
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the power head and place in upside down position. Follow instructions to remove the
FDUWULGJH¿OWHURQSDJH
&DUHIXOO\VOLGHWKHIRDPZHW¿OWHUGRZQRYHUWKH¿OWHUFDJHPDNLQJVXUHWKHFDJHLVFRPSOHWHO\
covered (Fig. 2 & 3).
4. Place the power head onto the collection tank.
CLEANING FOAM WET FILTER
:LWKWKHUHPRYHGSRZHUKHDGLQDQXSVLGHGRZQSRVLWLRQFDUHIXOO\UHPRYHWKHIRDPZHW¿OWHU
(Fig. 4).
8VHDPLOGVRDSDQGZDWHUVROXWLRQWRZDVKWKHIRDPZHW¿OWHUDQGULQVHZLWKFOHDQZDWHU)LJ
$OORZWKHZHW¿OWHUWRDLUGU\IRUKRXUVEHIRUHLQVWDOOLQJRQWRWKH¿OWHUFDJH
1
5
32 4
5
16
TROUBLESHOOTING
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE
TROUBLESHOOTING.
PROBLEM POSSIBLE CAUSE SOLUTION
The wet/dry vacuum will not
operate.
No power supply.
Check power supply – cord,
breakers, and fuses.
Faulty power cord.
Unplug and check the power
cord. If damaged, have it
repaired by a professional.
Collection tank is full. Empty the collection tank.
Switch in the wrong position.
Press the ON ‘I’ button on the
power head.
The dust comes out from the
motor cover.
7KHFDUWULGJH¿OWHULVPLVVLQJRU
damaged.
Attach or replace the cartridge
¿OWHU
Vacuum has been used to
FROOHFW¿QHGXVWVXFKDVGU\
ZDOOGXVW¿UHSODFHVRRWRUDVK
ZLWKRXWD¿QHGXVW¿OWHU
Remove the standard cartridge
¿OWHUDQGLQVWDOOWKHDSSURSULDWH
¿QHGXVWFDUWULGJH¿OWHU
5HGXFHGHI¿FLHQF\DQG
motor/speed vibration.
There is a blockage in the
nozzle or hose, or the collection
tank inlet.
Unplug and check nozzle, hose
and collection tank inlets for
blockages.
7KHFDUWULGJH¿OWHULVFORJJHGE\
¿QHGXVW
7DNHRIIWKH¿OWHUDQGFOHDQLWRU
LQVWDOODQHZFDUWULGJH¿OWHU
17
EXPLODED VIEW
18
PARTS LIST
PART PART NUMBER DESCRIPTION QUANTITY
1 Power Head Assembly 1
2 551582102 Collection Tank Lid 1
3 551005103 Float 1
4 551019117 Filter Cage 1
5 551030114 Cartridge Filter 1
6 551437107 Filter Retainer 1
7 551077113 Latch Assembly 2
8 Collection Tank 1
9 551016105 Vacuum Port Assembly 1
10 551582104 Caster Foot Assembly 4
11 551578104 Blower Adapter 1
12 551003108 Hose 1
13 551296103 Floor Brush/Squeegee Nozzle 1
14 551004114 Crevice Tool 1
15 551003109 Extension Wand 3
16 231001102 Blower Tube 1
17 551002118 Foam Wet Filter 1
