20.8 cu. ft.
20.8 cu. ft.
PRN2106MF
PRN2106MF

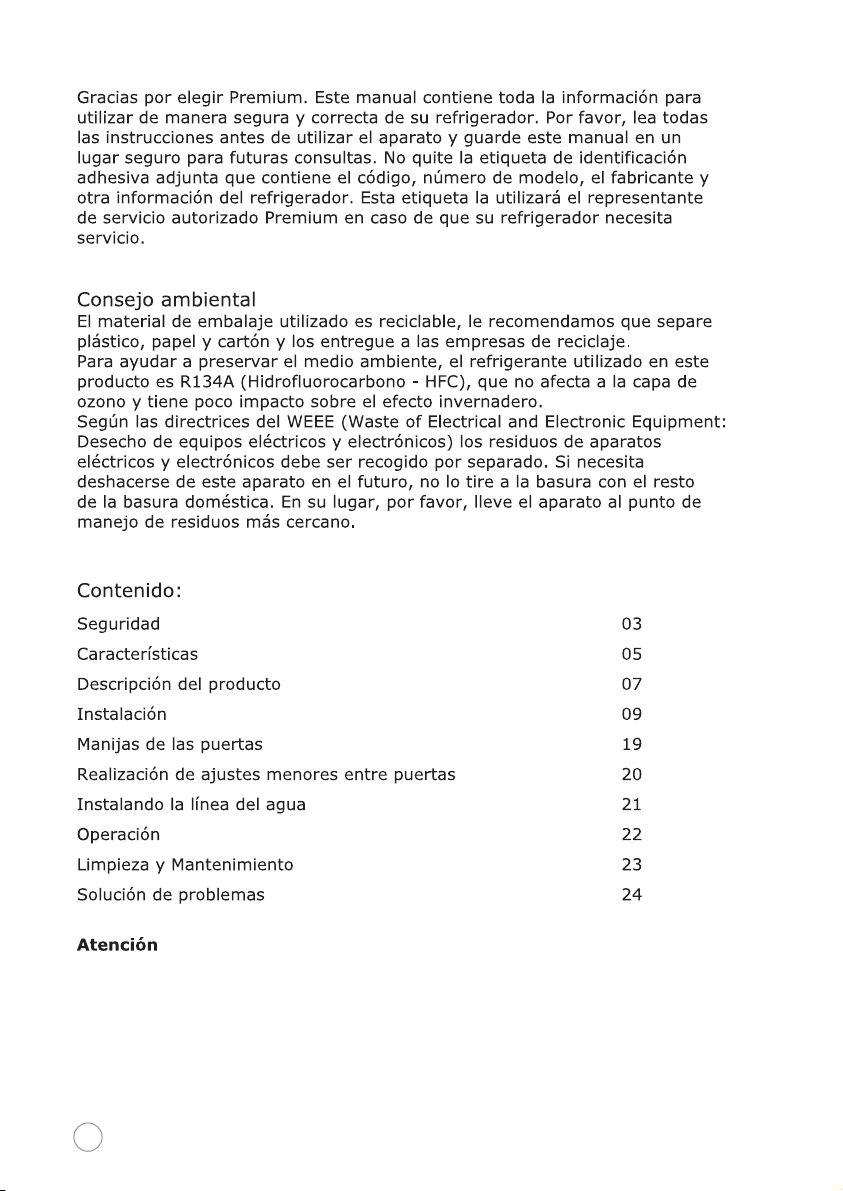

Thank you for choosing Premium. This manual contains all the information you
will need to safely and correctly use your refrigerator. Please read all the
instructions prior to using the appliance, and keep this manual in a secure place
for future reference. Do not remove the attached adhesive identification label
containing code, model number, manufacturer and other information from the
refrigerator. This label will be used by the Premium authorized service
representative in the event that your refrigerator needs servicing.
Environmental advice
The packaging material used is recyclable; we recommend that you separate
plastic, paper and cardboard and give them to recycling companies. To help
preserve the environment, the refrigerant used in this product is R134a
(Hydrofluorocarbon - HFC), which does not affect the ozone layer and has little
impact on the greenhouse effect. According to WEEE (Waste of Electrical and
Electronic Equipment) guidelines, waste from electrical and electronic devices
should be collected separately. If you need to dispose of this appliance in the
future, do NOT throw it away with the rest of your domestic garbage. Instead,
please take the appliance to the nearest WEEE collection point, where
available.
Contents
Safety.........................................................................................................03
Features.....................................................................................................05

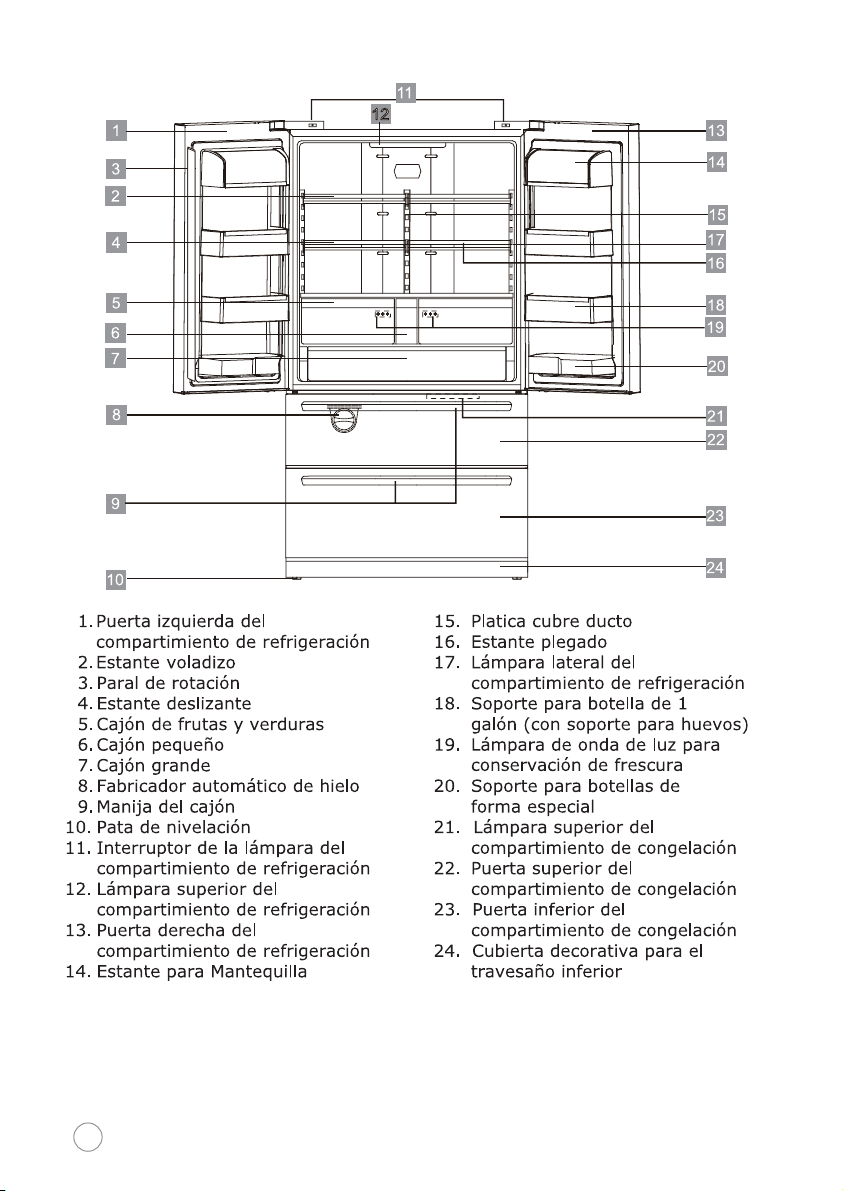

Product Description.................................................................................07
Installation........................... ...............................................................09........
Door Handles....................................... ................................................19...

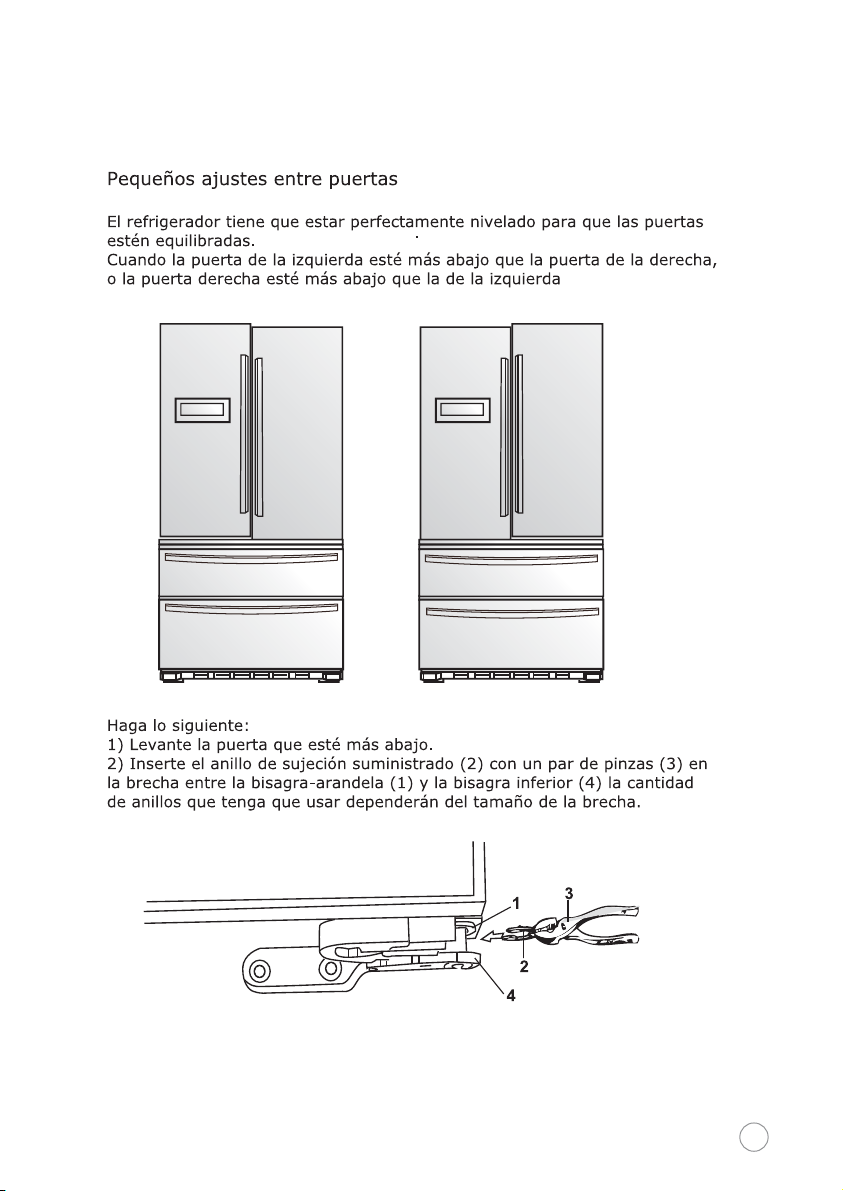

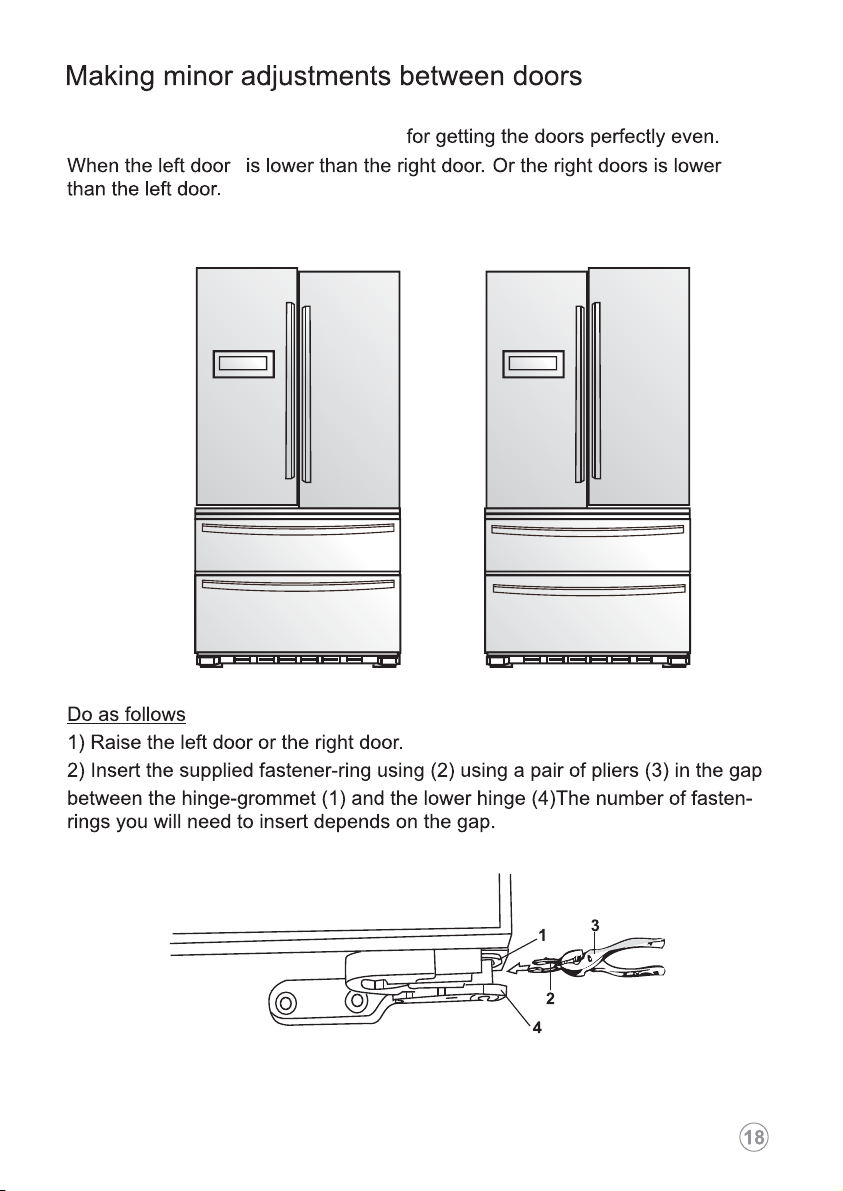

Making Minor Adjustments between doors................................................20

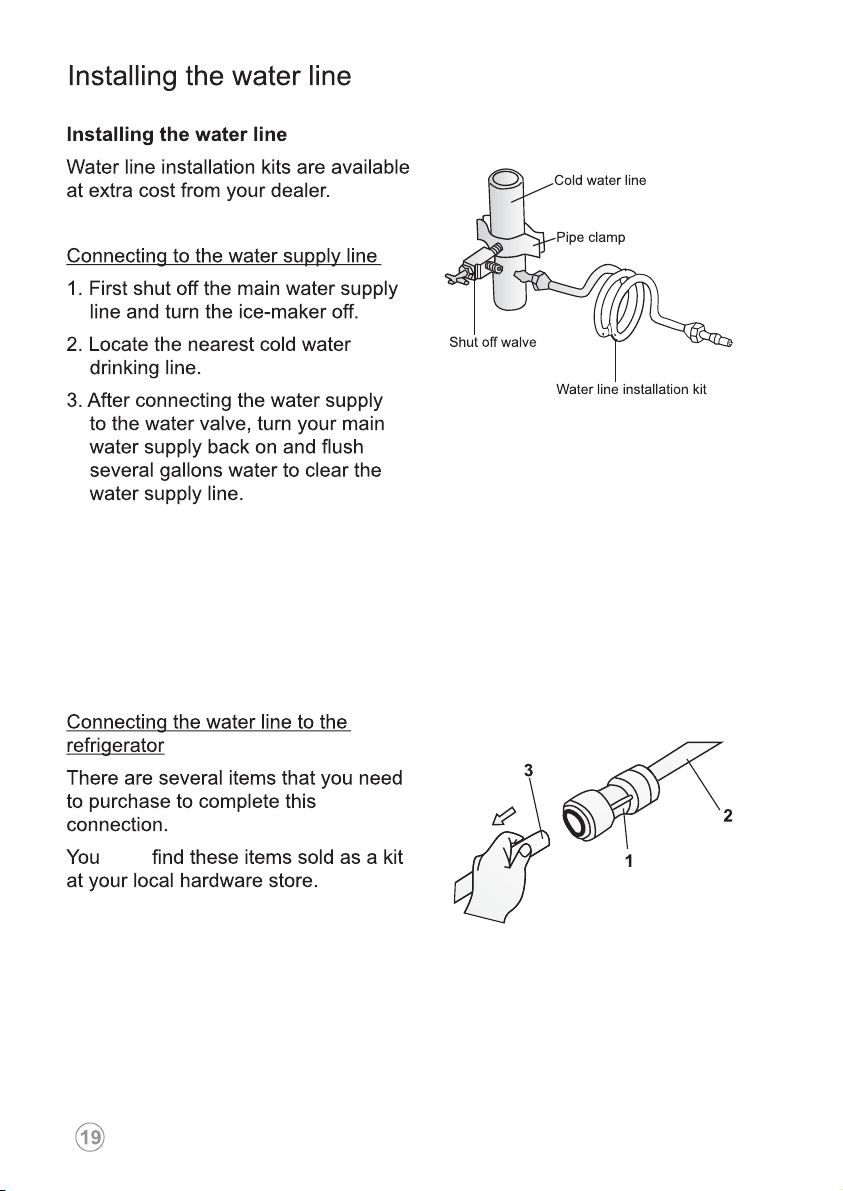

Installing the water line..............................................................................21
Operation...................................................................................................22

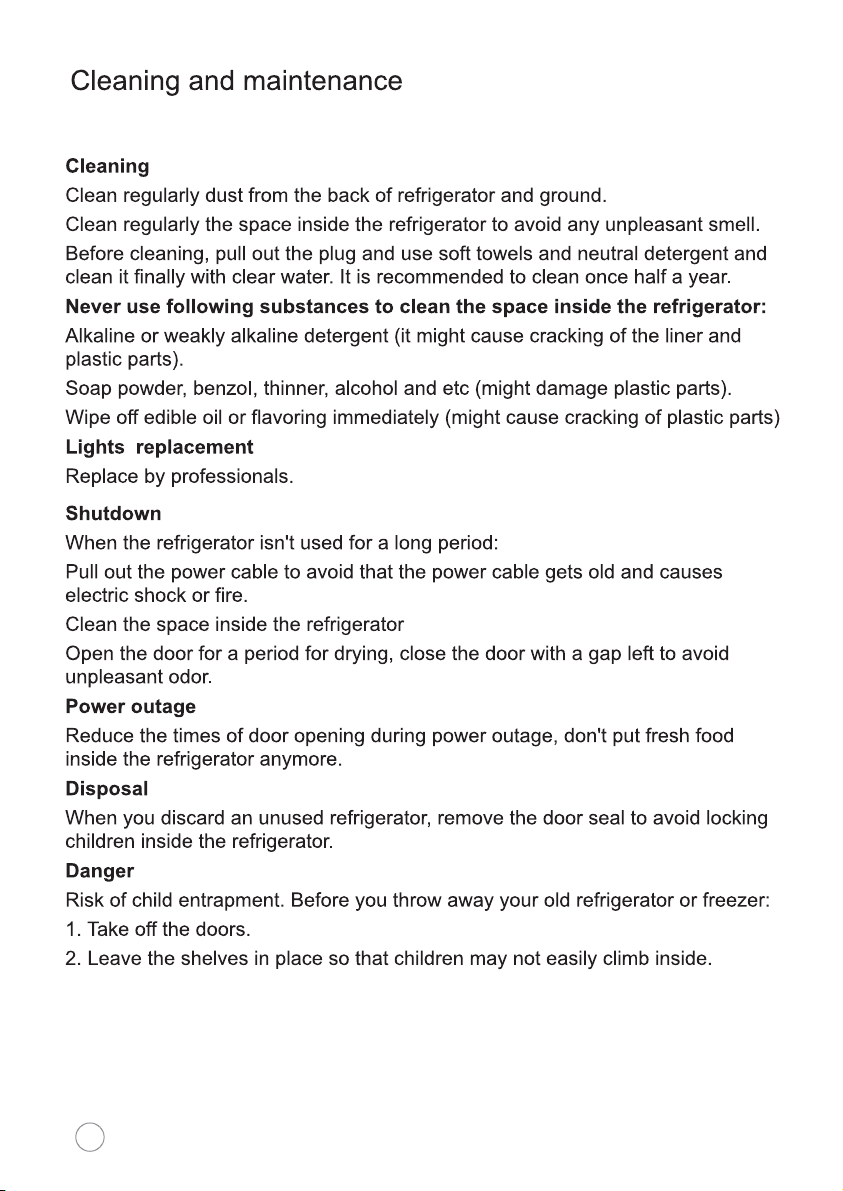

Cleaning and Maintenance....................................................................23
Solutions to Problems............................................................................24
The refrigerator you have just purchased may be slightly different from the one shown in
the drawings in this manual, but its overall design is the same.
Please read the information referring to its operation.This refrigerator is intended for
domestic use only.
The plug on the refrigerator you have purchased may be different from the one shown in
the manual, as the plug that accompanies the product meets your country's electrical
specifications.
Attention
Thank you for choosing Premium. This manual contains all the information you
will need to safely and correctly use your refrigerator. Please read all the
instructions prior to using the appliance, and keep this manual in a secure place
for future reference. Do not remove the attached adhesive identification label
containing code, model number, manufacturer and other information from the
refrigerator. This label will be used by the Premium authorized service
representative in the event that your refrigerator needs servicing.
Environmental advice
The packaging material used is recyclable; we recommend that you separate
plastic, paper and cardboard and give them to recycling companies. To help
preserve the environment, the refrigerant used in this product is R134a
(Hydrofluorocarbon - HFC), which does not affect the ozone layer and has little
impact on the greenhouse effect. According to WEEE (Waste of Electrical and
Electronic Equipment) guidelines, waste from electrical and electronic devices
should be collected separately. If you need to dispose of this appliance in the
future, do NOT throw it away with the rest of your domestic garbage. Instead,
please take the appliance to the nearest WEEE collection point, where
available.
Contents
Safety.........................................................................................................03
Features.....................................................................................................05
Product Description.................................................................................07
Installation........................... ...............................................................09........
Door Handles....................................... ................................................19...
Making Minor Adjustments between doors................................................20
Installing the water line..............................................................................21
Operation...................................................................................................22
Cleaning and Maintenance....................................................................23
Solutions to Problems............................................................................24
The refrigerator you have just purchased may be slightly different from the one shown in
the drawings in this manual, but its overall design is the same.
Please read the information referring to its operation.This refrigerator is intended for
domestic use only.
The plug on the refrigerator you have purchased may be different from the one shown in
the manual, as the plug that accompanies the product meets your country's electrical
specifications.
Attention
Please keep children from entering or climbing the refrigerator to avoid locking the
children inside the refrigerator and hurting them when the refrigerator falls.
Do not let the children near the refrigerator when open and close the doors.
Children should be supervised to ensure that they do not play with the appliance.
Never pull out the plug by pulling the power cable. Always hold the plug and pull it
out from the socket. Don't let the power cable pressed under the refrigerator or
feet. When the refrigerator is moved away from the wall, never press or damage
the power cable. When the power cable is damaged or the plug is worn, don't use
it anymore. When the power cable is worn or damaged, you must change it at the
repair station designated by the manufacturer.
Don't put inflammable, explosive, volatile or strongly corrosive substances into
the refrigerator to avoid damaging the refrigerator or starting fire or other
Don't use inflammable solvent near the refrigerator to avoid fire.
It is advisable that you don't put the power socket, voltage stabilizer, microwave
oven and other electric appliances on top of refrigerator to ensure safety. Don't
appliances inside the refrigerator (except for the model
recommended) to avoid electromagnetic interference or other accidents.
When the refrigerator starts to work, don't touch the cold surface of the freezer
compartment, especially with wet hands, to avoid hurting.
The gap between doors and between the door and refrigerator body is small.
Don't put your hands into these areas to avoid finger squeeze. When you open the
refrigerator's door, don't let children approach.
sprinkle water onto or rinse the refrigerator with water. Don't put the
refrigerator in wet or easy-to-sprinkle places to avoid to influence the electric
insulation property of the refrigerator.
Don't disassemble or reform the refrigerator by yourself. Never damage the
refrigeration pipeline. Please get the refrigerator repaired by professionals.
Don't place bottled fluids or sealed containers into the freezer, like
bottled beer or drinks to avoid that the explosive cracking during freezing causes
other losses.
When power outage or cleaning, pull out the plug. Turn on the power supply after
at least five minutes to avoid that repeated startup might damage the compressor.
When the refrigerator is out of service, please take down the refrigerator's door,
remove the door seal and shelves and put them at proper places to avoid that
children might play inside and cause an accident.
This product is a household refrigerator and is only suitable for storage of food
according to state standards. It can't be used for other purposes, like storage of
blood, drugs, biological products and etc.
Safety
For children
For the user
accidents.
use any electric
Don't
Please keep children from entering or climbing the refrigerator to avoid locking the
children inside the refrigerator and hurting them when the refrigerator falls.
Do not let the children near the refrigerator when open and close the doors.
Children should be supervised to ensure that they do not play with the appliance.
Never pull out the plug by pulling the power cable. Always hold the plug and pull it
out from the socket. Don't let the power cable pressed under the refrigerator or
feet. When the refrigerator is moved away from the wall, never press or damage
the power cable. When the power cable is damaged or the plug is worn, don't use
it anymore. When the power cable is worn or damaged, you must change it at the
repair station designated by the manufacturer.
Don't put inflammable, explosive, volatile or strongly corrosive substances into
the refrigerator to avoid damaging the refrigerator or starting fire or other
Don't use inflammable solvent near the refrigerator to avoid fire.
It is advisable that you don't put the power socket, voltage stabilizer, microwave
oven and other electric appliances on top of refrigerator to ensure safety. Don't
appliances inside the refrigerator (except for the model
recommended) to avoid electromagnetic interference or other accidents.
When the refrigerator starts to work, don't touch the cold surface of the freezer
compartment, especially with wet hands, to avoid hurting.
The gap between doors and between the door and refrigerator body is small.
Don't put your hands into these areas to avoid finger squeeze. When you open the
refrigerator's door, don't let children approach.
sprinkle water onto or rinse the refrigerator with water. Don't put the
refrigerator in wet or easy-to-sprinkle places to avoid to influence the electric
insulation property of the refrigerator.
Don't disassemble or reform the refrigerator by yourself. Never damage the
refrigeration pipeline. Please get the refrigerator repaired by professionals.
Don't place bottled fluids or sealed containers into the freezer, like
bottled beer or drinks to avoid that the explosive cracking during freezing causes
other losses.
When power outage or cleaning, pull out the plug. Turn on the power supply after
at least five minutes to avoid that repeated startup might damage the compressor.
When the refrigerator is out of service, please take down the refrigerator's door,
remove the door seal and shelves and put them at proper places to avoid that
children might play inside and cause an accident.
This product is a household refrigerator and is only suitable for storage of food
according to state standards. It can't be used for other purposes, like storage of
blood, drugs, biological products and etc.
Safety
For children
For the user
accidents.
use any electric
Don't
Division
Division
Division
Division
tilt
manufacturer
tilt
manufacturer
some
1
2
some
1
2
seasonings
division
division
Division
division
C.
seasonings
division
division
Division
division
C.
13 14
Big drawer
The big drawer has a maximum load
of 10kg.
Pull out and install the big drawer
1. Pull out the big drawer;
2. Find the hook at the left and right
sides at the drawer bottom (shown
in the figure).
3. Hold the hook at two sides with a
nose pliers or tweezers and push it
up and out of the groove of sliding
rail, and take out the hook at the
other side with the same method.
4. Take out the drawer.
5. Install the drawer by putting the
hook into the right place.
Ice-maker
Operating instructions on the ice-
maker
1. When the refrigerator is used for the
first time, start the ice-maker after
20min. The ice-maker is capable of
producing 1.2~1.7Kg ice in 24hr,
depending on the temperature of
freezer compartment, surrounding
temperature, times of door
opening/closing and other working
conditions.
2. If the ice-maker isn't used for a long
period, please close the ice-maker
at the control panel of the
Refrigerator door, clear the ice cube
box and ice storage box.
3. When the ice marker starts again
after a long period of power off,
please ensure that ice cubes are
not melted. Otherwise, please clear
the ice cube box and ice storage
box.
4. Check the level of water tank from
time to time (if the level of water
tank is too low, ice cubes will be
smaller).
5. The ice-maker checks the ice
amount automatically and stop ice-
making when the ice storage box is
full.
6. You will hear the sound of motor
after about two hours, which is the
sound of pump providing water to
the ice maker and doesn't indicate
malfunctioning.
7. It is normal that several ice cubes
may stick together or get crushed.
8. When the refrigerator is used for the
first time, the ice maker starts to
work after the freezer compartment
is cooling for about three hours
(maybe longer when there are much
food stored). The ice-maker could
produce about 1.3Kg ice cubes
within 24 hours, which may vary
depending on the temperature of
freezer compartment, surrounding
temperature, times of door
opening/closing and other working
conditions.
9. The ice-maker is capable of
automatic water supply, ice-making
and ice-removal. Please don't take
out the ice cube box and add water
by yourself.
If you did not use the fridge for a long
time,you need to get the water out of
the ice-maker when using again,and
clean the ice-maker to make sure the
ice is pure.
Hook
Sliding rail
Big drawer
Ice cube box
Rack
Fig.1
Fig.2
14
13 14
Big drawer
The big drawer has a maximum load
of 10kg.
Pull out and install the big drawer
1. Pull out the big drawer;
2. Find the hook at the left and right
sides at the drawer bottom (shown
in the figure).
3. Hold the hook at two sides with a
nose pliers or tweezers and push it
up and out of the groove of sliding
rail, and take out the hook at the
other side with the same method.
4. Take out the drawer.
5. Install the drawer by putting the
hook into the right place.
Ice-maker
Operating instructions on the ice-
maker
1. When the refrigerator is used for the
first time, start the ice-maker after
20min. The ice-maker is capable of
producing 1.2~1.7Kg ice in 24hr,
depending on the temperature of
freezer compartment, surrounding
temperature, times of door
opening/closing and other working
conditions.
2. If the ice-maker isn't used for a long
period, please close the ice-maker
at the control panel of the
Refrigerator door, clear the ice cube
box and ice storage box.
3. When the ice marker starts again
after a long period of power off,
please ensure that ice cubes are
not melted. Otherwise, please clear
the ice cube box and ice storage
box.
4. Check the level of water tank from
time to time (if the level of water
tank is too low, ice cubes will be
smaller).
5. The ice-maker checks the ice
amount automatically and stop ice-
making when the ice storage box is
full.
6. You will hear the sound of motor
after about two hours, which is the
sound of pump providing water to
the ice maker and doesn't indicate
malfunctioning.
7. It is normal that several ice cubes
may stick together or get crushed.
8. When the refrigerator is used for the
first time, the ice maker starts to
work after the freezer compartment
is cooling for about three hours
(maybe longer when there are much
food stored). The ice-maker could
produce about 1.3Kg ice cubes
within 24 hours, which may vary
depending on the temperature of
freezer compartment, surrounding
temperature, times of door
opening/closing and other working
conditions.
9. The ice-maker is capable of
automatic water supply, ice-making
and ice-removal. Please don't take
out the ice cube box and add water
by yourself.
If you did not use the fridge for a long
time,you need to get the water out of
the ice-maker when using again,and
clean the ice-maker to make sure the
ice is pure.
Hook
Sliding rail
Big drawer
Ice cube box
Rack
Fig.1
Fig.2
14
90 degrees,
because
90 degrees,
because
freezer
compartment
Refrigerator must be perfectly leveled
freezer
compartment
Refrigerator must be perfectly leveled
may
Insert water tube
if it's necessary a longer line, insert
a second water line installation kit
(not included)
may
Insert water tube
if it's necessary a longer line, insert
a second water line installation kit
(not included)
indicator
indicator
for three
ENERGY SAVING
and set AUTO mode.
seconds. When
indicator
indicator
for three
ENERGY SAVING
and set AUTO mode.
seconds. When

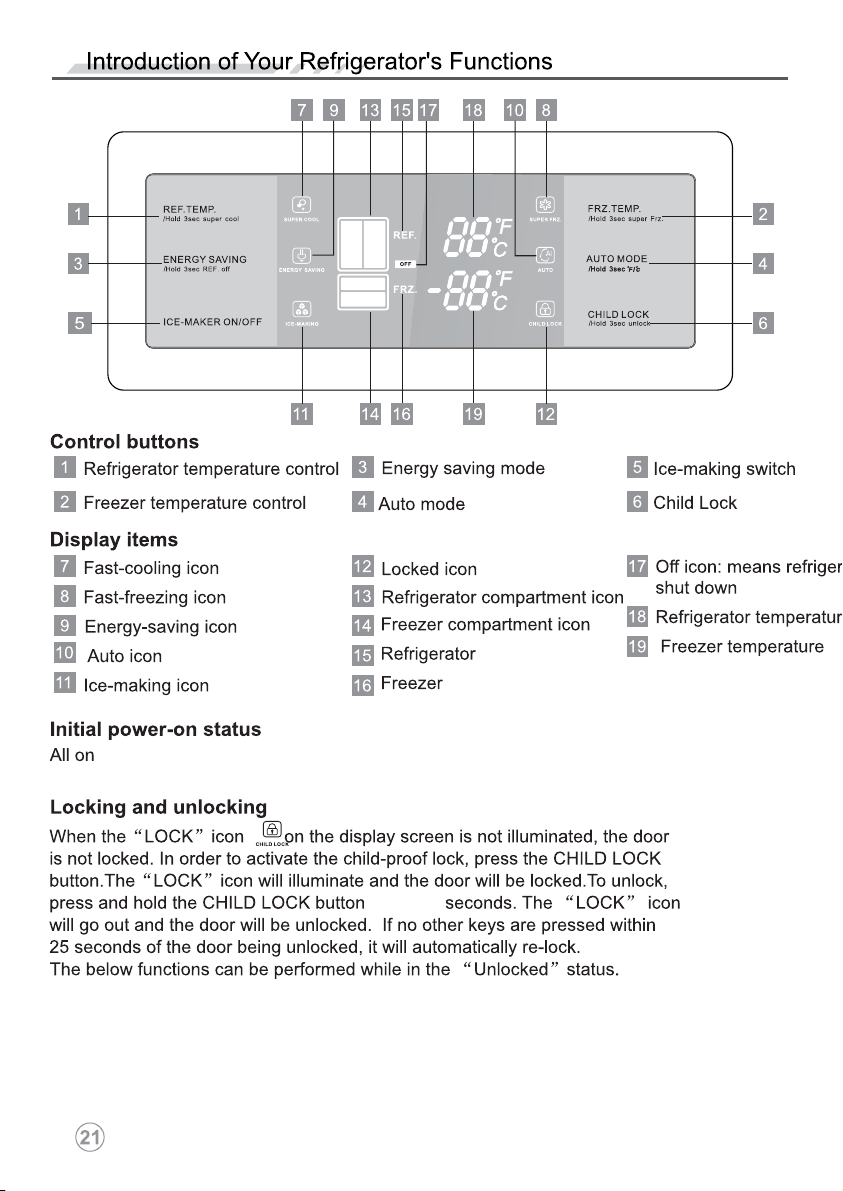

Introduction of Your Refrigerator's Functions

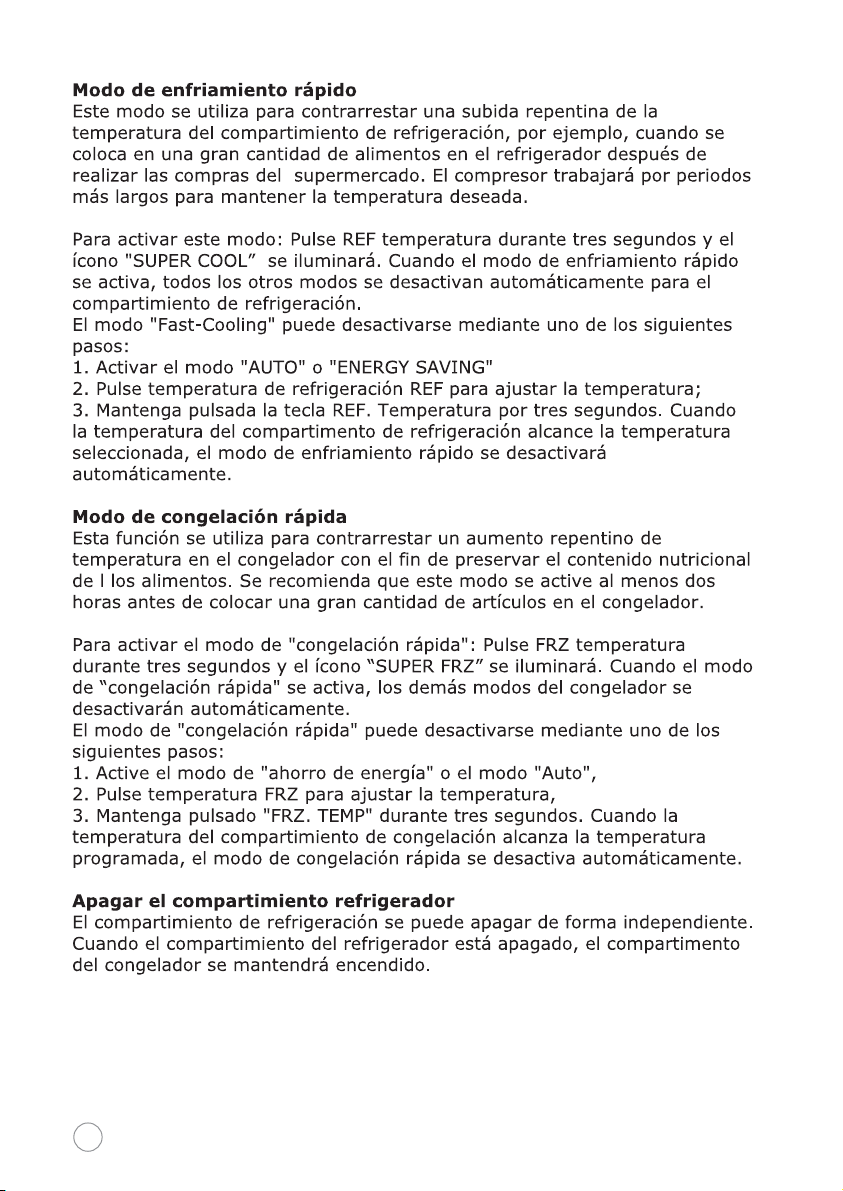

Fast-freezing mode
This function is used to counteract a sudden rise in the freezer compartment
in order to preserve the nutritional content of the food. it is recommended that
this mode be activated at least two hours before a large quantity of items is
placed into the freezer.
To activate the ĀFast-freezingāmode: press FRZ Temp for three seconds and
the Super Frz. icon will illuminate. When the ĀFast-freezingāmode is
activated for the freezer compartment, and the ĀEnergy-savingāmode or
AUTO MODE will automatically be de-activated.
TheĀFast-Freezingāmode can be de-activated by doing any of the following:
1. Activate the ĀEnergy-savingāor ĀAUTOā MODE,
2. Press FRZ. TEMP. to adjust the temperature,
3. Press and holdĀFRZ. TEMPā. for three seconds. When the temperature
of the freezer compartment reaches the set temperature,ĀFast-freezingā
mode will be automatically de-activated.
Turning off the refrigerator compartment
The refrigerator compartment can be independently turned off. When the
refrigerator compartment is turned off. the freezer compartment will remain
working. This function is recommended when the refrigerator compartment
will remain empty for a long period of time .
To independently turn off the refrigerator compartment, press and hold the
ENERGY SAVING MODE button for three seconds. TheĀRefrigerator
Compartmentāicon will go out and theĀOFFāicon will illuminate. The
REFRIGERATOR TEMPERATURE digital display will read Āüā.
To turn the refrigerator compartment back on, press and hold the ĀEnergy
Savingābutton for three seconds. TheĀRefrigerator Compartmentāicon will
illuminate, theĀOFFāicon will go out, and the REFRIGERATOR
TEMPERATURE digital display will return to normal.

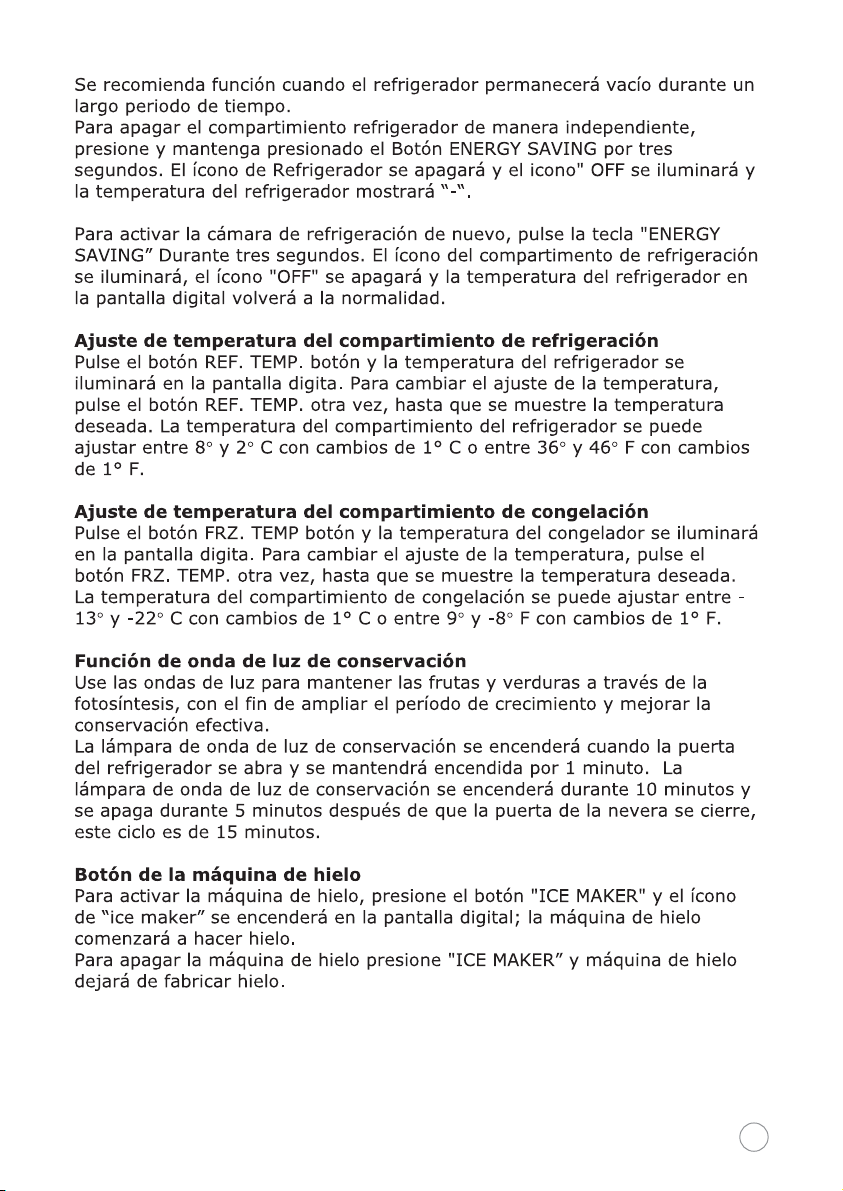

To set the temperature of the refrigerator compartment
Press the REF. TEMP. button and the REFRIGERATOR TEMPERATURE
digital display will illuminate. To change the temperature setting, press the
REF.TEMP. button again, until the desired temperature is diaplayed. The
temperature of the refrigerator compartment can be adjusted between 8 and
2 degrees C with a step of 1eC or between 36 and 46 degrees Fahrehneit
with a step of 1eF .
To set the temperature of the freezer compartment
Press the FRZ.TEMP button and the Freezer Temperature digital display will
illuminate . Tochange the temperature setting, press the FRZ. TEMP. button
again,until the desired temperature is displayed. The temperature of the
freezer compartment can be adjusted between -13 and -22 degrees C with a
step of 1eC or between 9 and -8 degrees Fahrehneit with a step of 1 eF .
Ice-making switch
To activate the ice maker, press theĀICE-MAKINGāand theĀICE-MAKINGā
icon will illuminate . The ice maker will begin to make ice. To turn off the ice
maker, pressĀICE-MAKERā.The ice maker will stop making ice. When the
freezer temperature below -5ć the ice marker needs 135 to 240
minutes to complete ice cycle.
Backlight action
When the refrigerator/ freezer door is open or any button is pressed, the
Function Display Screen will become illuminated. If no button is pressed and
the refrigerator/freezer door has remained open for 30 seconds, the Function
Display will turn off.
Introduction of Your Refrigerator's Functions
Function of light-wave fresh-keeping lamp in the crispers.
Use light waves to keep fruit and vegetable for photosynthesis, in order to
extend the growth period and make preservation effectively.
Light-wave fresh-keeping lamp will turn on when the refrigerator door opens,
and will turn off after 1 minute. The light wave fresh-keeping lamp will turn on
minutes after the refrigerator door is closed, for 10 minutes , and off for 5
this cycle lasts 15 minutes.
Introduction of Your Refrigerator's Functions
Fast-freezing mode
This function is used to counteract a sudden rise in the freezer compartment
in order to preserve the nutritional content of the food. it is recommended that
this mode be activated at least two hours before a large quantity of items is
placed into the freezer.
To activate the ĀFast-freezingāmode: press FRZ Temp for three seconds and
the Super Frz. icon will illuminate. When the ĀFast-freezingāmode is
activated for the freezer compartment, and the ĀEnergy-savingāmode or
AUTO MODE will automatically be de-activated.
TheĀFast-Freezingāmode can be de-activated by doing any of the following:
1. Activate the ĀEnergy-savingāor ĀAUTOā MODE,
2. Press FRZ. TEMP. to adjust the temperature,
3. Press and holdĀFRZ. TEMPā. for three seconds. When the temperature
of the freezer compartment reaches the set temperature,ĀFast-freezingā
mode will be automatically de-activated.
Turning off the refrigerator compartment
The refrigerator compartment can be independently turned off. When the
refrigerator compartment is turned off. the freezer compartment will remain
working. This function is recommended when the refrigerator compartment
will remain empty for a long period of time .
To independently turn off the refrigerator compartment, press and hold the
ENERGY SAVING MODE button for three seconds. TheĀRefrigerator
Compartmentāicon will go out and theĀOFFāicon will illuminate. The
REFRIGERATOR TEMPERATURE digital display will read Āüā.
To turn the refrigerator compartment back on, press and hold the ĀEnergy
Savingābutton for three seconds. TheĀRefrigerator Compartmentāicon will
illuminate, theĀOFFāicon will go out, and the REFRIGERATOR
TEMPERATURE digital display will return to normal.
To set the temperature of the refrigerator compartment
Press the REF. TEMP. button and the REFRIGERATOR TEMPERATURE
digital display will illuminate. To change the temperature setting, press the
REF.TEMP. button again, until the desired temperature is diaplayed. The
temperature of the refrigerator compartment can be adjusted between 8 and
2 degrees C with a step of 1eC or between 36 and 46 degrees Fahrehneit
with a step of 1eF .
To set the temperature of the freezer compartment
Press the FRZ.TEMP button and the Freezer Temperature digital display will
illuminate . Tochange the temperature setting, press the FRZ. TEMP. button
again,until the desired temperature is displayed. The temperature of the
freezer compartment can be adjusted between -13 and -22 degrees C with a
step of 1eC or between 9 and -8 degrees Fahrehneit with a step of 1 eF .
Ice-making switch
To activate the ice maker, press theĀICE-MAKINGāand theĀICE-MAKINGā
icon will illuminate . The ice maker will begin to make ice. To turn off the ice
maker, pressĀICE-MAKERā.The ice maker will stop making ice. When the
freezer temperature below -5ć the ice marker needs 135 to 240
minutes to complete ice cycle.
Backlight action
When the refrigerator/ freezer door is open or any button is pressed, the
Function Display Screen will become illuminated. If no button is pressed and
the refrigerator/freezer door has remained open for 30 seconds, the Function
Display will turn off.
Introduction of Your Refrigerator's Functions
Function of light-wave fresh-keeping lamp in the crispers.
Use light waves to keep fruit and vegetable for photosynthesis, in order to
extend the growth period and make preservation effectively.
Light-wave fresh-keeping lamp will turn on when the refrigerator door opens,
and will turn off after 1 minute. The light wave fresh-keeping lamp will turn on
minutes after the refrigerator door is closed, for 10 minutes , and off for 5
this cycle lasts 15 minutes.
and freezer compartments.
requesting repair service:
Problem
items
25 26
and freezer compartments.
requesting repair service:
Problem
items
25 26
27
28
27
28
29
30
29
30
31 32
31 32
33 34
33 34
35 36
35 36
37 38
37 38
39 40
39 40
41 42
41 42
43 44
43 44
45 46
45 46
49 50
49 50
50
50
