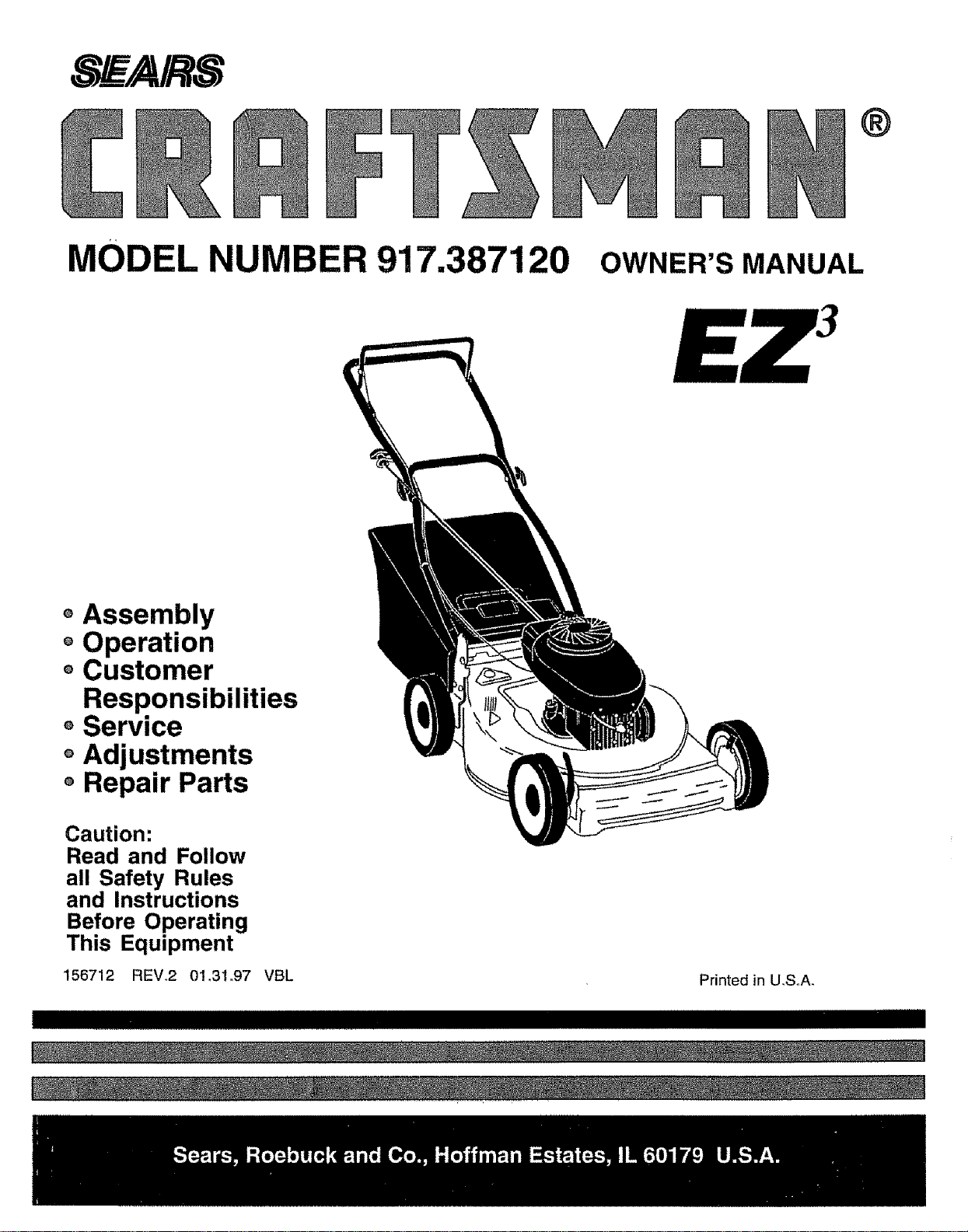

_o__A/RS
®
MODEL NUMBER 917.387120
OWNER'S MANUAL
jEZ3
oAssembly
oOperation
oCustomer
Responsibilities
Service
oAdjustments
oRepair Parts
Caution:
Read and Follow
all Safety Rules
and Instructions
Before Operating
This Equipment
156712 REV.2 01,31.97 VBL
Printed in U,S.A.
[I "

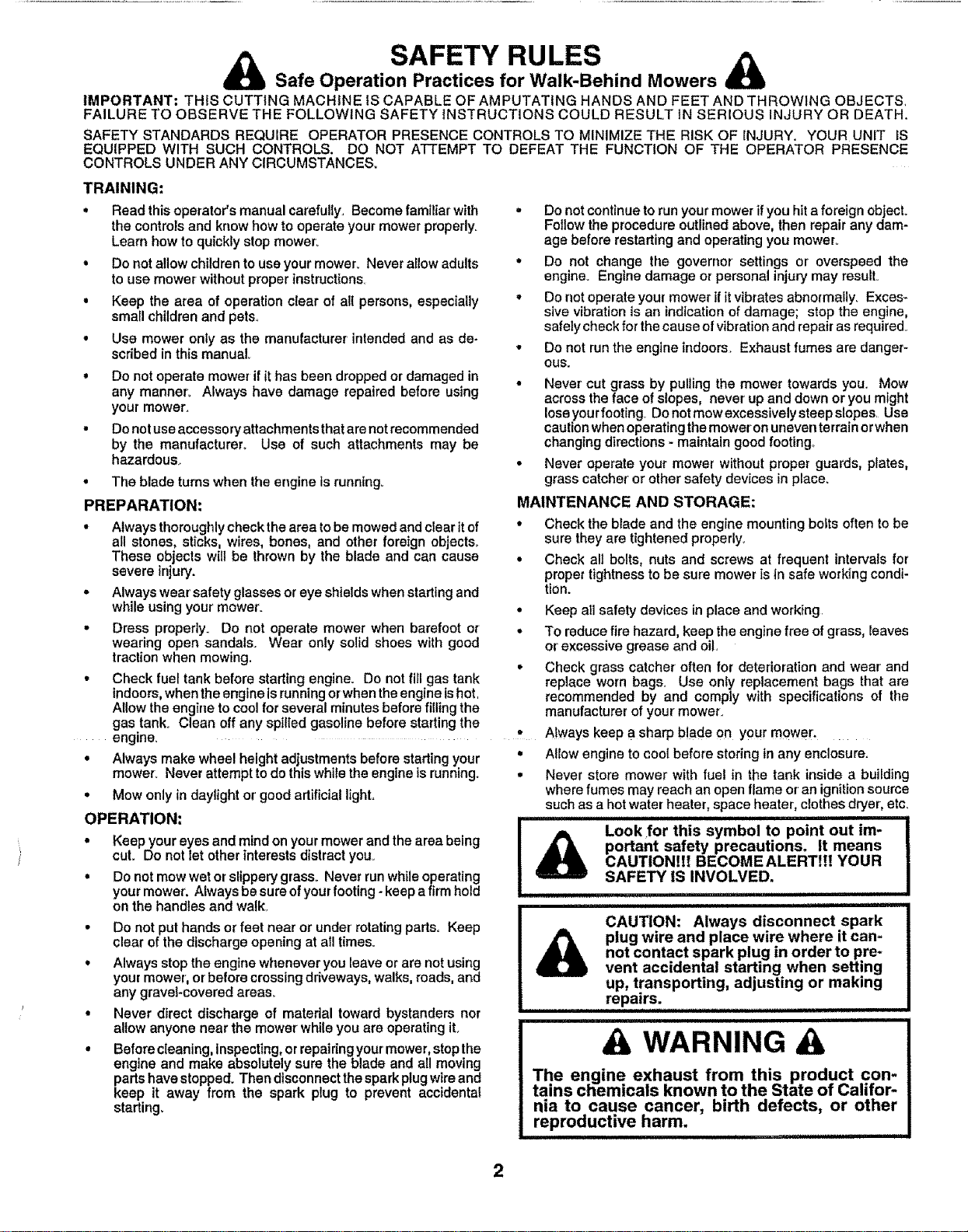

SAFETY RULES
_k Safe Operation Practices for Walk-Behind Mowers
IMPORTANT: THiS CUTTING MACHINE iS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.
FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZE THE RISK OF INJURY. YOUR UNiT iS
EQUIPPED WITH SUCH CONTROLS. DO NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE
CONTROLS UNDER ANY CIRCUMSTANCES.
TRAINING:
,, Read this operator's manual carefully. Become familiar with
the controls and know how to operate your mower properly_
Learn how to quickly stop mower,
• Do not allow children to use your mower. Never allow adults
to use mower without proper instructions.
• Keep the area of operation clear of all persons, especially
small children and pets.
• Use mower only as the manufacturer intended and as de-
scribed in this manual,
• Do not operate mower ifit has been dropped or damaged in
any manner. Always have damage repaired before using
your mower.
• Do not use accessory attachments that are not recommended
by the manufacturer. Use of such attachments may be
hazardous_
• The blade turns when theengineisrunning=
PREPARATION:
• Always thoroughly check the area tobe mowed and clear itof
all stones, sticks, wires, bones, and other foreign objects..
These objects will be thrown by the blade and can cause
severe injury.
• Always wear' safety glasses or eye shields when starting and
while using your mower'.
• Dress properly. Do not operate mower when barefoot or
wearing open sandals. Wear only solid shoes with good
traction when mowing.
• Check fuei tank before starting engine. Do not fill gas tank
indoors, when the engine is running or when the engine is hot
Allow the engine to cool for several minutes before filling the
gas tank. Clean off any spilled gasoline before starting the
engine.
Always make wheel height adjustments before starting your
mower: Never attempt todo this while the engine is running.
• Mow only in daylight or good artificial light.
OPERATION:
• Keep your eyes and mind on your mower and the area being
cuL Do not let other interests distract you°
• Do not mow wet or slippery grass. Never run while operating
your mower, Always be sure ofyour footing -keep a firm hold
on the handles and walk.
• Do not put hands or feet near or under rotating parts. Keep
clear of the discharge opening at ail times.
• Always stop the engine whenever you leave or are not using
your mower', or before crossing driveways, walks, roads, and
any gravel-covered areas.
• Never direct discharge of material toward bystanders nor
allow anyone near the mower while you are operating it.
• Before cleaning, inspecting, or repairingyour mower, stop the
engine and make absolutely sure the blade and all moving
parts have stopped° Then disconnect the spark plug wire and
keep it away from the spark plug to prevent accidental
starting_
e
, Do not continue to run your mower ifyou hit a foreign objecL
Follow the procedure outlined above, then repair any dam-
age before restarting and operating you mower°
• Do not change the governor settings or overspeed the
engine. Engine damage or personal injury may result°
', Do not operate your mower if it vibrates abnormally_ Exces-
sive vibration is an indication of damage; step the engine,
safety check for the cause of vibrationand repair as required_
• Do not runthe engine indoors. Exhaust fumes are danger-
ous.
• Never cut grass by pulling the mower towards you. Mow
across the face of slopes, never up and down or you might
Ioseyourfooting Donotmowexcessivelysteepslopes. Use
caution when operating the mower on uneven terrain orwhen
changing directions - maintain good footing_
• Never operate your mower without proper guards, plates,
grass catcher or other safety devices in place.
MAINTENANCE AND STORAGE:
• Check the blade and the engine mounting bolts often to be
sure they are tightened properly.
• Check all bolts, nuts and screws at frequent intervals for
proper tightness to be sure mower is in safe working condi-
tion.
• Keep all safety devices in place and working.
,' To reduce fire hazard, keep the engine free of grass, leaves
or excessive grease and oil.
,, Check grass catcher often for deterioration and wear and
replace worn bags. Use only replacement bags that are
recommended by and comply with specifications of tire
manufacturer of your'mower.
• A!ways keep a sharp blade on Your mower.
• Allow engine to cool before storing in any enclosure.
• Never store mower with fuel in the tank inside a building
where fumes may reach an open flame or an ignitionsource
such as a hotwater heater, space heater, clothes dryer, etc.
_!) ook for this symbol to point out im-
portant safety precautions. It means
CAUTION!I! BECOME ALERT!!! YOUR
SAFETY tS INVOLVED.
ii ii i i i i i ,,111 ,11111111,1111111111
i iii IIII'IIIII'IIHIIIIIIIIILIIHII I ................
I _lb CAUTION: Always disconnect spark !
plug wire and place wire where it can*
not contact spark plug in order to pre- |
vent accidental starting when setting !
up, transporting, adjusting or making
repairs. I
L 'IIHIII
& WARNING A
Th.e engine exhaust from this product con-
tams chemicals known to the State of Califor-
nia to cause cancer, birth defects, or other
reproductive harm.
,,. i, ,,,1111111111

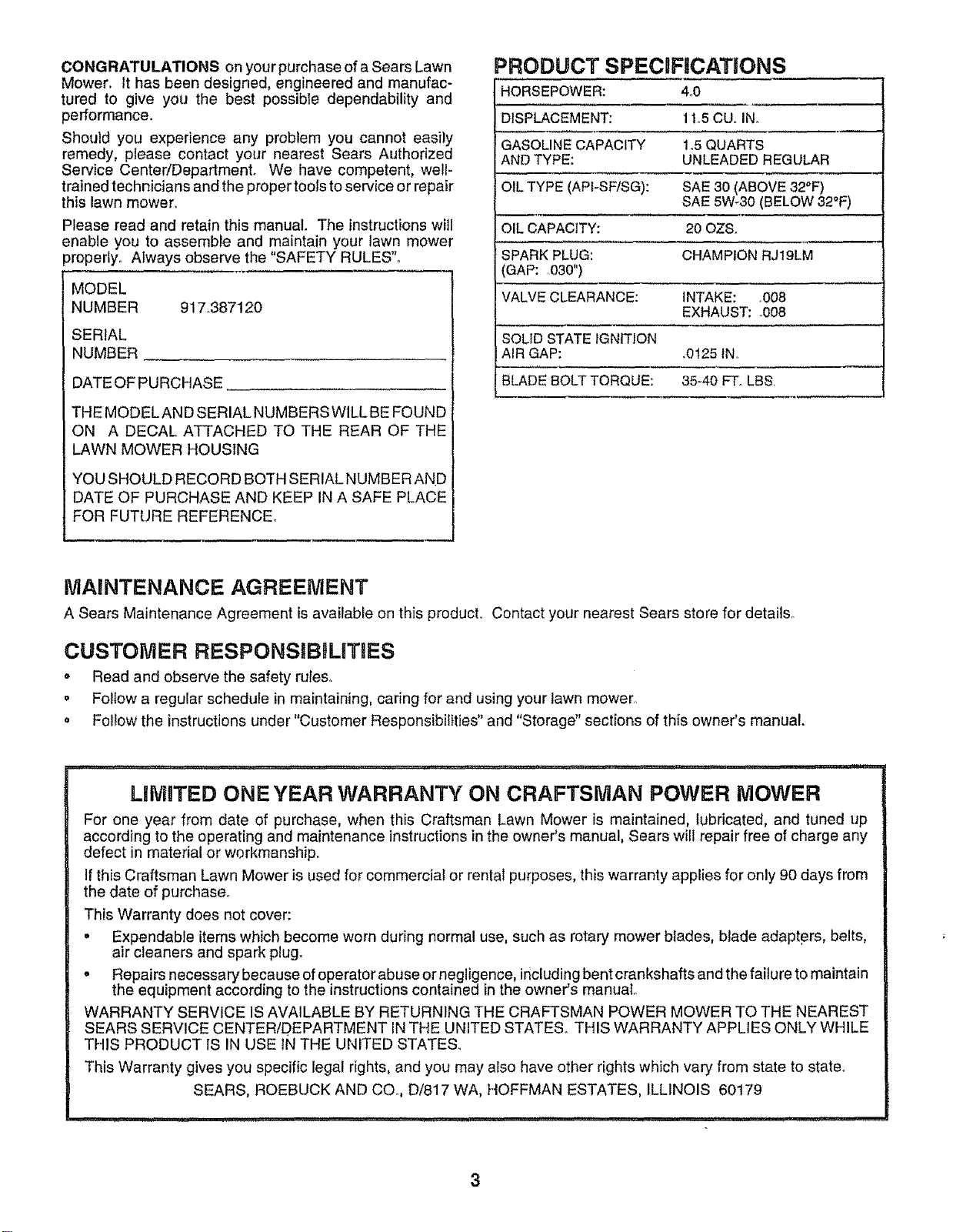

CONGRATULATIONS on your purchase of a Sears Lawn
Mower_ It has been designed, engineered and manufac-
tured to give you the best possible dependability and
performance.
Should you experience any problem you cannot easily
remedy, please contact your nearest Sears Authorized
Service Center/Departmento We have competent, well-
trained technicians and the proper tools to service or repair
this lawn mower.
Please read and retain this manual The instructions will
enable you to assemble and maintain your lawn mower
properly_ Always observe the "SAFETY RULES"°
MODEL
NUMBER 917o387120
SERIAL
NUMBER
DATEOFPURCHASE
THE MODELAND SERIAL NUMBERSWILLBE FOUND
ON A DECAL ATTACHED TO THE REAR OF THE
LAWN MOWER HOUSING
YOUSHOULDRECORDBOTHSERIALNUMBERAND
DATE OF PURCHASE AND KEEPIN A SAFE PLACE
FOR FUTURE REFERENCE
PRODUCT SPECDFnCATIIONS
HORSEPOWER: 4°0
DISPLACEMENT: 1£5 CU..IN.
GASOLINE CAPACITY 1o5QUARTS
AND TYPE: UNLEADED REGULAR
OIL TYPE (API-SF/SG): SAE 30 (ABOVE 32°F)
SAE 5W_30(BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG: CHAMPION RJt9LM
(GAP: B30")
VALVE CLEARANCE: INTAKE: .008
EXHAUST: .008
SOLID STATE IGNITION
AIR GAP: _0t25 1N,
BLADEBOLT TORQUE: 35-40 FT. LBS,
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this product.. Contact your nearest Sears store for detaiiso
CUSTOMER RESPONSaBgLITIES
o Read and observe the safety rules°
° Follow a regular schedule in maintaining, caring for and using your lawn mower°
• Follow the instructions under "Customer Responsibilities" and "Storage" sections of this owner's manual.
LIMnTED ONE YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For one year from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up
according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any
defect in material or workmanship°
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from
the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,
air cleaners and spark plug.
o Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain
the equipment according to the instructionscontained in the owner's manual..
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES° THIS WARRANTY APPLIES ONLY WHILE
THIS PRODUCT IS IN USE IN THE UNITED STATES..
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state°
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
• "n ,,'_',' ' i 'u" =u ............. u','="'lnu i u lull'= 'n,u I , I
3
,i i' '" lU,,U ..... i,,i, i i n,,, i, ,,,,,i................... i nl -

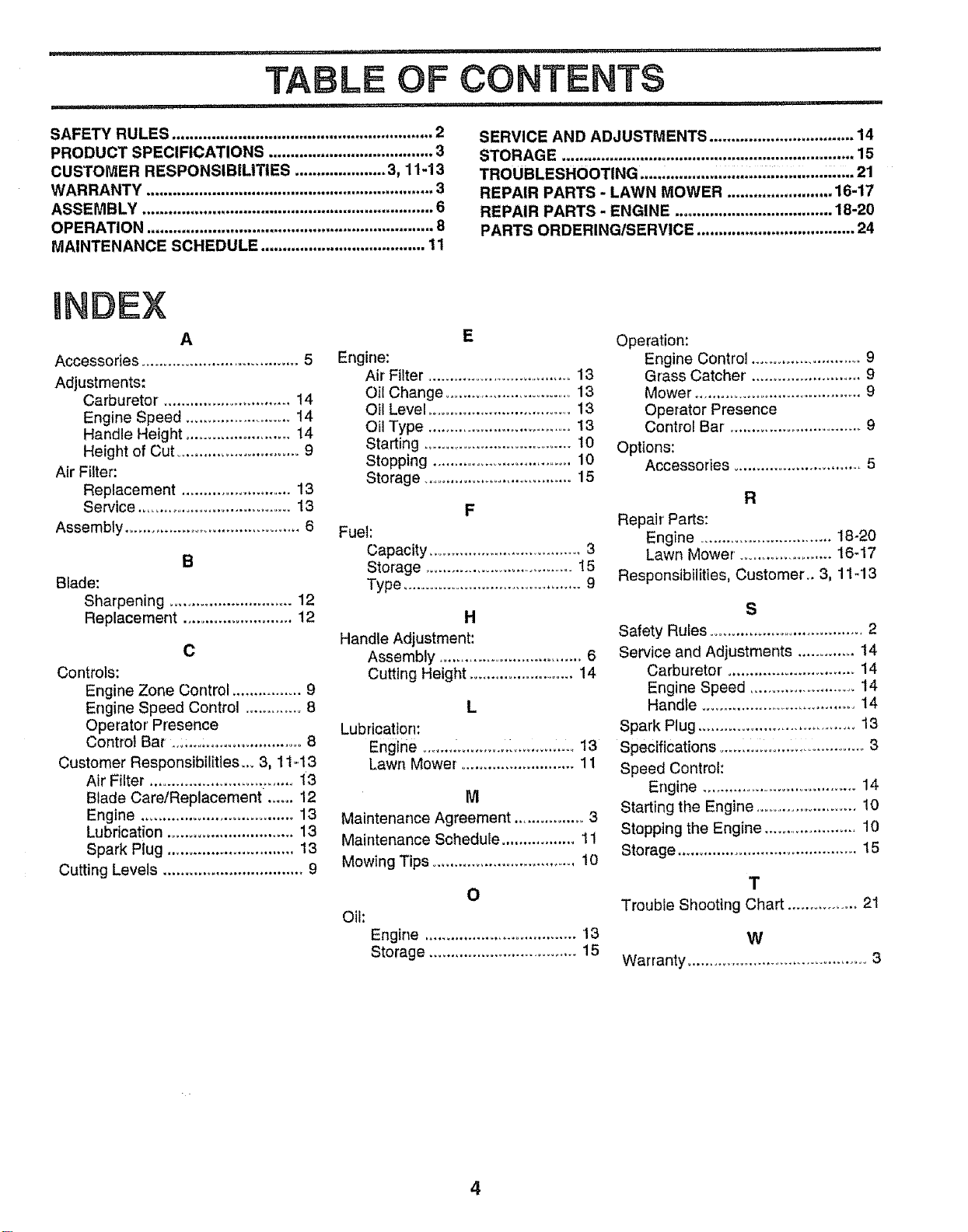

LE OF CONTENTS
.............. i i ,l i, i u ............ HUHU'UI' I ........
SAFETY RULES ............................................................ 2
PRODUCT SPECIFICATIONS ...................................... 3
CUSTOMER RESPONSIBILITIES ..................... 3, 11-13
WARRANTY .................................................................. 3
ASSEMBLY ................................................................... 6

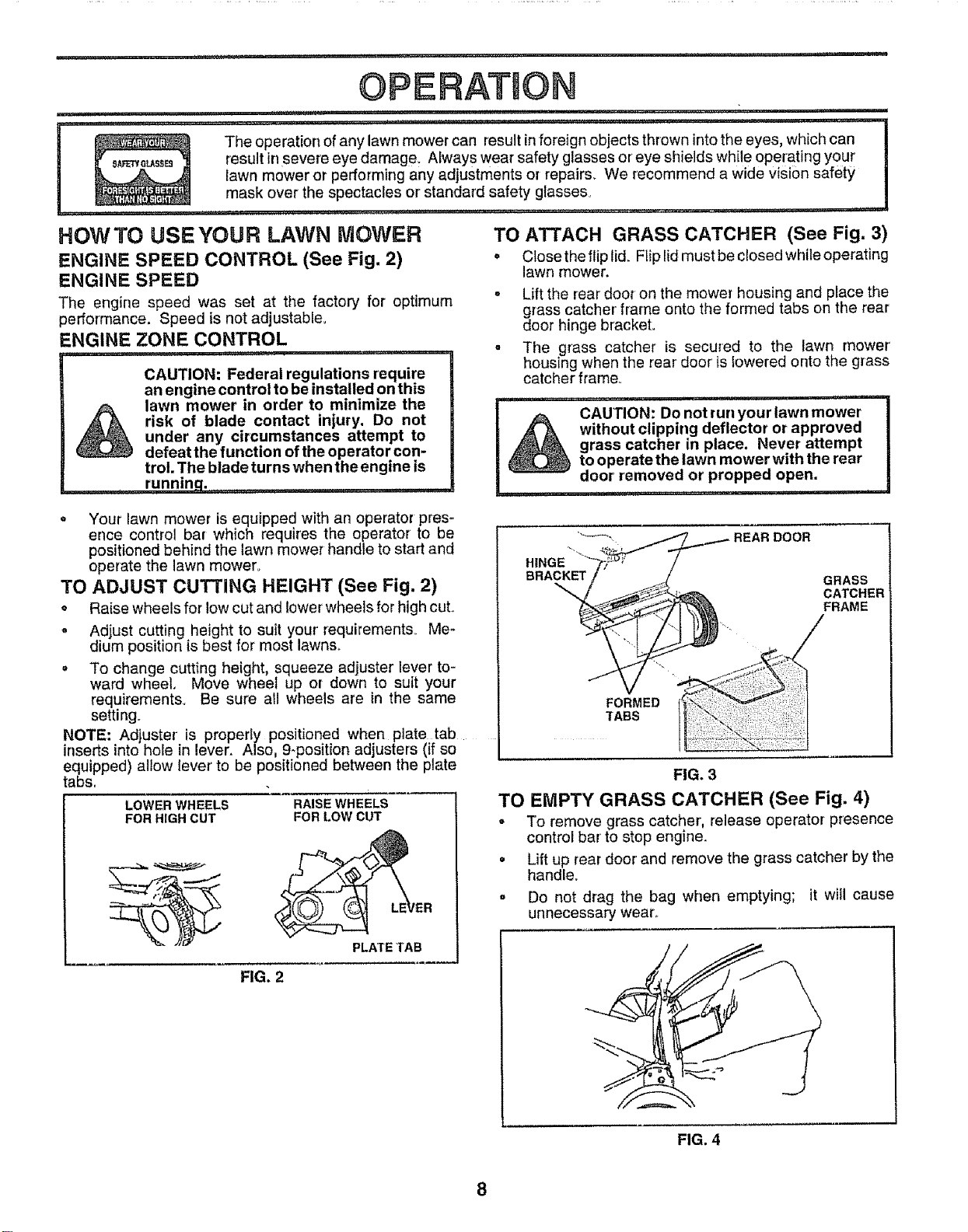

OPERATION .................................................................. 8

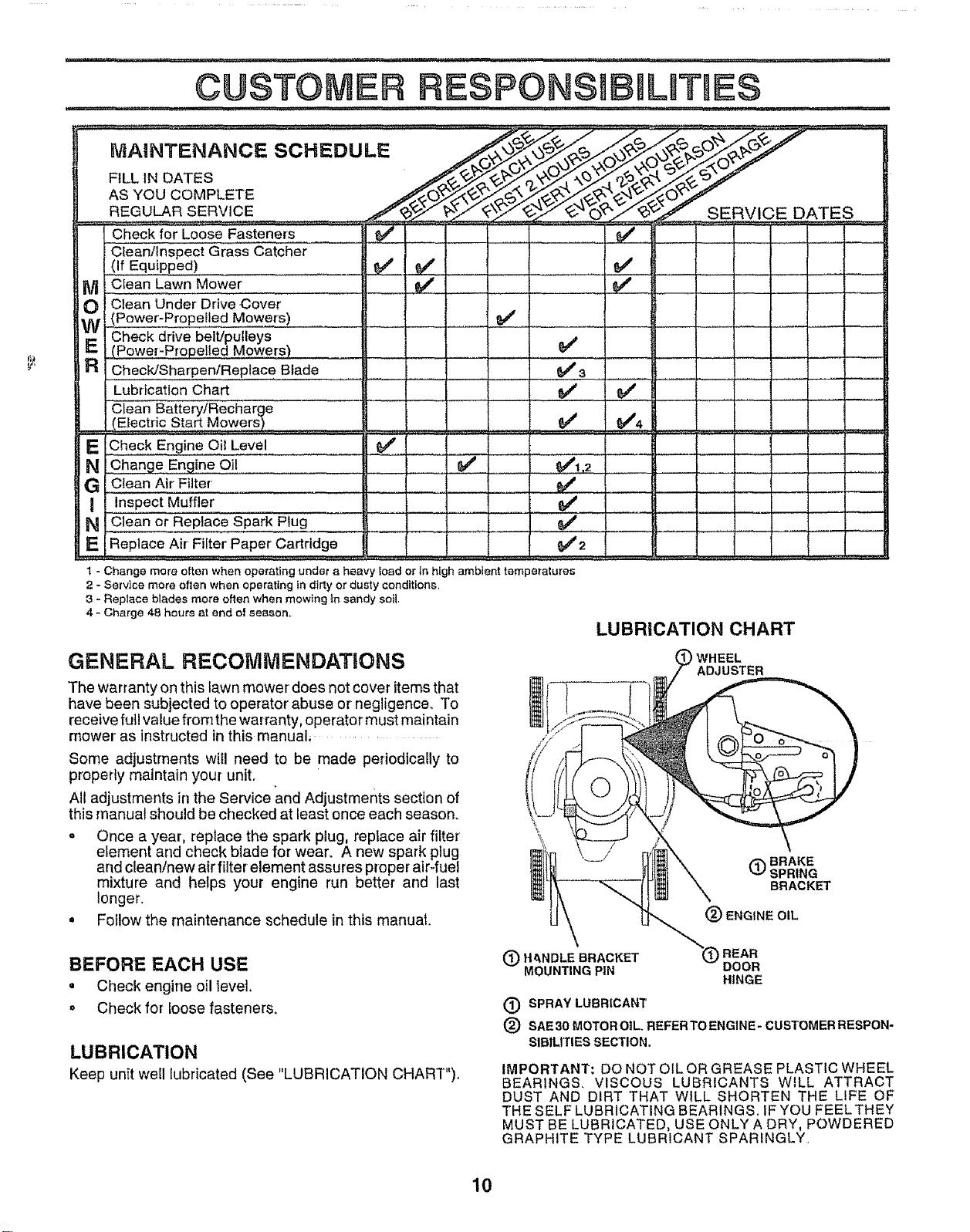

MAINTENANCE SCHEDULE ...................................... 11

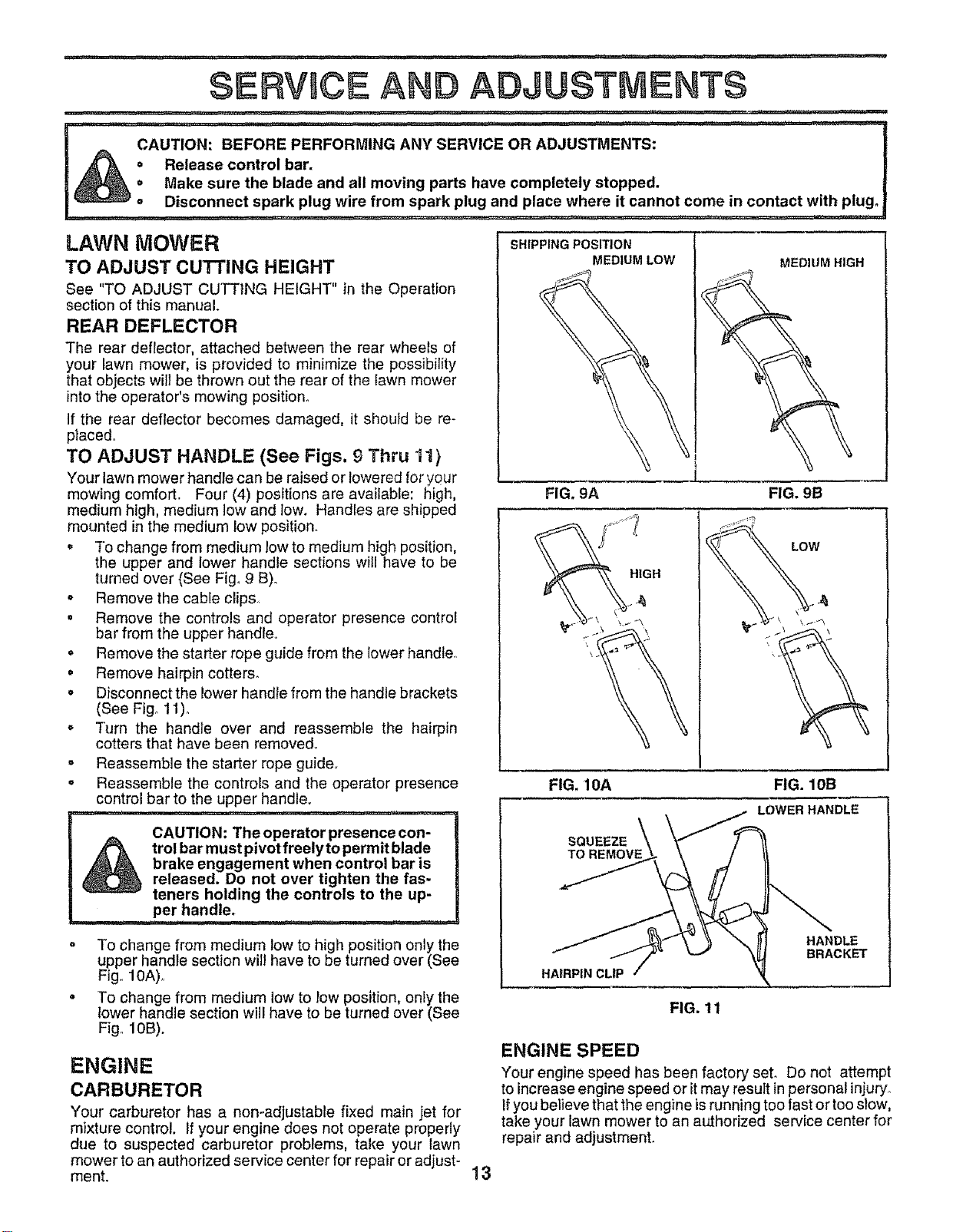

SERVICE AND ADJUSTMENTS ................................. 14

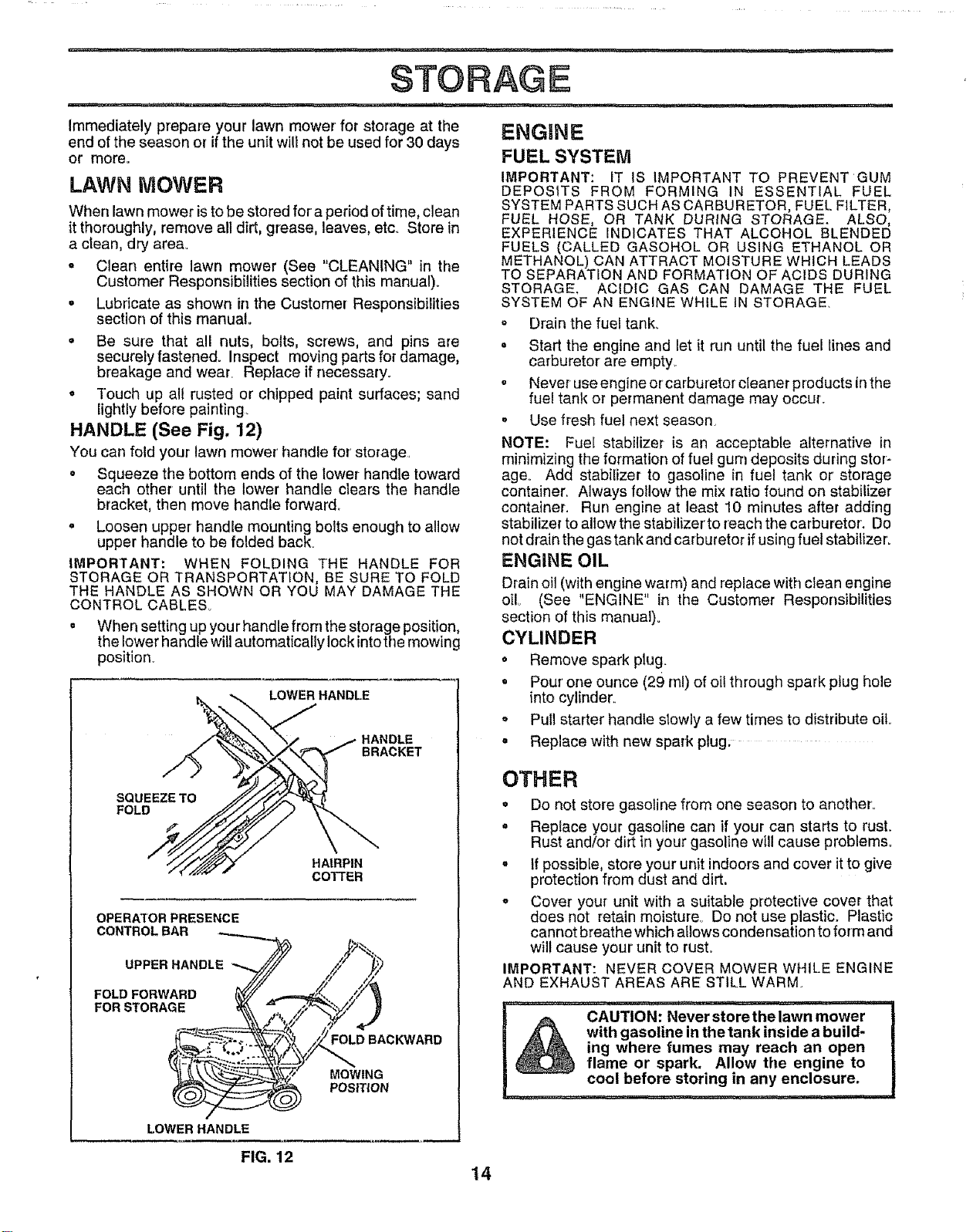

STORAGE ................................................................... 15

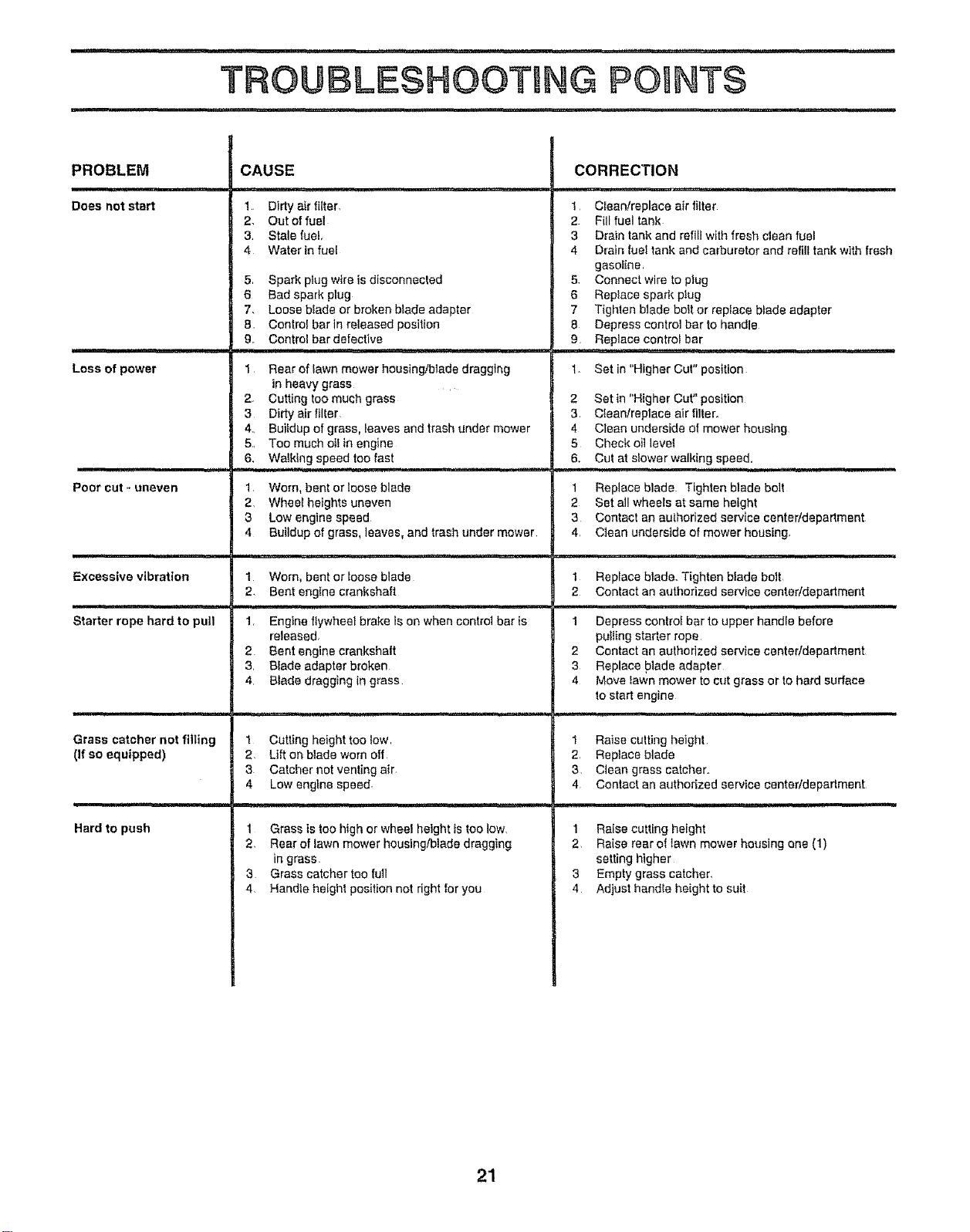

TROUBLESHOOTING .............................. ......,, ........... 21

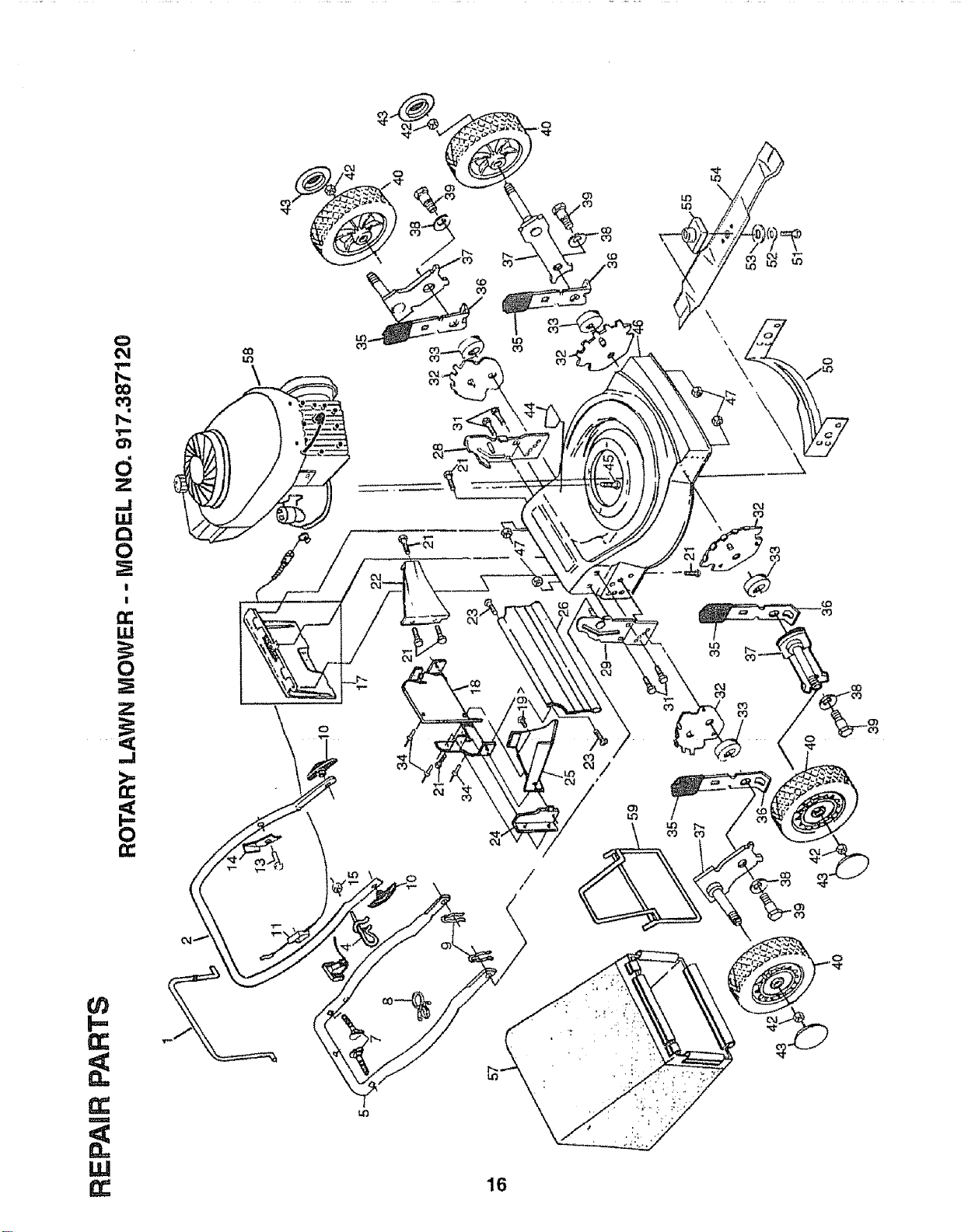

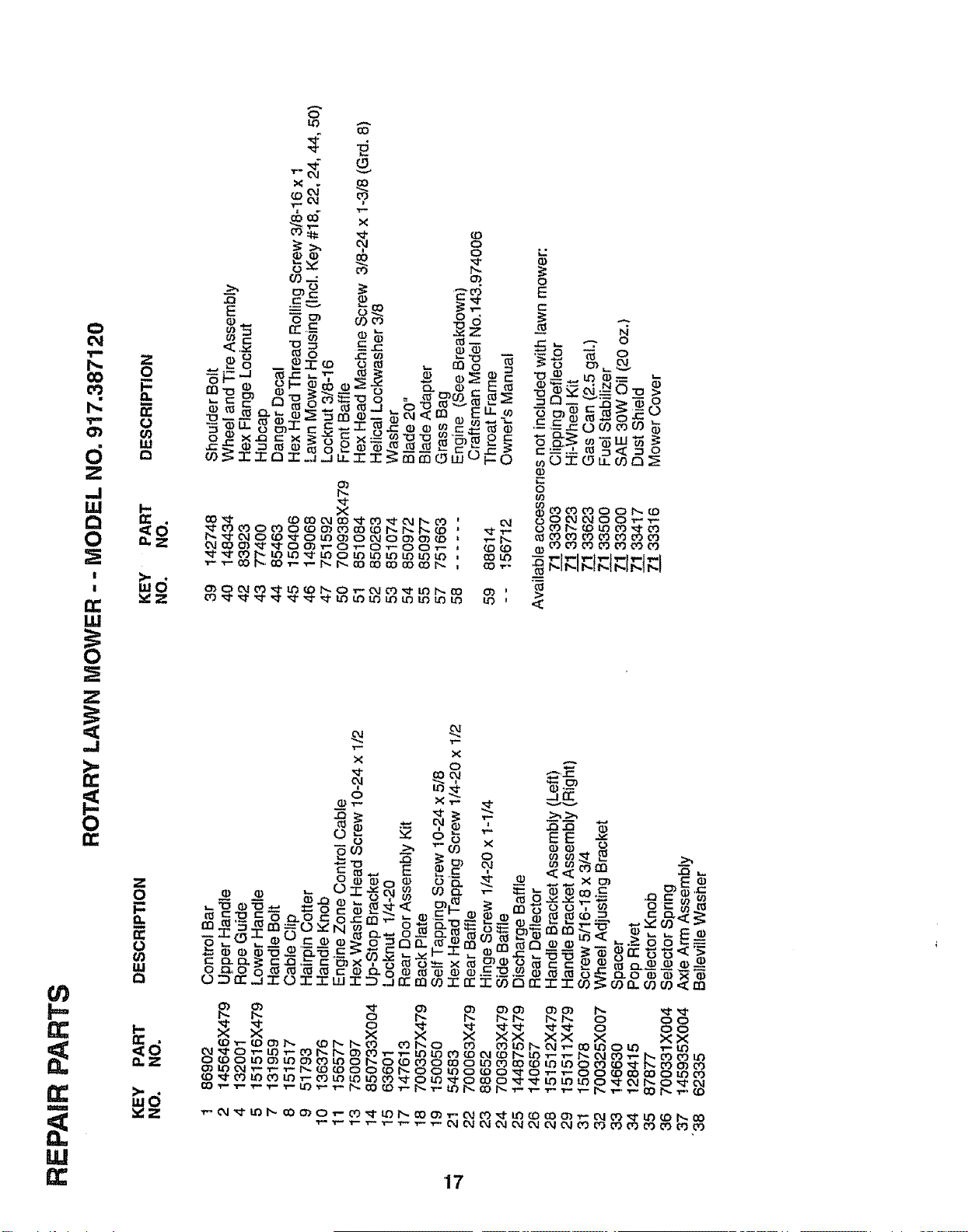

REPAIR PARTS - LAWN MOWER ........................ 16-17

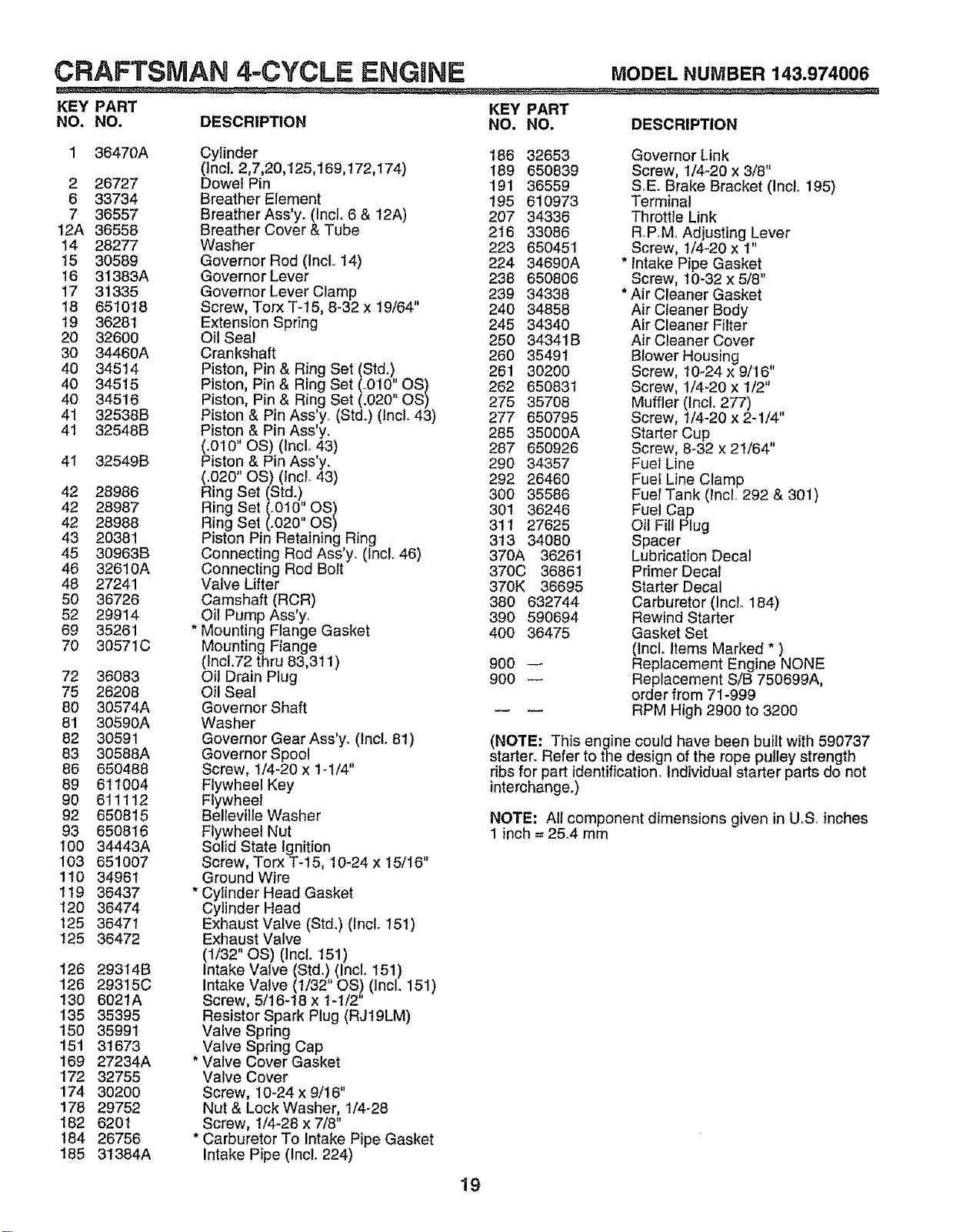

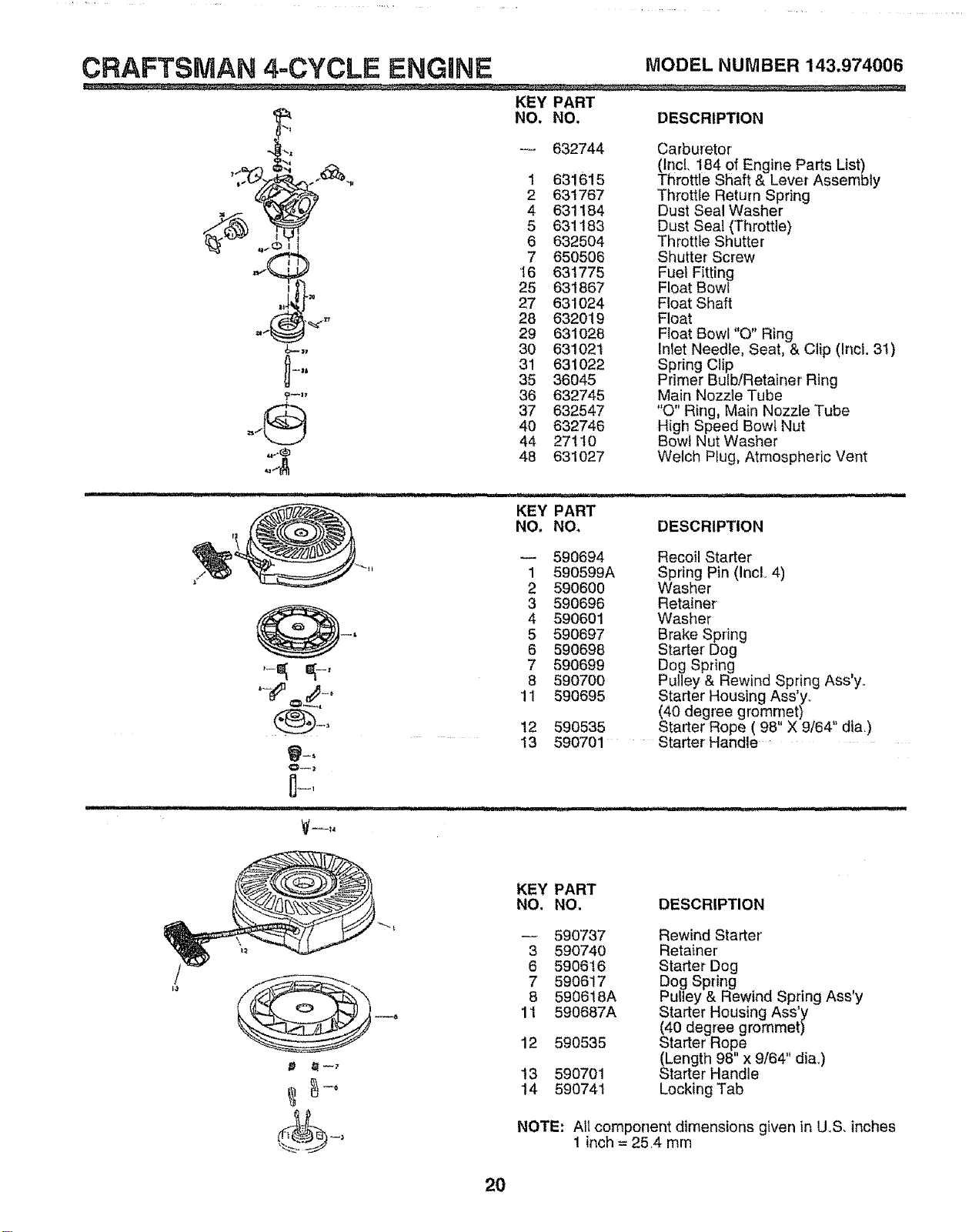

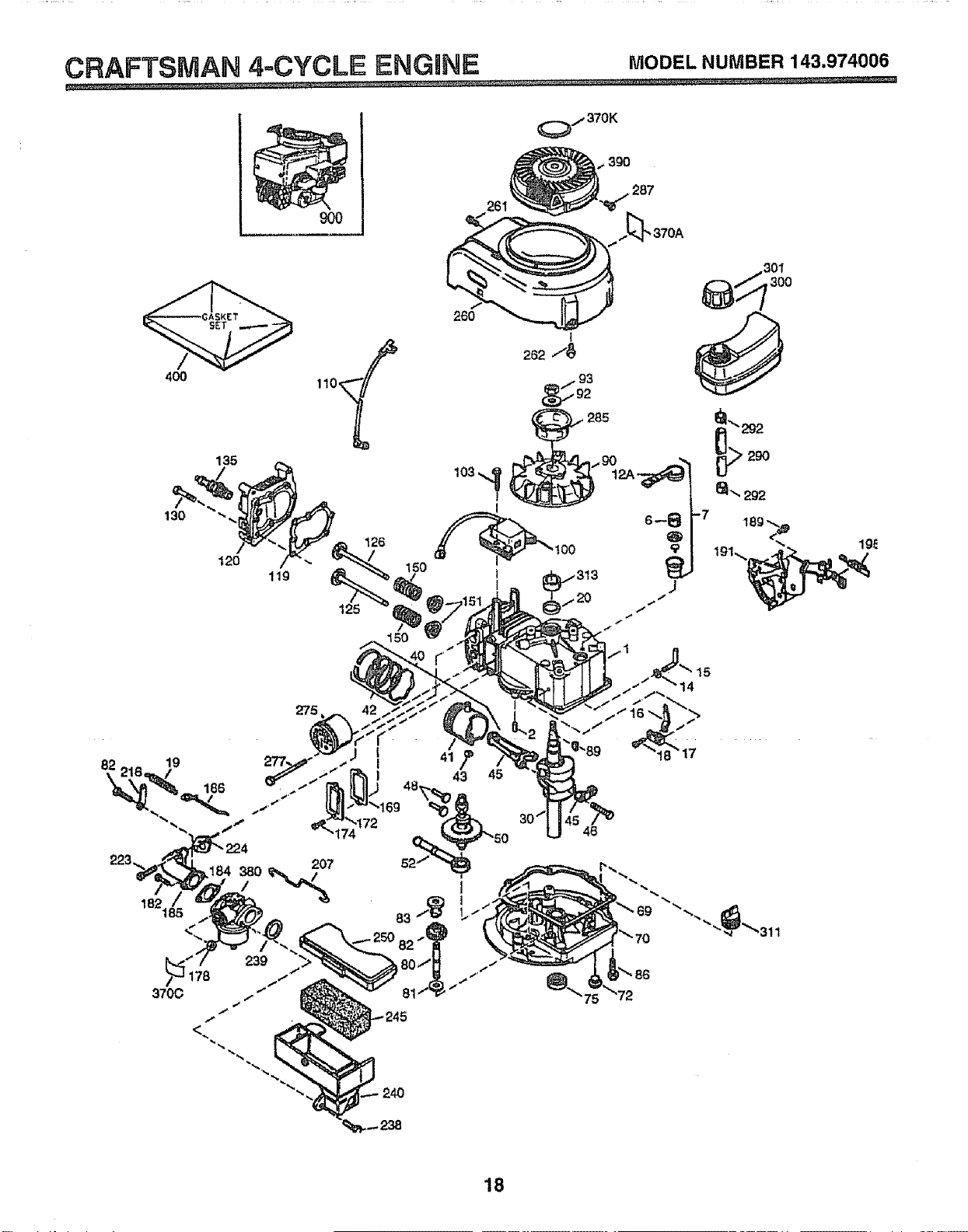

REPAIR PARTS - ENGINE .................................... 18-20
PARTS ORDERING/SERVICE .................................... 24
A
Accessories .................................... 5
Adjustments:
Carburetor'. ............................. 14
Engine Speed ........................ 14
Handle Height ........................ 14
Height of Cut ............................ 9
Air Filter:
Replacement ......................... 13
Service .................................... 13
Assembly ........................................ 6
B
Blade:
Sharpening ............................ 12
Replacement ......................... 12
C
Controls:
Engine Zone Control ................ 9
Engine Speed Control ............. 8
Operator Presence
Control Bar ,,:;.......................... 8
Customer Responsibilities,., 3. 11-13
Air Filter ......................... ,:...... 13
Blade Care/Replacement ...... 12
Engine ................................... 13
Lubrication ............................. 13
Spark Plug ............................. 13
Cutting Levels ................................ 9
E
Engine:
Air Filter ................................... 13
Oil Change ................................. 13
Oil Level .................................. 13
Oil Type ................................. 13
Starting ................................... I0
Stopping ................................. 10
Storage .................................. 15
F
Fuel:
Capacity ................................... 3
Storage .................................... 15
Type ......................................... 9
H
Handle Adjustment:
Assembly ................................. 6
Cutting Height .......................... 14
L
Lubrication:
Engine ..................... :............... 13
Lawn Mower .......................... 11
M
Maintenance Agreement ................ 3
Maintenance Schedule ................. 11
Mowing Tips ................................. 10
Oil:
O
Engine ................................... 13
Storage ................................... 15
Operation:
Engine Control ......................... 9
Grass Catcher'. ........................ 9
Mower ...................................... 9
Operator Presence
Control Bar .............................. 9
Options:
Accessories ............................. 5
R
Repair Parts:
Engine .............................. 18-20
Lawn Mower'. ...................... 16-17
Responsibilities, Customer.. 3, 11-13
S
Safety Rules ................................... 2
Service and Adjustments ............. 14
Carburetor .............................. 14
Engine Speed ......................... 14
Handle .................................... 14
Spark Plug .................................... 13
Specifications ..... i.o.:...... :.::................3
Speed Control:
Engine .................................... 14
Starting the Engine .......................... 10
Stopping the Engine ...................... 10
Storage ......................................... 15
T
Trouble Shooting Chart ................ 21
W
Warranty ......................................... 3
i1=,,i " i_,,1_=,=, i,, i ' ,,,11,1111ii i i

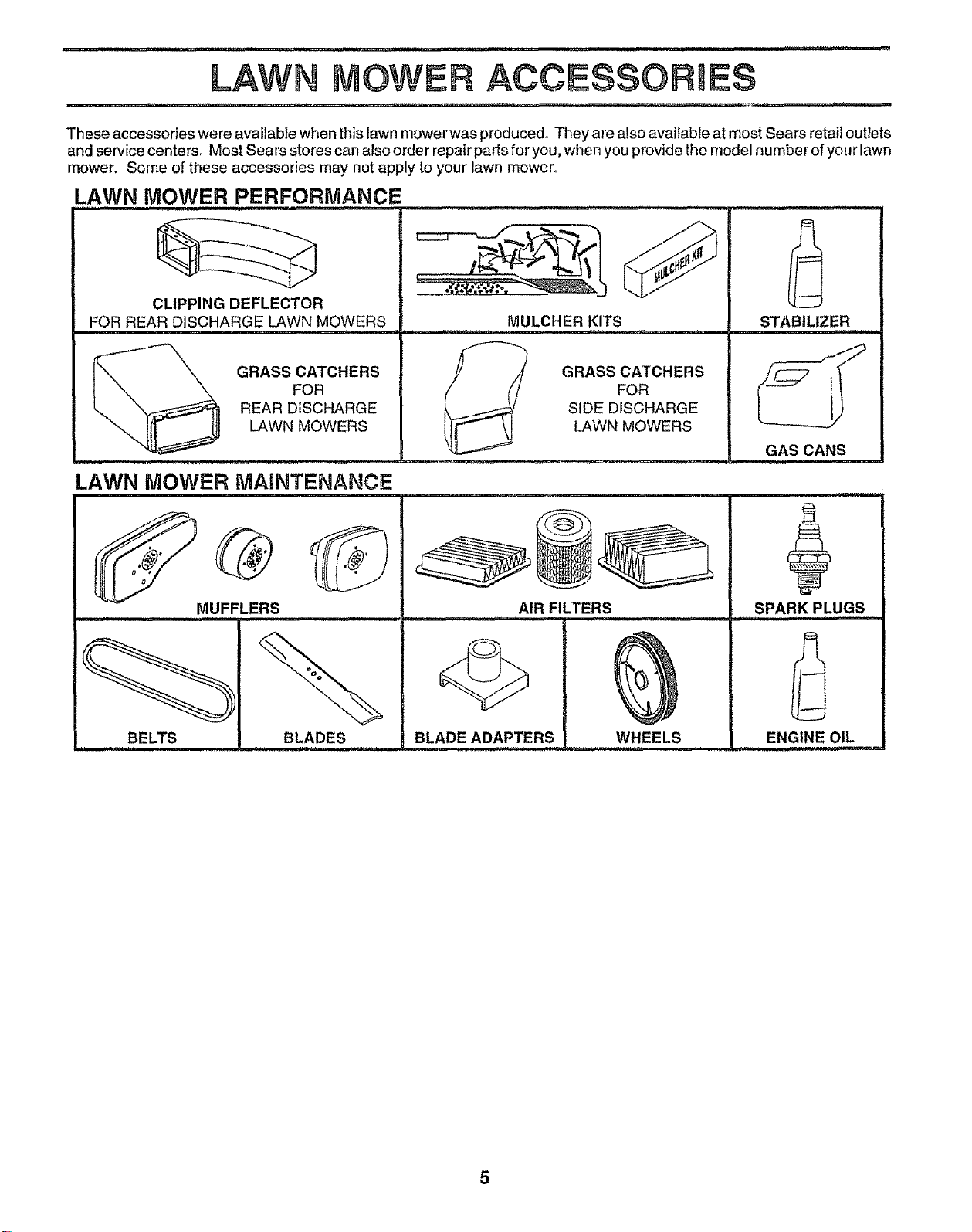

LAWN
_H" i = , i',1", ......... i i ,H ,1,1,,, i ...... ,i,11,11,.... 11L
These accessories were available when this lawn mowerwas produced° They are also available at most Sears retail outlets
and service centers. Most Sears stores can also order repair parts for you, when you provide the model number of your lawn
mower. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
i,rr,r...........................
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS
=
GRASS CATCHERS
FOR
REAR DISCHARGE
LAWN MOWERS
LAWN MOWER MAnNTENANCE
MUFFLERS
i1,1,11 ,1,,,1111,1,1=111=
BELTS BLADES
,=,= ,====11=
MULCHER KITS
GRASS CATCHERS
FOR
SIDE DISCHARGE
LAWN MOWERS
AIR FILTERS
,,,=! =,, ,
BLADE ADAPTERS
WHEELS
STABILIZER
GAS CANS
SPARK PLUGS
HH=H
ENGINE OIL
5
LY
,,u u ,ll ,,lU .....ii,,,,, i,, i i ii,,i illll Ul,,i ...... i, i ,,ll,l,,i ........................ _ .................... i,,i ,u,,

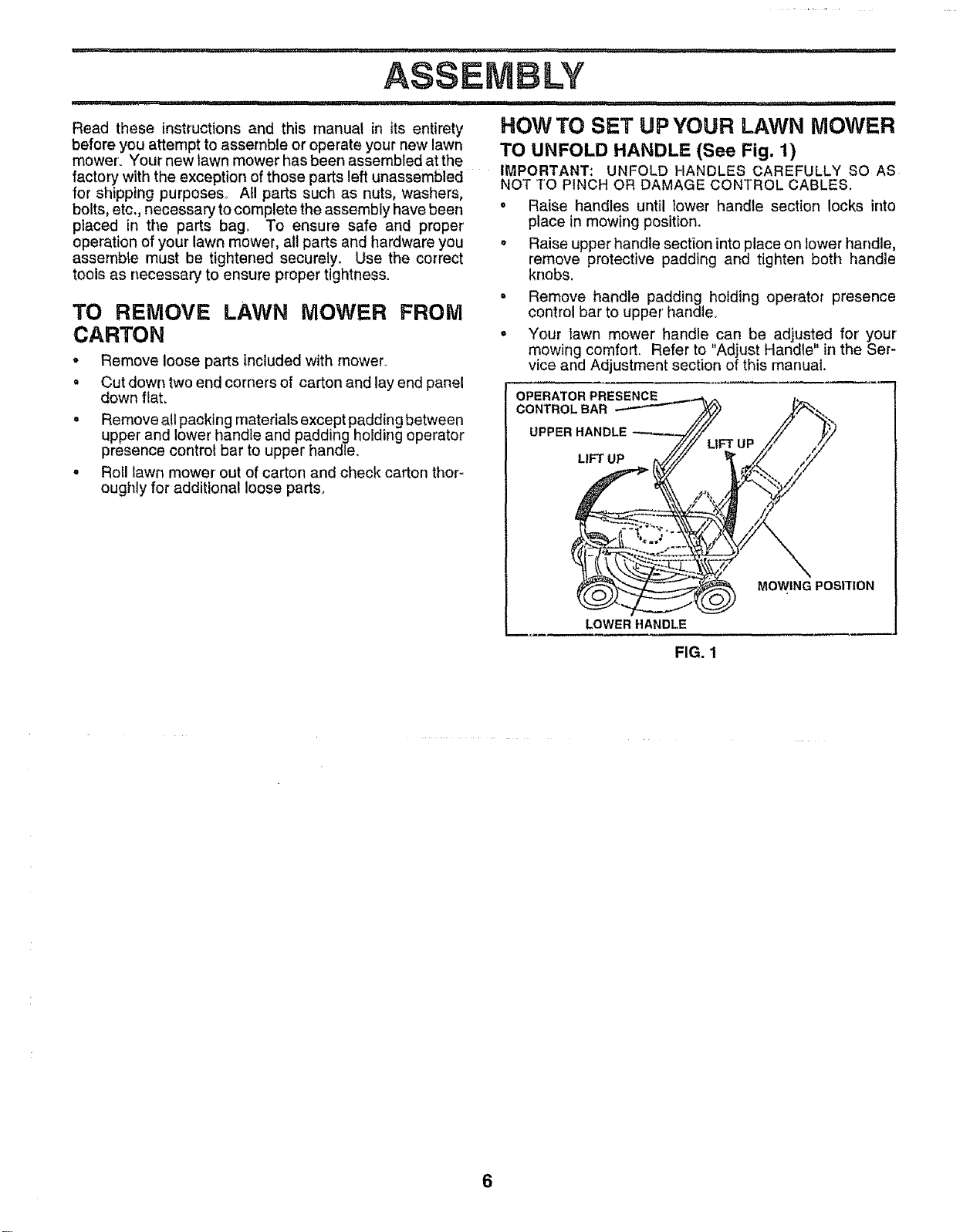

Read these instructions and this manual in its entirety HOWTO SET UPYOUR LAWN MOWER
befereyou attemptto assemble or operate your newlawn TO UNFOLD HANDLE (See Fig. 1)
mower. Your new fawnmower has been assembled at the
factory with the exception of those parts left unassembled IMPORTANT: UNFOLD HANDLES CAREFULLY SO AS
NOT TO PINCH OR DAMAGE CONTROL CABLES.
for shipping purposes° All parts such as nuts, washers,
bolts, etc., necessary to complete the assembly have been
placed in the parts bag. To ensure safe and proper'
operation of your lawn mower, all parts and hardware you
assembte must be tightened securely° Use the correct
tools as necessary to ensure proper tightness.
TO REMOVE
CARTON
g
o
LAWN MOWER FROM
Remove loose parts included with mower.
Cut down two end corners of carton and lay end panel
down flat,
Remove all packing materials except padding between
upper and lower handte and padding holding operator
presence control bar to upper handle,
Rofl lawn mower' out of carton and check carton thor-
oughly for additional loose parts.
o Raise handles until lower handle section locks into
place in mowing position.
o Raise upper handle section intoplace on lower handle,
remove protective padding and tighten both handle
knobs.
= Remove handle padding holding operator presence
control bar to upper' handleo
= Your lawn mower handle can be adjusted for your
mowing comforL Refer to "Adjust Handle" in the Ser-
vice and Adjustment section of this manual.
OPERATOR PRESENCE
CONTROLBAR
UPPER
LIFT UP
MOWING POSITION
LOWER HANDLE
FIG. 1
6

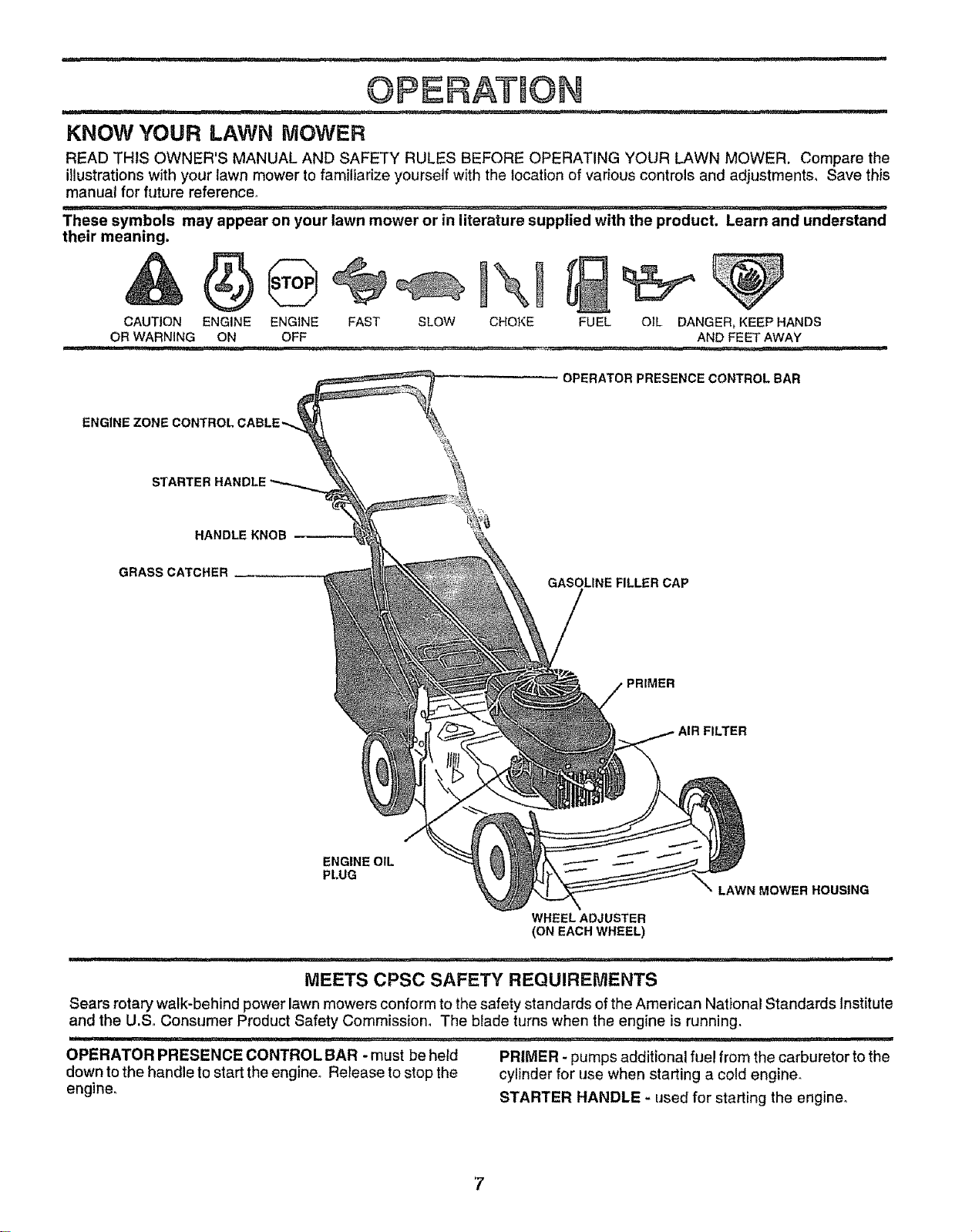

OPERATION
KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the
illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments, Save this
manual for future reference,
.... I'IH"nI'I'U''Ill ................................................ ' "'_ "
These symbols may appear on your lawn mower or in literature supplied with the product. Learn and understand
their meaning.
CAUTION ENGINE ENGINE
OR WARNING ON OFF
FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
AND FEET AWAY
'OPERATOR PRESENCECONTROLBAR
ENGINEZONEI
STARTER HANDLE
HANDLE KNOB
GRASS CATCHER
GASOLINEFILLER CAP
,PRIMER
AIR FILTER
ENGINE OIL
PLUG
LAWN MOWER HOUSING
WHEEL ADJUSTER
(ON EACH WHEEL)
i .... u .... Mn'' ' ,,,,,,,,,, ' ............... I'='"I="'u"nI'u................................ II II I '
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform tothe safety standards ofthe American National Standards Institute
and the U.SoConsumer Product Safety Commission, The blade turnswhen the engine is running_
J i i,,,ii.... i,,11 ..... ,,, ,,qf ..........i,, ., ,,, i......................................
OPERATOR PRESENCE CONTROL BAR - must be held PRIMER - pumps additional fue! from the carburetor tothe
down tothe handle tostart the engine° Re_easeto stop the cylinderfor use when starting a cold engine°
engine, STARTER HANDLE - used for starting the engine°
7
OPERATION
...................... ........................................................... i111, i
/
I The operation of any lawn mower can result inforeign objects thrown into the eyes, which can
I
result in severe eye damage. Always wear safety glasses or eye shields while operating your
lawn mower or performing any adjustments or repairs. We recommend a wide Visionsafety
mask over the spectacles or standard safety glasses.
....i,i ,H, , ,,n, r,, r,, ...... """'"'"'"""'" ' .................................... '...........
HOWTO USEYOUR LAWN MOWER TO ATTACH GRASS CATCHER (See Fig. 3)
ENGINE SPEED CONTROL (See Fig. 2) • Closetheftiplid. Fliplidmustbeclosedwhileoperating
ENGINE SPEED lawn mower,
The engine speed was set at the factory for optimum • Lift the reardoor on the mower housing and place the
performance. Speed is not adjustable, grass catcher frame onto the formed tabs on the rear
door hinge bracket.
ENGINE ZONE CONTROL . The grass catcher is secured to the lawn mower
..................... housing when the rear door' is Iowered onto the grass
CAUTION: Federal regulations require catcher frame°
an engine control to be installed on this
' ,11....... 11,,,,,,N
,_mo--,no,,or,om,n,m,zo, o! C,OT,Oono,,u,, our, nmowe,,
risk of blade contact injury. Do not without clipping deflector or approved I
under any circumstances attempt to grass catcher in place. Never attempt I
defeat the function of the operator con- to operate the lawn mower with the rear |
trol. The blade turns when the engine is door removed or propped open. I
....I'unninR., .... , .... ,................
o Your lawn mower is equipped with an operator pres-
ence control bar which requires the operator to be
positioned behind the lawn mower handle to start and
operate the lawn mower.
TO ADJUST CUTTING HEIGHT (See Fig. 2)
o Raise wheels for low cut and lower'wheels for high cut.
o Adjust cutting height to suit your' requirements Me-
dium position is best for' most lawns.
= To change cutting height, squeeze adjuster lever to-
ward wheel, Move wheel up or down to suit your
requirements. Be sure all wheels are in the same
setting.
NOTE: Adjuster' is properly positioned when plate tab
inserts into hole in lever. Also. 9-position adjusters (if so
equipped) allow {ever to be positioned between the plate
tabs.
LOWER WHEELS
FOR HIGH CUT
RAISE WHEELS
FOR t.OW CUT
PLATETAB
BRACKET GRASS
CATCHER
FRAME
"/ABS \ I
FIG. 3
TO EMPTY GRASS CATCHER (See Fig. 4)
• To remove grass catcher', release operator presence
control bar' to stop engine.
• Lift up rear door and remove the grass catcher by the
handle°
= Do not drag the bag when emptying; it will cause
unnecessary wear°
FIG. 2
FIG. 4

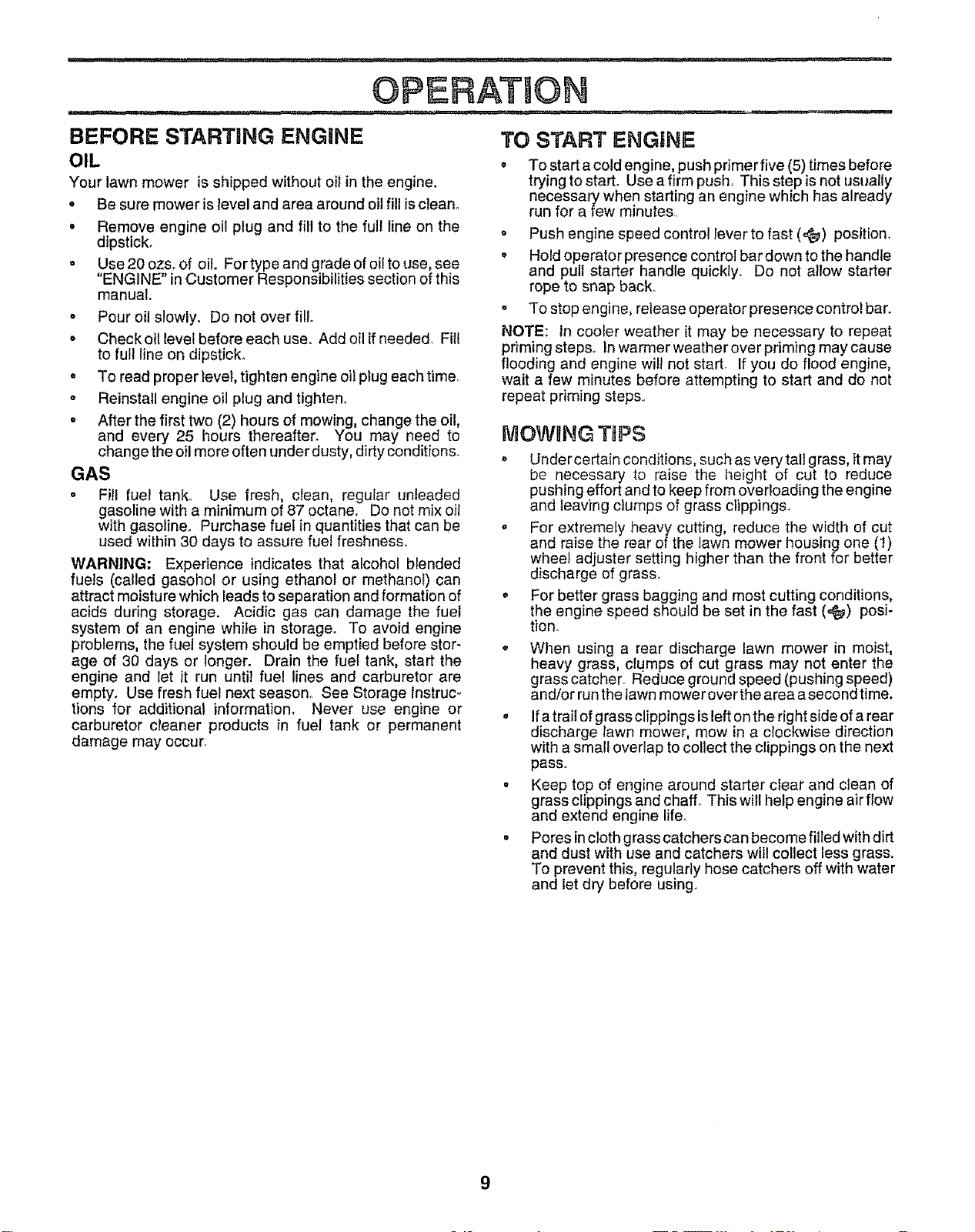

OPERAT]O
BEFORE STARTING ENGINE
OIL
Your lawn mower is shipped without oil in the engine.
o Be sure mower is level and area around oil fill is clean°
• Remove engine oil plug and fill to the full line on the
dipstick.
° Use 20 ozsoof oil. Fortypeand grade of oil to use, see
"ENGINE" in Customer Responsibilities section of this
manual.
o Pour oil slowly. Do not over fill.
o Check oil level before each use. Add oil ifneeded, Fill
to full line on dipstick.
° To read proper level, tighten engine oil plug each timer
° Reinstall engine oil plug and tighten.
° After the first two (2) hours of mowing, change the oil,
and every 25 hours thereafter. You may need to
change the oil more often under dusty, dirty conditions°
GAS
• Fill fuel tank° Use fresh, clean, regular unteaded
gasoline with a minimum of 87 octane. Do not mix oil
with gasoline. Purchase fuel in quantities that can be
used within 30 days to assure fuel freshness.
WARNING: Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or methanol) can
attract moisture which leads to separation and formation of
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid engine
problems, the fuel system should be emptied before stor-
age of 30 days or longer. Drain the fuel tank, start the
engine and let it run until fuel lines and carburetor are
empty. Use fresh fuel next season_ See Storage Instruc-
tions for additional information. Never use engine or
carburetor cleaner products in fuel tank or permanent
damage may occur,
TO START ENGINE
= To start a cold engine, push primer five (5) times before
trying to start° Use a firm push. This step is not usually
necessary when starting an engine which has already
run for a few minutes,
• Push engine speed control lever to fast (_) position,
,, Hold operator presence control bar down to the handle
and pull starter handle quickly_ Do not allow starter
rope to snap back.
o Tostop engine, release operator presencecontrolbaro
NOTE: In cooler weather it may be necessary to repeat
priming steps_ in warmer weatherover priming maycause
flooding and engine wilt not start. If you do flood engine,
wait a few minutes before attempting to start and do not
repeat priming steps.
MOWING TUPS
o Under certain conditions, such as very tall grass, itmay
be necessary to raise the height of cut to reduce
pushing effort and to keep from overloading the engine
and leaving clumps of grass clippings°
° For extremely heavy cutting, reduce the width of cut
and raise the rear of the lawn mower housing one (1)
wheel adjuster setting higher than the front for better
discharge of grass..
• For better grass bagging and most cutting conditions,
the engine speed should be set in the fast (_) posi-
tion.
,, When using a rear discharge lawn mower in moist,
heavy grass, clumps of cut grass may not enter the
grass catcher. Reduce ground speed (pushing speed)
and/or run the lawn mower over the area a second time.
o Ifa trail of grassclippings isleft on the right side of a rear
discharge lawn mower, mow in a clockwise direction
with a small overlap to collect the clippings on the next
pass.
• Keep top of engine around starter clear and clean of
grass clippings and chaff° This will help engine airflow
and extend engine lifeo
• Pores incloth grass catchers can become _led with dirt
and dust with use and catchers will collect less grass.
To prevent this, regularly hose catchers off with water
and let dry before using..
lUlU ii ..... i, ' ,u, , i ...................... ,, ,, ,111
CUSTOM RIESPONSUBmLmES
................... ll,ll .................... i ,i ,,i, u................... , .......................
MAINTENANCE SCHEDULE
FILL IN DATES _"O_
AS YOU COMPLETE
REGULAR SERVICE
Check for Loose Fasteners 6_4 I 6/'
Clean/Inspect Grass Catcher
_(If Equ,!p,ped) ............. _ ___ _f
1_ Ciean Lawn Mower tM# I_ .........
O Clean under Drive Cover'(Power-Propelled Mowers_) ,,, t_
Check drive belt/pulleys
_ ,(P0wer-Pr0pelled Mowers)
Ch,eck/Sharpen/Replace Blade 6,/3
Lubrication Chart _ 6/'
Clean Battery/Recharge ...................
, (Electr! € Start Mowers) .... 6#4
I_ ,Check Engine Oil Level ............ _
N Change Engine Oil 6,#' 6/'t,2
G Clean Air Filter' _
I Inspect Muffler .... 64_
N Clean or Replace Spark Plug ......... '........... 64' ............i........
E Replace Air Filter' Paper, Oartr!dg e................ 6/'2 [
1- Change moreoften when operatingundera heavy load orInhigh ambienttemperatures
2 - Service more oftenwhen operating in dirty or dusty conditions,
3 - Replace blades more oftenwhen mowinginsandysoil,
4 - Charge 48 hours at endof seasom
Q_'4
LUBRICATION CHART
GENERAL RECOIViMENDATIONS
The warranty on this lawn mower does not cover items that
have been subjected to operator abuse or negligence.. To
receive ful! value from the warranty, operator must maintain
mower as instructed in this manual,
Some adjustments will need to be made periodically to
properly maintain your unit°
All adjustments in the Service and Adjustments section of
this manual should be checked at least once each season.
• Once a year, replace the spark plug, replace air filter
element and check blade for wear. A new spark plug
and clean/new air filter element assures proper air-fuel
mixture and helps your engine run better and last
longer.
• Fo!!ow the maintenance schedule in this manuat.
) WHEEL
ADJUSTER
(_)BRAKE
SPRING
BRACKET
(_) ENGINE OIL
BEFORE EACH USE
o Check engine oil tevel,
o Checkfor loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICATION CHART").
(_H_NDLEBRACKET IREAR
MOUNTINGPIN DOOR
HINGE
(_) SPRAY LUBRICANT
(_) SAE30 MOTOROIL REFERTOENGINE- CUSTOMERRESPON-
SIB1LITIES SECTION.
IMPORI"ANT: DO NOT OIL OR GREASE PLASTIC WHEEL
BEARINGS, VISCOUS LUBRICANTS WILL ATTRACT
DUST AND DIRT THAT WILL SHORTEN THE LIFE OF
THE SELF LUBRICATING BEARINGS, IF YOU FEELTHEY
MUST BE LUBRICATED, USE ONLY A DRY, POWDERED
GRAPHITE TYPE LUBRICANT SPARINGLY,
10

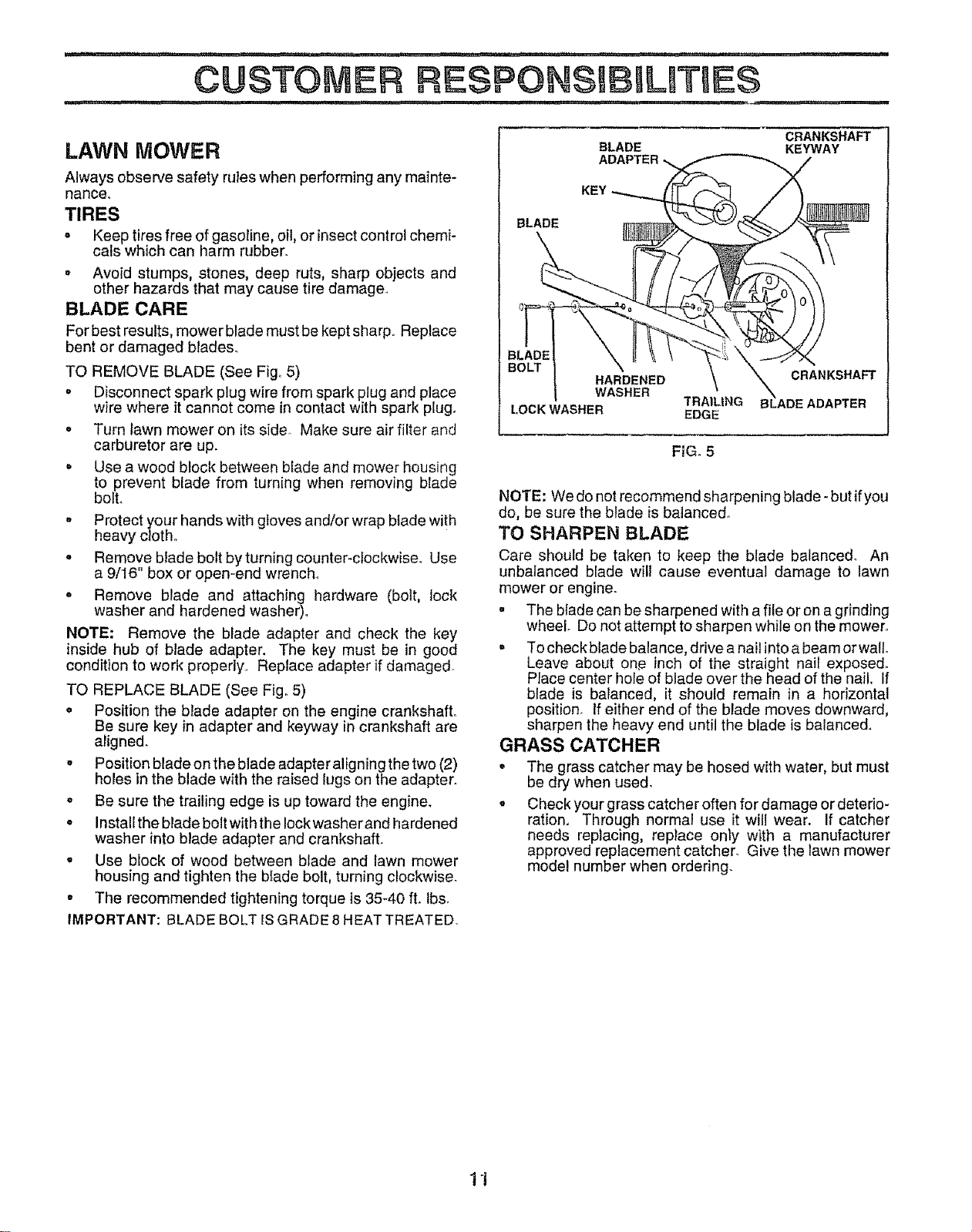

LAWN MOWER
Always obsewe safety rules when performing any mainte-
nanceo
TIRES
• Keep tires free of gasoline, oil, or insect control chemi-
cals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
BLADE CARE
For best results, mower blade must be kept sharp. Replace
bent or damaged blades.
TO REMOVE BLADE (See Fig. 5)
° Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug.
• Turn lawn mower on its side. Make sure air filter and
carburetor are up.
• Use a wood block between blade and mower housing
to prevent blade from turning when removing blade
bolt.
° Protect your hands with gloves and/or wrap blade with
heavy cloth.
• Remove blade bolt by turning counter-clockwise. Use
a 9/16" box or open-end wrench.
, Remove blade and attaching hardware (bolt, lock
washer and hardened washer).
NOTE: Remove the blade adapter and check the key
inside hub of blade adapter. The key must be in good
condition to work properly. Replace adapter if damaged
TO REPLACE BLADE (See Fig. 5)
o Position the b_ade adapter on the engine crankshaft.
Be sure key in adapter and keyway in crankshaft are
aligned.
° Position blade on the blade adapter aligning the two (2)
holes in the blade with the raised tugs on the adapter_
° Be sure the trailing edge is up toward the engine.
• Install the blade bolt with the lock washerand hardened
washer into blade adapter and crankshaft.
• Use block of wood between blade and lawn mower
housing and tighten the blade bolt, turning clockwise.
, The recommended tightening torque is 35_40 ft, Ibs,
IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED,
CRANKSHAFT
BLADE KEYWAY
KEY
BLADE
HARDENED CRANKSHAFT
\
WASHER TRAILING BLADE ADAPTER
LOCK WASHER EDGE
FiG. 5
NOTE: We do not recommend sharpening blade - but ifyou
do, be sure the blade is balanced.
TO SHARPEN BLADE
Care should be taken to keep the blade balanced° An
unbalanced blade wilt cause eventual damage to lawn
mower or engine.
= The blade can be sharpened with a file or on a grinding
wheel. Do not attempt to sharpen while on the mower..
, To check blade balance, drive a nail into a beam orwalL
Leave about on.e inch of the straight nail exposed.
Place center hole of blade over the head of the nail. If
blade is balanced, it should remain in a horizontal
position. Ifeither end of the blade moves downward,
sharpen the heavy end until the blade is balanced.
GRASS CATCHER
° The grass catcher may be hosed with water, but must
be dry when used.
o Check your grass catcher often for damage or deterio-
ration, Through normal use it will wear. If catcher
needs replacing, replace only with a manufacturer
approved replacement catcher. Give the lawn mower
model number when ordering.
11
......... ,,,, ' ii, u ..... H ,,i, i,

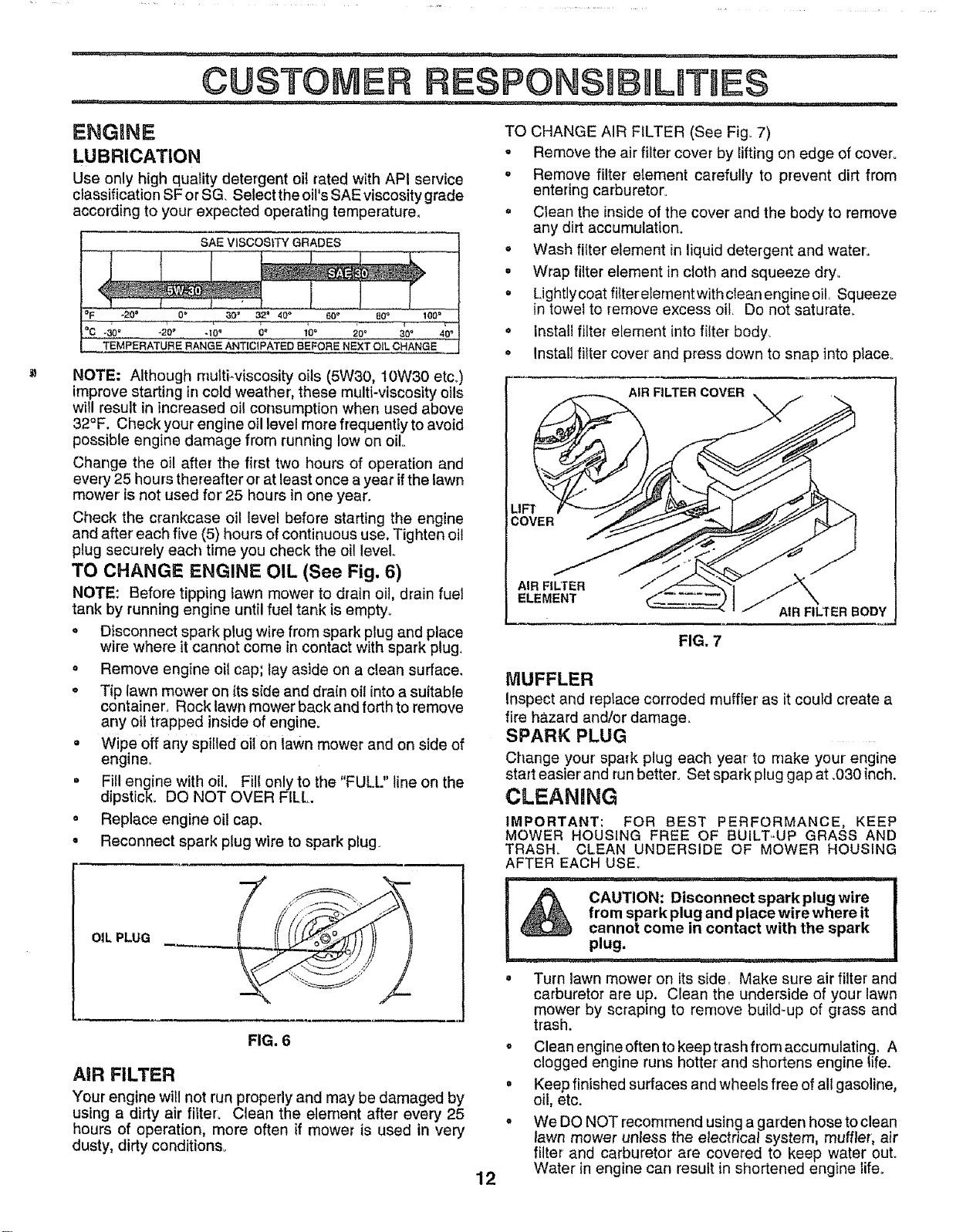

CUSTOM RESPON$1BILmE$
ENGINE
LUBRICATION
Use only high quality detergent eli rated with API service
classificationSF or SG Select theoil'sSAE viscositygrade
according to your expected operating temperature_
SAE VISCOS|TY GRADES
-20" 0r
TEMPERATURE RANGEANT[CIPATEDBEFOFIENE×TOILCHANGE
NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)
improve starting in cold weather, these multFviscosity oils
will result in increased oi! consumption when used above
32°F. Check your engine oil level more frequently to avoid
possible engine damage from running low on oilo
Change the oil after the first two hours of operation and
every 25 hours thereafter or at least once a year ifthe lawn
mower' is not used for 25 hours in one year.
Check the crankcase oil level before starting the engine
and after' each five (5) hours of continuous use. Tighten oil
plug securely each time you check the oi! level,,
TO CHANGE ENGINE OIL (See Fig, 6)
NOTE: Before tipping lawn mower' to drain oil, drain fuel
tank by running engine until fuel tank is empty.
• Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug,
° Remove engine oil cap', lay aside on a clean surface.
o Tip lawn mower on its side and drain oilintoa suitable
container, Rock lawn mower back and forth to remove
any oil trapped inside of engine.
= Wipe off any Spilted oil on iawn mower and on side of
engme_
• Fill engine with oil. Fill only to the "FULL" line on the
dipstick. DO NOT OVER FILL.
° Replace engine oil cap.
• Reconnect spark plug wire to spark plug
OIL PLUG
FIG, 6
AiR FILTER
Your engine willnot run properly and may be damaged by
using a dirty air filter, Clean the element after every 25
hours of operation, more often if mower is used in very
dusty, dirty conditions,
12
TO CHANGE AIR FILTER (See Fig. 7)
,, Remove the air filter cover by iifting on edge of cover°
- Remove filter element carefully to prevent dirt from
entering carburetor°
= Clean the inside of the cover and the body to remove
any dirt accumulation.
• Wash filter element in liquid detergent and water.
, Wrap fiRer element in cloth and squeeze dry,
• Lightlycoat filter element with clean engine oil, Squeeze
in towel to remove excess oil Do not saturate.
o Install filter element into filter body
o install filter cover and press down to snap into place_
AIR FILTER COVER
LIF
COVER
AIR FILTER /
ELEMENT
AiR FIL_ER BODY
FIG. 7
MUFFLER
Inspect and replace corroded muffler' as itcould create a
fire hazard and/or damage,.
SPARK PLUG
Change your spark plug each year- to make your engine
start easier and run better. Set spark plug gap at ,030 inch.
CLEANING
IMPORTANT: FOR BEST PERFORMANCE, KEEP
MOWER HOUSING FREE OF BUILT-UP GRASS AND
TRASH. CLEAN UNDERSIDE OF MOWER HOUSING
AFTER EACH USE.
,,,,,,,,
._ CAUTION: Disconnect spark plug wire I
from spark plug and place wire where it !
cannot come in contact with the spark |
plug. I,
• Turn lawn mower on itsside, Make sure air filter and
carburetor are up. Clean the underside of your lawn
mower by scraping to remove build-up of grass and
trash.
• Clean engine often to keep trash from accumulating, A
clogged engine runs hotter and shortens engine life.
= Keep finished surfaces and wheels free of all gasoline,
oil, etc.
o We DO NOT recommend using a garden hose to clean
lawn mower unless the electrical system, muffler, air
filter and carburetor are covered to keep water out.
Water in engine can result in shortened engine life.
SERVmCEANO ADJUSTMENTS
i..... BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
Release control bar.
_, Make sure the blade and all moving parts have completely stopped.
o Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTlNG HEIGHT" in the Operation
section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the rear wheels of
your lawn mower, is provided to minimize the possibility
that obiects will be thrown out the rear of the lawn mower
into the operator's mowing position°
If the rear deflector becomes damaged, it should be re-
placed°
TO ADJUST HANDLE (See Figs. 9 Thru 11)
Your lawn mower handle can be raised or lowered foryour
mowing comfort, Four (4) positions are available: high,
medium high, medium low and low. Handles are shipped
mounted in the medium low position.
o To change from medium low to medium high position,
the upper and lower handle sections will have to be
turned over (See Fig, 9 B)o
o Remove the cable clips
o Remove the controls and operator presence control
bar from the upper handle_
. Remove the starter rope guide from the lower handle,.
o Remove hairpin cotters.
, Disconnect the lower handle from the handle brackets
(See Fig° 11)o
° Turn the handle over and reassemble the hairpin
cotters that have been removed°
o Reassemble the starter rope guide.
• Reassemble the controls and the operator presence
control bar to the upper handle.
CAUTION: The operator presence con-
trol bar must pivot freely to permit blade
brake engagement when control bar is
released. Do not over tighten the fas-
teners holding the controls to the up-
per handle.
o To change from medium low to high position only the
upper handle section wil! have to be turned over (See
Fig. 10A),,
• To change from medium low to low position, only the
lower handle section will have to be turned over (See
Fig. 10B).
ENGINE
CARBURETOR
Your carburetor has a non-adjustable fixed main jet for
mixture control, if your engine does not operate properly
due to suspected carburetor problems, take your lawn
mower to an authorized service center for repair or adjust-
ment.
SHIPPING POSITION
MEDIUM LOW
MEDIUM HIGH
FIG. 9A FIG. 9B
LOW
FIG. '10A FIG. 10B
LOWER HANDLE
SQUEEZE
TO REMOVE
HAIRPIN CLIP
FIG. 11
HANDLE
BRACKET
ENGINE SPEED
Your engine speed has been factory set. Do not attempt
to increase engine speed or itmay result in personal injury°
If you believe that the engine is running too fast or too slow,
take your lawn mower to an authorized service center for
repair and adjustment.
13
i ... =1= ....... i .uu ....i................. i =.... =1 .=. . i.
......... . ....... N. i1.. 'n' = . u' i ii'"u .................. ,.,i .., H Hi .-1 .' ,.
Immediately prepare your lawn mower for storage at the
end of the season or if the unit will not be used for 30 days
or more°
LAWN MOWER
When lawn mower isto be stored for a period of time, clean
it thoroughly, remove all dirt, grease, leaves, etco Store in
a clean, dry area.
- Clean entire lawn mower (See "CLEANING" in the
Customer Responsibilities section of this manual)°
. Lubricate as shown in the Customer Responsibilities
section of this manual.
o Be sure that all nuts, bolts, screws, and pins are
securely fastened. Inspect moving partsfor damage,
breakage and wear. Replace if necessary.
o Touch up all rusted or chipped paint surfaces; sand
lightly before painting
HANDLE (See Fig. 12)
You can fold your lawn mower handle for storage.
° Squeeze the bottom ends of the lower handle toward
each other until the lower handle clears the handle
bracket, then move handle fonNard.
o Loosen upper handle mounting bolts enough to allow
upper handle to be folded back.
IMPORTANT: WHEN FOLDING THE HANDLE FOR
STORAGE OR TRANSPORTATION, BE SURE TO FOLD
THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE
CONTROL CABLES°
= When setting up your handle from the storage position,
the lower handle will automatically lock into the mowing
position_
LOWER HANDLE
HANDLE
BRACKET
SQUEEZETO
FOLD
HAIRPIN
COTTER
OPERATOR PRESENCE
CONTROLBAR
UPPER HANDLE
FOLDFORWARD
FORSTORAGE
FOLD BACKWARD
MOWING
POSITION
LOWER HANDLE
FIG. 12
ENGINE
FUEL SYSTEM
IMPORTANT: IT iS iMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,
FUEL HOSE, OR TANK DURING STORAGE. ALSO,
EXPERIENCE INDICATES THAT ALCOHOL BLENDED
FUELS (CALLED GASOHOL OR USING ETHANOL OR
METHANOL) CAN ATTRACT MOISTURE WHICH LEADS
TO SEPARATION AND FORMATION OF ACIDS DURING
STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL
SYSTEM OF AN ENGINE WHILE IN STORAGE.
° Drain the fuel tank.
° Start the engine and let it run until the fuel lines and
carburetor are empty.
- Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
• Use fresh fuel next season
NOTE: Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits during stor-
age_ Add stabilizer to gasoline in fuel tank or storage
container, Always follow the mix ratiofound on stabilizer
container. Run engine at least 10 minutes after adding
stabilize_ to allow the stabilizer'to reach the carburetor, Do
not drain the gas tank and carburetor if using fuel stabilizer,
ENGINE OIL
Drain oil (with engine warm) and replace with clean engine
Oilo (See "ENGINE" in the Customer Responsibilities
section of this manual)°
CYLINDER
o Remove spark plug,
o Pour' one ounce (29 ml) of oil through spark plug hole
into cylinder°
o Pull starter handle slowly a few times to distribute oil
° Replace with new spark plug,
OTHER
° Do not store gasoline from one season to another,
° Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.
o If possible, store your unit indoors and cover it to give
protection from dust and dirt.
• Cover your unit with a suitable protective cover that
does not retain moisture,, Do not use plastic, Plastic
cannot breathe which allows condensation to form and
will cause your unit to rust°
IMPORTANT: NEVER COVER MOWER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM,
........................................... i ....... =.... i..... hi'
_ CAUTION: Never store the lawn mower
| ,_ _ with gasoline in the tank inside a build-
| _ ing where fumes may reach an open
| _ flame or spark. Allow the engine to
J-- cool before storing in any enclosure.
=_ =.LIJ............. = .......... i,,, ,,, ,,,11,,111,
14
i ii i ' ii ,, i , iii, i, i, ii i ............... ii
SERVICE NOTES
ii i i i ] i,i ,1111, ii .... ii i , i ii i,i i
15
\
gO
n-
I
W
iv'
0
GO
d
Z
Q
0
!
!
n-
Z
-I
0
n-
0
0
o_
W
r_
'_0
o.Z
0
0
O0
UJ
0
rn
@
0
0
0
0
od
Ez
(DO
_mowO_-O
x
0
E
_o _ o
t-_._ _ 0
mO_Ou, oon_
0
_ O0 O0 O000 f'_ 0
0 (0 f_ (0 LO CO _" O_
0 _0 (0 O0 tO _0 O0 _0
<
O0
O0
00_00_0_0_0_
__0___0___
17
CRAFTSMAN 4oCYCLE ENGNNE MODELNUMBER143.974006
g00
4O0
135
130
120
11g
125
126
150
#
150
O'" 370K
, 3g0
...261 _'_" 287
2O0 _
ss2/,_
/ 93
285
300
_'_ 292
182
275
.I I
I
/
41
43
46
24O
18
CRAFTSMAN 4=CYCLE ENGINE MODELNUMBER143.974006
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
36470A
2 26727
6 33734
7 36557
12A 36558
14 28277
t5 30589
16 31383A
17 31335
18 651018
19 36281
20 32600
30 34460A
40 34514
40 34515
40 34516
41 32538B
41 32548B
41 32549B
42 28986
42 28987
42 28988
43 20381
45 30963B
46 32610A
48 27241
50 36726
52 29914
69 35261
70 30571C
72 36083
75 26208
80 30574A
81 30590A
82 30591
83 30588A
86 650488
89 611004
90 611112
92 650815
93 650816
100 34443A
103 651007
1t0 34961
119 36437
120 36474
125 36471
125 36472
126 29314B
126 29315C
130 6021A
135 35395
150 35991
151 31673
169 27234A
172 32755
174 30200
178 29752
182 6201
184 26756
185 31384A
Cylinder 186 32653
(Inc!. 2,7,20,125,169,t72,174) 189 650839
Dowel Pin 191 36559
Breather Element 195 610973
Breather Ass'y. (tncL 6 & !2A) 207 34336
Breather Cover & Tube 216 33086
Washer 223 650451
Governor Rod (Incl. 14) 224 34690A
Governor Lever 238 650806
Governor Lever Clamp 239 34338
Screw, Torx T-t5, 8-32 x 19/64" 240 34858
Extension Spring 245 34340
Oil Seal 250 34341B
Crankshaft 260 35491
Piston, Pin & Ring Set (Std.!, 261 30200
Piston, Pin & Ring Set (.010 OS) 262 650831
Piston, Pin & Ring Set (.020" OS) 275 35708
Piston & Pin Ass'yo (Std.) (tncL 43) 277 650795
Piston & Pin Ass'y. 285 35000A
(.010" OS) (IncL 43) 287 650926
Piston & Pin Ass'y. 290 34357
(,020" OS) (tncL 43) 292 26460
Ring Set (Std.!. 300 35586
Ring Set (.010 OS) 301 36246
Ring Set (.020" OS) 311 27625
Piston Pin RetainingRing 313 34080
Connecting Rod Ass y. (IncL 46) 370A 36261
Connecting Rod Bolt 370C 36861
Valve Lifter 370K 36695
Camshaft (RCR) 380 632744
Oil Pump Ass'y. 390 590694
* Mounting Flange Gasket 400 36475
Mounting FIange
(Incl,72 thru 83,3t 1) 900
Oil Drain PhJg 900
Oil Seal
Governor Shaft
Washer
Governor Gear Ass'y. (Incl. 81)
Governor Spool
Screw, t/4-20 x 1-1/4"
Flywheel Key
Flywheel
Belleville Washer
Flywheel Nut
Solid State Ignition
Screw, Torx T-15, 10-24 x 15/16"
Ground Wire
* Cylinder Head Gasket
Cylinder Head
Exhaust Valve (Std.) (Incl. 15t)
Exhaust Valve
(1/32" OS) (Inclo 151)
(
• . 1)
Intake Va!ve Std ) (Incl 15
Intake Valve (1/32" OS) (Incl° 151)
Screw, 5/16-18 x 1-1/2"
Resistor Spark Plug (RJ19LM)
Valve Spring
Valve Spring Cap
* Valve Cover Gasket
Valve Cover
Screw, 10-24 x 9/16"
Nut & Lock Washer, 1/4-28
Screw, 1/4-28 x 7/8"
* Carburetor To Intake Pipe Gasket
Intake Pipe (Inc!. 224)
Governor Link
Screw, 1/4-20 x 3/8"
S,E. Brake Bracket (Incl, 195)
Terminal
Throttle Link
RP.M Adjusting Lever
Screw, !/4-20 x 1"
Intake Pipe Gasket
Screw, 10-32 x 5/8"
Air Cleaner Gasket
Air Cleaner Body
Air Cleaner Filter
Air Cleaner Cover
Blower Housing ,,
Screw, 10-24 x 9/'16
Screw, 1/4-20 x 1/2"
Muffler (Incl. 277)
Screw, t/4-20 x 2-1/4"
Starter Cup
Screw, 8_32 x 21/64"
Fuel Line
Fuel Line Clamp
Fuel Tank (tncl. 292 & 301 )
Fuel Cap
Oil Fill Plug
Spacer
Lubrication Decal
Primer Decal
Starter Decal
Carburetor (Incl.. 184)
Rewind Starter
Gasket Set
(Inclo Items Marked * )
Replacement Engine NONE
Replacement S/B 750699A,
order from 71-999
RPM High 2900 to 3200
(NOTE: This engine could have been built with 590737
starter. Refer to the design of the rope pulley strength
ribs for part identification°Individual starter parts do not
interchange.)
NOTE: All component dimensions given in U,S. inches
1 inch = 25°4 mm
19
CRAFTSMAN 4-CYCLE ENGaNE MODELNUMBER143.974006
KEY PART
NO. NO. DESCRIPTION
632744
,,'_ A.,.,/'_'., 1 631615
4 631!84
5 631183
6 632504
" 7 650506
_i_. _ 16 631775
25 631867
27 631024
28 632019
29 631028
_-,, 3O 63102t
_,, 31 631022
35 36045
_=-,, 36 632745
37 632547
_... 40 632746
44 27110
,,.4_ 48 631027
Carburetor
(lnct, 184 of Engine Parts List)
Throttle Shaft & Lever Assembly
Throttle Return Spring
Dust Sea! Washer
Dust Seal (Throttle
Throttle Shutter
Shutter Screw
Fuel Fitting
Float Bowl
Float Shaft
Float
Float Bowl "O" Ring
Inlet Needle, Seat, & Clip (Incl. 31)
Spring Clip
Primer Bulb/Retainer Ring
Main Nozzle Tube
"O" Ring, Main Nozzle Tube
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Atmospheric Vent
KEY PART
NO, NO, DESCRIPTION
Hr,.r
590694 Recoil Starter
1 590599A Spring Pin (IncL 4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 690697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Pulley & Rewind Spring Ass'y.
11 590695 Starter Housing Ass'y.
(40 degree grommet)
12 590535 Starter Rope ( 98" X 9/64" dl&)
13 590701 Starter Handle
, H,n' ', I,l,,, I
/
KEY PART
NO. NO, DESCRIPTION
-- 590737 Rewind Starter'
3 590740 Retainer
6 5906t6 Starter' Dog
7 590617 Dog Spring
8 590618A Pulley & Rewind Spring Ass'y
11 590687A Starter Housing Ass'y
(40 degree grommet)
12 590535 Starter Rope
(Length 98" x 9/64" dia.)
13 590701 Starter Handle
14 590741 Locking Tab
NOTE: All component dimensions given in U.S. inches
! inch = 25.4 mm
20
.................... 1,1,,,,_1,_1 i ,,,i ..................... = i ,,, i i1,1
TROUBLESHOOTBNG POINTS
i,,i,i ..................= .......................1,11111111 i,ll ,i,i,,, _
PROBLEM
i i iii 1,1,1,,i
Does not start
Loss of power
Poor cut - uneven
H
Excessive vibration
ii iii IHI ii,,,,rl,n
Starter rope hard to pull
, ii, 1,1,,,
Grass catcher not filling
(If so equipped)
Hard to push
CAUSE
i1,11 ii
1 Dirty air filter.
2. Out of fuel
3. Stale fuel
4 Water in fuel
5. Spark plug wire is disconnected
6 Bad spark plug
7, Loose blade or broken btade adapter
8. Control bar in released position
9. Control bar defective
1 Rear of lawn mower housing/blade dragging
in heavy grass
2. Cutting too much grass
3 Dirty air filter
4.. Buitdup of grass, Ieaves and trash under mower
5, Too much oil in engine
6. Walking speed too fast
1. Worn, bent or loose blade
2. Whee_hetghts uneven
3 Low engine speed
4 Buildup of grass, leaves, and trash under mower
1 Worn, bent or loose blade
2. Bent engine crankshaft
..................... iil,i
1. Engine ttywheel brake Is on when control bar is
released,
2 Bent engine crankshalt
3. B_ade adapter broken
4 Biade dragging in grass
l Cutting height toolow.
2. Lift on blade worn off
3 Catcher not ventingair
4 Low engine speed.
1 Grass is too high or wheel height {s too low.
2_ Rear of lawn mower housing/blade dragging
in grass
3 Grass catcher too full
4. Handle height position not right for you
CORRECTION
,d i ,11iii i iiii,
1 Clean!replace airfilter
2 Fill fuel tank
3 Drain tank and refill with fresh clean fuel
4 Drain fuel tank and carburetor and refilt tank with fresh
gasoline.
5 Connect wire to ptug
6 Replace spark ptug
7 Tighten btade boit or replace bfade adapter
8 Depress control bar to handle
9. Replace controi bar
i ...... IH ,i ,,, i
1. Set in "Higher Cut" position
2 Set in "Higher Cut" position
3. Clean/replace air filter°
4 Clean underside of mower housing
5 Check oi1 level
6. Cut at slower walking speed.
1 Replace blade Tighten blade bolt
2 Set all wheels at same height
3 Contact an authorized service center/department
4. Clean underside of mower housing.
1 Replace blade. Tighten blade bolt
2 Contact an authorized service center/department
............... ii i, iiii1,1ir i
1 Depress contro_ bar to upper handle before
pulling starter rope
2 Contactan authorized service center/department
3 Replace .blade adapter
4 Move tawn mower to cut grass or to hard surface
to start engine
ii ,i, ii ii,
I Raise cutting height.
2 Replace blade
3. Clean grass catcher..
4 Contact an authorized service center/department
1 Raise cutting height
2. Raise rear of lawn mower housing one (1)
setting higher
3 Empty grass catcher.
4 Adjust handle height to suit
21
®
MODEL NO=
917,387120
iF YOU NEED
REPAIR SERVICE
OR PARTS:
FOR REPAIR SERVICE, CALL
THIS TOLL FREE NUMBER:
1-800-4-REPAIR
(1-800-473-7247)
FOR REPLACEMENT PARTS
iNFORMATION AND
ORDERING, CALL THIS
TOLL FREE NUMBER_
1-800-FON-PART
(1-800-366-7278)
4.0 HORSEPOWER
20" REAR DnSCHARGE
ROTARY LAWN MOWER
Each lawn mower has its own model number. Each en-
gine has its own model number,
The model number for your' lawn mower wil_be found on a
decal attached to the rear' ofthe lawn mower housing.
The model number for your engine will be found on the
blower housing of the engine°
All parts listed herein may be ordered from any Sears,
Roebuck and Co. Service CenteriDepartment and most
Retail Stores°
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
,, PRODUCT - LAWN MOWER
a MODEL NUMBER- 917.387120
= ENGINE - CRAFTSMAN - MODEL NO. 143.974006
* PART NUMBER
o PART DESCRIPTION
Your Sears merchandise has added value when you
consider' Sears has service units nationwide staffed with
Seats trained technicians., professional technicians
specifically trained to insure that we meet our' pledge to
you, we service what we sell.
