PLANNING GUIDE
WINE CABINET & BEVERAGE CENTRE
RS6009V2RT1 I RS6009V2R1 I RS6009SBLT1 I RS6009SBL1
PAGE 290003295A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2023 © FISHER & PAYKEL LIMITED 2023
PLANNING GUIDE | REFRIGERATION RS6009V2RT1 | RS6009V2R1 | RS6009SBLT1 | RS6009SBL1
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
Design Choices 3
Specification Guide 5
Integrated Wine Cabinet 6
Integrated Beverage Cabinet 8
Multiple Installation 10
CONTENTS
CONTENTS
Planning Guide information for Developed and
Detailed Design available in Q2 2024
i
i
© FISHER & PAYKEL LIMITED 2023 PAGE 390003295A PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 2023

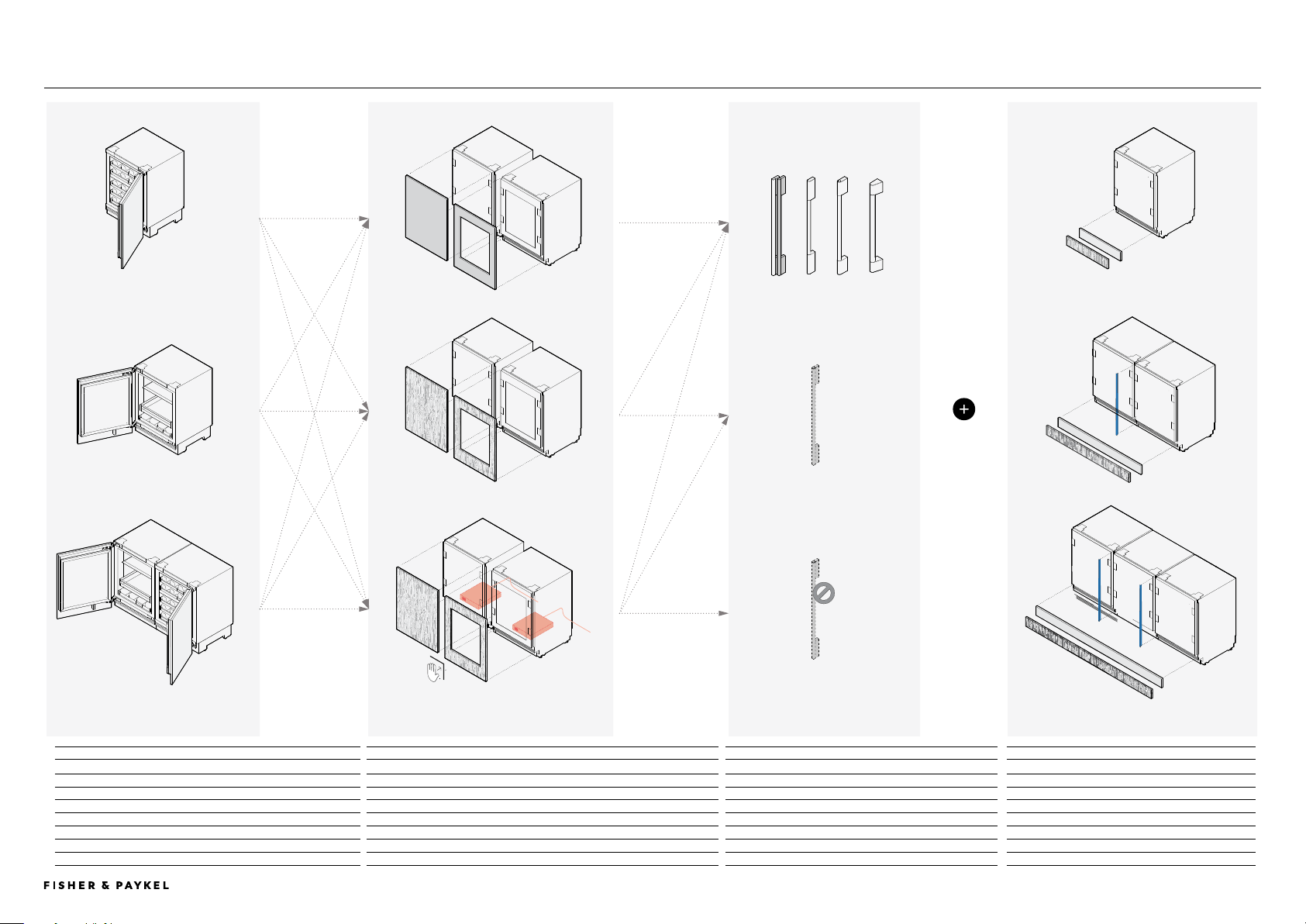

DESIGN CHOICES
PAGE 490003295A PLANNING GUIDE REFRIGERATION VERSION A - SEPTEMBER 2023 © FISHER & PAYKEL LIMITED 2023
MODELS
DOOR PANELS
HANDLES
STAINLESS STEEL TOE KICK AND JOINER KIT
Left Hinge Right Hinge
Left Hinge Right Hinge
Integrated Wine Cabinet - Glass door RS6009V2RT1 Solid Stainless Steel Door Panel RD6009L RD6009R
1
Fine Aluminium Handle AHD5RD09 Toe Kick Joiner Kit
Integrated Wine Cabinet - Solid door RS6009V2R1 Glass Stainless Steel Door Panel RD6009VL RD6009VL
2
Fine Black Aluminium Handle AHD5RD09B Single Installation AKRS06010 Not required
Integrated Beverage Cabinet - Glass door RS6009SBLT1
3
Fine Round Handle AHSRD09 Dual Installation AKRS12010 AJRS09LR (1x)
Integrated Beverage Cabinet - Solid door RS6009SBL1 Assisted Opening Accessory OPIN1
4
Classic Handle ACLRD09 Triple Installation AKRS18010 AJRS09LR (2x)
5
Professional Handle AHPRD09
Note: All models can achieve opposite hinge location using the supplied parts Note: Custom Door Panels to be manufactured and fitted by cabinetmaker Note: Custom handles to be fitted by cabinetmaker
Note: Custom Toe Kick to be manufactured and fitted by cabinetmaker
DESIGN CHOICES | UNDERCOUNTER CABINETS
Accessory Handle
Custom Handle
No handle
Stainless Steel Panels
Custom Door Panels
Custom Door Panels and
Assisted Opening Accessory
Integrated Wine Cabinet
Integrated Beverage Cabinet
Dual Installation
Single Installation
Dual Installation
Triple Installation
1 2 3 4 5
<CONTENT
© FISHER & PAYKEL LIMITED 2023 PAGE 590003295A PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 2023
SPECIFICATION GUIDE
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 6PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 202390003295A © FISHER & PAYKEL LIMITED 2023

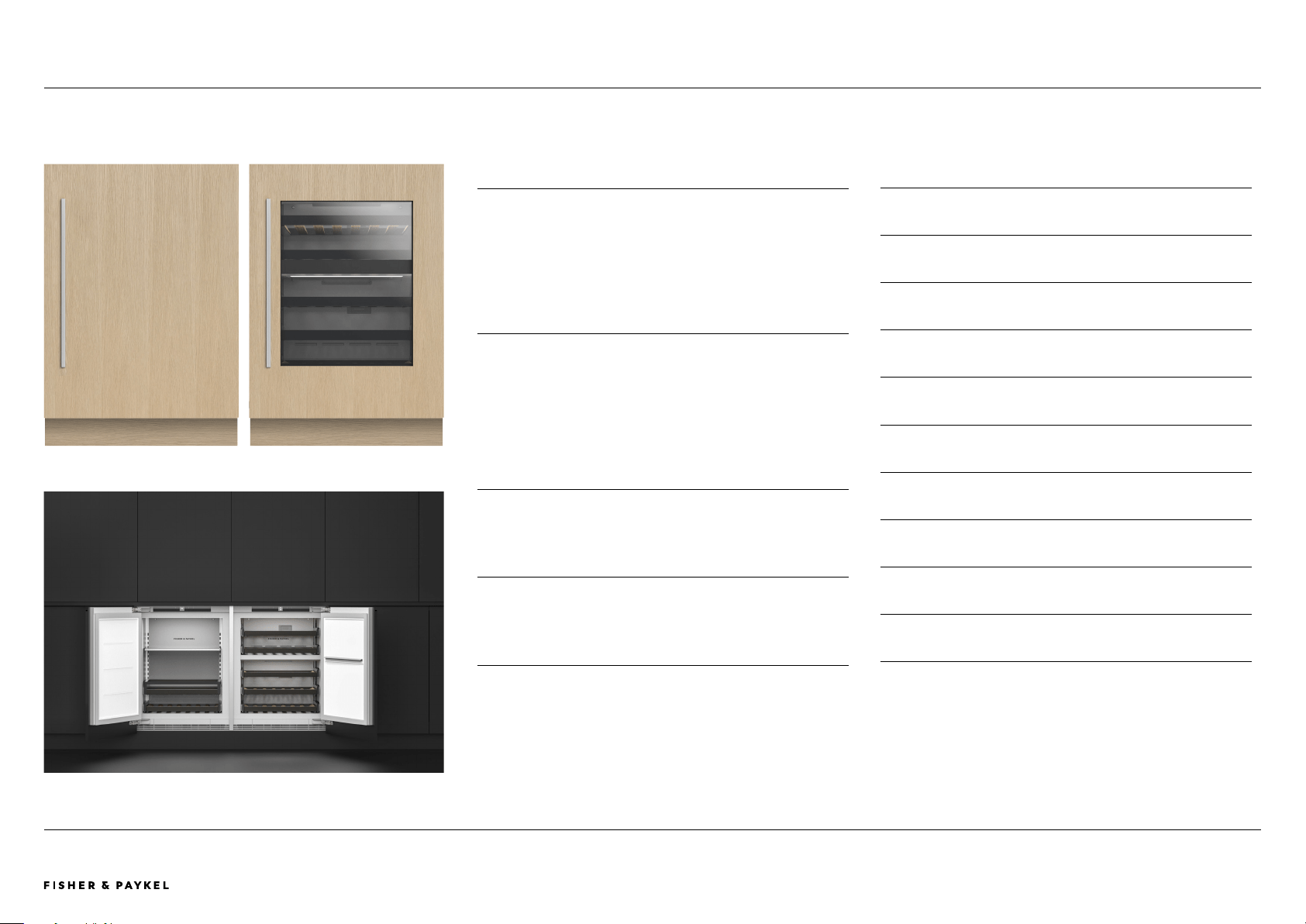

OVERVIEW
Designed for wine lovers, this under-counter wine cabinet
seamlessly fits in any space of the evolving home. Boasting
premium oak slide-out shelves and a UV-tempered glass
door, it elegantly showcases up to 35 bottles. Featuring dual
temperature zones and specialised modes for Red, White,
Sparkling, and Cellar wines, this versatile cabinet provides
the perfect environment for all wine varieties.
PRODUCTS
RS6009V2RT1 Integrated Wine Cabinet
Glass Door, Panel Ready or Stainless Steel Panel, Right
hinge (All models can achieve opposite hinge location using
the supplied parts)
RS6009V2R1 Integrated Wine Cabinet
Solid Door, Panel Ready or Stainless Steel Panel, Right
hinge (All models can achieve opposite hinge location using
the supplied parts)
FEATURES
1 Integrates into any setting within the home, from the bar
to the master suite – the choices are endless
2 Four specialised wine modes for Red, White, Sparkling,
and Cellar wines
3 Designed to fit flush, with 4mm gaps and no visible hinges
or grilles
4 Premium oak slide-out shelves for convenient access and
storage
5 Accommodates up to 35 bottles, providing ample space
for a diverse collection
6 Features two independent temperature zones to cater for
different wine varieties
7 UV-tempered glass door elegantly displays and protects
wine
8 Intuitive interface for easy temperature control and mode
selection
9 Internal LED lighting provides beautiful illumination,
showcasing the collection
"0 Wi-Fi enabled for remote temperature control from the
SmartHQ™ app
SPECIFICATION GUIDE | INTEGRATED WINE CABINET, 60CM
Integrated Wine Cabinet
RS6009V2RT1 - Glass door with Custom PanelRS6009V2LR1 - Solid door with Custom Panel
RS6009SB2LT1 & RS6009V2LR1 Side by Side
RS6009V2RT1, RS6009V2R1
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 7PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 202390003295A © FISHER & PAYKEL LIMITED 2023

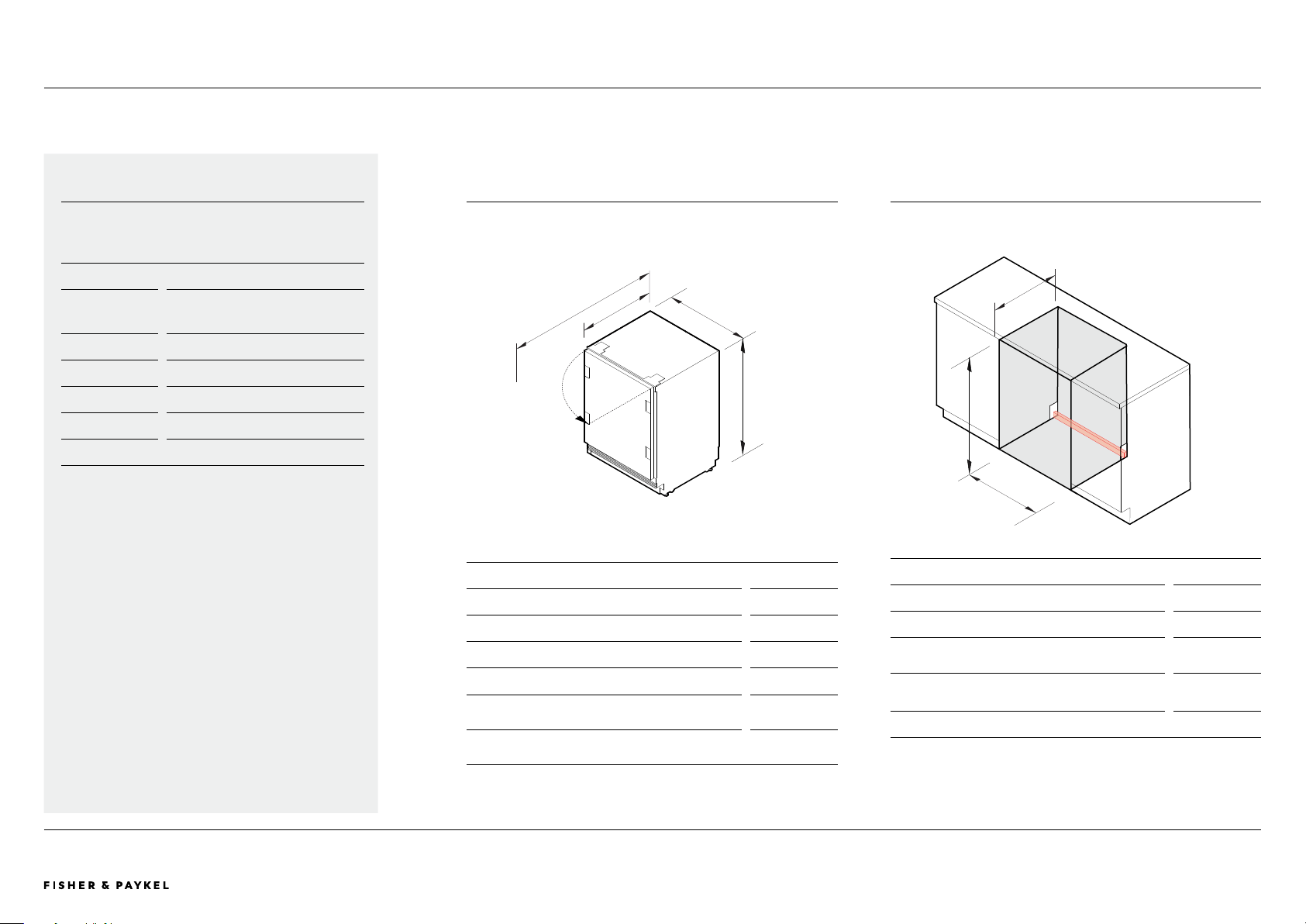

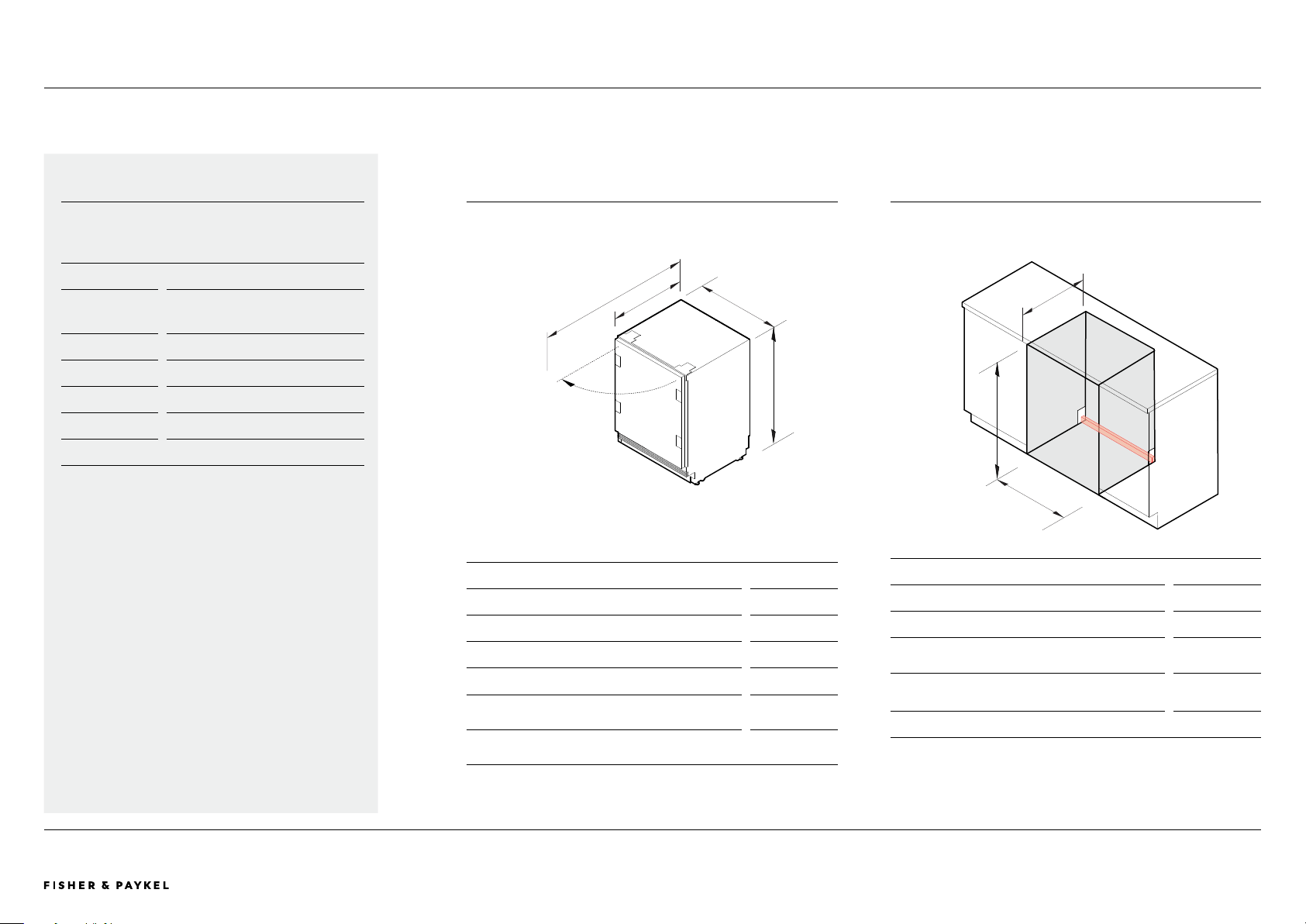

SPECIFICATIONS
Model No.
RS6009V2RT1, RS6009V2R1
Product
Dimensions
H 867-897mm W 592mm D 579mm
Electrical
Supply 220–240V, 50Hz
Service 10 Amps
PRODUCT DIMENSIONS
mm
A Overall height 867-897
B Overall width 592
C Overall depth* 579
D Overall depth with the door open* 1200
Height from floor to bottom of bottom door
panel**
15-150
Depth of toe kick (excl. front door and toe kick
panels)**
50-100
*Excluding Door Panel and Handle
**Applies to Custom Door Panels
Cd
A
B
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Height 870-900
B Minimum width 600
C Minimum overall cavity depth with
service to the side
600
c Minimum overall cavity depth
with service behind
650
Service area H37mm x W600 x D20mm
A
B
C
RS6009V2RT1, RS6009V2R1SPECIFICATION GUIDE | INTEGRATED WINE CABINET, 60CM
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 8PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 202390003295A © FISHER & PAYKEL LIMITED 2023
OVERVIEW
Experience the luxury of the Integrated Beverage Centre.
Seamlessly blending into any home setting, its adjustable
shelves and full-depth wine shelf elegantly house your
favourite beverages. With a UV-resistant glass door and soft
LED lighting, this Beverage Centre is a blend of style and
functionality, oering optimal conditions for all drinks.
PRODUCTS
RS6009SB2LT1 Integrated Beverage Cabinet
Glass Door, Panel Ready or Stainless Steel Panel, Left hinge
(All models can achieve opposite hinge location using the
supplied parts)
RS6009SB2L1 Integrated Beverage Cabinet
Solid Door, Panel Ready or Stainless Steel Panel, Left hinge
(All models can achieve opposite hinge location using the
supplied parts)
FEATURES
1 Integrates into any setting within the home, from the bar
to the master suite – the choices are endless
2 Designed to fit flush, with 4mm gaps and no visible hinges
or grilles
3 Adjustable temperature control helps to keep drinks at the
ideal temperature
4 Customisable beverage shelf with adjustable gates ensures
contents remain upright and neatly organised
5 Spacious 129L capacity, with full-depth wine shelf that can
accommodate up to seven bottles
6 Wi-Fi enabled for remote temperature control from the
SmartHQ™ app
7 Soft LED lighting illuminates the interior when the door is
open
8 UV-tempered glass door elegantly displays and protects
beverages
9 Intuitive touch control for easy temperature selection
SPECIFICATION GUIDE | INTEGRATED BEVERAGE CABINET, 60CM
Integrated Beverage Cabinet
RS6009SB2LT1 - Glass door with Custom PanelRS6009SB2LT1 - Solid door with Custom Panel
RS6009SB2LT1 & RS6009V2LR1 Side by Side
RS6009SB2LT1, RS6009SB2L1
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 9PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 202390003295A © FISHER & PAYKEL LIMITED 2023
C
A
B
d
E
A
B
RS6009SB2LT1, RS6009SB2L1SPECIFICATION GUIDE | INTEGRATED BEVERAGE CABINET, 60CM
SPECIFICATIONS
Model No.
RS6009SB2LT1, RS6009SB2L1
Product
Dimensions
H 867-897mm W 592mm D 579mm
Electrical
Supply 220–240V, 50Hz
Service 10 Amps
PRODUCT DIMENSIONS
mm
A Overall height 867-897
B Overall width 592
C Overall depth* 579
D Overall depth with the door open* 1200
Height from floor to bottom of bottom door
panel**
15-150
Depth of toe kick (excl. front door and toe kick
panels)**
50-100
*Excluding Door Panel and Handle
**Applies to Custom Door Panels
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Height 870-900
B Minimum width 600
C Minimum overall cavity depth with
service to the side
600
c Minimum overall cavity depth
with service behind
650
Service area H37mm x W600 x D20mm
<CONTENT
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 10PLANNING GUIDE REFRIGERATION - VERSION A - SEPTEMBER 202390003295A © FISHER & PAYKEL LIMITED 2023
C
A
B
C
d
b
A

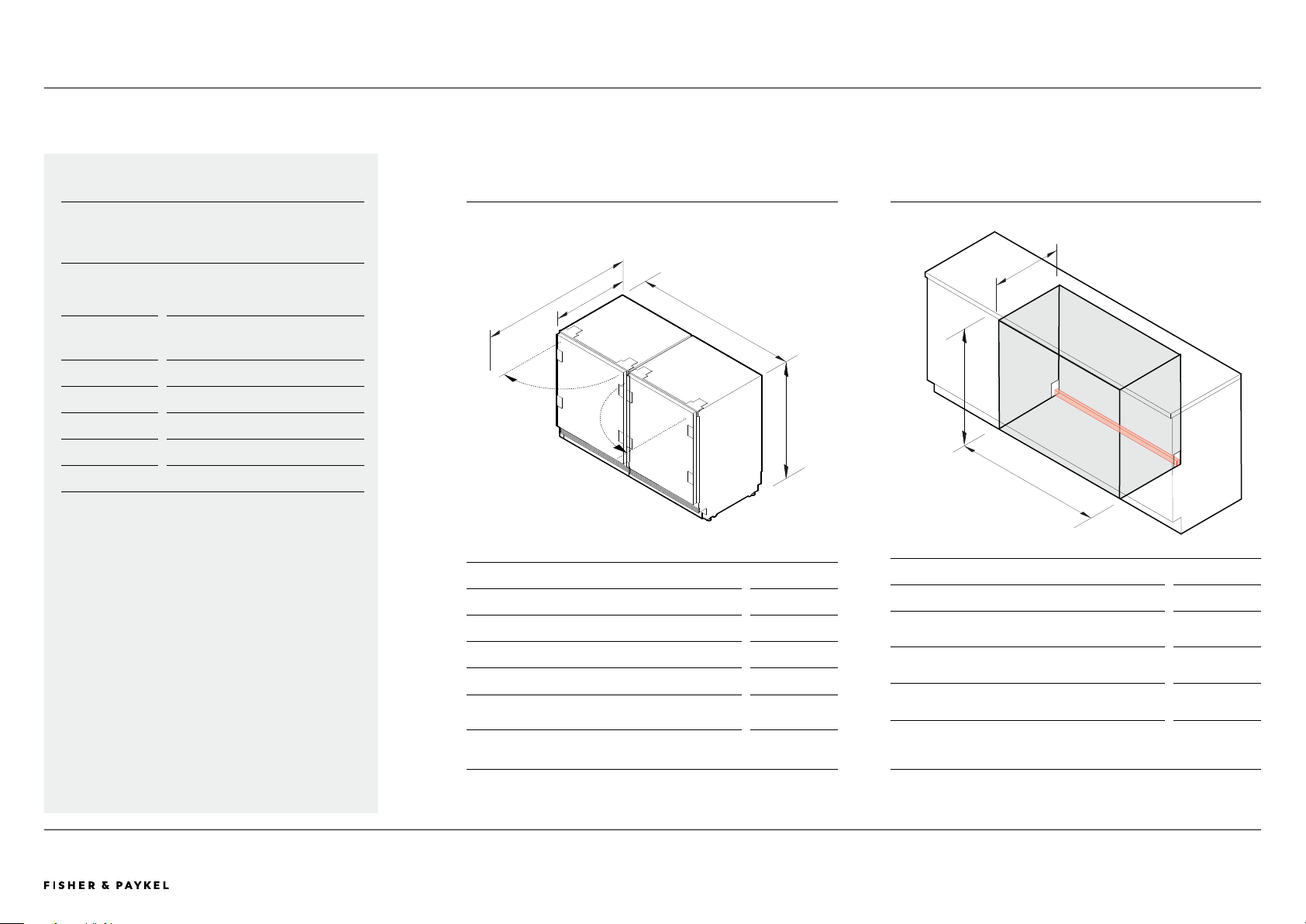

SPECIFICATION GUIDE | MULTIPLE INSTALLATION
SPECIFICATIONS
Model No.
RS6009V2RT1, RS6009V2R1
RS6009SB2LT1, RS6009SB2L1
Product
Dimensions
H 867-897mm W 592mm D 579mm
Electrical
Supply 220–240V, 50Hz
Service 10 Amps
RS6009V2RT1, RS6009V2R1 ,RS6009SB2LT1, RS6009SB2L1
PRODUCT DIMENSIONS
mm
A Overall height 867-897
B Overall width products - dual installation 1190
C Overall depth* 579
D Overall depth with the door open* 1200
Height from floor to bottom of bottom door
panel**
15-150
Depth of toe kick (excl. front door and toe kick
panels)**
50-100
*Excluding Door Panel and Handle
**Applies to Custom Door Panels
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Height 870-900
B Minimum width dual installation
Minimum width triple installation
1200
1800
C Minimum overall cavity depth with
service to the side
600
c Minimum overall cavity depth
with service behind
650
Service area dual installation H37mm x W1200 x D20mm
Service area triple installation H37mm x W1800 x D20mm
Multiple Installation
