Wet/Dry Vacuums
240-5417
OPERATOR’S MANUAL
CAUTION:
To Reduce The Risk Of Injury, User Must Read And
Understand Operator's Manual. Save These Instructions For Future
Reference.
Page 1
SECTION PAGE
Safety Instructions & Warnings ......................................................................................................2
Double Insulation Instructions ........................................................................................................4
Extension Cords .............................................................................................................................4
Unpacking & Checking Carton Contents ........................................................................................ 5
General Assembly Instructions .......................................................................................................7
Dry Vacuum Operation .................................................................................................................10
Liquid Vacuum Operation .............................................................................................................12
Blower Operation .......................................................................................................................... 14
Maintenance .................................................................................................................................16
Installing & Cleaning Cartridge Filter ............................................................................................18
Dust Bag Installation Instructions..................................................................................................19
Installing & Cleaning Foam Wet Filter ..........................................................................................20
Troubleshooting ............................................................................................................................ 21
Exploded View & Parts List ..........................................................................................................22
Notes ............................................................................................................................................23
Warranty .......................................................................................................................................24
Thank you for purchasing this wet/dry vacuum cleaner. Feel condent
that with this vacuum cleaner you are obtaining a high quality product
engineered for optimal performance. This vacuum is capable of picking
up liquids and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL
INSTRUCTIONS.
TABLE OF CONTENTS
IMPORTANT INFORMATION
Gallon
"TANK SIZE" refers to the actual tank volume, and does not reect capacity available during
operation.
PEAK HP
"PEAK HORSEPOWER" is a term used in the wet-dry vac industry for consumer comparison
purposes. It does not denote the operational horsepower output of a wet-dry vac, but rather the
horsepower output of a motor, including the motor’s inertial contribution, achieved in laboratory
testing. In actual use, motors do not operate at the peak horsepower shown.
Page 2
SAFETY INSTRUCTIONS & WARNINGS
The purpose of safety symbols is to attract our attention to possible dangers. The safety symbols,
and the explanations with them, deserve your careful attention and understanding. The symbol
warnings do not by themselves eliminate any danger. The instructions and warnings they give are
no substitutes for proper accident prevention measures.
WARNING:
Be sure to read and understand all safety instructions in this manual,
including all safety alert symbols such as “DANGER”, “WARNING” and “CAUTION”, before
using this wet/dry vacuum. Failure to follow all instructions listed below may result in
electric shock, re and/or serious personal injury.
SYMBOL MEANING
DANGER:
Failure to obey this warning WILL result in death or serious injury to
yourself or to others. Always follow the safety precautions to reduce the risk of re, electric
shock and personal injury.
WARNING:
Failure to obey this safety warning CAN result in death or serious injury
to yourself or to others. Always follow the safety precautions to reduce the risk of fire,
electric shock and personal injury.
CAUTION:
Failure to obey this safety warning MAY result in personal injury to
yourself or others or property damage. Always follow the safety precautions to reduce the
risk of re, electric shock and personal injury.
Page 3
SAFETY INSTRUCTIONS & WARNINGS
READ AND UNDERSTAND ALL
INSTRUCTIONS BEFORE USING THIS VACUUM.
Read and understand this operator’s manual
and all labels on the vacuum cleaner before
operating. Safety is a combination of common
sense, staying alert and knowing how your
vacuum works. Use this vacuum only as
described in this manual. To reduce the risk of
personal injury or damage to your vacuum, use
only manufacturer recommended accessories.
SAVE THIS MANUAL FOR FUTURE
REFERENCE.
When using a vacuum, basic precautions should
always be followed including the following.
Failure to follow the warnings and instructions
may result in explosion, fire and/or serious injury:
WARNING:
TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR INJURY:
• Do not run vacuum unattended.
• Do not vacuum, or use this vacuum near
flammable liquids, gases, or explosive
vapors like gasoline or other fuels, lighter
fluids, cleaners, oil-based paints, natural
gas, hydrogen, or explosive dusts like coal
dust, magnesium dust, grain dust, or gun
powder. Sparks inside the motor can ignite
flammable vapors or dust.
•
To reduce the risk of health hazards from
vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous
materials.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or hot
ashes.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a
handle, close a door on cord, or pull cord
around sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
•
Do not handle plug or vacuum with wet hands.
• Do not use without dust bag and/or filters in
place.
•
Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
• To reduce the risk of injury from accidental
starting, unplug power cord before changing
or cleaning filter.
• Do not leave vacuum when plugged in.
Unplug from outlet when not in use and
before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting
hose, or any other accessories.
• Do not put any object into openings. Do not
use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce
air flow.
•
Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
• This vacuum is provided with double
insulation. Use only identical replacement
parts. See DOUBLE INSULATION
INSTRUCTIONS.
CAUTION:
TO REDUCE THE RISK
OF INJURY FROM MOVING PARTS -
UNPLUG BEFORE SERVICING.
WARNING:
TO REDUCE THE RISK
OF ELECTRIC SHOCK - UNPLUG BEFORE
CLEANING OR SERVICING.
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
SAVE THESE INSTRUCTIONS
For Household Use Only
Page 4
This Wet/Dry Vacuum is double insulated,
eliminating the need for a separate grounding
system. Use only identical replacements parts.
Read the instructions for Servicing Double-
Insulated Wet/Dry Vacuums before servicing.
Use this vacuum as described in this manual.
Observe the following warnings that appear on
the motor housing of your vacuum.
DOUBLE INSULATED - GROUNDING
NOT REQUIRED - WHEN SERVICING
USE ONLY IDENTICAL REPLACEMENT
PARTS.
WARNING:
TO REDUCE THE RISK
OF ELECTRIC SHOCK - DO NOT EXPOSE
TO RAIN. STORE INDOORS.
WARNING:
FOR YOUR OWN SAFETY,
READ AND UNDERSTAND THE OPERATOR’S
MANUAL. DO NOT RUN UNATTENDED. DO
NOT PICK UP HOT ASHES, COALS, TOXIC,
FLAMMABLE OR OTHER HAZARDOUS
MATERIALS. DO NOT USE AROUND
EXPLOSIVE LIQUIDS OR VAPORS.
CAUTION:
DO NOT VACUUM
DRYWALL DUST, FIREPLACE SOOT, OR ASH
WITH STANDARD WET/DRY FILTER. THIS
TYPE OF DUST IS VERY FINE WHICH MAY NOT
BE CAPTURED BY THE FILTER AND CAUSE
DAMAGE TO MOTOR. WHEN VACUUMING
FINE DUST USE A FINE DUST FILTER.
WARNING:
SERVICING OF DOUBLE-
INSULATED WET/DRY VACUUM WITH A
DOUBLE-INSULATED WET/DRY VACUUM,
TWO SYSTEMS OF INSULATION ARE
PROVIDED INSTEAD OF GROUNDING. NO
GROUNDING MEANS IS PROVIDED ON A
DOUBLE-INSULATED APPLIANCE, NOR
SHOULD A MEANS FOR GROUNDING BE
ADDED. SERVICING A DOUBLE INSULATED
WET/DRY VACUUM REQUIRES EXTREME
CARE AND KNOWLEDGE OF THE SYSTEM
AND SHOULD BE DONE ONLY BY QUALIFIED
SERVICE PERSONNEL. REPLACEMENT
PARTS FOR A DOUBLE-INSULATED WET/
DRY VACUUM MUST BE IDENTICAL TO THE
PARTS THEY REPLACE. YOUR DOUBLE-
INSULATED WET/DRY VAC IS MARKED WITH
THE WORDS ‘DOUBLE INSULATED’ AND THE
SYMBOL (SQUARE WITHIN A SQUARE)
MAY ALSO BE MARKED ON THE APPLIANCE.
DOUBLE INSULATION INSTRUCTIONS
EXTENSION CORDS
When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine
the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension
cord are in good working condition. Make repairs or replacements before using the vacuum cleaner.
Only use extension cords that are rated for outdoor use.
Length of Extension Cord
120V
25ft (7.62m) 50ft (15.24m) 100ft (30.48m) 150ft (45.72m)
Ampere rating
More than Not more than A.W.G. Wire Size
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 NOT RECOMMENDED
Page 5

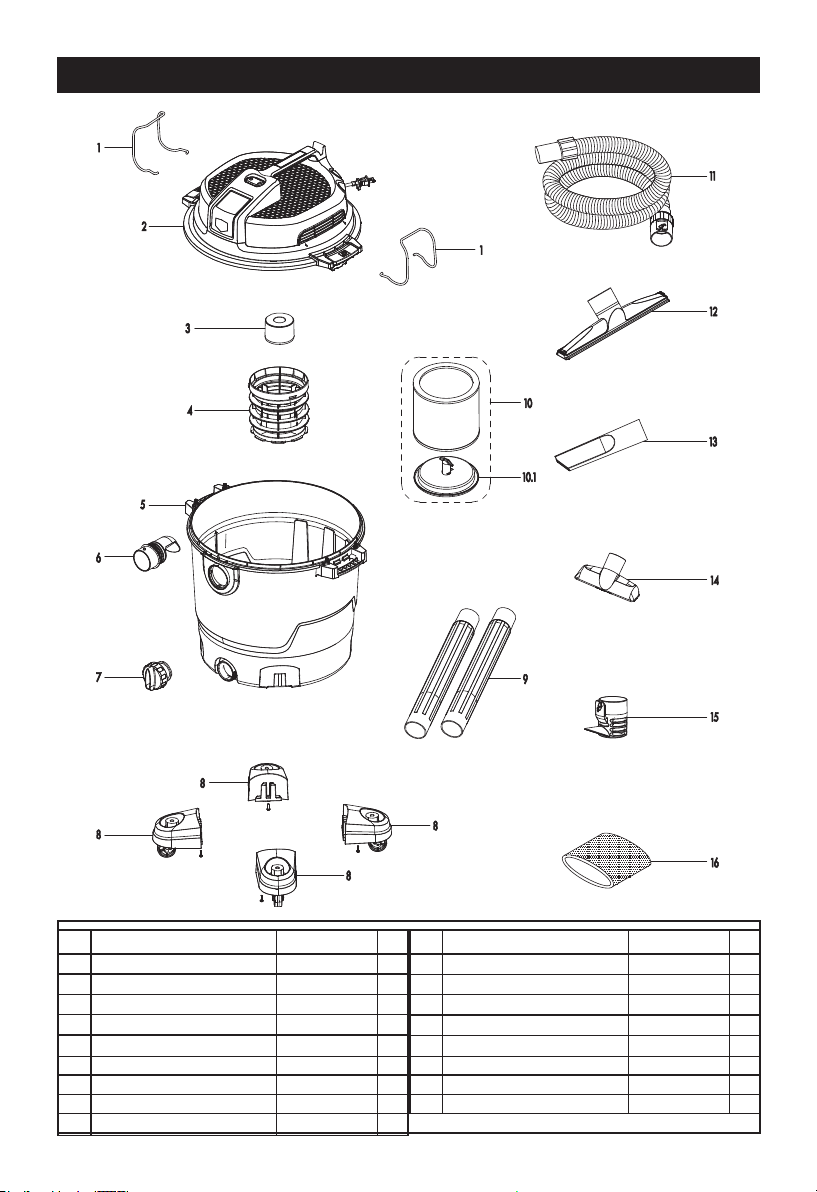

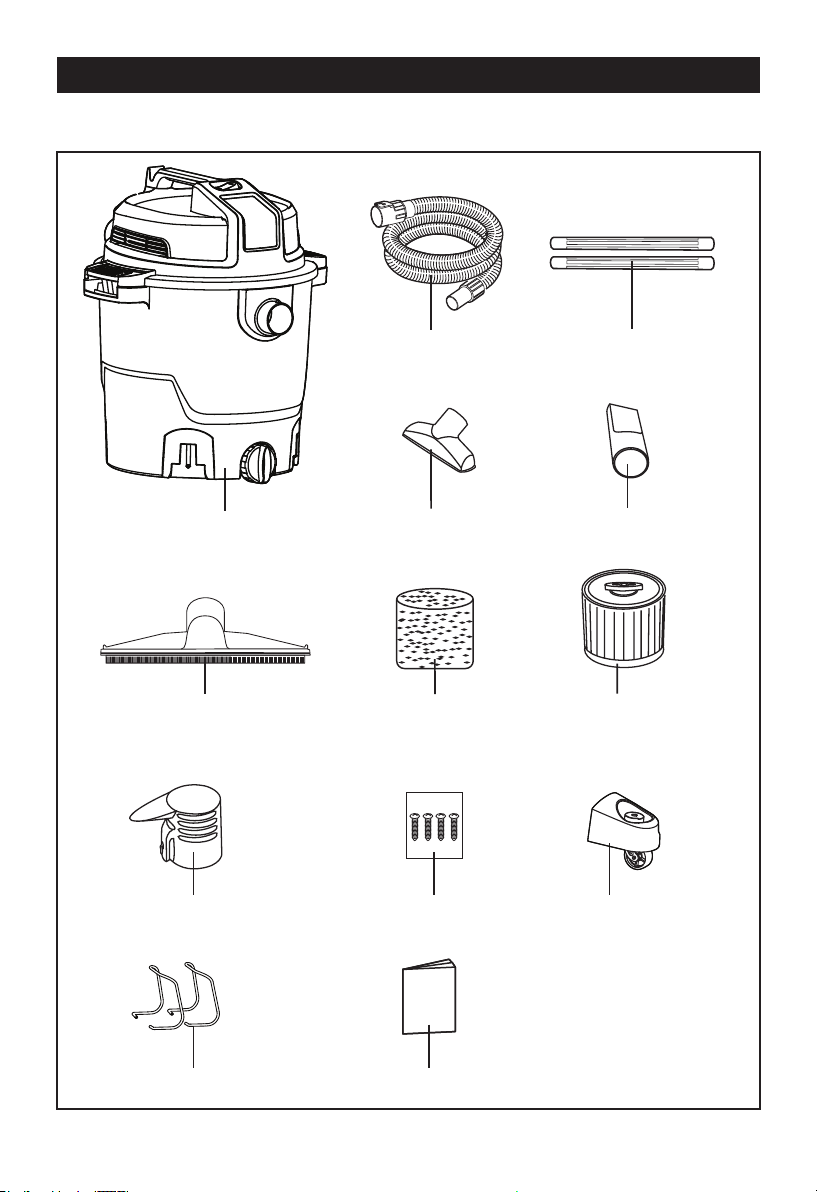

Crevice Tool
Extension Wands
Floor Brush / Squeegee
Nozzle
Cartridge Filter
Utility Nozzle
Hose
Vacuum Assembly
Noise Diffuser
Hose Storage Rack Operator’s Manual
4 Screws (Bag) Caster Foot
Assembly
Foam Wet Filter
UNPACKING & CHECKING CARTON CONTENTS
NOTE: The hose and accessories for this vacuum are 2-1/2'' (6.4 cm) diameter.
Remove all contents from the box. Remove the power head and take out any contents inside
the collection tank. Check each item against the carton contents list.
Page 6
UNPACKING & CHECKING CARTON CONTENTS

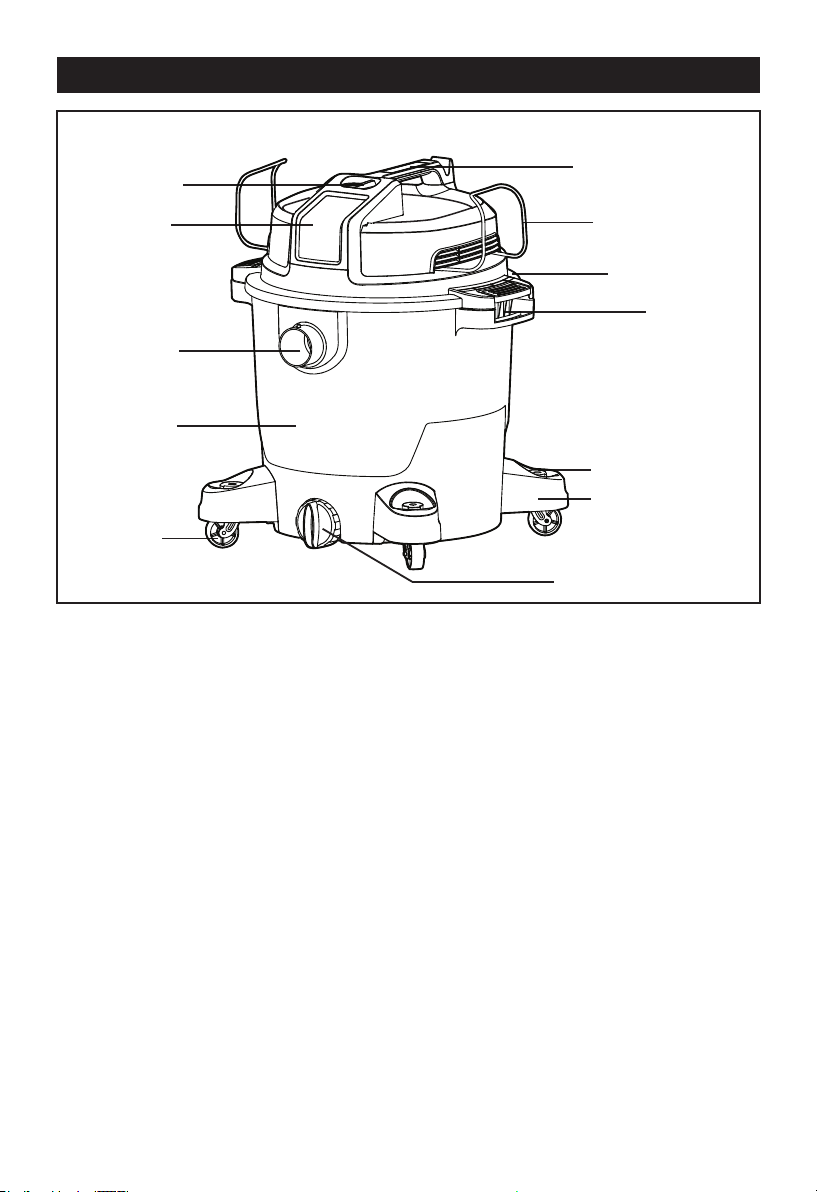

Blower Port
Handle
Collection Tank
Latch
Drain
Caster Foot
Accessory Storage
Power Head
On/Off Switch
Hose Storage Rack
Vacuum Port
Caster
Page 7
GENERAL ASSEMBLY INSTRUCTIONS
A Philips head screwdriver is required.
WARNING:
DO NOT PLUG THE
POWER CORD INTO A POWER OUTLET.
MAKE SURE THE PLUG IS DISCONNECTED
BEFORE ASSEMBLING THE WET/DRY
VACUUM. TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT EXPOSE TO
RAIN.
UNPACKING YOUR WET/DRY VACUUM &
GENERAL ASSEMBLY

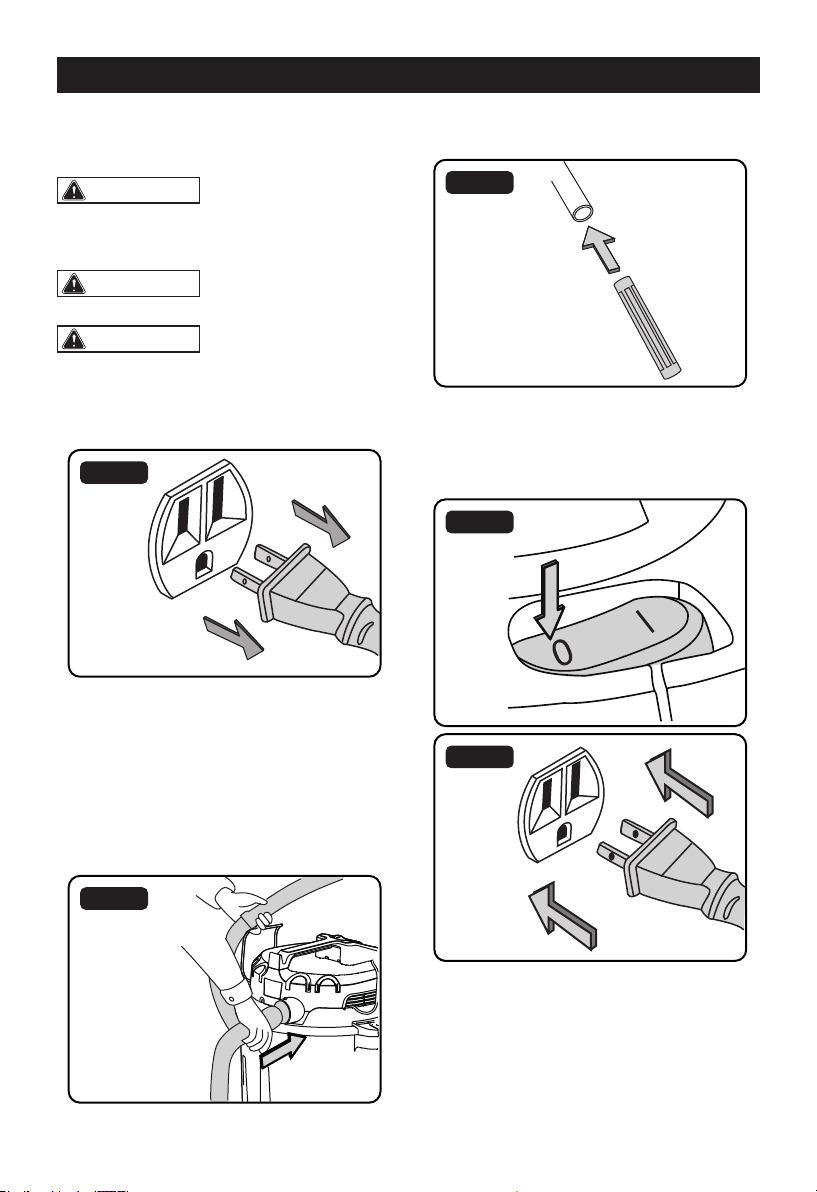

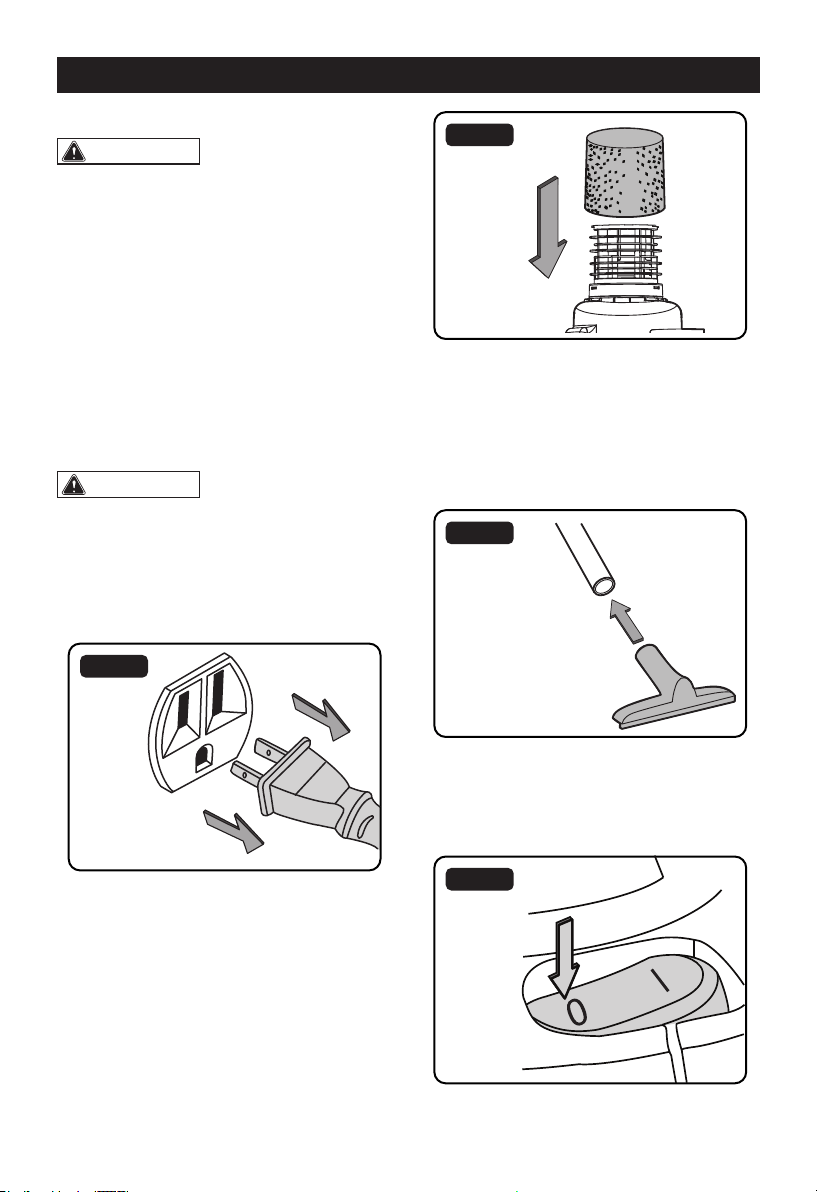

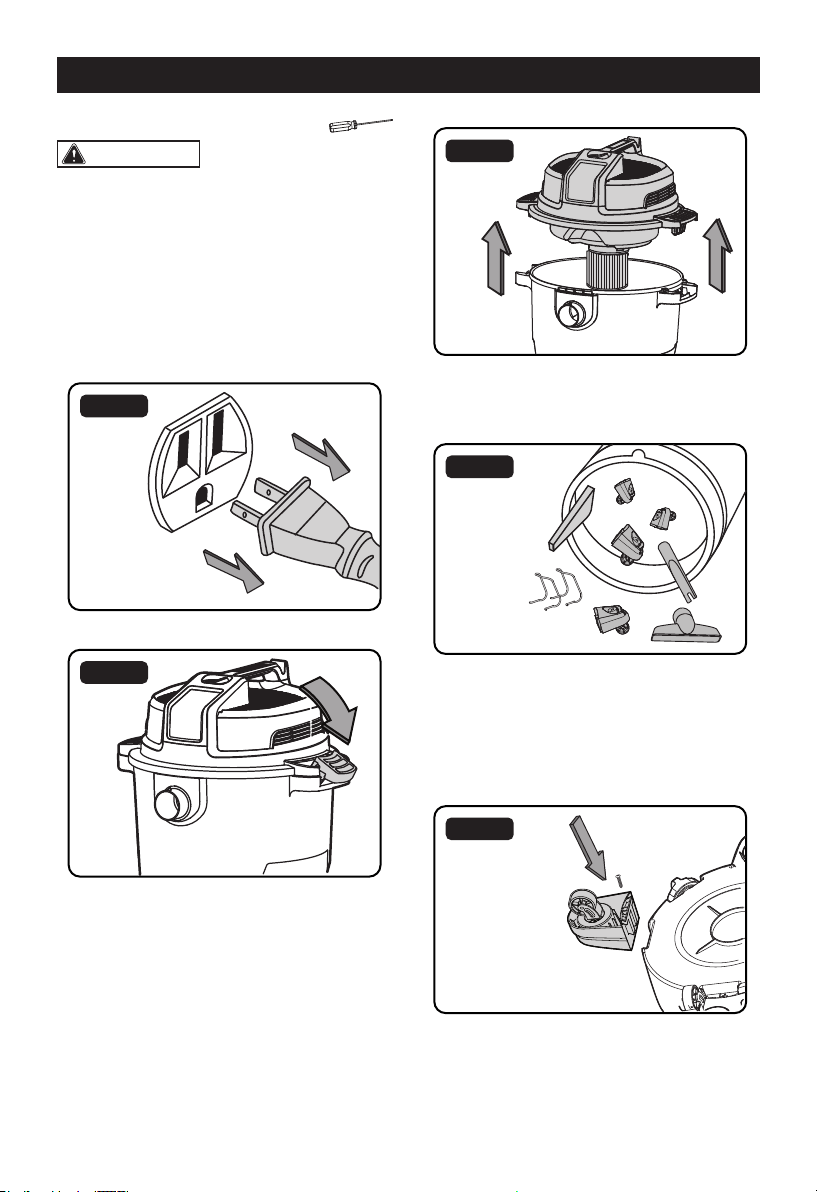

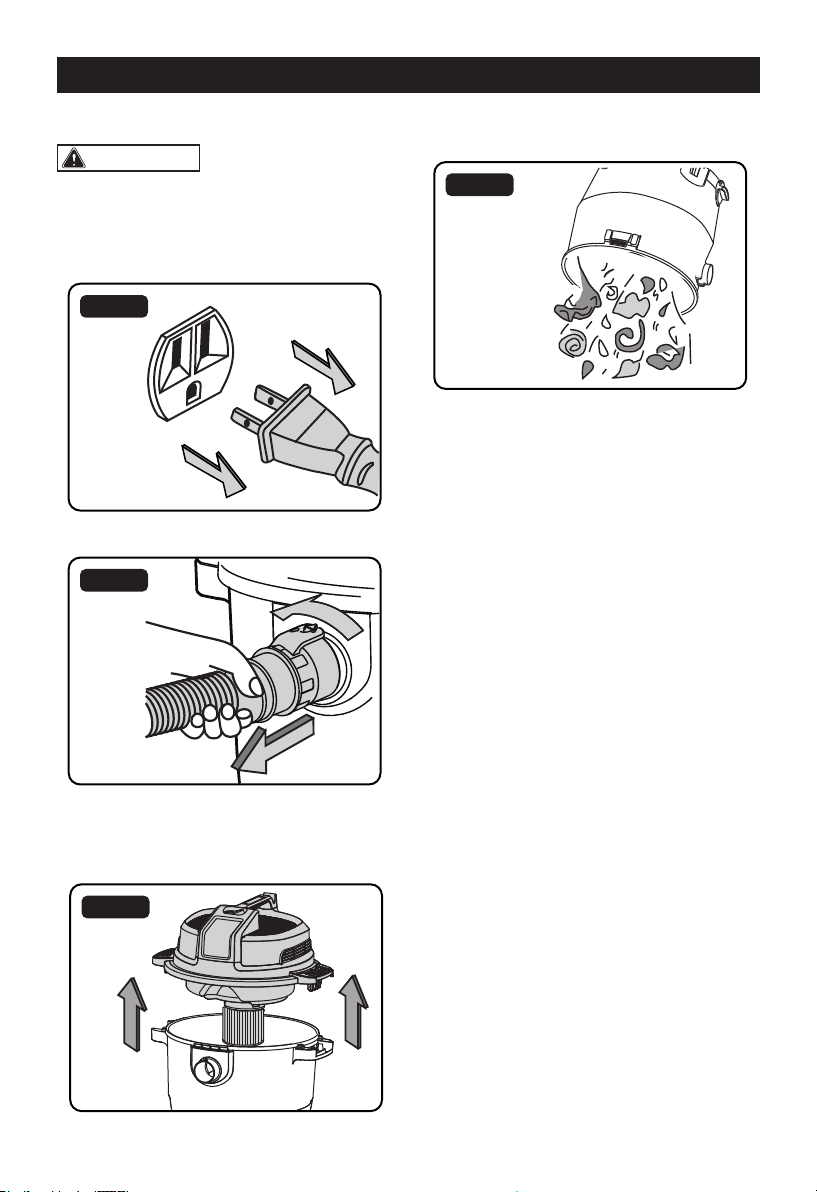

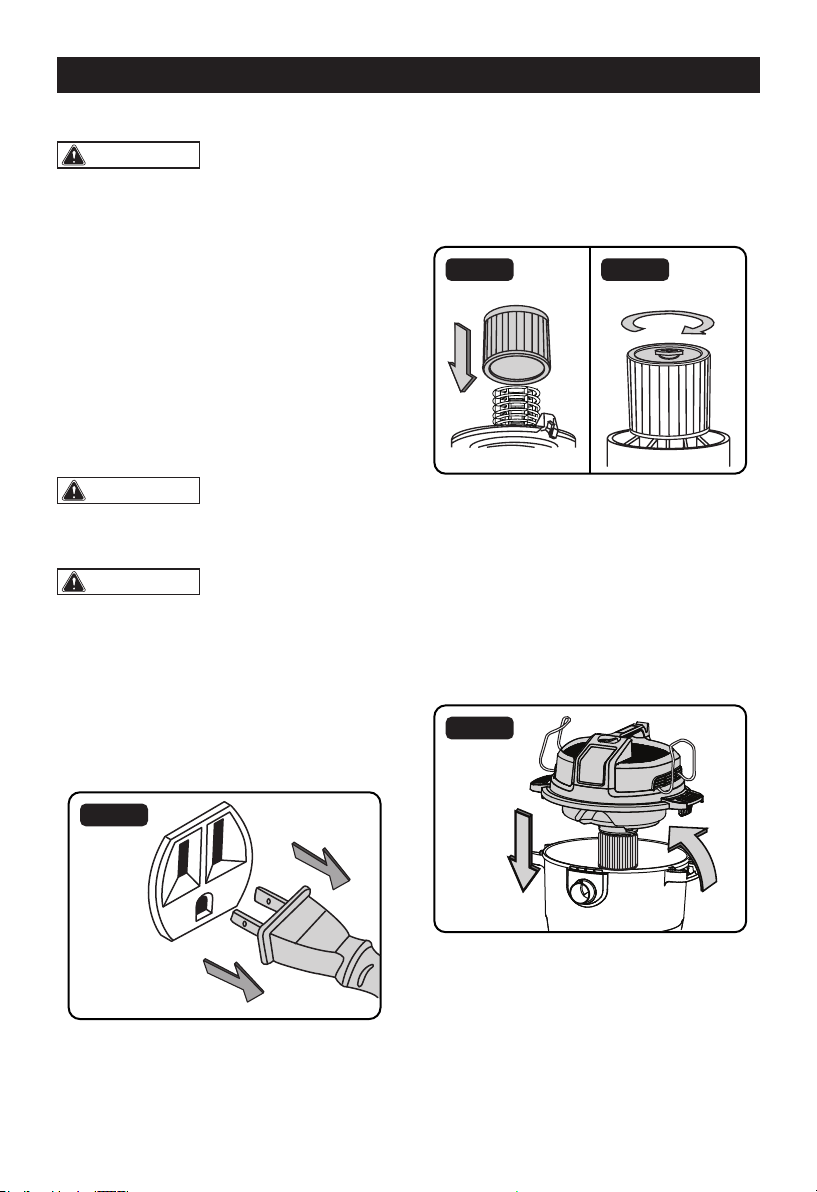

1. Verify that the power cord is disconnected
from the outlet (Fig. 1).
Fig. 1
2. Undo the latches (Fig. 2).
Fig. 2
3. Lift the power head off the collection tank
(Fig. 3).
Fig. 3
4.Remove the contents from inside the
collection tank. Make sure you have all
contents as listed on page 5 (Fig. 4).
Fig. 4
5.Turn the collection tank upside down and
insert the four caster feet into the slots on
the collection tank and tighten with supplied
screws. Verify that the casters are mounted
correctly. Do not over-tighten screws (Fig. 5).
Fig. 5

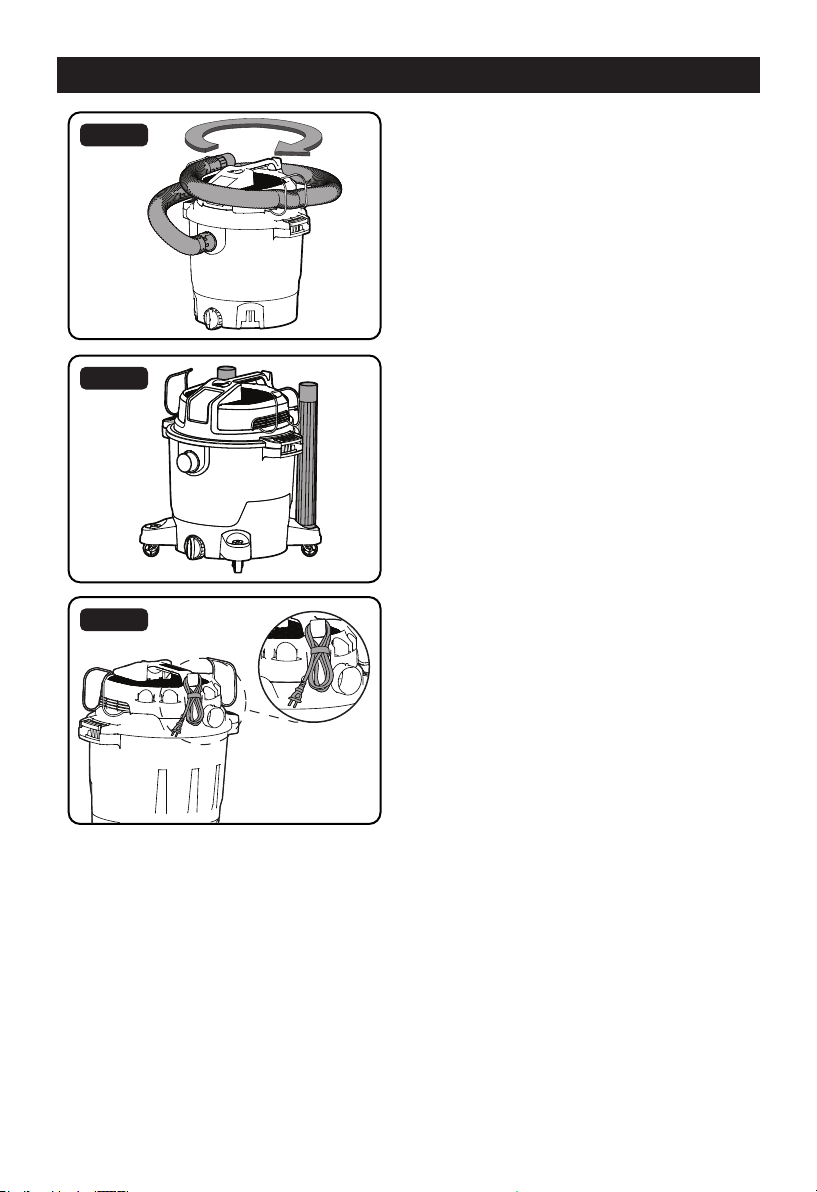

6. Position the hose storage rack as illustrated.
Fully insert one end of the hose storage rack
into the slot illustrated by the arrow, then pull
the other end of the hose storage rack to
Page 8
align with the corresponding arrow and insert
into the slot until it is secured in place
(Fig. 6a-6d).
.
Fig. 6
a
c d
b

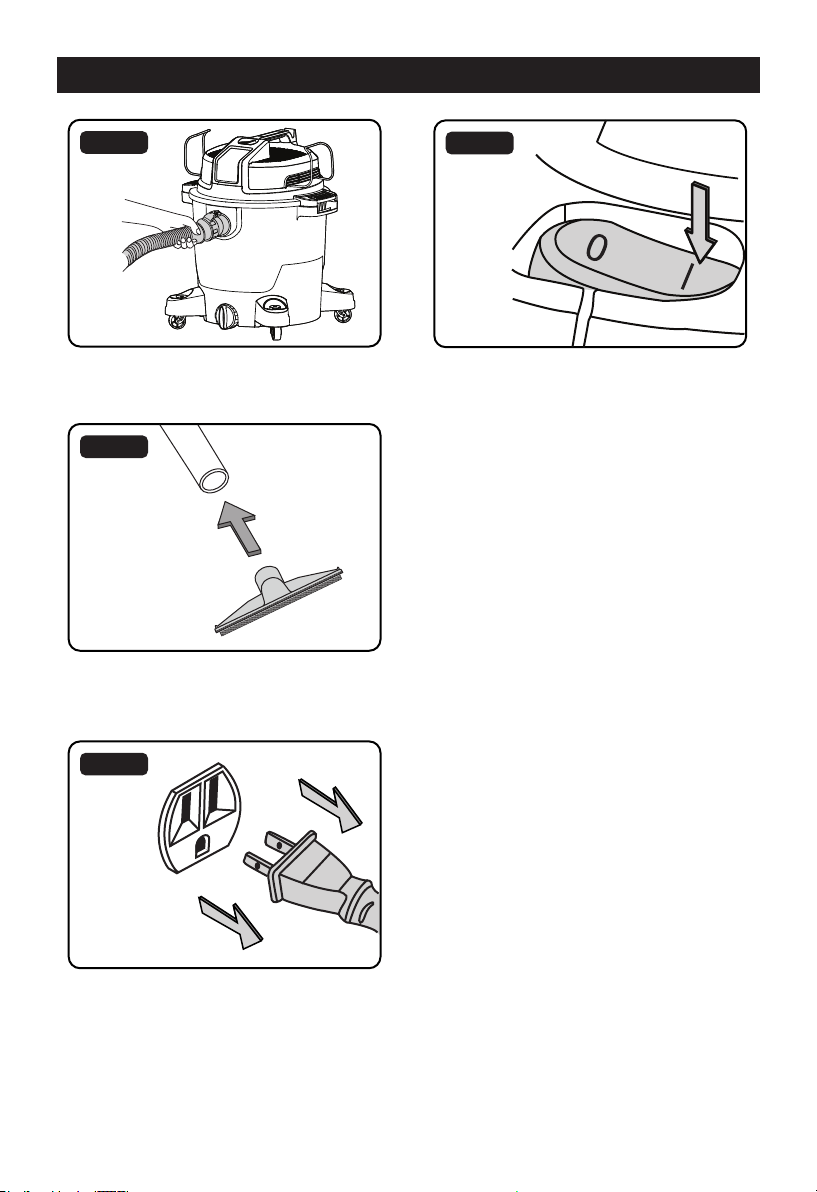

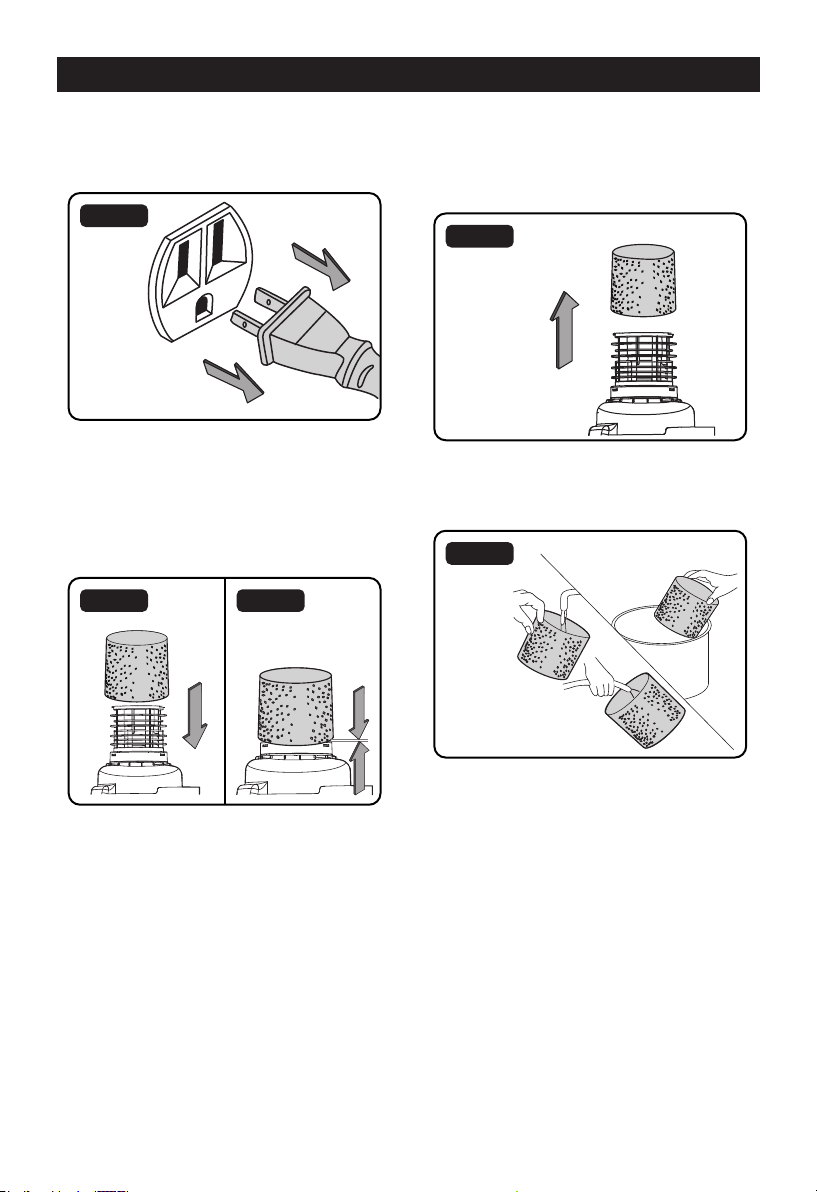

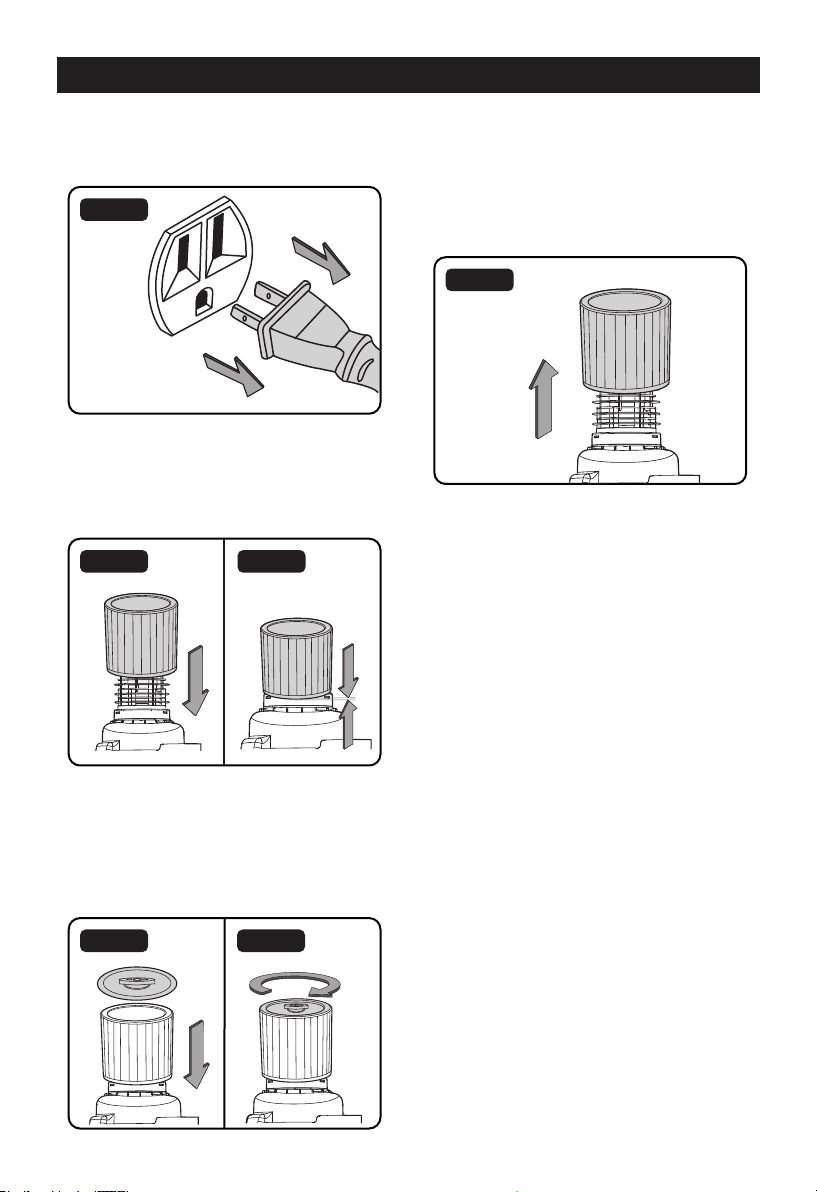

7. Your vacuum comes ready for dry vacuum
cleaning. If the cartridge filter is not installed,
refer to page 18 for installation instructions
(Fig. 7 & 8).
Fig. 7 Fig. 8
8. For wet vacuum cleaning, remove the
cartridge filter, and install the supplied foam
wet filter. See page 20 for the foam wet filter
installation instructions (Fig. 9).
Fig. 9
9. Place the power head back on the collection
tank and secure into place using the latches
(Fig. 10 & 11).
Fig.10 Fig.11

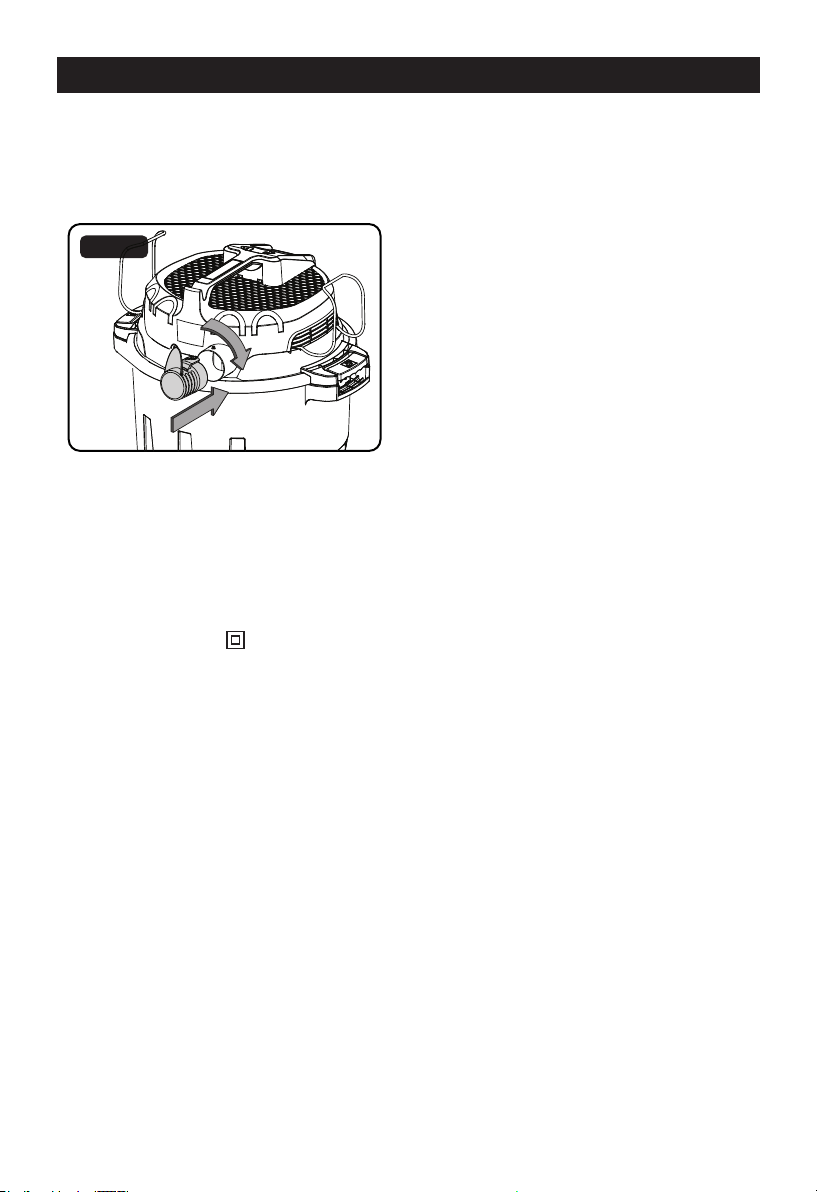

10. Insert the locking end of the hose into the
vacuum port on the collection tank and turn
to lock into place (Fig. 12).
Fig. 12

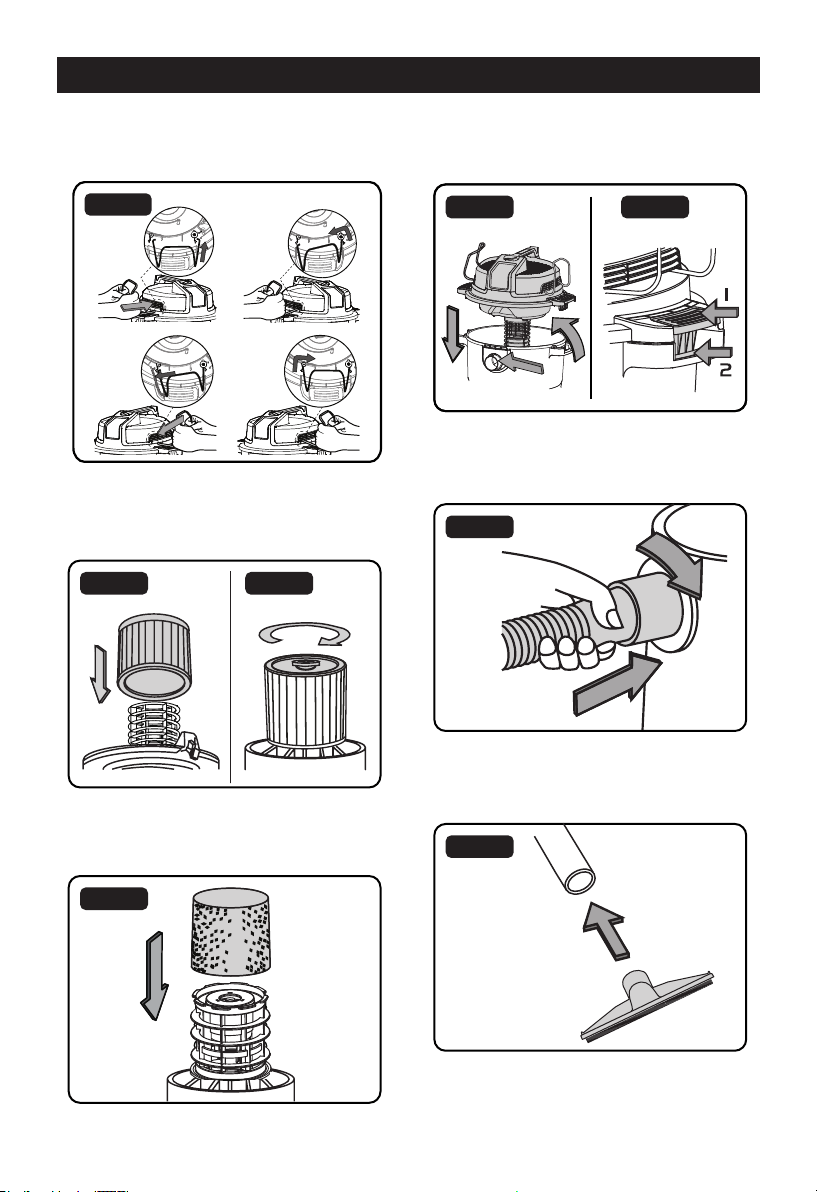

12. Choose the desired accessory and insert
onto the end of the hose or extension wand
(Fig. 13).
Fig. 13
GENERAL ASSEMBLY INSTRUCTIONS
Page 9
GENERAL ASSEMBLY INSTRUCTIONS
NOISE DIFFUSER
For quiet operation, install the noise diffuser
into the blower port by inserting the locking end
of the diffuser into the blower port and turning
clockwise to lock into place (Fig. 14).
Fig. 14
POLARIZED PLUG
To reduce the risk of electrical shock, this
appliance has a polarized plug (one blade wider
than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully
in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any
way. Double insulation
eliminates the need
for the three-wire grounded power cord and
grounded power supply system.
Page 10
DRY VACUUMING
WARNING:
BE SURE TO READ,
UNDERSTAND, AND APPLY INFORMATION
ENTITLED ‘SAFETY INSTRUCTIONS &
WARNINGS’. DO NOT VACUUM IN AREAS
WITH FLAMMABLE GASES, VAPORS,
OR EXPLOSIVE DUSTS IN THE AIR.
FLAMMABLE GASES OR VAPORS INCLUDE
BUT ARE NOT LIMITED TO: LIGHTER
FLUID, SOLVENT TYPE CLEANERS, OIL-
BASED PAINTS, GASOLINE, ALCOHOL, OR
AEROSOL SPRAYS. EXPLOSIVE DUSTS
INCLUDE BUT ARE NOT LIMITED TO: COAL,
MAGNESIUM, GRAIN, OR GUN POWDER.
TO REDUCE THE RISK OF HEALTH
HAZARDS FROM VAPORS OR DUST, DO
NOT VACUUM TOXIC MATERIALS.
WARNING:
DO NOT PLUG THE
POWER CORD INTO A POWER OUTLET.
MAKE SURE THE PLUG IS DISCONNECTED
BEFORE CHANGING THE FILTERS.
CAUTION:
DO NOT VACUUM
DRYWALL DUST, FIREPLACE SOOT, OR
ASH WITH STANDARD WET/DRY FILTER.
THIS IS A VERY FINE DUST WHICH WILL
NOT BE CAPTURED BY THE FILTER AND
MAY CAUSE DAMAGE TO MOTOR. WHEN
VACUUMING FINE DUST USE A FINE DUST
FILTER (INCLUDED).
1. Verify that the power cord is disconnected
from the outlet (Fig. 1).
Fig. 1
2. In order to prepare your vacuum for dry
vacuuming, make sure the cartridge filter
completely covers the filter cage against the
power head. Your wet/dry vacuum comes
with the cartridge filter pre-installed. For
installation instructions, see page 18 (Fig. 2).
Fig. 2 Fig. 3
3. Place filter retainer on the top of cartridge
filter and tighten down by turning the retainer
handle clockwise (Fig. 3).
4. Optional: For improved dust filtering, fit
collection bag flange onto the inlet port,
taking care not to damage the bag. Dust bag
sold separately.
5. Place the power head back on the collection
tank and secure it in place using the latches
(Fig. 4).
Fig. 4
OPERATING INSTRUCTIONS: DRY
VACUUMING
6.
Insert the locking end of the hose into the
vacuum port and turn to lock into place (Fig. 5).
DRY VACUUM OPERATION
Page 11
Fig. 5
7. Choose the desired accessory and insert onto
the end of the hose or extension wand (Fig. 6)
.
Fig. 6
8. Verify that the switch is in the 'O' OFF position
before plugging the power cord into the outlet.
Plug the power cord into the outlet (Fig. 7).
Fig. 7
9. Turn the motor on by flipping the on/off switch
to the ‘I’ ON position and begin vacuuming
(Fig. 8).
Fig. 8
10. Once you have completed vacuuming, flip
the on/off switch to the ‘O’ OFF position and
unplug the power cord from the outlet.
O = OFF I = ON
DO NOT USE THE CARTRIDGE FILTER FOR
LIQUID VACUUMING.
DO NOT USE THE COLLECTION BAG FOR
LIQUID VACUUMING.
DRY VACUUM OPERATION
Page 12
LIQUID VACUUM OPERATION
LIQUID VACUUMING
WARNING:
BE SURE TO READ,
UNDERSTAND, AND APPLY INFORMATION
ENTITLED ‘SAFETY INSTRUCTIONS &
WARNINGS’. DO NOT VACUUM IN AREAS
WITH FLAMMABLE GASES, VAPORS,
OR EXPLOSIVE DUSTS IN THE AIR.
FLAMMABLE GASES OR VAPORS INCLUDE
BUT ARE NOT LIMITED TO: LIGHTER
FLUID, SOLVENT TYPE CLEANERS, OIL-
BASED PAINTS, GASOLINE, ALCOHOL, OR
AEROSOL SPRAYS. EXPLOSIVE DUSTS
INCLUDE BUT ARE NOT LIMITED TO: COAL,
MAGNESIUM, GRAIN, OR GUN POWDER.
TO REDUCE THE RISK OF HEALTH
HAZARDS FROM VAPORS OR DUST, DO
NOT VACUUM TOXIC MATERIALS.
WARNING:
DO NOT PLUG POWER
CORD INTO POWER OUTLET. MAKE
SURE PLUG IS DISCONNECTED BEFORE
CHANGING THE FILTERS.
1. Verify that the power cord is disconnected
from the outlet. Make sure that the collection
tank is clean and free of dust and dirt (Fig. 1).
Fig. 1
2.Remove the cartridge filter, then carefully
install the foam wet filter over the filter cage
and place the power head back on the
collection tank. For foam wet filter installation
instructions, see page 20 (Fig. 2).
Fig. 2
DO NOT USE THE CARTRIDGE FILTER FOR
LIQUID VACUUMING.
OPERATING INSTRUCTIONS: WET
VACUUMING
3. Push the required attachment onto the free
end of the hose or extension wand (Fig. 3).
Fig. 3
4. Verify that the on/off switch is in the ‘O’ OFF
position before plugging the power cord into
the outlet. Plug the power cord into the outlet
(Fig. 4 & 5).
Fig. 4
Page 13
Fig. 5

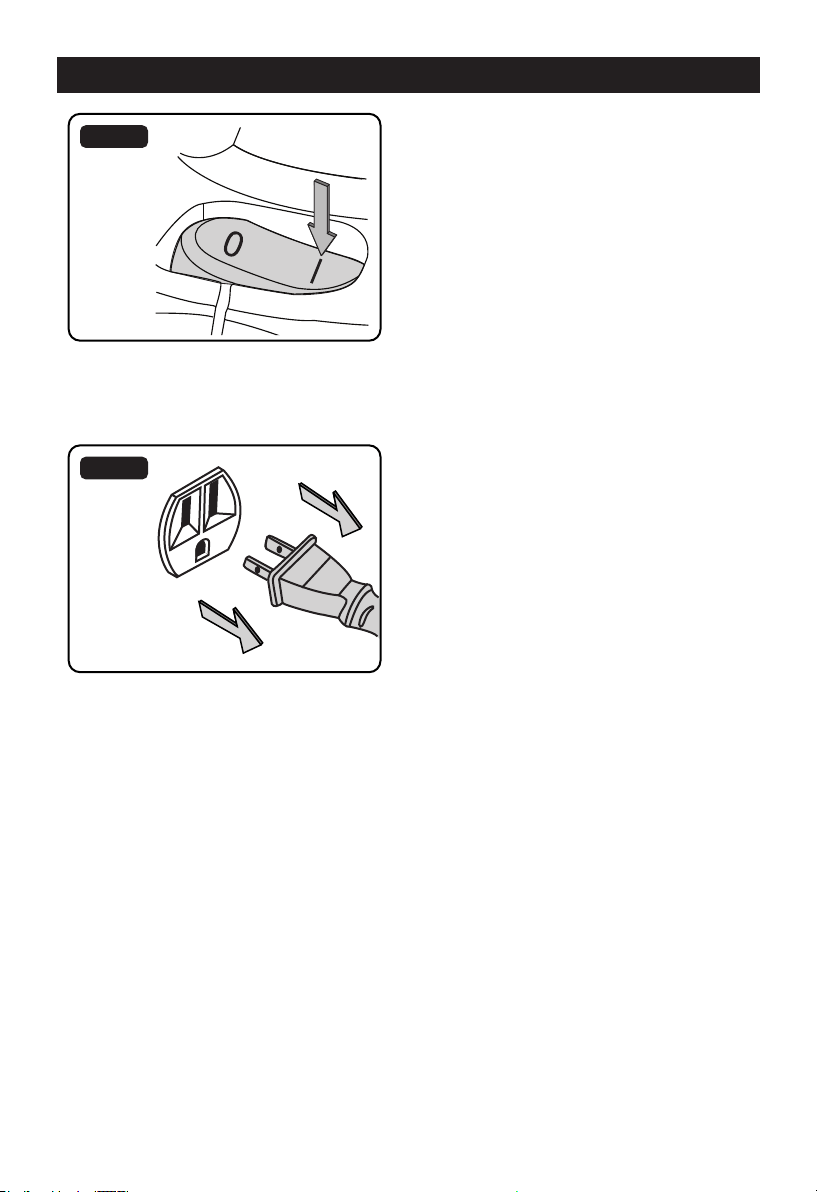

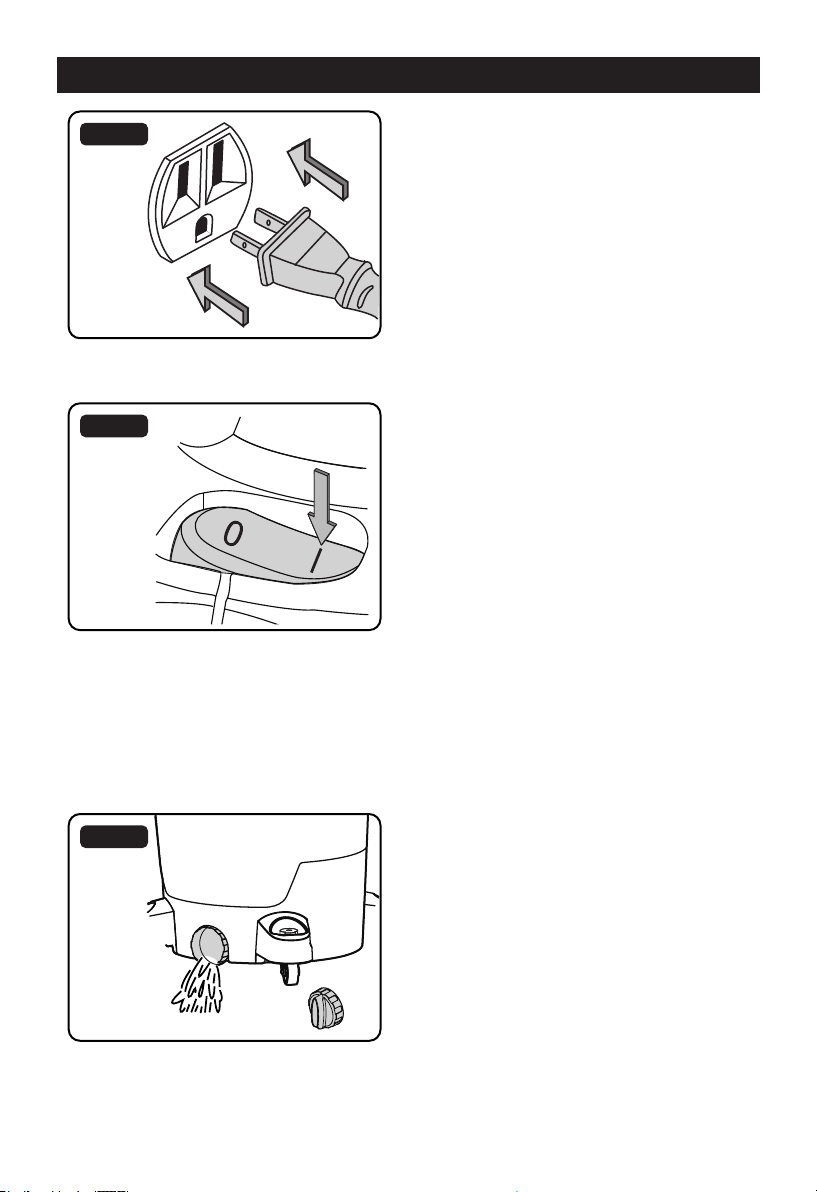

5. Turn the motor on by flipping the switch to the
‘I’ ON position (Fig. 6).
Fig. 6
6. Once you have completed vacuuming, flip
the on/off switch to the 'O' OFF position and
unplug the power cord from the outlet.
7. After use, empty the collection tank by
unscrewing the drain cap. Drain liquids into a
suitable receptacle or drain (Fig. 7).
Remember to refit the drain cap to the
collection tank.
Fig. 7
IMPORTANT!
When vacuuming large
quantities of liquids, do not immerse the nozzle
completely in the liquid; leave a gap at the tip
of the nozzle opening to allow air inflow. The
machine is fitted with a float valve that stops the
suction action when the collection tank reaches
its maximum capacity. You will notice an
increase in motor speed. When this happens,
turn off the machine, disconnect from power
supply, and empty the liquid into a suitable
receptacle or drain. To continue vacuuming,
refit the collection tank with the drain cap.
After wet vacuuming, turn the machine off and
remove plug from power supply. Empty the
collection tank. Clean and dry the inside and
outside before storage.
REMEMBER!
The foam wet filter must be
removed after wet vacuuming, and a cartridge
filter must be installed before dry vacuuming
again.
LIQUID VACUUM OPERATION
Page 14
BLOWER OPERATION
This Wet/Dry Vacuum has blowing capabilities.
To use the blower feature, follow the instructions
listed.
WARNING:
ALWAYS WEAR SAFETY
GOGGLES COMPLYING WITH ANSI Z87.1
(OR IN CANADA, CSAZ94.3) BEFORE USING
BLOWER.
CAUTION:
KEEP BYSTANDERS
CLEAR FROM BLOWING DEBRIS.
WARNING:
WEAR A DUST MASK IF
BLOWING CREATES DUST THAT MIGHT BE
INHALED.
1. Verify that the power cord is disconnected
from the outlet (Fig. 1).
Fig. 1
2. Make sure the collection tank is empty before
using as a blower. Clear all dirt and debris
from the hose and collection tank.
3. Remove the hose from the vacuum port.
Remove noise diffuser from blower port.
4. Insert the larger end of the hose into the
blower port on the back side of the power
head and lock into place (Fig. 2).
Fig. 2
5. Choose the desired accessory and insert
onto the end of the hose (Fig. 3).
Fig. 3
6. Verify that the on/off switch is in the ‘O’ OFF
position before plugging the power cord
into the outlet. Plug the power cord into the
outlet (Fig. 4 & 5).
Fig. 4
Fig. 5
7. Before turning on the vacuum, firmly hold the
loose end of the hose. Turn the motor on
by flipping the switch to the ‘I’ ON position
(Fig. 6).
Page 15
Fig. 6
8. Once you have completed blowing, flip
the on/off switch to the 'O' OFF position
and unplug the power cord from the outlet
(Fig. 7).
Fig. 7
BLOWER OPERATION
Page 16
MAINTENANCE
EMPTYING THE COLLECTION TANK
WARNING:
ALWAYS DISCONNECT
THE PLUG FROM THE POWER OUTLET
BEFORE REMOVING THE POWER HEAD
FROM THE COLLECTION TANK.
1. Verify that the power cord is disconnected
from the outlet (Fig. 1).
Fig. 1
2. Disconnect the hose from the vacuum (Fig. 2).
Fig. 2
3. Undo the latches and remove the power head
from the collection tank (Fig. 3). Place power
head on a soft, clean surface upside down.
Fig. 3
4. Clear all dirt or debris from the collection tank
and hose into a proper waste container (Fig. 4).
Fig. 4
5. Clean or replace the filters.
6. Check the hose, attachments, and power
cord to verify that they have not been
damaged.
7. Place the power head back on collection
tank and secure latches.
IMPORTANT!
Clean or change the cartridge
filter regularly for best performance.
ALWAYS
USE THE CARTRIDGE FILTER FOR DRY
VACUUMING.
If the machine is used without
the cartridge filter, the motor will burn out and
the warranty will be voided. Always keep spare
cartridge filters on hand.
NOTICE!
The filters included are made of
high-quality materials designed to stop small
dust particles. The cartridge filter should be
used for dry pick-up only. A dry cartridge filter
is necessary to pick up dust. If the cartridge
filter is wet, it will clog quickly and be difficult to
clean. Handle the filter carefully when removing
it for cleaning or replacing. Check the filters
for tears or small holes. A small hole can let
dust pass through and out of the filter. Do not
use a filter with holes or tears in it; replace it
immediately.
STORAGE
Before storing your vacuum, the collection
tank should be emptied and cleaned. The cord
should be wrapped and hung on the hook of
the handle. The hose and accessories should
be stored as illustrated so they can be readily
available when needed (Fig. 5-7). Store the
wet/dry vacuum indoors.
Page 17
MAINTENANCE
Fig. 5
Fig. 6
Fig. 7
REPAIRS
Repairs for this wet/dry vacuum should be
performed only by qualified service personnel
using only identical replacement parts.
Page 18
INSTALLING & CLEANING CARTRIDGE FILTER
INSTALLING CARTRIDGE FILTER
1. Verify that the power cord is disconnected
from the outlet (Fig. 1).
Fig. 1
2. Remove the power head and place in an
upside-down position.
3. Install the cartridge filter over the filter cage
making sure the cage is completely covered
(Fig. 2 & 3).
Fig. 2 Fig. 3
4.
Place the filter retainer on top of the cartridge
filter over the raised lip and tighten down by
turning the retainer clockwise; do not over-
tighten (Fig. 4 & 5).
5. Place the power head back onto the
collection tank.
Fig. 4 Fig. 5
REMOVING & CLEANING CARTRIDGE FILTER
1. Unlock and remove the filter retainer by
turning retainer handle counterclockwise.
2. With the removed power head in an upside-
down position, carefully remove the cartridge
filter from the filter cage (Fig. 6).
Fig. 6
3. Clean the cartridge filter by gently tapping
or brushing dirt off. Cleaning should not be
done indoors in living areas. For optimal
performance a new filter is recommended.
4. Install cleaned or new filter as above in steps
2-4 of Installing Cartridge Filter.
Page 19
DUST BAG INSTALLATION INSTRUCTIONS

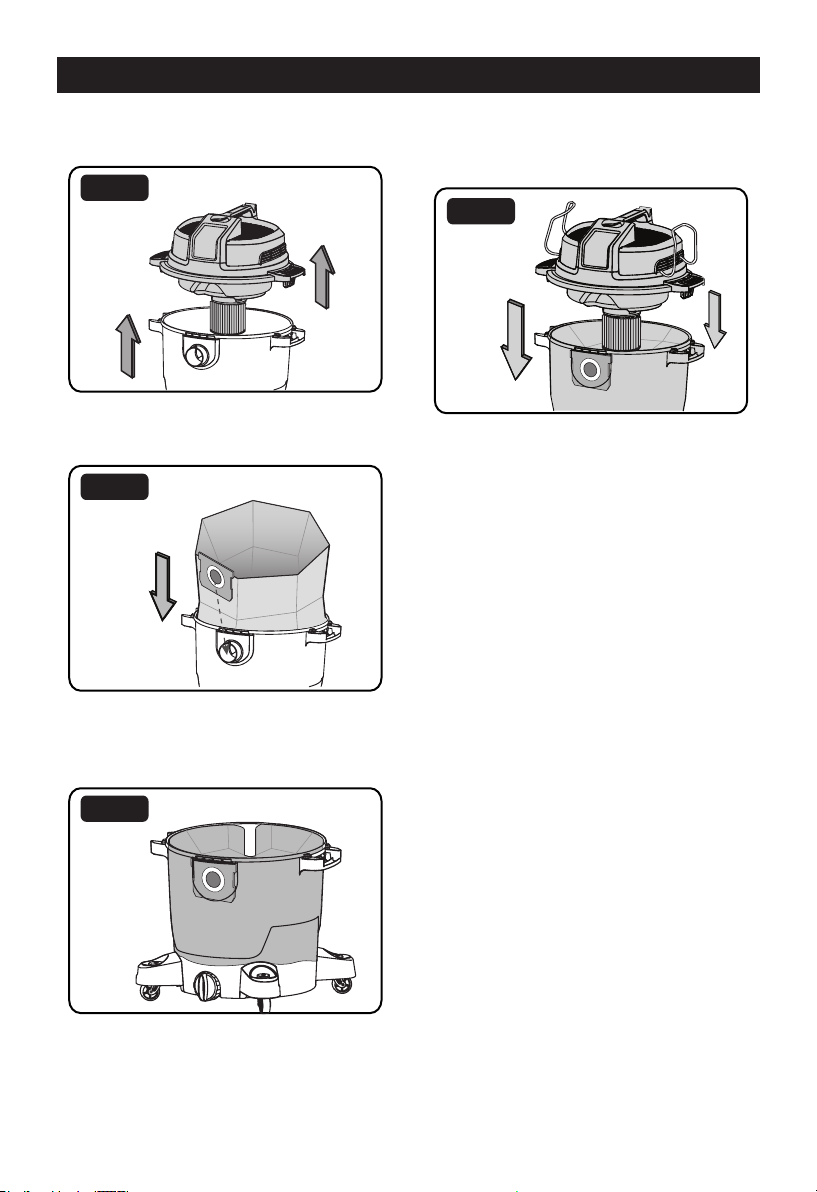

1. Lift the power head off the collection tank
(Fig 1).
2. Slide the cardboard dust bag flange onto
inlet port until it stops (Fig 2).
3. Unfold the dust bag so that it is evenly
distributed around the inside of the tank
(Fig 3).
4. Place the power head back on the
collection tank and secure into place using
latches (Fig 4).
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Page 20
INSTALLING & CLEANING FOAM WET FILTER
INSTALLING FOAM WET FILTER
1. Verify that the power cord is disconnected
from the outlet (Fig. 1).
Fig. 1
2. Remove the power head and place in an
upside-down position. Follow instructions to
remove the cartridge filter on page 18.
3. Carefully slide foam wet filter down over
the filter cage making sure the cage is
completely covered (Fig. 2 & 3).
Fig. 2 Fig. 3
4. Place the power head onto the collection
tank.
CLEANING FOAM WET FILTER
1. With the removed power head in an upside-
down position, carefully remove the foam
wet filter (Fig. 4).
Fig. 4
2. Use a mild soap and water solution to wash
the foam wet filter and rinse with clean water
(Fig. 5).
Fig. 5
3. Allow the filter to air dry for 24 hours before
installing onto the filter cage.
Page 21
TROUBLESHOOTING
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE
TROUBLESHOOTING.
PROBLEM POSSIBLE CAUSE SOLUTION
The wet/dry vacuum will
not operate.
1) No power supply.
1) Check the power supply, cord,
breakers, and fuses.
2) Faulty power cord.
2) Unplug and check the power cord.
If damaged, have it repaired by a
professional.
3) Collection tank is full. 3) Empty the collection tank.
4) Switch in the wrong position.
4) Press the ON ‘I’ button on the
power head.
The dust comes out from
the motor cover.
1) The cartridge filter is missing
or damaged.
1) Attach or replace cartridge filter.
2) Vacuum has been used to
collect fine dust, such as dry
wall dust, fireplace soot, or
ash, without a fine dust filter
equipped.
2) Remove the standard cartridge
filter and install the appropriate
fine dust filter.
Reduced efficiency and
motor/speed vibration.
1) There are blockages in
the nozzle or hose, or the
collection tank inlet.
1) Unplug and check nozzle, hose,
and collection tank inlets for
blockages.
2) The cartridge filter is clogged
by fine dust.
2) Take off the filter and clean it or
install a new cartridge filter.
Page 22
EXPLODED VIEW & PARTS LIST
Key Description Part # Qty
1 Hose Storage Rack 551006102 2
2 Power Head Assembly 1
3 Float 551006103 1
4 Filter Cage 551005104 1
5 Collection Tank 1
6 Vaccum Port Assembly 551007105 1
7 Drain Cap Assembly 551002110 1
8 Caster Foot Assembly 551007106 4
9 Extension Wand 551002116 2
Key Description Part # Qty
10 Cartridge Filter 551298116 1
10.1 Filter Retainer 551437107 1
11 Hose 551641101 1
12 Floor Brush/Squeegee Nozzle 551298107 1
13 Crevice Tool 551006113 1
14 Utility Nozzle 551006111 1
15
Noise Diffuser
551002117 1
16 Foam Wet Filter 551002118 1
Page 23
NOTES
Page 24
WARRANTY
This MASTERFORCE
®
brand wet/dry vacuum carries our 90-Day Money Back
Guarantee. If you are not completely satisfied with your MASTERFORCE
®
brand wet/
dry vacuum for any reason within ninety (90) days from the date of purchase, return the
vacuum with your original receipt to any MENARDS
®
retail store, and we will provide you
a refund - no questions asked.
Wet/Dry Vacuums
LIMITED LIFETIME WARRANTY
This MASTERFORCE
®
brand wet/dry vacuum carries a Limited Lifetime Warranty to the
original purchaser. The Limited Lifetime Warranty lasts for the lifetime of your wet/dry vac. The
normal run life of the wet/dry vacs will equate to many years of normal usage in a household
environment. The warranty coverage ends when the product becomes unusable for reasons
other than defects in workmanship or material. If, during normal use, this MASTERFORCE
®
wet/
dry vacuum breaks or fails due to a defect in material or workmanship, simply bring the vacuum
with the original sales receipt back to your nearest MENARDS
®
retail store. At its discretion,
MASTERFORCE
®
agrees to have the vacuum or any defective part(s) repaired or replaced with
the same or similar MASTERFORCE
®
product or part free of charge, within the stated warranty
period, when returned by the original purchaser with original sales receipt. Not withstanding
the foregoing, this limited lifetime warranty does not cover any damage that has resulted from
abuse or misuse of the Merchandise. This warranty: (1) excludes expendable parts including
but not limited to filters, hoses, nozzles, latches, and casters; (2) shall be void if this vacuum
is used for commercial and/or rental purposes; (3) excludes damage or burnout of the wet/
dry vac motor resulting from failure to clear a blockage occurring during the normal course of
use and/or failure to replace filters normally; (4) excludes damage to wet/dry vac resulting from
modifications or alterations made by anyone other than manufacturer; (5) does not cover any
losses, injuries to persons/property or costs. This warranty does give you specific legal rights
and you may have other rights, which vary from state to state. Be careful, wet/dry vacuums are
dangerous if improperly used or maintained. Seller’s employees are not qualified to advise you
on the use of this merchandise. Any oral representation(s) made will not be binding on seller
or its employees. The rights under this limited warranty are to the original purchaser of the
merchandise and may not be transferred to any subsequent owner. This limited warranty is in
lieu of all warranties, expressed or implied including warranties or merchantability and fitness
for a particular purpose. Seller shall not be liable for any special, incidental, or consequential
damages. The sole exclusive remedy against the seller will be for the replacement of any
defects as provided herein, as long as the seller is willing or able to replace this product with
the same or similar product or is willing to refund the purchase price as provided above. For
insurance purposes seller is not allowed to demonstrate any of these wet/dry vacuums for you.
For questions / comments, technical assistance or repair parts -
Please call toll free at:
1-866-384-8432
. (M-F 8:30am-5:00pm EST)
90-DAY MONEY BACK GUARANTEE
SAVE YOUR RECEIPTS
THIS WARRANTY IS VOID WITHOUT THEM
© 2011 Menard, Inc., Eau Claire, WI 54703
09/2021
