CHARGING OPERATION
The shaver cannot be overcharged, so you may charge it as often
as desired. However, periodic recharging of the shaver, rather than
continuous recharging, will prolong battery life.
The LED meter will show the amount of charge left on the shaver.
The fewer lights that are lit, the lower the charge on the battery is.
The red LED will flash for one second when turning off the shaver
when it is time to charge (below 10%).
While charging, the LED meter will show the progression of
charging. All LEDs will turn off when charging is complete.
SAVE THESE INSTRUCTIONS
For Household Use Only
LITHIUM-ION BATTERY REPLACEMENT,
SHAVER DISPOSAL AND RECYCLING:
• For battery replacement send the entire, intact shaver unit to:
Wahl Annex 3001 North Locust, P.O. Box 578, Sterling, IL 61081
• Do not attempt to remove the battery. Lithium-Ion batteries can
explode, catch fire, and/or cause burns if disassembled, damaged,
or exposed to water or high temperatures.
• If you choose not to replace the battery, the entire, intact shaver
unit must be disposed. Do not attempt to remove the battery for
disposal. Lithium-Ion batteries may be subject to local disposal
regulations. Many locations prohibit disposal in standard waste
receptacles. Check your local laws and regulations.
• For recycling contact a government recycling agency, waste
disposal service, retailer, or visit online recycling sources, such as
www.batteryrecycling.com or www.rbrc.org.
TRAVEL LOCK
The Wahl 07061 Series Shaver comes with an electronic travel
lock to avoid accidental activation while transporting.
Hold power button down for 3 seconds to engage travel lock.
Hold power button down for 3 seconds to disengage travel lock.
When travel lock is active, pressing the power button will cause the
LED(s) to flash for 1 second.
NOTE: The shaver can be charged even if the travel lock is
engaged. When travel lock is active, and the shaver is charged
then is disconnected from the transformer, the travel lock will be
disengaged.
WET/DRY USE
NOTE: Do not submerge shaver in more than 3 feet of water or for
more than 30 minutes to prevent water ingress into the electronics.
Warranty is void if shaver is submerged beyond these limitations.
The Wahl shaver is designed to be water resistant and shower
proof. This lets you use your Wahl shaver in the shower or at the
sink without worry and makes it easy to clean under running water.
NOTE: The shaver is for wet/dry use. The shaver will not run while
the cord is attached for safety.
TIPS FOR FIRST-TIME USERS
If you are using an electric shaver for the first time, your skin will
probably need to condition itself to this new shaving technique.
Start on the easiest part of the face first, usually the smooth
portion of the face below the ear. Shave with a light touch and use
your Wahl shaver exclusively for three to four weeks, or longer if
you have sensitive skin or if your whiskers grow at different angles
in certain areas. Initially your shaves may not be as close as you
would like, and your skin may become a bit irritated. But if you
stick with it, you will eventually get great shaves.
If you go several days without shaving and your beard gets a bit
long, use the pop-up trimmer to go over your beard, catching all
the longer hairs and setting up the remaining stubble for the foil to
shave smooth and clean.
If you have been using another type of electric shaver before, there
may also be a period of conditioning prior to receiving maximum
results.
QUICK TIPS & HANDY REMINDERS
1. If you are a first-time electric shaver user, or changing from
another brand, there will be a 2 to 3 week (or less) adjustment
period while your face and beard adapts to the new foil.
2. When you open your package, charge your shaver for 1 hour
before the first shave or until charging is complete.
3. Replace the foil head and cutter bars every 12 months or if foils
are damaged. Replacement foils can be ordered at
https://home.wahl.com.
4. Be sure to clean the shaver, cutter bars and foil after every three
or four shaves.
5. Use the pop-up long-hair trimmer to snip stray hairs.
6. Keep using and both your face and beard will adapt to the
shaver.
WahlUSA.com

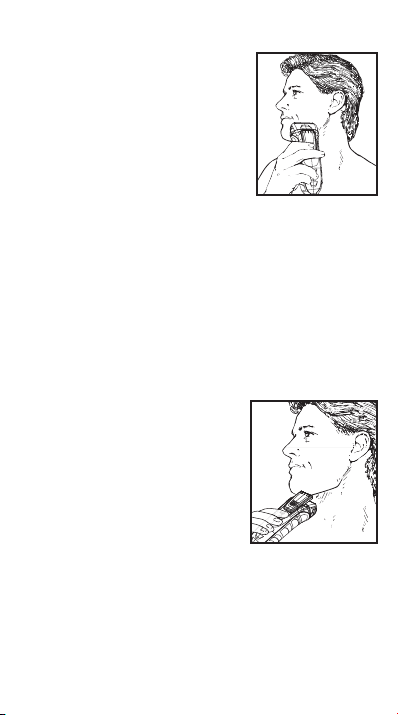

SHAVING PROCEDURES FOR FAST,
CLOSE SHAVES
We suggest that you thoroughly cleanse and
completely dry your skin prior to shaving.
For maximum speed and efficiency, hold the
shaver so that both screens are in contact
with the skin. When shaving the upper lip
or neck, hold shaver so that the uppermost
screen is in contact with skin.
Shave both with and against the grain of the
beard, and stretch the skin taut in the path of the shaver. Guide the
dual foil heads gently back and forth, primarily against the grain of
the beard. Do not press screen heads hard against face. Heavy
scrubbing action with the shaver could damage the foil and will not
result in a closer shave.
Always replace the foil guard to protect the delicate dual foil heads
when shaver is off.
SHAVING HEAVY BEARD GROWTH
Begin shaving in a less dense area of the
beard. Move the shaver in a circular motion
on a small area of the face (this picks up
the hairs that grow in all directions). When
you see that this small area is shaved clean,
gradually move into a new area while still
using the circular motion. Continue this
motion, one small section at a time, until
entire face is shaved.
If your beard has more than 3 days of growth, use the pop-up
long-hair trimmer to cut the beard down to about a one-day
growth before using the shaver foil.
CLEANING & OILING FOILS
Clean with the included brush.
For best results, put one or
two drops of Wahl Clipper
oil on the foils and pop-up
trimmer blades only when
necessary, or approximately
once a month. Motor bearings
are permanently lubricated—
do not attempt to oil.
When oiling your foils, turn
the shaver “ON - I,” hold the unit with the blades facing DOWN and
squeeze one or two drops of oil onto the blades. Keep the unit on
for ten seconds. Wipe off excess oil with soft cloth.
NOTICE—DO NOT OVER OIL!
Excessive oiling or application of liquids will cause damage if
allowed to seep back into motor.
FOIL & BLADE CARE
Shaver blades have precision-hardened, ground and lapped cutting
teeth. Foils, cutter bar, and blades should be handled carefully and
never bumped or used to cut dirty or abrasive material.
STORAGE
Before storing your shaver, use the cleaning brush to whisk any
loose hairs from the unit, foils, cutter bar, and blades. Store unit in
such a manner so that blades are protected from damage.
When the shaver is not in use, the shaver foil/blade guard
attachment should be in place to protect the blades.
This appliance should be stored in a manner where it is not
subjected to crushing, heating above 100°C (212°F), or
incineration.
LONG-HAIR TRIMMER
OPERATION
Your shaver features a special
long-hair trimmer located on
the back of the shaver which
telescopes up from the foil head
for precise and easy trimming of
sideburns, beards or mustaches,
and for removing long hairs from
the neck. And, as mentioned earlier, it can be used to “knock
down” heavy beard growth prior to shaving with the foil.
To use, remove foil guard and simply push the long-hair trimmer
Switch in an upward motion until trimmer slides (clicks) into
position. Push On/Off switch. Then begin trimming/styling.
CLEANING AND MAINTENANCE
SHAVER HEAD CARE
For maximum performance, we recommend you clean your
shaver after every few shaves. If using shaving cream or gel,
rinse with warm water after every use. Any servicing, other than
replacement of foil head and cutter bars, should be performed
by an authorized Wahl Shaver Service Center or Wahl Clipper
Corporation (see Warranty for mailing address information).
To clean, turn shaver “OFF” and remove
the foil head by pushing the shaver head
release buttons on the sides of the shaver
and lifting the foil head upward.
Lightly tap the open side of the foil head
on a hard surface to remove the majority
of loose stubble particles. Be careful not
to tap foil.
For easy cleaning, you may rinse your
shaver with water. While the foils can be
rinsed, we recommend removing the foil
head, and rinsing the cutter
bars. This will allow any hairs
still on the cutter bars to be
washed away. Leaving the foil
head on while rinsing makes
in more difficult for hairs to be
washed clean.
TO REMOVE CUTTER
BAR
Turn shaver off. Remove the foil
head and, holding the shaver in one
hand, gently pull up on cutter bar. Be
sure your thumb and first finger are
positioned at each end of the cutter bar.
Warning: Handle cutting components
with care to avoid personal injury.
NOTE: If you do not hold the cutter bar
as shown, brushing the blades could
result in damage to the assembly.
When the foil head and cutter bars are
removed from the shaver, an alternate
cleaning method is to rinse them under
running water. Simply let them air dry.
After cleaning, replace the cutter bars by
pressing down gently. Carefully replace
the foil head, snapping it into place.
From time to time, depending on the density of your beard, you will
need to replace the cutters and foils. If you notice that it is taking
you longer to shave, or if your face starts to feel some irritation,
or if the foil seems to become warm to the touch, it is probably
time to replace the cutters and foils. Replace the cutters and foils
only with WAHL parts (Yellow: 7045-100, Silver: 7045-400, Black
Chrome: 7045-700).
5-YEAR LIMITED WARRANTY
Valid in U.S.A. Only
If your Wahl product fails to operate satisfactorily within five (5)
years from the date of original purchase or receipt as a gift, Wahl
will, at our option, repair or replace the product and return it to
you FREE OF CHARGE. Do not return this product to store where
purchased. Products needing repair under this warranty should
be returned with postage pre-paid to the following address or call
1-800-767-9245 for assistance:
Wahl Clipper Corp.
Attn: Repair Department
3001 Locust Street
Sterling, Illinois 61081
When mailing, please include a note describing the defect and
the date of original purchase or receipt as a gift. Products out of
warranty will be repaired at our standard repair charges.
This warranty does not cover products damaged by:
1. Modification or repair by anyone other than Wahl Clipper
Corporation or a Wahl authorized service center;
2. Commercial (non-consumer) use or unreasonable use.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. No other written
express warranty is given. No responsibility is assumed for
incidental or consequential damages of any type or for the use
of unauthorized attachments. Some states may not allow the
exclusion or limitation of incidental or consequential damages, so
the limitation may not apply to you. Warranty valid in U.S.A. only.
Outside U.S.A., check with store for Wahl authorized distributor’s
warranty.
SERVICE AND REPAIR
If you have problems with your shaver, send it prepaid with a note
explaining the problem to:
Wahl Clipper Corporation
Attn: Repair Department
3001 Locust Street
Sterling, IL 61081
Telephone (800) 767-9245
For products purchased outside the United States, contact your distributor.
If for any reason within 60 days of purchase of your Wahl
®
shaver
you are not satisfied with your shaver and would like a refund, just
return your shaver, together with the sales receipt, to the retailer
from whom you purchased it. Wahl will reimburse all retailers
who accept shavers within 60 days of purchase. If you have any
questions regarding this money-back guarantee, please call
1-800-767-9245 in the United States.
60 Day Money Back Guarantee!
FEATURES
1. Socket
2. On/Off Switch
3. Cutter Bar Assembly
4. Flex Foil Head
5. Hypoallergenic Titanium
Coated Foil
6. Long-Hair Pop-Up Trimmer
7. Long-Hair Trimmer Switch
8. Shaver Head Release Button
9. Foil Guard
10. Charger Contacts
11. Spring Clips
Note: Remove LED label before first use.
CORD CARE
The cord should not be used to pull the shaver. Freedom of
movement needs to be maintained. Care should be used to keep
the cord untwisted and undamaged.
When stored, the cord should be coiled and replaced neatly in its
original package or storage pouch.
UL Model 7061L
Shaver Operating Instructions
Instrucciones de Operación
para Rasuradora
© 2022 Wahl Clipper Corporation
Art No. 1006848 (v.2022.01)
For more information or Product Registration, visit WahlUSA.com
This symbol, located on the shaver,
represents that the shaver is suitable
for use in the bath and shower.
1 &
10
8
3
7
11
4
2
9
6
5
Scan for Shaving 101
Loading ...
Loading ...
Loading ...
