BR-SV-500
USER MANUAL
Power Series
Cordless Vacuum Cleaner
TABLE OF CONTENTS
1
IMPORTANT SAFETY WARNING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 01
1.1 Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 01
1.2 Notes on the Battery Pack - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -01
1.3 Notes on Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 02
1.4 Storage and Maintenance Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 02
PACKAGE CONTENT - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 03
SPECIFICATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 03
OVERVIEW & ACCESSORIES - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 04
ASSEMBLY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 05
5.1 Install the Extension Tube - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 05
5.2 Install the Battery Pack - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 06
5.3 Install the Wall Mount- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -06
GUIDELINES FOR USE- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 07
6.1 Button operation & Power display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -07
6.2 Description of buttons and indicator lights - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 08
CHARGING METHODS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 09
7.1 Connect the Main Body to Charge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 09
7.2 Hanging to Charge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 09
7.3 Remove the Battery and Charge it Separately - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 09
MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10
8.1 Empty the Dust Cup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
8.2 Clean the Dust Cup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
8.3 Clean the filter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
8.4 Clean electric floor brush - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
TROUBLESHOOTING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
WARRANTY POLICY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14
DISPOSAL- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
1. IMPORTANT SAFETY WARNING
ATTENTION: Before using this machine, please read all instructions in
the manual and cautionary markings on the machine carefully.
1.1 Safety Instructions
1.2 Notes on the Battery Pack
①
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
This Britech machine is not intended for use by persons (including children) with reduced physical,
sensory or reasoning capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the machine by a person responsible for their
safety.
Use only as described in this Britech User Manual. If the machine is not working as it should, if it
has been hit hard, if it has been dropped, damaged, left outdoors, or dropped into
water, do not use and contact the Britech Support Team.
Suitable for dry locations only. Do not install, charge or use this machine outdoors, in a bathroom
or within 10 feet (3 meters) of a pool. Do not use on wet surfaces and do not expose to moisture,
rain or snow.
When using this machine, please keep hair, loose clothing, fingers, and all parts of the body away
from openings and moving parts. Do not point the hose, aluminium alloy tube or other accesso-
ries at your eyes or ears or put them in your mouth.
Do not use to pick up hard objects, such as glass, needles, nails, etc.
Do not touch the charger with wet hands to avoid electric shock.
Do not use without the dust cup and filter(s) in place.
When removing or replacing a motorized brush bar, be careful not to pull the power button until
the cleaner head has been reassembled.
Do not water or spill liquid onto the vacuum cleaner. If that happens, it will increase the risk of
electric shock.
Use extra care when cIeaning on stairs.
Do not throw the battery pack away, it should be safely recycled.
③
The battery is a sealed unit and under normal circumstances poses no safety concerns. In the
unlikely event that liquid leaks from the battery, do not touch the liquid as it may cause irritation or
burns, and observe the following precautions:
• Skin contact – can cause irritation. Wash with soap and water.
• Inhalation – can cause respiratory irritation. Expose to fresh air and seek medical advice.
• Eye contact – can cause irritation. Immediately flush eyes thoroughly with water for at least 15
minutes. Seek medical attention.
• Disposal – wear gloves to handle the battery and dispose of immediately, following local ordinanc-
es or regulations.
②
Do not use a battery pack or machine that is damaged or modified, this may exhibit unpredict-
able behavior resulting in fire, explosion or risk of injury.
Use only Britech recommended accessories and rep|acement Parts.
1.3 Notes on Charging
1.4 Storage and Maintenance Precautions
①
②
③
④
Do not use with a damaged charger or cord.
①
Please store the product under cool and dry environment. Please avoid long-time sunshine on
the product.
②
Please use dry cloth to clean the vacuum cleaner. Please do not use gas or liquid that can make
the surface cracked or color faded.
③
Do not apply any fragrance or scented product to the filter(s) of this machine. The chemicals in
such products are known to be flammable and can cause the machine to catch fire.
④
Do not carry out any maintenance other than that shown in this manual, or advised by the Britech
Support Team.
⑤
Do not disassemble the machine as incorrect reassembly may result in an electric shock or fire.
Contact the Britech Support Team when a service or repair is required
Unplug the charger when not in use for extended periods.
When your vacuum cleaner is fully charged , needs to be cleaned or repaired , please unplug the
charger in time and do not pull the power cord directly.
Fully charge battery before first use. If the product is not used for long time, please make sure the
battery is recharged and used each three months
at least.
⑤
If smoke or fire occurs during charging, unplug the charger immediately, and use a fire
extinguisher to put out the fire. Do not use water to extinguish the fire, it will increase the risk of
electric shock .
⑥
Follow all charging instructions and do not charge the battery pack or the machine outside of the
temperature range specified in the instructions. Charging improperly or at a temperature outside
of the specified range may damage the battery and increase the risk of fire. To ensure maximum
baltery life, Britech recommends the following:
• When not in use the machine should be stored at room temperature. Recommended range: 64
o
F
(18
o
C) to 82
o
F (28
o
C).
• The ambient temperature range for operation and charging should be 50
o
F(8
o
C) to 86
o
F (35
o
C).
SAVE THESE INSTRUCTIONS
Do not store
near heat sources.
Do not pick up
water or liquids.
Do not use near
open flames.
Do not put your hands
in the electric brush head
when using.
Do not place on
or near the cooker.
Do not pick up
burning objects.
2. PACKAGE CONTENT
Please check and confirm the accessories and parts according to the
following sheet before using.
Part Name Quantity
Main Body
Extension Tube
Electric Brush
Charger
Wall-hanging Plate
Long Crevice Nozzle
T-Brush
Battery Pack
User Manual
Quick Start Guide
1
1
1
1
1
1
1
1
1
1
3. SPECIFICATION
Model
Rated Voltage
Battery Type
Mode
Power Adapter Input
Power Adapter Output
BR-SV-500
DC 29.6V
Li-ion
Auto/Manual
100-240V～50/60Hz
35V 0.5A
Battery
Long crevice nozzle
T-Brush
Wall-Mount
Electric floor brush
Extension Tube
Dust Cup
Battery Display
Power Button
4. OVERVIEW & ACCESSORIES
5.1 Install the Extension Tube
5. ASSEMBLY
1) Insert the extension tube to the vacuum as shown below until you hear the "click".
Pull down the connection as shown to remove the extension tube from the vacuum.
2) Insert the extension tube to the floor brush as show below until you hear the "click".
Pull down the connection as shown to remove the extension tube from the vacuum.
Pull down
Insert
Pull down
Insert
5.2 Install the Battery Pack
5.3 Install the Wall Mount
Insert the battery pack along the track into the main body.
( Remove the battery pack by pressing the release button on the side and pulling it out. )
1) Drill holes approximately 40 inches above the ground.
2) Insert the vacuum or battery pack into the wall mount from above. Insert the accessories into the
sides of the wall mount from the bottom until you hear a click.
1）Press the power button to turn the appliance on and off.
2）The appliance is activated in AUTO mode by default.
3）Press the +/- button on the handle to adjust power mode.
6. GUIDELINES FOR USE
6.1 Button operation & Power display

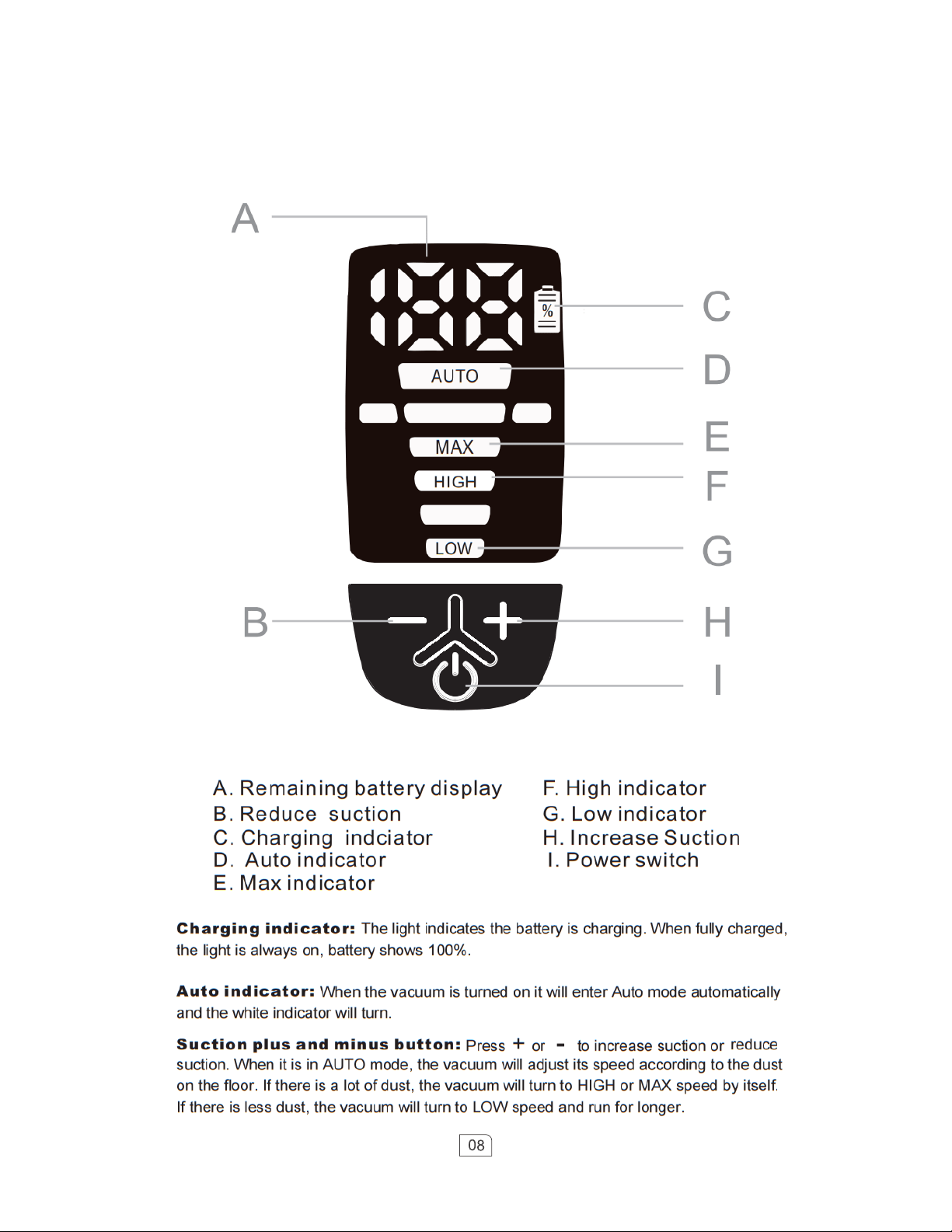

6.2 Description of buttons and indicator lights
7.CHARGING METHODS
7.1 Connect the Main Body to Charge
7.2 Hanging to Charge
7.3 Remove the Battery and Charge it Separately
Note: Please clean it regularly to prolong the service life of the vacuum cleaner.
Turn off the power before cleaning the body.
• Press the dust empty button to empty the dust cup before it reaches the MAX line.
8.2 Clean the Dust Cup
Press the button on the top of the dust cup to remove the dust cup.
8.MAINTENANCE
8.1 Empty the Dust Cup
8.3 Clean the filter
Note: When the suction is obviously insufficient or every 2-3 months,the HEPA filter
needs to be replaced.
Clean the filters with a soft brush or damp cloth.
Take out the HEPA filter and the stainless steel filter in turn
Wash the dust cup with cold water and wipe it with damp cloth.
8.4 Clean electric floor brush
As shown below, remove the roller from the floor brush, and install it by reversing the steps.
1) Press the release button（a square）and pull it out at the same time.The roll brush body will be
taken out.
2) Remove the debris wrapped around the roller, then flush with water.
3) Insert the brush roller into the motored brush window,push down the cover until it securely in
place. (Please make sure the brush roller is completely dry before using.)
Note: Ensure the cleaner is off when cleaning the roller and remove the floor brush from the
cleaner.
(1) Fully charge vacuum cleaner
(2) Change the Battery
(3) Clean the Electric Floor Brush
and Extension Tube
(4) Use the Charger provided by
Britech
9. TROUBLESHOOTING
with hair and other debris
(1) Low battery power
(2) No power supply to the adapter
(3) The Electric Floor Brush is blocked
(4) Auto protection for overheating
(1) Dust Cup is full of garbage
(2) Dust baffle misaligned
(3) HEPA Filter are clogged or not
instalied in place
(4) HEPA Filter not dry
(5) Electric Floor Brush or Extension Tube
is blocked with hair or other debris
(6) The power is set to Eco
(1) Battery Pack is dead or broken
(2) Charger is not correctly connected
(3) Charger is wrong
(1) Charge the unit in use. The
power/battery indicating lights
(1) Brush Roller are blocked with hair,
pebbles or other debris
(1) Insufficient charging time
(2) Battery aging
(3) Motorized Brush Head or Extension
Tube is blocked with hair or other debris
(4) Wrong power adaptor is being used
(2) Dust Cup is full of dust
should be going up.
(1) Empty the Dust Cup
(2) Ensure power socket is working
(3) Clean the Electric Floor Brush
(4) Restart after cooling down
(2) Align the dust baffle to correct
hole
(3) Clean or change the HEPA Filter
plugged in socket and Battery
Pack
(3) Use the Charger provided by
Britech
(1) Clean the Brush Roller
(2) Avoid picking up large rubbish,
such as pebbles
(3) Empty the Dust Cup
(4) Contact Britech Support for
replacement
Cannot turn on
Weak suction
Charging indicator
does not light up or
flash abnormaliy
Insufficient running
time after charging
Electric Floor
Brush does not
rotate
ISSUE
POSSIBLE CAUSES SUGGESTED SOLUTIONS
(1) Change the Battery Pack
(4) Dry out HEPA Filter
(5) Clean the Electric Floor Brush
and Extension Tube
(6) Set the power to HIGH or MAX
(2) Make sure the Charger are fully

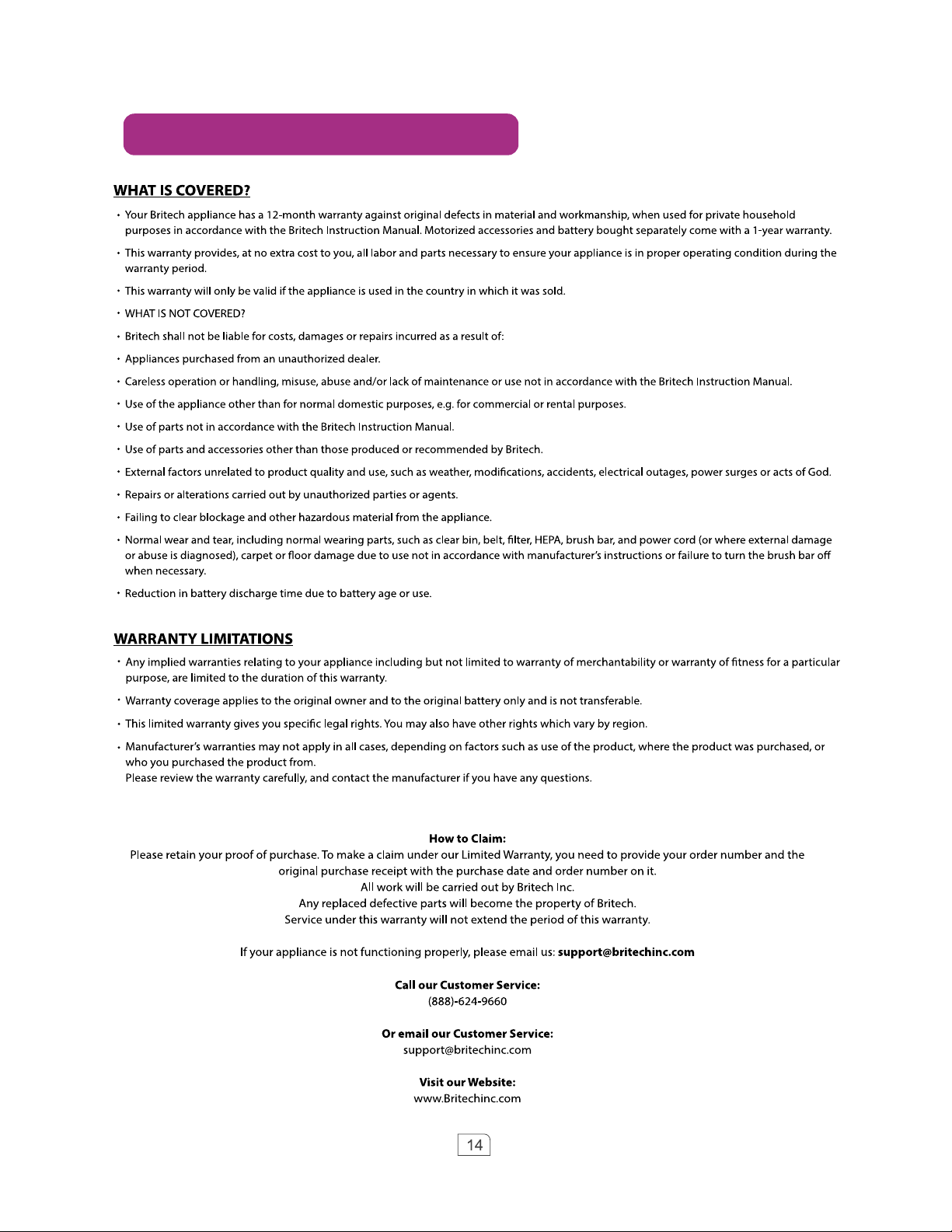

10. WARRANTY POLICY
11. DISPOSAL
This product must not be disposed of as household waste.
Dispose of the device at an authorized collection point for the
recycling of electrical appliances.
