Use & Care Guide
English / Español
Kenmore
®
Bottom Freezer Refrigerator
Refrigerador Congelador Inferior
Models, Modelos: 111.7302*
* color number, número de color
60139-0021700-00
Code : F706-8
2
TABLE OF CONTENTS
Warranty
.................................................................. 3
Important Safety Instructions
.........................4-7

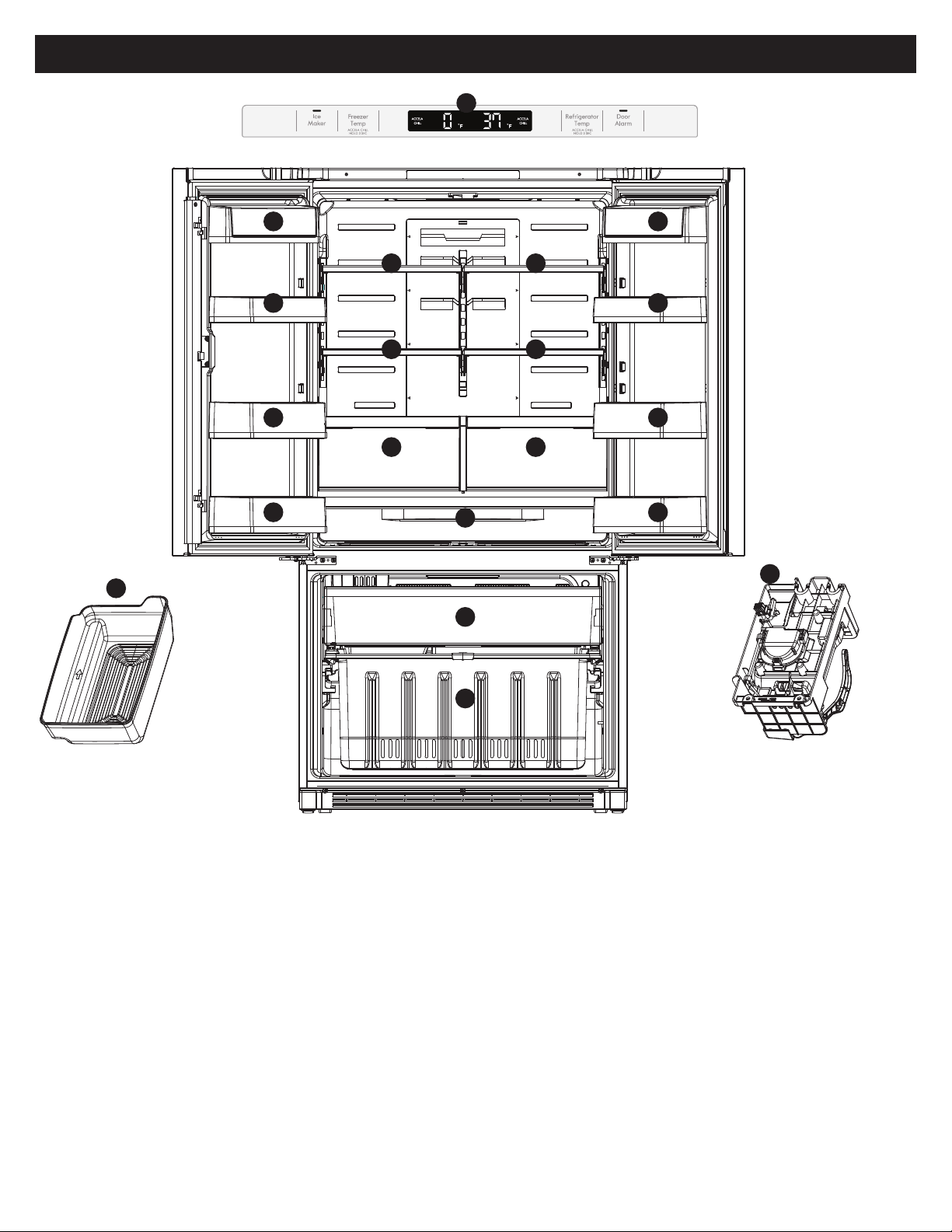

Parts and Features
................................................ 8
Refrigerator Installation
................................. 9-17
Unpacking Your Refrigerator .............................. 9
Prior to Use .......................................................... 10
Installation ........................................................... 10

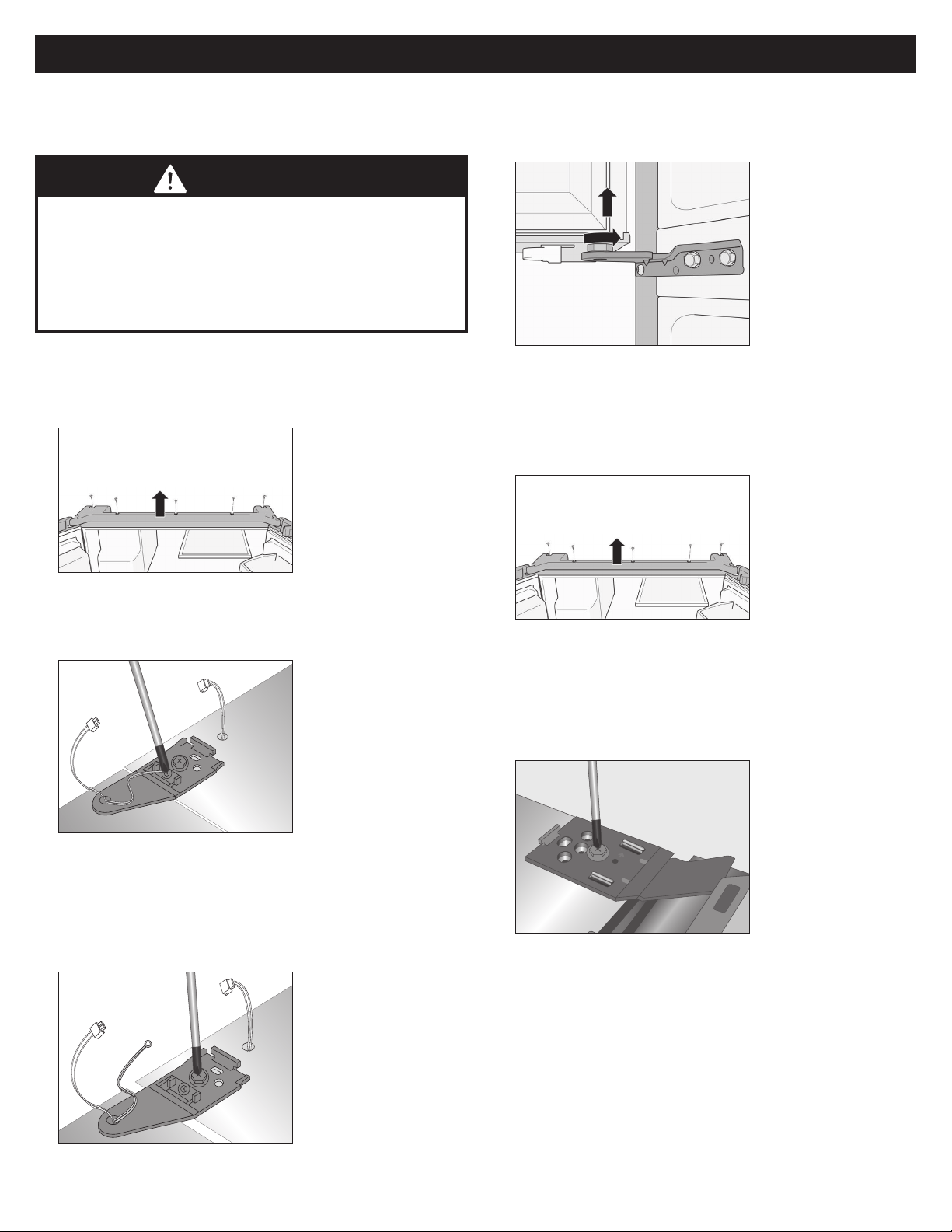

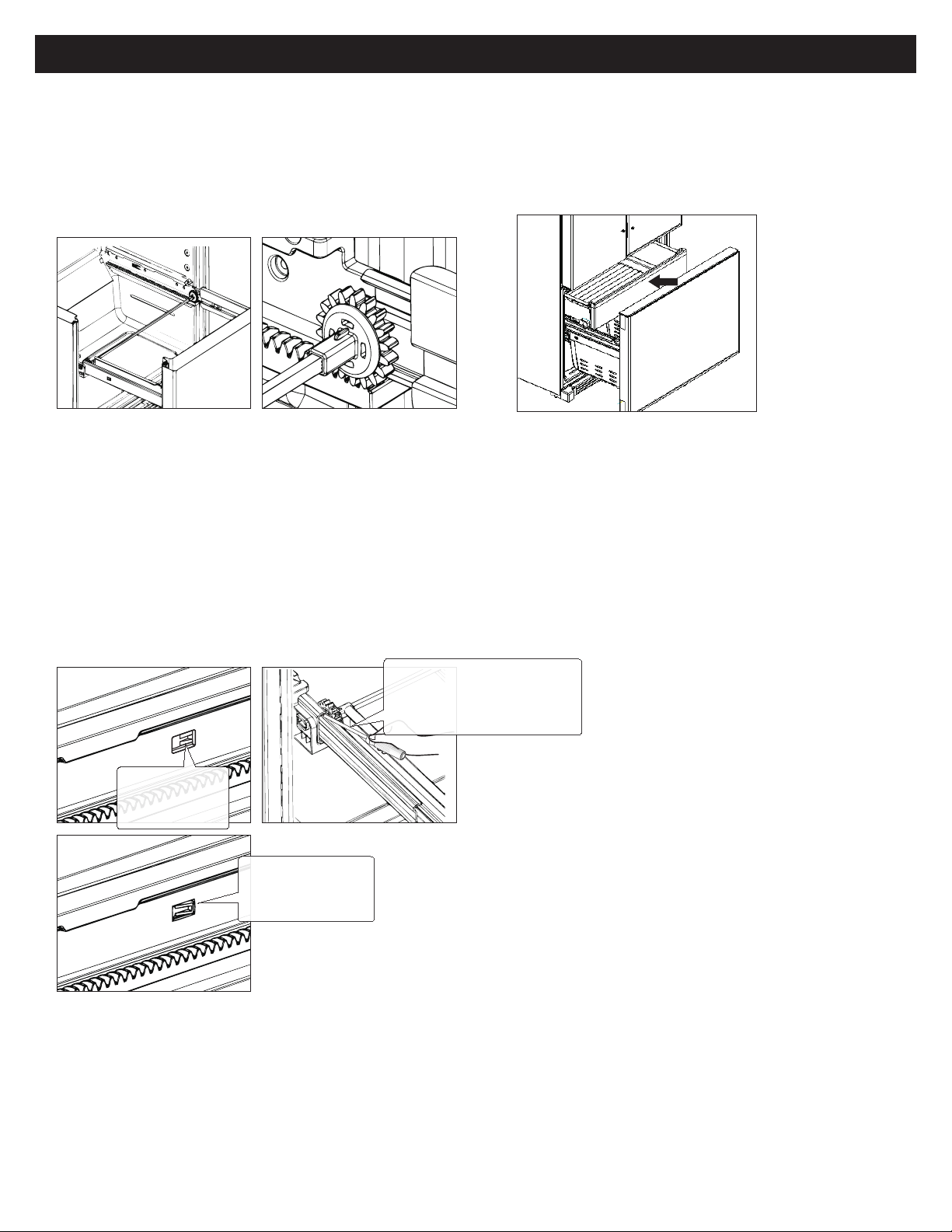

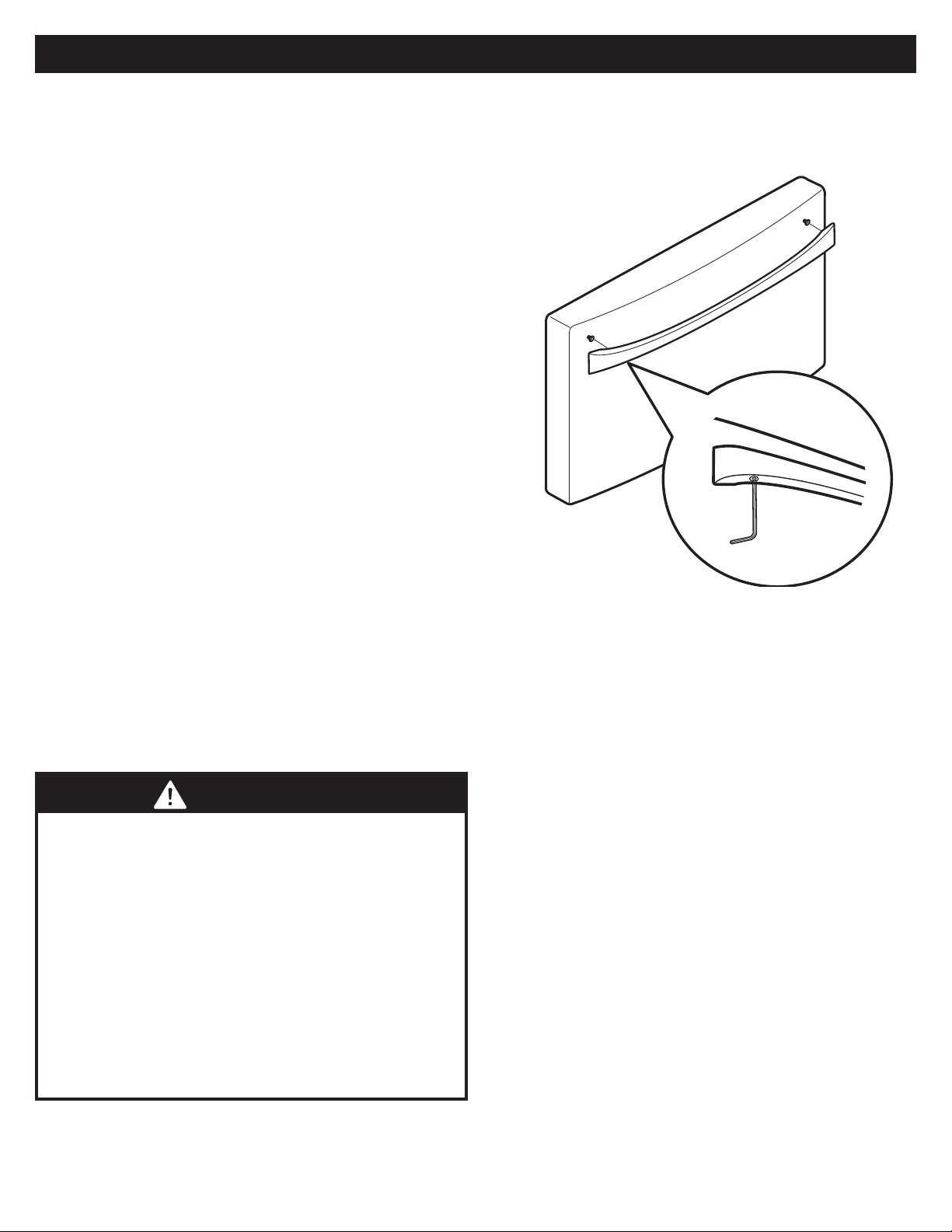

Removing/Replacing Your Refrigerator
and Freezer Handles,
Doors and Drawers ........................................ 11-16

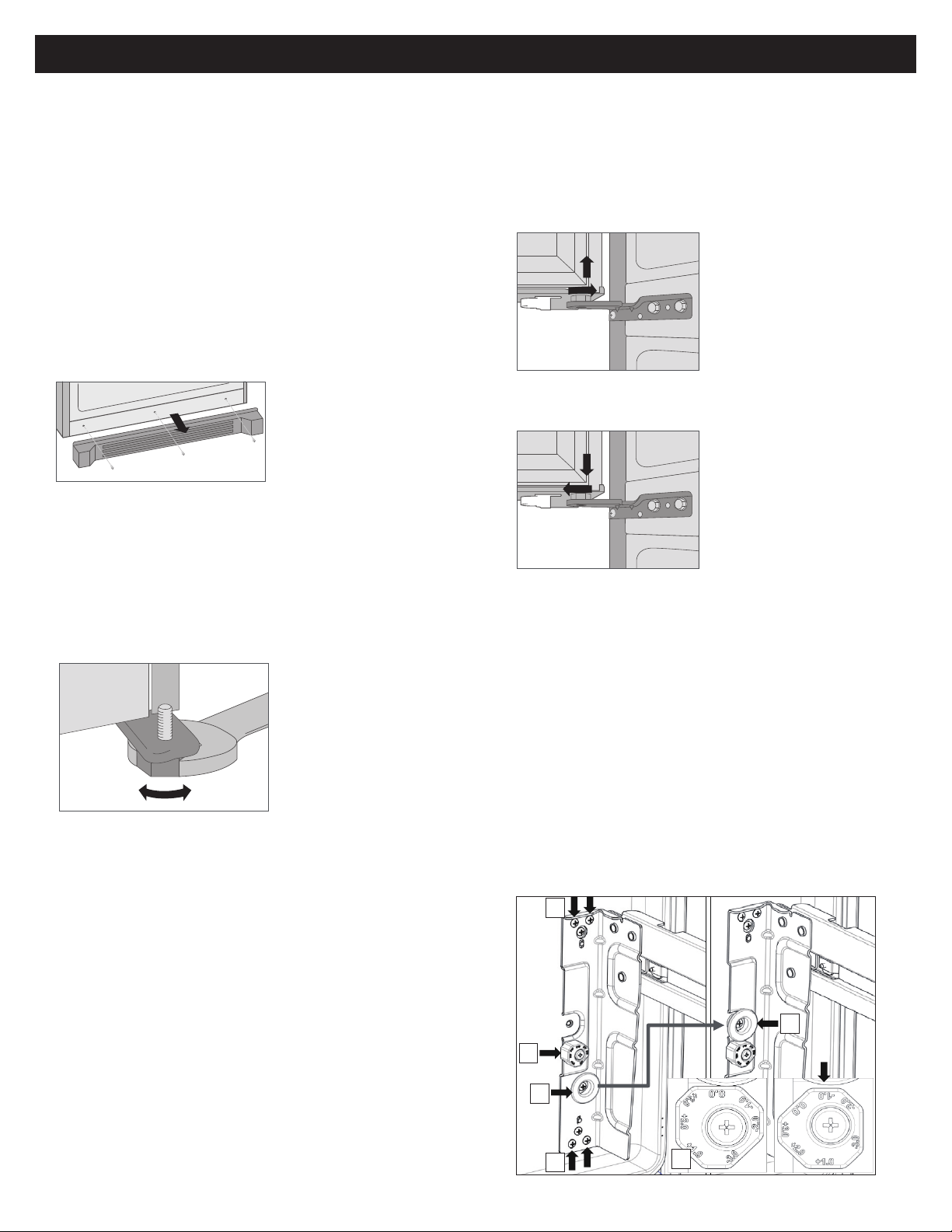

Refrigerator Leveling & Door Adjustment ..... 17
Using Your Refrigerator
.................................18-25
Setting the Controls .............................................18
Control Panel ........................................................19
Icemaker ..............................................................20

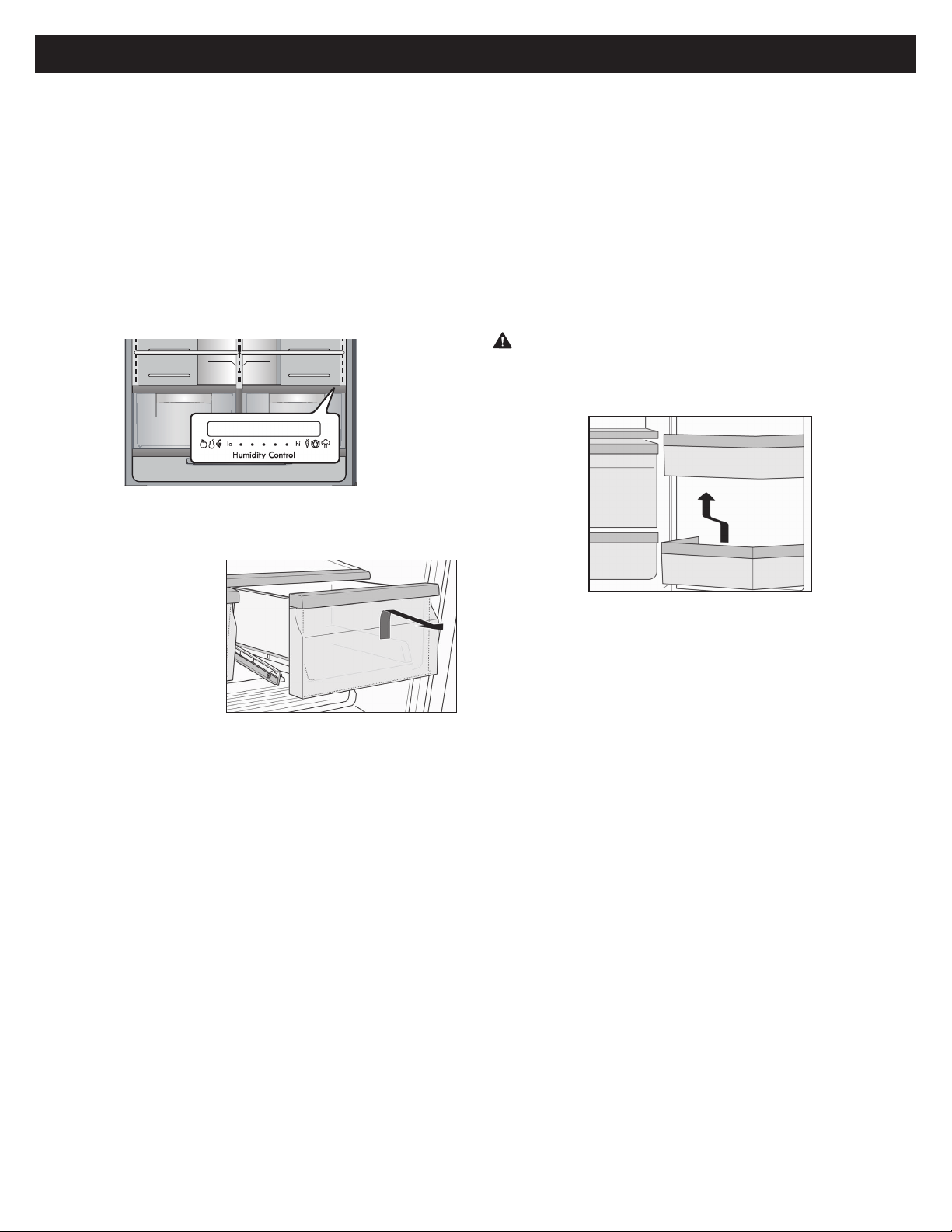

Refrigerator Section ...........................................23
Connecting the Water Line
.................................26
Care and Cleaning
....................................... 27-28
Troubleshooting Guide
................................29-35
Service
.................................................... Back Cover
PRODUCT RECORD
In the space below, record the date of purchase, model and serial number of your product. You will nd the model and
serial number printed on an identication label located on the interior liner of the refrigerator compartment. Have these
items of information available whenever you contact Sears concerning your product.
Model No.___________________ Date of Purchase ___________________
Serial No.___________________
Save these instructions and attach your sales receipt for future reference.
3
KENMORE LIMITED WARRANTY
REFRIGERATOR WARRANTY
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when
it is correctly installed, operated and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option
of seller.
For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty
This warranty applies for only 90 DAYS if this appliance is ever used for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to lters, belts, bags or screw-in
base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation,
operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair
problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such
installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service
agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and
maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration,
abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents,
cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of parts or systems resulting from unauthorized modications made to this appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have
the appropriate certication logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided
herein. Implied warranties, including warranties of merchantability or tness for a particular purpose, are limited to
one year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the
duration of implied warranties of merchantability or tness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
4
IMPORTANT SAFETY INSTRUCTIONS
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always
read and obey
all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or
hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER,
WARNING or CAUTION. These words mean:
WARNING
To reduce the risk of re, electric shock, or personal
injury when using your product, basic safety
precautions should be followed, including the
following.
Read all instructions before using this appliance.
• NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug rmly and pull it
straight out from the outlet.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard. Do not use
a cord that shows cracks or abrasion damage along its
length or at either the plug or connector end.
• Do not modify or extend the power cord length. It
could cause electric shock or re.
• When moving your refrigerator away from the wall, be
careful not to roll over or damage the power cord.
• DO NOT store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
• DO NOT allow children to climb, stand, or hang on the
refrigerator doors or shelves in the refrigerator. They
could damage the refrigerator and seriously injure
themselves.
• Keep ngers out of pinch point areas; clearances
between the doors and cabinets are necessarily small.
Be careful closing doors when children are in the area.
• Unplug your refrigerator before cleaning or making
any repairs.
NOTE:
It is strongly recommended that any service be
performed by a qualied technician.
You
will
be killed or seriously injured if you do not follow instructions.
You
can
be killed or seriously injured if you do not follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may
result in minor or moderate injury, or product damage.
SAVE THESE INSTRUCTIONS
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
5
WARNING
• Before replacing a burned-out or broken light bulb,
unplug the refrigerator or turn o power at the circuit
breaker or fuse box in order to avoid contact with a
live wire lament. (A burned-out light bulb may break
when being replaced exposing the wire lament.)
NOTE
: Some models have LED interior lighting and
service should be performed by a qualied technician.
WARNING
: Setting either or both controls to the OFF
position does not remove power to the light circuit.
• When you are nished, reconnect the refrigerator to
the electrical source and reset the controls (Thermostat,
Refrigerator Control, and or Freezer Control, depending
on the model) to the desired setting.
• This refrigerator must be properly installed in
accordance with the Attention Installer Instructions.
• After your refrigerator is in operation, do not touch the
cold surfaces in the freezer compartment when hands
are damp or wet. Skin may adhere to the extremely
cold surfaces.
• Do not plug several appliances into the same wall
outlet. - It can be a cause of overheating and/or
re. Use an exclusive grounding receptacle for the
refrigerator.
• Never hold the power cord or plug with wet hands. -
There is a risk of electric shock
• Never use a damaged power cord or plug, or loose
main socket. - There is a risk of re, electric shock or
serious injury.
• Be sure to ground. Check if your wall outlet is grounded
(earthed). - There is a risk of electric shock hazards.
• Do not install the refrigerator on a wet oor or in a
place with excessive humidity and moisture. - Electric
insulation gets weakened, resulting in a risk of electric
shock hazards.
• Never let the power cord touch or pass over heating
appliances. - Power cord can be damaged, resulting in
a risk of electric shock hazards.
• Make sure plug is fully inserted into socket to prevent
the risk of electrical shock.
• Do Not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
• Never pour or spray water into the refrigerator
(both interior and exterior). - Electric insulation gets
weakened, resulting in a risk of electric shock hazards.
• Do not place containers with water or liquid on top of
refrigerator. - Water can spill into the refrigerator and
can cause electric shock hazards or damage.
• Do not move or remove compartment shelves/pockets
while foods and containers are on them. - Hard
containers (of glass, metal etc.) can fall to hurt you and
can break glass shelf and interior parts.
• Never repair, disassemble or alter the refrigerator on
your own. - There is a risk of personal injury or damage
to the refrigerator. It is recommended that any service
be carried out by a qualied person.
• If a gas leak is found near the refrigerator or in the
kitchen, ventilate it immediately without touching the
power plug or refrigerator.
• Do not store medicine, academic research samples
which require strict temperature control in the
refrigerator.
• Never insert ngers or hands into the bottom of the
refrigerator, especially into the bottom back. - You can
be hurt by sharp metal edges or can receive an electric
shock.
• When you nd the power cord damaged or cut, call
the service agent immediately.
• When you get rid of your old refrigerator, be sure
to remove the door packings rst. - Children can
be entrapped and suocated in an abandoned
refrigerator.
• It is recommended to unplug the refrigerator when it is
not going to be used for a long period of time.
• Never touch foods and containers especially of metal
with wet hands in the freezer compartment. - You can
be hurt by chilblains or cold burns.
• Never eat any decayed or deteriorated food at
all. - Foods stored too long in the refrigerator can
deteriorate and become decayed.
• Never place bottles and containers of glass in the
freezer compartment. - Glass containers and bottles
can break and hurt you.
• When moving the refrigerator (horizontally or tilted),
more than 2 persons are required to hold it.(One to
hold top back handles, the other to hold the bottom
holder). If other parts are held instead, it is very
dangerous and likely to slip.
SAVE THESE INSTRUCTIONS
6
WARNING
DANGER: RISK OF CHILD ENTRAPMENT
• Be sure to turn up the wheel rst before moving the
refrigerator - Be sure to turn up the wheel rst before
moving the refrigerator, Otherwise, the parts can
collide and break each other.
• DO NOT touch the automatic ice making mechanism
while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of Agriculture
in Home and Garden Bulletin No. 69 says:
…You may safely refreeze frozen foods that have thawed
if they still contain ice crystals or if they are still cold—
below 39°F (4°C).
…Thawed ground meats, poultry or sh that have any
o-odor or o-color should not be refrozen and should
not be eaten. Thawed ice cream should be discarded.
If the odor or color of any food is poor or questionable,
dispose of it. The food may be dangerous to eat.
Even partial thawing and refreezing reduces the eating
quality of foods, particularly fruits, vegetables and
prepared foods. The eating quality of red meats is
aected less than that of many other foods. Use refrozen
foods as soon as possible to save as much of their quality
as you can.
Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. If you are getting rid of
your old refrigerator, please follow the instructions below to help prevent accidents (child entrapment and suocation).
WARNING
: This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
Wash hands after handling.
SAVE THESE INSTRUCTIONS
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER:
• Take o the doors.
• Leave the shelves in place so that
children may not easily climb inside.
7
CFC/HCFC DISPOSAL
ELECTRICAL & GROUNDING REQUIREMENTS
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorouorocarbons or
hydrochlorouorocarbons). CFCs and HCFCs are believed
to harm stratospheric ozone if released to the atmosphere.
Other refrigerants may also cause harm to the environment
if released to the atmosphere
If you are throwing away your old refrigerator, make
sure the refrigerant is removed for proper disposal by a
qualied technician. If you intentionally release
refrigerant, you may be subject to nes and imprisonment
under provisions of environmental legislation.
IMPORTANT
: Please read carefully.
TO CONNECT ELECTRICITY
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a re
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle that cannot be turned o with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, the use of an extension cord is not
recommended.
However, if you still elect to use an
extension cord, it is absolutely necessary that it be a UL-
listed (USA), 3-wire grounding type appliance extension
cord having a grounding type plug and outlet, and that
the electrical rating of the cord be 15 amperes (minimum)
and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.

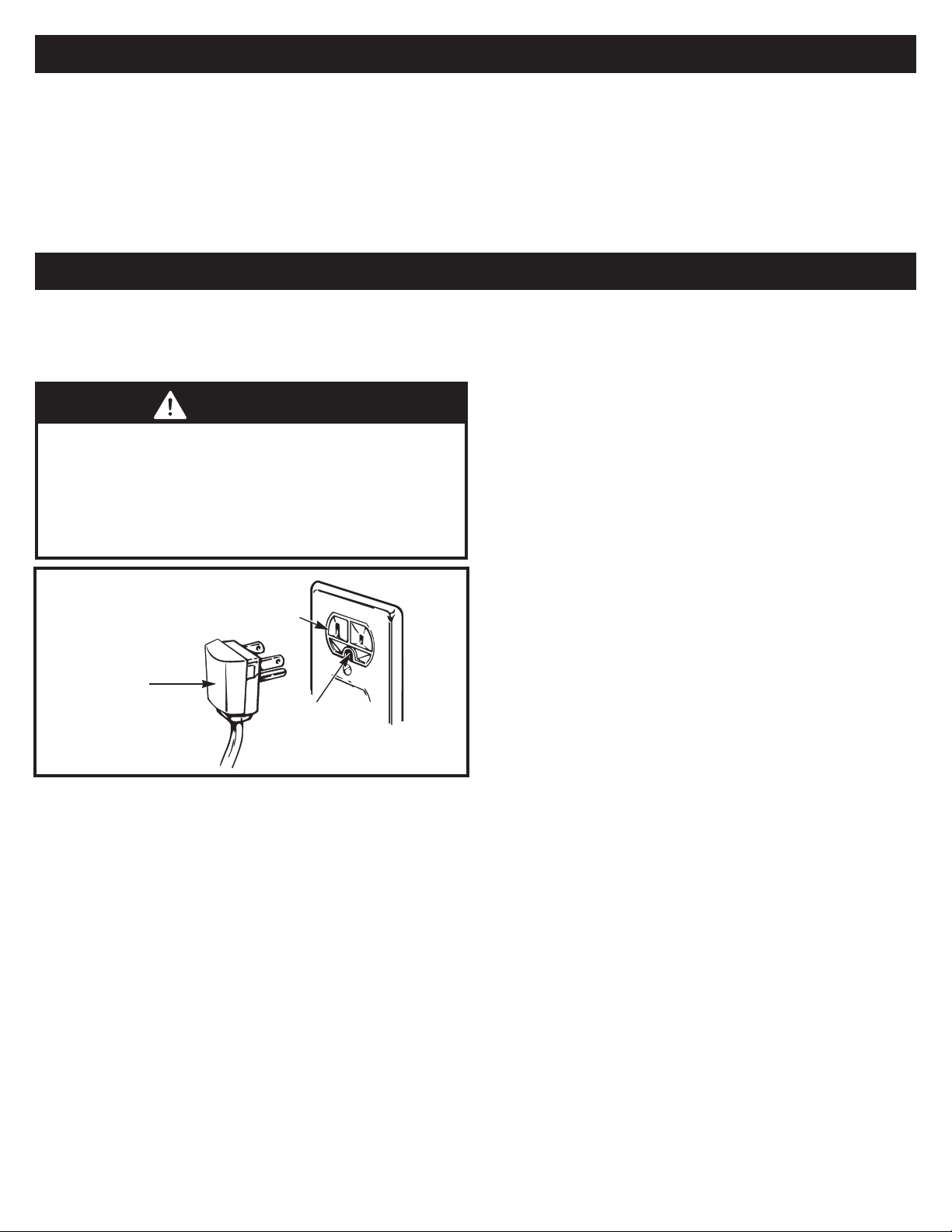

WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY,
this appliance must be
properly grounded. Have the wall outlet and the circuit
checked by a qualied electrician to make sure the
outlet is properly grounded.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Ensure proper
ground exists
before use.
8
PARTS AND FEATURES
* This instruction manual refers to several models. Features may vary according to model.
1. Covered Dairy Bin or Covered Storage Bin
for storing butter and cheese.
2. Gallon door storage bin
for items of medium to large size.
3. Low prole door storage bin
for items of medium to large size.
4. Ice maker for making ice.
5. Adjustable glass shelf
for items of medium to large size.
6. Humidity controlled Crisper Bin
for storage of fruits and vegetables
7. Full width pantry drawer
for storage of miscellaneous small items
8. Pull out freezer drawer
9. Lower freezer basket
for general freezer storage
10. Control and display panel
11. Ice storage bin
10
1
1
3 3
2 2
2 2
11
4
5
7
8
9
5
6
5
5
6
9
REFRIGERATOR INSTALLATION
WARNING
Excessive Weight Hazard:
Use two or more people to move and install the
refrigerator. Failure to do so can result in back or other
injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning- type
labels, the model and serial number label, or
the Tech Sheet that is located under the front of the
refrigerator.
To remove any remaining tape or glue, rub the area briskly
with your thumb. Tape or glue residue can also be easily
removed by rubbing a small amount of liquid dish soap
over the adhesive with your ngers. Wipe with warm water
and dry.
Do not use sharp instruments, rubbing alcohol, ammable
uids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual storage
needs.
WARNING
Excessive Weight Hazard:
Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to protect the oor.
Always pull the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator when trying to
move it, as oor damage could occur.
WARNING
Explosion Hazard:
Keep ammable materials and vapors, such as gasoline,
away from the refrigerator. Failure to do so can result in
re, explosion, or death.
10
REFRIGERATOR INSTALLATION
PRIOR TO USE
1.
Clean your refrigerator thoroughly and wipe o all
dust that accumulated during shipping.
2.
Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3.
Allow your refrigerator to run for at least two to three
hours before putting food in it. Check the ow of
cold air in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
INSTALLATION
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a re
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
WARNING
Shock Hazard:
To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
INSTALLATION (continued)
1.
To avoid noise and vibration, the unit must be leveled
and installed on a solidly constructed oor. If required,
adjust the leveling legs to compensate for unevenness
of the oor. The front should be slightly higher than the
rear to aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the leveling
legs to the left to raise the unit or to the right to lower
it. (See Leveling and door AlIgnment.)
NOTE:
Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure is not
recommended.
2.
Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C). If the
temperature around the appliance is too low or high,
cooling ability may be adversely aected.
3.

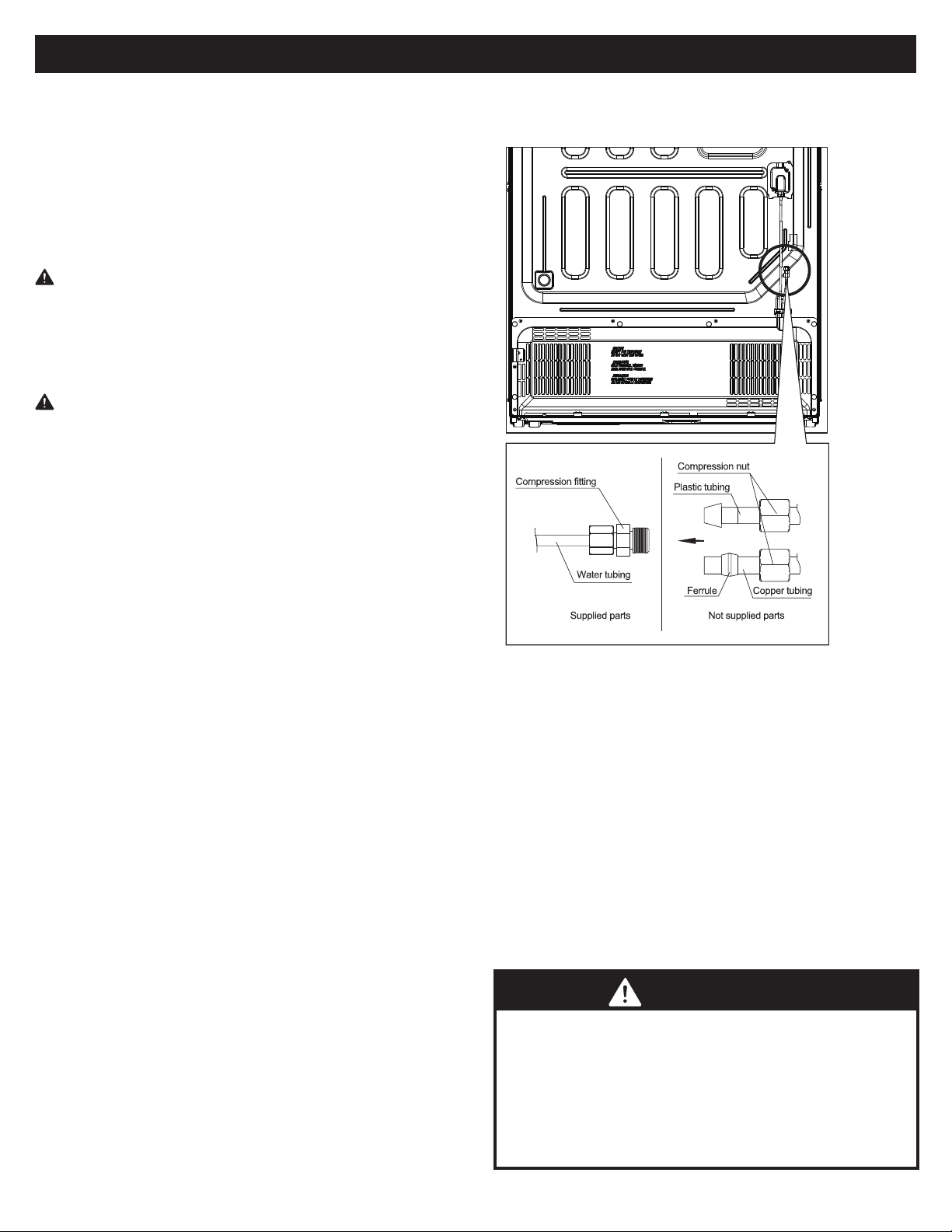

Select a place where a water supply can be easily
connected for the automatic icemaker.
NOTE:
The water pressure must be from 30 to 125 psi
or 207-862 kPa or 2.1-8.8 kgf/cm². If the refrigerator
is installed in an area with low water pressure below
30 psi, you can install a booster pump to compensate
for the low pressure.
4.
Too small of a distance from adjacent items may result
in lowered freezing capability and increased electricity
consumption charges. Allow at least 2 inch (5 cm)
between the back of the refrigerator and the wall.
2" (5 cm)
11
NOTE:
Removing the doors is always recommended
when it is necessary to move the refrigerator through
a narrow opening. If it is necessary to remove the
handles, follow the directions below.

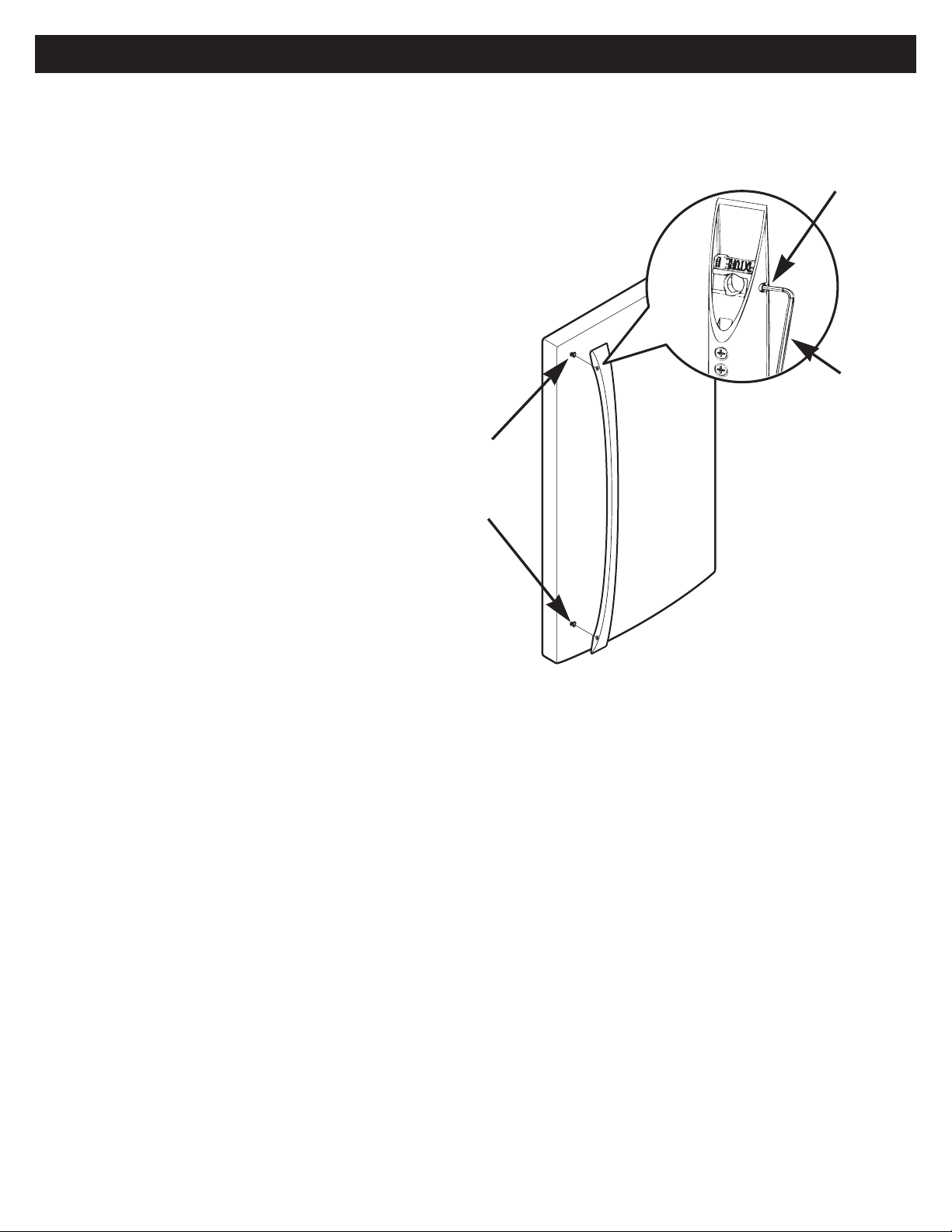

HOW TO REMOVE REFRIGERATOR
DOOR HANDLE
NOTE:
Handle appearance may vary from the
illustrations on this page.
Removing Refrigerator Handle
Loosen the set screws with the 2.5mm hex key
provided and remove the handle.
HOW TO REPLACE REFRIGERATOR
DOOR HANDLE
NOTE:
Handle appearance may vary from the
illustrations on this page.
Removing Refrigerator Handle
Place the handle on the door by tting the
handle footprints over the mounting fasteners and
tightening the set screws with a hex key.
Mounting
Fasteners
Set Screw
hex key
REFRIGERATOR INSTALLATION
12
HOW TO REMOVE FREEZER DOOR HANDLE
NOTE:
Handle appearance may vary from the
illustrations on this page.
Removing Freezer Drawer Handle
Loosen the set screws located on the lower side of
the handle with the hex key provided and remove
the handle.
HOW TO REPLACE FREEZER DOOR HANDLE
NOTE:
Handle appearance may vary from the
illustrations on this page.
Replacing Freezer Drawer Handle
Place the handle on the door by tting the
handle footprints over the mounting fasteners and
tightening the set screws with a hex key.
NOTE
: If the handle mounting fasteners need to be
tightened or removed, use a ¼ in. Allen wrench.
WARNING
When assembling or disassembling the handles:
• Grasp the handle rmly to ensure it will not drop or
cause injury.
• Prevent the handle from swinging toward nearby
people or animals.
• Insert the handle footprints over the door mounting
fasteners and tighten the hex screws to x the handle
in place.
• Check for any gap between the door and handle after
the handle is xed in place.
NOTE:
Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow
opening. If it is necessary to remove the handles, follow the directions below.
REFRIGERATOR INSTALLATION
13

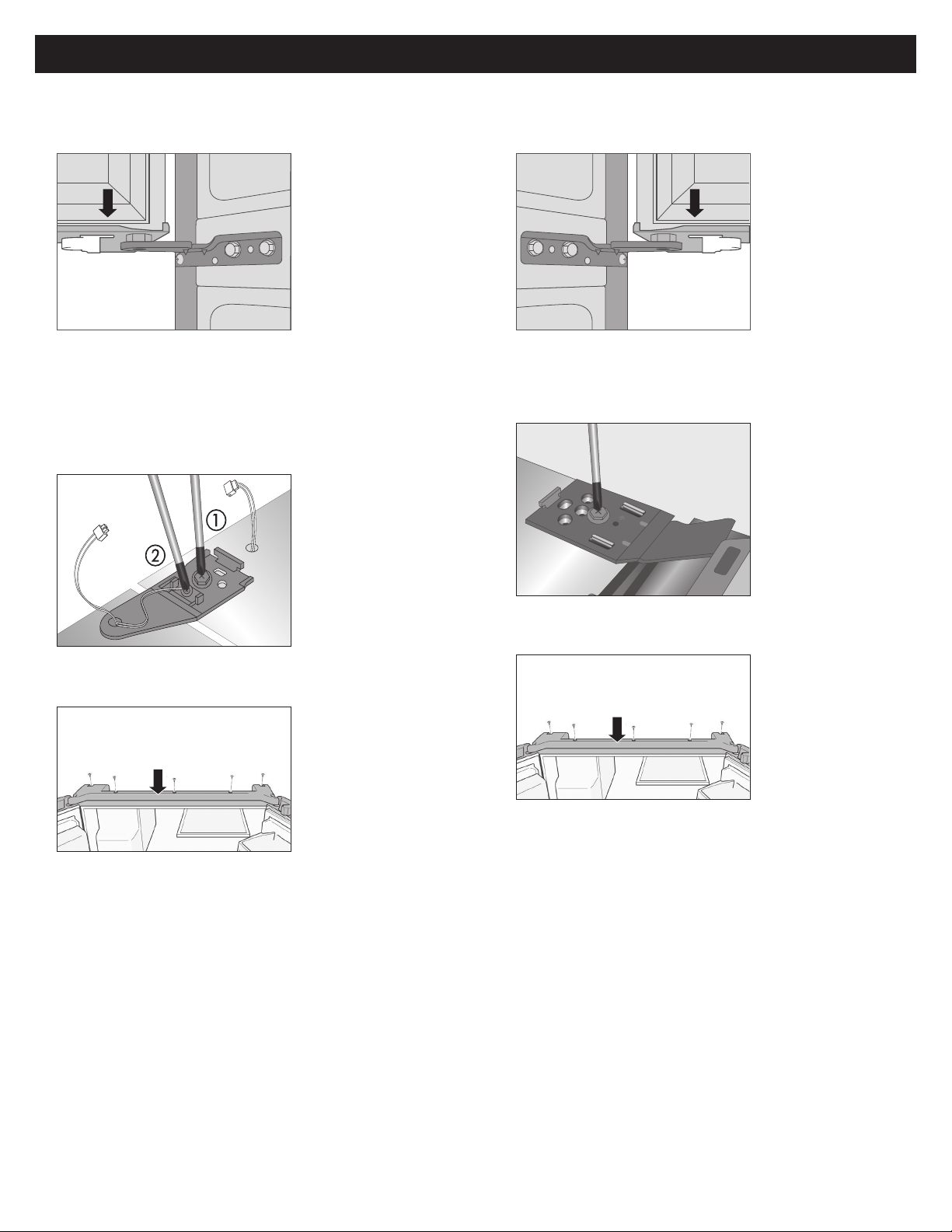

REMOVING AND REPLACING
REFRIGERATOR DOORS
WARNING
Risk of electric shock!
Before removing top hinge cover
• Shut o the water supply to the appliance.
• Unplug the appliance or switch o power from the
breaker or fuse panel.
To remove the left refrigerator door:
1.
Remove top hinge cover using a phillips type
screwdriver by removing 5 screws
2.
Remove the grounding wire screw and pull out the
grounding wire (green with yellow stripe). Disconnect
the main wire harness (blue and yellow wires).
3.
Using a large phillips screwdriver, turn top hinge
fastener counterclockwise to remove the top hinge
plate.
CAUTION:
After the hinge is removed, the door can
fall down forward. Hold the door to prevent it from
falling.
4.
Lift the door from the middle hinge pin and remove
the door. Place the door, inside facing up, on a non-
scratch surface.
To remove the right refrigerator door:
1.
Remove top hinge cover using a phillips type
screwdriver by removing 5 screws.
2.
Using a large phillips screwdriver, turn top hinge
fastener counterclockwise to remove the top hinge/
plate.
CAUTION:
After the hinge is removed, the door can
fall down forward. Please secure door during this
process.
3.
Lift the door from the middle hinge pin and remove
the door. Place the door, inside facing up, on a non-
scratch surface.
en-us
If the refrigerator doors are not
properly aligned:
WARNING
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
2.Unplug the appliance or switch
off the fuse.
1.Determine which refrigerator door
needs adjustment.
2.Remove the five screws on the top
panel.
3.Raise the panel.
4.Loosen the screw.
Do not remove the screw!
5.Move the hinge sideways to adjust
the refrigerator door.
6.Tighten the screw.
7.Realign panel.
8.Insert and tighten the five screws.

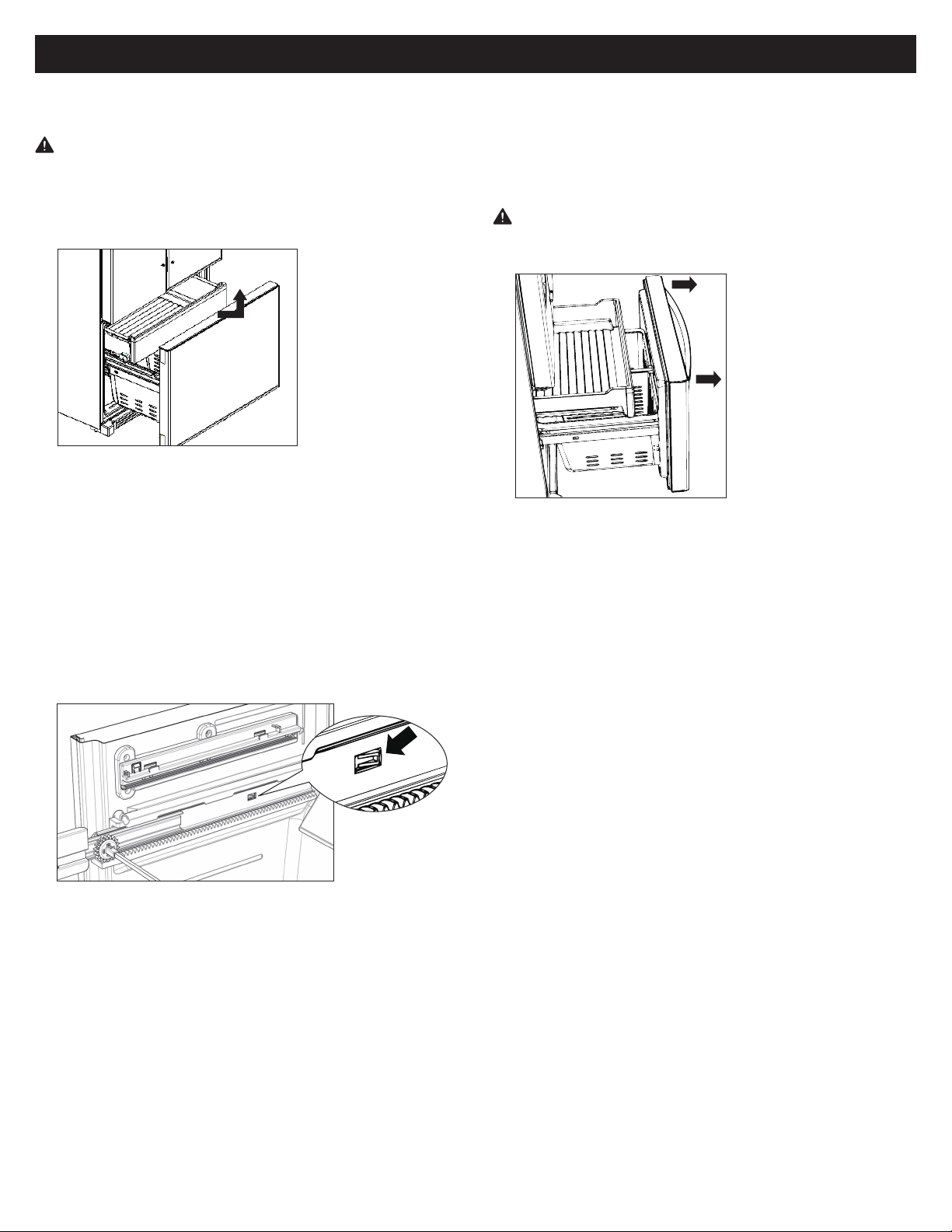

Adjusting the freezer
compartment drawer
1.Determine which side needs
adjustment.
2.Loosen the two screws.
Do not remove the screws!
3.Use the top screw to adjust the
freezer compartment drawer.
4.Tighten the two screws.
Installing the handles
Do not install the handles until the
appliance is installed in its designated
location and is level.
All handles are the same and are
installed in the same manner.
1.Remove the protective films from
the refrigerator doors and the
freezer compartment drawer.
2.Insert the door handles into the
guides.
�Refrigerator doors: The handle
screws must face the center of
the appliance.
�Freezer compartment drawer:
The handle screws must face
down.
3.Tighten the handle screws with the
accompanying Allen wrench.
Installing the base plate
1.Remove the three screws on the
appliance.
2.Mount the base plate.
3.Insert the three screws and
tighten.
en-us
If the refrigerator doors are not
properly aligned:
WARNING
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
2.Unplug the appliance or switch
off the fuse.
1.Determine which refrigerator door
needs adjustment.
2.Remove the five screws on the top
panel.
3.Raise the panel.
4.Loosen the screw.
Do not remove the screw!
5.Move the hinge sideways to adjust
the refrigerator door.
6.Tighten the screw.
7.Realign panel.
8.Insert and tighten the five screws.
Adjusting the freezer
compartment drawer
1.Determine which side needs
adjustment.
2.Loosen the two screws.
Do not remove the screws!
3.Use the top screw to adjust the
freezer compartment drawer.
4.Tighten the two screws.
Installing the handles
Do not install the handles until the
appliance is installed in its designated
location and is level.
All handles are the same and are
installed in the same manner.
1.Remove the protective films from
the refrigerator doors and the
freezer compartment drawer.
2.Insert the door handles into the
guides.
�Refrigerator doors: The handle
screws must face the center of
the appliance.
�Freezer compartment drawer:
The handle screws must face
down.
3.Tighten the handle screws with the
accompanying Allen wrench.
Installing the base plate
1.Remove the three screws on the
appliance.
2.Mount the base plate.
3.Insert the three screws and
tighten.
en-us
Aligning the appliance
NOTICE
To ensure that the appliance
operates correctly, use a level to
align the appliance.
If the appliance is not level, water
may flow out of the ice maker, ice
cubes may be irregular, or the doors
may not close properly.
1.Place the appliance in the
designated location.
2.Remove the three screws from the
base panel.
3.Remove the base panel.
4.Use a hexagonal wrench to loosen
the two front feet until they are
firmly planted on the floor and then
align the front of the appliance.
5.Use a hexagonal wrench to turn
the screws and then align the rear
of the appliance.
To raise the rear of the appliance:
Turn the screw clockwise.
To lower the rear of the appliance:
Turn the screw counterclockwise.
6.Use the level to check if the
appliance is level.
NOTICE
To ensure that the appliance does
not move, the front feet must be
firmly planted on the floor.
7.If the height of the refrigerator
compartment doors are uneven or
if the freezer compartment drawer
is slanted after adjusting the level
of the appliance, use the following
method to adjust them.
Adjusting a refrigerator door
If the height of the refrigerator doors
is uneven:
1.Determine which refrigerator door
needs to be raised.
2.Turn the screw nut on the lower
hinge to adjust the refrigerator
door.
To raise a refrigerator door:
Turn the screw counterclockwise.
To lower a refrigerator door:
Turn the screw clockwise.
REFRIGERATOR INSTALLATION
14
Reinstalling the Left Refrigerator Door
1.
Lower the door onto the middle hinge.
2.
Fit the top hinge over the mounting holes and align to
proper position before tightening. Turn top hinge screw
clockwise to secure the hinge. Insert the ground wire
screw and tighten the ground wire (green with yellow
stripe) securely beneath it. Reconnect the main wire
harness (blue and yellow wires).
3.
Screw top hinge cover into place with a screwdriver.
Reinstalling the Right Refrigerator Door
1.
Lower the door onto the middle hinge.
2.
Fit the top hinge over the mounting holes and align to
proper position before tightening.
Turn top hinge fastener clockwise to secure the hinge.
3.
Screw top hinge cover into place with a screwdriver.
REFRIGERATOR INSTALLATION
en-us
If the refrigerator doors are not
properly aligned:
WARNING
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
2.Unplug the appliance or switch
off the fuse.
1.Determine which refrigerator door
needs adjustment.
2.Remove the five screws on the top
panel.
3.Raise the panel.
4.Loosen the screw.
Do not remove the screw!
5.Move the hinge sideways to adjust
the refrigerator door.
6.Tighten the screw.
7.Realign panel.
8.Insert and tighten the five screws.
Adjusting the freezer
compartment drawer
1.Determine which side needs
adjustment.
2.Loosen the two screws.
Do not remove the screws!
3.Use the top screw to adjust the
freezer compartment drawer.
4.Tighten the two screws.
Installing the handles
Do not install the handles until the
appliance is installed in its designated
location and is level.
All handles are the same and are
installed in the same manner.
1.Remove the protective films from
the refrigerator doors and the
freezer compartment drawer.
2.Insert the door handles into the
guides.
�Refrigerator doors: The handle
screws must face the center of
the appliance.
�Freezer compartment drawer:
The handle screws must face
down.
3.Tighten the handle screws with the
accompanying Allen wrench.
Installing the base plate
1.Remove the three screws on the
appliance.
2.Mount the base plate.
3.Insert the three screws and
tighten.
en-us
If the refrigerator doors are not
properly aligned:
WARNING
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
2.Unplug the appliance or switch
off the fuse.
1.Determine which refrigerator door
needs adjustment.
2.Remove the five screws on the top
panel.
3.Raise the panel.
4.Loosen the screw.
Do not remove the screw!
5.Move the hinge sideways to adjust
the refrigerator door.
6.Tighten the screw.
7.Realign panel.
8.Insert and tighten the five screws.
Adjusting the freezer
compartment drawer
1.Determine which side needs
adjustment.
2.Loosen the two screws.
Do not remove the screws!
3.Use the top screw to adjust the
freezer compartment drawer.
4.Tighten the two screws.
Installing the handles
Do not install the handles until the
appliance is installed in its designated
location and is level.
All handles are the same and are
installed in the same manner.
1.Remove the protective films from
the refrigerator doors and the
freezer compartment drawer.
2.Insert the door handles into the
guides.
�Refrigerator doors: The handle
screws must face the center of
the appliance.
�Freezer compartment drawer:
The handle screws must face
down.
3.Tighten the handle screws with the
accompanying Allen wrench.
Installing the base plate
1.Remove the three screws on the
appliance.
2.Mount the base plate.
3.Insert the three screws and
tighten.
en-us
If the refrigerator doors are not
properly aligned:
WARNING
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
2.Unplug the appliance or switch
off the fuse.
1.Determine which refrigerator door
needs adjustment.
2.Remove the five screws on the top
panel.
3.Raise the panel.
4.Loosen the screw.
Do not remove the screw!
5.Move the hinge sideways to adjust
the refrigerator door.
6.Tighten the screw.
7.Realign panel.
8.Insert and tighten the five screws.
Adjusting the freezer
compartment drawer
1.Determine which side needs
adjustment.
2.Loosen the two screws.
Do not remove the screws!
3.Use the top screw to adjust the
freezer compartment drawer.
4.Tighten the two screws.
Installing the handles
Do not install the handles until the
appliance is installed in its designated
location and is level.
All handles are the same and are
installed in the same manner.
1.Remove the protective films from
the refrigerator doors and the
freezer compartment drawer.
2.Insert the door handles into the
guides.
�Refrigerator doors: The handle
screws must face the center of
the appliance.
�Freezer compartment drawer:
The handle screws must face
down.
3.Tighten the handle screws with the
accompanying Allen wrench.
Installing the base plate
1.Remove the three screws on the
appliance.
2.Mount the base plate.
3.Insert the three screws and
tighten.
en-us
If the refrigerator doors are not
properly aligned:
WARNING
Risk of electric shock!
Before removing the top panel:
1.Shut off the water supply to the
appliance.
2.Unplug the appliance or switch
off the fuse.
1.Determine which refrigerator door
needs adjustment.
2.Remove the five screws on the top
panel.
3.Raise the panel.
4.Loosen the screw.
Do not remove the screw!
5.Move the hinge sideways to adjust
the refrigerator door.
6.Tighten the screw.
7.Realign panel.
8.Insert and tighten the five screws.
Adjusting the freezer
compartment drawer
1.Determine which side needs
adjustment.
2.Loosen the two screws.
Do not remove the screws!
3.Use the top screw to adjust the
freezer compartment drawer.
4.Tighten the two screws.
Installing the handles
Do not install the handles until the
appliance is installed in its designated
location and is level.
All handles are the same and are
installed in the same manner.
1.Remove the protective films from
the refrigerator doors and the
freezer compartment drawer.
2.Insert the door handles into the
guides.
�Refrigerator doors: The handle
screws must face the center of
the appliance.
�Freezer compartment drawer:
The handle screws must face
down.
3.Tighten the handle screws with the
accompanying Allen wrench.
Installing the base plate
1.Remove the three screws on the
appliance.
2.Mount the base plate.
3.Insert the three screws and
tighten.
15
HOW TO REMOVE THE FREEZER DRAWER
WARNING
: Use two or more people to remove and
install the freezer drawer. Failure to do so can result in
personal injury, product or property damage.
1.
Take out the ice bin rst, and then take out the upper
freezer drawer by lifting it up.
2.
Remove lower freezer basket by pulling up and tilting
toward refrigerator until it can be removed from the
freezer drawer/door assembly.
3.
Push the rail support locking tabs to release the main
freezer drawer rails from the cabinet while slightly
pulling the exterior freezer drawer outwards, so that the
locking tab does not return to the locked position. The
locking tabs are located in the freezer compartment to
the rear of the main rail assembly (which is attached
to main exterior freezer drawer) as shown in the
illustration below.
4.
Pull exterior freezer drawer to fully disengage the rail
assembly from the unit. Use 2 people for this task as
the door is heavy and awkward to handle.
CAUTION
: Do not hold the handle when removing or
replacing the drawer. The handle may come o and it
could cause personal injury.
5.
Place the door on a non-scratch surface.
REFRIGERATOR INSTALLATION
Locking Tab
16
HOW TO INSTALL THE FREEZER DRAWER
1.
Using 2 people (recommended), align end of the
exterior drawer rails to the lower rail guides located on
the sidewalls of the freezer compartment. Make sure
the gear teeth are engaged to the gear rail the same
amount on both sides.
2.
Fully push in and close freezer drawer to engage rails
with rail support locking tab, applying a bit of pressure
after the door is closed to seat the tabs to the rail.
CAUTION
: Make sure the tabs are completely
engaged to the rail or the refrigerator drawer could
be pulled out of the refrigerator by the customer. Fully
open the freezer door to check and see if the locking
tabs are fully engaged. If they are not engaged,
gently push each freezer rail with a at head
screwdriver towards the freezer compartment until the
locking tabs snap to the locked position.
3.
Replace the lower freezer drawer basket
4.
Insert the upper freezer drawer above the lower basket,
and replace ice bin.
5.
Open and close the freezer drawer several times to
make sure operation is smooth and seal is consistent all
the way around the freezer compartment.
REFRIGERATOR INSTALLATION
This shows that
the tab is not
fully locked
If the tab is not fully engaged,
use a at screwdriver to push
on the rail as shown to allow
the tab to snap into position
This shows that the
tab is fully in the
locked position
17
REFRIGERATOR LEVELING
& DOOR ADJUSTMENT
The refrigerator must be level in order to maintain optimal
performance and desirable front appearance.
(If the oor beneath the refrigerator is uneven, the freezer
and refrigerator doors look unbalanced.)
Leveling Refrigerator
1.
Fully open the freezer drawer and remove the freezer
drawer basket to gain access to the lower toe guard
fasteners.
2.
Remove the lower toe guard using a phillips
screwdriver.
NOTE:
Put screws in safe location so they are not lost.
3.
Using the wrench provided, turn the leveling leg
clockwise to lower and counterclockwise to raise the
front corners of the refrigerator.
4.
Install lower toe guard/grille using a phillips
screwdriver.
5.
Install freezer drawer basket, then open and close the
freezer drawer several times to make sure operation is
smooth without hindrance.
Adjusting a refrigerator door
If the height of the refrigerator doors is uneven, turn the
screw nut on the middle hinge to adjust the refrigerator door.
1.
To raise a refrigerator door turn the screw
counterclockwise.
2.
To lower a refrigerator door turn the screw clockwise.
Adjusting the freezer drawer
If the freezer drawer is higher on one side than the other
(not even):
1.
Loosen the four side screws on the side where
adjustment is needed.
2.
Move the Stopper from ‘left picture position’ to ‘right
picture position’.
3.
Adjust the leveling by rotating the Position Knob.
(Pull and rotate the Position Knob)
4.
After adjusting the leveling, tighten the four side screws.
RaiseLower
REFRIGERATOR INSTALLATION
1
3
2
1
2
3
18
USING YOUR REFRIGERATOR
SETTING THE CONTROLS
Temperature Control
NOTE:
When changing control settings, wait 24 hours
before making additional adjustments. The controls are set
correctly when milk or juice is as cold as you would like
and when ice cream is rm. If the temperature in either
compartment is too cold or too warm, change the setting
one increment at a time. Wait 24 hours for the change to
stabilize before adjusting again.
• The refrigerator temperature control is preset to
37 deg F (3 deg C) and the freezer control is preset
to 0 deg F (-18 deg C). These are recommended
temperature settings for normal use conditions.
Freezer Compartment
Push the Freezer button and the temperature setting
changes in the sequence as shown below:
>>> Sequential Temperature Change <<<
Accela Chill Freezer function:
To activate freezer Accela Chill, press and hold the
Freezer button for 3 seconds. Accela Chill LED will turn
on. Push the button again to cancel.
The Accela Chill function is useful to help quickly chill the
freezer compartment when needed. For example: If a
large quantity of warm food is placed inside the freezer,
or if loading the freezer with new groceries which may
not be as cold as normal freezer temperatures.
Accela Chill will automatically cancel (Accela Chill LED
will turn o) after 50 hours.
Refrigerator Compartment
Push the Refrigerator button and the temperature setting
changes in the sequence as shown below:
>>> Sequential Temperature Change <<<
Accela Chill Refrigerator function:
To activate refrigerator Accela Chill, press and hold the
Refrigerator button for 3 seconds. Accela Chill LED will
turn on. Push the button again to cancel.
The Accela Chill function is useful to help quickly cool the
refrigerator compartment when needed. For example:
If a large quantity of warm food is placed inside the
refrigerator, or if loading the refrigerator with new
groceries which may not be as cold as normal refrigerator
temperatures.
Accela Chill refrigerator function will automatically cancel
(Accela Chill LED will turn o) after 6 hours
Demo Mode (For Store Use Only)
The Demo Mode disables all cooling in the refrigerator
and freezer sections to conserve energy while on display
in a retail store.
When Demo Mode is active, the display panel can be
demonstrated without activating cooling operation.
To activate or deactivate:
Press Door Alarm button 5 times while pressing and
holding Ice Maker and Freezer Temp buttons
19
USING YOUR REFRIGERATOR
Control Panel
1. Ice Maker button
Press to turn Ice Maker On or O. If you do not intend
to use any ice cubes for longer than one week (e.g.
because you are going on holiday), shut down the ice
maker.
Initial status: Ice Maker On (LED o)
Press Ice Maker button: Ice Maker OFF (LED on)
2. Freezer Temp button
Press to adjust freezer compartment temperature.
3. Refrigerator button
Press to adjust refrigerator compartment temperature.
4. Door Alarm
When either the refrigerator or the freezer door is left
open for more than one minute, the Door Alarm button
LED will illuminate and an audible alarm will sound to
alert you that the door is open. To turn o the alarm,
press the DOOR ALARM button.
5. ACCELA CHILL (
)
Illuminates when ACCELA CHILL function is ON.
6. Temperature Mode Switch Function ( °F
↔
°C )
If you want to convert from °F to °C or vice versa:
Press and hold the Freezer Temp and Refrigerator Temp
for 5 seconds until the temperature mode changes.
20
ICEMAKER
In case the icemaker doesn’t work
If the ice maker doesn’t work, check the following:
• Has it been less than 12 hours since the water supply
line installation?
• Is the water line connected and the shut-o valve
opened?
• Did you manually stop the ice making function?
• Is the freezer temperature too warm? Try setting the
freezer temperature lower.
In case of power failure
In the event of a lengthy power failure, remove ice cubes
from the storage bin as the ice may melt.
Shutting down the ice maker
Important!
If you do not intend to use any ice cubes for longer than
one week (e.g. because you are going on holiday),
shut down the ice maker for that period in order to
prevent ice cubes from freezing together.
1.
Press the On/O button for 5 seconds to turn the ice
maker o (LED on)
2.
Empty and clean the ice cube bin.
3.
Return the ice cube bin into position.
Reactivating the ice maker:
Press the button for 5 seconds to turn the ice maker on (LED
o)
ICEMAKER
FOOD STORAGE GUIDE
• Wash food before storing
• Divide and separate food into smaller pieces.
• Place watery food or food with a lot of moisture in
front shelves (close to door side). If they are placed
close to the cold air vent, they can be frozen.
• Warm or hot food should be cooled down enough
before storing to reduce power consumption and to
enhance refrigeration performance.
• Be careful in storing tropical fruits such as bananas,
pineapples and tomatoes, as they can easily
deteriorate in lower temperatures.
• Keep enough space between the food items. If too
tight or too close, cold air circulation is hindered,
resulting in poor refrigeration.
• Never forget to cover or wrap food to prevent odors.
USING YOUR REFRIGERATOR
21
AUTOMATIC ICE MAKER (continued)
CAUTION
:
• The rst ice and water dispensed may include particles
or odor from the water supply line or the water tank.
• Throw away the rst few batches of ice. This is also
necessary if the refrigerator has not been used for a
long time.
• Never store beverage cans or other items in the ice
bin for the purpose of rapid cooling. Doing so may
damage the ice maker if the containers burst.
• If discolored ice is dispensed, check the water lter
and water supply. If the problem continues, contact a
Sears or other qualied service center. Do not use the
ice or water until the problem is corrected.
• To avoid personal injury, keep hands out of the
ice maker.
• If ice or water dispenses unexpectedly, turn o the
water supply and contact Sears Home Services at
1-844-553-6667
WHEN TO SET ICEMAKER TO OFF
• When the water supply will be shut o for several
hours.
• When the ice bin is removed for more than one or two
minutes.
• When the refrigerator will not be used for several days.
NOTE:
The ice bin should be emptied when the
icemaker ON/OFF button is turned to the OFF mode.
PREPARING FOR VACATION
Set the icemaker ON/OFF button to OFF and shut o the
water supply to the refrigerator.
NOTE:
The ice bin should be emptied any time the
icemaker ON/OFF button is turned OFF.
If the ambient temperature will drop below freezing, have
a qualied technician drain the water supply system to
prevent serious property damage due to ooding caused
by ruptured water lines or connections.
How to use the Automatic Icemaker
The ice maker will produce 7 cubes per cycle
–
approximately 50 to70 cubes in a 24-hour period –
depending on freezer compartment temperature, room
temperature, number of times freezer door is opened, and
other use conditions.
Throw away the rst few batches of ice to allow the water
line to clear.
Be sure nothing interferes with the sweep of the ice maker
feeler arm.
When the bin lls to the level of the feeler arm, the ice
maker will stop producing ice.
After the ice maker has been turned on again, there will
be a time delay before the ice maker resumes operation.
When ice dispenses, it is normal for several cubes to be
joined together.
If ice is not dispensed on a regular basis, old ice cubes will
discolor and shrink. If you won’t be using ice on a regular
basis, turn the ice maker o.
USING YOUR REFRIGERATOR
22
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Items How to
Butter or
margarine
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese
Store in the original wrapping
until you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
Milk
Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Eggs
Store in original carton on interior
shelf, not on door shelf.
Fruit
Do not wash or hull the fruit
until it is ready to be used. Sort
and keep fruit in its original
container, in a crisper, or store in
a completely closed paper bag
on a refrigerator shelf.
Leafy
vegetables
Remove store wrapping and trim
or tear o bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper.
Vegetables
with skins
(carrots,
peppers)
Place in plastic bags or plastic
container and store in crisper.
Fish
Store fresh sh and shellsh in
the freezer section if they are not
being consumed the same day of
purchase. It is recommended to
consume fresh sh and shellsh
the same day purchased.
Leftovers
Cover leftovers with plastic wrap
or aluminum foil, or store in
plastic containers with tight lids.
STORING FROZEN FOOD
NOTE:
Check a freezer guide or a reliable cookbook for
further information about preparing food for freezing or
food storage times.
Freezing
Your freezer will not quick-freeze a large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours (no more than 2 to 3
lbs. of food per cubic foot of freezer space). Leave
enough space in the freezer for air to circulate around
packages. Be careful to leave enough room at the
front so the door can close tightly.
Storage times will vary according to the quality and
type of food, the type of packaging or wrap used
(how airtight and moisture-proof) and the storage
temperature. Ice crystals inside a sealed package are
normal. This simply means that moisture in the food
and air inside the package have condensed, creating
ice crystals.
NOTE:
Allow hot foods to cool at room temperature
for 30 minutes, then package and freeze. Cooling hot
foods before freezing saves energy.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not
allow air or moisture in or out. If it does, you could
have food odor and taste transfer throughout the
refrigerator and could also dry out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-tting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specied freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
CAUTION
: Do not keep beverage cans or plastic
food containers in the freezer compartment. They may
break or burst if they freeze.
USING YOUR REFRIGERATOR
23
REFRIGERATOR SECTION
Foldaway door bar (mullion bar)
- When closing the left refrigerator door, the mullion bar
folds behind the right refrigerator door, forming a seal
between the refrigerator doors.
- When opening the left refrigerator door, the mullion
bar folds back to the left door automatically.
- The mullion bar may become damaged upon closing
if it has been extended to the right while the door left
door is open.
CAUTION
: Before closing the left refrigerator door,
make sure the mullion bar is folded back to the left
door position or product damage may result.
Opening: Mullion bar
folds back
Closing: Mullion bar folds
to right
USING YOUR REFRIGERATOR
24

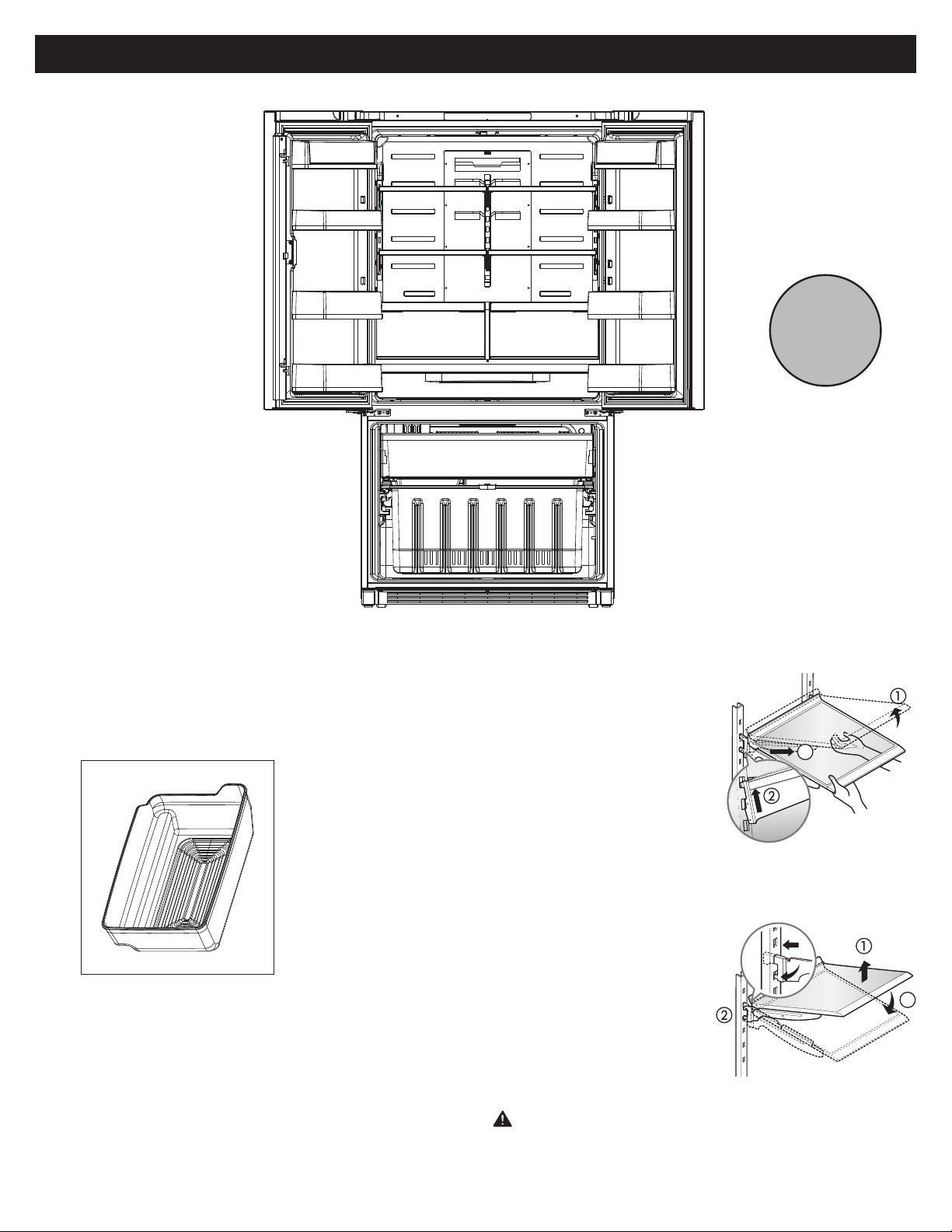

REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. Your model may have glass
or wire shelves.
Adjusting the shelves to t dierent heights of items will
make nding the exact item you want easier. Doing so will
also reduce the amount of time the refrigerator door is
open which will save energy.
IMPORTANT:
Do not clean glass shelves with warm water
while they are cold. Shelves may break if exposed to
sudden temperature changes or impact.
CAUTION
: Glass shelves are heavy. Use special care
when removing them.

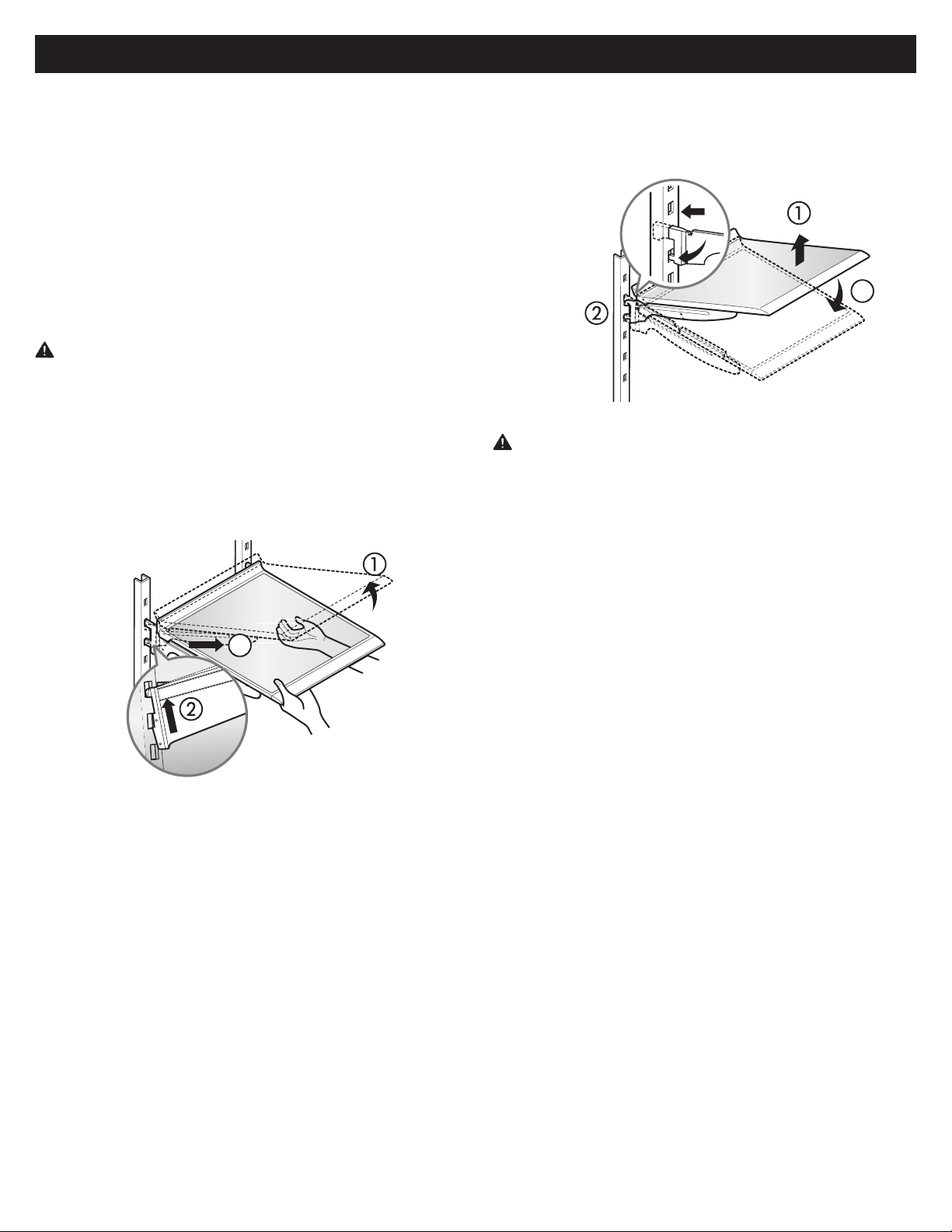

Adjusting Shelves (Cantilever)
Remove shelves from the shipping position and replace
shelves in the position you want.
To remove a shelf
: Lift up on front of shelf with one
hand and with other hand push up on back of shelf to
release attachment hooks from attachment slots. Pull
the shelf out.
To reinstall a shelf:
With front of shelf angled slightly
up, engage hooks on back of shelf into attachment
slots, and then lower front of shelf into place.
CAUTION
: Make sure that shelves are level from one
side to the other. Failure to do so may result in the shelf
falling or spilling food.
3
3
USING YOUR REFRIGERATOR
25
HUMIDITY CONTROLLED CRISPER
The crispers provide fresher tasting fruit and vegetables
by letting you easily control humidity inside the drawer.
You can control the amount of humidity in the moisture
sealed crispers crispers by adjusting the control to any
setting between
VEGETABLES
and
FRUIT
.
- Slide the Humidity Control toward “hi” to keep moist air
in crisper for best storage of fresh, leafy vegetables.
- Slide the Humidity Control toward “lo” to release moist
air from crisper for best storage of fruit.
REMOVING THE HUMIDITY CONTROLLED CRISPER
1.
To remove, pull the
drawer out to full
extension.
2.
Lift the front of the
crisper up, then pull
it straight out.
3.
To install, slightly tilt up the front, insert the drawer into
the frame and push it back into place.

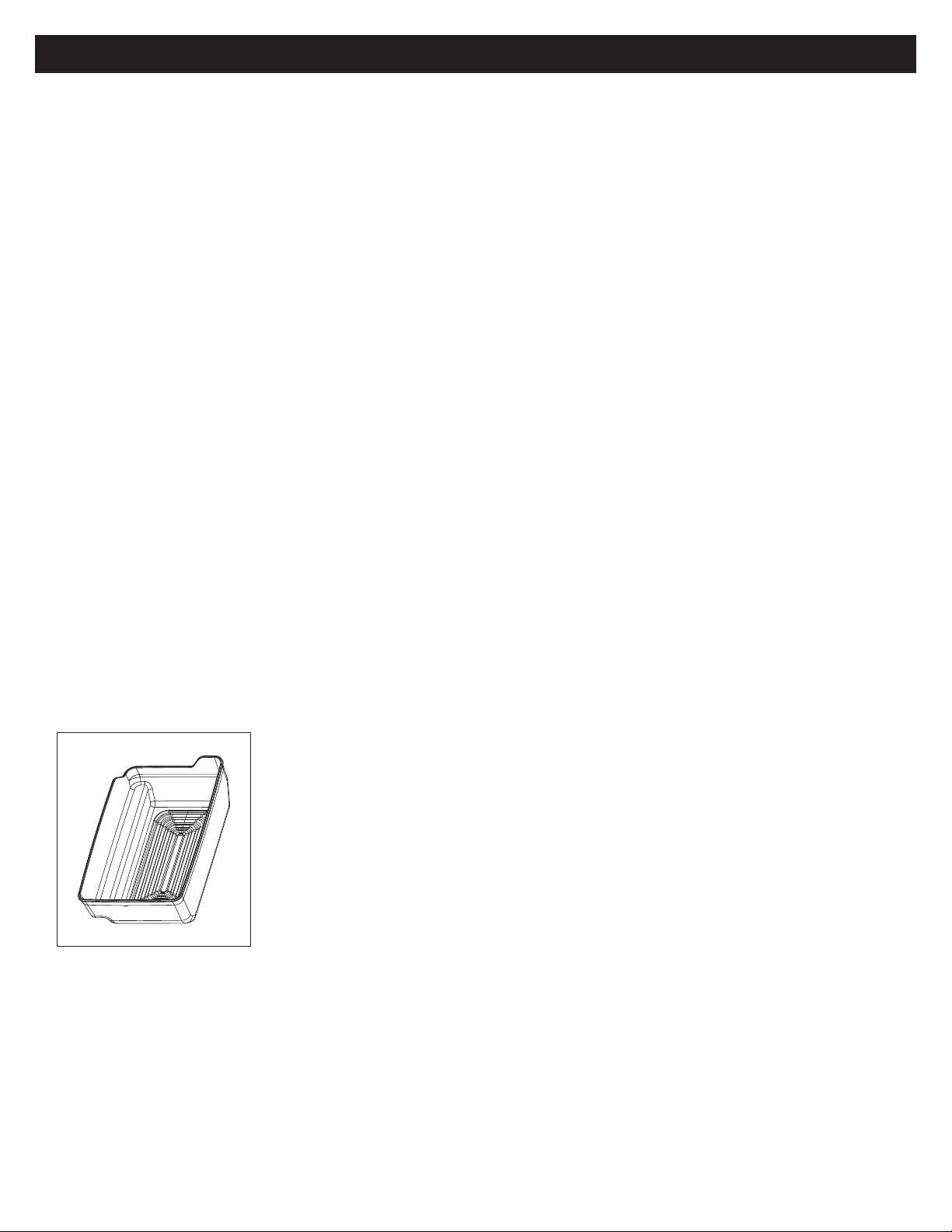

DOOR BIN
The door bins are removable for easy cleaning and
adjustment.
1. To remove the bin, simply lift the bin up and pull straight
out.
2. To replace the bin, slide it in above the desired support
and push down until it snaps into place.
NOTE:
Some bins may vary in appearance and will
only t in one location.
CAUTION
: Do not overll or pack items too tightly
into door bins. Doing so may cause damage to the bin
or personal injury if items are removed with excessive
force.
en-us
Temperature unit
The temperature can be displayed in
degrees Fahrenheit (°F) or
Celsius (°C).
After the appliance is switched on, the
temperature appears in degrees
Fahrenheit (°F).
To set the temperature unit:
Press ”alarm/lock” for 2 seconds.
The ”Panel lock” symbol appears.
Press and hold ”super/quick ice” for
15 seconds until the temperature unit
switches.
Refrigerator
compartment
WARNING
Risk of explosion!
Never store products containing
flammable propellants (such as
spray cans) or explosive or easily
combustible substances in the
appliance.
Bottles containing a high
percentage of alcohol must be
tightly sealed and stored in an
upright position.
The refrigerator compartment
temperature can be adjusted between
35 °F (+2 °C) and 46 °F (+8 °C).
We recommend a setting of 39 °F
(+4 °C).
Perishable foods should not be stored
at temperatures higher than 39 °F
(+4 °C).
Using the refrigerator
compartment
For storage of ready meals, cakes
and pastries, canned food,
condensed milk, cheese, spreads,
sauces, dips and eggs.
Follow these guidelines
when storing food:
-Allow warm food and drinks to cool
down outside the appliance.
-Place food in airtight containers to
prevent it from losing its flavor or
drying out.
-To prevent poor air circulation in
the appliance, do not block
ventilation openings with food.
-Avoid contact of oil and grease with
plastic parts and door seal.
Vita Fresh
compartment
(not included on all models)
The temperature inside the Vita Fresh
compartment is kept at almost 32 °F
(0 °C). The low temperature provides
optimum storage conditions for
perishable food.
Food can be stored much longer in
the Vita Fresh compartment than in
the regular refrigerator compartment
without losing its freshness.
The Vita Fresh compartment is
covered by a special humidity filter.
The special humidity filter optimizes
the humidity in the Vita Fresh
compartment. Depending on how full
the Vita Fresh compartment is, the
humidity can reach up to 90 percent
which is ideal for all garden and field
products such as vegetables,
lettuces, herbs and fruit.
Vita Fresh is suitable for:
Basically any food that is fresh and is
to be kept fresh longer, such as meat
and meat products, fresh fish,
seafood, milk, butter, soft cheese,
cottage cheese, fruit and vegetables.
Vita Fresh is not suitable for:
Fruit and vegetables sensitive to cold,
such as tropical fruits, avocados,
papayas, passion fruit, eggplant,
cucumbers, bell peppers as well as
fruit that has to ripen, green tomatoes
and potatoes.
When buying food, please
note:
The ”freshness at purchase” is
important for the storage life of your
food. In general, the fresher the
products are when placed in the
Vita Fresh compartments, the longer
they will stay fresh. Therefore, when
purchasing food, always check how
fresh it is.
Removing the Vita Fresh
drawers
1.Pull out the Vita Fresh drawers as
far as possible.
2.Lift up the front of the Vita Fresh
drawers and pull them out.
3.Inserting the Vita Fresh drawers:
Insert the Vita Fresh drawers into
the rail and push toward the back.
en-us
Deli drawer
The temperature in the deli drawer is
kept at a constant temperature just
below freezing. This provides
optimum storage conditions for meat
and meat products, fish, seafood,
dairy products as well as hard and
soft cheese.
NOTICE
Never store foods that are sensitive
to cold in the deli drawer.
Removing the deli drawer
1.Pull out the deli drawer as far as
possible.
2.Lift up the front of the deli drawer
and pull it out.
3.Inserting the drawer: Insert the deli
drawer into the rail and push
toward the back.
Variable interior
design
Glass shelves
The adjustable glass shelves can be
removed.
You can pull out the adjustable glass
shelves and place them at varying
heights.
Removing a glass shelf
Lift up and pull the shelf toward you.
Unhook and then remove the shelf.
Installing the glass shelf
Lift up the front of the shelf and insert
the hooks into the openings at the
desired height. Lower the front of the
shelf.
Small top glass shelf
The glass shelf can be removed and
placed in the holder underneath the
ice maker. This provides room to
place taller items such as tall bottles
next to the ice maker.
Door storage compartments
To remove door storage
compartments:
Lift door compartment and take it out.
To install door storage
compartments:
Place the compartment above the
bracket at the desired height and
press down.
Butter and cheese
compartment
Raise the cover on the butter and
cheese compartment.
To remove the butter and cheese
compartment:
Lift up the compartment and take it
out.
To install the butter and cheese
compartment:
Place the compartment above the
bracket at the desired height and
press down.
Egg compartment
USING YOUR REFRIGERATOR
26
CONNECTING THE WATER LINE
BEFORE YOU BEGIN
This water line installation is not covered by the
refrigerator warranty. Follow these instructions carefully to
minimize the risk of expensive water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
can lead to water leakage or ooding. Call a qualied
plumber to correct water hamme
CAUTION
: To prevent burns and product damage,
only connect the refrigerator water line to a cold water
supply.
If you use your refrigerator before connecting the water
line, make sure the icemaker is turned OFF at the control
panel.
CAUTION
: Do not install the icemaker tubing in areas
where temperatures fall below freezing.
WATER PRESSURE
The water pressure must be from 30 to 125 psi or 207-862
kPa or 2.1-8.8 kgf/cm2. If the refrigerator is installed in
an area with low water pressure “below 30 psi”, you can
install a booster pump to compensate for the low pressure.
WATER SUPPLY KIT
* Connecting the water line to the refrigerator.
Parts that are not supplied are available from local
service dealers.
1.
Connect water line to the compression tting.
- If you are using copper tubing (not supplied), slip
the compression nut (not supplied) and ferrule (not
supplied) onto copper tubing.
- If you are using plastic tubing (not supplied), insert
the molded ending of the plastic tubing into the
compression tting.
2.
Tighten the compression nut onto the compression
tting.
3.
Turn the water on and check for any leakage.
WARNING
To reduce the risk associated with ingestion of
contaminants: Do not use with water that is
microbiologically unsafe or of unknown quality
without adequate disinfection before and after the
system. Systems certied for cyst reduction may be
used on disinfected water that may contain lterable
cysts. EPA Establishment Number 10350-MN-005
27
CARE AND CLEANING
1. Ice Storage Bin
Cleaning: Empty the ice cube bin and clean with
lukewarm water. Thoroughly dry the bin and screw
conveyor to prevent new ice cubes from sticking
together.
2. Freezer & Refrigerator Bins
Hold both ends and pull up.
3. Refrigerator Shelves
To remove a shelf: Lift up
on front of shelf with one
hand and with other hand
push up on back of shelf to
release attachment hooks
from attachment slots. Pull
the shelf out.
To reinstall a shelf: With
front of shelf angled
slightly up, engage hooks
on back of shelf into
attachment slots, and then
lower front of shelf into
place.
CAUTION
: Make sure that shelves are level from one
side to the other. Failure to do so may result in the shelf
falling or spilling food.
Be sure to
unplug rst
* Features may vary according to model.
3
3
28
CARE AND CLEANING
LIGHT BULB REPLACEMENT
NOTE:
The refrigerator and freezer compartment
lights have LED interior lighting, and service should be
performed by a qualied technician.
POWER INTERRUPTIONS
1.
If the power will be out for 24 hours or less, keep all
refrigerator doors closed to help foods stay cold and
frozen.
2.
If the power will be out for more than 24 hours,
remove all frozen food and store it in a frozen food
locker.
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator on while you
are away,
follow these steps to prepare your refrigerator
before you leave.
1.
Use up any perishables and freeze other items.
2.
Turn o the icemaker and empty the ice bin.
If you choose to turn the refrigerator off before you
leave,
follow these steps.
1.
Remove all food from the refrigerator.
2.
Clean the refrigerator, wipe it and dry well.
3.
Tape rubber or wood blocks to the tops of both doors
to prop them open far enough for air to get in. This
stops odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1.
Remove all food from the refrigerator and pack all
frozen food in dry ice.
2.
Unplug the refrigerator.
3.
Clean, wipe and dry thoroughly.
4.
Take out all removable parts, wrap them well and tape
them together so they do not shift and rattle during the
move. Refer to the
Using your Refrigerator
section for
removing instructions.
5.
Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the
Refrigerator Installation
section for
preparation instructions.
WARNING
Electrical Shock Hazard
Before replacing a Compartment Lamp, either unplug
the refrigerator or turn o power at the circuit breaker
or fuse box.
29
TROUBLESHOOTING GUIDE
COOLING
Problem Possible Causes Solutions
Refrigerator and
Freezer section are
not cooling.
Refrigerator is set to demo mode. Demo Mode allows the lights and control display to work
normally while disabling cooling to save energy while
on the showroom oor. Refer to the Setting the Controls
section for instructions on how to disable Demo Mode.
Refrigerator is in the defrost cycle. During the defrost cycle, the temperature of each
compartment may raise slightly. Wait 30 minutes and
conrm the proper temperature has been restored once
the defrost cycle has completed.
Refrigerator was recently installed. It may take up to 24 hours for each compartment to
reach the desired temperature.
Refrigerator was recently relocated. If the refrigerator was stored for a long period of time or
moved on its side, it is necessary for the refrigerator to
stand upright for 24 hours before connecting it to power.
Cooling System runs
too much.
Refrigerator is replacing an older
model.
Modern refrigerators require more operating time but use
less energy due to more ecient technology.
Refrigerator was recently plugged in
or power restored.
The refrigerator will take up to 24 hours to cool
completely.
Door opened often or a large amount
of food / hot food was added.
Adding food and opening the door warms the
refrigerator, requiring the compressor to run longer in
order to cool the refrigerator back down. In order to
conserve energy, try to get everything you need out of
the refrigerator at once, keep food organized so it is
easy to nd, and close the door as soon as the food is
removed. (Refer to the Food Storage Guide.)
Doors are not closed completely. Firmly push the doors shut. If they will not shut all the
way, see the Doors will not close completely or pop open
section in Parts & Features Troubleshooting.
Refrigerator is installed in a hot
location.
The compressor will run longer under warm conditions.
At normal room temperatures (70°F) expect your
compressor to run about 40% to 80% of the time.
Under warmer conditions, expect it to run even more
often. The refrigerator should not be operated above
110°F.
Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to clean the
condenser cover and vents. Do not remove the panel
covering the condenser coil area.
30
TROUBLESHOOTING GUIDE
COOLING
Problem Possible Causes Solutions
Refrigerator or
Freezer section is too
warm.
Refrigerator was recently installed. It may take up to 24 hours for each compartment to
reach the desired temperature.
Doors are opened often or for long
periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. To lessen the eect, reduce the frequency
and duration of door openings.
Unit is installed in a hot location. The refrigerator should not be operated in temperatures
above 110F.
A large amount of food or hot food
was added to either compartment.
Adding food warms the compartment requiring the
cooling system to run. Allowing hot food to cool to room
temperature before putting it in the refrigerator will
reduce this eect.
Doors not closed correctly. See the Doors will not close correctly or pop open
section in Parts & Features Troubleshooting
Temperature control is not set
correctly.
If the temperature is too warm, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
Defrost cycle has recently completed. During the defrost cycle, the temperature of each
compartment may raise slightly and condensation may
form on the back wall. Wait 30 minutes and conrm the
proper temperature has been restored once the defrost
cycle has completed.
Interior moisture
buildup.
Doors are opened often or for long
periods of time.
When the doors are opened often or for long periods of
time, warm, humid air enters the compartment.
This raises the temperature and moisture level within the
compartment. To lessen the eect, reduce the frequency
and duration of door openings.
Doors not closed correctly. See the Doors will not close correctly section in the
Troubleshooting section.
Weather is humid. Humid weather allows additional moisture to enter the
compartments when the doors are opened leading to
condensation or frost. Maintaining a reasonable level of
humidity in the home will help to control the amount of
moisture that can enter the compartments.
Defrost cycle recently completed. During the defrost cycle, the temperature of each
compartment may raise slightly and condensation may
form on the back wall. Wait 30 minutes and conrm
that the proper temperature has been restored once the
defrost cycle has completed.
Food is not packaged correctly. Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation within each
compartment. Wipe all containers dry and store food in
sealed packaging to prevent condensation and frost.
31
COOLING/ICE & WATER
Problem Possible Causes Solutions
Food is freezing
in the refrigerator
compartment.
Food with high water content was
placed near an air vent.
Rearrange items with high water content away from air
vents.
Refrigerator temperature control is set
incorrectly.
If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
Refrigerator is installed in a cold
location.
When the refrigerator is operated in temperature
below 41°F (5°C), food can freeze in the refrigerator
compartment. The refrigerator should not be operated in
temperature below 55°F (13°C).
Frost or ice crystals
form on frozen food
(outside of package).
Door is opened frequently or for long
periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. Increased moisture will lead to frost and
condensation. To lessen the eect, reduce the frequency
and duration of door openings.
Door is not closing properly. Refer to the Doors will not close correctly or pop open
section in the Troubleshooting section.
Refrigerator or
Freezer section is too
cold.
Incorrect temperature control settings. If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
Frost or ice crystals
on frozen food
(inside of sealed
package).
Condensation from food with a high
water content has frozen inside of the
food package.
This is normal for food items with a high water content.
Food has been left in the freezer for a
long period of time.
Do not store food items with high water content in the
freezer for a long period of time.
Icemaker is not
making enough ice.
Demand exceeds ice storage
capacity.
The ice maker will product approximately 50 to 70 cubes
in a 24 hour period.
House water supply is not connected,
valve is not turned on fully, or valve is
clogged.
Connect the refrigerator to a cold water supply with
adequate pressure and turn the water shuto valve fully
open.
If the problem persists, it may be necessary to contact a
plumber.
Low house water supply pressure.
NOTE:
The water pressure must be from 30 to 125 psi
or 207-862 kPa or 2.1-8.8 kgf/cm
²
. If the refrigerator
is installed in an area with low water pressure below
30 psi, you can install a booster pump to compensate
for the low pressure.
If the problem persists, it may be necessary to contact a
plumber or install a booster pump to compensate for the
low pressure.
Reverse Osmosis ltration system is
used.
Reverse osmosis ltration systems can reduce the water
pressure below the minimum amount and result in
icemaker issues. (Refer to Water Pressure section.)
Tubing connecting refrigerator to
house supply valve is kinked.
The tubing can kink when the refrigerator is moved
during installation or cleaning resulting in reduced water
ow. Straighten or repair the water supply line and
arrange it to prevent future kinks.
TROUBLESHOOTING GUIDE
32
ICE & WATER
Problem Possible Causes Solutions
Icemaker is not
making ice.
Refrigerator was recently installed or
icemaker recently connected.
It may take up to 24 hours for each compartment to
reach the desired temperature and for the icemaker to
begin making ice.
Icemaker not turned on. Locate the icemaker on/of button and conrm that
it is turned ON.
The refrigerator is not connected to
a water supply or the supply shuto
valve is not turned on.
Connect refrigerator to the water supply and turn the
water shuto valve fully open.
Icemaker shuto (feeler arm)
obstructed.
If your icemaker is equipped with an ice shuto arm,
make sure that the arm moves freely.
Ice has bad taste or
odor.
Water supply contains minerals such
as sulfur.
A water lter may need to be installed to eliminate
taste and odor problems.
NOTE: In some cases, a lter may not help. It may not
be possible to remove all minerals / odor / taste in all
water supplies.
Icemaker was recently installed. Discard the rst few batches of ice to avoid discolored
or bad tasting ice.
Ice has been stored for too long. Ice that has been stored for too long will shrink,
become cloudy, and may develop a stale taste. Throw
away old ice and make a new supply.
The food has not been stored
properly in either compartment.
Rewrap the food. Odors may migrate to the ice if
food is not wrapped properly.
The interior of the refrigerator needs
to be cleaned.
See the Care and Cleaning section for more
information.
The ice storage bin needs to be
cleaned.
Empty and wash the bin (discard old cubes). Make
sure that the bin is completely dry before reinstalling
it.
Icemaker is making
too much ice.
Icemaker shuto (feeler arm) is
obstructed.
Empty the ice bin. If your icemaker is equipped with
an ice shuto arm, make sure that the arm moves
freely. Reinstall the ice bin and wait 24 hours to
conrm proper operation.
TROUBLESHOOTING GUIDE
33
NOISE
Problem Possible Causes Solutions
Clicking The defrost control will click when
the automatic defrost cycle begins
and ends. The thermostat control (or
refrigerator control on some models)
will also click when cycling on and
o.
Normal Operation
Rattling
Rattling noises may come from the
ow of refrigerant, the water line on
the back of the unit, or items stored
on top of or around the refrigerator.
Normal Operation
Refrigerator is not resting solidly on
the oor.
Floor is weak or uneven or leveling legs need to be
adjusted. See the Door Alignment section.
Refrigerator with linear compressor
was jarred while running.
Normal Operation
Whooshing Evaporator fan motor is circulating
air through the refrigerator and
freezer compartments.
Normal Operation
Air is being forced over the condenser
by the condenser fan.
Normal Operation
Gurgling
Refrigerant owing through the
cooling system.
Normal Operation
Popping
Contraction and expansion of the
inside walls due to changes in
temperature.
Normal Operation
Sizzling
Water dripping on the defrost heater
during a defrost cycle.
Normal Operation
Vibrating
If the side or back of the refrigerator
is touching a cabinet or wall, some of
the normal vibrations may make an
audible sound.
To eliminate the noise, make sure that the sides and
back cannot vibrate against any wall or cabinet.
Dripping Water running into the drain pan
during the defrost cycle.
Normal Operation
Pulsating or High-
Pitched Sound
Your refrigerator is designed to run
more eciently to keep your food
items at the desired temperature. The
high eciency compressor may cause
your new refrigerator to run longer
than your old one, but it is still more
energy ecient than previous models.
While the refrigerator is running, it is
normal to hear a pulsating or
highpitched
sound.
Normal Operation
TROUBLESHOOTING GUIDE
34
PARTS & FEATURES
Problem Possible Causes Solutions
Doors will not close
correctly or pop
open.
Food packages are blocking the door
open.
Rearrange food containers to clear the door and door
shelves.
Ice bin, crisper cover, pans, shelves,
door bins, or baskets are out of
position.
Push bins all the way in and put crisper cover, pans,
shelves and baskets into their correct positions. See the
Using Your Refrigerator section for more information.
The doors were removed during
product installation and not properly
replaced.
Remove and replace the doors according to the
Removing and Replacing Refrigerator Handles and
Doors section.
Refrigerator is not leveled properly. See Door Alignment in the Refrigeration Installation
section to level refrigerator.
Doors are dicult to
open.
The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.
Rub a thin coat of appliance polish or kitchen wax on
the gaskets after cleaning.
Door was recently closed. When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create a
vacuum. If the door is hard to open, wait one minute
to allow the air pressure to equalize, then see if it
opens more easily.
Refrigerator wobbles
or seems unstable.
Leveling legs are not adjusted
properly.
Refer to the Leveling and Door Alignment section.
Floor is not level. It may be necessary to add shims under the leveling
legs or rollers to complete installation.
Lights do not work.
LED interior lighting failure. The refrigerator compartment lamp is LED interior
lighting, and service should be performed by
a qualied technician. Refer to the Light Bulb
Replacement section.
The interior of
the refrigerator is
covered with dust or
soot.
The refrigerator is located near a re
source, such as a replace, chimney
or candle.
Make sure that the refrigerator is not located near a
re source, such as a replace, chimney or candle.
TROUBLESHOOTING GUIDE
Kenmore ®
Customer Care Hotline
To schedule in-home repair service
or order replacement parts
Para pedir servicio de reparación
a domicilio, y ordenar piezas
1-844-553-6667
www. kenmore. com
®
