ES-W110DS
ES-W100DS
Operation manual of full-automatic washing machine
Table of contents
Safety precautions
Name of each component
Key points of washing
Instruction on control panel functions
Things to know before washing
Instruction on washing courses
Self-decided washing course
Additional operating procedure
Maintenance
Common non-fault phenomenon
Specifications
2
6
7
8
12
13
14
15
17
19
23
Operation manual
Thank you for purchasing our product.
Please read this manual carefully before use.
Please read “Safety Precautions” carefully
before use.
Please keep this manual in a safe place.
Our product is specially designed for household
use only.
Page
Printed in Indonesia
SHARP CORPORATION
OSAKA, JAPAN
TINS-A281QBEZ 1

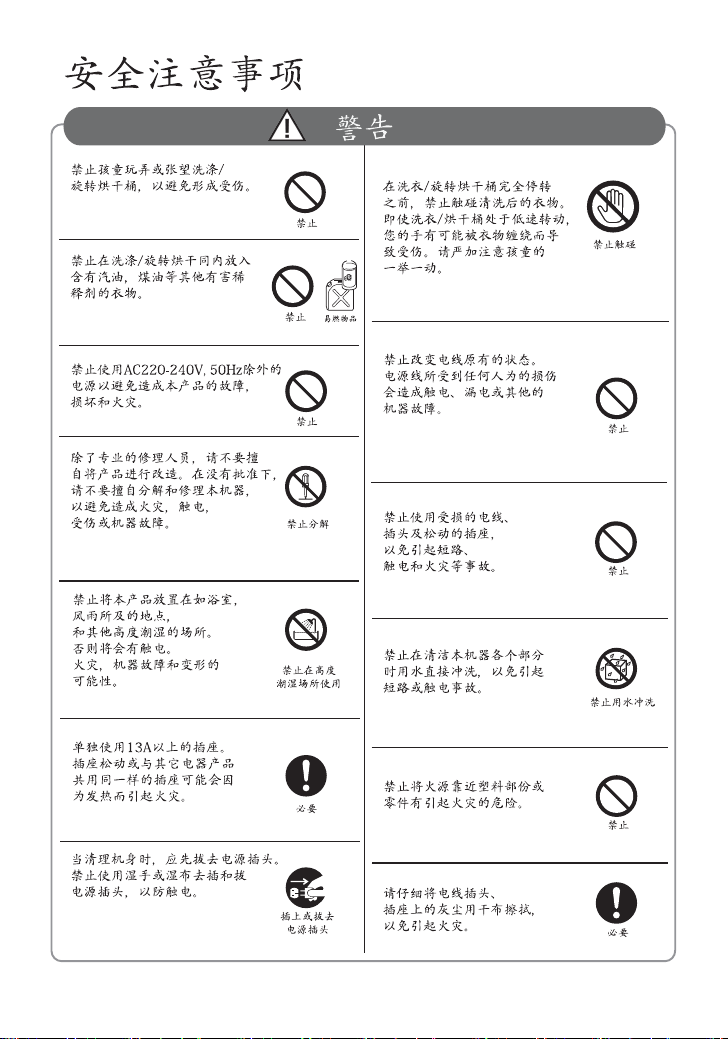

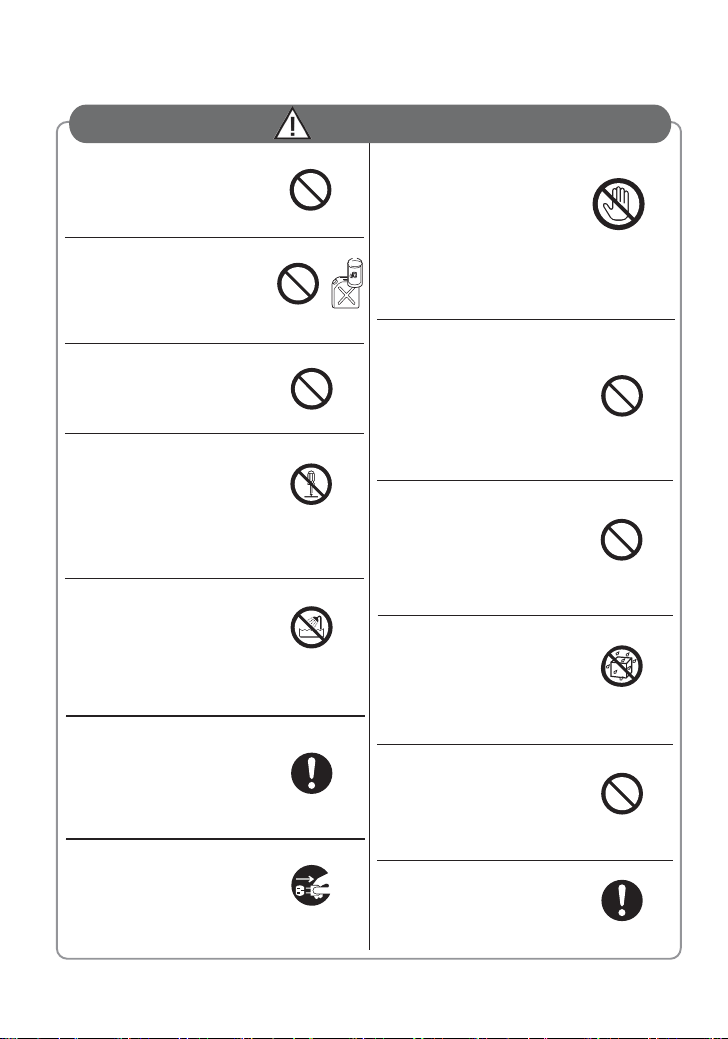

Safety precautions
FORBIDDEN
WARNING
FORBIDDEN
INFLAMMABLES
GASOLINE
FORBIDDEN
FORBIDDEN
DISASSEMBLE
FORBIDDEN TO
USE AT
HIGH-HUMIDITY
LOCATIONS
MANDATORY
PLUG OR PULL
THE PLUG
FORBIDDEN
TO
TOUCH
MANDATORY
FORBIDDEN
TO
WASH WITH WATER
FORBIDDEN
FORBIDDEN
FORBIDDEN
Do not allow children to play
with or look around the
washing / spin drying tub,
in case of injury.
Clothing stained with harmful
diluting agents such as
gasoline, kerosene and so
on must not be put into the
washing / spin drying tub.
Do not use power supply
other than AC220-240V, 50Hz,
so as to avoid malfunction,
damage and fire.
Except professional repair-men,
do not modify the machine.
Please do not disassemble and
repair the machine without
permission, so as to avoid fire,
electric shock, getting hurt or
malfunctions of the machine.
Do not place the machine at
high-humidity places such as
bathroom, locations where wind
and rain may get in, and so on.
Otherwise, electric shock, fire,
malfunctions and distortion may
take place.
Use plug socket above 13A
separately. A loose plug socket
or the action of sharing a plug
socket with other apparatus
may start a fire due to heat.
While cleaning the machine
body, the plug should be
pulled out first. Do not plug or
pull the plug with wet hand or
wet cloth, so as to avoid
electric shock.
Clean the dust on the plug and
plug socket to avoid fire.
Do not approach any fire source
to a plastic component, which
has the risk of starting a fire.
Do not use water to wash
components of the machine,
so as to avoid short circuit
and electric shock.
Before the washing / spin drying
tub completely stops, do not
touch the clothing being washed.
Even if the tub is running at low
speed, your hand may get
wrapped up and injured. Special
attention should be paid to children.
Do not use damaged power
cable, plug and loose plug
socket, so as to avoid short
circuit, electric shock, fire and
other accidents.
Do not change the original
state of power cable. Any
artificial damage to the power
cable could cause electric
shock, electric leakage or
other malfunctions.
2 23
Specifications
Standard washing/
spin drying capacity
Washing / Spin Drying
Rated Power Input
ES-W110DS ES-W100DS
Model
Power supply
Water pressure
Weight
Dimensions
(W×D×H (mm))
Standard water
consumption
Standard water level
Washing type
220V-240V ~ 50Hz
11.0 kg
10.0 kg
Swirl type
0.03 ~ 0.8 MPa
580 × 625 × 1031
580 × 625 × 1011
610 W / 310 W
605 W / 360 W
37 kg
51 L
48 L
93 L95 L
322
Not working
Light cannot be on.

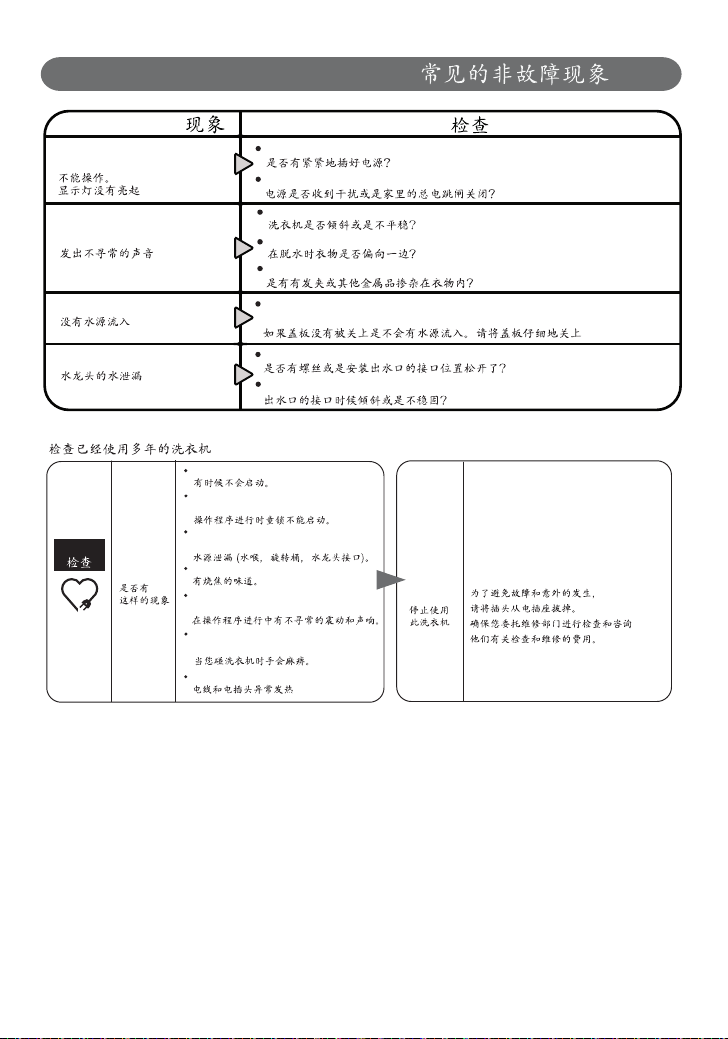

Common non-fault phenomenon
Is the plug plugged in firmly?
There’s abnormal sound.
Does the washing machine incline or is it unstable?
Does the clothing deviate to one side during spin drying?
No water inlet.
T
her
e
's
no
wa
t
er
sup
p
ly
i
f t
he
t
op
c
ov
er
i
s
ope
n
. P
lea
s
e
c
lo
s
e
t
he
t
op
c
ov
er
pro
pe
rl
y
.
Tap leaks.
Does the water nozzle connection incline or shake?
Phenomenon
Check
Is there a hair clip or other foreign metal objects mixed in the clothing?
Are the screws or the installation position of the water nozzle connection loose?
Is the power supply interrupted or does the main switch in your house trip off?
Inspection of a washing machine that have been used for many years.
Check
Are there
situations
like these?
Doesn’t operate sometimes.
Water leakage (water hose, spinning tub,
tap connection).
There is burning smell.
There is an abnormal sound or vibration
during operation.
Your hand feels numb while touching
the machine.
Power cable or plug is unusually hot.
To avoid a fault y or an accident, please pull
out the plug from the plug socket. Be sure to
entrust the maintenance department to
check it, and consult the maintenance
department for check and repair fees.
Stop using
the machine
“CHILD LOCK” doesn’t work during
operation.
4
21
WARNING
FORBIDDEN
CAUTION
DO NOT PUT
WATER-RESISTANT
CLOTHING INTO
THE TUB
Do not wash water resistant clothing.
Do not wash sleeping bags, bath
curtains, raincoats, rain ponchos,
rain covers, ski jackets, ski pants,
automobile covers and other water
resistant clothing, so as to avoid
abnormal vibration and other
unexpected accidents.
During spin drying, the washing
machine is rotating at high speed.
Because water in water resistant
clothing could not be discharged
instantaneously, the machine will
be out of balance, causing abnormal
vibration and other unexpected
accidents.
FORBIDDEN
Do not wash objects other than
clothing to avoid abnormal vibration
that causes damage to machine.
The temperature of water must
not exceed 50 , so as to avoid
accidents of electric leakage and
electric shock due to distortion or
damage of plastic.
FORBIDDEN
MANDATORY
While pulling out or plugging the
plug, do not touch the metal part
of the plug, so as to avoid electric
shock or short circuit.
PLUG OR PULL
OUT THE PLUG
After using the washing machine,
please pull out the plug, so as to
avoid electric leakage, electric shock
or fire due to loose connection of
plug.
MANDATORY
Before using, check carefully if
the connection of water inlet hose
or drain hose is reliable, so as to
avoid water leakage.
FORBIDDEN TO
TOUCH
When the machine is running,
do not touch the bottom with
hand or foot, where there’s
a rotating mechanism, so as to
avoid getting hurt.
Before using, check the bottom
of the product, make sure there
is no packaging material such
as a plastic holder attaching on
visual parts. And then install the
bottom cover.
Do not put heavy objects on the
machine. so as to avoid distortion
and damage.
The base opening must not be
obstructed by carpeting when
the washing machine is installed
on a carpeted floor.
MANDATORY
After using, please turn off the
tap to avoid water leakage.
MANDATORY
FORBIDDEN
MANDATORY
To avoid danger, if the soft power cable is damage, it must be replaced by the manufacture
or its maintenance department or similar dedicated personnel.
CAUTION
If powder detergent or liquid detergent adheres to a plastic component such as the top cover,
wipe it away immediately, otherwise it may damage the plastic component.
Safety precautions
Each time washing is finished, clean lint filter box. Otherwise it may not have effect to trap lint.

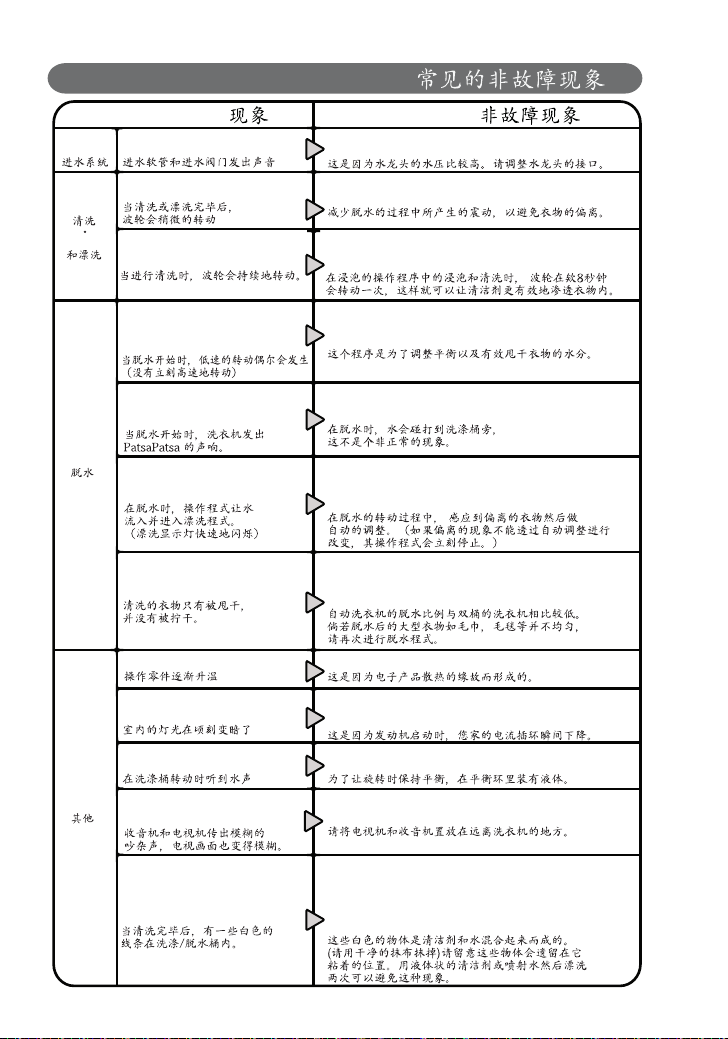

Common non-fault phenomenon
Phenomenon Not a fault
Water
inlet
W
a
s
h
in
g
R
in
s
i
n
g
Others
A sound in water hose and water
inlet valve.
Spinning
When washing or rinsing is finished,
the pulsator will rotate slightly.
During the washing process,the
pulsator rotates discontinuously.
Because the pressure of tap water is relatively high.
Please adjust tap connection.
To avoid the offset of clothing to reduce vibration during
spin drying.
In the soaking and washing in soak course, the pulsator
rotates once every 8 seconds, so that the detergent can
permeate into the clothing sufficiently.
When spinning starts, low-speed
rotation will happen for a while.
(Do not rotate at high speed
immediately.)
This action is done to adjust the balance and to dry clothing
sufficiently.
When spinning starts, the
machine gives off sounds like
“Patsa Patsa”.
During spin drying, water hits the tub side, which is not
abnormal.
During spinning, the program
inlets water and enters rinsing.
(Spin light indicator blinks quickly.)
During the rotation in spin drying, the offset of clothing is
detected and corrected automatically.
(If the offset phenomenon cannot be changed by
auto-correction, the operation will stop immediately.)
The clothing has been spin dried
but not wringed dry.
The spin drying ratio of an automatic washing machine is
a little lower than that of a twin tub washing machine.
In case the spin drying of large clothing such as towels,
blankets etc. is uneven, please spin drying it again.
Operating parts heat up.
It’s caused by the heat radiation of electrical components.
Indoor lighting darkens in an
instant.
The voltage of plug loop in your house drops in an instant
when the motor starts up.
(Please use an exclusive plug loop.)
There’s a sound of water when
tub body is rotated.
To keep balance during spinning, there’s liquid in the
balance ring.
There’s a stray noise on the radio
or television, and the image is
unclear.
Keep away from radio and television as far as possible.
After washing is finished, there are
white lines around the washing /
spin drying tub.
The white powdery material is the result of the combination
of ingredients in detergent and ingredients in water
(Wipe away with twisted cloth.)
Please note that it will stick on where it is left. Using liquid
detergent or injecting water and rinsing twice can prevent
this phenomenon.
520
196

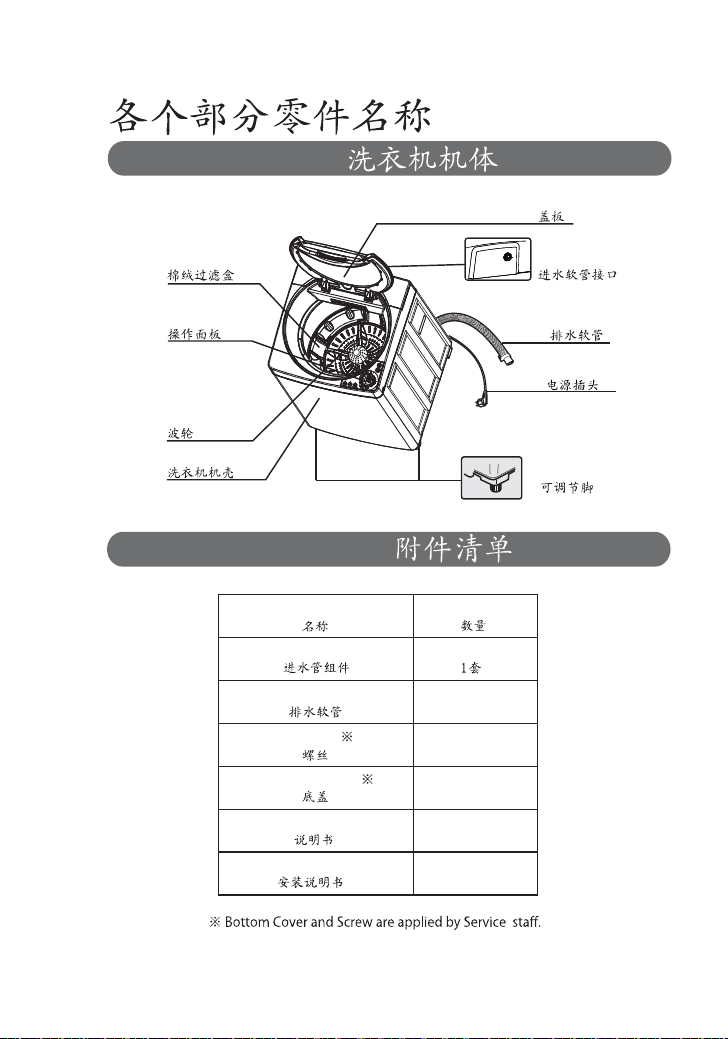

Name of each component
Machine body
List of accessories
Name
Quantity
Water inlet hose assembly
1 set
Drain hose
1
Operation manual
Bottom cover
1
1
Screw
1
Installation manual
1
Top cover
Drain hose
Adjustable foot
Control panel
Water inlet hose
connecting port
Power cable
Pulsator
Lint filter box
Cabinet

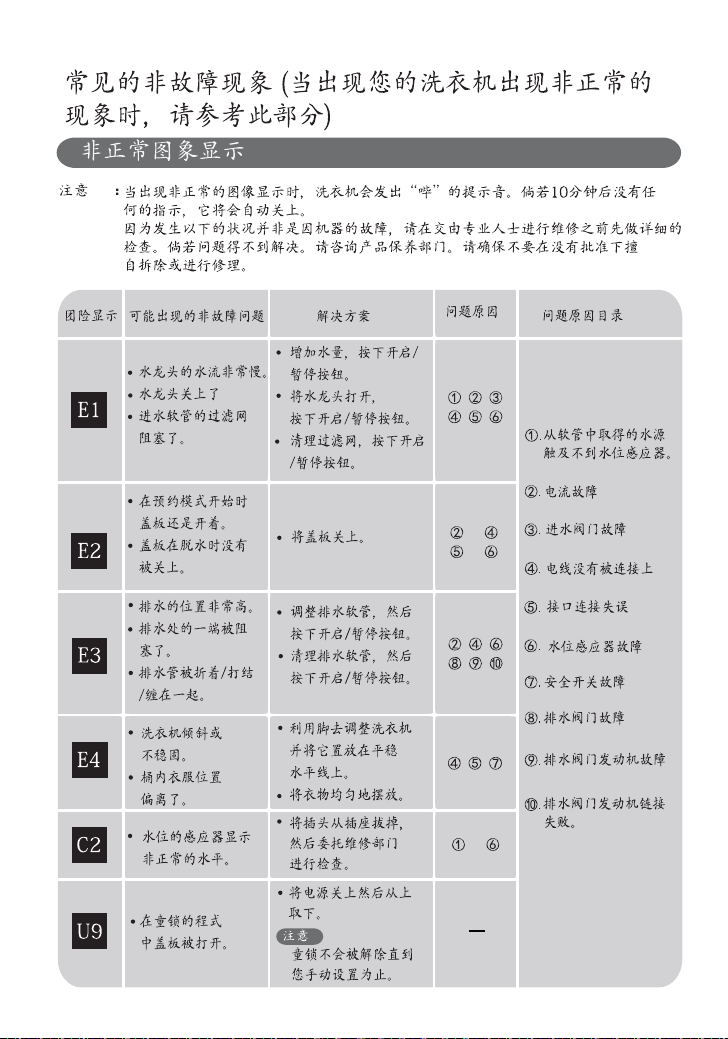

Common non-fault phenomenon (Please refer to
this section if there is an abnormality happens.)
Abnormal display
Present-
-ation
U9
E4
E3
E2
E1
C2
Washing machine
inclines or shaky.
The clothing is
lopsided.
The end of drain
hose is blocked.
The drain position is
relatively high.
Top cover is not clo-
-sed during spin
drying.
Possible non-fault
cause
Coping process
Failure
cause
Low flow at the
faucet.
Water inlet filter net
is blocked.
It generates a beep when washing machine indicates abnormal display. If not connec-
ted in 10 min, it turns off automatically.
Because the phenomenon may not be a fault, please check it again before sending
the machine for repair. In the case of failure, please consult the maintenance depart-
-ment. Be sure not to disassemble and repair the machine without permission.
Caution
List of failure cause
Water level sensor
shows an abnormal
level.
Failure of water inlet
valve
Connector contact
failure
Wiring disconnection
Failure of safety switch
Failure of drain valve
Failure of drain valve
motor
Circuit failure
Get water in tube of
water level sensor
Connect failure on
drain valve motor
The faucet is closed.
Top cover is opened
as the reservation
course starts.
Drain hose is folded/
crumpled/tied.
Increase water supply,
press START / PAUSE
key.
Turn the faucet on,
press START/PAUSE
key.
Failure of water level
sensor
Clean filter net, press
START/PAUSE key.
Close top cover.
Adjust drain hose pro-
-perly, press START
/PAUSE key.
Clean drain hose,
press START/PAUSE
key.
Place washing machine
place the horizontally
by adjusting the foot.
Distribute the clothing
evenly.
Pull out the plug from
the plug seat, and ent-
-rust the maintenance
department.
Top cover opened
in the situation of
CHILD LOCK.
Turn off the power off,
and take it from the top.
CHILD LOCK is not re-
-leased, unless you re-
set it manually.
Caution
7
18

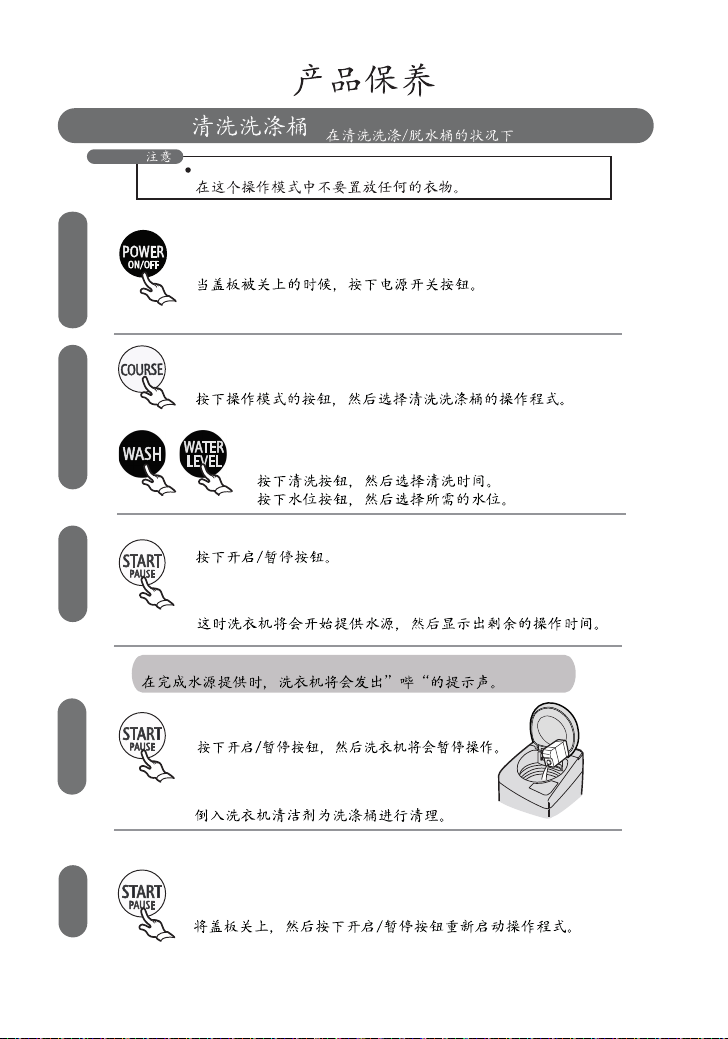

TUB CLEAN
Maintenance
In the case of cleaning the washing / spin drying tub.
Press Power ON/OFF key
with the top cover closed.
1
2
Press COURSE key,
and select TUB CLEAN course.
Press WASH key, and select the washing time.
Press WATER LEVEL key, and select the water
level as necessary.
3
Press START/PAUSE key.
The washing machine starts to supply water,
and displays remaining operation time.
4
Press START/PAUSE key,
and the washing machine pauses.
Put the washing machine cleaner for
washing the tub.
5
Close the top cover and press START/PAUSE key
to restart.
The machine generates a beep when it finishes supplying water.
Do not put the clothing in the tub in this course.
Caution

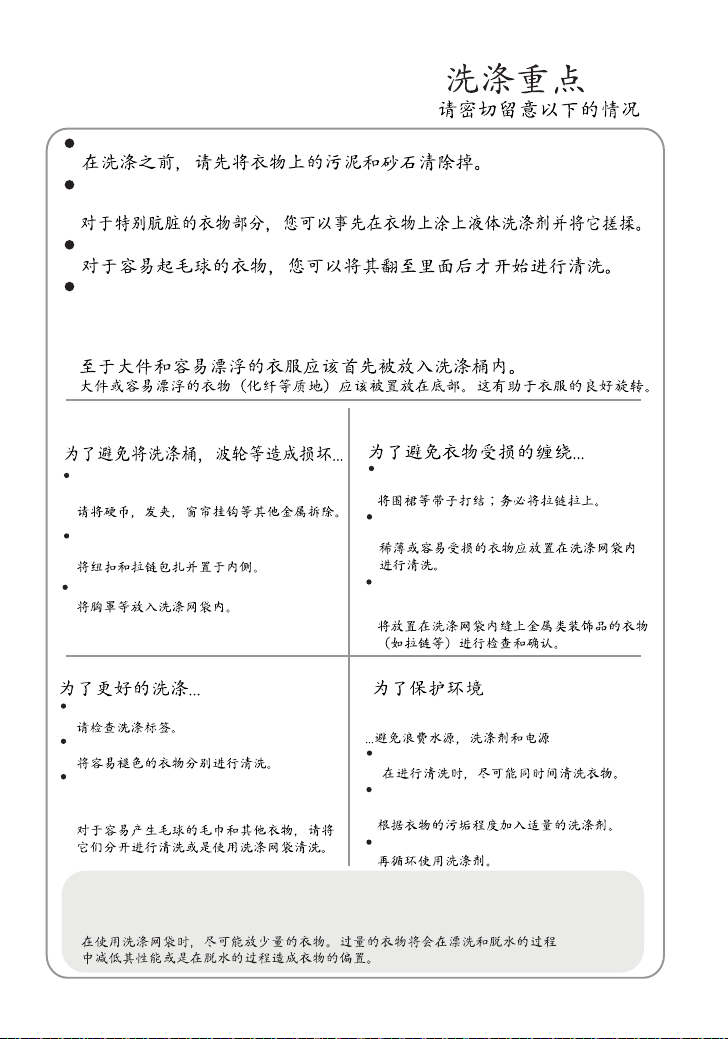

Key points of washing
Pay more attention to the following situations
Before washing, please remove sludge and sand on clothing first.
For very dirty parts of the clothes, you can smear some liquid
detergent on them and rub them in advance.
For clothing that are easy to pill, please turn it inside out first and then wash it.
Please put large clothing and clothing that are easy to float (chemical fibers etc.)
at the bottom. This is beneficial to the good rotation of clothing.
To avoid damage to tub,
pulsator...
To avoid damage to clothing,
winding of clothing...
For better washing...
To protect the environment
While using a washing mesh bag, put in as little clothing as possible. Too much
clothing will decrease the performance during rinsing and spin drying or cause
the offset of clothing during spin drying.
For towels and other clothing easy to
produce lints, please wash them
separately or use washing mesh bag.
Please check the washing mark.
Wash clothing easy to fade separately.
Reuse detergent liquid.
Put in proper amount of detergent
according to the fouling situation.
During washing, wash clothing together.
...To avoid the waste of water, detergent
and electricity.
Metal decorations (zippers etc.) on the
clothing in washing mesh bag must be
checked.
Thin or easily damaged clothing must
be washed in washing mesh bag.
Large clothing and clothing that are easy to float should be put into
the washing tub first.
Belts on apron and so on must be
knotted; zippers must be zipped.
Put bra etc. in washing mesh bag.
Wrap up buttons and zipper and put
them on the inner side.
Please take out coin, hair clip, curtain
hook and other metal.
WASH

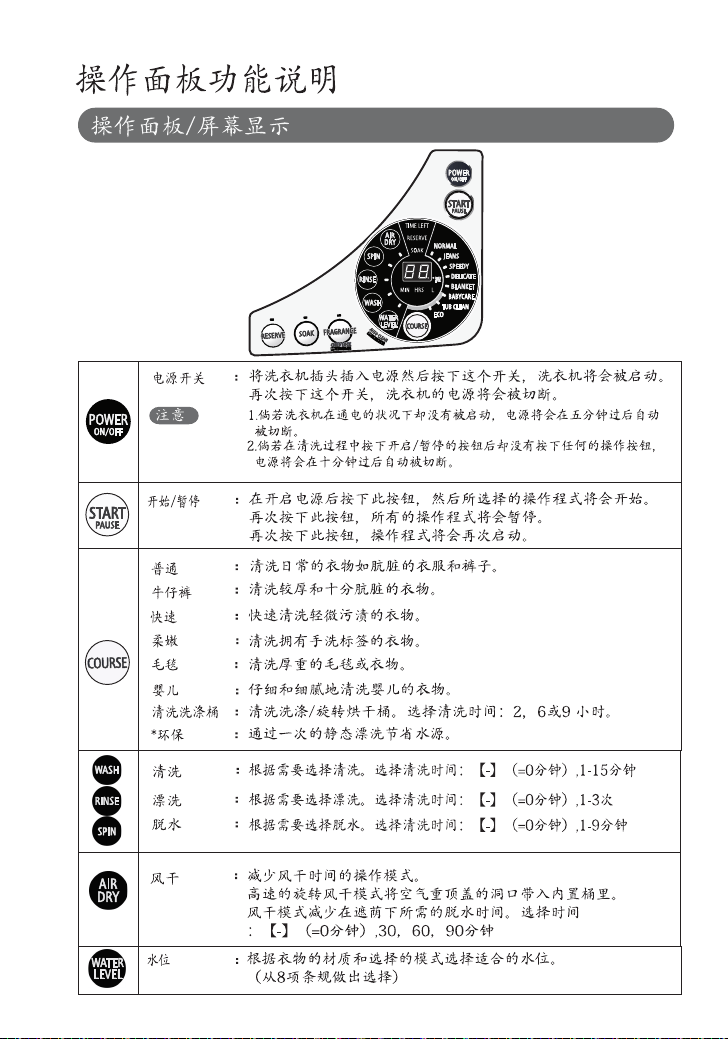

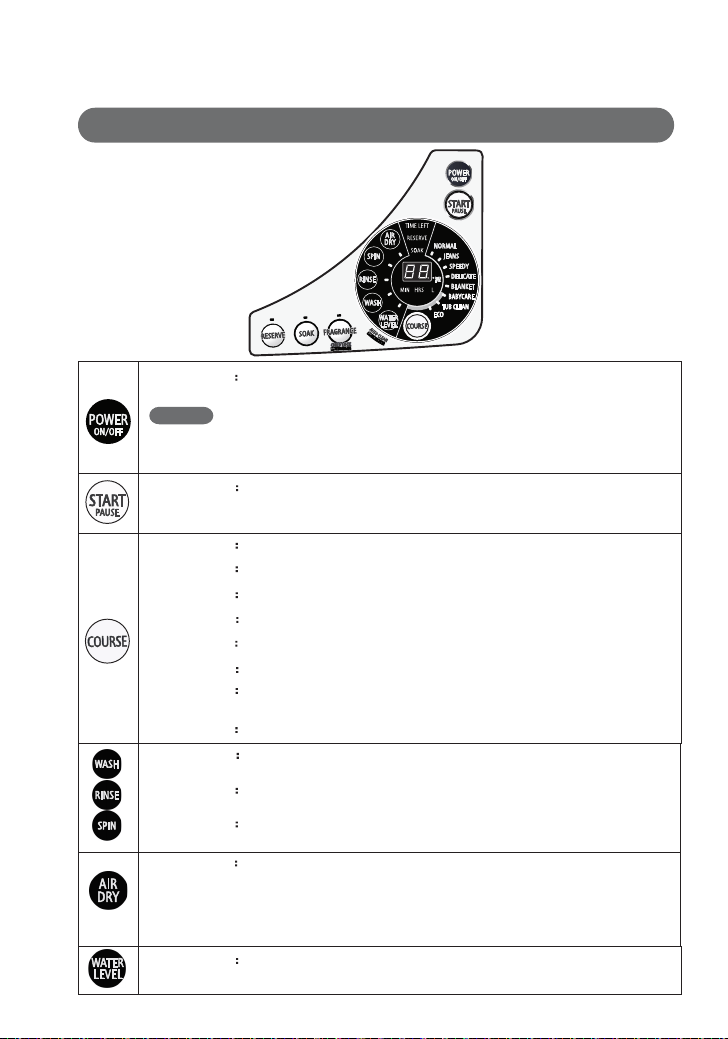

Instruction on control panel functions
RINSE
SPIN
NORMAL
JEANS
SPEEDY
DELICATE
BLANKET
TUB CLEAN
Wash heavy and very dirty clothing.
Wash speedy for not-so-dirty clothing.
POWER
Course for cleaning washing / spin drying tub.
Select the washing time: 2 hrs, 6 hrs, 9 hrs.
Course for reducing the time to dry.
AIR DRY

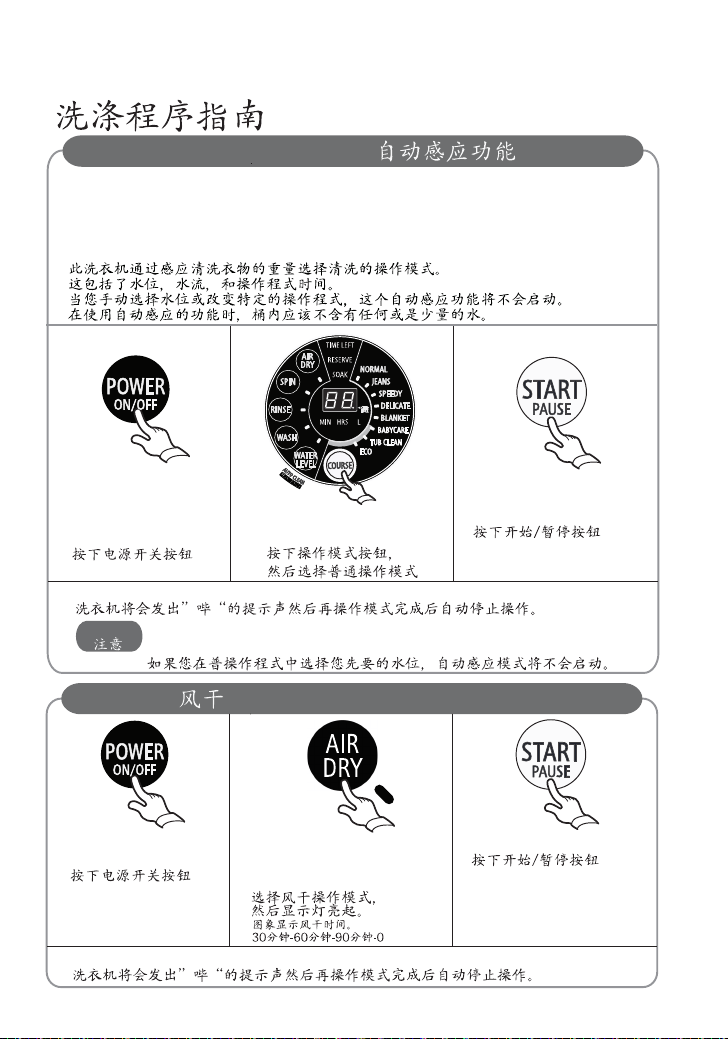

Spin-drying with high-speed takes air into the inner tub from
the hole of top lid.
AIR DRY course reduce the time to dry in the shade greatly.
Select the time:
[ - ](= 0 min)
, 30 min, 60 min, 90 min.
Control panel / Display
Caution
START/PAUSE
Press this key after turning on, selected course is started.
Plug the machine in and then press this key, the machine
turns on. Press this key again, it turns off.
1.If the machine is energized but not started, the power supply turns
off automatically 5 min later.
2.If no key pressed after the START/PAUSE key is pressed during the
operation, the power supply turns off automatically 10 min later.
Press this key again, the running is paused. Press it once again,
the running restarts.
Wash clothing with the HAND WASH mark.
Wash daily clothing like relatively-dirty shirts or pants.
Wash strong for blankets or heavy clothing.
Select WASH as necessary. Select the washing time: [ - ](= 0 min) ,
1 min – 15 min.
Select RINSE as necessary. Select the rinsing time: [ - ](= 0 min) ,
1 time – 3 times.
Select SPIN as necessary. Select the spinning time: [ - ](= 0 min) ,
1 min – 9 min.
Select the appropriate water level depending on course or kinds
of clothing. (Select from 8 steps regulation)
WATER LEVEL
BABYCARE
Wash gently and rinse thoroughly for baby clothing.
8
*ECO
Water is saved by 1 time static rinse.
Tub side

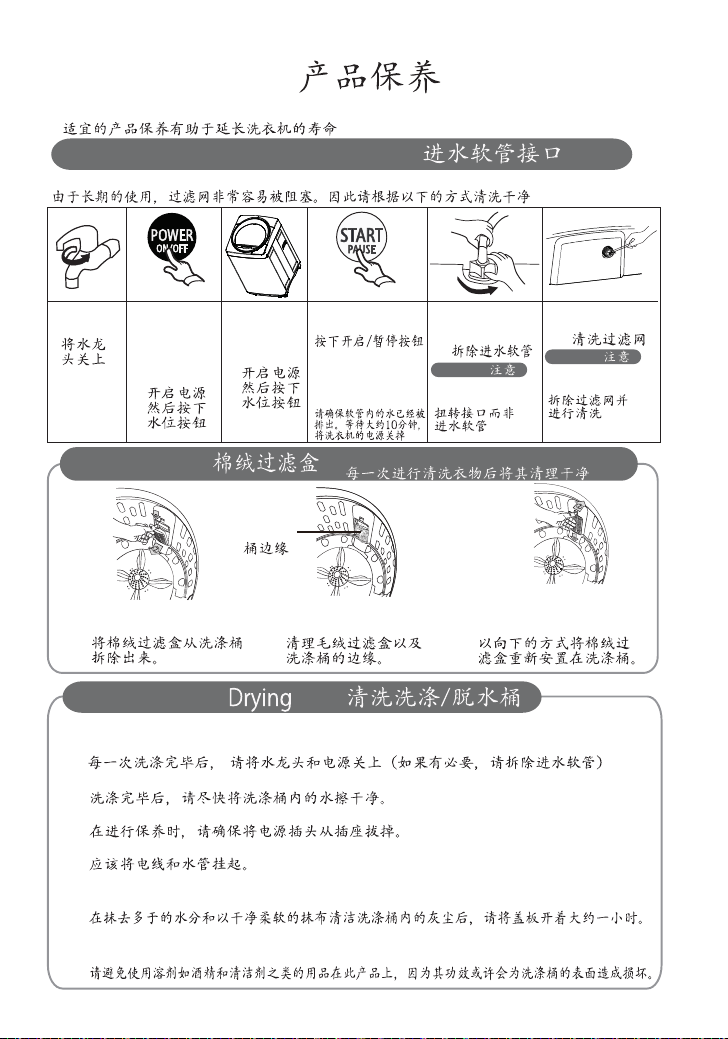

Maintenance
Lint filter box
Clean it each time after washing
3. Confirm
if top
cover is
closed.
4. Press START
/PAUSE key.
1. Detach lint filter box
from washing tub.
2. Clean lint filter box
and the tub side.
3. Attach lint filter box on
washing tub to a down-
-ward direction.
1. Turn off
the faucet.
2. Turn on
the power
and press
WATER
LEVEL
key.
Make sure the
water in the hose
has been drained.
About 10 min later,
turn off the power.
5. Dismantle
water inlet
hose.
For the prolonged use, the filter net is very easily blocked. Please clean it in the following way.
6. Clean the
filter net.
Water inlet hose connecting port
It is possible to extend a life of washing machine with an appropriate maintenance.
1. Each time after washing, please turn off the faucet and power. (If necessary,
please dismantle water inlet hose.)
2. Please wipe the water in the tub away after washing as soon as possible.
3. Be sure to pull out the plug from the plug socket during maintenance.
4. Hanging power cord and drain hose is desirable.
5. Please open top cover for about 1 hour after wiping away the water and the
persistent dirt in the tub cleanly with clean and soft cloth.
6. Please do not use solvents such as alcohol, cleanser and so on, because they
may cause damage to the surface of the tub.
Washing / Spin tub
Remove the filter
net and clean it.
Twist connecting
part, not hose.
Caution
Caution
17
9
While the power supply is “ON” status, hold down
“FRAGRANCE” key for 3 seconds.
After emitting a beep, “L” is displayed for 3 seconds,
and then the machine is locked.
While the power supply is “ON” status, hold down
“WATER LEVEL” key for 3 seconds.
After emitting a beep, “C” is displayed for 3 seconds,
and then the machine starts to clean the washing / spin drying
tub.
(This course adds a cleaning process, at the end of spinning,
and prevents secondary contamination on the tub)
FRAGRANCE
1. Press POWER
ON/OFF key.
2. Press COURSE key,
and select the necessary
course.
3. Press FRAGRANCE
key, and the light
turns on.

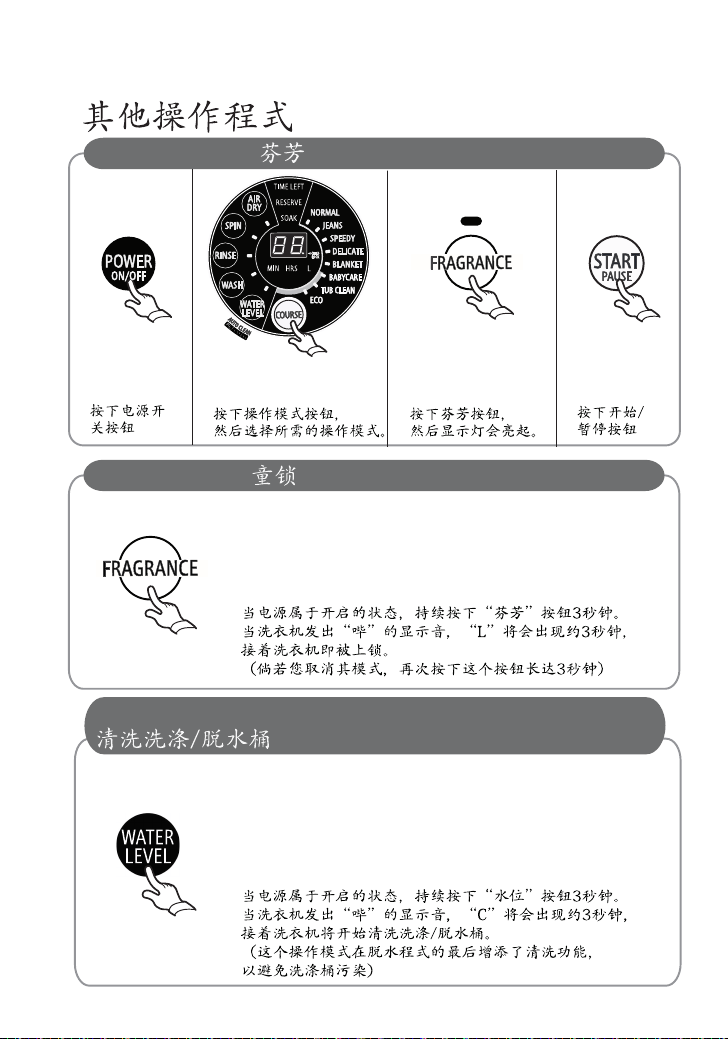

CHILD LOCK
CLEAN WASHING / SPIN DRYING TUB
4. Press START/
PAUSE key.
Additional operating procedure
(If you want to cancel, hold down this key for 3 seconds
again)
16
Instruction on control panel functions
SOAK
FRAGRANCE

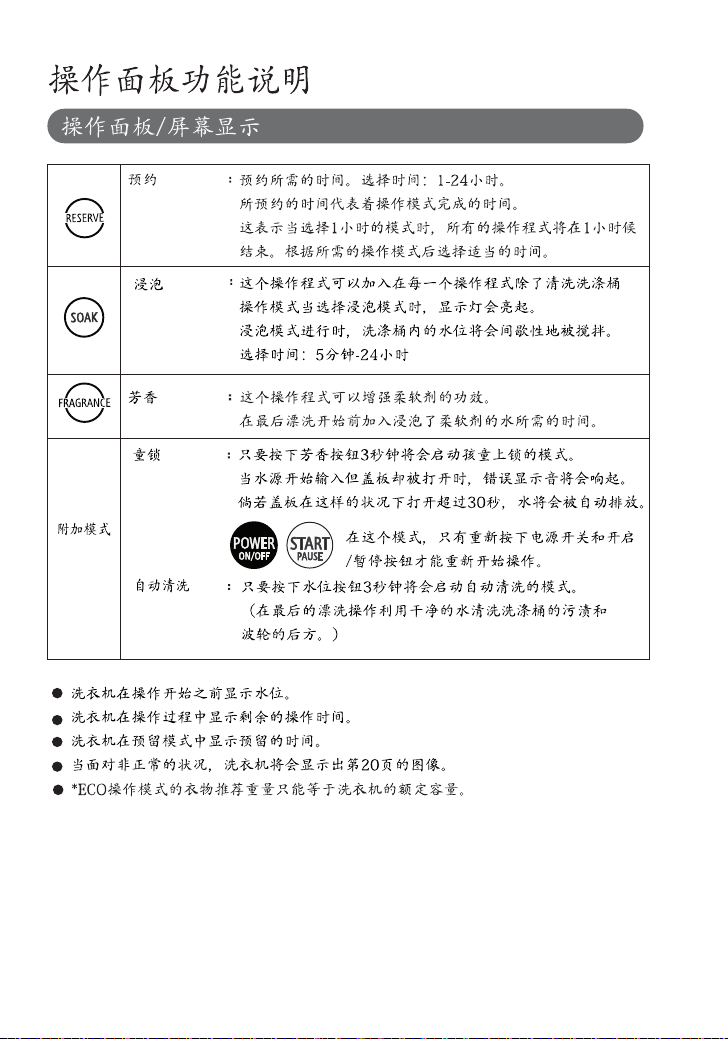

Control panel / Display
CHILD LOCK is set by holding down FRAGRANCE key for
3 sec. The error tone can be heard if top cover is opened
after water supply start. If top cover has been opened for
30 sec in such condition, the water is automatically drained.
CHILD LOCK
AUTO CLEAN
AUTO CLEAN is set by holding down WATER LEVEL key
for 3 sec. (Remove the dirt in the washing / spin drying tub
and the back side of pulsator with clean water at the final
spinning,)
When the SOAK course is selected the light is turned on.
During soaking, the water in the tub is stirred intermittently.
Select the soaking time:
5 min – 24 hrs
.
This course enhances softener’s efficacy.
Adds the time to soak in the water containing softener
at the beginning of final rinsing.
Additional
function
The washing machine displays the water level at the beginning of operation.
The washing machine displays the remaining operation time during the operation.
The washing machine displays reserved time during the RESERVE course operation.
The washing machine displays a presentation in the page 19, when an abnormality
happens.
This course can be added to every course except for
TUB CLEAN course.

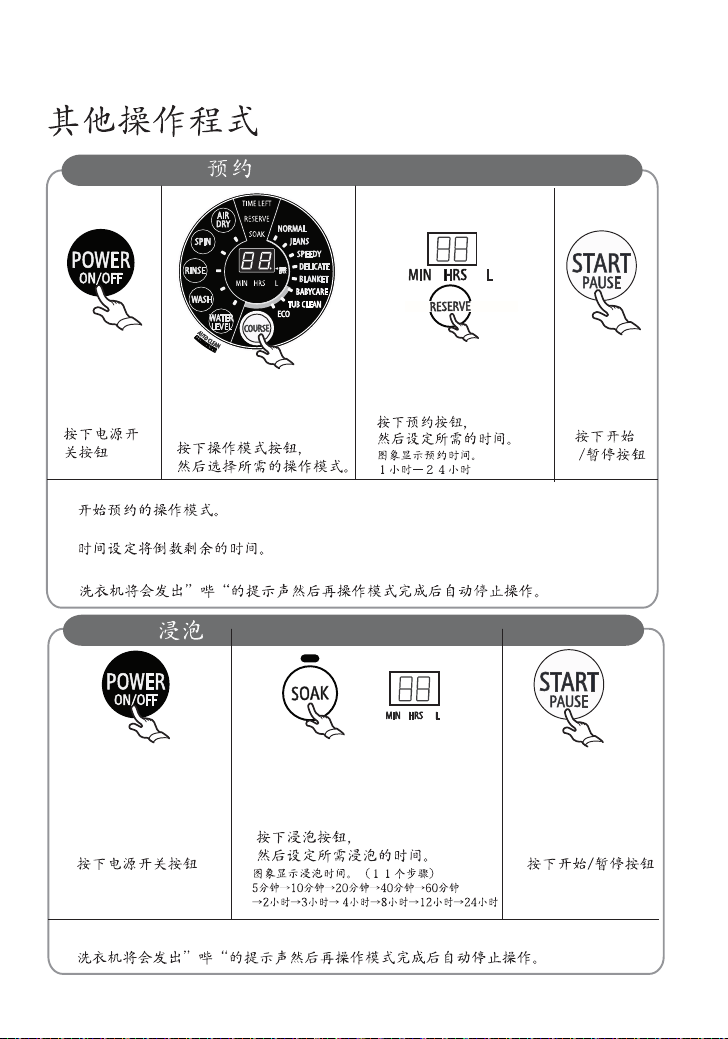

RESERVE
Reserve the time as desired. Select the time: 1 hr – 24 hrs.
Reserved time indicates the time to finish the operation.
It means, the operation finishes 1 hour later when 1 hr is
selected. Set the time after selecting the necessary course.
It is only possible to operate only POWER
key and START/PAUSE key in this mode.
The nominated program *ECO is recommended for normally soiled load equal to the
rated capacity in the product literature.
1510
1. Press
POWER
ON/OFF key.
2. Press COURSE key,
and select the necessary
course.
3. Press RESERVE key,
and set the time as desired.
4. Press
START/
PAUSE key.
Display represents reservation
time: 1hr →24hrs.
1. Press
POWER ON/OFF key.
2. Press SOAK key, and set
the soaking time as desired.
3. Press START/
PAUSE key.
RESERVE
SOAK
7. The machine generates a beep and turns off when it finishes the course.
6. The time setting counts down to show the remaining time.
4. The machine generates a beep and turns off when it finishes the course.
5. Start the reservation program.
Display represents soaking time (11 steps):
5min →10min →20min →40min →60min
→2hrs →3hrs →4hrs →8hrs →12hrs→24hrs
Additional operating procedure
11
14
2
3
Put the clothes in the tub,
and press Power ON/OFF key.
Before starting of rinsing, please select [Water level].
Select the course as necessary.
Put in detergent as required, and close the top cover properly.
Only spinning
Only draining
Reuse of detergent liquid

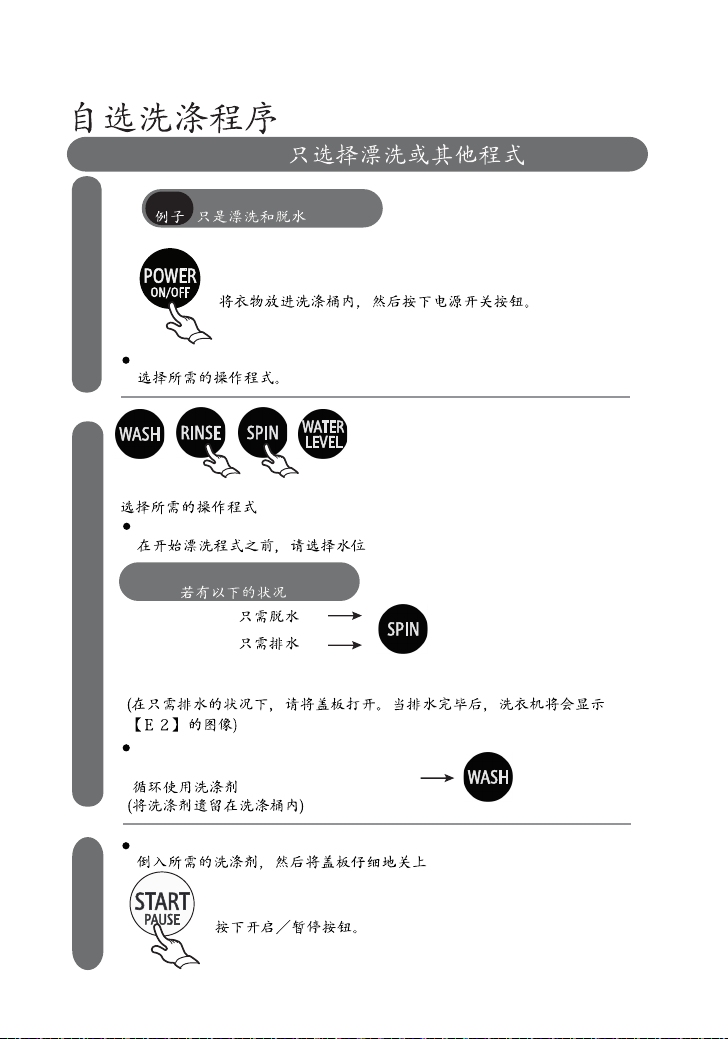

Self-decided washing course
Only spinning etc.
Only rinsing and spinning
Select the necessary processes.
In the cases below
Ex.
(In case of only draining, please keep the top cover open.
The machine displays [E2] when it finishes draining.)
(There is detergent liquid left in the tub)
Press START/PAUSE key.
1
1312

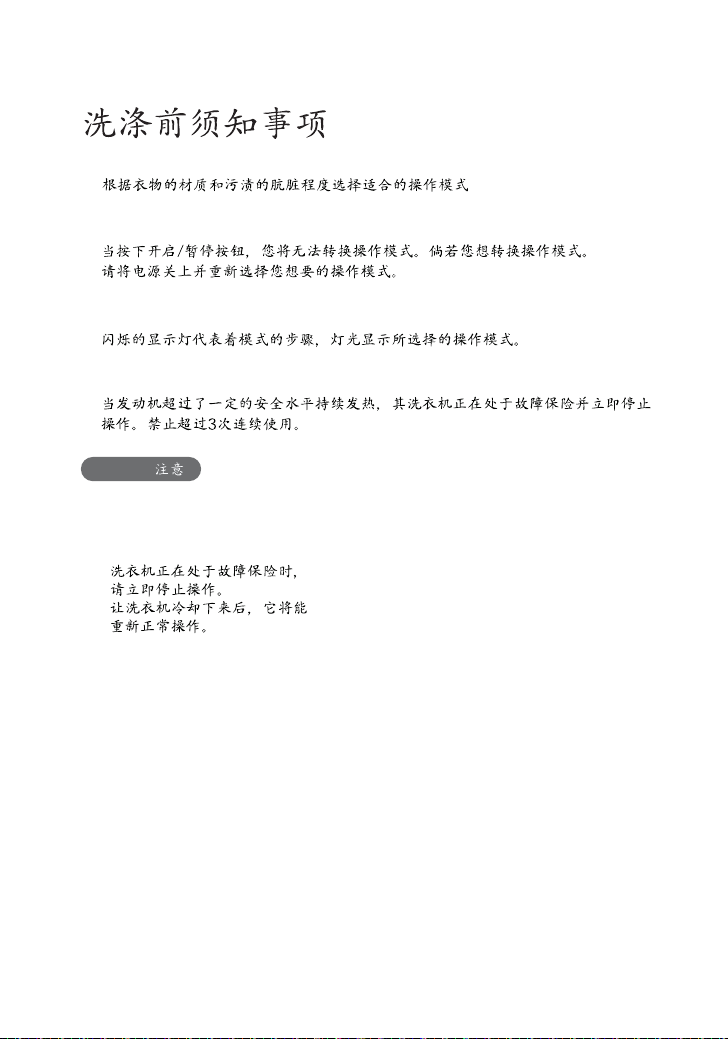

Things to know before washing
Select the course depending on the type of clothing or degree of dirt on clothing.
After pressing START/PAUSE key once, you cannot change the course. When you
want to change the course, turn off the power and select the desired course again.
Blinking display indicates the step in operation, lighting display indicates the course
selected.
When motor get hot beyond a safe limit, it fail-safes on it and stops the operation.
Do not use more than 3 continuous runs.
Caution
1. When it fail-safes on the motor,
it stops operation.
After cooling down, it can be used
normally.
1. Press
POWER ON/OFF key.
2. Press COURSE key, and
select NORMAL course.
3. Press START/PAUSE key.
Instruction on washing courses
4. The machine generates a beep and turns off when it finishes the course.
1. Press
POWER ON/OFF key.
4. The machine generates a beep and turns off when it finishes the course.
3. Press START/PAUSE key.
2. Press AIR DRY key, and the
light turns on.
AIR DRY
Display represents drying time:
30min →60min →90min →0
Caution
Automatic sensing function
The washing machine selects the way to wash with sensing the weight of clothing.
The way includes water level, current of water and operation time.
When you select water level or change the specific course manually, the automatic
sensing function does not work.
In the case of operating the automatic sensing function, there should be no water or
extremely little water in the tub.
If you select water level as desired in the normal course, the automatic
sensing function does not work.
1312
Things to know before washing
Select the course depending on the type of clothing or degree of dirt on clothing.
After pressing START/PAUSE key once, you cannot change the course. When you
want to change the course, turn off the power and select the desired course again.
Blinking display indicates the step in operation, lighting display indicates the course
selected.
When motor get hot beyond a safe limit, it fail-safes on it and stops the operation.
Do not use more than 3 continuous runs.
Caution
1. When it fail-safes on the motor,
it stops operation.
After cooling down, it can be used
normally.
1. Press
POWER ON/OFF key.
2. Press COURSE key, and
select NORMAL course.
3. Press START/PAUSE key.
Instruction on washing courses
4. The machine generates a beep and turns off when it finishes the course.
1. Press
POWER ON/OFF key.
4. The machine generates a beep and turns off when it finishes the course.
3. Press START/PAUSE key.
2. Press AIR DRY key, and the
light turns on.
AIR DRY
Display represents drying time:
30min →60min →90min →0
Caution
Automatic sensing function
The washing machine selects the way to wash with sensing the weight of clothing.
The way includes water level, current of water and operation time.
When you select water level or change the specific course manually, the automatic
sensing function does not work.
In the case of operating the automatic sensing function, there should be no water or
extremely little water in the tub.
If you select water level as desired in the normal course, the automatic
sensing function does not work.
11
14
2
3
Put the clothes in the tub,
and press Power ON/OFF key.
Before starting of rinsing, please select [Water level].
Select the course as necessary.
Put in detergent as required, and close the top cover properly.
Only spinning
Only draining
Reuse of detergent liquid
Self-decided washing course
Only spinning etc.
Only rinsing and spinning
Select the necessary processes.
In the cases below
Ex.
(In case of only draining, please keep the top cover open.
The machine displays [E2] when it finishes draining.)
(There is detergent liquid left in the tub)
Press START/PAUSE key.
1
1510
1. Press
POWER
ON/OFF key.
2. Press COURSE key,
and select the necessary
course.
3. Press RESERVE key,
and set the time as desired.
4. Press
START/
PAUSE key.
Display represents reservation
time: 1hr →24hrs.
1. Press
POWER ON/OFF key.
2. Press SOAK key, and set
the soaking time as desired.
3. Press START/
PAUSE key.
RESERVE
SOAK
7. The machine generates a beep and turns off when it finishes the course.
6. The time setting counts down to show the remaining time.
4. The machine generates a beep and turns off when it finishes the course.
5. Start the reservation program.
Display represents soaking time (11 steps):
5min →10min →20min →40min →60min
→2hrs →3hrs →4hrs →8hrs →12hrs→24hrs
Additional operating procedure
9
While the power supply is “ON” status, hold down
“FRAGRANCE” key for 3 seconds.
After emitting a beep, “L” is displayed for 3 seconds,
and then the machine is locked.
While the power supply is “ON” status, hold down
“WATER LEVEL” key for 3 seconds.
After emitting a beep, “C” is displayed for 3 seconds,
and then the machine starts to clean the washing / spin drying
tub.
(This course adds a cleaning process, at the end of spinning,
and prevents secondary contamination on the tub)
FRAGRANCE
1. Press POWER
ON/OFF key.
2. Press COURSE key,
and select the necessary
course.
3. Press FRAGRANCE
key, and the light
turns on.
CHILD LOCK
CLEAN WASHING / SPIN DRYING TUB
4. Press START/
PAUSE key.
Additional operating procedure
(If you want to cancel, hold down this key for 3 seconds
again)
16
Instruction on control panel functions
SOAK
FRAGRANCE
Control panel / Display
CHILD LOCK is set by holding down FRAGRANCE key for
3 sec. The error tone can be heard if top cover is opened
after water supply start. If top cover has been opened for
30 sec in such condition, the water is automatically drained.
CHILD LOCK
AUTO CLEAN
AUTO CLEAN is set by holding down WATER LEVEL key
for 3 sec. (Remove the dirt in the washing / spin drying tub
and the back side of pulsator with clean water at the final
spinning,)
When the SOAK course is selected the light is turned on.
During soaking, the water in the tub is stirred intermittently.
Select the soaking time:
5 min – 24 hrs
.
This course enhances softener’s efficacy.
Adds the time to soak in the water containing softener
at the beginning of final rinsing.
Additional
function
The washing machine displays the water level at the beginning of operation.
The washing machine displays the remaining operation time during the operation.
The washing machine displays reserved time during the RESERVE course operation.
The washing machine displays a presentation in the page 19, when an abnormality
happens.
This course can be added to every course except for
TUB CLEAN course.
RESERVE
Reserve the time as desired. Select the time: 1 hr – 24 hrs.
Reserved time indicates the time to finish the operation.
It means, the operation finishes 1 hour later when 1 hr is
selected. Set the time after selecting the necessary course.
It is only possible to operate only POWER
key and START/PAUSE key in this mode.
The nominated program *ECO is recommended for normally soiled load equal to the
rated capacity in the product literature.
WASH
Instruction on control panel functions
RINSE
SPIN
NORMAL
JEANS
SPEEDY
DELICATE
BLANKET
TUB CLEAN
Wash heavy and very dirty clothing.
Wash speedy for not-so-dirty clothing.
POWER
Course for cleaning washing / spin drying tub.
Select the washing time: 2 hrs, 6 hrs, 9 hrs.
Course for reducing the time to dry.
AIR DRY
Spin-drying with high-speed takes air into the inner tub from
the hole of top lid.
AIR DRY course reduce the time to dry in the shade greatly.
Select the time:
[ - ](= 0 min)
, 30 min, 60 min, 90 min.
Control panel / Display
Caution
START/PAUSE
Press this key after turning on, selected course is started.
Plug the machine in and then press this key, the machine
turns on. Press this key again, it turns off.
1.If the machine is energized but not started, the power supply turns
off automatically 5 min later.
2.If no key pressed after the START/PAUSE key is pressed during the
operation, the power supply turns off automatically 10 min later.
Press this key again, the running is paused. Press it once again,
the running restarts.
Wash clothing with the HAND WASH mark.
Wash daily clothing like relatively-dirty shirts or pants.
Wash strong for blankets or heavy clothing.
Select WASH as necessary. Select the washing time: [ - ](= 0 min) ,
1 min – 15 min.
Select RINSE as necessary. Select the rinsing time: [ - ](= 0 min) ,
1 time – 3 times.
Select SPIN as necessary. Select the spinning time: [ - ](= 0 min) ,
1 min – 9 min.
Select the appropriate water level depending on course or kinds
of clothing. (Select from 8 steps regulation)
WATER LEVEL
BABYCARE
Wash gently and rinse thoroughly for baby clothing.
8
*ECO
Water is saved by 1 time static rinse.
Tub side
Maintenance
Lint filter box
Clean it each time after washing
3. Confirm
if top
cover is
closed.
4. Press START
/PAUSE key.
1. Detach lint filter box
from washing tub.
2. Clean lint filter box
and the tub side.
3. Attach lint filter box on
washing tub to a down-
-ward direction.
1. Turn off
the faucet.
2. Turn on
the power
and press
WATER
LEVEL
key.
Make sure the
water in the hose
has been drained.
About 10 min later,
turn off the power.
5. Dismantle
water inlet
hose.
For the prolonged use, the filter net is very easily blocked. Please clean it in the following way.
6. Clean the
filter net.
Water inlet hose connecting port
It is possible to extend a life of washing machine with an appropriate maintenance.
1. Each time after washing, please turn off the faucet and power. (If necessary,
please dismantle water inlet hose.)
2. Please wipe the water in the tub away after washing as soon as possible.
3. Be sure to pull out the plug from the plug socket during maintenance.
4. Hanging power cord and drain hose is desirable.
5. Please open top cover for about 1 hour after wiping away the water and the
persistent dirt in the tub cleanly with clean and soft cloth.
6. Please do not use solvents such as alcohol, cleanser and so on, because they
may cause damage to the surface of the tub.
Washing / Spin tub
Remove the filter
net and clean it.
Twist connecting
part, not hose.
Caution
Caution
17
7
18
TUB CLEAN
Maintenance
In the case of cleaning the washing / spin drying tub.
Press Power ON/OFF key
with the top cover closed.
1
2
Press COURSE key,
and select TUB CLEAN course.
Press WASH key, and select the washing time.
Press WATER LEVEL key, and select the water
level as necessary.
3
Press START/PAUSE key.
The washing machine starts to supply water,
and displays remaining operation time.
4
Press START/PAUSE key,
and the washing machine pauses.
Put the washing machine cleaner for
washing the tub.
5
Close the top cover and press START/PAUSE key
to restart.
The machine generates a beep when it finishes supplying water.
Do not put the clothing in the tub in this course.
Caution
Key points of washing
Pay more attention to the following situations
Before washing, please remove sludge and sand on clothing first.
For very dirty parts of the clothes, you can smear some liquid
detergent on them and rub them in advance.
For clothing that are easy to pill, please turn it inside out first and then wash it.
Please put large clothing and clothing that are easy to float (chemical fibers etc.)
at the bottom. This is beneficial to the good rotation of clothing.
To avoid damage to tub,
pulsator...
To avoid damage to clothing,
winding of clothing...
For better washing...
To protect the environment
While using a washing mesh bag, put in as little clothing as possible. Too much
clothing will decrease the performance during rinsing and spin drying or cause
the offset of clothing during spin drying.
For towels and other clothing easy to
produce lints, please wash them
separately or use washing mesh bag.
Please check the washing mark.
Wash clothing easy to fade separately.
Reuse detergent liquid.
Put in proper amount of detergent
according to the fouling situation.
During washing, wash clothing together.
...To avoid the waste of water, detergent
and electricity.
Metal decorations (zippers etc.) on the
clothing in washing mesh bag must be
checked.
Thin or easily damaged clothing must
be washed in washing mesh bag.
Large clothing and clothing that are easy to float should be put into
the washing tub first.
Belts on apron and so on must be
knotted; zippers must be zipped.
Put bra etc. in washing mesh bag.
Wrap up buttons and zipper and put
them on the inner side.
Please take out coin, hair clip, curtain
hook and other metal.
196
Name of each component
Machine body
List of accessories
Name
Quantity
Water inlet hose assembly
1 set
Drain hose
1
Operation manual
Bottom cover
1
1
Screw
1
Installation manual
1
Top cover
Drain hose
Adjustable foot
Control panel
Water inlet hose
connecting port
Power cable
Pulsator
Lint filter box
Cabinet
Common non-fault phenomenon (Please refer to
this section if there is an abnormality happens.)
Abnormal display
Present-
-ation
U9
E4
E3
E2
E1
C2
Washing machine
inclines or shaky.
The clothing is
lopsided.
The end of drain
hose is blocked.
The drain position is
relatively high.
Top cover is not clo-
-sed during spin
drying.
Possible non-fault
cause
Coping process
Failure
cause
Low flow at the
faucet.
Water inlet filter net
is blocked.
It generates a beep when washing machine indicates abnormal display. If not connec-
ted in 10 min, it turns off automatically.
Because the phenomenon may not be a fault, please check it again before sending
the machine for repair. In the case of failure, please consult the maintenance depart-
-ment. Be sure not to disassemble and repair the machine without permission.
Caution
List of failure cause
Water level sensor
shows an abnormal
level.
Failure of water inlet
valve
Connector contact
failure
Wiring disconnection
Failure of safety switch
Failure of drain valve
Failure of drain valve
motor
Circuit failure
Get water in tube of
water level sensor
Connect failure on
drain valve motor
The faucet is closed.
Top cover is opened
as the reservation
course starts.
Drain hose is folded/
crumpled/tied.
Increase water supply,
press START / PAUSE
key.
Turn the faucet on,
press START/PAUSE
key.
Failure of water level
sensor
Clean filter net, press
START/PAUSE key.
Close top cover.
Adjust drain hose pro-
-perly, press START
/PAUSE key.
Clean drain hose,
press START/PAUSE
key.
Place washing machine
place the horizontally
by adjusting the foot.
Distribute the clothing
evenly.
Pull out the plug from
the plug seat, and ent-
-rust the maintenance
department.
Top cover opened
in the situation of
CHILD LOCK.
Turn off the power off,
and take it from the top.
CHILD LOCK is not re-
-leased, unless you re-
set it manually.
Caution
520
4
21

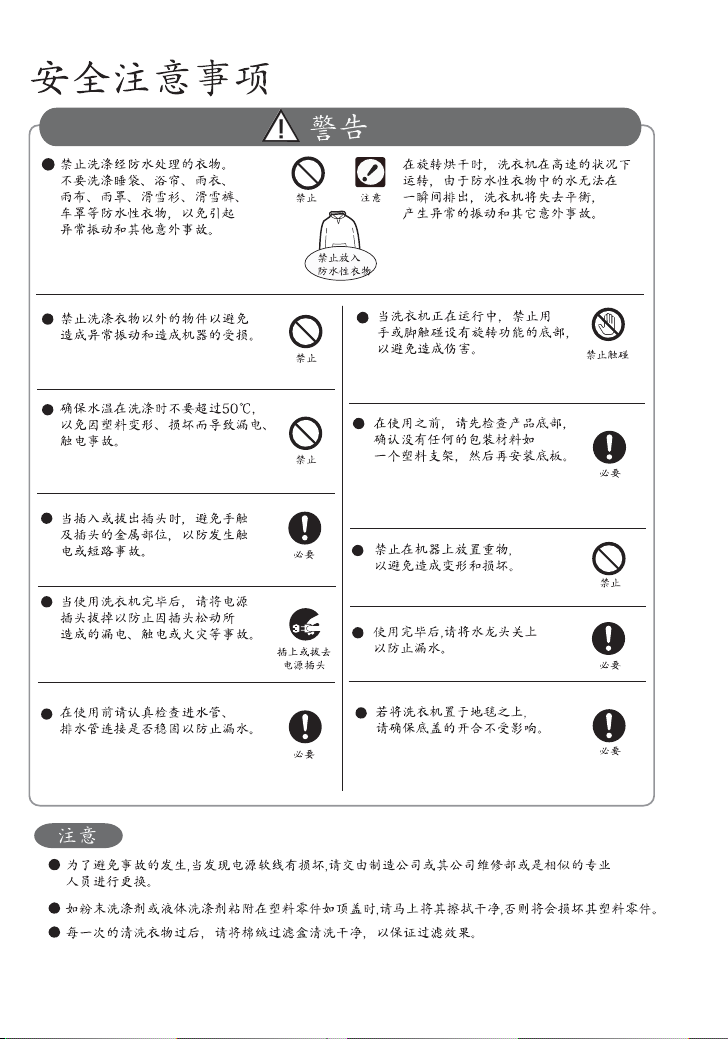

WARNING
FORBIDDEN
CAUTION
DO NOT PUT
WATER-RESISTANT
CLOTHING INTO
THE TUB
Do not wash water resistant clothing.
Do not wash sleeping bags, bath
curtains, raincoats, rain ponchos,
rain covers, ski jackets, ski pants,
automobile covers and other water
resistant clothing, so as to avoid
abnormal vibration and other
unexpected accidents.
During spin drying, the washing
machine is rotating at high speed.
Because water in water resistant
clothing could not be discharged
instantaneously, the machine will
be out of balance, causing abnormal
vibration and other unexpected
accidents.
FORBIDDEN
Do not wash objects other than
clothing to avoid abnormal vibration
that causes damage to machine.
The temperature of water must
not exceed 50 , so as to avoid
accidents of electric leakage and
electric shock due to distortion or
damage of plastic.
FORBIDDEN
MANDATORY
While pulling out or plugging the
plug, do not touch the metal part
of the plug, so as to avoid electric
shock or short circuit.
PLUG OR PULL
OUT THE PLUG
After using the washing machine,
please pull out the plug, so as to
avoid electric leakage, electric shock
or fire due to loose connection of
plug.
MANDATORY
Before using, check carefully if
the connection of water inlet hose
or drain hose is reliable, so as to
avoid water leakage.
FORBIDDEN TO
TOUCH
When the machine is running,
do not touch the bottom with
hand or foot, where there’s
a rotating mechanism, so as to
avoid getting hurt.
Before using, check the bottom
of the product, make sure there
is no packaging material such
as a plastic holder attaching on
visual parts. And then install the
bottom cover.
Do not put heavy objects on the
machine. so as to avoid distortion
and damage.
The base opening must not be
obstructed by carpeting when
the washing machine is installed
on a carpeted floor.
MANDATORY
After using, please turn off the
tap to avoid water leakage.
MANDATORY
FORBIDDEN
MANDATORY
To avoid danger, if the soft power cable is damage, it must be replaced by the manufacture
or its maintenance department or similar dedicated personnel.
CAUTION
If powder detergent or liquid detergent adheres to a plastic component such as the top cover,
wipe it away immediately, otherwise it may damage the plastic component.
Safety precautions
Each time washing is finished, clean lint filter box. Otherwise it may not have effect to trap lint.
Common non-fault phenomenon
Phenomenon Not a fault
Water
inlet
W
a
s
h
in
g
R
in
s
i
n
g
Others
A sound in water hose and water
inlet valve.
Spinning
When washing or rinsing is finished,
the pulsator will rotate slightly.
During the washing process,the
pulsator rotates discontinuously.
Because the pressure of tap water is relatively high.
Please adjust tap connection.
To avoid the offset of clothing to reduce vibration during
spin drying.
In the soaking and washing in soak course, the pulsator
rotates once every 8 seconds, so that the detergent can
permeate into the clothing sufficiently.
When spinning starts, low-speed
rotation will happen for a while.
(Do not rotate at high speed
immediately.)
This action is done to adjust the balance and to dry clothing
sufficiently.
When spinning starts, the
machine gives off sounds like
“Patsa Patsa”.
During spin drying, water hits the tub side, which is not
abnormal.
During spinning, the program
inlets water and enters rinsing.
(Spin light indicator blinks quickly.)
During the rotation in spin drying, the offset of clothing is
detected and corrected automatically.
(If the offset phenomenon cannot be changed by
auto-correction, the operation will stop immediately.)
The clothing has been spin dried
but not wringed dry.
The spin drying ratio of an automatic washing machine is
a little lower than that of a twin tub washing machine.
In case the spin drying of large clothing such as towels,
blankets etc. is uneven, please spin drying it again.
Operating parts heat up.
It’s caused by the heat radiation of electrical components.
Indoor lighting darkens in an
instant.
The voltage of plug loop in your house drops in an instant
when the motor starts up.
(Please use an exclusive plug loop.)
There’s a sound of water when
tub body is rotated.
To keep balance during spinning, there’s liquid in the
balance ring.
There’s a stray noise on the radio
or television, and the image is
unclear.
Keep away from radio and television as far as possible.
After washing is finished, there are
white lines around the washing /
spin drying tub.
The white powdery material is the result of the combination
of ingredients in detergent and ingredients in water
(Wipe away with twisted cloth.)
Please note that it will stick on where it is left. Using liquid
detergent or injecting water and rinsing twice can prevent
this phenomenon.
322
Not working
Light cannot be on.
Common non-fault phenomenon
Is the plug plugged in firmly?
There’s abnormal sound.
Does the washing machine incline or is it unstable?
Does the clothing deviate to one side during spin drying?
No water inlet.
T
her
e
's
no
wa
t
er
sup
p
ly
i
f t
he
t
op
c
ov
er
i
s
ope
n
. P
lea
s
e
c
lo
s
e
t
he
t
op
c
ov
er
pro
pe
rl
y
.
Tap leaks.
Does the water nozzle connection incline or shake?
Phenomenon
Check
Is there a hair clip or other foreign metal objects mixed in the clothing?
Are the screws or the installation position of the water nozzle connection loose?
Is the power supply interrupted or does the main switch in your house trip off?
Inspection of a washing machine that have been used for many years.
Check
Are there
situations
like these?
Doesn’t operate sometimes.
Water leakage (water hose, spinning tub,
tap connection).
There is burning smell.
There is an abnormal sound or vibration
during operation.
Your hand feels numb while touching
the machine.
Power cable or plug is unusually hot.
To avoid a fault y or an accident, please pull
out the plug from the plug socket. Be sure to
entrust the maintenance department to
check it, and consult the maintenance
department for check and repair fees.
Stop using
the machine
“CHILD LOCK” doesn’t work during
operation.
Safety precautions
FORBIDDEN
WARNING
FORBIDDEN
INFLAMMABLES
GASOLINE
FORBIDDEN
FORBIDDEN
DISASSEMBLE
FORBIDDEN TO
USE AT
HIGH-HUMIDITY
LOCATIONS
MANDATORY
PLUG OR PULL
THE PLUG
FORBIDDEN
TO
TOUCH
MANDATORY
FORBIDDEN
TO
WASH WITH WATER
FORBIDDEN
FORBIDDEN
FORBIDDEN
Do not allow children to play
with or look around the
washing / spin drying tub,
in case of injury.
Clothing stained with harmful
diluting agents such as
gasoline, kerosene and so
on must not be put into the
washing / spin drying tub.
Do not use power supply
other than AC220-240V, 50Hz,
so as to avoid malfunction,
damage and fire.
Except professional repair-men,
do not modify the machine.
Please do not disassemble and
repair the machine without
permission, so as to avoid fire,
electric shock, getting hurt or
malfunctions of the machine.
Do not place the machine at
high-humidity places such as
bathroom, locations where wind
and rain may get in, and so on.
Otherwise, electric shock, fire,
malfunctions and distortion may
take place.
Use plug socket above 13A
separately. A loose plug socket
or the action of sharing a plug
socket with other apparatus
may start a fire due to heat.
While cleaning the machine
body, the plug should be
pulled out first. Do not plug or
pull the plug with wet hand or
wet cloth, so as to avoid
electric shock.
Clean the dust on the plug and
plug socket to avoid fire.
Do not approach any fire source
to a plastic component, which
has the risk of starting a fire.
Do not use water to wash
components of the machine,
so as to avoid short circuit
and electric shock.
Before the washing / spin drying
tub completely stops, do not
touch the clothing being washed.
Even if the tub is running at low
speed, your hand may get
wrapped up and injured. Special
attention should be paid to children.
Do not use damaged power
cable, plug and loose plug
socket, so as to avoid short
circuit, electric shock, fire and
other accidents.
Do not change the original
state of power cable. Any
artificial damage to the power
cable could cause electric
shock, electric leakage or
other malfunctions.
2 23
Specifications
Standard washing/
spin drying capacity
Washing / Spin Drying
Rated Power Input
ES-W110DS ES-W100DS
Model
Power supply
Water pressure
Weight
Dimensions
(W×D×H (mm))
Standard water
consumption
Standard water level
Washing type
220V-240V ~ 50Hz
11.0 kg
10.0 kg
Swirl type
0.03 ~ 0.8 MPa
580 × 625 × 1031
580 × 625 × 1011
610 W / 310 W
605 W / 360 W
37 kg
51 L
48 L
93 L95 L
ES-W110DS
ES-W100DS
Operation manual of full-automatic washing machine
Table of contents
Safety precautions
Name of each component
Key points of washing
Instruction on control panel functions
Things to know before washing
Instruction on washing courses
Self-decided washing course
Additional operating procedure
Maintenance
Common non-fault phenomenon
Specifications
2
6
7
8
12
13
14
15
17
19
23
Operation manual
Thank you for purchasing our product.
Please read this manual carefully before use.
Please read “Safety Precautions” carefully
before use.
Please keep this manual in a safe place.
Our product is specially designed for household
use only.
Page
Printed in Indonesia
SHARP CORPORATION
OSAKA, JAPAN
TINS-A281QBEZ 1
