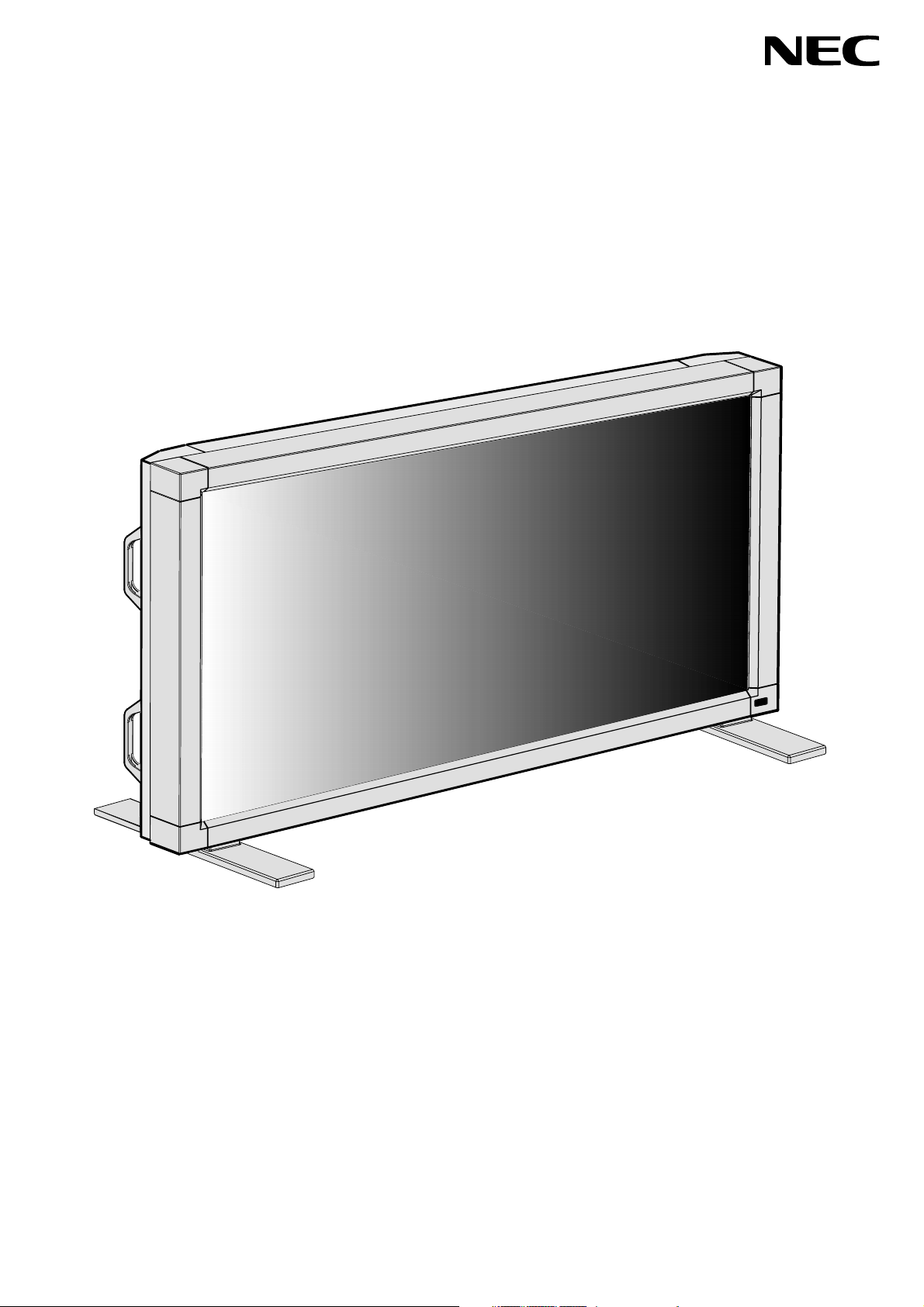

User’s Manual
MultiSync LCD5710
57" LCD Colour Monitor
Index
Declaration of conformity ............................................................................................................................. English-1
Important Information ................................................................................................................................... English-2
Warning, Caution ......................................................................................................................................... English-2
Declaration ................................................................................................................................................... English-2
Safety Precautions, Maintenance & Recommended Use ............................................................................ English-3
Contents ....................................................................................................................................................... English-4

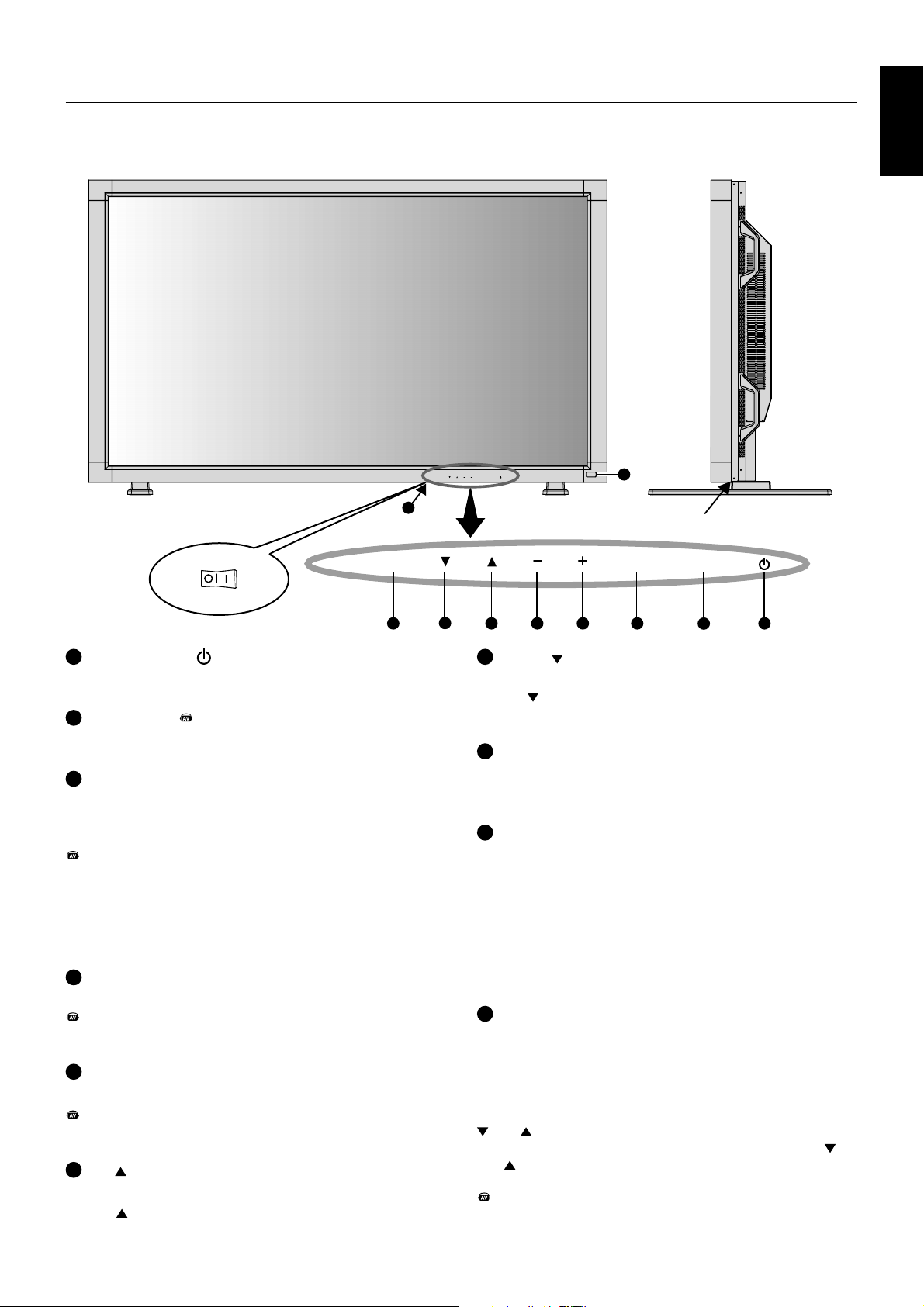

Parts Name and Functions .......................................................................................................................... English-5
Control Panel ...................................................................................................................................... English-5
Terminal Panel .................................................................................................................................... English-6
Wireless Remote Control ................................................................................................................... English-7
Operating Range for the Remote Control ........................................................................................... English-8
Handling the remote control ........................................................................................................... English-8
Setup Procedure .......................................................................................................................................... English-9
How to Mount and Attach Options to the LCD Monitor ................................................................................ English-11
Connections ................................................................................................................................................. English-12

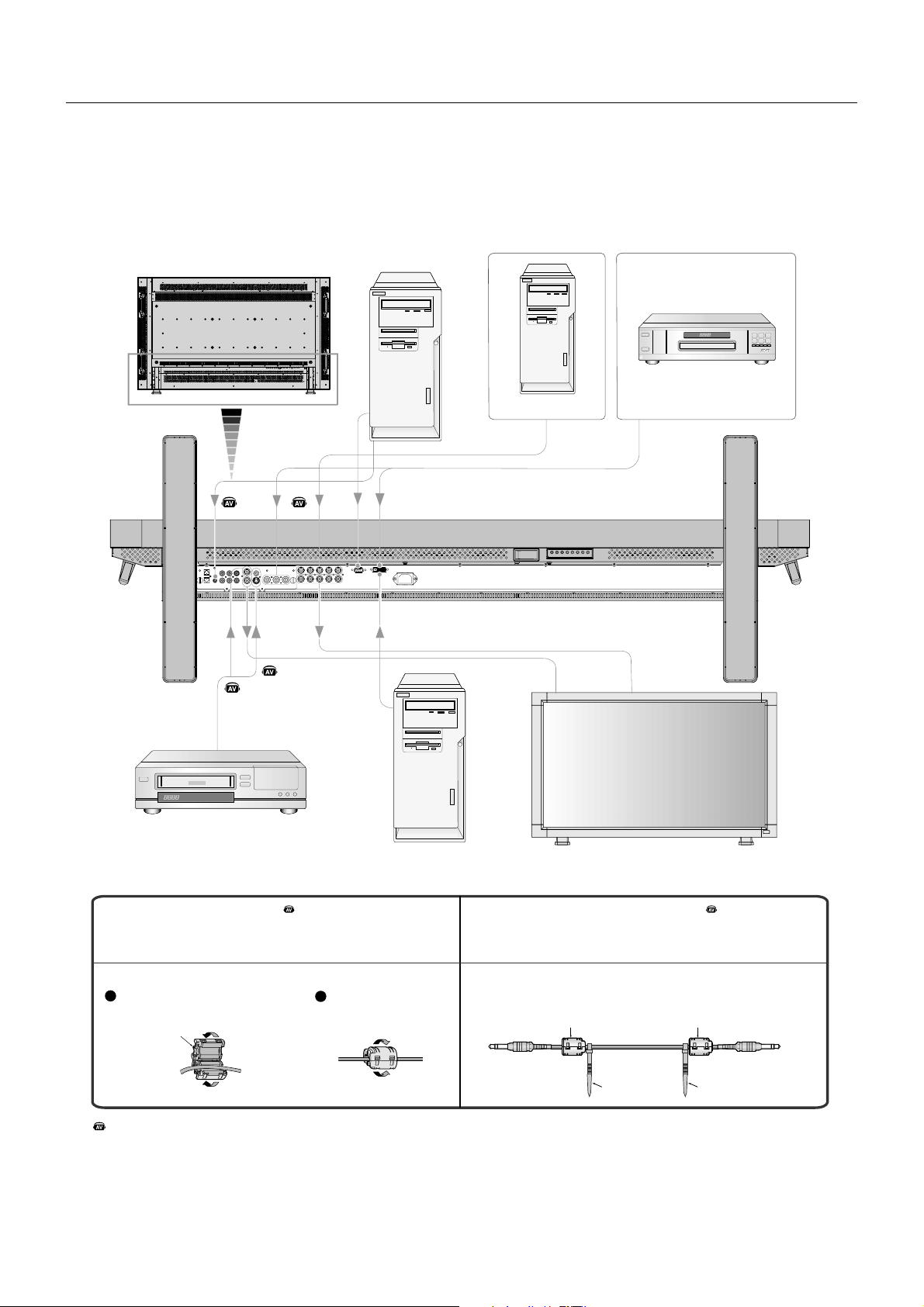

Wiring Diagram................................................................................................................................... English-12
Connecting a Personal Computer ...................................................................................................... English-13
Connect the LCD Monitor to a Personal Computer ........................................................................ English-13
Connecting to a Macintosh Computer ................................................................................................ English-14
Connect the LCD Monitor to Macintosh ......................................................................................... English-14
Connecting with Digital Interface Equipment ...................................................................................... English-15
Connect the LCD Monitor to a Computer with a Digital Output ...................................................... English-15
Connecting a DVD Player with component out................................................................................... English-16
Connect the LCD Monitor to a DVD Player .................................................................................... English-16

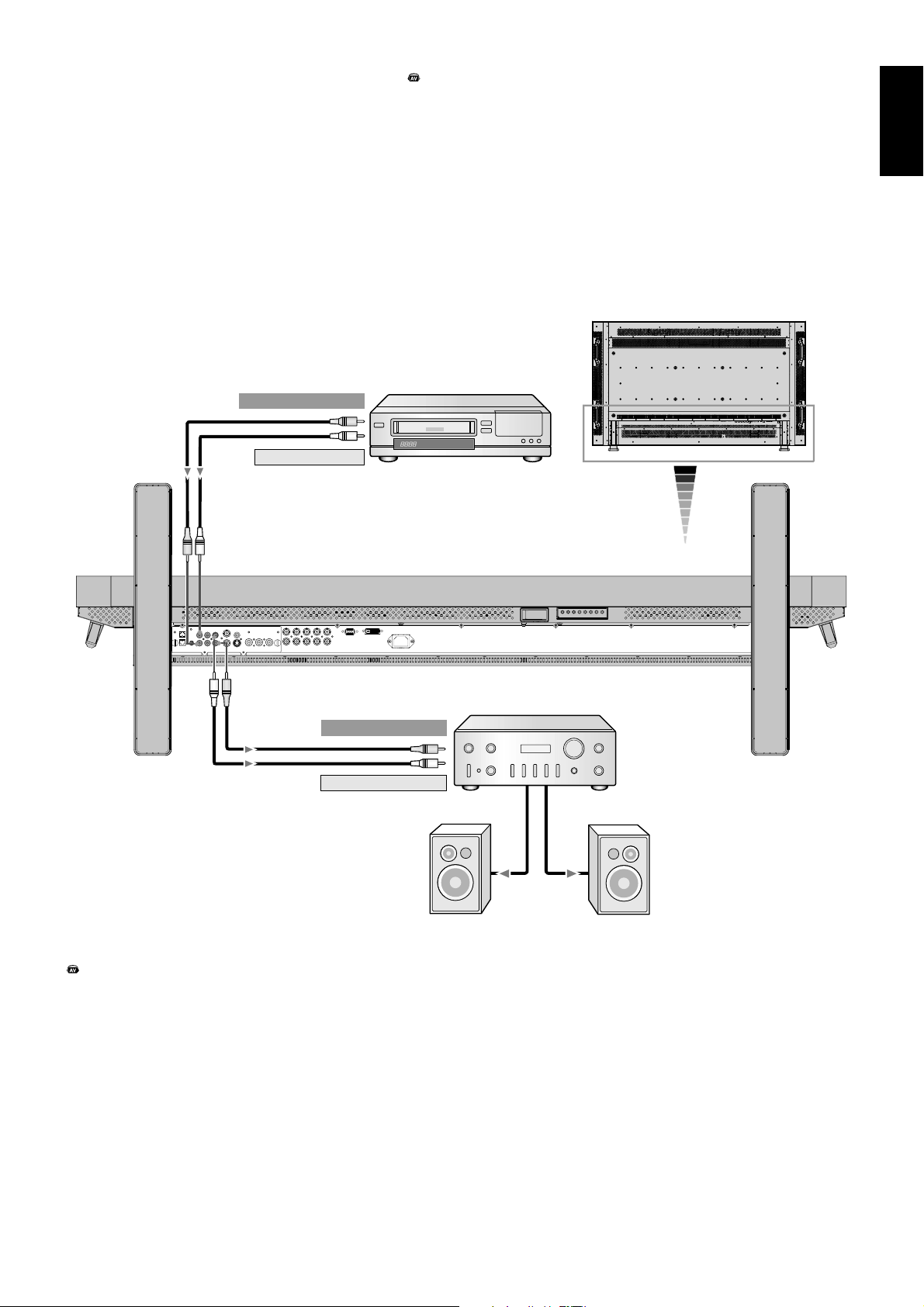

Connecting to a Stereo Amplifier........................................................................................................ English-17
Connect the LCD Monitor to a Stereo Amplifier ............................................................................. English-17
Basic Operation ........................................................................................................................................... English-18
Power ON and OFF Modes ................................................................................................................ English-18
Power Indicator ................................................................................................................................... English-19
Using Power Management ................................................................................................................. English-19
Selecting a video source .................................................................................................................... English-19
Picture Size ........................................................................................................................................ English-19
Picture Mode ...................................................................................................................................... English-19
Information OSM ................................................................................................................................ English-19
OSM (On-Screen-Manager) Controls .......................................................................................................... English-20
PICTURE............................................................................................................................................ English-20
SCREEN ............................................................................................................................................ English-21
AUDIO ................................................................................................................................................ English-22
PICTURE IN PICTURE ...................................................................................................................... English-23
CONFIGURATION 1 ........................................................................................................................... English-23
CONFIGURATION 2 ........................................................................................................................... English-24
ADVANCED OPTION ......................................................................................................................... English-26
Controlling the LCD monitor via RS-232C Remote Control ......................................................................... English-30
Features ....................................................................................................................................................... English-32
Troubleshooting ............................................................................................................................................ English-33
Specifications ............................................................................................................................................... English-34
Mounting on Wall or Ceiling ......................................................................................................................... English-35
Pin Assignment ............................................................................................................................................ English-36
English-1
English
DECLARATION OF CONFORMITY
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
U.S. Responsible Party: NEC Display Solutions of America, Inc.
Address: 500 Park Boulevard, Suite 1100
Itasca, Illinois 60143
Tel. No.: (630) 467-3000
Type of Product: LCD Monitor
Equipment Classification: Class B Peripheral
Model: MultiSync LCD5710 (L576RX)
We hereby declare that the equipment specified above
conforms to the technical standards as specified in the FCC Rules.
Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation.
OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.
All other brands and product names are trademarks or registered trademarks of their respective owners.
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.
FCC Information
1. Use the attached specified cables with the MultiSync LCD5710 (L576RX) colour monitor so as not to interfere with radio and
television reception.
(1) Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to 15-pin mini D-SUB.
(3) Please attach the ferrite cores on the Audio Cable. Please see page 12 of this manual.
2.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify
and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington,
D.C., 20402, Stock No. 004-000-00345-4.
English-2
Important Information
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT
USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS
THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM
WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE
POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit
has been included. Therefore, it should be read carefully in order to avoid any problems.
Declaration
Declaration of the Manufacturer
We hereby certify that the colour monitor MultiSync
LCD5710 (L576RX) is in compliance with
Council Directive 73/23/EEC:
– EN 60950-1
Council Directive 89/336/EEC:
– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024
and marked with
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japan
CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not
supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the
AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
Plug Type North America
European
Continental
U.K. Chinese Japanese
Plug Shape
Region
Voltage
U.S.A./Canada
U.K. China JapanEU (except U.K.)
120* 230 220 100230
*When operating the MultiSync LCD5710 monitor with its AC 125-240V power supply, use a power supply cord that matches
the power supply voltage of the AC power outlet being used.
WEEE Mark (European Directive 2002/96/EC)
Within the European Union
EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic
products carrying the mark (left) must be disposed of separately from normal household waste. This includes
monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your
NEC display products, please follow the guidance of your local authority, or ask the shop where you
purchased the product, or if applicable, follow any agreements made between yourself and NEC.
The mark on electrical and electronic products only applies to the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local
authority so as to comply with the correct disposal method.
110*
Taiwan
English-3
English
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND USING
THE MULTISYNC LCD5710 LCD COLOUR MONITOR:
• DO NOT OPEN THE MONITOR. There are no user
serviceable parts inside and opening or removing covers
may expose you to dangerous shock hazards or other risks.
Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor
near water.
• Do not insert objects of any kind into the cabinet slots, as
they may touch dangerous voltage points, which can be
harmful or fatal or may cause electric shock, fire or
equipment failure.
• Do not place any heavy objects on the power cord.
Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart,
stand or table, as the monitor may fall, causing serious
damage to the monitor.
• The power supply cord you use must have been approved
by and comply with the safety standards of your country.
(Type H05VV-F 3G 1mm
2
should be used in Europe)
• In UK, use a BS-approved power cord with molded plug
having a black (13A) fuse installed for use with this monitor.
• Do not place any objects onto the monitor and do not use
the monitor outdoors.
•
The lamps in this product contain mercury. Please
dispose according to state, local or federal law.
• Do not bend power cord.
• Do not use monitor in high temperature, humid, dusty, or
oily areas.
• If monitor or glass is broken, handle with care. Do not come
in contact with the liquid crystal.
• Allow adequate ventilation around the monitor, so that heat
can properly dissipate. Do not block ventilated openings or
place the monitor near a radiator or other heat sources.
Do not put anything on top of the monitor.
• The power cable connector is the primary means of
detaching the system from the power supply. The monitor
should be installed close to a power outlet, which is easily
accessible.
• Handle with care when transporting. Save packaging for
transporting.
• Please clean the holes of back cabinet to remove dirt and
dust at least once a year because of set reliability.
• If using the cooling fan continuously, it’s recommended to
wipe ventilation holes a minimum of once a month.
Immediately unplug your monitor from the wall outlet and refer
servicing to qualified service personnel under the following
conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the
monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following
operating instructions.
Recommended Use
• For optimum performance, allow 20 minutes for warm-up.
• Rest your eyes periodically by focusing on an object at least
5 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other
light sources to minimize glare and reflections.
• Clean the LCD monitor surface with a lint-free, non-abrasive
cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor’s brightness, contrast and sharpness
controls to enhance readability.
•Avoid displaying fixed patterns on the monitor for long
periods of time to avoid image persistence (after image
effects).
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomic benefits, we recommend the
following:
• Use the preset Size and Position controls with standard
signals.
• Use the preset Colour Setting.
• Use non-interlaced signals.
• Do not use primary colour blue on a dark background, as it
is difficult to see and may produce eye fatigue due to
insufficient contrast.
Safety Precautions, Maintenance & Recommended Use
English-4
Contents
Power Cord
(Type and number of power cords
included will depend on the where the
LCD monitor is to be shipped. When some
power cords are included, please use a
power cord that matches the AC voltage of
the power outlet and has been approved
by and complies with the safety standard
of your particular country).
User’s Manual
Video Signal Cable
(D-SUB to D-SUB Cable)
Wireless Remote Control
and AA Batteries
Clamp x 3

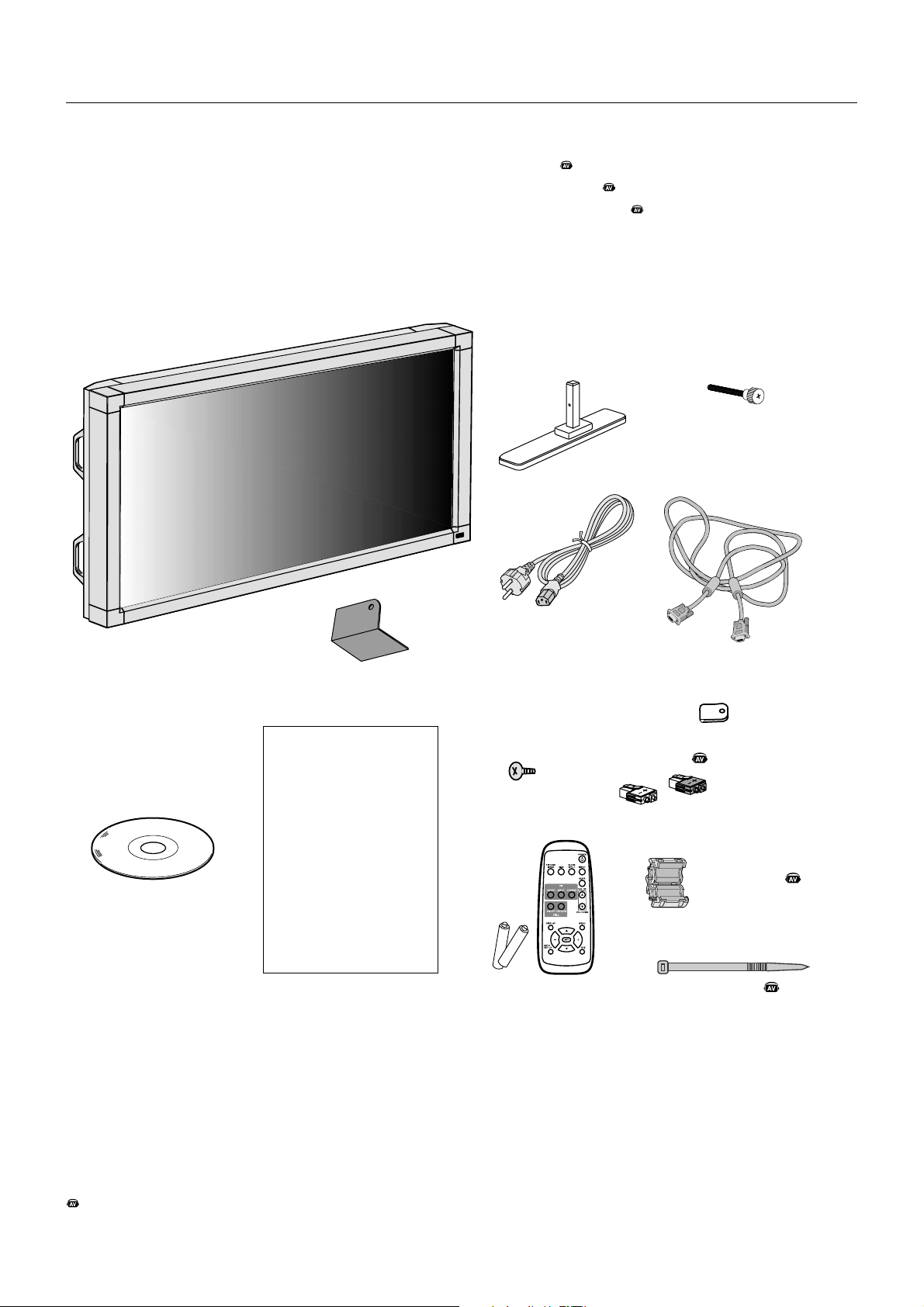

Your new MultiSync LCD5710 monitor box* should contain the following:
• LCD monitor
• Power Cord
•Video Signal Cable
• User’s Manual
•Wireless Remote Control and AA Batteries
• Clamp x 3
• Screw (M4 x 8) x 4
• CD-ROM
• Band x 2
• Ferrite Core x 2
• Speaker Plug x 1set
(Required for optional Loudspeakers)
• Stand*
1
x 2
• Thumbscrew for stand x 2
• Main switch cover
CD-ROM
Ferrite Core x 2
Band x 2
Thumbscrew
for stand x 2
Stand*
1
x 2
Screw (M4 x 8) x 4
*1 Depending on where the LCD is sold, the stand may or may not be included with some models.

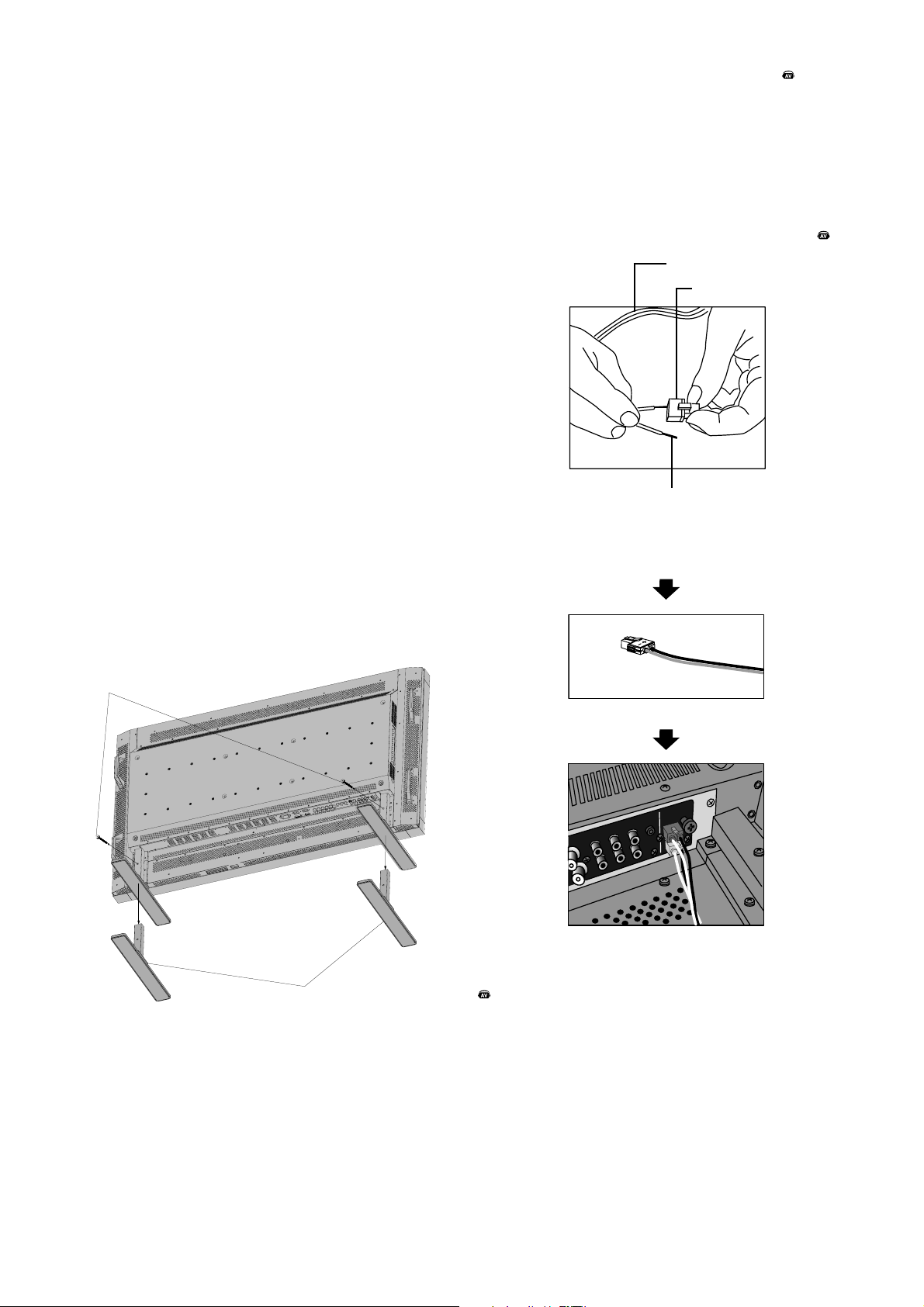

* If stands are to be used, install them as the monitor is unpacked.
* Remember to save your original box and packing material to transport or ship the monitor.
The following components are optional.
• External Speaker Unit
Speaker Plug x 1set
(Required for optional
Loudspeakers)
(Attached on external
speaker terminal)
Main switch cover
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV functions are available.
User’s Manual
English-5
English
8 1234
5
67
EXIT MUTEINPUT
10
EXIT MUTEINPUT
9
7
DOWN ( ) button
Activates the OSM menu when the OSM menu is turned-off.
Acts as button to move the highlighted area down to
select the adjustment with OSM menu.
8
EXIT button
Activates the OSM menu when the OSM menu is turned-off.
Acts as EXIT button to move to previous menu with OSM menu.
9
Remote control sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See page 8.
Glows green when the LCD monitor is in active mode and
glows red when the LCD monitor is in POWER OFF mode.
When the LCD monitor is in POWER SAVE mode, it will
glow both green and red. When SCHEDULE is enabled, it
will blink green and glow red. See page 19.
In the case of where a failure is detected, it will blink red.
10
Main Power Switch
On/off Switch to turn main power on/off.
Control Key Lock Mode
This control completely locks out access to all Control Key
functions. To activate the control key lock function, press both
and and hold down simultaneously for more than
3 seconds. To resume back to user mode, press both of
and and hold simultaneously for more than 3 seconds.
1
POWER button ( )
Switches the power on/off. See page 18.
2
MUTE button
Switches the audio mute ON/OFF.
3
INPUT button
Acts as SET button within OSM menu. (Toggle switches
between [RGB1], [RGB2], [RGB3], [DVD/HD], [VIDEO] or
[VIDEO<S>]).
[DVD/HD] and [VIDEO] inputs are enabled when the AV-
unit option is installed.
[VIDEO<S>] is enabled by selecting the “SEPARATE”
mode in the OSM or by having the “S-VIDEO” cable
connected with the “S-VIDEO” signal present and
selecting “PRIORITY” MODE. See page 26.
4
PLUS (+) button
Acts as (+) button to increase the adjustment with OSM menu.
Increases the audio output level when the OSM menu is
turned off.
5
MINUS (-) button
Acts as (-) button to decrease the adjustment with OSM menu.
Decreases the audio output level when the OSM menu is
turned off.
6
UP ( ) button
Activates the OSM menu when the OSM menu is turned-off.
Acts as button to move the highlighted area up to select
the adjustment with OSM menu.
Control Panel
Parts Name and Functions
Button Location
ON
OFF
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV
functions are available.
English-6

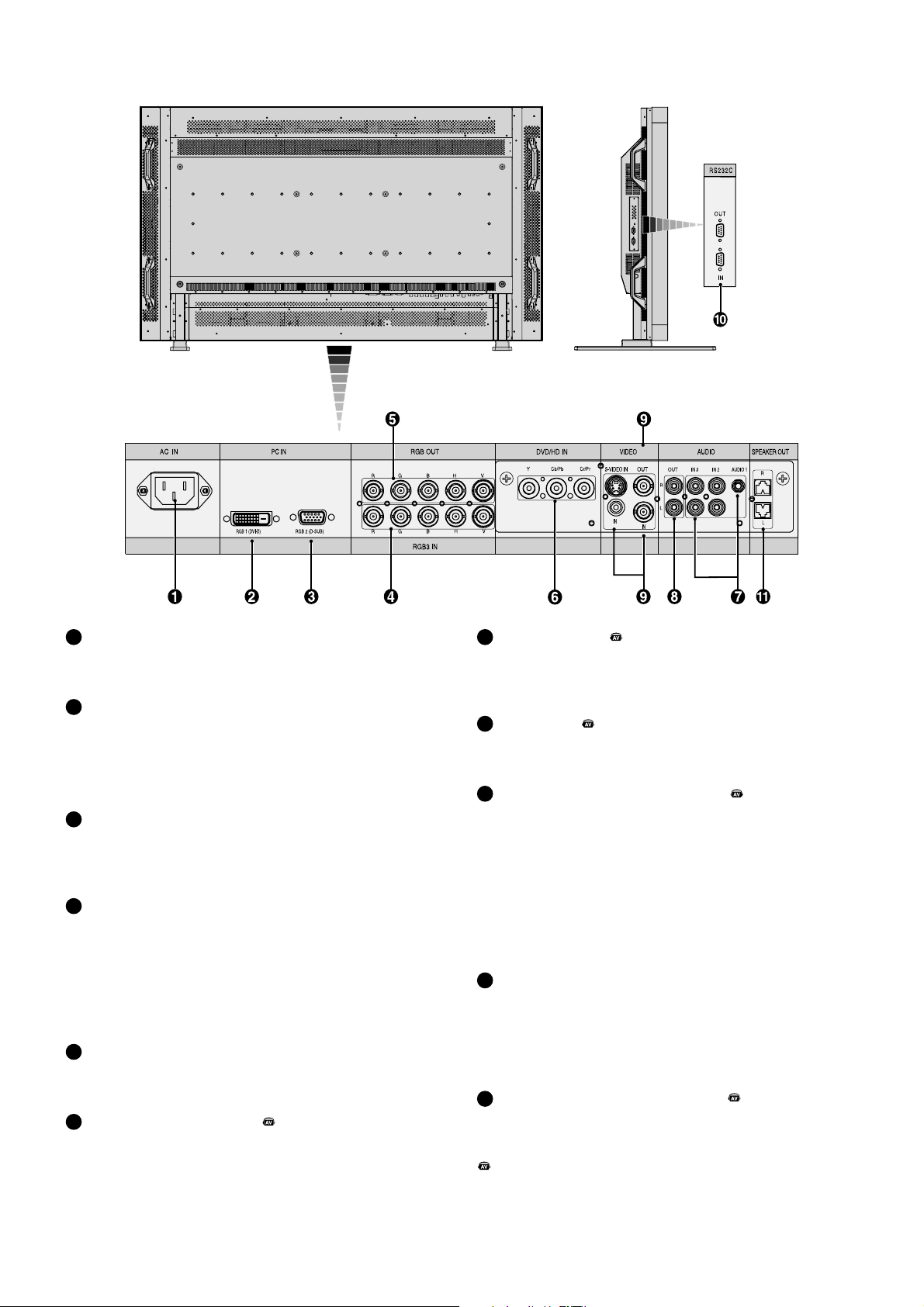

Terminal Panel
7
AUDIO IN 1, 2, 3
To input audio signal from external equipment such as a
computer, VCR or DVD player.
8
AUDIO OUT
To output the audio signal from the AUDIO IN 1, 2 and 3 jack.
9
VIDEO INPUT/OUTPUT Connector
VIDEO IN connector (BNC and RCA): To input a composite
video signal. BNC and RCA connectors are not available at
the same time. (Use only one input).
VIDEO OUT connector (BNC): To output the composite
video signal from the VIDEO IN connector.
S-VIDEO IN connector (DIN 4 pin): To input the S-video
(Y/C separate signal). See page 26, S-VIDEO MODE
SETTING.
10
EXTERNAL CONTROL (D-Sub 9 pin)
IN connector: Use when operating the LCD monitor from
the RGB equipment like a computer.
Out connector: To connect multiple MultiSync LCD5710
monitors.
11
EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, 2 or 3 jack.
1
AC IN connector
Connects with the supplied power cord.
2
RGB 1 IN (DVI-D)
To input digital RGB signals from a computer or HDTV
device having a digital RGB output.
* This connector does not support analog input.
3
RGB 2 IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
other RGB equipment.
4
RGB 3 [R, G, B, H, V] (BNC)
IN connector: To input analog RGB signals or signals from
other RGB equipment.
This is also to connect equipment such as a DVD player and
HDTV laser disk player. A Sync-on-Green signal can be
connected to the G connector.
5
RGB OUT connector (BNC)
To output the signal from RGB 3.
6
DVD/HD connector (BNC)
Connecting equipment such as a DVD player, HDTV device,
or Laser disc player.
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV
functions are available.
English-7
English
1
POWER button
Switches the power on/off.
* If Power Indicator is not glowing, then no controls will work.
2
INPUT button
Selects from input signal, [RGB1], [RGB2], [RGB3],
[DVD/HD], [VIDEO] or [VIDEO<S>].
[DVD/HD] and [VIDEO] inputs are enabled when the AV-
unit option is installed.
[VIDEO<S>] is enabled by selecting the “SEPARATE” mode
in the OSM or by having the “S-VIDEO” cable connected
with the “S-VIDEO” signal present and selecting “PRIORITY”
MODE. See page 26.
3
AUDIO INPUT button
Selects from input audio signal, [AUDIO1], [AUDIO2],
[AUDIO3].
4

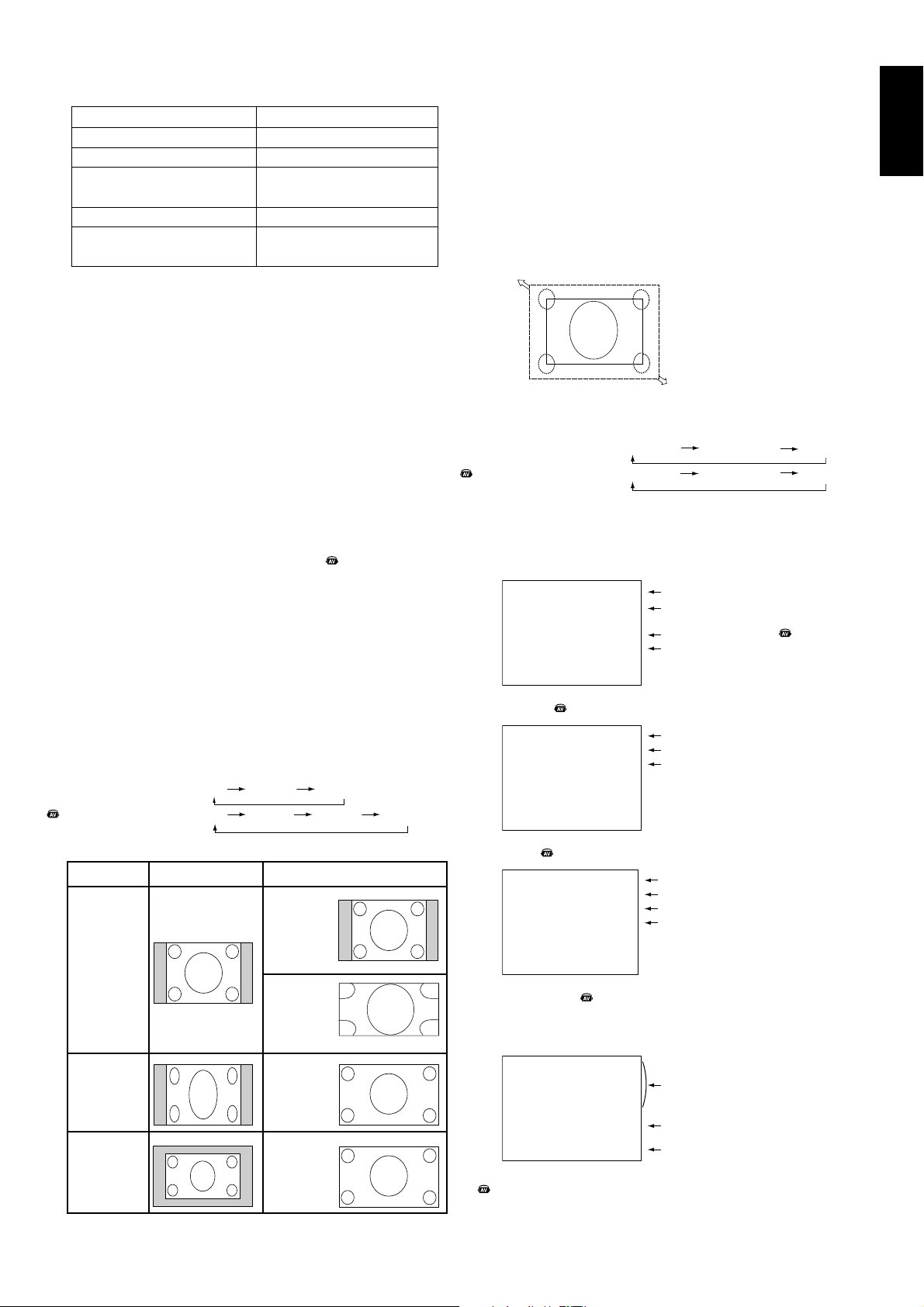

SIZE button
Selects picture size, [FULL], [NORMAL], [WIDE] and [ZOOM].
See page 19.
5
PICTURE MODE button
Selects picture mode, [HIGHBRIGHT], [STANDARD],
[sRGB], [CINEMA]. See page 19.
HIGHBRIGHT: for moving images such as DVD
STANDARD: for images
sRGB: for text based images
CINEMA: for movies.
6
MUTE button
To switch the mute function on/off.
7
VOLUME UP button
Increases the audio output level.
8
VOLUME DOWN button
Decreases the audio output level.
9
PIP (Picture In Picture) button
ON/OFF button: Toggle switches between PIP, POP,
side-by-side (aspect) and side-by-side (full). See page 23.
INPUT button: Selects the “picture in picture” input signal.
CHANGE button: Replaces to the main picture and sub
picture.
NOTE: The PIP function does not support 1080i input
signals. If a 1080i signal is used for PIP, then the sub picture
on the screen will be blank. The PIP function will work with
1080p signals.
10
STILL button
ON/OFF button: To switch the still picture mode on/off.
CAPTURE button: Captures the new picture.
NOTE: The STILL button does not work when pixel clock is
greater than 108MHz and also not work for 1080i.
11
DISPLAY button
To switch the information OSM on/off. See page 19.
12
AUTO SETUP button
To enter the auto setup menu. See page 23.
13
MENU button
To switch the menu mode on/off.
14
UP button
Acts as
button to move the highlighted area up to select
the adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves up.
15
DOWN button
Acts as
button to move the highlighted area down to
select the adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves down.
16
MINUS button decrease
Acts as (-) button to decrease the adjustment with OSM
menu.
Small screen which adjusted “PIP” mode moves left.
17
PLUS button increase
Acts as (+) button to increase the adjustment with OSM
menu.
Small screen which adjusted “PIP” mode moves right.
18
SET button
Acts as SET button with OSM menu.
19
EXIT button
Turn to previous menu with OSM menu.
Wireless Remote Control
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV
functions are available.
English-8
Point the top of the remote control toward the LCD monitor’s
remote sensor during button operation.
Use the remote control within a distance of about 7 m/23 ft.
from the front of the LCD monitor’s remote control sensor
and at a horizontal and vertical angle of within 30° within a
distance of about 3 m/10 ft.
Operating Range for the Remote Control
Caution: The remote control system may not function
when direct sunlight or strong illumination strikes
the remote control sensor of the LCD monitor, or
when there is an object in the path.
Handling the remote control
* Do not subject to strong shock.
* Do not allow water or other liquid to splash the remote
control. If the remote control gets wet, wipe it dry
immediately.
*Avoid exposure to heat and steam.
* Other than to install the batteries, do not open the
remote control.
English-9
English
1. Determine the installation location
CAUTION: DO NOT ATTEMPT TO INSTALL THE LCD
MONITOR BY YOURSELF.
Installing your LCD display must be done by a qualified
technician. Contact your dealer for more information.
CAUTION: MOVING OR INSTALLING THE LCD MONITOR
MUST BE DONE BY TWO OR MORE PEOPLE.
It is recommended that 4 people move or install
the LCD Monitor, due to its weight of almost
66.0kg (145.5lbs).
Failure to follow this caution may result in injury if the LCD
monitor falls.
CAUTION: Do not mount or operate the display upside
down, face up, or face down.
CAUTION: This LCD has a temperature sensor and cooling
fan. If the LCD becomes too hot, the cooling fan
will turn on automatically. If the LCD becomes
overheated and the cooling fan is running, the
“Caution” menu will appear. If the “Caution”
menu appears, discontinue use and allow the
unit to cool. When the LCD monitor is used in
an enclosure or with protection on the LCD
surface, please check the inside temperature of
monitor in the “HEAT STATUS” menu
(See page 28). If the temperature is hotter than
normal, turn the “cooling fan” function to ON in
the SCREEN SAVER OSM (See page 24).
IMPORTANT: Lay the protective sheet, which was wrapped
around the LCD monitor when it was
packaged, beneath the LCD monitor so as
not to scratch the panel.

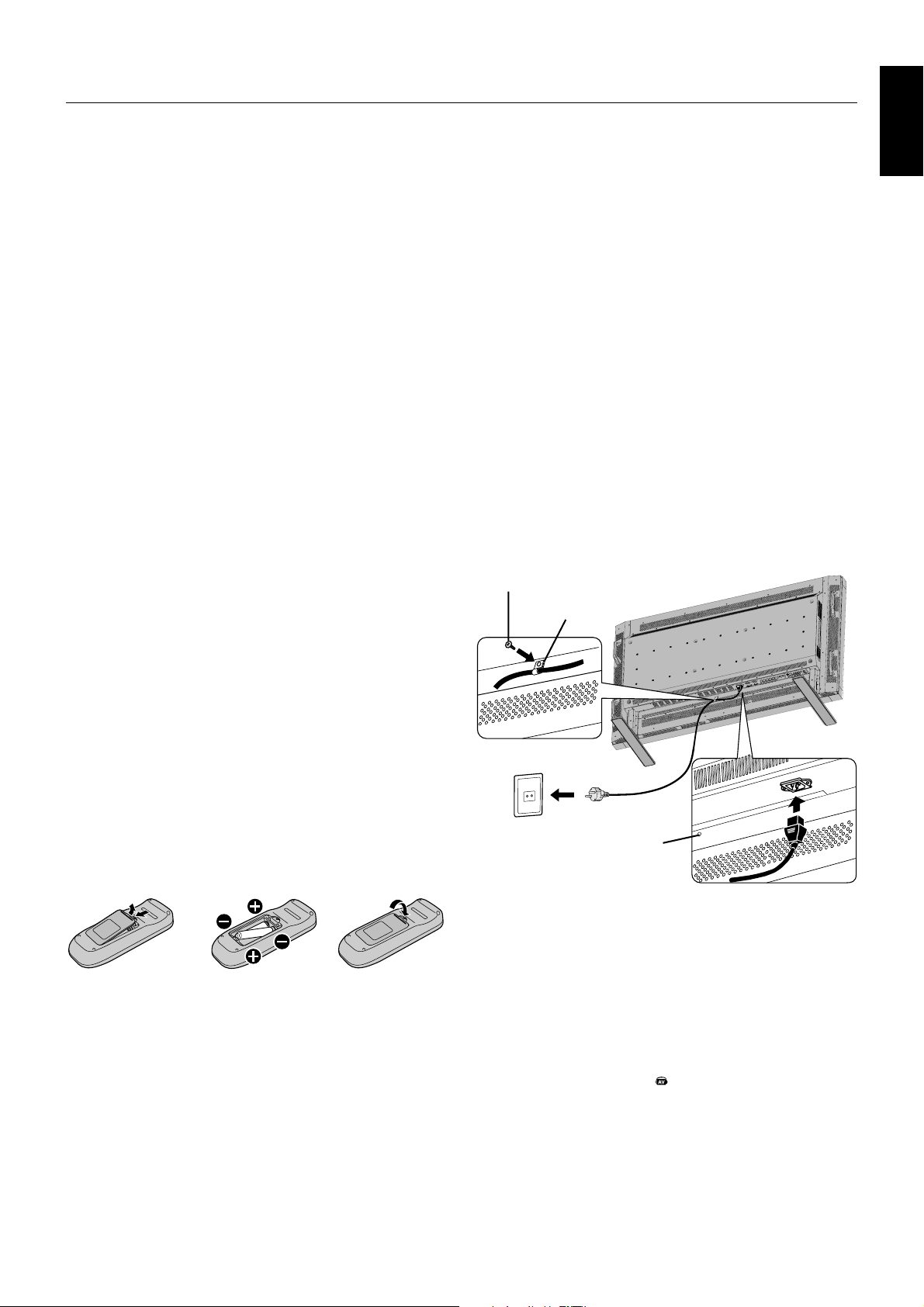

2. Install the remote control batteries
The remote control is powered by 1.5V AA batteries.
To install or replace batteries:
1. Press and slide to open the cover.
2. Align the batteries according to the (+) and (–)
indications inside the case.
3. Replace the cover.
CAUTION: Incorrect use of batteries can result in leaks
or bursting.
Be careful especially about the following points.
• Place “AA” size batteries matching the + and - signs on
each battery to the + and - signs of the battery
compartment.
• Don’t mix battery types.
• Don’t combine new batteries with used ones.
It causes shorter battery life or leakage of batteries.
• Remove dead batteries immediately to prevent battery
liquid from leaking into the battery compartment.
Don’t touch exposed battery acid, it cause damage to
your skin.
NOTE: If you do not intend to use the Remote Control for a
long period, remove the batteries.
3. Connect external equipment
(See pages 12-17)
•To protect the connected equipment, turn off the main
power before making connections.
• Refer to your equipment user manual.
4. Connect the supplied power cord
• The power outlet socket should be installed as near to
the equipment as possible, and should be easily
accessible.
• Fully insert the prongs into the power outlet socket.
Loose connection may cause noise.
• Please attach power cord to the LCD monitor using the
screw and clamp (included).
NOTE: Please refer to “Important Information” section of
this manual for proper selection of AC power cord.
Setup Procedure
5. Switch on the power of all attached
external equipment
When connected with a computer, switch on the power of
the computer first.
6. Operate the attached external
equipment
Displays the desired signal from the external equipment.
7. Adjust the sound
Makes adjustments when required.
8. Adjust the screen (See pages 20-28)
Makes required adjustments to the screen display position
or if there is distortion.
Screw
Clamp
Screw hole for clamp
English-10
9. Adjust the image (See pages 20-28)
Make adjustments to picture such as the brightness or
contrast when required.
10. Recommended Adjustment
To reduce the risk of “image persistence”, please adjust the
following items based on the application being used.
“SCREEN SAVER” (See page 24), “SIDE BORDER COLOR”
(See page 24), “DATE & TIME” (See page 28), “SCHEDULE”
(See page 28).
11. Installing and removing stand
NOTE: Depending on where the LCD is sold, the stand
may or may not be included with some models.
CAUTION: Installing and removing the stand must be done
by two or more people. It is recommended that
4 people install and remove the stand, due to
its weight of almost 66.0kg (145.5lbs).
How to install stand
1. Please turn monitor off.
2. Place stand onto monitor with the long ends of the feet in
front of the monitor.
3. After inserting stand in guide block, fasten thumbscrews
on both sides of the monitor.
How to remove the stand
1. Spread the protective sheet on the flat surface, such as
a desk.
2. Place monitor on the protective sheet.
3. Remove thumbscrews with a screwdriver or with your
fingers and place them in a safe place for reuse.
CAUTION: Handle with care when mounting the display
stand and avoid pinching your fingers.
NOTE: Place stand onto monitor so that the long end of the
feet are in the front.
Speaker plug
Fixed cable and speaker plug.
Insert the fixed cable and speaker plug to the speaker terminal.
Standard cable
Insert the negative (-) side of a standard speaker cable into the
negative (-) side of the speaker plug. The negative side of a
standard speaker cable has a stripe running the length of the cable.
Insert remaining wire into the positive (+) side of the speaker plug.
Hold down on the small lever on the speaker plug to insert cable.
12. When using external speakers
We recommend to using the optional speakers designed for
the MultiSync LCD5710.
The external speaker terminals of the MultiSync LCD5710
may be connected to standard speakers. To do so, the
speaker wires must first be fitted with the attached speaker
plugs.
Stand
Thumbscrews
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV
functions are available.
How to use the attached speaker plug
English-11
English
4. To avoid falling down
Fasten the LCD monitor to wall using a cord or chain,
which is sufficient to support the weight of the LCD monitor
(approx. 66.0kg (145.5lbs)). The wall must be strong enough
to support the monitor and mounting accessories.
Before moving the LCD monitor, the cord or chain should be
removed.
5. To prevent the main power switch from
being changed
To prevent use of the main power switch, please attach the
main switch cover, which is enclosed as an accessory.
NOTE: With the main power switch cover in place, the main
power switch cannot be turned off. Remove main
power switch cover in order to switch off the display.
Clamp
Cord or Chain
500mm
Screw
You can attach mounting accessories to the LCD monitor in
one of the following two ways:
1. In the upright position
How to Mount and Attach Options to the LCD Monitor
2. Lay the screen face down
Lay the protective sheet which was wrapped around the
monitor when it was packaged on a table, beneath the
screen surface so as not to scratch the screen face.
This device cannot be used or installed without the Tabletop
Stand or other mounting accessory. Failure to follow correct
mounting procedures could result in damage to the
equipment or injury to the user or installer. Product warranty
does not cover damage caused by improper installation.
Failure to follow these recommendations could result in
voiding your warranty.
Please refer to “Mounting on Wall or Ceiling” section when
you mount your monitor on Wall or Ceiling. See page 35.
Protective Sheet
Tabletop Stand
Table
Screw Holes
3. Ventilation Requirements for enclosure
mounting
To allow heat to disperse, leave space between surrounding
objects as shown in the diagram below.
Main switch cover
Screw
English-12
Mounting Position of Ferrite Core
Ferrite Core
To connector of PCTo AUDIO 1 of monitor
Attaching the Ferrite Core
Attach the Ferrite Core to PC Audio Cable.
Use of the cable without mounting the ferrite core will result in the
occurrence of noise.
1
Open the ferrite core and clamp it
on the PC Audio cable.
2
Close the ferrite core. Attach the two Ferrite Cores to the both ends of PC Audio Cable.
For PC Audio Cable
Ferrite Core
Connections
Before making connections:
* First turn off the power of all the external equipment and then make the necessary connections.
* Refer to the user manual included with each separate piece of equipment.
Wiring Diagram
LCD monitor
Personal computer
VCR
Personal computer
DVD player
Equipment with
digital interface
LCD monitor (second monitor)
Ferrite Core
Band
Band
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV functions are available.
English-13
English

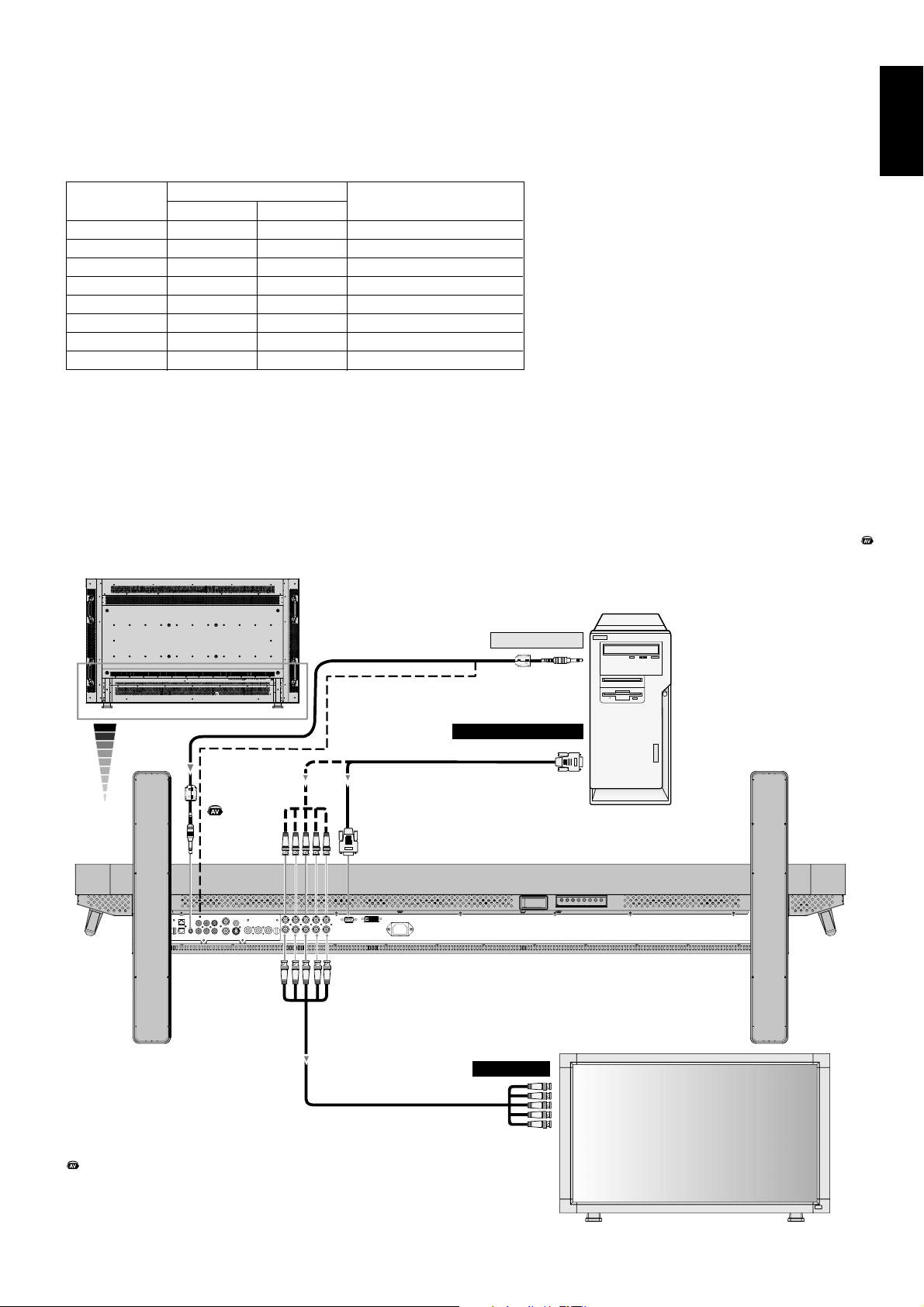

Connecting a Personal Computer
Connecting your computer to your LCD monitor will enable you to display your computer’s screen image.
Some video cards and pixel clock over 165MHz may not display an image correctly.
Your LCD monitor displays proper image by adjusting the factory preset timing signal automatically.
<Factory preset signal timing>
Connect the LCD Monitor to a Personal Computer
•To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal
cable (mini D-sub 15 pin to mini D-sub 15 pin).
•To connect the RGB 3 connector (BNC) on the LCD monitor, use a mini D-sub 15 pin to BNC x 5 signal cable (not
included). Select RGB 3 from the INPUT button.
• When connecting one or more LCD monitors, use the RGB OUT connector (BNC).
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
LCD monitor
LCD monitor (second monitor)
BNC x 5
BNC x 5
PC or IBM compatible
BNC x 5
Mini D-sub 15 pin
Mini D-sub
15 pin
To analog RGB output
To audio output
Horizontal Vertical
640 x 480 31.5kHz 60Hz
800 x 600 37.9kHz 60Hz
1024 x 768 48.4kHz 60Hz
1280 x 768 48kHz 60Hz
1360 x 768 48kHz 60Hz
1280 x 1024 64kHz 60Hz
1600 x 1200 75kHz 60Hz Compressed image
1920 x 1080 67.5kHz 60Hz Recommended resolution
Resolution Remarks
Scanning frequency
To RGB 3 IN
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all
AV functions are available.
English-14
Connecting your Macintosh computer to your LCD monitor will enable you to display your computer’s screen image. Some
video cards or drivers may not display images correctly.

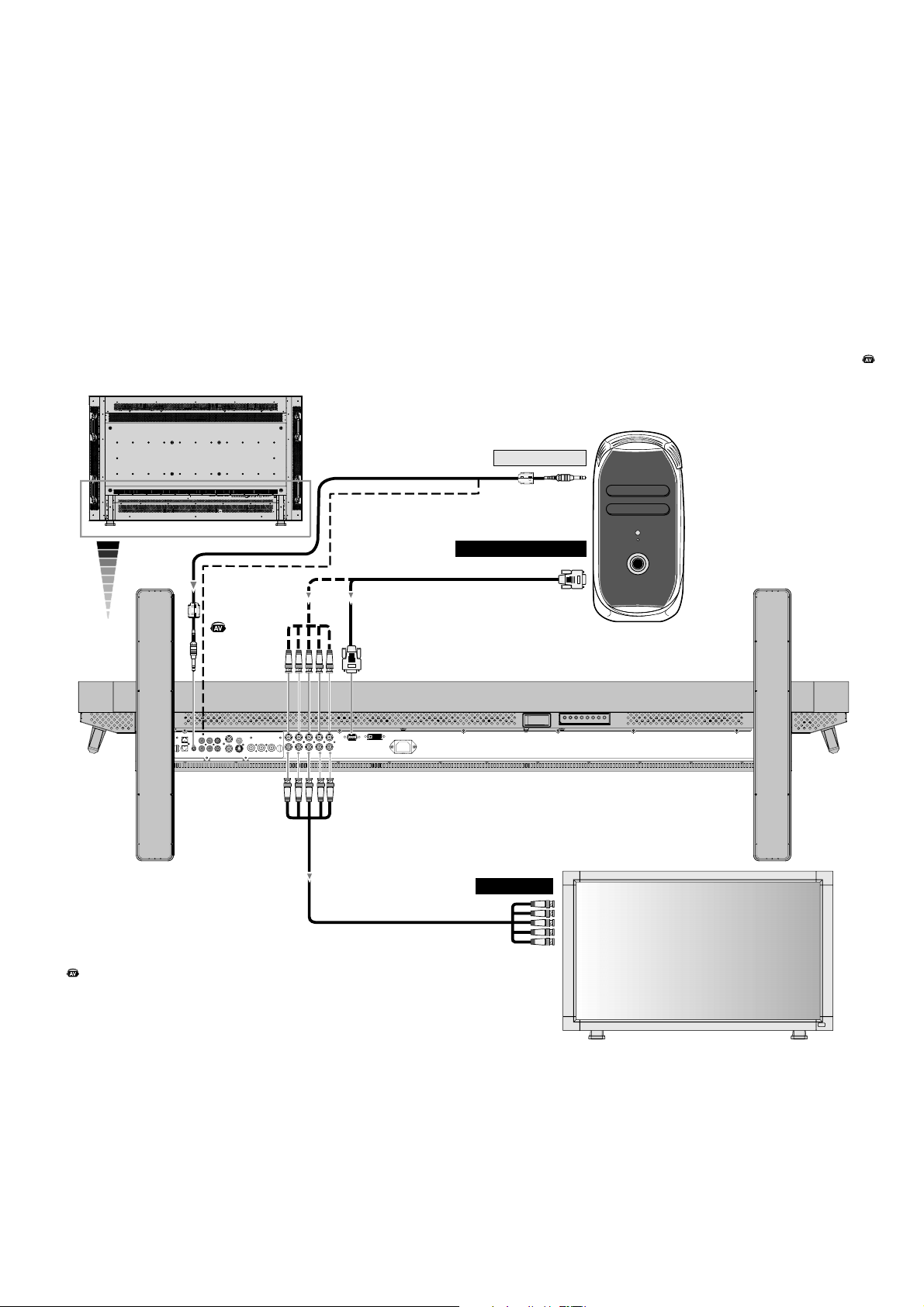

Connect the LCD Monitor to Macintosh
•To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal
cable (mini D-sub 15 pin to mini D-sub 15 pin).
•To connect the RGB 3 IN connector (BNC) on the LCD monitor, use the signal cable available separately (mini D-sub
15 pin to BNC x 5).
• If you use with a Macintosh PowerBook, set “Mirroring” to Off.
Refer to your Macintosh’s owner’s manual for more information about your computer’s video output requirements and any
special identification or configuring your monitor’s image and monitor may require.
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
Connecting to a Macintosh Computer
LCD monitor
LCD monitor (second monitor)
BNC x 5
BNC x 5
Macintosh
BNC x 5
Mini D-sub 15 pin
Mini D-sub
15 pin
To analog RGB output
To audio output
To RGB 3 IN
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all
AV functions are available.
English-15
English
LCD monitor
Equipment with a
digital interface such
as a personal
computer with RGB
output (TMDS)
DVI-D connector
DVI-D connector
To DVI output
To audio output
Connections can be made with equipment with a digital interface that is compliant with the DVI (Digital Visual Interface)
standard.

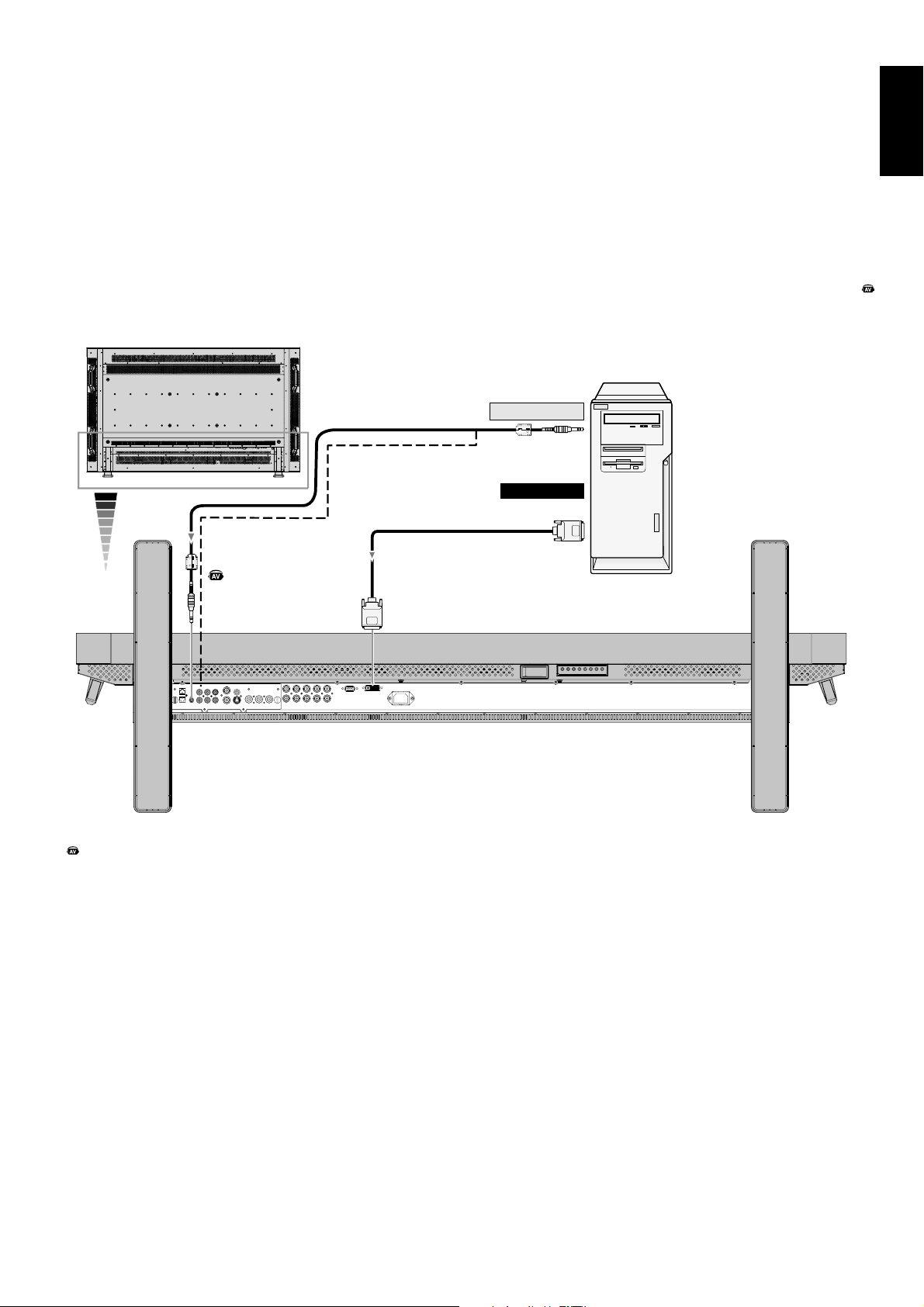

Connect the LCD Monitor to a Computer with a Digital Output
• The RGB 1 IN connector also accepts a DVI-D cable.
• Input TMDS signals conforming to DVI standards.
•To maintain display quality, use a cable with a quality prescribed by DVI standards.
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
• Mode selection, see “DVI MODE” of page 25.
Connecting with Digital Interface Equipment
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV functions are available.
English-16
Connecting your DVD player to your LCD monitor will enable you to display DVD video.
Refer to your DVD player user’s manual for more information.
Connect the LCD Monitor to a DVD Player
•To connect the DVD/HD IN connector (BNC) on the LCD monitor, use a BNC connector cable (not included) You will need
a BNC-to-RCA adapter to connect a DVD player with an RCA pin jack to the BNC connector cable (not included).
Some DVD players may have different connectors such as DVI-D connector.
Select [DVI/HD] mode from the “DVI MODE” menu when you connect a DVI-D connector. Mode selection, see “DVI
MODE” of page 25.
The AUDIO IN 2 and 3 (both RCA) can be used for audio input. For connection, select [AUDIO 2] or [AUDIO 3] from the
AUDIO INPUT button.
Connecting a DVD Player with component out
LCD monitor
RCA
BNC-to-RCA
adapter
BNC x 3
To audio left output
DVI-D connector
BNC x 3
To DVD Component video output
To DVI output
To audio
right output
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV functions are available.
English-17
English
You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information.
Connect the LCD Monitor to a Stereo Amplifier
•Turn on the LCD monitor and the amplifier only after all connections have been made.
• Use an RCA cable to connect the AUDIO OUT connector (RCA) on the LCD monitor and the audio input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN is used for audio input.
• The AUDIO OUT jack outputs sound from the selected Audio input.
Connecting to a Stereo Amplifier
LCD monitor
RCA
To audio right output
To audio left output
RCA
To audio right output
To audio left output
Amplifier
External speakerExternal speaker
VCR or Laser disc player
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV functions are available.
English-18
Basic Operation

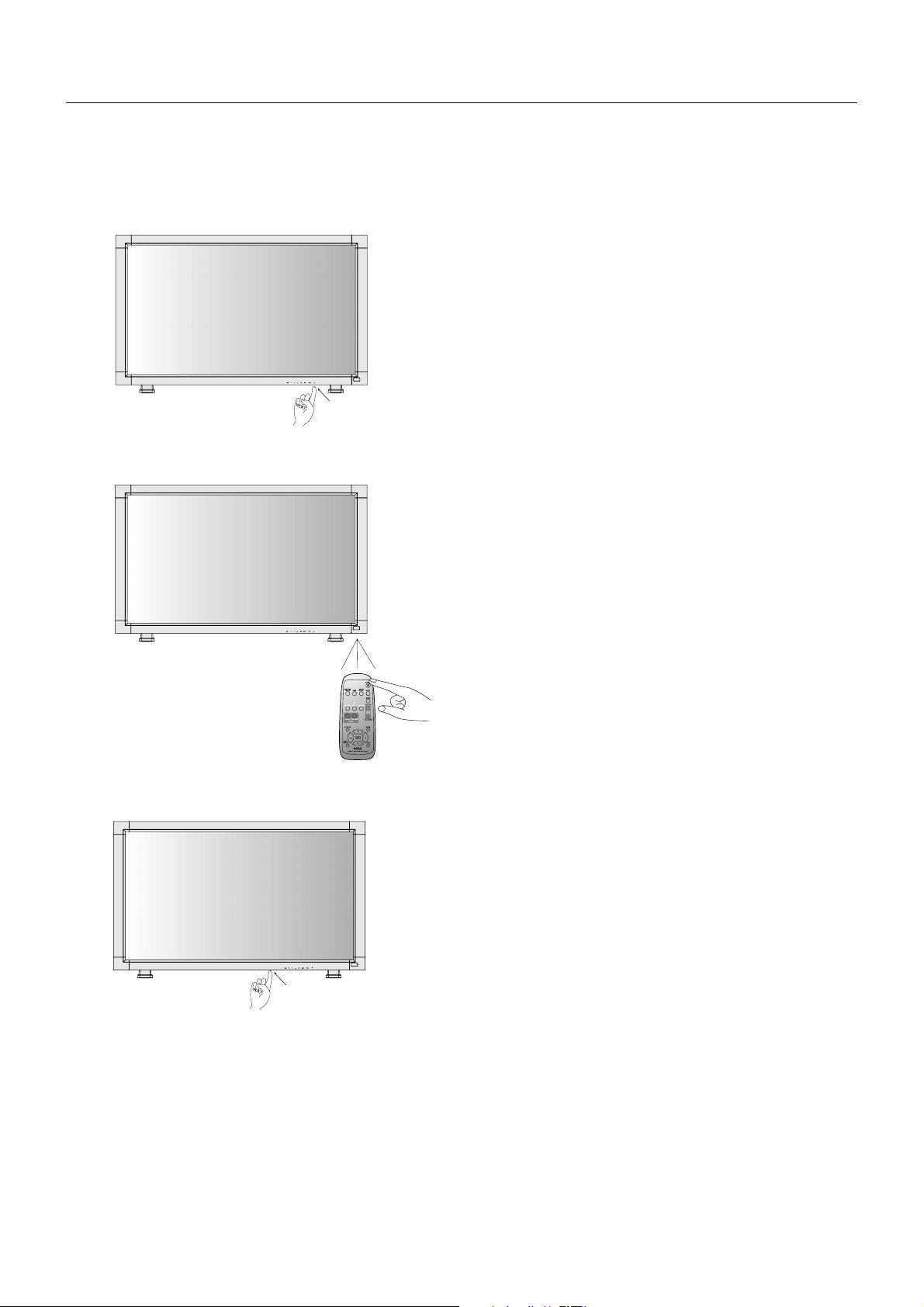

Power ON and OFF Modes
The LCD monitor power indicator will turn green while powered on, or red when in off mode. The monitor can be powered on
or off using the following three options:
1. Pressing the power button.
Note: Before pressing the power button, be sure to turn
on the Main Power Switch on the LCD monitor.
Main Power Switch
Power Button
2. Using the remote control.
Note: Before operating the remote control, be sure to turn
on the Main Power Switch on the LCD monitor.
3. Pressing the Main Power Switch.
Note: When the Main Power Switch is used to power off
the LCD, the remote control and the power button
will not activate the monitor and both green and red
power indicators will be off. Be sure to turn the
Main Power Switch to the on mode before using
these two options.
English-19
English
Power Indicator
Using Power Management
The LCD monitor follows the VESA approved DPM Power
Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fixed period.
The power management feature on your new display has
been set to the “ON” mode. This allows your display to enter
a Power Saving Mode when no signal is applied. This could
potentially increase the life and decrease the power
consumption of the display.
Selecting a video source
To view a video source:
Use the input button to set [VIDEO].
Use the COLOR SYSTEM menu to set [AUTO], [NTSC],
[PAL], [SECAM], [PAL60], [4.43NTSC], according to your
video format.
Picture Size
RGB 1, 2, 3 FULL ZOOM NORMAL
DVD/HD, VIDEO FULL WIDE ZOOM NORMAL
Status
Power ON Green
Power OFF Red
Power Standby when Red On
“SCHEDULE” is enabled Green Blinking
Power Standby Red, Green
Diagnosis (Detecting failure) Red Blinking
* See troubleshooting on page 33
RGB1, 2, 3
DVD/HD
VIDEO
PIP or POP
Main:RGB2
Sub:VIDEO<S>
Information OSM
Video Input mode
Input signal Information
Audio input mode
Picture Size mode
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
SIZE : FULL
)
Video Input mode
Audio input mode
Picture Size mode
DVD/HD
AUDIO : 3
SIZE : WIDE
Video Input mode
Input Signal Colour System mode
Audio input mode
Picture Size mode
VIDEO<S>
NTSC
AUDIO : 3
SIZE : NORMAL
Main picture Information
Sub picture Information
Main picture Information
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
VIDEO<S>
NTSC
SIZE : FULL
)
Picture Mode
RGB 1, 2, 3 HIGHBRIGHT STANDARD sRGB
DVD/HD, VIDEO HIGHBRIGHT STANDARD CINEMA
Signal Type
NORMAL
ZOOM
(DYNAMIC)
FULL
WIDE
4:3
Squeeze
Letter box
NORMAL SIZE Recommended Size
NORMAL: Displays the signal using the aspect ratio from the
PC signal, or displays DVD/HD or VIDEO signal at a 4:3
aspect ratio.
FULL: Displays in entire screen.
WIDE: Expands 16:9 letter box signal to entire screen.
ZOOM (DYNAMIC): Expands 4:3 pictures to the entire
screen with non-linearity. (Some around image will be cut by
expansion).
ZOOM
Image can be expanded beyond the active display area. The
image which is outside of active display area is not shown.
ZOOM
ZOOM
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV
functions are available.
English-20
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
+ -:ADJ :RETURN
MENU
:EXIT MENU
32
BRIGHTNESS
EXIT
EXIT
EXIT
OSM (On-Screen-Manager) Controls
Press MENU button to
open Main menu.
Press UP or DOWN button
to select sub-menu.
Press SET button to
decide.
Press UP or DOWN, and PLUS or
MINUS button to select function, or
control which you like.
Press SET button to decide.
Press MENU or EXIT
button to exit.
Remote Control
Press UP or DOWN
button to select.
Press INPUT button
to decide.
Press UP or DOWN, and PLUS or
MINUS button to select function, or
control which you like.
Press INPUT button to decide.
Press EXIT button
to exit.
Control Panel
UP or DOWN button INPUT button
OSM screen
Main-Menu
Sub-Menu
Adjusts the overall image and background screen
brightness.
Press + button to increase brightness.
Press - button to decrease brightness.
Adjusts the image brightness in relation to the input
signal.
Press + button to increase contrast.
Press - button to decrease contrast.
NOTE: sRGB picture mode is standard and cannot be
changed.
This function is digitally capable of keeping a crisp image
at any timing. It is adjustable to get as distinct an image
or as soft an image as you prefer. It is set independently
for each picture mode.
Press + button to increase sharpness.
Press - button to decrease sharpness.
Adjusts the image brightness in relation to the
background.
Press + button to increase black level.
Press - button to decrease black level.
NOTE: sRGB picture mode is standard and cannot be
changed.
Adjusts the noise reduction level.
Press + button to increase reduction level.
Press - button to decrease reduction level.
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
NOISE
REDUCTION
*:INPUT VIDEO only
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
COLOR
BLACK LEVEL
NOISE REDUCTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
32
NOISE REDUCTION
EXIT
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
32
BLACK LEVEL
EXIT
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
32
SHARPNESS
EXIT
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT
EXIT
:RETURN
MENU
:EXIT MENU
CONTRAST
+ -:ADJ :RETURN
MENU
:EXIT MENU
32
EXIT
+ -:ADJ
EXIT
:RETURN
MENU
:EXIT MENU
32
BRIGHTNESS
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
PLUS and
MINUS button
EXIT button
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV functions are available.
English-21
English
Adjust the tint of the screen.
Press + button to make flesh tone become greenish.
Press - button to make flesh tone becomes purplish.
Adjust the colour depth of the screen.
Press + button to increase colour depth.
Press - button to decrease colour depth.
R, Y, G, C, B, M, S: Increases or decreases Red, Yellow,
Green, Cyan, Blue, Magenta and Saturation depending
upon which is selected. The change in colour will appear
on screen and the direction (increase or decrease) will be
shown by the colour bars.
NOTE: sRGB picture mode is standard and cannot be
changed.
Adjusts the colour temperature of entire screen.
A lower colour temperature makes the screen reddish
and a higher colour temperature makes the screen
bluish.
NOTE: sRGB picture mode is standard and cannot be
changed.
Selecting Picture reset allows you to reset all OSM
settings within the PICTURE menu.
Select “Yes” and press “SET” button to restore to factory
preset data.
Press “EXIT” button to cancel and then return to the
previous menu.
TINT
*:INPUT DVD/HD, VIDEO only
COLOR
*:INPUT DVD/HD, VIDEO only
COLOR CONTROL
*:INPUT RGB1,2,3 only
COLOR
TEMPERATURE
PICTURE RESET
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
PICTURE RESET
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
EXIT
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
9600K
COLOR TEMPERATURE
EXIT
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
COLOR CONTROL
R
Y
G
C
B
M
S
0
0
0
0
0
0
0
EXIT
:SEL
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
COLOR
BLACK LEVEL
NOISE REDUCTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
32
COLOR
EXIT
BRIGHTNESS
CONTRAST
SHARPNESS
TINT
COLOR
BLACK LEVEL
NOISE REDUCTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
32
TINT
EXIT
Main-Menu
SCREEN
Sub-Menu
Controls Horizontal Image position within the display
area of the LCD.
Press + button to move screen to right.
Press - button to move screen to left.
Controls Vertical Image position within the display
area of the LCD.
Press + button to move screen to UP.
Press - button to move screen to DOWN.
Press + button to expand the width of the image on
the screen to the right.
Press - button to narrow the width of the image on the
screen to the left.
Adjusts image noise (snow).
Adjusts the horizontal size by increasing or decreasing
this setting.
Press + button to expand the width of the image on
the screen.
Press - button to narrow the width of the image on
the screen.
H POSITION
V POSITION
CLOCK
*:INPUT RGB2/3 only
CLOCK PHASE
*:INPUT RGB2/3 only
H RESOLUTION
*:INPUT RGB1/2/3 only
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
1360
H RESOLUTION
EXIT
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
18
CLOCK PHASE
EXIT
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
1782
CLOCK
EXIT
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
0
V POSITION
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
0
H POSITION
EXIT
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT

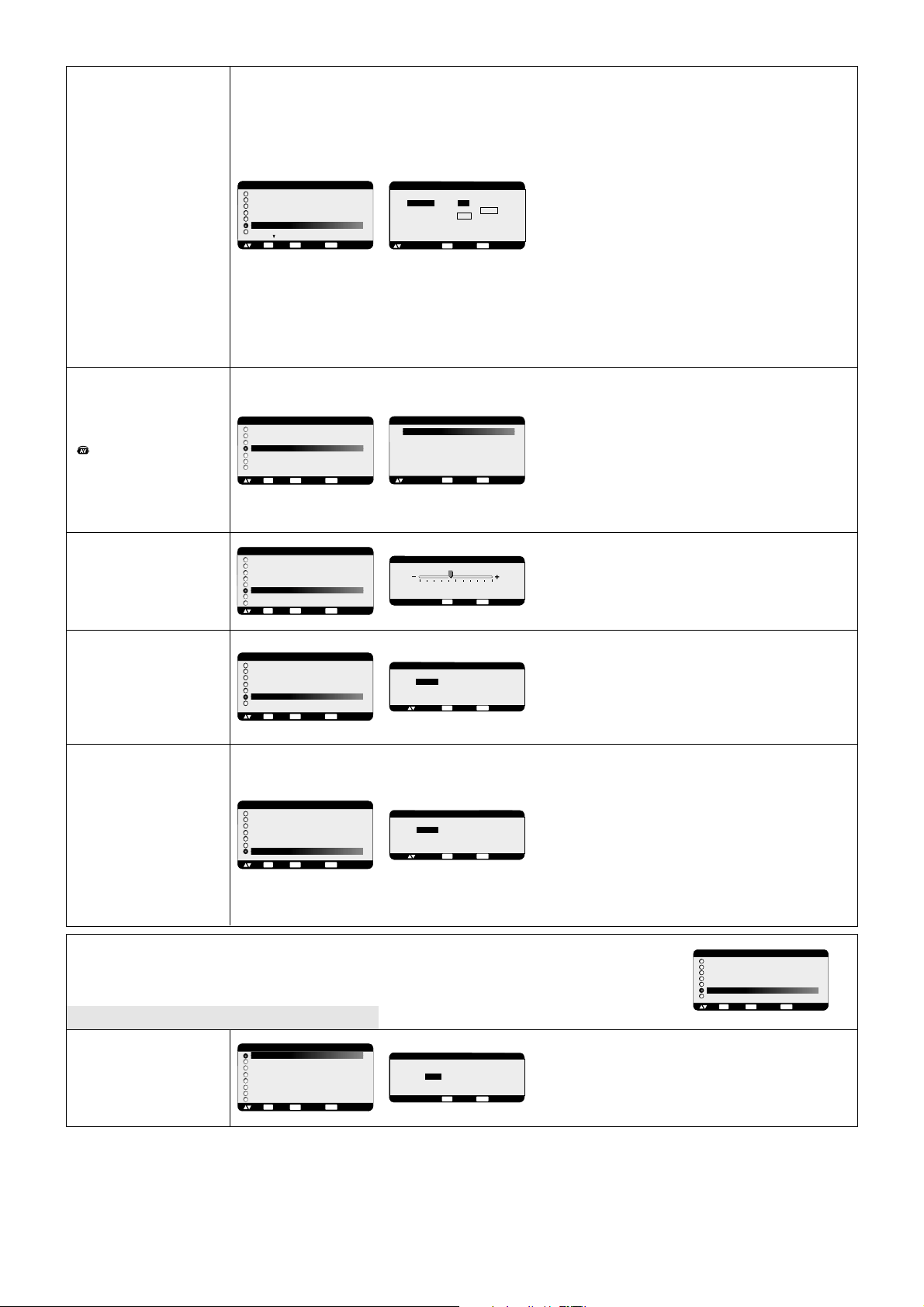

English-22
Adjusts the vertical size by increasing or decreasing this
setting.
Press + button to expand the height of the image on the
screen.
Press - button to narrow the height of the image on
the screen.
Selects the screen zoom mode. This zoom mode will be
selected by pushing the “SIZE” button on the remote
control.
When you select the “CUSTOM”, you will be able to
adjust optional horizontal and vertical size.
You can also select 16:9, 14:9 and DYNAMIC.
(INPUT DVD/HD,VIDEO only)
Press “SET” button to show a control menu as follows:
Increase or decrease “ZOOM” slider to adjust the whole
size and then adjust horizontal and vertical size by
H ZOOM and V ZOOM. Increase or decrease “H POS”
and “V POS” to adjust the picture position.
Selecting “DYNAMIC” will expand 4:3 pictures to fill
the entire screen with non-linearity. (Some area around
the image will be cut off due to expansion.) Dynamic
image is the same as FULL size image when HDTV
1080i signal is input.
When “OFF” is selected, image will be displayed 1 by 1
pixel. (If you input a signal over 1366x768 resolution, it
will be shrunk.)
Selecting Screen reset allows you to reset all OSM
settings within SCREEN Menu (except H POSITION, V
POSITION, CLOCK, CLOCK PHASE, H RESOLUTION,
V RESOLUTION).
Select “Yes” and press “SET” button to restore the
factory preset data.
Press “EXIT” button to cancel and then return to the
previous menu.
V RESOLUTION
*:INPUT RGB1/2/3 only
ZOOM MODE
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
SCREEN RESET
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
EXIT
CUSTOM
:SEL + - :ADJ :RETURN
MENU
:EXIT MENU
X 1.00
X 1.00
X 1.00
0%
0%
ZOOM
H ZOOM
V ZOOM
H POS
V POS
EXIT
ZOOM MODE
CUSTOMV
16:9
14:9
DYNAMIC
OFF
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
H RESOLUTION
V RESOLUTION
ZOOM MODE
SCREEN RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
768
V RESOLUTION
EXIT
SCREEN RESET
ZOOM MODE
CUSTOM
OFF
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
*:INPUT DVD/HD, VIDEO only
*:INPUT RGB1/2/3 only

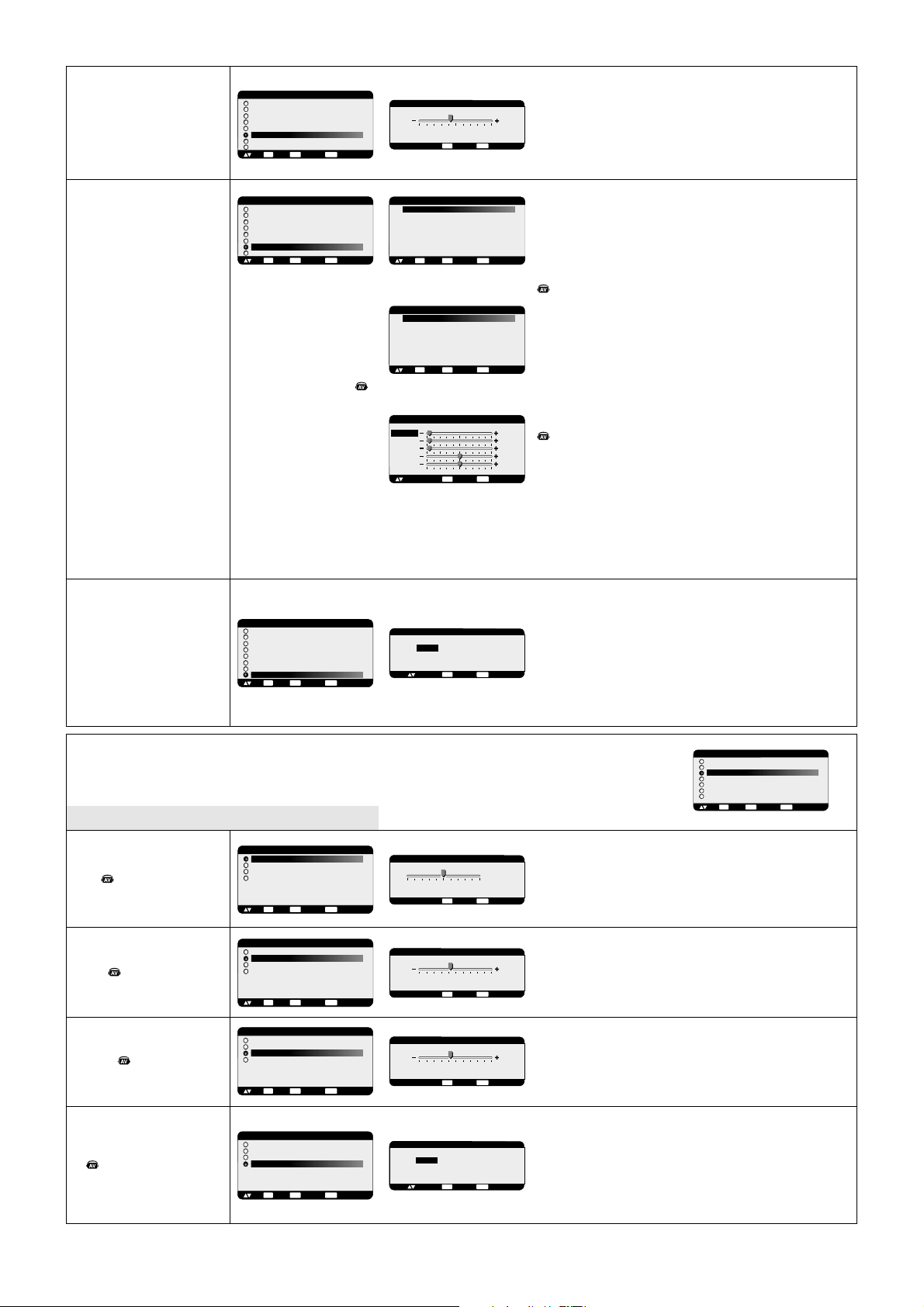

Main-Menu
AUDIO
Sub-Menu
Adjust the balance of L/R volume.
Press + button to move the stereo sound image to right.
Press - button to move the stereo sound image to left.
To accentuate or reduce the high frequency sound.
Press + button to increase TREBLE sound.
Press - button to decrease TREBLE sound.
To accentuate or reduce the low frequency sound.
Press + button to increase BASS sound.
Press - button to decrease BASS sound.
Selecting Audio reset allows you to reset all OSM
settings within AUDIO Menu.
Select “Yes” and press “SET” button to restore the
factory preset.
Press “EXIT” button to cancel and then return to the
previous menu.
BALANCE
TREBLE
BASS
AUDIO RESET
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
AUDIO
BALANCE
TREBLE
BASS
AUDIO RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
AUDIO RESET
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
EXIT
AUDIO
BALANCE
TREBLE
BASS
AUDIO RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
0
BASS
EXIT
AUDIO
BALANCE
TREBLE
BASS
AUDIO RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
0
TREBLE
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
R CENTER
BALANCE
L
EXIT
AUDIO
BALANCE
TREBLE
BASS
AUDIO RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
English-23
English
Main-Menu
PICTURE IN PICTURE
Sub-Menu
Selecting the size of picture inserted at the
“Picture-in-Picture” (PIP) mode.
“Large”, “Middle” and “Small” are available.
Selecting the sound source in PIP mode.
When selecting “MAIN AUDIO”, you will get the sound
for the main picture and when selecting “PIP AUDIO”,
you will get the sound for the picture instead.
When side-by-side mode, MAIN AUDIO is the sound
source of the left side screen and PIP AUDIO is the
right side.
Selecting PIP Reset allows you to reset all OSM
settings within PIP Menu.
Select “Yes” and press “SET” button to restore the factory
preset data.
Press “EXIT” button to cancel and then return to the
previous menu.
PIP SIZE
PIP AUDIO
PIP RESET
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
PIP
PIP SIZE
PIP AUDIO
PIP RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
PIP RESET
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
EXIT
PIP
PIP SIZE
PIP AUDIO
PIP RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
PIP AUDIO
MAIN AUDIO / PIP AUDIO
EXIT
+ -:SEL
:RETURN
MENU
:EXIT MENU
PIP SIZE
LARGE
MIDDLE
SMALL
:SEL
EXIT
PIP
PIP SIZE
PIP AUDIO
PIP RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT

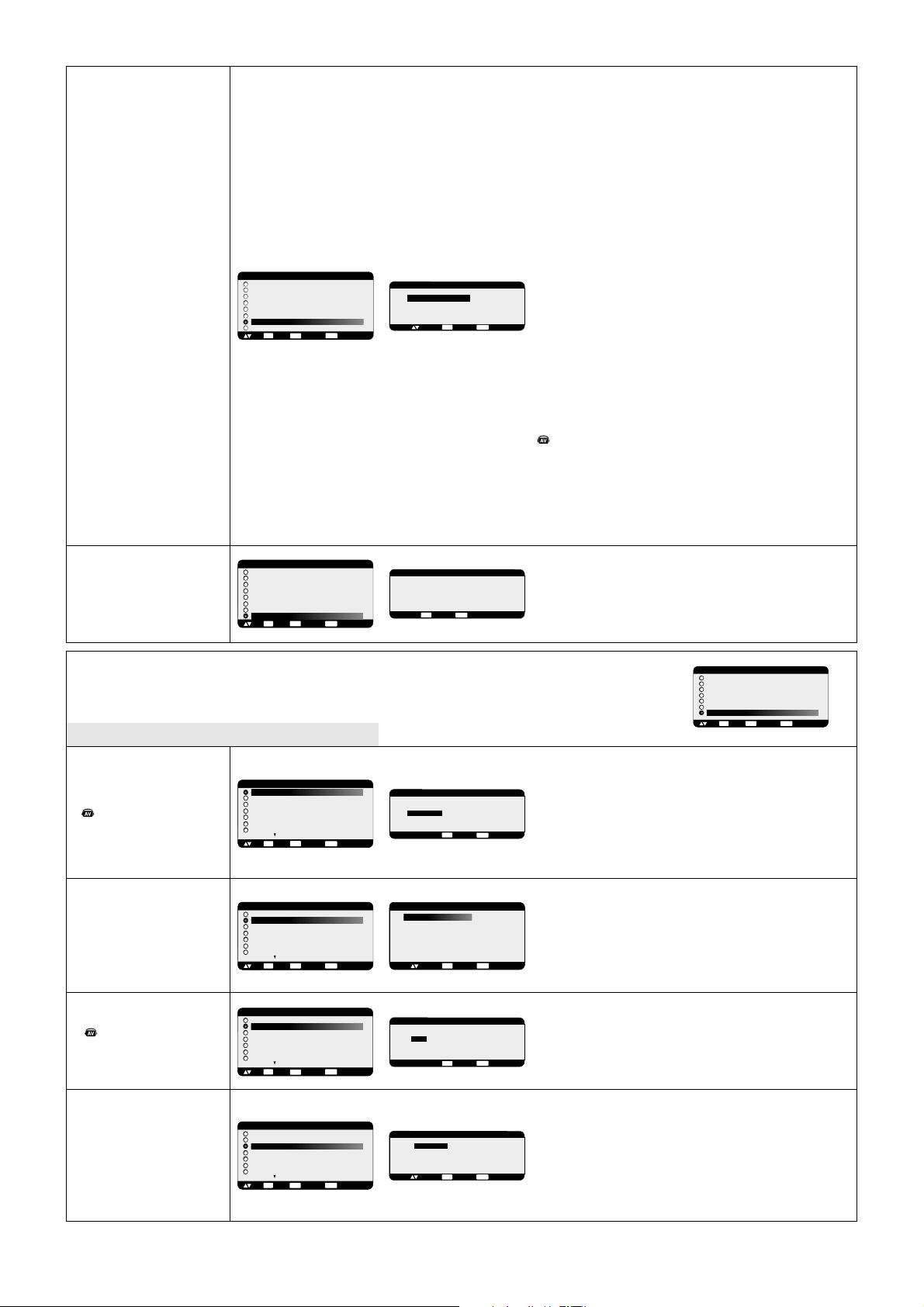

Main-Menu
CONFIGURATION 1
Sub-Menu
Press “SET” button to automatically adjust screen size,
horizontal position, vertical position, clock, clock phase,
white level and black level.
Press “EXIT” button to cancel AUTO SETUP and return
to the previous menu.
Selecting the auto adjust ON/OFF.
When ON, the horizontal position, vertical position and
clock-phase will adjust automatically when a change in
signal timing is detected.
Turns the auto brightness ON/OFF.
When “ON” is selected, the brightness will be
automatically adjusted.
When RGB “ON” is selected, the monitor will go to power
management mode when RGB1,2,3 sync is lost.
When VIDEO “ON” is selected, the monitor will go to
power management mode after about 10 minutes delay
after the DVD/HD and VIDEO input signal is lost.
NOTE: When connecting RGB1, the video card might not
stop sending digital data even if image has disappeared.
In this case the monitor does not go to power
management mode.
OSM control menus are available in seven languages.
AUTO SETUP
*:INPUT RGB2/3 only
AUTO ADJUST
*:INPUT RGB2/3 only
AUTO BRIGHTNESS
*:INPUT RGB1/2/3 only
POWER SAVE
LANGUAGE
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
CONFIGURATION 1
AUTO SETUP
AUTO ADJUST
AUTO BRIGHTNESS
POWER SAVE
LANGUAGE
SCREEN SAVER
SIDE BORDER COLOR
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
EXIT
LANGUAGE
ENGLISH
DEUTSCH
FRANCAIS
ESPAÑOL
ITALIANO
SVENSKA
CONFIGURATION 1
AUTO SETUP
AUTO ADJUST
AUTO BRIGHTNESS
POWER SAVE
LANGUAGE
SCREEN SAVER
SIDE BORDER COLOR
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
POWER SAVE
RGB ON / OFF
VIDEO ON / OFF
:SEL
EXIT
CONFIGURATION 1
AUTO SETUP
AUTO ADJUST
AUTO BRIGHTNESS
POWER SAVE
LANGUAGE
SCREEN SAVER
SIDE BORDER COLOR
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
AUTO BRIGHTNESS
ON / OFF
EXIT
+ -:SEL
CONFIGURATION 1
AUTO SETUP
AUTO ADJUST
AUTO BRIGHTNESS
POWER SAVE
LANGUAGE
SCREEN SAVER
SIDE BORDER COLOR
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
AUTO ADJUST
ON / OFF
EXIT
+ -:SEL
:CANCEL
MENU
:EXIT MENU
AUTO SETUP
SET
PRESS
TO RESET
:RESET
SET
EXIT
CONFIGURATION 1
AUTO SETUP
AUTO ADJUST
AUTO BRIGHTNESS
POWER SAVE
LANGUAGE
SCREEN SAVER
SIDE BORDER COLOR
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
English-24

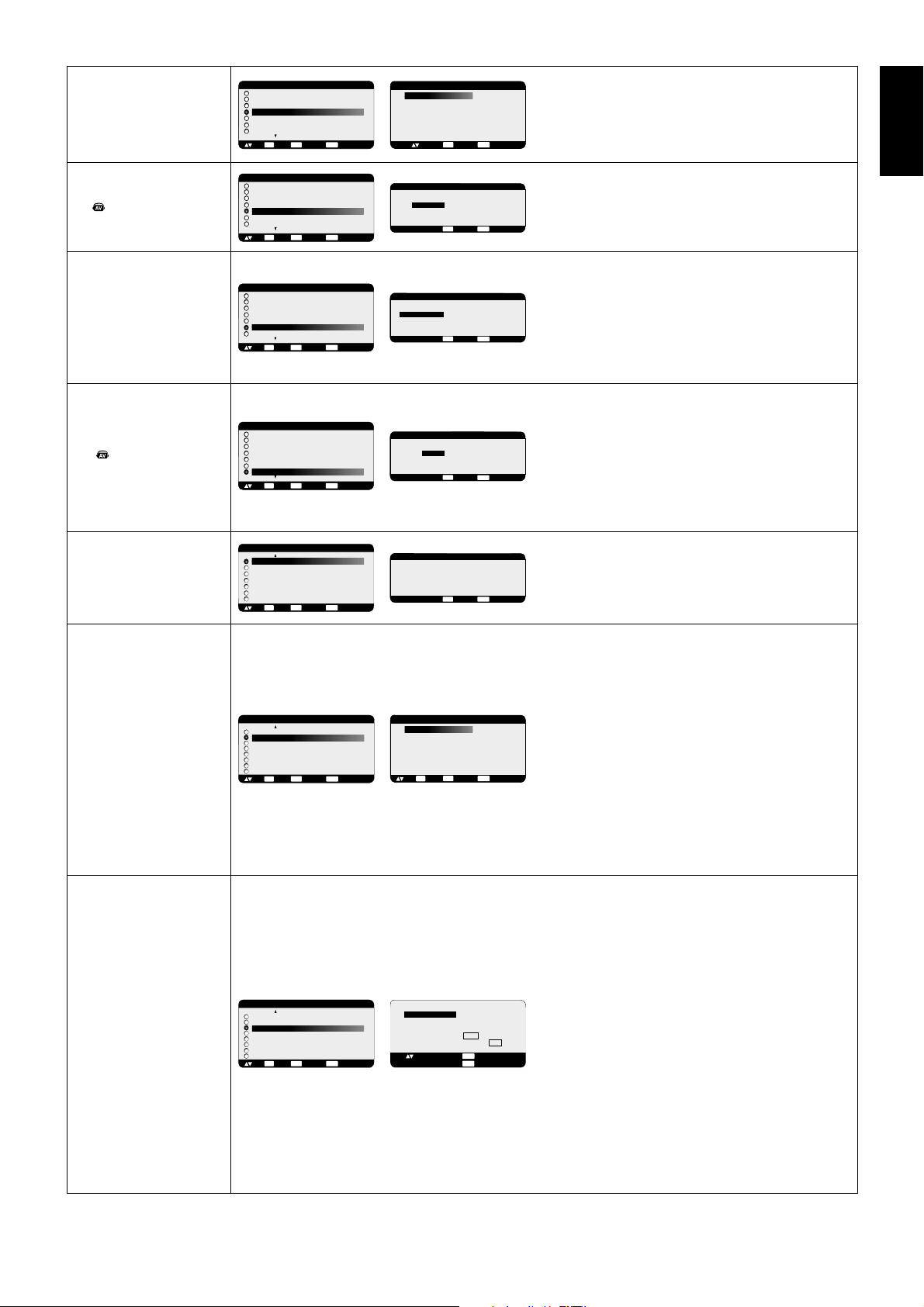

Select “SCREEN SAVER” functions to reduce the risk of
the “image persistence”.
GAMMA: When “ON” is selected, the display gamma is
changed and fixed.
COOLING FAN: When “ON” is selected, the built in
cooling fan is always on.
BRIGHTNESS: When “ON” is selected, the brightness is
decreased.
MOTION: Image is slightly expanded and moves
4 directions (UP, DOWN, RIGHT, LEFT) periodically
(Need setting the time for movement).
Movement area is approximately +/- 10mm from original
position; Please locate the important information such as
text within 90% area of screen image.
See note (1) for this functions.
PIP, POP, Side by Side and STILL will be disabled when
“MOTION” is active.
Selecting the Colour System depends on your input
video format.
AUTO: NTSC, PAL, SECAM, PAL60 or 4.43 NTSC is
automatically selected.
NTSC: Specific selection of NTSC.
PAL: Specific selection of PAL.
SECAM: Specific selection of SECAM.
PAL-60: Specific selection of PAL60.
4.43NTSC: Specific selection of 4.43 NTSC.
Adjusts the side bar color for when a 4:3 image
displayed, black to white.
Press + button, the bar will become whiter.
Press - button, the bar will become darker.
Selecting the CONFIGURATION RESET allows you to
reset all configuration settings.
Select “Yes” and press “SET” button to restore the
factory preset data.
Press “EXIT” button to cancel and return the previous
menu.
Selecting “YES” allows you to reset PICTURE, SCREEN,
AUDIO, CONFIGURATION1,2 and ADVANCED OPTION
back to factory settings (H POSITION, V POSITION,
CLOCK, CLOCK PHASE, H RESOLUTION,
V RESOLUTION, LANGUAGE, DATE & TIME and
SCHEDULE are not reset).
Select “YES” and press “SET” button to restore the
factory preset data.
Press “EXIT” button to cancel and return the previous
menu.
SCREEN SAVER
COLOR SYSTEM
*:INPUT VIDEO only
SIDE BORDER
COLOR
CONFIGURATION
RESET
FACTORY RESET
CONFIGURATION 1
POWER SAVE
LANGUAGE
SCREEN SAVER
COLOR SYSTEM
SIDE BORDER COLOR
CONFIGURATION RESET
FACTORY RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
FACTORY RESET
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
EXIT
CONFIGURATION 1
POWER SAVE
LANGUAGE
SCREEN SAVER
COLOR SYSTEM
SIDE BORDER COLOR
CONFIGURATION RESET
FACTORY RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
CONFIGURATION RESET
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
EXIT
CONFIGURATION 1
AUTO SETUP
AUTO ADJUST
AUTO BRIGHTNESS
POWER SAVE
LANGUAGE
SCREEN SAVER
SIDE BORDER COLOR
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ
:RETURN
MENU
:EXIT MENU
SCREEN SAVER
:SEL
GAMMA
COOLING FAN
BRIGHTNESS
MOTION
ON / OFF
ON / AUTO
ON / OFF
10 SEC.
EXIT
CONFIGURATION 1
POWER SAVE
LANGUAGE
SCREEN SAVER
COLOR SYSTEM
SIDE BORDER COLOR
CONFIGURATION RESET
FACTORY RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
COLOR SYSTEM
AUTODEUTSCH
NTSC
PAL
SECAM
4.43 NTSC
PAL-60
:SEL :RETURN
MENU
:EXIT MENU
EXIT
CONFIGURATION 1
AUTO BRIGHTNESS
POWER SAVE
LANGUAGE
POWER SAVE
COLOR SYSTEM
SIDE BORDER COLOR
CONFIGURATION RESET
FACTORY RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
50
SIDE BORDER COLOR
EXIT
Main-Menu
CONFIGURATION 2
Sub-Menu
Automatically adjusts the display to compensate for
image degradation caused by using a long cable.
Please refer to the CD-ROM included for alteration.
LONG CABLE
ON/OFF
*:INPUT RGB2/3 only
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:SEL :RETURN
MENU
:EXIT MENU
LONG CABLE ON/OFF
ON / OFF
EXIT
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
English-25
English

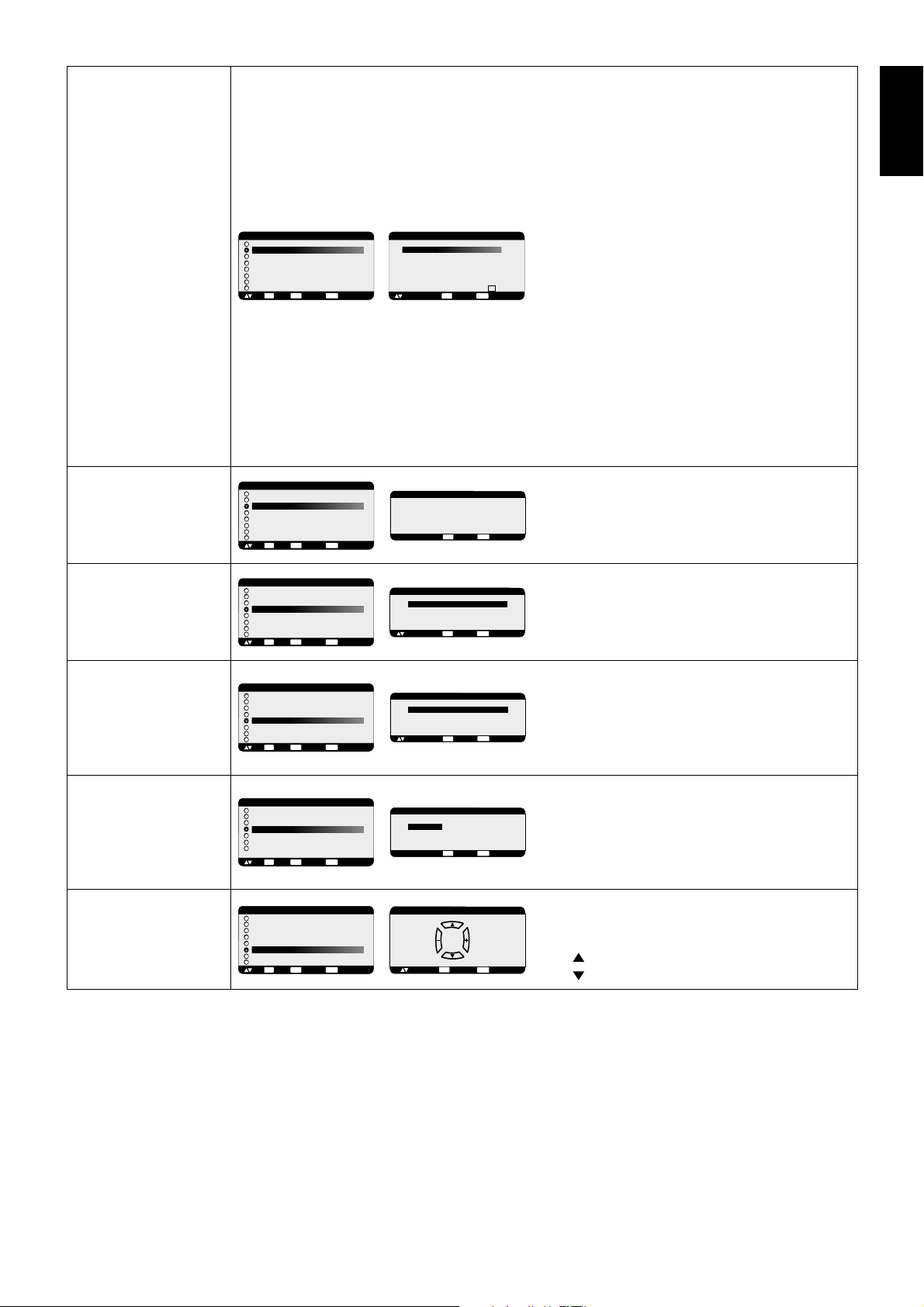

To manually compensate for image degradation, which is
caused by using a long cable.
RED/GREEN/BLUE DELAY
To adjust the each phase of RED, GREEN and BLUE
signal.
LEVEL: 0 - 6
RED/GREEN/BLUE SHARPNESS
To adjust the each performance degradation of RED,
GREEN and BLUE signal.
LEVEL: 0 - 45
SOG PEAK
To adjust the shape of Sync on Green signal.
Level: 0 - 1
VIDEO EQ (Input RGB 3 only)
To optimize the shape (Tailing) of RED, GREEN and
BLUE signal.
Level: 0 - 7
SYNC TERMINATE (Input RGB 3 only)
To select the terminate resistance for matching the cable
impedance.
HI: 2.2K ohm/LO:75 ohm
The OSM control menu will stay on as long as it is use.
In the OSM Turn Off submenu, you can select how long
the monitor waits after the last touch of a button to shut
off the OSM control menu. The preset choices are
10 -240 seconds.
Selects whether the information OSM is displayed or not.
The information OSM will display a warning message
when an input signal or source changes or if there is no
signal detected or the signal is out of frequency range.
A time between 3 to 10 seconds is available.
To turn the OFF TIMER mode ON/OFF.
In the OFF TIMER menu, you can preset the monitor to
automatically power down.
A time between 1 to 24 hours is available.
When the OFF TIMER is set, the SCHEDULE
(see page 28) settings will be disabled.
Selects the kind of DVI-D equipment which is connected
RGB1.
Select “DVI-PC” when PC or other computer equipment
is connected.
Select “DVI-HD” when DVD player, which has DVI-D
output, is connected.
Adjusts the position of the OSM menu.
Press + button to move to the right side of the screen.
Press - button to move to the left side of the screen.
Press button to move to the top of the screen.
Press button to move to the bottom of the screen.
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
LONG CABLE MANUAL
RED DELY
GREEN DELAY
BLUE DELAY
RED SHARPNESS
GREEN SHARPNESS
BLUE SHARPNESS
SOG PEAK
VIDEO EQ.
SYNC TERMINATE
:SEL :RETURN
MENU
:EXIT MENU
+ -:ADJ
0
2
0
0
0
0
0
0
HI / LO
EXIT
LONG CABLE
MANUAL
*:INPUT RGB2/3 only
OSM TURN OFF
INFORMATION OSM
OFF TIMER
DVI MODE
*:INPUT RGB1 only
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
OFF TIMER
ON 1 HOUR
OFF
+ -:ADJ
:SEL
EXIT
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
INFORMATION OSM
ON 10 SEC.
OFF
+ -:ADJ
:SEL
EXIT
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
+ -:ADJ :RETURN
MENU
:EXIT MENU
OSM TURN OFF
10 SEC.
EXIT
CONFIGURATION 2
OSM TURN OFF
INFORMATION OSM
OFF TIMER
DVI MODE
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
DVI MODE
DVI-PC / DVI-HD
+ -:SEL
EXIT
OSM POSITION
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
OSM POSITION
+ - :ADJ
RIGHTLEFT
UP
DOWN
EXIT
English-26
Selects the method of input detection when more than
two input sources are connected.
FIRST DETECT: When the current video input signal is
not present, the monitor searches for a video signal from
the other video input port. If the video signal is present in
the other port, then the monitor switches the video
source input port to the new found video source
automatically. The monitor will not look for other video
signals while the current video source is present.
This function is available at input RGB 1/2/3.
LAST DETECT: When the monitor is displaying a signal
from the current source and a new secondary source is
supplied to the monitor, the monitor will automatically
switch to the new video source. When current video input
signal is not present, the monitor searches for a video
signal from the other video input port. If the video signal
is present in the other port, then the monitor switches the
video source input port to the new found video source
automatically.
This function is available at input RGB 1/2/3.
VIDEO DETECT: DVD/HD or VIDEO inputs will have
priority over RGB1/2/3. When DVD/HD or VIDEO input
signal is present the monitor will change and keep to the
DVD/DH or VIDEO input.
NONE: The Monitor will not search the other video input
port.
Indicates the model and serial number of your monitor.
INPUT DETECT
MONITOR
INFORMATION
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
INPUT DETECT
FIRST
LAST
VIDEO
NONE
DETECT
DETECT
DETECT
:SEL
EXIT
CONFIGURATION 2
LONG CABLE ON/OFF
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
MONITOR INFORMATION
MODEL NAME:
LCD5710
SERIAL:
12315XXX
EXIT
Main-Menu
ADVANCED OPTION
Sub-Menu
Selects the S-Video input port function.
PRIORITY:
If cable is connected to the S-Video input, it will have
priority the composite input port.
SEPARATE:
S-Video port and Composite port are selectable as
independent input port.
Keeps the input signal at one of the below timings,
1024x768, 1280x768 and 1360x768.
AUTO: Determines the resolution automatically.
1024x768: Determines the resolution as 1024x768
1280x768: Determines the resolution as 1280x768
1360x768: Determines the resolution as 1360x768
Selects a level of black expansion.
To keep from going under the black cut-off level, please
adjust the “Black level” in moderation on OSM menu.
Selects a display gamma.
2.2
2.4
S gamma
Native
NOTE: sRGB picture mode is standard and cannot be
changed.
S-VIDEO MODE
INPUT RESOLUTION
*:INPUT RGB2/3 only
BLACK LEVEL
EXPANSION
*:INPUT VIDEO only
GAMMA SELECTION
MAIN MENU
SCREEN
AUDIO
PIP
CONFIGURATION 1
CONFIGURATION 2
ADVANCED OPTION
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
ADVANCED OPTION
S-VIDEO MODE
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
BLACK LEVEL EXPANSION
HIGH / MIDDLE / OFF
+ -:SEL
EXIT
ADVANCED OPTION
S-VIDEO MODE
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:EXIT MENU:RETURN
MENU
GAMMA SELECTION
2. 2
2. 4
S GAMMA
NATIVE
:SEL
EXIT
:EXIT MENU
ADVANCED OPTION
S-VIDEO MODE
INPUT RESOLUTION
GAMMA SELECTION
IMAGE FLIP
MONITOR ID
TILE MATRIX
HEAT PROTECT
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
S-VIDEO MODE
PRIORITY / SEPARATE
+ -:SEL
EXIT
ADVANCED OPTION
S-VIDEO MODE
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
INPUT RESOLUTION
:SEL
AUTO
1024 X 768
1280 X 768
1360 X 768
EXIT
English-27
English
Selects the image flip or rotation.
NORMAL: Normal display.
H MIRROR: Mirror image for horizontal direction.
V MIRROR: Mirror image for vertical direction.
ROTATE: Rotate the image 180 degrees.
Changes the display area of the image.
OVERSCAN: Set to display area about 95%
UNDERSCAN: Set to display area about 100%
Selects IP (Interlace to Progressive) converter function.
PROGRESSIVE: Enable the IP function, to convert interlace
signal to progressive. This setting is normally used.
INTERLACE: Disable the IP function.
NOTE: The INTERLACE mode is better suited for motion
pictures, but may cause image retention if used on a fixed
image.
Selects Film mode.
AUTO: Enable the Film mode function. This mode is
better suited for movies, which is converted 24 Frames/
sec source to DVD Video. We recommend to select
“PROGRESSIVE” in “SCAN CONVERSION” when using
this mode.
OFF: Disable the Film mode function. This mode is
better suited for Broadcasting or VCR source.
Set the Monitor ID number when multiple MultiSync
LCD5710 monitors are daisy-chained together.
The Monitor ID can be set to a number between
1 and 26.
Selects the infrared wireless remote controller mode
for use with the RS-232C daisy chain.
The item in this menu will become effective by pressing
“SET” button on the selected item.
NORMAL: The monitor will be controlled normally by
wireless remote controller.
PRIMARY: Set “PRIMARY” at the head of the daisy
chained monitors by RS-232C.
SECONDARY: Set “SECONDARY” after 2nd daisy
chained monitor.
LOCK: Disable the monitor control by infrared wireless
remote controller.
Keep pressing “DISPLAY” button for 5 sec or more, this
setting will return to “NORMAL”.
The “TILE MATRIX” feature allows one image to be
displayed on multiple screens. This feature can be used
with up to 25 monitors. (5 horizontal x 5 vertical).
Using the Tile Matrix function requires the PC output
signal to be sent through a distribution amplifier to each
individual monitor.
H MONITORS: Selects the number of horizontal
displays.
V MONITORS: Selects the number of vertical displays.
POSITION: Selects a position to expand the screen.
TILE COMP: Works in tandem with “TILE MATRIX” to
compensate for the width of the tiled bezels in order to
accurately display the image.
ENABLE: Select “YES”, to expand the signal to the
selected settings.
PIP, POP, SIDE by SIDE, STILL and DYNAMIC zoom
mode will be disabled when the “TILE MATRIX” is
activated.
IMAGE FLIP
SCAN MODE
*:INPUT DVD/HD, VIDEO only
SCAN CONVERSION
FILM MODE
*:INPUT DVD/HD, VIDEO only
MONITOR ID
MONITOR ID
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
ADVANCED OPTION
EXIT
:RETURN
MENU
:EXIT MENU
MONITOR ID
ID No. 1
+ -: SEL
EXIT
ADVANCED OPTION
S-VIDEO MODE
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
MENU
:EXIT MENU:RETURN
FILM MODE
AUTO / OFF
+ -: SEL
EXIT
ADVANCED OPTION
S-VIDEO MODE
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
ADVANCED OPTION
S-VIDEO MODE
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
SCAN MODE
OVERSCAN / UNDERSCAN
+ -: SEL
EXIT
IR CONTROL
TILE MATRIX
:RETURN
MENU
:EXIT MENU
IMAGE FLIP
:SEL
NORMAL
H MIRROR
V MIRROR
ROTATE
EXIT
ADVANCED OPTION
S-VIDEO MODE
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
SCAN CONVERSION
PROGRESSIVE / INTERLACE
+ -: SEL
EXIT
ADVANCED OPTION
MONITOR ID
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
IR CONTROL
NORMAL
PRIMARY
SECONDARY
LOCK
:SEL
SET
:SET
EXIT
ADVANCED OPTION
MONITOR ID
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
MENU
:EXIT MENU
TILE MATRIX
:SEL
H MONITORS
V MONITORS
POSITION
TILE COMP
ENABLE
1
1
1
YES / NO
YES / NO
EXIT
:RETURN
+ -: ADJ
English-28

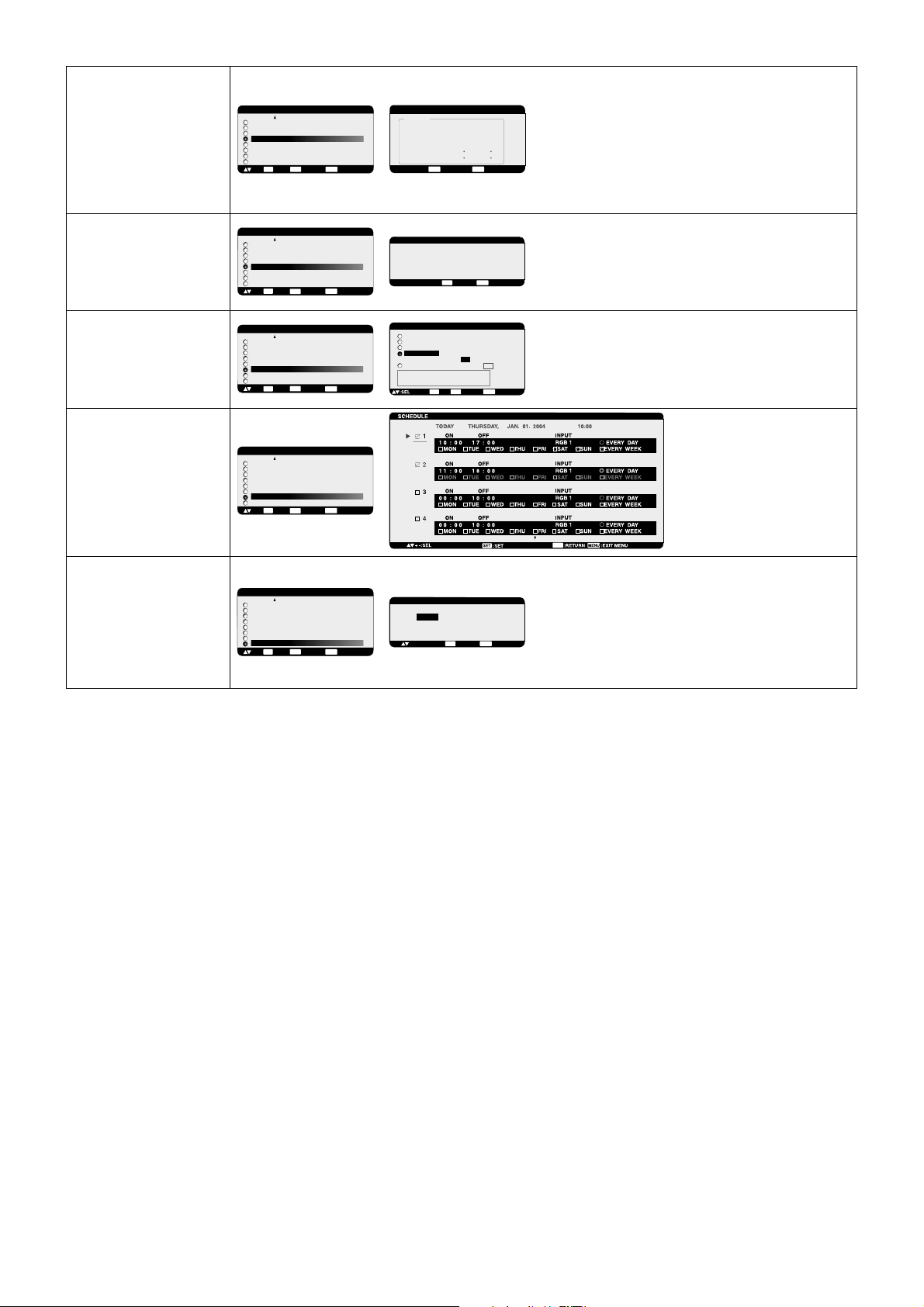

Provides information on the status of the COOLING FAN,
BRIGHTNESS and TEMPERATURE.
COOLING FAN runs when internal temperature of the
monitor is over a specified limit.
BRIGHTNESS is decreased when internal temperature
of the monitor is over specified limit while the cooling fan
is in use. In this case, a warning is displayed on the
screen.
Adjusts the delay time between “standby” to “power on”
mode.
“POWER ON DELAY” time is selectable between
0 and 50 sec.
Adjusts the current date and time for internal clock.
You should set this function when you use “SCHEDULE”.
Programs the monitor’s working
schedule.
Schedules the power on and
power off with hour and day of
the week. Also sets the input port.
Select “EXIT” to set schedule.
(see “NOTE 3” on page 29 for
further information).
Selecting ADVANCED OPTION reset allows you to reset
all OSM settings from ADVANCED OPTION settings,
except for DATE & TIME, and SCHEDULE.
Select “YES” and press “SET” button to restore the
factory preset data.
Press “EXIT” button to cancel and then return the
previous menu.
ADVANCED OPTION
MONITOR ID
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN:SET
MENU
:EXIT MENU
DATE & TIME
YEAR
MONTH
DAY
TIME
DAYLIGHT SAVING YES / NO
CURRENT DATE TIME
JAN. 01. 2004 00 : 00 : 00
2004
JANUARY
01
00 : 00
SET
+ -: ADJ
EXIT
NOTE 1: IMAGE PERSISTENCE
Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs when a
residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not
permanent, but constant images being displayed for a long period of time should be avoided.
To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the
monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.
As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver
at regular intervals whenever the screen is idle or turning off the monitor when not in use.
Please set “SCREEN SAVER”, “DATE &TIME” and “SCHEDULE” functions to further reduce the risk of Image persistence.
For long life use of Public Display
< Image Sticking of LCD Panel >
When LCD panel is operated continuously for long hours, a trace amount of electric charge remains near the electrode inside LCD, and a
residual or “ghost” image of previous image may be observed. This is called Image Persistence and is not permanent.
When a fixed image is displayed for a long period, ionic impurities inside the LCD accumulate along the displayed image. This is called
“Image Sticking” and is permanent.
< Recommendations >
For preventing the fast transition to Image Sticking, and for longer life usage of LCD, the following are recommended:
1. Fixed image should not be displayed for long period. Fixed images should be cycled in short intervals.
2. When not in use, do one of the following: turn off the monitor, use the Power Management Function to enter power save mode, or use
Schedule Function to turn off the monitor.
HEAT STATUS
DATE & TIME
SCHEDULE
ADVANCED OPTION
MONITOR ID
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
ADVANCED OPTION RESET
:RETURN
MENU
:EXIT MENU
NO
YES
:SEL
EXIT
ADVANCED OPTION
MONITOR ID
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
:RETURN
MENU
:EXIT MENU
POWER ON DELAY
3 SEC.
+ -: ADJ
EXIT
ADVANCED
OPTION RESET
ADVANCED OPTION
MONITOR ID
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
EXIT
ADVANCED OPTION
MONITOR ID
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
:SEL
SET
:NEXT :RETURN
MENU
:EXIT MENU
EXIT
EXIT
:RETURN
MENU
:EXIT MENU
HEAT STATUS
STATUS
COOLING FAN1 ON
COOLING FAN2 ON
BRIGHTNESS NORMAL
TEMPERATURE
SENSOR 1 0.0 C / 32.0 F
SENSOR 1 0.0 C / 32.0 F
POWER ON DELAY
English-29
English
3. Reducing the environmental temperature is effective to extend the lifetime of the monitor.
When a Protection cover (glass, acrylic) is installed over the LCD surface and the LCD is enclosed into the box/wall, or monitors are
stacked, please utilize the temperature sensors that are inside of the monitor.
To reduce the environmental temperature, the monitor use Low Brightness setting or turn the Cooling Fan “ON” using the Screen saver
Function.
4. Please use “Screen Saver Mode” of monitor.
NOTE 2: MONITOR ID and IR CONTROL
Using one PC or one infra-red wireless controller, you can control up to 26 MultiSync LCD5710 monitors that are daisy-chained together
using the RS-232C connection.
1. Connect a PC and MultiSync LCD5710.
Connect a PC’s RS-232C control output to the MultiSync LCD5710’s RS-232C input.
You can connect multiple MultiSync LCD5710 monitors together. (Refer to page 30).
2. Set Monitor ID.
Set “MONITOR ID” in the “ADVANCED OPTION” menu.
“MONITOR ID” should be set to a unique number on all daisy-chained MultiSync LCD5710 from 1 to 26.
We recommend numbering continuously from 1 in a sequential number.
Set “PRIMARY” to “IR CONTROL” in the “ADVANCED OPTION” menu on the first of the daisy chained monitors.
Set “SECONDERY” to “IR CONTROL” on other monitors.
3. Press “DISPLAY” button aiming at the “PRIMARY” monitor then ID select OSM will be shown at top left side of the screen.
ID: 1 <- ID number of the current monitor.
ID No.: 1 <- ID number of the controllable monitor.
Press “+” button to increase this “ID No.”.
Press “-” button to decrease it.
If you control all the daisy-chained monitors at the same time,
please select “ALL” as the “ID No.”
4. Operate wireless remote controller while aiming at the “PRIMARY” monitor.
The “MENU OSM” will appear on the selected ID No.’s monitor.
NOTE: If “ID No.” select OSM is showing at the “PRIMARY” monitor, press “DISPLAY” button to clear this OSM.
HINT: If you lost control due to the wrong “IR CONTROL” setting, keep pressing the “DISPLAY” for more than 5 sec.
The monitor will reset “IR CONTROL” to “NORMAL”.
NOTE 3: HOW TO SETUP SCHEDULE
Using the “SCHEDULE” function allows you to set up to seven different scheduled time intervals when the LCD Monitor will be activated.
You can select the time the monitor turns on and turns off, the day of week the monitor is activated, and which input source the monitor will
use for each scheduled activation period. A check mark in the box next to the number of the schedule indicates that the selected schedule
is in effect.
To select which schedule to set, use the up/down arrows to move the red bar vertically under the number (1 to 7) of the schedule.
Use the (+) and (-) buttons to move the red bar horizontally within the particular schedule. The “SET” button is used to make a selection.
If you create a schedule but do not want to use a power on time, select “--” in the “ON” time slot.
If you do not want to use a power off time select “--” in the OFF time slot.
If there is no input selected (“--” showing in the input spot) the input from the previous schedule will be used.
The selection of EVERY DAY within a schedule takes priority over other schedules that are set up to operate weekly.
When schedules are overlapping, scheduled Power ON time has priority over scheduled Power OFF time.
If there are two schedules programmed for the same time, then the highest numbered schedule has priority.
When the “OFF TIMER” (see page 25) is set, the “SCHEDULE” function is disabled.
Monitor ID
"Monitor ID"
(ID of the monitor
to be controlled)
ID: 1
ID No: 2
English-30
Controlling the LCD monitor via RS-232C Remote Control
This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal.
Functions that can be controlled by a personal computer are:
• Power ON or OFF
• Switching between input signals
Connection
LCD Monitor + PC
NOTE: If your PC (IBM or IBM compatible) is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is
required. Contact your dealer for details.
* RS-232C OUT terminal can connect MultiSync LCD5710 only. Do not connect other equipment.
The following control sequence is used for a single MultiSync LCD5710. To control multiple MultiSync LCD5710 monitors that are
daisy-chained together please use the extended control command. Instructions for the extended control command can be found on
the CD included with the display. The file is called “External_control_LCD5X10.pdf”. When using the following control commands, all
of the daisy-chained monitors can be controlled at the same time from one monitor. Reply and status commands, however, will only
pertain to the primary monitor, not secondary monitors.
1) Interface
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
2) Control command diagram
The command is structured by the address code, function code, data code and end code. The length of the command is
different for each function.
[Address code] 30h 30h (ASCII code, '0' '0'), fixed.
[Function code] A code of each fixed control move.
[Data code] A code of each fixed control data (number) and not always indicated.
[End code] 0Dh (In ASCII code, '
') fixed.
PROTOCOL RS-232C
BAUD RATE 9600 [bps]
DATA LENGTH 8 [bits]
PARITY BIT NONE
STOP BIT 1 [bit]
FLOW CONTROL NONE
Address code Function code Data code End code
HEX 30h 30h Function Data 0Dh
ASCII '0' '0' Function Data
RS-232C Cable
PC
RS-232C Cable
to RS-232C
“IN” terminal
from RS-232C
“OUT” terminal
to RS-232C
“IN” terminal
from RS-232C
“OUT” terminal
Next MultiSync LCD5710
RS-232C “IN” terminal
English-31
English
3) Control sequence
(1) The command from a computer to the LCD monitor will be sent in 400ms.
(2) The LCD monitor will send a return command 400ms* after it has received and encoded. If the command isn’t
received correctly, the LCD monitor will not send the return command.
(3) The personal computer checks the command and confirms if the command, which has been sent, has been executed or not.
(4) This LCD monitor sends various codes other than return code. When having a control sequence by RS-232C, reject other
codes from personal computers side.
*: The sending time of return command may delay depending on the condition (during changing of the input signal, etc.).
Example: Turn the power ON ( ’ ’ is for ASCII code)
4) Operation commands
The operation commands execute the basic operation setting of this LCD monitor.
It may not operate when changing the signal:
• POWER OFF command should be operated over 1 minute after the power is turned on.
• POWER ON command should be operated over 1 minute after the power is turned off.
*
1
S-VIDEO is enabled by having the “S-VIDEO” cable connected with the “S-VIDEO” signal present and selecting “PRIORITY MODE”.
*
2
S-VIDEO is SEPARATE only.
5) Read command
Host computer sends the command without Data-code to monitor.
After receiving this command, the monitor returns the command with Data-code of current status to host computer.
< ex. > When Host computer ask Power status of monitor, the status of monitor is powered-on.
Command from computer Command from Monitor Detail of command
30 30 76 50 0D 0''0'v''P'[enter] Ask about the power status of monitor.
30 30 76 50 31 0D '0''0''v''P''1'[enter] Monitor is powered-on.
Structure of the Read-command
Function Data (Receive) Function Data (Receive)
ON vP 1 76 50 31
OFF(stand by) vP 0 76 50 30
RGB-1(DVI-D) vI r1 76 49 72 31
RGB-2(D-SUB) vI r2 76 49 72 32
RGB-3(BNC) vI r3 76 49 72 33
Video vI v1 76 49 76 31
DVD/HD vI v2 76 49 76 32
S-VIDEO vI v3 76 49 76 33
HIGHBRIGHT vM p1 76 4D 70 31
STANDARD vM p2 76 4D 70 32
resolution 74 63 78 31 2B 20 32 35
0.5˚C 2E 30
resolution 74 63 31 2B 20 32 35
1˚C
resolution 74 63 78 32 2B 20 33 30 2E 35
0.5˚C
resolution 74 63 32 2B 20 33 31
1˚C
NOTE: For complete information please see file “External_Control_LCD5X10.pdf” on the CD-ROM.
Sending commands
from the PC
Status code from
LCD monitor
Meaning
30 30 21 0D
’0’ ’0’ ’!’ ’
’
30 30 21 0D
’0’ ’0’ ’!’ ’
’
Command received
(Command echoed back)
Command for
POWER ON
Input
Picture mode
Temperature
of Internal
monitor
Around
AV board
Around
Inverter
PCB
POWER
(ex.) +25.0
(ex.) +30.5
(ex.) +31
(ex.) +25
tcx1
tc1
tcx2
tc2
ASCII HEX
Operation ASCII HEX
POWER ON ! 21h
POWER OFF " 22h
INPUT RGB 1 _r1 5Fh 72h 31h
INPUT RGB 2 _r2 5Fh 72h 32h
INPUT RGB 3 _r3 5Fh 72h 33h
INPUT VIDEO*
1
_v1 5Fh 76h 31h
INPUT DVD/HD _v2 5Fh 76h 32h
INPUT S-VIDEO*
2
_v3 5Fh 76h 33h
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
If this product was purchased in Europe the AV unit is preinstalled and all AV functions are available.
English-32
Features
Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight
limitations.
Colour Control Systems: Allows you to adjust the colours on your screen and customize the colour accuracy of your monitor
to a variety of standards.
OmniColor: Combines Six-axis colour control and the sRGB standard. Six-axis colour control permits colour adjustments via
six axes (R, G, B, C, M and Y) rather than through the three axes (R, G and B) previously available. The sRGB standard
provides the monitor with a uniform colour profile. This assures that the colours displayed on the monitor are exactly the same
as on the colour printout (with sRGB supporting operating system and sRGB printer). This allows you to adjust the colours on
your screen and customise the colour accuracy of your monitor to a variety of standards.
sRGB Colour Control: A new optimized colour management standard which allows for colour matching on computer displays
and other peripherals. The sRGB standard, which is based on a calibrated colour space, allows for optimal colour
representation and backward compatibility with other common colour standards.
OSM (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to
use on-screen menus.
Plug and Play: The Microsoft
®
solution with the Windows
®
operating system facilitates setup and installation by allowing the
monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically
optimizing display performance.
IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a
lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions
and lowering the air conditioning costs of the workplace.
FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.
VESA Standard (FDMIv1) Mounting Interface: Allows users to connect their LCD monitor to any VESA standard (FDMIv1)
third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant
device. NEC recommends using mounting interface that comply with TÜV-GS and/or UL1678 standard in North America.
DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between
computers and displays. As a digital-only connector, analog support is not provided off a DVI-D connector. As a DVI-based
digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other DVI-based digital
connectors such as DFP and P&D. The DVI interface of this display supports HDCP.
TILE MATRIX, TILE COMP: Demonstrates multiple screens with an accurate image and compensates for the bezel width.
ZOOM: Expands the image individually for horizontal and vertical direction.
RS-232C daisy chain: You can control the multiple monitors by controller or wireless remote controller.
Self-diagnosis: When an internal error should occur, a failure state will be indicated.
CableComp: Automatic long cable compensation prevents image quality degradation (colour shift and dull signals) caused by
long cable lengths.
English-33
English
Troubleshooting
No picture
• The signal cable should be completely connected to the display card/computer.
• The display card should be completely seated in its slot.
• Front Power Switch and computer power switch should be in the ON position.
• Check to make sure that a supported mode has been selected on the display card or system being used.
(Please consult display card or system manual to change graphics mode.)
• Check the monitor and your display card with respect to compatibility and recommended settings.
• Check the signal cable connector for bent or pushed-in pins.
Power Button does not respond
• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.
Image persistence
• Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs
when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image
persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate
image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the
monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a
moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
Image is unstable, unfocused or swimming is apparent
• Signal cable should be completely attached to the computer.
• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the fine adjustment.
When the display mode is changed, the OSM Image Adjust settings may need to be re-adjusted.
• Check the monitor and your display card with respect to compatibility and recommended signal timings.
• If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.
Image of component signal is greenish
• Check to see if the DVD/HD input connector is selected.
LED on monitor is not lit (no green or red colour can be seen)
• Power Switch should be in the ON position and power cord should be connected.
• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).
RED LED on monitor is blinking
•A certain failure might have occurred, please contact your nearest authorized NEC DISPLAY SOLUTIONS service facility.
Display image is not sized properly
• Use the OSM Image Adjust controls to increase or decrease the coarse adjustment.
• Check to make sure that a supported mode has been selected on the display card or system being used.
(Please consult display card or system manual to change graphics mode.)
Selected resolution is not displayed properly
• Use OSM Display Mode to enter Information menu and confirm that the appropriate resolution has been selected.
If not, select corresponding option.
No Sound
• Check to see if speaker cable is properly connected.
• Check to see if mute is activated.
• Check to see if volume is set at minimum.
Remote Control is not available
• Check the Remote Control’s batteries.
• Check if batteries are inserted correctly.
• Check if the Remote Control is pointing at the monitor’s remote sensor.
• The remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor on the
LCD monitor, or when there is an object in the path.
“SCHEDULE”/“OFF TIMER” function is not working properly
• The “SCHEDULE” function will be disabled when the “OFF TIMER” is set.
• If the “OFF TIMER” function is enabled and the power to the LCD monitor is turned off or if the power supply is interrupted
unexpectedly, then the “OFF TIMER” will be reset.
Either light vertical or horizontal stripes may appear, depending on the specific display pattern. This is no product fault or
degradation.
PIP (Picture In Picture) does not work
• Check the resolution of the input signal. PIP does not work with all types of “1080i” input signals. The PIP function will work with
1080p signals.
English-34
Specifications
Product Specifications Analog Input Digital Input
LCD Module 57" /145.0cm diagonal
Pixel Pitch: 0.6518mm
Resolution: 1920 x 1080 dots
Colour: Over 16 million colours (depending on video card used)
Brightness: 450cd/m
2
(Typ.)
Contrast Ratio: 1800:1
Viewing Angle: Up 89°/ Down 89°/ Left 89°/ Right 89° (typ) @ CR>10
Design View Distance: 1500mm
Frequency Horizontal: 15.625/15.734kHz, 31.5kHz - 91.1kHz 31.5kHz - 91.1kHz
Vertical: 50.0/58.0 - 85.0 Hz 50.0/58.0 - 85.0 Hz
Pixel Clock 25.0MHz - 165.0MHz 25.0MHz - 165.0MHz
Viewable Size 1251.4 x 703.9mm
Input Signal
PC-Input: Video: Analog RGB 0.7V p-p TMDS
Input Impedance 75 ohm
Composite sync on Green Video: 0.3Vp-p Neg. (video 0.7Vp-p Pos.)
Sync: Separate: TTL level (Pos./Neg.)
Input Impedance 2.2K ohm (RGB3: 2.2k ohm/75 ohm selectable)
Input-terminal: BNC (R,G,B,H,V) 15pin Mini D-sub DVI-D (Digital)
VIDEO Input: Composite 1.0V p-p Input Impedance 75 ohm BNC and RCA-INPUT
Y/C Y:0.7V p-p C:0.283V p-p Input Impedance 75 ohm S-TERMINAL-INPUT
Component 1.0/0.7V p-p Input Impedance 75 ohm BNC-INPUT
AUDIO Input: RCA PIN-JACK L/R INPUT, STEREO Mini Jack INPUT
RS-232C: In: 9 Pin D-sub
Out: 9 Pin D-sub (with daisy chain)
Output Signal
PC-Output: Video: Analog RGB Video: 0.7V p-p with 75 ohm terminated
(RGB3 only) Sync: Separate HV sync: TTL level (Posi / Nega) with 2.2k ohm terminated
Output-terminal: BNC (R,G,B,H,V)
VIDEO Output: BNC 1 Output, Composite 1.0V p-p with 75 ohm terminated
AUDIO Output: RCA PIN-JACK L/R: 1 Output, 0.15Vrms with 1k ohm terminated
Speaker Output: External Speaker Jack 7W + 7W (8 ohm)
Resolutions Supported 640 x 480 at 60Hz to 85Hz
800 x 600 at 50Hz, 60Hz to 85Hz
1024 x 768 at 50Hz, 60Hz to 85Hz
1280 x 768 at 50Hz, 60Hz to 85Hz
1360 x 768 at 50Hz, 60Hz to 85Hz
1280 x 1024 at 60Hz to 85Hz
1600 x 1200 at 60Hz
1920 x 1080 at 60Hz*................................................. Maximum Resolution
* Recommended Resolution
NTSC/PAL/SECAM/4.43NTSC/PAL60 Component: 480i, 480p, 720p, 1080i
Power Supply 3.9 - 1.65A @ 100-240VAC, 50/60Hz
Operational Temperature: 5 - 40°C
Environment Humidity: 20 - 80% (without condensation)
Storage Temperature: -20 - 60°C
Environment Humidity: 10 - 90% (without condensation)/ 90% - 3.5% x (Temp - 40°C) regarding over 40°C
Dimension Net: 1357.8 (W) x 792.8 (H) x 164 (D) mm (Without stand)
1357.8 (W) x 825.1 (H) x 480 (D) mm (With stand)
Gross: 1587 (W) x 965 (H) x 377 (D) mm
Weight Net: 66.0Kg (With stand), 62.0Kg (Without stand)
Gross: 77.0Kg
VESA compatible arm 3 x 200 mm x 200 mm (8 Holes)
mounting interface 2 x 200 mm x 200 mm (6 Holes)
Complied Regulatory and UL60950-1/CSA C22.2 No.60950-1/ TUV-GS/EN60950-1/NOM/IRAM/CCC/BSMI
Guidelines FCC-B/DOC-B/EN55022/EN55024/EN61000-3-2/EN61000-3-3/CE/GOST-R/PSB/C-tick
Power Management VESA DPM
Plug & Play VESA DDC2B, DDC/CI
Accessories User’s manual, Power Cord, Video Signal Cable, Remote Control, AA Battery x 2,
Clamp x 3, Screw x 4, CD-ROM,
Ferrite Core x 2, Stand*
1
x 2, Curled head Screw for
stand x 2, Band x 2, Speaker plug x 1set, Main power switch cover
NOTE: Technical specifications are subject to change without notice. *1: Depending on where the LCD is sold, the stand may or may not be included with some models.
English-35
English
Mounting on Wall or Ceiling
DO NOT mount the monitor yourself. Please ask dealer.
For proper installation it is strongly recommended you use a trained, qualified technician.
Please inspect the location where the unit is to be mounted. Not all walls or ceilings are capable of supporting the weight of
the unit.
Product warranty does not cover damage caused by improper installation, remodeling, or natural disasters. Failure to follow
these recommendations could result in voiding the warranty.
To insure safe installation, use two or more brackets to mount the unit to at least two points on the installation location.
Please note the following when mounting on wall or ceiling
• When using mounting accessories other than NEC compliant and approved, they must
comply with the VESA-compatible (FDMIv1) mounting method.
• NEC strongly recommends using screws M8 size (15mm + bracket). If using screws longer
than 15mm, check the depth of the hole. (Recommended Fasten Force: 1125-1375N•cm)
NEC recommends using mounting interfaces that comply with UL1678 standard in
North America.
• Mounting on wall or ceiling is the customer’s responsibility.
• Prior to mounting, please inspect the installation location to insure that the location is
strong enough to support the mounted unit and that the unit will be safe from harm.
• DO NOT block ventilated openings by mounting accessories or other items too close.
• Refer to the manual included with the mounting equipment for detailed instructions.
Orientation
• When using the display in the portrait position, the monitor should be rotated clockwise so that
the left side is moved to the top and the LED indicator light is on the bottom. This will allow for
proper ventilation and will extend the lifetime of the monitor. Improper ventilation may shorten
the lifetime of the monitor.
Mounting location
• The ceiling and wall must be strong enough to support the monitor and mounting accessories.
• DO NOT install in locations where a door or gate can hit the unit. Do not install in areas with lots of vibrations and dust.
DO NOT install near where the main power supply enters into the building. Doing so may cause fire and the electric shock.
• Do not place where people can easily grab and hang onto the unit or mounting apparatus.
• When mounting in a recessed area, as in a wall, leave at least 4 inches (10cm) of space between the monitor and the wall
for ventilation.
• Allow adequate ventilation or air-conditioning around the monitor, so that heat can properly dissipate away from the unit
and mounting apparatus.
Mounting on ceiling
• Ensure that the ceiling is constructed strong enough to support the weight of the unit and mounting apparatus over time
against earthquakes, unexpected vibration and other external forces.
• Be sure that the unit is mounted to a solid structure within the ceiling such as a support beam. Secure the monitor using
the bolt, spring lock washer, washer and nut.
• DO NOT mount to areas that have no supporting internal structure. Do not use wood screws or anchor screws for
mounting. DO NOT mount the unit to the baseboard or to hanging fixtures.
Maintenance
• Periodically check for loose screws, gaps, distortions or other abnormalities. If an abnormality is detected please refer to
service person.
• Over time, the mounting location may become weaker. Please check regularly.
Unit
Mounting
Bracket
Screw
15mm
Thickness
of Bracket
Screw length should equal
depth of hole (15mm) + the
thickness of mounting bracket.
English-36
Pin Assignment
1) Analog RGB input (MiniDsub15p): R G B 2
Pin No Name
1 Video Signal Red
2 Video Signal Green
3 Video Signal Blue
4 GND
5 DDC-GND
6 Red-GND
7 Green-GND
8 Blue-GND
9 +5V (DDC)
10 SYNC-GND
11 GND
12 DDC-SDA
13 H-SYNC
14 V-SYNC
15 DDC-SCL
2) S-VIDEO input: V I D E O
Pin No Name
1 GND
2 GND
3Y (Luminance)
4C (Chroma)
3) Digital RGB input (DVI-D): R G B 1
4) RS-232C input/output
Pin No Name
1NC
2 RXD
3 TXD
4NC
5 GND
6NC
7RTS
8 CTS
9NC
Pin - Assignment of DVI connector:
1 TX2- 9 TX1- 17 TX0-
2 TX2+ 10 TX1+ 18 TX0+
3 Shield (TX2 / TX4) 11 Shield (TX1 / TX3) 19 Shield (TX0 / TX5)
4NC 12NC20NC
5NC 13NC21NC
6 DDC-Serial Clock 14 +5V power 22 Shield (TXC)
7 DDC-Serial Data 15 Ground 23 TXC+
8NC16Hot plug detect 24 TXC-
5
10
15
1
6
11
1
6
5
9
Mini D-SUB 15P
D-SUB 9P
1
17
24
16
8
9
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
