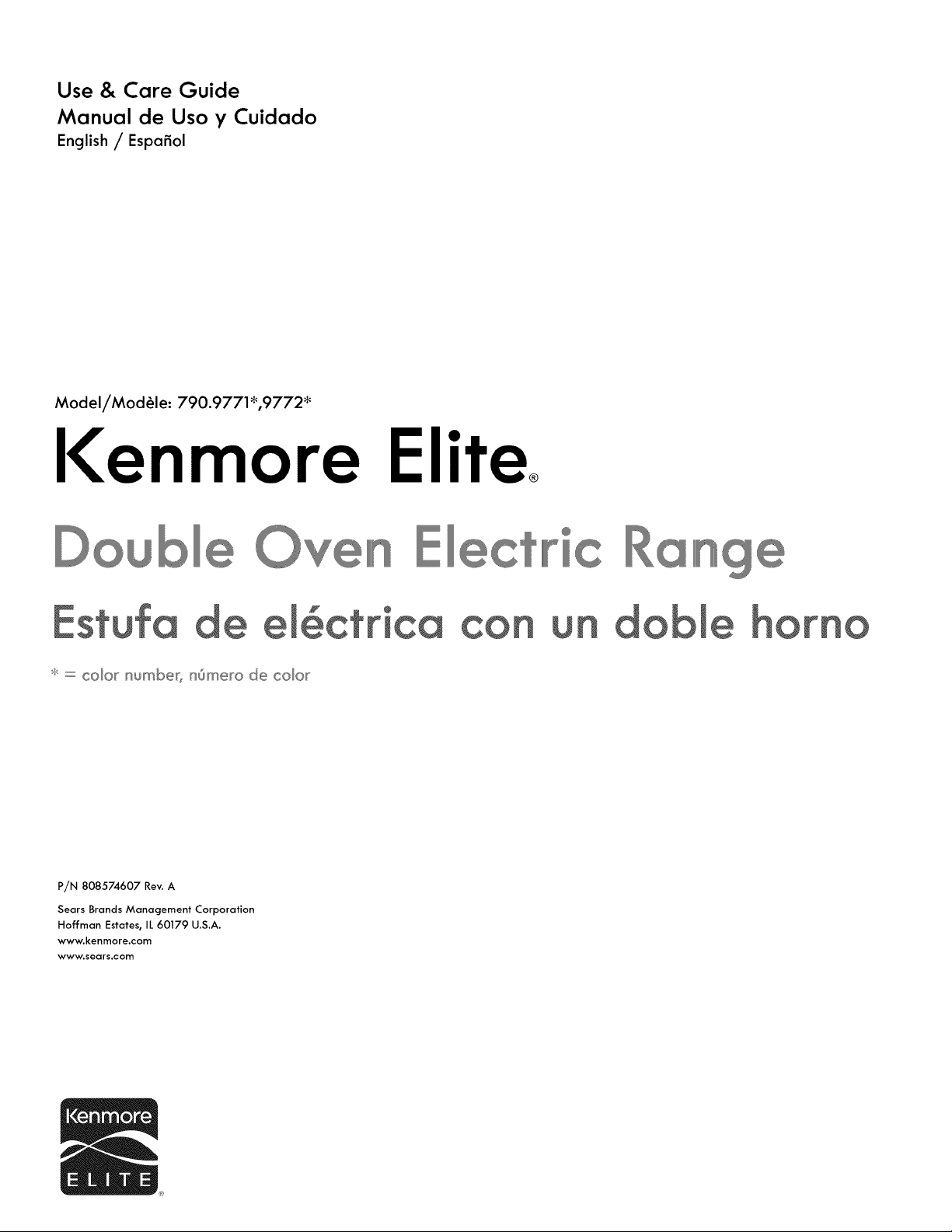

Use & Care Guide
Manual de Uso y Cuidado
English / Espa_ol
Model/ModUle: 790.9771%9772 _
Kenmore Elite°
El_tr°_
e el6ctrica con un
©
' = color numbe_, n#_,mero de color
P/N 808574607 Rev. A
Sears Brands Management Corporation
Hoffman Estates_ IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Table of Contents
Kenmore Elite Limited Warranty ................................................................. 2
Before Setting Surface Controls .................................................................. 8
Setting Surface Controls ............................................................................. 11
Before Setting Oven Controls ................................................................... 15
Setting Oven Controls ................................................................................ 17
Care and Cleaning ..................................................................................... 35
Porcelain enameled glide racks ........................................................... 38
Before You Call ........................................................................................... 40
Kenmore Elite Limited Warranty
When this appliance is installed, operated and maintained according to all supplied instructions, the following warranty coverage
applies. To arrange for warranty service, call 1-800-4-MY-HOME® (1-800-469-4663).
U.S.A. Warranty Coverage
One Year Limited Warranty on Appliance
For one year from the date of purchase, free repair will be provided if this appliance fails due to a defect in material or
workmanship.
Two Year Limited Warranty on Ceramic Cooktop (if equipped)
For two years from the date of purchase, if a ceramic cooktop fails due to thermal shock, or a ceramic cooktop element is
defective, a free replacement part will be supplied. After the first year from purchase date, you are responsible for the
labor cost of part installation.
All warranty coverage applies for only 90 days from the date of purchase if this appliance is ever used for other than private family
purposes.
This warranty covers only defects in material and workmanship, and will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions
supplied with the product.
3. Consumable items that can wear out from normal use, including but not limited to filters, belts, incandescent light bulbs,
and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with
the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year in the U.S. or the shortest period
allowed by law. Sears shall not be liable for incidental or consequential damages. Some states do not allow the exclusion or
limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness,
so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
All rights reserved. Printed in the USA.
2

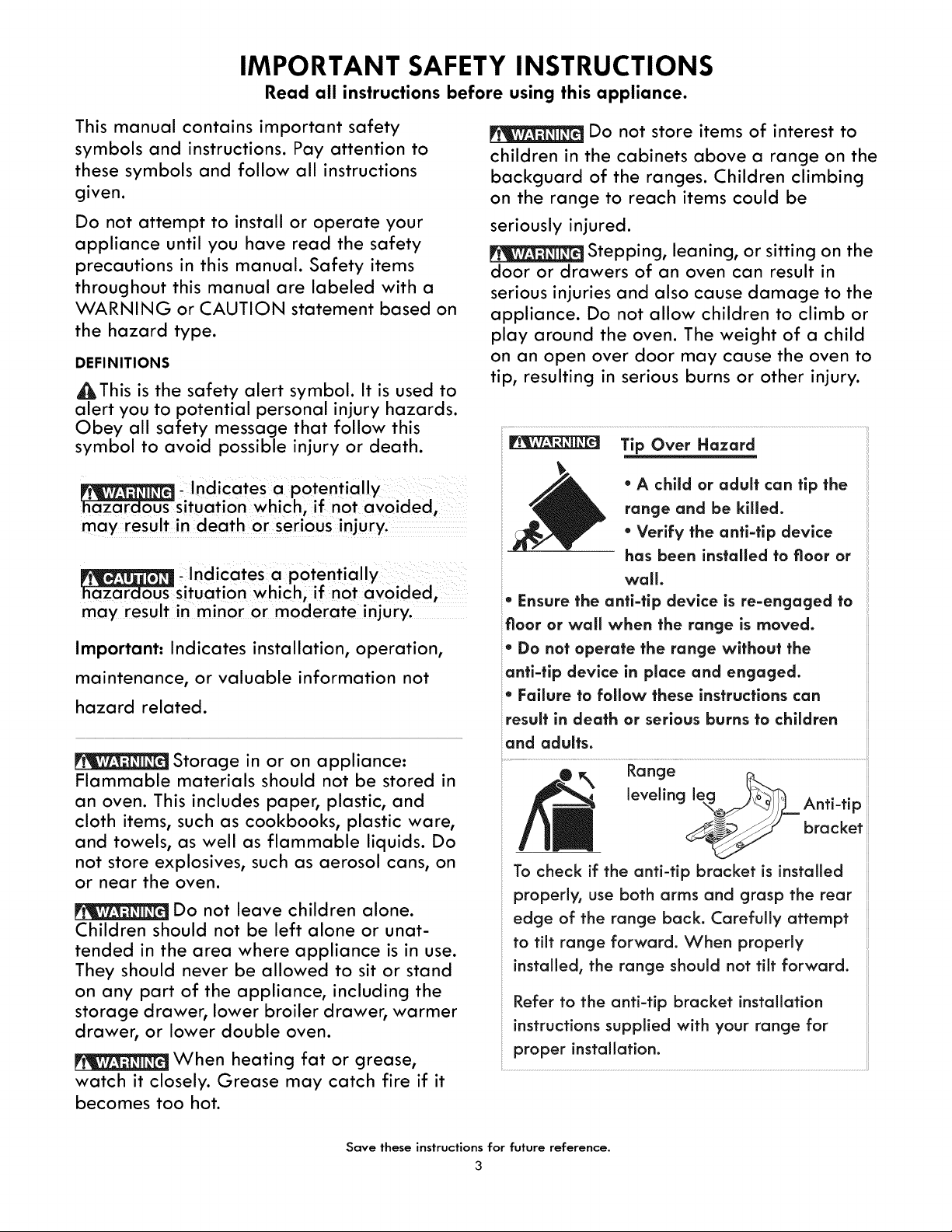

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
This manual contains important safety
symbols and instructions. Pay attention to
these symbols and follow all instructions
given.
Do not attempt to install or operate your
appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION statement based on
the hazard type.
DEFINITIONS
AThis is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety message that follow this
symbol to avoid possible injury or death.
__ Indicates a potentially
hazardous situation which, if not avoided;
may result in death or serious injury'
_Indicates a potentially
hazardous situation which; if not avoided,
may result in minor or moclerate injury.
Important: Indicates installation, operation,
maintenance, or valuable information not
hazard related.
Storage in or on appliance:
Flammable materials should not be stored in
an oven. This includes paper, plastic, and
cloth items, such as cookbooks, plastic ware,
and towels, as well as flammable liquids. Do
not store explosives, such as aerosol cans, on
or near the oven.
Do not leave children alone.
Children should not be left alone or unat-
tended in the area where appliance is in use.
They should never be allowed to sit or stand
on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer
drawer, or lower double oven.
When heating fat or grease,
watch it closely. Grease may catch fire if it
becomes too hot.
Do not store items of interest to
children in the cabinets above a range on the
backguard of the ranges. Children climbing
on the range to reach items could be
seriously injured.
Stepping, leaning, or sitting on the
door or drawers of an oven can result in
serious injuries and also cause damage to the
appliance. Do not allow children to climb or
play around the oven. The weight of a child
on an open over door may cause the oven to
tip, resulting in serious burns or other injury.
Tip Over Hazard
* A child or adult can tip the
range and be killed.
* Verify the anti-tip device
has been installed to floor or
wall.
* Ensure the anti-tip device is re-engaged to
floor or wall when the range is moved.
" Do not operate the range without the
anti-tip device in place and engaged.
* Failure to follow these instructions can
result in death or serious burns to children
and adults.
Range
leveling leg _
"<@._ _;_ Anti-tip
__ bracket
To check if the anti-tip bracket is installed
properly, use both arms and grasp the rear
edge of the range back. Carefully attempt
to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation
instructions supplied with your range for
proper installation.
Save these instructions for future reference.
3

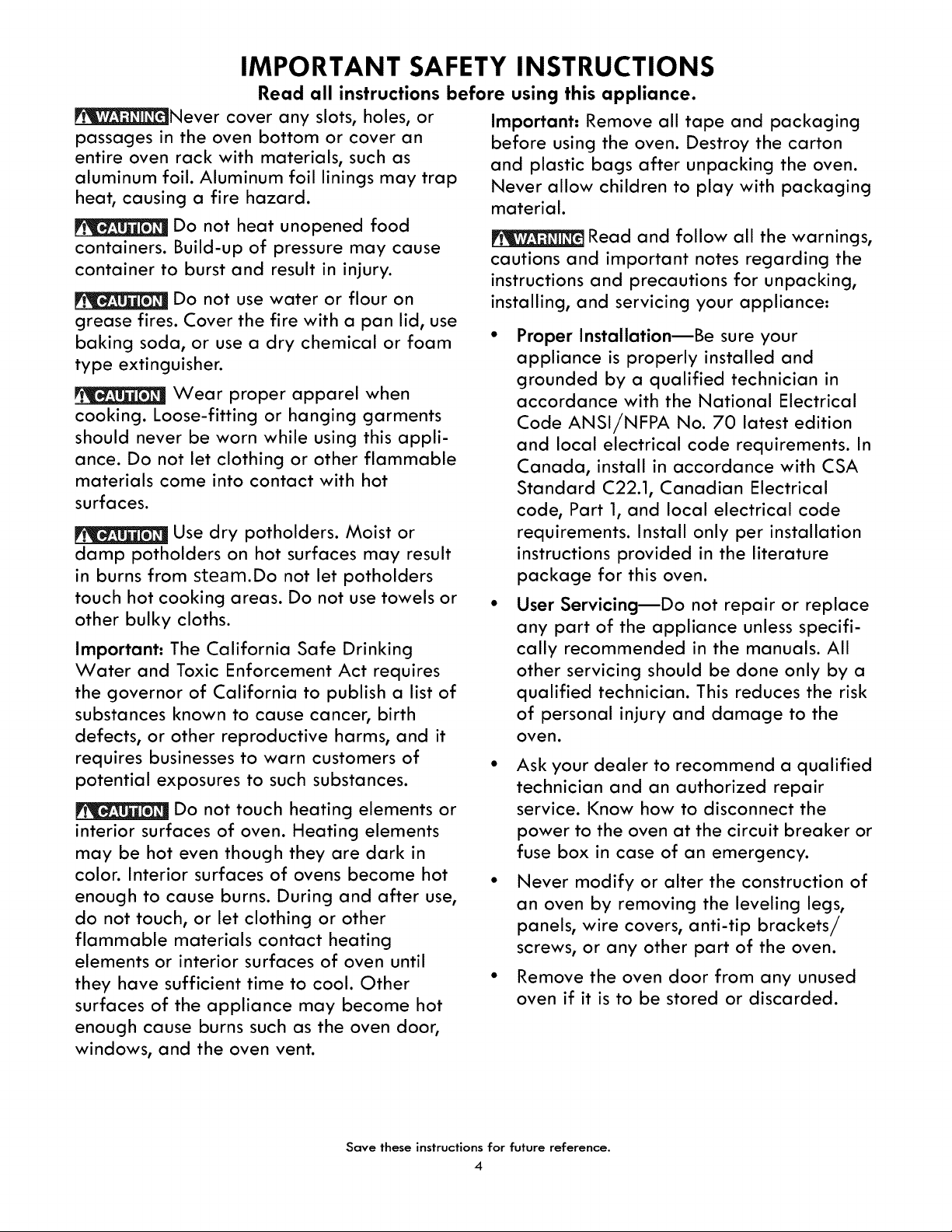

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
_Never cover any slots, holes, or
passages in the oven bottom or cover an
entire oven rack with materials, such as
aluminum foil. Aluminum foil linings may trap
heat, causing a fire hazard.
Do not heat unopened food
containers. Build-up of pressure may cause
container to burst and result in injury.
Do not use water or flour on
grease fires. Cover the fire with a pan lid, use
baking soda, or use a dry chemical or foam
type extinguisher.
Wear proper apparel when
cooking. Loose-fitting or hanging garments
should never be worn while using this appli-
ance. Do not let clothing or other flammable
materials come into contact with hot
surfaces.
Use dry potholders. Moist or
damp potholders on hot surfaces may result
in burns from steam.Do not let potholders
touch hot cooking areas. Do not use towels or
other bulky cloths.
Important: The California Safe Drinking
Water and Toxic Enforcement Act requires
the governor of California to publish a list of
substances known to cause cancer, birth
defects, or other reproductive harms, and it
requires businesses to warn customers of
potential exposures to such substances.
Do not touch heating elements or
interior surfaces of oven. Heating elements
may be hot even though they are dark in
color. Interior surfaces of ovens become hot
enough to cause burns. During and after use,
do not touch, or let clothing or other
flammable materials contact heating
elements or interior surfaces of oven until
they have sufficient time to cool. Other
surfaces of the appliance may become hot
enough cause burns such as the oven door,
windows, and the oven vent.
Important: Remove all tape and packaging
before using the oven. Destroy the carton
and plastic bags after unpacking the oven.
Never allow children to play with packaging
material.
Read and follow all the warnings,
cautions and important notes regarding the
instructions and precautions for unpacking,
installing, and servicing your appliance:
° Proper InstallationmBe sure your
appliance is properly installed and
grounded by a qualified technician in
accordance with the National Electrical
Code ANSI/NFPA No. 70 latest edition
and local electrical code requirements. In
Canada, install in accordance with CSA
Standard C22.1, Canadian Electrical
code, Part 1, and local electrical code
requirements. Install only per installation
instructions provided in the literature
package for this oven.
° User ServicingmDo not repair or replace
any part of the appliance unless specifi-
cally recommended in the manuals. All
other servicing should be done only by a
qualified technician. This reduces the risk
of personal injury and damage to the
oven.
° Ask your dealer to recommend a qualified
technician and an authorized repair
service. Know how to disconnect the
power to the oven at the circuit breaker or
fuse box in case of an emergency.
° Never modify or alter the construction of
an oven by removing the leveling legs,
panels, wire covers, anti-tip brackets/
screws, or any other part of the oven.
Remove the oven door from any unused
oven if it is to be stored or discarded.
Save these instructions for future reference.
4

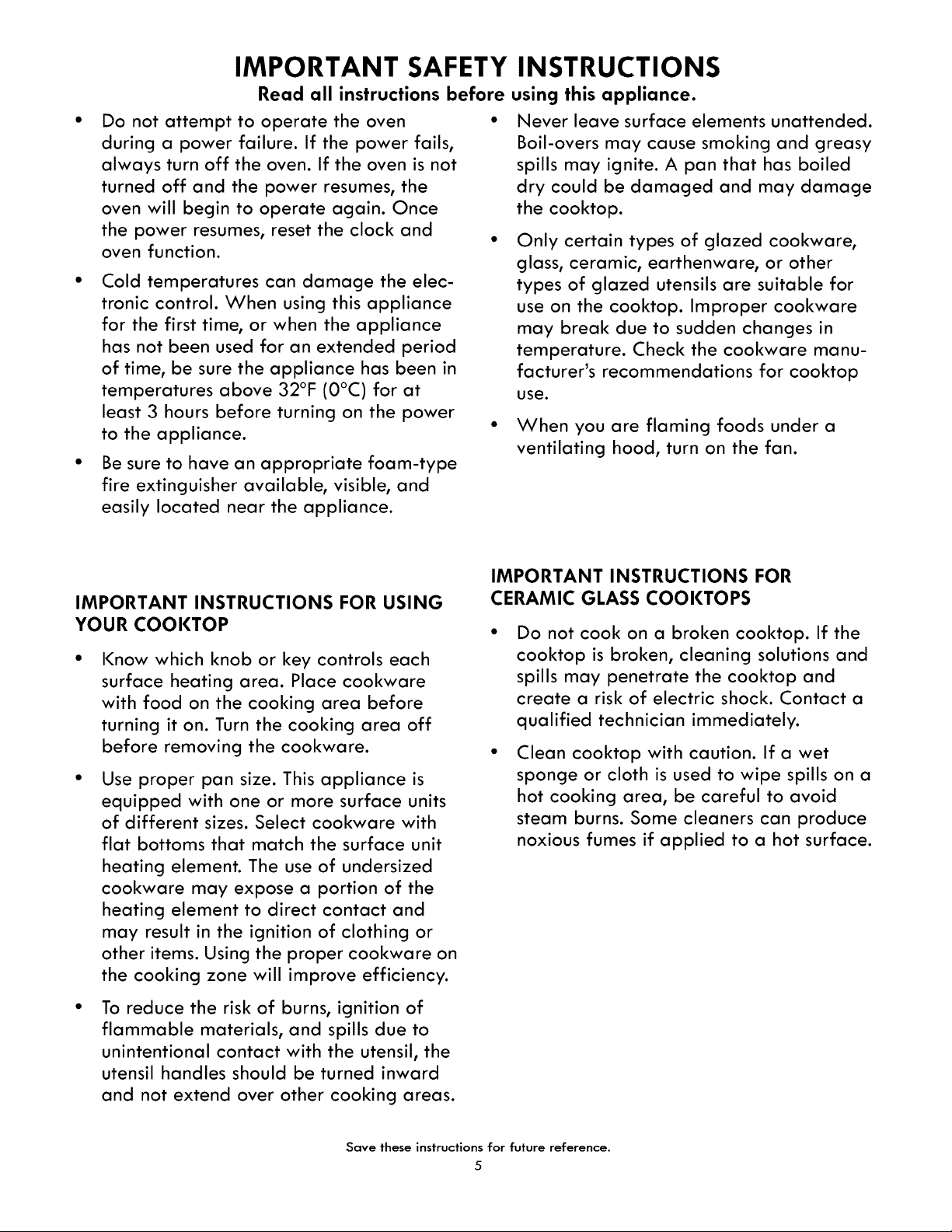

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Do not attempt to operate the oven •
during a power failure. If the power fails,
always turn off the oven. If the oven is not
turned off and the power resumes, the
oven will begin to operate again. Once
the power resumes, reset the clock and
oven function.
• Cold temperatures can damage the elec-
tronic control. When using this appliance
for the first time, or when the appliance
has not been used for an extended period
of time, be sure the appliance has been in
temperatures above 32°F (0°C) for at
least 3 hours before turning on the power
to the appliance.
• Be sure to have an appropriate foam-type
fire extinguisher available, visible, and
easily located near the appliance.
Never leave surface elements unattended.
Boil-overs may cause smoking and greasy
spills may ignite. A pan that has boiled
dry could be damaged and may damage
the cooktop.
Only certain types of glazed cookware,
glass, ceramic, earthenware, or other
types of glazed utensils are suitable for
use on the cooktop. Improper cookware
may break due to sudden changes in
temperature. Check the cookware manu-
facturer's recommendations for cooktop
use.
When you are flaming foods under a
ventilating hood, turn on the fan.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOl(TOP
Know which knob or key controls each
surface heating area. Place cookware
with food on the cooking area before
turning it on. Turn the cooking area off
before removing the cookware.
Use proper pan size. This appliance is
equipped with one or more surface units
of different sizes. Select cookware with
flat bottoms that match the surface unit
heating element. The use of undersized
cookware may expose a portion of the
heating element to direct contact and
may result in the ignition of clothing or
other items. Using the proper cookware on
the cooking zone will improve efficiency.
To reduce the risk of burns, ignition of
flammable materials, and spills due to
unintentional contact with the utensil, the
utensil handles should be turned inward
and not extend over other cooking areas.
IMPORTANT INSTRUCTIONS FOR
CERAMIC GLASS COOl(TOPS
Do not cook on a broken cooktop. If the
cooktop is broken, cleaning solutions and
spills may penetrate the cooktop and
create a risk of electric shock. Contact a
qualified technician immediately.
Clean cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a
hot cooking area, be careful to avoid
steam burns. Some cleaners can produce
noxious fumes if applied to a hot surface.
Save these instructions for future reference.
5

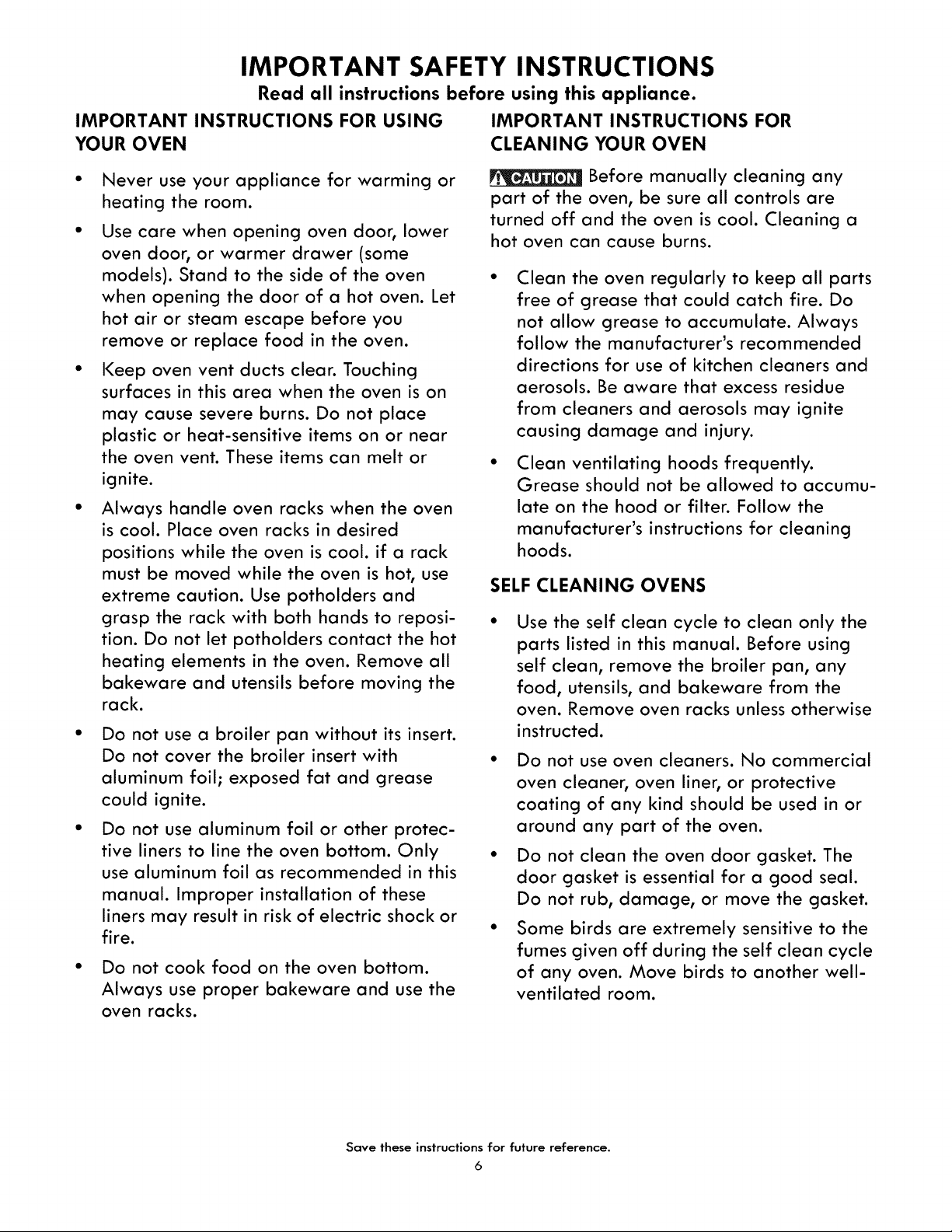

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
IMPORTANT INSTRUCTIONS FOR USING IMPORTANT INSTRUCTIONS FOR
YOUR OVEN CLEANING YOUR OVEN
Never use your appliance for warming or
heating the room.
Use care when opening oven door, lower
oven door, or warmer drawer (some
models). Stand to the side of the oven
when opening the door of a hot oven. Let
hot air or steam escape before you
remove or replace food in the oven.
Keep oven vent ducts clear. Touching
surfaces in this area when the oven is on
may cause severe burns. Do not place
plastic or heat-sensitive items on or near
the oven vent. These items can melt or
ignite.
Always handle oven racks when the oven
is cool. Place oven racks in desired
positions while the oven is cool. if a rack
must be moved while the oven is hot, use
extreme caution. Use potholders and
grasp the rack with both hands to reposi-
tion. Do not let potholders contact the hot
heating elements in the oven. Remove all
bakeware and utensils before moving the
rack.
Do not use a broiler pan without its insert.
Do not cover the broiler insert with
aluminum foil; exposed fat and grease
could ignite.
Do not use aluminum foil or other protec-
tive liners to line the oven bottom. Only
use aluminum foil as recommended in this
manual. Improper installation of these
liners may result in risk of electric shock or
fire.
Do not cook food on the oven bottom.
Always use proper bakeware and use the
oven racks.
Before manually cleaning any
part of the oven, be sure all controls are
turned off and the oven is cool. Cleaning a
hot oven can cause burns.
Clean the oven regularly to keep all parts
free of grease that could catch fire. Do
not allow grease to accumulate. Always
follow the manufacturer's recommended
directions for use of kitchen cleaners and
aerosols. Be aware that excess residue
from cleaners and aerosols may ignite
causing damage and injury.
Clean ventilating hoods frequently.
Grease should not be allowed to accumu-
late on the hood or filter. Follow the
manufacturer's instructions for cleaning
hoods.
SELF CLEANING OVENS
Use the self clean cycle to clean only the
parts listed in this manual. Before using
self clean, remove the broiler pan, any
food, utensils, and bakeware from the
oven. Remove oven racks unless otherwise
instructed.
Do not use oven cleaners. No commercial
oven cleaner, oven liner, or protective
coating of any kind should be used in or
around any part of the oven.
Do not clean the oven door gasket. The
door gasket is essential for a good seal.
Do not rub, damage, or move the gasket.
Some birds are extremely sensitive to the
fumes given off during the self clean cycle
of any oven. Move birds to another well-
ventilated room.
Save these instructions for future reference.
6

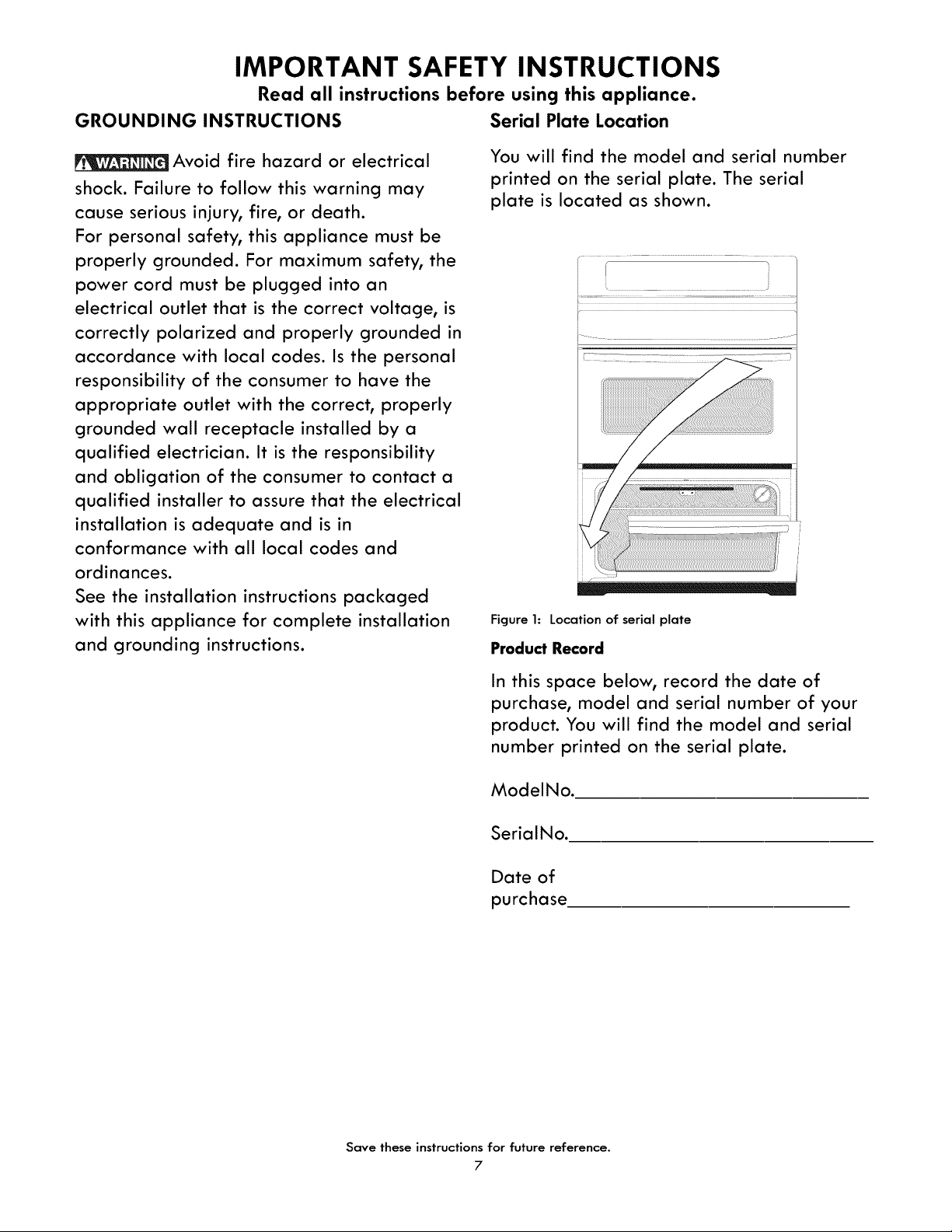

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
GROUNDING INSTRUCTIONS Serial Plate Location
Avoid fire hazard or electrical
shock. Failure to follow this warning may
cause serious injury, fire, or death.
For personal safety, this appliance must be
properly grounded. For maximum safety, the
power cord must be plugged into an
electrical outlet that is the correct voltage, is
correctly polarized and properly grounded in
accordance with local codes. Is the personal
responsibility of the consumer to have the
appropriate outlet with the correct, properly
grounded wall receptacle installed by a
qualified electrician. It is the responsibility
and obligation of the consumer to contact a
qualified installer to assure that the electrical
installation is adequate and is in
conformance with all local codes and
ordinances.
See the installation instructions packaged
with this appliance for complete installation
and grounding instructions.
You will find the model and serial number
printed on the serial plate. The serial
plate is located as shown.
I
Figure 1: Location of serial plate
Product Record
In this space below, record the date of
purchase, model and serial number of your
product. You will find the model and serial
number printed on the serial plate.
ModelNo.
SerialNo.
Date of
purchase
Save these instructions for future reference.
7

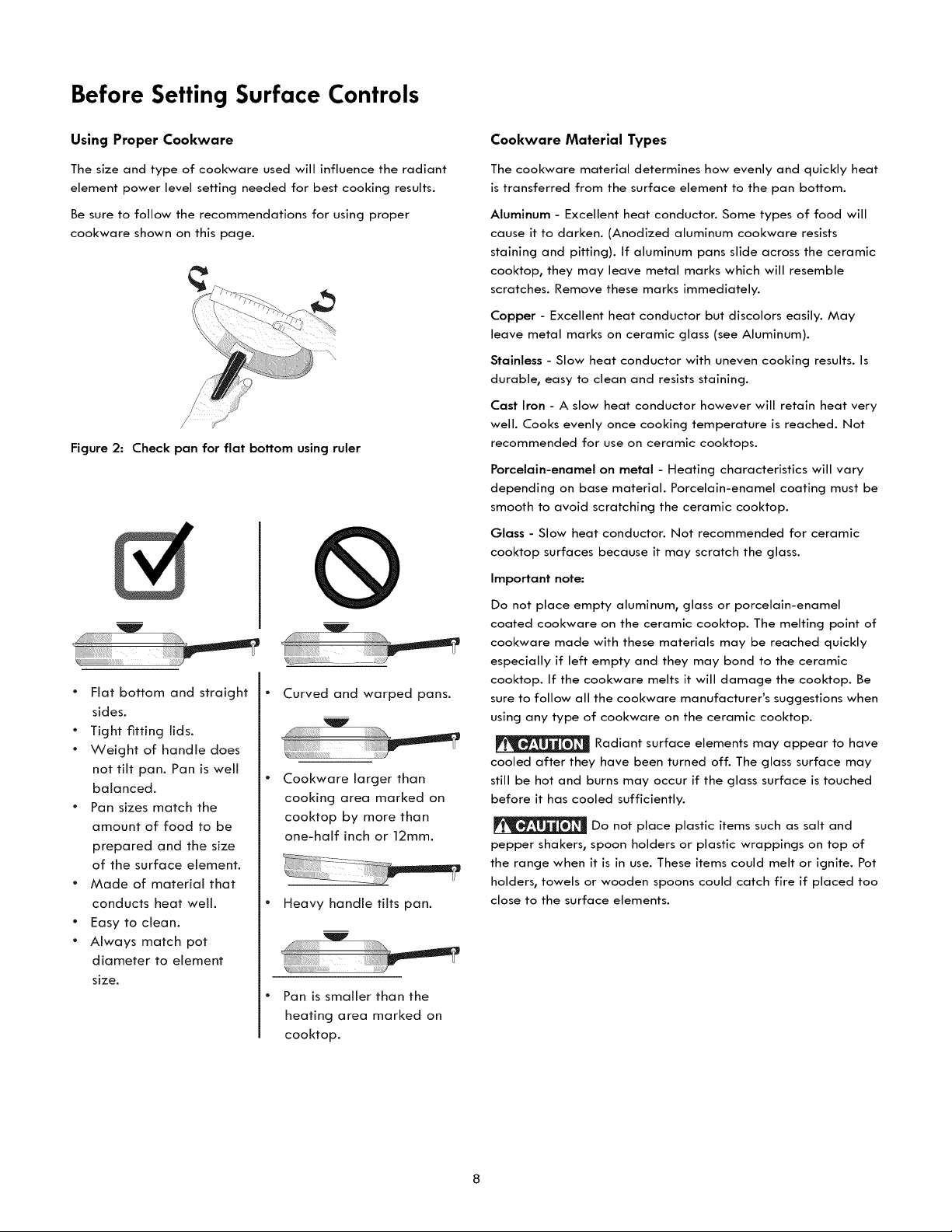

Before Setting Surface Controls
Using Proper Cookware
The size and type of cookware used will influence the radiant
element power level setting needed for best cooking results.
Be sure to follow the recommendations for using proper
cookware shown on this page.
t/ U
Figure 2: Check pan for flat bottom using ruler
W
* Flat bottom and straight
sides.
" Tight fitting lids.
Weight of handle does
not tilt pan. Pan is weEI
balanced.
" Pan sizes match the
amount of food to be
prepared and the size
of the surface element.
" Made of material that
conducts heat weEI.
Easy to dean.
- Always match pot
diameter to eEement
size.
___>- ............... J
Curved and warped pans.
w
iiiiiiiiiiiiiiiiii!iiili iiiiiii!i
_J
Cookware larger than
cooking area marked on
cooktop by more than
one-half inch or 12mm.
Heavy handle tilts pan.
Pan is smaller than the
heating area marked on
cooktop.
Cookware Material Types
The cookware material determines how evenly and quickly heat
is transferred from the surface element to the pan bottom.
Aluminum - Excellent heat conductor. Some types of food will
cause it to darken. (Anodized aluminum cookware resists
staining and pitting). If aluminum pans slide across the ceramic
cooktop, they may leave metal marks which will resemble
scratches. Remove these marks immediately.
Copper - Excellent heat conductor but discolors easily. May
leave metal marks on ceramic glass (see Aluminum).
Stainless - Slow heat conductor with uneven cooking results. Is
durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain heat very
well. Cooks evenly once cooking temperature is reached. Not
recommended for use on ceramic cooktops.
Porcelain-enamel on metal - Heating characteristics will vary
depending on base material. Porcelain-enamel coating must be
smooth to avoid scratching the ceramic cooktop.
Glass - Slow heat conductor. Not recommended for ceramic
cooktop surfaces because it may scratch the glass.
Important note:
Do not place empty aluminum, glass or porcelain-enamel
coated cookware on the ceramic cooktop. The melting point of
cookware made with these materials may be reached quickly
especially if left empty and they may bond to the ceramic
cooktop. If the cookware melts it will damage the cooktop. Be
sure to follow all the cookware manufacturer's suggestions when
using any type of cookware on the ceramic cooktop.
Radiant surface elements may appear to have
cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched
before it has cooled sufficiently.
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top of
the range when it is in use. These items could melt or ignite. Pot
holders, towels or wooden spoons could catch fire if placed too
close to the surface elements.
Before Setting Surface Controls

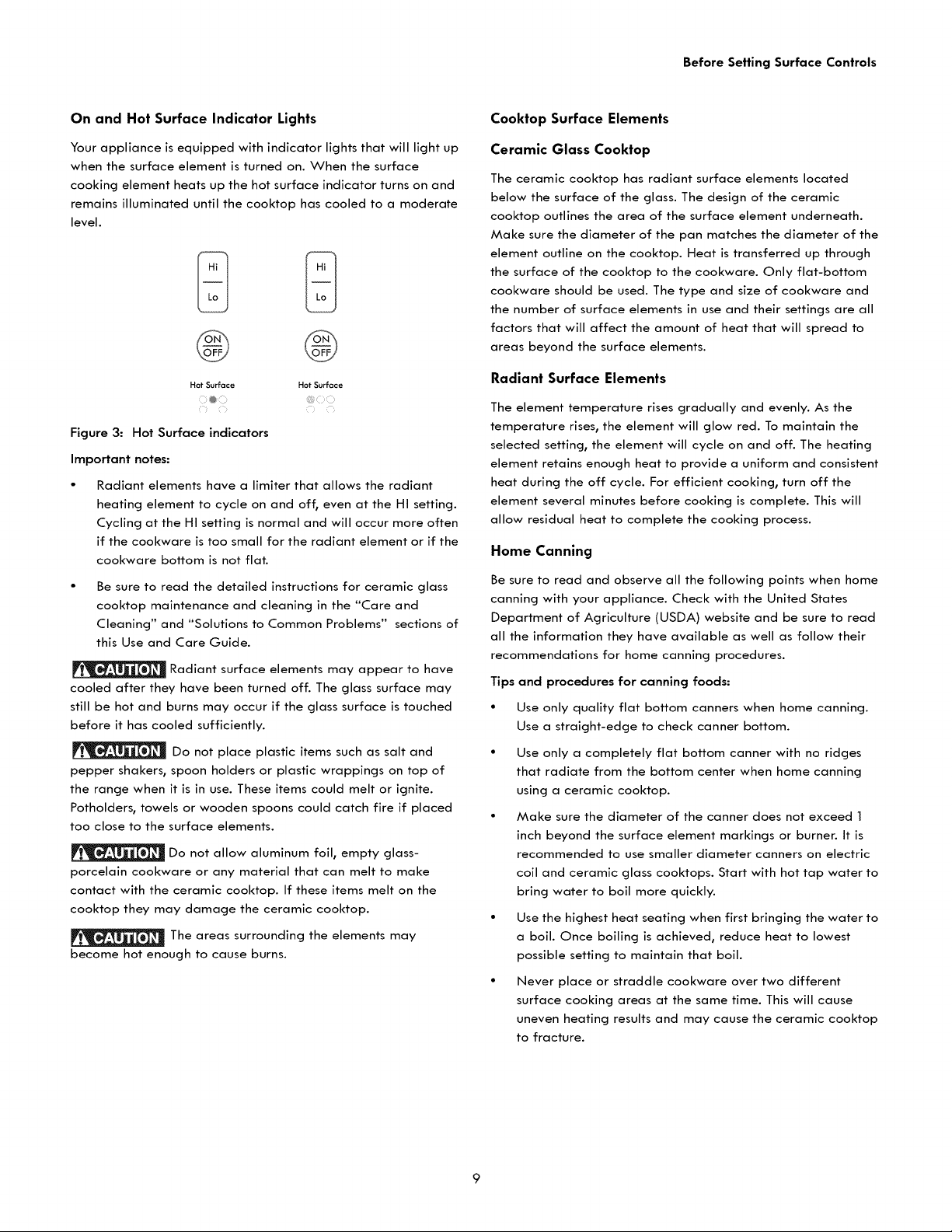

On and Hot Surface Indicator Lights
Your appliance is equipped with indicator lights that will light up
when the surface element is turned on. When the surface
cooking element heats up the hot surface indicator turns on and
remains illuminated until the cooktop has cooled to a moderate
level.
@
Hot Surface Hot Surface
@
Figure 3: Hot Surface indicators
Important notes:
Radiant elements have a limiter that allows the radiant
heating element to cycle on and off, even at the HI setting.
Cycling at the HI setting is normal and will occur more often
if the cookware is too small for the radiant element or if the
cookware bottom is not flat.
• Be sure to read the detailed instructions for ceramic glass
cooktop maintenance and cleaning in the _Care and
Cleaning" and _Solutions to Common Problems" sections of
this Use and Care Guide.
Radiant surface elements may appear to have
cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched
before it has cooled sufficiently.
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top of
the range when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the surface elements.
Do not allow aluminum foil, empty glass-
porcelain cookware or any material that can melt to make
contact with the ceramic cooktop. If these items melt on the
cooktop they may damage the ceramic cooktop.
The areas surrounding the elements may
become hot enough to cause burns.
Cooktop Surface Elements
Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located
below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element underneath.
Make sure the diameter of the pan matches the diameter of the
element outline on the cooktop. Heat is transferred up through
the surface of the cooktop to the cookware. Only flat-bottom
cookware should be used. The type and size of cookware and
the number of surface elements in use and their settings are all
factors that will affect the amount of heat that will spread to
areas beyond the surface elements.
Radiant Surface Elements
The element temperature rises gradually and evenly. As the
temperature rises, the element will glow red. To maintain the
selected setting, the element will cycle on and off. The heating
element retains enough heat to provide a uniform and consistent
heat during the off cycle. For efficient cooking, turn off the
element several minutes before cooking is complete. This will
allow residual heat to complete the cooking process.
Home Canning
Be sure to read and observe all the following points when home
canning with your appliance. Check with the United States
Department of Agriculture (USDA) website and be sure to read
all the information they have available as well as follow their
recommendations for home canning procedures.
Tips and procedures for canning foods:
• Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom.
Use only a completely flat bottom canner with no ridges
that radiate from the bottom center when home canning
using a ceramic cooktop.
Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner. It is
recommended to use smaller diameter canners on electric
coil and ceramic glass cooktops. Start with hot tap water to
bring water to boil more quickly.
• Use the highest heat seating when first bringing the water to
a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
• Never place or straddle cookware over two different
surface cooking areas at the same time. This will cause
uneven heating results and may cause the ceramic cooktop
to fracture.

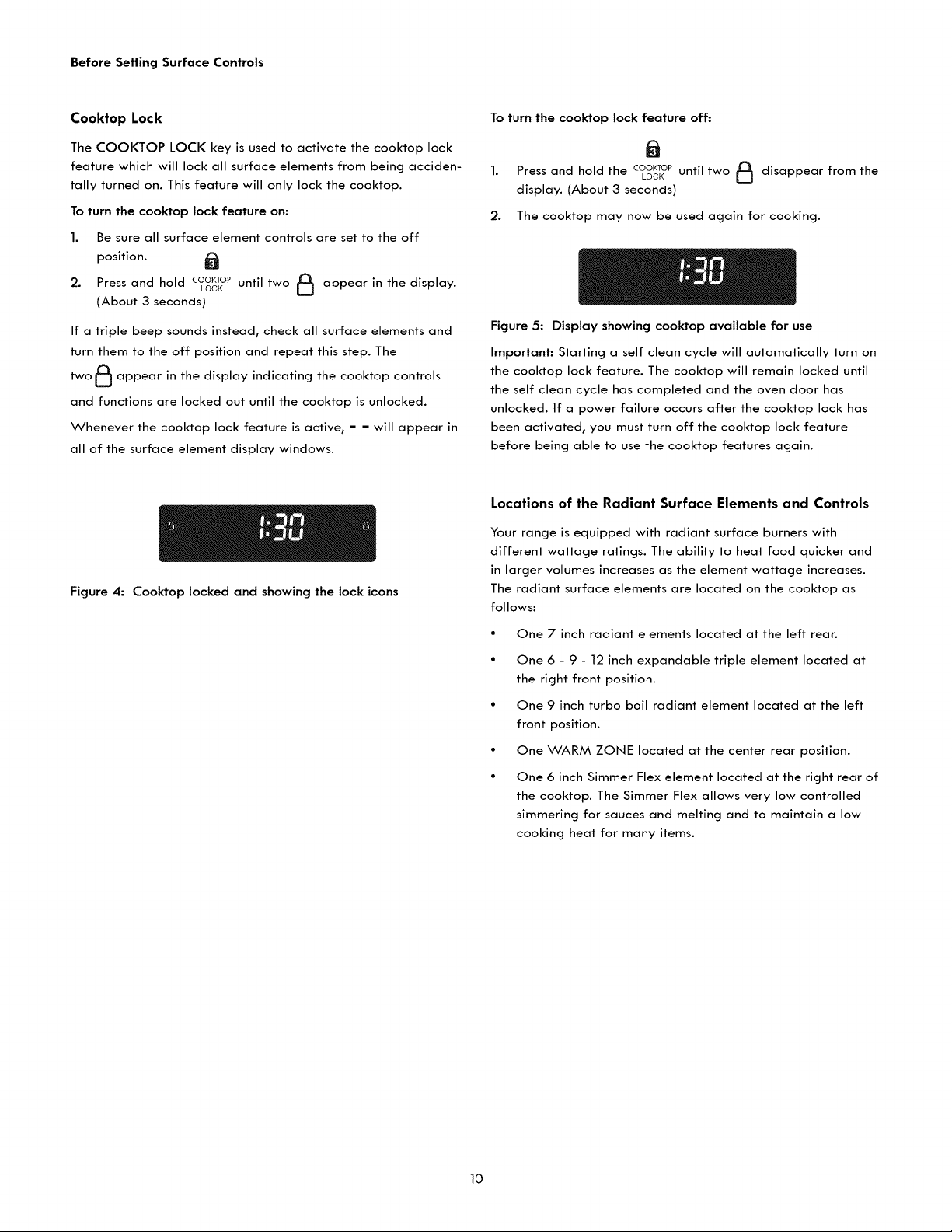

Before Setting Surface Controls
Cooktop Lock
The COOKTOP LOCK key is used to activate the cooktop lock
feature which will lock all surface elements from being acciden-
tally turned on. This feature will only lock the cooktop.
To turn the cooktop lock feature on:
1. Be sure all surface element controls are set to the off
position.
2. Press and hold COOKTOPLoCKuntil two _ appear in the display.
(About 3 seconds)
If a triple beep sounds instead, check all surface elements and
turn them to the off position and repeat this step. The
two _ appear in the display indicating the cooktop
controls
and functions are locked out until the cooktop is unlocked.
Whenever the cooktop lock feature is active, - - will appear in
all of the surface element display windows.
To turn the cooktop lock feature off:
1. Press and hold the COOKTOPLoCKuntil two _ disappear from the
display. (About 3 seconds)
2. The cooktop may now be used again for cooking.
Figure 5: Display showing cooktop available for use
Important: Starting a self clean cycle will automatically turn on
the cooktop lock feature. The cooktop will remain locked until
the self clean cycle has completed and the oven door has
unlocked. If a power failure occurs after the cooktop lock has
been activated, you must turn off the cooktop lock feature
before being able to use the cooktop features again.
Figure 4: Cooktop locked and showing the lock icons
Locations of the Radiant Surface Elements and Controls
Your range is equipped with radiant surface burners with
different wattage ratings. The ability to heat food quicker and
in larger volumes increases as the element wattage increases.
The radiant surface elements are located on the cooktop as
follows:
• One 7 inch radiant elements located at the left rear.
• One 6 - 9 - 12 inch expandable triple element located at
the right front position.
• One 9 inch turbo boil radiant element located at the left
front position.
• One WARM ZONE located at the center rear position.
• One 6 inch Simmer Flex element located at the right rear of
the cooktop. The Simmer Flex allows very low controlled
simmering for sauces and melting and to maintain a low
cooking heat for many items.
10
Setting Surface Controls
Setting Surface Controls

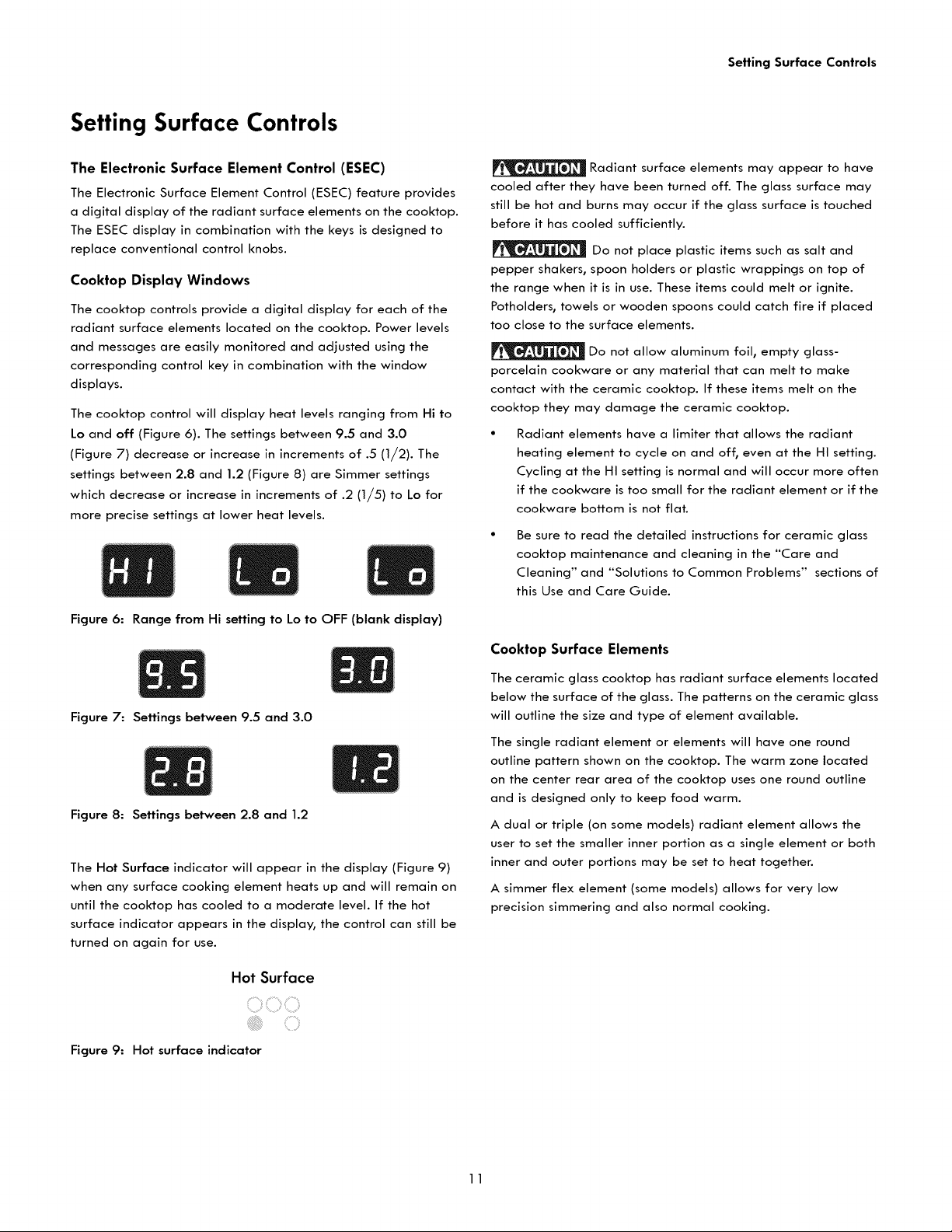

The Electronic Surface Element Control (ESEC)
The Electronic Surface Element Control (ESEC) feature provides
a digital display of the radiant surface elements on the cooktop.
The ESEC display in combination with the keys is designed to
replace conventional control knobs.
Cooktop Display Windows
The cooktop controls provide a digital display for each of the
radiant surface elements located on the cooktop. Power levels
and messages are easily monitored and adjusted using the
corresponding control key in combination with the window
displays.
The cooktop control will display heat levels ranging from Hi to
Lo and off (Figure 6). The settings between 9.5 and 3.0
(Figure 7) decrease or increase in increments of .5 (1/2). The
settings between 2.8 and 1.2 (Figure 8) are Simmer settings
which decrease or increase in increments of .2 (1/5) to Lo for
more precise settings at lower heat levels.
Figure 6: Range from Hi setting to Lo to OFF (blank display)
Figure 7: Settings between 9.5 and 3.0
Figure 8: Settings between 2.8 and 1.2
The Hot Surface indicator will appear in the display (Figure 9)
when any surface cooking element heats up and will remain on
until the cooktop has cooled to a moderate level. If the hot
surface indicator appears in the display, the control can still be
turned on again for use.
Hot Surface
Figure 9: Hot surface indicator
Radiant surface elements may appear to have
cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched
before it has cooled sufficiently.
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top of
the range when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the surface elements.
Do not allow aluminum foil, empty glass-
porcelain cookware or any material that can melt to make
contact with the ceramic cooktop. If these items melt on the
cooktop they may damage the ceramic cooktop.
Radiant elements have a limiter that allows the radiant
heating element to cycle on and off, even at the HI setting.
Cycling at the HI setting is normal and will occur more often
if the cookware is too small for the radiant element or if the
cookware bottom is not flat.
Be sure to read the detailed instructions for ceramic glass
cooktop maintenance and cleaning in the "Care and
Cleaning" and "Solutions to Common Problems" sections of
this Use and Care Guide.
Cooktop Surface Elements
The ceramic glass cooktop has radiant surface elements located
below the surface of the glass. The patterns on the ceramic glass
will outline the size and type of element available.
The single radiant element or elements will have one round
outline pattern shown on the cooktop. The warm zone located
on the center rear area of the cooktop uses one round outline
and is designed only to keep food warm.
A dual or triple (on some models) radiant element allows the
user to set the smaller inner portion as a single element or both
inner and outer portions may be set to heat together.
A simmer flex element (some models) allows for very low
precision simmering and also normal cooking.
11
Setting Surface Controls

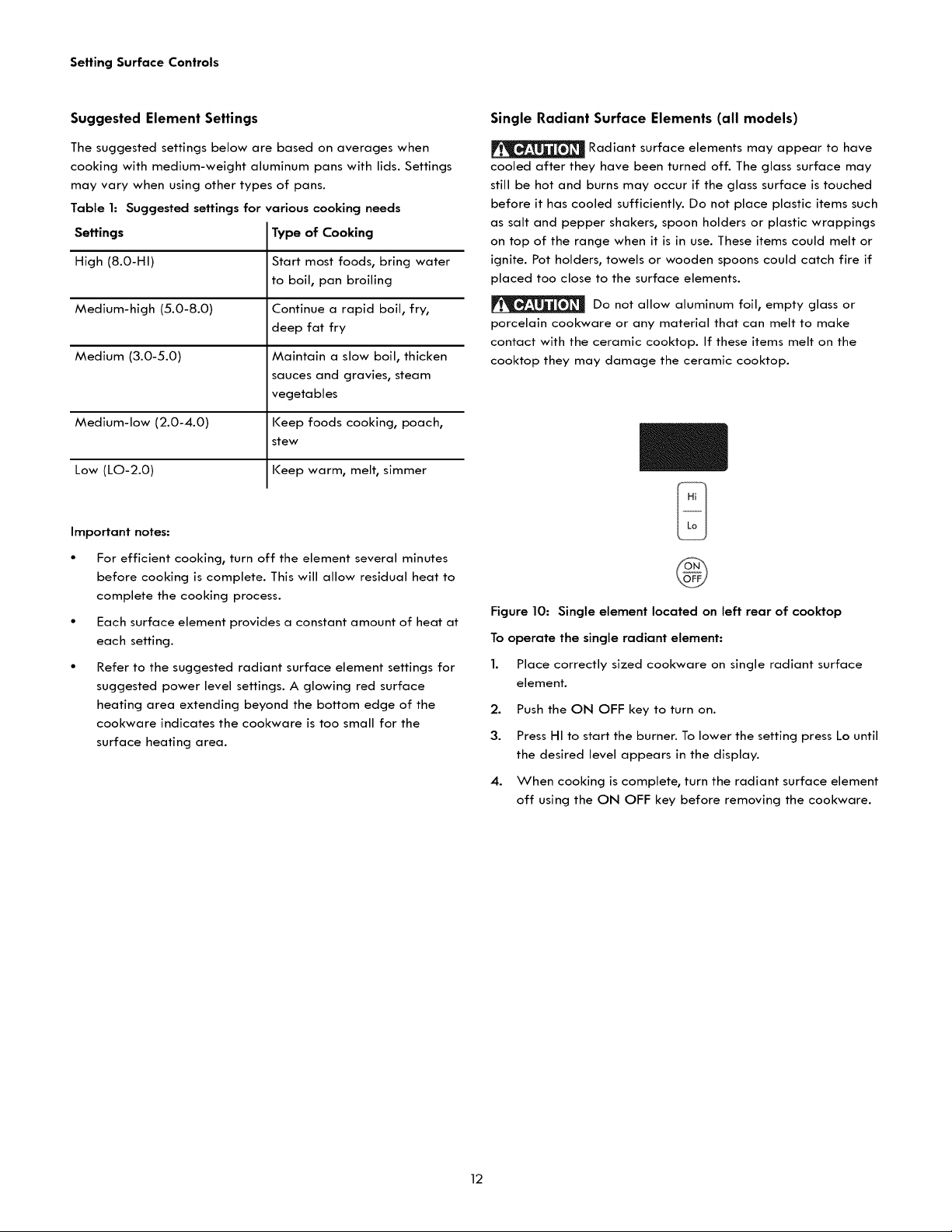

Suggested Element Settings
The suggested settings below are based on averages when
cooking with medium-weight aluminum pans with lids. Settings
may vary when using other types of pans.
Table 1: Suggested settings for various cooking needs
Type of Cooking
Settings
High (8.0-HI) Start most foods, bring water
to boil, pan broiling
Medium-high (5.0-8.0) Continue a rapid boil, fry,
deep fat fry
Medium (3.0-5.0) Maintain a slow boil, thicken
sauces and gravies, steam
vegetables
Medium-low (2.0-4.0) Keep foods cooking, poach,
stew
Low (LO-2.0) Keep warm, melt, simmer
Important notes:
• For efficient cooking, turn off the element several minutes
before cooking is complete. This will allow residual heat to
complete the cooking process.
• Each surface element provides a constant amount of heat at
each setting.
Refer to the suggested radiant surface element settings for
suggested power level settings. A glowing red surface
heating area extending beyond the bottom edge of the
cookware indicates the cookware is too small for the
surface heating area.
Single Radiant Surface Elements (all models)
Radiant surface elements may appear to have
cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched
before it has cooled sufficiently. Do not place plastic items such
as salt and pepper shakers, spoon holders or plastic wrappings
on top of the range when it is in use. These items could melt or
ignite. Pot holders, towels or wooden spoons could catch fire if
placed too close to the surface elements.
Do not allow aluminum foil, empty glass or
porcelain cookware or any material that can melt to make
contact with the ceramic cooktop. If these items melt on the
cooktop they may damage the ceramic cooktop.
m
Figure 10: Single element located on left rear of cooktop
To operate the single radiant element:
1. Place correctly sized cookware on single radiant surface
element.
2. Push the ON OFF key to turn on.
3. Press HI to start the burner. To lower the setting press Lo until
the desired level appears in the display.
4. When cooking is complete, turn the radiant surface element
off using the ON OFF key before removing the cookware.
12
Setting Surface Controls

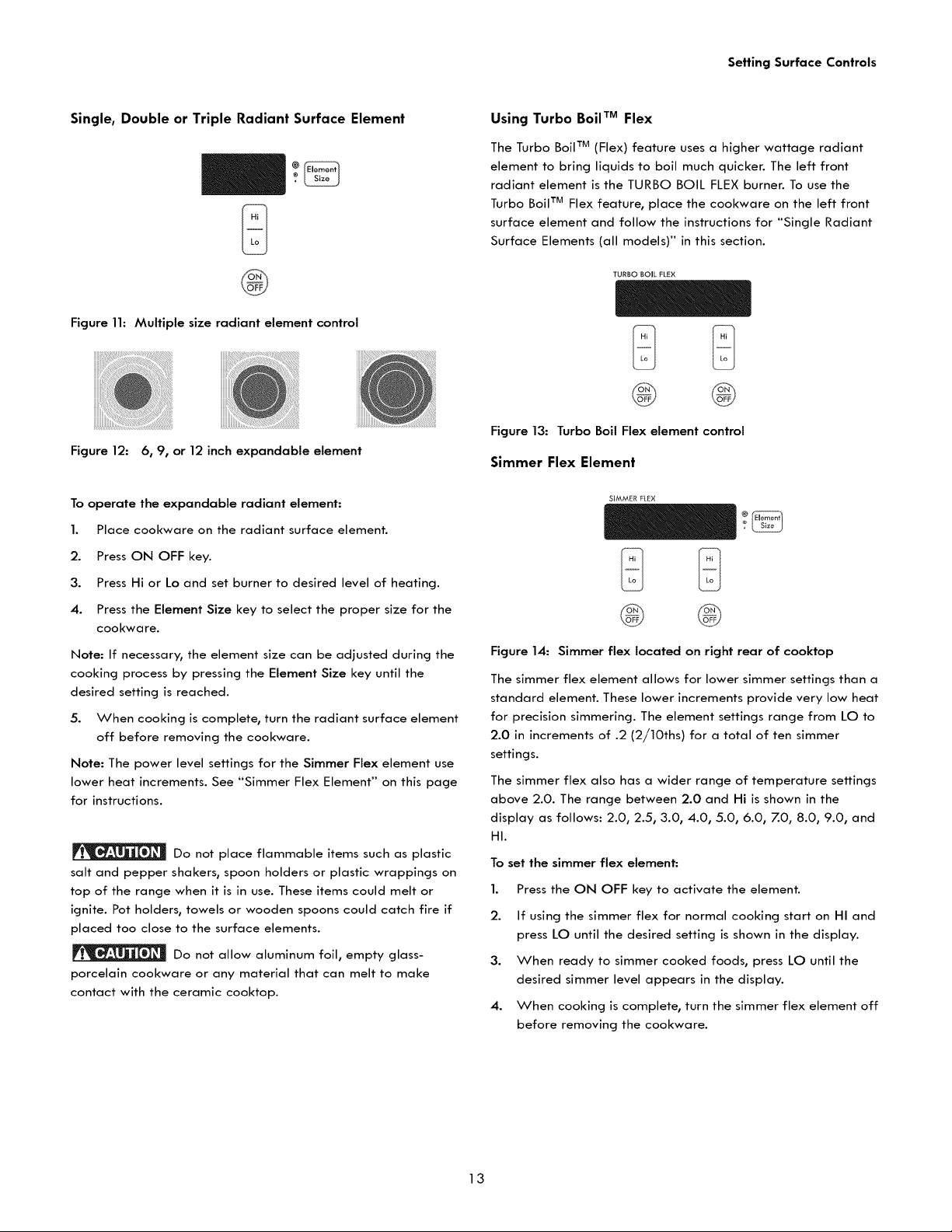

Single, Double or Triple Radiant Surface Element
®
Figure 11: Multiple size radiant element control
Figure 12: 6, 9, or 12 inch expandable element
Using Turbo BoiITM Flex
The Turbo Boil TM (Flex) feature uses a higher wattage radiant
element to bring liquids to boil much quicker. The left front
radiant element is the TURBO BOIL FLEX burner. To use the
Turbo Boil TM Flex feature, place the cookware on the left front
surface element and follow the instructions for "Single Radiant
Surface Elements (all models)" in this section.
TURBO BOIL FLEX
Figure 13: Turbo Boil Flex element control
Simmer Flex Element
To operate the expandable radiant element:
1. Place cookware on the radiant surface element.
2. Press ON OFF key.
3. Press Hi or Lo and set burner to desired level of heating.
4. Press the Element Size key to select the proper size for the
coo kw a re.
Note: If necessary, the element size can be adjusted during the
cooking process by pressing the Element Size key until the
desired setting is reached.
5. When cooking is complete, turn the radiant surface element
off before removing the cookware.
Note: The power level settings for the Simmer Flex element use
lower heat increments. See "Simmer Flex Element" on this page
for instructions.
Do not place flammable items such as plastic
salt and pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt or
ignite. Pot holders, towels or wooden spoons could catch fire if
placed too close to the surface elements.
Do not allow aluminum foil, empty glass-
porcelain cookware or any material that can melt to make
contact with the ceramic cooktop.
SIMMER FLEX
Figure 14: Simmer flex located on right rear of cooktop
The simmer flex element allows for lower simmer settings than a
standard element. These lower increments provide very low heat
for precision simmering. The element settings range from LO to
2.0 in increments of .2 (2/lOths) for a total of ten simmer
settings.
The simmer flex also has a wider range of temperature settings
above 2.0. The range between 2.0 and Hi is shown in the
display as follows: 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0, 9.0, and
HI.
To set the simmer flex element:
1. Press the ON OFF key to activate the element.
2. If using the simmer flex for normal cooking start on HI and
press LO until the desired setting is shown in the display.
3. When ready to simmer cooked foods, press LO until the
desired simmer level appears in the display.
4. When cooking is complete, turn the simmer flex element off
before removing the cookware.
13
Setting Surface Controls

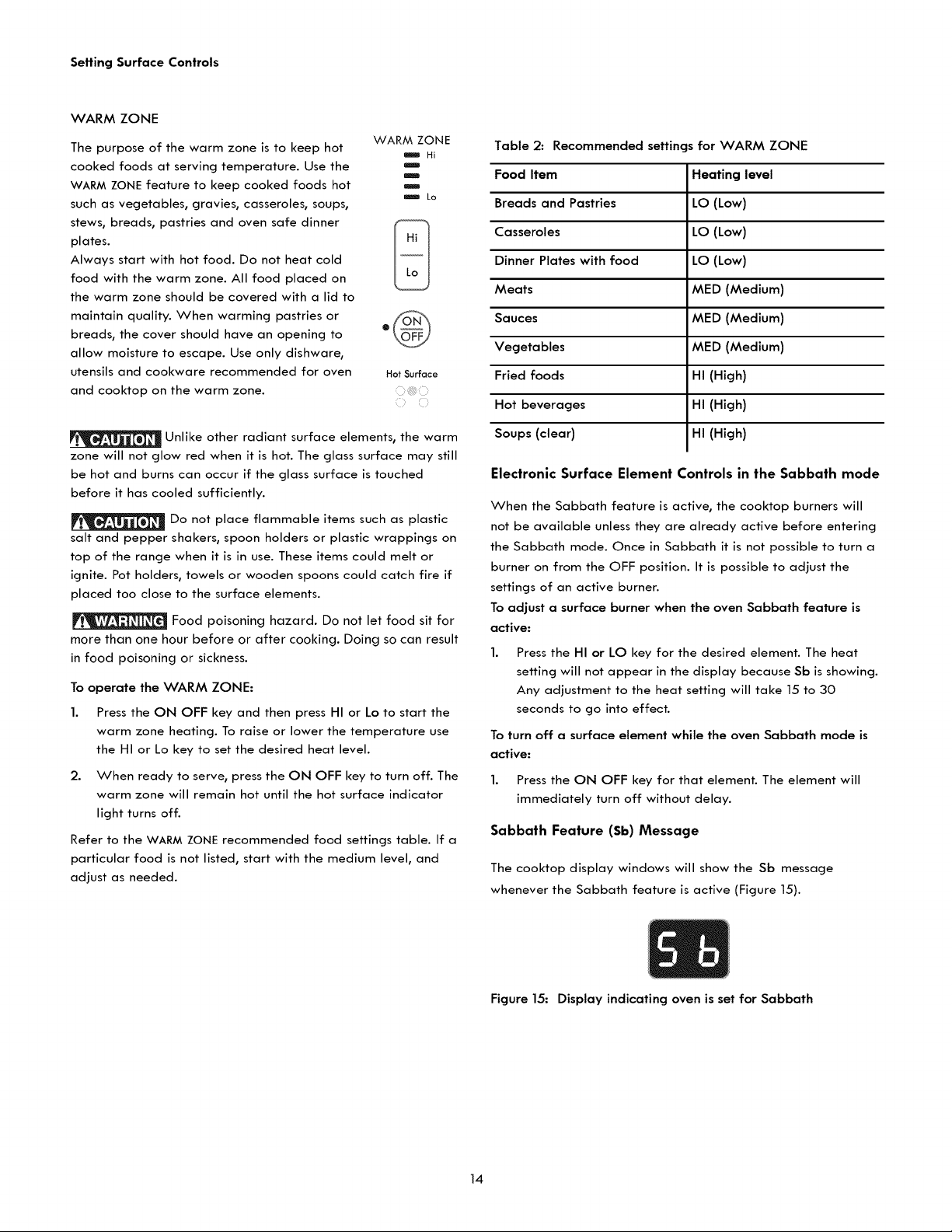

WARM ZONE
The purpose of the warm zone is to keep hot
cooked foods at serving temperature. Use the
WARM ZONE feature to keep cooked foods hot
such as vegetables, gravies, casseroles, soups,
stews, breads, pastries and oven safe dinner
plates.
Always start with hot food. Do not heat cold
food with the warm zone. All food placed on
the warm zone should be covered with a lid to
maintain quality. When warming pastries or
breads, the cover should have an opening to
allow moisture to escape. Use only dishware,
utensils and cookware recommended for oven
and cooktop on the warm zone.
WARM ZONE
Hi
I_ ko
.@
Hot Surface
Unlike other radiant surface elements, the warm
zone will not glow red when it is hot. The glass surface may still
be hot and burns can occur if the glass surface is touched
before it has cooled sufficiently.
Do not place flammable items such as plastic
salt and pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt or
ignite. Pot holders, towels or wooden spoons could catch fire if
placed too close to the surface elements.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To operate the WARM ZONE:
1. Press the ON OFF key and then press HI or Lo to start the
warm zone heating. To raise or lower the temperature use
the HI or Lo key to set the desired heat level.
2. When ready to serve, press the ON OFF key to turn off. The
warm zone will remain hot until the hot surface indicator
light turns off.
Refer to the WARM ZONE recommended food settings table. If a
particular food is not listed, start with the medium level, and
adjust as needed.
Table 2:
Foocl Item
Breads and Pastries
Casseroles
Dinner Plates with food
Meats
Sauces
Vegetables
Fried foods
Hot beverages
Soups (clear)
Recommended settings for WARM ZONE
Heating level
LO (Low)
LO (Low)
LO (Low)
MED (Medium)
MED (Medium)
MED (Medium)
HI (High)
HI (High)
HI (High)
Electronic Surface Element Controls in the Sabbath mode
When the Sabbath feature is active, the cooktop burners will
not be available unless they are already active before entering
the Sabbath mode. Once in Sabbath it is not possible to turn a
burner on from the OFF position. It is possible to adjust the
settings of an active burner.
To adjust a surface burner when the oven Sabbath feature is
active:
1. Press the HI or LO key for the desired element. The heat
setting will not appear in the display because Sb is showing.
Any adjustment to the heat setting will take 15 to 30
seconds to go into effect.
To turn off a surface element while the oven Sabbath mode is
active:
1. Press the ON OFF key for that element. The element will
immediately turn off without delay.
Sabbath Feature (Sb) Message
The cooktop display windows will show the Sb message
whenever the Sabbath feature is active (Figure 15).
Figure 15: Display indicating oven is set for Sabbath
14

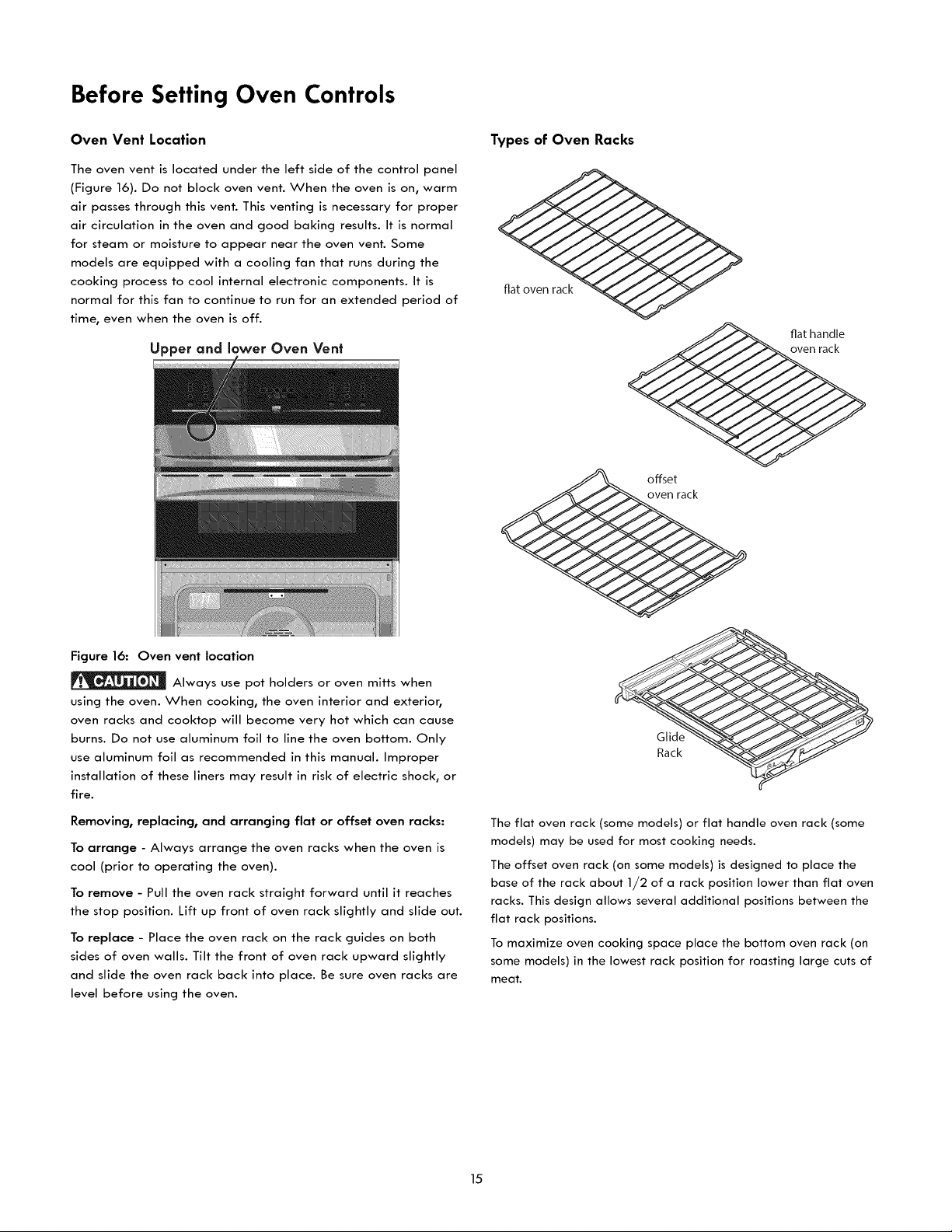

Before Setting Oven Controls
Oven Vent Location
The oven vent is located under the left side of the control panel
(Figure 16). Do not block oven vent. When the oven is on, warm
air passes through this vent. This venting is necessary for proper
air circulation in the oven and good baking results. It is normal
for steam or moisture to appear near the oven vent. Some
models are equipped with a cooling fan that runs during the
cooking process to cool internal electronic components. It is
normal for this fan to continue to run for an extended period of
time, even when the oven is off.
Upper and lower Oven Vent
Figure 16: Oven vent location
_ Always use pot holders or oven mitts when
using the oven. When cooking, the oven interior and exterior,
oven racks and cooktop will become very hot which can cause
burns. Do not use aluminum foil to line the oven bottom. Only
use aluminum foil as recommended in this manual. Improper
installation of these liners may result in risk of electric shock, or
fire.
Removing, replacing, and arranging flat or offset oven racks:
To arrange - Always arrange the oven racks when the oven is
cool (prior to operating the oven).
To remove - Pull the oven rack straight forward until it reaches
the stop position. Lift up front of oven rack slightly and slide out.
To replace - Place the oven rack on the rack guides on both
sides of oven walls. Tilt the front of oven rack upward slightly
and slide the oven rack back into place. Be sure oven racks are
level before using the oven.
Types of Oven Racks
nathand,e
The flat oven rack (some models) or flat handle oven rack (some
models) may be used for most cooking needs.
The offset oven rack (on some models) is designed to place the
base of the rack about 1/2 of a rack position lower than flat oven
racks. This design allows several additional positions between the
flat rack positions.
To maximize oven cooking space place the bottom oven rack (on
some models) in the lowest rack position for roasting large cuts of
meat.
15
Before Setting Oven Controls

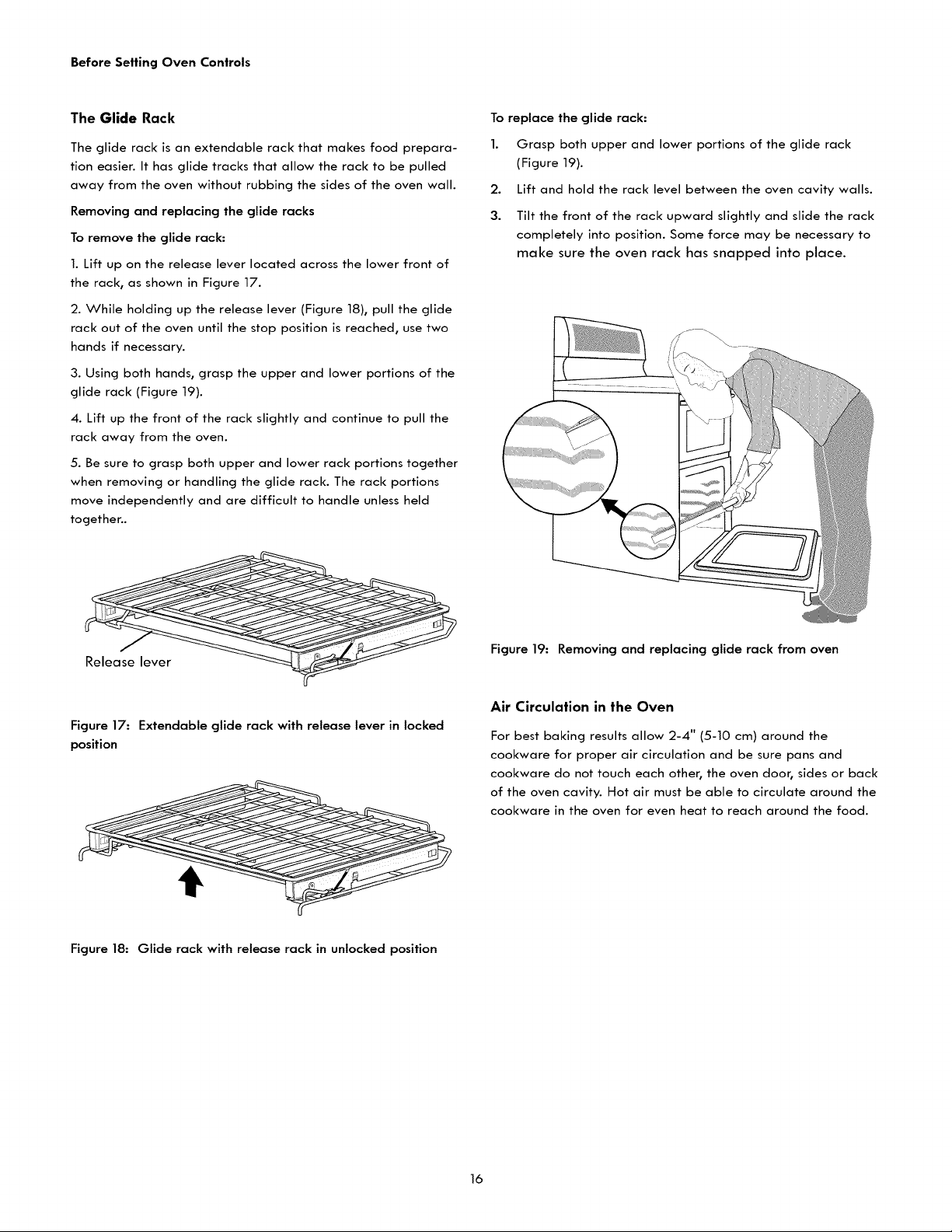

The Glide Rack
The glide rack is an extendable rack that makes food prepara-
tion easier. It has glide tracks that allow the rack to be pulled
away from the oven without rubbing the sides of the oven wall.
Removing and replacing the glide racks
To remove the glide rack:
1. Lift up on the release lever located across the lower front of
the rack, as shown in Figure 17.
2. While holding up the release lever (Figure 18), pull the glide
rack out of the oven until the stop position is reached, use two
hands if necessary.
3. Using both hands, grasp the upper and lower portions of the
glide rack (Figure 19).
4. Lift up the front of the rack slightly and continue to pull the
rack away from the oven.
5. Be sure to grasp both upper and lower rack portions together
when removing or handling the glide rack. The rack portions
move independently and are difficult to handle unless held
together..
Figure 17: Extendable glide rack with release lever in locked
position
t
To replace the glide rack:
1. Grasp both upper and lower portions of the glide rack
(Figure 19).
2. Lift and hold the rack level between the oven cavity walls.
3. Tilt the front of the rack upward slightly and slide the rack
completely into position. Some force may be necessary to
make sure the oven rack has snapped into place.
Figure 19: Removing and replacing glide rack from oven
Air Circulation in the Oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or back
of the oven cavity. Hot air must be able to circulate around the
cookware in the oven for even heat to reach around the food.
Figure 18: Glide rack with release rack in unlocked position
16

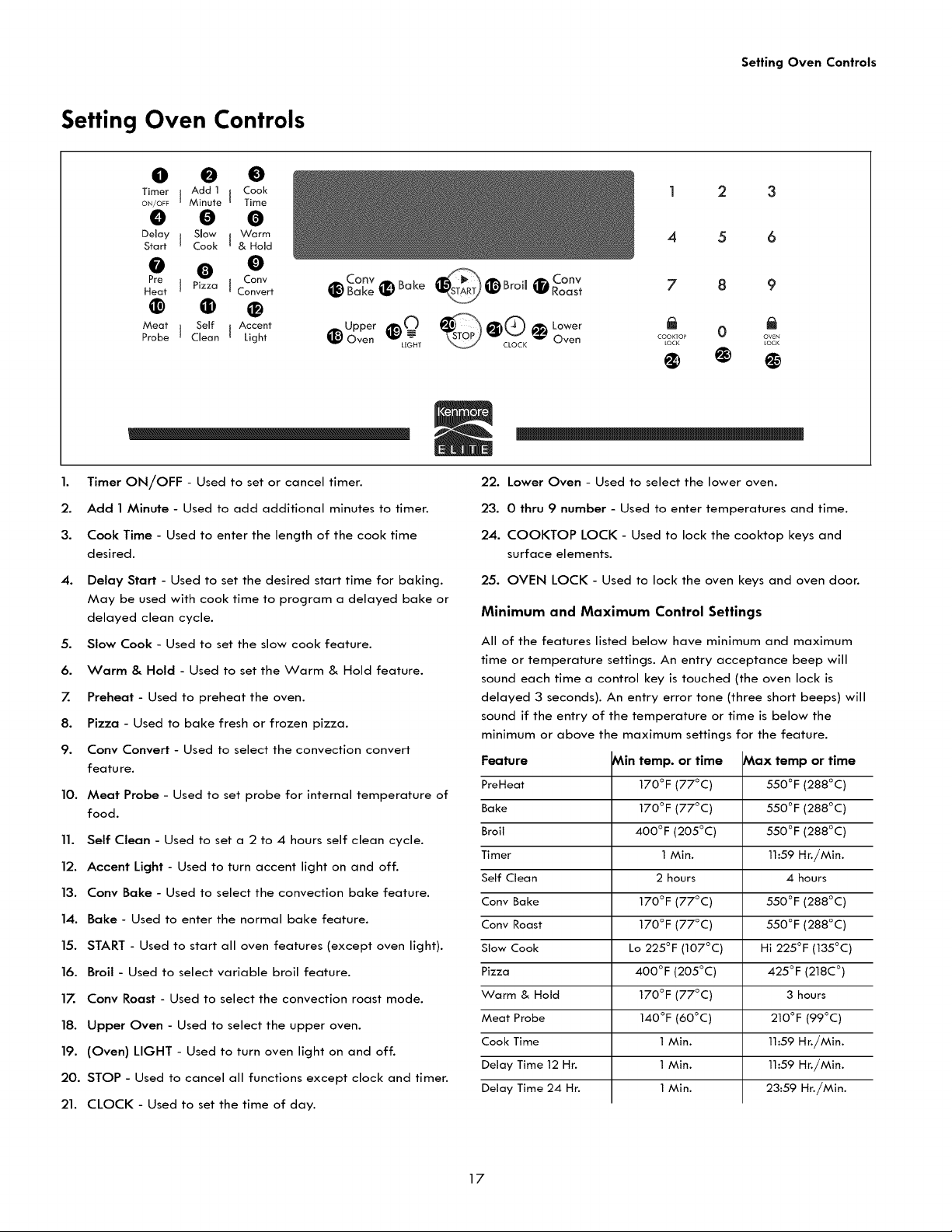

Setting Oven Controls
Setting Oven Controls
0 0 0
Timer I Add] I Cook
ON/OFF Minute Time
O 0 O
Delay Slow Warm
StartI I
Cook & Hold
O
onv
Heat I " I Convert
@ • •
Meat Self Accent
Probe I I
Clean Light
o Conv--. , _ (_Conv
Bake _ bake (_ BroR Roast
®up0o ®; @oO. owo
Oven LIGHT Oven
4
7 8 9
0
COOl<TOp OVeN
rOCK rOCK
I I
1. Timer ON/OFF - Used to set or cancel timer.
2. Add 1 Minute - Used to add additional minutes to timer.
3. Cook Time - Used to enter the length of the cook time
desired.
4. Delay Start - Used to set the desired start time for baking.
May be used with cook time to program a delayed bake or
delayed clean cycle.
5. Slow Cook - Used to set the slow cook feature.
6. Warm & Hold - Used to set the Warm & Hold feature.
7. Preheat - Used to preheat the oven.
8. Pizza - Used to bake fresh or frozen pizza.
9. Conv Convert - Used to select the convection convert
feature.
10. Meat Probe - Used to set probe for internal temperature of
food.
11. Self Clean - Used to set a 2 to 4 hours self clean cycle.
12. Accent Light - Used to turn accent light on and off.
13. Conv Bake - Used to select the convection bake feature.
14. Bake - Used to enter the normal bake feature.
15. START - Used to start all oven features (except oven light).
16. Broil - Used to select variable broil feature.
1Z Conv Roast - Used to select the convection roast mode.
18. Upper Oven - Used to select the upper oven.
19. (Oven) LIGHT - Used to turn oven light on and off.
20. STOP - Used to cancel all functions except clock and timer.
21. CLOCK - Used to set the time of day.
22. Lower Oven - Used to select the lower oven.
23. 0 thru 9 number - Used to enter temperatures and time.
24. COOKTOP LOCK - Used to lock the cooktop keys and
surface elements.
25. OVEN LOCK - Used to lock the oven keys and oven door.
Minimum and Maximum Control Settings
All of the features listed below have minimum and maximum
time or temperature settings. An entry acceptance beep will
sound each time a control key is touched (the oven lock is
delayed 3 seconds). An entry error tone (three short beeps) will
sound if the entry of the temperature or time is below the
minimum or above the maximum settings for the feature.
Feature
PreHeat
Bake
Broil
Timer
Self Clean
Conv Bake
Conv Roast
Slow Cook
Pizza
Warm & Hold
Meat Probe
Cook Time
Delay Time 12 Hr.
Delay Time 24 Hr.
Min temp. or time
170°F (77°C)
170°F (77°C)
400°F (205°C)
1 Min.
2 hours
170°F (77°C)
170°F (77°C)
Lo 225°F (107°C)
400°F (205°C)
170°F (77°C)
140°F (60°C)
1 Min.
1 Min.
1 Min.
Max temp or time
550°F (288°C)
550°F (288°C)
550°F (288°C)
11:59 Hr./Min.
4 hours
550°F (288°C)
550°F (288°C)
Hi 225°F (135°C)
425°F (218C °)
3 hours
210°F (99°C)
11:59 Hr./Min.
11:59 Hr./Min.
23:59 Hr./Min.
17
Setting Oven Controls

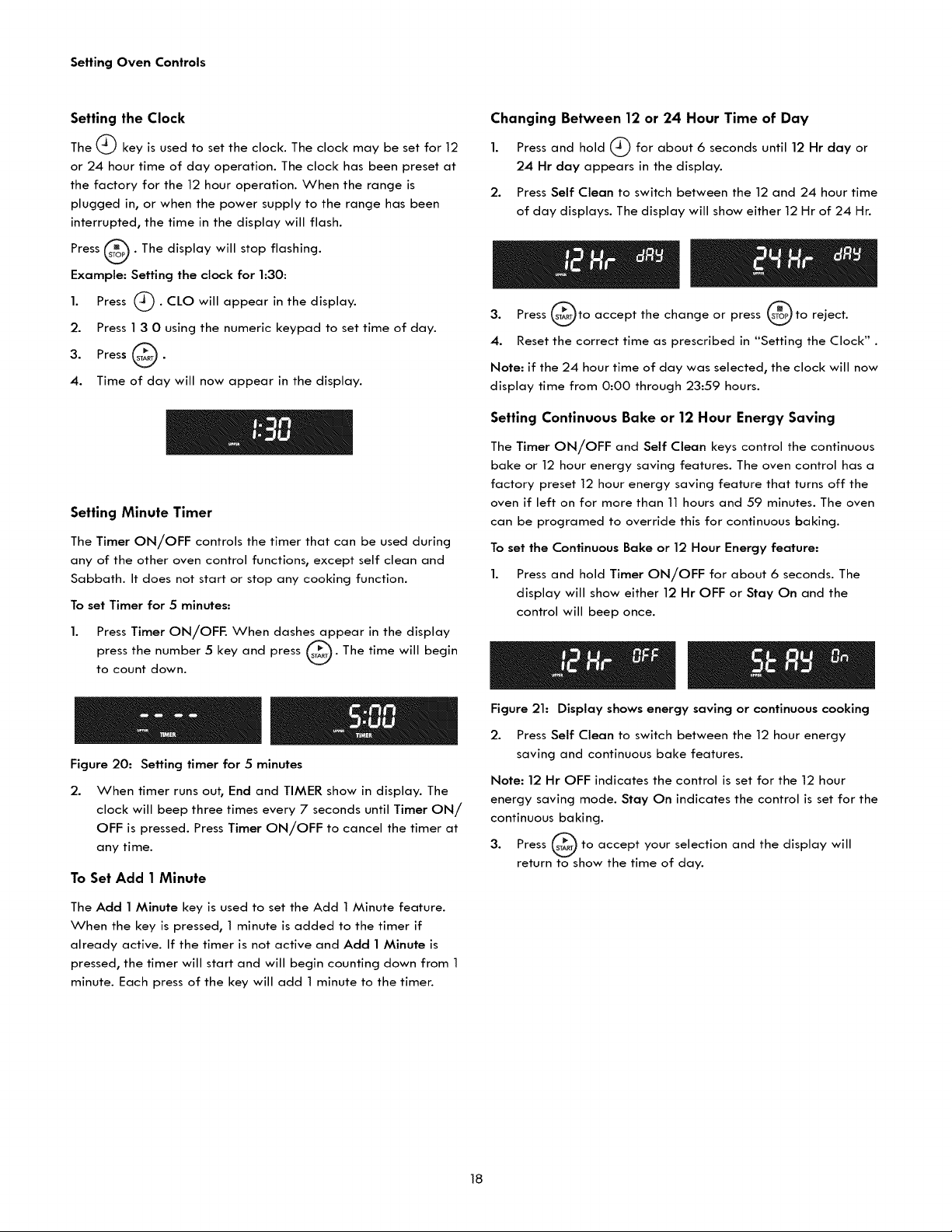

Setting the Clock
The Q key is used to set the clock. The clock may be set for 12
or 24 hour time of day operation. The clock has been preset at
the factory for the 12 hour operation. When the range is
plugged in, or when the power supply to the range has been
interrupted, the time in the display will flash.
Press _. The display will stop flashing.
Example: Setting the clock for 1:30:
1. Press Q. CLO will appear in the
display.
2. Press 1 3 0 using the numeric keypad to set time of day.
3. Press
B
4. Time of day will now appear in the display.
Setting Minute Timer
The Timer ON/OFF controls the timer that can be used during
any of the other oven control functions, except self clean and
Sabbath. It does not start or stop any cooking function.
To set Timer for 5 minutes:
1. Press Timer ON/OFF. When dashes appear in the display
the number 5 key and press (ST_)" The time will beginpress
to count down.
Figure 20: Setting timer for 5 minutes
2. When timer runs out, End and TIMER show in display. The
clock will beep three times every 7 seconds until Timer ON/
OFF is pressed. Press Timer ON/OFF to cancel the timer at
any time.
To Set Add 1 Minute
The Add 1 Minute key is used to set the Add 1 Minute feature.
When the key is pressed, 1 minute is added to the timer if
already active. If the timer is not active and Add 1 Minute is
pressed, the timer will start and will begin counting down from 1
minute. Each press of the key will add 1 minute to the timer.
Changing Between 12 or 24 Hour Time of Day
1. Press and hold Q for about 6 seconds until 12 Hr day or
24 Hr day appears in the display.
2. Press Self Clean to switch between the 12 and 24 hour time
of day displays. The display will show either 12 Hr of 24 Hr.
3. Press _to accept the change or press _to reject.
4. Reset the correct time as prescribed in "Setting the Clock".
Note: if the 24 hour time of day was selected, the clock will now
display time from 0:00 through 23:59 hours.
Setting Continuous Bake or 12 Hour Energy Saving
The Timer ON/OFF and Self Clean keys control the continuous
bake or 12 hour energy saving features. The oven control has a
factory preset 12 hour energy saving feature that turns off the
oven if left on for more than 11 hours and 59 minutes. The oven
can be programed to override this for continuous baking.
To set the Continuous Bake or 12 Hour Energy feature:
1. Press and hold Timer ON/OFF for about 6 seconds. The
display will show either 12 Hr OFF or Stay On and the
control will beep once.
Figure 21: Display shows energy saving or continuous cooking
2. Press Self Clean to switch between the 12 hour energy
saving and continuous bake features.
Note: 12 Hr OFF indicates the control is set for the 12 hour
energy saving mode. Stay On indicates the control is set for the
continuous baking.
3. Press _ to accept your selection and the display will
return to show the time of day.
18

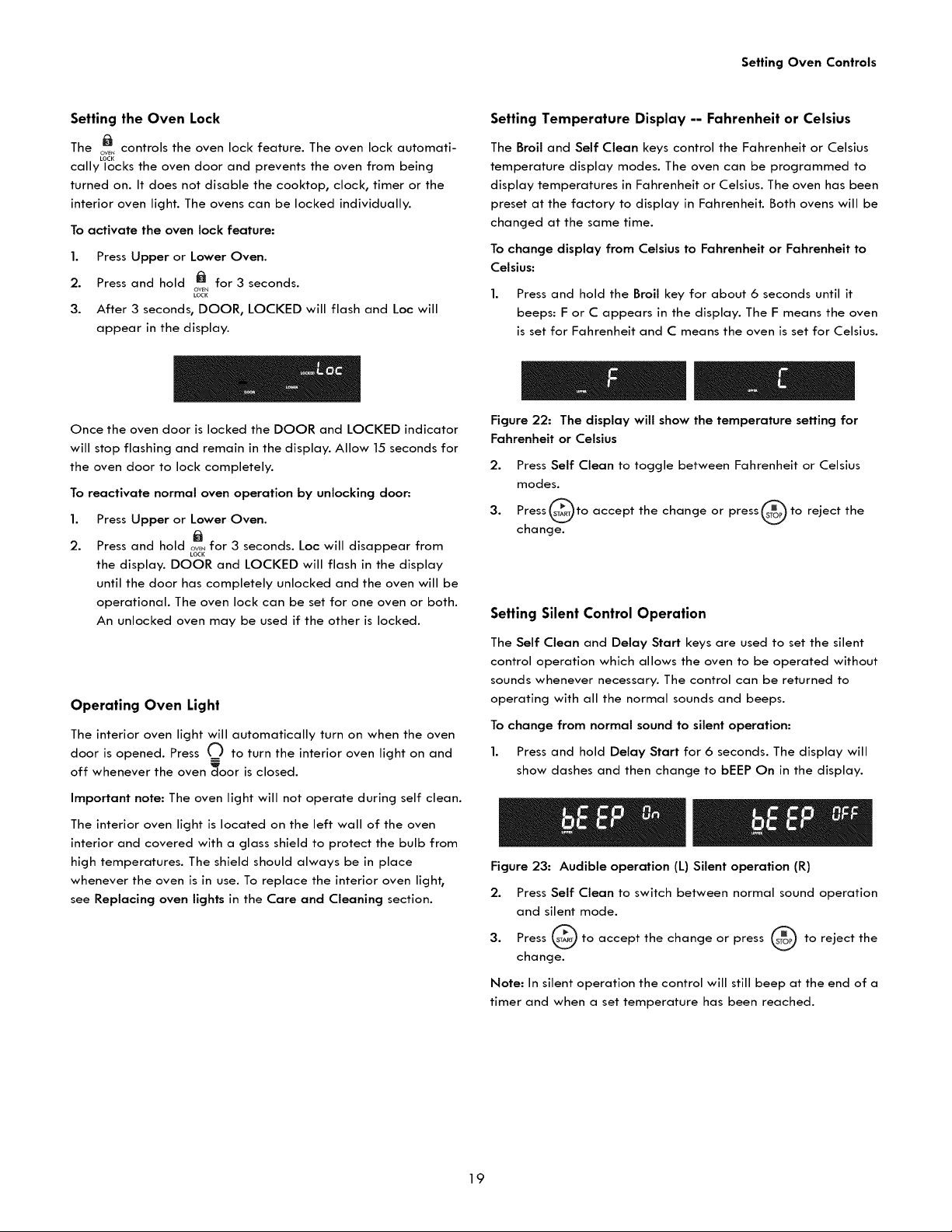

Setting Oven Controls
Setting the Oven Lock
The o_ controls the oven lock feature. The oven lock automati-
LOCK
cally locks the oven door and prevents the oven from being
turned on. It does not disable the cooktop, clock, timer or the
interior oven light. The ovens can be locked individually.
To activate the oven lock feature:
1. Press Upper or Lower Oven.
2. Press and hold o_ for 3 seconds.
LOCK
3. After 3 seconds, DOOR, LOCKED will flash and Loc will
appear in the display.
Once the oven door is locked the DOOR and LOCKED indicator
will stop flashing and remain in the display. Allow 15 seconds for
the oven door to lock completely.
To reactivate normal oven operation by unlocking door:
1. Press Upper or Lower Oven.
2. Press and hold ova,_ for 3 seconds. Loc will disappear from
LOCK
the display. DOOR and LOCKED will flash in the display
until the door has completely unlocked and the oven will be
operational. The oven lock can be set for one oven or both.
An unlocked oven may be used if the other is locked.
Operating Oven Light
The interior oven light will automatically turn on when the oven
door is opened. Press (_ to turn the interior oven light on and
off whenever the oven _oor is closed.
Important note: The oven light will not operate during self clean.
The interior oven light is located on the left wall of the oven
interior and covered with a glass shield to protect the bulb from
high temperatures. The shield should always be in place
whenever the oven is in use. To replace the interior oven light,
see Replacing oven lights in the Care and Cleaning section.
Setting Temperature Display -- Fahrenheit or Celsius
The Broil and Self Clean keys control the Fahrenheit or Celsius
temperature display modes. The oven can be programmed to
display temperatures in Fahrenheit or Celsius. The oven has been
preset at the factory to display in Fahrenheit. Both ovens will be
changed at the same time.
To change display from Celsius to Fahrenheit or Fahrenheit to
Celsius:
1. Press and hold the Broil key for about 6 seconds until it
beeps: F or C appears in the display. The F means the oven
is set for Fahrenheit and C means the oven is set for Celsius.
Figure 22: The display will show the temperature setting for
Fahrenheit or Celsius
2. Press Self Clean to toggle between Fahrenheit or Celsius
modes.
3. Press_to accept the change or press_ to reject the
change.
Setting Silent Control Operation
The Self Clean and Delay Start keys are used to set the silent
control operation which allows the oven to be operated without
sounds whenever necessary. The control can be returned to
operating with all the normal sounds and beeps.
To change from normal sound to silent operation:
1. Press and hold Delay Start for 6 seconds. The display will
show dashes and then change to bEEP On in the display.
Figure 23: Audible operation (L) Silent operation (R)
2. Press Self Clean to switch between normal sound operation
and silent mode.
to accept the change or press _ to reject
3. Press the
v
change.
Note: In silent operation the control will still beep at the end of a
timer and when a set temperature has been reached.
19
Setting Oven Controls

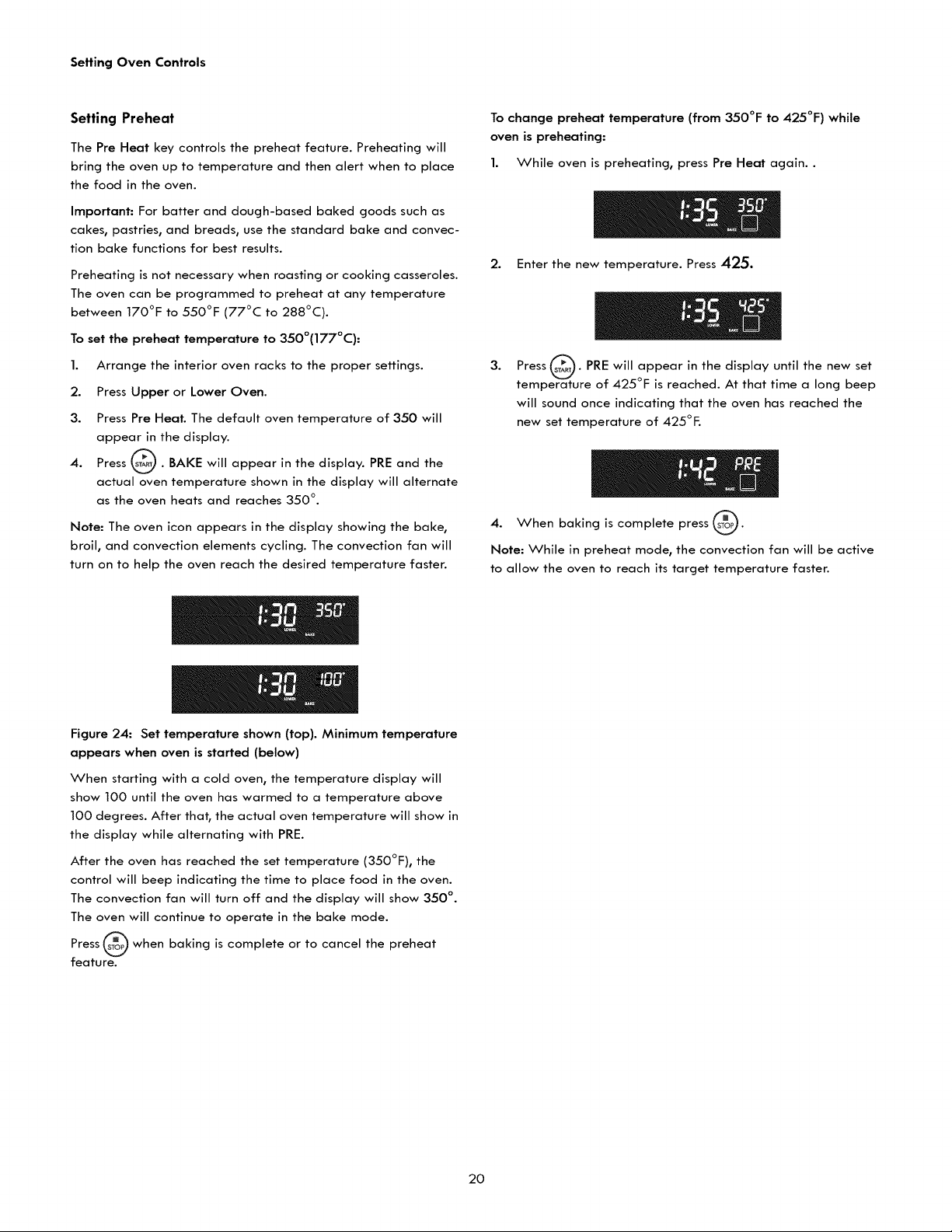

Setting Preheat
The Pre Heat key controls the preheat feature. Preheating will
bring the oven up to temperature and then alert when to place
the food in the oven.
Important: For batter and dough-based baked goods such as
cakes, pastries, and breads, use the standard bake and convec-
tion bake functions for best results.
Preheating is not necessary when roasting or cooking casseroles.
The oven can be programmed to preheat at any temperature
between 170°F to 550°F (77°C to 288°C).
To set the preheat temperature to 350°(177°C):
1. Arrange the interior oven racks to the proper settings.
2. Press Upper or Lower Oven.
3. Press Pre Heat. The default oven temperature of 350 will
appear in the display.
4. Press _ . BAKE will appear in the display. PRE and the
actual oven temperature shown in the display will alternate
as the oven heats and reaches 350 ° .
Note: The oven icon appears in the display showing the bake,
broil, and convection elements cycling. The convection fan will
turn on to help the oven reach the desired temperature faster.
Figure 24: Set temperature shown (top). Minimum temperature
appears when oven is started (below)
When starting with a cold oven, the temperature display will
show 100 until the oven has warmed to a temperature above
100 degrees. After that, the actual oven temperature will show in
the display while alternating with PRE.
After the oven has reached the set temperature (350°F), the
control will beep indicating the time to place food in the oven.
The convection fan will turn off and the display will show 350 °.
The oven will continue to operate in the bake mode.
Press _ when baking is complete or to cancel the preheat
feature.
To change preheat temperature (from 350°F to 425°F) while
oven is preheating:
1. While oven is preheating, press Pre Heat again..
2. Enter the new temperature. Press 425.
3. Press (_. PRE will appear in the display until the new set
temperature of 425°F is reached. At that time a long beep
will sound once indicating that the oven has reached the
new set temperature of 425°F.
4. When baking is complete press Q.
Note: While in preheat mode, the convection fan will be active
to allow the oven to reach its target temperature faster.
20

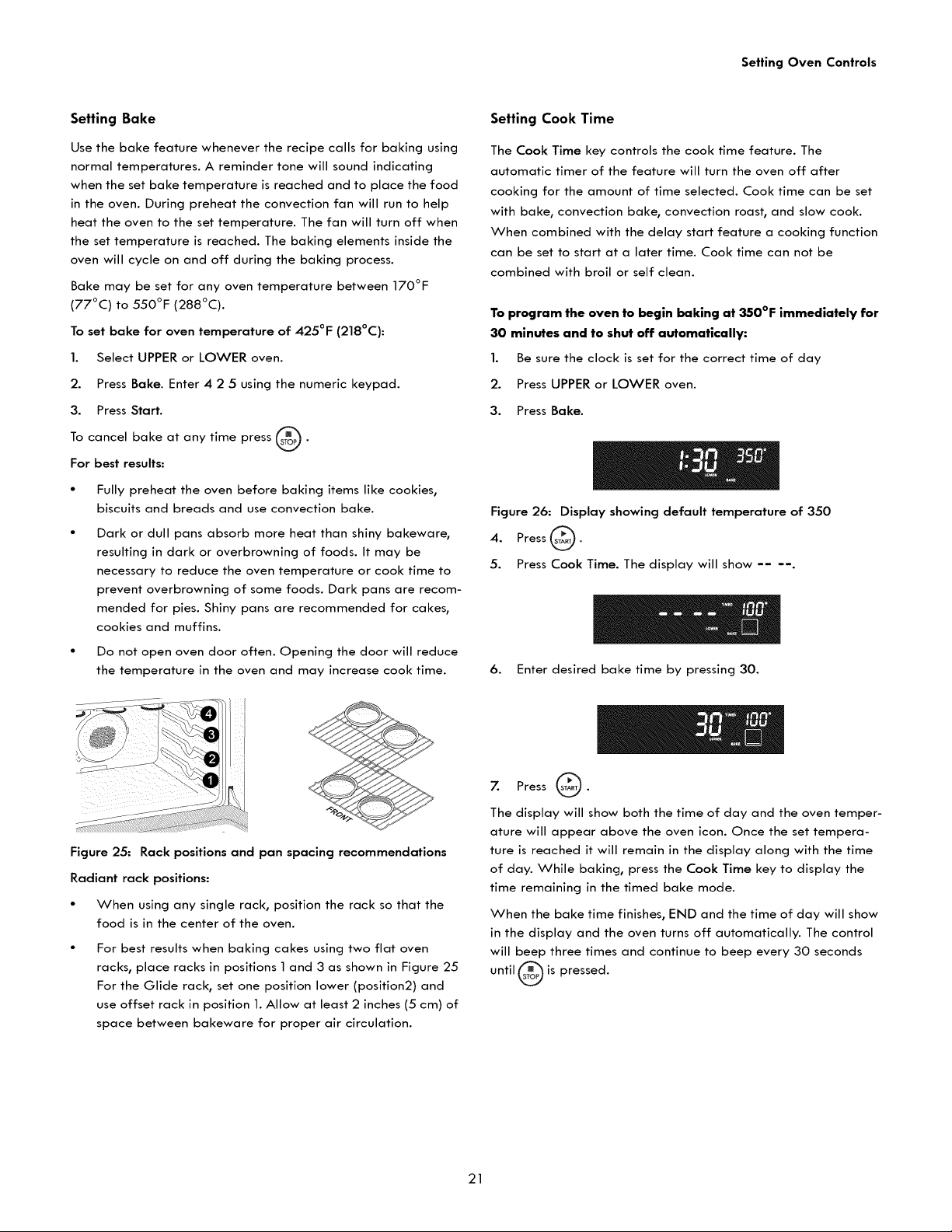

Setting Oven Controls
Setting Bake
Use the bake feature whenever the recipe calls for baking using
normal temperatures. A reminder tone will sound indicating
when the set bake temperature is reached and to place the food
in the oven. During preheat the convection fan will run to help
heat the oven to the set temperature. The fan will turn off when
the set temperature is reached. The baking elements inside the
oven will cycle on and off during the baking process.
Bake may be set for any oven temperature between 170°F
(77°C) to 550°F (288°C).
To set bake for oven temperature of 425°F (218°C):
1. Select UPPER or LOWER oven.
2. Press Bake. Enter 4 2 5 using the numeric keypad.
3. Press Start.
To cancel bake at any time press
o
For best results:
• Fully preheat the oven before baking items like cookies,
biscuits and breads and use convection bake.
Dark or dull pans absorb more heat than shiny bakeware,
resulting in dark or overbrowning of foods. It may be
necessary to reduce the oven temperature or cook time to
prevent overbrowning of some foods. Dark pans are recom-
mended for pies. Shiny pans are recommended for cakes,
cookies and muffins.
• Do not open oven door often. Opening the door will reduce
the temperature in the oven and may increase cook time.
Figure 25: Rack positions and pan spacing recommendations
Radiant rack positions:
• When using any single rack, position the rack so that the
food is in the center of the oven.
For best results when baking cakes using two flat oven
racks, place racks in positions 1 and 3 as shown in Figure 25
For the Glide rack, set one position lower (position2) and
use offset rack in position 1. Allow at least 2 inches (5 cm) of
space between bakeware for proper air circulation.
Setting Cook Time
The Cook Time key controls the cook time feature. The
automatic timer of the feature will turn the oven off after
cooking for the amount of time selected. Cook time can be set
with bake, convection bake, convection roast, and slow cook.
When combined with the delay start feature a cooking function
can be set to start at a later time. Cook time can not be
combined with broil or self clean.
To program the oven to begin baking at 350°F immediately for
30 minutes and to shut off automatically:
1. Be sure the clock is set for the correct time of day
2. Press UPPER or LOWER oven.
3. Press Bake.
Figure 26: Display showing default temperature of 350
4. Press
o
5. Press Cook Time. The display will show ....
6. Enter desired bake time by pressing 30.
7. Press Q.
The display will show both the time of day and the oven temper-
ature will appear above the oven icon. Once the set tempera-
ture is reached it will remain in the display along with the time
of day. While baking, press the Cook Time key to display the
time remaining in the timed bake mode.
When the bake time finishes, END and the time of day will show
in the display and the oven turns off automatically. The control
will beep three times and continue to beep every 30 seconds
until _ is pressed.
21
Setting Oven Controls

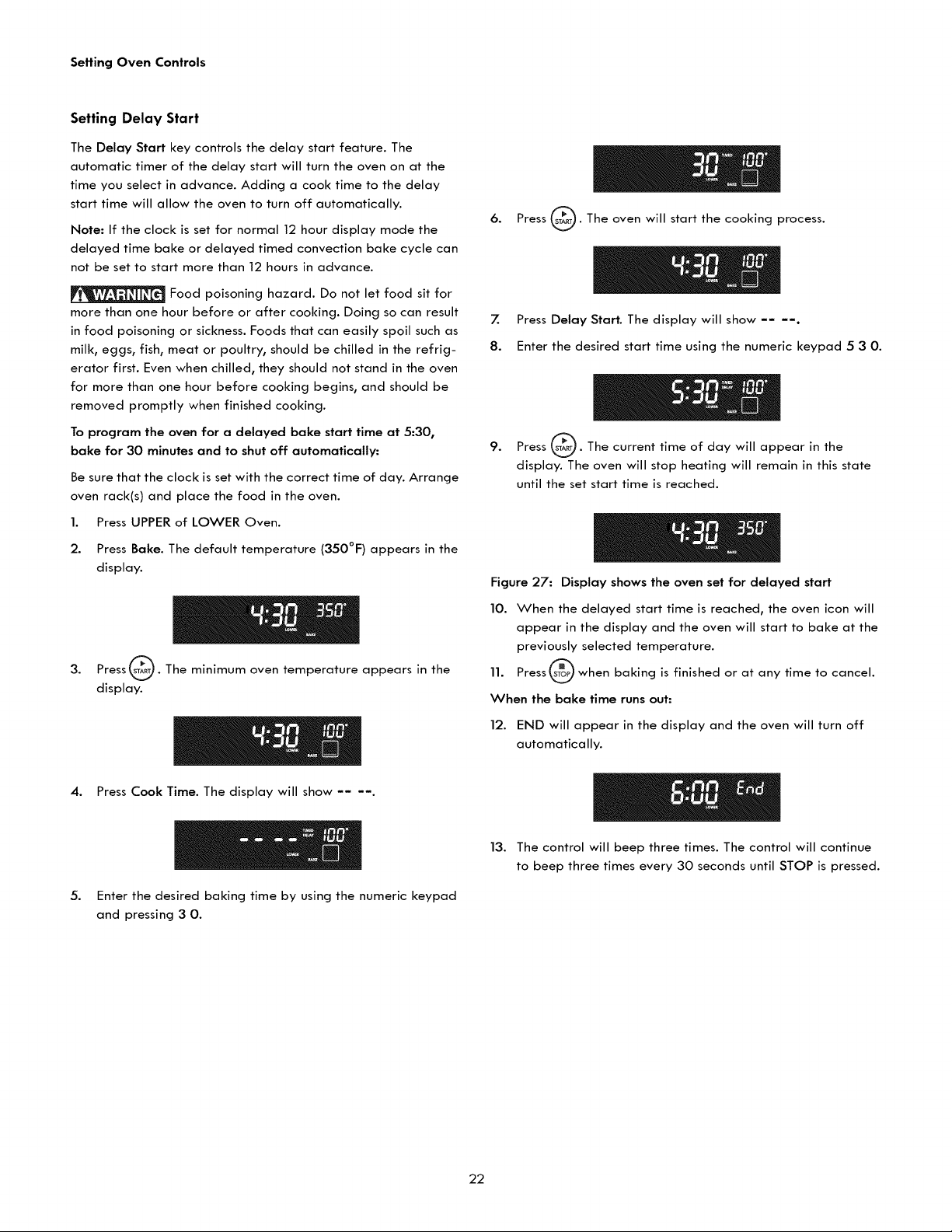

Setting Delay Start
The Delay Start key controls the delay start feature. The
automatic timer of the delay start will turn the oven on at the
time you select in advance. Adding a cook time to the delay
start time will allow the oven to turn off automatically.
Note: If the clock is set for normal 12 hour display mode the
delayed time bake or delayed timed convection bake cycle can
not be set to start more than 12 hours in advance.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness. Foods that can easily spoil such as
milk, eggs, fish, meat or poultry, should be chilled in the refrig-
erator first. Even when chilled, they should not stand in the oven
for more than one hour before cooking begins, and should be
removed promptly when finished cooking.
To program the oven for a delayed bake start time at 5:30,
bake for 30 minutes and to shut off automatically:
Be sure that the clock is set with the correct time of day. Arrange
oven rack(s) and place the food in the oven.
1. Press UPPER of LOWER Oven.
2. Press Bake. The default temperature (350°F) appears in the
display.
3.
Press_. The minimum oven temperature appears in the
display.
4. Press Cook Time. The display will show ....
5. Enter the desired baking time by using the numeric keypad
and pressing 30.
6.
Press Q. The oven will start the cooking process.
7. Press Delay Start. The display will show ....
8. Enter the desired start time using the numeric keypad 5 30.
9.
Press _. The current time of day will appear in the
display. The oven will stop heating will remain in this state
until the set start time is reached.
Figure 27: Display shows the oven set for delayed start
10. When the delayed start time is reached, the oven icon will
appear in the display and the oven will start to bake at the
previously selected temperature.
11. Press_ when baking is finished or at any time to cancel.
When the bake time runs out:
12. END will appear in the display and the oven will turn off
automatically.
13. The control will beep three times. The control will continue
to beep three times every 30 seconds until STOP is pressed.
22
Setting Oven Controls

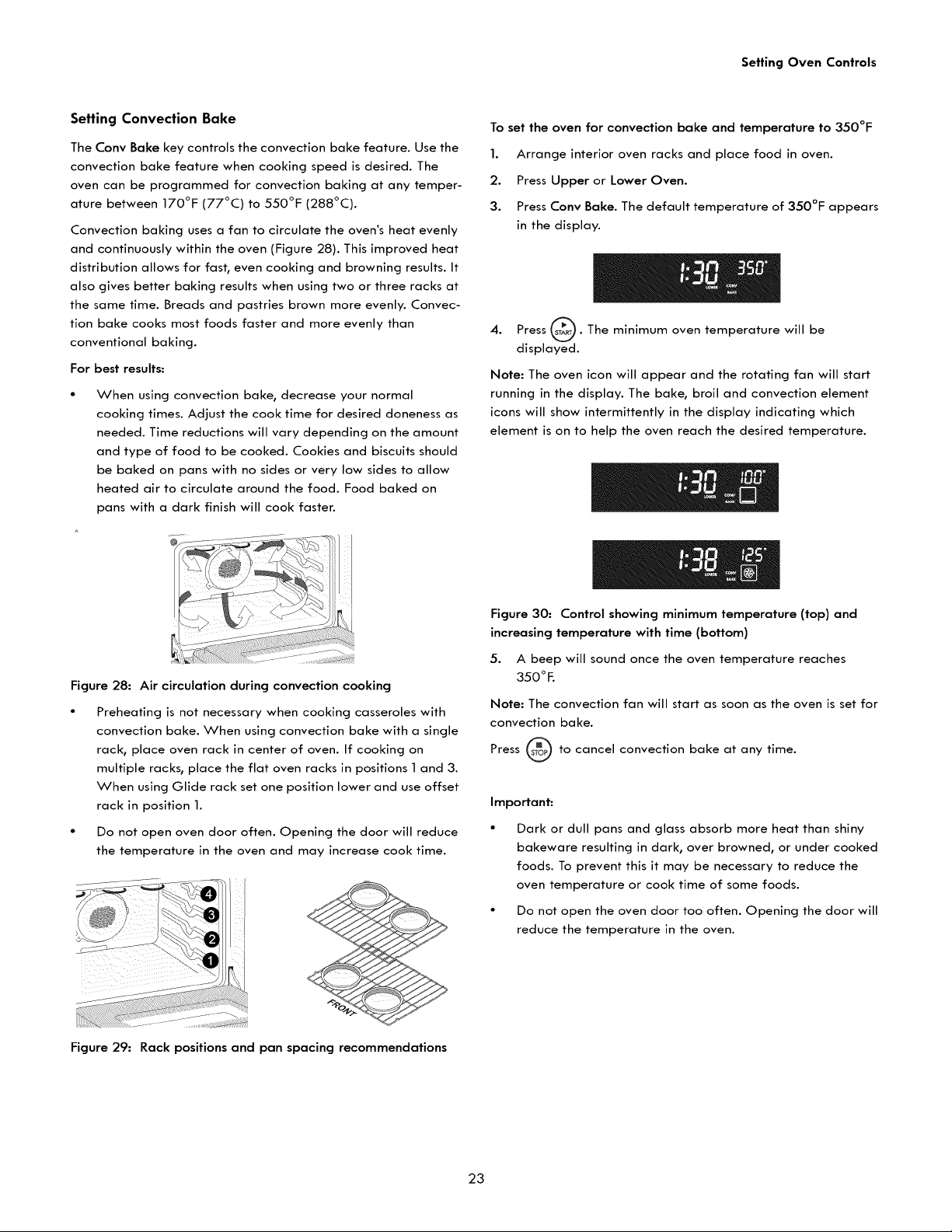

Setting Convection Bake
The Conv Bake key controls the convection bake feature. Use the
convection bake feature when cooking speed is desired. The
oven can be programmed for convection baking at any temper-
ature between 170°F (77°C) to 550°F (288°C).
Convection baking uses a fan to circulate the oven's heat evenly
and continuously within the oven (Figure 28). This improved heat
distribution allows for fast, even cooking and browning results. It
also gives better baking results when using two or three racks at
the same time. Breads and pastries brown more evenly. Convec-
tion bake cooks most foods faster and more evenly than
conventional baking.
For best results:
When using convection bake, decrease your normal
cooking times. Adjust the cook time for desired doneness as
needed. Time reductions will vary depending on the amount
and type of food to be cooked. Cookies and biscuits should
be baked on pans with no sides or very low sides to allow
heated air to circulate around the food. Food baked on
pans with a dark finish will cook faster.
Figure 28: Air circulation during convection cooking
Preheating is not necessary when cooking casseroles with
convection bake. When using convection bake with a single
rack, place oven rack in center of oven. If cooking on
multiple racks, place the flat oven racks in positions 1 and 3.
When using Glide rack set one position lower and use offset
rack in position 1.
• Do not open oven door often. Opening the door will reduce
the temperature in the oven and may increase cook time.
Figure 29: Rack positions and pan spacing recommendations
To set the oven for convection bake and temperature to 350°F
1. Arrange interior oven racks and place food in oven.
2. Press Upper or Lower Oven.
3. Press Conv Bake. The default temperature of 350°F appears
in the display.
4. Press (,sT_R_-The minimum oven temperature will be
V
displayed.
Note: The oven icon will appear and the rotating fan will start
running in the display. The bake, broil and convection element
icons will show intermittently in the display indicating which
element is on to help the oven reach the desired temperature.
Figure 30: Control showing minimum temperature (top) and
increasing temperature with time (bottom)
5. A beep will sound once the oven temperature reaches
350°F.
Note: The convection fan will start as soon as the oven is set for
convection bake.
Press _ to cancel convection bake at any time.
Important:
• Dark or dull pans and glass absorb more heat than shiny
bakeware resulting in dark, over browned, or under cooked
foods. To prevent this it may be necessary to reduce the
oven temperature or cook time of some foods.
• Do not open the oven door too often. Opening the door will
reduce the temperature in the oven.
23
Setting Oven Controls

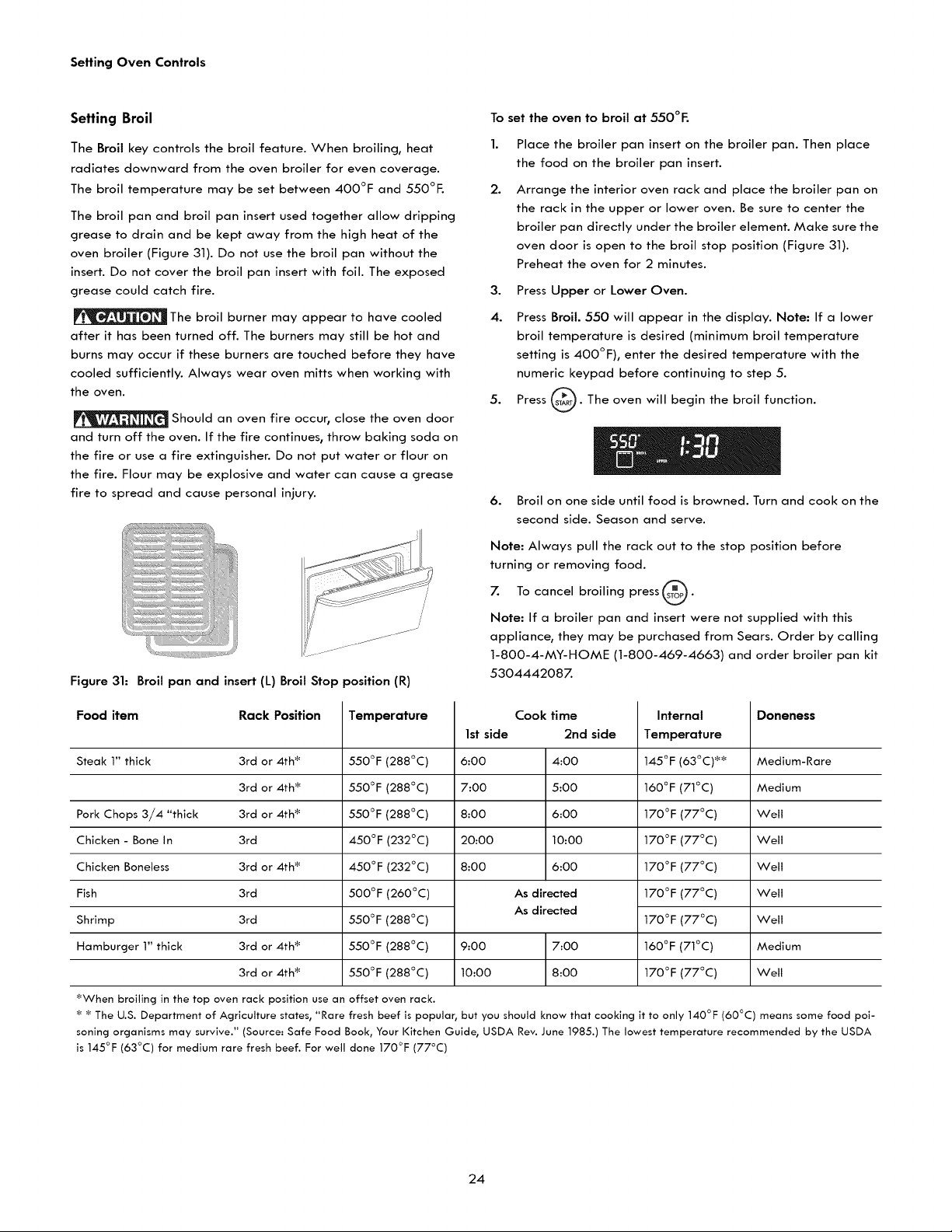

Setting Broil
The Broil key controls the broil feature. When broiling, heat
radiates downward from the oven broiler for even coverage.
The broil temperature may be set between 400°F and 550°1:.
The broil pan and broil pan insert used together allow dripping
grease to drain and be kept away from the high heat of the
oven broiler (Figure 31). Do not use the broil pan without the
insert. Do not cover the broil pan insert with foil. The exposed
grease could catch fire.
The broil burner may appear to have cooled
after it has been turned off. The burners may still be hot and
burns may occur if these burners are touched before they have
cooled sufficiently. Always wear oven mitts when working with
the oven.
Should an oven fire occur, close the oven door
and turn off the oven. If the fire continues, throw baking soda on
the fire or use a fire extinguisher. Do not put water or flour on
the fire. Flour may be explosive and water can cause a grease
fire to spread and cause personal injury.
/
//
/
Figure 31: Broil pan and insert (L) Broil Stop position (R)
To set the oven to broil at 550°F.
1. Place the broiler pan insert on the broiler pan. Then place
the food on the broiler pan insert.
2.
Arrange the interior oven rack and place the broiler pan on
the rack in the upper or lower oven. Be sure to center the
broiler pan directly under the broiler element. Make sure the
oven door is open to the broil stop position (Figure 31).
Preheat the oven for 2 minutes.
3. Press Upper or Lower Oven.
4. Press Broil. 550 will appear in the display. Note: If a lower
broil temperature is desired (minimum broil temperature
setting is 400°F), enter the desired temperature with the
numeric keypad before continuing to step 5.
5. Press (_. The oven will begin the broil function.
6. Broil on one side until food is browned. Turn and cook on the
second side. Season and serve.
Note: Always pull the rack out to the stop position before
turning or removing food.
Z To cancel broiling press O.
Note: If a broiler pan and insert were not supplied with this
appliance, they may be purchased from Sears. Order by calling
1-800-4-MY-HOME (1-800-469-4663) and order broiler pan kit
5304442087.
Food item Rack Position
Steak 1" thick 3rd or 4th*
3rd or 4th*
Pork Chops 3/4 "thick 3rd or 4th*
Chicken - Bone In 3rd
Chicken Boneless 3rd or 4th*
Fish 3rd
Shrimp 3rd
Hamburger 1" thick 3rd or 4th*
3rd or 4th*
Temperature
550°F (288°C)
550°F (288°C)
550°F (288°C)
450°F (232°C)
450°F (232°C)
500°F (260°C)
550°F (288°C)
550°F (288°C)
550°F (288°C)
*When broiling in the top oven rack position use an offset oven rack.
1st side
6:00
7:00
8:00
20:00
8:00
Cook time
2nd side
4:00
5:00
6:00
10:00
6:00
As directed
As directed
9:00 7:00
10:00 8:00
Internal
Temperature
145°F (63°C) **
160°F (71°C)
170°F (77°C)
170°F (77°C)
170°F (77°C)
170°F (77°C)
170°F (77°C)
160°F (71°C)
170°F (77°C)
Doneness
Medium-Rare
Medium
Well
Well
Well
Well
Well
Medium
Well
* * The U.S. Department of Agriculture states, "Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food poi-
soning organisms may survive." (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) The lowest temperature recommended by the USDA
is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77°C)
24
Setting Oven Controls

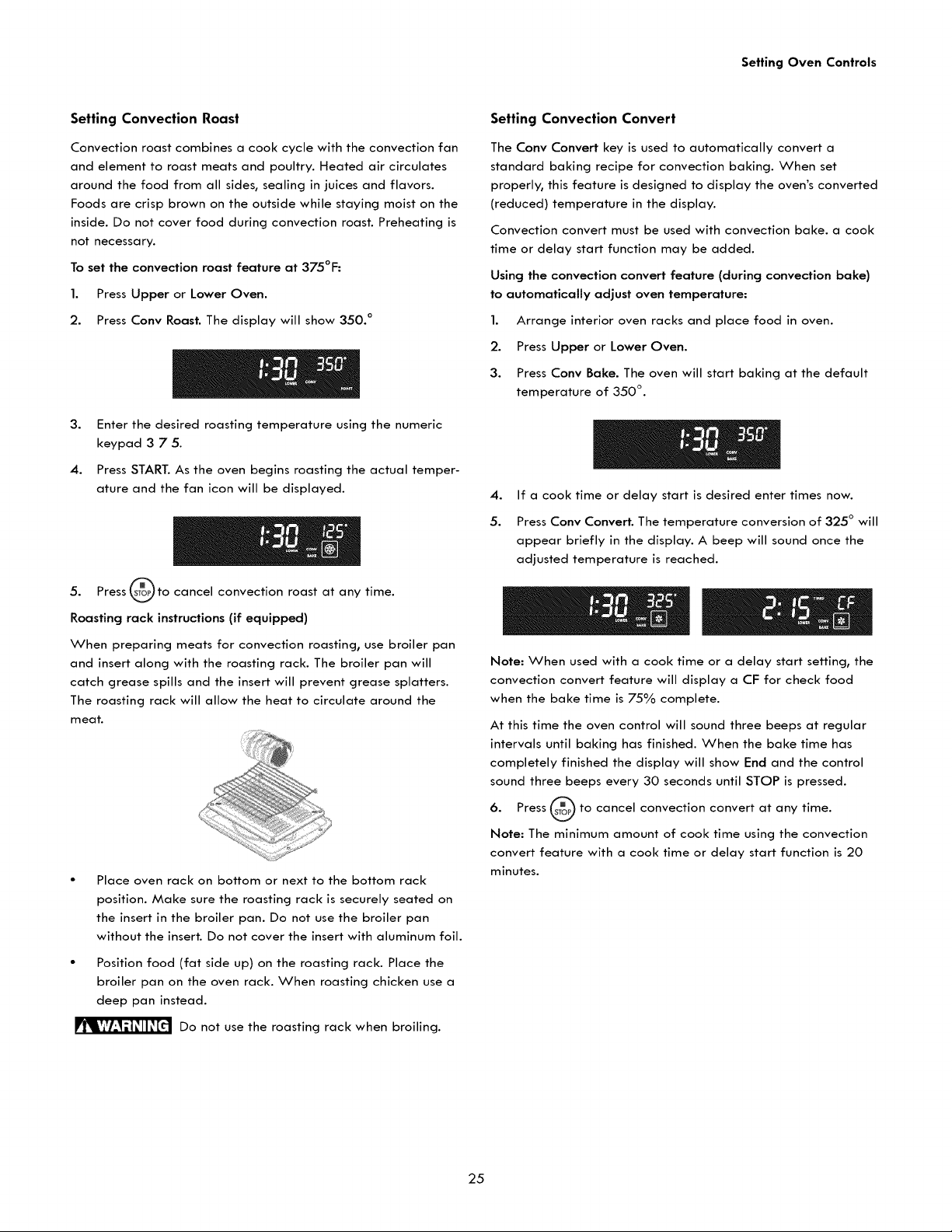

Setting Convection Roast
Convection roast combines a cook cycle with the convection fan
and element to roast meats and poultry. Heated air circulates
around the food from all sides, sealing in juices and flavors.
Foods are crisp brown on the outside while staying moist on the
inside. Do not cover food during convection roast. Preheating is
not necessary.
To set the convection roast feature at 375°F:
1. Press Upper or Lower Oven.
2. Press Conv Roast. The display will show 350. °
3.
4.
Enter the desired roasting temperature using the numeric
keypad 3 7 5.
Press START. As the oven begins roasting the actual temper-
ature and the fan icon will be displayed.
5. Press sT_to cancel convection roast at any time.
Roasting rack instructions (if equipped)
When preparing meats for convection roasting, use broiler pan
and insert along with the roasting rack. The broiler pan will
catch grease spills and the insert will prevent grease splatters.
The roasting rack will allow the heat to circulate around the
meat.
Place oven rack on bottom or next to the bottom rack
position. Make sure the roasting rack is securely seated on
the insert in the broiler pan. Do not use the broiler pan
without the insert. Do not cover the insert with aluminum foil.
• Position food (fat side up) on the roasting rack. Place the
broiler pan on the oven rack. When roasting chicken use a
deep pan instead.
_Do not use the roasting rack when broiling.
Setting Convection Convert
The Conv Convert key is used to automatically convert a
standard baking recipe for convection baking. When set
properly, this feature is designed to display the oven's converted
(reduced) temperature in the display.
Convection convert must be used with convection bake. a cook
time or delay start function may be added.
Using the convection convert feature (during convection bake)
to automatically adjust oven temperature:
1. Arrange interior oven racks and place food in oven.
2. Press Upper or Lower Oven.
3. Press Conv Bake. The oven will start baking at the default
temperature of 350 °.
4.
5.
If a cook time or delay start is desired enter times now.
Press Cony Convert. The temperature conversion of 325 ° will
appear briefly in the display. A beep will sound once the
adjusted temperature is reached.
Note: When used with a cook time or a delay start setting, the
convection convert feature will display a CF for check food
when the bake time is 75°/'0 complete.
At this time the oven control will sound three beeps at regular
intervals until baking has finished. When the bake time has
completely finished the display will show End and the control
sound three beeps every 30 seconds until STOP is pressed.
6. Press _ to cancel convection convert at any time.
Note: The minimum amount of cook time using the convection
convert feature with a cook time or delay start function is 20
minutes.
25

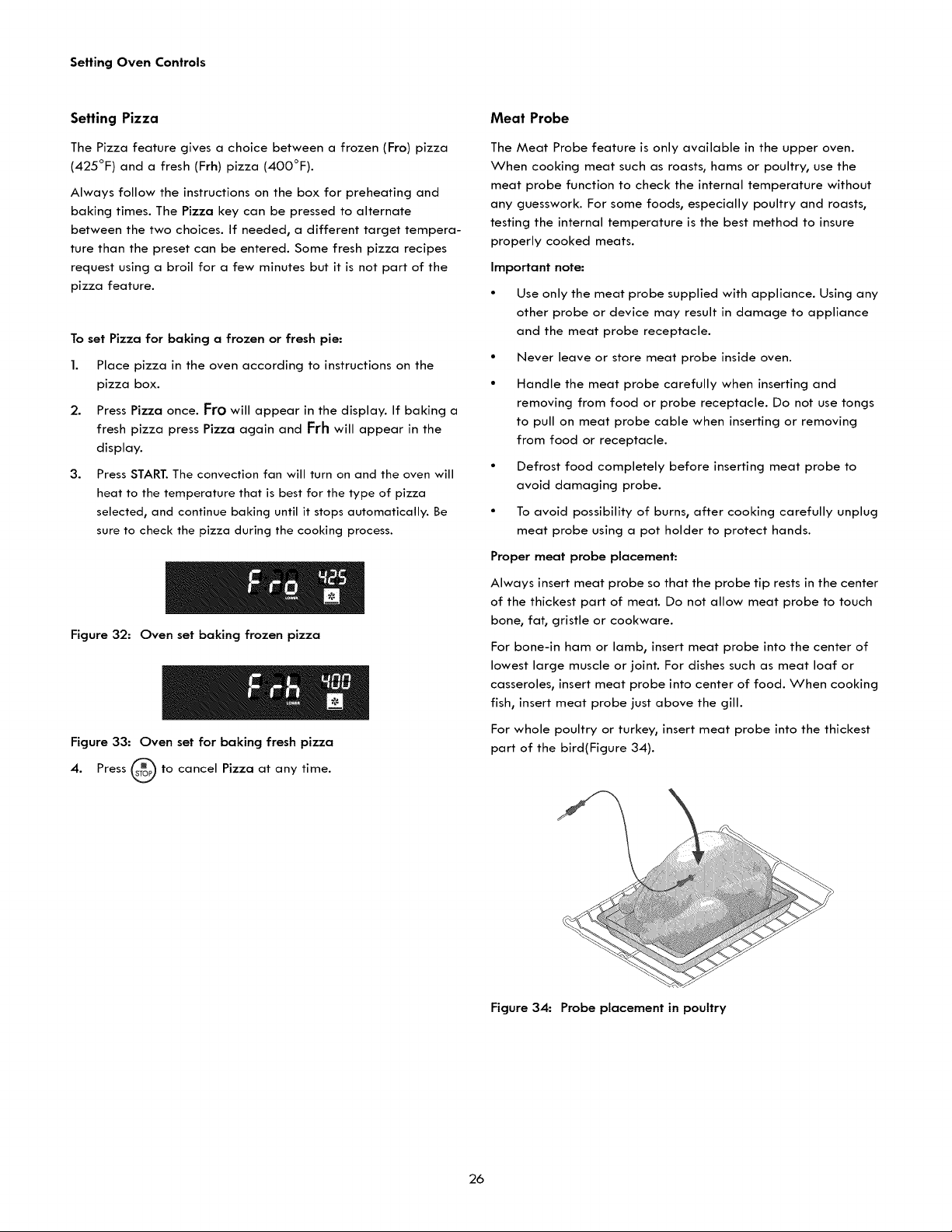

Setting Oven Controls
Setting Pizza
The Pizza feature gives a choice between a frozen (Fro) pizza
(425°F) and a fresh (Frh) pizza (400°F).
Always follow the instructions on the box for preheating and
baking times. The Pizza key can be pressed to alternate
between the two choices. If needed, a different target tempera-
ture than the preset can be entered. Some fresh pizza recipes
request using a broil for a few minutes but it is not part of the
pizza feature.
To set Pizza for baking a frozen or fresh pie:
1. Place pizza in the oven according to instructions on the
pizza box.
2. Press Pizza once. Fro will appear in the display. If baking a
fresh pizza press Pizza again and Frh will appear in the
display.
3.
Press START. The convection fan will turn on and the oven will
heat to the temperature that is best for the type of pizza
selected, and continue baking until it stops automatically. Be
sure to check the pizza during the cooking process.
Figure 32: Oven set baking frozen pizza
Figure 33: Oven set for baking fresh pizza
4. Press _ to cancel Pizza at any time.
Meat Probe
The Meat Probe feature is only available in the upper oven.
When cooking meat such as roasts, hams or poultry, use the
meat probe function to check the internal temperature without
any guesswork. For some foods, especially poultry and roasts,
testing the internal temperature is the best method to insure
properly cooked meats.
Important note:
• Use only the meat probe supplied with appliance. Using any
other probe or device may result in damage to appliance
and the meat probe receptacle.
• Never leave or store meat probe inside oven.
Handle the meat probe carefully when inserting and
removing from food or probe receptacle. Do not use tongs
to pull on meat probe cable when inserting or removing
from food or receptacle.
• Defrost food completely before inserting meat probe to
avoid damaging probe.
• To avoid possibility of burns, after cooking carefully unplug
meat probe using a pot holder to protect hands.
Proper meat probe placement:
Always insert meat probe so that the probe tip rests in the center
of the thickest part of meat. Do not allow meat probe to touch
bone, fat, gristle or cookware.
For bone-in ham or lamb, insert meat probe into the center of
lowest large muscle or joint. For dishes such as meat loaf or
casseroles, insert meat probe into center of food. When cooking
fish, insert meat probe just above the gill.
For whole poultry or turkey, insert meat probe into the thickest
part of the bird(Figure 34).
Figure 34: Probe placement in poultry
26

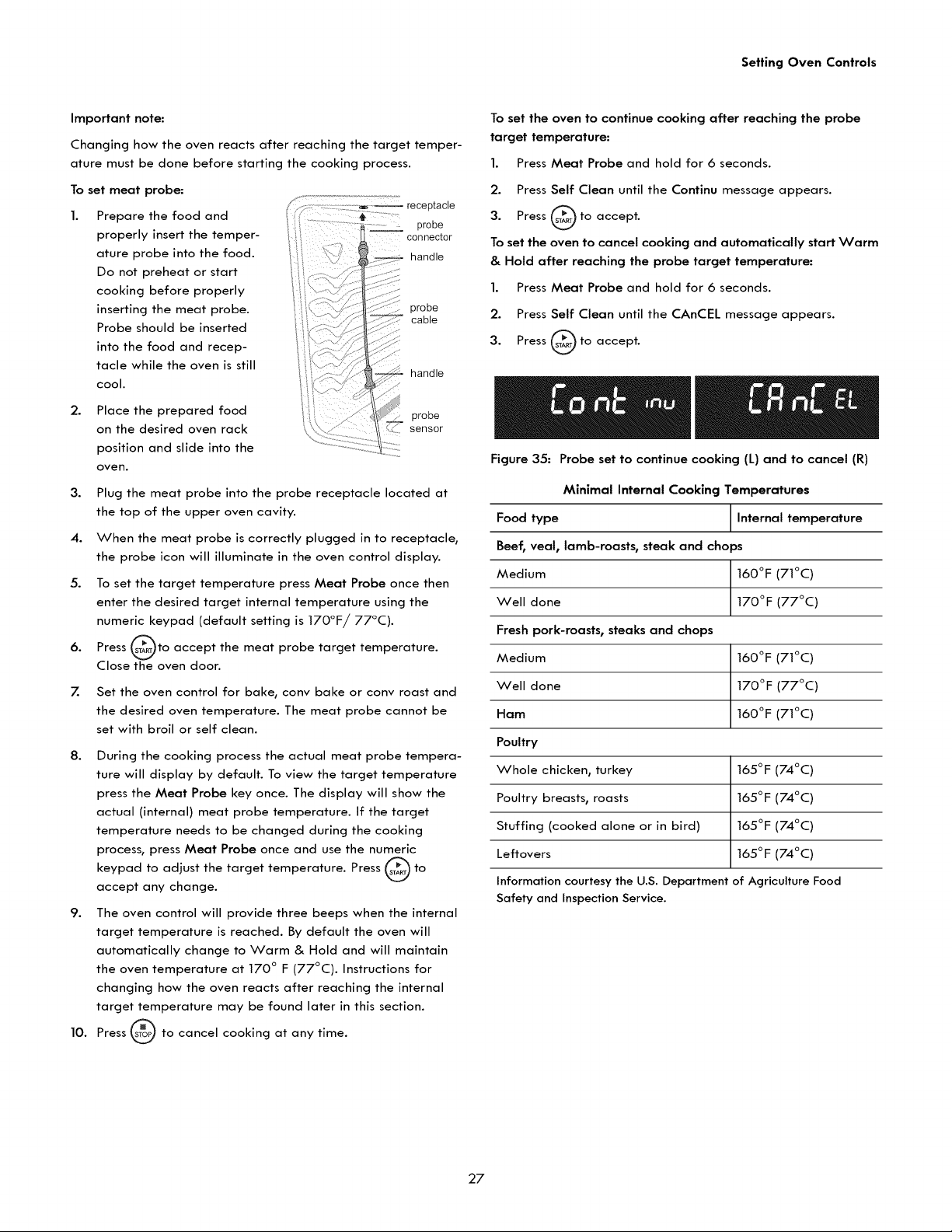

Setting Oven Controls
Important note:
Changing how the oven reacts after reaching the target temper-
ature must be done before starting the cooking process.
To set meat probe:
1. Prepare the food and
properly insert the temper-
ature probe into the food.
Do not preheat or start
cooking before properly
inserting the meat probe.
Probe should be inserted
into the food and recep-
tacle while the oven is still
CO01.
2. Place the prepared food
on the desired oven rack
position and slide into the
oven.
handle
probe
cable
handle
probe
sensor
3. Plug the meat probe into the probe receptacle located at
the top of the upper oven cavity.
4. When the meat probe is correctly plugged in to receptacle,
the probe icon will illuminate in the oven control display.
5. To set the target temperature press Meat Probe once then
enter the desired target internal temperature using the
numeric keypad (default setting is 170°F/77°C).
STeAm'toaccept the meat probe target temperature.
6. Press
Close the oven door.
7. Set the oven control for bake, conv bake or conv roast and
the desired oven temperature. The meat probe cannot be
set with broil or self clean.
8.
During the cooking process the actual meat probe tempera-
ture will display by default. To view the target temperature
press the Meat Probe key once. The display will show the
actual (internal) meat probe temperature. If the target
temperature needs to be changed during the cooking
process, press Meat Probe once and use the numeric
keypad to adjust the target temperature. Press _sT_ to
accept any change.
9. The oven control will provide three beeps when the internal
target temperature is reached. By default the oven will
automatically change to Warm & Hold and will maintain
the oven temperature at 170 ° F (77°C). Instructions for
changing how the oven reacts after reaching the internal
target temperature may be found later in this section.
10. Press ¢_ to cancel cooking at any time.
To set the oven to continue cooking after reaching the probe
target temperature:
1. Press Meat Probe and hold for 6 seconds.
2. Press Self Clean until the Continu message appears.
3. Press _ to accept.
To set the oven to cancel cooking and automatically start Warm
& Hold after reaching the probe target temperature:
1. Press Meat Probe and hold for 6 seconds.
2. Press Self Clean until the CANCEL message appears.
3. Press Q to accept.
Figure 35: Probe set to continue cooking (L) and to cancel (R)
Minimal Internal Cooking Temperatures
Food type Internal temperature
Beef, veal, lamb-roasts, steak and chops
160°F (71°C)
170°F (77°C)
Medium
Well done
Fresh pork-roasts, steaks and chops
Medium 160°F (71°C)
Well done 170°F (77°C)
Ham 160°F (71°C)
Poultry
Whole chicken, turkey 165°F (74°C)
Poultry breasts, roasts 165°F (74°C)
Stuffing (cooked alone or in bird) 165°F (74°C)
Leftovers 165°F (74°C)
Information courtesy the U.S. Department of Agriculture Food
Safety and Inspection Service.
27
Setting Oven Controls

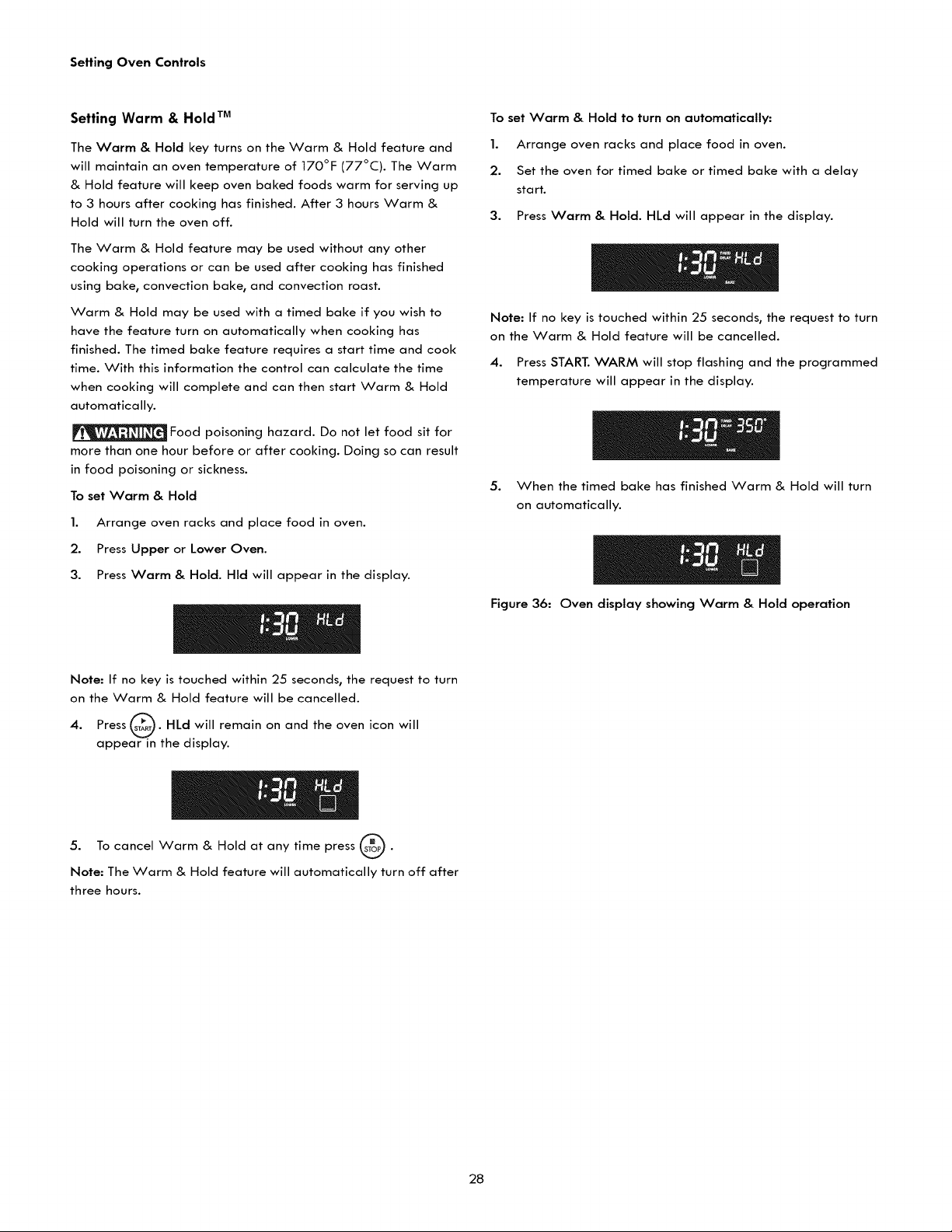

Setting Warm & Hold TM
The Warm & Hold key turns on the Warm & Hold feature and
will maintain an oven temperature of 170°F (77°C). The Warm
& Hold feature will keep oven baked foods warm for serving up
to 3 hours after cooking has finished. After 3 hours Warm &
Hold will turn the oven off.
The Warm & Hold feature may be used without any other
cooking operations or can be used after cooking has finished
using bake, convection bake, and convection roast.
Warm & Hold may be used with a timed bake if you wish to
have the feature turn on automatically when cooking has
finished. The timed bake feature requires a start time and cook
time. With this information the control can calculate the time
when cooking will complete and can then start Warm & Hold
automatically.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To set Warm & Hold
1. Arrange oven racks and place food in oven.
2. Press Upper or Lower Oven.
3. Press Warm & Hold. Hid will appear in the display.
Note: If no key is touched within 25 seconds, the request to turn
on the Warm & Hold feature will be cancelled.
4. Press S_A_. HLd will remain on and the oven icon will
appear in the display.
5. To cancel Warm & Hold at any time press
o
Note: The Warm & Hold feature will automatically turn off after
three hours.
To set Warm & Hold to turn on automatically:
1. Arrange oven racks and place food in oven.
2. Set the oven for timed bake or timed bake with a delay
start.
3. Press Warm & Hold. HLd will appear in the display.
Note: If no key is touched within 25 seconds, the request to turn
on the Warm & Hold feature will be cancelled.
4. Press START. WARM will stop flashing and the programmed
temperature will appear in the display.
5. When the timed bake has finished Warm & Hold will turn
on automatically.
Figure 36: Oven display showing Warm & Hold operation
28
Setting Oven Controls

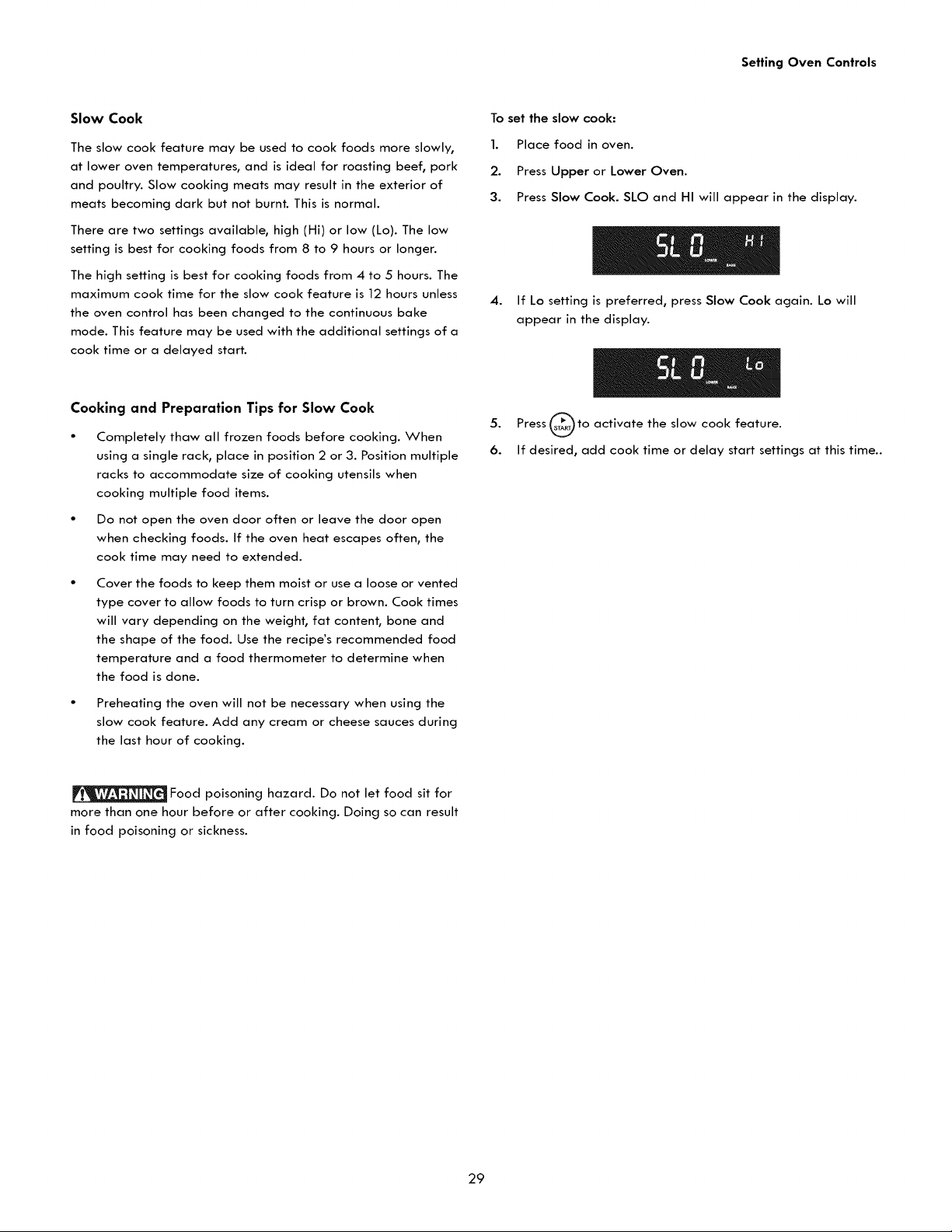

Slow Cook
The slow cook feature may be used to cook foods more slowly,
at lower oven temperatures, and is ideal for roasting beef, pork
and poultry. Slow cooking meats may result in the exterior of
meats becoming dark but not burnt. This is normal.
There are two settings available, high (Hi) or low (Lo). The low
setting is best for cooking foods from 8 to 9 hours or longer.
The high setting is best for cooking foods from 4 to 5 hours. The
maximum cook time for the slow cook feature is 12 hours unless
the oven control has been changed to the continuous bake
mode. This feature may be used with the additional settings of a
cook time or a delayed start.
Cooking and Preparation Tips for Slow Cook
Completely thaw all frozen foods before cooking. When
using a single rack, place in position 2 or 3. Position multiple
racks to accommodate size of cooking utensils when
cooking multiple food items.
• Do not open the oven door often or leave the door open
when checking foods. If the oven heat escapes often, the
cook time may need to extended.
Cover the foods to keep them moist or use a loose or vented
type cover to allow foods to turn crisp or brown. Cook times
will vary depending on the weight, fat content, bone and
the shape of the food. Use the recipe's recommended food
temperature and a food thermometer to determine when
the food is done.
• Preheating the oven will not be necessary when using the
slow cook feature. Add any cream or cheese sauces during
the last hour of cooking.
To set the slow cook:
1. Place food in oven.
2. Press Upper or Lower Oven.
3. Press Slow Cook. SLO and HI will appear in the display.
4. If Lo setting is preferred, press Slow Cook again. Lo will
appear in the display.
5. Press_to activate the slow cook feature.
6. If desired, add cook time or delay start settings at this time..
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
29

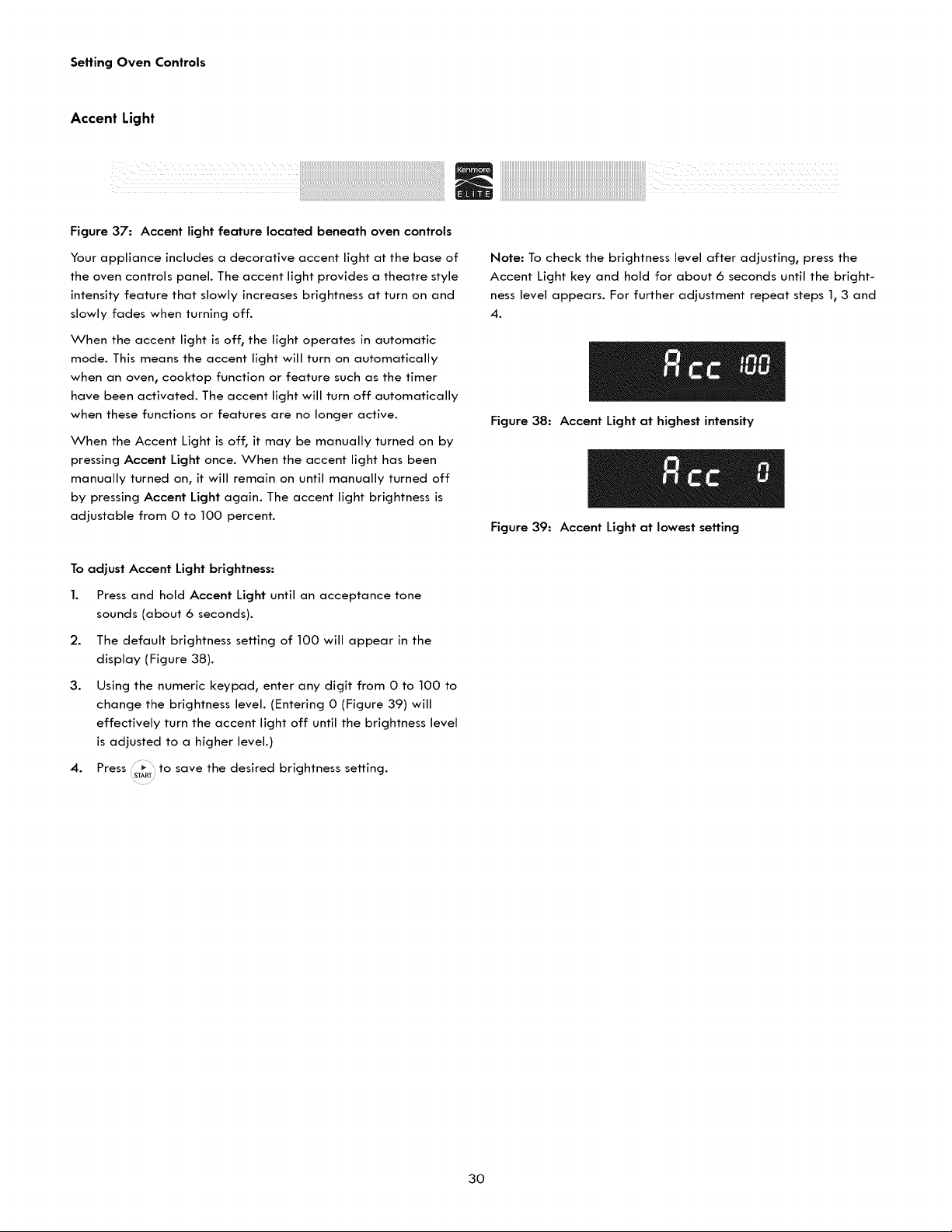

Setting Oven Controls
Accent Light
Figure 37: Accent light feature located beneath oven controls
Your appliance includes a decorative accent light at the base of
the oven controls panel. The accent light provides a theatre style
intensity feature that slowly increases brightness at turn on and
slowly fades when turning off.
When the accent light is off, the light operates in automatic
mode. This means the accent light will turn on automatically
when an oven, cooktop function or feature such as the timer
have been activated. The accent light will turn off automatically
when these functions or features are no longer active.
When the Accent Light is off, it may be manually turned on by
pressing Accent Light once. When the accent light has been
manually turned on, it will remain on until manually turned off
by pressing Accent Light again. The accent light brightness is
adiustable from 0 to 100 percent.
To adjust Accent Light brightness:
1. Press and hold Accent Light until an acceptance tone
sounds (about 6 seconds).
2. The default brightness setting of 100 will appear in the
display (Figure 38).
3. Using the numeric keypad, enter any digit from 0 to 100 to
change the brightness level. (Entering 0 (Figure 39) will
effectively turn the accent light off until the brightness level
is adiusted to a higher level.)
4. Press to save the desired brightness setting.
START
Note: To check the brightness level after adjusting, press the
Accent Light key and hold for about 6 seconds until the bright-
ness level appears. For further adjustment repeat steps 1, 3 and
4.
Figure 38: Accent Light at highest intensity
Figure 39: Accent Light at lowest setting
30

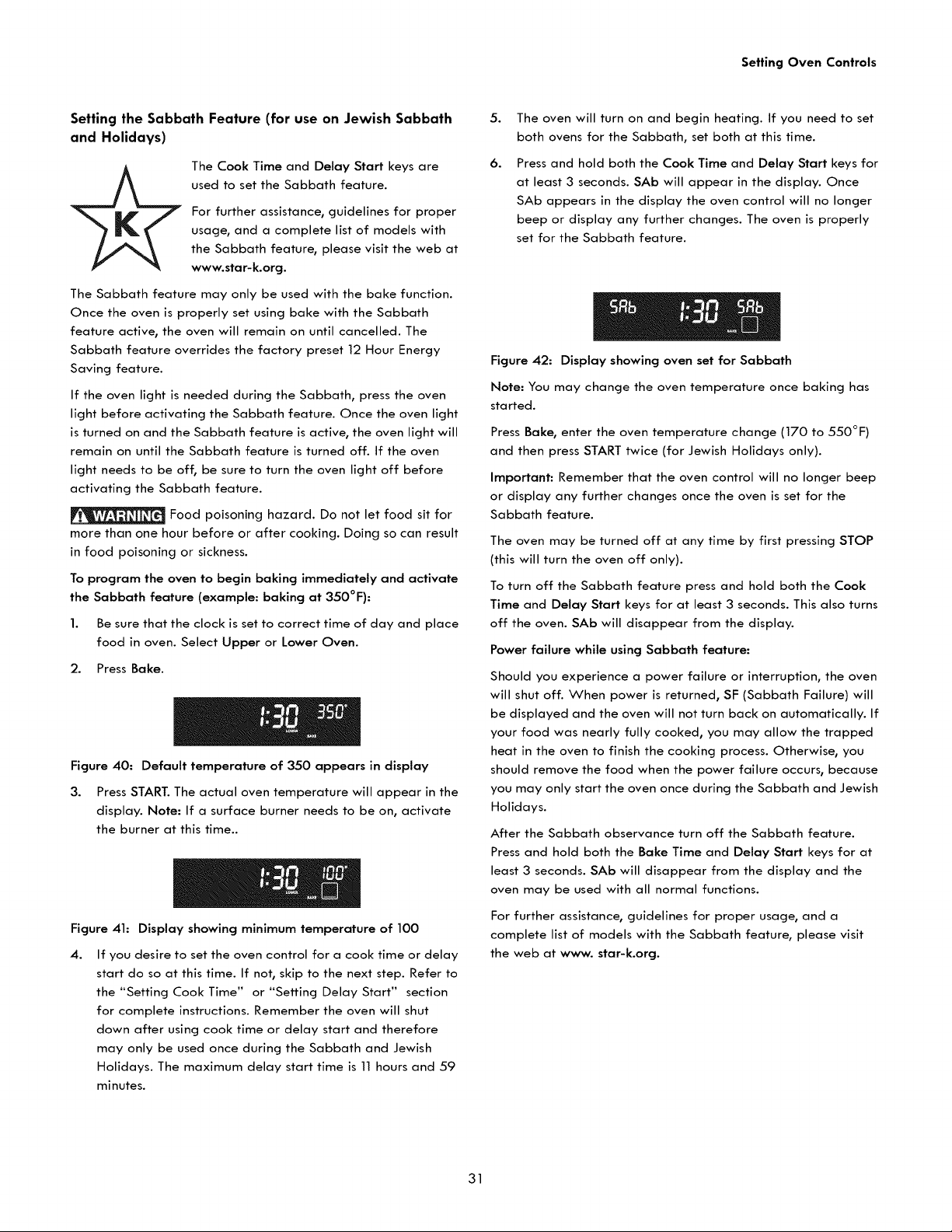

Setting Oven Controls
Setting the Sabbath Feature (for use on Jewish Sabbath
and Holidays)
The Cook Time and Delay Start keys are
used to set the Sabbath feature.
For further assistance, guidelines for proper
usage, and a complete list of models with
the Sabbath feature, please visit the web at
www.star-k.org.
The Sabbath feature may only be used with the bake function.
Once the oven is properly set using bake with the Sabbath
feature active, the oven will remain on until cancelled. The
Sabbath feature overrides the factory preset 12 Hour Energy
Saving feature.
If the oven light is needed during the Sabbath, press the oven
light before activating the Sabbath feature. Once the oven light
is turned on and the Sabbath feature is active, the oven light will
remain on until the Sabbath feature is turned off. If the oven
light needs to be off, be sure to turn the oven light off before
activating the Sabbath feature.
Food poisoning hazard. Do not let food sit for
more than one hour before or after cooking. Doing so can result
in food poisoning or sickness.
To program the oven to begin baking immediately and activate
the Sabbath feature (example: baking at 350°F):
1. Be sure that the clock is set to correct time of day and place
food in oven. Select Upper or Lower Oven.
2. Press Bake.
Figure 40: Default temperature of 350 appears in display
3. Press START. The actual oven temperature will appear in the
display. Note: If a surface burner needs to be on, activate
the burner at this time..
Figure 41: Display showing minimum temperature of 100
4. If you desire to set the oven control for a cook time or delay
start do so at this time. If not, skip to the next step. Refer to
the "Setting Cook Time" or "Setting Delay Start" section
for complete instructions. Remember the oven will shut
down after using cook time or delay start and therefore
may only be used once during the Sabbath and Jewish
Holidays. The maximum delay start time is 11 hours and 59
minutes.
5.
6.
The oven will turn on and begin heating. If you need to set
both ovens for the Sabbath, set both at this time.
Press and hold both the Cook Time and Delay Start keys for
at least 3 seconds. SAb will appear in the display. Once
SAb appears in the display the oven control will no longer
beep or display any further changes. The oven is properly
set for the Sabbath feature.
Figure 42: Display showing oven set for Sabbath
Note: You may change the oven temperature once baking has
started.
Press Bake, enter the oven temperature change (170 to 550°F)
and then press START twice (for Jewish Holidays only).
Important: Remember that the oven control will no longer beep
or display any further changes once the oven is set for the
Sabbath feature.
The oven may be turned off at any time by first pressing STOP
(this will turn the oven off only).
To turn off the Sabbath feature press and hold both the Cook
Time and Delay Start keys for at least 3 seconds. This also turns
off the oven. SAb will disappear from the display.
Power failure while using Sabbath feature:
Should you experience a power failure or interruption, the oven
will shut off. When power is returned, SF (Sabbath Failure) will
be displayed and the oven will not turn back on automatically. If
your food was nearly fully cooked, you may allow the trapped
heat in the oven to finish the cooking process. Otherwise, you
should remove the food when the power failure occurs, because
you may only start the oven once during the Sabbath and Jewish
Holidays.
After the Sabbath observance turn off the Sabbath feature.
Press and hold both the Bake Time and Delay Start keys for at
least 3 seconds. SAb will disappear from the display and the
oven may be used with all normal functions.
For further assistance, guidelines for proper usage, and a
complete list of models with the Sabbath feature, please visit
the web at www. star-k.org.
31
Setting Oven Controls

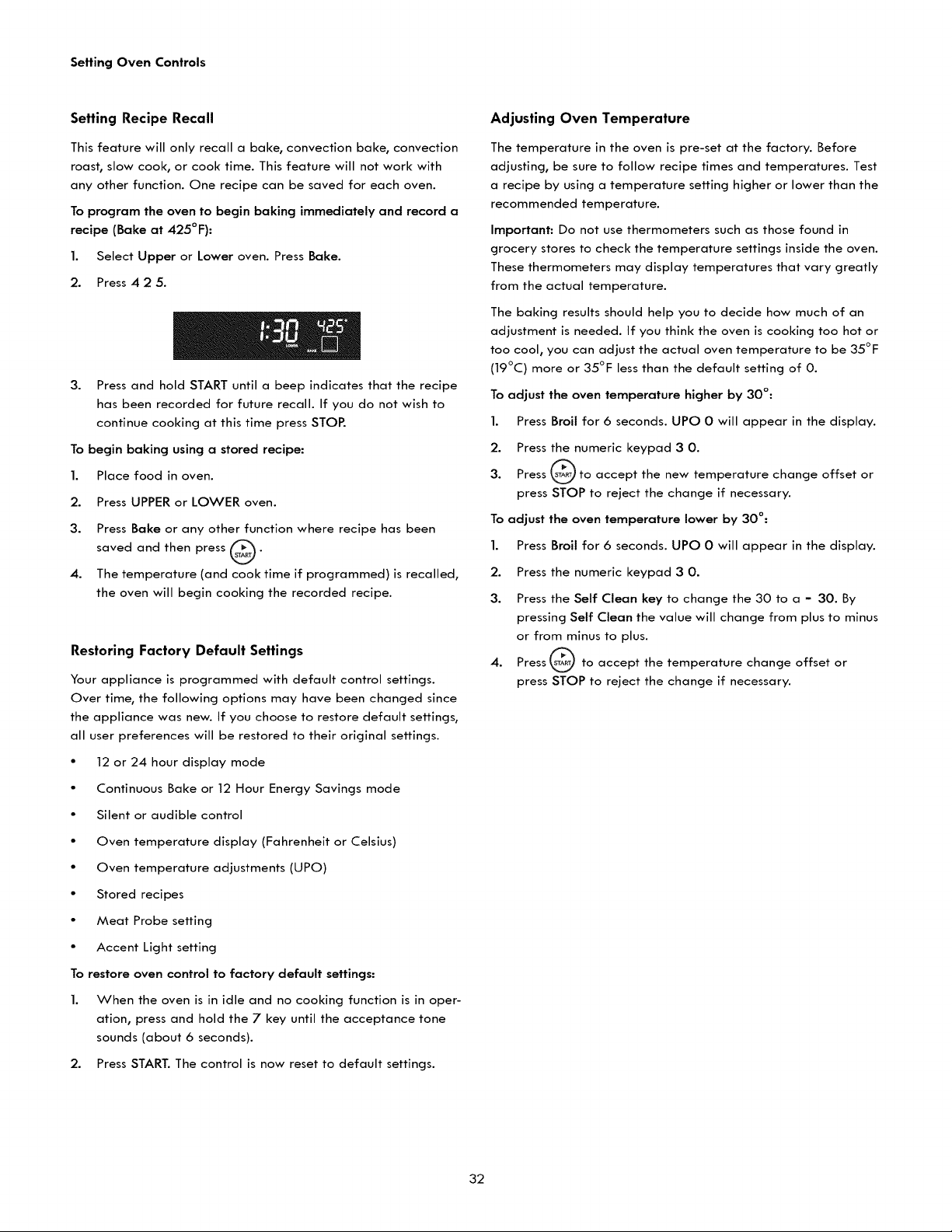

Setting Recipe Recall
This feature will only recall a bake, convection bake, convection
roast, slow cook, or cook time. This feature will not work with
any other function. One recipe can be saved for each oven.
To program the oven to begin baking immediately and record a
recipe (Bake at 425°F):
1. Select Upper or Lower oven. Press Bake.
2. Press 4 2 5.
3. Press and hold START until a beep indicates that the recipe
has been recorded for future recall. If you do not wish to
continue cooking at this time press STOP.
To begin baking using a stored recipe:
1. Place food in oven.
2. Press UPPER or LOWER oven.
3. Press Bake or any other function where recipe has been
saved and then press _.
V
4. The temperature (and cook time if programmed) is recalled,
the oven will begin cooking the recorded recipe.
Restoring Factory Default Settings
Your appliance is programmed with default control settings.
Over time, the following options may have been changed since
the appliance was new. If you choose to restore default settings,
all user preferences will be restored to their original settings.
• 12 or 24 hour display mode
• Continuous Bake or 12 Hour Energy Savings mode
• Silent or audible control
• Oven temperature display (Fahrenheit or Celsius)
• Oven temperature adjustments (UPO)
• Stored recipes
• Meat Probe setting
• Accent Light setting
To restore oven control to factory default settings:
1. When the oven is in idle and no cooking function is in oper-
ation, press and hold the 7 key until the acceptance tone
sounds (about 6 seconds).
2. Press START. The control is now reset to default settings.
Adjusting Oven Temperature
The temperature in the oven is pre-set at the factory. Before
adjusting, be sure to follow recipe times and temperatures. Test
a recipe by using a temperature setting higher or lower than the
recommended temperature.
Important: Do not use thermometers such as those found in
grocery stores to check the temperature settings inside the oven.
These thermometers may display temperatures that vary greatly
from the actual temperature.
The baking results should help you to decide how much of an
adjustment is needed. If you think the oven is cooking too hot or
too cool, you can adjust the actual oven temperature to be 35°F
(19°C) more or 35°F less than the default setting of 0.
To adjust the oven temperature higher by 30°:
1. Press Broil for 6 seconds. UPO 0 will appear in the display.
2. Press the numeric keypad 30.
3. Press _(_ to accept the new temperature change offset or
press STOP to reject the change if necessary.
To adjust the oven temperature lower by 30°:
1. Press Broil for 6 seconds. UPO 0 will appear in the display.
2. Press the numeric keypad 30.
3. Press the Self Clean key to change the 30 to a - 30. By
pressing Self Clean the value will change from plus to minus
or from minus to plus.
4. Press _(_ to accept the temperature change offset or
press STOP to reject the change if necessary.
32
Setting Oven Controls

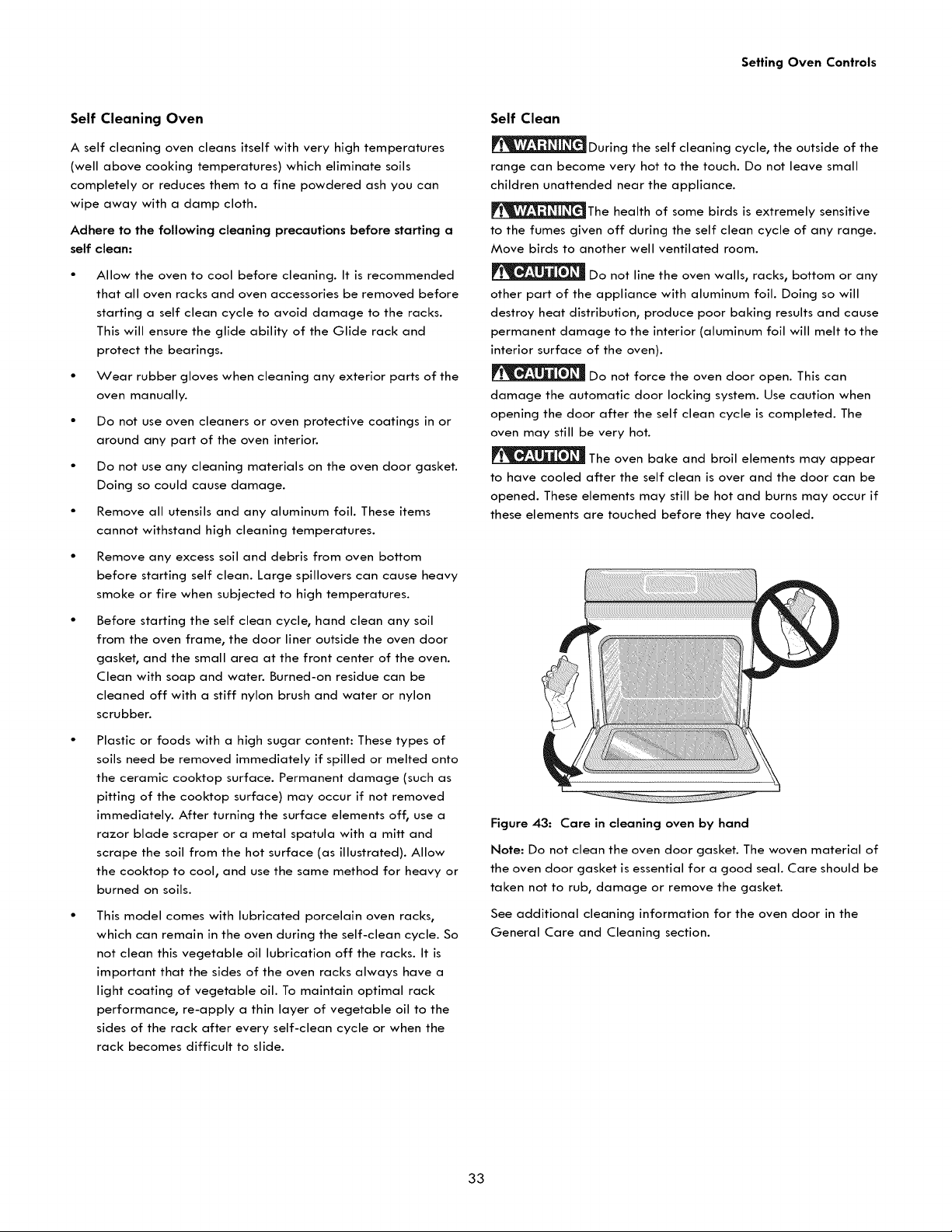

Self Cleaning Oven
A self cleaning oven cleans itself with very high temperatures
(well above cooking temperatures) which eliminate soils
completely or reduces them to a fine powdered ash you can
wipe away with a damp cloth.
Adhere to the following cleaning precautions before starting a
self clean:
Allow the oven to cool before cleaning. It is recommended
that all oven racks and oven accessories be removed before
starting a self clean cycle to avoid damage to the racks.
This will ensure the glide ability of the Glide rack and
protect the bearings.
• Wear rubber gloves when cleaning any exterior parts of the
oven manually.
• Do not use oven cleaners or oven protective coatings in or
around any part of the oven interior.
• Do not use any cleaning materials on the oven door gasket.
Doing so could cause damage.
• Remove all utensils and any aluminum foil. These items
cannot withstand high cleaning temperatures.
• Remove any excess soil and debris from oven bottom
before starting self clean. Large spillovers can cause heavy
smoke or fire when subjected to high temperatures.
Before starting the self clean cycle, hand clean any soil
from the oven frame, the door liner outside the oven door
gasket, and the small area at the front center of the oven.
Clean with soap and water. Burned-on residue can be
cleaned off with a stiff nylon brush and water or nylon
scrubber.
Plastic or foods with a high sugar content: These types of
soils need be removed immediately if spilled or melted onto
the ceramic cooktop surface. Permanent damage (such as
pitting of the cooktop surface) may occur if not removed
immediately. After turning the surface elements off, use a
razor blade scraper or a metal spatula with a mitt and
scrape the soil from the hot surface (as illustrated). Allow
the cooktop to cool, and use the same method for heavy or
burned on soils.
This model comes with lubricated porcelain oven racks,
which can remain in the oven during the self-clean cycle. So
not clean this vegetable oil lubrication off the racks. It is
important that the sides of the oven racks always have a
light coating of vegetable oil. To maintain optimal rack
performance, re-apply a thin layer of vegetable oil to the
sides of the rack after every self-clean cycle or when the
rack becomes difficult to slide.
Self Clean
_During the self cleaning cycle, the outside of the
range can become very hot to the touch. Do not leave small
children unattended near the appliance.
_The health of some birds is extremely sensitive
to the fumes given off during the self clean cycle of any range.
Move birds to another well ventilated room.
Do not line the oven walls, racks, bottom or any
other part of the appliance with aluminum foil. Doing so will
destroy heat distribution, produce poor baking results and cause
permanent damage to the interior (aluminum foil will melt to the
interior surface of the oven).
Do not force the oven door open. This can
damage the automatic door locking system. Use caution when
opening the door after the self clean cycle is completed. The
oven may still be very hot.
The oven bake and broil elements may appear
to have cooled after the self clean is over and the door can be
opened. These elements may still be hot and burns may occur if
these elements are touched before they have cooled.
Figure 43: Care in cleaning oven by hand
Note: Do not clean the oven door gasket. The woven material of
the oven door gasket is essential for a good seal. Care should be
taken not to rub, damage or remove the gasket.
See additional cleaning information for the oven door in the
General Care and Cleaning section.
33
Setting Oven Controls

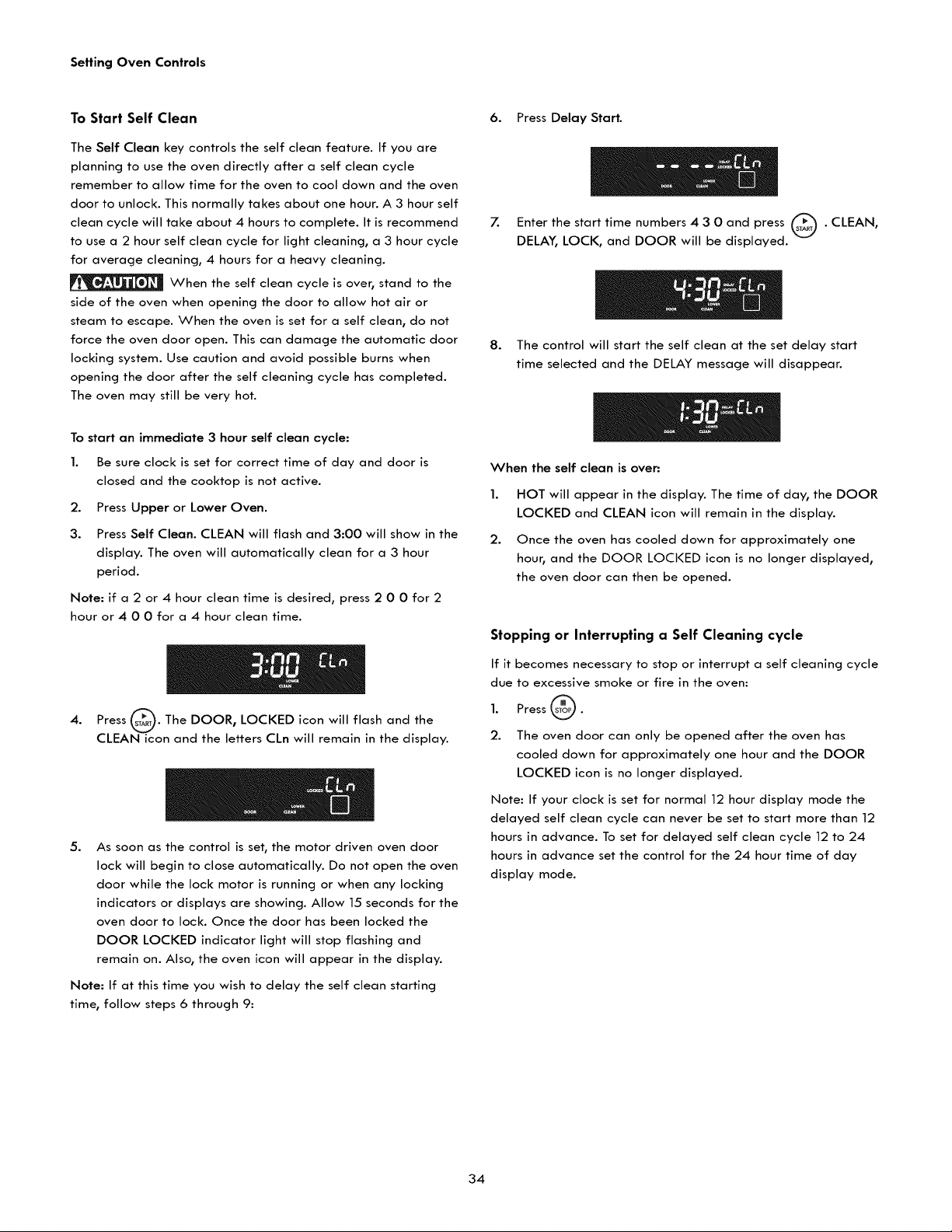

To Start Self Clean
The Self Clean key controls the self clean feature. If you are
planning to use the oven directly after a self clean cycle
remember to allow time for the oven to cool down and the oven
door to unlock. This normally takes about one hour. A 3 hour self
clean cycle will take about 4 hours to complete. It is recommend
to use a 2 hour self clean cycle for light cleaning, a 3 hour cycle
for average cleaning, 4 hours for a heavy cleaning.
When the self clean cycle is over, stand to the
side of the oven when opening the door to allow hot air or
steam to escape. When the oven is set for a self clean, do not
force the oven door open. This can damage the automatic door
locking system. Use caution and avoid possible burns when
opening the door after the self cleaning cycle has completed.
The oven may still be very hot.
To start an immediate 3 hour self clean cycle:
1. Be sure clock is set for correct time of day and door is
closed and the cooktop is not active.
2. Press Upper or Lower Oven.
3. Press Self Clean. CLEAN will flash and 3:00 will show in the
display. The oven will automatically clean for a 3 hour
period.
Note: if a 2 or 4 hour clean time is desired, press 2 0 0 for 2
hour or 4 0 0 for a 4 hour clean time.
4.
Press (s_). The DOOR, LOCKED icon will flash and the
CLEAN icon and the letters CLn will remain in the display.
5.
As soon as the control is set, the motor driven oven door
lock will begin to close automatically. Do not open the oven
door while the lock motor is running or when any locking
indicators or displays are showing. Allow 15 seconds for the
oven door to lock. Once the door has been locked the
DOOR LOCKED indicator light will stop flashing and
remain on. Also, the oven icon will appear in the display.
Note: If at this time you wish to delay the self clean starting
time, follow steps 6 through 9:
6. Press Delay Start.
Z Enter the start time numbers 4 3 0 and press (_ . CLEAN,
_J
DELAY, LOCK, and DOOR will be displayed.
8. The control will start the self clean at the set delay start
time selected and the DELAY message will disappear.
When the self clean is over:
1. HOT will appear in the display. The time of day, the DOOR
LOCKED and CLEAN icon will remain in the display.
2. Once the oven has cooled down for approximately one
hour, and the DOOR LOCKED icon is no longer displayed,
the oven door can then be opened.
Stopping or Interrupting a Self Cleaning cycle
If it becomes necessary to stop or interrupt a self cleaning cycle
due to excessive smoke or fire in the oven:
1. Press Q.
2. The oven door can only be opened after the oven has
cooled down for approximately one hour and the DOOR
LOCKED icon is no longer displayed.
Note: If your clock is set for normal 12 hour display mode the
delayed self clean cycle can never be set to start more than 12
hours in advance. To set for delayed self clean cycle 12 to 24
hours in advance set the control for the 24 hour time of day
display mode.
34

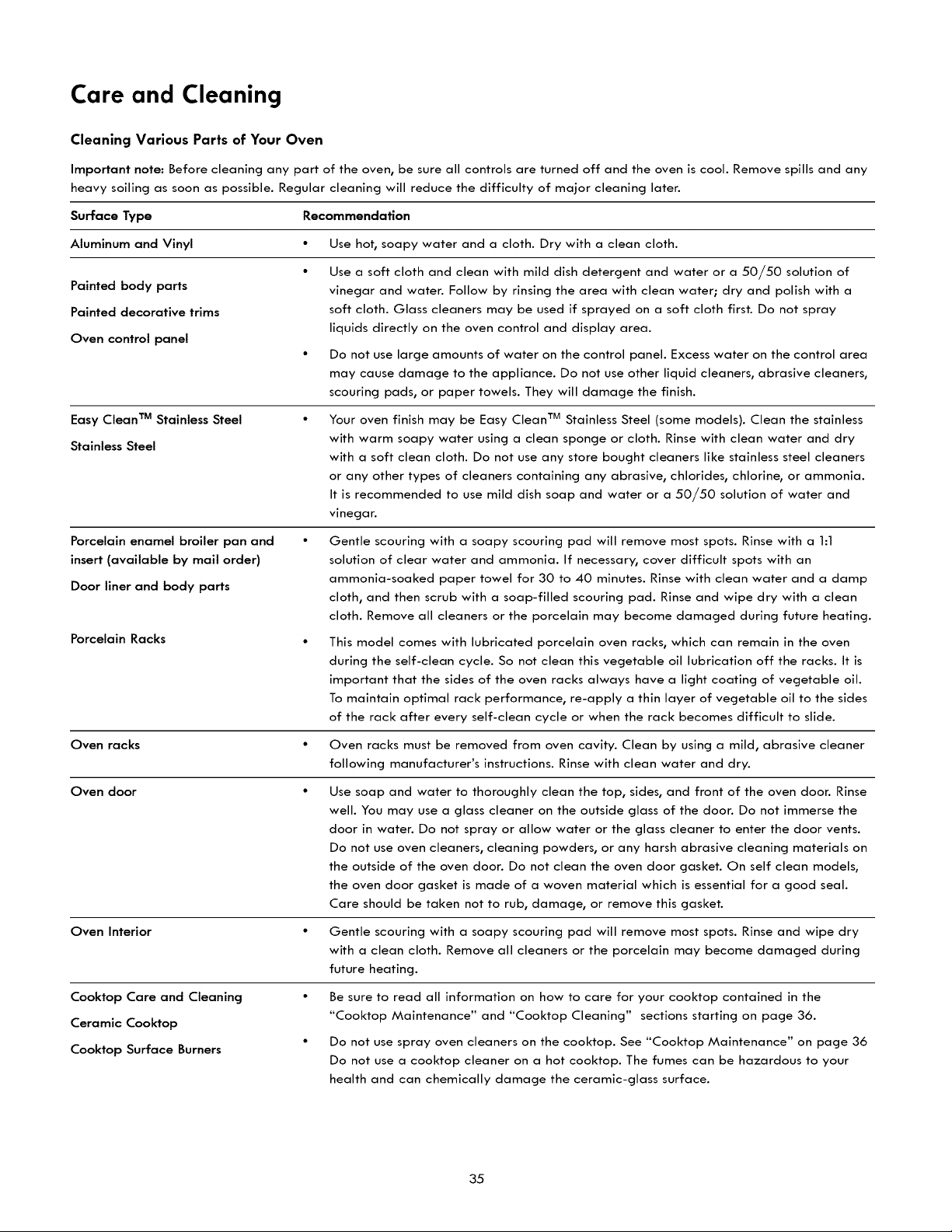

Care and Cleaning
Cleaning Various Parts of Your Oven
Important note: Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any
heavy soiling as soon as possible. Regular cleaning will reduce the difficulty of major cleaning later.
Surface Type Recommendation
Aluminum and Vinyl *
Painted body parts
Painted decorative trims
Oven control panel
Easy Clean TM Stainless Steel
Stainless Steel
Use hot, soapy water and a cloth. Dry with a clean cloth.
Use a soft cloth and clean with mild dish detergent and water or a 50/50 solution of
vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. Do not spray
liquids directly on the oven control and display area.
Do not use large amounts of water on the control panel. Excess water on the control area
may cause damage to the appliance. Do not use other liquid cleaners, abrasive cleaners,
scouring pads, or paper towels. They will damage the finish.
Your oven finish may be Easy Clean TM Stainless Steel (some models). Clean the stainless
with warm soapy water using a clean sponge or cloth. Rinse with clean water and dry
with a soft clean cloth. Do not use any store bought cleaners like stainless steel cleaners
or any other types of cleaners containing any abrasive, chlorides, chlorine, or ammonia.
It is recommended to use mild dish soap and water or a 50/50 solution of water and
vinegar.
Porcelain enamel broiler pan and
insert (available by mail order)
Door liner and body parts
Porcelain Racks
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp
cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean
cloth. Remove all cleaners or the porcelain may become damaged during future heating.
This model comes with lubricated porcelain oven racks, which can remain in the oven
during the self-clean cycle. So not clean this vegetable oil lubrication off the racks. It is
important that the sides of the oven racks always have a light coating of vegetable oil.
To maintain optimal rack performance, re-apply a thin layer of vegetable oil to the sides
of the rack after every self-clean cycle or when the rack becomes difficult to slide.
Oven racks • Oven racks must be removed from oven cavity. Clean by using a mild, abrasive cleaner
following manufacturer's instructions. Rinse with clean water and dry.
Oven door • Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse
well. You may use a glass cleaner on the outside glass of the door. Do not immerse the
door in water. Do not spray or allow water or the glass cleaner to enter the door vents.
Do not use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on
the outside of the oven door. Do not clean the oven door gasket. On self clean models,
the oven door gasket is made of a woven material which is essential for a good seal.
Care should be taken not to rub, damage, or remove this gasket.
Oven Interior
• Gentle scouring with a soapy scouring pad will remove most spots. Rinse and wipe dry
with a clean cloth. Remove all cleaners or the porcelain may become damaged during
future heating.
Cooktop Care and Cleaning
Ceramic Cooktop
Cooktop Surface Burners
• Be sure to read all information on how to care for your cooktop contained in the
"Cooktop Maintenance" and "Cooktop Cleaning" sections starting on page 36.
• Do not use spray oven cleaners on the cooktop. See "Cooktop Maintenance" on page 36
Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your
health and can chemically damage the ceramic-glass surface.
35

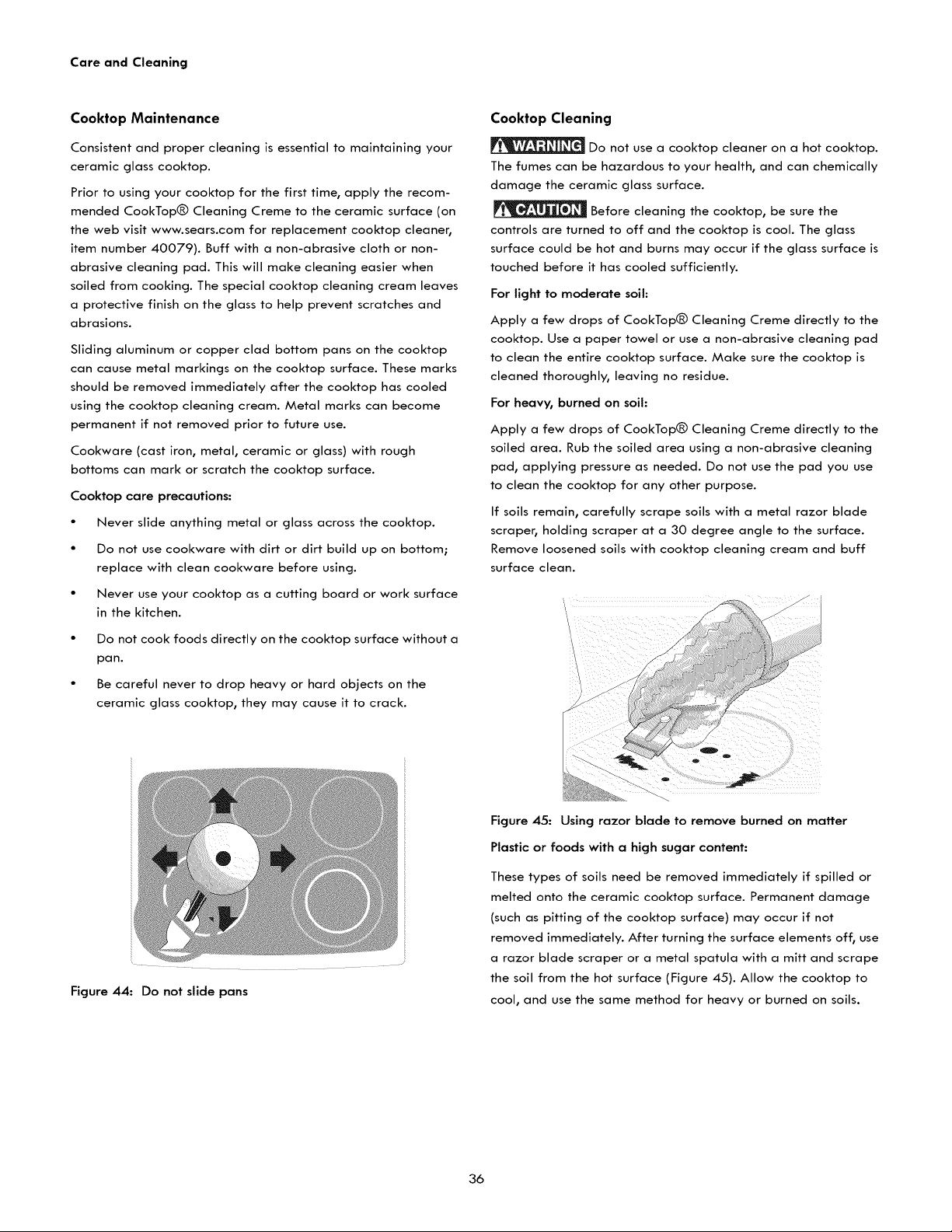

Care and Cleaning
Cooktop Maintenance
Consistent and proper cleaning is essential to maintaining your
ceramic glass cooktop.
Prior to using your cooktop for the first time, apply the recom-
mended CookTopO Cleaning Creme to the ceramic surface (on
the web visit www.sears.com for replacement cooktop cleaner,
item number 40079). Buff with a non-abrasive cloth or non-
abrasive cleaning pad. This will make cleaning easier when
soiled from cooking. The special cooktop cleaning cream leaves
a protective finish on the glass to help prevent scratches and
abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop
can cause metal markings on the cooktop surface. These marks
should be removed immediately after the cooktop has cooled
using the cooktop cleaning cream. Metal marks can become
permanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough
bottoms can mark or scratch the cooktop surface.
Cooktop care precautions:
• Never slide anything metal or glass across the cooktop.
• Do not use cookware with dirt or dirt build up on bottom;
replace with clean cookware before using.
• Never use your cooktop as a cutting board or work surface
in the kitchen.
• Do not cook foods directly on the cooktop surface without a
pan.
• Be careful never to drop heavy or hard objects on the
ceramic glass cooktop, they may cause it to crack.
Cooktop Cleaning
Do not use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health, and can chemically
damage the ceramic glass surface.
Before cleaning the cooktop, be sure the
controls are turned to off and the cooktop is cool. The glass
surface could be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the
cooktop. Use a paper towel or use a non-abrasive cleaning pad
to clean the entire cooktop surface. Make sure the cooktop is
cleaned thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the
soiled area. Rub the soiled area using a non-abrasive cleaning
pad, applying pressure as needed. Do not use the pad you use
to clean the cooktop for any other purpose.
If soils remain, carefully scrape soils with a metal razor blade
scraper, holding scraper at a 30 degree angle to the surface.
Remove loosened soils with cooktop cleaning cream and buff
surface clean.
Figure 44: Do not slide pans
Figure 45: Using razor blade to remove burned on matter
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or
melted onto the ceramic cooktop surface. Permanent damage
(such as pitting of the cooktop surface) may occur if not
removed immediately. After turning the surface elements off, use
a razor blade scraper or a metal spatula with a mitt and scrape
the soil from the hot surface (Figure 45). Allow the cooktop to
cool, and use the same method for heavy or burned on soils.
36
Care and Cleaning

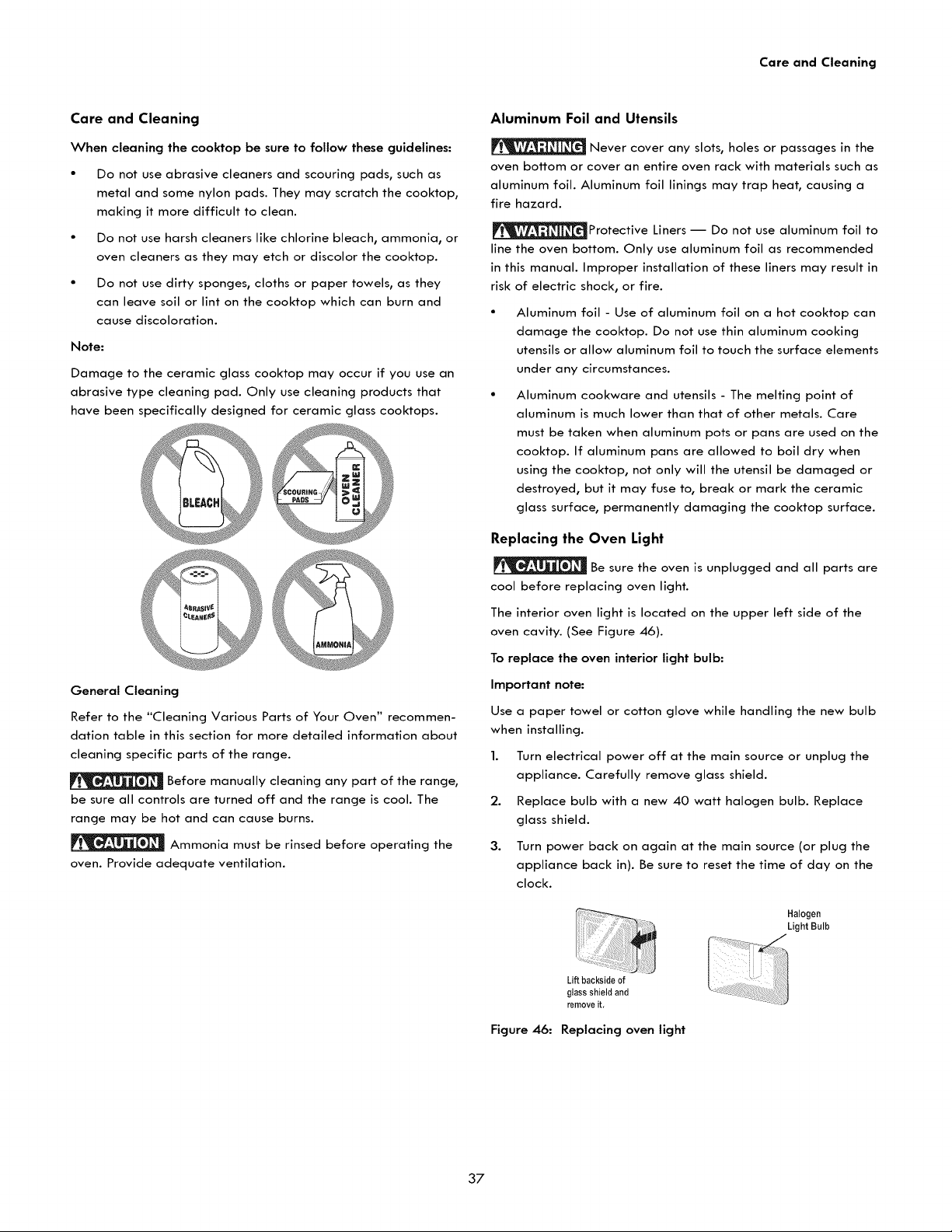

Care and Cleaning
When cleaning the cooktop be sure to follow these guidelines:
• Do not use abrasive cleaners and scouring pads, such as
metal and some nylon pads. They may scratch the cooktop,
making it more difficult to clean.
• Do not use harsh cleaners like chlorine bleach, ammonia, or
oven cleaners as they may etch or discolor the cooktop.
• Do not use dirty sponges, cloths or paper towels, as they
can leave soil or lint on the cooktop which can burn and
cause discoloration.
Note:
Damage to the ceramic glass cooktop may occur if you use an
abrasive type cleaning pad. Only use cleaning products that
have been specifically designed for ceramic glass cooktops.
J
General Cleaning
Refer to the "Cleaning Various Parts of Your Oven" recommen-
dation table in this section for more detailed information about
cleaning specific parts of the range.
Before manually cleaning any part of the range,
be sure all controls are turned off and the range is cool. The
range may be hot and can cause burns.
Ammonia must be rinsed before operating the
oven. Provide adequate ventilation.
Aluminum Foil and Utensils
Never cover any slots, holes or passages in the
oven bottom or cover an entire oven rack with materials such as
aluminum foil. Aluminum foil linings may trap heat, causing a
fire hazard.
_Protective Liners -- Do not use aluminum foil to
line the oven bottom. Only use aluminum foil as recommended
in this manual. Improper installation of these liners may result in
risk of electric shock, or fire.
Aluminum foil - Use of aluminum foil on a hot cooktop can
damage the cooktop. Do not use thin aluminum cooking
utensils or allow aluminum foil to touch the surface elements
under any circumstances.
Aluminum cookware and utensils - The melting point of
aluminum is much lower than that of other metals. Care
must be taken when aluminum pots or pans are used on the
cooktop. If aluminum pans are allowed to boil dry when
using the cooktop, not only will the utensil be damaged or
destroyed, but it may fuse to, break or mark the ceramic
glass surface, permanently damaging the cooktop surface.
Replacing the Oven Light
Be sure the oven is unplugged and all parts are
cool before replacing oven light.
The interior oven light is located on the upper left side of the
oven cavity. (See Figure 46).
To replace the oven interior light bulb:
Important note:
Use a paper towel or cotton glove while handling the new bulb
when installing.
1. Turn electrical power off at the main source or unplug the
appliance. Carefully remove glass shield.
2. Replace bulb with a new 40 watt halogen bulb. Replace
glass shield.
3.
Turn power back on again at the main source (or plug the
appliance back in). Be sure to reset the time of day on the
clock.
Halogen
Light Bulb
Figure 46:
Lift backside of
glass shield and
remove it
Replacing oven light
37

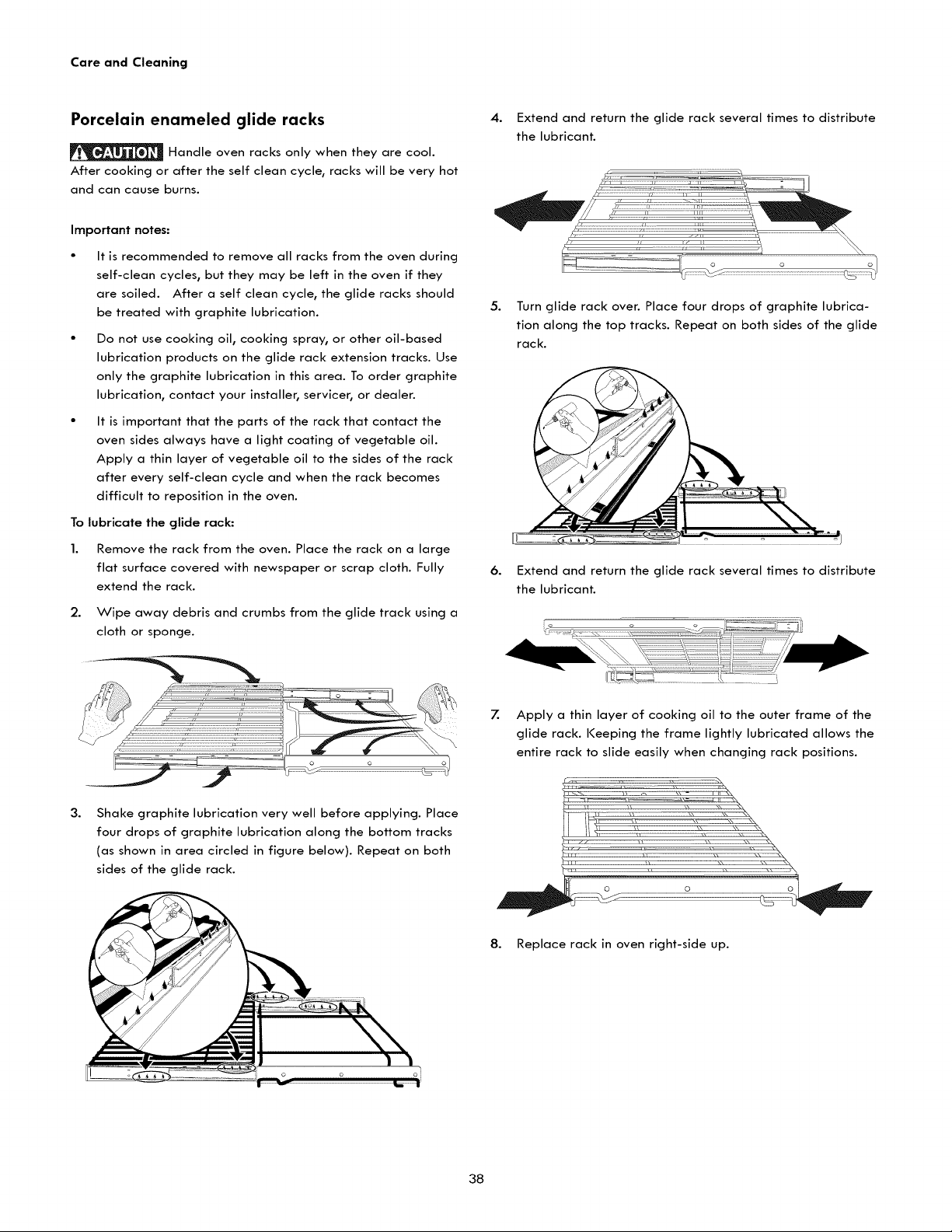

Care and Cleaning
Porcelain enameled glide racks
Handle oven racks only when they are cool.
After cooking or after the self clean cycle, racks will be very hot
and can cause burns.
Important notes:
• It is recommended to remove all racks from the oven during
self-clean cycles, but they may be left in the oven if they
are soiled. After a self clean cycle, the glide racks should
be treated with graphite lubrication.
Do not use cooking oil, cooking spray, or other oil-based
lubrication products on the glide rack extension tracks. Use
only the graphite lubrication in this area. To order graphite
lubrication, contact your installer, servicer, or dealer.
It is important that the parts of the rack that contact the
oven sides always have a light coating of vegetable oil.
Apply a thin layer of vegetable oil to the sides of the rack
after every self-clean cycle and when the rack becomes
difficult to reposition in the oven.
To lubricate the glide rack:
1. Remove the rack from the oven. Place the rack on a large
flat surface covered with newspaper or scrap cloth. Fully
extend the rack.
2. Wipe away debris and crumbs from the glide track using a
cloth or sponge.
4.
5.
6.
Extend and return the glide rack several times to distribute
the lubricant.
Turn glide rack over. Place four drops of graphite lubrica-
tion along the top tracks. Repeat on both sides of the glide
rack.
Extend and return the glide rack several times to distribute
the lubricant.
Z Apply a thin layer of cooking oil to the outer frame of the
glide rack. Keeping the frame lightly lubricated allows the
entire rack to slide easily when changing rack positions.
3.
Shake graphite lubrication very well before applying. Place
four drops of graphite lubrication along the bottom tracks
(as shown in area circled in figure below). Repeat on both
sides of the glide rack.
8. Replace rack in oven right-side up.
38

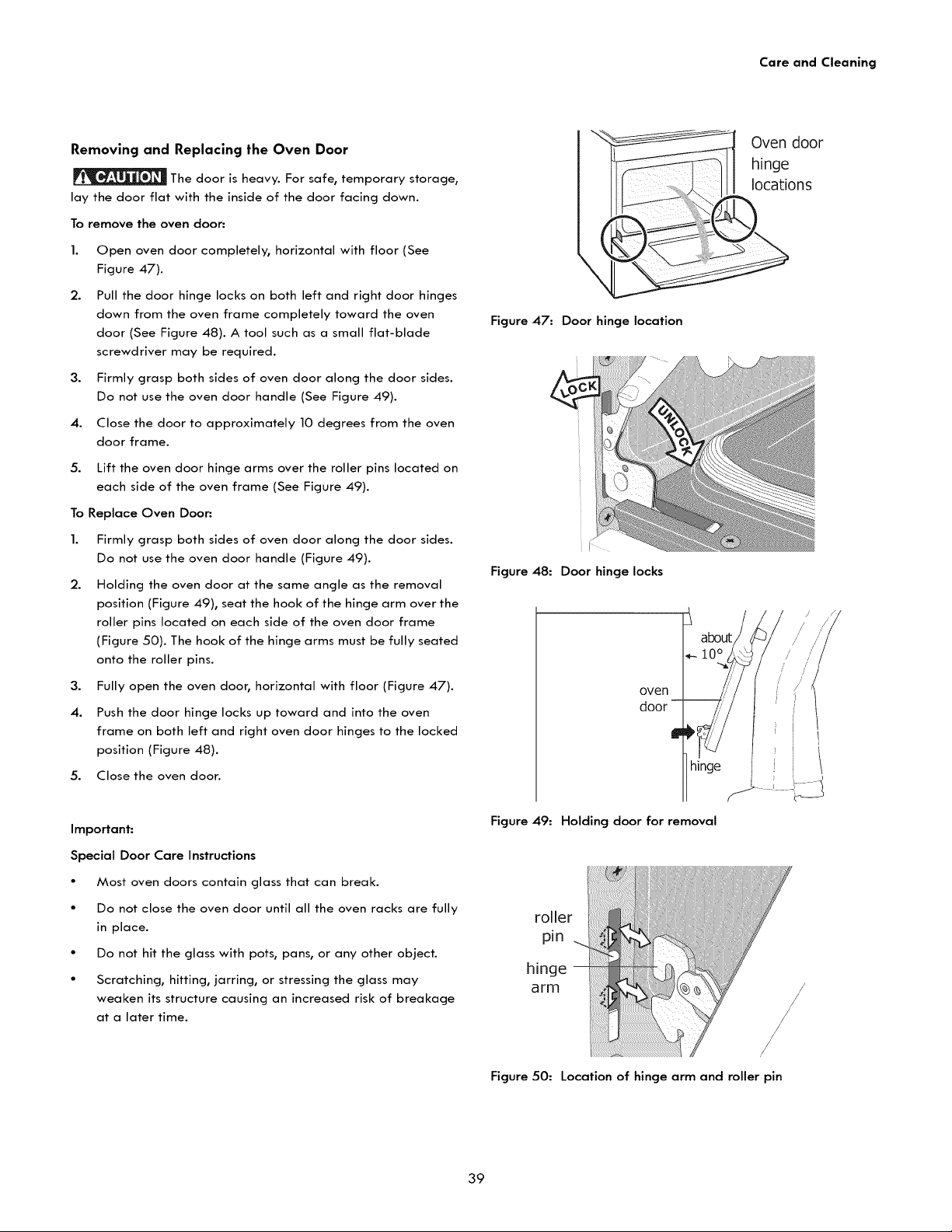

Care and Cleaning
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage,
lay the door flat with the inside of the door facing down.
To remove the oven door:
1. Open oven door completely, horizontal with floor (See
Figure 47).
2.
Pull the door hinge locks on both left and right door hinges
down from the oven frame completely toward the oven
door (See Figure 48). A tool such as a small flat-blade
screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 49).
4. Close the door to approximately 10 degrees from the oven
door frame.
5. Lift the oven door hinge arms over the roller pins located on
each side of the oven frame (See Figure 49).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (Figure 49).
2.
Holding the oven door at the same angle as the removal
position (Figure 49), seat the hook of the hinge arm over the
roller pins located on each side of the oven door frame
(Figure 50). The hook of the hinge arms must be fully seated
onto the roller pins.
3. Fully open the oven door, horizontal with floor (Figure 47).
4. Push the door hinge locks up toward and into the oven
frame on both left and right oven door hinges to the locked
position (Figure 48).
5. Close the oven door.
Important:
Special Door Care Instructions
• Most oven doors contain glass that can break.
• Do not close the oven door until all the oven racks are fully
in place.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring, or stressing the glass may
weaken its structure causing an increased risk of breakage
at a later time.
Oven door
hinge
locations
Figure 47: Door hinge location
I
Figure 48: Door hinge locks
Figure 49:
10°
oven
door -
0
hinge
S
Holding door for removal
roller
pin
hinge
arm
l/
Figure 50: Location of hinge arm and roller pin
39

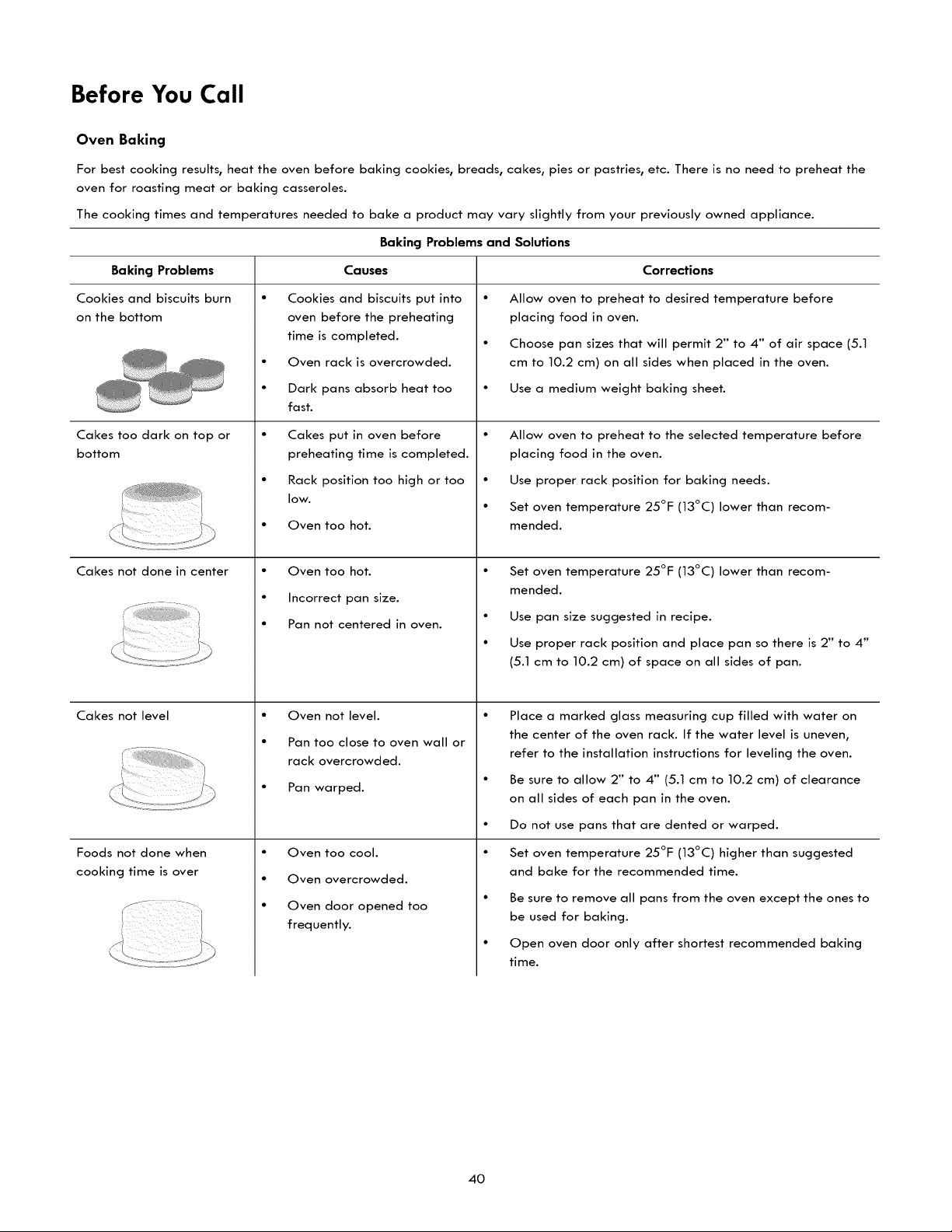

Before You Call
Oven Baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the
oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Baking Problems and Solutions
Baking Problems
Cookies and biscuits burn
on the bottom
Cakes too dark on top or
bottom
Cakes not done in center
Cakes not level
Foods not done when
cooking time is over
Causes Corrections
Cookies and biscuits put into
oven before the preheating
time is completed.
Oven rack is overcrowded.
Dark pans absorb heat too
fast.
Cakes put in oven before
preheating time is completed.
Rack position too high or too
lOW.
Oven too hot.
• Oven too hot.
• Incorrect pan size.
• Pan not centered in oven.
• Oven not level.
• Pan too close to oven wall or
rack overcrowded.
• Pan warped.
• Oven too cool.
• Oven overcrowded.
• Oven door opened too
frequently.
Allow oven to preheat to desired temperature before
placing food in oven.
• Choose pan sizes that will permit 2" to 4" of air space (5.1
cm to 10.2 cm) on all sides when placed in the oven.
• Use a medium weight baking sheet.
Allow oven to preheat to the selected temperature before
placing food in the oven.
• Use proper rack position for baking needs.
• Set oven temperature 25°F (13°C) lower than recom-
mended.
• Set oven temperature 25°F (13°C) lower than recom-
mended.
• Use pan size suggested in recipe.
• Use proper rack position and place pan so there is 2" to 4"
(5.1 cm to 10.2 cm) of space on all sides of pan.
Place a marked glass measuring cup filled with water on
the center of the oven rack. If the water level is uneven,
refer to the installation instructions for leveling the oven.
Be sure to allow 2" to 4" (5.1 cm to 10.2 cm) of clearance
on all sides of each pan in the oven.
• Do not use pans that are dented or warped.
• Set oven temperature 25°F (13°C) higher than suggested
and bake for the recommended time.
Be sure to remove all pans from the oven except the ones to
be used for baking.
Open oven door only after shortest recommended baking
time.
4O

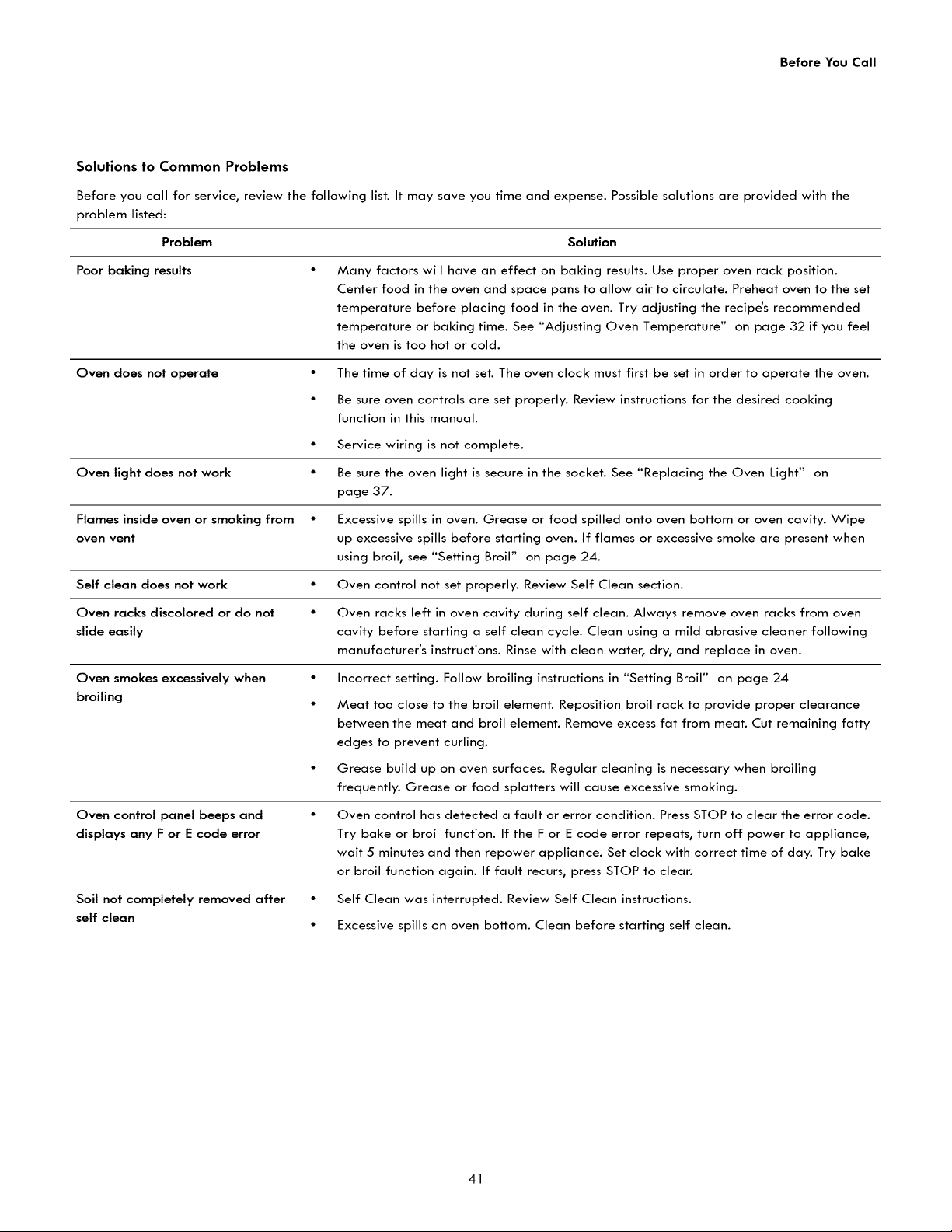

Before You Call
Solutions to Common Problems
Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the
problem listed:
Problem Solution
Poor baking results Many factors will have an effect on baking results. Use proper oven rack position.
Center food in the oven and space pans to allow air to circulate. Preheat oven to the set
temperature before placing food in the oven. Try adjusting the recipe's recommended
temperature or baking time. See "Adjusting Oven Temperature" on page 32 if you feel
the oven is too hot or cold.
Oven does not operate
Oven light does not work •
Flames inside oven or smoking from •
oven vent
Self clean does not work •
Oven racks discolored or do not •
slide easily
Oven smokes excessively when
broiling
Oven control panel beeps and
displays any F or E code error
Soil not completely removed after
self clean
• The time of day is not set. The oven clock must first be set in order to operate the oven.
• Be sure oven controls are set properly. Review instructions for the desired cooking
function in this manual.
Service wiring is not complete.
Be sure the oven light is secure in the socket. See "Replacing the Oven Light" on
page 37.
Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe
up excessive spills before starting oven. If flames or excessive smoke are present when
using broil, see "Setting Broil" on page 24.
Oven control not set properly. Review Self Clean section.
Oven racks left in oven cavity during self clean. Always remove oven racks from oven
cavity before starting a self clean cycle. Clean using a mild abrasive cleaner following
manufacturer's instructions. Rinse with clean water, dry, and replace in oven.
• Incorrect setting. Follow broiling instructions in "Setting Broil" on page 24
• Meat too close to the broil element. Reposition broil rack to provide proper clearance
between the meat and broil element. Remove excess fat from meat. Cut remaining fatty
edges to prevent curling.
• Grease build up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Grease or food splatters will cause excessive smoking.
• Oven control has detected a fault or error condition. Press STOP to clear the error code.
Try bake or broil function. If the F or E code error repeats, turn off power to appliance,
wait 5 minutes and then repower appliance. Set clock with correct time of day. Try bake
or broil function again. If fault recurs, press STOP to clear.
• Self Clean was interrupted. Review Self Clean instructions.
• Excessive spills on oven bottom. Clean before starting self clean.
41

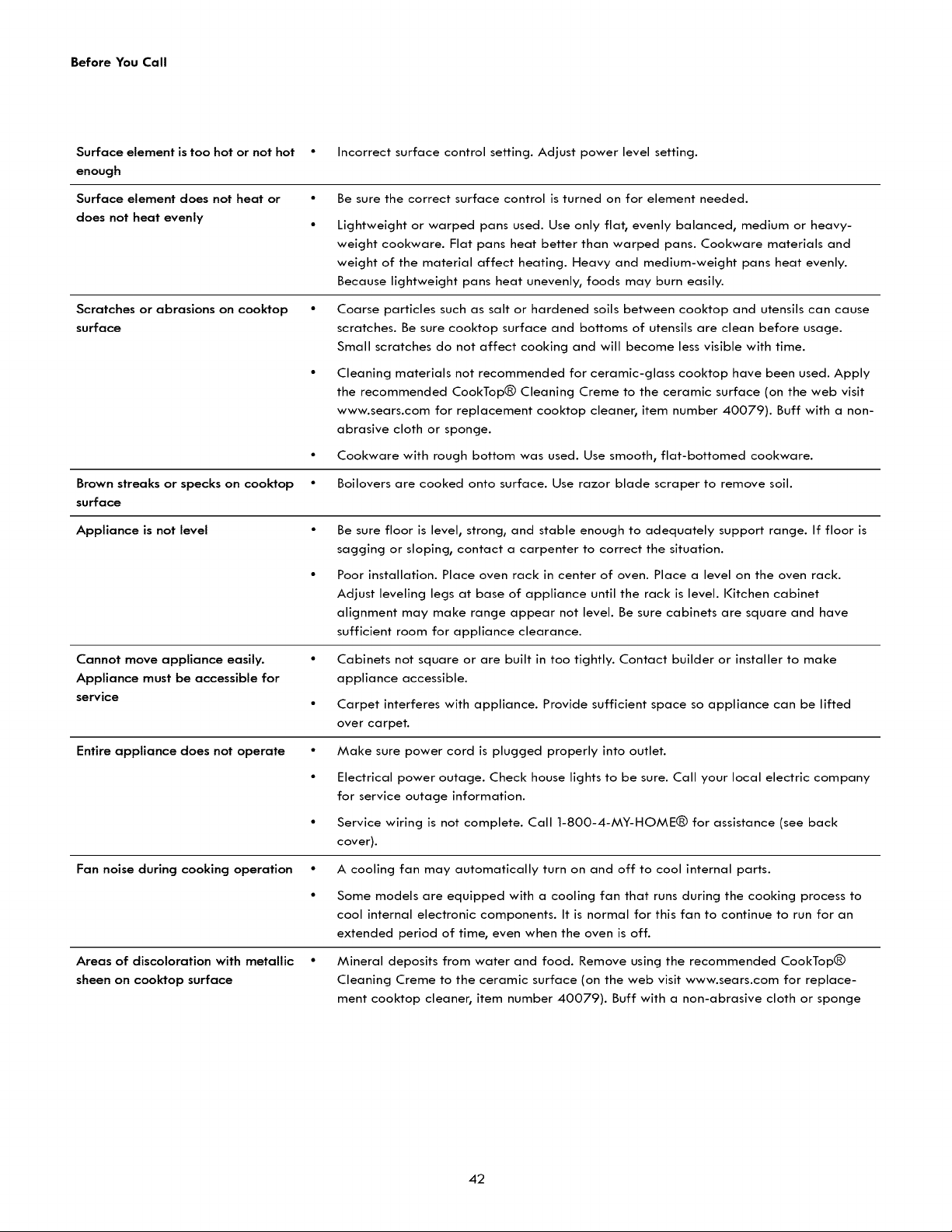

Before You Call
Surface element is too hot or not hot
enough
Surface element does not heat or
does not heat evenly
Scratches or abrasions on cooktop
surface
• Incorrect surface control setting. Adjust power level setting.
• Be sure the correct surface control is turned on for element needed.
Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavy-
weight cookware. Flat pans heat better than warped pans. Cookware materials and
weight of the material affect heating. Heavy and medium-weight pans heat evenly.
Because lightweight pans heat unevenly, foods may burn easily.
• Coarse particles such as salt or hardened soils between cooktop and utensils can cause
scratches. Be sure cooktop surface and bottoms of utensils are clean before usage.
Small scratches do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. Apply
the recommended CookTop® Cleaning Creme to the ceramic surface (on the web visit
www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-
abrasive cloth or sponge.
• Cookware with rough bottom was used. Use smooth, flat-bottomed cookware.
Brown streaks or specks on cooktop • Boilovers are cooked onto surface. Use razor blade scraper to remove soil.
surface
Appliance is not level • Be sure floor is level, strong, and stable enough to adequately support range. If floor is
sagging or sloping, contact a carpenter to correct the situation.
• Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Adjust leveling legs at base of appliance until the rack is level. Kitchen cabinet
alignment may make range appear not level. Be sure cabinets are square and have
sufficient room for appliance clearance.
Cannot move appliance easily.
Appliance must be accessible for
service
Entire appliance does not operate
• Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.
• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted
over carpet.
Fan noise during cooking operation •
Areas of discoloration with metallic •
sheen on cooktop surface
Make sure power cord is plugged properly into outlet.
Electrical power outage. Check house lights to be sure. Call your local electric company
for service outage information.
Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (see back
cover).
A cooling fan may automatically turn on and off to cool internal parts.
Some models are equipped with a cooling fan that runs during the cooking process to
cool internal electronic components. It is normal for this fan to continue to run for an
extended period of time, even when the oven is off.
Mineral deposits from water and food. Remove using the recommended CookTop®
Cleaning Creme to the ceramic surface (on the web visit www.sears.com for replace-
ment cooktop cleaner, item number 40079). Buff with a non-abrasive cloth or sponge
42
Master Protection Agreements
Congratulations on making a smart purchase, Your new Kenmore ®
product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional failure
excluded from coverage - real protection.
[] Expert service by a force of more than 10,000 authorized Sears
service technicians, which means someone you can trust will be
working on your product.
[] Unlimited service calls and nationwide service, as often as you
want us, whenever you want us.
[] "No=lemon" guarantee- replacement of your covered product if
four or more product failures occur within twelve months.
[] Product replacement if your covered product can't be fixed.
[] Annual Preventive Maintenance Check at your request - no extra
charge.
[] Fast help by phone - we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a "talking
owner's manual".
[] Power surge protection against electrical damage due to power
fluctuations.
[] $250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
[] Rental reimbursement if repair of your covered product takes
longer than promised.
[] 25% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1=800=827=6655.
* Coverage in Canada varies on some items. For full details call
Sears Canada at 1=800=361=6665.
Sears installation Service
For Sears professional installation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1=800=4=MY=HOME®.
Acuerdos maestros de proteccibn
Enhorabuena por haber hecho una compra inteligente. Su nuevo
producto Kenmore®esta diseSado y fabricado para brindarle aSos de
funcionamiento fiable. Pero, como cualquier producto, puede necesitar
mantenimiento preventive o reparaciones peri6dicas. Es por eso que
tener un Acuerdo maestro de proteccidn podria ahorrade dinero y
molestias.
El Acuerdo maestro de protecci6n tambien sirve para promongar ma
durabilidad de su nuevo producto. El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en
condiciones normales de uso, no s61o en caso de defectos de los
productos. Nuestra cobertura va mucho m_s all_ que la garantia
del producto. No se aplican deducibles ni exclusiones pot fallas del
funcionamiento: es decir, verdadera protecci6n.
[] Servicio t_cnico pot expertos (mas de 10000 t_cnicos
autorizados de Sears), Io cual significa que quien repare o realice
el mantenimiento de su producto ser#, un profesional de confianza.
[] Servicio t_cnico a escala nacional y n_mero ilimitado de
llamadas de solicitud de servicio t_cnico: se puede poner en
contacto con nosotros cuantas veces Io desee y cuando Io desee.
[] Garantia "sin sorpresas': se reemplaza el producto cubierto por el
acuerdo si ocurren cuatro o mas faHas demproducto en un periodo
de 12 meses.
[] Reemplazo del producto: en caso de que no se pueda reparar el
producto cubierto por emacuerdo.
[] Revisi6n anual preventiva de mantenimiento del producto:
puede solicitarla en cualquier memento, sin costo alguno.
[] R_pida asistencia telef6nica, la cual denominamos Soluci6n
r_pida: es decir, asistencia telefonica a traves de cualquiera de
nuestros representantes de Sears, sobre cuaiquiera de nuestros
productos. Piense en nosotros como en un "manual padante del
usuario".
[] Proteccibn contra fallas el_ctricas, contra da_os debidos a
fluctuaciones de la corriente electrica.
[] $250 al aSo para cubrir cualquier posible deterioro de
alimentos que haya tenido que desechar debido a una falla
mecAnica de cualquiera de nuestros refrigeradores o congeladores
cubiertos por este acuerdo.
[] Devoluci6n de gastos de alquiler de electrodom_sticos si la
reparaci6n de su producto asegurado toma m_s que el tiempo
prometido.
[] 25% de descuento aplicable tanto a los costos del servicio de
reparaci6n, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos por este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastara una simple
Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a
cualquier hora del dia o de la noche, o bien concertar una visita de
servicio por Intemet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n
exenta de riesgos. Si per cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garanfia del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancela el acuerdo en
cualquier otro momento posterior al vencimiento del periodo de garantia
del producto, iAdquiera hoy mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informacibn adicional, llame al 1=800=827=6655 (en los
EE,UU,),
* La cobertura en Canad_ vada en el caso de algunos artfculos. Para
obtener detalles completos al respecto, llame al 1=800=361=6665 de
Sears de Canad&
Servicio de instalacibn de Sears
Para solicitar la instalacidn por profesionales de Sears de
electrodomesticos, abridores de puertas de garaje, calentadores de agua
y otros articulos de uso prioritario en el hogar, Ilame al 1=800=4=MY=
HOME en los EE.UU. o CanadA.
®RegisteredTrademark/ TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TMMarca de Fabfica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises
MCMarque de commerce / MDMarque ddpos_e de Sears Brands, LLC
