PRO Series
All-in-One PC
PRO AP222T 13M (MS-AC01)
User Guide
2
Contents
Contents
Getting Started .............................................................................................................. 3
Package Contents ................................................................................................... 3
Safety & Comfort Tips ............................................................................................ 3
System Overview..................................................................................................... 4
Hardware Setup ...................................................................................................... 8
OSD Setup ............................................................................................................. 11
Component Replacement & Upgrade .................................................................. 15
Windows 11 System Operations ................................................................................ 16
Power Management ............................................................................................. 16
Network Connections ........................................................................................... 20
System Recovery .................................................................................................. 28
F3 Hotkey Recovery (Optional) ..................................................................................30
Troubleshooting.......................................................................................................... 31
Safety Instructions ...................................................................................................... 33
TÜV Rheinland Certification....................................................................................... 35
ENERGY STAR Certification ....................................................................................... 35
Regulatory Notices ..................................................................................................... 36
Revision
V1.0, 2023/01
3
Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
All-in-One PC PRO AP222T 13M
Documentation
User Guide (Optional)
Quick Start Guide (Optional)
Warranty Card & Warranty Book (Optional)
Accessories
Mouse (Optional)
Keyboard (Optional)
External Power Adapter
Power Cord
⚠
Important
∙
Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙
Package contents may vary by country.
∙
The included power cord is exclusively for this personal computer and should not be
used with other products.
Safety & Comfort Tips
∙ Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙ Your work area should have enough illumination.
∙ Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙ When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙ Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙ Put your hands on the desk naturally to support your wrists.
∙ Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙ The PC is an electrical device. Please treat it with great care to avoid personal
injury.
4
Getting Started
System Overview
2
1
4
3
6
5
7
9
11
12
13
14
15
16
17
18
19
20
21
18
8
10
8
5
Getting Started
1
Webcam
2
Digital Microphone
3
Touch Screen
4
Card Reader
5
USB 3.2 Gen 1 Type-C Port
This connector is provided for USB peripheral devices. This connector can
provide up to 5V/3A of power. (Speed up to 5 Gbps)
6
USB 3.2 Gen 1 Port
This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)
7
Power Button
8
Stereo Speaker
9
Kensington Lock
10
Navi Key
The AIO PC comes with a Navi Key, a multi-directional control that helps
navigate the On-Screen Display (OSD) menu.
11
Power LED
The power LED glows when the system is turned on and goes off when
the system is shut down. In terms of power saving, the LED blinks in S3
(Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode.
12
Hard Disk Drive LED
This indicator shows the activity status of the HDD. It flashes when the
system is accessing data on the HDD and remains off when no disk activity
is detected.
6
Getting Started
13
HDMI™ Connector
Supports 4K@60Hz as specified in HDMI™ 2.1.
⚠
Important
∙
Available for the processor with integrated graphics.
∙
Graphics specifications may vary depending on the installed CPU.
14
HDMI™ Connector
This input port comes with MSI Instant Display Technology. When you
connect power to the AIO PC successfully, the monitor will automatically
enter “standby” mode without pressing the power button. When devices are
connected to the HDMI™ port, the monitor will be turned on immediately.
You can also switch the modes through the Monitor Power/ Mode Button on
the side panel if you have already turned on your AIO PC. This technology
helps to save more energy for your system.
15
Serial Port
The serial port supports barcode scanners, barcode printers, bill printers,
credit card machine, etc.
16
USB 3.2 Gen 2 Port
This connector is provided for USB peripheral devices. (Speed up to 10
Gbps)
17
LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/ Activity
LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps
18
USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
7
Getting Started
19
Line-Out Jack
20
Mic-In Jack
21
Power Jack
8
Getting Started
Hardware Setup
Installing the Stand
1.
Leave the AIO PC in its protective foam packaging. Align the stand bracket to the
rear groove.
2. Tighten the stand bracket with screws.
3. Connect the base to the stand and tighten the base screw to secure the base.
4. Make sure the stand assembly is properly installed before setting the AIO PC
upright.
2
1
3
⚠
Important
∙
Place the AIO PC on a soft, protected surface to avoid scratching the display panel.
∙
Do not use any sharp objects on the panel.
∙
The groove for installing the stand bracket can also be used for wall mount. Please
contact your dealer for proper wall mount kit.
∙
This product comes with NO protective film to be removed by the user! Any
mechanical damages to the product including removal of the polarizing film may
affect the warranty!
9
Getting Started

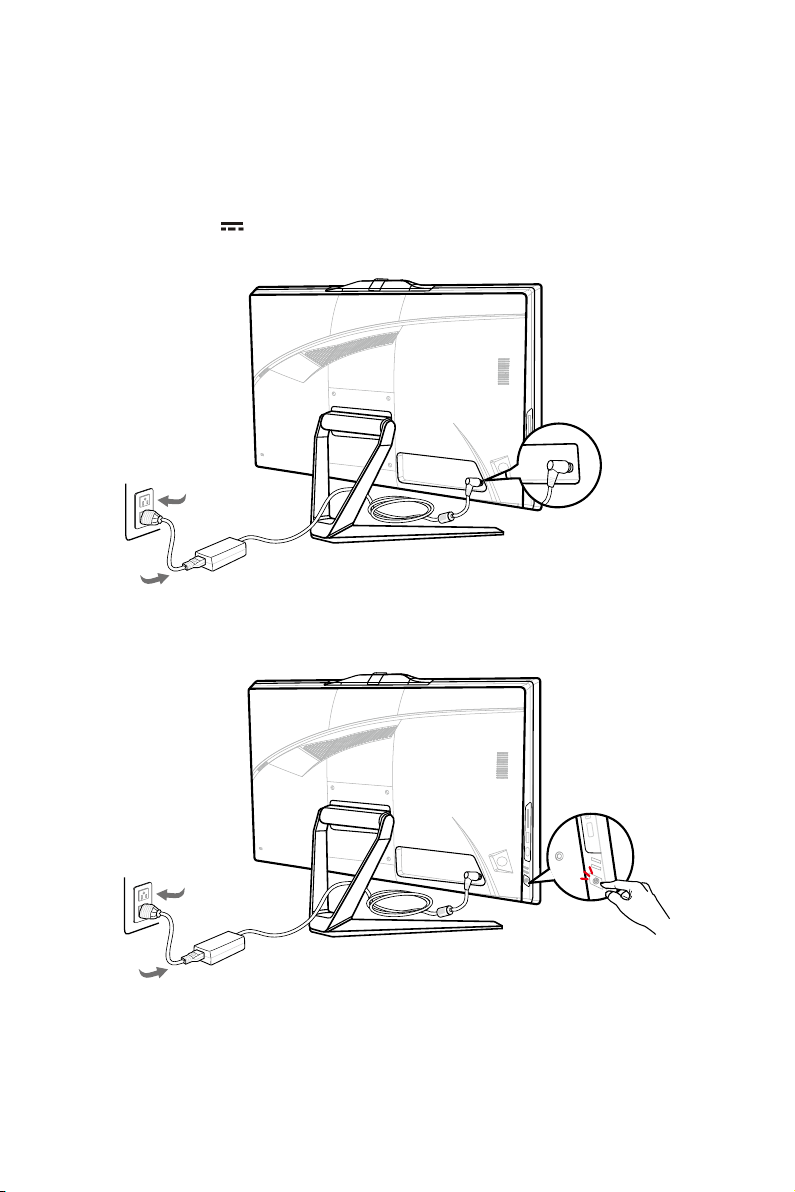

Connecting the Power
Connect the external power supply to the AIO PC and plug in the power cord. Press the
power button to power on the AIO PC.
120W External Power Supply
• Input: 100-240V~, 50-60Hz
• Output: 19.5V 6.15A
10
Getting Started
Adjusting the Monitor
This AIO PC is designed to maximize your viewing comfort with its adjustment
capabilities.
⚠
Important
∙
The illustrations are for reference only. Your AIO PC may vary in appearance.
∙
Please make sure the AIO PC has been grounded to earth through the AC power
cord and the electrical outlet before powering on the AIO PC.
∙
Do not use any sharp objects on the display panel.
∙
Avoid touching the display panel when adjusting the monitor.
-5°
15°
11
Getting Started
OSD Setup
This chapter provides you with essential information on OSD Setup.
⚠
Important
All information is subject to change without prior notice.

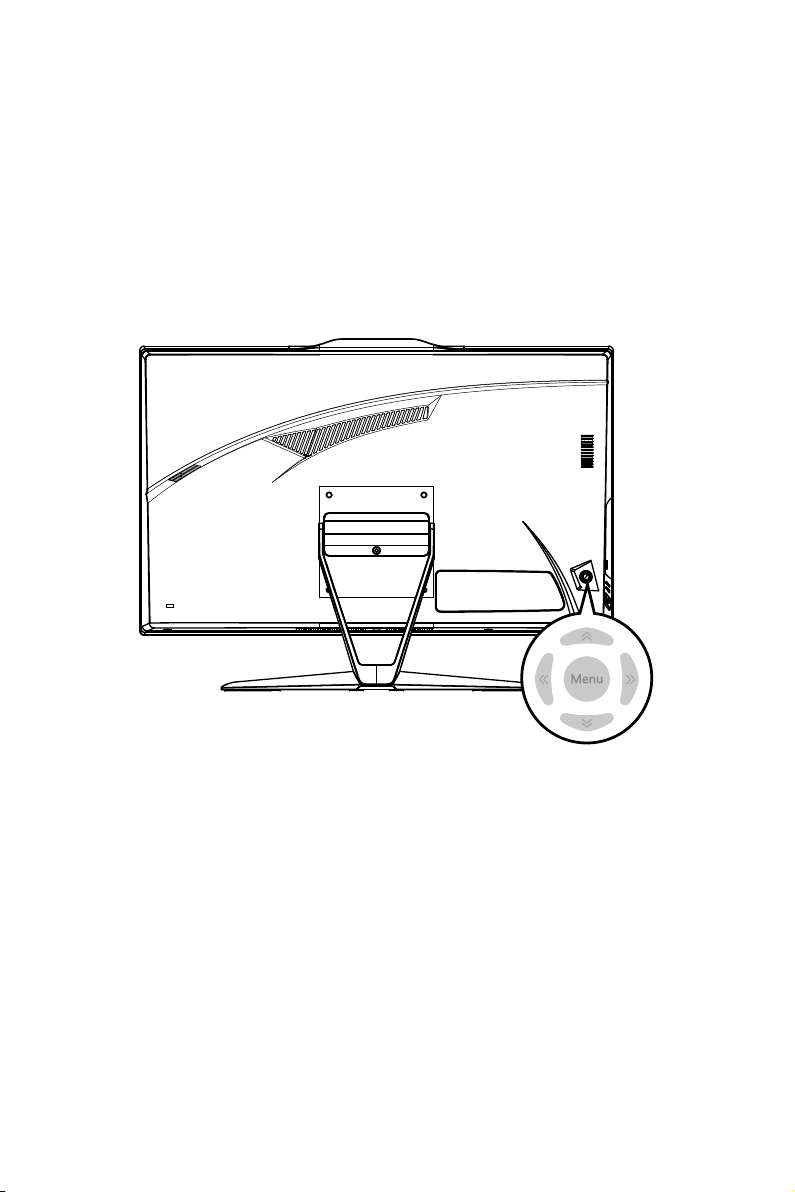

Navi Key
The AIO comes with a Navi Key, a multi-directional control that helps navigate the On-
Screen Display (OSD) menu.
Up/Down/Left/Right:
∙ selecting function menus and items
∙ adjusting function values
∙ entering into/exiting from function menus
Press (Menu):
∙ launching the On-Screen Display (OSD)
∙ entering submenus
∙ confirming a selection or setting
Hot Key
∙ Users may enter into Volume, Brightness, Mode and Input Source function menus by
moving the Navi Key up, down, left or right when the OSD menu is inactive.
∙ Users may customize their own Hot Keys to enter into different function menus.
12
Getting Started
OSD Setup via Navi Key
Press the Middle button of Navi Key to launch the On-Screen Display (OSD) main
menu. Use the Up, Down, Left, Right buttons to tune the desired function menus to
suit your personal preferences. Press Menu 3 seconds to shut the panel off. Press
Menu again to wake it up.
1st Level
Menu
2nd/ 3rd Level Menu Description
Mode User ∙ Default is User.
∙ While sRGB mode is selected, the
color space will changed to standard
sRGB from original panel gamut.
Reader
Cinema
Designer
sRGB
Brightness 0-100
∙ Default is 80.
∙ Brightness has to be gray out in PC
Mode.
Contrast 0-100
∙ Default is 80.
Sharpness 0-5
∙ Default is 0.
Eye Saver OFF
∙ Default is OFF.
∙ Eye Saver has to be enabled in
Reader Mode.
ON
13
Getting Started
1st Level
Menu
2nd/ 3rd Level Menu Description
Color
Temperature
Cool ∙ Default is Normal.
∙ Cool Mode is 9300K; Normal Mode
is 6500K; Warm Mode is 5000K.
∙ Customization Mode default R/G/B
are 50/50/50.
∙ Color Temperature has to gray out
while sRGB mode is selected.
Normal
Warm
Customization R
(0-100)
G
(0-100)
B
(0-100)
Screen Size 4:3
∙ Default is 16:9.
16:9
Input Source
1st Level Menu Description
PC User can use Navi Key, and OSD Menu to adjust the Input Source
in any Mode.
HDMI™
Setting
1st Level Menu 2nd Level
Menu
Description
Language English ∙ Default is English.
∙ Language is an independent setting. User’s
own language setting will override the
factory default. When user sets Reset to Yes,
Language will not be changed.
繁體中文
简体中文
Italiano
Español
Français
Português
Deutsch
日本語
Русский
14
Getting Started
1st Level Menu 2nd Level
Menu
Description
Transparency 0-5 ∙ Default is 0.
OSD Time Out 5-30
∙ Default is 20s.
Audio Volume 0-100
∙ Default is 50.
Reset YES
∙ User can Reset the settings to original OSD
default in any Mode.
NO
15
Getting Started

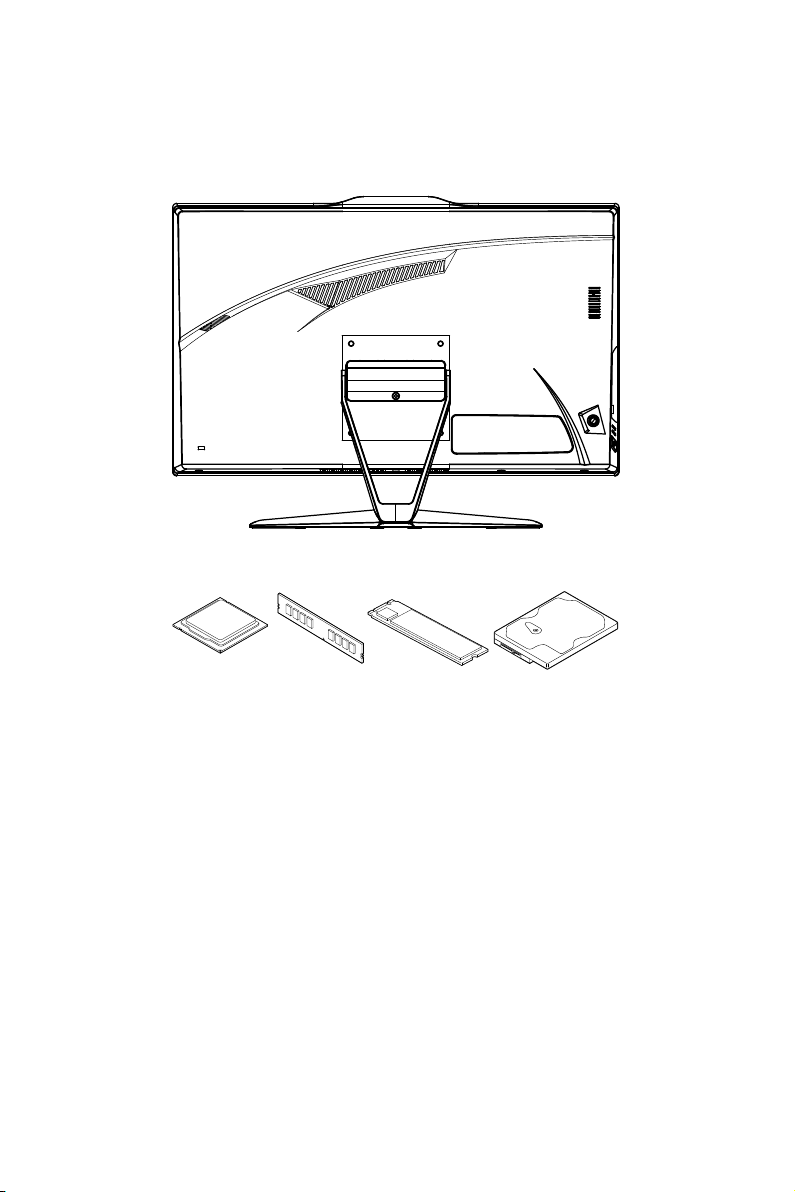

Component Replacement & Upgrade
Please note that certain components preinstalled in the product may be upgradable or
replaceable by user’s request depending on the models users purchased.
For any further information on the product users purchased, please contact the local
dealer. Do not attempt to upgrade or replace any component of the product if you are
not an authorized dealer or service center, since it may cause the warranty void. It is
strongly recommended that you contact the authorized dealer or service center for
any upgrade or replace service.
16
Windows 11 System Operations
Windows 11 System Operations
⚠
Important
All information and Windows screenshots are subject to change without prior notice.
Power Management
Power management of personal computers (PCs) and monitors has the potential to
save significant amounts of electricity as well as deliver environmental benefits.
To be energy efficient, turn off your display or set your PC to sleep mode after a period
of user inactivity.

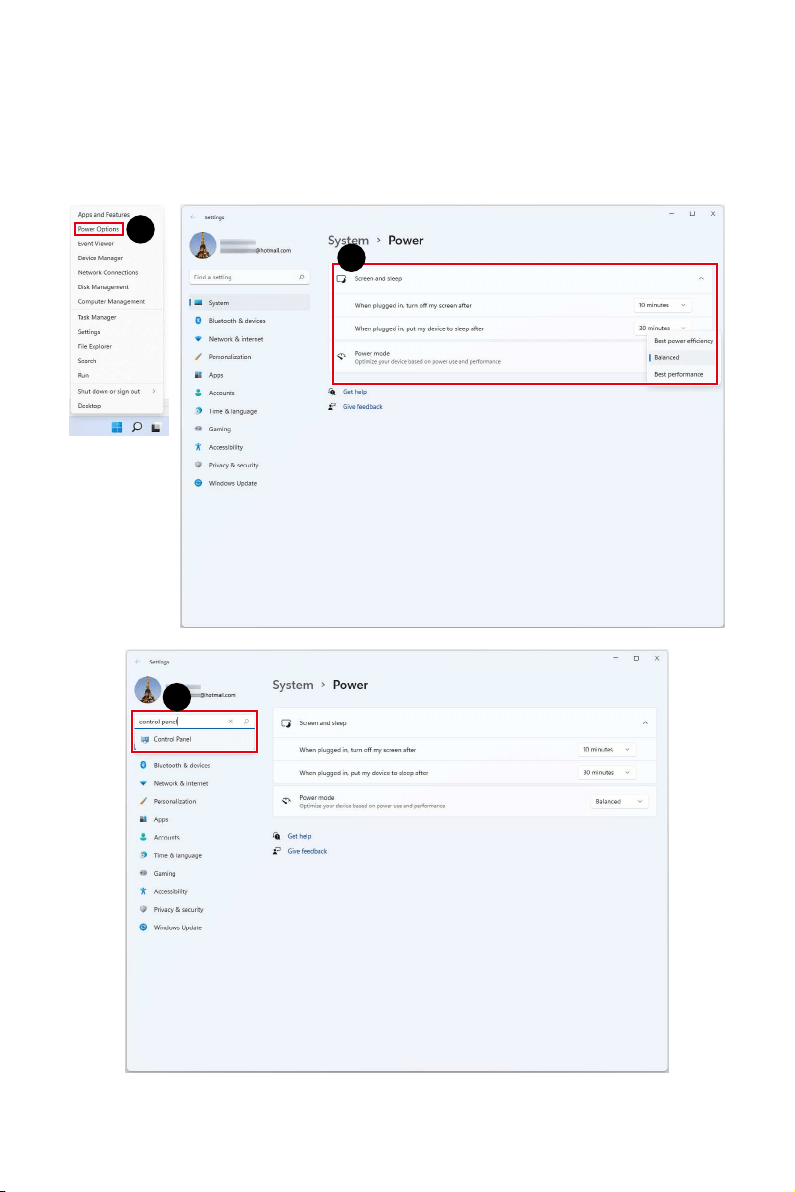

1. Right-click [Start] and select [Power Options] from the list.
2. Adjust [Screen and sleep] settings and select a power mode from the list.

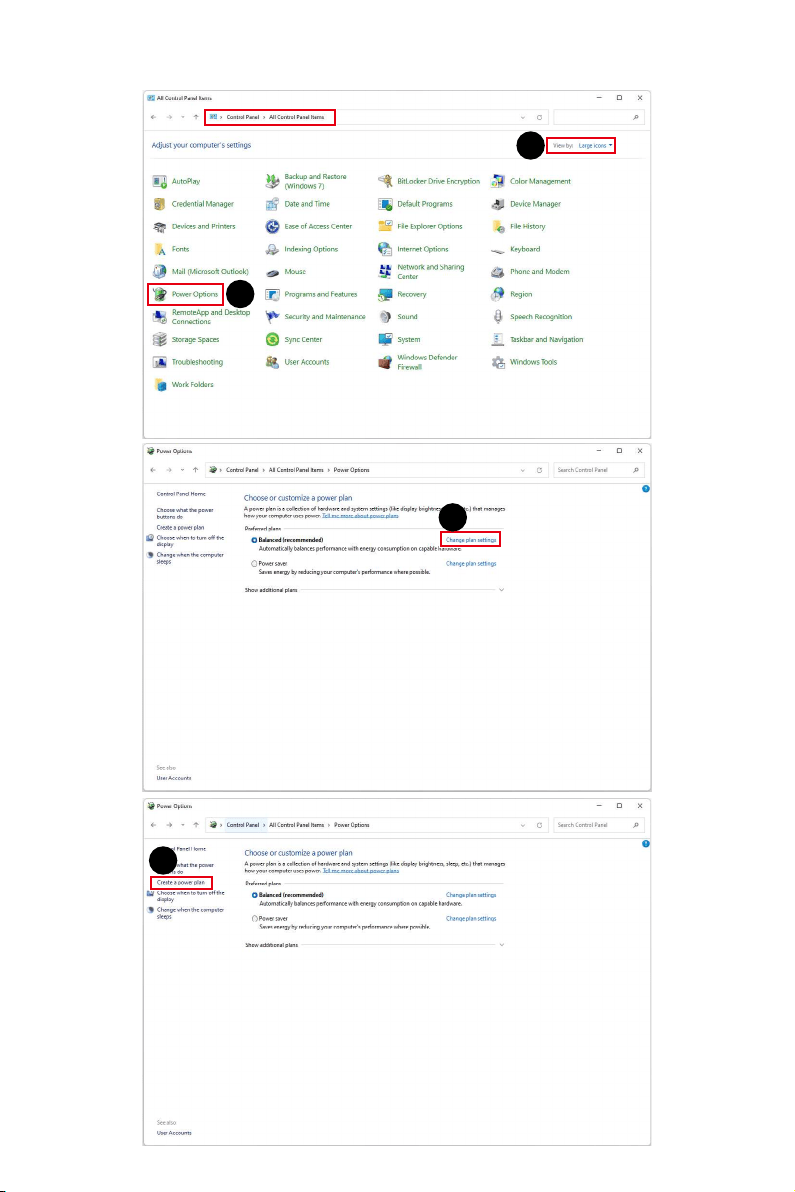

3. To choose or customize a power plan, type control panel in the search box and
select [Control Panel].
4. Open up [All Control Panel Items] window. Select [Large icons] under [View by]
drop-down menu.
5. Select [Power Options] to continue.

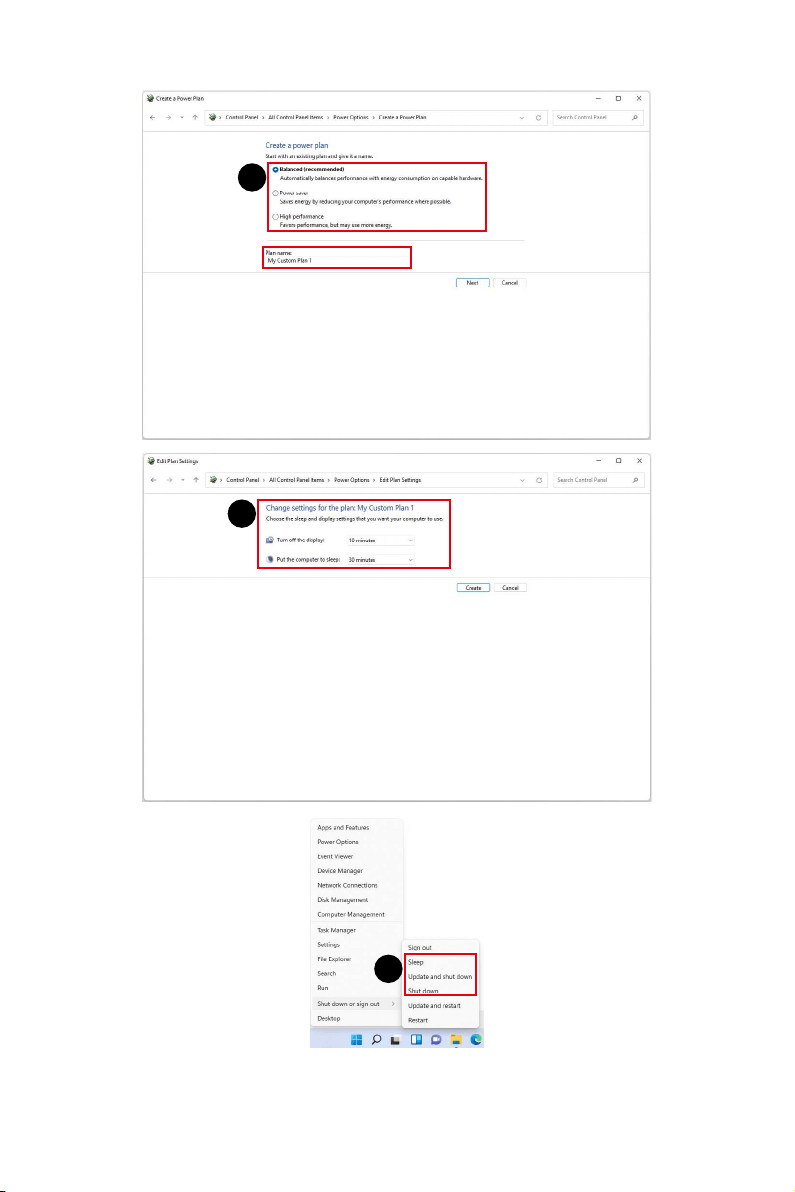

6. Select a power plan and fine-tune the settings by clicking [Change plan settings].
7. To create your own power plan, select (Create a power plan).
8. Select an existing plan and give it a new name.
9. Adjust settings for your new power plan.
10. The [Shut down or sign out] menu also presents power saving options for rapid and
easy management of your system power.
Energy Savings
The power management feature allows the computer to initiate a low-power or
“Sleep” mode after a period of user inactivity. To take advantage of these potential
energy savings, the power management feature has been preset to behave in the
following ways when the system is operating on AC power:
∙ Turn off the display after 10 minutes
∙ Initiate Sleep after 30 minutes
Waking the System Up
The computer shall be able to wake up from power saving mode in response to a
command from any of the following:
∙ the power button,
∙ the network (Wake On LAN),
∙ the mouse,
∙ the keyboard.
Energy Saving Tips:
∙ Turn off the monitor by pressing the monitor power button after a period of user
inactivity.
17
Windows 11 System Operations
∙ Tune the settings in Power Options under Windows OS to optimize your PC’s power
management.
∙ Install power saving software to manage your PC’s energy consumption.
∙ Always disconnect the AC power cord or switch the wall socket off if your PC would
be left unused for a certain time to achieve zero energy consumption.
2
3
1
18
Windows 11 System Operations
7
4
5
6
19
Windows 11 System Operations
10
8
9
20
Windows 11 System Operations
Network Connections
Wi-Fi

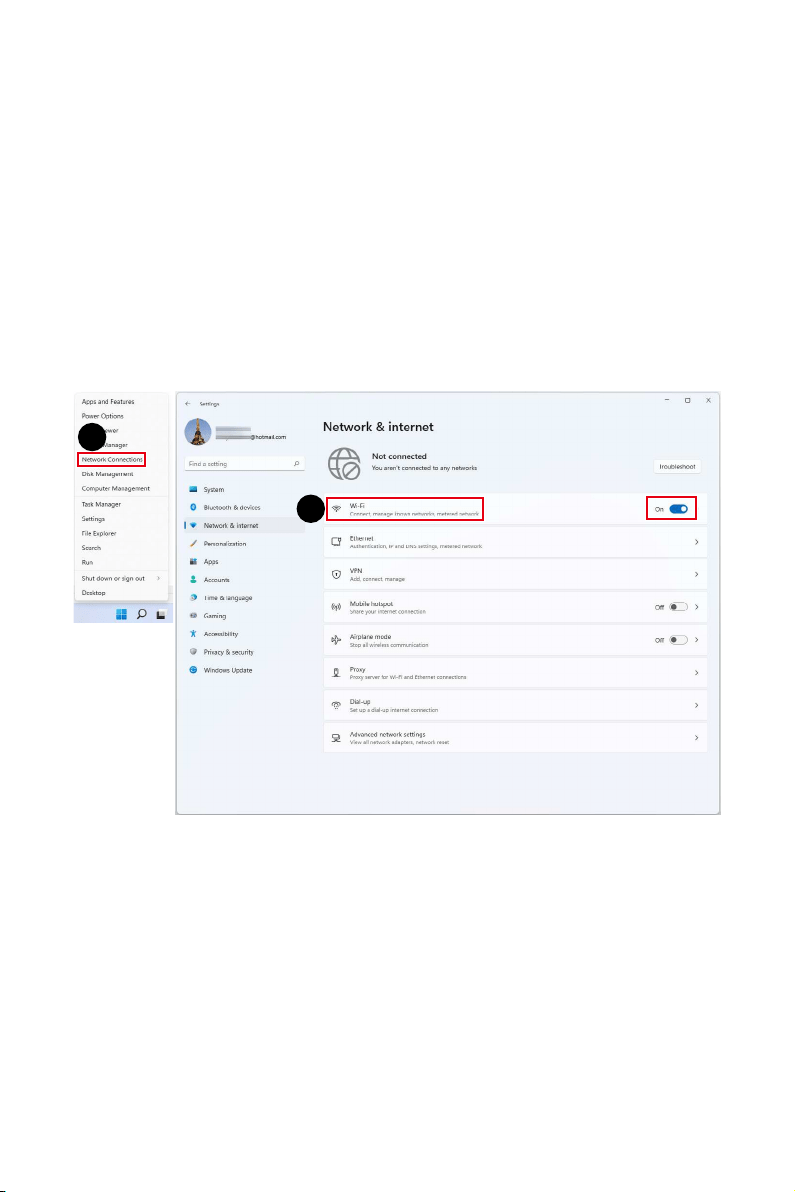

1.
Right-click [Start] and select [Network Connections] from the list.
2. Select and turn on [Wi-Fi].

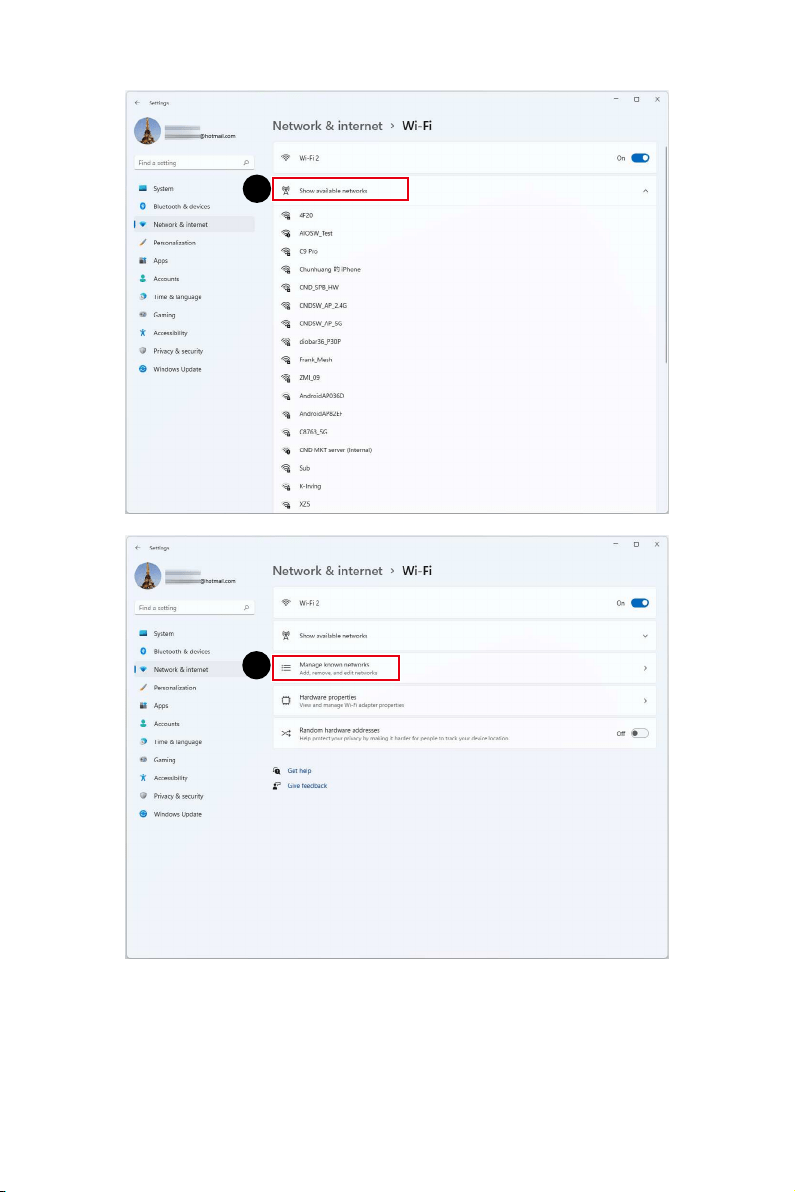

3. Select [Show available networks]. A list of available wireless networks pops up.
Choose a connection from the list.

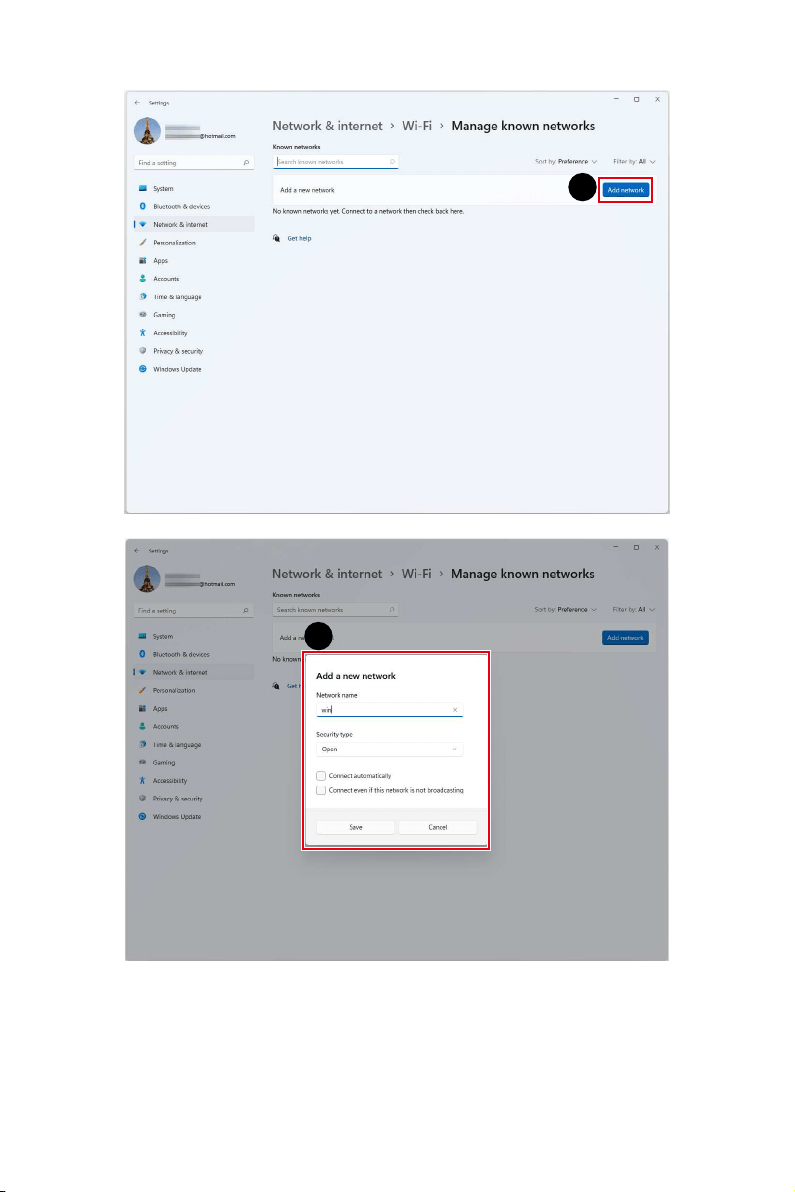

4. To establish a new connection, select [Manage known networks].
5. Select [Add network].
6. Enter information for the wireless network you intend to add and click [Save] to
establish a new connection.
1
2
21
Windows 11 System Operations
3
4
22
Windows 11 System Operations
5
6
23
Windows 11 System Operations
Ethernet
1.

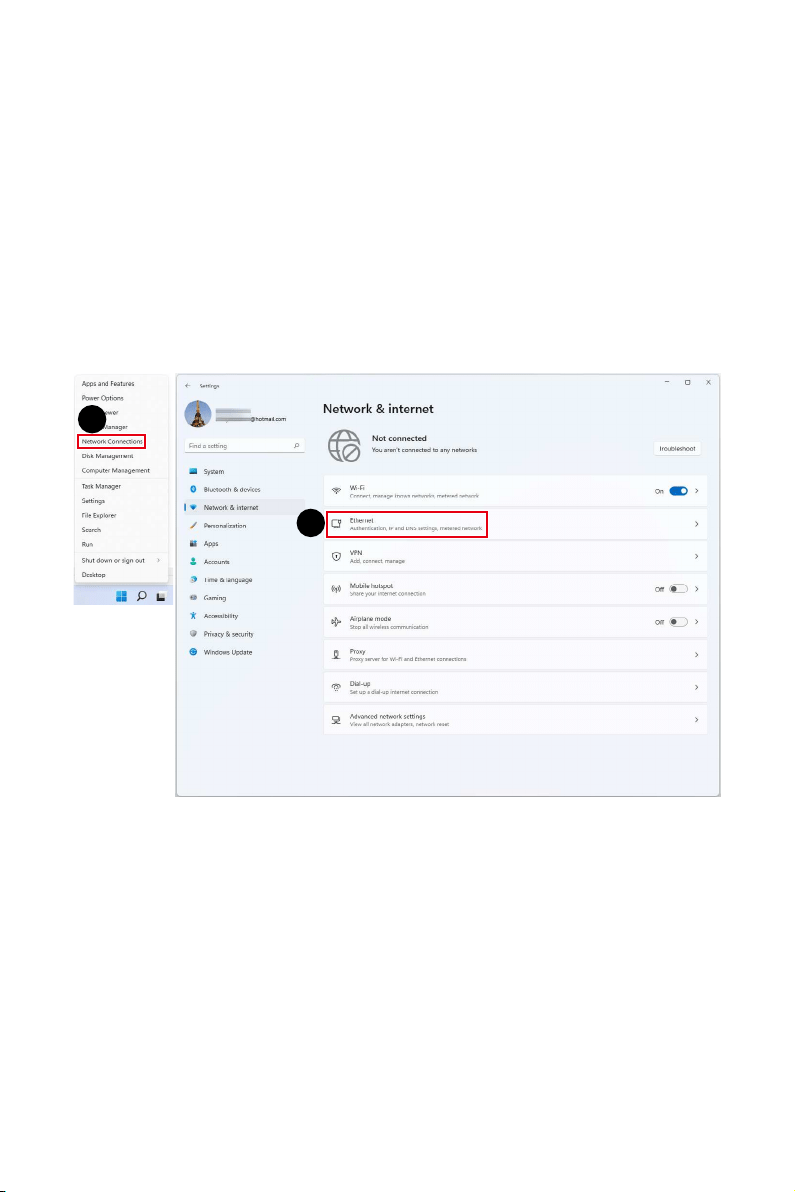

Right-click [Start] and select [Network Connections] from the list.
2. Select [Ethernet].

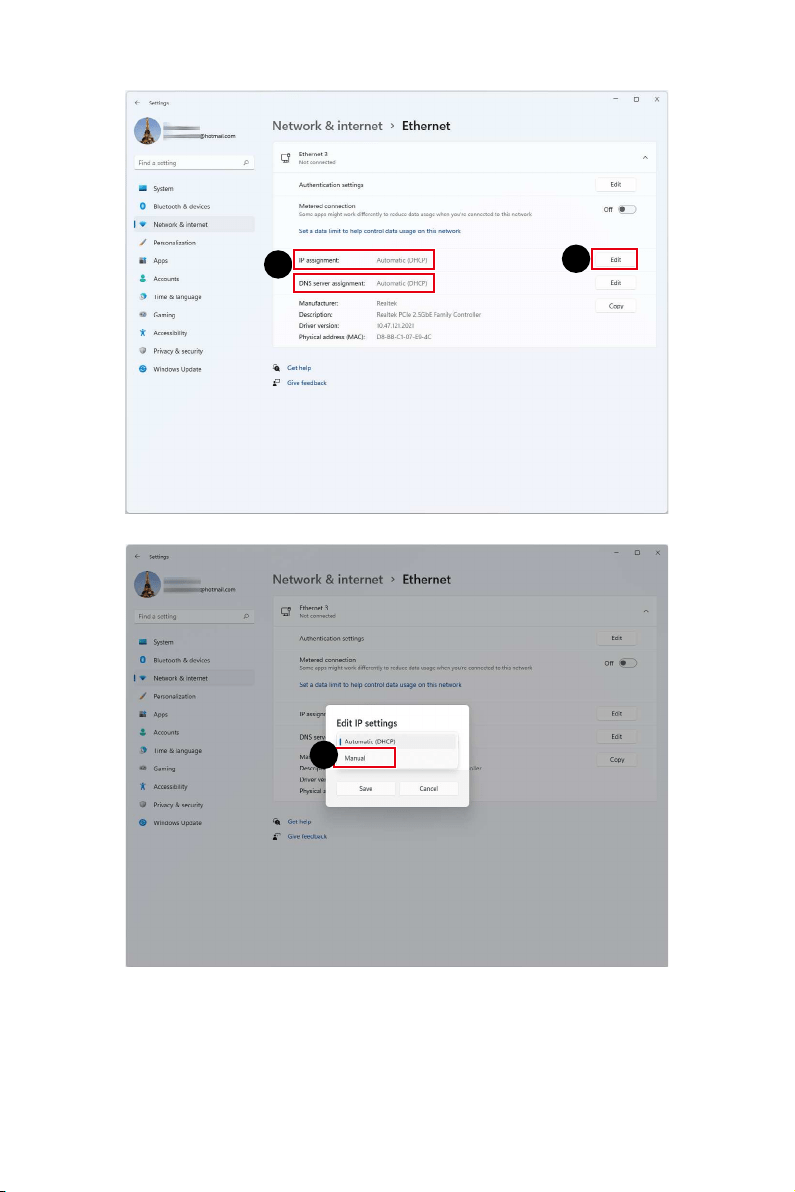

3. The [IP assignment] and [DNS server assignment] are automatically set as
[Automatic (DHCP)].
4. For a Static IP connection, click [Edit] of [IP assignment].

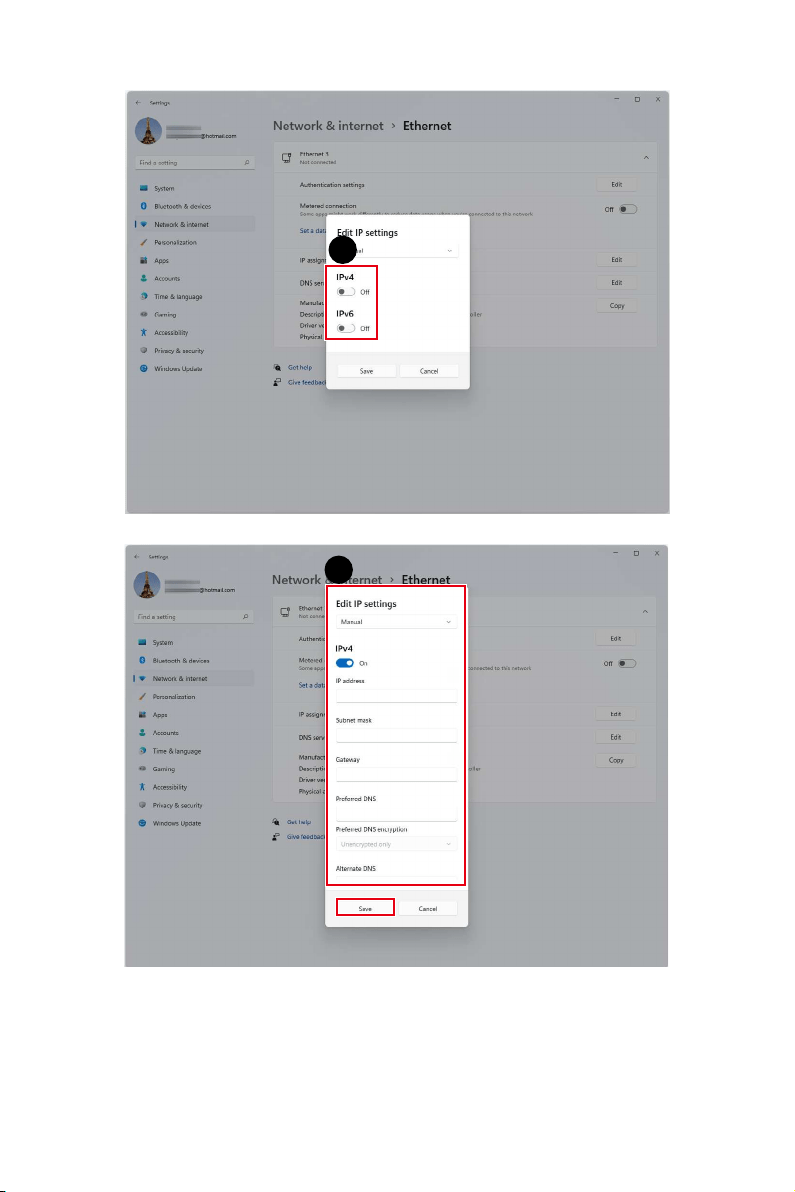

5. Select [Manual].
6. Switch on the [IPv4] or [IPv6].
7. Type the information from your Internet Service Provider and click [Save] to
establish a Static IP connection.
1
2
24
Windows 11 System Operations
3
4
5
25
Windows 11 System Operations
6
7
26
Windows 11 System Operations

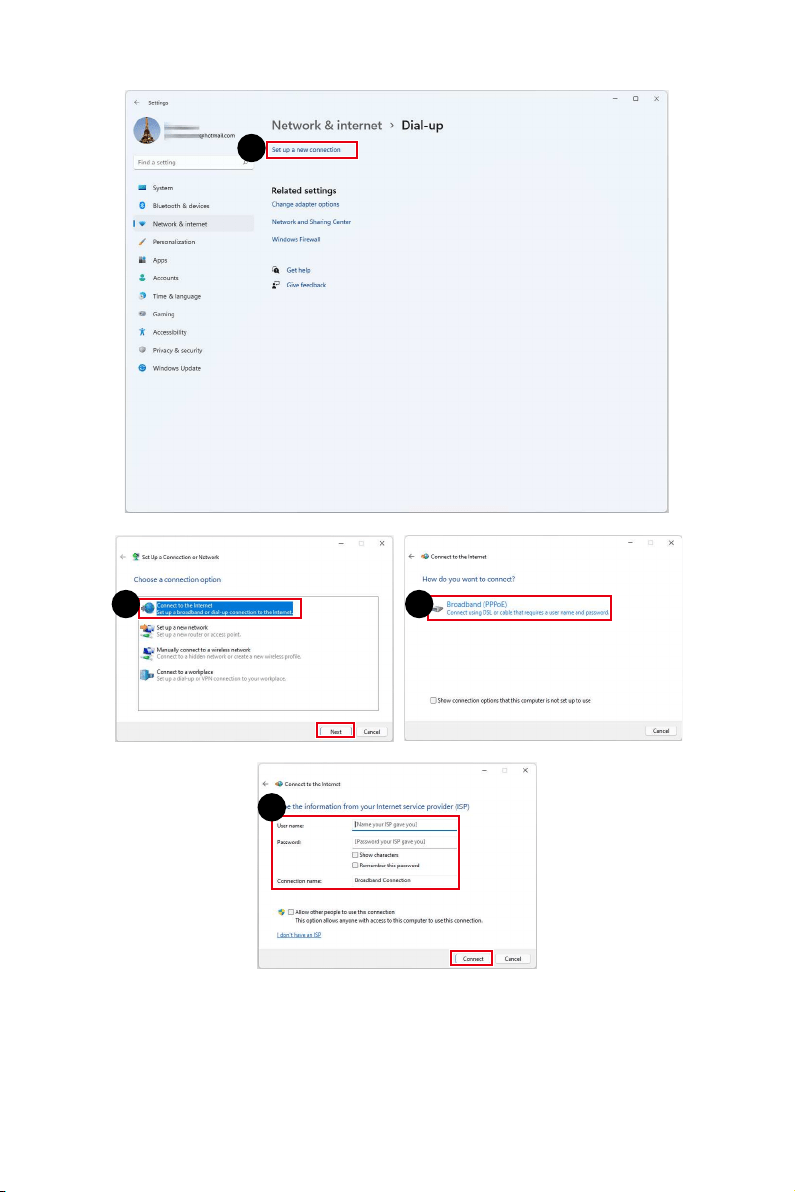

Dial-up
1.

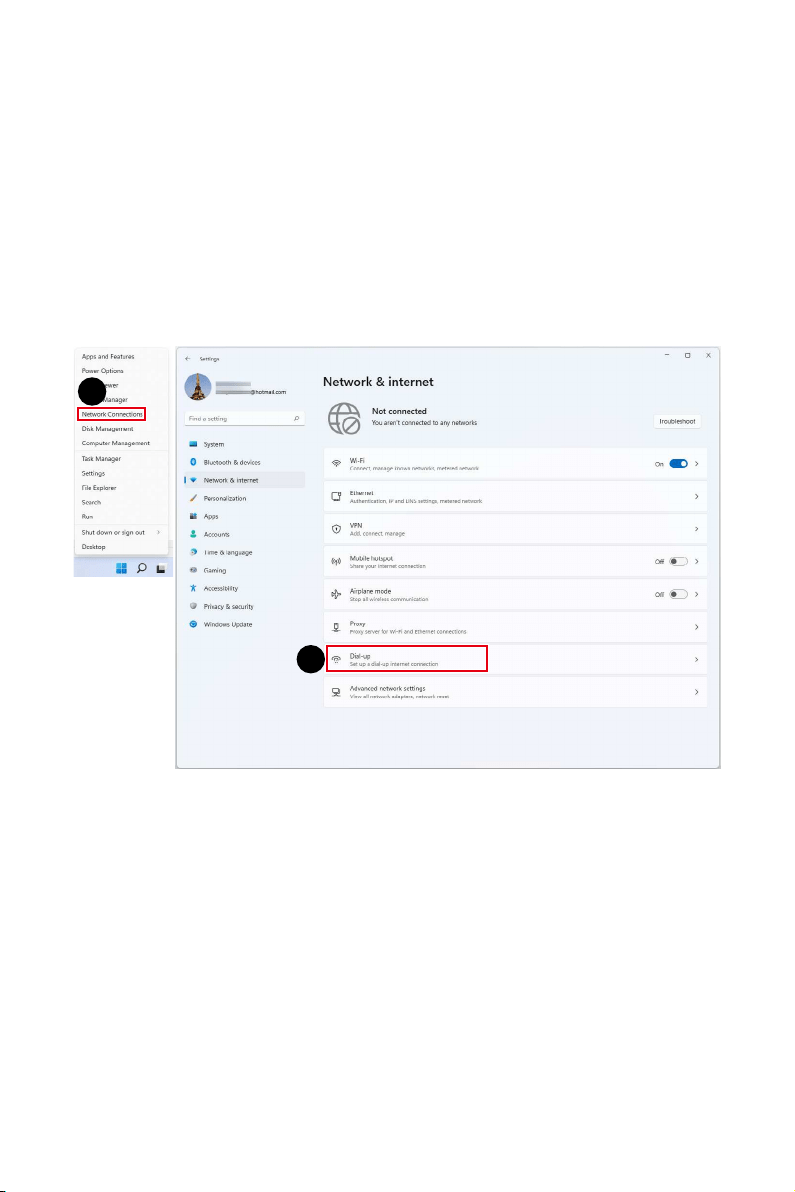

Right-click [Start] and select [Network Connections] from the list.
2. Select [Dial-up].
3. Select [Set up a new connection].
4. Choose [Connect to the Internet] and click [Next].
5. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user
name and password.
6. Type the information from your Internet Service Provider (ISP) and click [Connect]
to establish your LAN connection.
1
2
27
Windows 11 System Operations
3
4 5
6
28
Windows 11 System Operations
System Recovery
The purposes for using the System Recovery Function may include:
∙ Restore the system back to the initial status of original manufacturer’s default
settings.
∙ When some errors have occurred to the operating system in use.
∙ When the operating system is affected by virus and is not able to work normally.
∙ When you want to install the OS with other built-in languages.
Before using the System Recovery Function, please back up the important data saved
on your system drive to other storage devices.
If the following solution fails to recover your system, please contact the authorized
local distributor or service center for further assistance.
Reset this PC
1.

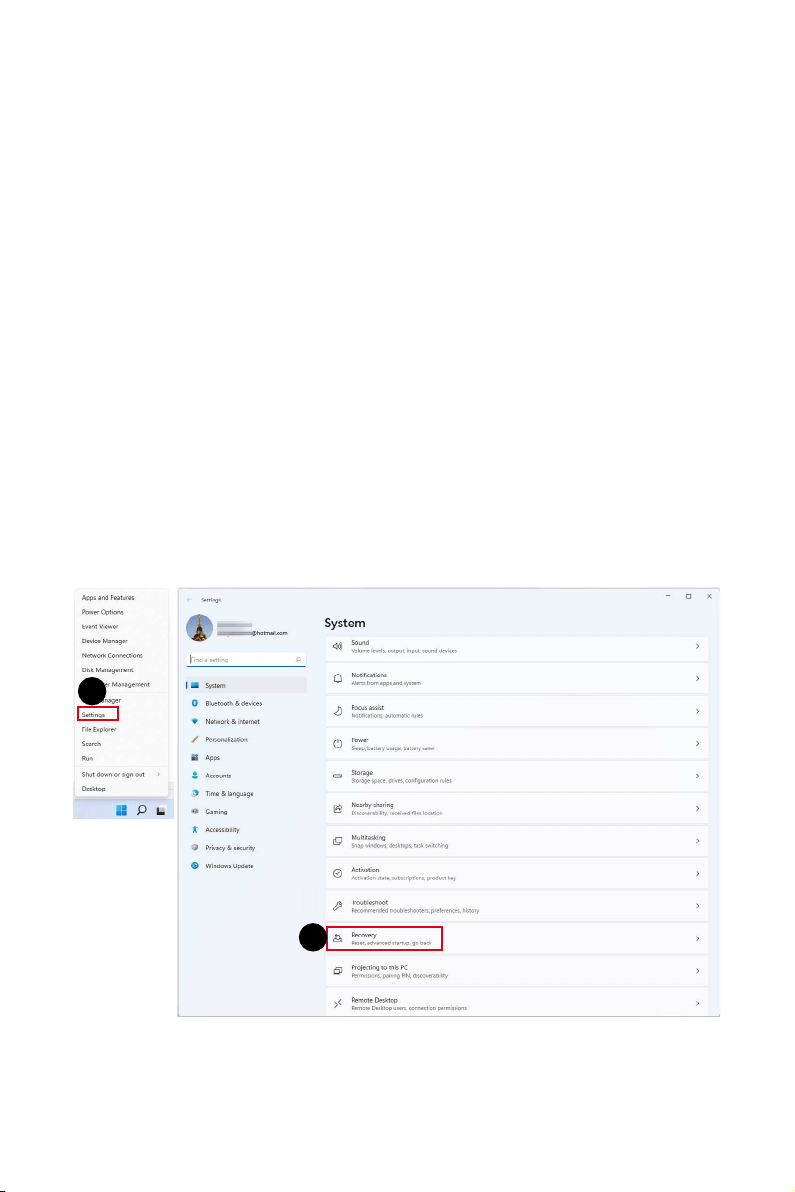

Right-click [Start] and select [Settings] from the list.
2. Select [Recovery] under [System].

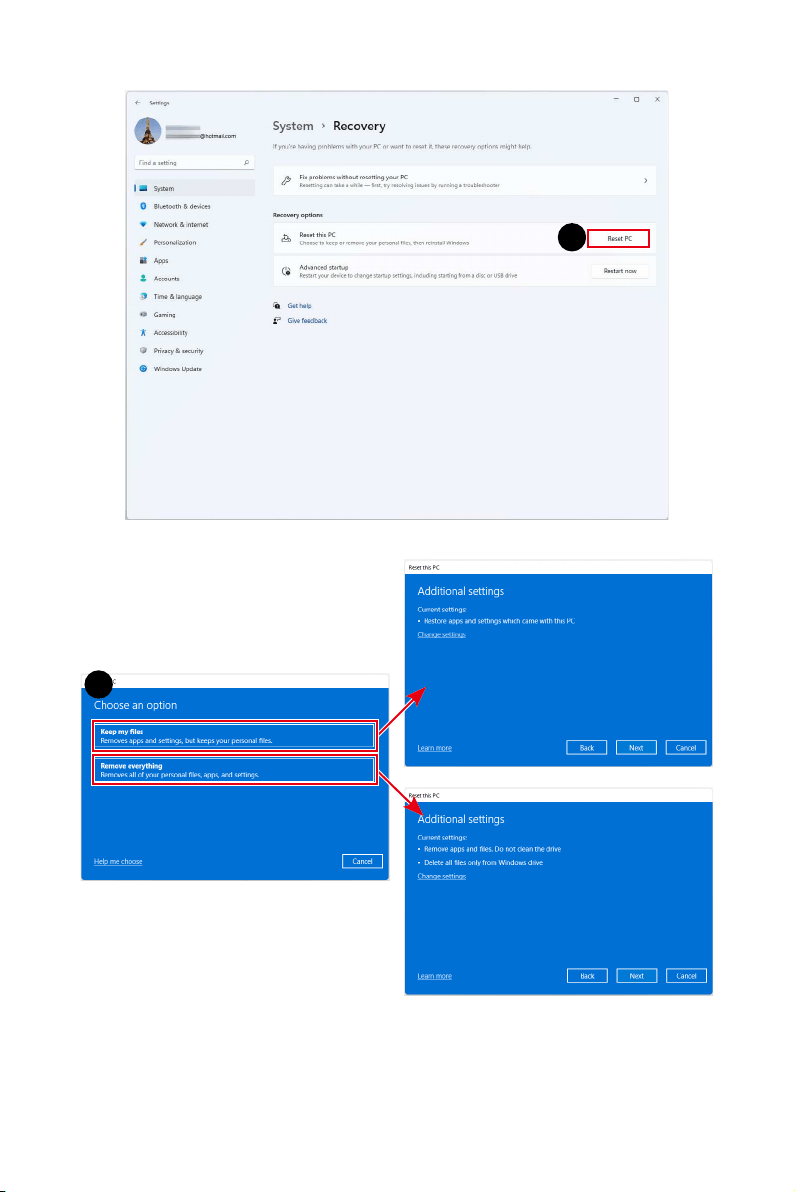

3. Click [Reset PC] to start the system recovery.
4. The [Choose an option] screen pops up. Choose between [Keep my files] and
[Remove everything] and follow the on-screen instructions to complete your
system recovery.
1
2
2
29
Windows 11 System Operations
3
4
30
F3 Hotkey Recovery (Optional)
F3 Hotkey Recovery (Optional)
Precautions for Using the System Recovery Function
1.
If your hard drive and system encountered non-recoverable problems, please use
the F3 Hotkey recovery from the Hard Drive first to perform the System Recover
Function.
2. Before using the System Recovery Function, please back up the important data
saved on your system drive to other storage devices.
Recovering the system with the F3 Hotkey
Follow the instructions below to continue:
1. Restart the PC.
2. Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on
the display.
3. On the [Choose an option] screen, select [Troubleshoot].
4. On the [Troubleshoot] screen, select [Restore MSI factory settings] to reset the
system to the default settings.
5. On the [RECOVERY SYSTEM] screen, select [System Partition Recovery].
6. Follow the on-screen instructions to continue and complete the Recovery Function.
31
Troubleshooting
Troubleshooting
My system does not start.
• Check if the system is connected to an electrical outlet and it is turned on.
• Check if the power cord and all cables are connected firmly.
When I turn on my computer, the message “Operating System not
found” appears or Windows does not start.
• Check if there is a non-bootable CD/ DVD inside the optical disk drive. If so,
remove the CD/ DVD then restart the computer.
• Check Boot Device Priority settings in the BIOS Setup.
The system can not be shut down.
It is best to shut down your computer using the Shut Down icon in the operating
system. Using other methods, including those listed below, may result in data failure.
If the Shut Down procedure does not work, choose one of the following steps:
• Press Ctrl+Alt+Del keys, then choose Shut Down.
• Press and hold the power button till the system is off.
• Unplug the power cable from the system.
My microphone does not work.
• For built-in microphone, please go to Start > Control Panel > Sounds and Audio
Devices > Audio to check if it is muted.
• If you are using an external microphone, check that the microphone is plugged
into the Microphone jack.
The Internet connection has problems.
• If you are having a problem connecting to your Internet Service Provider (ISP),
check if the ISP is experiencing technical problems.
• Check the Network settings and connection and make sure the system is properly
configured to Internet access.
• The wireless LAN data transfer speed is affected by distance and obstructions
between devices and access points. To maximize the data transfer speed, choose
the access point closest to your system.
System speakers do not work.
• Check the master volume setting in the Audio Mixer.
• If you are using an application that has its own volume control, check if the volume
is muted.
• If you have connected an audio cable to the Headphone jack, disconnect it.
• If the system has OSD function, please adjust the volume of OSD.
32
Troubleshooting
System monitor does not display anything.
• Check if the system is connected to an electrical outlet and it is turned on.
• The system may be in Standby mode. Press any key to activate the Display.
33
Safety Instructions
Safety Instructions
∙ Read the safety instructions carefully and thoroughly.
∙ All cautions and warnings on the device or User Guide should be noted.
∙ Refer servicing to qualified personnel only.
Power
∙ Make sure that the power voltage is within its safety range and has been adjusted
properly to the value of 100~240V before connecting the device to the power outlet.
∙ If the power cord comes with a 3-pin plug, do not disable the protective earth pin
from the plug. The device must be connected to an earthed mains socket-outlet.
∙ Please confirm the power distribution system in the installation site shall provide
the circuit breaker rated 120/240V, 20A (maximum).
∙ Always unplug the power cord before installing any add-on card or module to the
device.
∙ Always disconnect the power cord or switch the wall socket off if the device would
be left unused for a certain time to achieve zero energy consumption.
∙ Place the power cord in a way that people are unlikely to step on it. Do not place
anything on the power cord.
∙ If this device comes with an adapter, use only the MSI provided AC adapter approved
for use with this device.
Battery
Please take special precautions because this device comes with a battery.
∙ Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.
∙ Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, which can result in an explosion.
∙ Avoid leaving a battery in an extremely high temperature or extremely low air
pressure environment that can result in an explosion or the leakage of flammable
liquid or gas.
∙ Do not ingest battery. If the coin/button cell battery is swallowed, it can cause
severe internal burns and can lead to death. Keep new and used batteries away
from children.
European Union:
Batteries, battery packs, and accumulators should not be disposed of as
unsorted household waste. Please use the public collection system to
return, recycle, or treat them in compliance with the local regulations.
BSMI:
廢電池請回收
For better environmental protection, waste batteries should be collected
separately for recycling or special disposal.
34
Safety Instructions
California, USA:
The button cell battery may contain perchlorate material and requires
special handling when recycled or disposed of in California.
For further information please visit: https://dtsc.ca.gov/perchlorate/
Environment
∙ To reduce the possibility of heat-related injuries or of overheating the device, do not
place the device on a soft, unsteady surface or obstruct its air ventilators.
∙ Use this device only on a hard, flat and steady surface.
∙ To prevent the device from tipping over, secure the device to a desk, wall or fixed
object with an anti-tip fastener that helps to properly support the device and keep it
safe in place.
∙ To prevent fire or shock hazard, keep this device away from humidity and high
temperature.
∙ Do not leave the device in an unconditioned environment with a storage temperature
above 60℃ or below 0℃, which may damage the device.
∙ The maximum operating temperature is around 35℃.
∙ When cleaning the device, be sure to remove the power plug. Use a piece of soft
cloth rather than industrial chemical to clean the device. Never pour any liquid into
the opening; that could damage the device or cause electric shock.
∙ Always keep strong magnetic or electrical objects away from the device.
∙ If any of the following situations arises, get the device checked by service personnel:
• The power cord or plug is damaged.
• Liquid has penetrated into the device.
• The device has been exposed to moisture.
• The device does not work well or you can not get it working according to the User
Guide.
• The device has dropped and damaged.
• The device has obvious sign of breakage.
35
TÜV Rheinland Certification
TÜV Rheinland Certification
TÜV Rheinland Low Blue Light Certification
Blue light has been shown to cause eye fatigue
and discomfort. MSI now offers monitors with TÜV
Rheinland Low Blue Light certification to ensure
users’ eye comfort and well-being. Please follow
the instructions below to reduce the symptoms from
extended exposure to the screen and blue light.
∙ Place the screen 20 – 28 inches (50 – 70 cm) away
from your eyes and a little below eye level.
∙ Consciously blinking the eyes every now and then will help to reduce eye strain after
extended screen time.
∙ Take breaks for 20 minutes every 2 hours.
∙ Look away from the screen and gaze at a distant object for at least 20 seconds
during breaks.
∙ Make stretches to relieve body fatigue or pain during breaks.
∙ Turn on the optional Low Blue Light function.
TÜV Rheinland Flicker Free Certification
∙ TÜV Rheinland has tested this product to ascertain whether the display produces
visible and invisible flicker for the human eye and therefore strains the eyes of
users.
∙ TÜV Rheinland has defined a catalogue of tests, which sets out minimum standards
at various frequency ranges. The test catalogue is based on internationally
applicable standards or standards common within the industry and exceeds these
requirements.
∙ The product has been tested in the laboratory according to these criteria.
∙ The keyword “Flicker Free” confirms that the device has no visible and invisible
flicker defined in this standard within the range of 0 - 3000 Hz under various
brightness settings.
∙ The display will not support Flicker Free when Anti Motion Blur/MPRT is enabled.
(The availability of Anti Motion Blur/MPRT varies by products.)
ENERGY STAR Certification
ENERGY STAR is a program run by the U.S. Environmental
Protection Agency (EPA) and U.S. Department of Energy (DOE) to
promote energy efficiency. This product qualifies for ENERGY STAR
in the “factory default” settings through which power savings will be
achieved. Changing the factory default picture settings or enabling
other features will increase power consumption, which could exceed
the limits necessary to qualify for ENERGY STAR rating.
For more information on ENERGY STAR, refer to https://www.energystar.gov/.
36
Regulatory Notices
Regulatory Notices
CE Conformity
Products bearing the CE marking comply with one or more of the
following EU Directives as may be applicable:
∙ RED 2014/53/EU
∙ Low Voltage Directive 2014/35/EU
∙ EMC Directive 2014/30/EU
∙ RoHS Directive 2011/65/EU
∙ ErP Directive 2009/125/EC
Compliance with these directives is assessed using applicable European Harmonized
Standards.
The point of contact for regulatory matters is MSI-Europe: Eindhoven 5706 5692 ER
Son.
Products with Radio Functionality (EMF)
This product incorporates a radio transmitting and receiving device. For computers
in normal use, a separation distance of 20 cm ensures that radio frequency exposure
levels comply with EU requirements. Products designed to be operated at closer
proximities, such as tablet computers, comply with applicable EU requirements in
typical operating positions. Products can be operated without maintaining a separation
distance unless otherwise indicated in instructions specific to the product.
Restrictions for Products with Radio Functionality (select
products only)
CAUTION: IEEE 802.11x wireless LAN with 5.15~5.35 GHz frequency
band is restricted for indoor use only in all European Union member
states, EFTA (Iceland, Norway, Liechtenstein), and most other European
countries (e.g., Switzerland, Turkey, Republic of Serbia). Using this WLAN
application outdoors might lead to interference issues with existing radio
services.
Radio frequency bands and maximum power levels
∙ Features: Wi-Fi 6E, BT
∙ Frequency Range:
2.4 GHz: 2400~2485MHz
5 GHz: 5150~5350MHz, 5470~5725MHz, 5725~5850MHz
6 GHz: 5955~6415MHz
∙ Max Power Level:
2.4 GHz: 20dBm
5 GHz: 23dBm
6 GHz: 23dBm
37
Regulatory Notices
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the measures listed below:
∙ Reorient or relocate the receiving antenna.
∙ Increase the separation between the equipment and receiver.
∙ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
∙ Consult the dealer or an experienced radio/television technician for help.
Notice 1
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
∙ this device may not cause harmful interference, and
∙ this device must accept any interference received, including interference that may
cause undesired operation.
MSI Computer Corp.
901 Canada Court, City of Industry, CA 91748, USA
(626) 913-0828
www.msi.com
WEEE Statement
Under the European Union (“EU”) Directive on Waste Electrical and
Electronic Equipment, Directive 2012/19/EU, products of “electrical and
electronic equipment” cannot be discarded as municipal waste anymore
and manufacturers of covered electronic equipment will be obligated to
take back such products at the end of their useful life.
38
Regulatory Notices
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No. 1907/2006 of the European Parliament and the
Council), MSI provides the information of chemical substances in products at:
https://csr.msi.com/global/index
RoHS Statement
Japan JIS C 0950 Material Declaration
A Japanese regulatory requirement, defined by specification JIS C 0950, mandates
that manufacturers provide material declarations for certain categories of electronic
products offered for sale after July 1, 2006.
https://csr.msi.com/global/Japan-JIS-C-0950-Material-Declarations
India RoHS
This product complies with the “India E-waste (Management and Handling) Rule 2016”
and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01
weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Turkey EEE Regulation
Conforms to the EEE Regulations of the Republic Of Turkey
Ukraine Restriction of Hazardous Substances
The equipment complies with requirements of the Technical Regulation, approved by
the Resolution of Cabinet of Ministry of Ukraine as of 10 March 2017, № 139, in terms
of restrictions for the use of certain dangerous substances in electrical and electronic
equipment.
Vietnam RoHS
As from December 1, 2012, all products manufactured by MSI comply with Circular
30/2011/TT-BCT temporarily regulating the permitted limits for a number of
hazardous substances in electronic and electric products.
39
Regulatory Notices
Green Product Features
∙ Reduced energy consumption during use and stand-by
∙ Limited use of substances harmful to the environment and health
∙ Easily dismantled and recycled
∙ Reduced use of natural resources by encouraging recycling
∙ Extended product lifetime through easy upgrades
∙ Reduced solid waste production through take-back policy
Environmental Policy
∙ The product has been designed to enable proper reuse of parts and
recycling and should not be thrown away at its end of life.
∙ Users should contact the local authorized point of collection for
recycling and disposing of their end-of-life products.
∙ Visit the MSI website and locate a nearby distributor for further
recycling information.
∙ Users may also reach us at [email protected] for information regarding proper
disposal, take-back, recycling, and disassembly of MSI products.
Warning!
Overuse of screens is likely to affect eyesight.
Recommendations:
1.
Take a 10-minute break for every 30 minutes of screen time.
2. Children under 2 years of age should have no screen time. For children aged 2
years and over, screen time should be limited to less than one hour per day.
Upgrade and Warranty
Please note that certain components preinstalled in the product may be upgradable
or replaceable by user’s request. For any further information about the product users
purchased, please contact the local dealer. Do not attempt to upgrade or replace
any component of the product if you are not an authorized dealer or service center,
since it may cause the warranty void. It is strongly recommended that you contact the
authorized dealer or service center for any upgrade or replace service.
Acquisition of Replaceable Parts
Please be noticed that the acquisition of replaceable parts (or compatible ones) of
the product users purchased in certain countries or territories may be fulfilled by
the manufacturer within 5 years at most since the product has been discontinued,
depending on the official regulations declared at the time. Please contact the
manufacturer via https://www.msi.com/support/ for the detailed information about
the acquisition of spare parts.
40
Regulatory Notices
Copyright and Trademarks Notice
Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is
a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names
mentioned may be trademarks of their respective owners. No warranty as to accuracy
or completeness is expressed or implied. MSI reserves the right to make changes to
this document without prior notice.
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance. Visit the MSI website for
technical guide, BIOS updates, driver updates and other information via
https://www.msi.com/support/
