Prima
Tools:
FLASHLIGHT BASIN WRENCH
SCREW DRIVER
PLIERS
ADJUSTABLE
WRENCH
SEALED-TUBE
HEX-KEY MEASURING TAPE
Helpful Information
2021-06-01 MAAN4410-01
CHANNEL LOCKS
SAFETY GLASSES
PLUMBERS PUTTY

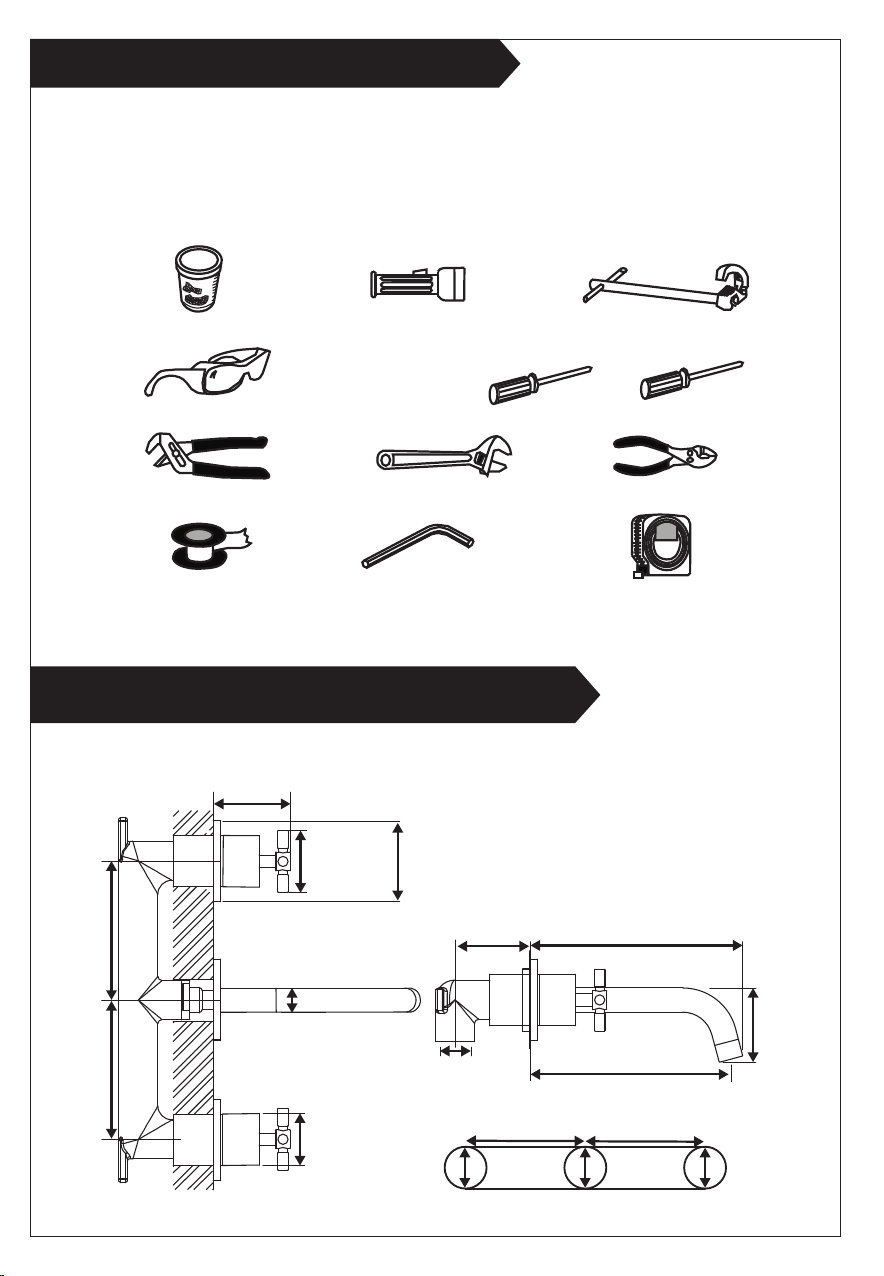

Installation Size Map
• Wall Mounted Bathroom Faucet
• STANDARDS
ASME A112.18.1-2012
CSA B125.1-12
NSF 61-9
LISTED IAPMO/cUPC
• 1.2 gpm/4.5 L/min
3.9”
(10 cm)
3.9”
(10 cm)
3.1”
(7.9 cm)
Ø1.6”
(4 cm)
2.6”
(6.6 cm)
Ø2.8”
(7.2 cm)
2.4”
(6 cm)
8.1” (20.5 cm)
7.5” (19.2 cm)
1.4 - 1.9”
(3.5 - 5 cm)
1”
(2.6 cm)
1/2”NPT
Ø1.9-2.3”
(5-6 cm)
Ø1.9-2.3”
(5-6 cm)
Ø1.9-2.3”
(5-6 cm)
3.9” (10 cm)
3.9” (10 cm)
Before starting the installation of your faucet, gather the necessary tools (shown
below). Some tools may not be needed depending on the model of your faucet.
Check with your local hardware store to confirm the requirements for your faucet
installation.
Prima
Tools:
FLASHLIGHT BASIN WRENCH
SCREW DRIVER
PLIERS
ADJUSTABLE
WRENCH
SEALED-TUBE
HEX-KEY MEASURING TAPE
Helpful Information
2021-06-01 MAAN4410-01
CHANNEL LOCKS
SAFETY GLASSES
PLUMBERS PUTTY
Installation Size Map
• Wall Mounted Bathroom Faucet
• STANDARDS
ASME A112.18.1-2012
CSA B125.1-12
NSF 61-9
LISTED IAPMO/cUPC
• 1.2 gpm/4.5 L/min
3.9”
(10 cm)
3.9”
(10 cm)
3.1”
(7.9 cm)
Ø1.6”
(4 cm)
2.6”
(6.6 cm)
Ø2.8”
(7.2 cm)
2.4”
(6 cm)
8.1” (20.5 cm)
7.5” (19.2 cm)
1.4 - 1.9”
(3.5 - 5 cm)
1”
(2.6 cm)
1/2”NPT
Ø1.9-2.3”
(5-6 cm)
Ø1.9-2.3”
(5-6 cm)
Ø1.9-2.3”
(5-6 cm)
3.9” (10 cm)
3.9” (10 cm)
Before starting the installation of your faucet, gather the necessary tools (shown
below). Some tools may not be needed depending on the model of your faucet.
Check with your local hardware store to confirm the requirements for your faucet
installation.

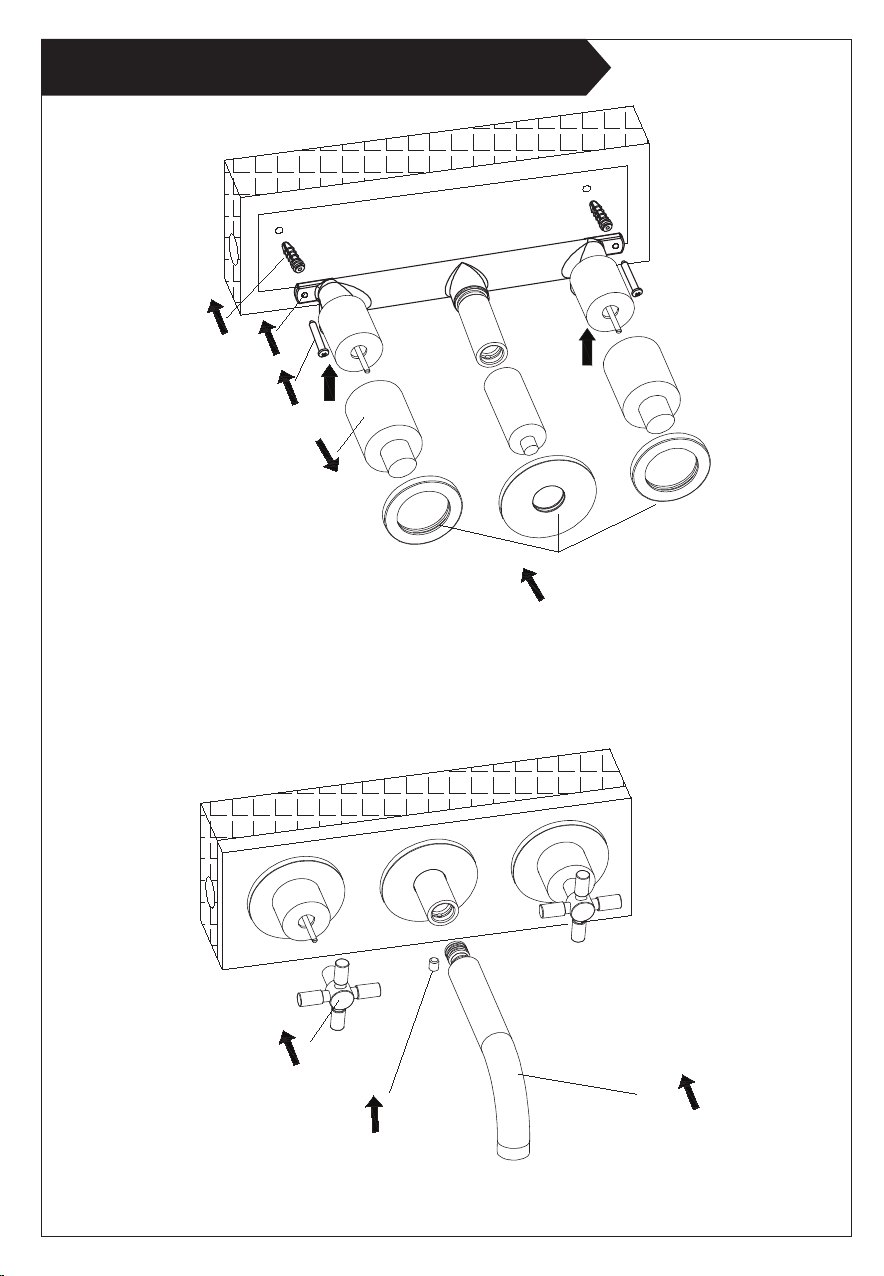

Attach the wall cover ( ) and install the handles ( ) and spout ( ).
Tighten the spout with the screw ( ).
Drill the holes and insert the grey plastic shells into the hole ( ).
Align the holes of the wall plate with the holes drilled in the wall ( ) and install
the plate using the 2 screws ( ).
Once the wall is completely finished, remove the protective plastic covers ( ).
A . B .
C .
Important
Installation
A. Move handle into "OFF" position.
B. Turn on water supplies. Check connections for leaks.
C. Remove and let both hot and cold water run for
one minute. This will help clean any debris that might
otherwise clog the system. Replace aerator.
D. Operate handle up and down, in cold and hot positions,
to flush water lines thoroughly.
aerator
Test Faucet Installation
Simply rinse the surface with clear water or
mild liquid detergents
if necessary Dry the
faucet with a clean soft cotton cloth
Do not
use any cleaning agents containing
acids
polish abrasives or harsh cleaners
Maintenance:
Cold
Hot
•
•
•
v
u
w
y
x
•
•
U
V
W

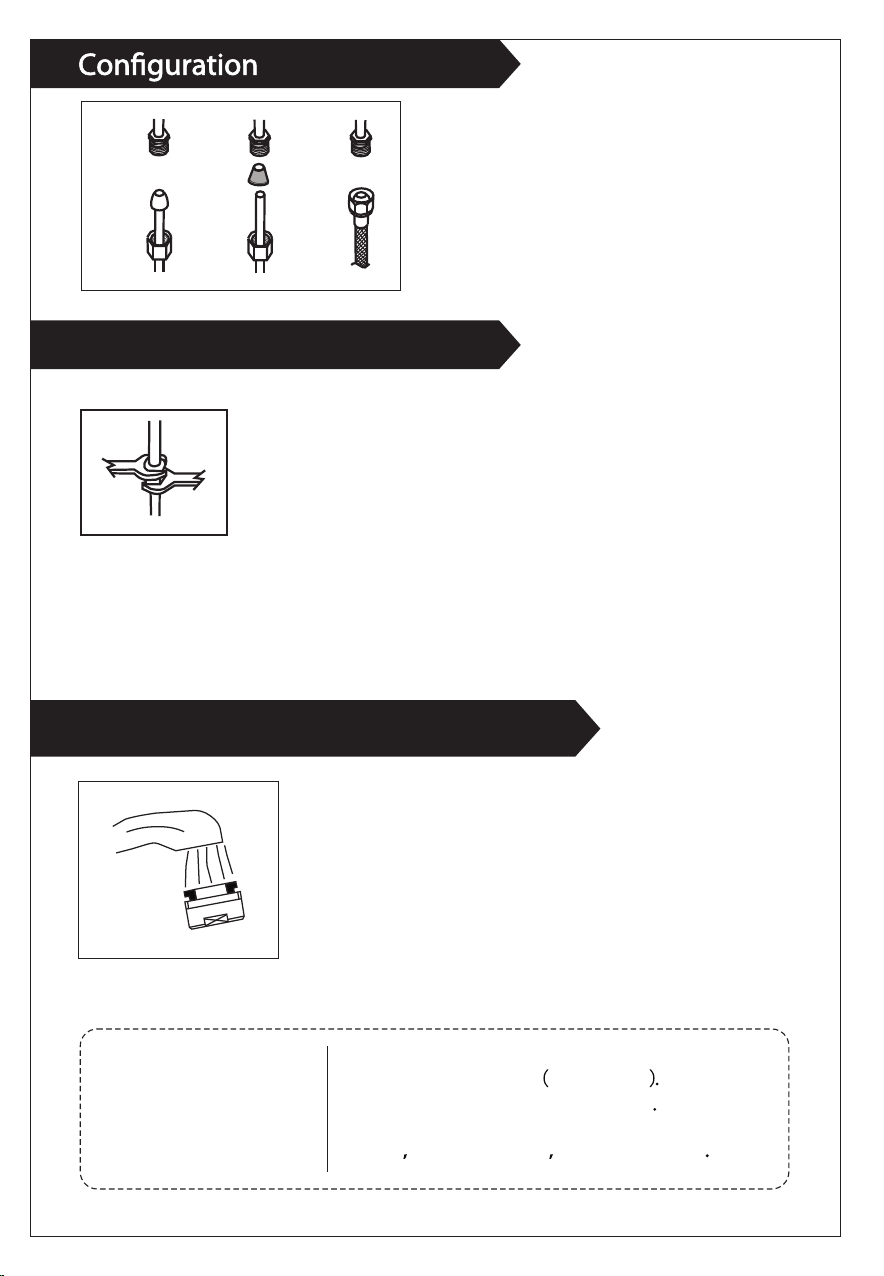

Tighten connection with two wrenches to prevent
damage to tube body. Be careful not to bend the
stem as this will void the product warranty.
Connect to water supply lines with either:
(A) 3/8” O.D. copper tubing (ball nose
risers with the coupling nuts or;
(B) 3/8” copper tubing (no ball) with
supplied tube head interior connector or;
(C) IPS faucet connectors (1/2”).
x
w
y U V
W
u
v
Attach the wall cover ( ) and install the handles ( ) and spout ( ).
Tighten the spout with the screw ( ).
Drill the holes and insert the grey plastic shells into the hole ( ).
Align the holes of the wall plate with the holes drilled in the wall ( ) and install
the plate using the 2 screws ( ).
Once the wall is completely finished, remove the protective plastic covers ( ).
A . B .
C .
Important
Installation
A. Move handle into "OFF" position.
B. Turn on water supplies. Check connections for leaks.
C. Remove and let both hot and cold water run for
one minute. This will help clean any debris that might
otherwise clog the system. Replace aerator.
D. Operate handle up and down, in cold and hot positions,
to flush water lines thoroughly.
aerator
Test Faucet Installation
Simply rinse the surface with clear water or
mild liquid detergents
if necessary Dry the
faucet with a clean soft cotton cloth
Do not
use any cleaning agents containing
acids
polish abrasives or harsh cleaners
Maintenance:
Cold
Hot
•
•
•
v
u
w
y
x
•
•
U
V
W
Tighten connection with two wrenches to prevent
damage to tube body. Be careful not to bend the
stem as this will void the product warranty.
Connect to water supply lines with either:
(A) 3/8” O.D. copper tubing (ball nose
risers with the coupling nuts or;
(B) 3/8” copper tubing (no ball) with
supplied tube head interior connector or;
(C) IPS faucet connectors (1/2”).
x
w
y U V
W
u
v
