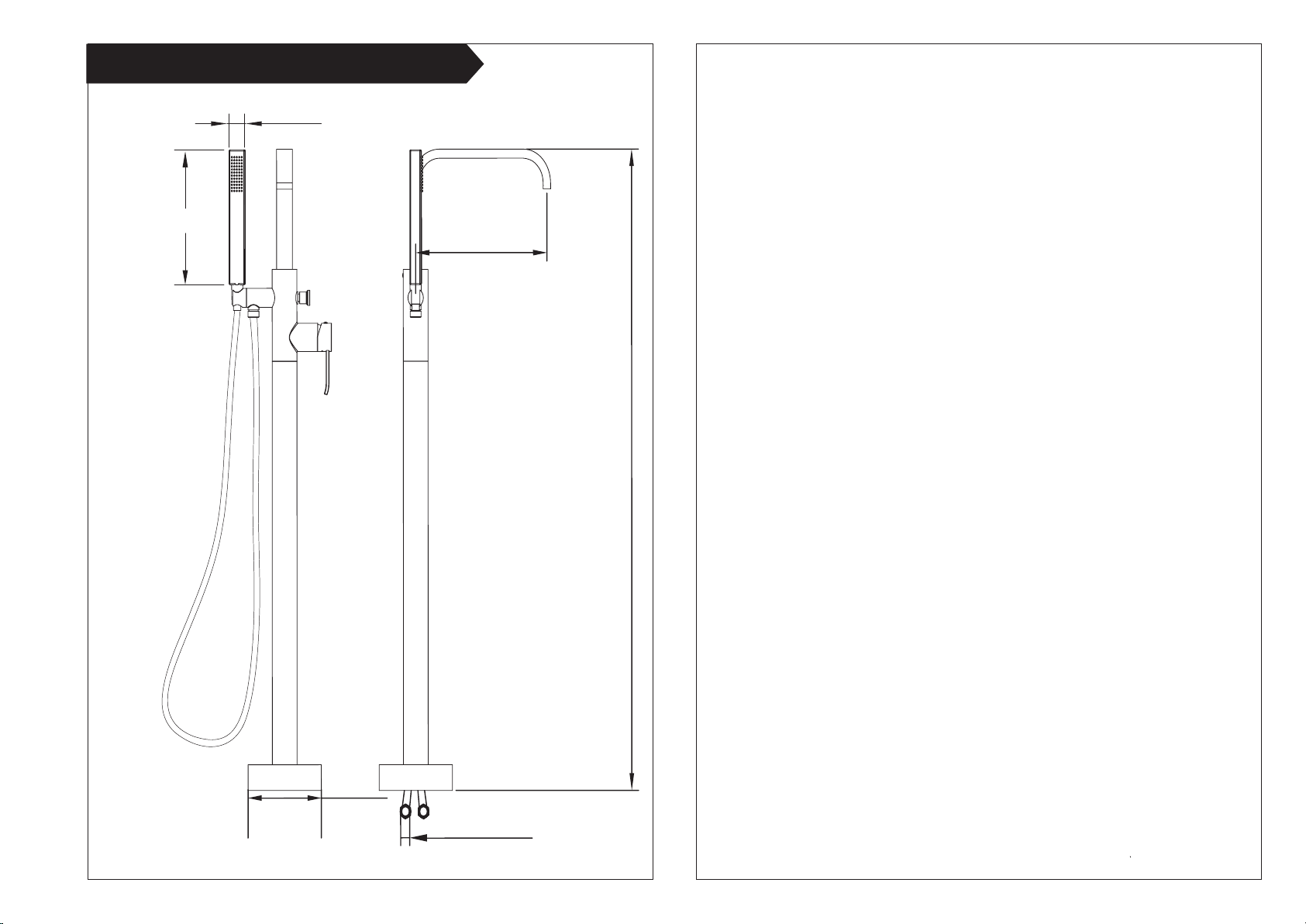

Isla Bathtub Faucet

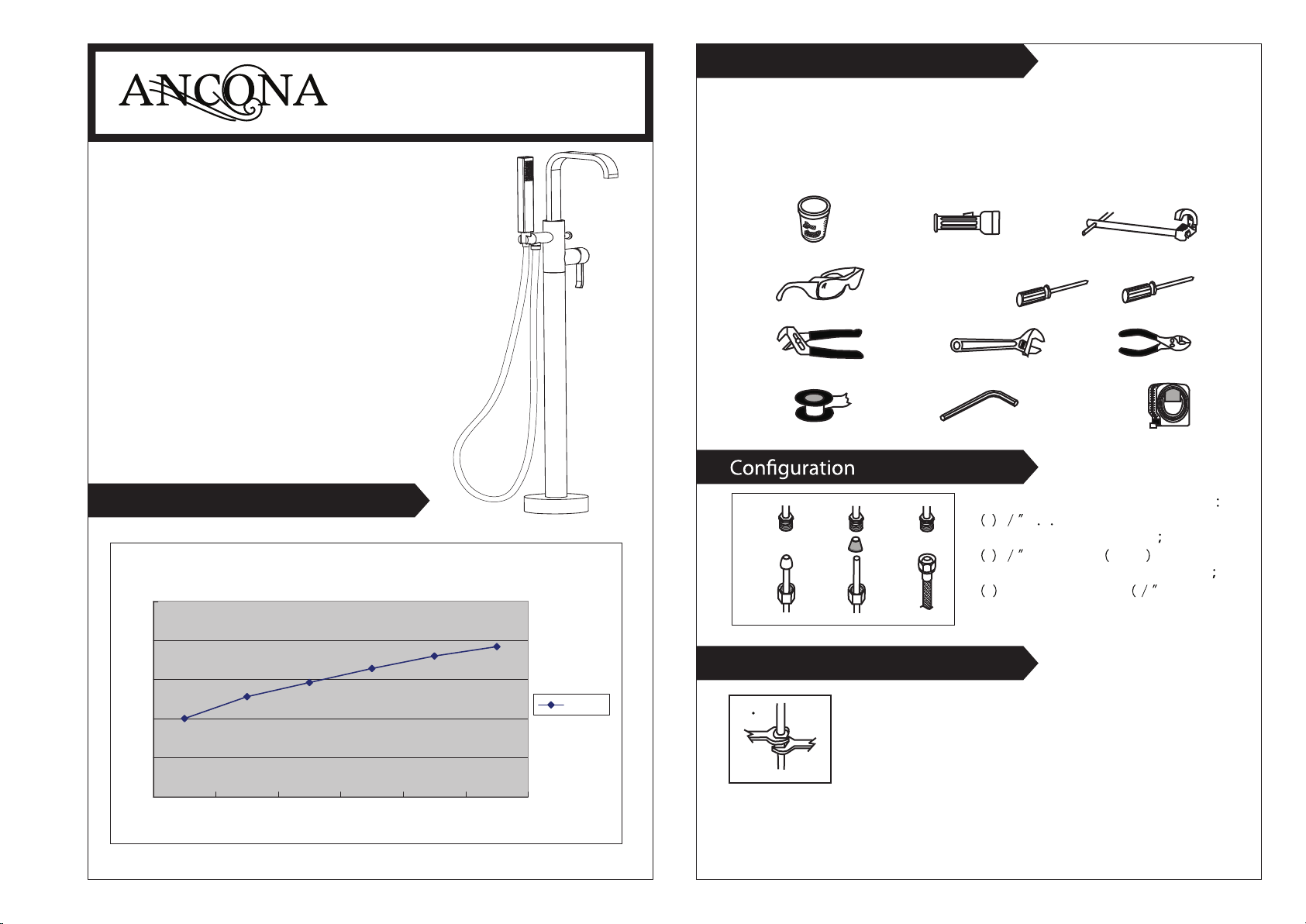

Gather the necessary tools as shown below to complete the installation of this
faucet. Some may not be needed depending on the model of faucet you are
installing. Check with your local hardware store on the requirements of your
installation situation.
Tools:
PLUMBERS PUTTY FLASHLIGHT BASIN WRENCH
SAFETY GLASSES SCREW DRIVER
PLIERSCHANNEL LOCKS ADJUST ABLE WRENCH
SEALED-TUBE
HEX-KEY TAPE

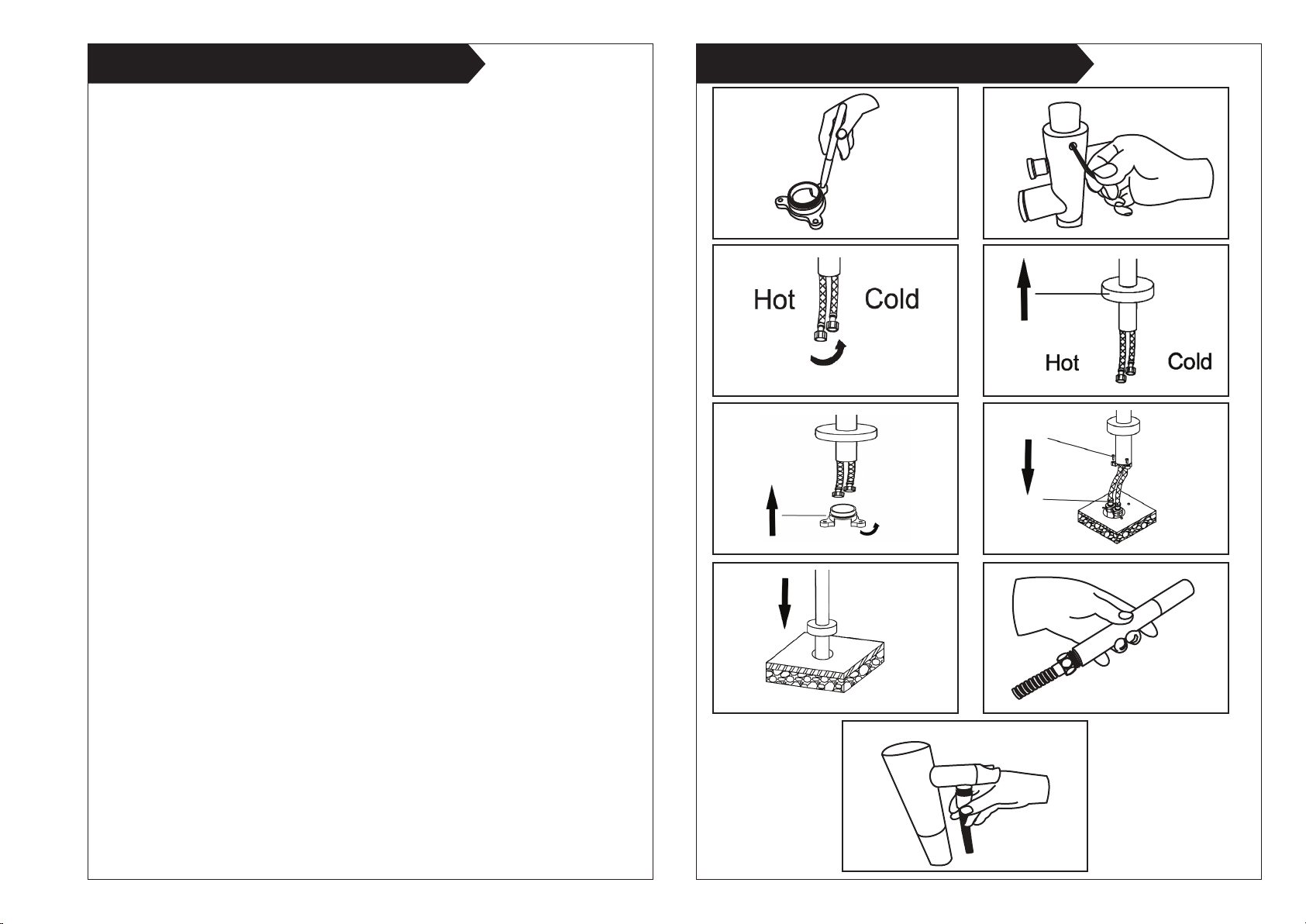

Connect to water supply lines with either
A 3 8 O D copper tubing ball nose
risers with the coupling nuts or
B 3 8 copper tubing no ball with
supplied tube head interior connector or
C IPS faucet connectors 1 2
Tighten connection with two wrench to prevent damage to tube body.
Be careful not to bend the stem as this will void the product warranty.
C
A . B .
C .
Helpful Information
Flow Rate Chart
Important
2017-06-01 MAAN4409-2
)
Flow diagram
0
5
10
15
20
25
10 20 30 40 50 60
L/min
(Psi)
(L/min)
