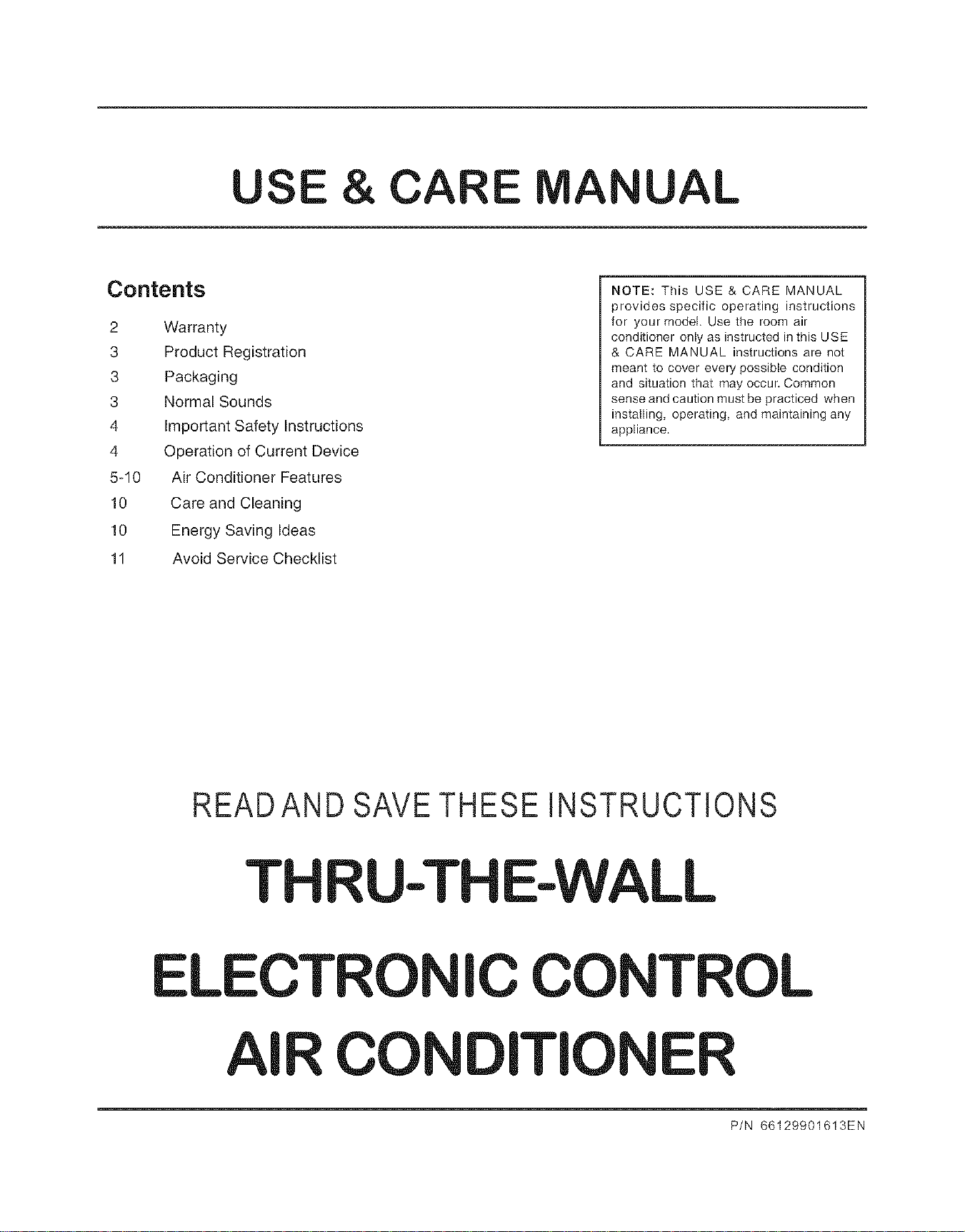

USE & CARE MANUAL
Contents
2 Warranty
3 Product Registration
3 Packaging
3 Normal Sounds
4 Important Safety Instructions
4 Operation of Current Device
5-10 Air Conditioner Features
10 Care and Cleaning
10 Energy Saving Ideas
11 Avoid Service Checklist
NOTE: This USE & CARE MANUAL
provides specific operating instructions
for your model. Use the room air
conditioner only as instructed in this USE
& CARE MANUAL instruclions are not
meant to cover every possible condition
and situation that may occur. Common
sense and caution must be practiced when
installing, operating, and maintaining any
appliance.
READAND SAVETHESE INSTRUCTIONS
THRU-THE-WALL
ELECTRONmC CONTROL
AIR CONDITIONER
P/N 66129901613EN

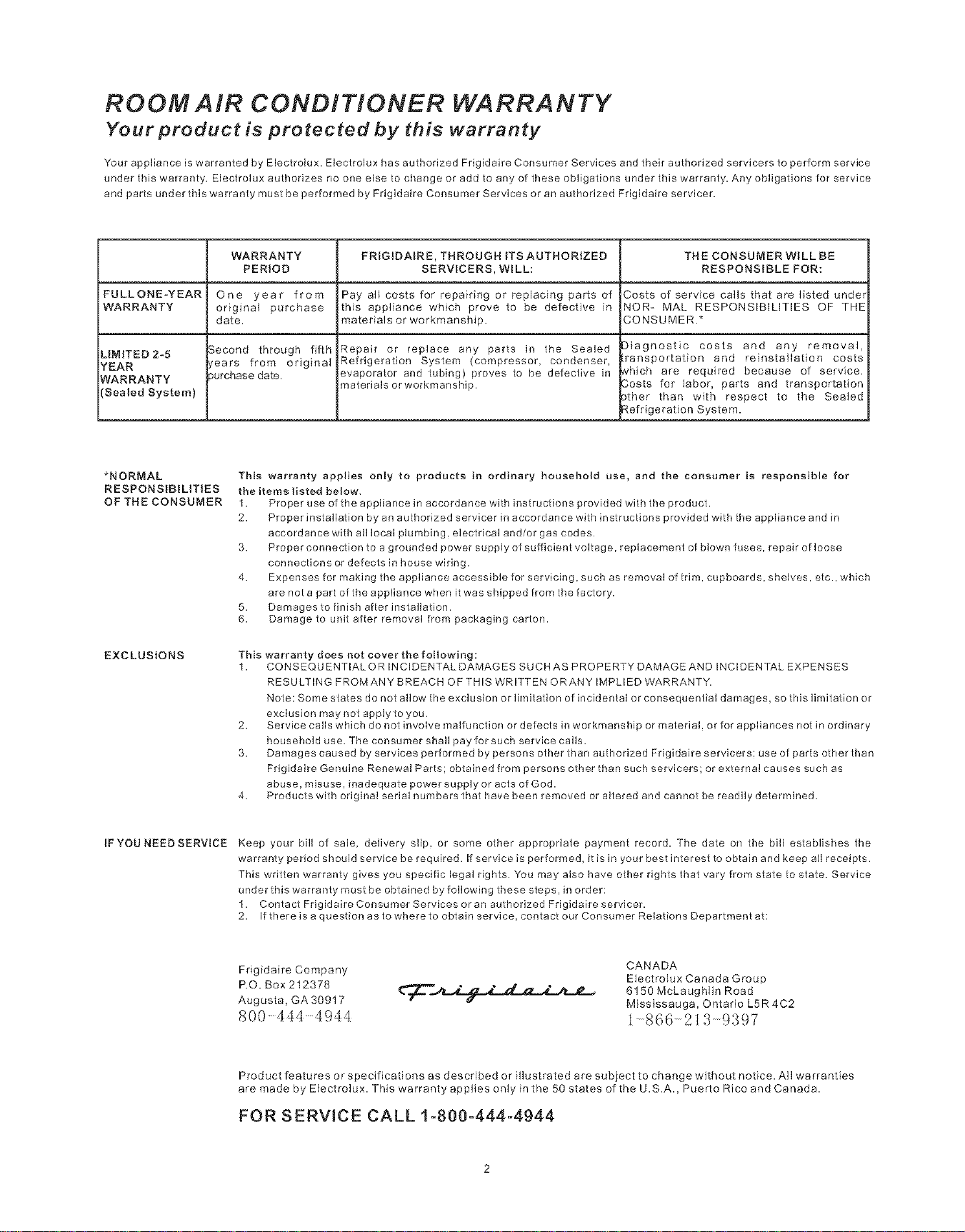

ROOM AIR CONDiTiONER WA RRA NTY
Your product is protected by this warranty
Your appliance is warranted by E]ectrolux. Etectrolux has authorized Frigidaire Consumer Services and their authorized servicers to perform service
under this warranty. E]ectro]ux authorizes no one else to change or add to any of these obligations under this warranty. Any obligations for service
and parts under this warranty must be performed by Frigidaire Consumer Services or an authorized Frigidaire servicer.
FULL ONE+YEAR
WARRANTY
L+MITED2-5
YEAR
WARRANTY
(SealedSystem)
WARRANTY
PERIOD
One year from
oNginal purchase
date.
_econd through fifth
ears from original
)urchase date.
FRiGiDAiRE, THROUGH iTS AUTHORIZED
SERVICERS, WILL:
iPay all costs for repairing or replacing parts of
ithis appliance which prove to be defective in
imatedals or workmanship.
Repair or replace any parts in the Sealed
Refrigeration System (compressor, condenser,
_vaporator and tubing) proves to be defective in
_latedats or workmanship.
THE CONSUMER WiLL DE
RESPONSIBLE FOR:
Costs of service cags that are listed unde+
NOR- MAL RESPONSIBILITIES OF THE
CONSUMER.*
Diagnostic costs and any removal
transportation and reinstaHation costs
which are required because of service.
Costs for labor, parts and transportation
other than with respect to the Sealed
Refrigeration System_
*NORMAL
RESPONSIBILiTiES
OF THE CONSUMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for
the items listed below,
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with h_strucgons provided with the appliance and in
accordance with alllocal plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects iN house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Damage to unit after removal from packaging carton.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN ORANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or fimitation of incidental or consequential damages, so this ]imitation or
exclusion may not apply to you.
2. Service calls which do not hwo]ve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by persons other than authorized Frigidaire servicers: use of parts other than
Frigidaire Genuine Renewal Parts; obtained from persons other than such servicers; or external causes such as
abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
iF YOU NEED SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill estabfishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by following these steps, in order:
1. Contact Frigidaire Consumer Services or an authorized Frigidaire servicer.
2. If there is a question as to where to obtain service, contact our Consumer Relations Department at:
Frigidaire Company
P.O. Box 212378
Augusta, GA 30917
800-4'14 49'14
CANADA
Electrolux Canada Group
6150 McLaughlin Road
Mississauga, Ontario L5R 4C2
1 866 2_ 3 9397
Product features or specifications as described or illustrated are subject to change without notice. AH warranties
are made by E_ectrolux. This warranty applies only in the 50 states of the U.S.A., Puerlo Rico and Canada.
FOR SERVICE CALL 1+800+444-4944

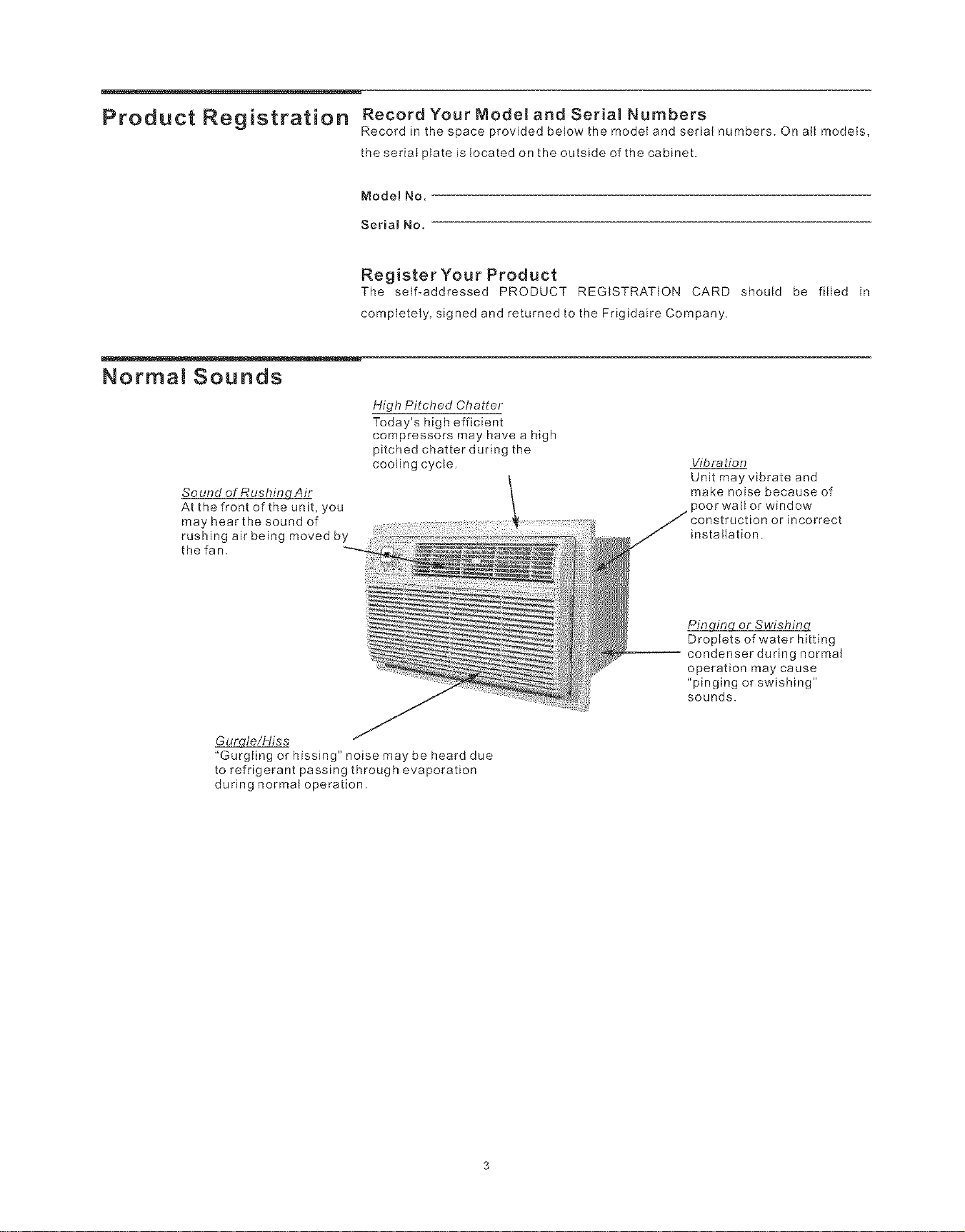

Product Registration Record Your Model and Serial Numbers
Record in the space provided below the modeI and serial numbers. On all modeis,
the seriat p_ate is located on the outside of the cabinet
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD should be filled in
compIetely, signed and returned to the Frigidaire Company.
Normal Sounds
Sound of Rushing Air
At the front of the unit you
may hear the sound of
rushing air being moved by
the fan.
High Pitched Chatter
Today's high efficient
compressors may have a high
pitched chatter during the
cooling cycle,
Vibration
Unit may vibrate and
make noise because of
/ poor wall or window
construction or incorrect
installation.
Pinging or Swishing.
Droplets of water hitting
-- condenserduringnormal
operation may cause
"pinging or swishing"
sounds.
Gurgle/Hiss
"Gurgling or hissing" noise may be heard due
to refrigerant passing through evaporation
during normal operation.

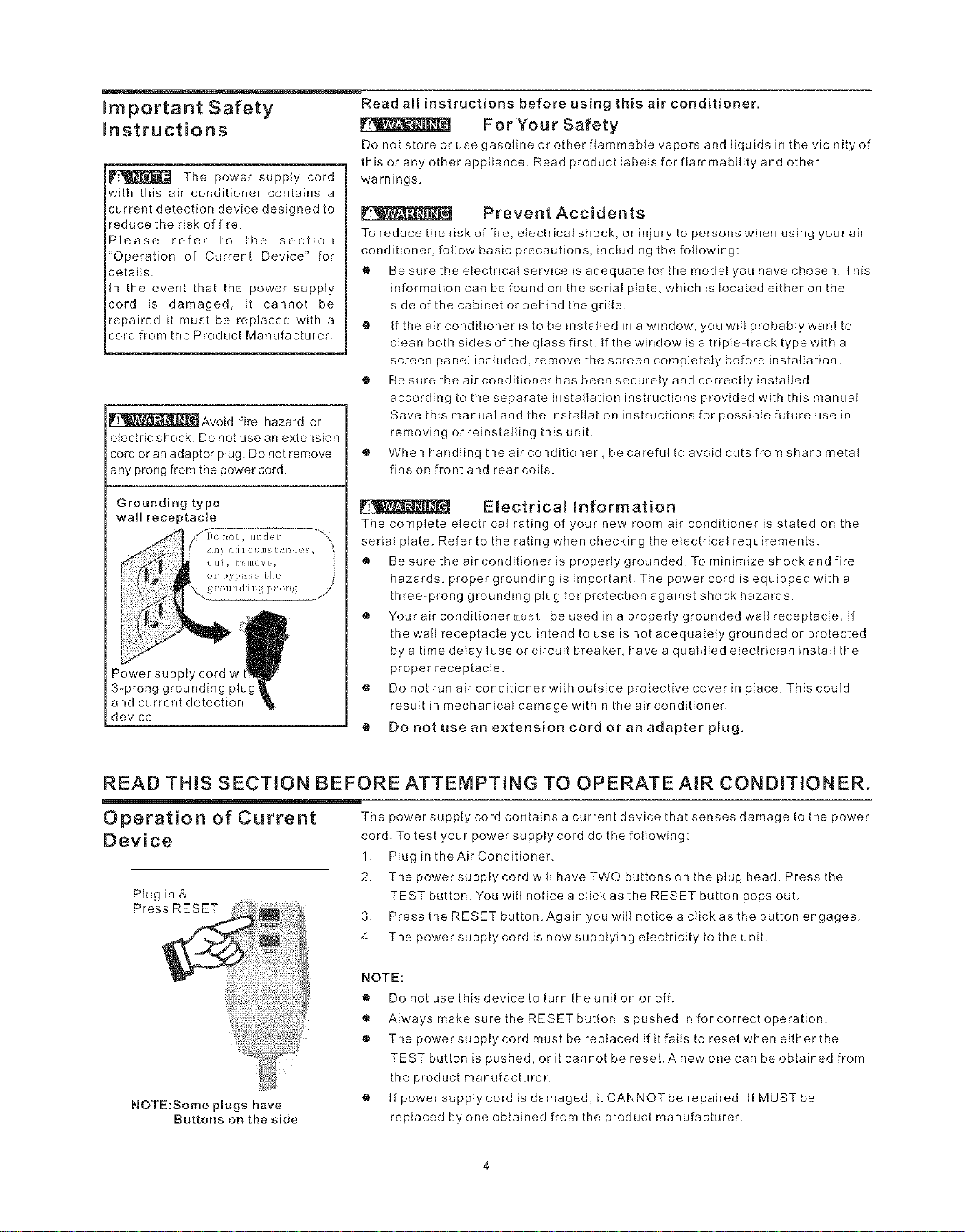

Bmportant Safety Read all instructions before using this air conditioner.
Unstructions For Your Safety
Do not store or use gasoline or other flammaMe vapors and _iquids in the vicinity of
this or any other appliance. Read product labels for flammability and other
warnings,
The power supply cord
with this air conditioner contains a
current detection device designed to
reduce the risk of fire,
Please refer to the section
"Operation of Current Device" for
details.
In the event that the power supply
cord is damaged it cannot be
repaired it must be replaced with a
cord from the Product Manufacturer,
_Avoid fire hazard or
electric shock. Do not use an extension
cord or an adaptor plug. Do not remove
any prong from the power cord
Grounding type
wall receptacle
device
Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons when using your air
conditioner, follow basic precautions, including the following:
e, Be sure the e_ectrica_ service is adequate for the mode_ you have chosen, This
information can be found on the serial plate which is located either on the
side of the cabinet or behind the grille
o If the air conditioner is to be installed in a window, you will probably want to
clean both sides of the glass first. If the window is a triple-tracktypewith a
screen panetincluded remove the screen completely beforeinstaHation.
® Be sure the air conditioner has been securety and correctly installed
according to the separate installation instructions provided with this manual.
Save this manual and the installation instructions for possible future use in
removing or reinstalling this unit,
o When handling the air conditioner, be careful to avoid cuts from sharp metal
fins on front and rear coils.
Electrical information
The complete electrical rating of your new room air conditioner is stated on the
serial plate. Refer to the rating when checking the electrical requirements.
e Be sure the air conditioner is properly grounded Tominimizeshockandfire
hazards proper grounding is important, The power cord is equipped witha
three-prong grounding plug for protection against shock hazards,
G, Your air conditioner_ust be used inapropertygroundedwatireceptacte, If
the wali receptacle you intend to use is not adequately grounded or protected
by a time delay fuse or circuit breaker, have a qualified electrician install the
proper receptacle.
® Do not run air conditioner with outside protective cover in place, This could
result in mechanical damage within the air conditioner.
• Do not use an extension cord or an adapter pJug.
READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.
Operation of Current
Device
Plug in &
Pres_
NOTE:Some plugs have
Buttons on the side
The power supply cord contains a current device that senses damage to the power
cord. To test your power suppiy cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the
TEST button, You will notice a click as the RESET button pops out,
3. Press the RESET button,Again you will notice a click as the button engages,
4, The power supply cord is now supplying electricity to the unit,
NOTE:
o Do not use this device to turn the unit on or off.
e Always make sure the RESET button is pushed in for correct operation.
e The power supply cord must be replaced if it falls to reset when either the
TEST button is pushed, or it can not be reset. A new one can be obtained from
the product manufacturer.
• tfpowersupplycordisdamaged itCANNOTberepaired, ttMUSTbe
replaced by one obtained from the product manufacturer.

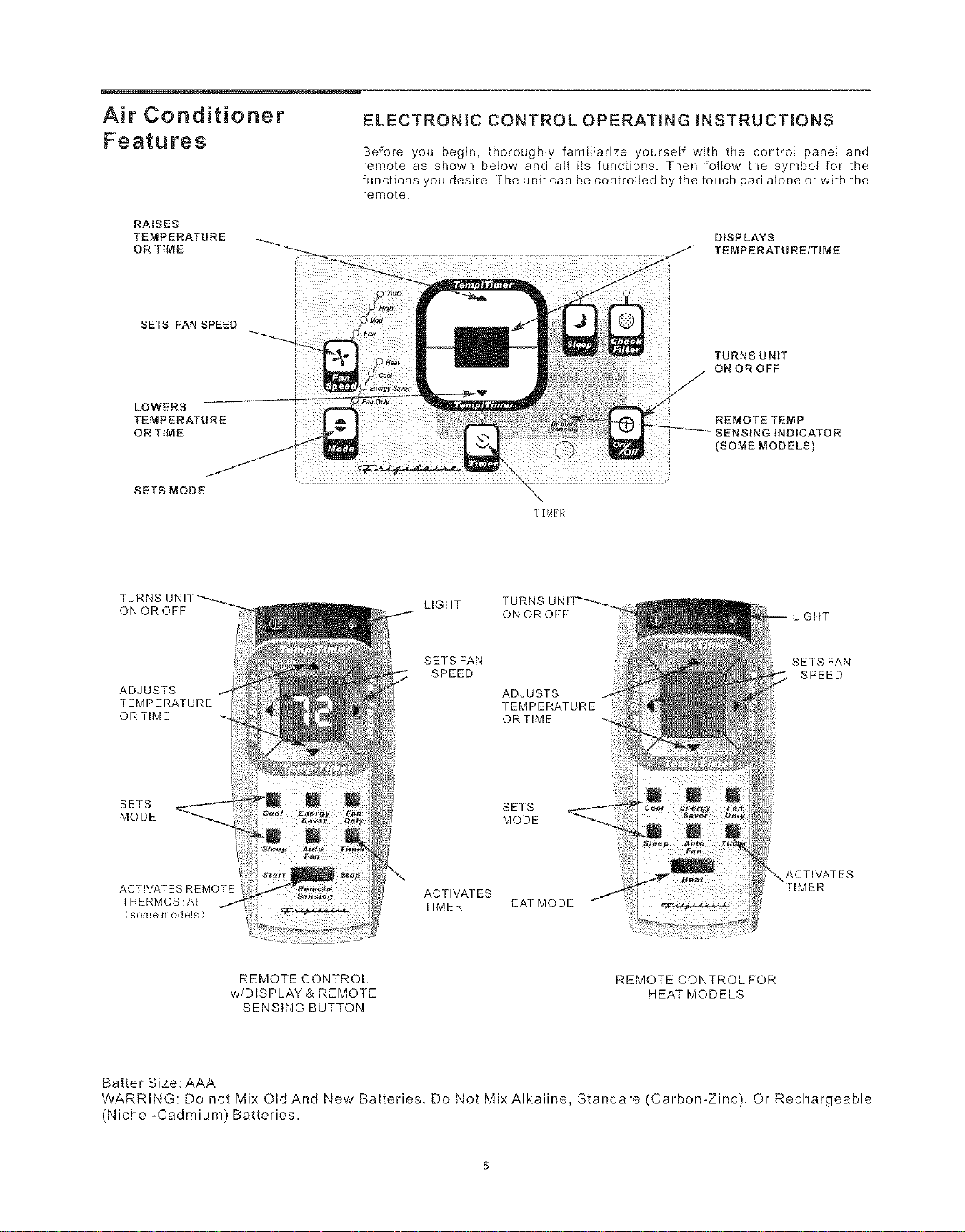

Air Conditioner
Features
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Before you begin, thoroughly familiarize yourself with the control panel and
remote as shown below and all its functions, Then follow the symbol for the
functions you desire. The unit can be controlled by the touch pad alone or with the
remote.
RAISES
TEMPERATURE DISPLAYS
OR TIME / TEMPERATURE/TIME
SETS FAN SPEED
LOWERS
TEMPERATURE
ORTIME
SETS MODE
/
/
/
./
\
\
TURNS UNIT
ON OR OFF
REMOTE TEMP
INDICATOR
SOME MODELS)
ON OR OFF
LIGHT
ONOROFF
SETS FAN SETS FAN
SPEED SPEED
ADJUSTS ADJUSTS
TEMPERATURE TEMPERATURE
ORTIME ORTIME
SETS SETS
MODE MODE
ACTIVATES REMOTE ACTIVATES
THERMOSTAT TIMER HEAT MODE
(some models)
ACTIVATES
TIMER
REMOTE CONTROL
w/DISPLAY & REMOTE
SENSING BUTTON
REMOTE CONTROL FOR
HEAT MODELS
Batter Size: AAA
WARRING: Do not Mix Old And New Batteries, Do Not Mix Alkaline, Standare (Carbon-Zinc), Or Rechargeable
(Nichel-Cadmium) Batteries.

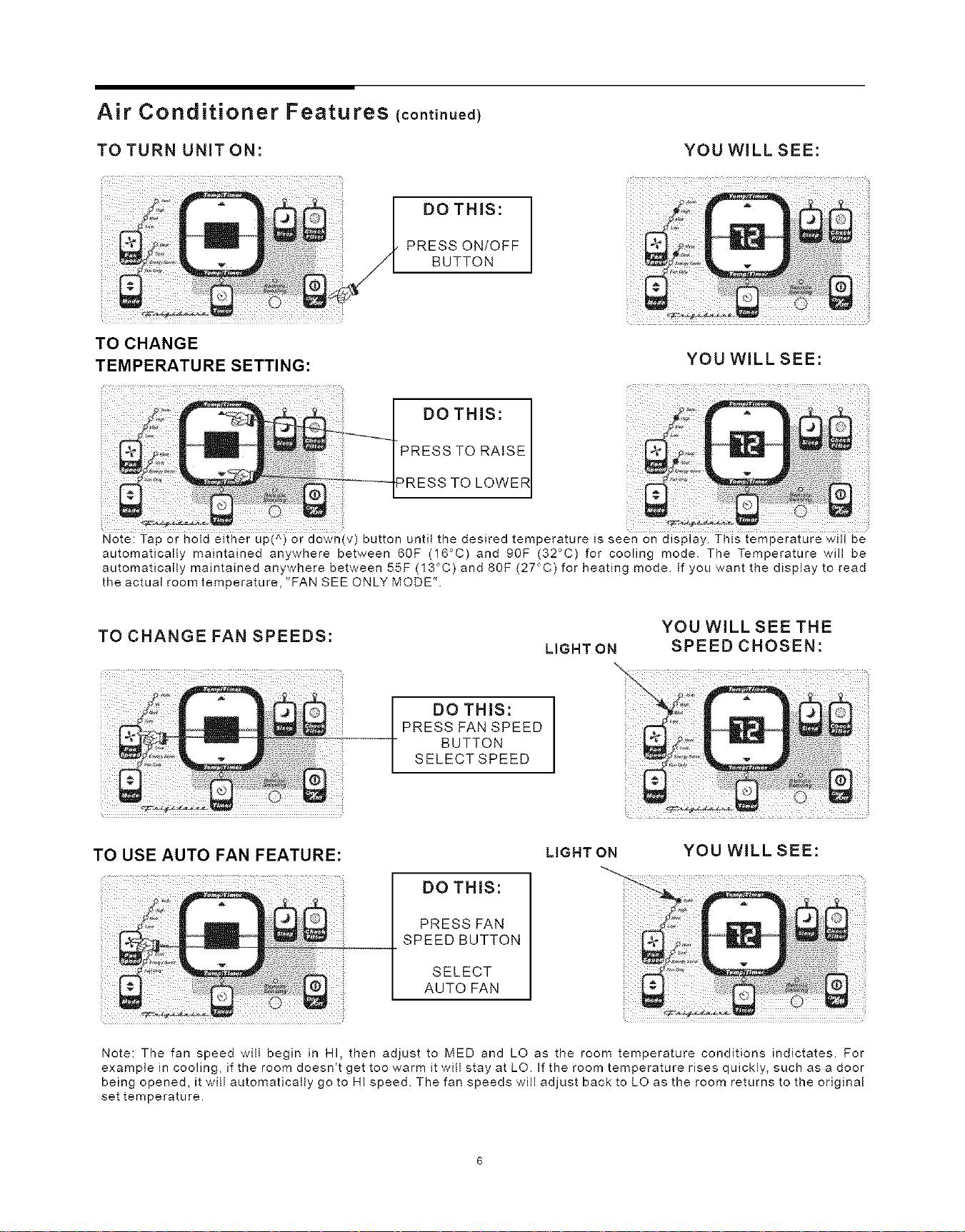

Air Conditioner Features (continued)
TO TURN UNIT ON: YOU WILL SEE:
DO THIS:
PRESS ON/OFF
BUTTON
TO CHANGE
TEMPERATURE SETTING:
YOU WiLL SEE:
DO THIS:
PRESS TO RAISE
PRESS TO LOWEF
Note: Tap or hold either up( A) or down(v) button until the desired temperature is seen on display This temperature will be
automatically maintained anywhere between 60F (16°C) and 90F (32°C) for cooling mode. The Temperature will be
automatically maintained anywhere between 55F (13_'C) and 80F (27 C) for heating mode. tf you want the display to read
the actual room temperature, "FAN SEE ONLY MODE".
TO CHANGE FAN SPEEDS:
DO THIS:
PRESSFANSPEED
BUTTON
SELECTSPEED
LIGHT ON
YOU WILLSEETHE
SPEEDCHOSEN:
TO USE AUTO FAN FEATURE:
DO THIS:
PRESS FAN
SPEED BUTTON
SELECT
AUTO FAN
LIGHT ON
YOU WILL SEE:
Note: The fan speed wilt begin in HI, then adjust to MED and LO as the room temperature conditions indictates. For
example in cooling, if the room doesn't get too warm it will stay at LO. If the room temperature rises quickly, such as a door
being opened, it will automatically go to HI speed. The fan speeds will adjust back to LO as the room returns to the original
set temperature.
6

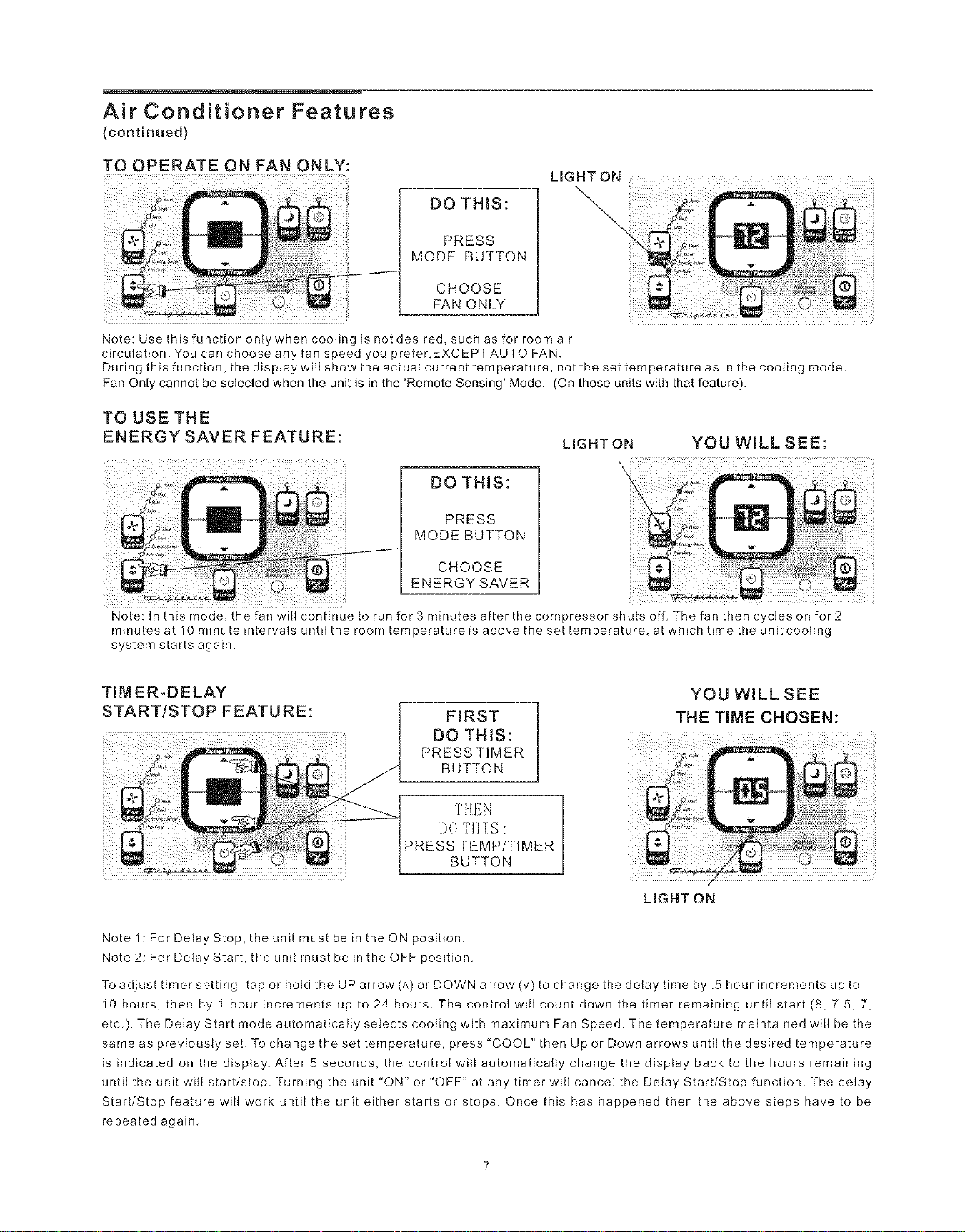

Air Conditioner Features
(continued)
TO OPERATE ON FAN ONLY:
DO THIS:
PRESS
MODE BUTTON
CHOOSE
FAN ONLY
Note: Use this function only when cooling is not desired, such as for room air
circulation. You can choose any fan speed you prefer EXCEPTAUTO FAN.
UGHTON
During this function, the disptaywitl show the actual current temperature, not the set temperature as in the cooling mode.
Fan Only cannot be selected when the unit is in the 'Remote Sensing' Mode. (On those units with that feature).
TO USETHE
ENERGYSAVERFEATURE:
LmGHTON YOU WILL SEE:
DO THIS: ......
PRESS
MODE BUTTON
CHOOSE
ENERGY SAVER
Note: ln this mode the fanwil_continuetorunfor3minutesafterthecompressorshutsoff`ThefanthencycIesonfor2
minutes atl0minuteintervatsunfiltheroomtemperatureisabovethesettemperature at which time the unit cooling
system starts again.
TIMER-DELAY
START/STOP FEATURE:
FIRST
DO THIS:
PRESSTIMER
BUTTON
THg
DO TH ] S :
PRESS TEMP/TIMER
BUTTON
YOU WILL SEE
THE TIME CHOSEN:
LmGHT ON
Note 1: For Delay Stop the unit must be in the ON position.
Note 2: For Delay Start, the unit must be in the OFF position.
To adjust timer setting, tap or hold the UP arrow (A) or DOWN arrow (v) to change the delay time by .5 hour increments up to
10 hours, then by 1 hour increments up to 24 hours. The control will count down the timer remaining until start (8 7.5 7
etc.). The Delay Start mode automatically setects cooling with maximum Fan Speed. The temperature maintained will be the
same as previously set. To change the set temperature, press "COOL" then Up or Down arrows until the desired temperature
is indicated on the display. After 5 seconds, the control will automatically change the display back to the hours remaining
until the unit witl start/stop. Turning the unit "ON" or "OFF" at any timer wilt cancel the Delay Start/Stop function. The delay
Start/Stop feature wilt work until the unit either starts or stops. Once this has happened then the above steps have to be
repeated again.

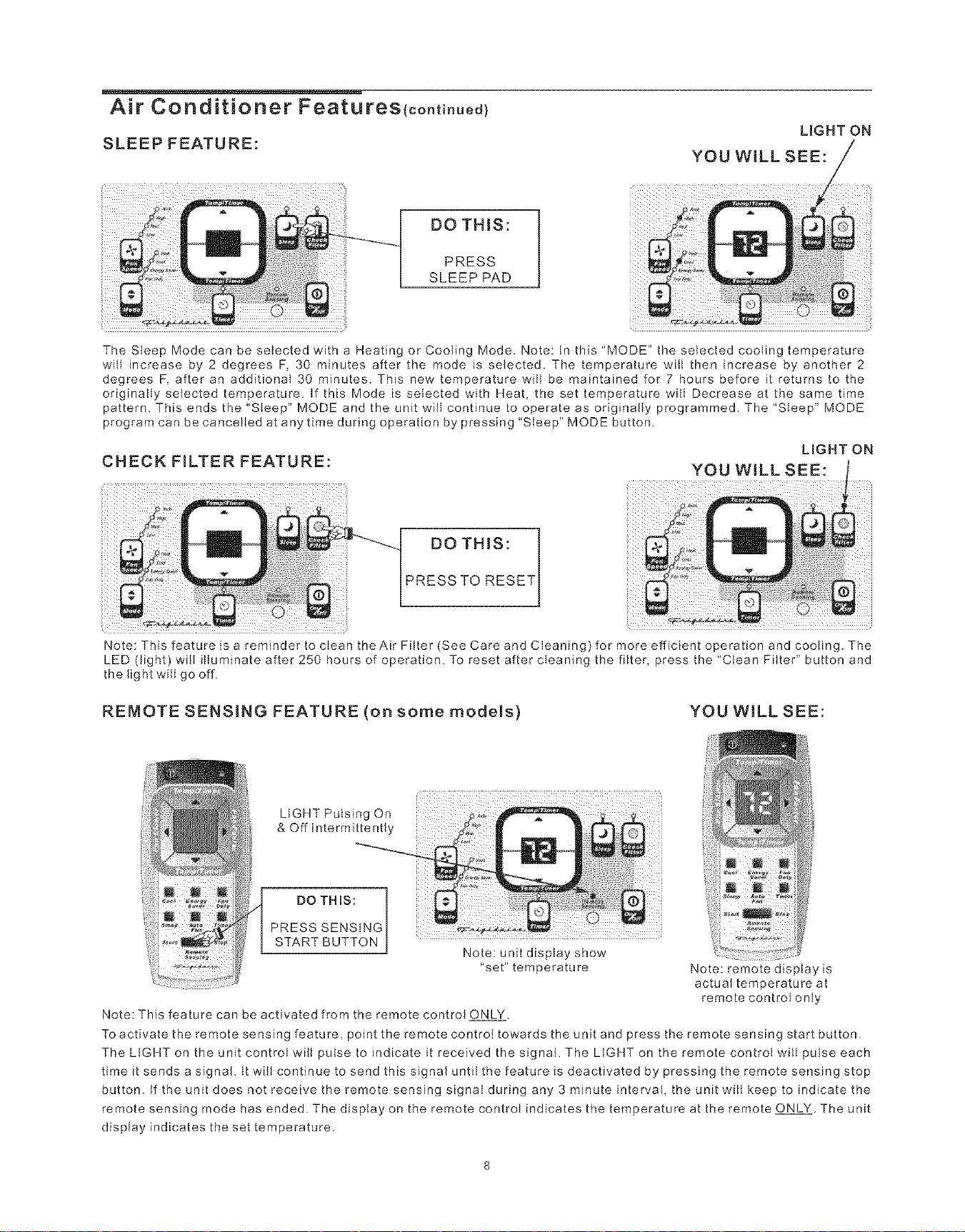

Air Conditioner Features(cont o.e¢
SLEEP FEATURE:
DO THIS:
PRESS
SLEEPPAD
]
UGHT ON
YOU WILL SEE:
!:tt ! t g t!!t t! tl at ? ! ii ¸
The Sleep Mode can be setected with a Heating or Cooling Mode. Note: In this "MODE" the selected cooling temperature
will increase by 2 degrees F, 30 minutes after the mode is selected. The temperature will then increase by another 2
degrees F, after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the
originally selected temperature. If this Mode is selected with Heat the set temperature will Decrease at the same time
pattern. This ends the "Sleep" MODE and the unit will continue to operate as originally programmed. The "Sleep" MODE
program can be cancelled at any time during operation by pressing "Sleep" MODE button
CHECK FILTER FEATURE:
DO THIS: i
PRESSTO RESETJ
LmGHT ON
YOU WILL SEE:
Note; This feature is a reminder to clean theAir FHter (See Care and Cleaning) for more efficient operation and cooling. The
LED (Hght) wilt iHuminate after 250 hours of operation. To reset after cleaning thefilter. )ressthe"Clean FHter"button and
the light will go off
REMOTE SENSING FEATURE (on some models)
YOU WILL SEE:
LIGHT Puising On
& Off Intermittently
DO THIS: ]
PRESS SENSING|
START BUTTON ]
Note: unit display show
"set" temperature
Note: This feature can be activated from the remote control ONLY.
Note: remote display is
actual temperature at
remote control only
To activate the remote sensing feature, point the remote control towards the unit and press the remote sensing start button.
The LIGHT on the unit control will pulse to indicate it received the signal. The LIGHT on the remote control will puise each
time it sends a signal It will continue to send this signal untit the feature is deactivated by pressing the remote sensing stop
button. If the unit does not receive the remote sensing signat during any 3 minute interval, the unit will keep to indicate the
remote sensing mode has ended. The display on the remote control indicates the temperature at the remote ONLY. The unit
display indicates the set temperature.

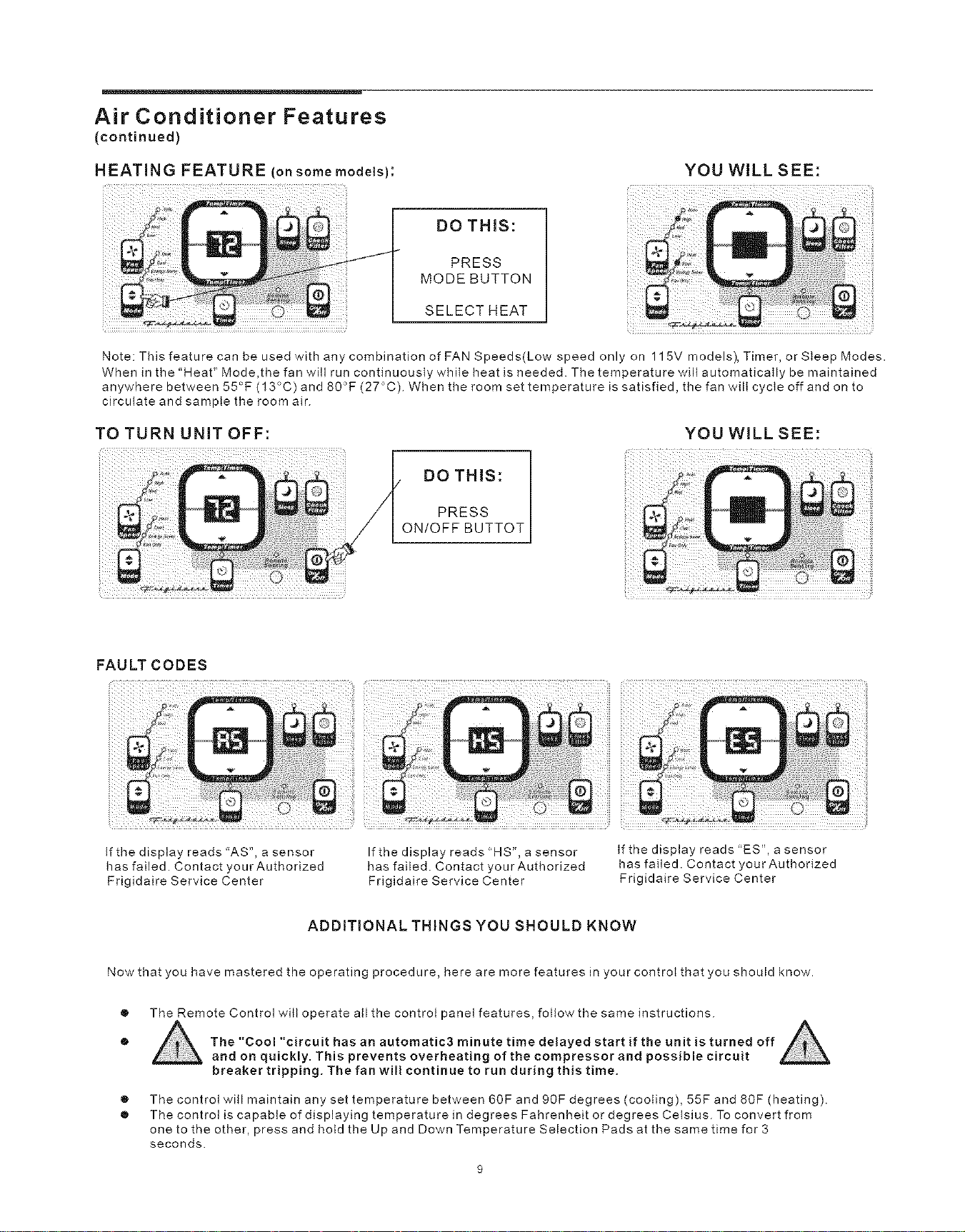

Air Conditioner Features
(continued)
HEATING FEATURE (on some models):
i
DO THIS:
PRESS
MODE BUTTON
SELECT HEAT
YOU WILL SEE:
Note: This feature can be used with any combination of FAN Speeds(Low speed only on 115V models), Timer, or Steep Modes•
When in the "Heat' Mode,the fan will run continuously while heat is needed. The temperature will automatically be maintained
anywhere between 55°F (13°C) and 80°F (27_C) When the room set temperature is satisfied, the fan wilt cycle off and on to
circulate and sample the room air.
TO TURN UNIT OFF:
DO THIS:
PRESS
ON/OFF BUTTOT
YOU WILL SEE:
i ill
/_!i!i
FAULT CODES
If the display reads "AS", a sensor
has failed• Contact your Authorized
Frigidaire Service Center
If the display reads "HS", a sensor
has failed. Contact your Authorized
Frigidaire Service Center
tfthe display reads"ES", a sensor
has failed. Contact your Authorized
Frigidaire Service Center
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your controt that you should know.
o
®
o
o
The Remote Control wilt operate all the controt panel features, follow the same instructions.
The"tool"circuit has an automatic3 minute time delayed start if the unit is turned off
and on quickly. This prevents overheating of the compressor and possible circuit
breaker tripping. The fan will continue to run during this time.
The control will maintain any set temperature between 60F and 90F degrees (cooling), 55F and 80F (heating)•
The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from
one to the other, press and hold the Up and Down Temperature Selection Pads at the same time for 3
seconds•
9
Air Conditioner Features (oo t ed)
4-WayAir Directional Louvers
The 4-Way air directional louvers allow you to direct air flow up or down, _eft or
right throughout the room as needed. To adjust the air directional louvers side-
to_ side, use the center handle as you move it side-to-side.
(4-WAY)
Clean your air conditioner occasionally to keep it looking new. Be sure to
Care and Cleaning unplugtheunit beforecleaningtopreventshockorfirehazards.
Air Filter Cleaning
The air filter shoutd be checked at teast once a month to see if cteaning is
necessary. Trapped particles in the filter can build up and cause an
accumulation of frost on the cooling coils.
o Grasp the fitter by the center and pull up and out.
o Wash the filter using liquid dishwashing detergent and warm water. Rinse
fiIter thorougMy. Gentty shake excess water from the filter. Be sure filter is
thoroughly dry before replacing.
o Or, instead of washing you may vacuum the filter clean.
Cabinet Cleaning
® Be sure to unptug the air conditioner to prevent shock or fire hazard. The
cabinet and front may be dusted with an oit-free cloth or washed with a cloth
dampened in a solution of warm water and mild tiquid dishwashing
detergent. Rinse thoroughly and wipe dry.
o Never use harsh cleaners wax or polish on the cabinet front.
e Be sure to wring excess water from the cloth before wiping around the
controls. Excess water in or around the controls may cause damage to the
air conditioner.
o Ptug in air conditioner.
Winter Storage
If you plan to store the air conditioner for the winter, cover it with plastic or
return it to the original carton.
NOTE: To prevent rust or electNcai connections from being damaged,
store air conditioner in an upright position and a dry place.
Energy Saving Ideas
o Do not block air flow inside with blinds, curtains or furniture; or
outside with shrubs, enclosures, or other buildings.
e The capacity of the room air conditioner must fit the room size for efficient
and satisfactory operation.
e install the room air conditioner on the shady side of your home. A window
that faces north is best because it is shaded most of the day.
® Close the fireplace damper, floor and watt registers so coot air does not
escape up the chimney and into the duct work.
o Keep btinds and drapes in other windows ctosed during the sunniest part of
the day.
G, Clean the air filter as recommended in the section "Care and Cleaning."
¢ Proper insulation and weather stripping in your home wilt help keep warm
air out and cool air in.
o Externat house shading with trees, plants or awnings will help reduce the
air cond itioner's work toad.
e Operate heat producing appliances such as ranges, washers, dryers and
dishwashers during the coolest part of the day.
10

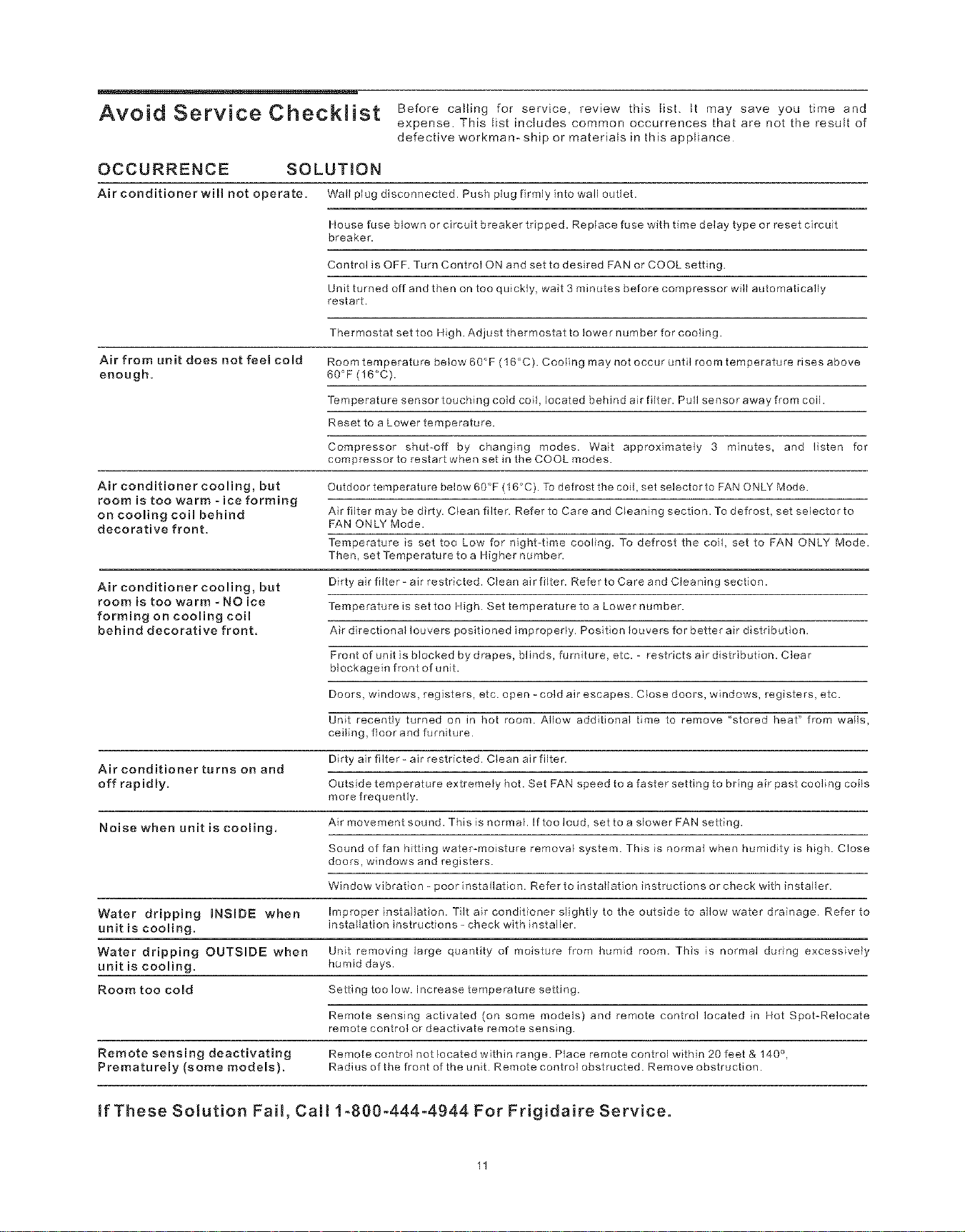

Avoid Service Checklist Beforeca,ingfor seru ce,reviewthis maysaveyout meand
expense This list includes common occurrences that are not the result of
defective workman- ship or materials in this appliance
OCCURRENCE SOLUTION
Air conditioner will not operate. Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Reptace fuse with time delay type or reset circuit
breaker.
Control is OFF. Turn Control ON and set to desired FAN or COOL setting.
Unit turned off and then on too quickly, wait 3 minutes before compressor will automatically
restart.
Thermostat set too High. Adjust thermostat to lower number for cooling.
Air from unit does not feel cold
enough.
Room temperature below 60 F (16'C). Cooling may not occur until room temperature rises above
60 F(16'C).
Temperature sensor touching cold coil, located behind air filter. Pull sensor away from coil.
Reset to a Lower temperature.
Compressor shut-off by changing modes. Wait approximately 3 minutes, and listen for
compressor to restart when set in the COOL modes.
Air conditioner cooling, bat
room is too warm - ice forming
on cooling coil behind
decorative front.
Outdoor temperature below 60"F (16°C). To defrost the coil, set selector to FAN ONLY Mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set selector to
FAN ONLY Mode.
Temperature is set too Low for night-time cooling. To defrost the coil, set to FAN ONLY Mode.
Then, set Temperature to a Higher number.
Air conditioner cooli rig, bat
room is too warm - NO ice
forming on cooling coil
behind decorative front.
Dirty air filter- air restricted. Clean air filter. Referto Care and Cleaning section.
Temperature is set too High. Set temperature to a Lower number.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear
btockagein front of unit.
Doors, windows, registers, etc. open - cold air escapes. Close doors, windows, registers, etc.
Unit recently turned on in hot room. Allow additional time to remove "stored heat" from wails,
ceiling, floor and furniture.
Air conditioner tarns on and
off rapidly.
Dirty air filter- air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a faster setting to bring air past cooling coils
more frequently.
Noise when unit is cooling.
Air movement sound. This is normal. If too loud, set to a slower FAN setting.
Sound of fan hitting water-moisture removal system. This is normal when humidity is high. Close
doors, windows and registers.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Water dripping INSIDE when
unit is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to
installation instructions - check with installer.
Water dripping OUTSIDE when Unit removing large quantity of moisture from humid room. This is normal during excessively
unit is cooling, humid days.
Room too cold Setting too low. Increase temperature setting.
Remote sensing activated (on some models) and remote control located in Hot Spot-Relocate
remote control or deactivate remote sensing.
Remote eensi ng deactivating Remote control not located within range. Place remote control within 20 feet & 140 °,
Prematurely (some models). Radius of the front of the unit. Remote control obstructed. Remove obstruction.
if These Solution Fail, Call 1-800-444-4944 For Frigidaire Service.
11
