USAGE AND
CARE GUIDE
PRODUCT
CODE:
EM52UMS
EM70UMS
EM90UMS
rangehoods
Contents
Warnings 3
Measurement 5
Safety Warning 4
Installation 7
Use 10
Maintenance 11
Contents
Main Parameters 14
Trouble Shooting 14
Disposal 15
2
CAUTION :
Warnings
Accessible parts may become hot when used with
cooking appliances.
3
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children shall not play with
the appliance.
Cleaning and user maintenance shall not be made
by children. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
There shall be adequate ventilation of the room when the range
hood is used at the same time as appliances burning gas or other
fuels.
The
filter
is
made
of
high
density
aluminum. Please do not use
corrosive detergent for cleaning. The proper function of the unit
is conditioned by the regularity of the maintenance.
To protect the main body from corrosion over the long time
accumulation of dirt, the cooker hood should be cleaned with hot
water with non-corrosice detrgent every two months.
There is a fire risk if cleaning is not carried out in accordance
with the instructions.
Do not flambe under the rangehood.
There shall be adequate ventilation of the room when the range hood
is used at the same time as appliances burning gas or other fuels.
The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
The minimum distance between the supporting surface for the cooking
vessels on the hob and the lowest part of the range hood is 650mm.
Regulations concerning the discharge of air have to be fulfilled.
The appliance uses 4 hob elements at most.
The appliance is not intended for use by young children or infirm
persons without supervisions.
Young children should be supervised to ensure they do not play with
the appliance.
Plug the power cord to socket outlet with earthing continuity terminal.
Do not use open flame, or allow oil to go beneath the appliance.
If there is any fault occurred with the appliance, please call after-sale
service department.
Please keep the kitchen room ventilated.
Prior to any maintenance, cleaning operation, ensure the power is cut
off.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
The replaced power cord should be provided by manufacturer or seller.
If the plug or cord is damaged, please call after-sale service center.
There is a fire risk if cleaning is not carried out in accordance with the
instruction.
In case of damaged connecting wire, please refer to the manufacturer,
after-sale service personnel or other qualified technicians.
Use the unit according to the instructions to avoid any fire hazard.
The exhaust air must not be intr
oduced into a smoke flue or chimney
that is used for exhausting fumes from appliances burning gas.
Follow the local laws applicable for external air evacuation.
Safety Warning
The cooker hood is for home use only, not suitable for barbecue,
roast shop and other commercial purposes.
T he cooker hood and its filter should be cleaned regularly
according to the instruction.
4
Measurement
259
A
520 700 900
13
L1
497 677 865
L1
Φ150
256
248
284
(A)
492/672/860
520/700/900
5
Measurement
6
Installation
Here two venting modes, extraction-air mode and
recirculation mode, before installing， select one mode.
Extraction-air mode
Recirculation mode
7
Press the lock catch of metal
Filter
,
remove the
Filter
.
Remove the stainless steel frame by unfastening the
other 2 screws (M4*8)
Unfastening the screws (ST4*10),
remove the lid of terminal box,
disconnect the wires to the
Commands at the connectors.
Disconnect the wires to the
Light at the connectors.
Fasten the Hood in the cabinet
by using the 12 screws (ST4*18).
Installation
8

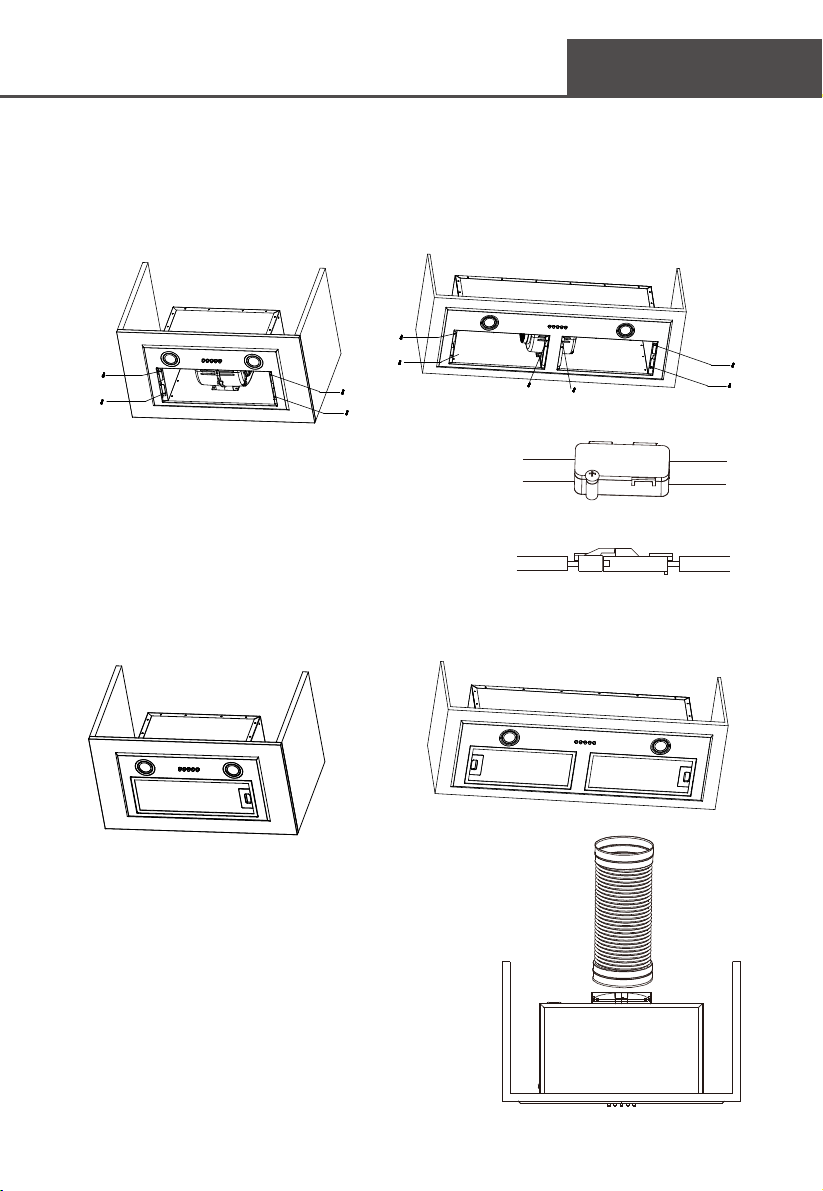

Reconnect the wires to the
Commands and Light.
Replace the metal Filter.
Install the air outlet pipe(optional).
Installation
Screw the stainless steel frame back into place using the
screws removed as described above.
9
Use
Mid Low StopLight High
Press
Stop button, the motor will stop running.
Press the
Low (speed) button, the motor runs at low speed.
Press the
Mid (speed) button, th
e motor runs at mid speed.
Press the Light button, the two lighting lamps will come on.
Press it again and the lamps will be turned off.
Press the High (speed) button,
the motor runs at high speed.
Speed adjustment. See below Fig (for some models).
10
Maintenance
Cleaning of the filter
Please do not use abrasive detergent for it will damage the hood.
Make sure that the hood is shut off before cleaning.
Removing the metal filter according to Installation (page 7).
Put it into a dishwasher with detergent, set the
temperature below
60 degrees.
11
Maintenance
Changing the filter
Remove the metal filter according to Installation (page 7).
Remove the saturated Activated Charcoal Filters(optional), as
indicated.
Fit the new Charcoal Filters, as indicated.
Replace the Metal grease Filter according to Installtion (page 8).
12
Maintenance

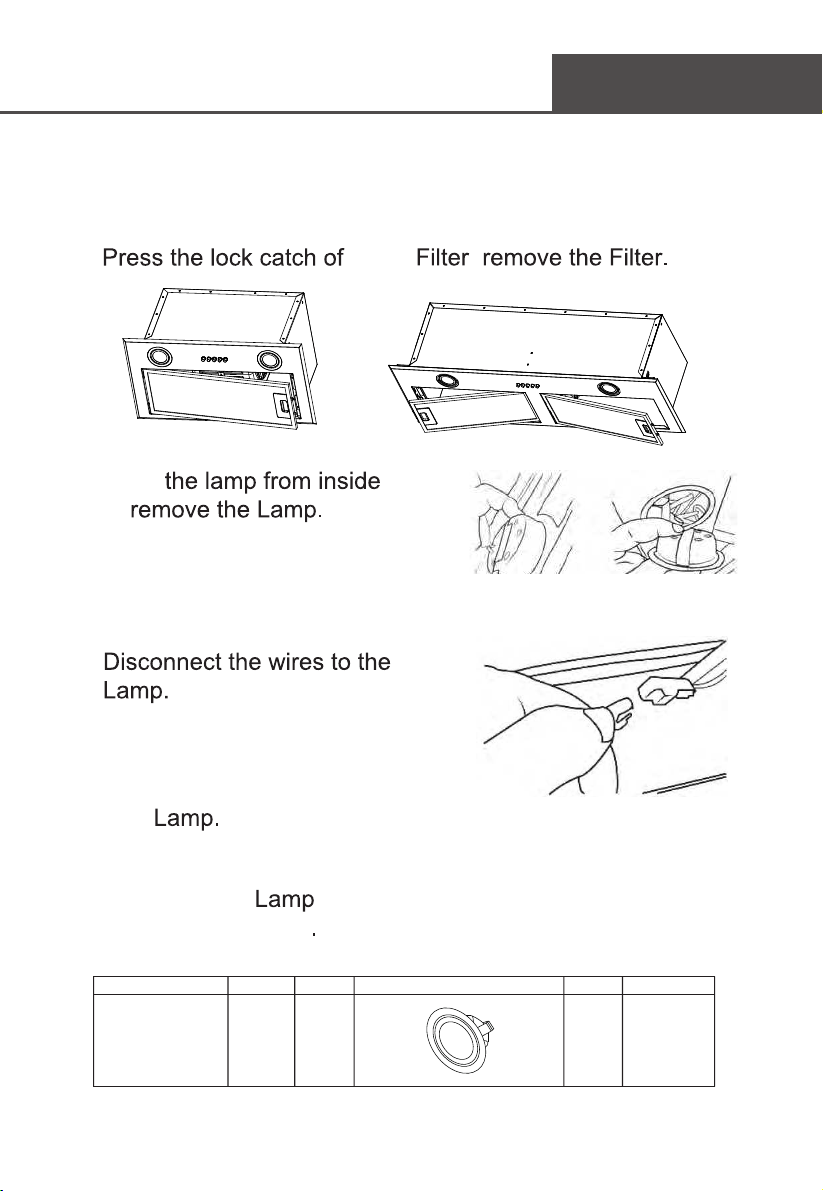

Replacing the lamp
metal
,
,
Connect the wires of the
new
Push the new
and fix it to the hole
from outside
Push
to
Max Power Voltage Picture Lamp Cap ILCOS D code
Round/ Diameter
: 70mm
1.5W DC 12 V
——
DSR-1.5-S-70
13
222
Cause Solution
Light on, but motor
does not work.
The blades are blocked.
The capacitor is damaged. Replace capacitor.
The motor is damaged. Replace motor.
The internal wiring of motor is cut off /
disconnected. An unpleaseant smell
may be produced.
Replace motor.
Apart from the above mentioned, check the following:
Light damaged. Replace lights.
Power cord loose.
Connect the wires as per the
electric diagram.
Oil leakage.
Outlet and the air ventilation entrance
are not tightly sealed.
Take down the outlet and seal with
glue.
Leakage from the connection
of U-shaped s
ection and cover.
Take U-shaped section down
and seal with soap or paint.
Vibration.
The blade, if damaged, can cause
vibrating.
Replace the blade.
The motor is not tightly fastened. Fasten the motor tightly.
The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction.
The distance between the cooker
hood and the cooker top is too large.
Readjust the distance.
Too much ventilation from open doors
or windows.
Choose a new place to install the
appliance or close some doors /
windows.
The machine inclines.
The fixing screws are not tight
enough.
Tighten the hanging screw
and make it horizontal.
Both light and motor
do not work.
The hanging screws are not
tight enough
.
Fault
Electrical Diagram
Electrical diagram see label on main body of the actual product.
Trouble Shooting
14
Tighten the fixing screw and make
it horizontal.
Disposal
Please dispose of it at your local community waste collection /
recycling center and ensure it presents no danger to children
while being stored for disposal. The plug must be rendered
useless and the cable cut off to prevent misuse.
Main Parameters
The air flow parameter is tested under conditions of 230V ~ 50Hz when the voltage is
220-240V~50Hz and without carbon filters.
Rated Power
Lighting Power
Motor Power
Diameter of air tube
220-240V~ 50Hz
1.5W x 2 1.5W x 2
150mm
Model
220-240V~ 50Hz
150mm
213W
210W
67 dB(A)
1.5W x 2
220-240V~ 50Hz
150mm
213W
210W
66 dB(A)
900m /h
3
Air flow
Voltage
Noise
EM52UMS EM70UMS EM90UMS
900m /h
3
110W
113W
550m /h
3
66 dB(A)
15
