[en] Instruction manual
Extractor hood
DFT63AC50
à Table of contents[en] Instruction manual
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
: Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
This appliance is not intended for operation with an external clock timer or a remote control.
Danger of suffocation!
Packaging material is dangerous to children. Never allow children to play with packaging material.
Danger of death!
Risk of poisoning from flue gases that are drawn back in.
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
â Adequate incoming air must therefore always be ensured.
â An incoming/exhaust air wall box alone will not ensure compliance with the limit.
Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
Risk of fire!
â Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Risk of fire!
â Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non- rem...
Risk of fire!
â Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
Risk of fire!
â When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
Risk of fire!
â Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer t...
Risk of burns!
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
Risk of injury!
â Components inside the appliance may have sharp edges. Wear protective gloves.
Risk of injury!
â Items placed on the appliance may fall down. Do not place any objects on the appliance.
Risk of electric shock!
â A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of electric shock!
â Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...
Risk of electric shock!
â Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
Causes of damage
Caution!
Environmental protection
Saving energy
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
Operating modes
Exhaust air mode
Note
Circulating-air mode
Note
Operating the appliance
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
Note

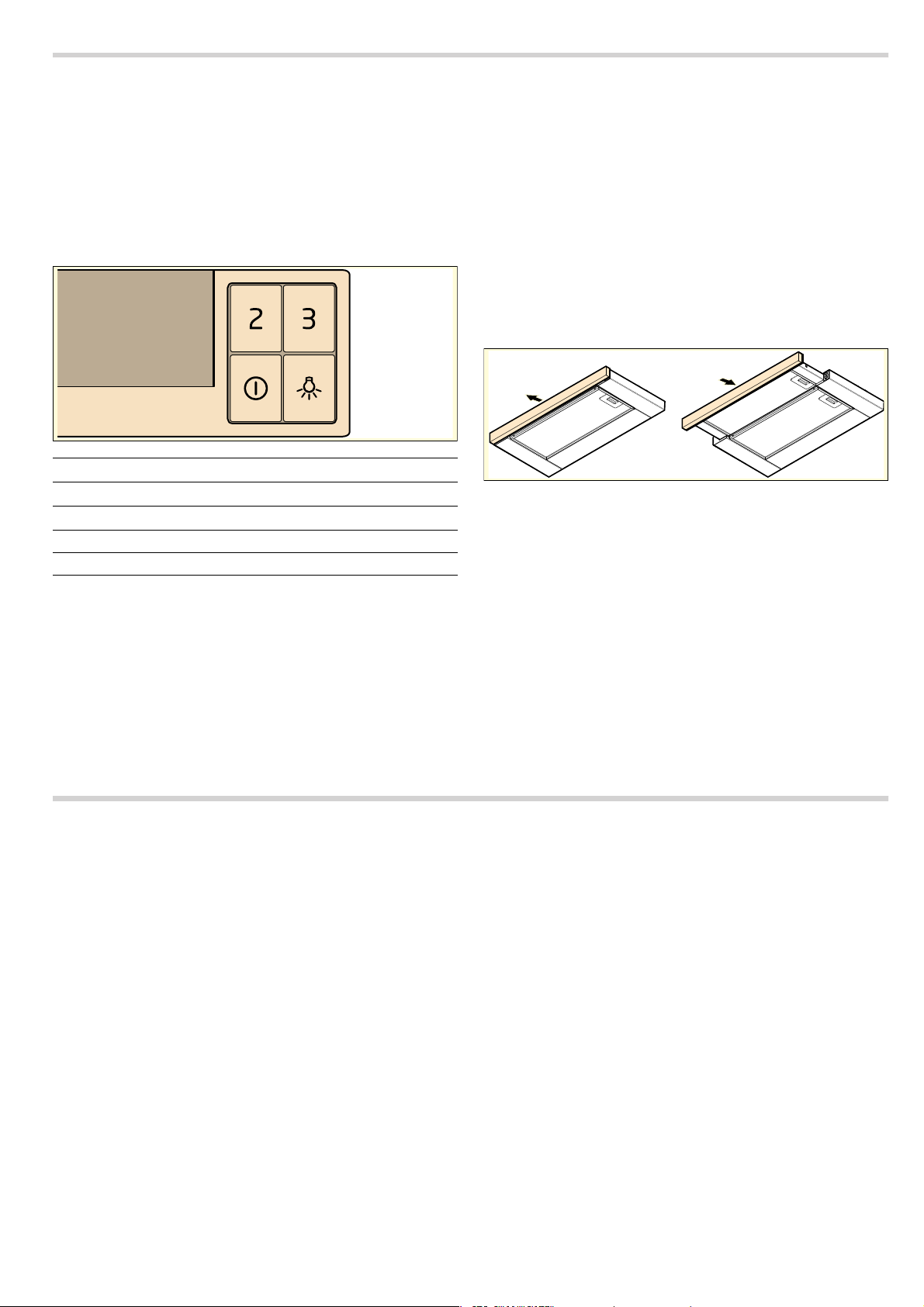

Control panel
Filter drawer
Pulling out the filter drawer
Hold the filter drawer by the middle and pull it out.
The control panel is accessible and the appliance is ready for operation.
Note
Pushing the filter drawer in
Hold the filter drawer by the middle and push it in.
Note
Setting the fan
Note
Switching on
Press the #, 2 or 3 button.
Switching off
Press the # button.
Lighting
The lighting can be switched on and off independently of the ventilation.
Cleaning and maintenance
: Risk of burns!
: Risk of electric shock!
: Risk of electric shock!
: Risk of injury!
Cleaning agents
To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Do not use any of the following:
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the cleaning agents.
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
: Risk of fire!
Notes
By hand:
Note
In the dishwasher:
Note

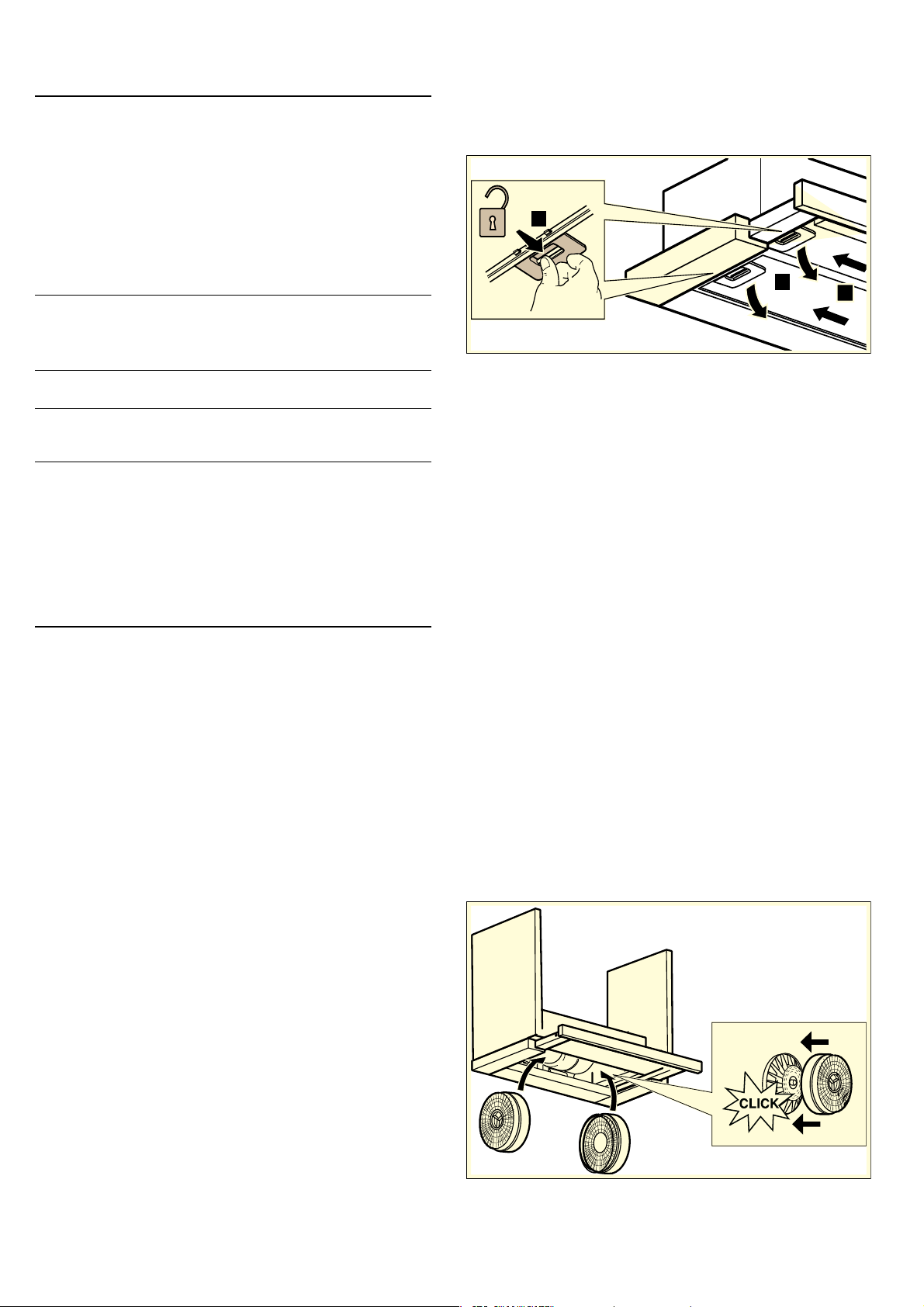

Removing metal grease filter
1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
2. Take the metal grease filter out of the holder.
Note
3. Clean the metal grease filters.
4. After removing the filters, clean the inside of the appliance.
Installing the metal mesh grease filter
1. Insert the metal mesh grease filter.
2. Fold the metal mesh grease filter upwards, locking it in place.
Changing the activated charcoal filter (only in circulating-air mode)
In order to guarantee efficient odour filtration, the filter must be serviced regularly.
The activated charcoal filters must be replaced at least every 4 months.
Notes
1. For removing the metal grease filter, see above.
2. Withdraw the old activated charcoal filters from the holder.
3. Press the new activated charcoal filters onto the holder until they can be heard to lock in place.
4. For fitting the metal grease filter, see above.
Trouble shooting
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
: Risk of electric shock!
Fault table
Replacing the LED lights
: Risk of electric shock!
: Risk of injury!

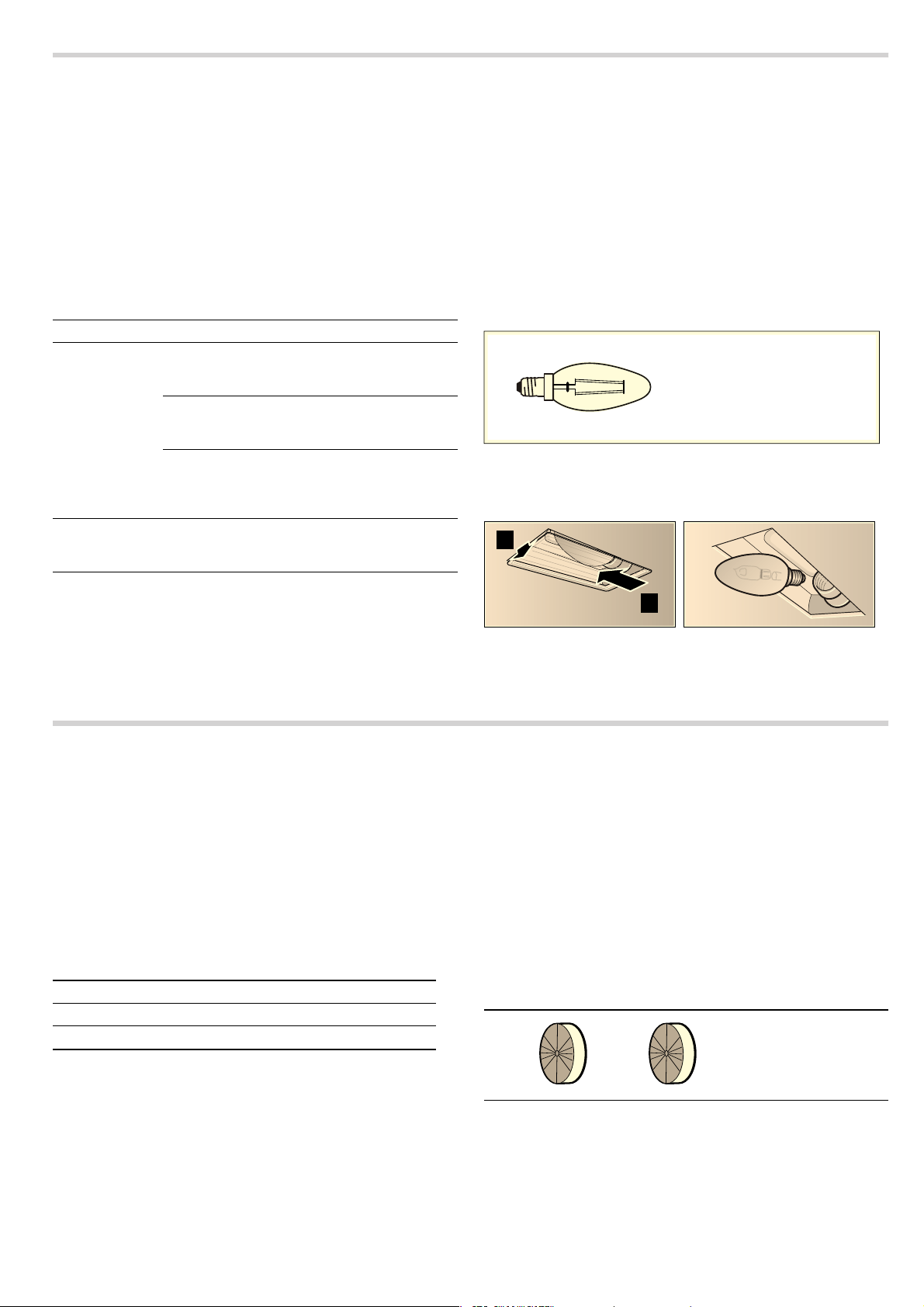

1. Lift the bulb cover slightly and move it towards the outside of the appliance.
2. Unscrew the bulb and replace it with a bulb of the same type.
3. Fit the bulb cover.
4. Plug in the mains plug and switch the fuse back on.
After-sales service
Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician.
When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter ...
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
Please find the contact data of all countries in the enclosed customer service list.
To book an engineer visit and product advice
Accessories for circulating-air mode
